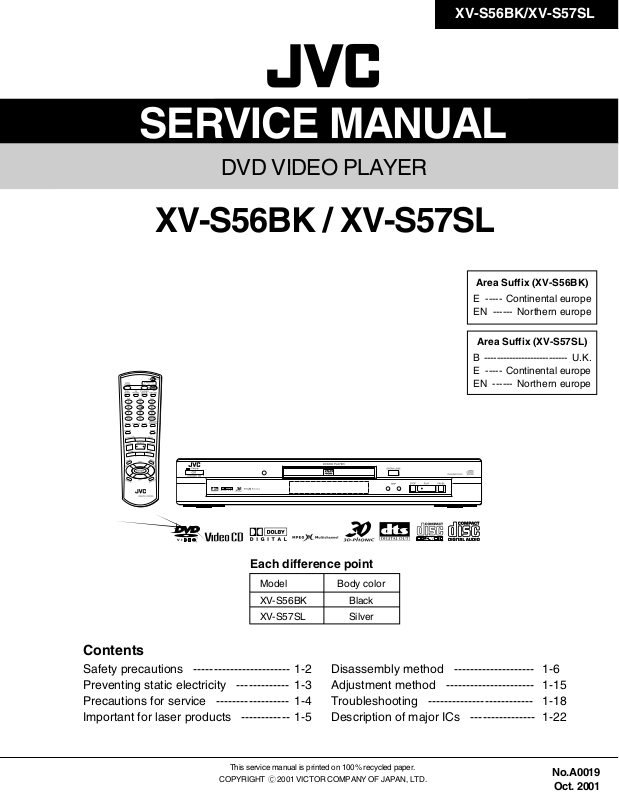

XV-S56BK/XV-S57SL
SERVICE MANUAL
DVD VIDEO PLAYER
XV-S56BK / XV-S57SL
Area Suffix (XV-S56BK)
E ----- Continental europe
EN ------ Northern europe
Area Suffix (XV-S57SL)
B --------------------------- U.K.
E ----- Continental europe
EN ------ Northern europe
Each difference point
Model
XV-S56BK
XV-S57SL
Body color
Black
Silver
Contents
Safety precautions ------------------------ 1-2
Preventing static electricity ------------- 1-3
Precautions for service ------------------ 1-4
Important for laser products ------------ 1-5
This service manual is printed on 100% recycled paper.
COPYRIGHT 2001 VICTOR COMPANY OF JAPAN, LTD.
Disassembly method -------------------- 1-6
Adjustment method ---------------------- 1-15
Troubleshooting -------------------------- 1-18
Description of major ICs ---------------- 1-22
No.A0019
Oct. 2001
XV-S56BK/XV-S57SL
1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by ( ) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.
5. Leakage current check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts of the product
(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the
product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor
between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path to
the chassis, and measure the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. Voltage measured any must not exceed 0.75 V
AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).
0.15 F AC TYPE
1500 10W
Good earth ground
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
Place this
probe on
each exposed
metal part.
!
1. This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Burrs formed during molding may
be left over on some parts of the
chassis. Therefore, pay attention to
such burrs in the case of
preforming repair of this system.
1-2
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the J and C version)
XV-S56BK/XV-S57SL
Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1. Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
1.1. Ground the workbench
1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
1.2. Ground yourself
1. Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
Conductive material
(conductive sheet) or iron plate
1.3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.
2. Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
1-3
XV-S56BK/XV-S57SL
Precautions for Service
Handling of Traverse Unit and Laser Pickup
1. Do not touch any peripheral element of the pickup or the actuator.
2. The traverse unit and the pickup are precision devices and therefore must not be subjected to
strong shock.
3. Do not use a tester to examine the laser diode. (The diode can easily be destroyed by the
internal power supply of the tester.)
4. When replacing the pickup, after mounting a new pickup, remove the solder on the short land
which is provided at the center of the flexible wire to open the circuit.
6. Half-fixed resistors for laser power adjustment are adjusted in pairs at shipment to match the
characteristics of the optical block.
Do not change the setting of these half-fixed resistors for laser power adjustment.
Destruction of Traverse Unit and Laser Pickup by Static Electricity
Laser diodes are easily destroyed by static electricity charged on clothing
or the human body. Before repairing peripheral elements of the traverse
unit or pickup, be sure to take the following electrostatic protection:
1. Wear an antistatic wrist wrap.
2. With a conductive sheet or a steel plate on the workbench on which
the traverse unit or the pick up is to be repaired, ground the sheet or the plate.
3. Pick-up's laser diode might be destroyed by static electricity, and put up solder to "Soldering part A",
please before extracting the card wire from connector (CN101).
4. Moreover, please remove solder from "Soldering part A" after inserting the card wire in connector (CN101)
at assembly.
Please refer to "Fig.4" of "Disassembly
method" for details.
Short circuit
Soldering part A
1-4
Servo control
board
Important for Laser Products
XV-S56BK/XV-S57SL
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The compact disc player uses invisible laser
radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are de
feated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABEL and PRINT
WARNING LABEL and PRINT
CAUTION: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)
VARNING: Osynlig laserstrålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
ADVARSEL: Usynlig laserstråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgå udsættelse for stråling (d)
VARO: Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)
CENTER
RIGHT LEFTSUBWOOFER
PCM / STREAM
RIGHT
LEFT
COAXIALOPTICAL
DIGITAL OUT
AUDIO OUT
REAR
FRONT
VIDEO OUT
VIDEO
S-VIDEO
CLASS 1
LASER PRODUCT
VIDEO OUT
AV
COMP.Y/C
AV COMPU LINK
AC IN
2
1-5
XV-S56BK/XV-S57SL
Disassembly method
<Main body>
Removing the top cover (see Fig.1)
1.Remove the two screws A attaching the top cover
on both sides of the body.
2.Remove the three screws B attaching the top cover
on the back of the body.
3.Remove the top cover from the body by lifting the
rear part of the top cover.
ATTENTION: Do not break the front panel tab
fitted to the top cover.
Removing the surround audio board
(see Fig.1,2)
A x 2
CN703
Lug wire
G
B
B
C
C
C
B
D
Fig.1
D
* Prior to performing the following procedure, remove
the top cover.
1.Remove the three screws C attaching the surround
audio board on the rear panel.
2.Disconnect the card wire from CN711 on the surround
audio board.
3.The surround audio board is remove while picking
up the point of the fastener in two places.
Removing the mechanism assembly
(see Fig.2,3)
* Prior to performing the following procedure, remove
the top cover.
* There is no need to remove the front panel assembly.
1.Remove the three screws D attaching the mechanism
assembly on the bottom chassis.
2.Remove the two screws G attaching the lug wire with
main board.
CN711
Fastener
Main board
Mechanism
assembly
CN701 CN961
Fig.3
CN702
G
D
Fig.2
Servo control
board
1-6
3.The servo control board is removed from the connector
CN961 and CN701 connected with the main board
respectively.
4.Remove the mechanism assembly by lifting the rear part
of the mechanism assembly.
Removing the servo control board
(see Fig.4)
* Prior to performing the following procedure, remove
the top cover and mechanism assembly.
1.Disconnect the card wire from connector CN201 and
CN202 on the servo control board respectively.
XV-S56BK/XV-S57SL
2.Disconnect the flexible wire from connector CN101
on the servo control board from pick-up.
ATTENTION
At this time, please extract the wire after short-circuited
of two places on the wire in part a with solder.
Please remove the solder two places of part a after
connecting the wire with CN101 when reassembling.
3.Two places in hook b are removed, the servo control
board is lifted, and it is removed.
Removing the rear panel (see Fig.5)
*Prior to performing the following procedure, remove
the top cover.
1.Remove the three screws C and nine screws E
attaching the rear panel on the back of the body.
Removing the front panel assembly
(see Fig.6,7)
Hook b
E
C
Hook c
Fig.4
Rear panel
Fig.5
E
F
Hook b
Servo control
board
E
Hook d
* Prior to performing the following procedure, remove
the top cover.
* There is no need to remove the mechanism assembly.
1.Remove the one screw F attaching the front panel
assembly on the bottom chassis.
2.Disconnect the wire from CN702 and CN703 on the
main board respectively.
3.Hook c and d are removed respectively, and the front
panel assembly is removed.
Removing the main board (see Fig.7)
* Prior to performing the following procedure, remove
the top cover, mechanism assembly, surround audio
board and rear panel.
1.Disconnect the wire from CN702 and CN703 on the
main board respectively.
2.Remove the four screws G attaching the main board
on the bottom chassis.
Front panel
assembly
CN703
G
Hook d
Fig.6
GG
CN702
G
Fig.7
1-7
XV-S56BK/XV-S57SL
<Loading assembly section>
Removing the clamper assembly
(See Fig.1)
1.
Remove the four screws A attaching the clamper
assembly.
2.
Move the clamper in the direction of the arrow to
release the two joints a on both sides.
ATTENTION:
When reattaching, fit the clamper to
the two joints a.
Removing the tray (See Fig.2 and 3)
Prior to performing the following procedure, remove
the clamper assembly.
1.
Push b of the slide cam into the slot on the left side
of the loading base until it stops.
2.
Draw out the tray toward the front.
Joint a
A
Joint a
A
AA
Fig.1
ATTENTION:
Before reattaching the tray, slide the
part c of the slide cam to the right as
shown in Fig.3.
Clamper base
Push
Tray
b
Fig.2
Part c
Slide cam
Fig.3
1-8
Removing the traverse mechanism
assembly (See Fig.4 and 5)
XV-S56BK/XV-S57SL
Prior to performing the following procedure, remove
the clamper assembly and the tray.
1.
Remove the four screws B attaching the traverse
mechanism assembly.
ATTENTION:
Before reattaching the traverse
mechanism assembly, pass the card
wire extending from the spindle motor
board through the notch d of the
elevator.
Removing the elevator (See Fig.6 and 7)
Prior to performing the following procedure, remove
the clamper assembly, the tray and the traverse
mechanism assembly.
1.
Extend each bar e inside of the loading base
outward and detach the elevator shaft.
B
Traverse mechanism
assembly
B
B
BB
BB
Fig.4
Traverse mechanism assembly
BB
Elevator
Notch d
ATTENTION:
Elevator
When reattaching, first fit the two
shafts on the front of the elevator to
the slots f of the slide cam.
Shafts
Slide cam
Elevator
Fig.5
e
Elevator
Elevator
Loading base
Slots f
e
Fig.6Fig.7
1-9
XV-S56BK/XV-S57SL
Removing the motor assembly
Prior to performing the following procedure, remove
the clamper assembly, the tray, the traverse
mechanism assembly and the elevator.
1.
Remove the belt from the pulley.
2.
Remove the screw C attaching the motor assembly.
3.
Turn over the body and remove the screw D
attaching the motor assembly.
4.
Release the two tabs g retaining the motor board.
(See Fig.8 and 9)
Belt
C
Motor assembly
Fig.8
Tabs g
Motor assembly
D
Loading base
Fig.9
1-10
XV-S56BK/XV-S57SL
Pulley gear
Pulley gear bracket
Motor assembly
Pulley gear bracket
E
Idle gear
Fig.10
Idle gear
Pulley gear
Tads h
Pulley gear
Removing the Idle gear / pulley gear /
middle gear / slide cam (See Fig.10 to 12)
Prior to performing the following procedure, remove
the clamper assembly, the tray, the traverse
mechanism assembly, the elevator and the motor
assembly.
1.
Press the two tabs h inward and pull out the idle
gear.
2.
Remove the screw E attaching the pulley gear
bracket. Slide the pulley gear bracket in the direction
of the arrow and pull out the pulley gear.
3.
Slide the slide cam in the direction of the arrow to
release the two joints i and remove upward.
4.
Remove the middle gear.
Slide cam
Joint i
Slide cam
Middle gear
Joint i
Fig.11
Middle gear
Fig.12
Loading base
1-11
XV-S56BK/XV-S57SL
<Traverse mechanism assembly section>
Removing the feed motor assembly
(See Fig.13)
1.
Unsolder the two soldering j on the spindle motor
board.
2.
Remove the two screws F attaching the feed motor
assembly.
Removing the feed motor
(See Fig.13 to 15)
Prior to performing the following procedure, remove
the feed motor assembly.
1.
Remove the screw G attaching the thrust spring.
Feed motor assembly
F
F
Notch k
Soldering j
Spindle motor board
Pickup
Spindle motor
Fig.13
Feed gear (M)
Thrust spring
ATTENTION:
2.
Remove the feed gear (M).
3.
Pull out the feed gear (E) and the lead screw.
4.
Remove the two screws H attaching the feed motor.
ATTENTION:
When reattaching the thrust spring,
make sure that the thrust spring
presses the feed gear (M) and the feed
gear (E) reasonably.
When reattaching, pass the two cables
extending from the feed motor through
the notch k of the feed holder as
shown in Fig.13.
G
Lead screw
Feed gear (E)
Fig.14
Feed motor
1-12
Feed holder
H
Fig.15
XV-S56BK/XV-S57SL
Removing the pickup (See Fig.16 and 17)
1.
Remove the screw I attaching the T spring (S) and
the shaft holder. Remove also the plate.
ATTENTION:
2.
Pull out the part l of the shaft upward. Move the part
m in the direction of the arrow and detach from the
spindle base.
3.
Disengage the joint n of the pickup and the shaft in
the direction of the arrow.
4.
Pull out the shaft from the pickup.
5.
Remove the two screws J attaching the actuator.
6.
Disengage the joint of the actuator and the lead
spring. Pull out the lead spring.
When reattaching, make sure that the
T spring (S) presses the shaft.
Shaft holder
I
Plate
T spring (S)
Lead spring
Pickup
Joint n
Part m
Part l
Fig.16
Actuator
J
Actuator
Lead spring
Shaft
Spring
The spring must be under the shaft when you
install pick-up.
Removing the shaft holder / shaft
(See Fig.18)
1.
Remove the screw K attaching the shaft holder.
2.
Remove the shaft.
Pick-up
Pickup
K
Shaft
Fig.17
Shaft
Shaft holder
Fig.18
1-13
XV-S56BK/XV-S57SL
Removing the spindle motor assembly
(See Fig.19 to 21)
1.
Remove the three screws L attaching the spindle
motor on the bottom of the mechanism base.
ATTENTION:
2.
Remove the three screws M attaching the spindle
base.
When reattaching, pass the card wire
extending from the spindle motor
board through the notch of the spindle
base.
L
L
Spindle motor assembly
Spindle motor
Fig.19
Spindle base
M
L
Fig.20
M
Spindle base
Mechanism base
Fig.21
1-14
XV-S56BK/XV-S57SL
Adjustment method
(1) Initialization method
If microprocessor (IC401,IC402,IC403) or pick-up is replaces, initialize the
DVD player in the following matter
1)Take out the disc and close the tray.
2)Unplug the power plug.
3)Insert power plug into outlet while pressing both PLAY button and OPEN/CLOSE button.
4)FL Display indicate "TEST " . :Version, :Region code
5)Press 3D-PHONIC key button of remote controller. and EEPROM initialize start.
6)When indicate "DTS" on the display, initialize finishes.
7)The power is turned OFF, and Unplug the power plug.
(2) Display of "Laser current value" and "Jitter value"
"Laser current value" and "Jitter value" are displayed on the FL display by the undermentioned
method. Please refer to the failure diagnosis.
1)Take out the disc and close the tray.
2)Unplug the power plug.
3)Insert power plug into outlet while pressing both PLAY button and OPEN/CLOSE button.
4)FL Display indicate "TEST " . :Version, :Region code
5)Press the "OPEN/CLOSE" button to move the tray outward.
Put the test disc (VT-501) on the tray and press "OPEN/CLOSE" button.
The tray should move inward (Note:Don't push to close the tray directly by hand etc.)
6)Press the "PLAY" button.
7)The laser current value and the jitter value is displayed on the FL indicator as follows.
FL Display
* The test mode is canceled when
0 0 4 0 3 9 7 8
the power is turned off.
Laser current value Jitter value
For Laser current value
The laser current value becomes 40mA for the above-mentioned.
Becomes a test mode by doing above-mentioned procedure 1) - 4). Afterwards, the laser current value can
be switched by pushing the key to remote control without turning on the disk.
Remote control "4" key --- Laser of CD
Remote control "5" key --- Laser of DVD
If the laser current value is 64mA or less, it is roughly good. There is a possibility to which pick-up is
deteriorated, and exchange pick-up, please when there are 65mA or more laser current value.
3D PHONIC
Button (Initialize start)
5 Button
(Laser of DVD)
POWER Button
DTS Display part
(Initialize complete)
*Returns to a usual test mode by the
thing to push the stop button of
remote control.
OPEN/CLOSE
Button(Test mode)
FL Display
PLAY Button
(Test mode & display of jitter)
4 Button
(Laser of CD)
1-15
XV-S56BK/XV-S57SL
For Jitter value
The jitter value is displayed on the FL display referring to the previous page.
The jitter value is displayed by the hexadecimal number and refer to the conversion table of following,please.
If the indication value is 11% or less, it can be judged by this simple checking method that the signal
read precision of the set is satisfactory.
Please do "Flap adjustment of the pick-up guide shaft" when you replace the pick-up and the spindle
motor when there are 11% or more jitter value.
Before using the TEST disc VT-501, careful check it if there is neither damage nor dirt on the read surface.
3D PHONIC
Button (Initialize start)
5 Button
(Laser of DVD)
4 Button
(Laser of CD)
POWER Button
Jitter value
FL display FL display
3818
3828
3838
3848
3858
3868
3878
3888
3898
38A8
38b8
38c8
38d8
38E8
38F8
3918
3928
3938
3948
3958
3968
3978
3988
Conversion
value(%)
4.7
4.8
4.9
5.1
5.2
5.3
5.4
5.5
5.7
5.8
5.9
6.0
6.1
6.3
6.4
6.6
6.7
6.9
7.0
7.1
7.2
7.3
7.5
3998
39A8
39B8
39C8
39D8
39E8
39F8
3A18
3A28
3A38
3A48
3A58
3A68
3A78
3A88
3A98
3AA8
3AB8
3AC8
3AD8
3AE8
3AF8
DTS Display part
(Initialize complete)
Conversion
value(%)
7.6
7.7
7.8
7.9
8.1
8.2
8.3
8.5
8.7
8.8
8.9
9.0
9.1
9.3
9.4
9.5
9.6
9.7
9.9
10.0
10.1
10.2
OPEN/CLOSE
Button(Test mode)
FL Display
FL display FL display
3B18
3B28
3B38
3B48
3B58
3B68
3B78
3B88
3B98
3BA8
3BB8
3BC8
3BD8
3BE8
3BF8
3C18
3C28
3C38
3C48
3C58
3C68
3C78
3C88
Conversion
value(%)
10.5
10.6
10.7
10.8
10.9
11.1
11.2
11.3
11.4
11.5
11.7
11.8
11.9
12.0
12.1
12.4
12.5
12.7
12.7
12.9
13.0
13.1
13.2
PLAY Button
(Test mode & display of jitter)
3C98
3CA8
3CB8
3CC8
3CD8
3CE8
3CF8
3D18
3D28
3D38
3D48
3D58
3D68
3D78
3D88
3D98
3DA8
3DB8
3DC8
3DD8
3DE8
3DF8
Conversion
value(%)
13.3
13.5
13.6
13.7
13.8
13.9
14.1
14.3
14.4
14.5
14.7
14.8
14.9
15.0
15.1
15.3
15.4
15.5
15.6
15.7
15.9
16.0
1-16
(3) Flap adjustment of the pick-up guide shaft
<Tool list for adjustment>
Stud (four pieces set)
Parts No. : JIGXVS40
Extension cord set (two cord and two board)
Parts No. : EXTXVS40CB
Hex wrench for adjustment
Off-the-shelf (1.3mm)
Test disc
VT-501 or VT-502
Assistance board
(Connect to main board)
XV-S40
MAIN CONNECT
Extension
cord
XV-S56BK/XV-S57SL
Stud
<Adjustment preparation>
XV-S40 CONTROL CONNECT
Assistance board
(Connect to servo control board)
(There is a somewhat different part in the photograph and the actual thing.)
One is not used though it is one
set which consists of four units.
1.The mechanism assembly is made in the state from the main body from which is detached referring to the
disassembly method.
2.Three studs are installed in the mechanism assembly respectively.
3.The servo control board is removed from the mechanism assembly, and puts into the state set up as shown
in figure. (Each wire connected by the servo control board this time leaves the connection maintained.)
Between shaft and hook of mechanism assembly of figure Board is put And, the board is inclined in the
direction of the arrow on figure as much as possible.
4.The extension cord is inserted in the connector of the assistance board respectively.
The main board is connected with the servo control board as shown in figure.
Hook
Mechanism assembly
Extension
Assistance
board
cord
Servo control board
Stud
Mechanism assembly
Servo control board
Shaft
Stud
Assistance
Main board
board
<Adjustment>
1.Puts into the state to display the jitter value on the FL display referring to "Display of the jitter value".
2.The adjustment screw under the traverse mechanism is turned with hex wrench, and matches so that the
jitter value displayed on the FL display may become minimum value.
Adjustment screw a Adjustment screw b
<POINT>
1.turns in the forward or the opposite direction,
and makes to the position where the jitter value
is good the half rotation of adjustment screw a
and b(180 degrees) respectively.
Adjustment
screw c
2.Afterwards, adjustment screw b and c are turned
in the same way, and makes to the best position.
1-17
XV-S56BK/XV-S57SL
Troubleshooting
Servo volume
Press OPEN
/CLOSE key
Is tray
operation
Confirmation of tray drive circuit
N
and circuit in surrounding
correct?
Y
Is the traverse moving
along the innermost
N
perimeter for SW detection?
Y
"NO DISC" message appears
Y
immediately after vertical
movement of the pick-up lens
N
The state that DISC does not rotate continues for
several seconds, and becomes NO DISC or an
error display afterwards.
The rotation of DISC becomes high-speed and
abnormal, and becomes NO DISC or an error
display afterwards.
N
Is focus retraction OK?
FE
OFF
Even when it retracts
correctly, if it is out of focus
and makes repeated retries
with a clicking sound, it is
in error.
ON
See "(4) Focus ON error"
N
in "Check points for
individual errors"
Y
Is tracking retraction OK?
See "(3) Traverse movement error"
in "Check points for individual errors"
See "(2) Disk detection, distinction error"
in "Check points for individual errors"
Y
See "(1) Spindle startup error"
in "Check points for individual errors"
Is the inter-layer jump OK?
FE
LO LI
A
Two layers of DVD only.
N
(8) Inter-layer
jump error
Y
1-18
TE
OFF
If TE waveform reappears
or fails to converge after the
TE retraction, it is in error.
ON
Y
Is the spindle servo
locked correctly?
Is the RF OUT waveform
locked correctly?
Y
A
See "(5) Tracking ON error"
N
in "Check points for
individual errors"
See "(6) Spindle CLV error"
N
in "Check points for
individual errors"
Has the disc information
been collected?
Stop will result
Y
Is playback
N
possible?
Y
OK !
N
(7) Address read
error
Check (9),(10),(11), and
(12) items in "Check points
for individual errors"
XV-S56BK/XV-S57SL
Check points for each error
(1) Spindle start error
1.Defective spindle motor
*Are there several ohms resistance between each pin of CN201 "5-6","6-7","5-7"?
(The power supply is turned off and measured.)
*Is the sign wave of about 100mVp-p in the voltage had from each terminal?
[ CN201"9"(H1-),"10"(H1+),"11"(H2-),"12"(H2+),"13"(H3-),"14"(H3+) ]
2.Defective spindle motor driver (IC251)
*Has motor drive voltage of a sine wave or a rectangular wave gone out to each terminal(SM1~3)
of CN201"5,6,7" and IC251"2,4,7"?
*Is FG pulse output from the terminal of IC251"24"(FG) according to the rotation of the motor?
*Is it "L(about 0.9V)" while terminal of IC251"15"(VH) is rotating the motor?
3.Has the control signal come from servo IC or the microcomputer?
*Is it "L" while the terminal of IC251"18"(SBRK) is operating?
Is it "H" while the terminal of IC251"23"(/SPMUTE) is operating?
*Is the control signal input to the terminal of IC251"22"(EC)?
(changes from VHALF voltage while the motor is working.)
*Is the VHALF voltage input to the terminal of IC251"21"(ECR)?
4.Is the FG signal input to the servo IC?
*Is FG pulse input to the terminal of IC201"53"(FG) according to the rotation of the motor?
(2) Disc Detection, Distinction error (no disc, no RFENV)
* Laser is defective.
* Front End Processor is defective (IC101).
* APC circuit is defective. --- Q101,Q102.
* Pattern is defective. --- Lines for CN101 - All patterns which relate to pick-up and patterns between IC101
* Servo IC is defective (IC201).
* IC101 --- For signal from IC101 to IC201, is signal output from IC101 "20" (ASOUT) and
IC101 "41"(RFENV) and IC101 "22" (FEOUT)?
1-19
XV-S56BK/XV-S57SL
(3) Traverse movement NG
1.Defective traverse driver
*Has the voltage come between terminal of CN101 "1" and "2" ?
2.Defective BTL driver (IC271)
*Has the motor drive voltage gone out to IC271"17" or "18"?
3.Has the control signal come from servo IC or the microcomputer?
*Is it "H" while the terminal of IC271"9"(STBY1) ?
*TRSDRV Is the signal input? (IC201 "51")
4.TRVSW is the signal input from microcomputer? (IC401 "50")
(4) Focus ON NG
* Is FE output ? --- Pattern, IC101
* Is FODRV signal sent ? (R279) --- Pattern, IC201 "5"
* Is driving voltage sent ?
IC271 "13", "14" --- If NG, pattern, driver, mechanical unit .
* Mechanical unit is defective.
(5) Tracking ON NG
* When the tracking loop cannot be drawn in, TE shape of waves does not settle.
* Mechanical unit is defective.
Because the self adjustment cannot be normally adjusted, the thing which cannot be normally
drawn in is thought.
* Periphery of driver (IC271)
Constant or IC it self is defective.
* Servo IC (IC201)
When improperly adjusted due to defective IC.
(6) Spindle CLV NG
* IC101 -- "35"(RF OUT), "30"(ARF-), "31(ARF+).
* Does not the input or the output of driver's spindle signal do the grip?
* Has the tracking been turned on?
* Spindle motor and driver is defective.
* Additionally, "IC101 and IC201" and "Mechanism is defective(jitter)", etc. are thought.
(7) Address read NG
* Besides, the undermentioned cause is thought though specific of the cause is difficult because various
factors are thought.
Mechanism is defective. (jitter)
IC201, IC301, IC401.
The disc is dirty or the wound has adhered.
(8) Between layers jump NG (double-layer disc only)
Mechanism defective
Defect of driver's IC(IC271)
Defect of servo control IC(IC201)
1-20
(9) Neither picture nor sound is output
1.It is not possible to search
*Has the tracking been turned on?
*To
"(5) Tracking ON NG" in "Check points for each error"
*Is the feed operation normal?
To "(3) traverse movement NG" in "Check points for each error" when it is not normal.
Are not there caught of the feeding mechanism etc?
(10) Picture is distorted or abnormal sound occurs at intervals of several seconds.
Is the feed operation normal?
Are not there caught of the feeding mechanism etc?
(11) Others
The image is sometimes blocked, and the image stops.
The image is blocked when going to outer though it is
normal in surroundings in the disk and the stopping
symptom increases.
when the tracking is not normal.
There is a possibility with bad jitter
value for such a symptom.
XV-S56BK/XV-S57SL
(12) CD During normal playback operation
a) Is TOC reading normal?
Displays total time
for CD-DA.
Shifts to double-speed
mode for V-CD.
YES
NO
b)Playback possible?
*--:-- is displayed during FL search.
According to [It is not possible to search ] for DVD(9), check the feed
and tracking systems.
*No sound is output although the time is displayed.(CA-DA)
DAC, etc, other than servo.
*The passage of time is not stable, or picture is abnormal.(V-CD)
*The wound of the disc and dirt are confirmed.
1-21
XV-S56BK/XV-S57SL
Description of major ICs
AN8702FH(IC101):Frontend processor
1.Pin layout
HDTYPE
VIN12
VIN11
GND1
VIN4
VIN3
VIN2
VIN1
VREF1
VCC1
VIN10
VIN9
VIN8
VIN7
646362616059585756555453525150
VIN6
VIN5
49
2.Pin function
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Symbol
PC1
PC01
PC2
PC02
TGBAL
TBAL
FBAL
POFLT
DTRD
IDGT
STANDBY
SEN
SCK
STDI
RSEL
JLINE
TEN
TEOUT
ASN
ASOUT
FEN
FEOUT
VSS
TG
VDD
GND2
VREF2
VCC2
VHALF
DFLTON
DFLTOP
DSFLT
GND3
1
PC1
2
PC01
3
PC2
4
PC02
5
TGBAL
6
TBAL
7
FBAL
8
POFLT
9
DTRD
10
IDGT
SEN
SCK
STDI
RSEL
JLINE
11
12
13
14
15
16
171819202122232425262728293031
TEN
TEOUT
STANDBY
I/O Description
Laser input terminal (DVD)
I
O
Laser drive signal output terminal (DVD)
I
Laser input terminal (CD)
O
Laser drive signal output terminal (CD)
I
Tangential phase balance control terminal
I
Tracking balance control terminal
I
Focus balance control terminal
O
Track detection threshold level terminal
I
Data slice part data read signal input terminal
(For RAM)
I
Data slice part address part gate signal input
terminal( For RAM)
I
Standby mode control terminal
I
SEN(Serial data input terminal)
I
SCK(Serial data input terminal)
I
STDI(Serial data input terminal)
I
Standard electric current terminal
I
Electric current setting terminal of JLine
Reversing input terminal of tracking error output AMP.
I
Tracking error signal output terminal
O
Offset adjusting terminal 1
I
Full adder signal output terminal
O
Focus error output amplifier reversing input terminal
I
Focus error signal output terminal
O
Connect to GND
-
Tangential phase error signal output terminal
O
Power supply terminal 3V
-
Connect to GND
-
VREF2 voltage output terminal
O
Power supply terminal 5V
-
VHALF voltage output terminal
O
Reversing output terminal of filter AMP.
O
Filter AMP. output terminal
O
Capacity connection terminal for filter output
I
Connect to GND
-
AN8702FH
FEN
ASN
FEOUT
ASOUT
VSS
TG
VDD
Pin No.
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
48
RFINN
RFINP
47
TESTSG
46
AGCO
45
AGCG
44
PEAK
43
42
BOTTOM
41
RFENV
40
BDO
39
OFTR
38
DCRF
37
RFC
36
VCC3
35
RFOUT
34
RFDIFO
33
GND3
32
VCC2
GND2
VREF2
VHALF
DFLTON
DSFLT
DFLTOP
Symbol I/O Description
Radial differential motion output terminal
RFDIFO
RFOUT
VCC3
RFC
DCRF
OFTR
BDO
RFENV
BOTTOM
PEAK
AGCG
AGCO
TESTSG
RFINP
RFINN
VIN5
VIN6
VIN7
VIN8
VIN9
VIN10
VCC1
VREF1
VIN1
VIN2
VIN3
VIN4
GND1
VIN11
VIN12
HDTYPE
O
Connect to TP101
-
Power supply terminal 5V
-
Filter for RF delay correction AMP.
O
All addition amplifier capacitor terminal
O
OFTR output terminal
O
BDO output terminal
O
RF envelope output terminal
O
Bottom envelope detection filter terminal
O
Peak envelope detection filter terminal
O
AGC amplifier gain control terminal
O
AGC amplifier level control terminal
O
TEST signal input terminal
I
RF signal positive input terminal
I
RF signal negative input terminal
I
Focus input of external division into two terminal
I
Focus input of external division into two terminal
I
Non connect
-
Non connect
-
Focus input of external division into two terminal
I
Focus input of external division into two terminal
I
Power supply terminal 5V
-
VREF1 voltage output terminal
O
External division into four (DVD/CD) RF input
I
terminal 1
External division into four (DVD/CD) RF input
I
terminal 2
External division into four (DVD/CD) RF input
I
terminal 3
External division into four (DVD/CD) RF input
I
terminal 4
Connect to GND
-
3 beam sub input terminal 2 (CD)
I
3 beam sub input terminal 1 (CD)
I
Connect to ground
-
1-22
BA5983FM-X (IC271) : 4CH DRIVER
1.Block diagram
27
26
25
28
Vcc
10k
24
20k
23 22
10k
20k
21
STAND BY
CH4
20
Vcc
19
10k
10k
18
Level Shift
XV-S56BK/XV-S57SL
17 16
10k
10k
10k
15
10k
10k
10k
Level Shift
10k
10k
10k
10k
1
2
3
5
4
6
7
2.Pin function
Pin No. Pin No.
Symbol Symbol
1
BIAS IN
2
OPIN1(+)
3
OPIN1(-)
4
OPOUT1
5
OPIN2(+)
6
OPIN2(-)
7
OPOUT2
8
9
10
11
12
13
14
GND
STBY1
PowVcc1
VO2(-)
VO2(+)
VO1(-)
VO1(+)
I/O I/O
Input for Bias-amplifier
I
Non inverting input for CH1 OP-AMP
I
Inverting input for CH1 OP-AMP
I
Output for CH1 OP-AMP
O
Non inverting input for CH2 OP-AMP
I
Inverting input for CH2 OP-AMP
I
Output for CH2 OP-AMP
O
Substrate ground
Input for CH1/2/3 stand by control
I
Vcc for CH1/2 power block
Inverted output of CH2
O
Non inverted output of CH2
O
Inverted output of CH1
O
Non inverted output of CH1
O
Function
15
16
17
18
19
20
21
22
23
24
25
26
27
28
STAND BY
CH1/2/3
89
VO4(+)
VO4(-)
VO3(+)
VO3(-)
PowVcc2
STBY2
GND
OPOUT3
OPIN3(-)
OPIN3(+)
OPOUT4
OPIN4(-)
OPIN4(+)
PreVcc
Level Shift
Level Shift
10k
10k
10k
Vcc
10
10k
11
12
10k
10k
13
Function
O
Non inverted output of CH4
O
Inverted output of CH4
O
Non inverted output of CH3
O
Inverted output of CH3
-
Vcc for CH3/4 power block
I
Input for Ch4 stand by control
-
Substrate ground
O
Output for CH3 OP-AMP
I
Inverting input for CH3 OP-AMP
I
Non inverting input for CH3 OP-AMP
O
Output for CH4 OP-AMP
I
Inverting input for CH4 OP-AMP
I
Non inverting input for CH4 OP-AMP
-
Vcc for pre block
10k
10k
14
1-23
XV-S56BK/XV-S57SL
BA6664FM-X(IC251):Spindle motor driver
1.Pin layout
1
NC
A3
NC
A2
NC
NC
A1
29
GND
H1+
10
H1-
11
H2+
12
H2-
13
H3+
14
H3-
2.Pin function
28
2
27
3
26
4
25
5
24
6
23
7
22
30
8
21
9
20
19
18
17
16
15
RNF
VM
GSW
VCC
FG
PS
EC
ECR
FR
FG2
SB
CNF
BR
VH
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Symbol
NC
A3
NC
A2
NC
NC
A1
GND
H1+
H1-
H2+
H2-
H3+
H3-
VH
BR
CNF
SB
FG2
FR
ECR
EC
PS
FG
VCC
GSW
VM
RNF
I/O
-
O
-
O
-
-
O
I
I
I
I
I
I
I
-
I
-
I
I
O
O
-
O
-
O
-
-
Description
Non connect
Output 3 for spindle motor
Non connect
Output 2 for spindle motor
Non connect
Non connect
Output 1 for spindle motor
Connect to ground
Positive input for hall input AMP 1
Negative input for hall input AMP 2
Positive input for hall input AMP 2
Negative input for hall input AMP 2
Positive input for hall input AMP 3
Negative input for hall input AMP 3
Hall bias terminal
Non connect
Capacitor connection pin for phase compensation
Short brake terminal
Non connect
Non connect
Torque control standard voltage input terminal
Torque control voltage input terminal
Start/stop switch (power save terminal)
FG signal output terminal
Power supply for signal division
Gain switch
Power supply for driver division
Resistance connection pin for output current sense
Connect to ground
Connect to ground
1-24
MN101C35DGZ(IC701):System controller
Pin function
Pin No.
1
2
3
4
5
6,7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22,23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49~51
52~64
65~88
89~99
100
Symbol
D DATA
DCLK
DACOCS
DAC1CS
DAC2CS
NC
VDD
OSC2
OSC1
VSS
XI
XO
MMOD
VREF-
POWER SW
NTSEL
RGB/YC SW
S/COMPO
AIN0
AIN2
TEST0,1
VREF+
RGBSEL
RESET
AVCO
AVCI
POWERON
TCLOSE
YOPEN
/LMMUTE
SWOPEN
SWUPDN
REMO
NC
REQ
NC
S2UDT
U2SDT
SCLK
BUSY
CPURST
NC
VS3
VS1
MUTE
STANDBYIND
NC
13G~1G
S24~S1
NC
VPP
I/O Description
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
DAC control data
DAC control clock
DAC control chip select
Chip select signal for rear L/R DAC (IC813)
Chip select signal for sub woofer/center DAC (IC823)
Non connect
Power supply +B 5V
Oscillation terminal 8MHz
Oscillation terminal 8MHz
I
Connect to ground
Connect with ground
Non connect
Connect to ground
Connect to ground
Key input (power)
I
NTSC/PAL switch input
I
Non connect
Non connect
Key input (S831~S835)
I
Key input (S821:open/close)
I
Non connect
Power supply +B 5V
RGB select control (H:RGB L:other)
Reset input
I
AV COMPULINK output
AV COMPULINK input
I
Power ON output
Tray close control output
Tray open control output
Tray muting output (L:muting)
Detection switch of tray open/close (L:open/close)
I
Detection switch of traverse mechanism up/down (H:UP L:DOWN)
I
Remote control interruption
I
Non connect
Communication between unit microcomputers request
I
Non connect
Communication between unit microcomputers DATA output
Communication between unit microcomputers DATA input
I
Communication between unit microcomputers CLK
Communication between unit microcomputers BUSY
Unit microcomputers reset
Non connect
S3 control (H:standby L:power ON)
S1 control
Muting output
LED control signal output (standby)
Non connect
FL grid control signal output
FL segment control signal output
Non connect
-
-VDISP (apply -35V)
-
XV-S56BK/XV-S57SL
1-25
XV-S56BK/XV-S57SL
MN102L25GGX2(IC401):Unit CPU
Pin function
Pin No. Pin No.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Symbol SymbolI/O I/OFunction Function
1
2
3
4
5
6
7
8
9
DRVMUTE
WAIT
RE
SPMUTE
WEN
CS1
CS2
CS3
SBRK
LSIRST
WORD
A0
A1
A2
A3
VDD
SYSCLK
VSS
XI
XO
VDD
OSCI
OSCO
MODE
A4
A5
A6
A7
A8
A9
A10
A11
VDD
A12
A13
A14
A15
A16
A17
A18
A19
VSS
A20
TXSEL
HAGUP
-
HMFON
TRVSW
Micon wait signal input
I
Read enable
O
Spindle muting output to IC251
O
Write enable
O
Non connect
Chip select for ODC
O
Chip select for ZIVA
O
Chip select for outer ROM
O
Driver mute
O
Short brake terminal
O
LSI reset
O
Bus selection input
O
Address bus 0 for CPU
O
Address bus 1 for CPU
O
Address bus 2 for CPU
O
Address bus 3 for CPU
O
Power supply
Connect to TP169
Ground
Not use (Connect to vss)
Connect to TP170
Power supply
Clock signal input(13.5MHz)
I
Clock signal output(13.5MHz)
O
CPU Mode selection input
I
Address bus 4 for CPU
O
Address bus 5 for CPU
O
Address bus 6 for CPU
O
Address bus 7 for CPU
O
Address bus 8 for CPU
O
Address bus 9 for CPU
O
Address bus 10 for CPU
O
Address bus 11 for CPU
O
Power supply
Address bus 12 for CPU
O
Address bus 13 for CPU
O
Address bus 14 for CPU
O
Address bus 15 for CPU
O
Address bus 16 for CPU
O
Address bus 17 for CPU
O
Address bus 18 for CPU
O
Address bus 19 for CPU
O
Ground
Address bus 20 for CPU
O
TX Select
O
O
Non connect
Non connect
-
Detection switch of traverse
I
inside
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
-
-
ADSCEN
VDD
FEPEN
SLEEP
BUSY
REQ
CIRCEN
-
VSS
EPCS
EPSK
DPDI
EPDO
VDD
SCLKO
S2UDT
U2SDT
CPSCK
SDIN
SDOUT
-
-
NMI
ADSCIRQ
ODCIRQ
DECIRQ
WAKEUP
ODCIRQ2
ADSEP
RST
VDD
TEST1
TEST2
TEST3
TEST4
TEST5
TEST6
TEST7
TEST8
VSS
D0
D1
D2
D3
D4
D5
D6
D7
-
Serial enable signal for ADSC
O
Power supply
Serial enable signal for FEP
O
Standby signal for FEP
O
Communication busy
I
Communication Request
O
CIRC command select
O
Non connect
Ground
EEPROM chip select
O
EEPROM clock
O
EEPROM data input
I
EEPROM data output
O
Power supply
Communication clock
I
Communication input data
I
Communication output data
O
Clock for ADSC serial
O
ADSC serial data input
I
ADSC serial data output
O
Not use
Not use
Not use
Interrupt input of ADSC
I
Interrupt input of ODC
I
Interrupt input of ZIVA
I
Not use
O
Interruption of system control
I
Address data selection input
I
Reset input
I
Power supply
Test signal 1 input
I
Test signal 2 input
I
Test signal 3 input
I
Test signal 4 input
I
Test signal 5 input
I
Test signal 6 input
I
Test signal 7 input
I
Test signal 8 input
I
Ground
Data bus 0 of CPU
I/O
Data bus 1 of CPU
I/O
Data bus 2 of CPU
I/O
Data bus 3 of CPU
I/O
Data bus 4 of CPU
I/O
Data bus 5 of CPU
I/O
Data bus 6 of CPU
I/O
Data bus 7 of CPU
I/O
1-26
MN103S13BDA(IC301):Optical disc controller
1.Pin layout
DMARQ
NIOWR
VSS
NIORD
IORDY
NDMACK
VDD
INTRQ
NIOCS16
DA1
VSS
NPDIAG
DA0
DA2
VDD
144
143
142
141
140
139
138
137
136
135
134
133
132
131
HDD15
HDD0
HDD14
VDD
HDD1
HDD13
HDD2
VSS
HDD12
VDD
HDD3
HDD11
HDD4
HDD10
VDD
HDD5
HDD9
VSS
HDD6
HDD8
HDD7
VDDH
NRESET
MASTER
NINT0
NINT1
WAITDOC
NMRST
DASPST
VDD
OSCO2
OSCI2
UATASEL
VSS
PVSSDRAM
PVDDDRAM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
3738394041424344454647484950515253545556575859606162636465666768697071
130
MN103S13BDA
NCS1FX
NCS3FX
129
128
NDASP
127
NTRYCL
126
VDD
125
NEJECT
VSS
124
123
MONI0
MONI1
122
121
MONI2
MONI3
120
119
SDATA
SCLOCK
118
117
VDD
116
DAT0
115
DAT1
114
DAT2
113
DAT3
112
CHCK40
NCLDCK
SUBC
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
SBCK
VSS
P0
P1
PVDD
PVSS
VDD
OSCO1
OSCI1
VSS
LRCK
BLKCK
IPFLAG
DACCLK
DACLRCK
DA C DATA
NTRON
LG
JMPINH
IDHOLD
SBCK/PLLOK
CLKOUT2
VDD
NRST
MMOD
VSS
CPDET1
CPDET2
BDO
IDGT
DTRD
TEHLD
VDD
CLKOUT1
CPUDT0
CPUDT1
XV-S56BK/XV-S57SL
2.Block diagram
DVD-ROM
Formatter
CGEN
MODE
CPUADR17
CPUADR16
VSS
CPUADR15
CPUADR14
CPUADR13
CD-PRE
Instruction
memory
(40KB)
DATA
MEMORY
(6KB)
VDD
CPUADR9
CPUADR8
CPUADR11
CPUADR10
CPUADR7
CPUADR12
Formatter
General purpose IO bus
CPUADR6
CPUADR5
CPUADR4
CPUADR3
CPUADR2
i /t
High speed IO bus
32 bit
CPU core
GCAL
CPUADR1
VSS
CPUADR0
NCS
NWR
ECC
NRD
VDD
CPUDT7
CPUDT6
PVPPDRAM
PVDDDRAM
PTESTDRAM
Host i / f
MPEG i / t
DMA
BCU
DRAMC
CPUDT5
CPUDT4
CPUDT3
PVSSDRAM
VSS
CPUDT2
ATAPI
4Mbit
DRAM
WDT
16 bit
timer x 2
SYSTEM
i / f
INTC
1-27
XV-S56BK/XV-S57SL
3.Pin function (1/3)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Symbol
HDD15
HDD0
HDD14
VDD
HDD1
HDD13
HDD2
VSS
HDD12
VDD
HDD3
HDD11
HDD4
HDD10
VDD
HDD5
HDD9
VSS
HDD6
HDD8
HDD7
VDDH
NRESET
MASTER
NINT0
NINT1
WAITDOC
NMRST
DASPST
VDD
OSCO2
OSCI2
UATASEL
VSS
PVSSDRAM
PVDDDRAM
CPUADR17
CPUADR16
VSS
CPUADR15
CPUADR14
CPUADR13
CPUADR12
VDD
CPUADR11
CPUADR10
CPUADR9
CPUADR8
CPUADR7
CPUADR6
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I
I/O
O
O
O
O
I
-
O
I
I
-
I
I
-
I
I
I
I
-
I
I
I
I
I
I
MN103S13BDA
Description
ATAPI Data
ATAPI Data
ATAPI Data
Power supply 3V
ATAPI Data
ATAPI Data
ATAPI Data
Connect to GND
ATAPI Data
Power supply 2.7V
ATAPI Data
ATAPI Data
ATAPI Data
ATAPI Data
Power supply 3V
ATAPI Data
ATAPI Data
Connect to GND
ATAPI Data
ATAPI Data
ATAPI Data
ATAPI Reset input
ATAPI Master/slave select
Interruption of system control 0
Interruption of system control 1
Wait control of system control
Reset of system control (Connect to TP302)
Setting of initial value of DASP signal
Power supply 3V
Non connect
Non connect
Connect to VSS
Connect to GND
Connect to VSS
Connect to VDD(2.7V)
System control address
System control address
Connect to GND
System control address
System control address
System control address
System control address
Power supply 2.7V
System control address
System control address
System control address
System control address
System control address
System control address
1-28
XV-S56BK/XV-S57SL
3.Pin function (2/3)
Pin No.
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Symbol
CPUADR5
CPUADR4
CPUADR3
CPUADR2
CPUADR1
VSS
CPUADR0
NCS
NWR
NRD
VDD
CPUDT7
CPUDT6
PVPPDRAM
PTESTDRAM
PVDDDRAM
PVSSDRAM
CPUDT5
CPUDT4
CPUDT3
VSS
CPUDT2
CPUDT1
CPUDT0
CLKOUT1
VDD
TEHLD
DTRD
IDGT
BDO
CPDET2
CPDET1
VSS
MMOD
NRST
VDD
CLKOUT2
SBCK/PLLOK
IDOHOLD
JMPINH
LG
NTRON
DAC DATA
DACLRCK
DACCLK
IPFLAG
BLKCK
LRCK
VSS
OSCI1
I/O
I
I
I
I
I
I
I
I
I
I/O
I/O
O
I
I/O
I/O
I/O
I/O
I/O
I/O
O
-
O
O
O
I
I
I
-
I
I
-
O
O
O
O
O
I
O
O
I
I
I
I
-
I
MN103S13BDA
Description
System control address
System control address
System control address
System control address
System control address
Connect to GND
System control address
System control chip select
Writing system control
Reading system control
Power supply 3V
System control data
System control data
Connect to VSS
Connect to VSS
Connect to VDD(2.7V)
Connect to VSS
System control data
System control data
System control data
Connect to GND
System control data
System control data
System control data
Clock signal output (16.9/11.2/8.45MHz)
Power supply 3V
Mirror gate (Connect to TP141)
Data frequency control switch (Connect to TP304)
CAPA switch
RF Dropout/BCA data
Outer capacity detection
Inner capacity detection
Connect to GND
Connect to VSS
System reset
Power supply 3V
Clock 16.9MHz
Flame mark detection
ID gate for tracking holding
Jump prohibition
Land/group switch
Tracking ON
Serial data output (Connect to TP148)
Identification signal of L and R (Connect to TP149)
Clock for serial data output
Input of IP flag
Sub code/block/input clock
Identification signal of L and R (Connect to VSS)
Connect to GND
Oscillation input terminal 16.9MHz
1-29
XV-S56BK/XV-S57SL
3.Pin function (3/3)
Pin No.
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
Symbol
OSCO1
VDD
PVSS
PVDD
P1
P0
VSS
SBCK
SUBC
NCLDCK
CHCK40
DAT3
DAT2
DAT1
DAT0
VDD
SCLOCK
S DATA
MONI3
MONI2
MONI1
MONI0
VSS
NEJECT
VDD
NTRYCL
NDASP
NCS3FX
NCS1FX
VDD
DA2
DA0
NPDIAG
VSS
DA1
NIOCS16
INTRQ
VDD
NDMACK
IORDY
NIORD
VSS
NIOWR
DMARQ
I/O
O
-
-
I/O
I/O
-
O
I
I
I
I
I
I
I
I/O
I/O
O
O
O
O
-
I
-
I
I/O
I
I
I/O
I/O
I/O
I/O
O
O
-
I
O
I
I/O
O
MN103S13BDA
Description
Oscillation output terminal 16.9MHz
Power supply 3V
Connect to GND
Power supply 3V
Terminal master polarity switch input
CIRC-RAM,OVER/UNDER Interruption
Connect to GND
Clock output for sub code,serial input
Sub code,serial input
Sub code,flame clock input
Clock is read to DAT3~0 (Output of division frequency from ADSC)
Data is read from disc (Going side by side output from ADSC)
Data is read from disc (Going side by side output from ADSC)
Data is read from disc (Going side by side output from ADSC)
Data is read from disc (Going side by side output from ADSC)
Power supply 3V
Debug serial clock (270 ohm pull up)
Debug serial data (270 ohm pull up)
Internal good title monitor (Connect to TP150)
Internal good title monitor (Connect to TP151)
Internal good title monitor (Connect to TP152)
Internal good title monitor (Connect to TP153)
Connect to GND
Eject detection
Power supply 2.7V
Non connect (Tray close detection)
ATAPI drive active / slave connect I/O
Non connect (ATAPI host chip select)
Non connect (ATAPI host chip select)
Power supply 3V
ATAPI host address
Non connect (ATAPI host address)
ATAPI Slave master diagnosis input
Connect to GND
Non connect (ATAPI host address)
Output of selection of width of ATAPI host data bus
ATAPI Host interruption output
Power supply 3V
Non connect (ATAPI Host DMA characteristic)
ATAPI Host ready output (Connect to TP157)
Non connect (ATAPI host read)
Connect to GND
ATAPI Host write
ATAPI Host DMA request (Connect to TP159)
1-30
MN67706ZY (IC201) : Auto digital servo controller
1.Pin layout
33VDD
33VSS
TEST
MINTEST
NCLDCK/JUMP
SUBC
IPFLAG
DACCLK
NTRON
DACDATA/LG
DACLRCK/JMPINH
IDHOLD
SBCK/PLLOK
BLKCK/CPDET1
LRCK/CPDET2
IDGT/TEMUTE
DTRD
25VDD
25VSS
TILTN
75747372717069686766656463626160595857565554535251
CHCK40
DAT3
DAT2
DAT1
DAT0
33VSS
33VDD
XRESET
ENS
ENC
CPUIRQ
CPUCLK
CPUDTIN
CPUDTOUT
MONA
MONB
MONC
25VSS
25VDD
LDCUR(AD6)
TDOFS(AD5)
TG(AD4)
RFENV(AD3)
TX
NC
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
123456789
MN67706ZY
101112131415161718192021222324
TILT
TILTPFGSPDRV
TRSDRV
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
TSTSG
BDO
SYSCLK
OFTR
33VDD
33VSS
FBAL
TBAL
TGBAL
AVSS
ROUT
LOUT
AVDD
JLINE
DBALO
VCOF
TRCRS
CMPIN
LPFOUT
LPFIN
AVSS
HPFOUT
HPFIN
AVDD
VFOSHORT
XV-S56BK/XV-S57SL
TE(AD1)
FE(AD0)
AS(AD2)
AVSS
AVDD
TRDRV(DA0)
FODRV(DA1)
ARF
NARF
IREF1
IREF2
DSLF1
AVDD
DSLF2
PLPG
VHALF
PLFG
VREFH
2.Pin functions (1/3)
Pin No. Symbol I/O Description
I
AS : Full adder signal(FEP)
I
Phase difference/3 beam tracking error(FEP)
I
Focus error(FEP)
Apply 3.3V(For analog circuit)
Focus drive(DRVIC)
Tracking drive(DRVIC)
Ground(For analog circuit)
I
Equivalence RF+(FEP)
I
Equivalence RF-(FEP)
I
Reference current1(For DBAL)
I
Reference current2(For DBAL)
Connect to capacitor1 for DSL
Connect to capacitor2 for DSL
Apply 3.3V(For analog circuit)
I
Reference voltage 1.65+-0.1V(FEP)
Not use(PLL phase gain setting resistor terminal)
Not use(PLL frequency gain setting resistor terminal)
I
Reference voltage 2.2V+-0.1V(FEP)
Connect to resistor for VREFH reference current source
Ground(For analog circuit)
Connect to capacitor1 for PLL
Connect to capacitor2 for PLL
Output for jitter signal monitor
I
Not use
Pull-up to VHALF
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
AS(AD2)
TE(AD1)
FE(AD0)
AVDD
FODRV(DA1)
TRDRV(DA0)
AVSS
ARF
NARF
IREF1
IREF2
DSLF1
DSLF2
AVDD
VHALF
PLPG
PLFG
VREFH
RVI
AVSS
PLFLT1
PLFLT2
JITOUT
RFDIF
CSLFL1
O
O
-
I/O
I/O
-
-
-
I/O
O
O
I/O
I/O
RVI
AVSS
PLFLT1
JITOUT
PLFLT2
RFDIF
CSLFL1
1-31
XV-S56BK/XV-S57SL
2.Pin function (2/3)
Pin No. Symbol I/O Description
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
VFOSHORT
AVDD
HPFIN
HPFOUT
AVSS
LPFIN
LPFOUT
CMPIN
TRCRS
VCOF
DBALO
JLINE
AVDD
LOUT
ROUT
AVSS
TGBAL
TBAL
FBAL
33VSS
33VDD
OFTR
SYSCLK
BDO
TSTSG
TRSDRV
SPDRV
FG
TILTP
TILT
TILTN
25VSS
25VDD
DTRD
IDGT/TEMUTE
LRCK/CPDET2
BLKCK/CPDET1
SBCK/PLLOK
IDHOLD
DACLRCK/JMPINH
DACDATA/LG
NTRON
DACCLK
IPFLAG
SUBC
NCLDCK/JUMP
MINTEST
TEST
33VSS
33VDD
CHCK40
DAT3
DAT2
DAT1
DAT0
O
O
O
I/O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
VFO short output
-
Apply 3.3V(For analog circuit)
I
Pull-up to VHALF
Connect to TP208
-
Ground(For analog circuit)
I
Pull-up to VHALF
Not use
I
Connect to TP210
I
Input signal for track cross formation
JFVCO control voltage
DSL balance adjust output
J-line setting output(FEP)
-
Apply 3.3V(For analog circuit)
Connect to TP203 (Analog audio left output)
Connect to TP204 (Analog audio right output)
-
Ground(For analog circuit)
Tangential balance adjust(FEP)
Tracking balance adjust(FEP)
Focus balance adjust(FEP)
-
Ground(For I/O)
-
Apply 3.3V(For I/O)
I
Off track signal
I
16.9344MHz system clock input(ODC)
I
Drop out(FEP)
Calibration signal(FEP)
Traverse drive(DRVIC)
Spindle drive output(DRVIC)
I
FG signal input (Spindle motor driver)
Connect to TP205
Connect to TP206
Connect to TP207
-
Ground(For internal core)
-
Apply 2.5V(For internal core)
I
Data read control signal(ODC)
I
Pull-down to Ground
LR channel data strobe(ODC)/
CD sub code synchronous signal(ODC)/
I
CD sub code data shift clock(ODC)/PLL pull-in OK signal input
I
Pull-down to Ground
I
1bit DAC-LR channel data strobe(ODC)/
I
CD 1bit DAC channel data(ODC)
L : Tracking ON(ODC)
1bit DAC channel data shift clock(ODC)
CIRC error flag(ODC)
CD sub code(ODC)
CD sub code data frame clock(ODC)/DVD JUMP signal(ODC)
I
Pull-down to Ground(For MINTEST)
I
Pull-down to Ground(For TEST)
-
Ground(For I/O)
-
Apply 3.3V(For I/O)
Clock for SRDATA(ODC)
SRDATA3(ODC)
SRDATA2(ODC)
SRDATA1(ODC)
SRDATA0(ODC)
MN67706ZY
1-32
XV-S56BK/XV-S57SL
2.Pin function (3/3)
Pin No. Symbol I/O Description
-
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
33VSS
33VDD
TX
XRESET
ENS
ENC
CPUIRQ
CPUCLK
CPUDTIN
CPUDTOUT
MONA
MONB
MONC
NC
25VSS
25VDD
LDCUR(AD6)
TDOFS(AD5)
TG(AD4)
RFENV(AD3)
O
O
O
O
O
O
O
Ground(For I/O)
-
Apply 3.3V(For I/O)
Digital audio interface
I
Reset input (System control)
I
Servo DSC serial I/F chip select (System control)
I
CIRC serial I/F chip select (System control)
Interrupt request (System control)
I
Syscon serial I/F clock (System control)
I
Syscon serial I/F data input (System control)
Syscon serial I/F data output (System control)
Connect to TP226 (Monitor terminal A)
Connect to TP225 (Monitor terminal A)
Connect to TP224 (Monitor terminal A)
Connect to TP211
-
Ground(For internal core)
-
Apply 2.5V(For internal core)
I
I
I
Tangential phase difference(FEP)
I
RF envelope input(FEP)
MN67706ZY
1-33
XV-S56BK/XV-S57SL
ZIVA-4.1-PA2(IC501):Back end - Digital decoder
1.Terminal layout
~
208 157
1
~
156
~
52
~
53 104
2.Pin function (1/5)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Symbol
RD
R/W
VDD
WAIT
RESET
VSS
VDD
INT
NC
NC
NC
NC
VDD
VSS
NC
NC
NC
NC
VSS
VDD
V DATA 0
V DATA 1
V DATA 2
V DATA 3
V DATA 4
V DATA 5
V DATA 6
V DATA 7
VSYNC
HSYNC
VSS
VDD
NC
NC
NC
VDD
105
I/O
-
O
-
-
O
-
-
-
-
-
-
-
-
-
-
-
O
O
O
O
O
O
O
O
I/O
I/O
-
-
-
-
-
-
Description
Read strobe input
I
Read/write strobe input
I
Power supply terminal 3.3V
Transfer not complete / data acknowledge.
Active LOW to indicate host initiated transfer is complete.
Active LOW : reset signal input
I
Connect to ground
Power supply terminal 3.3V
Host interrupt signal output
Non connect
Non connect
Non connect
Non connect
Power supply terminal 2.5V
Connect to ground
Non connect
Non connect
Non connect
Non connect
Connect to ground
Power supply 3.3V
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Video data bus output. Byte serial CbYCrY data synchronous with VCLK.
Vertical sync. Bi-directional, the decoder output the top border of a new
field on the first HSYNC after the falling edge of VSYNC.
Horizontal sync. The decoder begins outputting pixel data for a new
horizontal line after the falling (active) edge of HSYNC.
Connect to ground
Power supply terminal 3.3V
Non connect
Non connect
Non connect
Power supply terminal 2.5V
1-34
XV-S56BK/XV-S57SL
2.Pin function (2/5)
Pin No.
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
Symbol
VSS
NC
NC
NC
NC
NC
PIO0
VSS
VDD
PIO1
PIO2
PIO3
PIO4
PIO5
PIO6
PIO7
M DATA 0
M DATA 1
VDD
VSS
M DATA 2
M DATA 3
M DATA 4
M DATA 5
M DATA 6
M DATA 7
MDATA15
VDD
VSS
MDATA14
VDD
VSS
MDATA13
MDATA12
MDATA11
MDATA10
M DATA 9
VDD
VSS
M DATA 8
LDQM
SD-CLK
CLKSEL
MADDR9
MADDR8
VDD
VSS
MADDR7
I/O
Connect to ground
Non connect
Non connect
Non connect
Non connect
Non connect
Programmable I/O terminal
I/O
Connect to ground
Power supply terminal 3.3V
Programmable I/O terminal
I/O
Programmable I/O terminal
I/O
Programmable I/O terminal
I/O
Programmable I/O terminal
I/O
Programmable I/O terminal
I/O
Programmable I/O terminal
I/O
Programmable I/O terminal
I/O
SDRAM data
I/O
SDRAM data
I/O
Power supply terminal 3.3V
Connect to ground
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
Power supply terminal 3.3V
Connect to ground
SDRAM data
I/O
Power supply terminal 2.5
Connect to ground
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
SDRAM data
I/O
Power supply terminal 3.3V
Connect to ground
SDRAM data
I/O
SDRAM Lower or upper mask
O
SDRAM Clock
O
Selects SYSCLK or VCLK as clock source. Normal operation is to tie HIGH.
I
SDRAM address
O
SDRAM address
O
Power supply terminal 3.3V
Connect to ground
SDRAM address
O
Description
ZIVA-4.1-PA2
1-35
XV-S56BK/XV-S57SL
2.Pin function (3/5)
Pin No.
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
Symbol
MADDR6
MADDR5
VDD
VSS
MADDR4
MWE
SD-CAS
VDD
VSS
SD-RAS
SD-CS0
SD-CS1/MADDR11
SD-BS
MADDR10
MADDR0
VDD
VSS
MADDR1
MADDR2
MADDR3
RESERVED
NC
NC
RESERVED
NC
RESERVED
RESERVED
RESERVED
DAI-LRCK
DAI-BCK
VDD
VSS
DAI-DATA
DA -DATA 3
DA -DATA 2
DA -DATA 1
DA -DATA 0
DA-LRCK
VDD
VSS
DA-XCK
DA-BCK
DA-IEC
VDD
I/O
SDRAM address
O
SDRAM address
O
Power supply terminal 2.5V
Connect to ground
SDRAM address
O
SDRAM write enable
O
Active LOW SDRAM column address
O
Power supply terminal 3.3V
Connect to ground
Active LOW SDRAM row address
O
Active LOW SDRAM chip select 0
O
Active LOW SDRAM chip select 1 or use as MADDR11 for larger SDRAM
O
SDRAM bank select
O
SDRAM address
O
SDRAM address
O
Power supply terminal 3.3V
Connect to ground
SDRAM address
O
SDRAM address
O
SDRAM address
O
Tie to VSS or VDD_3.3 as specified in table1
I
Non connect
Non connect
Tie to VSS or VDD_3.3 as specified in table1
I
Non connect
Tie to VSS or VDD_3.3 as specified in table1
I
Tie to VSS or VDD_3.3 as specified in table1
I
Tie to VSS or VDD_3.3 as specified in table1
I
PCM left/right clock
I
PCM input bit clock
I
Power supply 3.3V
Connect to ground
PCM data input
I
PCM data output. Eight channels. Serial audio samples relative to
O
Description
DA_BCK and DA_LRCK
PCM data output. Eight channels. Serial audio samples relative to
O
DA_BCK and DA_LRCK
PCM data output. Eight channels. Serial audio samples relative to
O
DA_BCK and DA_LRCK
PCM data output. Eight channels. Serial audio samples relative to
O
DA_BCK and DA_LRCK
PCM left clock. Identifies the channel for each sample
O
Power supply terminal 3.3V
Connect to ground
Audio external frequency clock input or output
I/O
PCM bit clock output
O
PCM data out in IEC-958 format or compressed data out in IEC-1937 format
O
Power supply terminal 2.5V
-
ZIVA-4.1-PA2
1-36
XV-S56BK/XV-S57SL
2.Pin function (4/5)
Pin No.
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
Symbol
VSS
NC
VSS_DAC
VSS_VIDEO
CVBS
VDD_DAC
VDD_VIDEO
NC
VSS_DAC
VSS_VIDEO
CVBS/G/Y
VDD_DAC
VDD_VIDEO
NC
VSS_DAC
VSS_VIDEO
Y/B/U
VDD_DAC
VDD_VIDEO
NC
VSS_DAC
VSS_VIDEO
C/R/V
VDD_DAC
VDD_VIDEO
VSS_RREF
RREF
VDD_RREF
A_VSS
SYSCLK
VCLK
A_VDD
DVD-DATA0/CD-DATA
DVD-DATA1/CD-LRC
DVD-DATA2/CD-BCK
DVD-DATA3/CD-C2PO
DVD-DATA4/CDGSDATA
VSS
VDD
DVD-DATA5/CDG-VFSY
DVD-DATA6/CDG-SOS1
I/O
Connect to ground
Non connect
Connect to ground for analog video DAC
Connect to ground for analog video
DAC video output format : CVBS. Macrovision encoded
O
Power supply terminal for analog video DAC
Power supply terminal for analog video
Non connect
Connect to ground for analog video DAC
Connect to ground for analog video
DAC video output format. Macrovision encoded
O
Power supply terminal for analog video DAC
Power supply terminal for analog video
Non connect
Connect to ground for analog video DAC
Connect to ground for analog video
DAC video output format. Macrovision encoded
O
Power supply terminal for analog video DAC
Power supply terminal for analog video
Non connect
Connect to ground for analog video DAC
Connect to ground for analog video
DAC video output format. Macrovision encoded
O
Power supply terminal for analog video DAC
Power supply terminal for analog video
Connect to ground for analog video
Reference resistor. Connecting to pin 154
O
Power supply terminal for analog video 3.3V
Power supply terminal for analog PLL 3.3V
Optical system clock. Tie to A_VDD through a 1K ohm resistor
I
System clock input
I
Power supply terminal for analog PLL 3.3V
Serial CD data. This pin is shared with DVD compressed data DVD-DATA0
I
Programmable polarity 16-bit word synchronization to the decoder.
I
Description
This pin is shared with DVD compressed data DVD-DATA1
CD bit clock. Decoder accept multiple BCK rates. This pin is shared with
I
DVD compressed DVD-DATA2
Asserted HIGH indicates a corrupted byte. This pin is shared with DVD
I
compressed data DVD-DATA3
DVD parallel compressed data from DVD DSP. or CD-G data indicating
I
serial subcode data input
Connect to ground
Power supply terminal 3.3V
DVD parallel compressed data from DVD DSP. or CD-G frame sync
I
indicating frame-start or composite synchronization input.
DVD parallel compressed data from DVD DSP. or CD-G block sync
I
indicating block-start synchronization input
ZIVA-4.1-PA2
1-37
XV-S56BK/XV-S57SL
2.Pin function (5/5)
Pin No.
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
Symbol
DVD-DATA7/CDG-SCLK
VDACK
VREQUEST
VSTROBE
ERROR
VDD
RESERVED
VDD
VSS
NC
RESERVED
NC
HADDR0
HADDR1
HADDR2
RESERVED
RESERVED
RESERVED
VSS
VDD
RESERVED
VSS
VDD
RESERVED
RESERVED
RESERVED
RESERVED
H DATA 7
VSS
H DATA 6
H DATA 5
H DATA 4
H DATA 3
H DATA 2
VDD
VSS
H DATA 1
H DATA 0
CS
I/O
DVD parallel compressed data from DVD DSP. or CD-G clock indicating
I
Description
sub code data clock input or output
In synchronous mode, bitstream data acknowledge. Asserted when DVD
I
data is valid.Polarity is programmable
Bitstream request
O
Bitstream strobe
I
Error in input data
I
Power supply terminal 3.3V
Tie to VSS or VDD_3.3 as specified in table 1
I
Power supply terminal 3.3V
Connect to ground
Non connect
Tie to VSS or VDD_3.3 as specified in table 1
I
Non connect
-
Host addressbus. 3-bit address bus selects one of eight host interface registers
I
Host addressbus. 3-bit address bus selects one of eight host interface registers
I
Host addressbus. 3-bit address bus selects one of eight host interface registers
I
Tie to VSS or VDD_3.3 as specified in table 1
I
Tie to VSS or VDD_3.3 as specified in table 1
I
Tie to VSS or VDD_3.3 as specified in table 1
I
Connect to ground
Power supply terminal 2.5V
Tie to VSS or VDD_3.3 as specified in table 1
I
Connect to ground
Power supply terminal 3.3V
Tie to VSS or VDD_3.3 as specified in table 1
I
Tie to VSS or VDD_3.3 as specified in table 1
I
Tie to VSS or VDD_3.3 as specified in table 1
I
Tie to VSS or VDD_3.3 as specified in table 1
I
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
Connect to ground
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
Power supply terminal 3.3V
Connect to ground
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
The 8-bit bi-derectional host data through which the host writes data to
I/O
the decoder code.
Host chip select input
I
ZIVA-4.1-PA2
1-38
XV-S56BK/XV -S57SL
In regard with component parts appearing on the silk-screen printed side (parts side) of
the PWB diagrams, the parts that are printed over with black such as the resistor ( ),
diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified
by the manufacturer. (Except the JC version)
2-1
XV-S56BK/XV-S57SL
Block diagrams
DVD Servo control & AV decoder section(SHEET 5,6)
TO CN701
SHEET 4
TX
IC503
C/R/V
Y/B/U
IC502
27MHz
DA-IEC
SYSCLK
DA_DATA1~3
IC501
CVBS/G/Y
CVBS
CN502CN503
TO CN961
SHEET 2
V+5V
CPURST
IC504
16M SDRAM
FEPEN CPSCK SDOUT SLEEP
AV DECODER
STD0~7
/WR
/RD
ODC
IC301
(Optical disc controller)
BDO OFTR TGBAL
TBAL TE RFENV
FBAL FE TG AS
ARF+ ARF-
TESTSG JLINE
/WR
PLLOK
CDDET1
CDDET2
/RD
WAITODC
DAT0~3
IC201
ADSC
(Digital servo controller)
WAITDEC
IC311
IC312
ADSCEN
EPDO
CIRCEN
CPSCK
SDOUT
EPDI
EPSK
EPCS
EPROM
ZIVA WAIT
ADSCIRQ
IC403
IC321
IC322
WAIT
IC401
Unit CPU
SBRK SPMUTE
U2SDT S2UDT
SCLKO REQ
BUSY
CPUD0~7
X401
OSCI/O
CPUD0~7 CPUA0~2
LSIRST
DECIRQ
CPUD0~7 CPUA0~17
CPUA1~20
IC402
16M ROM
2-2
FEP
IC101
(Front end processor)
T1CD T2CD F1CD F2CD
CN101
TR TC TD TA F2DVD F1DVD
T+ T-
F+ F-
FROM
EXL-V7-1
4CH Driver
IC271
FM+
TDOFS FODRV
FM-
TRDRV TRSDRV
FG
DRVMUTE
VH
SM1~3
H1+~H3+
H1-~H3-
LM+
CN201 CN202
FROM
EXL-V7-1
LM-
MOTOR
SPINDLE
FROM
FLM-J1-1
IC251
DRIVER
SWOPEN SWUPDN
System control & audio output section(SHEET 4)
XV-S56BK/XV -S57SL
TO FW801
SHEET 1
TO FW802
SHEET 1
TO SHEET 1
TO CN711
SHEET 7
TO CN503
SHEET 6
AIN0
AIN2
CN703CN702CN701 CN704
POWERSW
STANDBYIND
REMO
S1~S24
1G~13G
DAC Control
DA_DATA2,3
DA_DATA1
TX
U2SDT
S2UDT
SCLK
REQ
BUSY
CPURST
SWOPEN
SWUPDN
SYSTEM
CONTROLLER
IC701
CONTROL
IC703
AVCI, AVCO
RESET
DAC
DAC
RESET
IC702
OSC
X701(8MHz)
OUT1C
OUT1D
OUT2C
OUT2D
LPF
IC741,IC751
RGBSEL
D3.3V
MUTE
IC704
AV
COMPULINK
Q709
MUTE
Q791
Q743,Q753
D791,D792
AUDIO_R
AUDIO_L
B5V
+12V
-12V
P.MUTE
Q744
Q754
OPTICAL
DIGITAL OUT
Lch
J702
J701
Rch
J704
J703
AV
COMPULINK
TO SHEET 2
ANALOG
AUDIO OUT
TO SHEET 3
COAXIAL
DIGITAL OUT
OPTICAL
DIGITAL OUT
FL Display & Operation switch section(SHEET 1)
S1~S24
TO SHEET 4
TO SHEET 2
1G~13G
B5V F- F+
FL DISPLAY
DI801
POWER
SWITCH
S801
STANDBY
INDICATOR
D801
POWERSW
FW803
STANDBYIND
TO CN703
SHEET 4
FW801
AIN0
AIN2
OPERATION
SWITCH
S831~S835
S821
TO CN702
SHEET 4
FW802
REMO
REMOTE
CONTROL
IC801
2-3
XV-S56BK/XV-S57SL
DC Regulator section (SHEET 2)
TO SHEET 1
Q951,Q952
FL ON/OFF
D951
C960
AC-DC
F+F--VDISP
B5V
D950
Q953
-30V REG.
+5V REG.
D952
AC-DC
TO CN502
SHEET 6
IC953
L951
C963,C964
D5V
CN961
IC951
+5V REG.
D953
AC-DC
C965,C966
L952
M9V
D3.3V
D954
AC-DC
TO SHEET 3
+3.3V REG.
L955
C979,C997
CVBS
SVBS/Y/G
Y/Pb/B
C/Pr/R
Q964,Q965
Q966
D972,D973
C995,C996
MUTE DETECTION
TO SHEET 4
B5V
P. O N
AC-DC
+12V
P.MUTE
L957
D956
C982,C984
-12V
AC-DC
L959
D957
C987,C989
AC-DC
LINE FILTER
AC IN
D901
L901
T901
TRANSFORMER
D904
C914
AC-DC
IC901
SWITCHING
REGULATOR
AC-DC
D908
D910
Q991
PC902
MODE SW.
PC901
FEED BACK
2-4
Audio & Video signal output section(SHEET 3)
TO SHEET 2
C/Pr/R
Y/Pb/B
CVBS/Y/G
CVBS
L601, L602
L611, L612
L621, L622
L631, L632
Lch
Rch
LPF
LPF
LPF
LPF
Q601
Q611
Q621
Q631
COMPOSITE
Y/C SWITCH
S691
J603
XV-S56BK/XV -S57SL
S-VIDEO OUT
COMPOSITE
VIDEO OUT
R/C
B
G
Y/COMPOSITE
Lch
Rch
TO SHEET 4
RGBSEL
Q696,Q697
Surround audio signal output section (SHEET 7)
TO CN704
SHEET 4
CN711
DA_DATA3
DABCK
DALRCK
D DATA
DA_DATA2
DABCK
DALRCK
D DATA
REAR
AUDIO DAC
IC813
CENTER/
SUB WOOFER
AUDIO DAC
IC823
OUT1C
OUT1D
OUT2C
OUT2D
OUT1C
OUT1D
OUT2C
OUT2D
IC812,IC811
LPF
LPF
IC821,IC822
MUTE2
MUTE2
MUTE
Q811,Q812
MUTE
Q821,Q822
J691
REAR
ANALOG
AUDIO OUT
J811
CENTER
SUB WOOFER
ANALOG
AUDIO OUT
J821
2-5
Standard schematic diagrams
FL Display & operation switch section
6
XV-S56BK/XV-S57SL XV-S56BK/XV-S57SL
FW802
QUM125-09DGZ4
5
S801
QSW0651-001Z
R801
330
D801
SLR-342VC-T
FW803
QUM123-12Z4Z4
FW803
QUM123-12Z4Z4
IC801
GP1U271X
C801
0.1
C802
47/10
4
3
B5V
FW801
QUM123-11DGZ4
S821
S831
S832
S833
S834
S835
R845R847 R846R848
4301.1K 6802.2K
TO SHEET 2
TO SHEET 4
S6S8S9
FF+
S13
S17
S18
S11
S12
S14
S10
S19
S15
S16
S21
S22
S24
S23
S20
1G
6G
2G3G4G5G7G8G9G
10G
11G
12G
13G
4.7/50
C821
S2S3S4
S5S1S7
2
1
BC
DE
2-6
F
G
HA
I
Power supply section
XV-S56BK/XV-S57SL
T901
C906
1000P/AC250V
L901
F901
QQR1105-001
6
P901
C902
0.068/AC250V
IC901
STR-G6651
5
4
D901
S1WB/A/60-4101
R905
68k
R911R910
750K750K
C907
82/400
C913
100p/1k
C908
0.0033/1K
R907
0.47
R906
680
R901
68K
D903
F1T4-T2
D902
F1T4-T2
C914
39/25
PC902
PC123Y02
D904
F1T4-T2
D910
F1T4-T2
PC901
PC123Y02
C909
100p/1k
R903
D908
F1T4-T2
R904
2.2k
C910C915
220P470P
R900
220
27
QQS0097-001
R969
220
C951
D951
C952
100p
F1T4-T2
100p
D952
F1T4-T2
10
R954
C963
39/50
CP951
ICP-N10-T
C953
D953
C960 C961
82/10 0.1
L951
0.22
C964 R955
22/50 22k
100p
FMB-24
C965
1000/10
KTA1267/G/-TT1.6AL-250V
R980
C994
0.022/25
L952
22
C966
470/10 0.1 0.1220/10
Q953
1.5k
C962
22/50
MTZJ4.7B-T2
D950
MTZJ36C-T2
C967 C968C969
R972
1.2k
KTC3199/Y/-T
Q951
KTD863/Y/-T
D960
KRA104S-X
IC951
PQ05RD21
Q964
2SB1184/QR/-X
Q965
R971
3.9k
D970
1SS133-T2
R953
10K
Q952
C970
0.1
IC953
NJM78M05FA
R952
10k
C973
100/10
R956
12
F+
F-
-VDISP
B5V
CVBS
CVBS/Y/G
Y/Pb/B
C/Pr/R
CVBS
CVBS/Y/G
Y/Pb/B
C/Pr/R
0.1
C917
TO SHEET 1
TO SHEET 3
EP951
R908
3.3K
3
2
Parts are safety assurance parts.
1
When replacing those parts make
sure to use the specified one.
C918
0.1
D911
1SS133-T2
Q991
KTC3199/Y/-T
C992
C993
0.47/50
100p
R960
100
R961
680
Video signal
D991
MTZJ5.1C-T2
R962
R964
C976
C981
0.1
Q966
KTA1267/G/-T
R974
5.6K
C995
220/16
0.1
R975
5.6k
R973
1K
C996
22/16
1M
100
R963
1M
10k
R965
C956
100p
D956
F1T4-T2
C982
560/25
D957
F1T4-T2
C957
100p
L957
10
L959
10
C954
D954
F1T4-T2
C984
220/25
C989C987
100/25180/25
100p
C979
820/16
CP952
ICP-N5-T
L955
22
C997
220/16
D973 D974
1SS133-T2 1SS133-T2
R976
220
D972
1SS133-T2
C977
0.1
C978
100/10
CN961
QGB2027M8-26
D5V
P.ON
P.MUTE
+12V
-12V
TO SHEET 4
BC
DE
F
G
HA
I
2-7
Audio / Video signal output section
XV-S56BK/XV-S57SL XV-S56BK/XV-S57SL
6
5
4
TO SHEET 2
C/Pr/R
Y/Pb/B
CVBS/Y/G
CVBS
C985
220/16
R601
150
R612
0
R621
150
R631
C603
C613
C623
C633
220p
220p
220p
220p
L602
2.2
L612L611
2.25.6
L622L621
2.25.6
L632L631
2.25.6
C604
C624
C634
47p
C614
47p
47p
R605
220
KTA1267/G/-T
150
R603
R615
220
KTA1267/G/-T
0
R614
R625
220
KTA1267/G/-T
0
R624
R635
220
KTA1267/G/-T
150
R633
Q601
Q611
Q621
Q631
R616 R606
R650
R636
D609D619
1SS133-T21SS133-T2
560 560
560
D629
1SS133-T2
C629
R629
C639
68
R639
68
470/6.3
560
D639
1SS133-T2
0.1/16
0
R604
150
47p
R613
150
R623
0
R634
L601
C601
C611
C621
C631
5.6
470p
470p
470p
470p
R602
0
R611
150
R622
0
R632
150
0
C649
R649
68470/6.3
C696
470/6.3
470/6.3
R697
R686
150
1k
C694
R698
C695
470/6.3
R682
NI
C697
R685
100k
470/6.3
KRA102S-X
150
R688
Q692
KRC102S-X
Q696
KRC102S-X
3
TO SHEET 4
2
Rch
Lch
VS3
+12V
D5V
RGBSEL
K605
NQR0227-004X
R1732
10
S691
QSW0454-001
C686C685
R1731
1k
Q691
KRC102S-X
470P470P
68
Q697
R681
300
R699
300
R695
R694
R687
68
68
68
J603
QNN0434-001
J691
QNZ0516-001
Video signal
Audio signal
1
BC
DE
2-8
F
G
HA
I
System control & audio signal DAC section
XV-S56BK/XV-S57SL
EP711
6
CN701
5
4
QGB2027M8-26
DDATA
DA_DATA2
DA_LRCK
DA_BCK
DAC1CS
DCLK
DA_DATA3
DAC2CS
CN704
QGF1205C1-17
POWER_SW
REMO
CN702
QGD2501C1-05Z
C7920
100P
3
CN703
QGD2501C1-03Z
2
C704
100P
R1713
SWOPEN
SWUPDN
TOPEN
TCLOSE
/LMMUTE
S2UDT
SCLKO
U2SDT
REQ
BUSY
CPURST
100
DA_BCK
DA_LRCK
DA_DATA1
DA_DATA2
DA_DATA3
1SS133-T2
D701
R701
C701
1K
1/50
R709
10k
D709
1SS133-T2
C709
330P
R1729
2.2k
IC-PST9140-T
IC702
0.1
C719 C720
Q709
KRC107S-X
X701
QAX0667-001Z
R702
R704
1K
IC705
AVCO
4.7k
R1714
4.7K
R795
R1728
2.2k
AVCI
PQ05RD11
220/6.3
R703
1M
100/10
0.1
C702
C728
R1715
L709R708
2.2100
R707
L710
D791
D792
R767
100
R777
100
R769
R779
K708
R1723
1SS133-T2
R768
10K
R778
10K
10k
10k
27
C1704
NI
220P
NI1KNI
NI
C708
C713
NI
IC703
MN35505-X
K703
NQR0227-004X
DA_DATA1
DA_LRCK
DA_BCK
C715
NI
R721
R723
R724
R725
C716
470/6.3
K702
C722
470
470
470
470
10
S3
S2
S4S5S6S7S8S9S10
S1
IC701
MN101C35DGZ
K701
DDATA
10
R711
K709
DDATA
DAC0CS
DCLK
DAC1CS
DAC2CS
C706
0.1
NI
R1710
R1709
1K4.7K
0.1
C705
C729
NI
R1730
K704
10k
C711
1.5
NQR0227-004X
-VDISP
NI
NQR0227-004X
22
NI
C724
R717
R731
3.3k
C717
C731
0.01
1.5
RA703
QRB139J-104
S11
S12
S13
R728
R729
C730
C721
NI
C714
470/6.3
R713R715
1010
DCLK
470
DAC0CS
470
C718
100/6.3
0.22
27k
R740
27k
R750
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
11G
12G
13G
RA702
QRB119J-104
RA701
QRB139J-104
27k
R751
27k
R741
R763
3.6k
3.6k
R773
R742
R743
R752
R753
R744
3.6k
R754
3.6k
18k
18k
1000p
C740
18k
18k
1000p
C750
R746
3.3k
3.6K
R747
R756
3.6K
R757
18K
R745
220p
C741
R748 R761
1.1k 1.1k
IC741
NJM4580M-X
0.0033
C742
18K
R755
220p
3.3k
C751
R758 R771
1.1k 1.1k
IC751
NJM4580M-X
0.0033
C752
C744
C754
C745
0.01
R762
680p
680
C749
R764
NI
18K
IC751
NJM4580M-X
C755
0.01
R772
680p
1.5k
C739
680p
IC741
NJM4580M-X
100/16
C762
100/16
R774
18K
D702
MTZJ3.3B-T2
C1701
47/25
C772
R782
220
R783
220
100/16
C761
R792
220
R793
220
100/16
C771
R1721
IC704
TC7SH08F-X
R797
Q791
47K
KRA102S-X 1SS133-T2
C797
0.0015
33K
R786
C746
22/25
R765
560
R766
C747
27K
2200p
Q743
2SD2144S/VW/-T
C756
22/25
R775
560
R776
C757
2200p
27K
C737
R780
1.1K
22/25
C738
R790
1.1K
22/25
C1703
R1722
150p
C1702
47/25
75
330
2SD2144S/VW/-T
R781
1.1K
R791
1.1K
QQR1185-001
T701
Q753
2SD2144S/VW/-T
Q744
Q754
2SD2144S/VW/-T
C1706
0.022
R1724
100
J702
QNS0089-001
J701
QNN0432-001
Rch
Lch
VS1
VS3
+12V
J704C1705
J704
QNN0347-001
RGBSEL
TO SHEET 3
TO SHEET 3
1
TO
SHEET 1
TO
SHEET 2
AVCO
AVCI
TCLOSE
TOPEN
P.ON
B5V
-12V
R1716
1k
SWOPEN
/LMMUTE
SWUPDN
REQ
BUSY
SCLK
U2SDT
CPURST
S2UDT
K706
NQR0227-004X
K705
NQR0227-004X
R706
100K
R705
2.2
C707 C736
100/6.3 0.1
J703
QNZ0487-001
Audio signal
BC
DE
F
G
HA
I
2-9
XV-S56BK/XV-S57SL XV-S56BK/XV-S57SL
DVD Servo control section
STCLK
STVALID
TP158
TP156 TP154
RF-
RF+
TA
TD
TB
TC
T2CD
T1CD
8.2k
10k
R131
R132
C145
TP121
TP120
TP115
TP114
TP113
TP111
TP109
TP126
TP125
TP124
6
CN101
QGF0501F2-30X
TP123
5
TP142
TP127
TP128
TP129
4
TP1
TP2
TP3
CN201
QGF1016F2-15W
TP4
3
TP8
TP9
TP10
TP11
CN202
QGF1016F2-06W
TP18
TP19
TP16
TP17
2
1
TP108
TP106
TP107
T2CD
F2CD
TP110
T1CD
C109
0.1/16
F1CD
R121
0
C108
0.1/16
TP116
TB
TP117
TC
TP118
TD
TP119
TA
R122
0
R123
0
F2DVD
F1DVD
RFRF+
R124
0
R125
NQR0265-003X
TFF+
T+
TP143
TP144
TP145
TP146
TP5
TP6
TP7
R271
47
TRVSW
FMFM+
TP15
TP12
TP13
TP14
SWOPEN
SWUPDN
LM+
LM-
TP20
TP122
C104
0.1/16
0.1/16
C107
C101
0.1/16
R102
M9V
VH
H3+
H3H2+
H2H1+
H1-
SM3
SM2
SM1
C271
22/6.3
R288
0
C272
NI
C273
0.1/16
M.GND
R101
D5V
D.GND
R104
33kNI33k
R103
10k
R272
R287
Q101
KTA1001/Y/-X
C102
NI
R106
C105
47/6.3
C152
F-
NI
C283
NI NI
LM+
M9V
M.GND
TP112
Q102
KTA1001/Y/-X
C103
NI
27
2.2272.2
R105
C106
47/6.3
K103
NQR0007-002X
15/6.3
C151
22/6.3
T-T+F+
C274
0.1/16
C287
0.1/16
C284
LM-
FM+
FM-
VH
R256
47
D5V
1
R257
D.GND
R107
MM3022JN-X
0.1/16
HAGUP
IC102
LDCUR
IC271
BA5983FM-X
H3-
H3+
C257
0.01/16
C256
R108
180k
TGBAL
TBAL
FBAL
SLEEP
FEPEN
CPSCK
SDOUT
JLINE
HMFON
TP176
C275
R283
10k
C281
0.022
H2-
H2+
H1-
H1+
C258
C259
0.01/16
0.01/16
R259
10k
SBRK
C276
NI270p
R277R276
12k12k
R281
2.4k
C280
NI
R284
10k
IC251
BA6664FM-X
NI1NI
NI
C117
C116
C115
R273
0
R274
10k
R275
10k
R289
7.5k
R290
7.5k
R291
6.8k
R292 R293
10K 9.1k
R282
10k
C282
0.01/16
SM1
0
R258
R254
C255
/SPMUTE
R110
27k
R112
R154
27k
R155
C118
Q104
C278
0.001
C277
0.001
R280
2.4k
R286
9.1k
C286
1/50
SM2
SM3
0.1/16
C262
0.1/16
R251
20k
NI
1
R253
R252
3.3
C252
22/16
0.1/16
C253
C254
22/6.3
0.022
R255
10k
0.01/16
C146
NI
R166
1.8k
IC101
NI
0
R114R113
1k6.8k
C119
220p
0.15/16
R116
68k
24k
C120
R115
82p
R109
NI
NI
Q105
D271
NI
R278
TRDRV
10k
R279
FODRV
10k
NI
C279
/DRVMUTE
C288
1/50
R285
TRSDRV
10k
C260
C261
0.1/16
C263
0.1/16
FG
C264
0.01/16
C251
0.1/16
TOPEN
SPDRV
AN8702FH
C121
NI
22p
0
0
R165
R147
R117
C110
12k
C122
R111
180p
R118
NI
30k
FE
TE
AS
TG
LDCUR
TG
RFENV
ARF+
ARF-
/LMMUTE
TCLOSE
F1CD
F2CD
F1DVD
F2DVD
TP131
0.1/16
C143
0.1/16
C144
0.1/16
TP102
TP103
C123
C124
C159
0.1/16
0.1/16
FE
TE
AS
C138
0.1/16
TESTSG
RFENV
BDO
OFTR
2.2k
TP567
TP568
C127
0.001
NI
C129
C128
0.1/16
NI
C158
C125
0.1/16
0.1/16
ARF+
ARF-
0
R231
TP233
TP234
C208
0.1/16
27k
R211
R212
NI
12k
27k
C211
R213
5.6k
R214
C222
0.1/16
C223
0.1/16
C201
0.47/16
12k
R226
C141
C139
0.1/16
NI
R119
C136
0.047/16
0.027/16
C135
C137
NI
560p
C134
R129
1M
C133
560p
1M
R128
0.1/16
C132
R127
C131
C130
12p
0.1/16
TP101
R152
1
R153
4.7
NQR0007-002X
33/4
C161
C126
C160
0.1/16
56/6.3
0
R236
330p
C203
C204
R207
47k
R202
47k
R203
47k
R204
47k
R205
C205
C207
C206
470p
270p
R208
47k
12k
R209
47k
R210
0.001
C209
0.001
C210
C231
0.0056/25
0.001
C232
0.1/16
C233
R218
15k
C226
47p
C227
0.001
C228
0.001
R219
47k
C239
0.018/16
C240
100p
TP212
TP201
D5V
C140
22/6.3
K301
NQR0007-002X
/WR
TP105
S5V
S3V
K102
S.GND
560pNI560p
560P
C202
C221
TP220
TP219
120p
R215
1M
C225
1/16
C230
NI
TP202
/RD
C345
100/6.3
C346
1/16
C341
0.1/16
D.GND
TP231
TP214
TP215
TP216
TP218
TP221
TP217
47k
R220
TESTSG
TP211
TP225
TP224
C237
0.1/16
TP210
TP208
R223
47k
C241
0.01/16
C224
C245
0.01/16
0.1/16
TP226
MN67706ZY
1k
R227
C244
IC312IC311
TC7SH32FU-XTC7SH08FU-X
TP301
1k
R312
R343
1k
IC321
TC7WH74FU-X
DAT2
DAT1
DAT0
220
220
220
CPSCK
SDOUT
IC201
R225
6.8k
0.1/16
JLINE
220
ADSCEN
CIRCEN
0.1/16
R240
R239
R238
R237
C238
0.1/16
C246
TP204
TP203
C242
1/16
27k
18k
27k
R228
R229
R230
OFTR
TGBAL
TBAL
BDO
FBAL
STD7
TP132
STD6
TP133
STD5
TP134
STD4
R341
NI
R342
0
C342
0.1/16
0.1/16
C343
DAT3
CHCK40
220
R241
R232
R233
R234
0
R235
C247
0.1/16
C248
0.15/16
C249
0.1/16
C214
0.1/16
C229
0.1/16
TP135
STD3
TP136
STD2
TP137
STD1
TP138
STD0
TP139
STEN
ODCIRQ2
ODCIRQ
1k
R311
TP160
0.1/16
C344
FG
SPDRV
TRSDRV
TP207
TP206
TP205
TP213
4.7k
4.7k
4.7k
R301
47k
R302
47k
R303
47k
R304
47k
R305
47k
R306
47k
R307
47k
R308
47k
R309
10k
R332
NI
D301
NI
C304
0.1/16
1k
TP303
5.6k
R345
R310
C305
0.1/16
IC322
TC74VHC00FT-X
TP161
D5V
C212
0.1/16
C213
0.1/16
TP570
47k
C218
47k
47k
0.1/16
R250
R249
R248
C215
33/6.3
C216
1/16
C220
C219
100/6.3
1/16
C324
0.1/16
C301
0.1/16
C302
0.1/16
C303
0.1/16
TP302
TP140
R221
R242
R243
NQR0007-002X
C217
100/6.3
R206
4.7
NI
K201
NQR0007-002X
K202
K203
NQR0007-002X
TP159
CPUA17
CPUA16
R222
ADSCIRQ
0
R224
IC202
TC7WT125FU-X
1k
1k
TP232
R245
1k
R246
1k
D2.7V
S3V
S.GND
NI
NI
NI
R327
R330
R329
R331
47k
R328
TP157
TP155
0.1/16
C321
0.1/16
C306
CPUA15
CPUA14
CPUA13
CPUA12
CPUA11
CPUA10
CPUA9
CPUA8
CPUA7
S3V
NI
SDIN
NCLOCK
SUBC
IPFLAG
NTRON
LG
JMPINH
PLLOK
CPDET1
CPDET2
D3V
D.GND
SYSCLK
47k
NI
NI
NI
R322
R323
R325
R326
NI
47k
R324
0.1/16
0.1/16
C320
C319
IC301
MN103S13BDA
CPUA6
CPUA5
CPUA4
CPUA3
CPUA2
CPUA1
CPUA0
/RD
/WR
TP167
CPUA0
CPUA1
CPUA2
CPUA3
X401
NAX0331-001X
/DRVMUTE
SBRK
/SPMUTE
TP152
TP153
TP151
0.1/16
C307
CPUD7
/WR
/RD
TP164
TP405
R405
4.7k
C413 C414
NI
DAT0
DAT1
DAT2
DAT3
SUBC
CHCK40
NCLOCK
NI
NI
R321
R320
C317
1/16
0.1/16
C318
TP150
R318
R317
C315
0.1/16
C314
0.1/16
R347
R348
R349
R350
C311
0.1/16
0.1/16
C309
CPUD2
CPUD3
CPUD4
CPUD5
CPUD6
TP163
TP401
TP166
R404
R403
4.7k
NI
C401
0.1/16
C402
0.1/16
R408
R407
NI
4.7k
NI
CPUD1
TP162
TP169
TP170
R409
NI
Digital data signal
D2.7V
D3V
K302
K303
NQR0007-002X
NQR0007-002X
C316
100/4
C326
0.1/16
C327
100/4
D.GND
TP306
0
0
R316
1M
X301
NAX0375-001X
C312
C313
18p
18p
TP149
TP148
1k
1k
1k
1k
C325
NI
TP141
C310
0.1/16
IPFLAG
R346
4.7k
NTRON
LG
JMPINH
TP307
PLLOK
SYSCLK
CPDET1
CPDET2
BDO
TP305
TP304
TP175
NI
0
R363
R364
TO SHEET 6
CPUD0
WAITDEC
LSIRST
CSROM
CSDEC
DECIRQ
ODCIRQ2
ODCIRQ
0.1/16
***0***
0.1/16
R428
CPUA12
R427
R426
MN102L25GGX
CPUA13
CPUA14
IC401
CPUA15
*
R425
R424
R423
R422
R421
CPUA16
CPUA17
CPUA18
CPUA19
CPUD0
CPUD1
CPUD2
CPUD3
CPUD4
CPUD5
CPUD6
CPUD7
C405
CPUA4
CPUA5
CPUA6
CPUA7
CPUA8
CPUA9
CPUA10
CPUA11
R419
C410
NI
C408
R417
HMFON
TRVSW
22/6.3
4.7k
D.GND
C409
CPUA20
R418
4.7k
0.1/16
HAGUP
C412
0.1/16
IC403
BR93LC66F-X
K402
NQR0007-002X
ADSCIRQ
CIRCEN
CPURST
SDOUT
SDIN
CPSCK
U2SDT
S2UDT
SCLKO
SLEEP
FEPEN
ADSCEN
TP174
EPDOEPCS
EPDI
D.GND
D5V
TP425
EPDO
EPDI
EPSK
EPCS
REQ
BUSY
TP415
TO
TP173
EPSK
R416
4.7k
R415
4.7k
R414
4.7k
C407
0.1/16
C406
0.1/16
R413
4.7k
R412
10k
TP413
R411
4.7k
TXSEL
ADSCTX
SHEET 6
BC
DE
2-10
F
G
HA
I
AV Decoder section
XV-S56BK/XV-S57SL
Z3V
R531
33
K503
6
K502
Z3V
5
K504
CSROM
C540
4
3
2
TO SHEET 5
NQR0007-002X
D5V
CPUA19
CPUA18
CPUA8
CPUA7
CPUA6
CPUA5
CPUA4
CPUA3
CPUA2
CPUA1
/RD
CPUD0
CPUD1
CPUD2
CPUD3
MD0
MD1
MD2
MD3
MD4
MD5
MD6
R432
4.7k
CPUA20
CPUA9
CPUA10
CPUA11
CPUA12
CPUA13
CPUA14
CPUA15
CPUA16
CPUA17
CPUA0
CPUD7
CPUD6
CPUD5
CPUD4
R431
4.7k
K401
K3N5C1000D-J020
C411
0.1/16
IC402
D.GND
MD7
LDQM
/MWE
SD_CAS
SD_RAS
SD-CS0
MA11
MA10
MA0
MA1
MA2
MA3
47/4
IC504
W986416DH-7
C541
0.1/16
1SR154-400-X
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
LDQM
SD_CLK
MA9
MA8
MA7
MA6
MA5
MA4
D.GND
D501
WAITDEC
LSIRST
DECIRQ
NQR0007-002X
CSDEC
/RD
/WR
NQR0007-002X
K506
R559
NI
R501
1k
R502
4.7k
K501
NQR0007-002X
C534
100/6.3
C533
0.1/16
D.GND
CPUD2
CPUD1
CPUD0
C530
C531
100/6.3
0.1/16
C556
100/6.3
C557
0.1/16
C501
0.1/16
C502
0.1/16
C503
0.1/16
C504
0.1/16
C505
0.1/16
C506
0.1/16
C507
0.1/16
D.GND
C547
C532
0.1/16
0.1/16
C508
0.1/16
MD3
MD2
MD1
MD0
C536
C535
0.01/16
0.1/16
CPUD7
CPUD6
CPUD5
CPUD4
CPUD3
C544
C510
C509
0.1/16
0.1/16
MD7
MD6
MD5
MD4
MD13
MD14
MD15
NQR0007-002X
0.1/16
C537
22/6.3
TP506
0.1/16
C511
0.1/16
MD9
MD10
MD11
MD12
C529
C538
TP507
0.1/16
IC501
ZIVA-4.1-PA2
MD8
IC502
NAX0393-001X
D.GND
STD5
STD6
STD7
STEN
STCLK
33
33
000
CPUA0
CPUA1
CPUA2
0.1/16
C528
C512
0.1/16
33
NQR0269-001X
R513
R511
K505
R504
LDQM
SD_CLK
MA9
MA8
STVALID
R538
R539
R540
R543
R542
R541
C527
4.7k
R545
0.1/16
C514
C513
0.1/16
0.1/16
33
33
R519
R515
R517
MA7
MA6
MA5
33
33
33333333333333
33
33
R521
R509
R507
R508
R506
/MWE
SD_CAS
SD_RAS
MA4
SD-CS0
TP505
Q1
KTC4377/C/-X
R1
D2.7V
S3V
Z3V
D3V
S5V
D5V
M9V
D.GND
STD2
STD1
STD0
STD3
STD4
33
3333333333
R533
R534
R535
R536
R537
C526
0.1/16
C515
0.1/16
33
R512
R516
R514
R510
SD-CS1
MA10
MA0
MA11
R552
0
1k
R532
R546
R528
180
1k
C523
0.1/16
0.1/16
C521
0.1/16
C519
C518
0.1/16
R529
180
NI
R530
C517
0.1/16
R527
180
R523
NI
R524
180
R525
180
R526
180
C516
0.1/16
33
33
33
R522
R518
R520
MA1
MA2
MA3
ADSCTX
10
C17
0.1/16
C11
C6
0.1/16
0.1/16
C2
C4
C3
C1
0.1/16
C525
0.1/16
C566
C/R/V
0.1/16
C524
0.1/16
Y/B/U
C522
0.1/16
CVBS/G/Y
0.1/16
C520
CVBS
DA_BCK
DA_XCK
DA_LRCK
DA_DATA0
DA_DATA1
DA_DATA2
DA_DATA3
C5
22/6.3
22/6.3
22/6.3
C10C9C8
C7
NININI
NI
TP94
TP93
TP92
TP91
D5V
NI
R550
R549
0
C567
22/6.3
V.GND
Z3V
C539
0.1/16
R548
3.3k
2.2k
R547
TXSEL
C561
0.1/16
R558
NI
NI
D552
IC503
TC74VHC00FT-X
NI
D551
C562
22/6.3
R571
D.GND
DECTX
D.GND
IC1
MM3023DN-X
C15
0.1/16
C16
33/4
TP39
TP40
TP42
TP44
TP43
TP38
TP41
L1
NQL044K-100X
NI
NI
C13
V5V
C/R/V
V3V
Y/B/U
CVBS/G/Y
CVBS
CPURST
BUSY
REQ
U2SDT
SCLKO
S2UDT
/LMMUTE
TCLOSE
DA_DATA3
TOPEN
DA_DATA2
SWUPDN
SWOPEN
DA_DATA0
DA_DATA1
DA_XCK
DA_LRCK
TX
DA_BCK
C14
M.GND
R553
R551
NI
NQR0007-002X
R554
NQR0007-002X
R556
NQR0007-002X
R555
R557
0
NQR0007-002X
R599
R598
NI
R597
NI
R594
NI
R596
NI
R595
NI
R585
NQR0007-002X
R584
NQR0007-002X
R583:
NQR0007-002X
R586
NQR0007-002X
NQR0007-002X
R587
NQR0007-002X
NQR0007-002X
100/6.3
C12
0.1/16
S.GND
TP45
D3V
Z3V
M9V
D5V
NI
NI
C568
C569
NI
C570
C571
NI
CN502
QGB2027L1-26X
TP47
TP49
TP52
TP48
TP50
TP54
TP59
TP63
TP56
TP55
TP57
NI
R581
TP61
TP65
R582
NI
R588
CN503
QGB2027L1-26X
TP67
TP69
TP72
TP73
TP66
D.GND
TP68
TP70
TP71
TO SHEET 5
1
Audio signalDigital data signal Video signal
BC
DE
F
G
HA
I
2-11
Surround audio signal output section
XV-S56BK/XV-S57SL XV-S56BK/XV-S57SL
C868
470/6.3
K812
QQR0601-001Z
6
K811
QQR0601-001Z
R912
R915
10
R909
470
10
IC813
MN35505
5
R974
10
QQR0601-001Z
K821
QQR0601-001Z
DAC2CS
DCLK
470/6.3
K822
R972
10
R971
470
D5V
4
TO CN704
SHEET 4/7
3
CN711
DDATA
DA_DATA3
DA_LRCK
DA_BCK
DAC2CS
DCLK
D.GND
D5V
+12V
-12V
DA_DATA2
DAC1CS
MUTE2
D5V
DAC1CS
DCLK
R913
3.3k
R914
470
470
470
470
470
R919
R918
R917
R916
DA_BCK
DA_LRCK
DDATA
DA_DATA3
C897
R970
470
C867
0.22
C866
0.01
1.5
K813
QQR0601-001Z
C860
470/6.3
C892
470/6.3
C859
470/6.3
R980
10
R899
10
R962
10
C864
1.5
C862
C861
10
R911
K814
R977
3.3k
C899
0.01
C900
1.5
1.5
C863
1.5
C898
0.22
C894
1.5
R894
18K
R892
18K
R896
30K
R898
30K
C858
R890
2.7K
R889 R1825 R883
2.7K 2.7K 3.6K
C857
30K
R895
R891
R897
18K
30K
+12V
R954
18K
R982
18K
R981
30K
R958
30K
R984
2.7K
1800P
1800P
C890
NJM4580L
1800P
IC822
R888
2.7k
NJM4580L
R1826
2.7K
NJM4580L
R887
2.7k
R950
2.7k
R1846
2.7K
R886
36k
C854
220P
IC812
R884
3.6K
C855
6800P
IC811
R885R893
36K18K
R948
36k
C888
220P
R946
3.6K
C886
6800P
C856
6800P
C853
220P
R882
R881
1.6k
R944
1.6k
C852
0.012
R878
NJM4580L
1.5k
1.6k
C884
0.012
R940
1.5k
IC812
C850
1000P
NJM4580L
C849
IC811
1000P
R877
1.5k
C851
0.012
C880
220/16
IC822
NJM4580L
C882
C878
1000P
220/16
220/16
220/16
220/16
220/16
C848
C846
C845
C847
1000P
C838
R938
220
C902
R936
R876
220
R872
2.2k
R874 R870
220 18K
220220
R873R875
2.2k
R871
C839
1000P
1000P
R934
2.2k
R932
18K
220
C844
47/25
18K
R869
C843
47/25
C876
47/25
R930
27K
R866
560
C842
4700P
R868
27K
27K
R867
C841
4700P
R865
560
-12V
R928
560
C874C873
4700P4700P
2SD2144S/VW/-T
Q822
2SD2144S/VW/-T
R864
100
Q812
Q811
2SD2144S/VW/-T
R863
R926
100
R862
10K
J811
QNN0461-001
C869
1500P
R861
10K
100
MUTE2
R924
10K
J821
QNN0455-001
IC823
MN35505
C877
2
10
470
470
R967
R966
DA_LRCK
DA_BCK
R973
K824
C895
1.5
470
470
R976
R968
DDATA
1
DA_DATA2
C893
1.5
QQR0601-001Z
C891
470/6.3
R975
10
K823
R983 R 945
2.7K 3.6K
30K
R957
30K
R951
R959
18K
R985 R947
18K 36K
+12V
R1845
2.7K
C885
6800P
C889
1800P
NJM4580L
R949
2.7k
IC821
C887
220P
R943 R939
1.6k
0.012
1.5k
220/16
C881
1000P
IC821
NJM4580L
C883
220/16
C903
C879
R931
18K
220
R935
2.2k
R933
1000P
R937
220
27K
R929
R927
C875
560
47/25
-12V
Q821
2SD2144S/VW/-T
R925
100
R923
10K
MUTE2
C871
1500P
BK811
E409182-001SM
Audio signal
BC
DE
F
G
HA
I
2-12
XV-S56BK/XV-S57SL
Printed circuit boards
Main board
C797
R1715
R1729
R703
R1727
Q791
R786
R1726
R789
C706
R639
J603
R1714
C728
R797
D792
R649
D791
R629
C649
C639
C629
CN701
R1732
R1713
K605
R635
C691
R634
R623
R633
C634
C985
C624
R636
S691
D639
Q631
R631
C633
R622
R632
Q621
R625
C621
C631
C623
R621
R682
Q696
Q697
R624
R612
R611
D619
C613
R681
R602
R614
Q611
R613
C611
R601
R792
C771
CN704
R717
R7020
S832
J704
C1706
R778
C1705
C757
Q753
R776
R772
C739
C755
IC751
R771
C751
R756
R755
R750
C730
R715
C714
R731
IC703
R713
D709
R846 R847 R848
C754
R757
C752
R773
R751
R752
R753
R741
R743
C715
C716
K704
C709
Q709
R709
CN703
C7922
S833 S834S835
C731
K701
R1723
R758
C1704
R711
R774
C701
R742
R740
R701
R793
50
R775
51
C7910
R777
C772
J701
C756
D701
R783
R744
IC702
C7920
R7923
R767
C762
R747
R763
R704
R766
C702
R765
C746
R748
C741
C742
C740
R1728
R702
C705
26
75 76
R761
R1707
R768
Q743
C747
C745
R762
R764
IC741
R782
R746
R745
R795
R1708
R788
R1704
R1709
R1710
IC701
100
R1725
1
X701
25
R729
R728
C1702
R721
K703
R705
C722
C736
R1722
R723
R724
J703
K708
C718
C724
R725
C707
K706
C1701
R1721
D702
R706
K705
C1703
R7103
IC704
R7922
C931
6
5
C704
4
3
T1A
2
S831
R845
R699
R694
C601
C604
R695
R615
C614
CN961
R604
J691
R688
C603
R697
Q601
R605
R698
R1731
R606
C973
D970
R603
Q754
C970
R779
R687
Q964
D974
D972
R685
R971
R972
R975
Q966
R790
L959
C996
C685
R791
C989
R974
R973
C984
Q965
C969
R780
C987
D973
C995
C956
R686
Q744
C968
C686
L710
R781
C737
R769
C719
IC705
C720
L957
C982
D957
C957
C954
C979
L955
C997
IC951
IC953
C977
C978
R707
R708
D956
D954
C967
C981
J702
C953
R1724
R901
C909
C917
C964
C952
C7921
C908
R911
C963
EP951
D902
C907
C713
R903
R954
C904
D901
R905
D903
C913
IC901
T901
D951
D952
C993
Q991
C951
R960
R962
C960
L951
[B7074]
C961
Q953
R7921
R980
Q952
D960
R963
R953
C962
Q951
R956
R961
R964
R965
C994
R952
D991
R955
D950
R969
HS901
C992
P901
FC901
C902
C914
IC801
D908
C906
C905
C801
R908
PC901
FC902
C910
C915
D910
PC902
R900
R801
S801
FW803
FW802
L901
R907
K902
R904
D904
C918
D911
D801
C802
C708
L709
D953
C965
L952
C966
C976
RA701
1
S821
FW801
BC
DE
RA702
RA703
C821
F
G
R1716
CN702
HA
I
2-13
XV-S56BK/XV-S57SL XV-S56BK/XV-S57SL
DVD Servo control board
Forward side Reverse side
C283C284
C144
C143
R119
C273
R280
R281
C287
C217
C140
C280
R288
R287
R278R279
R154
C134
C161
R282
C271
R215
R128
C126
C16
R286
C254
C131
R147
C121
C128
C158
R291
R283
C231
C129
C281
C215
C232
R109
C286
R218
Q104
R117
R1201
C239
C240
Q105
D552
C252
C227
C538
C566
C561
D551
C11
C272
R529
R530
R527
C327
K303
R272
C246
C244
R227
C245
C241
R223
R220
R522
R520
D301
K201
R518
R516
R345
C303
C304
C305
C537
K503
R550
R514
R512
R301
R302
R303
R304
R305
R306
R307
R308
R309
R332
R310
R311
C567
C562
R510
R509
R508
K203
C534
R507
R206
R506
R431
R521
C219
R519
R331
C536
C526
R517
R330
C413
C535
R515
R329
R513
R327
R511
R326
X401
C533
K502
K505
R325
R504
R323
R407
R322
C414
R321
C313
R316
C312
R346
R320
IC301
C541
D501
C407
K504
IC504
C316
C411
C530
K506
C325
C540
R364
L1
K402
R547
R363
IC401
C531
K501
R558
R350
K401
C532
C556
X301
C5
R428
R427
R426
R425
R424
R423
R422
R421
C410
R417
R548
C6
C539
IC503
C557
C17
C346
K301
R587
C408
R1
Q1
C1
C14
R598
R583
R586
R599
R597
R594
R596
R595
R553
R555
C345
C570
C569
C568
C2C3
C13
R585
R584
R582
R588
K561
R556
R554
R551
TP63
TP56
TP61
TP59
TP68
TP66
TP71
TP72
TP52
TP45
TP43
CN502
TP50
TP54
CN503
TP39
C4
TP67
TP65
TP42
TP47
TP69
C8
C343
C344
TP92
TP70
R343
TP49
C571
R557
TP164
R419
R416
TP55
TP57
C504
C505
C506
TP38
TP40
TP44
TP41
TP48
TP166
C501
R559
R501
C502
R502
C503
C507
TP73
R405
R418
R415
TP162
R404
C409
IC403
R414
C317
TP160
TP401
TP163
R403
C547
K302
IC321
TP161
IC322
TP167
TP174
TP173
C528
C508
IC501
R318
R317
C315
C314
TP306
TP149
TP148
TP405
C527
R542
R543
C509
TP91
R539
C7
C412
R537
C529C544
C510
C401
TP425
C406
R533
R535
C511
R413
R531
TP141
TP175
IC311
C306
C402
TP413
C512
TP305
TP304
TP415
C310
R409
R408
C405
R411
R545
C513
R347
R348
R349
C311
R412
R541
TP131
TP132
TP133
TP134
TP135
TP136
TP137
TP138
TP212
TP507
TP506
R538
R540
TP505
C514
TP307
C307C309
R432
TP169
TP170
TP201
TP202
R536
TP139
R534
TP204
TP203
C515
C318
TP150
TP301
TP302TP303
TP140
C242
C220
IC502
R532
C518
C517
C516
TP152 TP153
TP151
C342
C341
IC402
C247
C525
C122
C521
C519
R324
C319
IC312
R312
C326
R257
TP213
C224
R116
R111
R118
C320
R341R342
R231
R236
C120
R528
R525
R526
R328
TP154
C216
C226
TP233
TP234
R546
C110
R165
C123
C522 C523
C124
C159
C520
C127
R571
R523
R524
C321
C324
C301
C302
TP205
TP206
R549
C524
TP157
TP155
K202
TP207
IC1
TP158
TP156
TP570
R113
C118
R114
TP105
TP101
C15
C12
R155
C10
TP159
R235
R234
R233
R232
R225
C248
TP232
R115
C130
C125
K102
C119
R112
TP210
TP208
C201
TP102
R127
R110
R230
R229
R228
C228
IC202
TP103
C132
C133
C160
R108
TP94
C9
TP93
R219
C208
R129
R123
R251
C222
TP216
TP215
TP214
TP231
C117
C135
R252
C229
C214
C249
R226
C223
C225
C233
C237
C116
C136
R107
R152R153
R106
TP125
C251
R212R213
R222
R271
C212
C238
C115
C138
C139
C137
TP115
TP117
TP119
TP123
TP124
TP126
TP128
TP127
R211
C211
R214
R224
TP224
TP108
TP109
TP111
TP122
TP116
TP118
R221
TP15
TP226
TP567
TP568
TP110
TP107
TP114
IC101
R105
R104
C288
R253
C262
TP11
TP13
TP14
TP5
TP225
TP211
R202
R203
R204
R205
C253
C260
C261
TP9
TP10
TP12
TP6
TP4
R124
TP8
TP3
TP142
TP18
TP19
TP20
TP2
TP146
TP106
CN101
TP176
R101
C255
TP1
TP144
TP143
TP121
R102
R103
R258
C259
C263
TP7
TP120
R254
C264
C258
TP113
IC102
TP112
CN202
R259
TP220
C210
TP16
C257
TP145
TP218
TP219
R210
C209
TP129
IC251
CN201
TP217
TP221
C205
R209
TP17
C206
R293
R292
C282
R284
6
C277
R275
R277
C278
R289
R276
R274
R273
C279
R256
5
4
3
2
C275C276
C256
C152
C151
R131
C145
C146
R132
R121
R290
D271
C213
C109
C101
R242
R122
D101
C274
R243
K103
C102
R249
C221
C202
C203
C204
R207
C107
C104
R245
R125
Q102
Q101
IC271
R246
R241
R240
R239
R238
R237
C108
C103
R250
R248
C141
R166
C218
C106
C105
R255
C207
R285
IC201
R208
1
BC
DE
2-14
F
G
HA
I
Surround audio board
XV-S56BK/XV -S57SL
C847
C849
C845
C855
R883
C857C858
C861
R863
R1825
R895
R865
IC811
J811
C843
R889
R899
C869
R885
R891
R897
R887
R875
C853
R893
R877
R873
R881
C839
K813
R871
C851
6
BK811
K828
5
R938
C902
C884
R934
R940
4
R936
R944
C888
R948
R984
3
R954
R981
R950
R982
R958
C876
IC822
C890
R1846
R962
C892
C894
C886
C880
C882
C871
C878
R928
R930
R932
J821
C891
IC823
R926
R924
C879
C881
C877
C885
R945R946
C889
C874
IC821
R957
Q822
R983
C891
R951
K827
R929
R931
R947
R959
Q821
R937
R939
R985
R949
C873
C887
R935
C875
K823
R923
R943
C903
C852
R874
R925
R927
R933
R872
C883
C838
R878
R876
R882
R894
R866
R864
C844
C854
R886
R898
R890
C842
R888
R892
R862
R896
R861
Q812
Q811
K826
C841
R867
R868
R870
IC812
C856
R884
R1826R1845
R980
C860
C862
R869
C848
C850
C846
C859
IC813
C900
C899
C898
2
R977
K822
R970
R972
C897
K830
R971
C895
K824
R973
R966
R967
R968
R976
CN711
K821
R974
R914
K829
C867
R909
R913
K812
C866
C864
C868
R915
K825
C863
K814
R911
K811
R912
R916
R917
R918
R919
1
ABCDE
2-15
XV-S56BK/XV-S57SL
PARTS LIST
[XV-S56BK/XV-S57SL]
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Area Suffix (XV-S56BK)
E ----------- Continental Europe
EN ------------ Northern Europe
Area Suffix (XV-S57SL)
B ------------------------------- U.K.
E ----------- Continental Europe
EN ------------ Northern Europe
Exploded view of general assembly and parts list
DVD Traverse mechanism assembly and parts list
DVD Loading mechanism assembly and parts list
Electrical parts list
Packing materials and accessories parts list
3-2
3-5
3-7
3-9
3-18
3-1
XV-S56BK/XV-S57SL
Exploded view of general assembly and parts list
21
BACK SIDE
6
5
31
36
36
25
52
35
33
34
32
36
50
36
25
27
D
28
28
28
27
C
27
51
26
28
27
51
Block No. M M M1
Grease
UD-24H2
51
52
38
38
4
53
38
29
47
46
45
43
24
BACK SIDE
54
20
49
3
7
7
6
5
1
A
9
30
B
11
20
20
A
Main
Board
20
B
40
44
43
43
42
41
48
39
11
Surround
Audio
F
Board
8
2
2
E
11
19
22
21
4
10
D
12
F
23
23
3-2
4
16
1
3
E
17
C
17
ABCDE
XV-S56BK/XV-S57SL
Parts list (General assembly)
Item
A
1 LE10251-037A FRONT PANEL BKE,BKEN1
2 VJD5429-001SS JVC MARK BKE,BKEN1
3 LE20535-006A WINDOW SCREEN 1
4 LE40798-001A SPACER 2
5 LE30900-001A INDICATOR 1
6 LE20537-001A PUSH BUTTON BKE,BKEN1
7 QYSBSF2608Z T.SCREW 2
8 LE30899-001A REMOTE LENS BKE,BKEN1
9 QYSBSF2608Z T.SCREW 1
10 LE20538-001A PUSH BUTTON BKE,BKEN1
11 QYSBSF2608Z T.SCREW 3
12 QYSDSG3008M SCREW BKE,BKEN1
16 LE10250-002A CHASSIS BASE 1
17 LE40798-001A SPACER 2
19 LE40768-003A PROTECT SHEET 1
20 QYSBSGG3008E T.SCREW 4
21 QUQB12-1710AM FFC WIRE 1
22 LE20540-001A FL HOLDER 1
23 LE30968-001A FASTENER 2
25 LE30001-031A SPACER 2
26 --------- See 3-5 page
27 LV41659-201A INSULATOR 4
28 LV41424-001A SPECIAL SCREW 4
29 --------30 LV10455-002A TRAY 1
31 LV20913-002A CLAMPER BASE 1
32 LV32417-001A CLAMPER 1
33 LV42089-001A YOKE 1
34 LV41118-003A MAGNET 1
35 LV41741-001A SPECIAL SCREW 1
36 QYSBSF2008Z SCREW 4
38 QYSBSG3010E T.SCREW 3
39 LE20542-071A REAR PANEL BKE,BKEN1
40 QYSBSGY3008M SPECIAL SCREW 1
41 QYSBSGY3008M SPECIAL SCREW 1
42 QYSBSGY3008M SPECIAL SCREW 1
43 QYSBSGY3008M SPECIAL SCREW 3
44 QYSBSGY3008M SPECIAL SCREW 1
45 QYSBSGY3008M SPECIAL SCREW 2
46 QYSBSGY3008M SPECIAL SCREW 1
47 QYSBSGY3008M SPECIAL SCREW 1
Parts number Parts name Area
LE10251-038A FRONT PANEL SLB,SLE,SLEN1
VJD5429-002SS JVC MARK SLB,SLE,SLEN1
LE20537-002A PUSH BUTTON SLB,SLE,SLEN1
LE30899-002A REMOTE LENS SLB,SLE,SLEN1
LE20538-002A PUSH BUTTON SLB,SLE,SLEN1
QYSDSG3008N T.SCREW SLB,SLE,SLEN1
TRAVERSE MECHANISM
LOADING MECHANISM
LE20542-073A REAR PANEL SLB,SLE,SLEN1
Q'ty
1
See 3-7 page
1
REAR + CHASSIS
OPTICAL OUT
COAXIAL
AUDIO OUT
VIDEO OUT
21P OUT
COMPU LINK
AC INLET
Block No. M1MM
Description
Explanation of area column
BKE =XV-S56BK ver.E
SLB =XV-S57SL ver.B
BKEN =XV-S56BK ver.EN
SLE =XV-S57SL ver.E SLEN =XV-S57SL ver.EN
3-3
XV-S56BK/XV-S57SL
Parts list (General assembly)
Item
A
48 QYSBSGY3008M SPECIAL SCREW 1
49 QMF51E2-1R6-J1 FUSE 1
A
50 LE20541-001A/S/ METAL COVER BKE,BKEN1
51 QYSBSGG3008E T.SCREW 3
52 E406308-003 SPECIAL SCREW BKE,BKEN2
53 LE20536-004A FITTING BKE,BKEN1
54 LE40757-001A MARK BKE,BKEN1
Parts number Parts name Area
LE20541-002A/S/ METAL COVER SLB,SLE,SLEN1
E406308-004 SPECIAL SCREW SLB,SLE,SLEN2
LE20536-010A FITTING SLB,SLE,SLEN1
LE40757-002A MARK SLB,SLE,SLEN1
Q'ty
Block No. M1MM
Description
EARTH PLATE
Explanation of area column
BKE =XV-S56BK ver.E
BKEN =XV-S56BK ver.EN
SLB =XV-S57SL ver.B
SLE =XV-S57SL ver.E
SLEN =XV-S57SL ver.EN
3-4
DVD Traverse mechanism assembly and parts list
XV-S56BK/XV-S57SL
Grease
EBS0006-013B
946P-1
CFD-4007ZY2
Block No. M M M2
26
25
21
21
19
28
3
3
2
20
18
16
22
3
16
24
15
17
14
12.0mm 0.2mm
0.2
65.2mm mm
0
5
27
23
13
13
6
4
7
1
10
7
8
9
12
11
29
29
30
30
30
29
3-5
XV-S56BK/XV-S57SL
Parts list (DVD Traverse mechanism assembly)
Item
A
1 LE20520-002A MECHA BASE 1
2 LE20516-001A SPINDLE BASE 1
3 QYSDST2605M TAPPING SCREW 3
4 LE30909-001A HOLDER 1
5 QAR0165-001 FEED MOTOR 1
6 LV41510-001A FEED GEAR 1
7 QYSPSPU2040M SCREW 2
8 LV41512-001A FEED GEAR 1
9 LV41517-001A LEAD SCREW 1
10 LV41511-002A FEED GEAR 1
11 LE40742-001A TORSION SPRING 1
12 QYSDSF2005Z SCREW 1
13 QYSDST2605M TAPPING SCREW 2
14 LE20517-001A HOLDER 1
15 LE40744-001A SPRING 1
16 LV41121-002A SLIDE SHAFT 2
17 QYSDST2605M TAPPING SCREW 1
18 QAL0279-001 OPTICAL PICK-UP 1
19 LE20519-001A ACTUATOR 1
20 LE30886-001A SPRING 1
21 QYSPSPU1740Z SCREW 2
22 LE30888-003A SPRING 1
23 QYSPSPU1420Z SCREW 1
24 LE40743-001A SPRING 1
25 LE40774-001A PLATE 1
26 QYSDST2606Z SCREW 1
27 QAL0284-001 F.P.C.WIRE ASSY 1
28 QAR0162-001 SPINDLE MOTOR 1
29 QYSPSPU1760Z SCREW 3
30 QYYASPF2608N SCREW 3
Parts number Parts name Area
Q'ty
Block No. M2MM
Description
3-6
DVD Loading mechanism assembly and parts list
Block No. M M M3
Grease
UD-24H2
EM-30L
CFD-4007ZY2
XV-S56BK/XV-S57SL
13
10
9
8
3
A
12
11
7
6
4
1
3
2
2
6.85mm 0.1mm
5
14
A
3-7
XV-S56BK/XV-S57SL
Parts list (DVD Loading mechanism assembly)
Item
A
1 LV10454-007A LOADING BASE 1
2 QAR0164-001 MOTOR 1
3 LV42087-001A MOTOR PULLEY 1
4 QYSPSPU1730Z SCREW 1
5 VKZ4777-003 MINI SCREW 1
6 LV42209-001A BELT 1
7 LV42084-002A PULLEYGEAR 1
8 LV42085-002A MIDDLE GEAR 1
9 LV42086-001A IDLE GEAR 1
10 LV32514-002A SLIDE CAM 1
11 LV42348-001A GEAR BRACKET 1
12 QYSBSF2006Z SCREW 1
13 LV20912-002A ELEVATOR 1
14 QUQ110-0610AJ FFC WIRE 1
Electrical parts list (Loading motor board)
Item
A
CN 1
Parts number Parts name Area
QGF1016F3-06
S 1
QSW0910-002
S 2
QSW0910-002
Parts number Parts name Area
Block No. 04
Remarks
CONNECTOR
SWITCH
SWITCH
Q'ty
Block No. M3MM
Description
3-8
XV-S56BK/XV-S57SL
Electrical parts list (Main board)
Item
A
BK801 LE20539-001A FL HOLDER
C 601 NCS31HJ-471X C CAPACITOR
C 603 NCS31HJ-221X C.CAPA. C.M
C 604 NCS31HJ-470X C.CAPA. C.M
C 611 NCS31HJ-471X C CAPACITOR
C 613 NCS31HJ-221X C.CAPA. C.M
C 614 NCS31HJ-470X C.CAPA. C.M
C 621 NCS31HJ-471X C CAPACITOR
C 623 NCS31HJ-221X C.CAPA. C.M
C 624 NCS31HJ-470X C.CAPA. C.M
C 629 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 631 NCS31HJ-471X C CAPACITOR
C 633 NCS31HJ-221X C.CAPA. C.M
C 634 NCS31HJ-470X C.CAPA. C.M
C 639 NCB31CK-104X C CAPACITOR
C 649 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 685 NCS31HJ-471X C CAPACITOR
C 686 NCS31HJ-471X C CAPACITOR
C 694 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 695 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 696 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 697 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 701 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V
C 702 NCB31CK-104X C CAPACITOR
C 704 NCS31HJ-101X C.CAPA. C.M
C 705 NCB31CK-104X C CAPACITOR
C 706 NCB31CK-104X C CAPACITOR
C 707 QETN0JM-107Z E CAPACITOR 100MF 20% 6.3V
C 709 NCS31HJ-331X C.CAPA. C.M
C 711 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 713 NCS31HJ-471X C CAPACITOR
C 714 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 716 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C 717 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 718 QETN0JM-107Z E CAPACITOR 100MF 20% 6.3V
C 719 NCB31CK-104X C CAPACITOR
C 720 QETN0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 728 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 730 QFV21HJ-224Z MF CAPACITOR .22MF 5% 50V
C 731 QFN31HJ-103Z M CAPACITOR .010MF 5% 50V
C 736 NCB31CK-104X C CAPACITOR
C 737 QETN1EM-226Z E CAPACITOR 22MF 20% 25V
C 738 QETN1EM-226Z E CAPACITOR 22MF 20% 25V
C 740 QFN31HJ-102Z M CAPACITOR 1000PF 5% 50V
C 741 QFN31HJ-221Z M.CAPA. I.M 220PF 5% 50V
C 742 QFN31HJ-332Z M CAPACITOR 3300PF 5% 50V
C 744 QFN31HJ-681Z M.CAPA. I.M 680PF 5% 50V
C 745 QFN31HJ-103Z M CAPACITOR .010MF 5% 50V
C 746 QETN1EM-226Z E CAPACITOR 22MF 20% 25V
C 747 QFN31HJ-222Z M CAPACITOR 2200PF 5% 50V
C 750 QFN31HJ-102Z M CAPACITOR 1000PF 5% 50V
C 751 QFN31HJ-221Z M.CAPA. I.M 220PF 5% 50V
C 752 QFN31HJ-332Z M CAPACITOR 3300PF 5% 50V
C 754 QFN31HJ-681Z M.CAPA. I.M 680PF 5% 50V
C 755 QFN31HJ-103Z M CAPACITOR .010MF 5% 50V
C 756 QETN1EM-226Z E CAPACITOR 22MF 20% 25V
C 757 QFN31HJ-222Z M CAPACITOR 2200PF 5% 50V
C 761 QETN1CM-107Z E CAPACITOR 100MF 20% 16V
C 762 QETN1CM-107Z E CAPACITOR 100MF 20% 16V
C 771 QETN1CM-107Z E CAPACITOR 100MF 20% 16V
C 772 QETN1CM-107Z E CAPACITOR 100MF 20% 16V
C 797 NCB31HK-152X C CAPACITOR
C 801 NCB31CK-104X C CAPACITOR
C 802 QEKC1AM-476Z E.CAPACITOR 47MF 20% 10V
C 821 QEKC1HM-475Z E.CAPACITOR 4.7MF 20% 50V
C 902 QFZ9075-683 M CAPACITOR
A
Parts number Parts name Area
.068MF
Block No. 01
Remarks
Item
A
C 906 QCZ9079-102 C CAPACITOR 1000PF
A
C 907 QEZ0452-826 E.CAPACITOR
A
C 908 NZZ000000000500 C CAPACITOR
C 909 NZZ000000000499 C CAPACITOR
C 910 NCS31HJ-221X C.CAPA. C.M
C 913 NZZ000000000499 C CAPACITOR
C 914 QEZ0532-396Z E CAPACITOR 39MF
C 915 NCB31HK-471X C CAPACITOR
C 917 NCB31CK-104X C CAPACITOR
C 918 QCFB1HZ-104Y C CAPACITOR .10MF +80:-20%
C 951 NCS31HJ-101X C.CAPA. C.M
C 952 NCS31HJ-101X C.CAPA. C.M
C 953 NCS31HJ-101X C.CAPA. C.M
C 954 NCS31HJ-101X C.CAPA. C.M
C 956 NCS31HJ-101X C.CAPA. C.M
C 957 NCS31HJ-101X C.CAPA. C.M
C 960 QEZ0529-826Z E CAPACITOR 82MF
C 961 NCB31CK-104X C CAPACITOR
C 962 QETN1HM-226Z E CAPACITOR 22MF 20% 50V
C 963 QEZ0533-396Z E CAPACITOR 39MF
C 964 QETN1HM-226Z E CAPACITOR 22MF 20% 50V
C 965 QEZ0528-108 E CAPACITOR 1000MF
C 966 QETN1AM-477Z E CAPACITOR 470MF 20% 10V
C 967 NCB31CK-104X C CAPACITOR
C 968 NCB31CK-104X C CAPACITOR
C 969 QETN1AM-227Z E CAPACITOR 220MF 20% 10V
C 970 NCB31CK-104X C CAPACITOR
C 973 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 976 NCB31CK-104X C CAPACITOR
C 977 NCB31CK-104X C CAPACITOR
C 978 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 979 QEZ0530-827 E CAPACITOR 820MF
C 981 NCB31CK-104X C CAPACITOR
C 982 QEZ0531-567 E CAPACITOR 560MF
C 984 QETN1EM-227Z E CAPACITOR 220MF 20% 25V
C 985 QETN1CM-227Z E CAPACITOR 220MF 20% 16V
C 987 QEZ0532-187Z E CAPACITOR 180MF
C 989 QETN1EM-107Z E CAPACITOR 100MF 20% 25V
C 992 QETN1HM-474Z E CAPACITOR .47MF 20% 50V
C 993 NCS31HJ-101X C.CAPA. C.M
C 994 NCB31EK-223X C CAPACITOR
C 995 QETN1CM-227Z E CAPACITOR 220MF 20% 16V
C 996 QETN1CM-226Z E CAPACITOR 22MF 20% 16V
C 997 QETN1CM-227Z E CAPACITOR 220MF 20% 16V
C1701 QETN1EM-476Z E CAPACITOR 47MF 20% 25V
C1702 QETN1EM-476Z E CAPACITOR 47MF 20% 25V
C1703 NCS31HJ-151X C CAPACITOR
C1704 NCS31HJ-221X C.CAPA. C.M
C1706 NCB31CK-223X C CAPACITOR
C7920 NCS31HJ-101X C.CAPA. C.M
CN701 QGB2027M8-26 B TO B CONNECTOR
CN702 QGD2501C1-05Z SOCKET I.M
CN703 QGD2501C1-03Z SOCKET
CN704 QGF1205C1-17 CONNECTOR
CN961 QGB2027M8-26 B TO B CONNECTOR
CP951 ICP-N10-T ICP
A
CP952 ICP-N5-T ICP
A
D 609 1SS133-T2 SI DIODE IM
D 619 1SS133-T2 SI DIODE IM
D 629 1SS133-T2 SI DIODE IM
D 639 1SS133-T2 SI DIODE IM
D 701 1SS133-T2 SI DIODE IM
D 702 MTZJ3.3B-T2 ZENER DIODE IM
D 709 1SS133-T2 SI DIODE IM
D 791 1SS133-T2 SI DIODE IM
D 792 1SS133-T2 SI DIODE IM
Parts number Parts name Area
82MF
Remarks
3-9
XV-S56BK/XV-S57SL
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (Main board)
Item
A
D 801 SLR-342VC-T LED STANDBY
D 901 S1WB/A/60-4101 BRIDGE DIODE
A
D 902 F1T4-T2 FR DIODE
A
D 903 F1T4-T2 FR DIODE
A
D 904 F1T4-T2 FR DIODE
A
D 908 F1T4-T2 FR DIODE
A
D 910 F1T4-T2 FR DIODE
A
D 911 1SS133-T2 SI DIODE IM
D 950 MTZJ36C-T2 Z.DIODE I.M
D 951 F1T4-T2 FR DIODE
A
D 952 F1T4-T2 FR DIODE
A
D 953 FMB-24 FUSEIODE
A
D 954 F1T4-T2 FR DIODE
A
D 956 F1T4-T2 FR DIODE
A
D 957 F1T4-T2 FR DIODE
A
D 960 MTZJ4.7B-T2 Z DIODE I M
D 970 1SS133-T2 SI DIODE IM
D 972 1SS133-T2 SI DIODE IM
D 973 1SS133-T2 SI DIODE IM
D 974 1SS133-T2 SI DIODE IM
D 991 MTZJ5.1C-T2 ZENER DIODE
DI801 QLF0085-001 FL TUBE
EP711 QNZ0136-001Z EARTH PLATE
EP951 QNZ0136-001Z EARTH PLATE
FC901 QNG0003-001Z FUSE CLIP
FC902 QNG0003-001Z FUSE CLIP
FW801 QUM123-11DGZ4 PARA RIBON WIRE TO CN703
FW802 QUM125-09DGZ4 PARA RIBON WIRE TO CN702
FW803 QUM123-12Z4Z4 PARA RIBON WIRE TO FW803
HS901 E70306-002 HEAT SINK
IC701 MN101C35DGZ IC SYSTEM MICOM
IC702 IC-PST9140-T IC
IC703 MN35505-X IC C M
IC704 TC7SH08F-X IC C.M
IC705 PQ05RD11 IC
IC741 NJM4580M-X IC
IC751 NJM4580M-X IC
IC801 GP1U271X RM RECIVER
IC901 STR-G6651 IC
A
IC951 PQ05RD21 IC
IC953 NJM78M05FA IC
A
J 603 QNN0434-001 PIN JACK S-/COMP.
J 691 QNZ0516-001 RGB CONNECTOR
J 701 QNN0432-001 OPT TRANSMITTER AUDIO FRONT
J 702 QNS0089-001 3.5 JACK AV COMPULINK
J 703 QNZ0487-001 OPT TRANSMITTER OPT DIGITAL OUT
J 704 QNN0347-001 PIN JACK COAXIAL
K 605 NQR0227-004X FERRITE BEADS
K 701 NQR0227-004X FERRITE BEADS
K 703 NQR0227-004X FERRITE BEADS
K 704 NQR0227-004X FERRITE BEADS
K 705 NQR0227-004X FERRITE BEADS
K 706 NQR0227-004X FERRITE BEADS
K 708 NQR0227-004X FERRITE BEADS
L 601 QQL231K-5R6Y INDUCTOR I.M
L 602 QQL231K-2R2Y INDUCTOR I.M
L 611 QQL231K-5R6Y INDUCTOR I.M
L 612 QQL231K-2R2Y INDUCTOR I.M
L 621 QQL231K-5R6Y INDUCTOR I.M
L 622 QQL231K-2R2Y INDUCTOR I.M
L 631 QQL231K-5R6Y INDUCTOR I.M
L 632 QQL231K-2R2Y INDUCTOR I.M
L 709 QQL231K-2R2Y INDUCTOR I.M
L 901 QQR1105-001 LINE FILTER
A
L 951 QQL244K-R22Z INDUCTOR
L 952 QQL26AK-220Z INDUCTOR
Parts number Parts name Area
Block No. 01
Remarks
Item
A
L 955 QQL26AK-220Z INDUCTOR
L 957 QQL244K-100Z INDUCTOR
L 959 QQL244K-100Z INDUCTOR
P 901 QNC0081-001 AC INLET
PC901 PC123Y02 IC(PHOTO COUPLE
A
PC902 PC123Y02 IC(PHOTO COUPLE
A
A
R 601 NRSA63J-151X MG RESISTOR
R 602 NRSA63J-0R0X MG RESISTOR
R 603 NRSA63J-151X MG RESISTOR
R 604 NRSA63J-0R0X MG RESISTOR
R 605 NRSA63J-221X MG RESISTOR
R 606 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 611 NRSA63J-151X MG RESISTOR
R 612 NRSA63J-0R0X MG RESISTOR
R 613 NRSA63J-151X MG RESISTOR
R 614 NRSA63J-0R0X MG RESISTOR
R 615 NRSA63J-221X MG RESISTOR
R 616 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 621 NRSA63J-151X MG RESISTOR
R 622 NRSA63J-0R0X MG RESISTOR
R 623 NRSA63J-151X MG RESISTOR
R 624 NRSA63J-0R0X MG RESISTOR
R 625 NRSA63J-221X MG RESISTOR
R 629 NRSA63J-680X MG RESISTOR
R 631 NRSA63J-151X MG RESISTOR
R 632 NRSA63J-0R0X MG RESISTOR
R 633 NRSA63J-151X MG RESISTOR
R 634 NRSA63J-0R0X MG RESISTOR
R 635 NRSA63J-221X MG RESISTOR
R 636 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 639 NRSA63J-680X MG RESISTOR
R 649 NRSA63J-680X MG RESISTOR
R 650 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 681 NRSA63J-301X MG RESISTOR
R 685 NRSA63J-151X MG RESISTOR
R 686 NRSA63J-151X MG RESISTOR
R 687 NRSA63J-680X MG RESISTOR
R 688 NRSA63J-680X MG RESISTOR
R 694 NRSA63J-680X MG RESISTOR
R 695 NRSA63J-680X MG RESISTOR
R 697 NRSA63J-102X MG RESISTOR
R 698 NRSA63J-104X MG RESISTOR
R 699 NRSA63J-301X MG RESISTOR
R 701 NRSA63J-102X MG RESISTOR
R 702 NRSA63J-472X MG RESISTOR
Parts number Parts name Area
601 KTA1267/G/-T TR I/M
611 KTA1267/G/-T TR I/M
621 KTA1267/G/-T TR I/M
631 KTA1267/G/-T TR I/M
691 KRC102S-X DIGITAL.TR
692 KRC102S-X DIGITAL.TR
696 KRA102S-X DIGITAL.TR
697 KRC102S-X DIGITAL.TR
709 KRC107S-X DIGITAL.TR
743 2SD2144S/VW/-T TRANSISTOR AMUTE1
744 2SD2144S/VW/-T TRANSISTOR
753 2SD2144S/VW/-T TRANSISTOR AMUTE1
754 2SD2144S/VW/-T TRANSISTOR
791 KRA102S-X DIGITAL.TR
951 KTD863/Y/-T TRANSISTOR
952 KRA104S-X DIGITAL.TR
953 KTA1267/G/-T TR I/M
964 2SB1184/QR/-X TRANSISTOR
965 KTC3199/Y/-T TR I/M
966 KTA1267/G/-T TR I/M
991 KTC3199/Y/-T TR I/M
Remarks
3-10
XV-S56BK/XV-S57SL
Electrical parts list (Main board)
Item
A
R 703 NRSA63J-105X MG RESISTOR
R 704 NRSA63J-102X MG RESISTOR
R 705 NRSA63J-2R2X MG RESISTOR
R 706 NRSA63J-104X MG RESISTOR
R 708 NRSA63J-101X MG RESISTOR
R 709 NRSA63J-103X MG RESISTOR
R 711 NRSA63J-100X MG RESISTOR
R 713 NRSA63J-100X MG RESISTOR
R 715 NRSA63J-100X MG RESISTOR
R 717 NRSA63J-100X MG RESISTOR
R 721 NRSA63J-471X MG RESISTOR
R 723 NRSA63J-471X MG RESISTOR
R 724 NRSA63J-471X MG RESISTOR
R 725 NRSA63J-471X MG RESISTOR
R 728 NRSA63J-471X MG RESISTOR
R 729 NRSA63J-471X MG RESISTOR
R 731 NRSA63J-332X MG RESISTOR
R 740 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 741 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 742 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 743 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 744 NRSA63J-362X MG RESISTOR
R 745 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 746 NRSA63J-332X MG RESISTOR
R 747 NRSA63J-362X MG RESISTOR
R 748 NRSA63J-112X MG RESISTOR
R 750 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 751 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 752 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 753 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 754 NRSA63J-362X MG RESISTOR
R 755 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 756 NRSA63J-332X MG RESISTOR
R 757 NRSA63J-362X MG RESISTOR
R 758 NRSA63J-112X MG RESISTOR
R 761 NRSA63J-112X MG RESISTOR
R 762 NRSA63J-681X MG RESISTOR
R 763 NRSA63J-362X MG RESISTOR
R 764 NRSA63J-183X MG RESISTOR
R 765 NRSA63J-561X MG RESISTOR
R 766 NRSA63J-273X MG RESISTOR
R 767 NRSA63J-101X MG RESISTOR
R 768 NRSA63J-103X MG RESISTOR
R 769 NRSA63J-103X MG RESISTOR
R 771 NRSA63J-112X MG RESISTOR
R 772 NRSA63J-681X MG RESISTOR
R 773 NRSA63J-362X MG RESISTOR
R 774 NRSA63J-183X MG RESISTOR
R 775 NRSA63J-561X MG RESISTOR
R 776 NRSA63J-273X MG RESISTOR
R 777 NRSA63J-101X MG RESISTOR
R 778 NRSA63J-103X MG RESISTOR
R 779 NRSA63J-103X MG RESISTOR
R 780 NRSA63J-102X MG RESISTOR
R 781 NRSA63J-102X MG RESISTOR
R 782 NRSA63J-221X MG RESISTOR
R 783 NRSA63J-221X MG RESISTOR
R 786 NRSA63J-333X MG RESISTOR
R 790 NRSA63J-102X MG RESISTOR
R 791 NRSA63J-102X MG RESISTOR
R 792 NRSA63J-221X MG RESISTOR
R 793 NRSA63J-221X MG RESISTOR
R 795 NRSA63J-472X MG RESISTOR
R 797 NRSA63J-473X MG RESISTOR
R 801 NRSA63J-331X MG RESISTOR
R 845 NRSA63J-431X MG RESISTOR
Parts number Parts name Area
Block No. 01
Remarks
Item
A
R 846 NRSA63J-681X MG RESISTOR
R 847 NRSA63J-112X MG RESISTOR
R 848 NRSA63J-222X MG RESISTOR
R 900 NRSA63J-221X MG RESISTOR
R 901 QRL01DJ-683X OMF RESISTOR 68K 5% 1/1W
A
R 903 QRE141J-390Y C RESISTOR 39 5% 1/4W
A
R 904 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 905 QRL027J-683 OMF RESISTOR 68K 5% 1/2W
R 906 QRE141J-681Y C RESISTOR 680 5% 1/4W
R 907 QRT022J-R47 OMF RESISTOR 5% 1/2W
A
R 908 QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R 910 QRE141J-754Y C RESISTOR 750K 5% 1/4W
R 911 QRE141J-754Y C RESISTOR 750K 5% 1/4W
R 952 NRSA63J-103X MG RESISTOR
R 953 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 954 QRZ9005-100X F.RES I/M
A
R 955 NRSA63J-223X MG RESISTOR
R 956 QRE141J-120Y C RESISTOR 12 5% 1/4W
R 960 QRE141J-101Y C RESISTOR 100 5% 1/4W
R 961 NRSA63J-681X MG RESISTOR
R 962 NRSA63J-105X MG RESISTOR
R 963 NRSA63J-101X MG RESISTOR
R 964 NRSA63J-105X MG RESISTOR
R 965 NRSA63J-103X MG RESISTOR
R 969 NRSA63J-221X MG RESISTOR
R 971 NRSA63J-392X MG RESISTOR
R 972 NRSA63J-122X MG RESISTOR
R 973 NRSA63J-102X MG RESISTOR
R 974 NRSA63J-562X MG RESISTOR
R 975 NRSA63J-562X MG RESISTOR
R 976 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 980 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R1709 NRSA63J-102X MG RESISTOR
R1710 NRSA63J-102X MG RESISTOR
R1713 NRSA63J-101X MG RESISTOR
R1714 NRSA63J-472X MG RESISTOR
R1716 NRSA63J-102X MG RESISTOR
R1721 NRSA63J-331X MG RESISTOR
R1722 NRSA63J-750X MG RESISTOR
R1723 NRSA63J-270X MG RESISTOR
R1724 NRSA63J-101X MG RESISTOR
R1728 NRSA63J-222X MG RESISTOR
R1729 NRSA63J-222X MG RESISTOR
R1730 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1731 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R1732 QRE141J-100Y C RESISTOR 10 5% 1/4W
R7020 NRSA63J-100X MG RESISTOR
R7103 QRE141J-271Y C RESISTOR 270 5% 1/4W
S 691 QSW0454-001 SW
S 801 QSW0651-001Z TACT SWITCH
S 821 QSW0651-001Z TACT SWITCH
S 831 QSW0651-001Z TACT SWITCH
S 832 QSW0651-001Z TACT SWITCH
S 833 QSW0651-001Z TACT SWITCH
S 834 QSW0651-001Z TACT SWITCH
S 835 QSW0651-001Z TACT SWITCH
T 701 QQR1185-001 PULSE TRANS
T 901 QQS0100-001 SW TRANSF
A
X 701 QAX0667-001Z RESONATOR I.M
Parts number Parts name Area
10 1/0W
Remarks
3-11
XV-S56BK/XV-S57SL
Electrical parts list (Servo control board)
Item
A
C 1 NCB31CK-104X C CAPACITOR
C 2 NEA70JM-226X E CAPACITOR
C 3 NEA70JM-226X E CAPACITOR
C 4 NCB31CK-104X C CAPACITOR
C 5 NEA70JM-226X E CAPACITOR
C 6 NCB31CK-104X C CAPACITOR
C 11 NEA70JM-107X E.CAPACITOR
C 12 NCB31CK-104X C CAPACITOR
C 15 NCB31CK-104X C CAPACITOR
C 16 NEA70GM-336X E CAPACITOR
C 17 NCB31CK-104X C CAPACITOR
C 101 NCB31CK-104X C CAPACITOR
C 104 NCB31CK-104X C CAPACITOR
C 105 NEA70JM-476X E.CAPACITOR
C 106 NEA70JM-476X E.CAPACITOR
C 107 NCB31CK-104X C CAPACITOR
C 108 NCB31CK-104X C CAPACITOR
C 109 NCB31CK-104X C CAPACITOR
C 118 NCB21CK-154X C.CAPA. C.M
C 119 NCS31HJ-221X C.CAPA. C.M
C 120 NCS31HJ-820X C CAPACITOR
C 121 NCS31HJ-220X C CAPACITOR
C 122 NCB31HK-181X C CAPACITOR
C 123 NCB31CK-104X C CAPACITOR
C 124 NCB31CK-104X C CAPACITOR
C 125 NCB31CK-104X C CAPACITOR
C 126 NEX40JM-566X E CAPACITOR
C 127 NCB31HK-102X C CAPACITOR
C 128 NCB31CK-104X C CAPACITOR
C 130 NCB31CK-104X C CAPACITOR
C 131 NCS31HJ-120X C.CAPA. C.M
C 132 NCB31CK-104X C CAPACITOR
C 133 NCB31HK-561X C CAPACITOR
C 134 NCB31HK-561X C CAPACITOR
C 135 NCB31CK-273X C CAPACITOR
C 136 NCB31CK-473X C CAPACITOR
C 138 NCB31CK-104X C CAPACITOR
C 139 NCB31CK-104X C CAPACITOR
C 140 NEA70JM-226X E CAPACITOR
C 141 NCB31CK-104X C CAPACITOR
C 143 NCB31CK-104X C CAPACITOR
C 144 NCB31CK-104X C CAPACITOR
C 145 NCB31CK-103X C CAPACITOR
C 151 NEA70JM-226X E CAPACITOR
C 152 NEX40JM-156X E.CAPACITOR
C 159 NCB31CK-104X C CAPACITOR
C 160 NCB31CK-104X C CAPACITOR
C 161 NEA70GM-336X E CAPACITOR
C 201 NCB11CK-474X C.CAPA. C.M
C 202 NCB31HK-561X C CAPACITOR
C 203 NCB31HK-561X C CAPACITOR
C 204 NCB31HK-331X C CAPACITOR
C 205 NCS31HJ-121X C CAPACITOR
C 206 NCS31HJ-271X C CAPACITOR
C 207 NCB31HK-471X C CAPACITOR
C 208 NCB31CK-104X C CAPACITOR
C 209 NCB31HK-102X C CAPACITOR
C 210 NCB31HK-102X C CAPACITOR
C 212 NCB31CK-104X C CAPACITOR
C 213 NCB31CK-104X C CAPACITOR
C 214 NCB31CK-104X C CAPACITOR
C 215 NEA70JM-336X E CAPACITOR
C 216 NCB11CK-105X C CAPACITOR
C 217 NEA70JM-107X E.CAPACITOR
C 218 NCB31CK-104X C CAPACITOR
C 219 NEA70JM-107X E.CAPACITOR
Parts number Parts name Area
Block No. 02
Remarks
Item
A
C 220 NCB11CK-105X C CAPACITOR
C 221 NCB31HK-561X C CAPACITOR
C 222 NCB31CK-104X C CAPACITOR
C 223 NCB31CK-104X C CAPACITOR
C 224 NCB31CK-104X C CAPACITOR
C 225 NBE91CM-105X E CAPACITOR
C 227 NCB31HK-102X C CAPACITOR
C 228 NCB31HK-102X C CAPACITOR
C 229 NCB31CK-104X C CAPACITOR
C 231 NCB31CK-103X C CAPACITOR
C 232 NCB31HK-102X C CAPACITOR
C 233 NCB31CK-104X C CAPACITOR
C 237 NCB31CK-104X C CAPACITOR
C 238 NCB31CK-104X C CAPACITOR
C 239 NCB31CK-183X C CAPACITOR
C 240 NCS31HJ-101X C.CAPA. C.M
C 241 NCB31CK-103X C CAPACITOR
C 242 NCB11CK-105X C CAPACITOR
C 244 NCB31CK-104X C CAPACITOR
C 245 NCB31CK-103X C CAPACITOR
C 246 NCB31CK-104X C CAPACITOR
C 247 NCB31CK-104X C CAPACITOR
C 248 NCB21CK-154X C.CAPA. C.M
C 249 NCB31CK-104X C CAPACITOR
C 251 NCB31CK-104X C CAPACITOR
C 252 NEA71CM-226X E.CAPAP. C.M
C 253 NCB31CK-104X C CAPACITOR
C 254 NEA70JM-226X E CAPACITOR
C 255 NCB31HK-223X C CAPACITOR
C 256 NCB31CK-104X C CAPACITOR
C 257 NCB31CK-103X C CAPACITOR
C 258 NCB31CK-103X C CAPACITOR
C 259 NCB31CK-103X C CAPACITOR
C 260 NCB31CK-104X C CAPACITOR
C 261 NCB31CK-104X C CAPACITOR
C 262 NCB31CK-104X C CAPACITOR
C 263 NCB31CK-104X C CAPACITOR
C 264 NCB31CK-103X C CAPACITOR
C 271 NEA70JM-226X E CAPACITOR
C 273 NCB31CK-104X C CAPACITOR
C 274 NCB31CK-104X C CAPACITOR
C 275 NCB31HK-271X C CAPACITOR
C 277 NCB31HK-102X C CAPACITOR
C 278 NCB31HK-102X C CAPACITOR
C 281 NCB31HK-223X C CAPACITOR
C 282 NCB31CK-103X C CAPACITOR
C 286 NEA71HM-105X E.CAPA. C.M.
C 287 NCB31CK-104X C CAPACITOR
C 288 NEA71HM-105X E.CAPA. C.M.
C 301 NCB31CK-104X C CAPACITOR
C 302 NCB31CK-104X C CAPACITOR
C 303 NCB31CK-104X C CAPACITOR
C 304 NCB31CK-104X C CAPACITOR
C 305 NCB31CK-104X C CAPACITOR
C 306 NCB31CK-104X C CAPACITOR
C 307 NCB31CK-104X C CAPACITOR
C 309 NCB31CK-104X C CAPACITOR
C 310 NCB31CK-104X C CAPACITOR
C 311 NCB31CK-104X C CAPACITOR
C 312 NCS31HJ-180X C CAPACITOR
C 313 NCS31HJ-180X C CAPACITOR
C 314 NCB31CK-104X C CAPACITOR
C 315 NCB31CK-104X C CAPACITOR
C 316 NEA70GM-107X E CAPACITOR
C 317 NCB11CK-105X C CAPACITOR
C 318 NCB31CK-104X C CAPACITOR
Parts number Parts name Area
Remarks
3-12
XV-S56BK/XV-S57SL
Q
Q
Q
Electrical parts list (Servo control board)
Item
A
C 319 NCB31CK-104X C CAPACITOR
C 320 NCB31CK-104X C CAPACITOR
C 321 NCB31CK-104X C CAPACITOR
C 324 NCB31CK-104X C CAPACITOR
C 326 NCB31CK-104X C CAPACITOR
C 327 NEA70GM-107X E CAPACITOR
C 341 NCB31CK-104X C CAPACITOR
C 342 NCB31CK-104X C CAPACITOR
C 343 NCB31CK-104X C CAPACITOR
C 344 NCB31CK-104X C CAPACITOR
C 345 NEA70JM-107X E.CAPACITOR
C 346 NCB11CK-105X C CAPACITOR
C 401 NCB31CK-104X C CAPACITOR
C 402 NCB31CK-104X C CAPACITOR
C 405 NCB31CK-104X C CAPACITOR
C 406 NCB31CK-104X C CAPACITOR
C 407 NCB31CK-104X C CAPACITOR
C 408 NEA70JM-226X E CAPACITOR
C 409 NCB31CK-104X C CAPACITOR
C 410 NCB31CK-104X C CAPACITOR
C 411 NCB31CK-104X C CAPACITOR
C 412 NCB31CK-104X C CAPACITOR
C 501 NCB31CK-104X C CAPACITOR
C 502 NCB31CK-104X C CAPACITOR
C 503 NCB31CK-104X C CAPACITOR
C 504 NCB31CK-104X C CAPACITOR
C 505 NCB31CK-104X C CAPACITOR
C 506 NCB31CK-104X C CAPACITOR
C 507 NCB31CK-104X C CAPACITOR
C 508 NCB31CK-104X C CAPACITOR
C 509 NCB31CK-104X C CAPACITOR
C 510 NCB31CK-104X C CAPACITOR
C 511 NCB31CK-104X C CAPACITOR
C 512 NCB31CK-104X C CAPACITOR
C 513 NCB31CK-104X C CAPACITOR
C 514 NCB31CK-104X C CAPACITOR
C 515 NCB31CK-104X C CAPACITOR
C 516 NCB31CK-104X C CAPACITOR
C 517 NCB31CK-104X C CAPACITOR
C 518 NCB31CK-104X C CAPACITOR
C 519 NCB31CK-104X C CAPACITOR
C 520 NCB31CK-104X C CAPACITOR
C 521 NCB31CK-104X C CAPACITOR
C 522 NCB31CK-104X C CAPACITOR
C 523 NCB31CK-104X C CAPACITOR
C 524 NCB31CK-104X C CAPACITOR
C 525 NCB31CK-104X C CAPACITOR
C 526 NCB31CK-104X C CAPACITOR
C 527 NCB31CK-104X C CAPACITOR
C 528 NCB31CK-104X C CAPACITOR
C 529 NCB31CK-104X C CAPACITOR
C 530 NEA70JM-107X E.CAPACITOR
C 531 NCB31CK-104X C CAPACITOR
C 532 NCB31CK-104X C CAPACITOR
C 533 NCB31CK-104X C CAPACITOR
C 534 NEA70JM-107X E.CAPACITOR
C 535 NCB31CK-104X C CAPACITOR
C 536 NCB31CK-103X C CAPACITOR
C 537 NEA70JM-226X E CAPACITOR
C 538 NCB31CK-104X C CAPACITOR
C 539 NCB31CK-104X C CAPACITOR
C 540 NEA70GM-476X E.CAPA. C.M.
C 541 NCB31CK-104X C CAPACITOR
C 544 NCB31CK-104X C CAPACITOR
C 547 NCB31CK-104X C CAPACITOR
C 556 NEA70JM-107X E.CAPACITOR
Parts number Parts name Area
Block No. 02
Remarks
Item
A
C 557 NCB31CK-104X C CAPACITOR
C 561 NCB31CK-104X C CAPACITOR
C 562 NEA70JM-226X E CAPACITOR
C 566 NCB31CK-104X C CAPACITOR
C 567 NEA70JM-226X E CAPACITOR
CN101 QGF0501F2-30X FC/FPC CONNECTOR PU
CN201 QGF1016F2-15W CONNECTOR C.M PU
CN202 QGF1016F2-06W W TO B CONNECTOR PU
CN502 QGB2027L1-26X B TO B CONNECTOR SYSTEM
CN503 QGB2027L1-26X B TO B CONNECTOR SYSTEM
D 501 1SR154-400-X DIODE
IC 1 MM3023DN-X IC
IC101 AN8702FH IC
IC102 MM3022JN-X IC
IC201 MN67706ZY IC
IC202 TC7WT125FU-X IC(DIGITAL)
IC251 BA6664FM-X LSI
IC271 BA5983FM-X IC
IC301 MN103S13BDA IC
IC311 TC7SH08FU-X IC
IC312 TC7SH32FU-X IC
IC321 TC7WH74FU-X IC
IC322 TC74VHC00FT-X IC
IC401 MN102L25GGX2 IC
IC402 K3N5C1000D-J024 IC
IC403 BR93LC66F-X IC
IC501 ZIVA-4.1-PA2 IC
IC502 NAX0393-001X CXO C.M 27MHZ
IC503 TC74VHC00FT-X IC
IC504 W986416DH-7 IC
K 102 NQR0007-002X FERRITE BEADS
K 103 NQR0007-002X FERRITE BEADS
K 201 NQR0007-002X FERRITE BEADS
K 202 NQR0007-002X FERRITE BEADS
K 203 NQR0007-002X FERRITE BEADS
K 301 NQR0007-002X FERRITE BEADS
K 302 NQR0007-002X FERRITE BEADS
K 303 NQR0007-002X FERRITE BEADS
K 401 NQR0007-002X FERRITE BEADS
K 402 NQR0007-002X FERRITE BEADS
K 501 NQR0007-002X FERRITE BEADS
K 502 NQR0007-002X FERRITE BEADS
K 503 NQR0007-002X FERRITE BEADS
K 504 NQR0201-001X FERRITE BEADS
K 505 NQR0269-001X FERRITE BEADS
K 506 NQR0007-002X FERRITE BEADS
K 561 NQR0007-002X FERRITE BEADS
L 1 NQL044K-100X INDUCTOR
R 1 NRSA63J-100X MG RESISTOR
R 101 NRSA63J-103X MG RESISTOR
R 102 NRSA63J-333X MG RESISTOR
R 103 NRSA63J-333X MG RESISTOR
R 104 NRS125J-270X MG RESISTOR
R 105 NRS125J-270X MG RESISTOR
R 106 NRSA63J-2R2X MG RESISTOR
R 107 NRSA63J-2R2X MG RESISTOR
R 108 NRSA63J-184X MG RESISTOR
R 110 NRSA63J-273X MG RESISTOR
R 112 NRSA63J-273X MG RESISTOR
R 113 NRSA63J-682X MG RESISTOR
R 114 NRSA63J-102X MG RESISTOR
R 115 NRVA63D-243X RES. C.M
R 116 NRSA63J-683X MG RESISTOR
Parts number Parts name Area
1 KTC4377/C/-X POW TRANSISTOR
101 KTA1001/Y/-X TRANSISTOR
102 KTA1001/Y/-X TRANSISTOR
Remarks
3-13
XV-S56BK/XV-S57SL
Electrical parts list (Servo control board)
Item
A
R 117 NRSA63J-123X MG RESISTOR
R 118 NRSA63J-303X MG RESISTOR
R 121 NRSA63J-0R0X MG RESISTOR
R 122 NRSA63J-0R0X MG RESISTOR
R 123 NRSA63J-0R0X MG RESISTOR
R 124 NRSA63J-0R0X MG RESISTOR
R 125 NQR0265-003X FERRITE BEADS
R 127 NRSA63J-222X MG RESISTOR
R 128 NRSA63J-105X MG RESISTOR
R 129 NRSA63J-105X MG RESISTOR
R 131 NRSA63J-822X MG RESISTOR
R 132 NRSA63J-103X MG RESISTOR
R 147 NRSA63J-0R0X MG RESISTOR
R 152 NRS125J-1R0X MG RESISTOR
R 153 NRS125J-4R7X MG RESISTOR
R 155 NRSA63J-0R0X MG RESISTOR
R 165 NRSA63J-0R0X MG RESISTOR
R 166 NRSA63J-182X MG RESISTOR
R 202 NRSA63J-473X MG RESISTOR
R 203 NRSA63J-473X MG RESISTOR
R 204 NRSA63J-473X MG RESISTOR
R 205 NRSA63J-473X MG RESISTOR
R 206 NRS125J-4R7X MG RESISTOR
R 208 NRSA63J-473X MG RESISTOR
R 209 NRSA63J-123X MG RESISTOR
R 210 NRSA63J-473X MG RESISTOR
R 211 NRSA63J-273X MG RESISTOR
R 212 NRSA63J-273X MG RESISTOR
R 213 NRSA63J-562X MG RESISTOR
R 214 NRSA63J-123X MG RESISTOR
R 215 NRSA63J-105X MG RESISTOR
R 218 NRSA63J-153X MG RESISTOR
R 219 NRSA63J-473X MG RESISTOR
R 220 NRSA63J-473X MG RESISTOR
R 223 NRSA63J-473X MG RESISTOR
R 224 NRSA63J-0R0X MG RESISTOR
R 225 NRSA63J-682X MG RESISTOR
R 226 NRSA63J-123X MG RESISTOR
R 227 NRSA63J-102X MG RESISTOR
R 228 NRSA63J-183X MG RESISTOR
R 229 NRSA63J-273X MG RESISTOR
R 230 NRSA63J-273X MG RESISTOR
R 231 NRSA63J-0R0X MG RESISTOR
R 232 NRSA63J-472X MG RESISTOR
R 233 NRSA63J-472X MG RESISTOR
R 234 NRSA63J-472X MG RESISTOR
R 235 NRSA63J-0R0X MG RESISTOR
R 236 NRSA63J-0R0X MG RESISTOR
R 237 NRSA63J-221X MG RESISTOR
R 238 NRSA63J-221X MG RESISTOR
R 239 NRSA63J-221X MG RESISTOR
R 240 NRSA63J-221X MG RESISTOR
R 241 NRSA63J-221X MG RESISTOR
R 242 NRSA63J-102X MG RESISTOR
R 243 NRSA63J-102X MG RESISTOR
R 245 NRSA63J-102X MG RESISTOR
R 246 NRSA63J-102X MG RESISTOR
R 248 NRSA63J-473X MG RESISTOR
R 249 NRSA63J-473X MG RESISTOR
R 250 NRSA63J-473X MG RESISTOR
R 251 NRS125J-1R0X MG RESISTOR
R 252 NRSA63J-3R3X MG RESISTOR
R 254 NRSA63J-203X MG RESISTOR
R 255 NRSA63J-103X MG RESISTOR
R 256 NRSA63J-470X MG RESISTOR
R 257 NRS125J-1R0X MG RESISTOR
Parts number Parts name Area
Block No. 02
Remarks
Item
A
R 258 NRSA63J-0R0X MG RESISTOR
R 259 NRSA63J-103X MG RESISTOR
R 271 NRSA63J-470X MG RESISTOR
R 272 NRS125J-1R0X MG RESISTOR
R 273 NRSA63J-0R0X MG RESISTOR
R 274 NRSA63J-103X MG RESISTOR
R 275 NRSA63J-103X MG RESISTOR
R 276 NRSA63J-123X MG RESISTOR
R 277 NRSA63J-123X MG RESISTOR
R 278 NRSA63J-103X MG RESISTOR
R 279 NRSA63J-103X MG RESISTOR
R 280 NRSA63J-242X MG RESISTOR
R 281 NRSA63J-242X MG RESISTOR
R 282 NRSA63J-103X MG RESISTOR
R 283 NRSA63J-103X MG RESISTOR
R 284 NRSA63J-103X MG RESISTOR
R 285 NRSA63J-103X MG RESISTOR
R 286 NRSA63J-912X MG RESISTOR
R 288 NRSA63J-0R0X MG RESISTOR
R 289 NRSA63J-752X MG RESISTOR
R 290 NRSA63J-752X MG RESISTOR
R 291 NRSA63J-682X MG RESISTOR
R 292 NRSA63J-103X MG RESISTOR
R 293 NRSA63J-912X MG RESISTOR
R 301 NRSA63J-473X MG RESISTOR
R 302 NRSA63J-473X MG RESISTOR
R 303 NRSA63J-473X MG RESISTOR
R 304 NRSA63J-473X MG RESISTOR
R 305 NRSA63J-473X MG RESISTOR
R 306 NRSA63J-473X MG RESISTOR
R 307 NRSA63J-473X MG RESISTOR
R 308 NRSA63J-473X MG RESISTOR
R 309 NRSA63J-103X MG RESISTOR
R 310 NRSA63J-102X MG RESISTOR
R 311 NRSA63J-102X MG RESISTOR
R 312 NRSA63J-102X MG RESISTOR
R 316 NRSA63J-105X MG RESISTOR
R 317 NRSA63J-0R0X MG RESISTOR
R 318 NRSA63J-0R0X MG RESISTOR
R 322 NRSA63J-473X MG RESISTOR
R 324 NRSA63J-473X MG RESISTOR
R 328 NRSA63J-473X MG RESISTOR
R 342 NRSA63J-0R0X MG RESISTOR
R 343 NRSA63J-102X MG RESISTOR
R 345 NRSA63J-562X MG RESISTOR
R 346 NRSA63J-472X MG RESISTOR
R 347 NRSA63J-102X MG RESISTOR
R 348 NRSA63J-102X MG RESISTOR
R 349 NRSA63J-102X MG RESISTOR
R 350 NRSA63J-102X MG RESISTOR
R 364 NRSA63J-0R0X MG RESISTOR
R 403 NRSA63J-472X MG RESISTOR
R 405 NRSA63J-472X MG RESISTOR
R 408 NRSA63J-472X MG RESISTOR
R 411 NRSA63J-472X MG RESISTOR
R 412 NRSA63J-103X MG RESISTOR
R 413 NRSA63J-472X MG RESISTOR
R 414 NRSA63J-472X MG RESISTOR
R 415 NRSA63J-472X MG RESISTOR
R 416 NRSA63J-472X MG RESISTOR
R 417 NRSA63J-472X MG RESISTOR
R 418 NRSA63J-472X MG RESISTOR
R 423 NRSA63J-0R0X MG RESISTOR
R 424 NRSA63J-0R0X MG RESISTOR
R 425 NRSA63J-0R0X MG RESISTOR
R 431 NRSA63J-472X MG RESISTOR
Parts number Parts name Area
Remarks
3-14
XV-S56BK/XV-S57SL
Electrical parts list (Servo control board)
Item
A
R 432 NRSA63J-472X MG RESISTOR
R 501 NRSA63J-102X MG RESISTOR
R 502 NRSA63J-472X MG RESISTOR
R 504 NRSA63J-330X MG RESISTOR
R 506 NRSA63J-330X MG RESISTOR
R 507 NRSA63J-330X MG RESISTOR
R 508 NRSA63J-330X MG RESISTOR
R 509 NRSA63J-330X MG RESISTOR
R 510 NRSA63J-330X MG RESISTOR
R 511 NRSA63J-330X MG RESISTOR
R 512 NRSA63J-330X MG RESISTOR
R 513 NRSA63J-330X MG RESISTOR
R 514 NRSA63J-330X MG RESISTOR
R 515 NRSA63J-330X MG RESISTOR
R 516 NRSA63J-330X MG RESISTOR
R 517 NRSA63J-330X MG RESISTOR
R 518 NRSA63J-330X MG RESISTOR
R 519 NRSA63J-330X MG RESISTOR
R 520 NRSA63J-330X MG RESISTOR
R 521 NRSA63J-330X MG RESISTOR
R 522 NRSA63J-330X MG RESISTOR
R 524 NRSA63J-181X MG RESISTOR
R 525 NRSA63J-181X MG RESISTOR
R 526 NRSA63J-181X MG RESISTOR
R 527 NRSA63J-181X MG RESISTOR
R 528 NRSA63J-102X MG RESISTOR
R 529 NRSA63J-181X MG RESISTOR
R 531 NRSA63J-330X MG RESISTOR
R 532 NRSA63J-102X MG RESISTOR
R 533 NRSA63J-330X MG RESISTOR
R 534 NRSA63J-330X MG RESISTOR
R 535 NRSA63J-330X MG RESISTOR
R 536 NRSA63J-330X MG RESISTOR
R 537 NRSA63J-330X MG RESISTOR
R 538 NRSA63J-330X MG RESISTOR
R 539 NRSA63J-330X MG RESISTOR
R 540 NRSA63J-330X MG RESISTOR
R 541 NRSA63J-0R0X MG RESISTOR
R 542 NRSA63J-0R0X MG RESISTOR
R 543 NRSA63J-0R0X MG RESISTOR
R 545 NRSA63J-472X MG RESISTOR
R 546 NRSA63J-181X MG RESISTOR
R 547 NRSA63J-222X MG RESISTOR
R 548 NRSA63J-332X MG RESISTOR
R 549 NRSA63J-0R0X MG RESISTOR
R 551 NQR0007-002X FERRITE BEADS
R 552 NRSA63J-0R0X MG RESISTOR
R 554 NQR0007-002X FERRITE BEADS
R 555 NRSA02J-0R0X MG RESISTOR
R 556 NQR0007-002X FERRITE BEADS
R 557 NQR0007-002X FERRITE BEADS
R 582 NQR0007-002X FERRITE BEADS
R 583 NQR0007-002X FERRITE BEADS
R 584 NQR0007-002X FERRITE BEADS
R 585 NQR0007-002X FERRITE BEADS
R 586 NQR0007-002X FERRITE BEADS
R 587 NQR0007-002X FERRITE BEADS
R 588 NQR0007-002X FERRITE BEADS
R1201 NRSA63J-183X MG RESISTOR
X 301 NAX0375-001X CRYSTAL 16.9344MHZ
X 401 NAX0331-001X C RESONATOR
Parts number Parts name Area
Block No. 02
Remarks
3-15
XV-S56BK/XV-S57SL
Q
Q
Q
Q
Electrical parts list (Surround audio board)
Item
A
BK811 E409182-001SM GRAND TERMINAL
C 838 QFLC1HJ-102Z M CAPACITOR 1000PF 5% 50V
C 839 QFLC1HJ-102Z M CAPACITOR 1000PF 5% 50V
C 841 QFLC1HJ-472Z M CAPACITOR 4700PF 5% 50V
C 842 QFLC1HJ-472Z M CAPACITOR 4700PF 5% 50V
C 843 QTE1E28-476Z E CAPACITOR
C 844 QTE1E28-476Z E CAPACITOR
C 845 QTE1C28-227Z E CAPACITOR
C 846 QTE1C28-227Z E CAPACITOR
C 847 QTE1C28-227Z E CAPACITOR
C 848 QTE1C28-227Z E CAPACITOR
C 849 QFN31HJ-102Z M CAPACITOR 1000PF 5% 50V
C 850 QFN31HJ-102Z M CAPACITOR 1000PF 5% 50V
C 851 QFLC1HJ-123Z M CAPACITOR .012MF 5% 50V
C 852 QFLC1HJ-123Z M CAPACITOR .012MF 5% 50V
C 853 QFLC1HJ-221Z M.CAPA. I.M 220PF 5% 50V
C 854 QFLC1HJ-221Z M.CAPA. I.M 220PF 5% 50V
C 855 QFN31HJ-682Z M CAPACITOR 6800PF 5% 50V
C 856 QFN31HJ-682Z M CAPACITOR 6800PF 5% 50V
C 857 QFLC1HJ-182Z M CAPACITOR 1800PF 5% 50V
C 858 QFLC1HJ-182Z M CAPACITOR 1800PF 5% 50V
C 859 QTE0J28-477Z E CAPACITOR
C 860 QTE0J28-477Z E CAPACITOR
C 861 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 862 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 863 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 864 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 866 QFN31HJ-103Z M CAPACITOR .010MF 5% 50V
C 867 QFVJ1HJ-224Z MF CAPACITOR .22MF 5% 50V
C 868 QTE0J28-477Z E CAPACITOR
C 869 QFLC1HJ-152Z M CAPACITOR 1500PF 5% 50V
C 871 QFLC1HJ-152Z M CAPACITOR 1500PF 5% 50V
C 873 QFLC1HJ-472Z M CAPACITOR 4700PF 5% 50V
C 874 QFLC1HJ-472Z M CAPACITOR 4700PF 5% 50V
C 875 QTE1E28-476Z E CAPACITOR
C 876 QTE1E28-476Z E CAPACITOR
C 877 QTE1C28-227Z E CAPACITOR
C 878 QTE1C28-227Z E CAPACITOR
C 879 QTE1C28-227Z E CAPACITOR
C 880 QTE1C28-227Z E CAPACITOR
C 881 QFN31HJ-102Z M CAPACITOR 1000PF 5% 50V
C 882 QFN31HJ-102Z M CAPACITOR 1000PF 5% 50V
C 883 QFLC1HJ-123Z M CAPACITOR .012MF 5% 50V
C 884 QFLC1HJ-123Z M CAPACITOR .012MF 5% 50V
C 885 QFN31HJ-682Z M CAPACITOR 6800PF 5% 50V
C 886 QFN31HJ-682Z M CAPACITOR 6800PF 5% 50V
C 887 QFLC1HJ-221Z M.CAPA. I.M 220PF 5% 50V
C 888 QFLC1HJ-221Z M.CAPA. I.M 220PF 5% 50V
C 889 QFLC1HJ-182Z M CAPACITOR 1800PF 5% 50V
C 890 QFLC1HJ-182Z M CAPACITOR 1800PF 5% 50V
C 891 QTE0J28-477Z E CAPACITOR
C 892 QTE0J28-477Z E CAPACITOR
C 893 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 894 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 895 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 897 QTE0J28-477Z E CAPACITOR
C 898 QFVJ1HJ-224Z MF CAPACITOR .22MF 5% 50V
C 899 QFN31HJ-103Z M CAPACITOR .010MF 5% 50V
C 900 QCZ0202-155Z ML C CAPA I/M 1.5MF
C 902 QFLC1HJ-102Z M CAPACITOR 1000PF 5% 50V
C 903 QFLC1HJ-102Z M CAPACITOR 1000PF 5% 50V
CN711 QGF1205C1-17 CONNECTOR
IC811 NJM4580L IC
IC812 NJM4580L IC
IC813 MN35505-X IC C M
IC821 NJM4580L IC
Parts number Parts name Area
Block No. 03
Remarks
Item
A
IC822 NJM4580L IC
IC823 MN35505-X IC C M
J 811 QNN0432-001 OPT TRANSMITTER
J 821 QNN0431-001 PIN JACK
K 811 QQR0601-001Z FERRITE BEADS
K 812 QQR0601-001Z FERRITE BEADS
K 813 QQR0601-001Z FERRITE BEADS
K 821 QQR0601-001Z FERRITE BEADS
K 822 QQR0601-001Z FERRITE BEADS
K 823 QQR0601-001Z FERRITE BEADS
R 861 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 862 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 863 QRE141J-101Y C RESISTOR 100 5% 1/4W
R 864 QRE141J-101Y C RESISTOR 100 5% 1/4W
R 865 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 866 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 867 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 868 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 869 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 870 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 871 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 872 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 873 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 874 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 875 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 876 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 877 QRA14CF-1501Y MF.RES IM 15 1/4W
R 878 QRA14CF-1501Y MF.RES IM 15 1/4W
R 881 QRA14CF-1601Y MF.RES IM 16 1/4W
R 882 QRA14CF-1601Y MF.RES IM 16 1/4W
R 883 QRE141J-362Y C RESISTOR 3.6K 5% 1/4W
R 884 QRE141J-362Y C RESISTOR 3.6K 5% 1/4W
R 885 QRA14CF-3602Y MF.RES IM 36 1/4W
R 886 QRA14CF-3602Y MF.RES IM 36 1/4W
R 887 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 888 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 889 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 890 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 891 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 892 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 893 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 894 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 895 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 896 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 897 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 898 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 899 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 909 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 911 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 912 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 913 QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R 914 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 915 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 916 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 917 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 918 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 919 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 923 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 924 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 925 QRE141J-101Y C RESISTOR 100 5% 1/4W
R 926 QRE141J-101Y C RESISTOR 100 5% 1/4W
R 927 QRE141J-561Y C RESISTOR 560 5% 1/4W
Parts number Parts name Area
811 2SD2144S/VW/-T TRANSISTOR
812 2SD2144S/VW/-T TRANSISTOR
821 2SD2144S/VW/-T TRANSISTOR
822 2SD2144S/VW/-T TRANSISTOR
Remarks
3-16
XV-S56BK/XV-S57SL
Electrical parts list (Surround audio board)
Item
A
R 928 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 929 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 930 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 931 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 932 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 933 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 934 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 935 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 936 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 937 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 938 QRE141J-221Y C RESISTOR 220 5% 1/4W
R 939 QRA14CF-1501Y MF.RES IM 15 1/4W
R 940 QRA14CF-1501Y MF.RES IM 15 1/4W
R 943 QRA14CF-1601Y MF.RES IM 16 1/4W
R 944 QRA14CF-1601Y MF.RES IM 16 1/4W
R 945 QRE141J-362Y C RESISTOR 3.6K 5% 1/4W
R 946 QRE141J-362Y C RESISTOR 3.6K 5% 1/4W
R 947 QRA14CF-3602Y MF.RES IM 36 1/4W
R 948 QRA14CF-3602Y MF.RES IM 36 1/4W
R 949 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 950 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 951 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 954 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 957 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 958 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 959 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 962 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 966 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 967 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 968 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 970 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 971 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 972 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 973 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 974 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 975 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 976 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 977 QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R 980 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 981 QRE141J-303Y C RESISTOR 30K 5% 1/4W
R 982 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R 983 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 984 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 985 QRA14CF-1802Y M.F.RESISTOR 18 1/4W
R1825 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R1826 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R1845 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R1846 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
SP813 VYH7653-001 IC HOLDER
SP823 VYH7653-001 IC HOLDER
Parts number Parts name Area
Block No. 03
Remarks
3-17
XV-S56BK/XV-S57SL
Packing materials and accessories parts list
Block No. M4MM
Block No. M5MM
P3
P1
Accessories
A2
Except XV-S57SLB
A10
A2
XV-S57SLB only
P5
P4
P2
A6
3-18
XV-S56BK/XV-S57SL
Packing list
Item
A
P 1 QPC06005515P POLY BAG 1
P 2 LE30945-067A PACKING CASE BKE,BKEN1
P 3 LE20609-001A PACKING PAD(L) 1
P 4 LE20610-001A PACKING PAD(R) 1
P 5 LE30920-002A SHEET ASSY SLB1
Parts number Parts name Area
LE30945-070A PACKING CASE SLB1
LE30945-069A PACKING CASE SLE,SLEN1
Accessories list
Item
A
A 1 LET0193-002B INST BOOK BKE,SLE1
A 2 QMPL150-183-JC POWER CORD
A 3 BT-54008-2 WARRANTY CARD 1
A 4 QAM0328-001 AV CORD 3P 1
A 5 EWP302-011W SIGNAL CORD(JES 2
A 6 RM-SXVS56E REMOCON UNIT BKE,BKEN1
A 7 --------- BATTERY 2
A 8 QPC02504015P POLY BAG 1
A 10 QPC02503510P POLY BAG SLB1
A 11 VNA3000-204 SLB1
Parts number Parts name Area
LET0193-003B INST BOOK BKEN,SLEN1
LET0193-001B INST BOOK 1
QMPP060-183-JD POWER CORD SLB
RM-SXVS57E REMOCON UNIT SLB,SLE,SLEN1
REGIST.CARD
Q'ty
Q'ty
Block No. M4MM
Description
Block No. M5MM
Description
SLB
1
1
BKE,BKEN,SLE,SLEN
Explanation of area column
BKE =XV-S56BK ver.E
BKEN =XV-S56BK ver.EN
SLB =XV-S57SL ver.B
SLE =XV-S57SL ver.E
SLEN =XV-S57SL ver.EN
3-19
Loading...
