JVC XV-NA70BK User Manual

DVD AUDIO/VIDEO PLAYER

XV-NA70BK/XV-NA77SL

Before operation 2

Preparations 4

Basic operations 10

Advanced operations 16

VR format disc playback 27

MP3/WMA disc playback 31

INSTRUCTIONS

JPEG disc playback 33

Changing the initial settings 36

Additional information 44

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Se ria l No

GNT0036-001B

[J/UJ]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND

For Canada / Pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FORM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off). The STANDBY/ON button in any position does not disconnect the mains line.

•

When the player is on standby, the STANDBY/ON lamp lights red.

•

When the player is turned on, the STANDBY/ON lamp lights green.

The power can be remote controlled.

Attention –– Touche STANDBY/ON !

Déconnectez la prise d'allimentation secteur pour mettre l'appareil complètement hors tension (le témoin STANDBY/ON s'éteint). La touche STANDBY/ON , sur n'importe quelle position, ne peut pas déconnecter l'appareil du secteur.

•

Quand l'appareil est en mode de veille, le témoin STANDBY/ON est

allumé en rouge.

•

Quand l'appareil est sous tension, le témoin STANDBY/ON est alumé

on vert.

L'alimentation peut être télécommandée.

IMPORTANT FOR LASER PRODUCTS IMPORTANT POUR LES PRODUITS LASER

1. CLASS 1 LASER PRODUCT

2. DANGER: Visible laser radiation when open and interlock failed or

defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user service-

able parts inside the Unit; leave all servicing to qualified service personnel.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser visible quand l'appareil est ouvert ou

que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y a aucune

pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil.

CAUTION:

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

ATTENTION

• Ne bloquez pas les orifices ou les trous de ventilation. (Si les orifices ou les trous de ventilation sont bloqués par un journal un tissu, etc., la chaleur peut ne pas être évacuée correctement de l’appareil.)

• Ne placez aucune source de flamme nue, telle qu’une bougie, sur l’appareil.

• Lors de la mise au rebut des piles, veuillez prendre en considération les problèmes de l’environnement et suivre strictement les règles et les lois locales sur la mise au rebut des piles.

• N'exposez pas cet appareil à la pluie, à l'humidité, à un égouttement ou à des éclaboussures et ne placez pas des objets remplis de liquide, tels qu'un vase, sur l'appareil.

G-1

Supplied accessories

Check that you have all the following accessories supplied to you. If anything is missing, consult your dealer immediately.

• Audio/video cable (Yellow/White/Red) (× 1)

• Audio cable (White/Red) (× 2)

• Remote control unit (× 1)

• R6P(SUM-3)/AA(15F) battery (× 2)

• AC power plug adaptor (× 1) (for PX model ONLY)

About this manual

• The display window information and OSD (On Screen Display) menu items are put in brackets [ ] in the operation procedures.

• Usable disc(s) for each operation/function is (are) referred to by the icons;

Precautions

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small amount of power (2.0 W) is always consumed while the power cord is connected to the wall outlet.

• When unplugging the unit from the wall outlet, always pull the plug, not the power cord.

• Do not handle the power cord with wet hands!

Avoid moisture, water and dust

• Do not place the unit in moist or dusty places.

• If water gets inside the unit, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using the unit in this state may cause a fire or electrical shock.

Avoid high temperatures

• Do not expose the unit to direct sunlight or place it near a heating device.

Supplied accessories................................................................1

About this manual .....................................................................1

Precautions ................................................................................ 1

Before operation................................................... 2

About discs ..............................................................................2

Preparations ......................................................... 4

Connections............................................................................. 4

Using the remote control unit................................................... 8

Basic operations ................................................ 10

Turning on/off the unit............................................................ 10

Initial setup ............................................................................10

Basic playback....................................................................... 11

Resuming playback ...............................................................13

Various speed playback ........................................................14

Locating the beginning of a scene or song ............................ 15

Advanced operations......................................... 16

Playing from a specific position .............................................16

Selecting a still picture on a DVD AUDIO disc (PAGE) .........17

Playing back a bonus group of a DVD AUDIO disc ............... 18

Changing the playback order.................................................18

Repeat playback .................................................................... 20

Changing the language, sound and scene angle ..................21

Special picture/sound effect ..................................................22

Checking the sampling frequency and quantization bit length ......... 23

Menu bar functions ................................................................24

VR format disc playback.................................... 27

About VR format discs ........................................................... 27

Basic operations ....................................................................27

Repeat playback .................................................................... 29

Changing the sound ..............................................................30

Turning on/off the subtitle ......................................................30

Notes on installation

• Select a place which is level, dry and neither too hot nor too cold between 5°C and 35°C (41°F and 95°F).

• Leave sufficient distance between the unit and the TV.

• Do not install the unit in a place subject to vibrations.

• Do not put heavy objects on the unit.

To prevent malfunction of the unit

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the unit.

• Do not block the vents. Blocking the vents may damage the unit.

To clean the cabinet

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

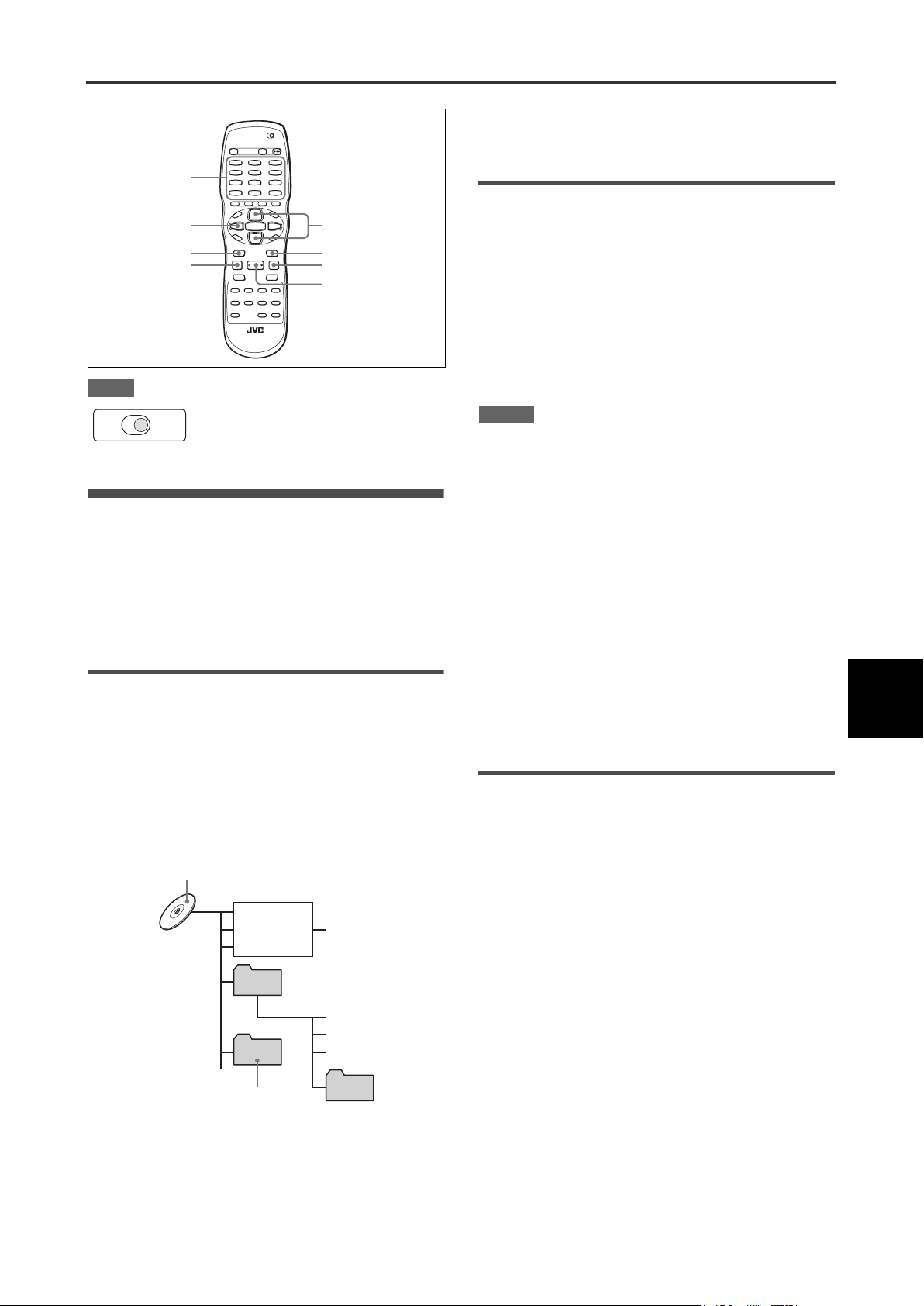

MP3/WMA disc playback ................................... 31

Operations .............................................................................31

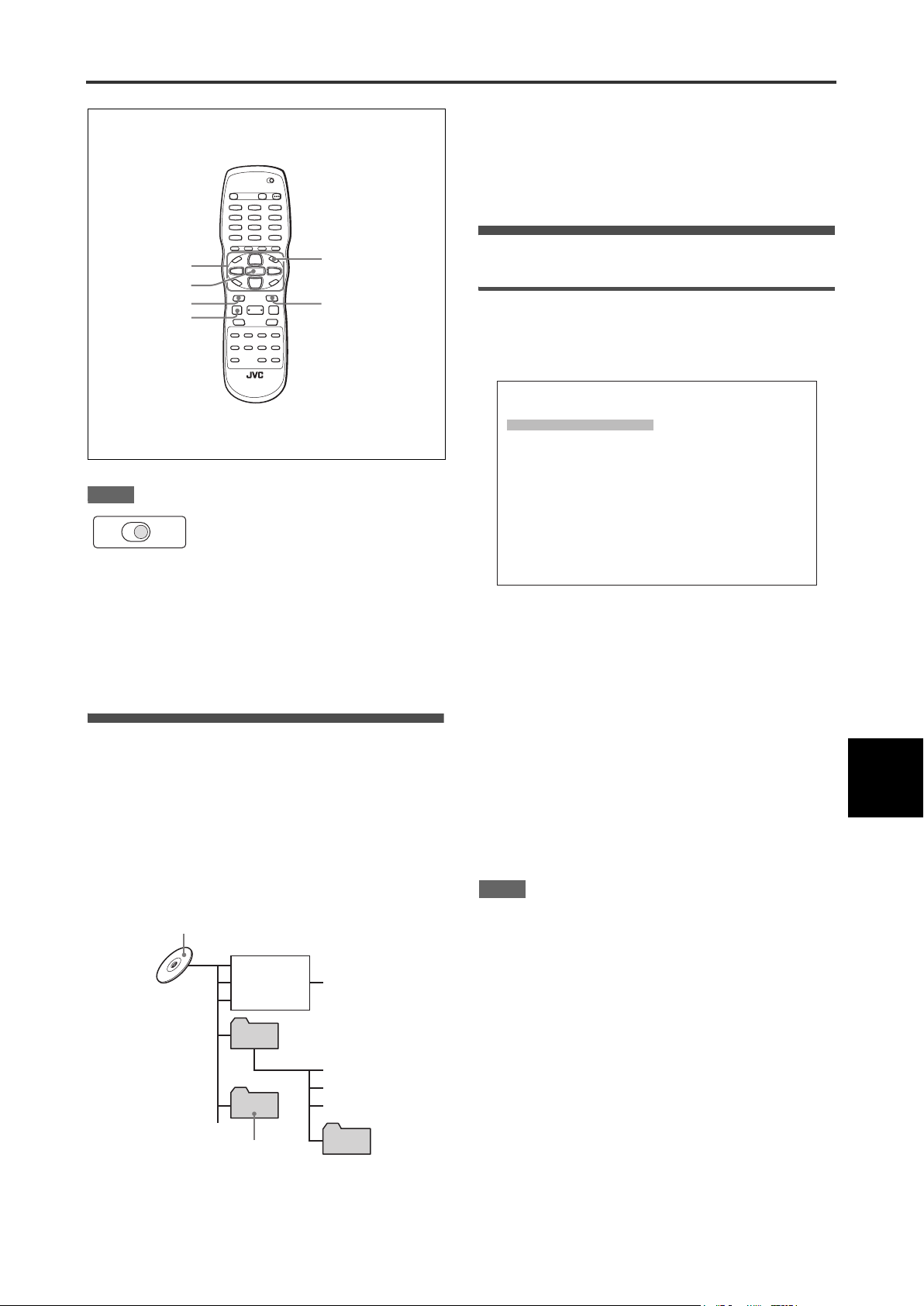

JPEG disc playback ........................................... 33

About JPEG discs.................................................................. 33

Basic operations ....................................................................33

Viewing pictures continuously (slide show mode) .................34

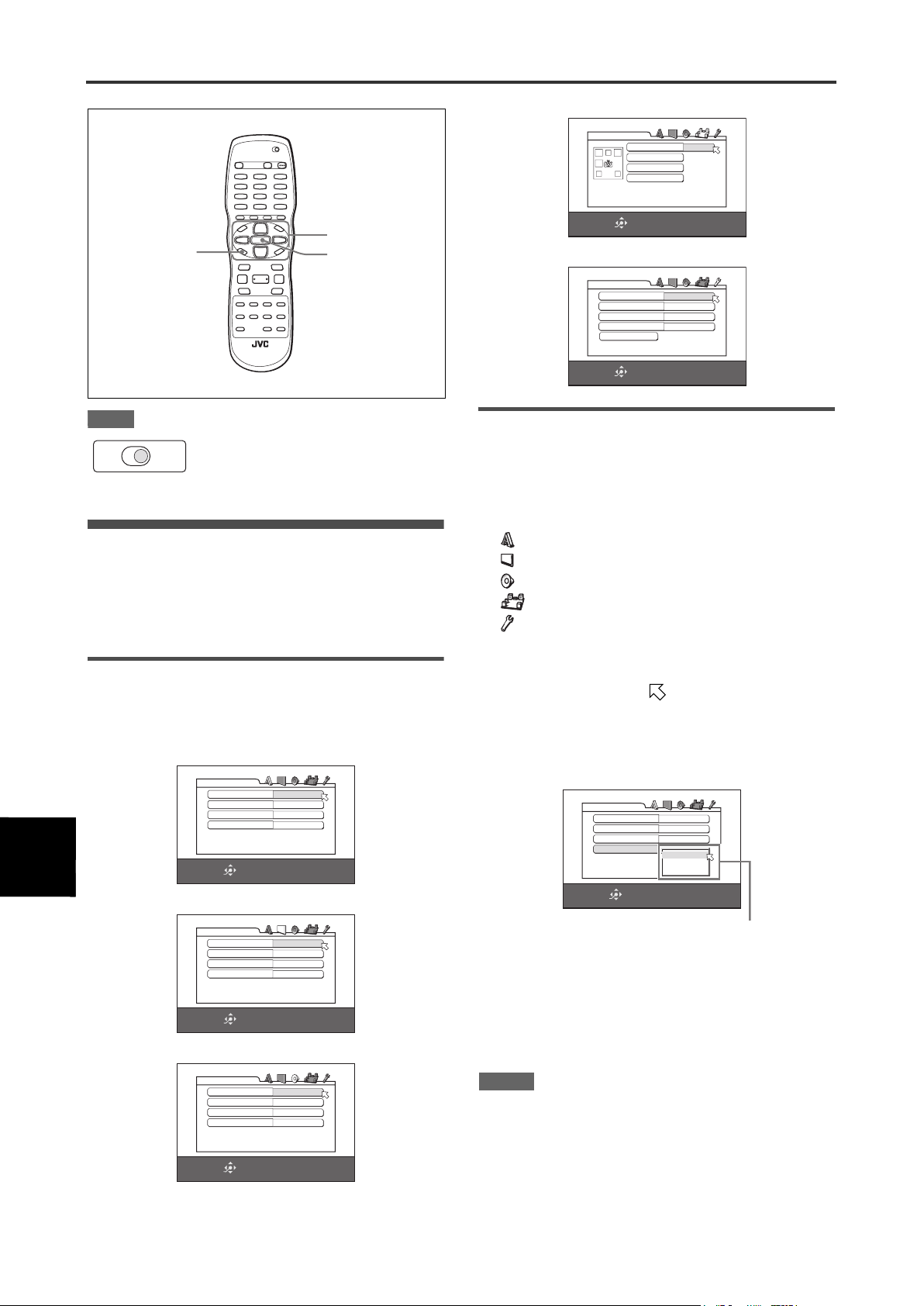

Changing the initial settings ............................. 36

Selecting preferences............................................................ 36

Making fine tuning for your speakers.....................................40

Limiting playback by children................................................. 42

Additional information ....................................... 44

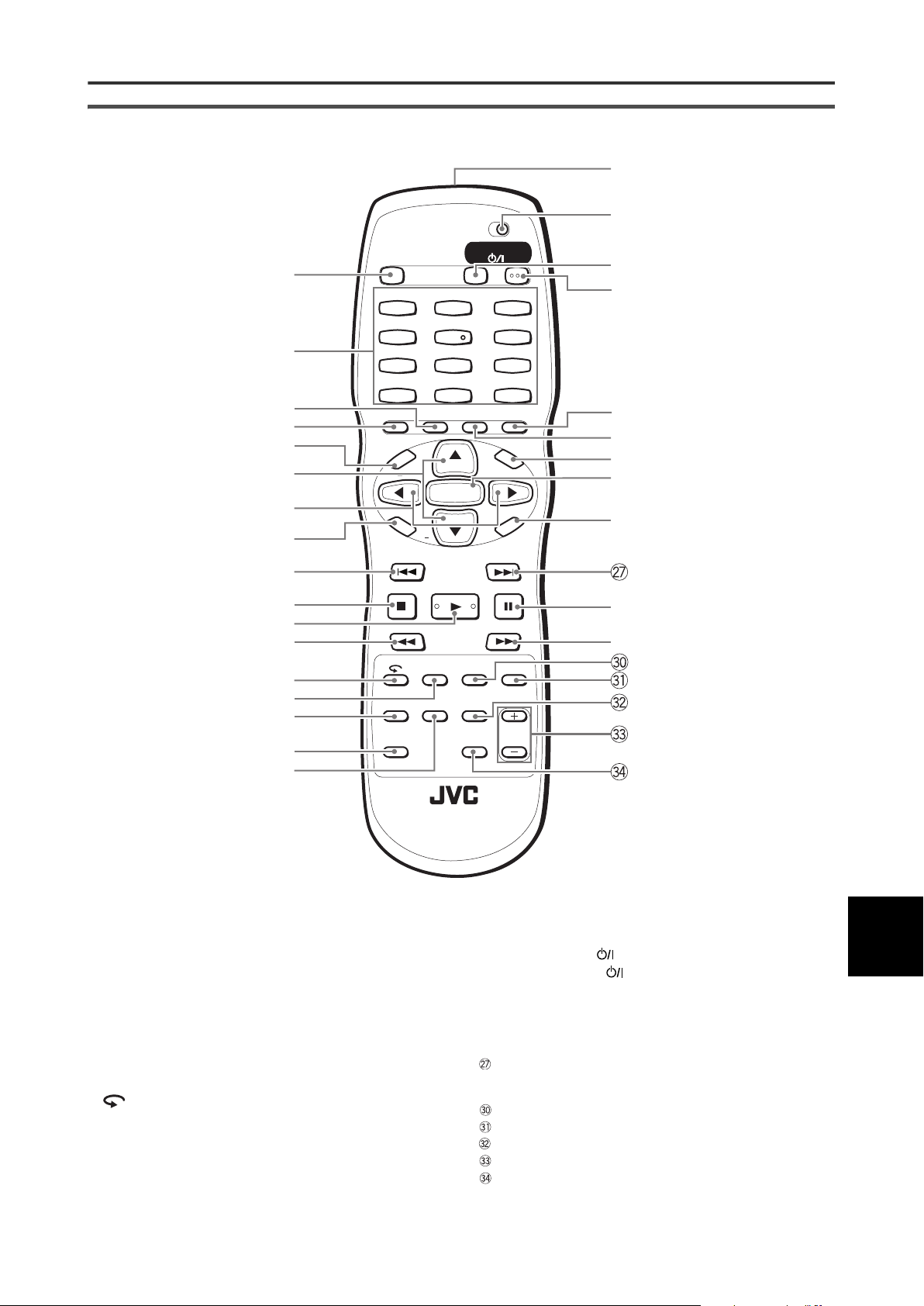

Names of parts and controls..................................................44

AV COMPU LINK remote control system ..............................46

Troubleshooting..................................................................... 47

Specifications ........................................................................48

Appendix A: Country/Area code list for Parental Lock........... 49

Appendix B: Table of languages and their abbreviations ......50

Appendix C: Digital output signal chart.................................. 50

Appendix D: Glossary............................................................ 51

Before operation

About discs

Region code of DVD VIDEO

This unit can play back DVD VIDEO discs whose region code numbers include “1.”

Playable disc types

Discs with the following marks can be played back on the unit.

DVD AUDIO DVD VIDEO SVCD

AUDIO

Video CD Audio CD

The DVD Logo is a trademark. The unit can also play back the following discs:

• 9.4GB/4.7GB DVD-RAM with no cartridge, recorded with the video recording standard version 1.1

• 9.4GB/4.7GB DVD-RAM with cartridge but can be removed from the cartridge, recorded with the video recording standard version 1.1

• DVD-R/RW discs written in the DVD VIDEO format and finalized

• DVD-RW (version 1.1) discs written in the VR (Video Recording) format and finalized

• CD-R and CD-RW discs written in the SVCD, Video CD or Audio CD format and finalized

• CD-R and CD-RW discs written in MP3 or WMA in accordance with the “ISO 9660” format (See page 31 for details.)

• CD-R and CD-RW discs written in JPEG in accordance with the “ISO 9660” format (See page 33 for details.)

NOTES

• This unit supports only the original playback of VR format discs. Playback by play list cannot be made.

• If a disc gets dirty, scratched or warped, or due to the disc characteristics or recording conditions, it may take considerable time for the unit to read the content, or the unit may not be able to play back such discs.

• With some DVD-RAM and DVD-RW (recorded in VR format) discs, portions such as a part between two programs may not be played back smoothly.

• DVD-RAM discs created using a personal computer and which do not comply with the video recording standard cannot be played back.

• DVD-RAM and DVD-RW discs that comply with the CPRM and on which material allowed to be copied only once is recorded cannot be played back. (CPRM: a picture source encryption technology developed to protect copyright)

• When playing back a DVD-RAM disc of type 2 or type 4, first remove the disc from the cartridge and place it in the disc tray (see page 11). Take care not to scratch the disc or make the disc dirty. After playing back the disc, be sure to retain it in the cartridge. (See also the instructions supplied with the disc.)

The unit can play back audio signals recorded in MIX-MODE CD, CD-G, CD-EXTRA and CD TEXT.

VIDEO

Examples of playable DVD VIDEO discs:

ALL

NOTE

The unit’s region code is printed on the rear of the unit.

Color system format

This unit accommodates the NTSC system, and also can play back discs recorded with PAL system whose Region Code numbers include “1.” Note that the PAL video signal on a disc is converted to an NTSC signal and output.

Unplayable discs

The unit does not play back discs listed below. If you try to play back these discs, noise may generate causing damage to speakers.

• 2.6GB/5.2GB DVD-RAM, cartridge type 1 DVD-RAM, version

1.0 DVD-RW (recordable only in the VR format), DVD-ROM, CD-ROM, PHOTO CD, SACD

In addition, the unit does not play:

• Unfinalized discs.

• Discs of irregular shape or discs with tape, seals or paste on either the label side or playback side. Playing back these discs may damage the unit.

Digital audio formats

The unit supports the following digital audio formats (see page 51 “Glossary” for descriptions of each audio format):

Linear PCM, Dolby Digital, DTS (Digital Theater Systems), MLP (Meridian Lossless Packing)

NOTE

Depending on the unit’s [DIGITAL AUDIO OUTPUT] setting, digital audio signals may not be output as they are recorded on the disc. See “DIGITAL AUDIO OUTPUT” on page 38 for details.

Notes on discs

• With some DVD VIDEO discs, the unit starts playback automatically after inserting the disc.

• The image may be sometimes poor or noisy due to defects in the disc itself.

• With some discs, operations described in this manual may not be possible.

• When a DVD AUDIO disc is played back, the DVD AUDIO indicator on the front panel turns on.

Care and handling of discs

If a disc gets dirty, dusty, scratched or warped, playback sound and picture may be deteriorated. Take proper precautions when handling discs.

Handling

• Do not touch the surface of the disc.

• Do not damage, stick paper to, or use any adhesive on either the label side or playback side.

Storing discs

• Keep discs in their cases. If discs are piled on top of one another without their protective cases, they can be damaged.

• Do not put discs in a location where they may be exposed to direct sunlight, or where the humidity or temperature is high. Avoid leaving discs in a car!

Cleaning discs

• Wipe with a soft dry cloth, moving from the center outwards. If a disc is difficult to clean, wipe with a cloth moistened with water.

Before operation

Before

operation

• Never use record cleaners, petrol, alcohol or any anti-static agents.

Notes on copyright

Check the copyright laws in your country before recording from DVD AUDIO, DVD VIDEO, DVD-RAM, SVCD, Video CD, Audio CD, MP3, WMA and JPEG discs. Recording of copyrighted material may infringe copyright laws.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Preparations

Connections

Before using the unit, connect the unit to a TV and/or amplifier.

Before making connections

• Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may cause a monitor problem when playing back a copy-protected disc. You may also have a monitor problem when connecting the unit to an integrated TV/Video system.

Connecting to a TV

The following sections A to C describe TV connections where only a TV is connected to the unit so that you will hear audio from the TV.

A Connecting to a conventional TV

NOTE

If your TV has an AV COMPU LINK terminal, you can use the AV COMPU LINK function. See “AV COMPU LINK remote control system” on page 46 for details.

• In the following description, “TV” may be substituted with “monitor” or “projector.”

• Terminal names used for other components may be different from those used in the following description.

NOTES

• Be sure to connect the red and white plugs of the audio/video cable to the FRONT RIGHT/LEFT jacks on the rear of the unit, as shown in the illustration.

• If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts stereo audio output to monaural.

• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH STEREO] (see page 38).

The unit

VIDEO

LEFT

AUDIO

RIGHT

Red

TRE

L OUT

AUDIO OU

DIGITA

Ye l l o w

White

COM

O OU

IDE

Ye l l o w

VIDEO SIGNAL

SELECTOR

EMOTE

Audio/video cable (supplied)

White

Red

B Connecting to a TV with an S-video jack

If your TV has an S-VIDEO input, you can get better picture quality by connecting it with the S-VIDEO output of the unit using an S-video cable instead of connecting the video input of the TV to the VIDEO jack of the unit.

The unit

S-VIDEO

VIDEO

LEFT

AUDIO

RIGHT

Red

IGITA

OUT

AUDI

White

PONEN

O OUT

TRE

L OU

White

VIDEO SIGNAL

SELECTOR

Audio cable (supplied)

VIDEO SIGNAL

SELECTOR

REMOTE

480p

AV COMPU LINK

480i

Set the VIDEO SIGNAL SELECTOR to “480i.”

NOTES

• Be sure to connect the red and white plugs of the audio cable to the FRONT RIGHT/LEFT jacks on the rear of the unit, as shown in the illustration.

• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH STEREO] (see page 38).

VIDEO SIGNAL

SELECTOR

REMOTE

480p

EMOTE

AV COMPU LINK

S-video cable (not supplied)

Set the VIDEO SIGNAL SELECTOR to “480i.”

480i

Red

C Connecting to a TV with component jacks

You can enjoy picture of high-fidelity color reproduction by connecting the COMPONENT VIDEO OUT jacks on the unit to your TV.

NOTES

• Be sure to connect the red and white plugs of the audio cable to the FRONT RIGHT/LEFT jacks on the rear of the unit, as shown in the illustration.

• Connect “Y” to “Y,” “P

• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH STEREO] (see page 38).

• If your TV has component video input jacks of BNC type, use an adapter which converts a pin jack to a BNC jack (not supplied).

Progressive scan video playback available

In the Progressive scanning mode, you can enjoy high quality picture with less flickers when the COMPONENT VIDEO OUT jacks are connected to a TV or monitor that supports the progressive video input.

B” to “PB” (CB), “PR” to “PR” (CR) correctly.

Preparations

About the scanning mode

Depending on the material source format, DVD VIDEO discs can be classified into two types; film source and video source (note that some DVD VIDEO discs contain both film source and video source). Film sources are recorded as 24-frame-persecond information, while (NTSC) video sources are recorded as 30-frame-per-second (60-field-per-second interlaced) information. When the unit plays back a film source material, uninterlaced progressive output signals are created using the original information. When a video source material is played back, the unit interleaves lines between the interlaced lines on each to create the interpolated picture and outputs as the progressive signal.

Preparations

S-VIDEO

VIDEO

LEFT

AUDIO

RIGHT

COMPONENT IN

White

Red

Blue

Green

Red

PONENT

The unit

I AX

/STRE

L OU

IGIT

AUDI

White

O OUT

Green

Red

Blue

Red

Selecting the VIDEO SIGNAL SELECTOR position

• If your TV equipped with component jacks does not support the progressive scanning mode Set the VIDEO SIGNAL SELECTOR to “480i.”

• If your TV equipped with component jacks supports the progressive scanning mode Set the VIDEO SIGNAL SELECTOR to “480p.”

• If you want to select the scanning mode between the interlace and progressive modes (depending on the source condition, or when connecting more than one TV, etc.) Set the VIDEO SIGNAL SELECTOR to “REMOTE.” Thus you can select the mode from the remote control unit.

NOTE

You must change the VIDEO SIGNAL SELECTOR position while the unit power is off. Otherwise, the changed setting is not effective.

Activating the Progressive scanning mode using the remote control unit

When the unit is turned on and the VIDEO SIGNAL SELECTOR is set to “REMOTE,” press and hold down VFP - PROGRESSIVE SCAN for a few seconds. The scanning mode switches between the Progressive scanning and Interlaced scanning modes. When the scanning mode is set to the Progressive mode, the PROGRESSIVE indicator on the front panel turns on. Depending on the [PICTURE SOURCE] setting on the [PICTURE] preference display and whether the current DVD VIDEO disc is film-source or video-source, the color of the indicator differs, as shown in the table below. (See page 37.)

VIDEO SIGNAL

SELECTOR

REMOTE

480p

CTOR

VIDEO SIGNA

SELE

MPU LINK

REMOTE

See “Selecting the VIDEO SIGNAL SELECTOR position” below.

Component video cable (not supplied)

Audio cable (supplied)

Setting of [PICTURE SOURCE]

AUTO Green Red

FILM Green Green

VIDEO (NORMAL)/ (ACTIVE)

* While stopped in the Progressive scanning mode, the

PROGRESSIVE indicator is lit in red regardless of the [PICTURE SOURCE] selection.

NOTES

• The Progressive scanning mode works only when you connect the unit’s COMPONENT VIDEO OUT jacks to your TV.

• There are some progressive TV and High-Definition TV sets that are not fully compatible with the unit, resulting in the unnatural picture when playing back a DVD VIDEO disc in the Progressive scanning mode. In such a case, use the Interlaced scanning mode. To check the compatibility of your TV set, contact your local JVC customer service center.

• All JVC progressive TV and High-Definition TV sets are fully compatible with the unit (Example: AV-61S902).

480i

Source type of DVD VIDEO

Film source Video source

Red Red

Preparations

Connecting to optional audio equipment

Connecting to a stereo audio amplifier/receiver

Connect the unit’s AUDIO OUT (LEFT/RIGHT) jacks to any linelevel inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.

Amplifier or receiver

White

PONENT

COM

O OUT

L OU

White

The unit

LEFT

AUDIO

RIGHT

Red

OFE

IGIT

AUDI

Red

Connecting to an amplifier/receiver equipped with

5.1-channel inputs

The unit supports the linear PCM multichannel format of DVD AUDIO and can feed multichannel audio output signals from the six analog AUDIO OUT jacks. It is also equipped with the DTS and Dolby Digital decoders. So you can enjoy any type of the high quality surround sounds by connecting the unit to an amplifier/receiver equipped with the 5.1channel inputs.

NOTES

• Be sure to connect the red and white plugs of the audio cable to the FRONT RIGHT/LEFT jacks on the rear of the unit, as shown in the illustration.

• Set [ANALOG OUT] in the [AUDIO] preference display to [2-CH STEREO] (see page 38).

VIDEO SIGNAL

SELECTOR

EMOTE

AV COMPU LINK

Audio cable (supplied)

NOTES

• When using the 5.1-channel outputs of the unit, set the [ANALOG OUT] in the [AUDIO] preference display to [MULTI CHANNEL] (see page 38).

• If you select [EXPERT] in the [SPK.SETTING] preference display, you can control the audio output balance of the speakers (see page 38).

• You can use the yellow plugs of the audio/video cable for video connection.

Amplifier or receiver

LEFT

RIGHT

The unit

UDIO OUT

FRO

Red

White

SUBWOOFER

CENTER

AUDIO IN

REAR

LEFT

RIGHT

PONEN

L OU

IGITA

O OUT

-V

Red

White

Red

White

VIDEO SIGNAL

SELECTOR

EMOTE

AV COMPU LINK

Audio cable (supplied)

Audio/video cable (supplied)

Audio cable (supplied)

Red

White

Preparations

Connecting to a digital audio device

You can enjoy sound of enhanced quality by connecting the unit’s DIGITAL OUT (either OPTICAL or COAXIAL) jack to a digital input of an amplifier, etc., using an optical or coaxial digital cable. The digital audio signal on a disc will be transferred directly from the unit. If the connected digital audio equipment is a Dolby Digital or DTS decoder or an amplifier with a built-in decoder, you can enjoy high-quality surround sound.

Digital equipment

LEFT

DVD

RIGHT

OPTICAL

DIGITAL

COAXIAL

NOTES

• Connect the unit and the digital audio device by using either an optical digital cable or a coaxial digital cable.

• It is not recommended to use the digital jacks for dubbing. When recording the sounds (DVD AUDIO, DVD VIDEO, SVCD, Video CD or Audio CD) played back on the unit, record them through the analog jacks (in this case, set [ANALOG OUT] in the [AUDIO] preference display to [2-CH STEREO]) (see page

38).

• Depending on the disc, no signal may be output from the DIGITAL OUT. Make an analog connection in this case.

• Set [DIGITAL AUDIO OUTPUT] in the [AUDIO] preference display correctly according to the connected digital audio equipment. If setting made for [DIGITAL AUDIO OUTPUT] is incorrect, loud noise may be generated causing damage to the speakers (see page 38).

VIDEO SIGNAL

SELECTOR

EMOTE

AV COMPU LINK

Preparations

The unit

COMPONENT

DIGITA

DIO OU

IDEO OUT

-VI

L OU

Coaxial digital cable (not supplied)

Audio cable (supplied)

Optical digital cable (not supplied)

Preparations

Connecting the power cord

When all the audio/video connections have been made, connect the AC power plug to the wall outlet. Make sure that the plugs are inserted firmly. The STANDBY indicator lights in red.

NOTE

(only for PX model) Use the supplied AC power plug adaptor when inserting the larger plug to the wall outlet.

Warning

• Disconnect the power cord:

- if you are not going to use the unit for a long time.

- before cleaning the unit.

- before moving the unit.

• Do not:

- connect or disconnect the power cord with wet hands.

- pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or other accidents.

Caution

• Do not mix new and old batteries, or batteries of different types, when replacing them.

Remote sensor

Point the top of the remote control unit toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may be shorter.

Remote sensor

• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.

Using the remote control unit

To install batteries

Open the compartment cover, and place the two supplied R6P (SUM-3)/AA(15F) batteries in the remote control unit according to the polarity markings (“+” and “–”) inside the compartment. Then replace the cover.

The batteries will last about six months with normal use. If the functions of the remote control unit become erratic, replace the batteries.

Precautions of the safe use of batteries

Observe the following precautions for the safe use of batteries. If they are used improperly their lives will be shortened, they may burst or their contents may leak.

• Remove the batteries from the remote control unit if it is not going to be used for a long period of time.

• Remove dead batteries and dispose of them properly.

• Never leave dead batteries lying around, take them apart, mix them with other refuse, or throw them into an incinerator.

• Never touch liquid that has leaked out of a battery.

3 Release TV/VIDEO - CANCEL.

Preparations

TV-DVD

TV STANDBY/ON

Numeric buttons

TV/VIDEO-CANCEL

ENTER

AMP VOL +/-

To use the remote control unit for TV operation

Setting the remote control signal for operating your TV

1 Set the TV - DVD switch to “TV.”

4 Try to operate the TV by pressing TV

STANDBY/ON .

If your TV turns on or off, you have successfully set the control signal.

NOTES

• The initial manufacuturer code of the unit upon purchase is “JVC” (01).

• If there is more than one code listed for the manufacturer of your TV, try them one by one until you succeed.

Operating the TV

Set the TV - DVD switch on the remote control unit to “TV.”

TV DVD

The following buttons can be used for operating the TV.

Turns the TV on or off.

Switches the TV input mode between TV and VIDEO.

Selects the TV channels directly. *For some TVs, pressing “+10” functions as the

“100+,” while “10” functions as the ENTER button if your TV requires pressing the ENTER button after selecting a channel number.

TV1

TV/VIDEO CANCEL

TV0

TV-/--

Preparations

2 While holding down TV/VIDEO - CANCEL,

enter the manufacturer code of your TV listed below by using the numeric buttons (0 to 9), and then press ENTER.

Example:

To enter the manufacturer code “01”: Press “0,” “1,” then ENTER.

Manufacturer code list

Manufacturer No. Manufacturer No.

AIWA 36 MIVAR 29

BEIJING 22 NEC 20

CCE 02 NOBLEX 22

CHANGHONG 34 NOKIA 31

DAEWOO 17, 37 PANASONIC 04, 11

FERGUSON 27 PEONY 34, 38, 39

FINLUX 30 PHILCO 10, 17, 21

FUNAI 32 PHILIPS 02

GRADIENTE 15, 20 RCA 05

GRUNDIG 19

HITACHI 10

ITT 28 SANYO 13, 16

JINXING 38 SEARS 13

01, 23, 24, 25SHARP 06

JVC

KONKA 40 TCL 41

LG (GOLDSTAR) 18 THOMSON 26

MAGNAVOX 02 TOSHIBA 08, 14

MITSUBISHI 03 ZENITH 09

SAMSUNG

SONY 07

12, 33, 34, 35

MUTING

+10

VOL

Mutes the TV sound.

Changes the TV channels.

Adjusts the TV sound volume.

VOL+

To control the volume of a JVC’s amplifier or receiver

Pressing the AMP VOL + button raises the audio volume of a JVC’s amplifier or receiver, while pressing the – button lowers the volume.

AMP

VOL

Basic operations

STANDBY indicator

OPEN/CLOSE

TOP MENU

ENTER

DVD STANDBY/ ON

5/∞

• NOW READING (The unit is reading the disc information.)

• REGION CODE ERROR! (The region code of the DVD VIDEO

disc does not match the unit. The disc cannot be played back.)

• OPEN

•CLOSE

•NO DISC

NOTE

Even if you turn off the unit, the unit is not disconnected from the AC power source as long as it is connected to the wall outlet. This state is called standby mode. In this state, the unit consumes a very small amount of power.

Initial setup

When you turn on the unit for the first time after purchase, the following message appears on the TV screen.

EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO SETTING YES - PRESS ENTER NO - CANCEL

DIMMER

NOTE

Make sure that the TV - DVD switch on the

TV DVD

remote control unit is set to “DVD” when using the 5/∞/2/3 and numeric buttons for controlling the unit.

About invalid operation icon

When you press a button, and if the unit does not accept its operation, appears on your TV screen. Operations are occasionally unacceptable even if is not displayed.

Note that some operations may not be accepted. For example, some discs may not allow rapid advance/reverse or slowmotion playback.

Turning on/off the unit

Press DVD STANDBY/ON on the remote control unit or press on the front panel.

The STANDBY/ON indicator on the front panel, which lights in red during standby, lights in green.

The opening display appears on the TV screen, and the following messages may appear at the bottom of the opening display.

You can set the display language, TV monitor type, analog audio output and digital output before using the unit, by following the procedure below.

• Refer to pages 37 and 38 for detailed explanation of each item to be set in the following procedure.

1 Press ENTER.

The first page of the DVD PLAYER SET UP display appears. The pull-down menu of the [ON SCREEN LANGUAGE] is already open.

DVD PLAYER SET UP

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

OFF

ENGLISH

ENGLISH SPANISH FRENCH

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM

ON SCREEN LANGUAGE options

2 Press 5/∞ to select the desired language.

You can select the on-screen language for the preference displays, etc. from among ENGLISH, SPANISH and FRENCH.

3 Press ENTER.

The second page is shown, in which the pull-down menu of the [MONITOR TYPE] is already open.

DVD PLAYER SET UP

MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

MP3&WMA/JPEG

4:3 L.B.

16:9 NORMAL

AUTO

16:9 AUTO 4:3 LB

4:3 PS

MP3

SELECT

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM

NOW READING

ENTER

MONITOR TYPE options

Message area

4 Press 5/∞ to select the desired monitor type.

For a normal (conventional) TV, select [4:3 LB] or [4:3 PS]. For a wide-screen TV, select [16:9 NORMAL] or [16:9 AUTO]. (See page 37.)

Basic operations

5 Press ENTER.

The third page is shown, in which the pull-down menu of the [ANALOG OUT] is already open.

DVD PLAYER SET UP

DIGITAL AUDIO OUTPUT

ANALOG OUT

D. RANGE CONTROL

OUTPUT LEVEL

SELECT

ENTER

STREAM/PCM

DOLBY PROLOGIC

2-CH DOLBY SURROUND

2-CH STEREO MULTI CHANNEL

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM

ANALOG OUT options

6 Press 5/∞ to select a desired analog output

signal type.

Set this item correctly when you play back a DVD VIDEO disc recorded with surround multichannel audio.

• When connecting to a surround decoder, select [2-CH DOLBY SURROUND].

• When connecting to a stereo amplifier/receiver or TV, select [2-CH STEREO].

• When connecting the unit’s 5.1-channel output, select [MULTI CHANNEL]. Note that you can perform fine tuning for your speakers when [MULTI CHANNEL] is selected (see pages 38 and 40).

7 Press ENTER.

The final page is shown, in which the pull-down menu of the [DIGITAL AUDIO OUTPUT] is already open.

DVD PLAYER SET UP

DIGITAL AUDIO OUTPUT

ANALOG OUT

D. RANGE CONTROL

OUTPUT LEVEL

DOLBY DIGITAL/PCM

PCM ONLY

DOLBY PROLOGIC

DOLBY DIGITAL/PCM STREAM/PCM

About screen saver function

A television monitor may have an image burned into it if a static image is displayed for a long time. To prevent this, the unit automatically activates the screen saver function if a static picture, such as an on-screen display or menu, is displayed for over 5 minutes. When the screen saver function is activated, the TV screen gets darker. Pressing any buttons will release the screen saver function (see page 37).

Basic playback

1 Press 0 (or OPEN/CLOSE on the remote

control unit) to open the disc tray.

2 Place a disc in the disc tray.

With the label side up

SS E R

O R P

• To insert an 8-cm disc, place it in the inner recess.

Basic

operations

SELECT

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM

ENTER

DIGITAL AUDIO OUTPUT options

8 Press 5/∞ to select a desired digital output

signal type.

Set this item correctly when you connect the unit to an external surround decoder or D/A converter. (If you do not connect the unit to such a device, you do not have to set this item.)

• When connecting to other digital device, select [PCM ONLY].

• When connecting to a Dolby Digital decoder, select [DOLBY DIGITAL/PCM].

• When connecting to a Dolby Digital decoder or a DTS decoder, select [STREAM/PCM].

9 Press ENTER.

The TV screen returns to the opening display.

To bring up the DVD PLAYER SET UP display later

Press CHOICE for a few seconds until the DVD PLAYER SET UP display appears.

To change the brightness of the display window

Press DIMMER on the remote control unit. You can select the display window and the disc tray brightness from three levels, or off. If the brightness is set to off, nothing will be shown on the display.

3 Press 3.

The unit starts playback from the beginning.

If a menu is shown on the TV screen

When inserting a DVD AUDIO, DVD VIDEO, SVCD or Video CD disc, a menu may be shown on the TV screen. From the menu, you can select a desired item to be played back.

For DVD AUDIO/DVD VIDEO

1Press 5/∞/2/3 to select a desired item. 2Press ENTER.

The unit starts playback of the selected item.

For SVCD/Video CD

Press the numeric buttons to select a desired item. The unit starts playback of the selected item.

NOTES

• Do not insert an unplayable disc. (See page 2.)

• When inserting a disc on the disc tray, be sure to position the disc inside the recess. Otherwise, the disc may be damaged when the disc tray is closed, or you may not be able to remove the disc from the unit.

• When a DVD AUDIO disc is played back, the DVD AUDIO indicator on the front panel turns on.

• For a double-sided DVD VIDEO disc, place the disc with the playback side facing down.

Basic operations

7380

TOP MENU

ON SCREEN

8 3

About PBC (Playback Control)

Some SVCD/Video CD discs support the PBC function. The PBC function allows you to enjoy menu-driven operation and high-resolution still images which have a resolution four times greater than moving pictures.

• To play a PBC-compatible SVCD/Video CD disc without activating the PBC function, press the numeric buttons instead of 3 to start playback.

• To activate the PBC function again,

1) press TOP MENU or MENU,

2) press 7 to stop playback, then press 3.

To stop playback completely

Press 7.

Hint

If you press 0 during playback, the unit stops playback and opens the disc tray.

To stop playback temporarily

Press 8.

To resume playback, press 3. (See the following item.)

About On-screen guide icons

You may see the following icons displayed over the picture. They have the following meanings.

: Appears at the beginning of playback mode.

: Appears at the beginning of pause mode.

: Appears at the beginning of fast forward/backward

playback with the current speed (see page 14).

: Appears at the beginning of slow-motion playback

with the current speed (see page 14).

: Appears at the beginning of a scene recorded from

multiple angles (see page 21).

: Appears at the beginning of a scene recorded with

multiple audio languages (see page 21).

: Appears at the beginning of a scene recorded with

multiple subtitle languages (see page 21).

You can change the setting so that the on-screen guide icons do not appear on the TV screen (see page 39).

To check the playback status

You can see the current selection number (the group/track number for DVD AUDIO, the title/chapter number for DVD VIDEO or track number for SVCD/Video CD/Audio CD), time information (the track or chapter time while stopped, or elapsed track or chapter time during playback) and the transport status (stop, playback, pause, etc.) on the TV screen.

Press ON SCREEN.

Example: for DVD VIDEO

Transfer rate

8.5Mbps

Note that pressing ON SCREEN again brings up the menu bar under the status bar, from which you can access various functions. See page 24 for details about the menu bar.

To turn off the status bar

Press ON SCREEN repeatedly until the status bar goes off.

Current chapter

number

TITLE 33 TOTAL 1:25:58CHAP 33

Current title number

Current transport

status

Current chapter

time

Basic operations

Resuming playback

The unit can memorize the position on a disc where you interrupt playback, and resume playback from that position later. There are three resume modes; ON, OFF and DISC RESUME. The mode is initially set to ON when you purchased the unit.

• You can select the mode using the preference display (see page 39).

When the resume mode is “ON”

When you press 7, the unit stops playback and memorizes the interrupted position. The TV screen shows [RESUME STOP] and the display window shows [– – – – RESUME] (for DVD AUDIO/ DVD VIDEO discs) or [– – RESUME] (for SVCD/Video CD/VR format discs). The memory of the interrupted position is not cleared if you turn off the unit. When you turn off the unit after setting the resume function, simply press 3. The unit is turned on, and playback starts from

the interrupted position. If you turn on the unit by pressing then press 3, playback starts from the beginning of the disc. Note that the memory is cleared if you open the disc tray.

When the resume mode is “DISC RESUME”

The memory of the interrupted position is not cleared if you open the disc tray or turn off the unit.

Hint

The unit memorizes interrupted positions for the last 30 discs played. Storing a new interrupted position will erase the interrupted position stored for the first disc.

To clear the memory

Press 7 while the disc is stopped.

To resume playback

When the resume mode is “ON”

While the disc you interrupted playback is still on the disc tray, press 3.

The unit resumes playback from the position where playback was interrupted. The TV screen and the display window show [RESUME PLAY].

To play back from the beginning

Press 7 before pressing 3 to start playback.

When the resume mode is “DISC RESUME”

1 Press 0 to insert a disc for which the unit has

stored an interrupted position.

The TV screen shows [RESUME STOP].

2 Press 3.

The TV screen and the display window show [RESUME PLAY] and the unit resumes playback from the position where playback was interrupted.

To play back from the beginning

After inserting the disc, press 7 before pressing 3 to start playback.

NOTES

• If you change the [RESUME] setting from [DISC RESUME] to [OFF] or [ON], you cannot resume playback of a disc whose “resuming” position is stored. However, when you again set [RESUME] to [DISC RESUME], you will then be able to resume playback of the disc.

• If you interrupt the playback of a disc for which an interrupted position has already been stored, the memory will be updated with the new interrupted position.

• For a double-sided DVD AUDIO/DVD VIDEO disc, the unit regards each side as a different disc. Therefore, to resume playback of such a disc, the disc must be inserted with the same side down.

• When the unit memorizes an interrupted point for a disc, it also memorizes Audio, Subtitle and Angle settings.

• The unit may not resume playback exactly from the interrupted point. In the case of an SVCD/Video CD disc with PBC function, the unit may resume playback from a point slightly earlier or later than the point where playback was interrupted.

Basic

operations

Basic operations

3 80

4¢

Numeric buttons

¢ 8

1¡

Various speed playback

To advance or reverse playback rapidly while monitoring

To advance a still picture frame by frame

While paused, press 8.

Each time you press 8, the still picture advances to the next frame. Pressing 3 returns to normal playback.

To play back in slow motion

You can select from 1/32 times, 1/16 times, 1/4 times and 1/2 times normal speed.

During playback, press 8, then press ¡ (to play forward slow motion), or 1 (to play reverse slow motion, for DVD VIDEO disc only).

Pressing 3 returns to normal playback.

NOTES

• During slow motion playback, the sound will be muted.

• Reverse slow motion playback is not possible for an SVCD and Video CD.

To replay the previous scenes (One touch replay function)

During playback, press ¡ or 1 on the remote control unit.

You can select from 1.5 times, 5 times, 20 times and 60 times normal speed. Pressing 3 returns the unit to normal playback.

During playback, hold down ¢ or 4.

Playback is advanced or reversed at 5 times normal speed.

NOTE

During rapid playback, the sound will be muted except when playing a DVD AUDIO or Audio CD, and when playing a DVD VIDEO or Video CD at 1.5 times normal speed. For Audio CD discs, the sound will be heard intermittently.

x1.5 Quick Playback with sound

When you select 1.5 times normal speed playback, the disc is played back with sound.

• For DVD VIDEO discs, the subtitle does not go off.

• If the sound of a DVD VIDEO disc is recorded in Dolby Digital or DTS format, stereo linear PCM signals are output. With some DVD VIDEO discs, the sound quality and volume may alter, or the sound may be out of tune.

• To switch from rapid reverse playback to x1.5 Quick Playback, first press 3, then press ¡ once.

During DVD VIDEO playback, press .

The playback position moves back 10 seconds before the current position.

NOTES

• This function works only within the same title, though it works between chapters.

• This function may not work with some DVD VIDEO discs.

Locating the beginning of a scene or song

For DVD AUDIO: During playback or while in stop mode, you can

skip a group or track.

For DVD VIDEO: During playback, you can skip a chapter or title,

depending on the disc configuration.

For SVCD/Video CD: During playback without PBC function, you

can skip a track.

For Audio CD: During playback or while in stop mode, you can

skip a track.

To skip forward, press ¢.

To skip backward, press 4.

Using the numeric buttons

For DVD AUDIO/DVD VIDEO/Audio CD: During playback or while

in stop mode

For SVCD/Video CD: During playback without PBC function or

while in stop mode

Press the numeric buttons to specify the number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

Basic operations

Basic

operations

The unit starts playback from the beginning of the selection.

NOTES

• Depending on the disc type and the unit status, what is specified differs:

unit status Disc type What is specified

While stopped

During playback

* Pressing the numeric buttons simply selects a track. To select a

group (when a disc contains more than one group), press TITLE/GROUP before pressing the numeric buttons.

• During DVD VIDEO playback, if a menu is shown on the TV screen, the numeric buttons may be used for selecting an item in the menu.

DVD AUDIO group or track *

DVD VIDEO title

SVCD/Video CD/Audio CD track

DVD AUDIO track

DVD VIDEO chapter

SVCD/Video CD/Audio CD track

Advanced operations

Numeric buttons

Locating a desired scene from the menu of a SVCD/Video CD with PBC

NOTE

TV DVD

PAG E

ENTER

Make sure that the TV - DVD switch on the remote control unit is set to “DVD” when using the 5/∞/2/3, numeric and TV/ VIDEO - CANCEL buttons for controlling the unit.

TITLE/GROUPRETURN MENUTOP MENU

5/∞/2/3

ON SCREEN

Playing from a specific position

Locating a desired scene from the DVD menu

DVD AUDIO/DVD VIDEO discs generally have their own menus which show the disc contents. These menus contain various items such as titles of movies, names of songs, or artist information, and display them on the TV screen. You can locate a desired scene using the DVD menu.

1 While a DVD AUDIO/DVD VIDEO disc is

inserted, press TOP MENU or MENU.

The menu appears on the TV screen.

2 Press 5/∞/2/3 to select a desired item, then

press ENTER.

The unit starts playback of the selected item.

Hints

• Some DVD AUDIO/DVD VIDEO discs may also have a different menu which appears when MENU is pressed.

• See the instructions of each DVD AUDIO/DVD VIDEO disc for its particular menu.

• With some discs, you can select items by entering the corresponding number using the numeric buttons, which may cause the unit to automatically start playback.

Some SVCD/Video CD discs support the PBC function. PBC is an abbreviation of “Playback Control.” Some SVCD/Video CD discs recorded with PBC have their own menus, such as a list of the songs of the disc. You can locate a specific scene by using the PBC menu.

1 In stop mode, press 3 or TOP MENU.

A disc menu appears on the TV screen.

2 Press the numeric buttons to select the

desired item.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The unit starts playback of the selected item. To return to the menu, press RETURN.

Hint

If something like [NEXT] or [PREVIOUS] appears on the TV screen, pressing ¢ advances to the next page, and pressing 4 returns to the previous page.

Specifying a desired title/group

1 During playback, press TITLE/GROUP.

[--] is shown in the title display area of the display window.

2 Press the numeric buttons to specify a title or

group to be played.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The unit starts playback from the specified title or group.

NOTE

This function may not work with some DVD AUDIO/DVD VIDEO discs.

NOTE

The MENU button does not work while stopped.

Advanced operations

Locating a desired position in the current title, group or track (Time search)

You can play a disc from the desired position by specifying the time from the beginning of the current group (for DVD AUDIO), the current title (for DVD VIDEO) or the disc (for SVCD/Video CD/ Audio CD).

For DVD AUDIO/DVD VIDEO/Audio CD: During playback or while

in stop mode

For SVCD/Video CD: In any condition except SVCD/Video CD

playback with PBC

1 Press ON SCREEN twice.

The menu bar appears on the TV screen.

2 Press 2/3 to move to , then press

ENTER.

The pull-down menu for entering time appears.

Screen example for DVD VIDEO

CHAP.

TITLE 33 TOTAL 1:25:58CHAP 33

1/3 1/3OFF 1/5

TIME 25:58TRACK 33

8.5Mbps

TIME _:__:__

Screen example for Audio CD

OFF PROG. RND.

TIME __:__

To dismiss the menu bar

Press ON SCREEN.

Hint

“10” and “+10” buttons are not used with this function.

NOTES

• Some DVD VIDEO discs do not contain time information, and the time search function cannot be used.

• When a DVD AUDIO disc is stopped, you can specify the elapsed time from the beginning of group 1.

• The time search function cannot be used during program playback.

Selecting a still picture on a DVD AUDIO disc (PAGE)

Most DVD AUDIO discs include still pictures, which appear in turn during playback. There are other page(s) of the current sitll picture and you can change the picture (turn the page) manually.

Hint

At the beginning of a part where there are selectable pictures, [PAGE] appears on the TV screen (except when the [ON SCREEN GUIDE] preference is set to [OFF]).

1 During playback except when the status bar

is shown, press PAGE.

The page selection window appears on the TV screen.

PAGE 1/32

Advanced

operations

3 Press the numeric buttons (0 to 9) to enter

the desired time.

The specified time is displayed in the pull-down menu.

Example (for DVD AUDIO/DVD VIDEO)

To play back from 2(H):34(M):00(S) Press 2, 3, then 4.

TIME 2:34 __:

Example (for SVCD/Video CD/Audio CD)

To play back from 23(M):40(S) Press 2, 3, then 4.

TIME 23 4_:

You do not have to press “0” to enter the trailing zeros (for the last two digits in the example above).

To correct a mistake

Press 2 repeatedly to move back to the digit where you entered a wrong number, and reenter the correct one.

4 Press ENTER.

The unit starts playback from the specified time.

2 Press PAGE or 5/∞ to select the desired

page.

3 Press ENTER.

The selected page (picture) is shown. The page selection window is dismissed.

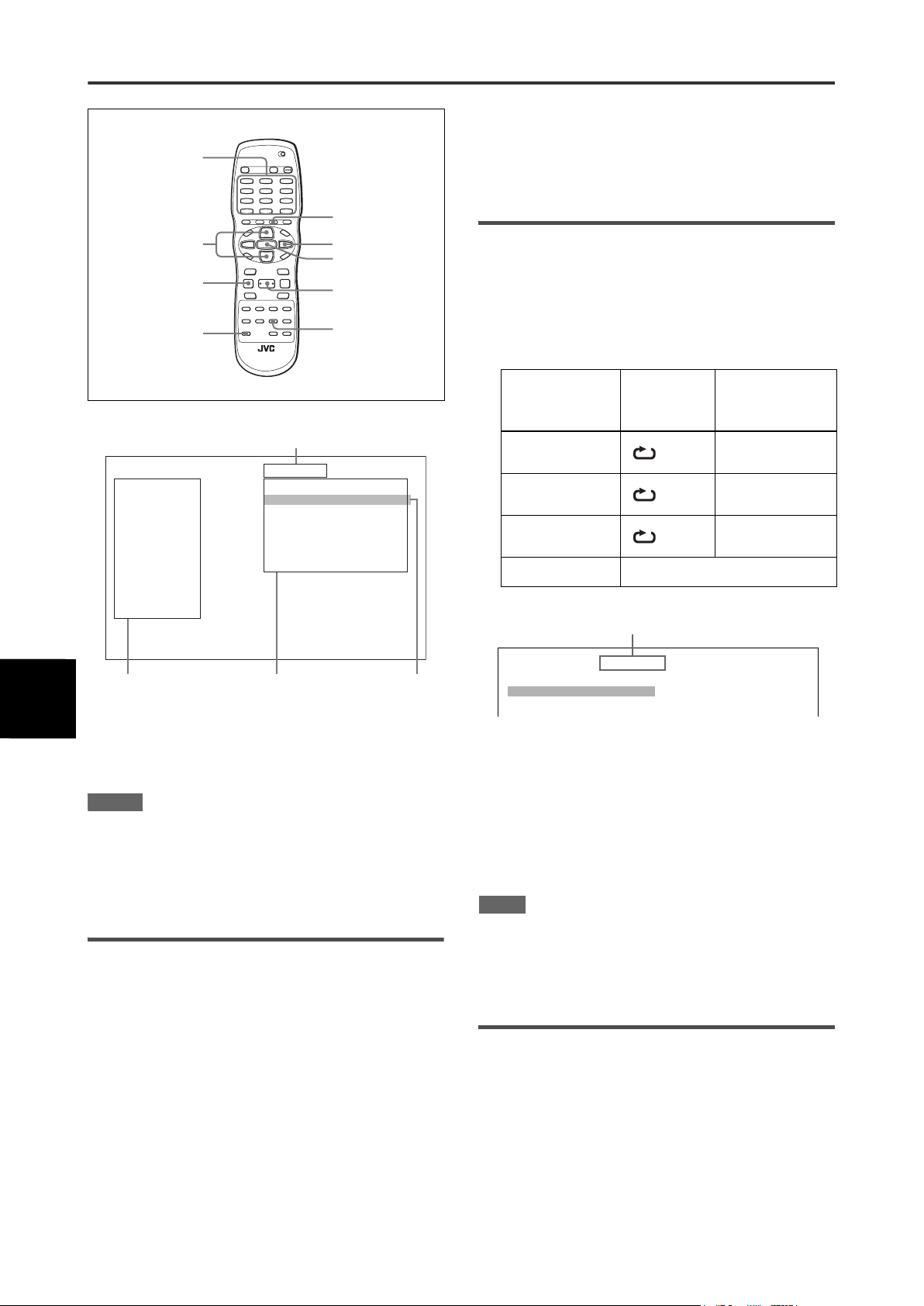

Advanced operations

Numeric buttons

TV/VIDEO-CANCEL

5/∞/2/3

ENTER

ON SCREEN

Playing back a bonus group of a DVD AUDIO disc

Some DVD AUDIO discs contain a special group called “bonus group” whose contents are not opened to the public. The bonus group is assigned to the last group of a disc. To play back a bonus group, you have to enter a specific “key number” for the bonus group. A way of getting the key number depends on discs.

1 In stop mode, press the numeric buttons to

select the bonus group numer (the last group).

The display window and on-screen display prompt you to enter the key number.

On the TV screen

Changing the playback order

To play back in a specific order (Program play)

By programming tracks, you can play up to 99 tracks in any order. You may program the same track more than once.

1 In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

GROUP 1

PROG. RND.

PROG.

TRACK 1

STOP

-/1 PAGE -/-OFF

2 Press 2/3 to move to .

Screen example for DVD AUDIO

-.-Mbps

TRACK

3 Press ENTER.

The program table appears. The [PRGM] indicator lights up in the display window.

4-a (for DVD AUDIO)

Press the numeric buttons to specify selections in the desired order by group and track numbers.

For each program step, specify a group first, then specify a track. To specify track 14 in group 2: press 2, +10, then 4.

4-b (for SVCD/Video CD/Audio CD)

Press the numeric buttons to specify tracks in the desired order.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

KEY _ _ _ _

2 Press the numeric buttons to enter the key

number.

If you entered the correct key number, the unit starts playback of the bonus group. If you entered a wrong key number, you are prompted to enter the correct key number.

To dismiss the key number entry display

Press 7, open the disc tray, or turn the power off.

NOTES

• Once you enter the correct key number, the unit memorizes it until you turn off the power or open the disc tray.

• If you specify a track in the bonus group for the program playback, you will also be prompted to enter the key number during program play.

• In the random playback, tracks in the bonus group are not played back.

(Program table example for DVD AUDIO)

The total program time

PROGRAM

No. Group TrackDisc 1 2 - 2 3 - 3 7 - 4 4 - 5 3 - 6 5 - 7 6 - 8 9 10

USE NUMERIC KEYS TO PROGRAM TRACKS. CANCEL DELETES THE LAST STEP.

To correct the program

Press 5/∞ to move press TV/VIDEO - CANCEL. The track is erased and the

subsequent programmed tracks move up. Pressing 7 clears all the programmed tracks.

to the track to be corrected, then

Total Program Time 00:25:12

7 DELETES ALL.

Selected track number
