JVC XV-N450B Instruction Manual

DVD PLAYER

XV-N452S XV-N450B

INSTRUCTIONS

LPT1155-001A

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the productʼs enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System. To ensure proper use of this product, please read this ownerʼs manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION concerning the Power Cord

Most devices are recommended be placed on a dedicated circuit;

That is, a single outlet circuit which powers only that electronic device and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions. - All these safety and

operating instructions should be read before the product is operated.

2. Keep these instructions. - The safety, operating and

use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in

the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this apparatus near water. - For example:

near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.

6. Clean only with dry cloth. - Unplug this product from

the wall outlet before cleaning. Do not use liquid cleaners.

PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNERʼS MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

Do not block any ventilation openings. Install in

7. accordance with the manufacturerʼs instructions. -

and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over- heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturerʼs instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

o not defeat the safety purpose of the polarized or

9. D grounding-type plug. A polarized plug has two with one wider than the other. A grounding has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

blades

type plug

Slots

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service personnel.

14. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

Contents

Introduction . . . . . . . . . . . . . . . . . . .5-8

About the Symbol Display . . . . . . . . . . . . . .5

Symbol Used in this Manual . . . . . . . . . . . . . . .5

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . .5

Handling Discs . . . . . . . . . . . . . . . . . . . . . . . .5

Storing Discs . . . . . . . . . . . . . . . . . . . . . . . . .5

Cleaning Discs . . . . . . . . . . . . . . . . . . . . . . . .5

Types of Playable Discs . . . . . . . . . . . . . . . . . .6

Regional Code . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .8

Remote Control operation . . . . . . . . . . . . . . .8

Remote Control Battery installation . . . . . . . .8

Installation and Setup . . . . . . . . .9-14

Setting up the Player . . . . . . . . . . . . . . . . . . . . .9

DVD Player Connections . . . . . . . . . . . . . . . . . .9

Video and Audio Connections to Your TV . . .9

Audio Connection to Optional Equipment . .10

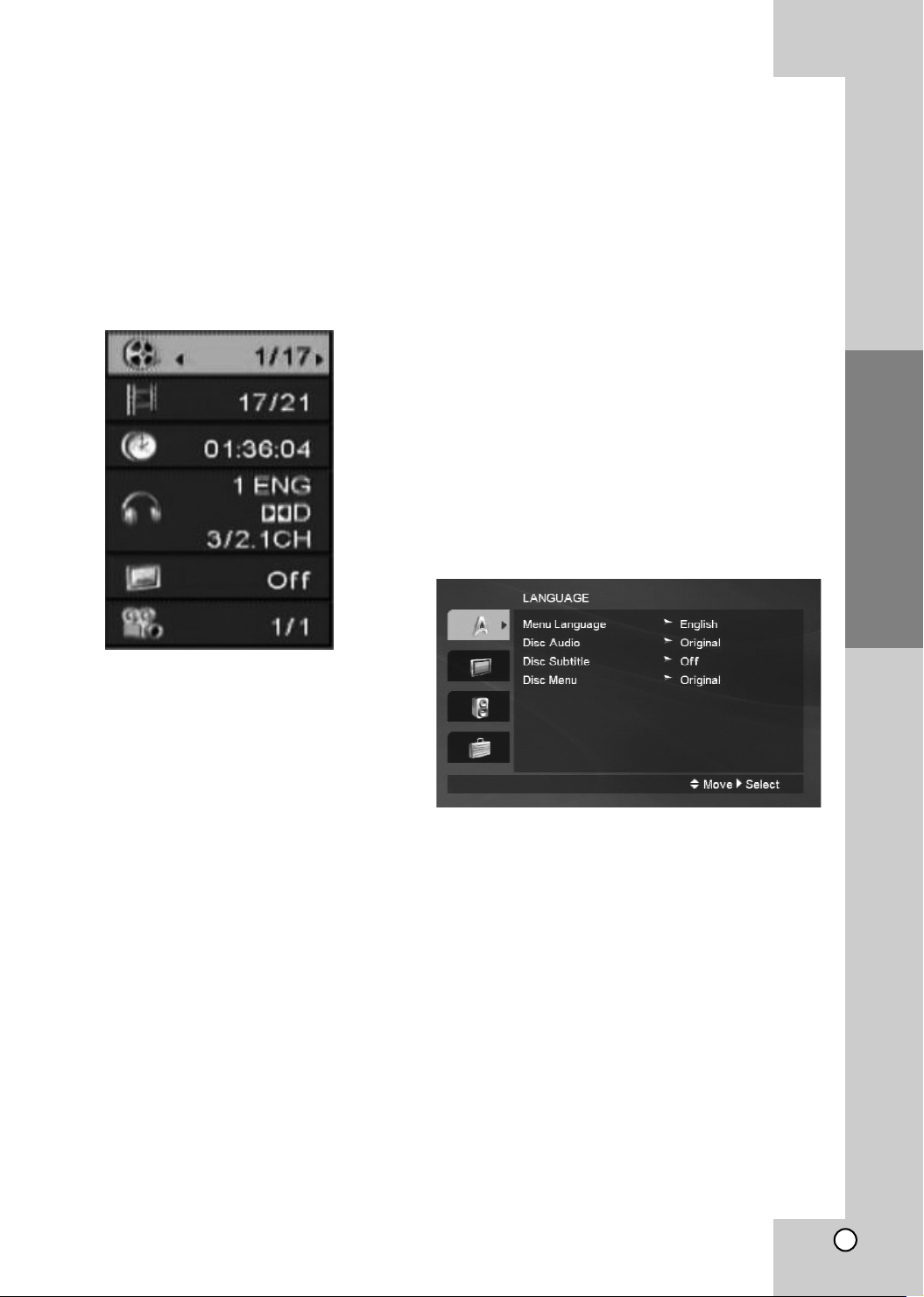

Displaying Disc Information on-screen . . . . .11

Initial Settings . . . . . . . . . . . . . . . . . . . . . . .11-14

General Operation . . . . . . . . . . . . . . . . . . . .11

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . .12

• Menu Language . . . . . . . . . . . . . . . . . .12

• Disc Audio / Subtitle / Menu . . . . . . . . .12

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . .12

• TV Aspect . . . . . . . . . . . . . . . . . . . . . . .12

• Display Mode . . . . . . . . . . . . . . . . . . . . .12

• Progressive Scan . . . . . . . . . . . . . . . . .12

• TV Output Select . . . . . . . . . . . . . . . . . .12

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

• Dolby Digital / DTS / MPEG . . . . . . . . .13

• Sample Freq. (Frequency) . . . . . . . . . .13

• DRC (Dynamic Range Control) . . . . . . .13

• Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . .13

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . .14

• PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

• B.L.E. (Black Level Expansion) . . . . . . .14

• DivX(R) VOD . . . . . . . . . . . . . . . . . . . . .14

Operations . . . . . . . . . . . . . . . . .15-21

General Features . . . . . . . . . . . . . . . . . . . . . . .15

Additional Features . . . . . . . . . . . . . . . . . . . . .16

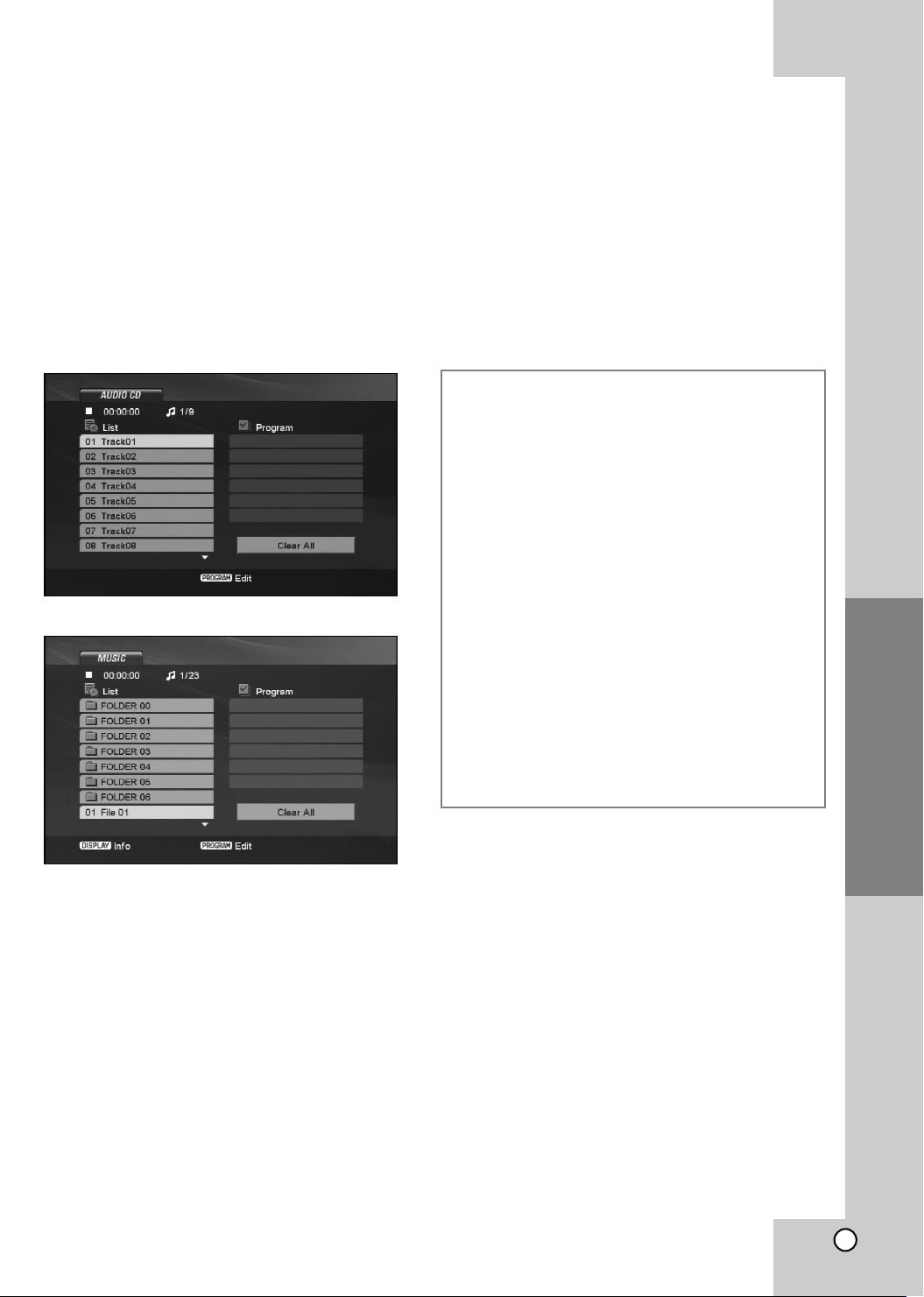

Playing an Audio CD or MP3/WMA file . . . . .17

Programmed Playback . . . . . . . . . . . . . . . . . .18

Repeat Programmed Tracks . . . . . . . . . . . .18

Erasing a Track from Program List . . . . . . .18

Erasing the Complete Program List . . . . . . .18

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . .19

Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . .19

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . .19

Moving to another file . . . . . . . . . . . . . . . . . .19

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Rotating the picture . . . . . . . . . . . . . . . . . . .19

Listening to MP3 music

while watching picture . . . . . . . . . . . . . . . . .19

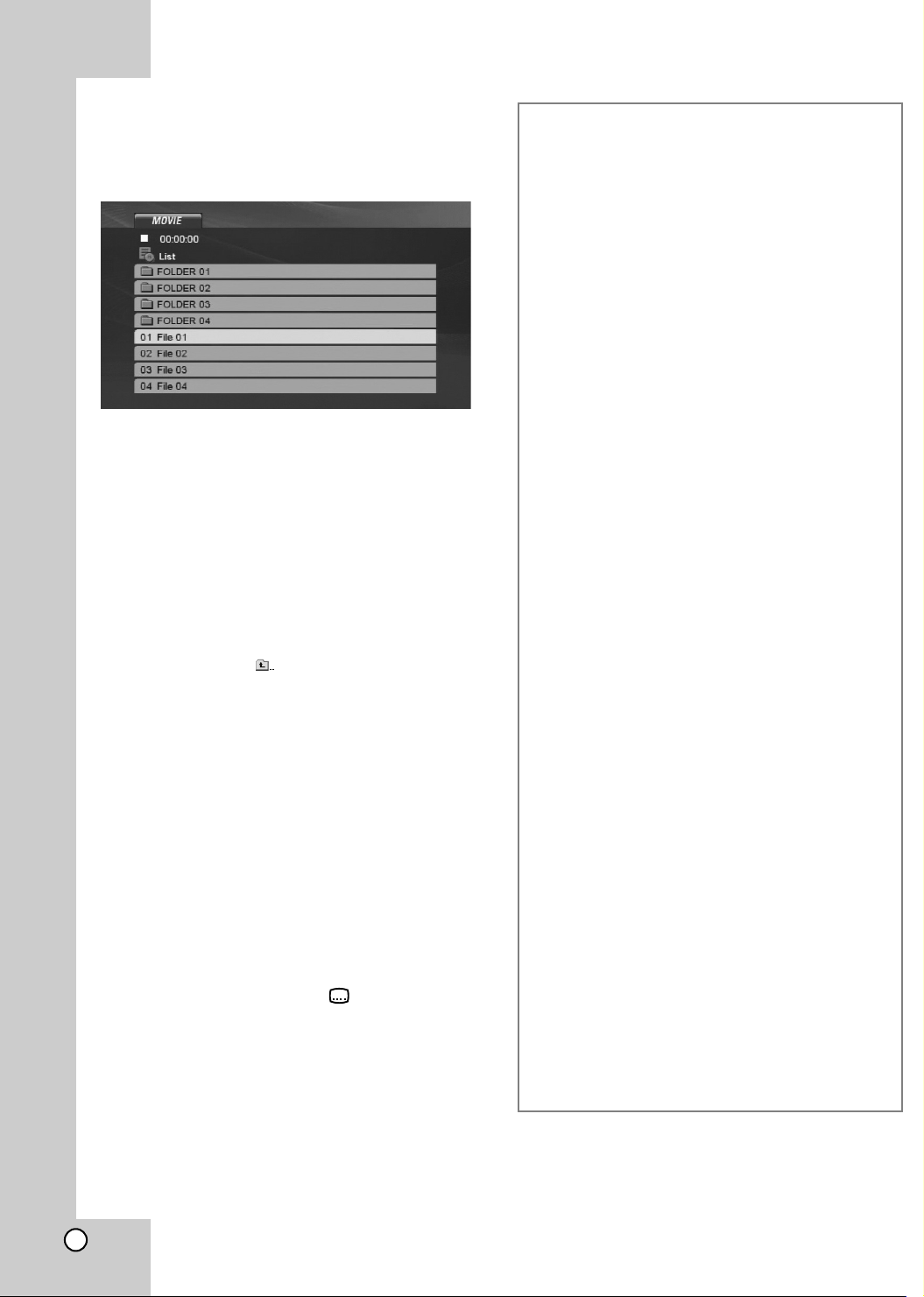

Playing a DivX Movie file . . . . . . . . . . . . . . . .20

Playing a DVD VR format Disc . . . . . . . . . . . .21

Reference . . . . . . . . . . . . . . . . . . .22-25

Remote Control Function

Maintenance and Service . . . . . . . . . . . . . . . . .22

Language Codes . . . . . . . . . . . . . . . . . . . . . . . .23

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .24

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .25

. . . . . . . . . . . . . . . . . . . .

Introduction

To ensure proper use of this product, please read this ownerʼs manual carefully and retain it for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

About the Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in

this ownerʼs manual is not available on that specific DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

ALL

All discs and file listed below

DVD

DVD and finalized DVD±R/RW

VCD

Video CDs

ACD

Audio CDs

MP3

MP3 files

WMA

DivX

WMA files

DivX files

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Introduction

Installation and Setup

Operation

Reference

Types of Playable Discs

Regional Code

DVD (8 cm / 12 cm disc)

Video CD (VCD/SVCD) (8 cm / 12 cm disc)

Audio CD (8 cm / 12 cm disc)

In addition, this unit plays DVD±R/RW and CD-R/RW, Dual disc that contains audio titles, DivX, MP3, WMA, and/or JPEG files.

This indicates a product feature that is capable of playing DVD-RW discs recorded with Video Recording format.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs may not be played on the unit.

• Do not use irregularly shaped CDs (e.g., heartshaped or octagonal) since they may result in malfunctions.

• This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled as the same as the rear of the unit or “ALL”.

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unitʼs regional code or the disc cannot play.

• If you try to play a DVD with a different regional code from your player, the message “Check Regional Code” appears on the TV screen.

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. The Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ʻSTANDARD DEFINITIONʼ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Front Panel

ab cdefghij

Introduction

a 1/' STANDBY/ON

Switches the unit ON and OFF.

b Disc Tray

Insert a disc here.

c Display window

Shows the current status of the unit.

d Remote Sensor

Point the remote control here.

e Z (OPEN/CLOSE)

Opens or closes the disc tray.

f DISPLAY

Accesses On-Screen Display.

g x (STOP)

Stops playback.

h N (PLAY)

Starts playback.

i . (SKIP)

Returns to the beginning of current chapter or track or go to the previous chapter or track.

j > (SKIP)

Go to the next chapter or track.

Installation and Setup

Operation

Reference

Remote Control

AAA

STANDBY/ON (1/')

Switches DVD Player ON and OFF.

OPEN/CLOSE (Z)

Opens and closes the disc tray.

PAUSE/STEP ( X )

Pauses playback temporarily/ press

repeatedly for frame-by-frame

playback.

SKIP (. / >)

Go to next chapter or track.

Returns to the beginning of current

chapter or track or go to the

previous chapter or track.

STOP (x)

Stops playback.

SCAN (m / M)

Search backward or forward.

PLAY (N)

Starts playback.

0-9 numerical buttons

Selects numbered items in a menu.

PROGRAM

Enter to program edit mode.

CLEAR

Removes a track number on the

Program List or a mark on the

Marker Search menu

Remote Control operation

Point the remote control at the remote sensor and press the buttons.

Cautions:

• Do not mix old and new batteries and never mix different types of batteries such as standard, alkaline, etc.

• Do not put the batteries in the place where young children can reach.

Remote Control Battery installation

Detach the battery cover on the rear of the remote control, and insert two batteries (size AAA) with 3 and # aligned correctly.

DISPLAY

Accesses On-Screen Display.

DVD MENU

Accesses menu on a DVD disc.

b / B / v / V (left/right/up/down)

Selects an item in the menu.

ENTER ( )

Confirms menu selection.

SETUP

Accesses or removes Setup menu.

RETURN (O)

Displays the menu of a video CD with PBC.

AUDIO ( )

Selects an audio language or an audio channel.

SUBTITLE ( )

Selects a subtitle language.

ANGLE ( )

Selects a DVD camera angle, if available.

ZOOM

Enlarges video image.

MARKER

Marks any point during playback.

Displays MARKER SEARCH menu.

TITLE

Displays title menu, if available.

REPEAT

Repeats chapter, track, title or all.

RANDOM

Plays tracks in random order.

A-B

Repeats sequence from point A to point B.

Installation and Setup

Setting up the Player

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc.

DVD Player Connections

Depending on your TV and other equipment there are various ways you can connect the player. Please refer to the manuals of your TV, stereo system or other devices as necessary for additional connection information.

Rear of TV

Rear of DVD Player

Video and Audio Connections to Your TV

Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system.

S-Video – Connect the S-VIDEO OUT jack on the DVD Player to the S-Video in jack on the TV using the S-Video cable (S).

Video – Connect the VIDEO OUT jack on the DVD player to the video in jack on the TV using the video cable (V).

Audio – Connect the left and right AUDIO OUT jacks of the DVD Player to the audio left and right IN jacks on the TV using the audio cables (A). Do not connect the DVD Playerʼs AUDIO OUT jack to the phone in jack (record deck) of your audio system. Component Video – Connect the COMPONENT / PROGRESSIVE SCAN jacks on the DVD Player to the corresponding jacks on the TV using an Y

B PR cable (C).

Progressive Scan

• If your television is a high-definition or “digital ready” television, you may take advantage of the DVD playerʼs progressive scan output for the highest possible video resolution.

• Set the Progressive Scan to “On” on the setup menu for progressive scan signal. (Refer to page 12).

• Progressive scan does not work with the analog video connections (yellow VIDEO OUT jack and S-VIDEO OUT jack).

Introduction

Installation and Setup

Operation

Reference

+ 19 hidden pages
