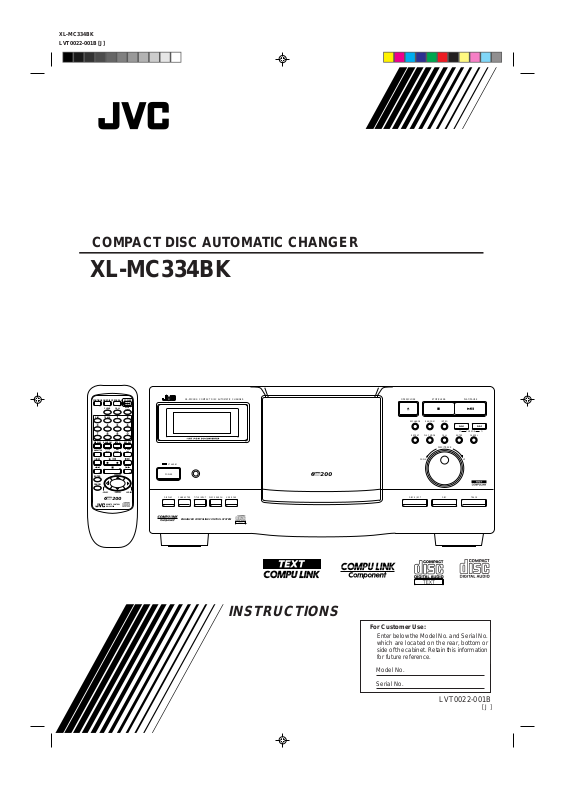

JVC XL-MC334BK User Manual
COMPACT COMPONENT SYSTEM
COMPACT DISC AUTOMATIC CHANGER
XL-MC334BK
XL-MC334
CONTINUE ONE DISCPROGRAM POWER
CLEAR
CALL
TRACKDISC
DISPLAY RANDOM INTRO REPEAT
TITLE
DISC
CHARACTER
INPUT
SEARCH
/
+
10DISC
ENTER
CANCEL
–10DISC–1DISC
200
REMOTE CONTROL
'
RM–SX334U
OPEN/
CLOSE
USER
FILE
STANDBY
POWER
+
1DISC
DISPLAY CHARACTER TITLE INPUT DISC SEARCH USER FILE
COMPACT DISC AUTOMATIC CHANGER PLAY/PAUSESTOP/CLEAR
200
OPEN/CLOSE
EXCHANGE RANDOM INTRO
REPEAT PLAY MODE CALL
11
DOWN
DISC EJECT
ENTER CANCEL
DISC/TRACK
DISC
CURSOR
<>
UP
TRACK
ENHANCED COMPULINK CONTROL SYSTEM
INSTRUCTIONS
'
For Customer Use:
Enter below the Model No. and Serial
Enter below the Model No. and Serial No.
No. which are located either on the rear,
which are located on the rear, bottom or
bottom or side of the cabinet. Retain this
side of the cabinet. Retain this information
information for future reference.
for future reference.
Model No.
Serial No.
LVT0022-001B
[J ]
WARNING AND CAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to
within an equilateral triangle alerts the user to
alert the user to the presence of uninsulated
the presence of uninsulated "dangerous
"dangerous voltage" within the product's
voltage" within the product's enclosure that
enclosure that may be of sufficient
magnitude to constitute a risk of electric
could cavse electric shock.
shock to persons.
The exclamation point within an equilateral
The exclamation mark within an equilateral
triangle is intended to alert the user to the
triangle alerts the user to important operating
presence of important operating and
and maintenance (servicing) instructions in the
maintenance (servicing) instructions in the
manual for the appliance.
literature accompanying the appliance.
For U.S.A.
For U.S.A.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to
Connect the equipment into an outlet on a circuit different from that
which the receiver is connected.
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Consult the dealer or an experienced radio/TV technician for help.
.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
Caution –– POWER switch!
Disconnect the mains plug to shut the power off completely. The
POWER switch in any position does not disconnect the mains line. The
power can be remote controlled.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when open and interlock failed or
bypassed. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-
able parts inside the player; leave all servicing to qualified service
personnel.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
INTRODUCTION CONTENTS
Thank you very much for purchasing this JVC product. W e sincerely
hope it proves its quality and performance to your full satisfaction.
Please read the instructions contained in this manual in order to get
the most out of the product’s capability and performance. If there
are any questions concerning the product, please consult your JVC
dealer.
XL-MC334BK main features
The XL-MC334BK Compact disc automatic changer provides many
sophisticated features.
• Loads up to 200 compact discs.
• Supports CD Text specifications.
• You can manually store disc information including Disc title,
Performer and Genre for a normal audio CD (non CD T ext disc)
into the memory built in the unit.
• Displays disc information of CD T ext discs, as well as manually
stored information of normal audio CDs.
• Supports JVC’s advanced TEXT COMPU LINK, allowing the
disc information to be displayed on your TV monitor through a
JVC amplifier/receiver supporting TEXT COMPU LINK.
• Provides on optical digital audio output port, as well as the
conventional analog audio output ports.
• 1-bit P.E.M. DD converter for optimum audio performance.
• Disc search function using the disc information.
• You can create up to 8 user files for classifying discs.
• Reserve mode for continuous playback of tracks in the specified
order.
PRECAUTIONS ...........................................................2
Installation ................................................................................. 2
Compact discs ........................................................................... 2
Operation ................................................................................... 2
SETTING UP ................................................................ 2
Connecting the unit ................................................................... 2
Installing batteries in the remote control .................................. 3
FRONT PANEL AND REMOTE CONTROL...........4
Front panel................................................................................. 4
Display....................................................................................... 5
Remote control .......................................................................... 6
BASIC OPERATION ................................................... 7
Turning the power on ................................................................ 7
Loading compact discs.............................................................. 7
Unloading/changing discs ......................................................... 7
Playing back discs ..................................................................... 8
Changing discs during playback ............................................... 9
CONTINUE MODE PLAYBACK ............................ 10
Basic mode .............................................................................. 10
Playing back discs in random order........................................ 10
Playing back a track repeatedly .............................................. 10
Playing back the beginning of each disc ................................ 10
ONE DISC MODE PLAYBACK............................... 11
Basic mode .............................................................................. 11
Playing back the tracks in random order ................................ 11
Playing back the disc repeatedly............................................. 11
Playing back a track repeatedly .............................................. 11
Playing back the beginning of each track............................... 11
PROGRAM MODE PLAYBACK............................. 12
Basic mode .............................................................................. 12
Playing back the program repeatedly ..................................... 12
Playing back a program step repeatedly ................................. 13
SHOWING DISC INFORMATION ......................... 14
With CD Text discs ................................................................. 14
With normal audio CDs (non CD Text discs)......................... 14
ENTERING DISC INFORMATION........................ 15
Storing Title information ........................................................ 15
SEARCHING FOR A DISC ...................................... 17
How to search for a disc.......................................................... 17
USER FILE ................................................................. 18
Enrolling a disc to a user file .................................................. 18
Assigning a user file name ...................................................... 18
Checking user file contents..................................................... 18
Deleting a disc from the user file............................................ 19
Playing back all discs in a user file ........................................ 19
RESERVE FUNCTION ............................................. 20
Reserving the following tunes to be played back................... 20
TEXT COMPU LINK SYSTEM ..............................21
COMPU LINK-3 REMOTE CONTROL
SYSTEM...................................................................... 21
HANDLING AND TAKING CARE OF DISCS...... 22
Handling compact discs .......................................................... 22
Cleaning compact discs........................................................... 22
Storing compact discs ............................................................. 22
SPECIFICATIONS & PACKING LIST ..................22
TROUBLESHOOTING ............................................. 23
1
PRECAUTIONS SETTING UP
Installation
• Select the best location
Select a level location to install this unit, where it is free from
extremes of temperature (5 to 35°C, or 41 to 95°F) and humidity ,
dust, or vibration.
If noise interference is caused when receiving AM broadcast by
a tuner/receiver located nearby , relocate it or this unit, or turn off
either one.
• Moving the unit
Before moving the unit, first remove all discs. Turn the power
off, making sure the standby indicator is on. Then remove the
AC power cord from the AC outlet.
Compact discs
• Use only compact digital audio discs
Only audio compact discs identified by the
logo on the right can be played back with the
unit.
Also the unit can display the text information
in CD text discs identified by the logo on the
right.
'
Connecting the unit
This compact disc changer/player needs to be connected to an
amplifier/receiver for audio reproduction.
CAUTION
Do not connect the AC power cord until all other necessary connections have been made.
1. Audio connection
Connect the analog (OUTPUT) ports on the back of this unit
with the CD or AUX input ports of the amplifier/receiver using
the supplied audio cords (red and white).
Audio cord
(White)
(Red)
To input audio jack of
the amplifier/receiver
• Be sure to insert the plug firmly into the proper ports.
• Be sure to match the output and input channels—RIGHT to
RIGHT and LEFT to LEFT.
OUTPUT COMPULINK-3
LEFT
RIGHT
(SYNCHRO)
TEXT
COMPULINK
DIGITAL
(OPTICAL)
Operation
• Place only discs in the disc storage
Do not put anything other than discs in slots of the disc storage.
• Turn the power off if a problem occurs
If an unusual condition arises, turn the power off immediately . If
the condition persists whenever the power is turned on, consult
your JVC dealer.
• Do not pull the AC cord
Do not pull the cable when unplugging the AC cord from the AC
outlet or this component — hold and pull the plug body.
• Set the sound volume carefully
Be careful in setting the sound volume on your amplifier/receiver
when playing a CD, which has almost no background noise unlike
analog records and tapes. Find the right setting by starting with a
low level setting. Setting the level too high and then playing a
CD could damage the speakers.
• Protect the unit against condensation
Condensation on the unit could disrupt the proper transmission
of the disc-reading laser beam, causing noise or malfunction. If
condensation occurs due to excessive humidity or sudden
temperature change, leave the unit turned on for a couple of hours
to dry — consult your JVC dealer if this does not correct the
condition.
If your audio unit has a digital optical input, you may connect
the DIGITAL (OPTICAL) port on the back of this unit to it
using the optional digital cord.
OUTPUT COMPULINK-3
LEFT
RIGHT
(SYNCHRO)
TEXT
COMPULINK
DIGITAL
(OPTICAL)
To Digital jack
Digital cord
2. COMPU LINK-3 connection
If you are using a JVC audio amplifier/receiver supporting the
COMPU LINK-3 remote control system, connect either one of
the COMPU LINK-3 (SYNCHRO) ports on the back of the
unit with the amplifier/receiver’s COMPU LINK-3 port using
the supplied compulink cord (black).
OUTPUT COMPULINK-3
LEFT
RIGHT
(SYNCHRO)
TEXT
COMPULINK
By using the COMPU LINK-3 system, you can control the unit
from the connected JVC amplifier/receiver.
(See “COMPU LINK-3 REMOTE CONTROL SYSTEM” on
page 21.)
COMPU LINK cord
DIGITAL
(Black)
(OPTICAL)
To COMPU LINK jack
2
3. TEXT COMPU LINK connection
If you are using a JVC audio amplifier/receiver supporting
TEXT COMPU LINK, connect either one of the TEXT COMPU
LINK ports on the back of the unit with the amplifier/receiver’s
TEXT COMPU LINK port using the supplied TEXT COMPU
LINK cord (green).
Installing batteries in the remote
control
The battery compartment is located on the back of the remote
control.
TEXT COMPU LINK
OUTPUT COMPULINK-3
LEFT
RIGHT
(SYNCHRO)
TEXT
COMPULINK
(OPTICAL)
DIGITAL
cord (Green)
To TEXT
COMPU LINK jack
By using the TEXT COMPU LINK system, you can see the
disc information or search result on the TV monitor , as well as
copy disc information to a MD, and more.
(See “TEXT COMPU LINK SYSTEM” on page 21.)
4. Power connection
Connect the supplied AC power cord into the socket on the
back of the unit. Then insert the AC plug into an AC outlet.
(If you use the COMPU LINK system, do not connect the AC
plug into a switched AC outlet of a component.)
AC POWER CORD
1. Press down on the triangular
mark of the compartment
cover, and pull up the cover
to open the compartment.
2. Set the two supplied batteries
R6P (SUM-3)/AA(15F) in
the compartment with the
correct polarities.
3. Place the cover over the
compartment, and press
down.
CAUTION
• Install the batteries with their polarities correctly set.
• Remove the batteries if the remote control is not
going to be used for an extended period of time.
• Do not expose the remote control to heat, flame, or
direct sunlight.
AC power cord
AC outlet
Replacing the batteries
The service life of batteries normally lasts for about one year though
it depends on the use of the remote control (and is shorter at low
temperatures, too). Replace the batteries any time if the controllable
range is reduced (max. range: 7 meters or 23 feet and 30 degrees
away from the unit).
CAUTION
• Be sure to replace them with the correct batteries
(R6P(SUM-3)/AA(15F)).
• Do not use a combination of new and old batteries.
3
FRONT PANEL AND REMOTE CONTROL
Front panel
XL-MC334
2
STANDBY
POWER
1
18 19 20 21 22
DISPLAY CHARACTER TITLE INPUT DISC SEARCH USER FILE
ENHANCED COMPULINK CONTROL SYSTEM
Numbers in brackets following button names indicate their
counterparts on the remote control.
COMPACT DISC AUTOMATIC CHANGER PLAY/PAUSESTOP/CLEAR
3
200
4 5 6
OPEN/CLOSE
EXCHANGE RANDOM INTRO
7 8 9
REPEAT PLAY MODE CALL
11
10 11 12
DISC EJECT
23 24 25
DISC/TRACK
DOWN
15 16
CURSOR
<>
ENTER CANCEL
13 14
UP
17
DISC
TRACK
1
POWER button [4]
Turns the power on or off. The ST ANDBY indicator above lights
when the power is turned off and the unit is in the standby
state; it goes out when the power is turned on. (To turn off the
unit completely, unplug the power cord from the AC outlet.)
2
Display
Shows the current operation status and disc information (see
next page for the details).
3
Disc storage
Holds up to 200 discs in slots of a carousel, which rotates inside
the disc storage.
4
0 OPEN/CLOSE button [7]
Opens or closes the door of the disc storage.
When the door is open, pressing this button closes the door and
brings the disc at the load/unload position to the playback
position.
When the door is closed, pressing this button brings the disc at
the playback position to the load/unload position and opens the
door.
5
7 STOP/CLEAR button [5, 23]
Also clears the contents of the Program, Reserve and Disc
information.
6
3/8 PLAY/PAUSE button [20]
Starts playback, pauses playback, or resumes playback.
If the selected disc is not in the playback position, it brings the
disc at the playback position and starts playback.
If you press the button when the door is open, pressing this
button closes the door and brings the disc at the load/unload
position to the playback position then starts playback.
7
EXCHANGE button
Opens the disc storage door without retracting the disc currently
in the playback position, and permits you to change discs in the
slots positioned in the front.
8
RANDOM button [12]
Selects or deselects the RANDOM playback function (see the
description of playback modes).
9
INTRO button [13]
Selects or deselects the INTRO playback function (see the
description of playback modes).
10
REPEAT button [14]
Selects or deselects the REPEAT or REPEAT 1 playback
function (see the description of playback modes).
11
PLAY MODE button [1, 2, 3]
Selects in turn a mode of playing successive discs continuously
(CONTINUE), one disc only (ONE DISC), or according to a
program (PROGRAM). (See the description of each playback
mode for details.)
12
CALL button [6]
Displays a program step, a reserved disc/track or a disc in the
user file during the operation of the Program or User file
function, respectively.
13
ENTER button [25]
Fixes the character, disc/track number , or name selected during
the operation of program, reserve, title and user file functions.
14
CANCEL button [26]
Cancels a program step, a reserved disc/track, a title, or a disc
in the user file during the operation of the Program or User file
function, respectively.
4
15
4 (track skip/search backward) button [19, 22]
Skips tracks or searches for a track backward. Holding down
this button causes playback to fast backward. Also moves the
cursor backward during the character input.
16
¢ (track skip/search forward) button [21, 24]
Skips tracks or searches for a track forward. Holding down
this button causes playback to fast forward. Also moves the
cursor forward during character input.
17
DISC/TRACK jog dial
Mainly used to select a disc or track together with the DISC or
TRACK button, or select a character to be entered during Title
input, etc.
18
DISPLAY button [11]
Selects displayed disc information from DISC TITLE,
PERFORMER GENRE, etc. See “SHOWING DISC
INFORMATION” on page 14.
19
CHARACTER button [15]
Selects the character type to be entered for the disc information,
user file name or search character. See “ENTERING DISC
INFORMATION” on page 15, “USER FILE” on page 18, and
“SEARCHING FOR A DISC” on page 17.
20
TITLE INPUT button [16]
Activates the entry of the disc information or user file name.
See “ENTERING DISC INFORMATION” on page 15 and
“USER FILE” on page 18.
21
DISC SEARCH button [17]
Activates the Disc search function. See “SEARCHING FOR A
DISC” on page 17.
22
USER FILE
Activates the User file function. See “USER FILE” on page
18.
23
DISC EJECT button
Raises the disc in the load/unload position of the disc storage
when its door is open.
24
DISC button [8]
Selects the DISC/TRACK jog dial function for discs.
25
TRACK button [9]
Selects the DISC/TRACK jog dial function for tracks.
Display
The display indicate playback/pause status, playback mode,
playback functions, disc (slot) number, track number, disc
information, jog dial function, step number of Program, track/total
playing time, user file number, etc.
5
10
11
Remote control
Numbers in brackets following button names indicate their
counterparts on the front control.
2
1
5
9
8
12
11
16
15
20
19
23
22
25
26
CONTINUE ONE DISC PROGRAM POWER
CALL
DISC
SEARCH
+
10DISC
–10DISC–1DISC
OPEN/
CLOSE
USER
FILE
+
1DISC
CLEAR
TRACKDISC
DISPLAY RANDOM INTRO REPEAT
ENTER
CANCEL
TITLE
INPUT
/
CHARACTER
200
REMOTE CONTROL
RM–SX334U
1
CONTINUE button
Directly selects the mode of playing successive discs
continuously — instead of selecting the CONTINUE mode
using the PLAY MODE button
2
ONE DISC button
Directly selects the mode of playing one disc only — instead
of selecting the ONE DISC mode using the PLA Y MODE button
11
on the front panel.
3
PROGRAM button
Directly selects the mode of playing discs and tracks according
to a program — instead of selecting the PROGRAM mode using
the PLAY MODE button
11
'
11
on the front panel.
on the front panel.
3
4
6
7
10
13
14
17
18
21
24
27
4
POWER button [1]
5
CLEAR button
Clears the contents of the Program and Disc information.
6
CALL button [12]
7
OPEN/CLOSE button [4]
8
DISC button [24]
Selects the numeric button function for disc number entry.
9
TRACK button [25]
Selects the numeric button function for track number entry.
Numeric buttons (0 through 9)
Used to specify a disc or track number.
DISPLAY button [18]
12
RANDOM button [8]
13
INTRO button [9]
14
REPEAT button [10]
15
CHARACTER button [19]
16
TITLE INPUT button [20]
17
DISC SEARCH button [21]
18
USER FILE button [22]
19
4 (track skip backward) button
Skips tracks backward. Also moves the cursor.
20
3/8 (play/pause) button [6]
21
¢ (track skip forward) button
Skips tracks forward. Also moves the cursor.
1 (track search backward) button
22
Searches a track backward.
7 (stop) button [5]
23
Stops playing the disc.
¡ (track search forward) button
24
Searches a track forward.
ENTER button [13]
25
CANCEL button [14]
26
Disc skip buttons
27
Select a disc.
( ) button increases (decreases) the disc number by ten,
while ( ) button increases (decreases) the disc number one
by one.
These buttons also select a character or genre to be entered
during the Title input or Search operation. Pressing the
buttons selects the next character or genre, while pressing the
/ buttons jumps to the 5th character or genre forward/
backward from the one currently displayed.
/
NOTE: When using the remote control, do not press the but-
tons too quickly to ensure proper reception by the unit.
6
BASIC OPERATION
Turning the power on
Check that the STANDBY indicator on the front panel is lit. Then
press the POWER button either on the front panel or remote control.
STANDBY
POWER
POWER
or
(Remote control)
To turn the power off, press the button again. The STANDBY
indicator will light.
NOTE: Keeping the unit in the standby state consumes a mini-
mal 6.0 watts. If necessary, unplug the power cord
from the AC outlet to turn off the power completely.
Please note, however, that the memorized data for
the user files and disc information will disappear in a
few days if the power is completely turned off.
Loading compact discs
Also see Page 22 for the manner of handling and taking care of
discs.
3. Place the disc in a slot, with its label facing to the left.
PLAY/PAUSESTOP/CLEAR
OPEN/CLOSE
EXCHANGE RANDOM INTRO
ENTER CANCEL
REPEAT PLAY MODE CALL
DISC/TRACK
DOWN
TRACK
STANDBY
POWER
CHARACTER
DISPLAY
ENHANCED COMPULINK CONTROL SYSTEM
USER FILE
DISC SERCH
TITLE INPUT
DISC EJECT
CD Label
DISC
CAUTION
• Do not put anything except CDs in the storage area.
• Be careful not to touch the playback mechanism in the
unit.
• Up to 25 discs can be accessed at one time. Trying to
insert or remove a disc which is not in the loading area
may result in damage to the discs and unit.
• The disc needs to be placed vertically in the storage slot
of this component. After taking the disc out of its case,
grip the rim of the disc between your thumb and middle
finger — be sure to keep the fingers on the narrow, outer most strip where the surface is solidly bright.
• Do not try to put more than one disc in a single slot. The
unit will be damaged.
NOTE: 3-inch (8 cm) CDs cannot be played back in this unit.
4. Repeat step 3, or steps 2 and 3, to load discs in the storage. Up
to 200 discs can be loaded.
1. Press the OPEN/CLOSE button either on the front panel or
remote control, opening the disc storage door and exposing the
carousel slots.
OPEN/CLOSE
OPEN/
CLOSE
or
(Remote control)
2. T o select a specified slot to load a disc, turn the DISC/TRACK
jog dial or press the
/ / / buttons to specify the slot
number, which is shown as the “DISC” number on the display.
The carousel rotates to bring the specified slot to the load/unload
position, which is in the center of the storage area.
DISC/TRACK
DOWN
UP
or
+10DISC
+1DISC
–10DISC–1DISC
(Remote control)
5. When all necessary discs have been loaded, press the OPEN/
CLOSE button to close the storage door.
The carousel rotates to bring the disc at the loaded/unloaded
position (in the center of the storage area) to the playback
position.
CAUTION
Make sure to remove your hand from the storage opening
before pressing the OPEN/CLOSE button.
Unloading/changing discs
1. Press the OPEN/CLOSE button to eject a disc in the playback
position for unloading or changing.
OPEN/CLOSE
OPEN/
CLOSE
or
(Remote control)
7
Loading...
