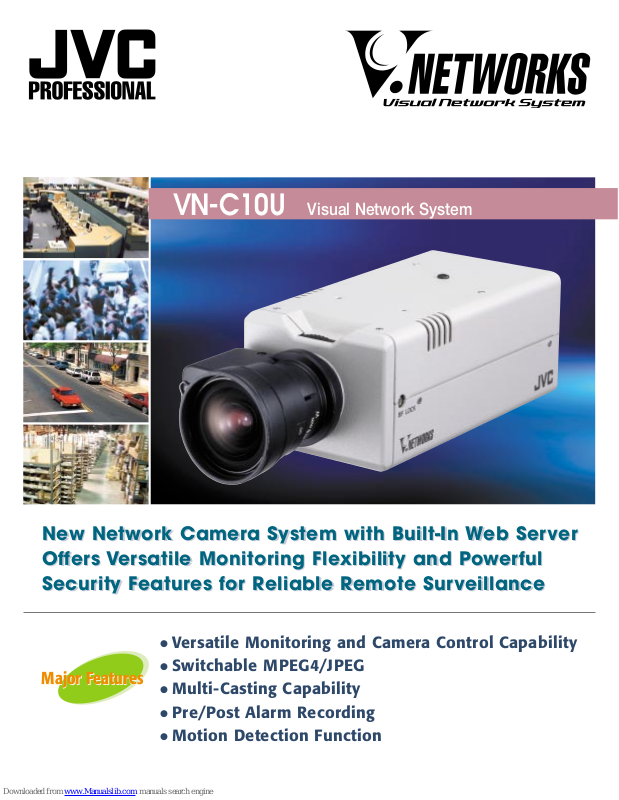

JVC V.Networks VN-C10U Specifications
New Network Camera System with Built-In Web Server
Offers Versatile Monitoring Flexibility and Powerful
Security Features for Reliable Remote Surveillance
New Network Camera System with Built-In Web Server
Offers Versatile Monitoring Flexibility and Powerful
Security Features for Reliable Remote Surveillance
VN-C10U Visual Network System
●
Versatile Monitoring and Camera Control Capability
●
Switchable MPEG4/JPEG
●
Multi-Casting Capability
●
Pre/Post Alarm Recording
●
Motion Detection Function
Major Features
Major Features
DISTRIBUTED BY
HubHubHub
Each Floor Each Floor Each Floor
Switching Hub
V.NETWORKS Website: http://www.jvc-victor.co.jp/english/pro/vnetworks/index-e.html
E.&O.E. Design, dimensions and specifications are subject to change without notice.
Printed in Japan
VEC-0302
Powerful Security Functions and Versatile
Network Capabilities
●
V.NETWORKS Lineup:
*Frame rate varies depending on the operating environment.
**In the Multi-Casting mode. Frame rate may be reduced while in the
Uni-Casting mode.
†
Web browser compatible with both Java-script and frame display. Netscape
4.0 or later, or Internet Explorer 4.0 or later is required. Depending on which
version of Java VM (virtual machine) is installed, it may not be possible to view
moving images even with Internet Explorer version 4.0 or later.
Internet
Internet
Hub
LAN (e.g. Building Security System)
Internet (e.g. Web Attraction)
Features
Image Sensor
Video S/N Ratio
Lens
Iris
Focus
White Balance
Minimum Illumination
Interface
Alarm I/O
Protocol
Compression
Resolution (Pixel)
320 x 240
640 x 480
160 x 120
(fps)*
Frame Rate
Storage RAM
Password Protection
Motion Detection
Multi-Casting
Web Server
View Through
Dimensions (H x W x D)
Weight
1/3” CCD 380,000 pixel
46dB
Optional C/CS Mount Lens
DC Iris
Manual
Auto/Manual
1.5 Lux
RJ-45 (Cat5) 10Base-T/100Base-TX
Input x2, Output x1
UDP/IP, TCP/IP, HTTP, F TP, DHCP
IGMP, ARP, RTP, RTSP
160 x 120, 320 x 240, 640 x 480
JPEG/MPEG4
JPEG: 30**, MPEG4: 24
JPEG: 30**, MPEG4: 30
JPEG: 8**, MPEG4: —
16MB (8MB for pre/post alarm recording)
3-level passwords
Yes
Yes (JPEG only)
Yes
JVC Control Software/Web Browser
†
Power Requirement
DC12V or AC 24V, 1.2A (Max.)
64.5mm x 71mm x 146mm
(2-5/9” x 2-4/5” x 5-3/4”)
Approx. 560g (19.8oz.)
Versatile Monitoring and Camera Control Capability
Since the VN-C10U comes with a built-in Web server and viewer/controller software, you can choose the monitoring and control system that works best for you.
If you need a platform-independent system that can be accessed from any
computer anywhere, you can use a standard Web browser* to view images and
operate cameras over the Internet or on a local intranet. Alternatively, you can
build a more exclusive system for use on
your local network with the included
viewer/controller software.
Either way, you’ll be able to remotely operate a variety of camera functions and set-
tings such as network and picture quality
setting. With the viewer/controller software,
you can also control recording and playback.
*For compatible browsers, please refer to the specifications below.
Viewer/Controller Software
Fully compatible with conventional
V.Networks cameras including the VNC1U, C2U, C3U, C30U* and VN-A1U.
So even if you have a mixed system that
includes other V.NETWORKS models,
you’ll enjoy seamless access and control
over all cameras. The latest updates can
be downloaded from JVC’s website.
*JPEG mode only.
Viewer/Controller Software
Multi-Casting Capability
With the VN-C10U, camera monitoring is never restricted to a dedicated system
or monitor. Multi-casting capability allows the built-in web server to deliver the
same high-quality images to any and all computers on your network. There’s
virtually no frame rate degradation when the VN-C10U is accessed by multiple
clients and network traffic management is easy and efficient.
Web Browser
Pre/Post Alarm Recording
Built-in alarm in/out terminals allow you to connect an infrared sensor or door
alarm to automatically trigger alarm recording, while an 8MB memory is available
for pre/post alarm image storage.
Motion Detection Function
Add an extra layer of security to your system
with this convenient function. The Motion
Detection function automatically indicates if
any movement occurs in a specified area of
the screen. You can specify the detection
area and select the sensitivity level. The
minimum area size is 8 x 8 pixels.
Other Features
• 10Base-T/100Base-TX interface
• FTP client function
• Support NAT/IP masquerade
• User web page serving
• Selectable power source —
AC 24V or DC 12V
System Examples
VN-C30U Network Camera
• Optical 15x Zoom
• Pan/Tilt
• Web Server
VN-A1U Network Encoder
• Direct connection with analog
camera
to digital network
●
Specifications
1
3
2
4
5
7
6
8
9
10
1
2
3
4
5
6
7
8
9
10
Back Focus Adjustment Ring
1/3” 380K pixels CCD
C/CS Mount
Power Terminal (AC24V/DC12V)
Alarm In/Out
Power Indicator
10Base-T/100Base-TX
DC Iris Connector
Reset Button
Tripod Base
Switchable MPEG4/JPEG
In addition to JPEG still images, the VN-C10U features MPEG4, today’s most
advanced motion picture compression technology. Thanks to MPEG4’s superior
compression efficiency, high-quality motion images can now be delivered
at lower bit rates than ever, so you can easily transfer moving pictures over
low-speed networks. Bit rates are selectable from 64Kbps to 2Mbps and image
type can be switched as required. This allows you to select the image type and
bit rate that are optimal for your network environment or the quality of your
communication line.
