SERVICE MANUAL
MICRO COMPONENT SYSTEM
MB02420038
UX-H30
MICRO COMPONENT SYSTEM
Area Suffix
U ---------------- Other Areas UP ---------------------- Korea UT --------------------- Taiwan UW ---- Brazil,Mexico,Peru
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
No.MB024
2003/8
SPECIFICATION
Amplifier Output Power 20 W (10 W + 10 W) at 4 (10% THD)
Audio input sensitivity/Impedance (at 1 kHz) AUX 500 mV/48.75 k Speakers/Impedance 4
Tuner FM tuning range 87.50 MHz - 108.00 MHz
AM tuning range AM 10 kHz intervals 530 kHz - 1 710 kHz
AM 9 kHz intervals 531 kHz - 1 710 kHz
CD player Dynamic range 85 dB
Signal-to-noise ratio 90 dB Wow and flutter Immeasurable
Cassette deck Frequency response Normal (type I) 50 Hz - 15 000 Hz
Wow and flutter 0.15% (WRMS)
Speaker Speaker units Full range 8.0 cm cone × 1
Impedance 4 Dimensions (approx.) 135 mm × 203 mm × 190 mm (W/H/D) Mass (approx.) 1.7 kg each
General Power requirement AC IN 110 V/ 127 V/ 230 V ,
adjustable with the voltageselector, 50 Hz/ 60 Hz
DC IN 12 V, 4 A
Power consumption 35 W (at operation)
3.0 W (on standby) Dimensions (approx.) 412 mm × 208 mm × 275 mm (W/H/D) Mass (approx.) 6.5 kg
1-2 (No.MB024)
1.1 Safety Precautions
Good earth ground
d
AC VOLTMETER
SECTION 1
PRECAUTION
(1) This design of th is product contains special hardware and
many circuits and components specially for safety purpos­es. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be per­formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris­tics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by us­ing replacement components rated for higher voltage, watt­age, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Ser­vice Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety charac­teristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassem­bling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isola­tion check on the exposed metal parts of the product (an­tenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.Do not use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particular­ly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage cur­rent must not exceed 0.5mA AC (r.m.s.).
• Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15µF AC-type capacitor between an ex­posed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC
voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).
(Having 1000 ohms/volts, or more sensitivity)
0.15 F AC TYPE
Place this probe on
1500 10W
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal resp onsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical compone nts are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution Burrs formed during molding may be left over on some parts
of the chassis. Therefore, pay attention to such burrs in the case of pre­forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer. (This regulation dose not Except the J and C version)
each expose metal part.
(No.MB024)1-3
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser dio de) in devices such as CD players. Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sh eet) or an iron plate over it before placing the traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption) Anti-static wrist strap
1M
Conductive material (conductive sheet) or iron palate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides o f the laser diode on the replacem ent optical pickup are shorted. After replacement, return the shorted parts to their original condition. (Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit. (2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long
a time when attaching it to the connector. (3) Handle the flexible cable carefully as it may break when subjected to strong force. (4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.7 Attention when traverse unit is decomposed *Please refer to "Disassembly method" in the text for the CD pickup unit.
• Apply solder to the short land sections before the flexible wire is disconnected from the connector CN601
on the CD servo board.
(If the flexible wire is disconnected without applying solder, the CD pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the flexible wire.
1-4 (No.MB024)
Flexible wire
Shorting round
Shorting round
CN601 on mechanism board
1.8 Important for laser products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the Laser Unit. Do not disassemble the Laser Unit. Replace the complete Laser Unit if it malfunctions.
4.CAUTION : The compact disc player uses invisible laser radiation and is equipped with safety switches which prevent emission of radiation when the drawer is open and the safety interlocks have failed or are de feated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able to function.
6.CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
!
Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
REPRODUCTION AND POSITION OF LABEL and PRINT
WARNING LABEL and PRINT
Caution label
(No.MB024)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
1-6 (No.MB024)
SECTION 3
A
A
A
DISASSEMBLY
3.1 Main body
3.1.1 Removing the rear pane l (See Fig.1,2)
(1) From behind the body, remove the nine screws A attach-
ing the rear panel.
(2) Turing the body upside down, remove the two screws B at-
taching the rear panel, and remove.
3.1.2 Removning the side panel (L) and (R) (See Fig.2~5)
• Prior to performing the following procedure, remove the rear
panel. (1) Turning the body upside down, remove the two screws C
attaching the front panel assembly.
(2) Turning the body initial position, open the CD door while
pressing the upper OPEN button.
(3) Moving the side panel (L) in the arrow direction, remove the
panel from the left side of the body.
(4) Moving the side panel (R) in the arrow dire ction, remove
the panel from the right side of the body.
A
Fig.3
Side panel (L)
Rear panel
Fig.1
Front panel assembly
Fig.2
Fig.4
Side panel (R)
BB
CC
Fig.5
(No.MB024)1-7
3.1.3 Removing the CD player assembly (See Fig.6,7)
• Prior to performing the following procedure, re move the rear
panel and the left and right side panels. (1) Disconnect the card wires from the two connectors CN603
and CN604 on the CD servo control board.
(2) Remove the two screws D attaching the front panel as-
sembly on the both sides.
(3) Release the two joints a on the both sides of the front pan-
el assembly.
(4) Move the CD player assembly in the direction o f the arro w.
CD player assembly
a
D
CD servo control board
CN604
CN603
Fig.6
CD player assembly
a
Fig.7
D
1-8 (No.MB024)
3.1.4 Removing the power amplifier board and heat sink
(See Fig.8~10)
• Prior to performing the following procedure, remove the rear
panel, the left and right side panels, and the CD player assem­bly. (1) Remove the five screws E and F attaching the heat sink. (2) Disconnect the wire from connector CN901
supply board.
(3) Disconnect the card wire from connector CN305
power amplifier board. (4) Remove the screw G attaching the power amplifier board. (5) Disconnect the connector CN301
board, and release the two joints b .
REFERENCE:
Remove the screw F , then power amplifier board can be re­moved without removing heat sink.
on the power amplifier
on the power
on the
Power amplifier board
CN301
Heat sink
E
E
F
Fig.8
3.1.5 Removing the tuner board (See Fig.11)
• Prior to performing the following procedure, remove the rear
panel, the left and right side panels, and the CD player assem­bly. (1) Remove the screw H attaching the tuner board from the
right side of the body.
(2) Disconnect the card wire from th e connector CN1
tuner board.
(3) Release the joint c , and remove the tuner board backward.
on the
Power supply board
CN901
Fig.9
Power amplifier board
bb
G
Fig.10
c
CN305
CN1
H
Tuner board
Fig.11
(No.MB024)1-9
3.1.6 Removing the front panel assembly (See Fig.12,13)
• Prior to performing the following procedure, re move the rear
panel the left and right side panels, the CD player assembly, the power amplifier board. (1) Disconnect the card wire from the connector CN714
LCD system CPU board.
(2) Release the joint d on the bottom of the front panel as-
sembly using a screwdriver, and remove the front panel as­sembly toward the front.
LCD system CPU board
CN714
on the
d
Front panel assembly
Fig.13
Fig.12
3.1.7 Remove the power transformer and power supply board (See Fig.14,15)
• Prior to performing the following procedure, re move the rear
panel, the left and right side panels, the CD player assembly, the power amplifier board and the tuner board. (1) Remove the screw I attaching the jack holder and release
joint e , and then remove jack holder.
(2) Remove the four screws J attaching the power transformer
and power supply board.
e
Jack holder
Power supply board
J
Fig.15
Power transformer
J
1-10 (No.MB024)
I
Fig.14
3.1.8 Remove the cassette mechanism assembly
(See Fig.16,17)
• Prior to performing the following procedure, remove the front
panel assembly. (1) Disconnect the card wire from the connector CN713
LCD system CPU board.
(2) Remove the four screws K and L attaching the cassette
mechanism assembly, and remove.
on the
Front panel assembly
CN713
LCD system CPU board
Fig.16
K
L
Cassette mechanism assembly
Fig.17
(No.MB024)1-11
3.1.9 Remove the LCD system CPU board (See Fig.18)
(1) Disconnect the wire from the connector CN716
system CPU board.
(2) Release the two joints f and pull out the LCD system CPU
board.
on the LCD
f
CN716
LCD system CPU board
Fig.18
3.1.10 Removing the operating switch board (See Fig.19,20)
• Prior to performing the following procedure, remove the front
panel assembly, the cassette mechanism assembly and the LCD system CPU board. (1) Remove the two screws M attaching the operating sw itch
button.
(2) Remove the two screws N attaching the operating switch
board, and remove.
M
Operating switch button
Fig.19
N
1-12 (No.MB024)
Operating switch board
Fig.20
3.2 Cassette mechanism assembly
3.2.1 Removing the Play/Record & Clear he ad
(See Fig.1~3)
(1) While moving the trigger arm on the right side of the he ad
mount in the direction of the arrow, turn the flywheel R counterclockwise until the head mount comes ahead and clicks.
(2) The head turn s counterclockwise as you turn the flywheel
R counterclockwise (See Fig.2 and 3).
(3) Disconnect the flexible wire from connector CN31
head amplifier & mechanism control board. (4) Remove the spring from the back of the head. (5) Loosen the azimuth screw for reversing attaching the head. (6) Remove the head on the front side of the head mount.
on the
Cassette mechanism assembly
Fig.1
Head
Fly wheelR
Trigger armHead mount
Flexible wire
Fly wheel R
Fig.2
Azimuth screw
Head
for reversing
Spring
CN31
Head amplifer & mecha control board
Fig.3
(No.MB024)1-13
3.2.2 Removing the head amplifier & mechanism control board (See Fig.4)
(1) Turn over the cassette mech anism assembly and remove
the three screws A attaching the head amplifier & mecha­nism control board.
(2) Disconnect the flexible wire fro m connector CN31
head amplifier & mechanism control board.
(3) Disconnect connector CN32
anism control board from connector CN1 board.REFERENCE: If necessary, unsolder the 4-pin wire soldered to the main motor.
3.2.3 Removing the main motor (See Fig.4~7)
(1) Remove the two screws B . (2) Half raise the motor and remove the capstan belt from the
motor pulley.
ATTENTION:
Be careful to keep the capstan belt from grease. When reas­sembling, refer to Fig.6 and 7 for attaching the capstan belt.
Head amplifier & mecha control board
of the head amplifier & mech-
on the reel pulse
on the
Main motor assembly
Capstan belt
Fig.5
Main motor assembly
CN31
Flexible wire
A
AA
Fig.4
CN32
4pin wire
B
Main motor assembly
Motor pulley
Capstan belt
Fig.6
Main motor assembly
Fly wheel
1-14 (No.MB024)
Capstan belt
Motor pulley
Fig.7
3.2.4 Removing the flywheel
(See Fig.8, 9)
• Prior to performing the following procedure, remove the head
amplifier & mechanism control board and the main motor as­sembly. (1) From the front side of the cassette mechanism, remove the
slit washers attaching the capstan shaft L and R. Pull out the flywheels backward.
Fly wheel R Fly wheel L
Fig.8
Fly wheel R
Capstan shaft R Capstan shaft L
Slit washer
Fig.9
3.2.5 Removing the reel pulse board and solenoid
(See Fig.10)
• Prior to performing the following procedure, remove the head amplifier & mechanism control board.
(1) Remove the screw C. (2) Release the tab a, b, c, d and e retaining the reel pulse board. (3) Release the tab f and g attaching the solenoid on the reel pulse board. (4) The reel pulse board and the solenoid come off.
Fly wheel L
bc
a
Solenoid
g
f
d
Reel pulse board
C
e
Fig.10
(No.MB024)1-15
3.2.6 Reattaching the Play/ Record & Clear head
r
r
(See Fig.11~13)
(1) Reattaching the head mount assembly.
a) Change front of the direction cover of the head
mount assembly to the left (Turn the head forward).
b) Fit the bosses O', P', Q', U' and V' on the head mount
assembly to the holes P and V, the slots O, U and Q of the mechanism sub assembly (See Fig.11 to 13).
CAUTION:
To remove the head mount assembly, turn the direction cover to the left to disengage the gear. If the gear can not be disengaged easily, push up the boss Q' slightly and raise the rear side of the head mounts slightly to return
the direction lever to the reversing side. (2) Tighten the azimuth screw for reversing. (3) Reattach the spring from the back of the Play/ Record &
Clear head.
(4) Connect the flexible wire to con nector CN31
amplifier & mechanism control board.
on the head
U' Q'
Head mount assembly
Head mount assembly
O'
Fig.11
P'
P'
V'
V'
Direction cove
Spring
Flexible wire
V
O
P
Q
Head
Direction cove
U
Fig.12
Azimuth screw for reversing
Head mount
1-16 (No.MB024)
CN31
Fig.13
Head amplifier &
mechanism control board
SECTION 4
ADJUSTMENT
4.1 Measurement Instruments Required for Adju stment
(1) Low frequency oscillator
This oscillator should have a capacity to output 0dBs to
600 at an oscillation frequency of 50Hz-20kHz. (2) Attenuator impedance : 600 (3) Electronic voltmeter (4) Distortion meter (5) Frequency counter (6) Wow & flutter meter (7) Test tape
VT703L : Head azimuth
VT712 : Tape speed and running unevenness (3kHz)
VT724 : Reference level (1kHz) (8) Blank tape
TYPE l : AC-225
TYPE ll : AC-514 (9) Torque gauge : For play and back tension
FWD(TW2111A), REV(TW2121a) and FF/REW(TW2231A)
(10) Test disc: CTS-1000
4.2 Measurement conditons
Power supply voltage AC 110V/127V/230V
adjustable with the voltage selector, 50Hz/60Hz
Reference output Speaker : 0.775V/4
Headphone : 0.077V/32
Reference frequency and input level 1kHz, AUX : -8dBs Measurement output terminal at Speaker J3002 Load resistance 4
4.2.1 Radio Input signal
AM frequency 400Hz AM modulation 30% FM frequency 400Hz FM frequency deviation 22.5kHz
4.2.2 Tuner section
Voltage applied to tuner +B : DC5.7V
VT : DC 12V Reference measurement output 26.1mV(0.28V)/3 Input positions AM : Standard loop antenna
FM : TP1 (hot) and TP2 (GND)
4.2.3 Standard measurement position of volu me
Function switch to Tape Beat cut switch to Cut Super Bass/Active hyper Bass to OFF Bass Treble to Center Adjustment of main volume to reference output VOL : 0.775V
Precautions for measurement
(1) Apply 30pF and 33k to the IF sweeper output side and
0.082µ F and 100k in series to the sweeper input side.
(2) The IF sweeper output level should be made as low as
possible within the adjustable range.
(3) Since the IF sweeper is a fixe d device, there is no need
to adjust this sweeper.
(4) Since a ceramic oscillator is used, there is no n eed to
perform any MIX adjustment.
(5) Since a fixed coil is used, there i s no need to adjust the
FM tracking.
(6) The input and output earth systems are separated. In
case of simultaneously measuring the voltage in both of the input and output systems with an electronic voltmeter for two channels, therefore, the earth should be connect­ed particularly carefully.
(7) In the case of BTL connection amp., the minus terminal
of speaker is not for earthing. Therefore, be sure not to connect any other earth terminal to this terminal. This system is of an BTL system.
(8) For connecting a dummy resisto r when measuring the
output, use the wire with a greater code size.
(9) Whenever any mixed tape is used, use the band pass fil-
ter (DV-12).
(No.MB024)1-17
4.3 Cassette mechanism adjustment
M V
w
Head azinuth adjustment screw (Forward side)
Mecha control board
Head azinuth adjustment screw (Reverse side)
SW1
SW2
Head azinuth adjustment screw (Forward side)
Head azinuth adjustment scre (Reverse side)
CN31
R/P head, Erase head
P1
D1
VR37
R371
CN1
FW100
SW5
otor speed
R37
BIAS adjust
VR31
C308
R327
R315
VR31
R313
Q302
C316
C319
R314
C121
C221
C314
L301
R104
Q305
C313
D340
C310
R304
R310
C107
L303
R102
R121
R221
R303
R335
R353
R339
R108
C113
R302
Q343
C103
C207
R301
C301
Q342
C105 C205
C304
R208
C106
R101
C104
R306
R106
Q344
CN34
C306
R344
R105
C102
R205
R110
Q345
R345
C307
R336
C340
C206
R346
R206
W1
R107
Q346
R305
C110
R210
C300
C341
R109
R372
Q372
C371
CN33
IC32
R116
C109
CN31
Q371
C101
C374
Q375
R376
R216
C376
R204
R201
C202
C204
C201
CN32
C203
R202
C210
R340
C331
R342
R347
Q347
SW6
R343
R341
IC33
IC1
D375
Q376
R338
R375
R337
C213
C342
C209
W1
R207
1-18 (No.MB024)
4.3.1 Mechanism section
Item Condition Measurement method Ref. value
Head azimuth Test tape
:VT703L (8kHz) Output terminal :Speaker out
Tape speed Test tap
:VT712 (3kHz) Output terminal :Speaker out or Headphone out
Item Condition Measurement method Ref. value
Tape speed diviation at FWD/ REV
Wow & Flutter Test tape
Test tape : VT712 (3kHz) Output terminal :Speaker out or Headphone out
: VT712 (3kHz) Output terminal :Speaker out or Headphone out
(1) Playback the test tape VT703L (8kHz). (2) Adjust to maximu m output level by azi-
muth adjustment screw for forward side and reverse side.
(3) This adjustment is adjust by adjustment
screw of forward side and adjustment screw of reverse side.
Playback the test tape VT712 (3kHz) at end of forward side,adjust to 2,940~3,90Hz indication of frequency counter by VR37.
Playback the test tape VT712 (3kHz) at end of forward and reverse, tape speed deviation should be less than 6.0Hz.
Playback the test tape VT712 (3kHz) at start of forward and reverse, Wow & Flutter are should be less than 0.25%(WRMS).
Adjustment
position
Maximum output Only adjust
at changed head
2,940 ~ 3,090Hz VR37
Adjustment
position
Leass than
6.0Hz
Less than 0.25%
(WRMS)
VR31
(No.MB024)1-19
4.3.2 Electrical adjustment
Item Condition Measurement method Ref. value
Recording BIAS adjustment
R/P playback frequency response
4.3.3 Electrical response confirmation
Item Condition Measurement method Ref. value
Recording bias current
Erase current (ref­erence value)
• Forward or Reverse
• Test tape : AC-514 TYPE ll : AC-225 TYPE l
• Output termina Recording head
• Reference frequency : 1kHz / 10kHz (Reference: -20dB)
• Test tape : AC-514 TYPE ll
• Input terminal : OSC IN
• Forward or Reverse
• Test tape : TYPE ll (AC-514)
• Measurement terminal : BIAS test point on printed circuit board
• Forward or Reverse
• Rec condition Test tape : AC-514 TYPE ll : AC-225 TYPE l
• Measurement terminal Both side of Erase head
(1) Set the test tape(AC-514 TYPE ll and
AC-225 TYPE l), then make REC/ PAUSE condition.
(2) Connect 100 to recording head by se-
ries, then connect to VTVM for measure­ment the current.
(3) After setting, start the recording by re-
lease the PAUSE, in this time bias cur­rent adjust to next fig. by VR31 and VR32
4.0 µA (TYPE ll) and 4.20 µA (TYPE l).
(1) Set the test tape (AC-514 TYPE ), then
make REC/PAUSE condition.
(2) Release the PAUSE, then start recording
the 1kHz and 10kHz of reference fre­quency from oscillator.
(3) Playback the recorded position, 1kHz
and 10kHz output deviation should -1dB 2dB to readjust by VR31
VR32 for Rch.
(1) Change BIAS1 and 2, confirm the fre-
quency should be change.
(2) Set the test tape (AC-514 TYPE ll), then
make REC/PAUSE condition.
(3) Confirm the frequency should 100Hz ±
6kHz at BIAS test point on printed circuit board.
(1) Set the test tape (AC-514 TYPE ll and
AC-225 TYPE l), then make REC/ PAUSE condition.
(2) Release the PAUSE to REC condition,
connect 1W to ERASE head by series, then confirm the erase current at both side of erase head.
for Rch.
for Lch
for Lch and
AC-225 : 4.20µA AC-514 : 4.0µA
Output deviation 1kHz/10kHz : -1dB ± 2dB
100 kHz ± 6 kHz
TYPE ll : 120 mA TYPE l : 75 mA
Adjustment
position
VR31
VR31
Adjustment
position
1-20 (No.MB024)
TROUBLESHOOTING

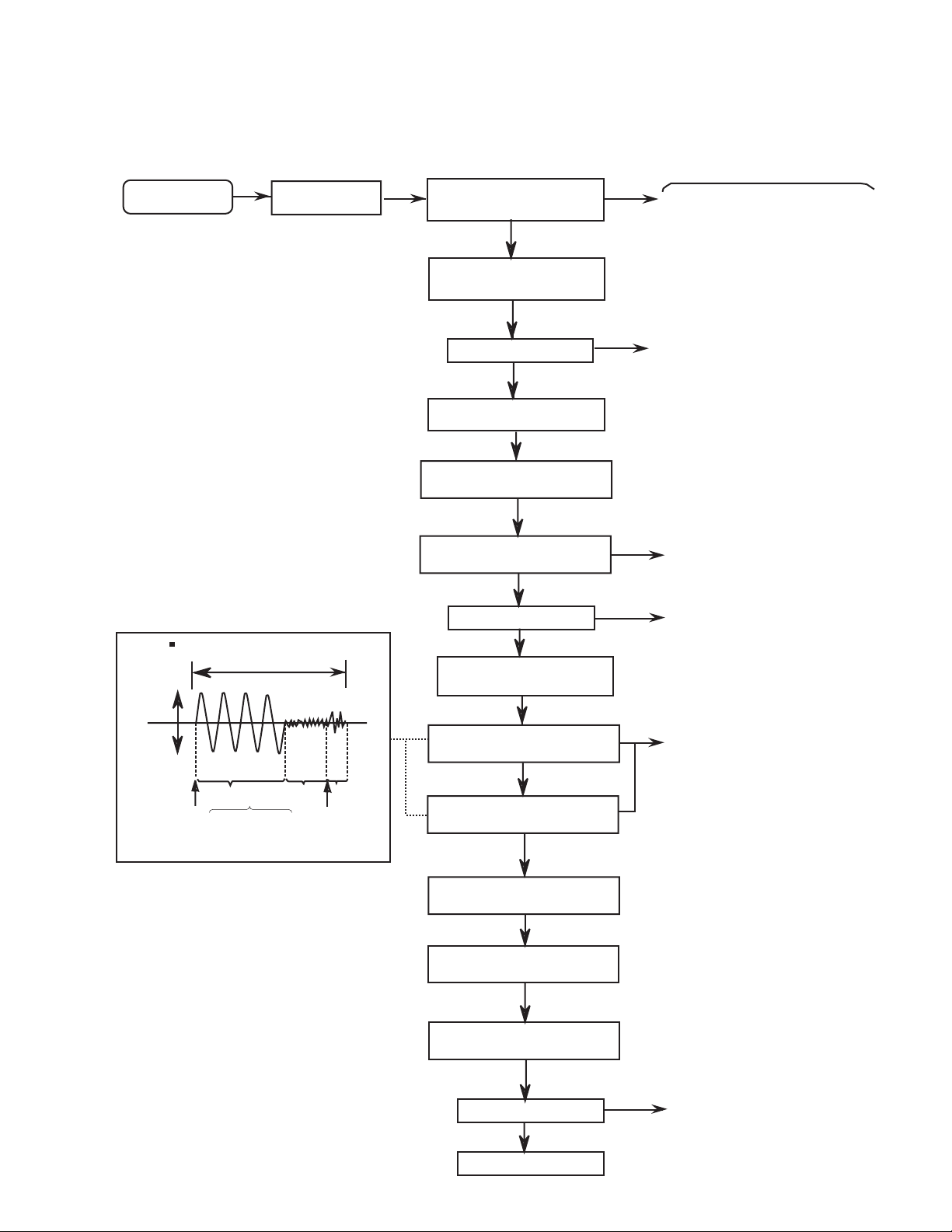

5.1 Flow of functional operation untill TOC read (CD)
Power ON
Power Key
SECTION 5
Slider turns REST SW ON.
Automatic tuning of TE offset
Check Point
Check that the voltage at the pin 5 of CN801 is 0V?
VREF
Tracking error waveform at TOC reading
pin 20 of IC601(TE)
Approx
1.7V
Tracking servo
Disc start to rotate
off
Automatic measurement of TE amplitude and automatic tuning of TE balance
Approx.1sec
Tracking servo ON
Disc to be braked to stop
TOC reading finishes
500mv/div 2ms/div
Fig.1
Laser ON
Detection of disc
Automatic tuning of Focus offset
Automatic measurement of Focus S-curve amplitude
Disc is rotated
Focus servo ON (Tracking servo ON)
Automatic measurement of Tracking error amplitude
Automatic tuning of Tracking error balance
Check that the voltage at the pin2 of IC601 is 4.4V?
Confirm that the Focus error S-cuve, ie at the pin23 of IC601 is approx.2Vp-p
Confirm that the siganl from pin 5,6 of IC801 is a 2V accelerated pulse with approx. 700ms.
Confirm the waveform of the Tracking error signal at the pin20 of IC601 (See fig-1)
Automatic tuning of Focus error balance
Automatic tuning of Focus error gain
Automatic tuning of Tracking error gain
TOC reading
Play a disc
Confirm the eye-pattern at the lead of TP1
(No.MB024)1-21
5.2 Maintenance of laser pickup (CD)
(1) Cleaning the pick up lens
Before you replace the pick up, please try to clean the lens with a alcohol soaked cotton swab.
(2) Life of the laser diode
When the life of the laser diode has expired, the following symptoms will appear.
• The level of RF output (EFM output : ampli tude of eye pattern) will below.
5.3 Replacement of laser pickup (CD)
Turn off the power switch and, disconnect the power cord from the ac outlet.
Replace the pickup with a normal one.(Refer to "Pickup Removal" on the previous page)
Is the level of
RFOUT under
1.25V 0.22Vp-p?
NO
Replace it.
YES
O.K
(3) Semi-fixed resistor on the APC PC board
The semi-fixed resistor on the APC printed circuit board which is attached to the pickup is used to adjust the laser power. Since this adjustment should be performed to match the characteristics of the whole optical block, do not touch the semi-fixed resistor. If the laser power is lower than the specified value, the la­ser diode is almost worn out, and the laser pickup should be replaced. If the semi-fixed resistor is adjusted while the pickup is functioning normally, the laser pickup may be damaged due to excessive current.
Plug the power cord in, and turn the power on. At this time, check that the laser emits for about 3seconds and the objective lens moves up and down. Note: Do not observe the laser beam directly.
Play a disc.
Check the eye-pattern at TP1.
Finish.
1-22 (No.MB024)
(No.MB024)1-23
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB024)
Printed in Japan
WPC
SCHEMATIC DIAGRAMS
MICORO COMPONENT SYSTEM
UX-H30
CD-ROM No.SML200309
MICRO COMPONENT SYSTEM
Contents
Block diagram Standard schematic diagrams Prited circuit boards
COPYRIGHT 2003 VICTOR COMPANY OF JAPAN, LTD.
Area Suffix
U ---------------- Other Areas UP ---------------------- Korea UT --------------------- Taiwan UW ---- Brazil,Mexico,Peru
2-1 2-2 2-8
No.MB024SCH
2003/9
In regard with component parts appearing on the silk-screen pr inted side (par ts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety.
(This regulation does not correspond to J and C version.)
Block diagram
IFOUT
TU1
AM RF & OSC
REEL
PULSE
FM RF
L1
CN31
L+,L– R+,R–
CN42
FM/AM
ANT
M
J1
RP MECHA
HEAD
FW100
MB
SWITCH
SOLENOID
OSCOUT
AMRF AFC AMOSC
CN32
IC2 PLL
CK,CE,DATA
SWITCH
MOTOR
DRIVE
SOLENOID
DRIVE
MUTE/IFOUT FM/AM,SDIN ST/MONO AMOSC
HEAD
IC1
LOUT ROUT
FM DET AM DET
IC32
PB/REC
AMP
MS,PBL,PBR RECL,RECR
IC33
PORT
EXTENSION
SOL,KEY1,PLAY,PHOTO
STEREO
STTA,SDATA SCK
CN1
CN34 CN33
DATA CK
TUNER
SWITCH
MPX RDSCK QRIN
TAPE1,TAPE0,SAFETY1 SCK,SDATA,STTA,REEL
CN712CN713CN714
SDATA/VOLDA SCK/VOLCK FTUNERSW
MICOM
LCD
COM0 to COM3 S0 to S39
IC931
SAFETY2 SAFETY0 AHB SMUTE FTUNER FCD SDATA/VOLDA SCK/VOLCK VOLCE POUT
REM
IC750
REMOCON
LCD LAMP
CD DOOR
SWITCH
FW701
CN717
FW701 CN716
RST/CLOSE
S7500 to S7512
KEY MATRIX
KEY0,KEY1
PICKUP
REST
SWITCH
FEED
MOTOR
SPINDLE
MOTOR
CD
A,B,C,D
CN601
E,F,LD,MD
T+,T– F+,F–
FW602
FM+
FM– SM+
SM–
RF & SERVO
IC602
BTL DRIVER
TRD,FOD ECM,ECS TVD,TRV KICK
IC601
AMP
OFT,BDO ARF,RFENV TBAL,FBAL FE,TE GCTL,RFDET VDET
XRST,STAT,SUBQ SQCK,BLKCK,MLD MDATA,MCLK FLAG,SCD
IC603
DIGITAL SERVO/DSP
REST
BTLM
OUTL OUTR
CN604 CN603
L,R
RECL,RECR
CN305CN303
PBL,PBR
TUL TUR
CN711
AUX IN
J301 CN301
L,R
SCK/VOLCLK SDATA/VOLDI VOLCE,TUL,TUR
IC302
E.VOL
FTUNER TU+B
LAMP 8V
LOUT ROUT
BASS BOOST
TUNER SW
IC301
AMP
5.6V
OUT1 OUT2
IC300
POWER AMP
SAFETY2 FCD
CD 8V
SW 8.8V
POUT
+L,+R –L,–R
J300 J302
SPEAKER
HEADPHONE
CN901
W306
T901
TRANS
DIODE
BRIDGE
S901
SELECTOR
L901
J902
J901
AC INPUT
2-1
Standard schematic diagrams
Primary section
F903
CN901
QGA2501C1-02
C901
!
T6.3AL
0.1
C902
!
D902
C903
6A10E2
T901
QQT0396-002
!
D901
0.1
!
6A10E2
D905
6A10E2
!
!
0.1
0.1
6A10E2
D903
C904
D904
!
!
F901
QQR1321-001
T500mAL
QNC0091-001
!
J902
QNA0016-001
6A10E2
L901
J901
!
!
F903
CN901
QGA2501C1-02
0.1
C901
!
6.3A/125V
!
6A10E2
R901
!
0.1
D901
C902
!
QRZ9037-335
T901
!
6A10E2
QQT0396-001
D902
C903
D905
!
0.1
6A10E2
F902
!
D903
1A/125V
!
0.1
C904
6.3A/125V
F901
QNC0092-001
6A10E2
6A10E2
F903
T6.3AL
!
J902
QNA0016-001
!
D904
!
J901
!
CN901
QGA2501C1-02
C901
!
6A10E2
0.1
D901
C902
!
6A10E2
0.1
!
T901
D902
QQT0396-002
C903
0.1
T500mAL
6A10E2
D905
!
6A10E2
F901
D903
!!
!
J902
QNA0016-001
!
C904
6A10E2
0.1
!
D904
L901
QQR1321-001
QNC0091-001
!
!
J901
F903
CN901
QGA2501C1-02
D903
!
6A10E2
!
!
0.1
6A10E2
D904
C904
!
L901
F901
QQR1321-001
QNC0091-001
J902
QNA0016-001
!
!
J901
!
T6.3AL
!
0.1
C901
6A10E2
D901
0.1
C902
!
!
D902
T901
QQT0396-003
C903
6A10E2
S901
QSW0740-001
!
D903
T6.3AL
!
0.1
C904
F901
QNC0091-001
T1AL
6A10E2
6A10E2
!
D904
QQR1321-001
L901
QNA0016-001
!
!
J901
!
J902
D905
!
0.1
6A10E2
F902
!
!
F903
CN901
QGA2501C1-02
C901
!
T6.3AL
D901
!
0.1
6A10E2
C902
!
T901
QQT0396-002
!
0.1
6A10E2
D902
0.1
C903
T500mAL
D905
!
6A10E2
D903
F901
0.1
C904
6A10E2
!
6A10E2
!
QNC0091-001
D904
QQR1321-001
L901
QNA0016-001
!
J901
!
J902
CN901
!
F903
0.1
C901
QGA2501C1-02
T6.3AL
!
!
6A10E2
D901
0.1
C902
!
T901
!
D902
QQT0396-004
6A10E2
0.1
C903
T500mAL
D905
!
6A10E2
Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
2-2
Amp section
J301
R1600
QNN0090-001
30K
C1600
R2600
C2600
30K
C2955
0.01
D3504
D3505
C3502
2SC2785/FE/-T
Q2400
R2402
10K
C2303
0.33 R2304R2301
4.7K
3.9K
R2503
0.1
0.1
0.0027
10/25
2.2K
R3503
C3501
IC302
LC75342
2.2K
R3501
SCK/VOLCLK
30K
220P
R1601R2601
30K
220P
R1802
R1803
2.7K
R2803
9.1K
9.1K
R1800
2.7K
R2800
VOLCE
SDATA/VOLDI
2.2K
R2802
2.2K
C2510
C2506
C2505
C2504
0.1
0.1
0.0027
C1505
C1506
C1504
3.9K
R1503
C1503
10/35
4.7/50
4.7/50
10/25
10/25
C1510
4.7/50
C2507
C2502
C2508
100
R3500
4.7/50
4.7/50
4.7/50
C1502
C1507
C1508
C2503
10/35
C3500
100/16
SMUTE AHB
R2306
R2307
4.7K
R1307
4.7K
D3403
C3405
10/16
51K
R3405
C2300
0.068
IC301
HA17558A
C1300
0.068
R1301
4.7K
R1306
C1303
D9502
0.33
1N4003S-T5
R1402
10K
2SC2785/FE/-T
R1304
Q1400
D3402
100
10K3.9K
R3300
C2301
47/16
C3300
C1301
0.068
3.9K
R1302
C1302
4.7K
10K
15K
R1303
R3403
22/50
R3402
C3404
120K
15K
R2303
R2302
4.7K
C2302
R2300
10/35
0.068
10/35
150K
150K
9.1K
R3302
R2305
6.8K
R1300
150K
R3303
R9205
R9206
SAFETY2
6.8K
R1305
3K
3K
R2151
10K
C3301
82K47K
R1151
22/16
Q9201 KTB772/Y/
0.01
C9202
D9201
Q9202
C9201
47/16
2SC2785/FE/-T
MTZJ4.3B-T2
R9203
D3151
Q2150
2SC3576-JVC-T
R3151
2SC3576-JVC-T
Q1150
82
4.7K
470
R3152
Q3151 KRC102M-T
47/10
C3152
10K
R9201
10K
R9202
C9203
10/35
FCD
IC300
LA4663
J300
L1100
L2100
L3200
QQL231K-470Y
QNS0072-001
QQL231K-470Y
L1200 L2200
QQL231K-470Y
!
C2103 C1103
J302
330P
330P
C2102
C2104
10/35
C1104
10/35
Q3150 KRA101M-T
1K
R3150
1K
R3154
R3153
1K
D3150
MTZJ5.1C-T2
C2954
Q3111 KRC111M-T
Q9301 KTA1267/YG/-T
100/10
C9303
C1102
22K
2.2
R2101
0.1
C2101
D3400
D3401
KTA1046/Y/
Q9002
22K
22K
R1400
Q9005
KRA114M-T
22K
R2400
R2401
R1401
!
100/35
1/50
1/50
C3400
C3401
0.056
0.056
4.7K
C3402
C3403
R9001
!
2SA1175/FE/-T
R9008
R9007
R9006
0.01
C3101
C3100
C2957
QEZ0635-828
4.7K
R3400
R9003
R9002
1
1
1
R9004
Q9003
6.8K
13K
R9020
D9001
1K
KRC114M-T
Q9004
1.5K
R9005
2.4K D9020
MTZJ5.6C-T2
5.1K
R9021
470
R1102
470
2SC3576-JVC-T
Q3110
R2102
C3102
100/16
C2958
C2953
QJK002-021202
470
!
4.7
R9100
2.2
R2100
0.1
C2100
R3401
Q9001
!
68
R9019
2.2
R9012
4.7K
C3106
FTUNER
2.2
R1101
R1100
0.1
0.1
C1101
C1100
100/16
D3152
2SC2785/FE/-T
R9013
470
4.7K
R9014
100/16
C3103
10/25
C2956
C3151
10/25
R3107 680
D9302
D9303
47/25
C9001
R9016
R9303
D9002
R3100
D3153
Q9302 2SC2785/FE/-T
4.7/50
1K
C9302
MTZJ8.2C-T2
R9015
4.7K
2SC2785/FE/-T
4.7K
C3104
10K
C9006
10/25
R3106
47K
R9304
100
3.9K
R9301
33K
R9302
C9002
0.01
C9003
220P
Q9006
QQR0621-001Z
QQR0621-001Z
W306
C1105
C2105
K1200
150
R1200 R2200
150
K2200
CN305
QGF1205F1-10
Q9070
QQR0621-001Z
C2959
K3800
SLCAGND
PBL
PBR
SW8V
RECR
RECL
2SC3576-JVC-T
C9070 10/25
470
R9070
CDL
CDR
CD+B
CN303
QGF1205C1-07
CN301
QGB1214J1-20S
SAFETY2
SAFETY0
AHB
SMUTE
FTUNER
FCD
POUT
VOLCE
US15V
SCK/VOLCLK
SDATA/VOLDI
LAMP8V
TUR
TUL
K9100
QQR0621-001Z
Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
2-3
Micon / LCD & Key control section
C7051
0.01
TAPE1
C7022
D7000
KRC111S-X
Q7000
SAFETY1
Q7001 KRC111S-X
D7001
TAPE0
R7063
10K
R7062
STTA
2K
PERIOD
SDATA/VOLDA
FTUNERSW
SCK/VOLCK
TU+B
LOUT
ROUT
RDSCK QRIN
MPX
9V
CN713
QGF1205F1-09
QGF1205F1-13
CN714
R7064
C7023
150p
10K
150p
COM1
COM0
FTUNERSW
REEL
COM2
COM3S0S1
R7061
2.2K
BL701
QLL0147-001
BL702
DI701
QLD0260-001
C7050
S26
S24
S25
S26
REEL
S22
2.2K
R7005
S27
MPX
S23
S28
PERIOD
2.2K
R7006
S29
FTUNER
1k
R7007
S30
AHB
2.2K
R7008
S27
S29
S28
S32
S31
S33
IC931
MN101C57CEW
10K
R7009
S30
S31
S32
S34
S35
S36
S37
0.01
C7003
S33
R7010
S34
S39
S38
1k
C7004
R7011
S37
S35
S36
SAFETY0
R7042
R7041 1K
2.2K
2.2K
R7043
SAFETY1
SDATA/VOLDA
SCK/VOLCK
1K
150
R7014
R7012
150p
47K
47K
R7013
S38
SAFETY2
2.2K
R7044
R7045
RST/CLOSE
1K
2.2K
R7016
R7015
100p
C7005
S4
S2
S5
S3
REM
S10
S9
S6
S8
S7
15K
R7000
S11
C7000
S16
0.1
S21
R7003 33K
S21
S17
S20
S18
S19
S25
S24
S22
S23
2.2K
R7004
82K
R7073
S12
S13
S14
S15
S20
S19
S18 S17 S16
S15 S14 S13 S12 S11 S10 S9 S8 S7 S6
S5
S4
S3 S2 S1 S0 COM3 COM2
COM1
COM0
R7001
R7002
33K33K
C7002
C7001
0.1
0.1
S39
STTA
2.2K
2.2K
R7046
TAPE1
TAPE0
CDSAFETY DOOR_RST
MDATA
BLKCK RDSCK
VOLCE
SQCK
QRIN
R7017
KEY1 KEY0
MCLK XRST
FLAG
MUTE STAT FCD
R7018
R7019
10K
R7047
R7048 R7049
MLD
REM
1K
47K
L7003
0.01
56K
100K 10K
K7002
R7038
R7037 R7036 R7035
R7034
R7033
R7032
R7031
R7030
R7029 R7028 R7027 R7026 R7025
R7024
R7023
R7022
R7021 R7020
K7003
QQR0621-001Z
QQL231K-4R7Y
R7040
2.2K
2.2K
2.2K
2.2K
2.2K 1K
1K 1K
2.2K
2.2K 1K
2.2K
2.2K 10K
2.2K
2.2K
2.2K 1K 1K
C7006
0.001
82K
QQR0621-001Z
R7071 R7072
R7074
C7007
0.01
QLL0147-001
QUM022-12Z3Z3
SLR-342VC3F
D7777
10K
10K
10K
FW701
FW701
FLAG CDSAFETY
DOOR_RST MLD
MDATA MCLK
XRST STAT SQCK QRIN
BLKCK MUTE
270
R7039
R7050
Q7006
KRA102S-X
R7070
D7009
KEY0
KEY1
RST/CLOSE
1K
22K
CN716 QGF1205C1-04
SAFETY2 SAFETY0 AHB SMUTE
FTUNER FCD
VOLCE SDATA/VOLDA SCK/VOLCK
9V
TU+B TUL
TUR CN711
QGB1214K1-20S
CN712 QGF1205F1-14
GND RST/CLOSE
KEY0 KEY1
CN717
QGF1205F1-04
S7550
QSW0122-001
S7510
R7505
2.7K
2.2K
S7504
R7512R7510
R7513
2.7K
3.9K
S7511
S7505
S7512
R7506
C7500
0.01
R7514
C7503
0.01
R7501 R7503 R7504R7502
R7500
1K1K1K
S7500
S7507
R7509
1.2K
S7501
S7508
C7501
0.01
R7508
R7507
1K
C7502
S7506
0.01
1.8K
1.2K
S7503
S7502
R7511
2.2K
1.8K
S7509
R7060
R7058 R7059
100K
2SC2412K/R/-X
390K 82K
C7021
0.01
Q7002
C7020
0.001
IC750
GP1UM281YK
C7019 47/16
C7018
0.01
18p
C7017
R7057
X7001
D7008
D7006
MTZJ8.2B-T2
100/16
C7009
D7007
KIA78S06P-T
C7008
IC932
0.1
L7002
QQL231K-470Y
1M
QAX0711-002Z
100/10
18p
0.001
C7014
C7015
C7016
2SA1037AK/R/-X
D7002
0.01
C7013
C7012
2200/6.3
Q7003
R7056
330
2.2/50
C7011
R7055
10K
L7001
QQL231K-100Y
KRC111S-X
Q7004
10K
R7054
KRC111S-X
Q7010
D7003
C7010
4.7/50 D7004
R7065
18K
100K
R7053
R7051
Q7005
2SC2412K/R/-X
D7005
MTZJ5.1C-T2
47K
33K
R7052
2-4
CD servo control section
CN601
QGF1008F1-16
VREF
R625 R624
R617 R618
R623 R626
F+ T+ T­F-
FW602
QJK018-060601
DGDGDGDG
FM­FM+ SM­SM+
18K
18K
R605
R606
680k
E F
0.082
0.022
0.022
C606
C615
Q602
0.022
NI
IC602
!
C602
56P
C603
NI
R615
Q601
KTA1271/OY/-T
R614
LA6541-X
C616
AN22000A-W
IC601
R629
2.2k
12
10
C605
10/25
2.2K
R657
R627
T+
C635
3.3p
C617
0.01/50
T-
390p
C614
6.8k
1
R628
C642
4.7k
F-
C636
390p
ARF
C610
0.015
RFENV
C644
R650
0.039
1k
D B C A
C622
E
0
D
0
A
0
B
0
C F
120
R613
R607 R609
33K 220K
C619
C620
560P
100P
BDO
OFT
C612
C611
0.01
0.0027
R648
1.2K C645
2.2/50
R649
1.5k
R647
C643
2.2/50
C631
1
C641
470/10
180k
RFDET
C608
C628
C629
R608
R634
C625
0.0022
0.056/50
C613
D662
1SS133-T2
R621
R642
3.3K
R641 56K
NI
C624
220K
0.022 R635
390k
C623
330p
1/50
0.047/25
220/10
10
3.9k
TRD KICK
FOD
C604
100/10
C621
TBAL FBAL
FE TE
VDET
NI
R610
FBAL TBAL FE TE RFENV
VDET
OFT
RFDET BDO
ARF
TP603
MLD
MDATA
2.7k
R697
0.33
C695
MCLK
C668
470/6.3
C677
0.022/25
C651
12p
C652
15p
470
R659
X651
C669
C655
QCZ0202-155Z
QAX0413-001Z
470/6.3
22
R666
C675
0.001
C674
0.022/25
C673
470/10
D661
0.0022/16
C672
1SS133-T2
QQR1183-001Z
K601
1k
R671
0.0022/16
C671
1k
R672
BTLM BLKCK
SUBQ SQCK STAT XRST
MCLK MDATA MLD REST
FLAG
CN604 QGF1205F1-14
1k
R669
XRST
1k
1k
R651
0.022/25
C653
100p
C694
TRV TVD
ECM ECS KICK TRD FOD
R612
1k
C618
1M
0.1/50 R619
68k
20k
R602
33k
R603
K602
QQR1183-001Z
R668
470p
C661
100/10
0.022/25
C662
C670
R662
KIA78S05P-T
IC604
C632
100/10
22
1.5M
C638
68k0.022
R661C663
0.1
C676
0.001
R652
120k
R663
C664
C691
150p C692
1k
100
100
150p C693
R654
R653
R656
150p
IC603
MN662748RPMFA
330
68k
R667
R664
0.33
0.022/25 C665
BLKCK
SQCK
SUBQ
STAT
R632
47k
SM-
C633
SM+
390p
FM+
C634
FM- F+
390p
R643 R644 R645 R646
47K
6.8K
33K
1.8K
TRV TVD ECM ECS
CN610
QGA2501F1-02
CN603
QGF1205F1-07
Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
2-5
Cassette mechanism control section
QAH0101-001
CN31
TP100
C220
4.7P
QGF1205F1-06
4.7P
C120
R327 470K
C301
R306
R344
R345
R346
Q342
4.7K
4.7K
4.7K
4.7K
100/10
R301
IC1
SG-105F3
QSW0832-001
SW1
C371
SW2
QSW0859-001
QSW0832-001
SW6
QGF1205F1-09
QGF1205F1-09
R340
680
R338
3.3K
R337
3.3K
4.7/25
R347
1SR139-400-T2
CN42
CN32
24K
R342
C374
100/10
10K
22/16
C331
QSW0832-001
D340
MTZJ5.1B-T
2.2K
R303
R302
2.2K
KRA111M-T
Q343
2SC3576-JVC-T
Q344
2SC3576-JVC-T
Q345
2SC3576-JVC-T
Q346
2SC3576-JVC-T
220
R207
9.1K
R107
9.1K
R121
R221
1K
R116
C109
4.7/25
C210
0.0068
C110
0.0068
C201
C101
C209
4.7/25
1K
R216
C121
15K
330P C221
15K
330P
820P
QVP0008-203Z
VR31
820P
1/50V
0.0047
C319
47/50V
47/50V
C104
220p
C340
C341
C342
C204
220p
0.022
C316
C102
0.01
C202
0.01
L301
QQR1118-001
R102
R101
HA12237F
R201
R202
5.1K
C103
C203
5.1K
R104
5.1K
0.1
0.1
C113
C106
2.2/50V
IC32
0.1
C213
C206
2.2/50V
0.1
5.1K R204
100/10
C313
2.2K
R106
11K
R206 11K
2.2K
L303
VQP0033-100Z
1.5
C314
R105
R205
100K
100K
C105
C205
R313
390P
390P
Q302
2SK2001
2.2
R310
4.7
2SK2001
Q372
KRC107M-T
FW100
Q371
270P
C107
R108
RECL
27K
PRL R110 10k
R336
22K
R339 100K
C304
10/16V
C306
R210 10k
R353
10
R315
100
0.022
C310
!
R335
Q305
2.2K
R314
15K
C308
0.0015
220/10V
1/50V
C207 270P
C300
R208 27K
R304
R305
!
100
10K
C307
RECR
PBR
0.001
KTC3199/GL/-T
Q375
Q376
R375
2SB562/C/
150
C376
R376
MSI-5U2LWA
0.01
D375
MTZJ5.1B-T
4.7K
R371
12K
QVP0077-103Z
KTA1271/OY/-T
1K
R372
IC33
SW5
VR37
CD4094BC
KRC107M-T
Q347
VKZ3174-00B
D1
12K
R341
18K
R343
2-6
QGF1201F3-10
CN34
Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
CN33
QGF1205F1-09
Tuner section
TU1
QAU0161-001
C1
0.022
C3
10/16
R1 56
D1
1SS133-T2
D2
1SS133-T2
R8
120
C8
0.001
C10
1SS133-T2
5P
D3
L3
4.7
J1
QNB0153-001
D4
1SS133-T2
R5 47
CF1
QAX0677-001Z
R3
C2
R2
R4
470K
2SC1623/5-61-X
Q1
0.01/16
1.5k
330
R6
C17
0.0039
C18
0.47/50
R23
1.8k
C25
330
0.01/16
0.01/16
C5
C4
R7
12
100/16
C15 12P
X1
C16
12P
IC2
QAX0402-001
C28
C22 C23
C24
R10
LC72136N
10/16
150P 150P
150P
2.2K
R22
R50
1K
1K
1K
1K
R20
R18
R19
C20 1000P
C19
0.047/16 330
R25
R26
2.2K
4.7k
R21
5.6K
Q5
DTA114YKA-X
10K
R24
C77
0.047/16
680P
QQR0793-001
C54
C53
22/50
R43
3.9K
C57
0.001
R41
3.3K
QAX0677-001Z
T1
0.047/16
C51
1/50
LA1838
IC1
CF2
C31
C48
0.0022
C49
C58
470P
C50
22/16
22/16
C32
0.047/16
0
R60
24K
0.027/25
R34C34
0.022/16
C47
C45
C44
47
0.047/16
C35
5.6k
R35
NC
C60
1/50
56K
R38
10/16
56K
R39
10/16
C43
0.022
C42
0.022
10/16
10/16
C41
C40
R37
10K
R36
3.3K 1/50
C38
0.22/50
C37
1/50
C39
C36
1/50
R40
C46
C33
0.047/16
C11
0.1/16
R9
L1
QQR0796-003
C12
R13
10K
R15
3.3k
0.047/16
C13 12P
R14
100K
C14
10/16
100
R16
4.7K
R17
1k
C7
0.001
R29 10K
0.001
CN1
QGF1205C1-09
R27
R28
10K
10K
C9
C6
0.001
C21
0.022/16
R33
CF3 QAX0610-001Z
270
C30
R32
100/16
1K
R31 1K
2-7
Printed circuit boards
C628
D662 C605
R621
Q601
CN610
C663
R614
R664
C608
R697
CN611
R613
R615
C696
C665
R662
C614
C629
C695
R667
C617
C615
R616
C664
R627
IC601
R628
R629
R605
R663
C616
X651
C670
C661
C603
R606
R659
C652
C651
C668
C662
IH603
R661
R602
R603
Q602
C602
C611
C610
C612
C623
IH601
C604
C620
R635
R608 R609
C619
R607
R618
R624
R626
C607
CN601
CD board
K602
C613
C622
R634
R619
C606
C677
C621
R657
R617
R610
C625
C624
C645
R623
R612
R668
R648
R625
R642
IC603
C618
R641
R647
IH602
C642
R669
C673
C653
R646
C635
R645
R632
R649
C669
R644
C633
C674
C655
C694
R652 R651
C634
R643
IC602
C641
C644
C675
C643
C693
C692
R656 R654 R653
R650
R666
FW602
C631
D661
C691
R696
R671
K601
R672
CN604
C636
R655
C638
C672
CN605
C676
C671
C632
IC604
CN603
S901
D9502
R3503
R3501
D9501
C9006
J902
J901
L901
CN301
R2803 R2802
R1803 R1802
C1510
R901
CN305
R1800
C2510
Trans board
Z901
Q9070
C9070
C2507
R9070
R2800
C2959
K3800
C1507
C2508
C1503
C2506
R2503
Z911
C2505
C2504
IC302
T901
C3501
Z902
Z912
R1304
CN901
C3500
R3500
R1307
R2307
R1306
R9301
R9302
C2303
R2306
C9302
C9303
C901
C902
Z903
Z913
D902
D901
C904
D904
D903
D905
C903
R9304
PP901
Q9302 R9303
D9303
D9302
Q9301
Main board
R1200
L3200
R1102
L1200
L2200
J302
R2102
K2200
R2200
C3102
R2600
R2601
C2600
C2502
C1502
Q3150
R3153
R1600
R3151
Q3111
D3150
R1601
J301
C3151
R3107
C1600
L2100
D3151 R3152
D3152
D3153
R3154
R3150
Q3110
C2105
C2103
Q3151
R3106
C3152
C3106
J300
L1100
CN303
R9100
C2950
K1200
K9100
C1105
C1103
C2951
C2503
C3100
C1302
W306
C2957
C3101
R1302 R1303
C2956
R2305
C2958
C1508
R2303
R2151
C2102
C2104
C3103
IC300
C3301
R2302
C1506
R3303
IC301
Q2150
Q1150
R1503
R1300
C2302
C1104
R1151
C3402
R1305
C3104
C1505
R3100
C1102
C1504
R3403
R3401
C3105
D3401
R1301
R2300
D3400
R1400
C3300
R2400
C1301
C3400
R1401
R1100
R2100
R3302
R3300
C3404
C3401
R1101 R2101
R3301
R2401
Q1400
R1402
R3402
C3403
C1100
C1101
C2953
R9004
R9003 R9001
R9002
C2101
C2100
C1300
R2301
R9013 C9003
C2301
D3402
Q9004
Q9003
R3400
Q9001
C1303
C2954
D9001
Q9002
C2300
R9021
R9007
R9015
C9002
D9002
R2304 Q2400
R2402 D3403
C3405
R3405
R9006
Q9006
R9005
R9019
Q9201
Q9005 R9012 R9014
C9001
R9016
R9205
C9201
D9201
C9202
R9008
D9020 R9020
C2955
R9206
R9201
R9202
R9203
C9203
C3502
Q9202
D3504
D3505
2-8
PP701
Micon board
EP740
R72 R73 B61
R70
R7017
C7020
L70
C7018
D7001
R7033
R7027
C7019
CN714
CN712
R7037
CN715
C73
C70
R7038
X70
FW701
BL701
R7031
R7032
R7034
D7009
R7070
R7040
R7029
R7030
R7062
R7025
R7024
L7003
R7064
R7035
R7036
R7043
C74
C71 C72
IC750
C59
C75
B59
C76
D11
R35
L4
K7002
B71
B70
C35
C6
C25
R34
C26 R32
C34
CN1
R29
R17
C33
C23
C27
C9
R31
R27
R28
C7
D7000
IC3
B69
C7022 C7023
C7024
Q7000
Q7001
C7007
R7028 R7026
R7074
C7005
R7018
R7021
R7022
R7023
R7020
R7019
R7014
R7015
R7016
R7046
R7049
R7045
R7048 C7006
C7050 C7051 R7044
R7047
R7042 R7041
C80
R20
C14
B50
C41
C40
C36
R36
C39
C37
R37
R19 R18
B58
C22
C24
X1
R23
C17
R16
B68
C45
R38
C42 C43
C38
R21
CF3 C16 C15
C19
R22
C18
R39
R33
R10
R24
C7004
B72
R7013
DI701
C44
R60
C30
R7063
C47
C49
R50
R7011
C46
R26
C60
R7053
R7010
R7012
IC931
R40
C21
IC2
BL702
C7003
C31
B60
C82
R7009 R7057
C32
T1
R7003
R7001
C50
R41
D7005
C7015
C7014
C7016 C7017
C7002
R7002
C51
IC1
Q5
R7065
C7000 C7001
R30
R25
C28
R7039
X7001
R7007
R7004
R7073
C20
C7013
R7060
B67
CF2
R42
D7003
R7008 R7061
R7059
C77
L2
C5 R7
R6
CF1
B56
B80
B57
L7002
R7052 R7051
R43
C48
C58
C57
C11
L7001
C55
R2
K7003
B55
Q7005
R7055
C54
R4
B54
C53
R7006
R7005
C56
FW701
Q7003
C81
R3
D7006
D7004
Q7010
R7058
Q1
R7054
C7021
R7000
C2
B52
B53
Q7004
Q2
R11
R12
C4
R15
CN716
D7777
C7008
Q7002
L1
B51
R5
R7072
R13
C7011
D7002
C7012
R7050
B63
B66
C1
R7071
R7056
Q7006
C3
TU1
D7007
IC932
C7009
C7010
D7008
CN711
CN713
B62
B65
Q3
S7512
C7503
C7502
S7550
C10
D4 D3
C12
C13 R14
R9
Q4
R1
TP1
D2
D1
D5
C7501
R7500
CN717
S7511
R7513
S7510
R7514
S7508 S7509
R7509
S7507
R7507
R7508
R7506 C7500
Switch board
D8 D7
L3
C8
J1
D10
D9
R8
D6
R7512
R7511
R7510
R7501
R7502
S7503
R7505
S7505
R7503
R7504
S7500
S7501
S7502
S7504
S7506
Tuner board
2-9
SW1
SW2
D1
Cassette (switch) board
P1
VR37
R371
CN1
FW100
SW5
C308
R315
R327
VR31
R313
Q302
R314
C316
C319
C314
L301
R104
Q305
C313
R310
C107
C310
L303
R304
R102
R108
R335
R353
R339
C113
C207
R301
C301
C103
R208
C105 C205
C106
C304
CN34
R106
C306
R101
R105
R205
R110
C102
C307
R336
C340
R206
C206
R210
R305
C300
C341
R372
Q372
C371
CN33
IC32
Q371
C101
C374
Q375
R376
R216
C376
R204
R201
C202
C204
D375
Q376
R375
C213
IC1
CN32
R338
R337
R202
C203
R340
C331
R342
SW6
R343
R341
2-10
C121
C221
D340
R303
R121
R221
R302
Q343
Q342
C104
R306
Q344
R344
Q345
R345
R109
R346
W1
Q346
C110
R107
R116
Cassette board
C109
CN31
C201
C342
W1
C209
R207
C210
IC33
R347
Q347
<< MEMO >>
2-11
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB024SCH)
Printed in Japan WPC
PARTS LIST
[ UX-H30 ]
* All printed circuit boards and its assemblies are not available as service parts.
Area suffix UP ---------------------------- Korea
UT --------------------------- Taiwan UW ---------- Brazil,Mexico,Peru U ---------------------- Other Areas
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Speaker assembly and parts list (Block No.M2)
Cassette mechanism assembly and parts list (Block No.MP) Electrical parts list (Block No.01~04) Packing materials and accessories parts list (Block No.M3)
No. MB024 3-1
3- 2 3- 5 3- 6 3- 8 3-14
Exploded view of general assembly and parts list
7
46
37
48
47
49
42
38
41
44
39
A
31
43
29
34
32
45
31
Block No.
30
h
32
35
M
M
1
M
68
93
f
6
7
D1
b
6
D
LCD system light board
23
80
20
CD servo
control baord
50
20
50
92
h
40
f
d
50
2
8
35
36
86
50
c
1
g
35
3
66
85
5
33
4
17
16
B
35
9
18
5
19
g
i
LCD system CPU board
4
51
10
19
11
15
26
52
88
66
2
13
3-2
24
22
21
77
77
12
14
25
68
M
93
Power ampliifier board
65
78
79
67
70
71
72
70
76
A
74
73
F
57
58
D
58
77
59
77
69
55
D1
b
j
c
60
D
LCD system light board
6
7
62
C
E
54
75
73
63
g
i
LCD system CPU board
52
51
88
66
27
19
91
66
90
87
e
d
i
b
89
27
64
84
54
82
83
C
81
j
Power supply board
E
B1
B
54
56
66
e
Tuner board
61
28
15
11
14
26
13
25
28
Head amplifier
& mechanism
control board
53
D1
B1
3-3
General assembly
Block No. [M][1][M][M]
Symbol No.
1 GV10127-003A FRONT PANEL 2 GV40077-002A JVC BADGE 3 GV20202-001A PUSH BUTTON 4 QYSBSF2608Z TAP SCREW 2.6mm x 8mm(x2) 5 QYSBSF2608Z TAP SCREW 2.6mm x 8mm(x2) 6 GV30423-001A LAMP CASE 7 GV40384-001A LCD FILTER 8 GV30402-001A LCD LENS 9 GV30349-009A SPACER 10 GV30424-001A DOOR HOLDER 11 GV40393-001A EJECT LEVER 12 GV40377-003A EJECT KNOB 13 QYSBSF2608Z TAP SCREW 2.6mm x 8mm 14 VKZ4323-202 SCREW (x2) 15 GV30421-001A TENSION SPRING 16 GV40394-002A EJECT ARM 17 VKZ4341-205 SPECIAL SCREW 18 GV40385-001A TORSION SPRING 19 QYSBSF3010Z TAP SCREW 3mm x 10mm(x2) 20 VKY4180-401 CASSETTE SPRING (x2) 21 VYH5601-001 GEAR 22 GV40386-001A DOOR SPRING 23 GV20198-003A CASSETTE HOLDER 24 GV30403-001A DOOR LENS 25 VKL7850-002 EJECT SAFTY(R) 26 VKW5258-003 TORSION SPRING 27 QYSBSF3012Z TAP SCREW 3mm x 12mm(x2) 28 QYSBST3008Z TH TAP SCREW 3mm x 8mm(x2) 29 KSM-213CCMJ CD MECHA ASSY 30 GV30412-001A PICK COVER 31 LV42763-001A INSULATOR (x2) 32 LV42763-002A INSULATOR (x2) 33 GV40379-001A CD M.HOLDER(L) 34 GV40379-002A CD M.HOLDER(R) 35 QYSBSF3010Z TAP SCREW 3mm x 10mm(x4) 36 GV40390-001A SHIELD 37 GV10134-001A CD CASE 38 VYH4769-002SS GEAR 39 GV40391-001A CD DOOR SPRING 40 GV40395-001A LOCK LEVER 41 GV40396-001A CD EJECT KNOB 42 GV20199-001A CD DOOR 43 QYSDSF2006Z SCREW 2mm x 6mm 44 GV40378-001A CD LENS 45 GV40423-002A CLAMPER BRACKET 46 LV33270-001A CLAMPER 47 VYH7313-005 P.C.MAGNET 48 VKL7757-001 YOKE 49 LV41741-001A SPECIAL SCREW 50 QYSBSF3010Z TAP SCREW 3mm x 10mm(x4) 51 GV40392-002A SHIELD 52 E3400-431 SPACER 53 GV10133-001A BOTTOM CHASSIS 54 QYSBST4006Z SCREW 4mm x 6mm(x4) 55 GV30404-001A JACK HOLDER 56 QYSBSF2608Z TAP SCREW 2.6mm x 8mm 57 GV30405-001A RADIATION 58 QYSBST3012Z SCREW 3mm x 12mm(x3) 59 QYSBST3006Z TAP SCREW 3mm x 6mm 60 QYSBST3006Z TAP SCREW 3mm x 6mm 61 QYSBST3006Z TAP SCREW 3mm x 6mm 62 GV30408-001A IC HOLDER 63 GV30422-001A SHIELD 64 QYSBST4006Z SCREW 4mm x 6mm 65 QYSBSG3006Z TAPPING SCREW 3mm x 6mm 66 LV30225-011A SPACER (x4) 67 GV10128-003A REAR PANEL
67 GV10128-005A REAR PANEL 68 GV20221-001A SIDE PANEL(L)
69 GV20218-001A SIDE PANEL (R) 70 QYSBSF3010Z TAP SCREW 3mm x 10mm(x2) 71 QYSBSF3010Z TAP SCREW 3mm x 10mm
Part No. Part Name Description Local
H30UP H30U,
H30UT , H30U W
Symbol No.
Part No. Part Name Description Local
72 QYSBSF3010Z TAP SCREW 3mm x 10mm 73 QYSBSF3010Z TAP SCREW 3mm x 10mm(x2) 74 QYSBSF3010Z TAP SCREW 3mm x 10mm 75 QYSBSF3010Z TAP SCREW 3mm x 10mm
76 QYSBSF3010Z TAP SCREW 3mm x 10mm 77 QYSSST3008Z SCREW 3mm x 8mm(x4)
78 GV30230-003A UP LABEL 78 GV30406-006A NAME PLATE 79 E70891-001 CLASS 1 LABEL
80 LV41843-001A LASER CAUTION
81 QQT0396-002 POWER TRANSF T901
81 QQT0396-003 POWER TRANSF T901
82 QMF51W2-R50-J8 FUSE F901 0.5A AC250V
82 QMF51W2-1R0-J8 FUSE T901 1A AC250V
83 QMF51W2-6R3-J8 FUSE F902 6.3A AC250V
84 QMF51W2-6R3-J8 FUSE F903 6.3A AC250V 85 QUQH12-0411BJ FFC WIRE 86 QUQH12-0714AJ FFC WIRE 87 QUQH12-0909BJ CARD WIRE 88 QUQH12-0913BJ FFC WIRE 89 QUQH12-1022BJ FFC WIRE 90 E3400-431 SPACER 91 QUQH12-1406BJ FFC WIRE 92 QUQ110-1607AJ FFC WIRE 93 GV30497-001A UT LABEL
H30U, H30UT, H30U W
H30UP H30U,
H30UT, H30U W
H30UP H30U,
H30UT, H30U W
H30UP H30U,
H30UT, H30U W
H30U, H30UT, H30U W
H30UT
3-4
Speaker assembly and parts list
5
6
6
3
Block No.
7
M
M
2
M
3
3
3
1
Speaker
Block No. [M][2][M][M]
Symbol No.
1 J201XH3000B10 SPEAKER FRAME (x2) 2 J200XH3000B00 FRONT PANEL (x2) 3 J282XH3000B00 LATCH (x8) 4 21302UXP510 JVC MARK (x2) 5 305J0XH300800 WOOFER (x2) 6 411B84012AB1 SCREW (x8) 7 6000XH30U00 RATING LABEL (x2)
Part No. Part Name Description Local
4
2
3-5
Cassette mechanism assembly and parts list
SLC-S302M
Grease
= EM-30L =UD-24 =LEN-320M =MOBIL-1
8
15
2
2
10
3
14
16
Block No.
9
M
MM
P
11
34
27
13
12
23
3
4
11
6
5
7
1
29
C
1
The lower side
24
5
Switch board
6
30
25
22
17
18
21
B
A
19
20
3-6
31
28
26
A
33
32
0.1
_
+
0.15 mm
8.7
33
B
32
35
C
36
Head amplifier board
35
Cassette mechanism
Block No. [M][P][M][M]
Symbol No.
1 VKS1165-00L CHASSIS B. ASSY 2 VKS2274-002 REEL GEAR (x2) 3 VKW5286-002 B.T. SPRING (x2) 4 VKS5559-001 PLAY IDLE GEAR 5 VKS5595-002 BLIND 6 VKS5560-003 FR IDLE GEAR 7 LV42013-001A EARTH SPRING 8 SLC-RP4SVM HEAD MOUNT ASSY 9 VKY3149-002 CASSETTE SP. 10 LV31786-001A PLAY LEVER 11 VKS1166-004 CONTROL CAM 12 VKW5279-002 HEAD BASE SP(R) 13 VKW5280-001 HEAD BASE SP(L) 14 LV41584-001A BRAKE(R) 15 LV41585-003A BRAKE(L) 16 QYSBSF2005Z SCREW 2mm x 5mm 17 VKS5603-00G MAIN PULLEY ASS 18 VKS3785-001MM FR ARM 19 VKW5284-002 SWING SPRING 20 VKS2278-003 TRIGGER ARM 21 VKW5301-001 FR SPRING 22 VKW5266-001 ELEVATOR SPRING 23 WDL214025 WASHER 24 QYSBSF2005Z SCREW 2mm x 5mm 25 VKS3786-00G CLUTCH ASSY 26 VKF3205-00B F.WHEEL ASSY(R) 27 WDL183425 SLIT WASHER 28 VKF3207-00C F.WHEEL ASSY(L) 29 WDL173525-6 SLIT WASHER 30 VKZ3174-00B DC SOLENOID 31 LV42836-001A CAPSTAN BEL T 32 MSI-5U2LWA D.C.MOTOR 33 VKR4761-003 MOTOR PULLEY 34 QYSPSP2604Z SCREW 2.6mm x 4mm(x2) 35 QYSBSF2608Z TAPPING SCREW 2.6mm x 8mm(x3) 36 QUQH12-0906BF WIRE
Part No. Part Name Description Local
3-7
Electrical parts list
Main board
Block No. [0][1][0][0]
Symbol No.
IC300 LA4663 POWER IC IC301 HA17558A IC IC302 LC75342 IC IC601 AN22000A-W IC
IC602 LA6541-X IC IC603 MN662748RPMFA IC IC604 KIA78S05P-T IC
Q601 KTA1271/OY/-T TRANSISTOR Q1150 2SC3576-JVC-T TRANSISTOR Q1400 2SC2785/FE/-T TRANSISTOR Q2150 2SC3576-JVC-T TRANSISTOR Q2400 2SC2785/FE/-T TRANSISTOR Q3110 2SC3576-JVC-T TRANSISTOR Q3111 KRC111M-T TRANSISTOR Q3150 KRA101M-T TRANSISTOR Q3151 KRC102M-T DIGI TRANSISTOR
Q9001 KTA1046/Y/ TRANSISTOR Q9002 2SC2785/FE/-T TRANSISTOR Q9003 2SA1175/FE/-T TRANSISTOR Q9004 KRC114M-T TRANSISTOR Q9005 KRA114M-T TRANSISTOR Q9006 2SC2785/FE/-T TRANSISTOR Q9070 2SC3576-JVC-T TRANSISTOR Q9201 KTB772/Y/ TRANSISTOR Q9202 2SC2785/FE/-T TRANSISTOR Q9301 KTA1267/YG/-T TRANSISTOR Q9302 2SC2785/FE/-T TRANSISTOR
D661 1SS133-T2 DIODE D662 1SS133-T2 DIODE
D901 6A10E2 SI DIODE
D902 6A10E2 SI DIODE
D903 6A10E2 SI DIODE
D904 6A10E2 SI DIODE
D905 6A10E2 SI DIODE D3150 MTZJ5.1C-T2 Z DIODE D3151 1SS133-T2 DIODE D3153 1SS133-T2 DIODE D3400 1SS133-T2 DIODE D3401 1SS133-T2 DIODE D3402 1SS133-T2 DIODE D3403 1SS133-T2 DIODE D3504 1SS133-T2 DIODE D3505 1SS133-T2 DIODE D9001 1SS133-T2 DIODE D9002 MTZJ8.2C-T2 Z DIODE D9020 MTZJ5.6C-T2 Z DIODE D9201 MTZJ4.3B-T2 Z DIODE D9302 1SS133-T2 DIODE D9303 1SS133-T2 DIODE D9501 1SS133-T2 DIODE D9502 1N4003S-T5 SI DIODE
C602 QCSB1H J-560Y C CAPACITOR 56pF 50V J C604 QEKC1A M-107Z E CAPACITOR 100uF 10V M C605 QETN1EM-106Z E CAPACIT OR 10uF 25V M C606 QFVF1HJ-823Z MF CAPACITOR 0.082uF 50V J C608 QETN1H M-105Z E CAPACITOR 1uF 50V M C610 QFVF1HJ-393Z MF CAPACITOR 0.039uF 50V J C611 QCBB1H K-103Y C CAPACIT OR 0.01uF 50V K C612 QDXB1C M-272Y C CAPACITOR 2700pF 16V M C613 QCBB1H K-331Y C CAPACIT OR 330pF 50V K C614 QCZ0313-105Z C CAPACITOR 1uF 25V Z C615 QDVB1E Z-223Y C CAPACITOR 0.022uF 25V Z C616 QDVB1E Z-223Y C CAPACITOR 0.022uF 25V Z C617 QCSB1H K-3R3Y C CAPACITOR 3.3pF 50V K C618 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C619 QCBB1H K-561Y C CAPACIT OR 560pF 50V K C620 QCBB1H K-101Y C CAPACIT OR 100pF 50V K C622 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C623 QFVF1HJ-563Z MF CAPACITOR 0.056uF 50V J
Part No. Part Name Description Local
Symbol No.
C624 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C625 QDXB1CM-222Y C CAPACITOR 2200pF 16V M C628 QDX31EM-473Z C CAPACITOR 0.047uF 25V M C629 QETN1AM-227Z E CAPACITOR 220uF 10V M C631 QETN1AM-477Z E CAPACITOR 470uF 10V M C632 QEKC1AM-107Z E CAPACITOR 100uF 10V M C633 QCBB1HK-391Y C CAPACITOR 390pF 50V K C634 QCBB1HK-391Y C CAPACITOR 390pF 50V K C635 QCBB1HK-391Y C CAPACITOR 390pF 50V K C636 QCBB1HK-391Y C CAPACITOR 390pF 50V K C638 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C641 QCZ0313-105Z C CAPACITOR 1uF 25V Z C642 QCBB1HK-103Y C CAPACITO R 0.01uF 50V K C643 QEQ61HM-225Z E CAPACITOR 2.2uF 50V M C644 QFN31HJ-153Z M CAPACITOR 0.015uF 50V J C645 QEQ61HM-225Z E CAPACITOR 2.2uF 50V M C651 QCSB1HJ-120Y C CAPACITOR 12pF 50V J C652 QCSB1HJ-150Y C CAPACITOR 15pF 50V J C653 QDVB1EZ-223Y C CAPACITOR 0.022uF 25V Z C655 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z C661 QCBB1HK-471Y C CAPACITOR 470pF 50V K C662 QDVB1EZ-223Y C CAPACITOR 0.022uF 25V Z C663 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C664 QDVB1EZ-223Y C CAPACITOR 0.022uF 25V Z C665 QFVF1HJ-334Z MF CAPACITOR 0.33uF 50V J C668 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C669 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C670 QETN1AM-107Z E CAPACITOR 100uF 10V M C671 QDXB1CM-222Y C CAPACITOR 2200pF 16V M C672 QDXB1CM-222Y C CAPACITOR 2200pF 16V M C673 QETN1AM-477Z E CAPACITOR 470uF 10V M C674 QDVB1EZ-223Y C CAPACITOR 0.022uF 25V Z C675 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C676 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C677 QDVB1EZ-223Y C CAPACITOR 0.022uF 25V Z C691 QCBB1HK-151Y C CAPACITOR 150pF 50V K C692 QCBB1HK-151Y C CAPACITOR 150pF 50V K C693 QCBB1HK-151Y C CAPACITOR 150pF 50V K C694 QCBB1HK-101Y C CAPACITOR 100pF 50V K C695 QFVF1HJ-334Z MF CAPACITOR 0.33uF 50V J C901 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C902 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C903 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C904 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C1100 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C1101 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C1102 QCBB1HK-331Y C CAPACITOR 330pF 50V K C1103 QDXB1CM-332Y C CAPACITOR 3300pF 16V M C1104 QTE1V06-106Z E CAPACITOR 10uF 35V C1105 QCBB1HK-221Y C CAPACITOR 220pF 50V K C1300 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J C1301 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J C1302 QTE1V06-106Z E CAPACITOR 10uF 35V C1303 QFVJ1HJ-334Z MF CAPACITOR 0.33uF 50V J C1502 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1503 QTE1V06-106Z E CAPACITOR 10uF 35V C1504 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C1505 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C1506 QFLC1HJ-272Z M CAPACITOR 2700pF 50V J C1507 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1508 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1510 QETN1EM-106Z E CAPACITOR 10uF 25V M C1600 QCBB1HK-221Y C CAPACITOR 220pF 50V K C2100 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C2101 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C2102 QCBB1HK-331Y C CAPACITOR 330pF 50V K C2103 QDXB1CM-332Y C CAPACITOR 3300pF 16V M C2104 QTE1V06-106Z E CAPACITOR 10uF 35V C2105 QCBB1HK-221Y C CAPACITOR 220pF 50V K C2300 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J C2301 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J C2302 QTE1V06-106Z E CAPACITOR 10uF 35V C2303 QFVJ1HJ-334Z MF CAPACITOR 0.33uF 50V J C2502 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
Part No. Part Name Description Local
3-8
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C2503 QTE1V06-106Z E CAPACITOR 10uF 35V C2504 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C2505 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C2506 QFLC1HJ-272Z M CAPACITOR 2700pF 50V J C2507 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C2508 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C2510 QETN1EM-106Z E CAPACITOR 10uF 25V M C2600 QCBB1HK-221Y C CAPACITOR 220pF 50V K C2953 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C2954 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C2955 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C2956 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K C2957 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K C2958 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K C2959 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C3100 QEZ0635-828 E CAPACITOR 8200uF C3101 QTE1V28-107Z E CAPACITOR 100uF 35V C3102 QEKC1CM-107Z E CAPACITOR 100uF 16V M C3103 QETN1EM-476Z E CAPACITOR 47uF 25V M C3104 QETN1EM-106Z E CAPACITOR 10uF 25V M C3151 QETN1EM-106Z E CAPACITOR 10uF 25V M C3152 QETN1AM-476Z E CAPACITOR 47uF 10V M C3300 QETN1CM-476Z E CAPACITOR 47uF 16V M C3301 QTE1C06-226Z E CAPACITOR 22uF 16V C3400 QETN1HM-105Z E CAPACITOR 1uF 50V M C3401 QETN1HM-105Z E CAPACITOR 1uF 50V M C3402 QFLC1HJ-563Z M CAPACITOR 0.056uF 50V J C3403 QFLC1HJ-563Z M CAPACITOR 0.056uF 50V J C3404 QETN1HM-226Z E CAPACITOR 22uF 50V M C3405 QETN1CM-106Z E CAPACITOR 10uF 16V M C3500 QETN1CM-107Z E CAPACITOR 100uF 16V M C3501 QETN1EM-106Z E CAPACITOR 10uF 25V M C3502 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M C9001 QETN1EM-476Z E CAPACITOR 47uF 25V M C9002 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M C9003 QCBB1HK-221Y C CAPACITOR 220pF 50V K C9006 QETN1EM-106Z E CAPACITOR 10uF 25V M C9070 QETN1EM-106Z E CAPACITOR 10uF 25V M C9201 QETN1CM-476Z E CAPACITOR 47uF 16V M C9202 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M C9203 QTE1V06-106Z E CAPACITOR 10uF 35V C9302 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M C9303 QEKC1AM-107Z E CAPACITOR 100uF 10V M
R602 QRE141J-203Y C RESISTOR 20kΩ 1/4W J R603 QRE141J-333Y C RESISTOR 33kΩ 1/4W J R605 QRE141J-684Y C RESISTOR 680kΩ 1/4W J R606 QRE141J-184Y C RESISTOR 180kΩ 1/4W J R607 QRE141J-333Y C RESISTOR 33kΩ 1/4W J R609 QRE141J-224Y C RESISTOR 220k R610 QRE141J-105Y C RESISTOR 1MΩ 1/4W J R612 QRE141J-102Y C RESISTOR 1k R613 QRE141J-121Y C RESISTOR 120 R614 QRE141J-100Y C RESISTOR 10Ω 1/4W J R615 QRE141J-120Y C RESISTOR 12 R619 QRE141J-683Y C RESISTOR 68k R621 QRE141J-100Y C RESISTOR 10Ω 1/4W J R625 QRE141J-183Y C RESISTOR 18k R626 QRE141J-183Y C RESISTOR 18kΩ 1/4W J R627 QRE141J-682Y C RESISTOR 6.8k R628 QRE141J-472Y C RESISTOR 4.7k R629 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R632 QRE141J-473Y C RESISTOR 47k R634 QRE141J-224Y C RESISTOR 220k R635 QRE141J-394Y C RESISTOR 390kΩ 1/4W J R641 QRE141J-563Y C RESISTOR 56k R642 QRE141J-332Y C RESISTOR 3.3k R643 QRE141J-473Y C RESISTOR 47k R644 QRE141J-682Y C RESISTOR 6.8k R645 QRE141J-333Y C RESISTOR 33kΩ 1/4W J R646 QRE141J-182Y C RESISTOR 1.8k R647 QRE141J-392Y C RESISTOR 3.9k R648 QRE141J-122Y C RESISTOR 1.2kΩ 1/4W J R649 QRE141J-152Y C RESISTOR 1.5k R650 QRE141J-182Y C RESISTOR 1.8k R651 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R652 QRE141J-102Y C RESISTOR 1k R653 QRE141J-101Y C RESISTOR 100
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
R654 QRE141J-101Y C RESISTOR 100Ω 1/4W J R656 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R657 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R659 QRE141J-471Y C RESISTOR 470Ω 1/4W J R661 QRE141J-683Y C RESISTOR 68kΩ 1/4W J R662 QRE141J-155Y C RESISTOR 1.5M R663 QRE141J-124Y C RESISTOR 120k R664 QRE141J-331Y C RESISTOR 330Ω 1/4W J R666 QRE141J-220Y C RESISTOR 22Ω 1/4W J R667 QRE141J-683Y C RESISTOR 68kΩ 1/4W J R668 QRE141J-220Y C RESISTOR 22Ω 1/4W J R669 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R671 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R672 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R697 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J R1100 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J R1101 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J R1102 QRE141J-471Y C RESISTOR 470Ω 1/4W J R1151 QRE141J-302Y C RESISTOR 3kΩ 1/4W J R1200 QRE141J-151Y C RESISTOR 150Ω 1/4W J R1300 QRE141J-154Y C RESISTOR 150k R1301 QRE141J-392Y C RESISTOR 3.9k R1302 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R1303 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R1304 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1305 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J R1306 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R1307 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R1400 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R1401 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R1402 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1503 QRE141J-392Y C RESISTOR 3.9kΩ 1/4W J R1600 QRE141J-303Y C RESISTOR 30kΩ 1/4W J R1601 QRE141J-303Y C RESISTOR 30kΩ 1/4W J R1800 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J R1802 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R1803 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J R2100 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J R2101 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J R2102 QRE141J-471Y C RESISTOR 470Ω 1/4W J R2151 QRE141J-302Y C RESISTOR 3kΩ 1/4W J R2200 QRE141J-151Y C RESISTOR 150Ω 1/4W J R2300 QRE141J-154Y C RESISTOR 150kΩ 1/4W J R2301 QRE141J-392Y C RESISTOR 3.9kΩ 1/4W J R2302 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R2303 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R2304 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R2305 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J R2306 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R2307 QRE141J-472Y C RESISTOR 4.7k R2400 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R2401 QRE141J-223Y C RESISTOR 22k R2402 QRE141J-103Y C RESISTOR 10k R2503 QRE141J-392Y C RESISTOR 3.9kΩ 1/4W J R2600 QRE141J-303Y C RESISTOR 30k R2601 QRE141J-303Y C RESISTOR 30k R2800 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J R2802 QRE141J-222Y C RESISTOR 2.2k R2803 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J R3100 QRE141J-222Y C RESISTOR 2.2k R3107 QRE141J-681Y C RESISTOR 680 R3110 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R3150 QRE141J-102Y C RESISTOR 1k R3151 QRE141J-472Y C RESISTOR 4.7k R3152 QRE141J-471Y C RESISTOR 470Ω 1/4W J R3153 QRE141J-102Y C RESISTOR 1k R3154 QRE141J-102Y C RESISTOR 1k R3300 QRE141J-101Y C RESISTOR 100 R3302 QRE141J-912Y C RESISTOR 9.1k R3303 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R3400 QRE141J-472Y C RESISTOR 4.7k R3401 QRE141J-472Y C RESISTOR 4.7k R3402 QRE141J-124Y C RESISTOR 120kΩ 1/4W J R3403 QRE141J-154Y C RESISTOR 150k R3405 QRE141J-513Y C RESISTOR 51k R3500 QRE141J-101Y C RESISTOR 100Ω 1/4W J R3501 QRE141J-222Y C RESISTOR 2.2k R3503 QRE141J-222Y C RESISTOR 2.2k
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J 1/4W J
1/4W J
1/4W J
3-9
Symbol No.
R9001 QRE141J-1R0Y C RESISTOR 1Ω 1/4W J R9002 QRE141J-1R0Y C RESISTOR 1Ω 1/4W J R9003 QRE141J-1R0Y C RESISTOR 1Ω 1/4W J R9004 QRE141J-471Y C RESISTOR 470Ω 1/4W J R9005 QRE141J-152Y C RESISTOR 1.5kΩ 1/4W J R9006 QRE141J-242Y C RESISTOR 2.4k R9007 QRE141J-102Y C RESISTOR 1k R9008 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J R9012 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R9013 QRE141J-471Y C RESISTOR 470Ω 1/4W J R9014 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R9015 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R9016 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R9019 QRZ9005-680X FUSI RESISTOR 68 R9020 QRE141J-133Y C RESISTOR 13kΩ 1/4W J R9021 QRE141J-512Y C RESISTOR 5.1kΩ 1/4W J R9070 QRE141J-471Y C RESISTOR 470Ω 1/4W J
R9100 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J R9201 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R9202 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R9203 QRE141J-820Y C RESISTOR 82 R9205 QRE141J-823Y C RESISTOR 82k R9206 QRE141J-473Y C RESISTOR 47kΩ 1/4W J R9301 QRE141J-392Y C RESISTOR 3.9kΩ 1/4W J R9302 QRE141J-333Y C RESISTOR 33kΩ 1/4W J R9303 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R9304 QRE141J-101Y C RESISTOR 100Ω 1/4W J
L901 QQR1321-001 LINE FILTER L1100 QQR0797-002 COIL L1200 QQL231K-470Y COIL 47uH K L2100 QQR0797-002 COIL L2200 QQL231K-470Y COIL 47uH K L3200 QQL231K-470Y COIL 47uH K
CN301 QGB1214J1-20S CONNECTOR B-B (1-20) CN303 QGF1205C1-07 CONNECTOR FFC/FPC (1-7) CN305 QGF1205F1-10 CONNECTOR FFC/FPC (1-10) CN601 QGF1008F1-16 CONNECTOR FFC/FPC (1-16) CN603 QGF1205F1-07 CONNECTOR FFC/FPC (1-7) CN604 QGF1205F1-14 CONNECTOR FFC/FPC (1-14) CN610 QGA2501C1-02 CONNECTOR W-B (1-2) CN901 QGA2501C1-02 CONNECTOR W-B (1-2) FW602 QJK018-060601 SIN CR C-B WIRE IH601 VYH7237-004 IC HOLDER IH602 VYH7237-001MM IC HOLDER IH603 VYH7237-003 IC HOLDER
J300 QNB0117-001 SPK TERMINAL J301 QNN0090-001 PIN JACK J302 QNS0072-001 HEADPHONE JACK
J901 QNC0091-001 AC INLET
J902 QNA0016-001 DC JACK K601 QQR0621-001Z COIL K602 QQR0621-001Z COIL K1200 QQR0621-001Z COIL K2200 QQR0621-001Z COIL K3800 QQR0621-001Z COIL K9100 QQR0621-001Z COIL PP901 QZW0038-001 WIRE CLAMP
S901 QSW0740-001 VOLTAGE SWITCH
X651 QAX0413-001Z CRYSTAL 16.9344MHz Z901 QNG0020-001Z FUSE CLIP
Z902 QNG0020-001Z FUSE CLIP
Z903 QNG0020-001Z FUSE CLIP Z911 QNG0020-001Z FUSE CLIP
Z912 QNG0020-001Z FUSE CLIP
Z913 QNG0020-001Z FUSE CLIP
Part No. Part Name Description Local
1/4W J
1/4W J
1/4W J
1/4W J
H30U, H30U T,H30 UW
H30U, H30U T,H30 UW
H30U, H30U T,H30 UW
Micon board
Block No. [0][2][0][0]
Symbol No.
IC1 LA1838 IC IC2 LC72136N IC IC750 GP1UM281YK IR DETECT UNIT 38kHz IC931 MN101C57CEW MASK MICON IC932 KIA78S06P-T IC
Q1 2SC1623/5-6/-X TRANSISTOR Q5 DTA114YKA-X TRANSISTOR Q7000 KRC111S-X TRANSISTOR Q7001 KRC111S-X TRANSISTOR Q7002 2SC2412K/R/-X TRANSISTOR Q7003 2SA1037AK/R/-X TRANSIST OR Q7004 KRC111S-X TRANSISTOR Q7005 2SC2412K/R/-X TRANSISTOR Q7006 KRA102S-X DIGI TRANSISTOR Q7010 KRC111S-X TRANSISTOR
D1 1SS133-T2 DIODE D2 1SS133-T2 DIODE D3 1SS133-T2 DIODE D4 1SS133-T2 DIODE D7000 1SS133-T2 DIODE D7002 1SS133-T2 DIODE D7003 1SS133-T2 DIODE D7004 1SS133-T2 DIODE D7005 MTZJ5.1C-T2 Z DIODE D7006 MTZJ8.2B-T2 Z DIODE D7007 1SS133-T2 DIODE D7008 1SS133-T2 DIODE D7777 SLR-342VC3F LED
C1 NCB31CK-223X C CAPACITOR 0.022uF 16V K C2 NCB31CK-103X C CAPACITOR 0.01uF 16V K C3 QEKC1CM-106Z E CAPACITOR 10uF 16V M C4 NCB31CK-103X C CAPACITOR 0.01uF 16V K C5 NCB31CK-103X C CAPACITOR 0.01uF 16V K C6 NCB31HK-102X C CAPACITOR 1000pF 50V K C7 NCB31HK-102X C CAPACITOR 1000pF 50V K C8 NCB31HK-102X C CAPACITOR 1000pF 50V K C9 NCB31HK-102X C CAPACITOR 1000pF 50V K C10 NDC31HJ-5R0X C CAPACITOR 5pF 50V J C11 NCB31CK-104X C CAPACITOR 0.1uF 16V K C12 NCB31CK-473X C CAPACITOR 0.047uF 16V K C13 NCS31HJ-100X C CAPACITOR 10pF 50V J C14 QEKC1CM-106Z E CAPACITOR 10uF 16V M C15 NCS31HJ-120X C CAPACITOR 12pF 50V J C16 NCS31HJ-120X C CAPACITOR 12pF 50V J C17 NCB31HK-392X C CAPACITOR 3900pF 50V K C18 QEKC1HM-474Z E CAPACITOR 0.47uF 50V M C19 NCB31CK-473X C CAPACITOR 0.047uF 16V K C20 NCB31HK-102X C CAPACITOR 1000pF 50V K C21 NCB31CK-223X C CAPACITOR 0.022uF 16V K C22 NCS31HJ-151X C CAPACITOR 150pF 50V J C23 NCS31HJ-151X C CAPACITOR 150pF 50V J C24 NCS31HJ-151X C CAPACITOR 150pF 50V J C25 QEKC1CM-107Z E CAPACITOR 100uF 16V M C28 QEKC1CM-106Z E CAPACITOR 10uF 16V M C30 QEKC1CM-107Z E CAPACITOR 100uF 16V M C31 QEKC1CM-226Z E CAPACITOR 22uF 16V M C32 NCB31CK-473X C CAPACITOR 0.047uF 16V K C33 NCB31CK-473X C CAPACITOR 0.047uF 16V K C34 NCB31CK-223X C CAPACITOR 0.022uF 16V K C35 NCB31CK-473X C CAPACITOR 0.047uF 16V K C36 QEKC1HM-105Z E CAPACITOR 1uF 50V M C37 QEKC1HM-105Z E CAPACITOR 1uF 50V M C38 QEKC1HM-224Z E CAPACITOR 0.22uF 50V M C39 QEKC1HM-105Z E CAPACITOR 1uF 50V M C40 QEKC1CM-106Z E CAPACITOR 10uF 16V M C41 QEKC1CM-106Z E CAPACITOR 10uF 16V M C42 NCB31CK-273X C CAPACITOR 0.027uF 16V K C43 NCB31CK-273X C CAPACITOR 0.027uF 16V K C44 QEKC1CM-106Z E CAPACITOR 10uF 16V M C45 QEKC1CM-106Z E CAPACITOR 10uF 16V M C46 NCB31CK-273X C CAPACITOR 0.027uF 16V K
Part No. Part Name Description Local
3-10
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C47 QEKC1HM-105Z E CAPACITOR 1uF 50V M C48 NCB31HK-222X C CAPACITOR 2200pF 50V K C49 NCB31HK-471X C CAPACITOR 470pF 50V K C50 QEKC1CM-226Z E CAPACITOR 22uF 16V M C51 QEKC1HM-105Z E CAPACITOR 1uF 50V M C53 QEKC1CM-226Z E CAPACITOR 22uF 16V M C54 NCB31CK-473X C CAPACITOR 0.047uF 16V K C57 NCB31HK-102X C CAPACITOR 1000pF 50V K C58 NCB31CK-473X C CAPACITOR 0.047uF 16V K C77 NCB31HK-681X C CAPACITOR 680pF 50V K C7000 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7001 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7002 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7003 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7004 NDC31HJ-151X C CAPACITOR 150pF 50V J C7005 NDC31HJ-101X C CAPACITOR 100pF 50V J C7006 NCB31HK-102X C CAPACITOR 1000pF 50V K C7007 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7008 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C7009 QEKC1CM-107Z E CAPACITOR 100uF 16V M C7010 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M C7011 QEKC1HM-225Z E CAPACITOR 2.2uF 50V M C7012 EETB0JM-228JC E CAPACITOR C7013 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7014 QETN1AM-107Z E CAPACITOR 100uF 10V M C7015 NCB31HK-102X C CAPACITOR 1000pF 50V K C7016 NDC31HJ-180X C CAPACITOR 18pF 50V J C7017 NDC31HJ-180X C CAPACITOR 18pF 50V J C7018 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7019 QETN1CM-476Z E CAPACITOR 47uF 16V M C7020 NCB31HK-102X C CAPACITOR 1000pF 50V K C7021 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7022 NDC31HJ-151X C CAPACITOR 150pF 50V J C7023 NDC31HJ-151X C CAPACITOR 150pF 50V J C7050 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7051 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7500 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7501 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7502 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7503 NCB31HK-103X C CAPACITOR 0.01uF 50V K
R1 NRSA63J-560X MG RESISTOR 56Ω 1/16W J R2 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3 NRSA63J-474X MG RESISTOR 470kΩ 1/16W J R4 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R5 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R6 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R7 NRSA63J-120X MG RESISTOR 12Ω 1/16W J R8 NRSA63J-121X MG RESISTOR 120Ω 1/16W J R9 NRSA63J-101X MG RESISTOR 100 R10 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R13 NRSA63J-103X MG RESISTOR 10k R14 NRSA63J-104X MG RESISTOR 100k R15 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R16 NRSA63J-472X MG RESISTOR 4.7k R17 NRSA63J-102X MG RESISTOR 1k R18 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R19 NRSA63J-102X MG RESISTOR 1k R20 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R21 NRSA63J-562X MG RESISTOR 5.6k R22 NRSA63J-472X MG RESISTOR 4.7k R23 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R24 NRSA63J-103X MG RESISTOR 10k R25 NRSA63J-331X MG RESISTOR 330 R26 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R27 NRSA63J-103X MG RESISTOR 10k R28 NRSA63J-103X MG RESISTOR 10k R29 NRSA63J-103X MG RESISTOR 10k R31 NRSA63J-102X MG RESISTOR 1k R32 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R33 NRSA63J-271X MG RESISTOR 270 R34 NRSA63J-470X MG RESISTOR 47 R35 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R36 NRSA63J-332X MG RESISTOR 3.3k R37 NRSA63J-103X MG RESISTOR 10k R38 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R39 NRSA63J-563X MG RESISTOR 56k R40 NRSA63J-243X MG RESISTOR 24k
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
R41 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R43 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R50 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R60 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7000 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R7001 NRSA63J-333X MG RESISTOR 33k R7002 NRSA63J-333X MG RESISTOR 33k R7003 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R7004 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7005 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7006 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7007 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7008 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7009 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7010 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7011 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R7012 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7013 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R7014 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R7015 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7016 NRSA63J-102X MG RESISTOR 1k R7017 NRSA63J-103X MG RESISTOR 10k R7018 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7019 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R7020 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7021 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7022 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7023 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7024 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7025 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7026 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7027 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7029 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7030 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7031 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7032 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7033 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7034 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7035 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7036 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7037 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7038 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7039 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7040 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R7041 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7042 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7043 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7044 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7045 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7046 NRSA63J-222X MG RESISTOR 2.2k R7047 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R7048 NRSA63J-104X MG RESISTOR 100k R7049 NRSA63J-103X MG RESISTOR 10k R7050 NRSA63J-271X MG RESISTOR 270Ω 1/16W J R7051 NRSA63J-473X MG RESISTOR 47k R7052 NRSA63J-333X MG RESISTOR 33k R7053 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R7054 NRSA63J-103X MG RESISTOR 10k R7055 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7056 NRSA63J-331X MG RESISTOR 330 R7057 NRSA63J-105X MG RESISTOR 1M R7058 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R7059 NRSA63J-394X MG RESISTOR 390k R7060 NRSA63J-823X MG RESISTOR 82k R7061 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R7063 NRSA63J-202X MG RESISTOR 2k R7064 NRSA63J-103X MG RESISTOR 10k R7065 NRSA63J-183X MG RESISTOR 18k R7070 NRSA63J-223X MG RESISTOR 22k R7071 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7072 NRSA63J-103X MG RESISTOR 10k R7073 NRSA63J-823X MG RESISTOR 82k R7074 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7500 NRSA63J-102X MG RESISTOR 1k R7501 NRSA63J-102X MG RESISTOR 1k R7502 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R7503 NRSA63J-182X MG RESISTOR 1.8k R7504 NRSA63J-222X MG RESISTOR 2.2k
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
3-11
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R7505 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R7507 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7508 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7509 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R7510 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R7511 NRSA63J-222X MG RESISTOR 2.2k R7512 NRSA63J-272X MG RESISTOR 2.7k R7513 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R7514 NRSA63J-363X MG RESISTOR 36kΩ 1/16W J
L1 QQR0796-003 COIL BLOCK L3 QQL231K-4R7Y COIL 4.7uH K L7001 QQL231K-100Y COIL 10uH K L7002 QQL231K-470Y COIL 47uH K L7003 QQL231K-4R7Y COIL 4.7uH K T1 QQR0793-001 IFT
BL701 QLL0147-001 LAMP BL702 QLL0147-001 LAMP CF1 QAX0677-001Z C FILTER 10.700MHz CF2 QAX0677-001Z C FILTER 10.700MHz CF3 QAX0610-001Z C DISCRIMINATOR 10.700MHz CN1 QGF1205F1-09 CONNECTOR FFC/FPC (1-9) CN711 QGB1214K1-20S CONNECTOR B-B (1-20) CN712 QGF1205F1-14 CONNECTOR FFC/FPC (1-14) CN713 QGF1205F1-09 CONNECTOR FFC/FPC (1-9) CN714 QGF1205F1-09 CONNECTOR FFC/FPC (1-9) CN716 QGF1205C1-04 CONNECTOR FFC/FPC (1-4) CN717 QGF1205F1-04 CONNECTOR FFC/FPC (1-4) DI701 QLD0260-001 LCD MODULE EP740 E409182-001SM GRAND TERMINAL FW701 QUM022-12Z3Z3 FLAT WIRE J1 QNB0153-001 ANT TERMINAL K7002 QQR0621-001Z COIL K7003 QQR0621-001Z COIL PP701 QZW0038-001 WIRE CLAMP S7500 QSW0651-001Z TACT SW S7501 QSW0651-001Z TACT SW S7502 QSW0651-001Z TACT SW S7503 QSW0651-001Z TACT SW S7504 QSW0651-001Z TACT SW S7505 QSW0651-001Z TACT SW S7506 QSW0651-001Z TACT SW S7507 QSW0651-001Z TACT SW S7508 QSW0651-001Z TACT SW S7509 QSW0651-001Z TACT SW S7510 QSW0651-001Z TACT SW S7511 QSW0651-001Z TACT SW S7512 QSW0651-001Z TACT SW S7550 QSW0122-001 PUSH SWITCH TU1 QAU0161-001 FRONT END X1 QAX0402-001 CRYSTAL 75.0kHz X7001 QAX0711-002Z CRYSTAL 8.000000MHz
1/16W J
1/16W J
Cassette switch board
Block No. [0][3][0][0]
Symbol No.
IC1 SG-105F3-BB,C PHOTO SENSER IC32 HA12238F IC R/P Equalizer
IC33 CD4094BC IC
L301 QQR1118-002 OSC COIL(BIAS) CN1 QGF1205F1-09 CONNECTOR FFC/FPC (1-9)
CN31 QGF1205F1-06 CONNECTOR FFC/FPC (1-6) CN32 QGF1205F1-09 CONNECTOR FFC/FPC (1-9) CN33 QGF1205F1-09 CONNECTOR FFC/FPC (1-9) CN34 QGF1201F3-10 CONNECTOR FFC/FPC (1-10) FW100 QUM024-07A2Z3 PARA RIBON WIRE H32 GV40397-002A IC HOLDER P1 QNZ0104-001 POST PIN
Part No. Part Name Description Local
Serial to parallel port extension
SW1 QSW0832-001 CASS.SWITCH SW2 QSW0832-001 CASS.SWITCH SW5 QSW0832-001 CASS.SWITCH SW6 QSW0859-001 DETECT SWITCH
Head amplifier board
Block No. [0][4][0][0]
Symbol No.
Q302 2SC2001/K/-T TRANSISTOR Q305 2SC2001/K/-T TRANSISTOR Q342 KRA11 1M -T DIGI TRANSISTOR Q343 2SC3576-JVC-T TRANSISTOR Q344 2SC3576-JVC-T TRANSISTOR Q345 2SC3576-JVC-T TRANSISTOR Q346 2SC3576-JVC-T TRANSISTOR Q347 KRC107M-T DIGI TRANSISTOR Q371 KTA1271/OY/-T TRANSISTOR Q372 KRC107M-T DIGI TRANSISTOR Q375 2SB562/C/-T TRANSISTOR Q376 KTC3199/GL/-T TRANSISTOR
D1 1SR139-400-T2 SI DIODE D340 MTZJ5.1B-T2 Z DIODE D375 MTZJ5.1B-T2 Z DIODE
C101 QDGB1HK-821Y C CAPACITOR 820pF 50V K C102 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M C103 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C104 QCBB1HK-221Y C CAPACITOR 220pF 50V K C105 QCBB1HK-391Y C CAPACITOR 390pF 50V K C106 QERF1HM-225Z E CAPACITOR 2.2uF 50V M C107 QCBB1HK-271Y C CAPACITOR 270pF 50V K C109 QEKJ1EM-475Z E CAPACITO R 4.7uF 25V M C110 QDYB1CM-682Y C CAPACITOR 6800pF 16V M C113 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C120 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K C121 QCBB1HK-331Y C CAPACITOR 330pF 50V K C201 QDGB1HK-821Y C CAPACITOR 820pF 50V K C202 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M C203 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C204 QCBB1HK-221Y C CAPACITOR 220pF 50V K C205 QCBB1HK-391Y C CAPACITOR 390pF 50V K C206 QERF1HM-225Z E CAPACITOR 2.2uF 50V M C207 QCBB1HK-271Y C CAPACITOR 270pF 50V K C209 QEKJ1EM-475Z E CAPACITO R 4.7uF 25V M C210 QDYB1CM-682Y C CAPACITOR 6800pF 16V M C213 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J C220 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K C221 QCBB1HK-331Y C CAPACITOR 330pF 50V K C300 QEKJ1HM-105Z E CAPACITOR 1uF 50V M C301 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C304 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C306 FQETJ1AM-227Z E CAPACITOR C307 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C308 QDXB1CM-152Y C CAPACITOR 1500pF 16V M C310 QCBB1HK-223Y C CAPACITO R 0.022uF 50V K C313 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C314 QCFB1HZ-105Y C CAPACITOR 1uF 50V Z C316 QFG32AJ-223Z PP CAPACITOR 0.022uF 100V J C319 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J C331 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C340 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C341 QEKJ1HM-105Z E CAPACITOR 1uF 50V M C342 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C371 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C374 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C376 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
R101 QRE141J-512Y C RESISTOR 5.1kΩ 1/4W J R102 QRE141J-512Y C RESISTOR 5.1kΩ 1/4W J R104 QRE141J-222Y C RESISTOR 2.2k R105 QRE141J-104Y C RESISTOR 100k
Part No. Part Name Description Local
1/4W J
1/4W J
3-12
Symbol No.
R106 QRE141J-113Y C RESISTOR 11kΩ 1/4W J R107 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J R108 QRE141J-273Y C RESISTOR 27kΩ 1/4W J R110 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R116 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R121 QRE141J-153Y C RESISTOR 15k R201 QRE141J-512Y C RESISTOR 5.1k R202 QRE141J-512Y C RESISTOR 5.1kΩ 1/4W J R204 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R205 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R206 QRE141J-113Y C RESISTOR 11kΩ 1/4W J R207 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J R208 QRE141J-273Y C RESISTOR 27kΩ 1/4W J R210 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R216 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R221 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R301 QRE141J-221Y C RESISTOR 220Ω 1/4W J R302 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R303 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R304 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J R305 QRE141J-103Y C RESISTOR 10k R306 QRE141J-472Y C RESISTOR 4.7k
R310 QRJ146J-4R7X UNF C RESISTOR 4.7Ω 1/4W J R313 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J R314 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R315 QRE141J-101Y C RESISTOR 100Ω 1/4W J R327 QRE141J-474Y C RESISTOR 470kΩ 1/4W J R335 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R336 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R337 QRE141J-332Y C RESISTOR 3.3kΩ 1/4W J R338 QRE141J-392Y C RESISTOR 3.9kΩ 1/4W J R339 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R340 QRE141J-681Y C RESISTOR 680Ω 1/4W J R341 QRE141J-123Y C RESISTOR 12kΩ 1/4W J R342 QRE141J-243Y C RESISTOR 24kΩ 1/4W J R343 QRE141J-183Y C RESISTOR 18kΩ 1/4W J R344 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R345 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R346 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R347 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R353 QRZ9005-100X FUSI RESISTOR 10 R371 QRE141J-123Y C RESISTOR 12kΩ 1/4W J R372 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R375 QRE141J-151Y C RESISTOR 150Ω 1/4W J R376 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J VR31 QVP0008-203Z TRIM RESISTOR 20k VR37 QVP0077-103Z TRIM RESISTOR 10k
L303 QQL244K-100Z COIL 10uH K
Part No. Part Name Description Local
1/4W J
1/4W J
1/4W J
1/4W J
Ω Ω
3-13
Packing materials and accessories parts list
P5
P3
Block No.
P4
M
3
M
M
P8
P6
P6
P7
P1
A3 A5A4A2A1
A10A9
A7 A6
P7
A8
P8
3-14
A11
P2
Packing and accessories
Block No. [M][3][M][M]
Symbol No.
Part No. Part Name Description Local
A 1 GVT0101-003A INST BOOK ENG CHI(PEKIN) H30U A 1 GVT0101-004A INST BOOK KOR A 1 GVT0101-012A INST BOOK CHI(TIWAN)
A 1 GVT0101-013A INST BOOK ENG SPA POR A 2 QAL0457-001 ANT.WIRE
A 3 QAL0014-001 AM LOOP ANT
A 4 QAM0060-002 AC ADAPTOR
A 5 VMP0121-001 POWER CORD(EU)
A 5 QMPS040-183-JD POWER CORD(EU) 1.83m BLACK
A 5 QMPL060-183-JD POWER CORD(EU) 1.83m BLACK A 6 RM-SUXH30U REMOCON UNIT
A 7 ------------------ BATTERY (x2) A 8 UXH30K-SPBOX SPEAKER BOX (x2) A 9 BT-56013-1 A=W.CARD
A 10 VMZ0139-001 CONTHI PLUG A 11 GV30497-001A UT LABEL H30UT P 1 QPC02503515P POLY BAG 25cm x 35cm P 2 GV30407-006A CARTON ASSY. P 3 GV20200-001A CUSHION FRONT P 4 GV20200-002A CUSHION REAR P 5 QPC04504515P POLY BAG 45cm x 45cm P 6 70012006210 POLY BAG (x2) P 7 71525007400 PACKING SHEET (x2) P 8 7200UXH3000 CUSHION (x2)
H30UP H30UT H30U
W
H30U, H30U W
H30UP H30UT H30U,
H30U W
H30UP H30UT
3-15
Loading...
