JVC UXG70A User Manual

MICRO COMPONENT SYSTEM

UX-G70

—Consists of CA-UXG70 and SP-UXG70

SUPER VIDEO

INSTRUCTIONS

GVT0181-012A

[A]

Warnings, Cautions and Others

CAUTION— (Standby/on) button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The (Standby/on) button in any position does not disconnect the mains line.

• When the System is on standby, the STANDBY lamp lights red.

• When the System is turned on, the STANDBY lamp goes off. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION:

personnel.

CAUTION:

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service

Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm

or more.

Front view Side view

15 cm

SP-UXG70

[European Union only]

1 cm

CA-UXG70

15 cm

1 cm

SP-UXG70

15 cm

10 cm

CA-UXG70

G-1

Introduction

Precautions

Installation

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with the TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place.

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Contents

Connections ..............................................................3

Display Indicators....................................................6

Daily Operations—Playback ..................................7

Daily Operations—Sound & Other Adjustments

Adjusting the Volume ....................................................... 13

Adjusting the Sound.......................................................... 13

Creating 3-dimentional Sound Field—3D Phonic ............ 14

Presetting Automatic DVD Video Sound Increase Level......14

Adjusting the Audio Input Level ...................................... 14

Adjusting the Audio Output Level.................................... 14

Changing the Display Brightness...................................... 15

Changing the Scanning Mode ........................................... 15

Changing the Picture Tone................................................ 15

Setting the Clock............................................................... 16

Turning Off the Power Automatically .............................. 16

Unique DVD/VCD Operations .............................17

Selecting the Audio Track................................................. 17

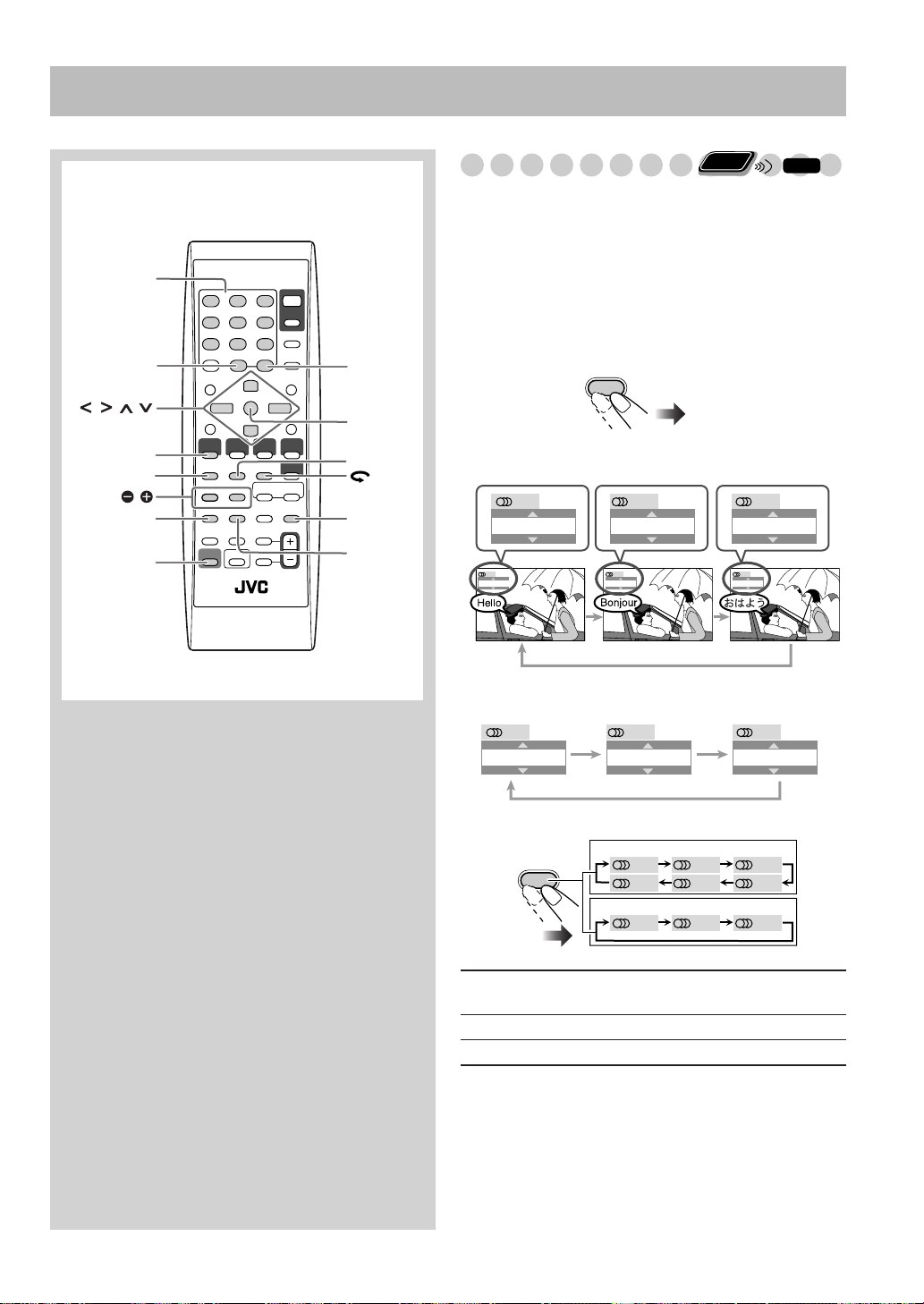

Selecting the Subtitle Language........................................ 18

Selecting the View Angle ................................................. 18

Selecting the Browsable Still Pictures .............................. 18

Playing Back Bonus Group............................................... 18

Making Dialogues Clear—Clear Voice ............................ 19

Special Effect Playback .................................................... 19

Advanced Disc Operations....................................20

Programming the Playing Order—Program Play ............. 20

Playing at Random—Random Play .................................. 21

Playing Repeatedly ........................................................... 22

Prohibiting Disc Ejection—Child Lock............................ 22

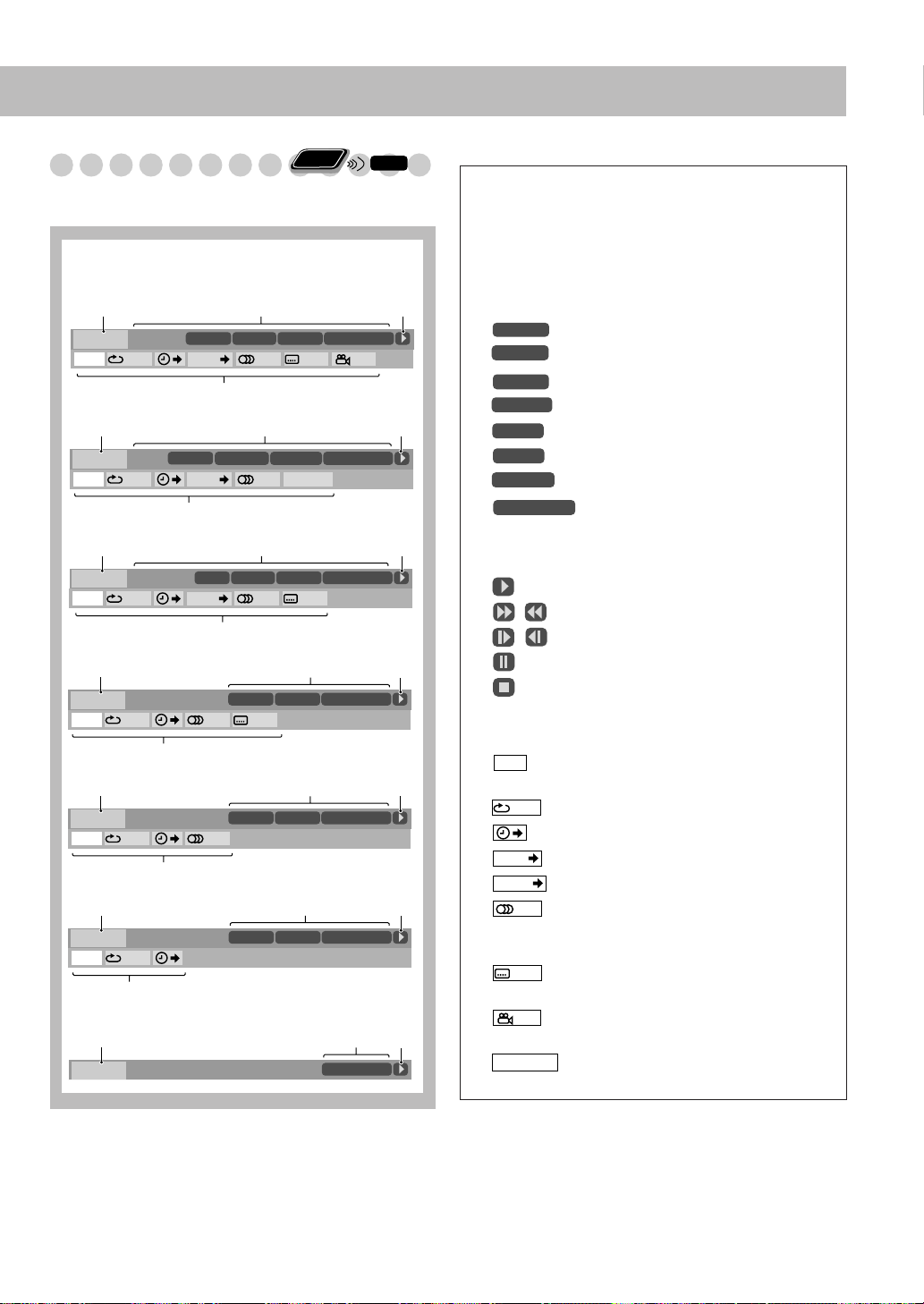

On-screen Disc Operations ............................................... 23

Operations on the Control Screen ..................................... 27

Advanced Tape Operations ..................................29

Recording on a Tape ......................................................... 29

Synchronized Disc Recording........................................... 30

Timer Operations...................................................31

Setup Menu Operations ........................................33

Additional Information .........................................35

Learning More about This System.................................... 35

Troubleshooting ................................................................ 38

Operating JVC’s TVs Using the Remote Control............. 40

Specifications .................................................................... 41

Parts Index ............................................................42

.....13

Playable Disc Types

COMPACT

DIGITAL VIDEO

SUPER VIDEO

• CD-R/-RW: Recorded in the Audio CD, Video CD and SVCD formats. MP3, WMA, JPEG, MPEG-1, MPEG-2, ASF and DivX files written in accordance with the “ISO 9660” format can also be played.

• DVD-R/-RW, +R/+RW: Recorded in the DVD Video format. MP3, WMA, JPEG, MPEG-1, MPEG-2, ASF and DivX files written in the UDF bridge format can also be played.

• DVD-R/-RW/-ROM: Recorded in the DVD Video Recording (VR) format.

In addition to the above discs, this System can playback audio data recorded on CD-Extra.

• The following discs cannot be played back: DVD-RAM, CD-I (CD-I Ready), CD-ROM, Photo CD, CD-G (CD-Graphics) and DVD/CD Text. Playing back these discs will generate noise and damage the speakers.

• In this manual, “file” and “track” are interchangeably used for MP3, WMA, JPEG, MPEG-1, MPEG-2, ASF and DivX operations.

• It is possible to playback finalized +R/+RW (DVD format only) discs. “DVD” lights on the front display panel when a +R/+RW disc is loaded.

About color system

This System accommodates the NTSC and PAL system and can playback discs recorded in either the NTSC or the PAL system.

• To change the color system, see page 15.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This System can playback only DVDs with Region Code numbers including “4.”

EX.:

DIGITAL AUDIO

When playing a multi-channel encoded DVDs, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers.

To enjoy the powerful sound of these multi-channel

•

encoded DVDs,

connect a proper decoder or an amplifier with a proper built-in decoder to the DVD OPTICAL DIGITAL OUT terminal on the rear.

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on

the TV to view the pictures or on-screen displays.

• For disc playback, you can change the initial setting to

your preference. See “Setup Menu Operations” on page 33.

If “ ” appears on the TV screen when you press a button,

the disc cannot perform the operation you have

tried to do.

How to Read This Manual

• Button and control operations are explained in the table below.

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some information).

Indicates that you press the button

repeatedly

selected.

Indicates that you press one of the buttons.

Indicates that you

sec.

for a specified period.

Indicates that you turn the control toward the specified direction(s).

Remote ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible

Main Unit

ONLY

using the main unit.

INFO

briefly.

briefly and

until an option you want is

press and hold

the button

Audio formats

The System can playback the following digital audio formats.

LPCM

•

(Linear PCM),

DTS

(Digital Theater Systems),

DIGITAL

MLP

(Dolby Digital),

(Meridian Lossless

Packing)

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of the Non-DVD side of a DualDisc in this product is not recommended.

Connections

Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT directly to the video input of your TV. Connecting VIDEO OUT to a TV via a VCR may interfere with your viewing when playing back a copyprotected disc. Connecting VIDEO OUT to an integrated TV/VCR system may also interfere with your viewing.

Rear panel

Supplied accessories

Check to be sure that you have all the following items.

• FM antenna (x1)

• AM loop antenna (x1)

• Composite video cord (x1)

• Core filters* (x2)

• Remote control (x1)

• Batteries (x2) If any item is missing, consult your dealer immediately.

~ From the powered subwoofer

See page 4.

Ÿ From AM/FM antenna

See page 4.

! From the input of TV/monitor

See page 4.

⁄ From the digital input of digital audio component

See page 5.

@ From the speakers

See page 5.

¤ To a wall outlet

Plug in the AC power cord only after all connections are complete.

Front panel

Pull down the cover until you hear a clicking sound.

From the PC:

From the portable audio device:

From the headphones:

*Attaching the core filter to the USB cable, LINE IN and LINE OUT cable to reduce interference

At the front panel

Wind firmly the USB cable twice. Wind firmly the LINE IN and LINE OUT cable once.

Stopper

• Keep close between the plug and the core filter.

• Do not damage the cable by applying excessive force when winding.

See page 12.

See page 5.

See page 7.

Close the core filter until you hear a clicking sound.

Powered subwoofer

From the powered

subwoofer

(not supplied)

The subwoofer connected can reproduce the bass sounds recorded in front left and right channels, but cannot reproduce the LFE signals in DVD multi-channel discs.

• Before plugging the unit to the main supply, make sure that the powered subwoofer is turned off.

AM/FM antenna

To assemble the AM loop antenna

To connect AM/FM antenna

SUB WOOFER OUT

For better AM/FM reception

AM loop antenna (supplied)

Keep it connected.

Vinyl-covered wire (not supplied)

Extend it horizontally.

FM outdoor antenna (not supplied)

• Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 connector (IEC or DIN45325).

Ω

wire with coaxial type

AM loop antenna (supplied)

FM antenna (supplied)

Extend it so that you can obtain the best reception.

TV/monitor

Connect only component cord at one time.

Red

Blue

Green

• To select progressive scanning mode (see page 15), use COMPONENT jacks.

Composite video cord (supplied)

• After connecting a TV, select the proper video signal mode according to the connection method. See “Changing the Scanning Mode” on page 15.

Component video cord (not supplied)

S-video cord (not supplied)

⁄

Digital audio component

Protective cap

When connecting a portable audio device (LINE)

Portable audio device (Digital Audio Player, etc.)

At the front panel

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu correctly according to the connected digital audio equipment (see page 34). If

the

setting is incorrect, loud

noise may be generated causing damage to the speakers.

• Digital audio signals are output from this System only when “DVD/CD” is selected as the source.

Speakers

• When connecting the speaker cords, match the polarity of the speaker terminals: red color to (+) and black color to (–).

Press and hold

Insert

Release

Red

To the audio output

Portable audio device with the audio input (Digital Audio Player, etc.)

Stereo mini plug

(not supplied)

To the audio input

• By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device on this unit when connecting it to the LINE IN jack. See page 12 for details.

• Connect an audio component to the LINE OUT jack if the component is not equipped with a digital input terminal.

• If an external device is not equipped with a stereo mini plug audio output, use a plug adaptor to convert the stereo mini plug to the corresponding plug of the audio output.

Preparing the remote control

From right speaker

CAUTION:

Black

From left speaker

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

R6(SUM-3)/AA(15F)

• Dispose of batteries in the proper manner, according to federal, state, and local regulations.

DO NOT recharge, short, disassemble, heat the battery or dispose of it in a fire.

When using the remote control

Point the top of the remote control toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may be shorter.

Display Indicators

GROUP

DISC

The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

12 43567 p8 9

RANDOM

MP3

QP Link

PRGM

DISC ALL A–B

GROUP

ewrty

Disc tray indicators

• 1–5: Disc tray number indicators. – Flashing while the disc tray is open.

• (disc tray indicator): – Lights when the disc is detected. – Flashing while playing back a disc or the disc tray is

open.

– Disappears when there is no disc in the tray.

•: Lights to indicate the current selected disc.

QP Link (Quick Portable Link) indicator

• Lights when QP Link is activated.

Audio file format indicators

• MP3: lights when an MP3 track is detected.

• WMA: lights when a WMA track is detected.

PG/PL indicators

• PG: lights when a DVD-VR formatted disc is called up.

• PL: lights when a playlist recorded on a DVD-VR formatted disc is called up.

FM reception indicators

• MONO: lights while receiving an FM stereo station in monaural.

• ST (stereo): lights while an FM stereo station with sufﬁcient signal strength is tuned in.

USB indicator

• Lights when “USB” is selected as the source.

AHB PRO indicator

• Lights when Active Hyper Bass Pro is activated.

S.TURBO (Sound Turbo) indicator

• Lights when Sound Turbo II is activated.

A.STBY (Auto Standby) indicator

• Lights when Auto Standby is activated.

• Flashes for about 3 minutes before Auto Standby turns the System off.

SLEEP

indicator

• Lights when the Sleep Timer is activated.

REC

indicator

• Lights while recording.

WMA

MONO

3D PHONIC

USB

NEWS INFO

AHB PRO

PRGR.

A.STBY

S.TURBO

B.S.P. BONUS

REC

SLEEP

REC

123

ui o;

Playback mode indicators

• PRGM: lights when Program Play is activated.

• RANDOM: lights when Random Play is activated.

•

(repeat)1 DISC A-B ALL GROUP

–: lights when One Track/Chapter/Step Repeat is

activated. –: lights when Group Repeat is activated. –: lights when One Disc Repeat is activated.

DISC ALL

–: lights when All Disc Repeat is activated.

A–B

–: lights when A-B Repeat is activated.

Main display

• While listening to radio: Band (or preset number) and station frequency appear.

• While selecting “LINE”: “LINE” appears.

• While selecting “TAPE”: “TAPE” appears.

• While selecting “USB”: “USB AUDIO” appears.

• While playing a disc: current status appears.

3D PHONIC indicator

• Lights when 3D Phonic is activated.

(Clear Voice) indicator

• Lights when Clear Voice is activated.

PRGR. (Progressive) indicator

• Lights when the progressive scanning mode is selected.

B.S.P. (Browsable Still Picture) indicator

• Lights when

Browsable

Still Pictures are detected while

playing a DVD Audio disc.

BONUS indicator

• Lights when detected

Daily Timer indicators

a DVD Audio disc with a bonus group is

• 1/2/3: lights when a Daily Timer (1, 2, or 3) is on standby; ﬂashes while working or being set.

•: lights when Daily Timer is on standby or is being set.

• REC: lights when the Recording Timer stands by; ﬂashes while working or being set.

; 2 3

(tape

direction) indicators – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding or fast-forwarding a

tape.

Daily Operations

—Playback

Remote control

Disc tray selecting buttons

ENTER/SET TOP MENU/PG RETURN

8 7

1,¡

QP LINK

SHIFT

Number buttons

MENU/PL

,, ,

GROUP/TITLE SKIP 4,¢

FM/PLAY MODE

In this manual, operations using the remote control are mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

Turn on the power.

The STANDBY lamp on the main unit goes off.

• Without pressing AUDIO, the System turns on by pressing one of the source buttons.

• The System turns on and changes the source to LINE by starting playback on an external device when QP Link is activated. (See page 12 for details.)

Select the source.

Playback automatically starts if the selected source is ready.

• If you press LINE, start playback on the external component.

Adjust the volume.

Operate the target source as explained

later.

To turn off (standby) the unit

The STANDBY lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

DVD/CD

TV VOLUME

VOLUME

FM/AM

DISC ALL A–B

GROUP

RANDOM

USB

MP3 QP Link

PRGM

WMA

MONO

3D PHONIC

LINE

TAPE

USB

NEWS INFO

AHB PRO

PRGR.

A.STBY

S.TURBO

B.S.P. BONUS

SLEEP

REC

You can reduce power consumption by pressing DISPLAY to turn the display off while on standby.

• When the display is turned off, QP Link does not work.

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the

REC

123

speakers.

Be sure to turn down the volume before

connecting or putting on the headphones.

• Disconnecting the headphones will activate the speakers again.

DO NOT turn off (standby) the System with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

Listening to the Radio

To set the AM tuner interval spacing

INFO

Main Unit

ONLY

Before operating the tuner, it is required to select the appropriate AM space interval used for your area.

• This is possible only while the System is on standby.

Select the AM band.

TUNER FM

TUNER AM

Turn off the power.

Select the appropriate AM space interval for your area.

DOWN

AM 9KHZ

(9 kHz interval)

(while holding...)

To select the band (FM or AM)

Remote control:

Main unit:

To tune in to a station

While FM or AM is selected...

Remote control: Main unit:

2 sec.

GROUP/TITLE SKIP

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

press either button.

If the FM station has poor reception

PAG E

FM/PLAY MODE

DOWN

2 sec.

Remote ONLY

(while holding...)

AM 10KHZ

(10 kHz interval)

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—Monaural reception.

To restore the stereo effect,

press the button again (the

MONO indicator disappears).

Remote

To preset the stations

ONLY

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset.

• You can also store the monaural reception mode for FM preset stations if selected.

Activate the preset number entry mode.

NEWS INFO

A.STBY

ENTER/SET

DISC ALL A–B

GROUP

RANDOM

MP3 QP Link

PRGM

WMA

MONO

3D PHONIC

USB

AHB PRO

PRGR.

S.TURBO

B.S.P. BONUS

SLEEP

REC

123

• Finish the following process while the indication on the display is flashing.

Select a preset number for the station you store.

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

LINE OUT LEVEL

A.STANDBY

VFP

ANGLE

Examples:

To select preset number 5, press

To select preset number 10, press

SLEEP

10.

To select preset number 15, press

ZOOM

10, 1, then 5.

To select preset number 30, press

10, 3, then 0.

Playing Back a Tape

To insert a tape

You can playback type I tapes.

Push Insert Close

• You can also use the ¡

Store the station.

ENTER/SET

To tune in to a preset station

Select the band (FM or AM).

or 1

DISC ALL A–B

RANDOM

GROUP

button.

WMA

MP3

MONO

QP Link

3D PHONIC

PRGM

USB

Remote

ONLY

NEWS INFO

AHB PRO

PRGR.

S.TURBO

B.S.P. BONUS

TUNER FM

TUNER AM

Select the preset number for the station you stored.

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

LINE OUT LEVEL

A.STANDBY

VFP

ANGLE

Examples:

To select preset number 5, press

To select preset number 10, press

SLEEP

10.

To select preset number 15, press

ZOOM

10, 1, then 5.

To select preset number 30, press

10, 3, then 0.

A.STBY

REC

SLEEP

With the tape side facing outside

123

To start:

To stop:

When “TAPE” is not selected as the current source, press twice.

To rewind/fast-forward the tape:

Remote control:

GROUP/TITLE SKIP

Fast-forward the tape.

Rewind the tape.

Main unit:

DOWN

Rewind the tape.

Fast-forward the tape.

• You can also use the ¡

or 1

button.

Playing Back a Disc

INFO

Before operating a disc, be familiar how a disc is recorded.

” which

• DVD Video/DVD-VR comprises of “ includes “

Chapters

,” DVD Audio/MP3/WMA/MPEG-1/

MPEG-2/ASF/DivX comprises of “

,” JPEG comprises of “

includes “ includes “

Tracks

“

Tracks

,” and CD/SVCD/VCD comprises of only

Files

.”

Titles

Groups

” which

• For playback of MP3/WMA/JPEG/MPEG-1/MPEG-2/ ASF/DivX, see also page 27.

To insert a disc

You can insert a disc while playing another source.

• When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray,

button. The tray closes and playback starts.

• When current selected disc tray is open, you can use DVD/CD 3

to close the disc tray and start playback

(depending on how the disc is programmed internally).

•

While one of the trays is open, the tray closes automatically by pressing down EJECT for the next tray, then the next tray comes out.

To start:

press the upper part of the same

To pause: To stop:

On-screen guide icons

• During DVD Video playback, the following icons may appear on the TV:

At the beginning of a scene containing multi-angle views.

At the beginning of a scene containing multi-audio sounds.

At the beginning of a scene containing multi-subtitles.

• The following icons will be also shown on the TV to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” in “OTHERS menu” on page 34.

To select a disc

Remote Control:

DISC 1 DISC 2 DISC 3

DISC 4 DISC 5

(while holding...)

Main Unit:

To select a title/group

While playing a disc...

Remote ONLY

GROUP/TITLE SKIP

Playback starts.

DVD/CD

To release, press DVD/CD 3

•

While playing DVD/SVCD/VCD/MP3/WMA/MPEG-1/ MPEG-2/ASF/DivX:

This System can store the stop point,

and when you start playback again by pressing DVD/CD 3 (even while on standby), it starts from the position where you have stopped—Resume Play. (“RESUME” appears on the display when you stop playback.)

To stop completely while Resume is activated,

press 7

twice. (To cancel Resume, see “RESUME” on page 34.)

• When operating the System, the on-screen guide icon (see the following table) appears on the TV.

(while holding...)

• You can select a title/group directly by pressing a number button after pressing GROUP/TITLE (except for DVD-VR disc).

• Group name appears for MP3/WMA playback.

To select a chapter/track

• For VCD/SVCD, cancel PBC (see the right column).

While playing a disc...

GROUP/TITLE SKIP

• First time you press 4

will go back to the beginning of the current chapter/track.

To locate a particular portion

While playing a disc...

SLOW

x2 x5

–

Remote ONLY

x10 x20 x60

, you

To playback using the disc menu

For DVD Video/DVD Audio:

Show the disc menu.

TOP MENU/PG MENU/PL

RETURN

Select an item on the disc menu.

TV CH

Remote ONLY

ENTER/SET

x2 x5

x10 x20 x60

• Search speed changes as illustrated above except for MP3/ WMA/DivX discs. For MP3/WMA/DivX discs, search speed and the indications on the TV are different.

• No sound comes out if searching is carried out while showing the moving picture.

To return to normal playback,

press DVD/CD 3

• For DivX, each time you press the > or < button, you can skip to a scene for 30 seconds or 5 minutes depending on the DivX file.

Remote

To locate an item directly

ONLY

You can select a title/chapter/track directly and start playback.

• For DVD Video, you can select

playback playback

SCAN MODE

LINE OUT LEVEL

, while you can select .

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

VFP

ANGLE

A.STANDBY

SLEEP

ZOOM

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press 10, 1, then 5. To select number 30, press 10, 3, then 0.

a title before starting

a chapter after starting

• With some discs, you can also select items by entering the number using the number buttons.

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV, select an item on the menu. Playback of the selected item starts.

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

LINE OUT LEVEL

VFP

ANGLE

A.STANDBY

SLEEP

ZOOM

Examples:

To select number 5, press 5. To select number 10, press 10.

To select number 15, press 10, 1, then 5.

To select number 30, press 10, 3, then 0.

To move to the next or previous page of the current menu:

GROUP/TITLE SKIP

Moves to the next page. Moves to the previous page.

To return to the previous menu:

TOP MENU/PG

RETURN

(while holding...)

To cancel PBC,

press 7

, then select a track. Playback starts

with the selected track.

press 7

To reactivate PBC,

(twice if Resume is turned

“ON”), then press DVD/CD 3

Playing Back a Portable Audio Device

INFO

Playing Back from the PC

INFO

By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device connected to the LINE IN jack (see page 5).

• Make sure to set the volume of your portable audio device loud enough so that the System can detect the sound signal.

Remote

To activate QP Link

QP LINK

CLOCK/TIMER

ONLY

QPLINK ON

QPLINK OFF

(while holding...)

When QP Link is activated, connecting a portable device to the LINE IN jack and starting playback performs the following:

• While listening to another source... Changes the source to LINE automatically. (If you change from LINE to another source, QP Link will be canceled.)

• While the System is on standby... Turns on the System and activates the LINE source automatically (except when the display is turned off).

NEWS INFO

A.STBY

WMA

MP3

MONO

DISC ALL A–B

GROUP

RANDOM

QP Link

PRGM

3D PHONIC

USB

AHB PRO

PRGR.

While QP Link plays back the device...

NEWS INFO

WMA

MP3

MONO

DISC ALL A–B

GROUP

RANDOM

QP Link

PRGM

3D PHONIC

USB

AHB PRO

PRGR.

S.TURBO

B.S.P. BONUS

A.STBY

S.TURBO

B.S.P. BONUS

REC

SLEEP

123

Bubbles appear when QP Link works.

REC

SLEEP

Bubbles disappear

123

when the sound signal stops or is too weak.

This System is equipped with a USB AUDIO terminal on the front panel. You can connect your PC to this terminal and enjoy sound reproduced through your PC. When you connect your PC for the first time, follow the procedure below.

• Remember you cannot send any signal or data to your PC from this System.

IMPORTANT

• Always set volume to “VOL MIN” when connecting or

disconnecting the other equipment.

How to install the USB drivers

Turn on your PC and start running WindowsR 98*,

WindowsR 98SE*, WindowsR Me*, WindowsR 2000*, or WindowsR XP*.

• If the PC has been turned on, quit all the applications running.

Select “USB” as the source.

Remote control:

USB

Connect the System to the PC using a USB cable (not supplied).

At the front panel

USB cable

Main unit:

•

Use “USB series A plug to B plug” cable less than 3 m

The USB drivers are installed automatically.

To playback sound on the PC

Refer to the manuals supplied with the sound reproduction application installed in the PC.

• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations: – Disconnect and connect the USB cable again – Restart the music software on your PC – Turn off and on the System

* Microsoft

WindowsR Me, WindowsR 2000 and WindowsR XP are registered trademarks of Microsoft corporation.

, WindowsR 98, WindowsR 98SE,

Daily Operations

Remote control

VFP

SCAN MODE

LINE OUT LEVEL

ENTER/SET

DVD LEVEL

AHB PRO

3D PHONIC

CLOCK/TIMER

SHIFT

SOUND TURBO

Main unit

SOUND TURBO

A.STANDBY

SLEEP

DIMMER

DISPLAY

,, ,

BASS/TREBLE

VOLUME +,–

FADE MUTING

VOLUME +,–

—Sound & Other Adjustments

Remote

To drop the volume in a moment

FADE

MUTING

Adjusting the Sound

To restore the volume,

adjust the volume level.

INFO

To reinforce the heavy sound

This boosts the low and high frequency sound—Sound Turbo II.

SOUND

TURBO

TURBO ON

TURBO OFF

• When Sound Turbo II is turned on, AHB Pro is automatically turned on, and cannot be turned off. (AHB PRO indicator does not light even though the function is turned on.)

To reinforce the bass sound

While Sound Turbo II is off, the richness and fullness of the bass sound is clearly maintained regardless of how you set the volume—Active Hyper Bass Pro.

DVD LEVEL

AHB PRO

• When Sound Turbo II is turned on, AHB Pro setting cannot be changed.

To adjust the tone

You can adjust the bass and treble level from –3 to +3.

To adjust the bass

AHB ON

AHB OFF

Remote ONLY

ONLY

press again, or

Remote ONLY

Adjusting the Volume

You can adjust the volume level from VOL MIN to level 40 (VOL MAX).

Remote control: Main unit:

VOLUME

TV VOLUME

VOLUME

BASS/

TREBLE

BASS

Canceled

To adjust the treble

BASS/

TREBLE

BASS

Canceled

TREBLE

TV VOLUME

VOLUME

TV VOLUME

VOLUME

Creating 3-dimentional Sound Field

Remote

—3D Phonic

• This does not function for MPEG-1/MPEG-2/ASF/DivX discs.

While playing a disc...

ONLY

(while holding...)

3D PHONIC

AUDIO/MPX

Remote

Adjusting the Audio Input Level

ONLY

If the sound from the component connected to the LINE IN jack is too loud or is too quiet when changing from another source to LINE, you can change the audio input level through the LINE IN jack (without changing the volume level).

2 sec.

ENTER/SET

L.IN LVL1 L.IN LVL2

L.IN LVL3

(initial setting)

3D PHONIC

ACTION

OFF

3D PHONIC

DRAMA

THEATER

• The selected mode can only be shown on the TV.

ACTION

Suitable for action movies and sports programs.

DRAMA

Creates natural and warm sound. Enjoy movies in a relaxed mood.

THEATER

Enjoy sound effects like in a major theater.

Presetting Automatic DVD Video Sound

Remote

Increase Level

DVD Video sound is sometimes recorded at a lower level than other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume when you change the source.

• This only functions for DVD Video and DVD-VR format disc.

(while holding...)

NORMAL

MEDIUM

HIGH

Original recording level.

Output level is increased (less than “HIGH”).

Output level is increased (more than “MEDIUM”). (initial setting)

ONLY

DVD LEVEL

AHB PRO

NORMAL MEDIUM

HIGH

(initial setting)

L.IN LVL1

Select this when the sound is too loud with “L.IN LVL 2” selected. This setting is recommended when connecting an audio device other than a portable audio device to the LINE IN jack.

L.IN LVL2

Select this when the sound is too loud with “L.IN LVL 3” selected.

L.IN LVL3

Select this when listening to a portable audio device or recording the sound from it (initial setting).

Remote

Adjusting the Audio Output Level

ONLY

If the recorded sound on the device connected to the LINE OUT jack is too loud or too quiet, you can change the audio output level through the LINE OUT jack (without changing the volume level).

LINE OUT LEVEL

L.OUT LVL1

(initial setting)

L.OUT LVL2

(while holding...)

L.OUT LVL1

L.OUT LVL2

Select this when recording the sound with a portable audio device (initial setting).

Select this when the recorded sound is too loud with “L.OUT LVL 1” selected.

Changing the Display Brightness

Changing the Picture Tone

Remote ONLY

You can dim the display window.

TV/VIDEO

DIMMER

DIMMER OFF

(Canceled)

DIMMER ON

AUTO DIM

DIMMER ON

AUTO DIM

* “AUTO DIM” does not work for CD/MP3/WMA.

Changing the Scanning Mode

This System supports progressive scanning. Select the video signal mode according to the type of your TV. If you connect a progressive TV through the VIDEO OUT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “NTSC PROG” or “PAL PROG.”

(while holding...)

NTSC

NTSC PROG

PAL

PAL PROG

Dims the display.

* Removes the display illumination when

starting playback a disc with a video source.

• The display illuminates when playback stops.

Remote

SCAN MODE

ENTER/SET

ONLY

PAL

PAL PROG

NTSC PROG

INFO

NTSC

Select for a conventional NTSC TV.

Select for a progressive NTSC TV. Select to enjoy a progressive scanned

picture through the Video Component out terminal.

Select for a conventional PAL TV.

Select for a progressive PAL TV. Select to enjoy a progressive scanned

picture through the Video Component out terminal.

• While showing a playback picture on the TV, you can select a preset picture tone, or adjust it and store your own taste.

To select a preset picture tone

While playing, display VFP setting screen.

VFP

(while holding...)

Select a preset picture tone.

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV

NORMAL CINEMA

USER2

NORMAL

CINEMA

USER1/USER2

To remove the screen,

SHIFT, or wait for more than 5 seconds.

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings.

press VFP again while holding

USER1

To adjust the picture tone

Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained above.

Select a parameter you want to adjust.

TV CH

ENTER/SET

TV CH

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Adjust if the neutral color is bright or dark (–3 to +3).

Adjust if the entire picture is bright or dark (–8 to +8).

Adjust if the far and near positions are unnatural (–7 to +7).

Adjust if the picture is whitish or blackish (–7 to +7).

Adjust if the human skin color is unnatural (–7 to +7).

Adjust if the picture is indistinct (–8 to +8).

Continued on the next page

Adjust the parameter.

TV CH

ENTER/SET

TV CH

Repeat steps 2 to 3 to adjust other parameters.

Turning Off the Power Automatically

Auto Standby

A.STANDBY

Canceled

Remote ONLY

To erase the screen,

press VFP again while holding SHIFT,

or wait for more than 5 seconds.

Setting the Clock

ONLY

INFO

Remote

Without setting the built-in clock, you cannot use Daily Timers (see page 31) and Sleep Timer.

• To correct a mis-entry during the process, press CANCEL or CLOCK/TIMER. You can return to the previous step.

Activate the clock setting mode.

NEWS INFO

A.STBY

QP LINK

CLOCK/TIMER

DISC ALL A–B

GROUP

RANDOM

MP3 QP Link

PRGM

WMA

MONO

3D PHONIC

USB

AHB PRO

PRGR.

S.TURBO

B.S.P. BONUS

SLEEP

REC

123

• If you have already adjusted the clock before, press the button repeatedly until the clock setting mode is selected.

Set the time.

• Adjust the hour and press ENTER/SET, then adjust the minute and press ENTER/SET.

ENTER/SET

NEWS INFO

A.STBY

DISC ALL A–B

GROUP

RANDOM

MP3 QP Link

PRGM

WMA

MONO

3D PHONIC

USB

AHB PRO

PRGR.

S.TURBO

B.S.P. BONUS

REC

SLEEP

123

(while holding...)

When Auto Standby is in use, the A.STBY indicator lights on the display. When disc play stops, the A.STBY indicator starts flashing. If no operation is done for about 3 minutes while the indicator is flashing, the System turns off (on standby) automatically.

Sleep Timer

You can set the shut-off time so that you can go to bed without turning it off yourself.

Specify the time (in minutes).

SLEEP

(while holding...)

10 20 30 60 90 120 150

Canceled

Wait until the set time disappears.

To check the time remaining until the shut-off time,

SLEEP while holding SHIFT.

• If you press the button repeatedly, you can change the shut-off time.

press

Now the built-in clock starts working.

To check the current clock time during play

DISPLAY

CANCEL

(while holding...)

Disc type*

Clock

Source information

* This appears depending on the disc type.

Remote control

Number

buttons

ANGLE

,, ,

DVD/CD 3

SLOW ,

AUDIO/MPX

SHIFT

Unique DVD/VCD Operations

Selecting the Audio Track

ZOOM

ENTER /SET

PAGE

C.VOICE

SUBTITLE

For DVD Video/DivX:

containing audio languages, you can select the language to listen to.

For DVD Audio:

audio channels, you can select the audio channel to listen to.

For DVD-VR and SVCD/VCD:

you can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 23).

While playing a DVD Video...

Ex.:

1/3

ENGLISH

1/3

ENGLISH

While playing back a chapter

While playing back a track containing

3D PHONIC

AUDIO/MPX

2/3

FRENCH

2/3

FRENCH

Remote

ONLY

INFO

When playing back a track,

3/3

JAPANESE

3/3

JAPANESE

While playing a DVD Audio/DivX...

Ex.:

1/3

2/3

3/3

While playing a DVD-VR, or SVCD/VCD...

3D PHONIC

AUDIO/MPX

ST1/ST2/ ST

L1/L2/L

R1/R2/R

SVCD

ST1 ST2 L1

R2 L2 R1

DVD-VR/VCD

ST L R

To listen to normal stereo (2-channel) playback.

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

Selecting the Subtitle Language

PAG E

FM/PLAY MODE

(while holding...)

Remote ONLY

Selecting the View Angle

Remote

ONLY

For DVD Video/DivX:

While playing back a chapter containing subtitles in different languages, you can select the subtitle language to display on the TV.

For DVD-VR:

While playing, you can turn the subtitles on

or off.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-

screen bar (see page 23).

While playing a DVD Video

/DivX

...

1/3

C. VOICE

SUBTITLE

1/3

ENGLISH

TV CH

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

While playing a DVD-VR...

C. VOICE

SUBTITLE

While playing an SVCD...

C. VOICE

SUBTITLE

3/3

JAPANESE

3/3

OFF

For DVD Video only:

While playing back a chapter containing multi-view angles, you can view the same scene from different angles.

• You can also select the multi-view angles using the on-

screen bar (see page 23).

While playing...

ANGLE

(while holding...)

Ex.:

1/3

2/3

Selecting the Browsable Still Pictures

For DVD Audio only:

browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• If a track is linked to browsable still pictures (B.S.P.), they

are usually shown automatically during playback.

• You can also select the page using the on-screen bar

(see page 23).

While playing back a track linked to

Playing Back Bonus Group

For DVD Audio only:

special group called “bonus group” whose contents are not open to the public.

• To playback a bonus group, you have to enter the specific

“key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

Some DVD Audio discs have a

3/3

Remote

ONLY

Each time you press the button (while holding SHIFT), the still picture changes one after another (if available).

Remote ONLY

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 10.

Enter the key number.

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

Follow the interactive instructions shown on the

VFP

ANGLE

A.STANDBY

SLEEP

ENTER/SET

screen.

To cancel the key number entry,

Making Dialogues Clear—Clear Voice

press 7

Remote ONLY

When you playback a disc, you can use this function—Clear Voice. You can make the singer’s voices or dialogues of the movie clear.

• This function only works when 3D Phonic is activated.

C. VOICE

SUBTITLE

3D PHONIC

(On)

Off

(while holding...)

Remote

Special Effect Playback

ONLY

INFO

Pause playback

Slow-motion playback

• This does not function for MPEG-1/MPEG-2/ASF/DivX discs.

While playing...

Still picture playback starts.

Select slow motion speed.

Forward slow motion starts.

SLOW

1/32 1/16 1/8 1/4 1/2

Reverse slow motion*starts.

1/32 1/16 1/8 1/4 1/2

–

*Only available for DVD Video.

To resume normal playback,

press DVD/CD 3

To replay the previous scenes (One-Touch Replay)

• This function is only used while playing DVD Video/ DVD-VR.

While playing back...

GROUP/TITLE

The playback position moves back about 10 seconds before the current position (only within the same title).

To pause:

To resume normal playback:

While playing...

Frame-by-frame playback

While playing...

Still picture playback starts.

Advance the still picture frame by frame.

To resume normal playback,

press DVD/CD 3

DVD/CD

Zoom

• For JPEG, see page 28.

While playing back...

ZOOM

(while holding...)

ZOOM 2 ZOOM 3 ZOOM 4

ZOOM 1

ZOOM OFF

ZOOM 5ZOOM 6

• As the number increases, magnification also increases.

Move the zoomed-in position.

TV CH

To cancel Zoom,

press ZOOM (while holding SHIFT)

repeatedly until “ZOOM OFF” appears on the TV.

Advanced Disc Operations

Remote ONLY

INFO

Remote control

Number

buttons

ZOOM

TOP MENU/PG

,, ,

DVD/CD 3

REPEAT A-B

REPEAT

SHIFT

Main unit

CANCEL MENU/PL

ENTER/SET

ON SCREEN

4,¢

FM/PLAY MODE

Programming the Playing Order— Program Play

You can arrange the playing order of the chapters or tracks (up to 99) before you start playback.

• Program play cannot be used for DVD-VR/JPEG/ MPEG-1/MPEG-2/ASF/DivX.

• Resume does not work for Program Play.

Before starting playback, activate Program Play.

PAG E

FM/PLAY MODE

PROGRAM RANDOM

Canceled

NEWS INFO

WMA

MP3 QP Link

PRGM

MONO

3D PHONIC

USB

DISC ALL A–B

GROUP

RANDOM

On the display

PROGRAM

No Group/TitleDisc Track/Chapter

2 3 4 5 6 7 8 9

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

On the TV

A.STBY

AHB PRO

S.TURBO

PRGR.

B.S.P. BONUS

SLEEP

REC

123

DVD/CD

DVD/CD #

EJECT

Select chapters or tracks you want for Program Play.

• For DVD Video/DVD Audio/MP3/WMA:

Select a disc number.

Select a title or group number.

Select a chapter or track number.

Repeat the above steps 1

to 3

• For SVCD/VCD/CD:

, 7,

Select a disc number.

Select tracks.

Repeat the above steps 1

and 2

To enter the numbers directly:

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

LINE OUT LEVEL

A.STANDBY

VFP

ANGLE

Examples:

To enter number 5, press 5. To enter number 10, press 10.

To enter number 15, press 10,

SLEEP

1, then 5.

To enter number 30, press 10,

ZOOM

3, then 0.

GROUP/TITLE SKIP

Start playback.

Playback starts in the order you

DVD/CD

To skip a step:

have programmed.

To pause: To stop:

To release, press DVD/CD 3

To check the programmed contents

Before or after playback...

TV CH

In the reverse order.

TV CH

In the programmed order.

Remote

Playing at Random—Random Play

ONLY

You can play all chapters or tracks at random.

• Random Play cannot be used for DVD-VR/JPEG/ MPEG-1/MPEG-2/ASF/DivX and some DVDs.

Before starting playback, activate Random Play.

PAG E

FM/PLAY MODE

PROGRAM RANDOM

Canceled

NEWS INFO

A.STBY

S.TURBO

B.S.P. BONUS

SLEEP

REC

123

Start playback.

DVD/CD

DISC ALL A–B

GROUP

WMA

MP3

MONO

3D PHONIC

USB

AHB PRO

PRGR.

RANDOM

QP Link

PRGM

Playback starts in random order. Random Play ends when the entire disc has been played.

• You can also use 4

or ¢

contents.

To modify the program

Before or after playback...

To erase the last track:

DISPLAY

CANCEL

To erase the entire program:

To exit from Program Play

Before or after playback...

PAG E

FM/PLAY MODE

PROGRAM RANDOM

to check the programmed

To add another track to the program:

Repeat step 2.

Canceled

To skip a chapter/

To pause: To stop:

track:

To go to the beginning of the current track, press 4

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

PAG E

FM/PLAY MODE

PROGRAM RANDOM

Canceled

Playing Repeatedly

GROUP

DISC

REPEAT

REPEAT A-B

(while holding...)

ONLY

INFO

Remote

• You can also select the repeat mode using the on-screen bar (see pages 24 and 25).

• For MP3/WMA/JPEG/MPEG-1/MPEG-2/ASF/DivX, see page 28.

Repeat Play

You can repeat playback.

• For DVD Video/Audio:

While playing...

REPEAT A-B

REPEAT

Canceled

• For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

REPEAT A-B

REPEAT

Canceled

GROUP

DISC ALL

DISC

DISC ALL

A-B Repeat

You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for MP3/WMA/MPEG-1/ MPEG-2/ASF/DivX and for some DVDs.

While playing (without PBC for SVCD/VCD), select

the start point (A).

appears on the

display.

A-

• appears on the TV if the TV is turned on.

Select the end point (B).

appears on the

display.

A-B

• appears on the TV.

• You can search for the end point using the ¡ button.

(while holding...)

REPEAT A-B

REPEAT

• For DVD-VR:

While playing an original program...

REPEAT A-B

REPEAT

Canceled

GROUP

While playing a playlist...

REPEAT A-B

REPEAT

Canceled

Repeats the current chapter/track.

Repeats the current title (for DVD Video)/ group (for DVD Audio)/title of PG or PL (for DVD-VR).

Repeats the current disc.

DISC ALL

Repeats all discs.

DISC

GROUP

DISC ALL

ALL

DISC

To cancel A-B Repeat,

press REPEAT A-B again while

holding SHIFT.

• A-B Repeat will also be canceled when you stop play or skip the chapter or track.

Main Unit

Prohibiting Disc Ejection—Child Lock

ONLY

You can lock the disc trays so that no one can eject the loaded disc.

• This is possible only while the System is on standby.

While the disc trays are closed...

(while holding...)

NEWS INFO

A.STBY

DISC ALL A–B

GROUP

RANDOM

PRGM

3D PHONIC

WMA

MP3

QP Link

To cancel the prohibition,

MONO

USB

AHB PRO

PRGR.

repeat the same procedure.

S.TURBO

B.S.P. BONUS

REC

SLEEP

123

“UNLOCKED” appears on the display.

On-screen Disc Operations

TOTAL

1:25:58

ONLY

INFO

Remote

On-screen Bar Information

You can check the disc information and use some functions through the on-screen bar.

On-screen bars

DVD Video

Dolby D

DVD-VIDEO

TIME

OFF

TIME OFF CHAP. 1/31/ 3 1/1

3/2.1ch

DISC 1

DVD Audio

LPCM

OFF

2/0.0ch

DISC 1

TRACK

DVD-AUDIO

TIME

DVD-VR

TIME OFF CHAP. ST ON

Dolby D 2/0.0ch

SVCD

DISC 1

SVCD

TIME

OFF

TIME OFF ST1

VCD

TIME

OFF

TIME OFF ST

TIME

OFF

TIME OFF

TITLE 2

TITLE

GROUP 14

PG 2

DISC 1

TITLE

1/3

DISC 1

TITLE

1/3

DISC 1

TITLE

-/ 4

1/3

1/ 3

1/3

CHAP 3

CHAP

TRACK 23

PAGE

CHAP 3

TRACK 3

CHAP

TRACK 3

CHAP

TRACK 3

CHAP

TIME 0:00:58

TOTAL

1:25:58

1/3 1/3

TIME 0:00:58

1/ 3

TOTAL 0:00:58

TIME 0:00:58

TOTAL

1:25:58

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

1/3 1/3

MP3/WMA/JPEG/MPEG-1/MPEG-2/ASF/DivX

213

TIME 00:00:58

TOTAL

FILE

CHAP

1:25:58

Disc type

Playback information

Indication Meanings

Dolby D, LPCM Audio format 3/2.1ch, 2/0.0 ch Channel number

DISC 1

TITLE

CHAP

GROUP 1

PG 2

PL 2

TRACK

Operation modes

Indication Meanings

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Function icons (on the pull-down menu)

Indication Meanings

TIME

OFF

CHAP.

TRACK

1/3

PAGE 1 / 5

Current disc

Current title

Current chapter

Current group

Current title of original program

Current title of playlist

Current track

Time indications

Playback

Pause

Stop

Select to change the time indication.

Select to repeat playback.

Select for time search.

Select for chapter search.

Select for track search.

Select to change the audio language or channel (see also page 17).

Select to change subtitle language (see also page 18).

Select to change the view angle (see also page 18).

Select to change the page (see also page 18).

To operate using the On-screen Bar

Ex.: Selecting a subtitle (French) for DVD Video

While a disc is selected as the source...

Display the entire on-screen bar.

ON SCREEN

Dolby D

OFF

3/2.1ch

Dolby D 3/2.1ch

DISC 1

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

TITLE

TITLE 2

1/3

CHAP 3

CHAP

TIME 0:00:58

TOTAL

1/3 1/3

disappears

TIME 0:00:58

1:25:58

For detailed operations of the following functions, see also “To operate using the On-screen Bar” on the left.

To change the time information

You can change the time information in the on-screen bar and the display window on the main unit.

While playing, display the on-screen bar with the pull-down menu.

Dolby D

DISC 1

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

3/2.1ch

OFF

TITLE

TITLE 2

1/3

CHAP 3

CHAP

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

* This does not appear for MP3/WMA/JPEG/MPEG-1/

MPEG-2/ASF/DivX discs.

Select (highlight) the item you want.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Display the pop-up window.

ENTER/SET

Select the desired option in the pop-up window.

TV CH

Finish the setting.

Dolby D 3/2.1ch

OFF

ENTER/SET

DISC 1

CHAP. 1/31/31/1

TITLE 2

DISC 1

TITLE

CHAP

1/3

CHAP 3

TITLE 2

CHAP

1/3

DISC 1

TITLE 2

TITLE

CHAP. 1/32/31/1

1/3

Pop-up window disappears.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1/3 1/3

ENGLISH

CHAP 3

CHAP

FRENCH

TIME 0:00:58

TOTAL

1:25:58

TOTAL 1:01:58

TOTAL

1:25:58

1/3 1/3

To remove the on-screen bar

ON SCREEN

Make sure is selected (highlighted).

Change the time indication.

ENTER/SET

TIME

TIME 0:00:58

REM 0:11:23

TOTAL 1:01:58T. REM 0:35:24

TIME

Elapsed playing time of the current chapter/track (except for DVD-VR).

REM

Remaining time of the current chapter/ track (except for DVD-VR).

TOTAL

T.REM

Elapsed disc time.

Remaining disc time.

To remove the on-screen bar

ON SCREEN

Repeat Play

• See also page 22.

While playing a disc (without PBC for SVCD/VCD), display the entire on-screen bar.

• Repeat Play can be selected before starting playback, except for DVD Video/DVD-VR.

Select .

2 3

Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

OFF

Dolby D 3/2.1ch

OFF

DISC 1

TITLE 2

TITLE

TOTAL 1:01:58

CHAP 3

TOTAL

1/3 1/3

1:25:58

CHAP

1/3

ENTER/SET

Select the repeat mode you want.

A-B TITLE GROUP DISC ALL CHAPTER TRACK PG

Repeats a desired portion (see below).

Repeats the current title.

Repeats the current group.

Repeats the current disc.

Repeats all discs (except for DVD).

* Repeats the current chapter.

* Repeats the current track.

Repeats the current title of original program (for DVD-VR only) (see also page 22).

Repeats the current title of playlist (for DVD-VR only) (see also page 22).

OFF

Cancels Repeat Play.

* During Program Play and Random Play, “STEP”

appears.

Finish the setting.

ENTER/SET

A-B Repeat

• See also page 22.

While playing, display the entire on-screen bar.

1 2

Select .

Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Select “A-B.”

TV CH

OFF

Dolby D 3/2.1ch

OFF

DISC 1

TITLE 2

CHAP

TITLE

1/3

OFF

Dolby D 3/2.1ch

A–B

DVD-VIDEO

TIME

TIME OFF CHAP. 1/3

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

DISC 1

TITLE

1:25:58

TITLE 2

1/3

To cancel A-B Repeat,

repeat steps 1 to 3, and select “OFF”

in step 4.

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

While playing (without PBC for SVCD/VCD), display

the entire on-screen bar.

• Time Search can be used before starting playback, except for DVD Video/DVD-VR.

Select .

Display the pop-up window.

Dolby D

DISC 1

TITLE 2

CHAP

TITLE

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Enter the time.

3/2.1ch

OFF

TIME _ : _ _ : _ _

1/3

You can specify the time in hours/minutes/seconds.

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

VFP

ANGLE

A.STANDBY

SLEEP

Examples:

To move to a point of 1 (hours): 02 (minutes): 00

(seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a mis-entry, press Cursor < to erase the last

entry.

Finish the setting.

The System starts playing the disc from the selected playing time.

CHAP 3

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

Select the start point (A).

ENTER/SET

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

Select the end point (B).

ENTER/SET

A-B Repeat starts. The selected portion plays repeatedly.

• Before pressing ENTER/SET, you can search for the end point using the ¡

Dolby D 3/2.1ch

button.

DISC 1

TITLE 2

TITLE

Chapter/Track Search

1/3

You can search for the chapter (DVD Video/DVD-VR) or track (DVD Audio) number to play.

While playing, display the entire on-screen bar.

1 2 3

CHAP.

Select

Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D 3/2.1ch

TRACK

DISC 1

CHAPTER _

TITLE 2

TITLE

TOTAL 1:01:58

CHAP 3

TOTAL

1/3 1/3

1:25:58

CHAP

1/3

TOP MENU/PG

RETURN

Enter the desired chapter/track number.

DISC 1

DISC 2 DISC 3

DISC 4 DISC 5

SCAN MODE

VFP

ANGLE

A.STANDBY

SLEEP

Examples:

To select chapter/track 5,

press 5.

To select chapter/track 10, press 1, then 0.

To select chapter/track 15, press 1, then 5. To select chapter/track 30, press 3, then 0.

•

To correct a mis-entry, press the number keys until the

desired number shown in the pop-up window.

Finish the setting.

ENTER/SET

The System starts playing the searched chapter or track.

Browsable Still Pictures

• See also page 18.

For DVD Audio only:

browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV.

• If a track is linked to browsable still pictures (B.S.P.), they are usually shown automatically during playback.

While playing a DVD Audio, display the entire on-

screen bar.

Select .

PAGE 1 / 5

Display the pop-up window.

DVD-AUDIO

TIME

Select a still picture you want.

TV CH

Finish the setting.

ENTER/SET

LPCM 2/0.0ch

OFF

While playing back a track linked to

TIME 0:00:58

TRACK 23

1/3

PAGE

TRACK 23

1/5

PAGE

TIME 0:00:58

3/5

DISC 1

TRACK

GROUP 14

UP 14

Control screen for DVD-R/-RW in DVD-VR format

The control screen is superimposed on the TV screen when you call up Program List (PG) or playlist (PL).

To select playback type

To select the Program List:

To remove the list, press the same button again.

Ex.: When Program List is selected.

ORIGINAL PROGRAM

No Date Ch Time Title

1 03/12/06 12:15L 2 09/12/06 23:05 3 18/12/06 08:17 4 20/12/06 07:47 5 25/12/06 19:38 Mr. Lawrence 6 28/12/06 14:20

12 3 4 5 6

Ex.: When playlist is selected.

PLAY LIST

No Date Chap Length Title

1 03/12/06 002 0:23:24 Nebula G. 2 15/12/06 004 1:04:39 3 24/12/06 013 0:41:26 4 27/12/06 017 0:09:08

Listed number

Recording date

Recording channels

Recording time

Title

Highlight bar (current selection)

Chapters included

Playback time

To select an item in the list and start playback

TV CH

To select the playlist:

MENU/PL

L L L L L

La fleur The last struggle free flyer BOOM!

Satisfy U

CDJ Secret Garden S. Walker

67 81 2

ENTER/SET

TV CH

Operations on the Control Screen

Remote

ONLY

You can search for and play the desired items through the control screen for MP3/WMA/JPEG/MPEG-1/MPEG-2/ ASF/DivX discs.

Control screen for MP3/WMA/JPEG/MPEG-1/ MPEG-2/ASF/DivX discs

The control screen automatically appears on the TV screen when you load an MP3, WMA JPEG, MPEG-1, MPEG-2, ASF or DivX disc.

Ex.: When the MP3 disc is loaded.

Group : 2 / 3

Spring

Summer

Fall Winter

Tr ack Information

Title Rain Artist

Album

Current group number/total group number

Current group

Group list

Track information (ID3 Tag Version 1.0: only for MP3/WMA)

Current track

Repeat Play setting

Elapsed playing time of the current track (except for JPEG)

Operation mode icon

Current track number/total number of tracks in the current group (total number of tracks on the loaded disc)

Highlight bar

Track list

TIME : 00:00:14REPEAT TRACK

Tr ack : 6 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

INFO

6 7

8 9

To move the highlight bar between group list and track list

Moves the bar to the track list.

Moves the bar to the group list.

To select an item in the list

TV CH

Move the highlight bar to the desired item.

• If you move the highlight bar

TV CH

while playing back an MP3/ WMA file or DVD-VR (PG/PL) disc, the selected track starts playback automatically.

To start playback

For JPEG:

ENTER/SET

The selected track (still picture) is displayed until you change it.

Slide-show playback starts.

DVD/CD

Each track (still picture) is shown on the screen for about 3 seconds, then changes one after another.

For the other ﬁles:

ENTER/SET

Playback starts with the selected track.

• Pressing DVD/CD 3

also

starts playback.

• Once you start playing back a JPEG/MPEG-1/MPEG-2/ ASF/DivX track, the control screen disappears.

• To cancel slide-show and display the current still picture, press 8

• If files of different types (MP3, WMA, JPEG, MPEG-1, MPEG-2, ASF and DivX) are recorded on a disc, select the file type to play (see page 33).

To select a group (for MP3/WMA/JPEG/MPEG-1/ MPEG-2/ASF/DivX):

GROUP/TITLE SKIP

To zoom in the JPEG files

• You cannot zoom in the still picture during slide-show.

• For other discs, see page 19.

While playing back a still picture...

• During slide-show, press 8

to display the still picture,

then...

(while holding...)

To skip a track: To stop playback:

GROUP/TITLE SKIP

• You can select a group directly by pressing a number

button after pressing GROUP/TITLE (except for DVD-VR disc).

To repeat MP3/WMA playback

While playing or before playback...

REPEAT A-B

REPEAT

Canceled

GROUP DISC

DISC

ALL

To repeat slide-show for JPEG

While playing or before playback...

REPEAT A-B

REPEAT

GROUP

Canceled

DISC

ALLDISC

ZOOM

ZOOM 1 ZOOM 2

ZOOM OFF

(while holding...)

Move the zoomed-in position.

TV CH

To cancel Zoom,

repeatedly until “ZOOM OFF” appears on the TV.

press ZOOM (while holding SHIFT)

To repeat MPEG-1/MPEG-2/ASF/DivX playback

While playing or before playback...

REPEAT A-B

REPEAT

GROUP

DISC

DISC ALL

Canceled

GROUP DISC

Repeats the current track.

Repeats the current group.

Repeats the current disc.

Repeats all discs.

DISC

ALL

+ 106 hidden pages
