JVC UXG6P Service Manual

Download

PARTS LIST

[ UX-G6 ]
AX-UXG6
XT-UXG6
UX-G6/FS-G6
TD-UXG6
* All printed circuit boards and its assemblies are not available as service parts.
Area Suffix (UX-G6)
UB.................Hong Kong
UP......................... Korea
U ..................Other Areas
- Contents -
AX-UXG6---------------------------------------------------------------------------------------------- 3 - 2
Exploded view of general assembly and parts list -------------------------------------- 3 - 2 Electrical parts list ------------------------------------------------------------------------------- 3 - 5
XT-UXG6 ---------------------------------------------------------------------------------------------- 3 - 10
TD-UXG6---------------------------------------------------------------------------------------------- 3 - 20
Packing materials and accessories parts list------------------------------------------------- 3 - 30
3-1
UX-G6/FS-G6

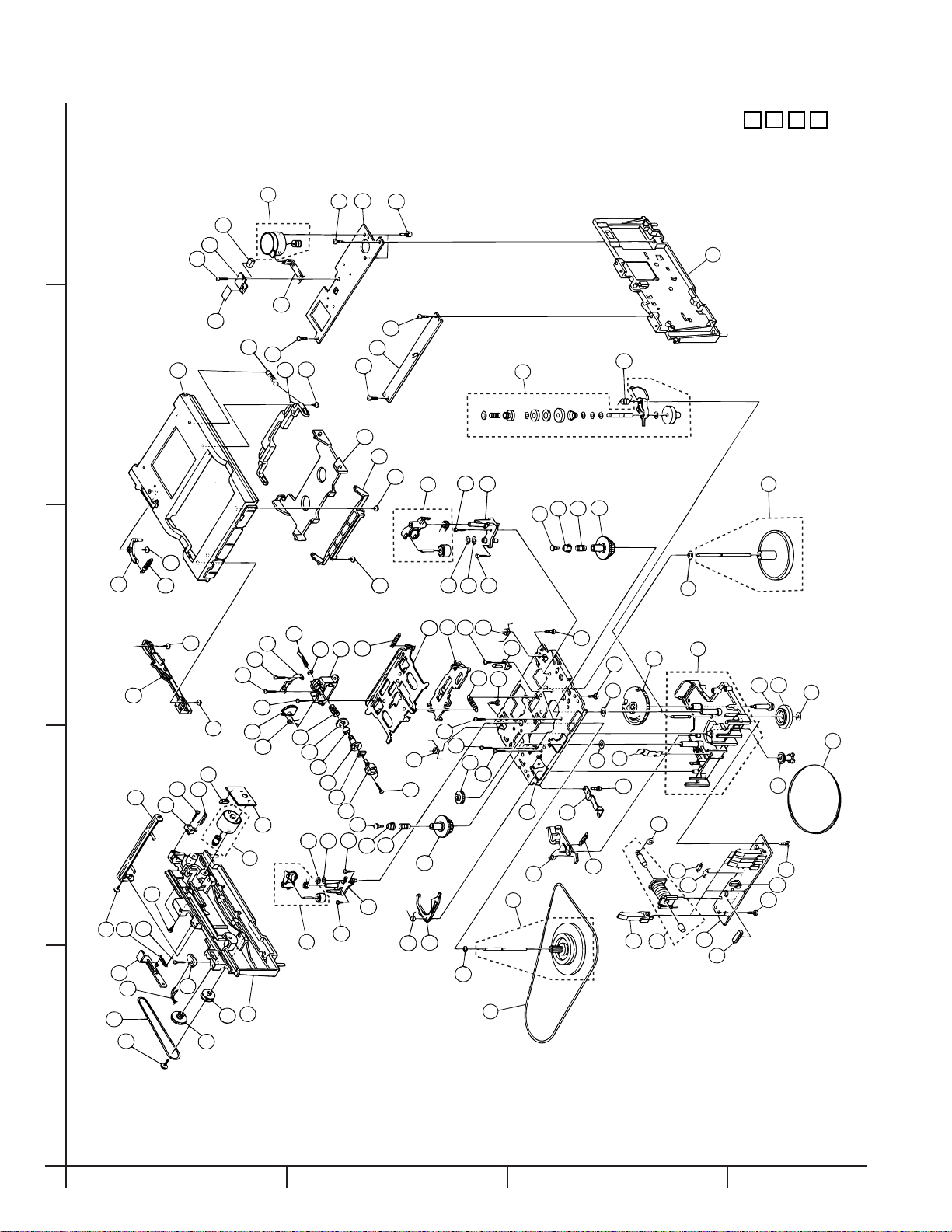

Exploded view of general assembly and parts list
AX-UXG6
5
59
4
21
Block: No. M 1 M M
58
67
A
2
5
7
8
6
9
59
12
11
60
60
82
60
1
f
j
a
76
B
14
D
12
12
FL Display board
3
15
12
E
13
72
f2,g
15
71
14
15
19
15
19
83
66
64
C
81
18
19
63
65
62
61
b
75
18
18
System control board
a
+
-
55
39
31
34
4
16
22
c
31
20
35
Regulator board
23
d
29
33
20
17
77
47
h
78
i
e
F
e
Amplifier board
Main board
48
b
40
F
48
43
22
49
j
f
3
80
79
49
c
d
44
44
C
10
3
7
8
21
69
69
f
2
42
1~3
68
70
g
1
+
6.5mm 0.1mm
-
Pulley specified height
30
28
34
84
h
73
74
69
i
69
39
A
29
(2.5mm 0.1mm)
35
32
26
27
1
3-2
41
46
D
53
52
54
37
41
42
39
39
E
36
52
53
45
ABCD
UX-G6/FS-G6
)
)
)
Parts list (AX-UXG6 General assembly)
Item
1 LV10268-003A FRONT PANEL 1 2 LV41290-002A PUSH BUTTON 1 POWER PLATING 3 LV41291-002A PUSH BUTTON 1 OP/CL PLATING 4 LV41292-002A PUSH BUTTON 1 AUX PLATING 5 LV41293-002A PUSH BUTTON 1 BAND PLATING 6 LV41327-001A INDICATOR 1 7 LV31445-001A INDICATOR 2 FOR M.JOG/VOL 8 QYSBSF2608Z T.SCREW 2 FOR INDICATOR
9 E406971-222 JVC MARK 1 10 LV31437-002A FL LENS 1 11 LV40220-006A FILTER 1 12 QYSBSF2608Z T.SCREW 4 FOR SW PWB 13 LV10269-001A FRONT COVER 1 14 LV41302-001A COLLOR(B 15 QYSBSF2608M SCREW 7 FOR F.PANEL 16 LV10266-002A FRONT BASE 1 17 LV20519-001A EDIT BUTTON 1 18 QYSBSF2608Z T.SCREW 5 FOR MICON PWB 19 QYSBSF2608Z T.SCREW 4 FOR EDIT SW PWB 20 E75896-002 FELT SPACER 2 FOR FOOT 21 LV31444-001A JOG KNOB 2 22 QYSBST3006Z T.SCREW 2 FOR F.BASE+B.CHASSIS 23 LV31489-001A MOTOR BKT ASS'Y 1 26 LV41304-001A WORM WHEEL 1 27 QYREE2000X E RING 1 28 VYH8090-001SC GEAR 1 1 29 LV41303-001A PULLY 1 30 VKB3000-183 BELT 1 31 PWN10EB12A5 DC.MOTOR 1 32 QYSPSPT2020Z MINI SCREW 2 FOR MOTOR 33 QYSBST2005Z T.SCREW 1 FOR PWB+M.BKT 34 QYSBST3006Z T.SCREW 2 FOR B.CHAS+M.BK 35 QYSBST3006Z T.SCREW 2 FOR M.BKT+PWB 36 LV10289-001A B.CHASSIS ASS'Y 1 37 LV20518-001A ARM BRACKET 1 39 LV41301-001A COLLOR(A 40 QSW0874-001 SWITCH 1 SW912 41 LV41305-001A COLLOR(C 42 QYSSSF2608Z SCREW 2 43 LV31442-001A HEAT SINK 1 44 QYSBSF2608Z T.SCREW 7 FOR LV31446-001 45 QYSDSF2612E SCREW 4 FOR LV31447-001 46 LV31443-001A HEAT SINK BKT 1 47 QYSBSF2608Z T.SCREW 1 H.S.BKT+H.SINK 48 QYSBST3006Z T.SCREW 1 H.S.BKT+B.CHASSIS 49 QYSBST3006Z T.SCREW 2 B.CHASSIS+PWB 50 QYSBST3006Z T.SCREW 1 H.S.BKT+PWB 52 E47227-029 FOOT 2
Parts number Parts name
Q'ty
2
4
2
Description
Block No.M1MM
Area
3-3
UX-G6/FS-G6
)
)
Parts list (AX-UXG6 General assembly)
Item
53 QYSBST3006Z T.SCREW 2 FOR FOOT 54 QYSBSG3010E T.SCREW 1 FOR HEAT SINK 55 LV41621-001A BARRIER(B 58 LV10273-001A/S/ METAL COVER 1 59 QYSDSG3008N T.SCREW 2 M.COVER+B.CHASSIS 60 QYSDSG3008N T.SCREW 4 M.COVER+R.PANEL 61 LV20526-018A REAR PANEL 1 UP
62 QYSDSG3008N T.SCREW 1 63 E409257-001 GND TERMINAL 1 64 QYSDSG3008N T.SCREW 2 FOR SPK TERMINAL 65 QYSDSG3008N T.SCREW 1 FOR SUB WOOFER 66 QYSDSG3008N T.SCREW 1 FOR SYS.CONNECT 67 LV41755-001A CAUTION LABEL 1 68 QQT0273-004 POWER TRANSF 1 T001 69 QYSDSTL4008E SPECIAL SCREW 4 FOR TRANS 70 LV31816-002A BARRIER(A 71 QMPK090-205-JN POWER CORD 1 U
72 QZW0033-001 STRAIN RELIEF 1 73 QMF51E2-R50-J1 FUSE 1 F9801
74 QMF51E2-2R5-J1 FUSE 1 F9001 75 QUQB12-2018BJ FFC WIRE 1 76 QUQ810-1911AJ FFC WIRE 1 77 LV31447-001A HOLDER 1 FOR Q1011-Q1014 78 LV31446-001A IC BRACKET 1 FOR Q9201­79 WJK0081-001A E-SI C WIRE C-B 1 UP
80 QJQ007-032001 SHI CR B-B WIRE 1 81 QJK018-070907 SIN CR C-B WIRE 1 82 QQR0216-001 NOISE FILTER 1 83 QYSBSG2608M T.SCREW 2 U,UB 84 QMF51E2-1R0-J1 FUSE 1 F9901
Parts number Parts name
LV20526-012A REAR PANEL 1 U,UB
QMPN100-200-JD POWER CORD 1 UB EMP7000-200 POWER CORD 1 UP
WJK0075-001A E-SI C WIRE C-B 1 U,UB
Q'ty
1 FOR HEAT SINK
1 FOR TRANS
Block No.M1MM
Description
Area
U,UB
3-4
Electrical parts list (System control & Main amplifier board) Block No. 01
)
Item Parts number Parts name AreaRemarks
CN701QGF1016F3-19 CONNECTOR
CN702QGF1016C1-19 CONNECTOR CN704QGF1201F3-20 FFC/FPC CONNE
CN711QGA2001C1-07 7P PLUG ASSY
CN901QJK024-041504 SIN CR C-B WIRE
CN903QGA2501C3-04Z CONNECTOR
CN904QGA3901C1-04 4P CONNECTOR
CN905QGA7901C1-03 CONNECTOR
CN906QGD2501C1-03Z SOCKET CN906
CN907QGD2501C1-04Z SOCKET DOOR OPEN/CLOSE
CN908QGF1201C3-20 FFC/FPC CONNE TO FRONT(CN704
CN909QGA1502F1-19 19P CONNECTOR TO XT-UXG6
CN910QGD2501C1-05Z SOCKET CN910 CN911QGB2510J1-12 CONNECTOR
CN912QGB2510K2-12 CONNECTOR
CN916QGD2501C1-04Z SOCKET CN906
CN920QGD2501C1-04Z SOCKET CN910
C1001QFZ0202-104Z M CAPACITOR .10MF
C1002QFZ0202-104Z M CAPACITOR .10MF
C1003QFZ0202-104Z M CAPACITOR .10MF
C1004QFZ0202-104Z M CAPACITOR .10MF
C1007QTE1E28-476Z E CAPACITOR
C1008QTE1E28-476Z E CAPACITOR C1009QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C1010QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C1011QCS11HJ-150 C CAPACITOR 15PF 5% 50V
C1012QCS11HJ-150 C CAPACITOR 15PF 5% 50V
C1013QCS11HJ-270 C CAPACITOR 27PF 5% 50V
C1014QCS11HJ-270 C CAPACITOR 27PF 5% 50V
C1015QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C1016QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C1017QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C1018QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C1019QFZ0202-104Z M CAPACITOR .10MF C1020QFZ0202-104Z M CAPACITOR .10MF
C1023QER61EM-226Z E CAPACITOR 22MF 20% 25V
C1024QTE1E28-226Z E CAPACITOR
C1025QFZ0202-104Z M CAPACITOR .10MF
C1026QFZ0202-104Z M CAPACITOR .10MF
C1027QFLC1HJ-104Z M CAPACITOR .10MF 5% 50V
C1028QFLC1HJ-104Z M CAPACITOR .10MF 5% 50V
C1029QER61EM-106Z E CAPACITOR 10MF 20% 25V
C1030QETC1EM-476Z E CAPACITOR 47MF 20% 25V
C2010QDGB1HK-102Y C CAPACITOR
C2101QETC1EM-106Z E CAPACITOR 10MF 20% 25V C7001QETC1HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C7002QETC1HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C7003QDVB1EZ-223Y C CAPACITOR
C7004QCBB1HK-223Y C CAPACITOR .022MF 10% 50V
C7005QETC0JM-107Z E CAPACITOR 100MF 20% 6.3V
C7006QER61HM-106Z E CAPACITOR 10MF 20% 50V
C7101QETC0JM-107Z E CAPACITOR 100MF 20% 6.3V
C7102QDVB1EZ-223Y C CAPACITOR
C7103QDVB1EZ-223Y C CAPACITOR
C7108QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C7110QDXB1CM-222Y C.CAPA IM C9101QCF11HZ-103 C CAPACITOR .010MF +80:-20%
C9102QETM1EM-108 E CAPACITOR 1000MF 20% 25V
C9103QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C9104QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C9105QDYB1CM-103Y C.CAPACITOR
C9106QETC1HM-227Z E CAPACITOR 220MF 20% 50V
C9107QETC1HM-107Z E CAPACITOR 100MF 20% 50V
Item Parts number Parts name AreaRemarks
C9108QETC1HM-226Z E CAPACITOR 22MF 20% 50V
C9109QETC1HM-226Z E CAPACITOR 22MF 20% 50V C9110QDYB1CM-103Y C.CAPACITOR
C9111QER61HM-475Z E CAPACITOR 4.7MF 20% 50V
C9112QCZ9019-472 C CAPACITOR 4700PF
C9113QFVF1HJ-104Z TF CAPACITOR .10MF 5% 50V
C9114QFVF1HJ-104Z TF CAPACITOR .10MF 5% 50V
C9201QTE1E28-476Z E CAPACITOR
C9202QTE1C06-476Z E CAPACITOR
C9203QDYB1CM-103Y C CAPACITOR
C9204QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C9205QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C9206QTE1C28-476Z E CAPACITOR C9207QTE1C28-476Z E CAPACITOR
C9208QFZ0202-103Z M CAPACITOR .010MF
C9209QTE1C28-476Z E CAPACITOR
C9210QTE1C28-476Z E CAPACITOR
C9211QFZ0202-103Z M CAPACITOR .010MF
C9212QDYB1CM-103Y C CAPACITOR
C9401QETC1CM-226Z-JB E CAPACITOR 22MF 20% 16V
C9402QER61CM-226Z E CAPACITOR 22MF 20% 16V
C9403QDYB1CM-103Y C.CAPACITOR
C9404QDYB1CM-103Y C.CAPACITOR C9504QETC1HM-225Z-JB E CAPACITOR 2.2MF 20% 50V
C9505QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C9701QCF11HZ-103 C CAPACITOR .010MF +80:-20%
C9705QETM1EM-688 E CAPACITOR 6800MF 20% 25V
C9706QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C9901QTE1V27-338 E CAPACITOR
C9902QTE1V27-338 E CAPACITOR
C9903QCF11HZ-103 C CAPACITOR .010MF +80:-20%
DI701QLF0067-001 FL TUBE
D1001 1SS133-T2 SI DIODE
D1002 1SS133-T2 SI DIODE D1003 1SS133-T2 SI DIODE
D1004 1SS133-T2 SI DIODE
D1005 MTZJ18C-T2 Z.DIODE +18V
D1006 MTZJ18C-T2 Z.DIODE -18V
D1009 1SS133-T2 SI DIODE
D1010 1SS133-T2 SI DIODE
D1011 1SS133-T2 SI DIODE
D1012 1SS133-T2 SI DIODE
D2001 1SS133-T2 SI DIODE
D7001 SELU1E10CXM LED JOG2 BLUE
D7002 SELU1E10CXM LED JOG2 BLUE D7003 SELU1E10CXM LED JOG1 BLUE
D7004 SELU1E10CXM LED JOG1 BLUE
D7007 SPR-39MVWF LED STBY/POWER LED
D7008 1SS133-T2 SI DIODE
D7009 1SS133-T2 SI DIODE
D7010 1SS133-T2 SI DIODE
D7011 MTZJ7.5A-T2 Z.DIODE FOR BLUE LED
D7012 MTZJ7.5A-T2 Z.DIODE FOR BLUE LED
D7101 1SS133-T2 SI DIODE
D7102 1SS133-T2 SI DIODE
D7105 1SS133-T2 SI DIODE D7106 1SS133-T2 SI DIODE
D9101 1SR35-400A-T5 DIODE
D9102 MTZJ6.2C-T2 Z.DIODE
D9103 MTZJ7.5A-T2 Z.DIODE
D9106 1SR35-400A-T5 DIODE
D9107 1SR35-400A-T5 DIODE
D9108 1SR35-400A-T5 DIODE
UX-G6/FS-G6
3-5
UX-G6/FS-G6
)
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (System control & Main amplifier board) Block No. 01
Item Parts number Parts name AreaRemarks
D9109 MTZJ33C-T2 Z DIODE
D9110 MTZJ5.1C-T2 ZENER DIODE D9112 1SS133-T2 SI DIODE
D9201 MTZJ3.3A-T2 ZENER DIODE
D9202 MTZJ8.2C-T2 ZENER DIODE
D9203 MTZJ11C-T2 ZENER DIODE
D9204 MTZJ13C-T2 ZENER DIODE
D9205 MTZJ13C-T2 ZENER DIODE
D9206 MTZJ13C-T2 ZENER DIODE
D9301 1SS133-T2 SI DIODE
D9302 1SS133-T2 SI DIODE
D9303 1SS133-T2 SI DIODE
D9401 MTZJ7.5A-T2 ZENER DIODE D9402 MTZJ5.1C-T2 ZENER DIODE
D9504 MTZJ5.1A-T2 ZENER DIODE
D9505 1SS133-T2 SI DIODE
D9506 1SS133-T2 SI DIODE
D9507 1SS133-T2 SI DIODE
D9508 MTZJ5.1A-T2 ZENER DIODE
D9701 11E2-T5 DIODE
D9702 11E2-T5 DIODE
D9703 11E2-T5 DIODE
D9704 11E2-T5 DIODE D9705 11E2-T5 DIODE
D9706 11E2-T5 DIODE
D9707 11E2-T5 DIODE
D9708 11E2-T5 DIODE
D9901 1N5401-TM DIODE
D9902 1N5401-TM DIODE
D9903 1N5401-TM DIODE
D9904 1N5401-TM DIODE
EP971QNZ0136-001Z EARTH PLATE
EP972QNZ0136-001Z EARTH PLATE
FH701 LV31441-001A FL HOLDER FT911QNG0020-001Z FUSE CLIP FOR F9001
FT912QNG0020-001Z FUSE CLIP FOR F9001
FT981QNG0020-001Z FUSE CLIP FOR F9801
FT982QNG0020-001Z FUSE CLIP FOR F9801
FT991QNG0020-001Z FUSE CLIP FOR F9901
FT992QNG0020-001Z FUSE CLIP FOR F9901
FW901 WJK0082-001A E-SI C WIRE C-B
FW902QUM027-08DGZ4 PARA RIBON WIRE
FW903QUM029-09DGZ4 PARA RIBON WIRE
FW904QUM024-12DGZ4 PARA RIBON WIRE
IC101 NJM5532D I C IC701 UPD780023AGKA15 IC
IC901 LB1641 IC
JS701QSW0739-001 R ENCODER JOG1
JS702QSW0739-001 R ENCODER JOG2(VOL
J2001QNB0082-001 SPK TERMINAL
J2002QNN0017-001 PIN JACK BASS OUT
K7001QQR0601-001Z F.BEADS I.M MI+5.6V
K7002QQR0601-001Z F.BEADS I.M DGND
L1001QQLZ005-R45 INDUCTOR
L1002QQLZ005-R45 INDUCTOR
1001 2SC2240/G/-T TRANSISTOR 1002 2SC2240/G/-T TRANSISTOR
1003 2SA970/G/-T TRANSISTOR
1004 2SA970/G/-T TRANSISTOR
1005 2SA970/G/-T TRANSISTOR
1006 2SA970/G/-T TRANSISTOR
1007 2SC2240/G/-T TRANSISTOR
1008 2SC2240/G/-T TRANSISTOR
U,UB
U,UB
Item Parts number Parts name AreaRemarks
1009 2SC2240/GL/-T TRANSISTOR +18V
1010 2SA970/GL/-T TRANSISTOR -18V 1011 2SK2382 F.E.T. U,UB
1011 2SK2381 F.E.T. UP
1012 2SK2381 F.E.T. UP
1012 2SK2382 F.E.T. U,UB
1013 2SJ334 F.E.T. U,UB
1013 2SJ407 F.E.T. UP
1014 2SJ407 F.E.T. UP
1014 2SJ334 F.E.T. U,UB
1015 2SD637/QR/ TRANSISTOR
1016 2SD637/QR/ TRANSISTOR
1017 2SA970/GL/-T TRANSISTOR 1018 2SA970/GL/-T TRANSISTOR
1019 KTC3199/GL/-T TRANSISTOR
1020 2SA733/QP/-T TRANSISTOR
1021 KTC3199/GL/-T TRANSISTOR
2001 2SC945/QP/-T TRANSISTOR
2101 2SC3576-JVC-T TRANSISTOR
2102 2SC3576-JVC-T TRANSISTOR
2103 KRA104M-T D.TRANSISTOR
7001 KRC107M-T D.TRANSISTOR JOG2 BLUE
7002 KRC107M-T D.TRANSISTOR JOG1 BLUE 7005 KRC107M-T D.TRANSISTOR LED DIMER
7006 KRC107M-T D.TRANSISTOR LED DIMER
7101 2SC3576-JVC-T TRANSISTOR FL ON/OFF
7102 2SC3576-JVC-T TRANSISTOR FL ON/OFF
9101 2SD2394/EF/ TRANSISTOR
9102 2SD400MP/EF/-T TRANSISTOR
9103 KTC3199/GL/-T TRANSISTOR
9104 KRA102M-T D.TRANSISTOR
9105 KRC104M-T D.TRANSISTOR
9201 2SD2394/EF/ TRANSISTOR
9202 2SD2394/EF/ TRANSISTOR 9203 KTC3199/GL/-T TRANSISTOR
9204 KTC3199/GL/-T TRANSISTOR
9205 KTC3199/GL/-T TRANSISTOR
9206 2SD2394/EF/ TRANSISTOR
9207 KTC3199/GL/-T TRANSISTOR
9208 2SD2394/EF/ TRANSISTOR
9209 2SC2240/GL/-T TRANSISTOR
9210 2SB1565/EF/ TRANSISTOR
9211 2SA970/GL/-T TRANSISTOR
9213 2SD2394/EF/ TRANSISTOR
9401 2SD400MP/EF/-T TRANSISTOR 9504 KRC107M-T D.TRANSISTOR
9505 KRC107M-T D.TRANSISTOR
9506 KRC107M-T D.TRANSISTOR
RY201QSK0115-001 RELAY
RY901QSK0113-001 RELAY
R1001QRE141J-912Y C RESISTOR 9.1K 5% 1/4W
R1002QRE141J-912Y C RESISTOR 9.1K 5% 1/4W
R1003QRE141J-104Y C RESISTOR 100K 5% 1/4W
R1004QRE141J-104Y C RESISTOR 100K 5% 1/4W
R1005QRZ0214-821Y C RESISTOR 820 1/2W
R1006QRZ0214-821Y C RESISTOR 820 1/2W R1007QRZ0214-473Y C RESISTOR 47K 1/2W
R1008QRZ0214-473Y C RESISTOR 47K 1/2W
R1009QRJ146J-331X UNF C.RESISTOR 330 5% 1/4W
R1010QRJ146J-331X UNF C.RESISTOR 330 5% 1/4W
R1011QRZ0214-472Y C RESISTOR 4.7K 1/2W
R1012QRZ0214-472Y C RESISTOR 4.7K 1/2W
R1013QRZ0214-472Y C RESISTOR 4.7K 1/2W
3-6
Electrical parts list (System control & Main amplifier board) Block No. 01
UP
UP
U,UB
U,UB
Item Parts number Parts name AreaRemarks
R1014QRZ0214-472Y C RESISTOR 4.7K 1/2W
R1015QRE141J-151Y C RESISTOR 150 5% 1/4W R1016QRE141J-151Y C RESISTOR 150 5% 1/4W
R1017QRE141J-151Y C RESISTOR 150 5% 1/4W
R1018QRE141J-151Y C RESISTOR 150 5% 1/4W
R1019QRE141J-510Y C RESISTOR 51 5% 1/4W
R1020QRE141J-510Y C RESISTOR 51 5% 1/4W
R1021QRE141J-510Y C RESISTOR 51 5% 1/4W
R1022QRE141J-510Y C RESISTOR 51 5% 1/4W
R1023QRZ0214-102Y C RESISTOR 1.0K 1/2W
R1024QRZ0214-102Y C RESISTOR 1.0K 1/2W
R1025QRJ146J-4R7X UNF C.RESISTOR +18V
R1026QRJ146J-4R7X UNF C.RESISTOR -18V R1027QRE141J-270Y C RESISTOR 27 5% 1/4W
R1028QRE141J-270Y C RESISTOR 27 5% 1/4W
R1029QRE141J-220Y C RESISTOR 22 5% 1/4W
R1030QRE141J-220Y C RESISTOR 22 5% 1/4W
R1031QRE141J-220Y C RESISTOR 22 5% 1/4W
R1032QRE141J-220Y C RESISTOR 22 5% 1/4W
R1033QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R1034QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R1035QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R1036QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W R1037QRE141J-100Y C RESISTOR 10 5% 1/4W
R1038QRE141J-100Y C RESISTOR 10 5% 1/4W
R1039QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R1040QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R1041QRE141J-223Y C RESISTOR 22K 5% 1/4W
R1042QRE141J-223Y C RESISTOR 22K 5% 1/4W
R1043QRE141J-223Y C RESISTOR 22K 5% 1/4W
R1044QRE141J-223Y C RESISTOR 22K 5% 1/4W
R1045QRJ146J-220X UNF C.RESISTOR 22 5% 1/4W
R1046QRJ146J-220X UNF C.RESISTOR 22 5% 1/4W
R1047QRE141J-104Y C RESISTOR 100K 5% 1/4W R1049QRE141J-823Y C RESISTOR 82K 5% 1/4W
R1050QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1051QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1052QRE141J-104Y C RESISTOR 100K 5% 1/4W
R1053QRE141J-104Y C RESISTOR 100K 5% 1/4W
R1054QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1055QRE141J-123Y C RESISTOR 12K 5% 1/4W
R1056QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1101QRE141J-392Y C RESISTOR 3.9K 5% 1/4W
R1102QRE141J-392Y C RESISTOR 3.9K 5% 1/4W
R1103QRE141J-511Y C RESISTOR 510 5% 1/4W R1103QRE141J-751Y C RESISTOR 750 5% 1/4W
R1104QRE141J-751Y C RESISTOR 750 5% 1/4W
R1104QRE141J-511Y C RESISTOR 510 5% 1/4W
R2001QRE141J-103Y C RESISTOR 10K 5% 1/4W
R2002QRE141J-103Y C RESISTOR 10K 5% 1/4W
R2003QRE141J-471Y C RESISTOR 470 5% 1/4W
R2004QRE141J-104Y C RESISTOR 100K 5% 1/4W
R2007QRZ9006-4R7X F RESISTOR 4.7 1/0W
R2008QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R2009QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R2101QRE141J-681Y C RESISTOR 680 5% 1/4W R2102QRE141J-681Y C RESISTOR 680 5% 1/4W
R2103QRZ0214-223Y C RESISTOR 22K 1/2W
R2104QRZ0214-223Y C RESISTOR 22K 1/2W
R2105QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R2106QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R2107QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R7001QRE141J-103Y C RESISTOR 10K 5% 1/4W
Item Parts number Parts name AreaRemarks
R7002QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7003QRE141J-103Y C RESISTOR 10K 5% 1/4W R7004QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7005QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R7006QRE141J-241Y C RESISTOR 240 5% 1/4W
R7007QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R7008QRE141J-241Y C RESISTOR 240 5% 1/4W
R7011QRE141J-183Y C RESISTOR 18K 5% 1/4W
R7012QRE141J-682Y C RESISTOR 6.8K 5% 1/4W
R7013QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R7014QRE141J-621Y C RESISTOR 620 5% 1/4W
R7101QRE141J-104Y C RESISTOR 100K 5% 1/4W
R7102QRE141J-104Y C RESISTOR 100K 5% 1/4W R7103QRE141J-104Y C RESISTOR 100K 5% 1/4W
R7104QRE141J-104Y C RESISTOR 100K 5% 1/4W
R7105QRE141J-101Y C RESISTOR 100 5% 1/4W
R7106QRE141J-101Y C RESISTOR 100 5% 1/4W
R7107QRE141J-101Y C RESISTOR 100 5% 1/4W
R7108QRE141J-101Y C RESISTOR 100 5% 1/4W
R7109QRE141J-101Y C RESISTOR 100 5% 1/4W
R7110QRE141J-101Y C RESISTOR 100 5% 1/4W
R7111QRE141J-101Y C RESISTOR 100 5% 1/4W
R7112QRE141J-101Y C RESISTOR 100 5% 1/4W R7113QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7114QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7115QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7116QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7117QRE141J-223Y C RESISTOR 22K 5% 1/4W
R7118QRE141J-101Y C RESISTOR 100 5% 1/4W
R7119QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7120QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R7121QRZ9005-220X F.RESISTOR 22 1/0W
R7122QRE141J-331Y C RESISTOR 330 5% 1/4W
R7123QRE141J-331Y C RESISTOR 330 5% 1/4W R7124QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7125QRE141J-1R0Y C RESISTOR 1.0 5% 1/4W
R7126QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R7127QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7128QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R7129QRE141J-103Y C RESISTOR 10K 5% 1/4W
R7130QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9101QRE141J-1R0Y C RESISTOR 1.0 5% 1/4W
R9103QRJ146J-152X UNF C.RESISTOR 1.5K 5% 1/4W
R9104QRJ146J-4R7X UNF C.RESISTOR 4.7 5% 1/4W
R9105QRZ9005-181X F.RESISTOR 180 1/0W R9106QRE141J-223Y C RESISTOR 22K 5% 1/4W
R9107QRZ9006-4R7X F RESISTOR 4.7 1/0W
R9108QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R9109QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9202QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R9203QRE141J-101Y C RESISTOR 100 5% 1/4W
R9204QRE141J-101Y C RESISTOR 100 5% 1/4W
R9205QRE141J-681Y C RESISTOR 680 5% 1/4W
R9206QRE141J-681Y C RESISTOR 680 5% 1/4W
R9207QRE141J-751Y C RESISTOR 750 5% 1/4W
R9208QRE141J-271Y C RESISTOR 270 5% 1/4W R9210QRE141J-561Y C RESISTOR 560 5% 1/4W
R9211QRE141J-242Y C RESISTOR 2.4K 5% 1/4W
R9212QRE141J-242Y C RESISTOR 2.4K 5% 1/4W
R9215QRE141J-101Y C RESISTOR 100 5% 1/4W
R9401QRZ9005-150X F RESISTOR 15 1/0W
R9402QRE141J-561Y C RESISTOR 560 5% 1/4W
R9403QRE141J-471Y C RESISTOR 470 5% 1/4W
UX-G6/FS-G6
3-7
UX-G6/FS-G6
Electrical parts list (System control & Main amplifier board) Block No. 01
Item Parts number Parts name AreaRemarks
R9506QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9507QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R9508QRE141J-104Y C RESISTOR 100K 5% 1/4W
R9509QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9901QRZ9006-4R7X F RESISTOR 4.7 1/0W
R9902QRZ9005-100X F RESISTOR 10 1/0W
SP701 VYH7237-001SC IC HOLDER
SW902QSW0513-002 SLIDE SWITCH U,UB
SW911QSW0620-001 SWITCH
S7001QSW0674-001Z TACT SWITCH POWER
S7002QSW0674-001Z TACT SWITCH FM/AM
S7003QSW0674-001Z TACT SWITCH AUX
S7004QSW0674-001Z TACT SWITCH OPEN/CLOSE S7005QSW0674-001Z TACT SWITCH <<
S7006QSW0674-001Z TACT SWITCH >>
S7007QSW0674-001Z TACT SWITCH PLAY MODE
S7008QSW0674-001Z TACT SWITCH REC MODE
S7009QSW0674-001Z TACT SWITCH CLOCK
S7010QSW0674-001Z TACT SWITCH SET
S7011QSW0674-001Z TACT SWITCH CANCEL
S7012QSW0674-001Z TACT SWITCH EDIT/TITLE
S7013QSW0674-001Z TACT SWITCH DISPLAY/CHARA
S7014QSW0674-001Z TACT SWITCH ENTER TB901QNZ0079-001Z TAB
TB902QNZ0079-001Z TAB
T9002QQT0274-004 POWER TRANS
X7001QAX0246-001Z RESONATOR
3-8
<< M E M O >>
UX-G6/FS-G6
3-9
UX-G6/FS-G6
Exploded view of general assembly and parts list XT-UXG6
5
4
3
10
11
Block: No. M 2 M M
9
36
System control board
15
19
38
46
40
49
11
22
21
9
9
8
11
10
18
24
9
38
9
2
28
28
3
1
5
54
7
4
25
6
18
17
20
23
52
47
39
45
42
39
41
44
45
44
2
Main & CD servo control board
1
26
30
31
32
51
43
34
31
27
Analog in/ digital out board
48
27
27
16
35
50
13
14
Tuner board
29
12
13
14
3-10
ABCD
UX-G6/FS-G6
)
)
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
QQ
Q
Q
Q
Q
Q
Q
QUQ
QUQ
Parts list (XT-UXG6 General assembly)
Item
1 LV10278-001A FRONT PANEL 1
2 LV31438-002A BUTTON 1 PLATING
3 LV41295-001A REMOTE LENS 1
4 LV31458-001A FRONT PLATE 1
5 E406971-222 JVC MARK 1
6 LV41317-002A LENS(A
7 LV41318-001A LENS(B
8 LV41750-001A LABEL 1
9 10 E75896-002 FELT SPACER 2 FOR FOOT 11 12 LV10275-001A BOTTOM CHASSIS 1 13 E47227-029 FOOT 2 14 15 --------------- CD MECHA 1 16 --------------- CD LOADING BASE 1 17 E26756-004 CD CLAMPER BASE 1 18 19 E406293-001 SPECIAL SCREW 1 20 E306835-221SS CD CLAMPER 1 21 VYH7313-003 MAGNET 1 22 E306836-003 C.D.YOKE 1 23 E102358-222K CD TRAY 1 24 25 LV20520-001A CD FITTING 1 26 LV31459-001A FITTING PLATE 1 27 28 29 30 31 32 E75896-001 FELT SPACER 1 FS401 34 35 VYSA1R3-049 SPACER 1 36 LV10273-002A/S/ METAL COVER 1 38 39 40 LV20521-007A REAR PANEL 1 U,UB
41 42 E409257-001 GND TERMINAL 1 FOR EARTH 43
44 45 46 47 48 49 50 51 52 WJS0015-002A E-FL/RB WIRE 1 19 PIN SYSTEM WIRE 54 LV41773-001A SHEET 1
Parts number Parts name
YSBSF2608Z T.SCREW 7 FOR SW PWB
YSBST3006Z T.SCREW 3 FOR F.PANE+B.CHASSIS
YSBST3006Z T.SCREW 2
YSBSF3008Z SCREW 2 CLAMP B.+LOADING BASE
YSBSF3008Z SCREW 1 FOR TRAY
YSBST3006Z T.SCREW 3 FOR CD LOADING YSBSF2608Z T.SCREW 2 PWB+CLAMPER BASE YSBST3006Z T.SCREW 1 TUNER+CHASSIS YSBST3006Z T.SCREW 1 PWB(L)+CHASSIS YSBSF2608Z T.SCREW 3 LOADING+PWB
YSBST3006Z T.SCREW 1 CHASSIS+PWB
YSDSG3008N T.SCREW 2 M.COVER+B.CHASSIS YSDSG3008N T.SCREW 4 M.COVER+R.PANEL
LV20521-008A REAR PANEL 1 UP
YSDSG3008N T.SCREW 1
R1086-001 NOISE FILTER 1
YSDSG3008N T.SCREW 2 FOR ANT. YSDSG3008N T.SCREW 2 FOR SYS.CONNECT YSDSG3008N T.SCREW 1 FOR AUX IN YSDSG3008N T.SCREW 1 FOR OPTICAL OUT JJ010-051000 SIN CR C-C WIRE 1 JJ010-061501 SIN CR C-C WIRE 1
B12-1010BJ FFC WIRE 1 TUNER-MICOM 910-1508AJ CARD WIRE 1 CD PICK
Q'ty
1 1
Block No.M2MM
Description
Area
3-11
UX-G6/FS-G6

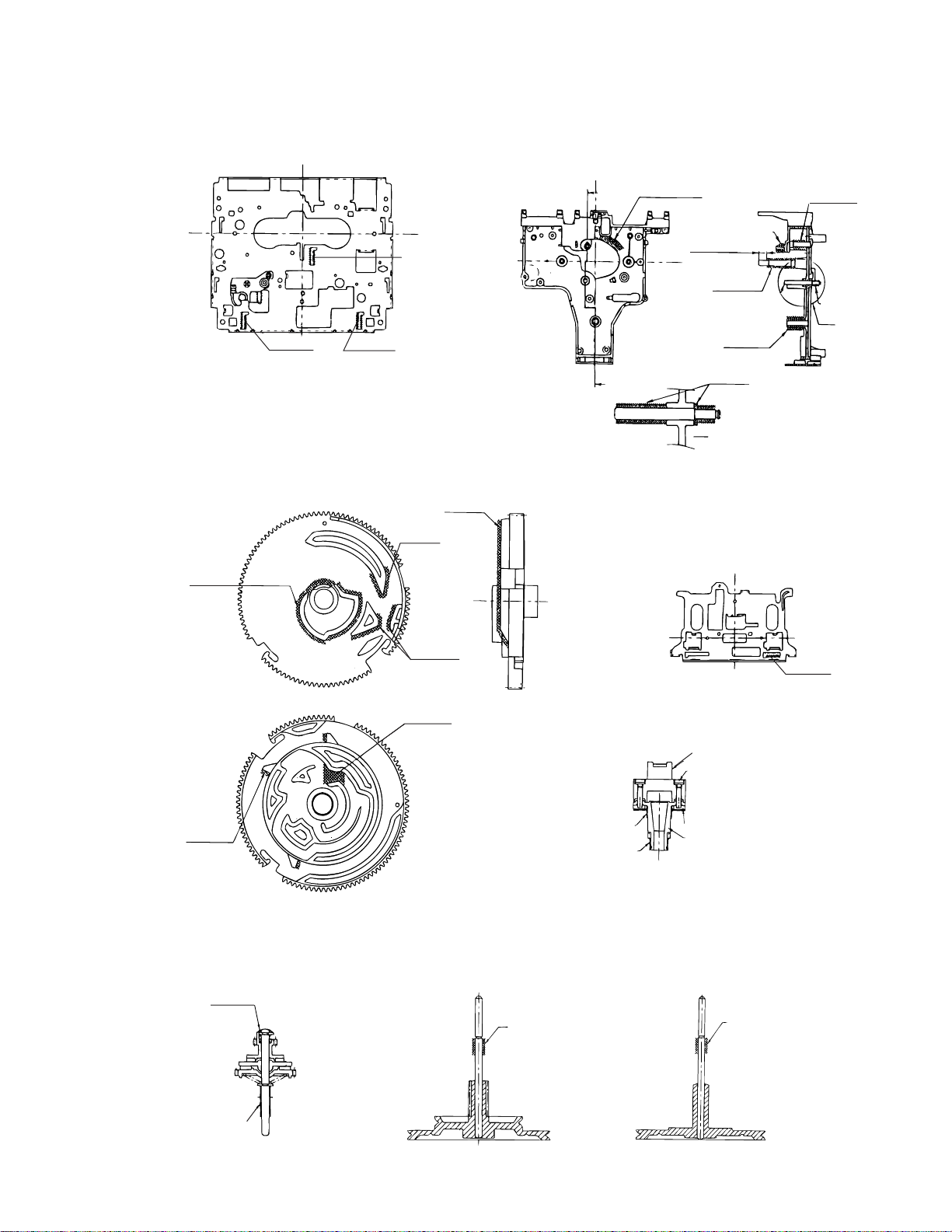

CD mechanism assembly and parts list
Grease point
FG-87HS (Grease to apply have to be a little for the exchange.)
FG-87HS
FG-87HS
FG-87HS
Block: No. M 3 M M
Parts list (CD mechanism)
Item
1 E102501-331SC MECHA BASE ASSY 1 2 OPTIMA-7B OPTICAL PICK UP 1 3 E407782-003SC CD SHAFT 1 4 HQN300031-001PK CD RACK GEAR 1 5 E307745-332SC MECHA GEAR 1 6 QYSDSP2003N SCREW 4 7 E406750-332SC PINION GEAR 1 8 EPB-001PK TURN TABLE ASSY 1
9 E406784-001 FEED MOTOR 1 10 QAR0130-001 SPPINDLE MOTOR 1 11 EMW10190-001 P.C. BOARD 1 12 QGA2001F1-06 6P PLUG ASSY 1 FOR P011 13 QSW0506-001 LEAF SWICH 1 FOR S001 14 E75832-221 SPECIAL SCREW 1
Parts number Parts name
Q'ty
12
Block No.M2MM
Description
FOR P.C. BOARD
EXL-M7GB
Area
3-12

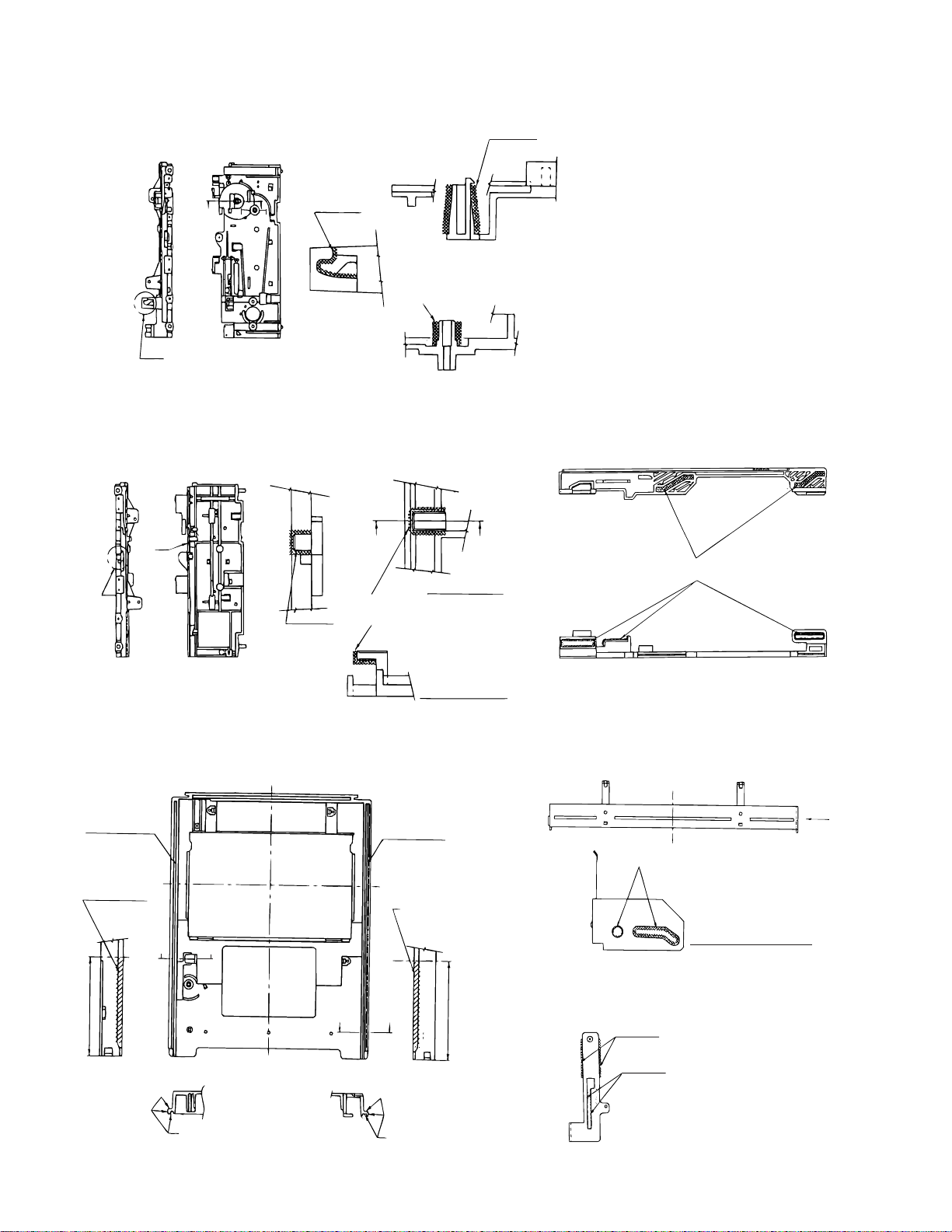

CD loading base assembly and parts list
UX-G6/FS-G6
Grease
= G-474C = EBS0006-009B
11
13
12
FLM-120-1
9
14
Block: No. M 4 M M
FIG A
Apply grease to groove
8
7
6
4
FIG A
5
18
and support convex.
1
10
Dimension gap for motor pulley
3
2
21
19
18
3
16
2
17
20
16
16
16
17
15
6.9 0.2mm
3-13
UX-G6/FS-G6
)
)
)
Parts list (CD loading base)
Item
1 E102357-441 C.D LOADING BAS 1 2 MMN-6F1LB8K MOTOR 1 3 E75984-001SC MOTOR PULLEY 1 4 QYSPSPT2640Z MINI SCREW 2 5 E75950-002 BELT 1 6 E75985-222SS GEAR(1 7 E60912-005SS SPEED NUT 1 8 E75986-221SS C.D GEAR (2
9 E75987-221SS C.D GEAR (3 10 E307162-331SS LEVER 1 11 E307252-331SS CAM PLATE 1 12 E65923-003 TAPPING SCREW 1 13 E75989-001 SPRING 1 14 QYSBSF3008Z SCREW 1 15 E307179-332 E.BASE ASS'Y 1 16 E406294-002 INSULATOR 4 17 E406871-001 SPRING 2 18 E65923-003 TAPPING SCREW 2 19 EMW10095-003 C.D CIR.BOARD 1 20 QGA2001F1-05 5P PLUG ASSY 1 21 QSW0472-001 SWITCH 1
Parts number Parts name
Q'ty
Block No.M4MM
Description
1
1 1
Area
3-14
Electrical parts list (System control & Analog IN / digital OUT board) Block No. 02
)
Q
Q
Q
Q
Q
Item Parts number Parts name AreaRemarks
CN451QGA2001F1-06 6P PLUG ASSY FROM KEY PWB
CN452QGB1214K1-16S CONNECTOR TO MICON PWB CN453QGB1214K1-18S CONNECTOR TO MICON PWB
CN454QGB2510K2-06 CONNECTOR TO MICON PWB
CN455QGB1214K1-18S CONNECTOR TO CD CTL PWB
CN456QGB1214K1-18S CONNECTOR TO CD CTL PWB
CN457QGB2510K2-13 CONNECTOR TO CD CTL PWB
CN501QGA2001F1-05 5P PLUG ASSY
CN502QGB1214J1-16S CONNECTOR
CN503QGB1214J1-18S CONNECTOR
CN504QGB2510J1-06 CONNECTOR
CN506QGF1205F1-10 CONNECTOR
CN507QGB2510J1-07 CONNECTOR CN508QGA2501C3-05Z CONNECTOR
C4161QETC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C4162QFZ0202-183Z M CAPACITOR .018MF
C4163QFZ0202-223Z M CAPACITOR .022MF
C4164QFN31HJ-224Z M CAPACITOR .22MF 5% 50V
C4165QFN31HJ-224Z M CAPACITOR .22MF 5% 50V
C4166QFZ0202-562Z M CAPACITOR 5600PF
C4167QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C4171QEKC1EM-226Z E CAPACITOR 22MF 20% 25V
C4172QEKC1EM-106Z E CAPACITOR 10MF 20% 25V C4173QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4181QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C4261QETC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C4262QFZ0202-223Z M CAPACITOR .022MF
C4263QFZ0202-223Z M CAPACITOR .022MF
C4264QFN31HJ-224Z M CAPACITOR .22MF 5% 50V
C4265QFN31HJ-224Z M CAPACITOR .22MF 5% 50V
C4266QFZ0202-562Z M CAPACITOR 5600PF
C4267QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C4271QEKC1EM-226Z E CAPACITOR 22MF 20% 25V
C4272QEKC1EM-106Z E CAPACITOR 10MF 20% 25V C4273QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4281QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C4361QETC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C4362QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C4372QDGB1HK-102Y C CAPACITOR
C4381QCBB1HK-223Y C CAPACITOR .022MF 10% 50V
C4382QDGB1HK-102Y C CAPACITOR
C4391QEKC1AM-107Z E CAPACITOR 100MF 20% 10V
C4392QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C5001QCS11HJ-200 C CAPACITOR 20PF 5% 50V
C5002QDCB1HJ-150Y C CAPACITOR C5003QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C5004QCZ0202-155Z ML C CAPACITOR 1.5MF
C5005QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C5006QETC0JM-108Z E CAPACITOR 1000MF 20% 6.3V
C5007QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C5008QCZ0202-155Z ML C CAPACITOR 1.5MF
C5009QDGB1HK-102Y C CAPACITOR
C5010QDGB1HK-102Y C CAPACITOR
C5011QDGB1HK-102Y C CAPACITOR
C5012QDGB1HK-102Y C CAPACITOR
C5013QDXB1CM-122Y C CAPACITOR C5014QDGB1HK-102Y C CAPACITOR
C5016QCZ0205-155Z ML C CAPACITOR 1.5MF
D4361 MTZJ9.1C-T2 Z DIODE
D4371 1SS133-T2 SI DIODE
D4372 1SS133-T2 SI DIODE
D4391 1SS133-T2 SI DIODE
D5001 1SS133-T2 SI DIODE
Item Parts number Parts name AreaRemarks
D5003 1SS133-T2 SI DIODE
D5005 1SS133-T2 SI DIODE D5006 1SS133-T2 SI DIODE
D5007 1SS133-T2 SI DIODE
EP452QNZ0136-001Z EARTH PLATE FOR H.P GND
IC435 TDA7439 I C
IC436 NJM4580D I C
IC501 UPD784214AGF503 IC(MCU
IH501 VYH7237-002SC IC HOLDER FOR IC501
J4301QNN0215-001 PIN JACK
J4302 GP1F32T OPTICAL JACK
L5001QQL01BK-100Z INDUCTOR
4171 2SC3576-JVC-T TRANSISTOR 4172 2SC3576-JVC-T TRANSISTOR
4271 2SC3576-JVC-T TRANSISTOR
4272 2SC3576-JVC-T TRANSISTOR
4371 KRA104M-T D.TRANSISTOR
R4161QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R4162QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R4164QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4171QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R4172QRJ146J-221X UNF C.RESISTOR 220 5% 1/4W
R4173QRE141J-223Y C RESISTOR 22K 5% 1/4W R4174QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R4175QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4176QRE141J-473Y C RESISTOR 47K 5% 1/4W
R4177QRJ146J-221X UNF C.RESISTOR 220 5% 1/4W
R4178QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R4181QRE141J-223Y C RESISTOR 22K 5% 1/4W
R4261QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R4262QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R4264QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4271QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R4272QRJ146J-221X UNF C.RESISTOR 220 5% 1/4W R4273QRE141J-223Y C RESISTOR 22K 5% 1/4W
R4274QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R4275QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4276QRE141J-473Y C RESISTOR 47K 5% 1/4W
R4277QRJ146J-221X UNF C.RESISTOR 220 5% 1/4W
R4278QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R4281QRE141J-223Y C RESISTOR 22K 5% 1/4W
R4361QRJ146J-221X UNF C.RESISTOR 220 5% 1/4W
R4371QRE141J-331Y C RESISTOR 330 5% 1/4W
R4391QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R4392QRE141J-182Y C RESISTOR 1.8K 5% 1/4W R5001QRE141J-105Y C RESISTOR 1.0M 5% 1/4W
R5002QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5003QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5005QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5007QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5008QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5009QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5011QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5012QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5013QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5014QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R5015QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5016QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5017QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5019QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5022QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5023QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5024QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
UX-G6/FS-G6
3-15
UX-G6/FS-G6
Electrical parts list (System control & Analog IN / digital OUT board) Block No. 02
Item Parts number Parts name AreaRemarks
R5025QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5026QRE141J-103Y C RESISTOR 10K 5% 1/4W R5028QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5029QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5030QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5031QRE141J-101Y C RESISTOR 100 5% 1/4W
R5032QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5033QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5034QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5035QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5036QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5037QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5038QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R5039QRE141J-101Y C RESISTOR 100 5% 1/4W
R5040QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5041QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5045QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5046QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5048QRE141J-101Y C RESISTOR 100 5% 1/4W
R5049QRE141J-101Y C RESISTOR 100 5% 1/4W
R5050QRE141J-101Y C RESISTOR 100 5% 1/4W
R5051QRE141J-101Y C RESISTOR 100 5% 1/4W
R5054QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R5055QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5056QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5057QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5058QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5059QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5062QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R5063QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R5068QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5069QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5071QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5072QRE141J-103Y C RESISTOR 10K 5% 1/4W R5073QRE141J-470Y C RESISTOR 47 5% 1/4W
R5075QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5078QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5079QRE141J-103Y C RESISTOR 10K 5% 1/4W
R5080QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R5081QRE141J-103Y C RESISTOR 10K 5% 1/4W
X5001QAX0600-001Z CRYSTAL
3-16
Electrical parts list (CD servo & Main board) Block No. 03
Item Parts number Parts name AreaRemarks
CN431QGD1501C1-19 F.WIRE SKT FOR SWIRE(TO AX
CN432QGA1502F1-17 W TO B CONNE FROM XM CN433QGA1502F1-13 W TO B CONNE FROM DECK
CN434QGB2510J1-06 CONNECTOR TO TUNER RELAY
CN435QGB2510J1-13 CONNECTOR TO VOL PWB
CN436QGB1214J1-18S CONNECTOR TO VOL PWB
CN437QGB1214J1-18S CONNECTOR TO VOL PWB
CN438QGA2001C1-05 5P PLUG ASSY TO CD TRAY
CN439QGF1023F1-15 15PIN CONNECTOR FOR OPT-7
CN440QGA2001C1-06 6P PLUG ASSY T0 CD MOTOR
CN441QGA2001F1-02 2P CONNECTOR
CN443QGB2510K2-06 CONNECTOR TO MICON
CN444QGB2510K2-07 CONNECTOR TO CD CTL C4101QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C4102QFN41HJ-682 M CAPACITOR 6800PF 5% 50V
C4103QFN31HJ-473Z M CAPACITOR .047MF 5% 50V
C4104QTE1C06-226Z E CAPACITOR
C4112QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C4124QFLC1HJ-562Z M CAPACITOR 5600PF 5% 50V
C4201QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C4202QFN41HJ-682 M CAPACITOR 6800PF 5% 50V
C4203QFN31HJ-473Z M CAPACITOR .047MF 5% 50V
C4204QTE1C06-226Z E CAPACITOR C4212QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C4224QFLC1HJ-562Z M CAPACITOR 5600PF 5% 50V
C4301QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4302QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4311QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C4312QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C4313QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C4321QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C4322QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C4331QETC1AM-476Z-JB E CAPACITOR 47MF 20% 10V
C4332QETC1AM-476Z E CAPACITOR 47MF 20% 10V C4333QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C4341QETC1AM-476Z-JB E CAPACITOR 47MF 20% 10V
C4342QETC1AM-476Z-JB E CAPACITOR 47MF 20% 10V
C4343QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C4601QDCB1HJ-120Y C CAPACITOR
C4602QDCB1HJ-120Y C CAPACITOR
C4603QCZ0205-155Z ML C CAPACITOR 1.5MF
C4604QETC0JM-477Z E CAPACITOR 470MF 20% 6.3V
C4605QFVJ1HJ-154Z TF CAPACITOR .15MF 5% 50V
C4606QDVB1EZ-223Y C CAPACITOR
C4607QFN31HJ-223Z M CAPACITOR .022MF 5% 50V C4608QCZ0205-155Z ML C CAPACITOR 1.5MF
C4609QETC0JM-107Z E CAPACITOR 100MF 20% 6.3V
C4610QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C4611QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4612QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4613QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4614QCSB1HK-5R6Y C CAPACITOR 5.6PF 10% 50V
C4615QCZ0205-155Z ML C CAPACITOR 1.5MF
C4616QETC0JM-477Z E CAPACITOR 470MF 20% 6.3V
C4617QDGB1HK-102Y C CAPACITOR
C4619QDGB1HK-102Y C CAPACITOR C4620QDGB1HK-102Y C CAPACITOR
C4621QFVC1HJ-563Z M.M.CAPACITOR .056MF 5% 50V
C4622QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4623QETC1AM-107Z E CAPACITOR 100MF 20% 10V
C4624QDYB1CM-103Y C CAPACITOR
C4625QDXB1CM-472Y C CAPACITOR
C4626QFN31HJ-273Z M CAPACITOR .027MF 5% 50V
Item Parts number Parts name AreaRemarks
C4627QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4628QETC1HM-105Z E CAPACITOR 1.0MF 20% 50V C4629QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4630QCF31HZ-223Z C CAPACITOR .022MF +80:-20%
C4631QCZ0205-155Z ML C CAPACITOR 1.5MF
C4632QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C4633QDVB1EZ-223Y C CAPACITOR
C4634QDGB1HK-102Y C CAPACITOR
C4635QDGB1HK-102Y C CAPACITOR
C4636QCBB1HK-271Y C CAPACITOR 270PF 10% 50V
C4637QCBB1HK-181Y C CAPACITOR 180PF 10% 50V
C4638QDVB1EZ-223Y C CAPACITOR
C4639QDVB1EZ-223Y C CAPACITOR C4640QDVB1EZ-223Y C CAPACITOR
C4641QDVB1EZ-223Y C CAPACITOR
C4642QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4643QFLC1HJ-822Z M CAPACITOR 8200PF 5% 50V
C4644QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4645QCZ0205-155Z ML C CAPACITOR 1.5MF
C4646QETC1CM-477Z E CAPACITOR 470MF 20% 16V
C4647QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4648QFLC1HJ-562Z M CAPACITOR 5600PF 5% 50V
C4652QCBB1HK-101Y C CAPACITOR 100PF 10% 50V C4663QCZ0205-155Z ML C CAPACITOR 1.5MF
C4671QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C4672QETC1AM-477Z E CAPACITOR 470MF 20% 10V
C4673QETC1AM-107Z E CAPACITOR 100MF 20% 10V
C4681QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C4682QCS11HJ-560 C CAPACITOR 56PF 5% 50V
C4683QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C4686QCZ0205-155Z ML C CAPACITOR 1.5MF
C4691QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4692QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C4693QCBB1HK-101Y C CAPACITOR 100PF 10% 50V C5082QDGB1HK-102Y C CAPACITOR
C5083QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C5084QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C5086QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C5087QDGB1HK-102Y C CAPACITOR
C5088QDGB1HK-102Y C CAPACITOR
C5091QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
C5092QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
D4331 MTZJ5.6C-T2 ZENER DIODE
D4341 MTZJ10A-T2 ZENER DIODE
D4601 1SS133-T2 SI DIODE D4663 1SS133-T2 SI DIODE
D4664 1SS133-T2 SI DIODE
D4671 MTZJ10C-T2 Z.DIODE
D4674 MTZJ9.1B-T2 ZENER DIODE
D4681 MTZJ4.7B-T2 Z DIODE
D5081 MTZJ10C-T2 Z.DIODE
D5082 SELU1E10CXM LED BLUE
D5083 1SS133-T2 SI DIODE
D5084 1SS133-T2 SI DIODE
D5085 1SS133-T2 SI DIODE
EP451QNZ0136-001Z EARTH PLATE IC431 NJM5532D I C
IC432 TC9164AN I C
IC433 NJM4580D I C
IC434 NJM4580D I C
IC461 MN35511AL IC
IC462 AN8806SB IC
IC463 BA6897FP-W IC
UX-G6/FS-G6
3-17
UX-G6/FS-G6
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (CD servo & Main board) Block No. 03
Item Parts number Parts name AreaRemarks
IC464 TA8409S IC
IC502 GP1U271X RM RECIVER IH461 VYH7237-001SC IC HOLDER
IH462 VYH7237-003SC IC HOLDER
IH463 VYH7237-003SC IC HOLDER
J5001QNS0027-001 JACK
K4603QQR0779-001Z INDUCTOR
K4604QQR0779-001Z INDUCTOR
K4609QQR0779-001Z INDUCTOR
K4610QQR0779-001Z INDUCTOR
K4612QQR0779-001Z INDUCTOR
K4613QQR0779-001Z INDUCTOR
K4619QQR0779-001Z INDUCTOR K4661QQR0779-001Z INDUCTOR
K4662QQR0779-001Z INDUCTOR
K4664QQR0601-001Z F.BEADS
K4671QQR0601-001Z F.BEADS
K4672QQR0601-001Z F.BEADS
K5082QQR0779-001Z INDUCTOR
L4121QQR0590-001 FILTER
L4221QQR0590-001 FILTER
L4681QQL25CK-221Z INDUCTOR
L5081QQL231K-470Y INDUCTOR L5082QQL231K-470Y INDUCTOR
4332 KRC107M-T D.TRANSISTOR
4333 KRA107M-T D.TRANSISTOR
4334 2SC2785/FE/-T TRANSISTOR
4341 2SC2785/FE/-T TRANSISTOR
4621 2SA952/LK/-T TRANSISTOR
4661 KTA1267/YG/-T TRANSISTOR
4665 KRC102M-T D.TRANSISTOR
4671 2SD2394/EF/ TRANSISTOR
R4101QRE141J-183Y C RESISTOR 18K 5% 1/4W
R4102QRE141J-183Y C RESISTOR 18K 5% 1/4W R4103QRE141J-243Y C RESISTOR 24K 5% 1/4W
R4104QRE141J-243Y C RESISTOR 24K 5% 1/4W
R4105QRE141J-821Y C RESISTOR 820 5% 1/4W
R4106QRE141J-682Y C RESISTOR 6.8K 5% 1/4W
R4107QRE141J-752Y C RESISTOR 7.5K 5% 1/4W
R4108QRE141J-202Y C RESISTOR 2.0K 5% 1/4W
R4109QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4114QRE141J-133Y C RESISTOR 13K 5% 1/4W
R4123QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4124QRE141J-123Y C RESISTOR 12K 5% 1/4W
R4125QRE141J-473Y C RESISTOR 47K 5% 1/4W R4126QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R4127QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R4128QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R4201QRE141J-183Y C RESISTOR 18K 5% 1/4W
R4202QRE141J-183Y C RESISTOR 18K 5% 1/4W
R4203QRE141J-243Y C RESISTOR 24K 5% 1/4W
R4204QRE141J-243Y C RESISTOR 24K 5% 1/4W
R4205QRE141J-821Y C RESISTOR 820 5% 1/4W
R4206QRE141J-682Y C RESISTOR 6.8K 5% 1/4W
R4207QRE141J-752Y C RESISTOR 7.5K 5% 1/4W
R4208QRE141J-202Y C RESISTOR 2.0K 5% 1/4W R4209QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4214QRE141J-133Y C RESISTOR 13K 5% 1/4W
R4223QRE141J-104Y C RESISTOR 100K 5% 1/4W
R4224QRE141J-123Y C RESISTOR 12K 5% 1/4W
R4225QRE141J-473Y C RESISTOR 47K 5% 1/4W
R4226QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R4227QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
<<CAUTION>> Please note that "IC461" uses IC different depending on the kind of the board.
For board No.LVB10107-001A IC461 MN35511 For board No.LVB10107-001B/001C IC461 MN35511AL
Item Parts number Parts name AreaRemarks
R4228QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4311QRE141J-331Y C RESISTOR 330 5% 1/4W R4331QRE141J-152Y C RESISTOR 1.5K 5% 1/4W R4332QRZ9005-470X F RESISTOR 47 1/0W R4334QRE141J-103Y C RESISTOR 10K 5% 1/4W R4335QRE141J-272Y C RESISTOR 2.7K 5% 1/4W R4341QRE141J-821Y C RESISTOR 820 5% 1/4W R4342QRZ9005-470X F RESISTOR 47 1/0W R4601QRE141J-271Y C RESISTOR 270 5% 1/4W R4602QRE141J-331Y C RESISTOR 330 5% 1/4W R4603QRE141J-124Y C RESISTOR 120K 5% 1/4W R4604QRE141J-105Y C RESISTOR 1.0M 5% 1/4W R4605QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4606QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4607QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4608QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4610QRE141J-471Y C RESISTOR 470 5% 1/4W R4611QRE141J-155Y C RESISTOR 1.5M 5% 1/4W R4614QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4615QRE141J-683Y C RESISTOR 68K 5% 1/4W R4616QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R4621QRE141J-125Y C RESISTOR 1.2M 5% 1/4W R4622QRE141J-113Y C RESISTOR 11K 5% 1/4W R4623QRE141J-100Y C RESISTOR 10 5% 1/4W R4624QRE141J-121Y C RESISTOR 120 5% 1/4W R4625QRE141J-120Y C RESISTOR 12 5% 1/4W R4626QRE141J-274Y C RESISTOR 270K 5% 1/4W R4627QRE141J-154Y C RESISTOR 150K 5% 1/4W R4628QRE141J-104Y C RESISTOR 100K 5% 1/4W R4629QRE141J-104Y C RESISTOR 100K 5% 1/4W R4630QRE141J-474Y C RESISTOR 470K 5% 1/4W R4631QRE141J-273Y C RESISTOR 27K 5% 1/4W R4632QRE141J-910Y C RESISTOR 91 5% 1/4W R4641QRE141J-223Y C RESISTOR 22K 5% 1/4W R4642QRE141J-222Y C RESISTOR 2.2K 5% 1/4W R4643QRE141J-472Y C RESISTOR 4.7K 5% 1/4W R4644QRE141J-223Y C RESISTOR 22K 5% 1/4W R4645QRE141J-822Y C RESISTOR 8.2K 5% 1/4W R4646QRE141J-473Y C RESISTOR 47K 5% 1/4W R4647QRE141J-222Y C RESISTOR 2.2K 5% 1/4W R4648QRE141J-222Y C RESISTOR 2.2K 5% 1/4W R4664QRJ146J-2R2X UNF C.RESISTOR 2.2 5% 1/4W R4665QRE141J-561Y C RESISTOR 560 5% 1/4W R4671QRT01DJ-4R7X MF RESISTOR 4.7 5% 1/1W R4672QRT01DJ-4R7X MF RESISTOR 4.7 5% 1/1W R4673QRE141J-151Y C RESISTOR 150 5% 1/4W R4674QRE141J-103Y C RESISTOR 10K 5% 1/4W R4675QRE141J-103Y C RESISTOR 10K 5% 1/4W R4676QRE141J-151Y C RESISTOR 150 5% 1/4W R4677QRE141J-363Y C RESISTOR 36K 5% 1/4W R4681QRE141J-471Y C RESISTOR 470 5% 1/4W R5081QRE141J-101Y C RESISTOR 100 5% 1/4W R5082QRE141J-101Y C RESISTOR 100 5% 1/4W R5083QRE141J-332Y C RESISTOR 3.3K 5% 1/4W R5084QRE141J-472Y C RESISTOR 4.7K 5% 1/4W R5085QRE141J-223Y C RESISTOR 22K 5% 1/4W R5088QRE141J-221Y C RESISTOR 220 5% 1/4W S5001QSW0674-001Z TACT SWITCH S5002QSW0674-001Z TACT SWITCH S5003QSW0674-001Z TACT SWITCH W 451 WJP0012-001A E-SHI C WIRE C­W 511 WJK0065-001A E-SI C WIRE C-B TO MICON/VOL X4601QAX0413-001Z CRYSTAL
3-18
Electrical parts list (Tuner board) Block No. 04
QQ
QQ
Q
Q
Q
Q
QQ
Item Parts number Parts name AreaRemarks
C 1 NCB21HK-223X C CAPACITOR
C 3 NCB21EK-473X C CAPACITOR C 4 NCB21HK-103X C CAPACITOR
C 5QEK41CM-106 E.CAPA I.M 10MF 20% 16V
C 6 NCB21HK-102X C CAPACITOR
C 9 NCB21HK-102X C CAPACITOR
C 12 NDU21HJ-100X C CAPACITOR
C 13 NCB21EK-473X C CAPACITOR
C 21 NCB21EK-473X C CAPACITOR
C 30QEK41CM-476 E CAPACITOR 47MF 20% 16V
C 32 NCB21HK-102X C CAPACITOR
C 33QEKC1AM-107Z E CAPACITOR 100MF 20% 10V
C 34 NCS21HJ-150X C CAPACITOR C 35 NCB21HK-102X C CAPACITOR
C 36QEK41CM-106 E CAPACITOR 10MF 20% 16V
C 37 NCB21EK-473X C CAPACITOR
C 39 NCB21EK-473X C CAPACITOR
C 40 NCB21HK-103X C CAPACITOR
C 41QEKC1HM-104Z E CAPACITOR .10MF 20% 50V
C 42QEK41HM-474 E CAPACITOR .47MF 20% 50V
C 44 NCS21HJ-221X C CAPACITOR
C 45QEKC1HM-335Z E CAPACITOR 3.3MF 20% 50V
C 46 NCB21HK-223X C CAPACITOR C 47 NCB21HK-103X C CAPACITOR
C 49 NCB21HK-153X C CAPACITOR
C 50 NCB21HK-153X C CAPACITOR
C 51QEKC1HM-105Z E CAPACITOR 1.0MF 20% 50V
C 52QEKC1HM-105Z E CAPACITOR 1.0MF 20% 50V
C 60QEKC1AM-107Z E CAPACITOR 100MF 20% 10V
C 61 NCS21HJ-120X C CAPACITOR
C 62 NCS21HJ-120X C CAPACITOR
C 63 NCB21EK-473X C CAPACITOR
C 65 NCB21HK-102X C CAPACITOR
C 66 NCS21HJ-151X C CAPACITOR C 68 NCS21HJ-101X C CAPACITOR
C 69QEKC1HM-225Z E CAPACITOR 2.2MF 20% 50V
C 70 NCB21HK-392X C CAPACITOR
C 71QEKC1HM-335Z E CAPACITOR 3.3MF 20% 50V
C 72 NCB21HK-102X C CAPACITOR
CF 1QAX0419-001Z C FILTER FM IF
CF 2QAX0419-001Z C FILTER FM IF
CF 3QAX0418-001Z C FILTER
CF 4QAX0409-001 CERA LOCK
CN 1QGF1205F1-10 CONNECTOR
D 1 1SS254-T2 SI DIODE D 2 1SS254-T2 SI DIODE
D 3 1SS254-T2 SI DIODE
D 4 1SS254-T2 SI DIODE
IC 1 TA2057N IC
IC 2 LC72136N IC
J 1QNB0014-001 ANT TERMINAL AM/FM ANT
L 1
L 4
R 1 NRSA02J-102X MG RESISTOR
R 2 NRSA02J-820X MG RESISTOR
R 3 NRSA02J-0R0X MG RESISTOR
R 12 NRSA02J-102X MG RESISTOR
R 13 NRSA02J-104X MG RESISTOR
R 20 NRSA02J-331X MG RESISTOR
R0796-001 COIL BLOCK MW/LW RF/OSC
L231K-221Y INDUCTOR
1 2SC2668/O/-T TRANSISTOR
6 DTA114YKA-X TRANSISTOR
7 2SA1037K/R/-X TRANSISTOR 8 2SA1037K/R/-X TRANSISTOR
UX-G6/FS-G6
Item Parts number Parts name AreaRemarks
R 21 NRSA02J-224X MG RESISTOR
R 22 NRSA02J-331X MG RESISTOR R 23 NRSA02J-270X MG RESISTOR
R 24 NRSA02J-271X MG RESISTOR
R 25 NRSA02J-473X MG RESISTOR
R 27 NRSA02J-223X MG RESISTOR
R 29 NRSA02J-473X MG RESISTOR
R 30 NRSA02J-103X MG RESISTOR
R 31 NRSA02J-103X MG RESISTOR
R 32 NRSA02J-473X MG RESISTOR
R 34 NRSA02J-333X MG RESISTOR
R 35 NRSA02J-333X MG RESISTOR
R 36 NRSA02J-103X MG RESISTOR R 37 NRSA02J-472X MG RESISTOR
R 38 NRSA02J-392X MG RESISTOR
R 39 NRSA02J-392X MG RESISTOR
R 42 NRSA02J-102X MG RESISTOR
R 43 NRSA02J-102X MG RESISTOR
R 44 NRSA02J-102X MG RESISTOR
R 45 NRSA02J-102X MG RESISTOR
R 46 NRSA02J-473X MG RESISTOR
R 48 NRSA02J-102X MG RESISTOR
R 52 NRSA02J-472X MG RESISTOR R 54 NRSA02J-472X MG RESISTOR
R 55 NRSA02J-182X MG RESISTOR
R 56 NRSA02J-332X MG RESISTOR
R 57 NRSA02J-102X MG RESISTOR
R 66 NRSA02J-222X MG RESISTOR
R 68 NRSA02J-223X MG RESISTOR
R 69 NRSA02J-103X MG RESISTOR
T 1
TU 1QAU0097-001 FRONT END FM TU
X 1QAX0402-001 CRYSTAL
R0793-001 IFT
3-19
UX-G6/FS-G6
Exploded view of general assembly and parts list
TD-UXG6
5
4
16
15
24
17
Block: No. M 5 M M
25
25
22
30
34
29
30
27
25
A
17
14
24
17
31
26
a
Dolby board
28
C
3
b
33
B
3
4
36
1
6
12
11
12
11
2
8
7
1
5
12
10
35
32
17
19
10
c
9
10
2
A
18
10
13
B
18
Loading mechanism board
c
b
a
20
21
20
21
18
Main board
18
C
3-20
ABCD
UX-G6/FS-G6
)
)
Parts list (TD-UXG6 General assembly)
Item
1 LV10277-001A FRONT PANEL 1 2 LV31438-002A BUTTON 1 PLATING 3 LV31440-003A BUTTON 1 PLATING 4 LV41325-001A INDICATOR 1 5 LV31458-001A FRONT PLATE 1 6 E406971-222 JVC MARK 1 7 LV41317-002A LENS(A 8 LV41318-002A LENS(B
9 LV41750-001A LABEL 1 10 QYSBSF2608Z T.SCREW 7 FOR SW PWB 11 E75896-002 FELT SPACER 2 FOR FOOT 12 QYSBST3006Z T.SCREW 3 FOR F.PANE+B.CHASSIS 13 LV10274-001A BOTTOM CHASSIS 1 14 --------------- CASSETTE MECHA 1 15 LV20522-001A FITTING 1 16 LV31459-002A FITTING PLATE 1 17 QYSBST3006Z T.SCREW 4 FOR CASS.MECHA 18 QYSBST3006Z T.SCREW 4 CHASSIS.B+PWB 19 LV30064-058A SPACER 1 20 E47227-029 FOOT 2 21 QYSBST3006Z T.SCREW 2 FOR FOOT 22 LV10273-002A/S/ METAL COVER 1 24 QYSDSG3008N T.SCREW 2 M.COVER+B.CHASSIS 25 QYSDSG3008N T.SCREW 4 M.COVER+R.PANEL 26 LV20527-008A REAR PANEL 1 UP
27 QYSDSG3008N T.SCREW 1 28 QQR1086-001 NOISE FILTER 1 29 E409257-001 GND TERMINAL 1 FOR EARTH 30 QYSDSG3008N T.SCREW 2 FOR PWB BKT 31 WJN0028-001A E-SH C WIRE C-C 1 32 QUQB12-1334AJ FFC WIRE 1 33 QUQB12-1536AJ FFC WIRE 1 34 WJS0016-001A E-FL/RB WIRE 1 13 PIN SYSTEM WIRE 35 LV41786-001A SPACER 1 36 LV41773-001A SHEET 1
Parts number Parts name
LV20527-007A REAR PANEL 1 U,UB
Q'ty
1 1
Block No.M5MM
Description
Area
3-21
UX-G6/FS-G6
Cassette mechanism assembly and parts list
Block: No. M 6 M M
5
109
95
104
75
2/2
90
133
101
139
113
93
139
126
117
141
131
141
140
108
96
17
4
110
112
126
126
116
3
2
128
120
127
122
125
134
111
118
141
121
34
115
37
90
38
90
33
32
129
138
107
79
39
40
41
42
818390
99
128
128
137
141
135
136
92
136
114
126
30
36
123
43
44
22
90
45
24
23
27
58
90
100
28
25
57
26
25
242223
80
82
90
29
105
124
52
31
139
91
91
21
91
1
4
97
86
63
119
139
139
84
65
84
139
5
68
85
94
3
106
69
72
1/2
66
75
73
98
67
20
88
64
19
91
71
91
1
3-22
LE30642-002A
ABCD
Grease point
UX-G6/FS-G6
1. CHASSIS
3. CAM GEAR
EM-30L
The wall side is painted.
EM-30L
EM-30L
EM-30L
The upper surface is painted.
EM-30L
EM-30L
The wall side is painted.
94. MECHA BASE(H)ASSY
CFD-005H
A
A
28. HEAD CHASSIS
EM-30L
Grease is not available
EM-30L
Right and left
EM-30L
EM-30L
The seat side is painted.
B
EM-30L
EM-30L
B
A - A
D
EM-30L
The wall side is painted.
(C,D and E are common.)
96. CLUTCH ARM ASSY
EM-30L
EM-30L
The wall side is painted.
EM-30L
C
The wall side is painted.
44. ROTATION HEAD(R/P)
EM-30L
45. HEAD SCREW
PSL-12
E
97. FLYWHEEL(RH)ASSY
PSL-12
PSL-12
98. FLYWHEEL(LH)ASSY
40. HEAD PLATE
42. ROTATOR
PSL-12
PSL-12
3-23
UX-G6/FS-G6
107. GUIDE BASE(R)
F
108. GUIDE BASE(L)
I
J
EM-30L
G
G
H
H
EM-30L
G-G ( S=2/1 )
F (2/1)
H-H ( S=2/1 )
111. SLIDER
K
CFD-005H
I ( S=2/1 )
EM-30L
J (2/1)
K
CFD-005H
109. TRAY(A)
CFD-005H
CFD-005H
(62)
LL
L-L
CFD-005H
M-M
K-K ( S=2/1 )
118. CLAMPER ASSY
CFD-005H
EM-30L
CFD-005H
View of arrow N (S=2/1)
N
120. CLAMPER ARM
M
M
CFD-005H
(62)
EM-30L
EM-30L
3-24
UX-G6/FS-G6
)
)
)
)
)
)
)
)
)
)
)
)
Parts list (Cassette mechanism)
Item
1 EGS-E5A1001 CHASSIS 1
3 EGS-E5A3002 CAM GEAR 1
4 EGS-E5B3004 TRIGGER ARM 1
5 EGS-E5D6006 SPRING 1 TRIGGER ARM 17 EGS-E5D6011 SPRING 1 CLUTCH ARM 19 EGS-E5D3024 IDLER GEAR 1 REW 20 EGS-E5D8002 CAM SCREW 1 21 EGS-E5D3030 IDLER GEAR 1 PLAY 22 EGS-E5D3062 REEL BUSH(D 23 EGS-FC3037 REEL CAP(A 24 EGS-MOD6015 B.T SPRING 2 25 EGS-E5D3031 REEL GEAR 2 26 EGS-E5C5001 HOUSING ASSY(L 27 EGS-E5C5002 HOUSING ASSY(R 28 EGS-E5B1002 HEAD CHASSIS 1 29 EGS-E5C3006 HEAD PLATE 1 30 EGS-E5D6003 HEAD SPRING 1 31 EGS-E5D6002 HEAD SPRING 1 32 EGS-E5D6018 SPRING(B 33 EGS-E5D3020 RETURN GEAR 1 34 EGS-E5D9009 HEAD WIRE(R/P 36 EGS-E5B3003 HEAD BASE 1 37 EGS-E5D1004 AZIMUTH PLATE 1 38 EGS-MOD8005 AZIMUTH SCREW 2 39 EGS-E5D6005 EARTH SPRING 1 40 EGS-E5D1005 HEAD PLATE 1 41 EGS-E5D2004 ROTATOR COLLAR 1 42 EGS-E5C3061 ROTATOR 1 43 EGS-PD8011 HEAD WIRE CLAMP 1 44 EGS-92432230 ROTATION HEAD 1 R/P KC-9242 45 EGS-E5D8003 HEAD SCREW 2 52 EGS-E5D3023 CASSETTE GUIDE 1 57 EGS-E5C3007 BRAKE ARM 1 58 EGS-E5D6001 SPRING 1 BRAKE ARM 63 EGS-E5D4007 DRIVE BELT(H 64 EGS-E5D4005 CLUTCH BELT(W 65 EGS-FDS1037 PACK SPRING(N 66 EGS-MOD9038 SOLENOID ASSY(H 1 67 EGS-E5D3029 PULLEY GEAR 1 68 EGS-MOC9036 REC SWITCH(B 69 EGS-E5D9007 IC(PH.INTER. 71 EGS-MOC9004 PLAY SWITCH 1 72 RD14BB2C222J RESISTOR 1 2.2K 73 EGS-99415181 CONNECTOR 1 IMSA-9604S-15F 75 EGS-E5C9019 MECHA BOARD(H 79 EGS-8341116108 POLY WASHER 1 4X7X0.4CUT 80 EGS-8340419002 NYLON WASHER 1 1.9X5X0.5 81 EGS-8340421023 NYLON WASHER 1 2.19X5.5X0.5 82 EGS-8341116591 POLY WASHER 1 1.57X5X0.5CUT 83 EGS-8341118065 POLY WASHER 1 1.8X6X0.5CUT 84 EGS-8340504111 TEFRON WASHER 2 4.1X5.5X0.25
Parts number Parts name
Q'ty
2 2
1 1
1 RETURN GEAR
1
1 1 1
5 1
1
Block No.M6MM
Description
Area
3-25
UX-G6/FS-G6
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Parts list (Cassette mechanism)
Item
85 EGS-8342121030 POLY WASHER 1 2.1X5X0.25 86 EGS-8342123076 POLY WASHER 1 2.3X4X0.25 88 EGS-8341115998 POLY WASHER 1 1.57X4X0.5 CUT 90 EGS-8113112005 TAPPING SCREW 7 M2X5 91 EGS-8114512006 TAPPING SCREW 6 M2X6 92 EGS-8115512604 SCREW 2 M2.6X4 93 EGS-96901033 FILAMENT TAPE 1 94 EGS-E5D3055 MECHA BASE(H)AS 1 95 EGS-E5D9025 MOTOR ASSY(H 96 EGS-E5C3032 CLUCH ASSY 1 97 EGS-E5D5007 FLYWHEEL ASSY 1 RH-A 98 EGS-E5D5009 FLYWHEEL ASSY 1 LH-A
99 EGS-E5D3035 PINCH ROLLER(R 100 EGS-E5D3034 PINCH ROLLER(L 101 EGS-E5D9022 MOTOR WIRE(H 104 EGS-99054172 CONNECTOR 1 S6B-PH 105 EGS-8113112004 SCREW 1 M2X4 106 EGS-8341140008 POLY WASHER 1 4X1.57X0.13CUT 107 EGS-E5A3041 GUIDE BASE(R 108 EGS-E5A3042 GUIDE BASE(L 109 EGS-E5A3043 TRAY(A 110 EGS-E5B3044 TRAY(B 111 EGS-E5B3045 SLIDER 1 112 EGS-E5C3048 LINK(A 113 EGS-E5C3047 LINK(B 114 EGS-E5D3050 GEAR(A 115 EGS-E5D3051 PULLY GEAR 1 116 EGS-E5D3052 STOPPER 1 117 EGS-E5C1009 MOTOR HOLDER 1 118 EGS-E5C1014 CLAMPER ASSY 1 119 EGS-E5D1012 EARTH PLATE 1 120 EGS-E5D1010 CLAMPER ARM 1 121 EGS-E5D6019 STOPPER SPRING 1 122 EGS-E5D6020 SPRING 1 CLAMPER ARM 123 EGS-E5D6021 P.RETURN SPRING 1 R 124 EGS-E5D6022 P.RETURN SPRING 1 L 125 EGS-C3D8010 SCREW(F 126 EGS-E1D8012 SCREW(A2 127 EGS-E5D4008 BELT(LD 128 EGS-E5D8011 SCREW(H 129 EGS-E5D9020 PCB(LD 131 EGS-E5D1013 GUIDE BASE 1 133 EGS-E5D6023 LINK SPRING 1 134 EGS-E5D9023 WIRE 1 OPEN 135 EGS-E5D9024 WIRE 1 CLOSE 136 EGS-94081105 SWITCH 2 MPU10420MLB0 137 EGS-99054175 CONNECTOR 1 S5B-PH 138 EGS-E5D9026 MOTOR ASSY 1 LD 139 EGS-8114512606 SCREW 6 M2.6X6 140 EGS-8115712635 SCREW 2 M2.6X3.5 141 EGS-8114512008 SCREW 4 M2X8
Parts number Parts name
Q'ty
1
1 1 1
1 1 1
1
1 1 1
1 4 1
3 1
Block No.M6MM
Description
Area
3-26
Electrical parts list (Main board) Block No. 05
Item Parts number Parts name AreaRemarks
CN632QGB2510J1-10 CONNECTOR TO DOLBY PWB
CN633 EMV7141-013M SOCKET ASSY TO TX CN634QGB2510J1-15 CONNECTOR TO CAPS MOTOR
CN635QGA2001C1-07 7P PLUG ASSY FOR HEAD WIRE
CN636QGB2510J1-06 CONNECTOR TO DOLBY
CN637QGF1205C1-13 CONNECTOR TO DOLBY
CN641QGA2501F1-03 CONNECTOR DOLBY TEST POIN
CN642QGB2510K2-10 CONNECTOR TO MAIN PWB
CN644QGB2510K2-15 CONNECTOR TO UCOM PWB
CN646QGB2510K2-06 CONNECTOR TO MAIN PWB
CN647QGF1205C1-15 CONNECTOR TO MECHA MOTOR
CN667QGF1205F1-13 CONNECTOR TO UCOM PWB
C6101QETC1HM-225Z E CAPACITOR 2.2MF 20% 50V C6102QCB31HK-122Z C CAPACITOR 1200PF 10% 50V
C6103QCF11HZ-473 C CAPACITOR .047MF +80:-20%
C6104QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C6105QFLC1HJ-153Z M CAPACITOR .015MF 5% 50V
C6106QFLC1HJ-223Z M CAPACITOR .022MF 5% 50V
C6107QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6108QETC1HM-225Z E CAPACITOR 2.2MF 20% 50V
C6109QCBB1HK-271Y C CAPACITOR 270PF 10% 50V
C6110QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C6111QCBB1HK-561Y C CAPACITOR 560PF 10% 50V C6112QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C6113QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6121QTE1H28-225Z E CAPACITOR
C6122QCBB1HK-820Y C CAPACITOR 82PF 10% 50V
C6123QFLC1HJ-822Z M CAPACITOR 8200PF 5% 50V
C6124QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C6131QFLC1HJ-821Z M.CAPACITOR 820PF 5% 50V
C6132QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
C6171QETC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C6172QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C6173QETC1HM-474Z E CAPACITOR .47MF 20% 50V C6174QFLC1HJ-154Z M.CAPACITOR .15MF 5% 50V
C6175QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6176QETC1HM-105Z E CAPACITOR 1.0MF 20% 50V
C6182QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C6201QETC1HM-225Z E CAPACITOR 2.2MF 20% 50V
C6202QCB31HK-122Z C CAPACITOR 1200PF 10% 50V
C6203QCF11HZ-473 C CAPACITOR .047MF +80:-20%
C6204QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C6205QFLC1HJ-153Z M CAPACITOR .015MF 5% 50V
C6206QFLC1HJ-223Z M CAPACITOR .022MF 5% 50V
C6207QETC1EM-106Z E CAPACITOR 10MF 20% 25V C6208QETC1HM-225Z E CAPACITOR 2.2MF 20% 50V
C6209QCBB1HK-271Y C CAPACITOR 270PF 10% 50V
C6210QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C6211QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C6212QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C6213QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6221QTE1H28-225Z E CAPACITOR
C6222QCBB1HK-820Y C CAPACITOR 82PF 10% 50V
C6223QFLC1HJ-822Z M CAPACITOR 8200PF 5% 50V
C6224QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C6231QFLC1HJ-821Z M.CAPACITOR 820PF 5% 50V C6232QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
C6271QETC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C6272QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C6273QETC1HM-474Z E CAPACITOR .47MF 20% 50V
C6274QFLC1HJ-154Z M.CAPACITOR .15MF 5% 50V
C6275QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6276QETC1HM-105Z E CAPACITOR 1.0MF 20% 50V
UX-G6/FS-G6
Item Parts number Parts name AreaRemarks
C6282QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C6301QETC1CM-476Z E CAPACITOR 47MF 20% 16V C6302QETC1CM-476Z E CAPACITOR 47MF 20% 16V
C6303QDGB1HK-102Y C CAPACITOR
C6304QFN31HJ-473Z M CAPACITOR .047MF 5% 50V
C6321QETC1EM-107Z-JB E CAPACITOR 100MF 20% 25V
C6322QETC1HM-105Z E CAPACITOR 1.0MF 20% 50V
C6331QETC1CM-107Z E CAPACITOR 100MF 20% 16V
C6341QDVB1EZ-223Y C CAPACITOR
C6342QDVB1EZ-223Y C CAPACITOR
C6343QETC1HM-104Z E CAPACITOR .10MF 20% 50V
C6344QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6351QFP32AJ-682Z PP CAPACITOR 6800PF 5% 100V C6353QFLC1HJ-103Z M CAPACITOR .010MF 5% 50V
C6354QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6355QFLC1HJ-222Z M CAPACITOR 2200PF 5% 50V
C6356QFLC1HJ-682Z M CAPACITOR 6800PF 5% 50V
C6357QFLC1HJ-222Z M CAPACITOR 2200PF 5% 50V
C6358QETC1HM-105Z E CAPACITOR 1.0MF 20% 50V
C6359QETC1EM-106Z E CAPACITOR 10MF 20% 25V
C6360QETC1HM-105Z E CAPACITOR 1.0MF 20% 50V
C6371QCF31HZ-223Z C CAPACITOR .022MF +80:-20%
C6372QETC1CM-476Z E CAPACITOR 47MF 20% 16V C6373QDGB1HK-102Y C CAPACITOR
C6374QETC1CM-226Z E CAPACITOR 22MF 20% 16V
C6375QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C6377QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C6378QFN31HJ-224Z M.CAPACITOR .22MF 5% 50V
C6379QFN31HJ-224Z M.CAPACITOR .22MF 5% 50V
C6380QETC1CM-227Z E CAPACITOR 220MF 20% 16V
C6601QDGB1HK-102Y C CAPACITOR
C6602QDGB1HK-102Y C CAPACITOR
C6703QCZ0202-155Z ML C CAPACITOR 1.5MF
C6704QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V C6705QETC1AM-107Z E CAPACITOR 100MF 20% 10V
C6706QDVB1EZ-223Y C CAPACITOR
C6707QDGB1HK-102Y C CAPACITOR
C6708QDGB1HK-102Y C CAPACITOR
C6709QDGB1HK-102Y C CAPACITOR
C6710QDGB1HK-102Y C CAPACITOR
C6711QDGB1HK-102Y C CAPACITOR
C6712QDGB1HK-102Y C CAPACITOR
C6733QETC1AM-477Z E CAPACITOR 470MF 20% 10V
C6734QFLC1HJ-103Z M CAPACITOR .010MF 5% 50V
C6735QDVB1EZ-223Y C CAPACITOR C6736QETC1CM-107Z-JB E CAPACITOR 100MF 20% 16V
D6351 1SS133-T2 SI DIODE
D6371 1SS133-T2 SI DIODE
D6601 SLR-342DC-T LED DOLBY ORENG
D6602 SLR-342DC-T LED REVERSE ORENG
D6603 SLR-342DC-T LED FWD ORENG
D6604 SLR-342DC-T LED REV ORENG
D6605 SLR-342VC-T LED REC RED
D6606 SELU1E10CXM LED BLUE
D6607 MTZJ10C-T2 Z.DIODE
D6608 1SS133-T2 SI DIODE D6609 1SS133-T2 SI DIODE
D6610 1SS133-T2 SI DIODE
D6702 1SS133-T2 SI DIODE
D6703 1SS133-T2 SI DIODE
D6704 1SS133-T2 SI DIODE
D6705 1SS133-T2 SI DIODE
D6711 1SS133-T2 SI DIODE
3-27
UX-G6/FS-G6
Q
Q
)
Q
Q
Q
Q
Q
)
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (Main board) Block No. 05
Item Parts number Parts name AreaRemarks
D6712 1SS133-T2 SI DIODE
D6731 MTZJ6.2B-T2 ZENER DIODE D6732 11E2-T5 DIODE
EP601QNZ0136-001Z EARTH PLATE
EP602 E409182-001SM GRAND TERMINAL
EP603 E409182-001SM GRAND TERMINAL
EP604QNZ0136-001Z EARTH PLATE
IC631 NJM4580L IC
IC632 UPC1228HA IC
IC633 UPC1330HA IC
IC634 BA8221AN IC
IC635 HA12136A IC
IC671 MN171601ADL IC IC673 LB1641 IC
IC675 MN1381/PQ/-T IC
L6101QQL30BJ-562Z INDUCTOR
L6102QQL30BJ-223Z INDUCTOR
L6201QQL30BJ-562Z INDUCTOR
L6202QQL30BJ-223Z INDUCTOR
L6351QQR0588-001 OSC COIL
L6711QQL231K-1R0Y INDUCTOR
L6712QQL01BK-100Z INDUCTOR
6101 KRC114M-T TRANSISTOR 6121 2SK301/PQ/-T TRANSISTOR(FET
6171 2SC3576-JVC-T TRANSISTOR
6172 2SC3576-JVC-T TRANSISTOR
6173 2SC3576-JVC-T TRANSISTOR
6201 KRC114M-T TRANSISTOR
6221 2SK301/PQ/-T TRANSISTOR(FET
6271 2SC3576-JVC-T TRANSISTOR
6272 2SC3576-JVC-T TRANSISTOR
6273 2SC3576-JVC-T TRANSISTOR
6341 2SC2785/FE/-T TRANSISTOR
6342 2SC2785/FE/-T TRANSISTOR 6351 2SC3576-JVC-T TRANSISTOR
6352 2SC3576-JVC-T TRANSISTOR
6353 2SC1740S/RS/-T TRANSISTOR
6354 2SC1740S/RS/-T TRANSISTOR
6371 KRA107M-T D.TRANSISTOR
6731 2SC2001/LK/-T TRANSISTOR
6732 2SC2785/FE/-T TRANSISTOR
6733 2SD400MP/EF/-T TRANSISTOR
6734 KRA104M-T D.TRANSISTOR PHOTO DTC
6735 2SC2785/FE/-T TRANSISTOR PHOTO DTC
R6101QRE141J-153Y C RESISTOR 15K 5% 1/4W R6102QRE141J-473Y C RESISTOR 47K 5% 1/4W
R6103QRE141J-333Y C RESISTOR 33K 5% 1/4W
R6104QRE141J-153Y C RESISTOR 15K 5% 1/4W
R6105QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R6106QRE141J-221Y C RESISTOR 220 5% 1/4W
R6107QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R6108QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R6109QRE141J-683Y C RESISTOR 68K 5% 1/4W
R6110QRE141J-153Y C RESISTOR 15K 5% 1/4W
R6121QRE141J-622Y C RESISTOR 6.2K 5% 1/4W
R6122QRE141J-912Y C RESISTOR 9.1K 5% 1/4W R6123QRE141J-334Y C RESISTOR 330K 5% 1/4W
R6124QRE141J-271Y C RESISTOR 270 5% 1/4W
R6125QRE141J-105Y C RESISTOR 1.0M 5% 1/4W
R6126QRE141J-223Y C RESISTOR 22K 5% 1/4W
R6127QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6131QRE141J-100Y C RESISTOR 10 5% 1/4W
R6171QRE141J-273Y C RESISTOR 27K 5% 1/4W
Item Parts number Parts name AreaRemarks
R6172QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R6173QRE141J-153Y C RESISTOR 15K 5% 1/4W R6174QRE141J-103Y C RESISTOR 10K 5% 1/4W
R6175QRE141J-221Y C RESISTOR 220 5% 1/4W
R6176QRE141J-223Y C RESISTOR 22K 5% 1/4W
R6177QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6178QRE141J-123Y C RESISTOR 12K 5% 1/4W
R6179QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R6201QRE141J-153Y C RESISTOR 15K 5% 1/4W
R6202QRE141J-473Y C RESISTOR 47K 5% 1/4W
R6203QRE141J-333Y C RESISTOR 33K 5% 1/4W
R6204QRE141J-153Y C RESISTOR 15K 5% 1/4W
R6205QRE141J-182Y C RESISTOR 1.8K 5% 1/4W R6206QRE141J-221Y C RESISTOR 220 5% 1/4W
R6207QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R6208QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R6209QRE141J-683Y C RESISTOR 68K 5% 1/4W
R6210QRE141J-153Y C RESISTOR 15K 5% 1/4W
R6221QRE141J-622Y C RESISTOR 6.2K 5% 1/4W
R6222QRE141J-912Y C RESISTOR 9.1K 5% 1/4W
R6223QRE141J-334Y C RESISTOR 330K 5% 1/4W
R6224QRE141J-271Y C RESISTOR 270 5% 1/4W
R6225QRE141J-105Y C RESISTOR 1.0M 5% 1/4W R6226QRE141J-223Y C RESISTOR 22K 5% 1/4W
R6227QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6231QRE141J-100Y C RESISTOR 10 5% 1/4W
R6271QRE141J-273Y C RESISTOR 27K 5% 1/4W
R6272QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R6273QRE141J-153Y C RESISTOR 15K 5% 1/4W
R6274QRE141J-103Y C RESISTOR 10K 5% 1/4W
R6275QRE141J-221Y C RESISTOR 220 5% 1/4W
R6276QRE141J-223Y C RESISTOR PB OUT 300MV
R6277QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6278QRE141J-123Y C RESISTOR 12K 5% 1/4W R6279QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R6301QRE141J-181Y C RESISTOR 180 5% 1/4W
R6302QRE141J-181Y C RESISTOR 180 5% 1/4W
R6321QRE141J-471Y C RESISTOR 470 5% 1/4W
R6322QRE141J-103Y C RESISTOR 10K 5% 1/4W
R6331QRE141J-101Y C RESISTOR 100 5% 1/4W
R6341QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R6342QRE141J-223Y C RESISTOR 22K 5% 1/4W
R6343QRE141J-105Y C RESISTOR 1.0M 5% 1/4W
R6344QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6345QRE141J-105Y C RESISTOR 1.0M 5% 1/4W R6346QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6347QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R6351QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R6352QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R6353QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6354QRE141J-681Y C RESISTOR 680 5% 1/4W
R6355QRE141J-561Y C RESISTOR 560 5% 1/4W
R6356QRE141J-511Y C RESISTOR 510 5% 1/4W
R6357QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R6358QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6359QRJ146J-6R8X UNF C.RESISTOR 6.8 5% 1/4W R6360QRE141J-563Y C RESISTOR 56K 5% 1/4W
R6361QRE141J-563Y C RESISTOR 56K 5% 1/4W
R6363QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R6367QRE141J-474Y C RESISTOR 470K 5% 1/4W
R6371QRE141J-224Y C RESISTOR 220K 5% 1/4W
R6372QRE141J-103Y C RESISTOR 10K 5% 1/4W
R6373QRE141J-183Y C RESISTOR 18K 5% 1/4W
3-28
Electrical parts list (Main board) Block No. 05
Item Parts number Parts name AreaRemarks
R6374QRZ9005-220X F.RESISTOR 22 1/0W
R6376QRE141J-103Y C RESISTOR 10K 5% 1/4W R6601QRE141J-221Y C RESISTOR 220 5% 1/4W
R6602QRE141J-221Y C RESISTOR 220 5% 1/4W
R6603QRE141J-331Y C RESISTOR 330 5% 1/4W
R6604QRE141J-331Y C RESISTOR 330 5% 1/4W
R6605QRE141J-161Y C RESISTOR 160 5% 1/4W
R6606QRE141J-151Y C RESISTOR 150 5% 1/4W
R6607QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6608QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6609QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6610QRE141J-111Y C RESISTOR 110 5% 1/4W
R6611QRE141J-111Y C RESISTOR 110 5% 1/4W R6701QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6702QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6703QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6704QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6705QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6706QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6707QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6708QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6709QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6710QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R6711QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6712QRE141J-101Y C RESISTOR 100 5% 1/4W
R6714QRE141J-821Y C RESISTOR 820 5% 1/4W
R6715QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6716QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R6730QRE141J-105Y C RESISTOR 1.0M 5% 1/4W
R6731QRE141J-104Y C RESISTOR 100K 5% 1/4W
R6732QRE141J-473Y C RESISTOR 47K 5% 1/4W
R6733QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R6734QRE141J-334Y C RESISTOR 330K 5% 1/4W
R6735QRE141J-104Y C RESISTOR 100K 5% 1/4W R6736QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R6737QRE141J-821Y C RESISTOR 820 5% 1/4W
R6738QRE141J-473Y C RESISTOR 47K 5% 1/4W
R6739QRE141J-103Y C RESISTOR 10K 5% 1/4W
R6740QRE141J-101Y C RESISTOR 100 5% 1/4W
R6741QRJ146J-1R0X UNF C.RESISTOR 1.0 5% 1/4W
R6742QRL01DJ-220X OMF RESISTOR 22 5% 1/1W
R6743QRE141J-561Y C RESISTOR 560 5% 1/4W
R6744QRL01DJ-220X OMF RESISTOR 22 5% 1/1W
R6745QRE141J-471Y C RESISTOR 470 5% 1/4W
SS601 LV41684-001A SPRING SS602 LV41684-001A SPRING
S6601QSW0674-001Z TACT SWITCH
S6602QSW0674-001Z TACT SWITCH
S6603QSW0674-001Z TACT SWITCH
S6604QSW0674-001Z TACT SWITCH
S6605QSW0674-001Z TACT SWITCH
S6606QSW0674-001Z TACT SWITCH
TP631QNZ0104-001 POST PIN
TP632QNZ0104-001 POST PIN
VR611QVP0004-501Z SEMI.V.RESISTOR H TYPE
VR612QVP0004-104Z SEMI.V.RESISTOR H TYPE VR613QVP0004-104Z SEMI.V.RESISTOR H TYPE
VR614QVP0008-503Z SEMI.V.RESISTOR V TYPE
VR621QVP0004-501Z SEMI.V.RESISTOR H TYPE
VR622QVP0004-104Z SEMI.V.RESISTOR H TYPE
VR623QVP0004-104Z SEMI.V.RESISTOR H TYPE
VR624QVP0008-503Z SEMI.V.RESISTOR V TYPE
VR671QVP0008-102Z SEMI.V.RESISTOR V TYPE
UX-G6/FS-G6
Item Parts number Parts name AreaRemarks
W 648QJK016-051600 SIN CR C-B WIRE
X6701QAX0247-001Z RESONATOR
3-29
UX-G6/FS-G6
Packing materials and accessories parts list
P8
P9
A1 A11
P12
P4
P14
Block: No. M 7 M M Block: No. M 8 M M
P5
P7
A14
P16
P15
P16
A13
P13
P6
P3
P11
A12
P2
P10
3-30
P1
UX-G6/FS-G6
)
)
)
)
)
)
)
)
)
)
Packing parts list
Item
P 1 LV31463-008A PACKING CASE 1 P 2 LV20535-001A PACKING PAD 1 FRONT(FOR AX P 3 LV20535-002A PACKING PAD 1 REAR (FOR AX P 4 LV20639-001A PACKING PAD 1 FRONT(FOR XT P 5 LV20639-002A PACKING PAD 1 REAR (FOR XT P 6 LV20535-001A PACKING PAD 1 FRONT(FOR TD P 7 LV20535-002A PACKING PAD 1 REAR (FOR TD P 8 LV31979-001A SPACER 1
P 9 QPC02503510P POLY BAG 1 P 10 LV30246-006A POLY BAG 1 RED(FOR AX P 11 QPA01001505 POLY BAG 1 UB P 12 LV30246-007A POLY BAG 1 ORANGE(FOR XT P 13 LV30246-008A POLY BAG 1 YELLOW(FOR TD P 14 8000041101 SPEAKER CUSHION 1 TOP P 15 8000041111 SPEAKER CUSHION 1 BOTTOM P 16 8500028981 POLY BAG 2 SPEAKER
Parts number Parts name
Q'ty
Block No.M7MM
Description
Area
Accessories list
Item
A 1 LVT0377-003A INST BOOK 1 KOR
A 2 EWPZ01-012 GND WIRE 1
A 3 VMP0133-001 SPK.CORD(2PCS
A 4 RM-SUXG6E REMOCON 1
A 5 --------------- BATTERY 1
A 6 EWP503-001C ANT.WIRE 1
A 7 QAL0014-001 AM LOOP ANT 1
A 8 QAM0060-001 SIEMENS PLUG 1 U
A 9 LV30258-066A UB SHEET 1 A 11 BT-56004-6 W.CARD 1 A 12 E43486-696A CATION SHEET 1 A 13 UXG6R-SPBOX SPEAKER BOXASSY 2 A 14 LV10294-001A SPEAKER NET 2
Parts number Parts name
LVT0377-001A INST BOOK 1 ENG,CHI,SPA
Q'ty
1
Block No.M8MM
Description
Area
UP U,UB
3-31
UX-G6/FS-G6
VICTOR COMPANY OF JAPAN, LIMITED
MOBILE ELECTRONICS DIVISION,10-1,1chome,Ohwatari-machi,Maebashi-city371-8543,Japan
(No.20808)
Printed in Japan 2000 02(M)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
