Jvc UX-G395, UX-G377, UX-G375 Service Manual

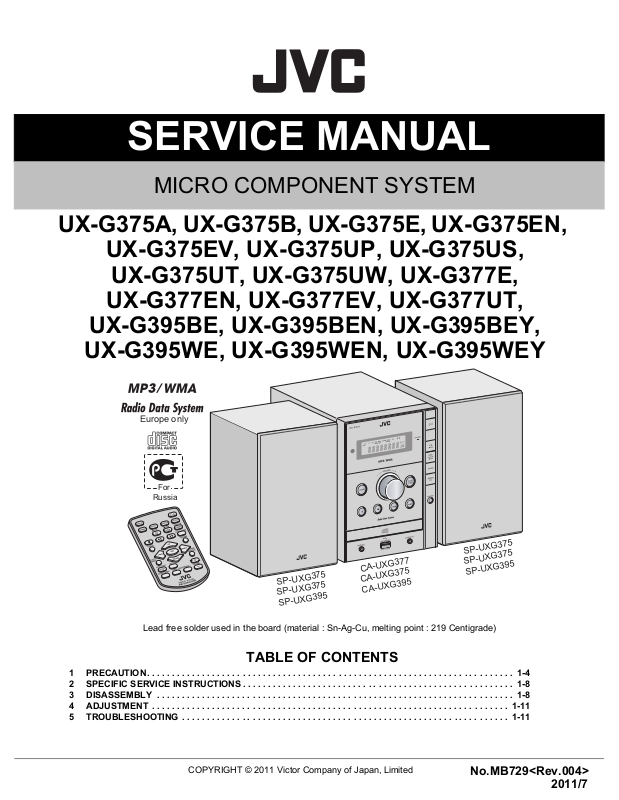

SERVICE MANUAL
MICRO COMPONENT SYSTEM
MB729<Rev.004>20117SERVICE MANUAL
UX-G375A, UX-G375B, UX-G375E, UX-G375EN,
UX-G375EV, UX-G375UP, UX-G375US,
UX-G375UT, UX-G375UW, UX-G377E,
UX-G377EN, UX-G377EV, UX-G377UT,
UX-G395BE, UX-G395BEN, UX-G395BEY,
UX-G395WE, UX-G395WEN, UX-G395WEY
Europe only
For
Russia
SP-UXG375
SP-UXG375
SP-UXG395
COPYRIGHT © 2011 Victor Company of Japan, Limited
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
SP-UXG375
SP-UXG375
SP-UXG395
CA-UXG377
CA-UXG375
CA-UXG395
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
COPYRIGHT © 2011 Victor Company of Japan, Limited
No.MB729<Rev.004>
2011/7
SPECIFICATION
For Europe
Amplifier section
OUTPUT POWER 60 W (30 W + 30 W) at 6 Ω (10% THD)
Speakers/Impedance 6 Ω - 16 Ω
Audio input AUDIO IN 500 mV/47 kΩ (at “LEVEL 1”)
250 mV/47 kΩ (at “LEVEL 2”)
125 mV/47 kΩ (at “LEVEL 3”)
Digital input USB MEMORY
Tuner section
FM tuning range 87.50 MHz - 108.00 MHz
CD player section
Dynamic range 88 dB
Signal-to-noise ratio 85 dB
Wow and flutter Immeasurable
USB section
USB specification Compatible with USB 2.0 Full Speed
Compatible device Mass storage class
Compatible file system FAT16, FAT32
Output power DC 5 V 500 mA
General
Power requirements AC 230 V , 50 Hz
Power consumption 30 W (power on)
1.00 W or less (standby)
Dimensions (W × H × D) 165 mm × 251 mm × 245 mm
Mass 1.9 kg
Speakers
Speaker units 10 cm cone × 1
Impedance 6 Ω
Dimensions (approx.) 140 mm × 251 mm × 141 mm (W/H/D)
Mass (approx.) 1.3 kg each
Designs & specifications are subject to change without notice.
1-2 (No.MB729<Rev.004>)
For Asia
Amplifier section
OUTPUT POWER 60 W (30 W + 30 W) at 6 Ω (10% THD)
Speakers/Impedance 6 Ω - 16 Ω
Audio input AUDIO IN 500 mV/47 kΩ (at “LEVEL 1”)
250 mV/47 kΩ (at “LEVEL 2”)
125 mV/47 kΩ (at “LEVEL 3”)
Digital input USB MEMORY
Tuner section
FM tuning range 87.50 MHz - 108.00 MHz
531 kHz - 1 710 kHz (in 9 kHz spacing)
530 kHz - 1 710 kHz (in 10 kHz spacing)
531 kHz - 1 602 kHz (in 9 kHz spacing) (only Saudi Arabia)
530 kHz - 1 600 kHz (in 10 kHz spacing) (only Saudi Arabia)
CD player section
Dynamic range 88 dB
Signal-to-noise ratio 85 dB
Wow and flutter Immeasurable
USB section
USB specification Compatible with USB 2.0 Full Speed
Compatible device Mass storage class
Compatible file system FAT16, FAT32
Output power DC 5 V 500 mA
General
Power requirements AC 110 V-127 V/AC 220 V-240 V adjustable with the voltage selector, 50 Hz/60 Hz
AC 240 V , 50 Hz (only Australia)
Power consumption 30 W (power on)
1.00 W or less (standby)
Dimensions (W × H × D) 165 mm × 251 mm × 245 mm
Mass 1.9 kg
Speakers
Speaker units 10 cm cone × 1
Impedance 6 Ω
Dimensions (approx.) 140 mm × 251 mm × 141 mm (W/H/D)
Mass (approx.) 1.3 kg each
Designs & specifications are subject to change without notice.
(No.MB729<Rev.004>)1-3
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
0.15 F AC TYPE
Place this
probe on
1500 10W
Good earth ground
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
each exposed
metal part.
1-4 (No.MB729<Rev.004>)
1.5 Safety Precautions (U.K only)
(1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For con-
tinued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.
(2) Any unauthorised design alterations or additions will void the manufacturer's guarantee; furthermore the manufacturer cannot
accept responsibility for personal injury or property damage resulting therefrom.
(3) Essential safety critical components are identified by ( ) on the Parts List and by shading on the schematics, and must never
be replaced by parts other than those listed in the manual. Please note however that many electrical and mechanical parts in
the product have special safety related characteristics. These characteristics are often not evident from visual inspection. Parts
other than specified by the manufacturer may not have the same safety characteristics as the recommended replacement parts
shown in the Parts List of the Service Manual and may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts,
high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is
required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to
normal, after re-assembling.
1.5.1 Warning
(1) Service should be performed by qualified personnel only.
(2) This equipment has been designed and manufactured to meet international safety standards.
(3) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(4) Repairs must be made in accordance with the relevant safety standards.
(5) It is essential that safety critical components are replaced by approved parts.
(6) If mains voltage selector is provided, check setting for local voltage.
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
(No.MB729<Rev.004>)1-5
1.6 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.6.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron palate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.7 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.8 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connector on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
solder short part
1-6 (No.MB729<Rev.004>)
1.9 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS and PRINT
WARNING LABEL and PRINT
(No.MB729<Rev.004>)1-7
SECTION 2
A
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
3.1 Main body (Used model: UX-G377E)
3.1.1 Removing the Top cover (See Fig.1, 2, 3, 4)
(1) Remove the four screws A attaching the Top cover. (See
Fig.1)
(2) Remove the four screws B attaching the Top cover. (See
Fig.2)
B
B
Fig.2
(3) Remove the two screws C and two screws D attaching both
side of the Top cover. (See Fig.3)
C
1-8 (No.MB729<Rev.004>)
Fig.1
D
Fig.3
(4) Disengage two hooks a engaged Top cover. (See Fig.4)
hook
a
Fig.4
3.1.2 Removing the MCU board (See Fig.5)
(1) Disconnect the connector wire from MCU board connected
to connector CN3
(2) Disconnect the card wire from Tuner pack connected to
connector CN201
(3) Remove the three screws E attaching the MCU board.
(4) Disconnect the card wire from Display board connected to
connector CN202
(5) Disconnect the connector wire from CD board connected to
connector CN208
(6) Disconnect the connector wire from USB board connected
to connector CN210 of the MCU board.
(7) Disconnect the connector wire from SMPS board connect-
ed to connector CN203
(8) Disconnect the card wire from CD board connected to con-
nector CN207 of the MCU board.
of the SMPS board.
of the MCU board.
of the MCU board.
of the MCU board.
of the MCU board.
CN3
3.1.3 Removing the SMPS board (See Fig.6)
(1) Disconnect the earth wire from Tuner pack connected to
post pin GND
(2) Remove the four screws F attaching the SMPS board.
(3) Disconnect the connector wire from Display board connect-
ed to connector CN5
(4) Disconnect the connector wire from USB board connected
to connector CN1
of the SMPS board.
of the SMPS board.
of the SMPS board.
GND
F
CN5
F
Fig.6
3.1.4 Removing the CD mechanism (See Fig.7, 8, 9, 10, 11)
(1) Remove the two screws G attaching the Back PCB brack-
et. (See Fig.7)
F
CN1
E
CN202 CN203
Fig.5
CN201
CN208
E
CN210
CN207
G
Fig.7
(2) Remove the four screws H attaching the CD mechanism.
(See Fig.8)
H
H
Fig.8
(No.MB729<Rev.004>)1-9
(3) Disconnect the connector wire from CD board connected to
connector of the Loader board. (See Fig.9)
(4) Disconnect the connector wire from CD board connected to
connector of Traverse mechanism. (See Fig.9)
connector of
loader board
(5) Solder the solder short part of the pickup. (See Fig.10)
connector of
traverse mechanism
Fig.9
solder short part
3.1.5 Removing the Front panel (See Fig.12, 13, 14)
(1) Remove the two screws J attaching the Front panel. (See
Fig.12)
J
Fig.12
(2) Disengage two hooks b engaged both side of the Front
panel. (See Fig.13)
hook b
Fig.10
(6) Disconnect the card wire from CD mechanism connected
to connector CN102
CN102
of the CD board. (See Fig.11)
Fig.11
Fig.13
(3) Disconnect the connector wire from USB board connected
to connector CN114
3.1.6 Removing the CD board (See Fig.15)
(1) Remove the four screws K attaching the CD board.
of the CD board. (See Fig.14)
CN114
Fig.14
1-10 (No.MB729<Rev.004>)
KK
Fig.15
3.1.7 Removing the Display board (See Fig.16)
(1) Remove the Volume knob.
(2) Remove the thirteen screws L attaching the Display board.
L
Fig.16
L
3.1.8 Removing the USB board (See Fig.17)
(1) Remove the six screws M attaching the USB board.
M
M
Fig.17
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
(No.MB729<Rev.004>)1-11
Victor Company of Japan, Limited
Home & Mobile Electronics Business Group, Personal AV Operation 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB729<Rev.004>)
Printed in Japan
VSE
PARTS LIST
UX-G377E, UX-G377EN, UX-G377EV, UX-G377UT,
UX-G375B, UX-G375E, UX-G375EN, UX-G375EV,
UX-G375A, UX-G375US, UX-G375UP, UX-G375UT,
UX-G375UW
MODEL MARK
AUX-G377E
DUX-G377UT EUX-G375B FUX-G375E
GUX-G375EN HUX-G375EV IUX-G375A
JUX-G375US
MUX-G375UW
* All printed circuit boards and its assemblies are not available as service parts.
MODEL MARK
BUX-G377EN
KUX-G375UP LUX-G375UT
MODEL MARK
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Electrical parts list (Block No.01~04)
Packing materials and accessories parts list (Block No.M3)
CUX-G377EV
3- 2
3- 6
3-14
MB729PAR<Rev.003>
3-1

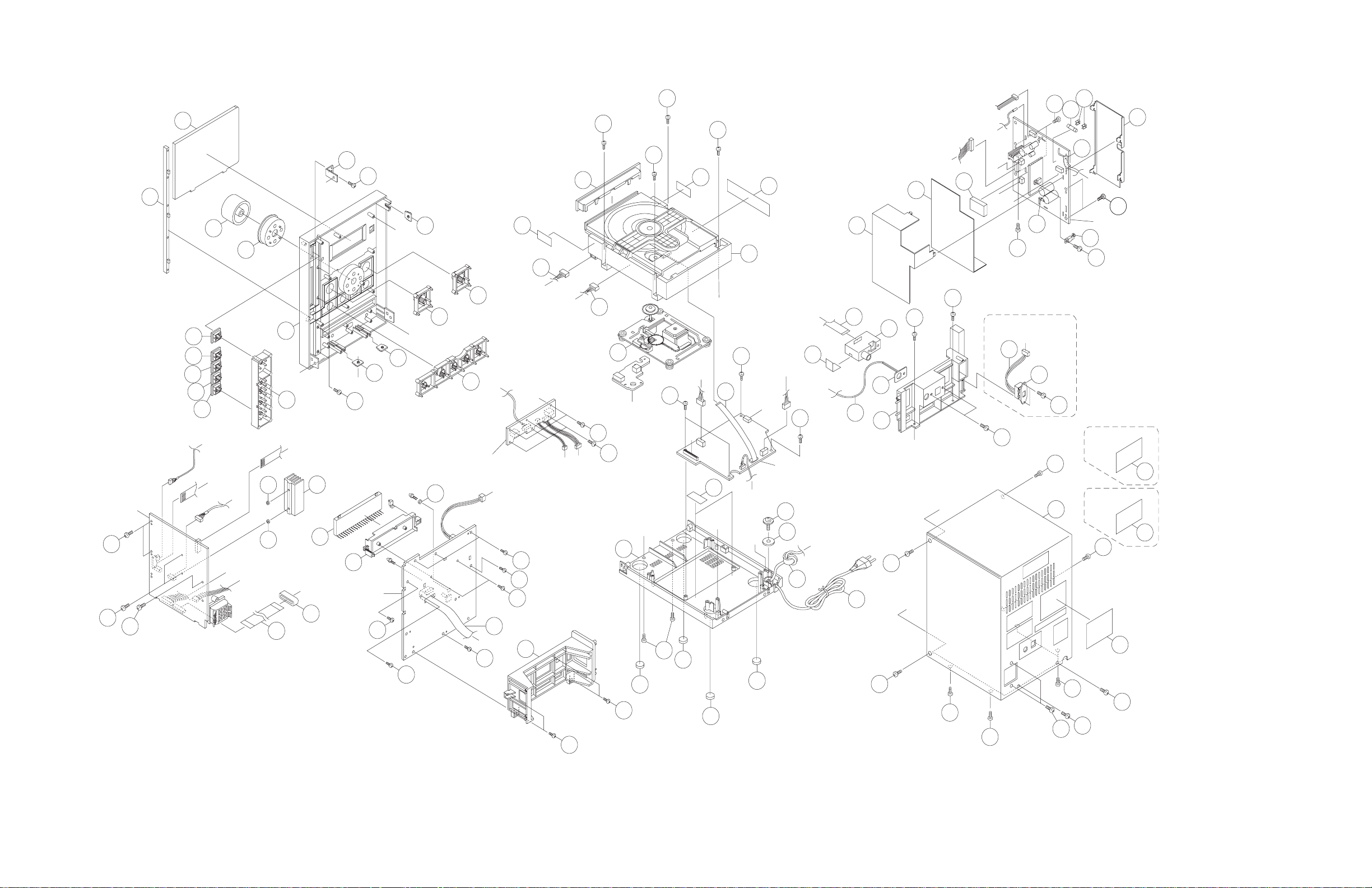

Exploded view of general assembly and parts list
7
Block No.
M MM1
MCU board
41
48
42
19
14
10
12
37
24
38
60
35
22
G
64
5
11
A
22
22
E
61
33
33
8
USB board
G
j
q
68
a
33
d
A
33
33
31
15
B
6
18
1
9
D
7
13
c
a
j
g
b
20
20
67
16
m
27
f
59
Display board
r
72
e
4
65
32
32
h
3
71
E
3
25
3-2
34
34
37
37
37
37
54
21
29
79
43
b
55
58
k
73
g
26
q
CN4
r
p
n
44
57
SMPS board
56
5
H
m
66
45
70
k
63
23
71
30
30
d
e
69
h
30
2
f
32
17
F
CD board
c
46
E
3
F
28
H
n
45
UT,US,UW
p
75
74
76
52
49
B
2
UT,UP
78
UT
77
47
51
62
D
34
25
50
25
25
25
53
47
47
39
47
39
47
40
The parts without symbol number are not service.
3-3
General Assembly
Block No. [M][1][M][M]
Symbol No. Part No. Part Name Description Local
1 CD5001091900100 FRONT CABINET 5001-091900100 A,B,C
1 CD5001091900300 FRONT CABINET 5001-091900300 D,L
1 CD5001092000100 FRONT CABINET 5001-092000100 E,F,G,H
1 CD5001092000200 FRONT CABINET 5001-092000200 I,J,K,M
2 CD5002081600300 REAR CABINET 5002-081600300 A,B,C
2 CD5002081600101 REAR CABINET 5002-081600101 D,L
2 CD5002081000300 REAR CABINET 5002-081000300 E,I,K
2 CD5002081000400 REAR CABINET 5002-081000400 F,G,H
2 CD5002081000101 REAR CABINET 5002-081000101 J,M
3 CD5002081000200 BOTTOM CABINET 5002-081000200
4 CD5201081600100 CD DOOR 5201-081600100 A,B,C,D,L
4 CD5201081000100 CD DOOR 5201-081000100 E,F,G,H,I,J,K,M
5 CD5401091900100 DEMO BUTTON 5401-091900100 A,B,C,D,L
5 CD5401092000100 DEMO BUTTON 5401-092000100 E,F,G,H,I,J,K,M
6 CD5307091900100 VOLUME KNOB 5307-091900100 A,B,C,D,L
6 CD5307092000100 VOLUME KNOB 5307-092000100 E,F,G,H,I,J,K,M
7 CD5403081600100 CONTROL BUTTON 5403-081600100 A,B,C,D,L
7 CD5403081000200 CONTROL BUTTON 5403-081000200 E,F,G,H,I,J,K,M
8 CD5408081600100 POWER BUTTON 5408-081600100 A,B,C,D,L
8 CD5408081000100 POWER BUTTON 5408-081000100 E,F,G,H,I,J,K,M
9 CD5413081600100 SOUND BUTTON 5413-081600100 A,B,C,D,L
9 CD5413081000100 SOUND BUTTON 5413-081000100 E,F,G,H,I,J,K,M
10 CD5416081600100 TUNER BUTTON 5416-081600100 A,B,C,D,L
10 CD5403081000100 TUNER BUTTON 5403-081000100 E,F,G,H,I,J,K,M
11 CD5416081600200 CD BUTTON 5416-081600200 A,B,C,D,L
11 CD5404081000100 CD BUTTON 5404-081000100 E,F,G,H,I,J,K,M
12 CD5416081600300 USB BUTTON 5416-081600300 A,B,C,D,L
12 CD5416081000100 USB BUTTON 5416-081000100 E,F,G,H,I,J,K,M
13 CD5424081600100 AUDIO BUTTON 5424-081600100 A,B,C,D,L
13 CD5424081000100 AUDIO BUTTON 5424-081000100 E,F,G,H,I,J,K,M
14 CD5501091900100 DISPLAY LENS 5501-091900100 A,B,C,D,L
14 CD5501092000100 DISPLAY LENS 5501-092000100 E,F,G,H,I,J,K,M
15 CD5607081000101 FRONT PCB BKT 5607-081000101 A,B,C,D,E,F,G,H,J,K,L,M
15 CD5607081000200 FRONT PCB BKT 5607-081000200 I
16 CD5618081000100 POWER BTN BKT 5618-081000100
17 CD5624081000100 BACK PCB BKT 5624-081000100 A,B,C,D,E,F,G,H,J,K,L,M
17 CD5624081000200 BACK PCB BKT 5624-081000200 I
18 CD5905081000100 VOLUME RING 5905-081000100
19 CD5913081000100 COSMETIC FRAME 5913-081000100
20 CD5939081000100 PLASTIC WASHER 5939-081000100(x2)
21 CD6204081000200 SHIELD TOP 6204-081000200
22 CD6211080700200 FIXING PLATE 6211-080700200(x3)
23 CD6217081000100 GROUND PLATE 6217-081000100
24 CD6303081000100 CONNECTOR BKT 6303-081000100
25 CD6404081100200 SILICON FOOT 6404-081100200(x4)
26 CD6406081000100 EVA 6406-081000100
27 CD6600081000500 HEAT SINK 6600-081000500
28 CD8024000000100 FIBRE WASHER 8024-000000100
29 CD6210081000200 PC CUT SHEET 6210-081000200
30 CD6011226060100 SCREW 6011-226060100(x4)
31 CD6011226060100 SCREW 6011-226060100(x2)
32 CD6011226080100 SCREW 6011-226080100(x6)
33 CD6011226080100 SCREW 6011-226080100(x7)
34 CD6011226080100 SCREW 6011-226080100(x4)
35 CD6011226080100 SCREW 6011-226080100
37 CD6013230120100 SCREW 6013-230120100(x4)
38 CD6013217060100 SCREW 6013-217060100(x5)
39 CD6013230100200 SCREW 6013-230100200(x2) A,B,C,D,L
39 CD6013230100120 SCREW 6013-230100120(x2) E,F,G,H,I,J,K,M
40 CD6013230100200 SCREW 6013-230100200(x2) A,B,C,D,L
40 CD6013230100120 SCREW 6013-230100120(x2) E,F,G,H,I,J,K,M
41 CD6013230100200 SCREW 6013-230100200(x2) A,B,C,D,L
41 CD6013230100120 SCREW 6013-230100120(x2) E,F,G,H,I,J,K,M
42 CD6013230100200 SCREW 6013-230100200 A,B,C,D,L
42 CD6013230100120 SCREW 6013-230100120 E,F,G,H,I,J,K,M
43 CD6013230100200 SCREW 6013-230100200(x2) A,B,C,D,L
43 CD6013230100120 SCREW 6013-230100120(x2) E,F,G,H,I,J,K,M
44 CD6013230100200 SCREW 6013-230100200(x2) A,B,C,D,L
44 CD6013230100120 SCREW 6013-230100120(x2) E,F,G,H,I,J,K,M
45 CD6013230100200 SCREW 6013-230100200(x2) A,B,C,D,L
45 CD6013230100120 SCREW 6013-230100120(x2) E,F,G,H,I,J,K,M
46 CD6012226100110 SCREW 6012-226100110
47 CD6014230100200 SCREW 6014-230100200(x6) A,B,C,D,L
47 CD6014230100110 SCREW 6014-230100110(x6) E,F,G,H,I,J,K,M
3-4
Symbol No. Part No. Part Name Description Local
48 CD6023230100300 SCREW 6023-230100300(x2)
49 CD6024230080200 SCREW 6024-230080200 A,B,C,D,L
49 CD6024230080100 SCREW 6024-230080100 E,F,G,H,I,J,K,M
50 CD6024230080200 SCREW 6024-230080200(x2) A,B,C,D,L
50 CD6024230080100 SCREW 6024-230080100(x2) E,F,G,H,I,J,K,M
51 CD6024230080200 SCREW 6024-230080200 A,B,C,D,L
51 CD6024230080100 SCREW 6024-230080100 E,F,G,H,I,J,K,M
52 CD6034226060100 SCREW 6034-226060100(x2)
53 CD7111091900100 RATING LABEL 7111-091900100 A,B
53 CD7111091900400 RATING LABEL 7111-091900400 D
53 CD7111092000100 RATING LABEL 7111-092000100 E,F,G
53 CD7111092000200 RATING LABEL 7111-092000200 H
53 CD7111092000700 RATING LABEL 7111-092000700 I
53 CD7111092000300 RATING LABEL 7111-092000300 J,L
53 CD7111092000500 RATING LABEL 7111-092000500 K
53 CD7111092000900 RATING LABEL 7111-092000900 M
54 CD7112081000100 LASER CAUTION 7112-081000100
! 55 CD2001250250120 FUSE 2001-250250120
56 CD6013230060300 SCREW 6013-230060300
57 CD6013230060300 SCREW 6013-230060300
58 CD6210081200200 PC CUT SHEET 6210-081200200
59 CD2401000000070 VFD 2401-000000070
60 CD5601081000100 VFD HOLDER 5601-081000100
61 CD5601081000200 LED BKT 5601-081000200
! 62 CD2902223007000 AC CORD 2902-223007000 A,B,C,F,G,H,J,L,M
! 62 CD2908212507000 AC CORD 2908-212507000 D
! 62 CD2905123007000 AC CORD 2905-123007000 E
! 62 CD2904225007000 AC CORD 2904-225007000 I
! 62 CD2911225007010 AC CORD 2911-225007010 K
63 CD3001000180130 WIRE 3001-000180130
64 CD3502050152010 CONNECTOR WIRE 3502-050152010
65 CD3502060252000 CONNECTOR WIRE 3502-060252000
66 CD3002100120920 FFC WIRE 3002-100120920
67 CD3002200090910 FFC WIRE 3002-200090910
68 CD3002160150900 FFC WIRE 3002-160150900
69 CD3002160105900 FFC WIRE 3002-160105900
70 CD3801000000350 FM TUNER MODULE 3801-000000350 A,B,C,F,G,H
70 CD3801000000360 AM/FM TUNER MODULE 3801-000000360 D,I,J,K,L,M
70 CD3801000000370 AM/FM TUNER MODULE 3801-000000370 E
71 CD4401120001120 CD MECHANISM 4401-120001120
72 CD8949050900200 CD MECHANISM LOADER 8949-050900200
73 CD8031000004100 UL PVC TUBE 8031-000004100
! 74 CD3307020200010 VOLTAGE SELECT SW 3307-020200010 D,J,L,M
75 CD3501020083900 CONNECTOR WIRE 3501-020083900 D,J,L,M
76 CD6011226080100 SCREW 6011-226080100(x2) D,I,J,K,L,M
77 CD7111091900300 UT LABEL 7111-091900300 D
77 CD7111092000800 UT LABEL 7111-092000800 L
78 CD7128081200100 CLASS 1 LABEL 7128-081200100 D,K,L
79 CD6304041500100 FUSE HOLDER 6304-041500100(x2)
3-5
Electrical parts list
MCU board
Block No. [0][1]
Symbol No.
IC201 1506780515000-C IC 1506-780515000
IC202 CD1511002402080 IC 1511-002402080
IC204 CD1502002314010 IC 1502-002314010
IC205 CD1502004453000 IC 1502-004453000
IC212 CD1502007492010 IC 1502-007492010
Q1 CD1421085500010 TRANSISTOR 1421-085500010
Q201 CD1422080500050 TRANSISTOR 1422-080500050
Q202 CD1411085500000 TRANSISTOR 1411-085500000
Q203 CD1422080500050 TRANSISTOR 1422-080500050
Q204 CD1422080500050 TRANSISTOR 1422-080500050
Q205 CD1424023010010 MOSFET 1424-023010010
Q206 CD1422080500050 TRANSISTOR 1422-080500050
Q207 CD1412080500000 TRANSISTOR 1412-080500000
Q212 CD1412080500000 TRANSISTOR 1412-080500000
Q213 CD1424230180010 MOS FET 1424-230180010 D,E,I,J,
Q217 CD1422080500050 TRANSISTOR 1422-080500050
Q218 CD1422080500050 TRANSISTOR 1422-080500050
Q219 CD1422080500050 TRANSISTOR 1422-080500050
D1 CD1321041480050 DIODE 1321-041480050
D2 CD1321041480050 DIODE 1321-041480050
D3 CD1321041480050 DIODE 1321-041480050
D6 CD1321041480050 DIODE 1321-041480050
D7 CD1321041480050 DIODE 1321-041480050
D201 CD1321041480050 DIODE 1321-041480050
D202 CD1321041480050 DIODE 1321-041480050
D203 CD1321041480050 DIODE 1321-041480050
D206 CD1321041480050 DIODE 1321-041480050
C1 CD1121103082020 C CAPACITOR 1121-103082020
C2 CD1132225083060 E CAPACITOR 1132-225083060
C3 CD1121103082020 C CAPACITOR 1121-103082020
C5 CD1121102082020 C CAPACITOR 1121-102082020 A,B,C,
C5 CD1121102082021 C CAPACITOR 1121-102082021 M
C6 CD1121102082020 C CAPACITOR 1121-102082020 A,B,C,
C6 CD1121102082021 C CAPACITOR 1121-102082021 M
C9 CD1138474091210 M CAPACITOR 1138-474091210
C10 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C10 CD1121105052020 C CAPACITOR 1121-105052020 M
C11 CD1121104082020 C CAPACITOR 1121-104082020
C16 CD1121103082020 C CAPACITOR 1121-103082020
C17 CD1121103082020 C CAPACITOR 1121-103082020
C18 CD1121103082020 C CAPACITOR 1121-103082020
C19 CD1121103082020 C CAPACITOR 1121-103082020
C20 CD1121224084020 C CAPACITOR 1121-224084020
C21 CD1121224084020 C CAPACITOR 1121-224084020
C22 CD1121224084020 C CAPACITOR 1121-224084020
C23 CD1121224084020 C CAPACITOR 1121-224084020
C7B CD1121104082020 C CAPACITOR 1121-104082020
C8B CD1121104082020 C CAPACITOR 1121-104082020
C201 CD1121102082020 C CAPACITOR 1121-102082020 D,E,I,J,
C201 CD1121102082021 C CAPACITOR 1121-102082021 M
C202 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
C207 CD1221304062020 C RESISTOR 1221-304062020 D,E,I,J,
C208 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
C210 CD1121104082020 C CAPACITOR 1121-104082020
C220 CD1121104082020 C CAPACITOR 1121-104082020
C221 CD1121104082020 C CAPACITOR 1121-104082020
C222 CD1121104082020 C CAPACITOR 1121-104082020
Part No. Part Name Description Local
K,L,M
D,E,F,
G,H ,I ,J ,
K,L
D,E,F,
G,H ,I ,J ,
K,L
D,E,F,
G,H ,I ,J ,
K,L
K,L
K,L,M
K,L,M
K,L,M
Symbol No.
C223 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C223 CD1121105052020 C CAPACITOR 1121-105052020 M
C224 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C224 CD1121105052020 C CAPACITOR 1121-105052020 M
C225 CD1132225083060 E CAPACITOR 1132-225083060
C226 CD1121104082020 C CAPACITOR 1121-104082020
C227 CD1121104082020 C CAPACITOR 1121-104082020
C228 CD1121104082020 C CAPACITOR 1121-104082020
C229 CD1132158073271 E CAPACITOR 1132-158073271
C230 CD1121331081020 C CAPACITOR 1121-331081020
C231 CD1138474091210 M CAPACITOR 1138-474091210
C232 CD1121224084020 C CAPACITOR 1121-224084020
C233 CD1121224084020 C CAPACITOR 1121-224084020
C234 CD1138474091210 M CAPACITOR 1138-474091210
C235 CD1121224084020 C CAPACITOR 1121-224084020
C236 CD1121224084020 C CAPACITOR 1121-224084020
C237 CD1121474084020 C CAPACITOR 1121-474084020
C238 CD1121474084020 C CAPACITOR 1121-474084020
C239 CD1121104082020 C CAPACITOR 1121-104082020
C240 CD1121474084020 C CAPACITOR 1121-474084020
C241 CD1121681081020 C CAPACITOR 1121-681081020 A,B,C,
C241 CD1121681081021 C CAPACITOR 1121-681081021 M
C242 CD1121681081020 C CAPACITOR 1121-681081020 A,B,C,
C242 CD1121681081021 C CAPACITOR 1121-681081021 M
C243 CD1121474084020 C CAPACITOR 1121-474084020
C244 CD1121104082020 C CAPACITOR 1121-104082020
C245 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C245 CD1121105052020 C CAPACITOR 1121-105052020 M
C246 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C246 CD1121105052020 C CAPACITOR 1121-105052020 M
C247 CD1121104082020 C CAPACITOR 1121-104082020
C256 CD1121104082020 C CAPACITOR 1121-104082020
C257 CD1132227053320 E CAPACITOR 1132-227053320
C258 CD1132227053320 E CAPACITOR 1132-227053320
C260 CD1121104082020 C CAPACITOR 1121-104082020
C262 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C262 CD1121105052020 C CAPACITOR 1121-105052020 M
C264 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C264 CD1121105052020 C CAPACITOR 1121-105052020 M
C265 CD1132476053050 E CAPACITOR 1132-476053050
C266 CD1132227053320 E CAPACITOR 1132-227053320
C267 CD1132476053050 E CAPACITOR 1132-476053050
C268 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C268 CD1121105052020 C CAPACITOR 1121-105052020 M
C269 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C269 CD1121105052020 C CAPACITOR 1121-105052020 M
C270 CD1121104082020 C CAPACITOR 1121-104082020
C271 CD1132107053060 E CAPACITOR 1132-107053060
C272 CD1132476053060 E CAPACITOR 1132-476053060
Part No. Part Name Description Local
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
D,E,F,
G,H,I,J,
K,L
3-6
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C273 CD1138272092230 M CAPACITOR 1138-272092230
C274 CD1138272092230 M CAPACITOR 1138-272092230
C275 CD1118104084370 M CAPACITOR 1118-104084370
C276 CD1132225083060 E CAPACITOR 1132-225083060
C277 CD1118104084370 M CAPACITOR 1118-104084370
C278 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C278 CD1121105052020 C CAPACITOR 1121-105052020 M
C279 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C279 CD1121105052020 C CAPACITOR 1121-105052020 M
C280 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C280 CD1121105052020 C CAPACITOR 1121-105052020 M
C281 CD1132106053060 E CAPACITOR 1132-106053060
C282 CD1132106053060 E CAPACITOR 1132-106053060
C283 CD1132226053060 E CAPACITOR 1132-226053060
C284 CD1121102082020 C CAPACITOR 1121-102082020 A,B,C,
C284 CD1121102082021 C CAPACITOR 1121-102082021 M
C285 CD1121102082020 C CAPACITOR 1121-102082020 A,B,C,
C285 CD1121102082021 C CAPACITOR 1121-102082021 M
C286 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C286 CD1121105052020 C CAPACITOR 1121-105052020 M
C291 CD1118104084370 M CAPACITOR 1118-104084370
C292 CD1118104084370 M CAPACITOR 1118-104084370
C293 CD1118104084370 M CAPACITOR 1118-104084370
C294 CD1118104084370 M CAPACITOR 1118-104084370
C295 CD1132225083060 E CAPACITOR 1132-225083060
C296 CD1121331081020 C CAPACITOR 1121-331081020
C301 CD1121104082020 C CAPACITOR 1121-104082020
C302 CD1132107053710 E CAPACITOR 1132-107053710
C303 CD1121104082020 C CAPACITOR 1121-104082020
C304 CD1132107053710 E CAPACITOR 1132-107053710
C306 CD1121104082020 C CAPACITOR 1121-104082020
C307 CD1121104082020 C CAPACITOR 1121-104082020
C308 CD1132107053710 E CAPACITOR 1132-107053710
C309 CD1132475053030 E CAPACITOR 1132-475053030
C310 CD1121104082020 C CAPACITOR 1121-104082020
C311 CD1121240081020 C CAPACITOR 1121-240081020
C312 CD1121240081020 C CAPACITOR 1121-240081020
C313 CD1121104082020 C CAPACITOR 1121-104082020
C314 CD1132107053060 E CAPACITOR 1132-107053060
C315 CD1132107053710 E CAPACITOR 1132-107053710
C316 CD1121104082020 C CAPACITOR 1121-104082020
C317 CD1121104082020 C CAPACITOR 1121-104082020
C318 CD1121101081020 C CAPACITOR 1121-101081020
C319 CD1121104082020 C CAPACITOR 1121-104082020
C320 CD1121104082020 C CAPACITOR 1121-104082020
C325 CD1121681081020 C CAPACITOR 1121-681081020 A,B,C,
C325 CD1121681081021 C CAPACITOR 1121-681081021 M
C326 CD1121681081020 C CAPACITOR 1121-681081020 A,B,C,
C326 CD1121681081021 C CAPACITOR 1121-681081021 M
C327 CD1132475083060 E CAPACITOR 1132-475083060
C328 CD1132475083060 E CAPACITOR 1132-475083060
C332 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C332 CD1121105052020 C CAPACITOR 1121-105052020 M
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
D,E,F,
G,H,I, J,
K,L
C336 CD1121105051020 C CAPACITOR 1121-105051020 A,B,C,
C336 CD1121105052020 C CAPACITOR 1121-105052020 M
C339 CD1121104082020 C CAPACITOR 1121-104082020
R1 CD1221000062020 C RESISTOR 1221-000062020
R2 CD1221000062020 C RESISTOR 1221-000062020
R4 CD1221472062020 C RESISTOR 1221-472062020
R5 CD1221103062020 C RESISTOR 1221-103062020
R13 CD1221102062020 C RESISTOR 1221-102062020
R14 CD1221102062020 C RESISTOR 1221-102062020
R15 CD1221102062020 C RESISTOR 1221-102062020
R26 CD1221101062020 C RESISTOR 1221-101062020
R27 CD1221224062020 C RESISTOR 1221-224062020 D,E,I,J,
R28 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
R29 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
R30 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
R200 CD1221101062020 C RESISTOR 1221-101062020
R201 CD1221562062020 C RESISTOR 1221-562062020
R202 CD1221562062020 C RESISTOR 1221-562062020
R203 CD1221562062020 C RESISTOR 1221-562062020
R210 CD1221242062020 C RESISTOR 1221-242062020
R212 CD1221242062020 C RESISTOR 1221-242062020
R213 CD1221242062020 C RESISTOR 1221-242062020
R214 CD1221242062020 C RESISTOR 1221-242062020
R215 CD1221242062020 C RESISTOR 1221-242062020
R216 CD1221242062020 C RESISTOR 1221-242062020
R217 CD1221242062020 C RESISTOR 1221-242062020
R218 CD1221242062020 C RESISTOR 1221-242062020
R223 CD1221392062020 C RESISTOR 1221-392062020
R227 CD1221562062020 C RESISTOR 1221-562062020
R228 CD1221562062020 C RESISTOR 1221-562062020
R229 CD1221562062020 C RESISTOR 1221-562062020
R230 CD1221561062020 C RESISTOR 1221-561062020
R231 CD1221561062020 C RESISTOR 1221-561062020
R232 CD1221473062020 C RESISTOR 1221-473062020
R233 CD1221104062020 C RESISTOR 1221-104062020
R234 CD1221103062020 C RESISTOR 1221-103062020
R235 CD1221103062020 C RESISTOR 1221-103062020
R236 CD1221103062020 C RESISTOR 1221-103062020
R238 CD1221473062020 C RESISTOR 1221-473062020
R240 CD1221473062020 C RESISTOR 1221-473062020
R241 CD1221821061020 C RESISTOR 1221-821061020
R242 CD1221473062020 C RESISTOR 1221-473062020
R243 CD1221103062020 C RESISTOR 1221-103062020
R244 CD1221222062020 C RESISTOR 1221-222062020
R245 CD1221222062020 C RESISTOR 1221-222062020
R246 CD1221103062020 C RESISTOR 1221-103062020
R247 CD1221182062020 C RESISTOR 1221-182062020
R248 CD1221182062020 C RESISTOR 1221-182062020
R250 CD1221562062020 C RESISTOR 1221-562062020
R251 CD1221562062020 C RESISTOR 1221-562062020
R255 CD1221332062020 C RESISTOR 1221-332062020
R256 CD1221102062020 C RESISTOR 1221-102062020
R257 CD1221392062020 C RESISTOR 1221-392062020
R286 CD1221105062020 C RESISTOR 1221-105062020
R300 CD1221102062020 C RESISTOR 1221-102062020
R301 CD1221152062020 C RESISTOR 1221-152062020
R302 CD1221152062020 C RESISTOR 1221-152062020
R303 CD1221000062020 C RESISTOR 1221-000062020
R304 CD1221000062020 C RESISTOR 1221-000062020
R305 CD1221101062020 C RESISTOR 1221-101062020
R306 CD1221472062020 C RESISTOR 1221-472062020
R307 CD1221472062020 C RESISTOR 1221-472062020
R308 CD1221472062020 C RESISTOR 1221-472062020
R309 CD1221472062020 C RESISTOR 1221-472062020
R310 CD1221101062020 C RESISTOR 1221-101062020
R311 CD1221101062020 C RESISTOR 1221-101062020
R312 CD1221102062020 C RESISTOR 1221-102062020
R313 CD1221102062020 C RESISTOR 1221-102062020
R314 CD1221102062020 C RESISTOR 1221-102062020
R315 CD1221102062020 C RESISTOR 1221-102062020
R316 CD1221102062020 C RESISTOR 1221-102062020
D,E,F,
G,H,I,J,
K,L
K,L,M
K,L,M
K,L,M
K,L,M
3-7
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R317 CD1221102062020 C RESISTOR 1221-102062020
R318 CD1221102062020 C RESISTOR 1221-102062020
R320 CD1221223062020 C RESISTOR 1221-223062020
R321 CD1221472062020 C RESISTOR 1221-472062020
R322 CD1221223062020 C RESISTOR 1221-223062020
R323 CD1221102062020 C RESISTOR 1221-102062020
R324 CD1221103062020 C RESISTOR 1221-103062020
R325 CD1221473062020 C RESISTOR 1221-473062020
R326 CD1221103062020 C RESISTOR 1221-103062020
R327 CD1221472062020 C RESISTOR 1221-472062020
R328 CD1221473062020 C RESISTOR 1221-473062020
R329 CD1221105062020 C RESISTOR 1221-105062020
R330 CD1221102062020 C RESISTOR 1221-102062020
R331 CD1221220062020 C RESISTOR 1221-220062020
R332 CD1221220062020 C RESISTOR 1221-220062020
R333 CD1221220062020 C RESISTOR 1221-220062020
R334 CD1221220062020 C RESISTOR 1221-220062020
R335 CD1221220062020 C RESISTOR 1221-220062020
R336 CD1221102062020 C RESISTOR 1221-102062020
R337 CD1221102062020 C RESISTOR 1221-102062020
R338 CD1221000062020 C RESISTOR 1221-000062020
R339 CD1221000062020 C RESISTOR 1221-000062020
R355 CD1221000062020 C RESISTOR 1221-000062020
R356 CD1221000062020 C RESISTOR 1221-000062020
R358 CD1231121012000 RESISTOR 1231-121012000
R359 CD1221223062020 C RESISTOR 1221-223062020
R360 CD1221472062020 C RESISTOR 1221-472062020
R361 CD1221472062020 C RESISTOR 1221-472062020
R362 CD1221103062020 C RESISTOR 1221-103062020
R363 CD1221102062020 C RESISTOR 1221-102062020
R364 CD1221102062020 C RESISTOR 1221-102062020
R365 CD1221102062020 C RESISTOR 1221-102062020
R366 CD1221103062020 C RESISTOR 1221-103062020
R367 CD1221102062020 C RESISTOR 1221-102062020
R368 CD1221103062020 C RESISTOR 1221-103062020
R369 CD1221103062020 C RESISTOR 1221-103062020
R370 CD1221223062020 C RESISTOR 1221-223062020
R373 CD1221102062020 C RESISTOR 1221-102062020
R374 CD1221102062020 C RESISTOR 1221-102062020
R375 CD1221103062020 C RESISTOR 1221-103062020
R376 CD1221102062020 C RESISTOR 1221-102062020
R377 CD1221102062020 C RESISTOR 1221-102062020
R378 CD1221102062020 C RESISTOR 1221-102062020
R379 CD1221102062020 C RESISTOR 1221-102062020
R380 CD1221103062020 C RESISTOR 1221-103062020
R381 CD1221102062020 C RESISTOR 1221-102062020
R382 CD1221102062020 C RESISTOR 1221-102062020
R383 CD1221000062020 C RESISTOR 1221-000062020
R384 CD1221103062020 C RESISTOR 1221-103062020
R385 CD1221103062020 C RESISTOR 1221-103062020
R387 CD1221103062020 C RESISTOR 1221-103062020
R388 CD1221103062020 C RESISTOR 1221-103062020
R389 CD1221392062020 C RESISTOR 1221-392062020
R390 CD1221392062020 C RESISTOR 1221-392062020
R391 CD1221103062020 C RESISTOR 1221-103062020
R392 CD1221223062020 C RESISTOR 1221-223062020
R393 CD1221123062020 C RESISTOR 1221-123062020
R394 CD1221682062020 C RESISTOR 1221-682062020
R395 CD1221472062020 C RESISTOR 1221-472062020
R396 CD1221103062020 C RESISTOR 1221-103062020
R401 CD1221223062020 C RESISTOR 1221-223062020
R402 CD1221223062020 C RESISTOR 1221-223062020
R403 CD1221513062020 C RESISTOR 1221-513062020
R404 CD1221513062020 C RESISTOR 1221-513062020
R405 CD1221222062020 C RESISTOR 1221-222062020
R406 CD1221222062020 C RESISTOR 1221-222062020
R407 CD1221333062020 C RESISTOR 1221-333062020
R408 CD1221333062020 C RESISTOR 1221-333062020
R409 CD1221220062020 C RESISTOR 1221-220062020
R410 CD1221105062020 C RESISTOR 1221-105062020
R411 CD1221105062020 C RESISTOR 1221-105062020
R412 CD1221105062020 C RESISTOR 1221-105062020
R413 CD1221393062020 C RESISTOR 1221-393062020 A,B,C,
R413 CD1221473062020 C RESISTOR 1221-473062020 D,E,I,J,
R414 CD1221105062020 C RESISTOR 1221-105062020
R415 CD1221000062020 C RESISTOR 1221-000062020
F,G, H
K,L,M
R416 CD1221000062020 C RESISTOR 1221-000062020
R417 CD1221220062020 C RESISTOR 1221-220062020
R418 CD1221220062020 C RESISTOR 1221-220062020
R419 CD1221102062020 C RESISTOR 1221-102062020 D,E,I,J,
R424 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
R425 CD1221000062020 C RESISTOR 1221-000062020 D,E,I,J,
R430 CD1221471062020 C RESISTOR 1221-471062020
R431 CD1221102062020 C RESISTOR 1221-102062020
R433 CD1221000062020 C RESISTOR 1221-000062020
R434 CD1221220062020 C RESISTOR 1221-220062020
R435 CD1221104062020 C RESISTOR 1221-104062020
R436 CD1221332062020 C RESISTOR 1221-332062020
R437 CD1221101062020 C RESISTOR 1221-101062020
R443 CD1221000062020 C RESISTOR 1221-000062020
R445 CD1221103062020 C RESISTOR 1221-103062020
R446 CD1221103062020 C RESISTOR 1221-103062020
L1 CD2105000000100 EMI FILTER BEAD 2105-000000100
L2 CD1608300025000 TOROIDAL COIL 1608-300025000
L3 CD1608300025000 TOROIDAL COIL 1608-300025000
L205 CD1614330010000 COIL 1614-330010000
L206 CD1614330010000 COIL 1614-330010000
L207 CD1614330010000 COIL 1614-330010000
L208 CD1614330010000 COIL 1614-330010000
L211 CD1604101350000 COIL 1604-101350000
L212 CD1604101350000 COIL 1604-101350000
L213 CD1604101350000 COIL 1604-101350000
CN201 CD3106121021000 FFC CONNECTOR 3106-121021000
CN202 CD3106101621020 FFC CONNECTOR 3106-101621020
CN203 CD3505090252000 CONNECTOR WIRE 3505-090252000
CN204 CD3101200821010 HEADER 3101-200821010
CN207 CD3106122021000 FFC CONNECTOR 3106-122021000
CN208 CD3101200321010 HEADER 3101-200321010
CN210 CD3101200721000 HEADER 3101-200721000
CN211 CD3505040252500 CONNECTOR WIRE 3505-040252500
CN212 CD3401000000310 SP TERMINAL 3401-000000310
EC1 CD1132106053060 E CAPACITOR 1132-106053060
FB03 CD1221000062030 C RESISTOR 1221-000062030
FB04 CD1221000062030 C RESISTOR 1221-000062030
FB07 CD1221000062030 C RESISTOR 1221-000062030
FB09 CD1221000062030 C RESISTOR 1221-000062030
FB10 CD1221000062030 C RESISTOR 1221-000062030
X203 CD1001000327130 CRYSTAL 1001-000327130
Z201 CD1313055510000 Z DIODE 1313-055510000
Z214 CD1313055910000 Z DIODE 1313-055910000
Z215 CD1313055330010 Z DIODE 1313-055330010
Z216 CD1313055330010 Z DIODE 1313-055330010
Z218 CD1313055560020 Z DIODE 1313-055560020
ZD1 CD1323001110000 Z DIODE 1323-001110000

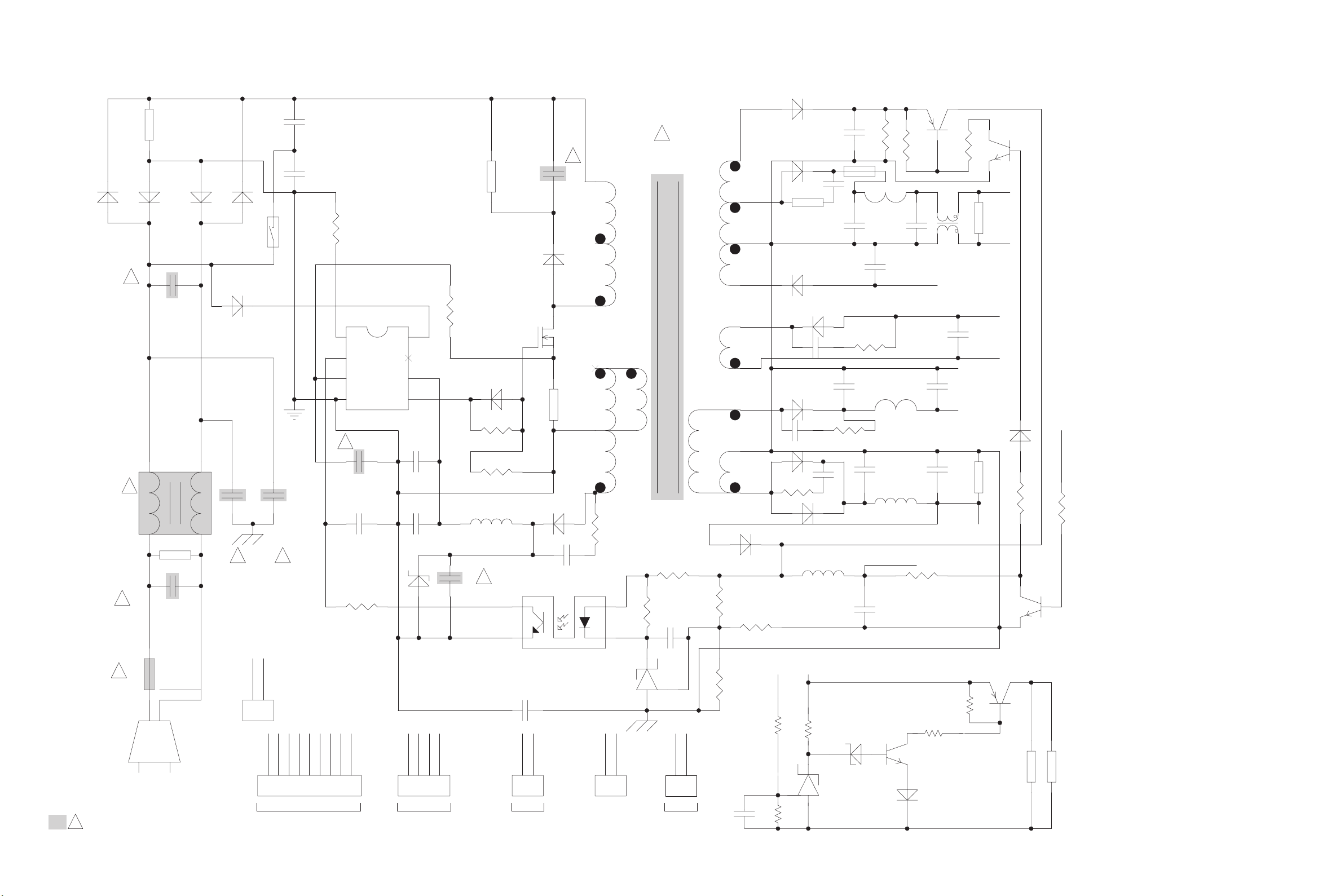

SMPS board
Block No. [0][2]
Symbol No.
U1 CD1512001216020 IC 1512-001216020
U2 CD1415008170000 PHOTO COUPLER 1415-008170000
U3 CD1512000431020 IC 1512-000431020
U6 CD1512000431020 IC 1512-000431020
D1 CD1311002070020 DIODE 1311-002070020
D2 CD1311002070020 DIODE 1311-002070020
D3 CD1311002070020 DIODE 1311-002070020
D4 CD1311002070020 DIODE 1311-002070020
D5 CD1311140070020 DIODE 1311-140070020
D6 CD1311001070050 DIODE 1311-001070050
D7 CD1321041480050 DIODE 1321-041480050
D8 CD1311001040030 DIODE 1311-001040030 A,B,C,
Part No. Part Name Description Local
K,L,M
K,L,M
K,L,M
D,E,F,
G, H, J ,
L,M
3-8
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
D8 CD1311140070020 DIODE 1311-140070020 I,K
D9 CD1311008200000 DIODE RECTIFIER 1311-008200000
D10 CD1311001040030 DIODE 1311-001040030
D11 CD1312005600000 SCHOTTKY DIODE 1312-005600000 A,B,C,
D11 CD1312158220010 BARRIER DIODE 1312-158220010 D,F,K
D12 CD1311001040030 DIODE 1311-001040030
D13 CD1312158190000 DIODE 1312-158190000
D14 CD1311001040030 DIODE 1311-001040030
D15 CD1321041480050 DIODE 1321-041480050
D16 CD1312005600000 SCHOTTKY DIODE 1312-005600000 A,B,C,
D16 CD1312158220010 BARRIER DIODE 1312-158220010 D,F,K
D17 CD1313055430000 Z DIODE 1313-055430000
D18 CD1311141480010 DIODE 1311-141480010
D19 CD1311001040030 DIODE 1311-001040030
! C1 CD1111224243870 CAPACITOR 1111-224243870
! C2 CD1111224243870 CAPACITOR 1111-224243870
! C3 CD1111152143010 C CAPACITOR 1111-152143010
! C4 CD1111152143010 C CAPACITOR 1111-152143010
C5 CD1112127203300 E CAPACITOR 1112-127203300
! C6 CD1111472193001 C CAPACITOR 1111-472193001
C7 CD1131471082000 C CAPACITOR 1131-471082000 A,B,C,
! C7 CD1131471082000 C CAPACITOR 1131-471082000 M
C8 CD1131471082000 C CAPACITOR 1131-471082000
C9 CD1132476063060 E CAPACITOR 1132-476063060
C10 CD1131104084000 C CAPACITOR 1131-104084000
C11 CD1111472193001 C CAPACITOR 1111-472193001
C12 CD1131103084000 C CAPACITOR 1131-103084000
C13 CD1112108053160 E CAPACITOR 1112-108053160
C14 CD1132337053220 E CAPACITOR 1132-337053220
C15 CD1132337053220 E CAPACITOR 1132-337053220
C16 CD1132337053220 E CAPACITOR 1132-337053220
C17 CD1132228073271 E CAPACITOR 1132-228073271
C18 CD1132477073140 E CAPACITOR 1132-477073140
C19 CD1132476083100 E CAPACITOR 1132-476083100
C20 CD1132105083030 E CAPACITOR 1132-105083030
C21 CD1132337053220 E CAPACITOR 1132-337053220
C23 CD1112127203300 E CAPACITOR 1112-127203300
! C24 CD1131102082000 C CAPACITOR 1131-102082000 A,B,C,
C25 CD1132107053060 E CAPACITOR 1132-107053060
C26 CD1131104084000 C CAPACITOR 1131-104084000
C27 CD1132226083060 E CAPACITOR 1132-226083060
C28 CD1111472193001 C CAPACITOR 1111-472193001
C29 CD1121102102030 C CAPACITOR 1121-102102030 D,E,I,
C32 CD1121102102030 C CAPACITOR 1121-102102030 D,E,I,
C33 CD1121472143120 C CAPACITOR 1121-472143120 D,I,J,
R1 CD1237105012000 RESISTOR 1237-105012000 A,B,C,
R2 CD1237473082000 RESISTOR 1237-473082000
R3 CD1237047082000 RESISTOR 1237-047082000
R4 CD1231470042000 RESISTOR 1231-470042000
R5 CD1231332022000 RESISTOR 1231-332022000 A,B,C,
R5 CD1231821042000 RESISTOR 1231-821042000 I,K
R6 CD1231103032000 RESISTOR 1231-103032000
R7 CD1231102042000 RESISTOR 1231-102042000
R8 CD1231220022000 RESISTOR 1231-220022000
R9 CD1231203042000 RESISTOR 1231-203042000
R10 CD1237330082000 RESISTOR 1237-330082000
R11 CD1231100042000 RESISTOR 1231-100042000
R12 CD1231104041000 RESISTOR 1231-104041000
E,G,H,
I,J,L,
M
E,G,H,
I,J,L,
M
D,E,F,
G,H,I,
J,K,L
E,F,G,
H
J,K,L,
M
J,K,L,
M
K,L,M
E,F,G,
H
D,E,F,
G,H,J,
L,M
R13 CD1237472012000 RESISTOR 1237-472012000
R14 CD1231472042000 RESISTOR 1231-472042000
R15 CD1231102042000 RESISTOR 1231-102042000
R16 CD1231102042000 RESISTOR 1231-102042000
R17 CD1221102062030 C RESISTOR 1221-102062030
R18 CD1231101042000 RESISTOR 1231-101042000
R19 CD1231102042000 RESISTOR 1231-102042000
R20 CD1231332021000 RESISTOR 1231-332021000
R21 CD1231362041000 RESISTOR 1231-362041000
R22 CD1231472042000 RESISTOR 1231-472042000
R23 CD1231101072000 RESISTOR 1231-101072000
R24 CD1211100072000 RESISTOR 1211-100072000
R25 CD1231243042000 RESISTOR 1231-243042000 A,B,C,
R25 CD1231273042000 RESISTOR 1231-273042000 D,I,J,
R26 CD1231184042000 RESISTOR 1231-184042000
R27 CD1211222042000 RESISTOR 1211-222042000
R28 CD1231331062000 RESISTOR 1231-331062000
R29 CD1211222042000 RESISTOR 1211-222042000
R30 CD1237220082000 RESISTOR 1237-220082000
R31 CD1237220082000 RESISTOR 1237-220082000
R32 CD1237105012000 RESISTOR 1237-105012000 D,I,J,
R33 CD1221220022050 C RESISTOR 1221-220022050 D,E,I,
R34 CD1221220022050 C RESISTOR 1221-220022050 D,E,I,
R36 CD1237105012000 RESISTOR 1237-105012000 D,I,J,
R37 CD1221101012050 C RESISTOR 1221-101012050 D,I,J,
! L1 CD2104000000130 LINE FILTER 2104-000000130 A,B,C,
! L1 CD2104000000270 LINE FILTER 2104-000000270 D,I,J,
L2 CD1604102174000 COIL 1604-102174000 A,B,C,
L2 CD1231560022000 RESISTOR 1231-560022000 D,I,J,
L3 CD1614100003010 INDUCTOR 1614-100003010
L4 CD1614100006000 POWER INDUCTOR 1614-100006000
L5 CD1614100003010 INDUCTOR 1614-100003010
L6 CD1604100072000 COIL 1604-100072000
L7 CD1608300025000 TOROIDAL COIL 1608-300025000
! T1 CD2302285000500 POWERTRANS 2302-285000500
CN1 CD3101250221010 HEADER 3101-250221010
CN2 CD3101200921000 HEADER 3101-200921000
CN3 CD3101250411000 HEADER 3101-250411000
CN4 CD8016000000100 FM ANT CONT PIN 8016-000000100 E,I,J
CN5 CD3101200221010 HEADER 3101-200221010
F3 CD1214109000000 PTC THERMISTOR 1214-109000000 A,B,C,
F3 CD2004300008700 RESETTABLE FUSE 2004-300008700 M
GND CD8016000000100 FM ANT CONT PIN 8016-000000100 E,I,J
HS1 CD6600061000200 HEAT SINK A 6600-061000200
HS2 CD6600081000600 HEAT SINK 6600-081000600
JP7 CD2105046000000 FERRITE COIL 2105-046000000 D,L
SW1 CD3101790221000 CONNECTOR WIRE 3101-790221000 D,J,L,
V1 CD1414005600010 MOS FET 1414-005600010 A,B,C,
V1 CD1414005600011 TRANSISTOR 1414-005600011 M
V2 CD1411012750000 TRANSISTOR 1411-012750000
V3 CD1412080500000 TRANSISTOR 1412-080500000
V4 CD1412080500000 TRANSISTOR 1412-080500000
V5 CD1411085500000 TRANSISTOR 1411-085500000
V7 CD1412080500000 TRANSISTOR 1412-080500000
VD1 CD1323002400000 Z DIODE 1323-002400000
VD2 CD1323000680040 Z DIODE 1323-000680040 I,K
E,F,G,
H
K,L,M
K,L,M
J,K,L,
M
J,K,L,
M
K,L,M
K,L,M
E,F,G,
H
K,L,M
E,F,G,
H
K,L,M
E,G,H,
I,J,L
M
D,E,F,
G,H ,I ,
J,K,L
3-9
Loading...
