USB specificationCompatible with USB 2.0 Full Speed
Compatible deviceMass storage class
Compatible systemFAT16, FAT32
Output powerDC 5 V 500 mA
SD
Compatible deviceSD, SDHC
Compatible systemFAT16, FAT32
Speaker SP-UXF2B
Speaker typeBass-reflex type
Tweeter4 cm
Woofer12 cm
Impedance6 Ω
Dimensions (approx.) (W x H x D) (including projecting parts) 141 mm × 250 mm × 181 mm
Mass (approx.)1.8 kg each
Ø 3.5 mm)
Design and specifications are subject to change without notice.
(No.MB736<Rev.003>)1-3
SECTION 1
PRECAUTION
1.1Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
0.15 F AC TYPE
Place this
probe on
1500 10W
Good earth ground
1.2Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this system.
1.4Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
each exposed
metal part.
1-4 (No.MB736<Rev.003>)
1.5Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron palate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.6Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.7Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connector on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
solder short part
(No.MB736<Rev.003>)1-5
1.8Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS and PRINT
WARNING LABEL and PRINT
1-6 (No.MB736<Rev.003>)
SECTION 2
A
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
3.1Main body (Used model: UX-F2E)
3.1.1 Removing the Top cover (See Fig.1, 2, 3)
(1) Remove the four screws A attaching the Top cover. (See
Fig.1)
A
Fig.1
(2) Remove the two screws B and two screws C attaching both
side of the Top cover. (See Fig.2)
3.1.2 Removing the Main board (See Fig.4)
(1) Disconnect the connector wire from Jack board connected
to connector CN606
(2) Disconnect the connector wire from FAN connected to con-
nector CN612 of the Main board.
(3) Disconnect the card wire from Upgrade board connected to
connector CN605
(4) Disconnect the connector wire from SMPS board connect-
ed to connector CN603
(5) Disconnect the card wire from MPEG board connected to
connector CN609 of the Main board.
(6) Disconnect the connector wire from MPEG board connect-
ed to connector CN607 of the Main board.
(7) Disconnect the connector wire from SMPS board connect-
ed to connector CN601
(8) Disconnect the card wire from Display board connected to
connector CN602 of the Main board.
(9) Disconnect the card wire from Tuner pack connected to
connector CN604 of the Main board.
(10) Remove the five screws F attaching the Main board.
F
CN606
of the Main board.
of the Main board.
of the Main board.
of the Main board.
CN605CN604
B
C
Fig.2
(3) Remove the three screws D and three screws E attaching
the Top cover. (See Fig.3)
D
E
Fig.3
F
F
F
CN602
CN601
CN607
CN609
F
CN612 CN603
Fig.4
(No.MB736<Rev.003>)1-7
3.1.3 Removing the SMPS board (See Fig.5, 6)
(1) Disconnect the connector wire from Display board connect-
ed to connector CN902
of the SMPS board. (See Fig.5)
CN902
(2) Remove the two screws M and two screws N attaching the
CD mechanism. (See Fig.8)
Fig.5
(2) Remove the two screws G, one screw H and one screw J
attaching the SMPS board. (See Fig.6)
G
HJ
Fig.6
3.1.4 Removing the CD mechanism (See Fig.7, 8, 9, 10, 11)
(1) Remove the one screw K and one screw L attaching the
Rear cabinet bracket. (See Fig.7)
L
M
N
Fig.8
(3) Disconnect the connector wire from MPEG board connect-
ed to connector of Loader board. (See Fig.9)
Loader boardconnector
Fig.9
(4) Solder the short part of the Pickup board. (See fig.10)
M
N
K
Fig.7
solder short part
Fig.10
(5) Disconnect the card wire from CD mechanism connected
to connector CN102
of the MPEG board. (See Fig.11)
CN102
1-8 (No.MB736<Rev.003>)
Fig.11
3.1.5 Removing the MPEG board (See Fig.12)
(1) Disconnect the card wire from USB board connected to
connector CN108
(2) Remove the four screws P attaching the MPEG board.
of the MPEG board.
3.1.7 Removing the Jack board (See Fig.15)
(1) Remove the two screws Q attaching the Jack board.
Q
CN108
P
P
Fig.12
3.1.6 Removing the Front panel (See Fig.13, 14)
(1) Disengage one hook a engaged Front panel. (See Fig.13)
hook
a
Fig.13
(2) Disengage two hooks b engaged both side of the Front
panel. (See Fig.14)
P
Fig.15
3.1.8 Removing the USB board (See Fig.16)
(1) Disconnect the connector wire from Display board connect-
ed to connector CN203
(2) Remove the two screws R attaching the USB board.
CN203
of the USB board.
R
Fig.16
3.1.9 Removing the Display board (See Fig.17)
(1) Remove the twelve screws S attaching the Display board.
hook
b
Fig.14
S
S
S
S
Fig.17
(No.MB736<Rev.003>)1-9
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
1-10 (No.MB736<Rev.003>)
(No.MB736<Rev.003>)1-11
Victor Company of Japan, Limited
Home Entertainment Business Division Personal AV Operation 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB736<Rev.003>)
Printed in Japan
VSE
REVISION INFORMATION
MICRO COMPONENT SYSTEM
UX-F2BE, UX-F2BEN, UX-F2BEV
■ OVERVIEW
Add UX-F2BEV.
■ DETAILS
COVER SECTION
Title Line No.MB736<Rev.001> No.MB736<Rev.002> Description
Revision Rev.001 Rev.002
Model No. UX-F2BE, UX-F2BEN UX-F2BE, UX-F2BEN, UX-F2BEV
SECTION 1 PRECAUTION
Title Line No.MB736<Rev.001> No.MB736<Rev.002> Description
1.1 Safety
Precautions
3 3. Many electrical and mechanical parts
in the products have special safetyrelated characteristics. These
characteristics are often not evident from
visual inspection nor can the protection
afforded by them necessarily be obtained
by using replacement components rated
for higher voltage, wattage, etc.
Replacement parts which have these
special safety characteristics are
identified in the Parts List of Service
Manual. Electrical components having
such features are identified by shading
on the schematics and by ( ) on the Parts
List in the Service Manual. The use of a
substitute replacement which does not
have the same safety characteristics as
the recommended replacement parts
shown in the Parts List of Service Manual
may create shock, fire, or other hazards.
3. Many electrical and mechanical parts
in the products have special safetyrelated characteristics. These
characteristics are often not evident from
visual inspection nor can the protection
afforded by them necessarily be obtained
by using replacement components rated
for higher voltage, wattage, etc.
Replacement parts which have these
special safety characteristics are
identified in the Parts List of Service
Manual. Electrical components having
such features are identified by shading
on the schematics and by
( ILLUSTRATION(kigo001.png) ) on the
Parts List in the Service Manual. The use
of a substitute replacement which does
not have the same safety characteristics
as the recommended replacement parts
shown in the Parts List of Service Manual
may create shock, fire, or other hazards.
05 C201 ------------ CD1121104084021 C CAPACITOR (Addition) 1 04,05
05 C202 ------------ CD1138474091210 M CAPACITOR (Addition) 1 04,05
05 C205 ------------ CD1121104084021 C CAPACITOR (Addition) 1 04,05
05 RS3 ------------ CD1121080088020 C CAPACITOR (Addition) 1 04,05
05 RS4 ------------ CD1121080088020 C CAPACITOR (Addition) 1 04,05
05 RS5 ------------ CD1121080088020 C CAPACITOR (Addition) 1 04,05
05 RS6 ------------ CD1121080088020 C CAPACITOR (Addition) 1 04,05
05 RS7 ------------ CD1121080088020 C CAPACITOR (Addition) 1 04,05
05 RS8 ------------ CD1121080088020 C CAPACITOR (Addition) 1 04,05
05 TP20 ------------ CD3001010300110 WIRE (Addition) 1 04,05
<Rev.002> <Rev.003>
Part No.
Part Name Description Qty Models
(MB736-R003) 5
Victor Company of Japan, Limited
Home Entertainment Business Division Personal AV Operation 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(MB736-R003)
Printed in Japan
No.MB736<Rev.002> VSE
PARTS LIST
UX-F2BE,UX-F2BEN,UX-F2BEV,UX-F2BUS,UX-F2BUW
MODELMARK
AUX-F2BE
UX-F2BEN
* All printed circuit boards and its assemblies are not available as service parts.
B
CUX-F2BEV
DUX-F2BUS
EUX-F2BUW
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Electrical parts list (Block No.01~05)
Packing materials and accessories parts list (Block No.M3)
No additional / supplemental order of WARRANTY CARDs are available.
Block No.
MMM3
P6
P9
P8
P7
A10
P5
US,UW
P3
P4
P4
A1,A2,A3,A4
A5,A6,A7
A12
A8
A11
E,EN,EV
A8
P8
P7
A9
A9
P2
P10
P10
P1
The parts without symbol number are not service.
3-13
Packing and Accessories
Symbol No.Part No.Part NameDescriptionLocal
A 1CD7202091800100INST BOOK7202-091800100 GERA
A 1CD7202091800700INST BOOK7202-091800700 SPAB
A 1CD7202091801200INST BOOK7202-091801200 RUSC
A 1CD7202091800500INST BOOK7202-091800500 ENGD,E
A 2CD7202091800200INST BOOK7202-091800200 FREA
A 2CD7202091800800INST BOOK7202-091800800 PORB
A 2CD7202091801300INST BOOK7202-091801300 POLC
A 2CD7202091800600INST BOOK7202-091800600 CHI(PEKIN)D
A 2CD7202091801600INST BOOK7202-091801600 SPAE
A 3CD7202091800300INST BOOK7202-091800300 DUTA
A 3CD7202091800900INST BOOK7202-091800900 SWEB
A 3CD7202091801400INST BOOK7202-091801400 HUNC
A 3CD7202091801700INST BOOK7202-091801700 PORE
A 4CD7202091800400INST BOOK7202-091800400 ITAA
A 4CD7202091801000INST BOOK7202-091801000 FINB
A 4CD7202091801500INST BOOK7202-091801500 CZEC
A 5CD7202091801100INST BOOK7202-091801100 DANB
A 6CD7201091900100SAFETY SHEET7201-091900100 ENG/GER/FRE/ITA/DUTA
A 6CD7201091900200SAFETY SHEET7201-091900200 SPA/DAN/FIN/SWE/PORB
A 6CD7201091900300SAFETY SHEET7201-091900300 RUS/HUN/CZE/POLC
A 6CD7201091900400SAFETY SHEET7201-091900400 ENG/CHI(PEKIN)/SPA/PORD,E
A 7------------WARRANTY CARD7201-081000102A,B,C
A 8CD3009001400100FM ANTENNA3009-001400100
A 9UXF2B-SPBOXSPEKAER WITH BOX8919-091300100(x2)
A 10CD1901000011900REMOCON UNIT1901-000011900
A 11CD5926081000100AM LOOP ANT5926-081000100D,E
A 12CD3103000000020CONVERSION PLUG3103-000000020D,E
P 1CD7603091800100CARTON7603-091800100
P 2CD7702091800100PAPER PULP BOTTOM7702-091800100
P 3CD7701091800100PAPER PULP TOP7701-091800100
P 4CD7502081000100POLY BAG7502-081000100A,B,C
P 4CD7502081000100POLY BAG7502-081000100(x2)D,E
P 5CD7502081000400POLY BAG7502-081000400
P 6CD7502092000100POLY BAG7502-092000100
P 7CD7215091800100CARD7215-091800100(x2)
P 8CD7501092000100EPE SHEET7501-092000100(x2)A,B,C
P 8CD7501070900100EPE SHEET7501-070900100(x2)D,E
P 9CD7208092000100PAPER SHEET7208-092000100
P 10CD7215091800200FLOUR PAPER7215-091800200(x2)D,E
Block No. [M][3][M][M]
3-14
SCHEMATIC DIAGRAMS
MICRO COMPONENT SYSTEM
UX-F2BE, UX-F2BEN, UX-F2BEV,
UX-F2BUS, UX-F2BUW
SP-UXF2B
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Contents
Block diagrams
Standard schematic diagrams
Printed circuit boards
2
SP-UXF2B
CA-UXF2B
only for Europe
2-1
2-2
2-11 to 13
COPYRIGHT 2010 Victor Company of Japan, Limited.
No.MB736SCH<Rev.003>
2010/6
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
Block diagram
r
System control & Audio Amp section
CD traverse
mechanism
CD PICKUP
mechanism
TRY SW
M
LOADER
Section
IC104
MOTOR
CN104
DRIVER
Q13
to
Q10
CN103CN102
USB
JK201JK302JK301
SD
JK202
AUX IN
HP
,
Q8
LOADER DRIVER
D+/D-
SD
CN108
CN201
D+/D-
+5V_USB
SD
SD&USB JACK section
AUX L/R
HP L/R
HP&AUX
JACK section
X101
27MHz
IC103
SDRAM
REC Key
CD /RL
IC106
MPEG
IC105
FLASH
ROM
IC101
IC102
1V8,3V3
REG
CD servo section
CN203
CON301
CN608
CN101
5VD
CN105
CN607
CN606
CON503
UART
CD_ON
TR+
TROPEN
CLOSE
CD R/L
U605
HP AMP
MUTE
AUX L/R
HP L/R
TACT SW
SW501-SW514
KEY MATRIX
LED MATRIX
WITH DIM
LED501
STANDBY
LED
LED section
HP_MUTE
HP_DET
KEY_1
KEY_2
LED ON
DIM OFF
IPOD_LED
X602
8MHz
X601
32.768K
U601
MICON
TU_CLK
Q604
RESET
CN602
CON501
VFD_CLK
VFD_DATA
VFD_STB
TU_DA
TU_RST
TU_DET
U501
VFD DRIVER
GR1 to 12
VFD1 DISPLAY
STB LED OFF
SG1 to 16
DISPLAY section
U602
EEPROM
SDA
TU_ON
CON1
CN605
REMOCON
CON2
IR_RX
IR501
SCLK
U604
E,VOLUME
Q704
IN L/R
POWER ON
MCU upgrade
CN902
CON502
STBY/MUTE
+9V REG
Q602
,Q601
A+12V
SWITCH
CN601
CN904
D911,D912
5VD REG
D916
5VE REG
D917
FL+/- REG
D915
-25V REG
Q702
+12V REG
QF01
Q703
,
,
A+12V
SWITCH
U608
POWER AMP
Q606
,Q605
,ZD601Q607
+5V REG
TU_ON
CN603
CN903
D913
+25V REG
T901
AMP TRANS
SW REG.
CONTROL
T902
POWER TRANS
SMPS section
QF03
TUNER L/R
D905
&U901
U904
BRIDGE
CN610
CN612
D901
DIODE
JK601
CN604
SW901
110V/230V
NTC
Sensor
DC Fan
TO
Speake
UNIT
TUNER
AC CORD
AC IN
2-1
Standard schematic diagrams
<SMPS section 1>
P+
L902
D901
R903
R901
C903
C902
R904
R902
C935
C936
C905
J910
SW901
To SMPS section 2
C906
VCC-H
WIRE1-2
R907
PRM-GND
Q909
RV901
RV902
U901
C909
J901
C940
J909
L905
R944
U902-B
D902
C908
Q901
R905
C911
R906
R937
D903
R943
L909
C907
C910
L907
R939
C939
R908
D904
PRM-GND
C937
T901
R945
J904
R913
U902-A
U903
R909
D905
C917
C913
C912
L906
R911
C915
R910
R912
C916
D921
PIN5
contact pin
PIN4
contact pin
PVCC
wire
SEC-GND
PIN1
F901
C901
L901
RT901
R933
VCC-L
U907-B
2-2
PRM-GND
SEC-GND
U907-A
R934
Q902
R935
R936
NOTE)
STB+5V
SEC-GND
Warning
Parts that are shaded are critical
With respect to risk of fire or
electrical shock.
ECO
<SMPS section 2>
D917
CN902
P+
J911
C919
C920
U904
U905-B
J903
R941
C918
R916
R915
D907
PRM-GND
L911
R917
C938
+12V
+5V
FL+
FL -
STB
D911
D916
D913
C930
SEC-GND
SEC-GND
D912
C931
R921
C926
L904
Q905
R922
C927
D919
R923
Q906
J907
C932
R924
C928
D918
-27V
To DISPLAY section CN502
SEC-GND
CN903
SEC-GND
To MICOM section CN603
PVCC
CN904
D910
Q903
R919
VCC-L
C923
C921
D922
R940
D908
D909
C922
PRM-GND
VCC-H
T902
-27V
C914
GND
D915
-27V
WIRE1-1
C929
C924
R946
U906
SEC-GND
C925
U905-A
C933
SEC-GND
R929
R925
R926
R928
R927
Q908
PIN3
R931
R930
J908
STB+5V
To MICOM section CN601
J906
ECO
2-3
<AMP section>
R710
R709
To AUDIO section
To MICOM section
To MICOM section
PRE_L
PRE_R
R728
R727
AMP_STB
UNPLUG_MUTE
AMP_MUTE
EC701
+25V
C724
PGND
R730
C701
R729
D701
R721
To MICOM section
A+12V
R718
C725
ZD701
R716
R720
R717
C742
C707
R714
AM_HOP
Q703
C706
R715
R719
C721
C715
C716
R712
Q702
R713
R711
Q706
C712
C711
C705
C722
R701
PGND
R705
C719
C717
C702
C794
C710
R706
C709
VDDS
R704
R707
C720
C703
C793
R723
R708
C727
C718
C723
SVR
PGND
R702
U608
C708
C713
C714
C704
VDDS
R703
C726
R722
L704
L703
M+12V
L702
SPK_R_+
SPK_L_+
L701
C728
C729
DF01
C730
C731
C732
C733
CF08
CF07
RF09
MGND
PGND
C789
C790
C791
C792
CF03
RF10
DF02
DF03
RF08
RF07
CF06
SPK_R_+
L705
L706
SPK_L_+
SPK_L_+
RF06
RF05
C783
C782
C734
CF02
RF02
RF01
QF03
PGND
C735
R729
RF11
C736
QF01
CF05
RF03
C737
RF04
CF01
RF12
JK601
MGND
MGND
NTC
CN612
CN610
PGND
RF13
MGND
SUB_R
To AUDIO section
SUB_L
A+12V
RA01
CA01
U609-B
CA06
U609-A
+12VV
RA04
+12VV
RA05
To This sheet
RA02
RA03
VREF
CA03
RA07
CA02
AGND
+12VV
RA08
RA06
To This sheet
VREF
U610-A
RA09
RA10
ST+5V
To MICOM section
LINE_MUTE
CA07
RA11
CA08
QA03
RA13
RA12
U610-B
QA02
CA04
RA14
CA05
RA15
QA01
LA01
To VIDEO section
SUB_OUT
ST+5V
R726
+25V
R725
Q701
D702
R724
ZD702
C779
UNPLUG_MUTE
SCREW1
SCREW2
PGND
2-4
<MICOM section>
To AUDIO section
CN602
To DISPLAY section CN501
C644
C643
C642
C640
C641
CN601
DGND
To SMPS section 2 CN904
CN603
To SMPS section 2 CN903
C645
+25V
+12V
PGND
To This sheet
MGND
D+5V
MGND
TUNER_LIN
TUNER_RIN
To AMP section
To AMP section
To This sheet
SCLK_UPGRADE
VFD_CLK
VFD_DATA
VFD_STB
KEY_2
KEY_1
IR_RX
ST+5V
+3V6
AM_HOP
ST+5V
C615
R675
C622
C623
TUNER_PULSE
IR_RX
AMP_STB
AMP_MUTE
EC604
D601
FMLD0
HOP
To This sheet
A+12V
SYSTEM_ON
C612
C613
R658
CN604
R657
C611
R659
R611
+3V6
+3V6
R676
C625
C624
Q604
C606
R610
U602
To AUDIO section
ST+5V
C616C614
RESET
R607
C607
C608
R608
D602
+5V_TUNER
C626
X601
X602
R616
C603
MCU_SCL
MCU_SDA
C627
R656
C637
L601
C636
C628
MGND
D603
C629
0805
R618
R655
MCU+3V3
R617
+3V6
R654
+3V6
C638
R653
R605
R615
R639
R652
C602
R614
C610
R602
R603
R604
R606
R609
EC601
R612
R613
+12V
C617
To This sheet
TUNER_PULSE
R651
R650
R649
R648
R647
R646
R601
C601
EC605
C609
R663
R664
ST+5V
R660
R678
Q602
Q603
C620
RN02
RN03
Q601
R665
R661
C618
R662
R645
R619
A+12V
EC610
R644
U601
R620
R621
To This sheet
ECO_STBY
FB601
L602
RN01
RN04
C619
R643
M+12V
R641
R622
EC607
MGND
R640
R623
TUNER_ON
HP_MUTE
HP_DET
VFD_STB
VFD_CLK
VFD_DATA
ECO_STBY
HOP
KEY_1
KEY_2
C605
R636
R635
R634
R633
R632
R630
R626
RN05
C631
C632
To This sheet
To AUDIO section
To This sheet
C604
R624
R625
+3V6
R629
R628
EC602
C633
C634
A+12V
R631
+3V6
R627
D604
D605
L603
R670
Q605
R638
IPOD1_SLEEP_DET
IPOD1_SET
IPOD1_ON
CD_DVD_ON
CLOSE_SW
OPEN_SW
TRAY-
TRAY+
SYNC
LINE_MUTE
IPOD_IC_NREST
To AMP section
PGND
TU+12V
R669
R671
R672
R637
To VIDEO section
Q606
R673
To This sheet
TUNER_ON
DVD_CLK
C635
DVD_DAT
UR_TXD
UR_RXD
DVD_STB
UR_TO_IPOD2
UR_FROM_IPOD2
IPOD_SELECT_A/B
IPOD2_DET
IPOD2_SLEEP_DET
IPOD2_SET
IPOD2_ON
IPOD1_DET
To DISPLAY section CON1
CN605
Q607
R674
ZD601
To VIDEO section
To VIDEO section
+3V6
R666
L611
+5V_TUNER
C621
R667
DGND
EC608
SCLK_UPGRADE
FMLD0
RESET
RXD6
R668
UR_TO_IPOD2
UR_FROM_IPOD2
To This sheet
TXD6
2-5

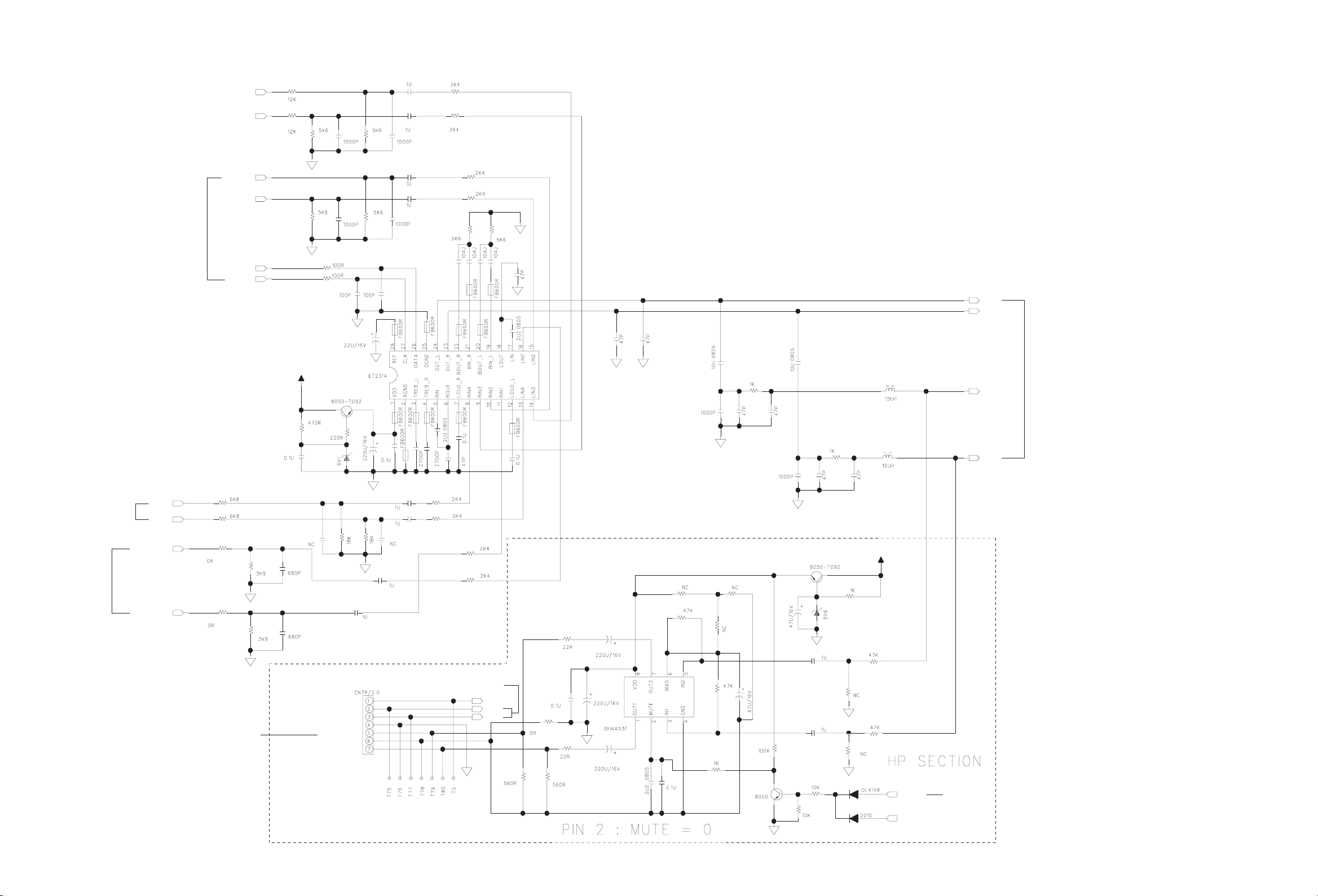

<AUDIO section>
IPOD_L
R742
C753
R746
To MICOM section
IPOD_R
TUNER_RIN
TUNER_LIN
MCU_SDA
MCU_SCL
R743
C740
R766
R767
A+12V
R740
R744
R762
Q704
R741
ZD703
C767
C765
C763
EC704
C768
U604
EC703
R745
R763
C741
B712
B701
C766
C764
C754
C755
C756
B702
B703
C745
B711
B704
C777
C746
R748
R749
R747
R764
C749
B710
B705
C747
C785
B709
C750
C751
B708
C752
B707
R765
C778
B706
C748
C786
C787
C788
C769
C780
C771
R768
C772
C770
C781
C773
R769
C774
L707
L708
SUB_L
SUB_R
To AMP section
PRE_L
PRE_R
To This sheet
To Video section
AUX_R
AUX_L
CD/DVD_LIN
CD/DVD_RIN
R758
R759
R755
R754
To DISPLAY section CN301
R757
R756
C762
C761
C738
R760
HP_L_OUT
HPGND
HP_R_OUT
R761
C760
CN606
C757
C758
C739
C759
R750
R751
R752
R753
To This sheet
HP_DET
AUX_L
AUX_R
R783
R785
C743
R784
R787
R786
EC712
EC711
EC713
U605
C784
C744
R771
R773
R788
R782
R774
R772
EC710
R780
Q708
EC709
C775
C776
R779
Q707
ZD704
R781
R770
D703
D705
R777
R778
A+12V
R775
R776
HP_MUTE
UNPLUG_MUTE
To MICOM section
2-6

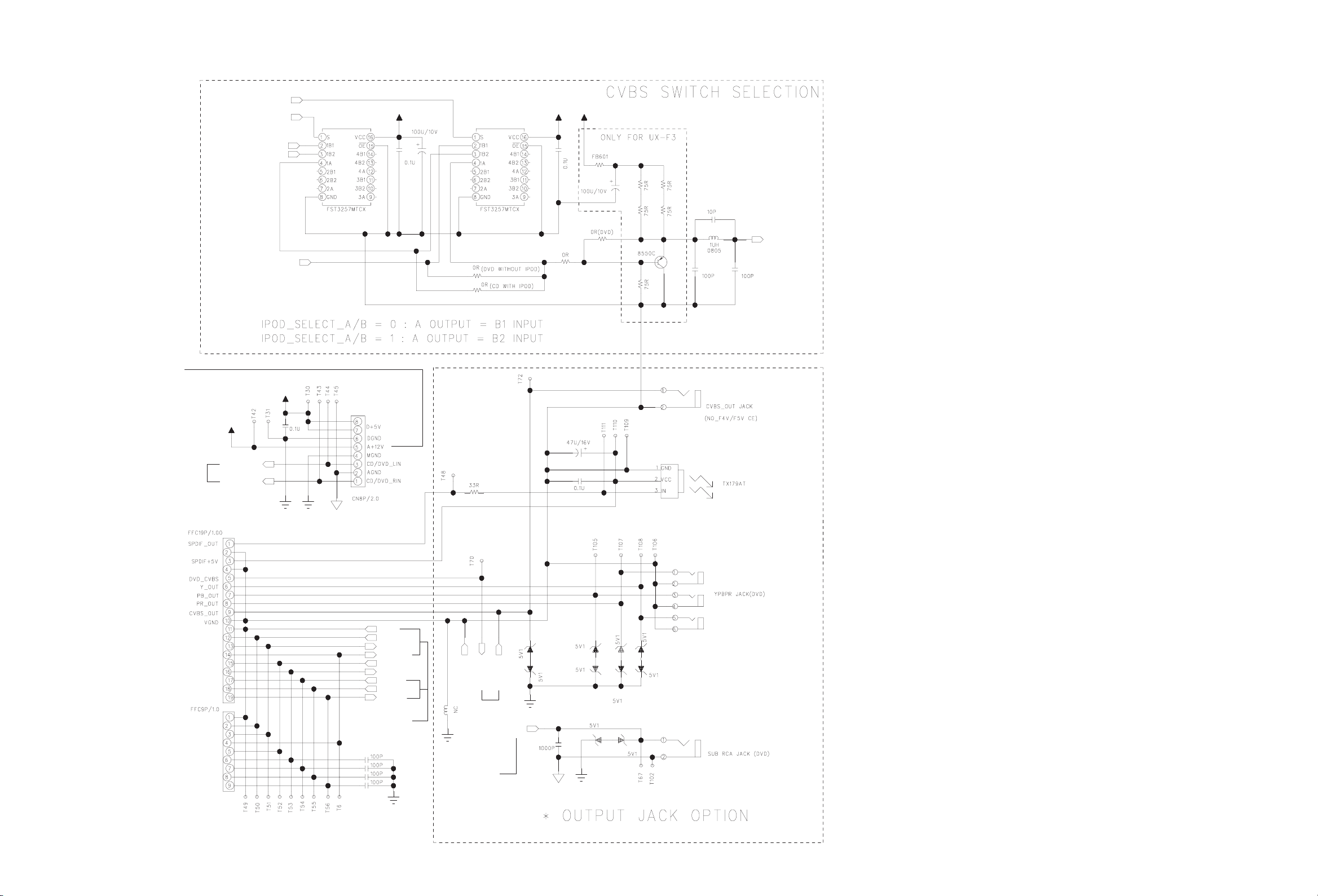

<VIDEO section>
To MPEG section CN105
IPOD2_CVBS_IN
IPOD1_CVBS_IN
A+12V
CD/IPOD_SEL
IPOD_SELECT
DVD_CVBS
To This sheet
D+5V
C630
U611
D+5V
CV06
CV07
RV08
RV09
U612
D+5V
CV05
RV07
D+5V
CV08
CV04
RV06
RV11
RV01
RV02
QV01
RV05
RV03
RV04
CV03
CV02
LV01
JK603
CV01
To This sheet
CVBS_OUT
To AUDIO section
To MPEG section CN101
CN608
CN609
CD/DVD_LIN
CD/DVD_RIN
DGND
MGND
CN607
TRAY+
TRAY-
OPEN_SW
CLOSE_SW
CD_DVD_ON
SYNC
DVD_CLK
DVD_STB
DVD_DAT
To MICOM section
C646
C647
C648
C649
MGND
RV10
VGND
To This sheet
LV02
To AMP section
DVD_CVBS
CVBS_OUT
SUB_OUT
DV02
DV01
MGND
CA11
CV09
DV03
DV04
DA01
MGND
DV05
DV06
DA02
JK605
JK604
DV07
DV08
JK602
2-7

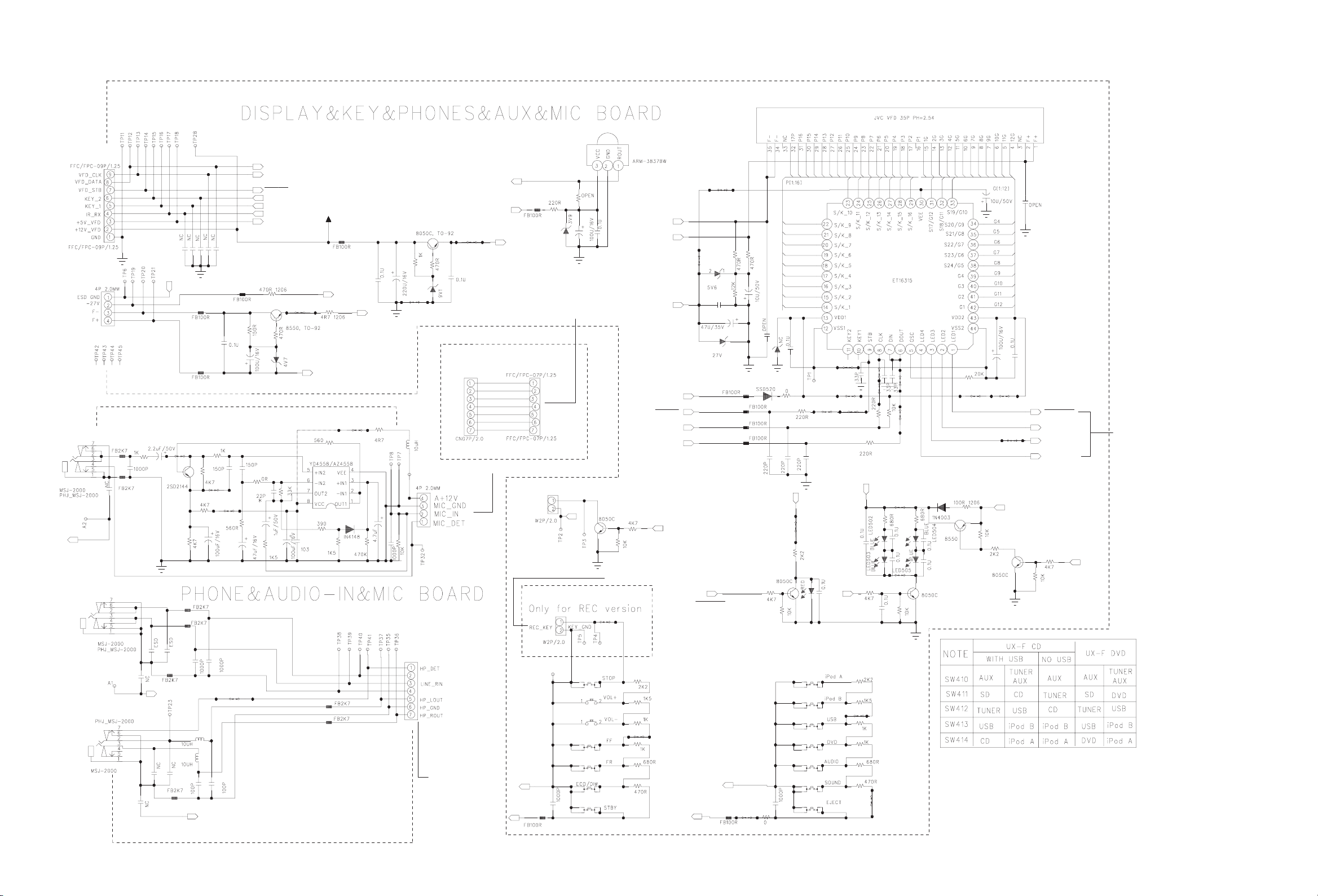

<DISPLAY section>
VFD501
To MICOM section CN602
CON501
CON502
To SMPS section 2 CN902
FB306
JK303
GND_ESD
JK302
JK301
FB305
R301
C305
C306
C311
GND
C307
C309
C313
FB307
FB308
C308
FB301
GND_ESD
C310
FB302
ESD
Q301
C501
JW302
R309
L303
L304
C502
FB508
FB509
C301
C303
C503
C504
GND
R303
R302
JW304
R307
C317
GND_ESD
C505
C314
C302
JW303
R308
JW301
C304
C509
FB507
R504
C510
C315
R304
C316
C318
VFD_DATA
VFD_CLK
VFD_STB
KEY_2
KEY_1
IR_RX
+5V_VFD
R503
ZD504
C319
R310
R505
Q502
R306
(100mA)
JW510
C320
C321
+12V_VFD
FB510
R544
FILAMENT
F2
To This sheet
R305
U301
R323
R313
FB303
FB304
To This sheet
-25V
FILAMENT
To This sheet
JW305
D301
R314
IR501
G9
P11
P13
P14
P15
P16
C524
R533
P12
JW506
C517
IR_RX
+5V_VFD
Q501
R502
C506
C507
F1
R315
R501
ZD505
JW502
L305
TP31
CON302
JW512
C508
CON2
To MPEG section CN2
FB506
+8V_LED
To MICOM section CN605
CON1
CON504
R518
ZD503
R519
C513
C514
To This sheet
F1
To This sheet
F2
To This sheet
-25V
+5V_VFD
VFD_STB
VFD_CLK
VFD_DATA
JW504
JW519
ZD502
0.1U
C520
ZD501
2
C521
1
FB502
FB503
FB504
FB505
R538
R537
C522
R539
GND
D501
C523
C519
P9
P8
P7
P6
P5
P4
P3
P2
P1
ZD506
R542
C518
+5V_VFD
C322
C323
R312
CON301
To AUDIO section CN606
KEY_1
CON503
GND
C511
FB511
LED+
Q507
JW517
SW507
SW506
SW505
SW504
SW503
SW502
SW501
R541
To This sheet
IPOD_LED_ON
R540
To USB & SD section CN203
To This sheet
R511
R510
R509
JW505
R508
R507
R506
KEY_2
STBLED_ON
GND
FB512
JW520
R543
R520
C512
Q503
R521
JW501
R522
LED501
SW514
SW513
SW512
SW511
SW510
SW509
SW508
LED_ON
C529
To This sheet
P10
P9
P10
JW516
JW513
JW513
JW509
JW509
R516
R515
P8
C534
R517
JW518
R514
R513
R512
P7
P11
R535
LED+
R523
P6
P12
C516
P5
P13
JW523
JW507
R534
C515
P4
R525
JW503
P3
P14
U501
C535
JW514
JW515
R524
P2
P15
C536
R532
P1
JW524
C530
C531
P16
JW508
R526
G12
Q504
G11
G1
D502
C533
G10
G2
C532
G8
G3
R536
R527
Q505
G7
G6
JW522
G5
R528
G4
R529
G3
C525
C527
JW521
Q506
G2
JW511
+8V_LED
G1
C526
C528
STBLED_ON
LED_ON
DIM_OFF
IPOD_LED_ON
R531
R530
To This sheet
DIM_OFF
To This sheet
2-8
<USB & SD section>
JK202
JK201
RS4
RS3
D_GND
C201
RS1
To DISPLAY section CN503
RS6
RS5
RS2
CN203
RS7
RS8
R201
SW201
C206
F201
R202
C205
SW202
L201
R203
R204
R205
R206
R207
R208
R209
CN201
FB201
R210
R211
R212
R213
R214
R215
R216
To MPEG section CN108
CN203
2-9
<MPEG section>
+5VV
C159
R118
CN102
C160
R145
C162
C169
DGND
T-
T+
F+
F-
CN104
C161
FB124
C168
DGND
M+5V
BIAS
TCO
SLED-
SLED+
SCO
MUTE
IC104
C152
FC0
SPDC0
4.7R
C170
SP-
OPVIN
F-
R144
Q102
R3
DVDD
DVDC
DVDB
DVDA
CDF
CDE
VCREF
C151
MD
F+
T-
T+
F-
To This sheet
TR+_CD
VCC3
+5VV
C127
F110
R159
VCREF
DGND
R158
DVDD
DVDC
DVDB
DVDA
CDF
CDE
CD_M
MD
CDLD
TC0
FC0
SPDC0
SC0
D104
R119
To This sheet
ROM_CE
ROM_DQ0
ROM_SCK
ROM_DQ1
OPEN
CLOSE
DGND
C2
C155
C149
C150
C164
C163
C166
C165
C157
C174
VCC3
C167
FB125
R143
R148
R147
R149
R150
SD_D1/MMC_WP
SD_D0/MMC_SI
SD_CLK/MMC_SCK
SD_CMD/MMC_S0
SD_D3/MMC_CS
SD_D2/MMC_RST
R5
R154
R6
R155
R1
R2
C1
VCREF
BIAS
DGND
TRAY++
MUTE
VVCC1V8
RF3.3V
DQ0
DQ1
C158
need?
R142
FB118
RF3.3V
R199
C146
OPVIN
OPVIP
VDD3
C173
R32
DGND
C109
C148
VCC1.8V
C110
C147
C156
TR-_CD
D103
TRAY--
C140
X101
C137
R120
PLLVCC1.8
HOME
IC106
R123
C135
FB100
C139
R126
R129
L102
PLLVCC3
C138
L101
C187
C136
C134
FB120
USB_DM
USB_DP
USB_VCC
C133
C185
C130
C112
C131
C111
R122
C132
C129
C186
CD_R
CD_L
DGND
AGMD
DGND
VCC_VDAC
FB119
FB115
CD_R
CD_L
VCC3
C141
VCC_ADAC
C124
C123
C122
F118
F120
F119
ID3
USB_DP
USB_DM
DGND
FB101
AGND
C184
C183
To This sheet
C182
DGND
D4
R135
C125
VCC_CARD
CARD_RST
CARD_SENSE
D3
Q202
R172
R20
R171
R153
D+D-_CONNECT
Q201
R19
RZ7
SD D2 / MMC RST
SD D3 / MMC CS
CARD SENSE
SD CMD / MMC SO
SD CLK / MMC SCK
SD D0 / MMC SI
SD D1 / MMC WP
R4
MD0
MD1
MD2
MD3
RN101
MD4
MD5
MD6
MD7
RN102
R12
R13
RZ8
R173
R141
DGND
C119
C120
C121
C117
R15
C4
Q100
C118
D1
R14
R16
Q1
RZ1
RZ2
R18
Q2
R17
RZ6
RZ3
RZ5
RZ4
SDRAM
To This sheet
D+D-_CONNECT
USB_D+
USB_D-
FB109
FB108
FB102
FB107
FB105
FB104
FB103
C181
VCC
F106
+5V
CARD_VCC3
C126
C128
DGND
CN108
To USB & SD section CN201
VCC3
SDCARD+MD
MD15
MD14
MD13
MD12
IC103
C114
C115
R110
C116
C113
DGND
RN103
RN104
MD11
MD10
MD9
MD8
CN103
CN101
To VIDEO section CN608
CN105
To VIDEO section CN607
F121
F122
FB113
FB112
FB121
FB116
FB117
F109
F108
F124
DGND
DGND
AOUT_L
AOUT_R
RST
OR
FB127
OR
FB128
LOAD-
LOAD+
DAT/UR_FROM_CD
CLK/UR_TO_CD
ID3
CD_ON
To This sheet
TR-
+12V
TR+
DGND
+5V
To This sheet
Q105
R165
R168
Q104
R167
R166
+5VV
R164
D101
CD_ON
DGND
DGND
AGND
C101
C103
IC101
IC102
R101
R103
R102
DGND
DGND
R104
VCC3
C100
C102
VVCC1V8
C105
C104
VCC3
FB114
To This sheet
ROM_DQ0
ROM_VCC
C172
DGND
VDD3
C196
C171
C106
R105
DGND
DGND
ROMDQ2
ROM_DQ0
ROM_CE
To This sheet
R106
D102
DGND
R163
R7
R107
R8
F103
Q101
IC105
MD0
R108
MD1
ROM_VCC
MD2
MD3
R109
ROM_DQ1
ROM_SCK
ROM_DQ3
ROM_VCC
MD6
MD4
MD15
MD5
MD7
DAT/UR_FROM_CD
CLK/UR_TO_CD
To This sheet
TR+
C108
C107
To This sheet
TR-
ROM_DQ1
ROM_SCK
R156
MD13
MD14
MD12
MD11
To This sheet
1
MD10
Q4
Q3
MD9
D2
D110
D111
TP1
MD8
F101
DGND
TR+_CD
To This sheet
TR-_CD
C179
R133
Q103
C177
R128
TP3
DGND
C11
AGND
R11
C5
R25
R10
R24
C14
C10
C19
IC107
C3
R9
Q108
Q107
Q109
Q106
R127
DGND
R130
R132
C180
C178
CD_R
LOAD-
LOAD+
To This sheet
CD_L
+12V
C13
R26
C20
C12
R30
C21
C6
R27
R31
R21
C7
R125
DGND
R169
DGND
DGND
TP4
11
C193
C194
AGND
+12V
CD_R
C18
CD_L
R22
R114
R29
C15
R28
R115
R23
AOUT_R
C17
AOUT_L
C8
C9
C16
C189
C188
2-10
Printed circuit boards
<MAIN board>
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
(forward side)
CN606
R783
R784
R786
EC712
EC713
EC710
JK601
R759
R758
R787
R788
C744
U605
C784
C737
R773
EC709
R774
C783
C635
R785
C776
R772
C743
R778
R777
C707
L705
ZD601
EC711
R776
L708
L707
R727
D705
D701
Q701
R724
D702
C730
C736
R775
R729
C772
C715
R718
R674
R771
R719
Q607
ZD704
R770
Q707
R769
C725
C711
ZD701
R717
L701
C731
R780
C735
R768
R730
R728
R715
ZD702
C789
C774
Q702
C779
C633
R673
C775
R713
C773
C769
R779
R765
Q708
R782
R764
R712
R781
R714
C782
L603
C770
Q703
EC608
C771
C716
C724
C712
R716
L702
L706
C739
C750
C749
C780
R761
C786
C751
R707
C723
R720
Q606
Q605
R672
R671
C738
C788
C720
R725
C706
C728
C734
R669
C790
B708
B709
C787
C781
C718
R709
R710
R708
R722
R670
R760
C623
C758
C752
B707
R675
C757
B711
EC704
C705
C726
EC701
CF08
CF07
C621
C778
B710
B712
R749
R751
R750
R701
C703
C624
C756
D703
C709
C763
C767
C768
RF13
R762
C702
C793
RF10
RF09
CN604
C622
R763
B706
C710
C794
DF02
DF03
C625
C747
B705
R767
C713
C791
CA11
U604
C729
R655
R676
C764
R748
C777
C732
JK602
C755
C785
B704
C741
R766
U608
U804
C748
C714
CF06
RF08
RF07
R705
C722
C704
R723
B703
B702
B701
C727
CF02
RF05
C719
C628
R746
R747
D604
C634
L703
C717
R711
C753
C754
RF06
C746
C745
R706
C627
C629
C626
C766
C765
C721
Q706
D605
R867
R745
R744
C740
EC703
R726
C792
QF03
RF11
RF04
EC813
R742
R743
C708
C733
RF12
Q704
R704
C855
C841
C823
C861
C843
C846
R702
C853
RF02
RF03
CN610
R752
R756
R703
R863
R721
C845
C638
L821
L823
R753
C761
R740
R741
R613
L704
QF01
DV01
DV02
R873
C844
C842
C762
R611
C637
C760
ZD703
C607
R612
R610
R657
C759
R757
R653
R619
C631
R755
R754
R654
R608
C632
C608
R624
CF03
RF01
C852
CN605
R620
C860
EC604
X602
R621
U803
R659
D601
C825
C742
C822
CN804
Q604
R658
C617
CV01
JK603
C850
R864
C701
X601
ZD810
CA02
CA01
CN603
L820
L822
CN803
R609
R666
R605
R603
R865
DF01
CN612
C606
CF05
LV01
R668
R667
C610
R604
C619
EC607
R601
C824
R606
C854
C603
R859
EC605
FB601
RV02
CF01
QV01
R607
C609
R602
R656
R639
C601
RV01
RV04
CV03
C857
R678
R652
C602
C849
RN02
U601
RN03
EC601
FB830
L602
RV11
CV02
C616
EC610
CV04
RV03
Q601
RV05
U602
RV07
RN01
R616
R855
R857
R631
RN04
RV06
R633
R627
RV08
JK604
L601
U612
F801
Q813
R632
R663
R664
EC811
R651
R645
R615
C636
R665
Q602
R650
R644
R623
R625
R649
R643
R617
C614
C618
Q811
R856
R647
R626
R618
R869
R868
LV02
R641
CV05
C851
R646
Q814
U805
R640
RN05
R622
R634
R614
Q815
RV09
R662
R648
R866
R629
C605
R636
U611
R853
R858
R630
F802
R628
C620
EC602
R635
Q810
C604
C615
C613
EC810
D603
C611
R876
CV07
CV06
RV10
R851
Q603
R875
R877
R638
R854
D602
C612
Q812
R852
CN602
R661
CN607
CN608
CV09
CN601
C856
CN609
L611
JK605
C630
CV08
C645
C644
C643
C642
C640
C641
D801
C649
C648
C647
C646
R874
R660
R637
(reverse side)
DV08
DV07
RA11
RA13
LA01
DV04
RA12
DV03
QA03
QA01
RA15
QA02
CA05
DV06
RA03
DV05
RA14
RA01
RA04
RA05
CA03
RA07
CA07
RA09
RA10
RA02
RA06
CA08
CA04
U609
RA08
U610
CA06
DA01
DA02
2-11
<SMPS board>
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
<DISPLAY board>
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
(reverse side)
D910
D922
C923
R901
R902
R904
R903
R905
U901
C909
R907
C920
C908
R940
C938
C919
C939
D902
R944
C940
R937
C911
R941
R946
C933
R925
R929
R935
R936
R913
R933
Q909
R934
Q902
<USB board>
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
(forward side)
RS4
RS3
TP20
JK202
(reverse side)
R201
R202
C206
C205
R212
R210
FB201
R214
R216
C201
RS6
RS5
RS7
RS8
R211
R213
R215
SW201
TP1
F201
JK201
R209
R208
R206
R207
R926
R927
R922
R924
Q906
R921
R928
R930
R910
R911
C917
Q908
R931
R923
C916
R912
R945
CN201
CN203
(forward side)
(Display board)
LED503
CON504
LED502
JW515
VFD501
JW509
JW523
SW513
SW514
D502
JW521
JW524
JW514
JW522
LED505
JW518
LED504
JW516
C527
JW511
SW511
JW519
C525
SW512
JW512
SW506
SW510
SW509
C317
JW503
C319
CON503
SW507
JW305
JW303
JW517
SW508
Q301
CON1
(Upgrade board)
CON2
C318
JW302
C313
(Jack board)
JW304
C322
D301
C320
JW306
L201
JW513
JW508
JW507
R204
C202
R203
SW202
R205
LED501
ZD504
JW506
Q502
C510
ZD501
C520
JW520
JW501
CON502
SW501
SW502
ZD502
SW505
JW526
JW525
JW510
JW504
ZD505
C522
Q501
C507
JW502
IR501
ZD503
CON302
JW505
CON301
CON501
C513
JW301
A2
JK303
JK302
A1
A3
JK301
SW504
SW503
(reverse side)
(Display board)
C512
(Jack board)
R314
R305
R304
FB305
C309
R308
C315
C314
C306
C311
FB302
R323
R306
C316
R303
R313
R301
C305
FB306
C312
FB307
C302
C301
FB308
C308
FB301
FB304
C307
C303
C304
L304
C310
FB303
C531
C533
R512
R513
R511
R309
R307
R302
C321
U301
R310
R312
C323
R315
L305
FB506
C508
C504
C503
R518
C514
L303
R508
C505
ZD506
R515
R514
R543
R528
R529
R531
Q507
R540
R541
R510
R509
R535
R532
R534
R533
R544
R542
R502
R501
C506
FB502
FB510
D501
C517
C518
FB505
FB504
FB503
FB512
C502
FB511
C519
C501
R519
R507
R516
R517
C532
R526
R525
C516
R527
R530
R524
C515
R523
U501
R536
C524
C523
R537
R538
R539
R504
C509
C521
R503
FB508
FB507
R506
C530
Q505
Q506
Q504
C537
C528
C534
C535
C536
C526
R505
R522
FB509
R520
Q503
R521
R545
C529
C511
RS2
RS1
2-12
<MPEG board>
(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))
(forward side)
CN108
(reverse side)
FB109
FB102
FB105
FB103
C125
FB101
RZ1
RZ2
FB108
FB107
FB104
RZ6
RZ7
R19
Q201
R13
C4
Q2
R17
R18
Q100
RZ3
RZ4
RZ5
R141
R173
R4
C126
RZ8
R20
Q202
R172R153
R135
R12
R15
Q1
R16
D1
R14
D3
D4
C118
C183
C182
C184
R171
C117
C196
R108
R107
FB114
C120
F119
C106
C116
C121
F118
Q101
R109
CN103
R105
F120
D102
R106
F103
FB128
FB127
C177
C172
R163
C171
R156
C107
IC103
C180
C181
F106
C178
C2
C1
IC105
C111
R130
R127
C163
RN101
C114
C115
C119
R128
Q108
Q107
Q106
Q109
R159
C179
C170
C174
R2
R1
C162
R5
C165
R150
R149
C166
R148
C113
R32
R154
R6
R155
R199
C108
RN102
C173
C110
RN103
RN104
C112
R147
R110
IC106
C122
C156
C123
C149
C141
C169
IC104
C167
Q102
C164
C157
C124
C190
CN104
R158
C151
R143
C133
C132
C131
R122
C129
C168
R144
Q103
C152
C187
C160
C135
C138
C148
FB120
FB115
R133
R125
R132
R129
C147
D104
FB124
C146
C130
R3
C155
D110
D103
D111
R145
CN102
R142
L101
C136
FB119
F101
R169
C185
F110
FB125
R126
R123
C140
C139
FB100
L102
Q4
Q3
C137
X101
C159
R118
CN105
R166
R167
D2
R119
R120
C102
F122
IC101
C104
C134
C109
C161
C150
C158
Q104
FB118
C188
C189
IC102
C18
F124
R115
R21
R31
R30
C6
C194
R168
F121
FB121
FB117
F108
Q105
R165
C16
C127
R164
C101
C100
R102
R101
D101
C103
C105
C15
C9
R29
R23
R22
IC107
C21
CN101
C193
R28
C14
C10
R24
R25
R26
C11
C12
R103
R104
C8
C19
C3
R9
R10
R11
C5
C20
C17
R114
C7
R27
C13
R8
R7
FB113
FB112
FB116
F109
C12
CN101
TP2
C14
C20
C127
CN105
C178
R127
C163
Q108
C177
Q109
CN103
CN108
C126
Q100
D101
R164
C102
CN104
D2
R3
C168
Q107
Q106
C104
C151
C161
C8
C18
CN102
C172
C106
C150
C111
C6
C158
C109
X101
C134
C118
C130
C124
C122
2-13
Victor Company of Japan, Limited
Home Entertainment Business Division Personal AV Operation
(No.MB736SCH<Rev.003>)
Printed in Japan
VSE
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
