JVC UX-A70 User Manual

MICRO COMPONENT MD SYSTEM

UX-A70MDR

DEF

ABCMARK

21 3

GHI JKL MNO

54 6

PQRS TUV WXYZ

+10

COMPACT

DIGITAL AUDIO

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

GVT0050-008A

[B]

Warnings, Cautions and Others

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the

plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately , to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT: DO NOT make any connection to the terminal which is

marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSUL T A COMPETENT ELECTRICIAN.

Caution –– switch!

Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off). The switch in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights red.

• When the unit is turned on, the STANDBY/ON lamp lights green.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

– G-1 –

IMPORTANT FOR LASER PRODUCTS

REPRODUCTION OF LABELS

1 CLASSIFICATION LABEL, PLACED ON REAR

ENCLOSURE

CLASS 1 LASER PRODUCT

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front:

No obstructions and open spacing.

2 Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom:

Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

2 WARNING LABEL, PLACED INSIDE THE UNIT

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling (d)

VARNING: Osynlig laserstrålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO: Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

Front view Side view

15 cm 15 cm

15 cm

1 cm1 cm

15 cm

UX-A70MDR

10 cm

15 cm

– G-2 –

15 cm

UX-A70MDR

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been disigned and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment. Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between

pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally , or if it is damaged in any way–switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for

unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic

safety. It is illegal to watch television whilst driving. DON’T listen to headphones at high volume as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the

manufacturer’s approved stand or legs with the fixings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case -this

could result in a fatal electrical shock.;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

– G-3 –

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

About This Manual

Power sources

This manual is organized as follows:

• This manual mainly explains playback and editing operations using the remote control, and the other operation such as recording operations using the buttons on the unit. You can use the buttons both on the remote control and on the main unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise.

• Basic and common information that is the same for many functions is grouped in one place, and is not repeated in each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Basic and Common Operations” on pages 10 – 13.

• The following marks are used in this manual:

Gives you warning and caution to prevent from damage or risk of fire/electric shock. Furthermore, gives you information which is not good for obtaining the best possible performance from the unit.

• When unplugging the unit from the wall outlet, always pull the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• The electronic swing panel may malfunction when you use this unit under the strong light such as the sunlight.

DO NOT expose this unit to the strong light.

Gives you information and hints you had better know.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold — between 5˚C (41˚F) and 35˚C (95˚F).

• Install the unit in a location with adequate ventilation to prevent internal heat buildup in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

DO NOT disassemble the unit since there are no user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and consult your dealer.

– 1 –

Location of the Buttons .................................. 3

Main Unit ............................................................... 4

Remote Control...................................................... 5

Getting Started................................................ 6

Unpacking .............................................................. 6

Connecting Antennas ............................................. 6

Connecting Speakers.............................................. 7

Connecting Other Equipment ................................ 8

Putting the Batteries into the Remote Control ....... 9

Basic and Common Operations................... 10

Turning On the Power.......................................... 11

Selecting the Sources and Starting Play .............. 11

Adjusting the Volume...........................................12

Reinforcing the Bass Sound................................. 12

Selecting the Sound Modes..................................12

Setting the Display Illumination .......................... 13

Listening to FM and AM (MW/LW)

Broadcasts ................................................ 14

Tuning in a Station............................................... 15

Presetting Stations................................................15

Tuning in a Preset Station .................................... 16

Receiving FM Stations with RDS........................ 16

Changing the RDS Information ........................... 16

Searching for Programs by PTY Codes

(PTY Search) ................................................. 16

Switching to a Program Type of Your Choice

Temporarily ................................................... 17

• How the EON function actually works...... 18

• Description of the PTY codes .................... 19

Playing Back a CD........................................ 20

Playing Back the Entire CD — Normal Play ...... 21

Basic CD Operations ........................................... 21

Programing the Playing Order of the Tracks

— Program Play ............................................22

Playing at Random — Random Play ................... 23

Repeating Tracks — Repeat Play ........................ 23

Playing Back an MD..................................... 24

Playing Back the Entire MD — Normal Play...... 25

Basic MD Operations........................................... 26

Programing the Playing Order of the Tracks

— Program Play ............................................26

Playing at Random — Random Play ................... 27

Repeating Tracks — Repeat Play ........................ 27

Recording on MD ......................................... 28

Before You Start Recording ................................. 29

Recording FM/AM (MW/LW) Broadcasts .......... 31

Recording CD — CD Synchronized Recording .... 31

Recording the External Equipment

— Sound Synchronized Recording ...............32

Editing MD.................................................... 33

Introducing MD Editing Functions ......................34

DIVIDE Function ................................................ 35

JOIN Function......................................................35

MOVE Function...................................................36

ERASE Function..................................................37

ALL ERASE Function......................................... 37

Assigning Titles to an MD............................ 38

Assigning the Disc Title and Track Title ............. 39

Using the Timers........................................... 41

Setting the Clock.................................................. 42

Using Recording Timer........................................42

Using Daily Timer ...............................................43

Using Sleep Timer ...............................................45

Timer Priority.......................................................45

Maintenance .................................................. 46

Additional Information ................................ 47

MD Disc Types .................................................... 47

ATRAC (Adaptive TRansform Acoustic Coding)/

ATRAC3 ( ) ........................................ 47

UTOC (User Table Of Contents) ......................... 47

Sound Skip Guard Memory ................................. 47

SCMS (Serial Copy Management System)..........48

HCMS (High-speed Copy Management System) .. 48

• MD limitations ........................................... 48

MD Messages ................................................ 49

Troubleshooting ............................................ 50

Specifications................................................. 50

– 2 –

Location of the Buttons

Become familiar with the buttons on your unit.

Main unit

1

p

2

3 

4 5

6 7   

     

q



 w



 



  t 



     y



Display window on the electronic swing panel

u i o ;

TRACK

HIGH

NORMAL SPEED ALL RANDOMPRGMREC

2 3 4 5 6 7 8 9 10 11 12 13 14

DAILY MD REC SLEEP MONO

LP2 LP4

asdf

– 3 –

STEREO

R·D·S

EON

TA News Info

BASS

SOUND

g h j k

See pages in the parentheses for details.

Continued

Main Unit

1 MD # ¥ 8 (play/pause) button (11, 25)

• Pressing this button also turns on the unit.

2 AUX button (11, 32)

• Pressing this button also turns on the unit.

3 MD OPEN/CLOSE 0 button (25, 40)

• Pressing this button also turns on the unit.

5 COLOR button (9, 13) 6 AHB (Active Hyper Bass) PRO button (12) 7 REC MODE and REC buttons (31, 32) 8 Display window 9 PHONES jack — stereo mini type (12) p CD # ¥ 8 (play/pause) button (11, 21)

q FM/AM button (11, 15)

w CD OPEN/CLOSE 0 button (21)

e VOLUME –/+ buttons (12) r Multi operation buttons

t Electronic swing panel y Remote sensor

(Standby/On) button and STANDBY/ON lamp

(11,13, 43)

• Pressing this button also turns on the unit.

• 4 (reverse search), 7 (stop), and ¢ (forward

search)

Display window

u Track number indicators i Timer mode indicators (42)

• (Timer), DAILY (Daily Timer), MD REC (Recording Timer), and SLEEP (Sleep Timer)

o Recording length mode indicators (25)

• SP, LP2, and LP4

; HIGH/NORMAL SPEED REC indicators (32) a MD indicators (25)

• MD and MD insertion (

s Play mode and Repeat mode indicators (22, 26)

• PRGM (Program), RANDOM, and

d CD indicators (21)

• CD and CD insertion (

f FM MODE indicators (15)

• MONO and STEREO

g RDS operation indicators (16, 17)

• RDS, EON, and TA/News/Info

h BASS indicator (12) j SOUND indicator (12) k Main display

• Shows the source name and other information.

)

(Repeat)

)

DIMMER

COLOR

CLOCK /TIMER

TITLE /EDIT

DISPLAY

/CHARA

When using the remote control, point it at the remote sensor on the electronic swing panel.

– 4 –

CANCEL

AUX POWER

AUTO /MONO SLEEP

GHI JKL MNO

PQRS TUV WXYZ

SET

ENTER

ABC

TAPE

SOUND

DEF

AREA GUIDE

MODE

AHB PRO

+10

PLAY MODE

REPEAT

FM/AM

–

FADE MUTING

RM - SUXA70MDR REMOTE CONTROL

VOLUME

Remote Control

PTY EON DISPLAY

– SELECT +

PTY EON DISPLAY

– SELECT +

;

Remote Control

1 DIMMER button (13) 2 CLOCK/TIMER button (42) 3 COLOR button (9, 13) 4 RDS CONTROL button (16) 5 TITLE/EDIT button (35, 39) 6 DISPLAY/CHARA (character) button (26, 30, 39) 7 CANCEL button (22, 27, 35, 39, 42) 8 SET button (13, 15, 29, 35, 39, 42) 9 ENTER button (35, 40) p REPEAT button (23, 27) q MD # ¥ 8 (play/pause) button (11, 25)

• Pressing this button also turns on the unit.

w SOUND MODE button (12) e AHB (Active Hyper Bass) PRO button (12) r FADE MUTING button (12) t AUX button (11, 32)

• Pressing this button also turns on the unit.

y FM MODE button (15) u i SLEEP button (45) o*Number buttons

; PLAY MODE button (22, 26) a FM/AM button (11, 15)

s CD # ¥ 8 (play/pause) button (11, 21)

d Multi operation buttons

f VOLUME –/+ buttons (12)

(Standby/On) button (11, 13, 43)

• 1 – 10, +10 buttons

• Character entry buttons (A – Z, 0 – 9)

• ø / Ø buttons

• PTY, EON, DISPLAY, and SELECT –/+ buttons (16, 17)

• Pressing this button also turns on the unit.

• 4 (reverse search), 7 (stop), and ¢ (forward

search)

* When using the remote control:

For RDS operations, press and hold RDS CONTROL on the remote control while using the buttons — PTY, EON, DISPLAY, and SELECT –/+ buttons.

– 5 –

Getting Started

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in the parenthesis indicates the quantity of the pieces supplied.

• FM antenna (1)

• AM (MW/LW) loop antenna (1)

• AC power cord (1)

• Remote control (1)

• Batteries (2)

• Spacers (2) If any is missing, consult your dealer immediately.

Connecting Antennas

FM antenna

FM antenna (supplied)

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

Outdoor FM antenna (not supplied)

A 75Ω antenna with coaxial type connector (DIN 45325) should be used.

Attach the FM antenna to the FM (75 Ω) COAXIAL terminal.

Extend the FM antenna.

Fasten it up in the position which gives you the best reception.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary measure. If reception is poor, you can connect an outdoor FM antenna.

– 6 –

AM (MW/LW) antenna

Connecting Speakers

Vinyl-covered wire (not supplied)

AM (MW/LW) loop antenna (supplied)

If cords are covered with insulation, twist the core of the cord at the end of each cord, then remove the insulation.

Connect the AM (MW/LW) loop antenna to the AM LOOP terminals as illustrated.

Turn the AM (MW/LW) loop antenna until you have the best reception.

To attach spacers

If you want to put the speakers on the side of the main unit, you need to make a space between the main unit and the right speaker for ventilation. In this case, attach spacers (supplied) to the right speaker as the illustration below:

The main unit

The openings for ventilation

By peeling the cover seal from spacers, you can attach them to the right speaker.

The right speaker

Spacers (supplied)

To remove the speaker grilles

The speaker grilles are removable as the illustration below:

Holes

Projections

To connect an outdoor AM (MW/LW) antenna

When reception is poor, connect a single vinyl-covered wire to the AM EXT terminal and extend it horizontally. The AM (MW/LW) loop antenna must remain connected.

For better reception of both FM and AM (MW/LW)

• Make sure the antenna conductors do not touch any other terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit, connecting cords, and the AC power cord.

Speaker grille

To remove the speaker grille, insert your fingers at the top of the speaker grille, then pull towards you. Also pull the bottom towards you.

To attach the speaker grille, put the projections of the speaker grille into the holes of the speaker.

– 7 –

Continued

To connect speakers

You can connect the speakers using the speaker cords.

Speaker cord

Speaker terminals

Red

3,42

Speaker cord

Connecting Other Equipment

You can connect the following equipment which can be used as a playback and recording device. By using the cassette deck, for example, you can record any source played back on this unit.

When you connect and use the equipment, refer also to its manual supplied.

• DO NOT connect other equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

To connect another component such as a cassette deck

Be sure that the plugs of the audio cords and the jacks on the rear of the unit are color-coded: White plugs and jacks are for left audio signals, and red ones for right audio signals.

To output (PLAY)

Ex. Cassette deck

Black

Rear of the right speaker

If cords are covered with insulation, twist the core

Rear of the left speaker

of the cord at the end of each cord, then remove the insulation.

Open the speaker terminal.

Insert the end of the speaker cord to the terminal.

Match the polarity of the speaker terminals: White (+) to red (+) and black (–) to black (–).

Close the speaker terminal on the rear of the unit.

Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

To input (REC)

–

ANTENNA

AM EXT

AM LOOP

FM(75Ω) COAXIAL

By using audio cords (not supplied), connect:

• Between the audio input jacks on the cassette deck and the LINE OUT jacks — For recording on the cassette deck.

• Between the audio output jacks on the cassette deck and the LINE IN jacks — For playing a tape.

– 8 –

NOW, you can plug in the unit and other connected equipment FINALLY!

SPEAKER IMPEDANCE

ANTENNA

AM EXT

AM LOOP

FM(75Ω) COAXIAL

To the AC IN terminal

MIN 4Ω

AC IN

AC power cord (supplied)

Putting the Batteries into the Remote Control

Insert the batteries — R6P(SUM-3)/AA(15F) — into the remote control, by matching the polarity (+ and –) on the batteries with the + and – marking on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

To a wall outlet

When connecting the AC power cord into a wall outlet, the unit automatically starts display demonstration.

To stop and cancel the display demonstration, press COLOR during display demonstration while the unit is turned off.

To start the display demonstration manually, press COLOR while the unit is turned off.

• Each time you press the button, the display demonstration alternates between on and off.

R6P(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, it will be damaged from battery leakage.

– 9 –

Basic and Common Operations

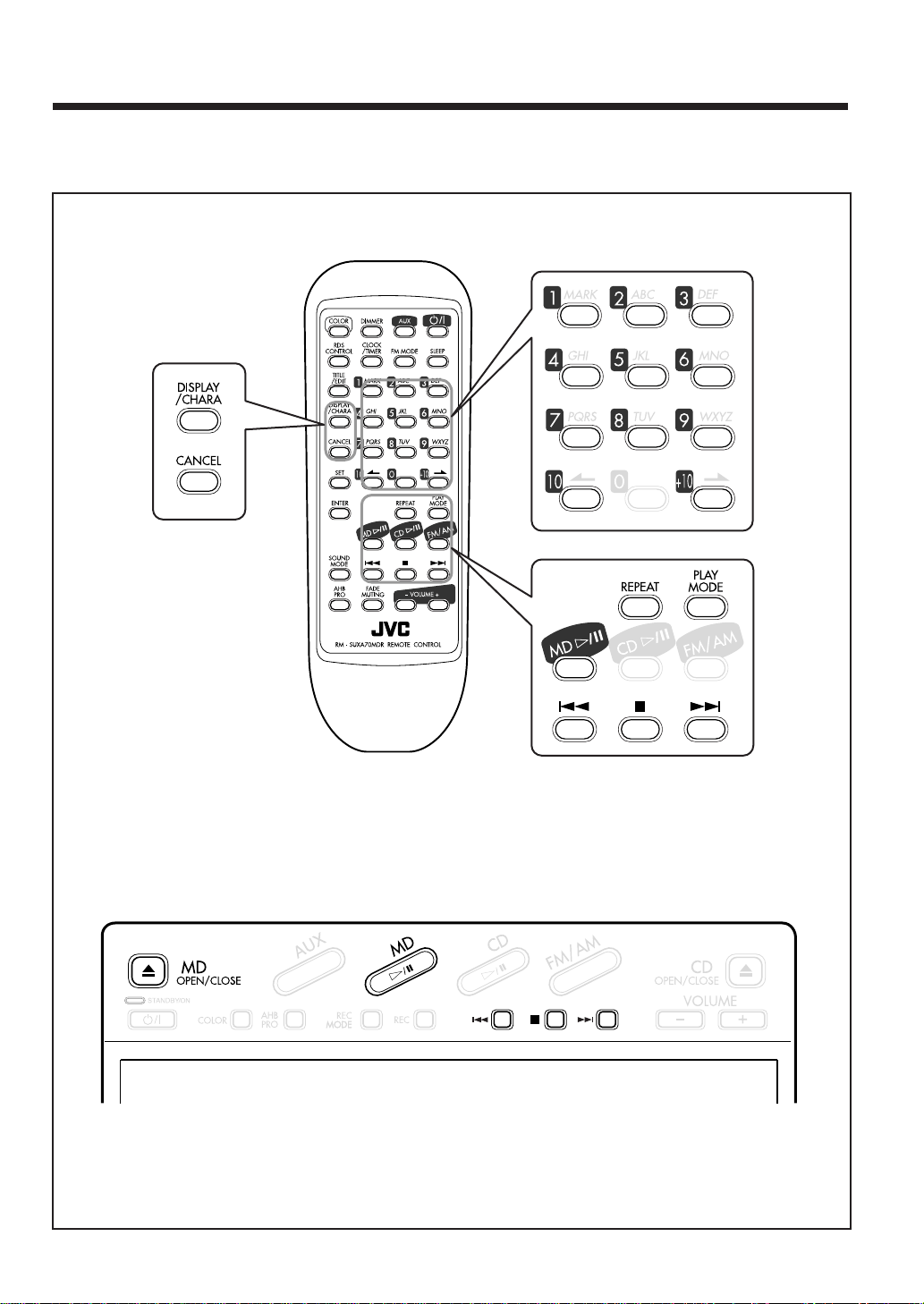

The buttons enlarged clearly in the illustration below are used and explained in this section (pages 11 to 13).

Remote control

PTY EON DISPLAY

– SELECT +

Main unit

– 10 –

Turning On the Power

Selecting the Sources and Starting Play

When you press the play button (CD # / 8, MD # / 8) or the source selecting buttons such as FM/AM and AUX, the unit automatically turns on (and starts playback if the source is ready.)

To turn on the unit without playing, press . The STANDBY/ON lamp on the main unit lights green. “HELLO” appears in the main display.

To turn off the unit (on standby), press again. “SEE YOU” appears in the main display. The STANDBY/ON lamp on the main unit lights red.

• “0:00” appears in the main display until you set the built-in clock. After setting the clock, the clock time will appear in the main display while the power is off.

• A little power is always consumed even while the unit is in standby mode.

To set the built-in clock, see page 42. To switch off the power supply completely, unplug the

AC power cord from the AC outlet.

When you unplug the AC power cord or if a power failure occurs

The clock setting, the tuner preset stations and other settings will be erased.

To select the tuner as the source, press FM/AM. The unit automatically turns on (when the unit is in standby), and “FM” or “AM” appears in the main display for a while. The unit starts to tune in the last received station.

• For more detailed operations, see pages 14 to 19.

To select the CD player as the source, press CD # / 8. The unit automatically turns on (when the unit is in standby), and “CD” appears in the main display for a while.

• Play will start if a CD is on the disc tray.

• “CD NO DISC” will appear in the main display if a CD is not loaded.

To stop playback, press 7.

• For more detailed operations, see pages 20 to 23.

To select the MD player as the source, press MD # / 8. The unit automatically turns on (when the unit is in standby), and “MD” appears in the main display for a while.

• Play will start if an MD is in the MD loading slot.

• “MD NO DISC” will appear in the main display if an MD is not loaded.

To stop playback, press 7.

• For more detailed operations, see pages 24 to 27.

To select the external equipment as the source, press AUX. The unit automatically turns on (when the unit is in standby), and “AUX” appears in the main display for a while.

• For operating the external equipment, see the manuals supplied with them.

– 11 –

Adjusting the Volume

Reinforcing the Bass Sound

You can adjust the volume level only while the unit is turned on.

To decrease the volume, press VOLUME – . To increase the volume, press VOLUME + .

(VOL. 40)

(VOL. 0)

• When press and hold each button, you can change the volume level continuously.

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on the headphones.

If “CAN NOT LISTEN” appears in the main display

During high-speed recording (see page 30), you cannot listen to any source, and therefore, cannot adjust the volume level.

DO NOT turn off (on standby) the unit with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source. REMEMBER you cannot adjust the volume level while the unit is in standby mode.

To turn down the volume level temporarily

On the remote control ONLY: Press FADE MUTING.

The unit automatically decreases the volume level to “VOL.MIN” at once. To restore the sound, press FADE MUTING again.

The richness and fullness of the bass sound is clearly maintained regardless of how low you set the volume — Active Hyper Bass PRO.

• You can use this effect only for playback.

To get the effect, press AHB PRO. “BASS ON” appears in the main display and the BASS indicator lights on the display. To cancel the effect, press AHB PRO again. “BASS OFF” appears in the main display and the BASS indicator goes off from the display.

Selecting the Sound Modes

You can select one of the 3 preset sound modes. The sound modes can be applied only to playback sounds, and cannot be used for recording.

On the remote control ONLY: To select the sound modes, press SOUND MODE

repeatedly until the sound mode you want appears in the main display. The SOUND indicator also lights on the display.

• Each time you press the button, the sound mode changes as follows:

FLAT

(Canceled)

ROCK

POP

ROCK: Boosts low and high frequency.

Good for acoustic music.

POP: Good for vocal music or voice. CLASSIC: Good for classical music. FLAT: Cancels the sound mode.

To check the sound mode currently selected, press

SOUND MODE once while the SOUND indicator is lit. The currently selected sound mode will appear in the main display.

CLASSIC

– 12 –

Setting the Display Illumination

You can change the illumination color and brightness of the electronic swing panel and display window.

To create your favorite colors

You can create two favorite colors and store them in memory as “M1” and “M2.”

On the remote control ONLY:

To set the illumination color

You can select the illumination color by your preference.

Press to turn on the unit.

Press COLOR repeatedly until the color you want

appears in the main display.

• Each time you press the button, the illumination color changes as follows:

(blue)

(white)

(pink)(purple)

Ex. Both “M1” and “M2” are set to “R0 G1 B1” at the

shipment (see also the right column.)

* If you select “RANDOM,” the unit will select one

from 9 preset colors at random as the illumination color every two seconds automatically.

** If you select “M1” or “M2,” you can use a custom

color. See “To create your favorite colors” to the right.
