COLOR VIDEO MONITOR
BEDIENUNGSANLEITUNG : FARB-VIDEO-MONITOR
MANUEL D’INSTRUCTIONS : MONITEUR VIDÉO COULEUR
MANUALE DI ISTRUZIONI : MONITOR VIDEO A COLORI
INSTRUCCIONES : MONITOR DE VIDEO A COLOR
!"#$%&'(&)
INSTRUCTIONS
TM-H1900G
ENGLISH
TM-H1700G
For Customer Use:
Enter below the Serial No. which is located on the rear of the cabinet.
Retain this information for future reference.
Pour l’usage du client:
Enter ci-dessous le numéro de série qui est situé sur l’arrière du coffret.
Conserver cette information pour une référence ultérieure.
Model No. :
Numéro de modèle :
Serial No. :
Numéro de série :
CHROMA
CONTRAST
VOLUME/SELECT
BRIGHT
PHASE
TM-H1900G
(TM-H1900G shown)
(Gezeigtes Modell ist TM-H1900G)
(TM-H1900G montré)
(Modello TM-H1900G)
(Muestra de TM-H1900G)
(
qjJeNVMMd
UNDER
MENU
SCAN
)
AB
INPUT SELECT
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
POWER
LCT1092-002B-H
INSTRUCTIONS
COLOR VIDEO MONITOR
TM-H1900G
TM-H1700G
ENGLISH
Thank you for purchasing this JVC color video monitor. Before using it, read and follow all
instructions carefully to take full advantage of the monitor’s capabilities.
SAFETY PRECAUTIONS
In order to prevent any fatal accidents caused by misoperation
or mishandling the monitor, be fully aware of all the following
precautions.
WARNINGS
To prevent fire or shock hazard, do not expose this
monitor to rain or moisture. Dangerous high voltages
are present inside the unit. Do not remove the back
cover of the cabinet. When servicing the monitor,
consult qualified service personnel. Never try to service
it yourself.
WARNING : THIS APPARATUS MUST
BE EARTHED.
Machine Noise Information Ordinance 3. GSGV,
January 18, 1991: The sound pressure level at the
operator position is equal or less than 70 dB(A)
according to ISO 7779.
Improper operations, in particular alternation of high
voltage or changing the type of tube may result in x-ray
emission of considerable dose. A unit altered in such a
way no longer meets the standards of certification, and
must therefore no longer be operated.
FCC INFORMATION (U.S.A. only)
CAUTION: Changes or modification not approved by
JVC could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
This monitor is equipped with a 3-blade grounding-type
plug to satisfy FCC rule. If you are unable to insert the
plug into the outlet, contact your electrician.
PRECAUTIONS
● Use only the power source specified on the unit.
(120 V AC/230 V AC, 50 Hz/60Hz)
● When not using this unit for a long period of time, or when
cleaning it, be sure to disconnect the power plug from the
AC outlet.
● Do not allow anything to rest on the power cord. And do not
place this unit where people will tread on the cord. Do not
overload wall outlets or power cords as this can result in a
fire or electric shock.
● Avoid using this unit under the following conditions:
– in extremely hot, cold or humid places,
– in dusty places,
– near appliances generating strong magnetic fields,
– in places subject to direct sunlight,
– in badly ventilated places,
– in automobiles with doors closed.
● Do not cover the ventilation slots while in operation as this
could obstruct the required ventilation flow.
● When dust accumulates on the screen surface, clean it with
a soft cloth.
Notice (U.S.A. only)
This product utilizes both a Cathode Ray Tube (CRT) and
other components that contain lead. Disposal of these
materials may be regulated in your community due to
environmental considerations. For disposal or recycling
information please contact your local authorities, or the
Electronics Industries Alliance: <http://
● Unplug this unit from the AC outlet and refer servicing to
qualified service personnel under the following conditions:
– when the power cord is frayed or the plug is damaged,
– if liquid has been spilled into the unit,
– if the unit has been dropped or the cabinet has been
damaged,
– when the unit exhibits a distinct change in performance.
● Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Always refer servicing to qualified service
personnel.
● When replacement parts are required, have the service
personnel verify in writing that the replacement parts he/
she uses have the same safety characteristics as the
original parts. Use of manufacture’s specified replacement
parts can prevent fire, shock, or other hazards.
● Upon completion of any servicing or repair work to this unit,
please ask the service personnel to perform the safety
check described in the manufacturer’s service literature.
● When this unit reaches the end of its useful life, improper
disposal could result in a picture tube implosion. Ask
qualified service personnel to dispose of this unit.
www.eiae.org.>
2
POWER CONNECTION
The power supply voltage rating of this product is AC 120 V (For U.S.A. and Canada only) and AC 230 V (For European countries
or United Kingdom), the power cord attached conforms to the following power supply voltage and countries. Use only the power
cord designated to ensure Safety and EMC regulations of each countries.
Power cord
Power supply voltage : AC 120 V AC 230 V AC 230 V
Countries : U.S.A. and Canada European countries United Kingdom
Warning:
● Do not use the same Power Cord for AC 120 V as for AC 230 V. Doing so may cause malfunction, electric shock
or fire.
Note for the United Kingdom power cord only
The plug on the United Kingdom power cord has a built-in fuse. When replacing the fuse, be sure to use only a correctly rated
approved type, re-fit the fuse cover.
(Consult your dealer or qualified service personnel.)
How to replace the fuse
Open the fuse compartment with the blade screw driver, and
replace the fuse.
(* An example is shown in the illustration.)
Fuse
SCREEN BURN
● It is not recommended to keep a certain still image displayed on screen for a long time as well as displaying extremely bright
images on screen. This may cause a burning (sticking) phenomenon on the screen of cathode-ray tube. This problem does
not occur as far as displaying normal video playback motion images.
Supplementary Explanation
= Information for monitor operation =
This monitor uses a high precision CRT (cathode ray tube). Please follow the procedures below.
* For stable operation of the CRT, approximately 30 minutes running time is required from the time the power is turned on.
* When the monitor is installed, it can be easily affected by surrounding magnetic fields, which can generate irregular color
on the screen. When it is difficult to eradicate, degauss from outside using a degausser, etc.
CONTENTS
SAFETY PRECAUTIONS ................................................................................. 2
CONTROLS AND FEATURES ..........................................................................

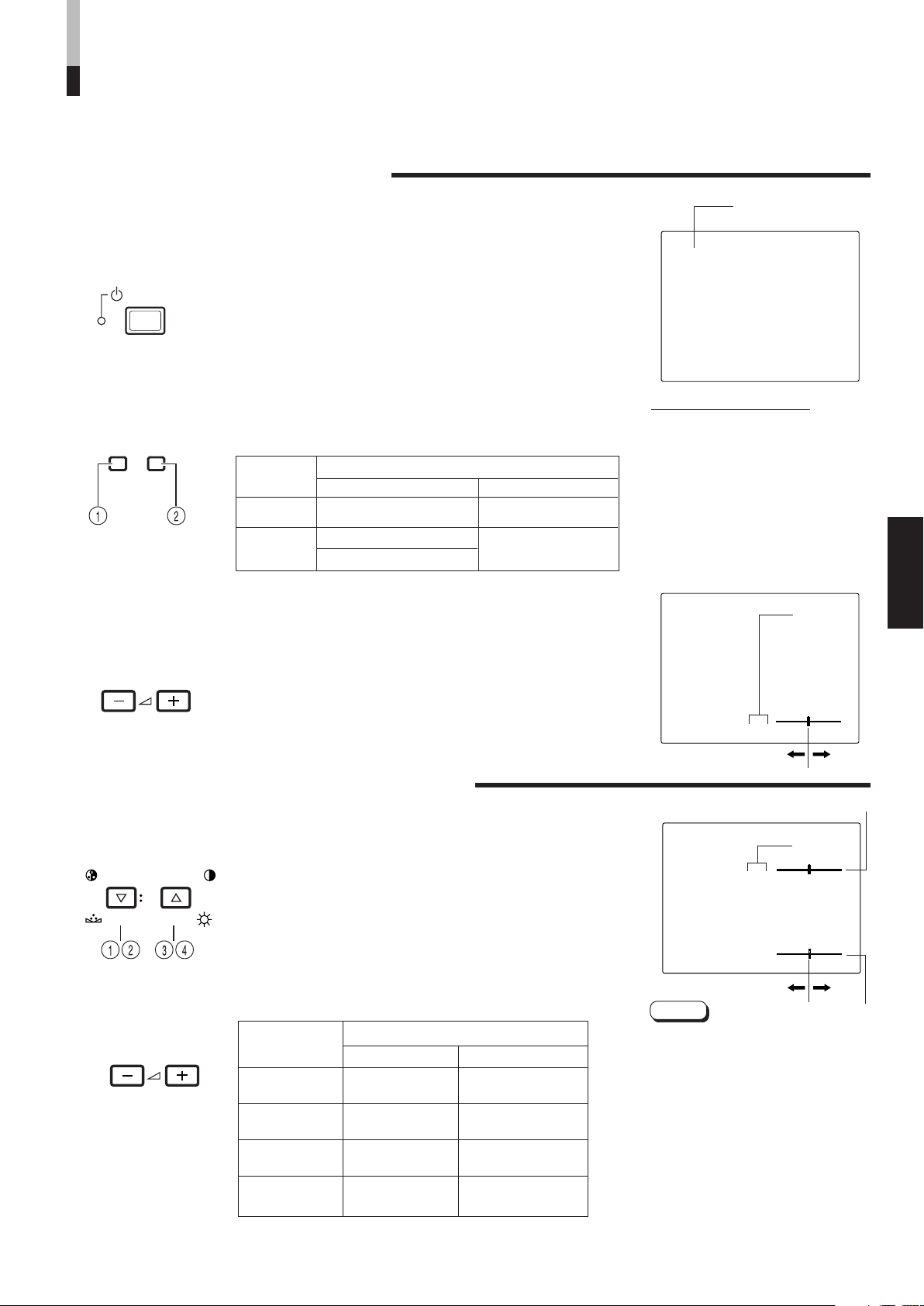

HOW TO HANDLE BASIC OPERATIONS ....................................................... 7
HOW TO USE THE MENU FUNCTIONS.......................................................... 9
HOW TO INITIALIZE THE SETTING.............................................................. 12
ENGLISH
4

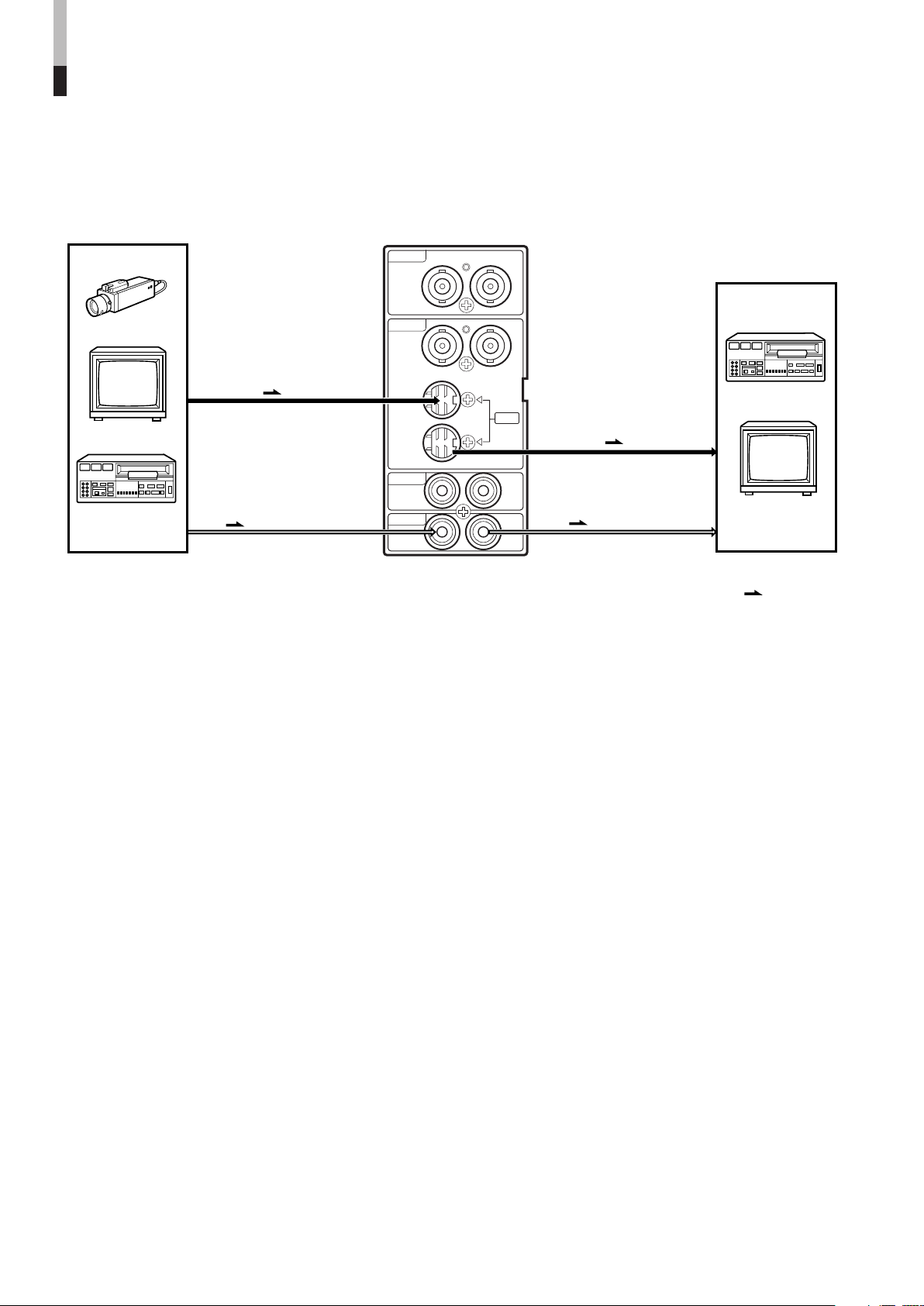

BASIC CONNECTION EXAMPLE.................................................................. 13
HOW TO USE EXTERNAL CONTROL .......................................................... 15
TROUBLESHOOTING.................................................................................... 16
SPECIFICATIONS .......................................................................................... 17
3
CONTROLS AND FEATURES
6
8
7
POWER
CHROMA MENU
INPUT SELECT
UNDER
SCAN
PHASE
BRIGHT
CONTRAST VOLUME/SELECT
AB
9
4
5
3
21
POWER
CHROMA
MENU
INPUT SELECT
UNDER
SCAN
PHASE
TM-H1900G
BRIGHT
CONTRAST
VOLUME/SELECT
AB
10
FRONT VIEW
<Front Panel>
(Front view of TM-H1900G
shown)
1
Chroma/Phase button
CHROMA/ PHASE]
[
Press this button to activate the picture color density
adjustment mode or picture hue adjustment mode. Each
time you press the button, the adjustment item changes.
Picture color density
Adjust the value with the VOLUME/SELECT buttons
Also used as a control button in the menu function mode.
Contrast/Brightness button
2
[CONTRAST
Press this button to activate the picture contrast adjustment mode or picture brightness adjustment mode. Each
time you press the button, the adjustment item changes.
Picture contrast
Adjust the value with the VOLUME/SELECT buttons
Also used as a control button in the menu function mode.
Volume/Select buttons
3
[VOLUME/SELECT –
Adjusts the speaker volume. Also used as a control
button in the menu function mode.
Menu button [MENU]
4
Displays and disappears the <MENU> screen.
Pressing the CHROMA/PHASE button
button depressed will display the <SET-UP MENU>
screen.
5
Under Scan button [UNDER SCAN]
Reduces the screen size to display the entire image.
Press the button again to cancel Under Scan.
When selected, the Under Scan button lights.
f Picture hue
/ BRIGHT ]
f Picture brightness
+]
1 with the Menu
3.
3.
Input A (VIDEO) button [INPUT SELECT A]
6
Selects the video and audio signals input to the VIDEO A
@ and AUDIO A % terminals on the rear panel. The
button lights when selected.
Input B (VIDEO Y/C) button [INPUT SELECT B]
7
Selects the video and audio signals input to the VIDEO B
# or VIDEO B (Y/C) $ and AUDIO B ^ terminals on
the rear panel. The button lights when selected.
Note:
● The VIDEO B terminals include a video terminal (BNC
connector) and a Y/C terminal (mini-DIN 4-pin connector). The Y/C (S-video) terminal has priority.
Power indicator
8
Unlit : The main power is OFF.
Orange : The main power is ON, but the monitor’s power
is OFF (in the stand-by mode).
Green : The main power is ON, and the monitor’s power
is ON (in the normal operation mode).
Power switch [POWER ]
9
Press the power switch to turn the monitor’s power ON or
OFF when the main power is ON.
Note:
● When RUSH DELAY is set to SLOW, it takes about
three seconds before power is actually supplied after
the power switch is pressed.
Speaker
10
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
4
REAR VIEW
12
11
13
14
15
16
VIDEO A
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
VIDEO A
REMOTE
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
<Rear Panel>
(Rear view of TM-H1900G shown)
REMOTE (external control) terminal
11
Connect this terminal to an external control unit to enable
remote operation of the monitor.
Refer to the HOW TO USE EXTERNAL CONTROL on
page 15 for more details.
Video A terminals [VIDEO A IN/OUT]
12
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
(The input signal is automatically terminated if a cable is
not connected to the OUT terminal.)
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO A
terminals
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
13
Video B terminals [VIDEO B IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
(The input signal is automatically terminated if a cable is
not connected to the OUT terminal.)
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
* Also refer to BASIC CONNECTION EXAMPLE on
page 13.
14
Video B (Y/C) terminals [VIDEO B Y/C IN/OUT]
Y/C (S-video) signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
(The input signal is automatically terminated if a cable is
not connected to the OUT terminal.)
%.
^.
IN : Y/C-separated (S-video) video signal input
terminal
OUT : Bridge-connected Y/C-separated (S-video) signal
output terminal.
ENGLISH
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
^.
* When both VIDEO B terminals are connected (input) at
the same time, the Y/C terminal has priority.
* Also refer to BASIC CONNECTION EXAMPLE
on page 14.
Audio A terminals [AUDIO A IN/OUT]
15
Input (IN) and output (OUT) terminals for the audio signal
corresponding to the VIDEO A terminals
@.
The output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO A
terminal
@.
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
16
Audio B terminals [AUDIO B IN/OUT]
Input (IN) and output (OUT) terminals for the audio
signals corresponding to the VIDEO B terminals
#
VIDEO B (Y/C) $.
The output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
terminals
# or VIDEO B (Y/C) terminals $.
* Also refer to BASIC CONNECTION EXAMPLE
on pages 13 and 14.
5
VIDEO A
REMOTE
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
18
17
19
19
19
CONTROLS AND FEATURES (cont’d)
REAR VIEW
<Rear Panel>
To AC outlet
(120 V AC,
50 Hz/60 Hz)
To AC outlet
(230 V AC,
50 Hz/60 Hz)
For U.S.A. and Canada
For Europe
(Rear view of
TM-H1900G shown)
For the United Kingdom
Main power switch
17
Press the switch to turn the main power ON or OFF. When
the main power is ON, the power indicator on the front
panel lights in orange and the monitor enters the stand-by
mode.
I : ON : OFF
AC inlet [AC IN]
18
Power input connector. Connect the provided AC power
( to an AC outlet (120 V AC or 230 V AC,
cord
50 Hz/60 Hz).
Power cord
19
Connects the provided power cord (120 V AC or
230 V AC, 50 Hz/60 Hz) to the AC IN connector
Caution:
In North America (USA and Canada), this monitor comes
with one power cable. In Europe and the United Kingdom, two power cables are provided (one for use in
continental European countries and the other for the UK).
Be sure to use the power cable that is appropriate for the
AC outlets used in your region. If none of the power
cables provided is suitable, please contact your dealer or
qualified service personnel to obtain the correct type of
power cable.
*.
6
+
–
HOW TO HANDLE BASIC
+
–
POWER
VOLUME/SELECT
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
INPUT SELECT
AB
OPERATIONS
BASIC OPERATION
1. Press the main power switch to turn on the power.
STATUS indication
(PAL or NTSC)
2. Press the POWER switch to turn on the power.
ON :Power turns ON. (Power indicator: lit)
Green: The main power is ON, and the monitor’s
OFF : Power turns OFF. (Power indicator: unlit)
Orange : The main power is ON, but the monitor’s
Unlit : The main power is OFF.
power is ON (in the normal operation mode).
power is OFF (in the standby mode)
3. Press the INPUT SELECT buttons to choose input.
Select video/audio signals input to terminals on the rear
panel. The selected button lights in green.
INPUT
SELECT
buttons
1 Input A
(VIDEO)
2
Input B
(VIDEO Y/C)
Note:The Y/C (S-video) terminal has priority.
VIDEO A terminal AUDIO A terminal
VIDEO B terminal
VIDEO B (Y/C) terminal
Terminals on the rear panel
Video signal input Audio signal input
AUDIO B terminal
4. Press the VOLUME/SELECT buttons to adjust the
speaker volume.
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00 [ 50)
– : The Built-in speaker volume is decreased. (50
* Screen indication will disappear about 10 seconds after operating.
* The on-screen display goes off when you press MENU button.
[ 00)
PAL
About the STATUS indication
● With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about
3 seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving a
B/W signal or when no signal is input.
Refer to page 9 for more information
about COLOR SYSTEM setting and
page 10 for more information about
STATUS indication setting.
00 ~ 50
VOLUME : 20
ENGLISH
PICTURE ADJUSTMENT
1. Press select buttons corresponding to the item
2. Adjust with the VOLUME/SELECT buttons.
you want to adjust.
The item you select is displayed on the screen.
1 Chroma control : Press the CHROMA/PHASE button once.
2 Phase control : Press the CHROMA/PHASE button twice.
3 Contrast control : Press the CONTRAST/BRIGHT button once.
4 Brightness control : Press the CONTRAST/BRIGHT button twice.
* Pressing the CHROMA/PHASE button and CONTRAST/BRIGHT button
alternately while the item is shown on screen restores the previous status.
When no item is shown on screen, CHROMA and CONTRAST have priority.
CHROMA
(Chroma)
PHASE
(Phase)
CONTRAST
(Contrast)
BRIGHT
(Brightness)
* Screen indication will disappear about 10 seconds after operating.
* The on-screen display goes off when you press MENU button.
VOLUME/SELECT button
Items
– +
lighter deeper
reddish greenish
lower higher
darker brighter
UPPER
–40 ~ +40
PHASE : 00
PHASE : 00
Notes:
● Phase control is effective only in the
NTSC color system mode.
● Chroma control is not effective when
receiving B/W or when no signal is
input.
● When CHROMA is adjusted to “–40,”
the picture becomes less colorful.
● “NO EFFECT” is displayed (for about
3 seconds) when your selected
function has no effect.
● To change the display position on
screen, set UPPER or LOWER with
ADJ. BAR POSI.
LOWER
7
HOW TO HANDLE BASIC
OPERATIONS
(cont’d)
VIDEO SIGNAL CONTROLS
Use these buttons for video signal control.
UNDER SCAN
Press the UNDER SCAN button to reduce the size of display area
so that the whole picture is displayed on screen. Use to check the
picture frame.
8
EXIT
CHROMA MENU
PHASE BRIGHT
CONTRAST VOLUME/SELECT
HOW TO USE THE MENU FUNCTIONS
SHARPNESS
ADJ. BAR POSI.
COLOR TEMP.
COLOR SYSTEM
RUSH DELAY
ASPECT RATIO
MENU
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
MENU
00 +01 +39 +40
• • • • • • • • • • • •
LOWER UPPER
6500 9300
AUTO NTSC AUTO PAL
STD. SLOW
4-3 16-9

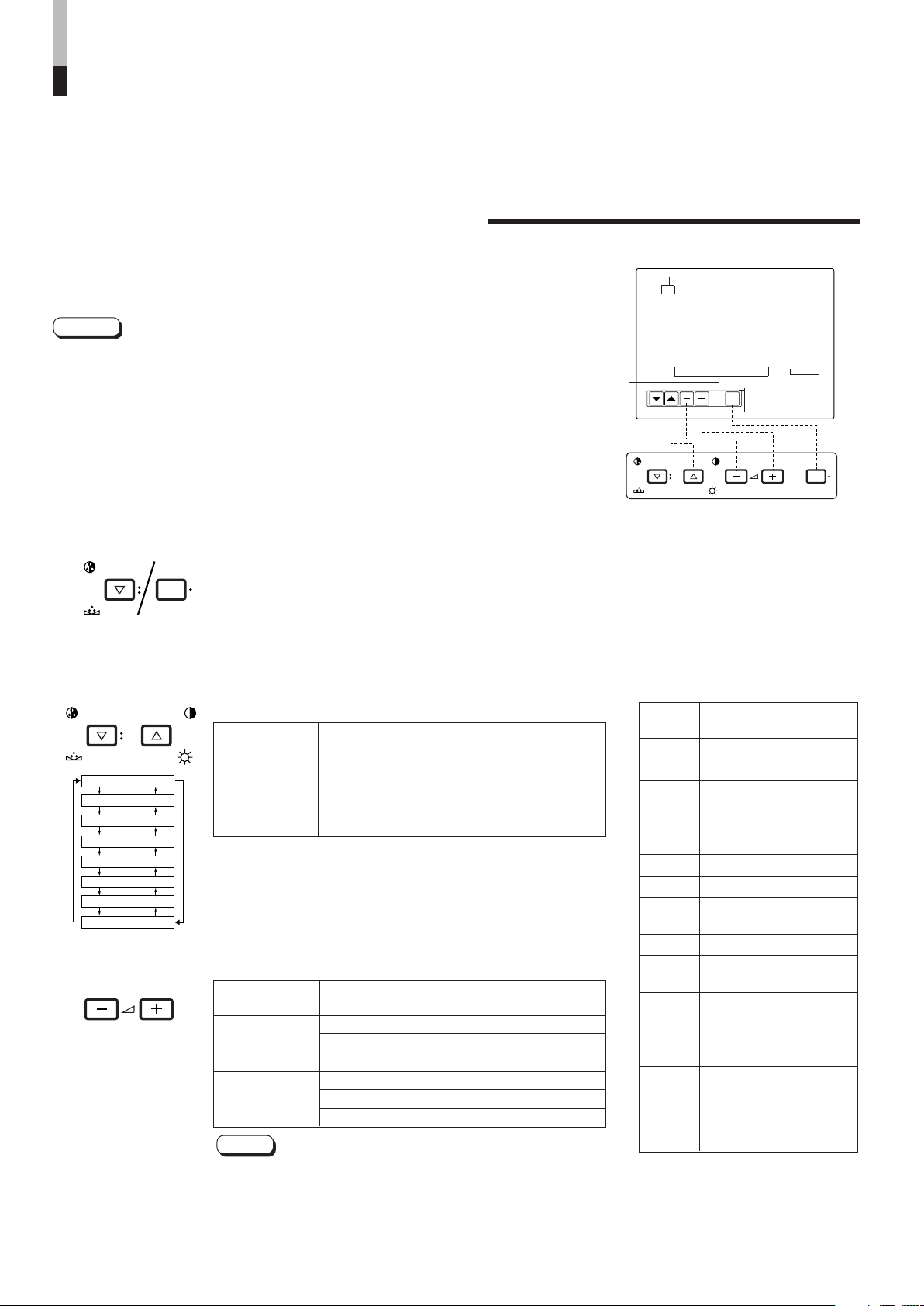

DISPLAY AND SELECTION IN THE <MENU> SCREEN MODE (SETTING)
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS • COLOR SYSTEM
• ADJ. BAR POSI. • RUSH DELAY
• COLOR TEMP. • ASPECT RATIO
1. Press the MENU button.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select MENU items.
3. Press the VOLUME/SELECT buttons to set.
Menu items Purpose Setting range
SHARPNESS Picture sharpness
ADJ.BAR POSI Volume bar position
COLOR TEMP. Color temperature of white
COLOR SYSTEM Color system
RUSH DELAY Delay value
ASPECT RATIO Aspect ratio
* For normal use, leave the COLOR SYSTEM setting to AUTO.
If reception is unsatisfactory in AUTO position, set it to the appropriate color system mode (NTSC or PAL).
* When REMOTE SYSTEM is set to MAKE, and REMOTE ENABLE signal is short circuited (ON), “REMOTE”
is displayed on the ASPECT RATIO setting menu, and Aspect ratio cannot be operated from the front panel.
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
The <MENU> screen is displayed.
* The on-screen display goes off automatically after about five
minutes with operation performed.
A selection mark (4) is put next to the selected item.
Front panel Function
button displayed
CHROMA/
Forward selection mark (
Contents
4
)
PHASE
CONTRAST/
Reverse selection mark (
4
)
BRIGHT
Front panel Function
button displayed
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
balance
Front panel Function
button displayed
MENU EXIT
+ Increase (to max. value)
4
– Decrease (to min. value)
1
Forward the setting value
Reverse the setting value
Quit (or Release) the <MENU>
screen
Contents
Contents
<MENU> screen
1
< MENU >
4
SHARPNESS : 00
ADJ. BAR POSI. :
COLOR TEMP. : 6500
COLOR SYSTEM : AUTO
RUSH DELAY : STD.
ASPECT RATIO : 4-3
LOWER
2
<Front panel buttons>
1 Selection mark (
menu item you select.
4
): Indicates the
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the current
settings (value).
4 Function display: The functions of
the front panel buttons (5 buttons on
the left) correspond to the function
displayed.
Function
displayed
Forward the menu item.
Reverse the menu item.
– Lower the adjustment
+ Raise the adjustment
4
1
EXIT Exits the <MENU> screen.
Notes:
● When the screen aspect ratio is set to
16 - 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
● RUSH DELAY sets the delay
between the time the power switch is
pressed and the time power is
actually supplied to the monitor’s
circuits.
STD. : Power turns on approxi-
mately 1 second after the
power switch is pressed.
SLOW : Power turns on approxi-
mately 3 seconds after the
power switch is pressed.
* When turning on multiple Color-
Video Monitors simultaneously, it is
recommended to use STD. or
SLOW settings to reduce the rush
current of the entire system.
Contents
value. (to the minimum)
value. (to the maximum)
Forward the setting value.
Reverse the setting value.
3
4
ENGLISH
9
HOW TO USE THE MENU
EXIT
CHROMA MENU
PHASE BRIGHT
CONTRAST VOLUME/SELECT
PICTURE SUB ADJ.
H. POSITION
V. POSITION
WHITE BALANCE
CONTROL LOCK
STATUS DISPLAY
REMOTE SYSTEM
INPUT REMOTE
MENU
CHROMA
PHASE
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
FUNCTIONS
DISPLAY AND SELECTIONS IN THE <SET-UP MENU> MODE (SETTING)
You can set the following set-up menu items.
• PICTURE SUB ADJ. • WHITE BALANCE • REMOTE SYSTEM
• H. POSITION • CONTROL LOCK • INPUT REMOTE
• V. POSITION • STATUS DISPLAY
Notes:
● Parameters for PICTURE SUB ADJ., H. POSITION and V. POSITION can be set
separately depending on the signal (Input A (VIDEO), Input B (VIDEO) or Input B (Y/
C)) selected with the input select buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance.
● WHITE BALANCE can be set independently at 6500 or 9300 for the color temperature
value.
Set COLOR TEMP. to 6500 or 9300 on the <MENU> screen beforehand.
● INPUT REMOTE is shown when REMOTE SYSTEM is set to MAKE.
1. While pressing the MENU button, press the
CHROMA/PHASE button.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select the desired menu item.
3. Press the VOLUME/SELECT buttons to set.
10
(cont’d)
The <SET-UP MENU> screen is displayed.
A selection mark (4) is put next to the selected item.
Front panel Function
button displayed
CHROMA/
PHASE
CONTRAST/
BRIGHT
Front panel Function
button displayed
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
Forward selection mark (
Reverse selection mark (
+ Increase (to max. value)
4
CUTO Selects CUT OFF setting screen
– Decrease (to min. value)
1
DRV Selects DRIVE setting screen
Forward the setting value
Reverse the setting value
Notes:
● For WHITE BALANCE items, select the CUT OFF or DRIVE
setting screen, then select the function display for adjustment.
● Press the EXIT (MENU) button to return to the <SET-UP
MENU> screen.
Contents
Contents
4
4
)
)
<SET-UP MENU> screen
1
<SET-UP MENU>
4
PICTURE SUB ADJ.
H. POSITION : 00
V. POSITION : 00
WHITE BALANCE
CONTROL LOCK : OFF
STATUS DISPLAY : ON
REMOTE SYSTEM : MAKE
INPUT REMOTE : A – B
2
<Front panel buttons>
1 Selection mark (
menu item you select.
4
): Indicates the
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the
current settings (value).
4 Function display: The functions of
the front panel buttons (5 buttons
on the left) correspond to the
function displayed.
Function
displayed
Forward the menu item.
Reverse the menu item.
– Lower the adjustment
+ Raise the adjustment
4
1
EXIT
DRV Selects DRIVE adjustment.
CUTO
RB
RGB
DISP function is effective only
Contents
value. (to the minimum)
value. (to the maximum)
Forward the setting value.
Reverse the setting value.
Exit the <MENU>
screen.
Selects CUT OFF
adjustment.
Adjusts red and blue
signal level.
Adjusts red, green and
blue signal level.
Turns the ON-SCREEN
display on or off. (This
in the DRIVE or CUT OFF
adjustment mode.)
3
4
MENU
Set-up menu items Purpose Settings
–
5 • • • –01 00 +1 • • • +5
–
5 • • • –01 00 +1 • • • +5
OFF
ON
OFF
ON
MAKE
TRG.
A–B
A/B
–
10 –9 –01 00 +01 +09 +10
• •
• •
–
10 –9 –01 00 +01 +09 +10
• •
• •
–
10 –9 –01 00 +01 +09 +10
• •
• •
–
10 –9 –01 00 +01 +09 +10
• •
• •
–
20 –19 –01 00 +01 +19 +20
• •
• •
–
20 –19 –01 00 +01 +19 +20
• •
• •
–
20 –19 –01 00 +01 +19 +20
• •
• •
–
20 –19 –01 00 +01 +19 +20
• •
• •
–
20 –19 –01 00 +01 +19 +20
• •
• •
PICTURE SUB ADJ. Image sub adjustment Selects CONTRAST/BRIGHT/CHROMA/PHASE. The
CONTRAST Adjusts contrast.
BRIGHT Adjusts brightness.
CHROMA Adjusts color density. *1
PHASE Adjusts hue. *1
H. POSITION Adjusts the horizontal position of the
screen (+: Horizontal position shifts
to the right/-: Horizontal position shifts to
the left)
V. POSITION Adjusts the vertical position of the screen
(+: Vertical position moves up/-: Vertical
position moves down)
WHITE BALANCE Adjusts the white balance. Selects the drive (DRV) or cut off (CUTO) adjustment. The selected
DRIVE R. DRIVE Adjusts red level.
B. DRIVE Adjusts blue level.
CUT OFF R. CUT OFF Adjusts red cut off.
G. CUT OFF Adjusts green cut off.
B. CUT OFF Adjusts blue cut off.
CONTROL LOCK Sets the operation buttons on the front
panel to control lock mode.
STATUS DISPLAY Sets the status display of the color system.
REMOTE SYSTEM Sets the external control function method. *2
INPUT REMOTE Sets external control of input selection.
(Shown only when REMOTE SYSTEM is *2
set to MAKE.)
selected setting screen is shown. Select the function display for
adjustment.
setting screen is shown. Select the function display for adjustment.
*1 May not be shown depending on the type of signals input.
*2 Refer to HOW TO USE EXTERNAL CONTROL on page 15 for more details.
4. To set the other set-up menu items, repeat the
procedures 2 and 3.
5. Press the MENU button to quit.
Front panel Function
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
Note:
Setting Description
MAKE Make contact system: Controls the function using the control
terminal’s short-circuit and open (short-circuits or opens 15th
terminal (GND)).
TRG. Trigger system: Controls the function by short-circuiting (short-
circuits or opens 15th terminal (GND)) with pulse (about 1 sec.)
A-B Switches the input by short-circuiting a specified signal line in
INPUT A or B.
A/B Switches between INPUT A and INPUT B with D-sub pin 2.
Contents
ENGLISH
Notes:
● When the CONTROL LOCK function
is set to ON, pressing operation
buttons on the front panel will display
the message “CONTROL LOCK ON!”
on the screen for about 3 seconds.
● The CONTROL LOCK function is
maintained even when the power is
turned off.
● To turn off the CONTROL LOCK
function, while holding the MENU
button press the CHROMA/PHASE
button. Then set the CONTROL
LOCK function to OFF.
● Even when the CONTROL LOCK
function is set to ON, the following
operations are available:
– Power Switch operation
– Volume control with the VOLUME/
SELECT buttons
– Display or disappear of the <SET-
UP MENU> screen.
● The STATUS DISPLAY function can
be set to display (ON) or not display
(OFF) the present color system when
the power is turned on or the input
signal is changed. Refer to page 7 for
more information.
● When REMOTE SYSTEM is set to
MAKE and any one of the INPUT A
and B buttons or the UNDER SCAN
button is pressed, “REMOTE ON!”
appears on screen for about 3
seconds. (Not shown with CONTROL LOCK set to ON.)
● When REMOTE SYSTEM is set to
TRG, the front panel controls can be
operated.
● INPUT REMOTE and REMOTE
SYSTEM are enabled when
REMOTE ENABLE is set to ON.
11
HOW TO INITIALIZE THE
POWER
MENU
CHROMA
PHASE
POWER
MENU
VOLUME/SELECT
SETTING
SCREEN DISPLAY AND SELECTIONS IN THE <SET-UP MENU> RESET MODE
You can set <MENU> and <SET-UP MENU> screen items, picture adjustment items and
the volume level to their factory-set (initial) values.
1. Press the Power ( ) switch to turn the power
OFF (activate the standby mode).
2. While pressing both MENU button and CHROMA/
PHASE button, press the Power ( ) switch to turn
the power ON.
The <SET-UP MENU> RESET screen is displayed.
Note:
● The <SET-UP MENU> RESET screen will not be
displayed if the MENU or CHROMA/PHASE buttons are
pressed for a very short time. Keep pressing them until
the display screen appears.
3. Setting
Initialization is required.
Press the VOLUME/SELECT [+] button.
* Initialization is completed, and the <SET-UP MENU>
RESET screen disappears.
Initialization is not required.
<SET-UP MENU> RESET screen
<SET–UP MENU> RESET
Are you sure ?
“Yes” then <+>
“No” then <MENU>
Initial settings
Functions (Items)
Sorts
SHARPNESS 00
ADJ. BAR POSI LOWER
COLOR TEMP 6500
COLOR SYSTEM
RUSH DELAY STD.
<MENU> screen
ASPECT RATIO 4 – 3
PICTURE SUB ADJ.
CONTRAST 00
BRIGHT 00
CHROMA 00
PHASE 00
H. POSITION 00
V. POSITION 00
WHITE BALANCE
R. CUT OFF 00
G. CUT OFF 00
B. CUT OFF 00
R. DRIVE 00
B. DRIVE 00
<SET-UP MENU> screen
CONTROL LOCK OFF
STATUS DISPLAY ON
REMOTE SYSTEM MAKE
INPUT REMOTE A – B
Initialization
(setting)
AUTO
12
Press the MENU button.
* Initialization is aborted, and the <SET-UP MENU>
RESET screen disappears.
CHROMA 00
PHASE 00
CONTRAST 00
BRIGHT 00
Picture adjustment
VOLUME 20
Volume
VIDEO A
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
BASIC CONNECTION EXAMPLE
Notes:
•
Before connecting your system, make sure that all units are turned off.
• The illustration below shows some examples of different connections. Terminal connections may differ depending on the component connected.
Be sure to refer to the instructions provided with the unit(s) you are connecting.
• Each pair of input (IN) and output (OUT) terminals are bridge-connected.
• If you’re not connecting any equipment to a bridged output (OUT) terminal, be sure not to connect any other cables to the bridged output (OUT)
terminal as this will cause the terminating resistance switch to open (auto terminate function).
• When making a bridge connection, connect the input (IN) and output (OUT) terminals on the monitor to separate video components.
(For example, if both terminals are connected to the same VCR, resonance may occur except during playback. This is caused by the same video
signal “looping” between the VCRs, and is not a malfunction.)
• Select the video input signal (INPUT A(VIDEO) or INPUT B (VIDEO/Y/C)) with the INPUT SELECT buttons on the front panel. When both
VIDEO B terminals are connected (input) at the same time, the Y/C terminal has priority.
VIDEO A Connection Example (Select Input A (VIDEO))
Video
Video Camera
Video Monitor
VCR
(Video signal cable)
Audio
(Audio signal cable)
VIDEO B (VIDEO) Connection
Example (Select Input B (VIDEO))
Video Camera
Video
(Video signal cable)
Video
(Video signal cable)
Video
(Video signal cable)
Audio
(Audio signal cable)
Audio
(Audio signal
cable)
VCR
ENGLISH
Video Monitor
VCR
Video Monitor
VCR
Audio
(Audio signal cable)
Video Monitor
: Signal Flow
13
VIDEO A
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
BASIC CONNECTION EXAMPLE
(cont’d)
VIDEO B (Y/C) Connection Example (Select Input B (Y/C))
Video Camera
Video Monitor
VCR
Y/C (S-video)
(Y/C (S-video) signal cable)
Audio
(Audio signal cable)
VCR
Y/C (S-video)
(Y/C (S-video) signal cable)
Video Monitor
Audio
(Audio signal cable)
: Signal Flow
14
HOW TO USE EXTERNAL
1
2
3
10
8
9
6
7
11
12
13
14
15
4
5
CONTROL
ABOUT EXTERNAL CONTROL
This monitor is provided with an external control terminal. MAKE (make contact) or TRIG. (trigger) system can be selected by
the setting of REMOTE SYSTEM in the <SET-UP MENU>.
MAKE (make contact system) : The function is controlled by short-circuiting or disconnecting each control terminal with pin 15
(GND).
TRIG. (trigger system) : The function is controlled by short-circuiting with pulses (for about 1 second) (short-circuit/open
with the 15th pin GND).
* The 14th pin (REMOTE ENABLE) is controlled with MAKE even though TRIG. is selected.
Note:
● When this monitor is externally controlled, the following buttons are disabled.
MAKE: INPUT-A and B, UNDER SCAN on the front panel.
Connections
Connect (short-circuit) the 15th terminal (GND) to each of the 1st through 14th terminals in the
3-lines 15-pins D-sub connector. The functions of each terminal are listed below.
The Names and Functions of Terminals
No. Names Functions Operations (OFF p[ ON) *1
1 not used – – – *2
2 INPUT A Changes the input to INPUT A Not change Change *4
3 INPUT B Changes the input to INPUT B Not change Change *4
4 not used – – – *2
5 not used – – – *2
6 not used – – – *2
7 not used – – – *2
8 not used – – – *2
9 not used – – – *2
10 ASPECT Changes the screen ratio to 16:9 4:3 16:9
11 UNDER SCAN Makes the screen under-scan Over-scan Under-scan
12 not used – – – *2
13 not used – – – *2
14 REMOTE ENABLE Makes the external control from the Invalid Valid *3
REMOTE terminal valid or invalid
15 GND Used as a ground terminal – –
ENGLISH
*1 : OFF stands for disconnection, and ON stands for short-circuit.
*2 : Do not connect.
*3 : Setting REMOTE ENABLE to ON enables remote control from the REMOTE terminal.
*4 : INPUT REMOTE setting in the set-up menu (REMOTE SYSTEM shown only when MAKE is selected.)
For the D-sub pins 2 and 3, 2-pin or 1-pin control can be set with INPUT REMOTE in the set-up menu.
• 2-pin control: Only the specified signal line in INPUT-A or B is short-circuited.
• 1-pin control: Switches between INPUT-A and INPUT-B only with the 2nd pin of the D-sub connector.
NOTES :
● When both INPUT A and INPUT B are selected (short-circuited) under the MAKE system, INPUT A has priority.
● To control INPUT A and INPUT B in MAKE mode, we recommend using the interlock switch, which turns off a switch when
another switch is turned on.
To control INPUT A and INPUT B in TRG. mode, we recommend using the return switch, which stays ON while pressed.
OFF : INPUT A
ON : INPUT B
15
TROUBLESHOOTING
Solutions to common problems related to your monitor are described here. If none of the solutions presented here
solves the problem, unplug the monitor and consult a JVC-authorized dealer or service center for assistance.
Problems
No power supply.
No picture with the
power on.
No sound.
Shaking picture.
No colors, wrong
color, or dark picture.
Unnatural, irregularly
colored, or distorted
picture.
Dark stripes appear
at the top and bottom
of the screen, picture
vertically squeezed.
The overall picture
size is too small.
Function buttons on
the front panel do not
function.
The INPUT SELECT
buttons do not
function.
Points to be checked
Is the power plug loosened or disconnected?
Is the main power turned OFF?
Is the video signal output from the connected
component?
Is the input signal selected properly?
Is the video cable disconnected?
Is the audio signal output from the connected
component?
Is the volume output set to minimum?
Is the audio cable disconnected?
Is the monitor close to a device generating a
strong magnetic field?
Is the color system selected properly?
Has the picture control setting (CONTRAST,
BRIGHT, CHROMA or PHASE) been changed?
Is the monitor close to a speaker, magnet or any
other device generating a strong magnetic field?
Is the aspect ratio set to 16:9?
Has the UNDER SCAN button been pressed so
the UNDER SCAN button lights?
Has control of the buttons been locked? (Has
the CONTROL LOCK function been set to ON?)
Is input selection under external control? (Has
the REMOTE ENABLE function been set to
valid (ON)?)
Measures (Remedy)
Firmly insert the power plug.
Turn the main power ON. (See page 6.)
Set the connected component correctly.
Select the required video signal input with the
Input select button. (See page 7.)
Connect the video signal cable firmly.
(See pages 13 and 14.)
Set the connected component correctly.
Adjust the speaker volume with the VOLUME/
SELECT button. (See page 7.)
Connect the audio signal cable firmly.
(See pags 13 and 14.)
Move the device away from the monitor until the
picture stabilizes.
Set COLOR SYSTEM in the <MENU> screen to
AUTO. (See page 9.)
Set each picture control to the standard setting.
(See page 7.)
Move the device away from the monitor and turn
the monitor’s power off. Wait at least 30 minutes,
then turn the power on again.
Set ASPECT RATIO in the <MENU> screen to
[4 : 3 (4 – 3)]. (See page 9.)
When controlling externally, ASPECT RATIO
should be set to [4 : 3 (4 – 3)]. (See page 15.)
Press the UNDER SCAN button to turn off the
button. (See page 4.)
Set CONTROL LOCK in the <SET-UP MENU>
screen to OFF. (See pages 10 and 11.)
Set REMOTE ENABLE to OFF (invalid).
(See page 15.)
The following are not malfunctions:
● When a bright still image (such as a white cloth) is displayed for a long period, it may appear to be colored. This is due to the
structure of the cathode ray tube and will be deleted when another image is displayed.
● You experience a mild electric shock when you touch the picture tube. This phenomenon is due to a normal buildup of static
electricity on the CRT and is not harmful.
● The monitor emits a strange sound when the room temperature changes suddenly. This is only a problem if an abnormality
appears on the screen as well.
● If two or more monitors are operated next to each other, their images may shake or be distorted. This phenomenon is due to
mutual interference; it is not a malfunction. Move the monitors away from each other until the interference disappears or turn
the power off on any monitor that is not being used.
16
SPECIFICATIONS
MODEL TM-H1900G TM-H1700G
Type Color video monitor
Color system PAL, NTSC (3.58)
Picture tube 49 cm (19") measured diagonally, 44 cm (17") measured diagonally,
90° deflection, in-line gun, 90° deflection, in-line gun,
trio-dot type trio-dot type
(phosphor dot-trio pitch 0.27 mm) (phosphor dot-trio pitch 0.27 mm)
Effective screen size Width 365.8 mm (14-5/8") Width 327.5 mm (12-7/8")
Height 274.3 mm (10-7/8") Height 246.2 mm (9-5/8")
Diagonal 457.2 mm (18") Diagonal 407.1 mm (16-1/32")
Scanning frequency H: 15.734 kHz (NTSC), 15.625 kHz (PAL)
V: 59.94 Hz (NTSC) 50 Hz (PAL)
Horizontal resolution 750 TV lines or more
(Y/C input mode)
Input terminals VIDEO A Composite video: 1 line, BNC connector x 2,
1 V(p-p), 75 Ω, negative sync
(bridge connection possible, auto termination)
VIDEO B Composite video: 1 line, BNC connector x 2,
1 V(p-p), 75 Ω, negative sync
(bridge connection possible, auto termination)
Y/C-separated: 1 line, mini-DIN 4-pin connector x 2
Y: 1.0 V (p-p), 75 Ω
C (BURST): 0.286 V (p-p), 75 Ω (NTSC) 0.3 V (p-p), 75 Ω (PAL)
(bridge connection possible, auto termination)
AUDIO A 1 line (monaural), RCA pin x 2, 0.5 V(rms), high-impedance
(bridge connection possible)
AUDIO B 1 line (monaural), RCA pin x 2, 0.5 V(rms), high-impedance
(bridge connection possible)
REMOTE Point-of-contact connection, 1 line D-sub connector (15-pin, 3-line)
Audio power output 1 W
Built-in speaker 8 cm round x 1, impedance of 8 Ω
Environmental conditions Operation temperature: 5°C – 40°C (41°F – 104°F)
Operation humidity: 20 % – 80 % (non-condensing)
Power requirements 120 V/230 V AC, 50 Hz/ 60 Hz
Power consumption 1.2 A (120 V AC)/0.8 A (230 V AC) 1.1 A (120 V AC)/0.7 A (230 V AC)
Dimensions Width 440 mm (17-3/8") Width 395 mm (15-5/8")
Height 375 mm (14-7/8") Height 334 mm (13-1/4")
Depth 496 mm (19-5/8") Depth 418 mm (16-1/2")
Weight 25.1 kg (55.2 lbs) 19.6 kg (43.2 lbs)
Accessory AC power cord
ENGLISH
* Illustrations used in this manual are for explanatory purposes only. The appearance of the actual product may differ slightly.
* Dimensions and weight are approximate.
* E. & O. E. Design and specifications subject to change without notice.
17
395 (15-5/8")
418 (16-1/2")
407 (16-1/8")
68
(2-3/4")
286 (11-3/8")
3 (1/8")
3 (1/8")
336.3 (13-1/4")*
288 (11-3/8")
ø20
(7/8")
256 (10-3/8")*
334 (13-1/4")
117 (7")
1.5
(1/16")
POWER
CHROMA MENU
INPUT SELECT
UNDER
SCAN
PHASE
TM-H1700G
BRIGHT
CONTRAST VOLUME/SELECT
AB
POWER
CHROMA
MENU
INPUT SELECT
UNDER
SCAN
PHASE
TM-H1900G
BRIGHT
CONTRAST
VOLUME/SELECT
AB
440 (17-3/8")
496 (19-5/8")
485 (19-1/8")
95.7
(3-7/8")
336 (13-1/4")
375 (14-7/8")
*
380.4 (15")
284.3 (11-1/4")*
375 (14-7/8")
195.5 (7-3/4")
1.5
(1/16")
5 (1/4")
5 (1/4")
ø20
(7/8")
SPECIFICATIONS (cont’d)
Dimensions
[TM-H1900G]
< Front View >
* Asterisks (*) are used to indicate front panel
dimensions.
Unit : mm (inch)
< Side View >
[TM-H1700G]
< Front View >
* Asterisks (*) are used to indicate front panel
dimensions.
18
< Side View >
Unit : mm (inch)
Y/C (Mini DIN 4 pin) terminal
IN
Y/C
OUT
2
1
2
1
4
3
4
3
specification
Pin No. Signal
1 GND (Y)
2 GND (C)
3Y
4C
ENGLISH
19
TM-H1900CG/TM-H1700CG COLOR VIDEO MONITOR
2002 VICTOR COMPANY OF JAPAN, LIMITED
©
VICTOR COMPANY OF JAPAN, LIMITED
Printed in Thailand
0602-Y-U-JMT
Loading...
