TK-C655

DOME TYPE CAMERA

INSTRUCTIONS

LWT0050

IMPORTANT SAFEGUARDS

1. Read all of these instructions.

2. Save these instructions for later use.

3. All warnings on the product and in the operating instructions should be adhered to.

4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

6. Do not use this appliance near water – for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

9. This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.

11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

12. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walking on it.

13. Follow all warnings and instructions marked on the appliance.

14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

15. Never push objects of any kind into this appliance through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

16. Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17. Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that

are covered by the operating instructions as improper adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to restore the appliance to normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance – this indicates a need for service.

18. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

19. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT: POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTROCUTION, NE PAS EXPOSER L'APPAREIL A L'HUMIDITE OU A LA PLUIE.

Contents

Introduction

Features ............................................................................................................................................................................. 4

Provided Accessories ......................................................................................................................................................... 4

Safety Precautions ............................................................................................................................................................. 5

Precautions for Correct Operation ...................................................................................................................................... 5

Controls, Connectors and Indicators .................................................................................................................................. 6

Connections & Installation

A Multi-Drop Communication System ................................................................................................................................ 8

Point-to-Point Communication System ............................................................................................................................. 10

Switch Settings ................................................................................................................................................................. 12

Cable Connections ........................................................................................................................................................... 14

Attaching the Ceiling Mount ............................................................................................................................................. 16

Attaching the Camera....................................................................................................................................................... 16

Setting Up the Camera using an RM-P2580

Setup Procedure .............................................................................................................................................................. 18

Menu Screen Flow............................................................................................................................................................ 19

CAMERA FUNCTION Screen .......................................................................................................................................... 20

CAMERA TITLE/ALARM Screen ...................................................................................................................................... 21

CAMERA VIDEO ADJUSTMENT Screen ........................................................................................................................ 22

CAMERA ALC/ExDR Screen ........................................................................................................................................... 22

AUTO PAN/PATROL/TRACE Screen ................................................................................................................................ 24

POSITION FUNCTION SET Screen ................................................................................................................................ 24

FACTORY SETTINGS Screen.......................................................................................................................................... 25

PRIVATE MASK Setup ..................................................................................................................................................... 26

CAMERA TITLE Setup ..................................................................................................................................................... 27

AREA TITLE Setup ........................................................................................................................................................... 28

ALARM TITLE Setup ........................................................................................................................................................ 29

AUTO PAN Setup ............................................................................................................................................................. 30

AUTO PATROL Setup ....................................................................................................................................................... 31

AUTO TRACE Setup ........................................................................................................................................................ 32

POSITION TITLE Setup ................................................................................................................................................... 33

Other

Attaching a Flush Mounted Ceiling Bracket (Optional WB-S575) ..................................................................................... 34

Removing a Flush Mounted Ceiling Bracket (Optional WB-S575) ................................................................................... 36

Troubleshooting ................................................................................................................................................................ 37

Specifications ................................................................................................................................................................... 38

Thank you for purchasing this product. (These instructions are for TK-C655E) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.

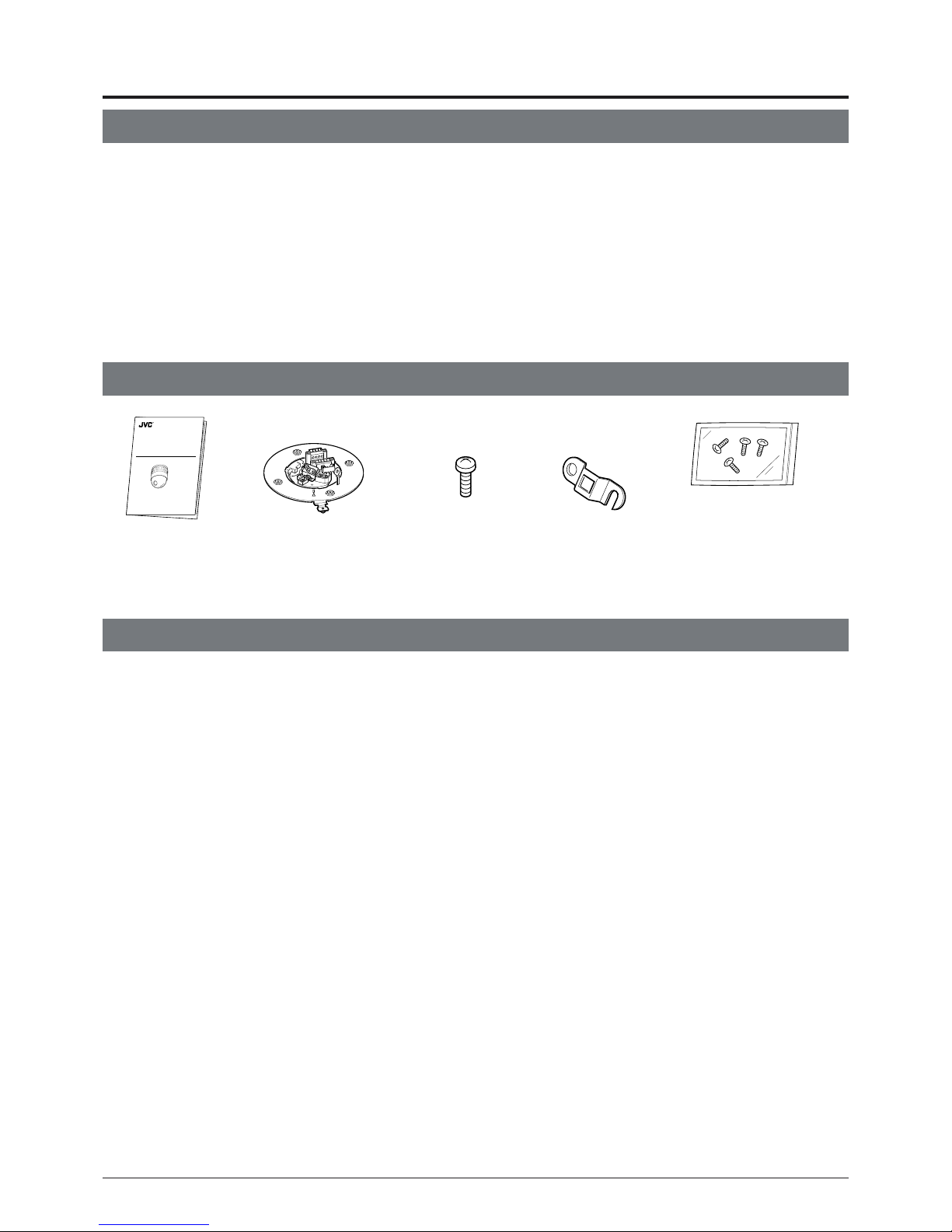

Provided Accessories

Features

 DSP with a wide dynamic range

Even objects differing greatly in brightness can be monitored clearly.

 Private masking facility

When the camera target area needs to be hidden, the camera can be set accordingly to mask it.

 Optical zoom lens

Detailed surveillance can be performed with the approx. 25 times optical zoom lens.

 High-speed pan/tilt table

The high-speed rotating table with a horizontal panning speed of 300°/sec. and a vertical tilting speed of 180°/sec. makes it possible to get to a preset position very quickly.

Introduction

WARNING

• Install the unit on a strong and stable surface. This unit has been designed to rotate at high speed. Due to its weight (about 2.4 kg) and to the vibrations whit it may be subjected,

the camera must be mounted to sturdy and stable material. If the ceiling material lacks strength, for example it is made of a decorative laminated material or plasterboard, then the mount should be reinforced using materials such as veneered plywood. If such reinforcement is inadequate images may be unstable due to vibration or, in the worst case, the camera may fall and cause a serious accident should there be anyone below it.

•For installation, use the provided Ceiling Mount and the optional flush mounted ceiling bracket, which is sold separately. When installing this device the provided Ceiling Mount and the optional flush mounted ceiling bracket, which is sold separately should be used. Also be sure to connect the drop prevention wire and tighten all screws and nuts firmly.

•Power the unit with the rated power voltage. The power rating for this unit is 24 V AC, 50 Hz/60 Hz. If a power above this rating is supplied, a malfunction will occur or, in the

worst case, smoke or fire may be produced.

• This unit offers a certain degree of protection against any damage either to itself or to its connection cable that might result from indirect lightning strikes, but it is not capable of preventing all damage caused by lightning strikes, for example it is not protected against a direct strike. If lightning damage can be expected in the place where the unit is installed, be sure to take countermeasures by adding an arrester to the connection cable, etc.

CAUTION

• Installation of this unit requires special skills. Please be sure to consult JVC authorized dealer about installation procedures. If the mounting screws or nuts are not tightened sufficiently, the camera may fall from its installation location. Be sure to tighten the mounting nuts firmly to prevent this happening.

• Inspect the unit periodically. Check periodically for any deterioration of the mount sections or loosening of screws due to vibration and ensure that there is no

likelihood of the unit dropping.

Safety Precautions

TK-C655

DOME TYPE CAMERA

INSTRUCTIONS

LWT0003-001A-H

Instructions

Ceiling Mount

Screw

(M3 × 12 mm)

For cable plate

Cable plate

Screws (M 4 × 12 mm) (For attaching the Ceiling Mount to the Flush Mounted Ceiling Bracket.)

● To save energy, turn the system power off whenever it is not in

use.

● This camera has been designed for indoor use. It cannot be used

outdoors.

● This camera has been designed to be hung from a ceiling with its

base uppermost. Do not install it in an upside down position on a surface or at an angle, as this may cause a malfunction or a noticeable shortening of its service life.

● Do not install or use the camera in the following locations.

• In a place exposed to rain or water.

• In a place containing vapor or oil soot, for example in a kitchen.

• In a place outside the operating temperature range (-10°C to 50°C).

• Near a source of strong radio waves or magnetism, radiation or X-rays.

• In a place where corrosive gasses are generated.

• In a place subject to vibrations.

• In a place with excessive dust.

● Insufficient ventilation of the camera may cause a malfunction. Be careful not to block ventilation to the camera. This unit radiates heat from the panel surfaces (top panel and side panels). Do not install it in a place where a heat pool may form, such as near a wall.

● Do not install the camera in a place exposed to cold air, for example near to the air outlet of an air conditioner. Otherwise, moisture may become condensed inside the dome cover.

● Do not point the lens at a strong light source, for example the sun, doing so may cause the camera to malfunction.

● The camera incorporates an AGC circuit. As a result, when it is used under low light conditions, the camera gain may increase automatically. This makes the picture appear uneven , however this is not a malfunction

● When equipment that generates strong magnetism such as a transceiver is used near to the unit while the AGC circuit is ON, beat noise, etc may interfere with the picture. If a transceiver or similar equipment is used, keep it at a distance of at least 3 metres away.

 Zooming

When zooming is stopped near the TELE end during manual operation or by selecting a preset position, focusing may deviate slightly. In addition, the manual zooming operation may not always be smooth. These phenomena are due to the characteristics of the builtin lens and are not malfunctions.

 Preset positions

• The zooming position of the camera can be set to a total of 100 preset positions, including the home position.

• The TILT position can be set and operated only between 0° to 90° even when the item “FLIP” is set to DIGITAL. (A TILT position between 91° and 180° cannot be set or operated. The message "INVALID POSITION (TILT) will appear on the screen if a larger TILT position than 90° is set. )

Precautions for Correct Operation

Note on consumable parts

The following parts are consumable and should be replaced after a certain number of hours or a count of operations. The service lives given below are only typical values. They may vary depending on the operating environment and conditions. Note that the replacement of consumable parts is chargeable even when they are replaced before the termination of the warranty period.

• Zoom lens assembly Zooming operation : 2 million times Focusing operation : 4 million times

• Slip rings : 5 million operations

• Cooling fan : 30,000 hours approx.

Note on auto focusing

Although this unit incorporates a one-push auto-focusing system and EASY AF functions, auto-focusing may sometimes be impossible depending on the object and camera setup. In this case, adjust the focusing manually.

Objects and images with which auto focusing may be difficult:

• When the image brightness is extremely high.

• When the image brightness is extremely low.

• When the image brightness varies continuously (for example when the object is a flashing light).

• When the image contrast (difference between bright and dark) is very poor.

• When the image does not contain a vertical contour component.

• When vertical stripe patterns recur on the screen.

Camera setups with which auto focusing may be difficult:

• When the AGC is activated and the image is coarse.

• When SENSE UP is activated and the image contains only little motion.

● In auto iris mode, when the AGC circuit is ON, varying the iris with the iris control button may not change the picture brightness. This is due to the automatic gain boost by the AGC circuit. In this case, set AGC to OFF or use the manual iris mode.

● In auto iris mode, the iris control button may not function under certain brightness conditions (i.e. when a sufficient amount of light cannot be obtained). In this case, set the iris mode to manual.

● When the camera is used in ATW (Auto White balance) mode, the colours captured by the camera may differ from the actual colours being shot due to the mechanics of the auto-tracking operation within the white balance circuit. However, this is not a malfunction.

● If a very bright object (such as a lamp) is being monitored, the picture may contain vertical lines (smear) above and below the bright object in the picture. This is a normal phenomenon for solidstate image pickup devices (CCD) and is not a malfunction.

● The electronic shutter speed of the camera has been set to 1/50 second at the factory. If the camera is used under a fluorescent light source in an area with a local power frequency of 60 Hz, change the shutter speed to 1/120 second using the remote control unit. (Note that the sensitivity will deteriorate slightly.) However, if the ExDR function is ON, the flicker may not disappear.

● When the camera is used to monitor the same position over many hours ( e.g. continuously for 24 hours a day) the contact resistance of the panning mechanism may increase. This may cause the picture to be affected by noise interference or the remote control operation becoming unstable. To prevent this happening, once a week, turn the system off and on in order to initialize the camera and to clean the contacts.

● Do not touch the lens on the dome cover directly by hand. Contamination of the cover will lead to deterioration of the picture quality.

● Since the dome cover is of a semispherical shape, the picture is distorted at the edges of the semisphere. When the camera is pointed for horizontal-direction shooting by tilting, it shoots the edge of the hemisphere, so that the picture may be distorted or out of focus.

● When an object is located near a light source or contains a large difference in brightness, ghosting may occur. This phenomenon is due to the characteristics of the dome cover and the built-in lens and is not a malfunction.

● Observe the following points when carrying out maintenance of the camera.

•Turn off the power to all equipment to be used before proceed-

ing.

• Clean the dome cover using a lens cleaning cloth (or tissue).

The dome cover may become stained in a very short period in certain operating environments. If the dome cover lens becomes excessively contaminated, clean it with a lens cleaning cloth (or tissue) moistened with a solution of neutral detergent in water.

■ Camera body

[VIDEO OUT] Coaxial Cable Connectors

Output connector of a composite video signal (1 V(p-p)) with an output impedance of 75 Ω, to be connected to a switcher, etc.

[AC ` 24V INPUT] Connector

Connect to a 24 V AC power supply.

Cover Position Alignment Mark

When attaching the cover, use this mark to align its final position correctly.

Locking Screw

Tighten this screw to fasten the camera clamping bracket

Safety Wire Hole

To prevent the possibility of the entire camera falling down, attach the safety wire between this hole and a secure attaching position in the ceiling.

Alarm Input Terminals (CN26)

This cannot be used.

[ALARM I/O] Input/output Terminals (CN23)

This cannot be used.

Introduction

Cover

(Connector side)

(Terminal Layout)

CONTROL terminal (CN22)

 Ceiling Mount

[CONTROL] Terminals (CN22)

Connect to a RM-P2580 remote control unit.

Controls, Connectors and Indicators

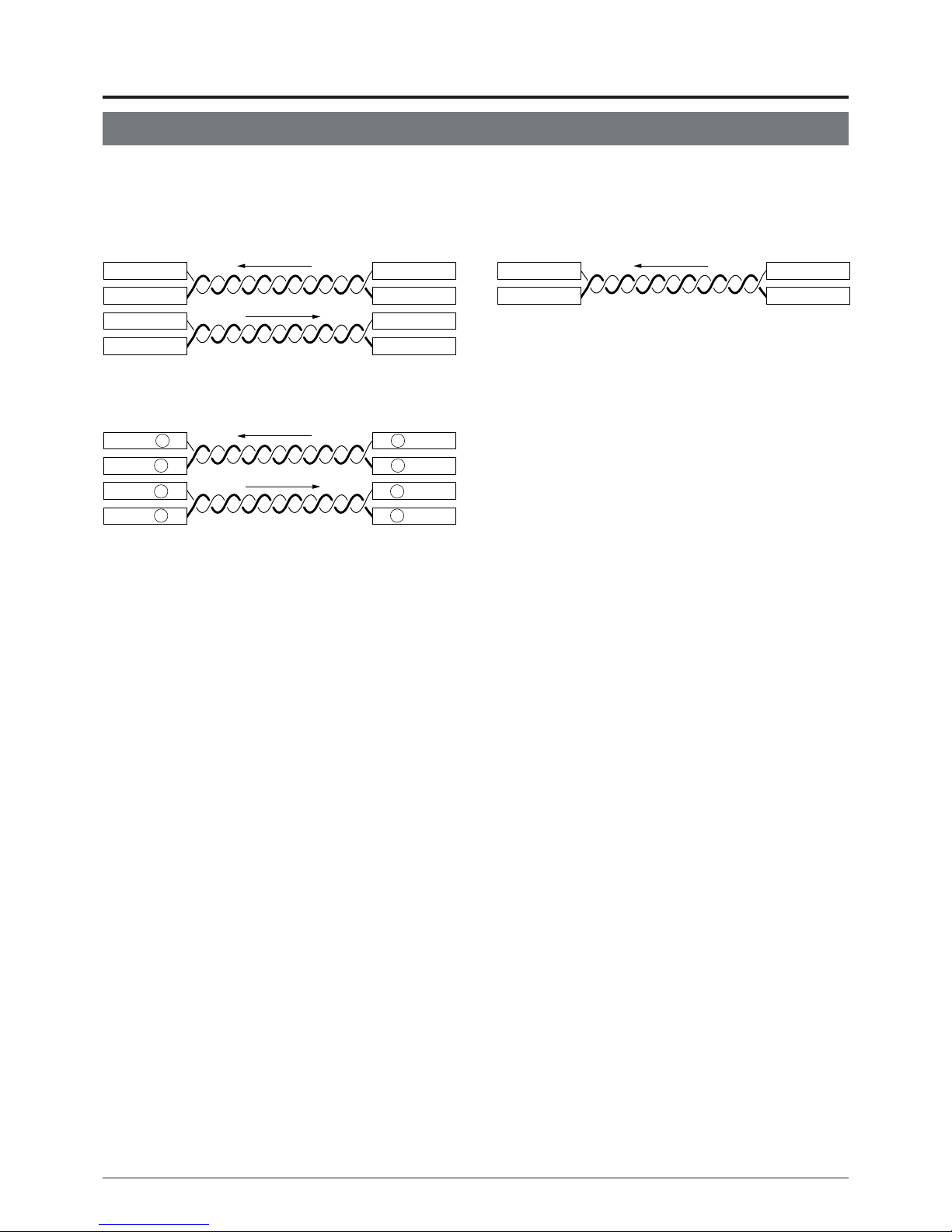

Pin No. Signal Name Mark

1 TX + A



2 TX – B



3 RX + C



4 RX – D



Alarm Output Terminals (CN24)

This cannot be used.

Cover

For protection against dust. Pierce the rubber cap on this cover and pass the cable through the slits.

☞

P. 1 4

)

⁄

(

(Setting switch side)

Camera Connector (Female)

Connect to ^, the Male Connector on the camera.

Drop Prevention Hook

Attach the Drop Prevention Wire & to this hook to prevent the camera from falling.

Clamping Holes (x 4)

Attach the camera to a ceiling or to a Flush Mounted Ceiling Bracket (optionally available) using these holes.

[MACHINE ID] Switch

When an RS-485 communication system is used, for example when using the camera in a system controlled by an RM-P2580, set the camera IDs individually for each camera.

☞

P. 1 3

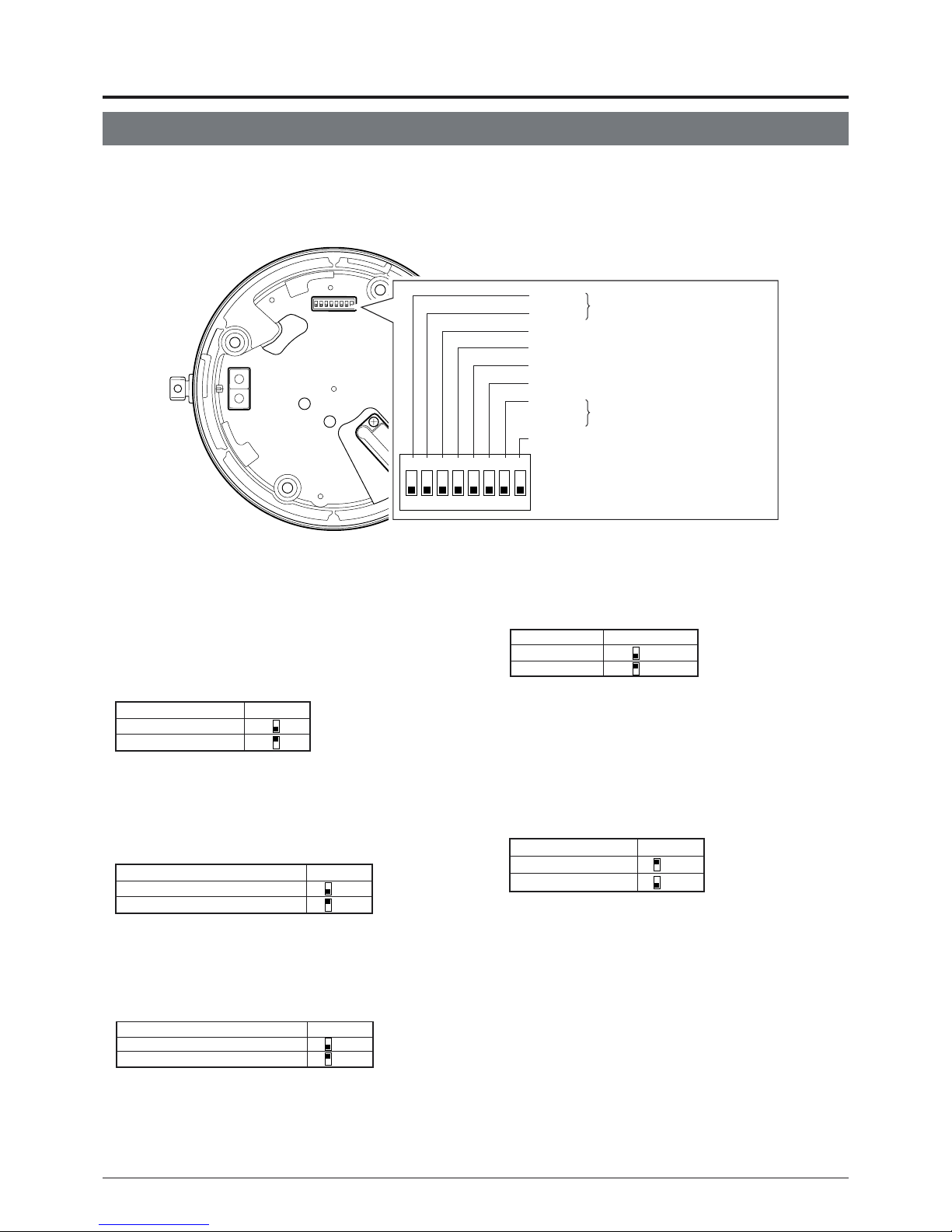

Setting Switches

Use these to set the PROTOCOL, etc.

☞

P. 1 2

Connector (Male)

Connect to !, the Female Camera Connector on the Ceiling Mount.

Drop Prevention Wire

Attach this wire to the Drop Prevention Hook @ on the Ceiling Mount.

Camera Clamping Bracket

In order to clamp the camera onto the Ceiling Mount, insert and tighten the Locking Screw

into this bracket.

(

Lens

The lens is not a replaceable item.

)

Dome Cover

The dome cover is fragile. Take care when handling it.

⁄

Camera Body Cover

Do not remove the camera body cover while the camera is installed on a ceiling. Doing so will cause the dome cover to fall down.

 Ceiling Mount  Camera

TO CAMERA

DATA I / O

RX+RX-TX+TX

COM

1 2 3 4 5 6 7 8

COM

9/1 10/2 11/3 12/4 13/5 14/6 15/7 16/8

COM COM COM

CAMERA

UNIT

ALARM

AUTO

431 2 875 6

2 3 4 5 6 7

MONITOR

OUTPUT

MONITOR

SERIAL-2

SERIAL-1

VIDEO INPUT

VIDEO OUTPUT

OUTPUT

2 3 4 5 6 7

POWER

OFF

AC INPUT

MONITOR

OUTPUT 1

CAMERA

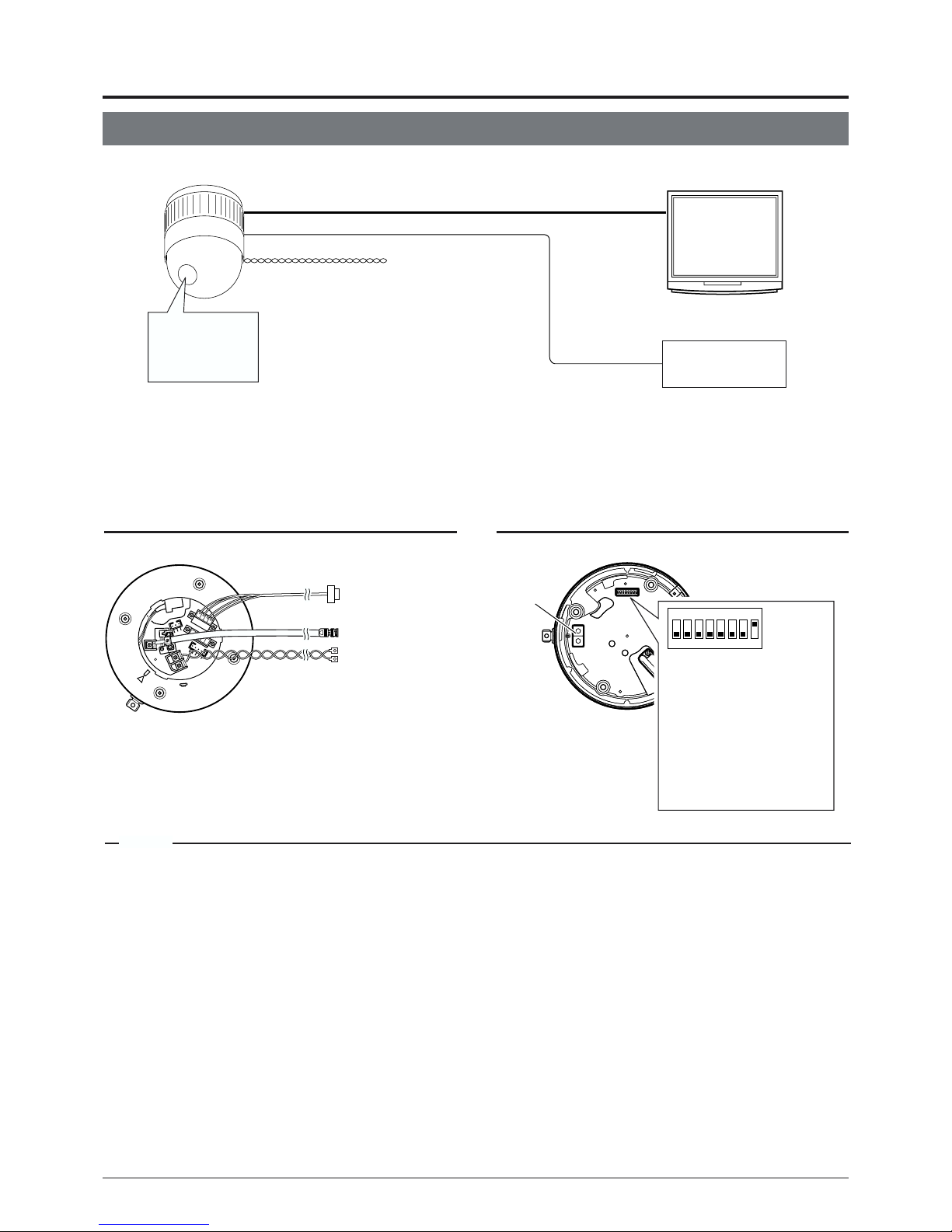

Remote control unit

RM-P2580

Control signal cable

Coaxial cable

AC 24 V power supply

Monitor

Camera 1

Camera 2

Camera 8

TK-C655

MACHINE ID: 01 Switch 8: OFF (RX TERM)

MACHINE ID: 02 Switch 8: OFF (RX TERM)

MACHINE ID: 08 Switch 8: ON (RX TERM)

Connections & Installation

TX +A TX –B RX +C RX –D

Camera 1 CONTROL terminals

Camera 2 CONTROL terminals

Camera 3 CONTROL terminals

RX +A RX –B TX +C TX –D

RM-P2580

terminal

A TX –B RX +C RX –D

TX +A TX –B RX +C RX –D

Connection of the control signal cable (A twisted pair cable is recommended.)

Power cable

Control signal cable

To AC 24V power supply

To the TO CAMERA connector of the RM-P2580 and to the next camera

Coaxial cable

To the VIDEO INPUT connector of the RM-P2580

Duplex display ID No. display

LPROCESS<<>> I INTIA

:--I--PAN :--I--TILT

DUPLEX ID- 01ROT>P COOL

Camera 1 monitor display at power ON

(ID check procedure

☞

P. 13)

Switch 1

Switch 2

: Switch 4 : ON Switch 5 : OFF Switch 7 : Invalid (Set to OFF)

Switch 8 :

Figure of 1 Figure of 10

Set it to the same number as the VIDEO INPUT terminal of the RMP2580. (Example) Camera 1: Set the figure of 10 to “0” and figure of 1 to “1”.

Set to ON only for the camera connected at the end of the control signal cable. Set to OFF for all other cameras.

Machine ID

1234678

Invalid (Set to OFF.)

A Multi-Drop Communication System

 A system that employs the RM-P2580 as the controller

The following figure shows a system that can accommodate up to eight cameras. (64 positions can be preset per camera.)

Observe the following points when connecting components together:

•Turn all the components off before proceeding.

• Read the instruction manuals of all components before proceeding.

•For the types and lengths of connection cables, see “Cable Connections” on page 14.

• Do not connect the control signal cables in a loop.

Cable connections

☞

P. 1 4

(Connector side of Ceiling Mount)

Switch settings

☞

P. 1 2

(Setting switches on the Ceiling Mount: Setting switch side)

Each terminal on the camera and the RMP2580 is marked



, B, C or D. In order to facilitate understanding and to avoid connection mistakes, it is recommended to connect the terminals carrying the same marks.

VIDEO SWITCHER, etc.

CONTROLLER*

Length of stub

CONTROL Cable

CAM1 CAM2

CAM31 CAM32

PROTOCOL(1) : ON MACHINE ID : 01 RX TERM : ON

PROTOCOL(1) : ON MACHINE ID : 02 RX TERM : OFF

PROTOCOL(1) : ON MACHINE ID : 31 RX TERM : OFF

PROTOCOL(1) : ON MACHINE ID : 32 RX TERM : ON

Length of stub

VIDEO SWITCHER, etc.

CONTROLLER*

Length of stub

CONTROL Cable

PROTOCOL(1) : ON MACHINE ID : 01 RX TERM : ON

PROTOCOL(1) : ON MACHINE ID : 02 RX TERM : OFF

PROTOCOL(1) : ON MACHINE ID : 32 RX TERM : OFF

Length of stub

CAM1 CAM2

CAM32

Terminate it with 110 Ω.

• Set the TERM switches of the cameras at each end (CAM1 and CAM32) to ON, and the TERM switches of the other cameras to OFF.

• Do not terminate at the controller.

• Set the TERM switch of CAM1 to ON, and terminate at the controller with a resistance of 110 Ω. Set the TERM switches of the other cameras to OFF.

● When the controller is located at the end of the system cable.

(An AC 24V power source must be supplied to each camera)

● When the controller is located in the middle of the system cable.

(An AC 24V power source must be supplied to each camera)

Be sure to terminate the control signal cable at both ends. The cables (length of stub) connecting pieces of non-terminated equipment (cameras or controllers) must be as short as possible. If the length of stub is too long, the precision of the control may suffer.

MEMO

 A system that does not employ the RM-P2580 as the controller

Connections & Installation

Point-to-Point Communication System

The following illustration shows a system in which a remote control unit (or a similar piece of equipment) controls a single camera.

Observe the following points when connecting system components :

•Turn all the components power off before proceeding.

• Read the instruction manuals of each component before above proceeding.

Control signal cable

AC 24 V power supply

Video out

Controller

Monitor

Switch 4 : OFF (Point to Point) Switch 8 : ON (Terminated 110Ω)

Cable connections

☞

P. 1 4

(Connector side of the Ceiling Mount)

To the AC 24V power supply

To controller

To monitor

Power cable

Control signal cable

Coaxial cable

If this camera or the cables connected to this camera are used in places subject to strong electromagnetic waves or other forms of magnetism, for example near a radio or TV transmitter, a power transformer or an electric motor, the picture may suffer from noise and colours may be affected. In order to operate and control the TK-C655 camera, a separate control unit accessory is required. Please contact JVC authorized dealer or installer for more information about these controllers.

MEMO

Switch settings

☞

P. 1 2

(Setting switches on the Ceiling Mount: Setting switch side)

Setting not required

1234678

Setting not required

Switch 1 : OFF Switch 2 : OFF Switch 4 : OFF Switch 5 :

Configure in accordance with the requirements of the controller communication system.

Switch 7 : OFF Switch 8 : ON

Use twisted-pair cables for the connections.

●Duplex

When the camera is controlled using the full duplex transmission protocol, set Switch 5 to OFF.

●Simplex

When the camera is controlled using the simplex transmission protocol, set Switch 5 to ON.

Camera Controller

RX+

RX–

TX+

TX–

TX+

TX–

RX+

RX–

Camera Controller

RX+

RX–

TX+

TX–

Tw o wires must be connected.

Four wires must be connected.

For example (connection with an RM-P2580)

Camera RM-P2580

RX+ C

RX– D

C TX+

D TX–

TX+ A

TX– B

A RX+

B RX–

Switch Settings

Set the switches on the Ceiling Mount prior to installing the camera. Settings will vary according to the configuration of the system.

 Setting switches

● Switch 7

This switch must be set to OFF.

● RX TERM (Switch 8)

This switch sets whether or not the section between control signal terminals RX + and RX – is to be terminated (with a resistance of 110 Ω.)

When the system in which this camera is used is a multidrop system (RS-485 system), set only the camera located at the extreme end of the control signal cables to “Terminated” and set the other cameras to “Open”.

● Switches 1, 2

These switches must be set to OFF.

● DISP (Switch 3)

This switch selects whether “MANUAL” is displayed in the screen when a remote control unit is being used to move the camera manually to a position other than a preset.

Switch 4PROTOCOL (1)

Point to point OFF Multi drop (when using the RM-P2580)

(Default setting: OFF)

PROTOCOL (2)

Switch 5

Duplex (when using the RM-P2580)

OFF

Simplex ON

(Default setting: OFF)

SYNC Switch 6

INT OFF

LL ON

(Default setting: OFF)

(LL mode : 50 Hz area only)

● SYNC (Switch 6)

When this switch is set to ON, the vertical sync of the camera becomes locked to the frequency of the AC power line.

● PROTOCOL (2) (Switch 5)

Set this switch according to the communication protocol used when controlling the cameras.

When set to Multi drop, be sure to set the Machine ID of each camera.

● PROTOCOL (1) (Switch 4)

Selects whether a single camera or multiple cameras are controlled in a system. Set PROTOCOL(1) to Multi drop when connecting multiple cameras in series.

123

678

Switch 1 Switch 2 Switch 3 DISP Switch 4 PROTOCOL(1) Switch 5 PROTOCOL(2) Switch 6 SYNC Switch 7

Switch 8 RX TERM

Reserved This switch must be set “OFF”

Connections & Installation

Switch 3MANUAL

Displayed

Not displayed

(Default setting: Displayed)

Switch 8RX Termination

Te r minated (110 Ω)ON

Open OFF

(Default setting: Terminated (110 Ω))

● Machine ID

When using a multi-drop system with a remote control unit such as a RM-P2580, the machine IDs need to be set for each camera. Machine IDs are used to identify each of the multiple cameras connected to the RM-P2580. Set the machine IDs according to the corresponding VIDEO INPUT terminal numbers on the RM-P2580.

(Example)

The machine ID of the camera connected to VIDEO INPUT 1 should be set to “0” “1” as shown on the right.

Figure of 1

Figure of 10

 Setting switches

Set the picture being monitored to that of the camera to be checked.

Tu rn the AC 24V power source of the camera OFF and then ON again.

The camera now performs the initialization operation and the following display appears:

Figure of 10 Figure of 1

“0” “1”

Ensure that “DUPLEX” and “ID-□□” are displayed and that the ID number is identical to the VIDEO INPUT terminal number on the RM-P2580.

If the ID number is incorrect, reset it accordingly.

PROCESSIN TIIAL

UPLEX I D - 10PROT OCLD

I--TI TL:--

I--PNA:--

“DUPLEX” should be displayed. “ID-□□” is displayed.

Ensure that the number

□□

is correct.

In a system using an RM-P2580, multiple cameras are connected by a single set of control cables. An error in the switch setting of even a single camera will make the entire system inoperable.

MEMO

Cable Connections

Connect cables to the Ceiling Mount as described below.

Make a 90 mm diameter hole in the ceiling.

Connect the cables.

Connect the cables to the terminals on the Ceiling Mount. The four connections consist of a AC 24V power cable, a coaxial cable and a control signal cable.

Remove the cover from the Ceiling Mount.

Pass the cables through the cover.

Make slits in the rubber cap on the cover as shown in the diagram below. Pull the cables through the hole in the ceiling and pass the cables through the slits.

Diameter 90 mm

Cover

Ceiling Mount

RELEASE LOCK

Cap (Side)

Tube Maximum diameter 22 mm

Cap (Top)

Drip-proof pipe

33 mm or less

Connector Maximum diameter 31 mm

Power cable

Control signal cable

To a remote controller such as RM-P2580

To the monitor, etc.

To the AC 24 V power supply

AC 24V power cable

This cable connects the AC 24V power supply to the AC 24V input connector. To prevent connection errors and disconnections, the use of lug plate for connections to the AC 24 V INPUT connector is recommended.

When a 2-conductor VVF (Vinyl-insulated vinyl-sheath cable) is used, the maximum connection length is as shown below. (These are merely the standard reference values.)

Maximum cable length

100 m 260 m 410 m 500 m

Wire diameter (mm) 1.0 or more 1.6 or more 2.0 or more 2.6 or more

Connections & Installation

CAUTIONS

● When thin cables are used the cable resistance increases. As

a result, when the power consumption of the unit is at its maximum level (during the simultaneous operation of panning and tilting) the effective voltage will drop.

When the voltage drops while the camera is in use, performance can become unstable and preset positions may not be reproduced accurately.

To prevent problems, either use thicker cables that have lower resistance or decrease the cable length by installing the power supply unit closes to the camera. Attempt to reduce the voltage drop to less than 10% while the rated current level of the camera is flowing through the cable.

● Do not connect an AC 24V cable directly to an AC 230 V outlet.

This will cause damage to the unit.

MEMO

The diameter of the cover hole without the cap is 20.5 mm. For dust prevention, remove the cap (side) and install a drip-proof pipe. (Be sure to use a drip-proof pipe. The maximum diametre of the pipe connector is 31 mm.) When distributing the cable from the side, use JVC’s WBS573 ceiling direct-mount bracket. In this case, the length of the connector should be 33 mm or less, and the maximum diameter of the tube should be 22 mm or less.

Mesh wiresPolyethylene

The figures inside the brackets ( ) are the dimensions when the coaxial cable is distributed from the side of the cover. (Unit : mm)

Conductor wire

(5)

(12)

Insulation tape

Fold back the mesh wires and secure them with insulation tape in order to prevent them from becoming loose and thus causing a short circuit.

If the cable is extended, the signal attenuation is increased, the resolution drops and the noise increases. Should it be required to extend the cable, use a thicker cable or a cable length compensator.

To feed the coaxial cable through the cap on the side of the cover, change the positioning of the cable plate as shown below.

Provided screw

Provided cable plate

Screw removed in the figure on the left

Control signal cables

The RM-P2580 unit allows the connection of up to eight cameras to the one set of control signal cables. The overall maximum permissible length of these control signal cables is 1200 metres.

Attach the cover.

Attach the cover to the Ceiling Mount by reversing the operations in step

Coaxial cable

Connecting a RG-59 coaxial cable.

If a RG-11 coaxial cable is used it cannot be connected directly to the terminal board. To use such a cable, connect a RG-59 cable to the camera and then connect the RG-11 cable to the RG-59 cable.

Tr im the end of the coaxial cable as shown below before connecting it.

Flat-blade screwdriver

Cable

4 mm

Flat-blade screwdriver

The connector can be released by loosening the screws on the two sides as shown in the figure.

Strip the coating of each cable by about 4 mm before inserting it. After connecting all of the cables, turn the screws on the side to fasten the connectors.

It is recommended to use a 4-core (a pair) twisted pair cable (0.65) or a twisted pair cable of category 3 or higher which is used for Ethernet.

Cables with a thickness between 16 AWG and 26 AWG can be used. Connect the control signal cables so that the TX+ and TX- signals form a pair and the RX+ and RX- signals form another pair.

Connections & Installation

Attaching the Ceiling Mount

To a ceiling slab or channel

Ceiling Mount

Screws

Safety wire hole

Rubber seals (Four on each side)

Attach Drop Prevention Wire to this hook.

Drop Prevention Wire

Attaching the Camera

Attaching a safety wire.

Attach a safety wire to the Ceiling Mount and to the ceiling slab or channel to prevent the unit from being able to fall to the floor. First attach the safety wire to the Ceiling Mount by passing the wire through the safety wire hole (see the diagram on the left).

Attaching the Ceiling Mount to the ceiling.

While taking care not to catch the connection cables, attach the Ceiling Mount to the ceiling using four screws (as shown in the diagram). Use M4-sized screws or bolts. If woodscrews are used, use those with a diametre of 4.1 mm.

Attach the drop prevention wire.

As shown in the diagram, take the drop prevention wire from the camera and attach it to the hook on the Ceiling Mount.

Be sure to connect the drop prevention wire. Otherwise, the camera will not fit properly to the Ceiling Mount. If they are engaged forcibly, they may be damaged.

CAUTION

Be sure to attach the safety cable. Otherwise, the camera could fall to the floor, caring damage to itself and any person passing underneath.

● Connect the wire so that it can be insulated from the ceiling struc-

ture. If the ceiling structure is made of a metallic material, inadequate insulation with the camera may produce noise in the video signal.

● Use a wire and ceiling attachment having sufficient length and

strength to prevent danger in case the camera drops.

● A safety wire is not provided. Please use an appropriate commer-

cially available wire.

MEMO

● Be sure to use four screws and attach them firmly. If the screws

are not tightened firmly, dust and moisture may enter the unit via the screw holes.

● The rubber seals attached to the Ceiling Mount screw holes of the

Ceiling Mount play the role of insulation in case the ceiling structure is made of a metallic material as well as the role of drip proofing. If the ceiling structure is made of a metallic material, improper insulation with the camera may produce noise in the video. To prevent this occurring, be sure to ensure correct insulation of the installation.

MEMO

Ensure that the locking screw is loose.

The camera cannot be attached properly if the locking screw of the Ceiling Mount is too tight at this stage.

Fit the camera.

Check the position of the camera clamping bracket and that of the locking screw, and fit the camera to the Ceiling Mount.

Rotate the camera.

Make sure that the camera is horizontal, then turn the camera clockwise until it stops. Ensure that the cameraclamping bracket is in line with the locking screw of the Ceiling Mount.

Tighten the locking screw.

Tighten the lock screw using a Phillips screwdriver.

Camera clamping bracket

Camera

Tighten the locking screw.

Lock screw

Rotate the camera clockwise.

Camera clamping bracket

Locking screw

Ceiling Mount

CAUTION

If the locking screw is not tightened firmly, the camera may vibrate or come loose. Be sure to tighten the locking screw firmly.

*To remove the camera from the Ceiling

Mount, reverse the steps

to 5.

Setting Up the Camera Using an RM-P2580

Setup Procedure

In systems using an RM-P2580 remote control unit, the menus for use during camera setup can be displayed on the remote control unit. (Please refer to the instructions for RM-P2580.)

Set the Power switch on the rear panel of the RMP2580 to ON.

The POWER lamp lights up.

Press and hold the MENU button for 3 seconds.

• The LED of the MENU button lights up.

• The SETUP menu of the remote control unit is displayed on the monitor connected to MONITOR OUTPUT-1.

Move the PAN/TILT lever downwards to move the cursor (>) to “CAMERA” in the menu.

• Tilting the lever upwards () moves the cursor upwards.

• Tilting the lever downwards (

) moves the cursor downwards.

Press the SET button.

• The MENU screen for the camera is displayed.

• Items followed by “..” have further submenus.

Tilt the PAN/TILT lever up or down to select an item.

Tilt the PAN/TILT lever to the left or right to change the value of the item.

• Tilting the lever towards the left ( ) decreases the value.

• Tilting the lever towards the right (

) increases the value.

Press the MENU button.

After completing the setup of the menu items, press the MENU button to return to the previous menu screen.

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

Power switch (Rear panel)

POWER lamp

SET button

MENU button

POS ITION SETUP..

SETUP

C AMERA . . CONT ROL UN I T . .

cursor

SETUP menu of the remote control unit

CAM. FUNC T I ON . .

–––M E N U – – –

CAM. T I TL E / ALARM. . CAM. V I DEOADJUST. . CAM. ALC / ExDR . . AUTO PAN / PA TROL / TRACE . . POS I . FUNCT I ON SET . . FACTORY SETT I NGS . .

SETUP menu of the camera

Indication of presence of submenus

Example of a submenu

POS .TITLE LOC. UP-L

–––CAMERA FUNCT I ON– – –

FL IP D

NORMAL

IGITAL VAR. P / T SPEED ON EASY AF OFF V PR I V ATE MASK . .

.SHARPNESS

V.PHASE 0

Change mark

Menu Screen Flow

The menu screens are arranged in a hierarchical structure as shown below. Refer to the respective reference pages for the details of each menu.

POS I T I ON SETUP . .

SETUP

CAMERA. . CONT ROL UN I T . .

CAM. FUNCT I ON . .

––– M E N U – – –

CAM. T I TL E / ALARM. . CAM. V I DEO AD JUS T . . CAM. ALC / ExDR . . AUTO PAN / PATROL / TRACE . . POS I . FUNCT I ON S ET . . FACTORY SETT I NGS . .

COL OUR L E VE L NORMAL

–––CAMERA V IDEO ADJUST–––

ENHANCE L EVE L NORMAL PEDESTAL L EVEL NORMAL AUTO B LK . CT L . OFF

CAM. T I T L E ED I T . .

–––CAMERA T I TLE/ALARM

–––

AREA T I T LE OFF AREA T I T LE ED I T . . ALM.T I TLE S IZE DOUB L E ALM.T I TLE COLOUR WHI TE ALARM T I TLE EDI T . .

AVERAGE : PEAK 8 : 2

–––CAMERA ALC/ExDR

–––

SHUTTER 1 / 5 0 AGC MODE 1 0 d B SENSE UP OFF ExDR MODE OFF ExDR LEVEL –––

AUTO PAN MODE RETURN

––AUTO P AN / P ATROL / TRACE

––

AUTO PAN SPE ED NORMAL A.PAN START POS.SET. . A.PAN RETURN POS.SET. . AUTO PA TROL SET . . AUTO T RACE SET . . RM . A .PAN KEY A.PAN RM . A .PATROL KEY A.PATROL

CANCEL

––FACTORY SETTINGS – –

CLEAR(W/ O POS I . T I T L E ) CLEAR( AL L )

POS I T I ON T I T L E . .

––POSI T ION FUNCTION SET – –

IRIS MODE AUTO BLC OFF W.BALANCE ATW R-B GAIN ––– M-G GAIN – ––

V.PHASE 0

––CAMERA FUNCT I ON – –

POS . T I T L E LOC . UP - L FL IP D

NORMAL

IGITAL VAR. P / T SPEED ON EASY AF OFF V PR I V ATE MASK. .

.SHARPNESS

Normal screen

SETUP screen of the remote control unit

☞

P.20

CAMERA FUNCTION screen

CAMERA VIDEO ADJUSTMENT screen

AUTO PAN/PATROL/TRACE screen

POSITION FUNCTION SET screen

☞

P.22

☞

P.24

☞

P.25

☞

P.21

CAMERA TITLE/ALARM screen

CAMERA ALC/ExDR screen

☞

P.22

☞

P.24

FACTORY SETTINGS screen

MENU screen

• Menus for setting up the function of each camera: CAM. FUNCTION CAM. TITLE/ALARM CAM. VIDEO ADJUST CAM. ALC/ExDR AUTO PAN/PATROL/TRACE

• Menu for setting up the function of each preset position: POSI. FUNCTION SET

Function & Setting

This adjusts the vertical synchronization to those of other cameras when a selector switch for the synchronizing system on the Ceilling Mount is at LL. (50 Hz power region only.) Setting values : –156 to 0 to 156

Sets the location of the position title and area title in the monitor.

UP : At the top of the screen. DOWN : At the bottom of the screen. L : In the left half of the screen. C : In the centre of the screen. R : In the right half of the screen Setting values : UP-L, UP-C, UP-R, DOWN-L, DOWN-C, DOWN-R

When a tilting operation is started while this item is OFF, the camera will stop at the position where it is pointing straight downwards. When an object moves directly below the camera, the camera makes three movements

points the straight down-

wards

pans 180° 3 points upwards. The FLIP function makes it possible to reduce these operations. Use this function when monitoring an object passing directly below the camera.

OFF : Tu r ns the FLIP function off. DIGITAL : Once the camera reaches a tilt of 135˚ from horizontal after passing a

position facing directly downwards, a picture is inverted both vertically and horizontally.

AUTO : When the camera reaches a position facing directly downwards, it pans

by 180° then stops.

Under this function, the panning and tilting speeds are adjusted automatically relative to the zoom ratio of the lens. Setting the zoom lens towards TELE decreases the pan and tilting speeds. Setting the zoom lens towards WIDE end increases the pan and tilting speeds. Use this function when monitoring objects at differing zoom ratios.

OFF : Tu r ns this function off. ON : Tu r ns this function on.

When this item is set to ON, the auto focusing (AF) is activated automatically during manual pan/tilt and zoom operations. This function is convenient when frequent manual operations are expected as it eliminates the need to focus manually after every manual operation.

OFF : Turns this function off. ON : Tu r ns this function on.

This function sets sharpness in the vertical direction of the image.

NORMAL : Normal sharpness. HIGH : High sharpness.

This function grays out sections that are not to be displayed in the monitored picture area. The grayed out section moves accordingly when the camera is panned, tilted or when the zoom is adjusted.

☞

P.26, “PRIVATE MASK Setup”

Setting Up the Camera Using an RM-P2580

CAMERA FUNCTION Screen

This screen sets up the functions of the camera itself.

Item

V. PHASE

POS. TITLE LOC.

FLIP

VAR. P/T SPEED

EASY AF

V.SHARPNESS

PRIVATE MASK..

Initial Value

UP-L

DIGITAL

OFF

NORMAL

–

Auto focusing may sometimes be incapable of bringing certain objects into accurate focus. (

☞

P. 5 )

In this case, use the manual focusing facility.

MEMO

The following phenomena may be observed when HIGH is selected. This is not a malfunction.

• Horizontal stripes are observed on bright objects.

• Vague horizontal stripes are observed under low light conditions.

CAUTION

Initial Value

–

OFF

–

DOUBLE

WHITE

–

Function & Setting

This sets the title which is displayed permanently at the bottom left of the picture. This title can be up to 16 characters in length.

☞

P. 27, “CAMERA TITLE Setup”

The 360° panning range can be divided into 16 areas and a title, of up to 16character in length, can be set for each area. As the camera is panned manually these area titles are displayed. This function determines whether area titles are displayed or not.

ON : Display area titles. OFF : Do not display area titles.

Sets the area titles.

☞

P. 28, “AREA TITLE Setup”

Sets the size of the characters in the alarm title. (Displayed when an alarm is activated.)

NORMAL : Same size as the characters used in the menu screen. DOUBLE : Double the size, both horizontally and vertically, of the characters used

in the menu screen.

Sets the colour of the alarm titles. Setting values: WHITE, YELLOW, CYAN, GREEN

Sets the alarm titles.

☞

P. 29, “ALARM TITLE Setup”

CAMERA TITLE/ALARM Screen

This screen sets items related to titles and alarms. *This unit is not equipped with alarm input/output.

The item ALARM TITLE is used to set the alarm title, which is displayed when an alarm signal is input to the RM-P2580 remote control unit. (Please refer to the instruction manual for the RM-P2580.)

Item

CAM. TITLE EDIT

AREA TITLE

AREA TITLE EDIT

ALM. TITLE SIZE

ALM. TITLE COLOUR

ALARM TITLE EDIT

CAMERA VIDEO ADJUSTMENT Screen

Item

COLOUR LEVEL

ENHANCE LEVEL

PEDESTAL LEVEL

AUTO BLK. CTL

Initial Value

NORMAL

OFF

Function & Setting

Sets the colour level of the picture signal.

To increase : Set a smaller value. To decrease : Set a larger value. Setting values : –5 to NORMAL to 5.

Sets the contour enhancement which controls the sharpness of the monitor picture.

To soften the picture : Set a smaller value. To sharpen the picture : Set a larger value. Setting values : –5 to NORMAL to 5.

Sets the pedestal level (black level) of the video signal.

To darken the picture : Set a smaller value. To brighten the picture : Set a larger value. Setting values : –5 to NORMAL to 5.

Use this function when darker parts of a picture are unclear even after the gain has been increased using the AGC (Auto Gain Control). ON : When the black level of the video signal is low, the pedestal level is in-

creased automatically in order to improve the clarity of the darker parts.

OFF : Tu rns this function off.

This menu sets the picture signal of the camera, such as the colour level and contour enhancement.

CAMERA ALC/ExDR screen

Item

AVERAGE : PEAK

SHUTTER

Initial Value

8:2

1/50

Function & Setting

Sets the method of exposure detection to the ratio between the average and peak values.

Large Average value

: Use this setting when areas other than the highlighted ar-

eas are filled with dark. (Example: 10:0)

Large Peak value : Use this setting when highlighted areas appear as halation.

(Example: 5:5)

Setting values : 10:0, 9:1, 8:2, 7:3, 6:4, 5:5

Sets the electronic shutter speed. When the SENSE UP item is set, the only two values that can be selected are 1/50 and 1/120. When the item “ExDR MODE” is set to “ON”, the available settings for the SHUTTER are limited to 1/50 and 1/120. Setting values : 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

This screen adjusts the settings of automated functions relating to picture brightness.

● To reduce the flickering which occurs under fluorescent lighting, set the shutter speed

to 1/50 if your local power supply frequency is 50 Hz and to 1/120 if it is 60 Hz.

● When a high shutter speeds are used, white stripes may be observed above and

below bright objects. This is called the smear phenomenon and is usual to CCD cameras.

MEMO

Setting Up the Camera Using an RM-P2580

CAMERA ALC/ExDR Screen (Continued)

Item

AGC MODE

SENSE UP

ExDR MODE

ExDR LEVEL

Initial Value

10 dB

OFF

NORMAL

Function & Setting

Sets the maximum gain of the AGC (Auto Gain Control), which electronically increases the gain when the object is under low light conditions.

OFF :Turns the AGC off. 10 dB : According to the brightness of the object, gain is increased by up to 10 dB 20 dB : According to the brightness of the object, gain is increased by up to 20 dB SUPER : Use this setting when brightness is still insufficient under the “20 dB”

setting.

This function is used to increase the sensitivity by extending the exposure time. Increasing this value slows the shutter speed and motion may appear unnatural. When the item “SHUTTER” is set to “1/250” or more, the SENSE UP item does not work and “---“ is displayed as the item name in the CAMERA ALC/ExDR Screen. Setting values: OFF, x2

The ExDR function synthesizes pictures captured at a shutter speed of 1/100 and those captured at higher shutter speeds to help monitor objects having large differences in brightness levels. When the “SHUTTER” function is set to “1/250” or a higher, this function does not work and “---” is displayed as the item name in the CAMERA ALC/ExDR Screen.

OFF : Tu r ns the ExDR function off. ON : Tu r ns the ExDR function on.

This function sets which section of the object is to be displayed in the easiest-toview brightness level in the ExDR mode. To make a low-light section of the object easy to view: Increase the level. To make a highlighted section of the object easy to view: Decrease the level. Setting values: –5 to NORMAL to 5

●

Note that increasing gain affects picture quality.

● When the “SUPER” setting is used, the AGC operation may take a while to adjust to

sudden drastic changes in the brightness level.

MEMO

● When SENSE UP is activated, the picture may become rough and whitish, and subject

to white blemishes.

● When the setting of the “SENSE UP” function is not OFF, flicker may appear on the

screen under fluorescent light or mercury lamps. This is due to the principles of the SENSE UP, and is not a malfunction.

● There may be cases where flicker can not be reduced even under the following condi-

tions: 1) Shutter speed is set at 1/120 in areas where the commercial electric current frequency is 50 Hz. 2) The shutter speed is set at 1/50 in areas where the commercial electric current frequency is 60 Hz.

MEMO

● When the ExDR function is on, flicker may appear on the screen under fluorescent light

or mercury lamps. This is due to the principles of the ExDR, and is not a malfunction.

● There may be cases where flicker cannot be reduced even under the following condi-

MEMO

● When the difference in brightness between objects is large, the picture may not change

even when the ExDR LEVEL is varied. This is due to the characteristics of the camera and is not a malfunction.

● When the item “SHUTTER” is set to 1/250 or higher, “---“ is displayed and the settings to

the item “ExDR LEVEL” cannot be carried out.

● When the item “ExDR MODE” is set to OFF, the settings for the item “ExDR LEVEL”

cannot be varied.

MEMO

POSITION FUNCTION SET Screen

This screen sets the configurations of functions relating to pictures taken in preset positions.

AUTO PAN/PATROL/TRACE Screen

Item

AUTO PAN MODE

AUTO PAN SPEED

A. PAN START POS. SET..

A. PAN RETURN POS. SET..

AUTO PATROL SET

AUTO TRACE SET

RM. A. PAN KEY

RM. A. PATROL KEY

Initial Value

RETURN

NORMAL

–

A. PAN

A. PATROL

Function & Setting

Determines movement during auto panning.

RETURN : Moves continuously between start and return positions. RIGHT : Clockwise rotation LEFT : Anti-clockwise rotation.

☞

P. 30, “AUTO PAN Setup”

Sets the rotation speed during auto panning.

LOW : Low speed. NORMAL : Normal speed. HIGH : High speed.

Sets the auto panning start position.

Sets the auto panning return position.

Sets the configuration of the auto patrol function.

☞

P. 31, “AUTO PATROL Setup”

Sets the configuration of the auto trace function.

☞

P. 32, “AUTO TRACE Setup”

Determines the function activated by pressing the AUTO PAN button on the remote control unit.

A. PAN :Auto pan function. A. PATROL :Auto patrol function. A. TRACE :Auto trace function.

Determines the function activated by pressing the AUTO PATROL button on the remote control unit.

A. PAN :Auto pan function. A. PATROL :Auto patrol function. A. TRACE :Auto trace function.

This screen sets up the auto pan function for slow panning, the auto patrol function for switching of positions in sequence, and the auto trace function for the reproduction of the results of manual camera operations.

Setting Up the Camera Using an RM-P2580

Item

POSITION TITLE

IRIS MODE

Initial Value

–

AUTO

Function & Setting

Sets the titles for the 99 preset positions and the home position. Titles can be up to 16 characters in length and are shown in the display.

☞

P. 33, “POSITION TITLE Setup”

Determines the lens iris adjustment mode.

AUTO : for auto iris adjustment under standard conditions. AUTO+ : for auto iris adjustment under slightly brighter conditions. AUTO– : for auto iris adjustment under slightly dimmer conditions. MANUAL : for manual iris adjustment.

Item

BLC

W. BALANCE

R-B GAIN

M-G GAIN

Initial Value

OFF

ATW

FACTORY SETTINGS screen

This screen resets values to their factory settings.

Item

FACTORY SETTINGS

Initial Value

–

Function & Setting

Resets all settings in the above menus to their initial factory settings. Pressing the SET button displays “EXECUTING” (2 sec. approx.) and resets the settings to the factory settings.

CANCEL : Does not alter current values. CLEAR (W/O POS. TITLE) : Resets the settings to the initial, factory settings.

However, the set positions, the setting data of each position and the titles are not reset to the factory settings.

CLEAR (ALL) :

Resets all settings including titles and stored positions.

Function & Setting

Sets of area of back light compensation. Use this function when the object appears dark (under auto iris control) because of the presence of a bright light source behind it. This function make it possible to place the unnecessary light source outside the photometry area.

OFF : The backlight compensation function does not work. ARER 1 to AREA 4 : When the SET button is pressed, the fixed light metering ar-

eas are displayed. Select one of the four types. Pushing the MENU button returns the screen to POSITION FUNCTION SET.

Determines the setting of the white balance adjustment. The white balance can be adjusted for lighting conditions with colour temperatures from 2500K to 8000K. ATW :Auto-Tracking White balance mode, adjusts the white balance automati-

cally according to the colour temperature of the lighting conditions. When ATW is set, “---“ is displayed for the items “R-B GAIN” and “M-G GAIN”, so that the colour phase adjustment cannot be carried out.

AWC :Auto White Control mode, which displays “PUSH SET → ADJ. STRAT”.

When the SET button is pressed, AWC is activated and the white balance adjustment starts. If the AWC is activated while the screen is B&W the LOW LIGHT ERROR will be displayed. This is not abnormal.

Adjusts the phases of R (Red) and B (Blue) under AWC mode.

• To enhance blue:Decrease the value.

• To enhance red : Increase the value. Setting values : 0 to 255

Adjusts the phases of M (Magenta) and G (Green) under AWC mode.

• To enhance green : Decrease the value.

• To enhance magenta : Increase the value. Setting values : 0 to 255

OFF AREA 1 AREA 2 AREA 3 AREA 4

Photometry area

When the item “ExDR MODE” (

☞

page 23) is set to ON, the item “BLC” is set to OFF and

“---” is displayed. Under this condition, the settings to the item “BLC” cannot be varied.

MEMO

POSITION FUNCTION SET Screen (Continued)

Setting Up the Camera Using an RM-P2580

PRIVATE MASK Setup

Use the PRIVATE MASK screen to set up the private mask function, which grays out areas that are not required to be included in the monitored picture. Up to four private masks can be set per screen, and up to eight private masks can be set in total.

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

TELE button

WIDE button

ENTER button

Numeric keys

SET button

MENU button

POS . T I T L E LOC . UP - L

–––CAMERA FUNCTION – ––

FL IP D

NORMAL

IGITAL VAR. P / T SPEED ON EASY AF OFF V.SHARPNESS PR I V ATE MASK. .

MOD E ON

–––PRI VATE MASK – ––

MAS K NO 1

MAS K ED IT. . MAS K DELETE . .

Already set.

–––MASK EDIT – ––

PUSH MENU  SAVE&RETURN

→

CANCEL

–––MASK DELETE – ––

DEL ETE

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Select the angle of view.

Use the PAN/TILT lever and the lens button to set the viewing angle to which the private mask function is to be applied.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.)

→

Select “CAMERA” using the PAN/TILT

lever

→

SET button.

The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “CAMERA FUNCTION” and press the SET button.

The CAMERA FUNCTION menu is displayed.

Move the cursor (>) to “PRIVATE MASK” and press the SET button.

The PRIVATE MASK submenu is displayed.

Select the private mask function ON or OFF.

Tu rn the private mask function on or off by setting the “MODE” item in the submenu to ON or OFF (Factory setting: OFF)

Select the mask number.

Select the private mask number from MASK NO. 1 to 8 and move the cursor on to the item “MASK EDIT.” Of these, a maximum of 4 can be set within one picture. If an already set mask number is selected, the (*) mark will be displayed.

Edit the masking area.

•Move the cursor to “MASK EDIT” and press the SET button to display the MASK EDIT screen. (The masked area will be displayed as a grayed-out area.)

• Tilt the PAN/TILT lever to move the grayed-out area to the centre of the area to be masked.

• Press the TELE and WIDE buttons to set the masked area size.

Press the MENU button.

• The screen returns to the “PRIVATE MASK menu”.

•

To delete a private masked area, select “MASK DELETE”, move the cursor to “DELETE” and press the SET button. The PRIVATE MASK menu reappears after the data has been deleted. To cancel deletion, select “CANCEL” and press the SET button.

10.

Repeat steps 6 to 9 for each additional masked area.

11.

Press the MENU button.

The screen returns to the “CAMERA FUNCTION” menu.

●

Depending on the camera direction, a picture may be shot even in the setting private mask area.

● The private MASK function cannot be carried out during the initializing process immediately after the power is turned on.

● If the picture being shot contains 5 or more masks, the entire picture is masked.

CAUTIONS

● It is not possible to set five or more masks in adjacent areas. (Even when

this is attempted, the masked area that is required to be set will not be displayed.)

● MASK cannot be set at lower than approx. 45° in the horizontal direction.

(The masks for new settings are not displayed.)

CAMERA TITLE Setup

Use the CAMERA TITLE screen to set the title of each camera. Titles can be up to 16 characters in length and are displayed at the bottom left of the picture.

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO

PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

TELE button

WIDE button

ENTER button

Numeric keys

SET button

MENU button

CAM. FUNC T I ON . .

–– – M E N U – – –

CAM. T I TL E / ALARM. . CAM. V I DEO AD JUS T . . CAM. ALC / ExDR . . AUTO PAN / PATROL / TRACE . . POS I . FUNCT I ON S ET . . FACTORY SETT I NGS . .

Cursor

SETUP menu display on the camera

CAM. T I T L E ED I T . .

–––CAMERA T I T LE / A L ARM

– – –

AREA T I T LE OFF AREA T I T LE ED I T . . ALM.T I TLE S I ZE DOUBLE ALM.T I TLE COLOUR WHI TE ALARM T I TLE EDI T . .

TITLE ALARM menu

0123456789ABCDEFGHI JK

–––CAMERA T I TLE – ––

LMNOPQRSTUVWXY Z

abcde f g hi jklmnopq r s t uvwxyz . , ' –:/ДЦЬВКОФЫЗСд л п ц ьвко ф ыбйн уъаи м тщз сЯ¡¿

←

WIDE TELE

→

Character area

CAMERA TITLE screen

Title input field

Blinking

Space Blinking

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.) → Select “CAMERA” with the PAN/TILT lever → SET button. The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “CAMERA TITLE/ALARM” and press the SET button.

The TITLE/ALARM menu is displayed.

Ensure that the cursor (>) is located on “CAMERA TITLE” and press the SET button.

• The CAMERA TITLE screen is displayed.

• The first characters in the character area and title input field blink to indicate that the system is ready for title input.

Tilt the PAN/TILT lever to select the first character of the title from the character area.

• The character being selected blinks.

• The selected character is displayed in the title input field.

Press the TELE button.

• The first character of the title is input, and the camera gets ready for the input of the second character.

• If the WIDE button is pressed, the blinking position in the title input field moves to the left. Use this facility to correct previously input characters.

Repeat steps 5 and 6 for each title character.

Complete the input of the title for the selected camera in this way.

Press the MENU button.

• The screen returns to the previous menu.

•To set the titles for multiple cameras, repeat steps

to 7 for each

camera.

Setting Up the Camera Using an RM-P2580

AREA TITLE Setup

The 360° panning range of the camera can be divided into 16 equally sized areas and an area title can be set for each area. Titles can be of up to 16 characters in length and are displayed in the picture as the camera is panned manually. (Area title display ON/OFF:

☞

P. 21, Item “AREA TITLE”. Area title display position ☞ P. 20, Item “POS. TITLE. LOC.”)

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

WIDE button

FAR button

TELE button

NEAR button

ENTER button

SET button

MENU button

AREA

HOME

position

SETUP menu display on the camera

CAM. FUNCT ION . .

–––MENU – – –

CAM. T I T LE / AL ARM. . CAM. V I DEOADJUST . . CAM. AL C / E x DR . .

AUTO PAN / PA TROL / TRACE . . POS I . FUNCT I ON SE T . . FACTORY SETT INGS . .

TITLE ALARM screen

CAM. T I T LE ED I T . .

–––CAMERA T ITLE/ALARM

– – –

AREA T I T LE OF F AREA T I T LEEDIT. . ALM.T I TLE S I ZE DOUBLE ALM.T I TLE COLOUR WHI TE ALARM T I TLE EDI T . .

0123456789ABCDEFGHI JK

–––AREA T I TLE 1 –––

LMNOPQRS TUVWXYZ

abcde f g hi jklmnopq r s t uvwxyz . , ' –:/ДЦЬВКОФЫЗС д л п ц ьвко ф ыбйн уъаимтщзсЯ¡¿

TITLE NO.SELECT→FOCUS

←

WIDE TELE

→

Character area

AREA TITLE screen

Title input field

Blinking

Space Blinking

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.) → Select “CAMERA” with the PAN/TILT lever → SET button. The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “CAMERA TITLE/ALARM” and press the SET button. The TITLE/ALARM menu is displayed.

Move the cursor (>) to “AREA TITLE EDIT” and press the SET button.

• The AREA TITLE 1 screen is displayed. AREA TITLE 1 corresponds to the home position.

• The first characters in the character area and title input field blink

to indicate that the system is ready for a title input.

Tilt the PAN/TILT lever to select the first character of the title from the character area.

• The character being selected blinks.

• The selected character is displayed in the title input field.

Press the TELE button.

• The first character of the title is input, and the system gets ready

for the input of the second character.

• If the WIDE button is pressed, the blinking position in the title input

field moves to the left. Use this facility to correct previously input characters.

Press the FAR button.

• The camera pans to the next area and the AREA TITLE 2 screen

is displayed.

• If the NEAR button is pressed, the camera pans back to the previ-

ous area and the previous AREA TITLE 1 screen is displayed.

Repeat steps

for each area title.

Complete the input of all area titles in this way.

Press the MENU button.

• The screen returns to the previous menu.

ALARM TITLE Setup

This unit is not equipped with alarm input/output. This function sets up the alarm title to be displayed when an alarm signal is input to the RM-P2580 remote control unit. Up to 10 alarm titles (ALARM TITLE 1 to 10) can be set and each title can be up to 12 characters in length.

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.)

→

Select “CAMERA” with the PAN/TILT lever

→

SET button.

The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “CAMERA TITLE/ALARM” and press the SET button.

The TITLE/ALARM screen is displayed.

Move the cursor (>) onto the item “ALARM TITLE EDIT” and press the SET button.

• The ALARM TITLE 1 menu is displayed.

• The first few characters in the character area and title input field

blink to indicate that the system is ready for a title input.

Tilt the PAN/TILT lever to select the first character of the title from the character area.

• The character being selected blinks.

• The selected character is displayed in the title input field.

Press the TELE button.

• The first character of the title is input, and the system gets ready

for the input of the second character.

• If the WIDE button is pressed, the blinking position in the title in-

put field moves to the left. Use this facility to correct previously input characters.

Press the FAR button.

• The next ALARM TITLE screen is displayed.

• If the NEAR button is pressed, the previous ALARM TITLE screen

is displayed.

Repeat steps 5 to 7 for each alarm title.

Complete the input of all the alarm titles (ALARM TITLE 1 to 10) in this way.

Press the MENU button.

• The screen returns to the previous menu.

RM-P2580 units need to be configured to display Alarm Titles. Use the RM-P2580 menu settings to do this:

1. Press and hold the MENU button for 3 seconds to display the SETUP screen on the remote control unit.

2. First select the CONTROL UNIT screen, then the DATA I/O screen and finally the INPUT ASSIGNMENT screen.

3. Select “ALARM TEXT” then “EDIT 1”, the alarm title set as ALARM TITLE 1 is displayed on the monitor. * The alarm signals are input into the DATA I/O terminals on the rear panel of the RM-P2580.

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO

PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

WIDE button

FAR button

TELE button

NEAR button

ENTER button

SET button

MENU button

SETUP menu on camera

CAM. FUNC T I ON . .

–––MENU– – –

CAM. T I TL E / ALARM. . CAM. V I DEO AD JUS T . . CAM. ALC / ExDR . . AUTO PAN / PATROL / TRACE . . POS I . FUNCT I ON S ET . . FACTORY SETT I NGS . .

TITLE/ALARM menu

CAM. T I T L E ED I T . .

–––CAMERA T I T LE / A L ARM

–––

AREA T I T LE OFF AREA T I T LE ED I T . . ALM.T I TLE S I ZE DOUBLE ALM.T I TLE COLOUR WHI TE ALARM T I TLE EDI T . .

0123456789ABCDEFGHI JK

–––ALARM T ITLE 1– ––

LMNOPQRS TUVWXYZ

abcde f g hi jklmnopq r s t uvwxyz . , ' –:/ДЦЬВКОФЫЗСд л п ц ьвко ф ыбйн уъаи м тщз сЯ¡¿

TITLE NO.SELECT→FOCUS

←

WIDE TELE

→

Character area

ALARM TITLE screen

Title input field

Blinking

Space Blinking

Setting Up the Camera Using an RM-P2580

AUTO PAN Setup

Use the AUTO PAN screen to set the auto pan function, which allows the camera to be revolved slowly in a horizontal direction) The auto pan function has three modes, the RETURN mode for continual movement between two positions, the RIGHT mode for clockwise rotation and the LEFT mode for anti-clockwise rotation.

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.) → Select “CAMERA” with the PAN/TILT lever → SET button. The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “AUTO PAN/PATROL TRACE” and press the SET button.

The AUTO PAN/PATROL/TRACE menu is displayed.

Set the auto pan mode and speed.

• Select the “AUTO PAN MODE” item and then select either RETURN (continual movement between two positions), RIGHT(clockwise rotation) or LEFT (anti-clockwise rotation).

• Select the “AUTO PAN SPEED” item and then select either LOW, NORMAL or HIGH.

Move the cursor (>) to “A. PAN START POSITION SET” and press the SET button.

The START POSITION SET screen is displayed.

Adjust the viewing angle of the start position.

• Use the PAN/TILT lever, FOCUS button and ZOOM button to adjust the viewing angle.

• Tilting of the camera and changes in lens controls such as the FOCUS and ZOOM settings are not available at the return position.

Press the MENU button.

The AUTO PAN/PATROL/TRACE screen shows “DATA SAVED” to indicate that the viewing angle for the start position has been registered.

Move the cursor (>) to “A. PAN RETURN POSITION SET” and press the SET button. (RETURN mode only)

The RETURN POSITION SET screen is displayed.

Adjust the viewing angle of the return position. (RETURN mode only)

Pan the camera in the right and left directions and adjust the viewing angle.

10.

Press the MENU button.

• The screen returns to the previous menu.

After the above setup, auto panning of the camera can be started by pressing the AUTO PAN button on the RM-P2580.

☞

“Auto Panning” in the RM-P2580 Instruction manual.

Slow movement

Picture of

start position

Picture of return position

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO

PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

WIDE button

FAR button

TELE button

NEAR button

ENTER button

SET button

MENU button

AUTO PAN/PATROL/TRACE menu

AUTO PAN MODE RETURN

–––AUTO PAN/ PATROL / T RACE –––

AUTO PAN SPE ED NORMAL A.PAN START POS.SET. . A.PAN RETURN POS.SET. . AUTO PA TROL SET . . AUTO T RACE SET . . RM A . P A N K EY A . PAN RM A . P A T ROL KEY A . PATROL

START POSITION SET screen

–––START POS I T I ON SE T – – –

PUSH MENU

SAVE&RETURN

RETURN POSITION SET screen

–––RETURN POS I T I ON SET– – –

NRUTER&EVAS

UNEMHSUP

• It is not possible to tilt the camera or change the lens settings at the return position.

• If the SET or MENU buttons are pressed while the camera is moving, the correct settings cannot be registered. Make sure that the camera is stationary before pressing the SET or MENU buttons.

MEMO

AUTO PATROL Setup

Use the AUTO PATROL screen to set the configuration of the auto patrol function, which moves the camera between several positions at a high speed. Patrol positions 1-100 can be set in each of three modes (MODES 1 to 3). It is recommended that these three modes be set the according to the day of the week or the time of day. For example: MODE 1 for nighttime and MODE 2 for daytime.

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.) → Select “CAMERA” with the PAN/TILT lever → SET button. The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “AUTO PAN/PATROL TRACE” and press the SET button.

The AUTO PAN/PATROL/TRACE menu is displayed.

Move the cursor (>) to “AUTO PATROL SET” and press the SET button.

The AUTO PATROL MODE 1 screen is displayed.

Tilt the PAN/TILT lever to move the cursor (>) to the PATROL position to be set.

•To display the next page (PATROL positions 9 to 19), press the TELE button.

•To display the previous page, press the WIDE button.

Set a patrolled position.

POSITION button → Numeric key (position number) → ENTER button.

•

At the factory settings, positions PATROL 1 to 100 are set to HOME to 99 in that order. Even when positions between POS 64 and POS 99 are set, the auto patrol operation skips them automatically and they are not switched.

Set the length of time a camera will stay in each position.

• Tilt the PAN/TILT lever to the left or right to set the time period.

•Available setting values: SKIP, 5s, 10s, 20s, 30s, 45s, 1min, 2min. (Selecting “SKIP” skips that position and moves to the next position.)

• The factory setting is “10s” for all positions.

Repeat steps 5 to 7 for each patrolled position.

• Set the patrolled positions and time periods of all patrol numbers in this way.

Change the auto patrol mode.

• Press the FAR or NEAR buttons to change the mode.

• After changing to a new mode, repeat steps

to 8.

10.

Press the MENU button.

• The screen returns to the previous menu.

• After the above setup, auto patrol of the camera can be started by pressing the AUTO PATROL button on the RM-P2580.

•To change the auto patrol mode after the above setup, display the AUTO PATROL MODE screen and press the FAR or NEAR buttons.

• The auto patrol function can only be set from an RM-P2580. Note that it differs to auto sequence operations available with other remote control units.

AUTO PAN/PATROL/TRACE menu

AUTO PAN MODE RETURN

–––AUTO PAN/ PATROL / T RACE –––

AUTO PAN SPE ED NORMAL A.PAN START POS. SET . . A.PAN RETURN POS.SET. . AUTO PA TROL SET . . AUTO T RACE SET . . RM A . P A N K EY A . PAN RM A . P A T ROL KEY A . PATROL

AUTO PATROL MODE 1 screen

(Example showing PATROL Nos. 9 to 16)

PATROL9 POS8 10 s

UTO PATROLMODE1

PATROL1 0 POS9 10 s PATROL1 1 POS1 0 1 0 s PATROL1 2 POS1 1 1 0 s PATROL1 3 POS1 2 1 0 s PATROL1 4 POS1 3 1 0 s PATROL1 5 POS1 4 1 0 s PATROL1 6 POS1 5 1 0 s

FWD / BWD/ZOOM MODE/FOCUS

AUTO PATROL MODE 1 screen

(Example showing PATROL Nos.1 to 8)

PATROL1 HOME 1 0 s

UTO PATRO L MOD

PATROL2 POS1 10 s PATROL3 POS2 10 s PATROL4 POS3 10 s PATROL5 POS4 10 s PATROL6 POS5 10 s PATROL7 POS6 10 s PATROL8 POS7 10 s

FWD / BWD/ZOOM MODE/FOCUS

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

WIDE button

FAR button

TELE button

NEAR button

ENTER button

SET button

MENU button

High

speed

High speed High speed

High

speed

POSITION

Setting Up the Camera Using an RM-P2580

AUTO TRACE Setup

Use the AUTO TRACE screen to set the auto trace function, which stores and reproduces the actions of a manual camera operation (for 30 seconds).

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button

The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.)

→

Select “CAMERA” with the PAN/TILT lever

→

SET button.

The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “AUTO PAN/PATROL TRACE” and press the SET button.

The AUTO PAN/PATROL/TRACE menu is displayed.

Move the cursor (>) to “AUTO TRACE SET” and press the SET button.

The AUTO TRACE SET screen is displayed.

Set the patrol start position.

Using the PAN/TILT lever and the ZOOM and FOCUS buttons, set the camera position at which the auto trace function is to be started.

Press the SET button (to start memorization of manual camera operations).

•Auto trace starts. Operate the camera using the PAN/TILT lever, and the ZOOM and FOCUS buttons.

• The Auto trace function can memorize camera operations for up to 30 seconds, during this period “LEARNING” is displayed in the screen.

• Storage finishes automatically after 30 seconds.

• Srform step

only when finishing the storage but before 30 sec-

onds elapses.

Press the SET button to end the memorization of manual camera operations.

•Auto trace ends and the screen returns to the AUTO PAN/PATROL/TRACE menu.

Press the MENU button.

• The screen returns to the AUTO PAN/PATROL/TRACE menu.

RM-P2580 units need to be configured to use replay movements stored by the Auto Trace function Use the AUTO PAN or AUTO TRACE buttons on the RM-P2580 to do this:

To let the camera execute reproduction of the auto trace operation, it is required to set the auto trace function in the AUTO PAN or AUTO TRACE button of the RM-P2580.

☞

P. 24, Items “RM. A. PAN KEY” and “RM. A. PATROL KEY”. When the button to which the auto trace function is set is pressed, the lamp in the button lights up and auto trace reproduction starts. The auto trace reproduction will repeat continually with a pause of 30 seconds between each operation. To end the auto trace reproduction, press the button to which the auto trace function is set again so that the lamp in the button turns off.

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO PAN

OPTION1OPTION

CAMERA

POSI-

TION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA buttons

FOCUS button

ZOOM button ENTER button

Numeric keys

SET button

MENU button

CAM. FUNCT I ON . .

–––MENU– – –

CAM. T I T LE / A LARM . . CAM. V I DEOADJUST . . CAM. ALC / E xDR . . HOME MOT I ON DE TE CT . . AUTO PAN / PAT ROL / TRACE . . POS I . F UNCT I ON SET . . FACTORY SETT I NGS. .

AUTO PAN MODE RETURN

––AUTO PAN / PATROL / TRACE

––

AUTO PAN S PEED NORMAL A.PAN START POS. SET . . A.PAN RETURN POS.SET. . AUTO PAT ROL S ET . . AUTO TRACE SET . . RM A . P AN K EY A . PAN RM A . P A TROL KEY A . PATROL

–––AUTO TRACE SE T

–––

LEARNI NG

–––AUTO TRACE SE T

–––

PUSH SET→LEARN

● The PAN/TILT position in the item “AUTO TRACE” function can be set and

operated only between 0° and 90° (it cannot be set and operated between 90° and 180°) even when the item “FLIP” is set to DIGITAL.

MEMO

POSITION TITLE Setup

Use the POSITION TITLE screen to set the title of each camera position. Each camera position can be given a title of up to 16 characters.

<Be sure to set the positions before proceeding to the position title

setup.>

Select the camera. (☞ RM-P2580 Instruction manual)

CAMERA button → Numeric key (camera number) → ENTER button. The picture of the selected camera is output.

Display the SETUP menu on the camera.

(☞ P. 18, steps 1 to 4) MENU button (3 sec.) → Select “CAMERA” with the PAN/TILT lever → SET button. The camera moves to the home position.

Tilt the PAN/TILT lever up or down to move the cursor (>) to “POSI. FUNCTION SET” and press the SET button.

The POSITION FUNCTION SET menu is displayed.

Ensure that the cursor (>) is located onto the item “POSITION TITLE” and press the SET button.

• The POSITION TITLE screen is displayed.

• The first characters in the character area and title input field blink to indicate that the system is ready for a title input.

Select a camera position. (☞

RM-P2580 Instruction manual)

POSITION button→Numeric key (position number)→ENTER button.

• The picture of the selected camera position is output.

• The next position can be selected simply by pressing the “+” button.

Tilt the PAN/TILT lever to select the first character of the title from the character area.

• The character being selected blinks.

• The selected character is displayed in the title input field.

Press the TELE button.

• The first character of the title is input, and the system gets ready for the input of the second character.

• If the WIDE button is pressed, the blinking position in the title input field moves to the left. Use this facility to correct previously input characters.

Repeat steps 5 to 7 for each title character.

• When the next position is selected, “DATA SAVED” is displayed for 3 seconds and the previous position title is stored in the memory.

• Complete the input of all position titles in this way.

Press the MENU button.

The screen returns to the previous menu.

SETUP

MENU SET

SPEED

IRIS

FOCUS

ZOOM

OPEN

FAR

TELE CLEAR

/HOME

ENTER

AUTO

PAN

OPTION1OPTION

CAMERA

POSITION

AUTO

PATROL

NEAR

WIDE

AUTO F-1 F-2 F-3

PAN/TILTLENS

CAMERA/POSITION

CAMERA POSITION

REMOTE CONTROL UNIT

RM-P2580

ALARM

POWER

KEY LOCK

PAN/TILT lever

CAMERA button

FOCUS button

ZOOM button

ENTER button

Numeric keys

+ button

SET button

MENU button

SETUP menu display on the camera

CAM. FUNC T I ON . .

–––MENU– – –

CAM. T I TL E / ALARM. . CAM. V I DEO AD JUS T . . CAM. ALC / ExDR . . AUTO PAN / PATROL / TRACE . . POS I . FUNCT I ON S ET . . FACTORY SETT I NGS . .

POSITION FUNCTION SET screen

POS I T I ON T I T L E . .

–––POS I FUNCT I ON SE T – – –

IRIS MODE AUTO

BLC OFF

W.BALANCE ATW

R-B GAIN ––– M-G GAIN –––

0123456789ABCDEFGHI JK

––POSI T ION TITLE– –

LMNOPQRSTUVWXY Z

abcde f g hi jklmnopq r s t uvwxyz . , ' –:/ДЦЬВКОФЫЗСд л п ц ьвк о ф ыбйн уъаи м тщз сЯ¡¿

←

WIDE TELE

→

Character area

POSITION TITLE screen

Title input field

Blinking

Space Blinking

Other

Attaching a Flush Mounted Ceiling Bracket (Optional WB-S575)

The Flush Mounted Ceiling Bracket (optional WB-S575) allows the camera to be installed flush with the ceiling surface. In this case the ceiling material should have a thickness of between 5 mm and 31 mm.

Make a hole (diameter 200 mm) in the ceiling.

If anchor bolts can be used, attach them using M8 - M10 (or 3/8 inch) nuts.

CAUTION

• Make sure that the clamping brackets grip the ceiling plate firmly.

• If the Flush Mounted Ceiling Bracket rattles after the clamping screws are tightened, loosen them fully and tighten them again.

Mounting hole

Anchor bolt mount holes

Clamping screw

Mounting screws (x 4)

Clamping screw

Clamping bracket

3 positions

Clamping screw

Diameter 200 mm

Loosen

Stoppers

Anchor bolt mount

Clamping screw

Prepare the Flush Mounted Ceiling Bracket.

• Fully loosen the clamping screws (by turning them anti-clockwise).

• Move the clamping brackets towards the inside as shown in the diagram.

• Remove the four mounting screws.

Clamp the Flush Mounted Ceiling Bracket.

(1) Fit the Flush Mounted Ceiling Bracket into the hole in the ceil-

ing.

(2) Ensure that the stoppers are pressing against the back of the

ceiling plate.

(3) Push the Flush Mounted Ceiling Bracket all the way up and tight-

en the three clamping screws (by turning them clockwise).

(1)

(2)

(3)

Connect cables to the Ceiling Mount.

☞

P. 14, “Connection Cables”

Attaching a safety wire to the Ceiling Mount.

Attach a safety wire to the Ceiling Mount and to the ceiling slab or channel to prevent the unit from dropping. First attach the safety wire to the Ceiling Mount by passing the wire through the safety wire hole.

☞

P. 16, step 1. “Attaching a safety wire”.

Attach the Ceiling Mount to the Flush Mounted Ceiling Bracket.

• Attach the Ceiling Mount to the Flush Mounted Ceiling Bracket, taking care not to catch the connection cables.

• Please use the four screws provided (M4 x 12 mm). If the screws that have been removed in step

above are used, the camera

may not be installed properly and may fall.

•

Attach so that the locking screw of the Ceiling Mount is positioned below the anchor bolt mounting hole of the Flush Mounted Ceiling Bracket.

Attach the camera to the Ceiling Mount.

☞

P. 16, “Attaching the Camera”

Attach the ceiling panel.

Attach the ceiling panel, provided with the Flush Mounted Ceiling Bracket, by attaching the two hooks, one an each side.

Ceiling Mount

Locking screw

Anchor bolt mount holes

Flush Mounted Ceiling Bracket attached to the ceiling

Screws (For attaching the Ceiling Mount to the Flush Mounted Ceiling Bracket)

Ceiling panel

Hook

Both the Flush Mounted Ceiling Bracket and the safety wire should be insulated from the ceiling structure. If the ceiling structure is made of a metallic material, inadequate insulation with the camera may produce noise in the video output.

MEMO

Other

Removing a Flush Mounted Ceiling Bracket (Optional WB-S575)

Push the stopper release lever upwards with a screwdriver, etc.

Release label

Stoppers

Clamping bracket

Remove the ceiling panel.

Pull down the ceiling panel and disengage the two hooks either side.

Remove the camera.

Remove the camera from the Ceiling Mount by reversing the attaching procedure.

☞

P. 16, “Attaching the Camera”

Loosen the clamping screws of the Flush Mounted Ceiling Bracket.

• Loosen the three clamping screws (by turning them anti-clockwise).

• Make sure that the clamping brackets move inwards.

Lower the Flush Mounted Ceiling Bracket until the stoppers contact the ceiling plate.

Push up the stopper release lever, marked (*) in the figure, using a screwdriver.

• While holding the Flush Mounted Ceiling Bracket from below so that it does not drop, push up the one of the three stopper release levers marked (

)using a screwdriver or a similar tool.

• If the ceiling plate is thick and the stoppers cannot be released easily, push up two of the stopper release levers (including the one marked (

)).

Pull out the Flush Mounted Ceiling Bracket from the hole in the ceiling.

Tilt the Flush Mounted Ceiling Bracket and move it obliquely downwards to remove it.

Troubleshooting

No picture is displayed.

No power to the camera

Connect the cables properly.

Symptom Cause (Information) Remedy

Is there a problem in the power cable(s) connecting the camera to the power supply unit? (If the power cable(s) are too long or of an inadequate size, the correct voltage may not be supplied due to an increase in cable resistance.)

Use cable(s) with low cable resistance and of the correct cable length. (Ensure that the voltage supplied to the terminal board is correct during camera operation, i.e. when the rated current is flowing through the camera.)

Are cables connected properly to the terminal board on the Ceiling Mount ?

Is there a problem with the power cable(s) connecting the camera to the power supply unit? (If the power cable(s) are too long or of an inadequate size, the correct voltage may not be supplied due to an increase in cable resistance during the pan/tilt operation.)

Change power cable(s) to one(s) of lower resistance (i.e. thicker or shorter cable(s)). (

☞

P. 14)

Power to the camera but it later turns off when the pan/tilt mechanism starts operation.

When L/L is set, does the power supply frequency match the video frequency (50 Hz)?

Is thses interference to the power supply?

Use a stable power supply with a matching frequency.

Prevent any penetration of noise into the power supply.

Video sync error occurs.

Other

Specifications

■ Camera

Image pickup device : 1/4 inch type, interline transfer

CCD, 752(H) x 582(V) pixels. Sync system : Line Lock, Internal Scanning frequencies : Horizontal 15.625 kHz,

Vertical 50 Hz S/N : 50 dB (typical), (AGC OFF,

ENHANCE –5) Minimum object : 6 lx (50% output, AGC 20 dB,

illumination WIDE end)

3 lx (25% output, AGC 20 dB,

WIDE end) Dynamic range : 52 dB (ExDR mode) White balance : TTL auto tracking/Manual Electronic shutter : 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000 sec.

Back light compensation

:Possible by selecting 4 photome-

try areas

Colour level adjustment

: Possible

Contour correction : Both Horizontal and Vertical (ENHANCE) (level adjustable)

■ Lens

Zoom ratio : Approx. x25 Focal distance : 3.8 mm to 95 mm Maximum aperture : F1.6 (WIDE) to F3.7 (TELE)

■ Pan/Tilt Mechanism

Panning range : 360° endless revolution Panning speed : 1°/s to 300°/s Tilting range : 0° to 180° (Horizontal – Straight

downwards – Horizontal)

Tilting speed : 1°/s to 180°/s

■ General

Power supply : AC 24 V, 1.3 A Number of preset

positions : 100

(Positions up to 64 are valid when the RM-P2580 remote control unit is used.)

Applicable remote control unit : RM-P2580

Control signal connection terminal :

EIA RS-485 compliant, 9600 bit/sec.

Ambient temperatures

: –10°C to 50°C (operating),

0°C to 40°C (recommended)

Ambient humidity : 35% to 90%RH (without conden-

sation) Mass : 2.4 k˝

Accessories : Instructions ...........................2

Ceiling Mount ....................... 1

Screw (M3 x 12 mm) ............ 1

Screw (M4 x 12 mm) ............ 4

Cable plate ........................... 1

■ Ceiling Mount hole

■ Dimensions in combination with the WB-S575

200 (Hole making size)

Anchor bolt Compatible with M8 to M10

Ceiling panel hook (x 2)

100

85.5

7.5

121.5

154 (Panel inner diametre)

230 (Panel outer diametre)

113

Screw

positions

Screw positions

Mounting hole ø90

■ External dimensions [Unit: mm]

■ WB-S575

(Flush Mounted Ceiling Bracket + Ceiling panel)

■ Ceiling Mount hole for WB-S575

SR70

152

(40)

188

190

(34)

(φ75)

Ceiling mount position alignment hole

Anchor bolt hole

2-12 x 16 long hole

Ceiling panel

130

Ceiling Mount hole (Plate thickness: 5 mm to 31 mm)

200

* Design and specifications are subject to be changed without notice.

TK-C655 DOME TYPE CAMERA

VICTOR COMPANY OF JAPAN, LIMITED

Printed in Thailand LWT0050

is a registered Trademark owned by VICTOR COMPANY OF JAPAN, LTD.

is a registered Trademark in JAPAN, the U.S.A., the U.K. and many other countries.

JVC TK-C655, TK-C655E, TK-C655E(A) Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
