DOME CAMERA
TK-C215VP4U/E
TK-C215VP12U/E
For Customer Use:
Enter below the Serial No. which is located on the
body. Retain this information for future reference.
Model No. TK-C215VP4U/E,TK-C215VP12U/E
Serial No.
INSTRUCTIONS
LST0519-001A
Introduction
These are general IMPORTANT SAFEGUARDS and certain items may not apply to all
appliances.
IMPORTANT SAFEGUARDS
1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
5.
Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, etc.
7.
Do not place this appliance on an unstable cart, stand, or table. The appliance may
fall, causing serious injury to a child or adult, and serious damage to the appliance.
Use only with a cart or stand recommended by the manufacturer, or sold with the
appliance. Wall or shelf mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the manufacturer. An appliance and
cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the appliance and
cart combination to overturn.
8. Slots and openings in the cabinet and the back or bottom are pro-vided for
ventilation, and to insure reliable operation of the appliance and to protect it from
overheating, these openings must not be blocked or covered. The openings
should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface.
This appliance should never be placed near or over a radiator or heat register. This appliance should
not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
9.
This appliance should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your home, consult your dealer or local power
company. For appliance designed to operate from battery power, refer to the operating instructions.
10.For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and power-line surges.
11.Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be
abused by persons walking on it.
12.Follow all warnings and instructions marked on the appliance.
13.Do not overload wall outlets and extension cords as this can result in fire or electric shock.
14.Never push objects of any kind into this appliance through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the appliance.
15.Do not attempt to service this appliance yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16.Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the appliance.
c. If the appliance has been exposed to rain or water.
d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the appliance to normal operation.
e. If the appliance has been dropped or the cabinet has been damaged.
f. When the appliance exhibits a distinct change in performance - this indicates a need for service.
17.When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
18.Upon completion of any service or repairs to this appliance, ask the service technician to perform
routine safety checks to determine that the appliance is in safe operating condition.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3125A
2
Safety Precautions
FOR USA AND CANADA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
TO REDUCE THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE.REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash wish arrowhead
symbol, within an equilateral
triangle isintended to alert the user
to the presence of uninsulated
"dangerous voltage" within the
product's enclosure thatmay be of
sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert theuser to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
INFORMATION (FOR CANADA)
RENSEIGNEMENT (POUR CANADA)
This Class B digital apparatus complies with
Canadian ICES-003.
Cet apparéil numerique de la Classe B est
conforme à la norme NMB-003 du Canada.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
AVERTISSEMENT:
POUR EVITER LES RISQUES
D'INCENDIE OU D'ELECTROCUTION,
NE PAS EXPOSER L'APPAREIL A
L'HUMIDITE OU A LA PLUIE.
INFORMATION FOR USA
INFORMATION
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
0
Reorient or relocate the receiving antenna.
Increase the separation between the
0
equipment and receiver.
0
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
0
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
CHANGES OR MODIFICATIONS NOT
APPROVED BY JVC COULD VOID USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
THIS DEVICE COMPLIES WITH PART 15 OF
THE FCC RULES.
OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS
DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED
OPERATION.
Due to design modifications, data given in this
instruction book are subject to possible change
without prior notice.
3
Introduction
Safety Precautions
(continued)
Information for Users on Disposal of Old Equipment
[European Union]
This symbol indicates that the electrical and electronic equipment should not be
disposed as general household waste at its end-of-life. Instead, the product
should be handed over to the applicable collection point for the recycling of
electrical and electronic equipment for proper treatment, recovery and recycling
in accordance with your national legislation.
By disposing of this product correctly, you will help to conserve natural resources
and will help prevent potential negative effects on the environment and human
health which could otherwise be caused by inappropriate waste handling of this
product. For more information about collection point and recycling of this product,
please contact your local municipal office, your household waste disposal service
Attention:
This symbol is
only valid in the
European Union.
Dear Customer,
This apparatus is in conformance with the
valid European directives and standards
regarding electromagnetic compatibility and
electrical safety.
European representative of Victor Commany
of Japan Limited.is:
JVC Technology Centre Europe GmbH
P.O.Box100552
61145 Friedberg
Germany
䢇 The unit is to be powered by a DC 12 V or an
AC 24 V power supply.
䢇 The unit is to be powered by a UL Listed DC
12 V or an AC 24 V power supply. (For U
type)
䢇 The AC 24 V and 12 V DC power supply shall
conform to the following: Class 2 only (For
USA), Isolated power supply only (For
Europe).
䢇 This installation should be made by a
qualified service person and should conform
to all local codes.
䢇 This installation shall be in accordance with
the National Electrical Code, ANSI/NFPA 70.
or the shop where you purchased the product.
Penalties may be applicable for incorrect disposal of this waste, in accordance
with national legislation.
(Business users)
If you wish to dispose of this product, please visit our web page
www.jvc-europe.com to obtain information about the take-back of the product.
[Other Countries outside the European Union]
If you wish to dispose of this product, please do so in accordance with
applicable national legislation or other rules in your country for the treatment of
old electrical and electronic equipment.
䢇 Any Mention in this manual of Alarm inputs
have not been evaluated by UL to be used for
Burglar Alarm Functionality.
䢇 When mounting this unit to the ceiling or wall,
mount it to a secure location where it can
support the mass of this unit. When mounting
to an insecure location, make sure to carry
out reinforcement of the ceiling or wall before
installation.
䢇 The rating label is placed on the bottom
surface of the camera unit.
䢇 The camera unit may fall if the mounting
screw or piping is not properly tightened.
Ensure that the screws and nuts are properly
tightened.
䢇 We do not accept liability for any damage to
the camera in cases when it is dropped
because of incomplete installation due to not
observing the installation instructions
correctly. Please be careful when installing
the camera.
䢇 Do not install the camera near lighting
equipment with a high temperature, such as
spotlights. Doing so may cause malfunction
or fire.
4
Thank you for purchasing this product.
(These instructions are for: TK-C215VP4U/TKC215VP4E/TK-C215VP12U/TK-C215VP12E.)
Before beginning to operate this unit, please
read the instruction manual carefully in order to
make sure that the best possible performance is
obtained.
Characteristics
䡵 Excellent dust-proof and water-proof
performance
With the dust-proof and water-proof structure, it
can be installed outdoor directly as it will not be
affected by the rain.
(IP66 specification)
䡵 Realizing a High Picture Quality
This camera provides 540 TV lines with a S/N
ratio of 50 dB. This performance is achieve by
using a highly sensitive CCD with 380,000 pixels
(U type) or 440,000 pixels (E type) and a highresolution video processing circuit.
䡵 Enlarged Shooting Range
The adjustment range of the shooting direction is
wide and mounting of the camera to the wall is
possible with the employment of 3 axis rotation
mechanism.
䡵 Non Camera-Like Design
Dome-type design allows application in various
locations.
This instruction manual covers total 4 different
models in common as follows:
TK-C215VP4U
TK-C215VP4E
TK-C215VP12U
TK-C215VP12E
In this manual, each model number is described
without the last letter (U/E) which means the
shipping destination. (U: NTSC, E: PAL)
Only “U”models (TK-C215VP4U/TKC215VP12U) have been evaluated by UL.
䡵 High Magnification Varifocal/Zoom
Lens
The built-in x3.6 varifocal lens (TK-C215VP4U/
E) and x12 zoom lens (TK-C215VP12U/E)
enables detailed supervision.
䡵 Alarm Zoom Feature
(TK-C215VP12U/E only)
2 preset positions are available, which allow
setting of the monitoring screen size under
normal circumstances and during alarm input.
䡵 Easy DAY & NIGHT Feature
This camera has an Easy Day & Night function.
This function, if activated, will automatically
switch to B&W image when the scene is getting
dark. This is very useful for monitoring a dark
environment.
How to Use This Manual
䡵 Characters and symbols used in
this manual
Note : Points to pay attention to during
operation.
Memo : Details for reference, such as
functions or constraints during
use.
A : Pages or items to refer to.
● All product names that appear in this
document are the trademarks or registered
trademarks of their respective companies.
Marks and symbols such as 姠, 姞 and 姝 do
not appear in this document.
5
Introduction
Table of Contents
Introduction
Safety Precautions .................................... 3
Characteristics .......................................... 5
Table of Contents ...................................... 6
Precautions for proper use of this product
Name of Parts ........................................... 9
Setting the Switches and the Lens
(TK-C215VP4U/E) ................................ 12
Setting the Switches and the Lens
(TK-C215VP12U/E) .............................. 14
Installation and Connection

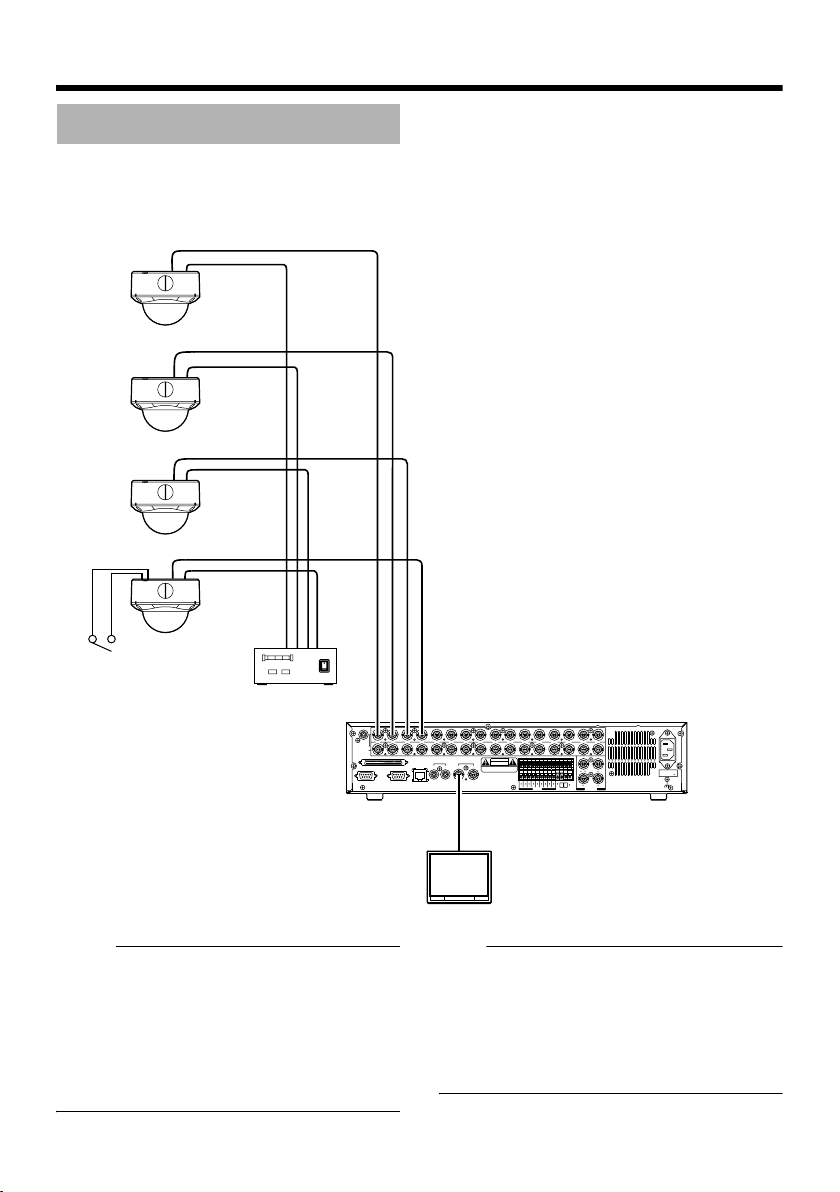

System Example ..................................... 16
About Connection Cables ....................... 17
Video signal cables ............................. 17
DC 12 V or AC 24 V
power supply cable ......................... 17
Electrical Specifications of
Alarm Input Terminals ..................... 18
The right sequence to connect and set the
camera ................................................. 19
Setting the switches ................................ 20
Mounting the base .................................. 21
Cable Connection ................................... 22
Mounting the camera unit ....................... 23
Adjusting the video image ...................... 25

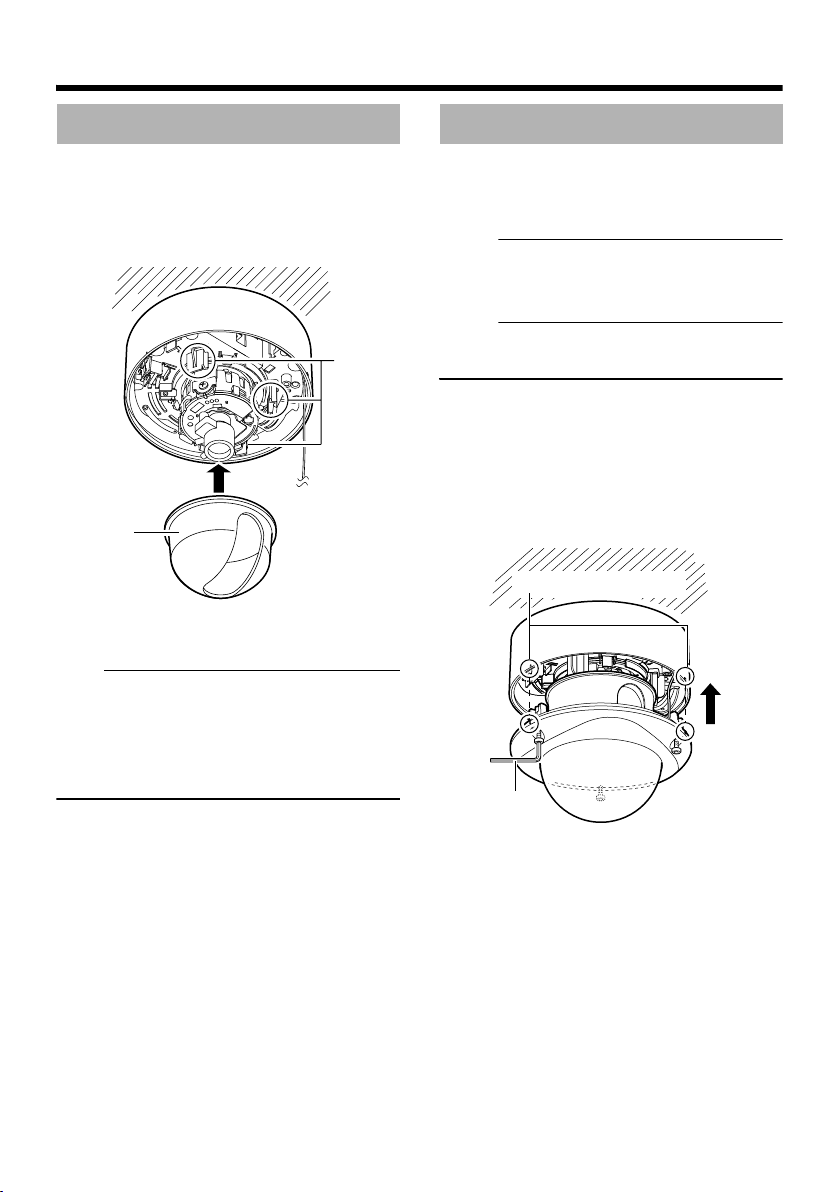

Mounting the inner dome ........................ 30
Mounting the dome cover ....................... 30
Mounting the camera using
the electrical box .................................. 31
Mounting the camera using the pipe ...... 32
White-spot correction .............................. 34
... 7
䢇 Before starting an important recording, be
sure to perform a test recording in order to
confirm that a normal recording is possible.
䢇 We will not provide any compensation
whatsoever for the contents to be recorded or
loss of opportunities when recording is not
properly performed due to malfunction of the
video camera, VTR, hard disk recorder or
video tape.
䢇 Before touching the camera unit, make sure
to touch the metal surface of the [MONITOR]
terminal to discharge any static electricity
from your body. Static electricity may cause
the camera to malfunction.
Others
Specifications ......................................... 36
6
Precautions for proper use of this product
Storage and Location of Use
䢇 Do not install this unit at the following
locations.
● Places that are exposed to vapor or oil, such
as kitchens.
● Places that exceed the ambient temperature
range (-10 I to 50 I).
● Places at which corrosive gases are emitted.
● Places where radiation or X-rays and strong
radio waves or magnetism are present.
● Places that are subject to vibration.
䢇 Using this unit or cables connected to this
unit in places where strong radio waves and
magnetic fields are present (e.g. near a radio,
TV, transformer or motor) may increase the
noises in the image and color changes .
䢇 Do not install this unit at a place that is
directly exposed to cold air or near the outlet
of an air-conditioner. The dome cover may
become foggy when there is a drastic change
in temperature.
䢇 Although this unit is IP66-compliant, water-
proof under all kinds of environment is not
guaranteed.
Others
䢇 This unit comes with a built-in AGC circuit.
When the AGC function is turned on, the
sensitivity increases automatically at a dark
place and the screen may appear grainy. This
is not a malfunction.
䢇 When using the Automatic Tracking White
balance (ATW) mode, the color tone may
differ slightly from the actual color. This slight
color variation is caused by the principle of
Auto Tracking White balance circuit and is not
a camera malfunction.
䢇 When shooting an object with high brightness
(lamps, etc.), vertical lines may appear in the
image on the screen (smear phenomenon)
and bleeding may be found around the high
brightness object (blooming phenomenon).
These are due to the characteristics of the
CCD and not malfunctions.
䢇 Tur n i ng AONB DAY & NIGHT function
switches the image to black-and-white in a
dark place. When switching between colored
and black-and-white images, the bright
portions of the screen are enhanced and the
clarity of the screen may deteriorate. Overall
the sensitivity increases in the case of blackand-white images, therefore the scene may
appear grainy and white spots may become
visible. This is not a malfunction.
䢇 When the power source voltage drops (such
as during lightning or upon turning on the airconditioner) distortion or noise may occur in
the image.
䢇 When this unit is moved from a cold to a
warm place, dew condensation may occur,
which may result in camera malfunctioning.
In this case, leave this unit at room
temperature for about 1 hour before turning
on the power.
䢇 The rotation angle of this unit has been
enlarged to enable installation at a wide
variety of locations. When the zoom function
of the lens is set to Wide and the tilt angle set
close to ±70°, a portion of this unit may be
visible on the shooting screen depending on
the rotation angle.
When this occurs, adjust the angle of view
accordingly. (A Pg. 25)
䢇 To prevent fogging due to changes in
temperature, make sure to insert the supplied
silica gel into the designated location.
(A Pg. 24)
䢇 When the supply voltage of the camera is
low, the input protection circuit within the
camera may be triggered and the power of
the camera may turn off automatically. Make
sure to use a power supply and voltage for
the camera that is within -10 % of the rated
voltage.
䢇 All Interconnecting Equipment must be UL
Listed.
䢇 Upon switching between the HOME and
ALARM positions, the camera focus may
change slightly after the zoom operation
comes to a stop. This is due to the built-in
lens performance and is not a malfunction.
(TK-C215VP12U/E only)
7
Introduction
Precautions for proper use
of this product (continued)
Maintenance
䢇 Turn off the power before performing
maintenance.
䢇 Clean the dome cover using a lens cleaning
cloth (or soft cloth). Wiping it with thinner or
benzene may melt the surface or cause it to
fog. For tough stains, wipe using a cloth that
is dipped into a neutral detergent diluted with
water, followed by wiping with a dry cloth.
Energy Conservation
䢇 When not in use, turn off the power of the
system to save energy.
䡵 Note on consumable parts
(TK-C215VP12U/E only)
The following parts are consumable and
should be replaced after a certain number of
hours or a count of operations. The service
lives given below are only typical values. They
may vary depending on the operating
environment and conditions. Note that the
replacement of consumable parts is
chargeable even when they are replaced
before the termination of the warranty period.
䢇 Zoom lens assembly
Zooming operation: 2 million times
8
Name of Parts
Camera
A
B
C
D
E
Mounting hole ⳯ 2
A
Use these when mounting the camera to the
ceiling, wall or electrical box.
(A Pg. 21)(A Pg. 31)
Note:
● To mount the camera using the electrical box,
consult the dealer from which this product is
purchased or any nearby JVC dealer.
B Hole for Connecting Cable and Piping
This is a hole for drawing out the connecting
cable.
This hole can also be used to mount directly to
pipes. (Piping hole: G3/4-14UNC)
(A Pg. 32)
F
C Mounting Screw for Fall Prevention Wire
Use this screw when mounting the fall prevention
wire to this unit. (Fall prevention wire is not
supplied with this product.)
Note:
● Connect the fall prevention wire to prevent
this unit from falling accidentally. The camera
unit may fall if this wire is not connected.
D Dome Cover
E Inner Dome
Set the switches as well as angle of view before
mounting the camera. (A Pg. 20)
F Plug for Piping Hole and Piping Hole
(Side)
Use this plug when mounting directly to pipes
from the side. The plug for piping hole is
mounted to this hole by default. (A Pg. 33)
9
Introduction
Name of Parts (continued)
Camera (continued)
L
K
TK-C215VP12U/E only
J
I
G
G
Base
Mount the base to the ceiling, wall or electrical
box before mounting the camera.
(A Pg. 21)(A Pg. 31)
H Fastening Screw for Dome Cover
This is a fastening screw for the dome cover.
Use a supplied wrench to fasten/unfasten the
screw.
I AC 24 V/DC 12 V Power Supply Wire
DC 12 V Input: Red (+12 V), Black (GND)
AC 24 V Input: Nonpolar
Note:
● In order to use the optional heater unit sold
separately (part number KA-ZH215) with this
camera an AC 24 V power supply MUST be
use.
● The AC 24 V power supply should conform to
the following:
U-type: Class 2 only
E-type: Isolated power supply only
● For inquiries on the heater, consult your
nearby JVC dealer.
H
J Alarm signal cable
(TK-C215VP12U/E only)
Yellow (ALARM IN), Gray (ALARM GND).
(A Pg. 18)
K Protection Cover
Upon connecting the video cable please protect
the BNC connection using this rubber cover.
L Video signal output connector (BNC)
(A Pg. 17)
10
Camera (Interior)
M
N
O
P
Q
R
S
T
*TK-C215VP4U/E is used in the above illustration
M Rotation Knob ( TK-C215VP4U/E only)
Rotate the lens unit to adjust the inclination of
the image. (A Pg. 25)
N
Rotation Center Mark
(A Pg. 25)
O Fall Prevention Wire
Use this to connect the base G to the dome
cover D.
P Camera Unit Fastening Screw ⳯ 2
Use this to fasten the camera body R to the
base G.
To remove (A Pg. 21)
Q [MONITOR]Monitor Terminal (RCA Jack)
(A Pg. 25)
R Camera Unit
S Connector for Power Supply of Heater
This is a power connector for use when the
heater (sold separately: KA-ZH215) is mounted.
T Space for Heater
Memo:
● When mounting the heater (sold separately:
KA-ZH215), read the instruction manual of
the heater carefully before mounting.
Lens
(A next page)
Y
X
W
V
U
U Camera Unit Fastening Clip ⳯ 2
This clip is used for fastening the camera unit to
the base. When removing the base, press
toward the direction indicated by the arrow to
release. (A Pg. 21)
V Tilt Fastening Screw
Upon adjusting the angle of view, tighten the
screw to ensure that camera’s angle of view
does not go out of alignment when it is used at a
location with strong vibration. (A Pg. 25)
W Shooting Direction Mark
Install the camera by aligning the shooting
direction with the arrow mark.
X Lug Plate
This plate is used for fastening the silica gel.
(A Pg. 24)
Y Space for Silica Gel
(A Pg. 24)
11
Introduction
Setting the Switches and the Lens (TK-C215VP4U/E)
Set the video setting switches on the camera unit before mounting it.
To set the switches, use a fine-tipped screwdriver.
A
B
C
D
E
LL PHASE
O
1
N
2
3
4
5
6
7
8
LH
IRIS
LEVEL
RESET/[SPOT
R
B
2
4
WHT.
BAL.
FOCUS ADJUST
]
A [RESET/SPOT] RESET/SPOT button
When switch #8 is set to [RESET] position and
this button is pressed, the value of the white
balance or phase adjusted manually is reset to
the default value.
● When switch 2 [SELECT] is set to WHT.BAL.,
the white balance is reset to the default value.
When the switch is set to PHASE, the phase
is reset to the default value.
● When switch #8 is set to SPOT:
When this button is pressed, white spots are
corrected.
For instructions on correcting white spots,
see AWhite-spot correctionB (A Pg. 34).
B [R/B,+/-] R/B,+/- adjustment button
This button is pressed when manually adjusting
the white balance or when adjusting the vertical
phase of the line lock.
The function of this button is selected using the 2
[SELECT] switch.
● When manually adjusting the white balance:
Press the R button to increase the red tint
and decrease the blue tint.
Press the B button to increase the blue tint
and decrease the red tint.
F
G
Function Selection Switch Settings Chart
(Characters in bold indicate factory settings)
AGC OFF
1
SELECT
2
3
WHT.BAL.
4
5
DAY/NIGHT
6
RESERVED
7
RESET/SPOT
8
OFF
PHASE
LLSYNC
ATW
OFFBLC
OFF
RESET
ON
ON
WHT.BAL.
INT
MANU
ON
ON
SET TO OFF
SPOT
● When adjusting the phase:
Press the + or - button to adjust the phase.
C Function selection switches
1. [AGC] Auto-gain control switch.
Setting this switch to AONB automatically
increases the sensitivity even when the
brightness of the subject is insufficient.
(Default setting: ON)
2.
[SELECT] WHT.BAL./PHASE setting switch.
WHT.BAL. :
The B [R/B,+/-] buttons are used as [R/B]
adjustment buttons.
PHASE :
The B [R/B,+/-] buttons are used as [+/-]
adjustment buttons.
(Default setting: WHT.BAL.)
12
3.
[SYNC] Synchronization system selection
switch.
This switch sets the synchronizing system for the
camera.
INT:
This is set for internal synchronization
LL (Line Lock):
The camera’s vertical synchronization is locked
to the AC 24 V 60 Hz or 50 Hz power line
frequency. When switching between multiple
cameras using a switcher, selecting this mode
and adjusting the vertical phase can reduce
the monitor sync disturbances occur that when
the camera image is switched.
U type: 60 Hz only
E type: 50 Hz only
(Default setting: INT)
4.
[WHT.BAL.] ATW/MANUAL selection switch.
For selecting whether to adjust the white
balance automatically or manually.
When the setting is changed from manual to
ATW, the setting values in the manual mode will
be reset. The camera switches to the same
mode as with pressing the [RESET] button.
(Default setting: ATW)
Memo:
● The white balance of this camera is preset to
use under sunlight or halogen lamps, and
may not be properly adjusted when used
under artificial lights such as fluorescent
lights.
appear rougher and white spots may
increase.
7.
[RESERVED]
Not used. Ensure to set this to AOFFB before
using the camera.
(Default setting: OFF)
8.
[RESET/SPOT] RESET/SPOT CORRECTION
selection switch.
RESET:
The [RESET/SPOT] button is used as a
[RESET] button.
SPOT:
The [RESET/SPOT] button is used as a
[SPOT] button. (A Pg. 34)
(Default setting: RESET)
D [IRIS LEVEL] Iris level adjustment
For adjusting the level of the automatic aperture
control lens. This adjustment only needs to be
made when required. Use this to accommodate
particular shooting conditions.
To darken image: Counterclockwise (L side)
To brighten image: Clockwise (H side)
Memo:
● Prior to adjusting the aperture level, ensure
to set the [AGC] Switch 1 of the function
selection switch C to AOFFB. Otherwise,
when the level is turned too far toward L, the
AGC function activates increasing sensitivity
and the picture may look uneven.
5.
[BLC] Backlight compensation switch.
When the object is placed against the light,
setting this to AONB increases the iris aperture
by 1 stop and the object will appear brighter.
(Default setting: OFF)
6.
[DAY/NIGHT] Easy Day & Night switch.
To capture a subject with continually changing
brightness (day/night), set this switch to AONB.
The camera automatically captures the image in
color when the subject is bright, and in black and
white mode when it is dark.
(Default setting: OFF)
Memo:
● When this item is set to AONB, the AGC
feature will automatically be set to AONB
regardless of the [AGC] Switch 1 setting.
● The Easy DAY & NIGHT feature on this
camera uses a sensitized black and white
mode unlike other black and white
surveillance cameras that use infra-red
lighting.
● Sensitivity increases in the case of black-andwhite images. The screen may therefore
E [FOCUS ADJUST] focus adjustment
button
Use this to adjust the lens focus.
Upon pressing, the lens aperture will open up for
about 30 seconds such that the depth of field
becomes shallower, thus enabling focus to be
easily adjusted. (A Pg. 26)
Memo:
● The electronic shutter functions automatically
upon pressing the focus adjustment button
and the screen may flicker. However, this is
not a malfunction.
F Focus adjustment ring
Move this to the left/right to adjust the focus.
G Zoom adjustment ring
Move this to the left/right to adjust the field angle.
13
Introduction
Setting the Switches and the
Lens
(TK-C215VP12U/E)
Set the video setting switches on the camera
unit before mounting it.
To set the switches, use a fine-tipped
screwdriver.
H
A
B
C
D
IRIS
L
TELE
FAR
ZOOM/FOCUS
WIDE
SELECT
POSITION
Function selection switch setting table
(Items in bold are factory position)
OFF
AGC OFF
1
SELECT
2
PHASE
3
WHT.BAL.
4
5
DAY/NIGHT
6
ALARM
7
RESET/SPOT
8
TRIGGER
RESET
A [IRIS LEVEL] Iris level adjustment
For adjusting the level of the automatic aperture
control lens. This adjustment only needs to be
made when required. Use this to accommodate
particular shooting conditions.
To darken image: Counterclockwise (L side)
To brighten image: Clockwise (H side)
Note:
● Prior to adjusting the aperture level, ensure
to set the 1 [AGC] Switch of the function
selection switch G to AOFFB. Otherwise,
when the level is turned too far toward L, the
AGC function activates increasing sensitivity
and the picture may look uneven.
LEVEL
[MEMORY]
NEAR
ALARM
LLSYNC
ATW
OFFBLC
OFF
R
WHT.BAL.
4
2
POSITION
B
8
7
RESET/[SPOT]
6
LL PHASE
5
4
3
2
1
ON
ON
WHT.BAL.
INT
MANUAL
ON
ON
STATE
SPOT
E
F
G
B [ZOOM / FOCUS,MEMORY] zoom, focus
adjustment switches/position memory button
Use the [JTELE] and [KWIDE] switches to
zoom, and the [HFAR] and [INEAR] switches to
adjust focus. (A Pg. 28)
Press the [MEMORY] button to register the
position. (A Pg. 28)
C [ALARM POSITION] status indication LED
Light off : Registration of home
position is enabled
Light on (red) : Lens initializing.
Light on (green) : Registration of alarm
position is enabled
Blinking (green) : Position memory
registration mode N
memory registration
completed
(A Pg. 28)
D [POSITION SELECT] POSITION SELECT
button
Press this button to switch between the home
and alarm positions. Display on the status
indication LED C will change accordingly.
(A Pg. 28)
E [RESET/SPOT] RESET/SPOT button
When switch #8 is set to [RESET] position and
this button is pressed, the value of the white
balance or phase adjusted manually is reset to
the default value.
● When switch 2 [SELECT] is set to
[WHT.BAL.], the white balance is reset to the
default value.
When the switch is set to PHASE, the phase
is reset to the default value.
● When switch #8 is set to SPOT:
When this button is pressed, white-spots are
corrected.
For instructions on correcting white-spots,
see AWhite-spot correctionB (A Pg. 34).
F [R/B,+/-] R/B, +/- adjustment button
This button is pressed when manually adjusting
the white balance or when adjusting the vertical
phase of the line lock.
The function of this button is selected using the 2
[SELECT] switch.
● When manually adjusting the white balance:
Press the R button to increase the red tint
and decrease the blue tint.
Press the B button to increase the blue tint
and decrease the red tint.
● When adjusting the phase:
Press the + or - button to adjust the phase.
14
G Function selection switches
1. [AGC] Auto-gain control switch.
Setting this switch to AONB automatically
increases the sensitivity even when the
brightness of the subject is insufficient.
(Default setting: ON)
2.
[SELECT] WHT.BAL./PHASE setting switch.
WHT.BAL.:
The F [R/B,+/-] buttons are used as [R/B]
adjustment buttons.
PHASE:
The F [R/B,+/-] buttons are used as [+/-]
adjustment buttons.
(Default setting: WHT.BAL.)
3.
[SYNC] Synchronization system selection
switch.
This switch sets the synchronizing system for the
camera.
INT:
This is set for internal synchronization
LL (Line Lock):
The camera’s vertical synchronization is locked
to the AC 24 V power line frequency. When
switching between multiple cameras using a
switcher, selecting this mode and adjusting the
vertical phase can reduce the monitor sync
disturbances occur that when the camera
image is switched.
U type: 60 Hz only
E type: 50 Hz only
(Default setting: INT)
4.
[WHT.BAL.] ATW/MANUAL selection switch.
For selecting whether to adjust the white
balance automatically or manually.
When the setting is changed from manual to
ATW, the setting values in the manual mode will
be reset. The camera switches to the same
mode as with pressing the [RESET] button.
(Default setting: ATW)
Note:
● The white balance of this camera is preset to
use under sunlight or halogen lamps, and
may not be properly adjusted when used
under artificial lights such as fluorescent
lights.
5.
[BLC] Backlight compensation switch.
When the object is placed against the light,
setting this to AONB increases the iris aperture
by 1 stop and the object will appear brighter.
(Default setting: OFF)
6.
[DAY/NIGHT] Easy DAY & NIGHT switch.
To capture a subject with continually changing
brightness (day/night), set this switch to AONB
The camera automatically captures the image in
color when the subject is bright, and in black and
white mode when it is dark.
(Default setting: OFF)
Note:
● When this item is set to AONB, the AGC
feature will automatically be set to AONB
regardless of the [AGC] Switch 1 setting.
● The Easy DAY & NIGHT feature on this
camera uses a sensitized black and white
mode unlike other black and white
surveillance cameras that use infra-red
lighting.
● Sensitivity increases in the case of black-andwhite images. The screen may therefore
appear rougher and white spots may
increase.
7.
[ALARM] alarm input mode selection
switch.
For setting the lens movement when there is an
alarm input. Set according to the alarm device
that you are using.
(A pg. 18 AElectrical Specifications of Alarm
Input TerminalsB)
(A pg. 25 AAdjusting the video imageB)
TRIGGER:
Upon input of an alarm, the lens moves to the
preset zoom/focus position (alarm position).
The lens remains in the alarm position for 15
seconds before it returns automatically to the
home position.
When there is a new alarm input while the lens
is at the alarm position, the lens continues to
remain in the alarm position for 15 seconds
upon the last alarm input.
STATE:
Upon input of an alarm, the lens moves to the
preset zoom/focus position (alarm position).
The lens remains in the alarm position for 15
seconds. The lens will, after a lapse of 15
seconds, continue shooting at the alarm
position as long as there is alarm input. The
lens returns automatically to the home position
immediately after alarm input stops.
(Default setting: TRIGGER)
8.
[RESET/SPOT] RESET/SPOT correction
selection switch.
RESET:
The [RESET/SPOT] button E is used as a
[RESET] button.
SPOT:
The [RESET/SPOT] button E is used as a
[SPOT] button. (A Pg. 34)
(Default setting: RESET)
15
Installation and Connection
System Example
● Turn off the power of devices to be used before connecting the cables.
● Read through the “Instruction Manual” of the devices to be used carefully before connecting.
Coaxial Cable
TK-C215VP4U/E
TK-C215VP4U/E
TK-C215VP4U/E
Power Cable
Coaxial Cable
Power Cable
Coaxial Cable
Power Ca ble
TK-C215VP12U/E
Coaxial Cable
Power Ca ble
Alarm Signal
(METAL CONTACT)
Power Unit DC12 V or
AC24 V (Class 2)
Hard Disk Recorder, etc.
AUDIOIN
12345678910111213141516
VIDEOIN
THRUOUT
SCSI
RS-232C UPS
Memo:
● When mounting the heater (sold separately
part number KA-ZH215), make sure to
connect the power wire to an AC 24 V power
supply only.
● The AC 24 V power supply should conform to
the following:
U-type: Class 2 only
E-type: Isolated power supply only
VIDEO INPUT
LAN
AUDIOOUT VIDEOOUT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
21
21
AVIS:RISQUEDECHOC
ELECTRIQ
5
81 4/ 16
EXTREC
IN
INCOMRST
15131197531
SER
CLK
OUT
161412108642
13 169 12
RST
REC
WAR
COM
OUT
OUT
OUT
ALARM
EEOUT
ACIN
(220V–240V )
SIGNALGND
VIDEO OUTPUT
VIDEO INPUT
Monitor
Note:
● Power consumption of TK-C215VP4 / TKC215VP12 are different from one another.
When installing a mixture of these models,
select a cable length according to the power
consumption of each model. Alternatively,
install based on the model with the highest
power consumption.
16
About Connection Cables
The maximum connection distance varies with
the type of cable used. Please refer carefully to
the table for each cable during connection.
* Be sure to turn off the power of devices before
connecting cables.
To video Signal
Cable
To DC 12 V or AC 24 V
Power Supply
To Alarm Signal Cable
( TK-C215VP12U/E
Only)
Note:
● When mounting the heater (sold separately
part number KA-ZH215), make sure to
connect the power wire to an AC 24 V power
supply only.
Video signal cables
Connect the coaxial cables (BNC) to the video
signal output connector (BNC).
Cable Maximum extension (No cable compensator)
RG-59 200 m
RG-6 350 m
RG-11 450 m
DC 12 V or AC 24 V power supply cable
Connect the DC 12 V or the AC 24 V power
supply to the DC 12 V/AC 24 V terminals on the
terminal board. To prevent connection errors or a
cable disconnection, we recommend the use of
lug plates for the connections. The following
table shows the connection distances and
connection cables provided that 2-conductor
VVF cables (vinyl-insulated vinyl sheath cables)
are used.
Conductor diameter (mm) R 1.0 mm
TK-C215VP4U/E
Maximum
extension
(Without heater)
TK-C215VP4U/E
Maximum
extension
(With heater)
TK-C215VP12U/E
Maximum
extension
(Without heater)
TK-C215VP12U/E
Maximum
extension
(With heater)
DC12V
AC24V
AC24V
DC12V
AC24V
AC24V
(AWG18)
50 m
(160ft)
130 m
(420ft)
40 m
(130 ft)
30 m
(100ft)
80 m
(260ft)
30 m
(100 ft)
R 1.6 mm
(AWG14)
140 m
(450ft)
350 m
(1100ft)
120 m
(390 ft)
80 m
(260ft)
210 m
(690ft)
90 m
(300 ft)
R 2.0 mm
(AWG12)
220 m
(720ft)
550 m
(1800ft)
180 m
(590 ft)
130 m
(430ft)
340 m
(1120ft)
140 m
(460 ft)
Note:
● If thin cables are used (i.e. with a high
resistance), a significant voltage drop will
occur when the unit is at its maximum power
consumption.
Either use a thick cable to restrict the voltage
drop at the camera side to below 10 %, or
place the power supply near to the camera.
When the voltage is low, the protection circuit
within the camera may be triggered and the
power of the camera may turn off
automatically.
● Do not allow input from both a DC 12 V and
AC 24 V power supply at the same time.
● When using a DC 12 V power supply, ensure
that the polarities of the cable are correct.
● The product shall be powered by Class 2
only.
● The AC 24 V power supply should conform to
the following:
U-type: Class 2 only
E-type: Isolated power supply only
17
Installation and Connection
About Connection Cables
(continued)
Electrical Specifications of Alarm Input Ter mina ls
(TK-C215VP12U/E only)
● To prevent penetration of noise in the internal
circuitry, apply a non-voltage contact signal to
the ALARM input terminal. Never apply a
voltage.
● Apply an alarm signal for at least 200 ms. If it is
shorter, it is not guaranteed that the signal will
be recognized as an alarm signal.
● Under the alarm status (status when the metal
contact is “make”), select the contact or
connecting wire such that the maximum wire
resistance between the ALARM IN and
ALARM GND is within 150 K.
ALARM IN
ALARM GND
Polarity of alarm signals
ALARM INPUT
SHORT (CONTACT) ALARM
OPEN NORMAL (HOME POSITION)
18
The right sequence to connect and set the camera
Follow the procedures below to connect/set this
unit.
Turn off the power of devices to be used before
connecting the cables.
䢇 Before touching the camera unit, make
sure to touch the metal surface of the
[MONITOR] terminal to discharge any
static electricity from your body. Static
electricity may cause the camera to
malfunction.
䢇 When mounting the base to the ceiling, or
when connecting the cable of the camera
unit, pay enough attention to the fall of
each part.
䢇 When mounting the heater (sold
separately: KA-ZH215), read the
instruction manual of the heater carefully
before mounting.
step 1
K
step 2
K
step 3
K
step 4
K
Set the switches
(A Pg. 20)
Remove the dome cover, followed
by setting the video image
switches.
Mounting the base
(A Pg. 21)
Mount the base to the wall or
ceiling.
Connect the cable
(A Pg. 22)
Connect the coaxial cable and
power supply for the heater.
Mounting the camera unit
(A Pg. 23)
Fill the piping hole and screw hole
with a sealing material, followed
by mounting the camera unit to
the base.
step 5
K
step 6
K
step 7

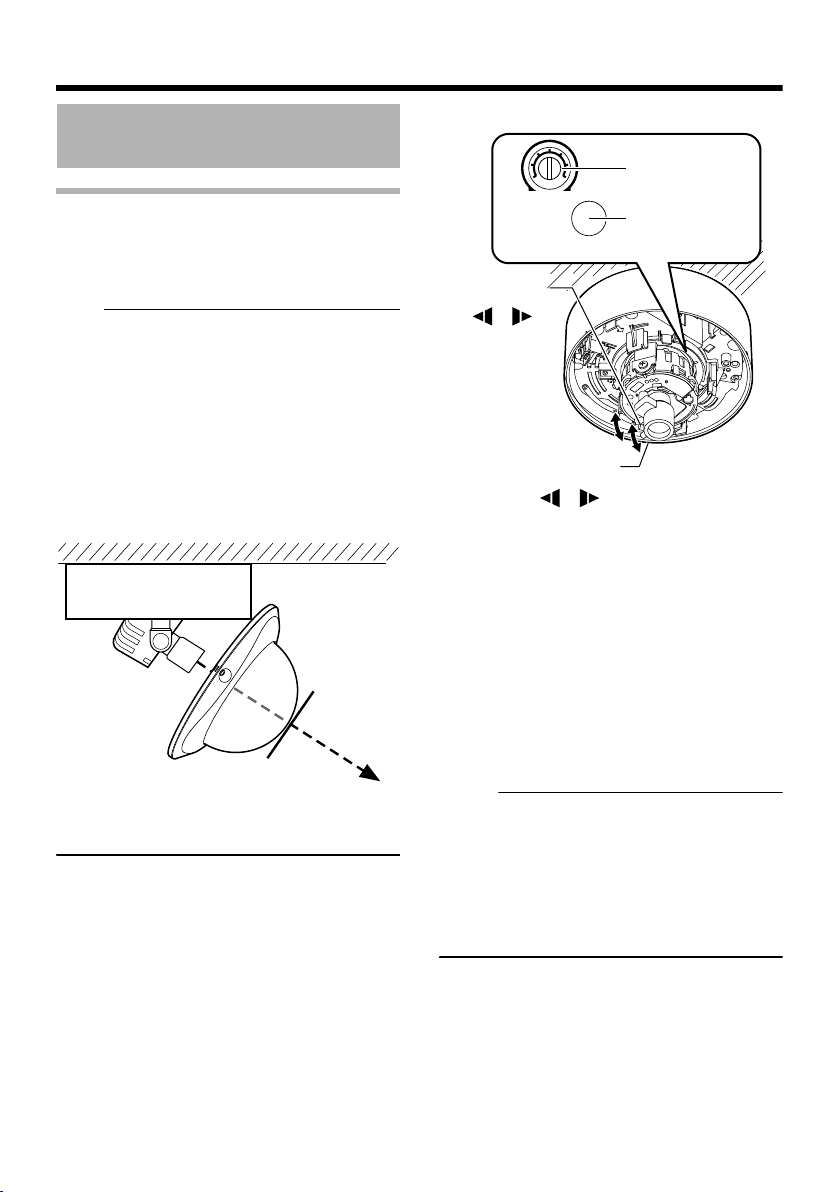

Adjusting the video image
(A Pg. 25)
Adjust the camera’s angle, focus
and brightness.
Mounting the inner dome
(A Pg. 30)
After setting is complete, mount
the inner dome to the camera.
Mounting the dome cover
(A Pg. 30)
Insert the silica gel into the
designated space to prevent
fogging of the dome cover,
followed by mounting the dome
cover.
19
Installation and Connection

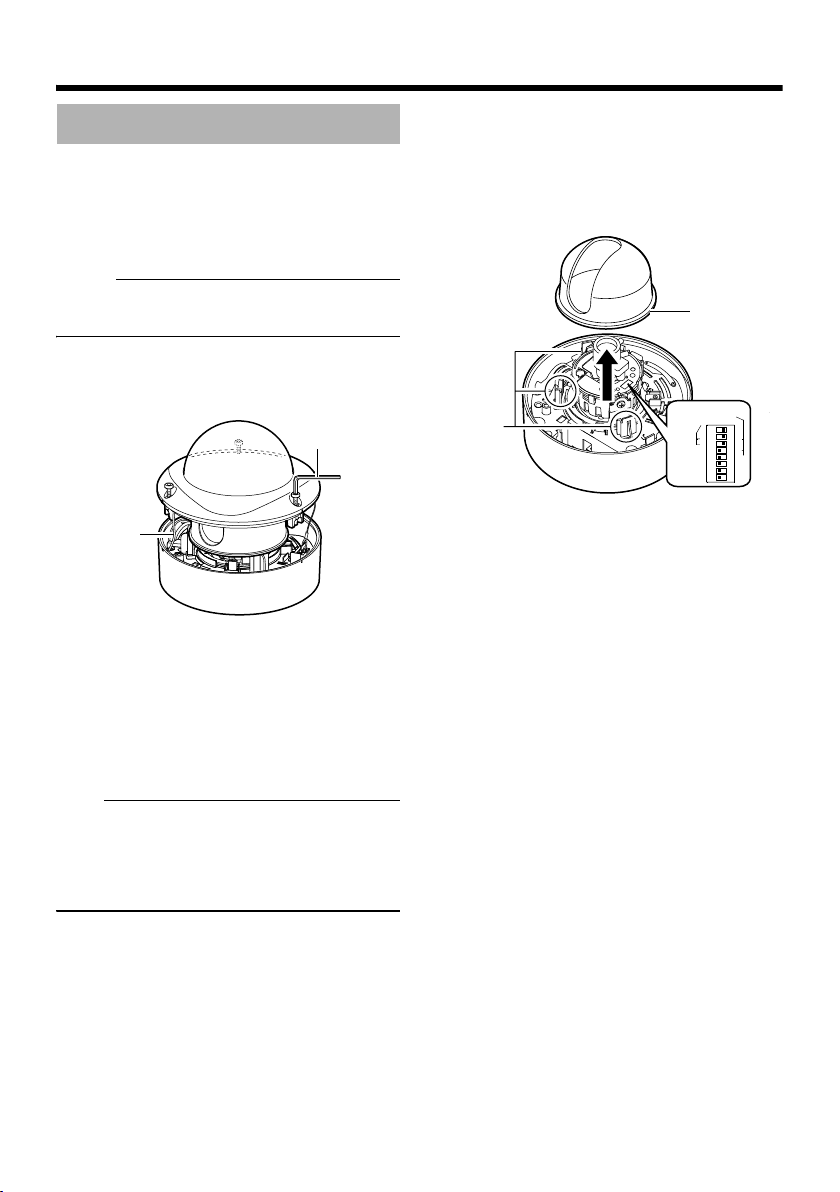

Setting the switches
Remove the dome cover, followed by setting the
video image switches.
1.Removing the dome cover
Remove the dome cover by unfastening the 3
fastening screws using the wrench supplied.
Memo:
● The dome cover and base are connected
with fall prevention wire.
Wrench (Supplied)
Fall Prevention
Wire
*TK-C215VP4U/E is used in the above illustration
3.Setting the switches
Set the switches for video images.
(APg. 12 eSetting the Switches and the Lens
(TK-C215VP4U/E)f)
(APg. 14 eSetting the Switches and the Lens
(TK-C215VP12U/E)f)
Inner
Dome
2
LL PHASE
Clip(x 3)
*TK-C215VP4U/E is used in the above illustration
3
O
1
N
2
2
3
4
4
5
WHT.
6
7
BAL.
8
2.Removing the inner dome
The inner dome is fastened using clips at 3
different positions. Grasp the inner dome and
remove it from the clips.
Note:
● Before touching the camera unit, make sure
to touch the metal surface of the [MONITOR]
terminal to discharge any static electricity
from your body. Static electricity may cause
the camera to malfunction.
20

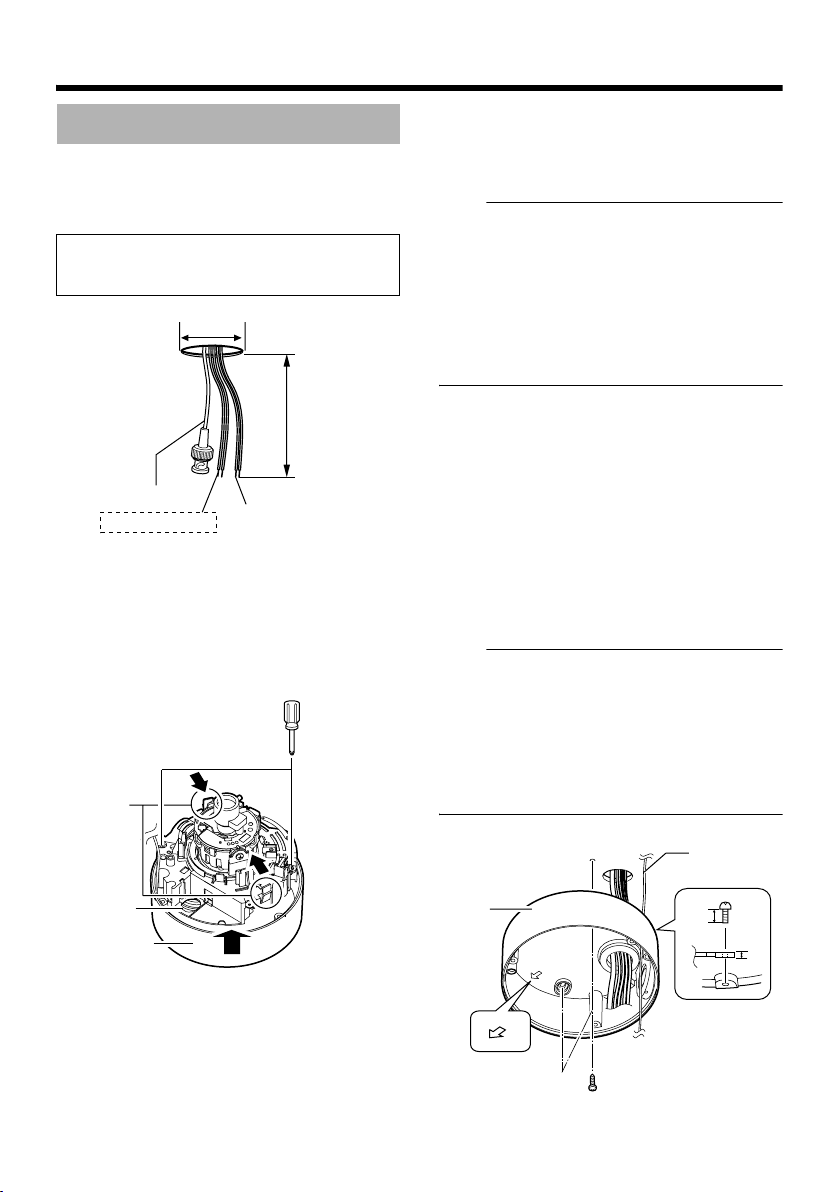

Mounting the base
Remove the camera unit from the base and
mount the base to the ceiling or wall.
When mounting to a wall, follow the procedures by
replacing areas indicated as [ceiling] by [wall] accordingly.
Setup
Drill mounting holes (R30 mm, 1 1/8 inch)
using the template supplied when necessary.
R30 mm
(1 1/8 inch)
2.Mounting the fall prevention wire to the
base (fall prevention wire is not supplied)
Remove the fastening screw for the fall
prevention wire and mount the fall prevention
wire.
Note:
● Pay attention to the length, strength, routing
and material (insulation properties) of the fall
prevention wire used.
● The internal diameter of the rounded portion
on the camera unit to which the fall
prevention wire is to be mounted shall be at
least R 4.1 mm and not larger than R 6.5 mm,
and its external diameter shall not be larger
than R12 mm.
Approx. 100 mm
(37/8 inch)
Coaxial Cable
Alarm Signal Cable
*TK-C215VP12U/E only
Power Supply Wire
(AC 24 V only when heater
is in use)
1.Removing the camera unit from the base
A Unfasten the 2 fastening screws from the
camera unit using a screwdriver.
B Press the 2 clips inwards to remove the
camera unit from the base.
A
B
Clip(x 2)
Camera
Base
3.Mounting the fall prevention wire to a firm
place
To prevent the camera from falling, mount the
base to a firm place using the fall prevention
wire.
4.Mounting the base
Mount the base by aligning the shooting
direction mark on the inner side of the base (j)
to the shooting direction.
When mounting to the wall, mount it with the
shooting direction mark(j) facing upward.
Do so by using 2 R4 mm mounting screws.
Note:
●
When mounting to the wall, make sure to mount
it with the shooting direction mark (
upward. Failure to do so may cause the fall
prevention wire of the dome cover to come off
easily.
●R4 mm screws are not supplied with this
product. Use appropriate type of screw
according to the material of the mounting place.
j
)facing
Fall Prevention
Wire
3
Base
8mm
2
2mm
TK-C215VP4U/E is used in the above illustration
Align with shooting
direction
(Face upward when
mounting to the wall)
,
4
R4 mm screw
21
Installation and Connection
Cable Connection
1.Connecting the coaxial cable (A Pg. 17)
Lower the protection cover and connect the
connectors. Upon connecting, cover the
connectors using the protection cover.
2.Connecting the AC 24 V/DC 12 V power
supply wires
Note:
● To mount a heater (sold separately) to this
unit, make sure to connect it to an AC 24 V
supply during use.
3.Connect the alarm cable.
(TK-C215VP12U/E only)(A Pg. 18)
4.Binding the AC 24 V/DC 12 V power
supply wires and alarm signal wires (TKC215VP12U/E only) with insulating tape
Make sure to bind the connecting portions of AC
24 V/DC 12 V power supply wires and alarm
signal wires (TK-C215VP12U/E only) with
insulating tape.
5.Wrap insulation tape around cables.
6.Storing cables
Upon connecting, push the connector into the
cable storage space of the camera unit.
Note:
● When mounting the camera to the electrical
box, push the connector into the electrical
box.
● While the camera unit is disconnected from
the base, be extremely careful not to drop the
camera unit.
Solder or Caulk
Insulating Tape
1
Protection Cover
Coaxial Cable
*TK-C215VP12U/E is used in the above illustration
S
]
3
Alarm signal Wire
(TK-C215VP12 only)
4
Cable Storage
Space
2
Bind
insulating
tape
AC 24 V/DC 12 V
Power Supply
Wire
22
Mounting the camera unit
Fill the piping hole and mounting hole with a
sealing material, mount the camera unit to the
base, and insert the silica gel.
1.Fill the hole with sealing material
Fill the piping hole as well as the 2 mounting
holes mounted with screws using a sealing
material.
Sealing Material
2.Mounting the camera unit to the base
Press the 2 clips until a “click” sound is heard.
Note:
● Mount such that the cables and fall
prevention wire of the dome cover are not
clamped.
3.Fastening the 2 fastening screws of the
camera unit
Tighten the 2 fastening screws of the camera
unit using a screwdriver to fasten the camera.
2
Clip
(x 2)
Memo:
● Use GE silicon or its equivalents as the
sealing material.
Note:
● If the piping hole and the 2 mounting holes
mounted with screws are not filled with
sealing material completely, water or vapor
may enter the holes causing the lens and
dome cover to fog. Make sure that these
holes are completely filled.
3
*TK-C215VP4U/E is used in the above illustration
23
Installation and Connection
Mounting the camera unit
(continued)
4.Inserting the silica gel supplied
Take out the silica gel from the aluminum
package, insert it into the silica gel insertion
space of the camera unit and fasten using the
lug plate.
Silica Gel Insertion
Space
Silica Gel
Lug Plate
*TK-C215VP4 is used in the above illustration
Memo:
● During reconnection or re-installation after
repair or maintenance, make sure to replace
the silica gel with a new one.
● Consult your nearby JVC’s dealer on the
replacement procedures.
Serial number of part to be replaced: Use a
LW40500-001A silica gel.
Note:
● When mounting is performed on a rainy day,
make sure that rain water does not enter this
unit.
● Make sure to use the silica gel supplied.
Failure to do so may cause the camera lens
and dome cover to fog.
● If the angle of view is not adjusted
immediately after mounting the camera,
insert the silica gel after adjustment is
completed. The silica gel loses its effect if it is
exposed to the air for a prolonged period of
time.
24
Adjusting the video image
Upon mounting the camera, adjust the images
while checking the actual image.
Mounting the test monitor
Connect the [MONITOR] terminal of this unit to
the test monitor to adjust the camera’s shooting
direction, angle of view and focus.
Memo:
● Before setting, ensure to turn on the power of
the system.
[MONITOR]
Terminal
Panning: ±175 ⬚
Rotation: ±175 ⬚
Tilting: ±70 ⬚
*TK-C215VP4U/E is used in the above illustration
Camera’s shooting
direction mark
Pan center mark
75 K terminal
Test Monitor
*TK-C215VP4U/E is used in the above illustration
Adjusting the shooting direction of the
camera
The camera unit can be panned, tilted or rotated.
Adjust the camera in the direction of the object.
Note:
● Before touching the camera unit, make sure
to touch the metal surface of the [MONITOR]
terminal to discharge any static electricity
from your body. Static electricity may cause
the camera to malfunction.
● Before adjusting the shooting direction of the
camera, ensure that the pan fastening screw
is loosened. Moving the lens unit without
loosening the pan fastening screw may
damage the lens unit.
UP
O
N
Rotation center mark
Rotation knob
( TK-C215VP4U/E only)
: Always adjust the
rotation by holding this
knob.
Memo:
● Panning/rotation of ±175 ⬚ is possible from
each of the camera unit’s shooting direction
mark, pan center mark and rotation center
mark. When adjusting the rotation, do not
hold the lens unit. Always adjust by holding
the rotation knob.
● When using the camera at locations with
strong vibration after the angle of view is
adjusted, stabilize by tightening the tilt
fastening screw to prevent the camera’s
angle of view from going out of alignment.
(A Pg. 11)
Note:
● Moving the camera beyond its adjustable
range may cause failure in maintaining the
performance of this camera.
● As this camera has a wide tilt/rotation range,
a part of this camera may appear on the
screen depending on the angle of view and
orientation.
● Do not hold the lens unit when adjusting the
direction of the camera. Applying force on the
lens unit may damage it.
25
Installation and Connection
Adjusting the video image
(continued)
Adjusting the angle of view, focus and
brightness
Upon determining the imaging direction, adjust
the angle of view, focus and brightness
accordingly.
Note:
● When adjusting the focus, make sure to cover
the dome cover over the lens. The dome
cover of this unit is thick. Therefore, if the
focus is not adjusted with the dome cover
covered, this may cause the lens to go out of
focus when the dome cover is mounted.
● When adjusting the focus, cover the dome
cover such that its center is perpendicular to
the light axis of the lens, and make sure that
the image is not distorted. (See illustration
below)
O
p
t
i
c
a
l
A
x
i
s
*TK-C215VP4U/E is used in the above illustration
⽧TK-C215VP4U/E(A Pg. 26)
⽧TK-C215VP12U/E(A Pg. 28)
䡵 TK-C215VP4U/E
Iris Level
LH
Zoom Adjustment
Ring
IRIS
LEVEL
FOCUS ADJUST
Adjustment Dial
Focus Adjustment
Button
W T
Focus Adjustment Ring
N F
Adjusting the angle of view
Loosen the fastening screw for the zoom
adjustment ring and move the ring to the left/
right to adjust the image.
Adjusting the focus
Press the focus adjustment button. The iris will
be released for about 30 seconds. Loosen the
fastening screw for the focus adjustment ring
and move the ring to the left/right to align the
focus.
Memo:
● Set by repeating [Adjusting the angle of view]
and [Adjusting the focus] for 2 to 3 times.
After adjustment is completed, fasten by
tightening each of the fastening screws.
● The electronic shutter functions automatically
upon pressing the focus adjustment button
and the screen may flicker. However, this is
not a malfunction.
26
Adjusting the brightness
Usually, adjustment of the brightness is not
required. When this is necessary, adjust the iris
level accordingly.
To darken : Anti-clockwise direction (L
To brighten : Clockwise direction (H side)
side)
Memo:
● Do not perform iris level adjustment within 30
seconds after pressing the focus adjustment
button. (It cannot be adjusted correctly as the
electronic shutter mode is activated.)
● Before adjusting the iris level, set the [AGC]
switch of selection switch C to AOFFB. If
turning too much to L side when not set to
AOFFB, AGC feature will activate causing the
sensitivity increases and the picture quality
may appear grainy.
27
Installation and Connection
Adjusting the video image
(continued)
䡵 TK-C215VP12U/E
● 2 types of angle of view may be selected for
TK-C215VP12U/E. In general, set in a way
such that the home position shoots a wide
range and the alarm position a narrow range.
● Use the alarm input mode selection switch to
set the actions when there is an alarm input.
(A Pg. 15)
䢇 Registering home position
For registering the angle of view during
monitoring under normal conditions.
4.
2.,3.
1.
H
IRIS
L
TELE
FAR
ZOOM/FOCUS
NEAR
WIDE
SELECT
POSITION
LEVEL
WHT.BAL.
[MEMORY]
4
2
POSITION
ALARM
B
R
RESET/[SPOT]
8
7
6
LL PHASE
5
4
3
2
1
3.Press the [MEMORY] button for 2 seconds
or longer.
The [ALARM POSITION] indicator light blinks for
3 times (green)
4.Adjust the brightness.
This adjustment only needs to be made when
required. Use this to accommodate particular
shooting conditions.
To darken image : Counterclockwise (L side)
To brighten image : Clockwise (H side)
Note:
● For adjusting the brightness, do not conduct it
within 30 seconds after pressing the [ZOOM /
FOCUS] button.
● When adjusting the iris level, set the AGC
switch to AOFFB. Otherwise, when the level is
turned too far toward L, the AGC function
activates increasing sensitivity and the picture
may look uneven.
佧
Home position registration is completed
1.Check that the [ALARM POSITION]
indicator light is turned off.
Registration of home position is enabled.
Press the [POSITION SELECT] button if the
[ALARM POSITION] indicator light is on.
2.Adjust the angle of view.
A Adjust the field angle
Move the zoom adjustment switch in the
[TELE] or [WIDE] direction to adjust the field
angle.
B Adjust the focus
Move the focus adjustment switch in the
[NEAR] or [FAR] direction to adjust the focus.
Note:
● When the [ZOOM / FOCUS] switch is set
to either [TELE / WIDE] or [NEAR / FAR],
the iris will automatically open up for
about 30 seconds and focus can be easily
adjusted. During this interval, the
electronic shutter mode is activated and
the image may flicker. However, this is not
a malfunction.
28
䢇 Registering alarm position
For registering the angle of view during
monitoring when there is an alarm input.
3.
2.,4.
1.,5.
H
IRIS
L
TELE
FAR
ZOOM/FOCUS
NEAR
WIDE
SELECT
POSITION
LEVEL
WHT.BAL.
[MEMORY]
POSITION
ALARM
B
R
RESET/[SPOT]
8
7
6
LL PHASE
5
4
4
3
2
2
1
1.Check that the [ALARM POSITION]
indicator light is turned on.
Registration of alarm position is enabled.
● Press the [POSITION SELECT] button if the
[ALARM POSITION] indicator light is off.
2.Adjust the image size. (A Pg. 28)
3.Press the [MEMORY] button for 2 seconds
or longer.
The [ALARM POSITION] indicator light blinks for
3 times (green)
佧
ALARM position registration is completed
4.Adjust the brightness. (A Pg. 28)
5.Press the [POSITION SELECT] button.
The camera returns to the home position
Note:
● Be sure to return the camera to the home
position after registration of the alarm
position is completed.
In addition to pressing the [POSITION
SELECT] button, you can also use the power
ON/OFF button to return the camera to the
home position.
● To check images at the registered home
position or alarm position, press the
[POSITION SELECT] button. Press this
button to switch between the image at the
home and alarm positions.
29
Installation and Connection
Mounting the inner dome
After setting is complete, mount the inner dome
to the camera.
1.Mounting the inner dome
Mount the inner dome to the 3 clips.
Clip(x 3)
Inner
Dome
*TK-C215VP4 is used in the above illustration
Note:
● Mount the inner dome such that it does not
cover the lens.
● When mounting the inner dome, make sure
not to move the position of the lens. Doing so
may cause the preset angle of view to go out
of alignment.
Mounting the dome cover
1.Cleaning the dome cover
Before mounting, remove any dust or dirt from
the dome cover.
Memo:
● Dirt that is not removed from the cover before
mounting may appear on the camera’s
image.
Memo:
● Do not apply excessive force to the dome
cover such as stretching it.
2.Mounting the dome cover to the base
Mount the dome cover by aligning the 3 position
marks on the base with the dome cover.
3.Fastening the dome cover
Fasten by tightening the 3 fastening screws of
the dome cover using the wrench supplied.
Position Alignment Mark (x 3)
3
Wrench
(Supplied)
2
30
*TK-C215VP4 is used in the above illustration
Note:
● Make sure that the dome cover is firmly
fastened.
Otherwise, the humidity level may rise, which
may result in fogging and even falling of the
cover.
● Ensure that the fall prevention wire of the
dome cover is not caught in the space
between the dome cover and base. Failing to
do so may cause the dust-proof and water-
proof features to malfunction.
Mounting the camera using the electrical box
Mounting the base to the electrical box.
1.Setting the switches (A Pg. 20)
2.Removing the camera unit from the base
(A Pg. 21)
3.Mounting the base to the electrical box
Mount the base to the electrical box by using the
2 mounting holes and 2 M4 screws.
Memo:
● M4 screws are not supplied with this product.
4 Inch square electrical box
Base
M4 Screw
4.The following procedures are same as
normal mounting
● Cable Connection (A Pg. 22)
● Mounting the camera unit to the base
● (A Pg. 23)
● Adjusting Images (A Pg. 25)
● Mounting the inner dome (A Pg. 30)
● Mounting the dome cover (A Pg. 30)
31
Installation and Connection
Mounting the camera using the pipe
Use the piping hole to mount the camera.
Mounting the camera using the piping
hole at the bottom surface of the base
1.Setting the switches (A Pg. 20)
2.Removing the camera unit from the base.
(A Pg. 21 , step 1)
3.Mount the fall prevention wire to the base
(A Pg. 21)
4.Binding the sealing tape
Bind at least 2 layers of the sealing tape to the
joint of the pipe (point where the thread of the
piping hole coincides with the screw hole of the
pipe).
5.Mounting the base to the pipe
Screw the base into the pipe by turning the base
in the clockwise direction. (Piping hole: G3/4-14
UNC)
Note:
● When screwing in the pipe, make sure that
not more than 12 mm (15/32 inch) of the pipe
is being screwed in. Failure to do so may
damage the internal components of this unit.
Sealing Tape
4
12 mm(15/32 inch)
and below
7
Fall Prevention Wire
5
3
8mm
2mm
6
R4 mm screw
8.The following procedures are same as
normal mounting
● Cable Connection (A Pg. 22)
● Mounting the camera unit to the base
(A Pg. 23)
● Adjusting Images (A Pg. 25)
● Mounting the inner dome (A Pg. 30)
● Mounting the dome cover (A Pg. 30)
6.Fastening the base to the ceiling
Fasten the base to the ceiling firmly using 2
RM4 mm screws.
Note:
● R4 mm screws are not supplied with this
product. Use appropriate type of screw
according to the material of the mounting
place.
● Check to ensure that there is no space
between the ceiling and base.
7.Mounting the fall prevention wire to a firm
place (A Pg. 21)
32
Mounting the camera using the piping
hole at the side surface of the base
If the camera cannot be mounted directly to the
ceiling, mount it to the pipe using the piping hole
at the side surface of the base.
1.Setting the switches (A Pg. 20)
2.Dismantle the camera unit from the base
and mount the fall prevention wire
(A Pg. 21)(A Pg. 9)
3.Binding the sealing tape
Bind at least 2 layers of the sealing tape to the
joint of the pipe (point where the thread of the
piping hole coincides with the screw hole of the
pipe).
Sealing Tape
4.Removing the plug for the piping hole of
the base
Loosen the mounting screw (M3 x 6 mm) using a
slotted screwdriver and pull out the plug at the
side of the base.
Plug for Piping Hole
5.Mounting the removed plug for the piping
hole to the piping hole at the bottom surface
of the base
6.Mounting the base to the pipe
Screw the pipe into the piping hole at the side of
the base.
(Piping hole: G3/4-14 UNC)
Note:
● When screwing in the pipe, make sure that
not more than 12 mm (15/32 inch) of the pipe
is being screwed in. Failure to do so may
damage the internal components of this unit.
Plug for Piping
Hole
7.The following procedures are same as
normal mounting
● Cable Connection (A Pg. 22)
● Mounting the camera unit to the base
(A Pg. 23)
● Adjusting Images (A Pg. 25)
● Mounting the inner dome (A Pg. 30)
● Mounting the dome cover (A Pg. 30)
Mounting
Screw
33
Installation and Connection
White-spot correction
As a general characteristic unique to CCDs,
white-spots may appear on the screen with age.
In order to reduce this phenomenon, this unit is
equipped with a white-spot correction feature.
Switch on the camera power supply and wait for
at least 30 minutes.
䡵 TK-C215VP4U/E
]
RESET/[SPOT
R
LL PHASE
B
O
1
N
2
2
3
4
4
5
WHT.
6
7
BAL.
8
䡵 TK-C215VP12U/E
H
L
NEAR
LEVEL
WHT.BAL.
[MEMORY]
POSITION
ALARM
R
4
2
IRIS
TELE
FAR
ZOOM/FOCUS
WIDE
SELECT
POSITION
[SPOT] button
Function selection switch 8
B
RESET/[SPOT]
8
7
6
LL PHASE
5
4
3
2
1
[SPOT] button
Function selection
switch 8
1.Remove the dome cover.
2.Cover the lens surface using a black sheet
of paper, etc. so that light does not enter the
lens.
3.Set the function selection switch 8 to
[SPOT]. (A Pg. 13)
4.Press and hold the SPOT CORRECTION
button for more than 2 seconds.
● White-spot correction will start. Correction
may take several seconds for completion.
Memo:
● Maximum correction: 32
● The white-spot correction feature of this unit
does not guarantee the correction of all white
spots.
● Depending on the characteristic of white
spots, correction may not be possible.
● When performing white-spot correction,
accurate data may not be achieved in case of
highly detailed pixels since correction is
made using the information of surrounding
pixels.
● The result of white-spot correction is
maintained until the next correction is
performed.
34
35
Others
Specifications
䡵 Camera
Signal system:
U type : Based on NTSC standard
E type : Based on PAL standard
Scanning frequencies
U type : 15.734 kHz (Horizontal),
59.94 Hz (Vertical)
E type : 15.625 kHz (Horizontal),
50 Hz (Vertical)
Image device: 1/4" IT CCD
Effective picture elements:
U type : 380,000 pixels,
768 (H) x 494 (V)
E type : 440,000 pixels,
752 (H) x 582 (V)
Sync system
: Line lock/Internal
Video S/N:
: 50 dB (AGC OFF, white 50 %
output)
Horizontal resolution:
: 540 TV lines (Center, Typ.)
Minimum illumination: (Typical)
TK-C215VP4U
Color mode : 2.5 lx (Standard, AGC ON,
50 IRE, WIDE end)
: 0.8 lx (Standard, AGC ON,
25 IRE, WIDE end)
Black and White mode
: 1.4 lx (Standard, AGC ON,
50 IRE, WIDE end)
0.4 lx (Standard, AGC ON,
25 IRE, WIDE end)
TK-C215VP12U
Color mode : 3.5 lx (Standard, AGC ON,
50 IRE, WIDE end)
: 1.1 lx (Standard, AGC ON,
25 IRE, WIDE end)
Black and White mode
: 2.0 lx (Standard, AGC ON,
50 IRE, WIDE end)
0.6 lx (Standard, AGC ON,
25 IRE, WIDE end)
TK-C215VP4E
Color mode : 2.9 lx (Standard, AGC ON,
50 IRE, WIDE end)
: 0.9 lx (Standard, AGC ON,
25 IRE, WIDE end)
Black and White mode
: 1.7 lx (Standard, AGC ON,
50 IRE, WIDE end)
0.6 lx (Standard, AGC ON,
25 IRE, WIDE end)
TK-C215VP12E
Color mode : 4.2 lx (Standard, AGC ON,
50 IRE, WIDE end)
: 1.3 lx (Standard, AGC ON,
25 IRE, WIDE end)
Black and White mode
: 2.4 lx (Standard, AGC ON,
50 IRE, WIDE end)
0.8 lx (Standard, AGC ON,
25 IRE, WIDE end
White balance
: ATW/Manual (Switchable)
Color temperature range
2,300 K to 10,000 K
Backlight compensation
: ON/OFF (Switchable)
Easy DAY & NIGHT
: ON/OFF (Switchable)
36
䡵 Lens
Focal length
TK-C215VP4U/E : 2.8 mm to 10 mm (variable)
TK-C215VP12U/E : 3.8 mm to 45.6 mm
(variable)
Zoom ratio
TK-C215VP4U/E : Approx. 3.6
TK-C215VP12U/E : Approx. 12
Maximum aperture
TK-C215VP4U/E : F1.3 (f = 2.8 mm) to F3.0
(f = 10 mm)
TK-C215VP12U/E : F1.6 (f = 3.8 mm) to F2.7
(f = 45.6 mm)
Ambient temperature
: -10 I to 50 I
(14 g to 122 g) (Operation)
:0 I to 40 I
(32 g to 104 g)(Recommended)
When using KA-ZH215
: -30 I to 50 I
(-22 g to 122 g) (Operation)
: -20 I to 40 I
(-4 g to 104 g)(Recommended)
Dustproof/Waterproof
:IP 66
Angle adjustment range
Pan : ±175 ⬚
Rotation : ±175 ⬚
Tilt : ±70 ⬚
Angle of vision
TK-C215VP4U/E : f = 2.8 mm
73 ⬚ (H) x 54 ⬚ (V)
f = 10 mm
20 ⬚ (H) x 15 ⬚ (V)
TK-C215VP12U/E : f = 3.8 mm
52 ⬚ (H) x 39 ⬚ (V)
f = 10 mm
4.5 ⬚ (H) x 3.4 ⬚ (V)
䡵 General
Power supply
U type : AC 24 V 60 Hz
DC 12 V
E type : AC 24 V H 50 Hz/60 Hz
DC 12 V d
Power consumption
TK-C215VP4
U type : 4.2 W
: 23 W (When using KA-
ZH215)
E type : 340 mA
: 1 A(When using KA-ZH215)
TK-C215VP12
U type : 6.6 W
: 24 W (When using KA-
ZH215)
E type : 550 mA
: 1 A(When using KA-ZH215)
Mass
TK-C215VP4 : Approx. 1250 g
TK-C215VP12 : Approx. 1310 g
Accessories
U type:
Instructions ..................................................... 1
Installation Precautions .................................. 1
Warranty Card ................................................ 1
Service Information Card ................................ 1
Silica gel ......................................................... 1
Wrench ........................................................... 1
Template ......................................................... 1
E type:
Instructions ..................................................... 1
Installation Precautions .................................. 1
Silica Gel ........................................................ 1
Wrench ........................................................... 1
Template ......................................................... 1
37
Others
Specifications (continued)
䡵 Dimensional Outline Drawing
[Unit: mm (inch)]
G3/4-14 UNC screw
for piping ( bottom
surface, side surface)
121(4-3/4)
113(4-1/2)
SR5
(2-1/8)
3.7
Ǿ160(6-1
9
(3/8)
5(1/4)
/4
42(1-5/8)
125(4-7/8)
Ǿ160(6-1/4)
* Specifications and appearance of this unit and
related products are subject to change for
product improvement without prior notice.
38
Focus chart
39
TK-C215VP4U/E
TK-C215VP12U/E
DOME CAMERA
© 2006 Victor Company of Japan, Limited
LST0519-001A
