DOME CAMERA

TK-C215V4

INSTRUCTIONS

(A)

For Customer Use:

Enter below the Serial No. which is located on the body. Retain this information for future reference.

Model No. TK-C215V4

Serial No.

LST0420-001A

Introduction

Safety Precautions

Information for Users on Disposal of Old Equipment [European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service

Attention:

This symbol is only valid in the European Union.

or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

FOR USA AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK. DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE.REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash wish arrowhead symbol, within an equilateral triangle isintended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure thatmay be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert theuser to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Due to design modifications, data given in this instruction book are subject to possible change without prior notice.

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT: POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTROCUTION, NE PAS EXPOSER L'APPAREIL A L'HUMIDITE OU A LA PLUIE.

INFORMATION (FOR CANADA) RENSEIGNEMENT (POUR CANADA)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la Class Best conforme a la norme NMB-003 du Canada.

INFORMATION FOR USA

䡵 INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the

equipment and receiver.

● Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/

TV technician for help.

䡵 CAUTION

CHANGES OR MODIFICATIONS NOT APPROVED BY JVC COULD VOID USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

䢇 The unit is to be powered by a DC 12 V or an

AC 24 V power supply.

䢇 The unit is to be powered by a UL Listed DC

12 V or an AC 24 V power supply.

䢇 The AC 24 V and 12 V DC power supply shall

conform to the following: Class 2 only .

䢇 This installation should be made by a qualified

service person and should conform to all local codes.

䢇 This installation shall be in accordance with

the National Electrical Code, ANSI/NFPA 70.

䢇 Any Mention in this manual of Alarm inputs

have not been evaluated by UL to be used for Burglar Alarm Functionality.

䢇 Embedding of cameras in the ceiling may not

be allowed due to regulations in some regions. Please consult your nearby authorized JVC dealer for more details.

䢇 The ceiling to mount the camera has to be

strong enough to support the weight of this product. If the ceiling is not strong enough, make sure to apply reinforcement to the ceiling before installation.

䢇 Be sure to tighten the screws and nuts

securely, Insufficient tightening may cause the unit to fall from its mount.

䢇 The rating label is displayed on the side of the

camera unit.

䢇 The camera unit may fall if the mounting

screws and nuts are not properly tightened. Ensure that the screws and nuts are properly tightened.

䢇 We do not accept liability for any damage to

the camera in cases when it is dropped because of incomplete installation due to not observing the installation instructions correctly. Please be careful when installing the camera.

䢇 Do not install the camera near lighting

equipment with a high temperature, such as spotlights. Doing so may cause malfunction or fire.

䢇 Before starting an important recording, be

sure to perform a test recording in order to confirm that a normal recording is possible.

䢇 We will not provide any compensation

whatsoever for the contents to be recorded or loss of opportunities when recording is not properly performed due to malfunction of the video camera, VTR, hard disk recorder or video tape.

䢇 Prior to adjusting the shooting direction of the

camera, touch the metal surface of the [MONITOR] terminal with your hand to discharge static electricity from your body.

Introduction

These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances.

IMPORTANT SAFEGUARDS

1. Read all of these instructions.

2. Save these instructions for later use.

3. All warnings on the product and in the operating instructions should be adhered to.

4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance.

Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

8. Slots and openings in the cabinet and the back or bottom are pro-vided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface.

This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

10.For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

11.Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walking on it.

12.Follow all warnings and instructions marked on the appliance.

13.Do not overload wall outlets and extension cords as this can result in fire or electric shock.

14.Never push objects of any kind into this appliance through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

15.Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

16.Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls

that are covered by the operating instructions as improper adjustment of other controls may result in damage

and will often require extensive work by a qualified technician to restore the appliance to normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance - this indicates a need for service.

17.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

18.Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.

PORTABLE CART WARNIN

(symbol provided by RETAC)

S3125A

Thank you for purchasing this product. (These instructions are for: TK-C215V4U.) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.

Characteristics

䡵 Realizing a High Picture Quality

This camera realizes 540 TV lines and S/N50 dB by employing a highly sensitive CCD with 380,000 pixels and a high-resolution video processing circuit.

䡵 Enlarged Shooting Range

The adjustment range of the shooting direction is wide and mounting of the camera to the wall is possible with the employment of 3 axis rotation mechanism.

䡵 Non Camera-Like Design

Dome-type design allows application in various locations.

䡵 Embedding in Ceiling Without Use of

Metal Fittings

There is no need to use a separate recess bracket when embedding this camera to the ceiling.

䡵 High Magnification Varifocal/Zoom

Lens

The built-in x3.6 varifocal lens enables detailed supervision.

䡵 Easy DAY & NIGHT Feature

A Easy DAY & NIGHT feature is available, which switches automatically to a black-andwhite image when the object is dark. This is useful for supervision in a dark environment.

How to Use This Manual

䡵 Characters and symbols used in

this manual

CAUTION : Points to pay attention to during

operation.

NOTE : Details for reference, such as

functions or constraints during use.

A : Pages or items to refer to.

● All product names that appear in this

document are the trademarks or registered trademarks of their respective companies. Marks and symbols such as 姠, 姞 and 姝 do not appear in this document.

Introduction

Safety Precautions ......................................... 2

Characteristics ............................................... 5

Contents ......................................................... 6

Operating Precautions ................................... 7

Name of Parts ................................................8

Camera ....................................................... 8

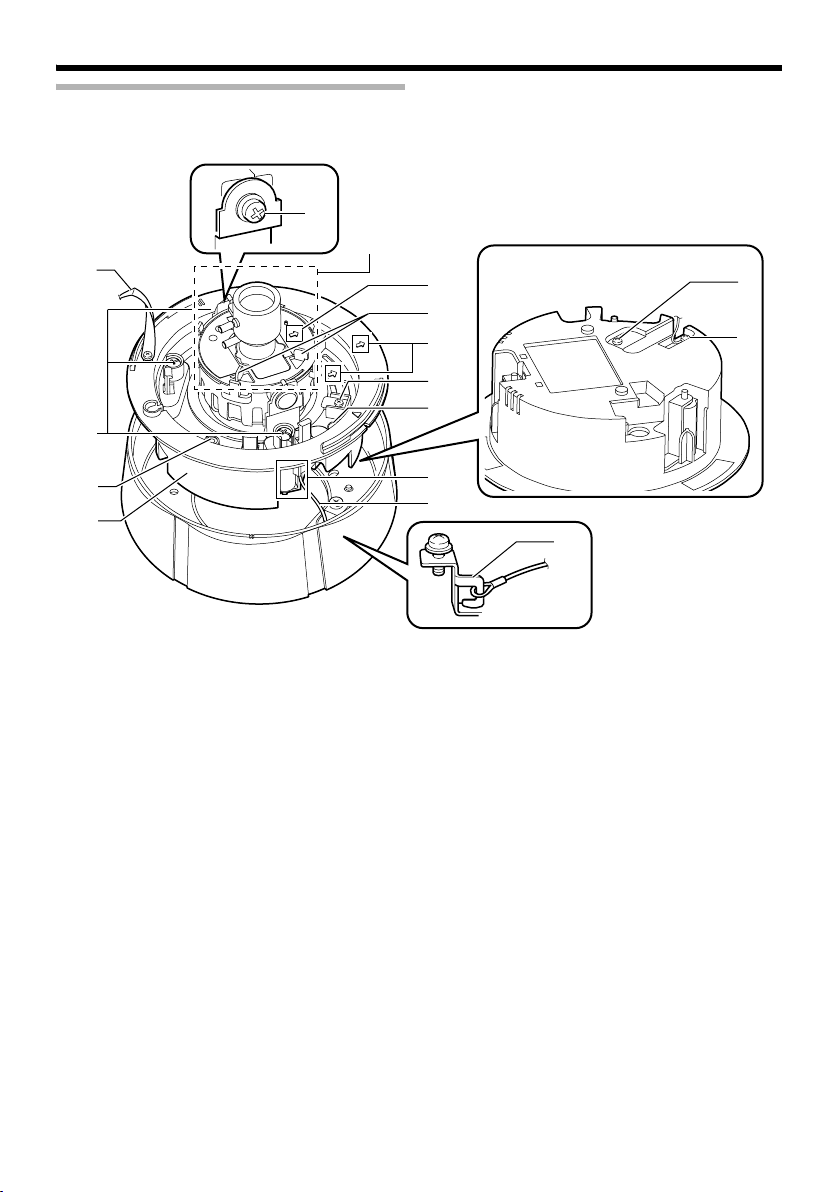

Camera (Interior) ........................................ 9

Setting the Lens and Switches ..................... 10

Installation and connection

About Connection Cables ............................ 12

Video signal cables .................................. 12

DC 12 V or AC 24 V power supply

cable ......................................................... 12

System diagram ...........................................13

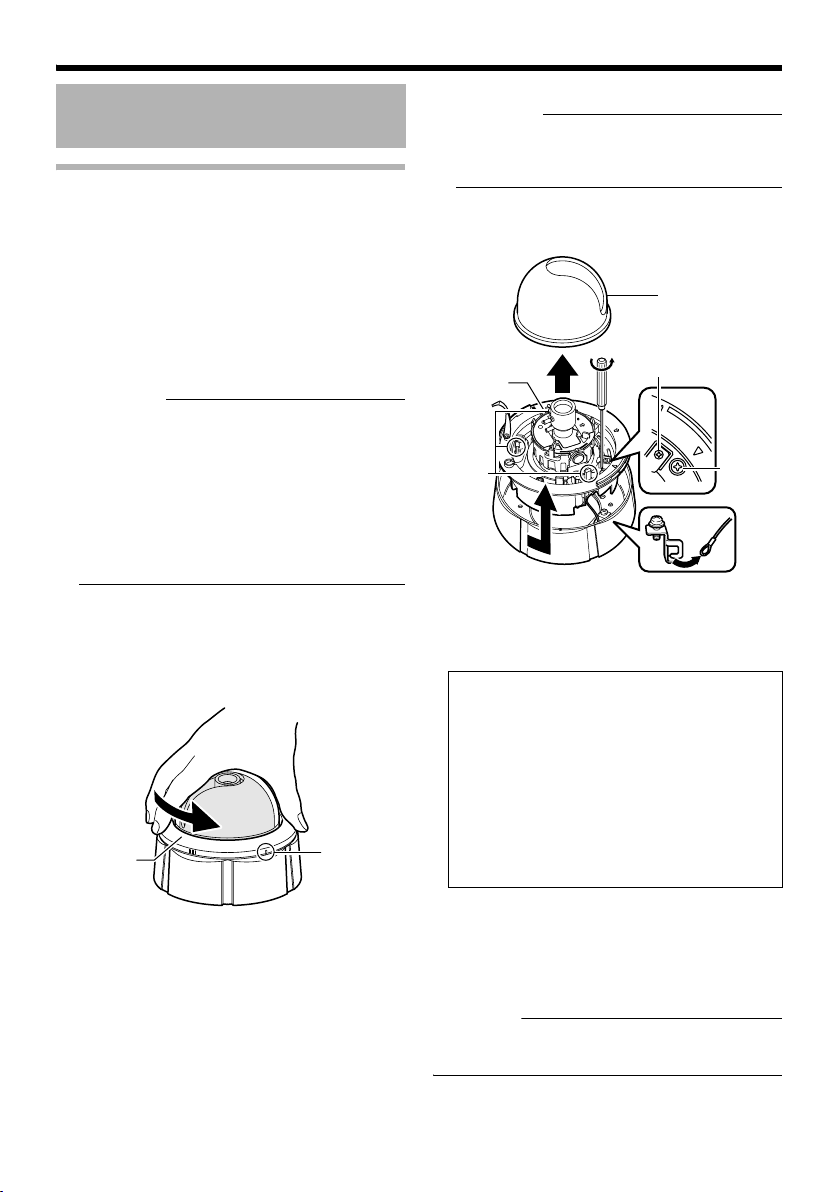

Mounting the Camera ................................... 13

Getting Started ......................................... 13

Selecting a mounting method ................... 13

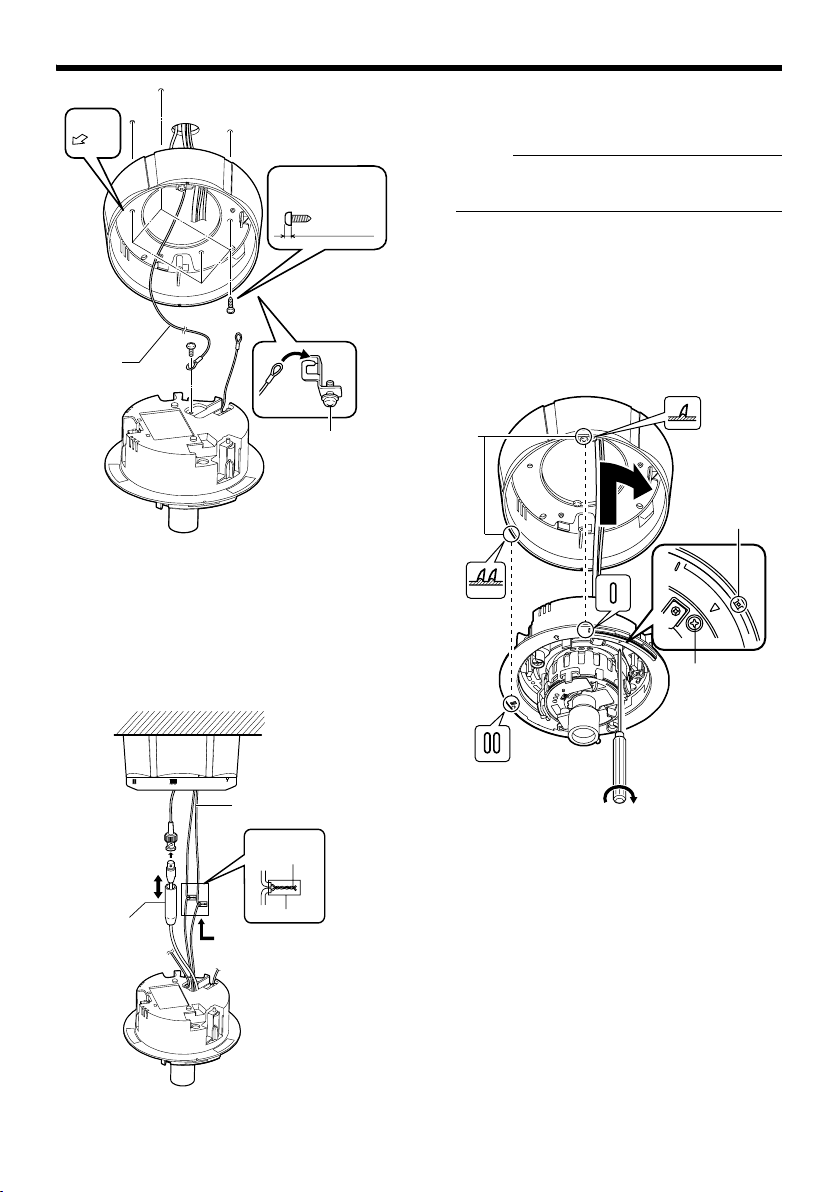

Embedding the camera to the ceiling ....... 14

When mounting the camera directly to

the ceiling or on the wall ........................... 16

When mounting the camera to the

electrical box ............................................ 18

Mount by allowing the cable to

exit from the side ...................................... 18

Adjusting Image

Adjusting Images .......................................... 19

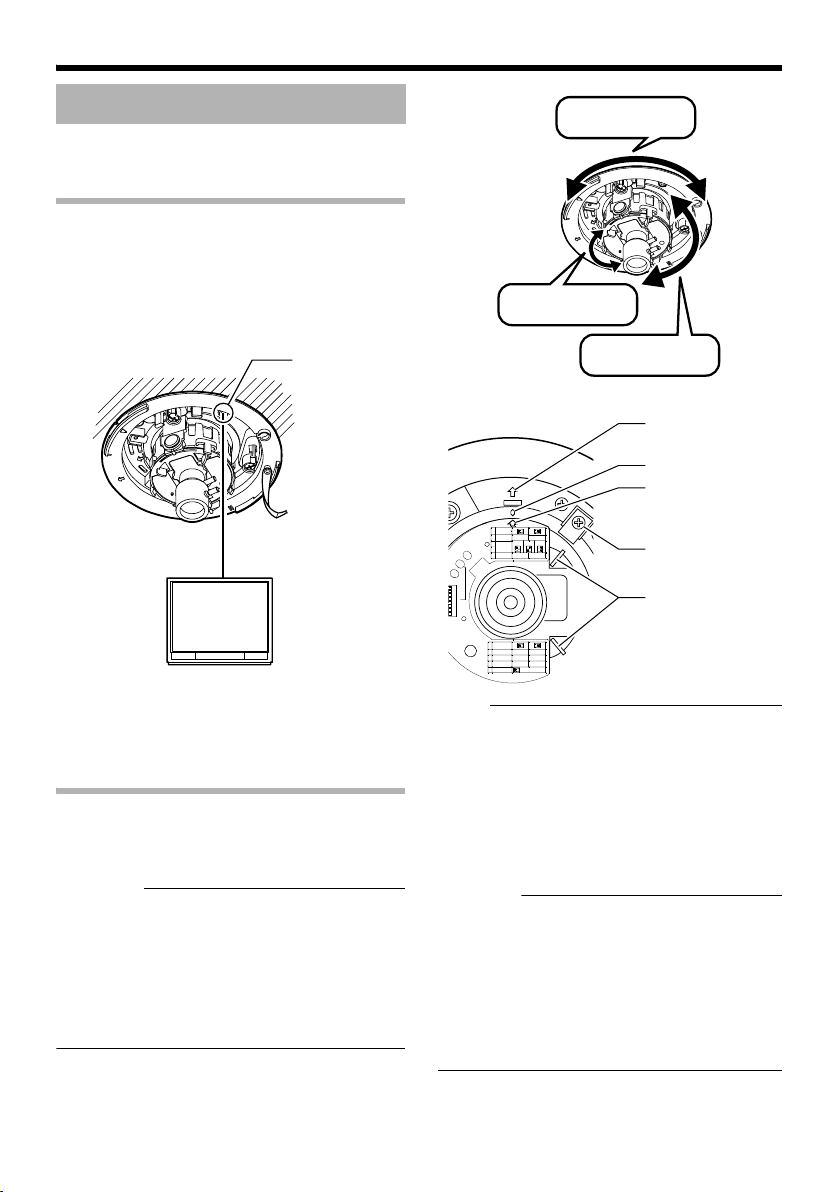

Mounting the test monitor ......................... 19

Adjusting the camera direction ................. 19

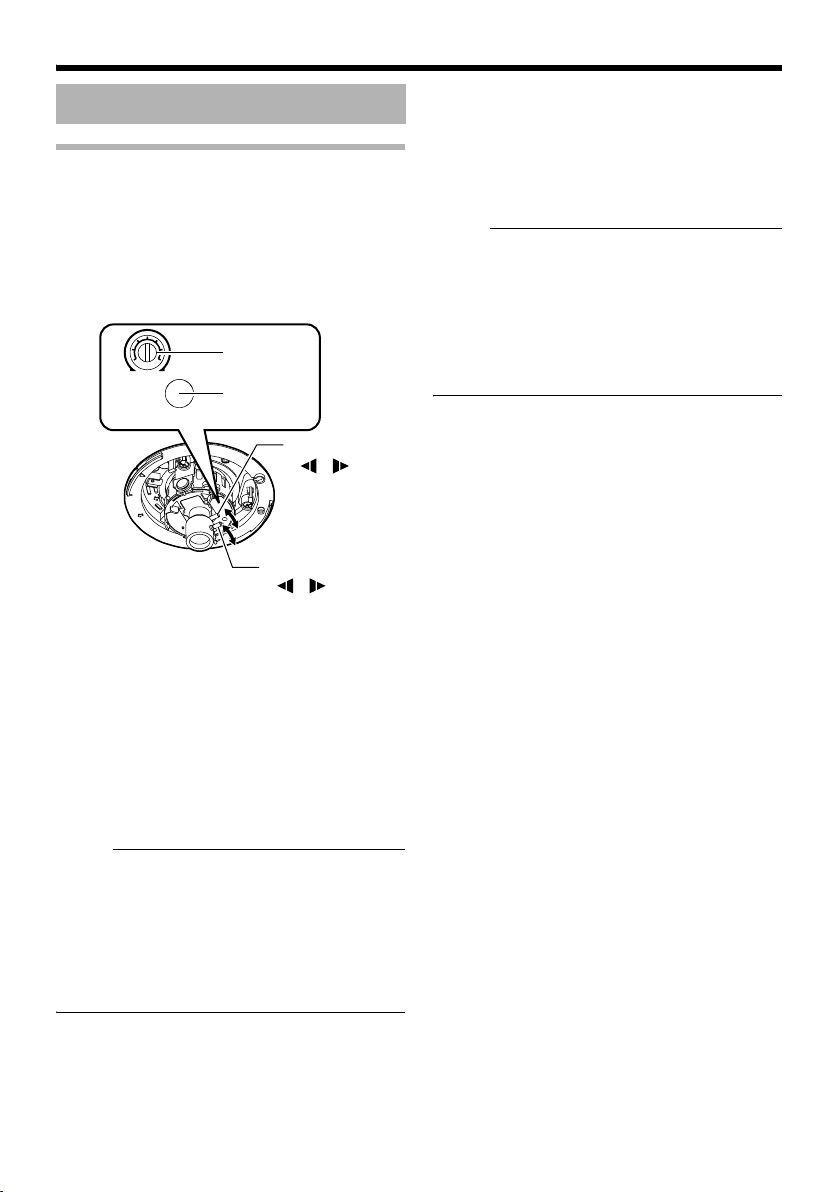

Adjusting the field angle/focus/

brightness ................................................. 20

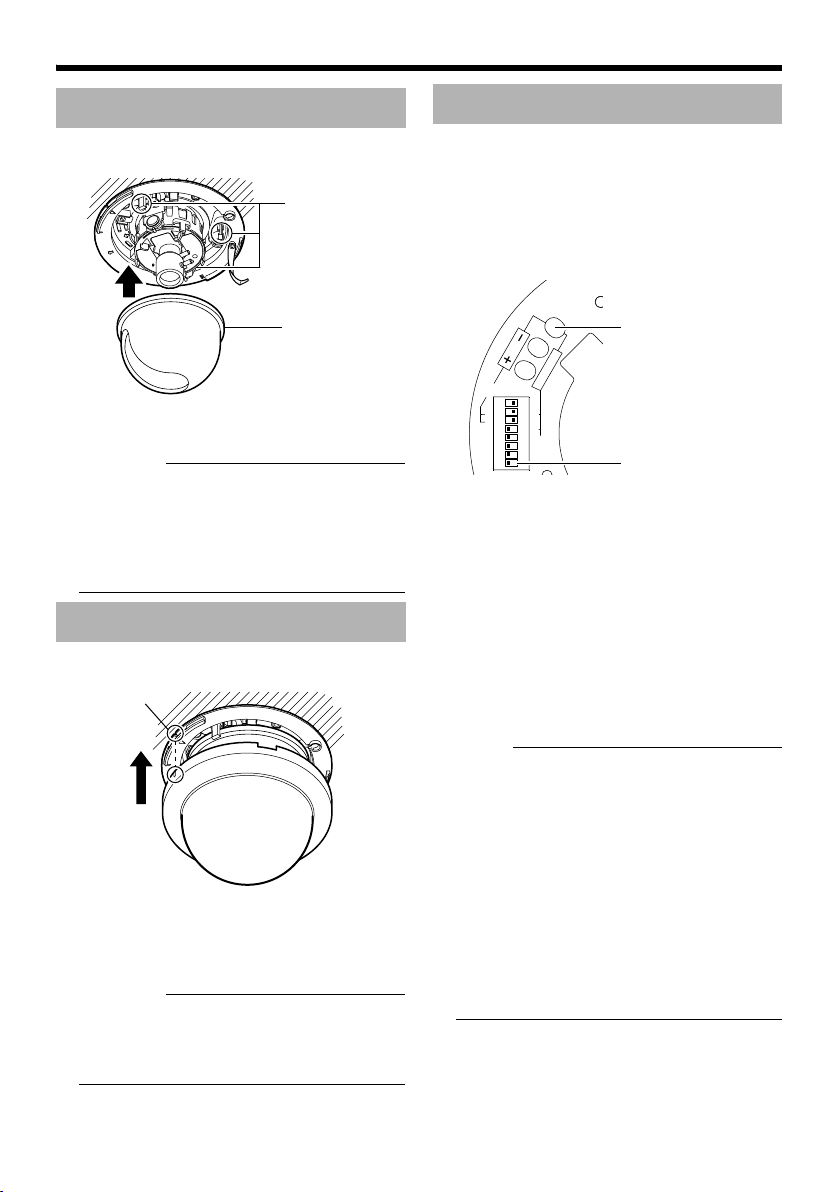

Mounting the Inner Dome ............................. 21

Mounting the Dome Cover ...........................21

White-spot correction ...................................21

Others

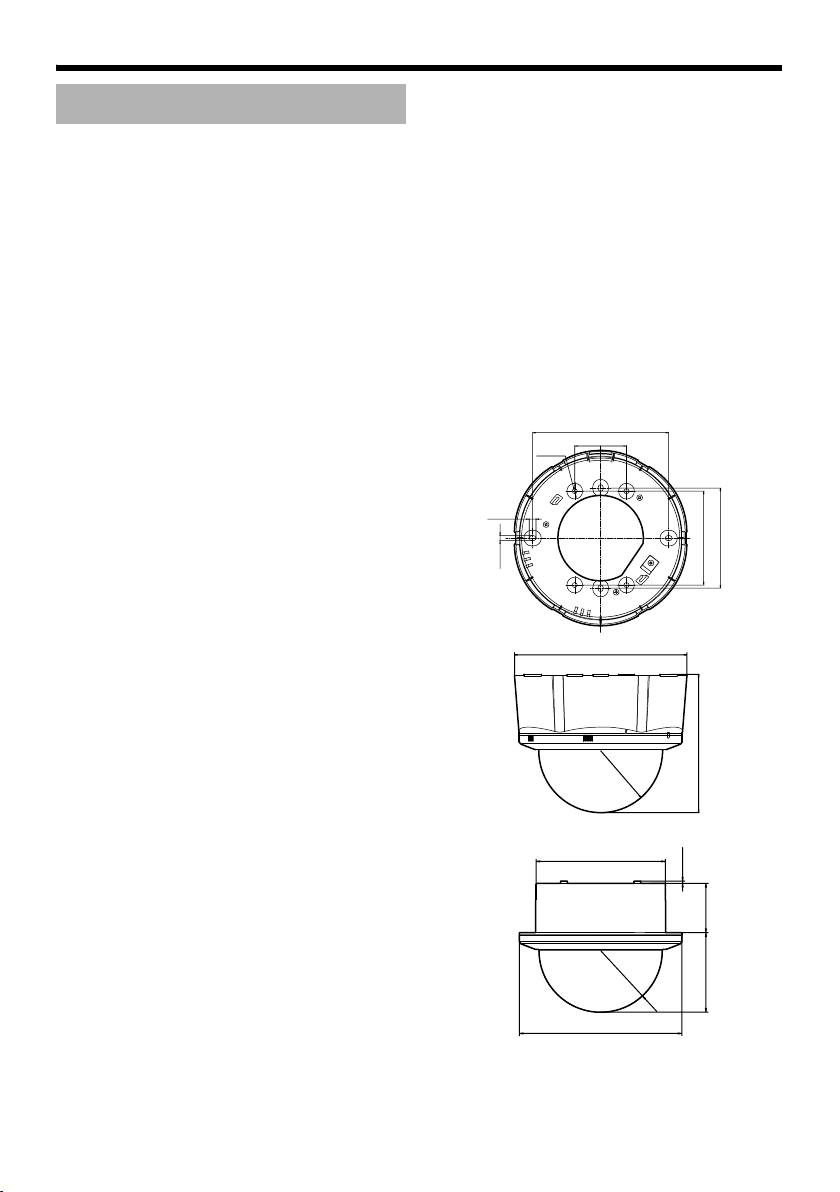

Specifications ............................................... 22

Operating Precautions

䢇 To save energy, when it is not being used turn

the system’s power off.

䢇 This camera has been designed for indoor

use. It cannot be used outdoors.

䢇 Do not install or use the camera in the

following places.

● In a place exposed to rain or moisture.

● In a place with vapor or oil soot, for example in

a kitchen.

● In a temperature outside the operating

temperature range (-10 f to 50 f).

● Near a source of radiation, X-rays, strong

radio waves or magnetism.

● In a place where corrosive gasses are

generated.

● In a place subject to vibration.

● In a place with excessive dirt.

● In an environment where there is cold air or

near the air outlet of an air conditioner.

䢇 If this camera and the cables connected to

this camera are used where there are strong electromagnetic waves or where there is magnetism present, for example near a radio or TV transmitter, power transformer or an electric motor, the picture may produce noise and the colors may be affected.

䢇 This camera incorporates an AGC circuit. As a

result, when it is used under low light conditions, the camera sensitivity is automatically boosted and the picture may look uneven. This is not a malfunction however.

䢇 When this camera is used in the ATW mode,

the recorded colors may be slightly different from the actual colors due to the operational principles of the auto-tracking white balance circuit. This is however not a malfunction.

䢇 If a high-intensity object (such as a lamp) is

shot, the image on the screen may have vertical lines (smear) or blur (blooming) at its periphery. This is a characteristic of the CCD, and is not a defect.

䢇 Observe the following when carrying out

camera maintenance.

● Turn the power OFF before proceeding to

carry out maintenance.

● Clean the dome cover lens using a lens wiper

cloth (or a tissue). If it is contaminated seriously, clean the contaminated part with a cloth (or a tissue) which has been soaked in a solution of water and a neutral detergent.

䢇 If the DAY/NIGHT switch is turned on, the

mode changes automatically to black and white in dark places. As the sensitivity increases, the image may look grainy and white spots may appear. When changing modes, bright portions of image may be emphasized but this is not a failure of the camera.

䢇 When the supply voltage of the camera is low,

the input protection circuit within the camera may be triggered and the power of the camera may turn off automatically. Make sure to use a supply voltage for the camera that is within 10 % of the rated voltage.)

䢇 When the camera is moved from a cold area

to room temperature, condensation may occur causing the camera to malfunction as a result. In this case, turn on the power after waiting for a few hours.

䢇 This unit enlarges the rotation angle to

support wide range set up. For TK-C215V4 , when the zoom of the lens is set to WIDE end and the tilt angle is set around ±80⬚,the dome cover can be visible into the image depending on the rotation angle. In this case, adjust the image angle if necessary. (A pg. 19)

䢇 All Interconnecting Equipment must be UL

Listed.

Introduction

Name of Parts

Camera

I H

G B

Mounting hole (elliptical) x 4

Use these when mounting the camera to the electrical box. (A pg. 18)

NOTE:

When installing the camera onto the electric box, install it using the supplied adaptor ring.

B Mounting hole (round) x 4

Use these when mounting the camera to the ceiling or wall. (A pg. 14, 16)

C Outer Case

Use this in the following cases:

● When mounting the camera directly to the

ceiling or on the wall. (A pg. 16)

● When mounting the camera to the electrical

box. (A pg. 18)

D Dome Cover

The dome cover is fragile. Take care when handling it.

A B

E Inner Dome

Before mounting the camera, remove it and perform switch setting and image angle setting. (A pg. 14, 16)

F Wiring Hole

Break and use this when drawing the cable from the camera unit without drilling a hole in the ceiling. (A pg. 18)

G Input Power cable

DC 12 V Input: Red (+12 V), Black (GND) AC 24 V Input: Non-polar. (A pg. 12)

H Protection Cover

Upon connecting the coaxial cable, protect it by insulating the metal part of the BNC connector from the ceiling structure.

I Video signal output connector (BNC)

(A pg. 12)

+ 16 hidden pages
