JVC TK-C205VPU, TK-C205VPUA Quick Manual

FIXED COLOR DOME CAMERA

Super LoLux

TM

0.9

lx

Super LoLux

TM

0.7

lx

(in B&W Mode)

(in Color Mode)

TK-C205VPU

(

(AC 24V/DC 12V)

Simple to Install Dome Camera with Vandal­Resistant Construction and Super High
Resolution

)

A



Outdoor-ready Vandal-Resistant Structure (complies with IP66) built to
withstand shock, rain or extreme temperatures

 Simple to install with built-in ceiling mechanism
 1/4" High resolution IT CCD with 380,000 effective pixels
 540 TV lines of horizontal resolution
 Easy day/night function: Chroma on/off
 Super LoLux sensitivity: 0.9 lx F1.2 (Color mode), 0.7 lx F1.2 (B&W mode)
 Signal-to-Noise ratio: 50dB
 Revolutionary integrated 10-bit digital signal processor

 All normal adjustments accessible on face of camera with front cover

 Built-in variable focal length auto iris lens (f = 2.6 mm to 6.0 mm)

removed

 Full-featured security camera

● Additional monitor video output (RCA) for easy camera setup

● Automatic gain control (AGC) on/off

● Auto tracking white balance (ATW) and manual modes: 2,300K to

10,000K

● Easy focus adjustment

● Backlight compensation on/off

● Sync systems INT/Line lock

● AC 24 V/DC 12 V power supply
 New inner cover to mask the direction of the camera
 Optional heater allowing you to use in various weather conditions

Vandal-resistant dome camera with 540 TVL resolution and Lolux sensitivity

More reliable than ever, this rugged high-resolution dome

$

camera features a tough vandal-resistant housing and new inner
cover to mask the direction of the camera, plus optionally
available heater to prevent condensation. Add convenient
features such as Easy Day/Night and easy focus adjustment, and
you’ve got a versatile surveillance camera ideal for service
indoors or out.

Outdoor-ready Vandal-Resistant* Structure (complies with IP66) built to withstand
shock, rain or extreme temperatures

With a solid die-cast aluminum base and silicon processed dome cover, this camera’s enclosure is
based on an original JVC design that meets the most rigorous standards for protection. Designed
to handle just about anything, this durable enclosure can withstand a hard hit from a hammer with
barely a scratch and its IP66 rating means it can be safely installed outdoors without worrying
about the weather. So, from accidental shocks to deliberate assaults or extreme weather, this
rugged camera is ready for anything.

*Vandal-Resistant: The rugged die-cast aluminum body has the shock absorption capability necessary to absorb a standard level
shock wave.

Built-in revolutionary digital signal processor (DSP)

JVC’s innovative Digital Signal Processor automatically adjusts camera parameters to ensure sharp
and natural pictures with 540 TVL of horizontal resolution and high performance.

1/4" High resolution IT CCD with 380,000 effective pixels

TK-C205VPU(A) comes with a 1/4" interline transfer CCD for accurate color reproduction and
signal-to-noise ratio of 50 dB (AGC off).

Easy day/night function

TK-C205VPU(A) automatically uses color mode when the subject is bright, and B&W mode when it
is very dark. In B&W mode, AGC is always active to achieve high performance even in low light
situations.

Automatic gain control (AGC)

With super LoLux sensitivity, as ambient light level falls, automatic gain control (AGC) increases the
camera’s sensitivity to 0.9 lx (Color mode).

Manual or automatic white balance (ATW)

For flexibility of operation in a wide range of environments the white balance can be set manually
or can be automatically adjusted in real time by the Automatic tracking white balance (ATW)
function over a range of 2,300K to 10,000K.

Easy focus adjustment

When the focus adjustment switch [FOCUS ADJ. - ON/OFF] is set to ON, focus adjustment is
possible in extreme environments with the iris opened. Enhanced focusing accuracy enables
optimum focus to be obtained even in the dark.

^

&

^

)

(

Specifications

 CAMERA

Signal system NTSC
Image device 1/4" IT CCD
Number of effective pixels 380,000 pixels, 768 (H) x 494 (V)
Sync system Internal, Line lock
Video S/N 50 dB (AGC off, typical)
Horizontal resolution 540 TV lines (Typical)
Minimum

illumination
(Typical) B&W mode 0.7 lx (F1.2, AGC on, 25% video, Easy D/N)

White balance ATW/Manual (switchable)
ATW Color temperature range (2,300K to 10,000K)
Backlight compensation ON/OFF (Switchable)

 LENS

Focal length 2.6 mm to 6 mm (Variable)
Max. aperture ratio F1.2 to F1.8
Angle of vision f = 2.6 mm, 82° (H) x 59° (V)

Angle adjustment range Horizontal: 350°, Vertical: +80°, -50°

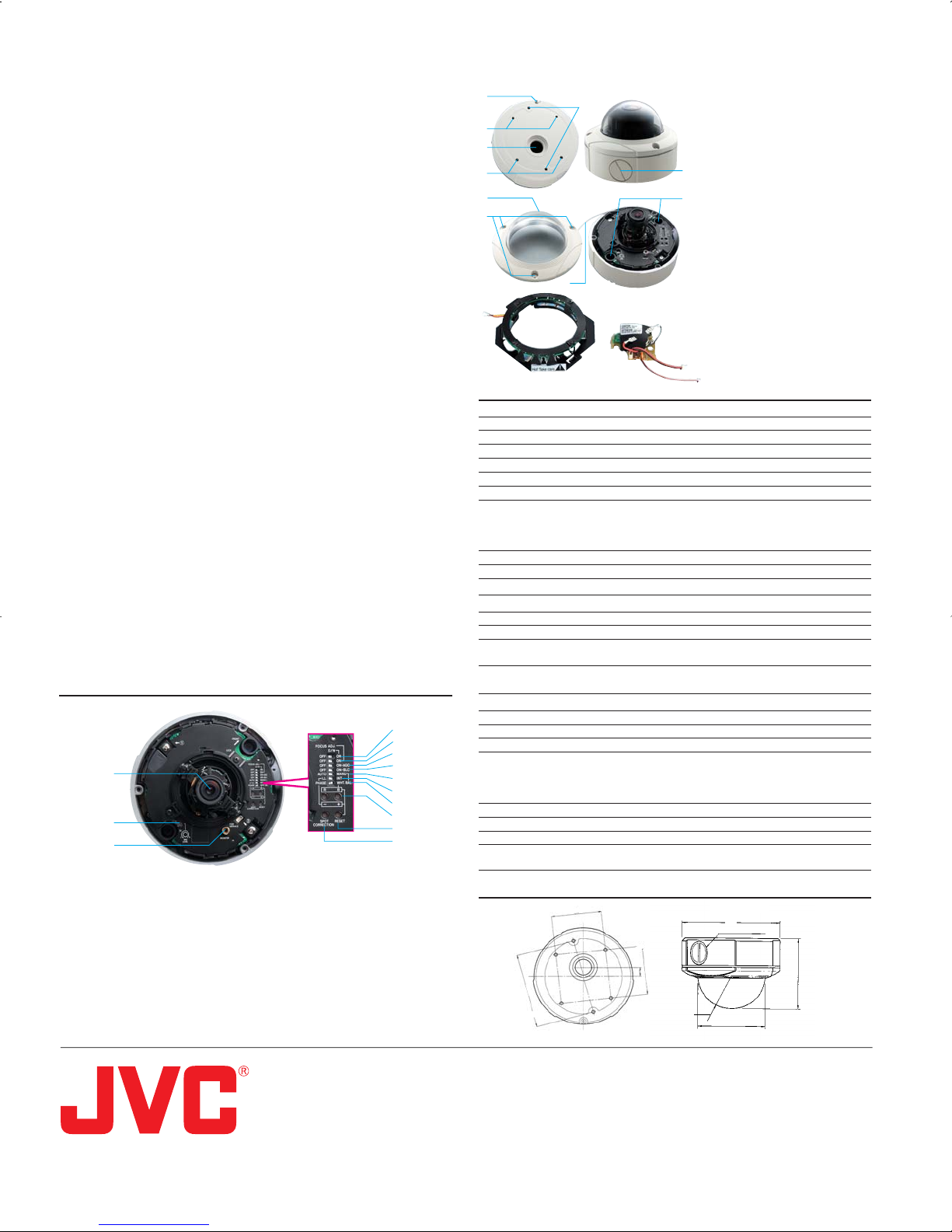

Controls, connectors and indicators

 GENERAL

Power supply AC 24 V (50/60 Hz), DC 12 V
Power consumption 4.2 W, 19.2 W (When using optional heater)
Weight 2.9 lbs. (1.3 kg)
Operating temperature 14° F to 122° F (-10° C to 50° C)

Weather resistance IP66, NEMA4
Regulatory standards FCC Part 15, Class A, ICES-003, UL2044
Dimensions ø6-5/16" x 4-9/16" (H) (ø160 mm x 115.2 mm (H))

Accessories

Dimensions

1

2

3

1 Camera head/lens
2 [IRIS LEVEL] Iris level adjustment

knob

3 MONITOR terminal (RCA pin)
4 [D/N - ON/OFF] Easy day/night

switch

5 [FOCUS ADJ. - ON/OFF] Focus

adjustment switch

6 [AGC - ON/OFF] Auto gain control

switch

7 [BLC - ON/OFF] Backlight

compensation switch

4
5
6
7
8
9
0
!
@
#

8 [AUTO/MANU] Auto/Manual selection

switch for white balance

9 [INT/LL] Synchronization system

selection switch

0 [WHT.BAL/PHASE] Adjustment

selection switch

! [R/B, +/-] Adjustment button
@ [RESET] Reset button
# [SPOT CORRECTION] White spot

correction button

%

Bottom

$ Safety cable installation screw
% Mounting holes (for mounting to

^ Mounting holes (for mounting to

*

& Conduit hole

Side

* Conduit plug & hole

w

To p

( Tamper resistant screws
) Dome cover
q Drop prevention wire
w Mounting holes

q

KA-H205U heater unit (option)

Prevents condensation even when
temperatures drop below freezing.

Color mode 0.9 lx (F1.2, AGC on, 25% video)

2.0 lx (F1.2, AGC on, 50% video)

1.3 lx (F1.2, AGC on, 50% video, Easy D/N)

f = 6 mm, 35° (H) x 26° (V)

Tilt: ±15°

32° F to 104° F (0° C to 40°C) (Recommended)
40° F to 122° F (-40° C to 50° C) with optional heater

-22° F to 104° F (-30° C to 40° C) with optional heater (Recommended)

Instructions x 1, Instruction precautions x 1, Warranty card x 1,
Service information card x 1, Wrench x 1, Silica gel x 1, Template x 1

)

0

(8

6

/1

-3

3

3-3/16 (80)

4-13/16 (121)

5/8 (15)

SR2-1/8 (53.7)

the electrical box)

the ceiling)

ø6-5/16 (160)

Cnduite Hole ø3/4 (ø19.1)

ø4-1/4 (107)

Unit: inches (mm)

4-9/16 (115.2)
