JVC TK-C1530U, TK-C1531EG, TK-C925U, TK-C925E, TK-C926EG User Manual

...

COLOR VIDEO CAMERA

TK-C1530U/E TK-C1531EG

TK-C925U/E TK-C926EG

: Only for TK-C1530U/E and TK-C1531EG

INSTRUCTIONS

TK-C1530U/E, TK-C1531EG : LST0459-001B TK-C925U/E, TK-C926EG : LST0450-001B

FOR USA

These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances.

IMPORTANT SAFEGUARDS

Read all of these instructions.

Save these instructions for later use. All warnings on the product and in the operating instructions should be

adhered to. Unplug this appliance system from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the appliance

manufacturer as they may cause hazards. Do not use this appliance near water - for example, near a bathtub,

washbowl,kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Do not place this appliance on an unstable cart,

stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

This appliance should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

For added protection for this product during a lightning storm, or when

10.

it is left unattended and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3125A

Do not allow anything to rest on the power cord. Do not locate this

11.

appliance where the cord will be abused by persons walking on it.

Follow all warnings and instructions marked on the appliance.

12.

Do not overload wall outlets and extension cords as this can result in

13.

fire or electric shock. Never push objects of any kind into this appliance through cabinet slots

14.

as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

Do not attempt to service this appliance yourself as opening or

15.

removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this appliance from the wall outlet and refer servicing to

16.

qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water.

If the appliance does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

e. If the appliance has been dropped or the cabinet has been damaged.

When the appliance exhibits a distinct change in performance - this indicates a need for service.

When replacement parts are required, be sure the service technician

17.

has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Upon completion of any service or repairs to this appliance, ask the

18.

service technician to perform routine safety checks to determine that the appliance is in safe operating condition.

Introduction

Safety Precautions

FOR USA AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

:TOREDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash wish arrowhead symbol, within an equilateral triangle isintended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure thatmay be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert theuser to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT:

POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTROCUTION, NE PAS EXPOSER L'APPAREIL A L'HUMIDITE OU A LA PLUIE.

INFORMATION (FOR CANADA) RENSEIGNEMENT (POUR CANADA)

This Class B digital apparatus complies with Canadian ICES-003.

INFORMATION FOR USA

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

CHANGES OR MODIFICATIONS NOT APPROVED BY JVC COULD VOID USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Cet apparéil numerique de la Classe B est conforme à la norme

NMB-003 du Canada.

Introduction

Safety Precautions (continued)

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-oflife. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be

Attention:

This symbol is only valid in the European Union.

Erklärung zum Rauschen (für die Bundesrepublik Deutschland): Maschinenlärminformations-Verordunung 3. GPSGV, 06.01.2004: Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gamäß EN ISO 7779

Due to design modifications, data given in this instruction book are subject to possible change without prior notice.

Wegen Entwurfsmodifikationen ist es möglich, dass die in dieser Anleitung gegebenen Daten ohne vorherige Ankündigung geändert werden.

caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

f you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

POWER SYSTEM

Connection to the mains supply This unit operates on voltage of 220 V to 240 V AC, 50 Hz/60 Hz.

CAUTION

To prevent electric shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan Limited.is: JVC Technology Centre Europe GmbH P. O.Box 100552 61145 Friedberg Germany

Sehr geehrter Kunde, sehr geehrte Kundin,

dieses Gerät stimmt mit den gültigen europäischen Richtlinien und Normen bezüglich elektromagnetischer Verträglichkeit und elektrischer Sicherheit überein.

Die europäische Vertretung für die Victor Company of Japan, Limited ist: JVC Technology Centre Europe GmbH Postfach 100552 61145 Friedberg Deutschland

䢇 The unit is to be powered by a DC12 V or an AC24 V power supply. 䢇 The unit is to be powered by a UL Listed DC12 V or an ACD24 V power supply. 䢇 The AC24 V and 12 V DC power supply shall conform to the following: Class 2 only

(For USA), Isolated power supply only (For Europe).

䢇 This installation should be made by a qualified service person and should conform to

all local codes.

Introduction

Thank you for purchasing this product. (These instructions are for TK-C1530U/E and TK-C1531EG.) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.

Features

䡵 Realizing a High Picture Quality

This camera realizes 540 TV lines (standard) and S/N50 dB (standard) by employing a highly sensitive CCD with 380,000 pixels (TK-C1530U) or 440,000 pixels (TK-C1530E/TK-C1531EG) and a high-resolution video processing circuit.

䡵 Day/Night surveillance

When the light is low, the camera automatically switches to high-sensitive mode (B&W mode) to allow for day/night surveillance.

䡵 CRT/LCD monitor compatible

This camera is compatible for both CRT/LCD monitors. You can make settings that are easier to view according to the type of monitor used.

䡵 Realizing sharper video images

The S.E.C (Smart Edge Control) function allows you to take sharper images.

How to read this manual

䡵 Conventions and symbols Note :Indicates operating precautions.

Memo :Indicates reference data regarding limitations on functions,

A :Indicates a reference page or item.

● JVC holds the copyright to this manual. Any part or all of this manual may

not be reproduced without prior consent from the company.

● Product names of other companies described in this manual are

trademarks or registered trademarks of the respective companies. Symbols such as 姠, 姞 and 姝 are omitted in this manual.

● Design, specifications and other contents described in this manual are

subject to change for improvements without prior notice.

䢇 Before starting an important recording, be sure to perform a test recording

in order to confirm that a normal recording is possible.

䢇 We do not accept liability for the loss of a recording when recording is not

properly performed due to a problem in the video camera, VTR or video tape.

䢇

We do not accept liability for any damage to the camera in cases where it is dropped because of bad installation due to failure to observe the installation instructions correctly. Please be careful when installing the camera.

usage and the like.

Contents

Introduction

Safety Precautions ....................................................................................... 4

Features ....................................................................................................... 8

Contents ....................................................................................................... 9

Operating Precautions ............................................................................... 10

Name of Parts and their Functions ............................................................ 12

Setup

System Example ........................................................................................ 17

Flow for Connection/Settings ..................................................................... 19

Mounting the lens ....................................................................................... 20

Connecting the back panel ........................................................................ 22

Mounting the camera ................................................................................. 25

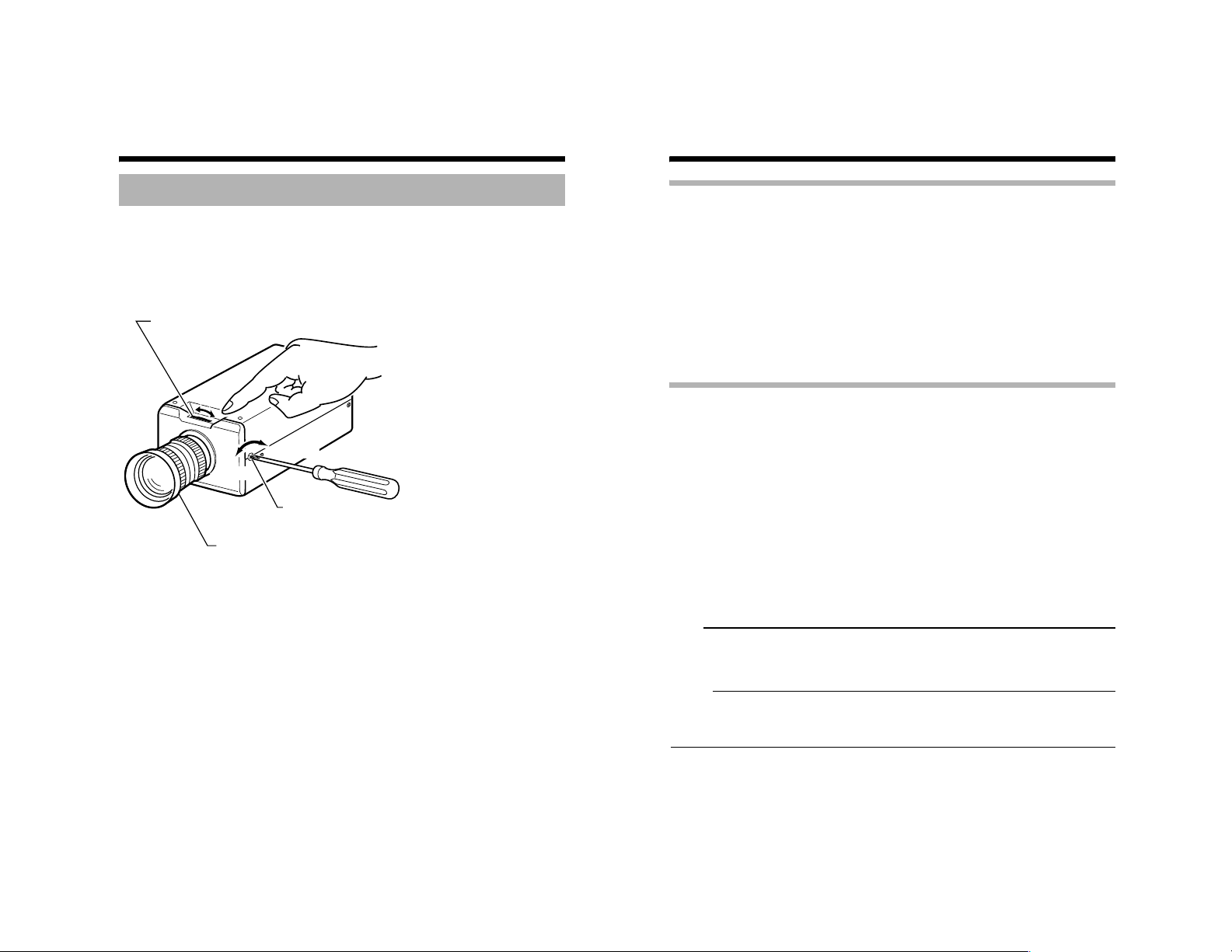

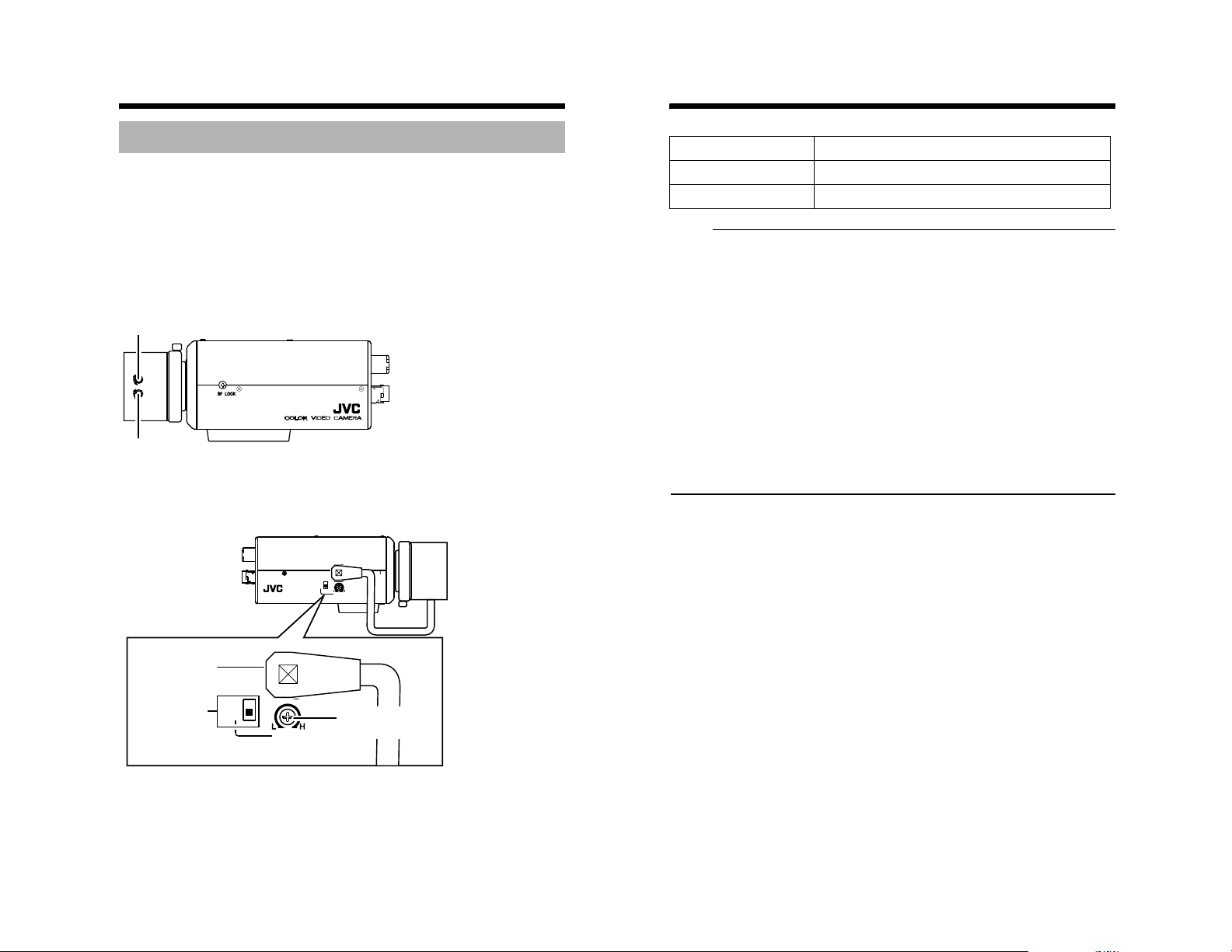

Adjusting the back focus ............................................................................ 28

Adjusting the lens ....................................................................................... 30

Adjusting the auto white balance ............................................................... 32

Setting

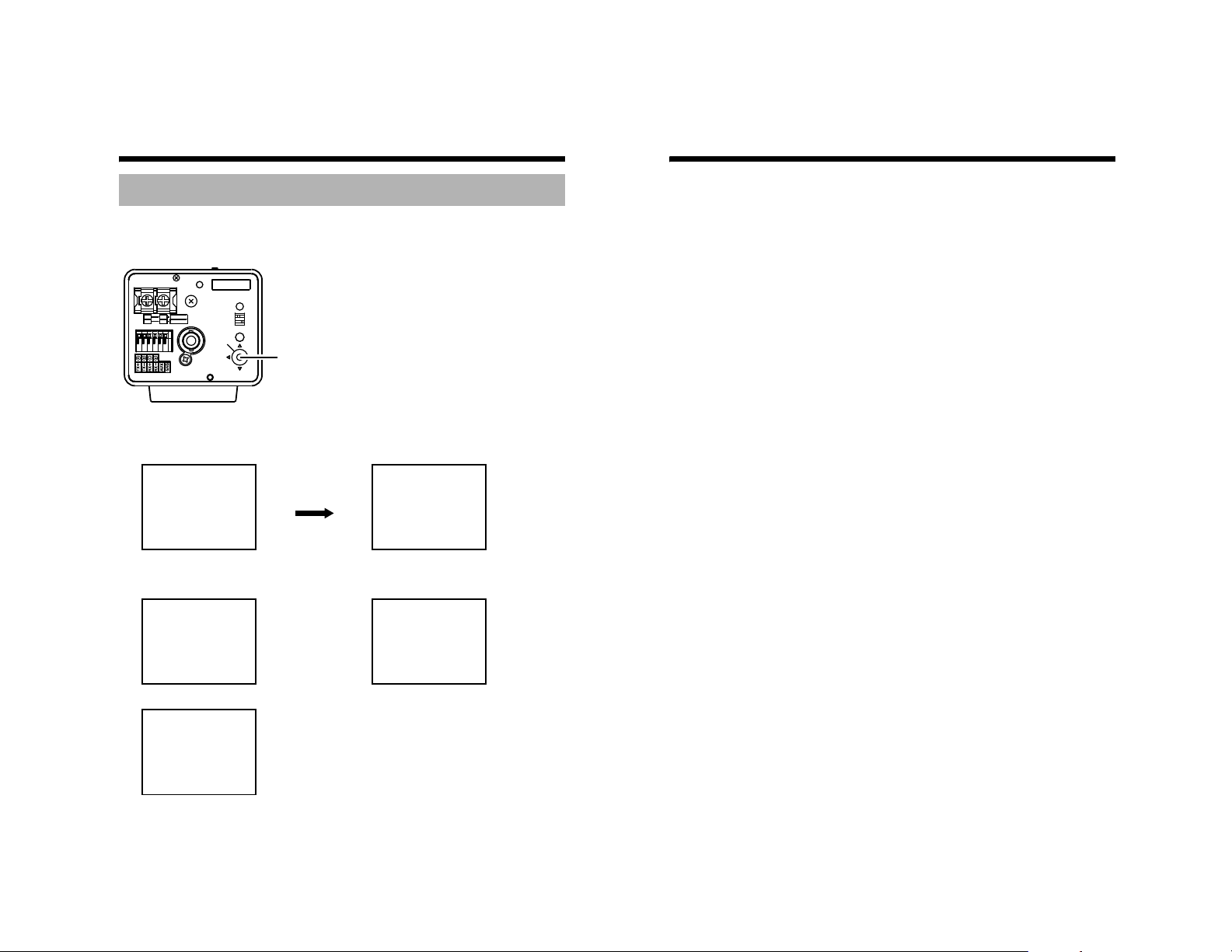

Menu basic operation ................................................................................. 34

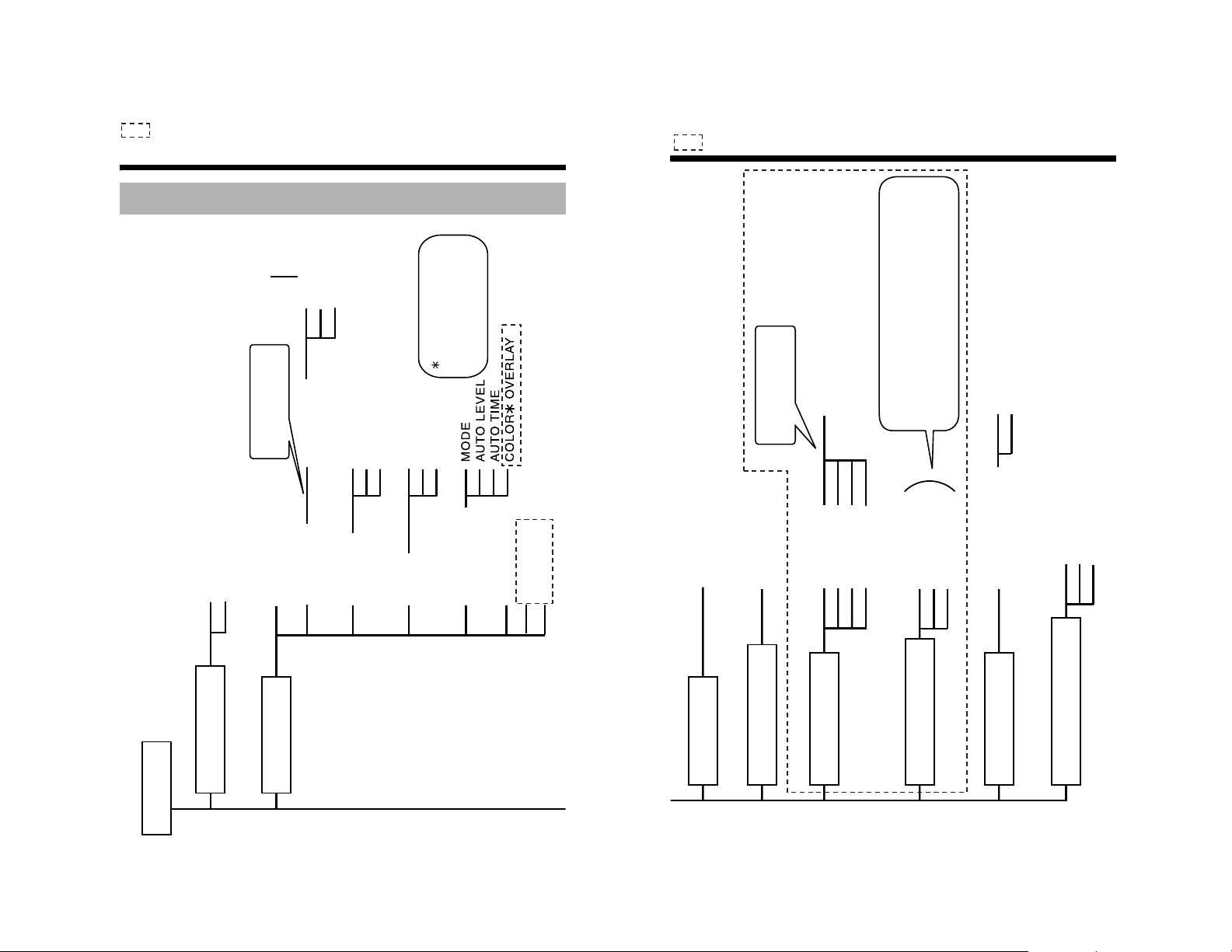

The flow of menu screen ............................................................................ 36

AUX FUNCTION screen ............................................................................ 38

TITLE/VIDEO screen ................................................................................. 39

DISPLAY screen ........................................................................................ 49

LL ADJUSTMENT screen .......................................................................... 49

PRIVATE MASK screen ............................................................................. 50

COMMUNICATION screen ........................................................................ 51

MAINTENANCE screen ............................................................................. 52

FACTORY SETTING screen ...................................................................... 53

Detailed setting

Camera title setting .................................................................................... 54

Manual adjustment of white balance .......................................................... 56

Output of B&W/Color switching signal ....................................................... 58

Control by B&W/Color switching signal from external ................................ 60

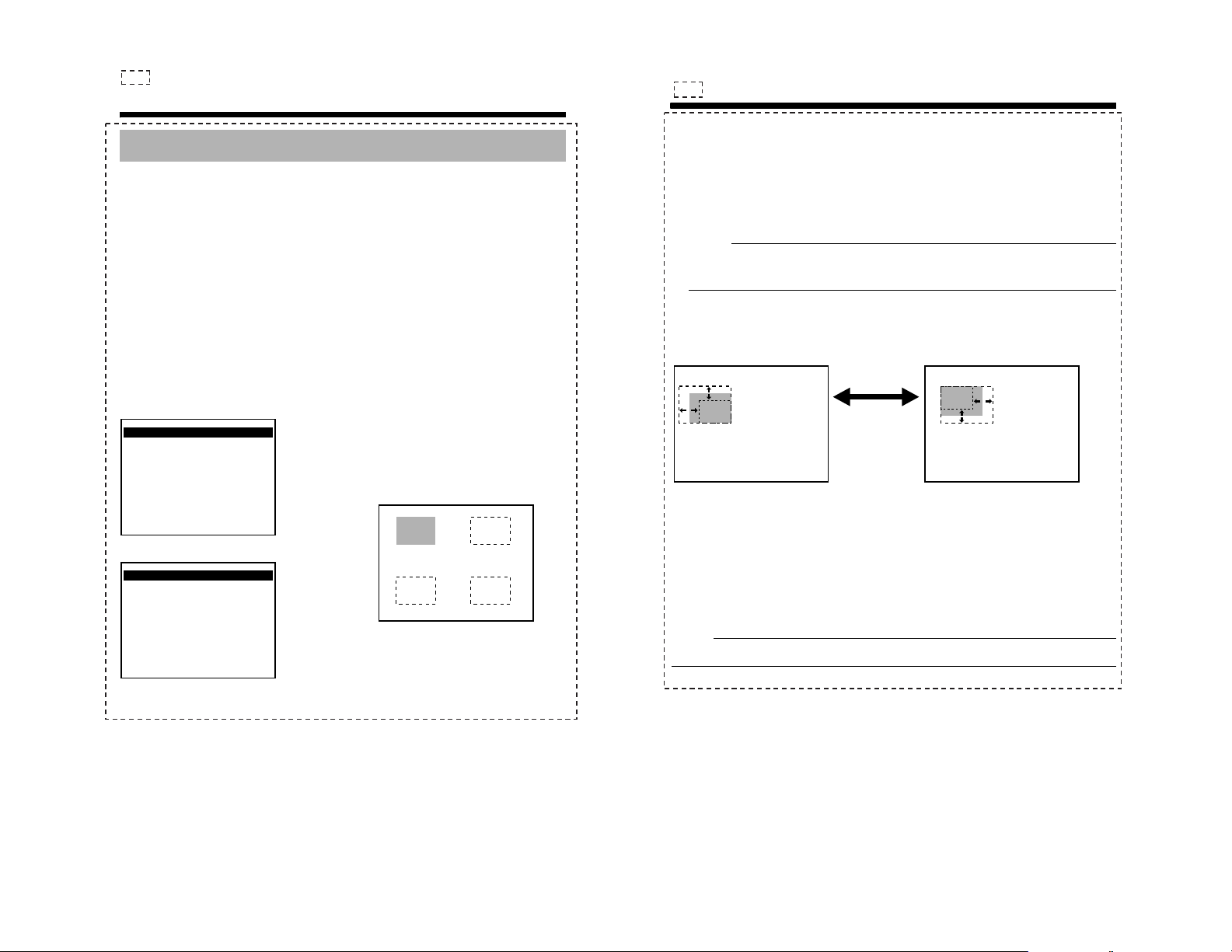

Private mask setting ................................................................................... 62

Scene file function ...................................................................................... 64

Others

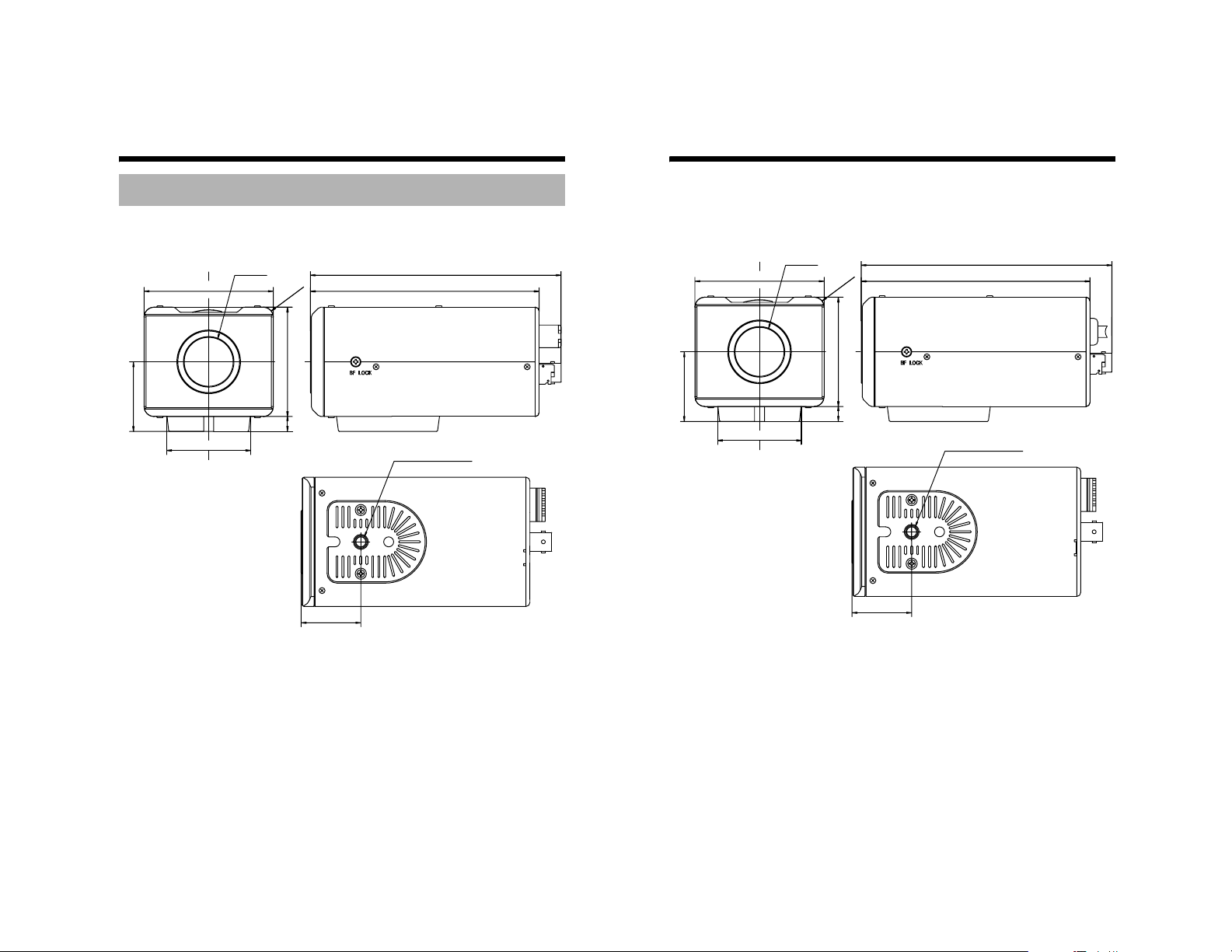

Specifications ............................................................................................. 66

Introduction

: Only for TK-C1530U/E and TK-C1531EG

Operating Precautions

Storage and Location of Use

䢇 This camera has been designed for indoor use. When you use it outdoors,

be sure to use a housing or the like.

䢇 Do not install or use the camera in the following places.

● In a place exposed to rain or moisture.

● In a place with vapor or oil, for example in a kitchen.

● When the ambient temperature rises above or falls below the acceptable

range (from -10 I to 50 I)

● In a place at which corrosive gases are emitted.

● Near a source of radiation, X-rays, strong radio waves or magnetism.

● In a place subject to vibration.

● In a place with excessive dirt.

䢇 Using this unit or cables connected to this unit at places at which strong

radio waves and magnetism are emitted (e.g. near a radio, TV, transformer or motor) may give rise to noises in the image and changes in its color.

Maintenance

䢇 Tu rn off the power before performing maintenance. 䢇 Clean the camera with a soft cloth. Wiping it with thinner or benzene may

melt the surface or cause it to fog. For tough stains, wipe using a cloth that is dipped into a neutral detergent diluted with water, followed by wiping with a dry cloth.

Energy Conservation

䢇 When the camera is not in use for a long time, turn off the power of the

system for safety and energy conservation reasons.

Others

䢇 This camera comes with a built-in AGC circuit. The sensitivity increases

automatically at a dark place and the screen may appear grainy. This is not a malfunction.

䢇 While the AGC is activated, if a transceiver which causes strong

electromagnetic wave is used near the camera, the picture may suffer from beat.

䢇 Please use the camera more than five meters from such transceivers. 䢇 Yo u may hear some noise during power on and when the screen is

switched between the color and the black and white mode, because of the movement of the optical filter switching motor. Also, the image will be somewhat distorted.

䢇 The beat may sometimes appear on the screen if gain is raised when the

line lock is in use, but the phenomenon takes place due to the fluctuation of power frequency and is not a malfunction.

䢇 When the COLOR OVERLAY is turned AONB, there may be an increase in

the color noises or changes in the colors. When such symptoms occur or when infrared illumination is used, set COLOR OVERLAY to AOFFB (black and white).

䢇 When this camera is used in the White Balance ATW (automatic tracking)

mode, the color tone may differ slightly from the actual color due to the principle of the automatic tracking white balance circuit. This is not a malfunction.

䢇 If a high brightness object (such as a lamp) is shot, the image on the

screen may have white vertical tailings. This is a characteristic of the CCD known as the smear phenomenon and is not a malfunction.

䢇 When a high brightness object is shot, sometimes undulations can be

observed on the vertical lines of the object. However, this phenomenon is peculiar to the camera and is not a malfunction.

䢇 Caution for operating the VIDEO IRIS lens

If the LEVEL dial of the VIDEO IRIS lens is set to a low level (L position), a malfunction - such as the hunting phenomenon where the iris opens and closes involuntarily - can occur. In such a case, first set the LEVEL dial on the lens to the H position, and then adjust it to an optimum level while checking the video signal.

䢇 The cable stopper on the terminal block can come off sometimes.

Therefore, be sure to take enough time and fix the cable securely.

䢇 This camera achieves optical performance by using specified lens (1/3

inch size) conformed to CCD size. However, some general lens may not meet this specification (effective image circle is small or optic displacement is big). When such lens are used, negative effects such as shading may occur.

Introduction

Name of Parts and their Functions

Front/Bottom/Side panel

This ring switches between back focus adjustment and lens mounting method. When adjustment is required, loosen the back focus fastening screw J by turning it anti-clockwise. After the adjustment, tighten the fastening screw by turning it clockwise. This camera is factory-adjusted to a suitable position with CS-mount lens. (A Pg. 28)

IRIS

VIDEO

LEVEL

Back focus adjustment ring

B Lens Mount

To attach the lens. This is suitable for CS-mount lens (1/3 size) or C-mount lens (1/3 size). (A Pg. 20)

C Camera-mounting bracket fixing screws (x2: M2.6 x 6 mm)

Be sure to use a 6 mm long screw.

Note:

● Do not use a screw that is longer than the specified length. It may damage

the internal par ts.

D [IRIS] Iris Terminal

This is connected to an automatic iris control lens.

E [VIDEO,DC] Iris Selector Switch

This should be set according to the type of lens if an automatic iris control lens is used.

VIDEO : In case of lens with EE amp built-in DC : In case of lens without EE amp built-in (Default setting: DC)

(A Pg. 20)

F [LEVEL] Iris Level Adjustment Dial

This adjusts the iris level of the automatic iris control lens. Usually, adjustment is not required. When it is necessary, adjust the iris level according to the condition of the object. (A Pg. 30)

To d a rken : Anti-clockwise direction (Towards L) To b r ighten : Clockwise direction (Towards H)

G Rotation-preventive hole

Make use of this rotation-preventive hole to prevent any fall when mounting the camera. Always make sure that the camera is securely mounted.

H Camera-mounting screw hole (1/4-20UNC)

Use this hole when mounting the camera onto a fixer, pan/tilt unit and the like. Use a screw shorter than 7 mm. (A Pg. 25)

Note:

● Do not use a screw that is longer than the specified length. It may damage

the internal par ts.

I Camera-mounting bracket

The bracket has been attached on the bottom of the camera before shipment. It can also be attached on the top according to the circumstance. (A Pg. 26)

J [BF LOCK] Back focus fastening screw

This serves to fix the back focus adjustment mechanism. (A Pg. 28)

Introduction

: Only for TK-C1530U/E and TK-C1531EG

Name of Parts and their Functions (continued)

Back panel

䡵 TK-C1530/TK-C925

S R

Q P

O N

CLASS 2ONLY(U TYPE) ISOLATEDPOWER ONLY(E TYPE)

‑

DC12V d

AC24V H

VIDEO OUT

SEE INSTRUCTION

MANUAL

POWER

INT LL

SET

SELECTOR

ONRX TERM-OFF

䡵 TK-C1531EG/TK-C926EG

VIDEO OUT

SEE INSTRUCTION

MANUAL

POWER

INT LL

SET

SELECTOR

ONRX TERM-OFF

P O

K [AC24V,DC12V] Power input terminal

To connect to AC 24 V or DC 12 V power supply. (A Pg. 22)

L [TX+ ,TX- ,RX+ ,RX- ] Control signal connection terminal

Te rminal for inputting or outputting signals with electrical characteristics conforming to the EIATIA RS-422A or RS-485 standard.

M [AUX,GND] External terminal

This terminal is for the input/output signals that are set in the AUX MODE of the AUX FUNCTION screen. (A Pg. 38)

● This terminal also outputs the B&W/Color signal. [Open-collector L signal.

Maximum voltage 25 V, current 30 mA]

● When switching B&W/Color using the control signal, the signals are input

through this terminal. [B&W: MAKE, Color: BREAK]

● When switching scene files using the control signal, the signals are input

through this terminal. (SCENE A and SCENE B only) (A Pg. 64)

N [VIDEO OUT] Video signal output connector

This connector outputs a composite video signal. Connect this to the video input connector of a video monitor, switcher and the like.

O [SELECTOR/SET] Selector switch/Set button

This allows user to select menu screens and change or confirm settings. (A Pg. 34) Press the SELECTOR switch up (J) and hold for 1 second to set to [FOCUS ADJUST MODE] and open the lens iris for easy focusing. (As the depth of object field is lower, focus can be adjusted accurately.)(A Pg. 28)

P [MENU] Menu button

When pressed, a menu screen is brought up. (A Pg. 34)

: Only for TK-C1530U/E and TK-C1531EG

Introduction

: Only for TK-C1530U/E and TK-C1531EG

Setup

Name of Parts and their Functions (continued)

[RX TERM-OFF,ON/INT,LL] Function Selector Switch

䢇 [RX TERM-OFF,ON] RX Signal Terminal ON/OFF Switch

This sets whether or not the signal between RX+ and RX- from the

C D

control signal connection terminals L should be terminated at the value of 110K resistance.

ON : Terminated at 110K. OFF : Not terminated at 110K. If the system including the camera is the MULTIDROP (Multi DROP, RS-485)

system, only the last camera mounted along the control signal cable is set to AONB and the other cameras are set to AOFFB. (In the case of the MULTIDROP system, it is necessary to set the MACHINE ID.) If the system including the camera is the P TO P (Point to Point, RS-422A) system, set this switch of all the cameras to AONB. To switch between communication systems, use the item STYLE on the COMMUNICATION screen. (A Pg. 51) (Default setting: ON)

䢇 [NT,LL] Selector Switch for Synchronizing System

This switch sets the synchronizing system for the camera. INT : This is set for internal synchronization (INT). LL (Line Lock) : This is set to synchronize the camera’s vertical

synchronization to the power frequency. (Default setting: INT)

R [POWER] Power indicator lamp

This lamp lights up when power is supplied to the camera.

S Mounting Screw for Fall Prevention Wire

Use this screw when mounting the fall prevention wire to this unit. (Fall prevention wire is not supplied with this product.)

Note:

● Connect the fall prevention wire to prevent this unit from falling accidentally.

T AC 2 20 V-240 V power cord

This connects the camera to a commercial AC 220 V-240 V socket.

System Example

Power Cable

Camera 1

MACHINE ID : 1 (MENU screen) RX TERM : OFF (Switch)

Camera 2

MACHINE ID : 2 (MENU screen) RX TERM : OFF (Switch)

Camera 8

MACHINE ID : 8 (MENU screen) RX TERM : ON (Switch)

LEVEL

ALC

Av Pk

DIGITAL

LEVEL

ALC

Av Pk

DIGITAL

LEVEL

ALC

Av Pk

DIGITAL

Remote control unit and etc

Memo:

● Tu rn off the power of devices to be used before connecting the cables.

● Read through the “Instruction Manual” of the devices to be used carefully

before connecting.

● For the types of connecting cables and the distances required, read

AConnecting the back panelB (A Pg.22) carefully before connecting.

● Loop connection cannot be made for control signal cables.

TK-C1530U/E : AC24 V or DC12 V TK-C1531EG : AC220 V-240V

Control Signal

Cable

Video Signal Cable

TOCAMERA DATAI/O

RX+RX-TX+TX

COM

1 2 3 4 5 6 7 8

COM

2 3 4 5 6 7

431 2 8756

2 3 4 5 6 7

9/1 10/211/3 12/4 13/514/6 15/7 16/8

VIDEOINPUT

VIDEOOUTPUT

UNIT

COM COM COM

ALARM

AUTO

CAMERA

MONITOR OUTPUT

Monitor

SERIAL-2SERIAL-1

MONITOR OUTPUT

: Only for TK-C1530U/E and TK-C1531EG

Setup

System Example (continued)

Precautions when using RM-P2580E:

When operating a system using the RM-P2580E, several cameras (up to

16) can be connected and used on one control signal cable. Consequently, an incorrect switch setting on just a single camera will cause the entire system to work incorrectly.

Confirm switch settings on the monitor screen using the following methods.

Confirm that the image from the camera to be checked is displayed on the monitor.

Tu rn ON the power of the camera to be checked.

The image is displayed on the monitor screen as shown below. (When MACHINE ID is set to A05B)

PROTOCOL : DUPLEX ID-05

Confirm that ADUPLEXB is displayed Check whether the ID is correct

Confirm that ADUPLEXB is displayed and that the ID number is correct.

Memo:

● The number should be the same as the number of the VIDEO

INPUT terminal on the back panel of the RM-P2580E connecting the camera to be checked.

If the number is wrong, set the MACHINE ID again.

Flow for Connection/Settings

Follow the procedures below to connect/set this unit. Tu rn off the power of devices to be used before connecting the cables.

step 1

Mounting the lens (A Pg. 20)

Mount the lens.

step 2

Connecting the back panel (A Pg. 22)

Connect the control signal cable, video signal coaxial cable and the like.

step 3

Mounting the camera (A Pg. 25)

Mount the camera to the mounting location.

step 4

Adjusting the back focus (A Pg. 28)

Adjust the back focus.

step 5

Adjusting the lens (A Pg. 30)

Adjust the lens.

step 6

Adjusting the auto white balance (A Pg. 32)

Memo:

● When controlling this camera with any system except the RM-P2580E,

perform proper settings using switches and menu screens according to the system used.

Setup

Mounting the lens

VIDEO

IRIS

VIDEO

COLOR VIDEO CAMERA

LEVEL

1. Check the mounting method of the lens before mounting

● This camera is set to CS-mount lens before shipment. To use a C-mount

lens, loosen the back focus fastening screw with a screwdriver, turn the back focus adjustment ring with your finger or the screwdriver and change

(a)

(b)

4 pin plug

the mounting method.

● For the dimension (a) of the lens mounting section as illustrated in the

diagram, use the value that is shown in the table below.

Note:

● Never use one that exceeds the dimension (a) as it will damage the inner

part of the camera and will not allow normal installation. This will result in a malfunction.

Lens Flange back (b) Dimension (a)

C-mount lens 17.526 mm

CS-mount lens 12.5 mm

Turn the lens clockwise and mount it securely on the camera.

For an automatic iris control lens, select the switch on the side of this camera according to the lens used.

VIDEO : When using a lens with a built-in EE amplifier DC : When using a lens without a built-in EE amplifier

In the case of an automatic iris control lens, check the pin arrangement and connect the lens cable to the socket.

䡵 4 pin plug

number

1Brake (-) 9.0 V (Max. 50 mA)

2Brake (+) NC

3Drive (+) VIDEO

4Drive (-) GND

(Without built-in EE amplifier)

DC IRIS lens

(With built-in EE amplifier)

5.5 mm or less

VIDEO IRIS lens

+ 24 hidden pages
