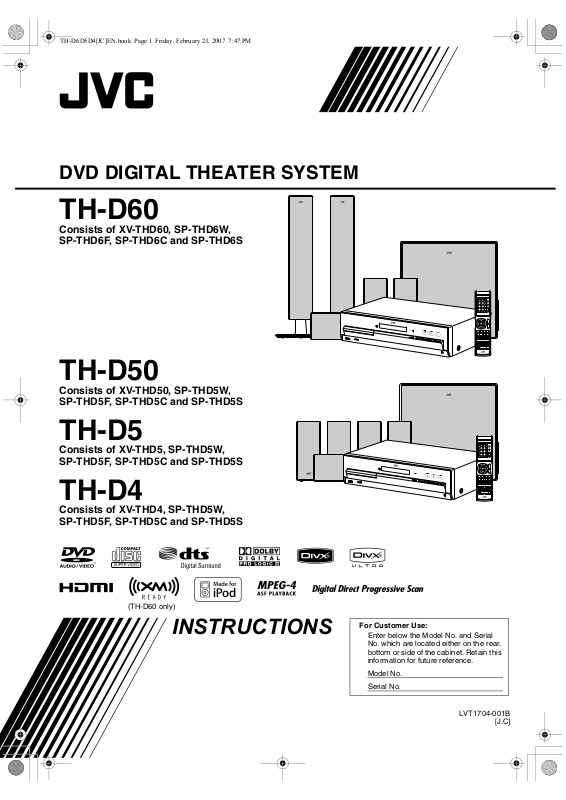

JVC THD60 User Manual

DVD DIGITAL THEATER SYSTEM

TH-D60

Consists of XV-THD60, SP-THD6W, SP-THD6F, SP-THD6C and SP-THD6S

TH-D50

Consists of XV-THD50, SP-THD5W, SP-THD5F, SP-THD5C and SP-THD5S

TH-D5

Consists of XV-THD5, SP-THD5W, SP-THD5F, SP-THD5C and SP-THD5S

TH-D4

Consists of XV-THD4, SP-THD5W, SP-THD5F, SP-THD5C and SP-THD5S

(TH-D60 only)

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1704-001B

[J,C]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

CAUTION — button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The button in any position does not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.

• When the system is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

ATTENTION — Touche

Déconnectez la fiche d’alimentation secteur pour couper l’alimentation complètement (le témoin STANDBY s’éteint). Lors de l’installation de l’appareil, assurez-vous que la fiche soit facilement accessible. La touche , dans n’importe quelle position, ne déconnecte pas le système du secteur.

• Quand le système est en attente, le témoin STANDBY est allumé en rouge.

• Quand le système est sous tension, le témoin STANDBY s’éteint.

L’alimentation peut être télécommandée.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTEN TI O N

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

[European Union only] [Union européenne seulement]

G-1

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

For Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

Pour le Canada

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION: Do not open the top cover or cabinet. There are

no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

CAUTION:

(For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

IMPORTANT POUR PRODUITS LASER

1. PRODUIT LASER CLASSE 1

2. ATTENTION: N’ouvrez pas le couvercle supérieur ni le coffret de l’appareil. Il n’y a aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.

ATTENTION:

(Pour les Etats-Unis) Radiation laser de classe II visibles et/ou invisible si l’appareil est ouvert. Ne regardez pas le rayon. (Pour le Canada) Rayonnement laser visible et/ou invisible de classe 1M une fois ouvert. Ne pas regarder directement avec des instruments optiques.

4. REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE DE PRÉCAUTION PLACÉE À L’INTERIEUR DE L’ AP PA R EI L .

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

ATTENTION!

Pour éviter toute blessure personnelle ou toute chute accidentelle de l’appareil, celui-ci doit être déballé, transporté et installé par deux personnes.

CAUTION:

Excessive sound pressure from earphones or headphones can cause hearing loss.

ATTENTION:

Une pression acoustique excessive des écouteurs ou du casque d’écoute peut entraîner une perte auditive.

TH-D60: 30.7 kg/68 lbs

TH-D50/TH-D5/TH-D4: 23.7 kg/53 lbs

G-2

How to read this manual

• Illustrations and button names of the TH-D60 are mainly used for explanation.

• The following icons and illustrations are used to make the explanations simple and easy-to-understand.

Icons for System operations

Operations from the center unit

Operations from the remote control

The function can be operated from the on-screen bar ( 21).

Icons for the references and notes

Reference page for the function/ operation

Caution for the function/operation

Note for the function/operation

Tip for the function/operation

Icons for operating information

The function is available while playing.

The function is available while paused.

The function is available while stopped.

There is a time limit on performing the target operation.

Illustrations for button operations

Press the button briefly.

Press the button repeatedly.

«Hold

Press and hold the button.

Press button A, then press button B.

Hold

Press button B while holding button A.

Table of contents

Before using this System ............................................... 2

Playable discs/devices/files............................................ 3

Playable disc types ...................................................... 3

Playable digital devices............................................... 3

Playable file types ....................................................... 4

Getting started............................................................... 5

Checking the supplied accessories .............................. 5

Putting batteries into the remote control ..................... 5

Connecting the speakers and subwoofer ..................... 5

Speaker layout............................................................. 6

Connecting the antennas..............................................7

Connecting a TV .........................................................7

Connecting external components ................................ 8

Connecting the AC power cord ...................................9

Basic and common operations.................................... 10

Sound and monitor settings........................................ 12

Sound settings and adjustments.................................12

Scanning mode setting............................................... 14

Disc/file playback ........................................................ 15

Basic playback........................................................... 15

Using the disc menu .................................................. 17

Locating a desired scene or song............................... 17

Changing the playback mode .................................... 18

Advanced operations ................................................. 19

Special playback for DVD Audio.............................. 20

Operation from the TV screen................................... 21

Personal settings .......................................................... 23

XM Satellite Radio operations ................................... 25

Preparations............................................................... 25

Manual tuning............................................................ 26

Preset tuning.............................................................. 26

Changing the channel information ............................26

FM/AM tuner operations............................................ 27

Manual tuning............................................................ 27

Preset tuning.............................................................. 27

Selecting the FM reception mode.............................. 27

iPod playback .............................................................. 28

Operating external components................................. 29

Setting the manufacturer’s code................................29

Operating external components................................. 29

References .................................................................... 30

Manufacturer’s code list ............................................ 30

Language code list..................................................... 30

Messages and icons shown on the TV and display ... 31

Troubleshooting......................................................... 31

Specifications ............................................................ 33

Before using this System

Precautions

There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

Notes on installing the System

• Select a location which is level, dry and neither too hot nor too cold between 5°C and 35°C (41°F and 95°F).

• Do not install the System in a location subject to vibrations.

• Do not put heavy objects on the System.

Avoid moisture, water, dust, and high temperatures

• Do not install the System in moist or dusty locations.

• If water gets inside the System, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using the System in this state may cause a fire or electrical shock.

• Do not expose the System to direct sunlight or place it near a heating device.

To prevent malfunctions or damage to the System

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the System.

• Do not block the vents.

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

• Disconnect the power cord before cleaning or moving the System.

• Do not modify, twist or pull the power cord, or put anything heavy on it. Doing so may cause fire, electric shock, or other accidents.

About copyright laws

Observe the copyright laws in your country before recording from original sources. Recording of copyrighted material may infringe copyright laws.

About the copyguard system

The discs are protected by the copyguard system. When connecting the System to a TV via a VCR, or to a TV with a built-in VCR, the copyguard system activates and distortion of the picture may occur.

Notes on installing and using the speakers

• Place the speakers and subwoofer on a flat and level surface.

• The speakers are magnetically shielded to avoid color distortions on TVs. If the color on a TV is distorted, perform the following procedure: – Turn off the TV’s main power switch or unplug it

before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power

switch again. Some TVs may still be affected even though you have followed the above procedure. If this happens, move the speakers away from the TV.

• The subwoofer is not magnetically shielded. To avoid color distortion, do not place it near the TV or monitor.

• When moving the speakers and subwoofer, do not pull the speaker cords. Doing so may cause the speakers and/or subwoofer to fall over, causing damage or injury.

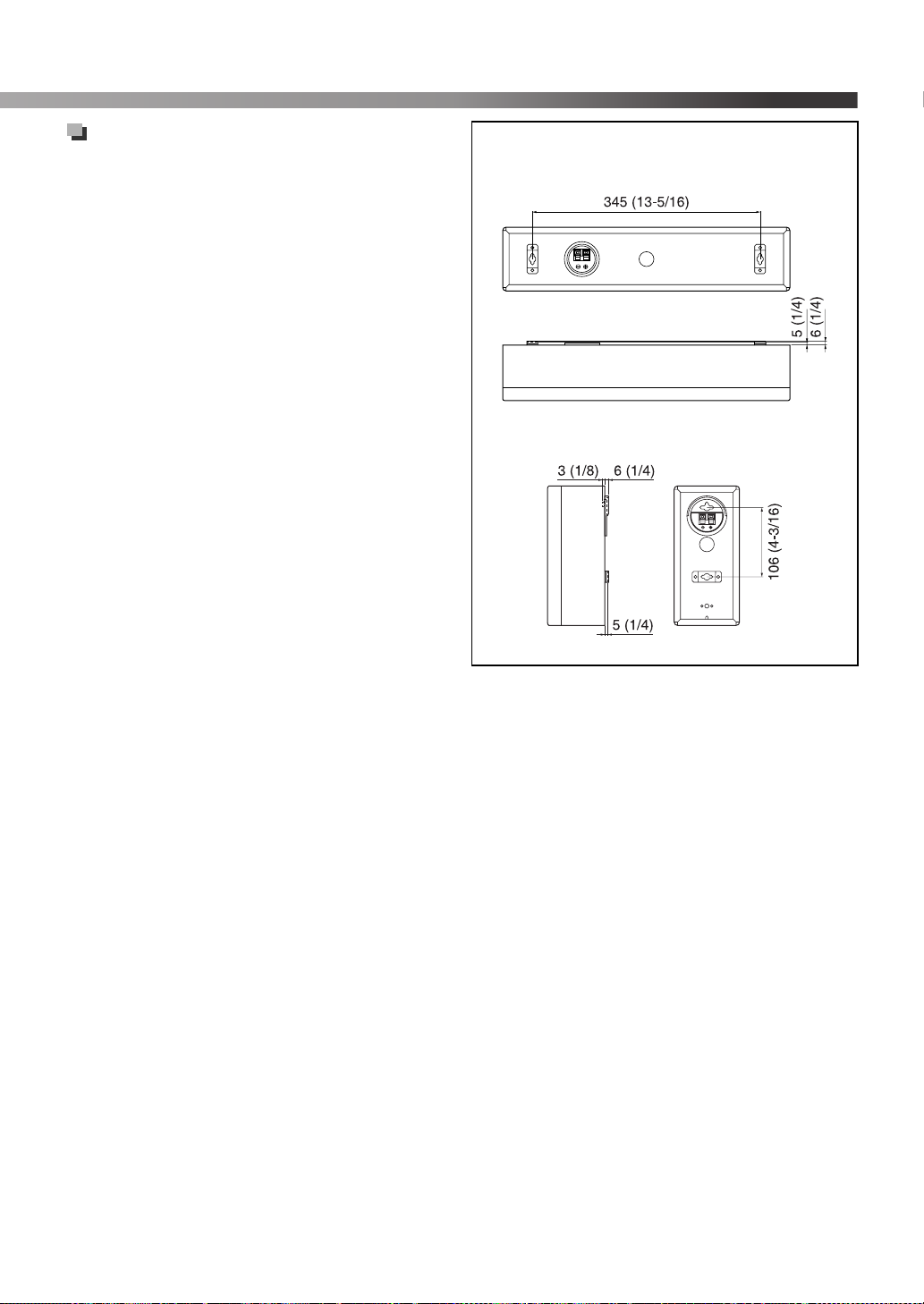

• When installing the speakers on a wall, be sure to have them installed by qualified personnel. DO NOT install the speakers on a wall by yourself.

• Do not lean against the speakers, as they could fall down or break, possibly causing an injury. Be especially careful that children do not lean against them.

About the adjustment of volume

Always set the volume to the minimum level before starting any source. If the volume is set at a high level, the sudden blast of sound could permanently damage your hearing and/ or blow out the speakers.

To clean the System

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• If the System is heavily stained, apply a small amount of water or neutral detergent to the cloth and wipe clean, then wipe with a dry cloth.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

Playable discs/devices/files

Some discs/files may require operations that differ from those explained in this manual. Some discs/devices/files may not be recognized or played back correctly due to their characteristics.

Playable disc types

Type of disc Types of media

• Discs on the market

DVD Video

DVD Audio

Super Video CD (SVCD)/Video CD (VCD)

Audio CD

A disc recorded in the DVD VR format

Audio/video files on a disc ( 4)

This System accommodates the NTSC system, and also can play discs/files recorded with PAL system. Note that an PAL video signal on a disc/file is converted to the NTSC signal and output. It is possible to play back finalized +R/+RW (DVD Video format only) discs. “DVD” lights on the display panel when a +R/+RW disc is loaded. DVD-R/-RW: This System does not support “multiborder” discs. CD-R/-RW: – This System supports “multi-session” discs (up to

20 sessions).

– This System cannot play “packet write” discs.

Region code of DVD Video

DVD Video players and DVD Video discs have their own Region Code numbers. This system can play back DVD Video discs whose Region Code numbers include “1.”

Ex.:

• DVD-R/-R DL/-RW

•+R/+RW

• DualDisc* (DVD side only)

• Discs on the market

• DVD-R/-R DL/-RW

•+R/+RW

• Discs on the market

• CD-R/-RW

• Discs on the market

• CD Text (Audio part only)

• CD-R/-RW

•DVD-R/-RW

• DVD-R/-R DL/-RW in UDF Bridge format

• CD-R/-RW in ISO 9660 format

Unplayable discs—unwarranted

Playing back the following discs generates noise and damages the speakers.

• DVD-ROM, DVD-RAM, DualDisc* (non-DVD side)

• CD-ROM, CD-I (CD-I Ready), Photo CD, SACD

• Unfinalized discs (except DVD VR)

• Discs with an irregular shape or discs with tape, stickers or paste on either the label side or playback side

• Warped, dirty, or scratched discs

The Non-DVD side of a “DualDisc” does not comply with

the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Playable digital devices

JVC bears no responsibility for any loss of data in an iPod and/or USB mass storage class device while using this System.

iPod

iPod model AUDIO VIDEO

iPod nano 1GB/2GB/4GB √

iPod nano (2nd Generation) 2GB/4GB/8GB

iPod mini 4GB/6GB √

iPod (4th Generation) 20GB/40GB

iPod photo (4th Generation) 20GB/30GB/40GB/60GB

iPod video (5th Generation) 30GB/60GB/80GB

* Only still pictures are available.

If the iPod does not play correctly, update your iPod software to the latest version. For details about updating your iPod, check on the Apple web site <http://www.apple.com>.

USB mass storage class device

A USB flash memory device, hard disk drive, multimedia card reader, digital camera, etc. can be used with this System through a USB connection.

This System is compatible with USB 2.0 Full-Speed. This System cannot recognize a USB mass storage class device whose rating exceeds 5 V/500 mA.

√

√√ *

√√

Playable file types

The following files in a disc or a USB mass storage class device can be played back.

Type of file Playable files Extensions

MP3 <.mp3>

Audio

Picture JPEG <.jpg>, <.jpeg>

Movie

If a file on a USB mass storage class device exceeds the following conditions, it may not be played back correctly: – Maximum data transfer rate: 2 Mbps – Maximum frame rate: 30 fps for progressive – Maximum file size: 2 GB The System recognizes up to 150 tracks (files) per group, and 99 groups per disc/device. The total number of tracks (files) that the System can detect is

4000.

Information about the recording conditions for the files on a disc/ device

MP3/WMA files

• The System supports MP3/WMA files recorded at a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz,

22.05 kHz, 24 kHz*, 32 kHz, 44.1 kHz, or 48 kHz.

• It is recommended to record each file at a sample rate of

44.1 kHz and at a data transfer rate of 128 (96*) kbps.

* For WMA only

WAV files

• The System supports WAV files recorded at a quantization rate of 8 or 16 bit and a sampling frequency of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, or 48 kHz.

• It is recommended to record each file at a sample rate of

44.1 kHz and at a quantization rate of 16 bit Linear PCM.

WMA <.wma>

WAV <.wav>

ASF <.asf>

MPEG-1 <.mpg>, <.mpeg>

MPEG-2

DivX (6.x, 5.x,

4.x and 3.11)

<.mpg>, <.mpeg>, <.mod>

<.divx>, <.div>, <.avi>

JPEG files

• It is recommended to record a file at 640 x 480 resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a longer time to be displayed.)

• This System can only play baseline JPEG files.

ASF files

• The System supports MPEG-4 files with the following conditions: File format: ASF Visual profile: MPEG-4 SP (Simple Profile) Audio CODEC: G.726 Max. picture size: 352 x 288 (CIF) Max. bit rate: 384 kbps

MPEG1/MPEG2 files

• The stream format should conform to the MPEG system/ program stream.

• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.

• This system also supports resolutions of 352 x 576/480 x 576/352 x 288 pixels (25 fps) and 352 x 480/480 x 480/ 352 x 240 pixels (30 fps).

• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or MPEG2 Audio Layer-2.

DivX files

• The System supports DivX files whose resolution is 720 x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

• Audio stream should conform to Dolby Digital (including multi-channel) or MPEG1 Audio Layer-3 (MP3).

• The System does not support GMC (Global Motion Compression).

• Files encoded in the interlaced scanning mode may not be played back correctly.

r /

Getting started

Checking the supplied accessories

If anything is missing, contact your dealer immediately.

• Remote control (x 1)

• Batteries (x 2)

• FM antenna (x 1)

• AM loop antenna (x 1)

• Composite video cord (x 1)

• Connector for iPod – TH-D60/TH-D50: Docking station for iPod (x 1) – TH-D5/TH-D4:

Connection cable for iPod (x 1) Stand for iPod (x 1)

• Speaker cords: 3 m (10 ft) (x 4), 8 m (26.3 ft) (x 2)

•Feet – TH-D60: For surround speakers (x 8) – TH-D50/TH-D5/TH-D4: For front and surround

speakers (x 16)

• Screws (TH-D60 only): M5 x 85 mm (3-3/8 inches) (x 6)

Putting batteries into the remote control

R03 (UM-4)/AAA (24F) type dry-cell batteries (supplied)

Connecting the speakers and subwoofer

Center unit

Speaker cords:

: 3 m (10 ft) : 8 m (26.3 ft)

To front right speaker (SP-THD6F/SP-THD5F)

To surround right speaker (SP-THD6S/SP-THD5S)

If you connect speakers other than those supplied for the System, use speakers of the same speaker impedance (SPEAKER IMPEDANCE) indicated on the rear of the center unit. DO NOT connect more than one speaker to one speaker terminal.

To center speake

(SP-THD6C/SP-THD5C)

To front left speaker

(SP-THD6F/SP-THD5F)

To subwoofe

(SP-THD6W

SP-THD5W)

To surround left speaker (SP-THD6S/SP-THD5S)

Do not expose batteries to heat or flame. If the range or effectiveness of the remote control decreases, replace both batteries.

Connecting the speaker cords

Connect the speaker cords both to the center unit and to each speaker.

On the center unit:

Speaker cord

On the speaker:

Speaker cord

• Connect the black cords to the r terminals.

• Connect the white cords to the q terminals.

Do not connect the power cord until all other connections have been made.

Attaching the base plates—required for the SPTHD6F only

Connect the speaker cord.

Route the speaker

This side should face the front.

Use the supplied screws (M5 x 85 mm/3-3/8 inches) to attach the base plate to the speaker.

cord.

Speaker layout

You can enjoy surround sound by placing the speakers as illustrated (Speaker layout A or B).

Speaker layout A

Select “S.SPK R” as the speaker position mode for this layout. ( 12)

Center (C)

Front left (L)

Front right (R)

Subwoofer (SW)

Speaker layout B

Select “S.SPK F” as the speaker position mode for this layout. ( 12)

Subwoofer (SW)

Surround left (SL)

Front left (L)

Place the surround speakers close to the center speaker. It is recommended to place the surround speakers horizontally (see below).

When placing the speakers horizontally

Lay the speakers horizontally so that the JVC logos are positioned as illustrated below.

Ex.:

SL SR

TH-D50/TH-D5/TH-D4 only: you can also lay the front speakers as illustrated below.

Surround right (SR)

Center (C)

Front right (R)

Surround left

(SL)

Surround right (SR)

To obtain the best possible surround sound from this System, place all the speakers except the subwoofer at the same distance from the listening position. If it is impossible, adjust the delay time from DELAY menu. ( 24)

LSL SR R

TH-D60: Do not lay down the front speakers horizontally. You can turn the JVC logos to make them legible.

Attaching the feet

When placing the speakers horizontally, attach the feet to the bottom of the speakers as illustrated.

Peel off

Getting started

Connecting the antennas

XM Mini-Tuner system—TH-D60 only

XM Mini-Tuner Home Dock antenna (not supplied)

XM Mini-Tuner (not supplied)

For better reception, install the XM Mini-Tuner Home Dock antenna in the following location: – Near a south-facing window with aiming the

antenna at the sky directly – Where “Channel 1” can be heard clearly – Where the Antenna Aiming display shows a value

higher than 0 for either satellite or terrestrial signal

strength ( 25)

AM and FM antennas

Make sure the antenna conductors do not touch any other terminals, connecting cords or power cords.

AM loop antenna

(supplied)

FM antenna (supplied)

Extend it horizontally.

For better FM reception

Turn it until the best reception is obtained.

Connecting a TV

Connect the TV to the appropriate video out jacks to view the playback picture.

The picture quality order is as follows: HDMI > Component video > S-video > Composite video Make the following settings after connecting the TV: – Scanning mode ( 14) – MONITOR TYPE ( 23)

Connection using the HDMI terminal

From HDMI input

You can make the following settings for the TV when the HDMI connection is used: – HDMI DVI COLOR ( 23) – HDMI OUT ( 23) – HDMI AUDIO OUT ( 24) –DOWN MIX ( 24)* Use a certified HDMI cable, which has the HDMI logo. You can use a monitor with a DVI terminal by connecting with a DVI-HDMI conversion cable. When you play HDCP (High-Bandwidth Digital Content Protection) source, allow a few seconds for the sound and picture to be transmitted to the speakers and TV while the confirmation process is completed. On some TV, no sound may come out during playback of sources such as DVD Audio even when the HDMI AUDIO OUT setting is “ON” ( 24).

This setting is available only when the speaker position

mode is set to “S.SPK F” ( 12).

terminal

HDMI cable (not supplied)

Standard type (75 Ω coaxial) connector

FM outdoor antenna

(not supplied)

FM outdoor antenna cord

(not supplied)

Do not connect the power cord until all other connections have been made.

Connection using the component video jacks

Green

From component video input

Component video

cord (not supplied)

Blue

Red

For the BNC connection, use a plug adapter (not supplied).

Connection using the S-video or composite video jack

Composite video cord

(supplied)

S-video cord (not supplied)

A From Composite video input B From S-video input

Align the

5 marks.

Connecting external components

Audio connection

Connecting a digital component

DBS (Direct Broadcasting Satellite) tuner, etc.

A From digital coaxial output B From digital optical output

Digital coaxial cable

(not supplied)

Digital optical cable

(not supplied)

The initial setting for the audio input setting is “COAX.” When using OPTICAL terminal, change the setting to “OPT” before playing back. ( 14)

Connecting an analog component

RCA pin plug cord (not supplied)

DVD player,

etc.

A From center channel audio output B From front left/right channel audio outputs C From subwoofer output D From surround left/right channel audio outputs

Connection for “VIDEO1”—TH-D60

Select “VIDEO1” as the source ( 11) for playing a component connected as follows.

Video connection

HDMI cable

DVD player,

etc.

No sound signal comes into HDMI VIDEO 1 IN terminal. Make audio connection to listen to the sound (see the right column).

(not supplied)

From HDMI video output

To listen to the sound from AUDIO MULTI IN jacks, perform the following procedure: – Place the speakers by following “Speaker layout

A” ( 6).

– Select “S.SPK R” as the speaker position mode.

(12) Select “5.1CH” as the audio input setting before playing back. ( 14)

Do not connect the power cord until all other connections have been made.

Connection for “VIDEO2”—TH-D60

Select “VIDEO2” as the source ( 11) for playing a component connected as follows.

Video connection

Composite video cord*

(not supplied)

VCR, etc.

A From composite video output B From S-video output

Connect an external component with the same kind of cable

as the one used to connect TV. ( 8)

Audio connection

Connecting a digital component

DBS (Direct Broadcasting Satellite) tuner, etc.

A From digital coaxial output B From digital optical output

Digital coaxial cable

(not supplied)

Digital optical cable

(not supplied)

S-video cord (not supplied)

Align the

5 marks.

Connection for “VIDEO” —TH-D50/THD5/TH-D4

Select “VIDEO” as the source ( 11) for playing a component connected as follows.

Video connection

Composite video cord*

(not supplied)

VCR, etc.

A From composite video output B From S-video output

Connect an external component with the same kind of cable

as the one used to connect TV. ( 8)

Audio connection

Connecting a digital component

Digital optical cable

DBS (Direct Broadcasting Satellite) tuner, etc.

(not supplied)

From digital optical output

S-video cord (not supplied)

Align the

5 marks.

The initial setting for the audio input setting is “OPT.” When using COAXIAL jack, change the setting to “COAX” before playing back. ( 14)

Connecting an analog component

VCR, etc.

RCA pin plug cord

(not supplied)

From audio output

Select “2CH” as the audio input setting before playing back. ( 14)

Select “OPT” as the audio input setting before playing back. ( 14)

Connecting an analog component

RCA pin plug cord

VCR, etc.

(not supplied)

From audio output

Select “2CH” as the audio input setting before playing back. ( 14)

Connecting the AC power cord

Plug in the System only after all the connections have been completed.

Available video output terminals for each source

Source

Terminal

DVD USB iPod

HDMI √√ √ COMPONENT √√ S-VIDEO √√√√ VIDEO (Composite video) √√√√

VIDEO2/

VIDEO

VIDEO1

Basic and common operations

Display

How to use the number buttons

To select 3: Press 3. To select 10: Press 10. To select 14: Press h10, 1, then 4. To select 24: Press h10, 2, then 4. To select 40: Press h10, 4, then 0. To select 114: Press h10, h10, 1, 1, then 4.

Set the remote control mode before operation.

Point at the remote sensor directly.

Listening with headphones

When the headphones is connected, the System automatically deactivates the speakers and cancels the surround mode ( 13) temporarily.

• “H.PHONE” appears on the display.

Be sure to turn down the volume before connecting or putting on the headphones.

STANDBY lamp:

• Goes off when the System is turned on.

• Lights when the System is turned off.

To change the display brightness

A TH-D60 only: XM Satellite Radio indicators

( 25)

XM: Lights when “XM” is selected as the source.

: Shows XM Satellite Radio signal strength.

CAT: Lights while selecting a channel by category.

B Digital audio signal format indicators C FM/AM tuner source indicators ( 27) D Lights when one of the surround modes is activated.

( 13)

E Frequency unit indicators for FM/AM F Source signal and speaker signal indicators

(front left), (center), (front right), (low frequency effect), (surround left), (surround right), (monaural surround): Light when the signal comes in for the digital input or when the System is ready to receive the signal for the analog input.

SW (subwoofer): Always lights. _: Lights while reproducing the channel’s sound

through the corresponding speaker.

G Speaker position mode indicators ( 12) H Lights when both the System and the TV (with HDMI

connection) are ready to communicate each other.

I Scanning mode indicators ( 14)

HD: Lights when “720P” or “1080I” is selected. PRGR.: Lights when the progressive scanning mode is

activated.

J Digital device indicators K File type indicators L Lights when the chapter (CHAP.) or track (TRK)

number is displayed.

M Lights when selecting a program number (PG) or

playlist number (PL) of a DVD VR disc by using TITLE/GROUP. ( 17)

N Special playback indicators for DVD Audio

(20)

BONUS: Lights when a bonus group is detected. B.S.P: Lights when browsable still pictures are

detected.

O FM reception mode indicators (MONO: monaural /

ST: stereo) ( 27)

P Play mode indicators (PRG: program play / RND:

random play) ( 18)

Q Lights when the System memorizes the position where

the playback is interrupted. ( 16)

R Repeat mode indicators ( 18, 21)

See page 10 for button locations.

Turning the power on or off

To turn off the System by using the sleep timer

– – (off) = 10 = 20 = 30 = 60 = 90 = 120 = 150 = 180 = (back to the beginning)

(unit: minutes)

To check the remaining time, press the button once.

Selecting the source

To do Indication

Play back a disc DVD 15

Play back a file on a USB mass storage class device

Play back an iPod IPod 28

Listen to an XM Satellite Radio*

FM, or AM station

Play back an external component

• TH-D60: VIDEO1/ VIDEO2

• TH-D50/TH-D5/ TH-D4: VIDEO

USB 15

XM*1, FM, or AM

VIDEO1*

VIDEO2*

VIDEO*

25*1, 27

Adjusting the volume

To turn off the volume instantly

“MUTING” appears on the display.

To restore the volume, press the button again, or adjust the volume level.

Prohibiting disc ejection

1 Turn off the System. 2 Lock the disc tray.

«Hold

(On the center unit)

To unlock the disc tray, perform the above procedure again. “UNLOCKED” appears on the display.

“LOCKED” appears on the display.

To select the source from the center unit

TH-D60 only

TH-D50/TH-D5/TH-D4: The FM/AM button is used instead of FM/AM/XM.

Make sure that the appropriate audio input setting have been made for the source (VIDEO1/VIDEO2 or VIDEO). ( 14)

Sound and monitor settings

As the speaker position mode is changed, the

Set the remote control mode before operation.

Sound settings and adjustments

following settings are also changed automatically: – The output level settings of the speakers and

subwoofer (see below) are initialized.

– The surround mode ( 13) is set to “AUTO

SUR.”

Adjusting the output level of the speakers and subwoofer

• When the speaker position mode is “S.SPK R”:

• When the speaker position mode is “S.SPK F”:

The items you can adjust differ depending on the selected speaker position mode (see the left column).

FRNT L = FRNT R = CENTER = SURR L = SURR R = SUBWFR = (back to the

beginning)

CENTER = SURR = SUBWFR = (back to the beginning)

Selecting the speaker position mode

Select the speaker position mode according to your speaker layout ( 6).

1 Turn off the System. ( 11)

«Hold

3 Select the appropriate speaker position mode

according to your speaker layout ( 6).

For speaker layout A

S.SPK R

• The R indicator lights on the display.

For speaker layout B

2 Adjust the output level.

Different output level settings can be stored for the following two groups of sources:

– TH-D60: DVD, USB, IPod, VIDEO1*1, VIDEO2

TH-D50/TH-D5/TH-D4: DVD, USB, IPod, VIDEO

– TH-D60: FM, AM and VIDEO1*

TH-D50/TH-D5/TH-D4: FM and AM TH-D60 only: When the source is “XM,” this adjustment is not available. You can also make adjustments from the LEVEL menu ( 24) when the speaker position mode is “S.SPK R.”

With “COAX” or “OPT” selected as the audio input setting

(14)

With “5.1CH” selected as the audio input setting

(14)

S.SPK F

• The F indicator lights on the display.

Sound and monitor settings

Adjusting the bass and treble sounds

TRE Adjusts the treble sound

BASS Adjusts the bass sound

2 Adjust the level.

Using the surround mode

Select one of the available surround modes.

The surround modes you can select depend on the playback source and the selected speaker position mode ( 12). For details on each surround mode, see “Available surround modes” on the right column.

• During 2-channel playback with “S.SPK R” speaker

position mode:

AUTO SUR = MOVIE = MUSIC = STADIUM = ALL ST = OFF = (back to the beginning)

When the source is “FM” or “AM,” you can only select “ALL ST.”

• During multi-channel playback with “S.SPK R”

speaker position mode:

AUTO SUR = currently selected mode* = OFF =

(back to the beginning)

When “AUTO SUR” is selected, the System

automatically selects a proper multi-channel surround mode, such as “DOLBY D (Dolby Digital)” or “DTS (DTS Digital Surround).”

• During playback with “S.SPK F” speaker position

mode:

AUTO SUR = MOVIE = WIDE/2CH = SUPER W = OFF = (back to the beginning)

When the source is “FM” or “AM,” the surround mode cannot be activated.

To check the surround mode currently selected, press

SURROUND once.

TH-D60 only: – When the source is “VIDEO 1” with “5.1CH”

selected as the audio input setting ( 14), the surround mode setting is ineffective. All incoming signals are emitted through the corresponding speakers. “MULTI CH” appears on the display.

– When the source is “XM,” the surround mode

cannot be changed. During playback of ASF, MPEG-2, or MPEG-1 files, the surround mode setting is ineffective. For DVD Audio, when “LR ONLY” appears on the display, activate the surround mode for the multichannel reproduction.

Available surround modes

Surround mode for “S.SPK R”

AUTO SUR (Auto Surround)

MOVIE (Dolby Pro Logic II Movie)

MUSIC (Dolby Pro Logic II Music)

STADIUM

ALL ST (All Channel Stereo)

OFF (Off) Deactivates surround mode

Surround mode for “S.SPK F”

AUTO SUR (Auto Surround)

MOVIE

WIDE/2CH For 2-channel music sources

SUPER W (Super Wide)

OFF (Off) Deactivates surround mode

Selects an appropriate surround mode according to the incoming signals

For movie sources

For music sources

Adds clarity and spreads the sound, as if in an outdoor stadium

Reproduces a larger stereo sound field using all the activated speakers

Selects an appropriate surround mode according to the incoming signals

For movie or multi-channel music sources

Reproduces broader sound field

See page 12 for button locations.

Setting the audio input for external components

Set the audio input of the external component for “VIDEO1/ VIDEO2” (TH-D60) or “VIDEO” (TH-D50/TH-D5/THD4).

Item*

Current setting

2 TH-D60 only: Select a source you want to set the

audio input for.

AIN.1 For “VIDEO 1”

AIN.2 For “VIDEO 2”

3 Select an appropriate audio input according to

the audio connection. ( 8, 9)

2CH

5.1CH

COAX

OPT

You can select the following settings for each source (underlined items are the initial settings for each source):

– “VIDEO1”: 5.1CH*

– “VIDEO2”: 2CH, COAX*3, and OPT* –“VIDEO”: 2CH and OPT If your System is the TH-D60, make the audio input setting for both “VIDEO1” and “VIDEO2.”

“AIN.1” or “AIN.2” appears on TH-D60, and “AIN.” on

TH-D50/TH-D5/TH-D4.

TH-D60 only: When the speaker position mode is set to “S.SPK F,” “5.1CH” is not selectable.

TH-D60 only: It is not possible to select the same audio input setting for “VIDEO 1” and “VIDEO 2.” For example, when “COAX” is assigned to “VIDEO 1,” it is not selectable for “VIDEO 2.”

For connection via the AUDIO IN jacks

For connection via the AUDIO MULTI IN jacks

For connection via the COAXIAL jack

For connection via the OPTICAL terminal

, COAX*3, and OPT*

Scanning mode setting

Select the scanning mode according to the type of TV and connection method.

To use the progressive mode, connect the TV to the HDMI MONITOR OUT terminal or COMPONENT jacks*1. ( 7)

1 Select “DVD” or “USB” as the source.

(11)

«Hold

3 Select an appropriate scanning mode, then

confirm the selection.

Select Confirm

480I*

1080I*

480P

720P*

AUTO*

You can get better picture quality in the following orders: – 1080I > 720P – 480P > 480I When the picture is not shown correctly, change the scanning mode to the interlaced mode. When the TV is connected through S-VIDEO or VIDEO jack, the scanning mode setting has no effect.

Activate progressive mode only when your TV supports

progressive video signals.

Selectable only when the TV is connected via COMPONENT jacks. ( 8)

Selectable only when the TV is connected via HDMI MONITOR OUT terminal. ( 7)

To see the picture in interlaced mode.

To see the picture in progressive

mode.

The System automatically emits the

video signal to get the best picture quality on your TV.

Disc/file playback

The following icons show the available disc/file types for the target function:

Initial settings

Make the following settings before playing back discs/ files.

• Scanning mode ( 14)

• MONITOR TYPE ( 23)

• ON SCREEN LANGUAGE ( 23)

Set the remote control mode before operation.

For disc playback

For playback of a file on a USB mass storage class device

Operating the touch sensor panel

You can operate the playback control buttons on the center unit simply by touching them. When you touch any one of these buttons, it lights briefly in blue.

Basic playback

Playing back a disc

1 Select “DVD” as the source. ( 11) 2 3 Place a disc on the tray.

4 Start playback.

1 Connect a USB mass storage class device while

2 Turn on the System, then select “USB” as the

(On the center unit)

Label side up

• JPEG: Slide-show playback starts.

• MP3/WMA/WAV: The file control display appears on the TV. ( 22)

When placing an 8 cm (3-3/16 inches) disc

Playing back a file on a USB mass storage class device

the System is turned off.

USB mass storage

class device

source. ( 11)

Playback starts automatically. Press 3 (play button) to start playback if the file is not played back automatically.

• JPEG: Slide-show playback starts.

• MP3/WMA/WAV: The file control display appears on the TV. ( 22)

If a still picture is displayed for about 5 minutes, the System automatically dims the screen (screen saver function). You can deactivate the screen saver function. ( 23)

When several types of files (music, picture or movie) are recorded on a disc or device, select the file type you want to play. (23)

For messages and icons appearing on the display, see “Messages and icons shown on the TV during disc/file playback” ( 31).

DO NOT connect or disconnect the device when the System is turned on. You cannot connect a computer to the USB MEMORY terminal of the System. DO NOT connect the device through a USB hub. iPod does not play through the USB MEMORY terminal. When iPod is connected to the USB MEMORY terminal, “RESTRICT” appears on the display. This System may not playback some USB mass storage class devices and does not support DRM (Digital Rights Management). Use a USB cable of less than 1 m (3.3 ft) in length.

Changing the playback information

Each time you press the button, the playback information alternates between “type A” and “type B” on the display as follows:

Ex.: When a DVD Video disc is played back.

Information type A

Chapter number

Information type B

Time information

Play/stop/pause/search

To do

Start playback

Stop playback

Pause playback

Fast-forward/fastreverse search*

To return to normal playback, press 3 (play button).

Pressing and holding 4/x also fast-forwards/fastreverses tracks or files.

Resume function

The System memorizes the position where the playback has been interrupted by one of the following operations:

• Pressing 7 once

• Turning off the power ( 11)

• Changing the source ( 11)

To resume playback, press 3 (play button) or the corresponding source button.

To clear the memorized position, press 7 twice.

• Opening the disc tray or disconnecting the USB mass storage class device also clears the memorized position.

«Hold

Title number Chapter number

Disc/ file type

Information type A Information type B

Title (T) number and chapter (C) number

Chapter number with time information*

Program (PG)

number/Playlist (PL) number and chapter (C) number

Track number with time information*

1*2

Group (G) number and track (T) number

File number

For DVD Video, DVD Audio, DVD VR, VCD, SVCD, or CD, you can change the time information mode ( 21). For MP3, WMA, WAV, ASF, MPEG1, MPEG2, or DivX, elapsed playing time is shown.

While playing a VCD or SVCD with PBC ( 17), only track number is displayed.

Group (G) number and file (F) number

This function does not work in program play and random play. ( 18) You can deactivate the resume function. (24)

Disc/file playback

Using the disc menu

For DVD Video/DVD Audio

For a DVD Video disc For a DVD Audio disc

2 Select the desired item, then confirm the

selection.

Select Confirm

For some discs, you can also select items by using the number buttons.

* TH-D50/TH-D5/TH-D4: The TOP MENU/PG button is used

instead of TOP MENU/PG/DIRECT.

For VCD/SVCD with PBC

The Play Back Control function (PBC) allows you to operate the VCD/SVCD using menus.

Select the number of the desired item while the menu is displayed on the TV.

• To move to the next or previous page

• To return to the previous menu

of the current menu

Locating a desired scene or song

Selecting the beginning of a desired scene or song

To do Disc/file

Skip chapter/track/file

Select the chapter/ track/file number*

Select the title/ program or playlist/

group number*

• Enter the number while “– –” is flashing on the display

For DVD Video, DVD VR, VCD, and SVCD discs, this function is not available while playback is stopped.

For DVD Video and DVD VR discs, you can select a title/ program while playback is stopped.

For details on using the number buttons, see “How to use the number buttons” ( 10).

When selecting the chapter/track/file number from the onscreen bar, see “Using the on-screen bar” ( 21).

Selecting the desired position of a scene or song

3 *4

To perform playback without PBC

• While playback is stopped, select the desired track by using the number buttons.*

• Select the desired track by pressing x repeatedly, then press 3 (play button).

To activate the PBC function, press TOP MENU(/PG/ DIRECT) or MENU(/PL).

While playing back a VCD or SVCD with PBC (“PBC” appears on the display), some functions such as time search, do not work.

For details on using the number buttons, see “How to use the

number buttons” ( 10).

To do Disc/file

Move the playback position back by 10 seconds (one-touch

replay)*

Skip at approximately 5-minute intervals*

1 *2

This function works only within the same title/program/file.

This function is not available during repeat play.

See page 15 for button locations.

Changing the playback mode

Program play and random play cannot be used for a USB mass storage class device.

Programing the playing order—program play

Program window

Select the desired chapters/

tracks.

• For DVD Video, DVD Audio, MP3 and WMA: Enter a title/group

number, then a chapter/track number.*

• For VCD, SVCD and CD: Enter a track number.*

To clear the programs

One by one All programs at once

«Hold

To check the program contents

To return to normal playback

Press the button repeatedly until both the program window and disappear from the TV.

To program the tracks in the bonus group on a DVD Audio disc, perform the “Playing back a bonus group” procedure ( 20) before operation. You can program up to 99 steps.

For details on using the number buttons, see “How to use the

number buttons” ( 10).

Playing at random—random play

To return to normal playback

Press the button repeatedly until both the program window and disappear from the TV.

To play the tracks in the bonus group on a DVD Audio disc during random play, perform the “Playing back a bonus group” procedure ( 20) before operation.

Playing repeatedly— repeat play

The repeat modes you can select depend on the playback discs/files.

On the display

ALL

No indication

You can repeat the desired part from the on-screen bar (A-B repeat). ( 21) This function is not available when playing back a VCD/SVCD disc with PBC ( 17).

For DVD Video and DVD VR discs, this function is not

available while playback is stopped.

On the TV Meaning

REPEAT GROUP

REPEAT ALL

REPEAT TRACK, REPEAT STEP

Repeat current group

Repeat current title

Repeat current program

Repeat current playlist

Repeat all titles/ programs/tracks/files

Repeat current track

Repeat current chapter

Repeat mode is deactivated

Disc/file playback

Advanced operations

Changing the language/sound/scene angle

To do Disc/file

Select the subtitle

language*

• To show/hide the subtitle, press SUBTITLE.

Select the audio language/audio

channel*

Select the view angle

For DVD Audio, the functions take effect for the moving picture part only.

For DVD VR and SVCD discs, the subtitle indication

appears and can be changed by performing the above procedure even if no subtitles are recorded.

Some subtitle or audio languages are abbreviated in the pop-up window. See “Language code list” ( 30).

1 *2

«Hold

Special picture playback

To do

Play back frame by frame

Play back in slow-

motion*

Enlarge the picture*2 *

«Hold

• Change the scene magnification, then move the zoomed-in area.

To return to normal playback

• While playing back frame by frame or in slow-motion,

press 3 (play button).

• While zooming in the picture, select “OFF” by pressing

ZOOM repeatedly while holding SHIFT.

For DVD Audio, the functions take effect for the moving picture part only.

For DVD Video and DVD Audio, reverse slow-motion is also available by pressing

To zoom in JPEG files, pause the playback first.

On some files, using cursor (3/2/K/5) cannot move the zoomed-in area during playback.

( SLOW repeatedly.

Disc/file

See page 15 for button locations.

Adjusting the picture quality (VFP)

You can adjust the picture mode.

2 Select the desired preset, then finish the setting.

Select

NORMAL Normally select this.

CINEMA Suitable for movies

USER1/ USER2

To adjust the picture tone

You can adjust parameters that affect picture appearance. (See below.)

Finish

1 Select “USER1” or “USER2” (see above). 2 Select a parameter, then confirm the selection.

Special playback for DVD Audio

Playing back a bonus group

Some DVD Audio discs have a “bonus group.” To play back a bonus group, you have to enter the specific “key number” (a password).

1 Select a bonus group.

The key number entry screen appears.

On the TV On the display

2 Enter the key number, then confirm the entry.

Confirm

Enter the number

To clear the key number entry

Select

GAMMA

BRIGHTNESS Controls the brightness of the

CONTRAST Controls the contrast

SATURATION Controls the color depth

TINT Controls the tint

SHARPNESS Controls the sharpness

Controls the brightness of the neutral color

entire picture

Confirm

3 Adjust the parameter, then confirm the

selection.

Select

Confirm

4 Repeat steps 2 and 3 to adjust others. 5

When connecting the TV to the HDMI MONITOR OUT terminal ( 7), the VFP setting has no effect.

Selecting browsable still pictures

While playing back a track linked to browsable still pictures (B.S.P), you can select the still pictures (turn the page).

• If a track is linked to browsable still pictures, they are usually shown automatically during playback.

Select the desired still picture.

Disc/file playback

Operation from the TV screen

Using the on-screen bar

You can use various functions from the onscreen bar.

Basic operation procedure

2 Select the desired item (see the right column),

then confirm the selection.

Select Confirm

After confirming the selection...

• When the pull-down menu appears, select the desired item by pressing cursor 5/Y repeatedly, then confirm the selection by pressing ENTER.

Ex.:

• When a number-entry box appears, enter the number by using the number buttons (0-9), then confirm the entry by pressing ENTER.

Ex.:

To correct a misentry:

– setting: press cursor 2 repeatedly to clear the

misentry, then re-enter the number.

– setting: re-enter the number.

• When changing the time information mode ( ), select the desired item by pressing ENTER repeatedly.

To clear the on-screen bar

Ex.:

Status bar

Function bar

On-screen bar functions

Selects the time information mode shown on the display and the status bar.

TIME*3: Elapsed time of chapter/track

REM*3: Remaining time of chapter/track TOTAL: Elapsed time of title (DVD Video)/

group (DVD Audio)/program (DVD VR)/disc (VCD/CD/SVCD)

T.REM: Remaining time of title (DVD

Video)/group (DVD Audio)/ program (DVD VR)/disc (VCD/ CD/SVCD)

Selects repeat mode.

/////

///: See also “Playing repeatedly—repeat play” ( 18).

: Repeats the desired part

(A-B repeat).*

4 *5

After selecting this, select the beginning point (A) by pressing ENTER, then select the end point (B) by pressing ENTER again.

Specifies the playback point by the time.

Specifies a chapter to play back from.

Specifies a track to play back from.

Selects the audio language or audio channel during playback.

Selects the subtitle language during playback.

Selects the desired scene angle in a multiangle part during playback.

Selects the desired browsable still picture.

Not available for DVD VR discs

During playback of DVD Video or DVD VR discs, A-B repeat play is available only within the same title/program.

A-B repeat play is not available during program and random playback.

The contents of the on-screen bar differ according to the type of discs/files.

TH-D50/TH-D5/TH-D4: The ON SCREEN button is used

instead of CAT/ON SCREEN.

During playback of ASF, MPEG-1, MPEG-2, or DivX files, the function bar does not appear.

+ 56 hidden pages
