JVC TH-45 User Manual

Specifications and Main Features

Model No.: TH-AS
Components: Includes the XV-THA5 and the SP-THA5
Supported Disc Types: DVD, VCD, Audio CD, CD-R, CD-RW, MP3
Audio Output: Dolby Digital, DTS Digital Surround Pro Logic.
DSP (Digital Signal Processor) Modes Available: HALL, THEATER, PAVILION, LIVE CLUB, DANCE CLUB.
Speaker Configuration:
5.1 Surround sound.
Left Front, Right Front, Center Speaker, Left Rear, Right Rear, Subwoofer.
Total Harmonic: Distortion (THD) has a maximum of 10%.
Frequency Range:
DVD/VCD/CD: 20 Hz to 20kHz.
MP3: 20 Hz to 18 kHz.
Power: 100 watts per channel.
Inputs:
Composite video RCA Input.
S - Video input.
Optical digital audio input.
Coaxial DIN input.
AUX (Analog) Input.
System Control: DVB-T powered remote that can operate the TV functions.
Weight: around 5Kg (11lb).
Dimensions of Center Unit: Height 15 cm, Width 43 cm, Depth 30 cm.

Frequently Asked Questions

Q1: What types of discs can the TH-AS system play?

A1: The TH-AS system can play DVD, VCD, Audio CD, CD-R, CD-RW and MP3 type files.

Q2: Is surround sound supported by the system?

A2: There are three features that can enhance surround sound experience. These are DTS Digital Surround, Dolby Digital and and Pro Logic sound systems.

Q3: What Is the maximum power output that can be supplied by the system?

A3: With respect to each speaker, their maximum power output is 100W per amplifier.

Q4: Does TH-AS system have the capability to connect various devices?

A4: Yes, it allows users to connect different devices through the use of optical digital audio input.

Q5: What is the TH-AS system and how can it be used?

A5: TH AS includes a remote device which can control and support basic TV functions.

Q6: What are the speaker configurations for the surround sound system?

A6: The system includes 5.1 surround sound configuration which consists of two front speakers, one center2speaker, two rear speakers and one subwoofer.

Q7: How do I adjust the settings concerning the audio output?

A7: The system incorporates different audio settings for example volume and the DSP modes and users have the option to change these settings either through remote or from the unit itself.

Q8: Are you able to provide dimensions for the center unit?

A8: The size and dimensions for the center unit are height - 15 cm, width - 43 cm and depth equal to 30 cm.

User Manual

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

DIGITAL

SURROUND

DIGITAL

COMPACT

DIGITAL VIDEO

STANDBY

AUDIO/FM MODE

DSP

VOLUME SOURCE

DVD DIGITAL THEATER SYSTEM TH-A5

STANDBY/ON

DISPLAY

TV/VIDEO

TOP MENU

AUDIO

TUNER PRESET

ENTER

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

STANDBY/ON

VCR

CONTROL

AUDIO/

FM MODE

SUBTITLE

RETURN

STEP

OFF

TV VOLUME

TV CHANNEL

VOLUME

B.SEARCH F.SEARCH

DOWN UP

REW FF

RM-STHA5J

DVD THEATER SYSTEM

DVD DIGITAL CINEMA SYSTEM

SYSTÈME CINÈMA NUMÉRIQUE DVD

TH-A5

Consists of XV-THA5 and SP-THA5

Se compose de XV-THA5 et SP-THA5

INSTRUCTIONS

LVT0837-003A

[C]

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Warnings, Cautions and Others/

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND

Mises en garde, précautions et indications diverses

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

English

Français

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution––STANDBY/ON switch!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON switch in any position does not disconnect. the mains line. The power can be remote controlled.

Attention –– Commutateur STANDBY/ON !

Déconnecter la fiche de secteur pour couper complètement le

courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

For Canada/pour Le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

G-1

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Invisible laser radiation when open and interlock

failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit; leave all servicing to qualified service personnel.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser invisible quand l'appareil est

ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y a

aucune pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Spacing 15 cm or more Dégagement de 15 cm ou plus

Wall or obstructions Mur, ou obstruction

Attention: Ventilation Correcte

Pour éviter les chocs électriques, l’incendie et tout autre dégât. Disposer l’appareil en tenant compte des impératifs suivants Avant: Rien ne doit gêner le dégagement Flancs: Laisser 10 cm de dégagement latéral Dessus: Laisser 10 cm de dégagement supérieur Arrière: Laisser 15 cm de dégagement arrière Dessous: Rien ne doit obstruer par dessous; poser l’appareil

sur une surface plate. Veiller également à ce que l’air circule le mieux possible comme illustré.

XV-THA5

Front Avant

Stand height 15 cm or more Hauteur du socle: 15 cm ou plus

Floor Plancher

G-2

Parts Identification ...................................... 2

Center Unit ................................................................................. 2

Remote Control .......................................................................... 3

Getting Started ........................................... 4

Before Installation ...................................................................... 4

Checking the Supplied Accessories ........................................... 4

Putting Batteries in the Remote Control .................................... 4

Connecting the FM and AM Antennas ....................................... 5

Speaker Layout Diagram ............................................................ 6

Connecting the Speakers ............................................................ 7

Connecting Audio/Video Component ........................................ 8

Basic DVD Operations ................................ 10

1 Turn On the Power ............................................................... 10

2 Load a DVD ......................................................................... 10

3 Start Playback ...................................................................... 10

4 Adjust the Volume ................................................................ 10

5 Activate Realistic Sound Field............................................. 11

6 Stop Playback ...................................................................... 11

Basic VCD/CD Operations .......................... 12

1 Turn On the Power ............................................................... 12

2 Load a VCD/CD .................................................................. 12

3 Start Playback ...................................................................... 12

4 Adjust the Volume ................................................................ 12

5 Activate Realistic Sound Field............................................. 13

6 Stop Playback ...................................................................... 13

Basic Tuner Operations .............................. 14

1 Turn On the Power ............................................................... 14

2 Select the Band .................................................................... 14

3 Adjust the Volume ................................................................ 14

4 Tune in to a Station .............................................................. 14

Other Basic Operations .............................. 15

Enjoying Sounds from the External Equipment ....................... 15

Turning Off the Power with the Timer ..................................... 15

Speaker Settings ....................................... 16

Setting the Speaker Information ............................................... 16

Setting the Delay Time ............................................................. 17

Creating Realistic Sound Fields ................... 18

7 Dolby Digital and DTS Digital Surround............................. 18

7 Dolby Surround .................................................................... 18

7 DSP (Digital Signal Processor) Modes ................................ 19

Adjusting Stereo Sound ............................................................ 20

Adjusting Dolby Digital and DTS Digital Surround ................ 21

Activating Dynamic Range Compression ................................ 21

Adjusting Dolby Surround ....................................................... 22

Adjusting DSP Modes .............................................................. 23

Adjusting DSP Sound Parameters ............................................ 24

Disc Introduction—DVD/VCD/CD ................ 25

Basic Disc Operations ................................ 26

DVD Playback ........................................... 27

Showing the On-Screen Bar ..................................................... 27

Selecting the Subtitles .............................................................. 28

Selecting the Audio Languages ................................................ 28

Selecting the Multi-Angle Views ............................................. 28

Checking the Remaining Time ................................................. 29

Disc Menu-Driven Playback .................................................... 29

Moving to a Particular Portion Directly ................................... 29

Searching for a Particular Point ............................................... 30

Repeating Playback .................................................................. 30

7 Repeat Play ........................................................................... 30

7 A–B Repeat ........................................................................... 30

Programming the Playing Order of the Chapters

—Program Play .................................................................. 31

DVD Special Effect Playback .................................................. 33

7 Still Picture/Frame-by-Frame Playback ............................... 33

7 Slow Motion Playback ......................................................... 33

7 Zoom .................................................................................... 33

VCD/CD Playback...................................... 34

Showing the On-Screen Bar ..................................................... 34

Checking the Remaining Time ................................................. 34

Disc Menu-Driven Playback (Only for VCD) .......................... 35

Moving to a Particular Portion Directly ................................... 35

Searching for a Particular Point ............................................... 35

Repeating Playback .................................................................. 36

7 Repeat Play ........................................................................... 36

7 A–B Repeat ........................................................................... 36

Programming the Playing Order of the Tracks

—Program Play .................................................................. 37

Selecting Playback Channel ..................................................... 38

VCD Special Effect Playback .................................................. 39

7 Still Picture/Frame-by-Frame Playback ............................... 39

7 Slow Motion Playback ......................................................... 39

7 Zoom .................................................................................... 39

MP3 Introduction ...................................... 40

MP3 Playback ........................................... 41

Starting Playback ..................................................................... 41

Operations Using the On-Screen Display ................................ 42

Moving to a Particular Track Directly...................................... 43

Repeating Playback .................................................................. 43

Tuner Operations ....................................... 44

Tuning in Stations .................................................................... 44

Using Preset Tuning ................................................................. 45

Selecting the FM Reception Mode ........................................... 45

Setting up the DVD Preferences ................. 46

Setting the Initial Languages .................................................... 46

Introducing the DVD Preference (System) .............................. 47

Setting the Parental (Rating) Level .......................................... 49

Operating JVC’s Components ...................... 50

Operating Other Manufacturers’ TV ............ 51

English

Maintenance ............................................. 52

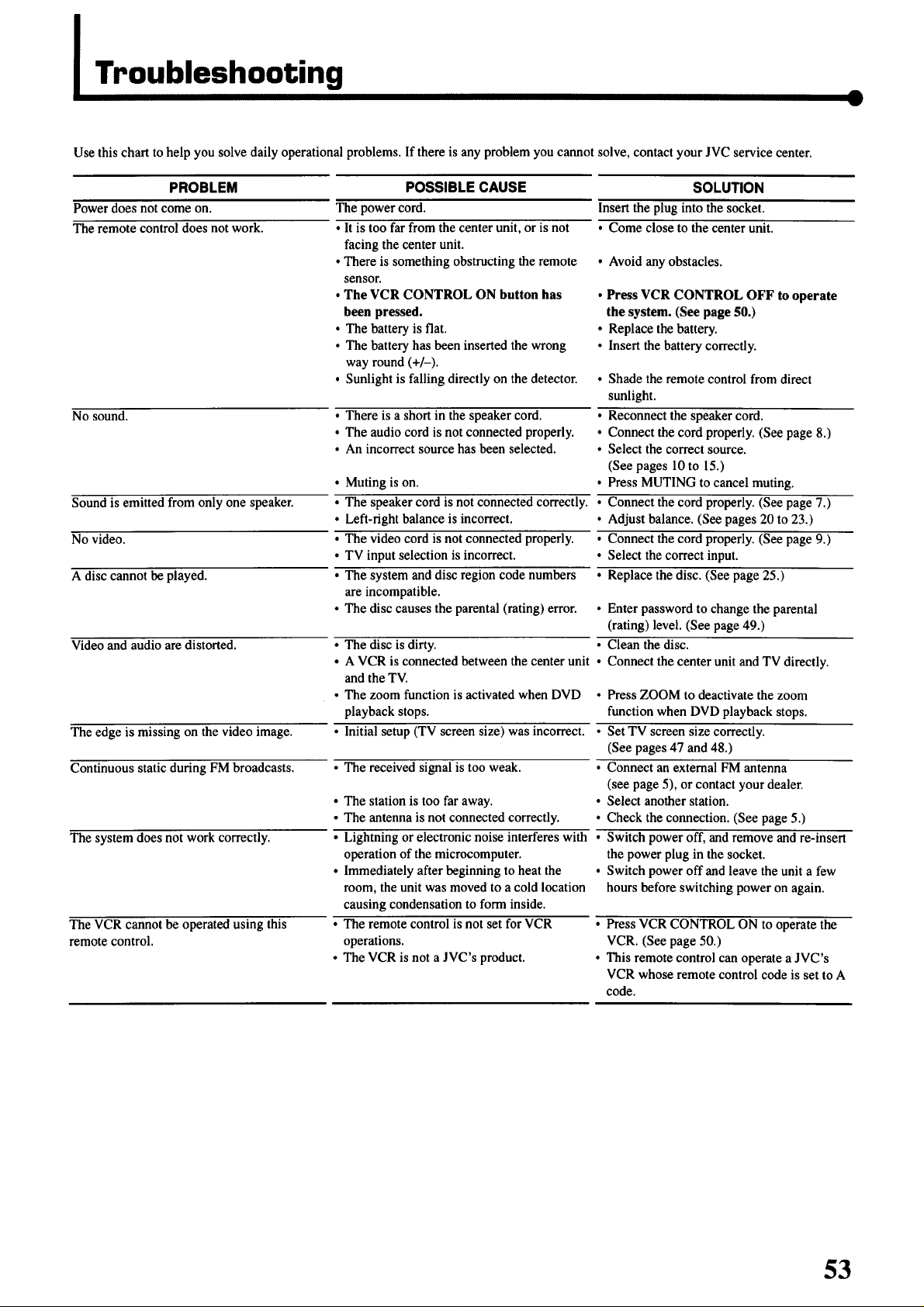

Troubleshooting ......................................... 53

Specifications............................................ 54

Parts Identification

DIGITAL

SURROUND

DIGITAL

COMPACT

DIGITAL VIDEO

STANDBY

AUDIO/FM MODE

DSP

VOLUME SOURCE

DVD DIGITAL THEATER SYSTEM TH-A5

STANDBY/ON

1 2345 6 78

q wp9

12 34567

L C R

LFE

S RS

LINEAR PCM

TITLE

TUNED

PROGRAM PBC

MHz k

DSP

English

Center Unit

Front Panel

See pages in the parentheses for details.

Front Panel

1 STANDBY/ON button and STANDBY lamp (10 – 14) 2 AUDIO/FM MODE button (28, 38, 45) 3 Multi operation buttons

• 4, ¢, and 7

4 Disc tray (10, 12) 5 0 (open/close) button (10 – 13, 32, 37, 41)

• Pressing this button also turns on the power and changes the source to the DVD player.

6 Display window

7 Remote sensor 8 3/8 (play/pause) button (10, 12, 26, 41)

• Pressing this button also turns on the power and changes the source to the DVD player.

9 DSP button (11, 13, 23) p VOLUME + and – buttons (10, 12, 14) q SOURCE button (14, 15, 44, 45) w Illumination lamp (10, 12, 14)

Display window

See pages in the parentheses for details.

Display

1 Sound signal indicators (11, 13, 18)

• PRO LOGIC, DOLBY DIGITAL, DTS, and LINEAR PCM

2 TITLE indicator (26) 3 Tuner mode indicators (14, 44, 45)

• TUNED and ST (stereo)

4 PROGRAM indicator (31, 37, 45)

5 DSP indicator (23) 6 PBC (Play Back Control) indicator (34, 35) 7 Frequency unit indicators

• MHz (for FM station) and kHz (for AM station)

8 Audio channel indicators

• Indicates audio channels currently being played back.

9 Main display

RETURN

STEP

TV/VIDEO

TV VOL

TUNER PRESET

VOLUME

VCR CHANNEL TUNING

DVD

FM/AM

AUX

MUTE

ENTER

L E

A R

CLEAR

G O

GO TO

R E

REMAIN

S LE

SLEEP

E FFE

EFFECT

R O

G RA

PROGRAM

P E

REPEAT

E PE

REPEAT

A N

G L

ANGLE

T S

NTSC/PALAL

DIGEST

DSPDSP M

D E

MODE

SET U

T E

S T

TEST TO

N E

ONE

P R

O L

PRO LOGIC

K M

O D

SPK MODE

S O

SOUND EDIT

S LO

SLOW

+10+10

Z O

ZOOM

A <–>

<–> B

RM-STHA5J

DVD THEA

TER

SYSTEM

DISPLAY

TV/VIDEO

TOP MENU

AUDIO

TUNING

ENTER

VCR CHANNEL

TUNER PRESET

DVD FM/AM AUX MUTING

STANDBY/ON

VCR

2 3

4 5

VCR

CONTROL

AUDIO/

FM MODE

SUBTITLE

RETURN

STEP

OFF

TV VOLUME

TV CHANNEL

6 7 8 9

i o

;

VOLUME

B.SEARCH F.SEARCH

DOWN UP

REW

RM-STHA5J

DVD THEATER SYSTEM

CLEAR SLEEP

EFFECTREPEAT

ANGLE ZOOM

D.R.C

DSP MODE

SETUP

TEST

PRO LOGIC

SETTING

SOUND

DVD AUX MUTING

2 3

4 5

6 7 8

A-B REPEAT

REMAIN

PROGRAM

FM/AM

SLOW

p q

w e r

t y

u i o

Remote Control

English

See pages in the parentheses for details.

Remote Control

1 STANDBY/ON 2 VCR

button (54)

AUDIO button (10 – 14)

3 TV button (10, 12, 50, 51) 4 MENU button (29, 35) 5 TOP MENU button (29) 6 AUDIO/FM MODE button (28, 38, 45) 7 SUBTITLE button (28) 8 DISPLAY button (27, 34, 41) 9 RETURN button (35, 47, 48) p 4, 7, 3/

, and ¢ buttons

TUNER PRESET UP and DOWN buttons (45) FF (Fast-forward) and REW (Rewind) buttons

• Pressing 3/

also turns on the power.

q VCR CHANNEL + and – buttons (50)

TUNING + and – buttons (14, 44) ¡ F. (Forward) SEARCH and 1 B. (Back) SEARCH buttons

w Menu operation buttons

• 3, 2, 5, and ∞ buttons

• ENTER button

e VOLUME + and – buttons (10, 12, 14) r Source selecting buttons (14, 15, 44)

• DVD, FM/AM, AUX

• Pressing one of these buttons also turns on the power.

t VCR CONTROL ON and OFF buttons (50)

IMPORTANT:

If you press VCR CONTROL ON, this remote control will work ONLY for the JVC’s VCR. When you want to operate the system again, press VCR CONTROL OFF.

y TV CHANNEL + and – buttons (50, 51) u TV VOLUME + and – buttons (50, 51) i TV/VIDEO button (10, 12, 50, 51) o STEP button (33, 39) ; MUTING button (10, 12)

To open the cover of the remote control, push here, then slide downward.

Inside of the Cover

1 Number buttons

(29, 35, 43, 50, 51)

2 SLOW button (33, 39) 3 ZOOM button (33, 39) 4 ANGLE button (28) 5 REPEAT button (30, 36, 43) 6 A–B REPEAT button

(31, 36)

7 CLEAR button (29, 35, 38) 8 SEARCH button

(29, 35, 43)

9 SOUND button (20 – 24) p SETTING button (16, 17)

q PRO LOGIC button

(15, 17, 22)

w SETUP button (47 – 49) e TEST button (19) r D.R.C button (21) t DSP MODE button

(11, 13, 23, 24)

y EFFECT button (24) u PROGRAM button

(31, 32, 37, 45)

i SLEEP button (15) o REMAIN button (29, 34)

Getting Started

English

Before Installation

General Precautions

• DO NOT insert any metal object into the center unit.

• DO NOT disassemble the center unit or remove screws, covers, or cabinet.

• DO NOT expose the center unit to rain or moisture.

Locations

• Install the center unit in a location that is level and protected from moisture.

• The temperature around the center unit must be between 5˚C and 35˚C (41˚F and 95˚F).

• Make sure there is good ventilation around the center unit. Poor ventilation could cause overheating and damage the center unit.

Handling the center unit

• DO NOT touch the power cord with wet hands.

• DO NOT pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

• Keep the power cord away from the connecting cords and the antenna. The power cord may cause noise or screen interference. It is recommended to use a coaxial cable for antenna connection, since it is well-shielded against interference.

• When a power failure occurs, or when you unplug the power cord, the preset settings such as preset FM/AM channels and sound adjustments may be erased in a few days.

Putting Batteries in the Remote Control

Before using the remote control, put two supplied batteries first.

• When using the remote control, aim the remote control directly at the remote sensor on the center unit.

1. On the back of the remote control, remove the

battery cover.

2. Insert batteries. Make sure to match the polarity:

(+) to (+) and (–) to (–).

3. Replace the cover.

Checking the Supplied Accessories

Check to be sure you have all of the following supplied accessories. The number in the parentheses indicates the quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

• Video cord (1)

• Speaker cords

5 m (4)* : For left front speaker, right front speaker, center

speaker, and subwoofer

10 m (2)* : For left rear speaker and right rear speaker

* The length of the speaker cords above are approximate.

If anything is missing, contact your dealer immediately.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two UM-4“AAA”/IEC “R03” type dry-cell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+)

to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

MIN MIN MIN MIN

COMPONENT OUT

BPR

OPTICAL

DIGITAL IN

Connecting the FM and AM Antennas

If FM reception is poor, connect outdoor FM antenna (not supplied).

English

If AM reception is poor, connect single vinyl-covered wire (not supplied).

AM Loop Antenna (supplied)

FM Antenna (supplied)

Cooling fan (See “About the cooling fan” below.)

FM antenna connection

Connect the supplied FM antenna to the FM 75 Ω COAXIAL terminal as temporary measure. Extend the supplied FM antenna horizontally.

• If reception is poor, connect an outdoor antenna. Before attaching a 75 Ω coaxial cable (with a standard type connector), disconnect the supplied FM antenna.

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

Center unit

AM antenna connection

Connect the supplied AM loop antenna to the AM and H terminals. Turn the loop until you have the best reception.

• If reception is poor, connect an outdoor single vinyl-covered wire to the AM terminal. (Keep the AM loop antenna connected.)

Note:

If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.

About the cooling fan

A cooling fan is mounted on the rear panel of the center unit to prevent abnormal temperature inside the center unit, thus assuring normal operation of the unit. The cooling fan automatically starts rotating to supply external cool air to the inside of the center unit when the internal temperature goes up.

For safety, observe the following carefully.

• Make sure there is good ventilation around the center unit. Poor ventilation could overheat and damage the center unit.

• DO NOT block the cooling fan and the ventilation openings or holes. (If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

Getting Started

Subwoofer

Left rear

speaker

Right front

speaker

Right rear

speaker

To center speaker

To left front speaker

To right front speaker

To left rear speaker

To right rear speaker

To subwoofer

Left front

speaker

DIGITAL

SURROUND

DIGITAL

COMPACT

DIGITAL VIDEO

STANDBY

AUDIO/FM MODE

DSP

VOLUME SOURCE

DVD DIGITAL THEATER SYSTEM TH-A5

STANDBY/ON

Center unit

Center speaker

MIN MIN MIN

MIN

COMPONENT OUT

OPTICAL

DIGITAL IN

Speaker Layout Diagram

English

Connecting the Speakers

Left front

speaker

Right front

speaker

Right rear

speaker

Subwoofer

Left rear

speaker

Center speaker

132

Connect the satellite speakers, center speaker, and subwoofer to the terminals on the rear panel using speaker cords supplied. Labels are attached to the speaker cords to indicate the speaker and the terminal to which each is to be connected.

• The four satellite speakers can be used for any positions—front left and right, and rear left and right.

• Connect the white cord to the red (+) terminal, and the black cord to the black (–) terminal respectively.

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.

Connecting speaker cords to the terminals

When setting the speakers

To obtain the best possible sound from this system, you need to place all the speakers except the subwoofer at the same distance from the listening position with each front faced toward the listener. Since bass sound is non-directional, you can place a subwoofer wherever you like. Normally place it in front of you.

If your speakers cannot be placed at the same distance from the listening position

You can adjust the delay time of the center speaker and rear speakers. For in-depth information about adjusting the delay time, see “Setting the Delay Time” on page 17.

English

Press and hold the terminal clamp.

Insert the speaker cord.

Release the finger from the clamp.

Note:

If the speaker cord is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.

Note:

You can change the phase of subwoofer sounds by connecting the speaker cords to the terminals inversely—the white cord to the black terminal, and the black cord to the red terminal. You may get the more effective bass sounds by changing the phase.

CAUTION:

• When attaching the satellite speakers on the wall, have them attached to the wall by a qualified person. DO NOT attach the satellite speakers on the wall by yourself to avoid an unexpected damage of their falling from the wall, caused by incorrect attachment or weakness in the wall.

• Care is required in selecting a location for attaching speakers to the wall. Injury to personnel, or damage to equipment, may result if the speakers are attached in a location which interferes with daily activities.

Getting Started

DBS Tuner

Center unit

MD Recorder

Cassette Deck

OUT

LEFT

RIGHT

AUDIO

VCR

MD Recorder

MIN

COMPONENT OUT

BPR

OPTICAL

DIGITAL IN

OPTICAL

DIGITAL IN

DIGITAL

OPTICAL OUT

English

Connecting Audio/Video Component

Turn the power off to all components before connections.

Audio component connection

Connect the other component to the center unit with the audio cord.

Use the cord supplied with the other component or purchase it at an electric appliance store.

Optical digital cord (not supplied)

Audio cord (not supplied)

Illustrations of the input/output terminals below are typical examples. When you connect the other component, refer also to its manuals since the terminal name actually printed on the rear vary among the components.

If you connect a sound-enhancing device such as a graphic equalizer between the source component and the center unit, the sound output through this system may be distorted.

Before connecting an optical digital cord, unplug the protective plug.

B/CB

PR/C

MINMIN

MIN

CONPONENT OUT

COMPONENT OUT

BPR

OPTICAL

DIGITAL IN

TV connection

The S-video cord and the component video cord are not supplied with this system. Use the cords supplied with the other component or purchase them at an electric appliance store.

Composite video cord (supplied) Component video cord (not supplied)

S-video cord (not supplied)

English

You can select one of three connection types—A, B, and C.

• If your TV has S-video (Y/C-separation) and/or component video

(Y, PR, PB) jacks, connect them using an S-video cord (not supplied)B and/or component video cord (not supplied)C. By using these jacks, you can get a better picture quality—in the order : Component video > S-video > Composite video.

Illustrations below are typical examples. When you connect the TV, refer also to its manual since the terminal names actually printed on the rear vary among the components.

Note:

Now, you can plug the power cord of the center unit into the AC outlet.

Keep the power cord away from the connecting cords and the antenna cables. The power cord may cause noise or screen interference.

Basic DVD Operations

STANDBY/ON

AUDIO

DVD FM/AM AUX MUTING

VOLUME

TUNER PRESET

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.CZOOM

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

English

This manual mainly explains operations using the buttons on the remote control. You can also use the buttons on the center unit if they have the similar names (or marks) as those on the remote control. If operations using the center unit are different from those using the remote control, they are then explained.

STANDBY/ON

AUDIO

TV/VIDEO

3/8

Load a DVD

On the front panel ONLY: Press 0 to open the disc tray, then place a DVD correctly with its label side up.

CORRECT INCORRECT

Start Playback

Press 3/8.

The disc tray closes. “LOADING” appears for a while.

• You can also start playback by closing the disc tray using 0 on the front panel.

VOLUME –

VOLUME +

MUTING

DSP MODE

For in-depth information about DVD operations, see pages 25 to 33.

Before turning on the system, turn on your TV and select the correct video input. (See the manual supplied with your TV.)

• When you use a JVC’s TV, you can turn on your TV by pressing TV

Turn On the Power

on the remote control, and select the video input by pressing TV/VIDEO. (If your TV is not a JVC’s, see “Operating Other Manufacturers’ TV” on page 51.)

• For changing the OSD messages—the information on the TV

screen—into the desired language, see “Setting the Initial Languages” on pages 46 and 47.

Adjust the Volume

To increase the volume, press and hold VOLUME +. To decrease the volume, press and hold VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any source. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

Notes:

• By pressing VOLUME + or – repeatedly, you can adjust the volume level step by step.

• The volume level can be adjusted within 71 steps—“MIN (minimum),” 01 to 69, and “MAX (maximum).”

To turn off the sounds temporarily

From the remote control ONLY:

Press MUTING.

To restore the sound, press

MUTING again.

• Pressing VOLUME + or – also restores the sound.

Press STANDBY/ON STANDBY/ON

The STANDBY lamp goes off and the illumination lamp on the center unit lights up. The source indication selected previously appears on the display.

on the front panel).

AUDIO (or

STANDBY/ON

AUDIO

HALL

PAVILIONTHEATER

Normal

indication

(canceled)

LIVE CLUB

DANCE CLUB

DSP MODE

TUNER PRESET

Activate Realistic Sound Field

Stop Playback

English

You can enjoy two kinds of surround—Digital Multichannel Surround (Dolby Digital and DTS Digital Surround) and DSP modes.

Digital Multichannel Surround—Dolby Digital and DTS Digital Surround

Dolby Digital or DTS Digital Surround takes effect only when you enjoy a disc encoded with its signals—the DOLBY DIGITAL or DTS indicator lights up on the display.

Sound signal indicators on the display

To activate Dolby Digital or DTS Digital Surround

When a disc encoded with the Dolby Digital or DTS Digital Surround is loaded, the system detects it and starts playing the disc automatically with Multichannel Surround activated. – For in-depth information about surround modes, see “Creating

Realistic Sound Fields” on pages 18 and 21.

DSP modes—HALL, THEATER, PAVILION, DANCE CLUB, LIVE CLUB

DSP modes take effect only when you enjoy a disc recorded using Linear PCM—the LINEAR PCM indicator lights up on the display.

Press 7 twice.

Playback stops completely and “DVD” appears on the display. (The DVD player goes on working for 3 minutes after playback stops.)

• This system can memorize the end point even when you press 7

once. When you start playback again by pressing 3/8, playback begins from where it has been stopped—Resume play.

To remove the loaded disc

Press 0.

“OPEN” appears on the display and the disc tray comes out.

To close the disc tray, press 0 again.

• If you do not press the button, the disc tray closes

automatically after 35 seconds.

To turn off the power (into standby)

Press STANDBY/ON AUDIO (or STANDBY/ON

The illumination lamp goes off and the STANDBY lamp lights up.

• If you press STANDBY/ON

STANDBY/ON open, the disc tray closes automatically, then the system is turned off.

• A small amount of power is consumed even in standby mode. To

turn the power off completely, unplug the AC power cord.

on the front panel).

AUDIO (or

on the front panel) while the disc tray is kept

Sound signal indicators on the display

To activate DSP modes

Press DSP MODE (or DSP on the front panel).

The DSP indicator lights up and the current DSP mode appears on the display for a while.

• Each time you press the button, DSP mode changes as follows:

– For in-depth information about DSP modes, see “Creating

Realistic Sound Fields” on pages 19, 23, and 24.

Note:

Before activating the realistic sound field, adjust the speaker setting to bring out the best performance from this system. For in-depth information about adjusting the speaker setting, see “Speaker Settings” on pages 16 and 17.

Basic VCD/CD Operations

STANDBY/ON

AUDIO

DVD FM/AM AUX MUTING

VOLUME

TUNER PRESET

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.CZOOM

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

English

STANDBY/ON

AUDIO

VOLUME –

TV/VIDEO

VOLUME +

MUTING

DSP MODE

3/8

Load a VCD/CD

On the front panel ONLY: Press 0 to open the disc tray, then place a disc correctly with its label side up.

CORRECT INCORRECT

• When using a CD single (8 cm), place it on the inner circle of the

disc tray.

• Continued use of irregular shape CDs (heart-shape, octagonal,

etc.) can damage the center unit.

Start Playback

Press 3/8.

The disc tray closes. “LOADING” appears for a while.

• You can also start playback by closing the

disc tray using 0 on the front panel.

For in-depth information about VCD/CD operations, see pages 25, 26, and 34 to 39.

Turn On the Power

Before turning on the system, turn on your TV if necessary and select the correct video input. (See the manual supplied with your TV.)

• When you use a JVC’s TV, you can turn on your TV by pressing TV on the remote control, and select the video input by pressing TV/VIDEO. (If your TV is not a JVC’s, see “Operating Other Manufacturers’ TV” on page 51.)

• For changing the OSD messages—the information on the TV screen—into the desired language, see “Setting the Initial Languages” on pages 46 and 47.

Press STANDBY/ON STANDBY/ON

The STANDBY lamp goes off and the illumination lamp on the center unit lights up. The source indication selected previously appears on the display.

AUDIO (or

on the front panel).

Adjust the Volume

To increase the volume, press and hold VOLUME +. To decrease the volume, press and hold VOLUME –.

CAUTION:

Notes:

• By pressing VOLUME + or – repeatedly, you can adjust the volume level step by step.

• The volume level can be adjusted within 71 steps—“MIN (minimum),” 01 to 69, and “MAX (maximum).”

To turn off the sounds temporarily

From the remote control ONLY:

Press MUTING.

To restore the sound, press

MUTING again.

• Pressing VOLUME + or – also restores the sound.

STANDBY/ON

AUDIO

HALL

PAVILIONTHEATER

Normal

indication

(canceled)

LIVE CLUB

DANCE CLUB

DSP MODE

TUNER PRESET

Activate Realistic Sound Field

Stop Playback

English

You can enjoy DSP modes.

DSP modes—HALL, THEATER, PAVILION, DANCE CLUB, LIVE CLUB

DSP modes take effect only when you enjoy a disc recorded using Linear PCM—the LINEAR PCM indicator lights up on the display.

Sound signal indicators on the display

To activate DSP modes

Press DSP MODE (or DSP on the front panel).

The DSP indicator lights up and the current DSP mode appears on the display for a while.

• Each time you press the button, DSP mode changes as follows:

– For in-depth information about DSP modes, see “Creating

Realistic Sound Fields” on pages 19, 23, and 24.

Note:

Press 7 twice.

Playback stops completely and “VCD” or “CD” appears on the display. (The DVD player goes on working for 3 minutes after playback stops.)

• This system can memorize the end point even

when you press 7 once. When you start playback again by pressing 3/8, playback begins from where it has been stopped— Resume play.

To remove the loaded disc

Press 0.

“OPEN” appears on the display and the disc tray comes out.

To close the disc tray, press 0 again.

• If you do not press the button, the disc tray closes automatically after 35 seconds.

To turn off the power (into standby)

Press STANDBY/ON AUDIO (or STANDBY/ON

The illumination lamp goes off and the STANDBY lamp lights up.

• If you press STANDBY/ON STANDBY/ON open, the disc tray closes automatically, then the system is turned off.

• A small amount of power is consumed even in standby mode. To turn the power off completely, unplug the AC power cord.

on the front panel).

AUDIO (or

on the front panel) while the disc tray is kept

Basic Tuner Operations

STANDBY/ON

AUDIO

DVD FM/AM AUX MUTE

DVD player* DIGITAL IN

FM ANALOG INAM

SOURCE

B.SEARCH F.SEARCH

VCR CHANNEL

TUNING

STANDBY/ON

AUDIO

VOLUME

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

English

STANDBY/ON

AUDIO

TUNING –

VOLUME –

FM/AM

TUNING +

VOLUME +

MUTING

For in-depth information about tuner operations, see “Tuner Operations” on pages 44 and 45.

Adjust the Volume

To increase the volume, press and hold VOLUME +. To decrease the volume, press and hold VOLUME –.

CAUTION:

Notes:

• By pressing VOLUME + or – repeatedly, you can adjust the volume

level step by step.

• The volume level can be adjusted within 71 steps—“MIN

(minimum),” 01 to 69, and “MAX (maximum).”

• You can turn off the sounds temporarily by pressing MUTING.

Tune in to a Station

From the remote control:

Press and hold TUNING + or – until the station frequency starts changing continuously on the display.

Turn On the Power

Press STANDBY/ON AUDIO (or STANDBY/ON

on the front panel).

The STANDBY lamp goes off and the illumination lamp lights up on the center unit. The source indication selected previously appears on the display.

Select the Band

From the remote control:

Press FM/AM.

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between FM and AM.

On the front panel:

Press SOURCE repeatedly until the desired band (FM or AM) appears on the display.

The last received station of the selected band is tuned in.

• Each time you press the button, the source changes as follows:

* “WAIT” appears on the display.

The system starts searching for a station.

On the front panel:

1) Press 7 so that “MANUAL” appears on the display.

2) Press and hold ¢ or 4 until the station frequency starts

changing continuously on the display.

The system starts searching for a station.

Notes:

• When a station of sufficient signal strength is tuned in, the system stops searching, and the indicator lights up on the display.

• When an FM stereo program is received, the indicator also lights up.

• When you press the button repeatedly, the frequency changes step by step.

To turn off the power (into standby)

Press STANDBY/ON AUDIO (or STANDBY/ON

The illumination lamp goes off and the STANDBY lamp lights up.

• A small amount of power is consumed even in

standby mode. To turn the power off completely, unplug the AC power cord.

on the front panel) again.

Other Basic Operations

10 20 30 60

150 120 90

OFF

(Canceled)

SLEEP

DVD player* DIGITAL IN

FM ANALOG INAM

DVD FM/AM AUX MUTE

SOURCE

SLEEP

ENTER

VOLUME

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.C

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

PRO LOGIC

3 STEREO

STEREO

(canceled)

PRO LOGIC

AUX

PRO LOGIC

SLEEP

Enjoying Sounds from the External Equipment

You can enjoy sounds from the external equipment connected to the DIGITAL IN OPTICAL terminal or AUX IN jacks on the rear panel of the center unit.

• When you listen to analog sounds encoded with Dolby Surround, you can enjoy Dolby Surround.

Press PRO LOGIC to activate Dolby Surround.

• Each time you press the button, Dolby Surround mode changes as follows:

• When Dolby Surround activates, the PRO LOGIC indicator lights up on the display.

– For in-depth information about Pro Logic modes, see “Creating

Realistic Sound Fields” on pages 18 and 22.

Turning Off the Power with the Timer

You can fall asleep while listening to music—Sleep Timer.

From the remote control ONLY:

Press SLEEP.

• Each time you press the button, the shut-off time changes as follows:

English

Select AUX as the source.

From the remote control:

Press AUX.

• Each time you press the button, the source alternates between DIGITAL IN and ANALOG IN.

DIGITAL IN : Select this to enjoy the external equipment

ANALOG IN : Select this to enjoy the external equipment

On the front panel:

Press SOURCE repeatedly until “DIGITAL IN” or “ANALOG IN” appears on the display.

• Each time you press the button, the source changes as follows:

* “WAIT” appears on the display.

Start playback on the external equipment.

• For in-depth information about the external equipment, see the manual supplied for it.

When you select “ANALOG IN” and reproduce the sounds encoded with Dolby Surround, you can enjoy Dolby Surround in the next step.

connected to the DIGITAL IN OPTICAL terminal.

connected to the AUX IN jacks.

When the shut-off time comes, the system turns off automatically.

To check or change the time remaining until the shut-off time

Press SLEEP once.

The remaining time (in minutes) appears on the display.

• By pressing SLEEP, you can change the shut-off time.

To cancel the Sleep Timer

Press SLEEP repeatedly until “OFF” appears on the display.

• Turning off the power also cancels the Sleep Timer.

Speaker Settings

F–SP SW–SPC–SP R–SP

(R–DEL) (C–DEL)

Normal indication

(canceled)

SETTING

ENTER

SMALL

NONE

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.C.

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

English

SETTING

PRO LOGIC

Setting the Speaker Information

To obtain best possible surround, register the center speaker (C–SP) and rear speakers (R–SP) settings after completing all the connections.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

From the remote control ONLY:

Press SETTING repeatedly until one of following speakers (with the current setting*) appears on the display.

• Each time you press the button, the indication in the main display changes as follows:

Front speaker setting and subwoofer setting are fixed. Even you can select these items by pressing SETTING, you cannot change their settings.

C–SP (Center speaker) : To register the center speaker

information.

R–SP (Rear speakers) : To register the rear speakers

information.

* “SMALL” is the initial setting.

If you have already changed the setting, “NONE” will be shown.

Press 3 (or 2) repeatedly to select the appropriate speaker information.

• Each time you press the button, the speaker information changes as follows:

SMALL : Normally select this.

NONE : Select this when you do not want to use the

corresponding speaker.

Repeat steps 1 and 2 to select the appropriate information for the other speaker.

Setting the Delay Time

2.1 m

2.4 m

2.7 m

3.0 m

Left front

speaker

Right front

speaker

Right rear

speaker

Subwoofer

Left rear speaker

Center speaker

ENTER

SETTING

PRO LOGIC

F–SP SW–SPC–SP R–SP

R–DEL C–DEL

Normal indication

(canceled)

Adjust the delay time of the sounds from the center speaker and the rear speakers, comparing to that of the sounds from the front speakers. If the distance to the center speaker* and/or the rear speakers** from your listening point is almost the same as from the front speakers, select “00 MS (msec).” * You can adjust the delay time only when the DOLBY DIGITAL

or DTS indicator is lit on the display.

** You can adjust the delay time only when the DOLBY DIGITAL,

DTS, or PRO LOGIC indicator is lit on the display.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

Activate Surround modes—Dolby Digital or DTS

again.

Digital Surround—or Dolby Pro Logic.

For Dolby Digital or DTS Digital Surround:

Prepare a DVD encoded with Dolby Digital or DTS Digital Surround, then start playback.

For Dolby Pro Logic:

1 Press AUX to select “ANALOG IN.” 2 Prepare a source encoded with Dolby Surround, then start

playback.

3 Press PRO LOGIC on the remote control so that

“PRO LOGIC” appears on the display.

Press 3 or 2 to adjust delay time.

• 3 : Increases delay time.

• 2 : Decreases delay time.

• 1 msec increase (or decrease) in delay

time corresponds to 30 cm increase (or decrease) in distance.

Repeat steps 2 and 3 to adjust the other delay time.

English

Press SETTING repeatedly until one of delay time indications (with the current setting*) appears on the display.

• Each time you press the button, the indication in the main display changes as follows:

C–DEL (Center delay) : To register delay time for center

speaker—from 0 msec to 5 msec (not selectable for Dolby Pro Logic).

R–DEL (Rear delay) : To register delay time for rear

speakers—from 0 msec to 15 msec for

* “00 MS” is the initial setting for the center speaker.

The initial setting for the rear speakers is “00 MS” for Dolby Digital and DTS Digital Surround, “15 MS” for Dolby Pro Logic. If you have already changed the setting, a different value will be shown.

Dolby Digital and DTS Digital Surround, and from 15 msec to 30 msec for Dolby Pro Logic.

1 msec increase (or decrease) in delay time corresponds to 30 cm increase (or decrease) in distance.

Ex. : In this case, set C–DEL to “01 MS” and R–DEL to

“02 MS”

Creating Realistic Sound Fields

DOLBY SURROUND

You can use the following surround to reproduce a realistic sound

English

field.

• Digital Multichannel Surround—Dolby Digital and DTS Digital Surround

• Dolby Surround

• DSP (Digital Signal Processor) modes

■ Dolby Digital and DTS Digital Surround

To enjoy surround effectively, all the speakers need to be connected and activated.

Dolby Digital*

Used to reproduce multichannel sound tracks of the software encoded with Dolby Digital (

Dolby Digital encoding method (so-called discrete 5.1 channel digital audio format) records and digitally compresses the left front channel, right front channel, center channel, left rear channel, right rear channel, and LFE channel signals (total 6 channels, but LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Since each channel is completely independent from the other channel signals to avoid interference, you can obtain much better sound quality with much stereo and surround effects. In addition, Dolby Digital enables stereo rear sounds, and sets the cutoff frequency of the rear treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. These facts enhance the sound movement and being-there feelings much more than Dolby Pro Logic.

Dolby Pro Logic and Dolby 3 Stereo

Dolby Surround encoding format records the left front channel, right front channel, center channel, and rear channel signals (total 4 channels) into 2 channels. The Dolby Pro Logic decoder built in this system decodes these 2 channel signals into original 4 channel signals—matrix-based multichannel reproduction, and allows you to enjoy a realistic stereo sound in your listening room.

When one of Dolby Surround is selected, the PRO LOGIC indicator lights up on the display.

Indications on the display for each surround

• Dolby Digital

• DTS Digital Surround

• Dolby Pro Logic

When the system detects Dolby Digital signals, the DOLBY DIGITAL indicator lights up on the display.

DTS Digital Surround**

Used to reproduce multichannel sound tracks of the software encoded with DTS Digital Surround (

DTS Digital Surround is another discrete 5.1 channel digital audio format available on CD, LD, and DVD software. Compared to Dolby Digital, audio compression rate is relatively low. This fact allows DTS Digital Surround format to add breadth and depth to the reproduced sounds. As a result, DTS Digital Surround features natural, solid and clear sound.

When the system detects DTS Digital Surround signals, the DTS indicator lights up on the display.

■ Dolby Surround*

Used to reproduce sound tracks of the VCR tapes encoded with Dolby Surround ( This is only used for the sound sources coming through the AUX IN jacks.

• Dolby 3 Stereo

• DSP*

* When you select FM/AM or AUX as the source, the Linear

PCM indicator (

– According to the speaker settings, some speaker indicators do

not light up. In this case, set the speaker setting appropriately.

) does not light up.

Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992–1997 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. ©1996 Digital Theater Systems, Inc. All rights reserved.

■ DSP (Digital Signal Processor) Modes

TEST

DSP modes have been designed to create important acoustic surround elements.

The sound heard in a hall, a theater, a pavilion, a dance club, or a live club consists of direct sound and indirect sound—early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These indirect sounds are important elements of the acoustic surround effects.

The following DSP modes are provided with this unit.

HALL : Gives clear vocal and the feeling of a concert

hall.

THEATER : Gives the feeling of a theater.

PAVILION : Gives the spacious feeling of a pavilion with a

high ceiling.

DANCE CLUB : Gives a throbbing bass beat.

LIVE CLUB : Gives the feeling of a live music club with a low

ceiling.

These DSP modes can be used to add the acoustic surround effects while reproducing stereo analog software or Linear PCM digital software, and can give you a real “being there” feeling.

To check the speaker connections and settings using the test tone

1. Select and play a DVD encoded with Dolby Digital or DTS Digital Surround.

2. Press TEST on the remote control. The test tone comes out from the speakers in the order.

• If there is a speaker from which no sounds comes out, check

the speaker’s connection (see pages 6 and 7) and setting (see page 16).

3. Press TEST again to stop the test tone.

English

When one of the DSP modes is selected, the DSP indicator lights up on the display.

Available surround according to the input signal format

Surround

Analog ⳯䡬䡬䡬䡬䡬䡬

Linear PCM ⳯䡬䡬䡬䡬䡬䡬

Dolby Digital 䡬⳯⳯⳯⳯⳯⳯

DTS 䡬⳯⳯⳯⳯⳯⳯

Input Signal format

Multichannel

Surround

HALL THEATER

䡬: Possible ⳯: Impossible

DSP (canceled)

PAVILION

DANCE CLUB LIVE CLUB

STEREO

Creating Realistic Sound Fields

B.SEARCH

REW FF

F.SEARCH

ENTER

VOLUME

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.C

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

00 F 00

00 R 00 CEN

Normal indication

(canceled)

REAR

00 F 00

00 R 00 CEN

Normal indication

(canceled)

REAR

DSP MODE

PRO LOGIC

SOUND

ENTER

SOUND

English

2 3

SOUND

To adjust the output balance for the front speakers

1) Press SOUND repeatedly until the adjustment indication for the front speakers appears on the display.

• Each time you press the button, the adjustment indication

on the display changes as follows:

PRO LOGIC

D.R.C

DSP MODE

Adjusting Stereo Sound

You can adjust the following settings. It is recommended that you make adjustments from your actual listening point while listening to reproduced sounds.

– Output balance for the front speakers – Output level for the subwoofer

Once you adjust these items, the adjustments take effect for all the surround modes.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

Select and play any source except Dolby Digital or DTS Digital Surround.

Cancel Dolby Surround or DSP modes if they are activated.

For deactivating Dolby Surround:

Press PRO LOGIC on the remote control until “STEREO” appears on the display.

For deactivating DSP modes:

Press DSP MODE (or DSP on the front panel) until the DSP indicator goes off from the display.

2) Press 3 or 2 to adjust the

output balance.

3 : Decreases the left speaker

output, or restores the right speaker output.

2 : Decreases the right speaker

output, or restores the left speaker output.

• The output balance changes from OFF (silence), –06 (most reduction) to 00 (no reduction).

•“00 F 00” is the initial setting (the output balance is at the center position). If you have already changed the setting, another value will appear.

To adjust the output level for the subwoofer

1) Press SOUND repeatedly to select “SW.”

• Each time you press the button, the indication on

the display changes as follows:

2) Press 3 or 2 to adjust the output level.

3 : Increases the output level. 2 : Decreases the output level.

• The output level changes from –06

to +06.

•“SW –06dB” is the initial setting.

If you have already changed the settings, another value will appear.

Now, you are ready to start adjustments.

• To adjust the output balance for the front speakers, go to the next step.

• To adjust the output level for the subwoofer, go to step

Adjusting Dolby Digital and

00 F 00

00 R 00 CEN

Normal indication

(canceled)

REAR

SOUND

ENTER

00 F 00

00 R 00 CEN

Normal indication

(canceled)

REAR

SOUND

D.R.C

ENTER

DTS Digital Surround

You can adjust the following settings while activating Dolby Digital or DTS Digital Surround. It is recommended that you make adjustments from your actual listening point while listening to reproduced sounds.

– Output balance for the front speakers – Output balance for the rear speakers – Output level for the center speaker – Output level for the rear speakers* – Output level for the subwoofer

* The adjustment is separately memorized for Digital Multichannel

Surround (Dolby Digital and DTS Digital Surround), and for Dolby Pro Logic.

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 16). You cannot adjust the speaker output balance and level when you set the speaker settings to “NONE.”

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

Select and play a DVD encoded with Dolby

again.

Digital or DTS Digital Surround.

Now, you are ready to start adjustments.

• To adjust the output balance for the front speakers and the rear speakers, go to the next step.

• To adjust the output level for the center speaker, the rear speakers,

and the subwoofer, go to step

2) Press 3 or 2 to adjust the

output balance.

3 : Decreases the left speaker

output, or restores the right speaker output.

2 : Decreases the right speaker

output, or restores the left speaker output.

• Each output balance changes from OFF (silence), –06 (most reduction) to 00 (no reduction).

3) Repeat 1) and 2) for setting the other speaker.

To adjust the output levels for the center speaker, the rear speakers, and the subwoofer

1) Press SOUND repeatedly to select the “CEN,” “REAR,” or “SW.”

• Each time you press the button, the indication on

the display changes as follows:

CEN (Center) : To adjust the output level for center

speaker (from –06 dB to +06 dB).

REAR : To adjust the output level for rear

speakers (from –06 dB to +06 dB).

SW (Subwoofer) : To adjust the output level for subwoofer

(from –06 dB to +06 dB).

English

To adjust the output balance for the front speakers and the rear speakers

1) Press SOUND repeatedly until one of the following adjustment indications appears on the display.

• Each time you press the button, the adjustment indication

on the display changes as follows:

00 F (Front) 00 : To adjust the output balance for the front

speakers.

00 R (Rear) 00 : To adjust the output balance for the rear

speakers.

•“00 F 00” and “00 R 00” are the initial setting (the output

balances are at the center position). If you have already changed the setting, another value will appear.

•“CEN –06dB,” “REAR –06dB,” and “SW –06dB” are the initial settings. If you have already changed the settings, another value will appear.

2) Press 3 or 2 to adjust the

output level.

3 : Increases the output level. 2 : Decreases the output level.

3) Repeat 1) and 2) for setting the other speakers.

Activating Dynamic Range Compression

You can enjoy a powerful sound even at a low volume level by compressing the dynamic range (difference between the maximum and minimum sounds).

• This function takes effect only when Dolby Digital or DTS Digital Surround is activated.

From the remote control ONLY:

Press D.R.C.

• Each time you press the button, the dynamic range compression mode alternates between on and off. Select “D.R.C. ON” while watching the DVD at night. (You can obtain a powerful sound at a low volume.)

Creating Realistic Sound Fields

PRO LOGIC

3 STEREO

STEREO

(canceled)

00 F 00

00 R 00 CEN

Normal indication

(canceled)

REAR

SOUND

ENTER

B.SEARCH

REW FF

F.SEARCH

ENTER

VOLUME

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.C

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

DVD FM/AM AUX MUTE

English

Adjusting Dolby Surround

2 3

AUX

SOUND

PRO LOGIC

DSP MODE

Press PRO LOGIC repeatedly on the remote control to select Dolby Pro Logic or Dolby 3 Stereo.

The PRO LOGIC indicator lights up on the display.

• Each time you press the button, the indication changes as follows:

Now, you are ready to start adjustments.

• To adjust the output balance for the front speakers and the rear speakers, go to the next step.

• To adjust the output level for the center speaker, the rear speakers,

and the subwoofer, go to step

To adjust the output balance for the front

speakers and the rear speakers

1) Press SOUND repeatedly until one of the following adjustment indications appears on the display.

• Each time you press the button, the indication on the

display changes as follows:

You can adjust the following settings while activating Dolby Surround. It is recommended that you make adjustments from your actual listening point while listening to reproduced sounds.

– Output balance for the front speakers – Output balance for the rear speakers – Output level for the rear speakers* – Output level for the subwoofer

• When Dolby 3 Stereo is activated, you cannot adjust the rear

speakers and subwoofer levels.

* The adjustment is separately memorized for Digital Multichannel

Surround (Dolby Digital and DTS Digital Surround), and for Dolby Pro Logic.

• Dolby Surround cannot be used with DSP modes. Once one of Dolby Surround is activated, DSP modes in use will be canceled.

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 16). You cannot adjust the speaker output balance and levels when you have set the speaker settings to “NONE.”

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

Press AUX to select the

again.

external component as the source.

Start playing a source encoded with Dolby Surround.

00 F (Front) 00 : To adjust the output balance for the front

speakers.

00 R (Rear) 00 : To adjust the output balance for the rear

speakers.

• When selecting “3 STEREO,” you cannot adjust the output balance for the rear speakers.

•“00 F 00” and “00 R 00” are the initial settings (the output balances are at the center position). If you have already changed the setting, another value will appear.

2) Press 3 or 2 to adjust the

output balance.

3 : Decreases the left speaker

output, or restores the right speaker output.

2 : Decreases the right speaker

output, or restores the left speaker output.

• Each output balance changes from OFF (silence), –06 (most reduction) to 00 (no reduction).

3) Repeat 1) and 2) for setting the other speakers.

00 F 00

00 R 00 CEN

Normal indication

(canceled)

REAR

SOUND

ENTER

HALL

PAVILIONTHEATER

Normal

indication

(canceled)

LIVE CLUB

DANCE CLUB

00 F 00

00 R 00 REAR

Normal

indication

(canceled)

ROOMLIVEREVERB

DSP MODE

SOUND

ENTER

To adjust the output level for the center speaker, the rear speakers, and the subwoofer

1) Press SOUND repeatedly to select the “CEN,” “REAR,” or “SW.”

• Each time you press the button, the indication on

the display changes as follows:

CEN (Center) : To adjust the output level for center

speaker (from –06 dB to +06 dB).

REAR : To adjust the output level for rear

speakers (from –06 dB to +06 dB).

SW (Subwoofer) : To adjust the output level for subwoofer

(from –06 dB to +06 dB).

• When selecting “3 STEREO,” you cannot adjust the output

levels for the rear speakers and subwoofer.

•“CEN –06dB,” “REAR –06dB,” and “SW –06dB” are the

initial settings. If you have already changed the settings, another value will appear.

2) Press 3 or 2 to adjust the output level.

3 : Increases the output level. 2 : Decreases the output level.

Select and play any source except Dolby Digital or DTS Digital Surround.

Press DSP MODE (or DSP on the front panel) repeatedly to select the desired DSP mode.

The DSP indicator lights up on the display while the DSP modes are activated.

• Each time you press the button, DSP mode changes as follows:

Now, you are ready to start the adjustment.

• To adjust the output balance for the front speakers and the rear speakers, go to the next step.

• To adjust the output level for the rear speakers, go to step next page.

• To adjust the overall level of DSP effect, go to step 5 on the next page.

To adjust the output balance for the front

on the

speakers and the rear speakers

1) Press SOUND repeatedly until one of the following adjustment indications appears on the display.

• Each time you press the button, the indication on the

display changes as follows:

English

3) Repeat 1) and 2) for setting the other speakers.

Adjusting DSP Modes

You can adjust the following settings while activating DSP modes. It is recommended that you make adjustments from your actual listening point while listening to reproduced sounds.

– Output balance for the front speakers – Output balance for the rear speakers – Output level for the rear speakers – Output level for the subwoofer – Overall level of DSP effect

• DSP modes cannot be used with Dolby Surround. Once one of

DSP modes is activated, Dolby Surround in use will be canceled.

• When you play back a DVD encoded with Dolby Digital or DTS Digital Surround, DSP MODE button (or DSP button on the center unit) does not work.

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 16). You cannot adjust the speaker output balance and levels when you have set the speaker settings to “NONE.”

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

again.

00 F (Front) 00 : To adjust the output balance for the front

speakers.

00 R (Rear) 00 : To adjust the output balance for the rear

speakers.

•“00 F 00” and “00 R 00” are the initial setting (the output balances are at the center position). If you have already changed the setting, another value will appear.

2) Press 3 or 2 to adjust the

output balance.

3 : Decreases the left speaker

output, or restores the right speaker output.

2 : Decreases the right speaker

output, or restores the left speaker output.

• Each output balance changes from OFF (silence), –06 (most reduction) to 00 (no reduction).

3) Repeat 1) and 2) for setting the other speaker.

TO BE CONTINUED ON THE NEXT PAGE

Creating Realistic Sound Fields

DSP MODE

SOUND

B.SEARCH

REW FF

F.SEARCH

ENTER

VOLUME

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

123

REMAIN

PROGRAM

D.R.C

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

00 F 00

00 R 00 REAR

Normal

indication

(canceled)

ROOMLIVEREVERB

SOUND

EFFECT 1 EFFECT 2

EFFECT 3DEFAULT

EFFECT

00 F 00

00 R 00 REAR

Normal

indication

(canceled)

ROOMLIVEREVERB

English

2 3

SOUND

DSP MODE

EFFECT

To adjust the output level for the rear speakers

1) Press SOUND repeatedly until “REAR” appears on the display.

• Each time you press the button, the indication on

the display changes as follows:

Adjusting DSP Sound Parameters

You can fine-adjust DSP modes more minutely by changing three parameters—room, liveness, and reverberation.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

Press DSP MODE (or DSP on the front panel) repeatedly to select the desired DSP mode.

Press SOUND repeatedly to select the desired DSP sound parameter.

• Each time you press the button, the indication on the display changes as follows:

ROOM : To adjust the resonance based on the room size.

The larger this value is, the more effective the resonance is (from 04 to 16 by 2 steps).

LIVE (Liveness) : To adjust the liveness. The larger this

value is, the more liveness is obtained (from 04 to 16 by 2 steps).

REVERB (Reverberation) : To adjust the reverberation

time of the sound (from 0.0 msec to 1.6 msec by

0.2 msec steps).

REAR : To adjust the output level for rear speakers

•“REAR –06dB” is the initial setting. If you have already changed the setting, another value will appear.

2) Press 3 or 2 to adjust the output level.

3 : Increases the output level. 2 : Decreases the output level.

To adjust the overall level of DSP effect

Press EFFECT repeatedly to adjust the overall level.

“EFFECT (with the current setting)” or “DEFAULT” appears on the display.

• Each time you press the button, the effect level changes as follows:

As the number increases, DSP effect becomes stronger.

•“DEFAULT” is the initial setting. For in-depth information about “DEFAULT (initial)” setting, see the table to the right.

(from –06 dB to +06 dB).

• The following diagram shows the “DEFAULT (initial)” settings of the DSP sound parameters for each DSP mode.

DSP MODE ROOM LIVE REVERB

HALL 08 16 0.4

THEATER 04 10 1.0

PAVILION 08 04 0.2

DANCE CLUB 04 08 1.6

LIVE CLUB 08 16 1.4

Press 3 or 2 to adjust the DSP sound parameter.

3 : Increases the value. 2 : Decreases the value.

Repeat 2 and 3 for setting the other DSP sound parameters.

Note:

Pressing EFFECT to adjust overall level of DSP effect will change your fine-adjustments to the fixed level.

Disc Introduction—DVD/VCD/CD

COMPACT

DIGITAL AUDIO

This system has been designed to play back the following discs: DVD, Video CD, Audio CD, CD-R, and CD-RW.

• This system can also play back MP3 files recorded on CD-Rs and CD-RWs. For in-depth information about what MP3 is, see “MP3 Introduction” on page 40.

Discs you can play:

Disc Mark Video Region Code Type (Logo) Format Number*

DVD

Video

NTSC

Video

Audio

CD-R

CD-RW

ALL

Disc structure—DVD, Video CD (VCD) and Audio CD (CD)

A DVD disc consists of Titles, and each title may be divided into some Chapters. (See Example 1.) For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided into some chapters. On the other hand, a VCD or CD consists of Tracks. (See Example

2.) In general, each song has its own track number. (On some discs, each track may also be divided by Indexes.) When playing back a VCD with Playback Control (PBC) function, you can select what to view using the menu shown on the TV screen. (While operating a Video CD using the menu, some of the functions such as Repeat and Track Search may not work.)

Example 1: DVD disc

Example 2 : Video CD/Audio CD

English

• On some DVD or VCD discs, their actual operations may be different from what is explained in this manual. This is due to the disc programming and disc structure, but not a malfunction of this system.

• The following discs cannot be played back: – DVD-Audio, DVD-ROM, DVD-RAM, DVD-R,

DVD-RW, CD-ROM, CD-I, (CD-I Ready), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

* Note on Region Code

DVD players and DVD Video discs have their own Region Code numbers. This system only can play back DVD discs recorded with the color system of NTSC whose Region Code numbers include “1.”

Examples:

If a DVD with the inadequate Region Code numbers is loaded, “REGION ERR” appears on the display and playback cannot start.

IMPORTANT: Before performing any operations, make sure of

the following....

• Check the connection with the TV.

• Turn on the TV and select the correct input on the TV to view the

pictures or on-screen indications on the TV screen.

• For DVD playback, you can change the Setup menu setting to your preference. (See pages 46 to 49.)

” appears on the TV screen when pressing a button,

If “

the disc cannot accept an operation you have tried to do, or information required for that operation is not recorded in the disc.

NOTICE : In some cases, without showing “ will not be accepted.

,” operations

Notes on CD-R and CD-RW

User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already “finalized.”

• The system can play back CD-Rs or CD-RWs recorded on a personal computer if they have been recorded in the audio CD format or recorded in MP3 format (see page 40). However, they may not be played back depending on their characteristics or recording conditions.

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the built-in lens is dirty.

• CD-RWs may require a longer readout time. This is caused by the fact that the reflectance of CD-RWs is lower than for regular CDs.

Basic Disc Operations

TUNER PRESET

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

AUDIO/

FM MODE

VCR CHANNEL

TUNING

Title No. Elapsed playing

time

Chapter No.

Track No.

Elapsed playing

time

Track No.

Elapsed playing

time

English

DISPLAY

To start playback

Press 3/8.

The source is automatically changed to the DVD player. “WAIT” appears on the display for a while, then the detected disc type appears—DVD, VCD, CD, or MP3. (If your TV is turned on, the mark corresponding to the detected disc type appears on the TV screen.)

• When a disc is not loaded, “NO DISC” appears on the display.

Disc play starts from the first chapter or track of the selected disc.

• If a menu appears while playing a DVD or VCD with PBC function, see “Disc Menu-Driven Playback” (for DVD) on page 29 or “Disc Menu-Driven Playback (Only for VCD)” on page 35.

Note:

If “WRONG PARENTAL CODE” appears on the TV screen, Parental Lock is in use. You cannot play back a DVD containing violent scenes or those not suitable for your family members. To play back such a disc, cancel the Parental Lock. (See page 49.)

Playback information on the display

DVD

3/8

To stop playback for a moment

Press 3/8.

While pausing, “PAUSE” appears on the display.

• To resume play, press 3/8.

To go to another chapter or track (except MP3)

Press ¢ or 4 repeatedly during playback.

• ¢ : Skips to the beginning of the next or succeeding chapter or

track.

• 4 : While a DVD or a VCD with PBC is played back

Goes back to the beginning of the previous chapter or track.

While a CD or a VCD without PBC is played back

Goes back to the beginning of the current or previous track.

To go to another title (only possible on a DVD) or track (only possible on a CD and VCD) directly using the number buttons

Pressing the number buttons before or during play allows you to start playing the title/track number you want. (If your TV is turned on, the on-screen bar is pulled down automatically on the TV screen.)

• To select number 1 to 9, press the corresponding number button (then press ENTER or wait for 5 seconds).

• To select number 15, press 1, 5.

• To select number 23, press 2, 3.

To stop during playback

Press 7.

(If your TV is turned on, “

STOP” appears

on the TV screen.)

• When an MP3 disc is played back, playback stops completely.

• This system can memorize the end point even when you press 7. When you start playback again by pressing 3/8, playback begins from where it has been stopped—Resume play.

• To stop completely, press 7 twice. (“7 STOP” appears on the TV screen.) The disc type appears on the display. The DVD player goes on working for 3 minutes after playback stops.

To remove the disc

Press 0 on the front panel.

The disc tray comes out.

VCD/CD

MP3

To close the disc tray, press 0 again.

• If you do not press the button, the disc tray closes automatically 35 seconds after.

DVD Playback

56789

23 4

On-screen bar goes off.

DISPLAY

Some DVDs contain several audio languages, subtitles, and multiangle views. When you find the following marks on the DVD or its package, you can select these elements recorded on the DVD.

Subtitles are recorded on the disc. The number inside the mark indicates the total number of the recorded subtitles.

Several audio languages are recorded on the disc. The number inside the mark indicates the total number of the recorded audio languages.

Multi-angle views are recorded on the disc. The number inside the mark indicates the total number of the recorded multi-angle views.

If you cannot find out whether your disc contains these features listed above, you can check it by showing the on-screen bar.

For basic disc operations such as inserting a disc, starting playback, and moving to another chapters, see “Basic DVD Operations” on pages 10, 11, and “Basic Disc Operations” on page 26.

Showing the On-Screen Bar

You can show the following information on the TV screen while a disc is loaded.

From the remote control ONLY:

Press DISPLAY.

• Each time you press the button, the following on-screen bar appears in sequence.

English

1 : Disc type

DVD VCD CD MP3

2 : Current title and total number of the titles on the

disc

• Ex.: 1st title is playing out of 3 titles recorded.

3 : Current chapter and total number of the chapters

recorded on the disc

• Ex.: 1st chapter is playing out of 5 chapters recorded.

4 : Elapsed playing time or remaining time

You can change the play time indication by pressing REMAIN. See page 29 for more details.

5 : Subtitle language indication

• Ex.: When no subtitle is recorded on the disc. See page 28 for more details.

6 : Audio language indication

• Ex.: Original sound (default) is selected out of 3 audio languages recorded. See page 28 for more details.

7 : Signal format indicator

• Signal format type—Linear PCM (stereo), Dolby Digital,

and DTS Digital Surround—will be indicated. Ex.: When the disc is encoded with Dolby Digital.

8 : Repeat mode indicator

• Ex.: When repeat mode is turned off. See page 30 for more details.

9 : Multi-angle view indicator

• Ex.: When only a single angle-view is recorded on the disc. See page 28 for more details.

ANGLE 3

ANGLE 1 ANGLE 2

DVD Playback

SUBTITLE

DEF 1/3 1/1OFF /3

OFF /3 ENG 1/3

SPA 3/3 FRE 2/3

ENG 1/3 FRE 2/3

SPA 3/3

ENG 1/3 1/1ENG 1/3

AUDIO/

FM MODE

ANGLE

1/3 2/3

3/3

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

REMAIN

PROGRAM

D.R.C

SETUP

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

123

English

TOP MENU

AUDIO/ FM MODE

3/2/5/∞ ENTER

Number buttons

SUBTITLE

Selecting the Audio Languages

While playing back a DVD containing audio languages (sound track), you can select the language (sound track) to listen to.

• You can set your favorite audio language as the initial audio language. (See page 46.)

Press AUDIO/FM MODE.

The on-screen bar appears on the TV screen for a while.

• Each time you press the button, the audio language changes as follows:

Ex.: When the disc has 3 selections—English,

French, and Spanish

ANGLE

CLEAR

Selecting the Subtitles

While playing back a DVD containing subtitles in different languages, you can select the subtitle to be displayed on the TV screen.

• You can set your favorite subtitle language as the initial language

From the remote control ONLY:

Press SUBTITLE.

The on-screen bar appears on the TV screen for a while.

• Each time you press the button, the subtitle language

shown on the screen. (See page 46.)

changes as follows:

Ex.: When the disc has 3 selections—English,

French, Spanish and no subtitle (OFF)

Selecting the Multi-Angle Views

REMAIN

While playing back a DVD containing multi-angle views, you can view the same scene at different angles.

• When you play back the DVD containing multi-angle views, appears on the TV screen.

From the remote control ONLY:

Press ANGLE.

• Each time you press the button, the view angle changes.

Ex.: When the disc has 3 multi-angle views

Note:

When the on-screen bar is shown on the TV screen, Repeat mode indication also changes as follows:

TOP MENU

ENTER

Canceled

TITLE – –

TIME – – : – – : – –

CHAPTER – – –

123

Checking the Remaining Time

TITLE TIME

CHAPTER TIME

REMAIN TIME:CHAPTER

REMAIN TIME:TITLE

REMAIN

Moving to a Particular Portion Directly

English

While playing back a DVD, you can check the remaining time to be played back.

From the remote control ONLY:

Press REMAIN.

The on-screen bar and the current play time indication appear on the TV screen for a while.

• Each time you press the button, the following indication appears on the screen:

REMAIN TIME:TITLE

: Select this to show the remaining time of the current title.

CHAPTER TIME

: Select this to show the elapsed playing time of the current

chapter.

REMAIN TIME:CHAPTER

: Select this to show the remaining time of the current chapter.

TITLE TIME

: Select this to show the elapsed playing time of the current title.

Disc Menu-Driven Playback

You can move to another title, chapter, or particular scene in the chapter directly.

From the remote control ONLY:

Press SEARCH during playback or pause.

• Each time you press the button, the following indication appears on the screen:

TITLE – – : Select this to move to another title. CHAPTER – – – : Select this to move to another chapter. TIME – – : – – : – – : Select this to move to a particular scene.

Press the number buttons to select a desired title, chapter, or playing time.

The unit starts playback of the selected item. (The on-screen bar appears for a while.)

Disc menu-driven playback is possible while playing back a DVD with menu (menu may be still pictures or moving pictures depending on the disc).

• When operating a disc using the disc menu, refer also to the instructions supplied for the disc.

DVD discs generally have their own menus or title lists. A menu usually contains various information about the disc and playback selections. On the other hand, a title list usually contains titles of movies and songs recorded.

From the remote control ONLY:

Press MENU or TOP MENU.

A menu or title list will appear on the screen.

“MENU” appears on the display.

• On some DVDs, a menu will automatically appear

on the screen after playback starts.

Select a desired item on the menu or on the title list, using

3/2/5/∞ and ENTER.

The unit starts playback of the selected item.

• On some discs, you can also select items by pressing the number buttons corresponding to the item numbers listed.

How to input the title and chapter number

Press the number buttons corresponding to the number, then wait for about 5 seconds or press ENTER to start playback.

• To select number 5, press 5, then ENTER.

• To select number 12, press 1, 2, then ENTER.

• To select number 22, press 2, 2, then ENTER.

How to input the playing time

Press the number buttons to input the playing time, then wait for about 5 seconds or press ENTER to start playback at the selected elapsed playing time.

• To input time “00:45:23,” press 4, 5, 2, 3.

• To input time “01:23:45,” press 1, 2, 3, 4, 5.

• To cancel a mis-entry, press CLEAR.

Each time you press the button, the last entry will be erased.

Note:

When you want to move to another title directly, you can move to it by simply pressing the corresponding number buttons (without pressing SEARCH in step 1).

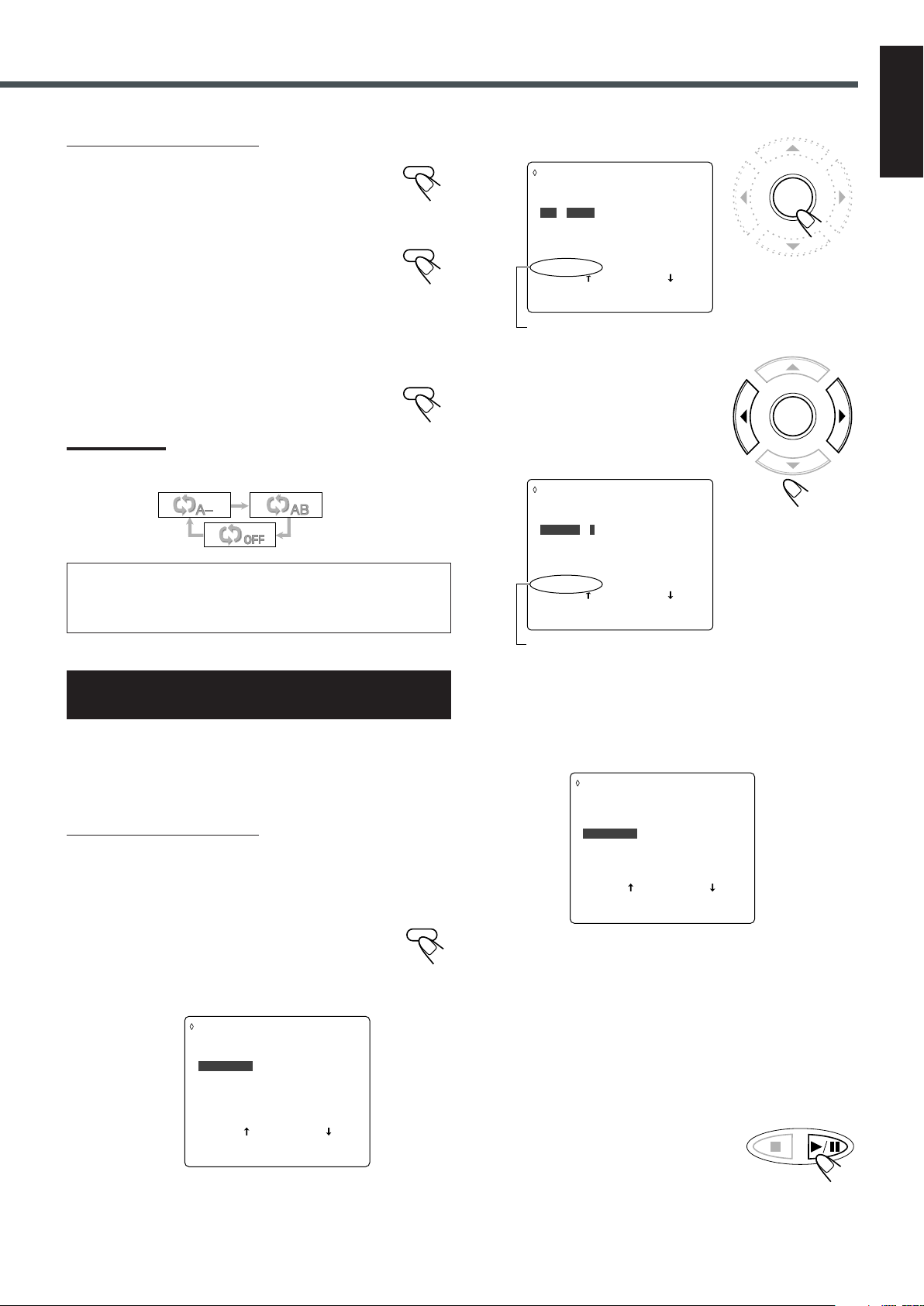

REPEAT A

REPEAT A–B

DVD Playback

PLAY (Back play)

x2 x4

PLAY (Normal play)

x2 x4

REPEAT:CHAPTER

REPEAT:TITLE

REPEAT OFF

REPEAT

B.SEARCH

TUNER PRESET

F.SEARCH

REPEAT:CHAPTER REPEAT:TITLE

REPEAT OFF

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

REMAIN

PROGRAM

D.R.C

SETUP

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

123

English

2 3

ENTER

3/8

To reverse the chapter—Variable Speed Reverse Search

From the remote control ONLY: Press 1 during playback or pause.

• Each time you press the button, the search speed changes as follows:

To resume normal play

Press 3/8.

Repeating Playback

7 Repeat Play

From the remote control ONLY:

Press REPEAT repeatedly.

The indication corresponding to the selected mode appears on your TV.

• Each time you press the button, Repeat mode changes as follows:

REPEAT

PROGRAM

A-B REPEAT

Searching for a Particular Point

You can search for a particular portion while playing a disc— Variable Speed Forward/Reverse Search.

• No sound comes out during Variable Speed Forward/Reverse

To fast-forward the chapter—Variable Speed Forward Search

From the remote control ONLY: Press ¡ during playback or pause.

• Each time you press the button, the search speed

Search.

changes as follows:

REPEAT:CHAPTER : Current chapter will be repeated. REPEAT:TITLE* : Current title will be repeated. REPEAT OFF : Repeat play is canceled. (Normal play

is resumed.)

* Cannot be selected during program play.

Note:

When the on-screen bar is shown on the TV screen, repeat mode indication also changes as follows:

7 A–B Repeat

While playing, you can also select a portion you want to repeat.

• A–B repeat is not performed between different titles.

• An interval of more than 5 seconds is required between point A

and point B.

Example:

PROGRAM MENU

SELECT: ENTER

TITLE CHAPT

1 – – – – 2 – – – – 3 – – – – 4 – – – – 5 – – – –

TITLE CHAPT

6 – – – – 7 – – – – 8 – – – – 9 – – – – 10 – – – –

PLAY: 3

FINISH: PROGRAM

From the remote control ONLY:

SELECT: ENTER

TITLE CHAPT

1 2 8 2 –– –– 3 –– –– 4 –– –– 5 –– ––

TITLE CHAPT

6 –– –– 7 –– –– 8 –– –– 9 –– –– 10 –– ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

A-B REPEAT

PROGRAM

ENTER

TUNER PRESET

SELECT: ENTER

TITLE CHAPT

1 –– –– 2 –– –– 3 –– –– 4 –– –– 5 –– –– CHOOSE : 1–5 PREVIOUS

TITLE CHAPT

6 –– –– 7 –– –– 8 –– –– 9 –– –– 10 –– ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

SELECT: ENTER

TITLE CHAPT

1 – 2 –– 2 –– –– 3 –– –– 4 –– –– 5 –– –– CHOOSE : 1–9 PREVIOUS

TITLE CHAPT

6 –– –– 7 –– –– 8 –– –– 9 –– –– 10 –– ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

PROGRAM MENU

ENTER

Press A–B REPEAT to select the start point.

“REPEAT A” appears on the display.

Press A–B REPEAT again to select the end point.

“REPEAT A” changes to “REPEAT A–B,” then A–B repeat begins. The unit automatically locates point A and starts repeated playback between points A and B.

Press ENTER.

Title numbers you can select in the next step

English

To cancel A–B Repeat

Press A–B REPEAT again.

“REPEAT A–B” goes off from the display.

Note:

When the on-screen bar is shown on the TV screen, Repeat mode indication also changes as follows:

On some DVDs, A–B Repeat may not be used even within the same title. This is due to their disc structures, and not a malfunction of the unit.

Programming the Playing Order of the Chapters—Program Play

You can arrange the chapter playback order before you start playing. You can program up to 20 steps.

• Before making a program, make sure that the TV is turned on and the correct input is selected on the TV.

Press 3 or 2 to select a title number, then ENTER.

• 3 : Increases the number.

• 2 : Decreases the number.

• You can also select a title number using

the number buttons.

Chapter numbers you can select in the next step

Press 3 or 2 to select a chapter number, then ENTER.

• 3 : Increases the number.

• 2 : Decreases the number.

•

You can also select a chapter number using the number buttons.

From the remote control ONLY:

Load a disc.

• If the current playing source is not the DVD player, press

3/8, then 7 before going to the next step.

Press PROGRAM.

The PROGRAM MENU screen appears on the TV screen.

•“PROGRAM” appears on the display and the PROGRAM indicator also lights up.

• To select all chapters in the selected title as one program step, simply press ENTER without selecting any number.

“ALL” appears on the chapter number position.

Repeat steps 3 to 5 to program other chapters you want.

• After 10 steps are programed, “NEXT «” is selected (highlighted). If you want to program more steps, press ENTER.

Press 3/8.

The chapters are played in the order you have programed.

After all the chapters you programed are played back, the PROGRAM MENU screen appears on the TV screen again.

TO BE CONTINUED ON THE NEXT PAGE

DVD Playback

SELECT: ENTER

TITLE CHAPT

1 2 8 2 1 5 3 1 17 4 3 6 5 4 2

TITLE CHAPT

6 2 2 7 2 12 8 1 9 9 –– –– 10 –– ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

DVD/Video CD/CD PLAYER

TUNER PRESET

PROGRAM

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

REMAIN

PROGRAM

D.R.C

SETUP

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

123

English

3/2/5/∞

ENTER

SLOW

CLEAR

STEP

3/8

ZOOM

PROGRAM

To erase the stored program

Press 0 to eject the disc.

• If you turn off the system or change the source, the program is also erased.

To check the program contents

You can check the program contents by pressing PROGRAM. The PROGRAM MENU screen appears on the TV screen.

• If you press the button during playback, the program play will stop.

To modify the program

You can modify the program while the PROGRAM MENU screen is shown on the TV screen.

• To erase a step: Press ∞ (or 5) to select (highlight) an unwanted program step, then press CLEAR.

• To modify a step: Press ∞ (or 5) to select (highlight) a program

step you want to modify, then perform steps (Before entering a new number, press CLEAR repeatedly until

“– –” appears on the number entry position.)

• To add a step: Press ∞ (or 5) to select (highlight) an empty

program step, then perform steps

to 5 on page 31.

• To move program step 11 to program step 10, press 5 when

program step 11 is selected (highlighted) so that

“PREVIOUS »” is selected (highlighted). Then, press ENTER.

• To move program step 10 to program step 11, press ∞ when

program step 10 is selected (highlighted) so that “NEXT « ” is selected (highlighted). Then, press ENTER.

to 5 on page 31.

To stop during playback

Press 7 or PROGRAM on the remote control.

The PROGRAM MENU screen appears on the TV screen.

• If you press 3/8 while this screen is

To exit from program play

From the remote control ONLY:

Press PROGRAM.

The PROGRAM MENU screen goes off, and the opening screen appears. (The program you made is still kept in memory.)

• If you press 3/8 while this screen is

shown, the unit starts program play.

shown, the unit starts normal playback.

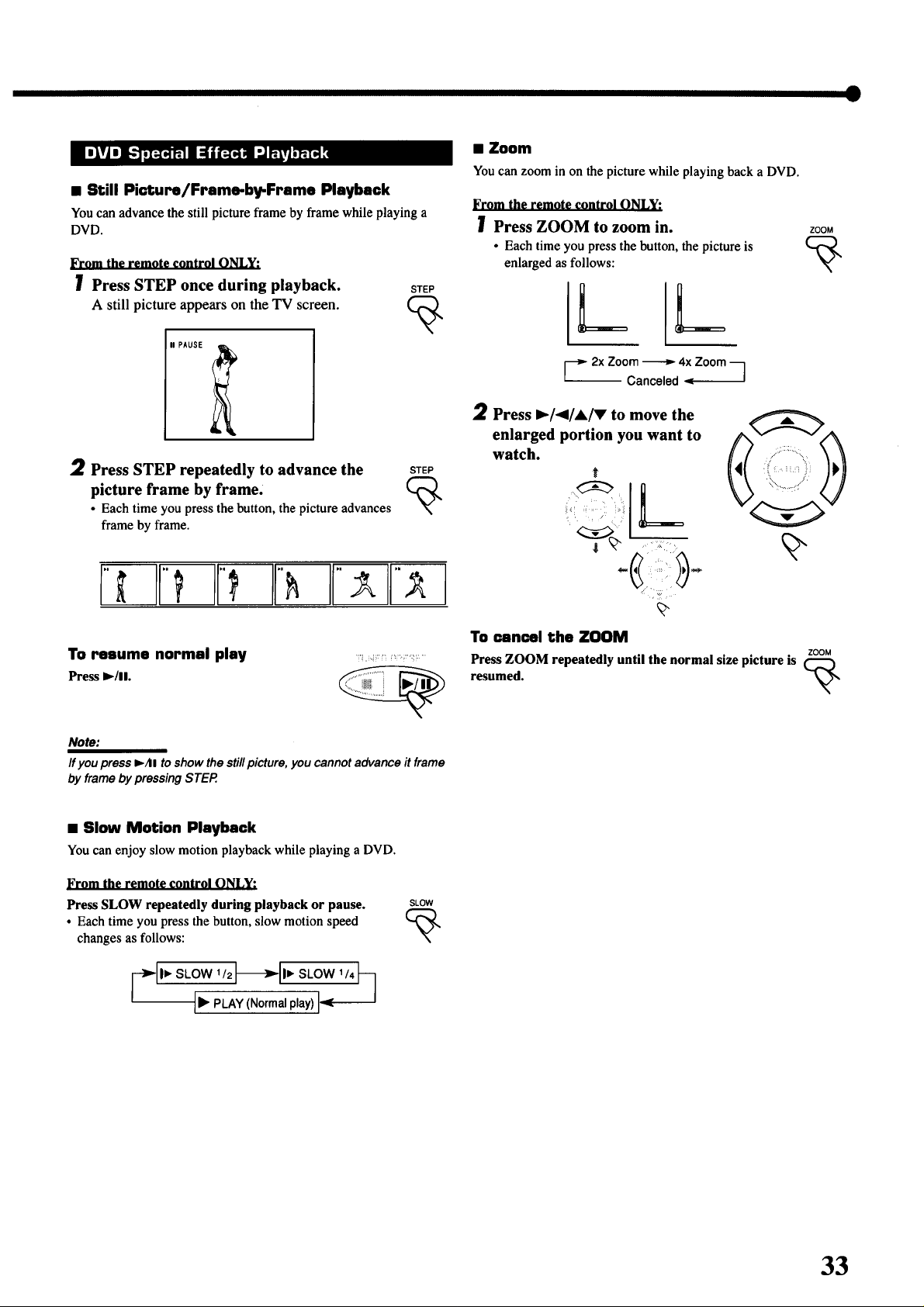

DVD Special Effect Playback

PAUSE

38 38 38 38 38 38

2x Zoom 4x Zoom

Canceled

STEP

TUNER PRESET

SLOW

SLOW /

PLAY

(Normal play)

SLOW /

ZOOM

ENTER

ZOOM

2 4

ENTER

7 Still Picture/Frame-by-Frame Playback

You can advance the still picture frame by frame while playing a DVD.

From the remote control ONLY:

Press STEP once during playback.

A still picture appears on the TV screen.

Press STEP repeatedly to advance the picture frame by frame.

• Each time you press the button, the picture advances frame by frame.

7 Zoom

You can zoom in on the picture while playing back a DVD.

From the remote control ONLY:

Press ZOOM to zoom in.

• Each time you press the button, the picture is enlarged as follows:

Press 3/2/5/∞ to move the enlarged portion you want to watch.

English

To resume normal play

Press 3/8.

Note:

If you press 3/8 to show the still picture, you cannot advance it frame by frame by pressing STEP.

7 Slow Motion Playback

You can enjoy slow motion playback while playing a DVD.

From the remote control ONLY:

Press SLOW repeatedly during playback or pause.

• Each time you press the button, slow motion speed changes as follows:

To cancel the ZOOM

Press ZOOM repeatedly until the normal size picture is resumed.

English

DISPLAY

REMAIN

REMAIN TIME:TRACK

REMAIN TIME:DISC

TRACK TIME

DISC TIME

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

REMAIN

PROGRAM

D.R.C

SETUP

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

123

00:12

1/35

12 3 64 5

On-screen bar goes off.

VCD/CD Playback

RETURN

DISPLAY

ENTER

Number buttons

CLEAR

3/8

REMAIN

* Appears only when a VCD is loaded.

1 : Disc type

DVD VCD CD MP3

2 : Current track and total number of the tracks on

the disc

• Ex.: 1st track is playing out of 35 tracks recorded.

3 : Sound mode

• Ex.: Stereo sound (Left channel and Right channel).

4 : Play Back Control (PBC) indicator

• Ex.: PBC is on. (When PBC is turned off, will appear.)

5 : Repeat mode indicator

• Ex.: When repeat mode is turned off. See page 36 for more details.

6 : Elapsed playing time or remaining time

You can change the play time indication by pressing REMAIN. See below.

7 : Sound indication

• Indicates sound input level. (Appears only during play.)

For basic disc operations such as inserting a disc, starting playback, and moving to another tracks, see “Basic VCD/CD Operations” on pages 12, 13, and “Basic Disc Operations” on page 26.

Showing the On-Screen Bar

You can show the following information on the TV screen while a disc is loaded.

From the remote control ONLY:

Press DISPLAY.

• Each time you press the button, the following on-screen bar appears in sequence.

Checking the Remaining Time

While playing back a VCD or CD, you can check the remaining time.

From the remote control ONLY:

Press REMAIN.

The on-screen bar appears on the TV screen for a while.

• Each time you press the button, the play time indication changes as follows:

REMAIN TIME:TRACK

: Select this to show the remaining time of the current track.

DISC TIME

: Select this to show the total elapsed playing time of the disc.

REMAIN TIME:DISC

: Select this to show the total remaining time of the disc.

TRACK TIME

: Select this to show the elapsed playing time of the current

track.

PLAY (Normal play)

x2 x4

B.SEARCH

F.SEARCH

Canceled

TRACK TIME

– – :

– –

TIME – – : – –

123

Disc Menu–Driven Playback (Only for VCD)

DOWN

REW

PLAY (Normal play)

x2 x4

The Play Back Control function (PBC) allows you to operate the VCD using menus. When you start playing a VCD with PBC function, a menu will automatically appear on the TV screen. (“MENU” will also appear on the display.)

• A menu may be a list of items, divided screens, or some moving pictures. (See “PBC operation concept” below.)

When a menu appears, you can select a desired item on the menu.

• When a list of items is displayed on the TV screen, press the number buttons to select an item.

• When “3” or “SELECT” is displayed on the TV screen, press 3/8 to start playback.

To go to the next submenu

Press ¢.

To return to the previous submenu

Press 4.

To cancel the PBC playback

You can cancel the menu-driven operations (PBC function): 1 Press 7 to stop playback. 2 Press the number buttons to select a track.

Normal playback starts from the selected track.

• You can also turn on and off the PBC function by

pressing MENU on the remote control. Each time you press the button, the PBC function turns on and off.

PBC operation concept

TIME – – : – –

: Select this to move to a particular portion on

the current disc.

TRACK TIME – – : – –

: Select this to move to a particular portion on

the current track.

Press number buttons to select a playing time you want to search for.

The unit starts playback at the selected elapsed playing time. (The on-screen bar appears for a while.)

• To input time “45:23,” press 4, 5, 2, 3.

• To input time “09:45,” press 9, 4, 5, then wait for about 5

seconds (or press ENTER).

• To cancel a misentry, press CLEAR. Each time you press the button, the last entry will be erased.

Searching for a Particular Point

You can search for a particular portion while playing a disc— Variable Speed Forward/Reverse Search.

• No sound comes out during Variable Speed Forward/Reverse Search on a VCD.

To fast-forward the tracks—Variable Speed Forward Search

Press ¡ during playback or pause.

• Each time you press the button, the search speed changes as follows:

English

Note:

While operating a VCD using menu, some of the functions such as repeat play may not work.

Moving to a Particular Portion Directly

You can move to a particular portion (scene) on the track directly.

• PBC function is canceled when you use this function.

From the remote control ONLY:

Press SEARCH during playback or pause.

• Each time you press the button, the following indication appears on the TV screen.

To reverse the tracks—Variable Speed Reverse Search

Press 1 during playback or pause.

• Each time you press the button, the search speed changes as follows:

REPEAT A

REPEAT A–B

VCD/CD Playback

REPEAT

REPEAT OFF

REPEAT:ONE REPEAT:DISC

REPEAT OFF

A-B REPEAT

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

REMAIN

PROGRAM

D.R.C

SETUP

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

123

English

2 3

ENTER

3/8

Note:

When the on-screen bar is shown on the screen, Repeat mode indication also changes as follows:

7 A–B Repeat

While playing, you can also select a portion you want to repeat.

• An interval of more than 5 seconds is required between point A and point B.

Example:

REPEAT

PROGRAM

A–B REPEAT

Repeating Playback

Repeat play cannot be used in the following cases:

• When you play back a VCD using the PBC function

• When you enjoy program play

7 Repeat Play

From the remote control ONLY:

Press REPEAT repeatedly.

The indication corresponding to the selected mode appears on your TV.

• Each time you press the button, repeat mode changes as follows:

Press A–B REPEAT to select the start point.

“REPEAT A” appears on the display.

Press A–B REPEAT again to select the end point.

“REPEAT A” changes to “REPEAT A–B,” then A–B Repeat begins. The unit automatically locates point A and starts repeated playback between points A and B.

To cancel A–B Repeat

Press A–B REPEAT again.

“REPEAT A–B” goes off from the display.

Note:

When the on-screen bar is shown on the TV screen, repeat mode indication also changes as follows:

REPEAT:ONE : Current track will be repeated. REPEAT:DISC : All the tracks will be repeated. REPEAT OFF : Repeat play is canceled. (Normal play is

resumed.)

Programming the Playing Order of the

PROGRAM

ENTER

TUNER PRESET

SELECT: ENTER

TRACK

1 –– 2 –– 3 –– 4 –– 5 ––

TRACK

6 –– 7 –– 8 –– 9 –– 10 ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

SELECT: ENTER

TRACK

1 –– 2 –– 3 –– 4 –– 5 –– CHOOSE : 1–17 PREVIOUS

TRACK

6 –– 7 –– 8 –– 9 –– 10 ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

SELECT: ENTER

TRACK

1 7 2 –– 3 –– 4 –– 5 ––

TRACK

6 –– 7 –– 8 –– 9 –– 10 ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

TUNER PRESET

DVD/Video CD/CD PLAYER

SELECT: ENTER

TRACK

1 7 2 6 3 9 4 13 5 11

TRACK

6 1 7 –– 8 –– 9 –– 10 ––

FINISH: PROGRAM

PROGRAM MENU

PLAY: 3

PROGRAM

ENTER

PROGRAM

Tracks—Program Play

You can arrange the track playback order before you start playing. You can program up to 20 steps.

• Before making a program, make sure that the TV is turned on and the correct input is selected on the TV.

From the remote control ONLY:

Load a disc.

• If the current playing source is not the DVD player, press 3/8 to select the disc you want to play, then 7 before going to the next step.

Press PROGRAM.

The PROGRAM MENU screen appears on the TV screen.

•“PROGRAM” appears on the display and the PROGRAM indicator also lights up.

Press ENTER.

Repeat steps 3 and 4 to program other tracks you want.

• After 10 steps are programed, “NEXT «” is selected

(highlighted). If you want to program more steps, press ENTER.

Press 3/8.

The tracks are played in the order you have programed.

After all the tracks you programed are played back, the PROGRAM MENU screen appears on the TV screen again.

To stop during play

Press 7 or PROGRAM on the remote control.

The PROGRAM MENU screen appears on the TV screen.

• If you press 3/8 while this screen is

shown, the system starts program play.

To exit from program play

From the remote control ONLY:

Press PROGRAM.

The PROGRAM MENU screen goes off, and the opening screen appears. (The program you made is still kept in memory.)

• If you press 3/8 while this screen is

shown, the unit starts normal playback.

English

Track numbers you can select in the next step

Press 3 or 2 to select a track number, then ENTER.

• 3 : Increases the number.

• 2 : Decreases the number.

• You can also select a track number

using the number buttons.

To erase the stored program

Press 0 to eject the disc.

• If you turn off the system or change the source, the program is also erased.

To check the program contents

You can check the program contents by pressing PROGRAM. The PROGRAM MENU screen appears on the TV screen.

• If you press the button during playback, the program play will stop.

TO BE CONTINUED ON THE NEXT PAGE

VCD/CD Playback

AUDIO:LEFT AUDIO:RIGHT

AUDIO:

STEREO

00:12

1/35

AUDIO/

FM MODE

DISPLAY

B.SEARCH

DOWN

REW

F.SEARCH

RETURN STEP TV/VIDEO

TV VOLUME

TV CHANNEL

SUBTITLE

TOP MENU

STANDBY/ON

AUDIO

VCR OFF ON

VCR

CONTROL

TUNER PRESET

ENTER

VOLUME

AUDIO/

FM MODE

VCR CHANNEL

TUNING

DVD FM/AM AUX MUTING

REMAIN

PROGRAM

D.R.C

SETUP

CLEAR

REPEAT

ANGLE

SLOW

A-B REPEAT

ZOOM

SLEEP

EFFECT

DSP MODE

TEST

PRO LOGIC

SETTING

SOUND

123

English

AUDIO/ FM MODE

3/2/5/∞ ENTER

SLOW

CLEAR

STEP

3/8

ZOOM

Selecting Playback Channel

When you play back a karaoke VCD or CD, you can only select either the left channel or right channel to listen to.

Press AUDIO/FM MODE repeatedly.

The on-screen bar appears on the screen for a while.

• Each time you press the button, the sound mode changes as follows:

AUDIO:STEREO (LR) : Select this to listen to both

channel sounds.

AUDIO:LEFT (L) : Select this to listen to the left

channel sounds.

AUDIO:RIGHT (R) : Select this to listen to the right

channel sounds.

To modify the program

You can modify the program while the PROGRAM MENU screen is shown on the TV screen.

• To erase a step: press ∞ (or 5) to select (highlight) an unwanted

• To modify a step: press ∞ (or 5) to select (highlight) an program

• To add a step: press ∞ (or 5) to select (highlight) an empty

program step, then press CLEAR.

step you want to modify, then perform steps entering a new number, press CLEAR repeatedly until “– –” appears on number entry position.)

program step, then perform steps 3 and 4.

• To move program step 11 to program step 10, press 5 when

program step 11 is selected (highlighted) so that “PREVIOUS » ” is selected (highlighted). Then, press ENTER.

• To move program step 10 to program step 11, press ∞ when program step 10 is selected (highlighted) so that “NEXT « ” is selected (highlighted). Then, press ENTER.

REMEMBER that after playing back a karaoke VCD or CD using “AUDIO:LEFT” or “AUDIO:RIGHT,” select “AUDIO:STEREO” to restore normal stereo playback.

and 4. (Before

JVC TH-45 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Warnings, Cautions and Others/

Table of Contents

Parts Identification

Getting Started

Basic DVD Operations

Basic VCD/CD Operations

Basic Tuner Operations

Other Basic Operations

Speaker Settings

Creating Realistic Sound Fields

Basic Disc Operations

DVD Playback

VCD/CD Playback
