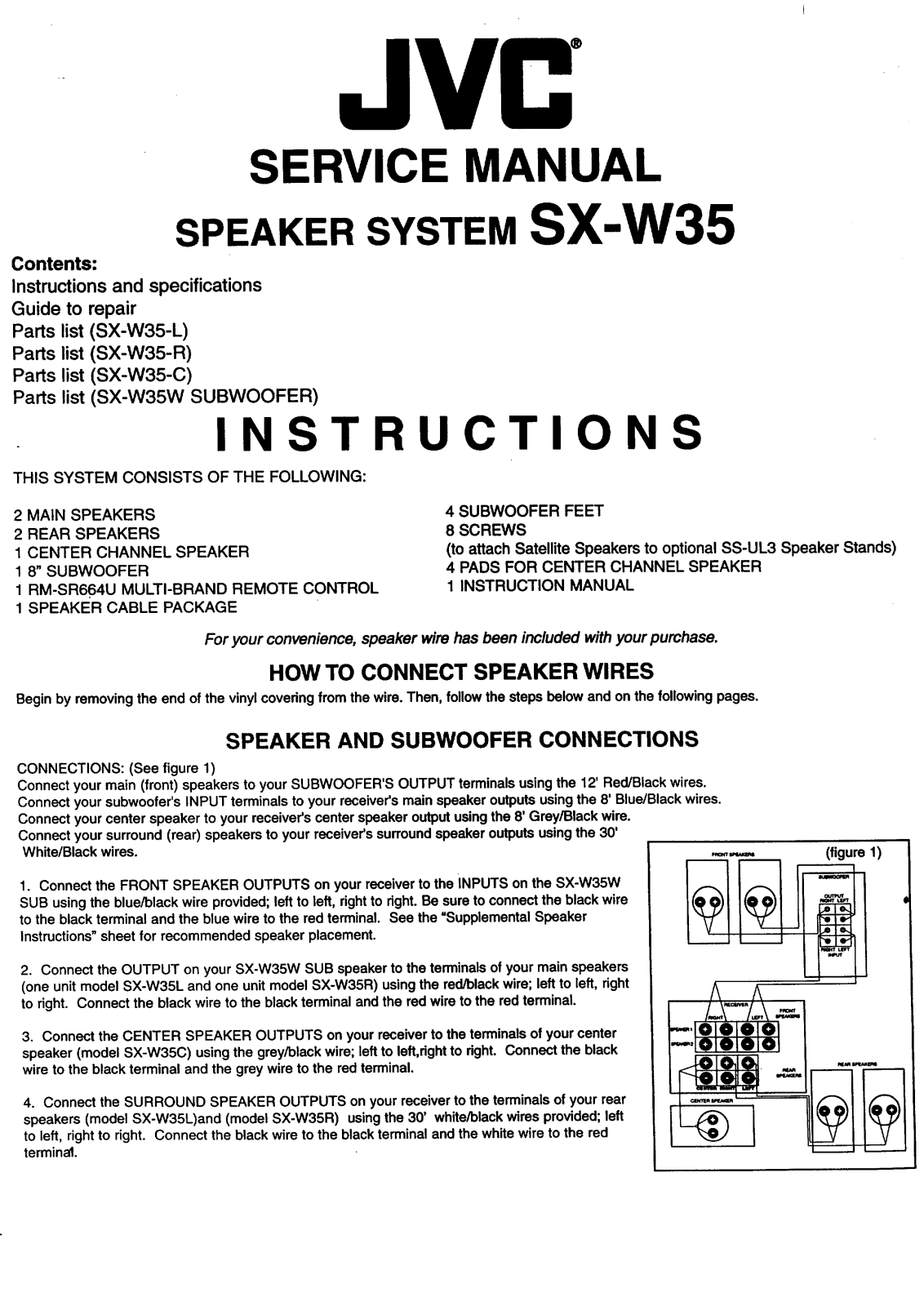

JVC SX-W35 Owner’s Manual

SERVICE MANUAL

SPEAKER SYSTEM SX-W35

Contents:
Instructions and specifications

Guide to repair

Parts list (SX-W35-L)
Parts list (SX-W35-R)
Parts list (SX-W35-C)
Parts list (SX-W35W SUBWOOFER)

INSTRUCTIONS

THIS SYSTEM CONSISTS OF THE FOLLOWING:

2 MAIN SPEAKERS
2 REAR SPEAKERS
1 CENTER CHANNEL SPEAKER

1 8" SUBWOOFER
1 RM-SR664U MULTI-BRAND REMOTE CONTROL

1 SPEAKER CABLE PACKAGE

For your convenience, speaker wire has been included with your purchase.

4 SUBWOOFER FEET
8 SCREWS

(to attach Satellite Speakers to optional SS-UL3 Speaker Stands)
4 PADS FOR CENTER CHANNEL SPEAKER

1 INSTRUCTION MANUAL

HOW TO CONNECT SPEAKER WIRES

Begin by removing the end of the vinyl covering from the wire. Then, follow the steps below and on the following pages.

SPEAKER AND SUBWOOFER CONNECTIONS

CONNECTIONS: (See figure 1)
Connect your main (front) speakers to your SUBWOOFER'S OUTPUT terminals using the 12' Red/Black wires.

Connect your subwoofer's INPUT terminals to your receiver's main speaker outputs using the 8' Blue/Black wires.

Connect your center speaker to your receiver's center speaker output using the 8' Grey/Black wire.
Connect your surround (rear) speakers to your receiver's surround speaker outputs using the 30'

White/Black wires.

1. Connect the FRONT SPEAKER OUTPUTS on yourreceivertotheINPUTS onthe SX-W35W

SUB usingthe blue/blackwire provided;lefttoleft, rightto right.Be suretoconnectthe blackwire
tothe blackterminaland the bluewireto theredterminal. See the "SupplementalSpeaker

Instructions"sheetfor recommendedspeakerplacement.

(figure 1)

2. Connect the OUTPUT on your SX-W35W SUB speaker to the terminals of your main speakers

(one unit model SX-W35L and one unit model SX-W35R) using the red/black wire; left to left, right

to right. Connect the black wire to the black terminal and the red wire to the red terminal.

3. Connect the CENTER SPEAKER OUTPUTS on your receiver to the terminals of your center
speaker (model SX-W35C) using the grey/black wire; left to left,rightto right. Connect the black

wire to the black terminal and the grey wire to the red terminal.

4. Connect the SURROUND SPEAKER OUTPUTS on your receiver to the terminals of your rear
speakers (model SX-W35L)and (model SX-W35R) usingthe 30' white/black wires provided; left

to left, right to right. Connect the black wire to the black terminal and the white wire to the red
terminal.

£-A---

.--,IOlOlOlOl

-,-,IOlOlOlOl

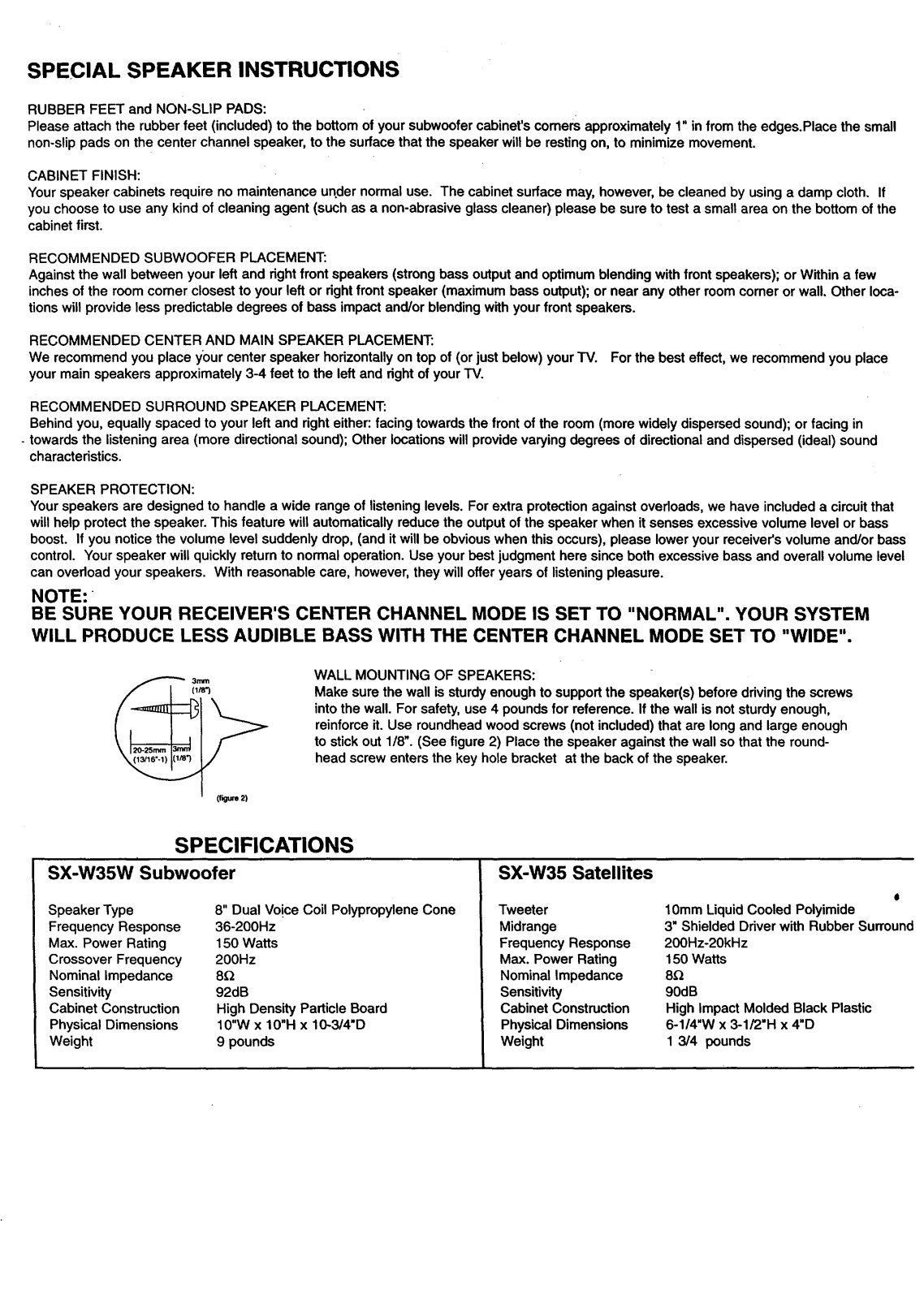

SPECIAL SPEAKER INSTRUCTIONS

RUBBER FEET and NON-SLIP PADS:
Please attach the rubber feet (included) to the bottom of your subwoofer cabinet's comers approximately 1" in from the edges.Place the small

non-slip pads on the center channel speaker, to the surface that the speaker will be resting on, to minimize movement.

CABINET FINISH:

Yourspeakercabinets require no maintenanceundernormaluse. The cabinetsurfacemay,however, be cleanedby usinga dampcloth. If
youchooseto useanykind of cleaningagent(suchas a non-abrasiveglasscleaner)pleasebe sureto testa smallarea onthe bottomofthe

cabinetfirst.

RECOMMENDED SUBWOOFER PLACEMENT:

Against the wall between your left and rightfront speakers (strong bass output and optimum blending with front speakers); or Within a few

inches of the room comer closest to your left or rightfront speaker (maximum bass output); or near any other room corner or wall. Other loca-

tions will provide less predictable degrees of bass impact and/or blending with yourfront speakers.

RECOMMENDED CENTER AND MAIN SPEAKER PLACEMENT:

We recommend you place your center speaker horizontally on top of (or just below) your TV. For the best effect, we recommend you place

your main speakers approximately 3-4 feet to the left and right of your TV.

RECOMMENDED SURROUND SPEAKER PLACEMENT:

Behind you, equally spaced to your left and right either: facing towards the front of the room (more widely dispersed sound); or facing in

- towards the listening area (more directional sound); Other locations will provide varying degrees of directional and dispersed (ideal) sound
characteristics.

SPEAKERPROTECTION:

Yourspeakersare designedto handlea wide range of listeninglevels. Forextra protectionagainstoverloads,we have includeda circuitthat
willhelpprotectthespeaker.This feature willautomaticallyreducethe outputofthespeakerwhen it sensesexcessivevolumelevelor bass
boost. If you noticethe volumelevelsuddenlydrop,(and it willbe obviouswhenthisoccurs),please loweryourreceiver'svolumeand/orbass

control. Yourspeakerwillquicklyreturnto normaloperation.Useyourbestjudgmentheresinceboth excessivebassand overallvolumelevel
canoverloadyour speakers. With reasonablecare, however,theywillofferyearsof listeningpleasure.

NOTE:
BE SURE YOUR RECEIVER'S CENTER CHANNEL MODE IS SET TO "NORMAL". YOUR SYSTEM

WILL PRODUCE LESS AUDIBLE BASS WITH THE CENTER CHANNEL MODE SET TO "WIDE".

SPECIFICATIONS

SX-W35W Subwoofer

Speaker Type

Frequency Response
Max. Power Rating

Crossover Frequency

Nominal Impedance
Sensitivity

Cabinet Construction
Physical Dimensions
Weight

8" Dual Voice Coil Polypropylene Cone
36-200Hz

150 Watts

200Hz

8Q
92riB

High Density Particle Board

10"W x 10"H x 10-3/4"D

9 pounds

WALL MOUNTING OF SPEAKERS:
Make sure the wall is sturdyenough to support the speaker(s) before driving the screws

into the wall. For safety, use 4 pounds for reference. If the wall is not sturdy enough,

reinforce it. Use roundhead wood screws (not included) that are long and large enough

to stick out 1/8". (See figure 2) Place the speaker against the wall so that the round-
head screw enters the key hole bracket at the back of the speaker.

SX-W35 Satellites

Tweeter

Midrange
Frequency Response
Max. Power Rating

Nominal Impedance

Sensitivity

Cabinet Construction

Physical Dimensions

Weight

10mm Liquid Cooled Polyimide

3" Shielded Driver with Rubber Surround
200Hz-20kHz

150 Watts

8_

90dB
High Impact Molded Black Plastic

6-1/4"W x 3-1/2"H x 4"D

1 3/4 pounds
