Mini DV & HDD & DVD VIDEO RECORDER

SR-DVM700ER

DVDTV

STANDBY/ON

OUTPUT

VIDEO

SELECT

DV HDD DVD

PR/CH

CANCEL

MEMO/MARK

INPUTSELECT

EDIT

PROG

NAVIGATIONTOPME NU

ENTER

RETURN

NEXTPREVIOUS

SLOWSLOW PLAY

PAUSEREC

STOP/CLEAR

DISPLAY

ONSCREEN

RECMODE/

AUDIO

SUBTITLE

REMAIN

PROGRESSIVE

SCAN

STANDBY/ON

ANGLE/

EECHECK

SETUPDUBBINGEE

S-VIDEO

INF-1

VIDEO(MONO)L -AUDIO - R

INPUT

OUTPUT

SELECT

EJECTEJECTDISPLAY

RECDVDRECHDDRECDV

DV/HDD/DVD RECMODE INSTANTREPLAY AUDIODUB. INSERT

RECPAUS EPLAY

FFREWSTOP

DVI N/ OUT

INSTRUCTIONS

LPT1137-001A

2 EN

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT

REPRODUCTION OF LABELS WARNING LABEL INSIDE OF THE UNIT

IMPORTANT:

8 Please read the various precautions on page 2 and 3 before

installing or operating the unit.

8 It should be noted that it may be unlawful to re-record pre-

recorded tapes, DVDs, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

CAUTION:

8 When you are not using the unit for a long period of time, it is

recommended that you disconnect the power cord from the mains outlet.

8 Dangerous voltage inside. Refer internal servicing to

qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

8 The mains plug shall remain readily operable.

KLASS 1 M LASERSTRÅLNING NÅR DEN ÄR ÖPPEN. TITTA INTE DIREKT PÅ DEN MED OPTISKA INSTRUMENT.

(SW)

LP41334-001A

This unit apply to the standard AIEC60825-1:2001B for laser products.

● Manufactured under licence from Dolby Laboratories. ADolbyB and the double-D symbol are trademarks of Dolby Laboratories.

● ADTSB and ADTS DIGITAL OUTB are trademarks of Digital Theater Systems, Inc.

● This unit plays back and records PAL and SECAM signals in PAL format. NTSC signals can also be played back on the DVD deck.

● This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of

this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

The STANDBY/ON A button does not completely shut off mains power from the unit, but switches operating current on and off. ABB shows electrical power standby and ACB shows ON.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or disc/cassette.

1. DO NOT

^ in an environment prone to extreme temperatures or

^ in direct sunlight. ^ in a dusty environment. ^ in an environment where strong magnetic fields are

^ on a surface that is unstable or subject to vibration.

2. DO NOT

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT

4. DO NOT or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT

6. DO NOT water. Also DO NOT place any containers filled with water or

liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT candles, on the apparatus.

8. AVOID

place the unit ^

humidity.

generated.

block the unit’s ventilation openings or holes.

place heavy objects on the unit or remote control. place anything which might spill on top of the unit

expose the apparatus to dripping or splashing. use this equipment in a bathroom or places with

place any naked flame sources, such as lighted

violent shocks to the unit during transport.

SAFETY FIRST

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions^just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit’s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.

DISCLAIMER OF LIABILITY

JVC shall not be liable for any loss relating to the unit’s failure to properly record, store or playback any content (video, audio or otherwise) for any reason whatsoever. Any applicable warranties shall only cover replacement or repair of the effected unit, and shall not apply to recovery or replacement of lost content.

ATTENTION:

8 Using a mobile phone in the vicinity of the unit may cause

picture vibration on the TV screen or change the screen to a black back display.

8 Some TVs or other appliances generate strong magnetic

fields. Do not place such appliances on top of the unit as it may cause picture disturbance.

8 When moving the product, press A to turn off the power,

and wait at least 30 seconds before unplugging the power cord. Then, wait at least 2 minutes before moving the product.

8 If there is a power outage when using the unit, the recorded

data may be erased.

8 It is recommended to back up discs which contain important

recordings periodically (every few years). As digital signals do not deteriorate, failure to play back or record might arise due to the effects of the disc aging through the years depending on the storage environment.

8 Recorded programmes and data cannot be restored once

the disc or tape is damaged.

EN 3

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

ATTENTION:

This symbol is only valid in the European Union.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

to obtain information

4 EN

SAFETY FIRST 2

Safety Precautions .........................................................................2

DISC INFORMATION 5

About Discs ....................................................................................5

Life Span Of Parts..........................................................................9

INDEX 10

INSTALLING YOUR NEW UNIT 16

Basic Connections .......................................................................16

INITIAL SETTINGS 17

Clock Set......................................................................................17

Language .....................................................................................18

Monitor Set...................................................................................19

BASIC OPERATIONS ON DVD DECK 20

Basic Playback.............................................................................20

Playback Features .......................................................................21

Using The On-screen Bar ............................................................25

BASIC OPERATIONS ON HDD DECK 29

Basic Playback.............................................................................29

Playback Features .......................................................................29

BASIC OPERATIONS ON DV DECK 31

Basic Playback.............................................................................31

Playback Features .......................................................................32

LIVE MEMORY PLAYBACK ON HDD/DVD DECK 33

Live Memory Playback .................................................................33

NAVIGATION ON HDD/DVD DECK 36

Library Database Navigation........................................................36

Edit Original Information...............................................................37

Edit Play List Information .............................................................40

Navigate Library Information ........................................................42

Playback With MP3/WMA/JPEG Navigation................................43

EDITING 44

Dubbing ....................................................................................... 44

DV Dubbing (HDD & DVD Deck Only) ........................................ 48

Edit From A Camcorder ............................................................... 50

Edit To Or From Another Recorder ............................................. 51

Dubbing DV Format Contents To A DV Device

(HDD Deck Only) ...................................................................... 52

Digital Audio Dubbing .................................................................. 52

Audio Dubbing (DV Deck Only) ................................................... 53

Insert Editing (DV Deck Only)...................................................... 54

REMOTE CONTROL 55

Remote Control Functions........................................................... 55

SYSTEM CONNECTIONS 56

Connecting To A Dolby Digital Decoder Or

An Amplifier With Built-in DTS .................................................. 56

SUBSIDIARY SETTINGS 57

Mode Set ..................................................................................... 57

Format A Disc (DVD Deck Only) ................................................. 60

Finalise A Disc (DVD Deck Only) ................................................ 61

User-Customisable Background And Text Colour ....................... 63

Setting The Background And Text Colour ................................... 64

Scan Mode Set (HDD & DVD Deck Only) ................................... 65

Tray Lock (DVD Deck Only) ........................................................ 65

Mode Lock ................................................................................... 65

Last Function Memory ................................................................. 65

TROUBLESHOOTING 66

APPENDIX 69

RS-232C INTERFACE 70

RS-232C Interface – Command Table – ..................................... 70

RS-232C Interface – Specifications –.......................................... 70

RS-232C Interface – Command – ............................................... 71

SPECIFICATIONS 82

LIST OF TERMS 83

HOW TO USE THIS INSTRUCTION MANUAL

● All major sections and subsections are listed in the Table Of Contents on page 4. Use this when searching for information on a specific

procedure or feature.

● The Index on pages 10 - 13 illustrates the controls and connections on the front and rear panel, the front display panel and the remote

control.

● The list of terms on page 83 lists frequently-used terms, and the number of the page on which they are used or explained in the manual.

● The A mark signals a reference to another page for instructions or related information.

● Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each

major section.

About Discs

Recordable/Playable Discs

You can use discs with the following logos for recording and playback.

DVD-RAM

12 cm: 4.7 GB/9.4 GB 8 cm: 1.4 GB/2.8 GB Ver. 2.0/2x speed Ver. 2.1/1x - 3x speed

DVD-R

12 cm: 4.7 GB 8 cm: 1.4 GB Ver. 2.0/1x - 4x/8x speed (Video mode/VR mode) Ver. 2.1/16x speed (Video mode/VR mode)

● The above table is based on the information as of June 2006.

● Recording and playback may not be performed depending on the

characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM standard Version 2.0 or 2.1.

● It is impossible to record on DVD-RAM discs which do not

conform to this standard. If you use a disc formatted under a different standard version, format it on this unit before use.

● It may not be possible to record, play back, edit or dub a

DVD-RAM disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.

● DVD-RAM discs recorded on this unit cannot be played back on

an incompatible DVD player.

● It is possible to record copy-once programmes of digital

broadcasts only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not compatible).

DVD-RW

12 cm: 4.7 GB/9.4 GB Ver. 1.1/1x - 2x speed (Video mode/VR mode) Ver. 1.2/4x speed (Video mode/VR mode)

DISC INFORMATION

EN 5

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0. When a DVD-R/RW disc (Video mode) is finalised (A pg. 61), it can be played back on a standard DVD player as a DVD VIDEO disc. When a DVD-R/RW disc (VR mode) is finalised (A pg. 61), it can be played back on a standard DVD player compatible with the VR mode of DVD-R/RW discs.

Before finalising ^ ^ it is possible to record on unrecorded areas of the disc, edit the

disc title and programme titles, and delete programmes.

● It is impossible to record or edit DVD-R/RW discs recorded on

other devices even if they have not been finalised.

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

programme is deleted from a DVD-R disc.

After finalising ^

After a DVD-R/RW disc (Video mode) has been finalised, it is possible to play back the recorded programmes (video and/or audio) on a standard DVD video player as a DVD VIDEO disc.

● Edited titles are displayed as the

ADVD menu B in video mode.

● It is impossible to record, edit or

delete the data either in video

mode or in VR mode.

● Either in video mode or in VR

mode, although the disc can be

HOME MOVIES DOCUMENTARIES

MTV CARTOON

TRAVELLINGCLIPS

played back on DVD players from

other manufacturers, sometimes it

may not be possible to play back depending on the disc and

recording conditions.

● It is impossible to record on CD-R/RW or DVD-R discs used for

authoring.

● It is impossible to record onto DVD-R/RW (Video mode) discs

broadcasts that allow you to copy once. The copy once

programmes can only be recorded onto DVD-R/RW discs

formatted in VR mode.

NOTES:

● The following may result if you play back a DVD-R disc recorded

on another unit.

● The disc does not play.

● A mosaic pattern (block noise) appears on the screen.

● Video or audio may be dropped out.

● The unit stops during playback.

● 6x speed DVD-RW disc cannot be used on this unit.

6 EN

DISC INFORMATION

Discs For Playback Only

You can use discs with the following logos for playback only.

DVD VIDEO Video CD/Super Video CD

(example of region code indications)

Audio CD

CD-DA files

CD-RW

CD-DA/JPEG/ MP3/WMA files

● Playback may not be performed depending on the characteristics

and condition of the disc used.

● DTS Audio CDs can also be played back (An optional DTS

decoder is required).

● MP3 and JPEG discs can be played back on this unit only when

they have been recorded in the ISO9660 or Joliet format and finalised.

● JPEG files that can be played back on this unit must conform to

JFIF/Baseline process, and the maximum resolution of a JPEG file is 2,812 pixels in width and 2,112 pixels in height.

● CD-R/RW discs recorded in music CD format need to be finalised

to play back on this unit.

● Operation and audio quality of this unit are not guaranteed for

discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

● Depending on the intentions of the author of the software,

recording conditions of DVD discs and Video CD/SVCD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.

● When switching from the first layer to the second layer of double-

layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.

● DVD-AUDIO discs compatible with DVD video players can be

played.

● Super Audio CDs (SACD) compatible with conventional CD

players can be played.

● +R/+RW discs recorded and finalised in Video mode can be

played. ADVDB will light on the front display panel.

CD-R

CD-DA/JPEG/ MP3/WMA files

CD-ROM

JPEG/MP3/ WMA files

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

● CD-ROM discs (including PHOTO-CD and CD-G)

● Discs recorded in Packet Write (UDF) format

● 1.3-GB double density CDs (DDCD)

● High density CDs (HDCD)

The following discs also cannot be played back.

● Discs of a region number other than A5B

● DVD-RAM (2.6 GB/5.2 GB)

● DVD-RAM (TYPE1)

Caution for DualDisc playback

The Non-DVD side of a ADualDiscB does not comply with the ACompact Disc Digital AudioB standard. Therefore, the use of Non-

DVD side of a DualDisc on this product may not be recommended.

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is A5B. Only discs whose region number includes A5B or AALLB can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

Marks of discs in this instruction manual

Allows operation with a DVD-RAM disc.

Allows operation with a DVD-R disc.

Allows operation with a DVD - RW d i sc.

Allows operation with a DVD VIDEO disc.

Allows operation with a Video CD/Super Video CD (SVCD) disc.

Allows operation with an Audio CD disc.

Allows operation with a disc including MP3 files.

Allows operation with a disc including JPEG files.

Recording Medium And Format

DVD-RAM

● Recording and erasing can be performed as many times as

possible on a disc.

● Editing can be performed after recording, such as deleting

unwanted parts.

● While recording, it is possible not only to start playback of a

programme currently being recorded, but also to watch another programme previously recorded.

DVD-RW (VR mode)

● Recording and erasing can be performed as many times as

possible on a disc.

● Editing can be performed after recording, such as deleting

unwanted parts.

● Recording of copy once programmes are possible using a CPRM

compatible disc.

DVD-RW (Video mode)

● Can be played back on other DVD players.

● New recording can be performed by erasing all the data on a disc

once played back.

DVD-R (VR mode)

● Editing can be performed after recording, such as deleting

unwanted parts.

● Recording of copy once programmes are possible using a CPRM

compatible disc.

DVD-R (Video mode)

● Can be played back on other DVD players.

● Suitable when keeping a recorded disc for a long time.

File Structure Of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called AtitlesB. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called AchaptersB. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

When you record a programme on a DVD-RAM/R/RW (VR mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (A pg. 23)

When you record a programme on a DVD-R/RW (Video mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during either recording or playback. Once the disc has been finalised, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.

DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc

Title 1 Title 2

Chapter 1 Chapter 2

● In Video mode, even before finalising, it is impossible to perform

Chapter 3

editing operations other than changing the disc name and/or title names and deleting programmes and/or titles.

● After finalising, it is impossible to perform editing operations.

Chapter 1

Chapter 2

Chapter 3

DISC INFORMATION

EN 7

Audio CD/Video CD/SVCD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD/ SVCD discs. However, some discs are not divided into tracks.

Audio CD or Video CD/SVCD

Track 1 Track 2 Track 3 Track 4

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (A pg. 43)

File structure of a disc before starting the MP3/JPEG Navigation

Directory MP3 file JPEG file

File structure of the disc after starting the MP3/JPEG Navigation

Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.

● This unit can recognise up to 9 hierarchies including directories

and files.

Also, it can recognise up to 250 files in each group, and up to 99

groups on a disc.

NOTES:

● Video CD/SVCD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and

played back according to the instructions on the screen while

navigating through the hierarchies. It is also possible to playback

recorded tracks consecutively without activating the PBC function

even when playing a PBC-compatible disc. (A pg. 24)

● Regarding the contents recorded on discs

Some files may not be played back depending on the file types

and other factors.

8 EN

DISC INFORMATION

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

Number of subtitles Number of angles

Recorded under the standard 4:3 aspect ratio

Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.

Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).

Marks related to audio

Number of audio tracks

Dolby Digital Stereo Creator mark Developed by Dolby Laboratories. It enables audio recording in high-quality stereo Dolby Digital.

DTS (Digital Theater Systems) You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL OUT connector of the unit.

Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)

Placing A Disc

Opening the disc tray

Press M to open the disc tray.

EJECT DV/HDD/DVD REC MODE INSTANTREPLAY AUDIODUB. INSERT

RECDVD

● Pressing the button again closes the disc tray.

● Use the button to open and close the disc tray.

● Do not block the disc tray with your hand while it is opening or

closing as this may result in hardware failure.

● Do not place unplayable discs or any object other than a disc on

the disc tray.

● Do not press down strongly on the disc tray or place any heavy

objects on it.

Discs without cartridges

R D V D

R ME I

A L P

O T S

W E R

P C / N

C E R

N I

MA E R

OW L S

<> <

D O M

C E R

Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.

DVD-RAM discs contained in cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with ASide AB facing down, programmes are recorded on the side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.

G N I B B

U D

R C V

E P

L L U

D K N I

C E R

C F F

D V

Disc tray

RECPAUSEPLAY FFREWSTOP

DVIN/ OUT

D V

N I

DISC INFORMATION

EN 9

Care And Handling Of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesives on its surface.

Recording side

Make sure that discs are not scratched or dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirty when removed from cartridge then put back in after use.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

Life Span Of Parts

Cooling fan

Periodical inspection and maintenance are requisite to maintain the initial performance and reliability of the product. We recommend the exchange of the fan motor every three years.

HDD

The HDD is a consumable part. Please arrange for maintenance after an estimated usage of 10,000 hours (this estimation is based on usage under the environment of 25f, it may differ depending on the usage environment). Please consult your authorised dealer or nearest JVC service centre on the maintenance and cost.

CAUTION:

Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

10 EN

INDEX

Front View

STANDBY/ON

S-VIDEO

VIDEO (MONO)L - AUDIO - R

IN F-1

INPUT

SELECT

OUTPUT SELECT

HGI

EJECTEJECTDISPLAY

RECDVDRECHDDRECDV

DV/HDD/DVD REC MODE INSTANT REPLAY AUDIODUB. INSERT

LMBA

RECPAU SEPLAY

FFREWSTOP

DV IN/ OU T

A STANDBY/ON Button (A) B Eject Button (M) (DV) A pg. 31 C Mini DV Cassette Loading Slot D DV Lamp (DV) A pg. 31

DV Recording Lamp (REC)

E HDD Lamp (HDD) A pg. 18

HDD Recording Lamp (REC)

F DVD Lamp (DVD) A pg. 18, 20

DVD Recording Lamp (REC)

G Eject Button (M) (DVD) A pg. 8 H DV/HDD/DVD Select Button (DV/HDD/DVD) A pg. 20, 29, 31

● This button will not function during navigation mode or set up

mode.

I Recording Mode Button (REC MODE) A pg. 48 J Instant Replay Button (INSTANT REPLAY) A pg. 22, 30, 32 K Disc Tray L Audio Dubbing Button (AUDIO DUB.) A pg. 53 M Insert Button (INSERT) A pg. 54 N Display Button (DISPLAY) A pg. 23 O S-video Input Connector [S-VIDEO] A pg. 50 P Video/Audio Input Connectors

[VIDEO/AUDIO ((MONO) L/R)] A pg. 50

Q Input Select Button (INPUT SELECT) A pg. 48, 50

R Output Select Button (OUTPUT SELECT)

● Switches between AALLB (DV/HDD/DVD output) and ADVB (DV

output) when pressed. When AALLB is selected, DV, HDD or DVD signals are output from the [DV/HDD/DVD OUTPUT] connectors on the rear panel depending on the deck selected. When ADVB is selected, DV signals are output regardless of the deck selected.

ATTENTION:

If ADVB is selected, ADV B and AOUTPUT DVB blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.

S Front Display Panel A pg. 12 T Infrared Beam Receiving Window U Stop Button (o) A pg. 20, 29 V Reverse Search Button (O) (HDD & DVD deck) A pg. 21,

34 Rewind Button (O) (DV deck) A pg. 31, 32

W Play Button (I) A pg. 20, 29 X Forward Search Button (N) (HDD & DVD deck) A pg. 21,

34 Fast Forward Button (N) (DV deck) A pg. 31, 32

Y Pause Button (W) A pg. 20, 29 Z Record Button (R) a DV Input/Output Connector [DV IN/OUT(A*)] A pg. 48

● This connector can also be used as a direct connection to NLE

(Non-Linear Editing) systems or to a PC for downloading, editing and archiving.

* A (i.Link) refers to the IEEE1394-1995 industry specification and

extensions thereof. The i.Link standard.

A logo is used for products compliant with the

Rear View

INDEX

EN 11

BCA

COMPONENT

VIDEO OUT

A AC Power Cord A pg. 16 B Cooling Fan

● This prevents the temperature from rising inside the unit.

Do not remove it.

● Install the unit so as not to block the area around the fan.

● The unit may become hot when it is turned off, as the cooling

fan on the rear of the unit is not activated. However, the cooling fan may be activated in the standby mode when AQUICK STARTUPB is set to AONB.

C Component Video Output Connectors [COMPONENT

VIDEO OUT (Y/P

D Serial Command Connector (D-SUB 9-PIN) [SERIAL COM.]

A pg. 70

● Use this connector when controlling this unit via a computer.

The cable to be used should be a RS-232C interface cable (straight type). For details on the RS-232C interface command, refer to page 70.

B/PR

)] (HDD & DVD deck only) A pg. 16

SERIALCOM.

HDD/DVD

DIGITAL AUDIO OUT

PCM/STREAM

COAXIAL

OPTICAL

DV/HDD/DVD

OUTPUT

HDD/DVD

VIDEO

E GF

OUTPUT

S-VIDEO

VIDEO

AUDIO

INPUT L-1

S-VIDEO

VIDEO

AUDIO

OUTPUT

DV/HDD/DVD

S-VIDEO

VIDEO

AUDIO

REMOTE IN

E S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (HDD & DVD

deck only)

● These connectors only output DVD/HDD signals and can be

used to connect to a second monitor.

F S-VIDEO/VIDEO/AUDIO INPUT Connectors (L-1) A pg. 51 G S-VIDEO/VIDEO/AUDIO OUTPUT Connectors A pg. 16 H Digital Audio Output Connectors

[DIGITAL AUDIO OUTPUT (OPTICAL/COAXIAL)] (HDD & DVD deck only) A pg. 52, 56

I BNC Video Output Connector [VIDEO OUTPUT] A pg. 16 J Remote Input Connector* [REMOTE IN]

* There is currently no compatible remote control unit available.

12 EN

INDEX

Front Display Panel

AB ED

CGFH

LPCM FR XP SP LP EP

RW VCD

RAM

A Disc Type Indicator

When a disc is loaded, the type of the disc is indicated.

Disc Status Indicator

When a disc is running, the disc marks rotate.

VR Mode Indicator (VR) A pg. 60

Lights when a DVD-R/RW disc is formatted in VR mode.

B Linear PCM Indicator (LPCM)

Lights when AXP MODE REC AUDIOB is set to ALINEAR PCMB (A pg. 58) for recording with HDD, DVD-RAM, DVD-R and DVD-RW discs, and when Linear PCM audio is played.

C Cassette Loaded Mark (u)

Indicates the present of a cassette in the DV deck. Lights when a cassette is loaded into the DV deck. It will remain lit as long as the cassette is loaded, even if the HDD or DVD deck is being selected.

D Recording Mode Indicator (XP/SP/LP/EP/FR) A pg. 49

Blinks when recording mode is being set. While AFRB is blinking, the left 3 digits of the Multi Display (L N) indicate setting values ranging from A60B to A480B. After the value has been set, only AFRB lights.

E Group/Title Indicator (GRP/TITLE)

AGRPB or ATITLEB lights depending on a disc loaded while the left 2 digits of the Multi Display (L) indicate the numbers explained below.

AGRPB: Total number of groups or group number being played

ATITLEB: Total number of titles or title number being played

F External Input Indicator

Indicates the external input selected.

G Track/Chapter Indicator (TRK/CHAP)

ATRKB or ACHAPB lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (N) indicate the numbers explained below.

ATRKB: Total number of tracks or track number being played

ACHAPB: Chapter number being played back are displayed on

H Simulated Surround Effect Indicator (3D) A pg. 27

Lights when a simulated surround effect is set to A3D-ONB on the on-screen bar.

back are displayed on the Multi Display.

the Multi Display.

I Random/Programme Playback Mode Indicator (RND/

PRGM) A pg. 28

ARNDB: Lights when Random Playback mode is set. APRGMB: Lights when Programme Playback mode is set.

J Repeat Mode Indicator (x/1/A-B) A pg. 25

Select Repeat Playback mode on the on-screen bar.

AxB: Whole disc is played back repeatedly. Ax1B: A single title/chapter/track is played back

AxA-BB: The selected part (A-B) is played back repeatedly.

No display: Repeat Playback mode is off.

K Video Output Indicator (q) A pg. 65

No display: Indicates that interlace mode is engaged. q: Indicates that progressive mode is engaged. (Example) q lights when video output mode is in progressive

L Group/Title Number Display M Audio Dubbing/Insert Editing Indicator

AADUBB or AINSB lights up during Audio Dubbing or Insert Editing respectively.

N Track/Chapter Number Display O Remaining Time/Elapsed Time Indicator A pg. 23

Lights when remaining time of HDD, DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed. The right 6 digits of the Multi Display (P) indicate elapsed or remaining time of each track. No display: Indicates elapsed time of the disc. Displayed: Indicates remaining time of the disc.

P Remaining Time/Elapsed Time Display A pg. 23

Time Code Display A pg. 32

Q Multi Display

Displays clock, received channel, elapsed time, and remaining time. Also displays status of the unit (NO DISC/OPEN/CLOSE/ READING).

repeatedly.

mode.

Remote Control

A B

C D

G H

I J

N O

P Q

R S

DV HDD DVD

CANCEL

DISPLAY

REC MODE/

REMAIN

SELECT

ENTER

STOP/CLEAR

ON SCREEN

AUDIO

VIDEO

MEMO/MARK

EDIT

SUBTITLE

PROGRESSIVE

SCAN

OUTPUT

STANDBY/ON

INPUT SELECT

NAVIGATIONTOP MENU

RETURN

SLOWSLOW PLAY

PAU S EREC

DVDTV

PR/CH

PROG

ANGLE/

EE CHECK

SET UPDUBBINGEE

U V

W X

a b c d

e f

h i

j k

l m

n o

p q

INDEX

EN 13

J Selection Keys (FGD E) A pg. 17 K Menu Button (MENU) A pg. 21 L Reverse Skip Button (S) A pg. 21, 30, 34

Previous Button (PREVIOUS) A pg. 24

M Reverse Search Button (O) (HDD & DVD deck) A pg. 21,

34 Rewind Button (O) (DV deck) A pg. 31 Reverse Slow Button (SLOW –) A pg. 21

N Record Button (R) O Display Button (DISPLAY) A pg. 23, 32 P On-Screen Button (ON SCREEN) A pg. 14, 25 Q Recording Mode Button (REC MODE) A pg. 48

Remain Button (REMAIN) A pg. 23

R Audio Button (AUDIO) A pg. 24 S EE Button A pg. 34 T Dubbing Button (DUBBING) A pg. 44 U TV/DVD switch A pg. 18, 55 V STANDBY/ON Button (A) W TV/VIDEO Button A pg. 55 X DVD Button* A pg. 20

* This button will not function during navigation mode or set up mode.

Y TV Volume Buttons (TV8 +/–) A pg. 55 Z TV Programme Buttons (PR/CH +/–) A pg. 55

Input Select Button (INPUT SELECT +/–) A pg. 48, 50

a Memo Button (MEMO) A pg. 37, 41

Mark Button (MARK) A pg. 23

b Programming Button (PROG): Not use on this unit. c Edit Button (EDIT) A pg. 37 d Navigation Button (NAVIGATION) A pg. 36, 43 e Enter Button (ENTER) A pg. 18 f Return Button (RETURN) A pg. 24, 26 g Forward Skip Button (T) A pg. 21, 34

Next Button (NEXT) A pg. 24

h Forward Search Button (N) (HDD & DVD deck) A pg. 21,

34 Fast Forward Button (N) (DV deck) A pg. 31 Forward Slow Button (SLOW +) A pg. 21

i Play Button (I) A pg. 20, 29 j Pause Button (W) A pg. 20, 29 k Stop Button (o) A pg. 20, 29

Clear Button (CLEAR) A pg. 28

l Skip Search Button (v) A pg. 22, 29, 32, 34 m Instant Replay Button (w) A pg. 22, 30, 32, 34, 35 n Angle Button (ANGLE) (DVD deck only) A pg. 23

EE Check Button (EE CHECK) A pg. 34

o Set Up Button (SET UP) A pg. 18, 57 p Subtitle Button (SUBTITLE) A pg. 24 q Progressive Scan Button (PROGRESSIVE SCAN) A pg. 65

A Output Select Button (OUTPUT SELECT)

● Switches between AALLB (DV/HDD/DVD output) and ADVB (DV

ATTENTION:

B TV Muting Button (TV d) A pg. 55 C DV Button* A pg. 31

* This button will not function during navigation mode or set up mode.

D HDD Button* A pg. 29

* This button will not function during navigation mode or set up mode.

E Number Keys A pg. 55 F Cancel Button (CANCEL) A pg. 28 G F1 Button A pg. 65 H F2 Button A pg. 61, 62 I Top Menu Button (TOP MENU) A pg. 21

How To Use

Before use, insert two R6 size batteries into the remote control with the polarity (F and G) matched correctly as indicated on the battery compartment or on the lid.

The remote control can operate most of your unit’s functions, as well as basic functions of TV sets of JVC and other brands. (A pg. 55)

● Point the remote control toward the receiving window.

● The maximum operating distance of the remote control is

about 8 m.

NOTE:

If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

14 EN

INDEX

On-Screen Display (HDD & DVD deck)

When ASUPERIMPOSEB is set to AONB or AAUTOB and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN twice.

When playing back a recorded title HDD

0:00 1:00 2:00

FISHING WORLD

01:16:48

FR360

Digital

When pressing REC MODE

(Appears for eight seconds.)

7: 00 XP 10: 00 SP 20: 00 LP 28: 00

36: 00

FR480

A Remaining disc time for each recording speed B Recording speed

When using Live Memory playback HDD

A Title start B Current playback point C Title end D Elapsed playing time E Play mode F Name of title currently being played back G Time scale (This title is an hour and a half long.) H Audio mode

DVD

TITLE99 CHAPTER999 REMAIN6:59:59T.

FISHING WORLD

Digital

A Playback title number B Playback chapter number C Disc remaining time D Current status (playback) E Audio mode F Bar meter G Name of title (or play list) currently being played back H Current playback point I Recorded mode*

* Depending on the recording condition, the recorded mode may not

always be displayed.

When recording HDD

11:00 12:00 13:00

FR360

11:35

11:33

DVD

TITLE99 CHAPTER999 REMAIN6:59:59 T.

RAM

FR360

11:35

11:33

A Time scale for recording (HDD deck)

Bar meter for recording (DVD deck)

B Current recording point C Recording mode D Current time E Current playback channel position number F Time scale for Live Memory Playback (HDD deck)

Bar meter for Live Memory Playback (DVD deck)

G Current playback point H Live Memory playback mode I Current playback time

PR.12

11:00 12:00 13:00

FR360

DVD

TITLE99 CHAPTER999 T. REMAIN6:59:59

RAM

FR360

A Recording point B Current status (recording) C Current time D Recording channel number

11:35

PR.12

LIVE

PR.12

LIVE

INDEX

EN 15

On-Screen Display (DV Dubbing)

When capturing images from the external DV equipment

0:00 1:00 2:00

HDD

00: 00:00. 00

FR360

12bit

JVC

GR-DV3500DV

A Recording speed B HDD capacity graph C HDD time counter D Recording time scale E HDD mode F Remote control mode G Connected DV equipment mode H Connected DV equipment model information I Input channel J Sound mode K Sound input bit-rate*

* Indicates the sound bit-rate of the connected DV equipment

L Connected DV equipment information*

* Maker name and model name, etc. may not appear depending on the

connected equipment.

M Time counter for the connected DV equipment N Sound monitor mode

DV DV

O Remote control switch P Auto capture button Q Sound monitor switch

GR-DV3500

00:00:00. 00

SOUND1

1 2

On-Screen Display (DV deck)

G F

SE CL EANI NG CASSETTE

R000:00:00:

61BIT

A Operation Mode Indicators B Tape Speed (SP/LP) C Sound Mode Display A pg. 59 D Current Day/Month/Year/Clock Display/Time Code Display

A pg. 32

E Audio Mode Display A pg. 32 F Warning Message G Auxiliary Input Indicator (L-1, F-1 or DV) H ACassette LoadedB Mark

A B

R Elapsed recording time

179 : 59 : 59

16 EN

INSTALLING YOUR NEW UNIT

Basic Connections

Another Recorder

Audio/Video

cable

(not supplied)

Mains outlet

Mains power cord

Back of unit

[COMPONENT

VIDEO OUT

B/PR

(Y/P

Component video

(not supplied)

S-video cable (not supplied)

To [S-VIDEO

INPUT]

To [AUDIO/VIDEO INPUT]

)]

cable

[VIDEO

OUTPUT]

BNC video

cable

(not supplied)

Audio/Video

(not supplied)

[AUDIO/

VIDEO

OUTPUT]

Audio/Video

(supplied)

It’s essential that your unit be properly connected.

ATTENTION:

Connect the AC plug only after all connections to the TV has been completed.

● Make sure the package contains all of the accessories listed in

ASPECIFICATIONSB (A pg. 82).

● Place the unit on a stable, horizontal surface.

cable

Camcorder

S-video cable (not supplied)

To [S - VI D EO INPUT]

To [S-VIDEO OUTPUT]

S-video cable (not supplied)

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Connecting to a TV Monitor

Connect the unit to a TV depending on the TV and cables you use.

8 AV Connection To connect to a TV with AV connector ^

A Connect the [AUDIO/VIDEO OUTPUT] connectors on the rear

panel of the unit and the TV’s audio/video input connectors with the supplied Audio/Video cable.

To connect to a TV with BNC connector ^

A Connect an optional audio cable between the [AUDIO

OUTPUT] connectors on the rear panel of the unit and the TV’s audio input connectors.

B Connect an optional BNC video cable between the unit’s BNC

[VIDEO OUTPUT] connector and the TV’s BNC VIDEO input connector.

8 S-Video Connection To connect to TV’s S-VIDEO input and AUDIO input connectors ^

A Connect the unit’s [S-VIDEO OUTPUT] connector to the TV’s

S-VIDEO input connector.

B Connect the unit’s [AUDIO OUTPUT] connectors to the TV’s

AUDIO input connectors.

● If your TV is not stereo-capable, use the unit’s [AUDIO

OUTPUT] connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

8 Component Video Connection To connect to TV’s component video input connectors ^

A Connect the unit’s [COMPONENT VIDEO OUT (Y/P

B/PR

)]

connectors to the TV’s component video input connectors.

B Connect the unit’s [AUDIO OUTPUT] connectors to the TV’s

AUDIO input connectors.

● You can obtain high-quality component video pictures.

● The [COMPONENT VIDEO OUT (Y/P

B/PR

)] connectors do not

output DV signals.

● If your TV is not stereo-capable, use the unit’s [AUDIO

OUTPUT] connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

● By using the component video connection, you can view the

images in the progressive mode. For switching to the progressive mode, refer to AScan Mode Set (HDD & DVD Deck Only)B (A pg. 65).

Connecting to a DV Device

A Connect the unit’s [S-VIDEO INPUT] or [VIDEO INPUT]

connector on the front panel to the camcorder’s s-video or video output connector.

B Connect the unit’s [AUDIO INPUT] connectors on the front

panel to the camcorder’s audio output connectors.

Connecting to Another Recorder

A Connect the unit’s [S-VIDEO INPUT] or [VIDEO INPUT]

connector to another recorder’s s-video or video output connector.

B Connect the unit’s [AUDIO INPUT] connectors to another

recorder’s audio output connectors.

Plug the end of the mains power cord into a mains outlet.

● APLEASEB and AWAITB blink alternately on the front display

panel when the AC plug of the mains power cord is connected into a mains outlet. After a short while, A32**B blinks on the front display panel and starts to count down. It takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.

Clock Set

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

INITIAL SETTINGS

EN 17

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

3 Press selection keys to select

ACLOCK SETB, then press G.

4 Press selection keys to select

AYEARB, then press ENTER.

DVDTV

Press selection keys to set the year, then press ENTER.

● Repeat the same procedure to

set the date and time.

● When you set the date, press

DVD VIDEO SET UP

MENU BACKGROUND

YEAR

DATE

TIME

SET UP

EXIT

HDD/DVD SET UP FUNCTION SET UP

CLOCK SET

ENTER

SELECT WITH @ THEN PRESS [ENTER]

SELECT

PRESS [SET UP] TO EXIT

2006

1/1 (SUN)

--:--

INITIAL SET UP

and hold FG to change the date by 15-day intervals.

● When you set the time, press and hold FG to change the time

by 30-minute intervals.

5 Press SET UP to start the clock operation.

ENTER

Selection Keys

FGDE

SET UP

18 EN

INITIAL SETTINGS

Language

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

HDD

ENTER

DVD

Selection Keys

FGDE

SET UP

On-screen Language Set

This unit offers you the choice to view on-screen messages in 11 different languages.

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select AFUNCTION SET UPB, then

DVDTV

press G.

4 Press selection keys to select

ADISPLAY SETB, then press

5 Press selection keys to select

AON SCREEN LANGUAGEB, then press ENTER.

6 Press selection keys to select

your desired language, then press ENTER.

DVD VIDEO SET UP HDD/DVD SET UP

REC/PLAY SET UP

DISPLAY SET

SUPERIMPOSE

DIMMER (DURING POWER ON)

DIMMER (DURING POWER OFF)

QUICK STARTUP

ON SCREEN LANGUAGE

ENTER

SET UP

SELECT WITH @ THEN PRESS [ENTER]

EXIT

SELECT

PRESS [SET UP] TO EXIT

FUNCTION SET UP

VIDEO IN/OUT

AUTO

BRIGHT

ENGLISH

INITIAL SET UP

OFF

7 Press SET UP to complete the setting.

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.

● The procedure shows how to set AMENU LANGUAGEB as an

example.

1 Press DVD so that the DVD lamp lights up on the unit. 2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select ADVD VIDEO SET UPB, then

press G.

4 Press selection keys to select

ALANGUAGE SETB, then press G.

5 Press selection keys to select

AMENU LANGUAGEB, then press ENTER.

6 Press selection keys to select

your desired language, then press ENTER.

● See ALanguage Code ListB (A pg. 69).

7 Press SET UP to complete the setting.

NOTE:

When the selected language is not available on the disc, the disc’s default menu language is played back.

DVD VIDEO SET UP

HDD/DVD SET UP

LANGUAGE SET AUDIO OUTPUT

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ENTER

SET UP

EXIT

SELECT

FUNCTION SET UP

DISC PLAY SET UP

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

ENGLISH

INITIAL SET UP

Monitor Set

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

DVD

INITIAL SETTINGS

EN 19

1 Press DVD so that the DVD lamp lights up on the unit. 2 Press SET UP to access the Main Menu screen.

● You cannot set the monitor type during recording or playback.

3 Press selection keys to select AFUNCTION SET UPB, then

press G.

4 Press selection keys to select

AVIDEO IN/OUTB, then press

5 Press selection keys to select

AMONITOR TYPEB, then

DVD VIDEO SET UP

HDD/DVD SET UP FUNCTION SET UP

REC/PLAY SET UP DI SPLAY SET

MONITOR TYPE

F-1 INPUT

L-1 INPUT

VIDEO IN/OUT

4:3LB

VIDEO

INITIAL SET UP

press ENTER.

6 Press selection keys to select

the desired option, then press

SET UP

SELECT WITH @ THEN PRESS [ENTER]

EXIT

SELECT

PRESS [SET UP] TO EXIT

ENTER

ENTER.

7 Press SET UP to complete the setting.

*The boldface settings below indicate the settings at your purchase.

ENTER

Selection Keys

FGDE

SET UP

8 MONITOR TYPE - 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

4:3LB (Letter Box conversion):

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3PS (Pan&Scan):

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

16:9AUTO (Wide television conversion):

Select this when the aspect ratio of your TV is 16:9 (wide TV).

16:9FIX (Wide television conversion):

Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, APan&ScanB (PS) and ALetter BoxB (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

● The picture will be shown in the A4:3LBB

mode depending on the disc even if the A4:3PSB mode is selected.

Letter Box

Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

20 EN

BASIC OPERATIONS ON DVD DECK

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVD lamp

ENTER

DV/HDD/DVD

DVD

To play back an MP3/JPEG disc, see APlayback With MP3/WMA/ JPEG NavigationB (A pg. 43).

1 Load a disc.

● For details, refer to APlacing A DiscB (A pg. 8).

● Pressing I also closes the disc tray.

● Playback begins automatically if an auto-playback DVD disc is

loaded.

2 Press DV/HDD/DVD on the unit repeatedly or DVD on the

remote control so that the DVD lamp lights up on the unit.

3 Press I to start playback.

● If you load a DVD disc whose region code does not match the

unit, AREGION CODE ERRORB appears on the TV screen. For details, refer to ARegion NumberB (A pg. 6).

● With Video CD/SVCD discs with PBC control or some DVD

discs, the menu display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go

forward. Refer to APlayback Control (PBC) FunctionB (A pg. 24) or ALocating A Desired Scene Using The DVD MenuB (A pg. 21).

● The Library Database Navigation also enables you to search

DVDTV

and select the desired titles. (A pg. 37)

4 Press W to pause playback.

● To resume normal playback, press I.

5 Press o to stop playback.

● When a recordable disc is played, playback stops and AV input

(from external AV source) resumes on the TV screen.

● When a playback-only disc is played, playback stops and the

TV screen becomes all black when you press o. Pressing o again resumes the AV input (from external AV source).

● If M is pressed during playback, playback stops, then the disc

tray opens.

NOTES:

● When the Library Database Navigation screen appears, choose

a thumbnail image of the desired title on the TV screen, then press ENTER. (A pg. 37)

● It is not possible to playback the DVD disc recorded in 96 kHz on

DVD during recording or Live Memory Playback on HDD.

● It is possible to play back on the DV deck and the HDD/DVD deck

simultaneously. However, either DVD or HDD can be played at the same time.

ATTENTION:

● It takes approximately 30 seconds to read a disc depending on

the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.

● It may take a few seconds to start playback. This is not a

malfunction.

● Forward/reverse high-speed search and other operations

cannot be performed while playback is stopped.

BASIC OPERATIONS ON DVD DECK

EN 21

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DVD so that the DVD lamp lights up on the unit.

DVDTV

DVD

0-9

TOP MENU

ENTER

O/SLOW

Locating A Desired Scene Using The DVD Menu

DVD VIDEO discs may have top menu and disc menu.

Top m e n u

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MEN U to access the top menu.

Disc menu

Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title. Press MENU to access the disc menu.

1 Press TOP MEN U or MENU to

access the DVD menu.

2 Press selection keys to select

a desired title, then press ENTER. Playback starts.

● It may be possible to select the

desired item using the number keys depending on the menu

display.

NOTE:

When A7B appears on the TV screen in step 1, the disc does not have a top menu or disc menu.

Locating The Start Point Of The Item Or Skip The Item

Press S or T during playback.

● Pressing T locates the start point or marked points of the item

or skips the item in the forward direction, then resumes playback.

● Pressing S locates the start point or marked points of the item

or skips the item in the reverse direction, then resumes playback.

Selection Keys

FGDE

T N/SLOW + W

Example:

Current playback point

programme

Scene 2

(Chapter 2)

Track 2

Reverse

: marked points if any (A pg. 23) or beginning of recording

●

Drama

Scene 3

(Chapter 3)

Track 3

programme

Scene 4

(Chapter 4)

Track 4

Forward

Movie

Scene 5

(Chapter 5)

Tra c k 5

Variable Speed Search

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

For Audio CD

You can perform 4 levels of speed search with N and O. (Audio is active also during variable speed search.) You cannot perform slow motion for each direction.

Reverse

Reverse Search

4 steps

–60 –15 –5 –3 –1

Reverse

Play

Reverse Slow

Motion 3 steps

–1/2 –1/4

–1/16 1/16

Slow Motion

3 steps

1/4 1/2 1 3 5 15 60

Normal

Play

Forward

Forward Search

4 steps

NOTE:

Reverse play (–1x) is not possible with Video CD/SVCD discs.

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) to activate frame-by-

frame playback.

● Each press of SLOW – (O) or SLOW + (N) advances/

reverses the still picture frame by frame.

● Frame-by-frame playback for reverse direction cannot be

performed with Video CD/SVCD discs.

● To resume normal playback, press I.

Slow Motion

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) for 2 or more seconds.

● Each press of SLOW – (O) or SLOW + (N) increases the

slow motion speed for each direction.

● Slow motion for reverse direction cannot be performed with

Video CD/SVCD discs.

22 EN

BASIC OPERATIONS ON DVD DECK

Skip Search

During playback, press v.

● Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

● Skip search cannot be performed when a VCD/SVCD disc is

being played back with the PBC function.

Instant Replay

You can move back the playback position slightly. Press w on the remote control or INSTANT REPLAY on the unit.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

● Instant replay cannot be performed when a VCD/SVCD disc is

being played back with the PBC function.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (A pg. 58) during playback (or Live Memory Playback). Press S or T.

● To advance forward or back, press S or T repeatedly within 5

seconds of each press to continue jump.

● Depending on the time from where you want to start jump search,

the first press of S or T will not necessarily lead to a jump of the selected time interval. The first press will lead to a jump to the nearest quarter points of an hour (15 min/ 30 min/ 45 min/ 00 min). The subsequent jumps will then be in accordance to the selected time interval.

● When you cannot advance any further (beginning or end of

programme reached), the message AUNABLE TO GO BACK ANY MOREB or AUNABLE TO GO FORWARD ANY MOREB appears on the screen. In such a case, press S, O, N, T or o.

Example:

Playback search when jump interval is set to 15 MIN jumps. Taking for instance, you want to start jump search 40 minutes after the beginning of the programme. Pressing S or T will result in a jump to the scene at the 30 minutes point or 45 minutes point respectively as illustrated below. At the subsequent press, the scene will jump to the 15 minutes point or 1 hour point respectively, according to the selected time interval, which in this case is A15 MINB.

Time counter

0 min

Beginning of programme

15 min

NOTES:

● Jump search cannot be performed with finalised DVD-R/DVD-RW

(video mode) discs.

● Jump search functions only when chapters (marks) are not set.

30 min

Current scene

40 min

45 min

1 h 15 min

1 h

End of programme

Resume Function

It is possible to memorise the position where you stop playback and resume playback from that position.

● Be sure to set ARESUMEB to AONB or ADISC RESUMEB.

(A pg. 58)

● Resume function always works for DVD-R/DVD-RW discs that

have not been finalised and DVD-RAM regardless of the setting of ARESUMEB.

1 Press o during playback to memorise a resume point.

● The unit enters Resume Stop mode and memorises the

position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorising.)

● The unit retains a memory of the resume points of the last 30

discs played back, even though they have been ejected if ARESUMEB is set to ADISC RESUMEB. (A pg. 58)

● Performing the following steps would erase the resume points:

(The inside of the disc status indicator stops blinking and lights.)

When ARESUMEB is set to AONB:

• Press A to turn off the unit.

• Press

M to take out the disc.

• Press

o in stop mode.

• Press

TOP MENU to display the top menu, then start playback by

selecting an item, etc.

MENU to display the disc menu, then start playback by

• Press selecting an item, etc.

When ARESUMEB is set to ADISC RESUMEB:

•Set ARESUMEB to AOFFB. (A pg. 58)

• Press

o in stop mode.

• Press

TOP MENU to display the top menu, then start playback by

selecting an item, etc.

MENU to display the disc menu, then start playback by

• Press selecting an item, etc.

2 Press I in stop mode to resume playback. The unit starts

playback from the resume point.

NOTES:

● ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD

and already finalised DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under AONB setting will be applied even if ARESUMEB is set to ADISC RESUMEB. (A pg. 58)

● If you stop the playback of a disc for which a resume point has

already been memorised, the memory will be updated with the new resume point.

● After the unit has memorised the resume points for 30 discs,

remembering a new resume point will cause the unit to delete the oldest memorised point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.

● When the unit memorises a resume point for a disc, it also

remembers audio language, subtitle and angle settings.

● This function may not work for some Video CD/SVCDs.

● When ARESUMEB is changed to AONB or AOFFB (A pg. 58),

resume points of the discs memorised with ARESUMEB set to ADISC RESUMEB will be cleared.

● Resume points are memorised for each side of a double-sided

disc.

● When you switch to HDD while playing back JPEG/MP3 files,

playback stops. The Resume Function doesn’t work when you switch to DVD thereafter to playback the disc.

BASIC OPERATIONS ON DVD DECK

EN 23

Checking The Time Information

DVDTV

DVD

0-9

MARK

ENTER

S/PREVIOUS

I o

DISPLAY

REC MODE/REMAIN

AUDIO

Selection Keys

FGDE

RETURN T/NEXT

ON SCREEN

SET UP SUBTITLE

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto DVD-RAM/R/RW (VR mode only) discs when recording is helpful to locate a start point when you play back the discs later.

To mark positions:

During playback, press MARK at positions you want to mark.

● AMARKB appears on the TV

screen. You can easily locate the marked positions using S or T when you play back the disc.

To delete the marked positions:

While paused, press S or T to locate a marked position you want to delete, then press MARK.

● Crossed AMARKB appears on the

TV screen, and the marked position is deleted.

NOTES:

● For DVD-R/RW (Video mode) discs, marks are assigned

automatically every 5 minutes.

● If MARK is pressed when playing back a disc that does not allow

marks to be inserted, A7B appears on the TV screen.

You can check time information of a disc on the front display panel and the TV screen.

8 DVD-RAM/DVD-R/DVD-RW

Each press of DISPLAY on the remote control or the unit changes the display as follows:

During recording

Clock time (front display panel only) N Current title elapsed time N Disc remaining time N (back to the beginning)

During playback

Each title elapsed time N Total remaining time N Remaining time* N (back to the beginning)

* only discs before finalising

During recording/playback or in stop mode Press REC MODE.

● The disc remaining time according to recording modes appears

on the TV screen.

● It is possible to check disc remaining time according to recording

modes also by pressing REMAIN.

● In FR mode, it is possible to set recording time in detail. While the

recording mode and the disc remaining time are displayed by pressing REMAIN, press selection keys to select AFRB, then press DE to select the desired recording time. (A pg. 49)

● It is not possible to switch the recording mode during playback or

while recording.

8 Video CD/SVCD/Audio CD During playback or in stop mode

Current track elapsed time N Current track remaining time N Tot al elapsed time N Total remaining time N (back to the beginning)

NOTES:

● When a PBC-compatible Video CD/SVCD disc is loaded,

deactivate the PBC function. (A pg. 24)

● For pre-recorded DVD VIDEO, only the title, chapter and elapsed

time are displayed when ON SCREEN is pressed.

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc contains Amulti-angleB parts, where the same scene was shot from different angles. If the disc contains Amulti-angleB parts, AyB appears on the TV screen at the beginning of the Amulti-angleB part.

1 Press ANGLE during playback.

The angle selection display appears on the TV screen.

2 Press ANGLE or selection

keys to select your desired

angle.

● Each time you press ANGLE or the selection keys, the angle

changes.

● When A7B appears on the TV screen, the current scene is not

recorded from multiple angles. In addition, some discs prohibit angle selection.

● To clear the angle selection display, press ENTER. In addition,

the angle selection display disappears automatically if no operation is done for 10 seconds.

When 3 scene angles are contained.

24 EN

BASIC OPERATIONS ON DVD DECK

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. AhB appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.

1 Press SUBTITLE during

playback. The subtitle selection display appears on the TV screen.

● Each time you press

SUBTITLE, the subtitle display is switched on and off.

When 3 subtitle languages are contained.

ENGLISH

2 Press selection keys to select your desired language.

● To clear the subtitle selection display, press ENTER.

NOTES:

● When A7B appears on the TV screen, no subtitle language is

recorded.

● When the subtitle language won’t be changed with the procedure

above, change the subtitle on a disc menu displayed by pressing MENU.

Audio Channel Selection

When watching bilingual programmes or playing discs on which you recorded bilingual or stereo programmes, you can choose the desired audio channel.

● When ASUPERIMPOSEB is set to AONB or AAUTOB, you can

confirm on the TV screen the audio channel you have chosen. (A pg. 58)

● Each time you press AUDIO, the audio

channel changes.

TRACK

On-Screen Display

For main audio of bilingual programme

For sub audio of bilingual programme

For stereo discs

For audio of left channel

For audio of right channel

NOTE:

It is not possible for DVD-R/DVD-RW (Video mode) disc playback to switch the audio channel.

When you can’t switch the audio channel of a bilingual programme

When the unit is connected with a digital audio device using an optional optical cable and ADIGITAL AUDIO OUTB is set to ADOLBY DIGITAL/PCMB, it is not possible to switch the audio channel of a bilingual programme recorded on a DVD-RAM or DVD-R/RW (VR mode) disc. (A pg. 56) In this case, perform the following steps using the remote control to switch ADIGITAL AUDIO OUTB from ADOLBY DIGITAL/PCMB to APCM ONLYB.

A Press SET UP to access the Main Menu screen. B Press selection keys to select ADVD VIDEO SET UPB, then

press G.

C Press selection keys to select AAUDIO OUTPUTB, then press

D Press selection keys to select ADIGITAL AUDIO OUTB, then

press ENTER.

E Press selection keys to select APCM ONLYB, then press

ENTER. (A pg. 57)

F Press SET UP to complete the setting. G Press AUDIO to select the desired audio channel.

USE

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD/SVCD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.

1 Press AUDIO during playback.

The Audio Language/Sound selection display appears.

2 Press AUD IO or selection

keys to select your desired

audio language/sound.

● Each time you press AUDIO or the selection keys, the audio

language/sound changes.

● To clear the Audio Language/Sound selection display, press

ENTER.

NOTES:

● When A7B appears on the TV screen, no other audio language is

recorded.

● When the audio language won’t be changed with the procedure

above, change the audio on a disc menu displayed by pressing MENU.

● Pressing AUDIO to select the audio language/sound is only

possible during playback. It is not possible to select by pressing AUDIO in stop mode. However, you can select the desired audio language/sound from the setup menu while in stop mode.

For example: DVD VIDEO

ENGLISH

When 3 audio languages are contained.

Playback Control (PBC) Function

Some Video CD/SVCD discs support the PBC function. PBC is an abbreviation of APlay Back ControlB. A Video CD/SVCD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.

1 Press I in stop mode. The PBC menu appears. 2 Press the number keys to enter the number of the desired

scene, then press ENTER. The unit starts playback of the selected item.

● APBCB appears on the front display panel.

● When ANEXTB or APREVIOUSB appears on the TV screen:

Pressing NEXT (T) advances to the next page. Pressing PREVIOUS (S) returns to the previous page.

● You can return to the menu by pressing RETURN.

● The method of the operation is different depending on the disc.

NOTE:

If you want to playback a PBC-compatible Video CD/SVCD disc without activating the PBC function, start playback with the PBC function, then press o to stop playback. The TV screen becomes all black. Then start playback in stop mode by using the number keys to choose the track, then press ENTER.

Using The On-screen Bar

The on-screen bar allows you to control various playback functions. Some of the functions operated on Navigation Menu can be controlled on the On-screen bar.

ATTENTION:

The on-screen bar can also be used for the HDD deck.

Be sure to clear Library Database Navigation screen by pressing NAVIGATION.

DVDTV

NAVIGATION

ENTER

Selection Keys

FGDE

RETURN

BASIC OPERATIONS ON DVD DECK

EN 25

A Disc type. B Select this for Repeat Playback. (See below) C Select this for A-B Repeat Playback. (A pg. 26) D Select this for search function. (A pg. 26) E Select this for time search function. (A pg. 27) F Select this to switch Simulated Surround Effect function.

(A pg. 27)

G Select this for Picture Control function. (A pg. 27) H Select this to switch picture source type. (A pg. 28) I Current status area for the selected item. J Select this for Programme Playback. (A pg. 28) K Select this for Random Playback. (A pg. 28) L Select this to control the switching interval of the slide show.

(A pg. 28)

NOTE:

Although examples of the on-screen bar are provided here only for 3 types of discs, the on-screen bar will be displayed for whichever disc indicated in the left column.

Basic Operation On The On-screen Bar

Example: When selecting Picture Control function of DVD

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. The

item currently selected is highlighted and pointed by :.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

ON SCREEN

How To Access The On-screen Bar

1 Press ON SCREEN twice whenever a disc is loaded.

Contents of the on-screen bar during playback

DVD VIDEO

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

Video CD/SVCD

TRACK 99

VCD

JPEG disc

JPEG

TRACK 99GROUP 99

5sec

3D-ON CINEMA AUTO

EACH 0:00

CINEMA

2 Press selection keys to select A B, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

3 Press selection keys to select the desired option, then press

ENTER.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

NORMAL CINEMA SHARP SOFT

To clear the on-screen bar Press ON SCREEN.

NOTE:

See the corresponding pages for details on each menu item.

Repeat Playback

You can repeat playback as you like according to the type of disc.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AxB, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

3 Press selection keys repeatedly to select the desired Repeat

mode, then press ENTER.

26 EN

DVD-RAM/RW/R

BASIC OPERATIONS ON DVD DECK

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TITLE REPEAT:

The current title is played back repeatedly.

DVD VIDEO

OFF:

Repeat playback is not performed.

TITLE REPEAT:

The current title is played back repeatedly.

CHAPTER REPEAT:

The current chapter is played back repeatedly.

Audio CD/Video CD/SVCD

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TRACK REPEAT:

The current track is played back repeatedly.

JPEG/MP3

OFF:

Repeat playback is not performed.

FOLDER REPEAT:

The whole folder is played back repeatedly.

TRACK REPEAT*:

The current track is played back repeatedly.

* ATRACK REPEATB cannot be selected for JPEG discs.

To clear the on-screen bar Press ON SCREEN.

To cancel Repeat Playback

Repeat the above procedure from step 1, select AOFFB in step 3, then press ENTER.

NOTES:

● Repeat Playback is not possible for a Video CD/SVCD with PBC

function.

● Repeat Playback may not work properly depending on the type of

the disc being used.

● It is possible to use the Mode Lock function. (A pg. 65)

A-B Repeat Playback

You can repeat the desired part.

During playback

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AA-B xB. 3 Press ENTER at the beginning of the desired part you want to

repeat (point A). The elapsed playing time of the point A appears.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

AB1:25:58 : :

4 Press ENTER at the end of the desired part you want to repeat

(point B). The elapsed playing time of the point B appears.

● The selected part of the disc (between point A and B) is played

repeatedly.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

To clear the on-screen bar Press ON SCREEN.

To cancel A-B Repeat Playback Press selection keys to select AA-B xB, then press ENTER.

NOTES:

● A-B Repeat Playback may not work properly depending on the

type of disc being used.

● The subtitles recorded around the A-B point may not appear.

● When the end of the item is reached before the end point is set,

the pop-up window disappears from the TV screen. In such a case, repeat the procedure from step 2.

● The point B must be set at least 3 seconds after the point A.

● When playing back a DVD, A-B Repeat Playback is possible only

within the same title.

● AA-B xB cannot be selected during Programme and Random

Playback.

● AA-B xB cannot be selected while stopped.

Locating The Beginning Of A Desired Selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select A9B, then press ENTER. 3 Press selection keys to select the desired item, then press

ENTER.

● Skip this step for Video CD/SVCD and Audio CD.

For DVD-RAM/RW/R, DVD VIDEO

ATITLE SEARCHB or ACHAPTER SEARCHB is selectable. (However, ACHAPTER SEARCHB is not selectable while stopped.)

For Video CD/SVCD, Audio CD, JPEG, MP3

ATRACKB is selectable.

NOTE:

Settings that are selectable during playback and stop mode differ depending on the type of disc and search used.

CHAPTER 99 EACH 179:59GROUP 99

DVD-

VIDEO

TITLE SEARCH CHAPTER SEARCH

4 Press the number keys to enter the desired item number, then

press ENTER.

● Playback starts from the selected section.

Examples:

A To select track 5, press the number key A5B. B To select track 15, press the number key A1B and A5B. C To select track 25, press the number key A2B and A5B.

If you have specified a wrong selection

Press RETURN on the remote control and repeat the above procedures from step 2.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When A7B is displayed on the TV screen in step 4, the chapter

you have selected is not contained in the disc, or chapter search does not work on the disc.

● Before you press ENTER, playback may start automatically when

you enter the section’s number depending on the disc.

● This function is not possible for a Video CD/SVCD with PBC

function.

CINEMA

AB1:25:58 1:40:00

DVDTV

0-9

CANCEL

ENTER

CLEAR

Selection Keys

FGDE

RETURN

ON SCREEN

Time Search

You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a programme (DVD-RAM, DVD-R, DVD-RW, DVD VIDEO and HDD) or a disc (Video CD/SVCD and Audio CD).

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select Aj9B, then press ENTER.

The pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

CINEMA AUTO

BASIC OPERATIONS ON DVD DECK

EN 27

Simulated Surround Effect

It is possible to get a simulated surround effect from your stereo system. You can enjoy the virtual surround sound with your 2channel stereo system.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. 3 Press selection keys to select AONB, then press ENTER.

● A3D-ONB appears above the selected item and Simulated

Surround Effect is activated.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

To clear the on-screen bar Press ON SCREEN.

To cancel the simulated surround effect

Press selection keys to select AOFFB, then press ENTER to clear A3D-ONB from the screen.

NOTES:

● Simulated Surround Effect works correctly only when playing

back a title recorded in multichannels.

● Simulated Surround Effect does not affect the DVD VIDEO

bitstream signal from the [DIGITAL AUDIO OUTPUT] connectors.

● When Simulated Surround Effect is activated, the settings of

AANALOG AUDIO OUTB and AD. RANGE CONTROLB are disabled. (A pg. 57)

● Simulated Surround Effect cannot be activated under the

following conditions:

● When the HDD deck is in the recording mode.

● When a disc containing both the Dolby Digital 5.1CH and 2CH

sound formats is playing back a scene that is not in the 5.1CH sound format.

CINEMA AUTO

OFF

Adjusting The Picture Quality

3 Press the number keys to enter the time, then press ENTER.

Playback starts from the specified time. Example: To play back from a point 12 (minutes): 50 (seconds) elapsed.

TIME

Press 1

TIME

If you have specified a wrong selection,

Press RETURN on the remote control and repeat the above procedures from step 2.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When A7B is displayed on the TV screen in step 3, you have

selected a point that exceeds the recording time of the disc. However, for HDD; DVD-R/RW (Video mode) discs that have not been finalised; and DVD-R/RW (VR mode) discs, A7B will not be displayed and the last image (still) of the programme appears on the TV screen.

● Some DVD VIDEO discs do not contain time information, and it is

not possible to use the Time Search function. In such cases, A7B is displayed on the TV screen as well.

● This function is not possible for a Video CD/SVCD with PBC

function.

TIME

Press 2

TIME

Press 0Press 5

You can obtain optimal picture quality by selecting an appropriate picture mode.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

CINEMA AUTO

3 Press selection keys to select the desired option, then press

ENTER.

NORMAL:

Normally select this option.

CINEMA:

Suitable for a movie disc, etc.

SHARP:

Clearer, sharper-edged picture when viewing images with lots of flat, same-coloured surfaces such as cartoons.

SOFT:

Select this option when too much noise appears.

To clear the on-screen bar Press ON SCREEN.

28 EN

BASIC OPERATIONS ON DVD DECK

Setting The Progressive Mode

You can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source).

1 Set the unit to the progressive scan mode. (A pg. 65) 2 Press ON SCREEN twice to access the on-screen bar. 3 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

AUTO

CINEMA

DVD-

VIDEO

3D-ON

4 Press selection keys to select the desired option, then press

ENTER.

AUTO:

This mode automatically detects film and video content for

progressive playback. When film content is found, flag detection

is used to invoke playback of film data in full screen. When

video content is found, pictures from multiple fields are used to

detect sections with movement, and then this movement

undergoes advanced image processing for output of sharp,

detailed progressive images without any reduction in image

quality where movement occurs. Normally, operation in this

mode is recommended.

FILM:

Suitable for playing back a progressive scanned film source

disc.

VIDEO:

Suitable for playing back a video source disc. The outlines on

the played back pictures will be soft.

To clear the on-screen bar Press ON SCREEN.

NOTE:

Progressive scan is output only from [COMPONENT VIDEO OUT] connectors.

Programme Playback

4 Press I. Playback starts in the programmed order.

● When all of the programmed tracks have been played back,

Programme Playback stops, but the programmed information remains.

● To add tracks to the end of the programme, perform step 3.

● During Programme Playback, pressing T skips to the next

selection of the programme. Pressing S returns to the beginning of the current selection.

To clear the on-screen bar and the contents of the programme Press ON SCREEN.

To cancel Programme Playback Press selection keys to select APRGMB, then press ENTER.

NOTE:

Programme Playback is not possible depending on the type of disc.

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select ARNDB, then press ENTER. 3 Press selection keys to select AONB, then press ENTER.

Playback starts in random order.

TRACK 99 EACH 0:00

VCD

To clear the on-screen bar Press ON SCREEN.

To cancel Random Playback Press selection keys to select AOFFB, then press ENTER.

NOTE:

The same track will not be played back more than once during Random Playback.

CINEMA

OFF

Select The Switching Interval Of The Slide Show

You can programme up to 30 tracks (Video CD/SVCD or Audio CD) to play back in the desired order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select APRGMB, then press ENTER.

The programme table appears under on-screen bar.

TRACK 99 EACH 0:00

VCD

3 Press the number keys to

enter the track numbers in the

desired order. Examples: A To select track 5, press the

number key A5B and ENTER. B To select track 15, press the

number key A1B and A5B.

C To select track 25, press the number key A2B and A5B.

If you have specified a wrong selection

Press CANCEL. The last selection is erased. Or press CLEAR (o). The whole selection is erased.

USE [0-9] KEYS TO SELECT TRACK

PROGRAMME TOTAL TIME

CINEMA

You can control the switching interval of the slide show.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

TRACK 99GROUP 99

JPEG

5sec

3 Press selection keys to select the desired option, then press

ENTER.

● Each time you press the selection keys, the interval changes

as follows: 5sec Y 10 sec Y 15 sec Y 20 sec Y 25 sec Y 30 sec Y (Back to the beginning)

To clear the on-screen bar Press ON SCREEN.

NOTE:

JPEG files are played back as a slide show. It may take more time to display an image with larger file size.

BASIC OPERATIONS ON HDD DECK

EN 29

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DV/HDD/DVD

WIo

DVDTV

HDD

ENTER

DISPLAY

ATTENTION:

● It may take a few seconds to start playback. This is not a

malfunction.

● Forward/reverse high-speed search and other operations

cannot be performed while playback is stopped.

1 Press DV/HDD/DVD on the unit repeatedly or HDD on the

remote so that the HDD lamp lights up on the unit.

2 Press I to start playback.

● The Library Database Navigation also enables you to search

and select the desired programmes. (A pg. 37)

3 Press W to pause playback.

● To resume normal playback, press I.

4 Press o to stop playback.

NOTES:

● When the Library Database Navigation screen appears, choose

a thumbnail image of the desired title on the TV screen, then press ENTER. (A pg. 37)

● During HDD playback, the current title elapsed time is displayed

on the TV screen when ON SCREEN is pressed. However, each press of DISPLAY changes the time display on the front display panel as follows: Current title elapsed time N Disc remaining time N Current title remaining time N (back to the beginning)

● It is possible to play back on the DV deck and the HDD/DVD deck

simultaneously. However, either DVD or HDD can be played at the same time.

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD so that the HDD lamp lights up on the unit.

DVDTV

HDD

MARK

O/SLOW

ON SCREEN

Variable Speed Search

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

Reverse

Reverse Search

5 steps

–360 –60 –15 –5 –3 –1

Reverse

Play

Reverse

Slow Motion

3 steps

–1/2 –1/4 –1/16

Slow Motion

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) to activate frame-by-

frame playback.

● Each press of SLOW – (O) or SLOW + (N) advances/

reverses the still picture frame by frame.

● To resume normal playback, press I.

Slow Motion

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) for 2 or more seconds.

● Each press of SLOW – (O) or SLOW + (N) increases the

slow motion speed for each direction.

Skip Search

During playback, press v.

● Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

T N/SLOW +

Forward

Normal

3 steps

1/16

1/4 1/2 1 1.5 3 5 15 60 360

Play

Forward Search

6 steps

30 EN

BASIC OPERATIONS ON HDD DECK

Instant Replay

You can move back the playback position slightly. Press w on the remote control or INSTANT REPLAY on the unit.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

1.5x Speed Playback

You can play back a title quickly. The sound will also be played back faster than normal speed during 1.5x speed playback.

1.5x speed playback cannot be performed during recording on HD D or DVD.

1 Press O to locate the point to start 1.5x speed playback from. 2 Press I to resume playback. 3 Press N once.

● Pressing ON SCREEN displays AX1.5B on the top right corner

of the screen.

NOTES:

● When the unit is connected with a digital audio device using an

optional optical cable, set ADIGITAL AUDIO OUTB to APCM ONLYB. (A pg. 24)

● For programmes recorded in DV mode, 1.5x speed playback with

sound is not possible.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (A pg. 58) during playback (or Live Memory Playback). Press S or T.

● To advance forward or back, press S or T repeatedly within 5

seconds of each press to continue jump.

● Depending on the time from where you want to start jump search,

● When you cannot advance any further (beginning or end of

programme reached), the message AUNABLE TO GO BACK ANY MOREB or AUNABLE TO GO FORWARD ANY MOREB appears on the screen. In such a case, press S, O, N, T or o.

Example:

Time counter

0 min

15 min

30 min

40 min

45 min

1 h 15 min

1 h

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto the disc when recording is helpful to locate a start point when you play back the disc later.

To mark positions:

During playback, press MARK at positions you want to mark.

● AMARKB appears on the TV

screen. You can easily locate the marked positions using S or T when you play back the disc.

To delete the marked positions:

While paused, press S or T to locate a marked position you want to delete, then press MARK.

● Crossed AMARKB appears on the

TV screen, and the marked position is deleted.

Beginning of programme

NOTE:

Jump search functions only when chapters (marks) are not set.

Current scene

End of programme

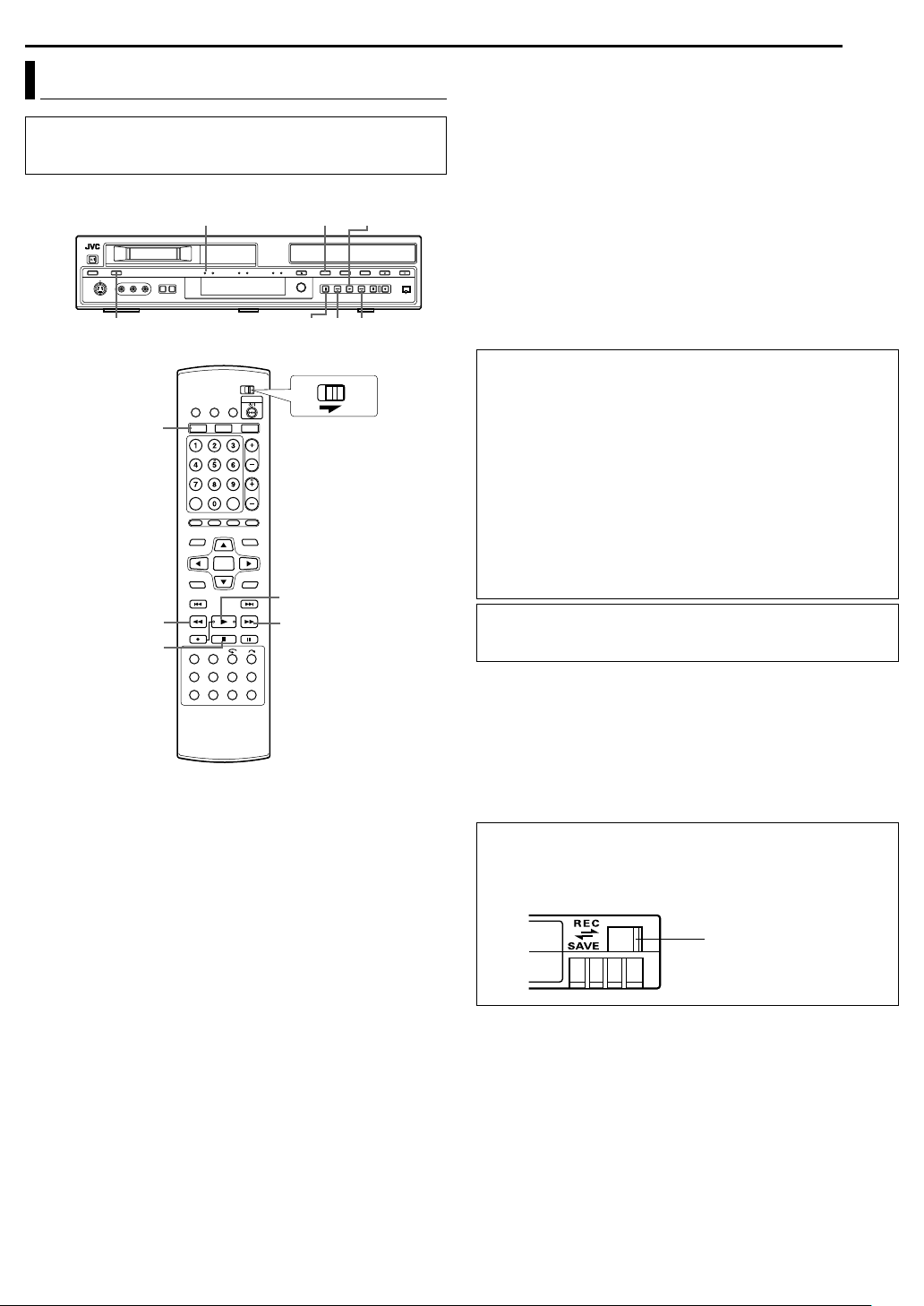

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DV lamp

DV/HDD/DVD I

DVDTV

BASIC OPERATIONS ON DV DECK

EN 31

1 Load a cassette. Make sure the window side is up, the rear

label side is facing you and the arrow on the front of the cassette is pointed toward the unit.

● Do not apply too much pressure when inserting.

● If the erase protection switch is set to ASAVEB, playback begins

automatically. It takes about 15 seconds until the playback picture appears.

● The unit’s power comes on automatically.

2 Press DV/HDD/DVD on the unit repeatedly or DV on the remote

control so that the DV lamp lights up on the unit.

3 Find the programme start point. If the tape is advanced past the

start point, press O. To go forward, press N.

4 Press I to start playback. 5 Press o to stop playback.

● To eject the cassette, press M (DV). You can also eject the

cassette when the unit is turned off.

Clean the video heads using a dry cleaning cassette

- M-DV12CL - when:

● No picture during playback.

● Block noise appears during playback.

● AUSE CLEANING CASSETTEB appears on the screen.

● AU01B lights on the front display panel.

NOTES:

● The heads get dirty in the following cases:

● in an environment prone to extreme temperature or humidity

● in a dusty environment

● flaw, dirt or mould on video tapes

● continuous usage for a long time

AU01B will also light on the front display panel when you

●

attempt to play back a tape recorded with NTSC signals. This unit cannot play back tapes recorded with NTSC signals.

Usable cassettes

● Cassettes marked P can be used with the DV deck.

● Tapes recorded in the DVCAM format can be played.

NOTES:

● When you record a tape on the DV deck with the recording speed

set to ALPB, it is recommended to play back that tape back on this DV deck. Digital video recorder from other manufacturers may not be able to play back the tape properly.

● It is possible to play back on the DV deck and the HDD/DVD deck

simultaneously. However, either DVD or HDD can be played at the same time.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, set its erase protection switch to ASAVEB. To record on it later, set the switch to ARECB.

Erase protection switch

32 EN

BASIC OPERATIONS ON DV DECK

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DV/HDD/DVD on the unit repeatedly or DV on the

remote so that the DV lamp lights up on the unit.

DVDTV

DISPLAY

AUDIO

N W

Skip Search

During playback, press v.

● Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

Instant Replay

During playback, press w on the remote control or

INSTANT REPLAY

(about 7 seconds) and resumes playback.

on the unit. The unit rewinds the picture a little

Next Function Memory

The Next Function Memory AtellsB the unit what to do after rewinding. Before continuing, make sure the unit is in the Stop mode.

For Automatic Start Of Playback

Press O, then press I within 2 seconds.

For Automatic Cassette Ejection After Tape Rewind

Press O, then press M (DV) within 2 seconds.

Soundtrack Selection

Your unit is capable of recording two soundtracks (L and R) and will play back the one you select.

During Playback Pressing AUDIO changes the soundtrack as follows:

TRACK

On-Screen Display

L WXR For stereo or Bilingual tapes

L W For main audio of Bilingual tapes

X R For sub audio of Bilingual tapes

To select the audio mode (SOUND1/SOUND2/MIX), refer to AAUDIO MODEB under ADV SET U P B (A pg. 59).

USE

ATTENTION:

In the search, still, slow-motion or frame-by-frame playback mode, a slight mosaic effect appears on screen.

Variable Speed Search

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

Reverse

Reverse Search

3 steps

–12 –4 –2 –1/5 1/5 1 2 4 12

Reverse

Slow Motion

1 step

Slow Motion

1 step

Normal

Play

Forward

Forward Search

3 steps

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Press W to activate frame-by-frame playback.

● To resume normal playback, press I.

Slow Motion

1 Press W to pause during playback. 2 Press and hold W for 2 seconds, then release. Press W and

release again to return to still picture.

● Press N for forward slow motion or O for reverse slow

motion.

● To resume normal playback, press I.

Time Code

During recording, a time code is recorded on the tape. This time code is used to confirm the position on the tape when playing back or editing a tape.

1 Press DISPLAY on the remote control or the unit until the time

code on the tape appears on the front display panel and the TV screen.

● Each time you press DISPLAY, the indication changes as

follows: Time code N Tape remaining time N Clock time N (Back to the beginning)

LIVE MEMORY PLAYBACK ON HDD/DVD DECK

EN 33

Live Memory Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DV/HDD/DVD on the unit repeatedly to select the HDD

or DVD deck.

This unit records pictures onto the hard disk and DVD-RAM disc, instead of video tapes, then plays back the pictures recorded on the disc. This makes it possible to achieve high-speed writing and read-out that has not been possible with conventional VCRs, enabling recording and playback simultaneously.

High-speed spin

(High-speed writing)

Recording

It is called ALive Memory PlaybackB to start playback of the programme being recorded, with a time-lag between a recording point and a playback point, as shown in the figure below.

Current playback point

(Live Memory Playback)

Current recording position

Playback continues

(Recording point)

Recording start point

Currently elapsed recording time

30 min.

Not only can this unit play back a programme previously recorded while recording another programme, but the unit also allows you to play back from the beginning of a programme while continuing to record the same programme.

Playback (High-speed read-out)

Recording continues

1 hour

Recording/playback Status Display

DVDTV

NAVIGATION

Press NAVIGATION to display Library Database Navigation menu, then choose a programme to play

A pg. 36)

back. (

R o

ON SCREEN

Live Memory Playback status can be checked by pressing ON SCREEN to display the bar meter on the superimpose display. The current status is superimposed on the TV screen. ( using Live Memory playbackB)

EE CHECK

NOTES:

● Live Memory Playback could be performed approximately 30

seconds after recording has started on the DVD-RAM disc. However, for HDD, Live Memory Playback is possible right after recording has started.

● Although high-speed search up to approximately 30 seconds

before the current recording point is possible during Live Memory Playback, once the current recording point is reached, the unit resumes normal playback and maintains a delay of approximately 30 seconds so that recording and playback can continue.

● Playback may be paused for a moment during Live Memory

Playback, which does not interfere with recording.

● Live Memory Playback cannot be performed while recording the

source from DV input. (A pg. 48, ADV Dubbing (HDD & DVD Deck Only)B)

● When EE CHECK is pressed to display the picture currently

being recorded, the picture size may not be correct.

● Press o or EE to stop Live Memory Playback.

● Live Memory Playback cannot be performed while the DVD deck

is recording as temporary recording on HDD stops during recording on DVD.

A pg. 14, AWhen

34 EN

LIVE MEMORY PLAYBACK ON HDD/DVD DECK

Buttons To Be Used During Live Memory Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to select the desired deck for Live Memory

Playback.

DVDTV

HDD

D F

A NAVIGATION

Displays Library Database Navigation menu. You can choose a

title to play back.

B S

● Pressing once skips back to the beginning of the chapter being

played back.

● Pressing down for 2 or more seconds during playback reverses

playback at 5 times the normal speed while pressed. Releasing

the button resumes normal playback.

Available only when paused

● Pressing down for 2 or more seconds reverses playback at 1/16

times the normal speed. Releasing the button resumes normal

playback.

Backward Jump

● Each press of the button during Live Memory Playback jumps

back for the selected time interval and resumes playback.

(A pg. 30, AJump SearchB)

C T

● Pressing once skips forward to the beginning of the next

chapter being played back.

● Pressing down for 2 or more seconds during playback

advances playback at 5 times the normal speed while pressed.

Releasing the button resumes normal playback.

Available only when paused

● Pressing down for 2 or more seconds advances playback at 1/

16 times the normal speed. Releasing the button resumes

normal playback.

Forward Jump

● Each press of the button during Live Memory Playback jumps

forward for the selected time interval and resumes playback.

(A pg. 30, AJump SearchB)

D O

● Each press of the button during playback advances the

playback speed in 6 steps in the reverse direction.

Available only when paused

● Each press of the button reverses the still picture frame by

frame.

● Pressing down for 2 or more seconds reverses playback at 1/16

times the normal speed. Then, each press of the button

reverses slow-motion at 1/16 times, 1/4 times and 1/2 times the

normal playback.

DVD

E G

E N

● Each press of the button during playback advances the

playback speed in 5 steps in the forward direction.

Available only when paused

● Each press of the button advances the still picture frame by

frame.

● Pressing down for 2 or more seconds advances playback at

1/16 times the normal speed. Then, each press of the button advances slow-motion at 1/16 times, 1/4 times and 1/2 times the normal playback.

F o

● Pressing once during Live Memory Playback or RetroActive

Recording returns to the external input screen.

● Pressing twice during recording stops recording and returns to

the external input screen.

G W

● Pressing once pauses playback (still picture playback).

● Pressing repeatedly advances the still picture frame by frame.

H w

It is useful when watching sports programmes, etc.

● Each press skips back for approximately 7 seconds and

resumes playback.

● Pressing repeatedly skips back for approximately 7 seconds

continuously as many times as pressed.

I v

It is useful when skipping over unwanted sections.

● Pressing once skips forward for approximately 30 seconds and

resumes playback.

● Pressing repeatedly skips forward continuously as many times

as pressed.

J EE

Returns to on external input screen. When a confirmation message appears by pressing this button during title editing, etc., follow the instruction to return to the previous screen.

K EE CHECK

You can check, for example, if the programme you are recording has already finished.

● Pressing once displays the picture currently being recorded and

the one being played back simultaneously.

● Pressing successively clears the Live Check window and

displays only the picture currently being played back.

LIVE MEMORY PLAYBACK ON HDD/DVD DECK

EN 35

Temporary recording for Live Memory (HDD deck only)

This unit automatically records the AV input being received, within the specified range of time, to the reserved space on the hard disk. The time range can be set for 30 minutes, 1 hour, and 3 hours. (A pg. 58)

NOTE:

Previous temporary recordings will be overwritten since the unit is always recording the AV input being received. Thus, it is not possible to play back programmes recorded beyond the specified range of time since they are already overwritten. To avoid this in order to save titles, perform normal recording or RetroActive Recording (See below).

About limitation on temporary recording

The temporary recording for Live Memory is cancelled in the following cases, and will start all over again when it is to resume.

● When the power is turned off

● When the system is powered again after a power failure was

occurred

● When normal recording or RetroActive Recording is performed

● When the ALIVE MEMORYB setting is changed (A pg. 58)

● When dubbing is performed by pressing DUBBING (A pg. 44)

● When ADVB is selected by pressing INPUT SELECT +/–

(A pg. 48)

RetroActive Recording (HDD deck only)

You can start recording from the previous part of the AV input you are currently watching (temporarily recorded on the background). (See ATemporary recording for Live Memory (HDD deck only)B above.)

1 Press S or O to locate the point to start recording from.

● Each press of O increases the reverse search speed.

2 Press R on the unit to start RetroActive Recording. Or while

holding R, press I on the remote control.

3 Press o twice to stop RetroActive Recording.

● The external input screen resumes.

NOTES:

● You cannot use RetroActive Recording for inputs other than the

one you are currently watching.

● Recording speed is automatically set to FR65 mode when

RetroActive Recording is started.

● Temporarily recorded data prior to the beginning of RetroActive

Recording is erased when RetroActive Recording started.

Simultaneous Recording and Playback

You can play back the previous part of the AV input you are recording or other programmes available in the Library Database.

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select the desired title, then press

ENTER.

● For DVD-RAM, playback starts from the beginning of the title if

ACONTINUOUS PLAYB in ADVD SET UPB is set to AONB (A pg. 58).

4 Press selection keys to select the desired playback method

(ABEGINNINGB, ARESUMEB or AREPEATB), then press ENTER.

● Playback of the selected title begins automatically.

5 Press o to stop playback.

● The external input screen resumes.

NOTES:

● You can use various playback features during Live Memory

Playback.

● To stop simultaneous playback, press o. The external input

screen resumes. To stop actual recording, press o twice again.

Instant Replay

You can move back the playback position slightly during recording or Live Memory Playback. Press w on the remote control or INSTANT REPLAY on the unit.

8 DVD-RAM

● Pressing once during recording skips back for approximately 30

seconds and starts Live Memory Playback. While pressing once during Live Memory Playback skips back for approximately 7 seconds and resumes playback.

● Each subsequent press skips back for approximately 7 seconds

and resumes playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

8 HDD

● Pressing during recording skips back for approximately 7

seconds and starts Live Memory Playback. While pressing during Live Memory Playback skips back for approximately 7 seconds and resumes playback.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

Resuming Playback (HDD deck only)

You can resume playback of an AV input you were recording or watching from the point you have paused.

1 Press W to pause an AV input.

● Recording continues when recording.

2 Press I to start Live Memory Playback.

● Playback resumes from the paused position.

3 Press o to resume the external input screen.

36 EN

NAVIGATION ON HDD/DVD DECK

Library Database Navigation

The Library Database Navigation enables you to search and select the desired titles recorded on the HDD deck and the DVD deck very easily. You can record up to 99 titles on a disc. Each time a title is recorded, the information of the title is registered for the Library Database Navigation automatically. So, you can confirm the information of the titles recorded with the Library Database Navigation screen. And, you can also select one of the titles recorded using the Library Database Navigation. The following screen appears as the Library Database Navigation screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing selection keys on the remote control.

NAVIGATION > ORIGINAL

ENTER

SELECT

0026 143 MIN[FISH WORLD ]

25/12/03 THU 10:00 - 10:15

FROG WORLD

SELECT WITH @ THEN PRESS [ENTER]

PRESS[ NAVIGATION] TO EXIT

NAVIGATION

EXIT

C D

A Playback screen

(Indicates currently received AV input.)

B Guidance for operations C Scroll bar

(Appears when there are over nine registered titles (or play

lists). The scroll bar only indicates that there are more titles (or

play lists) hidden off the current screen display. To show hidden

titles (or play lists), press selection keys repeatedly.) D Title number ( , , …)

(Number assigned to titles for selecting directly via RS-232C

the desired title to be played. (A pg. 71))

E Recording information for the title indicated by the arrow F Index list

(Thumbnail still of each title)

Thumbnail still is not to be played back. G Index

: Indicates no index is registered. : Indicates no title is registered.

H Icons

(Indicate the record condition of each title.)

001

002

L-1

G H

Using Library Database Navigation system, you can easily modify registered information, edit the title or play list, as well as search for the beginning of each title.

About registration of information

The following information is automatically registered for each title when ordinary recording is performed, then stored in an area specified on the unit.

● index* (reduced pictures to show programme titles)

● programme title*

● category*

● date and time

● channel

● recording mode

● length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Library Database Navigation system.

The limitations of registration

You can register information up to 99 titles for the DVD deck and 500 titles for the HDD deck. When the amount of information is at the limits of registration, you cannot record new titles any more. In this case, you need to delete old titles to register new ones. (A pg. 38)

NOTES:

● Once a DVD-R/RW (Video mode) disc has been finalised, the

display for original does not appear. Only display for library appears.

● When a copy-once title recorded on the HDD is dubbed to a DVD

disc (DVD-RAM/R/RW (VR mode)), the original data will be moved from the HDD to the DVD disc. In additional, the title that was moved to the DVD disc will become a copy-protected title, and the icon changes from to .

● Sound of received channel may be interrupted while the Library

Database Navigation screen is displayed.

● The order of index which are displayed by pressing DUBBING

differs from the images displayed by pressing NAVIGATION or EDIT.

The Icons and their meanings

This title is write-protected.

NEW

This title has not been played back.

This title is copy-protected.

This title can only be recorded once (copy-once title).

NAVIGATION ON HDD/DVD DECK

EN 37

Scan For Beginning Of Title

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to scan.

DVDTV

HDD

CANCEL

ENTER

You can scan the beginning of the title easily with the Library Database Navigation.

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select

the index (small pictures) of

the desired title, then press

ENTER.

● When you want the plural titles

to be played back

continuously, press MEMO

after selecting the desired title.

The numbers of the playback

order appear on the index. You can select up to 8 titles.

● When you want to correct the order, move the arrow to the

desired index and press MEMO. The number disappears and

the unit re-numbers the other programmes automatically.

● When you want to cancel the order, press CANCEL.

4 Press selection keys to select

ABEGINNINGB, then press

ENTER.

● To resume playback from the

point where playback was

previously stopped, press

selection keys to select

ARESUMEB, then press

ENTER.

● To repeat playback of a selected title, press selection keys to

select AREPEATB, then press ENTER.

5 Press W to pause playback.

● To resume normal playback, press I.

6 Press o to stop playback.

DVD

MEMO

EDIT

NAVIGATION

Selection Keys

FGDE

RETURN

I N

SELECT WITH @ THEN PRESS [ENTER]

PRESS[NAVIGATION] TO EXIT

ENTER

NAVIGATION

EXIT

SELECT

SELECT WITH @ THEN PRESS [ENTER]

PRESS[ NAVIGATION] TO EXIT

ENTER

NAVIGATION

EXIT

SELECT

NAVIGATION > ORIGINAL

0026 143 MIN[FISH WORLD ]

25/12/03 THU 10:00 - 10:15

FROG WORLD

NAVIGATION > ORIGINAL

25/12/03 THU

10:00 - 10:15

L-1

FROG WORLD

SELECT HOW TO PLAY BACK

BEGINNING RESUME R EPEAT

L-1

Edit Original Information

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to modify.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

Modify Index

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select AMODIFYB under AORIGINALB,

then press ENTER.

4 Press selection keys to select a title you want to modify, then

press ENTER.

5 Press selection keys to select AINDEXB, then press ENTER. 6 Press I to start playback. Press O or N to search for the

picture from the title, then press W.

● The pictures of the title appear

on the left window.

7 Confirm the arrow is on

AREPLACEB, then press

ENTER to register new index. New index appears on the right window.

● When you press ENTER with

the arrow on ARETURNB you can return to the previous screen.

8 Press EDIT to return to the normal screen.

Modify Title Name

1 Perform steps 1 - 4 of AModify IndexB above before continuing. 2 Press selection keys to select ANAMEB, then press ENTER. 3 Press selection keys to select AALPHABETB, ASYMBOL1B,

ASYMBOL2B or ARUSSIANB.

4 Press selection keys to select

the desired letter or symbol, then press ENTER. Repeat this process to complete the name.

● To correct a letter, press

selection keys to select

ADELETEB, then press

ENTER.

● You can enter the letters up to 64.

5 Press selection keys to select ASAVEB, then press ENTER. 6 Press EDIT to return to the normal screen.

NOTE:

For DVD-RAM and DVD-R/RW (VR mode) discs, it is not possible to use Russian characters when modifying the title name. The ARUSSIAN B selection will not be selectable and a warning message will appear below the playback screen.

EDITING > MODIFY INDEX

25/12/03 THU 10:00 - 10:15

FROG WORLD SP

0:01:03PROG. 1

SELECT IMAGE TO REPLACE WITH

25/12/03 THU 10:00 - 10:15

FROG WORLD

ENTER

EDIT

EXIT

SELECT

FROG

ALPHABET SYMBOL1 SYMBOL2 RUS SIAN

Ȭ ɀ Ɂ ɂ Ƀ Ʉ ɺ ɠ ɡ ɢ ɣ ɤ    Ʌ Ɇ ɇ Ɉ ɉ Ɋ ɥ ɦ ɧ ɨ ɩ ɪ    ɋ Ɍ ɍ Ɏ ɏ ɐ ɫ ɬ ɭ ɮ ɯ ɰ   

ɗɘə

SELECT WITH @

THEN PRESS [ENTER]

PRESS [EDIT] TO EXIT

L-1

INDEX

ON REMOTE

RETURNREPLACE

EDITING > MODIFY NAME

0026 64 MIN[FISH WORLD ]

ORLD

Ȼ ȼ Ƚ Ⱦ ȿ ɚ ɛ ɜ ɝ ɞ ɟ   

SAVE DELETE CANCEL

L-1

ɴɵɶ

ɖɑɒɓɔɕ ɱ ɲ "  

ɷɸ

 ¶ #

38 EN

NAVIGATION ON HDD/DVD DECK

Modify Category

1 Perform steps 1 - 4 of AModify IndexB (A pg. 37) before

continuing.

2 Press selection keys to select ACATEGORYB, then press

ENTER.

3 Press selection keys to select

the desired category, then

press ENTER.

4 Press EDIT to return to the

normal screen.

SELECT WITH @ THEN PRESS [ENTER]

PRESS [EDIT] TO EXIT

EDIT

EXIT

EDITING > MODIFY CATEGORY

0026 64 MIN[FISH WORLD ]

25/12/03 THU 10:00 - 10:15

FROG WORLD

MOVIES MUSIC DRAMA

ANIMATION SPORTS

NEWS WEATHER EDUCATION

ENTER

HOBBY

SELECT

ENTERTAINMENT

L-1

DOCUMENTARY

ART

Protect Title (DVD-RAM & DVD-R/RW (VR mode) only)

You can protect titles to prevent accidental erasure of the important titles.

1 Perform steps 1 - 2 of AModify IndexB (A pg. 37) before

continuing.

2 Press selection keys to select APROTECTB, then press

ENTER.

3 Press selection keys to select a title you want to protect, then

press ENTER.

4 Press selection keys to select APROTECTB, then press

ENTER. AB appears.

● To cancel the protection, repeat 3 - 4 again. In step 4, select

ACANCEL PROTECTB, then press ENTER.

5 Press EDIT to return to the normal screen.

NOTE:

All the titles on a disc will be deleted once the disc is formatted even if they are protected titles.

Delete Title

You cannot record any more with Library Database Navigation once the registered titles on the disc reach 99 titles for the DVD deck and 500 titles for the HDD deck. Deleting unnecessary titles after dubbing or other operations can increase remaining time and available recording capacity. (For DVD-R discs, although it is possible to delete recorded titles, available recording capacity does not increase.) The deleted title is never resumed. Play lists and title information in the unit’s library are also deleted.

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select ADELETEB under AORIGINALB,

then press ENTER.

4 Press selection keys to select a title you want to delete, then

press ENTER.

5 Press selection keys to select ADELETEB, then press ENTER.

● When you cancel the deletion, select ACANCELB, then press

ENTER.

6 Press EDIT to return to the normal screen.

Delete Unwanted Part Of The Title (HDD, DVD-RAM & DVD-R/RW (VR mode) only)

You can delete unwanted part of the title.

1 Perform steps 1 - 2 of AModify IndexB (A pg. 37) before

continuing.

2 Press selection keys to select ADEL SCENB, then press

ENTER.

3 Press selection keys to select a title whose unwanted part you

want to delete, then press ENTER.

4 Press I to start playback. Press O or N to find the point

where you want the deletion to begin, then press W.

5 Confirm the arrow is on AINB,

then press ENTER.

6 Press I to start playback.

Press O or N to find the point where you want the deletion to end, then press W.

7 Press selection keys to select

AOUTB, then press ENTER.

● Select APREVIEWB, then

press ENTER to preview the edited title.

8 Press selection keys to select AOKB, then press ENTER.

● If you do not want to delete the scene, press RETURN.

To modify the points

A Press RETURN. B Repeat steps 4 - 8 as necessary.

9 Press selection keys to select ADELETEB, then press ENTER.

The selected scene is deleted.

● To cancel the deletion, press selection keys to select

ACANCELB, then press ENTER.

10 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● Available recording capacity may not match the deleted part after

deletion.

● For DVD-R discs, although it is possible to delete unwanted part

of a title, available recording capacity does not increase.

EDITING > ORIGINAL/DEL SCENE

21/12/03 SUN 18:30 - 20:00

RALLYCAR SP

PROG. 1

0:01:03

SELECT SCENE TO DELETE WITH

IN OUT PREVIEW OK

L-1

0: 05 :15

OUT

0: 06 :15

ON REMOTE

NAVIGATION ON HDD/DVD DECK

EN 39

Divide Title (HDD deck only)

You can divide titles that are recorded continuously.

1 Press EDIT. The Editing screen appears. 2 Press selection keys to select ADIVIDEB, then press ENTER. 3 Press selection keys to select a title to divide, then press

ENTER.

4 Press I to start playback. Press O or N to locate a point to

divide, then press W.

5 Confirm the arrow is on ADIVIDEB, then press ENTER.

● The first picture (start) of the newly created title appears in the

bottom right window.

● Select APREVIEWB, then press ENTER. The first several

seconds of the newly created title is played back, then the

playback pauses at the dividing point.

● To undo the division, press selection keys to select ARETRYB,

then press ENTER. Repeat the above procedure to locate

another point to divide.

6 Press selection keys to select AOKB, then press ENTER. 7 Press selection keys to select ADIVIDEB, then press ENTER.

● Select ACANCELB, then press ENTER to return to the previous

screen.

8 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● It is not possible to divide titles that are used in the play list.

Modify Chapter (HDD, DVD-RAM & DVD-R/RW (VR mode) only)

You can create and delete chapter marks in titles.

1 Perform steps 1 - 4 of AModify IndexB (A pg. 37) before

continuing.

2 Press selection keys to select ACHAPTERB, then press

ENTER.

3 Press I to start playback.

Press O or N, then press W at the positions you want to

mark.

4 Press selection keys to select

AMARKB, then press ENTER.

● To undo the marking, press

selection keys to select ARETRYB, then press ENTER.

● Repeat the above steps 3 and 4 to locate another point to mark.

5 Press S or T to select one chapter you want to delete,

press selection keys to select AERASEB, then press ENTER.

● To undo the deletion, press selection keys to select ARETRYB,

then press ENTER.

6 Press EDIT to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

EDITING > MODIFY CHAPTER

03/10

0:07:01

01 00: 00: 00 02 00: 05 : 30 03 00: 07: 00 04 00: 30 :00

MARK

ERASE RETRY RETURN

40 EN

NAVIGATION ON HDD/DVD DECK

Edit Play List Information

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to modify.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

DVDTV

HDD

CANCEL

ENTER

DVD

MEMO EDIT

NAVIGATION

Selection Keys

DFGE

T I

Create Play List

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select ACREATEB, then press ENTER. 4 Press selection keys to select a title that includes scenes to be

included in a play list, then press ENTER.

5 Press I to start playback. Press O or N to find the point

where you want the created play list to begin, then press W.

6 Confirm the arrow is on AIN/

OUTB, then press ENTER.

● The edit-in time is displayed on

the screen.

● To undo, press selection keys

to select ARETRYB, then press ENTER.

7 Press I to start playback.

PRO. 1

EDITING > SCENE

IN/OUT

SEL. TITLE

0: 00 :15

OUT

SCENE

1 PRO.1

MODIFY MOVE PREV IEW

DELETE RETRY OK

Press O or N to find the point where you want the created play list to end, then press W.

8 Confirm the arrow is on AIN/OUTB, then press ENTER.

● The edit-out time is displayed on the screen.

● The edit-out point must come after the edit-in point.

● Select APREVIEWB, then press ENTER to preview the play list.

9 Press selection keys to select AOKB, then press ENTER. 10 Press selection keys to select AEXITB, then press ENTER. 11 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● The title, index and category of the play list can be modified in the

same way as AORIGINALB. (A pg. 37)

● You can modify the play list that has just been created here by

adding, moving, or deleting unwanted parts to create a digest edition, etc.

TOTAL TIME

00: 00 :0000: 00: 00

1/11/1

PAGE

Play List

It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single title.

Edit Scenes

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select AMODIFYB under APLAY LISTB,

then press ENTER.

4 Press selection keys to select a play list to modify, then press

ENTER.

5 Press selection keys to select ASCENEB, then press ENTER. 6 Press selection keys to select AMODIFYB, then press ENTER. 7 Press selection keys to select the start or end point of a scene

to modify, then press ENTER.

8 Perform steps 5 - 11 of ACreate Play ListB above.

NAVIGATION ON HDD/DVD DECK

EN 41

Add scenes

1 Perform steps 1 - 5 of AEdit ScenesB (A pg. 40) before

continuing.

2 Press selection keys to select ASEL. TITLEB, then press

ENTER.

3 Perform steps 4 - 11 of ACreate Play ListB (A pg. 40).

Move Scenes

1 Perform steps 1 - 5 of AEdit ScenesB (A pg. 40) before

continuing.

2 Press selection keys to select AMOVEB, then press ENTER. 3 Press selection keys to select a scene to move, then press

ENTER.

4 Press selection keys to select another scene to which the

scene is to be moved, then press ENTER.

● To cancel the move, press selection keys to select ARETRYB,

then press ENTER.

5 Perform steps 9 - 11 of ACreate Play ListB (A pg. 40).

Delete Scenes

1 Perform steps 1 - 5 of AEdit ScenesB (A pg. 40) before

continuing.

2 Press selection keys to select ADELETEB, then press ENTER. 3 Press selection keys to select a scene to delete, then press

ENTER.

4 Perform steps 9 - 11 of ACreate Play ListB (A pg. 40).

Play Back Play List

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select APLAY LISTB, then press

ENTER.

3 Press selection keys to select

the index (small pictures) of

the desired play list, then

press ENTER.

● When you want the plural play

lists to be played back

continuously, press MEMO

after selecting the desired play

lists. The numbers of the

playback order appear on the

index. You can select up to 8 play lists.

● When you want to correct the order, move the arrow to the

desired index and press MEMO. The number disappears and

the unit re-numbers the other play lists automatically.

● When you want to cancel the order, press CANCEL.

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

4 Press selection keys to select ABEGINNINGB, then press

ENTER. The playback starts.

● Upon completing play list playback, the normal screen will

resume.

● The normal screen will also resume when o is pressed to stop

play list playback.

NOTE:

The play list number on the top right corner of the index is for selecting directly via RS-232C the desired play list to be played. (A pg. 71)

ENTER

SELECT

NAVIGATION > PLAY LIST

0026

026 CREATED 26/12/03 FRI

TEDDY BEAR 25/12

143 MIN[FISH WORLD ]

001 002 003

004 005 006

007 008 009

Play list number

Delete Play List

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select ADELETEB under APLAY LISTB,

then press ENTER.

4 Press selection keys to select one play list you want to delete,

then press ENTER.

5 Press selection keys to select ADELETEB, then press ENTER.

● When you cancel the deletion, select ACANCELB, then press

ENTER.

6 Press EDIT to return to the normal screen.

NOTE:

Even if a play list is deleted, the titles recorded and the library information are not affected at all.

Modify Index

A Perform steps 1 - 4 of AEdit ScenesB (A pg. 40) before

continuing.

B Perform steps 5 - 8 of AModify IndexB (A pg. 37).

Modify Play List Name

A Perform steps 1 - 4 of AEdit ScenesB (A pg. 40) before

continuing.

B Perform steps 2 - 6 of AModify Title NameB (A pg. 37).

Modify Category

A Perform steps 1 - 4 of AEdit ScenesB (A pg. 40) before

continuing.

B Perform steps 2 - 4 of AModify CategoryB (A pg. 38).

42 EN

NAVIGATION ON HDD/DVD DECK

Navigate Library Information

Title information can be registered in the unit’s memory for up to 600 DVD discs, 2,000 titles. It is helpful when finding a desired title (or play list) by sorting according to the sort options registered during (or after) recording.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

DVDTV

HDD

ENTER

DVD

NAVIGATION

Selection Keys

FGDE

Scan For Title From Library

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select

the appropriate sort button to sort the information, then press ENTER. ADATEB:

Sort by date

ADISC No.B:

Sort by disc number

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

SELECT

ENTER

NAVIGATION

ORIGINAL

DVD NAVIGATION

DVD LIBRARY

DATE

Register Disc

When a disc that is not registered in the library is loaded, a message appears confirming if the disc should be registered. If registering, perform the following procedure.

1 Press selection keys to select AREGISTERB, then press

ENTER to confirm the registration.

2 Press NAVIGATION to return to the normal screen.

NOTES:

● It is not possible to register discs formatted on devices other than

JVC’s DVD recorders.

● It is not possible to register discs recorded on devices other than

JVC’s DVD recorders.

● It is not possible to register discs when ASAVE AS LIBRARYB is

set to AOFFB. (A pg. 58)

NAVIGATION ON HDD/DVD DECK

EN 43

Playback With MP3/WMA/JPEG Navigation

This unit can play back discs that MP3/WMA sound files and JPEG image files taken with digital still cameras or other devices are recorded. The MP3/WMA/JPEG Navigation enables you to search and select the desired files recorded on CD-R/RW or CD-ROM discs very easily.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DVD to select the DVD deck.

NAVIGATION > ORIGINAL (INSERTED DISC)

TRACK: 001/010 01-Whose Side Are YouOn_.mp3

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

A Selected file number/total number of files in the group that

contains the selected file

B Name of the selected file C Selected file

ENTER

SELECT

> 01 Whose Side Are You On

---PREVIOUS FOLDER---

-Whose Side Are YouOn_.mp3

-More Than I Can Bear.mp3

-No No Never.mp3

-Half A Minute.mp3

-Matts Mood.mp3

-Get Out of YourLazy Bed.mp3

Locating The Desired Folders And Tracks

1 Load a disc. 2 Press NAVIGATION. 3 Press selection keys to select AORIGINALB, then press

ENTER.

4 Press selection keys to select

the desired folder, then press ENTER.

● A list of files in the selected

folder appears.

5 Press selection keys to select

the desired item, then press ENTER. The unit starts playback from the selected item.

● The unit stops when all items

in the selected folder are played back.

NOTES:

● If you press I instead of ENTER in step 4, the unit starts

playback from the first file of the folder.

● JPEG files are played back as a slide show at the set intervals.

(A pg. 28)

● If a file name includes any 2-byte character, the unit may not

show the file name correctly.

● The order of the folders and items shown in steps 4 and 5 may

differ from the order shown on your PC.

NAVIGATION > ORIGINAL (INSERTED DISC)

TRACK: ---/000 01 Whose Side Are YouOn

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

NAVIGATION > ORIGINAL (INSERTED DISC)

TRACK: 001/010 01-Whose Side Are YouOn_.mp3

SELECT WITH @ THEN PRESS [ENTER]

PRESS[NAVIGATION] TO EXIT

NAVIGATION

EXIT

ENTER

SELECT

ENTER

SELECT

> ROOT

> 01 Whose Side Are You On

Whose Side Are YouOn

Matt Bianco

Indigo

Samba In YourCasa

Another Time Another Place

Gran Via 5

WorldGo Round

---PREVIOUS FOLDER---

-Whose Side Are YouOn_.mp3

-More Than I Can Bear.mp3

-No No Never.mp3

-Half A Minute.mp3

-Matts Mood.mp3

-Get Out of YourLazy Bed.mp3

NOTES:

● If there are more than 100 files, the rest of the files are not

displayed. In this case, press ON SCREEN to display them on the TV screen.

● The on-screen bar will display AMP3/WMAB regardless of

whether MP3 or WMA files are played.

● If both MP3/WMA files and JPEG files are recorded on the same

disc, you can select to play back either of the file types using the AMP3&WMA/JPEGB setting. (A pg. 58)

44 EN

EDITING

Dubbing

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

HDD

ENTER

R o

DUBBING

Auto Finalising

When dubbing from a Mini DV or HDD to a DVD-R/RW (Video mode) disc, you can select whether to finalise the disc automatically after dubbing has been completed. It is also possible to set the operation method of a DVD-R/RW (Video mode) disc when finalising the disc. Each time the finalised disc is played back, it will be played back in accordance to the setting you have selected during finalisation. For details, refer to ADISC TYPEB (A pg. 61).

NOTE:

You can select and set the background to be used when Auto Finalising a DVD-R/RW (Video mode) disc. For details, refer to ASetting The Background And Text ColourB (A pg. 64).

NOTES:

● It is not possible to dub copy-protected contents. An error

message will appear on the TV screen.

● The order of the index which is displayed by pressing

DUBBING differs from the images displayed by pressing NAVIGATION or EDIT.

High Speed Dubbing (From HDD To DVD)

It is possible to dub the original recordings and/or play lists on the HDD deck to DVD discs. The dubbing is performed in high speed, keeping the original transfer rate.

NOTES:

● After accessing the Dubbing Menu screen, it is not possible to

take out a disc.

● It is not possible to dub copy-once titles in Video mode.

● When dubbing a copy-once title, the data will be moved from

HDD to DVD upon completing dubbing.

● When you cancel dubbing a copy-once title during dubbing, the

original recording on the HDD deck remains and the title copied to a DVD disc is deleted.

● It is not possible to dub play lists which contain copy-once titles.

● It is not possible to dub the following programmes to DVD-R/RW

disc (Video mode):

● which contains more than one audio language.

● which is on the play list.

● which is edited (also RetroActive Recording).

● which is recorded in LP mode or FR155-FR240 mode.

DVD

MARK

Selection Keys

FGDE

Recording may not be performed in the highest speed depending

●

on the characteristics of the disc used.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVDB, then press

ENTER.

4 Press selection keys to select AHIGH SPEEDB, then press

ENTER.

5 Press selection keys to select indexes (small pictures) of

desired original recordings and/or play lists, then press MARK. After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings and/or play lists.

●

The recordable time of the disc is displayed on the bar meter. For details, refer to

●

When dubbing to a DVD-RAM or DVD-R/RW (VR mode) disc, if there are Russian characters in the title names, a warning message will appear on the TV screen. If you choose to continue with the dubbing, the Russian characters in the title names will be deleted after dubbing is completed.

About Disc Remaining DisplayB (Apg. 47).

6 Press selection keys to select AEXECUTEB or AAUTO

FINALISEB, then press ENTER to start dubbing.

NOTES:

● Play lists are dubbed as programmes.

● In Video mode, if the selected play list includes the scenes

recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list.

● During dubbing, it is not possible to play back on HDD or DVD.

● It is not possible to discontinue dubbing once it has been started.

Just Dubbing (From HDD To DVD)

By using Just Dubbing function, when dubbing all selected original recordings and/or play lists, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the selected recordings and/or play lists to be dubbed and the available disc space.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVDB, then press

ENTER.

4 Press selection keys to select AJUSTB, then press ENTER. 5 Perform steps 5 - 6 of AHigh Speed Dubbing (From HDD To

DVD )B.

NOTES:

● Play lists are dubbed as programmes.

● In Video mode, if the selected play list includes the scenes

recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.

● The recordable time of the disc is displayed on the bar meter. For

details, refer to AAbout Disc Remaining DisplayB (A pg. 47).

● During dubbing, it is not possible to play back on HDD or DVD.

● It is not possible to discontinue dubbing once it has been started.

Manual Dubbing (From HDD To DVD)

It is possible to perform dubbing in the desired transfer rate.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVDB, then press

ENTER.

4 Press selection keys to select AMANUALB, then press

ENTER.

5 Perform step 5 of AHigh Speed Dubbing (From HDD To DVD)B.

The Manual Dubbing screen appears.

6 Press selection keys to select AREC MODEB, then press

ENTER. Press selection keys to select the desired option, then press ENTER.

● For details on the recording mode, see ARecording ModeB

(A pg. 49)

7 Press G to select ACONFIRMB, then press ENTER. 8 Press selection keys to select AEXECUTEB or AAUTO

FINALISEB, then press ENTER to start dubbing.

NOTES:

● In Video mode, if the selected play list includes the scenes

● The recordable time of the disc is displayed on the bar meter. For

details, refer to AAbout Disc Remaining DisplayB (A pg. 47).

● During dubbing, it is not possible to play back on HDD or DVD.

● It is not possible to discontinue dubbing once it has been started.

Dubbing From HDD To DV

It is possible to perform dubbing from the HDD deck to the DV deck.

1 Load a Mini DV cassette with the erase protection switch set to

ARECB.

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVB, then press

ENTER.

4 Press selection keys to select indexes (small pictures) of

desired original recordings and/or play lists, then press MARK.

After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings and/or play lists.

5 Press selection keys to select ASELECT REC. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

6 Press selection keys to select ASELECT SND. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press I to locate the point from where you want to start

dubbing, press o or W then press R and W simultaneously so

that the DV deck enters the record pause mode.

● The dubbing screen will appear.

9 Press selection keys to select AEXECUTEB, then press

ENTER for confirmation.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

10 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

EDITING

EN 45

Dubbing From DVD To DV

It is possible to perform dubbing from the DVD deck to the DV deck.

1 Load the disc you want to dub onto the DVD deck, and a Mini

DV cassette with the erase protection switch set to ARECB to the DV deck.

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVD NDVB, then press

ENTER.

4 Press selection keys to select indexes (small pictures) of

desired original recordings, then press MARK. After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings.

5 Press selection keys to select ASELECT REC. MODEB, then

press ENTER. Press selection keys to select the desired option, then press ENTER. The confirmation screen appears.

6 Press selection keys to select ASELECT SND. MODEB, then

press ENTER. Press selection keys to select the desired option, then press ENTER.

● Sound mode selection is not available when dubbing a

DVD-R/RW (Video mode) disc.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press I to locate the point from where you want to start

dubbing, press o or W then press R and W simultaneously so that the DV deck enters the record pause mode.

● The dubbing screen will appear.

9 Press selection keys to select AEXECUTEB, then press

ENTER to confirm.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

10 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

NOTES:

● It is not possible to dub play lists on DVD discs.

● It is not possible to dub Video CDs/SVCDs or Audio CDs.

● It is not possible to dub from +R/+RW discs.

● When dubbing is in progress, only o is functional.

Original Dubbing (From DVD To HDD)

It is possible to dub the original recordings on DVD discs to the HDD deck.

1 Load a disc you want to dub. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVD NHDDB, then press

ENTER.

4 Press selection keys to select indexes (small pictures) of

desired original recordings, then press MARK. After selecting

all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings.

5 Press selection keys to select AEXECUTEB, then press

ENTER to start dubbing.

NOTES:

● It is not possible to dub play lists on DVD discs.

● It is not possible to dub pre-recorded DVD VIDEO discs.

● It is not possible to dub Video CDs/SVCDs or Audio CDs.

● It is not possible to dub from +R/+RW discs.

● It is not possible to discontinue dubbing once it has been started.

46 EN

EDITING

Dubbing From DV To HDD (Dubbing An Entire Cassette)

It is possible to perform automatic dubbing of all the recorded programmes of a cassette from the DV deck to the HDD deck using the AENTIREB dubbing. You cannot select the images to be dubbed; all recorded images on the DV cassette will be dubbed.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 59)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNHDDB, then press

ENTER.

4 Select AENTIREB, then press ENTER. 5 Press selection keys to select ASELECT REC. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

● To dub DV format contents in its original DV format, select

ADVB.

6 Press selection keys to select ASELECT SND. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB, then press

ENTER for confirmation.

● Once dubbing starts, it will continue dubbing until the end of the

tape is reached.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

● If the tape is not rewind, the unit will start dubbing after

automatically rewinding the tape to the beginning.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to

end.

● The tape will automatically be rewound.

NOTES:

● When there are blanks on the tape of more than 2 seconds, the

HDD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, ADUBBING COMPLETEDB appears on the TV screen when the tape end is reached and the tape rewinds automatically.

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o, ON SCREEN and AUDIO

buttons are functional.

Dubbing From DV To HDD (Dubbing A Part of A Cassette)

It is possible to select the images on the DV cassette to be dubbed from the DV deck to the HDD deck using AMANUALB dubbing.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 59)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNHDDB, then press

ENTER.

4 Select AMANUALB, then press ENTER. 5 Press selection keys to select ASELECT REC. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

● To dub DV format contents in its original DV format, select

ADVB.

6 Press selection keys to select ASELECT SND. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB, then press

ENTER for confirmation.

● If the DV deck is in the stop mode, the unit will start dubbing

from the current tape position.

● If the DV deck is in the pause mode, the unit will start dubbing

from the point where the tape was paused after automatically rewinding the tape for 2 seconds.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

● The tape will automatically be rewound.

NOTES:

● When there are blanks on the tape of more than 2 seconds, the

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o, ON SCREEN and AUDIO

buttons are functional.

Dubbing From DV To DVD (Dubbing An Entire Cassette)

It is possible to perform automatic dubbing of all the recorded programmes of a cassette from the DV deck to the DVD deck using the AENTIREB dubbing. You cannot select the images to be dubbed; all recorded images on the DV cassette will be dubbed.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 59)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNDV DB, then press

ENTER.

4 Select AENTIREB, then press ENTER. 5 Press selection keys to select ASELECT REC. MODEB, then

press ENTER. Press selection keys to select the desired option, then press ENTER.

6 Press selection keys to select ASELECT SND. MODEB, then

press ENTER. Press selection keys to select the desired option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB or AAUTO

FINALISEB, then press ENTER for confirmation.

● Once dubbing starts, it will continue dubbing until the end of the

tape is reached.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

● If the tape is not rewind, the unit will start dubbing after

automatically rewinding the tape to the beginning.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

● The tape will automatically be rewound.

NOTES:

● The programme information at the DV deck will not be dubbed.

● When there are blanks on the tape of more than 2 seconds, the

DVD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, ADUBBING

COMPLETEDB appears on the TV screen when the tape end is reached and the tape rewinds automatically.

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o and ON SCREEN buttons are

functional.

Dubbing From DV To DVD (Dubbing A Part Of A Cassette)

It is possible to select the images on the DV cassette to be dubbed from the DV deck to the DVD deck using AMANUALB dubbing.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 59)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNDV DB, then press

ENTER.

4 Select AMANUALB, then press ENTER. 5 Press selection keys to select ASELECT REC. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

6 Press selection keys to select ASELECT SND. MODEB, then

press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB or AAUTO

FINALISEB, then press ENTER for confirmation.

● If the DV deck is in the stop mode, the unit will start dubbing

from the current tape position.

● If the DV deck is in the pause mode, the unit will start dubbing

from the point where the tape was paused after automatically

rewinding the tape for 2 seconds.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to

end.

● The tape will automatically be rewound.

NOTES:

● The programme information at the DV deck will not be dubbed.

● When there are blanks on the tape of more than 2 seconds, the

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o and ON SCREEN buttons are

functional.

EDITING

About Disc Remaining Display

When dubbing from HDD to DVD, the unit displays the time information for dubbing by bar meter. By comparing the disc remaining time and the necessary time for dubbing of the selected items, it is possible to check if the dubbing can be performed completely or not.

When performing the High Speed Dubbing

Capacity of a disc Remaining capacity

Dark green: Length of already recorded item Light green: Length of selected item Yellow: Length of the item now being selected by arrow Red: Excess over the capacity

When performing the Just Dubbing

● The unit displays the status on the assumption that the selected

items are dubbed in the lowest transfer rate.

● The total time of a loaded disc is displayed on the right of the bar

meter.

When performing the Manual Dubbing

● The unit displays the status on the assumption that the selected

items are dubbed in the lowest transfer rate.

● The available highest transfer rate is displayed on the right of the

bar meter.

EN 47

21%

TOTAL 105MIN

MAX FR240

48 EN

EDITING

DV Dubbing (HDD & DVD Deck Only)

You can dub programmes from a camcorder or DV equipment connected to the unit with a DV cable. The unit’s remote control allows you the limited control of the connected camcorder or DV equipment functions during dubbing.

NOTE:

When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable (VC-VDV 204U).

Your unit

To [DV IN/OUT]

Camcorder

DV equipment

The following on-screen display for DV dubbing appears when ON SCREEN is pressed while the channel has been set to ADVB.

HDD

00:00: 00. 00

FR360

12bit

0:00 1:00 2:00

JVC

DV DV

GR-DV3500

00:00: 00. 00

GR-DV3500DV

1 2

A B C

A Remote control switch

To switch between the devices operable by the remote control

unit. The unit is operable when the remote icon ( )

displayed faces to the left, while the DV device is operable when

the remote icon is facing to the right.

B Auto capture button

Select to start or pause the dubbing. If ENTER is pressed when

the DV device is in the pause condition, preroll editing* where it

is possible to dub with a start time that is highly accurate will be

activated. When the DV device cannot be operated from the unit

(such as in camera mode), proceed with normal recording.

●

Do not start dubbing at the portion with no time code (A––:––:––B).

* Preroll editing refers to the playback after the DV tape is slightly rewind.

(For DV devices that do not support the –1x speed, the rewinding time may be longer.)

C Sound monitor switch

For selecting the desired sound format for dubbing.

1 Connect a camcorder or DV equipment to the [DV IN/OUT]

connector on the unit’s front panel.

DV cable

(VC-VDV 204U)

(not supplied)

DV connector

L–R

SOUND1

2 Press DV/HDD/DVD on the unit repeatedly; or press HDD or

DVD on the remote control to select the recording deck.

● When dubbing to a DVD disc, load a recordable disc on this

unit.

3 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to set the channel to ADVB.

4 Press ON SCREEN.

● The on-screen display for DV dubbing appears.

5 Press selection keys to select , then press ENTER

to display the remote icon (facing to the right) for the DV equipment.

6 Press REC MODE repeatedly to set the recording mode. For

DV deck, press REC MODE on the remote control to set the recording mode.

● Each time you press REC MODE, the recording mode changes

as follows:

N XP N SP N LP N EP N FR (60-360*2, 420, 480) N

(Back to the beginning)

*1 Selectable when dubbing to the HDD deck. *2 The value is selectable from 1 to 6 hours in 5 minutes interval by

pressing

DE repeatedly after selecting AFR60–FR360B. To change

the value in 30 minutes interval, press and hold

● For details on the recording mode, see ARecording ModeB

DE.

(A pg. 49).

7 Locate the point from where you want to start dubbing, then

stop or pause playback by pressing the following buttons on the remote control: I, N, O, o, W.

● To play back in slow speed (1/10 of the normal speed), press W

to pause playback, then press O or N.

● To play back frame-by-frame, press W to pause playback, then

press W repeatedly. Each press of W advances a frame.

● To change the playback direction, press O or N.

8 Press selection keys to select , then press ENTER

repeatedly until the desired sound track appears on the TV screen.

SOUND1:

Select this to record the original stereo sound played back on the connected DV equipment.

SOUND2:

Select this to record the dubbed stereo sound played back on the connected DV equipment.

MIX:

Select this to record the sound of both ASOUND1B and ASOUND2B.

● Note that this selection is not available when the source

programme is recorded in 16BIT (48 kHz) mode.

9 Press selection keys to select , then press

ENTER. The dubbing starts.

● Playback on the external DV equipment and recording on the

unit should start simultaneously.

● To pause dubbing, press selection keys to select ,

then press ENTER. Both the unit and the external DV equipment pause dubbing. Pressing W on the unit also works the same way.

10 Press selection keys to select , then press

ENTER. Then press o. The DV equipment stops.

11 Press selection keys to select , then press

ENTER.

12 Press o twice on the remote control to stop dubbing.

● Both the unit and the external DV equipment stop dubbing.

NOTES:

● To create chapters (marks) automatically, set ADV AUTO

CHAPTERINGB to AONB. (A pg. 58)

● Dubbing copyright guarded programmes is not possible.

● Original DV information such as the recording date and time are

not recorded.

● The superimposed indication during the operation or dubbing is

not recorded.

● If the dubbing is paused while the channel is set to ADVB, you

cannot switch channels.

EDITING

EN 49

When you dub from DV equipment other than a camcorder

A Perform steps 1 - 4. B Locate the point from where you want to start dubbing,

then stop on the DV equipment.

● If you pause the DV equipment in this step, a few

second’s still picture will be recorded at the beginning of the recorded programme.

Set the input mode to ADV INPUTB on the DV equipment.

● If you select an input mode other than ADV INPUTB,

unwanted pictures may be recorded at the beginning of the recorded programme.

D Perform steps 9 - 12.

To skip unwanted part of the source picture

Press ENTER to stop both equipment, then press selection keys to select . Locate the point where you want to restart dubbing by pressing I, N, or O, then press o. Press selection keys to select , then press ENTER to restart dubbing.

Recording Mode

MPEG2 format is used as recording format. As a guide for picture quality, the AbpsB unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording. Select XP or SP for programmes where quick movement occurs, such as sports programmes, and LP or EP for talk shows, etc. with relatively less movement. The recording modes for a 4.7 GB disc are set as follows:

Recording mode Recording amount

(approx.)

Maximum recording

time (approx.)

XP 10 Mbps 1 hour

SP 5 Mbps 2 hours

LP 2.5 Mbps 4 hours

EP 1.6 Mbps 6 hours

60-360

420 7 hours

480 8 hours

● For details on FR mode, refer to AFree Rate FunctionB on the

The amount varies

depending on the

selected time.

1 - 6 hours

right column.

The recording modes for the HDD are set as follows:

Recording mode Maximum recording time (approx.)

DV 18 hours

XP 53 hours

SP 109 hours

LP 218 hours

EP 328 hours

FR480 473 hours

● For details on FR mode, refer to AFree Rate FunctionB.

NOTE:

The maximum recording time stated in the above table are the approximate time under unused condition.

Free Rate Function

To record the entire programme, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the programme to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 480 minutes).

8 To record the entire programme within the actual remaining

disc space (DVD deck only)

Select AFR (JUST)B in a recording mode selection procedure.

● Note that this function is available only when dubbing from HDD

to DVD (A pg. 44).

8 To record the entire programme by specifying the desired

recording time

Select AFR60–FR360B, AFR420B or AFR480B in a recording mode selection procedure.

8 To record a 25-min. long programme five times on the same

DVD disc for example

Be sure to set the recording mode to AFR125B to fit the total recording time to the whole disc space.

A: 1st

Blank

When the same programme is recorded in SP mode instead of in AFR125B, the 5th programme cannot be recorded.

Blank

NOTES:

● The maximum recording time of FR (JUST) mode is the same as

the recording time of FR480 mode. When dubbing a long programme in FR (JUST) mode on a disc whose remaining time is short, it is recommended to check the disc remaining time in FR480 mode to see if the remaining time is enough for the programme.

● In order to ensure that the recording fits on the disc, this feature

may leave a slight non-recorded section at the end of the disc.

● There may be some noise and sound disturbance at the point on

the disc where the unit switches the mode.

B: 2nd C: 3rd D: 4th E: 5th

A: 1st B: 2nd C: 3rd D: 4th E: Blank (20 min.)

50 EN

EDITING

Edit From A Camcorder

You can use a camcorder as the source player and your unit as the recording deck. If your camcorder has a DV IN/OUT connector, you can use the camcorder as the recording deck and your unit as the source player.

A If the camcorder has no S-VIDEO output connector:

To [VIDEO/AUDIO ((MONO) L/R)] input

Audio/video cable (not supplied)

AUDIO/VIDEO OUTPUT

Player

B If the camcorder has an S-VIDEO output connector:

[S-VIDEO]

input

S-video cable (not supplied)

To [AUDIO] input

Player

S-VIDEO OUTPUT

AUDIO OUTPUT

Recorder

Audio cable (not supplied)

●

Slide the TV/DVD switch to DVD.

1 Make connections.

A If the camcorder has no S-VIDEO output connector:

^ connect the camcorder’s AUDIO/VIDEO OUTPUT

connectors to the unit’s [VIDEO/AUDIO ((MONO) L/R)] input connectors on the front panel.

● When using a monaural camcorder, connect its AUDIO OUT

connector to the [AUDIO-L] input connector on your unit.

B If the camcorder has an S-VIDEO output connector:

^ connect the camcorder’s AUDIO OUT and S-VIDEO OUT

connectors to the unit’s [AUDIO] and [S-VIDEO] input connectors on the front panel.

C If the camcorder has a DV IN/OUT connector:

^ connect the camcorder’s DV IN/OUT connector to the unit’s

[DV IN/OUT] connector.

● When using your unit as the source player, refer to the

camcorder’s instruction manual for the recording procedure.

2 Press DV/HDD/DVD on the unit repeatedly to select the

recording deck.

3 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select AF-1B or ADVB.

● Set AF-1 INPUTB to AVIDEOB for the [VIDEO] input connector,

or AS-VIDEOB for the [S-VIDEO] input connector, depending on the connector being used. (A pg. 59)

4 Press REC MODE repeatedly to set the recording mode. For

DV deck, press REC MODE on the remote control to set the recording mode.

5 Start playback on the camcorder slightly before the actual point

from where you wish to start dubbing.

6 Press R on the unit to start recording. Or while holding R, press

I on the remote control. The dubbing starts.

7 Press o on the unit, then stop playback on the camcorder.

NOTES:

● All necessary cables can be obtained from your dealer.

● Refer to the camcorder’s instruction manual for operating

procedure.

● The quality of dubbed picture becomes poorer than that of the

original.

● When you are editing through the [DV IN/OUT] connector, the

unit will stop if the player begins playing a blank portion of tape or the signal is interrupted.

● When connecting the unit to a device equipped with a DV input

connector, be sure to use the optional DV cable (VC-VDV 204U).

● To edit through the [DV IN/OUT] connector using the HDD or

DVD deck, refer to ADV Dubbing (HDD & DVD Deck Only)B (A pg. 48).

● When using your unit as the recording deck, chapters (marks)

can be automatically created. Set ADV AUTO CHAPTERINGB to AONB. (A pg. 58)

C If the camcorder has a DV IN/OUT connector:

Recorder/Player

(VC-VDV 204U)

(not supplied)

DV connector

Player/Recorder

To [DV IN]

DV cable

Edit To Or From Another Recorder

You can use your unit as the source player or as the recording deck.

NOTES:

● When using another recorder as the recording deck, refer to its

instruction manual.

● It is not possible to dub copy-protected contents. An error

message will appear on the TV screen.

A When using your unit as the source player

Player

Another recorder

Your unit

●

Slide the TV/DVD switch to DVD.

EDITING

EN 51

1 Make connections.

A When using your unit as the source player:

^ connect its [S-VIDEO/VIDEO/AUDIO OUTPUT] connectors

to the input connectors on another recorder.

B When using your unit as the recording deck:

^ connect its [S-VIDEO/VIDEO/AUDIO INPUT] connectors on

the front or rear panel to the output connectors on another recorder.

● When connecting to another recorder with S-video connector,

set AL-1 INPUTB or AF-1 INPUTB to AS-VIDEOB.

2 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select the external input.

● Select AF-1B when the source player is connected to the unit’s

[VIDEO/AUDIO] or [S-VIDEO/AUDIO] input connectors on the front panel, and select AL-1B when it is connected to the unit’s [VIDEO/AUDIO] or [S-VIDEO/AUDIO] input connectors on the rear panel.

3 Press REC MODE repeatedly to set the recording mode. 4 Engage the Play mode on the source player. 5 Engage the Record mode on the recording deck. 6 Stop recording on the recording deck, then stop playback on the

source player.

NOTES:

● All necessary cables can be obtained from your dealer.

● When you use this unit as the source player for editing, be sure to

set ASUPERIMPOSEB to AOFFB before starting. (A pg. 58)

Recorder

B When using your unit as the recording deck

Recorder

Another recorder

Player

Your unit

52 EN

EDITING

Dubbing DV Format Contents To A DV Device (HDD Deck Only)

You can dub programmes recorded in DV mode on the HDD deck to a camcorder or DV equipment.

NOTE:

When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable (VC-VDV 204U).

Your unit

Recorder

Camcorder

To [DV IN/OUT]

(VC-VDV 204U)

(not supplied)

Player

DV cable

Digital Audio Dubbing

You can dub selected audio from a DVD or Audio CD disc to a digital audio device. However, it is not possible to dub copy-protected discs.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

Example: Dubbing to an MD

Recorder

Digital audio device

(MD deck, etc.)

Player

Coaxial cable (not supplied)

To [DIGITAL AUDIO

OUTPUT (COAXIAL)]

Optical cable (not supplied)

To [DIGITAL AUDIO OUTPUT (OPTICAL)]

To DV input

DV equipment

1 Connect the camcorder or DV equipment’s DV input connector

to the unit’s [DV IN/OUT] connector.

2 Press DV/HDD/DVD on the unit repeatedly or HDD on the

remote so that the HDD lamp lights up on the unit.

3 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select ADVB.

4 Set the camcorder or DV equipment’s input channel to DV. 5 Select and play back the programme (DV mode) from the

Library Database Navigation.

6 Start recording on the camcorder or DV equipment. 7 When dubbing is completed, stop recording on the camcorder

or DV equipment, then stop playback on the HDD deck.

NOTES:

● The channel of this unit must be set to ADVB in order to output the

images (DV mode).

● Images other than those recorded in DV mode will not be output.

Rear of unit

Note for connection:

Remove the protection cap from the optical cable.

1 Connect the unit and a digital audio device using either an

optional optical cable or an optional coaxial cable.

2 Place a disc on the unit and load an MD on the connected

digital audio device.

3 Select the audio to be dubbed. 4 Start playback slightly before the actual point from where you

wish to start dubbing.

5 Press W to pause playback. 6 Select the input mode on the connected digital audio device. 7 Press I to start playback on the unit. 8 Start recording on the digital audio device. 9 Stop recording on the digital audio device. Then press o to stop

playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

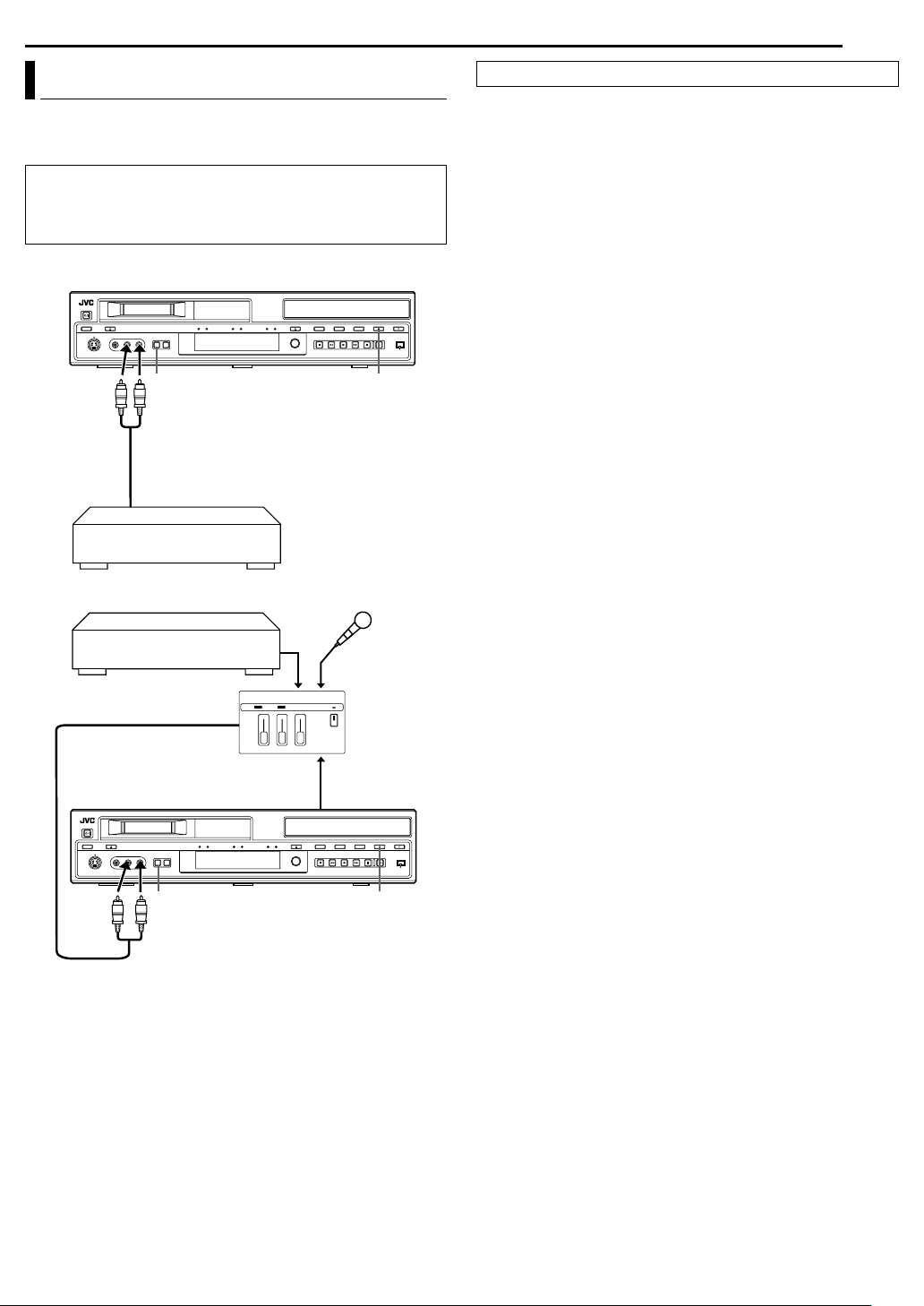

Audio Dubbing (DV Deck Only)

This function allows you to record new audio, without erasing the original audio, on a DV tape that was recorded with ADV AUDIO RECB set to A12BITB (A pg. 59).

ATTENTION:

You cannot perform Audio Dubbing on a tape that was recorded with ADV AUDIO RECB set to A16BITB (A pg. 59), on a tape that was recorded at the ALPB speed, or on a blank tape.

Your unit

To [AUDIO]

input

Audio cable (not supplied)

AUDIO OUT

CD player, etc.

Mixer output

Recorder

AUDIO DUB.INPUT SELECT

Audio mixer

Slide the TV/DVD switch to DVD.

●

EDITING

EN 53

1 Connect an audio device to the unit’s [AUDIO] input connectors

on the front panel.

● When using a monaural audio device, connect its AUDIO OUT

connector to the [AUDIO-L] input connector on your unit.

2 Load a Mini DV cassette with the erase protection switch set to

ARECB.

3 Press DV/HDD/DVD on the unit repeatedly or DV on the remote

so that the DV lamp lights up on the unit.

4 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select AF-1B.

5 Start playback slightly before the actual point from where you

wish to start dubbing.

6 Press W to pause playback. 7 Press AUDIO DUB. to engage the audio dubbing mode.

● Your unit enters the Audio Dubbing Pause mode.

● To perform Audio Dubbing with audio mixing, press AUDIO to

select AL W X RB at this point. When using the DV deck as the recording deck, also make sure that AAUDIO MODEB is set to ASOUND1B (A pg. 59).

* Audio Dubbing with audio mixing is not possible if you are using a

monaural audio component, or if you don’t have an audio mixer.

8 Engage the audio device’s playback, then press I to start the

tape in the unit. Audio dubbing starts at this point.

● To stop dubbing temporarily, press W. Press I to resume

dubbing.

9 Press o on the unit, then stop playback on the audio device to

end the audio dubbing.

NOTES:

● When monitoring the audio dubbed sound on the DV deck, set

AAUDIO MODEB to ASOUND2B (A pg. 59).

● When playing back an audio dubbed Mini DV tape on the DV

deck, set AAUDIO MODEB to ASOUND2B (A pg. 59).

● Audio dubbing is not possible using the [DV IN/OUT] connector.

● Audio dubbing is not possible on a blank portion of the tape.

Your unit

[AUDIO]

input

Original sound

[AUDIO OUTPUT]

Recorder

AUDIO DUB.INPUT SELECT

54 EN

EDITING

Insert Editing (DV Deck Only)

Insert Editing replaces the pictures with new ones, while the audio soundtrack remains unchanged. For Insert Editing, use your unit as the recording deck.

ATTENTION:

Insert Editing is not possible with a Mini DV cassette recorded in LP mode.

A If the player has no S-VIDEO output connector:

Your unit

Player

B If the player has an S-VIDEO output connector:

Your unit

INPUT SELECT

To [VIDEO] input

Audio/video cable (not supplied)

VIDEO OUT

Another recorder

INPUT SELECT

Recorder

INSERT

Recorder

Slide the TV/DVD switch to DVD.

●

1 Make connections.

A If the player has no S-VIDEO output connector:

^ connect the player’s VIDEO OUT connector to your unit’s

[VIDEO] input connector on the front panel.

B If the player has an S-VIDEO output connector:

^ connect the player’s S-VIDEO OUT connector to your unit’s

[S-VIDEO] input connector on the front panel.

2 Load a Mini DV cassette with the erase protection switch set to

ARECB.

3 Press DV/HDD/DVD on the unit repeatedly or DV on the remote

so that the DV lamp lights up on the unit.

4 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select AF-1B.

5 Press S, T and W to determine the edit-in point (the

beginning of the segment to be replaced).

● Be sure to engage the Still mode at the edit-in point.

6 Press INSERT to engage the insert editing mode.

● Your unit enters the Insert Pause mode.

● The TV screen changes from the still picture to the input source

you are going to record.

7 Load the source cassette and play back the segment that is to

be inserted. When you reach the start of the section of the source tape that you wish to insert, press I to start the tape in your unit. Insert editing begins at this point.

8 Press o to stop recording on the DV deck to end insert editing.

NOTES:

● All necessary cables can be obtained from your dealer.

● Insert Editing cannot be performed on a Mini DV cassette that

has had its erase protection switch set to ASAVEB.

● When Insert Editing is performed on a tape that has been

recorded on another video recorder, the inserted portion may appear distorted.

● A small portion of the recording which precedes an insert edit

may become erased.

● Insert Editing is not possible using the [DV IN/OUT] connector.

● Insert Editing is not possible on a blank portion of the tape.

To [S-VIDEO] input

S-video cable (not supplied)

S-VIDEO OUT

Player

INSERT

Another recorder

REMOTE CONTROL

EN 55

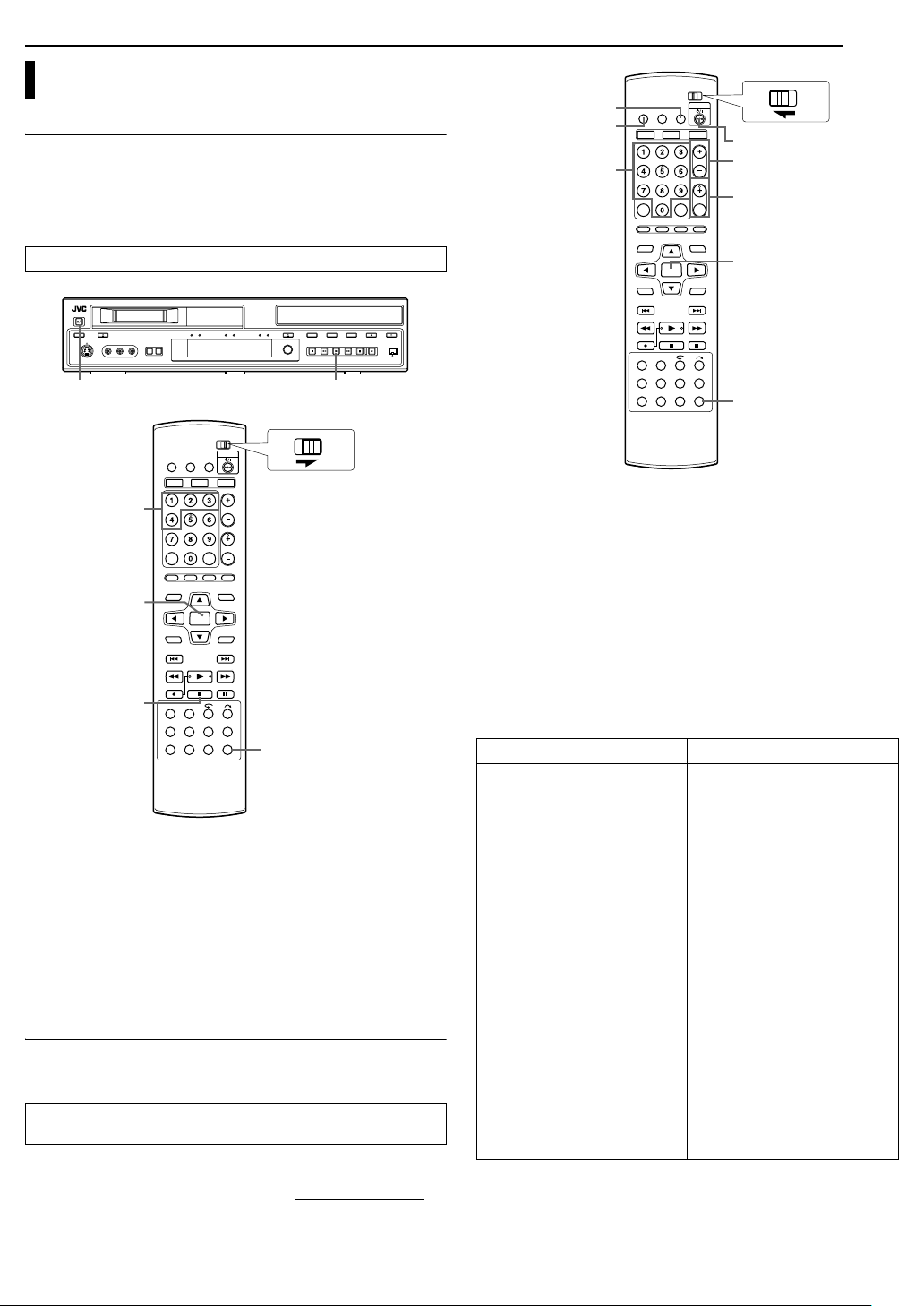

Remote Control Functions

Remote Control 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of the four codes (1, 2, 3 or 4). The remote control is preset to send code 3 signals because your unit is initially set to respond to code 3 signals. You can easily modify your unit to respond to code 1, 2 or 4 signals.

● Slide the TV/DVD switch to DVD.

1 – 4

ENTER

DVDTV

TV/VIDEO

TV d

0 – 9

● Keep pressing SET UP down during step 1.

TV 8 +/–

PR/CH +/–

ENTER

SET UP

DVDTV

1 Enter your TV’s brand code using the number keys, then press

ENTER.

2 Press A on the unit’s remote control to turn on the TV and try

operations (A step 3).

● Once you have set the remote control to operate the TV, you do

not have to repeat this step until you replace your remote control’s batteries.

● Some brands of TVs have more than one code. If the TV does

not function with one code, try entering another.

3 Press the corresponding buttons to operate the TV: A, TV/

VIDEO, PR/CH +/–, TV8 +/–, TV d, number keys.

● For some brands of TVs, you must press ENTER after having

pressed the number keys.

SET UP

● Keep pressing SET UP down during step 1.

1 Press the number key A1B for 1, A2B for 2, A3B for 3 or A4B for 4

to change the remote control code, then press ENTER.

2 Press A on the unit to turn off the unit. 3 Press I on the unit for over 5 seconds while the unit is turned

off. The current code appears on the front display panel.

4 Press o on the remote control to change the unit’s code. The

new code blinks on the front display panel for approximately 5

seconds, and is applied to the unit.

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

● Turn off the TV using its remote control.

● Slide the TV/DVD switch to TV.

IMPORTANT:

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

BRAND NAME CODE

JVC FERGUSON FINLUX FUNAI LG/GOLDSTAR GRUNDIG HITACHI ITT MITSUBISHI MIVAR NEC NOKIA PANASONIC PHILIPS RCA SAMSUNG SANYO SHARP SONY THOMSON TOSHIBA

01, 23, 24, 25 27 30 32 18 19 10 28 03 29 20 31 04, 11 02 05 12, 33, 34, 35 13, 16 06 07 26 08, 14

56 EN

SYSTEM CONNECTIONS

Connecting To A Dolby Digital Decoder Or An Amplifier With Built-in DTS

These instructions enable you to connect your unit to a Dolby Digital Decoder or an amplifier with built-in DTS.

Dolby Digital Decoder or

amplifier with built-in DTS

To DIGITAL AUDIO input

Coaxial cable

(not supplied)

To [DIGITAL AUDIO

OUTPUT

(COAXIAL)]

Note for connection:

Remove the protection cap from the optical cable.

Optical cable (not supplied)

To [DIGITAL AUDIO OUTPUT (OPTICAL)]

Rear of unit

1 Connect the unit and a Dolby Digital Decoder or an amplifier

with built-in DTS using either an optional optical cable or an optional coaxial cable.

NOTES:

● For Dolby Digital sound, set ADIGITAL AUDIO OUTB to ADOLBY

DIGITAL/PCMB. (A pg. 57)

● For DTS sound, set ADIGITAL AUDIO OUTB to ASTREAM/PCMB.

(A pg. 57)

CAUTIONS:

● This unit has a dynamic range of more than 110 dB with regards

to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to prevent

television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the playback picture.

When you can’t switch the audio channel of a bilingual programme

When the unit is connected with a digital audio device using an optional optical cable and ADIGITAL AUDIO OUTB is set to ADOLBY DIGITAL/PCMB, it is not possible to switch the audio channel of a bilingual programme recorded on a DVD-RAM or DVD-R/RW (VR mode) disc. In this case, perform the following steps using the remote control to switch ADIGITAL AUDIO OUTB from ADOLBY DIGITAL/PCMB to APCM ONLYB.

A Press SET UP to access the Main Menu screen. B Press selection keys to select ADVD VIDEO SET UPB, then

press G.

C Press selection keys to select AAUDIO OUTPUTB, then press

D Press selection keys to select ADIGITAL AUDIO OUTB, then

press ENTER.

E Press selection keys to select APCM ONLYB, then press

ENTER. (A pg. 57)

F Press SET UP to complete the setting. G Press AU DIO to select the desired audio channel.

Mode Set

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

HDD

ENTER

AUDIO

Various modes of this unit are categorised into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu (for details on each menu, see pages 57 through 59), then follow the procedure below.

DVD VIDEO SET UP LANGUAGE SET (A pg. 18)

AUDIO OUTPUT (See right column) DISC PLAY SET UP (A pg. 58)

HDD/DVD SET UP HDD SET UP (A pg. 58)

DVD SET UP (A pg. 58, 61) DISC SET UP (A pg. 60, 61) COMMON SET UP (A pg. 58)

FUNCTION SET UP REC/PLAY SET UP (A pg. 58)

DISPLAY SET (A pg. 58) VIDEO IN/OUT (A pg. 19)

INITIAL SET UP MENU BACKGROUND (A pg. 63)

CLOCK SET (A pg. 17)

DV SET UP (A pg. 59)

● The procedure below shows how to set the desired option of the

AJUMP TIMEB mode as an example.

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select AFUNCTION SET UPB, then

press G.

4 Press selection keys to select

AREC/PLAY SET UPB, then

press G.

5 Press selection keys to select

AJUMP TIMEB, then press

ENTER.

6 Press selection keys to select

the desired option, then press

ENTER.

7 Press SET UP to complete the setting.

DVD

Selection Keys

FGDE

SET UP

DVD VIDEO SET UP

REC/PLAY SET UP

XP MODE REC AUDIO

INPUT COLOUR SYSTEM

JUMP TIME

ENTER

SET UP

EXIT

SELECT

HDD/DVD SET UP

DISPLAY SET

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

FUNCTION SET UP

VIDEO IN/OUT

DOLBY DIGITAL

PAL

15 MIN

INITIAL SET UP

SUBSIDIARY SETTINGS

*The boldface settings below indicate the settings at your purchase.

EN 57

AUDIO OUTPUT

8 DIGITAL AUDIO OUT ^ DOLBY DIGITAL/PCM / STREAM/

/ PCM ONLY

PCM

Set to the appropriate mode according to the type of the device connected to [DIGITAL AUDIO OUTPUT] connector.

DOLBY DIGITAL/PCM:

Select this when you connect the digital input connector of a Dolby Digital Decoder or an amplifier with a built-in Dolby Digital Decoder.

STREAM/PCM:

Select this when you connect the digital input connector of an amplifier with a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

PCM ONLY:

Select this when you connect the linear PCM digital input of other audio equipment (amplifier, MD or DAT deck, etc.).

NOTES:

● This setting also functions when HDD is active.

● If you watch or play back a title which contains multiple audio

languages, select APCM ONLYB in advance and choose main or sub audio with AUDIO.

8 ANALOG AUDIO OUT ^ STEREO / DOLBY SURROUND

Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.

STEREO:

Select this when listening to conventional two-channel stereo audio with the unit’s [AUDIO OUTPUT] connectors connected to a stereo amplifier/receiver or TV set, or in case you want to record the audio from a DVD VIDEO disc to a Mini Disc, etc.

DOLBY SURROUND:

Select this when listening to multichannel surround audio with the unit’s [AUDIO OUTPUT] connectors connected to an amplifier/receiver with a built-in surround decoder or a surround decoder.

8 D. RANGE CONTROL ^ NORMAL / WIDE RANGE / TV MODE

The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a programme encoded in Dolby Digital format. This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.

NORMAL:

Normally select this setting to activate this function.

WIDE RANGE:

Select this to deactivate this function when you enjoy wide dynamic range programme.

TV MODE:

Select this when you hear the sound through the TV’s speaker(s).

NOTES:

● This function has no effect on programmes other than those

recorded in Dolby Digital format.

● This function does not work when Simulated Surround Effect is

activated. (A pg. 27)

● The effect of ANORMALB and AWIDE RANGEB may not be

different depending on discs.

8 OUTPUT LEVEL ^ STANDARD / LOW

You can lower the output level of analogue audio to accommodate the unit to the connected A/V equipment.

STANDARD:

Normally select this setting.

LOW:

The output level of analogue audio is lowered.

58 EN

SUBSIDIARY SETTINGS

DISC PLAY SET UP

8 RESUME ^ OFF / ON / DISC RESUME

When this function is set to AONB or ADISC RESUMEB, you can use the resume function. (A pg. 22)

OFF:

You cannot use the resume function.

ON:

You can start playback from the resume point of the placed disc.

DISC RESUME:

The unit retains a memory of the resume points of the last 30

discs played back, even though they have been ejected.

NOTE:

ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD and already finalised DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under AONB setting will be applied even if ARESUMEB is set to ADISC RESUMEB.

HDD SET UP

8 LIVE MEMORY ^ OFF / 30 MIN / 1 HR / 3 HR

When this function is set to A30 MINB, A1 HRB or A3 HRB, you can apply the selected time length to ATemporary recording for Live Memory (HDD deck only)B (A pg. 35).

DVD SET UP

8 SAVE AS LIBRARY ^ OFF / ON

When this function is set to AONB, the recording information is automatically stored in the library. For details, refer to ANavigate Library InformationB (A pg. 42).

8 CONTINUOUS PLAY ^ OFF / ON

When this function is set to AONB, multiple titles on a disc are played back continuously one after another.

8 VIDEO MODE RECORDING ASPECT ^ PRIORITIZE 4:3 /

PRIORITIZE 16:9

This is the setting for the aspect ratio used when you dub titles to DVD discs in video mode. If the titles you want to dub are recorded in both 16:9 and 4:3, you must select one aspect ratio.

PRIORITIZE 4:3:

If you select APRIORITIZE 4:3B, even a title recorded in 16:9 is

dubbed in 4:3.

PRIORITIZE 16:9:

If you select APRIORITIZE 16:9B, even a title recorded in 4:3 is

dubbed in 16:9.

8 MP3&WMA / JPEG ^ MP3&WMA / JPEG

You can select files to play back, when both MP3&WMA files and JPEG files are recorded on a disc.

MP3&WMA:

Select this to play back MP3/WMA files.

JPEG:

Select this to play back JPEG files.

COMMON SET UP

8 DV AUTO CHAPTERING ^ OFF / ON

When this function is set to AONB, you can create chapters (marks) when dubbing from the DV deck or via the DV input terminal connecting the external DV camcorder.

OFF:

Do not create chapters (marks).

ON:

Create chapters (marks).

NOTE:

Marks cannot be created for direct recording to the DVD in Video mode. Record to the HDD, then dub to the DVD.

8 DV 12-BIT AUDIO ^ SOUND1 / SOUND2 / MIX

You can select the desired sound mode when playing back a programme recorded on the HDD in DV mode.

SOUND1:

Original recorded sound.

SOUND2:

Post-recorded sound.

MIX:

Original recorded and post-recorded sound.

8 MOTION INDEX ^ OFF / ON

When this function is set to AONB, you can set the picture on the top left corner of the Library Database Navigation screen or the Editing screen to that of the selected title.

REC/PLAY SET UP

8 XP MODE REC AUDIO ^ DOLBY DIGITAL / LINEAR PCM

You can select the audio format when you record a title in XP mode. When this function is set to ALINEAR PCMB, you can obtain a high-quality audio sound.

DOLBY DIGITAL:

To record in Dolby Digital format.

LINEAR PCM:

To record in Linear PCM format.

8 INPUT COLOUR SYSTEM ^ PAL / SECAM

You can play back PAL discs, or record PAL and SECAM signals on this unit. Select the appropriate colour system.

PAL:

To record PAL signals.

SECAM:

To record SECAM signals.

8 JUMP TIME ^ 15 MIN / 30 MIN / 1 HR

You can locate a scene ahead of or behind the currently viewed one by jumping a selected time interval during playback (or Live Memory Playback). For details, refer to AJump SearchB (A pg. 22,

30).

DISPLAY SET

8 SUPERIMPOSE ^ OFF / ON / AUTO

When this function is set to AAUTOB , various operational indicators appear on the TV screen. Messages appear in the selected language. (A pg. 18)

OFF:

To turn off superimposed indications.

ON:

To turn on superimposed indications.

AUTO:

To superimpose operational indications for approximately five seconds just after the corresponding operation.

NOTES:

● When you use this unit as the source player for editing, be sure to

set ASUPERIMPOSEB to AOFFB before starting. (A pg. 51)

● When you select AAUTOB, during playback, the operation mode

indicators may be disturbed depending on the type of disc being used.

8 DIMMER (DURING POWER ON) ^ BRIGHT / DIMMED

You can change the brightness of the front display panel.

BRIGHT:

Normally select this.

DIMMED:

To dim the front display panel.

SUBSIDIARY SETTINGS

EN 59

8 DIMMER (DURING POWER OFF) ^ OFF / ON

You can select to light up or turn off the light of the front display panel when the unit is off.

OFF:

To turn off the light of the front display panel when the unit is off.

ON:

To light up the front display panel when the unit is off.

8 QUICK STARTUP ^ OFF / ON

When this function is set to AONB, operations such as playback can be performed more quickly upon turning on the unit than when set to AOFFB. However, the power consumption during standby increases.

OFF:

To disable the quick startup function.

ON:

Operations can be performed quickly after turning on the unit.

8 ON SCREEN LANGUAGE

This unit offers you the choice to view on-screen messages in 11 different languages. For details, refer to AOn-screen Language SetB (A pg. 18).

VIDEO IN/OUT

8 MONITOR TYPE ^ 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs. For details, refer to AMonitor SetB (A pg. 19).

8 F-1 INPUT ^ VIDEO / S-VIDEO

Select the appropriate mode depending on the connector (F-1) being used on the front panel.

VIDEO:

To use the [VIDEO] input connector on the front panel.

S-VIDEO:

To use the [S-VIDEO] input connector on the front panel.

NOTE:

To display the ADV SET U P B menu, press SET UP while in the DV deck mode.

DV SET UP

8 DV AUDIO REC ^12BIT / 16BIT

This is the setting for sound mode before recording on a Mini DV tape.

12BIT:

Enables Audio Dubbing later.

16BIT:

Audio Dubbing is not possible but the recorded sound quality is higher than A12BITB

8 AUDIO MODE ^ SOUND1 / SOUND2 / MIX

You can select the desired sound mode when playing back an audio dubbed Mini DV tape.

SOUND1:

Original recorded sound.

SOUND2:

Audio dubbed sound.

MIX:

Original recorded sound and audio-dubbed sound.

NOTES:

● When AAUDIO MODEB is set to AMIXB, both the main and sub

audio will be audible for bilingual tapes.

● To select only the main audio or only the sub audio of bilingual

tapes, set AAUDIO MO DEB to ASOUND1B.

8 L-1 INPUT ^ VIDEO / S-VIDEO

Select the appropriate mode depending on the connector (L-1) being used on the rear panel.

VIDEO:

To use the [VIDEO INPUT] connector on the rear panel.

S-VIDEO:

To use the [S-VIDEO INPUT] connector on the rear panel.

60 EN

SUBSIDIARY SETTINGS

Format A Disc (DVD Deck Only)

Some DVD-RAM/RW discs are unformatted. Format the disc when you use an unformatted disc or you want to delete all recordings and data on the disc. To use a DVD-R disc in VR mode, format the new disc in VR mode. (It will be in Video mode when not formatted.)

ATTENTION:

● When a disc is formatted, all recordings and data are erased. It

is impossible to restore them.

● Never turn off the unit or disconnect the mains power cord

while ANOW FORMATTING...B is displayed on the TV screen.

● DVD-R discs can only be formatted once.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Load a DVD-RAM/R/RW disc to format.

DVDTV

HDD

ENTER

DVD

Selection Keys

FGDE

Format A DVD-RAM Disc

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select AHDD/DVD SET UPB, then

press G.

4 Press selection keys to select

ADISC SET UPB, then press

5 Press selection keys to select

AFORMATB, then press

DVD VIDEO SET UP

HDD SET UP

HDD/DVD SET UP

DVD SET UP

FINALISE

Video

FUNCTION SET UP

DISC SET UP DV SET UP

CANC. FINALIS.

FORMAT

INITIAL SET UP

Video

ENTER. Press selection keys to select AEXECUTEB, then press ENTER.

SET UP

ENTER

SELECT WITH @ THEN PRESS [ENTER]

EXIT

SELECT

PRESS [SET UP] TO EXIT

6 Press selection keys to select

AEXECUTEB, then press ENTER.

Format A DVD-RW Disc

1 Perform steps 1 - 4 of AFormat A DVD-RAM DiscB as above

before continuing.

2 Press selection keys to select AFORMATB, then press ENTER.

Press selection keys to choose AVR MODEB or AVIDEO MODEB, then press ENTER.

AVR MODEB:

To be chosen when you want to record, erase, or edit data on the disc repeatedly.

AVIDEO MODEB:

To be chosen when you want to erase all the data on the disc once played back to record new data, or play back the disc on other DVD players.

3 Press selection keys to select AEXECUTEB, then press

ENTER.

NOTES:

● It is impossible to format Version 1.0 DVD-RW discs in Video

mode.

● All the titles on a disc will be deleted once the disc is formatted

even if they are protected titles. (A pg. 38)

SET UP

Format A DVD-R Disc

1 Perform steps 1 - 4 of AFormat A DVD-RAM DiscB as above

before continuing.

2 Press selection keys to select AFORMATB, then press ENTER.

Press selection keys to select AEXECUTEB, then press ENTER.

SUBSIDIARY SETTINGS

EN 61

Finalise A Disc (DVD Deck Only)

Finalising DVD-R/RW discs recorded on this unit makes it possible for the discs to be played back on other DVD players. DVD-RW discs are finalised in the mode that the discs were formatted, enabling playback on compatible DVD players. Title names input in the Library Database Navigation are registered as title names in the DVD menu. (A pg. 37)

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Load a DVD-R/RW disc to finalise.

DVDTV

HDD

ENTER

Before finalising

● It is possible to record on a blank space.

● It is possible to enter title names. (A pg. 37)

● It is possible to delete titles. (A pg. 38)

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

title is deleted from a DVD-R disc.

● It is impossible to record or edit DVD-R/RW discs recorded on

other devices even if they have not been finalised.

After finalising (For DVD-R/RW (Video mode) discs)

● Video and audio that have been recorded by then are recorded in

conformity to the DVD Video standard, enabling you to play back the discs as DVD VIDEO discs.

● Although DVD-R/RW discs finalised on this unit become playable

on DVD players compatible with DVD-R/RW discs, some discs still may not play, for which JVC cannot take responsibility.

● Marked points marked before finalising will be deleted, and titles

will be divided automatically into AchaptersB approximately every 5 minutes. (A pg. 23)

● Depending on the DVD players and DVD-R/RW discs used, and

on the conditions of recording, it may not be possible to play back the discs. In this case, play back the discs on this unit.

● Additional recordings become impossible.

DVD

Selection Keys

FGDE

SET UP

Finalise A DVD-R/RW Disc

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen.

● Alternatively, you can press F2 to access the ADISC SET UPB

screen directly. For details, refer to ADirect Access To ADISC SET UPB ScreenB (A pg. 62).

3 Press selection keys to select AHDD/DVD SET UPB, then

press G.

● If you want to change the ADISC TYPEB setting, proceed to

step 4. Otherwise, proceed to step 7 for disc finalisation.

4 Press selection keys to select ADVD S ET UPB, then press G. 5 Press selection keys to select ADISC TYPEB, then press

ENTER.

6 Press selection keys to select the desired option, then press

ENTER.

7 Press selection keys to select ADISC SET UPB, then press G. 8 Press selection keys to select

AFINALISEB, then press

ENTER.

● For DVD-R/RW (Video mode)

discs, the background selection screen will appear. To finalise using the current background (with a check mark AB superimposed on it), press ENTER. To choose a new background, press selection keys to select the desired background from a selection of 18 backgrounds, then press ENTER. You can use your own created backgrounds instead of those available on this unit. Refer to AUser-Customisable Background And Text ColourB (A pg. 63). After selecting a background, you can preview the final result before finalising the disc. Refer to APreviewing the background effectB (A pg. 64).

9 Press selection keys to select AOKB, then press ENTER. 10 Upon completing finalisation, ACOMPLETEDB appears on the

TV screen. Press ENTER to end.

11 Press SET UP to return to the normal screen.

● Once a DVD-R/RW (Video mode) disc has been finalised, the

displays for original and play list do not appear. Only display for library appears.

● Once a DVD-RW (VR mode) disc has been finalised, it can be

played on DVD players compatible with VR mode.

● Once a DVD-R (VR mode) disc has been finalised, it can be

played on DVD players compatible with DVD-R (VR mode).

*The boldface settings below indicate the settings at your purchase.

8 DISC TYPE ^ MANUAL START / MENU STOP / AUTO

REPEAT

You can set the operation method of a DVD-R/RW (Video mode) disc when finalising the disc on this unit.

MANUAL START:

When the DVD disc is loaded, the disc will stop after it has been read. To play back the disc, press I.

MENU STOP:

When the DVD disc is loaded, the disc will be played back automatically after it has been read. Playback will stop when the disc menu is displayed.

AUTO REPEAT:

When the DVD disc is loaded, the disc will be played back automatically after it has been read. The disc will be played repeatedly.

DVD VIDEO SET UP

HDD/DVD SET UP

HDD SET UP DVD SET UP

ENTER

SET UP

EXIT

SELECT

FINALISE

Video

FORMAT

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

INITIAL SET UP

FUNCTION SET UP

DISC SET UP DV SET UP

CANC. FINALIS.

Video

62 EN

SUBSIDIARY SETTINGS

Cancel The Finalisation Of A DVD-RW Disc

1 Load a DVD-RW disc to cancel the disc finalisation, and

perform steps 1 - 2 of AFinalise A DVD-R/RW DiscB (A pg. 61)

before continuing.

2 Press selection keys to select AHDD/DVD SET UPB, then

press G.

3 Press selection keys to select ADISC SET UPB, then press G. 4 Press selection keys to select

ACANC. FINALIS.B, then press

ENTER.

5 Press selection keys to select

AOKB, then press ENTER.

6 Upon completing cancellation

of finalisation,

ACANCELLATION

COMPLETEDB appears on the

TV screen. Press ENTER to end.

7 Press SET UP to return to the normal screen.

● When the disc finalisation is cancelled, the mode in which the

disc was formatted is restored, making the disc recordable.

(A pg. 7, 60)

NOTE:

It is not possible to cancel the finalisation of a DVD-R disc.

DVD VIDEO SET UP

HDD/DVD SET UP

HDD SET UP DVD SET UP

ENTER

SET UP

EXIT

SELECT

FINALISE

Video

FORMAT

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

INITIAL SET UP

FUNCTION SET UP

DISC SET UP DV SET UP

CANC. FINALIS.

Video

Direct Access To ADISC SET UPB Screen

When you wish to finalise or cancel the finalisation of a disc, besides accessing the ADISC SET UPB screen through the SET UP button, you can also use the F2 button on the remote control. This F2 button enables you to access the ADISC SET UPB screen directly after loading the disc.

To finalise a disc

A Load the disc. B Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

C Press F2 to access the ADISC SET UPB screen.

● The screen in step 8 of AFinalise A DVD-R/RW DiscB

(A pg. 61) appears.

D Perform steps 8 – 11 of AFinalise A DVD-R/RW DiscB

(A pg. 61) to finalise the disc.

To cancel finalisation

A Perform steps A – C of ATo finalise a discB above.

● The screen in step 4 of ACancel The Finalisation Of A DVD-RW

DiscB on the left column appears.

B Perform steps 4 – 7 of ACancel The Finalisation Of A DVD-RW

DiscB on the left column to cancel finalisation of the disc.

NOTES:

● The direct access (F2) function works only when in the HDD or

DVD deck mode, on the condition that the Main Menu, Editing, Library Database Navigation or Dubbing screen is not displayed.

● The direct access (F2) function will not work in the following

cases, and an operation prohibition mark AB appears on the TV screen.

● During DVD recording or playback.

● Disc is not loaded.

● A playback-only disc is loaded.

● Disc reading in progress.

● Disc information acquisition failure when DVD-RAM is loaded.

● When this unit is in the DV deck mode or when dubbing is in

progress, the direct access (F2) function will also not work. However, AB will not be displayed.

SUBSIDIARY SETTINGS

EN 63

User-Customisable Background And Text Colour

This function allows you to replace the original backgrounds available on this unit with your own created backgrounds. Up to 18 backgrounds can be replaced. Besides the background, you can also change the text colour to improve the visibility of the text on a dark background. You can make use of the font data provided.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Load a UDF2.0 DVD-RAM or CD-R/RW disc to update.

DVDTV

ENTER

Usable image format, text format and disc

● Usable image format

File name: User01.bmp ~ User18.bmp

(Case-insensitive. Maximum: 18 images.) Size: 720x576 Mode: RGB (24Bit)

The file names do not have to be sequentially numbered.

● Usable text format

File name: Text01.bmp ~ Text18.bmp Size: 362x126 (recommended) Mode: INDEX (4Bit)

● Usable disc

Use a UDF2.0 DVD-RAM or CD-R/RW disc that consists of the above stated bitmap files in the root directory. The CD-R/RW disc used for updating must be written in the discat-once mode with the ISO9660 (or Joliet) format. Files in an added session written with multisession cannot be used for updating.

Selection Keys

FGDE

SET UP

Updating Backgrounds And Text Colour

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

3 Press selection keys to select AMENU BACKGROUNDB, then

press G.

4 Press selection keys to select AUPDATEB, then press ENTER.

● An error message will appear if the disc is not loaded; playback

or recording in progress on the DVD deck; disc other than UDF2.0 DVD-RAM or CD-R/RW is loaded, or when a blank CD-R/RW is loaded.

5 Press selection keys to select AOKB, then press ENTER. 6 Upon completion, the updating result appears on the TV

screen. Press ENTER to end.

● The disc is automatically ejected.

7 Press SET UP to return to the normal screen.

NOTES:

● While updating, the number of files successfully and

unsuccessfully updated is displayed on the TV screen.

● The unsuccessful updates may be due to the following.

● Files cannot be converted due to incorrect file name, size or format.

● Files cannot be copied or written due to HDD error.

This unit will not display any warning message regarding

●

incorrect file format.

Restoring Original Backgrounds And Text Colour

All user-customised backgrounds and/or text colour will be erased and the original backgrounds and text colour are restored.

1 Perform steps 1 - 3 of AUpdating Backgrounds And Text

ColourB above.

2 Press selection keys to select ADEFAULTB, then press

ENTER.

3 Press selection keys to select AOKB, then press ENTER. 4 Upon completion, AFINISHEDB appears on the TV screen.

Press ENTER to end.

5 Press SET UP to return to the normal screen.

Background and text colour

You can choose to customise the background or text colour or both. To customise both the background and text colour, the disc used for update must contain both the image and text data. To customise either the background or text colour, the disc should contain only the respective data. The text data corresponds to the image data; Text01.bmp to User01.bmp and Text18.bmp to User18.bmp.

Example:

If Text01.bmp is set to yellow colour and User01.bmp is selected as the background, the disc name (if any) and all the title names will be displayed in yellow.

MISCELLANEOUS

HOME MOVIES

DOCUMENTARIES

TRAVELLINGCLIPS

Displayed in yellow.

After updating has been completed, the backgrounds will be arranged in the sequence as illustrated. The file names will not be displayed on the TV screen.

HDD/DVD SET UP > FINALISE

1 4 7

SET UP

EXIT

1: User01.bmp ~ 18: User18.bmp

ENTER

SELECT

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

3 6 9

HDD/DVD SET UP > FINALISE

10 13 16

ENTER

SET UP

EXIT

SELECT

11 14 17

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

12 15 18

MTV CARTOON

64 EN

SUBSIDIARY SETTINGS

Setting The Background And Text Colour

You can select a desired background from the 18 original backgrounds or the backgrounds and/or text colours that you have created (A pg. 63), and set it as the default background to be used during finalisation (A pg. 44, 61).

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

ENTER

Selection Keys

FGDE

RETURN

SET UP

Registering Default Background And Text Colour

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

3 Press selection keys to select AMENU BACKGROUNDB, then

press G.

4 Press selection keys to select AREGISTERB, then press

ENTER.

● The background selection screen appears. The current

background selected is indicated by a check mark AB superimposed on it.

● To return to the previous screen, press RETURN.

5 Press selection keys to select the desired background, then

press ENTER.

● The AB mark is superimposed on the newly selected

background.

● A preview screen of the selected background will be displayed

for approximately 2 seconds.

● The selected background will be used as the default

background for finalisation.

6 Press SET UP to return to the normal screen.

NOTE:

When you update the backgrounds/text colour or restore the original backgrounds/text colour, the default setting registered in the above procedures will be cleared.

Previewing the background effect

This unit allows you to preview the effect of the background and/or text colour you have selected before proceeding with finalisation. This preview function is only possible when finalising a DVD-R/RW (Video mode) disc.

After selecting a background in step 8 of AFinalise A DVD-R/RW DiscB (A pg. 61):

A Press selection keys to select APREVIEWB, then press

ENTER.

● A preview screen of the final result of your selected background

will appear.

● To exit the preview screen, press ENTER.

● To preview again, press selection keys to select

ARECONFIRMB, then press ENTER.

B Press selection keys to select AOKB, then press ENTER to

continue with finalisation.

C Proceed to perform steps 9 - 11 of AFinalise A DVD-R/RW

DiscB (A pg. 61) to complete finalisation.

SUBSIDIARY SETTINGS

EN 65

Scan Mode Set (HDD & DVD Deck Only)

If you connect the unit and TV with Component Video Connection (A pg. 16), you can select the scan mode from two modes: Interlaced scan mode which is used in the conventional TV system, and Progressive scan mode which enables reproduction of higher-quality images.

8 Interlaced scan

In the conventional video system, a picture is shown on the display monitor in two halves. The Interlaced scan system places lines of the second half of the picture in-between lines of the first half of the picture.

8 Progressive scan

Progressive scan displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

ATTENTION:

Your TV needs to be compatible with PAL Progressive.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

HDD

DVD

Tray Lock (DVD Deck Only)

You can lock the disc tray to prohibit the unwanted disc ejection by children.

● Turn off the unit.

To lock tray

While the unit is turned off, press and hold o, then press M on the unit. ALOCKB appears on the front display panel and the disc tray is locked.

To unlock tray

While the unit is turned off, press and hold o, then press M on the unit. AUNLOCKB appears on the front display panel.

Mode Lock

During playback or recording, press and hold F1 for more than 5 seconds. ALOCKB appears on the front display panel.

● No buttons will function and playback and recording will not be

interrupted.

● When the unit is in the stop mode, all buttons will not function

except R and I.

To cancel Mode Lock, press and hold F1 again for more than 5 seconds.

NOTE:

It is also possible to use Mode Lock during Repeat Playback (A pg. 25).

PROGRESSIVE SCAN

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press PROGRESSIVE SCAN for 3 or more seconds.

● Video output indicator (q) lights on the front display panel if

Progressive scan mode has been established. (A pg. 12)

● Each press of PROGRESSIVE SCAN for 3 or more seconds

switches the scan mode.

NOTES:

● Interlaced scan mode is the setting at your purchase.

● Interlaced scan mode might be suitable depending on video

material.

● Scan mode cannot be set while menu screen is displayed.

● When the Progressive scan mode is engaged, no video signal is

output from [S-VIDEO OUTPUT] connector and [VIDEO/AUDIO OUTPUT] connectors.

Last Function Memory

When the power plug is disconnected from unit or when power failure occurs, your settings for the following functions are kept in the memory. These settings will resume when the unit is turned on again.

● Input selection (channel or auxiliary input; L-1, F-1 or DV)

● Recorder selection (The last selected deck is memorised.)

● Recording mode (A pg. 48)

● Mode settings (A pg. 57 – 59)

66 EN

Before requesting service for a problem, use this chart and see if you can solve the trouble yourself. Small problems are often easily solved, and this can save you the trouble of sending your unit off for repair.

TROUBLESHOOTING

● When interlace scanned programme is played back,

progressive scan mode is selected.

] Press and hold PROGRESSIVE SCAN until q disappears

from the front display panel. (A pg. 65)

Initialising (DVD Deck Only)

Malfunction occurs on the unit.

] Press A to turn off the unit, press and hold A, then press o

for two seconds or more.

General

No power is supplied to the unit.

● The AC power plug is disconnected from the mains outlet.

] Connect the AC power plug to the mains outlet securely.

(A pg. 16)

The remote control does not work properly.

] Remove the batteries, wait for 5 minutes or more, then load the

batteries again.

● The setting of the remote control code is inappropriate.

] Set the same remote control code (1, 2, 3, or 4) on both the unit

and the remote control. (A pg. 55)

● The batteries are discharged.

] Replace the dead batteries with new ones. The remote control

code will revert back to its default setting A3B. If you had change the remote control code prior to replacing the batteries, you need to set the code again. (A pg. 55)

Dubbing from the external equipment is not possible.

● The source (another video recorder, camcorder) has not been

properly connected.

] Confirm that the source is properly connected.

● All necessary power switches have not been turned on.

] Confirm that all units’ power switches are turned on.

● The setting of the input channel position is inappropriate.

] Select the input channel position (AF-1B or AL-1B) that

corresponds to the input terminal connected to the external equipment. (A pg. 51)

The on-screen display superimposed on the programme played back/received on this unit is recorded when you dub the programme to an external recording equipment.

] Set ASUPERIMPOSEB to AOFFB. (A pg. 58)

The unit does not operate.

● There are cases when the operation is prohibited on the disc.

● Lightning or static electricity may cause malfunction of the unit.

] Press A to turn the power off, then press the button again to

turn the power on.

The remote control of a JVC TV will not operate the unit.

● The setting of the remote control code is inappropriate.

] To operate the unit using a JVC TV remote control, set the

remote control code of the unit to A1B (Default: A3B). (A pg. 55)

Playback (DVD Deck)

The DVD deck cannot be operated.

● The DVD deck is not selected.

] Press DV/HDD/DVD on the unit repeatedly or DVD on the

remote control so that the DVD lamp lights up on the unit.

Images do not appear on the TV screen.

● The TV receiver’s channel selector is not set to the AV mode.

] Set the TV to its AV mode.

Playback does not start or stop immediately after playback is started by pressing I. On the front display panel, ANO DISCB appears.

● The disc is loaded upside down.

] Place the disc on the disc tray with the playback surface facing

down. (A pg. 8)

● A disc not being compatible with the unit is loaded.

] Load a playable disc on the unit. (A pg. 5)

● A dirty disc is loaded.

] Clean the disc. (A pg. 9)

● Defective disc is loaded.

] Replace the warped or scratched disc with a normal one.

Images are blurred or distorted when you start High-Speed Search.

] Images are blurred or distorted at the point where the playback

speed changes and this is not a malfunction of the unit.

Playback does not start.

] Playback does not start for approximately 30 seconds after

recording is stopped and this is not a malfunction of the unit.

Playback (HDD Deck)

The HDD deck cannot be operated.

● The HDD deck is not selected.

] Press DV/HDD/DVD on the unit repeatedly or HDD on the

remote so that the HDD lamp lights up on the unit.

Playback (DV Deck)

The DV deck cannot be operated.

● The DV deck is not selected.

] Press DV/HDD/DVD on the unit repeatedly or DV on the remote

control so that the DV lamp lights up on the unit.

The tape will not rewind or fast-forward.

● The tape is already fully rewound or fast-forwarded.

] Check the cassette.

The playback picture does not appear while the tape is running.

● The TV is not set to the AV mode.

] Set the TV to the AV mode.

Noise appears during visual search.

● This is normal.

The playback picture is blurred or interrupted while TV broadcasts are clear or AUSE CLEANING CASSETTEB message appears on the screen.

● The video heads may be dirty.

] Use a dry cleaning cassette M-DV12CL, or consult your JVC

dealer.

Recording (DVD Deck)

Recording cannot be made.

● No disc or a disc not being compatible with the unit is loaded.

] Load a recordable disc on the unit. (A pg. 5)

● The disc loaded is not formatted.

] Format the disc. (A pg. 60)

● A finalised DVD-R disc is loaded.

] Recording cannot be made on finalised discs. Load a

recordable disc on the unit.

● The disc is full or does not have enough space for the title to be

recorded.

] Clear unnecessary titles on the disc or load a blank disc.

(A pg. 38)

● The DVD-RAM disc loaded has had its protect tab slid to the

protect position.

] Release the protect tab. (A pg. 8)

Recording (HDD Deck)

Camcorder recording is not possible.

● The camcorder has not been properly connected.

] Confirm that the camcorder is properly connected.

● The input mode is not correct.

] Set the input mode to AF-1B. (A pg. 50)

Recording (DV Deck)

During recording, the tape does not run. The DV recording lamp lights up on the unit.

● The unit is in the Record Pause mode.

] Press I to resume recording.

Recording cannot be done.

● There is no cassette loaded, or the cassette loaded has had its

erase protection switch set to ASAVEB.

] Insert a Mini DV cassette, or set the erase protection switch set

to ARECB.

Camcorder recording is not possible.

● The camcorder has not been properly connected.

] Confirm that the camcorder is properly connected.

● The input mode is not correct.

] Set the input mode to AF-1B or ADVB.

The tape is automatically rewound, then the unit is shut off.

● The end of the tape was reached during recording.

] The programme may not have been recorded in its entirety.

Next time make sure you have enough time on the tape to record the entire programme.

Audio dubbing is not possible.

● ADV AUDIO RECB had been set to A16BITB at the original

recording.

] Set ADV AUDIO RECB to A12BITB at the original recording.

● The tape speed had been set to LP at the original recording.

] Set the tape speed to SP at the original recording.

Monitoring the audio dubbed sound is not possible during audio dubbing.

] This is normal. Monitor the sound using the connected devices.

TROUBLESHOOTING

EN 67

APPENDIX

EN 69

70 EN

RS-232C INTERFACE

RS-232C Interface – Command Table –

Lower OrderN Higher OrderQ

0 123456789ABCD E F

Complete

Chapter

Sense

Chapter

Finalise Cancel-

Finalisa-

Standby OnStandby

Command

Tar g e t

Title

Sense

Title

Disc

tion

Off

Error Casset te

Out

CueUp

with

Data

DiscErase

CueUp

TOP

Eject FF REW Fwd Field

with

Data

Not

Ta rg e t

Clear

CHAPTER

Fwd Shtl Rev Shtl Select

CHAPTER

ACK NAK

Play Stop

Still

Date

Step

Date Data

Clock

Preset

Data

ClockData

Sense

Preset

Setup SET UP DOWN RIGHT LEFT Next Title Prev Title Remote

Rev Field

Step

Select

Preset

Status Sense

Tc Data

Sense

CTL

Data

Sense

Rec Rec

Rec/Dub Request

Pause

JVCStatus

Vtr Ind

Sense

RS-232C Interface – Specifications –

● 9PIN D-Sub

PIN No. Signal Operation Direction of

signal

2 RxD Receive data HDD/DVDOPC

3 TxD Transmit data HDD/DVDNPC

5 GND Signal grounding

NOTES:

● When using the Serial Command Connector, the cable to be used should be a RS-232C interface cable (straight type).

● It takes about 10 seconds for the communication to be established after turning on the unit.

● During command transmission, a minimum interval of 50 mm/second is required between each command.

Mode : Non-synchronous Character length : 8 bits Parity check : Odd Start bit : 1 Stop bit : 1 Data rate : 9600bps Bit configuration

D6 D7D4 D5D2 D3D0 D1

Starting bit

Parity check

Stopping bit

RS-232C INTERFACE

RS-232C Interface – Command –

● Operation Commands

Commands for operating functions such as PLAY and REC on the HDD/DVD/Mini DV deck.

Command Description

3A Plays the selected deck.

3F Stops the selected deck. Resume will be cleared when this is pressed while in the Stop mode. (HDD/DVD Deck)

Rec Request will be cleared.

42 or B2 For cueing the desired position on the tape. (Mini DV Deck)

See page 72 for data format.

4F Switches the selected deck to the Still mode.

80 Searches the specified chapter and starts playback from the beginning. (HDD/DVD Deck)

See page 72 for data format.

81 Searches the specified title under AORIGINALB or in the APLAY LISTB by its number and starts playback from the

beginning. (HDD/DVD Deck) See page 73 for data format.

8E For setting the date. See page 73 for data format.

8F For setting the time. See page 73 for data format.

90 Finalises the disc. (HDD/DVD Deck)

91 Cancels disc finalisation. (HDD/DVD Deck)

92 For erasing rewritable discs.

93 Displays/Closes the top menu of a disc. (DVD Deck)

94 Displays/Closes the disc menu. (DVD Deck)

95 Advances to the next chapter. Functions like the T button on the remote control. (HDD/DVD Deck)

96 Returns to the previous chapter. Functions like the S button on the remote control. (HDD/DVD Deck)

97 Displays/Closes the Main Menu, Editing, Library Database Navigation or Dubbing screen.

97 N 30: Closes the screen. 97 N 31: Displays the Main Menu screen. 97 N 32: Displays the Library Database Navigation screen. (HDD/DVD Deck) 97 N 35: Displays the Editing screen. (HDD/DVD Deck) 97 N 37: Displays the Dubbing screen.

98 Functions as a confirmation key.

99 Functions as an up key.

9A Functions as a down key.

9B Functions as a right key.

9C Functions as a left key.

9D Advances to the next title. Functions like the T button on the remote control. (DVD Deck)

9E Returns to the previous title. Functions like the S button on the remote control. (DVD Deck)

9F Issues the same codes as the wired remote control via RS-232C. See page 74 for the remote control codes.

A0 Power On

A1 Power Off

A3 Eject:

HDD/DVD Deck: Opens/Closes tray. Mini DV Deck: Removes cassette.

AB FF:

HDD/DVD Deck: Functions only during playback. Activates forward search. For details on the search speed for HDD and DVD deck, refer to AVariable Speed SearchB on pages 29 and 21 respectively. Mini DV Deck: Fast forward. Search Fwd during playback. For details on the search speed, refer to AVariable Speed SearchB (A pg. 32).

EN 71

72 EN

RS-232C INTERFACE

Command Description

AC REW:

HDD/DVD Deck: Functions only during playback. Activates reverse search. For details on the search speed for HDD and DVD deck, refer to AVariable Speed SearchB on pages 29 and 21 respectively. Mini DV Deck: Rewind. Search Rev during playback. For details on the search speed, refer to AVariable Speed SearchB (A pg. 32).

AD Functions as a key for advancing (FWD) a frame. When this command is received during still mode, the unit advances the

still picture by one frame (or field) in the FWD direction.

AE Functions as a key for reversing (REV) a frame. When this command is received during still mode, the unit reverses the

still picture by one frame (or field) in the REV direction.

B5 Fwd Shtl: Functions only during playback. Activates forward search.

B5 N 30: STILL B5 N 31: FWD SLOW at a slow speed. B5 N 33: FWD SLOW at a fast speed. B5 N 35: 1x B5 N 36: FWD SEARCH at a fast speed. B5 N 37: FWD SEARCH at a faster speed. B5 N 38: FWD SEARCH at the fastest speed.

B6 Rev Shtl: Functions only during playback. Activates reverse search.

B6 N 30: STILL B6 N 31: REV SLOW at a slow speed. B6 N 33: REV SLOW at a fast speed. B6 N 35: –1x B6 N 36: REV SEARCH at a fast speed. B6 N 37: REV SEARCH at a faster speed. B6 N 38: REV SEARCH at the fastest speed.

B8 For setting the input/output, recording mode, audio language selection and subtitle selection. See pages 75 - 77 for data

format.

CA Rec: Starts recording at the selected deck when a Rec Request is received.

CB Rec Pause: Switches the selected deck to the Rec Pause mode when a Rec Request is received. (Mini DV/DVD Deck)

F0 Command Target:

F0 N 30: For selecting Mini DV deck. F0 N 34: For selecting HDD deck. F0 N 38: For selecting DVD deck.

FA Rec Request: For issuing approval for recording. This can be cleared using STOP.

42 or B2: CueUp with Data

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte 7th Byte 8th Byte

Cue Position Hr (Tens) Hr (Ones) Min (Tens) Min (Ones) Sec (Tens) Sec (Ones) Frame

ASCII codes (30 - 39)

E.g. (01:23:45:15) 30 31 32 33 34 35 31 35

E.g.: When setting the desired position at the 15th frame at 1 hr 23 min 45 sec.

80: Chapter Search

Chapter Search Hundreds Tens Ones

ASCII codes (30 - 39) 3* 3* 3*

E.g. (012) 30 31 32

E.g.: When searching the 12th chapter.

3* 3* 3* 3* 3* 3* 3* 3*

1st Byte 2nd Byte 3rd Byte

(Tens)

Frame (Ones)

RS-232C INTERFACE

81: Title Search under AORIGINALB

1st Byte 2nd Byte 3rd Byte 4th Byte

Title Search (ORIGINAL) 30 Hundreds Tens Ones

ASCII codes (30 - 39) 30 3* 3* 3*

E.g. (345) 30 33 34 35

E.g.: When searching the 345th title, as indicated by the title number on the top right corner of the index, under AORIGINALB. (A pg. 36)

81: Title Search in APLAY LISTB

1st Byte 2nd Byte 3rd Byte 4th Byte

Title Search (PLAY LIST) 38 Hundreds Tens Ones

ASCII codes (30 - 39) 38 3* 3* 3*

E.g. (028) 38 30 32 38

E.g.: When searching the 28th play list, as indicated by the play list number on the top right corner of the index, in the APLAY LISTB. (A pg. 41)

8E: Date Preset

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte

Date Preset Mth (Tens) Mth (Ones) Day (Tens) Day (Ones) Yr (Tens) Yr (Ones)

ASCII code (30 - 39) 3* 3* 3* 3* 3* 3*

E.g. (01.17.2006) 30 31 31 37 30 36

E.g.: When setting the date to January 17 2006.

EN 73

8F: Clock Preset

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte

Clock Preset Hr (Tens) Hr (Ones) Min (Tens) Min (Ones) Sec (Tens) Sec (Ones)

ASCII code (30 - 39) 3* 3* 3* 3* 3* 3*

E.g. (12:34:56) 31 32 33 34 35 36

E.g.: When setting the time to 12 hrs 34 min and 56 sec.

74 EN

9F: Remote Data The remote control codes for controlling the VTR (similar to wired remote control) via RS-232C is as shown in

RS-232C INTERFACE

the following table. The codes apply to all three DV, HDD and DVD deck unless otherwise stated.

Code Items Remarks Code Items Remarks

03 STOP 8F TOP MENU DVD Deck only

04 EJECT DV Deck only 90 MEMORY HDD/DVD Deck only

06 F.F/SPEED+ 96 CM SKIP

07 REW/SPEED– 97 iLINK DV Deck only

0B POWER ON/OFF AQUICK STARTUPB must be

0C PLAY B0 –SLOW D

0D PAUSE/STILL B1 SHUTTLE-C

0E JUMP+

0F JUMP– B3 SHUTTLE-A

14 FWD SKIP B4 SHUTTLE-2

15 REV SKIP B5 SHUTTLE-1

17 AUDIO B6 –SLOW B

18 CH – (PR–) B7 –SLOW C

19 CH + (PR+) B8 +SLOW C

20 TEN KEY 0 (AUX) B9 +SLOW B

21 TEN KEY 1

22 TEN KEY 2 BB SHUTTLE +2

23 TEN KEY 3 BC SHUTTLE +A

24 TEN KEY 4 BD SHUTTLE +B

25 TEN KEY 5 BE SHUTTLE +C

26 TEN KEY 6 BF +SLOW D

27 TEN KEY 7 C0 ANGLE/LIVE CHECK ANGLE (DVD Deck only)

28 TEN KEY 8 C4 SUBTITLE DVD Deck only

29 TEN KEY 9 CC REC

31 REC MODE (SP/LP/EP…) CD REC PAUSE

32 DVD DECK D4 RETURN

33 CH-0 (AUX) D6 DV/HDD/DVD

34 DUBBING D8 JOG–1

36 CANCEL HDD/DVD Deck only D9 JOG–1/6

37 SET UP DA JOG +1/6

38 DISPLAY SELECT DB JOG +1

3C OK/ENTER DC INSTANT REPLAY

3E ON SCREEN DD EDIT

43 DV DECK E0 NAVIGATION

44 HDD DECK E1 L1 Y/C INPUT SELECT

4C A.DUB

7C SP E6 OUTPUT SELECT ALL

7D LP E7 OUTPUT SELECT DV

80 CUSOR 0° Moves the arrow in the index

81 MENU DVD Deck only E9 ON AIR HDD/DVD Deck only

82 CUSOR 90° Moves the arrow in the index

84 CUSOR 180° Moves the arrow in the index

86 CUSOR 270° Moves the arrow in the index

87 OPEN/CLOSE DVD Deck only F2 MODE LOCK

8E PROGRESSIVE HDD/DVD Deck only F3 FINALISE HDD/DVD Deck only

set to AONB for the power on function to work. (A pg. 59)

HDD/DVD Deck only

DV Deck only

list (A pg. 36) to the right.

list (A pg. 36) up.

list (A pg. 36) to the left.

list (A pg. 36) down.

AF REV FRAME

B2 SHUTTLE-B

BA SHUTTLE +1

E2 L1 COMPOSITE INPUT SELECT

E8 OUTPUT SELECT ALL/DV

EC F-1 Y/C INPUT SELECT

ED FWD FRAME

EE F-1 COMPOSITE INPUT SELECT

LIVE CHECK (HDD/DVD Deck only)

HDD/DVD Deck only

DV D eck o nly

RS-232C INTERFACE

B8: Input/Output Selection

1st Byte 2nd Byte

L-1 VIDEO 30 31

L-1 S-VIDEO 30 39

External input selection

Output selection

B8: Recording Mode Selection

XP 34 30 FR150 34 93 FR265 34 AA

SP 34 31 FR155 34 94 FR270 34 AB

LP 34 32 FR160 34 95 FR275 34 AC

EP 34 33 FR165 34 96 FR280 34 AD

DV 34 38 FR170 34 97 FR285 34 AE

FR60 34 81 FR175 34 98 FR290 34 AF

FR65 34 82 FR180 34 99 FR295 34 B0

FR70 34 83 FR185 34 9A FR300 34 B1

FR75 34 84 FR190 34 9B FR305 34 B2

FR80 34 85 FR195 34 9C FR310 34 B3

FR85 34 86 FR200 34 9D FR315 34 B4

FR90 34 87 FR205 34 9E FR320 34 B5

FR95 34 88 FR210 34 9F FR325 34 B6

FR100 34 89 FR215 34 A0 FR330 34 B7

FR105 34 8A FR220 34 A1 FR335 34 B8

FR110 34 8B FR225 34 A2 FR340 34 B9

FR115 34 8C FR230 34 A3 FR345 34 BA

FR120 34 8D FR235 34 A4 FR350 34 BB

FR125 34 8E FR240 34 A5 FR355 34 BC

FR130 34 8F FR245 34 A6 FR360 34 BD

FR135 34 90 FR250 34 A7 FR420 34 C9

FR140 34 91 FR255 34 A8 FR480 34 D5

FR145 34 92 FR260 34 A9

F-1 VIDEO 30 35

F-1 S-VIDEO 30 3D

DV 30 34

Common output 32 30

Mandatory DV output 32 38

1st Byte 2nd Byte 1st Byte 2nd Byte 1st Byte 2nd Byte

EN 75

76 EN

B8: Audio Language Selection

See ALanguage Code ListB (A pg. 69).

RS-232C INTERFACE

1st Byte 2nd Byte 1st Byte 2nd Byte 1st Byte 2nd Byte

JAPANESE 39 11 HI 39 3F RM 39 6D

ENGLISH 3912HR 3940RN 396E

GERMAN 39 13 HU 39 41 RO 39 6F

FRENCH 39 14 HY 39 42 RU 39 70

ITALIAN 3915IA 3943RW 3971

SPANISH 3916IE 3944SA 3972

DUTCH 39 17 IK 39 45 SD 39 73

SWEDISH 3918IN 3946SG 3974

NORWEGIAN3919IS 3947SH 3975

FINNISH 391AIW 3948SI 3976

DANISH 39 1B JI 39 49 SK 39 77

AA 39 1C JW 39 4A SL 39 78

AB 39 1D KA 39 4B SM 39 79

AF 39 1E KK 39 4C SN 39 7A

AM 39 1F KL 39 4D SO 39 7B

AR 39 20 KM 39 4E SQ 39 7C

AS 39 21 KN 39 4F SR 39 7D

AY 39 22 KO 39 50 SS 39 7E

AZ 39 23 KS 39 51 ST 39 7F

BA 39 24 KU 39 52 SU 39 80

BE 39 25 KY 39 53 SW 39 81

BG 39 26 LA 39 54 TA 39 82

BH 39 27 LN 39 55 TE 39 83

BI 39 28 LO 39 56 TG 39 84

BN 39 29 LT 39 57 TH 39 85

BO 39 2A LV 39 58 TI 39 86

BR 39 2B MG 39 59 TK 39 87

CA 39 2C MI 39 5A TL 39 88

CO 39 2D MK 39 5B TN 39 89

CS 39 2E ML 39 5C TO 39 8A

CY 39 2F MN 39 5D TR 39 8B

DZ 39 30 MO 39 5E TS 39 8C

EL 39 31 MR 39 5F TT 39 8D

EO 39 32 MS 39 60 TW 39 8E

ET 39 33 MT 39 61 UK 39 8F

EU 39 34 MY 39 62 UR 39 90

FA 39 35 NA 39 63 UZ 39 91

FJ 39 36 NE 39 64 VI 39 92

FO 39 37 OC 39 65 VO 39 93

FY 39 38 OM 39 66 WO 39 94

GA 39 39 OR 39 67 XH 39 95

GD 39 3A PA 39 68 YO 39 96

GL 39 3B PL 39 69 ZH 39 97

GN 39 3C PS 39 6A ZU 39 98

GU 39 3D PT 39 6B

HA 39 3E QU 39 6C

RS-232C INTERFACE

B8: Subtitle Selection

1st Byte 2nd Byte 1st Byte 2nd Byte 1st Byte 2nd Byte

OFF 3C 10 HA 3C 3E QU 3C 6C

JAPANESE 3C 11 HI 3C 3F RM 3C 6D

ENGLISH 3C 12 HR 3C 40 RN 3C 6E

GERMAN 3C 13 HU 3C 41 RO 3C 6F

FRENCH 3C 14 HY 3C 42 RU 3C 70

ITALIAN 3C 15 IA 3C 43 RW 3C 71

SPANISH 3C 16 IE 3C 44 SA 3C 72

DUTCH 3C 17 IK 3C 45 SD 3C 73

SWEDISH 3C 18 IN 3C 46 SG 3C 74

NORWEGIAN3C19IS 3C47SH 3C75

FINNISH 3C 1A IW 3C 48 SI 3C 76

DANISH 3C 1B JI 3C 49 SK 3C 77

AA 3C 1C JW 3C 4A SL 3C 78

AB 3C 1D KA 3C 4B SM 3C 79

AF 3C 1E KK 3C 4C SN 3C 7A

AM 3C 1F KL 3C 4D SO 3C 7B

AR 3C 20 KM 3C 4E SQ 3C 7C

AS 3C 21 KN 3C 4F SR 3C 7D

AY 3C 22 KO 3C 50 SS 3C 7E

AZ 3C 23 KS 3C 51 ST 3C 7F

BA 3C 24 KU 3C 52 SU 3C 80

BE 3C 25 KY 3C 53 SW 3C 81

BG 3C 26 LA 3C 54 TA 3C 82

BH 3C 27 LN 3C 55 TE 3C 83

BI 3C 28 LO 3C 56 TG 3C 84

BN 3C 29 LT 3C 57 TH 3C 85

BO 3C 2A LV 3C 58 TI 3C 86

BR 3C 2B MG 3C 59 TK 3C 87

CA 3C 2C MI 3C 5A TL 3C 88

CO 3C 2D MK 3C 5B TN 3C 89

CS 3C 2E ML 3C 5C TO 3C 8A

CY 3C 2F MN 3C 5D TR 3C 8B

DZ 3C 30 MO 3C 5E TS 3C 8C

EL 3C 31 MR 3C 5F TT 3C 8D

EO 3C 32 MS 3C 60 TW 3C 8E

ET 3C 33 MT 3C 61 UK 3C 8F

EU 3C 34 MY 3C 62 UR 3C 90

FA 3C 35 NA 3C 63 UZ 3C 91

FJ 3C 36 NE 3C 64 VI 3C 92

FO 3C 37 OC 3C 65 VO 3C 93

FY 3C 38 OM 3C 66 WO 3C 94

GA 3C 39 OR 3C 67 XH 3C 95

GD 3C 3A PA 3C 68 YO 3C 96

GL 3C 3B PL 3C 69 ZH 3C 97

GN 3C 3C PS 3C 6A ZU 3C 98

GU 3C 3D PT 3C 6B

See ALanguage Code ListB (A pg. 69).

EN 77

78 EN

● System Commands

Commands relating to RS-232C control system.

RS-232C INTERFACE

Command Description

01 Complete: Issued by the VTR upon completing all specified operations by commands such as CueUp with Data.

02 Error: Issued by the VTR when receiving invalid commands in the context. In such cases, commands that are sent will

05 Not Target: Issued by the VTR when specified operations by commands such as CueUp with Data cannot be completed

0A ACK: A return command issued when a defined command is received.

0B NAK: A return command issued when an undefined or possibly nonexistent command is received.

56 Clear: Clears the Error status.

FB VTR Ind: A command for checking whether the connected device is a VTR.

not be accepted. However, a return command will be issued but only to the Status Sense. To clear the Error status, perform command 56 (Clear).

properly.

● Response Commands

Commands for acquiring information such as deck status.

Command Description

03 Cassette Out: Issued by the Mini DV deck when the cassette is ejected after ejecting is performed.

60 Chapter Sense: For acquiring the current chapter number.* (HDD/DVD Deck)

61 Title/Track Sense: For acquiring the current title number under AORIGINALB or in the APLAY LISTB.* (HDD/DVD Deck)

B9 Select Sense: For acquiring the status of the inputs, outputs, recording mode, audio language selection and subtitle

selection.*

BE Date Sense: For acquiring the currently configured year, month and day.*

BF Time Sense: For acquiring the currently configured hour, minute and second.*

D7 Status Sense: For acquiring the deck information.*

D8 TC Data Sense: For acquiring the total remaining time in the current recording mode when there is a media in the

D9 CTL Data Sense: For acquiring the lapse counter when there is a media in the selected deck.*

DD JVC Status Sense: Returns data from the unit.*

* See pages 79 - 81 for data format.

Chapter Sense

Chapter Sense Hundreds Tens Ones

60 3* 3* 3*

E.g. (012) 30 31 32

E.g.: When the current chapter is the 12th chapter.

selected deck.*

1st Byte 2nd Byte 3rd Byte

RS-232C INTERFACE

Title/Track Sense under AORIGINALB

1st Byte 2nd Byte 3rd Byte 4th Byte

Title/Track Sense (ORIGINAL) 30 Hundreds Tens Ones

61 30 3* 3* 3*

E.g. (345) 30 33 34 35

E.g.: When the current title under AORIGINALB is the 345th title.

Title/Track Sense in APLAY LISTB

1st Byte 2nd Byte 3rd Byte 4th Byte

Title/Track Sense (PLAY LIST) 38 Hundreds Tens Ones

61 38 3* 3* 3*

E.g. (028) 38 30 32 38

E.g.: When the current title under APLAY LISTB is the 28th title.

Select Sense

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte

Select Sense External input

selection

B9 3* 3* ** ** **

E.g. (3930311213) 39 30 31 12 13

E.g.: When the selection status of the VTR is as follows:

External input selection N L-1 S-VIDEO Output selection N Common output Recording mode selection N SP Audio language selection N ENGLISH Subtitle selection N GERMAN

For response data for B9, see data format for B8 (Select Preset) on pages 75 - 77.

Output selection Recording mode

selection

Audio language

selection

Subtitle selection

EN 79

Date Data Sense For acquiring the currently configured year, month and day in ASCII codes.

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte

Date Sense Mth (Tens) Mth (Ones) Day (Tens) Day (Ones) Yr (Tens) Yr (Ones)

BE 3* 3* 3* 3* 3* 3*

E.g. (01.17.2006) 30 31 31 37 30 36

When the current date is not set, the value is fixed as “—” (0x2D).

Time Data Sense For acquiring the currently configured hour, minute and second in ASCII codes.

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte

Time Sense Hr (Tens) Hr (Ones) Min (Tens) Min (Ones) Sec (Tens) Sec (Ones)

BF 3* 3* 3* 3* 3* 3*

E.g. (12:34:56) 31 32 33 34 35 36

When the current time is not set, the value is fixed as “—” (0x2D).

80 EN

Status Data Sense

RS-232C INTERFACE

D7 STATUS SENSE

DV HDD DV D DV HD D/DV D DV HDD/DV D

bit7 0 (Fixed) 1 (Fixed) 1 (Fixed) Video EE Video EE 0 (Fixed) 0 (Fixed)

bit6 0 (Fixed) 0 (Fixed) 1 (Fixed) Audio EE Audio EE 0 (Fixed) 0 (Fixed)

bit5 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed)

bit4 Record

bit3 Cassette Not

bit2 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) During Repeat

bit1 0 (Fixed) 0 (Fixed) 0 (Fixed) Start sensor 0 (Fixed) During CueUp 0 (Fixed)

bit0 RS-232C

D7 STATUS SENSE

bit7 During PLAY During PLAY

bit6 During FF 0 (Fixed) 0 (Fixed) 0 (Fixed)

bit5 During REW 0 (Fixed) During Reverse Shuttle Search

bit4 During STOP During STOP During Forward Shuttle Search

bit3

bit2

bit1 During REC During REC SPEED CODE 1 SPEED CODE 1

bit0

Forbidden

Inserted

command error status. Clear using 56 (Clear).

DV HDD/DVD DV HDD/DVD

During STANDBY (Unit Power Off)

During CASSETTE EJECT

During Audio Dub

1byte 2byte 3byte

Record Forbidden

Disc Not Inserted

RS-232C command error status. Clear using 56 (Clear).

4byte 5byte

During STANDBY (Unit Power Off)

0 (Fixed) SPEED CODE 2 SPEED CODE 2

0 (Fixed) SPEED CODE 0 SPEED CODE 0

Record Forbidden

Disc Not Inserted

RS-232C command error status. Clear using 56 (Clear).

During PAUSE (Set to 1 simultaneously with to 1 simultaneously with in REC PAUSE mode.)

(Excluding STILL)

SPEED CODE 3 SPEED CODE 3

0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed)

Occurrence of abnormality in VTR

End sensor 0 (Fixed) 0 (Fixed) 0 (Fixed)

During PLAYB in STILL mode, set

Occurrence of abnormality in VTR

During RECB

During PAUSE (Set to 1 simultaneously with

During PLAYB in STILL mode, set to 1 simultaneously with in REC PAUSE mode.)

During Reverse Shuttle Search (Excluding STILL)

During Forward Shuttle Search (Excluding STILL)

0 (Fixed) 0 (Fixed)

Playback (Including PAUSE)

During RECB

TC Data Sense For acquiring the remaining time in the current recording mode in hours, minutes and seconds for HDD/DVD,

TC Data Sense Hr (Tens) Hr (Ones) Min (Tens) Min (Ones) Sec (Tens) Sec (Ones) Frame

D8 3* 3* 3* 3* 3* 3* 3* 3*

E.g. (01:23:45) 30 31 32 33 34 35 30 30

E.g.: When remaining time is 1 hr 23 min 45 sec. Mini DV (hr and min only) HDD/DVD (hr, min and sec only) Frame is fixed as 0.

and hours and minutes for Mini DV.

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte 7th Byte 8th Byte

(Tens)

Frame (Ones)

RS-232C INTERFACE

CTL Data Sense For acquiring lapse counter of selected deck in hours, minutes and seconds.

1st Byte 2nd Byte 3rd Byte 4th Byte 5th Byte 6th Byte 7th Byte 8th Byte

CTL Data Sense Hr (Tens) Hr (Ones) Min (Tens) Min (Ones) Sec (Tens) Sec (Ones) Frame

(Tens)

D9 3* 3* 3* 3* 3* 3* 3* 3*

E.g. (01:23:45) 30 31 32 33 34 35 30 30

E.g.: When time lapse counter is 1 hr 23 min 45 sec.

JVC Status Sense

Frame (Ones)

EN 81

DD JVC SENSE

bit7 1 (Fixed) 1 (Fixed) 0 (Fixed) 0 (Fixed) 1 (Fixed) 1 (Fixed) 1 (Fixed) 1 (Fixed)

bit6 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 1 (Fixed) 1 (Fixed)

bit5 0 (Fixed) 0 (Fixed) 1 (Fixed) 1 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed)

bit4

bit3 0 (Fixed) 0 (Fixed) 0 (Fixed)

bit2 0 (Fixed) 0 (Fixed) 0 (Fixed)

bit1 0 (Fixed) 0 (Fixed) 1 (Fixed)

bit0 1 (Fixed) 1 (Fixed) 0 (Fixed)

DISC TYPE

DVD 0000

DVD-RAM 0001

DVD-R 0010

DVD-RW 0011

DVD+R 0000

DVD+RW 0000

VCD 0110

CD 0111

... ... ... ... ...

No disc 1111

During Playback of LP Recorded Tape

1byte 2byte 3byte 4byte

DV HDD/DVD DV HDD/DVD DV HDD/DVD DV HDD/DVD

0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed) 0 (Fixed)

During dubbing (Including PAUSE)

Refer to the DISC TYPE table below.

bit3 bit2 bit1 bit0

0 (Fixed) 0 (Fixed)

During Audio Dub (Including PAUSE)

During Insert (Including PAUSE)

During dubbing (Including PAUSE)

0 (Fixed) 0 (Fixed) 0 (Fixed)

During dubbing (Including PAUSE)

0 (Fixed) 0 (Fixed)

82 EN

SPECIFICATIONS

GENERAL

Power requirement

AC 220 V - 240 VH, 50 Hz/60 Hz

Power consumption

Power on: 42 W Power off: 5 W

Laser specification

For CD

Wavelength: 770 to 810 nm Output: 0.4 mW

For DVD

Wavelength: 653 to 663 nm Output: 1.0 mW

Temperature

Operating: 5f to 35f Storage: –20f to 60f

Operating position

Horizontal only

Dimensions (WxHxD)

435 mm x 96 mm x 372 mm

Weight

5.8 kg

Input/Output

Video input: 0.5 - 2.0 Vp-p, 75 K (pin jack) Video output: 1 Vp-p, 75 K (BNC) Audio input:

–8 dB, 50 kK (pin jack) Corresponding to mono (left)

Audio output: –8 dB, 1 kK (pin jack) S-video input:

Y: 0.8 - 1.2 Vp-p, 75 K C: 0.2 - 0.4 Vp-p, 75 K

S-video output:

Y: 1.0 Vp-p, 75 K C: 0.3 Vp-p, 75 K

DV: 4-pin for DV IN/OUT Remote Input: R3.5 mm Jack Serial Command: D-SUB 9-PIN Component video output:

Y: 1.0 Vp-p, 75 K C

, PB/PR: 0.7 Vp-p, 75 K

B/CR

Corresponding to copy protection

Digital audio output:

Optical, Coaxial Corresponding to Dolby Digital and DTS Digital Surround Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD Deck)

Recording time

Maximum 8 hours (with 4.7 GB disc) (XP): Approx. 1 hour (SP): Approx. 2 hours (LP): Approx. 4 hours (EP): Approx. 6 hours (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch) Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (HDD Deck)

Video recording compression system

MPEG2 (VBR)

Audio recording system

Dolby Digital (2 ch) Linear PCM (DV/XP mode)

Recording time

Maximum 473 hours (with 250 GB HDD) (DV): Approx. 18 hours (XP): Approx. 53 hours (SP): Approx. 109 hours (LP): Approx. 218 hours (EP): Approx. 328 hours (FR): Approx. 473 hours

VIDEO/AUDIO (DV Deck)

Signal system

PAL colour signal, 625 lines/50 fields

Recording system

Digital Component Recording

Format

DV format (SD mode)

Cassette

Mini DV Cassette

Maximum recording time

(SP): 80 min. with M-DV80ME cassette (LP): 120 min. with M-DV80ME cassette

Audio recording system

PCM 48 kHz, 16 bit (2 ch)/ 32 kHz, 12 bit (4 ch)

Specifications shown are for SP mode unless otherwise specified.

ACCESSORIES

Provided accessories

Audio/Video cable, Infrared remote control unit, AR6B battery x 2

E.& O.E. Design and specifications subject to change without notice.

ATTENTION:

This unit contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the unit off and unplug the mains power cord. Then plug it in again and turn the unit on. Take out the disc. After checking the disc, operate the unit as usual.

A-B Repeat Playback ................................................ 26

Accidental erasure prevention .................................... 31

Adjusting The Picture Quality ..................................... 27

Angle Selection ........................................................ 23

Audio Channel Selection ........................................... 24

Audio Language/Sound Selection ............................... 24

Auto Full Repeat Playback ........................................ 61

Basic Playback .............................................. 20, 29, 31

Disc menu ............................................................... 21

Disc Resume ........................................................... 58

Discs For Playback Only ............................................. 6

DV Native Format Recording to HDD .......................... 46

DVCAM ................................................................... 31

DVD menu ............................................................... 21

File Structure Of Discs ................................................ 7

Free Rate Function ................................................... 49

Instant Replay ......................................... 22, 30, 32, 35

Interlaced scan ......................................................... 65

Jump Search .......................................................22, 30

Language Code List .................................................. 69

Last Function Memory ............................................... 65

Letter Box ................................................................ 19

Live Memory Playback .............................................. 33

Marking Positions To Play Back Again Later ...........23, 30

Menu/Audio/Subtitle Language Set ............................. 18

Mode Lock ............................................................... 65

Next Function Memory .............................................. 32

On-screen Bar .......................................................... 25

On-screen Language Set .......................................... 18

LIST OF TERMS

EN 83

Pan&Scan ................................................................ 19

Play List Editing ........................................................ 40

Playback Control (PBC) ............................................. 24

Programme Playback ................................................ 28

Progressive scan ...................................................... 65

Random Playback ..................................................... 28

Recordable/Playable Discs .......................................... 5

Recording Medium And Format .................................... 7

Recording Mode ....................................................... 49

Region Number .......................................................... 6

Repeat Playback ...................................................... 25

Resume Function ..................................................... 22

Resuming Playback .................................................. 35

RetroActive Recording .............................................. 35

RS-232C Interface .............................................. 11, 70

Select The Switching Interval Of The Slide Show .........28

Setting The Progressive Mode ................................... 28

Simulated Surround Effect ......................................... 27

Simultaneous Recording and Playback ....................... 35

Skip Search .................................................. 22, 29, 32

Slow Motion ..................................................21, 29, 32

Soundtrack Selection ................................................ 32

Still Picture/Frame-By-Frame Playback ............21, 29, 32

Subtitle Selection ...................................................... 24

Temporary Recording ................................................ 35

Time Code ............................................................... 32

Time Search ............................................................ 27

Top menu ................................................................ 21

Tray Lock ................................................................. 65

Unplayable Discs ........................................................ 6

Usable cassettes ...................................................... 31

User-Customisable Background And Text Colour ......... 63

Variable Speed Search ................................... 21, 29, 32

SR-DVM700ER

Printed in China

0906MNH-SW-BJ

JVC SR-DVM700ER User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY FIRST

Safety Precautions

CONTENTS

About Discs

Recordable/Playable Discs

DISC INFORMATION

Discs For Playback Only

Unplayable Discs

Region Number

Recording Medium And Format

File Structure Of Discs

DVD VIDEO Marks

Placing A Disc

Care And Handling Of Discs

Life Span Of Parts

INDEX

Front View

Rear View

Front Display Panel

Remote Control

On-Screen Display (HDD & DVD deck)

On-Screen Display (DV Dubbing)

On-Screen Display (DV deck)

INSTALLING YOUR NEW UNIT

Basic Connections

Connecting to a TV Monitor

Connecting to a DV Device

Connecting to Another Recorder

Clock Set

INITIAL SETTINGS

Language

On-screen Language Set

Menu/Audio/Subtitle Language Set (DVD deck only)

Monitor Set

BASIC OPERATIONS ON DVD DECK

Basic Playback

Playback Features

Locating A Desired Scene Using The DVD Menu

Locating The Start Point Of The Item Or Skip The Item

Variable Speed Search

Slow Motion

Still Picture/Frame-By-Frame Playback

Skip Search

Instant Replay

Jump Search

Resume Function

Checking The Time Information

Marking Positions To Play Back Again Later

Angle Selection

Subtitle Selection

Audio Channel Selection

Audio Language/Sound Selection

Playback Control (PBC) Function

Using The On-screen Bar

Basic Operation On The On-screen Bar

How To Access The On-screen Bar

Repeat Playback

A-B Repeat Playback

Locating The Beginning Of A Desired Selection

Time Search

Simulated Surround Effect

Adjusting The Picture Quality

Setting The Progressive Mode

Programme Playback

Random Playback

Select The Switching Interval Of The Slide Show

BASIC OPERATIONS ON HDD DECK

Basic Playback

Playback Features

Variable Speed Search

Slow Motion

Still Picture/Frame-By-Frame Playback

Skip Search

Instant Replay

1.5x Speed Playback

Jump Search
