Mini DV & HDD & DVD VIDEO RECORDER

SR-DVM600U

DVDTV

STANDBY/ON

OUTPUT

VIDEO

SELECT

DV HDD DVD

PR/CH

CANCEL

MEMO/MARK

INPUTSELECT

EDIT

PROG

NAVIGATIONTOPME NU

ENTER

RETURN

NEXTPREVIOUS

SLOWSLOW PLAY

PAUSEREC

STOP/CLEAR

DISPLAY

ONSCREEN

RECMODE/

AUDIO

SUBTITLE

REMAIN

PROGRESSIVE

SCAN

STANDBY/ON

ANGLE/

EECHECK

SETUPDUBBINGEE

S-VIDEO

INF-1

VIDEO(MONO)L -AUDIO - R

INPUT

OUTPUT

SELECT

EJECTEJECTDISPLAY

RECDVDRECHDDRECDV

DV/HDD/DVD RECMODE INSTANTREPLAY AUDIODUB. INSERT

RECPAUS EPLAY

FFREWSTOP

DVI N/ OUT

NTSC

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.

Model No.

Serial No.

LPT1138-001A

2 EN

SAFETY FIRST

Dear Customer,

Thank you for purchasing the JVC Mini DV & HDD & DVD video recorder. Before use, please read the safety information and precautions to ensure safe use of your new unit.

Cautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT REPRODUCTION OF LABELS

WARNING LABEL INSIDE OF THE UNIT

This unit apply to the standard AIEC60825-1:2001B for laser products.

RISQUE DE CHOC ELECTRIQUE

AVIS

- NE PAS OUVRIR.

KLASS 1M LASERSTRÅLNING NÅR DEN Ä R ÖPPEN. TITTA INTE DIREKT PÅ DEN MED OPTISKA INSTRUMENT.

(SW)

LP41334-001A

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This unit should be used with AC 120VH, 60Hz only. To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION:

Changes or modifications not approved by JVC could void user’s authority to operate the equipment.

Declaration of Conformity

Model Number: SR-DVM600U Trade Name: JVC Responsible Party: JVC Americas Corp. Address: 1700 Valley Road Wayne, N.J. 07470 Telephone Number: 973-317-5000 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

INSTALLATION

1. Grounding or Polarization

(A)Your product may be equipped with a polarized alternating-

current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B)Your product may be equipped with a 3-wire grounding-type

plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

● Do not block the openings by placing the product on a bed, sofa,

rug or other similar surface.

● Do not place the product in a built-in installation such as a

bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

SAFETY FIRST

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EN 3

4 EN

SAFETY FIRST

USE

1. Accessories

To avoid personal injury:

● Do not place this product on an unstable cart, stand, tripod,

bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

● Use only with a cart, stand, tripod, bracket, or table

recommended by the manufacturer or sold with the product.

● Use a mounting accessory recommended by the manufacturer

and follow the manufacturer’s instructions for any mounting of the product.

● Do not try to roll a cart with small casters across thresholds or

deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water^for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to

qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper

adjustment of other controls may result in damage and will often

require extensive work by a qualified technician to restore the

product to its normal operation. e. If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in

performance^this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service

technician has used replacement parts specified by the

manufacturer or which have the same characteristics as the

original part. Unauthorized substitutions may result in fire,

electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask

the service technician to perform safety checks to determine

that the product is in safe operating condition.

HOW TO USE THIS INSTRUCTION MANUAL

● All major sections and subsections are listed in the Table Of

Contents on page 6. Use this when searching for information on a specific procedure or feature.

● The Index on pages 12 - 15 illustrates the controls and

connections on the front and rear panel, the front display panel and the remote control.

● The list of terms on page 71 lists frequently-used terms, and the

number of the page on which they are used or explained in the manual.

● The A mark signals a reference to another page for instructions

or related information.

● Operation buttons necessary for the various procedures are

clearly indicated through the use of illustrations at the beginning of each major section.

BEFORE YOU INSTALL YOUR NEW UNIT . . .

. . . please read the sections/literature listed below.

● ACautionsB on page 2

● AIMPORTANT PRODUCT SAFETY INSTRUCTIONSB on

pages 3 - 4

NTSC

● Manufactured under license from Dolby Laboratories. ADolbyB

and the double-D symbol are trademarks of Dolby Laboratories.

● ADTSB and ADTS DIGITAL OUTB are trademarks of Digital

Theater Systems, Inc.

● This unit can play back and record only NTSC signals. PAL

signals can also be played back on the DVD deck.

● This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or disc/cassette.

1. DO NOT

place the unit ^

^ in an environment prone to extreme temperatures or

humidity.

^ in direct sunlight. ^ in a dusty environment. ^ in an environment where strong magnetic fields are

generated.

^ on a surface that is unstable or subject to vibration.

2. DO NOT

block the unit’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT

4. DO NOT

place heavy objects on the unit or remote control. place anything which might spill on top of the unit

or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT

6. DO NOT

expose the apparatus to dripping or splashing. use this equipment in a bathroom or places with

water. Also DO NOT place any containers filled with water or

liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT

place any naked flame sources, such as lighted

candles, on the apparatus.

8. AVOID

violent shocks to the unit during transport.

SAFETY FIRST

EN 5

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions^just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit’s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.

DISCLAIMER OF LIABILITY

JVC shall not be liable for any loss relating to the unit’s failure to properly record, store or playback any content (video, audio or otherwise) for any reason whatsoever. Any applicable warranties shall only cover replacement or repair of the effected unit, and shall not apply to recovery or replacement of lost content.

ATTENTION:

8 Using a mobile phone in the vicinity of the unit may cause

picture vibration on the TV screen or change the screen to a black back display.

8 Some TVs or other appliances generate strong magnetic

fields. Do not place such appliances on top of the unit as it may cause picture disturbance.

8 When moving the product, press A to turn off the power,

and wait at least 30 seconds before unplugging the power cord. Then, wait at least 2 minutes before moving the product.

8 If there is a power outage when using the unit, the recorded

data may be erased.

8 It is recommended to back up discs which contain important

recordings periodically (every few years). As digital signals do not deteriorate, failure to play back or record might arise due to the effects of the disc aging through the years depending on the storage environment.

8 Recorded programs and data cannot be restored once the

disc or tape is damaged.

6 EN

SAFETY FIRST 2

DISC INFORMATION 7

About Discs....................................................................................7

Life Span Of Parts........................................................................11

INDEX 12

INSTALLING YOUR NEW UNIT 18

Basic Connections .......................................................................18

INITIAL SETTINGS 19

Clock Set......................................................................................19

Language .....................................................................................20

Monitor Set...................................................................................21

BASIC OPERATIONS ON DVD DECK 22

Basic Playback.............................................................................22

Playback Features .......................................................................23

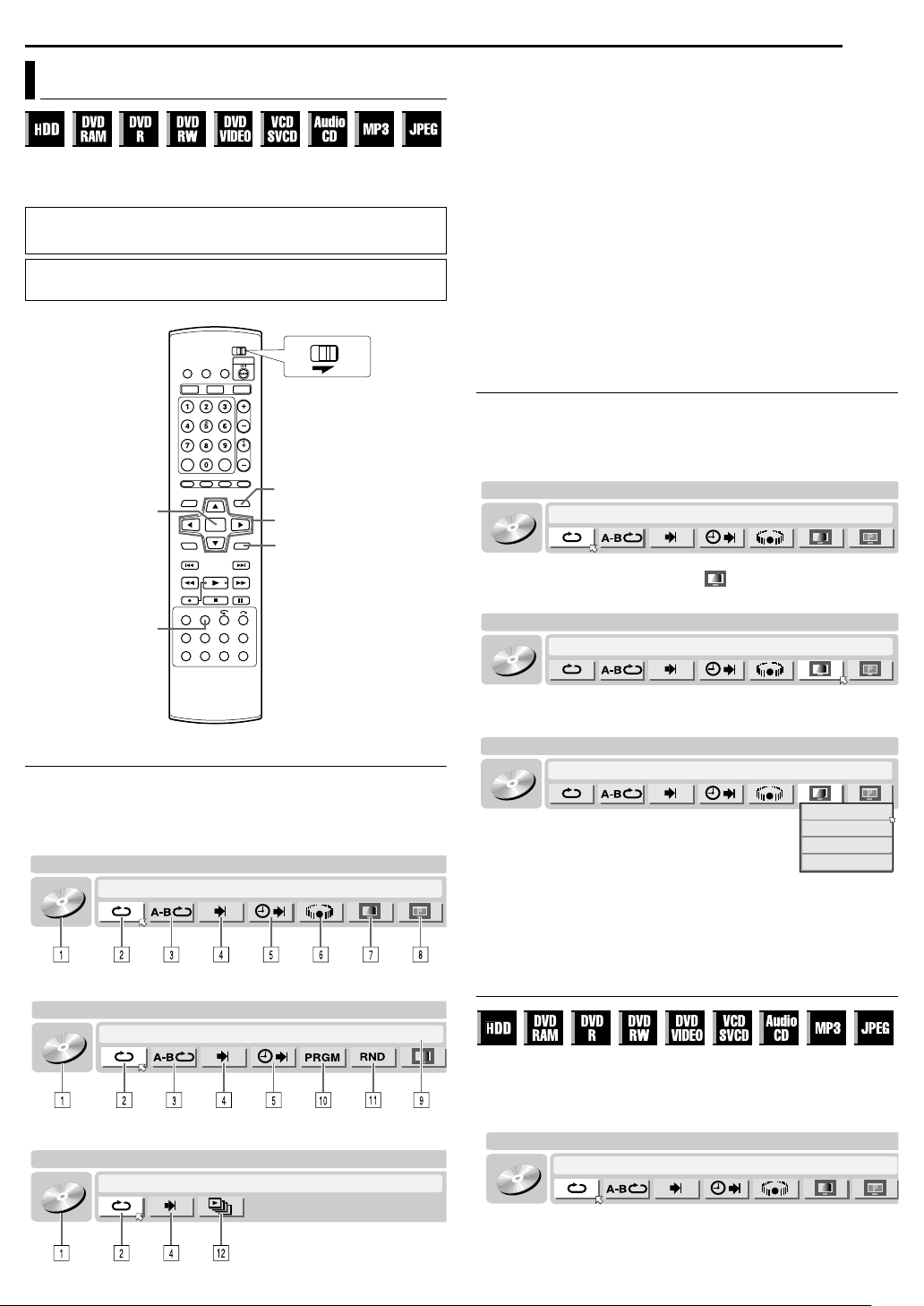

Using The On-screen Bar ............................................................27

BASIC OPERATIONS ON HDD DECK 31

Basic Playback.............................................................................31

Playback Features .......................................................................31

BASIC OPERATIONS ON DV DECK 33

Basic Playback.............................................................................33

Playback Features .......................................................................34

LIVE MEMORY PLAYBACK ON HDD/DVD DECK 35

Live Memory Playback.................................................................35

NAVIGATION ON HDD/DVD DECK 38

Library Database Navigation........................................................38

Edit Original Information...............................................................39

Edit Play List Information .............................................................41

Navigate Library Information........................................................43

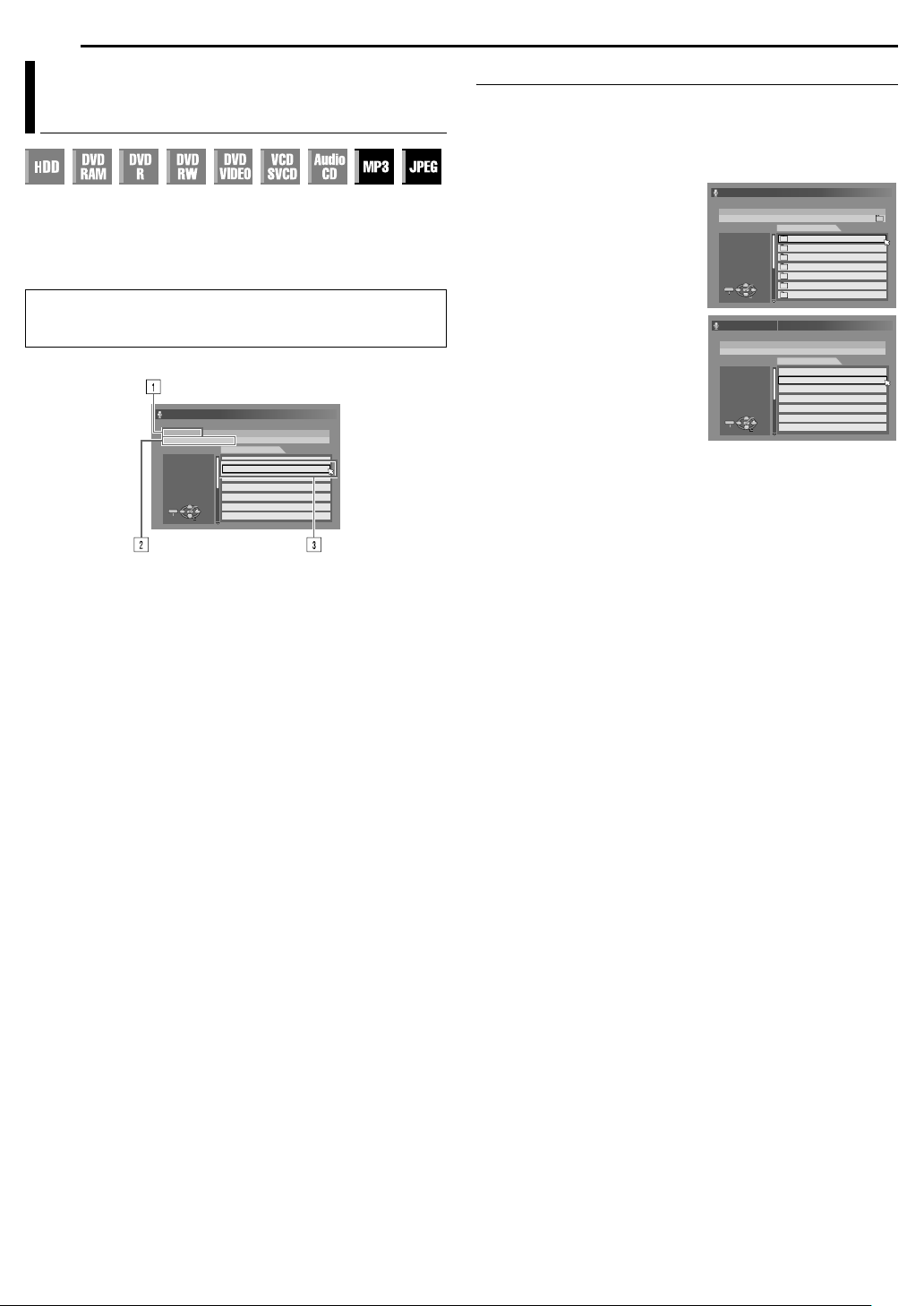

Playback With MP3/WMA/JPEG Navigation................................44

EDITING 45

Dubbing .......................................................................................45

DV Dubbing (HDD & DVD Deck Only) ........................................ 49

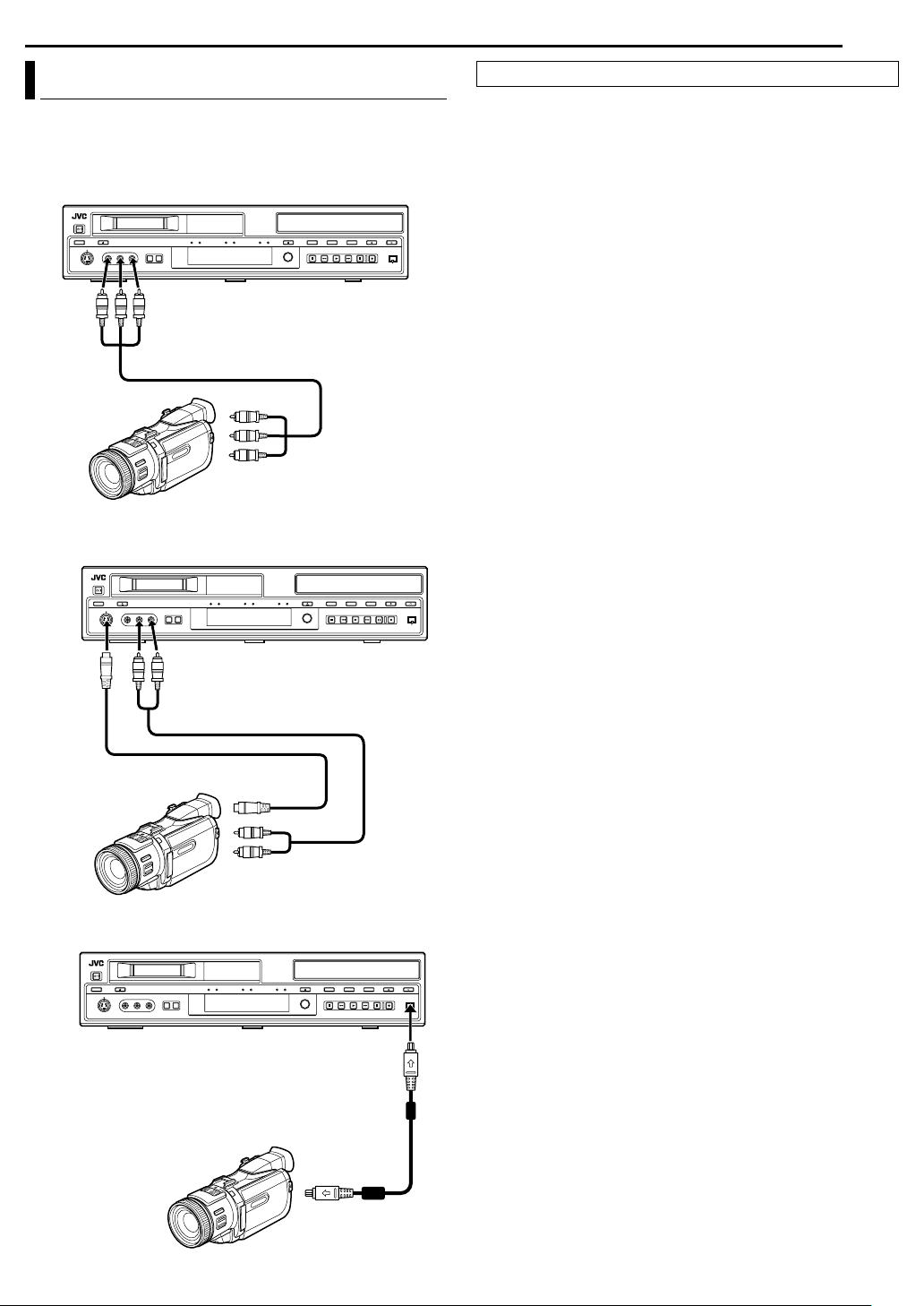

Edit From A Camcorder............................................................... 51

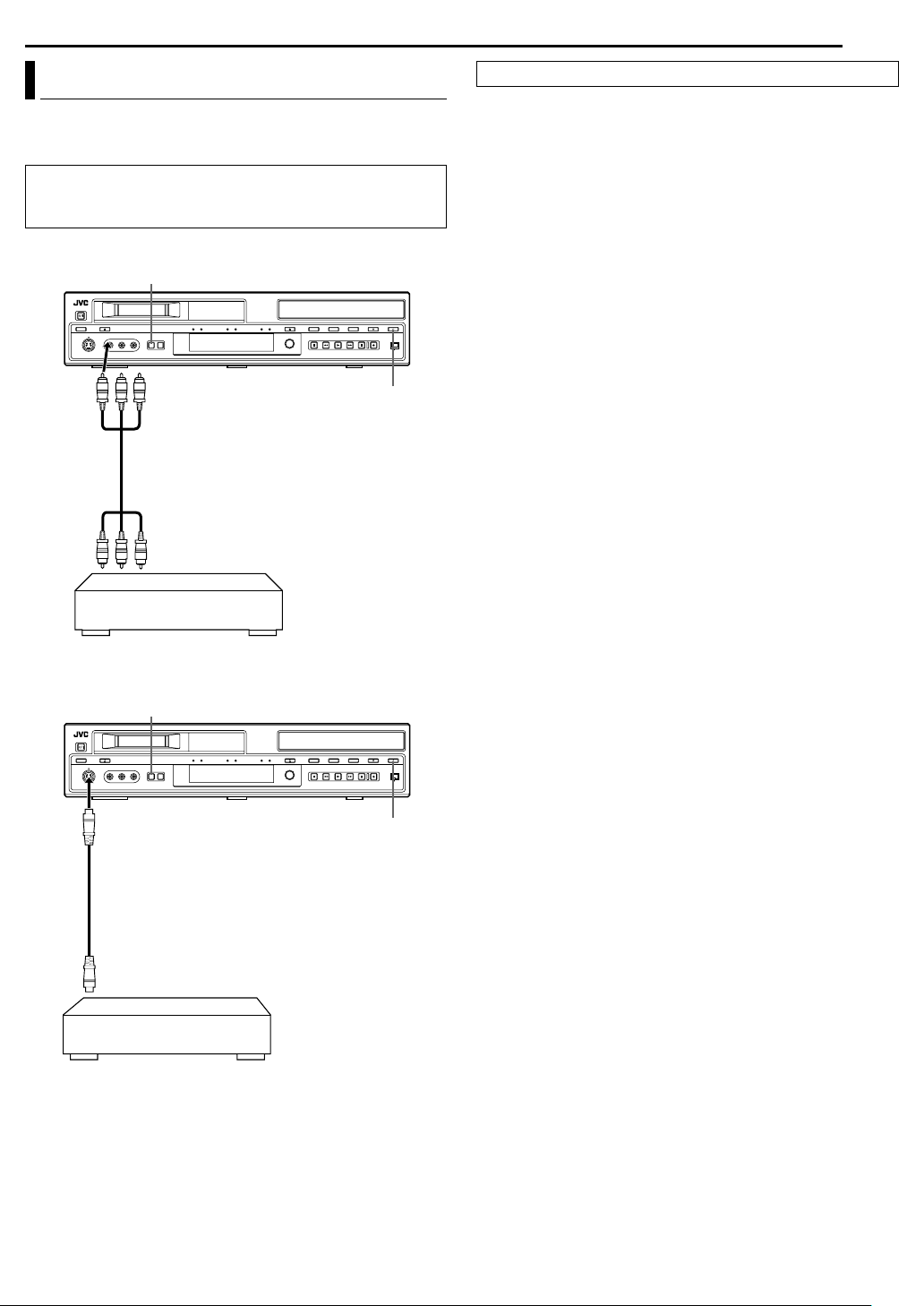

Edit To Or From Another Recorder ............................................. 52

Digital Audio Dubbing .................................................................. 53

Audio Dubbing (DV Deck Only) ................................................... 54

Insert Editing (DV Deck Only)...................................................... 55

REMOTE CONTROL 56

Remote Control Functions........................................................... 56

SYSTEM CONNECTIONS 57

Connecting To A Dolby Digital Decoder Or

An Amplifier With Built-in DTS .................................................. 57

SUBSIDIARY SETTINGS 58

Mode Set .....................................................................................58

Format A Disc (DVD Deck Only) .................................................61

Finalize A Disc (DVD Deck Only) ................................................62

Setting The Background .............................................................. 64

Scan Mode Set (HDD & DVD Deck Only) ...................................65

Tray Lock (DVD Deck Only) ........................................................ 65

Mode Lock ................................................................................... 65

Last Function Memory ................................................................. 65

TROUBLESHOOTING 66

APPENDIX 69

SPECIFICATIONS 70

LIST OF TERMS 71

About Discs

Recordable/Playable Discs

You can use discs with the following logos for recording and playback.

DVD-RAM

12 cm: 4.7 GB/9.4 GB 8 cm: 1.4 GB/2.8 GB Ver. 2.0/2x speed Ver. 2.1/1x – 3x speed

DVD-R

12 cm: 4.7 GB 8 cm: 1.4 GB Ver. 2.0/1x – 4x/8x speed (Video mode/VR mode) Ver. 2.1/16x speed (Video mode/VR mode)

● The above table is based on the information as of August 2006.

● Recording and playback may not be performed depending on the

characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM standard Version 2.0 or 2.1.

● It is impossible to record on DVD-RAM discs which do not

conform to this standard. If you use a disc formatted under a different standard version, format it on this unit before use.

● It may not be possible to record, play back, edit or dub a

DVD-RAM disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.

● DVD-RAM discs recorded on this unit cannot be played back on

an incompatible DVD player.

● It is possible to record copy-once programs of digital broadcasts

only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not compatible).

DVD-RW

12 cm: 4.7 GB/9.4 GB Ver. 1.1/1x – 2x speed (Video mode/VR mode) Ver. 1.2/4x speed (Video mode/VR mode)

DISC INFORMATION

EN 7

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0. When a DVD-R/RW disc (Video mode) is finalized (A pg. 62), it can be played back on a standard DVD player as a DVD VIDEO disc. When a DVD-R/RW disc (VR mode) is finalized (A pg. 62), it can be played back on a standard DVD player compatible with the VR mode of DVD-R/RW discs.

Before finalizing ^ ^ it is possible to record on unrecorded areas of the disc, edit the

disc title and program titles, and delete programs.

● It is impossible to record or edit DVD-R/RW discs recorded on

other devices even if they have not been finalized.

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

program is deleted from a DVD-R disc.

After finalizing ^

After a DVD-R/RW disc (Video mode) has been finalized, it is possible to play back the recorded programs (video and/or audio) on a standard DVD video player as a DVDVIDEO disc.

● Edited titles are displayed as the

ADVD menu B in video mode.

● It is impossible to record, edit or

delete the data either in video mode or in VR mode.

● Either in video mode or in VR

mode, although the disc can be

HOME MOVIES DOCUMENTARIES

MTV CARTOON

TRAVELLINGCLIPS

played back on DVD players from other manufacturers, sometimes it may not be possible to play back depending on the disc and recording conditions.

● It is impossible to record on CD-R/RW or DVD-R discs used for

authoring.

● It is impossible to record onto DVD-R/RW (Video mode) discs

broadcasts that allow you to copy once. The copy once programs can only be recorded onto DVD-R/RW discs formatted in VR mode.

NOTES:

● The following may result if you play back a DVD-R disc recorded

on another unit.

● The disc does not play.

● A mosaic pattern (block noise) appears on the screen.

● Video or audio may be dropped out.

● The unit stops during playback.

● 6x speed DVD-RW disc cannot be used on this unit.

8 EN

DISC INFORMATION

Discs For Playback Only

You can use discs with the following logos for playback only.

DVD VIDEO Video CD/Super Video CD

(example of region code indications)

Audio CD

CD-DA files

CD-RW

CD-DA/JPEG/ MP3/WMA files

● Playback may not be performed depending on the characteristics

and condition of the disc used.

● DTS Audio CDs can also be played back (An optional DTS

decoder is required).

● MP3 and JPEG discs can be played back on this unit only when

they have been recorded in the ISO9660 or Joliet format and finalized.

● JPEG files that can be played back on this unit must conform to

JFIF/Baseline process, and the maximum resolution of a JPEG file is 2,812 pixels in width and 2,112 pixels in height.

● CD-R/RW discs recorded in music CD format need to be finalized

to play back on this unit.

● Operation and audio quality of this unit are not guaranteed for

discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

● Depending on the intentions of the author of the software,

recording conditions of DVD discs and Video CD/SVCD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.

● When switching from the first layer to the second layer of double-

layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.

● DVD-AUDIO discs compatible with DVD video players can be

played.

● Super Audio CDs (SACD) compatible with conventional CD

players can be played.

● +R/+RW discs recorded and finalized in Video mode can be

played. ADVDB will light on the front display panel.

CD-R

CD-DA/JPEG/ MP3/WMA files

CD-ROM

JPEG/MP3/ WMA files

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

● CD-ROM discs (including PHOTO-CD and CD-G)

● Discs recorded in Packet Write (UDF) format

● 1.3-GB double density CDs (DDCD)

● High density CDs (HDCD)

The following discs also cannot be played back.

● Discs of a region number other than A1B

● DVD-RAM (2.6 GB/5.2 GB)

● DVD-RAM (TYPE1)

Caution for DualDisc playback

The Non-DVD side of a ADualDiscB does not comply with the ACompact Disc Digital AudioB standard. Therefore, the use of Non-

DVD side of a DualDisc on this product may not be recommended.

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is A1B. Only discs whose region number includes A1B or AALLB can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

Marks of discs in this instruction manual

Allows operation with a DVD-RAM disc.

Allows operation with a DVD-R disc.

Allows operation with a DVD-RW disc.

Allows operation with a DVDVIDEO disc.

Allows operation with a Video CD/Super Video CD (SVCD) disc.

Allows operation with an Audio CD disc.

Allows operation with a disc including MP3 files.

Allows operation with a disc including JPEG files.

Recording Medium And Format

DVD-RAM

● Recording and erasing can be performed as many times as

possible on a disc.

● Editing can be performed after recording, such as deleting

unwanted parts.

● While recording, it is possible not only to start playback of a

program currently being recorded, but also to watch another program previously recorded.

DVD-RW (VR mode)

● Recording and erasing can be performed as many times as

possible on a disc.

● Editing can be performed after recording, such as deleting

unwanted parts.

● Recording of copy once programs are possible using a CPRM

compatible disc.

DVD-RW (Video mode)

● Can be played back on other DVD players.

● New recording can be performed by erasing all the data on a disc

once played back.

DVD-R (VR mode)

● Editing can be performed after recording, such as deleting

unwanted parts.

● Recording of copy once programs are possible using a CPRM

compatible disc.

DVD-R (Video mode)

● Can be played back on other DVD players.

● Suitable when keeping a recorded disc for a long time.

File Structure Of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called AtitlesB. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called AchaptersB. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

When you record a program on a DVD-RAM/R/RW (VR mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (A pg. 25)

When you record a program on a DVD-R/RW (Video mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during either recording or playback. Once the disc has been finalized, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.

DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc

Title 1 Title 2

Chapter 1 Chapter 2

● In Video mode, even before finalizing, it is impossible to perform

Chapter 3

editing operations other than changing the disc name and/or title names and deleting programs and/or titles.

● After finalizing, it is impossible to perform editing operations.

Chapter 1

Chapter 2

Chapter 3

DISC INFORMATION

EN 9

Audio CD/Video CD/SVCD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD/ SVCD discs. However, some discs are not divided into tracks.

Audio CD or Video CD/SVCD

Track 1 Track 2 Track 3 Track 4

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (A pg. 44)

File structure of a disc before starting the MP3/JPEG Navigation

Directory MP3 file JPEG file

File structure of the disc after starting the MP3/JPEG Navigation

Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.

● This unit can recognize up to 9 hierarchies including directories

and files. Also, it can recognize up to 250 files in each group, and up to 99 groups on a disc.

NOTES:

● Video CD/SVCD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and played back according to the instructions on the screen while navigating through the hierarchies. It is also possible to playback recorded tracks consecutively without activating the PBC function even when playing a PBC-compatible disc. (A pg. 26)

● Regarding the contents recorded on discs

Some files may not be played back depending on the file types and other factors.

10 EN

DISC INFORMATION

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

Number of subtitles Number of angles

Recorded under the standard 4:3 aspect ratio

Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.

Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).

Marks related to audio

Number of audio tracks

Dolby Digital Stereo Creator mark Developed by Dolby Laboratories. It enables audio recording in high-quality stereo Dolby Digital.

DTS (Digital Theater Systems) You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL OUT connector of the unit.

Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)

Placing A Disc

Opening the disc tray

Press M to open the disc tray.

EJECT DV/HDD/DVD REC MODE INSTANTREPLAY AUDIODUB. INSERT

RECDVD

● Pressing the button again closes the disc tray.

● Use the button to open and close the disc tray.

● Do not block the disc tray with your hand while it is opening or

closing as this may result in hardware failure.

● Do not place unplayable discs or any object other than a disc on

the disc tray.

● Do not press down strongly on the disc tray or place any heavy

objects on it.

Discs without cartridges

R D V D

R ME I

A L P

O T S

W E R

S S O

P C /

N E

C E R

N I

MA E R

OW L S

<> <

D O M

C E R

Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.

DVD-RAM discs contained in cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with ASide AB facing down, programs are recorded on the side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.

G N I B B

U D

R C V

E P

L L U

D K N I

C E R

C F F

D V

Disc tray

RECPAUSEPLAY FFREWSTOP

DVIN/ OUT

D V

N I

DISC INFORMATION

EN 11

Care And Handling Of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesives on its surface.

Recording side

Make sure that discs are not scratched or dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirty when removed from cartridge then put back in after use.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

Life Span Of Parts

Cooling fan

Periodical inspection and maintenance are requisite to maintain the initial performance and reliability of the product. We recommend the exchange of the fan motor every three years.

HDD

The HDD is a consumable part. Please arrange for maintenance after an estimated usage of 10,000 hours (this estimation is based on usage under the environment of 25f, it may differ depending on the usage environment). Please consult your authorized dealer or nearest JVC service center on the maintenance and cost.

CAUTION:

Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

12 EN

INDEX

Front View

STANDBY/ON

S-VIDEO

VIDEO (MONO)L - AUDIO - R

IN F-1

INPUT

SELECT

OUTPUT SELECT

HGI

EJECTEJECTDISPLAY

RECDVDRECHDDRECDV

DV/HDD/DVD REC MODE INSTANT REPLAY AUDIODUB. INSERT

LMBA

RECPAU SEPLAY

FFREWSTOP

DV IN/ OUT

A STANDBY/ON Button (A) B Eject Button (M) (DV) A pg. 33 C Mini DV Cassette Loading Slot D DV Lamp (DV) A pg. 33

DV Recording Lamp (REC)

E HDD Lamp (HDD) A pg. 20

HDD Recording Lamp (REC)

F DVD Lamp (DVD) A pg. 20, 22

DVD Recording Lamp (REC)

G Eject Button (M) (DVD) A pg. 10 H DV/HDD/DVD Select Button (DV/HDD/DVD) A pg. 22, 31, 33

● This button will not function during navigation mode or set up

mode.

I Recording Mode Button (REC MODE) A pg. 49 J Instant Replay Button (INSTANT REPLAY) A pg. 24, 32, 34 K Disc Tray L Audio Dubbing Button (AUDIO DUB.) A pg. 54 M Insert Button (INSERT) A pg. 55 N Display Button (DISPLAY) A pg. 25 O S-video Input Connector [S-VIDEO] A pg. 51 P Video/Audio Input Connectors

[VIDEO/AUDIO ((MONO) L/R)] A pg. 51

Q Input Select Button (INPUT SELECT) A pg. 49, 51

R Output Select Button (OUTPUT SELECT)

● Switches between AALLB (DV/HDD/DVD output) and ADVB (DV

output) when pressed. When AALLB is selected, DV, HDD or DVD signals are output from the [DV/HDD/DVD OUTPUT] connectors on the rear panel depending on the deck selected. When ADVB is selected, DV signals are output regardless of the deck selected.

ATTENTION:

If ADVB is selected, ADVB and AOUTPUT DVB blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.

S Front Display Panel A pg. 14 T Infrared Beam Receiving Window U Stop Button (o) A pg. 22, 31 V Reverse Search Button (O) (HDD & DVD deck) A pg. 23,

36 Rewind Button (O) (DV deck) A pg. 33, 34

W Play Button (I) A pg. 22, 31 X Forward Search Button (N) (HDD & DVD deck) A pg. 23,

36 Fast Forward Button (N) (DV deck) A pg. 33, 34

Y Pause Button (W) A pg. 22, 31 Z Record Button (R) a DV Input/Output Connector [DV IN/OUT(A*)] A pg. 49

● This connector can also be used as a direct connection to NLE

(Non-Linear Editing) systems or to a PC for downloading, editing and archiving.

● [DV OUT] is available for DV deck only.

* A (i.Link) refers to the IEEE1394-1995 industry specification and

extensions thereof. The i.Link standard.

A logo is used for products compliant with the

Rear View

INDEX

EN 13

BCA

A AC Power Cord A pg. 18 B Cooling Fan

● This prevents the temperature from rising inside the unit.

Do not remove it.

● Install the unit so as not to block the area around the fan.

● The unit may become hot when it is turned off, as the cooling

fan on the rear of the unit is not activated. However, the cooling fan may be activated in the standby mode when AQUICK STARTUPB is set to AONB.

C Component Video Output Connectors [COMPONENT

VIDEO OUT (Y/P

B/PR

)] (HDD & DVD deck only) A pg. 18

D FE

HDD/DVD

OUTPUT

S-VIDEO

COMPONENT

VIDEO OUT

HDD/DVD

DIGITAL AUDIO OUT

PCM/STREAM

COAXIAL

OPTICAL

DV/HDD/DVD

OUTPUT

VIDEO

AUDIO

D S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (HDD & DVD

deck only)

● These connectors only output DVD/HDD signals and can be

used to connect to a second monitor.

E S-VIDEO/VIDEO/AUDIO INPUT Connectors (L-1) A pg. 52 F S-VIDEO/VIDEO/AUDIO OUTPUT Connectors A pg. 18 G Digital Audio Output Connectors

[DIGITAL AUDIO OUTPUT (OPTICAL/COAXIAL)] (HDD & DVD deck only) A pg. 53, 57

H BNC Video Output Connector [VIDEO OUTPUT] A pg. 18 I Remote Input Connector* [REMOTE IN]

* There is currently no compatible remote control unit available.

INPUT L-1

S-VIDEO

VIDEO

AUDIO

OUTPUT

DV/HDD/DVD

S-VIDEO

VIDEO

AUDIO

REMOTE IN

14 EN

INDEX

Front Display Panel

AB ED

CGFH

LPCM FR XP SP LP EP

RW VCD

RAM

A Disc Type Indicator

When a disc is loaded, the type of the disc is indicated.

Disc Status Indicator

When a disc is running, the disc marks rotate.

VR Mode Indicator (VR) A pg. 61

Lights when a DVD-R/RW disc is formatted in VR mode.

B Linear PCM Indicator (LPCM)

Lights when AXP MODE REC AUDIOB is set to ALINEAR PCMB (A pg. 59) for recording with HDD, DVD-RAM, DVD-R and DVD-RW discs, and when Linear PCM audio is played.

C Cassette Loaded Mark (u)

Indicates the present of a cassette in the DV deck. Lights when a cassette is loaded into the DV deck. It will remain lit as long as the cassette is loaded, even if the HDD or DVD deck is being selected.

D Recording Mode Indicator (XP/SP/LP/EP/FR) A pg. 50

Blinks when recording mode is being set. While AFRB is blinking, the left 3 digits of the Multi Display (L N) indicate setting values ranging from A60B to A480B. After the value has been set, only AFRB lights.

E Group/Title Indicator (GRP/TITLE)

AGRPB or ATITLEB lights depending on a disc loaded while the left 2 digits of the Multi Display (L) indicate the numbers explained below.

AGRPB: Total number of groups or group number being played

ATITLEB: Total number of titles or title number being played

F External Input Indicator

Indicates the external input selected.

G Track/Chapter Indicator (TRK/CHAP)

ATRKB or ACHAPB lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (N) indicate the numbers explained below.

ATRKB: Total number of tracks or track number being played

ACHAPB: Chapter number being played back are displayed on

H Simulated Surround Effect Indicator (3D) A pg. 29

Lights when a simulated surround effect is set to A3D-ONB on the on-screen bar.

back are displayed on the Multi Display.

the Multi Display.

I Random/Program Playback Mode Indicator (RND/PRGM)

A pg. 30

ARNDB: Lights when Random Playback mode is set. APRGMB: Lights when Program Playback mode is set.

J Repeat Mode Indicator (x/1/A-B) A pg. 27

Select Repeat Playback mode on the on-screen bar.

AxB: Whole disc is played back repeatedly. Ax1B: A single title/chapter/track is played back

AxA-BB: The selected part (A-B) is played back repeatedly.

No display: Repeat Playback mode is off.

K Video Output Indicator (q) A pg. 65

No display: Indicates that interlace mode is engaged. q: Indicates that progressive mode is engaged. (Example) q lights when video output mode is in progressive

L Group/Title Number Display M Audio Dubbing/Insert Editing Indicator

AADUBB or AINSB lights up during Audio Dubbing or Insert Editing respectively.

N Track/Chapter Number Display O Remaining Time/Elapsed Time Indicator A pg. 25

Lights when remaining time of HDD, DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed. The right 6 digits of the Multi Display (P) indicate elapsed or remaining time of each track. No display: Indicates elapsed time of the disc. Displayed: Indicates remaining time of the disc.

P Remaining Time/Elapsed Time Display A pg. 25

Time Code Display A pg. 34

Q Multi Display

Displays clock, received channel, elapsed time, and remaining time. Also displays status of the unit (NO DISC/OPEN/CLOSE/ READING).

repeatedly.

mode.

Remote Control

A B

C D

G H

I J

N O

P Q

R S

DV HDD DVD

CANCEL

DISPLAY

REC MODE/

REMAIN

SELECT

ENTER

STOP/CLEAR

ON SCREEN

AUDIO

VIDEO

MEMO/MARK

EDIT

SUBTITLE

PROGRESSIVE

SCAN

OUTPUT

STANDBY/ON

INPUT SELECT

NAVIGATIONTOP MENU

RETURN

SLOWSLOW PLAY

PAU S EREC

DVDTV

PR/CH

PROG

ANGLE/

EE CHECK

SET UPDUBBINGEE

U V

W X

a b c d

e f

h i

j k

l m

n o

p q

INDEX

EN 15

J Selection Keys (FGD E) A pg. 19 K Menu Button (MENU) A pg. 23 L Reverse Skip Button (S) A pg. 23, 32, 36

Previous Button (PREVIOUS) A pg. 26

M Reverse Search Button (O) (HDD & DVD deck) A pg. 23,

36 Rewind Button (O) (DV deck) A pg. 33 Reverse Slow Button (SLOW –) A pg. 23

N Record Button (R) O Display Button (DISPLAY) A pg. 25, 34 P On-Screen Button (ON SCREEN) A pg. 16, 27 Q Recording Mode Button (REC MODE) A pg. 49

Remain Button (REMAIN) A pg. 25

R Audio Button (AUDIO) A pg. 26 S EE Button A pg. 36 T Dubbing Button (DUBBING) A pg. 45 U TV/DVD switch A pg. 20, 56 V STANDBY/ON Button (A) W TV/VIDEO Button A pg. 56 X DVD Button* A pg. 22

* This button will not function during navigation mode or set up mode.

Y TV Volume Buttons (TV8 +/–) A pg. 56 Z TV Program Buttons (PR/CH +/–) A pg. 56

Input Select Button (INPUT SELECT +/–) A pg. 49, 51

a Memo Button (MEMO) A pg. 39, 42

Mark Button (MARK) A pg. 25

b Programming Button (PROG): Not use on this unit. c Edit Button (EDIT) A pg. 39 d Navigation Button (NAVIGATION) A pg. 38, 44 e Enter Button (ENTER) A pg. 20 f Return Button (RETURN) A pg. 26, 28 g Forward Skip Button (T) A pg. 23, 36

Next Button (NEXT) A pg. 26

h Forward Search Button (N) (HDD & DVD deck) A pg. 23,

36 Fast Forward Button (N) (DV deck) A pg. 33 Forward Slow Button (SLOW +) A pg. 23

i Play Button (I) A pg. 22, 31 j Pause Button (W) A pg. 22, 31 k Stop Button (o) A pg. 22, 31

Clear Button (CLEAR) A pg. 30

l Skip Search Button (v) A pg. 24, 31, 34, 36 m Instant Replay Button (w) A pg. 24, 32, 34, 36, 37 n Angle Button (ANGLE) (DVD deck only) A pg. 25

EE Check Button (EE CHECK) A pg. 36

o Set Up Button (SET UP) A pg. 20, 58 p Subtitle Button (SUBTITLE) A pg. 26 q Progressive Scan Button (PROGRESSIVE SCAN) A pg. 65

A Output Select Button (OUTPUT SELECT)

● Switches between AALLB (DV/HDD/DVD output) and ADVB (DV

ATTENTION:

If ADVB is selected, ADV B and AOUTPUT DVB blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.

B TV Muting Button (TV d) A pg. 56 C DV Button* A pg. 33

* This button will not function during navigation mode or set up mode.

D HDD Button* A pg. 31

* This button will not function during navigation mode or set up mode.

E Number Keys A pg. 56 F Cancel Button (CANCEL) A pg. 30 G F1 Button A pg. 65 H F2 Button A pg. 62, 63 I Top Menu Button (TOP MENU) A pg. 23

How To Use

Before use, insert two AA size batteries into the remote control with the polarity (F and G) matched correctly as indicated on the battery compartment or on the lid.

The remote control can operate most of your unit’s functions, as well as basic functions of TV sets of JVC and other brands. (A pg. 56)

● Point the remote control toward the receiving window.

● The maximum operating distance of the remote control is

about 8 m.

NOTE:

If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

16 EN

INDEX

On-Screen Display (HDD & DVD deck)

When ASUPERIMPOSEB is set to AONB or AAUTOB and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN twice.

When playing back a recorded title HDD

0:00 1:00 2:00

FISHING WORLD

01:16:48

FR360

Digital

L–R

When pressing REC MODE

(Appears for eight seconds.)

7: 00 XP 10: 00 SP 20: 00 LP 28: 00

36: 00

FR480

A Remaining disc time for each recording speed B Recording speed

When using Live Memory playback HDD

A Title start B Current playback point C Title end D Elapsed playing time E Play mode F Name of title currently being played back G Time scale (This title is an hour and a half long.) H Audio mode

DVD

TITLE99 CHAPTER999 REMAIN6:59:59T.

FISHING WORLD

Digital

L–R

A Playback title number B Playback chapter number C Disc remaining time D Current status (playback) E Audio mode F Bar meter G Name of title (or play list) currently being played back H Current playback point I Recorded mode*

* Depending on the recording condition, the recorded mode may not

always be displayed.

When recording HDD

11:00 12:00 13:00

FR360

11:35AM

11:33AM

DVD

TITLE99 CHAPTER999 REMAIN6:59:59T.

RAM

FR360

11:35AM

11:33AM

A Time scale for recording (HDD deck)

Bar meter for recording (DVD deck)

B Current recording point C Recording mode D Current time E Current playback channel position number F Time scale for Live Memory Playback (HDD deck)

Bar meter for Live Memory Playback (DVD deck)

G Current playback point H Live Memory playback mode I Current playback time

PR.12

11:00 12:00 13:00

FR360

DVD

TITLE99 CHAPTER999 T. REMAIN6:59:59

RAM

FR360

A Recording point B Current status (recording) C Current time D Recording channel number

11:35AM

PR.12

LIVE

PR.12

LIVE

INDEX

EN 17

On-Screen Display (DV Dubbing)

When capturing images from the external DV equipment

0:00 1:00 2:00

HDD

00: 00 : 00. 00

FR360

12bit

JVC

GR-DV3500DV

A Recording speed B HDD capacity graph C HDD time counter D Recording time scale E HDD mode F Remote control mode G Connected DV equipment mode H Connected DV equipment model information I Input channel J Sound mode K Sound input bit-rate*

* Indicates the sound bit-rate of the connected DV equipment

L Connected DV equipment information*

* Maker name and model name, etc. may not appear depending on the

connected equipment.

M Time counter for the connected DV equipment N Sound monitor mode

DV DV

O Remote control switch P Auto capture button Q Sound monitor switch

GR-DV3500

00:00:00.00

SOUND1

1 2

L–R

On-Screen Display (DV deck)

G F

SE CL EANI NG CASSE TTE

R000:00:00:

61BIT

A Operation Mode Indicators B Tape Speed (SP/LP) C Sound Mode Display A pg. 60 D Current Month/Day/Year/Clock Display/Time Code Display

A pg. 34

E Audio Mode Display A pg. 34 F Warning Message G Auxiliary Input Indicator (L-1, F-1 or DV) H ACassette LoadedB Mark

A B

R Elapsed recording time

179 : 59 : 59

18 EN

INSTALLING YOUR NEW UNIT

Basic Connections

Another Recorder

Audio/Video

cable

(not supplied)

AC outlet

AC power cord

Back of unit

[COMPONENT

VIDEO OUT

B/PR

(Y/P

Component video

(not supplied)

S-video cable (not supplied)

To [S-VIDEO

INPUT]

To [AUDIO/VIDEO INPUT]

)]

cable

[VIDEO

OUTPUT]

BNC video

cable

(not supplied)

Audio/Video

(not supplied)

[AUDIO/

VIDEO

OUTPUT]

Audio/Video

(supplied)

It’s essential that your unit be properly connected.

ATTENTION:

Connect the AC plug only after all connections to the TV has been completed.

● Make sure the package contains all of the accessories listed in

ASPECIFICATIONSB (A pg. 86).

● Place the unit on a stable, horizontal surface.

cable

Camcorder

S-video cable (not supplied)

To [S - VI D EO INPUT]

To [S-VIDEO OUTPUT]

S-video cable (not supplied)

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Connecting to a TV Monitor

Connect the unit to a TV depending on the TV and cables you use.

8 AV Connection To connect to a TV with AV connector ^

A Connect the [AUDIO/VIDEO OUTPUT] connectors on the rear

panel of the unit and the TV’s audio/video input connectors with the supplied Audio/Video cable.

To connect to a TV with BNC connector ^

A Connect an optional audio cable between the [AUDIO

OUTPUT] connectors on the rear panel of the unit and the TV’s audio input connectors.

B Connect an optional BNC video cable between the unit’s BNC

[VIDEO OUTPUT] connector and the TV’s BNC VIDEO input connector.

8 S-Video Connection To connect to TV’s S-VIDEO input and AUDIO input connectors ^

A Connect the unit’s [S-VIDEO OUTPUT] connector to the TV’s

S-VIDEO input connector.

B Connect the unit’s [AUDIO OUTPUT] connectors to the TV’s

AUDIO input connectors.

● If your TV is not stereo-capable, use the unit’s [AUDIO

OUTPUT] connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

8 Component Video Connection To connect to TV’s component video input connectors ^

A Connect the unit’s [COMPONENT VIDEO OUT (Y/P

B/PR

)]

connectors to the TV’s component video input connectors.

B Connect the unit’s [AUDIO OUTPUT] connectors to the TV’s

AUDIO input connectors.

● You can obtain high-quality component video pictures.

● The [COMPONENT VIDEO OUT (Y/P

B/PR

)] connectors do not

output DV signals.

● If your TV is not stereo-capable, use the unit’s [AUDIO

OUTPUT] connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

● By using the component video connection, you can view the

images in the progressive mode. For switching to the progressive mode, refer to AScan Mode Set (HDD & DVD Deck Only)B (A pg. 65).

Connecting to a DV Device

A Connect the unit’s [S-VIDEO INPUT] or [VIDEO INPUT]

connector on the front panel to the camcorder’s s-video or video output connector.

B Connect the unit’s [AUDIO INPUT] connectors on the front

panel to the camcorder’s audio output connectors.

Connecting to Another Recorder

A Connect the unit’s [S-VIDEO INPUT] or [VIDEO INPUT]

connector to another recorder’s s-video or video output connector.

B Connect the unit’s [AUDIO INPUT] connectors to another

recorder’s audio output connectors.

Plug the end of the AC power cord into an AC outlet.

● APLEASEB and AWAITB blink alternately on the front display

panel when the AC plug of the AC power cord is connected into an AC outlet. After a short while, A32**B blinks on the front display panel and starts to count down. It takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.

Clock Set

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

ENTER

Selection Keys

FGDE

INITIAL SETTINGS

EN 19

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

3 Press selection keys to select

ACLOCK SETB, then press G.

4 Press selection keys to select

ATIMEB, then press ENTER.

DVDTV

Press selection keys to set the time, then press ENTER.

● Repeat the same procedure to

set the date and year.

● When you set the time, press

DVD VIDEO SET UP

MENU BACKGROUND

TIME

DATE

YEAR

D.S.T.

SET UP

EXIT

HDD/DVD SET UP FUNCTION SET UP

CLOCK SET

ENTER

SELECT WITH @ THEN PRESS [ENTER]

SELECT

PRESS [SET UP] TO EXIT

1/1 (SUN)

2006

INITIAL SET UP

--:--

and hold FG to change the time by 30-minute intervals.

● When you set the date, press and hold FG to change the date

by 15-day intervals.

5 Press selection keys to select AD.S.T.B, then press ENTER.

Press selection keys to select the desired setting, then press ENTER.

ON:

Adjustment will be made by the built-in clock itself.

OFF:

Select when Daylight Saving Time does not apply to you.

6 Press SET UP to start the clock operation.

SET UP

Daylight Saving Time

This function enables automatic adjustment of the unit’s clock at the start and end of Daylight Saving Time.

● With D.S.T. activated, ^

^ on the second Sunday of March at 2:00 AM, the clock is

adjusted to 3:00 AM.

^ on the first Sunday of November at 2:00 AM, the clock is

adjusted to 1:00 AM.

NOTE:

For the year 2006, the Daylight Saving time will end on the last Sunday of October at 2:00 AM.

20 EN

INITIAL SETTINGS

Language

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

HDD

ENTER

DVD

Selection Keys

FGDE

SET UP

On-screen Language Set

This unit offers you the choice to view on-screen messages in 3 different languages.

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select AFUNCTION SET UPB, then

DVDTV

press G.

4 Press selection keys to select

ADISPLAY SETB, then press

5 Press selection keys to select

AON SCREEN LANGUAGEB, then press ENTER.

6 Press selection keys to select

your desired language, then press ENTER.

DVD VIDEO SET UP HDD/DVD SET UP

REC/PLAY SET UP

DISPLAY SET

SUPERIMPOSE

DIMMER (DURING POWER ON)

DIMMER (DURING POWER OFF)

QUICK STARTUP

ON SCREEN LANGUAGE

ENTER

SET UP

SELECT WITH @ THEN PRESS [ENTER]

EXIT

SELECT

PRESS [SET UP] TO EXIT

FUNCTION SET UP

VIDEO IN/OUT

AUTO

BRIGHT

ENGLISH

INITIAL SET UP

OFF

7 Press SET UP to complete the setting.

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.

● The procedure shows how to set AMENU LANGUAGEB as an

example.

1 Press DVD so that the DVD lamp lights up on the unit. 2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select ADVD VIDEO SET UPB, then

press G.

4 Press selection keys to select

ALANGUAGE SETB, then press G.

5 Press selection keys to select

AMENU LANGUAGEB, then press ENTER.

6 Press selection keys to select

your desired language, then press ENTER.

● See ALanguage Code ListB (A pg. 69).

7 Press SET UP to complete the setting.

NOTE:

When the selected language is not available on the disc, the disc’s default menu language is played back.

DVD VIDEO SET UP

HDD/DVD SET UP

LANGUAGE SET AUDIO OUTPUT

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ENTER

SET UP

EXIT

SELECT

FUNCTION SET UP

DISC PLAY SET UP

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

ENGLISH

INITIAL SET UP

Monitor Set

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

DVD

INITIAL SETTINGS

EN 21

1 Press DVD so that the DVD lamp lights up on the unit. 2 Press SET UP to access the Main Menu screen.

● You cannot set the monitor type during recording or playback.

3 Press selection keys to select AFUNCTION SET UPB, then

press G.

4 Press selection keys to select

AVIDEO IN/OUTB, then press

5 Press selection keys to select

AMONITOR TYPEB, then

DVD VIDEO SET UP

HDD/DVD SET UP FUNCTION SET UP

REC/PLAY SET UP DISPLAY SET

MONITOR TYPE

FRONT AUX F-1

REAR AUX L-1

VIDEO IN/OUT

4:3LB

VIDEO

INITIAL SET UP

press ENTER.

6 Press selection keys to select

the desired option, then press

SET UP

SELECT WITH @ THEN PRESS [ENTER]

EXIT

SELECT

PRESS [SET UP] TO EXIT

ENTER

ENTER.

7 Press SET UP to complete the setting.

*The boldface settings below indicate the settings at your purchase.

ENTER

Selection Keys

FGDE

SET UP

8 MONITOR TYPE - 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

4:3LB (Letter Box conversion):

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3PS (Pan&Scan):

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

16:9AUTO (Wide television conversion):

Select this when the aspect ratio of your TV is 16:9 (wide TV).

16:9FIX (Wide television conversion):

Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

Pan&Scan/Letter Box

In general, DVDVIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, APan&ScanB (PS) and ALetter BoxB (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

● The picture will be shown in the A4:3LBB

mode depending on the disc even if the A4:3PSB mode is selected.

Letter Box

Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

22 EN

BASIC OPERATIONS ON DVD DECK

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVD lamp

ENTER

DV/HDD/DVD

DVD

To play back an MP3/JPEG disc, see APlayback With MP3/WMA/ JPEG NavigationB (A pg. 44).

1 Load a disc.

● For details, refer to APlacing A DiscB (A pg. 10).

● Pressing I also closes the disc tray.

● Playback begins automatically if an auto-playback DVD disc is

loaded.

2 Press DV/HDD/DVD on the unit repeatedly or DVD on the

remote control so that the DVD lamp lights up on the unit.

3 Press I to start playback.

● If you load a DVD disc whose region code does not match the

unit, AREGION CODE ERRORB appears on the TV screen. For details, refer to ARegion NumberB (A pg. 8).

● With Video CD/SVCD discs with PBC control or some DVD

discs, the menu display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go

forward. Refer to APlayback Control (PBC) FunctionB (A pg. 26) or ALocating A Desired Scene Using The DVD MenuB (A pg. 23).

● The Library Database Navigation also enables you to search

DVDTV

and select the desired titles. (A pg. 39)

4 Press W to pause playback.

● To resume normal playback, press I.

5 Press o to stop playback.

● When a recordable disc is played, playback stops and AV input

(from external AV source) resumes on the TV screen.

● When a playback-only disc is played, playback stops and the

TV screen becomes all black when you press o. Pressing o again resumes the AV input (from external AV source).

● If M is pressed during playback, playback stops, then the disc

tray opens.

NOTES:

● When the Library Database Navigation screen appears, choose

a thumbnail image of the desired title on the TV screen, then press ENTER. (A pg. 39)

● It is not possible to playback the DVD disc recorded in 96 kHz on

DVD during recording or Live Memory Playback on HDD.

● It is possible to play back on the DV deck and the HDD/DVD deck

simultaneously. However, either DVD or HDD can be played at the same time.

ATTENTION:

● It takes approximately 30 seconds to read a disc depending on

the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.

● It may take a few seconds to start playback. This is not a

malfunction.

● Forward/reverse high-speed search and other operations

cannot be performed while playback is stopped.

BASIC OPERATIONS ON DVD DECK

EN 23

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DVD so that the DVD lamp lights up on the unit.

DVDTV

DVD

0-9

TOP MENU

ENTER

O/SLOW

Locating A Desired Scene Using The DVD Menu

DVDVIDEO discs may have top menu and disc menu.

Top m e n u

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MENU to access the top menu.

Disc menu

Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title. Press MENU to access the disc menu.

1 Press TOP MENU or MENU to

access the DVD menu.

2 Press selection keys to select

a desired title, then press ENTER. Playback starts.

● It may be possible to select the

desired item using the number keys depending on the menu

display.

NOTE:

When A7B appears on the TV screen in step 1, the disc does not have a top menu or disc menu.

Locating The Start Point Of The Item Or Skip The Item

Press S or T during playback.

● Pressing T locates the start point or marked points of the item

or skips the item in the forward direction, then resumes playback.

● Pressing S locates the start point or marked points of the item

or skips the item in the reverse direction, then resumes playback.

Selection Keys

FGDE

T N/SLOW + W

Example:

Current playback point

program

Scene 2

(Chapter 2)

Track 2

Reverse

: marked points if any (A pg. 25) or beginning of recording

●

Drama

Scene 3

(Chapter 3)

Track 3

Next program

Scene 4

(Chapter 4)

Track 4

Forward

Movie

Scene 5

(Chapter 5)

Tra c k 5

Variable Speed Search

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

For Audio CD

You can perform 4 levels of speed search with N and O. (Audio is active also during variable speed search.) You cannot perform slow motion for each direction.

Reverse

Reverse Search

4 steps

–60 –15 –5 –3 –1

Reverse

Play

Reverse Slow

Motion 3 steps

–1/2 –1/4

–1/16 1/16

Slow Motion

3 steps

1/4 1/2 1 3 5 15 60

Normal

Play

Forward

Forward Search

4 steps

NOTE:

Reverse play (–1x) is not possible with Video CD/SVCD discs.

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) to activate frame-by-

frame playback.

● Each press of SLOW – (O) or SLOW + (N) advances/

reverses the still picture frame by frame.

● Frame-by-frame playback for reverse direction cannot be

performed with Video CD/SVCD discs.

● To resume normal playback, press I.

Slow Motion

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) for 2 or more seconds.

● Each press of SLOW – (O) or SLOW + (N) increases the

slow motion speed for each direction.

● Slow motion for reverse direction cannot be performed with

Video CD/SVCD discs.

24 EN

BASIC OPERATIONS ON DVD DECK

Skip Search

During playback, press v.

● Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

● Skip search cannot be performed when a VCD/SVCD disc is

being played back with the PBC function.

Instant Replay

You can move back the playback position slightly. Press w on the remote control or INSTANT REPLAY on the unit.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

● Instant replay cannot be performed when a VCD/SVCD disc is

being played back with the PBC function.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (A pg. 59) during playback (or Live Memory Playback). Press S or T.

● To advance forward or back, press S or T repeatedly within 5

seconds of each press to continue jump.

● Depending on the time from where you want to start jump search,

the first press of S or T will not necessarily lead to a jump of the selected time interval. The first press will lead to a jump to the nearest quarter points of an hour (15 min/ 30 min/ 45 min/ 00 min). The subsequent jumps will then be in accordance to the selected time interval.

● When you cannot advance any further (beginning or end of

program reached), the message AUNABLE TO GO BACK ANY MOREB or AUNABLE TO GO FORWARD ANY MOREB appears on the screen. In such a case, press S, O, N, T or o.

Example:

Playback search when jump interval is set to 15 MIN jumps. Taking for instance, you want to start jump search 40 minutes after the beginning of the program. Pressing S or T will result in a jump to the scene at the 30 minutes point or 45 minutes point respectively as illustrated below. At the subsequent press, the scene will jump to the 15 minutes point or 1 hour point respectively, according to the selected time interval, which in this case is A15 MINB.

Time counter

0 min

Beginning of program

15 min

NOTES:

● Jump search cannot be performed with finalized DVD-R/DVD-RW

(video mode) discs.

● Jump search functions only when chapters (marks) are not set.

30 min

Current scene

40 min

45 min

1 h 15 min

1 h

End of program

Resume Function

It is possible to memorize the position where you stop playback and resume playback from that position.

● Be sure to set ARESUMEB to AONB or ADISC RESUMEB.

(A pg. 59)

● Resume function always works for DVD-R/DVD-RW discs that

have not been finalized and DVD-RAM regardless of the setting of ARESUMEB.

1 Press o during playback to memorize a resume point.

● The unit enters Resume Stop mode and memorizes the

position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorizing.)

● The unit retains a memory of the resume points of the last 30

discs played back, even though they have been ejected if ARESUMEB is set to ADISC RESUMEB. (A pg. 59)

● Performing the following steps would erase the resume points:

(The inside of the disc status indicator stops blinking and lights.)

When ARESUMEB is set to AONB:

• Press A to turn off the unit.

• Press

M to take out the disc.

• Press

o in stop mode.

• Press

TOP MENU to display the top menu, then start playback by

selecting an item, etc.

MENU to display the disc menu, then start playback by

• Press selecting an item, etc.

When ARESUMEB is set to ADISC RESUMEB:

•Set ARESUMEB to AOFFB. (A pg. 59)

• Press

o in stop mode.

• Press

TOP MENU to display the top menu, then start playback by

selecting an item, etc.

MENU to display the disc menu, then start playback by

• Press selecting an item, etc.

2 Press I in stop mode to resume playback. The unit starts

playback from the resume point.

NOTES:

● ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD

and already finalized DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under AONB setting will be applied even if ARESUMEB is set to ADISC RESUMEB. (A pg. 59)

● If you stop the playback of a disc for which a resume point has

already been memorized, the memory will be updated with the new resume point.

● After the unit has memorized the resume points for 30 discs,

remembering a new resume point will cause the unit to delete the oldest memorized point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.

● When the unit memorizes a resume point for a disc, it also

remembers audio language, subtitle and angle settings.

● This function may not work for some Video CD/SVCDs.

● When ARESUMEB is changed to AONB or AOFFB (A pg. 59),

resume points of the discs memorized with ARESUMEB set to ADISC RESUMEB will be cleared.

● Resume points are memorized for each side of a double-sided

disc.

● When you switch to HDD while playing back JPEG/MP3 files,

playback stops. The Resume Function doesn’t work when you switch to DVD thereafter to playback the disc.

BASIC OPERATIONS ON DVD DECK

EN 25

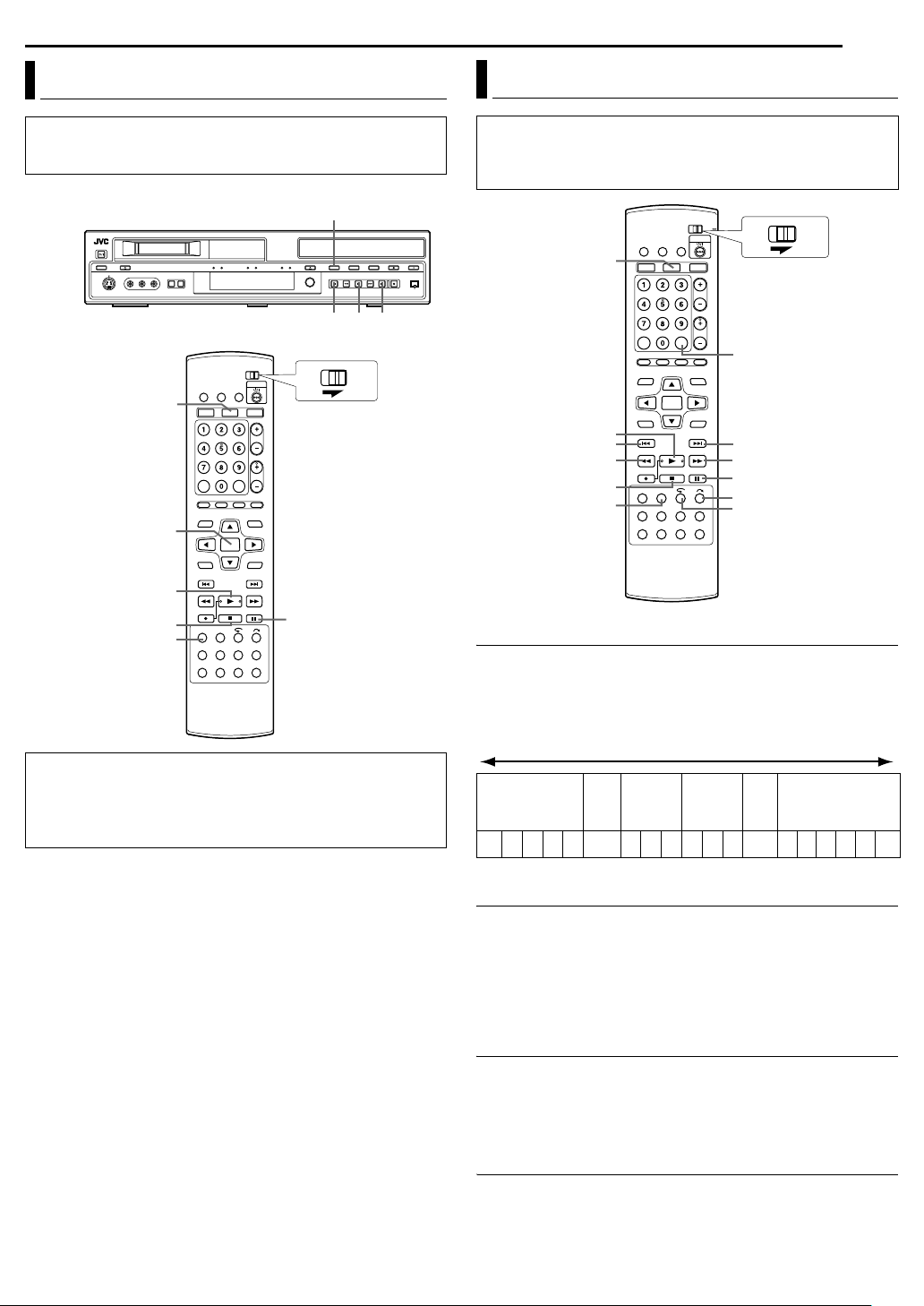

Checking The Time Information

DVDTV

DVD

0-9

MARK

ENTER

S/PREVIOUS

I o

DISPLAY

REC MODE/REMAIN

AUDIO

Selection Keys

FGDE

RETURN T/NEXT

ON SCREEN

SET UP SUBTITLE

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto DVD-RAM/R/RW (VR mode only) discs when recording is helpful to locate a start point when you play back the discs later.

To mark positions:

During playback, press MARK at positions you want to mark.

● AMARKB appears on the TV

screen. You can easily locate the marked positions using S or T when you play back the disc.

To delete the marked positions:

While paused, press S or T to locate a marked position you want to delete, then press MARK.

● Crossed AMARKB appears on the

TV screen, and the marked position is deleted.

NOTES:

● For DVD-R/RW (Video mode) discs, marks are assigned

automatically every 5 minutes.

● If MARK is pressed when playing back a disc that does not allow

marks to be inserted, A7B appears on the TV screen.

You can check time information of a disc on the front display panel and the TV screen.

8 DVD-RAM/DVD-R/DVD-RW

Each press of DISPLAY on the remote control or the unit changes the display as follows:

During recording

Clock time (front display panel only) N Current title elapsed time N Disc remaining time N (back to the beginning)

During playback

Each title elapsed time N Total remaining time N Remaining time* N (back to the beginning)

* only discs before finalizing

During recording/playback or in stop mode Press REC MODE.

● The disc remaining time according to recording modes appears

on the TV screen.

● It is possible to check disc remaining time according to recording

modes also by pressing REMAIN.

● In FR mode, it is possible to set recording time in detail. While the

recording mode and the disc remaining time are displayed by pressing REMAIN, press selection keys to select AFRB, then press DE to select the desired recording time. (A pg. 50)

● It is not possible to switch the recording mode during playback or

while recording.

8 Video CD/SVCD/Audio CD During playback or in stop mode

Current track elapsed time N Current track remaining time N Tot al elapsed time N Total remaining time N (back to the beginning)

NOTES:

● When a PBC-compatible Video CD/SVCD disc is loaded,

deactivate the PBC function. (A pg. 26)

● For pre-recorded DVD VIDEO, only the title, chapter and elapsed

time are displayed when ON SCREEN is pressed.

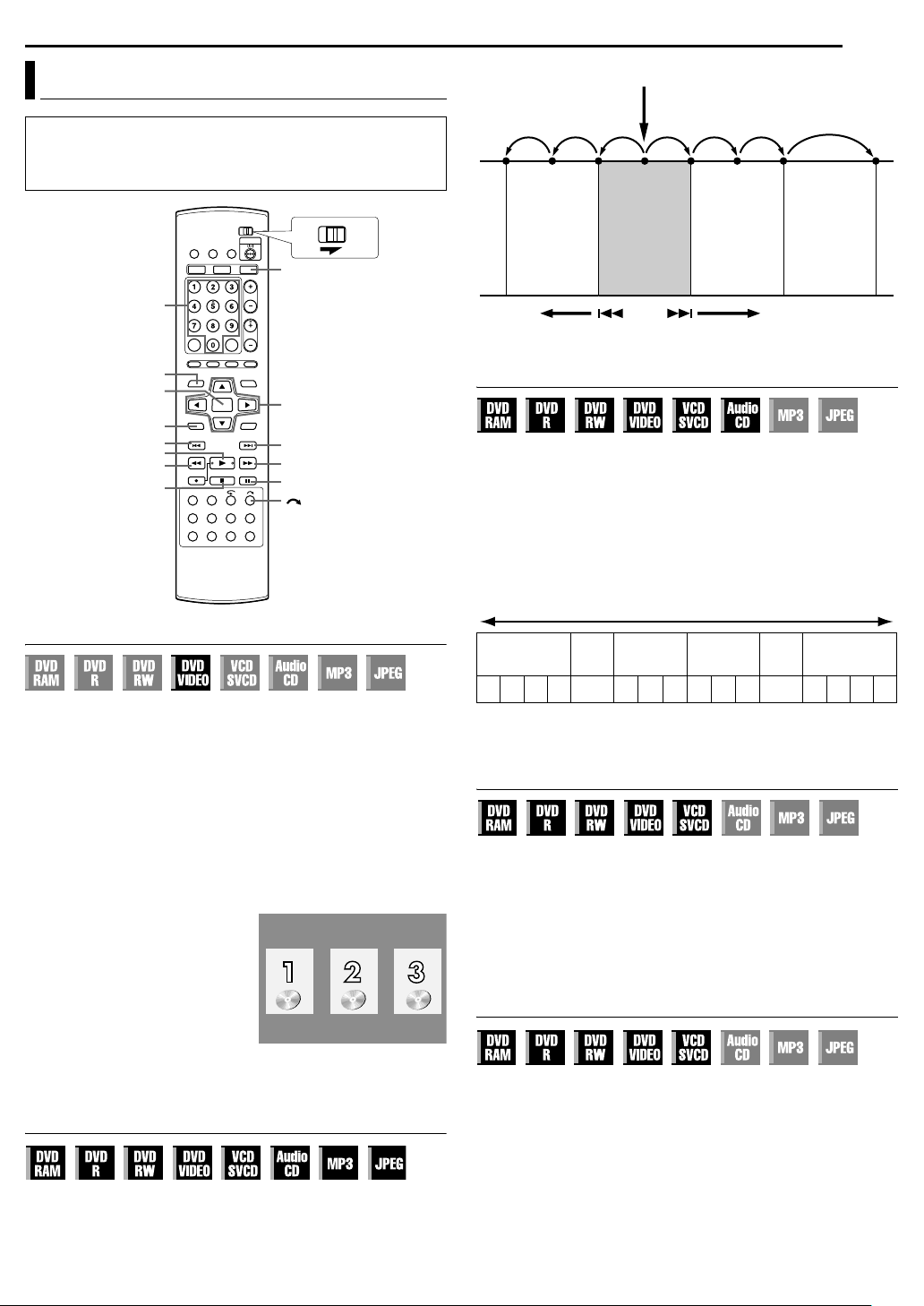

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc contains Amulti-angleB parts, where the same scene was shot from different angles. If the disc contains Amulti-angleB parts, AyB appears on the TV screen at the beginning of the Amulti-angleB part.

1 Press ANGLE during playback.

The angle selection display appears on the TV screen.

2 Press ANGLE or selection

keys to select your desired

angle.

● Each time you press ANGLE or the selection keys, the angle

changes.

● When A7B appears on the TV screen, the current scene is not

recorded from multiple angles. In addition, some discs prohibit angle selection.

● To clear the angle selection display, press ENTER. In addition,

the angle selection display disappears automatically if no operation is done for 10 seconds.

When 3 scene angles are contained.

26 EN

BASIC OPERATIONS ON DVD DECK

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. AhB appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.

1 Press SUBTITLE during

playback. The subtitle selection display appears on the TV screen.

● Each time you press

SUBTITLE, the subtitle display is switched on and off.

When 3 subtitle languages are contained.

ENGLISH

2 Press selection keys to select your desired language.

● To clear the subtitle selection display, press ENTER.

NOTES:

● When A7B appears on the TV screen, no subtitle language is

recorded.

● When the subtitle language won’t be changed with the procedure

above, change the subtitle on a disc menu displayed by pressing MENU.

Audio Channel Selection

When watching bilingual programs or playing discs on which you recorded bilingual or stereo programs, you can choose the desired audio channel.

● When ASUPERIMPOSEB is set to AONB or AAUTOB, you can

confirm on the TV screen the audio channel you have chosen. (A pg. 59)

● Each time you press AUDIO, the audio

channel changes.

TRACK

On-Screen Display

For stereo discs For audio of left channel For audio of right channel

NOTE:

It is not possible for DVD-R/DVD-RW (Video mode) disc playback to switch the audio channel.

When you can’t switch the audio channel of a bilingual program

When the unit is connected with a digital audio device using an optional optical cable and ADIGITAL AUDIO OUTB is set to ADOLBY DIGITAL/PCMB, it is not possible to switch the audio channel of a bilingual program recorded on a DVD-RAM or DVD-R/ RW (VR mode) disc. (A pg. 57) In this case, perform the following steps using the remote control to switch ADIGITAL AUDIO OUTB from ADOLBY DIGITAL/PCMB to APCM ONLYB.

A Press SET UP to access the Main Menu screen. B Press selection keys to select ADVD VIDEO SET UPB, then

press G.

C Press selection keys to select AAUDIO OUTPUTB, then press

D Press selection keys to select ADIGITAL AUDIO OUTB, then

press ENTER.

E Press selection keys to select APCM ONLYB, then press

ENTER. (A pg. 58)

F Press SET UP to complete the setting. G Press AUDIO to select the desired audio channel.

USE

Audio Language/Sound Selection

Some DVDVIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD/SVCD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.

1 Press AUDIO during playback.

The Audio Language/Sound selection display appears.

2 Press AUDIO or selection

keys to select your desired

audio language/sound.

● Each time you press AUDIO or the selection keys, the audio

language/sound changes.

● To clear the Audio Language/Sound selection display, press

ENTER.

NOTES:

● When A7B appears on the TV screen, no other audio language is

recorded.

● When the audio language won’t be changed with the procedure

above, change the audio on a disc menu displayed by pressing MENU.

● Pressing AUDI O to select the audio language/sound is only

possible during playback. It is not possible to select by pressing AUDIO in stop mode. However, you can select the desired audio language/sound from the setup menu while in stop mode.

For example: DVD VIDEO

ENGLISH

When 3 audio languages are contained.

Playback Control (PBC) Function

Some Video CD/SVCD discs support the PBC function. PBC is an abbreviation of APlay Back ControlB. A Video CD/SVCD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.

1 Press I in stop mode. The PBC menu appears. 2 Press the number keys to enter the number of the desired

scene, then press ENTER. The unit starts playback of the selected item.

● APBCB appears on the front display panel.

● When ANEXTB or APREVIOUSB appears on the TV screen:

Pressing NEXT (T) advances to the next page. Pressing PREVIOUS (S) returns to the previous page.

● You can return to the menu by pressing RETURN.

● The method of the operation is different depending on the disc.

NOTE:

If you want to playback a PBC-compatible Video CD/SVCD disc without activating the PBC function, start playback with the PBC function, then press o to stop playback. The TV screen becomes all black. Then start playback in stop mode by using the number keys to choose the track, then press ENTER.

Using The On-screen Bar

The on-screen bar allows you to control various playback functions. Some of the functions operated on Navigation Menu can be controlled on the On-screen bar.

ATTENTION:

The on-screen bar can also be used for the HDD deck.

Be sure to clear Library Database Navigation screen by pressing NAVIGATION.

DVDTV

NAVIGATION

ENTER

Selection Keys

FGDE

RETURN

BASIC OPERATIONS ON DVD DECK

EN 27

A Disc type. B Select this for Repeat Playback. (See below) C Select this for A-B Repeat Playback. (A pg. 28) D Select this for search function. (A pg. 28) E Select this for time search function. (A pg. 29) F Select this to switch Simulated Surround Effect function.

(A pg. 29)

G Select this for Picture Control function. (A pg. 29) H Select this to switch picture source type. (A pg. 30) I Current status area for the selected item. J Select this for Program Playback. (A pg. 30) K Select this for Random Playback. (A pg. 30) L Select this to control the switching interval of the slide show.

(A pg. 30)

NOTE:

Although examples of the on-screen bar are provided here only for 3 types of discs, the on-screen bar will be displayed for whichever disc indicated in the left column.

Basic Operation On The On-screen Bar

Example: When selecting Picture Control function of DVD

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. The

item currently selected is highlighted and pointed by :.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

ON SCREEN

How To Access The On-screen Bar

1 Press ON SCREEN twice whenever a disc is loaded.

Contents of the on-screen bar during playback

DVD VIDEO

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

Video CD/SVCD

TRACK 99

VCD

JPEG disc

JPEG

TRACK 99GROUP 99

5sec

3D-ON CINEMA AUTO

EACH 0:00

CINEMA

2 Press selection keys to select A B, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

3 Press selection keys to select the desired option, then press

ENTER.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

NORMAL CINEMA SHARP SOFT

To clear the on-screen bar Press ON SCREEN.

NOTE:

See the corresponding pages for details on each menu item.

Repeat Playback

You can repeat playback as you like according to the type of disc.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AxB, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

3 Press selection keys repeatedly to select the desired Repeat

mode, then press ENTER.

28 EN

DVD-RAM/RW/R

BASIC OPERATIONS ON DVD DECK

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TITLE REPEAT:

The current title is played back repeatedly.

DVD VIDEO

OFF:

Repeat playback is not performed.

TITLE REPEAT:

The current title is played back repeatedly.

CHAPTER REPEAT:

The current chapter is played back repeatedly.

Audio CD/Video CD/SVCD

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TRACK REPEAT:

The current track is played back repeatedly.

JPEG/MP3

OFF:

Repeat playback is not performed.

FOLDER REPEAT:

The whole folder is played back repeatedly.

TRACK REPEAT*:

The current track is played back repeatedly.

* ATRACK REPEATB cannot be selected for JPEG discs.

To clear the on-screen bar Press ON SCREEN.

To cancel Repeat Playback

Repeat the above procedure from step 1, select AOFFB in step 3, then press ENTER.

NOTES:

● Repeat Playback is not possible for a Video CD/SVCD with PBC

function.

● Repeat Playback may not work properly depending on the type of

the disc being used.

● It is possible to use the Mode Lock function. (A pg. 65)

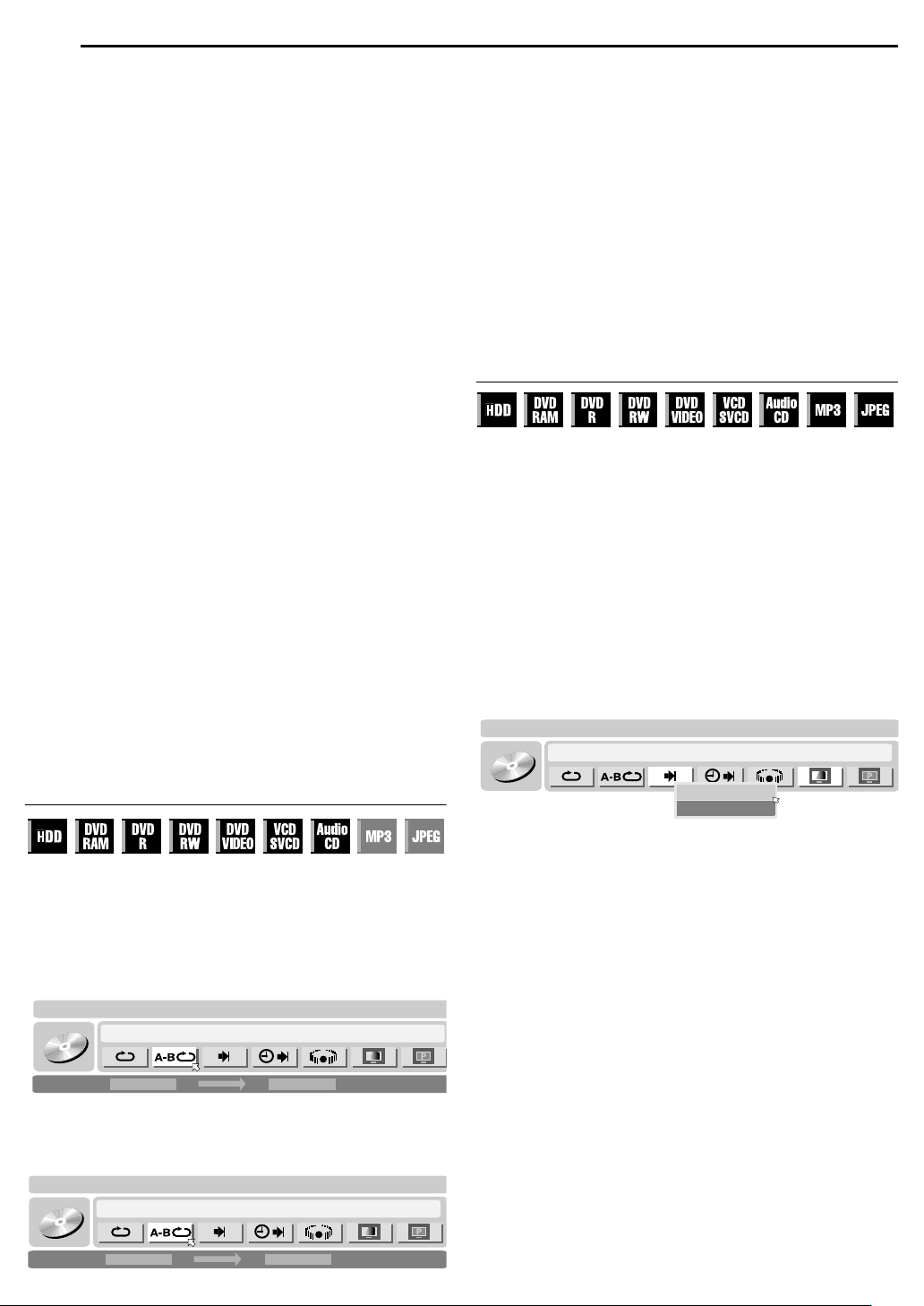

A-B Repeat Playback

You can repeat the desired part.

During playback

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AA-B xB. 3 Press ENTER at the beginning of the desired part you want to

repeat (point A). The elapsed playing time of the point A appears.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

AB1:25:58 : :

4 Press ENTER at the end of the desired part you want to repeat

(point B). The elapsed playing time of the point B appears.

● The selected part of the disc (between point A and B) is played

repeatedly.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

3D-ON CINEMA AUTO

To clear the on-screen bar Press ON SCREEN.

To cancel A-B Repeat Playback Press selection keys to select AA-B xB, then press ENTER.

NOTES:

● A-B Repeat Playback may not work properly depending on the

type of disc being used.

● The subtitles recorded around the A-B point may not appear.

● When the end of the item is reached before the end point is set,

the pop-up window disappears from the TV screen. In such a case, repeat the procedure from step 2.

● The point B must be set at least 3 seconds after the point A.

● When playing back a DVD, A-B Repeat Playback is possible only

within the same title.

● AA-B xB cannot be selected during Program and Random

Playback.

● AA-B xB cannot be selected while stopped.

Locating The Beginning Of A Desired Selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select A9B, then press ENTER. 3 Press selection keys to select the desired item, then press

ENTER.

● Skip this step for Video CD/SVCD and Audio CD.

For DVD-RAM/RW/R, DVD VIDEO

ATITLE SEARCHB or ACHAPTER SEARCHB is selectable. (However, ACHAPTER SEARCHB is not selectable while stopped.)

For Video CD/SVCD, Audio CD, JPEG, MP3

ATRACKB is selectable.

NOTE:

Settings that are selectable during playback and stop mode differ depending on the type of disc and search used.

CHAPTER 99 EACH 179:59GROUP 99

DVD-

VIDEO

TITLE SEARCH CHAPTER SEARCH

4 Press the number keys to enter the desired item number, then

press ENTER.

● Playback starts from the selected section.

Examples:

A To select track 5, press the number key A5B. B To select track 15, press the number key A1B and A5B. C To select track 25, press the number key A2B and A5B.

If you have specified a wrong selection

Press RETURN on the remote control and repeat the above procedures from step 2.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When A7B is displayed on the TV screen in step 4, the chapter

you have selected is not contained in the disc, or chapter search does not work on the disc.

● Before you press ENTER, playback may start automatically when

you enter the section’s number depending on the disc.

● This function is not possible for a Video CD/SVCD with PBC

function.

CINEMA

AB1:25:58 1:40:00

DVDTV

0-9

CANCEL

ENTER

CLEAR

Selection Keys

FGDE

RETURN

ON SCREEN

Time Search

You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a program (DVD-RAM, DVD-R, DVD-RW, DVD VIDEO and HDD) or a disc (Video CD/ SVCD and Audio CD).

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select Aj9B, then press ENTER.

The pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

CINEMA AUTO

BASIC OPERATIONS ON DVD DECK

EN 29

Simulated Surround Effect

It is possible to get a simulated surround effect from your stereo system. You can enjoy the virtual surround sound with your 2channel stereo system.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. 3 Press selection keys to select AONB, then press ENTER.

● A3D-ONB appears above the selected item and Simulated

Surround Effect is activated.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

To clear the on-screen bar Press ON SCREEN.

To cancel the simulated surround effect

Press selection keys to select AOFFB, then press ENTER to clear A3D-ONB from the screen.

NOTES:

● Simulated Surround Effect works correctly only when playing

back a title recorded in multichannels.

● Simulated Surround Effect does not affect the DVD VIDEO

bitstream signal from the [DIGITAL AUDIO OUTPUT] connectors.

● When Simulated Surround Effect is activated, the settings of

AANALOG AUDIO OUTB and AD. RANGE CONTROLB are disabled. (A pg. 58)

● Simulated Surround Effect cannot be activated under the

following conditions:

● When the HDD deck is in the recording mode.

● When a disc containing both the Dolby Digital 5.1CH and 2CH

sound formats is playing back a scene that is not in the 5.1CH sound format.

CINEMA AUTO

OFF

Adjusting The Picture Quality

3 Press the number keys to enter the time, then press ENTER.

Playback starts from the specified time. Example: To play back from a point 12 (minutes): 50 (seconds) elapsed.

TIME

Press 1

TIME

If you have specified a wrong selection,

Press RETURN on the remote control and repeat the above procedures from step 2.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When A7B is displayed on the TV screen in step 3, you have

selected a point that exceeds the recording time of the disc. However, for HDD; DVD-R/RW (Video mode) discs that have not been finalized; and DVD-R/RW (VR mode) discs, A7B will not be displayed and the last image (still) of the program appears on the TV screen.

● Some DVD VIDEO discs do not contain time information, and it is

not possible to use the Time Search function. In such cases, A7B is displayed on the TV screen as well.

● This function is not possible for a Video CD/SVCD with PBC

function.

TIME

Press 2

TIME

Press 0Press 5

You can obtain optimal picture quality by selecting an appropriate picture mode.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

DVD-

VIDEO

CINEMA AUTO

3 Press selection keys to select the desired option, then press

ENTER.

NORMAL:

Normally select this option.

CINEMA:

Suitable for a movie disc, etc.

SHARP:

Clearer, sharper-edged picture when viewing images with lots of flat, same-colored surfaces such as cartoons.

SOFT:

Select this option when too much noise appears.

To clear the on-screen bar Press ON SCREEN.

30 EN

BASIC OPERATIONS ON DVD DECK

Setting The Progressive Mode

You can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source).

1 Set the unit to the progressive scan mode. (A pg. 65) 2 Press ON SCREEN twice to access the on-screen bar. 3 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

CHAPTER 99 EACH 0:00TITLE 99

AUTO

CINEMA

DVD-

VIDEO

3D-ON

4 Press selection keys to select the desired option, then press

ENTER.

AUTO:

This mode automatically detects film and video content for

progressive playback. When film content is found, flag detection

is used to invoke playback of film data in full screen. When

video content is found, pictures from multiple fields are used to

detect sections with movement, and then this movement

undergoes advanced image processing for output of sharp,

detailed progressive images without any reduction in image

quality where movement occurs. Normally, operation in this

mode is recommended.

FILM:

Suitable for playing back a progressive scanned film source

disc.

VIDEO:

Suitable for playing back a video source disc. The outlines on

the played back pictures will be soft.

To clear the on-screen bar Press ON SCREEN.

NOTE:

Progressive scan is output only from [COMPONENT VIDEO OUT] connectors.

Program Playback

4 Press I. Playback starts in the programmed order.

● When all of the programmed tracks have been played back,

Program Playback stops, but the programmed information remains.

● To add tracks to the end of the program, perform step 3.

● During Program Playback, pressing T skips to the next

selection of the program. Pressing S returns to the beginning of the current selection.

To clear the on-screen bar and the contents of the program Press ON SCREEN.

To cancel Program Playback Press selection keys to select APRGMB, then press ENTER.

NOTE:

Program Playback is not possible depending on the type of disc.

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select ARNDB, then press ENTER. 3 Press selection keys to select AONB, then press ENTER.

Playback starts in random order.

TRACK 99 EACH 0:00

VCD

To clear the on-screen bar Press ON SCREEN.

To cancel Random Playback Press selection keys to select AOFFB, then press ENTER.

NOTE:

The same track will not be played back more than once during Random Playback.

CINEMA

OFF

Select The Switching Interval Of The Slide Show

You can program up to 30 tracks (Video CD/SVCD or Audio CD) to play back in the desired order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select APRGMB, then press ENTER.

The program table appears under on-screen bar.

TRACK 99 EACH 0:00

VCD

3 Press the number keys to

enter the track numbers in the

desired order. Examples: A To select track 5, press the

number key A5B and ENTER. B To select track 15, press the

number key A1B and A5B.

C To select track 25, press the number key A2B and A5B.

If you have specified a wrong selection

Press CANCEL. The last selection is erased. Or press CLEAR (o). The whole selection is erased.

USE [0-9] KEYS TO SELECT TRACK

PROGRAM TOTAL TIME

CINEMA

You can control the switching interval of the slide show.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

TRACK 99GROUP 99

JPEG

5sec

3 Press selection keys to select the desired option, then press

ENTER.

● Each time you press the selection keys, the interval changes

as follows: 5sec Y 10 sec Y 15 sec Y 20 sec Y 25 sec Y 30 sec Y (Back to the beginning)

To clear the on-screen bar Press ON SCREEN.

NOTE:

JPEG files are played back as a slide show. It may take more time to display an image with larger file size.

BASIC OPERATIONS ON HDD DECK

EN 31

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DV/HDD/DVD

WIo

DVDTV

HDD

ENTER

DISPLAY

ATTENTION:

● It may take a few seconds to start playback. This is not a

malfunction.

● Forward/reverse high-speed search and other operations

cannot be performed while playback is stopped.

1 Press DV/HDD/DVD on the unit repeatedly or HDD on the

remote so that the HDD lamp lights up on the unit.

2 Press I to start playback.

● The Library Database Navigation also enables you to search

and select the desired programs. (A pg. 39)

3 Press W to pause playback.

● To resume normal playback, press I.

4 Press o to stop playback.

NOTES:

● When the Library Database Navigation screen appears, choose

a thumbnail image of the desired title on the TV screen, then press ENTER. (A pg. 39)

● During HDD playback, the current title elapsed time is displayed

on the TV screen when ON SCREEN is pressed. However, each press of DISPLAY changes the time display on the front display panel as follows: Current title elapsed time N Disc remaining time N Current title remaining time N (back to the beginning)

● It is possible to play back on the DV deck and the HDD/DVD deck

simultaneously. However, either DVD or HDD can be played at the same time.

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD so that the HDD lamp lights up on the unit.

DVDTV

HDD

MARK

O/SLOW

ON SCREEN

Variable Speed Search

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

Reverse

Reverse Search

5 steps

–360 –60 –15 –5 –3 –1

Reverse

Play

Reverse

Slow Motion

3 steps

–1/2 –1/4 –1/16

Slow Motion

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) to activate frame-by-

frame playback.

● Each press of SLOW – (O) or SLOW + (N) advances/

reverses the still picture frame by frame.

● To resume normal playback, press I.

Slow Motion

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N) for 2 or more seconds.

● Each press of SLOW – (O) or SLOW + (N) increases the

slow motion speed for each direction.

Skip Search

During playback, press v.

● Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

T N/SLOW +

Forward

Normal

3 steps

1/16

1/4 1/2 1 1.5 3 5 15 60 360

Play

Forward Search

6 steps

32 EN

BASIC OPERATIONS ON HDD DECK

Instant Replay

You can move back the playback position slightly. Press w on the remote control or INSTANT REPLAY on the unit.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

1.5x Speed Playback

You can play back a title quickly. The sound will also be played back faster than normal speed during 1.5x speed playback.

1.5x speed playback cannot be performed during recording on HDD or DVD.

1 Press O to locate the point to start 1.5x speed playback from. 2 Press I to resume playback. 3 Press N once.

● Pressing ON SCREEN displays AX1.5B on the top right corner

of the screen.

NOTES:

● When the unit is connected with a digital audio device using an

optional optical cable, set ADIGITAL AUDIO OUTB to APCM ONLYB. (A pg. 26)

● For programs recorded in DV mode, 1.5x speed playback with

sound is not possible.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (A pg. 59) during playback (or Live Memory Playback). Press S or T.

● To advance forward or back, press S or T repeatedly within 5

seconds of each press to continue jump.

● Depending on the time from where you want to start jump search,

● When you cannot advance any further (beginning or end of

program reached), the message AUNABLE TO GO BACK ANY MOREB or AUNABLE TO GO FORWARD ANY MOREB appears on the screen. In such a case, press S, O, N, T or o.

Example:

Time counter

0 min

15 min

30 min

40 min

45 min

1 h 15 min

1 h

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto the disc when recording is helpful to locate a start point when you play back the disc later.

To mark positions:

During playback, press MARK at positions you want to mark.

● AMARKB appears on the TV

screen. You can easily locate the marked positions using S or T when you play back the disc.

To delete the marked positions:

While paused, press S or T to locate a marked position you want to delete, then press MARK.

● Crossed AMARKB appears on the

TV screen, and the marked position is deleted.

Beginning of program

NOTE:

Jump search functions only when chapters (marks) are not set.

Current scene

End of program

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DV lamp

DV/HDD/DVD I

DVDTV

BASIC OPERATIONS ON DV DECK

EN 33

1 Load a cassette. Make sure the window side is up, the rear

label side is facing you and the arrow on the front of the cassette is pointed toward the unit.

● Do not apply too much pressure when inserting.

● If the erase protection switch is set to ASAVEB, playback begins

automatically. It takes about 15 seconds until the playback picture appears.

● The unit’s power comes on automatically.

2 Press DV/HDD/DVD on the unit repeatedly or DV on the remote

control so that the DV lamp lights up on the unit.

3 Find the program start point. If the tape is advanced past the

start point, press O. To go forward, press N.

4 Press I to start playback. 5 Press o to stop playback.

● To eject the cassette, press M (DV). You can also eject the

cassette when the unit is turned off.

Clean the video heads using a dry cleaning cassette

- M-DV12CL - when:

● No picture during playback.

● Block noise appears during playback.

● AUSE CLEANING CASSETTEB appears on the screen.

● AU01B lights on the front display panel.

NOTES:

● The heads get dirty in the following cases:

● in an environment prone to extreme temperature or humidity

● in a dusty environment

● flaw, dirt or mould on video tapes

● continuous usage for a long time

AU01B will also light on the front display panel when you

●

attempt to play back a tape recorded with PAL signals. This unit cannot play back tapes recorded with PAL signals.

Usable cassettes

● Cassettes marked P can be used with the DV deck.

● Tapes recorded in the DVCAM format can be played.

NOTES:

● When you record a tape on the DV deck with the recording speed

set to ALPB, it is recommended to play back that tape back on this DV deck. Digital video recorder from other manufacturers may not be able to play back the tape properly.

● It is possible to play back on the DV deck and the HDD/DVD deck

simultaneously. However, either DVD or HDD can be played at the same time.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, set its erase protection switch to ASAVEB. To record on it later, set the switch to ARECB.

Erase protection switch

34 EN

BASIC OPERATIONS ON DV DECK

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DV/HDD/DVD on the unit repeatedly or DV on the

remote so that the DV lamp lights up on the unit.

DVDTV

DISPLAY

AUDIO

ATTENTION:

In the search, still, slow-motion or frame-by-frame playback mode, a slight mosaic effect appears on screen.

N W

Skip Search

During playback, press v.

● Each press initiates an approximately 30-second period of fast-

motion playback. Normal playback resumes automatically.

Instant Replay

During playback, press w on the remote control or

INSTANT REPLAY

(about 7 seconds) and resumes playback.

on the unit. The unit rewinds the picture a little

Next Function Memory

The Next Function Memory AtellsB the unit what to do after rewinding. Before continuing, make sure the unit is in the Stop mode.

For Automatic Start Of Playback

Press O, then press I within 2 seconds.

For Automatic Cassette Ejection After Tape Rewind

Press O, then press M (DV) within 2 seconds.

Soundtrack Selection

Your unit is capable of recording two soundtracks (L and R) and will play back the one you select.

During Playback Pressing AUDIO changes the soundtrack as follows:

TRACK

On-Screen Display

L WXR Both sounds on the left channel and

the right channel are mixed and played back

L W Sound on the left channel is played

back

X R Sound on the right channel is played

back

To select the audio mode (SOUND1/SOUND2/MIX), refer to AAUDIO MODEB under ADV SET UPB (A pg. 60).

USE

Variable Speed Search

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

Reverse

Reverse Search

3 steps

–12 –4 –2 –1/5 1/5 1 2 4 12

Reverse

Slow Motion

1 step

Slow Motion

1 step

Normal

Play

Forward

Forward Search

3 steps

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Press W to activate frame-by-frame playback.

● To resume normal playback, press I.

Slow Motion

1 Press W to pause during playback. 2 Press and hold W for 2 seconds, then release. Press W and

release again to return to still picture.

● Press N for forward slow motion or O for reverse slow

motion.

● To resume normal playback, press I.

Time Code

During recording, a time code is recorded on the tape. This time code is used to confirm the position on the tape when playing back or editing a tape.

1 Press DISPLAY on the remote control or the unit until the time

code on the tape appears on the front display panel and the TV screen.

● Each time you press DISPLAY, the indication changes as

follows: Time code N Tape remaining time N Clock time N (Back to the beginning)

LIVE MEMORY PLAYBACK ON HDD/DVD DECK

EN 35

Live Memory Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DV/HDD/DVD on the unit repeatedly to select the HDD

or DVD deck.

This unit records pictures onto the hard disk and DVD-RAM disc, instead of video tapes, then plays back the pictures recorded on the disc. This makes it possible to achieve high-speed writing and read-out that has not been possible with conventional VCRs, enabling recording and playback simultaneously.

High-speed spin

(High-speed writing)

Recording

It is called ALive Memory PlaybackB to start playback of the program being recorded, with a time-lag between a recording point and a playback point, as shown in the figure below.

Current playback point

(Live Memory Playback)

Current recording position

Playback continues

(Recording point)

Recording start point

Currently elapsed recording time

30 min.

Not only can this unit play back a program previously recorded while recording another program, but the unit also allows you to play back from the beginning of a program while continuing to record the same program.

Playback (High-speed read-out)

Recording continues

1 hour

Recording/playback Status Display

DVDTV

NAVIGATION

Press NAVIGATION to display Library Database Navigation menu, then choose a program to play

A pg. 38)

back. (

R o

ON SCREEN

Live Memory Playback status can be checked by pressing ON SCREEN to display the bar meter on the superimpose display. The current status is superimposed on the TV screen. ( using Live Memory playbackB)

EE CHECK

NOTES:

● Live Memory Playback could be performed approximately 30

seconds after recording has started on the DVD-RAM disc. However, for HDD, Live Memory Playback is possible right after recording has started.

● Although high-speed search up to approximately 30 seconds

before the current recording point is possible during Live Memory Playback, once the current recording point is reached, the unit resumes normal playback and maintains a delay of approximately 30 seconds so that recording and playback can continue.

● Playback may be paused for a moment during Live Memory

Playback, which does not interfere with recording.

● Live Memory Playback cannot be performed while recording the

source from DV input. (A pg. 49, ADV Dubbing (HDD & DVD Deck Only)B)

● When EE CHECK is pressed to display the picture currently

being recorded, the picture size may not be correct.

● Press o or EE to stop Live Memory Playback.

● Live Memory Playback cannot be performed while the DVD deck

is recording as temporary recording on HDD stops during recording on DVD.

A pg. 16, AWhen

36 EN

LIVE MEMORY PLAYBACK ON HDD/DVD DECK

Buttons To Be Used During Live Memory Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to select the desired deck for Live Memory

Playback.

DVDTV

HDD

D F

A NAVIGATION

Displays Library Database Navigation menu. You can choose a

title to play back.

B S

● Pressing once skips back to the beginning of the chapter being

played back.

● Pressing down for 2 or more seconds during playback reverses

playback at 5 times the normal speed while pressed. Releasing

the button resumes normal playback.

Available only when paused

● Pressing down for 2 or more seconds reverses playback at 1/16

times the normal speed. Releasing the button resumes normal

playback.

Backward Jump

● Each press of the button during Live Memory Playback jumps

back for the selected time interval and resumes playback.

(A pg. 32, AJump SearchB)

C T

● Pressing once skips forward to the beginning of the next

chapter being played back.

● Pressing down for 2 or more seconds during playback

advances playback at 5 times the normal speed while pressed.

Releasing the button resumes normal playback.

Available only when paused

● Pressing down for 2 or more seconds advances playback at 1/

16 times the normal speed. Releasing the button resumes

normal playback.

Forward Jump

● Each press of the button during Live Memory Playback jumps

forward for the selected time interval and resumes playback.

(A pg. 32, AJump SearchB)

D O

● Each press of the button during playback advances the

playback speed in 6 steps in the reverse direction.

Available only when paused

● Each press of the button reverses the still picture frame by

frame.

● Pressing down for 2 or more seconds reverses playback at 1/16

times the normal speed. Then, each press of the button

reverses slow-motion at 1/16 times, 1/4 times and 1/2 times the

normal playback.

DVD

E G

E N

● Each press of the button during playback advances the

playback speed in 5 steps in the forward direction.

Available only when paused

● Each press of the button advances the still picture frame by

frame.

● Pressing down for 2 or more seconds advances playback at

1/16 times the normal speed. Then, each press of the button advances slow-motion at 1/16 times, 1/4 times and 1/2 times the normal playback.

F o

● Pressing once during Live Memory Playback or RetroActive

Recording returns to the external input screen.

● Pressing twice during recording stops recording and returns to

the external input screen.

G W

● Pressing once pauses playback (still picture playback).

● Pressing repeatedly advances the still picture frame by frame.

H w

It is useful when watching sports programs, etc.

● Each press skips back for approximately 7 seconds and

resumes playback.

● Pressing repeatedly skips back for approximately 7 seconds

continuously as many times as pressed.

I v

It is useful when skipping over unwanted sections.

● Pressing once skips forward for approximately 30 seconds and

resumes playback.

● Pressing repeatedly skips forward continuously as many times

as pressed.

J EE

Returns to on external input screen. When a confirmation message appears by pressing this button during title editing, etc., follow the instruction to return to the previous screen.

K EE CHECK

You can check, for example, if the program you are recording has already finished.

● Pressing once displays the picture currently being recorded and

the one being played back simultaneously.

● Pressing successively clears the Live Check window and

displays only the picture currently being played back.

LIVE MEMORY PLAYBACK ON HDD/DVD DECK

EN 37

Temporary recording for Live Memory (HDD deck only)

This unit automatically records the AV input being received, within the specified range of time, to the reserved space on the hard disk. The time range can be set for 30 minutes, 1 hour, and 3 hours. (A pg. 59)

NOTE:

Previous temporary recordings will be overwritten since the unit is always recording the AV input being received. Thus, it is not possible to play back programs recorded beyond the specified range of time since they are already overwritten. To avoid this in order to save titles, perform normal recording or RetroActive Recording (See below).

About limitation on temporary recording

The temporary recording for Live Memory is canceled in the following cases, and will start all over again when it is to resume.

● When the power is turned off

● When the system is powered again after a power failure was

occurred

● When normal recording or RetroActive Recording is performed

● When the ALIVE MEMORYB setting is changed (A pg. 59)

● When dubbing is performed by pressing DUBBING (A pg. 45)

● When ADVB is selected by pressing INPUT SELECT +/–

(A pg. 49)

RetroActive Recording (HDD deck only)

You can start recording from the previous part of the AV input you are currently watching (temporarily recorded on the background). (See ATemporary recording for Live Memory (HDD deck only)B above.)

1 Press S or O to locate the point to start recording from.

● Each press of O increases the reverse search speed.

2 Press R on the unit to start RetroActive Recording. Or while

holding R, press I on the remote control.

3 Press o twice to stop RetroActive Recording.

● The external input screen resumes.

NOTES:

● You cannot use RetroActive Recording for inputs other than the

one you are currently watching.

● Recording speed is automatically set to FR65 mode when

RetroActive Recording is started.

● Temporarily recorded data prior to the beginning of RetroActive

Recording is erased when RetroActive Recording started.

Simultaneous Recording and Playback

You can play back the previous part of the AV input you are recording or other programs available in the Library Database.

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select the desired title, then press

ENTER.

● For DVD-RAM, playback starts from the beginning of the title if

ACONTINUOUS PLAYB in ADVD SET UPB is set to AONB (A pg. 59).

4 Press selection keys to select the desired playback method

(ABEGINNINGB, ARESUMEB or AREPEATB), then press ENTER.

● Playback of the selected title begins automatically.

5 Press o to stop playback.

● The external input screen resumes.

NOTES:

● You can use various playback features during Live Memory

Playback.

● To stop simultaneous playback, press o. The external input

screen resumes. To stop actual recording, press o twice again.

Instant Replay

You can move back the playback position slightly during recording or Live Memory Playback. Press w on the remote control or INSTANT REPLAY on the unit.

8 DVD-RAM

● Pressing once during recording skips back for approximately 30

seconds and starts Live Memory Playback. While pressing once during Live Memory Playback skips back for approximately 7 seconds and resumes playback.

● Each subsequent press skips back for approximately 7 seconds

and resumes playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

8 HDD

● Pressing during recording skips back for approximately 7

seconds and starts Live Memory Playback. While pressing during Live Memory Playback skips back for approximately 7 seconds and resumes playback.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

Resuming Playback (HDD deck only)

You can resume playback of an AV input you were recording or watching from the point you have paused.

1 Press W to pause an AV input.

● Recording continues when recording.

2 Press I to start Live Memory Playback.

● Playback resumes from the paused position.

3 Press o to resume the external input screen.

38 EN

NAVIGATION ON HDD/DVD DECK

Library Database Navigation

The Library Database Navigation enables you to search and select the desired titles recorded on the HDD deck and the DVD deck very easily. You can record up to 99 titles on a disc. Each time a title is recorded, the information of the title is registered for the Library Database Navigation automatically. So, you can confirm the information of the titles recorded with the Library Database Navigation screen. And, you can also select one of the titles recorded using the Library Database Navigation. The following screen appears as the Library Database Navigation screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing selection keys on the remote control.

NAVIGATION > ORIGINAL

SELECT WITH @ THEN PRESS [ENTER]

PRESS[ NAVIGATION] TO EXIT

NAVIGATION

EXIT

0026 143 MIN[FISHWORLD ]

12/25/03 THU 10:00AM - 10:15AM

FROG WORLD

ENTER

SELECT

A Playback screen

(Indicates currently received AV input.)

B Guidance for operations C Scroll bar

(Appears when there are over nine registered titles (or play

lists). The scroll bar only indicates that there are more titles (or

play lists) hidden off the current screen display. To show hidden

titles (or play lists), press selection keys repeatedly.)

D Recording information for the title indicated by the arrow E Index list

(Thumbnail still of each title)

Thumbnail still is not to be played back. F Index

: Indicates no index is registered. : Indicates no title is registered.

G Icons

(Indicate the record condition of each title.)

L-1

F G

Using Library Database Navigation system, you can easily modify registered information, edit the title or play list, as well as search for the beginning of each title.

About registration of information

The following information is automatically registered for each title when ordinary recording is performed, then stored in an area specified on the unit.

● index* (reduced pictures to show program titles)

● program title*

● category*

● date and time

● channel

● recording mode

● length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Library Database Navigation system.

The limitations of registration

You can register information up to 99 titles for the DVD deck and 500 titles for the HDD deck. When the amount of information is at the limits of registration, you cannot record new titles any more. In this case, you need to delete old titles to register new ones. (A pg. 40)

NOTES:

● Once a DVD-R/RW (Video mode) disc has been finalized, the

display for original does not appear. Only display for library appears.

● When a copy-once title recorded on the HDD is dubbed to a DVD

disc (DVD-RAM/R/RW (VR mode)), the original data will be moved from the HDD to the DVD disc. In additional, the title that was moved to the DVD disc will become a copy-protected title, and the icon changes from to .

● Sound of received channel may be interrupted while the Library

Database Navigation screen is displayed.

● The order of index which are displayed by pressing DUBBING

differs from the images displayed by pressing NAVIGATION or EDIT.

The Icons and their meanings

This title is write-protected.

NEW

This title has not been played back.

This title is copy-protected.

This title can only be recorded once (copy-once title).

NAVIGATION ON HDD/DVD DECK

EN 39

Scan For Beginning Of Title

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to scan.

DVDTV

HDD

CANCEL

ENTER

You can scan the beginning of the title easily with the Library Database Navigation.

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select

the index (small pictures) of

the desired title, then press

ENTER.

● When you want the plural titles

to be played back

continuously, press MEMO

after selecting the desired title.

The numbers of the playback

order appear on the index. You can select up to 8 titles.

● When you want to correct the order, move the arrow to the

desired index and press MEMO. The number disappears and

the unit re-numbers the other programs automatically.

● When you want to cancel the order, press CANCEL.

4 Press selection keys to select

ABEGINNINGB, then press

ENTER.

● To resume playback from the

point where playback was

previously stopped, press

selection keys to select

ARESUMEB, then press

ENTER.

● To repeat playback of a selected title, press selection keys to

select AREPEATB, then press ENTER.

5 Press W to pause playback.

● To resume normal playback, press I.

6 Press o to stop playback.

DVD

MEMO

EDIT

NAVIGATION

Selection Keys

FGDE

RETURN

I N

SELECT WITH @ THEN PRESS [ENTER]

PRESS[NAVIGATION] TO EXIT

ENTER

NAVIGATION

EXIT

SELECT

SELECT WITH @ THEN PRESS [ENTER]

PRESS[ NAVIGATION] TO EXIT

ENTER

NAVIGATION

EXIT

SELECT

NAVIGATION > ORIGINAL

0026 143 MIN[FISHWORLD ]

12/25/03 THU 10:00AM - 10:15AM

FROG WORLD

NAVIGATION > ORIGINAL

12/25/03 THU 10:00AM - 10:15AM

FROG WORLD

SELECT HOW TO PLAY BACK

BEGINNING RESUME R EPEAT

L-1

Edit Original Information

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to modify.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

Modify Index

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select AMODIFYB under AORIGINALB,

then press ENTER.

4 Press selection keys to select a title you want to modify, then

press ENTER.

5 Press selection keys to select AINDEXB, then press ENTER. 6 Press I to start playback. Press O or N to search for the

picture from the title, then press W.

● The pictures of the title appear

on the left window.

7 Confirm the arrow is on

AREPLACEB, then press

ENTER to register new index. New index appears on the right window.

● When you press ENTER with

the arrow on ARETURNB you can return to the previous screen.

8 Press EDIT to return to the normal screen.

Modify Title Name

1 Perform steps 1 – 4 of AModify IndexB above before continuing. 2 Press selection keys to select ANAMEB, then press ENTER. 3 Press selection keys to select

the desired letter or symbol, then press ENTER. Repeat this process to complete the name.

● To correct a letter, press

selection keys to select

ADELETEB, then press

ENTER.

● You can enter the letters up to 64.

4 Press selection keys to select ASAVEB, then press ENTER. 5 Press EDIT to return to the normal screen.

EDITING > MODIFY INDEX

12/25/03 THU 10:00AM - 10:15AM

FROG WORLD SP

0:01:03PROG. 1

SELECT IMAGE TO REPLACE WITH

12/25/03 THU 10:00AM - 10:15AM

FROG WORLD

ENTER

EDIT

SELECT

FROG

A B C D E F a b c d e f 1 2 3 G H I J K L g h i j k l 4 5 6 M N O P Q R m n o p q r 7 8 9 S T U V W X s t u v w x 0 + Y Z y z * / =

! " # $ % & ; < > ? @ [ | } ~ ' ( ) , . : \ ] ^ _ ` {

SELECT WITH @ THEN PRESS [ENTER]

PRESS [EDIT] TO EXIT

EXIT

L-1

INDEX

ON REMOTE

RETURNREPLACE

EDITING > MODIFY NAME

0026 64 MIN[FISH WORLD ]

ORLD

SAVE DELETE CANCEL

L-1

40 EN

NAVIGATION ON HDD/DVD DECK

Modify Category

1 Perform steps 1 – 4 of AModify IndexB (A pg. 39) before

continuing.

2 Press selection keys to select ACATEGORYB, then press

ENTER.

3 Press selection keys to select

the desired category, then

press ENTER.

4 Press EDIT to return to the

normal screen.

SELECT WITH @ THEN PRESS [ENTER]

PRESS [EDIT] TO EXIT

EDIT

EXIT

EDITING > MODIFY CATEGORY

0026 64 MIN[FISH WORLD ]

12/25/03 THU 10:00AM - 10:15AM

FROG WORLD

MOVIES MUSIC DRAMA

ANIMATION

NEWS WEATHER EDUCATION

ENTER

HOBBY

SELECT

SPORTS

ENTERTAINMENT

L-1

DOCUMENTARY

ART

Protect Title (DVD-RAM & DVD-R/RW (VR mode) only)

You can protect titles to prevent accidental erasure of the important titles.

1 Perform steps 1 – 2 of AModify IndexB (A pg. 39) before

continuing.

2 Press selection keys to select APROTECTB, then press

ENTER.

3 Press selection keys to select a title you want to protect, then

press ENTER.

4 Press selection keys to select APROTECTB, then press

ENTER. AB appears.

● To cancel the protection, repeat 3 – 4 again. In step 4, select

ACANCEL PROTECTB, then press ENTER.

5 Press EDIT to return to the normal screen.

NOTE:

All the titles on a disc will be deleted once the disc is formatted even if they are protected titles.

Delete Title

You cannot record any more with Library Database Navigation once the registered titles on the disc reach 99 titles for the DVD deck and 500 titles for the HDD deck. Deleting unnecessary titles after dubbing or other operations can increase remaining time and available recording capacity. (For DVD-R discs, although it is possible to delete recorded titles, available recording capacity does not increase.) The deleted title is never resumed. Play lists and title information in the unit’s library are also deleted.

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select ADELETEB under AORIGINALB,

then press ENTER.

4 Press selection keys to select a title you want to delete, then

press ENTER.

5 Press selection keys to select ADELETEB, then press ENTER.

● When you cancel the deletion, select ACANCELB, then press

ENTER.

6 Press EDIT to return to the normal screen.

Delete Unwanted Part Of The Title (HDD, DVD-RAM & DVD-R/RW (VR mode) only)

You can delete unwanted part of the title.

1 Perform steps 1 – 2 of AModify IndexB (A pg. 39) before

continuing.

2 Press selection keys to select ADEL SCENB, then press

ENTER.

3 Press selection keys to select a title whose unwanted part you

want to delete, then press ENTER.

4 Press I to start playback. Press O or N to find the point

where you want the deletion to begin, then press W.

5 Confirm the arrow is on AINB,

then press ENTER.

6 Press I to start playback.

Press O or N to find the point where you want the deletion to end, then press W.

7 Press selection keys to select

AOUTB, then press ENTER.

● Select APREVIEWB, then

press ENTER to preview the edited title.

8 Press selection keys to select AOKB, then press ENTER.

● If you do not want to delete the scene, press RETURN.

To modify the points

A Press RETURN. B Repeat steps 4 – 8 as necessary.

9 Press selection keys to select ADELETEB, then press ENTER.

The selected scene is deleted.

● To cancel the deletion, press selection keys to select

ACANCELB, then press ENTER.

10 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● Available recording capacity may not match the deleted part after

deletion.

● For DVD-R discs, although it is possible to delete unwanted part

of a title, available recording capacity does not increase.

EDITING > ORIGINAL/DEL SCENE

12/21/03 SUN 6:30PM - 8:00PM

RALLYCAR SP

PROG. 1

0:01:03

SELECT SCENE TO DELETE WITH

IN OUT PREVIEW OK

L-1

0: 05 :15

OUT

0: 06 :15

ON REMOTE

NAVIGATION ON HDD/DVD DECK

EN 41

Divide Title (HDD deck only)

You can divide titles that are recorded continuously.

1 Press EDIT. The Editing screen appears. 2 Press selection keys to select ADIVIDEB, then press ENTER. 3 Press selection keys to select a title to divide, then press

ENTER.

4 Press I to start playback. Press O or N to locate a point to

divide, then press W.

5 Confirm the arrow is on ADIVIDEB, then press ENTER.

● The first picture (start) of the newly created title appears in the

bottom right window.

● Select APREVIEWB, then press ENTER. The first several

seconds of the newly created title is played back, then the

playback pauses at the dividing point.

● To undo the division, press selection keys to select ARETRYB,

then press ENTER. Repeat the above procedure to locate

another point to divide.

6 Press selection keys to select AOKB, then press ENTER. 7 Press selection keys to select ADIVIDEB, then press ENTER.

● Select ACANCELB, then press ENTER to return to the previous

screen.

8 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● It is not possible to divide titles that are used in the play list.

Modify Chapter (HDD, DVD-RAM & DVD-R/RW (VR mode) only)

You can create and delete chapter marks in titles.

1 Perform steps 1 – 4 of AModify IndexB (A pg. 39) before

continuing.

2 Press selection keys to select ACHAPTERB, then press

ENTER.

3 Press I to start playback.

Press O or N, then press

W at the positions you want to

mark.

4 Press selection keys to select

AMARKB, then press ENTER.

● To undo the marking, press

selection keys to select

ARETRYB, then press ENTER.

● Repeat the above steps 3 and 4 to locate another point to mark.

5 Press S or T to select one chapter you want to delete,

press selection keys to select AERASEB, then press ENTER.

● To undo the deletion, press selection keys to select ARETRYB,

then press ENTER.

6 Press EDIT to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

EDITING > MODIFY CHAPTER

03/10

0:07:01

01 00 : 00 :00 02 00 : 05: 30 03 00 :07 : 00 04 00 :30 : 00

MARK

ERASE RETRY RETURN

Edit Play List Information

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to modify.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

DVDTV

HDD

CANCEL

ENTER

S O

Play List

It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single title.

DVD

MEMO EDIT

NAVIGATION

Selection Keys

DFGE

T I

42 EN

NAVIGATION ON HDD/DVD DECK

Create Play List

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select ACREATEB, then press ENTER. 4 Press selection keys to select a title that includes scenes to be

included in a play list, then press ENTER.

5 Press I to start playback. Press O or N to find the point

where you want the created play list to begin, then press W.

6 Confirm the arrow is on AIN/

OUTB, then press ENTER.

● The edit-in time is displayed on

the screen.

● To undo, press selection keys

to select ARETRYB, then press

ENTER.

7 Press I to start playback.

EDITING > SCENE

PRO. 1

0: 00 :15

OUT

MODIFY MOVE PREV IEW

IN/OUT

DELETE RETRY OK

SEL. TITLE

1 PRO. 1

SCENE

TOTAL TIME

00: 00 :0000 :00 : 00

1/11/1

PAGE

Press O or N to find the

point where you want the created play list to end, then press W.

8 Confirm the arrow is on AIN/OUTB, then press ENTER.

● The edit-out time is displayed on the screen.

● The edit-out point must come after the edit-in point.

● Select APREVIEWB, then press ENTER to preview the play list.

9 Press selection keys to select AOKB, then press ENTER. 10 Press selection keys to select AEXITB, then press ENTER. 11 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● The title, index and category of the play list can be modified in the

same way as AORIGINALB. (A pg. 39)

● You can modify the play list that has just been created here by

adding, moving, or deleting unwanted parts to create a digest edition, etc.

Edit Scenes

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select AMODIFYB under APLAY LISTB,

then press ENTER.

4 Press selection keys to select a play list to modify, then press

ENTER.

5 Press selection keys to select ASCENEB, then press ENTER. 6 Press selection keys to select AMODIFYB, then press ENTER. 7 Press selection keys to select the start or end point of a scene

to modify, then press ENTER.

8 Perform steps 5 – 11 of ACreate Play ListB above.

Add scenes

1 Perform steps 1 – 5 of AEdit ScenesB on the left column before

continuing.

2 Press selection keys to select ASEL. TITLEB, then press

ENTER.

3 Perform steps 4 – 11 of ACreate Play ListB on the left column.

Move Scenes

1 Perform steps 1 – 5 of AEdit ScenesB on the left column before

continuing.

2 Press selection keys to select AMOVEB, then press ENTER. 3 Press selection keys to select a scene to move, then press

ENTER.

4 Press selection keys to select another scene to which the

scene is to be moved, then press ENTER.

● To cancel the move, press selection keys to select ARETRYB,

then press ENTER.

5 Perform steps 9 – 11 of ACreate Play ListB on the left column.

Delete Scenes

1 Perform steps 1 – 5 of AEdit ScenesB on the left column before

continuing.

2 Press selection keys to select ADELETEB, then press ENTER. 3 Press selection keys to select a scene to delete, then press

ENTER.

4 Perform steps 9 – 11 of ACreate Play ListB on the left column.

Play Back Play List

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select APLAY LISTB, then press

ENTER.

3 Press selection keys to select

the index (small pictures) of the desired play list, then press ENTER.

● When you want the plural play

lists to be played back continuously, press MEMO after selecting the desired play

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

lists. The numbers of the playback order appear on the index. You can select up to 8 play lists.

● When you want to correct the order, move the arrow to the

desired index and press MEMO. The number disappears and the unit re-numbers the other play lists automatically.

● When you want to cancel the order, press CANCEL.

4 Press selection keys to select ABEGINNINGB, then press

ENTER. The playback starts.

● Upon completing play list playback, the normal screen will

resume.

● The normal screen will also resume when o is pressed to stop

play list playback.

ENTER

SELECT

NAVIGATION > PLAY LIST

0026

026 CREATED 12/26/03 FRI

TEDDY BEAR 25/12

001

004 005 006

007 008 009

143 MIN[FISHWORLD ]

002 003

NAVIGATION ON HDD/DVD DECK

EN 43

Delete Play List

1 Press EDIT. The Editing screen appears. 2 (DVD deck only) Press selection keys to select AMODIFYB

under AORIGINAL/PLAY LISTB, then press ENTER.

3 Press selection keys to select ADELETEB under APLAY LISTB,

then press ENTER.

4 Press selection keys to select one play list you want to delete,

then press ENTER.

5 Press selection keys to select ADELETEB, then press ENTER.

● When you cancel the deletion, select ACANCELB, then press

ENTER.

6 Press EDIT to return to the normal screen.

NOTE:

Even if a play list is deleted, the titles recorded and the library information are not affected at all.

Modify Index

A Perform steps 1 – 4 of AEdit ScenesB (A pg. 42) before

continuing. B Perform steps 5 – 8 of AModify IndexB (A pg. 39).

Modify Play List Name

A Perform steps 1 – 4 of AEdit ScenesB (A pg. 42) before

continuing. B Perform steps 2 – 5 of AModify Title NameB (A pg. 39).

Modify Category

A Perform steps 1 – 4 of AEdit ScenesB (A pg. 42) before

continuing. B Perform steps 2 – 4 of AModify CategoryB (A pg. 40).

Navigate Library Information

Title information can be registered in the unit’s memory for up to 600 DVD discs, 2,000 titles. It is helpful when finding a desired title (or play list) by sorting according to the sort options registered during (or after) recording.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

DVDTV

HDD

ENTER

Scan For Title From Library

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press selection keys to select

the appropriate sort button to sort the information, then press ENTER. ADATEB:

Sort by date

ADISC No.B:

Sort by disc number

ACATEGORYB:

Sort by category

ANAMEB:

Sort by name

● ADATEB and ADISC No.B are available for the DVD deck only.

3 Press selection keys to select the desired title, then press

ENTER.

● For HDD deck, playback begins automatically after the selected

title is located.

● For DVD deck, the title information will be displayed after the

selected title is located. However, playback will not begin automatically.

NOTE:

If a disc registered in the library is recorded or modified on DVD units from other manufacturers, it may become impossible to operate properly.

DVD

NAVIGATION

Selection Keys

FGDE

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

ENTER

NAVIGATION

EXIT

SELECT

NAVIGATION

ORIGINAL

DVD NAVIGATION

DVD LIBRARY

DATE

Register Disc

When a disc that is not registered in the library is loaded, a message appears confirming if the disc should be registered. If registering, perform the following procedure.

1 Press selection keys to select AREGISTERB, then press

ENTER to confirm the registration.

2 Press NAVIGATION to return to the normal screen.

NOTES:

● It is not possible to register discs formatted on devices other than

JVC’s DVD recorders.

● It is not possible to register discs recorded on devices other than

JVC’s DVD recorders.

● It is not possible to register discs when ASAVE AS LIBRARYB is

set to AOFFB. (A pg. 59)

44 EN

NAVIGATION ON HDD/DVD DECK

Playback With MP3/WMA/JPEG Navigation

This unit can play back discs that MP3/WMA sound files and JPEG image files taken with digital still cameras or other devices are recorded. The MP3/WMA/JPEG Navigation enables you to search and select the desired files recorded on CD-R/RW or CD-ROM discs very easily.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Press DVD to select the DVD deck.

NAVIGATION > ORIGINAL (INSERTED DISC)

TRACK: 001/010 01-Whose Side Are YouOn_.mp3

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

A Selected file number/total number of files in the group that

contains the selected file

B Name of the selected file C Selected file

ENTER

SELECT

> 01 Whose Side Are You On

---PREVIOUS FOLDER---

-Whose Side Are YouOn_.mp3

-More Than I Can Bear.mp3

-No No Never.mp3

-Half A Minute.mp3

-Matts Mood.mp3

-Get Out of YourLazy Bed.mp3

Locating The Desired Folders And Tracks

1 Load a disc. 2 Press NAVIGATION. 3 Press selection keys to select AORIGINALB, then press

ENTER.

4 Press selection keys to select

the desired folder, then press ENTER.

● A list of files in the selected

folder appears.

5 Press selection keys to select

the desired item, then press ENTER. The unit starts playback from the selected item.

● The unit stops when all items

in the selected folder are played back.

NOTES:

● If you press I instead of ENTER in step 4, the unit starts

playback from the first file of the folder.

● JPEG files are played back as a slide show at the set intervals.

(A pg. 30)

● If a file name includes any 2-byte character, the unit may not

show the file name correctly.

● The order of the folders and items shown in steps 4 and 5 may

differ from the order shown on your PC.

NAVIGATION > ORIGINAL (INSERTED DISC)

TRACK: ---/000 01 Whose Side Are YouOn

SELECT WITH @ THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

TRACK: 001/010 01-Whose Side Are YouOn_.mp3

SELECT WITH @ THEN PRESS [ENTER]

PRESS[NAVIGATION] TO EXIT

NAVIGATION

EXIT

> ROOT

ENTER

SELECT

NAVIGATION > ORIGINAL (INSERTED DISC)

> 01 Whose Side Are You On

ENTER

SELECT

Whose Side Are YouOn

Matt Bianco

Indigo

Samba In YourCasa

Another TimeAnother Place

Gran Via 5

WorldGo Round

---PREVIOUS FOLDER---

-Whose Side Are YouOn_.mp3

-More Than I Can Bear.mp3

-No No Never.mp3

-Half A Minute.mp3

-Matts Mood.mp3

-Get Out of YourLazy Bed.mp3

NOTES:

● If there are more than 100 files, the rest of the files are not

displayed. In this case, press ON SCREEN to display them on the TV screen.

● The on-screen bar will display AMP3/WMAB regardless of

whether MP3 or WMA files are played.

● If both MP3/WMA files and JPEG files are recorded on the same

disc, you can select to play back either of the file types using the AMP3&WMA/JPEGB setting. (A pg. 59)

Dubbing

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

HDD

ENTER

R o

DUBBING

Auto Finalizing

When dubbing from a Mini DV or HDD to a DVD-R/RW (Video mode) disc, you can select whether to finalize the disc automatically after dubbing has been completed. It is also possible to set the operation method of a DVD-R/RW (Video mode) disc when finalizing the disc. Each time the finalized disc is played back, it will be played back in accordance to the setting you have selected during finalization. For details, refer to ADISC TYPEB (A pg. 62).

NOTE:

You can select and set the background to be used when Auto Finalizing a DVD-R/RW (Video mode) disc. For details, refer to ASetting The BackgroundB (A pg. 64).

NOTES:

● It is not possible to dub copy-protected contents. An error

message will appear on the TV screen.

● The order of the index which is displayed by pressing

DUBBING differs from the images displayed by pressing NAVIGATION or EDIT.

High Speed Dubbing (From HDD To DVD)

It is possible to dub the original recordings and/or play lists on the HDD deck to DVD discs. The dubbing is performed in high speed, keeping the original transfer rate.

NOTES:

● After accessing the Dubbing Menu screen, it is not possible to

take out a disc.

● It is not possible to dub copy-once titles in Video mode.

● When dubbing a copy-once title, the data will be moved from

HDD to DVD upon completing dubbing.

● When you cancel dubbing a copy-once title during dubbing, the

original recording on the HDD deck remains and the title copied to a DVD disc is deleted.

● It is not possible to dub play lists which contain copy-once titles.

● It is not possible to dub the following programs to DVD-R/RW disc

(Video mode):

● which contains more than one audio language.

● which is on the play list.

● which is edited (also RetroActive Recording).

● which is recorded in LP mode or FR155-FR240 mode.

DVD

MARK

Selection Keys

FGDE

EDITING

Recording may not be performed in the highest speed depending

●

on the characteristics of the disc used.

EN 45

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVDB, then press

ENTER.

4 Press selection keys to select AHIGH SPEEDB, then press

ENTER.

5 Press selection keys to select indexes (small pictures) of

desired original recordings and/or play lists, then press MARK. After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings and/or play lists.

●

The recordable time of the disc is displayed on the bar meter. For details, refer to

About Disc Remaining DisplayB (Apg. 48).

6 Press selection keys to select AEXECUTEB or AAUTO

FINALIZEB, then press ENTER to start dubbing.

NOTES:

● Play lists are dubbed as programs.

● In Video mode, if the selected play list includes the scenes

recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list.

● During dubbing, it is not possible to play back on HDD or DVD.

● It is not possible to discontinue dubbing once it has been started.

Just Dubbing (From HDD To DVD)

By using Just Dubbing function, when dubbing all selected original recordings and/or play lists, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the selected recordings and/or play lists to be dubbed and the available disc space.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVDB, then press

ENTER.

4 Press selection keys to select AJUSTB, then press ENTER. 5 Perform steps 5 – 6 of AHigh Speed Dubbing (From HDD To

DVD )B.

NOTES:

● Play lists are dubbed as programs.

● In Video mode, if the selected play list includes the scenes

recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.

● The recordable time of the disc is displayed on the bar meter. For

details, refer to AAbout Disc Remaining DisplayB (A pg. 48).

● During dubbing, it is not possible to play back on HDD or DVD.

● It is not possible to discontinue dubbing once it has been started.

Manual Dubbing (From HDD To DVD)

It is possible to perform dubbing in the desired transfer rate.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVDB, then press

ENTER.

4 Press selection keys to select AMANUALB, then press

ENTER.

5 Perform step 5 of AHigh Speed Dubbing (From HDD To DVD)B.

The Manual Dubbing screen appears.

6 Press selection keys to select AREC MODEB, then press

ENTER. Press selection keys to select the desired option, then press ENTER.

● For details on the recording mode, see ARecording ModeB

(A pg. 50)

7 Press G to select ACONFIRMB, then press ENTER. 8 Press selection keys to select AEXECUTEB or AAUTO

FINALIZEB, then press ENTER to start dubbing.

46 EN

NOTES:

● In Video mode, if the selected play list includes the scenes

● The recordable time of the disc is displayed on the bar meter. For

● During dubbing, it is not possible to play back on HDD or DVD.

● It is not possible to discontinue dubbing once it has been started.

EDITING

details, refer to AAbout Disc Remaining DisplayB (A pg. 48).

Dubbing From HDD To DV

It is possible to perform dubbing from the HDD deck to the DV deck.

1 Load a Mini DV cassette with the erase protection switch set to

ARECB.

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select AHDDNDVB, then press

ENTER.

4 Press selection keys to select indexes (small pictures) of

desired original recordings and/or play lists, then press MARK.

After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings and/or play lists.

5 Press selection keys to select ASELECT RECORDING

MODEB, then press ENTER. Press selection keys to select

the desired option, then press ENTER.

6 Press selection keys to select ASELECT SOUND MODEB,

then press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press I to locate the point from where you want to start

dubbing, press o or W then press R and W simultaneously so

that the DV deck enters the record pause mode.

● The dubbing screen will appear.

9 Press selection keys to select AEXECUTEB, then press

ENTER for confirmation.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

10 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

Dubbing From DVD To DV

It is possible to perform dubbing from the DVD deck to the DV deck.

1 Load the disc you want to dub onto the DVD deck, and a Mini

DV cassette with the erase protection switch set to ARECB to the DV deck.

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVD NDVB, then press

ENTER.

4 Press selection keys to select indexes (small pictures) of

desired original recordings, then press MARK. After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings.

5 Press selection keys to select ASELECT RECORDING

MODEB, then press ENTER. Press selection keys to select the desired option, then press ENTER. The confirmation screen appears.

6 Press selection keys to select ASELECT SOUND MODEB,

then press ENTER. Press selection keys to select the desired option, then press ENTER.

● Sound mode selection is not available when dubbing a

DVD-R/RW (Video mode) disc.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press I to locate the point from where you want to start

dubbing, press o or W then press R and W simultaneously so that the DV deck enters the record pause mode.

● The dubbing screen will appear.

9 Press selection keys to select AEXECUTEB, then press

ENTER to confirm.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

10 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

NOTES:

● It is not possible to dub play lists on DVD discs.

● It is not possible to dub Video CDs/SVCDs or Audio CDs.

● It is not possible to dub from +R/+RW discs.

● When dubbing is in progress, only o is functional.

Original Dubbing (From DVD To HDD)

It is possible to dub the original recordings on DVD discs to the HDD deck.

1 Load a disc you want to dub. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVD NHDDB, then press

ENTER.

4 Press selection keys to select indexes (small pictures) of

desired original recordings, then press MARK. After selecting

all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings.

5 Press selection keys to select AEXECUTEB, then press

ENTER to start dubbing.

NOTES:

● It is not possible to dub play lists on DVD discs.

● It is not possible to dub pre-recorded DVD VIDEO discs.

● It is not possible to dub Video CDs/SVCDs or Audio CDs.

● It is not possible to dub from +R/+RW discs.

● It is not possible to discontinue dubbing once it has been started.

Dubbing From DV To HDD (Dubbing An Entire Cassette)

It is possible to perform automatic dubbing of all the recorded programs of a cassette from the DV deck to the HDD deck using the AENTIREB dubbing. You cannot select the images to be dubbed; all recorded images on the DV cassette will be dubbed.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 60)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNHDDB, then press

ENTER.

4 Select AENTIREB, then press ENTER. 5 Press selection keys to select ASELECT RECORDING

MODEB, then press ENTER. Press selection keys to select

the desired option, then press ENTER.

6 Press selection keys to select ASELECT SOUND MODEB,

then press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB, then press

ENTER for confirmation.

● Once dubbing starts, it will continue dubbing until the end of the

tape is reached.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

● If the tape is not rewind, the unit will start dubbing after

automatically rewinding the tape to the beginning.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to

end.

● The tape will automatically be rewound.

NOTES:

● When there are blanks on the tape of more than 2 seconds, the

HDD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, ADUBBING COMPLETEDB appears on the TV screen when the tape end is reached and the tape rewinds automatically.

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o, ON SCREEN and AUDIO

buttons are functional.

Dubbing From DV To HDD (Dubbing A Part of A Cassette)

It is possible to select the images on the DV cassette to be dubbed from the DV deck to the HDD deck using AMANUALB dubbing.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 60)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNHDDB, then press

ENTER.

4 Select AMANUALB, then press ENTER. 5 Press selection keys to select ASELECT RECORDING

MODEB, then press ENTER. Press selection keys to select

the desired option, then press ENTER.

6 Press selection keys to select ASELECT SOUND MODEB,

then press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB, then press

ENTER for confirmation.

EDITING

● If the DV deck is in the stop mode, the unit will start dubbing

from the current tape position.

● If the DV deck is in the pause mode, the unit will start dubbing

from the point where the tape was paused after automatically rewinding the tape for 2 seconds.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

EN 47

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

● The tape will automatically be rewound.

NOTES:

● When there are blanks on the tape of more than 2 seconds, the

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o, ON SCREEN and AUDIO

buttons are functional.

Dubbing From DV To DVD (Dubbing An Entire Cassette)

It is possible to perform automatic dubbing of all the recorded programs of a cassette from the DV deck to the DVD deck using the AENTIREB dubbing. You cannot select the images to be dubbed; all recorded images on the DV cassette will be dubbed.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 60)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNDV DB, then press

ENTER.

4 Select AENTIREB, then press ENTER. 5 Press selection keys to select ASELECT RECORDING

MODEB, then press ENTER. Press selection keys to select the desired option, then press ENTER.

6 Press selection keys to select ASELECT SOUND MODEB,

then press ENTER. Press selection keys to select the desired option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB or AAUTO

FINALIZEB, then press ENTER for confirmation.

● Once dubbing starts, it will continue dubbing until the end of the

tape is reached.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

● If the tape is not rewind, the unit will start dubbing after

automatically rewinding the tape to the beginning.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to end.

● The tape will automatically be rewound.

NOTES:

● The program information at the DV deck will not be dubbed.

● When there are blanks on the tape of more than 2 seconds, the

DVD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, ADUBBING COMPLETEDB appears on the TV screen when the tape end is reached and the tape rewinds automatically.

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o and ON SCREEN buttons are

functional.

48 EN

EDITING

Dubbing From DV To DVD (Dubbing A Part Of A Cassette)

It is possible to select the images on the DV cassette to be dubbed from the DV deck to the DVD deck using AMANUALB dubbing.

1 Load the Mini DV cassette you want to dub. Make sure its erase

protection switch is set to ASAVEB.

● Set ADV AUDIO RECB to the appropriate mode. (A pg. 60)

2 Press DUBBING to access the Dubbing Menu screen. 3 Press selection keys to select ADVNDV DB, then press

ENTER.

4 Select AMANUALB, then press ENTER. 5 Press selection keys to select ASELECT RECORDING

MODEB, then press ENTER. Press selection keys to select

the desired option, then press ENTER.

6 Press selection keys to select ASELECT SOUND MODEB,

then press ENTER. Press selection keys to select the desired

option, then press ENTER.

7 Press G to select ACONFIRMB, then press ENTER. The

confirmation screen appears.

8 Press selection keys to select AEXECUTEB or AAUTO

FINALIZEB, then press ENTER for confirmation.

● If the DV deck is in the stop mode, the unit will start dubbing

from the current tape position.

● If the DV deck is in the pause mode, the unit will start dubbing

from the point where the tape was paused after automatically

rewinding the tape for 2 seconds.

● To cancel the dubbing, press o then selection keys to select

ACANCELB and press ENTER to confirm.

9 Upon completing dubbing, the tape stops and ADUBBING

COMPLETEDB appears on the TV screen. Press ENTER to

end.

● The tape will automatically be rewound.

NOTES:

● The program information at the DV deck will not be dubbed.

● When there are blanks on the tape of more than 2 seconds, the

● Dubbing copyright guarded tape is not possible.

● When dubbing is in progress, o and ON SCREEN buttons are

functional.

About Disc Remaining Display

When dubbing from HDD to DVD, the unit displays the time information for dubbing by bar meter. By comparing the disc remaining time and the necessary time for dubbing of the selected items, it is possible to check if the dubbing can be performed completely or not.

When performing the High Speed Dubbing

Capacity of a disc Remaining capacity

21%

Dark green: Length of already recorded item Light green: Length of selected item Yellow: Length of the item now being selected by arrow Red: Excess over the capacity

When performing the Just Dubbing

TOTAL 105MIN

● The unit displays the status on the assumption that the selected

items are dubbed in the lowest transfer rate.

● The total time of a loaded disc is displayed on the right of the bar

meter.

When performing the Manual Dubbing

MAX FR240

● The unit displays the status on the assumption that the selected

items are dubbed in the lowest transfer rate.

● The available highest transfer rate is displayed on the right of the

bar meter.

DV Dubbing (HDD & DVD Deck Only)

You can dub programs from a camcorder or DV equipment connected to the unit with a DV cable. The unit’s remote control allows you the limited control of the connected camcorder or DV equipment functions during dubbing.

NOTE:

When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable (VC-VDV 204U).

Your unit

To [DV IN/OUT]

Camcorder

DV equipment

The following on-screen display for DV dubbing appears when ON SCREEN is pressed while the channel has been set to ADVB.

HDD

00:00: 00. 00

FR360

12bit

0:00 1:00 2:00

JVC

DV DV

GR-DV3500

00:00: 00. 00

GR-DV3500DV

1 2

A B C

A Remote control switch

To switch between the devices operable by the remote control

unit. The unit is operable when the remote icon ( )

displayed faces to the left, while the DV device is operable when

the remote icon is facing to the right.

B Auto capture button

Select to start or pause the dubbing. If ENTER is pressed when

the DV device is in the pause condition, preroll editing* where it

is possible to dub with a start time that is highly accurate will be

activated. When the DV device cannot be operated from the unit

(such as in camera mode), proceed with normal recording.

●

Do not start dubbing at the portion with no time code (A––:––:––B).

* Preroll editing refers to the playback after the DV tape is slightly rewind.

(For DV devices that do not support the –1x speed, the rewinding time may be longer.)

C Sound monitor switch

For selecting the desired sound format for dubbing.

DV cable

(VC-VDV 204U)

(not supplied)

DV connector

L–R

SOUND1

EDITING

EN 49

1 Connect a camcorder or DV equipment to the [DV IN/OUT]

connector on the unit’s front panel.

2 Press DV/HDD/DVD on the unit repeatedly; or press HDD or

DVD on the remote control to select the recording deck.

● When dubbing to a DVD disc, load a recordable disc on this

unit.

3 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to set the channel to ADVB.

4 Press ON SCREEN.

● The on-screen display for DV dubbing appears.

5 Press selection keys to select , then press ENTER

to display the remote icon (facing to the right) for the DV equipment.

6 Press REC MODE repeatedly to set the recording mode. For

DV deck, press REC MODE on the remote control to set the recording mode.

● Each time you press REC MODE, the recording mode changes

as follows: XP N SP N LP N EP N FR (60-360

, 420, 480) N (Back to the

beginning)

* The value is selectable from 1 to 6 hours in 5 minutes interval by

For details on the recording mode, see ARecording ModeB

●

DE repeatedly after selecting AFR60–FR360B. To change

pressing the value in 30 minutes interval, press and hold

DE.

(A pg. 50).

7 Locate the point from where you want to start dubbing, then

stop or pause playback by pressing the following buttons on the remote control: I, N, O, o, W.

● To play back in slow speed (1/10 of the normal speed), press W

to pause playback, then press O or N.

● To play back frame-by-frame, press W to pause playback, then

press W repeatedly. Each press of W advances a frame.

● To change the playback direction, press O or N.

8 Press selection keys to select , then press ENTER

repeatedly until the desired sound track appears on the TV screen.

SOUND1:

Select this to record the original stereo sound played back on the connected DV equipment.

SOUND2:

Select this to record the dubbed stereo sound played back on the connected DV equipment.

MIX:

Select this to record the sound of both ASOUND1B and ASOUND2B.

● Note that this selection is not available when the source

program is recorded in 16BIT (48 kHz) mode.

9 Press selection keys to select , then press

ENTER. The dubbing starts.

● Playback on the external DV equipment and recording on the

unit should start simultaneously.

● To pause dubbing, press selection keys to select ,

then press ENTER. Both the unit and the external DV equipment pause dubbing. Pressing W on the unit also works the same way.

10 Press selection keys to select , then press

ENTER. Then press o. The DV equipment stops.

11 Press selection keys to select , then press

ENTER.

12 Press o twice on the remote control to stop dubbing.

● Both the unit and the external DV equipment stop dubbing.

NOTES:

● To create chapters (marks) automatically, set ADV AU TO

CHAPTERINGB to AONB. (A pg. 59)

● Dubbing copyright guarded programs is not possible.

● Original DV information such as the recording date and time are

not recorded.

● The superimposed indication during the operation or dubbing is

not recorded.

50 EN

● If the dubbing is paused while the channel is set to ADV B, you

EDITING

cannot switch channels.

When you dub from DV equipment other than a camcorder

A Perform steps 1 – 4. B Locate the point from where you want to start dubbing,

then stop on the DV equipment.

● If you pause the DV equipment in this step, a few

second’s still picture will be recorded at the beginning of the recorded program.

Set the input mode to ADV INPUTB on the DV equipment.

● If you select an input mode other than ADV INPUTB,

unwanted pictures may be recorded at the beginning of the recorded program.

D Perform steps 9 – 12.

To skip unwanted part of the source picture

Press ENTER to stop both equipment, then press selection keys to select . Locate the point where you want to restart dubbing by pressing I, N, or O, then press o. Press selection keys to select , then press ENTER to restart dubbing.

Recording Mode

MPEG2 format is used as recording format. As a guide for picture quality, the AbpsB unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording. Select XP or SP for programs where quick movement occurs, such as sports programs, and LP or EP for talk shows, etc. with relatively less movement. The recording modes for a 4.7 GB disc are set as follows:

Recording mode Recording amount

(approx.)

Maximum recording

time (approx.)

XP 10 Mbps 1 hour SP 5 Mbps 2 hours LP 2.5 Mbps 4 hours EP 1.6 Mbps 6 hours

60-360

420 7 hours 480 8 hours

● For details on FR mode, refer to AFree Rate FunctionB on the

The amount varies

depending on the

selected time.

1 – 6 hours

right column.

The recording modes for the HDD are set as follows:

Free Rate Function

To record the entire program, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the program to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 480 minutes).

8 To record the entire program within the actual remaining

disc space (DVD deck only)

Select AFR (JUST)B in a recording mode selection procedure.

● Note that this function is available only when dubbing from HDD

to DVD (A pg. 45).

8 To record the entire program by specifying the desired

recording time

Select AFR60–FR360B, AFR420B or AFR480B in a recording mode selection procedure.

8 To record a 25-min. long program five times on the same

DVD disc for example

Be sure to set the recording mode to AFR125B to fit the total recording time to the whole disc space.

A: 1st

Blank

When the same program is recorded in SP mode instead of in AFR125B, the 5th program cannot be recorded.

Blank

NOTES:

● The maximum recording time of FR (JUST) mode is the same as

the recording time of FR480 mode. When dubbing a long program in FR (JUST) mode on a disc whose remaining time is short, it is recommended to check the disc remaining time in FR480 mode to see if the remaining time is enough for the program.

● In order to ensure that the recording fits on the disc, this feature

may leave a slight non-recorded section at the end of the disc.

● There may be some noise and sound disturbance at the point on

the disc where the unit switches the mode.

B: 2nd C: 3rd D: 4th E: 5th

A: 1st B: 2nd C: 3rd D: 4th E: Blank (20 min.)

Recording mode Maximum recording time (approx.)

XP 8 hours

SP 16 hours

LP 33 hours

EP 49 hours

FR480 71 hours

● For details on FR mode, refer to AFree Rate FunctionB.

NOTE:

The maximum recording time stated in the above table are the approximate time under unused condition.

Edit From A Camcorder

You can use a camcorder as the source player and your unit as the recording deck. If your camcorder has a DV IN/OUT connector, you can use the camcorder as the recording deck and your unit (DV deck only) as the source player.

A If the camcorder has no S-VIDEO output connector:

To [VIDEO/AUDIO ((MONO) L/R)] input

Audio/video cable (not supplied)

AUDIO/VIDEO OUTPUT

Player

B If the camcorder has an S-VIDEO output connector:

[S-VIDEO]

input

S-video cable (not supplied)

To [AUDIO] input

Player

S-VIDEO OUTPUT

AUDIO OUTPUT

Recorder

Audio cable (not supplied)

●

Slide the TV/DVD switch to DVD.

EDITING

EN 51

1 Make connections.

A If the camcorder has no S-VIDEO output connector:

^ connect the camcorder’s AUDIO/VIDEO OUTPUT

connectors to the unit’s [VIDEO/AUDIO ((MONO) L/R)] input connectors on the front panel.

● When using a monaural camcorder, connect its AUDIO OUT

connector to the [AUDIO-L] input connector on your unit.

B If the camcorder has an S-VIDEO output connector:

^ connect the camcorder’s AUDIO OUT and S-VIDEO OUT

connectors to the unit’s [AUDIO] and [S-VIDEO] input connectors on the front panel.

C If the camcorder has a DV IN/OUT connector:

^ connect the camcorder’s DV IN/OUT connector to the unit’s

[DV IN/OUT] connector.

● When using your unit as the source player, refer to the

camcorder’s instruction manual for the recording procedure.

2 Press DV/HDD/DVD on the unit repeatedly to select the

recording deck.

3 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select AF-1B or ADVB.

● Set AFRONT AUX F-1B to AVIDEOB for the [VIDEO] input

connector, or AS-VIDEOB for the [S-VIDEO] input connector, depending on the connector being used. (A pg. 60)

4 Press REC MODE repeatedly to set the recording mode. For

DV deck, press REC MODE on the remote control to set the recording mode.

5 Start playback on the camcorder slightly before the actual point

from where you wish to start dubbing.

6 Press R on the unit to start recording. Or while holding R, press

I on the remote control. The dubbing starts.

7 Press o on the unit, then stop playback on the camcorder.

NOTES:

● All necessary cables can be obtained from your dealer.

● Refer to the camcorder’s instruction manual for operating

procedure.

● The quality of dubbed picture becomes poorer than that of the

original.

● When you are editing through the [DV IN/OUT] connector, the

unit will stop if the player begins playing a blank portion of tape or the signal is interrupted.

● When connecting the unit to a device equipped with a DV input

connector, be sure to use the optional DV cable (VC-VDV 204U).

● To edit through the [DV IN/OUT] connector using the HDD or

DVD deck, refer to ADV Dubbing (HDD & DVD Deck Only)B (A pg. 49).

● When using your unit as the recording deck, chapters (marks)

can be automatically created. Set ADV AUTO CHAPTERINGB to AONB. (A pg. 59)

C If the camcorder has a DV IN/OUT connector:

Recorder/Player

(VC-VDV 204U)

(not supplied)

DV connector

Player/Recorder

To [DV IN]

DV cable

52 EN

EDITING

Edit To Or From Another Recorder

You can use your unit as the source player or as the recording deck.

NOTES:

● When using another recorder as the recording deck, refer to its

instruction manual.

● It is not possible to dub copy-protected contents. An error

message will appear on the TV screen.

A When using your unit as the source player

Player

Another recorder

Your unit

●

Slide the TV/DVD switch to DVD.

1 Make connections.

A When using your unit as the source player:

^ connect its [S-VIDEO/VIDEO/AUDIO OUTPUT] connectors

to the input connectors on another recorder.

B When using your unit as the recording deck:

^ connect its [S-VIDEO/VIDEO/AUDIO INPUT] connectors on

the front or rear panel to the output connectors on another recorder.

● When connecting to another recorder with S-video connector,

set AREAR AUX L-1B or AFRONT AUX F-1B to AS-VIDEOB.

2 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select the external input.

● Select AF-1B when the source player is connected to the unit’s

[VIDEO/AUDIO] or [S-VIDEO/AUDIO] input connectors on the front panel, and select AL-1B when it is connected to the unit’s [VIDEO/AUDIO] or [S-VIDEO/AUDIO] input connectors on the rear panel.

3 Press REC MODE repeatedly to set the recording mode. 4 Engage the Play mode on the source player. 5 Engage the Record mode on the recording deck. 6 Stop recording on the recording deck, then stop playback on the

source player.

NOTES:

● All necessary cables can be obtained from your dealer.

● When you use this unit as the source player for editing, be sure to

set ASUPERIMPOSEB to AOFFB before starting. (A pg. 59)

Recorder

B When using your unit as the recording deck

Recorder

Another recorder

Player

Your unit

Digital Audio Dubbing

You can dub selected audio from a DVD or Audio CD disc to a digital audio device. However, it is not possible to dub copy-protected discs.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

Example: Dubbing to an MD

Recorder

Digital audio device

(MD deck, etc.)

EDITING

EN 53

1 Connect the unit and a digital audio device using either an

optional optical cable or an optional coaxial cable.

2 Place a disc on the unit and load an MD on the connected

digital audio device.

3 Select the audio to be dubbed. 4 Start playback slightly before the actual point from where you

wish to start dubbing.

5 Press W to pause playback. 6 Select the input mode on the connected digital audio device. 7 Press I to start playback on the unit. 8 Start recording on the digital audio device. 9 Stop recording on the digital audio device. Then press o to stop

playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

Player

Coaxial cable (not supplied)

To [DIGITAL AUDIO

OUTPUT (COAXIAL)]

Note for connection:

Remove the protection cap from the optical cable.

Optical cable (not supplied)

To [DIGITAL AUDIO OUTPUT (OPTICAL)]

Rear of unit

54 EN

EDITING

Audio Dubbing (DV Deck Only)

This function allows you to record new audio, without erasing the original audio, on a DV tape that was recorded with ADV AUDIO RECB set to A12BITB (A pg. 60).

ATTENTION:

You cannot perform Audio Dubbing on a tape that was recorded with ADV AUDIO RECB set to A16BITB (A pg. 60), on a tape that was recorded at the ALPB speed, or on a blank tape.

Your unit

To [AUDIO]

input

Audio cable (not supplied)

AUDIO OUT

CD player, etc.

Mixer output

Recorder

AUDIO DUB.INPUT SELECT

Audio mixer

Slide the TV/DVD switch to DVD.

●

1 Connect an audio device to the unit’s [AUDIO] input connectors

on the front panel.

● When using a monaural audio device, connect its AUDIO OUT

connector to the [AUDIO-L] input connector on your unit.

2 Load a Mini DV cassette with the erase protection switch set to

ARECB.

3 Press DV/HDD/DVD on the unit repeatedly or DV on the remote

so that the DV lamp lights up on the unit.

4 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select AF-1B.

5 Start playback slightly before the actual point from where you

wish to start dubbing.

6 Press W to pause playback. 7 Press AUDIO DUB. to engage the audio dubbing mode.

● Your unit enters the Audio Dubbing Pause mode.

● To perform Audio Dubbing with audio mixing, press AUDIO to

select AL W X RB at this point. When using the DV deck as the recording deck, also make sure that AAUDIO MODEB is set to ASOUND1B (A pg. 60).

* Audio Dubbing with audio mixing is not possible if you are using a

monaural audio component, or if you don’t have an audio mixer.

8 Engage the audio device’s playback, then press I to start the

tape in the unit. Audio dubbing starts at this point.

● To stop dubbing temporarily, press W. Press I to resume

dubbing.

9 Press o on the unit, then stop playback on the audio device to

end the audio dubbing.

NOTES:

● When monitoring the audio dubbed sound on the DV deck, set

AAUDIO MODEB to ASOUND2B (A pg. 60).

● When playing back an audio dubbed Mini DV tape on the DV

deck, set AAUDIO MODEB to ASOUND2B (A pg. 60).

● Audio dubbing is not possible using the [DV IN/OUT] connector.

● Audio dubbing is not possible on a blank portion of the tape.

Your unit

[AUDIO]

input

Original sound

[AUDIO OUTPUT]

Recorder

AUDIO DUB.INPUT SELECT

Insert Editing (DV Deck Only)

Insert Editing replaces the pictures with new ones, while the audio soundtrack remains unchanged. For Insert Editing, use your unit as the recording deck.

ATTENTION:

Insert Editing is not possible with a Mini DV cassette recorded in LP mode.

A If the player has no S-VIDEO output connector:

Your unit

Player

B If the player has an S-VIDEO output connector:

Your unit

INPUT SELECT

To [VIDEO] input

Audio/video cable (not supplied)

VIDEO OUT

Another recorder

INPUT SELECT

Recorder

INSERT

Recorder

Slide the TV/DVD switch to DVD.

●

EDITING

EN 55

1 Make connections.

A If the player has no S-VIDEO output connector:

^ connect the player’s VIDEO OUT connector to your unit’s

[VIDEO] input connector on the front panel.

B If the player has an S-VIDEO output connector:

^ connect the player’s S-VIDEO OUT connector to your unit’s

[S-VIDEO] input connector on the front panel.

2 Load a Mini DV cassette with the erase protection switch set to

ARECB.

3 Press DV/HDD/DVD on the unit repeatedly or DV on the remote

so that the DV lamp lights up on the unit.

4 Press INPUT SELECT +/– on the remote control or

INPUT SELECT on the unit to select AF-1B.

5 Press S, T and W to determine the edit-in point (the

beginning of the segment to be replaced).

● Be sure to engage the Still mode at the edit-in point.

6 Press INSERT to engage the insert editing mode.

● Your unit enters the Insert Pause mode.

● The TV screen changes from the still picture to the input source

you are going to record.

7 Load the source cassette and play back the segment that is to

be inserted. When you reach the start of the section of the source tape that you wish to insert, press I to start the tape in your unit. Insert editing begins at this point.

8 Press o to stop recording on the DV deck to end insert editing.

NOTES:

● All necessary cables can be obtained from your dealer.

● Insert Editing cannot be performed on a Mini DV cassette that

has had its erase protection switch set to ASAVEB.

● When Insert Editing is performed on a tape that has been

recorded on another video recorder, the inserted portion may appear distorted.

● A small portion of the recording which precedes an insert edit

may become erased.

● Insert Editing is not possible using the [DV IN/OUT] connector.

● Insert Editing is not possible on a blank portion of the tape.

To [S-VIDEO] input

S-video cable (not supplied)

S-VIDEO OUT

Player

INSERT

Another recorder

56 EN

REMOTE CONTROL

Remote Control Functions

Remote Control 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of the four codes (1, 2, 3 or 4). The remote control is preset to send code 3 signals because your unit is initially set to respond to code 3 signals. You can easily modify your unit to respond to code 1, 2 or 4 signals.

● Slide the TV/DVD switch to DVD.

1 – 4

ENTER

DVDTV

TV/VIDEO

TV d

0 – 9

● Keep pressing SET UP down during step 1.

TV 8 +/–

PR/CH +/–

ENTER

SET UP

DVDTV

1 Enter your TV’s brand code using the number keys, then press

ENTER.

2 Press A on the unit’s remote control to turn on the TV and try

operations (A step 3).

● Once you have set the remote control to operate the TV, you do

not have to repeat this step until you replace your remote control’s batteries.

● Some brands of TVs have more than one code. If the TV does

not function with one code, try entering another.

3 Press the corresponding buttons to operate the TV: A, TV/

VIDEO, PR/CH +/–, TV8 +/–, TV d, number keys.

● For some brands of TVs, you must press ENTER after having

pressed the number keys.

SET UP

● Keep pressing SET UP down during step 1.

1 Press the number key A1B for 1, A2B for 2, A3B for 3 or A4B for 4

to change the remote control code, then press ENTER.

2 Press A on the unit to turn off the unit. 3 Press I on the unit for over 5 seconds while the unit is turned

off. The current code appears on the front display panel.

4 Press o on the remote control to change the unit’s code. The

new code blinks on the front display panel for approximately 5

seconds, and is applied to the unit.

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

● Turn off the TV using its remote control.

● Slide the TV/DVD switch to TV.

IMPORTANT:

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

BRAND NAME CODE

JVC FERGUSON FINLUX FUNAI LG/GOLDSTAR GRUNDIG HITACHI ITT MITSUBISHI MIVAR NEC NOKIA PANASONIC PHILIPS RCA SAMSUNG SANYO SHARP SONY THOMSON TOSHIBA

01, 23, 24, 25 27 30 32 18 19 10 28 03 29 20 31 04, 11 02 05 12, 33, 34, 35 13, 16 06 07 26 08, 14

Connecting To A Dolby Digital Decoder Or An Amplifier With Built-in DTS

These instructions enable you to connect your unit to a Dolby Digital Decoder or an amplifier with built-in DTS.

Dolby Digital Decoder or

amplifier with built-in DTS

To DIGITAL AUDIO input

Coaxial cable

(not supplied)

To [DIGITAL AUDIO

OUTPUT

(COAXIAL)]

Note for connection:

Remove the protection cap from the optical cable.

Optical cable (not supplied)

To [DIGITAL AUDIO OUTPUT (OPTICAL)]

Rear of unit

SYSTEM CONNECTIONS

EN 57

1 Connect the unit and a Dolby Digital Decoder or an amplifier

with built-in DTS using either an optional optical cable or an optional coaxial cable.

NOTES:

● For Dolby Digital sound, set ADIGITAL AUDIO OUTB to ADOLBY

DIGITAL/PCMB. (A pg. 58)

● For DTS sound, set ADIGITAL AUDIO OUTB to ASTREAM/PCMB.

(A pg. 58)

CAUTIONS:

● This unit has a dynamic range of more than 110 dB with regards

to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to prevent

television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the playback picture.

When you can’t switch the audio channel of a bilingual program

When the unit is connected with a digital audio device using an optional optical cable and ADIGITAL AUDIO OUTB is set to ADOLBY DIGITAL/PCMB, it is not possible to switch the audio channel of a bilingual program recorded on a DVD-RAM or DVD-R/ RW (VR mode) disc. In this case, perform the following steps using the remote control to switch ADIGITAL AUDIO OUTB from ADOLBY DIGITAL/PCMB to APCM ONLYB.

A Press SET UP to access the Main Menu screen. B Press selection keys to select ADVD VIDEO SET UPB, then

press G.

C Press selection keys to select AAUDIO OUTPUTB, then press

D Press selection keys to select ADIGITAL AUDIO OUTB, then

press ENTER.

E Press selection keys to select APCM ONLYB, then press

ENTER. (A pg. 58)

F Press SET UP to complete the setting. G Press AUDIO to select the desired audio channel.

58 EN

SUBSIDIARY SETTINGS

Mode Set

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

HDD

ENTER

AUDIO

Various modes of this unit are categorized into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu (for details on each menu, see pages 58 through 60), then follow the procedure below.

DVD VIDEO SET UP LANGUAGE SET (A pg. 20)

AUDIO OUTPUT (See right column) DISC PLAY SET UP (A pg. 59)

HDD/DVD SET UP HDD SET UP (A pg. 59)

DVD SET UP (A pg. 59, 62) DISC SET UP (A pg. 61, 62) COMMON SET UP (A pg. 59)

FUNCTION SET UP REC/PLAY SET UP (A pg. 59)

DISPLAY SET (A pg. 59) VIDEO IN/OUT (A pg. 21)

INITIAL SET UP MENU BACKGROUND (A pg. 64)

CLOCK SET (A pg. 19)

DV SET UP (A pg. 60)

● The procedure below shows how to set the desired option of the

AJUMP TIMEB mode as an example.

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select AFUNCTION SET UPB, then

press G.

4 Press selection keys to select

AREC/PLAY SET UPB, then

press G.

5 Press selection keys to select

AJUMP TIMEB, then press

ENTER.

6 Press selection keys to select

the desired option, then press

ENTER.

7 Press SET UP to complete the setting.

DVD

Selection Keys

FGDE

SET UP

DVD VIDEO SET UP

REC/PLAY SET UP

XP MODE REC AUDIO

JUMP TIME

ENTER

SET UP

EXIT

SELECT

HDD/DVD SET UP

DISPLAY SET

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

FUNCTION SET UP

VIDEO IN/OUT

DOLBY DIGITAL

15 MIN

INITIAL SET UP

*The boldface settings below indicate the settings at your purchase.

AUDIO OUTPUT

8 DIGITAL AUDIO OUT ^ DOLBY DIGITAL/PCM / STREAM/

/ PCM ONLY

PCM

Set to the appropriate mode according to the type of the device connected to [DIGITAL AUDIO OUTPUT] connector.

DOLBY DIGITAL/PCM:

Select this when you connect the digital input connector of a Dolby Digital Decoder or an amplifier with a built-in Dolby Digital Decoder.

STREAM/PCM:

Select this when you connect the digital input connector of an amplifier with a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

PCM ONLY:

Select this when you connect the linear PCM digital input of other audio equipment (amplifier, MD or DAT deck, etc.).

NOTES:

● This setting also functions when HDD is active.

● If you watch or play back a title which contains multiple audio

languages, select APCM ONLYB in advance and choose main or sub audio with AUDIO.

8 ANALOG AUDIO OUT ^ STEREO / DOLBY SURROUND

Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.

STEREO:

Select this when listening to conventional two-channel stereo audio with the unit’s [AUDIO OUTPUT] connectors connected to a stereo amplifier/receiver or TV set, or in case you want to record the audio from a DVD VIDEO disc to a Mini Disc, etc.

DOLBY SURROUND:

Select this when listening to multichannel surround audio with the unit’s [AUDIO OUTPUT] connectors connected to an amplifier/receiver with a built-in surround decoder or a surround decoder.

8 D. RANGE CONTROL ^ NORMAL / WIDE RANGE / TV MODE

The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a program encoded in Dolby Digital format. This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.

NORMAL:

Normally select this setting to activate this function.

WIDE RANGE:

Select this to deactivate this function when you enjoy wide dynamic range program.

TV MODE:

Select this when you hear the sound through the TV’s speaker(s).

NOTES:

● This function has no effect on programs other than those

recorded in Dolby Digital format.

● This function does not work when Simulated Surround Effect is

activated. (A pg. 29)

● The effect of ANORMALB and AWIDE RANGEB may not be

different depending on discs.

8 OUTPUT LEVEL ^ STANDARD / LOW

You can lower the output level of analog audio to accommodate the unit to the connected A/V equipment.

STANDARD:

Normally select this setting.

LOW:

The output level of analog audio is lowered.

SUBSIDIARY SETTINGS

EN 59

DISC PLAY SET UP

8 RESUME ^ OFF / ON / DISC RESUME

When this function is set to AONB or ADISC RESUMEB, you can use the resume function. (A pg. 24)

OFF:

You cannot use the resume function.

ON:

You can start playback from the resume point of the placed disc.

DISC RESUME:

The unit retains a memory of the resume points of the last 30

discs played back, even though they have been ejected.

NOTE:

ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD and already finalized DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under AONB setting will be applied even if ARESUMEB is set to ADISC RESUMEB.

HDD SET UP

8 LIVE MEMORY ^ OFF / 30 MIN / 1 HR / 3 HR

When this function is set to A30 MINB, A1 HRB or A3 HRB, you can apply the selected time length to ATemporary recording for Live Memory (HDD deck only)B (A pg. 37).

DVD SET UP

8 SAVE AS LIBRARY ^ OFF / ON

When this function is set to AONB, the recording information is automatically stored in the library. For details, refer to ANavigate Library InformationB (A pg. 43).

8 CONTINUOUS PLAY ^ OFF / ON

When this function is set to AONB, multiple titles on a disc are played back continuously one after another.

8 VIDEO MODE RECORDING ASPECT ^ PRIORITIZE 4:3 /

PRIORITIZE 16:9

This is the setting for the aspect ratio used when you dub titles to DVD discs in video mode. If the titles you want to dub are recorded in both 16:9 and 4:3, you must select one aspect ratio.

PRIORITIZE 4:3:

If you select APRIORITIZE 4:3B, even a title recorded in 16:9 is

dubbed in 4:3.

PRIORITIZE 16:9:

If you select APRIORITIZE 16:9B, even a title recorded in 4:3 is

dubbed in 16:9.

8 MP3&WMA / JPEG ^ MP3&WMA / JPEG

You can select files to play back, when both MP3&WMA files and JPEG files are recorded on a disc.

MP3&WMA:

Select this to play back MP3/WMA files.

JPEG:

Select this to play back JPEG files.

COMMON SET UP

8 DV AUTO CHAPTERING ^ OFF / ON

When this function is set to AONB, you can create chapters (marks) when dubbing from the DV deck or via the DV input terminal connecting the external DV camcorder.

OFF:

Do not create chapters (marks).

ON:

Create chapters (marks).

NOTE:

Marks cannot be created for direct recording to the DVD in Video mode. Record to the HDD, then dub to the DVD.

8 MOTION INDEX ^ OFF / ON

When this function is set to AONB, you can set the picture on the top left corner of the Library Database Navigation screen or the Editing screen to that of the selected title.

REC/PLAY SET UP

8 XP MODE REC AUDIO ^ DOLBY DIGITAL / LINEAR PCM

You can select the audio format when you record a title in XP mode. When this function is set to ALINEAR PCMB, you can obtain a high-quality audio sound.

DOLBY DIGITAL:

To record in Dolby Digital format.

LINEAR PCM:

To record in Linear PCM format.

8 JUMP TIME ^ 15 MIN / 30 MIN / 1 HR

You can locate a scene ahead of or behind the currently viewed one by jumping a selected time interval during playback (or Live Memory Playback). For details, refer to AJump SearchB (A pg. 24,

32).

DISPLAY SET

8 SUPERIMPOSE ^ OFF / ON / AUTO

When this function is set to AAUTOB , various operational indicators appear on the TV screen. Messages appear in the selected language. (A pg. 20)

OFF:

To turn off superimposed indications.

ON:

To turn on superimposed indications.

AUTO:

To superimpose operational indications for approximately five seconds just after the corresponding operation.

NOTES:

● When you use this unit as the source player for editing, be sure to

set ASUPERIMPOSEB to AOFFB before starting. (A pg. 52)

● When you select AAUTOB, during playback, the operation mode

indicators may be disturbed depending on the type of disc being used.

8 DIMMER (DURING POWER ON) ^ BRIGHT / DIMMED

You can change the brightness of the front display panel.

BRIGHT:

Normally select this.

DIMMED:

To dim the front display panel.

8 DIMMER (DURING POWER OFF) ^ OFF / ON

You can select to light up or turn off the light of the front display panel when the unit is off.

OFF:

To turn off the light of the front display panel when the unit is off.

ON:

To light up the front display panel when the unit is off.

8 QUICK STARTUP ^ OFF / ON

When this function is set to AONB, operations such as playback can be performed more quickly upon turning on the unit than when set to AOFFB. However, the power consumption during standby increases.

OFF:

To disable the quick startup function.

ON:

Operations can be performed quickly after turning on the unit.

8 ON SCREEN LANGUAGE

This unit offers you the choice to view on-screen messages in 3 different languages. For details, refer to AOn-screen Language SetB (A pg. 20).

60 EN

SUBSIDIARY SETTINGS

VIDEO IN/OUT

8 MONITOR TYPE ^ 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs. For details, refer to AMonitor SetB (A pg. 21).

8 FRONT AUX F-1 ^ VIDEO / S-VIDEO

Select the appropriate mode depending on the connector (F-1) being used on the front panel.

VIDEO:

To use the [VIDEO] input connector on the front panel.

S-VIDEO:

To use the [S-VIDEO] input connector on the front panel.

8 REAR AUX L-1 ^ VIDEO / S-VIDEO

Select the appropriate mode depending on the connector (L-1) being used on the rear panel.

VIDEO:

To use the [VIDEO INPUT] connector on the rear panel.

S-VIDEO:

To use the [S-VIDEO INPUT] connector on the rear panel.

NOTE:

To display the ADV SET UPB menu, press SET UP while in the DV deck mode.

DV SET UP

8 DV AUDIO REC ^12BIT / 16BIT

This is the setting for sound mode before recording on a Mini DV tape.

12BIT:

Enables Audio Dubbing later.

16BIT:

Audio Dubbing is not possible but the recorded sound quality is higher than A12BITB

8 AUDIO MODE ^ SOUND1 / SOUND2 / MIX

You can select the desired sound mode when playing back an audio dubbed Mini DV tape.

SOUND1:

Original recorded sound.

SOUND2:

Audio dubbed sound.

MIX:

Original recorded sound and audio-dubbed sound.

NOTES:

● When AAUDIO MODEB is set to AMIXB, both the main and sub

audio will be audible for bilingual tapes.

● To select only the main audio or only the sub audio of bilingual

tapes, set AAUDIO MODEB to ASOUND1B.

SUBSIDIARY SETTINGS

EN 61

Format A Disc (DVD Deck Only)

Some DVD-RAM/RW discs are unformatted. Format the disc when you use an unformatted disc or you want to delete all recordings and data on the disc. To use a DVD-R disc in VR mode, format the new disc in VR mode. (It will be in Video mode when not formatted.)

ATTENTION:

● When a disc is formatted, all recordings and data are erased. It

is impossible to restore them.

● Never turn off the unit or disconnect the AC power cord while

ANOW FORMATTING...B is displayed on the TV screen.

● DVD-R discs can only be formatted once.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Load a DVD-RAM/R/RW disc to format.

DVDTV

HDD

ENTER

DVD

Selection Keys

FGDE

Format A DVD-RAM Disc

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen. 3 Press selection keys to select AHDD/DVD SET UPB, then

press G.

4 Press selection keys to select

ADISC SET UPB, then press

5 Press selection keys to select

AFORMATB, then press

DVD VIDEO SET UP

HDD SET UP

HDD/DVD SET UP

DVD SET UP

FINALIZE

Video

FUNCTION SET UP

DISC SET UP DV SET UP

CANC. FINALIZ.

FORMAT

INITIAL SET UP

Video

ENTER. Press selection keys to select AEXECUTEB, then press ENTER.

SET UP

ENTER

SELECT WITH @ THEN PRESS [ENTER]

EXIT

SELECT

PRESS [SET UP] TO EXIT

6 Press selection keys to select

AEXECUTEB, then press ENTER.

Format A DVD-RW Disc

1 Perform steps 1 – 4 of AFormat A DVD-RAM DiscB as above

before continuing.

2 Press selection keys to select AFORMATB, then press ENTER.

Press selection keys to choose AVR MODEB or AVIDEO MODEB, then press ENTER.

AVR MODEB:

To be chosen when you want to record, erase, or edit data on the disc repeatedly.

AVIDEO MODEB:

To be chosen when you want to erase all the data on the disc once played back to record new data, or play back the disc on other DVD players.

3 Press selection keys to select AEXECUTEB, then press

ENTER.

NOTES:

● It is impossible to format Version 1.0 DVD-RW discs in Video

mode.

● All the titles on a disc will be deleted once the disc is formatted

even if they are protected titles. (A pg. 40)

SET UP

Format A DVD-R Disc

1 Perform steps 1 – 4 of AFormat A DVD-RAM DiscB as above

before continuing.

2 Press selection keys to select AFORMATB, then press ENTER.

Press selection keys to select AEXECUTEB, then press ENTER.

62 EN

SUBSIDIARY SETTINGS

Finalize A Disc (DVD Deck Only)

Finalizing DVD-R/RW discs recorded on this unit makes it possible for the discs to be played back on other DVD players. DVD-RW discs are finalized in the mode that the discs were formatted, enabling playback on compatible DVD players. Title names input in the Library Database Navigation are registered as title names in the DVD menu. (A pg. 39)

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

● Load a DVD-R/RW disc to finalize.

DVDTV

HDD

ENTER

Before finalizing

● It is possible to record on a blank space.

● It is possible to enter title names. (A pg. 39)

● It is possible to delete titles. (A pg. 40)

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

title is deleted from a DVD-R disc.

● It is impossible to record or edit DVD-R/RW discs recorded on

other devices even if they have not been finalized.

After finalizing (For DVD-R/RW (Video mode) discs)

● Video and audio that have been recorded by then are recorded in

conformity to the DVD Video standard, enabling you to play back the discs as DVD VIDEO discs.

● Although DVD-R/RW discs finalized on this unit become playable

on DVD players compatible with DVD-R/RW discs, some discs still may not play, for which JVC cannot take responsibility.

● Marked points marked before finalizing will be deleted, and titles

will be divided automatically into AchaptersB approximately every 5 minutes. (A pg. 25)

● Depending on the DVD players and DVD-R/RW discs used, and

on the conditions of recording, it may not be possible to play back the discs. In this case, play back the discs on this unit.

● Additional recordings become impossible.

DVD

Selection Keys

FGDE

SET UP

Finalize A DVD-R/RW Disc

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press SET UP to access the Main Menu screen.

● Alternatively, you can press F2 to access the ADISC SET UPB

screen directly. For details, refer to ADirect Access To ADISC SET UPB ScreenB (A pg. 63).

3 Press selection keys to select AHDD/DVD SET UPB, then

press G.

● If you want to change the ADISC TYPEB setting, proceed to

step 4. Otherwise, proceed to step 7 for disc finalization.

4 Press selection keys to select ADVD SET UPB, then press G. 5 Press selection keys to select ADISC TYPEB, then press

ENTER.

6 Press selection keys to select the desired option, then press

ENTER.

7 Press selection keys to select ADISC SET UPB, then press G. 8 Press selection keys to select

AFINALIZEB, then press

ENTER.

● For DVD-R/RW (Video mode)

discs, the background selection screen will appear. To finalize using the current background (with a check mark AB superimposed on it), press ENTER. To choose a new background, press selection keys to select the desired background from a selection of 18 backgrounds, then press ENTER. After selecting a background, you can preview the final result before finalizing the disc. Refer to APreviewing the background effectB (A pg. 64).

9 Press selection keys to select AOKB, then press ENTER. 10 Upon completing finalization, ACOMPLETEDB appears on the

TV screen. Press ENTER to end.

11 Press SET UP to return to the normal screen.

● Once a DVD-R/RW (Video mode) disc has been finalized, the

displays for original and play list do not appear. Only display for library appears.

● Once a DVD-RW (VR mode) disc has been finalized, it can be

played on DVD players compatible with VR mode.

● Once a DVD-R (VR mode) disc has been finalized, it can be

played on DVD players compatible with DVD-R (VR mode).

*The boldface settings below indicate the settings at your purchase.

8 DISC TYPE ^ MANUAL START / MENU STOP / AUTO

REPEAT

You can set the operation method of a DVD-R/RW (Video mode) disc when finalizing the disc on this unit.

MANUAL START:

When the DVD disc is loaded, the disc will stop after it has been read. To play back the disc, press I.

MENU STOP:

When the DVD disc is loaded, the disc will be played back automatically after it has been read. Playback will stop when the disc menu is displayed.

AUTO REPEAT:

When the DVD disc is loaded, the disc will be played back automatically after it has been read. The disc will be played repeatedly.

DVD VIDEO SET UP

HDD/DVD SET UP

HDD SET UP DVD SET UP

ENTER

SET UP

EXIT

SELECT

FINALIZE

Video

FORMAT

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

INITIAL SET UP

FUNCTION SET UP

DISC SET UP DV SET UP

CANC. FINALIZ.

Video

SUBSIDIARY SETTINGS

EN 63

Cancel The Finalization Of A DVD-RW Disc

1 Load a DVD-RW disc to cancel the disc finalization, and

perform steps 1 – 2 of AFinalize A DVD-R/RW DiscB (A pg. 62)

before continuing.

2 Press selection keys to select AHDD/DVD SET UPB, then

press G.

3 Press selection keys to select ADISC SET UPB, then press G. 4 Press selection keys to select

ACANC. FINALIZ.B, then press

ENTER.

5 Press selection keys to select

AOKB, then press ENTER.

6 Upon completing cancellation

of finalization,

ACANCELLATION

COMPLETEDB appears on the

TV screen. Press ENTER to end.

7 Press SET UP to return to the normal screen.

● When the disc finalization is canceled, the mode in which the

disc was formatted is restored, making the disc recordable.

(A pg. 9, 61)

NOTE:

It is not possible to cancel the finalization of a DVD-R disc.

DVD VIDEO SET UP

HDD/DVD SET UP

HDD SET UP DVD SET UP

ENTER

SET UP

EXIT

SELECT

FINALIZE

Video

FORMAT

SELECT WITH @ THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

INITIAL SET UP

FUNCTION SET UP

DISC SET UP DV SET UP

CANC. FINALIZ.

Video

Direct Access To ADISC SET UPB Screen

When you wish to finalize or cancel the finalization of a disc, besides accessing the ADISC SET UPB screen through the SET UP button, you can also use the F2 button on the remote control. This F2 button enables you to access the ADISC SET UPB screen directly after loading the disc.

To finalize a disc

A Load the disc. B Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

C Press F2 to access the ADISC SET UPB screen.

● The screen in step 8 of AFinalize A DVD-R/RW DiscB

(A pg. 62) appears.

D Perform steps 8 – 11 of AFinalize A DVD-R/RW DiscB

(A pg. 62) to finalize the disc.

To cancel finalization

A Perform steps A – C of ATo finalize a discB above.

● The screen in step 4 of ACancel The Finalization Of A DVD-RW

DiscB on the left column appears.

B Perform steps 4 – 7 of ACancel The Finalization Of A DVD-RW

DiscB on the left column to cancel finalization of the disc.

NOTES:

● The direct access (F2) function works only when in the HDD or

DVD deck mode, on the condition that the Main Menu, Editing, Library Database Navigation or Dubbing screen is not displayed.

● The direct access (F2) function will not work in the following

cases, and an operation prohibition mark AB appears on the TV screen.

● During DVD recording or playback.

● Disc is not loaded.

● A playback-only disc is loaded.

● Disc reading in progress.

● Disc information acquisition failure when DVD-RAM is loaded.

● When this unit is in the DV deck mode or when dubbing is in

progress, the direct access (F2) function will also not work. However, AB will not be displayed.

64 EN

SUBSIDIARY SETTINGS

Setting The Background

You can select a desired background from the 18 backgrounds available on this unit, and set it as the default background to be used during finalization (A pg. 45, 62).

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

ENTER

Selection Keys

FGDE

RETURN

SET UP

Registering Default Background

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

3 Press selection keys to select AMENU BACKGROUNDB, then

press G.

4 Press ENTER.

● The background selection screen appears. The current

background selected is indicated by a check mark AB superimposed on it.

● To return to the previous screen, press RETURN.

5 Press selection keys to select the desired background, then

press ENTER.

● The AB mark is superimposed on the newly selected

background.

● A preview screen of the selected background will be displayed

for approximately 2 seconds.

● The selected background will be used as the default

background for finalization.

6 Press SET UP to return to the normal screen.

Previewing the background effect

This unit allows you to preview the effect of the background you have selected before proceeding with finalization. This preview function is only possible when finalizing a DVD-R/RW (Video mode) disc.

After selecting a background in step 8 of AFinalize A DVD-R/RW DiscB (A pg. 62):

A Press selection keys to select APREVIEWB, then press

ENTER.

● A preview screen of the final result of your selected background

will appear.

● To exit the preview screen, press ENTER.

● To preview again, press selection keys to select

ARECONFIRMB, then press ENTER.

B Press selection keys to select AOKB, then press ENTER to

continue with finalization.

C Proceed to perform steps 9 – 11 of AFinalize A DVD-R/RW

DiscB (A pg. 62) to complete finalization.

SUBSIDIARY SETTINGS

EN 65

Scan Mode Set (HDD & DVD Deck Only)

If you connect the unit and TV with Component Video Connection (A pg. 18), you can select the scan mode from two modes: Interlaced scan mode which is used in the conventional TV system, and Progressive scan mode which enables reproduction of higher-quality images.

8 Interlaced scan

In the conventional video system, a picture is shown on the display monitor in two halves. The Interlaced scan system places lines of the second half of the picture in-between lines of the first half of the picture.

8 Progressive scan

Progressive scan displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

ATTENTION:

Your TV needs to be compatible with NTSC Progressive.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/DVD switch to DVD.

DVDTV

HDD

DVD

Tray Lock (DVD Deck Only)

You can lock the disc tray to prohibit the unwanted disc ejection by children.

● Turn off the unit.

To lock tray

While the unit is turned off, press and hold o, then press M on the unit. ALOCKB appears on the front display panel and the disc tray is locked.

To unlock tray

While the unit is turned off, press and hold o, then press M on the unit. AUNLOCKB appears on the front display panel.

Mode Lock

During playback or recording, press and hold F1 for more than 5 seconds. ALOCKB appears on the front display panel.

● No buttons will function and playback and recording will not be

interrupted.

● When the unit is in the stop mode, all buttons will not function

except R and I. To cancel Mode Lock, press and hold F1 again for more than 5 seconds.

NOTE:

It is also possible to use Mode Lock during Repeat Playback (A pg. 27).

PROGRESSIVE SCAN

1 Press HDD or DVD so that the HDD or DVD lamp lights up on

the unit.

2 Press PROGRESSIVE SCAN for 3 or more seconds.

● Video output indicator (q) lights on the front display panel if

Progressive scan mode has been established. (A pg. 14)

● Each press of PROGRESSIVE SCAN for 3 or more seconds

switches the scan mode.

NOTES:

● Interlaced scan mode is the setting at your purchase.

● Interlaced scan mode might be suitable depending on video

material.

● Scan mode cannot be set while menu screen is displayed.

● When the Progressive scan mode is engaged, no video signal is

output from [S-VIDEO OUTPUT] connector and [VIDEO/AUDIO OUTPUT] connectors.

Last Function Memory

When the power plug is disconnected from unit or when power failure occurs, your settings for the following functions are kept in the memory. These settings will resume when the unit is turned on again.

● Input selection (channel or auxiliary input; L-1, F-1 or DV)

● Recorder selection (The last selected deck is memorized.)

● Recording mode (A pg. 49)

● Mode settings (A pg. 58 – 60)

66 EN

Before requesting service for a problem, use this chart and see if you can solve the trouble yourself. Small problems are often easily solved, and this can save you the trouble of sending your unit off for repair.

TROUBLESHOOTING

● When interlace scanned program is played back, progressive

scan mode is selected.

] Press and hold PROGRESSIVE SCAN until q disappears

from the front display panel. (A pg. 65)

Initializing (DVD Deck Only)

Malfunction occurs on the unit.

] Press A to turn off the unit, press and hold A, then press o

for two seconds or more.

General

No power is supplied to the unit.

● The AC power plug is disconnected from the AC outlet.

] Connect the AC power plug to the AC outlet securely.

(A pg. 18)

The remote control does not work properly.

] Remove the batteries, wait for 5 minutes or more, then load the

batteries again.

● The setting of the remote control code is inappropriate.

] Set the same remote control code (1, 2, 3, or 4) on both the unit

and the remote control. (A pg. 56)

● The batteries are discharged.

] Replace the dead batteries with new ones. The remote control

code will revert back to its default setting A3B. If you had change the remote control code prior to replacing the batteries, you need to set the code again. (A pg. 56)

Dubbing from the external equipment is not possible.

● The source (another video recorder, camcorder) has not been

properly connected.

] Confirm that the source is properly connected.

● All necessary power switches have not been turned on.

] Confirm that all units’ power switches are turned on.

● The setting of the input channel position is inappropriate.

] Select the input channel position (AF-1B or AL-1B) that

corresponds to the input terminal connected to the external equipment. (A pg. 52)

The on-screen display superimposed on the program played back/received on this unit is recorded when you dub the program to an external recording equipment.

] Set ASUPERIMPOSEB to AOFFB. (A pg. 59)

The unit does not operate.

● There are cases when the operation is prohibited on the disc.

● Lightning or static electricity may cause malfunction of the unit.

] Press A to turn the power off, then press the button again to

turn the power on.

The remote control of a JVC TV will not operate the unit.

● The setting of the remote control code is inappropriate.

] To operate the unit using a JVC TV remote control, set the

remote control code of the unit to A1B (Default: A3B). (A pg. 56)

Playback (DVD Deck)

The DVD deck cannot be operated.

● The DVD deck is not selected.

] Press DV/HDD/DVD on the unit repeatedly or DVD on the

remote control so that the DVD lamp lights up on the unit.

Images do not appear on the TV screen.

● The TV receiver’s channel selector is not set to the AV mode.

] Set the TV to its AV mode.

Playback does not start or stop immediately after playback is started by pressing I. On the front display panel, ANO DISCB appears.

● The disc is loaded upside down.

] Place the disc on the disc tray with the playback surface facing

down. (A pg. 10)

● A disc not being compatible with the unit is loaded.

] Load a playable disc on the unit. (A pg. 7)

● A dirty disc is loaded.

] Clean the disc. (A pg. 11)

● Defective disc is loaded.

] Replace the warped or scratched disc with a normal one.

Images are blurred or distorted when you start High-Speed Search.

] Images are blurred or distorted at the point where the playback

speed changes and this is not a malfunction of the unit.

Playback does not start.

] Playback does not start for approximately 30 seconds after

recording is stopped and this is not a malfunction of the unit.

Playback (HDD Deck)

The HDD deck cannot be operated.

● The HDD deck is not selected.

] Press DV/HDD/DVD on the unit repeatedly or HDD on the

remote so that the HDD lamp lights up on the unit.

Playback (DV Deck)

The DV deck cannot be operated.

● The DV deck is not selected.

] Press DV/HDD/DVD on the unit repeatedly or DV on the remote

control so that the DV lamp lights up on the unit.

The tape will not rewind or fast-forward.

● The tape is already fully rewound or fast-forwarded.

] Check the cassette.

The playback picture does not appear while the tape is running.

● The TV is not set to the AV mode.

] Set the TV to the AV mode.

Noise appears during visual search.

● This is normal.

The playback picture is blurred or interrupted while TV broadcasts are clear or AUSE CLEANING CASSETTEB message appears on the screen.

● The video heads may be dirty.

] Use a dry cleaning cassette M-DV12CL, or consult your JVC

dealer.

Recording (DVD Deck)

Recording cannot be made.

● No disc or a disc not being compatible with the unit is loaded.

] Load a recordable disc on the unit. (A pg. 7)

● The disc loaded is not formatted.

] Format the disc. (A pg. 61)

● A finalized DVD-R disc is loaded.

] Recording cannot be made on finalized discs. Load a

recordable disc on the unit.

● The disc is full or does not have enough space for the title to be

recorded.

] Clear unnecessary titles on the disc or load a blank disc.

(A pg. 40)

● The DVD-RAM disc loaded has had its protect tab slid to the

protect position.

] Release the protect tab. (A pg. 10)

Recording (HDD Deck)

Camcorder recording is not possible.

● The camcorder has not been properly connected.

] Confirm that the camcorder is properly connected.

● The input mode is not correct.

] Set the input mode to AF-1B. (A pg. 51)

Recording (DV Deck)

During recording, the tape does not run. The DV recording lamp lights up on the unit.

● The unit is in the Record Pause mode.

] Press I to resume recording.

Recording cannot be done.

● There is no cassette loaded, or the cassette loaded has had its

erase protection switch set to ASAVEB.

] Insert a Mini DV cassette, or set the erase protection switch set

to ARECB.

Camcorder recording is not possible.

● The camcorder has not been properly connected.

] Confirm that the camcorder is properly connected.

● The input mode is not correct.

] Set the input mode to AF-1B or ADVB.

The tape is automatically rewound, then the unit is shut off.

● The end of the tape was reached during recording.

] The program may not have been recorded in its entirety. Next

time make sure you have enough time on the tape to record the entire program.

Audio dubbing is not possible.

● ADV AUDIO RECB had been set to A16BITB at the original

recording.

] Set ADV AUDIO RECB to A12BITB at the original recording.

● The tape speed had been set to LP at the original recording.

] Set the tape speed to SP at the original recording.

Monitoring the audio dubbed sound is not possible during audio dubbing.

] This is normal. Monitor the sound using the connected devices.

TROUBLESHOOTING

EN 67

APPENDIX

EN 69

70 EN

SPECIFICATIONS

GENERAL

Power requirement

AC 120 VH, 60 Hz

Power consumption

Power on: 45 W Power off: 2.5 W

Laser specification

For CD

Wavelength: 770 to 810 nm Output: 0.4 mW

For DVD

Wavelength: 653 to 663 nm Output: 1.0 mW

Temperature

Operating: 5f to 35f (41°F to 95°F) Storage: –20f to 60f (–4°F to 140°F)

Operating position

Horizontal only

Dimensions (WxHxD)

435 mm x 96 mm x 372 mm (17-1/10" x 3-4/5" x 14-3/5")

Weight

5.8 kg (12.9 lbs)

Input/Output

Video input: 0.5 - 2.0 Vp-p, 75 K (pin jack) Video output: 1 Vp-p, 75 K (BNC) Audio input:

–8 dB, 50 kK (pin jack)

Corresponding to mono (left) Audio output: –8 dB, 1 kK (pin jack) S-video input:

Y: 0.8 - 1.2 Vp-p, 75 K

C: 0.2 - 0.4 Vp-p, 75 K S-video output:

Y: 1.0 Vp-p, 75 K

C: 0.3 Vp-p, 75 K DV: 4-pin for DV IN/OUT Remote Input: R3.5 mm Jack Component video output:

Y: 1.0 Vp-p, 75 K

, PB/PR: 0.7 Vp-p, 75 K

B/CR

Corresponding to copy protection Digital audio output:

Optical, Coaxial

Corresponding to Dolby Digital and DTS Digital Surround

Bit stream

Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD Deck)

Recording time

Maximum 8 hours (with 4.7 GB disc) (XP): Approx. 1 hour (SP): Approx. 2 hours (LP): Approx. 4 hours (EP): Approx. 6 hours (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch) Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (HDD Deck)

Video recording compression system

MPEG2 (VBR)

Audio recording system

Dolby Digital (2 ch) Linear PCM (XP mode only)

Recording time

Maximum 71 hours (with 40 GB HDD) (XP): Approx. 8 hours (SP): Approx. 16 hours (LP): Approx. 33 hours (EP): Approx. 49 hours (FR): Approx. 71 hours

VIDEO/AUDIO (DV Deck)

Signal system

NTSC color signal and EIA monochrome signal, 525 lines/60 fields

Recording system

Digital Component Recording

Format

DV format (SD mode)

Cassette

Mini DV Cassette

Maximum recording time

(SP): 80 min. with M-DV80ME cassette (LP): 120 min. with M-DV80ME cassette

Audio recording system

PCM 48 kHz, 16 bit (2 ch)/ 32 kHz, 12 bit (4 ch)

Specifications shown are for SP mode unless otherwise specified.

ACCESSORIES

Provided accessories

Audio/Video cable, Infrared remote control unit, AAAB battery x 2

E.& O.E. Design and specifications subject to change without notice.

ATTENTION:

This unit contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the unit off and unplug the AC power cord. Then plug it in again and turn the unit on. Take out the disc. After checking the disc, operate the unit as usual.

A-B Repeat Playback ................................................ 28

Accidental erasure prevention .................................... 33

Adjusting The Picture Quality ..................................... 29

Angle Selection ........................................................ 25

Audio Channel Selection ........................................... 26

Audio Language/Sound Selection ............................... 26

Auto Full Repeat Playback ........................................ 62

Basic Playback .............................................. 22, 31, 33

Disc menu ............................................................... 23

Disc Resume ........................................................... 59

Discs For Playback Only ............................................. 8

DVCAM ................................................................... 33

DVD menu ............................................................... 23

File Structure Of Discs ................................................ 9

Free Rate Function ................................................... 50

Instant Replay ......................................... 24, 32, 34, 37

Interlaced scan ......................................................... 65

Jump Search .......................................................24, 32

Language Code List .................................................. 69

Last Function Memory ............................................... 65

Letter Box ................................................................ 21

Live Memory Playback .............................................. 35

Marking Positions To Play Back Again Later ...........25, 32

Menu/Audio/Subtitle Language Set ............................. 20

Mode Lock ............................................................... 65

Next Function Memory .............................................. 34

On-screen Bar .......................................................... 27

On-screen Language Set .......................................... 20

LIST OF TERMS

EN 71

Pan&Scan ................................................................ 21

Play List Editing ........................................................ 41

Playback Control (PBC) ............................................. 26

Program Playback .................................................... 30

Progressive scan ...................................................... 65

Random Playback ..................................................... 30

Recordable/Playable Discs .......................................... 7

Recording Medium And Format .................................... 9

Recording Mode ....................................................... 50

Region Number .......................................................... 8

Repeat Playback ...................................................... 27

Resume Function ..................................................... 24

Resuming Playback .................................................. 37

RetroActive Recording .............................................. 37

Select The Switching Interval Of The Slide Show .........30

Setting The Progressive Mode ................................... 30

Simulated Surround Effect ......................................... 29

Simultaneous Recording and Playback ....................... 37

Skip Search .................................................. 24, 31, 34

Slow Motion ..................................................23, 31, 34

Soundtrack Selection ................................................ 34

Still Picture/Frame-By-Frame Playback ............23, 31, 34

Subtitle Selection ...................................................... 26

Temporary Recording ................................................ 37

Time Code ............................................................... 34

Time Search ............................................................ 29

Top menu ................................................................ 23

Tray Lock ................................................................. 65

Unplayable Discs ........................................................ 8

Usable cassettes ...................................................... 33
