JVC LVT1148-010A, TH-S5AH, TH-S8, XV-THS8, SP-PWS8 Instructions Manual

...

Download

DVD DIGITAL CINEMA SYSTEM

Consists of XV-THS8, SP-PWS8, SP-THS9F, SP-THS9C and SP-THS9S

English

Consists of XV-THS5, SP-PWS5, SP-THS5F, SP-THS5C and SP-THS7S

INSTRUCTIONS

LVT1148-010A

[US, UB, UG, A]

Warnings, Cautions and Others

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION — F button! (XV-THS8/XV-THS5)

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). The F button in any position does not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.

• When the system is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION (SP-PWS8/SP-PWS5)

The power supply to the subwoofer is linked to the center unit. The POWER ON lamp on the subwoofer lights green when the power is turned on.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION: Do not open the top cover. There are no user

2. serviceable parts inside the unit; leave all servicing to qualified service personnel.

CAUTION: Visible and invisible laser radiation when open and

3. interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

G-1

Warnings, Cautions and Others

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage, place the apparatus on a level surface. The minimal clearances are shown below:

Wall or

obstructions

XV-THS8/ XV-THS5

3 cm 3 cm

Wall or

SP-PWS8/ SP-PWS5

15 cm 15 cm

8 cm

20 cm

15 cm

Front

No obstructions

Front

No obstructions

Wall or obstructions

XV-THS8/XV-THS5

10 cm

Wall or obstructions

SP-PWS8/SP-PWS5

15 cm

G-2

Table of contents

Introduction .....................................2

Notes on handling .................................................................2

Supplied accessories ............................................................2

About discs .....................................3

Playable disc types ...............................................................3

Description of parts and controls ...5

Connections ....................................8

Connecting the FM and AM antennas ....................................8

Assembling the front and surround speakers .......................9

Connecting the satellite (front, center, surround) speakers ... 10

Speaker layout ....................................................................12

Connecting a TV ..................................................................12

Connecting the powered subwoofer ....................................12

Connecting to an analog component ...................................13

Connecting to a digital component .....................................13

Setting the VOLTAGE SELECTOR switch (except for

Hong Kong and Australia) ...................................................13

Connecting the power cord .................................................13

Operating external components with

the remote control ........................14

Operating the TV .................................................................14

Operating the DBS tuner or CATV converter .......................14

Operating the VCR ..............................................................15

Basic operations ...........................16

Turning the system on/off ...................................................16

Selecting the source to play ................................................17

Adjusting the volume [VOLUME] ........................................17

Listening with headphones (not supplied) ..........................17

Turning off the sound temporarily [MUTING] .....................17

Adjusting the brightness of the indications [DIMMER] .......17

Sleep Timer [SLEEP] ...........................................................18

Adjusting the output level of the subwoofer and center/

surround speakers [SUBWFR, CENTER, SURR L/R] ...........18

Adjusting the treble sound [TREBLE] ..................................18

Changing the scan mode ....................................................18

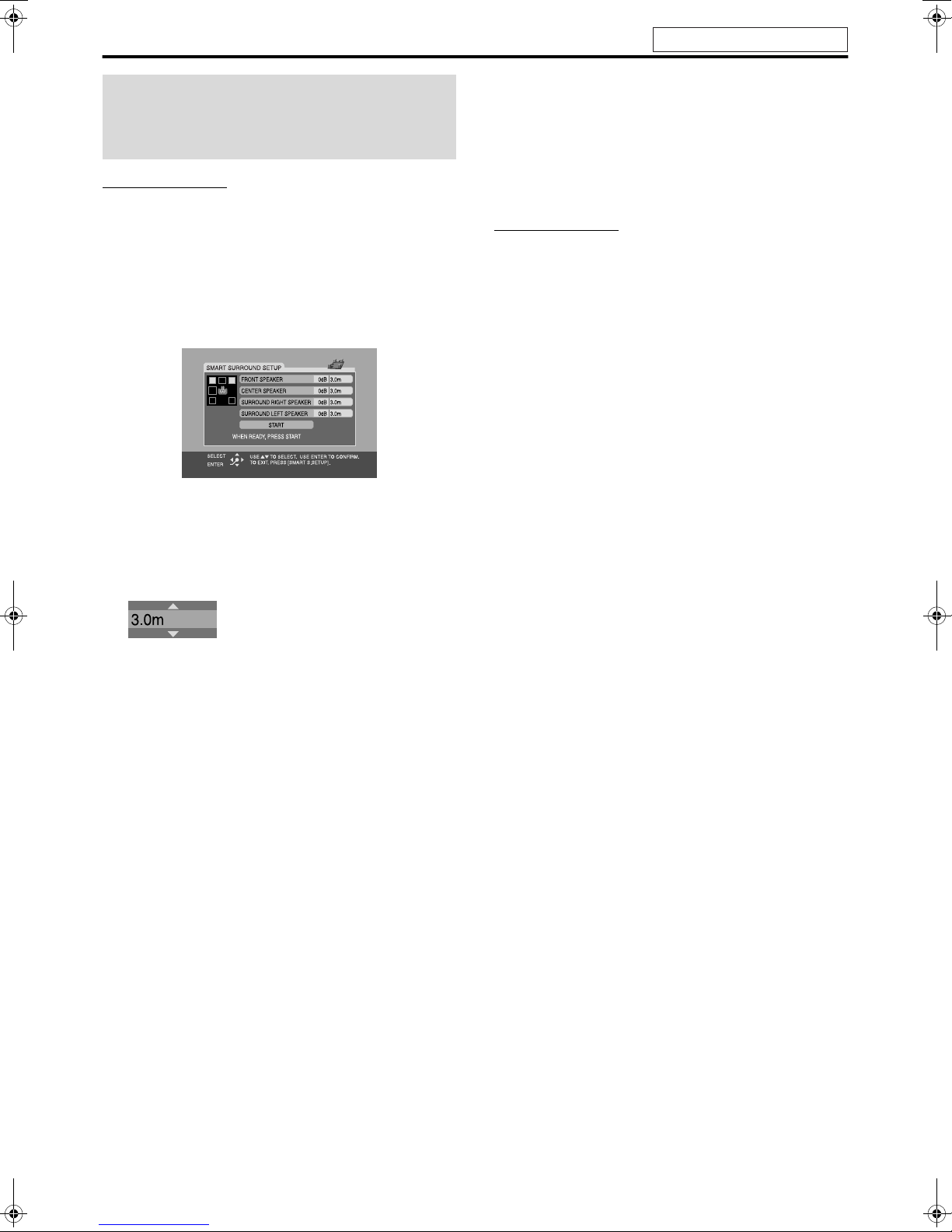

Optimizing the speaker settings [Smart Surround Setup] ...19

Playback ........................................ 20

Basic playback ....................................................................20

One Touch Replay ...............................................................22

Fast-forward/fast-reverse search ........................................22

Skip to the beginning of a desired selection .......................22

Locating a desired title/group using number buttons .........23

Playing back a bonus group ................................................23

Advanced operations ....................24

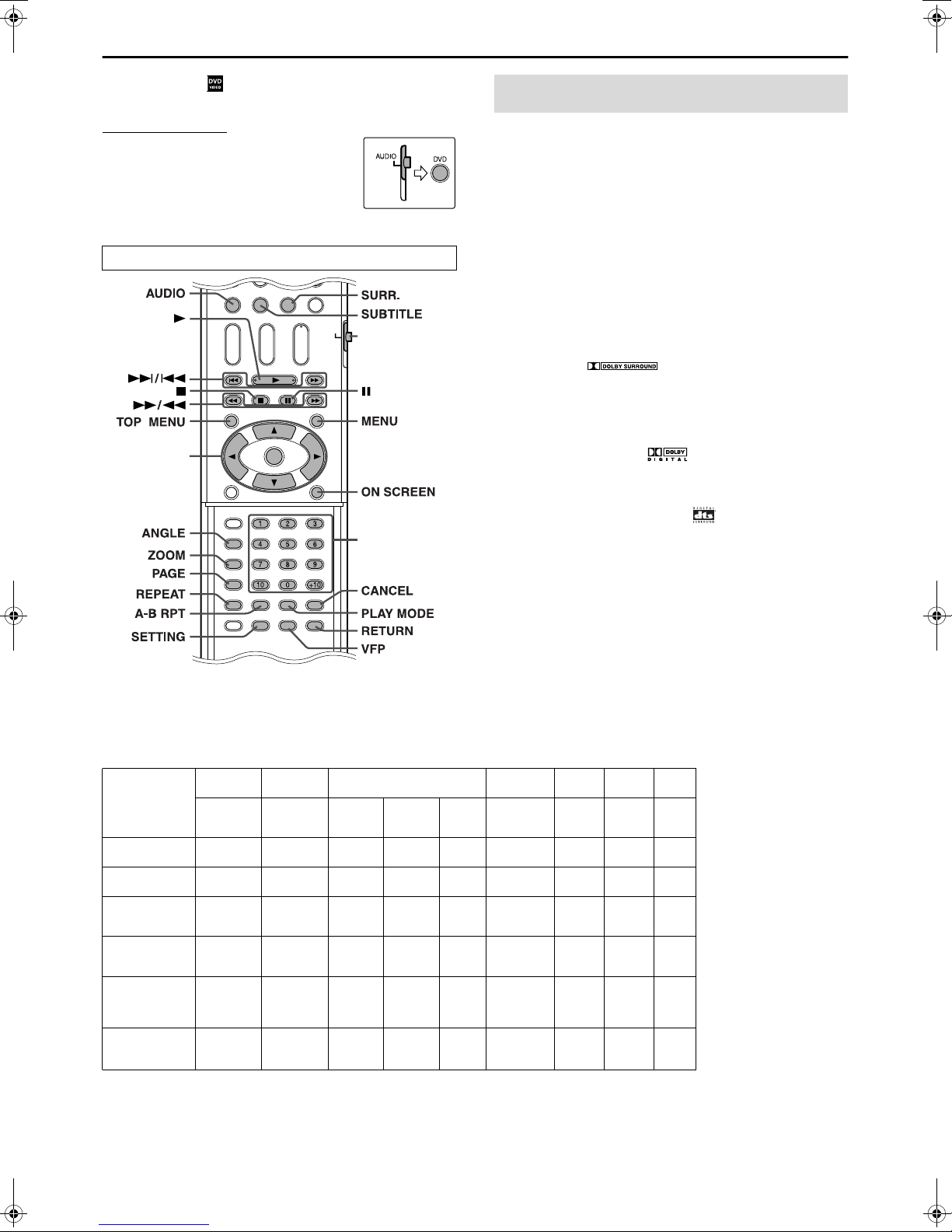

Using the surround mode ...................................................24

Using the on-screen bar .....................................................25

Playing from a specified position on a disc .........................27

Using the file control display ..............................................28

Resume Playback ...............................................................29

Selecting a view angle .........................................................29

Selecting the subtitle ..........................................................29

Selecting the audio .............................................................30

Special picture playback .....................................................30

Program Playback ...............................................................32

Random Playback ...............................................................33

Repeat Playback .................................................................33

Tray lock .............................................................................34

Sound and other settings ....................................................35

Setting DVD preferences .............. 36

Using the setup menus .......................................................36

Menu description ................................................................36

Tuner operations ...........................39

Setting the AM tuner interval spacing .................................39

Manual tuning .....................................................................39

Preset tuning ......................................................................40

Selecting the FM reception mode ........................................40

Reducing the noise of AM broadcast ..................................40

AV COMPU LINK remote control

system ........................................... 41

References .................................... 42

Maintenance .......................................................................42

Troubleshooting ..................................................................42

Specifications .....................................................................43

Introduction

Notes on handling

7 Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.

• Leave sufficient distance between the system and the TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands!

• A small amount of power is always consumed while the power

cord is connected to the wall outlet (center unit only).

• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart, flower or

credit card, etc.) available on the market, because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

7 Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.

Label sticker

Sticker

Note about copyright laws

Check the copyright laws in your country before recording from the discs. Recording of copyrighted material may infringe copyright laws.

Note about copyguard system

The discs are protected by copyguard system. When you connect the system to your VCR directly, the copyguard system activates and the picture may not be played back correctly.

Paste

Supplied accessories

Check to be sure you have all of the supplied accessories. The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.

• Remote control (1)

• Batteries (2)

• FM antenna (1)

• AM loop antenna (1)

• Power cord (1)

• System cord (1)

• Composite video cord (1)

• Speaker cords

For satellite (front left/right) and center speakers (3) For satellite speakers (surround left/right) (2)

• Screws (TH-S8 only) M5 x 25 mm:

For satellite speakers (8)

• AC plug adaptor (2) (except for Hong Kong and Australia)

About discs

Playable disc types

This system has been designed to play back the following discs: DVD VIDEO, DVD AUDIO, Video CD (VCD), Super Video CD (SVCD), Audio CD (CD), CD-R and CD-RW.

• This system accommodates the NTSC and PAL system. When you play an NTSC disc with the scan mode set to “PAL ” (A pg. 18), the NTSC video signal is converted to the PAL60 signal and output.

• This system can also play MP3, WMA, JPEG and MPEG4 files recorded on CD-Rs and CD-RWs. (A pg. 20)

• This system can also play finalized DVD-R/-RWs recorded in DVD VIDEO format. However, some discs may not be played because of their disc characteristics or recording conditions.

Discs you can play:

DVD VIDEO CD

DVD AUDIO CD-R

VCD CD-RW

SVCD

• The following discs cannot be played back: DVD-ROM, DVD-RAM, SACD, CD-ROM, CD-I (CD-I Ready), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

Notes on CD-R and CD-RW

• User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already “finalized”.

• This system can play CD-Rs or CD-RWs recorded on a personal computer if they have been recorded in the audio CD format. This system can also play CD-Rs or CD-RWs if MP3, WMA, JPEG or MPEG4 files are recorded on them. However, some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them. Especially, the configuration and characteristics of an MP3, WMA, JPEG or MPEG4 disc are determined by the writing (encoding) software and hardware used for recording. Therefore, due to the software and hardware used, the following symptoms may occur:

• Some discs may not be played back.

• Some tracks on an MP3 or WMA disc may be skipped or may

not be played back normally.

• Some files on a JPEG or MPEG4 disc may be played back

distortedly.

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• CD-RWs may require a longer readout time. This is caused by the fact that the reflectance of CD-RWs is lower than that of regular CDs.

DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

Region code of DVD VIDEO

DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This system can play back DVD VIDEO discs whose Region Code numbers include the system’s Region Code, which is indicated on the rear panel.

Example of playable DVD: For Australia

For Middle East

Except for Australia and Middle East

If a DVD with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.

About discs

Notes on MP3/WMA/JPEG/MPEG4 discs

• MP3/WMA/JPEG/MPEG4 discs (either CD-R or CD-RW) require a longer readout time. (It differs due to the complexity of the directory/file configuration.)

• When making an MP3/WMA/JPEG/MPEG4 disc, select ISO 9660 Level 1 or Level 2 for the disc format.

• This system supports “multi-session” discs (up to 20 sessions).

• This system cannot play “packet write” discs.

• The system can only play MP3/WMA/JPEG/MPEG4 files with

the following file extensions; MP3: “.MP3”, “.Mp3”, “.mP3” and “.mp3” WMA: “.wma”, “.WMA” and any uppercase and lowercase

combination (such as “.Wma”)

JPEG: “.jpg”, “.jpeg”, “.JPG”, “.JPEG” and any uppercase and

lowercase combination (such as “.Jpg”)

MPEG4: “.asf”, “.ASF” and any uppercase and lowercase

combination (such as “.Asf”)

• If different type of files (audio (MP3/WMA), still picture (JPEG), and video (MPEG4) files) are recorded on a disc, set the FILE TYPE setting in the PICTURE menu to the appropriate setting for the data to be read. (A pg. 37)

• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 1000. For example, if you set FILE TYPE to AUDIO (A pg. 37) and play a disc that contains 500 MP3 tracks, 200 JPEG files, and 600 WMA tracks, the system can play 500 MP3 tracks and the first 500 of 600 WMA tracks.

• Some MP3/WMA/JPEG/MPEG4 discs may not be played back normally because of their disc characteristics or recording conditions.

Notes on MP3/WMA discs only

• The system supports MP3 files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz*, 32 kHz, 44.1 kHz, or 48 kHz.

• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen. (A pg. 28)

• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96*) kbps.

• Some tracks may be skipped or may not be played back normally. * For WMA only

Notes on JPEG discs only

• We recommend to record a file at 640 x 480 resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a longer time to be displayed.)

• This system can only play baseline JPEG files.

• Some files on a JPEG disc may be played back distortedly.

Notes on MPEG4 disc only

• The system supports the types of simple profile as MPEG4 files (MPEG4 SP).

• The system supports MPEG4 files recorded with the maximum bit rate of 384 kbps and an audio codec of G.726. (To play the MPEG4 file, it is required that G.726 formatted audio data is contained in that file.)

• The maximum size of the played picture is at a 352 x 288 pixel resolution (CIF).

• Some files may be skipped or may not be played normally.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.

Description of parts and controls

The illustrations of the center unit and the subwoofer used in this manual are of TH-S8 unless otherwise noted.

Front panel (center unit)

Display window

pg. 25 pg. 40 pg. 21 pg. 25

pg. 31 pg. 39

pg. 21

pg. 18

Disc tray (inside): pg. 20

Rear panel (center unit)

pg. 21 pg. 21

pg. 23

pg. 39

pg. 16

pg. 17

Remote sensor: pg. 7

pg. 40 pg. 33

pg. 20

PHONES

pg. 16

pg. 17

pg. 20

VOLUMESTANDBY

pg. 13

AC IN

pg. 41

AV COMPU LINK-

pg. 12

COMPONENT VIDEO OUT

PRPBY

OUT

pg. 12 pg. 13

VIDEO

S-VIDEO

pg. 13

OPTICAL

VCR IN

DIGITAL

(DBS)

pg. 12

pg. 13

LEFT

RIGHT

AUDIO IN

(VCR)

AM EXT

AM LOOP

pg. 8

ANTENNA

FM 75

COAXIAL

Description of parts and controls

Powered subwoofer

SP-PWS8/SP-PWS5

Front

POWER ON lamp:

pg. 16

pg. 12

pg. 10

Do not block the ventilation openings.

pg. 13

(except for Hong Kong and Australia)

Power cord:

pg. 13

Rear

NOTE

• For safety reasons, always ensure that there is sufficient space behind the powered subwoofer.

Description of parts and controls

TITLE/GROUP

ANGLE

VFP

ZOOM

PAGE

REPEAT

SETUP

SLEEP

TV RETURN

A-B RPT

SETTING

SMART

S.SETUP

PLAY MODE

RETURN

DIMMER

100+

CANCEL

SCAN MODE

TREBLE

Remote control Putting batteries in the remote control

pg. 20 pg. 14

pg. 17

pg. 30

pg. 29

pg. 14

pg. 27

pg. 20,

pg. 15,

22 pg. 23

pg. 29

pg. 31

pg. 31 pg. 33

pg. 34 pg. 36

pg. 35

pg. 17 pg. 18

pg. 18

OPEN/CLOSE

TV/VIDEO

MUTING

DVD

FM/AM

VCR

AUDIO

SUBTITLE

SURR.

TV VOL CHANNEL AUDIO VOL

TUNING

FM MODEMEMORY

TOP MENU

ENTER

REC

TITLE/GROUP

ANGLE

ZOOM

TV RETURN

PAG E

A-B RPT

SETTING

DIMMER

CENTER

PLAY MODE

SCAN MODE

VFP

SMART

S.SETUP

L-SURR.-R

REPEAT

SETUP

SLEEP

S.WFR

F AUDIO

VCR/DBS

DBS

FL DISP.

AUDIO

VCR/DBS

TUNING

SCREEN

100+

CANCEL

RETURN

TREBLE

pg. 16 pg. 14

pg. 15

pg. 17

pg. 21

R6P (SUM-3)/AA (15F)

type dry-cell batteries

(supplied)

pg. 25 pg. 17

pg.14–39 pg. 20 pg. 22, 39

pg. 22 pg. 27

pg. 20, 40

If the range or effectiveness of the remote control decreases,

pg. 18, 36

replace both batteries.

CAUTION

pg. 25

• Do not expose batteries to heat or flame.

Operating the system from the remote

Number buttons:

pg. 22 pg. 32

pg. 32, 33 pg. 27 pg. 18, 31

pg. 18

pg. 19

pg. 18

control

Aim the remote control directly to the front panel of the center unit.

• Do not hide the remote sensor.

pg. 18

NOTE

• To use the buttons under the cover, slide down the cover.

Connections

Connecting the FM and AM antennas

7 AM loop antenna

Setting up supplied AM loop antenna

Do not connect the power cord until all other connections have been made.

If reception is poor

Center unit

AM loop antenna

Outdoor single vinyl-covered wire antenna (not supplied)

If the antenna cord is covered with the insulation coat, twist and pull the insulation coat off and remove.

Connecting AM loop antenna

Center unit

Antenna cord

7 FM antenna

Center unit

If reception is poor

Center unit

Standard type (75 C coaxial) connector

NOTE

• We recommend that you use coaxial cable for the FM antenna as it is well-shielded against interference.

FM antenna (supplied)

Extend the supplied FM antenna horizontally.

Outdoor FM antenna

(not supplied)

Outdoor FM antenna cord

(not supplied)

• Turn the loop antenna until you have the best reception during AM broadcast program reception.

NOTE

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cords. This could cause poor reception.

Connections

Assembling the front and surround speakers

The following procedure explains the front speaker assembly. The assembly of both the front and surround speakers are done in the same manner.

Black

This page is for

Red

Copper

Silver

(×2)

NOTE

• The stands and the base plates are commonly used for both front and surround speakers assembly.

Before assembling —

• Prepare a Phillips screwdriver (not supplied).

• Take care not to drop the base plate while assembling; otherwise,

it may cause damage to the floor or injury.

Surround speaker

(×2)

Stand (×4)Front speaker

Base plate (×4)

Stand

Base plate

Speaker cord (supplied)

Speaker

Stand

Completion

Screw M5 x 25 mm (supplied)

Black

White

Screw M5 x 25 mm (supplied)

Bottom

• You can route the speaker cords through one on the three grooves on the base plate depending on the speaker layout.

• Depending on the installing condition, you can assemble the front and surround speakers without the stands. In such a case, attach the speaker directly to the base plate instead of the stand.

with stand without stand

Connections

This page is for

Connecting the satellite (front, center, surround) speakers

Before connecting the speaker cords;

Twist and pull the insulation coat off and remove.

Speaker cord (supplied)

Powered subwoofer

SP-PWS8

Front speakers

SP-THS9F

• Connect the silver cords to the black (r) terminals.

• Connect the copper cords to the (q) terminals referring to the table below:

FRONT SPEAKERS (LEFT) White

FRONT SPEAKERS (RIGHT) Red

CENTER SPEAKER Green

SURROUND SPEAKERS (LEFT) Blue

SURROUND SPEAKERS (RIGHT) Gray

Center speaker

SP-THS9C

Red

Black

Copper

Surround speakers

SP-THS9S

Silver

CAUTION

• When you connect speakers other than the supplied ones, use speakers of the same speaker impedance (SPEAKER IMPEDANCE) indicated near the speaker terminals on the rear of the powered subwoofer.

• DO NOT connect more than one speaker to one speaker terminal.

4m 10m

Continued on next page

Connections

Before connecting the speaker cords;

Twist and pull the insulation coat off and remove.

This page is for

Powered subwoofer SP-PWS5

4 m

Center speaker SP-THS5C

4 m

Front speakers

SP-THS5F

10 m

Speaker cord (supplied)

• Connect the silver cords to the black (r) terminals.

• Connect the copper cords to the (q) terminals

referring to the table below:

FRONT SPEAKERS (LEFT) White

FRONT SPEAKERS (RIGHT) Red

CENTER SPEAKER Green

SURROUND SPEAKERS (LEFT) Blue

SURROUND SPEAKERS (RIGHT) Gray

Surround speakers

SP-THS7S

(Bottom)

Silver

Black

Copper

Red

CAUTION

• When you connect speakers other than the supplied ones, use speakers of the same speaker impedance (SPEAKER IMPEDANCE) indicated near the speaker terminals on the rear of the powered subwoofer.

• DO NOT connect more than one speaker to one speaker terminal.

Route the speaker cord through the hole on the bracket.

• When installing the satellite speakers on the wall;

• Be sure to have them installed on the wall by a qualified personnel.

DO NOT install the satellite speakers on the wall by yourself to avoid unexpected damage from their falling off the wall due to incorrect installation or weakness in wall structure.

• Care must be taken in selecting a location for speaker installation

on a wall. Injury to personnel or damage to equipment may result if the speakers installed interfere with daily activities.

Connections

Speaker layout

Center speaker

Front left

speaker

Surround left

speaker

NOTE

• Although the satellite speakers and the powered subwoofer are magnetically shielded, the TV screen may appear mottled. In this case, keep enough distance between the speakers and the TV.

• The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, they may cause color distortions. So, pay attention to the following when installing the speakers. – When placing the speakers near a TV set, turn off the TV’s main

power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power switch

again. Some TVs may still be affected even though you have followed the above. If this happens, move the speakers away from the TV.

• Place the satellite speakers on a flat and level surface.

• Be sure to place the powered subwoofer to the TV’s right. If you place

the powered subwoofer to the TV’s left, keep sufficient distance between them to prevent the TV screen from appearing mottled.

Front right speaker

Powered subwoofer

Surround right speaker

7 To connect a TV equipped with the component video

input jacks

Center unit

COMPONENT VIDEO OUT

NOTE

• If your TV supports progressive video input, you can enjoy a high quality picture by setting the progressive scan mode to active. (A pg. 18)

• If the component video input jacks of your TV are of the BNC type, use a plug adapter (not supplied) to convert the pin plugs to BNC plugs.

• The component video signals can be output only when you select “DVD” as the source to play. (A pg. 17)

PRPBY

To component

video input

Component video cord (not supplied)

7 To connect a TV equipped with the composite video

or S-video jack

Center unit

Align the 5 marks.

Composite video cord (supplied)

S-video cord (not supplied)

To S-video input

To composite video input

Connecting a TV

• You can get better picture quality in the order — Component video > S-video > Composite video.

• Distortion of picture may occur when connecting to the TV via a VCR, or to a TV with a built-in VCR.

• You need to set “MONITOR TYPE” in the PICTURE menu correctly according to the aspect ratio of your TV. (A pg. 37)

NOTE

• Select the appropriate scan mode according to your TV. See

“Changing the scan mode” (A pg. 18).

Connecting the powered subwoofer

Powered

Center unit

Align the 5 marks. Align the 5 marks.

System cord (supplied)

subwoofer

Connections

Connecting to an analog component

You can enjoy the sound of an analog component.

Center unit

S-video cord

(not supplied)

Composite video

(not supplied)

cord

AB C

VCR (A C or B C)

TV (C)

Cassette recorder (C)

A To composite video output B To S-video output C To audio output

NOTE

• The signals input to the VIDEO VCR IN jack will be output only from the VIDEO OUT jack, not from the S-VIDEO OUT jack.

LEFT

RIGHT

AUDIO IN

(VCR)

RCA pin plug cord (not supplied)

Setting the VOLTAGE SELECTOR switch (except for Hong Kong and Australia)

To avoid damaging the powered subwoofer, set the VOLTAGE SELECTOR switch to the voltage of your area. When you change the position of the VOLTAGE SELECTOR switch, use a tool such as a slotted screwdriver, etc.

CAUTION

DO NOT plug the power cord of the powered subwoofer before setting the VOLTAGE SELECTOR switch to the correct voltage.

Powered subwoofer

Connecting the power cord

Make sure that all other connections have been completed.

Connecting to a digital component

You can enjoy the sound of a digital component.

Center unit

* tuner

DBS

MD recorder

OPTICAL

DIGITAL

(DBS)

* DBS = Direct Broadcasting Satellite

NOTE

• Only digital audio signals can be input when selecting “DBS” as the source to play. (A pg. 17) When connecting a video component such as a DBS tuner, operate this system to listen to the sound.

Digital optical cord

(not supplied)

To digital optical output

Center unit Powered

AC IN

Power cord

(supplied)

Plug into AC outlets.

CAUTION

• Disconnect the power cord before cleaning or moving the system.

• Do not pull on the power cord to unplug the cord. When unplugging

the cord, always grasp and pull the plug so as not to damage the cord.

• If the AC outlets do not match the AC plugs, use the supplied AC plug adaptors. (except for Hong Kong and Australia)

subwoofer

Power cord

Operating external components with the remote control

The buttons described below are used on pages 14 and

15.

Remote control mode selector

(play button)

Number buttons

NOTE

• Manufacturers’ codes are subject to change without notice.

• Set the codes again after replacing the batteries of the remote control.

4 Press number buttons (1-9, 0) to enter

the manufacturer’s code (2 digits).

Examples: For a Hitachi TV:

Press 1, then 0.

For a Toshiba TV:

Press 0, then 8.

Manufacturer Code Manufacturer Code

JVC 01 Samsung 12

Hitachi 10 Sharp 06

Magnavox 02 Sony 07

Mitsubishi 03 Toshiba 08

Panasonic 04, 11 Zenith 09

RCA 05

5 Release F TV.

If there is more than one code listed for corresponding brand, try each one until you enter the correct one.

7 Operation

Aim the remote control at the TV.

IMPORTANT

Before using the remote control to operate a TV;

• Set the remote control mode selector to TV.

The following buttons are available:

F TV: Turns TV on and off. TV VOL +/–: Adjusts the volume. TV/VIDEO: Selects the input mode (either TV or

VIDEO).

CHANNEL +/–: Changes the channels. 1-10, 0, +10 (100+): Selects the channel. TV RETURN: Alternates between the previously selected

channel and the current channel.

Operating the TV

7 To set the manufacturer’s code

You can operate a JVC TV without setting the manufacturer’s code.

1 Slide the remote control mode selector

to TV.

2 Press and hold F TV.

Keep the button pressed until step 4 is finished.

3 Press ENTER.

Operating the DBS tuner or CATV converter

7 To set the manufacturer’s code

1 Slide the remote control mode selector

to VCR/DBS.

2 Press DBS. 3 Press and hold F VCR/DBS.

Keep the button pressed until step 5 is finished.

4 Press ENTER.

Continued on next page

Operating external components with the remote control

See page 14 for button locations.

5 Press number buttons (1-9, 0) to enter

the manufacturer’s code (2 digits).

Examples: For a GI Jerrold product:

Press 0, then 1.

For a Sony product:

Press 2, then 0.

Manufacturer Code

Echostar 21

GI Jerrold 01, 02, 03, 04, 05, 06, 07, 08

Hamlin 15, 16, 17, 18

Pioneer 13, 14

RCA 19

Scientific Atlanta 09, 10

Sony 20

Zenith 11, 12

6 Release F VCR/DBS.

If there is more than one code listed for your brand, try each one until you enter the correct one.

7 Operation

Aim the remote control at the DBS tuner or CATV converter.

IMPORTANT

Before using the remote control to operate a DBS tuner or CATV converter; 1 Set the remote control mode selector to

VCR/DBS.

2Press DBS.

The following buttons are available: F VCR/DBS: Turns DBS tuner or CATV converter on and

off.

CHANNEL +/–: Changes the channels. 1-10, 0, +10 (100+): Selects the channel.

Operating the VCR

7 To set the manufacturer’s code

1 Slide the remote control mode selector

to VCR/DBS.

2 Press VCR. 3 Press and hold F VCR/DBS.

Keep the button pressed until step 5 is finished.

4 Press ENTER.

5 Press number buttons (1-9, 0) to enter

the manufacturer’s code (2 digits).

Examples: For a Philips VCR:

Press 0, then 9.

For an NEC VCR:

Press 2, then 5.

Manufacturer Code Manufacturer Code

JVC 01, 02, 03 Philips 09

Emerson 11, 26 RCA 05, 06

Fisher 29 Samsung 24

Funai 10, 14, 15, 16 Sanyo 21, 22, 23

Gold Star 12 Sharp 27, 28

Hitachi 04 Shintom 30

Mitsubishi 13 Sony 18, 19, 20

NEC 25 Zenith 08

Panasonic 07, 17

6 Release F VCR/DBS.

If there is more than one code listed for your brand, try each one until you enter the correct one.

7 Operation

Aim the remote control at the VCR.

IMPORTANT

Before using the remote control to operate a VCR; 1 Set the remote control mode selector to

VCR/DBS.

2 Press VCR.

The following buttons are available:

F VCR/DBS: Turns VCR on and off. 3 (play button): Starts playback. 7 : Stops operation. 8 : Pauses playback. y: Fast forwards video tape. 1: Rewinds video tape.

REC: Press this button together with 3 (play button) to

start recording or together with 8 to pause recording.

CHANNEL +/–: Changes the TV channels on the VCR.

NOTE

When operating a VCR or DBS tuner/CATV converter;

• The source setting of VCR or DBS remains after you have changed the remote control mode selector to AUDIO or TV. When operating VCR or DBS tuner/CATV converter again, it is not necessary to press VCR or DBS after setting the remote control mode selector.

Basic operations

The buttons on the remote control are used to explain most of the operations in this manual. You can use the buttons on the center unit same as on the remote control for operations unless otherwise noted.

IMPORTANT

Before using the remote control for the following operation;

• Set the remote control mode selector to AUDIO.

The buttons described below are used on pages 16 to 19.

F AUDIO

MUTING

DVD

FM/AM

Source

selecting

VCR DBS

buttons

AUDIO VOL

AUDIO

Remote control mode selector

Cursor

(3/2/Y/5)/

ENTER

Turning the system on/off

On the remote control:

Press F AUDIO.

On the center unit:

Press F.

When DVD is selected as the source (A pg. 17), the following messages will appear on the TV screen.

•“OPEN”/“CLOSE”: Appears when opening or closing the disc tray.

•“NOW READING”: Appears when the system is reading the disc information.

•“REGION CODE ERROR!”: Appears when the Region Code of the DVD VIDEO does not match the code the system supports. The disc cannot be played back.

•“NO DISC”: Appears when no disc is loaded.

•“CANNOT PLAY THIS DISC”: Appears when unplayable disc is loaded.

SLEEP

S.WFR

DIMMER

CENTER

SCAN MODE

SMART

S.SETUP

L-SURR.-R

TREBLE

NOTE

• The STANDBY lamp turns on when the power is turned off and turns off when the power is turned on.

• The power supply to the subwoofer is linked to the center unit. The POWER ON lamp on the subwoofer lights green when the power is turned on.

• A small amount of the power is consumed even when the power is turned off (center unit only). This is called standby mode and the STANDBY lamp lights in this mode. Unplug the power cord from the AC outlet to turn the power off completely.

• You can also turn on the system by pressing the following buttons;

• OPEN/CLOSE on the remote control or 0 on the center unit

• One of the source selecting buttons on the remote control

• 3 on the center unit. You can use the same buttons on the remote

control except after pressing FM/AM.

VOLUMESTANDBY

PHONES

Basic operations

See page 16 for button locations.

Selecting the source to play

On the remote control:

Press one of the source selecting buttons (DVD, FM/AM, VCR or DBS).

DVD : To play back a disc (DVD VIDEO, VCD etc.). (A pg. 20) FM/AM: To tune in an FM or AM station. (A pg. 39)

Each time you press the button, the band alternates between FM and AM.

VCR: To select the source from a component connected to the

VCR IN jacks and AUDIO IN (VCR) jacks. (A pg. 13)

DBS: To select the source from a component connected to the

DIGITAL IN (DBS) jack. (A pg. 13)

On the center unit:

Press SOURCE repeatedly until the source name you want appears on the display window.

NOTE

• When AM, FM or DBS is selected as the source, the system does not output video signals.

• It may take time to change the source.

Adjusting the volume [VOLUME]

CAUTION

• Always set the volume to minimum level before starting any source. If the volume is set at its high level, the sudden blast of sound could permanently damage your hearing and/or blow out the speakers.

On the remote control:

Press AUDIO VOL + or –.

Listening with headphones (not supplied)

CAUTION

Be sure to turn down the volume;

• Before connecting or putting on headphones as high volume may damage both the headphones and your hearing.

• Before disconnecting headphones as high volume may be suddenly output from the speakers.

While connecting a pair of headphones to the PHONES jack on the center unit, the system automatically cancels the surround mode (A pg. 24) currently selected, deactivates the speakers, turn the subwoofer’s power off, and activates the headphone mode. “HEADPHONE” appears on the display window.

Headphone mode

When using the headphones, the following signals are output regardless of your speaker setting;

• For 2 channel sources, the front left and right channel signals are output from the headphones.

• Multi-channel signals are down-mixed and output from the headphones.

• (DVD AUDIO) When the disc prohibits down-mixing, only the front left and right channels are output from the headphones. In this case, “L/R ONLY” appears on the display window for a few seconds.

Turning off the sound temporarily [MUTING]

Press MUTING.

To restore the sound

Perform one on the following:

• Press MUTING again.

• Press AUDIO VOL +/– (or turn VOLUME on the center unit).

On the center unit:

Turn VOLUME.

Adjusting the brightness of the indications [DIMMER]

Press DIMMER.

Each time you press the button, the brightness level changes.

Basic operations

See page 16 for button locations.

Sleep Timer [SLEEP]

The system turns off automatically when the specified period of time has passed.

Press SLEEP.

Each time you press the button, the shut-off time changes.

Example:

minutes

SLEEP 60mi n

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly.

To cancel

Press SLEEP repeatedly until “SLEEP OFF” appears.

• Turning off the power also cancels the Sleep Timer.

Adjusting the output level of the subwoofer and center/surround speakers [SUBWFR, CENTER, SURR L/R]

Press S.WFR +/– to adjust the subwoofer. Press CENTER +/– to adjust the center

speaker. Press SURR.-L +/– to adjust the surround

left speaker. Press SURR.-R +/– to adjust the surround

right speaker.

NOTE

• You can also make adjustments by using the setup menu shown on the

TV screen. (A pg. 37)

• The adjustments take effect for all sources.

• You cannot make this adjustment when FM or AM is selected as the

source.

Changing the scan mode

The system can be accommodated to your TV’s scan mode.

NOTE

• To use the system in PROGRESSIVE mode, it is required that the center unit is connected to the TV by using a component video cord (not supplied). (A pg. 12)

7 While DVD is selected as the source and stopped

1 Press and hold SCAN MODE for

2 seconds.

Currently selected mode appears on the display window.

2 Press Cursor 3/2 to select the desired

mode.

• PAL: Select this when your TV supports the PAL interlaced video input only.

• PAL PROG.: Select this when your TV equipped with component jacks supports the PAL progressive video input.

• NTSC: Select this when your TV supports the NTSC interlaced video input only.

• NTSC PROG.: Select this when your TV equipped with component jacks supports the NTSC progressive video input.

You can get better picture quality in “PA L PR OG .” or “NTSC PROG.” mode than in PAL or NTSC mode.

3 Press ENTER while the selected mode

is displayed.

When “PAL PROG.” or “NTSC PROG.” is selected, the PROGRESSIVE indicator lights on the display window.

NOTE

• Although the picture may be distorted when you press ENTER, this

is not a malfunction of the system.

• There are some progressive TVs and High-Definition TVs that are not fully compatible with this system, resulting in an unnatural picture when playing back a DVD VIDEO in the progressive scan mode. In such a case, change the scan mode to “PAL” or “NTSC ”. To check the compatibility of your TV, contact your local JVC customer service center.

• All JVC progressive TVs and High-Definition TVs are fully compatible with this system.

Adjusting the treble sound [TREBLE]

Press TREBLE +/–.

NOTE

• The adjustments take effect for all sources.

Basic operations

Optimizing the speaker settings [Smart Surround Setup]

NOTE

• When you change the positioning of the speakers or listener, or replace the supplied speakers with other ones, perform Smart Surround Setup again.

7 While DVD is selected as the source and stopped

1 Take your position where you listen to

the sound.

2 Press and hold SMART S.SETUP.

See page 16 for button locations.

When “FAILED !” appears on the TV screen

The system could not detect the clapping sound correctly. In such a case, follow the instructions that appears on the TV screen.

• When the system detects the clapping sound as “FAI LED !” three times, set the distance (DISTANCE) and the output level (LEVEL) manually (A pg. 37).

To cancel

Press SMART S.SETUP.

NOTE

• You need to set the subwoofer’s output level (LEVEL) manually. (A pg. 18 and 37)

• In step 2, “SW ERROR” appears on the display window if the center unit and the powered subwoofer are not connected correctly by using the supplied system cord.

“SETTING UP” flashes on the display window.

3 Press ENTER, press Cursor Y/5 to

select the distance between the front speakers and the listening position, then press ENTER.

4 Press Cursor Y/5 to select START,

then press ENTER.

5 Clap your hands over your head once. 6 Make sure that “COMPLETED !”

appears on the TV screen, then press SMART S.SETUP.

The system detects your clapping sound through the satellite speakers, then automatically makes the best settings for each speaker. “COMPLETED !” appears on the TV screen when Smart Surround Setup completes.

Playback

• The icon such as shows the types of discs the operation is available for.

IMPORTANT

Before using the remote control for the following operation; 1 Set the remote control mode selector to

AUDIO.

2Press DVD.

The buttons described below are used on pages 20 to 23.

OPEN/CLOSE

DVD

FL DISP.

100+

AUDIO

Remote control mode selector

Number buttons

(play button)

ENTER

TITLE/GROUP

Basic playback

1 Press OPEN/

CLOSE.

• The system turns on and the disc tray comes out.

• 0 on the center unit can also be used.

2 Place a disc.

When placing an 8 cm

Label side up

disc

3 Press 3 (play button).

For MP3/WMA disc

The file control display (A pg. 28) appears on the TV screen.

For JPEG disc

Each file (still pictures) is shown on the TV screen for about 3 seconds (slide-show). When stopping playback, the file control display (A pg. 28) appears on the TV screen.

For MPEG4 disc

Pressing TOP MENU or MENU shows the file control display (A pg. 28) on the TV screen during playback.

7 To pause playback

Press 8.

To return to playback, press 3 (play button).

7 To stop

Press 7.

7 On-screen guide icons

During DVD VIDEO playback, the following guide icons may appear for a while on the TV screen;

• : appears at the beginning of a scene containing multisubtitle languages.

• : appears at the beginning of a scene containing multi-audio languages.

• : appears at the beginning of a scene containing multi-angle views.

• (Play), (Pause), / (Fast forward/

fast-reverse), / (Slow-motion forward/ reverse): appears when you perform each operation.

• : the disc cannot accept an operation you have tried to do.

Continued on next page

Playback

See page 20 for button locations.

NOTE

• (For JPEG) The system cannot accept operations even though you press any buttons before the entire picture appears on the TV screen.

• If you do not want the on-screen guide icons to appear, see page 38.

7 Playback information on the display window

DVD VIDEO

Example: When a DVD VIDEO encoded with Dolby Digital 5.1ch is played

Elapsed playing time

Chapter number

(hour:minute:second)

C10:02:31

Signal and speaker indicators (A pg. 25)

Surround mode and digital signal format (A pg. 24)

Pressing FL DISP.

Title number

Chapter number

DVD T 1 C 1

DVD AUDIO

Signal and speaker indicators

T11:23:45

Track number Elapsed playing time

Pressing FL DISP.

Group number

(hour:minute:second)

Track number

DVDA G1 T 1

VCD/SVCD/CD

Example: When a CD is played back

Track number

Signal and speaker

indicators

CD 1 10 : 3 1

MP3/WMA disc

Example: When an MP3 disc is played back

Track number

Signal and speaker

indicators

TR123 12 : 34

MP3 indicator

Elapsed playing time (minute:second)

Pressing FL DISP.

(during playback only)

Group number

MP3 G12T123

Track number

WMA indicator lights for WMA disc.

JPEG disc

Group number File number

JPG G12F123

MPEG4 disc

Track number

TR123 10 : 31

Elapsed playing time (minute:second)

Pressing FL DISP.

Group number Track number

ASF

NOTE

• You can change the time information mode (except for MP3/WMA/

JPEG/MPEG4). (A pg. 26)

• You can also check the playback information on the TV screen.

(A pg. 25)

G12T123

(during playback only)

Signal and speaker indicators

VCD indication appears for VCD/SVCD.

NOTE

• When a VCD or SVCD with PBC function is played, the elapsed playing time does not appear, but “PBC” appears.

Elapsed playing time (minute:second)

Playback

7 Screen saver

A TV screen may burn out if a static picture is displayed for a long time. To prevent this, the system automatically dims the screen if a static picture is displayed for over 5 minutes (the screen saver function).

• Pressing any button will cancel the screen saver function.

• If you do not want to use the screen saver function, see page 37.

One Touch Replay

You can move back the playback position by 10 seconds from the current position.

7 During playback

On the remote control:

Press .

NOTE

• This function works in the same title.

• This feature may not work for some discs.

Fast-forward/fast-reverse search

7 During playback

On the remote control:

Press y or 1.

Each time you press the button, the search speed changes (M2, M5, M10, M20, M60).

To return to normal speed playback

Press 3 (play button).

Press and hold x or 4.

Continuously pressing x or 4 increases the fast-forward/ reverse search speed (M5 → M20).

NOTE

• The operation with x or 4 above is available for a disc other than MPEG4 disc.

• When a DVD VIDEO, VCD, SVCD, or MPEG4 disc is played back, no sound comes out during fast-forward/reverse search.

• When a DVD AUDIO or CD is played back, sound is intermittent and low during fast-forward/reverse search.

• This feature may not work for some discs.

See page 20 for button locations.

Skip to the beginning of a desired selection

7 Using x/4 buttons

7 For DVD VIDEO (chapter):

During playback For VCD/SVCD (track): During playback without PBC function For DVD AUDIO/CD/MP3/WMA/JPEG/MPEG4 (track/file): During playback or while stopped

Press x or 4 repeatedly.

NOTE

• When playing back an MP3/WMA disc, you can make operations

using the file control display. (A pg. 28)

• This feature may not work for some discs.

7 Using number buttons on the remote control

7 For DVD VIDEO (title, chapter):

While stopped, the title number is selected. During playback, the chapter number is selected.

For DVD AUDIO (track): During playback or while stopped For VCD/SVCD (track): During playback without PBC function For CD/MP3/WMA/JPEG/MPEG4 (track/file): During playback or while stopped

Press number buttons (0-10, +10) to select the desired number.

• For details on using the number buttons, see “How to use the number buttons” below.

How to use the number buttons

To select 3: Press 3. To select 14: Press +10, then 4. To select 24: Press +10 twice, then 4. To select 40: Press +10 three times, then 10.

Or press +10 four times, then 0.

Playback

See page 20 for button locations.

Locating a desired title/ group using number buttons

7 During playback or while

stopped

1 Press TITLE/

GROUP.

“_ _” or “_” is shown in the title/group display area in the display window.

Example: During DVD VIDEO playback

1:23:45

2 While the display window shows “_ _”

or “_”, use number buttons (0-10, +10) to enter the desired title or group number.

The system starts playback from the first chapter/track/file of the selected title/group.

• For details on using the number buttons, see “How to use the

number buttons” (A pg. 22).

NOTE

• This feature may not work for some discs.

Playing back a bonus group

Some DVD AUDIOs have a special group called “bonus group” whose contents are not open to the public. The bonus group is always assigned to the last group of a disc. To play back a bonus group, you have to enter the specific “key number” (a password). The way of getting the key number depends on the disc. After getting the key number, you can play back the bonus group by following the procedure below.

7 While the BONUS indicator lights up on the display window

1 Select the bonus group.

For selecting the group, see “Locating a desired title/group using number buttons” described above. The key number entry indication appears.

On the TV

On the display window

KEY

____

2 Press number buttons (0-9) to enter the

key number, then press ENTER.

When you enter the correct key number, playback starts and the BONUS indicator goes off.

• If you enter the wrong number, reenter the correct number.

To clear the key number entry

Perform whichever one of the following:

• Press 7.

• Open the disc tray.

• Turn off the system.

Advanced operations

• The icon such as shows the types of discs the operation is available for.

IMPORTANT

Before using the remote control for the following operation; 1 Set the remote control mode selector to

AUDIO.

2Press DVD.

• There are exceptions in the operation mentioned above. In such a case, follow each instruction.

The buttons described below are used on pages 24 to 35.

AUDIO SUBTITLE SURR.

PLAY MODE

VFP

SCREEN

100+

CANCEL

RETURN

AUDIO

Remote control mode selector

Number buttons

(play button)

Cursor

(3/2/Y/5)/

ENTER

TOP MENU MENU

ENTER

ANGLE

ZOOM

PAG E

A-B RPT

REPEAT

SETTING

Using the surround mode

7 Auto Surround (AUTO SURR)

Used to reproduce the sound as it is recorded without any conversion (downmixing or simulation, etc.). For example, a multichannel source is automatically reproduced in multichannel audio.

7 Dolby Surround

Dolby Pro Logic II* Dolby Pro Logic II has a newly developed multichannel playback format to decode all 2 channel sources — stereo source and Dolby Surround encoded source — into a 5.1 channel. Dolby Pro Logic II has two modes — Movie mode and Music mode:

• Pro Logic II Movie (PL II MOVIE)

Suitable for reproduction of Dolby Surround encoded sources bearing the mark .

• Pro Logic II Music (PL II MUSIC)

Suitable for reproduction of any 2 channel stereo music sources.

Dolby Digital* Used to reproduce multichannel soundtracks of the software encoded with Dolby Digital ( ).

7 DTS Digital Surround*

Used to reproduce multichannel soundtracks of the software encoded with DTS Digital Surround ( ). DTS Digital Surround (DTS) is another discrete multichannel digital audio format available on CD and DVD software.

Available Surround modes for each input signal

The B marks show available surround modes.

Signal

Dolby Digital (Multichannel)

Dolby Digital (2 channel)

DTS Digital Surround (Multichannel)

DTS Digital Surround (2 channel)

Analog (VCR) or Linear/Packed PCM (2 channel)

Linear/Packed PCM (Multichannel)

Mode

Surround

off

SURR OFF

Auto

Surround

AUTO SURR

Dolby Surround

PL II

MOVIE*

MUSIC*

BB——B ————

BBBB—— ——B

BB——— B ———

BB—— ——B

BBBB—— ——B

BB——— — BB—

PL II

Dolby

Digital

DTS Digital

Surround

DTS LPCM PPCM

Linear

PCM

Packed

PCM

DSP

ALL

ST.*

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP

Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

You can select these modes by pressing SURR.. (A pg. 25)

Continued on next pag

Advanced operations

See page 24 for button locations.

7 All Channel Stereo (DSP)

All Channel Stereo (ALL CH ST.) mode can reproduce a larger stereo sound field using all the connected (and activated) speakers. All Channel Stereo can be used while reproducing 2 channel stereo source.

Normal stereo sound All Channel Stereo

7 Indicators on the display window

Digital signal format indicators

PPCM: Lights when DVD AUDIO packed PCM signals

comes in.

LPCM: Lights when Linear PCM signal comes in.

GD: Lights when Dolby Digital signals come in. C: Lights when DTS Digital (Surround) signals

come in.

No indication: No digital signal indicator lights when analog

signals come in.

Dolby Surround/DSP mode indicators

GPLII: Lights when Dolby Pro Logic II mode is activated. DSP: Lights when All Channel Stereo mode is activated.

Source signal indicators, etc.

Light to indicate the incoming signals. a: Lights when the left channel signal comes

in.

b: Lights when the center channel signal comes in. c: Lights when the right channel signal comes in. d: Lights when the LFE channel signal comes in. g: Lights when the surround left channel signal comes in. i: Lights when the surround right channel signal comes in. h: Lights when the monaural surround channel signal or 2

channel Dolby Surround signal comes in.

SW : Always lights.

The channel with “” shows that the corresponding speakers are reproducing the channels’ sound. If the channels’ sound decoded into 5.1 channel is reproduced, only “” lights.

7 When playing back digital multichannel software

(except during SURR OFF mode)

The appropriate multichannel surround mode (Dolby Digital, DTS Digital Surround or Linear/Packed PCM) is automatically selected.

7 When playing back 2 channel source

You can select either mode of Dolby Pro Logic II (PL II MOVIE/ PL II MUSIC) or the DSP (ALL CH ST.) mode.

Press SURR. repeatedly to select the desired mode.

The surround mode is turned on and the current surround mode appears on the display window. Each time you press the button, the surround mode changes.

For details on each mode, see page 24.

To turn off the surround mode

Press SURR. repeatedly until SURR OFF appears on the display window.

Storing adjustments — auto memory

When you turn the power off, the system memorizes the current surround mode. The memorized mode is automatically recalled when you turn the power on.

NOTE

• When FM or AM is selected as the source, you cannot select any surround mode.

• Note that the surround mode takes no effect on MPEG4 playback.

• For a down-mixing prohibited DVD AUDIO disc, the system

continues to output multi-channel signals with “MULTI CH” shown on the display window even if the surround mode is turned off during playback. On the other hand, the system outputs only the front left and front right channel signals with “LR ONLY” shown on the display window when you start playback with the surround mode having been set to “SURR OFF”.

Using the on-screen bar

You can check disc information and you can use some functions using the on-screen bar.

Showing the on-screen bar

Selecting the surround mode

The system is set up to automatically select the optimal surround mode for input signal from digital multichannel software. When playing back 2 channel source, you can select the desired surround mode manually.

IMPORTANT

Before using the remote control for the following operation;

• Set the remote control mode selector to AUDIO.

7 Whenever a disc is

loaded

Press ON SCREEN.

Each time you press the button, the on-screen bar changes as follows on the TV screen.

Example: During DVD VIDEO playback

(The on-screen bar disappears)

(back to the beginning)

• The currently selected item shows green.

OFF

Advanced operations

See page 24 for button locations.

7 Contents of the on-screen bar during playback

DVD VIDEO

DVD AUDIO

VCD

SVCD

MPEG4*

* 7 – N are not available.

A Shows disc type. B Shows current transfer rate (Megabits per second). C Shows current title (for DVD VIDEO) or group (for DVD

AUDIO) number.

D Shows current chapter number (for DVD VIDEO) or track

number (for other type of discs).

E Shows time information. See “Changing the time information”

below.

F Shows playback status.

: appears during playback.

/ : appears during fast forward/reverse.

/ : appears during playback in forward slow-motion/

reverse slow-motion.

: appears when paused.

: appears when stopped.

G Select this to change time information (E). See “Changing the

time information” below.

H Select this for Repeat Playback. (A pg. 33) I Select this for time search function. (A pg. 28) J Select this for chapter (for DVD VIDEO) or track (for DVD

AUDIO) search function. (A pg. 27)

K Select this to change audio language, channel, or stream.

(A pg. 30)

L Select this to change subtitle language. (A pg. 29) M Select this to change view angle. (A pg. 29) N Select this to change the page. (A pg. 31) O Shows Playback Mode status.

PROGRAM: appears during Program Playback. (A pg. 32) RANDOM: appears during Random Playback. (A pg. 33)

P Shows Repeat Mode status. (A pg. 33)

Changing the time information

You can change the time information in the on-screen bar on the TV screen and the display window of the center unit.

7 During playback

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER repeatedly to select the

desired information.

Example: When elapsed playing time of disc is selected.

• TIME: Elapsed playing time of current chapter/track

• REM: Remaining time of current chapter/track

• TOTAL: Elapsed time of disc

• T. REM: Remaining time of disc

4 Press ON SCREEN.

The on-screen bar disappears.

Advanced operations

Playing from a specified position on a disc

You can start playing a title, chapter or track you specify. You can also play a disc from specified time.

Locating a desired scene from the DVD menu

DVD VIDEOs generally have their own menus which show disc contents and you can display them on the TV screen. You can locate a desired scene by using these menus.

7 Whenever a DVD VIDEO is loaded

1 Press TOP MENU or MENU.

The menu appears on the TV screen.

Example:

See page 24 for button locations.

2 Press number buttons (1-10, +10) to

select the number of the desired item.

• For details on using the number buttons, see “How to use the number buttons” (A pg. 22).

To return to the menu

Press RETURN.

When “NEXT” or “PREVIOUS” is shown on the TV screen:

• To go to the next page, press x.

• To return to the previous page, press 4.

NOTE

• If you want to play a PBC-compatible VCD/SVCD without using the PBC function, perform any of the following:

• Start playback by pressing number buttons while stopped.

• Press x repeatedly until the desired track number is displayed,

then start playback by pressing 3 (play button). The track number appears on the display window instead of

“PBC”.

• To activate the PBC function when playing a PBC-compatible VCD/

SVCD without using the PBC function, perform any of the following:

• Press TOP MENU or MENU.

• Press 7 twice to stop playback, then press 3 (play button).

Normally, a DVD VIDEO which contains more than one title will have a “top” menu which lists the titles. Press TOP MENU to show the title menu. Some DVD VIDEO may also have a different menu which is shown by pressing MENU. See the instructions for each DVD VIDEO regarding its particular menu.

2 Use Cursor 3/2/Y/5 to select a

desired item.

3 Press ENTER.

• With some discs, you can also select items by entering the corresponding number using number buttons.

Locating a desired scene using a VCD/ SVCD menu with PBC

A VCD or SVCD recorded with PBC has its own menus such as a list of contained songs. You can locate a specific scene by using these menus.

7 During playback with PBC function

1 Press RETURN repeatedly until the

menu appears on the TV screen.

Example:

Locating a desired chapter/track using the on-screen bar

7 During playback

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight /

3 Press ENTER.

Example: During DVD VIDEO playback

4 Press number buttons (0-9) to enter the

desired chapter number.

Example: To select 8: Press 8.

To select 10: Press 1, then 0. To select 20: Press 2, then 0. To select 37: Press 3, then 7.

To correct a misentry

Repeat step 4.

5 Press ENTER.

6 Press ON SCREEN.

The on-screen bar disappears.

NOTE

• You can select up to the 99th chapter/track.

Advanced operations

See page 24 for button locations.

Locating a desired position by specifying the time

7 For DVD VIDEO/DVD

AUDIO: During playback

For VCD/SVCD: While stopped or during playback without PBC function

For CD: During playback or while stopped

7 When specifying the elapsed playing time from the

beginning of the disc

Perform the following procedure while stopped.

7 When specifying the elapsed playing time from the

beginning of the current title/track

Perform the following procedure during playback.

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER.

4 Use number buttons (0-9) to enter the

time.

Example: To play back from a point 2 (hours): 34 (minutes): 08 (seconds)

elapsed

Press 2 Press 3

Using the file control display

You can search and play desired groups and tracks/files using the file control display on the TV screen.

Current group/total group number

Tag information (for MP3/ WMA only)

Current group

Current track (file) / total track (file) number on current group

The file control display appears automatically during playback (MP3/WMA) or while stopped.

Playback mode (PROGRAM, RANDOM, REPEAT)

Elapsed playing time of current track (for MP3/WMA/MPEG4 only)

Current track (file)

Total track (file) number on disc

Playback status

Press 4

Press 8

To cancel a misentry

Press Cursor 2 repeatedly.

Press 0

5 Press ENTER. 6 Press ON SCREEN.

The on-screen bar disappears.

NOTE

• You can specify time in hours/minutes/seconds for DVD VIDEO/ DVD AUDIO and in minutes/seconds for VCD/SVCD/CD.

Continued on next page

Advanced operations

See page 24 for button locations.

7 For MP3/WMA:

During playback or while stopped For JPEG/MPEG4: While stopped

1 Press Cursor 3/2/Y/5 to select the

desired group/track/file.

• For MP3/WMA, playback starts from the selected track.

2 Press 3 (play button) or ENTER.

• Track playback/slide-show starts from the selected track/ file.

• When you press ENTER for JPEG, only the selected file is played back.

NOTE

• During playback, you can locate the desired track/file by pressing

x/4 or Cursor 5/Y.

• You can also check playback information on the display window.

(A pg. 21)

• Some group, track and file names may not be displayed correctly depending on recording conditions.

• The order of groups, tracks and files may be displayed differently from the order displayed on your personal computer.

Resume Playback

When Resume Playback is set to “ON” (A pg. 38) and you stop playback by the following operations, the position where playback has been stopped is stored. (“RESUME” appears on the display window.)

• Turning off the power (A pg. 16)

• Pressing 7 once

• Changing the source (A pg. 17)

To start playback from the stored position

Press 3 (play button) or DVD.

• There may be a case where 3 (play button) does not work after changing the source.

To clear the stored position

Press 7 again or open the disc tray.

2 Press ANGLE repeatedly or press

Cursor Y/5 to select the desired view angle.

When using the on-screen bar:

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER.

4 Press Cursor Y/5 to select the desired

view angle.

5 Press ENTER. 6 Press ON SCREEN.

The on-screen bar disappears.

NOTE

• During DVD AUDIO playback, this feature is available only for the video part.

Selecting the subtitle

7 During playback of a disc containing

subtitles in several languages

When using the SUBTITLE button:

1 Press SUBTITLE.

Example (DVD VIDEO): “ENGLISH” is selected out of 3 subtitle languages recorded.

Selecting a view angle

7 During playback of a disc containing multi-view

angles

When using the ANGLE button:

1 Press ANGLE.

Example: The first view angle is selected out of 3 view angles recorded.

2 Press Cursor Y/5 to select the desired

subtitle.

For SVCD

• An SVCD can contain up to four subtitles. Pressing

SUBTITLE changes the subtitles regardless of whether the subtitles are recorded or not. (Subtitles will not change if no subtitle is recorded.)

NOTE

• To clear the subtitle, press SUBTITLE. Each time you press SUBTITLE, subtitle appears and disappears alternately.

Advanced operations

See page 24 for button locations.

When using the on-screen bar:

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER.

4 Press Cursor Y/5 repeatedly to select

the desired subtitle.

5 Press ENTER. 6 Press ON SCREEN.

The on-screen bar disappears.

NOTE

• To clear the subtitle, press SUBTITLE. Each time you press SUBTITLE, subtitle appears and disappears alternately.

• Some subtitle or audio languages are abbreviated in the pop-up window. See “The language codes list” (A pg. 36).

• During DVD AUDIO playback, this feature is available only for the video part.

Selecting the audio

4 Press Cursor Y/5 to select the desired

audio.

5 Press ENTER. 6 Press ON SCREEN.

The on-screen bar disappears.

NOTE

• Some subtitle or audio languages are abbreviated in the pop-up

window. See “The language codes list” (A pg. 36).

•“ST”, “L” or “R” is displayed when playing a VCD or SVCD respectively representing “stereo”, “left sound” and “right sound”.

Special picture playback

Frame-by-frame playback

7 During playback

Press 8 repeatedly.

Each time you press the button, the still picture advances by one frame.

To return to normal playback

Press 3 (play button).

NOTE

• During DVD AUDIO playback, this feature is available only for the video part.

7 During playback of a disc

containing audio in several languages

When using the AUDIO button:

1 Press AUDIO.

Example (DVD VIDEO): “ENGLISH” is selected out of 3 audio languages recorded.

2 Press AUDIO repeatedly or press

Cursor Y/5 to select the desired audio.

When using the on-screen bar:

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER.

Playing back in slow-motion

7 During playback

1 Press 8 at the point

where you want to start playback in slow-motion from.

The system pauses playback.

2 Press y.

• Playback in forward slow-motion starts.

For DVD VIDEO/DVD AUDIO only:

• To play back in reverse slow-motion, press 1.

Each time you press the button, the playback speed become faster.

Example: On the TV

To return to normal playback

Press 3 (play button).

NOTE

• Sound cannot be heard during slow-motion playback.

• During DVD AUDIO playback, this feature is available only for the

video part.

Advanced operations

See page 24 for button locations.

Selecting browsable still picture recorded on DVD AUDIO

Most DVD AUDIOs include browsable still pictures (B.S.P.), which usually appear by turns automatically during playback according to the playback sequence. You can change the picture (turn the page) manually when the current group/track has selectable pictures (pages).

7 During playback and while the B.S.P. indicator lights up on the

display window

When using the PAGE button:

Press PAGE repeatedly to select a desired still picture.

When using the on-screen bar:

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER.

4 Press Cursor 5/Y to select the desired

still picture.

NOTE

• The number of the magnification steps varies depending on the disc type.

• During slide-show playback of a JPEG disc, zooming in is not available. In such a case, press 8 to pause slide-show playback, then zoom in.

• During DVD AUDIO playback, this feature is available only for the video part.

• During MPEG4 playback, there may be a case where Cursor (3/2/ Y/5) does not work in step 2 above.

Changing the VFP setting

The VFP (Video Fine Processor) function enables you to adjust the picture character according to the type of programming, picture tone or personal preference.

7 During playback

1 Press VFP.

The current VFP settings appear on the TV screen.

Example:

5 Press ENTER. 6 Press ON SCREEN.

The on-screen bar disappears.

Zooming in

7 During playback or

while paused

1 Press ZOOM.

Each time you press ZOOM, scene magnification changes.

2 While zoomed in, press Cursor 3/2/Y/

5 to move zoom-in area.

To return to normal playback

Press ZOOM repeatedly to select ZOOM OFF.

2 Press Cursor 3/2 repeatedly to select

the VFP mode.

• NORMAL: Normally select this.

• CINEMA: Suitable for movies.

When you select “NORMAL” or “CINEMA”, press VFP to complete the setting.

• USER 1 and USER 2: You can adjust parameters that affect picture appearance.

Only when selecting “USER 1” or “USER 2” in step 2, proceed to perform the following operation;

3 Press Cursor Y/5 repeatedly to select

a parameter you want to adjust.

Adjust gradually and confirm picture appearance results are as preferred.

• GAMMA:

Controls brightness of neutral tints while maintaining brightness of dark and bright portions.

• BRIGHTNESS:

Controls screen brightness.

• CONTRAST:

Controls screen contrast.

• SATURATION:

Controls screen color depth.

• TINT:

Controls screen tint.

• SHARPNESS:

Controls screen sharpness.

Advanced operations

See page 24 for button locations.

4 Press ENTER.

Example:

5 Press Cursor Y/5 to change the

setting.

6 Press ENTER.

The current VFP settings appear again.

7 Repeat steps 3 to 6 to adjust other

parameters.

8 Press VFP.

NOTE

• Although the setting display disappears in the middle of the procedure, the setting at that time will be stored.

Program Playback

7 While stopped

1 Press PLAY MODE repeatedly until

program window appears on the TV screen.

2 Follow the instructions that appears on

the TV screen to program the desired chapters/tracks.

• For details on using the number buttons, see “How to use the

number buttons” (A pg. 22).

• The content’s numbers that you have to specify for programming varies depending on the disc type:

• DVD VIDEO: Titles and chapters

• VCD, SVCD, CD: Tracks

• DVD AUDIO, MP3, WMA:

Groups and tracks

• Before you program the tracks in bonus group on a DVD AUDIO, perform the procedure of “Playing back a bonus group” (A pg. 23) to turn off the BONUS indicator on the display window.

• You can specify the chapters/tracks whose number is up to

99.

• (For CD, SVCD or VCD) When the total playback time exceeds 99 minutes 59 seconds, “–:–” will appear on the display window. But, it is possible to continue programming.

• (For DVD VIDEO, DVD AUDIO, MP3 or WMA) When you press ENTER instead of the number buttons in the Track/Chaper column, “ALL” appears and all the tracks or chapters on the selected group or title are programmed as a step.

To clear the programs one by one from the last entered number

Press CANCEL repeatedly.

To clear all programs

Press 7. You can also clear the program by turning off the system.

3 Press 3 (play button).

If all of the programmed tracks/files have been played back, playback stops and the program window appears again. Note that program setting remains.

To check the program contents

During playback, press 7. Playback stops and the program window appears.

To quit the Program mode

While stopped, press PLAY MODE repeatedly until both program window and disappear from the TV screen.

NOTE

• The Resume function cannot be used with Program Playback.

• Program Playback may not work for some discs.

Advanced operations

See page 24 for button locations.

Random Playback

You can play titles or tracks on a disc in random order.

7 While stopped

1 Press PLAY MODE repeatedly until

appears on the TV screen.

2 Press 3 (play button).

To quit Random mode

While stopped, press PLAY MODE repeatedly until both program window and disappear from the TV screen. You can also clear the Random mode by turning off the system.

NOTE

• The same title/track will not be played back more than once during Random Playback.

Repeat Playback

Repeating the current selection

7 For DVD VIDEO:

During playback For VCD/SVCD:

During playback without PBC function or stopped For DVD AUDIO/CD/MP3/ JPEG/MPEG4: During playback or stopped

When using the REPEAT button:

Press REPEAT.

C11:31:01

Display

window

ALL

No indication

NOTE

• For DVD VIDEO and DVD AUDIO, REPEAT ALL may not be available depending on the disc.

When using the on-screen bar (except for MP3/ WMA/JPEG/MPEG4 disc):

TV screen Meanings

Repeats the current group for

REPEAT GROUP

REPEAT ALL

REPEAT TRACK, REPEAT STEP

REPEAT STEP

DVD AUDIO/MP3/WMA/ JPEG/MPEG4 disc.

Repeats the current title for DVD VIDEO.

Repeats all tracks/files for VCD/ SVCD/CD/MP3/WMA/JPEG/ MEPG4 disc.

Repeats the current track for DVD AUDIO/VCD/SVCD/CD/ MP3/WMA/MPEG4 disc.

Repeats the current chapter for DVD VIDEO.

Repeat mode is off. The system plays back the disc normally.

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight . 3 Press ENTER.

4 Press Cursor Y/5 repeatedly to select

the Repeat mode.

Repeat mode indicator

Each time you press REPEAT, the Repeat mode changes.

5 Press ENTER. 6 Press ON SCREEN.

The on-screen bar disappears.

To cancel Repeat Playback

Select “OFF” in step 4.

Advanced operations

See page 24 for button locations.

Repeating a desired part [A-B Repeat]

You can repeat playback of a desired part by specifying the beginning (point A) and ending (point B).

7 During playback

When using the A-B RPT button:

1 Press A-B RPT at the beginning of the

part you want to repeat (point A).

The repeat mode indicator “” appears on the display window.

2 Press A-B RPT again at the end of the

part you want to repeat (point B).

The repeat mode indicator on the display window changes to “” and A-B Repeat Playback starts. The selected part of the disc (between point A and B) is played repeatedly.

To cancel

Press A-B RPT during A-B Repeat Playback.

When using the on-screen bar:

1 Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2 Press Cursor 3/2 to highlight .

To cancel

Select “OFF” in step 4, then press ENTER.

NOTE

• When playing back a DVD VIDEO, A-B Repeat Playback is possible only within the same title.

•“A-B” cannot be selected during Program and Random Playback.

Tray lock

You can lock the tray and prohibit the unwanted disc ejection.

On the center unit ONLY:

While the system is turned off

Press and hold

• The system turns on and “LOCKED” appears on the display window.

• If you try to eject the disc, “LOCKED” appears to indicate that the tray is locked.

To cancel

Carry out the same operation again.

• The system turns on and “UNLOCKED” appears on the display window.

3 Press ENTER.

4 Press Cursor Y/5 repeatedly to select

“A-B”.

5 Press ENTER at the beginning of the

part you want to repeat (point A).

6 Press ENTER at the end of the part you

want to repeat (point B).

A-B Repeat Playback starts.

7 Press ON SCREEN.

The on-screen bar disappears.

Advanced operations

Sound and other settings

IMPORTANT

Before using the remote control for the following operation;

• Set the remote control mode selector to

AUDIO.

NOTE

Before you start operation;

• There is a time limit when doing the following steps. If the setting is cancelled before you finish, start from step 1 again.

1 Press SETTING.

Example:

BAL : CENTER

2 Press Cursor Y/5 to select the item

you want to set.

• BAL (Balance): You can adjust the balance between the front left and front right speakers.

• DEC (Decode): When you play an external source (DBS is selected as a source) that was encoded with Dolby Digital or DTS Digital Surround, the following symptoms may occur;

• No sound comes out at the beginning of playback.

• Noise comes out while searching for or skipping chapters

or tracks.

AUT/PCM (Auto/PCM):

Normally select this. The system automatically detects the incoming signals.

DOLBY D: Select this if the symptoms above occur when

playing a disc (or software) encoded with Dolby Digital.

DTS: Select this if the symptoms above occur when

playing a disc (or software) encoded with DTS Digital Surround.

See page 24 for button locations.

• M. OUT (Monitor Out): Select the video output jack type by which you watch DVD playback after connecting your TV. (A pg. 12) Set the video output to use AV COMPU LINK remote control system. (A pg. 41)

VIDEO: To watch DVD playback via the VIDEO jack. S: To watch DVD playback via the S-VIDEO jack. COMPNT (component):

To watch DVD playback via the COMPONENT VIDEO OUT jacks.

3 Press Cursor 3/2 to make an

adjustment or selection.

Example:

BAL : R

The adjustment is set and the display automatically disappears a few seconds later.

NOTE

• When “DOLBY D” or “DTS” is selected, if a signal encoded with another digital format comes in, you cannot listen to the sound. (The GD or C indicator flashes.)

Setting DVD preferences

TOP MENU MENU

Using the setup menus

• You can change the language used in the setup menus. See “Menu description” below.

Basic operation on the setup menus

IMPORTANT

Before using the remote control for the following operation; 1 Set the remote control mode selector to

AUDIO.

2Press DVD.

PTY

7 While stopped

REC

SETUP

ENTER

DISPLAY

RDS

SCREEN

Cursor (3/2/Y/5)/

ENTER

1 Press SET UP.

2 Follow the instructions that appears on

the TV screen.

Menu description

:Language menu (LANGUAGE)

7 MENU LANGUAGE

Some DVDs have their own menus in multiple languages.

• Select the initial language*.

7 AUDIO LANGUAGE

Some DVDs have multiple audio languages.

• Select the initial audio language*.

NOTE

• See the following “The language codes list” for the code of each language, such as “AA”, etc.

The language codes list

AA Afar IK Inupiak RN Kirundi

AB Abkhazian IN Indonesian RO Rumanian

AF Afrikaans IS Icelandic RU Russian

AM Ameharic IW Hebrew RW Kinyarwanda

AR Arabic JI Yiddish SA Sanskrit

AS Assamese JW Javanese SD Sindhi

AY Aymara KA Georgian SG Sangho

AZ Azerbaijani KK Kazakh SH Serbo-Croatian

BA Bashkir KL Greenlandic SI Singhalese

BE Byelorussian KM Cambodian SK Slovak

BG Bulgarian KN Kannada SL Slovenian

BH Bihari KO Korean (KOR) SM Samoan

BI Bislama KS Kashmiri SN Shona

BN Bengali, Bangla KU Kurdish SO Somali

BO Tibetan KY Kirghiz SQ Albanian

BR Breton LA Latin SR Serbian

CA Catalan LN Lingala SS Siswati

CO Corsican LO Laothian ST Sesotho

CS Czech LT Lithuanian SU Sundanese

CY Welsh LV Latvian, Lettish SV Swedish

DA Danish MG Malagasy SW Swahili

DZ Bhutani MI Maori TA Tamil

EL Greek MK Macedonian TE Telugu

EO Esperanto ML Malayalam TG Tajik

ET Estonian MN Mongolian TH Thai

EU Basque MO Moldavian TI Tigrinya

FA Per si an MR Ma ra th i TK Tu rk men

FI Finnish MS Malay (MAY) TL Tagalog

FJ Fiji MT Maltese TN Setswana

FO Faroese MY Burmese TO Tonga

FY Frisian NA Nauru TR Turkish

GA Irish NE Nepali TS Tsonga

GD Scots Gaelic NL Dutch TT Tatar

GL Galician NO Norwegian TW Twi

GN Guarani OC Occitan UK Ukrainian

GU Gujarati OM (Afan) Oromo UR Urdu

HA Hausa OR Oriya UZ Uzbek

HI Hindi PA Panjabi VI Vietnamese

HR Croatian PL Polish VO Volapuk

HU Hungarian PS Pashto, Pushto WO Wolof

HY Armenian PT Portuguese XH Xhosa

IA Interlingua QU Quechua YO Yoruba

IE Interlingue RM Rhaeto-Romance ZU Zulu

7 SUBTITLE

Some DVDs have multiple subtitle languages.

• Select the initial subtitle language*.

7 ON SCREEN LANGUAGE

• Select the language shown on the TV screen when operating this system.

* When the language you have selected is not recorded to a disc,

the original language is automatically used as the initial language.

Continued on next page

Setting DVD preferences

:Picture menu (PICTURE)

7 MONITOR TYPE

You can select the monitor type to match your TV when you play DVDs recorded in the picture’s height/width ratio of 16:9.

• 16:9/16:9 MULTI (Wide television conversion)

Select this when the aspect ratio of your TV is 16:9 (wide TV).

• 4:3 LB/4:3 MULTI LB (Letter Box conversion)

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

• 4:3 PS/4:3 MULTI PS (Pan Scan conversion)

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear, however, the left and right edges of the pictures will not be shown on the screen.

Ex.: 16:9 Ex.: 4:3 LB Ex.: 4:3 PS

NOTE

• Even if “4:3 PS” or “4:3 MULTI PS” is selected, the screen size may become “4:3 LB” or “4:3 MULTI LB” with some DVDs. This depends on how DVDs are recorded.

• When selecting “MULTI” options as the monitor type for the multicolor system TV, this system outputs PAL or NTSC video signal according to the disc, regardless of the scan mode setting. (A pg. 18)

7 PICTURE SOURCE

When you set the scan mode to PROGRESSIVE (A pg. 18), you can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source). Normally set to “AU TO”.

• AUTO

Used to play a disc containing both video and film source materials. This system recognizes the source type (video or film) of the current disc according to the disc information.

• If the playback picture is unclear or noisy, or the oblique lines of the picture are rough, try to change to other modes.

• FILM

Suitable for playing back a film source disc.

• VIDEO

Suitable for playing back a video source disc.

7 SCREEN SAVER (A pg. 22)

You can activate or deactivate Screen Saver function.

• AUTO

Select this when you want to enjoy surround sound with its full dynamic range (no effect applied).

• ON

Select this when you want to fully apply the compression effect (useful at midnight).

NOTE

• When you play a multichannel Dolby Digital source with the surround mode is off, the setting of D. RANGE COMPRESSION is set to ON automatically.

: Speaker setting menu

(SPK. SETTING)

7 Level menu (LEVEL)

CENTER SPEAKER/SURROUND RIGHT SPEAKER/ SURROUND LEFT SPEAKER/SUBWOOFER

While monitoring the test tone, adjust the center and surround speakers volume as much as that of the front speakers.

TEST TONE*

Outputs the test tone.

RETURN

Returns to the SPK. SETTING menu.

* The test tone comes out of all of the activated speakers in the

following sequence:

s Front left speaker s Center speaker s Front right speaker s Surround right speaker s Surround left speaker s (back to the beginning)

NOTE

• Before you turn on the test tone, be sure to select AUTO SURR as the surround mode. (A pg. 24)

7 Distance menu (DISTANCE)

Example:

Center

speaker

Front left

2.7 m

2.4 m

2.1 m

Subwoofer

Front right

3.0 m

7 FILE TYPE

When several types of files are recorded on a disc, you can select which files to play. If you have changed FILE TYPE setting, be sure to turn the power off, then turn the power on to enable the new setting.

• AUDIO

Select this to play MP3/WMA files.

• STILL PICTURE

Select this to play JPEG files.

• VIDEO

Select this to play MPEG4 files.

: Audio menu (AUDIO)

7 D. RANGE COMPRESSION

(Dynamic range compression) You can enjoy low level recorded sound clearly at night even at a low volume when listening to the sound with Dolby Digital.

Surround left Surround right

In this case, set the distance of each speaker as follows;

• Distance of front speakers: 3.0 m

• Distance of center speaker: 2.7 m

• Distance of surround speakers: 2.4 m

FRONT SPEAKER/CENTER SPEAKER/SURROUND SPEAKER

Adjust the distance from the listening position to the speakers.

Within the range from 0.3 m to 9.0 m. (by 0.3 m)

RETURN

Returns to the SPK. SETTING menu.

Setting DVD preferences

:Other setting menu (OTHERS)

7 RESUME

You can activate or deactivate Resume Playback function. (A pg. 29)

7 ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons. (A pg. 20)

7 Parental lock menu (PARENTAL LOCK)

You can restrict playback of a DVD VIDEO containing violent scenes that is not suitable for your other family members.

• This setting takes effect only for DVDs containing the Parental Lock level information — Level 1 (most restrictive) to Level 8 (least restrictive).

COUNTRY CODE

Select this when you set the code for your resident. (A pg. 38)

Country/Area codes list for Parental Lock

A: AD (Andorra), AE (United Arab Emirates), AF (Afghanistan), AG (Antigua and Barbuda), AI (Anguilla), AL (Albania), AM (Armenia), AN (Netherlands Antilles), AO (Angola), AQ (Antarctica), AR (Argentina), AS (American Samoa), AT (Austria), AU (Australia), AW (Aruba), AZ (Azerbaijan) B: BA (Bosnia and Herzegovina), BB (Barbados), BD (Bangladesh), BE (Belgium), BF (Burkina Faso), BG (Bulgaria), BH (Bahrain), BI (Burundi), BJ (Benin), BM (Bermuda), BN (Brunei Darussalam), BO (Bolivia), BR (Brazil), BS (Bahamas), BT (Bhutan), BV (Bouvet Island), BW (Botswana), BY (Belarus), BZ (Belize) C: CA (Canada), CC (Cocos (Keeling) Islands), CF (Central African Republic), CG (Congo), CH (Switzerland), CI (Côte d’Ivoire), CK (Cook Islands), CL (Chile), CM (Cameroon), CN (China), CO (Colombia), CR (Costa Rica), CU (Cuba), CV (Cape Verde), CX (Christmas Island), CY (Cyprus), CZ (Czech Republic) D: DE (Germany), DJ (Djibouti), DK (Denmark), DM (Dominica), DO (Dominican Republic), DZ (Algeria) E: EC (Ecuador), EE (Estonia), EG (Egypt), EH (Western Sahara), ER (Eritrea), ES (Spain), ET (Ethiopia) F: FI (Finland), FJ (Fiji), FK (Falkland Islands (Malvinas)), FM (Micronesia (Fedelated States of)), FO (Faroe Islands), FR (France), FX (France, Metropolitan) G: GA (Gabon), GB (United Kingdom), GD (Grenada), GE (Georgia), GF (French Guiana), GH (Ghana), GI (Gibraltar), GL (Greenland), GM (Gambia), GN (Guinea), GP (Guadeloupe), GQ (Equatorial Guinea), GR (Greece), GS (South Georgia and the South Sandwich Islands), GT (Guatemala), GU (Guam), GW (Guinea-Bissau), GY (Guyana) H: HK (Hong Kong), HM (Heard Island and McDonald Islands), HN (Honduras), HR (Croatia), HT (Haiti), HU (Hungary) I: ID (Indonesia), IE (Ireland), IL (Israel), IN (India), IO (British Indian Ocean Territory), IQ (Iraq), IR (Iran (Islamic Republic of)), IS (Iceland), IT (Italy)

J: JM (Jamaica), JO (Jordan), JP (Japan) K: KE (Kenya), KG (Kyrgyzstan), KH (Cambodia), KI (Kiribati), KM

(Comoros), KN (Saint Kitts and Nevis), KP (Korea, Democratic People’s Republic of), KR (Korea, Republic of), KW (Kuwait), KY (Cayman Islands), KZ (Kazakhstan) L: LA (Lao People’s Democratic Republic), LB (Lebanon), LC (Saint Lucia), LI (Liechtenstein), LK (Sri Lanka), LR (Liberia), LS (Lesotho), LT (Lithuania), LU (Luxembourg), LV (Latvia), LY (Libyan Arab Jamahiriya)

SET LEVEL

Select this when you set the level of restriction.

PASS WO RD

This item is selected automatically when some changes are made on Parental Lock setting. Enter a four-digit number as your password with number buttons 0-9, then press ENTER.

• If you have failed to enter your correct password three times, you cannot select an item other than EXIT. In such a case, press ENTER to exit the mode, then try the setting again.

EXIT

Returns to OTHERS menu.

• Be sure to exit the Parental Lock setting mode after entering your password. Otherwise, the changes you made won’t be stored.

• If you forget your password, enter “8888” instead of your password.

NOTE

• When you enter wrong passwords three times, you can only select EXIT.

M: MA (Morocco), MC (Monaco), MD (Moldova, Republic of), MG (Madagascar), MH (Marshall Islands), ML (Mali), MM (Myanmar), MN (Mongolia), MO (Macau), MP (Northern Mariana Islands), MQ (Martinique), MR (Mauritania), MS (Montserrat), MT (Malta), MU (Mauritius), MV (Maldives), MW (Malawi), MX (Mexico), MY (Malaysia), MZ (Mozambique) N: NA (Namibia), NC (New Caledonia), NE (Niger), NF (Norfolk Island), NG (Nigeria), NI (Nicaragua), NL (Netherlands), NO (Norway), NP (Nepal), NR (Nauru), NU (Niue), NZ (New Zealand)

O: OM (Oman) P: PA (Panama), PE (Peru), PF (French Polynesia), PG (Papua New

Guinea), PH (Philippines), PK (Pakistan), PL (Poland), PM (Saint Pierre and Miquelon), PN (Pitcairn), PR (Puerto Rico), PT (Portugal), PW (Palau), PY (Paraguay)

Q: QA (Qatar) R: RE (Réunion), RO (Romania), RU (Russian Federation), RW

(Rwanda) S: SA (Saudi Arabia), SB (Solomon Islands), SC (Seychelles), SD (Sudan), SE (Sweden), SG (Singapore), SH (Saint Helena), SI (Slovenia), SJ (Svalbard and Jan Mayen), SK (Slovakia), SL (Sierra Leone), SM (San Marino), SN (Senegal), SO (Somalia), SR (Suriname), ST (Sao Tome and Principe), SV (El Salvador), SY (Syrian Arab Republic), SZ (Swaziland) T: TC (Turks and Caicos Islands), TD (Chad), TF (French Southern Territories), TG (Togo), TH (Thailand), TJ (Tajikistan), TK (Tokelau), TM (Turkmenistan), TN (Tunisia), TO (Tonga), TP (East Timor), TR (Turkey), TT (Trinidad and Tobago), TV (Tuvalu), TW (Taiwan), TZ (Tanzania, United Republic of) U: UA (Ukraine), UG (Uganda), UM (United States Minor Outlying Islands), US (United States), UY (Uruguay), UZ (Uzbekistan) V: VA (Vatican City State (Holy See)), VC (Saint Vincent and the Grenadines), VE (Venezuela), VG (Virgin Islands (British)), VI (Virgin Islands (U.S.)), VN (Vietnam), VU (Vanuatu)

W: WF (Wallis and Futuna Islands), WS (Samoa) Y: YE (Yemen), YT (Mayotte), YU (Yugoslavia) Z: ZA (South Africa), ZM (Zambia), ZR (Zaire), ZW (Zimbabwe)

Tuner operations

IMPORTANT

Before using the remote control for the following operation; 1 Set the remote control mode selector to

AUDIO.

2Press FM/AM.

The buttons described below are used on pages 39 to 40.

Remote control mode selector

Setting the AM tuner interval spacing

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing.

• 9 kHz interval spacing is the initial setting.

On the center unit ONLY:

VOLUMESTANDBY

PHONES

7 When AM is selected as the source

To select the 10 kHz interval

Press and hold 7, then press 8. “10k STEP” appears on the display window.

To select the 9 kHz interval

Press and hold 7, then press 3. “9k STEP” appears on the display window.

Manual tuning

Number buttons

1 Press FM/AM repeatedly to select the

band.

Example: When the system is tuned in to 810 kHz.

810k

2 Press TUNING 9/( repeatedly until

you find the frequency you want.

When you hold down the button until the system starts searching for stations and then release it, the system stops searching automatically when a station of sufficient signal strength is tuned in to.

NOTE

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights on the display window.

• When an FM stereo program is received, the ST indicator lights on the display window.

Tuner operations

See page 39 for button locations.

Preset tuning

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset 30 FM and 15 AM stations.

7 To preset the stations

1 Tune in the station you want to preset.

• If you want to store the FM reception mode for an FM station, select the reception mode you want. See “Selecting the FM reception mode” below.

Example: When the system is tuned in to 103.50 MHz.

103.50M

2 Press MEMORY.

While “CH” and “– –” are flashing:

103.50M

3 Press number button(s) (1-10, +10) to

select a preset number you want.

• For details on using the number buttons, see “How to use the number buttons” (A pg. 22).

Example: When the preset channel 1 is selected.

1 103.50M

If the setting is cancelled before you finish, start from step 2 again.

While the selected number is flashing:

Selecting the FM reception mode

When the stereo FM program currently tuned in is noisy, you can change the FM reception mode to improve the reception.

7 While listening to an FM station

Press FM MODE.

The FM reception mode appears on the display window. Each time you press the button, the FM reception mode changes.

• AUTO MUT ING :

When a program is broadcast in stereo, you will hear stereo sound. (The ST indicator lights on the display window.) When in monaural, you will hear monaural sound. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights on the display window.

• MONO:

Reception will be improved although you will lose the stereo effect. (The ST indicator goes off.) In this mode, you will hear noise until you are tuned in to a station. (The AUTO MUTING indicator also goes off.)

Reducing the noise of AM broadcast

When listening to an AM broadcast with a lot of noise interference, you can change the Beat Cut mode to reduce the noise.

7 While listening to an AM station

Press FM MODE.

The current Beat Cut mode appears on the display window. Each time you press the button, the Beat Cut mode changes.

• Choose “BEAT CUT 1” or “BEAT CUT 2” according to which gives clearer sound.

4 Press MEMORY.

The selected number stops flashing. The station is assigned to the selected preset number. If the setting is cancelled before you finish, start from step 2 again.

5 Repeat steps 1 to 4.

• Storing a new station to a used number erases the previously stored one.

7 To tune in to a preset station

1 Press FM/AM repeatedly to select FM or

AM.

2 Press number button(s) (1-10, +10) to

select a preset number.

• For details on using the number buttons, see “How to use the number buttons” (A pg. 22).

AV COMPU LINK remote control system

The AV COMPU LINK remote control system allows you to operate JVC TVs and VCRs through the center unit. This system is equipped with the AV COMPU LINK-III, which adds a function to operate JVC’s video components via the video components terminals. To use this remote control system, you need to connect the video components you want to operate as follows.

• Refer also to the manuals supplied with your TV and video components.

Connecting a TV and VCR

CAUTION

Before connecting;

• If you have already plugged your VCR, TV and the center unit into the AC outlets, unplug their AC power cords first.

1 Connect the center unit to a TV and

VCR.

• For details, see page 12 and 13.

2 Connect the center unit to a TV and VCR

using the optional AV COMPU LINK cords.

Center unit

AV COMPU LINK cord (not supplied)

Available functions

The AV COMPU LINK remote control system allows you to use the functions listed following.

One-touch video play

Simply by inserting a video cassette without its safety tab into the VCR, you can enjoy video playback without manually setting other switches. This system automatically turns on and changes the source to VCR. The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture. When you insert a video cassette with its safety tab in place, press the play (3) button on the VCR or on the remote control to get the same result.

One-touch DVD play

Simply by starting playback on the built-in DVD player, you can enjoy playback without manually setting other switches. The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

Automatic selection of TV input mode

When you select DVD or VCR as the source to play on the system, the TV automatically changes the input mode to the appropriate position so that you can view the playback picture.

Automatic Power On/Off

The TV and VCR turn on and off along with the system. When you turn on the system;

• If the previously selected source is “DVD”, only the TV will turn on automatically.

• If the previously selected source is “VCR”, the TV and VCR will turn on automatically.

When you turn off the system, the TV and VCR will turn off.

NOTE

• If you turn off the system while recording on the VCR, the VCR will not turn off and will continue recording.

VCR

3 Plug the AC power cords of the VCR, TV

and the center unit into the AC outlets.

4 Turn on the connected components

first, then turn on the center unit.

• When turning on the TV for the first time after the AV COMPU LINK connection, turn the TV volume to minimum using the TV volume control on the TV.

• When turning on the VCR, use the remote control supplied with this system. (Press F VCR/DBS.)

NOTE

• To correctly use the automatic selection of TV input mode, select the

correct “M. OUT” setting. (A pg. 35)

References

To clean the disc

Maintenance

7 Handling Discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes and moisture.

Troubleshooting

PROBLEM POSSIBLE CAUSE SOLUTION

Power does not come on.

The remote control does not work.

No sound. The system cord and/or speaker cord is not connected. Check the connection. (A pg. 12)

No picture is displayed on the TV screen.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

Video and audio are distorted.

The picture does not fit the TV screen.

Hard to listen to broadcast because of noise.

The power cord and/or system cord is not connected. Connect the power cord and system cord correctly.

The batteries are exhausted. Replace the batteries. (A pg. 7)

Sunlight is falling directly on the remote sensor. Hide the remote sensor from direct sunlight.

The audio cord is not connected to AUDIO IN (VCR) and/or DIGITAL IN (DBS) correctly.

An incorrect source has been selected. Select the correct source. (A pg. 17) The decode mode is not set correctly. Select the proper decode mode. (A pg. 35) The video cord is not connected correctly. Connect the cord correctly. (A pg. 12) The disc is not playable. Use a playable disc. (A pg. 3)

The scan mode is set to “PAL PROG.” or “NTSC PROG.” though the center unit is connected to the TV which does not support the progressive video input such as a conventional TV.

The disc is scratched or dirty. Replace or clean the disc.

A VCR is connected between the center unit and the TV.

The monitor type is not set correctly. Set “MONITOR TYPE” properly. (A pg. 37)

Antennas are disconnected. Reconnect the antennas correctly and securely.

Wipe the disc with a soft cloth in a straight line from center to edge.

• DO NOT use any solvent — such as conventional record cleaner, spray, thinner or benzine — to clean the disc.

7 Cleaning the system

• Stains on the system should be wiped off with a soft cloth. If the system is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the system may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following.

• DO NOT wipe it with a hard cloth.

• DO NOT wipe it strong.

• DO NOT wipe it with thinner or benzine.

• DO NOT apply any volatile substance such as insecticides to it.

• DO NOT allow any rubber or plastic to remain in contact with

it for a long time.

(A pg. 13)

Connect the cord correctly. (A pg. 13)

Change the scan mode to “PAL ” or “NTSC”. (A pg. 18)

Connect the center unit and TV directly. (A pg. 12)

(A pg. 8)

References

Specifications

Center unit (XV-THS8/XV-THS5)

Audio section

Total Harmonic Distortion 0.02 %

NOTE: This value is measured at System cord CONNECTOR for

reference.

Digital input*1:

DIGITAL IN (DBS): –21 dBm to –15 dBm

(OPTICAL) (660 nm E30 nm)

*1Corresponding to Linear PCM, Dolby Digital, and DTS Digital

Surround (with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz)

Video section

Video System: NTSC/PAL selectable Horizontal Resolution: 500 lines Signal-to-Noise Ratio: 64 dB Video output level

Composite: 1.0 V(p-p)/75 C S-video-Y: 1.0 V(p-p)/75 C S-video-C: 0.286 V (0.3 V* Component-Y: 1.0 V(p-p)/75 C Component-P

Video input sensitivity/Impedance (VCR IN)

Composite: 1.0 V(p-p)/75 C S-video-Y: 1.0 V(p-p)/75 C S-video-C: 0.286 V (0.3 V*

For PAL system

Tuner section

Tuning Range

FM: 87.50 MHz to 108.00 MHz AM: 531 kHz to 1 602 kHz

General

Power Requirements: AC 110 – 240 V , 50/60 Hz

Power Consumption: 18 W (at operation)

Dimensions (W M H M D):

Mass: 3.0 kg

B/PR: 0.7 V(p-p)/75 C

(at 9 kHz intervals) 530 kHz to 1 600 kHz (at 10 kHz intervals)

(except for Hong Kong and Australia) AC 220 V , 50 Hz (for Hong Kong only) AC 240 V , 50 Hz (for Australia only)

2.0 W (in standby mode)

435 mm M 57 mm M 319 mm

) (p-p)/75 C

7 Subwoofer (SP-PWS8/SP-PWS5)

Amplifier section

Front/Center/Surround: 80 W per channel, RMS at 6 C

(Center/Surround)/120 W per channel, RMS at 4 C (Front) at 1 kHz, with 10 % total harmonic distortion.

Subwoofer: 120 W, RMS at 4 C at 100 Hz, with

10 % total harmonic distortion.

Speaker section

Speaker unit: 16 cm Bass-reflex, Magnetically

Shielded

Frequency Range: 30 Hz to 200 Hz

General

Power Requirements: AC 110 V/127 V/220 – 240 V

selectable with the voltage selector, 50 Hz/60 Hz (except for Hong Kong and Australia) AC 220 V , 50 Hz (for Hong Kong only) AC 240 V , 50 Hz (for Australia only)

Power Consumption: 110 W (at operation)

0 W (in standby mode)

Dimensions (W M H M D):

170 mm M 412 mm M 444 mm

Mass: 12.0 kg

7 Satellite Speakers

Front speakers (SP-THS9F)

Speakers: 5.5 cm M 2,

3.0 cm Bass-reflex, Magnetically Shielded

Power Handling Capacity: 120 W Impedance: 4 C Frequency Range: 95 Hz to 40 kHz Dimensions (W M H M D):

250 mm M 1 103 mm M 250 mm

Mass: 3.67 kg

Surround speakers (SP-THS9S)

Speakers: 5.5 cm M 2

Bass-reflex, Magnetically Shielded

Power Handling Capacity: 80 W Impedance: 6 C Frequency Range: 90 Hz to 30 kHz Dimensions (W M H M D):

250 mm M 1 103 mm M 250 mm

Mass: 3.77 kg

Center speaker (SP-THS9C)

Speakers: 5.5 cm M 2,

3.0 cm Bass-reflex, Magnetically Shielded

Power Handling Capacity: 80 W Impedance: 6 C Frequency Range: 90 Hz to 40 kHz Dimensions (W M H M D):

209 mm M 85 mm M 92 mm

Mass: 0.87 kg

References

7 Satellite Speakers

Front speakers (SP-THS5F)

Speakers:

Woofer: 8.0 cm Tweeter: 1.5 cm

Power Handling Capacity: 120 W Impedance: 4 C Frequency Range: 90 Hz to 20 kHz Dimensions (W M H M D):

Mass: 0.67 kg

Surround speakers (SP-THS7S)

Speakers: 8.0 cm

Power Handling Capacity: 80 W Impedance: 6 C Frequency Range: 80 Hz to 20 kHz Dimensions (W M H M D):

Mass: 0.52 kg

Center speaker (SP-THS5C)

Speakers:

Woofer: 8.0 cm Tweeter: 1.5 cm

Power Handling Capacity: 80 W Impedance: 6 C Frequency Range: 90 Hz to 20 kHz Dimensions (W M H M D):

Mass: 0.67 kg

Bass-reflex, Magnetically Shielded

106 mm M 139.5 mm M 102 mm

Bass-reflex, Magnetically Shielded

111.5 mm M 139 mm M 106.5 mm

Bass-reflex, Magnetically Shielded

137.5 mm M 105 mm M 108 mm

Designs & specifications are subject to change without notice.

Mains (AC) Line Instruction (not applicable for Hong Kong and Australia)

SP-PWS8 SP-PWS5

TH-S8/TH-S5 DVD DIGITAL CINEMA SYSTEM

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.
