PARTS LIST
[ SP-PW100 ]
* All printed circuit boards and its assemblies are not available as service parts.
SP-PW100
Area suffix
UP ---------------------------- Korea
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Amp assembly and parts list (Block No.M2)
Electrical parts list (Block No.01)

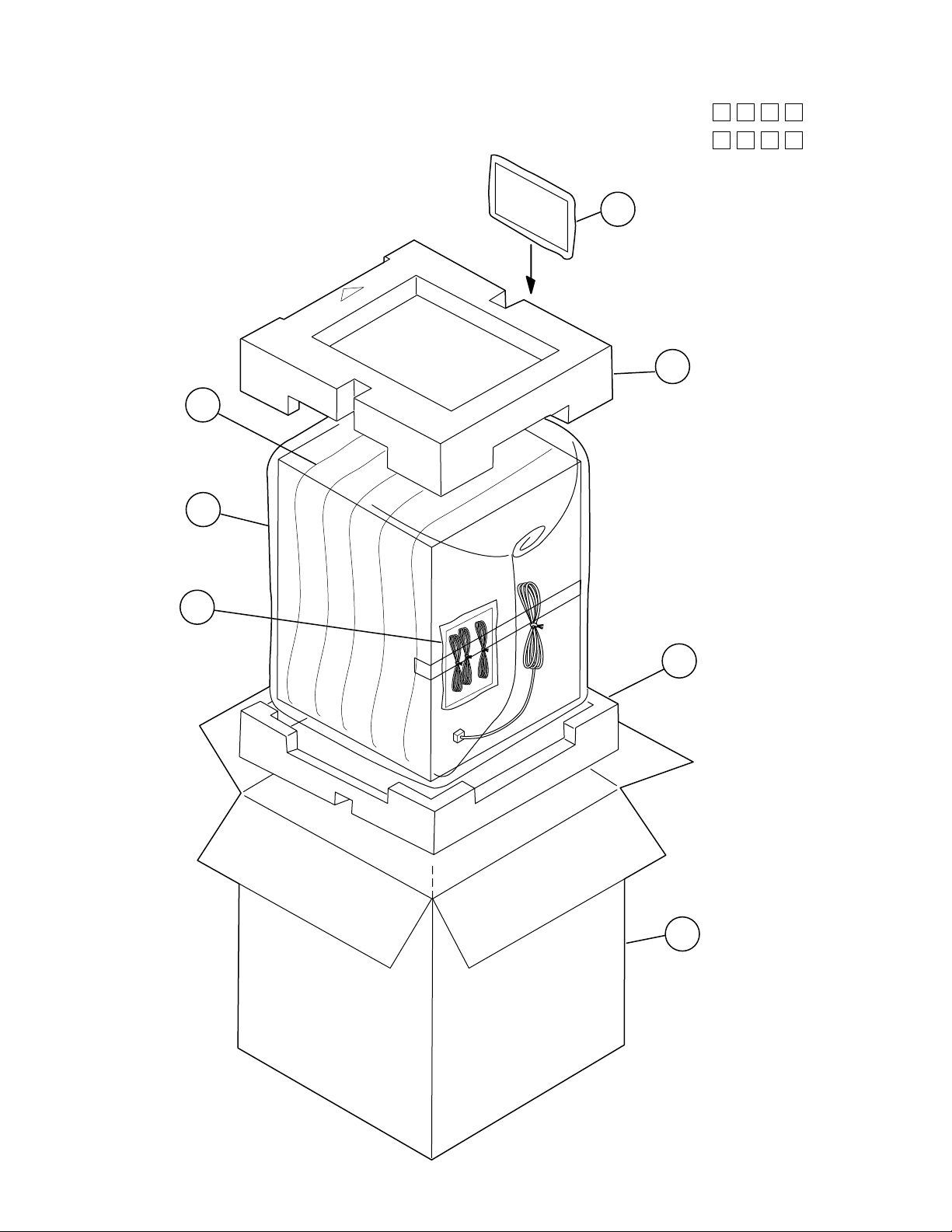

Packing materials and accessories parts list (Block No.M3,M5)
3-2
3-4
3-6
3-8
3-1
SP-PW100
Exploded view of general assembly and parts list
Block No.
9
9
10
M
M
1
M
1
8
3
7
4
5
6
6
6
2
3-2
SP-PW100
Parts list (General assembly)
Item
A
1 AA000021-02
2 99-160-104-11
3 7004690801
4 66-000-074-11
5 53-000-145-01
6 70-059-416-02
7 CR160058-01
8 29-100-079-01
9 SDSA4020M
10 6000167301
Parts number Parts name Area
WOOD CABINET
SARAN BOARD
TAPPING SCREW
CIE.BORAD ASSY
PANEL
SCREW
CONE SPEAKER
RING
SCREW
CAUTION LABEL
Q'ty
Block No. M1MM
Description
1
1
2
1
1
6
1
1
11
1
3-3
SP-PW100
Amp. assembly and parts list
14
19
14
3
25
Block No.
35
18
M
2
M
M
Input Board
Amp Board
17
20
11
22
17
24
30
2
A
15
31
22
B
17
5
26
12
16
15
16
C
6
32
10
33
1
27
14
23
21
9
10
9
8
7
A
B
13
28
C
Power Board
4
24
19
3-4
SP-PW100
Parts list (Amp. assembly)
Item
A
1 LV10253-002A
2 LV20997-010A
3 LV42236-001A
4 LV41147-001A
5 LV31303-002A
6 LV41211-001A
7 LV41148-002A
8 LV30225-025A
9 LV30225-026A
10 LV30225-027A
11 LV30225-028A
12 LV30225-029A
13 LV30225-030A
14 QYSBSF3008Z
15 QYSBSF4016Z
16 QYWLS417610Z
17 QYSBSF3008Z
18 QYSBSGY3008M
19 QYSBST3006Z
20 QYSBSG3016Z
21 QYSBSF4012Z
22 QYSBSG3010Z
23 QHS3771-108
24 E407321-002SM
25 LV30734-002A
26 QQT0265-003
27 EMP7000-200
28 QMF51E2-1R0-J1
30 QMF51E2-1R6-J1
31 QMF51E2-1R6-J1
32 WJJ0097-001A
33 WJJ0098-001A
35 LV30262-016A
Parts number Parts name Area
Q'ty
COVER
BACK PANEL
VOLUME BRACKET
AC BRACKET
HEAT SINK
HEAT SINK
CORD COVER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SCREW
SCREW
WASHER
SCREW
SPECIAL SCREW
T.SCREW
T.SCREW
SCREW
T.SCREW
CORD STOPPER
PUSH BUTTON
KNOB
POWER TRANSF
POWER CORD
FUSE
FUSE
FUSE
E-SI C WIRE C-C 1
E-SI C WIRE C-C
UP LABEL
Description
1
1
1
1
1
1
1
1
2
2
1
2
1
5
FOR AC BRACKET
4
FOR TRANS
4
6
FOR PCB
3
FOR SPK TERMINA
4
FOR POWER SW
2
FOR POWER IC
2
2
1
2
2
1
T8901
1
1
F8901
1
F8911
1
F8921
1
1
Block No. M2MM
3-5
SP-PW100
ea
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
ea
Electrical parts list (Main board)
Item
A
CN811 QGB2016J1-15 CONNECTOR TO WOOF.PWB
CN821 QGB2016K1-15 CONNECTOR TO CONT.PWB
CN851 QGA2501C1-02 2P CONNECTOR FOR LED
CN881 QGA3901C1-02 CONNECTOR FOR SPK
CN891 QGA3901C1-05 CONNECTOR FOR SEC.POWER
CN899 QGA7901C1-02 CONNECTOR
A
C2117 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C2118 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C8101 QTE1H28-106Z E CAPACITOR
C8102 QTE1H28-106Z E CAPACITOR
C8103 QCBB1HK-222Y C CAPACITOR 2200PF 10% 50V
C8104 QFVJ1HJ-224Z MF CAPACITOR .22MF 5% 50V
C8105 QFVJ1HJ-224Z MF CAPACITOR .22MF 5% 50V
C8106 QFVJ1HJ-274Z MF CAPACITOR .27MF 5% 50V
C8107 QFVJ1HJ-823Z MF CAPACITOR .082MF 5% 50V
C8108 QFN31HJ-123Z M CAPACITOR .012MF 5% 50V
C8109 QFVJ1HJ-223Z MF CAPACITOR .022MF 5% 50V
C8110 QFN31HJ-332Z M CAPACITOR 3300PF 5% 50V
C8111 QTE1H28-106Z E CAPACITOR
C8112 QCBB1HK-223Y C CAPACITOR .022MF 10% 50V
C8113 QCBB1HK-223Y C CAPACITOR .022MF 10% 50V
C8114 QDGB1HK-102Y C CAPACITOR
C8115 QDGB1HK-102Y C CAPACITOR
C8116 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V
C8121 QTE1H28-106Z E CAPACITOR
C8122 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C8123 QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C8124 QCBB1HK-103Y C CAPACITOR .010MF 10% 50V
C8201 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C8202 QTE1H28-107Z E CAPACITOR
C8203 QTE1H28-107Z E CAPACITOR
C8204 QTE1H28-106Z E CAPACITOR
C8205 QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C8206 QENC1HM-225Z NP E CAPACITOR 2.2MF 20% 50V
C8207 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C8208 QFVJ1HJ-224Z MF CAPACITOR .22MF 5% 50V
C8209 QFVJ1HJ-224Z MF CAPACITOR .22MF 5% 50V
C8210 QETN1EM-106Z E CAPACITOR 10MF 20% 25V
C8211 QETN1EM-476Z E CAPACITOR 47MF 20% 25V
C8212 QETN1CM-107Z E CAPACITOR 100MF 20% 16V
C8213 QDCB1HK-8R2Y C CAPACITOR
C8214 QFVJ1HJ-104Z MF CAPACITOR .10MF 5% 50V
C8215 QTE1E28-107Z E CAPACITOR
C8217 QTE1H28-106Z E CAPACITOR
C8218 QTE1H28-106Z E CAPACITOR
C8219 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V
C8231 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C8232 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C8233 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C8234 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C8252 QFVJ1HJ-104Z MF CAPACITOR .10MF 5% 50V
C8253 QDYB1CM-103Y C CAPACITOR
C8501 QETN1EM-226Z E CAPACITOR 22MF 20% 25V
C8502 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C8503 QETN1EM-107Z E CAPACITOR 100MF 20% 25V
C8504 QETN1HM-106Z E CAPACITOR 10MF 20% 50V
C8505 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C8506 QETN1HM-106Z E CAPACITOR 10MF 20% 50V
C8507 QDYB1CM-103Y C CAPACITOR
C8508 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V
C8701 QTE1E28-476Z E CAPACITOR
C8702 QTE1E28-476Z E CAPACITOR
C8703 QTE1E28-107Z E CAPACITOR
Parts number Parts name Ar
Block No. 01
Remarks
PRI MORE
Item
A
C8704 QTE1E28-107Z E CAPACITOR
C8801 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V
C8901 QCZ9104-472 C CAPACITOR
A
C8911 QEZ0223-478 E CAPACITOR
A
C8912 QEZ0223-478 E CAPACITOR
A
C8914 QFV72AJ-104Z MF CAPACITOR .10MF 5% 100V
C8915 QFV72AJ-104Z MF CAPACITOR .10MF 5% 100V
C8917 QFV72AJ-104Z MF CAPACITOR .10MF 5% 100V
C8921 QETM1EM-688 E CAPACITOR
A
C8922 QETM1EM-688 E CAPACITOR
A
C8924 QFVJ1HJ-104Z MF CAPACITOR .10MF 5% 50V
C8925 QFVJ1HJ-104Z MF CAPACITOR .10MF 5% 50V
C8927 QFVJ1HJ-104Z MF CAPACITOR .10MF 5% 50V
C8928 QETN1HM-225Z E CAPACITOR 2.2MF 20% 50V
D8201 MTZJ8.2C-T2 ZENER DIODE
D8202 MTZJ8.2C-T2 ZENER DIODE
D8205 MTZJ33C-T2 Z DIODE
D8206 MTZJ33C-T2 Z DIODE
D8207 1SS133-T2 SI DIODE
D8208 1SS133-T2 SI DIODE
D8209 1SS133-T2 SI DIODE
D8211 1N5402M-20 DIODE
A
D8212 1N5402M-20 DIODE
A
D8501 1SS133-T2 SI DIODE
D8502 1SS133-T2 SI DIODE
D8503 1SS133-T2 SI DIODE
D8504 1SS133-T2 SI DIODE
D8505 1SS133-T2 SI DIODE
D8506 1SS133-T2 SI DIODE
D8507 1SS133-T2 SI DIODE
D8508 1SS133-T2 SI DIODE
D8509 1SS133-T2 SI DIODE
D8510 1SS133-T2 SI DIODE
D8511 MTZJ6.8B-T2 ZENER DIODE
D8701 MTZJ10B-T2 ZENER DIODE
D8702 MTZJ10B-T2 ZENER DIODE
D8801 1SS133-T2 SI DIODE
D8911 D5SBA20-S1 SI DIOD E
A
D8921 D5SBA20-S1 SI DIOD E
A
D8924 DSK10C-T1 DIO DE
A
FW801 QUM103-06Z4Z4 PARA RIBON WIRE
IC811 NJM4580D-D IC
IC812 NJM4580D-D IC
IC813 NJM4580D-D IC
IC821 STK411-290E IC
A
IC851 TC74HCU04AP IC
IC861 UPC78L05J-T IC
J8101 QNN0090-001 PIN JACK
J8102 QNB0002-001 SPK TERMINAL
L8201 QQLZ005-R45 INDUCTOR
PP891 QNZ007 9-001 Z TAB
PP892 QNZ007 9-001 Z TAB
A
A
A
Parts number Parts name Ar
4700PF
4700MF
4700MF
6800MF 20% 25V
6800MF 20% 25V
+/-35V
+/-15V
WOOFER AMP
8101 KTC3199/GL/-T TRANSISTOR
8102 KTC3199/GL/-T TRANSISTOR
8201 KTC3199/GL/-T TRANSISTOR
8202 KTA1267/YG/-T TRANSISTOR
8203 KTC3199/GL/-T TRANSISTOR
8204 KTA1267/YG/-T TRANSISTOR
8501 KTC3199/GL/-T TRANSISTOR
8502 KTC3199/GL/-T TRANSISTOR
8701 2SD400MP/EF/-T TRANSISTOR
8702 2SB544MP(E,F) TRANSISTOR
8801 2SC945/PK/T TRANS ISTOR
Remarks
3-6
SP-PW100
ea
ea
Electrical parts list (Main board)
Item
A
RY881 QSK0109-001 RELAY
A
R8101 QRE141J-474Y C RESISTOR 470K 5% 1/4W
R8102 QRE141J-474Y C RESISTOR 470K 5% 1/4W
R8103 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8104 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8105 QRE141J-683Y C RESISTOR 68K 5% 1/4W
R8106 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8107 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R8108 QRE141J-123Y C RESISTOR 12K 5% 1/4W
R8109 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R8110 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R8111 QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R8112 QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R8113 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R8114 QRE141J-123Y C RESISTOR 12K 5% 1/4W
R8115 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8116 QRE141J-393Y C RESISTOR 39K 5% 1/4W
R8117 QRE141J-392Y C RESISTOR 3.9K 5% 1/4W
R8118 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R8119 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R8120 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R8121 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R8122 QRE141J-682Y C RESISTOR 6.8K 5% 1/4W
R8123 QRE141J-682Y C RESISTOR 6.8K 5% 1/4W
R8124 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8125 QRE141J-473Y C RESISTOR 47K 5% 1/4W
R8126 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8127 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8128 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8129 QRE141J-684Y C RESISTOR 680K 5% 1/4W
R8201 QRZ9005-100X F RESISTOR
A
R8202 QRZ9015-101X F RESISTOR
A
R8203 QRZ9015-101X F RESISTOR
A
R8204 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R8205 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R8206 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8207 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8208 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8209 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8210 QRT01DJ-R33X MF RESISTOR
A
R8211 QRT01DJ-R33X MF RESISTOR
A
R8212 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R8213 QRJ146J-100X UNF C RESISTORA10 5% 1/4W
R8214 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8215 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R8216 QRZ9005-100X F RESISTOR
A
R8217 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8218 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8219 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8220 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8221 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8222 QRE141J-823Y C RESISTOR 82K 5% 1/4W
R8223 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8224 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8225 QRE141J-333Y C RESISTOR 33K 5% 1/4W
R8226 QRE141J-561Y C RESISTOR 560 5% 1/4W
R8227 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R8228 QRE141J-271Y C RESISTOR 270 5% 1/4W
R8229 QRT01DJ-R33X MF RESISTOR
A
R8233 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R8252 QRE141J-100Y C RESISTOR 10 5% 1/4W
R8501 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8502 QRE141J-123Y C RESISTOR 12K 5% 1/4W
Parts number Parts name Ar
10 1/4W
100 1/4W
100 1/4W
5% 1W
5% 1W
10 1/4W
5% 1/1W
Block No. 01
Remarks
Item
A
R8503 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8504 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8505 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R8506 QRE141J-105Y C RESISTOR 1.0M 5% 1/4W
R8507 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R8512 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R8514 QRE141J-105Y C RESISTOR 1.0M 5% 1/4W
R8515 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R8516 QRE141J-473Y C RESISTOR 47K 5% 1/4W
R8517 QRE141J-564Y C RESISTOR 560K 5% 1/4W
R8518 QRE141J-220Y C RESISTOR 22 5% 1/4W
R8519 QRE141J-514Y C RESISTOR 510K 5% 1/4W
R8520 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R8521 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8522 QRE141J-181Y C RESISTOR 180 5% 1/4W
R8523 QRE141J-220Y C RESISTOR 22 5% 1/4W
R8701 QRZ9005-100X F RESISTOR
A
R8702 QRZ9005-100X F RESISTOR
A
R8703 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R8704 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R8705 QRZ9005-100X F RESISTOR
A
R8801 QRJ146J-222X UNF C RESISTORA2.2K 5% 1/4W
R8802 QRJ146J-222X UNF C RESISTORA2.2K 5% 1/4W
R8803 QRJ146J-222X UNF C RESISTOR 2.2K 5% 1/4W
R8811 QRE141J-622Y C RESISTOR 6.2K 5% 1/4W
R8812 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R8921 QRE141J-333Y C RESISTOR 33K 5% 1/4W
R8922 QRZ9006-4R7X F RESISTOR
A
S8101 QSW0834-001 PUSH SWITCH PHASE CHANGE
S8901 QSW0632-001 PUSH SWITCH
A
VR811 QVQ002 1-B14 V RESISTOR
VR812 QVQ0300-B24 V.RES.
WC881 QZW0038-001 WIRE CLAMP
Z 892 QNG0003-001Z FUSE CLIP
A
Z 893 QNG0003-001Z FUSE CLIP
A
Z 894 QNG0003-001Z FUSE CLIP
A
Z 895 QNG0003-001Z FUSE CLIP
A
Z 897 QNG0003-001Z FUSE CLIP
A
Z 898 QNG0003-001Z FUSE CLIP
A
Parts number Parts name Ar
10 1/4W
10 1/4W
10 1/4W
4.7 1/4W
Remarks
3-7
SP-PW100
Packing materials and accessories parts list
P6
Block No.
Block No.
P1
A1,A2
P4
M
M
3
M
M
5
M
M
P5
P1
A3~A5
P3
P2
3-8
SP-PW100
Parts list (Packing)
Item
A
P 1 QPA02503503P
P 2 LV31492-013A
P 3 80-000-449-11
P 4 80-000-449-01
P 5 8500037721
P 6 85-000-353-21
Parts number Parts name Area
Parts list (Accessories)
Item
A
A 1 LVT0909-001A
A 2 BT-56010-1
A 3 LV42286-002A
A 4 LE30745-001A
A 5 QAM0199-001
Parts number Parts name Area
POLY BAG
CARTON
BOTTOM CUSHION
TOP CUSHION
POLY BAG
MIRROR MAT
INST BOOK
WARRANTY CARD
FOOT
SPK CORD
PIN CABLE
Q'ty
Q'ty
2
FOR INST
1
1
1
1
1
1
1
1
2
1
Block No. M3MM
Description
Block No. M5MM
Description
3-9
Loading...
