JVC RX-D212B, RX-D211S User Manual

AUDIO / VIDEO CONTROL RECEIVER

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

RX-D211S / RX-D212B

INSTRUCTIONS

LVT1557-001A

[J]

Warnings, Cautions, and Others

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

ATTENTION

Des changements ou modifications non approuvés par JVC pourront invalider l’autorité de l’utilisateur à opérer cet appareil.

For U.S.A

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution–– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (the standby lamp goes off). When installing the apparatus, ensure

that the plug is easily accessible. The in any position does not disconnect the mains line.

• When the unit is on standby, the standby lamp lights red.

• When the unit is turned on, the standby lamp goes off. The power can be remote controlled.

Attention—Touche

Déconnectez la fiche secteur pour mettre l’appareil complètement hors tension (le témoin d’attente s’éteint). Lors de l’installation de l’appareil, assurez-vous que la fiche soit

facilement accessible. La touche n’importe quelle position ne déconnecte pas l’appareil du secteur.

• Quand l’appareil est en mode d’attente, le témoin d’attente s’allume en rouge.

• Quand l’appareil est sous tension, le témoin d’attente s’éteint.

L’alimentation ne peut pas être commandée à distance.

STANDBY/ON!

STANDBY/ON button

STANDBY/ON dans

Declaration of Conformity:

Trade Name: JVC Model Number: RX-D211S/RX-D212B Responsible Party: JVC Americas Corp. Address: 1700 Valley Road, Wayne New Jersey 07470 Telephone Number: 973-317-5000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received,

including interference that may cause undesired operation.

For Canada/pour Le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

G-1

[European Union Only] [Union européenne seulement]

Table of Contents

Parts identification ................................................ 2

Getting started ...................................................... 4

Before Installation .................................................................. 4

Checking the supplied accessories ....................................... 4

Putting batteries in the remote control ................................... 4

Connecting antennas ............................................................. 5

Connecting the speakers ....................................................... 6

Connecting audio/video components .................................... 7

Connecting the power cord .................................................. 10

USB connection ................................................................... 11

Basic operations ................................................. 12

1 Turn on the power ............................................................. 12

2 Select the source to play .................................................. 12

3 Adjust the volume ............................................................. 13

Turning off the sounds temporarily ...................................... 14

Changing the display brightness.......................................... 14

Turning off the power with the Sleep Timer ......................... 14

FM/AM tuner operations ..................................... 15

Tuning in to FM/AM stations manually ................................. 15

Using preset tuning .............................................................. 15

Selecting the FM reception mode ........................................ 16

XM Satellite Radio operations............................ 17

Preparation .......................................................................... 17

Listening to XM Satellite Radio ............................................ 18

Using preset tuning .............................................................. 19

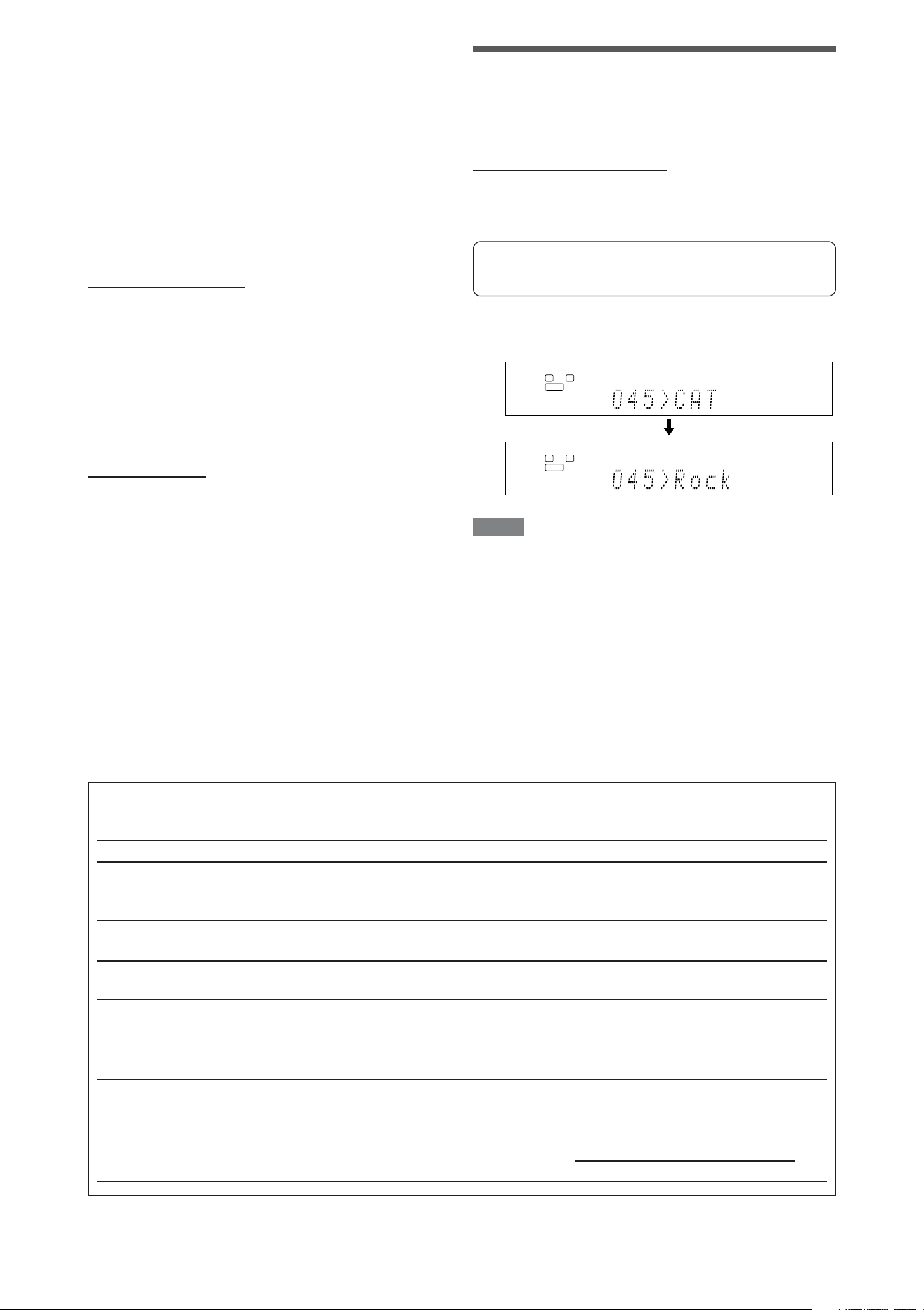

Changing the channel information ....................................... 19

Basic settings ...................................................... 20

Setting the speaker information easily

—Quick Speaker Setup ................................................. 20

Basic setting items ............................................................... 21

Operating procedure ............................................................ 22

Setting the speakers ............................................................ 22

Activating the EX/ES/PLIIx setting—EX/ES/PLIIx ............... 23

Selecting the main or sub channel—DUAL MONO ............. 24

Setting bass sound .............................................................. 24

Using the Midnight mode—MIDNIGHT MODE .................... 24

Setting the digital input (DIGITAL IN) terminals

—DIGITAL IN 1/2/3 ........................................................ 25

Selecting the component video input mode

—DVD VIDEO IN/VCR VIDEO IN/DBS VIDEO IN ......... 25

Sound adjustments ............................................. 26

Basic adjustment items ........................................................ 26

Operating procedure ............................................................ 26

Adjusting the speaker output levels ..................................... 27

Adjusting the equalization patterns

—D EQ 63Hz/250Hz/1kHz/4kHz/16kHz ........................ 27

Adjusting the bass sounds ................................................... 28

Adjusting the sound parameters for the

Surround/DSP modes ................................................... 28

Creating realistic sound fields ........................... 30

Reproducing theater ambience ........................................... 30

Introducing the Surround modes ......................................... 30

Introducing the DSP modes ................................................. 32

Using the Surround/DSP modes ......................................... 33

Activating the Surround/DSP modes ................................... 34

AV COMPU LINK remote control system .......... 35

Operating other JVC products ........................... 37

Operating other manufacturers’ products ........ 39

Troubleshooting .................................................. 42

Specifications ...................................................... 43

Parts identification

A/V CONTROL RECEIVER

r t

REMOTE CONTROL

MUTING

DVR/DVD

USB

TV VOL

TUNING

TOP MENU MENU

SURROUND

TV/VIDEO

ANALOG/DIGITAL

FM MODE

MEMORY

D.EQ FREQ DIRECT BAND

D.EQ LEVEL

L — FRONT — R

L — SURR — R

RM- SRXD211J

AUDIO

DBS/ CATV

DBS

FM/AM

VOLUME

SET

EFFECT

TEST

CENTER

L — S. BACK — R

TV/SIRIUS

SIRIUS

TUNING

DISPLAY

10/100

SLEEP

SUBWFR

VCR

CHANNEL

SELECT

CAT

RETURN

C.TONE DIMMER

B.BOOST

DVR

DVD

;

a s d

f g

h j

Remote control

See pages in parentheses for details.

1 MUTING button (14) 2 Standby/on buttons (12, 37 – 41)

AUDIO, DVR/DVD , VCR , DBS/CATV ,

TV/SIRIUS

3 Source selecting buttons (12, 16, 17, 34, 37 – 41)

DVR/DVD, VCR, DBS, TV, USB, XM, FM/AM, SIRIUS

4 TV VOL (volume) +/– button (37, 39) 5 CHANNEL +/– button (37 – 41) 6 • Operating buttons for video components (37, 38, 40, 41)

4, 3, ¢, 1, 7, 8, ¡

• Operating buttons for FM/AM tuner (15)

( TUNING, TUNING 9

• Operating buttons for XM Satellite Radio or SIRIUS Satellite Radio (18, 37) SELECT*, ( CAT, CAT 9

7 Operating buttons for DVD recorder or DVD player** (38, 41)

TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), SET

8 SURROUND button (34) 9 TV/VIDEO button (37, 39) p ANALOG/DIGITAL button (13) q FM MODE button (16) w MEMORY button (15, 19) e Adjusting buttons for Digital Equalizer (27)

D.EQ FREQ, D.EQ LEVEL +/–

r DIRECT button (18) t B (bass). BOOST button (28) y Adjusting buttons for speaker and subwoofer output levels

(27) FRONT L +/–, FRONT R +/–, CENTER +/–, SUBWFR +/–, SURR L +/–, SURR R +/–, S.BACK L +/–, S.BACK R +/–

u VOLUME +/– button (13) i DVR/DVD mode selector (38, 41) o DISPLAY button (19, 37) ; • Numeric buttons (16, 18, 19, 37 – 41)

1 – 10, 0, h10, +10/100+

• RETURN button (37)

a PREV* button (37) s BAND* button (37) d DIMMER button (14) f EFFECT button (28) g SLEEP button (14) h TEST button (27) j C (center).TONE button (29)

* For SIRIUS Satellite Radio only **These buttons can be used for operating a DVD recorder (JVC

product ONLY) or DVD player with the mode selector set to “DVR” or “DVD” (see page 38). If these buttons do not function normally, use the remote control supplied with your DVD recorder or DVD player. Refer also to the manuals supplied with the DVD recorder or DVD player for details.

To open the cover of the remote control, push here then slide downward

• When operating a DVD recorder (for JVC products

ONLY), set the mode selector (i) to “DVR.”

• When operating a DVD player, set the mode selector ( to “DVD.”

See pages in parentheses for details.

Front panel

AUDIO/VIDEO CONTROL RECEIVER

STANDBY/ON

PHONES USB

DIMMER SETTING ADJUST SURROUND

1 STANDBY/ON button and standby lamp (12) 2 DIMMER button (14) 3 SETTING button (20, 22) 4 ADJUST button (26) 5 SURROUND button (34) 6 Source lamps

DVR/DVD, VCR, DBS, TV/SIRIUS, USB, XM, FM, AM

7 • SET button (20, 22, 26)

• TUNER PRESET button (16, 19)

Display window

1 23

SOURCE SELECTOR

/ MULTI JOG

VCR DBS TV/SIRIUS USB XM FM AMDVR / DVD

SET / TUNER PRESET

MASTER VOLUME

8 • SOURCE SELECTOR (12, 16, 17)

• MULTI JOG (16, 19, 20, 22, 26, 34)

9 MASTER VOLUME control (13) p PHONES jack (13) q USB terminal (11) w Display window (see below) e Remote sensor (4)

789 06

=45 -

DIGITAL

96 / 24

DUAL MONO

S.WFR

LFE

LSSBRS

SBSSB

ANALOG DIGITAL AUTO LINEAR PCM

1 ANALOG indicator (13) 2 DUAL MONO indicator (24) 3 AUTO SURR (surround) indicator (34) 4 HEADPHONE indicator (13, 31) 5 FM/AM tuner operation indicators (15)

TUNED, STEREO

6 DIGITAL EQ indicator (27) 7 AUTO MUTING indicator (16) 8 C.TONE indicator (29) 9 B (bass).BOOST indicator (28) 0 MIDNIGHT indicator (24)

- INPUT ATT (attenuate) indicator (28) = SLEEP indicator (14)

Rear panel

VIDEO

S-VIDEO

MONITOR

DVR

VCR

DBS

OUT(REC) IN(PLAY)

OUT(REC)

DVR/DVD IN(PLAY)

OUT

AUTO SURR HEADPHONE

NEO : 6

DSP

3D-PHONIC VIRTUAL SB

COMPONENT VIDEO

DVR/DVD

VCR(DBS)

MONITOR

OUT

TV/SIRIUSINDBS

COMPU LINK-

1(DVR/DVD)

III

AUDIO

VCR DVR

OUT(REC) IN(PLAY)

TUNED

STEREO

DIGITAL EQ

AUTO MUTING

C.TONE

B.BOOST

MIDNIGHT

SLEEP

INPUT ATT

&#@ $%^~

~ Digital signal format indicators (13, 30, 31)

DIGITAL AUTO, LINEAR PCM,

! Signal and speaker indicators (14) @ NEO:6 indicator (31) # VIRTUAL SB indicator (33) $ 3D-PHONIC indicator (31, 32) % DSP indicator (31, 32) ^ and indicator (30 – 32) & Main display * Frequency unit indicators

MHz (for FM stations), kHz (for AM stations)

DIGITAL IN

2(DBS)

OUT(REC)

3(VCR)

DVR/DVD

IN(PLAY)

SUBWOOFER

OUT

SURROUND

SPEAKERS

ANTENNA

FM 75

COAXIAL

SURROUND BACK

SPEAKERS

LEFTRIGHT LEFTRIGHT LEFTRIGHT

CAUTION:SPEAKER IMPEDANCE 6 -16

CENTER

SPEAKER

MHz kHz

AM LOOP

AM EXT

SPEAKERS

FRONT

, , 96/24

7 8 9 p

1 Power cord (10) 2 AV COMPU LINK-III terminals (35) 3 DIGITAL IN terminals (10)

• Coaxial: 1(DVR/DVD)

• Optical: 2(DBS)

• Optical: 3(VCR)

4 XM jack (5) 5 FM/AM ANTENNA terminals (5) 6 VIDEO jacks (7– 9)

VIDEO (composite video) jacks, S-VIDEO jacks

• Input: DBS IN, VCR IN (PLAY), DVR/DVD IN (PLAY)

• Output: VCR OUT (REC), DVR OUT (REC), MONITOR OUT

7 COMPONENT VIDEO (Y, P

B, PR) jacks (7– 9)

VCR (DBS) IN, DVR/DVD IN, MONITOR OUT

8 AUDIO jacks (7 – 9)

• Input: TV/SIRIUS IN, DBS IN, VCR IN (PLAY), DVR/DVD IN (PLAY)

• Output: VCR OUT (REC), DVR OUT (REC)

9 SUBWOOFER OUT jack (6) p Speakers terminals (6)

SURROUND BACK SPEAKERS, SURROUND SPEAKERS, CENTER SPEAKER, FRONT SPEAKERS

Getting started

Before Installation

General precautions

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.

• The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

• Leave sufficient distance between the receiver and the TV.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

• When you are away on travel or otherwise for an extended period or time, remove the plug from the wall outlet. A small amount of power is always consumed while the power cord is connected to the wall outlet.

Putting batteries in the remote control

Before using the remote control, put two supplied batteries first.

123

Press and slide the battery cover on the back of the remote control.

Insert batteries.

Make sure to match the polarity: (+) to (+) and (–) to (–).

Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

• Supplied batteries are for initial setup. Replace for continued use.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:

(+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

When using the remote control, aim the remote control directly at the remote sensor on the front panel.

Remote sensor

The receiver has a built-in cooling fan which operates while the receiver is turned on. Be sure to leave enough ventilation to obtain sufficient cooling effect.

CAUTION:

Do not connect the AC power plug to the wall outlet until all connections are completed.

Checking the supplied accessories

Check to be sure you have all of the following supplied accessories. If anything is missing, contact your dealer immediately.

• Remote control (× 1)

• Batteries (× 2)

• AM loop antenna (× 1)

• FM antenna (× 1)

Connecting antennas

Do not connect the AC power plug to the wall outlet until all connections are completed.

7 Connecting FM and AM antennas

If FM reception is poor, connect an outdoor FM antenna (not supplied).

AM loop antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

ANTENNA

FM antenna (supplied)

FM 75

COAXIAL

ANTENNA

AM antenna connection

Connect the AM loop antenna supplied to the AM LOOP terminals. Connect the white cord to the AM EXT terminal, and connect the black cord to the H terminal. Turn the loop until you have the best reception.

• If the reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. Keep the AM loop antenna connected.

AM LOOP

If AM reception is poor, connect

AM EXT

NOTES

• If the AM loop antenna wire is covered with vinyl, remove the vinyl while twisting it as shown on the right.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

an outdoor single vinyl-covered wire (not supplied).

FM antenna connection

Connect the FM antenna supplied to the FM 75 Ω COAXIAL terminal as a temporary measure. Extend the supplied FM antenna horizontally.

• If the reception is poor, connect an outdoor FM antenna (not supplied). Before attaching a 75 Ω coaxial cable with a connector, disconnect the supplied FM antenna.

7 Connecting the XM Connect and Play Digital Antenna

To enjoy XM Satellite Radio, connect the XM Connect and Play Digital Antenna (not supplied) to the XM jack.

XM Connect and Play Digital Antenna (not supplied)

NOTE

For the best reception: – Place the XM Connect and Play Digital Antenna near a south-facing window or where “Channel 1” can be heard clearly (see page 17). – Make sure there is no obstruction between the XM Connect and Play Digital Antenna and the sky.

Connecting the speakers

Do not connect the AC power plug to the wall outlet until all connections are completed.

Speaker Layout Diagram

SBL

(*SB)

SBR

Powered

subwoofer

(SW)

CAUTIONS:

• Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals (6 Ω – 16 Ω).

• DO NOT connect more than one speaker to one speaker terminal.

Connecting the speakers

Turn off all components before making connections.

Center

speaker (C)

SUBWOOFER

OUT

Right surround

back speaker

(SBR)

*Left surround

back speaker

(SBL)

SURROUND BACK

SPEAKERS

SURROUND

SPEAKERS

LEFTRIGHT LEFTRIGHT LEFTRIGHT

CAUTION:SPEAKER IMPEDANCE 6 -16

CENTER

SPEAKER

Left

surround

speaker (LS)

Right

surround

speaker (RS)

FRONT

SPEAKERS

Left front

speaker

Right front

speaker

(L)

(R)

*When using a single speaker for the surround back speaker

You can enjoy the surround sound by one surround back speaker. When using one surround back speaker, – set “SB OUT” to “ – connect the surround back speaker to the left surround back

speaker terminal. (No sound comes from the speaker if

you connect it to the right surround back speaker terminal.)

<1SPK>” (see page 22) and

12 3

–

Twist and remove the insulation at the end of each speaker cord.

Open the terminal (1), then insert the speaker cord (2).

• For each speaker, connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

Close the terminal.

Connecting the powered subwoofer

By connecting a subwoofer, you can enhance the bass or reproduce the original LFE signals recorded in digital software.

Connect the input jack of a powered subwoofer to the

–

SUBWOOFER OUT jack on the rear panel, using a cord with RCA pin plugs (not supplied).

• Refer also to the manual supplied with your subwoofer.

After connecting all the speakers and/or a subwoofer, set the speaker setting information properly to obtain the best possible surround effect. For details, see pages 20 to 24.

NOTE

You can place a subwoofer wherever you like since bass sound is non-directional. Normally place it in front of you.

Connecting audio/video components

Do not connect the AC power plug to the wall outlet until all connections are completed.

This receiver is equipped with the following video terminals— composite video, S-video, and component video terminals.

• If your video components have S-video (Y/C-separation) and/or component video (Y, PB, PR) jacks, connect them using an Svideo cable (not supplied) or component video cable (not supplied). By using these terminals, you can get better picture quality in the order:

Component > S-video > Composite

IMPORTANT:

This receiver can convert video signals as follows:

• Composite video signals can be converted into both S-video signals and component signals.

• S-video signals can be converted into component signals.

• Component signals cannot be converted.

When converting video signals, there are some points to observe. For details, see “About video signal conversion” on page 10.

7 Connecting a DVD recorder or DVD player

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

DO NOT use a TV through a VCR or a TV with a built-in VCR; otherwise, the picture may be distorted.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

If your video components have AV COMPU LINK terminal

See also page 35 for detailed information about the connection and the AV COMPU LINK remote control system.

DVR

OUT(REC)

DVR/DVD IN(PLAY)

COMPONENT VIDEO

MONITOR

DVR/DVD

DVR

OUT(REC)

VCR(DBS)

DVR/DVD

IN(PLAY)

OUT

White

Red

White

S-video cable (not supplied)

Green

Blue

Red

Component video cable (not supplied)

DVD recorder or DVD player

ıÎ‰ÏÌ

Stereo audio cable (not supplied)

Composite video cable (not supplied)

NOTES

• When connecting a DVD recorder or DVD player to the component video input jacks,

select the component video input mode (DVD VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly. See page 25 for details.

• When using a stereo audio cable as the illustration above, set the audio input mode to “ANALOG.” For details, see “Selecting the analog or digital input mode” on page 12.

• You can enjoy digital sound if using a digital coaxial or optical cable. When shipped

from the factory, the digital input terminal setting for a DVD recorder and DVD player is set to use the digital coaxial terminal (DIGITAL IN 1 (DVR/DVD)). For details of digital connection, see page 10.

Å To component video output

• Connect Y, P

B, and PR correctly.

ı To left/right audio channel output Ç Only for DVD recorder: To left/

right audio channel input

Î To composite video output ‰ To S-video output Ï Only for DVD recorder: To S-video

input

Ì Only for DVD recorder: To

composite video input

Do not connect the AC power plug to the wall outlet until all connections are completed.

7 Connecting a VCR

VCR

OUT(REC) IN(PLAY)

VCR(DBS)

AUDIO

VCR

OUT(REC) IN(PLAY)

COMPONENT VIDEO

MONITOR

DVR/DVD

OUT

White

Red

White

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

Green

Component video cable (not supplied)

Blue

Red

VCR

ıÎ‰ÏÌÇ

Stereo audio cable (not supplied)

Composite video cable (not supplied)

S-video cable (not supplied)

Composite video cable (not supplied)

NOTES

• When connecting a VCR to the component video input jacks, select the component video input mode (VCR VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly. See page 25 for details.

• When using a stereo audio cable as the illustration above, set the audio input mode to “ANALOG.” For details, see “Selecting the analog or digital input mode” on page 12.

• You can enjoy digital sound if using a digital coaxial or optical cable. When shipped from the factory, the digital input terminal setting for a VCR is set to use the digital optical terminal (DIGITAL IN 3 (VCR)). For details of digital connection, see page 10.

7 Connecting a DBS tuner

Component video cable (not supplied)

TV/SIRIUSINDBS

Green

Blue

Red

COMPONENT VIDEO

Å To component video output

• Connect Y, P

B, and PR correctly.

ı To left/right audio channel output Ç To left/right audio channel input Î To composite video output ‰ To S-video output Ï To S-video input Ì To composite video input

Stereo audio cable

IN OUT(REC)

(not supplied)

White

Red

VCR(DBS)

OUT

VIDEO

S-VIDEO

DBS

Composite video cable (not supplied)

MONITOR

DVR/DVD

NOTES

• When connecting a DBS tuner to the component video input jacks, select the component video input mode (DBS VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV. See page 25 for details.

• When using a stereo audio cable as the illustration above, set the audio input mode to “ANALOG.” For details, see “Selecting the analog or digital input mode” on page 12.

• You can enjoy digital sound if using a digital coaxial or optical cable. When shipped from the factory, the digital input terminal setting for a DBS tuner is set to use the digital optical terminal (DIGITAL IN 2 (DBS)). For details of digital connection, see page 10.

S-video cable (not supplied)

Å To left/right audio channel output ı To component video output

• Connect Y, P

Ç To composite video output Î To S-video output

DBS tuner

B, and PR correctly.

Do not connect the AC power plug to the wall outlet until all connections are completed.

7 Connecting a TV

Connect the TV to the appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.

COMPONENT VIDEO

DVR/DVD

VCR(DBS)

MONITOR

OUT

Green

Blue

Red

TV/SIRIUSIND L

Component video cable (not supplied)

White

Red

MONITOR

DVD

OUT

AY)

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

Stereo audio cable (not supplied)

S-video cable (not supplied)

Composite video cable (not supplied)

NOTES

• When using a stereo audio cable as the illustration above, set the audio input mode to “ANALOG.” For details, see “Selecting the analog or digital input mode” on page 12.

• You can enjoy digital sound if using a digital coaxial or optical cable. For details of digital connection, see page 10.

7 Connecting a SIRIUS Satellite Radio

TV/SIRIUSIND

White

Å To component video input

• Connect Y, P

B, and PR correctly.

ı To left/right audio channel output Ç To S-video input Î To composite video input

∞

Red

Stereo audio cable (not supplied)

SIRIUS Satellite Radio

NOTES

• To connect KT-SR2000 (JVC SIRIUS Satellite Radio) to this receiver, it is required to separately purchase KS-K6013 Home Docking Kit.

• You cannot use a digital audio cable (coaxial or optical) to connect a SIRIUS Satellite Radio to this receiver.

• After connecting a SIRIUS Satellite Radio to the TV IN jacks, change the source name to “SIRIUS.” See page 12 for details.

About video signal conversion

This receiver can convert video signals. See the table below about video signal conversion.

Video Input Converted Video Output

Component

S-video

Video (composite)

To convert composite video and S-video signal into component video signal, set the “DVD VIDEO IN,” “VCR VIDEO IN,” or “DBS VIDEO IN” to “<S/C>” (see page 25).

• If using composite video cable for connecting to the video input and using S-video cable for connecting to the video output, the video signal is converted into S-video signal automatically. The signal is emitted through the S-video output jacks of MONITOR OUT, VCR OUT (REC), and DVR OUT (REC).

• Pictures may be distorted if the signals are converted. If this happens, connect the playback source component and TV using the cords of the same type.

• Incoming signal of component can be emitted only through the component output jacks.

Component

S-video

Video (composite)

Digital connection

This receiver is equipped with three DIGITAL IN terminals—one digital coaxial terminal and two digital optical terminals. To reproduce the digital sound, use the digital connection in addition to the analog connection methods described on pages 7 to 9.

Digital coaxial cable (not supplied)

Digital optical cable (not supplied)

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

NOTES

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components: – 1(DVR/DVD): For DVD recorder or DVD player

– 2(DBS): For DBS tuner – 3(VCR): For VCR If you connect other components, change the digital input

(DIGITAL IN) terminal setting correctly. See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN 1/2/3” on page 25.

• Select the correct digital input mode. See “Selecting the analog or digital input mode” on page 12.

• When you want to operate the connected component (except DBS tuner) using the AV COMPU LINK remote control system (see pages 35 and 36), connect them also as described on pages 7 to 9.

Connecting the power cord

When all the audio/video connections have been made, connect the AC power plug to the wall outlet. Make sure that the plugs are inserted firmly. The standby lamp lights in red.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not alter, twist or pull the power cord, or put anything heavy

on it, which may cause fire, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power

cord replaced with a new one.

NOTES

• Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

• The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

• When you unplug the power cord with the receiver on and connect the power cord again, the receiver enters standby mode.

When the component has a digital coaxial output terminal, connect it to the 1(DVR/DVD) terminal, using a digital coaxial cable (not supplied).

DIGITAL IN

1(DVR/DVD)

When the component has a digital optical output terminal, connect it to the 2(DBS) or 3(VCR) terminal, using a digital optical cable (not supplied).

2(DBS)

3(VCR)

Before connecting a digital optical cable, unplug the protective plug.

USB connection

This receiver is equipped with a USB terminal. You can enjoy sound reproduced through your PC. When you connect your PC for the first time, follow the procedure below.

• Remember you cannot send any signal or data to your PC from this receiver.

IMPORTANT:

Check if your PC equipped with the CD-ROM drive is running on Windows XP* and prepare its CD-ROM.

Preparation

1. Turn on your PC.

2. Turn on the receiver, and select the source as “USB.”

3. Set the volume to minimum.

98 SE*, Windows® Me*, Windows® 2000* or Windows

• If the PC has been turned on, quit all the applications now running.

2. Check if the drivers are correctly installed.

1. Open the Control Panel on your PC:

Select [Start] = [Control Panel].

2. Select [System] = [Hardware] = [Device Manager] =

[Sound, video and game controllers] and [Universal Serial Bus controllers].

• The following window appears, and you can check whether the drivers are installed.

IMPORTANT:

Always set volume to “0” when connecting or disconnecting other equipment.

4. Connect the receiver to the PC using a USB cable (not supplied).

USB

USB cable (not supplied)

• Use “USB series A plug to B plug” cable when connecting.

How to install the USB drivers

The following procedure is described using the English version of Windows

XP. If your PC is running on a different version of operation system or language, the screens shown on your PC's monitor will differ from the ones used in the following procedure.

1. The USB drivers are installed automatically.

• If the USB drivers are not installed automatically, install the USB drivers by following the instructions on the PC’s monitor.

Now the PC is ready for playback through the USB connection.

After installation is completed, you can use your PC as the playback source. The PC automatically recognizes the receiver whenever the USB cable is connected between the PC and the receiver while the receiver is turned on.

• When not using the PC as the playback source, disconnect the transmitter or the USB cable.

To play back sounds on the PC, refer to the manuals supplied with the sound reproduction application installed in the PC. Start the application after the USB device is recognized.

If no sound comes from the speakers, check the following items:

– check if the USB device is recognized properly. – check if the playback software in your PC is compatible with the

USB device.

– open the Control Panel on your PC, select [Sounds and Audio

Devices] = [Audio] tab = [Sound playback] = [Default device], and check if [Default device] is set to [USB Audio DAC].

– select “USB” as the source. – connect the USB cable correctly.

NOTES

• DO NOT turn off the receiver or disconnect the USB cable while installing the drivers and for several seconds while your PC is recognizing the receiver.

• If your PC does not recognize the receiver, disconnect the USB cable and connect it again. If it does not work yet, restart Windows

• The installed drivers can be recognized only when the USB cable is connected between the receiver and your PC.

• The sound may not be played back correctly—interrupted or degraded—due to your PC settings and PC specifications.

• Use a USB cable (version 1.1 or later). Recommended cord length is 1.5 m.

* Microsoft

and Windows corporation.

, Windows® 98 SE, Windows® Me, Windows® 2000,

XP are registered trademarks of Microsoft

Basic operations

Source lamps

Select the source to play

On the front panel:

Turn SOURCE SELECTOR until the source name you want appears on the display.

The source lamp corresponding to the selected source lights in red.

• As you turn SOURCE SELECTOR, the source changes as follows:

ANALOG

S.WFR

AUTO SURR

TUNED

STEREO

AUTO MUTING

MHz

DVR/DVD VCR DBS TV (SIRIUS*1) FM AM

USB XM

(Back to the beginning)

DVR/DVD* VCR*

DBS*

1,2

TV* SIRIUS*

: Select this for the DVD recorder or DVD player.

: Select this for the VCR.

: Select this for the DBS tuner.

: Select this for the TV.

: Select this for the SIRIUS Satellite Radio. USB: Select this for the PC component. XM: Select this for the XM Satellite Radio. FM: Select this for an FM broadcast.

AM: Select this for an AM broadcast.

From the remote control:

Press one of the source selecting buttons.

• For “FM” and “AM,” press FM/AM. Each time you press FM/AM, the mode alternates between “FM” and “AM.”

*1Changing the source name of TV/SIRIUS input

On the front panel only:

Press SET when “TV” is selected as the source.

• “ASSIGN SIRIUS” appears on the display for a while.

ANALOG

S.WFR

AUTO SURR

Turn on the power

Press STANDBY/ON (or AUDIO on the remote control).

The standby lamp goes off and the source lamp of the current source lights in red.

Current source name appears.

ANALOG

To turn off the power (into standby)

Press STANDBY/ON (or AUDIO on the remote control) again. The standby lamp lights in red.

NOTE

A small amount of power is consumed in standby mode. To turn the power off completely, unplug the AC power cord.

S.WFR

AUTO SURR

TUNED

STEREO

AUTO MUTING

MHz

• When you change the source name to “TV,” press SET when “SIRIUS” is selected as the source. “ASSIGN TV” appears on the display for a while.

NOTE

When you change the source name to “SIRIUS,” you cannot select “TV” as the source.

*2Selecting the analog or digital input mode

You need to select the proper input mode according to the connection method (analog or digital) on pages 7 to 10.

• In case of digital connection, you also need to select the correct digital input terminal. (See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN 1/2/3” on page 25.)

• “DIGITAL AUTO” and “ANALOG” setting are memorized for each source.

From the remote control ONLY:

Press ANALOG/DIGITAL to select the analog or digital input mode.

• Each time you press the button, the input mode changes as follows:

S.WFR LFE

LS RS

AUTO SURR

DIGITAL AUTO

DIGITAL

DIGITAL AUTO DOLBY DIGITAL

DTS

ANALOG

DIGITAL AUTO: Select for the digital input mode. The

receiver automatically detects the incoming signal format, then the digital signal format indicator (LINEAR PCM,

detected signal lights up.

DOLBY DIGITAL*3: Select to play back software encoded with

Dolby Digital.

(Back to the beginning)

, , or 96/24) for the

Adjust the volume

To increase the volume, turn MASTER VOLUME control clockwise (or press VOLUME + on the remote control).

To decrease the volume, turn MASTER VOLUME control counterclockwise (or press VOLUME – on the remote control).

• When you adjust the volume, the volume level indication appears on the display for a while.

ANALOG

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

S.WFR

AUTO SURR

DTS*3: Select to play back software encoded with

DTS.

ANALOG: Select for the analog input mode. The

ANALOG indicator lights up on the display.

Initial setting: DIGITAL AUTO

If the following symptoms occur while playing Dolby Digital or

DTS software with “DIGITAL AUTO” selected, select “DOLBY DIGITAL” or “DTS.”

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

Ex.: When “DOLBY DIGITAL” is selected:

S.WFR LFE

LS RS

AUTO SURR

DIGITAL AUTO

DIGITAL

NOTES

• You cannot select the digital input mode when selecting “FM,” “AM,” or “SIRIUS” as the source.

• The input mode is fixed to “DIGITAL AUTO” when selecting “USB” or “XM” as the source.

• When you turn off the power or select another source, “DOLBY DIGITAL” or “DTS” is canceled and the digital mode is automatically reset to “DIGITAL AUTO.”

NOTE

The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

Listening with headphones

You can enjoy not only stereo software but also multi-channel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

Connect a pair of headphones to the PHONES jack on the front panel to activate the HEADPHONE mode.

The HEADPHONE indicator lights up on the display.

• You can also enjoy the Surround/DSP mode through the headphones—3D HEADPHONE mode. For details, see page 31.

• Disconnecting a pair of headphones from the PHONES jack cancels the HEADPHONE (or 3D HEADPHONE) mode and activates the speakers.

CAUTION:

Be sure to turn down the volume:

• Before connecting or putting on headphones, as high volume

can damage both the headphones and your hearing.

• Before removing headphones, as high volume may output from

the speakers.

The following digital signal format indicators on the display indicate what type of signal comes into the receiver.

LINEAR PCM: Lights up when Linear PCM signal comes in.

: • Lights up when Dolby Digital signal comes

in.

• Flashes when “DOLBY DIGITAL” is selected for any software other than Dolby Digital.

: • Lights up when conventional DTS signal

comes in.

• Flashes when “DTS” is selected for any software other than DTS.

96/24: Lights up when DTS 96/24 signal comes in.

NOTE

When “DIGITAL AUTO” cannot recognize the incoming signal, no digital signal format indicator lights up on the display.

Turning off the sounds temporarily

From the remote control ONLY:

Press MUTING to turn off the sound through all connected speakers and headphones.

“MUTING” appears on the display and the volume turns off.

ANALOG

To restore the sound, press MUTING again.

• Pressing VOLUME +/– (or turning MASTER VOLUME control on the front panel) also restores the sound.

S.WFR

AUTO SURR

Changing the display brightness

Basic adjustment of auto memory

This receiver memorizes sound settings for each source:

• when you turn off the power, and

• when you change the source.

When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Analog/digital input mode (see page 12)

• Bass boost (see page 28)

• Digital equalization pattern (see page 27)

• Input attenuator mode (see page 28)

• Midnight mode (see page 24)

• Speaker output level (see page 27)

• Surround/DSP mode selection (see page 34)

NOTE

If the source is “FM” or “AM,” you can assign a different setting for each band.

You can dim the display—Dimmer.

Press DIMMER repeatedly.

• Each time you press the button, the display brightness changes as follows:

DIMMER 1: Dims the display. DIMMER 2: Dims the display more than DIMMER 1. DIMMER 3: Turns off the display.

(Temporarily canceled when you operate the receiver.)

DIMMER OFF: Cancels the Dimmer (normal display).

Turning off the power with the Sleep Timer

You can fall asleep while listening to music—Sleep Timer.

From the remote control ONLY:

Press SLEEP repeatedly.

• Each time you press the button, the shut-off time changes in 10 minute intervals. The SLEEP indicator lights up on the display.

SLEEP indicator

ANALOG

10min

OFF (canceled)

S.WFR

20min

AUTO SURR

30min 40min

90min

50min

80min

70min

When the shut-off time comes:

The receiver turns off automatically.

To check or change the remaining time until the shut-off time:

Press SLEEP once. The remaining time (in minutes) until the shut-off time appears.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly so that “SLEEP OFF” appears on the display. (The SLEEP indicator goes off.)

• The Sleep Timer is also canceled when you turn off the receiver.

SLEEP

60min

Signal and speaker indicators on the display

Signal indicators Speaker indicators

S.WFR LFE

SBSSB

ANALOG DIGITAL AUTO LINEAR PCM

DIGITAL

96 / 24

DUAL MONO

S.WFR

LFE

LSSBRS

SBSSB

AUTO SURR

HEADPHONE

NEO : 6 3D-PHONIC VIRTUAL SB

DSP

S.WFR LFE

The signal indicators light up as follows:

L: • When digital input is selected: Lights up when the

left channel signal comes in.

• When analog input is selected: Always lights up.

R: • When digital input is selected: Lights up when the

right channel signal comes in.

• When analog input is selected: Always lights up.

C: Lights up when the center channel signal comes in. LS: Lights up when the left surround channel signal comes

in.

RS: Lights up when the right surround channel signal comes

in. S: Lights up when monaural surround signal comes in. SB: Lights up when the surround back channel signal

comes in. LFE: Lights up when the LFE channel signal comes in.

The speaker indicators light up as follows:

• The subwoofer indicator (

“SUBWOOFER” is set to “SUBWFR

) lights up when

S.WFR

<YES>.” For details,

see page 22.

• The other speaker indicators light up only when the

corresponding speaker is set to “SML (small)” or “LRG (large),” and also when required for the current playback.

SBSSB

FM/AM tuner

Tuning in to FM/AM stations manually

From the remote control ONLY:

operations

FM/AM tuner operations are mainly done from the remote control.

FM/AM

Press FM/AM to select the band.

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between “FM” and “AM.”

ANALOG

S.WFR

Press repeatedly or hold TUNING 9 or

TUNED

STEREO

AUTO MUTING

MHz

( TUNING until the station you want is tuned in.

• Pressing (or holding) TUNING 9 increases the frequency.

• Pressing (or holding) ( TUNING decreases the frequency.

NOTES

• When you hold and release TUNING 9 or ( TUNING, the

frequency keeps changing until a station is tuned in.

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.

• When an FM stereo program is received, the STEREO indicator also lights up.

TUNING

FM MODE

MEMORY

TUNING

Using preset tuning

Once a station is assigned a channel number, the station can be quickly tuned simply by selecting the number. You can preset up to 30 FM and 15 AM stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

From the remote control ONLY:

Tune in to the station you want to preset (see “Tuning in to FM/AM stations manually” above).

• If you want to store the FM reception mode for this station, select the FM reception mode you want. See “Selecting the FM reception mode” on page 16.

ANALOG

S.WFR

TUNED

STEREO

again.

AUTO MUTING

MHz

NOTE

When you have selected “FM” or “AM” by using SOURCE SELECTOR on the front panel, the remote control may not work for tuner operations. To use the remote control for tuner operations, select “FM” or “AM” by using FM/AM button on the remote control.

Press MEMORY.

The channel number position starts flashing on the display for about 5 seconds.

ANALOG

S.WFR

TUNED

STEREO

AUTO MUTING

CONTINUED ON THE NEXT PAGE

MHz

Press the numeric buttons (0 – 9, h10) to select a channel number while the channel number position is flashing.

• For channel number 5, press 5.

• For channel number 10, press h10, 1, then 0.

• For channel number 15, press h10, 1, then 5.

On the front panel:

2 1,3

ANALOG

S.WFR

Press MEMORY again while the selected

TUNED

STEREO

AUTO MUTING

channel number is flashing on the display.

The selected channel number stops flashing. The station is assigned to the selected channel number.

Repeat steps 1 to 4 until you store all the stations you want.

To erase a stored preset station

Storing a new station on a used channel number erases the previously stored one.

To tune in to a preset station

From the remote control:

Press FM/AM to select the band.

The last received station of the selected band is tuned in and the numeric buttons now work for tuner operations.

• Each time you press the button, the band alternates between “FM” and “AM.”

ANALOG

S.WFR

Press the numeric buttons (0 – 9, h10) to

TUNED

select a preset channel number.

ANALOG

S.WFR

• For channel number 5, press 5.

• For channel number 10, press h10, 1, then 0.

• For channel number 15, press h10, 1, then 5.

TUNED

STEREO

AUTO MUTING

MHz

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

Turn SOURCE SELECTOR to select “FM” or

again.

“AM.”

The last received station of the selected band is tuned in.

Press TUNER PRESET.

“P” appears on the display, and MULTI JOG now works for selecting preset channels.

Turn MULTI JOG to select a preset channel number.

• To increase the preset channel numbers, turn MULTI JOG clockwise.

• To decrease the preset channel numbers, turn MULTI JOG counterclockwise.

Selecting the FM reception mode

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

• You can store the FM reception mode for each preset station (see page 15).

From the remote control ONLY:

While listening to an FM station, press FM MODE.

• Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MONO.”

AUTO MUTING Normally select this.

When a program is broadcast in stereo, you will hear stereo sound; when in monaural, you will hear monaural sound. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display.

MONO Select this to improve the reception (but

stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)

Initial setting: AUTO MUTING

XM Satellite Radio operations

This is an XM Ready

• Before operating, refer also to the manuals of your XM Connect and Play Digital Antenna (not supplied).

receiver.

Preparation

To listening to XM Satellite Radio, you need the following: – The XM Connect and Play Digital Antenna (not supplied)* – Subscription to XM Satellite Radio**.

* To connect the XM Connect and Play Digital Antenna with this

receiver, see page 5.

**The following channels are available without subscription:

– Channel 0: This channel is for checking the XM Satellite

Radio ID number.

– Channel 1: This is “XM Preview” channel.

How to subscribe

XM Satellite radio is a subscription service. To subscribe to XM Satellite Radio, visit the XM Satellite Radio’s web site at <http://xmradio.com/activation/>, or you can call 1-800-XM-RADIO (1-800-967-2346). For subscription, you need to have the XM Satellite radio ID number. To check the ID number, follow the procedure below:

How to check the XM Satellite Radio ID number

After connection:

NOTE

When you have selected “XM” by using SOURCE SELECTOR on the front panel, the remote control may not work for XM Satellite Radio operations. To use the remote control for XM Satellite Radio operations, select “XM” by using XM button on the remote control.

Press XM on the remote control or turn SOURCE SELECTOR on the front panel to select “XM” as the source.

Tune in to “Channel 0” (see “Tune in to channels” on page 18) to check your XM Satellite Radio ID number.

The display alternately shows “RADIO ID” and the 8-digit (alphanumeric) ID number.

To cancel the ID number display

Select any channel other than “Channel 0.”

Listening to XM Satellite Radio

Press XM on the remote control or turn SOURCE SELECTOR on the front panel to select “XM” as the source.

The last received channel is tuned in. “XM” appears and then the channel name appears on the display.

DIGITAL AUTO

S.WFR

LINEAR PCM

About XM Satellite Radio

XM Satellite Radio is a satellite radio with digital-quality sound and over 100 digital channels—100% commercial-free music channels, over 30 channels of news, sports, talk and entertainment, and over 20 channels of traffic and weather. For the latest channel listings and programming information, or to sign up, visit <http://www.xmradio.com>.

is a registered trademark of XM Satellite Radio

DIGITAL AUTO

S.WFR

LINEAR PCM

Channel number Channel name

Tune in to the desired channel.

You can tune in to channels with one of the following methods: – Channel Search – Category Search – Direct Channel Access For details, see “Tune in to channels” on page 18.

Tuning in to channels

From the remote control ONLY:

7 Channel Search

You can search and tune in to all channels (including noncategorized channels).

Press XM to select “XM” as the source.

Press repeatedly or hold CHANNEL +/– until the desired channel number appears on the display.

• Pressing (or holding) CHANNEL + increases the channel number.

• Pressing (or holding) CHANNEL – decreases the channel number.

NOTE

While searching, the invalid and unsubscribed channels are skipped.

7 Category Search

You can select the channel category and tune in to only the channels included in the selected category.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

again.

7 Direct Channel Access

You can tune in to the desired channel directly by entering the channel number.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

Press XM to select “XM” as the source.

Press DIRECT.

The receiver enters the Direct Access mode and the numeric buttons now work for entering channel numbers.

The channel number position starts flashing on the display for about 5 seconds.

DIGITAL AUTO

S.WFR

LINEAR PCM

Press the numeric buttons (0 – 9, h10) to

again.

enter the desired channel number while the channel number position is flashing.

• For channel number 005, press 5.

• For channel number 010, press h10, 1, then 0.

• For channel number 015, press h10, 1, then 5.

• For channel number 115, press h10, h10, 1, 1, then 5.

Press XM to select “XM” as the source.

Press CAT 9 or ( CAT.

The receiver enters the Category Search mode.

The category name of the currently selected channel appears and “>” starts flashing on the display for about 15 seconds.

DIGITAL AUTO

S.WFR

LINEAR PCM

Press CAT 9 or ( CAT repeatedly to display the desired category name on the display while “>” is flashing.

DIGITAL AUTO

S.WFR

LINEAR PCM

Press repeatedly or hold CHANNEL +/– until the desired channel is tuned in.

• Pressing (or holding) CHANNEL + increases the channel number included in the selected category.

• Pressing (or holding) CHANNEL – decreases the channel number included in the selected category.

NOTE

While searching, the invalid and unsubscribed channels are skipped.

Using preset tuning

Once a channel is assigned a preset number, the channel can be quickly tuned simply by selecting the number. You can preset up to 30 channels.

To store the preset channels

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

From the remote control ONLY:

Tune in to the channel you want to preset (see “Tune in to channels” above).

Press MEMORY.

The preset number position starts flashing on the display for about 5 seconds.

DIGITAL AUTO

S.WFR

LINEAR PCM

Press the numeric buttons (0 – 9, h10) to select a preset number while the preset number position is flashing.

• For preset number 5, press 5.

• For preset number 10, press h10, 1, then 0.

• For preset number 15, press h10, 1, then 5.

again.

Press MEMORY again while the selected preset number is flashing on the display.

Repeat steps 1 to 4 until you store all the desired channels.

Changing the channel information

While listening to XM Satellite Radio, the currently selected channel information appears on the display. You can change the kind of channel information.

To erase a stored preset channel

Storing a new channel on a used preset number erases the previously stored one.

To tune in a preset channel

From the remote control:

Press XM.

The last received channel is tuned in.

Press the numeric buttons (0 – 9, h10) to select a preset channel number.

• For preset number 5, press 5.

• For preset number 10, press h10, 1, then 0.

• For preset number 15, press h10, 1, then 5.

On the front panel:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

Turn SOURCE SELECTOR to select “XM.”

The last received channel is tuned in.

Press TUNER PRESET.

“P” flashes on the display, and MULTI JOG now works for selecting preset channels.

again.

From the remote control ONLY:

Press DISPLAY.

Each time you press the button, the channel information changes as follows:

CHAN (channel name)* = NAME (artist name/feature) = TITLE (song/program title) = CAT (category name) = Back to the beginning

* “CHAN” is the initial setting.

EX.: When the category name is selected:

DIGITAL AUTO

S.WFR

After one second

LINEAR PCM

DIGITAL AUTO LINEAR PCM

NOTES

• If you turn off the power or select another source, the display is changed back to the initial setting.

• When you tune in to another channel, the channel name appears on the display and then the channel information you have selected appears.

• When all the text information cannot be shown on the display at the same time, the text scrolls.

• Some characters cannot be displayed correctly.

Turn MULTI JOG to select a preset number.

• To increase the preset numbers, turn MULTI JOG clockwise.

• To decrease the preset numbers, turn MULTI JOG counterclockwise.

Messages on the display

When problems occur, a message appears on the display. In this case, refer to the following solution.

Message

NO SIGNAL

CHECK ANTENNA

OFF AIR

Possible cause

Signals are too weak.

The XM Connect and Play Digital Antenna is not connected properly.

This receiver is loading the channel information and audio data.

Selected channel is not currently broadcasting any signal.

Solution

Move the XM Connect and Play Digital Antenna near a south-facing window or where “Channel 1” can be heard clearly.

Check the connection (see page 5).

It takes a few minutes to complete. Wait until loading is finished.

Select another channel.

UPDATING

• Channel number and “-----”

• Preset number, channel number, and “-----”

• Channel number and “CH---”

• Preset number and “--->CH---”

The latest encryption code is being updated.

No text information for the selected channel is available.

Selected channel does not exist or is not subscribed yet.

Wait until updating is finished.

Basic settings

Turn MULTI JOG to select the appropriate number of connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

• For the details of speaker channel number, see “ Speakers (channels) number and the size” on page 21.

ANALOG

S.WFR

To obtain the best possible sound effect from Surround/DSP modes (see pages 30 to 34), you need to set up the speaker and subwoofer information after all the connections are completed. From pages 20 to 25, how to set speakers and other basic items of the receiver are explained.

Setting the speaker information easily—Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size, speaker distance, and output level of each speaker according to your listening room to create the best possible surround effect.

• You can also register each speaker’s information manually. For details, see pages 23 and 27.

1,7 2,4,6 1,3,5

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

again.

2.0ch

4.0ch

6.0ch 6.1ch

2.1ch

4.1ch

3.0ch

3.1ch

5.0ch 5.1ch

7.0ch*

7.1ch

(Back to the beginning)

* “7.0ch” is the initial setting.

Press SET.

ANALOG

S.WFR

Turn MULTI JOG to select the appropriate room size to match to your listening room.

As you turn the jog, the room size changes as follows.

• To select your appropriate room size, see “Room size and the speaker distance/output level” on page 21.

ANALOG

S.WFR

(Back to the beginning)

On the front panel ONLY:

Press SETTING and turn MULTI JOG until “QUICK SPK SET” appears on the display.

ANALOG

S.WFR

Press SET.

ANALOG

S.WFR

* “L” is the initial setting.

Press SET.

QUICK SPEAKER SETUP is now completed, then the display goes back to SETTING menu.

Press SETTING.

NOTES

• This procedure will not be completed if you stop in the middle of the setting process.

• Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the speaker output levels” on page 27.

Speakers (channels) number and the size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “ch” number) you select.

• Subwoofer is counted as 0.1 channel.

The size of connected speakers

CH L/R C LS/RS SB SUBWFR

2.0CH LRG (large) NO NO NO NO

2.1CH SML (small) NO NO NO YES

3.0CH LRG SML NO NO NO

3.1CH SML SML NO NO YES

4.0CH LRG NO SML NO NO

4.1CH SML NO SML NO YES

5.0CH LRG SML SML NO NO

5.1CH SML SML SML NO YES

6.0CH LRG SML SML NO

6.1CH SML SML SML YES

7.0CH LRG SML SML NO

7.1CH SML SML SML YES

SML

(1SPK)

SML

(1SPK)

SML

(2SPK)

SML

(2SPK)

Basic setting items

You can adjust the following items. See pages in parentheses for details.

• You cannot select the items which is not available with the current setting. For example, when the speaker channel number is set to “ the following items: S BACK OUT, S BACK DIST, S BACK L DIST, S BACK R DIST

Items To do

QUICK SPK SET Register the number of speakers you connect

SUBWOOFER* Register your subwoofer. (22)

FRONT SPK* Register your front speaker size. (22)

CENTER SPK* Register your center speaker size. (22)

SURROUND SPK* Register your surround speaker size. (22)

S BACK SPK* Register your surround back speaker size. (22)

S BACK OUT* Register the number of your surround back

DIST UNIT Select the measuring unit for the speaker

FRONT L DIST* Register the distance from the left front

FRONT R DIST* Register the distance from the right front

<5.1ch>” in Quick Speaker Setup, you cannot select

and the size of your listening room. (20)

speaker(s). (22)

distance. (23)

speaker to your listening point. (23)

Room size and the speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

Room size

Speaker Distance

L L/R 3.0 m (10 ft) 0 dB

(Large) C 3.0 m (10 ft) 0 dB

LS/RS 3.0 m (10 ft) 0 dB

SBL(SB)/SBR 3.0 m (10 ft) 0 dB

M L/R 2.7 m (9 ft) 0 dB

(Medium) C 2.4 m (8 ft) –2 dB

LS/RS 2.1 m (7 ft) –3 dB

SBL(SB)/SBR 1.8 m (6 ft) –4 dB

S L/R 2.4 m (8 ft) 0 dB

(Small) C 2.1 m (7 ft) –2 dB

LS/RS 1.5 m (5 ft) –4 dB

SBL(SB)/SBR 1.2 m (4 ft) –6 dB

Output

level

CENTER DIST* Register the distance from the center speaker

to your listening point. (23)

SURR L DIST* Register the distance from the left surround

speaker to your listening point. (23)

SURR R DIST* Register the distance from the right surround

speaker to your listening point. (23)

S BACK DIST* Register the distance from the surround back

speaker to your listening point. (23)

S BACK L DIST* Register the distance from the left surround

back speaker to your listening point. (23)

S BACK R DIST* Register the distance from the right surround

back speaker to your listening point. (23)

EX/ES/PLIIx Select the EX/ES/PLIIx reproduction mode. (23)

DUAL MONO Select the Dual Mono sound channel. (24)

SUBWOOFER OUT

CROSSOVER Select the cutoff frequency to the subwoofer. (24)

LFE ATT Attenuate the bass (LFE) sounds. (24)

MIDNIGHT MODE

DIGITAL IN 1 Select the component connected to the digital

DIGITAL IN 2 Select the component connected to the digital

Select sounds emitted from the subwoofer. (24)

Reproduce a powerful sound at night. (24)

coaxial terminal—1(DVR/DVD). (25)

optical terminal—2(DBS). (25)

NOTE

Abbreviations used in the tables above stand for the following speakers and the subwoofer: – L: Left front speaker – R: Right front speaker – C: Center speaker – LS: Left surround speaker – RS: Right surround speaker – SB: Surround back speaker – SBL: Left surround back speaker – SBR: Right surround back speaker – SUBWFR: Subwoofer

DIGITAL IN 3 Select the component connected to the digital

optical terminal—3(VCR). (25)

DVD VIDEO IN Select the type of video terminal used for the

DVD recorder or DVD player. (25)

VCR VIDEO IN Select the type of video terminal used for the

VCR. (25)

DBS VIDEO IN Select the type of video terminal used for the

DBS tuner. (25)

* If you have used Quick Speaker Setup on page 20, these

settings are not required.

Operating procedure

S.WFR

Setting the speakers

1,7

3,5

2,4

On the front panel ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

Ex.: When setting DIGITAL IN 1 terminal.

Press SETTING.

MULTI JOG now works for the setting operation.

Turn MULTI JOG until the item you want to set

again.

appears on the display.

• As you turn MULTI JOG, the setting items change as follows:

ANALOG

S.WFR

To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker after all connections are completed.

• If you have used Quick Speaker Setup on page 20, this setting is not required.

Setting subwoofer information—SUBWOOFER

Select whether you have connected a subwoofer or not.

SUBWFR <YES> Select when you have connected a

subwoofer. The subwoofer indicator ( on the display. You can adjust the subwoofer output level (see page 27).

SUBWFR <NO> Select when you have disconnected a

subwoofer. Selecting this changes the front speaker size to “LRG” (see below).

Initial setting: SUBWFR <NO>

) lights up

Setting the speaker size—FRONT SPK (front speakers), CENTER SPK (center speaker), SURROUND SPK (surround speakers), S BACK SPK (surround back speakers)

QUICK SPK SET

SUBWOOFER CENTER SPKFRONT SPK

SURROUND SPK S BACK SPK

DIST UNITS BACK OUT FRONT L DIST CENTER DIST

FRONT R DIST

SURR L DIST

S BACK DISTSURR R DIST S BACK L DIST S BACK R DIST

DUAL MONOEX/ES/PLIIx

CROSSOVERSUBWOOFER OUT LFE ATT MIDNIGHT MODE DIGITAL IN 1 DIGITAL IN 2 DIGITAL IN 3

DVD VIDEO IN

DBS VIDEO INVCR VIDEO IN

(Back to the beginning)

Press SET.

The current setting of the selected item appears.

ANALOG

S.WFR

Turn MULTI JOG to select the appropriate setting.

ANALOG

S.WFR

Your setting is stored.

Press SET.

DVR/DVD

DBS

VCR

<LRG> (large) Select when the cone speaker size is larger

than 12 cm (4

/4 inches).

<SML> (small) Select when the cone speaker size is smaller

than 12 cm (4

/4 inches).

<NO> Select when you have disconnected a speaker.

(Not selectable for the front speakers.)

Initial setting:

<LRG> (for the front speakers) <SML> (for other speakers)

Setting the surround back speaker(s)—S BACK OUT

SB OUT <1SPK> Select when you use one surround back

speaker.

SB OUT <2SPK> Select when you use two surround back

speakers.

Initial setting: SB OUT

NOTES

• If you have selected “SML (small)” for the front speaker size, you cannot select “LRG (large)” for other speakers.

• When “SUBWOOFER” is set to “SUBWFR speaker size is fixed to “LRG” (and you cannot select “SML”).

• When “SURROUND SPK” is set to “SML (small),” you cannot select “LRG (large)” for the surround back speaker.

• When “SURROUND SPK” is set to “NO,” the surround back speaker is fixed to “NO.”

• When “S BACK SPK” is set to “NO,” you cannot select “S BACK OUT.”

• When “SB OUT” is set to “ speaker to the left surround back speaker terminal (see page 6). No sound comes from the surround back speaker if you connect it to the right surround back speaker terminal.

<2SPK>

<NO>,” the front

<1SPK>,” connect the surround back

Repeat steps 2 to 5 to set other items if necessary.

Press SETTING.

The source indication resumes on the display.

Setting the speaker distance

The distance from your listening point to the speakers is one of the important elements to obtain the best possible sound effect from the Surround/DSP modes. By referring to the speaker distance, the receiver automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you at the same time.

7 Measuring unit—DIST UNIT

Select which measuring unit you use.

D UNIT <meter>Select to set the distance in meters.

Activating the EX/ES/PLIIx setting— EX/ES/PLIIx

Depending on this setting, available Surround modes for digital multi-channel software vary—EX/ES/PLIIx reproduction or 5.1channel reproduction. Select an appropriate setting for your enjoyment.

• For details about relation between EX/ES/PLIIx setting and available Surround mode, see page 33.

• To activate the Surround mode, see page 34.

D UNIT <feet> Select to set the distance in feet.

Initial setting: D UNIT <meter>

7 Speaker distance—

FRONT L DIST (for the left front speaker), FRONT R DIST (for the right front speaker), CENTER DIST (for the center speaker), SURR L DIST (for the left surround speaker), SURR R DIST (for the right surround speaker), S BACK L DIST (for the left surround back speaker), S BACK R DIST (for the right surround back speaker)

Adjustable range: 0.3 m to 9.0 m in 0.3 m intervals

(1 ft to 30 ft in 1 ft intervals)

Initial setting: 3.0 m (10 ft) for all speakers

2.1 m (7 ft)

2.7 m (9 ft)

2.4 m (8 ft)

3.0 m (10 ft)

3.3 m

(11 ft)

<AUTO> According to the incoming signal, an appropriate

Surround mode is applied.

• For Dolby Digital Surround EX and DTS-ES software, 7.1-channel reproduction is applied*.

• For other multi-channel (4 channel or more) encoded software, 5.1-channel reproduction is applied.

<ON> Select to apply 7.1-channel reproduction to both

5.1-channel and 6.1-channel encoded software.

<PLIIx MOVIE>Select to apply PLIIx MOVIE reproduction to

both 5.1-channel and 6.1-channel encoded software.

<PLIIx MUSIC>Select to apply PLIIx MUSIC reproduction to

both 5.1-channel and 6.1-channel encoded software.

<OFF> Select to cancel the EX/ES/PLIIx reproduction.

Initial setting:

* For some Dolby Digital Surround EX software, Dolby Digital 5.1-

channel reproduction (“DOLBY DIGITAL”) may be applied even though you have selected “ “

<ON>” to apply “DOLBY D EX.”

NOTES

• When “SURROUND SPK” is set to “NO” (see page 22), this function is not available.

• When “S BACK SPK” is set to “NO” (see page 22), the Virtual Surround Back (see page 33) is applied for EX/ES/PLIIx reproduction.

<AUTO>

<AUTO>.” In this case, select

SBL

In this case, set the distance as follows: Left front speaker (L): “FRONT L <3.0m> (10ft)” Right front speaker (R): “FRONT R <3.0m> (10ft)” Center speaker (C): “CENTER <3.0m> (10ft)” Left surround speaker (LS): “SURR L <2.7m> (9ft)” Right surround speaker (RS): “SURR R <2.7m> (9ft)” Left surround back speaker (SBL) : “SBACK L <2.4m> (8ft)” Right surround back speaker (SBR) : “SBACK R <2.4m> (8ft)”

NOTES

• You cannot set the speaker distance for the speakers you have set to “NO.”

• If you have selected “

22), “S BACK DIST” appears instead of “S BACK L DIST” and “S BACK R DIST.”

<1SPK>” for “S BACK OUT” (see page

SBR

Selecting the main or sub channel —DUAL MONO

You can select the playback sound (channel) you want while playing digital software recorded (or broadcasted) in Dual Mono mode (see page 31), which includes two monaural channels separately. When the receiver detects Dual mono signals, the DUAL MONO indicator lights up on the display.

D MONO <MAIN>Select to play back the main channel (Ch 1).*

Signal indicator “L” lights up while playing back this channel.

D MONO <SUB> Select to play back the sub-channel (Ch 2).*

Signal indicator “R” lights up while playing back this channel.

D MONO <ALL> Select to play back both the main and sub-

channels (Ch 1/Ch 2).* Signal indicators “L” and “R” light up while playing back these channels.

Setting the crossover frequency—CROSSOVER

Small speakers cannot reproduce the bass sounds efficiently. If you use a small speaker in any position, this receiver automatically reallocates the bass sound elements assigned to the small speaker to the large speakers. To use this function properly, set this crossover frequency level according to the size of the small speaker connected.

• If you have selected “LRG (large)” for all speakers (see page

22), this function will not take effect (“CROSS OFF” appears).

CROSS <80Hz> Select when the cone speaker unit built in the

speaker is about 12 cm (4

CROSS <100Hz> Select when the cone speaker unit built in the

speaker is about 10 cm (3

CROSS <120Hz> Select when the cone speaker unit built in the

speaker is about 8 cm (3

CROSS <150Hz> Select when the cone speaker unit built in the

speaker is about 6 cm (2

CROSS <200Hz> Select when the cone speaker unit built in the

speaker is less than 5 cm (2 inches).

/4 inches).

/16 inches).

/8 inches).

Initial setting: D MONO <MAIN>

* Dual Mono signals can be heard from the following speakers—L

(left front speaker), R (right front speaker), and C (center speaker), with respect to the current Surround setting:

With Surround Activated

Dual Mono

setting

MAIN

SUB Ch 2 Ch 2 Ch 2 Ch 2 Ch 2

ALL

NOTE

The Dual Mono format is not identical with bilingual broadcasting for TV programs. So this setting does not take effect while watching such bilingual programs.

Without

Surround

LRL RCLR

Ch 1

Ch 2

Center speaker setting

SML/LRG NO

Ch 1 Ch 1

Ch1

Ch 1+Ch 2Ch 1+Ch 2Ch 1+Ch 2

Setting bass sound

Initial setting: CROSS

NOTE

Crossover frequency is not valid for the HEADPHONE and 3D HEADPHONE modes.

<100Hz>

Setting the low frequency effect attenuator—LFE ATT

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

• This function takes effect only when the LFE signals come in.

LFE <0dB> Normally select this. LFE <–10dB>Select when the bass sound is distorted.

Initial setting: LFE

<0dB>

Using the Midnight mode —MIDNIGHT MODE

Setting subwoofer output—SUBWOOFER OUT

The subwoofer emits the LFE signals* and the bass elements of each speaker set to “SML.” You can make the bass elements of the front speaker channels (MAIN) emitted through the subwoofer.

SW <LFE> Select to emit the LFE signals and the bass

elements of each speaker set to “SML.”

SW <LFE+MAIN> Select to emit the bass elements of the front

speakers’ channels (MAIN) when no bass elements are emitted through the subwoofer in “SW <LFE>.”

Initial setting: SW

NOTE

• When “SUBWOOFER” is set to “SUBWFR <NO>” (see page

22), this function is not available.

* The LFE signals are emitted only when playing the following

software with the LFE signals: – Dolby Digital multi channel software – DTS multi channel software When playing analog source or linear PCM software, no LFE signals are emitted.

<LFE>

You can enjoy a powerful sound at night using the Midnight mode. When the Midnight mode is activated, the MIDNIGHT indicator lights up on the display.

MIDNIGHT <OFF> Select when you want to enjoy surround

with its full dynamic range. (No effect applied.)

MIDNIGHT <1> Select when you want to reduce the

dynamic range a little.

MIDNIGHT <2> Select when you want to apply the

compression effect fully (useful at night).

Initial setting: MIDNIGHT

<OFF>

Setting the digital input (DIGITAL IN)

Selecting the component video input

terminals—DIGITAL IN 1/2/3

When you use the digital input terminals, register what components are connected to which terminals—DIGITAL IN 1/2/3 (see page 10) so that the correct source name will appear when you select the digital source. Select one of the following components for each terminal:

DVR/DVD For the DVD player (or DVD recorder).

DBS For the DBS tuner.

VCR For the VCR.

TV For the TV.

Initial setting: For “DIGITAL IN 1”: DVR/DVD

For “DIGITAL IN 2”: DBS For “DIGITAL IN 3”: VCR

NOTES

• You cannot assign the same component for different terminals. The priority order for assignment is as follows:

“DIGITAL IN 1” > “DIGITAL IN 2” > “DIGITAL IN 3.”

Ex.: When “DIGITAL IN 1” is set to “DVR/DVD.”

DIGITAL IN 1

DVR/DVD

DBS VCR TV

mode—DVD VIDEO IN/VCR VIDEO IN/ DBS VIDEO IN

When you use the component video inputs for connecting the DVD recorder (or DVD player), VCR, or DBS, register the type of video input jacks. If you have not selected the appropriate video input jacks, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly (see page

35). When “ S-video signals is converted into component signals (see page

10).

For the DVD recorder or DVD player (DVD VIDEO IN): DVD <S/C> Select when connecting the DVD recorder

DVD <CMPNT> Select when connecting the DVD recorder

Initial setting: DVD

<S/C>” is selected for each setting, either composite or

(or DVD player) to the composite video or Svideo input jacks.

(or DVD player) to the component video input jacks.

<CMPNT>

For “DIGITAL IN 2,” “DBS,” “VCR,” and “TV” are selectable.

• In this case, “VCR” is selected.

DIGITAL IN 2

For “DIGITAL IN 3,” “DBS” and “TV” are selectable.

DIGITAL IN 3

• Setting “DIGITAL IN 1” affects “DIGITAL IN 2” and “DIGITAL IN 3” settings. When you have changed “DIGITAL IN 1,” confirm the components assigned to “DIGITAL IN 2” and “DIGITAL IN 3.”

DVR/DVD

: Selectable : Not selectable

DBS VCR TV

For the VCR (VCR VIDEO IN): VCR <S/C> Select when connecting the VCR to the

composite video or S-video input jacks.

VCR <CMPNT> Select when connecting the VCR to the

component video input jacks.

Initial setting: VCR <CMPNT>

For the DBS (DBS VIDEO IN): DBS <S/C> Select when connecting the DBS to the

composite video or S-video input jacks.

DBS <CMPNT> Select when connecting the DBS to the

component video input jacks.

Initial setting: DBS

NOTE

You cannot select “CMPNT” for both the VCR and the DBS at the same time. If you select “CMPNT” for the VCR, the setting for the DBS is fixed to “S/C” and vice versa.

<S/C>

Sound adjustments

Operating procedure

1,7

On the front panel:

3,5

2,4

You can make sound adjustment to your preference after completing basic setting.

Basic adjustment items

You can adjust the following items. See pages in parentheses for details.

• You cannot select the items which are not available with the current setting.

Items To do

SUBWFR LVL*

FRONT L LVL*1*

FRONT R LVL*1*

CENTER LVL*1*

SURR L LVL*1*

SURR R LVL*1*

S BACK LVL*1*

S BACK L LVL*1*2Adjust the left surround back speaker output

S BACK R LVL*1*2Adjust the right surround back speaker

D EQ 63Hz* D EQ 250Hz* D EQ 1kHz* D EQ 4kHz* D EQ 16kHz*

BASS BOOST*

Adjust the subwoofer output level. (27)

Adjust the left front speaker output level. (27)

Adjust the right front speaker output level. (27)

Adjust the center speaker output level. (27)

Adjust the left surround speaker output level. (27)

Adjust the right surround speaker output level. (27)

Adjust the surround back speaker output level. (27)

level. (27)

output level. (27)

Adjust the equalization pattern of each band. (27)

Boost the bass level. (28)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

Ex.: When adjusting subwoofer output level.

Press ADJUST.

MULTI JOG now works for the sound adjustment.

Turn MULTI JOG until the item you want to

again.

adjust appears on the display.

• As you turn MULTI JOG, the adjustment items change as follows:

ANALOG

S.WFR

SUBWFR LVL FRONT R LVL SURR L LVL S BACK LVL S BACK R LVL D EQ 250Hz D EQ 4kHz BASS BOOST EFFECT LIVENESS CENTER WIDTH

FRONT L LVL CENTER LVL SURR R LVL S BACK L LVL D EQ 63Hz D EQ 1kHz D EQ 16kHz INPUT ATT ROOM SIZE PANORAMA

DIMENSION CENTER GAIN CENTER TONE CENTER ALIGN

(Back to the beginning)

INPUT ATT Attenuate the input level of analog source. (28)

EFFECT*

ROOM SIZE Select the room size for your virtual listening

LIVENESS Select the liveness level for your virtual

PANORAMA Add “wraparound” sound effect with side-

CENTER WIDTH Adjust the center channel localization

DIMENSION Adjust sound localization pattern. (29)

CENTER GAIN Adjust the sound localization of the center

CENTER TONE*

CENTER ALIGN Align the vertical localization of the center

You can also use the remote control for the adjustment.

If you have used Quick Speaker Setup on page 20, these settings are not required.

Adjust the effect level. (28)

room. (28)

listening room. (28)

wall image. (28)

between the center speaker and the left/ right speakers. (29)

channel. (29)

Make the center tone soft or sharp. (29)

channel signals. (29)

Press SET.

The current setting for the selected item appears.

ANALOG

S.WFR

Turn MULTI JOG to adjust the selected item.

ANALOG

S.WFR

–10

Your adjustment is stored.

Press SET.

Repeat steps 2 to 5 to adjust other items if

0 +10

necessary.

Press ADJUST.

The source indication resumes on the display.

Adjusting the speaker output levels

Adjusting the equalization patterns—

• SUBWFR LVL (subwoofer output level),

• FRONT L LVL (left front speaker output level),

• FRONT R LVL (right front speaker output level),

• CENTER LVL (center speaker output level),

• SURR L LVL (left surround speaker output level),

• SURR R LVL (right surround speaker output level),

• S BACK L LVL (left surround back speaker output level),

• S BACK R LVL (right surround back speaker output level)

You can adjust the speaker output levels. Adjust all the speakers’ output levels so that you can listen to the sounds from all the speakers at the same level.

• Once you have made an adjustment, it is memorized for each source.

Adjustable range: –10 (dB) to +10 (dB) (in 1 step intervals)

Initial setting: 0 (dB) for all speakers

NOTES

• If you have selected “NO” for a speaker (see page 22), the output level for the corresponding speaker is not adjustable.

• If you have selected “

<1SPK>” for “S BACK OUT” (see page

22), “S BACK LVL” appears instead of “S BACK L LVL” and “S BACK R LVL.”

• While using the headphones, you can adjust only the left and right front speakers’ output level.

From the remote control:

D EQ 63Hz/250Hz/1kHz/4kHz/16kHz

You can adjust equalization patterns in five frequency bands (center frequency: 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) for the front speakers.

• Once you have made an adjustment, it is memorized for each source.

Adjustable range: –8 (dB) to +8 (dB) (in 2 dB intervals)

Initial setting: 0 (dB) for all bands

• When adjustment is made, the DIGITAL EQ indicator lights up on the display.

If no adjustment is required, set all the frequency bands to “0 (dB).”

• The DIGITAL EQ indicator goes off from the display.

From the remote control:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

Press D. EQ FREQ repeatedly to select the band you want to adjust.

Press D. EQ LEVEL + or – to adjust the equalization pattern of the selected band.

again.

1 2

Press TEST to check the speakers’ output balance.

“TEST FL” starts flashing on the display, and a test tone comes out of the speakers clockwise.

1,3

• You can adjust the speaker output levels without the test tone.

Adjust the speaker output levels.

Press the + or – button corresponding to the speaker you want to adjust.

Press TEST again to stop the test tone.

NOTES

• No test tone comes out of the speakers for which the speaker setting is set to “NO” (see page 22).

• No test tone is available when the headphones are in use.

• If you have selected “<1SPK>” for “S BACK OUT” (see page 22), press + or – button for L – S. BACK to adjust the output level.

Repeat steps 1 and 2 to adjust other bands.

Adjusting the bass sounds

Reinforcing the bass—BASS BOOST

You can boost the bass level—Bass Boost.

• Once you have made an adjustment, it is memorized for each source.

B BOOST <ON> Select to boost the bass level.

The B.BOOST indicator lights up on the display.

B BOOST <OFF> Select to deactivate the Bass Boost.

Initial setting: B BOOST <OFF>

NOTE

This function affects only the sound coming out through the front speakers.

From the remote control:

Press B.BOOST to select either one of the above.

From the remote control:

Press EFFECT to select the level you want to adjust.

Adjusting the virtual room size for DSP modes— ROOM SIZE

This setting is available only when one of the DSP modes (except ALL CH STEREO) is in use. To activate DSP mode, see page 34.

• If “SURROUND SPK” is set to “ is not adjustable.

• Once you have made an adjustment, it is memorized for each DSP mode.

• You cannot use the remote control for this setting.

Adjustable range: 1 to 5 (in 1 step intervals)

Initial setting: ROOM SIZE

As the number increases, the interval between reflections increases so that you will feel as if you were in a larger room. Normally, select “3.”

<NO>” (see page 22), this item

<3>

Attenuating the input signal—INPUT ATT

When the input level of the analog source is too high, the sound will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

• Once you have made an adjustment, it is memorized for each source.

• You cannot use the remote control for this setting.

ATT <ON> Select to attenuate the input signal level.

The INPUT ATT indicator lights up on the display.

ATT <NORMAL> Select to deactivate attenuation.

Initial setting: ATT <NORMAL>

Adjusting the sound parameters for the Surround/DSP modes

Adjusting the liveness effect for DSP modes— LIVENESS

This setting is available only when one of the DSP modes (except ALL CH STEREO) is in use. To activate DSP mode, see page 34.

• If “SURROUND SPK” is set to “

<NO>” (see page 22), this item

is not adjustable.

• Once you have made an adjustment, it is memorized for each DSP mode.

• You cannot use the remote control for this setting.

Adjustable range: 1 to 5 (in 1 step intervals)

Initial setting: LIVENESS

<3>

As the number increases, the attenuation level of reflections over time decreases so that acoustics change from “Dead” to “Live.” Normally, select “3.”

Adjusting the panorama control for Pro Logic IIx Music and Pro Logic II Music—PANORAMA

This setting is available when Pro Logic IIx Music or Pro Logic II Music is activated for the analog or digital 2-channel sound signal. To activate Pro Logic IIx Music or Pro Logic II Music, see page 34.

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

You can adjust the Surround/DSP sound parameters to your preference.

• For details about the Surround/DSP modes, see pages 30 to 34.

Adjusting the effect level for DSP modes—EFFECT

This setting is available only when one of the DSP modes (except ALL CH STEREO) is in use. To activate DSP mode, see page 34.

• Once you have made an adjustment, it is memorized for each DSP mode.

Adjustable range: 1 to 5 (in 1 step intervals)

Initial setting: EFFECT

<3>

As the number increases, the effect becomes stronger. Normally, select “3.”

PANORAMA <ON> Select to add “wraparound” sound effect

with side-wall image.

PANORAMA <OFF> Select to listen to originally recorded

sound.

Initial setting: PANORAMA <OFF>

Adjusting the center channel localization for Pro Logic IIx Music and Pro Logic II Music—CENTER WIDTH

• If “CENTER SPK” is set to “NO” (see page 22), this item is not adjustable.

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

Adjustable range: OFF and 1 to 7 (in 1 step intervals)

Initial setting: C WIDTH

As the number increases, the center channel sound moves toward the left and right speakers. Normally, select “3.”

<3>

Adjusting the sound localization position for Pro Logic IIx Music and Pro Logic II Music— DIMENSION

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

Adjustable range: 1 to 7 (in 1 step intervals)

Adjusting the center tone—CENTER TONE

This setting is available when one of the Surround/DSP modes is in use. To activate Surround/DSP mode, see page 34.

• If “CENTER SPK” is set to “NO” (see page 22), this item is not adjustable.

• This setting is common to all Surround modes, and is memorized separately for DSP modes.

Adjustable range: 1 to 5 (in 1 step intervals)

Initial setting: C TONE

As the number increases, the dialogue becomes stronger. Normally, select “3.”

• When the center tone is set to other than “C TONE C.TONE indicator lights up on the display.

From the remote control:

Press C. TONE to select the level you want to adjust.

<3>

<3>,” the

Initial setting: DIMENSION

As the number increases, the sound localization moves towards forward from backward. Normally, select “4.”

<4>

Adjusting the sound localization of the center channel—CENTER GAIN

This setting is available only when Neo:6 Music is in use.

• If “CENTER SPK” is set to “NO” (see page 22), this item is not adjustable.

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

Adjustable range: 0 to 1.0 (in 0.1 step intervals)

Initial setting: C GAIN

As the number increases, the center channel will be localized clearly. Normally, select “0.3.”

<0.3>

Aligning the vertical localization of the center channel for Surround/DSP modes—CENTER ALIGN

This setting is available when one of the Surround/DSP modes (except PLIIx MUSIC, PLII MUSIC, NEO:6 MUSIC, and ALL CH STEREO) is in use. To activate Surround/DSP mode, see page

34.

• If “CENTER SPK” is set to “NO” (see page 22), this item is not adjustable.

• This setting is common to all Surround modes, and is memorized separately for DSP modes.

• You cannot use the remote control for this setting.

C ALIGN <ON> Select this when you cannot feel as if the

actors or singers are speaking or singing on the screen.

C ALIGN <OFF> Center alignment is turned off.

Initial setting: C ALIGN <OFF>

Creating realistic sound fields

Reproducing theater ambience

In a movie theater, many speakers are located on the walls to reproduce impressive multi-channel sound, reaching you from all directions. With these many speakers, sound localization and sound movement can be expressed. Surround/DSP modes built in this receiver can create almost the same Surround sound as you can feel in a real movie theater.

Introducing the Surround modes

■ Dolby Digital*

Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding.

• When Dolby Digital signal is detected through the digital input, the

Dolby Digital 5.1CH

Dolby Digital 5.1CH (DOLBY DIGITAL) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.

Dolby Digital EX

Dolby Digital EX (DOLBY D EX) is a digital surround encoding format that adds the third surround channels, called “surround back.” Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.

indicator lights up on the display.

■ Dolby Surround

Dolby Pro Logic II

Dolby Pro Logic II is a multi-channel playback format to convert 2-channel software into 5-channel (plus subwoofer). The matrixbased conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.

• This receiver provides three types of Dolby Pro Logic II modes—Pro Logic II Movie (PLII MOVIE), Pro Logic II Music (PLII MUSIC), and Pro Logic II Game (PLII GAME). When Dolby Pro Logic II is activated, the up on the display.

PLII MOVIE Suitable for playing any Dolby Surround encoded

software. You can enjoy a sound field very close to the one created with discrete 5.1-channel sounds.

PLII MUSIC Suitable for playing any 2-channel stereo

software. You can enjoy wide and deep sounds.

PLII GAME Suitable for playing a video game. You can enjoy

sounds with “being there” feeling.

indicator lights

SBL

(SB)

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

SBR

Dolby Pro Logic IIx

Dolby Pro Logic IIx is a newly introduced multi-channel playback format to convert not only multi-channel software but 2-channel software into 7.1 channel (or 6.1 channel) that developed from Dolby Pro Logic II. The matrix-based conversion method used for Dolby Pro Logic IIx makes no limitation for the cutoff frequency of the surround treble.

• This receiver provides three types of Dolby Pro Logic IIx

modes—Pro Logic IIx Movie (PLIIx MOVIE), Pro Logic IIx Music (PLIIx MUSIC), and Pro Logic IIx Game (PLIIx GAME). When Dolby Pro Logic IIx is activated, “PLIIx MOVIE,” “PLIIx MUSIC,” or “PLIIx GAME” appear and the lights up on the display.

PLIIx MOVIE Suitable for playing any Dolby Surround encoded

software. You can enjoy a sound field with a natural wraparound effect.

PLIIx MUSIC Suitable for playing any 2-channel stereo

software. You can enjoy wide and deep 7.1channel sounds.

PLIIx GAME Suitable for playing a video game. You can enjoy

7.1-channel sounds with “being there” feeling. This model is available for both an analog and digital 2-channel signal.

• To enjoy software encoded with Dolby Digital, connect the source component using the digital terminal on the rear of this receiver. (See page 10.)

indicator

■ DTS**

DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).

• When DTS signal is detected through the digital input, the indicator lights up on the display.

DTS Neo:6

DTS Neo:6 is another conversion method to create 6-channel (plus subwoofer) from analog/digital 2-channel software by using the high precision digital matrix decoder used for DTS-ES Matrix

6.1ch.

• This receiver provides the following DTS Neo:6 modes—Neo:6 Cinema (NEO:6 CINEMA) and Neo:6 Music (NEO:6 MUSIC). When one of them is activated, the NEO:6 indicator lights up on the display.

NEO:6 CINEMA Suitable for playing movies. You can get the

same atmosphere with 2-channel software as with 6.1-channel software. It is also effective for playing software encoded with conventional surround formats.

NEO:6 MUSIC Suitable for playing music software. The front

channel signals bypass the decoder (resulting in no loss of sound quality) and the surround signals transmitted through the other speakers expand the sound field naturally.

** “DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks

of Digital Theater Systems, Inc.

When using Surround mode, the sounds come out of the activated speakers which the Surround mode requires.

• If either “SURROUND SPK” or “CENTER SPK” is set to “

<NO>” in the speaker setting (see page 22), the

corresponding channel signals are allocated to and emitted through the front speakers.

• If both “SURROUND SPK” and “CENTER SPK” are set to

<NO>” in the speaker setting (see page 22), JVC’s original

“

3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

DTS Digital Surround

DTS Digital Surround (DTS) is another discrete 5.1 channel digital audio format available on CD, LD, and DVD software. Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.

DTS Extended Surround (DTS-ES)

DTS-ES is another multi-channel digital encoding format. It greatly improves the 360-degree surround impression and space expression by adding the third surround channel—surround back channel. DTS-ES includes two signal formats with different surround signal recording methods—DTS-ES Discrete 6.1ch (ES DISCRETE) and DTS-ES Matrix 6.1ch (ES MATRIX). DTS-ES Discrete 6.1ch has been designed to encode (and decode) a 6.1-channel signal discretely to avoid interference with each channel. DTS-ES Matrix 6.1ch has been designed to add an extra surround channel to DTS Digital Surround 5.1-channel. By using a matrix encoding/decoding method, an additional “surround back” channel signal is encoded (and decoded) in both the left and right surround channel signals.

DTS 96/24

In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range. DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “betterthan-CD sound quality” into the home.

• When DTS 96/24 signal is detected, the indicators light up. You can enjoy its 5.1-channel sound with fullquality.

and 96/24

3D HEADPHONE mode

If you connect a pair of headphones while one of the Surround modes is in use, the 3D HEADPHONE mode is activated regardless of the type of software played back. “3D HEADPHONE” appears on the display and the DSP and HEADPHONE indicators light up.

About other digital signals

Linear PCM

Uncompressed digital audio data used for DVDs, CDs, and Video CDs. DVDs support 2 channels with sampling rates of 48/96 kHz, at quantization of 16/20/24 bits. On the other hand, CDs and Video CDs are limited to 2 channels with 44.1 kHz at 16 bits.

• When Linear PCM signal is detected, the LINEAR PCM indicator lights up.

Dual Mono

Dual Mono can be easily understood when you think of the bilingual broadcast for TV programs (however, the Dual Mono format is not identical with those analog formats). This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and sub-channel) to be recorded separately.

• You can select either channel you want to listen to (see page 24).

Introducing the DSP modes

The sound heard in a concert hall, club, etc. consists of direct sound and indirect sound—early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. The DSP modes can create these important elements, and give you a real “being there” feeling.

Reflections from behind

Early reflections

Direct sounds

The DSP modes include the following modes:

• Digital Acoustic Processor (DAP) modes—HALL1, HALL2, LIVE CLUB, DANCE CLUB, PAVILION, THEATER1, THEATER2

• MONO FILM—Used for all types of 2-channel signals (including Dual Mono signal)

• All Channel Stereo mode (ALL CH STEREO)

When one of the DSP modes is activated, the DSP indicator lights up on the display.

When using the DAP mode, the sounds come out of all the connected and activated speakers.

• If “SURROUND SPK” is set to “ setting (see page 22), JVC’s original 3D-PHONIC processing

(which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

<NO>” in the speaker

■ MONO FILM

In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2-channel digital signals including Dual Mono signal), you can use this mode. The surround effect will be added, and the sound localization of actor’s words will be improved.

This mode cannot be used for multi-channel digital signals.

When “MONO FILM” is used, sounds come out of all the connected (and activated) speakers.

• If “SURROUND SPK” is set to “ setting (see page 22), JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

• If incoming signals change from 2-channel digital signal to another digital signal type, “MONO FILM” is canceled and an appropriate Surround mode is activated.

<NO>” in the speaker

■ All Channel Stereo mode (ALL CH STEREO)

This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers. This mode cannot be used

if “SURROUND SPK” is set to “ (see page 22).

<NO>” in the speaker setting

■ Digital Acoustic Processor (DAP) modes

You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.

HALL1 Reproduces the spatial feeling of a large

shoebox-shaped hall designed primarily for classical concerts. (Its seating capacity is about

2000.)

HALL2 Reproduces the spatial feeling of a large

vineyard-shaped hall designed primarily for classical concerts. (Its seating capacity is about

2000.)

LIVE CLUB Reproduces the spatial feeling of a live music club

with a low ceiling.

DANCE CLUB Reproduces the spatial feeling of a rocking dance

club.

PAVILION Reproduces the spatial feeling of an exhibition

hall with a high ceiling.

THEATER1 Reproduces the spatial feeling of a large theater

where the seating capacity is about 600.

THEATER2 Reproduces the spatial feeling of a small theater

where the seating capacity is about 300.

Sound reproduced from normal stereo

Sound reproduced from All Channel Stereo mode

NOTE

When “THEATER1” or “THEATER2” is activated while playing back 2-channel analog or digital source, the built-in Dolby Pro Logic II decoder is activated and the

indicator lights up.

Using the Surround/DSP modes

Available Surround/DSP modes vary depending on the speaker settings and the incoming signals. See the table below.

• The numbers inside the parentheses following the incoming signal type indicate the number of the front channels and that of the surround channels. For example, (3/2) indicates that the signals are encoded with three front signals (left/right/center) and two (stereo) surround signals.

• For EX/ES/PLIIx setting, see page 23.

Incoming Signal Type

EX/ES/PLIIx setting

AUTO ON PLIIx MOVIE PLIIx MUSIC OFF

Dolby Digital Surround EX DOLBY D EX*

3,5

DOLBY D EX*

Dolby Digital (3/2, 2/2) DOLBY DIGITAL DOLBY D EX*

D+PLIIx MOVIE*

Dolby Digital (3/1, 2/1, 3/0, 1/0) DOLBY DIGITAL

Dolby Digital

Dolby Digital (Dual Mono)

DTS-ES Discrete*

DTS-ES Matrix*

DTS (3/2, 2/2)*

DTS

DTS-ES DSCRT*3DTS-ES DSCRT*3DTS+PLIIx MOVIE*

DTS-ES MATRIX*3DTS-ES MATRIX*3DTS+PLIIx MOVIE*

DTS SURROUND DTS+NEO:6*

DUAL MONO

DTS+PLIIx MOVIE*

DTS (3/1, 2/1, 3/0, 1/0) DTS

DTS (Dual Mono)

Analog/LINEAR PCM

Dolby Digital (2/0)

PLIIx MOVIE*4/ PLIIx MUSIC*

PLIIx GAME*

NEO:6 CINEMA/

NEO:6 MUSIC

DUAL MONO

2,3

D+PLIIx MUSIC*3DOLBY DIGITAL

2,3

D+PLIIx MUSIC*3DOLBY DIGITAL

2,3

DTS+PLIIx MUSIC*3DTS SURROUND

2,3

DTS+PLIIx MUSIC*3DTS SURROUND

2,3

DTS+PLIIx MUSIC*3DTS SURROUND

PLII MOVIE/ PLII MUSIC/

PLII GAME/

NEO:6 CINEMA/

NEO:6 MUSIC

*1DTS 96/24 processing is not applied when the EX/ES/PLIIx setting is activated. If you want to apply the processing, set the EX/ES/

PLIIx setting to “OFF” (see page 23).

When “S BACK OUT” is set to “<1SPK>,” D+PLIIx MOVIE is changed to DOLBY D EX and DTS+PLIIx MOVIE is changed to

DTS+

When “S BACK SPK” is set to “<NO>,” Virtual Surround Back is activated for the modes and the VIRTUAL SB indicator lights up on

EX.

the display.

When “S BACK SPK” is set to “<NO>,” PLllx MOVIE, PLllx MUSIC, and PLllx GAME are changed to PLll MOVIE, PLll MUSIC, and PLll GAME respectively.

For some Dolby Digital Surround EX software, Dolby Digital 5.1-channel reproduction (“DOLBY DIGITAL”) may be applied even

though you have selected “

<AUTO>.” In this case, select “<ON>” to apply “DOLBY D EX.”

About the DSP modes

• The following DSP modes are available regardless of incoming signal type. HALL1, HALL2, LIVE CLUB, DANCE CLUB, PAVILION, THEATER1, THEATER2

• If an incoming signal is a multi-channel (2 channel or more) digital signal, “MONO FILM” is not available.

• If “SURROUND SPK” is set to “

<NO>,” “ALL CH STEREO” is not available.

Virtual Surround Back

This function creates a great surround effect from behind as if you have connected the surround back speaker. The VIRTUAL SB (Surround Back) indicator lights up on the display. If you have connected (and activated) the surround speakers, you can use Virtual Surround Back without connecting the surround back speaker. Virtual Surround Back is activated when EX/ES/PLIIx is set to other than “ following signals:

– Dolby Digital Surround EX – DTS-ES – Dolby Digital or DTS with 4 channel or more

<OFF>” and when playing back the software including the

Activating the Surround/DSP modes

Available Surround/DSP modes vary depending on the speaker settings and the incoming signals. For details, see page 33.

Activating one of the Surround/DSP modes automatically recalls the memorized settings and adjustments.

On the front panel:

1,32

• To adjust the speaker output level, see page 27.

• When activating one of the Surround/DSP modes, you

can adjust CENTER TONE. (see page 29)

• When activating one of the Surround/DSP modes (except PLIIx MUSIC, PLII MUSIC, NEO:6 MUSIC, and ALL CH STEREO), you can adjust CENTER ALIGN. (see

page 29)

• When activating NEO:6 MUSIC, you can adjust CENTER GAIN. (see page 29)

• When activating the DSP mode (except ALL CH STEREO), you can adjust the following settings:

EFFECT (see page 28) LIVENESS (see page 28) ROOM SIZE (see page 28)

• When activating “PLIIx MUSIC” and “PLII MUSIC,” you can adjust the following settings:

CENTER WIDTH (see page 29) DIMENSION (see page 29) PANORAMA (see page 28)

Selecting the Surround/DSP modes

From the remote control:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

Select and play any source.

again.

• Make sure you have selected the input mode (analog or digital) correctly.

Press SURROUND.

MULTI JOG now works for selecting Surround/DSP modes.

Turn MULTI JOG to select the Surround/DSP mode you want.

Ex.: When “DOLBY DIGITAL” is selected for Dolby Digital

multi-channel software:

DIGITAL AUTO

S.WFR LFE

DIGITAL

LS RS

AUTO SURROUND

Surround modes

HALL1 HALL2 LIVE CLUB DANCE CLUB

PAVILION THEATER1 THEATER2

MONO FILM

SURROUND OFF

ALL CH STEREO

(Back to the beginning)

Select and play any source.

• Make sure you have selected the input mode (analog or digital) correctly.

Press SURROUND repeatedly to select the Surround/DSP mode you want.

Ex.: When “DOLBY DIGITAL” is selected for Dolby Digital

multi-channel software:

DIGITAL AUTO

S.WFR LFE

DIGITAL

LS RS

AUTO SURROUND

Surround modes

HALL1 HALL2 LIVE CLUB DANCE CLUB

PAVILION THEATER1 THEATER2

MONO FILM

SURROUND OFF

“AUTO SURROUND” is the initial setting.

Available Surround modes vary depending on the speaker

settings and the incoming signals. For details, see page

33.

*3If an incoming signal is a multi-channel (2 channel or more)

digital signal, “MONO FILM” is not available.

If “SURROUND SPK” is set to “<NO>,” “ALL CH STEREO” is not available.

To cancel Surround/DSP modes

Press SURROUND repeatedly so that “SURROUND OFF” appears on the display.

ALL CH STEREO

(Back to the beginning)

“AUTO SURROUND” is the initial setting.

Available Surround modes vary depending on the speaker settings and the incoming signals. For details, see page 33.

If an incoming signal is a multi-channel (2 channel or more)

digital signal, “MONO FILM” is not available.

If “SURROUND SPK” is set to “<NO>,” “ALL CH STEREO” is not available.

To cancel Surround/DSP modes

Turn MULTI JOG so that “SURROUND OFF” appears on the display.

When you select “AUTO SURROUND”

You can enjoy the Surround mode easily.

• For details about the Surround modes, see page 33.

• When “AUTO SURROUND” is activated, the AUTO SURR indicator lights up on the display.

How does “AUTO SURROUND” work?

• If a multi-channel signal comes in, an appropriate Surround

mode will be selected automatically.

• If a Dolby Digital 2-channel signal with surround signal

comes in, “PLIIx MOVIE” or “PLII MOVIE” will be selected.

• If a Dolby Digital 2-channel signal without surround signal

comes in, “SURROUND OFF (stereo)” will be selected.

• If a Linear PCM signal comes in, “SURROUND OFF (stereo)”

will be selected.

NOTE

“AUTO SURROUND” does not take effect in the following cases:

– While playing an analog source, – While selecting one of the fixed digital input mode—“DOLBY

DIGITAL” or “DTS” (see page 12).

AV COMPU LINK remote control system

The AV COMPU LINK remote control system allows you to operate JVC’s video components (TV, DVD player*, and VCR) through this receiver.

This receiver is equipped with the AV COMPU LINK-III, which has added a function to operate JVC’s video components through the component video jacks. To use this remote control system, you need to connect the video components you want to operate, following the diagrams below and the procedures on page 36.

• Refer also to the manuals supplied with your video components.

* “DVD player” on pages 35 and 36 can be replaced with “DVD

recorder.”

Connections 2: Video cable connection

This receiver is equipped with three types of video terminals— composite video, S-video, and component video, and the signals coming into this receiver through one type of video terminals can output only through the terminal of the same type. So you need to connect the video components to this receiver using one of the following three ways.

• When using the AV COMPU LINK remote control system, set the video input for the DVD player and the VCR correctly (see “Selecting the component video input mode—DVD VIDEO IN/ VCR VIDEO IN/DBS VIDEO IN” on page 25); otherwise, the correct input for this receiver will not be selected on the TV.

Case 1: When connecting the source equipment to the receiver through the S-video terminals, connect this receiver to the TV’s video input 1 terminal using S-video cables.

S-video cable S-video cable

Source

equipment

RX-D211S RX-D212B

To video input 1

Connections 1: AV COMPU LINK connection

COMPU LINK-III

Monaural mini-plugs (not supplied)

COMPU LINK EX

Monaural mini-plugs (not supplied)

COMPU LINK

COMPU LINK-

III

Case 2: When connecting the source equipment to the receiver through the composite video jacks, connect this receiver to the TV’s video input 2 terminal (composite video input) using composite video cables.

Composite video cable

Source

equipment

Case 3: When connecting the source equipment to the receiver through the component video jacks, connect this receiver to the TV’s video input 2 terminals (component video input) using component video cables.

Component video cable

Source

equipment

RX-D211S RX-D212B

Composite video cable

To video input 2 (Composite)

Component video cable

DVD player

COMPU LINK

VCR

IMPORTANT:

The AV COMPU LINK remote control system cannot control the DBS tuner connected to the DBS IN jacks.

NOTES

• When connecting the receiver and a TV with the AV COMPU LINK EX terminal by using a component video cable, you cannot use Automatic selection of TV’s input mode (see page 36).

• When connecting only the VCR or DVD player to this receiver, connect it directly to the receiver using cable with the monaural mini-plugs.

• You can connect only the TV with AV COMPU LINK EX or AV COMPU LINK-III terminal to the AV COMPU LINK-III terminal.

To video input 2 (Component)

Connecting procedure

If you have already plugged your VCR, DVD player, TV, or this receiver into the AC outlets, unplug their AC power cords first.

Connect your VCR, DVD player, TV, and this receiver as follows, using the cables with the monaural mini-plugs (not supplied).

• See “Connections 1” on the previous page.

Connect the audio input/output jacks on the VCR, DVD player, TV, and this receiver using the audio cables.

• See pages 7 to 10.

Connect the video input/output jacks on the VCR, DVD player, TV, and this receiver using the S-video cables, composite video cables, or component video cables.

• See “Connections 2” on the previous page.

Plug the AC power cords of the connected components and this receiver into the AC outlets.

One-touch DVD play

Simply by starting playback on the DVD player, you can enjoy the DVD playback without setting other switches manually.

• When the DVD player is connected through the analog input jacks on this receiver (and analog input is selected), the receiver automatically turns on and changes the source to “DVR/DVD.”

• When the DVD player is connected through the digital input terminal on this receiver (and digital input is selected), the receiver automatically turns on and changes the source to “DVR/DVD.”

The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

Automatic selection of TV’s input mode

• When you select “TV” as the source to play on the receiver, the TV automatically changes the input mode to the TV tuner so that you can watch TV.

• When you select “DVR/DVD,” “VCR,” or “DBS” as the source to play on the receiver, the TV automatically changes the input mode to the appropriate position (either video input 1 or video input 2) so that you can view the playback picture.

NOTE

This function does not work when you connect this receiver and the TV with the AV COMPU LINK EX terminal using a component video cable. In this case, reconnect the TV referring to Case 1 or Case 2 on page 35.

When turning on the TV for the first time after the AV COMPU LINK connection, turn the TV volume to the minimum using the TV volume control on the TV.

Turn on other connected components first, then turn on this receiver.

• When turning on the VCR, use the remote control supplied with this receiver (press VCR

The AV COMPU LINK remote control system allows you to use the five basic functions listed below.

Remote control of the TV, DVD player, and VCR using this remote control

See pages 37 and 38 for details.

• Aim the remote control directly at the remote sensor on each

component.

One-touch video play

Simply by inserting a video cassette without its safety tab into the VCR, you can enjoy the video playback without setting other switches manually. The receiver automatically turns on and changes the source to “VCR.” The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture. When you insert a video cassette with its safety tab, press the play (3) button on the VCR or on the remote control. So, you can get the same result.

Automatic power on/off

The TV, DVD player, and VCR turn on and off along with the receiver. When you turn on the receiver;

• If the previously selected source is “TV” or “DBS,” only the TV will turn on automatically.

• If the previously selected source is “DVR/DVD,” the TV and DVD player will turn on automatically.

• If the previously selected source is “VCR,” the TV and VCR will turn on automatically.

When you turn off the receiver, the TV, DVD player, and VCR will turn off.

NOTE

If you turn off the receiver while recording on the VCR, the VCR will not turn off, but continue recording.

Operating other JVC products

You can use the supplied remote control to operate not only this receiver but also other JVC products.

• Refer also to the manuals supplied with the other products. – Some JVC VCRs can accept two types of control signals—

remote codes “A” and “B.” This remote control can operate a VCR whose remote control code is set to “A.”

– Some JVC DVD recorders can accept four types of control

signals. This remote control can operate a DVD recorder whose remote control code is set to the initial code. For details, refer to the manual supplied with the DVD recorder.

• To operate other products, aim the remote control directly at the remote sensor on the target product.

7 VCR 7 SIRIUS Satellite Radio

7 TV

You can always perform the following operation:

VCR : Turn on or off the VCR.

After pressing VCR, you can perform the following operations on the VCR.

CHANNEL +/–: Change the channel numbers on the VCR.

1 – 9, 0: Select the channel numbers on the VCR.

3: Start playback.

7: Stop playback.

8: Pause playback. To release it, press 3.

¡: Fast-wind a tape.

1: Rewind a tape.

After pressing SIRIUS, you can perform the following operations on the SIRIUS Satellite Radio.

TV/SIRIUS : Turn on or off the SIRIUS Satellite Radio.

You can always perform the following operations:

TV/SIRIUS : Turn on or off the TV.

TV VOL +/–: Adjust the volume on the TV.

TV/VIDEO: Change the input mode (either video

input or TV tuner) on the TV.

After pressing TV, you can perform the following operations on the TV.

CHANNEL +/–: Change the channel numbers.

1 – 9, 0, 100+ (h10): Select the channel numbers.

RETURN (10): Switch between the previous channel

and the current channel.

CHANNEL +/–: Change the channel numbers on the SIRIUS

Satellite Radio.

SELECT: Select a highlighted item on the display of the

SIRIUS Satellite Radio.

CAT 9/( CAT: Change the category of the program.

MENU: Enter and exit from the Menu Option screen of

the SURIUS Satellite Radio.

DISPLAY: Change the text size on the display of the

SIRIUS Satellite Radio.

1 – 9, 0, BAND: Store or tune in to the preset channel.

MEMORY: Store information on the display of the SIRIUS

Satellite Radio.

DIRECT: Enable access to channels of the SIRIUS

Satellite Radio directly by numeric buttons.

PREV: Return to the previous channel.

NOTE

The remote control may not operate properly for a SIRIUS Satellite Radio other than KT-SR2000 (JVC SIRIUS Satellite Radio).

7 DVD recorder or DVD player

To operate the DVD recorder, set the mode selector to “DVR.”

To operate the DVD player, set the mode selector to “DVD.”

You can always perform the following operation:

DVR/DVD : Turn on or off the DVD recorder or DVD

player.

After pressing DVR/DVD, you can perform the following operations on the DVD recorder and DVD player.

3: Start playback.

7: Stop playback.

8: Pause playback. To release it, press 3.

¢: Skip to the beginning of the next

chapter.

4: Return to the beginning of the current

(or previous) chapter.

¡: Fast-forward playback.

1: Fast-reverse playback.

TOP MENU/MENU: Display the menu recorded on discs.

5/∞/3/2: Select an item on the menu screen.

After setting the mode selector correctly, you can perform the

following operations on the DVD recorder or DVD player.

See the instructions supplied with the DVD recorder or DVD player for details.

7 Changing the remote control code for DVD

recorder

Some JVC DVD recorders can accept four types of control signals. You can assign one of the four codes to the remote control supplied with this receiver for operating your DVD recorder. For details, refer to the manual supplied with the DVD recorder.

Initial setting: 03

Set the mode selector to “DVR.”

Press and hold DVR/DVD .

Press DVR/DVD.

Enter the remote control code you want using buttons 1 – 4, and 0.

EX.: To enter the code “2,” press 0, then 2.

SET: Enter the selected item, channel

number, chapter/title number, or track number (if required).

Only for DVD recorder operations:

CHANNEL +/–: Change the channel numbers.

1 – 9, 0: Select a channel number (while stopped)

or a chapter/title number, track number (while playing back). Press SET to enter the number.

Only for DVD player operations:

1 – 10, 0, h10: Select a chapter/title number, track

number, menu item, etc.

If these buttons do not function normally, use the remote control supplied with your DVD recorder or DVD player. Refer also to the manuals supplied with the DVD recorder or DVD player for details.

Code for DVR Number to enter

101 202 303 404

Release DVR/DVD .

Now, the remote control code has been changed.

Manufacturers’ codes for TV

Operating other manufacturers’ products

By changing the transmittable signals, you can use the supplied remote control to operate other manufacturers’ products.

• Refer also to the manuals supplied with the other products.

• To operate those components with the remote control, first you need to set the manufacturers’ codes each for the TV, VCR, CATV converter, DBS tuner, and DVD player.

• After replacing the batteries of the remote control, set the manufacturers’ codes again.

• All the functions may not be assigned to the buttons for some equipment.

❏ Changing the transmittable signals for operating

a TV

Press and hold TV/SIRIUS .

Press TV.

Enter the manufacturer’s code using buttons 1 – 9, and 0.

See “Manufacturers’ codes for TV” on the right.

Release TV/SIRIUS .

Now, you can perform the following operations on the TV.

TV/SIRIUS : Turn on or off the TV.

Manufacturer Codes

JVC 01 Akai 02 Bell+Howell 03 Centurion 04 Coronad 05 Daewoo 06, 07, 08 Emerson 09, 10, 11, 12, 13 Fisher 14 GE•Pana 15, 16 GE•RCA 17 Gold Star 18, 19 Hitachi 20, 21 KTV 22, 23 Magnavox 24 Marantz 25 Mitsubishi 25 Panasonic 26, 27 Philips 24 Pioneer 28 Proscan 29 Quasar 30 Radioshack 31 RCA 02, 17, 32, 33, 34, 35 Samsung 36, 37, 45, 46, 47, 48 Sanyo 14 Sears 38 Sharp 39, 49, 50 Sony 40 Symphonic 41, 42 Toshiba 38 Zenith 43, 44

Initial setting: 01

TV VOL +/–: Adjust the volume on the TV.

TV/VIDEO: Change the input mode (either TV or

VIDEO).

After pressing TV, you can perform the following operations on the TV.

CHANNEL +/–: Change the channel numbers.

1 – 9, 0, 100+ (h10): Select the channel numbers.

See the instructions supplied with the TV for details.

Try to operate your TV by pressing TV .

When your TV turns on or off, you have entered the correct code.

If more than one code is listed for your brand of TV, try each one until the correct one is entered.

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

❏ Changing the transmittable signals for operating

a VCR

Press and hold VCR .

Press VCR.

Enter the manufacturer’s code using buttons 1 – 9, and 0.

See “Manufacturers’ codes for VCR” on the right.

Release VCR .

Now, you can perform the following operation on the VCR.

VCR : Turn on or off the VCR.

After pressing VCR, you can perform the following operations on the VCR.

CHANNEL +/–: Change the channel numbers on the

VCR.

1 – 10, 0, h10: Select the channel numbers on the VCR.

3: Start playback.

7: Stop playback.

8: Pause playback.

¡: Fast-wind a tape.

1: Rewind a tape.

See the instructions supplied with the VCR for details.

Try to operate your VCR by pressing VCR .

When your VCR turns on or off, you have entered the correct code.

Manufacturers’ codes for VCR

Manufacturer Codes

JVC 01, 02, 03, 04 Aiwa 05 Akai 06, 07, 08 Bell+Howell 09 Daewoo 10 Emerson 11, 12, 13, 14, 15 Fisher 16, 17, 18, 19 G.E. 20, 21 Go Video 22 Gold Star 23 Go-Video A 24 Go-Video B 25 Hitachi 20, 26 Magnavox 27, 28, 29 Mitsubishi 30, 31, 32, 33 NEC 34, 35 Panasonic 36, 37 Philips 27 RCA 38 Samsung 39, 40, 41 Sanyo 16, 17, 18, 19 Scott 42 Sharp 43, 44 Shintom 45 Sony 46, 47, 48, 49, 50, 51 Symphonic 52 Teknica 53, 54 Toshiba 55 Zenith 56

Initial setting: 01

If more than one code is listed for your brand of VCR, try each

one until the correct one is entered.

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

❏ Changing the transmittable signals for operating

a CATV converter or DBS tuner

Press and hold DBS/CATV .

Press DBS.

Enter the manufacturer’s code using buttons 1 – 9, and 0.

See “Manufacturers’ codes for CATV converter” or “Manufacturers’ codes for DBS tuner” below.

Release DBS/CATV .

Now, you can perform the following operation on the CATV converter or DBS tuner.

❏ Changing the transmittable signals for operating

a DVD player

Set the mode selector to “DVD.”

Press and hold DVR/DVD .

Press DVR/DVD.

Enter the manufacturer’s code using buttons 1 – 9, and 0.

See “Manufacturers’ codes for DVD player” below.

Release DVR/DVD .

Now, you can perform the following operation on the DVD player.

DBS/CATV : Turn on or off the CATV converter or

DBS tuner.

After pressing DBS, you can perform the following operations on the CATV converter or DBS tuner.

CHANNEL +/–: Change the channel numbers on the

CATV converter or DBS tuner.

1 – 10, 0: Select the channel numbers on the

CATV converter or DBS tuner.

See the instructions supplied with the CATV converter or DBS tuner for details.

Try to operate your CATV converter or DBS tuner by pressing DBS/CATV .

When your CATV converter or DBS tuner turns on or off, you have entered the correct code.

If more than one code is listed for your brand of CATV converter or DBS tuner, try each one until the correct one is

entered.

Manufacturers’ codes for CATV converter

DVR/DVD : Turn on or off the DVD player.

3: Start playback.

¡: Skip to the beginning of the next chapter

(or fast-forward for some models).

1: Return to the beginning of the current

chapter (or fast-reverse for some models).

7: Stop playback.

8: Pause playback.

TOP MENU/MENU: Display the menu recorded on DVD

VIDEO discs.

5/∞/3/2: Select an item on the menu screen.

SET: Enter the selected item.

1 – 9, 0, h10: Select the chapter number.

See the instructions supplied with the DVD player for details.

Try to operate your DVD player by pressing DVR/DVD .

When your DVD player turns on or off, you have entered the correct code.

Manufacturer Codes

G.I. 01 Gemini 02 Hamlin 03, 04, 05, 06 Jerrold 07, 08, 09, 10, 11, 12, 13, 14, 15 Macom 16, 17, 18 Magnavox 19 Oak 20, 21, 22 Panasonic 23, 24 Philips 25, 26, 27, 28, 29, 30 Pioneer 31, 32 S. Atlanta 33, 34, 35 Samsung 36 Tocom 37 Zenith 38, 39

Manufacturers’ codes for DBS tuner

Manufacturer Codes

Echostar 40 G.I. 41 Hitachi 42 Hughes 43 Panasonic 44 Primestar 45 RCA 46 Sony 47 Toshiba 48

Manufacturers’ codes for DVD player

Manufacturer Codes

JVC 01 Hitachi 02 Kenwood 03, 04 Magnavox 05 Marantz 06 Mitsubishi 07 Onkyo 08, 09 Panasonic 10 Philips 06 Pioneer 11 Proscan 12 RCA 12 Samsung 13 Sony 14 Toshiba 05 Yamaha 15 Zenith 05, 16

Initial setting: 01

NOTE

You cannot use this remote control to operate other manufacturers’ DVD recorders than JVC.

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Initial setting: 01

Troubleshooting

Use this chart to help you solve daily operational problems. If there are any problems you cannot solve, contact your JVC’s service center.

PROBLEM

The power does not come on.

The receiver turns off (enters standby mode).

wer Po

“OVER HEAT” flashes on the display, then the receiver turns off.

No sound from speakers.

POSSIBLE CAUSE

The power cord is not plugged in.

Speakers are overloaded because of high volume.

Speakers are overloaded because of a short circuit at the speaker terminals.

The receiver is overloaded because of a high voltage.

The receiver is overloaded because of high volume or long time usage.

Speaker signal cables are not connected.

Connections are incorrect.

SOLUTION

Plug the power cord into an AC outlet.

1. Stop the playback source.

2. Turn on the receiver again, then turn the volume down.

Check the speaker wiring. If speaker wiring is not short-circuited, contact your dealer.

Consult your dealer after unplugging the power cord.

Turn the volume down or turn off the receiver for a while and turn it on again. If the receiver turns off soon after doing solutions above, consult your dealer after unplugging the power cord.

Check speaker wiring, then reconnect if necessary (see page 6) after unplugging the power cord.

Check the audio connections (see pages 7 to 11) after unplugging the power cord.

Sound

Sound from one speaker only.

Sounds are intermittently distorted by the outside noise such as a lightning discharge.

Remote control does not operate as you intend.

Remote control does not work.

Remote control

An incorrect source is selected.

Muting is activated.

An incorrect input mode (analog or digital) is selected.

Speaker signal cables are not connected properly.

When you use the digital coaxial connection, the sounds may be intermittently distorted by the outside noise such as a lightning discharge but the sound will be restored automatically.

The remote control is not ready for your intended operation.

There is an obstruction blocking the remote sensor on the receiver.

Batteries are weak.

The mode selector is set to the incorrect position.

Select the correct source.

Press MUTING to cancel the mute (see page 14).

Select the correct input mode (analog or digital).

Check speaker wiring and reconnect if necessary (see page 6) after unplugging the power cord.

This is not a malfunction.

Set the mode selector correctly, then press the corresponding source selecting button before operation.

Remove the obstruction.

Replace batteries.

Set the mode selector to the proper position.

Continuous hiss or buzzing during FM reception.

FM/AM

Occasional cracking noise during FM reception.

Incoming signal is too weak.

The station is too far away.

The wrong antenna is being used.

Antennas are not connected properly.

Ignition noise from automobiles.

Connect an outdoor FM antenna or contact your dealer.

Select another station.

Check with your dealer to be sure you have the correct antenna.

Check the connections.

Move the antenna farther from automobile traffic.

Specifications

Designs and specifications are subject to change without notice.

Amplifier

Output Power

At stereo operation:

Front channels: 110 W per channel, min. RMS, driven

into 6 Ω at 20 Hz to 20 kHz with no more than 0.8% total harmonic distortion.

At surround operation:

Front channels: 110 W per channel, min. RMS, driven into

6 Ω at 1 kHz with no more than 0.8% total harmonic distortion.

Center channel:

Surround channels: 110 W per channel, min. RMS, driven into

Surround back channels:

Audio

Audio Input Sensitivity/Impedance:

DVR/DVD, VCR, DBS, TV: 300 mV/47 kΩ

Audio Input (DIGITAL IN)*:

Coaxial: DIGITAL IN 1(DVR/DVD): 0.5 V(p-p)/75 Ω

Optical: DIGITAL IN 2(DBS), 3(VCR): –21 dBm to –15 dBm

USB: USB DIGITAL

* Corresponding to Linear PCM, Dolby Digital, and DTS (with

sampling frequency—32 kHz, 44.1 kHz, 48 kHz).

Audio Output Level:

DVR, VCR: 300 mV

Signal-to-Noise Ratio (’66 IHF/’78 IHF): 80 dB/70 dB

Frequency Response (6 Ω): 20 Hz to 20 kHz (±1 dB)

Bass Boost: +4 dB ±1 dB at 100 Hz

Equalization (at DSP operation):

Center frequency: 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz

Control range: ±8 dB

110 W, min. RMS, driven into 6 Ω at 1 kHz, with no more than 0.8% total harmonic distortion.

6 Ω at 1 kHz, with no more than 0.8% total harmonic distortion.

110 W

per channel 6 Ω at 1 kHz, with no more than 0.8% total harmonic distortion.

, min. RMS, driven into

(660 nm ±30 nm)

Video

Video Input Sensitivity/Impedance:

Composite video: DVR/DVD, VCR, DBS:

1 V(p-p)/75 Ω

S-video: DVR/DVD, VCR, DBS:

Y (luminance): 1 V(p-p)/75 Ω

C (chrominance, burst): 0.286 V(p-p)/75 Ω

Component: DVR/DVD, VCR (DBS):

Y (luminance): 1 V(p-p)/75 Ω

B, PR: 0.7 V(p-p)/75 Ω

Video Output Level/Impedance:

Composite video: DVR, VCR, MONITOR OUT:

1 V(p-p)/75 Ω

S-video: DVR, VCR, MONITOR OUT:

Y (luminance): 1 V(p-p)/75 Ω

C (chrominance, burst): 0.286 V(p-p)/75 Ω

Component: MONITOR OUT:

Y (luminance): 1 V(p-p)/75 Ω

B, PR: 0.7 V(p-p)/75 Ω

Synchronization: Negative

FM tuner (IHF)

Tuning Range: 87.5 MHz to 108.0 MHz

Usable Sensitivity:

Monaural: 12.8 dBf (1.2 μV/75 Ω)

50 dB Quieting Sensitivity:

Monaural: 16.0 dBf (1.7 μV/75 Ω)

Stereo: 37.5 dBf (20.5 μV/75 Ω)

Stereo Separation at REC OUT: 35 dB at 1 kHz

AM tuner

Tuning Range: 530 kHz to 1 710 kHz

General

Power Requirements: AC 120 V , 60 Hz

Power Consumption: 150 W/200 VA (at operation)

0.9 W (in standby mode)

Dimensions (W x H x D): 435 mm x 91.5 mm x 360 mm

/16 inches x 3 5/8 inches x 14 3/16 inches)

(17

Mass: 6.7 kg (14.8 lbs)

RX-D211S / RX-D212B

AUDIO / VIDEO CONTROL RECEIVER

0306RYMMDWJEIN

JVC RX-D212B, RX-D211S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
