JVC RV-NB10, RV-NB10W User's Guide

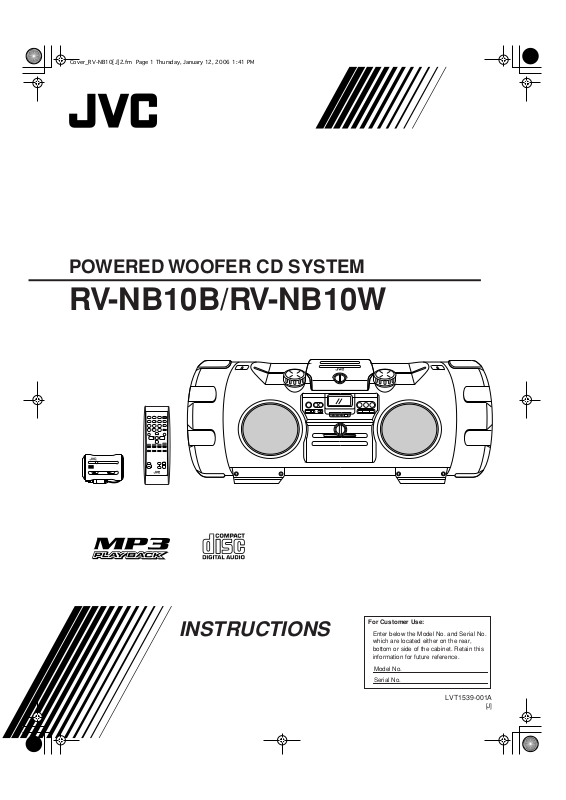

POWERED WOOFER CD SYSTEM

RV-NB10B/RV-NB10W

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1539-001A

[J]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

The lightning ﬂash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

For wireless transmitter

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The ON/STANDBY button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY lamp lights red.

• When the unit is turned on, the STANDBY lamp goes off. The power can be remote controlled.

ATTENTION

Déconnectez la fiche secteur pour mettre l’appareil complètement hors tension (le témoin STANDBY l s’éteint). Lors de l’installation de l’appareil, assurez-vous que la fiche soit facilement accessible. La

touche ON/STANDBY dans n’importe quelle position ne déconnecte pas l’appareil du secteur.

• Quand l’appareil est en mode d’attente, le témoin STANDBY est allumé en rouge.

• Quand l’appareil est sous tension, le témoin STANDBY s’éteint.

L’alimentation ne peut pas être commandée à distance.

CAUTION

To reduce the risk of electrical shocks, ﬁre, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Aﬁn d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

—

de l’appareil.

ON/STANDBY button!

Touche ON/STANDBY!

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

G-1

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

IMPORTANT FOR LASER PRODUCTS

[European Union Only] [Union européenne seulement]

1. CLASS 1 LASER PRODUCT

CAUTION:

serviceable parts inside the unit; leave all servicing to qualiﬁed service personnel.

CAUTION:

open. Do not view directry with optical instruments.

Do not open the top cover. There are no user

Visible and/or invisible class 1M laser radiation when

IMPORTANT POUR PRODUITS LASER

1. PRODUIT LASER CLASSE 1

ATTENTION:

aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; conﬁez toute réparation à un personnel qualiﬁé.

ATTENTION:

classe 1M une fois ouvert. instruments optiques.

N’ouvrez pas le couvercle supérieur. Il n’y a

Rayonnement laser visible et/ou invisible de

Ne pas regarder directement avec des

CAUTION:

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

• Do not place any naked ﬂame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

ATTENTION:

• Ne bloquez pas les oriﬁces ou les trous de ventilation. (Si les oriﬁces ou les trous de ventilation sont bloqués par un journal un tissu, etc., la chaleur peut ne pas être évacuée correctement de l’appareil.)

• Ne placez aucune source de ﬂamme nue, telle qu’une bougie, sur l’appareil.

• Lors de la mise au rebut des piles, veuillez prendre en considération les problèmes de l’environnement et suivre strictement les règles et les lois locales sur la mise au rebut des piles.

• N’exposez pas cet appareil à la pluie, à l’humidité, à un égouttement ou à des éclaboussures et ne placez pas des objets remplis de liquide, tels qu’un vase, sur l’appareil.

G-2

Thank you for purchasing the JVC Powered Woofer CD System. Before operating this system, read this manual carefully and thoroughly to obtain the best possible performance from your system, and retain this manual for future reference.

Features

Here are some of the things that make your system both powerful and simple to use.

■

General

•With JVC’s with a single touch. (Only when AC power is used.)

•With the supplied wireless transmitter, you can listen to auxiliary equipment such as a digital audio player (not supplied) by wireless connection.

• Shoulder strap with carrying cases for the remote control and auxiliary equipment, and carrying handle

•ACS (Active Clear Sound) circuit for enhancing sound reproduction

• Super woofer volume control that provides powerful bass

• Sound mode control—reproducing various sound ﬁelds

• Remote control unit that operates the disc, cassette, tuner, and wireless functions

• Locking mechanism for disc and cassette door

• Microphone/guitar input

■

Disc playback mode includes Skip Play, Search Play, Repeat Play, Random Play, and Program Play.

■

Cassette player having full logic cassette mechanism, auto reverse, and auto tape mechanism.

■

A 45-station preset capability (30 stations in FM band and 15 stations in AM band) in addition to auto-seek and manual tuning.

■

Clock/timer functions, timer on/off with preset volume function, and sleep timer.

COMPU PLAY

you can turn on the system and automatically start the radio, disc player, or cassette deck

IMPORTANT CAUTIONS

1.Where to place the system

■

• Select a place which is level, dry and neither too hot nor too cold (between 5˚C and 35˚C or 41˚F and 95˚F).

• Leave sufﬁcient distance between the system and a TV.

• Do not use the system in a place subject to vibrations.

2.Power cord

■

• Do not handle the power cord with wet hands!

• Some power is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the system from the wall outlet, always pull the plug, not the power cord.

3.When carrying the system

■

• Remove a disc from the system.

• Disconnect all the cords from the system.

4.Malfunctions, etc.

■

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any foreign object into the system.

• The system is not waterproof or dust proof.

Table of contents

■■

Features............................................................................ 1

IMPORTANT CAUTIONS.............................................. 1

Index of parts and controls .................................. 2

Getting started....................................................... 3

Basic operations ................................................... 7

Listening to the radio............................................ 9

Playing back discs ................................................ 10

Playing back tapes................................................ 13

Recording .............................................................. 14

Listening to auxiliary equipment ......................... 16

Tr ansmitting sound on FM wave .................................... 16

Connecting to the AUX IN jack......................................17

Using the microphone/guitar ............................... 18

Using the timer ...................................................... 18

Care and maintenance.......................................... 20

Troubleshooting .................................................... 21

Speciﬁcations........................................................ 22

■■

FM/AM

REW STOP

MULTI CONTROL

TAPE

SOUNDAUX

ONE TOUCH

REC

ACTIVE

CLEAR SOUND

PRESET TUNING

ON/ STANDBY

LEVEL

STANDBY

ACS

BEAT CUT

WIRELESS

Display window

Index of parts and controls

See pages in parentheses for details.

1 2

4 5 6 7 8 9 p q w

e r t y u

ON/STANDBY button (7)

Shoulder strap hooks (4)

AUX button (3, 17)

• Pressing this button also turns on the unit.

SOUND button (8) SUPER WOOFER VOLUME +/– control knob (8) LOCK/RELEASE knob (for disc) (10) Disc compartment door (10) VOLUME +/– control knob (7) PRESET TUNING/BEAT CUT button (9, 15 – 17)

ONE TOUCH REC button (15) ACTIVE CLEAR SOUND button (8)

ACS (Active Clear Sound) indicators (8)

• ON, LEVEL

LOCK/RELEASE knob (for deck) (13)

Cassette holder (13) STANDBY indicator (7)

Remote sensor (4)

MULTI CONTROL buttons (9 – 15)

• 4

REW (rewind), 7

STOP, ¢

FF (fast-forward)

Source and play mode buttons (3, 9 – 17)

• CD 6

, TAPE 2 3, WIRELESS/FM/AM

Pressing one of these buttons also turns on the unit.

Display window

REC indicator (19)

;

Timer indicators (19)

• (timer), ON, OFF

SLEEP indicator (19)

CLOCK indicator (8, 18)

d f 2 g h 3 j k l

/ z x c

(reverse mode) indicator (13 – 15)

(reverse) tape direction indicator (13 – 15)

indicator (15)

(forward) tape direction indicator (13 – 15) MONO indicator (9, 17) MP3 indicator (11) Repeat indicators (12)

•, ALL, GROUP Main display PRGM (program) indicator (12) RANDOM indicator (12) Frequency unit indicators (8 – 9)

• kHz, MHz

Remote control

See pages in parentheses for details.

Number buttons (9, 11, 17)

SLEEP button (19)

Multi control buttons (9 – 15, 18 – 19)

•GROUP UP, GROUP DOWN

• 4

, 7

, ¢

Source buttons (3, 9 – 17)

•AUX, CD 6

Pressing one of these buttons also turns on the unit.

PLAY MODE button (12)

REPEAT button (12)

SOUND button (8)

ACS (Active Clear Sound) button (8)

ON/STANDBY button (7, 18 – 20)

DISPLAY button (8)

CANCEL button (12, 18 – 20)

SET button (10, 18 – 20)

CLOCK/TIMER button (18 – 20)

FM MODE button (9, 17)

REVERSE MODE button (13)

VOLUME +/– button (7)

SUPER WOOFER VOLUME +/– buttons (8)

, TAPE 2 3, WIRELESS/FM/AM

COMPU PLAY — One Touch Operation

With One Touch Operation you can play a disc, a tape, or turn on the radio with a single press of the play button for that function. The system turns on and starts playing the source if it is ready.

The COMPU PLAY buttons are:

Note: The COMPU PLAY feature is not effective when the system is operated on batteries or car battery (DC12V).

On the system and remote control

CD 6

button TAPE 2 3 button WIRELESS/FM/AM button AUX button

Getting started

■■

Accessories

Check that you have all the following items, which are supplied with the system.

Power cord (1) Remote control (1) Shoulder strap with carrying cases for the remote control and auxiliary equipment (1) Wireless transmitter (1) Batteries*—R6(SUM-3)/AA(15F) (4)

*Supplied batteries are for the initial setup for the remote control and wireless transmitter.

If any of these items are missing, contact your dealer immediately.

Carrying the system

Shoulder strap

Remote control

Shoulder strap

Remote control case

Digital audio player etc. (not supplied)

Auxiliary

equipment case

Wireless

transmitter

■

Using the carrying handles

Be sure to hold both handles when you carry the system. If you carry the system by only one handle, because of the length of the system, the end may drag on the ground and be damaged as a result. Do not lift the system by the woofer ducts, and do not insert any foreign objects into them.

Carrying handle

Woofer duct

■

Using the shoulder strap

Attach the supplied shoulder strap (adjustable in length) to each end of the system as illustrated.

To detach the shoulder strap, press in the metal ﬁtting and unhook it from the shaft.

Using the remote control — RM-SRVNB10J

Installing the batteries

■

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

R6(SUM-3)/AA(15F) (supplied)

CAUTION:

To avoid battery leakage or explosion:

• Remove batteries when the remote control is not in use for an extended period of time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Do not use different types of batteries together.

Point the remote control at the remote sensor on the system’s control panel (from a distance of up to 7 m or 23 feet). If you point the remote control from the slant direction, the distance will be shortened.

• Do not expose the remote sensor to strong direct sunlight or artiﬁcial lighting.

• Make sure there are no obstacles between the remote sensor and the remote control.

Remote sensor

Connections

■ Connecting the microphone/guitar

(See page 18.)

■

CAUTION: Make all connection before plugging the system into an AC power outlet.

■ Wireless connection (See page 16.)

Wireless transmitter (supplied)

Headphones jack

Auxiliary equipment (not supplied)

(not supplied)

■ Connecting to the car battery

Connecting the auxiliary equipment (See page 17.)

Auxiliary equipment (not supplied)

Pin-plug x 2

Signal cord (not supplied)

Stereo mini plug

■ Memory backup batteries

To car’s cigarette lighter socket (DC12V)

Car adapter JVC model CA-R120 (not supplied)

CAUTION:

• Be sure to use the speciﬁed car adapter (JVC model CA-R120) to prevent mishaps or damage resulting from different polarity design.

•For safety, stop the car before performing operations.

• Be sure to start the engine when you use the car adapter; otherwise, the car battery will be exhausted.

• During transport, stabilize the system in a box, etc.

•To prevent malfunctions, do not leave the system in a car for a long time.

• If the power is supplied through the car battery, the display will be blank with the system turned off (at standby).

Unplug the AC power cord from the system to supply the power through the car battery; otherwise, the system does not work.

■ Connecting the AC power cord

Power cord

CAUTIONS:

• ONLY USE THE JVC POWER CORD PROVIDED WITH THIS SYSTEM TO AVOID MALFUNCTION OR DAMAGE TO THE SYSTEM.

• BE SURE TO UNPLUG THE POWER CORD FROM THE OUTLET WHEN GOING OUT OR WHEN THE SYSTEM IS NOT IN USE FOR AN EXTENDED PERIOD OF TIME.

Battery cover

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

“R6(SUM-3)/AA(15F)” size batteries (not supplied)

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

Battery cover

To remove the batteries, remove battery “3” ﬁrst.

PHONES jack

Notes:

• The memory backup batteries will not be consumed as long as the power is supplied from an AC outlet, loaded 10 batteries, or car battery (DC12V). However, if no power is supplied to the system, the memory backup batteries should be replaced with new ones approximately every 12 months to securely maintain the contents of the memory.

• Before replacing the memory backup batteries, always connect the AC power cord to the system to prevent the contents of memory from being erased.

• When a power failure occurs, the time indication disappears from the display to save the battery power of the memory backup batteries.

CAUTION:

To avoid battery leakage or explosion:

• When you need to replace the batteries, replace all batteries at the same time with new ones. Before replacing, you need to supply AC power to the system.

• Do not use an old battery with new ones.

• Do not use different types of batteries together.

■

Operating the system on batteries

“R20/D(13F)” size batteries (not supplied)

To remove the batteries, remove battery “10” ﬁrst.

Notes:

• When you operate the system on mains (AC) power or on car battery (DC12V), the power source automatically switches from batteries to AC or DC12V. However, you should remove the 10 batteries when operating on AC power or car battery (DC12V).

• When the batteries are exhausted, the following symptoms will occur: – Mistracking occurs during disc playback. – Sounds are distorted intermittently during

tape playback.

– “DC OFF” ﬂashes on the display, then the

power goes off.

If this happens, replace the batteries.

• It is recommended to use AC power cord when recording important material or listening to a disc.

CAUTION:

To avoid battery leakage or explosion:

• Remove the 10 batteries when the system is not in use for an extended period of time.

• When you need to replace the batteries, replace all batteries at the same time with new ones.

• Do not use different types of batteries together.

• If the power is supplied through the batteries, the display will be blank with the system turned off (at standby).

Unplug the AC power cord from the system to supply the power through the batteries; otherwise, the system does not work.

+ 19 hidden pages
