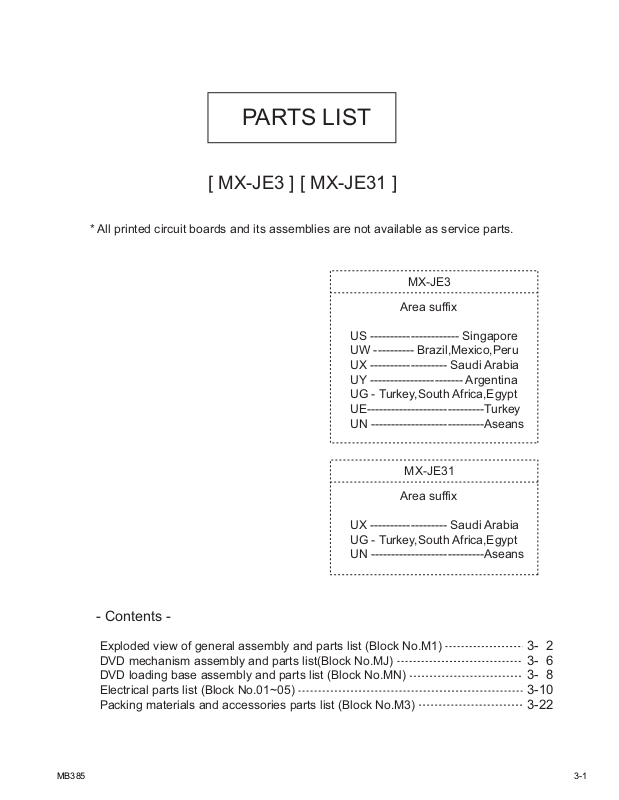

PARTS LIST
[ MX-JE3 ] [ MX-JE31 ]
* All printed circuit boards and its assemblies are not available as service parts.
MX-JE3
Area suffix
US ---------------------- Singapore
UW ---------- Brazil,Mexico,Peru
UX ------------------- Saudi Arabia
UY ----------------------- Argentina
UG - Turkey,South Africa,Egypt
UE-----------------------------Turkey
UN ----------------------------Aseans
MX-JE31
Area suffix
UX ------------------- Saudi Arabia
UG - Turkey,South Africa,Egypt
UN ----------------------------Aseans
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
DVD mechanism assembly and parts list(Block No.MJ)
DVD loading base assembly and parts list (Block No.MN)
Electrical parts list (Block No.01~05)
Packing materials and accessories parts list (Block No.M3)
3- 2
3- 6
3- 8
3-10
3-22
MB385
3-1
Page 2
Exploded view of general assembly and parts list
1
0
o
1
2
Block No.
M
M
1
M
33
72
39
37
31
47
B
69
40
11
8
r
FL board
12
58
42
A
This parts include in No.1.
72
2
4
1
6
3
6
93
91
k
e
13
Switch board
92
13
82
78
D
b
18
a
5
C
19
36
25
77
v
84
27
u
38
C
26
17
g
24
Transformer b
e
38
F103
88
j
F1
89
34
29
7
t
8
This parts include in No.1.
38
9
23
26
27
28
25
33
10
37
E
39
14
36
38
d
38
38
22
3-2
32
35
30
Page 3
No.
M
40
M
1
M
82
28
2
25
19
77
v
84
58
27
u
38
C
26
78
17
g
24
42
b
18
a
Transformer board
j
e
38
F103
89
88
81
r
41
41
DVD module board
16
21
g
F104
85
75
18
s
F001
57
86
80
F003
49
87
79
52
73
57
83
59
B
65
68
66
71
64
q
m
n
Video board
w
Speaker terminal
k
board
62
63
67
60
53
70
o
h
Regulator board
Main amplifier board
51
50
h
76
52
45
j
y
c
Primary board
74
54
d
61
b
90
v
a
g
w
q
m
r
n
o
44
48
56
55
20
c
15
y
E
A
Main board
s
t
u
46
43
3-3
Page 4
General Assembly
Symbol No. Part No. Part Name Description Local
Block No. [M][1][M][M]
1 GV10220-022A FRONT PANEL ASSY
1 GV10220-019A FRONT PANEL ASSY
1 GV10220-021A FRONT PANEL ASSY
2 GV30576-007A FL LENS
3 GV20277-007A FRONT COVER
3 GV20277-008A FRONT COVER
4 GV30577-001A FUNC.INDICATOR
5 GV40485-002A REMOTE LENS
6 GV40486-002A INDICATOR LENS (x2)
7 GV30580-001A VOLUME KNOB
8 LV42979-003A VOLUME RING
9 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x2)
10 GV40083-004A MIC.KNOB
11 GV30583-006A TRAY FITTING
11 GV30583-005A TRAY FITTING
12 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
13 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x11)
14 GV40246-001A FOOT SPACER (x2)
15 GV40246-002A FOOT SPACER (x2)
16 GV10206-003A CENTER CHASSIS
17 GV20275-001A STAY BRACKET
18 QYSBSG3008ZA TAP SCREW M3 x 8mm(x2)
19 QYSBSG3008ZA TAP SCREW M3 x 8mm
20 E310243-002 PLASTIC RIVET
21 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x4)
22 QAL0700-001 MECHA ASSY
23 GV40496-001A SWING CAM(L)
24 GV40497-001A SWING CAM(R)
25 GV40501-001A SWING CAM (x2)
26 GV40502-002A SPRING (x2)
27 GV40503-001A WASHER (x2)
28 GV40504-002A SCREW (x2)
29 GV10204-002A CASS.HOLDER(L)
30 GV10205-002A CASS.HOLDER(R)
31 GV20278-006A CASS.COVER (L)
31 GV20278-003A CASS.COVER (L)
32 GV20279-006A CASS.COVER (R)
32 GV20279-003A CASS.COVER (R)
33 GV40487-001A CASS.LENS (x2)
34 GV40489-001A DOOR SPRING
35 GV40490-001A DOOR SPRING(R)
36 GV40034-001A DAMPER ASSY. (x2)
37 VKY4180-401 CASSETTE SPRING (x4)
38 QYSBSF3010ZA TAP SCREW M3 x 10mm(x6)
39 GV40515-001A METAL PIN (x2)
40 QYSBSF3012ZA TAP SCREW M3 x 12mm(x3)
41 LV30225-011A SPACER (x2)
42 LV30225-011A SPACER
43 GV30349-003A SPACER
44 GV10209-002A BOTTOM CHASSIS
45 QYSBSGG3008EA TAP SCREW M3 x 8mm
46 QYSBSGG3008EA TAP SCREW M3 x 8mm
47 GV10217-005A METAL COVER
48 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)
49 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)
50 GV30581-002A HEAT SINK
51 GV40488-001A LEAF SPRING
52 QYSBSG3014EA TAP SCREW M3 x 14mm(x4)
53 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4)
54 QZW0033-001 STRAIN RELIEF
55 QYSSST3006ZA TAP SCREW M3 x 6mm(x2)
56 QYSBSG3010ZA TAP SCREW M3 x 10mm
57 GV30349-003A SPACER (x2)
58 E3400-431 SPECER
59 GV10207-033A REAR PANEL
59 GV10207-032A REAR PANEL
59 GV10207-030A REAR PANEL
59 GV10207-027A REAR PANEL
59 GV10207-031A REAR PANEL
59 GV10207-026A REAR PANEL
59 GV10207-028A REAR PANEL
JE31UG,JE31UN,JE31UX
JE3UG,JE3UN,JE3US,JE3UX
JE3UE,JE3UW,JE3UY
JE31UG,JE31UN,JE31UX
JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX
JE3UY
JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3USJ
E3UX
JE31UG,JE31UN,JE31UX
JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX
JE3UY
JE31UG,JE31UN,JE31UX
JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX,
E3UY
JE31UG,JE31UN,JE31UX
JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX
JE3UY
JE31UN
JE31UG,JE31UX
JE3UE
JE3UN,JE3US
JE3UW
JE3UG,JE3UX
JE3UY
3-4
Page 5
Symbol No. Part No. Part Name Description Local
60 GV10208-001A REAR COVER
61 QAU0278-003 TUNER
61 QAU0307-003 TUNER
62 QYSBSGY3008EA TAP SCREW M3 x 8mm
63 QYSBSGY3008EA TAP SCREW M3 x 8mm
64 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
65 QYSBSGY3008EA TAP SCREW M3 x 8mm
66 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
67 QYSBSF3012EA TAP SCREW M3 x 12mm(x2)
68 QYSBSGY3008EA TAP SCREW M3 x 8mm(x3)
69 QYSBSGY3008EA TAP SCREW M3 x 8mm(x6)
70 QYSBSGY3008EA TAP SCREW M3 x 8mm
71 QYSBSGY3008EA TAP SCREW M3 x 8mm
72 QYSDSG3006NA TAP SCREW M3 x 6mm(x2)
73 LV41843-002A LASER CAUTION
74 QMPK210-205-JN POWER CORD(EU) 2.05m BLACK
74 QMPR300-200-JC POWER CORD 2m BLACK
75 QQT0479-001 POWER TRANSF
76 QUQH12-1108AJ-E FFC WIRE 11pin 8cm
77 QUQH12-1314AJ-E FFC WIRE 13pin 14cm
78 QUQH12-1614BJ-E FFC WIRE 16pin 14cm
79 QUQH10-1730BJ-E FFC WIRE 17pin 30cm
80 QUQH10-1920BJ-E FFC WIRE 19pin 20cm
81 QUQH10-0541BJ-E FFC WIRE 5pin 41cm
82 QUQH12-1111AJ-E FFC WIRE 11pin 11cm
83 QUQH12-1110AJ-E FFC WIRE 11pin 10cm
84 WJN0074-005A-E SIGNAL WIRE
85 WJZ0137-001A-E S.WIRE
86 QMF51W2-3R15-J8 FUSE 3.15A AC250V
87 QMF51W2-2R0-J8 FUSE 2A AC250V
88 QMF51W2-2R0-J8 FUSE 2A AC250V
89 QMF51W2-3R15-J8 FUSE 3.15A AC250V
90 LV30225-011A SPACER
91 QLF0149-001 FL TUBE
92 GV30507-001A FL HOLDER
93 GV30349-021A SPACER (x2)
JE3UE
JE31UG,JE31UN,JE31UX,JE3 UG,JE3UN,JE3USJ
E3UW,JE3UX,JE3UY
JE31UG,JE31UN,JE31UX,JE3 UG,JE3UN,JE3USJ
E3UX
JE31UG,JE31UN,JE31UX,JE3UE,JE3UG,JE3UNJ
E3US,JE3UW,JE3UX
JE3UY
JE31UG,JE31UN,JE31UX,JE3 UG,JE3UN,JE3USJ
E3UW,JE3UX,JE3UY
JE3UE,JE3UW,JE3UY
3-5
Page 6
DVD mechanism assembly and parts list
23
Block No.
J
M
M
M
Grease
=JVG-31N
=CFD-4007ZY2
=PG-641
=1401C
< Back side >
25
24
29
FTU-JZ1-11M
26
27
16
DVD module board
27
22
21
A
6
17
A
27
20
19
18
14
13
15
< Back side >
27
+
63.3mm
0.1mm
-
12
3-6
30
10.5mm
2
+
0.1mm
-
3
28
5
11
8
31
1
4
9
7
11
10
The parts without symbol number are not service.
Page 7
DVD mechanism
Symbol No. Part No. Part Name Description Local
1 LV21814-001A MECHA BASE
2 LE20731-001A SPINDLE BASE
3 QYSDST2605M TAP SCREW M2.6 x 5mm(x2)
4 LE40931-001A SHAFT
5 LE40995-001A BAR SPRING
6 QYSPSTU2080M TAP SCREW M2 x 8mm
7 LE20730-002A FEED HOLDER
8 QAR0165-001 FEED MOTOR
9 LV41510-201A FEED GEAR T
10 QYSPSPU2040M SCREW M2 x 4mm(x2)
11 QYSDST2605M TAP SCREW M2.6 x 5mm(x3)
12 QAL0577-001 P.UP
13 LE20732-001A SW ACTUATOR
14 LE31093-001A LEAD SPRING
15 QYSPSFU1740Z TAP SCREW M1.7 x 4mm(x2)
16 QUQ105-2412AC FFC WIRE 24pin 12cm
17 LE40931-001A SHAFT
18 LE40855-002A FEED GEAR E
19 LV41517-003A LEAD SCREW
20 LE40930-001A FEED GEAR M
21 LE40928-002A THURUST SPRING
22 LE40927-002A PLATE
23 QYSDST2614Z TAP SCREW M2.6 x 14mm
24 QAR0334-001 S.MOTOR
25 QYSPSPU1760Z SCREW M1.7 x 6mm(x3)
26 LE40994-001A T.SPRING
27 LE40858-002A SPECIAL SCREW (x4)
28 QYSDST2004Z TAP SCREW M2 x 4mm(x2)
29 LV30225-0X6A SPACER
30 LV30225-0X5A SPACER
31 LV44007-001A TAPE
Block No. [M][J][M][M]
3-7
Page 8
DVD loading base assembly and parts list
Grease
JBS-1003
JVG-450
20
19
FMU-MZ1-11M
Block No.
M
N
M
M
16
h
< Back side >
4
18
15
2
3
14
12
h
1
16
17
11
10
j
0.10mm
7.75mm
Backside
7
8
6
13
3-8
24
5
j
24
21
22
c
d
24
23
c
e
f
e
DVD loading switch board
g
d
f
9
The parts without symbol number are not service.
Page 9
DVD loading base
Symbol No. Part No. Part Name Description Local
1 LV11065-002A LOADER SUB ASSY
2 E407140-001SS C.D ROLLER
3 E407149-001SS RUBBER TUBE
4 LV10979-002A TRAY
5 LV35499-001A SHAFT GUIDE
6 LV44022-001A SHAFT
7 QYSSSF2008ZA TAP SCREW M2 x 8mm
8 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)
9 LV41741-004A SPECIAL SCREW
10 QAR0197-001 MOTOR
11 LV43844-002A MOTOR PULLEY
12 QYSPSPU1730ZA SCREW M1.7 x 3mm(x2)
13 QYSDSF2008ZA TAP SCREW M2 x 8mm
14 LV43974-001A BELT
15 LV21852-003A CLAMPER BASE
16 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)
17 LV35056-002A DVD CLAMPER
18 LV42930-003A P.C.MAGNET
19 LV43848-001A YOKE
20 LE40906-002A SPECIAL SCREW
21 ------------ DVD TRAMECHA UN
22 LE40900-003A INSULATOR (x2)
23 LE40900-005A INSULATOR (x2)
24 LE40901-002A SPECIAL SCREW (x4)
Block No. [M][N][M][M]
3-9
Page 10
Electrical parts list
Power board
Block No. [0][1]
Symbol No.
IC260 KIA7809API IC
IC270 KIA7805API IC
IC280 KIA7812API IC
IC290 KIA7809API IC
IC602 STK432-070 IC
IC900 SN74HCU04N FL DRIVER
IC920 PT6305 FL DRIVER
IC930 GP1UM281XKVF IR DETECT UNIT
Q221 KTA1046/Y/ TRANSISTOR
Q222 KTC3199/GL/-T TRANSISTOR
Q223 KTC3199/GL/-T TRANSISTOR
Q601 KTC3199/GL/-T TRANSISTOR
Q602 KTC3199/GL/-T TRANSISTOR
Q612 KTA1267/YG/-T TRANSISTOR
Q613 KRC102M-T DIGI TRANSISTOR
Q681 2SK301/PQ/-T TRANSISTOR
Q725 KTA1267/YG/-T TRANSISTOR
Q726 KTC3199/GL/-T TRANSISTOR
Q727 KTA1267/YG/-T TRANSISTOR
Q728 KTC3199/GL/-T TRANSISTOR
D211 1N5402M-20 DIODE
D212 1N5402M-20 DIODE
D213 1N5402M-20 DIODE
D214 1N5402M-20 DIODE
D221 MTZJ5.6C-T2 Z DIODE
D222 2A02-M DIODE
D260 MTZJ11B-T2 Z DIODE
D270 1SS133-T2 SI DIODE
D271 MTZJ6.8C-T2 Z DIODE
D280 MTZJ15B-T2 Z DIODE
D290 MTZJ11B-T2 Z DIODE
D619 1SS133-T2 SI DIODE
D620 1SS133-T2 SI DIODE
D622 MTZJ9.1B-T2 Z DIODE
D681 MTZJ2.4B-T2 Z DIODE
D728 1SS133-T2 SI DIODE
D925 SLR-343VC/NPQ-T LED
C204 QEZ0726-688 E CAPACITOR 6800uF
C205 QEZ0726-688 E CAPACITOR 6800uF
C213 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C214 QETM1HM-338 E CAPACITOR 3300uF 50V M
C215 QETM1HM-338 E CAPACITOR 3300uF 50V M
C221 QETM1EM-688 E CAPACITOR 6800uF 25V M
C222 QEZ0724-828 E CAPACITOR 8200uF
C225 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C226 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C260 QETN1HM-106Z E CAPACITOR 10uF 50V M
C261 QETN1CM-227Z E CAPACITOR 220uF 16V M
C270 QETN1HM-106Z E CAPACITOR 10uF 50V M
C271 QETN1HM-106Z E CAPACITOR 10uF 50V M
C280 QETN1HM-106Z E CAPACITOR 10uF 50V M
C281 QETN1HM-106Z E CAPACITOR 10uF 50V M
C290 QETN1HM-106Z E CAPACITOR 10uF 50V M
C291 QETN1HM-106Z E CAPACITOR 10uF 50V M
C601 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C602 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C603 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C604 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C605 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C606 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C607 QTE1C06-476Z E CAPACITOR 47uF 16V
C608 QTE1C06-476Z E CAPACITOR 47uF 16V
C609 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C610 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C611 QETN1HM-107Z E CAPACITOR 100uF 50V M
C612 QETN1HM-107Z E CAPACITOR 100uF 50V M
Part No. Part Name Description Local
JE31U
N,JE3
UN
JE31U
N,JE3
UN
Symbol No.
C613 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C614 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C615 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C616 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C621 QTE1V06-106Z E CAPACITOR 10uF 35V
C622 QTE1V06-106Z E CAPACITOR 10uF 35V
C623 QTE1H28-106Z E CAPACITOR 10uF 50V
C624 QTE1H28-106Z E CAPACITOR 10uF 50V
C639 QETN1HM-105Z E CAPACITOR 1uF 50V M
C681 QETN1HM-224Z E CAPACITOR 0.22uF 50V M
C682 QFLC1HJ-823Z M CAPACITOR 0.082uF 50V J
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C729 QETN1EM-476Z E CAPACITOR 47uF 25V M
C738 QETN1HM-106Z E CAPACITOR 10uF 50V M
C920 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C921 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C922 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C924 QEKC1HM-226Z E CAPACITOR 22uF 50V M
C925 QETN1HM-226Z E CAPACITOR 22uF 50V M
C926 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K
C930 QETN1HM-106Z E CAPACITOR 10uF 50V M
C931 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C932 QCBB1HK-331Y C CAPACITOR 330pF 50V K
C933 QCBB1HK-331Y C CAPACITOR 330pF 50V K
R215 QRE141J-223Y C RESISTOR 22k
R216 QRE141J-223Y C RESISTOR 22k
R221 QRE141J-102Y C RESISTOR 1k
R222 QRE141J-102Y C RESISTOR 1k
R223 QRE141J-102Y C RESISTOR 1k
R224 QRE141J-681Y C RESISTOR 680
R225 QRE141J-472Y C RESISTOR 4.7k
R226 QRE141J-272Y C RESISTOR 2.7k
R227 QRE141J-681Y C RESISTOR 680
R271 QRE141J-102Y C RESISTOR 1k
R601 QRJ146J-101X UNF C RESISTOR 100
R602 QRJ146J-101X UNF C RESISTOR 100
R603 QRE141J-473Y C RESISTOR 47k
R604 QRE141J-473Y C RESISTOR 47k
R605 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J
R606 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J
R607 QRE141J-563Y C RESISTOR 56k
R608 QRE141J-563Y C RESISTOR 56k
R613 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R614 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R615 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R616 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R617 QRE141J-221Y C RESISTOR 220
R618 QRE141J-221Y C RESISTOR 220
R619 QRE141J-222Y C RESISTOR 2.2k
R620 QRE141J-222Y C RESISTOR 2.2k
R621 QRE141J-473Y C RESISTOR 47k
R623 QRE141J-473Y C RESISTOR 47k
R650 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J
R652 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J
R654 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J
R656 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J
R666 QRE141J-333Y C RESISTOR 33k
R667 QRE141J-103Y C RESISTOR 10k
R668 QRE141J-103Y C RESISTOR 10k
R674 QRJ146J-100X UNF C RESISTOR 10
R675 QRE141J-102Y C RESISTOR 1k
R676 QRE141J-102Y C RESISTOR 1k
R681 QRE141J-153Y C RESISTOR 15k
R682 QRE141J-203Y C RESISTOR 20k
R683 QRE141J-473Y C RESISTOR 47k
R684 QRE141J-103Y C RESISTOR 10k
R685 QRE141J-475Y C RESISTOR 4.7M
R686 QRE141J-392Y C RESISTOR 3.9k
R687 QRE141J-105Y C RESISTOR 1M
R688 QRE141J-823Y C RESISTOR 82k
R689 QRE141J-823Y C RESISTOR 82k
R725 QRE141J-823Y C RESISTOR 82k
R726 QRE141J-104Y C RESISTOR 100k
R727 QRE141J-104Y C RESISTOR 100k
R728 QRE141J-103Y C RESISTOR 10k
Part No. Part Name Description Local
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
1/4W J
1/4W J
1/4W J
1/4W J
3-10
Page 11
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R729 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
Ω
R730 QRE141J-103Y C RESISTOR 10k
R743 QRE141J-103Y C RESISTOR 10k
R744 QRE141J-104Y C RESISTOR 100k
R792 QRE141J-823Y C RESISTOR 82k
R793 QRE141J-823Y C RESISTOR 82k
R920 QRE141J-102Y C RESISTOR 1k
1/4W J
Ω
1/4W J
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
1/4W J
R920 QRE141J-202Y C RESISTOR 2kΩ 1/4W J
R920 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R921 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R921 QRE141J-122Y C RESISTOR 1.2kΩ 1/4W J
R923 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
Ω
R924 QRE141J-181Y C RESISTOR 180
R926 QRE141J-102Y C RESISTOR 1k
R927 QRE141J-102Y C RESISTOR 1k
R928 QRE141J-102Y C RESISTOR 1k
R929 QRE141J-103Y C RESISTOR 10k
R930 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
1/4W J
L601 QQLZ035-R39 COIL 0.39uH
L602 QQLZ035-R39 COIL 0.39uH
L920 QQR0621-001Z COIL
L921 QQR0621-001Z COIL
L923 QQR0621-001Z COIL
CN201 QGB2510J1-09 CONNECTOR B-B (1-9)
CN202 QGB2510J1-07 CONNECTOR B-B (1-7)
CN203 QGB2510J1-09 CONNECTOR B-B (1-9)
CN204 QGB2510K1-06 CONNECTOR B-B (1-6)
CN212 QGB2510K1-07 CONNECTOR B-B (1-7)
CN213 QGB2510K1-09 CONNECTOR B-B (1-9)
CN215 QGB2510K1-08 CONNECTOR B-B (1-8)
CN890 QGF1205F1-11 CONNECTOR FFC/FPC (1-11)
EP201 QNZ0136-001Z EARTH PLATE
FW109 QJK015-062924-E WIRE SOCKET
FW208 QUM156-08DGZ4-E FLAT WIRE
FW241 QUM153-18DGZ4-E FLAT WIRE
FW601 QUM154-10Z4Z4-E FLAT WIRE
JS920 QSW0857-001 ROTARY SW
PP201 QZW0112-001 WIRE CLAMP
S920 QSW1121-001Z PUSH SW I.M
SP920 GV40205-004A IC HOLDER
Input board
Block No. [0][2]
Symbol No.
IC100 MM1623XF-X IC
IC120 RC4558D-X IC
IC300 HA12237F IC
IC410 LB1641 IC
IC414 KTC3200/GL/-T TRANSISTOR
IC420 KIA278R33PI REGULATOR IC
IC421 KIA278R05PI TRANSISTOR
IC460 LC75342M-X IC
IC520 RC4558D-X IC
Part No. Part Name Description Local
JE3US
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3UX
JE3UE,
JE3UW
,JE3UY
JE3UE
JE31U
G, JE 3 1
UX,JE3
UG,JE3
UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
IC521 RC4558D-X IC
IC801 BR24L02F-W-X IC
IC810 UPD784217AGF551 IC
IC815 SN74AHCT08NS-X IC
Q120 KTC3875/YG/-X SI TRANSISTOR
Q121 KTC3875/YG/-X SI TRANSISTOR
Q122 KTC3875/YG/-X SI TRANSISTOR
Q123 KTC3875/YG/-X SI TRANSISTOR
Q124 KTC3875/YG/-X SI TRANSISTOR
Q125 KTC3875/YG/-X SI TRANSISTOR
Q126 KTC3875/YG/-X SI TRANSISTOR
Q127 KTC3875/YG/-X SI TRANSISTOR
Q128 KTC3875/YG/-X SI TRANSISTOR
Q129 KTC3875/YG/-X SI TRANSISTOR
Q306 KRC107M-T DIGI TRANSISTOR
Q307 KRC107M-T DIGI TRANSISTOR
Q309 KTA1271/OY/-T TRANSISTOR
Q310 KTC3199/GL/-T TRANSISTOR
Q311 2SB562/C/-T TRANSISTOR
Q312 KTC3199/GL/-T TRANSISTOR
Q313 2SB562/C/-T TRANSISTOR
Q316 2SC2001/K/-T TRANSISTOR
Q320 2SC2001/K/-T TRANSISTOR
Q360 KRC103M-T TRANSISTOR
Q362 KRA111M-T DIGI TRANSISTOR
Q363 2SC3576-JVC-T TRANSISTOR
Q364 2SC3576-JVC-T TRANSISTOR
Q365 2SC3576-JVC-T TRANSISTOR
Q366 2SC3576-JVC-T TRANSISTOR
Q410 KRA104S-X DIGI TRANSISTOR
Q415 KRC104S-X TRANSISTOR
Q417 KRA111S-X D. TRANSISTOR
Q420 2SD2114K/VW/-X TRANSISTOR
Q421 2SD2114K/VW/-X TRANSISTOR
Q430 KRC111S-X TRANSISTOR
Q431 KTC3875/YG/-X SI TRANSISTOR
Q520 KRA104S-X DIGI TRANSISTOR
Q521 2SD2114K/VW/-X TRANSISTOR
Q585 KRA104S-X DIGI TRANSISTOR
Q586 2SD2114K/VW/-X TRANSISTOR
Q587 2SD2114K/VW/-X TRANSISTOR
Q801 KRA111S-X D. TRANSISTOR
Q802 KRC102S-X DIGI TRANSISTOR
D303 1N4003S-T5 SI DIODE
D304 1N4003S-T5 SI DIODE
D374 1SS133-T2 SI DIODE
D375 1N4003S-T5 SI DIODE
D384 MTZJ3.9B-T2 Z DIODE
D385 MTZJ3.9B-T2 Z DIODE
D410 MTZJ4.7C-T2 Z DIODE
D414 MTZJ6.2B-T2 Z DIODE
D415 MTZJ5.6B-T2 Z DIODE
D420 MTZJ3.9B-T2 Z DIODE
D421 1N4003S-T5 SI DIODE
D422 1N4003S-T5 SI DIODE
D423 MTZJ5.6C-T2 Z DIODE
D430 1SS133-T2 SI DIODE
D444 1N4003S-T5 SI DIODE
D454 1SS133-T2 SI DIODE
D455 1SS133-T2 SI DIODE
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
3-11
Page 12
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
D551 1SS133-T2 SI DIODE
D801 1SS244-T2 SI DIODE
D802 1SS133-T2 SI DIODE
D803 1SS244-T2 SI DIODE
D804 MTZJ4.3B-T2 Z DIODE
D805 1SS133-T2 SI DIODE
D807 1SS133-T2 SI DIODE
D808 1N4003S-T5 SI DIODE
D809 1SS133-T2 SI DIODE
D862 1SS133-T2 SI DIODE
C120 QFZ0225-473Z MYLAR CAPA 0.047uF
C121 QFZ0225-473Z MYLAR CAPA 0.047uF
C122 QFZ0225-473Z MYLAR CAPA 0.047uF
C123 QFZ0225-473Z MYLAR CAPA 0.047uF
C124 QTE1C06-476Z E CAPACITOR 47uF 16V
C125 QTE1C06-476Z E CAPACITOR 47uF 16V
C300 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C301 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C302 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C303 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C306 QETN1HM-226Z E CAPACITOR 22uF 50V M
C307 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C308 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C309 QETN1CM-107Z E CAPACITOR 100uF 16V M
C311 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C313 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C314 QETN1CM-107Z E CAPACITOR 100uF 16V M
C315 QDXB1CM-152Y C CAPACITOR 1500pF 16V M
C318 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K
C321 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C322 QETN1CM-107Z E CAPACITOR 100uF 16V M
C323 QFG32AJ-223Z PP CAPACITOR 0.022uF 100V J
C324 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J
C325 QCBB1HK-331Y C CAPACITOR 330pF 50V K
C326 QCBB1HK-331Y C CAPACITOR 330pF 50V K
C330 QETN1AM-227Z E CAPACITOR 220uF 10V M
C331 QETN1HM-105Z E CAPACITOR 1uF 50V M
C332 QETN1HM-106Z E CAPACITOR 10uF 50V M
C334 NCS21HJ-821X C CAPACITOR 820pF 50V J
C335 QCBB1HK-271Y C CAPACITOR 270pF 50V K
C336 QCBB1HK-391Y C CAPACITOR 390pF 50V K
C337 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C338 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J
C339 NCS21HJ-821X C CAPACITOR 820pF 50V J
C340 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J
C341 QCBB1HK-271Y C CAPACITOR 270pF 50V K
C343 QCBB1HK-391Y C CAPACITOR 390pF 50V K
C344 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C345 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J
C346 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J
C350 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C351 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C352 QETN1HM-476Z E CAPACITOR 47uF 50V M
C353 QETN1HM-105Z E CAPACITOR 1uF 50V M
C354 QETN1HM-476Z E CAPACITOR 47uF 50V M
C355 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C356 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C357 NCS21HJ-821X C CAPACITOR 820pF 50V J
C358 NCS21HJ-821X C CAPACITOR 820pF 50V J
C359 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C360 QCBB1HK-151Y C CAPACITOR 150pF 50V K
C361 QCBB1HK-151Y C CAPACITOR 150pF 50V K
C367 QETN1CM-107Z E CAPACITOR 100uF 16V M
C368 QDXB1CM-682Y C CAPACITOR 6800pF 16V M
JE3UE
JE3UE
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UW
,JE3UX
,JE3UY
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UW
,JE3UX
,JE3UY
JE3UE
JE3UE
C369 QDXB1CM-682Y C CAPACITOR 6800pF 16V M
C370 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C371 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C372 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C373 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C374 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C375 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C376 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C377 QETN1AM-477Z E CAPACITOR 470uF 10V M
C378 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K
C379 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C380 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C397 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C406 QTE1V06-106Z E CAPACITOR 10uF 35V
C407 QTE1V06-106Z E CAPACITOR 10uF 35V
C408 NDC31HJ-101X C CAPACITOR 100pF 50V J
C409 NDC31HJ-101X C CAPACITOR 100pF 50V J
C411 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C412 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C413 QETN1AM-477Z E CAPACITOR 470uF 10V M
C414 QTE1C06-476Z E CAPACITOR 47uF 16V
C415 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C420 QETN1EM-476Z E CAPACITOR 47uF 25V M
C421 QETN1HM-106Z E CAPACITOR 10uF 50V M
C422 QETN1HM-106Z E CAPACITOR 10uF 50V M
C423 QETN1CM-477Z E CAPACITOR 470uF 16V M
C430 QETN1HM-105Z E CAPACITOR 1uF 50V M
C431 QETN1HM-105Z E CAPACITOR 1uF 50V M
C432 NDC31HJ-330X C CAPACITOR 33pF 50V J
C433 QETN1HM-105Z E CAPACITOR 1uF 50V M
C436 QTE1V06-106Z E CAPACITOR 10uF 35V
C437 QTE1V06-106Z E CAPACITOR 10uF 35V
C445 QETN1HM-105Z E CAPACITOR 1uF 50V M
C446 QCBB1HK-331Y C CAPACITOR 330pF 50V K
C447 QCBB1HK-331Y C CAPACITOR 330pF 50V K
C454 NCB31HK-221X C CAPACITOR 220pF 50V K
C455 NCB31HK-221X C CAPACITOR 220pF 50V K
C456 NCB31HK-222X C CAPACITOR 2200pF 50V K
C460 NCB31HK-471X C CAPACITOR 470pF 50V K
C461 NCB31HK-471X C CAPACITOR 470pF 50V K
C462 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C463 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C464 QETN1HM-106Z E CAPACITOR 10uF 50V M
C465 QETN1HM-106Z E CAPACITOR 10uF 50V M
C466 QETN1HM-106Z E CAPACITOR 10uF 50V M
C467 QETN1HM-106Z E CAPACITOR 10uF 50V M
C468 QTE1H28-106Z E CAPACITOR 10uF 50V
C469 QTE1H28-106Z E CAPACITOR 10uF 50V
C470 QTE1H28-106Z E CAPACITOR 10uF 50V
C471 QTE1H28-106Z E CAPACITOR 10uF 50V
C472 QFLC1HJ-272Z M CAPACITOR 2700pF 50V J
C473 QFLC1HJ-272Z M CAPACITOR 2700pF 50V J
C474 QTE1V06-106Z E CAPACITOR 10uF 35V
C475 QTE1V06-106Z E CAPACITOR 10uF 35V
C476 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C477 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C478 NCB31HK-471X C CAPACITOR 470pF 50V K
C479 QTE1C28-107Z E CAPACITOR 100uF 16V
C508 QETN1AM-337Z E CAPACITOR 330uF 10V M
C526 QETN1HM-106Z E CAPACITOR 10uF 50V M
C527 NCB21HK-683X C CAPACITOR 0.068uF 50V K
C528 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
JE3UE
JE3UE
JE3UE
JE3UE
JE3UE
JE3UE
JE3UE
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
3-12
Page 13
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C529 NCB31HK-271X C CAPACITOR 270pF 50V K
C532 QETN1EM-476Z E CAPACITOR 47uF 25V M
C533 QETN1EM-476Z E CAPACITOR 47uF 25V M
C555 QETN1HM-105Z E CAPACITOR 1uF 50V M
C560 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C587 QETN1HM-106Z E CAPACITOR 10uF 50V M
C800 QETN1CM-107Z E CAPACITOR 100uF 16V M
C801 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C802 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C803 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C804 QETN1AM-477Z E CAPACITOR 470uF 10V M
C805 QETN0JM-227Z E CAPACITOR 220uF 6.3V M
C806 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C807 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C808 NDC31HJ-270X C CAPACITOR 27pF 50V J
C809 NDC31HJ-300X C CAPACITOR 30pF 50V J
C810 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C814 QETN1CM-107Z E CAPACITOR 100uF 16V M
C815 QETN1HM-106Z E CAPACITOR 10uF 50V M
C816 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C817 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C1000 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C1004 QETN1HM-105Z E CAPACITOR 1uF 50V M
C1005 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1006 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C1007 QETN1AM-477Z E CAPACITOR 470uF 10V M
C1008 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C1009 QETN1AM-477Z E CAPACITOR 470uF 10V M
C1010 QETN1HM-105Z E CAPACITOR 1uF 50V M
C1011 QCBB1HK-181Y C CAPACITOR 180pF 50V K
C1012 QCBB1HK-181Y C CAPACITOR 180pF 50V K
C1013 QETN1AM-477Z E CAPACITOR 470uF 10V M
R120 NRSA63J-434X MG RESISTOR 430k
R121 NRSA63J-394X MG RESISTOR 390k
R122 QRE141J-272Y C RESISTOR 2.7k
R123 QRE141J-242Y C RESISTOR 2.4k
R124 QRE141J-622Y C RESISTOR 6.2k
R125 QRE141J-562Y C RESISTOR 5.6k
R126 NRSA63J-133X MG RESISTOR 13k
R127 NRSA63J-133X MG RESISTOR 13k
R128 NRSA63J-223X MG RESISTOR 22k
R129 NRSA63J-223X MG RESISTOR 22k
R130 QRE141J-682Y C RESISTOR 6.8k
R131 QRE141J-682Y C RESISTOR 6.8k
R132 NRSA63J-101X MG RESISTOR 100
R133 NRSA63J-101X MG RESISTOR 100
R134 NRSA63J-101X MG RESISTOR 100
R135 NRSA63J-101X MG RESISTOR 100
R136 NRSA63J-224X MG RESISTOR 220k
R137 NRSA63J-224X MG RESISTOR 220k
R138 NRSA63J-243X MG RESISTOR 24k
R139 NRSA63J-243X MG RESISTOR 24k
R140 NRSA63J-223X MG RESISTOR 22k
R141 NRSA63J-223X MG RESISTOR 22k
R142 NRSA63J-563X MG RESISTOR 56k
R143 NRSA63J-563X MG RESISTOR 56k
Ω
1/16W J
Ω
1/16W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/4W J
Ω
1/4W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE3UE,
JE3UG,
JE3UN
,JE3US
,JE3U
W,J E3
UX,JE3
UY
R144 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
Ω
R145 NRSA63J-243X MG RESISTOR 24k
R300 QRE141J-223Y C RESISTOR 22k
R301 QRE141J-103Y C RESISTOR 10k
R302 QRE141J-273Y C RESISTOR 27k
R303 QRE141J-243Y C RESISTOR 24k
R304 QRE141J-103Y C RESISTOR 10k
R305 QRE141J-393Y C RESISTOR 39k
R306 QRE141J-103Y C RESISTOR 10k
R307 QRE141J-332Y C RESISTOR 3.3k
R309 QRE141J-102Y C RESISTOR 1k
R310 QRE141J-472Y C RESISTOR 4.7k
R311 QRE141J-151Y C RESISTOR 150
R312 QRE141J-472Y C RESISTOR 4.7k
R313 QRE141J-151Y C RESISTOR 150
R315 QRE141J-153Y C RESISTOR 15k
R316 QRE141J-101Y C RESISTOR 100
R317 QRZ9005-100X FUSI RESISTOR 10
1/16W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
1/4W J
Ω
Ω
1/4W J
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
R318 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J
R319 QRJ146J-4R7X UNF C RESISTOR 4.7Ω 1/4W J
R320 QRE141J-222Y C RESISTOR 2.2k
R324 QRE141J-474Y C RESISTOR 470k
R325 QRE141J-153Y C RESISTOR 15k
R326 QRE141J-153Y C RESISTOR 15k
R330 QRE141J-101Y C RESISTOR 100
R332 QRE141J-104Y C RESISTOR 100k
R333 QRE141J-223Y C RESISTOR 22k
R335 QRE141J-273Y C RESISTOR 27k
R336 QRE141J-273Y C RESISTOR 27k
R337 QRE141J-113Y C RESISTOR 11k
R338 QRE141J-222Y C RESISTOR 2.2k
R339 QRE141J-512Y C RESISTOR 5.1k
R340 QRE141J-512Y C RESISTOR 5.1k
R341 QRE141J-273Y C RESISTOR 27k
R343 QRE141J-273Y C RESISTOR 27k
R344 QRE141J-113Y C RESISTOR 11k
R345 QRE141J-222Y C RESISTOR 2.2k
R346 QRE141J-512Y C RESISTOR 5.1k
R347 QRE141J-512Y C RESISTOR 5.1k
R359 QRE141J-102Y C RESISTOR 1k
R360 QRE141J-223Y C RESISTOR 22k
R361 QRE141J-222Y C RESISTOR 2.2k
R362 QRE141J-222Y C RESISTOR 2.2k
R363 QRE141J-472Y C RESISTOR 4.7k
R364 QRE141J-472Y C RESISTOR 4.7k
R365 QRE141J-472Y C RESISTOR 4.7k
R366 QRE141J-472Y C RESISTOR 4.7k
R367 QRE141J-221Y C RESISTOR 220
R368 QRE141J-123Y C RESISTOR 12k
R369 QRE141J-123Y C RESISTOR 12k
R370 QRE141J-102Y C RESISTOR 1k
R373 QRE141J-104Y C RESISTOR 100k
R374 QRE141J-104Y C RESISTOR 100k
R377 QRE141J-102Y C RESISTOR 1k
R378 QRE141J-102Y C RESISTOR 1k
R379 QRE141J-102Y C RESISTOR 1k
R380 QRE141J-102Y C RESISTOR 1k
R398 NRSA63J-222X MG RESISTOR 2.2k
R403 NRSA63J-122X MG RESISTOR 1.2k
R405 NRSA63J-222X MG RESISTOR 2.2k
R406 NRSA63J-222X MG RESISTOR 2.2k
R408 NRSA63J-222X MG RESISTOR 2.2k
R409 NRSA63J-122X MG RESISTOR 1.2k
R411 NRSA63J-122X MG RESISTOR 1.2k
R412 NRSA63J-122X MG RESISTOR 1.2k
R430 QRZ9006-4R7X F.RESISTOR 4.7
R451 NRSA63J-472X MG RESISTOR 4.7k
R452 NRSA63J-472X MG RESISTOR 4.7k
R462 NRSA63J-823X MG RESISTOR 82k
R463 NRSA63J-823X MG RESISTOR 82k
R464 NRSA63J-102X MG RESISTOR 1k
R465 NRSA63J-102X MG RESISTOR 1k
R466 NRSA63J-472X MG RESISTOR 4.7k
R467 NRSA63J-103X MG RESISTOR 10k
R468 NRSA63J-472X MG RESISTOR 4.7k
R469 NRSA63J-103X MG RESISTOR 10k
R470 NRSA63J-103X MG RESISTOR 10k
R471 NRSA63J-104X MG RESISTOR 100k
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/4W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
3-13
Page 14
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R472 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
Ω
R473 NRSA63J-682X MG RESISTOR 6.8k
R474 NRSA63J-225X MG RESISTOR 2.2M
R475 NRSA63J-473X MG RESISTOR 47k
R480 NRSA63J-153X MG RESISTOR 15k
R481 NRSA63J-153X MG RESISTOR 15k
R482 NRSA63J-203X MG RESISTOR 20k
R483 NRSA63J-203X MG RESISTOR 20k
R484 NRSA63J-362X MG RESISTOR 3.6k
R485 NRSA63J-362X MG RESISTOR 3.6k
R486 NRSA63J-102X MG RESISTOR 1k
R487 NRSA63J-102X MG RESISTOR 1k
R488 NRSA63J-102X MG RESISTOR 1k
R489 NRSA63J-103X MG RESISTOR 10k
R520 NRSA63J-102X MG RESISTOR 1k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
R521 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R522 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R523 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R524 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R525 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R526 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R527 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R528 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R529 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
R530 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R531 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R533 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R534 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
Ω
R535 NRSA63J-303X MG RESISTOR 30k
R551 NRSA63J-183X MG RESISTOR 18k
R552 NRSA63J-183X MG RESISTOR 18k
R553 NRSA63J-132X MG RESISTOR 1.3k
R566 NRSA63J-753X MG RESISTOR 75k
R571 NRSA63J-332X MG RESISTOR 3.3k
R585 NRSA63J-103X MG RESISTOR 10k
R586 NRSA63J-103X MG RESISTOR 10k
R587 NRSA63J-102X MG RESISTOR 1k
R588 QRE141J-513Y C RESISTOR 51k
R589 QRE141J-513Y C RESISTOR 51k
R800 NRSA63J-102X MG RESISTOR 1k
R801 NRSA63J-102X MG RESISTOR 1k
R802 NRSA63J-222X MG RESISTOR 2.2k
R803 NRSA63J-102X MG RESISTOR 1k
R804 NRSA63J-103X MG RESISTOR 10k
R805 NRSA63J-331X MG RESISTOR 330
R810 NRSA63J-102X MG RESISTOR 1k
R811 NRSA63J-103X MG RESISTOR 10k
R812 NRSA63J-102X MG RESISTOR 1k
R813 NRSA63J-103X MG RESISTOR 10k
R814 NRSA63J-102X MG RESISTOR 1k
R815 NRSA63J-103X MG RESISTOR 10k
R816 NRSA63J-102X MG RESISTOR 1k
R817 NRSA63J-103X MG RESISTOR 10k
R818 NRSA63J-102X MG RESISTOR 1k
R819 NRSA63J-472X MG RESISTOR 4.7k
R820 NRSA63J-102X MG RESISTOR 1k
R821 NRSA63J-472X MG RESISTOR 4.7k
R822 NRSA63J-102X MG RESISTOR 1k
R823 NRSA63J-103X MG RESISTOR 10k
R824 NRSA63J-102X MG RESISTOR 1k
R825 NRSA63J-103X MG RESISTOR 10k
R826 NRSA63J-103X MG RESISTOR 10k
R827 NRSA63J-102X MG RESISTOR 1k
R828 NRSA63J-102X MG RESISTOR 1k
R829 NRSA63J-101X MG RESISTOR 100
R830 NRSA63J-103X MG RESISTOR 10k
R831 NRSA63J-101X MG RESISTOR 100
R832 NRSA63J-102X MG RESISTOR 1k
R833 NRSA63J-103X MG RESISTOR 10k
R834 NRSA63J-102X MG RESISTOR 1k
R835 NRSA63J-102X MG RESISTOR 1k
R836 NRSA63J-102X MG RESISTOR 1k
R837 NRSA63J-102X MG RESISTOR 1k
R838 NRSA63J-102X MG RESISTOR 1k
R839 NRSA63J-102X MG RESISTOR 1k
R840 NRSA63J-102X MG RESISTOR 1k
R841 NRSA63J-103X MG RESISTOR 10k
R842 NRSA63J-102X MG RESISTOR 1k
R843 NRSA63J-102X MG RESISTOR 1k
R844 NRSA63J-102X MG RESISTOR 1k
R846 NRSA63J-102X MG RESISTOR 1k
R847 NRSA63J-103X MG RESISTOR 10k
R853 NRSA63J-103X MG RESISTOR 10k
R856 NRSA63J-102X MG RESISTOR 1k
R857 NRSA63J-102X MG RESISTOR 1k
R858 NRSA63J-102X MG RESISTOR 1k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/4W J
Ω
1/4W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
3-14
Page 15
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R862 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
Ω
R863 NRSA63J-103X MG RESISTOR 10k
R864 NRSA63J-102X MG RESISTOR 1k
R866 NRSA63J-102X MG RESISTOR 1k
R867 NRSA63J-102X MG RESISTOR 1k
R868 NRSA63J-103X MG RESISTOR 10k
R869 NRSA63J-103X MG RESISTOR 10k
R871 NRSA63J-102X MG RESISTOR 1k
R872 NRSA63J-102X MG RESISTOR 1k
R873 NRSA63J-102X MG RESISTOR 1k
R874 NRSA63J-102X MG RESISTOR 1k
R876 NRSA63J-102X MG RESISTOR 1k
R878 NRSA63J-102X MG RESISTOR 1k
R879 NRSA63J-102X MG RESISTOR 1k
R882 NRSA63J-104X MG RESISTOR 100k
R883 NRSA63J-470X MG RESISTOR 47
R886 NRSA63J-102X MG RESISTOR 1k
R887 NRSA63J-102X MG RESISTOR 1k
R892 NRSA63J-102X MG RESISTOR 1k
R894 NRSA63J-102X MG RESISTOR 1k
R895 NRSA63J-102X MG RESISTOR 1k
R896 NRSA63J-103X MG RESISTOR 10k
R897 NRSA63J-102X MG RESISTOR 1k
R898 NRSA63J-102X MG RESISTOR 1k
R899 NRSA63J-101X MG RESISTOR 100
R900 NRSA63J-472X MG RESISTOR 4.7k
R901 NRSA63J-102X MG RESISTOR 1k
R902 NRSA63J-103X MG RESISTOR 10k
R903 NRSA63J-102X MG RESISTOR 1k
R904 NRSA63J-103X MG RESISTOR 10k
R905 NRSA63J-102X MG RESISTOR 1k
R906 NRSA63J-103X MG RESISTOR 10k
R907 NRSA63J-102X MG RESISTOR 1k
R908 NRSA63J-103X MG RESISTOR 10k
R1003 QRE141J-331Y C RESISTOR 330
R1004 QRE141J-331Y C RESISTOR 330
R1009 QRE141J-331Y C RESISTOR 330
R1010 QRE141J-331Y C RESISTOR 330
R1011 QRE141J-750Y C RESISTOR 75
R1012 QRE141J-750Y C RESISTOR 75
R1013 QRE141J-750Y C RESISTOR 75
VR320 QVP0004-203Z TRIM RESISTOR 20k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
L317 QQL244K-100Z COIL 10uH K
L320 QQR1118-002 OSC COIL(BIAS)
CN11 QGF1036C1-05 CONNECTOR FFC/FPC (1-5)
CN21 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)
CN211 QGB2510K1-09 CONNECTOR B-B (1-9)
CN216 QGB2510J1-11 CONNECTOR B-B (1-11)
CN220 QGD2504C1-03Z CONNECTOR (1-3)
CN221 QGD2504C1-03Z CONNECTOR (1-3)
CN301 QGA2001C1-07 CONNECTOR W-B (1-7)
CN302 QGA2001C1-03 CONNECTOR W-B (1-3)
CN303 QGF1205C1-13 CONNECTOR FFC/FPC (1-13)
CN410 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)
CN420 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)
CN454 QGA2501C1-03 CONNECTOR W-B (1-3)
CN511 QGF1036C1-19 CONNECTOR FFC/FPC (1-19)
CN513 QGF1036C1-17 CONNECTOR FFC/FPC (1-17)
CN860 QGF1205C1-16 CONNECTOR FFC/FPC (1-16)
CN880 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)
HS420 GV40577-001A HEAT SINK
HS421 LV40057-002A HEAT SINK
J454 QNN0420-001 SURROUND JACK
J814 GP1FAV30TK0F OPTICAL JACK
J1010 QNN0557-002 PIN JACK
Ω
K403 NRSA63J-0R0X MG RESISTOR 0
K404 NRSA63J-0R0X MG RESISTOR 0
K405 NRSA63J-0R0X MG RESISTOR 0
K406 NRSA63J-0R0X MG RESISTOR 0
K407 NRSA63J-0R0X MG RESISTOR 0
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
JE3UE,
JE3UW
,JE3UY
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
K408 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
Ω
K409 NRSA63J-0R0X MG RESISTOR 0
K410 NRSA63J-0R0X MG RESISTOR 0
K411 NRSA63J-0R0X MG RESISTOR 0
K412 NRSA63J-0R0X MG RESISTOR 0
K413 NRSA63J-0R0X MG RESISTOR 0
K414 NRSA63J-0R0X MG RESISTOR 0
K416 NRSA63J-0R0X MG RESISTOR 0
K417 NRSA63J-0R0X MG RESISTOR 0
K418 NRSA63J-0R0X MG RESISTOR 0
K419 NRSA63J-0R0X MG RESISTOR 0
K420 NRSA63J-0R0X MG RESISTOR 0
K421 NRSA63J-0R0X MG RESISTOR 0
K422 NRSA63J-0R0X MG RESISTOR 0
K423 NRSA63J-0R0X MG RESISTOR 0
K424 NRSA63J-0R0X MG RESISTOR 0
K425 NRSA63J-0R0X MG RESISTOR 0
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
PP301 QZW0112-001 WIRE CLAMP
PP310 QNZ0104-001 POST PIN
S1001 QSW0454-001 SW
X801 QAX0724-001Z CRYSTAL 12.000000MHz
Front board
Block No. [0][3]
Symbol No.
IC970 BU9253AS IC
IC971 RC4580IP IC
Q190 2SC3576-JVC-T TRANSISTOR
Q191 2SC3576-JVC-T TRANSISTOR
Q192 2SC3576-JVC-T TRANSISTOR
Q193 2SC3576-JVC-T TRANSISTOR
Q194 KRA111M-T DIGI TRANSISTOR
Q195 KTC3199/GL/-T TRANSISTOR
Q933 KRC102M-T DIGI TRANSISTOR
Q934 KRC102M-T DIGI TRANSISTOR
Q935 KRC102M-T DIGI TRANSISTOR
Q936 KRC102M-T DIGI TRANSISTOR
Q937 KRC102M-T DIGI TRANSISTOR
Q938 KRC102M-T DIGI TRANSISTOR
Q987 2SC3576-JVC-T TRANSISTOR
Q2010 KTC2026/Y/ TRANSISTOR
Q2011 KTC3203/OY/-T TRANSISTOR
D160 1SS133-T2 SI DIODE
D161 1SS133-T2 SI DIODE
D162 1SS133-T2 SI DIODE
D180 MTZJ5.6B-T2 Z DIODE
D933 SLR-343VC/NPQ-T LED
D934 SLI-343URC-W-T LED
D935 SLI-343URC-W-T LED
D936 SLI-343URC-W-T LED
D937 SLI-343URC-W-T LED
D938 SLI-343URC-W-T LED
D957 1SS133-T2 SI DIODE
Part No. Part Name Description Local
JE3UE
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE3UE,
JE3UW
,JE3UY
3-15
Page 16
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
D958 1SS133-T2 SI DIODE
D971 MTZJ5.1B-T2 Z DIODE
D991 MTZJ2.4B-T2 Z DIODE
D992 1SS133-T2 SI DIODE
D2010 1N5402M-20 DIODE
D2011 1N5402M-20 DIODE
D2012 1N5402M-20 DIODE
D2013 1N5402M-20 DIODE
D2015 1N4003S-T5 SI DIODE
D2016 1N4003S-T5 SI DIODE
D2017 1N4003S-T5 SI DIODE
D2018 MTZJ15B-T2 Z DIODE
D2019 MTZJ22B-T2 Z DIODE
D2020 MTZJ6.8B-T2 Z DIODE
C160 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C162 QCBB1HK-332Y C CAPACITOR 3300pF 50V K
C162 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C163 QCBB1HK-332Y C CAPACITOR 3300pF 50V K
C163 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C164 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C165 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C171 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C180 QETN1CM-107Z E CAPACITOR 100uF 16V M
C957 QCBB1HK-222Y C CAPACITOR 2200pF 50V K
C970 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C972 QETN1CM-107Z E CAPACITOR 100uF 16V M
C973 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
JE3UE,
JE3UW
,JE3UY
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE3UE
JE3UE
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UW
,JE3UX
,JE3UY
JE3UE
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UW
,JE3UX
,JE3UY
JE3UE
JE3UE,
JE3UW
,JE3UY
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
C974 QDXB1CM-472Y C CAPACITOR 4700pF 16V M
C975 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C976 QEKC1CM-226Z E CAPACITOR 22uF 16V M
C977 QEKC1HM-474Z E CAPACITOR 0.47uF 50V M
C978 QDXB1CM-332Y C CAPACITOR 3300pF 16V M
C979 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C980 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C981 QEKC1HM-224Z E CAPACITOR 0.22uF 50V M
C982 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C983 QCBB1HK-151Y C CAPACITOR 150pF 50V K
C984 QCBB1HK-331Y C CAPACITOR 330pF 50V K
C985 QCBB1HK-151Y C CAPACITOR 150pF 50V K
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
3-16
Page 17
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C986 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C987 QETN1CM-107Z E CAPACITOR 100uF 16V M
C988 QEKC1AM-227Z E CAPACITOR 220uF 10V M
C989 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C990 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C991 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C992 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C993 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C995 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C996 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C997 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C998 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C999 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C2010 QETN1JM-107Z E CAPACITOR 100uF 63V M
C2011 QETN2AM-476Z E CAPACITOR 47uF 100V M
C2012 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2013 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2014 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M
C2015 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2017 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K
C2018 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K
C2019 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C2020 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
R160 QRL01DJ-331X OMF RESISTOR 330Ω 1W J
R161 QRL01DJ-331X OMF RESISTOR 330Ω 1W J
R162 QRL01DJ-331X OMF RESISTOR 330Ω 1W J
R163 QRZ9006-4R7X F.RESISTOR 4.7
Ω
1/4W J
R164 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J
R165 QRE141J-153Y C RESISTOR 15kΩ 1/4W J
Ω
R166 QRE141J-153Y C RESISTOR 15k
R167 QRL01DJ-471X OMF RESISTOR 470Ω 1W J
R168 QRE141J-822Y C RESISTOR 8.2k
R169 QRE141J-822Y C RESISTOR 8.2k
R177 QRL01DJ-471X OMF RESISTOR 470Ω 1W J
R180 QRE141J-103Y C RESISTOR 10k
R190 QRE141J-472Y C RESISTOR 4.7k
R191 QRE141J-472Y C RESISTOR 4.7k
R192 QRE141J-472Y C RESISTOR 4.7k
R193 QRE141J-472Y C RESISTOR 4.7k
R195 QRE141J-222Y C RESISTOR 2.2k
R933 QRE141J-181Y C RESISTOR 180
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE3UE
JE3UE
R934 QRE141J-271Y C RESISTOR 270Ω 1/4W J
Ω
R935 QRE141J-271Y C RESISTOR 270
R936 QRE141J-271Y C RESISTOR 270
R937 QRE141J-271Y C RESISTOR 270
R938 QRE141J-271Y C RESISTOR 270
R940 QRE141J-102Y C RESISTOR 1k
R941 QRE141J-102Y C RESISTOR 1k
R942 QRE141J-122Y C RESISTOR 1.2k
R943 QRE141J-152Y C RESISTOR 1.5k
R944 QRE141J-222Y C RESISTOR 2.2k
R945 QRE141J-272Y C RESISTOR 2.7k
R946 QRE141J-392Y C RESISTOR 3.9k
R947 QRE141J-562Y C RESISTOR 5.6k
R948 QRE141J-103Y C RESISTOR 10k
R949 QRE141J-183Y C RESISTOR 18k
R950 QRE141J-102Y C RESISTOR 1k
R951 QRE141J-102Y C RESISTOR 1k
R952 QRE141J-122Y C RESISTOR 1.2k
R953 QRE141J-152Y C RESISTOR 1.5k
R954 QRE141J-222Y C RESISTOR 2.2k
R955 QRE141J-272Y C RESISTOR 2.7k
R960 QRE141J-102Y C RESISTOR 1k
R961 QRE141J-102Y C RESISTOR 1k
R962 QRE141J-122Y C RESISTOR 1.2k
R963 QRE141J-152Y C RESISTOR 1.5k
R964 QRE141J-222Y C RESISTOR 2.2k
R965 QRE141J-272Y C RESISTOR 2.7k
R966 QRE141J-392Y C RESISTOR 3.9k
R967 QRE141J-562Y C RESISTOR 5.6k
R969 QRE141J-103Y C RESISTOR 10k
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
Ω
1/4W J
Ω
1/4W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
1/4W J
R970 QRE141J-393Y C RESISTOR 39kΩ 1/4W J
R971 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R972 QRE141J-822Y C RESISTOR 8.2kΩ 1/4W J
R973 QRE141J-203Y C RESISTOR 20kΩ 1/4W J
R974 QRE141J-203Y C RESISTOR 20kΩ 1/4W J
R975 QRE141J-221Y C RESISTOR 220Ω 1/4W J
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
3-17
Page 18
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R981 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R982 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R983 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R984 QRE141J-153Y C RESISTOR 15kΩ 1/4W J
R985 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R986 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R987 QRE141J-561Y C RESISTOR 560Ω 1/4W J
R988 QRE141J-203Y C RESISTOR 20kΩ 1/4W J
R989 QRE141J-510Y C RESISTOR 51Ω 1/4W J
R990 QRE141J-475Y C RESISTOR 4.7MΩ 1/4W J
R991 QRE141J-101Y C RESISTOR 100Ω 1/4W J
R992 QRE141J-152Y C RESISTOR 1.5kΩ 1/4W J
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
R993 QRE141J-391Y C RESISTOR 390Ω 1/4W J
R994 QRE141J-123Y C RESISTOR 12kΩ 1/4W J
R995 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R996 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R997 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R998 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J
R999 QRE141J-152Y C RESISTOR 1.5kΩ 1/4W J
R2010 QRJ146J-4R7X UNF C RESISTOR 4.7Ω 1/4W J
R2011 QRE141J-333Y C RESISTOR 33k
R2012 QRE141J-103Y C RESISTOR 10k
R2016 QRE141J-333Y C RESISTOR 33k
R2017 QRK126J-470X UNF C RESISTOR 47Ω 1/2W J
R2018 QRK126J-470X UNF C RESISTOR 47Ω 1/2W J
Ω
1/4W J
Ω
1/4W J
Ω
1/4W J
VR970 QVQ0299-B54 V RESISTOR
L996 QQL231K-470Y COIL 47uH K
L997 QQL231K-470Y COIL 47uH K
L998 QQR0621-001Z COIL
CN103 QGD2504C1-03Z CONNECTOR (1-3)
CN106 QGD2503F1-03 CONNECTOR (1-3)
CN119 QGA3901F1-06 CONNECTOR W-B (1-6)
CN205 QGB2510J1-08 CONNECTOR B-B (1-8)
CN206 QGB2510K1-11 CONNECTOR B-B (1-11)
CN214 QGB2510J1-06 CONNECTOR B-B (1-6)
CN250 QGA7901C1-02 CONNECTOR W-B (1-2)
CN870 QGF1205C1-16 CONNECTOR FFC/FPC (1-16)
FT111 QNG0003-001Z FUSE CLIP
FT112 QNG0003-001Z FUSE CLIP
FT131 QNG0003-001Z FUSE CLIP
FT132 QNG0003-001Z FUSE CLIP
FT151 QNG0003-001Z FUSE CLIP
FT152 QNG0003-001Z FUSE CLIP
FT521 QNG0003-001Z FUSE CLIP
FT522 QNG0003-001Z FUSE CLIP
FW116 QUM153-29DGZ4-E FLAT WIRE
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G,J E 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
3-18
Page 19
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
FW444 QJP001-033600-E FLAT WIRE
J81 QNB0089-001 SPK.TERMINAL
J970 QNS0236-001 PHONE JACK
J971 QNS0236-001 PHONE JACK
J971 QNS0235-001 PHONE JACK
J995 QNS0237-001 PHONE JACK
RY160 QSK0109-001 RELAY
S500 QSW0812-001 VOLTAGE SWITCH
S939 QSW1121-001Z PUSH SW I.M
S940 QSW1121-001Z PUSH SW I.M
S941 QSW1121-001Z PUSH SW I.M
S942 QSW1121-001Z PUSH SW I.M
S943 QSW1121-001Z PUSH SW I.M
S944 QSW1121-001Z PUSH SW I.M
S945 QSW1121-001Z PUSH SW I.M
S946 QSW1121-001Z PUSH SW I.M
S947 QSW1121-001Z PUSH SW I.M
S948 QSW1121-001Z PUSH SW I.M
S949 QSW1121-001Z PUSH SW I.M
S950 QSW1121-001Z PUSH SW I.M
S951 QSW1121-001Z PUSH SW I.M
S952 QSW1121-001Z PUSH SW I.M
S953 QSW1121-001Z PUSH SW I.M
S954 QSW1121-001Z PUSH SW I.M
S955 QSW1121-001Z PUSH SW I.M
S960 QSW1121-001Z PUSH SW I.M
S961 QSW1121-001Z PUSH SW I.M
S962 QSW1121-001Z PUSH SW I.M
S963 QSW1121-001Z PUSH SW I.M
S964 QSW1121-001Z PUSH SW I.M
S965 QSW1121-001Z PUSH SW I.M
S966 QSW1121-001Z PUSH SW I.M
S967 QSW1121-001Z PUSH SW I.M
DVD module board
Block No. [0][4]
Symbol No.
IC201 LA6502-X IC
IC301 MN2DS0003AA-H IC
IC302 LM1117MP-ADJ-X IC
IC453 S-80827CNNB-W IC
IC505 K4S641632H-UC75 IC
IC509 AT49BV162AT70TI IC (FLASH)
IC701 AK4384VT-X IC
Q101 KTA1001/Y/-X TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 KTA1001/Y/-X TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 UN2119-X TRANSISTOR
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C106 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C107 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C108 NEA70JM-476X E CAPACITOR 47uF 6.3V M
Part No. Part Name Description Local
JE3UE,
JE3UW
,JE3UY
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE31U
G, JE 3 1
UN,JE
31UX,J
E3UG,J
E3UN,
JE3US,
JE3UX
JE3UE,
JE3UW
,JE3UY
C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C205 NCB31HK-271X C CAPACITOR 270pF 50V K
C206 NDC31HJ-151X C CAPACITOR 150pF 50V J
C208 NCB31HK-561X C CAPACITOR 560pF 50V K
C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C212 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C217 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C253 NCB31HK-561X C CAPACITOR 560pF 50V K
C255 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31HK-822X C CAPACITOR 8200pF 50V K
C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C260 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C261 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C262 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C264 NEA70JM-227X E CAPACITOR 220uF 6.3V M
C265 NDC31HJ-221X C CAPACITOR 220pF 50V J
C266 NDC31HJ-221X C CAPACITOR 220pF 50V J
C267 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C301 NEA70GM-227X E CAPACITOR 220uF 4V M
C302 NEA70GM-476X E CAPACITOR 47uF 4V M
C303 NEA70GM-476X E CAPACITOR 47uF 4V M
C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C306 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C307 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C325 NDC31HJ-180X C CAPACITOR 18pF 50V J
C326 NDC31HJ-150X C CAPACITOR 15pF 50V J
C327 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C356 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C359 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C371 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C374 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C391 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C455 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C505 NDC31HJ-330X C CAPACITOR 33pF 50V J
C506 NDC31HJ-330X C CAPACITOR 33pF 50V J
C507 NDC31HJ-330X C CAPACITOR 33pF 50V J
C508 NDC31HJ-330X C CAPACITOR 33pF 50V J
C509 NDC31HJ-330X C CAPACITOR 33pF 50V J
C510 NDC31HJ-330X C CAPACITOR 33pF 50V J
C547 NCB31CK-104X C CAPACITOR 0.1uF 16V K
3-19
Page 20
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C551 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C552 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C553 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C554 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C555 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C556 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C557 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C558 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C559 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C704 NEA70JM-227X E CAPACITOR 220uF 6.3V M
C706 NEA71CM-106X E CAPACITOR 10uF 16V M
C707 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C721 NCB31HK-102X C CAPACITOR 1000pF 50V K
C902 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C903 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C904 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C906 NCB31CK-104X C CAPACITOR 0.1uF 16V K
Ω
R101 NRSA63J-101X MG RESISTOR 100
R102 NRSA63J-101X MG RESISTOR 100
R103 NRSA63J-243X MG RESISTOR 24k
R104 NRSA63J-303X MG RESISTOR 30k
R105 NRS125J-270X MG RESISTOR 27
R106 NRSA63J-2R2X MG RESISTOR 2.2
R107 NRSA63J-101X MG RESISTOR 100
R108 NRSA63J-471X MG RESISTOR 470
R109 NRSA63J-471X MG RESISTOR 470
R110 NRSA63J-0R0X MG RESISTOR 0
R111 NRSA63J-243X MG RESISTOR 24k
R112 NRSA63J-303X MG RESISTOR 30k
R113 NRS125J-270X MG RESISTOR 27
R114 NRSA63J-2R2X MG RESISTOR 2.2
R115 NRSA63J-101X MG RESISTOR 100
R116 NRSA63J-471X MG RESISTOR 470
R117 NRSA63J-331X MG RESISTOR 330
R118 NRSA63J-0R0X MG RESISTOR 0
R119 NRSA63J-0R0X MG RESISTOR 0
R120 NRSA63J-0R0X MG RESISTOR 0
R122 NRSA63J-0R0X MG RESISTOR 0
R123 NRSA63J-0R0X MG RESISTOR 0
R125 NRS125J-1R0X MG RESISTOR 1
R126 NRSA02J-101X MG RESISTOR 100
R128 NRSA63J-0R0X MG RESISTOR 0
R204 NRSA63J-273X MG RESISTOR 27k
R205 NRSA63J-273X MG RESISTOR 27k
R206 NRSA63J-303X MG RESISTOR 30k
R207 NRSA63J-473X MG RESISTOR 47k
R208 NRSA63J-223X MG RESISTOR 22k
R213 NRSA63J-103X MG RESISTOR 10k
R214 NRSA63J-103X MG RESISTOR 10k
R215 NRSA63J-103X MG RESISTOR 10k
R219 NRSA63J-183X MG RESISTOR 18k
R220 NRSA63J-243X MG RESISTOR 24k
R221 NRSA63J-682X MG RESISTOR 6.8k
R251 NRS125J-R47X MG RESISTOR 0.47
R252 NRSA63J-2R2X MG RESISTOR 2.2
R254 NRSA63J-203X MG RESISTOR 20k
R255 NRSA63J-103X MG RESISTOR 10k
R257 NRSA63J-0R0X MG RESISTOR 0
R259 NRSA63J-103X MG RESISTOR 10k
R302 NRSA63J-240X MG RESISTOR 24
R303 NRSA63J-101X MG RESISTOR 100
R306 NRSA63J-102X MG RESISTOR 1k
R307 NRSA63J-102X MG RESISTOR 1k
R308 NRSA63J-223X MG RESISTOR 22k
R309 NRSA63J-104X MG RESISTOR 100k
R310 NRS125J-R47X MG RESISTOR 0.47
R312 NRSA63J-0R0X MG RESISTOR 0
R313 NRSA63J-0R0X MG RESISTOR 0
R314 NRSA63J-0R0X MG RESISTOR 0
R315 NRSA63J-0R0X MG RESISTOR 0
R316 NRSA63J-0R0X MG RESISTOR 0
R317 NRSA63J-0R0X MG RESISTOR 0
R318 NRSA63J-333X MG RESISTOR 33k
R319 NRSA63J-0R0X MG RESISTOR 0
R320 NRSA63J-103X MG RESISTOR 10k
R322 NRSA63J-473X MG RESISTOR 47k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/2W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/2W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/2W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/2W J
1/16W J
1/2W J
R325 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R326 NRSA63J-331X MG RESISTOR 330
R333 NRSA63J-163X MG RESISTOR 16k
R334 NRSA63J-151X MG RESISTOR 150
R335 NRSA63J-151X MG RESISTOR 150
R336 NRSA63J-151X MG RESISTOR 150
R337 NRSA63J-151X MG RESISTOR 150
R338 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-0R0X MG RESISTOR 0
R340 NRSA63D-303X MG RESISTOR 30k
R341 NRSA63D-362X MG RESISTOR 3.6k
R342 NRSA63D-222X MG RESISTOR 2.2k
R343 NRSA63J-0R0X MG RESISTOR 0
R344 NRSA63J-6R8X MG RESISTOR 6.8
R345 NRSA63J-221X MG RESISTOR 220
R351 NRSA63J-681X MG RESISTOR 680
R352 NRSA63J-105X MG RESISTOR 1M
R357 NRSA63J-0R0X MG RESISTOR 0
R358 NRSA63J-0R0X MG RESISTOR 0
R361 NRSA63J-0R0X MG RESISTOR 0
R362 NRSA63J-331X MG RESISTOR 330
R363 NRSA63J-151X MG RESISTOR 150
R372 NRSA63J-102X MG RESISTOR 1k
R373 NRSA63J-102X MG RESISTOR 1k
R374 NRSA63J-102X MG RESISTOR 1k
R375 NRSA63J-102X MG RESISTOR 1k
R376 NRSA63J-102X MG RESISTOR 1k
R377 NRSA63J-102X MG RESISTOR 1k
R378 NRSA63J-102X MG RESISTOR 1k
R379 NRSA63J-102X MG RESISTOR 1k
R384 NRSA63J-102X MG RESISTOR 1k
R385 NRSA63J-102X MG RESISTOR 1k
R390 NRSA63J-472X MG RESISTOR 4.7k
R391 NAD0025-103X N THERMISTOR 10k
R392 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R393 NRSA63J-0R0X MG RESISTOR 0
R394 NRSA63J-0R0X MG RESISTOR 0
R395 NRSA02J-0R0X MG RESISTOR 0
R457 NRSA63J-0R0X MG RESISTOR 0
R458 NRSA63J-102X MG RESISTOR 1k
R501 NRSA63J-471X MG RESISTOR 470
R502 NRSA63J-471X MG RESISTOR 470
R503 NRSA63J-101X MG RESISTOR 100
R530 NRSA63J-103X MG RESISTOR 10k
R551 NRSA63J-102X MG RESISTOR 1k
R558 NRSA63J-102X MG RESISTOR 1k
R701 NRSA63J-100X MG RESISTOR 10
R702 NRSA63J-0R0X MG RESISTOR 0
R711 NRSA63J-221X MG RESISTOR 220
R712 NRSA63J-221X MG RESISTOR 220
R713 NRSA63J-221X MG RESISTOR 220
R716 NRSA63J-0R0X MG RESISTOR 0
R718 NRSA63J-473X MG RESISTOR 47k
R719 NRSA63J-0R0X MG RESISTOR 0
R723 NRSA63J-101X MG RESISTOR 100
R724 NRSA63J-101X MG RESISTOR 100
R725 NRSA63J-101X MG RESISTOR 100
R727 NRSA63J-101X MG RESISTOR 100
R728 NRSA63J-0R0X MG RESISTOR 0
R909 NRSA02J-0R0X MG RESISTOR 0
R911 NRSA02J-0R0X MG RESISTOR 0
L501 NQL044K-100X COIL 0.26
CN101 QGF0523F1-24W CONNECTOR FFC/FPC (1-24)
CN201 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)
CN501 QGF1016F2-19W CONNECTOR FFC/FPC (1-19)
CN502 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)
CN503 QGF1016F2-17W CONNECTOR FFC/FPC (1-17)
K101 NRSA02J-0R0X MG RESISTOR 0
K102 NRSA02J-0R0X MG RESISTOR 0
K251 NRSA63J-0R0X MG RESISTOR 0
K252 NRSA63J-102X MG RESISTOR 1k
K301 NQR0354-001X FERRITE BEADS
K302 NRSA63J-101X MG RESISTOR 100
K303 NRSA63J-101X MG RESISTOR 100
K304 NQR0502-001X FERRITE BEADS
K501 NQR0129-002X FERRITE BEADS
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W D
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/10W J
Ω
1/10W J
Ω
10uH K
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-20
Page 21
Symbol No.
K551 NQR0129-002X FERRITE BEADS
K552 NQR0129-002X FERRITE BEADS
K553 NQR0129-002X FERRITE BEADS
K554 NQR0129-002X FERRITE BEADS
K555 NQR0022-005X FERRITE BEADS
K556 NQR0129-002X FERRITE BEADS
K563 NQR0129-002X FERRITE BEADS
K564 NQR0129-002X FERRITE BEADS
K565 NQR0129-002X FERRITE BEADS
K566 NQR0129-002X FERRITE BEADS
K567 NQR0129-002X FERRITE BEADS
K710 NQR0129-002X FERRITE BEADS
K721 NQR0251-004X FERRITE BEADS
K722 NQR0251-004X FERRITE BEADS
K723 NQR0251-004X FERRITE BEADS
X351 NAX0550-001X CRYSTAL 27.000MHz
Part No. Part Name Description Local
DVD loading switch board
Block No. [0][5]
Symbol No.
CN1 QGF1016F3-05 CONNECTOR FFC/FPC (1-5)
S1 QSW1074-001 DETECT SWITCH
Part No. Part Name Description Local
3-21
Page 22
Packing materials and accessories parts list
Speaker x2 (EX-JE31)
A12
A13
Speaker x2 (EX-JE3)
A11
P3
P3
Block No.
3
M
M
M
P9
P10
P8
P11
P11
P8
P8
P9
P10
P8
P5
P4
P7
A10
P6
P1
P4
A1 A2 A3
A4 A5 A6
A7 A8 A9
3-22
P2
Page 23
Packing and Accessories
Symbol No. Part No. Part Name Description Local
A 1 QAL0014-001 AM LOOP ANT
A 2 QAL0457-001 ANT.WIRE
A 3 QAM0112-002 PLUG ADAPTOR
A 4 QAM0216-001 SIGNAL CORD
A 5 RM-SMXJE3U REMOCON
A 5 RM-SMXJE3A REMOCON
A 6 ------------ BATTERY (x2)
A 7 GVT0145-001A INST BOOK ENG
A 7 GVT0145-002A INST BOOK ENG
A 8 GVT0145-005A INST BOOK TUR
A 8 GVT0145-003A INST BOOK ENG
A 8 GVT0145-004A INST BOOK ARA PER
A 8 GVT0145-006A INST BOOK SPA POR
A 9 GV40524-001B NOTICE SHEET
A 9 GV40524-002A NOTICE SHEET
A 10 GV40631-001A NOTICE SHEET
A 11 SPMXJE3K-SPBOX SPK WITH BOX (x2)
A 12 SPMXJE31U-SPBOX SPK WITH BOX-F (x2)
A 13 J201-XJE311S-40 SPK NET (x2)
P 1 QPC02503515P POLY BAG 25cm x 35cm
P 2 GV30735-003A CARTON ASSY.
P 2 GV30735-004A CARTON ASSY.
P 2 GV30714-009A CARTON ASSY.
P 2 GV30714-006A CARTON ASSY.
P 2 GV30714-007A CARTON ASSY.
P 2 GV30714-008A CARTON ASSY.
P 3 GV10223-001A CUSHION (TOP)
P 4 GV10224-001A CUSHION (BOTTOM
P 5 QPC06507030P POLY BAG 65cm x 70cm
P 6 GV30778-001A SPACER
P 7 GV40437-003A CLOTH
P 8 441-802104-00 LEG CUSHION (x2)
P 9 715-250031-00 MIRAMAT SHEET (x2)
P 10 700-120034-20 HDPE BAG (x2)
P 11 720-MXJE3F-00 CUSHION (x2)
P 11 720-MXJE5F-00 CUSHION (x2)
Block No. [M][3][M][M]
JE31UN,JE3UE,JE3UN,JE3US,JE3UW
JE31UG,JE31UN,JE31UX,JE3 UG,JE3UN,JE3US,
JE3UX
JE3UE,JE3UW,JE3UY
JE31UG,JE31UN,JE31UX,JE3 UG,JE3UN,JE3US,
JE3UX
JE3UE,JE3UW,JE3UY
JE3UE
JE31UN,JE3UN, JE3US
JE31UG,JE31UX,JE3UG,JE3UX
JE3UW,JE3UY
JE31UG,JE31UN,JE31UX,JE3UE,JE3UG,JE3UN,
JE3US,JE3UX
JE3UW,JE3UY
JE31UN,JE3UN
JE3US,JE3UW,JE3UX,JE3UY,JE3UG,JE3UE,
JE3UN
JE31UX,JE31UG,JE31UW
JE31UX,JE31UG,JE31UW
JE31UN
JE31UG,JE31UX
JE3UE
JE3UN,JE3US
JE3UG,JE3UX
JE3UW,JE3UY
3-23
Loading...
