COMPACT COMPONENT SYSTEM

CA-MXJD8

CA-MXJD5

CA-MXJD5 CA-MXJD8

English

EXTENDED SUPER BASS

INSTRUCTIONS

GVT0127-001A

[US,UN]

Warnings, Cautions and Others

Caution–– (STANDBY/ON) button!

Disconnect the mains plug to shut the power off completely. The (STANDBY/ON) button in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows

1. Front:No obstructions and open spacing.

2. Sides/ Top/ Back:No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom:Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view Side view

1 cm

CA-MXJD5 CA-MXJD8

15 cm

1 cm

15 cm

15 cm15 cm

15 cm

CA-MXJD5 CA-MXJD8

10 cm

G-2

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

inside the Unit; leave all servicing to qualified service personnel.

CAUTION

failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

: Do not open the top cover. There are no user serviceable parts

: Visible and invisible laser radiation when open and interlock

G-3

Contents

Introduction ............................................................ 2

Precautions ..........................................................................2

How to Read This Manual ..................................................2

Getting Started ........................................................ 3

Step 1: Unpack ....................................................................3

Step 2: Prepare the Remote Control....................................3

Step 3: Hook Up..................................................................4

Setting the Speakers ............................................................8

Before Operating the System ............................... 10

Playable Disc Types .......................................................... 10

Parts Index.........................................................................11

About the Display Indication ............................................12

Daily Operations—Playback ...............................14

Canceling the Demonstration ............................................ 14

Listening to the Radio .......................................................15

Playing Back a Disc ..........................................................16

Playing Back a Tape.......................................................... 18

Daily Operations—Sound&Other Adjustments

Adjusting the Volume .......................................................19

Reinforcing the Bass Sound ..............................................19

Adjusting the Front Speaker Output Balance.................... 20

Selecting the Sound Modes ............................................... 20

Creating Your Own Sound Modes—User Mode ..............20

Using Surround Mode .......................................................21

Presetting Automatic DVD Video

Sound Increase Level ....................................................21

Changing the Scanning Mode ...........................................21

Changing the Picture Tone................................................22

Changing the Display Brightness......................................22

Setting the Clock ...............................................................23

Turning Off the Power Automatically ..............................23

..... 19

Advanced Tape Operations .................................35

Recording on a Tape .........................................................35

Dubbing Tapes ..................................................................36

Synchronized Disc Recording...........................................36

Enjoying Karaoke ................................................37

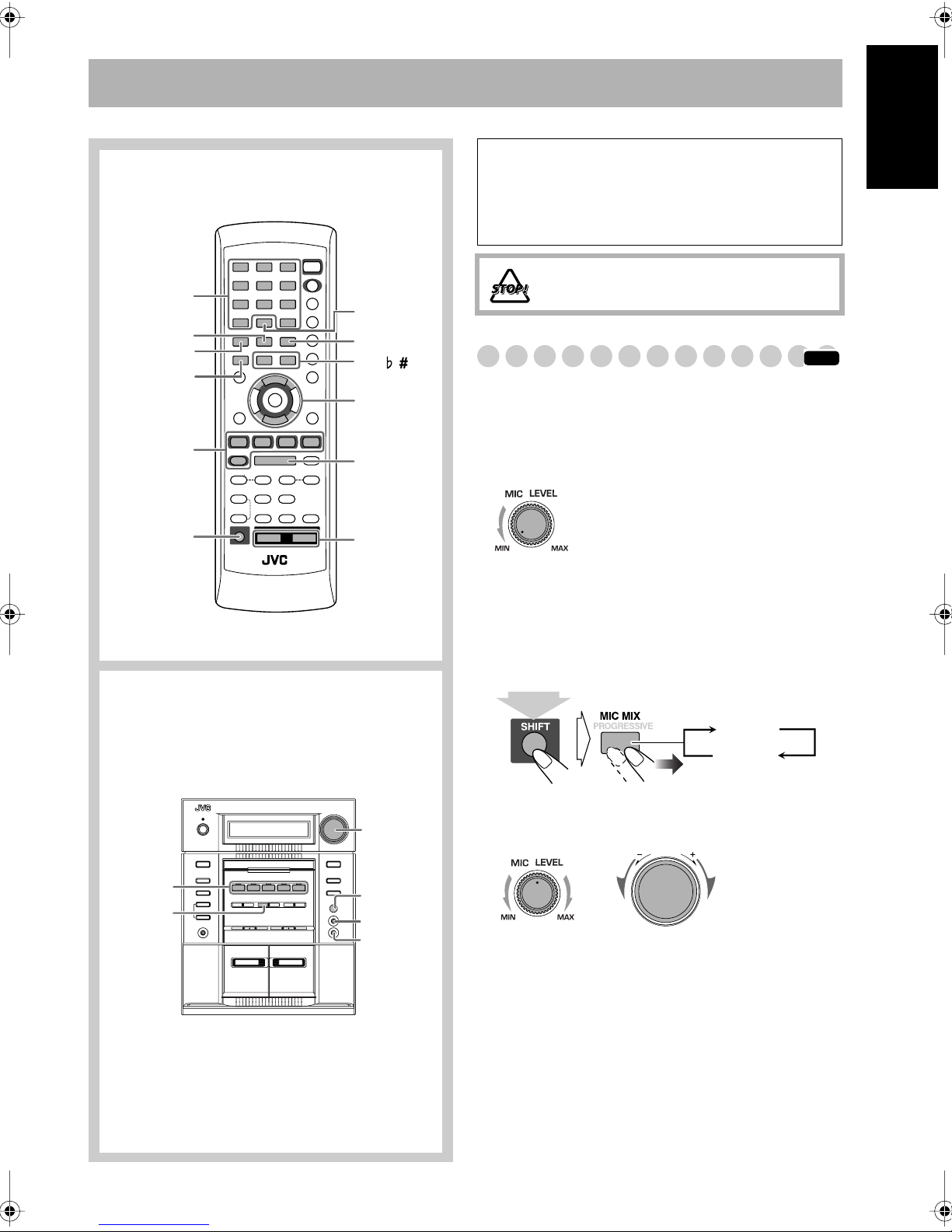

Microphone Mixing...........................................................37

Singing Along (Karaoke) ..................................................38

Reserving Karaoke Songs—Karaoke Program Play......... 39

Timer Operations ..................................................40

Setting the Timer...............................................................40

Timer Priority....................................................................41

Set up Menu Operations ......................................42

Operating Procedure.......................................................... 42

LANGUAGE Set up Menu ............................................ 43

PICTURE Set up Menu.................................................. 43

AUDIO Set up Menu .....................................................44

SPK. SETTING Set up Menu ........................................45

OTHERS Set up Menu................................................... 46

Restricting the Review—Parental Lock............................ 47

Operating the TV ..................................................49

Operating TV.....................................................................49

Additional Information ........................................50

Learning More about This System .................................... 50

Maintenance ......................................................................52

Troubleshooting ................................................................53

Language Code List ..........................................................54

Country/Area codes list for Parental Lock........................ 55

OPTICAL DIGITAL OUTPUT Signals ...........................56

Specifications ....................................................................57

English

Unique DVD/VCD Operations ............................24

Selecting the Sound Track.................................................24

Selecting the Subtitle Language........................................25

Selecting a View Angle.....................................................25

Selecting a Still Pictures on a DVD Audio .......................25

Playing Back a Bonus Group on a DVD Audio................26

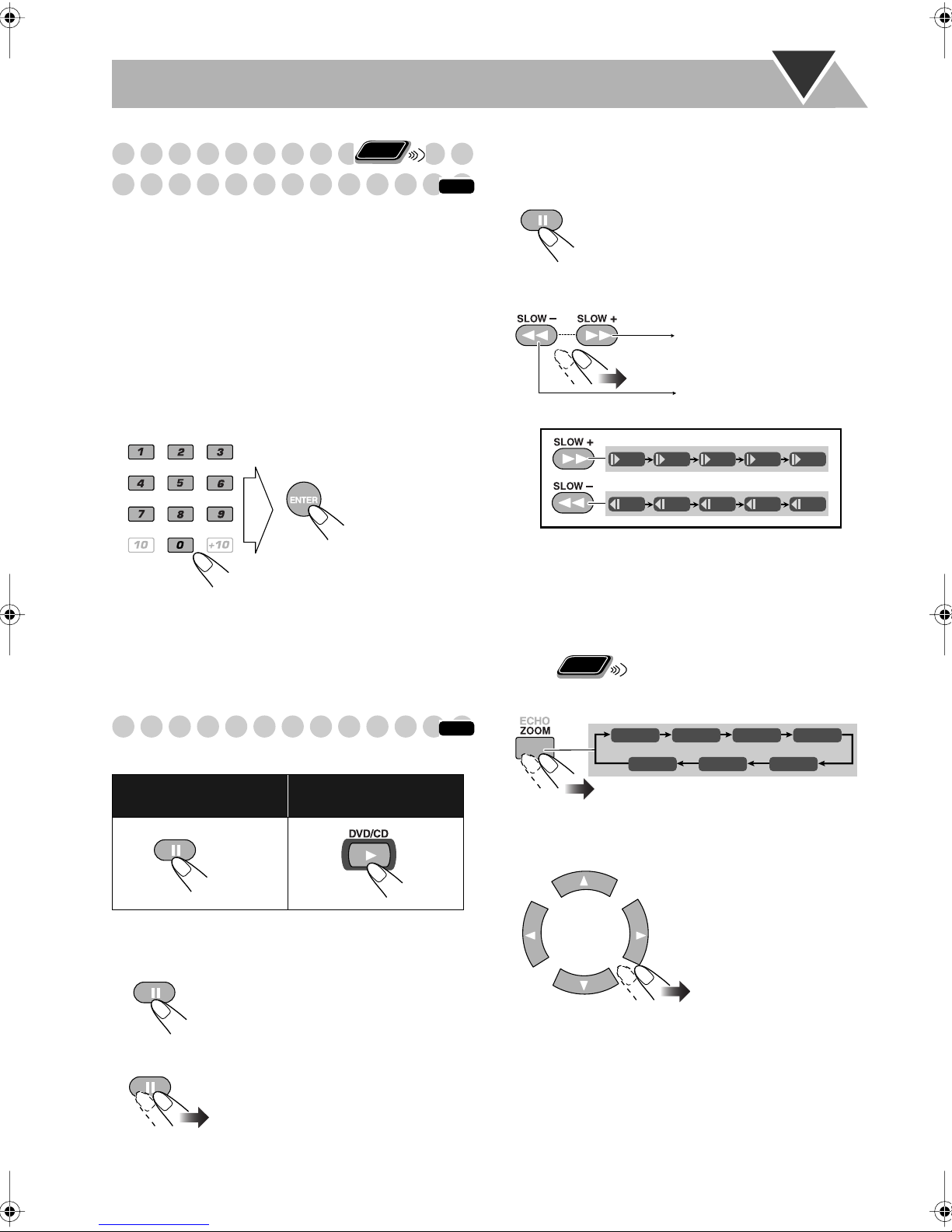

Special Picture Playback ...................................................26

Advanced Disc Operations ................................... 27

Programming the Playing Order—Program Play..............27

Playing at Random—Random Play...................................28

Playing Repeatedly............................................................ 29

Prohibiting Disc Ejection—Child Lock ............................29

On-Screen Disc Operations .................................. 30

About the On-screen Bar...................................................30

Operations Using the On-screen Bar................................. 31

Operations on the CONTROL Screen............................... 33

Introduction

sec.

Remote ONLY

English

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

•

A cooling fan is inside the unit to prevent heat buildup.

For safety, observe the following carefully:

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

• DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

How to Read This Manual

To make the explanations in this manual as simple and easyto-understand as possible, we have adapted the following methods:

•

Button and control operations are explained as listed in the table below. In this manual, the operations using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some informations).

about the functions, or if you have a doubt about the function, go to these sections and you will find your answer there.

Indicates that you press the button

briefly

Indicates that you press the button

briefly and repeatedly

option you want is selected.

Indicates that you press one of the buttons.

Indicates that you button for a specified period.

• The number inside the arrow indicates the period of press (in this example, 2 seconds).

• If no number is inside the arrow, press and hold until the entire procedure is complete or until you get a result you want.

Indicates that you turn the control toward the specified direction(s).

INFO

If you want to know more

until an

press and hold

the

DO NOT disassemble the System since there are no user serviceable parts inside.

Main Unit

ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the buttons and controls on the main unit.

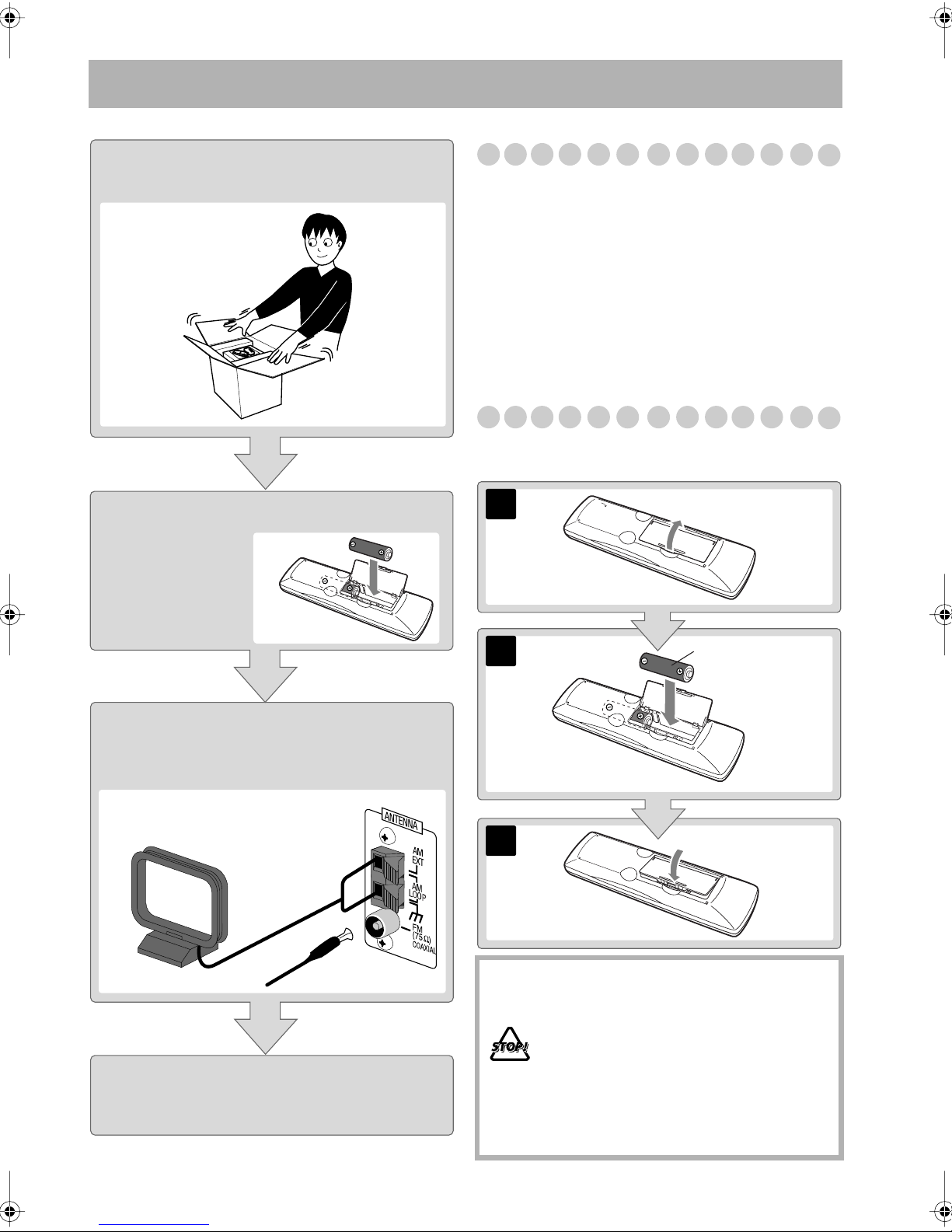

Getting Started

Step 1:Unpack the package and

check the accessories.

R6(SUM-3)/AA(15F)

Step 2: Prepare the remote control.

Step 1: Unpack

English

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Composite video cord (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1)

• Core filter (1) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

Step 3: Hook up the components such

as AM/FM antennas, speakers, etc. (see pages 4 to 7).

Finally plug the AC power cord.

Now you can operate this System.

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

AUX

Digital Audio

Equipment

AUDIO OUT

OPTICAL

DIGITAL IN

COMPU LINK II

COMPU LINK EX

English

Step 3: Hook Up

If you need more detailed information, see pages 6 and 7.

Turn the power off to all components before connections.

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary.

VCR, etc.

AM loop antenna (supplied)

Turn it until the best reception is obtained.

White

Audio cord (not supplied)

MD recorder, Amplifier etc.

Red

Green

Blue

Red

Monaural mini plugs (not supplied)

Yellow

Optical digital cord (not supplied)

Component video cord (not supplied)

Composite video cord (supplied) S-video cord (not supplied)

To center speaker/Surround speaker

• See “To connect the speakers” on page 6 and “Setting the Speakers” on page 8.

To a wall outlet Plug the AC power cord only after all connections are complete.

• If the wall outlet does not match the AC plug, use the supplied AC plug adaptor.

English

CENTER

CENTER SPEAKER

OPTICAL DIGITAL OUTPUT

FRONT MAIN SPEAKER

LEFT

RIGHT

FRONT SUBWOOFERS

For better FM/AM reception

AM loop antenna

Keep it connected.

Outdoor FM antenna (not supplied)

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector (IEC or DIN45325).

Vinyl-covered wire (not supplied)

Extend it horizontally.

* This illustration uses

SP-MXJD8 as speakers.

FM antenna (supplied)

Extend it so that you can obtain the best reception.

To Front subwoofer

• See “To connect the speakers” on page 6 and “Setting the Speakers” on page 8.

English

FRONT MAIN SPEAKERS

FRONT SUBWOOFERS

From right front main speaker

From left

front main

speaker

1 Open

To assemble and connect the AM loop antenna

To assemble the AM loop antenna

To connect the speakers

To connect the speaker cords

From

front subwoofer

2 Insert

3 Close

From

front subwoofer

To connect the AM loop antenna and speaker cords

1 Hold

2 Insert

3 Release

• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

• When connecting the speaker cords, match the polarity of the speaker terminals: (+) to (+) and (–) to (–).

Terminal color

Speaker

(+) (–)

Front main speakers

Front subwoofer

Blue Black

Red Black

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

To connect a center speaker and surround speakers

OPTICAL DIGITAL OUTPUT

Before connecting optical digital cord, remove the protective cap from the OPTICAL DIGITAL OUTPUT terminal.

From center speaker

From left surround speaker

From right surround speaker

• Connect the center speaker to the CENTER jack.

• Connect the left surround speaker to the LEFT jack.

• Connect the right surround speaker to the RIGHT jack.

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

CENTER

To connect digital audio

To connect the AV COMPU LINK cords

The AV COMPU LINK control system allows you to use JVC’s TV with simple operations; by starting playing back a disc, the TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture. To use AV COMPU LINK, you need to connect the unit and the TV by using a cord with monaural mini-plugs (not supplied) in addition to the connection with a video cord (see page 4).

To set the video output selector

You can select the video output to match it to the color system of your TV.

NTSC:

PAL:

For an NTSC TV or Multi-color system TV. For a PAL TV or Multi-color system TV.

English

Adjusting the Voltage Selector

Use a screwdriver to rotate the voltage selector so that the voltage marker is pointing at the same voltage as where you are plugging in the unit. (See also the back cover page.)

Voltage marker

DO NOT plug in before setting the voltage selector on the rear of the unit and all connection procedures are complete.

English

Left surround speaker

Right surround speaker

Right front main speaker

Left front main speaker

Center speaker

Front subwoofer

* This illustration uses SP-MXJD8 as speakers.

ENGLISH

LANGUAGE

MENU LANGUAGE

ON SCREEN LANGUAGE

AUDIO LANGUAGE

SUBTITLE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS

[

SET UP

]

ENTER

SELECT

Setting the Speakers

Speaker layout

To enjoy multi-channel sound, locate speakers as follows. If you cannot locate them like this, adjust the speaker setting by using the Set up menu. (See right column.)

To adjust the speaker distance

You need to adjust the each speaker’s distance from where you usually take seat (listening position) to get the best surround effect.

Turn o the TV and select the correct input mode on

the TV. Turn on the System and change the source to

“DVD/CD.”

Display the Set up Menu.

• You can place the front subwoofer wherever you like since bass sound is non-directional. However, it is recommended to place it in front of you.

• DO NOT place a center speaker and surround speakers on the front main speakers or the front subwoofer.

Select the SPK. SETTING Set up Menus.

SPK. SETTING

SELECT

ENTER

Select “DISTANCE.”

SPK. SETTING

SELECT

ENTER

Enter the DISTANCE submenu.

DISTANCE

SELECT

ENTER

LEVEL

DISTANCE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

LEVEL

DISTANCE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

FRONT SPEAKER

CENTER SPEAKER

SURROUND SPEAKER

RETURN

3. 0m

0dB

3. 0m

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

Select the speaker to adjust the distance, then display the pop-up window.

DISTANCE

SELECT

ENTER

FRONT SPEAKER

CENTER SPEAKER

SURROUND SPEAKER

RETURN

3. 0m

0dB

3. 0m

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

Speaker Diagram

Front Speakers

Center Speaker

Surround Speakers

• The selected speaker icon is highlighted blue.

Adjust the desired speaker distance.

• For each speaker (FRONT SPEAKER, CENTER SPEAKER, SURROUND SPEAKER), set the distance from the listening point within the range of 0.3 m to

9.0 m in 0.3 m intervals.

English

Repeat steps 7

to 8

to adjust other speakers’ distance

if necessary.

To finish the setting

Before Operating the System

English

Playable Disc Types

This unit has been designed to play back the following discs:

Disc Type Mark (Logo)

DVD Video

DVD Audio

Video CD

(VCD)

Super Video

CD (SVCD)

Audio CD

CD-R

CD-RW

DVD-R

DVD-RW

The System can play back CD-R or CD-RW recorded in the Audio CD, Video CD, SVCD, MP3, WMA, JPEG, MPEG-4 formats.

The System can play back DVD-R or DVDRW recorded in the DVD Video format.

COMPACT

DIGITAL AUDIO

In addition to the above discs, this system can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD-ROM, DVD-RAM, DVD+R, DVD+RW, CD-I (CD-I Ready), CD-ROM, Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

• In this manual, “file” and “track” are interchangeably used for MP3/WMA/JPEG/MPEG-4 operations.

About color system

This System accommodates both NTSC and PAL system and can playback discs recorded with either system. To change the color system, see page 7.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This System can play back only DVDs recorded with the NTSC or PAL color system whose Region Code numbers including “3.”

EX.:

If a DVD with the improper Region Code numbers is loaded, “REGION ERR” appears on the display and playback will not start.

INFO

Audio formats

The System can play back the following digital audio formats.

• LPCM (

•

DTS

• MPEG

•

MLP

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on

• For disc playback, you can change the initial setting to

If “ ” appears on the TV screen when you press a button,

tried to do, or data required for that operation is not recorded on the disc.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.

• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NONCOMMERCIAL ACTIVITIES.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

Linear PCM

DIGITAL

)

(Dolby Digital)

(Digital Theater Systems)

(MPEG Multichannel)

(Meridian Lossless Packing)

the TV to view the pictures or on-screen displays on the TV screen.

your preference. See “Set up Menu Operations” on page 42.

the disc cannot accept the operation you have

Parts Index

Main unit

SET UP

TV VOLUME

Refer to the pages to see how to use the buttons and controls.

Remote control

15, 17, 20, 21, 25 – 28,

32, 33, 39, 47 – 49

21, 37 – 39

26, 34, 38

24, 38

25, 38

8, 9, 42, 43, 47

14, 15

14, 18, 35

16, 17, 28

15 – 17, 20, 21, 25, 28, 37 – 39, 49

14 49

23 22

27, 28 25, 39

29, 34 17

22, 38

8, 9, 17, 22, 25, 26, 28, 31 – 34, 39, 42, 47 – 49

31– 33

8, 14, 16, 27, 28, 34, 39 8, 16 – 18, 28, 34, 38, 39

16, 26, 28 15, 16, 18, 26

20 21 19

19 14, 19, 49

English

14, 15, 41

Remote Sensor

16, 18, 20, 26

15 – 18, 28, 29, 34 – 36

14 36

18, 35

STANDBY

RHYTHM AX

SURROUND

MODE

SOUND

MODE

SUBWOOFER

LEVEL

PHONES

COMPACT COMPONENT SYSTEM

CD-R/RW PLAYBACK

AUX FM/AM DVD/CD TAPE-A TAPE-B

CLOCK /

TIMER

DISC SYNCHRO RECORDINGFULL-LOGIC CONTROL

DISPLAY

PRESET

SET

CANCEL /

DEMO

PLAY

TUNING

REC

DISC REC

START/STOP

PLAY REC

DUBBING

START

EXTENDED SUPER BASS

MIC

OPEN/CLOSE

DVD LEVEL

REVERSE

MODE

MIC LEVEL

MIN

PUSH OPEN

MAX

00 PUSH OPEN

14, 19

16, 29

14 – 16, 18, 27, 35, 36

21 16, 26, 28 18, 35 15, 17, 20, 23, 28, 40 37, 38 14

37, 38

15, 20, 23, 40 23, 40, 41

18, 35

English

TITLE

LFE

CHAP.

DVD

TITLE

DVD

• While disc play is stopped:

Total track number

Elapsed playing time

Disc type

About the Display Indication

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

TITLE

LFE

DVD AUDIO

DIGITAL

DTS MPEG SURR.

er io ;

GROUP TRACK

MOVIE MUSIC

SOUND

ty as d f g hu

Indications on the main display

• While listening to radio:

Band Frequency

• While playing a disc:

DVD Video:

Title number

DVD Audio:

DVD AUDIO

Preset number

Chapter number

GROUP TRACK

LFE

Track number

Elapsed playing timeGroup number

RESUME

MIC ECHO KARAOKE DVD LEVEL

1 2 3

PRGM. RND.

REPEATALL

1 DISC

TAPE REC

A B

CHAP. MP3 WMA JPEG LPCM MONO ST

BONUS B.S.P.

PROGRESSIVE

• While selecting “TAPE” or “AUX IN”:

Source name

CHAP. MP3 WMA JPEG LPCM MONO ST

GROUP TRACK

TAPE

DVD Video:

Total title number

DVD Audio:

GROUP TRACK

DVD AUDIO

SLEEP

DAILY

REC

SVCD/VCD/CD:

Track number

Elapsed playing time*

TRACK

MP3*3/WMA*3/JPEG/MPEG-4*5:

Group number Elapsed playing time*

GROUP TRACK

MP3

Track number

Disc type is displayed with the following abbreviation: “SV (SVCD)”, “VD (VCD)”, “CD (CD)”.

While activating PBC function, “PBC” appears on the display instead of the playing time.

When you start playing an MP3/WMA track, the track name (and Tag information) will be shown before the

elapsed playing time appears.

While playing back a JPEG disc, “JPEG” appears on the display instead of the elapsed playing time.

When you start playing an MPEG-4 file, the file name will be shown before the elapsed playing time appears.

SVCD/VCD/CD:

Disc type*

MP3/WMA/JPEG/MPEG-4:

Current group number

TRACK

GROUP TRACK

Current track number

Total playing time*

)

Surround Mode/Source signal indicators

• Surround Mode indicators: light to indicate the current activated speaker.

• L/C/R/LFE/LS/S/RS: light to indicate the current source signal.

TITLE indicator

• Lights to indicate the title number when the source is DVD Video.

• Lights to indicate the group title or track title when MP3/ WMA/JPEG/MPEG-4 title is shown on the main display.

GROUP indicator

• Lights to indicate the group number when the source is DVD Audio or MP3/WMA/JPEG/MPEG-4 disc.

CHAP. indicator

• Lights to indicate the chapter number when the source is DVD Video.

TRACK indicator

• Lights to indicate the track number when the source is a disc (except for DVD Video).

MP3 indicator

• Lights while playing back an MP3 track.

WMA indicator

• Lights while playing back a WMA track.

JPEG indicator

• Lights while playing back a JPEG file.

LPCM indicator

• Lights when a source signal is linear PCM.

FM reception indicators

• MONO: lights while receiving an FM stereo station in monaural.

• ST (stereo): lights while an FM stereo station with sufficient signal strength is tuned in.

Animation indicator

DVD AUDIO indicator

• DVD: lights when DVD Video is detected.

• DVD AUDIO: lights when DVD Audio is detected.

Source signal indicators

• DIGITAL: lights when a source signal is Dolby Digital.

• DTS: lights when a source signal is DTS Surround.

• MPEG: lights when a source signal is MPEG multichannel.

Main display

SURR. indicators

• Lights when Surround mode is activated.

Dolby Pro Logic II indicator

• PL II: lights when Dolby Pro Logic II mode is activated.

• MOVIE: lights when Dolby Pro Logic II Movie is activated.

• MUSIC: lights when Dolby Pro Logic II Music is activated.

SOUND indicators

• Lights when SEA mode or USER mode is activated.

RESUME indicator

• Lights when the Resume function is activated (see page 16).

BONUS indicator

• Lights when DVD Audio with bonus group is detected (see page 26).

;

PROGRESSIVE indicator

• Lights when the progressive scanning mode is selected.

B.S.P. indicator

• Lights when browsable still picture on DVD Audio is available (see page 25).

Karaoke operation indicators

• MIC: lights when the mic mixing mode is activated (see

page 37).

• ECHO: lights when the echo effect is activated (see

page 38).

• KARAOKE: lights when the Karaoke mode is activated

(see page 38).

DVD LEVEL 1/2/3 indicators

• Lights when the DVD Video is detected.

Disc operation indicators

• PRGM.: lights when Program Play mode is activated.

• RND.: lights when Random Play is activated.

• REPEAT: lights when Repeat Play mode is activated.

• ALL: lights when All Disc Repeat is activated.

• 1: lights when One Track/Chapter/Step Repeat is activated.

Tape operation indicators

• TAPE: lights when a tape is loaded in either A or B.

• (reverse mode): –: tape play continues endlessly. –: tape automatically reverses once. –: tape play stops at the end of one side.

• A: lights when a tape is loaded in the deck A.

• B: lights when a tape is loaded in the deck B.

• REC: lights while recording.

•

2 3

(tape direction): – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

Timer indicators

•: lights when Sleep Timer is working or Daily Timer or Recording Timer stands by or is working or setting.

• SLEEP: flashes when the Sleep Timer is activated.

• DAILY: lights when the Daily Timer stands by; flashes while working or setting.

• REC: lights when the Recording Timer stands by; flashes while working or setting.

English

Daily Operations

1/¡

7,8

SHIFT

TOP MENU

3/2/5/∞

ENTER

GROUP SKIP

4/¢

RETURN

10 Keys

—Playback

English

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

Turn on the power.

The STANDBY lamp on the main unit goes off.

• Without pressing (STANDBY/ON), the System also turns on by pressing one of the source select buttons in the next step.

Select the source.

Playback automatically starts if the selected source is ready to start playback.

• If you press AUX, start playback source on the external component.

Adjust the volume.

[

Operate the target source as explained later.

To turn off (stand by) the system

The STANDBY lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

DO NOT turn off (standby) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

Canceling the Demonstration

sec.

CANCEL

DEMO

DEMO OFF

DEMO START

Main Unit

ONLY

Listening to the Radio

Main Unit

ONLY

SET

DISPLAY

INFO

English

To select the AM tuner interval spacing

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing. You can change the AM tuner intervals during the unit is turned on.

While AM is selected...

AM 9 k

AM 10 k

(holding then...)

To select the band (FM/AM)

FM AM

To tune in to a station

While FM or AM is selected...

To preset Stations

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset, then enter into

the presetting mode.

SET

DISPLAY

Select a preset number for the station you store.

PRESET

Store the station.

sec.

Increases the frequencies.

Decreases the frequencies.

When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

To stop searching manually,

press either button.

• When you repeatedly press the button, the frequency changes step by step.

If the received FM station is hard to listen

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—monaural reception mode.

(holding then...)

To restore the stereo effect,

again (the MONO indicator goes off).

Remote

ONLY

press the button

To turn in to a Preset Station

Select the band (FM or AM).

FM AM

Select a preset number for the station you store.

Examples:

To select preset number 5, press 5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then 10.

• You can also use 4/¢

buttons on the remote control or the PRESET +/– buttons on the main unit.

English

(holding then...)

Skips to the next title/group.

Skips to the previous title/group.

Playing Back a Disc

Before operating a disc, be familiar how a disc is recorded.

• DVD Video comprises of “ “

Chapters

comprise of “

,” DVD Audio/MP3/WMA/JPEG/MPEG-4

Groups

” which includes “

SVCD/VCD comprise of only “

” which includes

Titles

Tracks

.” For JPEG/MPEG-4 playback, see “Operations on the CONTROL Screen” on page 33.

To insert discs

OPEN/CLOSE

• When using an 8 cm disc, place it on the inner circle of the

disc tray.

To close the disc tray,

If you press DVD/CD 3 playback starts.

To start:

press OPEN/CLOSE 0

, disc tray closes automatically and

To pause: To stop:

,” and CD/

again.

INFO

On-screen guide icons

• During disc playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

• The following icons will be also shown on the TV screen to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 46.

Remote

To select a title/group

While playing a disc...

ONLY

To release it, press DVD/CD 3

While playing DVD/SVCD/VCD:

This System can store

the stop point, and when you start playback again by pressing DVD/CD 3

, it starts from the position where you have stopped—Resume Play. (RESUME indicator lights up when you stop playback.)

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 46.)

press 7

To select a chapter/track

While playing a disc...

Increases the chapter/track numbers.

Decreases the chapter/track numbers.

To locate a particular portion

While playing a disc except WMA/MP3...

• No sound comes out while searching on DVD/SVCD/ VCD.

To return to normal playback,

press DVD/CD 3

Remote

(holding then...)

o select

You can select a title/chapter/track directly and start playback. For DVD Video, you can select

playback playback

an item directly

, while you can select .

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

Playing Back by Using the Disc Menu

You can operate the disc play—DVD and SVCD/VCD with Playback Control (PBC)—using the disc menu shown on the TV screen.

• When an SVCD or VCD with PBC is detected, “PBC” appears on the display instead of the playing time.

ONLY

a title before starting

a chapter after starting

Remote ONLY

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

To move to the next or previous page of the current menu:

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

English

For DVD Video/DVD Audio:

Show the disc menu.

Select an item on the disc menu.

• With some discs, you can also select items by entering the number using the 10 keys.

To cancel PBC

You can also cancel PBC function by pressing the number button to select a track.

To reactivate PBC,

press 7

, then press 4

English

Push

Insert

Playing Back a Tape

INFO

To change the tape running direction (deck B only)

To insert a tape

You can play back type I tapes.

• The use of C-120 or longer tape is not recommended.

3 (forward)

2 (reverse)

To reverse the tape automatically

Main Unit

ONLY

(deck B only)

REVERSE

MODE

Tape is automatically reversed, and playback repeats until you stop it.

Tape will not be reversed. When the current side of the tape reaches its end, playback stops.

Tape is automatically reversed once.

To playback the both decks A and B continuously —Relay Play

When the cassettes are set in the both decks...

REVERSE

MODE

To start:

To rewind tape:

Before or after play...

To stop:

Rewinds the tape to the right.

Rewinds the tape to the left.

After the tape in deck A finishes playing, the tape in deck B starts playing. After the reverse (2 playing, the tape in the deck A rewinds and then starts playing.

) side of the tape in deck B finishes

Daily Operations

SET /DISPLAY

VOLUME +/

DVD LEVEL

SUBWOOFER

LEVEL +/

RHYTHM AX

SURROUND

MODE

4/¢

SOUND MODE

CLOCK /TIMER

—Sound&Other Adjustments

Remote Control

L/R BALANCE

L/R

EFFECT

PROGRESSIVE

3/2/5/∞

ENTER

SURROUND

MODE

SUBWFR

LEVEL

SHIFT

DVD LEVEL

SLEEP DIMMER

VFP

SOUND MODE

RHYTHM AX FADE MUTING

VOLUME

Adjusting the Volume

INFO

The volume level can be adjusted in 32 steps (VOLUME MIN, VOLUME 1 – VOLUME 30, VOLUME MAX).

Remote control:

To drop the volume in a moment

To restore the volume,

Main unit:

press again, or

Remote ONLY

adjust the volume level.

Reinforcing the Bass Sound

To adjust the bass level gradually

You can select the subwoofer level from level 0 (minimum) to level 4 (maximum).

English

Main unit

SUBWFR

LEVEL

To emphasize rhythm feeling—RHYTHM AX

This function emphasizes bass attack feeling, and also

changes the subwoofer level.

[

RHYTHM AX ON

(subwoofer level 4)

[

OFF

(subwoofer level 0)

]

English

SET

DISPLAY

Adjusting the Front Speaker

Remote ONLY

Output Balance

You can adjust the output balance of left front speaker and right front speaker within the range of R (right) –6 (minimum sound level from the right speaker) to L (left) –6.

Enter into the SEA Control Mode.

• You can enter the SEA Control Mode only while the Sound Mode appears on the display.

SET

DISPLAY

TITLE

L/R BALANCE

Decreases the left

front speaker output

level.

Decreases the right

(holding then...)

front speaker output level.

Selecting the Sound Modes

You can select one of the preset Sound Modes.

ROCK

POP

FLAT

SEA (Sound Effect Amplifier) modes

ROCK

POP

CLASSIC

User modes

USER 1/2/3

FLAT

Boosts low and high frequency. Good for acoustic music.

Good for vocal music.

Good for classical music.

Your individual mode stored in memory. See the next column “Creating Your Own Sound Modes—User Mode.”

No Sound Mode effect.

CLASSIC

TITLE

Adjust the SEA pattern.

Select one of the tone—BASS or TRE (treble).

Adjust the level of the selected tone.

• You can adjust the bass and treble level from –3 to +3.

Repeat steps 1

and 2

the level of the other tone.

Finish the SEA pattern setting.

Select one of the User Modes.

PRESET

TITLE

PRESET

TUNING

to adjust

Creating Your Own Sound Modes—User Mode

You can create your own Sound Modes to make sounds suit your taste. The changed settings can be stored as the USER 1, USER 2 and USER 3 modes.

Select one of the preset Sound Modes.

SOUND

MODE

ROCK

POP

FLAT

Main Unit

ONLY

CLASSIC

INFO

Finish the setting.

SET

DISPLAY

TITLE

Using Surround Mode

To activate Surround Mode

•

For DVD/CD

AUTO MOVIE MUSIC

INFO

DANCE

To adjust the DSP effect level

When one of the DSP modes is selected...

–

Increases the level

Remote

ONLY

English

STEREO

For AUX/FM/AM/TAPE-A/TAPE-B

•

DANCE

STEREO

Auto Surround Mode*

AUTO

Dolby Pro Logic II modes*

MOVIE

MUSIC

DSP modes*

DANCE

HALL

STADIUM

Stereo mode

STEREO

* If Multi-channel surround signal comes in, Multi-channel

Surround Mode will be selected automatically.

• If Multi-channel surround signal comes in, Multi-channel Surround Mode will be selected.

• If Dolby Surround signal comes in, Dolby Pro Logic II MOVIE mode will be selected automatically.

• If 2-channel signal comes in, STEREO mode will be selected.

Creates 5.1-channel sound field from 2ch source. This mode is suitable for movie source.

Creates 5.1-channel sound field from 2ch source. This mode is suitable for music source.

Increases resonance and bass.

Adds depth and brilliance to the sound.

Adds clarity and spreads the sound, as in an outdoor stadium.

Cancels the Surround Mode.

STADIUM

HALL

STADIUM

HALL

Decreases the level

(holding then...)

Presetting Automatic DVD Video Sound Increase Level

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume every time you change the source.

As the number increases, sound level also increases.

Changing the Scanning Mode

This System supports progressive scanning. If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PROGRESSIV.”

PROGRESSIV

INTERLACE

PROGRESSIV

INTERLACE

• PROGRESSIVE indicator lights on when progressive mode is selected.

Progressive scanning. For a progressive TV.

Interlaced scanning. For a conventional TV.

Remote

ONLY

INFO

English

NORMAL CINEMA

USER2 USER1

Changing the Picture Tone

Remote

ONLY

While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own likeliness.

To select a preset picture tone

Activate VFP.

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV screen

Select a preset picture tone.

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

INFO

GAMMA

Adjust if the neutral color is bright or dark. The brightness of dark and bright portions is maintained (–3 to +3).

BRIGHTNESS

Adjust if the picture is bright or dark as a whole (–8 to +8).

CONTRAST

Adjust if the far and near position is unnatural (–7 to +7).

SATURATION

Adjust if the picture is whitish or blackish (–7 to +7).

TINT

Adjust if the human skin color is unnatural (–7 to +7).

SHARPNESS

Adjust the parameter.

Adjust if the picture is indistinct (–8 to +8).

NORMAL

CINEMA

USER1/USER2

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings (see below).

To adjust the picture tone

Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained above.

Select a parameter you want to adjust.

Repeat steps 2 to 3 to adjust other parameters.

4 5

Finish setting.

Changing the Display Brightness

You can dim the display window.

DIMMER

NORMAL

Remote ONLY

Setting the Clock

Main Unit

ONLY

INFO

Without setting the built-in clock, you cannot use Daily/ Recording Timers (see page 40) and Sleep Timer (see next column).

• To exit from the clock setting, press CLOCK/TIMER as required.

• To go back to the previous step, press CANCEL/DEMO.

Activate clock setting mode.

CLOCK

TIMER

• If you have already adjusted the clock before, press the button repeatedly until the clock setting mode is selected.

Adjust the hour.

PRESET

SET

DISPLAY

Remote

Turning Off the Power Automatically

ONLY

With Sleep Timer, you can fall asleep listening to music.

Specify the time (in minutes).

SLEEP 10 SLEEP 20 SLEEP 30 SLEEP 60

Canceled

Wait until the set time goes off.

To check the time remaining until the shut-off time

• If you press repeatedly, you can change the shut-off time.

SLEEP 90SLEEP 120

SLEEP

English

Adjust the minute.

PRESET

SET

DISPLAY

Now the built-in clock starts working.

To check the current time during play

sec.

SET

DISPLAY

Clock

Source information

Unique DVD/VCD Operations

Remote Control

SLOW -/+

7,8

ANGLE

PAGE

DVD/CD

ZOOM

AUDIO

SUB TITLE

3/2/5/∞

ENTER

SHIFT

ENGLISH

1/3

3/3

FRENCH

2/3

JAPANESE

ENGLISH

1/3

FRENCH

2/3

JAPANESE

3/3

Ex.:

English

10 Keys

Remote

Selecting the Sound Track

For DVD Video:

While playing back a chapter containing

ONLY

INFO

audio languages, you can select the language to listen to.

For DVD Audio:

While playing back a track containing

audio channels, you can select the audio channel to listen to.

For SVCD/VCD:

When playing back a track, you can select

the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 31).

While playing a DVD Video...

While playing an SVCD or VCD...

SVCD

ST1 ST2 L1

R2 L2 R1

VCD

ST L R

ST1/ST2/ST

To listen to normal stereo (2 channel) playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ ST2).

Selecting the Subtitle Language

ENGLISH

1/3

3/3

FRENCH

2/3

JAPANESE

ENGLISH

1/3

FRENCH

2/3

JAPANESE

3/3

Ex.:

Remote ONLY

Selecting a View Angle

Remote ONLY

English

For DVD Video:

While playing back a chapter containing subtitles in different languages, you can select the subtitle language to display on the TV screen.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-

screen bar (see page 31).

While playing a DVD Video...

Display the subtitle selection window.

1/3

ENGLISH

Select the subtitle language.

1/3

ENGLISH

While playing back a chapter (of DVD Video) containing multi-view angles, you can view the same scene from different angles.

• You can also select the view angle using the on-screen bar (see page 31).

While playing back or paused...

Ex.:

1/3

2/3

3/3

While playing an SVCD...

Selecting a Still Pictures on a DVD Audio

While playing back a track (of DVD Audio) linked to browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• If a track is linked to browsable still pictures (B.S.P.), they are usually shown in turn automatically during playback.

• You can also select the page using the on-screen bar (see page 31).

Each time you press the button, the still picture changes one after another (if available).

(holding then...)

English

Playing Back a Bonus Group

Remote ONLY

on a DVD Audio

Some DVD Audios have a special group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 16.

Enter the key number.

INFO

Slow-motion playback

While playing...

Select slow motion speed.

1/32 1/16 1/8 1/4 1/2

*Only for DVD Video.

Still picture playback starts.

Forward slow motion starts.

Reverse slow motion* starts.

Follow the interactive instruction shown on the TV

screen.

To cancel the key number entry,

another source.

press 7

or change to

Special Picture Playback

Still picture playback

To start still picture playback:

While playing...

Frame-by-frame playback

While playing...

Advance the still picture frame by frame.

To resume normal playback:

Still picture playback starts.

INFO

To resume normal playback,

Remote

Zoom

While playing back...

Move the zoomed-in position.

To resume normal playback,

“ZOOM OFF” appears on the TV screen.

ONLY

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

As the number increases, magnification also increases.

press DVD/CD 3

ZOOM 5ZOOM 6

press ZOOM repeatedly until

To resume normal playback,

press DVD/CD 3

Advanced Disc Operations

DVD/CD

OPEN/CLOSE 0

TITLE

PRGM.

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

PROGRAM

No Group/Title Track/Chapter

2 3 4 5 6 7 8 9

On the display

On the TV screen

PROGRAM RANDOM

Canceled

Remote Control

10 keys

5/∞

4/¢

SHIFT

PLAY MODE REPEAT

DVD/CD

7,8

Remote

Programming the Playing Order —Program Play

ONLY

INFO

You can arrange the playing order of the tracks (up to 99) before you start playback.

Before starting playback, activate Program Play.

English

Main unit

Select chapters or tracks you want for Program Play.

•

For DVD/MP3/WMA:

Select a title or group number.

Select a chapter or track number.

• For SVCD/VCD/CD:

Select a track number.

To enter the numbers:

Examples:

To enter number 5, press 5. To enter number 15, press +10, then 5. To enter number 30, press +10, +10, then 10.

Repeat the above step 2 until you finish what you want

to program. Start playback.

Playback starts in the order you have programmed.

English

To skip a track: To pause: To stop:

Remote

Playing at Random—Random Play

ONLY

You can play the contents of all tracks at random.

Before starting playback, activate Random Play.

To release, press DVD/ CD 3

To check the programmed contents

Before or after playback...

in the reverse order

in the programmed order

Remote

To modify the program

Before or after playback...

To erase the last step:

ONLY

To erase the entire program:

Remote ONLY

Start playback.

To skip:

To go to the beginning of the current track, press 4

PROGRAM RANDOM

Canceled

TITLE

RND.

Playback starts in a random order. Random Play ends when all chapters/tracks are played.

To pause: To stop:

To release, press DVD/CD 3

(holding then...)

You can also use on the unit.

To add steps in the program:

Repeat step 2 on page 27.

To exit from Program Play

Before or after playback...

PROGRAM RANDOM

Canceled

button

To exit from Random Play

Before or after playback...

PROGRAM RANDOM

Canceled

Remote

TRACK

ALL

OFF

OPEN/CLOSE

(holding then...)

Playing Repeatedly

ONLY

• You can also select the repeat mode using the on-screen bar (see page 31).

Repeat Play

You can repeat playback.

• For DVD Video:

While playing...

CHAP

TITLE

TRACK

GROUP

ALL

STEP

OFF

Repeats the current chapter.

English

Repeats the current title.

Repeats the current track.

Repeats the current group.

Repeats all tracks or all programmed tracks.

Repeats the current track.

Selects to cancel Repeat Play mode.

CHAP

TITLE

OFF

• For DVD Audio:

While playing or before playback...

TRACK

GROUP

OFF

•

For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

• For MP3/WMA:

While playing or before playback...

REPEAT TRACK

Canceled

REPEAT GROUP

REPEAT ALL

Prohibiting Disc Ejection —Child Lock

Main Unit

ONLY

INFO

You can lock the disc tray so that no one can eject the loaded disc.

• This operation is possible only when the source is the disc player.

While the disc tray is closed...

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

• For MPEG-4:

While playing or before playback...

(REPEAT) TRACK

OFF (Canceled)

• For Program Play/Random Play mode:

While playing or before playback...

(REPEAT) STEP

OFF (Canceled)

(REPEAT) GROUP

(REPEAT) ALL

On-Screen Disc Operations

3/2/5/∞

ENTER

ON SCREEN

REPEAT

ZOOM

DVD/CD

TITLE

CHAP

GROUP 1

TOTAL

1:25:58

TIME

CHAP.

TRACK

1/3

PA GE 1/15

English

Remote control

10 keys

On-screen bars

DVD Video

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

DVD Audio

8.5Mbps

OFF

DVD-AUDIO

TIME

OFF

SVCD

TRACK

SVCD

TIME

OFF

TIME OFF ST1

VCD

TIME

OFF

TIME OFF ST

TIME

TIME OFF

OFF

TITLE 2

TITLE

GROUP 14

TITLE

1/3

TITLE

1/3

TITLE

CHAP 3

CHAP

1/3

TRACK 23

PAGE

1/31/3

TRACK 3

CHAP

1/3

-/ 4

TRACK 3

CHAP

TRACK 3

CHAP

1/3

TOTAL 1:01:58

TOTAL

1/3 1/3

TIME 0:15:58

TIME 0:04:58

TOTAL

1/3 1/3

TIME 0:04:58

TOTAL

1/3 1/3

TIME 04:58

TOTAL

1/3 1/3

1:25:58

About the On-screen Bar

You can check the information on disc (except for MP3/ WMA/JPEG/MPEG-4 disc) and use some functions through the on-screen bar.

Disc type

Playback information

Indication Meanings

Mbps

TRACK

Playback conditions

Indication Meanings

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Operation icons (on the pull-down menu)

Indication Meanings

Current transfer rate

(Megabits per second)

Current title

Current chapter

Current group

Current track

Time indications

Playback

Pause

Stop

Select to change the time indication (see also page 31).

Select to repeat playback (see also pages 29, 31, and 32).

Select for time search (see also page 32).

Select for chapter search (see also page 33).

Select for track search (see also page 33).

Select to change the audio language or channel (see also page 24).

Select to change subtitle language (see also page 25).

Select to change the view angle (see also page 25).

Select to change the page (see also page 25).

perations Using the

OFF

1/3

1/3 1/3

TIME

TITLE

TOTAL

1:25:58

CHAP

DVD-VIDEO

TITLE 2

TIME OFF CHAP. 1/31/ 3 1/1

TOTAL 1:01:58

CHAP 3

8.5Mbps

TIME

OFF

On-screen Bar

Remote ONLY

INFO

Basic operation procedure through the on-screen bar is as follows:

While a disc is selected as the source...

Ex.: Selecting a subtitle (French) for DVD Video:

Display the on-screen bar with the pull-down menu.

Changing the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 Display the on-screen bar with the pull-down menu.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TITLE 2

TITLE

CHAP

1/3

2 Make sure is selected (highlighted). 3 Change the time indication.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

English

DVD-VIDEO

8.5Mbps

TIME

OFF

TIME OFF CHAP. 1/31/ 3 1/1

TITLE 2

TITLE

CHAP 3

CHAP

1/3 1/3

1/3

Goes off

Select (highlight) the item you want.

Display the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 2

CHAP

ITLE

1/3

1/31/ 3 1/1

Select the desired option in the pop-up window.

TITLE 2

CHAP

ITLE

1/3

1/32/ 3 1/1

Finish the setting.

Pop-up window goes off.

To erase the on-screen bar

1/3 1/3

ENGLISH

CHAP 3

1/3 1/3

FRENCH

TOTAL

TOTAL 1:01:58

TOTAL

TOTAL 1:01:58

TOTAL

1:25:58

TOTAL

T.REM

TIME

Elapsed disc time.

Remaining disc time.

Elapsed playing time of the current chapter/track.

REM

Remaining time of the current chapter/ track.

To erase the on-screen bar

Repeat Play

• See also page 29.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu. 2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TITLE 2

TITLE

CHAP

1/3

4 Select the repeat mode you want.

ALL

A-B

Repeats the disc (except for DVD).

Repeats a desired portion (see page 32).

TITLE

GROUP

CHAPTER

TRACK*

OFF

Repeats the current title.

Repeats the current group.

Repeats the current chapter.

Repeats the current track.

Cancels Repeat Play.

CHAP 3

TOTAL 1:01:58

TOTAL

1:25:58

1/3 1/3

* During Program Play or Random Play, “STEP”

appears.

5 Finish the setting.

English

Pop-up window goes off.

To cancel Repeat Play,

select “OFF” in step

A-B Repeat

1 While playing, display the on-screen bar with the

pull-down menu. 2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

4 Select “A-B”.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

8.5Mbps

OFF

8.5Mbps

OFF

A–B

TITLE 2

TITLE

TITLE 2

TITLE

CHAP 3

CHAP

1/3

CHAP 3

CHAP

TOTAL 1:01:58

TOTAL

1:25:58

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

1/3 1/3

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the on-screen bar with the pull-down menu.

• Except for DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TIME _ : _ _ : _ _

TITLE 2

TITLE

CHAP

1/3

4 Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

5 Select the start point (A).

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

8.5Mbps

OFF

TITLE 2

TITLE

• Before pressing ENTER, you can search for the end

point using ¡

6 Select the end point (B).

A-B Repeat starts. The selected portion plays repeatedly.

To erase the on-screen bar

•

It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the

1/3

last two digits in the examples above).

•

To correct a misentry,

press cursor 2

to erase the last

entry.

5 Finish the setting.

The System starts playing from the specified time.

To erase the on-screen bar

Chapter/Track Search

Group : 2 / 3

Time : 00:00:14REPEAT TRACK

Tr ack : 5 / 14 (Total 41)

Blue

Red

Green

Tr ack Information

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

Title Rain Artist

Album

You can search for the chapter (DVD Video) or track (DVD Audio) number to play.

1 While playing, display the on-screen bar with the pull-

down menu.

2 Select

CHAP.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

4 Enter the desired chapter/track number.

•

To correct a misentry, press the 10 keys until the

desired number shown in the pop-up window.

5 Finish the setting.

TRACK

CHAPTER _

TITLE 2

TITLE

CHAP 3

CHAP

1/3

1/3 1/3

Examples:

To select chapter/track 5, press

5. To select chapter/track 15, press 1, then 5. To select chapter/track 30, press 3, then 0.

The System starts playing the searched chapter or track.

TOTAL 1:01:58

TOTAL

1:25:58

Operations on the

Screen

CONTROL

Remote ONLY

INFO

The CONTROL screen automatically appears on the TV screen when you load an MP3, WMA, JPEG, or MPEG-4 disc. You can search for and play the desired tracks through the CONTROL screen.

• If more than two types of files (MP3/WMA files, JPEG files, and MPEG-4 files) are recorded on a disc, select the file type to play (see page 44).

CONTROL screen

Ex.: When the MP3 disc is loaded.

English

To erase the on-screen bar

1 Current group number/total group number 2 Current group 3 Group list 4 Current track 5 Track information (Tag information: only for MP3/

WMA)

6 Repeat Play setting 7 Elapsed playing time of the current track

(only for MP3/WMA)

8 Operation mode icon 9 Current track number/total number of tracks in the

current group (total number of tracks on the loaded disc)

0 Highlight bar

- Track list

English

To move the highlight bar between group list and track list

To repeat slide-show for JPEG

While playing or before starting playback or...

Moves the bar to the track list.

Moves the bar to the group list.

To select a group/track in the list

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back an MP3/ WMA disc, the selected track starts playback automatically.

To start playback

For MP3/WMA/MPEG-4:

Playback starts with the selected track.

• Pressing DVD/CD 3

playback.

also starts

(REPEAT) GROUP

OFF (Canceled)

GROUP

ALL

• For Repeat Play of MP3/WMA/MPEG-4, see page 29.

To zoom in the still picture

For JPEG: While playback is paused... For MPEG-4: While playing back...

As the number increases, magnification also increases.

To move the zoomed-in position

Repeats the current group.

Repeats all disc.

ZOOM 1 ZOOM 2

ZOOM OFF

(REPEAT) ALL

For JPEG:

The selected track (still picture) is displayed until you change it.

Slide-show playback starts. Each track (still picture) is shown on the screen for a few seconds, then changes one after another.

• Once you start playing back a JPEG/MPEG-4 track, the CONTROL screen goes off.

• While playing back an MPEG-4 track, you can use ON SCREEN button to show the following information on the display:

- Repeat Play setting

- Elapsed playing time of the current track

- Operation mode icon

• To cancel slide-show, and display the current still picture, press 8

To stop playback

To resume normal playback,

“ZOOM OFF” appears on the TV screen.

press ZOOM repeatedly until

Advanced Tape Operations

DISC

REC START

REC

START/STOP

REVERSE MODE

DUBBING

TAPE-B23

DVD/CD 3

PUSH

OPEN

PUSH OPEN

TAPE

Tape direction indicator

Reverse mode indicator

Current source

Main unit

IMPORTANT

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Recording on a Tape

Main Unit

ONLY

You can use type I tapes for recording.

• To play a tape, see page 18.

Insert a recordable cassette in deck B.

Push Insert

Check the tape running direction and Reverse Mode

settings on the display.

English

INFO

To change the direction

TAPE-B

2 (

forward

reverse

)

3 (

Change the Reverse mode if necessary

REVERSE

MODE

To record on both sides.

•

When using Reverse Mode, start

()()()

recording in the forward (

To record on only one side.

) direction.

TAPE-B

START

DISC REC

English

To stop recording

START/STOP

Start playing the source—“FM,” “AM,” “DVD/CD,” “TAPE-A” or “AUX.”

• When recording a disc, you can also use “Synchronized Disc Recording” (see the right column).

Start recording.

REC

START/STOP

REC

Synchronized Disc Recording

Main Unit

ONLY

INFO

You can start and stop both disc play and tape recording at the same time.

Load a disc and insert a recordable cassette.

• If the current playing source is not the disc player, press

DVD/CD 3

Check the tape running direction and Reverse Mode

, then 7

settings on the display.

• See step 2 of “Recording on a Tape” on page 35.

For recording desired tracks on discs:

You can program tracks to record with your preferred order.

• Select Program Play (and make a program (see page 27)) without starting playback.

Dubbing Tapes

Change the source to TAPE.

Insert the source cassette in deck A, and a recordable

Main Unit

ONLY

cassette in deck B.

Check the tape running direction and Reverse Mode settings on the display.

See step 2 of “Recording on a Tape” on page 35.

Start dubbing.

DUBBING

• When either tape playback or recording ends, both cassette decks stop at the same time.

To stop dubbing

Start recording.

The System automatically creates 4-second blanks between the tunes recorded on the tapes.

• When either disc play or recording ends, both disc player and the cassette deck stop at the same time.

To record without creating a 4-second blank

1 Press DVD/CD 3 2 Press 4

to go back to the beginning of the track.

3 Start recording.

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or re-recording.

To protect your recording,

, then press 8

remove these tabs.

To re-record on a protected tape,

adhesive tape.

cover the holes with

Enjoying Karaoke

MIC LEVEL

MIC 2

MIC 1

VOLUME +/

Remote control

10 keys

ECHO

MIC MIX

KARAOKE

Source

buttons

SHIFT

Main unit

CANCEL

RESERVE KEY /

5/∞

VOLUME

IMPORTANT

English

• Always set MIC LEVEL to MIN when connecting or disconnecting the microphone.

• MIC LEVEL adjustment is valid for both microphones connected to the MIC 1 and MIC 2 jacks.

DO NOT keep the microphones connected while they are not in use.

Microphone Mixing

You can enjoy microphone mixing while playing any source. When Mic mixing mode is activated, you can use two microphones connected the MIC jack.

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) to the

MIC 1 and/or MIC 2 jack.

Start playing the source—FM, AM, disc player, tape, or auxiliary equipment connected to the AUX IN jacks.

Activate the Mic mixing mode.

INFO

Source

buttons

(holding then...)

Adjust the MIC LEVEL and VOLUME.

To cancel from the Mic mixing mode,

step 4.

MIC MIX

MIC OFF

select “MIC OFF” in

English

OFF

KARAOKE

(holding then...)

To use microphone only

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) to the

MIC 1 and/or MIC 2 jack.

Select disc player, then stop playback.

Activate the Mic mixing mode.

(holding then...)

Adjust the MIC LEVEL and VOLUME.

MIC MIX

MIC OFF

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) to the MIC 1 and/or MIC 2 jack.

Start playback.

Activate the Mic mixing mode.

MIC MIX

MIC OFF

(holding then...)

Activate the Karaoke mode.

To cancel from the Mic mixing mode,

step 4.

To apply an echo to your voice

During Mic mixing mode is activated...

(holding then...)

• As the number increases, echo level also increases.

Singing Along (Karaoke)

You can enjoy singing along (Karaoke) and microphone mixing by using two microphones. Karaoke mode is vocal masking mode. The vocal masking reduces the lead vocal of any disc (except for DVD Audio/ MPEG-4) source, and allows you to replace it by singing into the microphones as the music plays. If the playing disc is a multiplex Karaoke disc, you can enjoy multiplex sound by press AUDIO (see page 24).

select “MIC OFF” in

ECHO 1 ECHO 2

ECHO 3ECHO OFF

INFO

Adjust the MIC LEVEL and VOLUME.

To cancel from the Karaoke mode,

select “OFF” in step

or change the source to play.

To adjust the Key (disc playback only)

While playing back a disc...

To raise the key.

To lower the key.

(holding then...)

Reserving Karaoke Songs

1 2 3 4 5

Gr/Tt Tr/Chap

(holding then...)

On the TV screen

(holding then...)

Remote ONLY

—Karaoke Program Play

You can determine the playback order of the titles or tracks on the disc player. You can program up to 12 steps.

Change the source to the “DVD/CD.”

Activate Karaoke Program mode.

Start playback.

To check the programmed contents

(holding then...)

The Karaoke reserve screen appears.

To modify the program

While the Karaoke reserve screen is shown on the TV...

To erase the unwanted step:

English

• PRGM. indicator flashes during this mode.

Select songs you want for Karaoke program play.

For DVD Video/MP3/WMA:

Press the number buttons to select a title (DVD Video) or group (MP3/WMA).

Repeat step 1

to select a chapter (DVD Video) or

track (MP3/WMA).

For SVCD/VCD/CD:

Press the number buttons to select a track.

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

Activate the Mic mixing mode.

(holding then...)

To erase the entire program:

To add steps in the program:

Repeat step 3.

MIC MIX

MIC OFF

Timer Operations

CANCEL /DEMO

SET /DISPLAY

CLOCK /TIMER

4/¢

PRESET

SET

DISPLAY

English

Main unit

Setting the Timer

Main Unit

ONLY

INFO

Using Daily Timer, you can wake up with your favorite song. On the other hand, with Recording Timer, you can make a tape of a radio broadcast automatically.

• To correct a misentry during the process, press CANCEL/ DEMO. You can return to the previous step.

Select one of the timer setting modes (TIMER(ON)) you want to set—Daily Timer or Recording Timer.

CLOCK

TIMER

Make the timer setting as you want.

DAILYTIMER

TITLE

Daily Timer Recording Timer

Canceled

TIMER(ON)

Clock setting

REC TIMER

TIMER(ON)

DAILY

Repeat the procedure until you finish setting in the following order:

Set the hour then minute for on-time.

Set the hour then minute for off-time.

For Daily Timers: Select the playback source—

“TUNER FM,” “TUNER AM,” “DISC,” “TAPE-A,” “TAPE-B” or “AUX IN.”

For Recording Timer: Select the playback

source—“TUNER FM” or “TUNER AM.”

DAILY

EX.: When “TUNER FM” is selected.

Select a preset station for “TUNER FM” and “TUNER AM,” or select a group and track number for “DISC.”

For Daily Timers: Select the volume level.

• You can select the volume level (“VOLUME 5,” “VOLUME 10,” “VOLUME 15” and “VOLUME --”). If you select “VOLUME --,” the volume is set to the last level when the system has been turned off.

Turn off the System (on standby) if you have set the

SET

DISPLAY

timer with the System turned on.

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and DAILY indicator are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column).

When the on-time comes

The System turns on, tunes in to the specified station or starts playing the specified source, and sets the volume level to the preset level.

When the off-time comes

The System stops playback, and turns off (standby).

• The timer setting remains in memory until you change it.

How Recording Timer actually works

When Recording Timer has been set, Timer ( ) indicator and the REC indicator are lit on the display. Recording Timer works only once.

To turn off the Timer after its setting is done

You can turn off the timer after it has been set.

• Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

Select the timer you want to cancel (DAILYTIMER or

REC TIMER) you want to cancel.

CLOCK

TIMER

Turn off the selected timer.

CANCEL

DEMO

DAILYTIMER

• The timer ( ) indicator goes off.

To turn on the timer again,

SET/DISPLAY.

Daily Timer Recording Timer

Canceled

TIMER(ON)

Clock setting

repeat the step 1 and press

REC TIMER

TIMER(ON)

English

When the on-time comes

The System turns on, tunes in to the specified station, sets the volume level to “VOLUME MIN,” and starts recording.

When the off-time comes

The System stops recording, and turns off (standby).

• The timer setting remains in memory until you change it.

Even if the System is power on condition and selected other source, Recording Timer will be activated.

Timer Priority

INFO

Since each timer can be set separately, you may wonder what happens if the setting for these timers overlaps.

• Recording Timer has priority over the Daily Timer and Sleep Timer (see page 23).

6:00 6:30 7:00 7:30

Recording Timer

Daily Timer

Canceled

6:00 6:30 7:00 7:30

Recording Timer

Sleep Timer

Canceled

Set up Menu Operations

Set up Menu Icons

The icon for the selected Set up Menu will be highlighted.

4:3 LB

AUTO


MONITOR TYPE

PICTURE SOURCE

AUDIO

SCREEN SAVER

FILE TYPE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

SELECT

English

Remote control

10 keys

SET UP

3/2/5/∞ ENTER

Operating Procedure

Remote ONLY

You can use the Set up Menus only when a disc is selected as the source and its playback is not yet started.

Ex.: Selecting “STILL PICTURE” for “FILE TYPE”:

Show the set up menu.

LANGUAGE

Select one of the set up menus.

Select the item you want to adjust.

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM

[

]

SET UP

TO EXIT, PRESS

4:3 LB

AUTO

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

Ex.: LANGUAGE Set up Menu is selected.

12 3 45

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

1 LANGUAGE Set up Menu 2 PICTURE Set up Menu 3 AUDIO Set up Menu 4 SPK. SETTING Set up Menu 5 OTHERS Set up Menu

Display the pop-up window.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT . USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

Select the desired option in the pop-up window.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

Finish the setting.

4:3 LB

AUTO

AUDIO

AUDIO STILL PICTURE VIDEO

4:3 LB

AUTO

AUDIO

AUDIO STILL PICTURE VIDEO

ENGLISH

LANGUAGE

MENU LANGUAGE

ON SCREEN LANGUAGE

AUDIO LANGUAGE

SUBTITLE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

SELECT

Repeat steps 3 Setup Menu. Repeat steps 2 Menu.

to 4

to set other items on the same

to 4

to set other items on another Setup

PICTURE Set up Menu

INFO

You can select the desired options concerning a picture or monitor screen.

English

To finish the Set up Menu

LANGUAGE Set up Menu

INFO

You can select the initial languages for disc playback. You can also select the language shown on the TV screen while operating this System.

MENU LANGUAGE

Some discs have multiple menu languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 54).

AUDIO LANGUAGE

Some discs have multiple audio languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 54).


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

4:3 LB

AUTO

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM

[

SET UP].

TO EXIT, PRESS

MONITOR TYPE

You can select the monitor type of your TV when you play DVD Video recorded with aspect ratio of 16:9.

For the multi-color system TV

When you use a multi-color system TV, you can change the color system of the System automatically by selecting “MULTI” options as the monitor type. In this case, the color system of the System is changed to match the color system of the loaded disc regardless the VIDEO OUT SELECT setting for better picture quality.

Select one of the following

16:9 / 16:9 MULTI (Wide television conversion):

Select when the aspect ratio of your TV is 16:9 (wide TV) and when the TV has the screen size adjustment function.

4:3 LB (Letter Box)/ 4:3 MULTI LB:

Select when the aspect ratio of your TV is 4:3. While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3 PS (Pan Scan) / 4:3 MULTI PS:

Select when the aspect ratio of your TV is 4:3. While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

SUBTITLE

Some discs have multiple subtitle languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 54) or “OFF (no subtitle).”

ON SCREEN LANGUAGE

Select one of the languages shown on the TV from— ENGLISH, CHINESE, and SPANISH.

Ex.: 16:9 Ex.: 4:3 LB Ex: 4:3 PS

English

PICTURE SOURCE

You can obtain optimal picture quality by selecting an appropriate option—picture source type (either video source or film source).

Select one of the following:

AUTO:

Normally select this. When playing back a disc containing both video and film sources, the System automatically changes the processing to match it to the picture type (film or video source) of the current chapter.

FILM:

VIDEO:

To play a film source disc.

To play a video source disc.

SCREEN SAVER

You can activate or deactivate screen saver while operating the built-in disc player.

Select one of the following:

ON:

The on-screen display on the TV becomes dark when no operation is done for about 5 minutes.

OFF:

To cancel the screen saver.

FILE TYPE

If both audio tracks (MP3 or WMA files), still picture (JPEG files), and video (MPEG-4 files) are recorded on a disc, you can select which to play.

Select one of the following:

AUDIO:

STILL PICTURE:

VIDEO:

To play MP3/WMA files.

To play JPEG files.

To play MPEG-4 files.

AUDIO Set up Menu

INFO

You can adjust the sound settings of the System.

AUDIO

DIGITAL AUDIO OUTPUT

D. RANGE COMPRESSION

SELECT

ENTER

STREAM/PCM

AUTO

USE TO SELECT. USE ENTER TO CONFIRM

[

TO EXIT, PRESS

SET UP].

DIGITAL AUDIO OUTPUT

When using the digital output terminal on the rear, set this correctly according to the connected component.

Select one of the following:

PCM ONLY:

To connect to a linear PCM digital equipment such as an MD recorder.

DOLBY DIGITAL /PCM:

To connect to a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM:

To connect to a DTS decoder or an amplifier with a built-in DTS decoder.

• See also “OPTICAL DIGITAL OUTPUT Signals” on page 56.

D. RANGE COMPRESSION

You can compress the dynamic range (the difference between the loudest sound and the softest sound) to enjoy a powerful sound even at a low volume level when listening to Dolby Digital software. This is useful at night.

• The effectiveness varies depends on a software.

Select one of the following:

AUTO:

ON:

To enjoy powerful sounds with full dynamic range.

Best for watching a movie at a low volume level.

Speaker Diagram

Front Speakers

Center Speaker

Surround Speakers

• The selected speaker icon is highlighted blue.

SPK. SETTING Set up Menu

You can adjust the sound settings of the System

DISTANCE

Select this to enter the DISTANCE submenu. See also “Setting the Speakers” on page 8.

English

SPK. SETTING

LEVEL

DISTANCE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

LEVEL

Select this to enter the LEVEL submenu. If the output sound of center speaker or surround speakers from the listening position are not equal to that of the front speakers, use test tone to adjust the output level to get the best possible surround effect.

DISTANCE

SELECT

ENTER

FRONT SPEAKER, CENTER SPEAKER, SURROUND SPEAKER

RETURN

FRONT SPEAKER

CENTER SPEAKER

SURROUND SPEAKER

RETURN

3. 0m

0dB

3. 0m

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

For each speaker, set the distance from the listening point within the range of 0.3 m to 9.0 m in 0.3 m intervals.

Select this then press ENTER to return to the SPK. SETTING menu.

LEVEL

SELECT

ENTER

CENTER SPEAKER

SURROUND RIGHT SPEAKER

SURROUND LEFT SPEAKER

TEST TONE

RETURN

0dB

OFF

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

1 Select “ON” of the item TEST TONE. 2 Select the speaker—CENTER SPEAKER,

SURROUND RIGHT SPEAKER, SURROUND LEFT SPEAKER.

3 Adjust the speaker output level for the selected

speaker.

You can adjust the output level within the range of –6 dB to +6 dB in 1 dB interval.

4 Repeat steps 2 and 3 to adjust the other speakers.

• To stop test tone, select “OFF” of the item TEST TONE.

5 Select “RETURN” then press ENTER to return to the

SPK. SETTING Set up menu.

English

OTHERS Set up Menu

You can change some other convenient functions.

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

ENTER

DVD1

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

RESUME

You can activate or deactivate Resume for disc playback (see page 16).

Select one of the following:

ON:

OFF:

To activate Resume.

To cancel Resume.

ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons (see page 16).

• When recording the picture on a VCR, select “OFF” to avoid recording the guide icons on your video tape.

Select one of the following:

ON:

OFF:

To activate the on-screen guide icons.

To cancel the on-screen guide icons.

INFO

AV COMPULINK MODE

When connecting the System to a JVC’s TV with the AV COMPU LINK remote control system, select the proper setting.

Select one of the following:

DVD1:

To connect to the COMPONENT Video (or VIDEO-3 Input) jacks on the TV using a component video cord.

DVD2:

To connect to the VIDEO-1 Input jack on the TV using an S-video cord.

DVD3:

To connect to the VIDEO-2 Input jack on the TV using a composite video cord.

• For details, see “To connect the AV COMPU LINK cords” on page 7.

PARENTAL LOCK

Select this to enter the PARENTAL LOCK submenu. See the section that follows.

Restricting the Review

OTHERS

RESUME

ON SCREEN GUIDE

DVD1

PARENTAL LOCK

AV COMPULINK MODE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

SELECT

NONE

_ _ _ _

PARENTAL LOCK

COUNTRY CODE

EXIT

SET LEVEL

PASSWORD

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

SELECT

7 6 5

NONE

Remote

ONLY

—Parental Lock

You can restrict playback of DVD Video containing violent scenes and those unsuitable for your family members. Once you have set the rating level, such violent scenes (for which a higher level than you set is assigned) may be skipped or changed to another scene (depending on how the disc is programmed).

Select “COUNTRY CODE,” then display the pop-up window.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

MX MY

NONE

_ _ _ _

NA NC NE NF

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

English

To set Parental Lock

Set the rating level—Level 1 (most restrictive) to Level 8 (least restrictive).

Display the Setup Menu.

LANGUAGE

Select the OTHERS Setup Menus.

Select “PARENTAL LOCK.”

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM

[

]

SET UP

TO EXIT, PRESS

DVD1

Select the country code of your area.

• See also “Country/Area codes list for Parental Lock” on page 55 to find your country code.

Select “SET LEVEL,” then display the pop-up

window.

Set the rating level (NONE, 8 – 1).

SELECT

ENTER

Enter the PARENTAL LOCK submenu.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

NONE

_ _ _ _

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

The System automatically enters password entry mode.

Enter any 4-digit number for your password.

Finish the setting.

English

To change the setting

Display the PARENTAL LOCK sub menu.

• Follow steps 1 to 4 of “To set Parental Lock” .

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

_ _ _ _

PASSWORD? ••• PRESS 0 ~ 9 KEY

TO EXIT, PRESS [SET UP].

To release Parental Lock temporarily

When you set a strict rating level, some discs may not be played back at all. When you try to play such a disc, the following screen appears on the TV screen.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

_ _ _ _

“PASSWORD” is automatically selected.

• You cannot select any item other than “EXIT” until you enter the correct password.

Enter your password.

• If you enter a wrong password, “– – – –” appears again.

• If you enter a wrong password three times, “EXIT” is automatically selected. In this case, press ENTER to exit from the PARENTAL LOCK submenu.

• If you forget your password, enter “8888.”

Change the settings.

• Follow steps 5 to 8 of “To set Parental Lock” .

Enter your password again.

SELECT

USE 5∞TO SELECT. USE ENTER TO CONFIRM.

ENTER

Select “TEMPORARY RELEASE,” then ENTER.

“PASSWORD” is automatically selected.

• If you do not play back such a disc, select “NOT RELEASE,” then ENTER. Then eject the disc.

Enter your password.

• If you want to change a password, enter a new four digit number in this step.

• If you enter a wrong password three times, “NOT RELEASE” is automatically selected. In this case, press ENTER. Then eject the disc.

Operating the TV

TV/VIDEO

ENTER

SHIFT

TV VOLUME

TV CHANNEL

Remote control

Manufacture’s code

Manufacture Code number

10 Keys

Operating TV

You can operate the JVC’s or other manufacturers’ TV using this remote control.

Keep pressed until the following steps are complete.

Enter the code setting mode.

Enter the 2-digit manufacture’s code number.

English

JVC 01

Hitachi 10

Magnavox 02

Mitsubishi 03

Panasonic 04,11

RCA 05

Samsung 12

Sanyo 13

Sharp 06

Sony 07

Toshiba 08

Zenith 09

Release TV .

To operate the TV

To turn on or off the TV:

To adjust TV volume:

(holding then...)

To select the TV channel:

To select the input mode (either TV or VIDEO):

(holding then...)

TV VOLUME

(holding then...)

Additional Information

English

Learning More about This System

Before Operating the System

(see pages 10 to 13)

Playable Disc Types:

• If you play back an NTSC disc with this setting set to “PAL,” you can watch the playback pictures (the disc will be reproduced using “PAL 60” format), but the TV screen may roll over upward and downward rapidly.

• If you play back a PAL disc with this setting set to “NTSC,” you can watch the playback pictures, but the following symptoms may occur: – The items on the disc menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the original

aspect ratio.

– The picture movement is not smooth.

• Notes on MP3/WMA/JPEG/MPEG-4 discs

– MP3/WMA/JPEG/MPEG-4 discs are required a longer

readout time than regular CDs. (It depends on the complexity of the group/file configuration.)

– Some MP3/WMA/JPEG/MPEG-4 files cannot be played

back and will be skipped. This results from their recording processes and conditions.

– This system can play back MP3/WMA/JPEG/MPEG-4

files with the extension code <.mp3>, <.wma>, <.jpg>, or <.asf> (regardless of the letter case—upper/lower).

• About audio format

–

Linear PCM:

format used for CDs and most studio masters.

Dolby Digital:

–

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

DTS (Digital Theater Systems):

–

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

– When playing back a DVD Audio disc recorded by MLP

(Meridian Lossless Packing; a lossless audio compression system that can completely recreate the PCM signal), the signals recognized as the linear PCM signal, however, no indicator lights up in the display window.

Daily Operations—Playback

Uncompressed digital audio, the same

Compressed digital audio, developed by

Compressed digital

(see pages 14 to 18)

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Disc:

• On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• For MP3/WMA playback... – When making MP3/WMA discs, use ISO 9660 Level 1 or

Level 2 for the disc format.

– It is recommended that you make each MP3/WMA file at a

sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

Playing Back a Tape:

• In Relay Play, the reverse side of the tape in deck A does not playback. If the playing time of the tape in deck A is less than 12 seconds, the System rewind the tape and playback again.

Daily Operations—Sound&Other Adjustments

(see pages 19 to 23)

Adjusting the Volume:

• Be sure to turn down the volume before connecting or putting the headphones.

Creating Your Own Sound Modes—User Mode:

• When you unplug the AC power cord or if a power failure occurs, the USER mode settings will be erased in a few days. If this happens, set the USER Modes again.

Using Surround Mode:

•

Dolby Pro Logic II modes:

Dolby Pro Logic II has developed multichannel playback format to decode the 2 channel sources—Linear PCM digital source, MP3 source, WMA source, Dolby Digital 2ch, DTS 2ch, and Dolby Surround encoded source—into 5.1 channel. Dolby Pro Logic II enables to reproduce spacious sound from original sound without adding any new sounds and tonal colorations.

• While you use the headphones, the Surround Mode will canceled temporarily (“STEREO” will appear on the display).

• Some DVD Audios prohibit downmix. – When you change the Surround Mode while playing back

such a disc, “MULTI CH” appears on the display and you cannot change the Surround Mode.

– When you select the Surround Mode to “STEREO” and start

playback such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

– When you use the headphones while playing back such a

disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• During MPEG-4 playback, Dolby Pro Logic II modes will be canceled temporarily.

Changing the Scanning Mode:

• Do not change the progressive scanning mode in the following cases: – When your TV does not support the progressive video input. – When you have not connected your TV to the unit using a

component video cord.

• When you play back an NTSC disc in progressive scanning mode, the System output the NTSC signal though color system settings.

Changing the Picture Tone:

• If no operation is done for about 10 seconds, the VFP setting screen disappears.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique DVD/VCD Operations

(see pages 24 to 26)

Selecting the Sound Track:

• On some DVD Videos, you cannot change audio languages while playing back.

Playing Back a Bonus Group on a DVD Audio:

• You cannot select a track in the bonus group for Program Play.

Special Picture Playback:

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

(see pages 27 to 29)

Programming the Playing Order—Program Play:

• While programming steps... Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks). Such entries are ignored, and are erased from the program.

• You cannot use Program Play and Random Play for JPEG/ MPEG-4 discs.

Prohibiting Disc Ejection—Child Lock:

• If you try to eject discs while Child Lock is in use, “LOCKED” appears to inform you that the disc tray is locked.

On-Screen Disc Operations

(see pages 30 to 34)

Operations Using the On-screen Bar:

• A-B Repeat:

– A-B Repeat cannot be used on some DVDs. – For DVD Video, A-B Repeat is possible only within the

same title.

– For DVD Audio/SVCD/VCD/CD, A-B Repeat is possible

only within the same track.

Operations on the CONTROL Screen:

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files*. Progressive

JPEG files* or lossless JPEG files* cannot be played.

* Baseline JPEG format: Used for digital cameras, web,

etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

• This unit may not play back JPEG files properly which are recorded by the devices other than digital still camera. During JPEG Slide-show playback, zoom cannot be operated.

•

• For MPEG-4 files playback... – The System can play back the MPEG-4 files followed the

conditions below: File format: ASF Visual profile MPEG-4 SP (Simple Profile) Audio CODEC: G.726 Max. picture size: 352 x 288 Max. bit rate: 384 kbps

– The size of playback screen will be the same size as it is

recorded. – Some recorded files may not be able to be played back. – Some MPEG-4 files created on a personal computer may not

be played back.

Advanced Tape Operations

(see pages 35 and 36)

Recording on a Tape:

• The recording level is automatically set correctly. Thus, you can adjust the sound you are actually listening to without affecting the recording level.

• There is leader tape which cannot be recorded onto at the start and the end of cassette tapes. Thus, when recording discs or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If no cassette is inserted, “NO TAPE” appears on the display. If a protected tape has been inserted, “NO REC” appears on the display.

• When using Reverse Mode for recording, start recording in the

forward ( when only one side (reverse) of the tape is recorded.

• You cannot change the source during recording.

) direction first; otherwise, recording will stop

Synchronized Disc Recording:

• While recording, you cannot use ¢/4, ¡/1, DVD LEVEL, Surround Mode and source buttons.

• You can adjust volume control and sound setting (Subwoofer, RHYTHM AX, Sound Mode) but the settings do not affect the recording sound.

• Everything on the disc goes onto the tape in the order on the disc, or according to the order you have made for Program Play.

• You cannot use Synchronized Recording with Repeat Play (Repeat Play will be canceled).

• When recording starts, “DISC REC” appears on the display and the REC (recording) lamp flashes.

) during

)

• When the tape reaches its end in the forward direction ( during recording, the last song will be re-recorded at the

beginning of the reverse side (

• When the tape reaches its end in the reverse side ( recording, recording stops even though the entire disc is not entirely recorded.

• During Recording, Multi-channel source will be downmixed into 2 channels, and AUTO or Dolby Pro Logic II modes are temporarily canceled.

• You cannot use Synchronized Recording with JPEG or MPEG-4 disc.

English

Enjoying Karaoke

(see pages 37 to 39)

Microphone Mixing:

• When Mic mixing mode is activated, Multi-channel source will be downmixed into 2 channel temporarily.

• When Mic mixing mode is activated, Dolby Pro Logic II mode will be canceled temporarily.

• By pressing REC START/STOP, you can record your singing along if you want.

Singing Along (Karaoke):

• When Karaoke mode is activated, Multi-channel source will be downmixed into 2 channel temporarily.

• When Karaoke mode is activated, Dolby Pro Logic II mode will be canceled temporarily.

• Karaoke mode cannot be activated while DVD Audio or MPEG-4 is played.

• Karaoke mode setting is also applied to the optical digital output signals through the OPTICAL DIGITAL OUTPUT terminal.

• On some music, Karaoke mode does not provide the correct effect.

Reserving Karaoke Songs—Karaoke Program Play

• You cannot use Karaoke Program Play for DVD Audio and MPEG-4 discs.

Timer Operations

(see pages 40 and 41)

Setting the Timer:

• If you do not specify the preset station or track number correctly while setting a timer, the currently selected station or the first track will be played when timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• Without stopping the recording, you cannot change the source after Recording Timer starts recording.

• If you set DVD Video as the source, Daily Timer will not work correctly.

Timer Priority:

• If you set the Sleep Timer after Daily Timer starts playing the selected source, Daily Timer is canceled.

• If you set the Sleep Timer after Recording Timer starts recording, Recording Timer is canceled, but recording continues until Sleep Timer shuts off the power.

Set up Menu Operations

(see pages 42 to 48)

LANGUAGE Set up Menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE Set up Menu—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may become 4:3 letter box with some DVD Videos. This depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

OTHERS Set up Menu—ON SCREEN GUIDE:

• The set up menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zooming in always appear on the display regardless of this setting.

Maintenance

To get the best performance of the System, keep your discs, tapes, and mechanism clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

• Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in the

cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality:

• Use a cotton swab moistened with alcohol to clean the heads, capstans, and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System turned off).

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strong. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as insecticides

to it.

– DO NOT allow any rubber or plastic to remain in contact for

a long time.

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive video input.

]

Incorrect color system is selected (see “To set the video output selector” on page 7).

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB /4:3 MULTI LB” for “MONITOR TYPE” (see page 43).

Unplug the AC power cord

MP3/WMA, JPEG, or MPEG-4 files are not played back.

The inserted disc may include more than two types of tracks

]

(MP3/WMA ﬁles, JPEG ﬁles, and MPEG-4 ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 44).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

The disc playback sounds strange.

]

Cancel Key Control (see page 38).

The sound through OPTICAL DIGITAL OUTPUT is strange.

]

Cancel Karaoke mode (see page 38).

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, press SUB TITLE after starting play (see page 25).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, press AUDIO after starting play (see page 24).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use (see page 29).

Tape Operations:

The cassette holder cannot be opened.

]

Power supply from the AC power cord has been cut off while the tape was running. Turn on the System.

English

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

]

The disc is placed upside down. Place the disc with the label side up.

]

Parental Lock is in use (see page 48).

ID3 Tag on an MP3 disc cannot be shown.

here are two types of ID3 Tag—Version 1 and Version 2.

]

This System can only show ID3 Tag Version 1.

MP3 groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

Recordings:

Impossible to record.

]

Small tabs on the back of the cassette are removed. Cover the holes with adhesive tape.

Timer operations:

Daily Timer does not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

English

Language Code List

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

SH Serbo-Croatian

SI Singhalese

SK Slovak

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay (MAY)

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangho

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA Tamil

TE Telugu

TG Tajik

TH Thai

TI Tigrinya

TK Turkmen

TL Tagalog

TN Setswana

TO Tonga

TR Turkish

TS Tsonga

TT Tatar

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

VI Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu

Country/Area codes list for Parental Lock

Andorra

United Arab Emirates

Afghanistan

Antigua and Barbuda

Anguilla

Albania

Armenia

Netherlands Antilles

Angola

Antarctica

Argentina

American Samoa

Austria

Australia

Aruba

Azerbaijan

Bosnia and Herzegovina

Barbados

Bangladesh

Belgium

Burkina Faso

Bulgaria

Bahrain

Burundi

Benin

Bermuda

Brunei Darussalam

Bolivia

Brazil

Bahamas

Bhutan

Bouvet Island

Botswana

Belarus

Belize

Canada

Cocos (Keeling) Islands

Central African Republic

Congo

Switzerland

Côte d’Ivoire

Cook Islands

Chile

Cameroon

China

Colombia

Costa Rica

Cuba

Cape Verde

Christmas Island

Cyprus

Czech Republic

Germany

Djibouti

Denmark

Dominica

Dominican Republic

Algeria

Ecuador

Estonia

Egypt

Western Sahara

Eritrea

Spain

Ethiopia

Finland

Fiji

Falkland Islands (Malvinas)

Micronesia (Federated States of)

Faroe Islands

France

France, Metropolitan

Gabon

United Kingdom

Grenada

Georgia

French Guiana

Ghana

Gibraltar

Greenland

Gambia

Guinea

Guadeloupe

Equatorial Guinea

Greece

South Georgia and the South Sandwich

Guatemala

Guam

Guinea-Bissau

Guyana

Hong Kong

Heard Island and McDonald Islands

Honduras

HR Croatia HT Haiti HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Indian Ocean Territory IQ Iraq IR Iran (Islamic Republic of) IS Iceland IT Italy JM Jamaica

English

JO Jordan JP Japan KE Kenya KG Kyrgyzstan KH Cambodia KI Kiribati KM Comoros KN Saint Kitts and Nevis KP Korea, Democratic People’s

Republic of

KR Korea, Republic of KW Kuwait KY Cayman Islands KZ Kazakhstan LA Lao People’s Democratic

Republic

LB Lebanon LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libyan Arab Jamahiriya MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands ML Mali MM Myanmar MN Mongolia MO Macau MP Northern Mariana Islands MQ Martinique MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway

English

Nepal

Nauru

Niue

New Zealand

Oman

Panama

Peru

French Polynesia

Papua New Guinea

Philippines

Pakistan

Poland

Saint Pierre and Miquelon

Pitcairn

Puerto Rico

Portugal

Palau

Paraguay

Qatar

Réunion

Romania

Russian Federation

Rwanda

Saudi Arabia

Solomon Islands

Seychelles

Sudan

Sweden

Singapore

Saint Helena

Slovenia

Svalbard and Jan Mayen

Slovakia

Sierra Leone

San Marino

Senegal

Somalia

Suriname

Sao Tome and Principe

El Salvador

Syrian Arab Republic

Swaziland

Turks and Caicos Islands

Chad

French Southern Territories

Togo

Thailand

Tajikistan

Tokelau

Turkmenistan

Tunisia

Tonga

East Timor

Turkey

Trinidad and Tobago

Tuvalu

Taiwan

Tanzania, United Republic of

Ukraine

Uganda

United States Minor Outlying Islands

United States

Uruguay

Uzbekistan

Vatican City State (Holy See)

Saint Vincent and the Grenadines

Venezuela

Virgin Islands (British)

Virgin Islands (U.S.)

Vietnam

Vanuatu

Wallis and Futuna Islands

Samoa

Yemen

Mayotte

Yugoslavia

South Africa

Zambia

Zaire

Zimbabwe

OPTICAL DIGITAL OUTPUT Signals

DIGITAL AUDIO

OUTPUT Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD Video

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS Digital Surround DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/ 20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS Digital Surround DTS bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD CD with DTS Digital Surround MP3/WMA disc

44.1 kHz, 16 bit Linear PCM*/48 kHz, 16 bit Linear PCM*

DTS bitstream 44.1 kHz, 16 bit Linear PCM

32/44.1/48 kHz, 16 bit Linear PCM

MPEG-4 disc

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

32 kHz, 16 bit Linear PCM

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the

OPTICAL DIGITAL OUTPUT terminal if the discs are not copy-protected.

Specifications

CA-MXJD5

Amplifier section

Output Power: FRONT MAIN SPEAKERS: 40 W per channel, min. RMS,

driven into 6 Ω at 1 kHz with no more than harmonic distortion.

FRONT SUBWOOFERS: 80 W per channel, min. RMS,

driven into 6 Ω at 63 Hz with no more than harmonic distortion.

CENTER SPEAKER: 40 W, min. RMS, driven into

8 Ω at 1 kHz with no more than

10% total harmonic

distortion.

SURROUND SPEAKERS: 25 W per channel, min. RMS,

driven into 16 Ω at 1 kHz with no more than harmonic distortion.

Digital output: OPTICAL DIGITAL OUTPUT:

–21 dBm to –15 dBm (660 nm ±30 nm) Audio input sensitivity/Impedance (Measured at 1 kHz, with tape recording signal 300 mV) AUX IN: 300 mV/47 k MIC 1/2: 3.0 mV/50 k

VIDEO OUT: Color system:NTSC/PAL selectable VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

C (chrominance, burst)

COMPONENT (Interlace/Progressive):

(Y) 1 V(p-p)/75

B/PR

Ω

) 0.7 V(p-p)/75

10% total

0.286 V(p-p)/75

Ω Ω

Ω

Ω Ω

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range:

531 kHz – 1 710 kHz (at 9 kHz) 530 kHz – 1 710 kHz

(at 10 kHz)

Disc player section

Playable disc: DVD Video/DVD Audio/CD/VCD/SVCD

CD-R/CD-RW (recorded in Audio CD/ Video CD/ Super Video CD/ MP3/ WMA/ JPEG/MPEG-4 format) DVD-R/DVD-RW (recorded in video

format) Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Cassette deck section

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V /

AC 230 V – AC 240 V , (adjustable with the voltage selector), 50 Hz / 60 Hz

Power consumption: 220 W (at operation)

20 W (on standby)

Dimensions (approx.):265 mm x 335 mm x 352 mm

(W/H/D)

Mass (approx.): 8.7 kg

Supplied Accessories

See page 3.

Design and specifications are subject to change without notice.

English

Speaker Terminals: 6

Others: AV COMPU LINKx2 (φ 3.5)

Ω − 16 Ω

Ω − 32 Ω

Ω − 16 Ω

(Front main speakers) (Center speakers)

(Surround speakers)

(Front subwoofers)

English

CA-MXJD8

Amplifier section

Output Power: FRONT MAIN SPEAKERS: 55 W per channel, min. RMS,

driven into 6 Ω at 1 kHz with no more than harmonic distortion.

FRONT SUBWOOFERS: 140 W per channel, min.

RMS, driven into 6 Ω at 63 Hz with no more than harmonic distortion.

CENTER SPEAKER: 50 W, min. RMS, driven into

8 Ω at 1 kHz with no more than

10% total harmonic

distortion.

SURROUND SPEAKERS: 30 W per channel, min. RMS,

driven into 16 Ω at 1 kHz with no more than harmonic distortion.

Digital output: OPTICAL DIGITAL OUTPUT:

–21 dBm to –15 dBm (660 nm ±30 nm) Audio input sensitivity/Impedance (Measured at 1 kHz, with tape recording signal 300 mV) AUX IN: 300 mV/47 k MIC 1/2: 3.0 mV/50 k

VIDEO OUT: Color system:NTSC/PAL selectable VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

C (chrominance, burst)

COMPONENT (Interlace/Progressive):

(Y) 1 V(p-p)/75

B/PR

Ω

) 0.7 V(p-p)/75

0.286 V(p-p)/75

10% total

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range:

531 kHz – 1 710 kHz (at 9 kHz) 530 kHz – 1 710 kHz

Disc player section

Playable disc: DVD Video/DVD Audio/CD/VCD/SVCD

CD-R/CD-RW (recorded in Audio CD/ Video CD/ Super Video CD/ MP3/ WMA/ JPEG/MPEG-4 format) DVD-R/DVD-RW (recorded in video

format) Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Cassette deck section

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V /

AC 230 V – AC 240 V , (adjustable with the voltage selector), 50 Hz / 60 Hz

Power consumption: 325 W (at operation)

22 W (on standby)

Dimensions (approx.):265 mm x 335 mm x 352 mm

(W/H/D)

Mass (approx.): 9.1 kg

Ω Ω

Supplied Accessories

See page 3.

Ω

Design and specifications are subject to change without

Ω

notice.

Ω

(at 10 kHz)

Speaker Terminals: 6

Others: AV COMPU LINKx2 (φ 3.5)

Ω − 16 Ω

Ω − 32 Ω

Ω − 16 Ω

(Front main speakers) (Center speakers)

(Surround speakers)

(Front subwoofers)

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.)

VOLTAGE

SELECTOR

CA-MXJD5/CA-MXJD8 COMPACT COMPONENT SYSTEM

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

AUX

RIGHT LEFT

COMPU LINK

OPTICAL

DIGITAL OUTPUT

ANTENNA

LOOP

FM (75 )

COAXIAL

PR PB Y

COMPONENT

EXT

VIDEO

NTSC

PAL

S-VIDEO

VIDEO OUT

RIGHT

LEFT

FRONT MAIN SPEAKERS

FRONT SUBWOOFERS

CAUTION: SPEAKER IMPEDANCE 6Ω-16Ω

CENTER

VOLTAGE

SELECTOR

EN,CS

VICTOR COMPANY OF JAPAN, LIMITED

0404AIMMDWJEM

COMPACT COMPONENT SYSTEM

CA-MXJD8

CA-MXJD5

CA-MXJD5 CA-MXJD8

EXTENDED SUPER BASS

INSTRUCTIONS

GVT0127-002A

[UX]

Warnings, Cautions and Others

Caution–– (STANDBY/ON) button!

Disconnect the mains plug to shut the power off completely. The (STANDBY/ON) button in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

G-1

CAUTION: Proper Ventilation

15 cm

10 cm

1 cm

CA-MXJD5 CA-MXJD8

1 cm

15 cm

Front view Side view

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on a level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

G-2

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

parts inside the unit; leave all servicing to qualified service personnel.

CAUTION

failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

: Do not open the top cover. There are no user serviceable

: Visible and invisible laser radiation when open and interlock

G-3
