JVC SP-MXJ100J, CA-MXJ100J, MX-J100J, MX-J100, CA-MXJ100 Instructions Manual

COMPACT

DIGITAL AUDIO

COMPACT COMPONENT SYSTEM

MX-J100

Consists of CA-MXJ100 and SP-MXJ100.

POWER TIMER

SLEEP

ON/OFF

PROGRAM

REPEAT

SOUND

ACTIVE

/SET

MODE

BASS EX.

CD

TAPEA/B

TUNING MODE FM MODE

TAPE

FM/AM AUX

CD

DISC SKIP

VOL.

+

FADE

MUTING

VOL.

–

RM–SMXJ100J

REMOTE CONTROL

SP-MXJ100

STANDBY

POWER

ACTIVE BASS EX.

PHONES

COMPU

PLAY

CONTROL

COUNTER

RESET

DEMO

CLOCK/TIMER

SOUND MODE

PROGRAM/SET

REPEAT

FULL-LOGIC CONTROL

CA-MXJ100

AUX FM/AM

–

PLAY REC/PLAY

INSTRUCTIONS

PLAY & EXCHANGER

CD TAPE

-

TUNING TUNING +

PRESET

CD SYNCHRO RECORDING

CD1CD2CD

+

SP-MXJ100

OPEN / CLOSE

DISC CHANGE

3

COMPACT

DIGITAL AUDIO

VOLUME

+

–

CD REC
START

TAPE A/B

REC/PAUSE

A B

DUBBING

EJECTEJECT

For Customer Use:

Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.

Model No.
Serial No.

LVT0472-001C

[J]

Warnings, Cautions and Others
Mises en garde, précautions et indications diverses

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

For U.S.A.

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas
ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution –– POWER switch!

Disconnect the mains plug to shut the power off completely.
The POWER switch in any position does not disconnect the
mains line. The power can be remote controlled.

Attention –– Commutateur POWER!

Déconnecter la fiche de secteur pour couper complètement
le courant. Le commutateur POWER ne coupe jamais
complètement la ligne de secteur, quelle que soit sa position.
Le courant peut être télécommandé.

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.

3. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to
qualified service personnel.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser invisible quand l'appareil
est ouvert ou que le verrouillage est en panne ou
désactivé. Eviter une exposition directe au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y
a aucune pièce utilisable à l'intérieur. Laisser à un
personnel qualifié le soin de réparer votre appareil.

WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

– G-1 –

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND.

For Canada/pour le Canada

THIS DIGIT AL APPARA TUS DOES NOT EXCEED THE CLASS
B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL
APP ARA TUS AS SET OUT IN THE INTERFERENCE-CA USING
EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,”
ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE
BRUITS RADIOELECTRIQUES APPLICABLES AUX
APP AREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS
LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS
NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES
COMMUNICATIONS.

– G-2 –

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

About This Manual

This manual is organized as follows:

• The manual mainly explains operations using the

buttons and controls on the unit. You can also use the
buttons on the remote control if they have the same or
similar names (or marks) as those on the unit.
If operation using the remote control is different from
that using the unit, it is then explained.

• Basic and common information that is the same for many
functions is grouped in one place, and is not repeated in
each procedure. For instance, we do not repeat the
information about turning on/off the unit, setting the
volume, changing the sound effects, and others, which are
explained in the section “Common Operations” on pages 9
and 10.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent
from a damage or risk of fire/electric shock.
Also gives you information which is not good
for obtaining the best possible performance
from the unit.

Gives you information and hints you had better
know.

Power sources

• When unplugging from the wall outlet, always pull the
plug, not the AC power cord.

DO NOT handle the AC power cord with wet
hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the
following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case,
leave the unit turned on for a few hours until the moisture
evaporates, unplug the AC power cord, and then plug it in
again.

Others

• Should any metallic object or liquid fall into the unit,
unplug the unit and consult your dealer before operating
any further.

• If you are not going to operate the unit for an extended
period of time, unplug the AC power cord from the wall
outlet.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor
too cold — between 5˚C (41˚F) and 35˚C (95˚F).

• Install the unit in a location with adequate ventilation to
prevent internal heat built-up in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference
with TV.

DO NOT install the unit in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust or vibration.

DO NOT disassemble the unit since there are no
user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and
consult your dealer.

– 1 –

Contents

Location of the Buttons and Controls....................... 3

Front Panel ................................................................. 4

Remote Control .......................................................... 5

Getting Started............................................................ 6

Unpacking .................................................................. 6

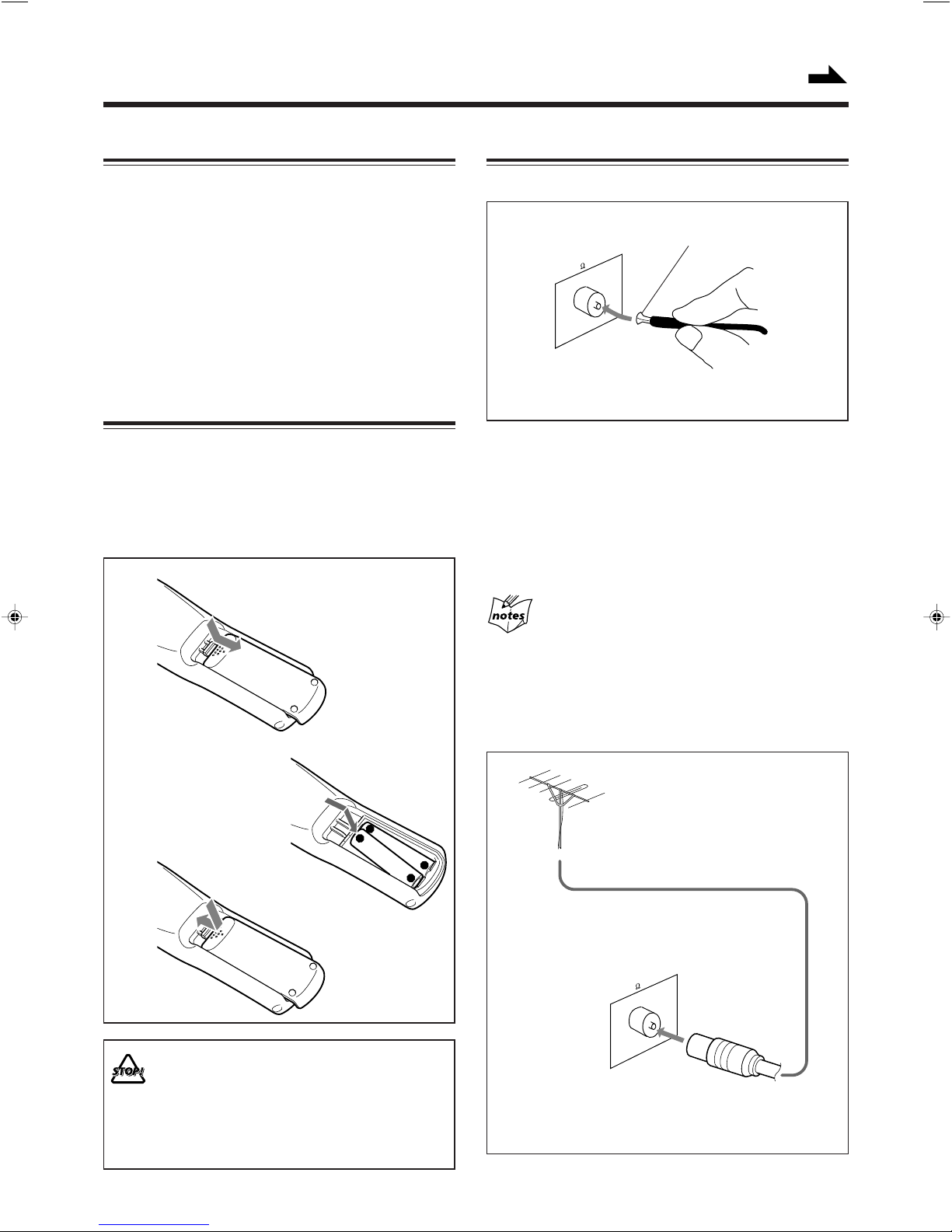

Putting the Batteries into the Remote Control ........... 6

Connecting Antennas ................................................. 6

Connecting Speakers .................................................. 7

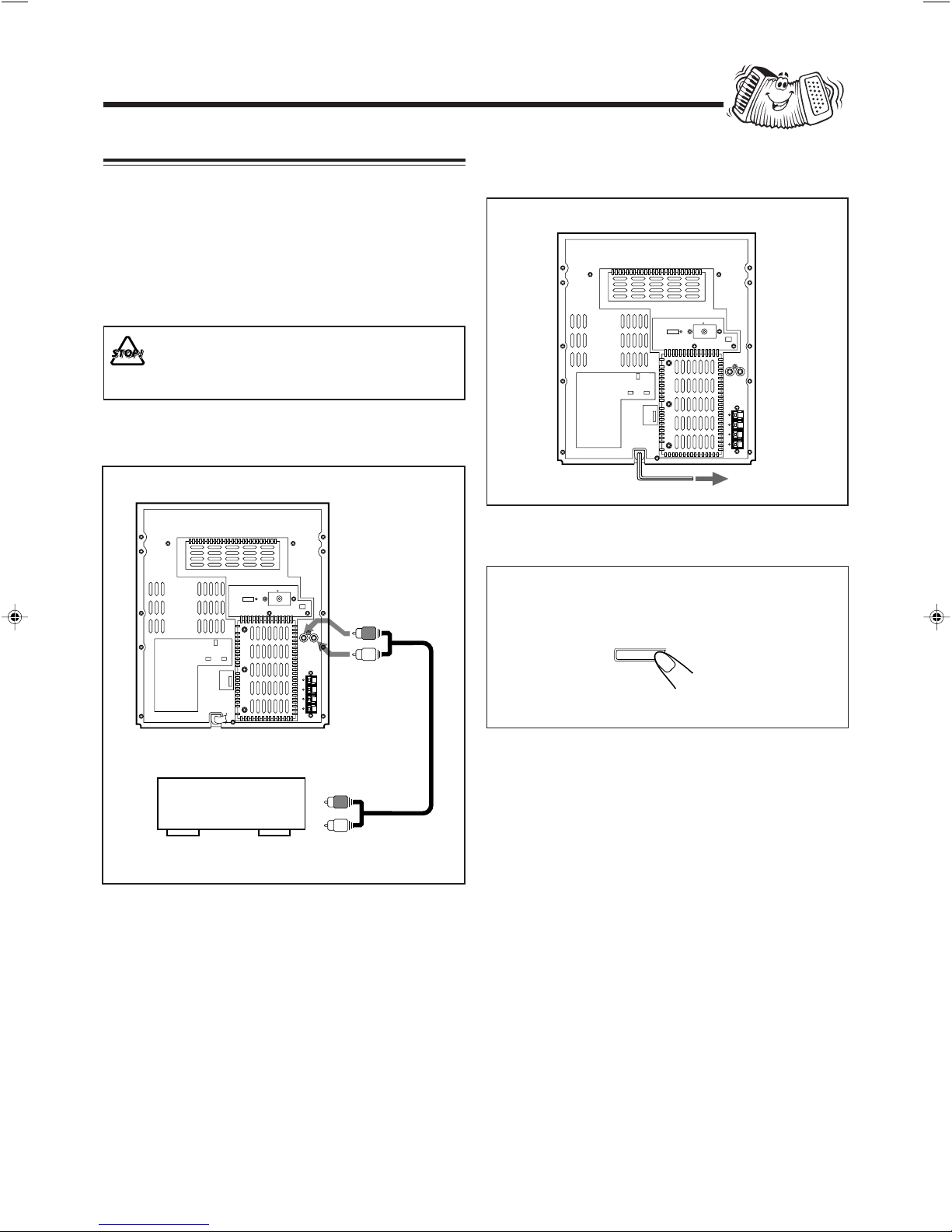

Connecting Other Equipment..................................... 8

Common Operations .................................................. 9

Setting the Clock ........................................................ 9

Turning On the Po wer and Selecting the Sources......... 9

Adjusting the Volume............................................... 10

Reinforcing the Bass Sound ..................................... 10

Selecting the Sound Modes ...................................... 10

Listening to FM and AM Broadcasts...................... 11

Tuning in a Station ................................................... 11

Presetting Stations .................................................... 11

Tuning in a Preset Station ........................................ 11

Playing Back CDs ..................................................... 12

Loading CDs ............................................................ 12

Playing Back CDs .................................................... 12

Basic CD Operations................................................ 13

Programming the Playing Order of the Tracks

— Program Play ................................................. 13

Playing Back Tapes................................................... 14

Playing Back a Tape ................................................. 14

Recording .................................................................. 15

Recording Tapes on Deck B ..................................... 15

Resetting the tape counter ........................................ 15

Dubbing Tapes .......................................................... 15

CD Direct Recording................................................. 15

Using the Timers....................................................... 16

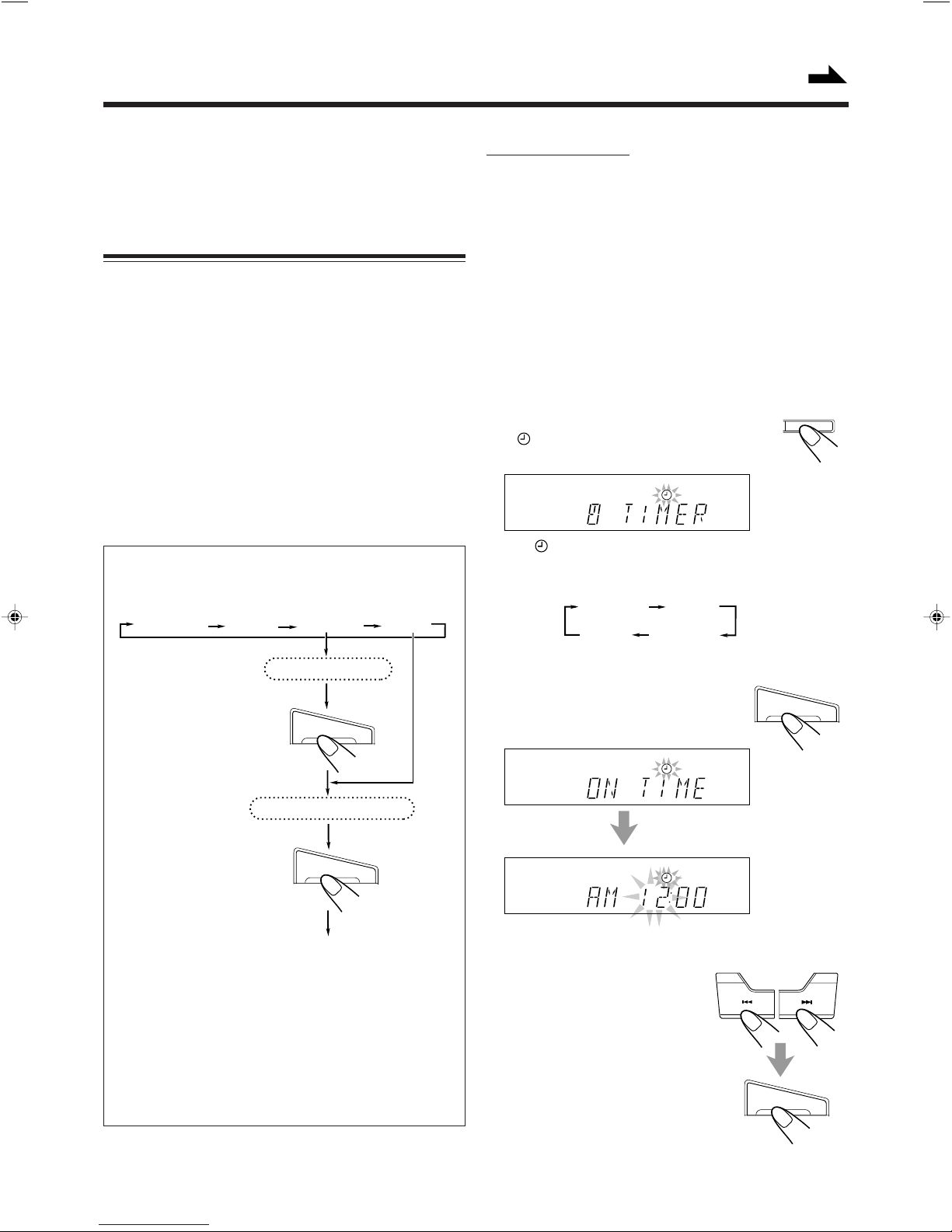

Using Recording and Daily Timer ........................... 16

Using Sleep Timer.................................................... 18

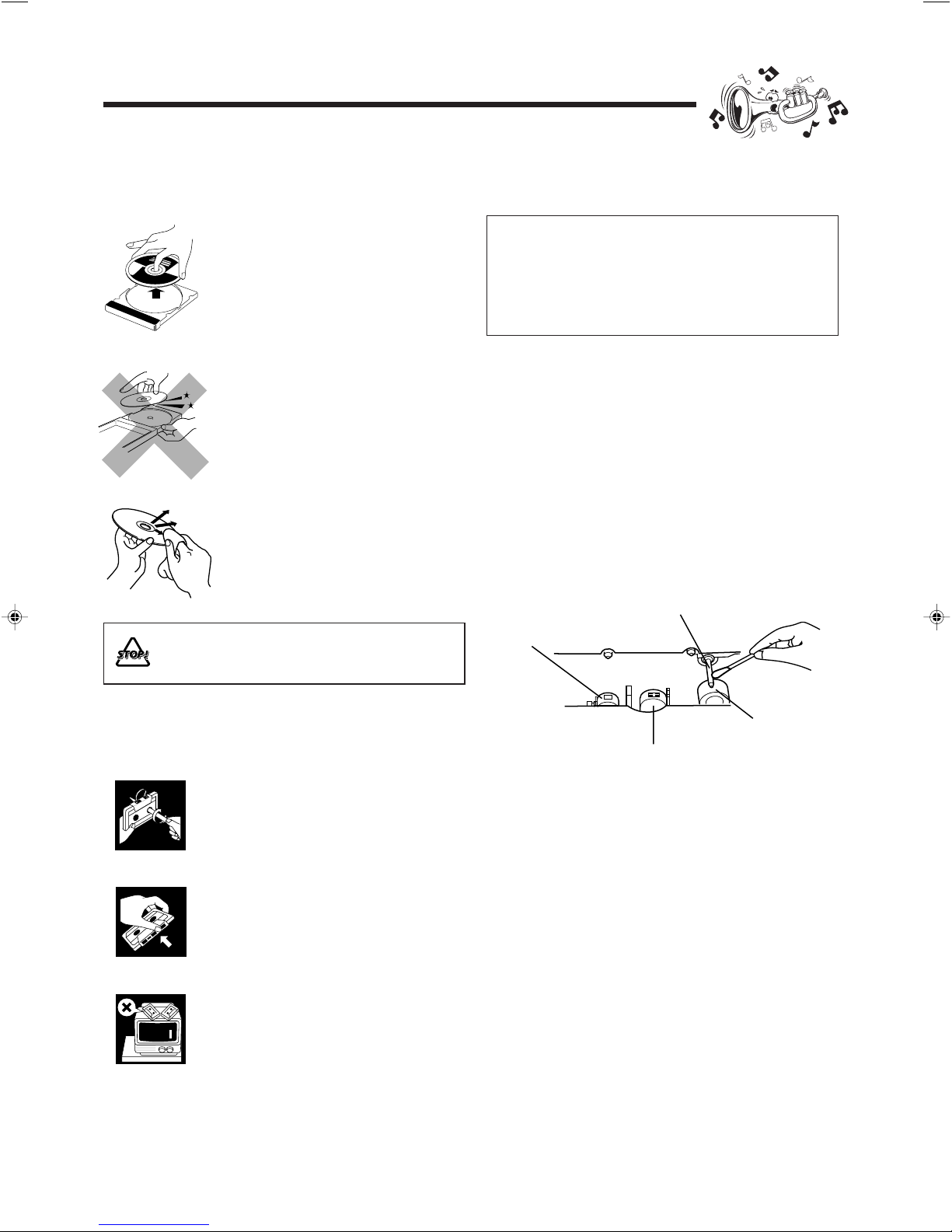

Maintenance .............................................................. 19

Troubleshooting ........................................................ 20

Specifications............................................................. 20

– 2 –

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

1

STANDBY

DISC CHANGE

CD

3

CD

2

CD

2

3

4
5

6
7

8
9

p
q
w

e
r
t

y

u

PHONES

COMPU

PLAY

CONTROL

POWER

COUNTER

RESET

DEMO

ACTIVE BASS EX.

CLOCK/TIMER

SOUND MODE

PROGRAM/SET

REPEAT

AUX FM/AM

-

TUNING

–

PLAY & EXCHANGER

PRESET

1

VOLUME

–

CD TAPE

TUNING +

+

+

TAPE A/B

REC/PAUSE

OPEN / CLOSE

COMPACT

DIGITAL AUDIO

CD REC

START

A B

DUBBING

EJECTEJECT

o

;
a

s

d
f

g

h

j
k
l

/

i

PLAY REC/PLAY

FULL-LOGIC CONTROL

CD SYNCHRO RECORDING

– 3 –

z

Display Window

Continued

1

2

13

2

3

SLEEP

CD-SYNC

PRGM

PRESET

4

TAPE

REPEAT

ALL 1 CD

pq w

See pages in the parentheses for details.

Front Panel

1 Carousel
2 POWER button and STANDBY lamp (9)
3 Display window
4 CLOCK/TIMER button (9, 16)
5 COUNTER RESET button (15)

DEMO button (8)

6 SOUND MODE button (10)
7 ACTIVE BASS EX. (extension) button (10)
8 Remote sensor
9 FM/AM button (11)

Pressing this button also turns on the unit.

p AUX button (9)

Pressing this button also turns on the unit.

q PROGRAM/SET button (9, 13, 16)
w PHONES jack (10)
e REPEAT button (12)
r PRESET – button (11)

4 (reverse search) button (9, 13, 16)

t 7 (stop) button (12, 15)
y TUNING + / – buttons (11)

1 / ¡ (fast left/fast right) buttons (11, 13, 14)

u 0 EJECT button for deck A (14)
i Deck A cassette holder (14)
o Disc number buttons (CD 1, CD 2, CD 3) (12)

Pressing one of these buttons also turns on the unit.

; 0 OPEN/CLOSE button (12)

Pressing this button also turns on the unit.

a DISC CHANGE button (12)
s VOLUME control (10)
d CD 6 (play/pause) button (12)

Pressing this button also turns on the unit.

f TAPE 3 button (14)

Pressing this button also turns on the unit.

g TAPE A/B button (14)

5

AB

6

SOUND

ST

9

kHz

MHz

VOL

7

REC

8

e

h CD REC START button (15)
j A 3 B DUBBING button (15)
k REC/PAUSE button (15)
l PRESET + button (11)

¢ (forward search) button (9, 13, 16)

/ EJECT 0 button for deck B (15)
z Deck B cassette holder (15)

Display window

1 Disc indicators
2 CD-SYNC indicator
3 SLEEP indicator
4 BASS indicator
5 Tape operation indicators

• TAPE and A B (operating deck) indicators

6 SOUND indicator
7 REC indicator
8 ‰ (timer) indicator
9 Tuner operation indicators

• TUNED, MONO and ST (stereo) indicators

p CD play mode indicators

• REPEAT and (ALL/1/CD) indicators

q PRESET and PRGM (program) number indicators
w Main display

• Shows the source name, frequency, etc.

e Volume level indicators

– 4 –

Remote Control

1

2
3

4
5
6
7
8

9

p
q

POWER TIMER

PROGRAM

REPEAT

/SET

CD

TAPEA/B

TAPE

CD

VOL.

FADE

MUTING

VOL.

SLEEP

ON/OFF

SOUND

ACTIVE

MODE

BASS EX.

TUNING MODE FM MODE

FM/AM AUX

DISC SKIP

+

–

w
e

r
t
y
u
i
o

;

a
s

Remote Control

1 POWER button (9)
2 PROGRAM/SET button (9)
3 REPEAT button (12)
4 CD 0 button (12)

Pressing this button also turns on the unit.

5 TAPE A/ B button (14)
6 CD 38 button (12)

Pressing this button also turns on the unit.

7 TAPE 3 button (14 – 15)

Pressing this button also turns on the unit.

8 7 (stop) button (12 – 13)
9 VOL. + button (10)
p 4 / 1 (fast rewind/reverse search) button (13 – 14)
q VOL. – button (10)
w SLEEP button (18)
e TIMER ON/OFF button (17)
r SOUND MODE button (10)
t ACTIVE BASS EX. (extension) button (10)
y FM MODE button (11)
u TUNING MODE button (11)
i AUX button (9)

Pressing this button also turns on the unit.

o FM/AM button (11)

Pressing this button also turns on the unit.

; DISC SKIP button (12)
a ¡/ ¢ (fast forward/forward search) button (13 – 14)
s FADE MUTING button (10)

RM–SMXJ100J

REMOTE CONTROL

STANDBY

POWER

ACTIVE BASS EX. SOUND MODE

PHONES

COMPU

PLAY

CONTROL

COUNTER

RESET

DEMO

PLAY

CLOCK/TIMER

PROGRAM/SET

REPEAT

AUX FM/AM

FULL-LOGIC CONTROL

PLAY & EXCHANGER

CD TAPE

-

TUNING TUNING +

PRESET +–

CD SYNCHRO RECORDING

CD1CD2CD

REC/PLAY

OPEN / CLOSE

DISC CHANGE

3

COMPACT

DIGITAL AUDIO

VOLUME

+

–

CD REC
START

TAPE A/B

REC/PAUSE

A B

DUBBING

EJECTEJECT

When using the remote control, point it at
the remote sensor on the front panel.

– 5 –

Getting Started

Continued

Unpacking

After unpacking, check to be sure that you have all the
following items.
The number in the parentheses indicates the quantity of the
pieces supplied.

• AM loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

If any is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries — UM-4/AAA/IEC R03 — into the
remote control, by matching the polarity (+ and –) on the
batteries with the + and – markings on the battery
compartment.
When the remote control can no longer operate the unit,
replace both batteries at the same time.

1

Connecting Antennas

FM antenna

FM antenna (supplied)

FM 75 COAXIAL

1 Attach the FM antenna to the FM 75 Ω

COAXIAL terminal.

2 Extend the FM antenna.
3 Fasten it up in the position which gives you

the best reception, then fix it on the wall, etc.

2

UM-4/AAA/IEC R03

-

+

3

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery
compartment when you are not going to use the
remote control for an extended period of time.
Otherwise, it will be damaged from battery leakage.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary
measure. If reception is poor, you can connect an outdoor FM
antenna.

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

Outdoor FM antenna
(not supplied)

+

-

FM 75 COAXIAL

A 75 Ω antenna with coaxial type connector should be
used.

– 6 –

AM antenna

Connecting Speakers

You can connect a pair of the front speakers.

AM

ANT

AM loop antenna
(supplied)

1 Connect the AM loop antenna to the AM

LOOP terminals as illustrated.

1

Speaker
cord

Black

2, 3

SPEAKERS

IMPEDANCE 6-16 OHMS.

+

L

–

–

R

+

Red

Speaker
cord

2 Turn the AM loop antenna until you have the

best reception.

For better reception of both FM and AM

• Make sure the antenna conductors do not touch any other
terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.

Right

speaker

Left

speaker

1 Press and hold the clamp of the speaker

terminal on the rear of the unit.

2 Insert the end of the speaker cord into the

terminal.

Match the polarity of the speaker terminals: Red (+) to
red (+) and black (–) to black (–).

3 Release the finger from the clamp.

IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.

– 7 –

Connecting Other Equipment

You can connect an audio equipment — used only as a
playback device.
When you connect and use this equipment, refer also to its
manual.

Be sure that the plugs of the audio cords are color coded:
White plugs and jacks are for left audio signals, and red ones
for right audio signals.

• DO NOT connect any equipment while the power
is on.

• DO NOT plug in any equipment until all
connections are complete.

To connect audio equipment

NOW, you can plug in the unit and other
connected equipment FINALLY!

FM 75 COAXIAL

ANT

AM

I N

AUX
R+L

SPEAKERS

IMPEDANCE 6-16 OHMS.

L
–

–
R

AC CORD

+

To a wall outlet

FM 75 COAXIAL

AM

ANT

AUX

I N

R+L

SPEAKERS

IMPEDANCE 6-16 OHMS

L
–

–

R

+

Audio equipment

To audio output

Connect the audio output jacks on the other equipment and
the AUX jacks on the rear, using an audio cord (not supplied).

To start the display demonstration

Press DEMO while the unit is turned off (on
stand by).

COUNTER

RESET

DEMO

To stop the display demonstration, press any button.

– 8 –

Common Operations

Setting the Clock

Before operating the unit any further, first set the clock built
in this unit.

• There is a time limit in doing the following steps. If the
setting is canceled before you finish, start from step 1
again.

• If you want to stop clock setting, press CLOCK/TIMER
once or wait until the time limit of 15 seconds comes.

1

Press CLOCK/TIMER twice.

The “CLOCK” appears on the display.

2

Press PROGRAM/SET.

The hour digits start flashing on the
display.

3

Press 4 or ¢ to adjust
the hour, then press
PROGRAM/SET.

After hour digits are set, the
minute digits start flashing on the
display.

CLOCK/TIMER

PROGRAM/SET

PROGRAM/SET

To adjust the clock again

If you have adjusted the clock before, you need to press
CLOCK/TIMER until the “CLOCK” is selected.

• Each time you press the button, the clock/timer setting
modes change as follows:

Clock time

‰ REC

If there is a power failure

The clock loses the setting and is reset to “AM 12:00.” You need to
set the clock again.

CLOCK

‰ TIMER

Turning On the Power and Selecting the
Sources

When you press the play button for a particular source (AUX,
FM/AM, CD 6, and TAPE 3), the unit turns on (and the
unit starts playing the source if it is ready — COMPU PLAY
CONTROL).

To listen to the FM/AM broadcasts, press FM/AM. (See
page 11.)

To play back CDs, press CD 6. (See pages 12 – 13.)
To play back tapes, press TAPE 3. (See page 14.)
To select the external equipment as the source, press AUX.

AUX

To turn on the unit without playing, press
POWER so that the STANDBY lamp goes off.

FM/AM

CD

TAPE

STANDBY

POWER

4

Press 4 or ¢ to adjust
the minute, then press
PROGRAM/SET.

5

Press CLOCK/TIMER twice to
finish the clock setting.

To check the clock time

Press CLOCK/TIMER while playing any source.
The clock time appears on the display
for a while.

PROGRAM/SET

CLOCK/TIMER

CLOCK/TIMER

To turn off the unit (on standby), press
POWER again so that the STANDBY lamp
lights up.

A little power is always consumed even while the unit is on
standby.
To switch off the power supply completely, unplug the AC
power cord from the AC outlet.

When you unplug the AC power cord or if a power
failure occurs

The clock is reset to “AM 12:00” right away, while the tuner preset
stations (see page 11) will be erased in a few days.

– 9 –

STANDBY

POWER

Adjusting the Volume

Reinforcing the Bass Sound

You can adjust the volume level only while the unit is turned
on.

Turn VOLUME clockwise to increase

VOLUME

+

the volume or counterclockwise to
decrease it.

–

VOL

When using the remote control, press VOL. + to increase the
volume or press VOL. – to decrease it.

For private listening

Connect a pair of headphones to the PHONES jack. No sound
comes out of the speakers. Be sure to turn down the volume before
connecting or putting on headphones on the unit.

DO NOT turn off (on standby) the unit with the
volume set to an extremely high level; otherwise, a
sudden blast of sound can damage your hearing,
speakers and/or headphones when you turn on the
unit or start playing any source next time.
REMEMBER you cannot adjust the volume level
while the unit is on standby.

To turn down the volume level temporarily

Press FADE MUTING on the remote control.

FADE

MUTING

The richness and fullness of the bass sound is maintained
regardless of how low you set the volume.
You can use this effect only for playback.

To get the effect, press ACTIVE BASS EX. so

ACTIVE BASS EX.

that the BASS indicator appears on the display.

To cancel the effect, press the button again so that the
indicator also goes off.

Selecting the Sound Modes

You can select one of the 3 preset sound modes (3 SEA –
Sound Effect Amplifier – modes). The sound modes can be
applied only to playback sounds, and cannot be used for
recording.

To select the sound modes, press SOUND
MODE until the sound mode you want
appears on the display. The SOUND indicator
also lights up on the display.

SOUND

SOUND MODE

To restore the sound, press the button again.

VOL

• Each time you press the button, the sound modes change as
follows:

(Canceled)

VOL

SEA modes:
ROCK: Boosts low and high frequency. Good for

acoustic music.

POP: Good for vocal music.
CLASSIC: Good for classical music.
OFF: Cancels the sound mode.

– 10 –

Listening to FM and AM Broadcasts

Tuning in a Station

1

Press FM/AM.

The unit automatically turns on and tunes in
the previously tuned station (either FM or
AM).

• Each time you press the button, the band alternates
between FM and AM.

2

Select a station.
On the unit:
Press and hold TUNING –
or TUNING + for more
than 1 second.

On the remote control:

1) Press TUNING MODE so that

“MANUAL” appears on the
display.

2) Press and hold 4¥1 or

¢¥¡ for more than 1
second.

The unit starts searching for stations
and stops when a station of sufficient
signal strength is tuned in.
If a program is broadcast in stereo, the ST (stereo)
indicator lights up.

To stop during searching, press TUNING – or TUNING +
or (4¥1 or ¢¥¡ on the remote control).

When you press TUNING – or TUNING + (4¥1
or ¢¥¡ on the remote control) briefly and
repeatedly

The frequency changes step by step.

To change the FM reception mode

When an FM stereo broadcast is hard to receive or
noisy, press FM MODE on the remote control so
that the MONO indicator lights up on the display.
Reception improves.

To restore the stereo effect, press FM MODE again so that
the MONO indicator goes off.
In this stereo mode, you can hear stereo sounds when a
program is broadcast in stereo.
The FM reception mode is restored even when the unit is
turned off.

-

TUNING

TUNING MODE

FM/AM

TUNING +

FM MODE

1

Tune in the station you want to preset.

• See “Tuning in a Station” to the left.

MHz

2

Press PROGRAM/SET.

PRGM

The PRGM flashes on the display.

3

Press PRESET – or + to

PROGRAM/SET

select a preset number.

PRESET +–

4

Press PROGRAM/SET again.

The tuned station in step 1 is stored in the
preset number selected in step 3.

• Storing a new station on a used number
erases the previously stored one.

When you unplug the AC power cord or if a power
failure occurs

The preset stations will be erased in a few days. If this happens,
preset the stations again.

PROGRAM/SET

Tuning in a Preset Station

1

Press FM/AM.

The unit automatically turns on and tunes in
the previously tuned station (either FM or
AM).

• Each time you press the button, the band alternates
between FM and AM.

2

Select a preset number.
On the unit:
Press PRESET – or +.

FM/AM

Presetting Stations

You can preset 30 FM and 15 AM stations.
In some cases, test frequencies have been already memorized
for the tuner since the factory examined the tuner preset
function before shipment. This is not a malfunction. You can
preset the stations you want into memory by following the
presetting method.

• There is a time limit in doing the following steps. If the
setting is canceled before you finish, start from step 1
again.

– 11 –

On the remote control:

1) Press TUNING
MODE so that “PRESET”
appears on the display.

2) Press 4¥1 or

¢¥¡.

PRESET +–

TUNING MODE

Playing Back CDs

CD

CD

1

CD

2

CD

3

REPEAT

DISC SKIP

Continued

Loading CDs

1

Press 0 OPEN/CLOSE on the
unit.

The unit automatically turns on and the
carousel comes out.

2

Place one or two discs correctly on the front
slots of the carousel, with its label side up.

CORRECT

• When using a CD single (8 cm), place it on the inner
circle of the disc tray.

3

If you wish to load a third disc, press
DISC CHANGE on the unit (or
DISC SKIP on the remote control).

The carousel rotates by 120˚.

4

Press 0 OPEN/CLOSE again.

The carousel closes, and the corresponding
disc number indicator (disc 1 to disc 3) lights
up on the display.

About the disc indicators

Each disc indicator corresponds to the disc tray of the same number.

OPEN / CLOSE

INCORRECT

DISC CHANGE

DISC SKIP

OPEN / CLOSE

Playing Back CDs

You can play CDs continuously.

1

Load CDs.

2

Press REPEAT on the unit
(or REPEAT on the remote
control) to select a play mode
you want.

Each time you press the button, play modes
change as follows:

ALL CD

REPEAT ALL CD REPEAT 1CD

ALL CD: Plays all loaded CD. (When you turned on

1CD: Plays back one CD.
REPEAT 1: Repeats one track on one CD.
REPEAT ALL CD: Repeats all the tracks on all the CDs ,

REPEAT 1CD*: Repeats all the tracks on one CD.

*REPEAT 1CD is not used for Program play.

3

Select the disc you want to

1 CD

the unit, “ALL CD” is automatically
selected.)

or all the tracks in the program.

REPEAT 1

start play from.
On the unit :
Press one of the disc number
buttons (CD 1, CD 2, and CD 3).
On the remote control :
Press DISC SKIP repeatedly.

CD play starts from the first track of the selected disc.

REPEAT

2

Disc number Disc indicator

• The disc indicator flashes while the corresponding CD is currently
selected.

• The disc indicator goes off when the unit has detected that there is
no CD on the corresponding disc tray.

13

Disc No.
flashes

• Pressing CD 6 instead of the disc n umber buttons
starts playing back if a CD is on the trays.

To stop during play, press 7.

2

1

Track number

To stop play for a moment

Press CD 6.

2

1

“PAUSE” appears on the display.

To resume play, press CD 6 again.
To remove the disc, press 0 OPEN/CLOSE.

– 12 –

VOL

Elapsed playing time

VOL

Basic CD Operations

While playing a CD, you can do the following operations.

To exchange CDs during playback of another

Press DISC CHANGE to eject and exchange the CD.

To locate a particular point in a track

TUNING +

-

During play, press and hold 1 or
¡.

• 1 : Fast reverses the disc.

• ¡ : Fast forwards the disc.
When using the remote control, press
and hold 4 / 1 or ¢ / ¡.

TUNING

4

Press 4 or ¢ (4 / 1 or ¢ / ¡ on
the remote control) to select the track
number, then press PROGRAM/SET.

PROGRAM/SET

Corresponding
disc number
flashes

Program step number

2

13

PRGM

Disc number

Track number

To go to another track

Press 4 or ¢ repeatedly before
or during playback.

• 4:Goes back to the beginning of
the current or previous tracks.

• ¢:Skips to the beginning of the
next or succeeding tracks.

When using the remote control, press 4 / 1 or ¢ / ¡
before playing.

If you press and hold 4 / ¢ on the unit

You can change the tracks continuously.

Programming the Playing Order of the Tracks
— Program Play

You can arrange the order in which the tracks play before you
start playing. You can program up to 24 tracks.

• To repeat the program, select “REPEAT ALL CD” by

pressing REPEAT repeatedly.

1

Load discs.

• If the current playing source is not the CD player, press
CD 6, then 7 before going to the next step.

2

Press PROGRAM/SET.

PROGRAM/SET

5

Program other tracks you want.

• To program tracks from the same disc, repeat step 4.

• To program tracks from a different disc, repeat steps 3
and 4.

6

Press CD 6.

The tracks are played in the order you have programed.

To add more tracks into the program

Press PROGRAM/SET.
You can add the tracks into the program before or after play.
If you have already programed all 24 tracks, you cannot add
more. If you do, it will overwrite the 1st track and so on.

• You cannot erase or modify the programmed tracks.

• If you want to modify the program, erase all the program and start
from the beginning.

To stop during play, press 7.
To erase the entire program before or after play, press 7.

• Ejecting the Carousel will also erase the program.

If your entry is ignored

You have tried to program a track from an empty tray, or a track
number that does not exist on the CD (for example, selecting track
14 on a CD that only has 12 tracks). Such entries are ignored.

3

Select the disc number.
On the unit:
Press one of the disc number
buttons (CD 1, CD 2, and CD

3).
On the remote control:
Press DISC SKIP repeatedly.

Corresponding
disc number
flashes

Program step number

2

13

PRGM

Disc number

CD

3

CD

2

CD

1

DISC SKIP

– 13 –

Playing Back Tapes

0EJECT

Playing Back a Tape

1

Press EJECT 0 for the deck you want to use.

0EJECT

For Deck B

For Deck A

2

Put a cassette in, with the exposed part of the
tape down.

• You can play back only type I.

To stop during play, press 7.

To operate the other deck, press TAPE A/B, then TAPE 3.

To fast-forward the tape, press ¡ or (¢ / ¡ on the

remote control).

To rewind the tape, press 1 or (4 / 1 on the remote
control).

To remove the cassette, press 0 EJECT for deck A or
EJECT 0 for deck B.

3

Close the cassette holder gently.

If you put cassettes in both decks A and B, the deck which
you have put a cassette into last is selected.
To operate the other deck, press TAPE A/B.

4

Press TAPE

The tape play starts.

When the tape plays to the end, the deck
automatically stops .

33

3.

33

TAPE

The use of the C-120 or thinner tape is not
recommended, since characteristic deterioration
may occur and this tape easily jams in the pinch­rollers and the capstans.

– 14 –

Recording

IMPORTANT:

• It should be noted that it may be unlawful to re-record
pre-recorded tapes, records, or discs without the
consent of the owner of copyright in the sound or video
recording, broadcast or cable programme and in any
literary, dramatic, musical, or artistic embodied
therein.

• The recording level is automatically set correctly, so it is
not affected by the VOLUME control. Thus, during
recording you can adjust the sound you are actually
listening to without affecting the recording level.

• While recording, you can hear tunes with sound modes
and/or the active bass extension effect through the speakers
or headphones. However, the sound is recorded without
these effects (see page 10).

• If the sound recorded have excessive noise or static, the
unit may be too close to a TV. Please separate the TV from
the unit.

• You can use only type I tape for recording.

Recording Tapes on Deck B

1

Press EJECT 0 for the deck B.

0EJECT

Resetting the tape counter

If you wish to take a note on the counter value at the
beginning of each track, reset the counter before starting a
recording.

Press COUNTER RESET on the unit
to reset the counter.

The counter reading becomes “0000.”

• The counter reading also becomes “0000”
when the unit is turned off (stands by).

COUNTER

RESET

DEMO

Dubbing Tapes

1

Press TAPE 3, then 7.

2

Put the source cassette in deck A,
and a recordable cassette into
deck B.

3

Press A 3 B DUBBING.

Dubbing starts.
“DUBBING” and REC indicators light up on
the display.

To stop during dubbing, press 7.
To remove the cassette, press 0 EJECT for deck A and

EJECT 0 for deck B.

TAPE

A B

DUBBING

2

Put in a recordable cassette, with the exposed
part of the tape down.

3

Close the cassette holder gently.

4

Start playing the source — FM, AM, CD
player or auxiliary equipment connected to
AUX jacks.

• When the source is CD, you can also use CD Direct
Recording.

5

Start recording.
Press REC/PAUSE.

The REC indicator lights up on the
display and recording starts.

To stop during recording, press 7.
To stop recording temporarily, press REC/PAUSE on the

unit. The REC indicator starts flashing on the display.

To resume recording, press REC/PAUSE.
To remove the cassette, press EJECT 0 for deck B.

REC/PAUSE

CD Direct Recording

Everything on the CD goes onto the tape in the order it is on
the CD, or according to the order you have made for Program
play.

1

Put a recordable cassette into deck B.

2

Place a disc correctly on the circle of the disc
tray, with its label side up.

CD

3

CD

2

CD

3

Press one of the disc number
buttons (CD 1 to CD 3) to
select the disc, then 7.

4

Press CD REC START.

“SYNCHRO” appears, and the CD-SYNC,
REC and 1CD indicator light up on the
display.
Deck B starts recording and the CD player starts playing.
When the recording is done, the CD player and deck B
stop.

To stop during CD Direct Recording, press 7.
To remove the cassette, press EJECT 0 for deck B.

1

CD REC

START

– 15 –

Using the Timers

Continued

There are three types of timers available — Recording Timer,
Daily Timer and Sleep Timer.

Before using the timers, you need to set the clock built in the
unit. (See page 9.)

Using Recording and Daily Timer

With Recording Timer, you can make a tape of a radio
broadcast automatically.

How Recording Timer actually works

The unit automatically turns on, tunes into the specified
station, adjust the volume, and starts recording when the on­time comes . Then, when the off-time comes, the unit
automatically turns off (stands by).

Using Daily Timer, you can wake up with your favorite music
or radio program.

How Daily Timer actually works

The unit automatically turns on, adjust the volume, and starts
playing the specified source when the on-time comes. Then,
when the off-time comes, the unit automatically turns off
(stands by).

When you want to set the daily timer or the recording timer,
press CLOCK/TIMER. Each time you press the button, the
timer setting mode changes as follows:

Clock time

CLOCK

Daily Timer setting

‰ TIMER

PROGRAM/SET

‰ REC

On the unit ONLY:

The condition of the timer setting remains in memory until
you change it.

• There is a time limit in doing the following steps. If the
setting is canceled before you finish, start from step 1
again.

• If you have made a mistake while setting timer, press
CLOCK/TIMER repeatedly and start from step 1 again.

• To cancel the Daily Timer setting anytime during the
process, press CLOCK/TIMER twice.

• To cancel the Recording Timer setting anytime during the
process, press CLOCK/TIMER once.

The unit enters Daily Timer setting mode.

1

Press CLOCK/TIMER until

CLOCK/TIMER

“ TIMER” appears on the
display.

The indicator also starts flashing on the display.

• Each time you press the button, the timer setting mode
changes as follows:

Clock time

‰ REC

• If you select ‰ REC in step 1, skip step 8.

2

Press PROGRAM/SET.

“ON TIME” appears for 2 seconds, then
the unit enters on-time setting mode.

CLOCK

‰ TIMER

PROGRAM/SET

Recording Timer setting

PROGRAM/SET

Finish the setting

‰ TIMER: Select this when you want to set the Daily

Timer.

‰ REC: Select this when you want to set the

Recording Timer.

As you can see from the above flow chart, for Recording
Timer setting, you can skip the Daily Timer setting.
When you want to change the timer mode, press TIMER
ON/OFF on the remote control. (See page 17.)

3

– 16 –

Set the on-time you want the unit to turn on.

1) Press 4 or ¢ to set the

hour, then press PROGRAM/
SET.

2) Press 4 or ¢ to set the

minute, then press
PROGRAM/SET.
“OFF TIME” appears for 2 seconds,
then the unit enters off-time
setting mode.

PROGRAM/SET

4

Set the off-time you want the unit to turn off
(on standby).

1) Press 4 or ¢ to set the

hour, then press PROGRAM/
SET.

2) Press 4 or ¢ to set the

minute, then press
PROGRAM/SET.

PROGRAM/SET

5

Set the volume level when the
unit is turned on.

The last set volume level appears
on the display.
Press 4 or ¢ to set the
volume, then press PROGRAM/
SET.
The selected source is displayed.

6

Press 4 or ¢ to select the source to play.

• Each time you press 4 or ¢, the source changes as
follows:

FM

TAPE

FM: tunes into a specified preset FM station. = Press

4 or ¢ to select the preset station number.

AM: tunes into a specified preset AM station. = Press

4 or ¢ to select the preset station number.

CD: plays a disc from the 1st track of a selected disc.

• Make sure there is a CD on the selected disc
number tray.

TAPE: plays a tape in deck A or B.

• Make sure that a tape is in the deck whose deck

indicator (A or B) is lit on the display.

• As for Recording Timer setting, you can select only AM
or FM as a source.

7

Press PROGRAM/SET.

Press CLOCK/TIMER to finish the
Daily Timer setting.

AM

CD

PROGRAM/SET

PROGRAM/SET

CLOCK/TIMER

The unit enters Recording Timer setting mode.

8

Repeat from step 2 to step 7 for on-time
setting, off-time setting, volume setting and
source selecting.

The ‰ indicator remains lit.

9

Press POWER to turn off the
unit (on standby) if you have set

STANDBY

POWER

the Recording or Daily Timer
with the unit operating.

When the Recording Timer setting is finished,

The REC indicator lights up on the display.

To select Recording or Daily Timer after its setting
has been done

Press TIMER ON/OFF on the

TIMER

ON/OFF

remote control.

Each time you press the button, the timer
mode changes as follows:

‰ TIMER

OFF

‰ TIMER: Select this when you want to use only

the Daily Timer.

‰ REC: Select this when you want to use only

the Recording Timer.

‰TIM+REC: Select this when you want to use both

the Daily Timer and the Recording
Timer.

OFF: Select this when you want to cancel the

timer mode setting.

• When the timer is set to OFF, the indicator and/or

REC indicator goes off from the display.
Even if the Recording or Daily Timer is canceled, but the
setting condition for the Recording or Daily Timer
remains in memory.

• When the timer is set to on, the indicator and/or

REC indicator lights up again.

If the unit is operating when the timer-on time comes

Recording or Daily Timer does not work.

‰ REC

‰ TIM+REC

– 17 –

Using Sleep Timer

With Sleep Timer, you can fall asleep to music.
You can set Sleep Timer when the unit is operating.

How Sleep Timer actually works

The unit automatically turns off after the specified time
length passes by.

On the remote control ONLY:

1

Press SLEEP.

The time length until the shut-off time
appears and the SLEEP indicator lights up on
the display.

• Each time you press the button, the time length changes
as follows:

90 MIN

OFF

(Canceled)

2

Wait for about 5 seconds after specifying the

60 MIN

15 MIN

45 MIN

30 MIN

SLEEP

time length.

The SLEEP indicator remains lit.

To check the remaining time until the shut-off time, press
SLEEP once so that the remaining time until the shut-off time
appears for about 3 seconds.

To change the shut-off time, press SLEEP repeatedly until
the desired time length appears on the display.

To cancel the setting, press SLEEP repeatedly so that the
SLEEP indicator goes off.

• Sleep Timer is also canceled when you turn off the unit.

– 18 –

Maintenance

To get the best performance of the unit, keep your discs, tapes, and mechanism clean.

Handling discs

• Remove the disc from its case by
holding it at the edge while pressing the
center hole lightly.

• Do not touch the shiny surface of the
disc, or bend the disc.

• Put the disc back in its case after use to
prevent warping.

• Be careful not to scratch the surface of
the disc when placing it back in its
case.

• Avoid exposure to direct sunlight,
temperature extremes, and moisture.

To clean the disc

Wipe the disc with a soft cloth in a
straight line from center to edge.

DO NOT use any solvent — such as conventional
record cleaner, spray, thinner, or benzine — to
clean the disc.

To protect your recording

Cassettes have two small tabs on the back to protect
unexpected erasure or re-recording.
To protect your recording, remove these tabs.
To re-record on a protected tape, cover the holes with
adhesive tape.

Cassette decks

If the heads, capstans, and pinch rollers of the cassette
decks become dirty, the following will occur:

• Impaired sound quality

• Discontinuous sound

• Fading

• Incomplete erasure

• Difficulty in recording

To clean the heads, capstans, and pinch rollers

Use a cotton swab moistened with alcohol.

Capstan

Erase head

Handling cassette tapes

• If the tape is loose in its cassette, take
up the slack by inserting a pencil in one
of the reels and rotating.

• If the tape is loose, it may get stretched,
cut, or caught in the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the
tape:
— In dusty places
— In direct sunlight or heat
— In moist areas
— Near a magnet

Pinch roller

Heads

To demagnetize the heads

Turn off the unit, and use a head demagnetizer (available at
electronics and record shops).

– 19 –

Troubleshooting

If you are having a problem with your unit, check this list for a possible solution before calling for service.
If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person,
such as your dealer, for service.

Symptom

No sound is heard.

Hard to listen to broadcasts because of
noise.

The disc sound is discontinuous.
The disc tray does not open or close.
The disc does not play.
The cassette holders cannot be opened.

Impossible to record.

Operations are disabled.

Unable to operate the unit from the remote
control unit.

Cause

Connections are incorrect or loose.

• Antennas are disconnected.

• The AM loop antenna is too close to the
unit.

• The FM antenna is not properly extended
and positioned.

The disc is scratched or dirty.
The AC power cord is not plugged in.
The disc is placed upside down.
Power supply from the AC power cord has

been cut off while the tape was running.
Small tabs on the back of the cassette are

removed.
The built-in microprocessor may

malfunction due to external electrical
interference.

• The path between the remote control unit
and the remote sensor on the unit is
blocked.

• The batteries are exhausted.

Action

Check all connections and make
corrections. (See pages 6 to 8.)

• Reconnect the antennas correctly and
securely.

• Change the position and direction of the
AM loop antenna.

• Extend the FM antenna at the best
position.

Clean or replace the disc. (See page 19.)
Plug the AC power cord.
Place the disc with the label side up.
Turn on the unit.

Cover the holes with adhesive tape.

Unplug the AC power cord and then plug it
back in.

• Remove the obstruction.

• Replace the batteries.

Specifications

Amplifier section – CA-MXJ100

Output Power

40 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no
more than 10% total harmonic distortion.

Audio input sensitivity/Impedance (at 1 kHz)

AUX: 400 mV/50 kΩ

Speakers Impedance: 6 Ω – 16 Ω

Tuner

FM tuning range: 87.5 MHz – 108.0 MHz
AM tuning range: 530 kHz – 1,710 kHz

CD player

CD Capacity: 3 CDs
Dynamic range: 85 dB
Signal-to-noise ratio: 90 dB
Wow and flutter: Unmeasurable

Cassette deck

Frequency response

Normal (type I): 50 Hz — 14,000 Hz

Wow and flutter

0.15% (WRMS)

Design and specifications are
subject to change without notice.

General

Power requirement: AC 120 V , 60 Hz
Power consumption: 55 W (at operation)

13 W (on standby)

Dimensions (approx.): 270 mm x 317 mm x 380 mm (W/H/D)

Mass (approx.): 6.9 kg (15.3 lbs)

11

(10

/16 in. x 12 1/2 in. x 15 in.)

Supplied accessories

See page 6.

Speaker section — SP-MXJ100

Type: 2-way bass-reflex type

Speaker units: Woofer: 12 cm (4

Tweeter: 2 cm (

Power handling capacity: 40 W
Impedance: 6 Ω
Frequency range: 50 Hz — 18,000 Hz
Sound pressure level: 87 dB/w•m
Dimensions (approx.): 219 mm x 317 mm x 219 mm (W/H/D)

Mass (approx.): 3.1 kg (6.9 lbs) each

5

(8

/8 in. x 12 1/2 in. x 8 5/8 in.)

3

/4") cone x1

13

/16") piezo x1

– 20 –

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE : 1-800-537-5722

http://www.jvcservice.com

Dear customer:
In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair

is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental
United States, Call 1-800-537-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.

—JVC

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

FACTORY SERVICE CENTER LOCATIONS

10 New Maple Avenue
Pine Brook, NJ 07058-9641
[phone]

5665 Corporate Avenue
Cypress, CA 90630-0024
[phone]

13 Cummings Park
Woburn, MA 01801
[phone]

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of

the wide array of JVC products, service is the key to maintaining the high level of performance for which JVC is world famous. The
JVC service and engineering organization stands behind our products.

1500 Lakes Parkway
Lawrenceville, GA 30243-5857
[phone]

2969 Mapunapuna Place
Honolulu, HI 96819-2040
[phone]

8192 State Road 84
Davie, FL 33324
[phone]

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

If you ship the product • • •

Pack your JVC unit in the original carton or one of equivalent

size and strength. Enclose, with the unit, a letter stating the
problem or symptom that exists and also a copy of the
receipt or bill of sale you received when you purchased your
JVC unit. Print your home return address on the outside
and the inside of the carton. Send to the appropriate JVC
Factory Service Center as listed above.

To prevent electrical shock, do not open the cabinet. No user

serviceable parts inside.

Refer servicing to qualified service personnel.

705 Enterprise Street
Aurora, IL 60504-8149
[phone]

10700 Hammerly, Suite 110
Houston, TX 77043
[phone]

890 Dubuque Avenue
South San Francisco, CA 94080-1804
[phone]

Don’t service it yourself.

CAUTION

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer.

Or from the 48 Continental United States call toll free : 800-882-2345

(1099)

LIMITED W ARRANTY AUDIO-1

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL
PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP from the date of original retail

purchase for the period as shown below. (“The Warranty Period.”)

PARTS LABOR

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY(50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN
COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such
repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers.
Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be
brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and
above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized
service center, please call toll free: [phone].
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of
your bill of sale plus and letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location
of which will be given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty

installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to
render such service, or if affixed to any attachment not provided with the products, or if the model number or serial number
has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner’s Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus(Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except the Rechargeable Batteries are covered for 90 days from the date of purchase);
There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER
DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO
TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied
warranty last, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA 1700 Valley Road

DIVISION OF JVC AMERICAS CORP. Wayne, NJ 07470

1YR 1YR

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF
REFURBISHED PRO DUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this

information for future reference.

Model No.: Serial No.:
Purchase date: Name of dealer:

VICTOR COMPANY OF JAPAN, LIMITED

EN

JVC

0100KSMMDWSAM
