JVC MX-DK51EE, MX-DK51A, MX-DK51UG, MX-DK51UN, MX-DK51US Service Manual

SERVICE MANUAL

COMPACT COMPONENT SYSTEM

MB54720066

MX-DK51EE,MX-DK51A,MX-DK51US,

MX-DK51UX,MX-DK51UG,MX-DK51UN

SP-MXDK51C

CA-MXDK51

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

SP-MXDK51F SP-MXDK51WSP-MXDK51FSP-MXDK51S SP-MXDK51S

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

No.MB547

2006/6

SPECIFICATION

Amplifier section Output Power FRONT SPEAKERS 100 W per channel, min. RMS, driven into 6 Ω at 1 kHz with

no more than 10% total harmonic distortion.

CENTER SPEAKER 50 W per channel, min. RMS, driven into 6 Ω at 1 kHz with

no more than 10% total harmonic distortion.

SURROUND SPEAKERS 50 W per channel, min. RMS, driven into 6 Ω at 1 kHz with

no more than 10% total harmonic distortion.

SUBWOOFER 100 W per channel, min. RMS, driven into 6 Ω at 63 Hz

with no more than 10% total harmonic distortion.

Audio input sensitivity/ Impedance*

VIDEO OUT Color system NTSC/PAL selectable

Speaker Terminals 6 Ω - 16 Ω (Front speakers)

Tuner section FM tuning range 87.50 MHz - 108.00 MHz

AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz)

For Saudi Arabia only 530 kHz - 1 600 kHz (at 10 kHz)

For Russia only 522 kHz - 1 629 kHz

Disc player section Playable disc DVD Video/DVD Audio/CD/VCD/SVCD

Dynamic range 90 dB

Horizontal resolution 500 lines

Wow and flutter Immeasurable

Cassette deck section Frequency response Normal (type I) 50 Hz - 14 000 Hz

Wow and flutter 0.15% (WRMS)

General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V ,

Power consumption 225 W (at operation)

Dimensions (approx.) 265 mm × 335 mm × 370 mm (W/H/D)

Mass (approx.) 8.4 kg

AUX 400 mV/47 kΩ MIC 1/2 3.0 mV/50 kΩ

VIDEO (composite) 1 V(p-p)/75 Ω S-VIDEO Y (luminance) : 1 V(p-p)/75 Ω

C (chrominance, burst) : 0.286 V(p-p)/75 Ω

COMPONENT (Interlace/Progressive)

(Y) : 1 V(p-p)/75 Ω (PB/PR) : 0.7 V(p-p)/75 Ω

6 Ω - 16 Ω (Center speaker) 6 Ω - 16 Ω (Surround speakers) 6 Ω - 16 Ω (Subwoofer)

530 kHz - 1 710 kHz (at 10 kHz)

CD-R/-RW/-ROM (CD/VCD/SVCD/MP3/WMA/MPEG-1/ MPEG-2/ASF/JPEG/DivX format) DVD-R/-RW (DVD Video/DVD Video Recording (VR)/ MP3/WMA/MPEG-1/MPEG-2/ASF/JPEG/DivX format) +R/+RW (DVD Video format)

(adjustable with the voltage selector), 50 Hz / 60 Hz

22 W (on standby)

*Measured at 1 kHz, with tape recording signal 400 mV

Design and specifications are subject to change without notice.

1-2 (No.MB547)

SECTION 1

PRECAUTION

1.1 Safety Precautions

(1) This design of this product contains special hardware and

many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should

not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety characteristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards.

(4) The leads in the products are routed and dressed with ties,

clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassembling.

(5) Leakage shock hazard testing

After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.Do not use a line isolation transformer during this check.

• Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

• Alternate check method Plug the AC line cord directly into the AC outlet. Use an

AC voltmeter having, 1,000Ω per volt or more sensitivity in the following manner. Connect a 1,500Ω 10W resistor paralleled by a 0.15µF AC-type capacitor between an ex-

posed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC

voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).

AC VOLTMETER (Having 1000 ohms/volts, or more sensitivity)

0.15 F AC TYPE

Place this probe on

1500 10W

Good earth ground

1.2 Warning

(1) This equipment has been designed and manufactured to

meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that

these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant

safety standards.

(4) It is essential that safety critical components are replaced

by approved parts.

(5) If mains voltage selector is provided, check setting for local

voltage.

1.3 Caution

Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer. (This regulation dose not Except the J and C version)

each exposed metal part.

(No.MB547)1-3

1.5 Important for laser products

1.CLASS 1 LASER PRODUCT

2.CAUTION :

(For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (Others) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

3.CAUTION : Visible and/or invisible laser radiation when open and inter lock failed or defeated. Avoid direct exposure to beam.

4.CAUTION : This laser product uses visible and/or invisible laser radiation and is equipped with safety switches which prevent emission of radiation when the drawer is open and the safety interlocks have failed or are defeated. It is dangerous to defeat the safety switches.

5.CAUTION : If safety switches malfunction, the laser is able to function.

6.CAUTION : Use of controls, adjustments or performance of procedures other than those specified here in may result in hazardous radiation exposure.

!

Please use enough caution not to

see the beam directly or touch it

in case of an adjustment or operation

check.

REPRODUCTION AND POSITION OF LABELS and PRINT

WARNING LABEL and PRINT

1-4 (No.MB547)

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

Please refer to "MX-DK5 (No.MB523)" about this section.

SECTION 3

DISASSEMBLY

Please refer to "MX-DK5 (No.MB523)" about this section.

SECTION 4

ADJUSTMENT

Please refer to "MX-DK5 (No.MB523)" about this section.

SECTION 5

TROUBLESHOOTING

Please refer to "MX-DK5 (No.MB523)" about this section.

(No.MB547)1-5

Victor Company of Japan, Limited Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.MB547)

Printed in Japan

VPT

PARTS LIST

MX-DK51EE,MX-DK51A,MX-DK51US

MX-DK51UX,MX-DK51UG,MX-DK51UN

* All printed circuit boards and its assemblies are not available as service parts.

- Contents -

Exploded view of general assembly and parts list (Block No.M1)

DVD mechanism assembly and parts list (Block No.MJ)

DVD loading base assembly and parts list (Block No.MN) Electrical parts list (Block No.01~07) Packing materials and accessories parts list (Block No.M3)

No.MB547

3- 2 3- 6 3- 8 3-10 3-22

3-1

Exploded view of general assembly and parts list

8

47

B

67

Block No.

M

1

M

68

15

14

32

7

69

FL board

A

k

68

Switch board

71

79

o

70

72

7

p

78

2

6

4

1

30

12

m

3

s

r

25

24

28

5

C

18

n

s

28

19

E

21

48

23

9

10

3-2

11

13

16

22

24

30

25

20

28

r

26

17

31

33

80

51

2

B

b

32

g

34

j

h

81

35

82

55

66

62

64

58

65

59

53

57

52

t

41

29

8

D

C

39

Surround board

Regulator & amprifier board

75

36

56

61

38

37

e

f

27

F103

87

77

Transformer board

a

k

q

85

F101

86

F102

F104

88

A

E

F001

F003

74

84

49

83

50

40

42

44

73

m

a

t

Bracket board

d

c

Primary board

43

16

76

D

f

e

o

p

q

Main board

b

54

g

h

j

89

d

c

n

46

45

3-3

General Assembly

Block No. [M][1][M][M]



Symbol No. Part No. Part Name Description Local

1 GV10328-015A FRONT PANEL ASSY DK51EE,DK51US,DK51UX,DK51UG,DK51UN 1 GV10328-016A FRONT PANEL ASSY DK51A 2 GV30871-001A POWER BUTTON 3 GV30872-001A EJECT BUTTON 4 GV30873-003A BUTTON A 5 GV30874-007A BUTTON B 6 GV20418-002A FUNCTION BUTTON 7 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6) 8 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x12) 9 GV10319-008A FRONT LENS 10 GV30875-005A VOLUME KNOB 11 GV30894-002A V.ORNAMENT ASSY 12 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x2) 13 GV40083-004A MIC.KNOB DK51EE,DK51US,DK51UX,DK51UG,DK51UN 14 GV30878-002A TRAY FITTING 15 GV40706-003A FL FILTER 16 GV40246-003A FOOT SPACER (x4) 17 QAL0789-001 ALPS MECHA 18 QUQU12-0706AJ-E FFC WIRE 7pin 6cm 19 GV10321-002A CASS.HOLDER(L) 20 GV10322-002A CASS.HOLDER(R) 21 GV40694-001A DOOR SPRING(L) 22 GV40695-001A DOOR SPRING(R) 23 GV40220-001A LACH (x2) 24 GV40034-001A DAMPER ASSY. (x2) 25 VKY4180-401 CASSETTE SPRING (x4) 26 GV30883-001A PCB BRACKET 27 QYSDSG2606EA TAP SCREW M2.6 x 6mm(x2) 28 QYSBSF3010ZA TAP SCREW M3 x 10mm(x6) 29 GV10320-001A CENTER CHASSIS 30 QYSSSF3010ZA TAP SCREW M3 x 10mm(x2) 31 QYSBSF3010ZA TAP SCREW M3 x 10mm(x3) 32 LV30225-011A SPACER (x2) 33 GV30349-047A SPACER 34 GV30349-067A SPACER 35 QYSBSF3035ZA TAP SCREW M3 x 35mm(x2) 36 GV30882-003A HEAT SINK 37 QYSBSG3016EA TAP SCREW M3 x 16mm(x2) 38 GV40488-001A LEAF SPRING 39 QYSBSG3016EA TAP SCREW M3 x 16mm(x2) 40 QYSBSG3016EA TAP SCREW M3 x 16mm(x2) 41 QYSBSG3010EA TAP SCREW M3 x 10mm 42 QYSBSG3010EA TAP SCREW M3 x 10mm 43 GV10323-001A BOTTOM CHASSIS 44 QYSBSGG3008EA TAP SCREW M3 x 8mm 45 QYSBSGG3008EA TAP SCREW M3 x 8mm 46 QYSBSF3010ZA TAP SCREW M3 x 10mm 47 GV10217-007A/S/ METAL COVER 48 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2) 49 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)



50 QZW0033-001 STRAIN RELIEF 51 GV10324-015A REAR PANEL DK51EE 51 GV10324-017A REAR PANEL DK51A 51 GV10324-014A REAR PANEL DK51US,DK51UN 51 GV10324-016A REAR PANEL DK51UX,DK51UG 52 GV10325-001A REAR COVER 53 QYSBSGY3008EA TAP SCREW M3 x 8mm 54 QAU0412-001 TUNER 55 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 56 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4) 57 QYSBSGY3008EA TAP SCREW M3 x 8mm DK51EE,DK51US,DK51UX,DK51UG,DK51UN 58 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 59 QYSBSGY3008EA TAP SCREW M3 x 8mm 61 QYSBSGY3008EA TAP SCREW M3 x 8mm 62 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 64 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 65 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 66 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 67 QYSBSGY3008EA TAP SCREW M3 x 8mm(x6) 68 QYSDSG3006NA TAP SCREW M3 x 6mm(x2) 69 GV30880-001A FL HOLDER A 70 GV30891-001A FL HOLDER B 71 GV30349-048A SPACER (x2) 72 GV40411-001A LED HOLDER

3-4



Symbol No. Part No. Part Name Description Local



73 QMPK200-200-JD POWER CORD(EU) 2m BLACK DK51EE,DK51US,DK51UX,DK51UG,DK51UN



73 QMPG150-244-JC POWER CORD(AST) 2.44m BLACK DK51A



74 QQT0506-001 POWER TRANSF T1 75 QAR0405-001 FAN 76 QUQU12-1116AJ-E FFC WIRE 11pin 16cm 77 QUQU12-1911AJ-E FFC WIRE 19pin 11cm 78 QUQU12-1915BJ-E FFC WIRE 19pin 15cm 79 QUQU12-0915BJ-E FFC WIRE 9pin 15cm 80 QUR110-2522AJ-E FFC WIRE 81 QUR110-1518AJ-E FFC WIRE 82 QUR110-0530BJ-E FFC WIRE



83 QMF51W2-5R0-J8 FUSE F001 5A AC250V



84 QMF51W2-2R5-J8 FUSE F003 2.5A AC250V



85 QMF51W2-6R3-J8 FUSE F101 6.3A AC250V



86 QMF51W2-6R3-J8 FUSE F102 6.3A AC250V



87 QMF51W2-2R0-J8 FUSE F103 2A AC250V



88 QMF51W2-3R15-J8 FUSE F104 3.15A AC250V 89 GV30349-048A SPACER

3-5

DVD mechanism assembly and parts list

Block No.

M

J

M

Grease

=JVG-31N =JVS-1003 =1401C

< Back side >

29

28

25

31

24

FXL-D10-1M

31

30

26

27

31

20

23

30

31

22

18

15

21

16

17

14

10

7.0mm

2

+

0.2mm

-

7

6

9

3

1

11

12

13

8

5

4

The parts without symbol number are not service.

3-6

DVD mechanism



Symbol No. Part No. Part Name Description Local

1 LV22234-001A TM.CHASSIS 2 LV22235-001A SPINDLE BASE 3 QYSDST2005ZA TAP SCREW M2 x 5mm(x2) 4 LV36555-001A G.S.HOLDER 5 QYSDST2005ZA TAP SCREW M2 x 5mm 6 LV44041-002A GUIDE SHAFT 7 LV44479-001A BAR SPRING 8 LV22236-001A FEED HOLDER 9 QAR0165-001 FEED MOTOR 10 LV30225-0X5A SPACER 11 LV36557-001A F.M.GEAR 12 QYSPSPT2030MA SCREW M2 x 3mm 13 QYSDST2005ZA TAP SCREW M2 x 5mm 14 QAL0786-002 P.UP 15 LV22237-001A RACK ARM 16 LV36560-001A RACK ARM SPRING 17 QYSPSFU1740ZA TAP SCREW M1.7 x 4mm(x2) 18 QUQK05-2415AC-E FFC WIRE 24pin 15cm 20 LV44041-002A GUIDE SHAFT 21 LV36559-001A L.S.GEAR 22 LV41517-003A LEAD SCREW 23 LV36558-001A MIDDLE GEAR 24 LV36556-001A SPRING HOLDER 25 LV44623-001A COMP.SPRING 26 QYSDST2005ZA TAP SCREW M2 x 5mm 27 QYSDST2616MA TAP SCREW M2.6 x 16mm 28 QAR0386-001 S.MOTOR 29 QYSPSPU1775ZA SCREW M1.7 x 7.5mm(x3) 30 LV44042-001A ROD SPRING (x2) 31 LV44046-001A ADJUST SCREW (x4)

Block No. [M][J][M][M]

3-7

DVD loading base assembly and parts list

Grease

JVS-1003 JVG-450

20

19

18

16

h

FMU-MB4-21M

27

14

M

N

M

Block No.

M

2

3

13

15

h

< Back side >

25

24

16

17

j

1

10

11

9

0.10mm

4

7

8

6

7.75mm

Backside

26

5

j

A

B

26

DVD module board

25

c

12

DVD loading switch board

g

e

f

A

21

23

c

23

22

d

3-8

d

22

23

k

B

22

f

e

The parts without symbol number are not service.

DVD loading base



Symbol No. Part No. Part Name Description Local

1 LV11065-004A LOADER SUB ASSY 2 E407140-001SS C.D ROLLER 3 E407149-001SS RUBBER TUBE 4 LV10979-002A TRAY 5 LV35499-001A SHAFT GUIDE 6 LV44022-001A SHAFT 7 QYSSSF2008ZA TAP SCREW M2 x 8mm 8 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2) 9 QAR0197-001 MOTOR 9 or QAR0280-001 LOADING MOTOR 10 LV43844-002A MOTOR PULLEY 11 QYSPSPU1730ZA SCREW M1.7 x 3mm(x2) 12 QYSDSF2008ZA TAP SCREW M2 x 8mm 13 LV43974-001A BELT 14 LV21852-003A CLAMPER BASE 15 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2) 16 LV41741-004A SPECIAL SCREW 17 LV35056-002A DVD CLAMPER 18 LV42930-003A P.C.MAGNET 18 or LV41118-003A MAGNET 19 LV43848-001A YOKE 20 LE40906-002A SPECIAL SCREW 21 ----------------- SINGLE DVD TRAM 22 LV44043-001A INSULATOR (x4) 23 LV44044-001A SPECIAL SCREW (x4) 24 LV11212-002A CB HOLDER 25 QYSBSF2608ZA TAP SCREW M2.6 x 8mm(x4) 26 LV44209-001A WASHER SCREW (x2) 27 LV44603-001A LASER CATION

Block No. [M][N][M][M]

3-9

Electrical parts list

Power board



Symbol No.



IC119 STK413-400 IC



IC160 KIA7809API IC



IC170 KIA7805API IC



IC180 KIA7812API IC



IC190 KIA7809API IC



IC195 KIA7805API IC

Q1030 KRA111M-T DIGI TRANSISTOR Q1031 KTC2876-T TRANSISTOR Q1032 KTC2876-T TRANSISTOR Q1033 KTC2876-T TRANSISTOR Q1034 KTC2876-T TRANSISTOR Q1050 KTC3200/GL/-T TRANSISTOR Q1051 KTC3199/GL/-T TRANSISTOR Q1052 KTA1268/GL/-T TRANSISTOR Q1053 KTA1268/GL/-T TRANSISTOR Q1070 KTC3199/GL/-T TRANSISTOR Q1090 KTA1268/GL/-T TRANSISTOR Q1091 KTC1027/OY/-T TRANSISTOR Q1092 KTC3200/GL/-T TRANSISTOR Q1093 KTA1023/OY/-T TRANSISTOR Q1120 KTC3199/GL/-T TRANSISTOR Q1140 KTC3199/GL/-T TRANSISTOR Q1180 KTC3199/GL/-T TRANSISTOR



Q1221 KTA1046/Y/ TRANSISTOR Q1222 KTC3199/GL/-T TRANSISTOR Q1223 KTC3199/GL/-T TRANSISTOR Q1295 KRC102M-T DIGI TRANSISTOR



Q2010 KTA1046/Y/ TRANSISTOR Q2011 KTC3203/OY/-T TRANSISTOR

D1040 1SS133-T2 SI DIODE D1041 1SS133-T2 SI DIODE D1042 1SS133-T2 SI DIODE D1050 1SS133-T2 SI DIODE D1070 1SS133-T2 SI DIODE D1071 1SS133-T2 SI DIODE D1090 1SS133-T2 SI DIODE D1100 MTZJ15B-T2 Z DIODE D1101 MTZJ15B-T2 Z DIODE D1102 MTZJ36B-T2 Z DIODE D1103 MTZJ36B-T2 Z DIODE D1105 2A02-M DIODE D1106 2A02-M DIODE D1120 1SS133-T2 SI DIODE D1140 1SS133-T2 SI DIODE D1180 1SS133-T2 SI DIODE D1221 MTZJ5.6C-T2 Z DIODE D1222 2A02-M DIODE D1260 MTZJ11B-T2 Z DIODE D1271 MTZJ6.8C-T2 Z DIODE D1280 MTZJ15B-T2 Z DIODE D1290 MTZJ11B-T2 Z DIODE D1295 1SS133-T2 SI DIODE D1296 MTZJ4.3B-T2 Z DIODE D1298 MTZJ2.0B-T2 Z DIODE



D2010 1N5402M-20 SI DIODE



D2011 1N5402M-20 SI DIODE



D2012 1N5402M-20 SI DIODE



D2013 1N5402M-20 SI DIODE D2015 1N4003S-T5 SI DIODE D2016 1N4003S-T5 SI DIODE D2017 1N4003S-T5 SI DIODE D2018 MTZJ33B-T2 Z DIODE D2020 MTZJ5.6B-T2 Z DIODE D2100 1N5402M-20 SI DIODE D2101 1N5402M-20 SI DIODE D2102 1N5402M-20 SI DIODE D2103 1N5402M-20 SI DIODE D2200 1N5402M-20 SI DIODE D2201 1N5402M-20 SI DIODE D2202 1N5402M-20 SI DIODE

Part No. Part Name Description Local

Block No. [0][1]



Symbol No.

D2203 1N5402M-20 SI DIODE

C1001 QEZ0819-688 E CAPA 6800uF C1002 QEZ0819-688 E CAPA 6800uF C1010 QETM1HM-228 E CAPACITOR 2200uF 50V M C1011 QETM1HM-228 E CAPACITOR 2200uF 50V M C1050 QETN1EM-476Z E CAPACITOR 47uF 25V M C1051 QETN1EM-476Z E CAPACITOR 47uF 25V M C1052 QETN1HM-106Z E CAPACITOR 10uF 50V M C1080 QCBB1HK-471Y C CAPACITOR 470pF 50V K C1081 QTE1V06-106Z E CAPACITOR 10uF 35V C1082 QCBB1HK-471Y C CAPACITOR 470pF 50V K C1083 QTE1V06-106Z E CAPACITOR 10uF 35V C1084 QCBB1HK-471Y C CAPACITOR 470pF 50V K C1085 QTE1V06-106Z E CAPACITOR 10uF 35V C1090 QETN1CM-107Z E CAPACITOR 100uF 16V M C1091 QFZ0212-104Z M CAPACITOR 0.1uF C1092 QFZ0212-104Z M CAPACITOR 0.1uF C1120 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K C1122 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C1123 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C1124 QCBB1HK-221Y C CAPACITOR 220pF 50V K C1140 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K C1142 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C1143 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C1144 QCBB1HK-221Y C CAPACITOR 220pF 50V K C1160 QETN1JM-476Z E CAPACITOR 47uF 63V M C1161 QETN1JM-476Z E CAPACITOR 47uF 63V M C1162 QETN1JM-476Z E CAPACITOR 47uF 63V M C1180 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K C1182 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C1183 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C1184 QCBB1HK-221Y C CAPACITOR 220pF 50V K C1190 QETN1HM-105Z E CAPACITOR 1uF 50V M C1221 QETM1EM-688 E CAPACITOR 6800uF 25V M C1222 QETM1CM-688 E CAPACITOR 6800uF 16V M C1225 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K C1226 QCBB1HK-221Y C CAPACITOR 220pF 50V K C1260 QETN1HM-106Z E CAPACITOR 10uF 50V M C1261 QETN1CM-227Z E CAPACITOR 220uF 16V M C1270 QETN1HM-106Z E CAPACITOR 10uF 50V M C1271 QETN1HM-106Z E CAPACITOR 10uF 50V M C1280 QETN1HM-106Z E CAPACITOR 10uF 50V M C1281 QETN1HM-106Z E CAPACITOR 10uF 50V M C1290 QETN1HM-106Z E CAPACITOR 10uF 50V M C1291 QETN1HM-106Z E CAPACITOR 10uF 50V M C1295 QETN1HM-106Z E CAPACITOR 10uF 50V M C1296 QETN1HM-106Z E CAPACITOR 10uF 50V M C2010 QETN1JM-107Z E CAPACITOR 100uF 63V M C2011 QETN2AM-476Z E CAPACITOR 47uF 100V M C2012 QETN1HM-226Z E CAPACITOR 22uF 50V M C2013 QETN1HM-226Z E CAPACITOR 22uF 50V M C2014 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K C2015 QETN1HM-106Z E CAPACITOR 10uF 50V M C2019 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J



C2020 QFZ0227-104Z M CAPACITOR 0.1uF C2100 QFZ0228-104Z M CAPACITOR 0.1uF C2200 QFZ0227-104Z M CAPACITOR 0.1uF

R1001 QRE141J-104Y C RESISTOR 100k R1002 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R1010 QRE141J-104Y C RESISTOR 100k R1011 QRE141J-104Y C RESISTOR 100k R1030 QRE141J-823Y C RESISTOR 82kΩ 1/4W J R1031 QRE141J-823Y C RESISTOR 82k R1033 QRE141J-472Y C RESISTOR 4.7k R1034 QRE141J-472Y C RESISTOR 4.7k R1035 QRE141J-472Y C RESISTOR 4.7k R1036 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J



R1037 QRL01DJ-471X OMF RESISTOR 470Ω 1W J



R1038 QRL01DJ-471X OMF RESISTOR 470Ω 1W J R1040 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R1041 QRE141J-272Y C RESISTOR 2.7k R1042 QRE141J-272Y C RESISTOR 2.7k R1043 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R1044 QRE141J-272Y C RESISTOR 2.7k

Part No. Part Name Description Local

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

3-10



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R1045 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R1050 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1051 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R1052 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R1053 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1054 QRE141J-104Y C RESISTOR 100k R1055 QRE141J-103Y C RESISTOR 10k R1070 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R1080 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R1081 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R1082 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R1083 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R1084 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R1085 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R1090 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R1091 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1092 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1093 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R1094 QRE141J-103Y C RESISTOR 10kΩ 1/4W J



R1095 QRJ146J-470X UNF C RESISTOR 47Ω 1/4W J



R1096 QRJ146J-470X UNF C RESISTOR 47Ω 1/4W J R1097 QRE141J-222Y C RESISTOR 2.2k R1100 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J R1101 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J R1102 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J R1103 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J



R1104 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R1120 QRZ0224-R22 EMIT RESISTOR 0.22 R1121 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R1122 QRE141J-202Y C RESISTOR 2kΩ 1/4W J R1123 QRE141J-202Y C RESISTOR 2kΩ 1/4W J R1124 QRE141J-102Y C RESISTOR 1kΩ 1/4W J



R1125 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R1126 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R1127 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R1128 QRE141J-473Y C RESISTOR 47kΩ 1/4W J R1129 QRE141J-104Y C RESISTOR 100kΩ 1/4W J



R1140 QRZ0224-R22 EMIT RESISTOR 0.22 R1141 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R1142 QRE141J-202Y C RESISTOR 2kΩ 1/4W J R1143 QRE141J-202Y C RESISTOR 2kΩ 1/4W J R1144 QRE141J-102Y C RESISTOR 1kΩ 1/4W J



R1145 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R1146 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R1147 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R1148 QRE141J-473Y C RESISTOR 47kΩ 1/4W J R1149 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R1160 QRE141J-333Y C RESISTOR 33kΩ 1/4W J



R1161 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J



R1162 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J



R1163 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J



R1180 QRZ0224-R22 EMIT RESISTOR 0.22 R1181 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R1182 QRE141J-202Y C RESISTOR 2kΩ 1/4W J R1183 QRE141J-202Y C RESISTOR 2k R1184 QRE141J-102Y C RESISTOR 1k R1185 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R1186 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R1187 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R1188 QRE141J-473Y C RESISTOR 47k R1189 QRE141J-104Y C RESISTOR 100k R1221 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R1222 QRE141J-102Y C RESISTOR 1k R1223 QRE141J-102Y C RESISTOR 1k R1224 QRE141J-681Y C RESISTOR 680Ω 1/4W J R1225 QRE141J-472Y C RESISTOR 4.7k R1226 QRE141J-272Y C RESISTOR 2.7k R1227 QRE141J-681Y C RESISTOR 680 R1295 QRE141J-102Y C RESISTOR 1k



R2010 QRJ146J-4R7X UNF C RESISTOR 4.7Ω 1/4W J R2011 QRE141J-333Y C RESISTOR 33k R2012 QRE141J-103Y C RESISTOR 10k R2016 QRE141J-333Y C RESISTOR 33kΩ 1/4W J



R2017 QRJ146J-470X UNF C RESISTOR 47Ω 1/4W J



R2018 QRJ146J-470X UNF C RESISTOR 47Ω 1/4W J

L1120 QQLZ035-R39 COIL 0.39uH L1140 QQLZ035-R39 COIL 0.39uH

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

L1180 QQLZ035-R39 COIL 0.39uH

CN103 QGD2504C1-03Z CONNECTOR (1-3) CN110 QGB2510J1-12 CONNECTOR B-B (1-12)



CN119 QGA3901F1-08 CONNECTOR W-B (1-8) CN120 QGB2510J1-07 CONNECTOR B-B (1-7) CN130 QGB2510J1-08 CONNECTOR B-B (1-8) CN140 QGD2504C1-03Z CONNECTOR (1-3) CN150 QGB2510K1-08 CONNECTOR B-B (1-8) CN160 QGB2510K1-12 CONNECTOR B-B (1-12) CN250 QGA7901F2-02 CONNECTOR W-B (1-2) EP119 QNZ0136-001Z EARTH PLATE EP120 E409182-001SM GRAND TERMINAL EP121 GV40327-002A IC BRD.HOLDER EP 651 FT111 QNG0003-001Z FUSE CLIP FT112 QNG0003-001Z FUSE CLIP FT131 QNG0003-001Z FUSE CLIP FT132 QNG0003-001Z FUSE CLIP FT151 QNG0003-001Z FUSE CLIP FT152 QNG0003-001Z FUSE CLIP FT511 QNG0003-001Z FUSE CLIP FT512 QNG0003-001Z FUSE CLIP FT521 QNG0003-001Z FUSE CLIP FT522 QNG0003-001Z FUSE CLIP FT531 QNG0003-001Z FUSE CLIP FT532 QNG0003-001Z FUSE CLIP FW100 QJK015-083324-E WIRE FW150 QUM154-16DGZ4-E FLAT WIRE FW160 QUM156-14DGZ4-E FLAT WIRE FW170 QUM154-14DGZ4-E FLAT WIRE J100 QNB0298-001 SPK.TERMINAL RY110 QSK0127-001 RELAY RY120 QSK0127-001 RELAY S500 QSW0812-001 VOLTAGE SWITCH

Input board

Block No. [0][2]



Symbol No.

IC300 IC305 LB1641 IC IC325 KIA278R05PI IC IC350 UPD78F0547GC IC IC400 KIA4558F-X IC IC410 KIA4558F-X IC DK51EE,DK51UX

IC410 NJM4565E-X IC

IC430 KIA4558F-X IC IC450 KIA4558F-X IC IC470 R2S15904SP-X IC IC473 KTC812T-X IC IC490 R2S15904SP-X IC IC500 KTC812T-X IC IC510 R2S15904SP-X IC

IC560 KIA4558F-X IC

IC560 NJM4565E-X IC

IC580 KIA4558F-X IC

IC580 NJM4565E-X IC

IC600 KTC812T-X IC IC610 KTC812T-X IC IC620 KTC812T-X IC IC640 KIA4558F-X IC IC650 KIA4558F-X IC IC700 BH7868FS-X IC

Q3100 KRA102S-X DIGI TRANSISTOR Q3101 KRC102S-X DIGI TRANSISTOR Q3300 KTC3203/OY/-T TRANSISTOR Q4000 KTC2875-X CHIP TR. Q4001 KRA104S-X DIGI TRANSISTOR

Part No. Part Name Description Local

SN74AHCT08NS-X

IC

DK51US,DK51UG, DK51UN

DK51EE,DK51A DK51UX DK51US,DK51UG, DK51UN

DK51EE,DK51A, DK51UX

DK51US,DK51UG, DK51UN

3-11



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

Q4080 KRA104S-X DIGI TRANSISTOR

Q4081 KTC2875-X CHIP TR.

Q4730 KRA104S-X DIGI TRANSISTOR Q5100 KTC2875-X CHIP TR. Q5400 KTC3875/YG/-X TRANSISTOR Q5401 KTC3875/YG/-X TRANSISTOR Q5402 KTC3875/YG/-X TRANSISTOR Q5500 KTC3875/YG/-X TRANSISTOR Q5501 KTC3875/YG/-X TRANSISTOR Q5502 KTC3875/YG/-X TRANSISTOR Q6000 KRA104S-X DIGI TRANSISTOR Q6200 KRA104S-X DIGI TRANSISTOR

D3050 MTZJ5.6B-T2 Z DIODE D3051 1N4003S-T5 SI DIODE D3100 MTZJ2.2A-T2 S.B.DIODE D3101 1SS133-T2 SI DIODE D3200 1N4003S-T5 SI DIODE D3201 1N4003S-T5 SI DIODE D3202 1N4003S-T5 SI DIODE D3250 MTZJ5.6C-T2 Z DIODE D3251 1N4003S-T5 SI DIODE D3252 1N4003S-T5 SI DIODE D3253 1N4003S-T5 SI DIODE D3300 MTZJ5.1B-T2 Z DIODE D4000 1SS133-T2 SI DIODE D4001 1SS133-T2 SI DIODE D4730 1SS133-T2 SI DIODE D4731 1SS133-T2 SI DIODE D5300 1SS133-T2 SI DIODE

D6850 1SS133-T2 SI DIODE

D6851 1SS133-T2 SI DIODE

C3000 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3050 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3051 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3052 QETN1CM-107Z E CAPACITOR 100uF 16V M C3100 QETN1CM-107Z E CAPACITOR 100uF 16V M C3101 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3102 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3103 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C3250 QETN1HM-106Z E CAPACITOR 10uF 50V M C3251 QETN1EM-477Z E CAPACITOR 470uF 25V M C3300 QETN1EM-476Z E CAPACITOR 47uF 25V M C3500 NDC31HJ-270X C CAPACITOR 27pF 50V J C3501 NDC31HJ-270X C CAPACITOR 27pF 50V J C3502 QETN1HM-474Z E CAPACITOR 0.47uF 50V M C3503 QETN1CM-107Z E CAPACITOR 100uF 16V M C4000 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C4001 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J C4002 QFVF1HJ-274Z MF CAPACITOR 0.27uF 50V J C4004 QTE1V06-106Z E CAPACITOR 10uF 35V C4005 QFLC1HJ-153Z M CAPACITOR 0.015uF 50V J C4006 QETN1HM-106Z E CAPACITOR 10uF 50V M C4050 QETN1VM-107Z E CAPACITOR 100uF 35V M

C4080 QETN1HM-106Z E CAPACITOR 10uF 50V M

C4081 NCB31EK-683X C CAPACITOR

C4082 QETN1HM-226Z E CAPACITOR 22uF 50V M

C4100 QETN1HM-226Z E CAPACITOR 22uF 50V M

C4101 QETN1HM-106Z E CAPACITOR 10uF 50V M

C4121 QTE1V06-106Z E CAPACITOR 10uF 35V

0.068uF 25V K

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

C4200 QETN1HM-226Z E CAPACITOR 22uF 50V M

C4201 QETN1HM-106Z E CAPACITOR 10uF 50V M

C4301 NDC31HJ-100X C CAPACITOR 10pF 50V J C4401 NDC31HJ-100X C CAPACITOR 10pF 50V J C4501 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C4502 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J C4601 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C4602 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J C4701 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C4702 QETN1HM-106Z E CAPACITOR 10uF 50V M C4703 QETN1HM-106Z E CAPACITOR 10uF 50V M C4705 QETN1JM-476Z E CAPACITOR 47uF 63V M C4707 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C4708 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J C4710 QTE1H06-475Z E CAPACITOR 4.7uF 50V C4711 QETN1HM-105Z E CAPACITOR 1uF 50V M C4722 QTE1C28-107Z E CAPACITOR 100uF 16V C4723 QETN1JM-476Z E CAPACITOR 47uF 63V M C4730 QETN1HM-105Z E CAPACITOR 1uF 50V M C4734 QTE1H28-106Z E CAPACITOR 10uF 50V C4735 NDC31HJ-471X C CAPACITOR 470pF 50V J C4736 QETN1JM-476Z E CAPACITOR 47uF 63V M C4801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C4802 QETN1HM-106Z E CAPACITOR 10uF 50V M C4803 QETN1HM-106Z E CAPACITOR 10uF 50V M C4805 QETN1JM-476Z E CAPACITOR 47uF 63V M C4807 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C4808 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J C4810 QTE1H06-475Z E CAPACITOR 4.7uF 50V C4811 QETN1HM-105Z E CAPACITOR 1uF 50V M C4834 QTE1H28-106Z E CAPACITOR 10uF 50V C4835 NDC31HJ-471X C CAPACITOR 470pF 50V J C4836 QETN1JM-476Z E CAPACITOR 47uF 63V M C4900 QETN1HM-106Z E CAPACITOR 10uF 50V M C4902 QETN1HM-106Z E CAPACITOR 10uF 50V M C4903 QETN1HM-104Z E CAPACITOR 0.1uF 50V M C4904 QETN1HM-105Z E CAPACITOR 1uF 50V M C4922 QTE1C28-107Z E CAPACITOR 100uF 16V C5000 QETN1HM-106Z E CAPACITOR 10uF 50V M C5002 QETN1HM-106Z E CAPACITOR 10uF 50V M C5003 QETN1HM-104Z E CAPACITOR 0.1uF 50V M C5004 QETN1HM-105Z E CAPACITOR 1uF 50V M C5100 QETN1HM-106Z E CAPACITOR 10uF 50V M C5101 QETN1HM-105Z E CAPACITOR 1uF 50V M C5102 QETN1HM-104Z E CAPACITOR 0.1uF 50V M C5103 QETN1HM-105Z E CAPACITOR 1uF 50V M C5122 QTE1C28-107Z E CAPACITOR 100uF 16V C5201 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C5203 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C5300 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C5301 QETN1HM-105Z E CAPACITOR 1uF 50V M C5600 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C5601 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C5602 QETN1JM-476Z E CAPACITOR 47uF 63V M C5700 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C5701 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J C5702 QETN1JM-476Z E CAPACITOR 47uF 63V M C5800 NDC31HJ-100X C CAPACITOR 10pF 50V J C5801 QFVF1HJ-124Z MF CAPACITOR 0.12uF 50V J C5802 QFLC1HJ-153Z M CAPACITOR 0.015uF 50V J C6000 QETN1HM-106Z E CAPACITOR 10uF 50V M C6200 QETN1HM-106Z E CAPACITOR 10uF 50V M C6400 QETN1JM-476Z E CAPACITOR 47uF 63V M C6401 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C6402 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C6500 QTE1V06-106Z E CAPACITOR 10uF 35V C6502 NDC31HJ-151X C CAPACITOR 150pF 50V J C6600 QTE1V06-106Z E CAPACITOR 10uF 35V C6602 NDC31HJ-151X C CAPACITOR 150pF 50V J

C6850 NCB31HK-222X C CAPACITOR 2200pF 50V K

C7000 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C7001 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7002 NCB31HK-103X C CAPACITOR 0.01uF 50V K

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

3-12



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C7003 QETN1EM-476Z E CAPACITOR 47uF 25V M C7005 QETN1HM-226Z E CAPACITOR 22uF 50V M C7006 NCB30JK-105X C CAPACITOR 1uF 6.3V K C7007 NCB30JK-105X C CAPACITOR 1uF 6.3V K C7008 NCB30JK-105X C CAPACITOR 1uF 6.3V K C7009 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7010 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C7011 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C7012 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C7500 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C7501 NCB31HK-103X C CAPACITOR 0.01uF 50V K C7502 QETN0JM-477Z E CAPACITOR 470uF 6.3V M

R3000 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3002 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3003 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3004 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3005 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3006 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3007 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3100 NRSA63J-102X MG RESISTOR 1k R3101 NRSA63J-103X MG RESISTOR 10k R3102 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3103 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3300 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3301 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3302 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3350 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J R3351 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J R3450 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J R3451 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J R3500 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3505 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3507 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3508 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3511 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3512 NRSA63J-201X MG RESISTOR 200Ω 1/16W J R3513 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3514 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3519 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3520 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3521 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3522 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3523 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3524 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3525 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3526 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3529 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3530 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3531 NRSA63J-102X MG RESISTOR 1k R3532 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3533 NRSA63J-102X MG RESISTOR 1k R3534 NRSA63J-122X MG RESISTOR 1.2k R3535 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3536 NRSA63J-122X MG RESISTOR 1.2k R3537 NRSA63J-102X MG RESISTOR 1k R3538 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3539 NRSA63J-102X MG RESISTOR 1k R3540 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3541 NRSA63J-102X MG RESISTOR 1k R3542 NRSA63J-102X MG RESISTOR 1k R3543 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3544 NRSA63J-102X MG RESISTOR 1k R3545 NRSA63J-102X MG RESISTOR 1k R3546 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3547 NRSA63J-102X MG RESISTOR 1k R3548 NRSA63J-102X MG RESISTOR 1k R3549 NRSA63J-102X MG RESISTOR 1k R3550 NRSA63J-102X MG RESISTOR 1k R3551 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3552 NRSA63J-102X MG RESISTOR 1k R3554 NRSA63J-102X MG RESISTOR 1k R3555 NRSA63J-133X MG RESISTOR 13kΩ 1/16W J R3556 NRSA63J-102X MG RESISTOR 1k R3557 NRSA63J-103X MG RESISTOR 10k R3600 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3601 NRSA63J-222X MG RESISTOR 2.2k R3602 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R3603 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3604 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3605 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3606 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3607 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3608 NRSA63J-103X MG RESISTOR 10k R3609 NRSA63J-103X MG RESISTOR 10k R3610 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3611 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3612 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3613 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3614 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3615 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3616 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3618 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3619 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3621 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4000 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4001 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J R4002 NRSA63J-132X MG RESISTOR 1.3k R4003 NRSA63J-273X MG RESISTOR 27k R4004 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4005 NRSA63J-184X MG RESISTOR 180kΩ 1/16W J R4006 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R4007 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R4008 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R4009 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R4010 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4011 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R4050 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4051 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J

R4080 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

R4081 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R4082 NRSA63J-104X MG RESISTOR

R4083 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

R4101 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J

R4102 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R4103 NRSA63J-103X MG RESISTOR 10k

R4104 NRSA63J-103X MG RESISTOR 10k

R4105 NRSA63J-332X MG RESISTOR R4201 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J

R4202 NRSA63J-103X MG RESISTOR 10k

R4203 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R4204 NRSA63J-103X MG RESISTOR 10k

R4205 NRSA63J-332X MG RESISTOR R4300 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J R4301 QRE141J-203Y C RESISTOR 20k R4302 QRE141J-203Y C RESISTOR 20k R4303 NRSA63J-512X MG RESISTOR R4400 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J R4401 QRE141J-203Y C RESISTOR 20kΩ 1/4W J R4402 QRE141J-203Y C RESISTOR 20k R4403 NRSA63J-512X MG RESISTOR R4502 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R4503 NRSA63J-223X MG RESISTOR 22k R4602 NRSA63J-223X MG RESISTOR 22k R4603 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R4700 NRSA63J-682X MG RESISTOR R4720 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4721 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

100kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

3.3kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

3.3kΩ 1/16W J

Ω

1/4W J

Ω

1/4W J

5.1kΩ 1/16W J

Ω

1/4W J

5.1kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

6.8kΩ 1/16W J

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

3-13



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R4730 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4731 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R4732 NRSA63J-104X MG RESISTOR R4733 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4800 NRSA63J-682X MG RESISTOR R4831 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R4832 NRSA63J-104X MG RESISTOR R4833 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4901 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4902 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4903 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4920 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R4921 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R5001 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R5002 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R5003 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R5101 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R5102 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R5103 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R5104 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R5120 NRSA63J-102X MG RESISTOR 1k R5121 NRSA63J-102X MG RESISTOR 1k R5201 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R5204 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R5300 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R5301 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R5302 QRE141J-823Y C RESISTOR 82kΩ 1/4W J R5400 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R5401 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R5402 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R5404 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R5500 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R5501 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R5502 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R5504 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R5600 QRE141J-152Y C RESISTOR 1.5kΩ 1/4W J R5601 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R5602 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R5603 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R5700 QRE141J-152Y C RESISTOR 1.5kΩ 1/4W J R5701 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R5702 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R5703 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R5800 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R5802 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R5803 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R5804 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R5820 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R6000 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R6001 NRSA63J-103X MG RESISTOR 10k R6002 QRE141J-182Y C RESISTOR 1.8kΩ 1/4W J R6003 QRE141J-102Y C RESISTOR 1k R6101 NRSA63J-103X MG RESISTOR 10k R6102 QRE141J-182Y C RESISTOR 1.8kΩ 1/4W J R6103 QRE141J-102Y C RESISTOR 1k R6111 NRSA63J-103X MG RESISTOR 10k R6112 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R6113 QRE141J-102Y C RESISTOR 1k R6200 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R6201 NRSA63J-103X MG RESISTOR 10k R6202 QRE141J-103Y C RESISTOR 10k R6203 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R6301 NRSA63J-103X MG RESISTOR 10k R6302 QRE141J-103Y C RESISTOR 10k R6303 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R6311 NRSA63J-103X MG RESISTOR 10k R6312 QRE141J-103Y C RESISTOR 10k R6313 QRE141J-102Y C RESISTOR 1k R6400 NRSA63J-103X MG RESISTOR 10k R6401 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R6402 QRE141J-223Y C RESISTOR 22k R6403 NRSA63J-243X MG RESISTOR 24k R6404 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R6420 NRSA63J-0R0X MG RESISTOR 0 R6500 QRE141J-513Y C RESISTOR 51k R6501 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R6502 NRSA63J-393X MG RESISTOR 39k R6503 NRSA63J-513X MG RESISTOR 51k

100kΩ 1/16W J

6.8kΩ 1/16W J

100kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/4W J

Ω

1/4W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

R6520 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R6600 QRE141J-513Y C RESISTOR 51kΩ 1/4W J R6601 QRE141J-223Y C RESISTOR 22kΩ 1/4W J R6602 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J R6603 NRSA63J-513X MG RESISTOR 51kΩ 1/16W J

Ω

R6700 NRSA63J-183X MG RESISTOR 18k

R6701 NRSA63J-823X MG RESISTOR 82k

R6800 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J

R6801 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J

R7000 NRSA63J-201X MG RESISTOR 200Ω 1/16W J R7002 NRSA63J-201X MG RESISTOR 200Ω 1/16W J R7004 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R7005 NRSA63J-201X MG RESISTOR 200Ω 1/16W J R7006 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R7007 NRSA63J-201X MG RESISTOR 200 R7008 NRSA63J-751X MG RESISTOR 750 R7009 NRSA63J-271X MG RESISTOR 270Ω 1/16W J R7300 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R7301 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R7302 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R7500 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R7501 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R7502 NRSA63J-750X MG RESISTOR 75Ω 1/16W J

CN300 QGF1036C2-05 CONNECTOR FFC/FPC (1-5) CN301 QGF1036C2-25 CONNECTOR FFC/FPC (1-25) CN302 QGF1036C2-15 CONNECTOR FFC/FPC (1-15) CN303 QGF1205C2-19 CONNECTOR FFC/FPC (1-19) CN304 QGF1205F2-05 CONNECTOR FFC/FPC (1-5) CN306 QGF1205C2-09 CONNECTOR FFC/FPC (1-9) CN307 QGF1205C2-19 CONNECTOR FFC/FPC (1-19) CN308 QGF1205C2-07 CONNECTOR FFC/FPC (1-7) CN309 QGB2510K1-08 CONNECTOR B-B (1-8) CN310 QGB2510J1-10 CONNECTOR B-B (1-10) CN311 QGB2510K1-07 CONNECTOR B-B (1-7) CN312 QGD2504C1-03Z CONNECTOR (1-3) CN313 QGD2504C1-03Z CONNECTOR (1-3) CN314 QGD2504C1-04Z CONNECTOR (1-4) CN330 QGA2501C1-03 CONNECTOR W-B (1-3) CN335 QGF1205C2-11 CONNECTOR FFC/FPC (1-11) HS325 LV40057-002A HEAT SINK

J6700 QNN0420-001 SURROUND JACK

J7300 QNN0779-001 VIDEO JACK J7500 QNN0557-002 PIN JACK K3100 QQR0621-001Z COIL K4730 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J K4731 NRSA63J-0R0X MG RESISTOR 0 SC325 QYSBSG3008ZA TAP SCREW M3 x 8mm X3500 QAX0724-001Z CRYSTAL 12.000000MHz

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Front board

Block No. [0][3]



Symbol No.

IC901 PT6315 IC IC902 GP1UM281XKVF IR DETECT UNIT

IC950 PT2399-S-W ECHO IC

IC960 KIA4558F-X IC

IC970 KIA4558F-X IC DK51A

Part No. Part Name Description Local

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

3-14



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

Q9530 KTC3875/YG/-X TRANSISTOR

Q9531 KTC3875/YG/-X TRANSISTOR

Q9532 KTC3875/YG/-X TRANSISTOR

Q9601 KTC3875/YG/-X TRANSISTOR

Q9602 KTC3875/YG/-X TRANSISTOR

D9000 SLI-343URC-W-T LED D9200 SELU1E54CM-P LED D9201 SELU2E10C-P LED

D9500 MTZJ5.1B-T2 Z DIODE

D9521 MTZJ3.9B-T2 Z DIODE

D9522 MTZJ3.9B-T2 Z DIODE

D9523 MTZJ3.9B-T2 Z DIODE

D9601 1SS133-T2 SI DIODE

D9602 1SS133-T2 SI DIODE

D9651 KDS4148U-X DIODE DK51A D9652 KDS4148U-X DIODE DK51A

D9653 UDZW2.4B-X Z DIODE

D9899 MTZJ2.4B-T2 Z DIODE

C9001 NCB31HK-102X C CAPACITOR 1000pF 50V K C9002 QEKC1EM-106Z E CAPACITOR 10uF 25V M C9005 NCB31HK-471X C CAPACITOR 470pF 50V K C9091 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C9093 NCB31HK-103X C CAPACITOR 0.01uF 50V K C9094 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C9096 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C9097 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C9200 NCB31HK-103X C CAPACITOR 0.01uF 50V K C9401 NCB31HK-103X C CAPACITOR 0.01uF 50V K C9402 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9500 QEKC1CM-107Z E CAPACITOR 100uF 16V M

C9501 QEKC1CM-476Z E CAPACITOR 47uF 16V M

C9502 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9503 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9504 NCB31CK-823X C CAPACITOR

C9505 NCB31CK-823X C CAPACITOR

C9506 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9507 NCB31HK-561X C CAPACITOR 560pF 50V K

C9508 NCB31HK-332X C CAPACITOR 3300pF 50V K

0.082uF 16V K

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

C9509 QEKC1CM-106Z E CAPACITOR 10uF 16V M

C9510 QEKC1CM-106Z E CAPACITOR 10uF 16V M

C9511 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M

C9512 NCB31HK-561X C CAPACITOR 560pF 50V K

C9513 NCB31HK-392X C CAPACITOR 3900pF 50V K

C9600 QEKC1AM-107Z E CAPACITOR 100uF 10V M

C9601 QEKC1HM-224Z E CAPACITOR 0.22uF 50V M

C9602 QEKC1HM-104Z E CAPACITOR 0.1uF 50V M

C9603 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9604 NCB31HK-681X C CAPACITOR 680pF 50V K

C9605 NDC31HJ-151X C CAPACITOR 150pF 50V J

C9606 QEKC1CM-336Z E CAPACITOR 33uF 16V M

C9607 QEKC1HM-335Z E CAPACITOR 3.3uF 50V M

C9608 QEKC1AM-107Z E CAPACITOR 100uF 10V M

C9631 NCB31HK-102X C CAPACITOR 1000pF 50V K

C9632 NCB31HK-102X C CAPACITOR 1000pF 50V K

C9633 NCB21HK-473X C CAPACITOR

C9634 QEKC1HM-104Z E CAPACITOR 0.1uF 50V M

C9635 NCB31HK-391X C CAPACITOR 390pF 50V K

C9636 NCB31HK-391X C CAPACITOR 390pF 50V K

C9637 NCB31HK-471X C CAPACITOR 470pF 50V K

C9651 NCB31HK-102X C CAPACITOR 1000pF 50V K

C9651 NCB31HK-222X C CAPACITOR 2200pF 50V K DK51A C9700 QEKC1AM-107Z E CAPACITOR 100uF 10V M DK51A C9701 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M DK51A C9702 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M DK51A C9899 NCB31HK-222X C CAPACITOR 2200pF 50V K

R9001 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R9002 NRSA63J-221X MG RESISTOR 220 R9003 NRSA63J-102X MG RESISTOR 1k R9004 NRSA63J-102X MG RESISTOR 1k R9005 NRSA63J-102X MG RESISTOR 1k R9006 NRSA63J-330X MG RESISTOR 33Ω 1/16W J R9007 NRSA63J-823X MG RESISTOR 82k R9102 NRSA63J-102X MG RESISTOR 1k

R9103 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

R9103 NRSA63J-103X MG RESISTOR 10k R9104 NRSA63J-0R0X MG RESISTOR 0

0.047uF 50V K

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J DK51EE,DK51US

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

1/16W J

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

1/16W J DK51A

3-15



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R9104 NRSA63J-302X MG RESISTOR 3kΩ 1/16W J DK51A

R9104 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J

R9105 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

R9105 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J DK51A R9105 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J DK51UX,DK51UG R9198 NRSA63J-221X MG RESISTOR 220 R9199 NRSA63J-750X MG RESISTOR 75 R9200 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R9201 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R9202 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R9203 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R9204 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R9205 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R9206 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R9207 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R9208 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R9209 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R9210 NRSA63J-183X MG RESISTOR 18k R9211 NRSA63J-563X MG RESISTOR 56k R9301 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R9302 NRSA63J-102X MG RESISTOR 1k R9303 NRSA63J-122X MG RESISTOR 1.2k R9304 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R9305 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R9306 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R9307 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R9499 NRSA63J-121X MG RESISTOR 120Ω 1/16W J R9500 NRSA63J-101X MG RESISTOR 100Ω 1/16W J

R9501 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J

R9502 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R9503 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R9504 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J

R9505 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J

R9506 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J

R9507 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R9508 NRSA63J-183X MG RESISTOR 18k

R9509 NRSA63J-103X MG RESISTOR 10k

R9510 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J

R9521 NRSA63J-223X MG RESISTOR 22k

R9522 NRSA63J-223X MG RESISTOR 22k

R9523 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J

R9530 NRSA63J-104X MG RESISTOR

R9531 NRSA63J-682X MG RESISTOR 6.8k

R9532 NRSA63J-203X MG RESISTOR 20k

R9540 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

Ω Ω

Ω

1/16W J

Ω

100kΩ 1/16W J

Ω

1/16W J

1/16W J 1/16W J

1/16W J

DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

R9600 NRSA63J-221X MG RESISTOR 220Ω 1/16W J

R9601 NRSA63J-104X MG RESISTOR

R9602 NRSA63J-102X MG RESISTOR 1k

R9603 NRSA63J-222X MG RESISTOR 2.2k

R9604 NRSA63J-124X MG RESISTOR

R9605 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

R9606 NRSA63J-104X MG RESISTOR

R9607 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R9608 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

R9609 NRSA63J-821X MG RESISTOR 820Ω 1/16W J

R9610 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R9611 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

R9612 NRSA63J-104X MG RESISTOR

R9613 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J

R9614 NRSA63J-104X MG RESISTOR

R9631 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J

R9632 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J

R9635 NRSA63J-104X MG RESISTOR

R9636 NRSA63J-104X MG RESISTOR

R9637 NRSA63J-563X MG RESISTOR 56k

R9700 NRSA63J-221X MG RESISTOR 220Ω 1/16W J DK51A R9701 NRSA63J-183X MG RESISTOR 18k R9702 NRSA63J-183X MG RESISTOR 18k R9703 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J DK51A R9704 NRSA63J-473X MG RESISTOR 47k R9705 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J DK51A R9706 NRSA63J-823X MG RESISTOR 82k

VR961 QVQ0320-B54 V RESISTOR

L9501 QQR0621-001Z COIL

L9502 QQR0621-001Z COIL

CN900 QGF1205F2-09 CONNECTOR FFC/FPC (1-9) CN920 QGF1205F2-19 CONNECTOR FFC/FPC (1-19) FL900 QLF0167-001 FL TUBE FW900 FW980 FW981

J961 QNS0231-001 JACK

QUM153-13DGZ4-E QUM153-18DGZ4-E QUM023-05Z4Z4-E

FLAT WIRE FLAT WIRE FLAT WIRE

100kΩ 1/16W J

Ω

120kΩ 1/16W J

100kΩ 1/16W J

Ω

Ω Ω

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US,

1/16W J

DK51UX,DK51UG, DK51UN

DK51EE,DK51US,

Ω

1/16W J

DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

DK51EE,DK51US,

1/16W J

DK51UX,DK51UG, DK51UN

1/16W J DK51A 1/16W J DK51A

1/16W J DK51A

DK51EE,DK51US, DK51UX,DK51UG, DK51UN

3-16



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

J962 QNS0231-001 JACK J980 QNS0231-001 JACK JS940 QSW0857-001 ROTARY SW K9898 NQR0505-001X RES. C.M S9101 QSW0683-001Z PUSH SW I.M S9102 QSW0683-001Z PUSH SW I.M S9201 QSW0683-001Z PUSH SW I.M S9202 QSW0683-001Z PUSH SW I.M S9203 QSW0683-001Z PUSH SW I.M S9204 QSW0683-001Z PUSH SW I.M S9205 QSW0683-001Z PUSH SW I.M S9206 QSW0683-001Z PUSH SW I.M S9207 QSW0683-001Z PUSH SW I.M S9208 QSW0683-001Z PUSH SW I.M S9209 QSW0683-001Z PUSH SW I.M S9210 QSW0683-001Z PUSH SW I.M S9211 QSW0683-001Z PUSH SW I.M S9301 QSW0683-001Z PUSH SW I.M S9302 QSW0683-001Z PUSH SW I.M S9303 QSW0683-001Z PUSH SW I.M S9304 QSW0683-001Z PUSH SW I.M S9305 QSW0683-001Z PUSH SW I.M S9306 QSW0683-001Z PUSH SW I.M S9307 QSW0683-001Z PUSH SW I.M TW962

QUB220-18HPDM-E

S.WIRE

Suurround board

Block No. [0][4]



Symbol No.



IC800 STK402-240 IC

Q8001 KTC3199/GL/-T TRANSISTOR Q8002 KTC3199/GL/-T TRANSISTOR Q8003 KTC3199/GL/-T TRANSISTOR Q8091 KRC102M-T DIGI TRANSISTOR Q8092 KTA1267/YG/-T TRANSISTOR Q8100 KTC3199/GL/-T TRANSISTOR

D8001 1SS133-T2 SI DIODE D8002 1SS133-T2 SI DIODE D8003 1SS133-T2 SI DIODE D8081 MTZJ9.1B-T2 Z DIODE D8082 MTZJ9.1B-T2 Z DIODE D8101 1SS133-T2 SI DIODE D8102 1SS133-T2 SI DIODE D8103 1SS133-T2 SI DIODE D8104 1SS133-T2 SI DIODE D8105 1SS133-T2 SI DIODE

C8001 QETN1HM-105Z E CAPACITOR 1uF 50V M C8002 QETN1HM-105Z E CAPACITOR 1uF 50V M C8003 QCBB1HK-221Y C CAPACITOR 220pF 50V K C8004 QCBB1HK-221Y C CAPACITOR 220pF 50V K C8005 QCBB1HK-221Y C CAPACITOR 220pF 50V K C8006 QCBB1HK-221Y C CAPACITOR 220pF 50V K C8007 QCSB1HJ-100Y C CAPACITOR 10pF 50V J C8008 QCSB1HJ-100Y C CAPACITOR 10pF 50V J C8009 QETN1JM-476Z E CAPACITOR 47uF 63V M C8010 QETN1JM-476Z E CAPACITOR 47uF 63V M C8011 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C8012 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C8013 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C8014 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C8031 QETN1HM-105Z E CAPACITOR 1uF 50V M C8033 QCBB1HK-221Y C CAPACITOR 220pF 50V K C8035 QCBB1HK-221Y C CAPACITOR 220pF 50V K C8037 QCSB1HJ-100Y C CAPACITOR 10pF 50V J C8039 QETN1JM-476Z E CAPACITOR 47uF 63V M C8041 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C8043 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J C8081 QETN1HM-107Z E CAPACITOR 100uF 50V M C8084 QETN1HM-107Z E CAPACITOR 100uF 50V M

Part No. Part Name Description Local

C8085 QETN1HM-106Z E CAPACITOR 10uF 50V M C8086 QETN1HM-106Z E CAPACITOR 10uF 50V M C8099 QETN1HM-105Z E CAPACITOR 1uF 50V M C8105 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C8106 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C8135 QDGB1HK-102Y C CAPACITOR 1000pF 50V K C8136 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

R8001 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R8002 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R8003 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R8004 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R8005 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R8006 QRE141J-563Y C RESISTOR 56kΩ 1/4W J



R8007 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R8008 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R8009 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J



R8010 QRJ146J-122X UNF C RESISTOR 1.2kΩ 1/4W J R8011 QRE141J-104Y C RESISTOR 100kΩ 1/4W J R8012 QRE141J-104Y C RESISTOR 100kΩ 1/4W J



R8013 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R8014 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R8015 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R8016 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R8017 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R8018 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R8019 QRE141J-473Y C RESISTOR 47kΩ 1/4W J R8020 QRE141J-473Y C RESISTOR 47kΩ 1/4W J R8031 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R8033 QRE141J-563Y C RESISTOR 56kΩ 1/4W J R8035 QRE141J-563Y C RESISTOR 56kΩ 1/4W J



R8037 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R8039 QRJ146J-821X UNF C RESISTOR 820Ω 1/4W J R8041 QRE141J-104Y C RESISTOR 100kΩ 1/4W J



R8043 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R8045 QRE141J-102Y C RESISTOR 1kΩ 1/4W J R8047 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J R8049 QRE141J-473Y C RESISTOR 47kΩ 1/4W J



R8071 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J



R8072 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J



R8073 QRT01DJ-R22X MF RESISTOR 0.22Ω 1W J



R8081 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J R8083 QRE141J-333Y C RESISTOR 33kΩ 1/4W J



R8084 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R8088 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R8091 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R8092 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R8100 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R8105 QRE141J-912Y C RESISTOR 9.1kΩ 1/4W J R8106 QRE141J-912Y C RESISTOR 9.1k R8107 QRE141J-332Y C RESISTOR 3.3kΩ 1/4W J R8108 QRE141J-332Y C RESISTOR 3.3k R8135 QRE141J-432Y C RESISTOR 4.3k R8137 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J R8171 QRL01DJ-101X OMF RESISTOR 100 R8172 QRL01DJ-101X OMF RESISTOR 100 R8181 QRL01DJ-101X OMF RESISTOR 100Ω 1W J R8182 QRL01DJ-101X OMF RESISTOR 100 R8191 QRL01DJ-220X OMF RESISTOR 22Ω 1W J R8192 QRL01DJ-220X OMF RESISTOR 22

L8001 QQLZ035-R39 COIL 0.39uH L8002 QQLZ035-R39 COIL 0.39uH L8003 QQLZ035-R39 COIL 0.39uH

CN800 QGB2510K1-10 CONNECTOR B-B (1-10) CN802 QGD2504C1-04Z CONNECTOR (1-4) CN803 QGB2510J1-08 CONNECTOR B-B (1-8) EP810 GV40327-002A IC BRD.HOLDER EP 651 J810 QNB0287-001 SPK.TERMINAL RY811 QSK0127-001 RELAY RY812 QSK0127-001 RELAY

Ω Ω

Ω

Ω Ω

Ω

1W J

1/4W J

1/4W J 1/4W J

1W J 1W J

1W J

3-17

Cassette board

Block No. [0][5]



Symbol No.

IC200 HA12237F-E IC

Q110 KTA1271/OY/-T TRANSISTOR Q111 KRC107S-X DIGI TRANSISTOR Q120 KTA1296/Y/-T TRANSISTOR Q121 KRC107S-X DIGI TRANSISTOR Q150 KTA1296/Y/-T TRANSISTOR Q151 KRC107S-X DIGI TRANSISTOR Q200 KRA102S-X DIGI TRANSISTOR Q201 KTC2876-T TRANSISTOR Q202 KTC2876-T TRANSISTOR Q203 KTC2876-T TRANSISTOR Q204 KTC2876-T TRANSISTOR Q205 KRC107S-X DIGI TRANSISTOR Q206 KRC107S-X DIGI TRANSISTOR Q300 KTC3203/OY/-T TRANSISTOR Q301 KTC3203/OY/-T TRANSISTOR

D121 1N4003S-T5 SI DIODE D122 1N4003S-T5 SI DIODE D151 1N4003S-T5 SI DIODE D152 1N4003S-T5 SI DIODE

C110 QETN1HM-106Z E CAPACITOR 10uF 50V M C122 QETN1CM-107Z E CAPACITOR 100uF 16V M C202 NCB31HK-122X C CAPACITOR 1200pF 50V K C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K C205 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C206 NCB31CK-104X C CAPACITOR 0.1uF 16V K C209 QETN1AM-227Z E CAPACITOR 220uF 10V M C210 QETN1HM-105Z E CAPACITOR 1uF 50V M C211 QETN1HM-106Z E CAPACITOR 10uF 50V M C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K C213 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C214 NCB31CK-104X C CAPACITOR 0.1uF 16V K C216 NCB31HK-272X C CAPACITOR 2700pF 50V K C219 NCB31HK-103X C CAPACITOR 0.01uF 50V K C220 QETN1HM-226Z E CAPACITOR 22uF 50V M C221 QETN1HM-105Z E CAPACITOR 1uF 50V M C222 QETN1HM-226Z E CAPACITOR 22uF 50V M C223 NCB31HK-682X C CAPACITOR 6800pF 50V K C224 NCB31HK-682X C CAPACITOR 6800pF 50V K C225 NCB31HK-122X C CAPACITOR 1200pF 50V K C226 QETN1EM-475Z E CAPACITOR 4.7uF 25V M C227 QETN1EM-475Z E CAPACITOR 4.7uF 25V M C228 QETN1CM-107Z E CAPACITOR 100uF 16V M C231 NCB31HK-272X C CAPACITOR 2700pF 50V K C232 NCB31HK-152X C CAPACITOR 1500pF 50V K C233 NCB31HK-152X C CAPACITOR 1500pF 50V K C236 NCB31HK-561X C CAPACITOR 560pF 50V K C237 NCB31HK-561X C CAPACITOR 560pF 50V K C238 NCB31HK-272X C CAPACITOR 2700pF 50V K C239 NCB31HK-272X C CAPACITOR 2700pF 50V K C300 QCBB1HK-331Y C CAPACITOR 330pF 50V K C301 QCBB1HK-331Y C CAPACITOR 330pF 50V K C303 QFG32AJ-273Z PP CAPACITOR 0.027uF 100V J C304 QETN1CM-107Z E CAPACITOR 100uF 16V M C306 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K C307 QDXB1CM-152Y C CAPACITOR 1500pF 16V M

R110 QRE141J-222Y C RESISTOR 2.2k R123 QRE141J-222Y C RESISTOR 2.2k R153 QRE141J-222Y C RESISTOR 2.2k R200 NRSA63J-822X MG RESISTOR 8.2k R201 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R202 NRSA63J-222X MG RESISTOR 2.2k R204 NRSA63J-272X MG RESISTOR 2.7k R205 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R206 NRSA63J-103X MG RESISTOR 10k R207 NRSA63J-101X MG RESISTOR 100 R208 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R209 QRE141J-223Y C RESISTOR 22k R211 NRSA63J-273X MG RESISTOR 27k

Part No. Part Name Description Local

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J



Symbol No.

R212 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R213 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R214 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R215 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R216 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R217 NRSA63J-102X MG RESISTOR 1k R218 NRSA63J-123X MG RESISTOR 12k R219 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R220 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R221 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R222 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R223 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R224 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R225 QRE141J-472Y C RESISTOR 4.7kΩ 1/4W J R226 QRE141J-221Y C RESISTOR 220Ω 1/4W J R227 QRE141J-103Y C RESISTOR 10kΩ 1/4W J R234 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R235 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R300 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R301 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J



R302 QRZ9005-100X FUSI RESISTOR 10 R303 QRE141J-101Y C RESISTOR 100Ω 1/4W J R304 QRE141J-153Y C RESISTOR 15kΩ 1/4W J R305 QRE141J-2R2Y C RESISTOR 2.2Ω 1/4W J



R306 QRJ146J-4R7X UNF C RESISTOR 4.7Ω 1/4W J R307 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J R308 QRE141J-474Y C RESISTOR 470kΩ 1/4W J VR300 QRE141J-103Y C RESISTOR 10kΩ 1/4W J

L236 QQL30BJ-103Z COIL 10mH J L237 QQL30BJ-103Z COIL 10mH J L300 QQR1118-002 OSC COIL(BIAS) L301 QQL244K-100Z COIL 10uH K

CN100 QGF1205F2-19 CONNECTOR FFC/FPC (1-19) CN120 QGF1205F2-07 CONNECTOR FFC/FPC (1-7) CN200 QGB2021L1-06 CONNECTOR B-B (1-6) CN220 QGA2001F1-03 CONNECTOR W-B (1-3)

Part No. Part Name Description Local

Ω

1/16W J

Ω

1/16W J

Ω

Connector board

Block No. [0][6]



Symbol No.

CN1 QGF1016F3-05 CONNECTOR FFC/FPC (1-5) S1 QSW1074-001 DETECT SWITCH

Part No. Part Name Description Local

DVD module board

Block No. [0][7]



Symbol No.

IC201 LA6502-X IC IC301 MN2DS0009AA IC IC302 MM1701CH-X IC IC305 MM1563BF-X IC 3.1V Regulator IC453 S-80827CNNB-G-W IC IC505 K4S641632H-UC75 IC IC505 or K4S641632K-UC75 IC IC509 --------------- IC(MICRO C ROM) IC510 BR24L16F-W-X IC IC701 AK4387ET-X IC IC702 AK4387ET-X IC IC703 AK4387ET-X IC IC705 MM1615AN-X IC

Q101 KTA1001/Y/-X TRANSISTOR Q101 or 2SB1424/R/-W TRANSISTOR Q102 2SC4617/R/-X TRANSISTOR Q103 KTA1001/Y/-X TRANSISTOR

Part No. Part Name Description Local

3-18



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

Q103 or 2SB1424/R/-W TRANSISTOR Q104 2SC4617/R/-X TRANSISTOR

C101 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C102 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C103 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C104 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C105 NEAF0JM-476X E CAPACITOR 47uF 6.3V M C106 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C107 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C108 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C201 NDC31HJ-221X C CAPACITOR 220pF 50V J C202 NDC31HJ-221X C CAPACITOR 220pF 50V J C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K C204 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C205 NCB31HK-271X C CAPACITOR 270pF 50V K C206 NDC31HJ-151X C CAPACITOR 150pF 50V J C210 NCF31AZ-105X C CAPACITOR 1uF 10V Z C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K C217 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K C257 NCB31HK-822X C CAPACITOR 8200pF 50V K C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K C260 NCB31HK-223X C CAPACITOR 0.022uF 50V K C261 NCB31HK-223X C CAPACITOR 0.022uF 50V K C262 NCB31HK-223X C CAPACITOR 0.022uF 50V K C263 NEAF1CM-107X E CAPACITOR 100uF 16V M C300 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M C302 NEAF0GM-476X E CAPACITOR 47uF 4V M C303 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K C305 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C306 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C307 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C308 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C309 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C310 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C312 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C313 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C314 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C315 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C316 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C318 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C319 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K C325 NDC31HJ-120X C CAPACITOR 12pF 50V J C326 NDC31HJ-100X C CAPACITOR 10pF 50V J C328 NCB31HK-103X C CAPACITOR 0.01uF 50V K C329 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C330 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K C332 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C333 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C334 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C335 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K C338 NCB31HK-562X C CAPACITOR 5600pF 50V K C339 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K C349 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C350 NCB31HK-103X C CAPACITOR 0.01uF 50V K C351 NCB31HK-103X C CAPACITOR 0.01uF 50V K C352 NCB31CK-153X C CAPACITOR 0.015uF 16V K C353 NCB31HK-561X C CAPACITOR 560pF 50V K C354 NCB31HK-561X C CAPACITOR 560pF 50V K C356 NCB30JK-105X C CAPACITOR 1uF 6.3V K C359 NCB30JK-105X C CAPACITOR 1uF 6.3V K C371 NCF31AZ-105X C CAPACITOR 1uF 10V Z

C372 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C375 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C376 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C377 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C379 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C380 NCB21CK-105X C CAPACITOR 1uF 16V K C381 NCB21AK-225X C CAPACITOR 2.2uF 10V K C382 NCB31HK-471X C CAPACITOR 470pF 50V K C383 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C386 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C393 NCB31HK-103X C CAPACITOR 0.01uF 50V K C455 NCB31HK-103X C CAPACITOR 0.01uF 50V K C551 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C554 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C555 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C557 NCB31HK-102X C CAPACITOR 1000pF 50V K C558 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C559 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C560 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C562 NCF31AZ-105X C CAPACITOR 1uF 10V Z C563 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C564 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C701 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C702 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C703 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C704 NEAF0JM-476X E CAPACITOR 47uF 6.3V M C706 NEAF1CM-106X E CAPACITOR 10uF 16V M C707 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C708 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C709 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z C711 NCB21CK-105X C CAPACITOR 1uF 16V K C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K C713 NCB21CK-105X C CAPACITOR 1uF 16V K C740 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R101 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R102 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R103 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R104 NRSA63J-432X MG RESISTOR 4.3kΩ 1/16W J R105 NRS181J-180X MG RESISTOR 18Ω 1/8W J R106 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J R107 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R108 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R109 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R111 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R112 NRSA63J-432X MG RESISTOR 4.3kΩ 1/16W J R113 NRS181J-180X MG RESISTOR 18Ω 1/8W J R114 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J R115 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R116 NRSA63J-471X MG RESISTOR 470 R117 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R125 NRSA63J-1R0X MG RESISTOR 1 R127 NRSA63J-432X MG RESISTOR 4.3k R128 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R201 NRSA63J-471X MG RESISTOR 470 R202 NRSA63J-102X MG RESISTOR 1k R204 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R205 NRSA63J-273X MG RESISTOR 27k R206 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J R207 NRSA63J-473X MG RESISTOR 47k R213 NRSA63J-103X MG RESISTOR 10k R214 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R219 NRSA63J-183X MG RESISTOR 18k R220 NRSA63J-243X MG RESISTOR 24k R221 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R251 NRS125J-R39X MG RESISTOR 0.39 R259 NRSA63J-103X MG RESISTOR 10k R303 NRSA63J-220X MG RESISTOR 22 R306 NRSA63J-102X MG RESISTOR 1k R307 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R308 NRSA63J-103X MG RESISTOR 10k R309 NRSA63J-104X MG RESISTOR 100k R310 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R316 NRSA63J-102X MG RESISTOR 1k R319 NRSA63J-103X MG RESISTOR 10k R324 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R325 NRSA63J-331X MG RESISTOR 330 R326 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-19



Symbol No.

R327 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R331 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R332 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R334 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R335 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R336 NRSA63J-0R0X MG RESISTOR 0 R337 NRSA63J-0R0X MG RESISTOR 0 R338 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R339 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R340 NRSA63D-303X MG RESISTOR 30kΩ 1/16W D R341 NRSA63D-512X MG RESISTOR 5.1kΩ 1/16W D R342 NRSA63D-242X MG RESISTOR 2.4kΩ 1/16W D R345 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R346 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R347 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J R348 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R350 NRSA63J-751X MG RESISTOR 750Ω 1/16W J R351 NRSA63J-681X MG RESISTOR 680Ω 1/16W J R352 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R353 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R357 NRSA63J-221X MG RESISTOR 220 R358 NRSA63J-221X MG RESISTOR 220 R359 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R360 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R362 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R367 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R372 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R373 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R375 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R376 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R377 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R383 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R384 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R385 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R392 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R458 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R535 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R541 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R542 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R701 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J R718 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R721 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R722 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R723 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R724 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R725 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R726 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R727 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R728 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R730 NRSA63J-331X MG RESISTOR 330 R731 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R732 NRSA63J-102X MG RESISTOR 1k

CN101 QGF0523F3-24W CONNECTOR FFC/FPC (1-24) CN201 QGF1016F8-08W CONNECTOR FFC/FPC (1-8) CN701 QGF1016F8-25W CONNECTOR FFC/FPC (1-25) CN702 QGF1016F8-15W CONNECTOR FFC/FPC (1-15) K101 NQR0502-001X FERRITE BEADS K351 NQR0502-001X FERRITE BEADS K352 NQR0502-001X FERRITE BEADS K501 NQR0502-001X FERRITE BEADS K701 NQR0022-002X FERRITE BEADS K702 NQR0022-002X FERRITE BEADS K703 NQR0022-002X FERRITE BEADS K704 NQR0022-002X FERRITE BEADS K705 NQR0022-002X FERRITE BEADS K706 NQR0022-005X FERRITE BEADS K707 NQR0022-002X FERRITE BEADS K708 NQR0022-002X FERRITE BEADS K709 NQR0022-002X FERRITE BEADS K710 NQR0022-002X FERRITE BEADS K711 NQR0022-002X FERRITE BEADS K720 NQR0022-002X FERRITE BEADS K721 NRSA63J-0R0X MG RESISTOR 0 K722 NRSA63J-0R0X MG RESISTOR 0 K726 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J TH301 NAD0025-103X N THERMISTOR 10k X301 NAX0741-001X CRYSTAL 27.000MHz

Part No. Part Name Description Local

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

3-20

< MEMO >

3-21

Packing materials and accessories parts list

No additional / supplemental order of WARRANTY CARDs are available

Block No.

M

3

M

P5

P4

A4

A15

P2

P6

A1,A2, A3, A5, A6,A7, A8, A9, A10, A12, A13,A14

P3

P1

P9

A19

P8

P7

A18

P9

A19

P9

A18

A22

A19

A22

A16, A17

FRONT

A20

A21

A11

A23

P10

P11

P15

P14

A20

P10

P11

A17

P12

P16

A21

A16

P13

A21

P10

P11

3-22

Packing and Accessories

Block No. [M][3][M][M]



Symbol No. Part No. Part Name Description Local

A 1 GVT0178-001A INST BOOK ENG DK51A,DK51US,DK51UX,DK51UG,DK51UN A 2 GVT0178-006A INST BOOK RUS DK51EE A 2 GVT0178-003A INST BOOK CHI(PEKIN) DK51US,DK51UN A 2 GVT0178-004A INST BOOK ARA PER DK51UX,DK51UG A 3 GVT0186-001A NOTICE SHEET A 4 GVT0187-001A NOTICE SHEET A 5 QAL0014-003 AM LOOP ANT A 6 QAL0457-001 ANT.WIRE



A 7 QAM0112-002 PLUG ADAPTOR DK51US,DK51UN A 8 QAM0216-001 SIGNAL CORD A 9 RM-SMXDK51U REMOCON DK51EE,DK51US,DK51UX,DK51UG,DK51UN A 9 RM-SMXDK51A REMOCON DK51A A 10 ----------------- BATTERY 1.5V(x2) A 11 LE40796-001A VERANCE LABEL A 12 ----------------- WARRANTY CARD BT-54028-1 DK51EE A 13 ----------------- WARRANTY CARD BT-56012-1 DK51A A 14 GVT0195-001A NOTICE SHEET DK51A,DK51US,DK51UX,DK51UG,DK51UN A 15 GVT0185-001A NOTICE SHEET DK51UN A 16 MXDK5F-SPBOX-R SPEAKER BOX SPK WITH BOX-R A 17 MXDK5F-SPBOX-L SPEAKER BOX SPK WITH BOX-L A 18 ASL8CDK51-EB10 SPEAKER BOX SPK WITH BOX-C A 19 ASL8SDK51-EB10 SPEAKER BOX SPK WITH BOX-S(x2) A 20 SPMXDK5W-SPBOX SPEAKER BOX SPK WITH BOX-WO A 21 441-802104-00 LEG CUSHION (x12) A 22 DUF803001-0002 LEG CUSHION (x9) A 23 650-DK51US-00 USER MANUAL A 23 650-DK51EE-00 USER MANUAL P 1 GV20427-004A CARTON ASSY. DK51EE P 1 GV20427-003A CARTON ASSY. DK51A P 1 GV20427-001A CARTON ASSY. DK51US,DK51UN P 1 GV20427-002A CARTON ASSY. DK51UX,DK51UG P 2 GV10326-001A CUSHION (TOP) P 3 GV10327-001A CUSHION (BOTTOM P 4 QPC06507030P POLY BAG 65cm x 70cm P 5 GV40437-003A CLOTH P 6 QPC02503515P POLY BAG 25cm x 35cm P 7 ITF830361-0001 TOP CUSHION P 8 ITF830361-0002 BOTTOM CUSHION P 9 IVA803101-0023 HDPE BAG (x3) P 10 715-250104-00 MIRAMAT SHEET (x3) P 11 700-120034-20 HDPE BAG (x3) P 12 720-XDK5FT-00 TOP CUSHION P 13 720-XDK5FB-00 BOTTOM CUSHION P 14 720-DK51WT-00 TOP CUSHION P 15 720-DK51WB-00 BOTTOM CUSHION P 16 730-DK51US-10 PACKING CASE P 16 730-DK51UX-10 PACKING CASE P 16 730-DK51EE-10 PACKING CASE

3-23

SCHEMATIC DIAGRAMS

COMPACT COMPONENT SYSTEM

MX-DK51EE,MX-DK51A,MX-DK51US

MX-DK51UX,MX-DK51UG,MX-DK51UN

CD-ROM No.SML200606

SP-MXDK51C

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

Contents

Block diagrams Standard schematic diagrams Printed circuit boards

CA-MXDK51

SP-MXDK51F SP-MXDK51WSP-MXDK51FSP-MXDK51S SP-MXDK51S

2-1 2-2 2-12 to 16

No.MB547SCH

2006/6

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety.

2-1

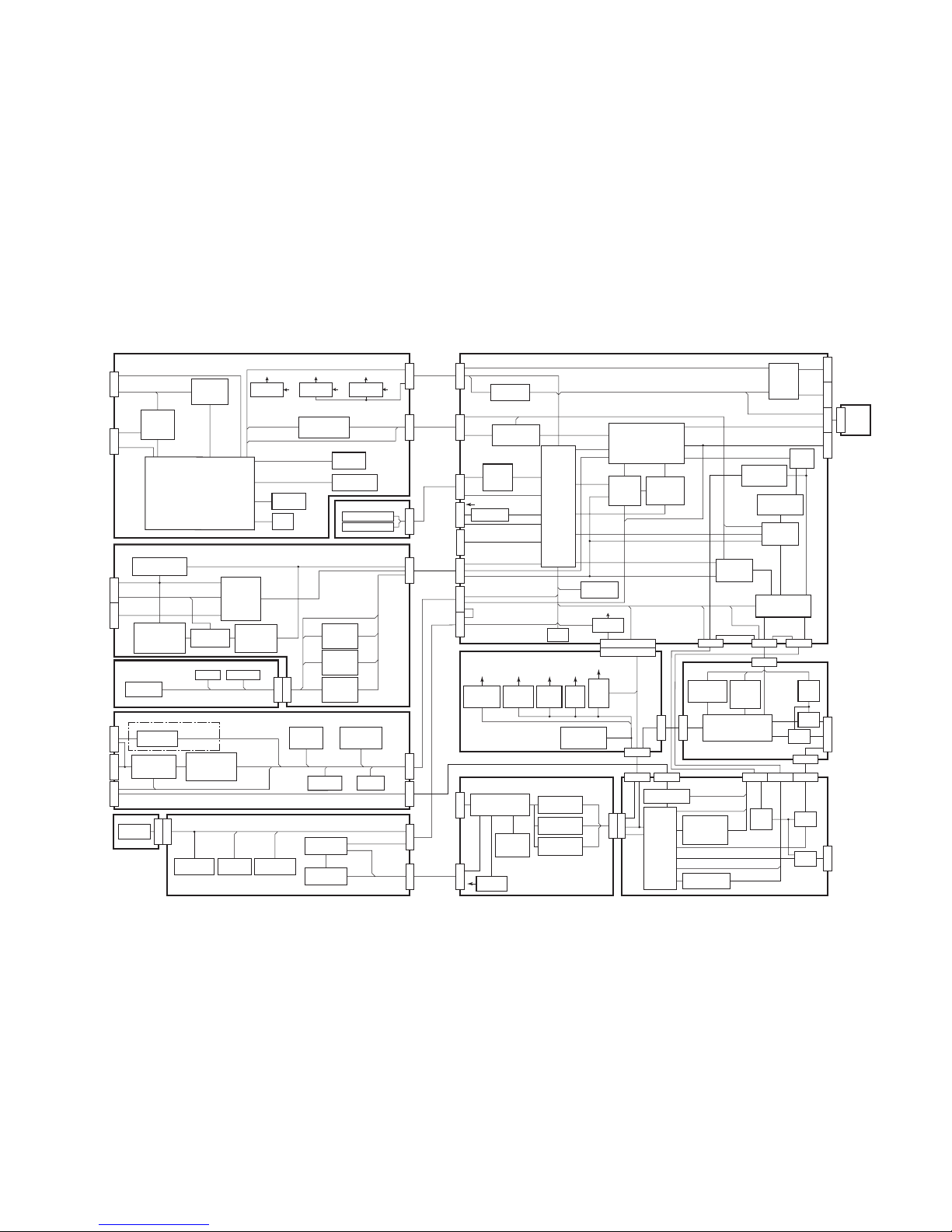

Block diagram

IC350

SYSTEM

MICON

CN303

IC700 VIDEO

DRIVER

J100

MAIN SPEAKER

Primary section

Regulator section

Main Amp section

Surround Amp section

FW150

IC119 MAIN

AMP.

Q1030 to Q1034

HP MUTE

IC195

Q1295

FAN REG.

Q1221 to Q1223

VOLTAGE CONTROL

Q1070

RELAY

CTRL

Q8100 RELAY

CTRL

RY120 RELAY

RY110 RELAY

Q1090 to Q1093

STAND-BY CTRL

Q8091 Q8092

STAND-BY

CTRL

FAN_SPD

RELAY

POUT

IMP

SW

L R

SR_RELAY

COUT

SLOUT SROUT

POUT SR_RELAY

POUT

RLOUT RROUT

RECL, RECR

RAOUTL RAOUTR LRMUTE

CTR SURL SURR

SW MAINL MAINR

HPMUTE

HP_L, HP_R

OPEN CLOSE

LM+/-

IC470 MAIN

E.VOLUME

IC640,IC650

IC473,Q4730

FRONT MIX AMP.

IC410 Q4080 Q4081

MIC MUTE

IC400

IC430,IC450

Q4000,Q4001

HARMONIC

IC300

LEVEL SHIFT

IC305

LOADING

MOTOR

DRIVER

RECL RECR

PBL, PBR

FANOUTL/R SWAOUT LRMUTE

FL FR

LRMUTE

RAOUTL/R CAOUT

MICMUTE

MICIN

LVRI N RVRIN

LSELO RSELO

HARCTRL

CN335

CN300

CN311CN309

FW160,FW170

CN312,CN313,CN314

CN120CN130

CN307 CN306

CN140

CN110

CN160

J7500 J7300

VIDEO OUT (S-VIDEO /COMPOSITE)

VIDEO OUT (COMPONENT)

VCLK VDATA1

C, Y, CV

Pr, Pb, Y

VMUTE

COUT, YOUT CROUT, CBOUT, Y/GOUT

TUL TUR

CN308

AVCI, AVCO, RESET, CLOCK

Q3100,Q3101

RESET

INH RESET

ILLUMI

FANSP D

SAFETY

TUCE, TUDI TUCK, TUDO

UR FLASH

AUXL AUXR

J6700

CN802

AUX INPUT

IC560

AHB

IC600,IC610,IC620

Q6000,Q6200

MUTE SYSTEM

IC490,IC500 SURROUND

E.VOLUME

IC510,Q5100

C & SW

E.VOLUME

IC580

SUBWOOFER

LPF INPUT AMP.

Q5400 to Q5402 Q5500 to Q5502 AHB CONTROL

LOUT ROUT

FLOUT FROUT

SWFB

SMUTE C/RMUTE

VCLK, VDATA3

VCLK, VDATA2

DI-DT, DI-CK, DI-CS KEY1, REMIN, SBYLED

VOL+/-, KEY2, KEY3 HPDET, STLED ECHO-CTR, ECHO1, ECHO2

PRT LEVDET HPMUTE RELAY

DC, LEVDET, IMP

System control & Audio/Video section

OPENDET CLOSEDET

PBMUTE, RECB, RMUTE, A/B SOL1, SOL2, MOTOR, ALPKEY ENDSW1, ENDSW2

CN330

FAN CTRL

FAN STATUS

FAN UNIT

Q3300

FAN CTRL

FAN12V

CTR SURL SURR LEVDET DC

CN310

CN800

12V FAN

IC170

5.6V MICON REG.

5.6V MICON

IC160

MONITOR

9V REG.

MONITOR 9V

IC180

SLC12V

REG.

SLC12V

IC325

D5V REG.

D5V

IC190

9V

REG.

9V

SW, MAINL, MAINR

Q1050 to Q1053

Q1120, Q1140

Q1180

PROTECTOR

DC IMP PRT

LEVDET, SWFB

S-W

SW-AHB

SWOUT COUT

CAOUT LRMUTE

IC201

MOTOR

DRVER

IC301

DV3.2

IC505

SDRAM

IC509

FLASH ROM

DVD traverse mechanism

CN101

CN702

CN302

TRAY SWITCH

LOADING MOTOR

DVD loading section

CN1

A, B, C, D, E, F, RF+, LPC1, LPC2

F+/T+/-

FM+/WOUT VOUT UOUT COM

LD(CD) LD(DVD)

FAOUTL/R, RAOUTL/R CAOUT, SWAOUT

BCK, LRCK AOUT0 to AOUT2 DCLK, DDATA DAC0CS to DAC2CS DACCK, DACPDN

LRMUTE

D4V

D2V

A6V

DVDPON

Q101 to Q104

LASER

DRIVER

EXADT0 to 15, EXADR16 to 20 EXDT0 to 15, NEXCE NEXOE, NEXWE, CPURST

MA0 to 11, BA0, BA1 MDQ0 to 15, DQM0 , DQM1 NCSM, NRAS, NCAS, NWE, MCK

X301

27MHz

DVD traverse mechanism

CN201

LPCO1 LPCO2 CDLDCUR DVDLDCUR

FG, SPDRV, TRSDRV FODRV, TRDRV DRVMUTE, SPMUTE

TRVSW

IC701 to IC703

AUDIO DAC

CN701

CN301

DAC1OUT to DAC5OUT UCS, SCS, UCLK U2SDT, S2UDT, CPURST

DVD servo control section

IC510

EEPROM

SDA SCL WP

UCS SCLK U2SDT

SCS, S2UDT, CPURST, DVDPON

CN250 CN103

T1

TRANSFORMER

Q2010

-34V REG.

CN119

FW100

CN150

CN803

D2100 to D2103 DIODE BRIDGE

D2200 to D2203 DIODE BRIDGE

D2010 to D2013 DIODE BRIDGE

S1500

VOLTAGE

SELECTOR

AC IN

VH+/-

VL+/-

S4H S4L

S4H

S4H S4L

S4L

VL+/- VL+/-

-34V

F+/-

D9000

STANDBY LED

FL900

FL DISPLAY

IC901

FL DRIVER

S9102

STANDBY SW

CN900 FW900

IC902

REMOCON

S9101

EJECT SW

FW981

LEDSTBY

DI-DT, DI-CK DI-CS, ILLUMI

S1 to S16 G1 to G12

F+/-

KEY1

REMIN

-VDISP

S9201 to S9211 S9301 to S9307

KEY MATRIX

IC950

Q9530 to Q9532

COMPANDER,

LPF & ECHO MIX.

IC960

Q9601,Q9602

MIC AMP. & ALC

IC970

AUX BUFFER

KEY2 KEY3

ECHO1 ECHO2 ECHO-CTRL

HP-DET

MICIN

AUXL, AUXR

HP_L, HP_R

ILLUMI

SBYLED

JS940

VOLUME

D9200

ILLUMI.LED

D9201

S.BOOSTER

LED

CN920

J961 J980

FW980

J962

VOL+/-

MIC2 / AUX INPUT

MIC1 INPUT

HEADPHONE

TUNER UNIT

IC200

MECHA

MICON

L300

BIAS OSC

Q300,Q301

BIAS

OSC/CONT.

VR300

REC/PLAY

FREQUENCY

RESPONSE Adj.

Q200 to Q204

HEAD SWITCH

BIN(L) BIN(R)

RECOUT(L) RECOUT(R)

AIN(L) AIN(R)

E

CN200

REC/PB ERACE HEAD

CN220

PB HEAD

Q150,Q151 SOLENOID

DRIVE B

Q120,Q121 SOLENOID

DRIVE A

Q110,Q111

MOTOR

DRIVE

Cassette Head amplifier section

CN120

SOLENOID

MOTOR

END SW

F-REC SW

SOL1, SOL2

ALPKEY ENDSW1 ENDSW2

MTR+

Cassette Mecha section

FL Display section

Mic, Headphone & USER Control Keys section

RECB

MOTOR

SOL1

SOL2

PBL, PBR RECL, RECR A/B, RMUTE PBMUTE

CN100

IC302

D1.2V REG.

D1.2V

IC305

3.1V REG.

3.1V

IC705

A5V REG.

A5V

VL+/-

CENTER

SURROUND

SUBWOOFER

Q8001

to Q8003

PROTECTOR

RY811 RELAY

RY812 RELAY

J810

IC800

SURROUND

AMP.

X3500

12MHz

Used for Area suffix A

SPEAKER

2-2

Parts are safety assurance parts. When replacing those parts make sure to use the specified one.

Standard schematic diagrams

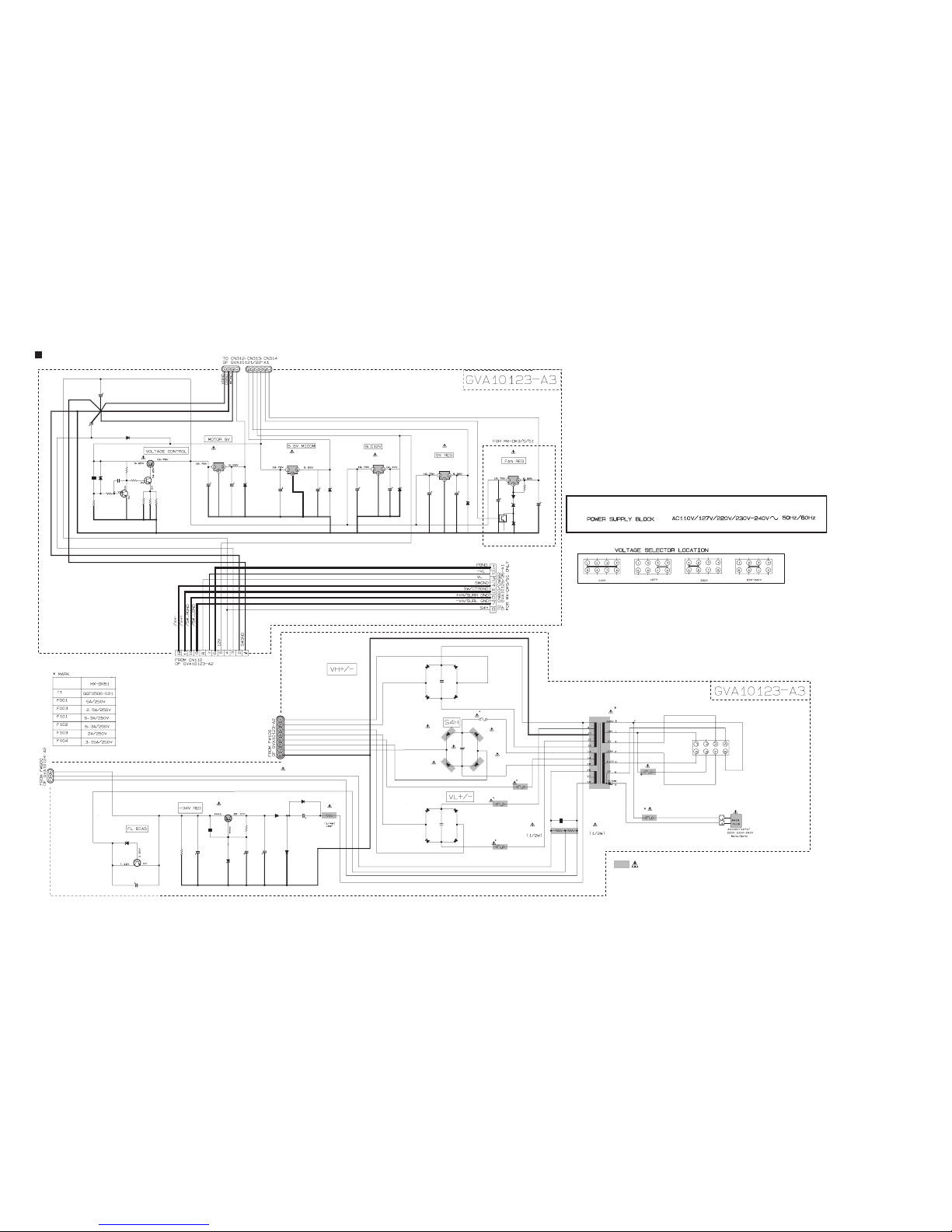

Primary section

CN160

IC195

R1295

Q1295

CN150

IC190

IC180

IC160

IC170

Q1221

Q1222

Q1223

R1226

R1224

D1222

CN250

FW170

F102

Q2011

CN103

D2101

D2010

T1

C2015

D2102

C2010

D2016

D2015

D2020

F101

R2010

CN119

Q2010

F104

D2012

D2013

D2011

F103

F001

F003

S1500

FW160

R2017 R2018

C2019

D2103

D2100

D2201

D2202

D2203

D2200

D1298

C1296

D1296

C1295

D1295

C1291

D1280

C1280

C1222

C1281

C1221

C1260

C1261

D1260

C1271

D1271

R1222

R1221

R1223

R1225

R1227

C1225

c1226

C1270

D1221

D1290

C1290

D2018

D2017

R2011

R2012

C2012

C2013

C2014

C2011

C2020

C2100

C2200

MTZJ2.0B-T2

QGB2510K1-12

KIA7805API

MTZJ4.3B-T2

KRC102M-T

QGB2510K1-08

KIA7809API

KIA7812API

6800/16

KIA7809API

KIA7805API

KTA1046/Y/

KTC3199/GL/-T

2.7K

680

MTZJ5.6C-T2

2A02-M

QGA7901F2-02

QUM154-14DGZ4

KTC3203/0Y/-T

QGD2504C1-03Z

1N5402M-20

10/50

1N5402M-20

100/63V

1N4003S-T5

MTZJ6.8B-T2

4.7

QGA3901F1-08

KTA1046/Y/

1N5402M-20

QSW0812-001

QUM156-14DGZ4

47

0.01/50

1N5402M-20

10/50

1K

10/50

MTZJ15B-T2

10/50

6800/25

10/50

220/16

MTZJ11B-T2

10/50

MTZJ6.8C-T2

1K1K1K

4.7K

680

0.01/50

220P/50

10/50

MTZJ11B-T2

10/50

MTZJ33C-T2

1N4003S-T5

7.5K

22K

22/50

47/50V

0.01/16

47/100V

0.1/100

0.1/2500.1/100

S4H

GND

CTS4

FL2

S4L

VL-

VL+

VH_-

VH_+

FL1

-34V

S4L

S4H

CTS4

M9V

9V

12V_FAN

M5.6V

SLC12V

VL+

S4L

VL-

FAN_SPD

S/L_GND

S/R_GND

CTR_GND

S/W_GND

P_GND

!

!!

2-3

Parts are safety assurance parts. When replacing those parts make sure to use the specified one.

Amplifier section

Q1031

R1041

EP200

R2500

C2504

C2503

B1001

C2502

C2501

IC119

Q1033

FW150

J220

CN110

FW100

J210

B1000

CN140

CN120

Q1032

Q1034

Q1030

R1033

R1034

R1035

R1036

L1060

L1061

B1061

B1060

L2010

B2010

J100

Q1070

R1044

R1042

Q1093

Q1091

Q1092

Q1090

C1063

R1091

R1093

C1061

R1092

R1094

R1141

R1097

C1121

R1063

C1066

C1064

R1062

R1095

R1096

RY110

R1070

C1052

C1140

C1062

C1060

C1065

C1067

RY120

R1060

R1061

Q1180

Q1140

D1100

R1121

C1141

R1037

R1038

C1120

Q1120

C1124

C1144

C1181

R1184

R1181

C1180

C1184

R1055

C1190

R1144

R1124

R1082

C1082

C1083

C1081

R1080

C1085

R1085

C1084

C1080

R1053

Q1050

CN130

D1105D1106

R1032

B1004

R1040

D1040

R1031

R1030

B1005

B1003

B1002

CN210

R1129

R1149

R1189

R1090

D1090

C1091

C1092

R1182

R1143

R1145

R1185

R1163

R1146

R1162

R1148

R1147

R1187

R1188

R1186

Q1053

D1101

R1122

C1182

D1071

C1183

C1090

R1142

C1142

C1143

C1162

C1161

D1070

D1140

D1180

L1180

L1140

R1100

R1120

R1140

R1183

R1123

R1125

R1126

R1161

R1128

R1127

C1122

C1123

C1160

D1120

R1045

R1043

L1120

D1042

D1041

R1160

R1180

R1101

R1102

R1103

R1104

D1102

D1103

R1010

C1010

R1050

R1051

R1052

R1011

C1011

R1001

C1001

R1083 R1081

R1002

C1002

R1084

C1050

C1051

D1050

Q1052

Q1051

R1054

2SC3576-JVC-T

2.7K

4.1

0.1uF

0.001/50

STK412-490

2SC3576-JVC-T

QUM156-16DGZ4

QNN0420-001

QGB2510J1-12

QJK015-083324

QNB0285-001

QGD2504C1-03Z

QJK2510J1-07

2SC3576-JVC-T

KRA111M-T

4.7K

QNB0181-001

KTC3199/GL/-T

2.7K

KTA1023/OY/-T

KTC1027/OY/-T

KTC3200/GL/-T

0.001/50

10K

0.001/50

56K

2.2K

NI

4.1

0.1uF

4.7

47

QSK0127-001

2.2K

10/50

4.7P

QSK0127-001

10

MTZJ15B-T2

56K

NI

470

4.7P

220P

NI

1K

56K

4.7P

220P

2200/35

10K

1/50

1K

1k

470P

10/35

2200/35

10/35

1k

10/35

1k

470P

10K

QJK2510J1-08

2A02-M2A02-M

82K

15K

82K

QGD2503F1-06

100K

KTA1268/GL/-T

10K

100K

0.1

2K

10

1.2K

10

*

47K

5.6K

47K

10

KTA1023/OY/-T

MTZJ15B-T2

2K

0.047/50

100/10

2K

0.047/50

47/63

0.39

KTC3199/GL/-T

6.8K

0.22

2K

10

*

47K

5.6K

0.047/50

47/63

15K

0.39

KTC3199/GL/-T

33K

0.22

6.8K

10

MTZJ36B-T2

100K

10K

100K

4700/50

56k 56k

100K

4700/50

56k

10/50

47/16

KTA1023/OY/-T

KTC3199/GL/-T

KTC1027/OY/-T

100K

MAINR_IN

MAINL_IN

SW_FB

SW_IN

IMP

RELAY

DC

HP_R

HP_L

LEV_DET

POUT

PRT

H/P_MUTE

IP_GND

CTS4

S4L

12V

S4H

CT

VL-

VH-

VL+

!

2-4

Micon section

R3500

C3502

C3053

R3507

D3300

CN330

C3052

B3143

IC305

C3503

R3613

R3605

R3606

R3618

R3616

R3617

R3615

CN304

IC350

R3614

D3255D3254

IC325

D3505

R3608

Q3300

R3300

B3014

R3301

R3508

R3533

R3005

R3006

R3537

CN308

IC300

CN303

R3000

R3505

CN301

CN300

CN306

R3536

R3532

D3200

R3535

C3300

R3531

R3302

R3529

R3530

R3604

R3607

R3102

CN307

R3602

CN305

Q3100

X3500

C3501

C3500

Q3101

C3103

CN309

R3534

R3007

R3621

R3611

CN335

D3201

D3202

R3603

B3043

R3601

R3600

R3555

K3100

B3049

D3253 D3252

B3044

C3050

R3549

D3050

C3051

R3612

R3610

R3609

B3045

B3031

D3250

C3251

C3250

R3004

CN312

R3451

R3351

R3350

R3450

C3350

C3450

R3548

R3526

C3000

R3512

R3513

R3514

R3519

R3520

R3511

R3521

R3522

R3523

R3524

R3525

R3538

R3539

R3540

R3541

R3542

R3543

D3251

R3544

R3545

R3546

R3547

R3550

R3551

R3552

C3101

R3003

C3102

D3100

R3100

R3101

D3101

C3100

R3103

D3051

R3562

D3151

C3152

C3151

D3150

R3150

R3002

C3150

CN313

R3619

R3620

R3556

R3557

K3101

B3050

CN314

1K

0.47/50

NI

1K

MTZJ5.1B-T2

QGA2501C1-03

100/16

LB1641

100/16

10K

NI

10K

QGF1205F1-05

UPD78F0547GC

10K

NINI

KIA278R05PI

NI

10K

KTC3203/0Y/-T

QGD2504C1-03Z

1K

NI

10K

1K

UN2111-X

1K

1KQGF1205C1-07

SN74AHCT08NS-X

UN2213-X

QGF1205C1-19

330

1K

QGF1036C1-25

QGF1036C1-05

QGF1205C1-09

1.2K

1K

1N4003S-T5

1K

47/25

1K

2.2K

1K

10K

QGF1205C1-19

2.2K

QGF1205C1-07

KRA102S-X

QAX0724-001Z

27p

KRC102S-X

4.7/50

QGB2510K1-08

1.2K

1K

10K

QGF1205C1-15

1N4003S-T5

UN2113-X

UN2214-XUN2215-X

QGD2504C1-03Z

2.2K

13K

QQR0621-001Z

NI

QGD2504C1-04Z

1N4003S-T5 1N4003S-T5

0.01

1K

MTZJ5.6B-T2

0.1

10K

NI

MTZJ5.6C-T2

470/25

10/50

2.2K

20K

9.1K

NI

1K

0.01

200

1K1K1K

1K1K1K1K1K1K1K 1K

1K1K1K1K1K

1N4003S-T5

1K1K1K1K1K1K1K

0.01

1K

2.2K

0.01

MTZJ2.2A-T2

1K

10K

1SS133-T2

100/16

10K

1N4003S-T5

NI

NININI

NI

2.2K

NI

10K

1K

10K

NI

SCLK_

S2UDT_

SAFETY

OPENDET

SCS_

U2SDT_

FANSPD

UCS_

CPURST_

MICIN

HPMUTE

ECHO-CTRL

CLOSEDET

OPENDET

ECHO1

STLED

RELAY

DVDPON

CLOSE

SCLK_

U2SDT_

ECHO2

SR-RELAY

OPEN

AVCI

IMP

SCS_

INH

AVCI

REMIN

S2UDT_

RECR

RECL

VCLK

PBR

PBL

RESET

INH

SCLK_

U2SDT_

S2UDT_

VPP

AVCO

CLOSE

AVCO

AVCI

PBMUTE

RECB

RMUTE

A/B

DC

SOL1

MOTOR

ALPKEY

ENDSW2

SOL2

ENDSW1

VMUTE

AVCO

LEVDET

PRT

FANSPD

POUT

UCS_

CLOSEDET

HPDET

CPURST_

OPEN

DVDPON

TUCE

TUDO

TUCK

TUDI

SR-RELAY

SBYLED

ALPKEY

KEY2_

LEVDET

SAFETY

ENDSW1

SOL2

MOTOR

SOL1

LEVDET

MICIN

KEY1_

KEY2_

KEY3

REMIN

HPDET

DI-CS

DI-CK

DI-DT

VOL+

VOL-

KEY1_

ECHO-CTRL

MICMUTE

ECHO1

ECHO2

AUXL

DI-CS

DI-CK

DI-DT

VOL-

VOL+

DVDPON

VDATA3

C/RMUTE

VMUTE

SBYLED

VDATA2

VDATA1

VCLK

VDATA1

VDATA3

VDATA2

TUDO

TUDI

TUCK

TUCE

RECR

RECL

PBR

PBL

RECB

A/B

ENDSW2

PBMUTE

PRT

POUT

SMUTE

C/RMUTE

LEVDET

HARCTRL

RMUTE

STLED

MICMUTE

AUXR

AUXL

AUXR

SMUTE

RELAY

HPMUTE

2-5

Audio section

R6000R6200

R4104

R4205

CN311

B3005

B3004

Q6000

Q6200

J6700

C4736

C4836

R6401

R6403

C6401

R6601

R6501

R6602

R6502

R4731

R4831

CN310

R4833

R4733

CN302

C4121

R4002

R5400

R4001

C4320

IC470

R4730

R5405

C4004

R4007

R4008

C5701

C6850

Q4001

R4403

R4400

R5802

R4502

R4301

R4503

C4502

C4730

R4009

D6850

D6851

R4303

R4011

R4300

IC400

R6001

R6101

B3010

B3009

R5403

R5200

C5211

B3054

C4301

C4401

R4081

Q4080

R5600

R5700

R5404

R5702

R5602

R5003

C5300

R6201

R6301

R5301

D5300

R5500

C5201

R6311

R5701

R5601

R5204

R5104

R5820

R6404

R5801

R5803

C5802

C6701

C6801

R6701

R6801

C6800

C6700

K4730

IC450

C6500

C6502

C6600

C5104

C4705

R4101

R4103

R4102

C5301

R4105

C4101

R4204

C6400

R6500

R6600

R5302

C4201

R4203

R4202

R4201

IC600

IC640

R6402

R6400

C6402

C6420

C6602

IC650

R4603

R6503

IC610

C4805

R6603

IC430

R4060

C4701

C4834

C6520

R4832 R4732

C4734

IC500

C4520

R4004

C4722

C4003

C4702

R5505

C4801

C4803

B5200

C4120

C4100

C4920

C4810

Q5400

C4921

Q5401

C5120

C5121

R4921

R4920

R5121

B3140

R5120

C4721

C4720

R4721

C4710

R4700

R4006

C4703

R4720

C4807

C4808

C4005

D4000

C4735

D4001

C4708

C4806

R4800

C4723

C4835

IC473

C4802

IC620

Q4000

R4401

C4707

Q4730

Q5100

C4905

C5005

R5401

C4082

R4402

R5402

C4200

R6800

C5601

R6112

C4000

C4601

R4000

R4602

C4602

C4060

R4061

C5602

C5702

C4501

C4006

Q5402

C4922

C5002

C4080

R4050

C4050

R4051

IC410

C5304

C5302

R4302

K4731

C6851

R4010

R4005

R4003

C4002

C4001

IC560

C4706

C5700

R6003

R6103

R5703

C5600

C6421

R6102

R6002

C6521C5621

C5821

IC490

C5003

C4903

IC510

B3007

C4924

C5124

R5603

R5503

C4724

B3008

R4080

R4083

C4081

R4082

C4811

C4711

C5206

C5207

B3053

Q4081

B3052

B3051

R6312

R5504

C4900

C5000

R4901

C5303

R5001

R5002

R4902

R5300

R4903

C5004

C4904

C5620

Q5502

R6203

R6303

C5100

R5101

R5102

R5103

C5101

R5501

C5203

C5103

R5502

Q5500

R6113

R6313

R6111

Q5501

R6700

C6200

D4730

D4731

C6000

C4902

C5102

C5200

R5201

R5202

C5820

C4923

C5123

R6420

R6520

R6202

R6302

IC580

C5800

R5800

R5804

C5801

C5122

1K

10K

3.3K

10K

QGB2510K1-07

NI

KRA104S-X

QNN0420-001

47/63

22K

24K

0.022

22K

39K

1K

QGB2510J1-10

10K

QGF1036C2-15

10/35

1.3K

220K

30K

NI

R2S15904SP-X

1K

NI

10/35

100K

0.1

2200p

KRA104S-X

5.1K

20K

0

22K

KIA4558F-X

20K

22K

0.027

1/50

3.3K

1SS133-T2

5.1K

56K

20K

KTC812T-X

0.01

10K

NI

NI NI

10p

10K

KRA104S-X

1.5K

15K

4.7K

10K

4.7/50

10K

220K

4.7/50

10K

120K

22K

0

UN2111-X UN2213-XUN2113-X UN2214-XUN2215-X

10K

10p

NI

22K

0.015

NI

82K

NI

SHORT

KIA4558F-X

10/35

150P

10/35

NI

47/63

9.1K

10K

1/50

3.3K

10/50

47/63

51K

82K

10/50

10K

9.1K

KTC812T-X

KIA4558F-X

22K

10K

0.022

NI

150P

KIA4558F-X

22K

51K

KTC812T-X

47/63

51K

KIA4558F-X

NI

2.2/50

10/63

NI

100K 100K

10/63

KTC812T-X

NI

10K

100/16

NI

10/50NI2.2/50

10/50

NI

22/50

NI

4.7/50

KTC3875/YG/-X

NI

KTC3875/YG/-X

NI

1K

NI

1K

4.7/50

6.8K

100K

10/50

1K

0.047

0.01

0.015

1SS133-T2

470p

1SS133-T2

0.01

NI

6.8K

47/63

470p

KTC812T-X

10/50

KTC812T-X

KTC2875-X

20K

0.047

KRA104S-X

KTC2875-X

NI

100

22/50

20K

100

22/50

18K

0.1

10K

4.7/50

0.22

1K

22K

0.027

NI

47/63

0.22

10/50

KTC3875/YG/-X

100/16

10/50

1K

100/35

1.2K

KIA4558F-X

NI

20K

SHORT

NI

KIA4558F-X

1K

180K

27K

0.27

KIA4558F-X

NI

0.1

1K

15K

0.1

NI

1.8K

NI

R2S15904SP-X

0.1/50

R2S15904SP-X

NI

15K

NI

1K

0.068

100K

1/50

NI

KTC2875-X

10K

15K

10/50

1K

NI

1K

10K

5.6K

10K

1/50

NI

KTC3875/YG/-X

1K

10/50

1K

10K

1/50

100

4.7/50

1/50

100

KTC3875/YG/-X

1K

10K

KTC3875/YG/-X

18K

10/50

1SS133-T2

10/50

0.1/50

NI

0

10K

KIA4558F-X

12K

22K

0.12

100/16

SR-RELAY

LOUT

POUT

MICIN

TUR

SMUTE

TUL

SWFB

HARCTRL

CTR

RECL

LEVDET

RECR

PBL

SURR

PBR

SWFB

VDATA1

LEVDET

SURL

VDATA2

VDATA3

VCLK

POUT

SR-RELAY

IMP

MICMUTE

DC

POUT

IMP

LVRIN

DC

C/RMUTE

AUXL

AUXR

ROUT

LRMUTE

TUL

AUXR

LSELO

C/RMUTE

MAINL

RECR

RROUT

SURL

RECL

SMUTE

VDATA3

RECR

RECL

SW

MAINR

LSELO

LOUT

SW

CAOUT

MAINL

LVRIN

FANOUTR

RSELO

LRMUTE

TUR

HARCTRL

CTR

FROUT

PBR

RVRIN

SURR

FANOUTL

FLOUT

SWOUT

AUXL

MAINR

AUXR

ROUTFR

FR

RAOUTL

FL

RSELO

PBL

S-W

VCLK

LRMUTE

RECR

RLOUT

VDATA2

MICMUTE

VCLK

VDATA1

COUT

RLOUT

RROUT

COUT

SWOUT

RVRIN

VCLK

FL

RECL

LRMUTE

MICIN

RAOUTR

FROUT

AUXL

FLOUT

SW-AHB

FANOUTR

RAOUTL

RAOUTR

CAOUT

S-W

2-6

Front section

C9402

IC950

D9201

C9096

JS940

C9512

D9200

K9801

C9401

B9567

J980

S9211

S9306

S9307

B9566

R9614

R9531

L9003

R9007

K9802

C9506

C9508

K9800

R9800

D9899

D9523

D9522

D9521

R9523

R9522

R9521

B9534

R9532

R9613

C9094

R9540

R9635

Q9530

Q9531

Q9532

C9704

C9703

R9701

R9702

R9704

C9701

C9702

C9700

IC901

C9200

C9003

C9631

D9653

C9004

C9507

C9504

C9505

C9632

C9651

R9631

D9651

D9652

R9632

C9005

R9637

R9005

R9004

R9003

TW962

R9001

S9102

R9638

C9635

C9636

R9105

R9103

C9637

R9104

C9638

S9101

C9634

R9200

R9002

R9006

C9097

TW961

R9530

C9095

L9004

L9001

L9002

J961

J962

S9210

FW980

S9301

S9302

R9604

R9602

D9000

C9899

S9209

C9601

C9604

D9602

VR961

R9610

R9600

IC902

S9201

S9202

S9303

S9304

S9305

S9207

S9208

S9203

S9204

S9206

S9205

R9502

D9601

R9102

IC960

R9500

C9511

D9500

R9636

CN900

R9211

R9306

B9535

R9307

IC970

C9603

R9605

R9509

R9507

K9898

C9513

R9510

R9506

Q9602

R9607

C9502

R9608

R9612

C9500

C9602

C9607

C9806

R9703

R9700

C9001

C9002

C9898

R9706

R9705

C9805

C9510

R9508

R9505

C9509

R9504

R9503

C9501

R9501

C9503

CN920

C9092

C9093

C9091

C9633

R9198

FW900

R9199

FW981

L9501

L9502

R9201

C9800

R9302

C9802

C9801

R9210

C9803

C9804

R9301

R9603

R9601

C9605

Q9601

R9609

R9611

C9600

C9608

R9606

C9606

R9304

R9202

R9303

R9209

R9305

R9206

R9204 R9203

R9208 R9207

R9205

0.01

PT2399D-S-W

SLR-343VC/NPQ-T

4.7/50

QSW0857-001

560P

NQR0007-002X

0.01

QNS0231-001

QSW0825-001Z

100K

6.8K

QQR0621-001Z

82K

NQR0007-002X

0.01

3300P

NQR0007-002X

1K

UDZS2.4B-X

MTZJ3.9B-T2

22K

20K

4.7K

4.7/50

1K

100K

KTC3875/YG/-X

0.01

1K

47K

4.7/50

100/16

PT6315

0.01

NI

0.001

MTZJ2.4B-T2

NI

560P

0.082

0.001

2200P

4.7K

470P

56K

1K

QUB220-18HPDM-E

10K

QSW1121-001Z

NI

390P

****

470P

****

NI

QSW1121-001Z

0.1/50

10K

220

33

4.7/50

N.I

100K

0.033

QQR0621-001Z

QNS0231-001

QSW0825-001Z

QUM153-16DGZ4

QSW0825-001Z

120K

1K

SLR-343VC/NPQ-T

2200P

QSW0825-001Z

0.22/50

680P

QVQ0320-B54

1K

220

GP1UM281XKVF

QSW0825-001Z

10K

1K

KIA4558F-X

220

4.7/50

MTZJ5.1B-T2

100K

QGF1205F2-09

56K

2.7K

3.9K

KIA4558F-X

0.1

47K

10K

NQR0505-001X

3900P

18K

5.1K

KTC3875/YG/-X

10K

0.1

10K

100K

100/16

0.1/50

3.3/50

0.001

1K

47K

220

0.001

10/50

0.001

10K10K

0.001

10/50

18K

5.6K

10/16

15K

10K

47/50

9.1K

0.1

QGF1205F2-19

1

0.01

4.7/50

0.047

220

QUM153-11DGZ4

QUM023-05Z4Z4

QQR0621-001Z

1K

0.001

1K

0.001

18K

0.001

1K

2.2K

100K

150P

KTC3875/YG/-X

820

1K

100/16

220/10

100K

33/25

1.5K

1K

1.2K

10K

2.2K

2.7K

1.5K

1.2K

5.6K

3.9K

2.2K

KEY3

VCC5V

DI-DT

HP-DET

KEY2

VOL-

LEDSTBY

VOL+

9V

REMIN

DI-CS DI-CK DI-DT

ILLUMI

VCC5V

DGND

ECHO_CTRL ECHO2

ILLUMI

ECHO3

MIC-IN

G3

G2

G1

S16

S15

S14

S13

S12

S11

S10

DI-DT

DI-CK

DI-CS

DI-CK

-VDISP

F-

F+

G12

G11

G10G9G8G7G6G5G4

S9S8S7S6S5S4S3S2S1

2-7

Parts are safety assurance parts. When replacing those parts make sure to use the specified one.

Surround section

C8135

C8136

C8106

C8105

Q8092

IC800

R8091

RY8102

RY8101

D8102D8101

CN802

R8135

CN803

R8106

R8105

D8103

D8104

D8105

R8013

R8006

R8014

R8084

R8035

R8002

C8004

C8002

R8043

C8031

R8031

C8001

R8001

C8003

C8043

C8099

C8041

C8037

C8014

C8033

C8013

C8008

C8012

C8011

C8007

D8082

R8005

R8103

R8104

R8133

R8134

J810

R8100

R8192

R8182

R8191R8181

Q8001

Q8091

R8011

C8131

C8102

C8132

C8101

Q8002

R8092

Q8100

CN800

Q8003

C8035

R8012

R8015

R8007

R8008

R8020

R8081

R8083

R8071

R8010

R8017

R8072

R8073

R8088

R8016

R8037

D8002R8018

R8039

R8045R8047

R8004

R8041

R8033

C8086

R8049

R8003

C8039

C8081

C8006

C8084

C8085

C8005

C8009

R8009

D8001

R8019

C8010

D8081

D8003

L8001

L8002

L8003

R8172

R8171

R8102

C8104

R8137

R8108

R8107

R8101

R8131

R8132

C8103

C8133

C8134

0.001

KTA1267/YG/-T

STK402-230

10K

1SS133-T2

QGD2504C1-04Z

4.3K

QGB2510J1-08

9.1K

1SS133-T2

10

56K

10

100

56K

1k

220P

1/50

10

1/50

1k

1/50

1k

220P

0.047

1/50

0.047

10P

0.047

220P

0.047

10P

0.047

10P

56K

10

QNB0171-001

2.2K

180180

KTC3199/GL/-T

KRC102M-T

100K

0.001

KTC3199/GL/-T

10K

QSK0127-001

KTC3199/GL/-T

QGB2510K1-10

KTC3199/GL/-T

220P

100K

1K

10

47K

100

33k

0.22

820

5.6k

0.22

10

1K

10

1SS133-T2

5.6k

820

1K

5.6k

56k

100K

56k

10/50

47K

56k

47/63

100/50

220P

100/50

10/50

220P

47/63

820

1SS133-T2

47K

47/63

MTZJ9.1B-T2

1SS133-T2

MTZJ9.1B-T2

QQLZ035-R39

180

4.7

0.001

2.7K

3.3K

4.7

0.001

POUT

OUT-DET

IMP

C-IN

SR-IN

SR-GND

SL-IN

SR-RELAY

C-GND

DC

-VL

S4H/12V

PGND

+VL

!

!!

!

2-8

Video section

J7500

IC700

R7010

B3003

J7300

R7501

R7500

R7302

R7301

R7300

R7502C7010

C7011

C7012

C7500

C7501

C7502

L7000

C7005

C7000

C7001

C7002

C7006

C7007

C7008

C7009

J7500

C7003

C7505

C7504

C7503

R7000

R7001

L7001

B3004

B3041

R7002

R7303

R7304R7305

C7300

R7003

R7009

R7005R7007

C7301C7302

R7004R7006 R7008

QNN0557-002

BH7868FS-X

NI

QNN0779-001

75

470/6.3

0.01/16

470/6.3

NI

22/50

470/6.3

0.01/16

0.01/50

1/10

0.01/16 QNN0557-002

QNN0557-002

47/25

NI

200

NI

200

NI

NINI

NI

270

200200

NINI

180180 750

2-9

DVD section (1/2)

FM+

F-

T+

TRSDRV

E

CDLDCUR

FODRV

WOUT

T-

C

COM

UOUT

F

EXDT3

MDQ4

F-

MDQ0

VOUT

MDQ1

MDQ13

C

MDQ14

LPC1

MDQ2

MDQ10

MDQ12

AD4

B

MDQ5

MDQ3

D

EXADT9

EXDT11

DACCK

EXADT8

EXDT4

F+

FM-

EXADR19

DAC5OUT

VOUT

NEXWE

DAC4OUT

DDATA

E

DAC1OUT

BCK

D

DCLK

RF+

F

T-

DAC2OUT

B

FM-

MDQ9

NEXOE

TRDRV

FM+

A

MDQ6

NEXCE

COM

EXDT14

MDQ8

EXADT10

EXDT9

WOUT

AOUT0

DQM0

EXDT2

A

AOUT1

DQM1

EXDT10

DAC3OUT

AOUT2

VREFH

EXDT7

BCKM

UOUT

EXDT15

LRCK

F+

T+

EXADT0

FG

LPCO1

LPCO2

EXDT1

EXDT8

EXDT0

MDQ11

MDQ7

DATAM

EXDT6

EXDT13

MDQ15

CPURST

EXDT5

EXDT12

DVDLDCUR

TRVSW

SPDRV

EXADR20

SPMUTE

HFMON

EXADT15

EXADT14

EXADT6

EXADT5

EXADT4

EXADT3

EXADT2

EXADT1

EXADT11

EXADT13

EXADT12

EXADT7

EXADR16

NWE

NCAS

NRAS

NCSM

MA11

BA0

MA9

BA1

MA8

MA10

MA7

MA0

MA6

MA1

MA5

MA3

MA4

MA2

DACPDN

ADCPDN

DAC1CS

DAC2CS

CDLDCUR

AD4

TRDRV

FODRV

LRCKM

SPMUTE

HFMON

SPDRV

TRSDRV

LPCO1

LPC2

LPCO2

TRVSW

DAC0CS

FG

VREFH

MCK

DVDLDCUR

DRVMUTE

HAGUP

LPC2

RF+

LPC1

EXADR17

EXADR18

SCS

S2UDT

U2SDT

UCLK

UCS

DVDPWR

CPURST

LRMUTE

ADIN

INDEX

TRACK

COPY

DEMP

TX

RX

SWMUTE

X301

NAX0741-001X

TP292

10kR373

0.1C321

10pC326

1k

R384

30k

R206

100R353

0.022

C211

0

R337

10k

R308

TP109

S3.3V

TP118

47/6.3

C303

T

0.1

C318

F

22/6.3

C108

T

NI

R215

0.1

C335

F

30k

R340

0.5%

1C324 F

220

R359

TP111

5.6k

R111

330

R117

24k

R220

TP113

NI

R355

0.1

C300

F

47/4

C302

27k

R204

10/6.3

C339

T

330R324

0.01

C203

18

R113

1/4W

DGND

0.1

C334

F

Q104

2SC4617/R/-X

TP101

4.3k

R127

TP205

0.1C320

NI

R354

1k

R107

22k

R346

4.3k

R112

10k

R214

0.022C261

0.1

C383

F

0.1

C307

F

IC302

MM1701CH-X

8

Vin

7

NC

6

NC

5

Cont4Cn

3

GND

2

NC

1

Vo

IC510

BR24L16F-W-X

8

VCC

7

WP

6

SCL

5

SDA4GND

3

A2

2

A1

1

A0

220

R345

TP121

0.1C107 F

NI

R371

560p

C353

NIC336

0.018C337

0.1C348

220p

C201

0.1

C217

F

5.6k

R128

M9V

TP332

IC301

MN2DS0009AA

1

MDQ182VSS3VDD334MDQ285MDQ196MDQ277MDQ208VDD339VSS10MDQ2611MDQ2112MDQ2513MDQ2214MDQ2415MDQ2316VSS17VDD3318EXADT019NEXCE20NEXOE21VSS22VDD1223EXDT024EXDT825EXDT126EXDT927EXDT228EXDT1029EXDT330EXDT1131EXDT432EXDT1233EXDT534VSS35VDD3336EXDT1337EXDT638EXDT1439EXDT740EXDT1541EXADR1642EXADT1543EXADT1444VSS45VDD1246EXADT1347EXADT1248EXADT1149EXADT1050EXADT951EXADT852VSS53VDD3354EXADR1955NEXWE56EXADR1857EXADR1758EXADT759EXADT660EXADT561EXADT462EXADT363EXADT264EXADT1

65 P0

66 P1

67 P2

68 VSS

69 VDD33

70 P3

71 P4

72 P5

73 P6

74 P7

75 P8

76 P9

77 P10

78 P11

79 P12

80 P13

81 P14

82 VSS

83 VDD12

84 NRST

85 FG

86 DRV5

87 DRV4

88 DRV3

89 DRV2

90 DRV1

91 DRV0

92 VSS

93 VDD33

94 MONI7

95 MONI6

96 MONI5

97 MONI4

98

MONI3

99 MONI2

100 MONI1

101 MONI0

102 AVDDD

103 PLFIL1

104 AVSSD

105 VREFH7

106 VREFL7

107 CCAPA

108 AVSSC

109 CDATA

110 AVDDC

111 ANAMONI1

112 ANAMONI2

113 RFINN

114 RFINP

115 VIN1RF

116 VIN2RF

117 VIN4RF

118 VIN3RF

119 AVDDB

120 VREFH5

121 VREFL5

122 AVSSB

123 LPC1

124 LPCO1

125 LPC2

126 LPCO2

127 VREFH

128 VHALF

129

VIN10

130

VIN9

131

VIN5

132

VIN6

133

VIN7

134

VIN8

135

VIN3

136

VIN4

137

VIN2

138

VIN1

139

AD0

140

AD1

141

AD2

142

AD4

143

AVSSH

144

PWM1

145

PWM0

146

AVDDH

147

DAC3OUT

148

DAC2OUT

149

DAC1OUT

150

AVDDF

151

COMP1

152

VREF

153

IREF1

154

COMP2

155

AVSSF

156

DAC4OUT

157

DAC5OUT

158

AVDDE

159

AVSSE

160

AVDDG

161

AVSSG

162

OSCI

163

OSCO

164

VSS

165

VDD12

166

DACCK

167

LRCK

168

SRCK

169

ADOUT3

170

ADOUT2

171

ADOUT1

172

ADOUT0

173

IECOUT

174

VSS

175

VDD33

176

VDIO7

177

VDIO6

178

VDIO5

179

VDIO4

180

VDIO3

181

VDIO2

182

VDIO1

183

VDIO0

184

VDD33

185

VSS

186

EXTRG1

187

SCLOCK

188

SDATA

189

EXTRG0

190

TRCCLK

191

TRCDATA0

192

TRCDATA1

193TRCDATA2

194TRCDATA3

195TRCST

196VSS

197VDD33

198MDQ15

199MDQ0

200MDQ14

201MDQ1

202MDQ13

203MDQ2

204VDD33

205VSS

206MDQ12

207MDQ3

208MDQ11

209MDQ4

210MDQ10

211MDQ5

212MDQ9

213MDQ6

214VDD33

215VSS

216MDQ8

217MDQ7

218VDD12

219DQM0

220DQM1

221NWE

222VSS

223MCK

224

VDD33

225MCKI

226VSS

227NCAS

228NRAS

229NCSM

230

MA11

231BA0

232MA9

233VSS

234VDD12

235BA1

236MA8

237MA10

238VSS

239DVV33

240MA7

241MA0

242MA6

243MA1

244MA5

245MA2

246MA4

247MA3

248VSS

249VDD33

250DQM2

251DQM3

252MDQ31

253MDQ16

254MDQ30

255DQM17

256DQM29

750

R350

0.1C310 F

220p

C202

TP315

1

C356

0.01

C393

220

R357

1k

R385

1kR376

0.1

C309

F

0

R335

0.1

C204

F

TP381

TP107

0.1C323

TP334

TP331

NI

C374

F

TP116

1C304

K352

NQR0502-001X

IC201 LA6502-X

12345678910111249131415161718192021222324

25 26 27 28 29 30 31 32 33 34 35 36 50 37 38 39 40 41 42 43 44 45 46 47 48

1k

R306

TP122

2.2

R106

0.1

C375

F

TP105

0R338

0.022C260

220

R360

CN301

NI

12345

6

4.3k

R104

Q103

KTA1001/Y/-X

MGND

TP220

1k

R307

0R339

TP206

NI

C290

NI

R126

6.8k

R221

D2V

NIR374

TP103

0.1

C103

F

0.1

C329

0.0056C338

0.1C333 F

TP119

0.1

C379

F

680

R351

TP207

220

R358

470

R116

1M

R352

TP227

1k

R202

0R348

TP104

330R326

NI

R361

1

C341

TP201

0.1C564 F

470

R108

0.01

C328

10kR259

Q101

KTA1001/Y/-X

0.1C256

TP337

1C340 F

47kR542

TP226

NI

C378

18k

R219

TP333

NI

R290

0.1

C101

F

47kR541

0.015

C352

0.033C331

NI

Q105

0.1

C314

F

0.1

C305

F

100/16

C263

TP108

150p

C206

2.2

R114

0.1

C349

F

22

R303

27k

R205

NI

R366

NI

R363

10kR372

5.1k

R341

0.5%

TP202

0.1

C377

TP231

TP204

220/6.3

C301

NI

R208

5.6k

R103

220

R367

S5V

22/6.3

C106

T

270p

C205

TP329

100

R101

NI

R356

330R325

0.015C2581

C210

F

NI

R254

TP117

P3.3V

TP106

NI

C264

0.1

C306

F

0

R334

TP221

2.4k

R342

0.5%

0.1

C376

1

R125

0.1

C308

F

NI

C373

0

R336

10k

R213

0.1

C102

F

330

R109

M5V

TP203

100

R102

47/6.3

C105

TP291

NI

R255

0.022C262

1

C371

F

TP326

TP328

NI

R110

TP110

0.1

C104

F

0.1

C315

100kR309

NI

R365

TP115

0.1C332 F

TP120

Q102

2SC4617/R/-X

0.015C259

0.1

C319

F

0.1

C372

F

TP330

0.39

R251

1/2W

100R310

TH301

NAD0025-103X

TP123

10k

R392

0.1

C330

F

TP208

TP314

12p

C325

0.1C322

NIR257

NI

R118

100R383

20k

R347

NI

R364

1k

R115

18

R105

1/4W

47k

R207

560p

C354

0.47C251

TP102

47

R362

0.0082C257

0.01

C351

1

C359

TP304

TP321

CN201

QGF1016F8-08W

1

2

3

4

5

6

7

8

NI

C311

D301

NI

C316 0.1

F

C312

0.1 F

C350

0.01

NI

R323

NI

R330

330

R331

CN101

QGF0523F3-24W

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

470

R201

470

R375

NIR318

9

10k

R319

0.1C347

C313 0.1

F

R316 1k

330

R327

K101 NQR0502-001X

S5V

0.1

C386

F

330

R332

TP325

TP320

TP335

NI

R322

NI

R321

NI

R320

1kR377

TP306

TP308

TP309

TP307

TP124

TP114

TP125TP112

NI

C770NIC772

DGND DGND

NIR252

NI

C776

DGND

NI

C771

NI

C774

NI

C777

DGND

D1.2V

TP300

TP301

OUT3F

0V

SPINDLE

SPC1

PICKUP

PD(DVD)

D

B

DGND

AMP1IN-

SPRF

UOUT

+RF

0V

LD(CD)

QAR0165-001

AMP3OUT

FM-

0V

ICE

SDATA

AMP1OUT

MCOM

VR(DVD)

0V

AMP2OUT

DGND

OUT3R

QAR0386-001

0V

OUT1F

for

SPFC

GND

VCC

NC

VOUT

MUTE1

VCC2

MECHA

TRA

OUT4F

0V

E

AMPOUT

WOUT

0V

GND

OUT1R

T-

AMP2IN-

SPFGO

D1.2V

ASS'Y

VOUT

VCC

TRVSW

T+

MUTE3

MGND

PD(CD)

VREF

0V

MOTOR

FR

0V

TEMPDET

0V

RESET

SGND

FXL-D10-1M

AMP4IN-

SPVCOIN

OUT2F

DRIVER

SPCX

WOUT

MGND

SCLK

SW

EEPROM

LASER

AMP2IN+

REG.

UOUT

AMP3IN-

MGND

FEED

NC

VCC1

SPCTL

F

(OPA-652PH*)

VHALF2

QAL0786-***

FODRV

SWGND

SPDRV

TRSDRV

F-

2SB1424/R/-W

MOTOR

AMP1IN+

0V

2SB1424/R/-W

COM

MGND

F+

SPC2

AMPIN+

MUTE2

OUT4R

VCC(HF)

NC

or

DV3.2

AMPIN-

NC

0V

BR

VS

LD(DVD)

VR(CD)

AMP4IN+

OUT2R

AMP3IN+

TRDRV

CHASSIS

or

C

DRIVER

MECHA

A

HFM

FM+

ASS'Y

(EXADR20)

(ADIN)

(SCK)

(SDA)

(UCS)

(UCLK)

(U2SDT)

(S2UDT)

(SCS)

(DCLK)

(DDATA)

(DAC1CS)

(TRVSW)

(DAC2CS)

(ADCPDN)

(SERIAL1OUT)

(DAC0CS)

(DACPDN)

(DEMP)

(COPY)

(TRACK)

(INDEX)

GND

(SWMUTE)

(IECIN)

LVA10542-421B (1/2)

(TALK)

(WP)

27MHz

OR

CAPACITANCE( F)

disc

NOTES

ALL RESISTORS ARE

ALL E.CAPACITORS ARE SHOWN IN THE FORM

.

mode

METAL GLAZE RESISTOR.

1.

F(p=pF).

ALL INDUCTANCE VALUES

5%

UNLESS OTHERWISE SPECIFIED.

METAL GLAZE RESISTOR.

ACONDITION ---

or,

ALL CAPACITANCE VALUES ARE IN

the

25V

,

IN OHM( ).

50V

1

16V

DVD

/RATED VOLTAGE (V).

6.3V

NI STANDS FOR NOT INSERTED PARTS.

ARE IN H(m=mH).

2.

,

VOLT METER

ALL CAPACITORS ARE

Tray,STOP

10V

1/16W

and

0.5%

VOLTAGES ARE DC-MEASURED WITH A DIGITAL

in

CERAMIC CAPACITOR

WITHOUT INPUT SIGNAL.

OF

3.

ALL RESISTANCE VALUES ARE

1.2V

0V

3.9V

0V

0V3.1V

0V

3.1V

1.2V

0V

3.1V

0V

3.1V

0V

2.2V

1.55V

2.2V

0V

3.1V

0.99V

0V0V0V

0V

3.1V

1.2V

3.1V

0V

3.1V

0V

3.1V

0V

3.1V

1.2V

3.1V

0V

3.1V

1.2V

3.1V

1.2V0V0V

0V

3.1V

0V

1.2V

3.1V

0V

0V0V0V0V3V

1.8v

2.1v

2.4v

1.8v

2.1v

2.2v

1.8v

1.8v 0V

9V9V9V9V0V0V0V

0.9V

2.4V

2.2V

1.8V

A

B

D

E

F

G

2-10

DVD section (2/2) Loader section

NEXCE

MDQ5

EXADT9

EXADT6

DCLK

EXDT2

EXDT12

MDQ11

MA1

MDQ0

AOUT0

TRACK

EXADR18

MDQ6

DAC2CS

MDQ7

EXADT7

ADCPDN

DAC0CS

MA8

EXADT15

EXDT4

EXDT11

NRAS

MA5

EXDT13

EXDT15

MDQ2

DAC5OUT

TX

MA4

MDQ1

EXADT11

DAC2OUT

MDQ15

EXDT6

SCS

EXDT8 NCSM

EXDT5

EXADT5

NCAS

RX

MA2

EXDT14

DQM1

EXDT7

ADIN

EXDT3

EXADT12

EXDT0

EXDT9

EXADT14

EXADT10

EXADR16

ADIN

DAC3OUT

U2SDT

NEXOE

BCK

MDQ4

NWE

DDATA

UCLK

AOUT1

EXDT10

MDQ10

BA0

UCS

BCK

MDQ3

S2UDT

MDQ9

DAC4OUT

DAC0CS

LRMUTE

MA10

LRCKM

AOUT2

EXADT0

MDQ14

EXADT13

EXADT1

MDQ8

INDEX

MA7

EXADT4

MDQ13

DACPDN

AOUT2

MA3

DAC1CS

EXADR19

EXADR17

DAC2CS

DAC1OUT

MDQ12

CPURST

COPY

DACCK

LRCK

SWMUTE

DCLK

MA6

MA9

LRCK

DDATA

AOUT1

EXDT1

EXADT2

NEXWE

EXADT8

DAC1CS

EXADT3

MA0

DQM0

BA1

MA11

MCK

BCKM

DATAMDATAM

DEMP

EXADR20

AOUT0

DVDPWR

CPURST

10/16

C706

P3.3V

470R727

0R726

IC707 NI

123

45

NI

C741

470R724

IC704

NI

16 15 14 13 12 11 10 9

87654321

IC453

S-80827CNNB-G-W

12

34

K708 NQR0022-002X

TP725

0R722

K707 NQR0022-002X

NI

C728

MGND

CN702

QGF1016F8-15W

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

NI

R714

K759 NI

S5V

1kR731

0.1

C559

F

NI

C745

S3.3V

2.2

C381

K711 NQR0022-002X

IC705

MM1615AN-X

123

45

1kR732

TP717

NI

C714

NIC755

K709 NQR0022-002X

TP718

TP380

-

D701

NI

1

2

3

1k

R458

TP705

K722

0

TP703

TP724

0.1

C702

F

K721

0

NI

C742

NI

C729

NI

R462

NIC754

K763 NI

K710 NQR0022-002X

M5V

0.001

C557

TP722

K756 NI

TP748

IC509

SG32A90TFIR3

484746454443424140393837363534333231302928272625

24 23 22 21 20 19 1817 16 15 14 1312 11 10 9 8 7 6 5 4 3 2 1

NIC753

K705 NQR0022-002X K713 NI

IC701

AK4387ET-X

161514131211109

87654321

2.2

R701

TP753

NI

C721

F

K761 NI

470R728

NI

R719

0.01

C455

TP721

IC703

AK4387ET-X

161514131211109

87654321

47kR718

TP738

TP707

K733 NI

NI

R711

IC305

MM1563BF-X

1234

567

TP755

K726

0

NIC756

TP702

0.1

C555

F

470R721

K702

NQR0022-002X

TP709

TP741

TP736

NI

C715

TP734

TP732

0.1

C563

F

0.1

C709

F

TP731

TP746

NIR729

K720

NQR0022-002X

TP711

CN704

NI

1

2

3

TP749

K712

NI

TP750

CN701

QGF1016F8-25W

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

K703 NQR0022-002X

NIR720

K351

NQR0502-001X

TP701

NI

R716

K754 NI

K762 NI

NI

C556

F

TP747

0.01

C712

TP716

NI

R712

1

C380

K731 NI

TP743

CN703

NI

1

2

3

4

5

6

7

8

47/6.3

C704

NI

R713

470R723

0.1

C708

F

TP742

NIR715

K753 NI

K732 NI

M9V

22/6.3

C558

T

K751 NI

K501

NQR0502-001X

NIC752

0.1

C740

F

0.1

C707

F

47k

R535

K704 NQR0022-002X

NI

C743

1C713

TP735

0.1

C560

F

NI

R741

TP744

470R725

IC702

AK4387ET-X

161514131211109

87654321

TP733

DGND

TP710

NI

R742

K706 NQR0022-005X

IC706 NI

123

45

NI

C744

K765 NI

D2V

TP745

TP708

K701 NQR0022-002X

0.1

C703

F

1

C711

TP752

470p

C382

K723

NI

TP714

TP720

D4V

TP737

TP713

TP751

NI

R530

330R730

0.1

C551

F

0.1

C701

F

TP761

TP719

0.1

C554

F

1

C562

F

NIR740

K755 NI

TP723

IC505

K4S641632K-UC75

27

VDD28VSS

29

A4

30

A5

31

A6

32

A7

33

A8

34

A9

35

A11

36

NC

37

CKE

38

CLK

39

UDQM

40

NC/RFU

41

VSS

42

DQ8

43

VDDQ

44

DQ9

45

DQ10

46

VSSQ

47

DQ11

48

DQ12

49

VDDQ

50

DQ13

51

DQ14

52

VSSQ

26

A3

25

A2

24

A1

23

A0

22

A10/AP

21

BA1

20

BA0

19

/CS

18

/RAS

17

/CAS

16

/WE

15

LDMQ

14

VDD

13

DQ7

12

VSSQ

11

DQ6

10

DQ5

9

VDDQ

8

DQ4

7

DQ3

6

VSSQ

5

DQ2

4

DQ1

3

VDDQ

2

DQ0

1

VDD

53

DQ15

54

VSS

CN712

NI

1

2

3

4

5

NI

R743

NI

R388

NI

C778NIC775NIC773

DGND DGND DGND

NI

C739

DGND

TP391

IC454

NI

12

34

NI

C456

NI

R460

D1.2V

0V

BICK

DEMP

0V

3.3V

MCLK

NC

1.6V

3.3V

NI STANDS FOR NOT INSERTED PARTS.

DGND

VCC

,

0V

1.3V

BCK

25V

D9

0V

4.9V

1.3V 3.3V

,

1.6V

VCC

CCLK

1.6V

0V

A10

1.9V

1.6V

0V

WITHOUT INPUT SIGNAL.

4.9V

VSS

DGNG

0V

/OE

DGND

A3

D8

CKS1

.

MODULE

2.7V

1.3V

DAC

S2UDT

LRCK

0.5%

DATA

CPURST

SCLK

0V

Vout

0V

VCOM

LRCLK

METAL GLAZE RESISTOR.

M5V

2.4V

for

AOUTL

3.3V

PDN

1.7V

0V

M9V

Cont

NOTES

D5

2.8V

2.4V

UCLK

0V

3.3V

A7

MCLK

3.3V

AOUT0

0V

1.7V

CCLK

0V

AINR

0V

ALL CAPACITANCE VALUES ARE IN

6.0V

2.4V

mode

SWAOUT

1.6V

REG

AGND

2.0V

DACCK+

AOUT1

1.3V

0V

GND

SCS

0.7V

Cn

2.8V

DGND

RAOUTR

1.3V

AVDD

A8

FLASH ROM

VSS

2.4V

CONDITION ---

2.4V

4.0V

Sub

VD

DAC4OUT

3.3V

the

2.8V

A19

D11

A12

1.3V

1.0V

0.7V

LRCK

CKS0

D0

DAC1CS

A5

1.2V

3.1V

0V

D4V

0V

COPY

0V

0.4V

D2V

A14

DACCK-

0.5V

P/S

3.5V

Vin

0V

ARE IN H(m=mH).

3.0V

6.0V

NC

0.1V

0V

DAC1OUT

SDRAM

DDATA

AOUTL

LRMUTE

STOP

A5V

MGND

0.5V

PDN

3.3V

0.7V

and

SWMUTE

0V

in

3.3V

1.6V

2.8V

ALL RESISTANCE VALUES ARE

0V

D4

DET

2.4V

0.1V

1.3V

D1

2.8V

4.0V

3.3V

0.4V

2.7V

1.6V

1.7V

ALL RESISTORS ARE

LRCK

2.3V

SWMUTE

A20

ALL INDUCTANCE VALUES

2.4V

A6V

DZF

AGND

SDTI

UNLESS OTHERWISE SPECIFIED.

2.4V

METAL GLAZE RESISTOR.

A11

DGND

3.3V

DVDPWR

DZFMCLK

CDTI

1.7V

2.4V

1

0.8V

2.4V

3.3V

0.6V

D14

/RATED VOLTAGE (V).

D15

6.3V

VA

0.2V

*R/B

2.4V

VSS

0V

SYSTEM

AVDD

P/S

VOLT METER

ALL CAPACITORS ARE

0.4V

Tray

,

0V

1.1V

0V

DAC3OUT

AOUT2

3.1V

GND

0V

1.4V

2.7V

4.9V

Vout

0V

NC

S5V

1.8V

CKS2

DCLK

4.9V

*/BYTE

2.0V

A1

0V

A18

AINL

3.1V

ALL E.CAPACITORS ARE SHOWN IN THE FORM

3.2V

Noise

0V

2.7V

VSS

0V

F(p=pF).

D6

INDEX

1.3V

MGND

AVDD

AOUTL

0V

SDTI

3.3V

DZF

DACCK

VSS

3.3V

1.3V

MCLK

4.9V

2.4V

VCC

2.4V

50V

3.3V

DAC2CS

D12

16V

0.9V

DVD

OUT

0.8V

CAOUT

CSN

3.1V

A6

1.6V

TRACK

1.5V

BICK

,

5.0V

AOUTR

BUFFER

A9

A16

4.0V

10V

1/16W

0V

AOUTR

0V

3.3V

0.7V

CSN

REG

GND

1.1V

0V

GND

3.

3.3V

CAPACITANCE( F)

D3

DAC2OUT

1.6V

2.8V

disc

*/RST

A2

0V

2.0V

DIF

LRMUTE

CCLK

VCOM

P/S

2.4V

TX

1.6V

2.4V

D7

A17

0V

1.6V

U2SDT

BICK

A

BCK

VPP

1.6V

2.8V

2.7V

MD

2.6V

3.3V

3.1V

IN OHM( ).

RX

3.3V

1.6V

DAC5OUT

AOUTR

3.3V

1.8V

1.6V

PDN

CDTI

Cont

0V

LVA10542-421B (2/2)

0V

DGND

ADIN

Vin

VCOM

3.3V

0V

A13

0.9V

AINR

RAOUTL

FAOUTR

SYSTEM

AUDIO

4.9V

1.6V

3.9V

/CE

0V

2.8V

AGND

UCS

VOLTAGES ARE DC-MEASURED WITH A DIGITAL

2.7V

CERAMIC CAPACITOR

OF

3.3V

OR

0V

CDTI

0V

D10

4.9V

1.8V

1.6V

D13

.

2.4V

0V

1.

A6V

A15

3.3V

DAC0CS

VCOM

3.3V

D2

3.5V

5%

AUDIO

0.4V

for

0V

or

LRCK

2.4V

DGND

1.6V

0.3V

3.2V

D2V

/WE

for

3.3V

A4

CSN

SDTI

VDD

LRCLK

0.9V

2.4V

PDN

FAOUTL

2.8V

ADC

0V

2.

2.4V

AINL

1.6V

DGND

3.3V

SDOUT

A0

1.1V

A6V

FAOUTR

AGND

FAOUTL

LRMUTE

VSS

DVDD

A

B

D

E

F

G

S1

CN1

QSW1074-001

QGF1016F3-05

2-11

Parts are safety assurance parts. When replacing those parts make sure to use the specified one.

Cassette section

C200

R226

C217

R203

VR300

R123

Q110

R208

D122

C122

C218

B143

R227

C201

C208

R302

C301

IC200

D152

R306

R206

Q205

R300

R301

Q206

C203

R219

R207

R221

R205

R307

Q200

TP300

C300

L300

W2

C211

CN200

R122

Q150

R218

R112

C231

Q120

Q111

C219

CN120

R209

C220

C221

C222

Q300

C224

D200

R211

R153

R210

R308

R220

R152

R222

R223

R224

R225

Q201

Q203

Q202

Q204

CN220

C151

B101

Q121

Q151

Q301

C307

B139

CN100

B141

R304

C223

C110

L301

R303

C111

C207

C225

C213

R110

C202

R200

C206

R201

C234

C204

C212

C205

R121

R204

R113

C227

R213

C209

C235

R234

C216

C210

C226

C214

C228

R215

R120

C120

C229

R202

R214

C230

R217

R216

C215

R212

R151

R150

C150

D121

C121

D151

C233

C232

C303

R235

C306

C305

C304

R305

NI

220

NI

11K

QVP0008-203Z

2.2k

KTA1271/OY/-T

100K

1N4003S-T5

100/16

NI

QUY150-050Y

( 10K)

NI

10

330P/50

HA12237F

1N4003S-T5

4.7

10K

( KRC107S-X)

15K

( KRC107S-X)

0.01/50

12K

100

2.2K

27K

2.2K

KRA102S-X

330P/50

QQR1118-002

NI

10/16

QGB2008J1-06

0

KTA1296/Y/-T

12K

0

270P/50

KTA1296/Y/-T

KRC107S-X

0.01/50

QGF1205F1-07

22K

22/16

1/50

22/16

KTC3203/Y/-T

0.0068/16

MTZJ5.1B-T2

27K

2.2k

11K

470K

2.2K

0

4.7K

2SC3576-JVC-T

QGA2001F1-03

NI

QUY150-050Y

KRC107S-X

KTC3203/Y/-T

0.0015/16

QUY150-050Y

QGF1205F1-19

NI

10K

47K

10K

KRA102S-X

15K

0.0068/16

10/50

QQL244K-100Z

100

NI

390P/50

1200P/50

2.2/50

2.2k

1200P/50

5.1K

0.1/16

5.1K

820P/50

0.1/16

2.2/50

NI

27K

0

4.7/25

2.2K

220/10

820P/50

NI

270P/50

1/50

4.7/25

0.1/16

100/16

5.1K

0

NI

2.2K

5.1K

NI

1K

390P/50

27K

NI

O

NI

1N4003S-T5

NI

1N4003S-T5

NI

0.027/10

NI

0.022/50

NI

100/10

2.2

!

2-12

Primary board

Printed circuit boards

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

C1001

C1002

C1010

C1011

C1050

C1051

C1052

C1060

C1061

C1062

C1063

C1064

C1065

C1066

C1067

C1080

C1081

C1082

C1083

C1084

C1085

C1090

C1091

C1092

C1120

C1121

C1122

C1123

C1124

C1140

C1141

C1142

C1143

C1144

C1160

C1161

C1162

C1180

C1181

C1182

C1183

C1184

C1190

FW100

CN120

CN140

D1040

D1041

D1042

D1050

D1070

D1071

D1090

D1100

D1101

D1102

D1103

D1120

D1140

D1180

EP119

IC119

J100

L1120

L1140

L1180

Q1030

Q1031

Q1032

Q1033

Q1034

Q1050

Q1051

Q1052

Q1053

Q1070

Q1090

Q1091

Q1092

Q1093

Q1120

Q1140

Q1180

R1001

R1002

R1010

R1011

R1030

R1031

R1032

R1033

R1034

R1035

R1036

R1037

R1038

R1040

R1041

R1042

R1043

R1044

R1045

R1050

R1051

R1052

R1053

R1054

R1055

R1060

R1061

R1062

R1063

R1070

R1080

R1081

R1082

R1083

R1084

R1085

R1090

R1091

R1092

R1093

R1094

R1095

R1096

R1097

R1100

R1101

R1102

R1103

R1104

R1120

R1121

R1122

R1123

R1124

R1125

R1126

R1127

R1128

R1129

R1140

R1141

R1142

R1143

R1144

R1145

R1146

R1147

R1148

R1149

R1160

R1161

R1162

R1180

R1181

R1182

R1183

R1184

R1185

R1186

R1187

R1188

R1189

R1163

RY110

RY120

EP121

EP120

FW150

PP120

CN110

R1005

R1004

R1003

TW1

CN130

D1105

D1106

C1221

C1225

C1260

C1261

C1270

C1271

C1280

C1281

C1290

C1291

C1295

C1296

D1221

D1222

D1260

D1270

D1271

D1280

D1290

D1295

D1296

IC160

IC170

IC180

IC190

IC195

Q1221

Q1222

Q1223

Q1295

R1221

R1222

R1223

R1224 R1225

R1226

R1227

R1271

R1295

C1226

R1280

FW170

R1282

D1298

Q1296

R1281

D1297

C1297

CN150

FW160

CN160

C1222

D2200

C2010

Q2010

C2012

C2014

C2013

R2014

CN250

D2017

D2019

D2020

D2018

D2015

D2012

D2013

D2010

D2011

R2015

FT111

FT131

FT531

FT512

FT151

FT521

C2019

R2010

R2011

R2012

D2016

R2013

S500

D2201

C2015

FT132

FT112

T1

FT511

FT522

FT152

FT532

Q2011

D2202

C2020

R2016

CN103

C2018

C2017

C2011

R2018

R2017

CN119

D2203

D2100

D2103

D2101

D2102

C2200

C2100

(Transformer board)

(Primary board)

(Regulator & amplifier board)

2-13

Main board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

K3101

R3556

R3555

C3000

C3050

C3051

C3052

C3053

C3100

C3101

C3102

C3103

C3150

C3151

C3152

C3250

C3251

C3300

C3350

C3450

C3500

C3501

C3503

C4000

C4001

C4002

C4003

C4004

C4005

C4006

C4050

C4060

C4100

C4101

C4120

C4121

C4200

C4201

C4320

C4501

C4502

C4520

C4601

C4602

C4701

C4702

C4703

C4705

C4706

C4707

C4708

C4710

C4720

C4721

C4722

C4723

C4730

C4734

C4735

C4736

C4801

C4802

C4803

C4805

C4806

C4807

C4808

C4810

C4834

C4835

C4836

C4900

C4902

C4903

C4904

C4905

C4920

C4921

C4922

C4923

C5000

C5002

C5003

C5004

C5005

C5100

C5101

C5102

C5203

C5104

C5120

C5121

C5122

C5123

C5200

C5201

C5103

C5300

C5301

C5302

C5303

C5304

C5600

C5601

C5602

C5620

C5700

C5701

C5702

C5800

C5801

C5802

C5820

C6000

C6200

C6400

C6401

C6402

C6420

C6500

C6502

C6520

C6600

C6602

C6800

C6801

C6700

C6701

C6850

C6851

C7000

C7001

C7002

C7003

C7005

C7006

C7007

C7008

C7009

C7010

C7011

C7012

C7300

C7301

C7302

C7500

C7501

C7502

C7503

C7504

C7505

CN300

CN301

CN302

CN304

CN305

CN306

R3554

CN310

CN311

R3557

C4301

CN314

CN330

CN335

D3050

D3051

D3100

D3101

D3150

D3151

D3200

D3201

D3202

D3250

D3251

D3252

D3253

D3254

D3255

D3300

D3505

D4000

D4001

D4730

D4731

D5300

D6850

D6851

IC300

IC305

IC325

IC350

IC400

IC410

IC430

IC450

IC470

IC620

IC490

IC610

IC510

IC560

IC580

IC600

K3100

IC640

IC650

IC700

J6700

B3049

J7500

K4730

K4731

L7000

L7001

Q3100

Q3101

Q3300

Q4000

Q4001

Q4730

Q5100

Q5400

Q5401

Q5402

Q5500

Q5501

Q5502

Q6000

Q6200

R3000

R3002

R3003

R3004

R3005

R3006

R3007

R3100

R3101

R3102

R3103

R3150

R3300

R3301

R3302

R3350

R3351

R3450

R3451

R3500

C5206

C5207

R5200

C5211

R3505

R3507

R3508

R3511

R3512 R3513

R3514

R3519 R3520

R3521

R3522

R3523

R3524

R3525

R3526

R3530 R3533

R3531

R3532

R3529

R3534

R3535

R3536

R3537

R3538

R3539

R3540

R3541

R3542

R3543

R3544

R3545

R3546

R3547

R3548

R3549

R3550

R3551

R3552

R3562

R3600

R3601

R3602

R3603

R3604 R3605

R3606 R3607

R3608

R3610

R3609

R3611

R3612

R3613

R3614

R3615

R3616

R3617

R3618

R3619

R3620

R4000

R4001

R4002

R4003

R4004

R4005

R4006

R4007

R4008

R4009

R4010

R4011

R4050

R4051

R4060

R4061

R4101

R4102

R4103 R4104

R4105

R4201

R4202

R4203

R4204

R4205

R4300

R4301

R4302

R4303

R4400

R4401

R4402

R4403

R4502

R4503

R4602

R4603

R4700

R4720

R4721

R4730

R4731

R4732

R4733

R4800

R4831

R4832

R4833

R4901

R4902

R4903

R4920

R4921

R5001

R5002

R5003

R5101

R5102

R5103

R5104

R5120

R5121

R5201

R5202

R5204

R5300

R5301

R5302

R5400

R5401

R5402

R5403

R5404

R5405

R5500

R5501

R5502

R5503

R5504

R5505

R5600

R5601

R5602

R5603

R5700

R5701

R5702

R5703

R5800

R5801

R5802

R5803

R5804

R5820

R6000

R6001

R6002

R6003

R6101

R6102

R6103

R6111

R6112

R6113

R6200

R6201

R6202

R6203

R6301

R6302

R6303

R6311

R6312

R6313

R6400

R6401

R6402

R6403

R6404

R6420

R6500

R6501

R6502

R6503

R6520

R6600

R6601

R6602

R6603

R6800

R6801

R6700

R6701

R7000

R7001

R7002

R7003

R7004

R7005

R7006

R7007

R7008 R7009

R7010

R7300

R7301

R7302

R7303

R7304

R7305

R7500

R7501

R7502

X3500

J7300

CN308

C3502

B3050

IC473

CN303

C6421

C6521

IC500

B412

C4401

C4811

B425

C4711

R3621

B426

B418

B420

CN307

B435

CN312

B427

B428

B417

B419

HS325

C4724

Q4080

C5621

CN309

Q4081

C4080

C4082

R4080

B402

B401

B403

B400

R4082

B411

B404

B405

B409

CN313

C5821

C4924

C5124

R4081

R4083

C4081

2-14

Front board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

Surround board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

C9001

C9002

C9003

C9004

C9005

C9091

C9092

C9093

C9094

C9095

C9096

C9097

CN900

D9000

FL900

FW900

IC901

IC902

L9001

L9002

L9003

L9004

R9001

R9002

R9003

R9004

R9005

R9006

R9007

R9102

R9103

R9104

R9105

S9102

B9101

FW981

S9101

FW981

C9401

C9402

C9500

C9501

C9502

C9503

C9504

C9505

C9506

C9507

C9508

C9509

C9510

C9511

C9512

C9513

C9600

C9601

C9602

C9604

C9605

C9606

C9607

C9608

C9631

C9632

C9651

C9700

C9701

C9702

C9703

C9704

C9800

C9801

C9802

C9803

C9804

C9805

C9806

C9898

C9899

D9200

B9602

FW980

IC950

IC960

IC970

JS940

K9800

K9801

K9802

K9898

Q9530

Q9531

Q9532

Q9601

Q9602

R9201

R9202

R9203

R9204

R9205

R9206

R9207

R9208

R9209

R9210

R9211

R9301

R9302

R9303

R9304

R9305

R9306R9307

R9500

R9501

R9502

R9503

R9504

R9505

R9506

R9507

R9508

R9509

R9510

R9521

R9522

R9523

R9531

R9532

R9540

R9600

R9601

R9602

R9603

R9604

R9605

R9606

R9607

R9608

R9609

R9610

R9611

R9612

R9613

R9614

R9631

R9632

R9700

R9701

R9702

R9703

R9704

R9705

R9706

R9800

S9201

S9202S9203

S9204

S9205

S9206

S9207

S9208

S9209

S9210

S9211

S9301

S9302

S9303

S9304

S9305

S9306S9307

TW961

VR961

B9601

L9501

C9603

B9604

D9899

D9523

D9522

D9521

TW962

D9601

D9602

D9500

C9635

B9603

C9634

D9201

B9605

CN920

D9653

D9652

D9651

C9633

R9635

C9636

C9637

C9638

R9636

R9637

R9638

B9606

J961

J962

J980

C9200

B9608

R9200

R9199

R9198

B9607

R9499

L9502

R9530

C8001

C8002

C8003

C8004

C8005

C8006

C8007

C8008

C8009

C8010

C8011

C8012

C8013

C8014

C8031

C8033

C8035

C8037

C8039

C8041

C8043

C8081

C8084

C8085

C8086

C8099

C8101

C8102

C8103

C8104

C8105

C8106

C8131

C8132

C8133

C8134

C8135

C8136

CN800

CN802

CN803

D8001

D8002

D8003

D8081

D8082

D8101

D8102

D8103

D8104

D8105

IC800

J810

L8001

L8002

L8003

Q8001

Q8002

Q8003

Q8091

Q8092

Q8100

R8001

R8002

R8003

R8004

R8005

R8006

R8007

R8008

R8009

R8010

R8011

R8012

R8013

R8014

R8015

R8016

R8017

R8018

R8019

R8020

R8031

R8033

R8035

R8037

R8039

R8041

R8043

R8045

R8047

R8049

R8071

R8072

R8073

R8081

R8083

R8084

R8088

R8091

R8092

R8100

R8101

R8102

R8105

R8106

R8107

R8108

R8131

R8132

R8135

R8137

R8171

R8172

R8181

R8182

R8191

R8192

RY811

RY812

EP810

(Switch board)

(FL board)

(LED boad)

2-15

DVD board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

forward side reverse side

C101

C108

CN712

C201

C202

C203

C204

C205

C210

C217

C251

C256

C257

C260

C261

C262

C290

C303

C304

C318

C320

C321

C322

C323

C325

C326

C328

C331

C332

C333

C336

C338

C339

C341

C347

C348

C351

C352

C353

C354

C356

C359

C371

C455

C456

C551

C554

C555

C556

C557

C558

C559

C560

D301

C562

C563

C564

C714

C715

C740

C741

CN201

CN701

CN702

CN703

CN301

CN704

IC201

IC302

IC453

IC454

C739

IC509

IC510

IC701

IC702

IC703

IC704

K501

K701

K702

K703

K704

K705

K706

K707

K708

K709 K710

K711

CN101

R101

Q103

Q104

R111

R112

R113

R114

R115

R116

R117

R118

R202

R204

R205

R206

R207

R208

R213

R214

R215

R219

R251

R252

R254

R255

R290

R308

R309

R340

R341

R342

R346

R347

R348

R351

R352

R362

R371

R372

R373

R375

R384

R385

R458

R460

R462

R530

R535

R541

R542

R714

R715

R718

R719

R720

R721

R723

R724

R725

R727

R728

R730

R731

R732

TP105

TP106

TP107

TP108

TP109

TP110

TP111

TP112

TP123

TP124

R740

TP202

TP203

TP204

TP205

TP206

TP207 TP208

TP101 TP102 TP103

TP301

TP303

TP104

TP201

TP220

TP221

TP226

TP227

TP231

TP291

TP292

TP300

TP305

TP306

TP307 TP308

TP309

TP314

TP315

TP320

TP701

TP702

TP703

TP705

TP707

TP708

TP709

TP710

TP711

TP713

TP714

TP716

TP717

TP718

TP719

TP720

TP721

TP722

TP723

TP724

TP725

TP731

TP732

TP733

TP734

TP735

TP736

TP737

TP738

TP741

TP742

TP743

TP744

TP745 TP746

TP747

TP748

TP749

TP750

TP751

TP752

TP753

TP755

TP321

TP323

TP324

TP325

TP326

TP328

TP329

TP330

TP331

TP332

TP333

TP334

TP335

TP337

TP338

TP380

TP381

TP761

X301

IC505

TP391

R319

C102

C103

C104

C105

C106

C107

C206

C211

C258

C259

C263C264

C300

C301

C302

C305

C306

C307

C308

C309

C310

C311

C312

C313

C314

C315

C316

C319

C324

C329

C330

C334

C335

C337

C340

C349

C350

K101

C372

C373

C374

C375

C376

C377

C378 C379

C380

C381

C382

C383

C386

C393

C701C702

C703

C704

C706

C707

C708

C709

C711

C712

C713

C721

C728

C729

C742

C743

C744

C745

C752

C753

C754

C755

C756

D701

IC301

IC305

IC705

IC706

IC707

K351

K352

K712

K713

K720

K721

K722

K723

K726

K731

K732

K733

K751

K753

K754

K755

K756

K759

K761 K762 K763 K765

Q101

Q102

Q105

R102

R103

R104

R105

R106

R107

R108

R109

R110

R125

R126

R127

R128

R220

R221

R257

R259

R303

R306

R307

R310

R316

R318

R320 R321

R322 R323

R324

R325

R326

R327

R330

R331

R332

R334

R335

R336

R337

R338

R339

R345

R350

R353

R354

R355

R356

R357

R358

R359

R360

R361

R363

R364

R365

R366

R367

R374 R376

R377

R383

R388

R392

R201

R701

R711

R712

R713

R716

R722

R726

R729

R741

R742

R743

TH301

C770

C771

C772

C773

C774

C775

C776

C777

C778

2-16

DVD switch board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

Cassette board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

D152

C120

C121

C150

C151

C200

C303

C202

C203

C204

C206

C301

C208

CN110

R115

R114

C212

D122

C214

C300

C216

C201

C218

C219

VR300

R151

R307

C307

C225

R121

C229

C230

C231

C232C233

C223

C224

R110

C305

R209

B201

R224

CN220

R225

D121

C217

D151

IC200

L300

L301

W2

Q110

Q111

Q121

D200

Q151

Q200

Q201

Q202

Q203

Q204

Q300

Q301

C209

R123

R153

Q120

R200

R201

R202

R308

R205

R206

R207

R208

R211

R213

R214

R215

R216

R217

R304

R303

R220 R221

R305

R300

R301

R302

R306

Q150

C306

B202

CN100

W1

B200

C226

Q206

R227

R226

R212

CN200

R223

R222

R234

R235

C215

C234

C235

C211

C228

C304

C111

C213

C205

Q205

C210

C221

C222

C220

C227

C110

C122

L236

L237

C236

C237

C207

C238

C239

CN120

R218

R219

R204

B203

R309

S1

CN1

< MEMO >

Victor Company of Japan, Limited

Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.MB547SCH)

Printed in Japan

VPT

JVC MX-DK51EE, MX-DK51A, MX-DK51UG, MX-DK51UN, MX-DK51US Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
