SERVICE MANUAL

MB59820072SERVICE MANUAL

MX-DK11A,MX-DK11UW,

MX-DK11UX,MX-DK11UY,

MX-DK11UG,MX-DK11UN

COMPACT COMPONENT SYSTEM

COPYRIGHT © 2007 Victor Company of Japan, Limited

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29

COPYRIGHT © 2007 Victor Company of Japan, Limited

CA-MXDK11

TABLE OF CONTENTS

SP-MXDK11SP-MXDK11

No.MB598

2007/2

SPECIFICATION

Amplifier section Output Power 90 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no more than

10% total harmonic distortion.

Digital output OPTICAL DIGITAL OUTPUT : -21 dBm to -15 dBm (660 nm ±30 nm)

Audio input sensitivity/
Impedance *1

VIDEO OUT Color system NTSC/PAL selectable

VIDEO (composite) 1 V(p-p)/75 Ω
S-VIDEO Y (luminance) : 1 V(p-p)/75 Ω

Speaker Terminals 6 Ω - 16 Ω

Tuner section FM tuning range 87.50 MHz - 108.00 MHz

AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz)

For Saudi Arabia only 531 kHz - 1 602 kHz (at 9 kHz)

Disc player section Playable disc DVD Video/CD/VCD/SVCD

Dynamic range 90 dB

Horizontal resolution 500 lines

Wow and flutter Immeasurable

Cassette deck section Frequency response Normal (type l) 50 Hz - 14 000 Hz

Wow and flutter 0.15% (WRMS)

General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V , (adjustable

Power consumption at operation: 95 W, on standby: 17 W

Dimensions (approx.) 265 mm × 337 mm × 370 mm (W/H/D)

Mass (approx.) 7.9 kg

AUX : 400 mV/47 kΩ
MIC : 3.0 mV/50 kΩ

C (chrominance, burst) : 0.286 V(p-p)/75 Ω

530 kHz - 1 710 kHz (at 10 kHz)

530 kHz - 1 600 kHz (at 10 kHz)

CD-R/-RW/-ROM
(CD/VCD/SVCD/MP3/WMA/JPEG/MPEG-1/MPEG-2 format)
DVD-R/-RW
(DVD Video/DVD Video Recording (VR)/MP3/WMA/JPEG/MPEG-1/
MPEG-2 format)
+R/+RW
(DVD Video format)

with the voltage selector), 50 Hz / 60 Hz

*1: Measured at 1 kHz, with tape recording signal 400 mV.

• Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Lab­oratories.

• "DTS" is a registered trademark of DTS, Inc. and "DTS 2.0+Digital Out" is a trademark of DTS, Inc.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• Design and specifications are subject to change without notice.

1-2 (No.MB598)

SECTION 1

PRECAUTION

1.1 Safety Precautions

(1) This design of this product contains special hardware and

many circuits and components specially for safety purpos­es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per­formed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should

not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteris­tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us­ing replacement components rated for higher voltage, watt­age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser­vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac­teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.

(4) The leads in the products are routed and dressed with ties,

clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem­bling.

(5) Leakage shock hazard testing

After reassembling the product, always perform an isola­tion check on the exposed metal parts of the product (an­tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.

• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular­ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur­rent must not exceed 0.5mA AC (r.m.s.).

• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an

AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-

posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC

voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).

AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)

0.15 F AC TYPE

Place this
probe on

1500 10W

Good earth ground

1.2 Warning

(1) This equipment has been designed and manufactured to

meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that

these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant

safety standards.

(4) It is essential that safety critical components are replaced

by approved parts.

(5) If mains voltage selector is provided, check setting for local

voltage.

1.3 Caution

Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre­forming repair of this system.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)

each exposed
metal part.

(No.MB598)1-3

1.5 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.5.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity built up in your body.

(caption)
Anti-static wrist strap

1M

Conductive material
(conductive sheet) or iron palate

(3) Handling the optical pickup

• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)

• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.

1.6 Handling the traverse unit (optical pickup)

(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the

replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a

time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1.7 Attention when traverse unit is decomposed

*Please refer to "Disassembly method" in the text for the pickup unit.

• Apply solder to the short land sections before the card wire is disconnected from the connecto on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)

• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.

DVD changer mechanism assembly

DVD servo board

1-4 (No.MB598)

Switch board

DVD traverse mechanism assembly

1.8 Important for laser products

1.CLASS 1 LASER PRODUCT

2.CAUTION :

(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.

3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.

4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.

5.CAUTION : If safety switches malfunction, the laser is able
to function.

6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.

!

Please use enough caution not to

see the beam directly or touch it

in case of an adjustment or operation

check.

REPRODUCTION AND POSITION OF LABELS and PRINT

WARNING LABEL and PRINT

(No.MB598)1-5

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

Please use the MX-DK1US service manual (No.MB515) excluding the published content as follows.
The use number has changed when a part number of the reference origin and this part number are the same.

Parts list (General assembly) [P3-4 Block No.M1MM]

MX-DK11A

Item Parts name

1 FRONT PANEL ASSY GV10328-001A GV10328-038A 1

4 FUNCTION BUTTON GV20418-002A GV20418-003A 1

7 FRONT LENS GV10319-001A GV10319-017A 1

8 VOLUME KNOB GV30875-001A GV30875-007A 1

9 V.ORNAMENT ASSY GV30894-001A GV30894-004A 1

11 MIC.KNOB GV40083-004A ---------- 0

14 SPACER GV30349-068A ---------- 0

24 TAP SCREW QYSBSF3010ZA QYSBSF3010ZA 5

29 SPACER GV30349-046A ---------- 0

31 HEAT SINK GV30879-003A GV31012-001A 1

32 SCREW QYSBSG3016EA QYSBSG3016EA 1

35 SCREW QYSBSG3010EA ---------- 0

39 SCREW QYSBSF3010ZA ---------- 0

40 METAL COVER GV10217-007A/S/ GV10217-015A/S/ 1

44 REAR PANEL GV10324-004A GV10324-047A 1

47 TUNER QAU0412-001 QAU0492-001 1

50 TAP SCREW QYSBSGY3008EA ---------- 0

58 TAP SCREW QYSDSG3006NA QYSDSG3008NA 2

63 POWER CORD(EU) QMPK200-200-JD QMPG150-244-JC 1

64 POWER TRANS QQT0515-001 QQT0534-001 1

66 FFC WIRE QUQU12-1911AJ-E QUQU12-1913AJ-E 1

67 FFC WIRE QUQU12-1915BJ-E QUQU12-1921BJ-E 1

68 FFC WIRE QUQU12-0915BJ-E QUQU12-0921BJ-E 1

69 FFC WIRE QUR110-2520AJ-E QUR110-0532BJ-E 1

70 FFC WIRE QUR110-0515AJ-E QUR110-2517AJ-E 1

71 FFC WIRE QUR110-0532BJ-E QUR110-0513AJ-E 1

78 SPACER GV30349-048A ---------- 0

MX-DK1US MX-DK11A

Parts number

Q'ty

MX-DK11UW

Item Parts name

1 FRONT PANEL ASSY GV10328-001A GV10328-037A 1

4 FUNCTION BUTTON GV20418-002A GV20418-003A 1

7 FRONT LENS GV10319-001A GV10319-017A 1

8 VOLUME KNOB GV30875-001A GV30875-007A 1

9 V.ORNAMENT ASSY GV30894-001A GV30894-004A 1

11 MIC.KNOB GV40083-004A GV40083-006A 1

14 SPACER GV30349-068A ---------- 0

24 TAP SCREW QYSBSF3010ZA QYSBSF3010ZA 5

29 SPACER GV30349-046A ---------- 0

31 HEAT SINK GV30879-003A GV31012-001A 1

1-6 (No.MB598)

Parts number

MX-DK1US MX-DK11UW

Q'ty

Item Parts name

32 SCREW QYSBSG3016EA QYSBSG3016EA 1

35 SCREW QYSBSG3010EA ---------- 0

39 SCREW QYSBSF3010ZA ---------- 0

40 METAL COVER GV10217-007A/S/ GV10217-015A/S/ 1

44 REAR PANEL GV10324-004A GV10324-045A 1

47 TUNER QAU0412-001 QAU0492-001 1

58 TAP SCREW QYSDSG3006NA QYSDSG3008NA 2

64 POWER TRANS QQT0515-001 QQT0534-001 1

66 FFC WIRE QUQU12-1911AJ-E QUQU12-1913AJ-E 1

67 FFC WIRE QUQU12-1915BJ-E QUQU12-1921BJ-E 1

68 FFC WIRE QUQU12-0915BJ-E QUQU12-0921BJ-E 1

69 FFC WIRE QUR110-2520AJ-E QUR110-0532BJ-E 1

70 FFC WIRE QUR110-0515AJ-E QUR110-2517AJ-E 1

71 FFC WIRE QUR110-0532BJ-E QUR110-0513AJ-E 1

78 SPACER GV30349-048A ---------- 0

MX-DK11UX/UG

Item Parts name

1 FRONT PANEL ASSY GV10328-001A GV10328-037A 1

4 FUNCTION BUTTON GV20418-002A GV20418-003A 1

7 FRONT LENS GV10319-001A GV10319-017A 1

8 VOLUME KNOB GV30875-001A GV30875-007A 1

9 V.ORNAMENT ASSY GV30894-001A GV30894-004A 1

11 MIC.KNOB GV40083-004A GV40083-006A 1

14 SPACER GV30349-068A ---------- 0

24 TAP SCREW QYSBSF3010ZA QYSBSF3010ZA 5

29 SPACER GV30349-046A ---------- 0

31 HEAT SINK GV30879-003A GV31012-001A 1

32 SCREW QYSBSG3016EA QYSBSG3016EA 1

35 SCREW QYSBSG3010EA ---------- 0

39 SCREW QYSBSF3010ZA ---------- 0

40 METAL COVER GV10217-007A/S/ GV10217-015A/S/ 1

44 REAR PANEL GV10324-004A GV10324-046A 1

47 TUNER QAU0412-001 QAU0492-001 1

58 TAP SCREW QYSDSG3006NA QYSDSG3008NA 2

64 POWER TRANS QQT0515-001 QQT0534-001 1

66 FFC WIRE QUQU12-1911AJ-E QUQU12-1913AJ-E 1

67 FFC WIRE QUQU12-1915BJ-E QUQU12-1921BJ-E 1

68 FFC WIRE QUQU12-0915BJ-E QUQU12-0921BJ-E 1

69 FFC WIRE QUR110-2520AJ-E QUR110-0532BJ-E 1

70 FFC WIRE QUR110-0515AJ-E QUR110-2517AJ-E 1

71 FFC WIRE QUR110-0532BJ-E QUR110-0513AJ-E 1

78 SPACER GV30349-048A ---------- 0

Parts number

MX-DK1US MX-DK11UW

Parts number

MX-DK1US MX-DK11UX/UG

Q'ty

Q'ty

(No.MB598)1-7

MX-DK11UY

Item Parts name

1 FRONT PANEL ASSY GV10328-001A GV10328-038A 1

4 FUNCTION BUTTON GV20418-002A GV20418-003A 1

7 FRONT LENS GV10319-001A GV10319-017A 1

8 VOLUME KNOB GV30875-001A GV30875-007A 1

9 V.ORNAMENT ASSY GV30894-001A GV30894-004A 1

11 MIC.KNOB GV40083-004A GV40083-006A 1

14 SPACER GV30349-068A ---------- 0

24 TAP SCREW QYSBSF3010ZA QYSBSF3010ZA 5

29 SPACER GV30349-046A ---------- 0

31 HEAT SINK GV30879-003A GV31012-001A 1

32 SCREW QYSBSG3016EA QYSBSG3016EA 1

35 SCREW QYSBSG3010EA ---------- 0

39 SCREW QYSBSF3010ZA ---------- 0

40 METAL COVER GV10217-007A/S/ GV10217-015A/S/ 1

44 REAR PANEL GV10324-004A GV10324-043A 1

47 TUNER QAU0412-001 QAU0492-001 1

58 TAP SCREW QYSDSG3006NA QYSDSG3008NA 2

63 POWER CORD(EU) QMPK200-200-JD QMPR300-200-JC 1

64 POWER TRANS QQT0515-001 QQT0534-001 1

66 FFC WIRE QUQU12-1911AJ-E QUQU12-1913AJ-E 1

67 FFC WIRE QUQU12-1915BJ-E QUQU12-1921BJ-E 1

68 FFC WIRE QUQU12-0915BJ-E QUQU12-0921BJ-E 1

69 FFC WIRE QUR110-2520AJ-E QUR110-0532BJ-E 1

70 FFC WIRE QUR110-0515AJ-E QUR110-2517AJ-E 1

71 FFC WIRE QUR110-0532BJ-E QUR110-0513AJ-E 1

78 SPACER GV30349-048A ---------- 0

Parts number

MX-DK1US MX-DK11UY

Q'ty

MX-DK11UN

Item Parts name

1 FRONT PANEL ASSY GV10328-001A GV10328-037A 1

4 FUNCTION BUTTON GV20418-002A GV20418-003A 1

7 FRONT LENS GV10319-001A GV10319-017A 1

8 VOLUME KNOB GV30875-001A GV30875-007A 1

9 V.ORNAMENT ASSY GV30894-001A GV30894-004A 1

11 MIC.KNOB GV40083-004A GV40083-006A 1

14 SPACER GV30349-068A ---------- 0

24 TAP SCREW QYSBSF3010ZA QYSBSF3010ZA 5

29 SPACER GV30349-046A ---------- 0

31 HEAT SINK GV30879-003A GV31012-001A 1

32 SCREW QYSBSG3016EA QYSBSG3016EA 1

35 SCREW QYSBSG3010EA ---------- 0

39 SCREW QYSBSF3010ZA ---------- 0

40 METAL COVER GV10217-007A/S/ GV10217-015A/S/ 1

44 REAR PANEL GV10324-004A GV10324-044A 1

47 TUNER QAU0412-001 QAU0492-001 1

58 TAP SCREW QYSDSG3006NA QYSDSG3008NA 2

Parts number

MX-DK1US MX-DK11UN

Q'ty

1-8 (No.MB598)

Item Parts name

64 POWER TRANS QQT0515-001 QQT0534-001 1

66 FFC WIRE QUQU12-1911AJ-E QUQU12-1913AJ-E 1

67 FFC WIRE QUQU12-1915BJ-E QUQU12-1921BJ-E 1

68 FFC WIRE QUQU12-0915BJ-E QUQU12-0921BJ-E 1

69 FFC WIRE QUR110-2520AJ-E QUR110-0532BJ-E 1

70 FFC WIRE QUR110-0515AJ-E QUR110-2517AJ-E 1

71 FFC WIRE QUR110-0532BJ-E QUR110-0513AJ-E 1

78 SPACER GV30349-048A ---------- 0

Parts list (Power board) [P3-12 Block No.01]

MX-DK11A

Item Parts name

Q1050 TRANSISTOR KTC3200/GL/-T KTC3199/GL/-T 1

Q1052 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1053 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1090 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1091 TRANSISTOR KTC1027/OY/-T KTC3200/GL/-T 1

Q1092 TRANSISTOR KTC3200/GL/-T KTC3199/GL/-T 1

Q1093 TRANSISTOR KTA1023/OY/-T KTA1268/GL/-T 1

Q2011 TRANSISTOR KTC3203/OY/-T KTC3199/GL/-T 1

D1041 SI DIODE 1SS133-T2 ---------- 0

D1042 SI DIODE 1SS133-T2 ---------- 0

D1105 DIODE 2A02-M ---------- 0

D1106 DIODE 2A02-M ---------- 0

C1001 E CAPACITOR QEZ0818-478 QEZ0808-478 1

C1002 E CAPACITOR QEZ0818-478 QEZ0808-478 1

C1010 E CAPACITOR QETM1EM-338 QETM1VM-338 1

C1011 E CAPACITOR QETM1EM-338 QETM1VM-338 1

C1083 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C1085 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C1091 M CAPACITOR QFZ0212-104Z QFVF1HJ-104Z 1

C1092 M CAPACITOR QFZ0212-104Z QFVF1HJ-104Z 1

C1221 E CAPACITOR QETM1EM-688 QETM1EM-478 1

C1222 E CAPACITOR QETM1CM-688 QETM1CM-478 1

C1270 E CAPACITOR QETN1HM-106Z ---------- 0

C1280 E CAPACITOR QETN1HM-106Z ---------- 0

C1290 E CAPACITOR QETN1HM-106Z ---------- 0

C1260 E CAPACITOR QETN1HM-106Z ---------- 0

C2019 M CAPACITOR QFLC1HJ-104Z QFVF1HJ-104Z 1

C2020 M CAPACITOR QFZ0227-104Z QFNC2AJ-104Z 1

C2200 M CAPACITOR QFZ0227-104Z QFZ0228-104Z 1

R1042 C RESISTOR QRE141J-272Y ---------- 0

R1043 C RESISTOR QRE141J-153Y ---------- 0

R1044 C RESISTOR QRE141J-272Y ---------- 0

R1045 C RESISTOR QRE141J-153Y ---------- 0

R1093 C RESISTOR QRE141J-103Y QRE141J-822Y 1

Parts number

MX-DK1US MX-DK11UN

Parts number

MX-DK1US MX-DK11A

Q'ty

Q'ty

(No.MB598)1-9

Item Parts name

R1094 C RESISTOR QRE141J-103Y QRE141J-822Y 1

R1095 UNF C RESISTOR QRJ146J-470X QRJ146J-100X 1

R1096 UNF C RESISTOR QRJ146J-470X QRJ146J-100X 1

EP121 IC BRD.HOLDER GV40327-002A ---------- 0

FW160 FLAT WIRE QUM156-14DGZ4-E QUM156-13DGZ4-E 1

FW170 FLAT WIRE QUM154-14DGZ4-E QUM154-13DGZ4-E 1

J100 SPK TERMINAL QNB0181-001 QNB0303-001 1

MX-DK11UW

Item Parts name

Q1050 TRANSISTOR KTC3200/GL/-T KTC3199/GL/-T 1

Q1052 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1053 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1090 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1091 TRANSISTOR KTC1027/OY/-T KTC3200/GL/-T 1

Q1092 TRANSISTOR KTC3200/GL/-T KTC3199/GL/-T 1

Q1093 TRANSISTOR KTA1023/OY/-T KTA1268/GL/-T 1

Q2011 TRANSISTOR KTC3203/OY/-T KTC3199/GL/-T 1

D1105 DIODE 2A02-M ---------- 0

D1106 DIODE 2A02-M ---------- 0

C1001 E CAPACITOR QEZ0818-478 QEZ0808-478 1

C1002 E CAPACITOR QEZ0818-478 QEZ0808-478 1

C1010 E CAPACITOR QETM1EM-338 QETM1VM-338 1

C1011 E CAPACITOR QETM1EM-338 QETM1VM-338 1

C1083 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C1085 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C1091 M CAPACITOR QFZ0212-104Z QFVF1HJ-104Z 1

C1092 M CAPACITOR QFZ0212-104Z QFVF1HJ-104Z 1

C1221 E CAPACITOR QETM1EM-688 QETM1EM-478 1

C1222 E CAPACITOR QETM1CM-688 QETM1CM-478 1

C1270 E CAPACITOR QETN1HM-106Z ---------- 0

C1280 E CAPACITOR QETN1HM-106Z ---------- 0

C1290 E CAPACITOR QETN1HM-106Z ---------- 0

C1260 E CAPACITOR QETN1HM-106Z ---------- 0

C2019 M CAPACITOR QFLC1HJ-104Z QFVF1HJ-104Z 1

C2020 M CAPACITOR QFZ0227-104Z QFNC2AJ-104Z 1

C2200 M CAPACITOR QFZ0227-104Z QFZ0228-104Z 1

R1043 C RESISTOR QRE141J-153Y QRE141J-822Y 1

R1045 C RESISTOR QRE141J-153Y QRE141J-822Y 1

R1093 C RESISTOR QRE141J-103Y QRE141J-822Y 1

R1094 C RESISTOR QRE141J-103Y QRE141J-822Y 1

R1095 UNF C RESISTOR QRJ146J-470X QRJ146J-100X 1

R1096 UNF C RESISTOR QRJ146J-470X QRJ146J-100X 1

EP121 IC BRD.HOLDER GV40327-002A ---------- 0

FW160 FLAT WIRE QUM156-14DGZ4-E QUM156-13DGZ4-E 1

FW170 FLAT WIRE QUM154-14DGZ4-E QUM154-13DGZ4-E 1

J100 SPK TERMINAL QNB0181-001 QNB0303-001 1

Parts number

MX-DK1US MX-DK11A

Parts number

MX-DK1US MX-DK11UW

Q'ty

Q'ty

1-10 (No.MB598)

MX-DK11UX/UY/UG/UN

Item Parts name

Q1050 TRANSISTOR KTC3200/GL/-T KTC3199/GL/-T 1

Q1052 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1053 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1090 TRANSISTOR KTA1268/GL/-T KTA1267/YG/-T 1

Q1091 TRANSISTOR KTC1027/OY/-T KTC3200/GL/-T 1

Q1092 TRANSISTOR KTC3200/GL/-T KTC3199/GL/-T 1

Q1093 TRANSISTOR KTA1023/OY/-T KTA1268/GL/-T 1

Q2011 TRANSISTOR KTC3203/OY/-T KTC3199/GL/-T 1

D1041 SI DIODE 1SS133-T2 ---------- 0

D1042 SI DIODE 1SS133-T2 ---------- 0

D1105 DIODE 2A02-M ---------- 0

D1106 DIODE 2A02-M ---------- 0

C1001 E CAPACITOR QEZ0818-478 QEZ0808-478 1

C1002 E CAPACITOR QEZ0818-478 QEZ0808-478 1

C1010 E CAPACITOR QETM1EM-338 QETM1VM-338 1

C1011 E CAPACITOR QETM1EM-338 QETM1VM-338 1

C1083 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C1085 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C1091 M CAPACITOR QFZ0212-104Z QFVF1HJ-104Z 1

C1092 M CAPACITOR QFZ0212-104Z QFVF1HJ-104Z 1

C1221 E CAPACITOR QETM1EM-688 QETM1EM-478 1

C1222 E CAPACITOR QETM1CM-688 QETM1CM-478 1

C1270 E CAPACITOR QETN1HM-106Z ---------- 0

C1280 E CAPACITOR QETN1HM-106Z ---------- 0

C1290 E CAPACITOR QETN1HM-106Z ---------- 0

C1260 E CAPACITOR QETN1HM-106Z ---------- 0

C2019 M CAPACITOR QFLC1HJ-104Z QFVF1HJ-104Z 1

C2020 M CAPACITOR QFZ0227-104Z QFNC2AJ-104Z 1

C2200 M CAPACITOR QFZ0227-104Z QFZ0228-104Z 1

R1042 C RESISTOR QRE141J-272Y ---------- 0

R1043 C RESISTOR QRE141J-153Y ---------- 0

R1044 C RESISTOR QRE141J-272Y ---------- 0

R1045 C RESISTOR QRE141J-153Y ---------- 0

R1093 C RESISTOR QRE141J-103Y QRE141J-822Y 1

R1094 C RESISTOR QRE141J-103Y QRE141J-822Y 1

R1095 UNF C RESISTOR QRJ146J-470X QRJ146J-100X 1

R1096 UNF C RESISTOR QRJ146J-470X QRJ146J-100X 1

EP121 IC BRD.HOLDER GV40327-002A ---------- 0

FW160 FLAT WIRE QUM156-14DGZ4-E QUM156-13DGZ4-E 1

FW170 FLAT WIRE QUM154-14DGZ4-E QUM154-13DGZ4-E 1

J100 SPK TERMINAL QNB0181-001 QNB0303-001 1

Parts number

MX-DK1US MX-DK11UX/UY/UG/UN

Q'ty

(No.MB598)1-11

Parts list (Input board) [P3-14 Block No.02]

MX-DK11A/UY

Item Parts name

IC300 IC SN74AHCT08NS-X TC74VHCT08AFT-X 1

IC325 IC KIA278R05PI PQ050RDC2SZF 1

IC410 IC NJM4565E-X ---------- 0

IC473 IC KTC812T-X ---------- 0

IC560 IC NJM4565E-X KIA4558F-X 1

IC600 IC KTC812T-X RT3Y97M-X 1

Q3100 DIGI TRANSISTOR KRA102S-X RT1P141C-X 1

Q3101 DIGI TRANSISTOR KRC102S-X RT1N141C-X 1

Q4080 DIGI TRANSISTOR KRA104S-X ---------- 0

Q4081 TRANSISTOR KTC2875-X ---------- 0

Q4730 DIGI TRANSISTOR KRA104S-X ---------- 0

Q5400 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5401 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5402 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5500 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5501 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5502 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5851 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q5853 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q6000 DIGI TRANSISTOR KRA104S-X ---------- 0

D3300 Z DIODE MTZJ5.1B-T2 ---------- 0

D6850 DIODE 1SS133-T2 ---------- 0

D6851 DIODE 1SS133-T2 ---------- 0

C3300 E CAPACITOR QETN1EM-476Z ---------- 0

C3302 C CAPACITOR ---------- NCB31CK-104X 1

C3251 E CAPACITOR QETN1EM-477Z QETN1CM-107Z 1

C3500 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C3501 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C4080 E CAPACITOR QETN1HM-106Z ---------- 0

C4081 C CAPACITOR NCB31EK-683X ---------- 0

C4082 E CAPACITOR QETN1HM-226Z ---------- 0

C4050 E CAPACITOR QTE1V28-107Z QTE1E46-107Z 1

C4100 E CAPACITOR QETN1HM-226Z ---------- 0

C4101 E CAPACITOR QETN1HM-106Z ---------- 0

C4200 E CAPACITOR QETN1HM-226Z ---------- 0

C4201 E CAPACITOR QETN1HM-106Z ---------- 0

C4705 E CAPACITOR QETN1JM-476Z ---------- 0

C4707 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4708 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4710 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4711 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4723 E CAPACITOR QETN1JM-476Z QTE1E53-107Z 1

C4730 E CAPACITOR QETN1HM-105Z ---------- 0

C4734 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4736 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

Parts number

MX-DK1US MX-DK11A/UY

Q'ty

1-12 (No.MB598)

Item Parts name

MX-DK1US MX-DK11A/UY

Parts number

Q'ty

C4805 E CAPACITOR QETN1JM-476Z ---------- 0

C4807 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4808 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4810 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4811 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4834 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4836 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C5602 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C5702 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C6850 C CAPACITOR NCB31HK-222X ---------- 0

C7001 C CAPACITOR NCB31HK-103X ---------- 0

C7009 C CAPACITOR NCB31HK-103X ---------- 0

R3007 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R3101 MG RESISTOR NRSA63J-103X NRSA63J-222X 1

R3351 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3451 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R4051 MG RESISTOR NRSA63J-122X NRSA63J-102X 1

R4080 MG RESISTOR NRSA63J-102X ---------- 0

R4081 MG RESISTOR NRSA63J-103X ---------- 0

R4082 MG RESISTOR NRSA63J-104X ---------- 0

R4083 MG RESISTOR NRSA63J-102X ---------- 0

R4101 MG RESISTOR NRSA63J-912X ---------- 0

R4102 MG RESISTOR NRSA63J-103X ---------- 0

R4103 MG RESISTOR NRSA63J-103X ---------- 0

R4104 MG RESISTOR NRSA63J-103X ---------- 0

R4201 MG RESISTOR NRSA63J-912X ---------- 0

R4202 MG RESISTOR NRSA63J-103X ---------- 0

R4203 MG RESISTOR NRSA63J-103X ---------- 0

R4204 MG RESISTOR NRSA63J-103X ---------- 0

R4730 MG RESISTOR NRSA63J-102X ---------- 0

R4733 MG RESISTOR NRSA63J-682X ---------- 0

R4833 MG RESISTOR NRSA63J-103X ---------- 0

R4700 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4800 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R5300 MG RESISTOR NRSA63J-392X NRSA63J-362X 1

R5301 MG RESISTOR NRSA63J-222X NRSA63J-272X 1

R5302 MG RESISTOR NRSA63J-913X NRSA63J-104X 1

R5404 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5504 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5600 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5601 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5602 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5700 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5701 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5702 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5853 MG RESISTOR NRSA63J-243X ---------- 0

R5857 MG RESISTOR NRSA63J-243X ---------- 0

(No.MB598)1-13

Item Parts name

R6001 MG RESISTOR NRSA63J-103X ---------- 0

R6101 MG RESISTOR NRSA63J-103X ---------- 0

R6111 MG RESISTOR NRSA63J-103X ---------- 0

R6700 MG RESISTOR NRSA63J-183X ---------- 0

R6701 MG RESISTOR NRSA63J-823X ---------- 0

R6800 MG RESISTOR NRSA63J-183X ---------- 0

R6801 MG RESISTOR NRSA63J-823X ---------- 0

CN308 CONNECTOR QGF1210G1-07 QGF1205F2-07 1

J6700 SURROUND JACK QNN0420-001 ---------- 0

K3002 INDUCTOR ---------- QQR0621-001Z 1

MX-DK11UW

Item Parts name

IC300 IC SN74AHCT08NS-X TC74VHCT08AFT-X 1

IC325 IC KIA278R05PI PQ050RDC2SZF 1

IC410 IC NJM4565E-X KIA4558F-X 1

IC473 IC KTC812T-X ---------- 0

IC560 IC NJM4565E-X KIA4558F-X 1

IC600 IC KTC812T-X RT3Y97M-X 1

Q3100 DIGI TRANSISTOR KRA102S-X RT1P141C-X 1

Q3101 DIGI TRANSISTOR KRC102S-X RT1N141C-X 1

Q4080 DIGI TRANSISTOR KRA104S-X RT1P441C-X 1

Q4081 TRANSISTOR KTC2875-X RT6N140C-X 1

Q4730 DIGI TRANSISTOR KRA104S-X ---------- 0

Q5400 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5401 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5402 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5500 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5501 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5502 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5851 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q5853 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q6000 DIGI TRANSISTOR KRA104S-X ---------- 0

C3251 E CAPACITOR QETN1EM-477Z QETN1CM-107Z 1

C3500 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C3501 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C4050 E CAPACITOR QTE1V28-107Z QTE1E46-107Z 1

C4081 C CAPACITOR NCB31EK-683X NCB31CK-683X 1

C4101 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4201 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4730 E CAPACITOR QETN1HM-105Z ---------- 0

C4734 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4736 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4705 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4707 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4708 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4710 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

Parts number

MX-DK1US MX-DK11A/UY

Parts number

MX-DK1US MX-DK11UW

Q'ty

Q'ty

1-14 (No.MB598)

Item Parts name

MX-DK1US MX-DK11UW

Parts number

Q'ty

C4711 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4723 E CAPACITOR QETN1JM-476Z QTE1E53-107Z 1

C4805 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4807 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4808 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4810 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4811 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4834 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4836 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C5602 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C5702 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C7001 C CAPACITOR NCB31HK-103X ---------- 0

C7009 C CAPACITOR NCB31HK-103X ---------- 0

R3007 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R4051 MG RESISTOR NRSA63J-122X NRSA63J-102X 1

R3101 MG RESISTOR NRSA63J-103X NRSA63J-222X 1

R3351 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3451 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R4730 MG RESISTOR NRSA63J-102X ---------- 0

R4733 MG RESISTOR NRSA63J-682X ---------- 0

R4833 MG RESISTOR NRSA63J-103X ---------- 0

R4700 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4800 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4081 MG RESISTOR NRSA63J-103X ---------- 0

R5300 MG RESISTOR NRSA63J-392X NRSA63J-362X 1

R5301 MG RESISTOR NRSA63J-222X NRSA63J-272X 1

R5302 MG RESISTOR NRSA63J-913X NRSA63J-104X 1

R5404 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5504 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5600 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5601 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5602 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5700 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5701 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5702 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5853 MG RESISTOR NRSA63J-243X ---------- 0

R5857 MG RESISTOR NRSA63J-243X ---------- 0

R6001 MG RESISTOR NRSA63J-103X ---------- 0

R6101 MG RESISTOR NRSA63J-103X ---------- 0

R6111 MG RESISTOR NRSA63J-103X ---------- 0

CN308 CONNECTOR QGF1210G1-07 QGF1205F2-07 1

K3002 INDUCTOR ---------- QQR0621-001Z 1

(No.MB598)1-15

MX-DK11UX

Item Parts name

IC300 IC SN74AHCT08NS-X TC74VHCT08AFT-X 1

IC325 IC KIA278R05PI PQ050RDC2SZF 1

IC410 IC NJM4565E-X KIA4558F-X 1

IC473 IC KTC812T-X ---------- 0

IC560 IC NJM4565E-X KIA4558F-X 1

IC600 IC KTC812T-X RT3Y97M-X 1

Q3100 DIGI TRANSISTOR KRA102S-X RT1P141C-X 1

Q3101 DIGI TRANSISTOR KRC102S-X RT1N141C-X 1

Q4080 DIGI TRANSISTOR KRA104S-X RT1P441C-X 1

Q4081 TRANSISTOR KTC2875-X RT6N140C-X 1

Q4730 DIGI TRANSISTOR KRA104S-X ---------- 0

Q5400 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5401 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5402 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5500 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5501 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5502 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5851 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q5853 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q6000 DIGI TRANSISTOR KRA104S-X ---------- 0

D3300 Z DIODE MTZJ5.1B-T2 ---------- 0

C3251 E CAPACITOR QETN1EM-477Z QETN1CM-107Z 1

C3300 E CAPACITOR QETN1EM-476Z ---------- 0

C3302 C CAPACITOR ---------- NCB31CK-104X 1

C3500 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C3501 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C4050 E CAPACITOR QTE1V28-107Z QTE1E46-107Z 1

C4101 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4201 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4705 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4707 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4708 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4710 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4711 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4723 E CAPACITOR QETN1JM-476Z QTE1E53-107Z 1

C4730 E CAPACITOR QETN1HM-105Z ---------- 0

C4734 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4736 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4834 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4836 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4805 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4807 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4808 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4810 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4811 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4081 C CAPACITOR NCB31EK-683X NCB31CK-683X 1

Parts number

MX-DK1US MX-DK11UX

Q'ty

1-16 (No.MB598)

Item Parts name

C5602 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C5702 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C7001 C CAPACITOR NCB31HK-103X ---------- 0

C7009 C CAPACITOR NCB31HK-103X ---------- 0

R3007 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R3101 MG RESISTOR NRSA63J-103X NRSA63J-222X 1

R3351 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3451 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R4051 MG RESISTOR NRSA63J-122X NRSA63J-102X 1

R4081 MG RESISTOR NRSA63J-103X ---------- 0

R4700 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4730 MG RESISTOR NRSA63J-102X ---------- 0

R4733 MG RESISTOR NRSA63J-682X ---------- 0

R4833 MG RESISTOR NRSA63J-103X ---------- 0

R4800 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R5300 MG RESISTOR NRSA63J-392X NRSA63J-362X 1

R5301 MG RESISTOR NRSA63J-222X NRSA63J-272X 1

R5302 MG RESISTOR NRSA63J-913X NRSA63J-104X 1

R5404 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5504 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5600 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5601 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5602 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5700 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5701 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5702 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5853 MG RESISTOR NRSA63J-243X ---------- 0

R5857 MG RESISTOR NRSA63J-243X ---------- 0

R6111 MG RESISTOR NRSA63J-103X ---------- 0

CN308 CONNECTOR QGF1210G1-07 QGF1205F2-07 1

K3002 INDUCTOR ---------- QQR0621-001Z 1

MX-DK11UG

Item Parts name

IC300 IC SN74AHCT08NS-X TC74VHCT08AFT-X 1

IC325 IC KIA278R05PI PQ050RDC2SZF 1

IC473 IC KTC812T-X ---------- 0

IC600 IC KTC812T-X RT3Y97M-X 1

Q3100 DIGI TRANSISTOR KRA102S-X RT1P141C-X 1

Q3101 DIGI TRANSISTOR KRC102S-X RT1N141C-X 1

Q4080 DIGI TRANSISTOR KRA104S-X RT1P441C-X 1

Q4081 TRANSISTOR KTC2875-X RT6N140C-X 1

Q4730 DIGI TRANSISTOR KRA104S-X ---------- 0

Q5400 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5401 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5402 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5500 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Parts number

MX-DK1US MX-DK11UX

Parts number

MX-DK1US MX-DK11UG

Q'ty

Q'ty

(No.MB598)1-17

Item Parts name

MX-DK1US MX-DK11UG

Parts number

Q'ty

Q5501 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5502 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5851 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q5853 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q6000 DIGI TRANSISTOR KRA104S-X ---------- 0

D3300 Z DIODE MTZJ5.1B-T2 ---------- 0

C3251 E CAPACITOR QETN1EM-477Z QETN1CM-107Z 1

C3300 E CAPACITOR QETN1EM-476Z ---------- 0

C4050 E CAPACITOR QTE1V28-107Z QTE1E46-107Z 1

C3302 C CAPACITOR ---------- NCB31CK-104X 1

C3500 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C3501 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C4081 C CAPACITOR NCB31EK-683X NCB31CK-683X 1

C4101 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4201 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4705 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4707 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4708 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4710 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4711 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4723 E CAPACITOR QETN1JM-476Z QTE1E53-107Z 1

C4730 E CAPACITOR QETN1HM-105Z ---------- 0

C4734 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4736 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4805 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4807 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4808 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4810 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4811 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4834 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4836 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C5602 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C5702 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C7001 C CAPACITOR NCB31HK-103X ---------- 0

C7009 C CAPACITOR NCB31HK-103X ---------- 0

R3007 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R3101 MG RESISTOR NRSA63J-103X NRSA63J-222X 1

R3351 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3451 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3562 MG RESISTOR ---------- NRSA63J-103X 1

R4051 MG RESISTOR NRSA63J-122X NRSA63J-102X 1

R4081 MG RESISTOR NRSA63J-103X ---------- 0

R4730 MG RESISTOR NRSA63J-102X ---------- 0

R4733 MG RESISTOR NRSA63J-682X ---------- 0

R4833 MG RESISTOR NRSA63J-103X ---------- 0

R4700 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4800 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

1-18 (No.MB598)

Item Parts name

R5300 MG RESISTOR NRSA63J-392X NRSA63J-362X 1

R5301 MG RESISTOR NRSA63J-222X NRSA63J-272X 1

R5302 MG RESISTOR NRSA63J-913X NRSA63J-104X 1

R5404 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5504 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5600 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5601 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5602 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5700 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5701 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5702 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5853 MG RESISTOR NRSA63J-243X ---------- 0

R5857 MG RESISTOR NRSA63J-243X ---------- 0

R6001 MG RESISTOR NRSA63J-103X ---------- 0

R6101 MG RESISTOR NRSA63J-103X ---------- 0

R6111 MG RESISTOR NRSA63J-103X ---------- 0

CN308 CONNECTOR QGF1210G1-07 QGF1205F2-07 1

K3002 INDUCTOR ---------- QQR0621-001Z 1

MX-DK11UN

Item Parts name

IC300 IC SN74AHCT08NS-X TC74VHCT08AFT-X 1

IC325 IC KIA278R05PI PQ050RDC2SZF 1

IC473 IC KTC812T-X ---------- 0

IC600 IC KTC812T-X RT3Y97M-X 1

Q3100 DIGI TRANSISTOR KRA102S-X RT1P141C-X 1

Q3101 DIGI TRANSISTOR KRC102S-X RT1N141C-X 1

Q4080 DIGI TRANSISTOR KRA104S-X RT1P441C-X 1

Q4081 TRANSISTOR KTC2875-X RT6N140C-X 1

Q4730 DIGI TRANSISTOR KRA104S-X ---------- 0

Q5400 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5401 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5402 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5500 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5501 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5502 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q5851 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q5853 TRANSISTOR KTC3875/YG/-X RT1N240C-X 1

Q6000 DIGI TRANSISTOR KRA104S-X ---------- 0

D3300 Z DIODE MTZJ5.1B-T2 ---------- 0

C3300 E CAPACITOR QETN1EM-476Z ---------- 0

C3251 E CAPACITOR QETN1EM-477Z QETN1CM-107Z 1

C3302 C CAPACITOR ---------- NCB31CK-104X 1

C3500 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C3501 C CAPACITOR NDC31HJ-270X NDC31HJ-300X 1

C4050 E CAPACITOR QTE1V28-107Z QTE1E46-107Z 1

C4730 E CAPACITOR QETN1HM-105Z ---------- 0

Parts number

MX-DK1US MX-DK11UG

Parts number

MX-DK1US MX-DK11UN

Q'ty

Q'ty

(No.MB598)1-19

Item Parts name

MX-DK1US MX-DK11UN

Parts number

Q'ty

C4734 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4736 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4834 E CAPACITOR QETN1JM-476Z QTE1J46-106Z 1

C4836 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4705 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4707 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4708 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4710 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4711 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4723 E CAPACITOR QETN1JM-476Z QTE1E53-107Z 1

C4805 E CAPACITOR QETN1JM-476Z QTE1J63-106Z 1

C4807 M CAPACITOR QFLC1HJ-473Z QFLC1HJ-333Z 1

C4808 M CAPACITOR QFG32AJ-332Z QFG32AJ-392Z 1

C4810 E CAPACITOR QTE1V06-106Z QTE1J46-106Z 1

C4811 E CAPACITOR QETN1HM-105Z QETN1HM-225Z 1

C4081 C CAPACITOR NCB31EK-683X NCB31CK-683X 1

C4101 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C4201 E CAPACITOR QETN1HM-106Z QTE1J46-106Z 1

C5602 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C5702 E CAPACITOR QETN1JM-476Z QTE1E46-476Z 1

C7001 C CAPACITOR NCB31HK-103X ---------- 0

C7009 C CAPACITOR NCB31HK-103X ---------- 0

R3007 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R3101 MG RESISTOR NRSA63J-103X NRSA63J-222X 1

R3351 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3451 MG RESISTOR NRSA63J-203X NRSA63J-163X 1

R3562 MG RESISTOR ---------- NRSA63J-103X 1

R4051 MG RESISTOR NRSA63J-122X NRSA63J-102X 1

R4081 MG RESISTOR NRSA63J-103X ---------- 0

R4700 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4730 MG RESISTOR NRSA63J-102X ---------- 0

R4733 MG RESISTOR NRSA63J-682X ---------- 0

R4800 MG RESISTOR NRSA63J-103X NRSA63J-123X 1

R4833 MG RESISTOR NRSA63J-103X ---------- 0

R5300 MG RESISTOR NRSA63J-392X NRSA63J-362X 1

R5301 MG RESISTOR NRSA63J-222X NRSA63J-272X 1

R5302 MG RESISTOR NRSA63J-913X NRSA63J-104X 1

R5404 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5504 MG RESISTOR NRSA63J-153X NRSA63J-123X 1

R5600 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5601 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5602 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5700 MG RESISTOR NRSA63J-102X NRSA63J-122X 1

R5701 MG RESISTOR NRSA63J-184X NRSA63J-204X 1

R5702 MG RESISTOR NRSA63J-302X NRSA63J-242X 1

R5853 MG RESISTOR NRSA63J-243X ---------- 0

R5857 MG RESISTOR NRSA63J-243X ---------- 0

1-20 (No.MB598)

Item Parts name

R6001 MG RESISTOR NRSA63J-103X ---------- 0

R6101 MG RESISTOR NRSA63J-103X ---------- 0

R6111 MG RESISTOR NRSA63J-103X ---------- 0

CN308 CONNECTOR QGF1210G1-07 QGF1205F2-07 1

K3002 INDUCTOR ---------- QQR0621-001Z 1

Parts list (Front board) [P3-19 Block No.03]

MX-DK11A

Item Parts name

IC950 ECHO IC PT2399-S-W ---------- 0

IC960 IC KIA4558F-X ---------- 0

IC970 IC ---------- KIA4558F-X 1

Q9530 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9531 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9532 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9601 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9602 TRANSISTOR KTC3875/YG/-X ---------- 0

D9500 Z DIODE MTZJ5.1B-T2 ---------- 0

D9521 Z DIODE MTZJ3.9B-T2 ---------- 0

D9522 Z DIODE MTZJ3.9B-T2 ---------- 0

D9523 Z DIODE MTZJ3.9B-T2 ---------- 0

D9601 Z DIODE 1SS133-T2 ---------- 0

D9602 Z DIODE 1SS133-T2 ---------- 0

D9651 Z DIODE ---------- MA111-X 1

D9652 Z DIODE ---------- MA111-X 1

D9653 Z DIODE UDZW2.4B-X ---------- 0

C9200 C CAPACITOR NCB31HK-103X ---------- 0

C9500 E CAPACITOR QEKC1CM-107Z ---------- 0

C9501 E CAPACITOR QEKC1CM-476Z ---------- 0

C9502 C CAPACITOR NCB31CK-104X ---------- 0

C9503 C CAPACITOR NCB31CK-104X ---------- 0

C9504 C CAPACITOR NCB31CK-823X ---------- 0

C9505 C CAPACITOR NCB31CK-823X ---------- 0

C9506 C CAPACITOR NCB31HK-103X ---------- 0

C9507 C CAPACITOR NCB31HK-561X ---------- 0

C9508 C CAPACITOR NCB31HK-332X ---------- 0

C9509 E CAPACITOR QEKC1CM-106Z ---------- 0

C9510 E CAPACITOR QEKC1CM-106Z ---------- 0

C9511 E CAPACITOR QEKC1HM-475Z ---------- 0

C9512 C CAPACITOR NCB31HK-561X ---------- 0

C9513 C CAPACITOR NCB31HK-392X ---------- 0

C9600 E CAPACITOR QEKC1AM-107Z ---------- 0

C9601 E CAPACITOR QEKC1HM-224Z ---------- 0

C9602 E CAPACITOR QEKC1HM-104Z ---------- 0

C9603 C CAPACITOR NCB31HK-104X ---------- 0

C9604 C CAPACITOR NCB31HK-681X ---------- 0

Parts number

MX-DK1US MX-DK11UN

Parts number

MX-DK1US MX-DK11A

Q'ty

Q'ty

(No.MB598)1-21

Item Parts name

MX-DK1US MX-DK11A

Parts number

Q'ty

C9605 C CAPACITOR NDC31HJ-151X ---------- 0

C9606 E CAPACITOR QEKC1CM-336Z ---------- 0

C9607 E CAPACITOR QEKC1HM-335Z ---------- 0

C9608 E CAPACITOR QEKC1AM-107Z ---------- 0

C9631 C CAPACITOR NCB31HK-102X ---------- 0

C9632 C CAPACITOR NCB31HK-102X ---------- 0

C9651 C CAPACITOR NCB31HK-102X NCB31HK-222X 1

C9633 C CAPACITOR NCB21HK-473X ---------- 0

C9634 E CAPACITOR QEKC1HM-104Z ---------- 0

C9635 C CAPACITOR NCB31HK-391X ---------- 0

C9636 C CAPACITOR NCB31HK-391X ---------- 0

C9637 C CAPACITOR NCB31HK-471X ---------- 0

C9700 E CAPACITOR ---------- QEKC1AM-107Z 1

C9701 E CAPACITOR ---------- QEKC1HM-475Z 1

C9702 E CAPACITOR ---------- QEKC1HM-475Z 1

R9103 MG RESISTOR NRSA63J-102X NRSA63J-103X 1

R9104 MG RESISTOR NRSA63J-0R0X NRSA63J-302X 1

R9105 MG RESISTOR NRSA63J-0R0X NRSA63J-512X 1

R9501 MG RESISTOR NRSA63J-912X ---------- 0

R9502 MG RESISTOR NRSA63J-103X ---------- 0

R9503 MG RESISTOR NRSA63J-103X ---------- 0

R9504 MG RESISTOR NRSA63J-153X ---------- 0

R9505 MG RESISTOR NRSA63J-562X ---------- 0

R9506 MG RESISTOR NRSA63J-512X ---------- 0

R9507 MG RESISTOR NRSA63J-103X ---------- 0

R9508 MG RESISTOR NRSA63J-183X ---------- 0

R9509 MG RESISTOR NRSA63J-103X ---------- 0

R9510 MG RESISTOR NRSA63J-183X ---------- 0

R9521 MG RESISTOR NRSA63J-223X ---------- 0

R9522 MG RESISTOR NRSA63J-223X ---------- 0

R9523 MG RESISTOR NRSA63J-223X ---------- 0

R9531 MG RESISTOR NRSA63J-682X ---------- 0

R9532 MG RESISTOR NRSA63J-203X ---------- 0

R9540 MG RESISTOR NRSA63J-102X ---------- 0

R9530 MG RESISTOR NRSA63J-104X ---------- 0

R9600 MG RESISTOR NRSA63J-221X ---------- 0

R9601 MG RESISTOR NRSA63J-104X ---------- 0

R9602 MG RESISTOR NRSA63J-102X ---------- 0

R9603 MG RESISTOR NRSA63J-222X ---------- 0

R9604 MG RESISTOR NRSA63J-124X ---------- 0

R9605 MG RESISTOR NRSA63J-473X ---------- 0

R9606 MG RESISTOR NRSA63J-104X ---------- 0

R9607 MG RESISTOR NRSA63J-103X ---------- 0

R9608 MG RESISTOR NRSA63J-103X ---------- 0

R9609 MG RESISTOR NRSA63J-821X ---------- 0

R9612 MG RESISTOR NRSA63J-104X ---------- 0

R9613 MG RESISTOR NRSA63J-472X ---------- 0

1-22 (No.MB598)

Item Parts name

R9614 MG RESISTOR NRSA63J-104X ---------- 0

R9631 MG RESISTOR NRSA63J-472X ---------- 0

R9632 MG RESISTOR NRSA63J-472X ---------- 0

R9635 MG RESISTOR NRSA63J-104X ---------- 0

R9636 MG RESISTOR NRSA63J-104X ---------- 0

R9637 MG RESISTOR NRSA63J-563X ---------- 0

R9700 MG RESISTOR ---------- NRSA63J-221X 1

R9701 MG RESISTOR ---------- NRSA63J-183X 1

R9702 MG RESISTOR ---------- NRSA63J-183X 1

R9703 MG RESISTOR ---------- NRSA63J-473X 1

R9704 MG RESISTOR ---------- NRSA63J-473X 1

R9705 MG RESISTOR ---------- NRSA63J-823X 1

R9706 MG RESISTOR ---------- NRSA63J-823X 1

VR961 V RESISTOR QVQ0320-B54 ---------- 0

L9501 COIL QQR0621-001Z ---------- 0

L9502 COIL QQR0621-001Z ---------- 0

J962 JACK QNS0231-001 QNS0276-001 1

J980 JACK QNS0231-001 QNS0276-001 1

K9898 FERRITE BEADS NQR0505-001X NQR0627-004X 1

TW961 S.WIRE ---------- QUB220-05DMHP-E 1

TW962 S.WIRE QUB220-18HPDM-E ---------- 0

MX-DK11UW

Item Parts name

Q9530 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9531 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9532 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9601 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9602 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

C9200 C CAPACITOR NCB31HK-103X ---------- 0

C9631 C CAPACITOR NCB31HK-102X ---------- 0

C9633 C CAPACITOR NCB21HK-473X NCB31CK-473X 1

R9103 MG RESISTOR NRSA63J-102X NRSA63J-562X 1

R9104 MG RESISTOR NRSA63J-0R0X NRSA63J-302X 1

R9105 MG RESISTOR NRSA63J-0R0X NRSA63J-392X 1

R9631 MG RESISTOR NRSA63J-472X ---------- 0

J962 JACK QNS0231-001 QNS0276-001 1

J980 JACK QNS0231-001 QNS0276-001 1

K9898 FERRITE BEADS NQR0505-001X NQR0627-004X 1

TW961 S.WIRE ---------- QUB220-05DMHP-E 1

TW962 S.WIRE QUB220-18HPDM-E QUB220-05DMHP-E 1

Parts number

MX-DK1US MX-DK11A

Parts number Q'ty

MX-DK1US MX-DK11UW

Q'ty

(No.MB598)1-23

MX-DK11UX/UG/UN

Item Parts name

Q9530 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9531 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9532 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9601 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

Q9602 TRANSISTOR KTC3875/YG/-X 2SC3928A/QR/-X 1

C9200 C CAPACITOR NCB31HK-103X ---------- 0

C9631 C CAPACITOR NCB31HK-102X ---------- 0

C9633 C CAPACITOR NCB21HK-473X NCB31CK-473X 1

R9104 MG RESISTOR NRSA63J-0R0X NRSA63J-122X 1

R9105 MG RESISTOR NRSA63J-0R0X NRSA63J-152X 1

R9631 MG RESISTOR NRSA63J-472X ---------- 0

J962 JACK QNS0231-001 QNS0276-001 1

J980 JACK QNS0231-001 QNS0276-001 1

K9898 FERRITE BEADS NQR0505-001X NQR0627-004X 1

TW961 S.WIRE ---------- QUB220-05DMHP-E 1

TW962 S.WIRE QUB220-18HPDM-E QUB220-05DMHP-E 1

TW962 S.WIRE QUB220-18HPDM-E ---------- 0

Parts number

MX-DK1US MX-DK11UX/UG/UN

Q'ty

MX-DK11UY

Item Parts name

IC950 ECHO IC PT2399-S-W ---------- 0

IC960 IC KIA4558F-X ---------- 0

IC970 IC ---------- KIA4558F-X 1

Q9530 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9531 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9532 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9601 TRANSISTOR KTC3875/YG/-X ---------- 0

Q9602 TRANSISTOR KTC3875/YG/-X ---------- 0

D9601 Z DIODE 1SS133-T2 ---------- 0

D9602 Z DIODE 1SS133-T2 ---------- 0

D9651 Z DIODE ---------- MA111-X 1

D9652 Z DIODE ---------- MA111-X 1

D9653 Z DIODE UDZW2.4B-X ---------- 0

D9500 Z DIODE MTZJ5.1B-T2 ---------- 0

D9521 Z DIODE MTZJ3.9B-T2 ---------- 0

D9522 Z DIODE MTZJ3.9B-T2 ---------- 0

D9523 Z DIODE MTZJ3.9B-T2 ---------- 0

C9200 C CAPACITOR NCB31HK-103X ---------- 0

C9500 E CAPACITOR QEKC1CM-107Z ---------- 0

C9501 E CAPACITOR QEKC1CM-476Z ---------- 0

C9502 C CAPACITOR NCB31CK-104X ---------- 0

C9503 C CAPACITOR NCB31CK-104X ---------- 0

C9504 C CAPACITOR NCB31CK-823X ---------- 0

C9505 C CAPACITOR NCB31CK-823X ---------- 0

C9506 C CAPACITOR NCB31HK-103X ---------- 0

C9507 C CAPACITOR NCB31HK-561X ---------- 0

Parts number

MX-DK1US MX-DK11UY

Q'ty

1-24 (No.MB598)

Item Parts name

MX-DK1US MX-DK11UY

Parts number

Q'ty

C9508 C CAPACITOR NCB31HK-332X ---------- 0

C9509 E CAPACITOR QEKC1CM-106Z ---------- 0

C9510 E CAPACITOR QEKC1CM-106Z ---------- 0

C9511 E CAPACITOR QEKC1HM-475Z ---------- 0

C9512 C CAPACITOR NCB31HK-561X ---------- 0

C9513 C CAPACITOR NCB31HK-392X ---------- 0

C9600 E CAPACITOR QEKC1AM-107Z ---------- 0

C9601 E CAPACITOR QEKC1HM-224Z ---------- 0

C9602 E CAPACITOR QEKC1HM-104Z ---------- 0

C9603 C CAPACITOR NCB31HK-104X ---------- 0

C9604 C CAPACITOR NCB31HK-681X ---------- 0

C9605 C CAPACITOR NDC31HJ-151X ---------- 0

C9606 E CAPACITOR QEKC1CM-336Z ---------- 0

C9607 E CAPACITOR QEKC1HM-335Z ---------- 0

C9608 E CAPACITOR QEKC1AM-107Z ---------- 0

C9631 C CAPACITOR NCB31HK-102X ---------- 0

C9632 C CAPACITOR NCB31HK-102X ---------- 0

C9651 C CAPACITOR ---------- NCB31HK-222X 1

C9633 C CAPACITOR NCB21HK-473X ---------- 0

C9634 E CAPACITOR QEKC1HM-104Z ---------- 0

C9635 C CAPACITOR NCB31HK-391X ---------- 0

C9636 C CAPACITOR NCB31HK-391X ---------- 0

C9637 C CAPACITOR NCB31HK-471X ---------- 0

C9700 E CAPACITOR ---------- QEKC1AM-107Z 1

C9701 E CAPACITOR ---------- QEKC1HM-475Z 1

C9702 E CAPACITOR ---------- QEKC1HM-475Z 1

R9103 MG RESISTOR NRSA63J-102X NRSA63J-472X 1

R9104 MG RESISTOR NRSA63J-0R0X NRSA63J-122X 1

R9501 MG RESISTOR NRSA63J-912X ---------- 0

R9502 MG RESISTOR NRSA63J-103X ---------- 0

R9503 MG RESISTOR NRSA63J-103X ---------- 0

R9504 MG RESISTOR NRSA63J-153X ---------- 0

R9505 MG RESISTOR NRSA63J-562X ---------- 0

R9506 MG RESISTOR NRSA63J-512X ---------- 0

R9507 MG RESISTOR NRSA63J-103X ---------- 0

R9508 MG RESISTOR NRSA63J-183X ---------- 0

R9509 MG RESISTOR NRSA63J-103X ---------- 0

R9510 MG RESISTOR NRSA63J-183X ---------- 0

R9521 MG RESISTOR NRSA63J-223X ---------- 0

R9522 MG RESISTOR NRSA63J-223X ---------- 0

R9523 MG RESISTOR NRSA63J-223X ---------- 0

R9531 MG RESISTOR NRSA63J-682X ---------- 0

R9532 MG RESISTOR NRSA63J-203X ---------- 0

R9540 MG RESISTOR NRSA63J-102X ---------- 0

R9530 MG RESISTOR NRSA63J-104X ---------- 0

R9600 MG RESISTOR NRSA63J-221X ---------- 0

R9601 MG RESISTOR NRSA63J-104X ---------- 0

(No.MB598)1-25

Item Parts name

MX-DK1US MX-DK11UY

Parts number

Q'ty

R9602 MG RESISTOR NRSA63J-102X ---------- 0

R9603 MG RESISTOR NRSA63J-222X ---------- 0

R9604 MG RESISTOR NRSA63J-124X ---------- 0

R9605 MG RESISTOR NRSA63J-473X ---------- 0

R9606 MG RESISTOR NRSA63J-104X ---------- 0

R9607 MG RESISTOR NRSA63J-103X ---------- 0

R9608 MG RESISTOR NRSA63J-103X ---------- 0

R9609 MG RESISTOR NRSA63J-821X ---------- 0

R9612 MG RESISTOR NRSA63J-104X ---------- 0

R9613 MG RESISTOR NRSA63J-472X ---------- 0

R9614 MG RESISTOR NRSA63J-104X ---------- 0

R9631 MG RESISTOR NRSA63J-472X ---------- 0

R9632 MG RESISTOR NRSA63J-472X ---------- 0

R9635 MG RESISTOR NRSA63J-104X ---------- 0

R9636 MG RESISTOR NRSA63J-104X ---------- 0

R9637 MG RESISTOR NRSA63J-563X ---------- 0

R9700 MG RESISTOR ---------- NRSA63J-221X 1

R9701 MG RESISTOR ---------- NRSA63J-183X 1

R9702 MG RESISTOR ---------- NRSA63J-183X 1

R9703 MG RESISTOR ---------- NRSA63J-473X 1

R9704 MG RESISTOR ---------- NRSA63J-473X 1

R9705 MG RESISTOR ---------- NRSA63J-823X 1

R9706 MG RESISTOR ---------- NRSA63J-823X 1

VR961 V RESISTOR QVQ0320-B54 ---------- 0

L9501 COIL QQR0621-001Z ---------- 0

L9502 COIL QQR0621-001Z ---------- 0

J962 JACK QNS0231-001 QNS0276-001 1

J980 JACK QNS0231-001 QNS0276-001 1

K9898 FERRITE BEADS NQR0505-001X NQR0627-004X 1

TW961 S.WIRE ---------- QUB220-05DMHP-E 1

TW962 S.WIRE QUB220-18HPDM-E ---------- 0

1-26 (No.MB598)

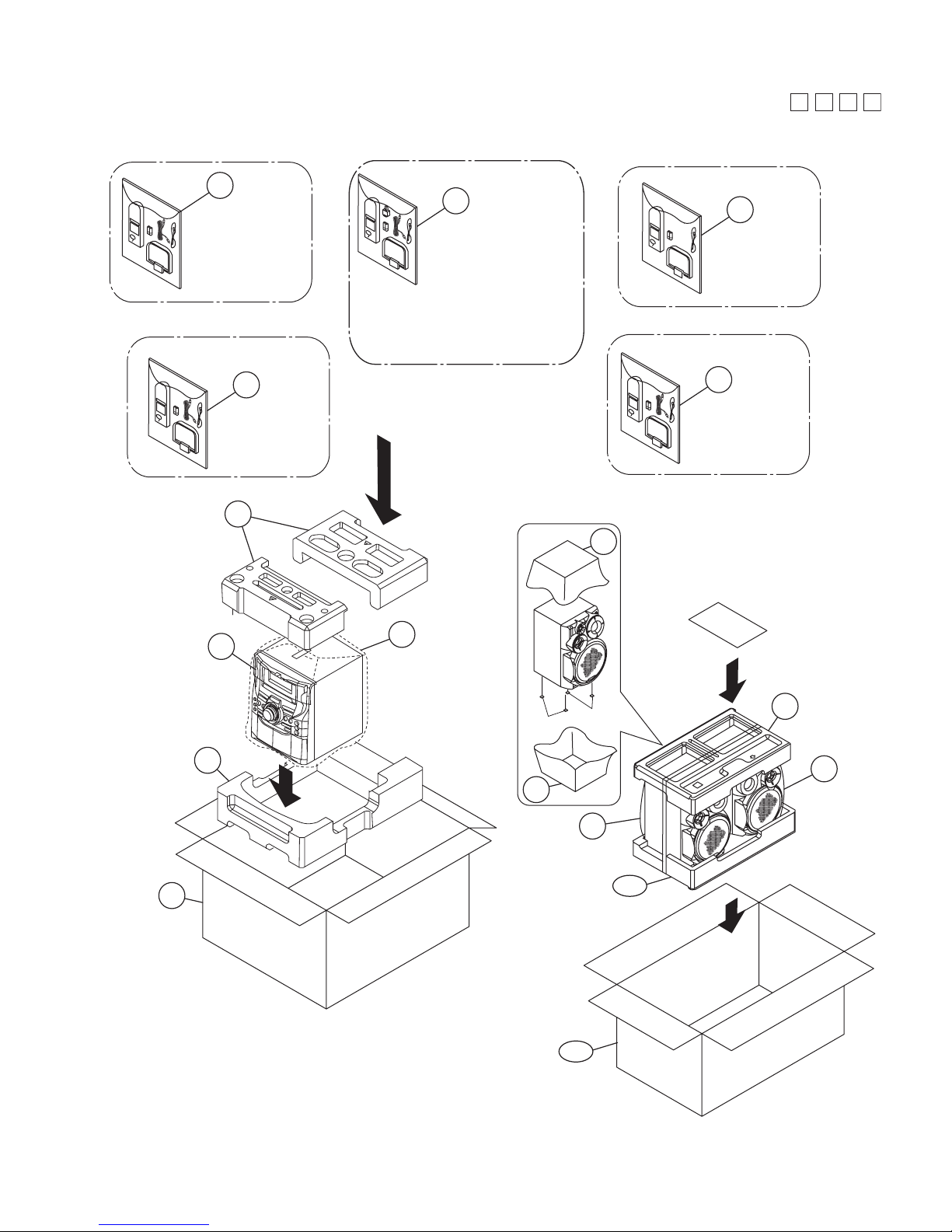

Packing materials and accessories parts list

Block No.

(MX-DK11A,MX-DK11UW,MX-DK11UX,MX-DK11UY, MX-DK11UG,MX-DK11UN)

M

5

M

M

P2

A1,
A5,
A9,

A15,

A2,

A5,

A9,

only A

A3,
A6,
A10,

A16,

only UY

P2

A3,
A6,

A10,

P4

A4,

A8,

A4,

A8,

UW,UN

P2

A1,

A2(only UW),

A3,A4, A5,

A8,

A7,

A9,

A6,

A10,

A11(only UN),
A13(only UW),
A14(only UN),

P7

A1,
A5,

A10, A12,

P2

A3,

A1,

A5,

A6,

A9,

A10,

only UX

P2

A3,A4,

A9,

A6,

only UG

A4,
A8,

A12,

A20

P1

P3

P6

P5

A19

P7

A19

P9

P8
A17

P8

A18

P10

P11

(No.MB598)1-27

Packing and Accessories [Block No.M5MM]

Symbol Parts number Parts name Description

A 1 GVT0205-001A INST BOOK ENG A,UW,UX,UG,UN

A 2 GVT0205-004A INST BOOK SPA UY,UW

A 3 GVT0186-001A NOTICE SHEET

A 4 GVT0187-001A NOTICE SHEET

A 5 QAL0014-003 AM LOOP ANT

A 6 QAL0457-001 ANT.WIRE

A 7 QAL0112-002 AC PLUG UW,UN

A 8 QAM0944-001 SIGNAL CORD A,UW,UY,UG,UN

A 9 RM-SMXDK1A REMOCON A,UY

A 9 RM-SMXDK1U REMOCON UW,UX,UG,UN

A10 ---------- BATTERY ×2

A11 GVT0205-002B INST BOOK ENG INA UN

A12 GVT0205-003A INST BOOK ARA,PER UX,UG

A13 GVT0205-005A INST BOOK POR UW

A14 GVT0185-001A NOTICE SHEET UN

A15 BT-56016-1 WARRANTY CARD A

A16 BT-56017-1 WARRANTY CARD A

A17 MXDK11U-SPBOX-R SPK WITH BOX-R

A18 MXDK11U-SPBOX-L SPK WITH BOX-L

A19 441-802104-00 LEG CUSHION ×8

A20 GVT0211-001A INST BOOK ENG,PER,ARA,CHI(PEKIN) UX,UN,UG

A20 GVT0211-002A INST BOOK ENG,SPA,POR A,UW,UY

P 1 GV20463-001A CARTON ASSY UW,UN

P 1 GV20463-002A CARTON ASSY A,UY

P 1 GV20463-003A CARTON ASSY UX,UG

P 2 QPC02503515PB POLYBAG

P 3 GV10376-001A CUSHION BOTTOM

P 4 GV10375-001A CUSHION TOP

P 5 QPC06507030PB POLYBAG

P 6 GV40437-003A CLOTH

P 7 715-250035-00 MIRAMAT SHEET ×2
P 8 700-120112-10 HDPE BAG ×2

P 9 720-XDK5FT-00 TOP CUSHION

P 10 720-XDK5FB-00 BOTTOM CUSHION

P 11 730-DK11UN-10 PACKING CASE A,UN,UW,UY

P 11 730-DK11UG-10 PACKING CASE UX,UG

1-28 (No.MB598)

SECTION 3

DISASSEMBLY

Please refer to "MX-DK1US (No.MB515

SECTION 4

ADJUSTMENT

Please refer to "MX-DK1US (No.MB515

SECTION 5

TROUBLESHOOTING

)" about this section.

)" about this section.

Please refer to "MX-DK1US (No.MB515

)" about this section.

(No.MB598)1-29

Victor company of Japan, Limited
Audio/Video Systems category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken, 371-8543,Japan

(No.MB598)

Printed in Japan

VPT
