JVC Model SR-TS1U Instructions Manual
SR-TS1U
VIDEO CASSETTE RECORDER
INSTRUCTIONS
LPT0284-001A
For Customer Use:
Enter below the Model No. and
Serial No. which are located on the
rear of cabinet. Retain this
information for future reference.
Model No.
Serial No.
T
V
C
H
+
T
V
V
O
L
–
T
V
C
H
–
T
V
V
O
L
+
TV
CANCEL
TIMER
START STOP DATE
PLAY
R
E
W
R
E
C
STOP
SHUTTLE
PLUS
P
A
U
S
E
F
F
MENU
O
K
CH
POWER
TV/VCR
C.RESET
DBS
DAILY(M-F)
AUX
WEEKLY
PROG
CHECK
PROG SP/EP SKIP SEARCH
DISPLAY
ENTER/OSD
CABLE/
DBS
123
456
7
89
0
2
4
1
3
EXPRESS PROGRAMMING
MULTI BRAND
REMOTE CONTROL UNIT
MBRSET
A/B
JOG
SHUTTLE
VIDEO (MONO)L—AUDIO—R
PLAY
FF
REW
MENU
OK
CH
S-VHS ET
REC LINK
SP/EP
TV/VCR
PAUSE
REC
POWER
SP EP
VCR
2 EN
Dear Customer,
Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions
contained in the following pages to ensure safe use of your new VCR.
CAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC
120V`, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use
any other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU'AU FOND.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
CAUTION:
Changes or modifications not approved by JVC could void
user's authority to operate the equipment.
䡲 Cassettes marked "S-VHS" and "VHS" can be used with this
video cassette recorder. However, S-VHS recordings are
possible only with cassettes marked "S-VHS".
By using S-VHS ET it is possible to record and play back with
S-VHS picture quality on VHS cassettes with this VCR.
䡲 As an ENERGY STAR® Partner, JVC has determined that this
product or product model meets the ENERGY STAR® guidelines
for energy efficiency.
VCR Plus+ C3 and PlusCode are registered trademarks of Gemstar
Development Corporation.
The VCR Plus+ system is manufactured under license from
Gemstar Development Corporation.
DSS
TM
is an official trademark of DIRECTV, Inc., a unit of GM
Hughes Electronics. PRIMESTAR is a registered service mark of
Primestar Partners, L.P. DISH Network
TM
is a trademark of
Echostar Communications Corporation.
MOVIE ADVANCETM is a trademark of SRT, Inc. A Jerry Iggulden
invention licensed in association with Arthur D. Little Enterprises, Inc.
Warning on lithium battery
The battery used in this device may present a fire or
chemical burn hazard if mistreated. Do not recharge,
disassemble, heat above 100°C or incinerate.
Replace battery with Panasonic (Matsushita Electric),
Sanyo, Sony or Maxell CR2025; use of another battery may
present a risk of fire or explosion.
䡲 Dispose of used battery promptly.
䡲 Keep away from children.
䡲 Do not disassemble and do not dispose of in fire.
EN 3
IMPORTANT PRODUCT
SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But
improper use can result in potential electrical shock or fire
hazards. This product has been engineered and manufactured
to assure your personal safety. In order not to defeat the built-in
safeguards, observe the following basic rules for its installation,
use and servicing.
ATTENTION:
Follow and obey all warnings and instructions marked on your
product and its operating instructions. For your safety, please
read all the safety and operating instructions before you operate
this product and keep this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way.
This is a safety feature.
If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety
feature.
If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your product dealer or
local power company. If your product is intended to operate
from battery power, or other sources, refer to the operating
instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or
covered.
• Do not block the openings by placing the product on a bed,
sofa, rug or other similar surface.
• Do not place the product in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
ELECTRIC SERVICE
EQUIPMENT
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
GROUND CLAMP
ANTENNA INSTALLATION
INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as
to provide some protection against voltage surges and built-up
static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding
electrode.
2. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna
or cable system. This will prevent damage to the product due to
lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as
contact with them might be fatal.
4 EN
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked
change in performance and you are unable to restore normal
operation by following the detailed procedure in its operating
instructions, do not attempt to service it yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a.When the power supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the
product.
c.If the product has been exposed to rain or water.
d.If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation.
e.If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask
the service technician to perform safety checks to determine
that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION
MANUAL
● All major sections and subsections are listed in the Table Of
Contents on page 5. Use this when searching for information
on a specific procedure or feature.
● The Index on pages 64–67 lists frequently-used terms, and
the number of the page on which they are used or explained
in the manual. This section also illustrates the controls and
connections on the front and rear panel, the front display
panel and the remote control.
● The 墌 mark signals a reference to another page for
instructions or related information.
● Operation buttons necessary for the various procedures are
clearly indicated through the use of illustrations at the
beginning of each major section.
BEFORE YOU INSTALL YOUR NEW
VCR . . .
. . . please read the sections/literature listed below.
● ”Cautions” on page 2
● ”Important Products Safety Instructions” on the previous pages
USE
1. Accessories
To avoid personal injury:
• Do not place this product on an unstable cart, stand, tripod,
bracket, or table. It may fall, causing serious injury to a child
or adult, and serious damage to the product.
• Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the product.
• Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s instructions for
any mounting of the product.
• Do not try to roll a cart with small casters across thresholds or
deep-pile carpets.
2. Product and Cart Combination
A product and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the product and
cart combination to overturn.
3. Water and Moisture
Do not use this product near water—for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement,
or near a swimming pool and the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer
of this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
7. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
PORTABLE CART WARNING
(Symbol provided by RETAC)
EN 5
CONTENTS
Recording Features ..................................... 38
Record One Program While Watching Another .......38
Display Elapsed Recording Time..............................38
Display Tape Remaining Time .................................38
Record Safety...........................................................39
S-VHS (Super VHS), S-VHS ET and VHS .................. 40
Super VHS ET ..........................................................41
Stereo And SAP (Second Audio Program) .................42
To Record SAP Programs..........................................42
T
IMER RECORDING 43
VCR Plus+ Timer Programming ................... 43
VCR Plus+ Setup ......................................... 45
Express Timer Programming ....................... 47
Check, Cancel And Revise Programs ....................... 49
Auto SP→EP Timer ..................................................50
Auto Timer............................................................... 50
Instant Timer Recording (ITR)....................... 51
Automatic Satellite Program Recording ....... 52
E
DITING 53
Edit To Or From Another VCR ...................... 53
Edit From A Camcorder ............................... 54
S
PECIAL FEATURES 56
TV Multi-Brand Remote Control .............................. 56
Cable Box Multi-Brand Remote Control ...................57
DBS Receiver Multi-Brand Remote Control..............58
Child Lock ...............................................................59
Control Two JVC VCRs ............................................ 59
T
ROUBLESHOOTING 60
Power ........................................................ 60
Tape Transport............................................ 60
Playback .................................................... 60
Recording ...................................................60
Timer Recording.......................................... 61
Other Problems .......................................... 62
Q
UESTIONS AND ANSWERS 63
Playback .................................................... 63
Recording ...................................................63
Timer Recording.......................................... 63
I
NDEX 64
List Of Terms............................................... 64
Front View .................................................. 65
Rear View .................................................. 66
Front Display Panel..................................... 66
Remote Control ........................................... 67
S
PECIFICATIONS 68
F
OR SERVICING (Only in U.S.A.) 69
W
ARRANTY (Only in U.S.A.) 70
I
NSTALLING YOUR NEW VCR 6
Connections ........................................... 6
Basic Connections .....................................................6
S-Video Connection...................................................7
I
NITIAL SETTINGS 8
Plug & Play .................................................. 8
Clock .......................................................... 10
Preparation ..............................................................10
Semi-Auto................................................................11
Manual ....................................................................12
Tuner .......................................................... 13
Set Receivable Channels ..........................................13
Add Or Delete A Channel........................................14
Cable Box Control ....................................... 15
Situate And Connect Controller ............................... 15
Set Cable Box Output Channel &
Cable Box Brand......................................................16
DBS Receiver Control................................... 18
Situate And Connect Controller ............................... 18
Set DBS Receiver Output Channel &
DBS Receiver Brand ................................................ 19
S
IMPLE PLAYBACK AND
RECORDING 21
Simple Playback ......................................... 21
Simple Recording ........................................ 22
P
LAYBACK AND RECORDING
FEATURES 23
Playback Features ...................................... 23
Still Picture/Frame-By-Frame Playback.....................23
Slow Motion/Reverse Slow Motion ..........................23
Variable-Speed Search/Reverse Motion Playback ..... 24
Skip Search ..............................................................24
Index Search ............................................................24
High-Speed Search ..................................................24
Manual Tracking ...................................................... 24
Picture Control ........................................................ 25
Select The Soundtrack ............................................. 26
Video Stabilizer .......................................................27
Instant ReView.........................................................28
Returning Position ................................................... 28
Tape Position Indicator ............................................29
Repeat Playback ......................................................29
Counter Reset ..........................................................29
Next-Function Memory............................................29
Superimpose ............................................................30
Movie Advance ....................................................... 31
Series Playback ........................................................32
Series Recording ......................................................34
Active Video Calibration ............................. 36
Preparation ..............................................................36
Playback ..................................................................37
Recording ................................................................37
6 EN
ANTENNA IN
TV OUT
CABLE
BOX
IN OUT
S VIDEO
VHF/UHF
(MONO)
IN OUT
AUDIO
VIDEO
CH3
CH4
L
R
REMOTE
INSTALLING YOUR NEW VCR
CHECK CONTENTS
1
Make sure the package contains all of the accessories
listed in “SPECIFICATIONS” (墌 pg. 68).
SITUATE VCR
2
Place the VCR on a stable, horizontal surface.
CONNECT VCR TO TV
3
The connection method you use depends on the type of
TV you have.
RF Connection
●
To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV antenna from the TV.
b– Connect the TV antenna cable to the ANTENNA
IN jack on the rear of the VCR.
c– Connect the supplied RF cable between the TV
OUT jack on the rear of the VCR and the TV’s
antenna terminal. Set TV on CH3 or CH4
corresponding to the CH3 – CH4 switch setting on
the back of the VCR.
AV Connection
●
To Connect To A TV With AV Input Terminals . . .
a– Connect the antenna, VCR and TV as shown in
the illustration.
b– Connect an Audio/Video Cable between the AUDIO
OUT and VIDEO OUT jacks on the rear of the VCR
and the AV IN jacks on the TV. Set your TV in video
input mode or A/V input mode. Refer to the TV
Instruction Manual.
S-VIDEO Connection
●
If you have a TV with S-VIDEO input terminals, see
"S-VIDEO Connection" on page 7.
CONNECT VCR TO
POWER SOURCE
4
Connect the power plug to an AC outlet.
● The clock and tuner channels will automatically be
set when the antenna is connected and when the AC
is first connected to the VCR (墌 pg. 8).
(If "Auto" or "CH" is displayed on the front display
panel before the VCR is powered on, the clock and
tuner channels are being set automatically. Wait for
the time to be displayed on the front display panel
before powering on the VCR.)
FINAL PREPARATION FOR
USE
5
Power on the VCR and if you have connected the VCR
to the TV using the RF connector, select the VCR
channel (3 or 4) by setting the switch on the rear of the
VCR as shown in the illustration.
You can now perform simple playback (墌 pg. 22) or
simple recording (墌 pg. 23).
NOTES:
●
The VCR channel is the channel on the TV which will display
the audio and video signals from the VCR. The VCR's CH3CH4 switch, on the back of the VCR, sets the VCR channel to
CH3 or CH4.
●
The CH3–CH4 switch is preset to the CH3 position.
Set to CH4 if CH3 is used for broadcasting in your area and
set the channel on the TV to correspond to the VCR's CH3–
CH4 switch setting.
●
If you have connected the VCR to the TV using the RF connector,
you may need to press CH UP and then CH DOWN on the TV
when switching between the TV and VCR input modes, to
maintain good picture quality.
●
Even if you are using AV cables to connect your VCR to your
TV, you must also connect it using the RF cable. This will
ensure that you can record one show while watching another
(墌 pg. 38).
●
For full identification of the VCR's rear panel, refer to the
Index (REAR VIEW 墌 pg. 66).
Connections
Antenna or Cable
Flat Feeder
Coaxial Cable
AC Power Cord
Back of VCR
AC Outlet
75 ohm terminal
TV
Matching
Transformer
(Not supplied)
TV OUT
Audio/Video
Cable (supplied)
RF Cable
(supplied)
CH3
CH4
E
Back of VCR
ANTENNA IN
(Antenna or Cable input)
Basic Connections
AUDIO
OUT
VIDEO
OUT
EN 7
(MONO)
IN OUT
AUDIO
VIDEO
CH3
CH4
ANTENNA IN
TV OUT
CABLE
BOX
IN OUT
S VIDEO
L
R
VHF/UHF
REMOTE
RF Cable (supplied)
Matching
Transformer
(not supplied)
AC Power
Cord
Audio/Video
Cable
(supplied)
TV
Back of VCR
To Antenna Input
To AC Outlet
Antenna or Cable
Flat Feeder
Coaxial Cable
NOTES:
●
To make the most of the Super VHS picture performance we
recommend that you use the supplied S-VIDEO cable to
connect your VCR to a TV with an S-VIDEO input connector.
●
To operate the VCR with your TV using the S-VIDEO connection, set your TV to the AV mode using the TV's remote
control.
You can also use the TV/VCR button on the VCR's remote
control to set your TV to the AV mode. (墌 pg. 56)
S-VIDEO Connection
CONNECT VCR TO TV
a– Connect both the RF cable and the AV cables to the TV as
explained in step 3 of "Basic Connections" (墌 pg. 6).
b– Connect the S-Video cable between the S-VIDEO OUT
jack on the rear of the VCR and the S-Video Input on the
TV.
S-Video Cable
(supplied)
To S Video Input
Connector
Connect the power plug to an
AC outlet
before installing the
lithium battery. (See below)
Installing/Removing the lithium battery
1
Make sure that the power plug is connected to an AC outlet
and turn off the VCR.
2 Open the battery cover while pressing the release tab as
illustrated.
3 Insert a lithium battery with the plus (+) side up and push it
in.
● To remove the lithium battery, press the latch A down-
ward using a pointed non-metallic object, then pull out
the lithium battery.
4 Close the battery cover until it clicks in place.
Be sure to connect the power plug to an AC outlet first
before installing the lithium battery; otherwise, the
battery's service life will be drastically shortened.
A
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
To ANTENNA IN
To TV OUT
To AUDIO/
VIDEO OUT
To S VIDEO OUT
To Audio/Video Input
8 EN
INITIAL SETTINGS
Plug & Play
The Plug & Play function sets the clock and tuner channels
automatically when power is first connected to the VCR. The
antenna cable must be connected for the Plug & Play function.
The time and date can be set automatically from clock setting
data that is transmitted by one of the regular TV broadcast
channels. We call this TV channel the “Host Channel” and it is
a PBS channel in your area.
PLUG & PLAY SETUP
1
Connect the antenna cable to the VCR (墌 pg. 6). Then
connect the VCR’s power plug to an AC outlet. Do not
power on the VCR. The clock and tuner channels will
be set automatically.
NOTES:
●
Auto clock set is performed first. The auto clock set
function scans all the channels received by your VCR
to find the Host Channel and then sets the clock.
"Auto" blinks on the front display panel during Auto
clock set.
●
Auto channel set is performed next. The auto channel
set function scans all the channels that are receivable
by your VCR. It then automatically assigns each
receivable channels to the CH
5
∞
(+/–) buttons. It
skips non-receivable channels. During auto channel
set the channel numbers are displayed as they are
scanned and set.
●
When Plug & Play has been completed successfully the
correct time is displayed.
●
If an incorrect time or "– –:– –" appears on the display
panel, see "What To Do If Plug & Play Has Failed" on
next page.
ATTENTION
If you use a cable box, Plug & Play will not function; set
the clock and tuner channels manually. (墌 pg.10 – 14)
Auto Clock Set/Auto Tuner Set
IMPORTANT
● Don’t press any buttons on the VCR or remote while Plug
& Play is in progress.
● If you perform Plug & Play successfully, there’s no need to
perform the Clock (墌 pg. 10) and Tuner (墌 pg. 13) set
procedures. If, however, you want to add or delete
channels, refer to “Add Or Delete A Channel” on page 14.
JOG
SHATTLE
During Initial Auto Clock Set
"Auto" blinks.
During Auto Channel Set
The channel numbers are displayed
as they are scanned and set.
* If an incorrect time or "– –:– –" appears on the display panel, see "What To Do If Plug & Play Has Failed" on next page.
Plug & Play Completed
The current time (including
AM/PM) is displayed.
EN 9
INFORMATION
● If "AUTO CLOCK" is set to "ON" at the Clock Set screen on page 11, the clock will be adjusted automatically by the host
channel every hour on the hour (except for 11:00 PM, midnight, 1:00 AM and 2:00 AM) by the incoming PBS channel clock
setting data. (This automatic clock adjustment can only be performed when the VCR’s power is turned off. The clock will be
adjusted on the hour based on the time displayed on the VCR, not on the actual real time.) The default setting of "AUTO
CLOCK" is "ON".
● If the memory backup fails, because of a power outage or because the AC was removed from the VCR, Plug & Play will be
performed when power is restored to the VCR.
What To Do If Plug & Play Has Failed
● If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from
an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semi-Auto (墌 pg. 11) or
Manual Clock Set (墌 pg. 12) procedure. Auto channel set has already taken place and it need not be set again.
● If “- -:- -” appears on the display, your antenna cable may not be connected to the VCR or there may not be a Host PBS signal
available in your area. Ensure that the antenna cable is connected correctly. Then power on and power off the VCR; the Plug &
Play function will be automatically reactivated and "Auto" will be displayed on the VCR's front panel. If Plug & Play is not
performed but the antenna cable is connected correctly, perform the Manual Clock Set procedure (墌 pg. 12). Auto channel
set has not yet taken place, so please also perform the “Set Receivable Channels” procedure (墌 pg. 13).
Last-Function Memory
When the AC is removed from the VCR or when the power failure occurs, your settings for the following functions are kept in
memory. These settings will resume when the VCR is turned on again.
a- Input Selection (channel or auxiliary input; L-1 or F-1)
b- Returning Position (墌 pg. 28)
c- Superimpose (墌 pg. 30)
d- Recording Safety Mode (墌 pg. 39)
10 EN
INITIAL SETTINGS (cont.)
JOG
SHATTLE
Clock
Perform clock setting only if the clock has not been set correctly
by the Plug & Play function or you use a cable box. Access the
Clock Set screen to perform the Semi-Auto or Manual clock
setting procedure. Each procedure starts from step 5.
If you use a cable box, set the clock manually. (墌 pg. 12)
Turn on the TV and select the VCR channel 3 or 4 (or AV
mode).
Preparation
TURN ON THE VCR
1
Press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU.
ACCESS INITIAL SET
SCREEN
3
At the Main Menu screen,
move the highlight bar
(arrow) to “INITIAL SET”
by pressing CH5∞ or
SHUTTLE PLUS %fi, then
press OK or SHUTTLE
PLUS #.
ACCESS CLOCK SET
SCREEN
4
Move the highlight bar
(arrow) at the Initial Set
screen to “CLOCK SET” by
pressing SHUTTLE PLUS
%
fi
, then press OK or
SHUTTLE PLUS #.
● "CABLE BOX USERS SET
CLOCK MANUALLY"
appears on the screen for about 5 seconds, then the
Clock Set screen appears.
MAIN MENU
FUNCTION SET 1
FUNCTION SET 2
TUNER SET
=
INITIAL SET
PRESS (5,∞), THEN (OK)
PRESS (MENU) TO END
INITIAL SET
=
CLOCK SET
GUIDE CHANNEL SET
CABLE BOX SET
DBS RECEIVER SET
SELECT WITH (5,∞) AND (OK)
PRESS (MENU) TO END
POWER
123
456
7
89
0
2
4
1
3
POWER
CH
OK
MENU
MENU
OK
SHUTTLE PLUS
EN 11
Semi-Auto
You can change the Host Channel/D.S.T. /Time Zone setting
manually.
SET AUTO CLOCK TO ON
5
At the Clock Set screen,
press OK or SHUTTLE
PLUS # repeatedly to
move the highlight bar to
"AUTO CLOCK" and press
CH 5∞ or SHUTTLE PLUS
%
fi to set to "ON".
a– To select the Host
Channel — go to step 6
b– To select the D.S.T. mode — go to step 7
c– To select the Time Zone — go to step 8
NOTE:
The time that has been set previously will be erased
when "AUTO CLOCK", "HOST CH", "D.S.T." or "TIME
ZONE" setting is changed.
SELECT HOST CHANNEL
6
You can either select "AUTO" or enter a PBS channel
number. Move the highlight bar to "HOST CH" by
pressing OK or SHUTTLE PLUS #, then press CH 5∞
or SHUTTLE PLUS %fi to set to "AUTO" or the desired
PBS channel number.
NOTE:
There are some PBS channels that do not transmit clock
setting data.
SELECT D.S.T. MODE
7
You have three choices:
a– Select "AUTO" and the adjustment to your VCR's
clock will be made according to the incoming signal
from the host channel.
b– Select "ON" and the adjustment will be made based
on the clock itself.
c– Select "OFF" if Daylight Saving Time does not apply
to you.
Move the highlight bar to "D.S.T." by pressing OK or
SHUTTLE PLUS #, then press CH 5∞ or SHUTTLE
PLUS %fi to select the desired mode.
**AUTO DAYLIGHT SAVING TIME
This function enables automatic adjustment of the VCR’s
clock at the start and end of Daylight Saving Time.
With Auto DST activated, . . .
. . . on the first Sunday of April at 2:00 AM, the clock is
adjusted to 3:00 AM.
. . . on the last Sunday of October at 2:00 AM, the clock is
adjusted to 1:00 AM.
CLOCK SET
TIME DATE YEAR
1:00PM 12/24 99 FRI
AUTO CLOCK : ON
HOST CH : AUTO (CATV)
D.S.T. : AUTO
TIME ZONE : AUTO
PRESS (5,∞), THEN (OK)
PRESS (MENU) TO END
JOG
SHATTLE
123
456
7
89
0
2
4
1
3
CH
OK
MENU
MENU
OK
SHUTTLE PLUS
12 EN
INITIAL SETTINGS (cont.)
SET TIME
5
Press CH 5∞ or SHUTTLE
PLUS %fi until the desired
time appears, then press
OK or SHUTTLE PLUS #.
● Press and hold CH 5
∞
or SHUTTLE PLUS %
fi
to change the time by
30-minute increments.
● When the time is entered manually, "AUTO CLOCK"
will be automatically set to "OFF", and "HOST CH"
and "TIME ZONE" will disappear.
SET DATE
6
Press CH 5∞ or SHUTTLE PLUS %fi until the desired
date appears, then press OK or SHUTTLE PLUS #.
● Press and hold CH 5∞ or SHUTTLE PLUS %fi to
change the date by 15-day increments.
SET YEAR
7
Press CH 5∞ or SHUTTLE PLUS %fi until the desired
year appears, then press OK or SHUTTLE PLUS # twice.
SELECT D.S.T. MODE
8
Press CH 5∞ or SHUTTLE PLUS %fi to select the
desired mode.
a– Set to "ON" so that the adjustment to your VCR's
clock will be made on the clock itself.
b– Set to "OFF" if Daylight Saving Time does not apply
to you.
START CLOCK
9
Press MENU and normal screen appears.
Manual
To Make Corrections
Press OK or SHUTTLE PLUS # until the item you want to
change blinks, then press CH
5
∞
or SHUTTLE PLUS
%
fi
.
SELECT TIME ZONE
8
You can select the time zone automatically or manually.
Move the highlight bar to "TIME ZONE" by pressing OK
or SHUTTLE PLUS #, then press CH 5∞ or SHUTTLE
PLUS %fi to select "AUTO" or the desired time zone.
AUTO ATLANTIC
HAWAII EASTERN
ALASKA CENTRAL
PACIFIC MOUNTAIN
NOTE:
If an incorrect time is displayed by the Plug & Play
function, you may be receiving the clock setting data of
a PBS channel from an adjacent time zone or from an
incorrect PBS channel from a cable TV system. If you
selected "AUTO" for the host channel in step 6, be sure
to select the correct time zone manually.
RETURN TO NORMAL
SCREEN
9
Press MENU.
IMPORTANT
Turn the VCR off after performing the Semi-Auto Clock Set
procedure. "Auto" will appear on the front display panel
when the clock is being set. The current time will appear
automatically when the clock is set.
CLOCK SET
TIME DATE YEAR
– –:– –AM 1/ 1 00
AUTO CLOCK : ON
HOST CH : AUTO (CATV)
D.S.T. : AUTO
TIME ZONE : AUTO
PRESS (5,∞), THEN (OK)
PRESS (MENU) TO END
EN 13
Tuner
Set Receivable Channels
TURN ON THE VCR
1
Press POWER.
ACCESS MAIN MENU
SCREEN
2
Press MENU.
ACCESS TUNER SET SCREEN
3
Move the highlight bar
(arrow) to "TUNER SET" by
pressing CH5∞ or
SHUTTLE PLUS %fi, then
press OK or SHUTTLE
PLUS #.
PERFORM AUTO CHANNEL
SET
4
Move the highlight bar
(arrow) to "AUTO CHANNEL SET" by pressing
CH5∞ or SHUTTLE PLUS
%fi, then press OK or
SHUTTLE PLUS #.
● Receivable channels in
your area are
automatically assigned to
the CH5∞ (+/–) buttons,
and non-receivable
channels are skipped.
NOTES:
●
At the end of Auto
Channel Set, “SCAN
COMPLETED” appears on screen.
●
If the scan was unsuccessful, “SCAN COMPLETED–
NO SIGNAL” appears on screen. Check the
connections and start again.
RETURN TO NORMAL
SCREEN
5
Press MENU.
INFORMATION
The VCR detects the band (TV or CATV) and selects the
correct band automatically during Auto Channel Set.
The selected band will be displayed on the right side of
"BAND" on the Tuner Set screen.
Turn on the TV and select the VCR channel 3 or 4 (or AV
mode).
MAIN MENU
FUNCTION SET 1
FUNCTION SET 2
=
TUNER SET
INITIAL SET
PRESS (5,∞), THEN (OK)
PRESS (MENU) TO END
AUTO CHANNEL SET
SCANNING...
PRESS (MENU) TO END
TUNER SET
BAND CATV
=
AUTO CHANNEL SET
MANUAL CHANNEL SET
SELECT WITH (5,∞) AND (OK)
PRESS (MENU) TO END
JOG
SHATTLE
POWER
123
456
7
89
0
2
4
1
3
POWER
OK
MENU
MENU
OK
SHUTTLE PLUS
CH
CH
14 EN

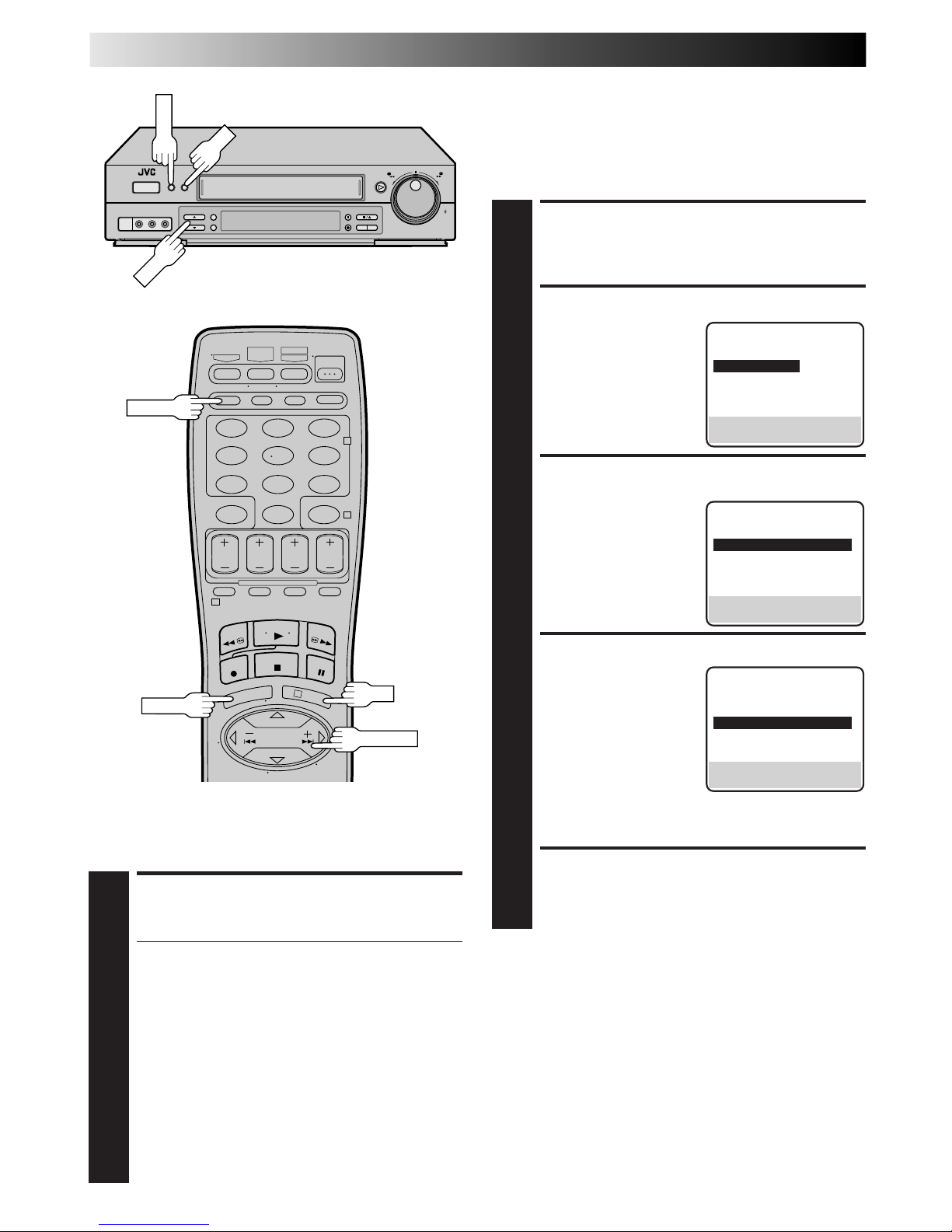

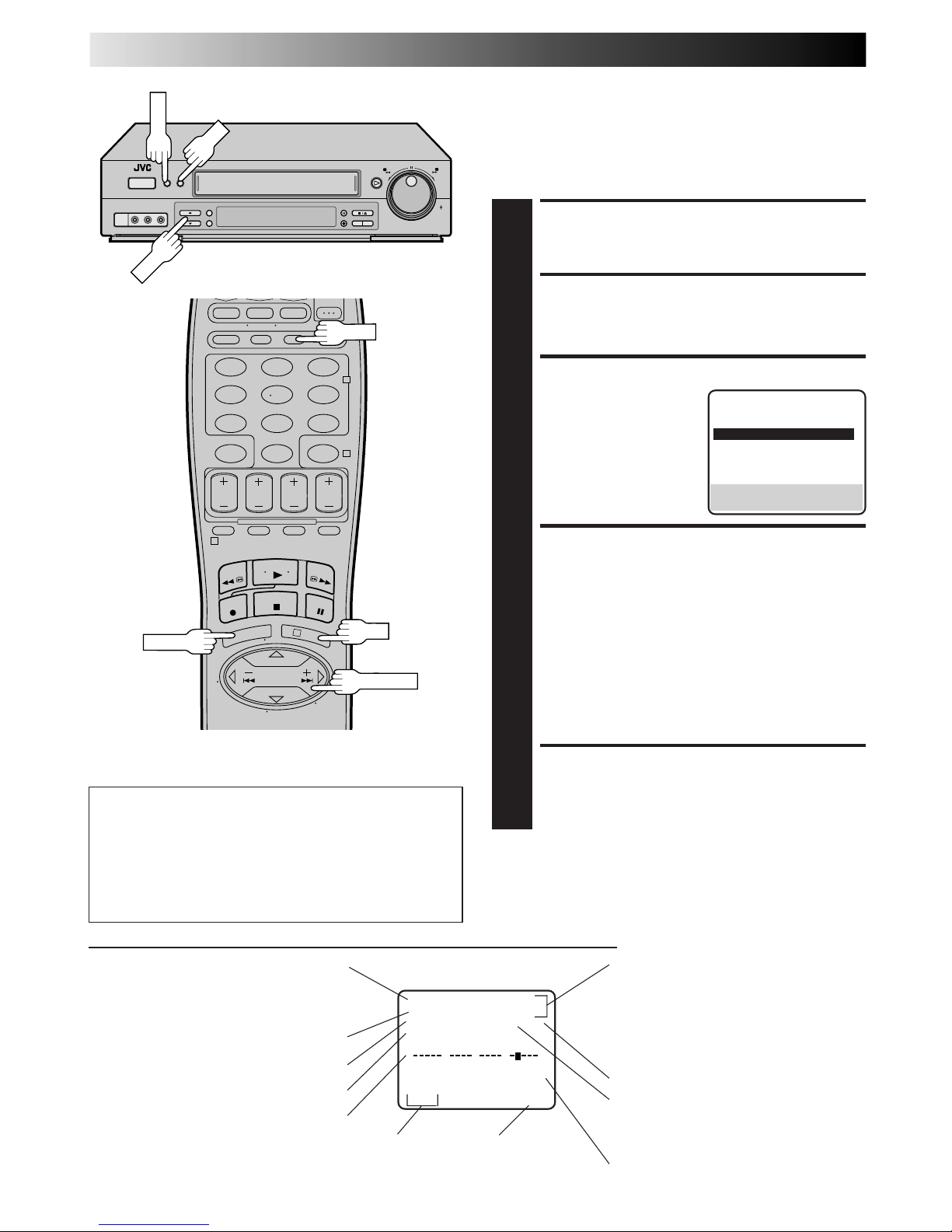

INITIAL SETTINGS (cont.)
Add Or Delete A Channel
ACCESS MAIN MENU
SCREEN
1
Press MENU.
ACCESS TUNER SET SCREEN
2
Move the highlight bar (arrow) to "TUNER SET" by
pressing CH5∞ or SHUTTLE PLUS %fi, then press OK
or SHUTTLE PLUS #.
ACCESS MANUAL
CHANNEL SET SCREEN
3
Move the highlight bar
(arrow) to "MANUAL
CHANNEL SET" by
pressing CH5∞ or
SHUTTLE PLUS %fi, then
press OK or SHUTTLE
PLUS #.
ADD OR SKIP DESIRED
CHANNEL
4
Input the channel number
using the NUMBER keys or
by pressing CH5∞ or
SHUTTLE PLUS %fi, then
press OK or SHUTTLE
PLUS # to set to "SKIP".
Repeat for each channel
you want to skip. Input the
channel number using the NUMBER keys, then press
OK or SHUTTLE PLUS # to set to "ADD" the channel.
RETURN TO NORMAL
SCREEN
5
Press MENU.
TUNER SET
BAND CATV
AUTO CHANNEL SET
=
MANUAL CHANNEL SET
SELECT WITH (5,∞) AND (OK)
PRESS (MENU) TO END
MANUAL CHANNEL SET
(CATV)
CH 45 ADD
PRESS NUMBER KEY (0–9)
OR (5,∞), THEN (OK)
PRESS (MENU) TO END
JOG
SHATTLE
123
456
7
89
0
2
4
1
3
CH
OK
MENU
MENU
OK
SHUTTLE PLUS
NUMBER
EN 15
CABLE
BOX
This procedure is required if you receive your TV channels
through a cable box (descrambler). The Controller allows the
VCR to automatically switch the cable box channel during
timer-recording. The Controller is effective for recording shows
that have been programmed using VCR Plus+ (墌 pg. 43) or
Express Timer Programming (墌 pg. 47).
Cable Box
Control
Situate And Connect
Controller
SITUATE CONTROLLER
1
Place the Controller so that the path between its
transmitter and the cable box’s remote sensor is
unobstructed.
ATTACH CONTROLLER
2
Fasten securely using the supplied adhesive strip.
CONNECT CABLE BOX TO
VCR
3
The connection method depends on the type of cable
box you have.
If your cable box has AUDIO and VIDEO OUT
connectors . . .
. . . connect them to the AUDIO and VIDEO IN
connectors on your VCR. Set the VCR to channel "L-1"
for the rear AUDIO and VIDEO IN connectors, or
channel "F-1" for the front AUDIO and VIDEO IN
connectors to use the cable box.
If your cable box doesn’t have AUDIO and VIDEO
OUT connectors . . .
. . . connect the antenna output connector on the cable
box to the ANTENNA IN connector on the rear of your
VCR.
Set the VCR tuner to the same channel as the cable box
RF output (see page 16 also).
NOTE:
When connecting your cable box refer to its instruction
manual.
CONNECT CONTROLLER
TO VCR
4
Connect to the CABLE BOX connector on your VCR.
Suggested Location
Place the cable box on top of the VCR. Attach the VCR's
Controller to the top of the VCR with the Controller’s transmitter
pointed towards the cable box’s remote sensor.
ATTENTION:
The Controller can also control a DBS receiver. If both a cable
box and a DBS receiver are used, position the controller so its
signal reaches the remote control sensors of both the cable box
and DBS receiver.
About Your Cable Box
This VCR has two separate methods to control your Cable Box.
●
The VCR's Wireless Remote Control Unit can control your
Cable Box.
This eliminates the need for a separate Cable Box Remote
Control Unit.
●
The VCR's Controller can also control your Cable Box.
This allows the VCR to change your Cable Box's channel
number during timer recording.
Each method must be set up separately. To set up the VCR's
Remote Control unit, refer to page 57. To set up the Controller
go to page 16.
Cable box
Cable box
Your VCR
Controller
(suggested
locations)
Controller
Transmitter
Your VCR
Connected to
ANTENNA IN
16 EN
INITIAL SETTINGS (cont.)
Turn on the TV and select the VCR channel 3 or 4 (or AV
mode).
Set Cable Box Output
Channel & Cable Box Brand
TURN ON CABLE BOX
1
Select a channel other than channel 9 on your cable
box.
TURN ON THE VCR
2
Press POWER.
ACCESS MAIN MENU
SCREEN
3
Press MENU.
ACCESS INITIAL SET SCREEN
4
Press CH5∞ or SHUTTLE PLUS %fi to move the
highlight bar (arrow) to “INITIAL SET”, then press OK or
SHUTTLE PLUS #.
ACCESS CABLE BOX SET
SCREEN
5
Press CH5∞ or SHUTTLE
PLUS %fi to move the
highlight bar (arrow) to
“CABLE BOX SET”, then
press OK or SHUTTLE
PLUS #.
SELECT CABLE BOX
OUTPUT
CHANNEL
6
Your selection depends on
how your cable box is
connected to your VCR.
If your cable box is
connected to your VCR
using an RF connection . . .
. . . press CH 5∞ or SHUTTLE PLUS %fi until the
channel number representing the cable box’s output
(CH2 – CH9) appears on the screen.
If your cable box is connected to your VCR's FRONT
AUDIO/VIDEO IN connectors . . .
. . . press CH 5∞ or SHUTTLE PLUS %fi until "ON F-1
(FRONT)" appears on the screen.
If your cable box is connected to your VCR’s REAR
AUDIO/VIDEO IN connectors . . .
. . . press CH 5∞ or SHUTTLE PLUS %fi until "ON L-1
(REAR)" appears on the screen.
CONTINUED ON NEXT PAGE
INITIAL SET
CLOCK SET
GUIDE CHANNEL SET
=
CABLE BOX SET
DBS RECEIVER SET
SELECT WITH (5,∞) AND (OK)
PRESS (MENU) TO END
CABLE BOX SET
OFF
PRESS (5,∞), THEN (OK)
PRESS (MENU) TO END
JOG
SHATTLE
POWER
123
456
7
89
0
2
4
1
3
POWER
CH
OK
MENU
MENU
OK
SHUTTLE PLUS
EN 17
ACCESS CABLE BOX
BRAND SET SCREEN
7
Press OK.
ENTER CABLE BOX BRAND
8
Press the appropriate
NUMBER keys to enter the
Cable Box Code from the
CABLE BOX BRAND LIST
shown below, then press
OK.
● If the cable box’s
channel changes to 9,
setting is complete. Press OK and "CABLE BOX
CONTROL IS ON" appears on the screen for about 5
seconds, then it returns to the normal screen.
● If the cable box's channel does not change to 9, press
CH 5∞ or SHUTTLE PLUS %fi to move the highlight
bar (arrow) to "NO", then press OK. By entering
another code, repeat step 8 until the cable box’s
channel changes to 9.
● If the channel does not change after going through all
the code numbers listed for your model of cable box,
then try all the other numbers between 1 and 25.
CABLE BOX BRAND LIST
BRAND CODE
ARCHER 1, 5, 17
CABLETENNA 1, 17
CABLEVIEW 15, 16, 17, 21, 25
CITIZEN 15, 16, 17, 21, 25
CURTIS 2, 8
DIAMOND 1, 17
EASTERN 19
GC BRAND 15, 16, 17, 21, 25
GEMINI 15
GENERAL INSTRUMENTS 1, 4, 6, 11, 12, 15
HAMLIN 10, 18, 19, 23
JASCO 15
JERROLD 1, 4, 6, 11, 12, 15
NOVAVISION 2, 8
OAK 7, 20
PANASONIC 13, 14
PULSER 15, 16, 17, 21, 25
RCA 13, 14
REGAL 10, 18, 19, 23
REGENCY 19
REMBRANDT 1, 16, 17
SAMSUNG 5, 16, 24
SCIENTIFIC ATLANTA 2, 8
SIGMA 7, 20
SL MARX 5, 16, 17, 24, 25
SPRUCER 13, 14
STARGATE 5, 15, 16, 17, 21, 24, 25
TELEVIEW 5, 16, 24
TOCOM 1, 4, 16
UNIKA 1, 17
UNIVERSAL 16, 17, 25
VIDEOWAY 3, 9, 22
ZENITH 3, 9, 22
NOTES:
●
Although the supplied Controller is compatible with many
different cable box brands, it is possible that it will not work
with your cable box.
●
If your cable box doesn’t respond to any code between 1 and
25, you can’t use the Controller to change cable box
channels. In this case, make sure to leave the cable box
turned on and tuned to the proper channel before the
scheduled start of timer recording.
Please contact your cable company about the possibility of
exchanging your current cable box with one that is compatible
with your VCR.
●
The VCR can only change the cable box channel through the
Controller during timer recording.
●
If your cable box is one that can’t be operated with a remote
control (because it has no remote sensor), you can’t use the
Controller to change its channels. Make sure to leave the
cable box turned on and tuned to the proper channel before
the scheduled start of timer recording.
●
If the VCR's memory backup expires because of a power
failure, set the cable box output channel and brand again.
When the VCR's clock has not been set (with AUTO
CLOCK set to ON), if you press OK in step 7, "CABLE
BOX USERS SET CLOCK MANUALLY" will be displayed on
the screen for about 5 seconds, then the Clock Set screen
will appear; perform the manual clock setting procedure
on page 12. If you press MENU after the clock has been
set, the Cable Box Brand Set screen appears.
INFORMATION
CABLE BOX BRAND SET
1
PRESS NUMBER KEY (0–9)
THEN (OK) TO TEST
PRESS (MENU) TO END
JOG
SHATTLE
MENU
123
456
7
89
0
2
4
1
3
CH
OK
OK
MENU
NUMBER
SHUTTLE PLUS
18 EN
INITIAL SETTINGS (cont.)
CABLE
BOX
The following procedure is required if you receive satellite channels
through a DBS (Direct Broadcast Satellite) Receiver. The Controller
allows the VCR to automatically switch the DBS Receiver's channels
during timer recording.
NOTES:
●
The VCR can automatically change the DBS Receiver channels
using the Controller when the VCR has been programmed
using Express Timer Programming (墌 pg. 42).
Because satellite programming does not use PlusCode; the
Controller cannot change the DBS Receiver channels during
VCR Plus+ Timer Recording.
●
If a cable box is also used it is recommended that you
connect the DBS receiver to your VCR's A/V inputs and the
cable box to your VCR's antenna input.
Situate And Connect
Controller
DBS Receiver
Control
Suggested Location
Place the DBS (Direct Broadcast Satellite) receiver on top of the
VCR. Attach the VCR's Controller to the top of the VCR with the
Controller’s transmitter pointed towards the DBS receiver's
remote sensor.
ATTENTION:
The Controller can also control a cable box. If both a DBS
receiver and a cable box are used, position the controller so its
signal reaches the remote control sensors of both the DBS
receiver and cable box.
About Your DBS Receiver
This VCR has two separate methods to control your DBS Receiver.
●
The VCR's Wireless Remote Control Unit can control your
DBS Receiver.
This eliminates the need for a separate DBS Receiver Remote
Control Unit.
●
The VCR's Controller can also control your DBS Receiver.
This allows the VCR to change your DBS receiver's channel
number during timer recording.
Each method must be set up separately. To set up the VCR's
Remote Control unit, refer to page 58. To set up the Controller
go to page 19.
DBS receiver
Controller
(suggested locations)
Your VCR
DBS receiver
Controller
Transmitter
Connected
to VIDEO/
AUDIO IN
Your VCR
Connected to
ANTENNA IN
SITUATE CONTROLLER
1
Place the Controller so that the path between its
transmitter and the DBS receiver's remote sensor is
unobstructed.
ATTACH CONTROLLER
2
Fasten securely using the supplied adhesive strips.
CONNECT DBS RECEIVER
TO VCR
3
The connection method depends on the type of DBS
receiver you have.
If your DBS receiver has AUDIO and VIDEO OUT
connectors . . .
. . . connect them to the AUDIO and VIDEO IN
connectors on your VCR. Set the VCR to channel "L-1"
for the rear AUDIO and VIDEO IN connectors, or
channel "F-1" for the front AUDIO and VIDEO IN
connectors to use the DBS receiver.
If your DBS receiver doesn’t have AUDIO and VIDEO
OUT connectors . . .
. . . connect the antenna output connector on the DBS
receiver to the ANTENNA IN connector on the rear of
your VCR.
Set the VCR's tuner to the same channel as the DBS
receiver's RF output. (See page 19 also.)
NOTE:
When connecting your DBS receiver refer to its
instruction manual.
CONNECT CONTROLLER
TO VCR
4
Connect to the CABLE BOX connector on your VCR.
EN 19

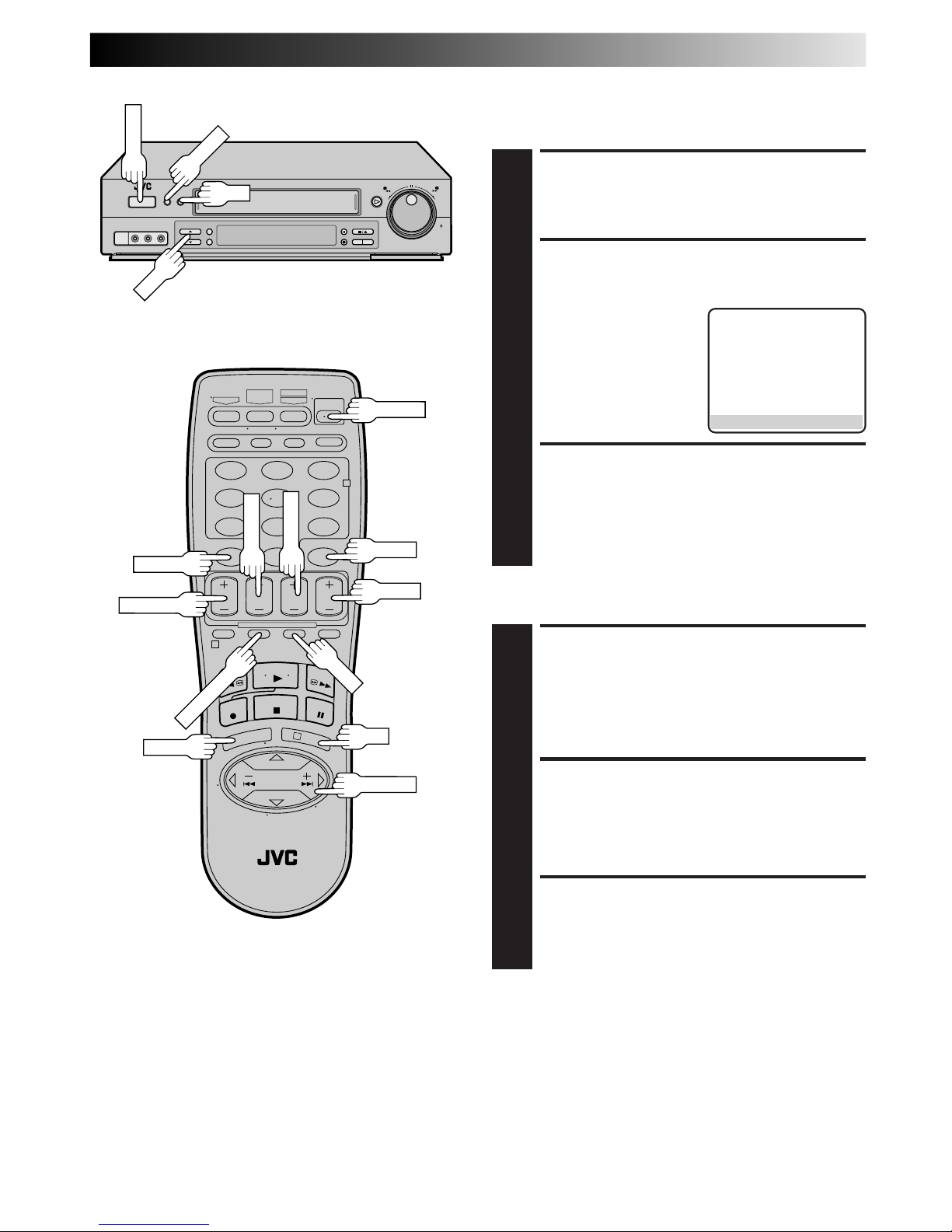

Set DBS Receiver Output
Channel & DBS Receiver
Brand
Turn on the TV and select the VCR channel 3 or 4 (or AV
mode).
TURN ON DBS RECEIVER
1
Select a channel other than channel 55, 100 or 205 on
your DBS receiver.
TURN ON THE VCR
2
Press POWER.
● Set the VCR to the channel (3 or 4 or F-1 or L-1) on
which the signals from the DBS receiver are received.
ACCESS MAIN MENU
SCREEN
3
Press MENU.
ACCESS INITIAL SET
SCREEN
4
Press CH5∞ or SHUTTLE PLUS %fi to move the
highlight bar (arrow) to “INITIAL SET”, then press OK or
SHUTTLE PLUS #.
ACCESS DBS RECEIVER SET
SCREEN
5
Press CH5∞ or SHUTTLE
PLUS %fi to move the
highlight bar (arrow) to
“DBS RECEIVER SET”, then
press OK or SHUTTLE
PLUS #.
SELECT DBS RECEIVER
OUTPUT CHANNEL
6
Your selection depends on
how your DBS receiver is
connected to your VCR.
If your DBS receiver is
connected to your VCR
using an RF connection . . .
. . . press CH 5∞ or
SHUTTLE PLUS %fi until
the channel number
representing the DBS receiver's output (CH3 – CH4)
appears on the screen.
If your DBS receiver is connected to your VCR's
FRONT AUDIO/VIDEO IN connectors . . .
. . .
press
CH 5∞ or SHUTTLE PLUS %
fi until "ON F-1
(FRONT)" appears on the screen
.
If your DBS receiver is connected to your VCR’s REAR
AUDIO/VIDEO IN connectors . . .
. . . press CH 5∞ or SHUTTLE PLUS %
fi until "ON L-1
(REAR)" appears on the screen.
INITIAL SET
CLOCK SET
GUIDE CHANNEL SET
CABLE BOX SET
=
DBS RECEIVER SET
SELECT WITH (5,∞) AND (OK)
PRESS (MENU) TO END
DBS RECEIVER SET
OFF
PRESS (5,∞), THEN (OK)
PRESS (MENU) TO END
JOG
SHATTLE
POWER
123
456
7
89
0
2
4
1
3
POWER
CH
OK
MENU
MENU
OK
SHUTTLE PLUS
20 EN
SIMPLE PLAYBACK AND RECORDING
123
456
7
89
0
2
4
1
3
NUMBER
ACCESS DBS RECEIVER
BRAND SET SCREEN
7
Press OK.
SET DBS RECEIVER BRAND
8
Press the appropriate
NUMBER keys to enter the
DBS Receiver Code from
the following list, then
press OK.
● After OK is pressed, the program currently received
through the DBS receiver will appear for about 10
seconds.
● If the DBS receiver's channel changes to the channel
listed below for your brand of DBS receiver, setting is
complete. Press OK and "DBS RECEIVER CONTROL
IS ON" appears on the screen for about 5 seconds,
then it returns to the normal screen.
JVC [ 100
ECHOSTAR [ 100
PRIMESTAR [ 55
SONY [ 205
RCA [ 205
● If the DBS receiver's channel does not change as
shown above, press CH 5∞ or SHUTTLE PLUS %
fi
to move the highlight bar (arrow) to "NO", then press
OK. Re-enter the correct code.
BRAND CODE
JVC (DISH Network) 51
ECHOSTAR (DISH Network) 51
PRIMESTAR 50
SONY (DSS) 41
RCA (DSS) 40
NOTES:
●
It is possible that the Controller will not work with all types of
DBS receiver.
●
If your DBS receiver doesn’t respond to the code, you can’t
use the Controller to change satellite channels. In this case,
make sure to leave the DBS receiver turned on and tuned to
the proper channel before the scheduled start of timer
recording.
●
The VCR can only change the satellite channel through the
Controller during timer recording.
●
If your DBS receiver is one that can’t be operated with a
remote control (because it has no remote sensor), you can’t
use the Controller to change its channels. Make sure to leave
the DBS receiver turned on and tuned to the proper channel
before the scheduled start of timer recording.
DBS RECEIVER BRAND SET
4 0
PRESS NUMBER KEY (0–9)
THEN (OK) TO TEST
PRESS (MENU) TO END
JOG
SHATTLE
CH
OK
OK
SHUTTLE PLUS
EN 21
Simple
Playback
LOAD A CASSETTE
1
Make sure the window side is up, the rear label side is
facing you and the arrow on the front of the cassette is
pointing towards the VCR. Don’t apply too much
pressure when inserting.
● The VCR’s power comes on automatically.
● The counter is automatically reset to "0:00:00".
● If the cassette's record safety tab has been removed
and the Record Safety mode is set to "ON", playback
begins automatically.
FIND PROGRAM START
POINT
2
If the tape is advanced past the start point, press REW or
turn the SHUTTLE ring to the left. To go forward, press
FF or turn the SHUTTLE ring to the right.
START PLAYBACK
3
Press PLAY. "VIDEO CALIBRATION" appears on the
screen (when VIDEO CALIBRATION is set to "ON"
墌 pg. 36).
STOP PLAYBACK
4
Press STOP or STOP/EJECT. Then press STOP/EJECT
to remove the cassette.
Turn on the TV and select the VCR channel 3 or 4 (or AV
mode).
JOG
SHATTLE
123
456
7
89
0
2
4
1
3
STOP/EJECT
PLAY
PLAY
REW (Rewind)
FF (Fast-Forward)
STOP
Usable cassettes
Full-Size VHS
T-30 (ST-30**)
T-60 (ST-60**)
T-90
T-120 (ST-120**)
T-160 (ST-160**)
ST-210**
Compact VHS*
TC-20 (ST-C20**)
TC-30 (ST-C30**)
TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on
this video recorder. Simply place the recorded cassette
into a VHS Cassette Adapter and it can be used just like
any full-sized VHS cassette.
** This VCR can record on regular VHS and Super VHS
cassettes. While only VHS signals can be recorded on
regular VHS cassettes, both VHS and Super VHS signals
can be recorded and played back using Super VHS
cassettes.
SHUTTLE
To prohibit other operations during playback
(Mode Lock)
Press and hold OK on the remote control for more than 5
seconds. The Mode Lock indicator lights up on the front display
panel (墌 pg. 66). The playback will not be interrupted until the
recording end (unrecorded portion) or tape end is reached (墌
pg. 28). Only PLAY will function while Mode Lock is activated
(墌 "Repeat Playback", pg. 29).
To resume the other operations, press and hold OK on the
remote control again for more than 5 seconds.
OK
22 EN

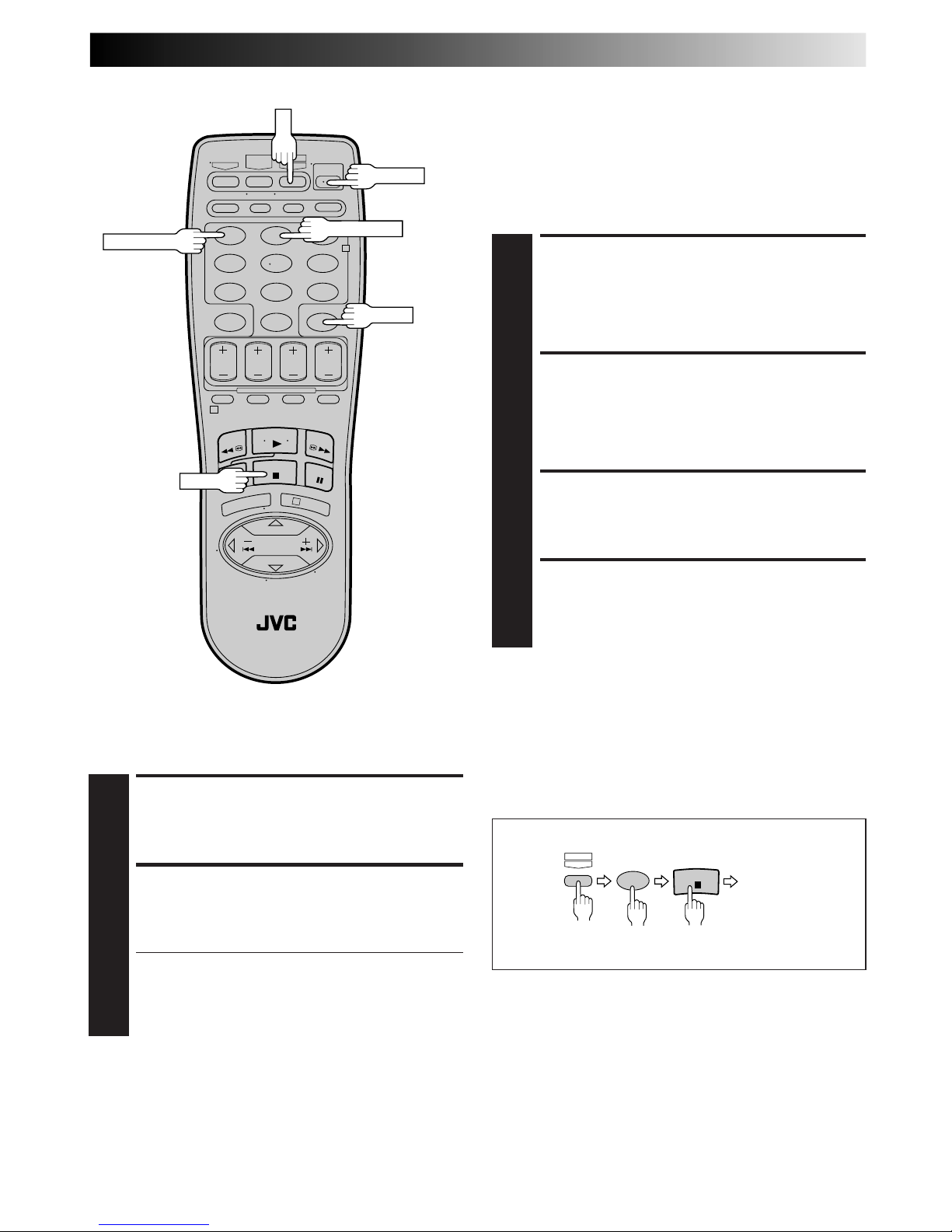

Simple
Recording
LOAD A CASSETTE
1
Make sure the record safety tab is intact. If not, cover the
hole with adhesive tape before inserting the cassette.
SELECT RECORDING
CHANNEL
2
Press CH5∞ (+/–). Or press the appropriate NUMBER
keys, then press ENTER. (The channel changes after a
few seconds whether you press ENTER or not.)
● If you use the RF connection, by pressing the TV/VCR
button, select VCR mode to view the program to be
recorded.
SET TAPE SPEED
3
Press SP/EP to set the recording speed.
START RECORDING
4
Press and hold REC then press PLAY on the remote
control, or press REC on the VCR's front panel.
Video Calibration takes place at the beginning of
both the first SP and the first EP recording after
inserting the cassette (when Video Calibration is set
to "ON", 墌 pg. 36).
PAUSE/RESUME
RECORDING
5
Press PAUSE. Press PLAY to resume recording.
● During record pause, you can change the recording
channel by using the CH5∞ (+/–) buttons or NUMBER
keys.
Video Calibration will not take place if the tape
speed is changed while in record pause mode.
STOP RECORDING
6
Press STOP or STOP/EJECT. Then press STOP/EJECT to
remove the cassette.
Turn on the TV and select the VCR channel 3 or 4 (or AV
mode).
● To prevent accidental recording on a recorded cassette,
remove its record safety tab.
To record on it later, cover the hole with adhesive tape,
or set the Record Safety mode to "OFF". (墌 pg. 39)
Note: You can also record onto the cassette even when the
tab is removed. (墌 pg. 39)
Accidental erasure prevention
JOG
SHATTLE
123
456
7
89
0
2
4
1
3
PLAY
PAUSE
REC
CH
PAUSE
STOP
REC
PLAY
SP/EP
CH
TV/VCR
ENTER
NUMBER
Record safety tab
STOP/EJECT
SP/EP
To prohibit other operations during recording
(Mode Lock)
Press and hold OK on the remote control for more than 5 seconds.
The Mode Lock indicator lights up on the front display panel (墌
pg. 66). No button will function and recording will not be
interrupted until it completes.
To resume the other operations, press and hold OK on the remote
control again for more than 5 seconds.
OK
