JVC LVT1002-012B User Manual

HOME CINEMA CONTROL CENTER

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

DVD VIDEO PLAYER

RX-ES1SL XV-NK58SL

INSTRUCTIONS

LVT1002-012B

[A]

Warnings, Cautions, and Others

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids such as vases, shall be placed on the apparatus.

button in any position does not disconnect the

Caution

The model number, supply ratings and identifications are located on the bottom.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

G-1

Caution: Proper Ventilation / RX-ES1SL

To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Spacing 15 cm or more

RX-ES1SL

Wall or

obstructions

Stand height

15 cm or more

Floor

Caution: Proper Ventilation / XV-NK58SL

To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 3 cm from the sides. Top: No obstructions in 5 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Spacing 15 cm or more

XV-NK58SL

Wall or

obstructions

Stand height

5 cm or more

Floor

* Do not stack RX-ES1SL and XV-NK58SL.

G-2

Parts identification ................................................... 2

Getting started ......................................................... 5

Precautions ------------------------------------------------------------------ 5 Checking the supplied accessories ------------------------------------ 5 Putting batteries in the remote control -------------------------------- 5 Setting the voltage selector (RX-ES1SL) ---------------------------- 5 Connecting the FM and AM antennas -------------------------------- 6 Connecting the speakers and DVD player --------------------------- 7 Connecting other video components ---------------------------------- 9 Connecting the power cord -------------------------------------------- 12

RX-ES1SL

Basic operations ................................................... 13

1 Turn on the power -------------------------------------------------- 13 2 Select the source to play ------------------------------------------ 13 3 Adjust the volume --------------------------------------------------- 14 Selecting the digital decode mode ----------------------------------- 14 Turning off the sounds temporarily—Muting ---------------------- 15 Turning off the power with the Sleep Timer ------------------------ 15 Changing the display brightness ------------------------------------- 15

Speaker settings ................................................... 16

Setting the speakers information automatically

—Smart Surround Setup ----------------------------------------- 16

Setting the speakers and subwoofer information quickly

—Quick Setup ------------------------------------------------------- 17

Setting the speakers and subwoofer information manually

—Manual Setup ----------------------------------------------------- 18

Basic settings ........................................................ 20

Operating procedure ---------------------------------------------------- 20 Setting the digital input (DIGITAL IN) terminals

—DIGITAL IN -------------------------------------------------------- 20 Setting Auto Surround—AUTO SR ---------------------------------- 21 Setting the video component input mode

—DVD VIDEO/DBS VIDEO -------------------------------------- 21

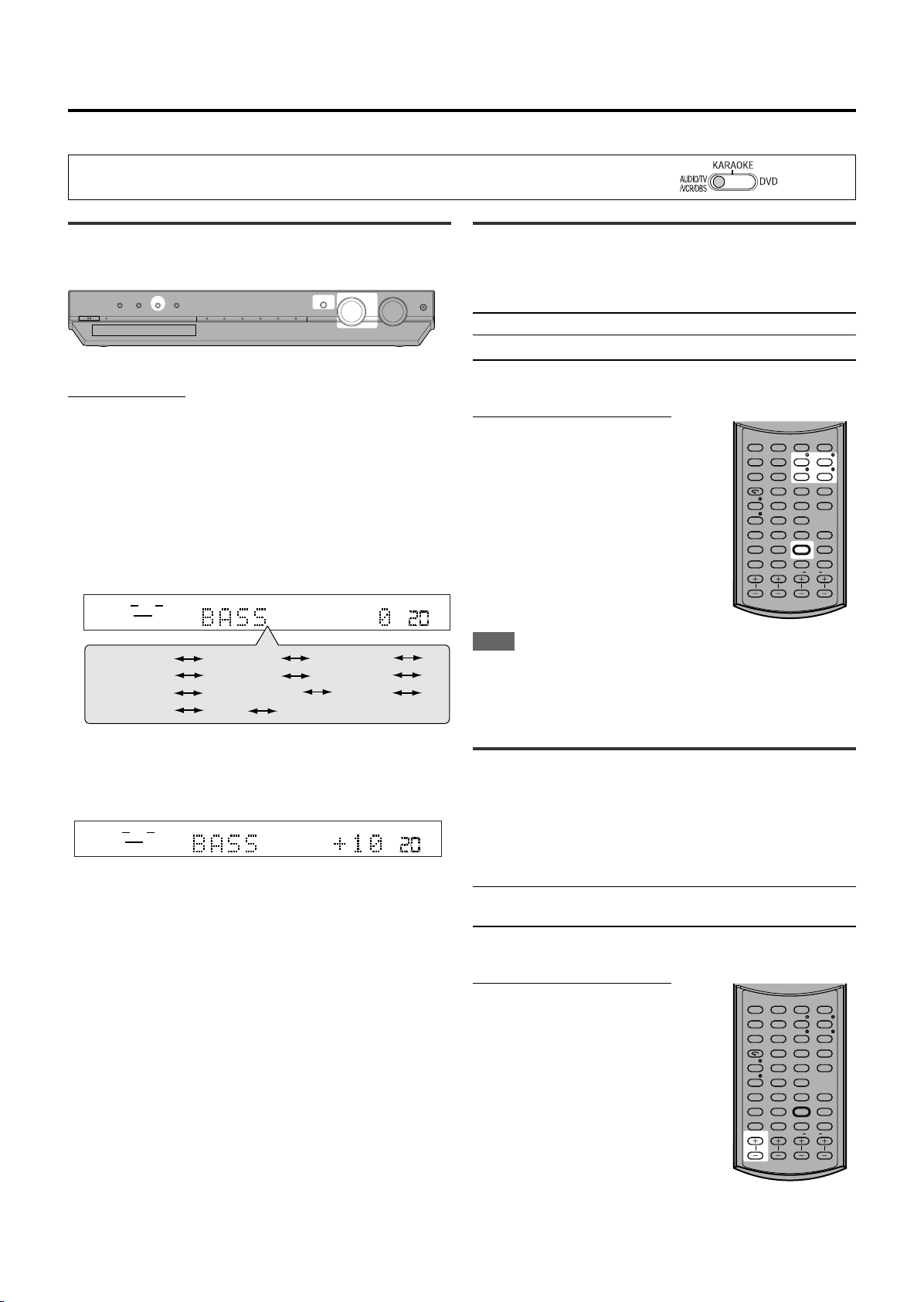

Sound adjustments ............................................... 22

Operating procedure ---------------------------------------------------- 22 Adjusting the tone—BASS, TREBLE-------------------------------- 22 Adjusting the subwoofer output level—SUBWFR ---------------- 22 Adjusting the front speakers output balance—BAL ------------- 23 Reinforcing the bass—B.BOOST ------------------------------------ 23 Attenuating the input signal—ATT ----------------------------------- 23

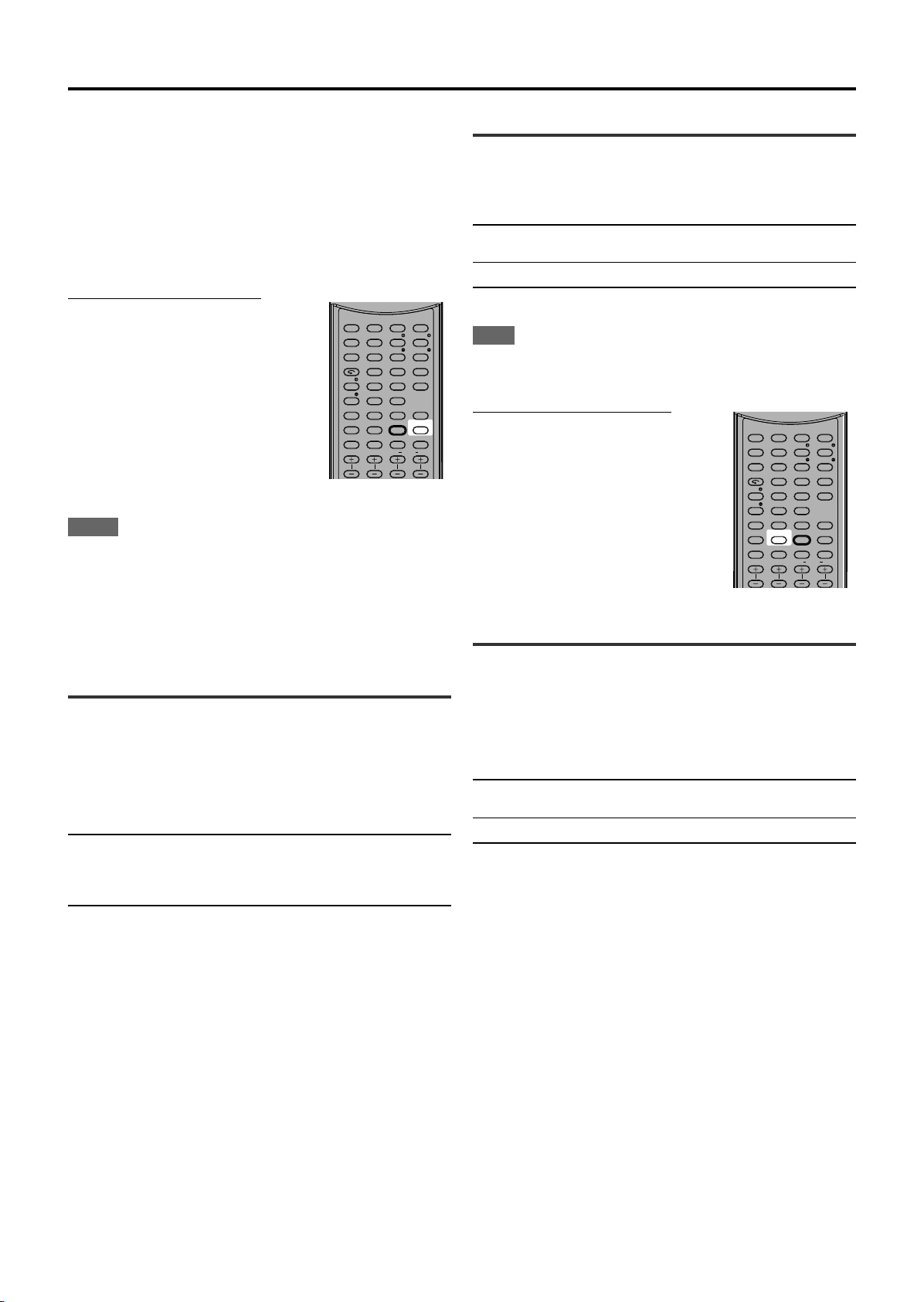

Tuner operations ................................................... 24

Tuning in to stations manually ---------------------------------------- 24 Using preset tuning ------------------------------------------------------ 24 Selecting the FM reception mode ------------------------------------ 25

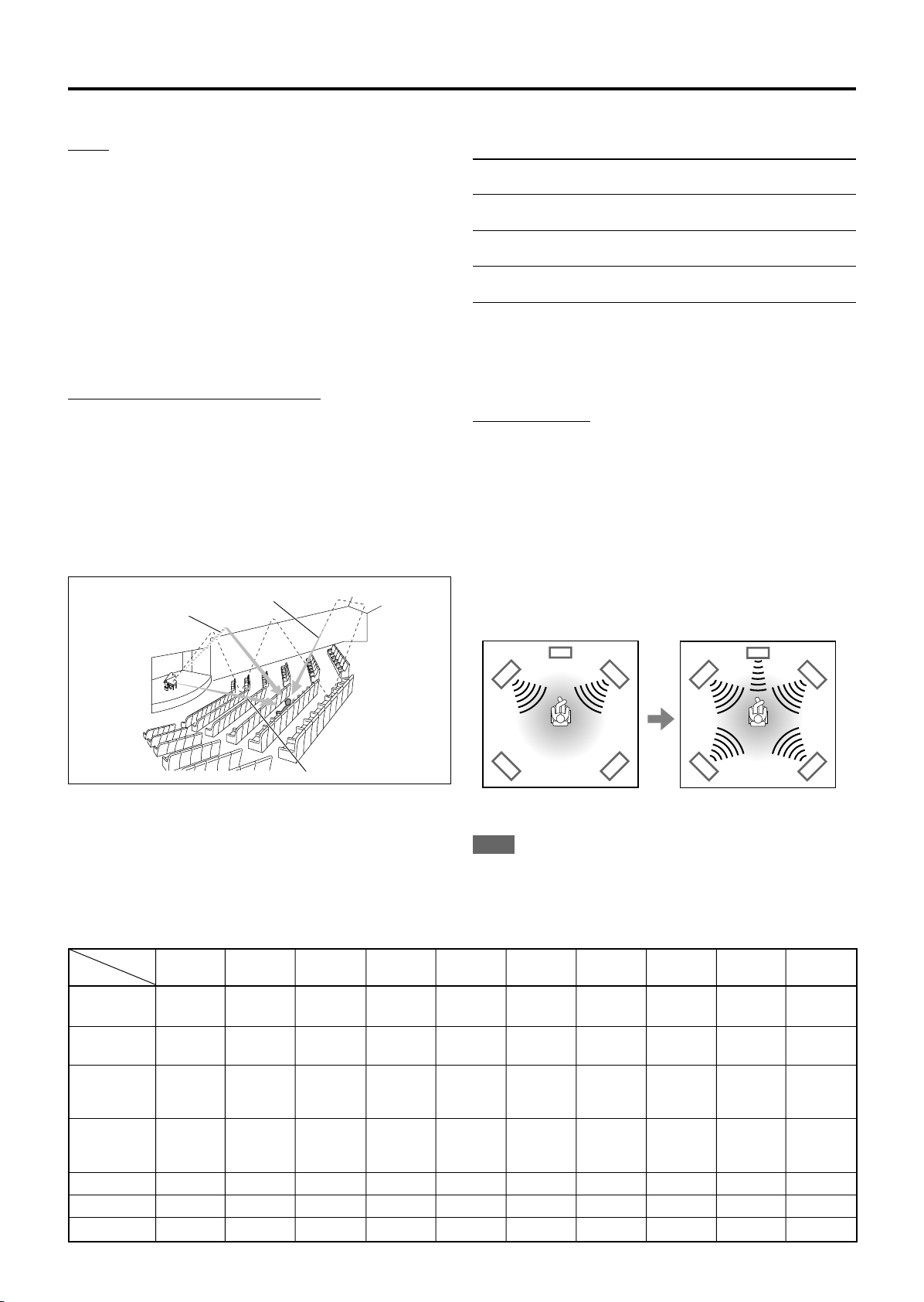

Creating realistic sound fields ............................. 26

Reproducing theater ambience ---------------------------------------- 26 Introducing the Surround/DSP modes ------------------------------- 26 About relations between speaker layout

and Surround/DSP modes ---------------------------------------- 28 Using Surround modes ------------------------------------------------- 28 Using DSP modes ------------------------------------------------------- 30

Using the DVD MULTI playback mode ................. 32

Activating the DVD MULTI playback mode -------------------------- 32 Adjusting the speaker output level ------------------------------------ 32

XV-NK58SL

Before operation ................................................... 33

About this manual -------------------------------------------------------- 33 About discs ---------------------------------------------------------------- 33

Basic operations ................................................... 34

Turning on/off the player ------------------------------------------------ 34 Initial setup ----------------------------------------------------------------- 34 Basic playback ------------------------------------------------------------ 35 Resuming playback ------------------------------------------------------ 36 Various speed playback ------------------------------------------------ 37 Locating the beginning of a scene or song ------------------------ 38

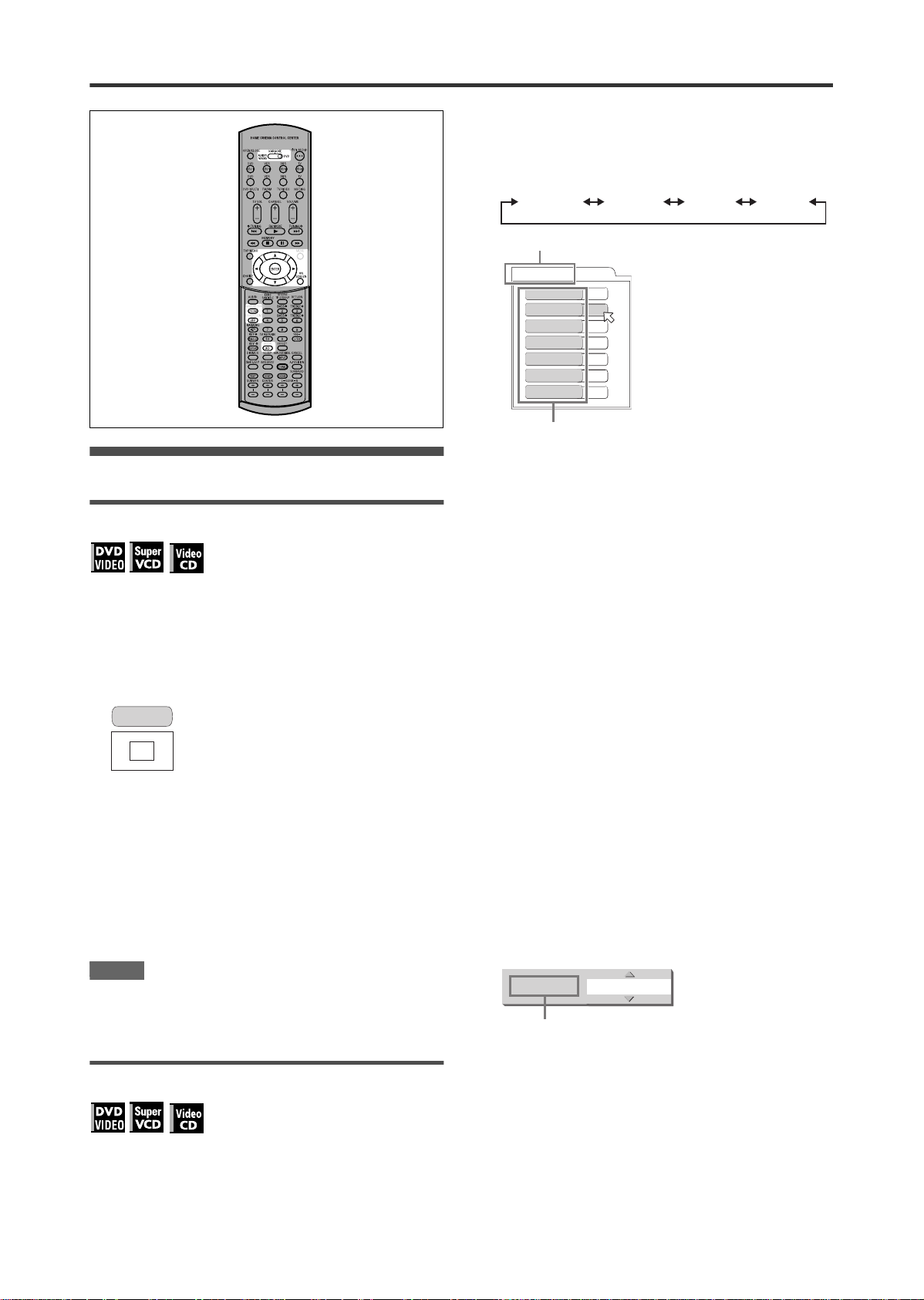

Advanced operations............................................ 39

Playing from a specific position --------------------------------------- 39 Changing the playback order------------------------------------------ 40 Repeat playback---------------------------------------------------------- 42 Changing the language, sound and scene angle ---------------- 43 Special picture/sound effect ------------------------------------------- 44 Menu bar functions ------------------------------------------------------ 45

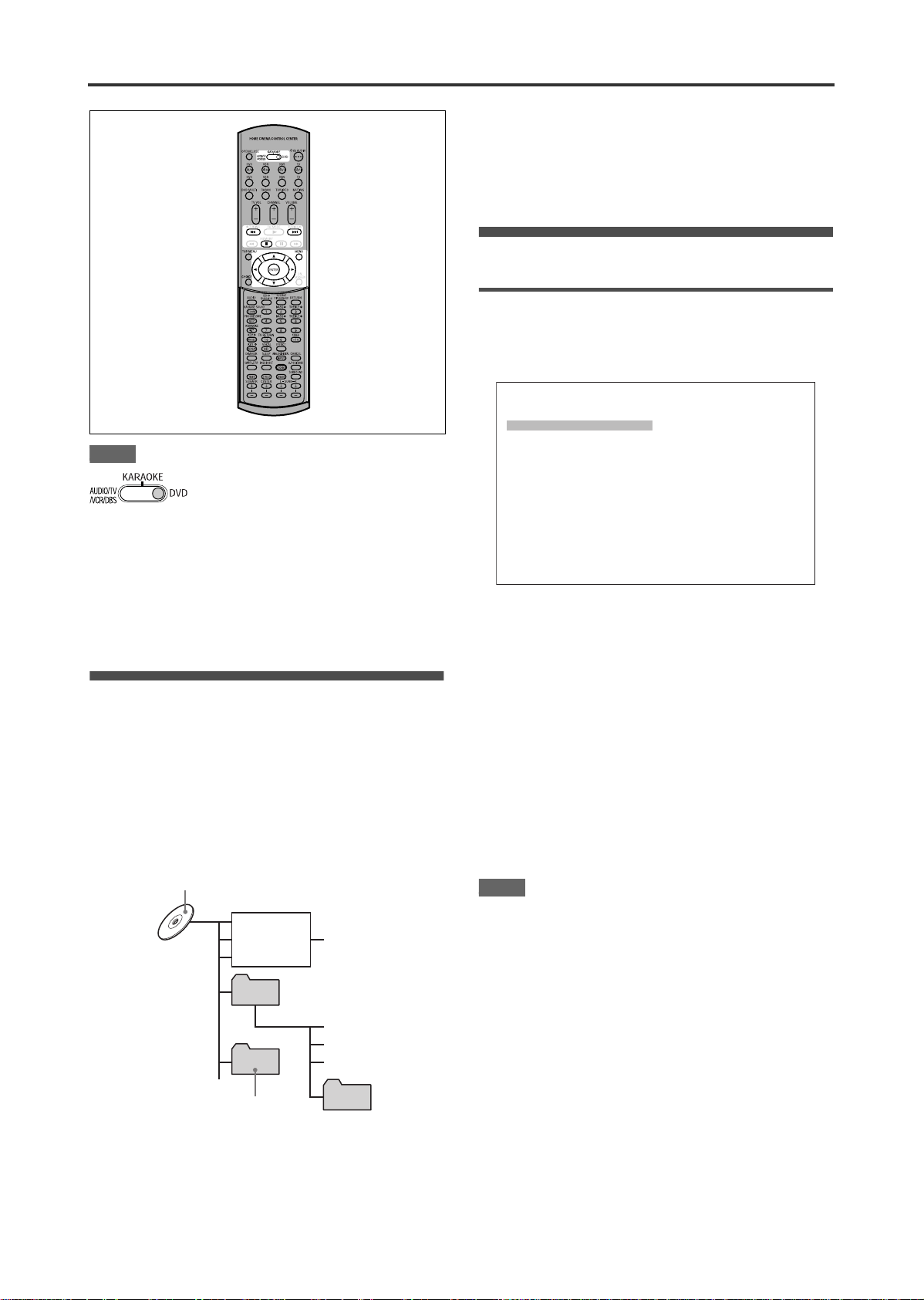

MP3/WMA disc playback ...................................... 47

Operations ----------------------------------------------------------------- 47

JPEG disc playback .............................................. 49

About JPEG discs -------------------------------------------------------- 49 Basic operations ---------------------------------------------------------- 49 Viewing pictures continuously (slide show mode) --------------- 50

KARAOKE operation............................................. 52

Preparation ---------------------------------------------------------------- 52 Reserving songs --------------------------------------------------------- 52 Selecting audio ----------------------------------------------------------- 53 Adding an effect to your voice ---------------------------------------- 55 Shifting the musical key ------------------------------------------------ 56

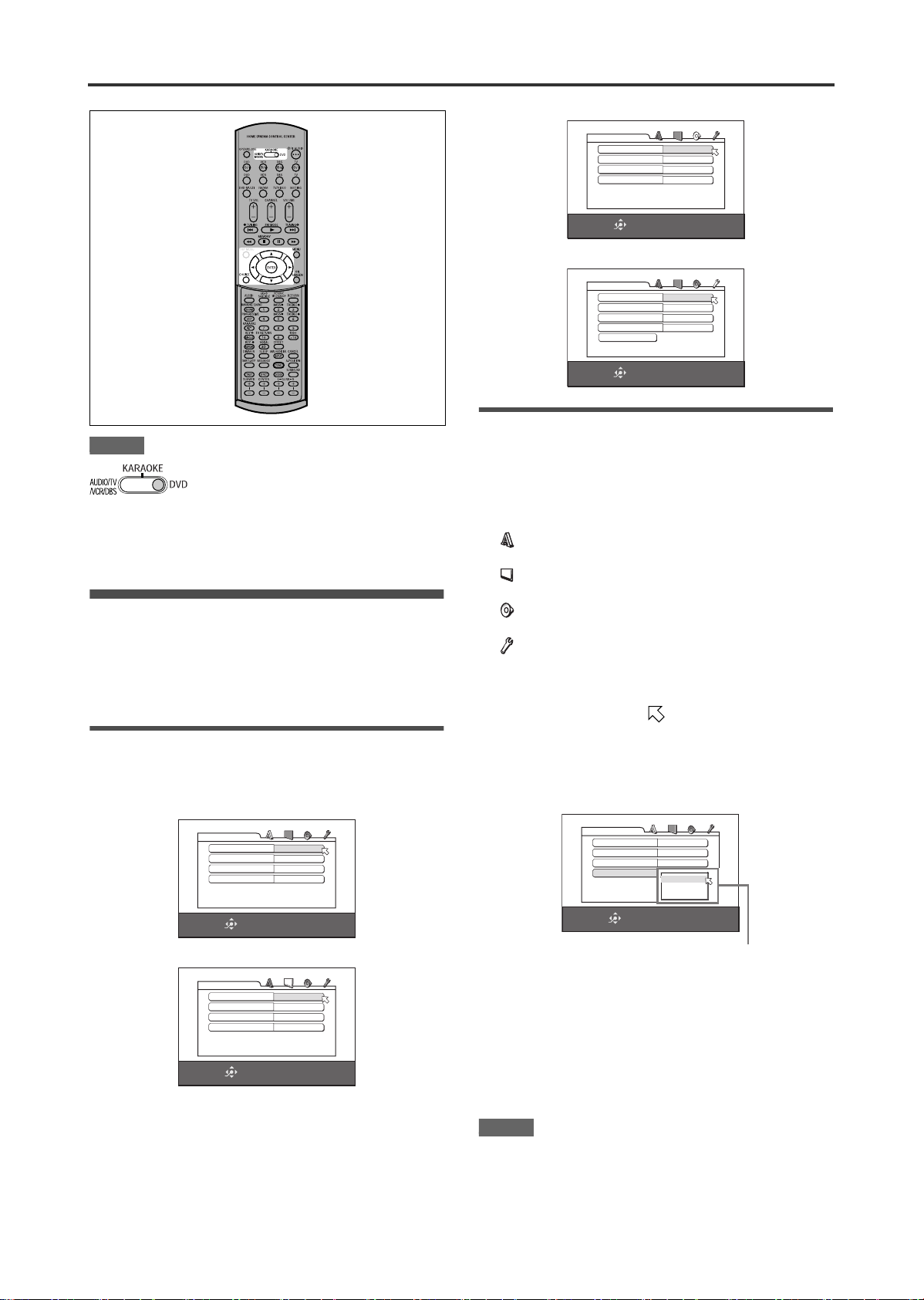

Changing the initial settings ................................ 57

Selecting preferences --------------------------------------------------- 57 Limiting playback by children------------------------------------------ 60

Additional information .......................................... 62

Appendix A: Country/Area code list for Parental Lock ---------- 62 Appendix B: Table of languages and their abbreviations------- 63 Appendix C: Digital output signal chart ----------------------------- 63 Appendix D: Glossary --------------------------------------------------- 64

AV COMPLU LINK remote control system ........... 65

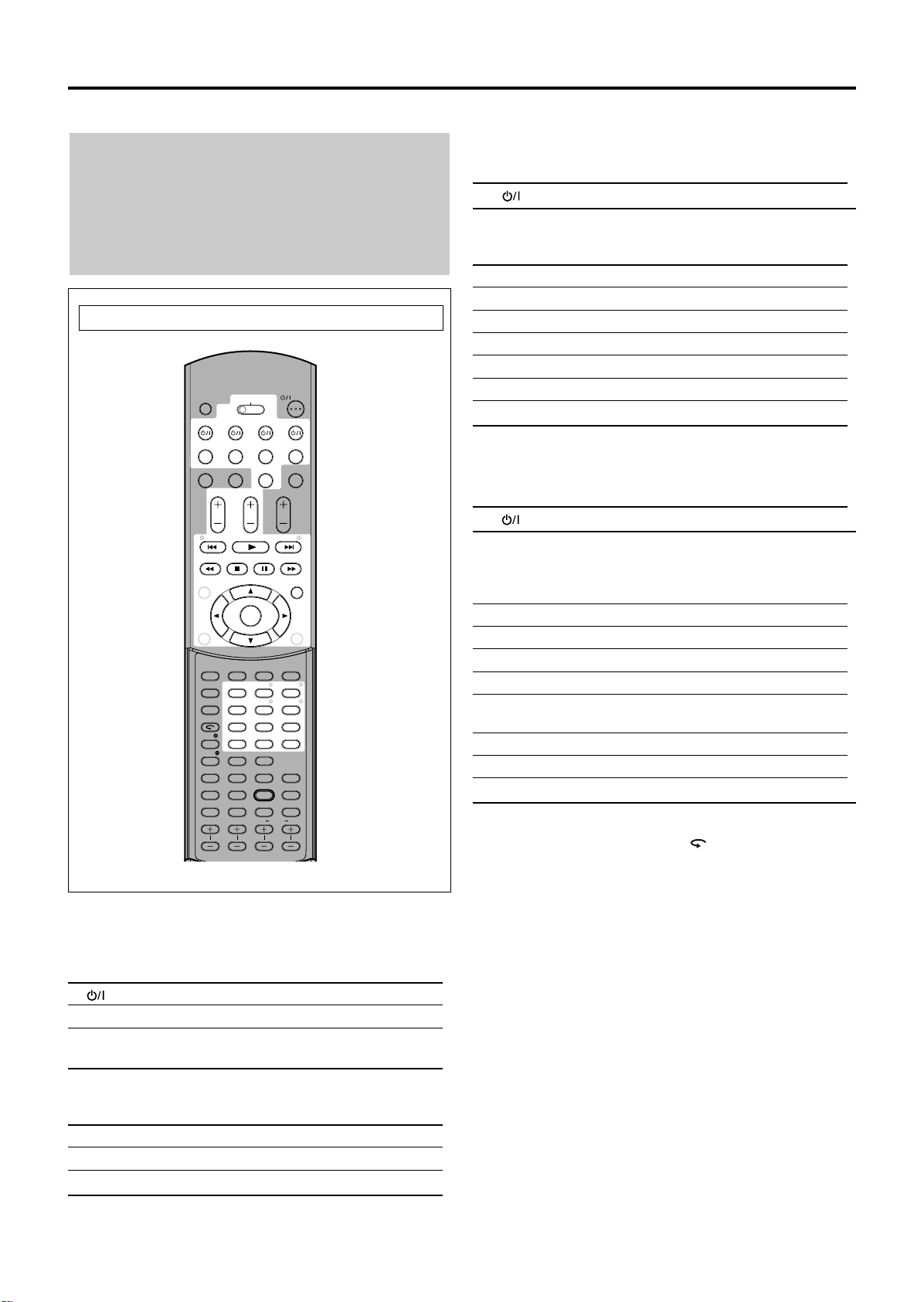

Operating other JVC products .............................. 67

Operating other manufacturers’ equipment ..........

Troubleshooting ..................................................... 70

Specifications ......................................................... 73

Parts identification

t u

;

a s

j k

5 6

v n

+10+10

Remote control

• When operating this receiver (RX-ES1SL), set the mode

selector (1) to “AUDIO/TV/VCR/DBS.”

• When operating the player (XV-NK58SL), set the mode

selector (1) to “DVD.”

• When using KARAOKE function, set the mode selector

(1) to “KARAOKE.”

See pages in parentheses for details. 1 Mode selector

AUDIO/TV/VCR/DBS, KARAOKE, DVD

2 OPEN/CLOSE button (35) 3 Standby/on buttons (13, 67 – 69)

AUDIO, DVD , VCR , DBS , TV

4 Source selecting buttons (13)

DVD, VCR, DBS, TV, DVD MULTI, FM/AM

5 CHANNEL +/– buttons (67 – 69) 6 TV VOL (volume) +/– buttons (67, 69) 7 • Operating buttons for video components (67, 69)

4, 3, ¢, 1, 7, 8, ¡

• Operating buttons for tuner (24, 25)

TUNING 9, TUNING (, FM MODE, MEMORY

8 Operating buttons for DVD

TOP MENU, MENU, CHOICE, ON SCREEN, ENTER, 3, 2, 5, ∞

9 • ECHO button (55)

• SUBTITLE button (43)

p AUDIO button (43, 53) q • KARAOKE SOUND button (54)

• ZOOM button (44, 50)

w • PROGRESSIVE button (10)

• VFP button (44)

e • KARAOKE button (52)

• button (38)

r • KEY 9 button (56)

• ANGLE button (43)

t • VOCAL button (55)

• 3D button (45)

y • KEY ( button (56)

• REPEAT button (42, 48, 51)

u SLEEP button (15) i DIMMER button (15, 35) o BASS BOOST button (23) ; SMART S (surround). SETUP button (16) a EFFECT button (31) s TEST button (29 – 31) d Adjusting buttons for speaker and subwoofer output levels

(22, 29, 31, 32) SUBWFR (subwoofer) +/–, CENTER +/–, SURR L (left surround) +/–, SURR R (right surround) +/–

f TV/VIDEO button (67, 69) g MUTING button (15) h VOLUME +/– buttons (14) j • RESERVE button (52)

• TITLE/GROUP button (39, 48, 50)

k RETURN button (39) l • Numeric buttons for adjusting tone (22)

BASS 9/(, TREBLE 9/(

• Numeric buttons for selecting preset channels (25)

• Numeric buttons for operating video components

/ EFFECT button (55) z ANALOG/DIGITAL INPUT button (13, 14) x CANCEL button (41, 52) c TONE button (22) v A (audio).POSITION button (23) b DECODE button (14) n SURROUND button (28, 30, 31)

To open the cover of the remote control, push here then slide downward.

STANDBY / ON STANDBY

DIMMER SETTING ADJUST SURROUND

DVD MULTI DVD DBS VCR TV FM / AM

SET / TUNER PRESET

SOURCE SELECTOR MASTER VOLUME

PHONES

/ MULTI JOG

ANALOG

PLΙΙ

SUBWFR LFE

SLEEP

STTUNED

AUTO MUTING

A.POSITION

VOL

AUTO SR INPUT ATT

DSP

LCR

LS S RS

LPCM

DOLBY D DTS

BASS BOOST

w e r

RX-ES1SL

COAXIAL

AM LOOP

VOLTAGE SELECTOR

ANTENNA

FM 75

AM EXT

VIDEO

AUDIO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

DVD IN

FRONT

SURR (REAR)

TVVCRDBS

COMULINK-III

ININ

(PLAY)

OUT (REC)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

110V

127V

220V

230 240V

S-VIDEO

4 5 6 7

See pages in parentheses for details.

Front panel

Parts identification

1 STANDBY/ON button and STANDBY lamp (13) 2 DIMMER button (15) 3 SETTING button (17, 18, 20) 4 ADJUST button (22, 29, 31, 32) 5 SURROUND button (29, 31) 6 Display window (see below) 7 Source indicators

DVD MULTI, DVD, DBS, VCR, TV, FM/AM

Display window

1 Signal format indicators (13, 14)

ANALOG, LPCM (Linear PCM), DOLBY D (Dolby Digital), DTS

2 Signal and speaker indicators (15) 3 DSP indicator (27, 30, 31) 4 PLII indicator (26) 5 HP (headphone) indicator (14) 6 SLEEP indicator (15) 7 BASS BOOST indicator (23)

8 • SET button (17, 18, 20, 22, 29 – 32)

• TUNER PRESET button (25)

9 Remote sensor (5) p SOURCE SELECTOR (13)

MULTI JOG (17, 18, 20, 22, 25, 29 – 32)

q MASTER VOLUME control (14) w PHONES jack (14)

8 Tuner operation indicators (24)

TUNED, ST (stereo)

9 AUTO MUTING indicator (25) p INPUT ATT (attenuator) indicator (23) q AUTO SR (surround) indicator (21) w Main display e Volume level indicator (13) r A (audio).POSITION indicator (23)

Rear panel

1 VOLTAGE SELECTOR (5) 2 ANTENNA terminals (6) 3 DVD IN terminals (8, 11)

FRONT, CENTER, SURR (REAR), SUBWOOFER

4 COMPONENT VIDEO terminals (8, 9, 11)

DVD IN, DBS IN, MONITOR OUT

5 VIDEO terminals (8 – 11)

DVD IN, DBS IN, VCR OUT (REC)/IN (PLAY), MONITOR OUT

6 DIGITAL IN terminals (8, 12)

DIGITAL 1 (DVD) , DIGITAL 2 (DBS), DIGITAL 3 (TV)

7 Speaker terminals (7)

FRONT SPEAKERS, SURROUND SPEAKERS, CENTER SPEAKER

8 AV COMPULINK-III terminals (65) 9 AUDIO terminals (9 – 11)

p SUBWOOFER OUT jack (7)

DBS IN, VCR OUT (REC)/IN (PLAY), TV IN

Parts identification

STANDBY / ON

PROGRESSIVE

MIC

MIC LEVEL

MIN

MAX

-8

= ~ !

VIDEO

BPR

COMPONENT

LEFT

PCM

STREAM

COAXIAL

OPTICAL

RIGHT

S-VIDEO

VIDEO OUT

DIGITAL OUTAUDIO OUT

VIDEO SIGNAL

SELECTOR

NTSC REMOTE

PAL 525i

525

AV COMPU LINK

XV-NK58SL

See pages in parentheses for details.

Front panel

1 button (34) 2 STANDBY/ON indicator (34) 3 Display window (see below) 4 Remote sensor (5) 5 Disc tray (35) 6 0 button (35) 7 4 button (37, 39)

Display window

1 Audio format indicators 2 Disc indicator 3 Karaoke indicator 4 Group/title/track/chapter indicators 5 Repeat mode indicator 6 Program/random indicators

8 ¢ button (37, 39) 9 7 button (35, 36) 0 3 button (35, 36)

- 8 button (36, 37) = PROGRESSIVE indicator (10) ~ MIC jack (52) ! MIC LEVEL control (52)

7 Total time/remaining time indicators 8 3D indicator 9 3 (play)/8 (pause) indicators 0 Resume indicator

- Multi-information window

Rear panel

1 AUDIO OUT LEFT/RIGHT jacks 2 DIGITAL OUT jacks (8)

COAXIAL, OPTICAL

3 VIDEO OUT jacks*

VIDEO, S-VIDEO, COMPONENT

4 VIDEO SIGNAL SELECTOR (9)

NTSC, PAL REMOTE, 525p, 525i

5 AV COMPU LINK terminals

NOTE

* When connecting the DVD player (XV-NK58SL) to the receiver

(RX-ES1SL) or TV

Connect only one of the following jacks—the VIDEO (composite), S-VIDEO, or COMPONENT jacks. Color and brightness do not display correctly if you connect them using more than two types of jacks at the same time.

Getting started

VOLTAGE SELECTOR

110V

127V

220V

230 240V

Precautions

General precautions

• DO NOT disassemble the unit or remove screws, covers, or cabinet.

• DO NOT expose the unit to rain or moisture.

• DO NOT expose the unit to direct sunlight or place it near a heating device.

Locations

• Install the receiver in a location that is level and protected from moisture and dust. If water gets inside the unit, turn off the power and remove the plug from the outlet, then consult your dealer. Using the unit in this state may cause a fire or electrical shock.

• Select a place which is level, dry and neither too hot nor too cold between 5˚C and 35˚C

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

• Leave sufficient distance between the unit and the TV.

• Do not install the unit in a place subject to vibrations.

Handling the receiver

• DO NOT touch the power cord with wet hands.

• DO NOT pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

• Keep the power cord away from the connecting cords and the antenna. The power cord may cause noise or screen interference. It is recommended to use a coaxial cable for antenna connection, since it is well-shielded against interference.

• When a power failure occurs, or when you unplug the power cord, the preset settings such as preset FM or AM channels and sound adjustments may be erased in a few days.

• When you are away on travel or otherwise for an extended period or time, remove the plug from the wall outlet. A small amount of power is always consumed while the power cord is connected to the wall outlet.

To prevent the malfunction

• There are no user-servicable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the unit.

• Do not block the vents. Blocking the vents may damage the unit.

Putting batteries in the remote control

Before using the remote control, put two supplied batteries first.

• When using the remote control, aim the remote control directly at the remote sensor on the front panel.

Press and slide the battery cover on the back of the remote control.

Insert batteries.

Make sure to match the polarity: (+) to (+) and (–) to (–).

Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.

• Supplied butteries are for initial setup. Replace for continued use.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:

(+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

To clean the cabinet

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

Checking the supplied accessories

Check to be sure you have all of the following supplied accessories. The number in parentheses indicates the quantity of each piece supplied.

• Remote control (1)

• Batteries (2)

• AM loop antenna (1)

• FM antenna (1)

• Digital coaxial cord (1)

• Audio/video cord (1)

If anything is missing, contact your dealer immediately.

Setting the voltage selector (RX-ES1SL)

Before connections, always do the following first if necessary. Select the correct voltage in VOLTAGE SELECTOR on the rear of the receiver by using a screw driver. Check to be sure if the voltage mark is set to the voltage for your area where this unit plugs in.

Voltage mark

Getting started

RX-ES1SL

Connecting the FM and AM antennas

If FM reception is poor, connect outdoor FM antenna (not supplied).

FM antenna (supplied)

If AM reception is poor, connect an outdoor single vinylcovered wire (not supplied).

AM loop antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

AM antenna connection

Connect the AM loop antenna supplied to the AM LOOP terminals. Connect the white cord to the AM EXT terminal, and the black cord to H terminal. Turn the loop until you have the best reception.

• If the reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. Keep the AM loop antenna connected.

FM antenna connection

Connect the FM antenna supplied to the FM 75 Ω COAXIAL terminal as temporary measure. Extend the supplied FM antenna horizontally.

• If the reception is poor, connect an outdoor FM antenna (not supplied). Before attaching a 75 Ω coaxial cable with a connector (IEC or DIN 45325), disconnect the supplied FM antenna.

NOTES

• If the AM loop antenna wire is covered with vinyl, remove the vinyl while twisting it as shown on the right.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

Getting Started

MIN

MAX

Center speaker

Subwoofer

Left front

speaker

Left surround speaker

Right front

speaker

Right surround

speaker

RX-ES1SL

XV-NK58SL

COAXIAL

AM LOOP

VOLTAGE SELECTOR

ANTENNA

FM 75

AM EXT

VIDEO

AUDIO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

DVD IN

FRONT

SURR (REAR)

TVVCRDBS

COMULINK-III

ININ

(PLAY)

OUT (REC)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT (REC)IN(PLAY)

CENTER SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

110V

127V

220V

230 240V

S-VIDEO

SUBWOOFER

OUT

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

RX-ES1SL

Connecting the speakers and DVD player

Turn off all components before connections.

Speaker Layout Diagram

After connecting the front, center and surround speakers, and/or a subwoofer, set the speaker setting information properly to obtain the best possible surround effect. For details, see pages 16 to 19.

Connecting the front, center, and surround speakers

For each speaker, connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers respectively.

Twist and remove the insulation at the end of each speaker cord (not supplied).

Press and hold the clamp of the speaker terminal (1), then insert the speaker cord (2).

Release the finger from the clamp.

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.

Powered subwoofer

Connecting the subwoofer

By connecting a subwoofer, you can enhance the bass or reproduce the original LFE signals recorded in the digital software.

Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cord with RCA pin plugs (not supplied).

• Refer also to the manual supplied with your subwoofer.

NOTE

You can place a subwoofer wherever you like since bass sound is non-directional. Normally place it in front of you.

A To center speaker B To right surround speaker C To left surround speaker D To right front speaker E To left front speaker

VIDEO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

DVD IN

FRONT

SURR (REAR)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT (REC)IN(PLAY)

CENTER SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

S-VIDEO

COMPONENT

VIDEO OUT

VIDEO

LEFT

PCM

STREAM

COAXIAL

OPTICAL

RIGHT

S-VIDEO

DIGITAL OUTAUDIO OUT

XV-NK58SL

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

VIDEO

COMPONENT VIDEO

DVD

DVD IN DBS IN MONITOR

OUT

DBSINVCR

OUT

(REC)

DVD

FRONT

SURR (REAR)

RIGHT LEFT

SUB-

WOOFER

CENTER

RX-ES1SL

Getting started

Connecting the DVD player (XV-NK58SL)

Notes for video connection:

• You can use component video cord in addition to composite video cord and S-video cord. By using S-video cord or component video cord, you can get a better picture quality—in the order: composite < S-video < component.

• To view the picture from the DVD player, connect your TV to this receiver using the same type of cord.

Component video cord (not supplied)

Green

Red

Connect using one of the video terminals.

Blue

Red

S-video cord (not supplied)

Audio/video cord

(supplied: 1 cable)

Yellow

White

Red

Digital coaxial cord (supplied: 1 cable)

Blue

Green

Red

White

Yellow

Digital optical cord

(not supplied)

NOTES

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components:

Before connecting a digital optical cord, unplug the protective plug.

– DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For DBS tuner – DIGITAL 3 (optical): For TV tuner

If you connect other components, change the digital input (DIGITAL IN) terminal setting correctly. See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN” on page 20.

• Select the correct digital input mode. See “Selecting the analog or digital input mode” on page 13.

• To enjoy the digital sound, digital connection is required—Digital optical connection or Digital coaxial connection.

COAXIAL

AM LOOP

ANTENNA

FM 75

AM EXT

VIDEO

AUDIO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

DVD IN

FRONT

SURR (REAR)

TVVCRDBS

COMULINK-III

ININ

(PLAY)

OUT (REC)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT (REC)IN(PLAY)

CENTER SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

AUDIO

TVVCRDBS

ININ

(PLAY)

OUT (REC)

VIDEO

COMPONENT VIDEO

DVD

DVD IN DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

LEFT

RIGHT

AUDIO

OUT

S-VIDEO

RX-ES1SL

Getting started

VIDEO SIGNAL

SELECTOR

NTSC REMOTE

PAL 525i

525

Connecting other video components

Turn off all components before making connections.

• Illustrations of the input/output terminals are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear vary among different components.

Notes for video connection:

• You can use composite video cord or S-video cord for connecting the VCR to this receiver.

• You can use component video cord in addition to composite video cord and S-video cord for connecting your DVD player, TV and DBS tuner to this receiver.

• By using S-video cord or component video cord, you can get a better picture quality—in the order: composite < S-video < component.

• To view the picture from the DVD player, DBS tuner or VCR on your TV, connect your TV to this receiver using the same type of cord for connecting the DVD player, DBS tuner or VCR to this receiver.

TV connection

DO NOT use a TV through a VCR or a TV with a built-in VCR; Otherwise, the picture may be distorted.

Connect using one of the video terminals.

About VIDEO SIGNAL SELECTOR on XV-NK58SL

Selecting PAL or NTSC

Set the PAL/NTSC selector on the rear panel to “PAL” or “NTSC” to match the color system of your TV. Make sure that the color system of a DVD VIDEO/SVCD/video CD disc labeled on the package matches your TV. If you use a multi-color system TV, you can play discs recorded on both PAL and NTSC systems by setting the PAL/NTSC selector appropriately.

• Change the PAL/NTSC selector position in stop mode or with no disc inserted. The changed setting is not effective if you change the selector position in playback mode.

Component video cord (not supplied)

Green

Blue

Red

Green

Blue

Red

Composite video cord (not supplied)

S-video cord (not supplied)

Stereo audio cord (not supplied)

Selecting the 525i/525p/REMOTE selector position

You must change the 525i/525p/REMOTE selector position while the player power is off. Otherwise, the changed setting is not effective.

• If your television equipped with component jacks does not support the progressive scanning mode, set the selector to “525i.”

• If your television equipped with component jacks supports the progressive scanning mode, set the selector to “525p.”

• If you want to select the scanning mode between the interlace and progressive modes (depending on the source condition, or when connecting more than one television, etc.), set the selector to “REMOTE.”

CONTINUED ON THE NEXT PAGE

COAXIAL

AM LOOP

ANTENNA

FM 75

AM EXT

VIDEO

AUDIO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD IN

DVD

DVD IN

FRONT

SURR (REAR)

TVVCRDBS

COMULINK-III

ININ

(PLAY)

OUT

(REC)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT (REC)IN(PLAY)

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

S-VIDEO

LEFT

RIGHT

AUDIO

OUT IN

AUDIO

TVVCRDBS

ININ

(PLAY)

OUT

(REC)

VCR

VIDEO

DVDINDBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

S-VIDEO

RX-ES1SL

Getting started

Activating the Progressive scanning mode using the remote control unit

When the player is turned on and the 525i/525p/REMOTE selector is set to “REMOTE,” press and hold down PROGRESSIVE for a few seconds. The scanning mode switches between the Progressive scanning and Interlaced scanning modes. When the scanning mode is set to the Progressive mode, the PROGRESSIVE indicator on the front panel turns on. Depending on the [PICTURE SOURCE] setting on the [PICTURE] preference display and whether the current DVD VIDEO disc is film-source or video-source, the color of the indicator differs, as shown in the table below.

Setting of

[PICTURE SOURCE]

AUTO

FILM

VIDEO (NORMAL)/ (ACTIVE)

Source type of DVD VIDEO

Film source Video source

Green

Red

Green

Red

* While stopped in the Progressive scanning mode, the

PROGRESSIVE indicator is lit in red regardless of the [PICTURE SOURCE] selection.

NOTES

• The Progressive scanning mode works only when you connect the

player’s COMPONENT VIDEO OUT jacks to your TV.

• The Progressive scanning mode works only when the signal format

is NTSC.

• There are some progressive TV and High-Definition TV sets that

are not fully compatible with the player, resulting in the unnatural picture when playing back a DVD VIDEO disc in the Progressive scanning mode. In such a case, use the Interlaced scanning mode. To check the compatibility of your TV set, contact your local JVC customer service center.

• All JVC progressive TV and High-Definition TV sets are fully

compatible with the player (Example: AV-61S902).

• The VIDEO jack, S-VIDEO jack and COMPONENT VIDEO OUT

jacks cannot be used at the same time. Connect cable(s) only to the jack(s) you want to use.

Progressive scan video playback available

In the Progressive scanning mode, you can enjoy high quality picture with less flickers when the COMPONENT VIDEO OUT jacks are connected to a TV or monitor that supports the progressive video input.

About the scanning mode

Depending on the material source format, DVD VIDEO discs can be classified into two types; film source and video source (note that some DVD VIDEO discs contain both film source and video source). Film sources are recorded as 24-frame-per-second information, while (NTSC) video sources are recorded as 30-frame-per-second (60-fieldper-second interlaced) information. When the player plays back a film source material, uninterlaced progressive output signals are created using the original information. When a video source material is played back, the player interleaves lines between the interlaced lines on each to create the interpolated picture and outputs as the progressive signal.

VCR connection

Connect using one of the video terminals.

Composite video cord (not supplied)

S-video cord (not supplied)

Stereo audio cord (not supplied)

Getting started

COAXIAL

AM LOOP

ANTENNA

FM 75

AM EXT

VIDEO

AUDIO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

DVD IN

FRONT

SURR (REAR)

TVVCRDBS

COMULINK-III

ININ

(PLAY)

OUT

(REC)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

CENTER SPEAKER

SURROUND SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

S-VIDEO

AUDIO

TVVCRDBS

ININ

(PLAY)

OUT

(REC)

VIDEO

COMPONENT VIDEO

DVD

DVD IN DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

DBS tuner

LEFT

RIGHT

AUDIO

OUT

S-VIDEO

RX-ES1SL

AM LOOP

ANTENNA

AM EXT

VIDEO

AUDIO

COMPONENT VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

DVD IN

FRONT

SURR (REAR)

TVVCRS

(PLAY)

OUT

(REC)

RIGHT LEFT

SUB-

WOOFER

CENTER

DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

S-VIDEO

VIDEO

COMPONENT VIDEO

DVD

DVD IN DBS IN MONITOR

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT

(REC)IN(PLAY)

DVD

FRONT

SURR (REAR)

RIGHT LEFT

SUB-

WOOFER

CENTER

DVD Player with 5.1 channel

analog discrete jacks

S-VIDEO

RX-ES1SL

DBS tuner connection

Connect using one of the video terminals.

Green

Blue

Red

Component video cord (not supplied)

Composite video cord (not supplied)

S-video cord (not supplied)

Stereo audio cord (not supplied)

Green

Blue

Red

Analog connection for DVD MULTI playback (see page 32)

• DVD MULTI playback is not available for XV-NK58SL. See page 8 for how to connect XV-NK58SL.

Green

Blue

Red

Component video cord (not supplied)

Composite video cord (not supplied)

S-video cord (not supplied)

Stereo audio cord (not supplied)

Monaural audio cord (not supplied)

Green

Blue

Red

To front right channel audio output

To front left channel audio output

To center channel audio output

To surround left channel audio output

To surround right channel audio output

To subwoofer output

CONTINUED ON THE NEXT PAGE

VIDEO

SUBWOOFER

OUT

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

DVD

OUT

DBSINVCR

MONITOR OUT

VIDEO

OUT (REC)IN(PLAY)

CENTER

SPEAKER

SURROUND SPEAKERS

RIGHT LEFT RIGHT LEFT

FRONT

SPEAKERS

CAUTION: SPEAKER IMPEDANCE 8

S-VIDEO

OPTICAL

DIGITAL OUT

COAXIAL

DIGITAL OUT

DBS tuner

DIGITAL IN

DIGITAL 3

(TV)

DIGITAL 2 (DBS)

DIGITAL 1

(DVD)

RX-ES1SL

Getting started

Digital connection

Digital optical cord (not supplied)

Digital coaxial cord (supplied: 1 cable)

Before connecting a digital optical cord, unplug the protective plug.

NOTES

• When shipped from the factory, the DIGITAL IN terminals have

been set for use with the following components:

– DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For DBS tuner – DIGITAL 3 (optical): For TV tuner

If you connect other components, change the digital input (DIGITAL IN) terminal setting correctly. See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN” on page 20.

• Select the correct digital input mode.

See “Selecting the analog or digital input mode” on page 13.

Connecting the power cord

When all the audio/video connections have been made, connect the AC power plug to the wall outlet. Make sure that the plugs are inserted firmly. The STANDBY lamp on the receiver and indicator on the DVD player light in red.

• Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

NOTES

• The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases: – when you unplug the power cord. – when a power failure occurs.

• Disconnect the power cord: – if you are not going to use the player for a long period of time.

– before cleaning the player.

– before moving the player.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.

• Do not plug in before setting the voltage selector switch on the rear of the receiver and all connection procedures are completed.

RX-ES1SL

ANALOG

SUBWFR

VOL

DVD MULTI

DVD (DVD DIGITAL)

DBS (DBS DIGITAL)

VCR

TV (TV DIGITAL)

FM AM

(Back to the beginning)

ANALOG

SUBWFR

VOL

STANDBY / ON STANDBY

DIMMER SETTING ADJUST SURROUND

DVD MULTI DVD DBS VCR TV FM / AM

SET / TUNER PRESET

SOURCE SELECTOR MASTER VOLUME

PHONES

/ MULTI JOG

OPEN/CLOSE

DVD VCR DBS TV

DVD MULTI

TV VOL CHANNEL

TUNING TUNINGFM MODE

MEMORY

TOP MENU

CHOICE

AUDIO

ZOOM

ANGLE

REPEAT

DIMMER

SUBWFR CENTER L RSURR

BASS BOOST

A.POSITION

SMART S. SETUP

SLEEP CANCEL

SURROUND

ANALOG/DIGITAL

TV RETURN 100

BASS TREBLE

ECHO

SUBTITLE

RETURN

RESERVE

TITLE/GROUP

SCREEN

VOLUME

FM/AM TV/VIDEO MUTING

AUDIO

HOME CINEMA CONTROL CENTER

BASS TREBLE

PROGRESSIVE

AUDIO/TV /VCR/DBS

KARAOKE

DVD

KARAOKE SOUND

KARAOKE

VOCAL

EFFECT

KEY

123

VFP

INPUT

TONE

TEST EFFECT

DECODE

789

103D0 +10

ENTER

Basic operations

When operating the receiver using the remote control, always set the mode selector to AUDIO/TV/VCR/DBS.

Select the source to play

On the front panel:

Turn SOURCE SELECTOR until the source name you want appears on the display.

The source indicator corresponding to the selected source lights in red.

• As you turn SOURCE SELECTOR, the source changes as follows:

From the remote control:

Press one of the source selecting buttons.

• Each time you press FM/AM, FM and AM changes alternately.

Turn on the power

Press STANDBY/ON (or AUDIO on the remote control).

The STANDBY lamp goes off. The current source indicator lights in red. The name of the current source (or station frequency) appears on the display.

To turn off the power (into standby)

Press STANDBY/ON again (or AUDIO on the remote control). The STANDBY lamp lights up.

NOTE

A small amount of power is consumed in standby mode. To turn the power off completely, unplug the AC power cord.

Current volume level is shown here.

Current source name appears.

DVD MULTI: Select the DVD player using the analog discrete

output mode (5.1 channel reproduction). To enjoy the DVD MULTI playback, see page 32.

DVD (DIGITAL)*: Select the DVD player. DBS (DIGITAL)*: Select the DBS tuner. VCR: Select the VCR. TV (DIGITAL)*: Select the TV tuner. FM: Select an FM broadcast. AM: Select an AM broadcast.

* Selecting the analog or digital input mode

When you have connected the DVD player, DBS tuner, or TV tuner using both the analog connection and the digital connection methods (see pages 8 to 12), you need to select the correct input mode.

• You can select the digital input only for sources which you have selected digital input terminals for. (See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN” on page 20.)

From the remote control ONLY:

Press ANALOG/DIGITAL INPUT to select the analog or digital input mode.

• Each time you press the button, the input mode alternates between the analog input (“ANALOG”) and the digital input (“DGTL AUTO”).

DGTL AUTO: Select for the digital input mode. The receiver

ANALOG*: Select for the analog input mode.

* Initial setting

NOTE

You cannot select the digital input mode when selecting “DVD MULTI” as the playing source.

automatically detects the incoming signal format, then the digital signal format indicator (DOLBY D, DTS or LPCM) for the detected signals lights up.

CONTINUED ON THE NEXT PAGE

SUBWFR LFE

VOL

LCR

LS RS

DOLBY D

DGTL AUTO

DGTL DTS

DGTL D.D.

Basic operations

STANDBY / ON STANDBY

DIMMER SETTING ADJUST SURROUND

DVD MULTI DVD DBS VCR TV FM / AM

SET / TUNER PRESET

SOURCE SELECTOR MASTER VOLUME

PHONES

/ MULTI JOG

OPEN/CLOSE

DVD VCR DBS TV

DVD MULTI

TV VOL CHANNEL

TUNING TUNINGFM MODE

MEMORY

TOP MENU

CHOICE

AUDIO

ZOOM

ANGLE

REPEAT

DIMMER

SUBWFR CENTER L RSURR

BASS BOOST

A.POSITION

SMART S. SETUP

SLEEP CANCEL

SURROUND

ANALOG/DIGITAL

TV RETURN 100

BASS TREBLE

ECHO

SUBTITLE

RETURN

RESERVE

TITLE/GROUP

SCREEN

VOLUME

FM/AM TV/VIDEO MUTING

AUDIO

HOME CINEMA CONTROL CENTER

BASS TREBLE

PROGRESSIVE

AUDIO/TV /VCR/DBS

KARAOKE

DVD

KARAOKE SOUND

KARAOKE

VOCAL

EFFECT

KEY

123

VFP

INPUT

TONE

TEST EFFECT

DECODE

789

103D0 +10

ENTER

When operating the receiver using the remote control, always set the mode selector to AUDIO/TV/ VCR/DBS.

CAUTION:

Be sure to turn down the volume:

• Before connecting or putting on headphones, as high volume can damage both the headphones and your hearing.

• Before removing headphones, as high volume may output from the speakers.

Selecting the digital decode mode

If the following symptoms occur while playing Dolby Digital or DTS Digital Surround software with “DGTL AUTO” selected (see page 13), follow the procedure below:

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

From the remote control ONLY:

Press ANALOG/DIGITAL INPUT to select “DGTL AUTO.”

Press DECODE to select “DGTL D.D.” or “DGTL DTS.”

• Each time you press the button, the digital decode mode changes as follows:

Adjust the volume

To increase the volume, turn MASTER VOLUME control clockwise (or press VOLUME + on the remote control).

To decrease the volume, turn MASTER VOLUME control counterclockwise (or press VOLUME – on the remote control).

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

NOTE

The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

Listening with headphones

Connect a pair of headphones to the PHONES jack on the front panel. This cancels the Surround mode currently selected, deactivates speakers, and activates the HEADPHONE mode. The HP (headphone) indicator lights up on the display.

• Disconnecting a pair of headphone from the PHONES jack cancels the HEADPHONE mode and activates the speakers.

HEADPHONE mode

When using the headphones, the following signal is output regardless of your speaker setting: — For 2 channel sources, the front left and right channel signal is

output directly from the left and right headphones.

— For multi-channel sources, the front left and right, center and

surround channel signal is down-mixed and then output from the headphones without missing bass element. You can enjoy multi-channel sound source using the headphones.

• To play back software encoded with Dolby Digital, select “DGTL D.D.”

• To play back software encoded with DTS Digital Surround, select “DGTL DTS.”

NOTE

When you turn off the power or select another source, “DGTL DTS” or “DGTL D.D.” is canceled and the digital decode mode is automatically reset to “DGTL AUTO.”

The following are the analog/digital signal format indicators on the display to indicate what type of signal comes into the receiver.

ANALOG: Lights when analog input is selected.

LPCM: Lights when Linear PCM signal comes in.

DOLBY D: • Lights when Dolby Digital signal comes in.

• Flashes when “DGTL D.D.” is selected for software not encoded with Dolby Digital.

DTS: • Lights when DTS signal comes in.

• Flashes when “DGTL DTS” is selected for software not encoded with DTS.

NOTE

When “DGTL AUTO” cannot recognize the incoming signal, no digital signal format indicator lights up on the display.

Basic operations

ANALOG

SUBWFR

ANALOG

SUBWFR

SLEEP

VOL

(Canceled)

SUBWFR

ANALOG

PL ΙΙ

SUBWFR LFE

AUTO SR INPUT ATT

DSP HP

LCR

LS S RS

LPCM

DOLBY D DTS

SUBWFR

LCR

LS RS

LFE

LCR

LS S RS

Turning off the sounds temporarily— Muting

From the remote control ONLY:

Press MUTING to turn off the sound through all connected speakers.

“MUTING” appears on the display and the volume turns off (the volume level indicator goes off).

To restore the sound, press MUTING again.

• Pressing VOLUME +/– (or turning MASTER VOLUME control on the front panel) also restores the sound.

Turning off the power with the Sleep Timer

You can fall asleep while listening to music—Sleep Timer.

From the remote control ONLY:

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals.

SLEEP indicator

NOTES

• When setting speakers and basic items or adjusting sound, select “DIMMER OFF” to confirm the setting you make on the display.

• When selecting DVD or DVD MULTI as a source using the remote control, DIMMER functions for the DVD player. To dim the display and indication on the receiver, select a source except DVD or DVD MULTI on the remote control, and then press DIMMER.

Basic adjustment of auto memory

This receiver memorizes sound settings for each source:

• when you turn off the power,

• when you change the source, and

• when you change the analog/digital input mode (see page 13).

When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Analog/digital input mode (see page 13)

• Tone adjustment (see page 22)

• Subwoofer output level (see page 22)

• Bass boost (see page 23)

• Input attenuator mode (see page 23)

• Balance (see page 23)

• Subwoofer audio position (see page 23)

• Surround/DSP mode selection (see pages 26 – 31)

NOTES

• If the source is FM or AM, you can assign a different setting for each band.

• You cannot assign and store different settings for digital input mode and analog input mode.

When the shut-off time comes:

The receiver turns off automatically.

To check or change the remaining time until the shut-off time:

Press SLEEP once. The remaining time (in minutes) until the shut-off time appears.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly until “SLEEP 0” appears on the display. (The SLEEP indicator goes off.)

• Turning off the power also cancels the Sleep Timer.

Changing the display brightness

You can dim the display.

Press DIMMER repeatedly.

• Each time you press the button, the indication changes as follows:

DIMMER 1: • Dims the display slightly.

DIMMER 2: • Dims the display more than DIMMER 1.

DIMMER 3: Turns off the display and the blue indication

DIMMER OFF: Cancels the dim (normal display).

• Dims the blue indication lighting source lamps.

• Dims the blue indication lighting source lamps (same as DIMMER 1).

lighting source lamps.

Signal and speaker indicators on the display

Signal indicators Speaker indicators

The following signal indicators light up —:

L: •When digital input is selected: Lights up when the left

channel signal comes in.

• When analog input is selected: Always lights up.

R: • When digital input is selected: Lights up when the right

channel signal comes in.

• When analog input is selected: Always lights up. C: Lights up when the center channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal

comes in.

LFE: Lights up when the LFE channel signal comes in.

The speaker indicators light up as follows:

• The subwoofer indicator (

set to “USE” for Quick Setup (see page 17) or to “YES” for Manual Setup (see page 18).

• The other speaker indicators light up only when the

corresponding speaker is set to “SML” or “LRG,” and also when required for the current playback.

) lights up when “SUBWFR” is

RX-ES1SL

ANALOG

SUBWFR

VOL

MIN

MAX

ZOOM

ANGLE

REPEAT

DIMMER

SUBWFR CENTER L RSURR

BASS BOOST

A.POSITION

SMART S. SETUP

SLEEP CANCEL

SURROUND

ANALOG/DIGITAL

TV RETURN 100

BASS TREBLE

KARAOKE

KEY

VOCAL EFFECT

123

VFP

INPUT

TONE

TEST EFFECT

DECODE

789

103D0 +10

Speaker settings

To obtain the best possible surround effect from Surround/DSP modes (see pages 26 to 31), you need to set up the speaker and subwoofer information after all the connections are completed. You can set the speaker information using one of the following three methods.

Smart Surround Setup: Set the speakers information automatically by one simple action—clapping hands. The delay time and output level for

Quick Setup: Set the speakers and subwoofer information quickly by entering the use of the subwoofer, the number of the speakers,

Manual Setup: Set the speakers and subwoofer information manually.

• Before starting the speaker setting, connect and position the speakers and subwoofer (see page 7) and turn on the receiver.

Setting the speakers information automatically—Smart Surround Setup

The distance from your listening point to the speakers is one of the important element to obtain the best possible sound effect for the Surround/DSP modes. You need to set the delay time of the center and surround speakers relative to the front speakers so that sounds through all the speakers can reach you at the same time (see also page 19). By using Smart Surround Setup, the speaker delay time and output level are automatically calculated by one simple action—clapping hands.

• To set the speaker information effectively using Smart Surround Setup, unplug the power cords of all the components connected to this receiver such as a TV, DVD player, DBS tuner, and VCR which may cause noise.

• To use Smart Surround Setup effectively, connect both the center and surround speakers.

• You can also set the crossover frequency, the low frequency effect attenuator and the dynamic range compression manually (see page

19).

• When you change your speakers, do the following steps again.

From the remote control ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

the center and surround speakers are set automatically.

and your room size.

Confirm “SETTING UP” stops flashing and clap your hands over your head once while “SETTING UP” appears on the display.

The receiver starts detecting the level of the sound coming through all speakers (except the subwoofer). After detecting the sound, one of the following indications appears on the display.

SUCCESSFUL: Sound of your clapping is successfully

SILENT: The receiver cannot detect sound from some

SILENT-ALL: The receiver cannot detect any sound from all

FAILED: The receiver cannot detect both right and left

• When the receiver cannot detect the sound correctly (“SILENT,”

• The speaker delay time and output levels are set automatically

When operating the receiver using the remote control, always set the mode selector to AUDIO/TV/VCR/DBS.

• When the receiver detects the sound as “SILENT-ALL” or

detected. The receiver sets the delay time and the output level of the center and surround speakers automatically.

speakers.

channels for the front and/or surround speakers correctly.

“SILENT-ALL” or “FAILED” appears on the display), “SETTING UP” appears on the display again then repeat step

when:

—the receiver detects the sound as “SILENT” twice in

succession.

—the receiver detects the sound as “SILENT” at the third time

after detecting “SILENT”, “SILENT-ALL” and/or “FAILED” twice.

“FAILED” three times, “MANUAL” appears on the display. Set

the speaker and subwoofer information using Quick Setup (see page 17) or Manual Setup (see page 18), and the speakers’ output levels for the center and surround speakers (see pages 29 to 31).

Take your position where you listen to the sound.

Press and hold SMART S. SETUP.

“SETTING UP” flashes on the display.

To cancel Smart Surround Setup, press SMART S. SETUP while “SETTING UP” flashes on the display.

• Any other operations cannot be done after “SETTING UP” stops flashing. Complete the Smart Surround Setup.

NOTES

• You need to set the subwoofer information and output level

manually (see pages 18 and 22).

• When you use Smart Surround Setup, the speaker delay time and

output levels you have set before will be ineffective.

• Set the speakers information using Quick Setup (see page 17) or

Manual Setup (see page 18), and the speakers’ output levels for the center and surround speakers (see pages 29 to 31) when: —you like to change the speaker setting made by Smart Surround

Setup

—Smart Surround Setup is not done correctly due to some factors

such as the environment, speaker types and clapping strength.

• Smart Surround Setup will not be done correctly if your body or

other object blocks the sound.

• Do not clap your hands hard because it may hurt your hands.

Setting the speakers and subwoofer

STANDBY / ON STANDBY

DIMMER SETTING ADJUST SURROUND

DVD MULTI DVD DBS VCR TV FM / AM

SET / TUNER PRESET

SOURCE SELECTOR MASTER VOLUME

PHONES

/ MULTI JOG

ANALOG

SUBWFR

VOL

5 SPEAKERS*

3 SPEAKERS

4 SPEAKERS

ANALOG

SUBWFR

VOL

USE *

ANALOG

SUBWFR

VOL

SMALL*

MEDIUM

LARGE

ANALOG

SUBWFR

VOL

SUBWFR

FRNT SP

LFE

DIGITAL IN

AUTO SR

DVD VIDEO

QUICK SETUP

(Back to the beginning)

CNTR SP SURR DL

CROSS

CNTR DL

D.COMP

SURR SP

DBS VIDEO

1.5 m

2.4 m

1.8 m

2.1 m

information quickly—Quick Setup

Entering the use of the subwoofer, the number of the speakers, and your room size, the center and surround speakers’ delay time is automatically calculated.

• When you change your speakers, register the information about the speakers again.

•

You can also set the crossover frequency, the low frequency effect attenuator and the dynamic range compression manually (see page 19).

On the front panel ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Press SETTING.

MULTI JOG now works for the setting operation.

Turn MULTI JOG until “QUICK SETUP” appears on the display.

• As you turn MULTI JOG, the indication changes as follows:

Speaker settings

Press SET.

“ENTER USE OF SUBWOOFER” scrolls on the display.

Turn MULTI JOG to select whether or not you have connected a subwoofer.

• As you turn MULTI JOG, the indication changes as follows:

* Initial setting

Press SET.

“ENTER ROOM SIZE” scrolls on the display.

Turn MULTI JOG to select the room size.

• As you turn MULTI JOG, the indication changes as follows:

The center and surround speakers’ delay time is registered appropriately according to the room size. For details, see the list “Speaker delay time according to room size” below.

* Initial setting

Press SET.

“ENTER THE NUMBER OF SPEAKERS” scrolls on the display.

• Once you have selected “QUICK SETUP,” previously adjusted speaker setting is cleared.

Turn MULTI JOG to select the number of the speakers you have connected.

• As you turn MULTI JOG, the indication changes as follows:

5 SPEAKERS*: Select when the front, center and surround

4 SPEAKERS: Select when the front and surround speakers

3 SPEAKERS: Select when the front and center speakers

* Initial setting

Each speaker size is registered appropriately according to the number of the connected speakers. For details, see the list “Speaker size according to the number of speakers” on the right.

speakers are connected.

are connected.

Press SET to finish the setting.

“SETUP END” appears for a while, then the indication of the previously selected source appears on the display.

NOTES

• The setting you have made is not registered until “SETUP END” appears on the display.

• Performing any operation other than volume and dimmer adjustment cancels Quick Setup process.

• When you want to change the speaker and subwoofer information after Quick Setup, use Manual Setup (see page 18).

Speaker size according to the number of speakers

Number of Subwoofer Front Center Surround speakers

3 NO LRG (large) SML (small) NO 3 USE (YES) SML (small) SML (small) NO

4 NO LRG (large) NO SML (small)

4 USE (YES) SML (small) NO SML (small)

5 NO LRG (large) SML (small) SML (small) 5 USE (YES) SML (small) SML (small) SML (small)

Speaker delay time according to room size

When selecting “SMALL ROOM,”

• Center speaker delay time is set to 1 msec.

• Surround speakers delay time is set to 3 msec.

CONTINUED ON THE NEXT PAGE

Speaker settings

ANALOG

SUBWFR

VOL

SUBWFR

FRNT SP

LFE

DIGITAL IN

AUTO SR

DVD VIDEO

QUICK SETUP

(Back to the beginning)

CNTR SP SURR DL

CROSS

CNTR DL

D.COMP

SURR SP

DBS VIDEO

SUBWFR

ANALOG

VOL

2.7 m

2.4 m

2.1 m

3.0 m

STANDBY / ON STANDBY

DIMMER SETTING ADJUST SURROUND

DVD MULTI DVD DBS VCR TV FM / AM

SET / TUNER PRESET

SOURCE SELECTOR MASTER VOLUME

PHONES

/ MULTI JOG

When selecting “MEDIUM ROOM,”

• Center speaker delay time is set to1 msec.

• Surround speakers delay time is set to 2 msec.

When selecting “LARGE ROOM,”

• Center speaker delay time is set to 0 msec.

• Surround speakers delay time is set to 0 msec.

Setting the speakers and subwoofer information manually—Manual Setup

You can set the following speakers and subwoofer information manually as you prefer. When you change your speakers, register the information again.

• Subwoofer information—SUBWFR

• Speaker size—FRNT SP, CNTR SP, SURR SP

• Speaker delay time—CNTR DL, SURR DL

• Crossover frequency—CROSS

• Low frequency effect attenuator—LFE

• Dynamic range compression—D.COMP

Turn MULTI JOG to select the appropriate setting for the item selected in step 2, then press SET.

Your setting is stored.

EX.: When selecting “NO” for “SUBWFR.”

If you would like to set other items, repeat steps

and 3.

Setting the subwoofer information — SUBWFR (subwoofer)

YES*: Select when you have connected a subwoofer.

The subwoofer speaker indicator (

) lights up on the display (see page 15). You can adjust the subwoofer output level (see page 22).

NO: Select when you have not connected or have

disconnected a subwoofer.

* Initial setting

Setting the speakers size

— FRNT SP (front speakers), CNTR SP (center

speaker), SURR SP (surround speakers)

Operating procedure

On the front panel ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Press SETTING.

MULTI JOG now works for the setting operation.

Turn MULTI JOG until the setting item you want to set appears on the display, then press SET.

• As you turn MULTI JOG, the indication changes as follows:

LRG (large): Select when the cone speaker size is larger than

12 cm.

SML (small)*: Select when the cone speaker size is smaller than

12 cm.

NO: Select when you have not connected a speaker. (Not

selectable for the front speakers.)

* Initial setting

NOTES

• If you have selected “SML (small)” for the front speaker size, you cannot select “LRG (large)” for the center and surround speaker sizes.

• If you have selected “NO” for the subwoofer setting (see above and page 17), you can only select “LRG (large)” for the front speaker size.

Speaker settings

3.0 m

Left front

speaker

Right front

speaker

Right surround

speaker

Center speaker

2.7 m

2.4 m

2.1 m

Left surround speaker

Setting the speaker delay time

— CNTR DL (center speaker delay),

SURR DL (surround speakers delay)

You can set the speaker delay time easily by using Smart Surround Setup (see page 16) or Quick Setup (see page 17).

The distance from your listening point to the speakers is one of the important element to obtain the best possible surround sound for the Surround modes. You need to set the delay time of the center and surround speakers relative to the front speakers so that sounds through all the speakers can reach you at the same time.

• 1 msec increase (or decrease) in delay time corresponds to 30 cm increase (or decrease) in distance.

CNTR DL*: Set the delay time for the center speaker within a

range of 0 msec to 5 msec (in 1 msec intervals).

SURR DL*: Set the delay time for the surround speakers within a

range of 0 msec to 15 msec (in 1 msec intervals).

* “0ms” is the initial setting.

Setting the crossover frequency—CROSS

Small speakers cannot reproduce the bass sounds efficiently. If you use a small speaker in any position, this receiver automatically reallocates the bass sound elements assigned to the small speaker to the large speakers. To use this function properly, set this crossover frequency level according to the size of the small speaker connected.

• If you have selected “LRG (large)” for all speakers (see page 18), this function will not take effect.

80HZ: Select when the cone speaker unit built in the

speaker is about 12 cm.

100HZ: Select when the cone speaker unit built in the

speaker is about 10 cm.

120HZ: Select when the cone speaker unit built in the speaker

is about 8 cm.

150HZ*: Select when the cone speaker unit built in the speaker

is about 6 cm.

200HZ: Select when the cone speaker unit built in the

speaker is less than 5 cm.

* Initial setting

NOTE

Crossover frequency is not valid for the HEADPHONE mode.

Example: In this case,

set “CNTR DL” to “1ms” and set “SURR DL” to “2ms.”

NOTE

If the center and/or surround speakers are not connected (see pages 17 and 18), you cannot set the speaker delay time for the center and/ or surround speakers.

Setting the low frequency effect attenuator —LFE

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

• This function takes effect only when the LFE signals come in.

0dB*: Normally select this.

–10dB: Select when the bass sound is distorted.

* Initial setting

Setting the dynamic range compression —D.COMP

You can compress the dynamic range (difference between maximum sound and minimum sound) of the reproduced sound. This is useful when listening to surround sound at night.

• This function takes effect only when playing back a source encoded with Dolby Digital.

OFF: Select when you want to enjoy surround with its full

dynamic range. (No effect applied.)

MID*: Select when you want to reduce the dynamic range a

little.

MAX: Select when you want to apply the compression effect

fully. (Useful at night.)

* Initial setting

RX-ES1SL

SUBWFR

FRNT SP

LFE

DIGITAL IN*

AUTO SR

QUICK SETUP

CNTR SP SURR DL

CROSS

CNTR DL

D.COMP

SURR SP

ANALOG

SUBWFR

VOL

(Back to the beginning)

DVD VIDEO

DBS VIDEO

ANALOG

SUBWFR

VOL

STANDBY / ON STANDBY

DIMMER SETTING ADJUST SURROUND

DVD MULTI DVD DBS VCR TV FM / AM

SET / TUNER PRESET

SOURCE SELECTOR MASTER VOLUME

PHONES

/ MULTI JOG

Basic settings

Operating procedure

On the front panel ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Press SETTING.

MULTI JOG now works for the setting operation.

Turn MULTI JOG until the setting item you want to set appears on the display, then press SET.

• As you turn MULTI JOG, the indication changes as follows:

* Setting item you can select appears on the display after

“DIGITAL IN” appears for a few seconds.

Turn MULTI JOG to select the appropriate setting for the item selected in step 2, then press SET.

Your setting is stored.

Setting the digital input (DIGITAL IN) terminals—DIGITAL IN

When you use the digital input terminals, register what components are connected to which terminals—DIGITAL 1/2/3 (see pages 8 and

12) so that the correct source name will appear when you select the

digital source.

1DVD2DBS3TV* : Select when connecting the following

components; DIGITAL 1:DVD player DIGITAL 2:DBS tuner DIGITAL 3:TV tuner

1DVD2TV3DBS : Select when connecting the following

components; DIGITAL 1:DVD player DIGITAL 2:TV tuner DIGITAL 3:DBS tuner

1DBS2DVD3TV : Select when connecting the following

components; DIGITAL 1:DBS tuner DIGITAL 2:DVD player DIGITAL 3:TV tuner

1DBS2TV3DVD : Select when connecting the following

components; DIGITAL 1:DBS tuner DIGITAL 2:TV tuner DIGITAL 3:DVD player

1TV2DVD3DBS : Select when connecting the following

components; DIGITAL 1:TV tuner DIGITAL 2:DVD player DIGITAL 3:DBS tuner

1TV2DBS3DVD : Select when connecting the following

components; DIGITAL 1:TV tuner DIGITAL 2:DBS tuner DIGITAL 3:DVD player

* Initial setting

Ex.: When selecting “1DVD2DBS3TV” for “DIGITAL IN”.

Basic settings

Setting Auto Surround—AUTO SR

You can enjoy Surround mode simply by selecting the source (with digital input selected for that source). Select “ON” when activating Auto Surround.

ON: • If multi-channel signal comes in, an appropriate

OFF*: Select this to deactivate Auto Surround.

* Initial setting

NOTES

• This function does not take effect in the following cases: – While playing an analog source, and – While selecting “DGTL D.D.” or “DGTL DTS” as the fixed digital

decode mode (see page 14).

•

If Surround mode is automatically activated by Auto Surround, any other Surround mode in use will be canceled temporarily. When the multi-channel digital signal stops coming in, “PLII MOVIE” activates.

•

If you press SURROUND with Auto Surround activated, Auto Surround will be canceled temporarily for the currently selected source. Auto Surround setting will be restored in the following cases:

– When you turn the receiver off and on, – When you change the source, – When you change the analog/digital input, and – When you reset “AUTO SR” to “ON” again.

Surround mode will be turned on.

• If Dolby Digital 2 channel or DTS 2 channel signal including surround signal comes in, “PLII MOVIE” will be selected.

• If Dolby Digital 2 channel or DTS 2 channel signal not including surround signal comes in, “STEREO” will be selected.

• If Linear PCM signal comes in, nothing will change.

The AUTO SR indicator lights up on the display.

Setting the video component input mode—DVD VIDEO/DBS VIDEO

When you use the component video inputs for the DVD player and/or DBS tuner, you have to register the type of input terminals. Without setting this correctly, you cannot view the correct input on the TV.

S/C*: Select when connecting the video component to

the composite video or S-video input terminals.

COMP.: Select when connecting the video component to

the component video input terminals.

* Initial setting

+ 54 hidden pages

JVC LVT1002-012B User Manual

INSTRUCTIONS

Warnings, Cautions, and Others

Table of Contents

Parts identification

Getting started

Basic operations

Speaker settings

Basic settings
