JVC lt 37dv1bj lt 37dv1bu Schematic

SCHEMATIC DIAGRAMS

INTEGRATED DIGITAL TERRESTRIAL LCD TELEVISION

LT-37DV1BJ/PP, LT-37DV1BU/PP

DVD-ROM No.SML2009Q1

BASIC CHASSIS

FY2

COPYRIGHT © 2009 Victor Company of Japan, Limited.

No.YA690<Rev.001>

2009/4

LT-37DV1BJ/PP, LT-37DV1BU/PP

STANDARD CIRCUIT DIAGRAM

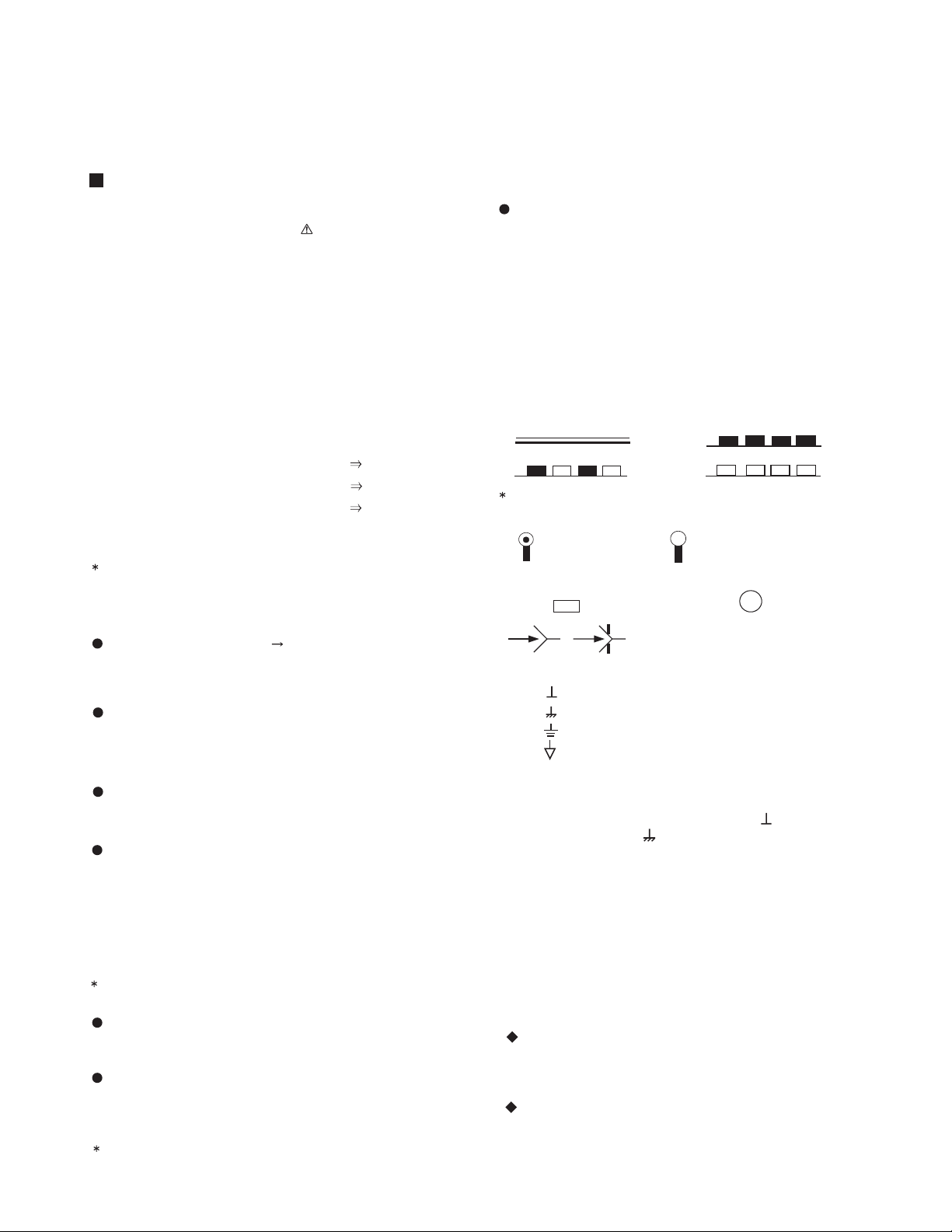

NOTE ON USING CIRCUIT DIAGRAMS

1.SAFETY

The components identified by the symbol and shading are
critical for safety. For continued safety replace safety ciritical
components only with manufactures recommended parts.

2.SPECIFIED VOLTAGE AND WAVEFORM VALUES

The voltage and waveform values have been measured under the
following conditions.

(1)Input signal : Colour bar signal

(2)Setting positions of
each knob/button and
variable resistor

(3)Internal resistance of tester

(4)Oscilloscope sweeping time

(5)Voltage values

Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.

: Original setting position
when shipped

: DC 20kΩ/V

: H

: V

: Othters

: All DC voltage values

20µs / div

5ms / div

Sweeping time is
specified

3.INDICATION OF PARTS SYMBOL [EXAMPLE]

In the PW board

: R1209

R209

Type

No indication

MM
PP
MPP

MF
TF
BP

TAN

(3)Coils

No unit

Others

(4)Power Supply

Respective voltage values are indicated

(5)Test point

: Test point

(6)Connecting method

: Ceramic capacitor
: Metalized mylar capacitor

: Polypropylene capacitor
: Metalized polypropylene capacitor
: Metalized film capacitor
: Thin film capacitor
: Bipolar electrolytic capacitor
: Tantalum capacitor

: [µH]

: As specified

: B1

: 9V

: Connector

: Receptacle

: Only test point display

: Wrapping or soldering

: B2 (12V

: 5V

)

4.INDICATIONS ON THE CIRCUIT DIAGRAM

(1)Resistors

Resistance value

No unit : [Ω]

K
M

Rated allowable power
No indication : 1/16 [W]

Others : As specified

Type

No indication

OMR

MFR

MPR

UNFR

FR

Composition resistor 1/2 [W] is specified as 1/2S or Comp.

(2)Capacitors

Capacitance value

1 or higher : [pF]

less than 1

Withstand voltage

No indication : DC50[V]

Others : DC withstand voltage [V]

AC indicated
Electrolytic Capacitors

47/50[Example]: Capacitance value [µF]/withstand voltage[V]

: [kΩ]

: [MΩ]

: Carbon resistor

: Oxide metal film resistor

: Metal film resistor

: Metal plate resistor

: Uninflammable resistor

: Fusible resistor

: [µF]

: AC withstand voltage [V]

(7)Ground symbol

: LIVE side ground

: ISOLATED(NEUTRAL) side ground

: EARTH ground

: DIGITAL ground

5.NOTE FOR REPAIRING SERVICE

This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be
taken for the following points.

(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL) side GND simultaneously. if the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.

(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected, a fuse or any parts will be broken.

Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.

NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicated in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.

)

(No.YA690<Rev.001>)2-1

CONTENTS

SEMICONDUCTOR SHAPES ......................................................................2-2

WIRING DIAGRAM .......................................................................................2-3

BLOCK DIAGRAM ........................................................................................2-5

CIRCUIT DIAGRAMS ...................................................................................2-7

MAIN PWB CIRCUIT DIAGRAM ................................................................................................................. 2-7

POWER PWB CIRCUIT DIA GRAM ........................................................................................................... 2-33

CAPSENS PWB CIRCUIT DIAGRAM....................................................................................................... 2-35

LED PWB CIRCUIT DIAGRAM................................................................................................................. 2-37

AC INLET PWB CIRCUIT DIA GRAM ........................................................................................................ 2-38

IR PWB CIRCUIT DIAGRAM .................................................................................................................... 2-39

HP/USB PWB CIRCUIT DIAGRAM........................................................................................................... 2-41

SUB PWB CIRCUIT DIAGRAM................................................................................................................. 2-43

PATTERN DIAGRAMS .............................................................................. 2-45

MAIN PWB P ATTERN .............................................................................................................................. 2-45

POWER PWB PATTERN .......................................................................................................................... 2-49

CAPSENS PWB P ATTERN ...................................................................................................................... 2-51

LED PWB P ATTERN ................................................................................................................................ 2-51

AC INLET PWB PATTERN ....................................................................................................................... 2-51

IR PWB P ATTERN.................................................................................................................................... 2-52

HP/USB PWB P ATTERN .......................................................................................................................... 2-52

SUB PWB P ATTERN ................................................................................................................................ 2-52

VOLTAGE CHARTS ................................................................................... 2-53

WAVEFORMS ............................................................................................ 2-55

USING P.W. BOARD

P.W.B ASS㵭Y name LT-37DV1BJ/PP

MAIN P.W. BOARD

SUB P.W. BOARD

HP/USB P.W. BOARD

CAPSENS P.W. BOARD

LED P.W. BOARD

IR P.W. BOARD

POWER P.W. BOARD

AC INLET P.W. BOARD

SFY-1006A-H3

SFY-7101A-H3

SFY-7302A-H3

SFY-7704A-H3

SFY-8704A-H3

SFY-8804A-H3

SFY-9006A-H3

SFY-9901A-H3

LT-37DV1BU/PP

φ

φ

φ

φ

φ

φ

φ

φ

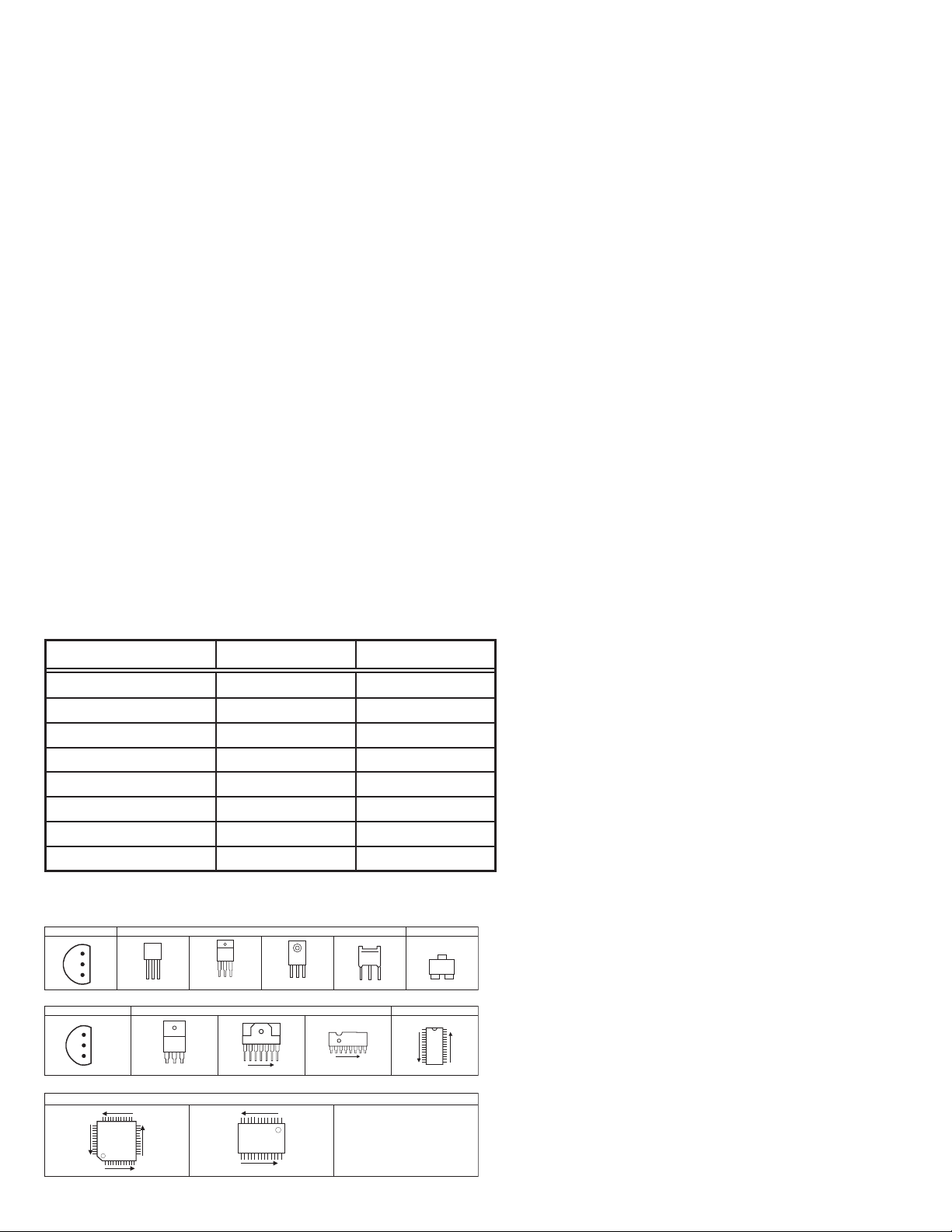

SEMICONDUCTOR SHAPES

TRANSISTOR

BOTTOM VIEW FRONT VIEW TOP VIEW

E
C
B

IC

BOTTOM VIEW FRONT VIEW TOP VIEW

OUT

E

IN

CHIP IC

ECB

IN OUTE

B

(G)E(S)C(D)

TOP VIEW

1 N

ECB

1

ECB

1 N

CHIP TR

1

C

BE

N

N

1

2-2(No.YA690<Rev.001>)

N

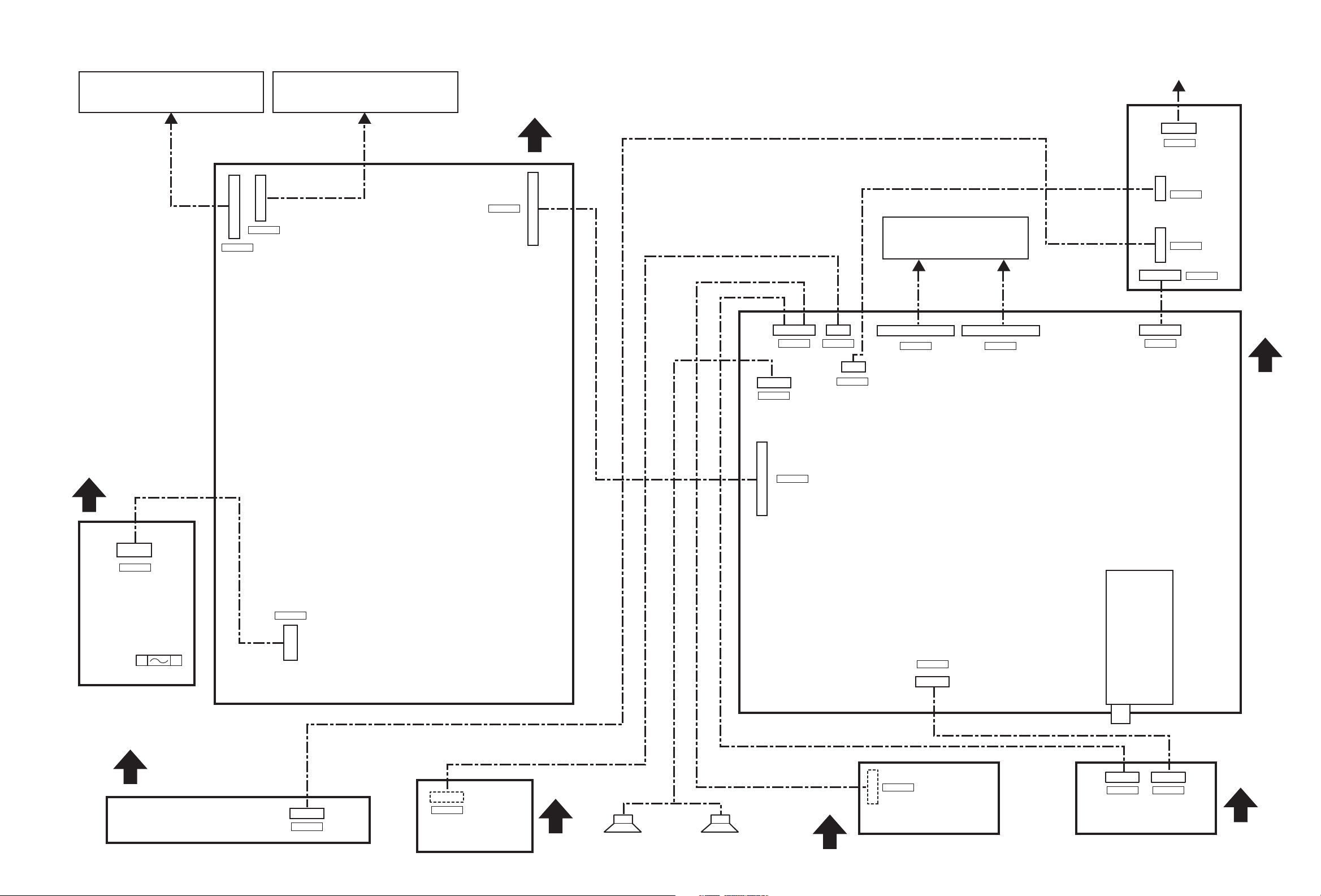

WIRING DIAGRAM

LCD PANEL UNIT

[INVERTER PWB(MASTER)]

LCD PANEL UNIT

[INVERTER PWB(SLAVE)]

TOP

MICROPHONE

3

1

CN7004

TOP

14110

CN9002

1

CN9001

CN9005

POWER PWB

1

16

13

1

CN4651

1

CN1004

4

CN4701

1

4

CN1005

CN4652

SUB PWB

3

CN7003

1

LCD PANEL UNIT

[LCD CONTROL PWB]

1

3

41

CN5001

1

51

1

CN5002

1

30

30

CN1007

8

1

CN7001

CN7002

1

1

TOP

21

CN9021

F9021

AC INLET PWB

TOP

CAPSENS PWB

CN9010

21

7

CN7701

15

CN3501

1

5

3

1

1

CN8701

TOP

TOP

CN8801

1

MAIN PWB

4

TU2001

4

CN7301

1

5

CN7302

1

TOP

HP/USB PWBIR PWB

LED PWB

SPEAKER(L) SPEAKER(R)

2-4(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-3

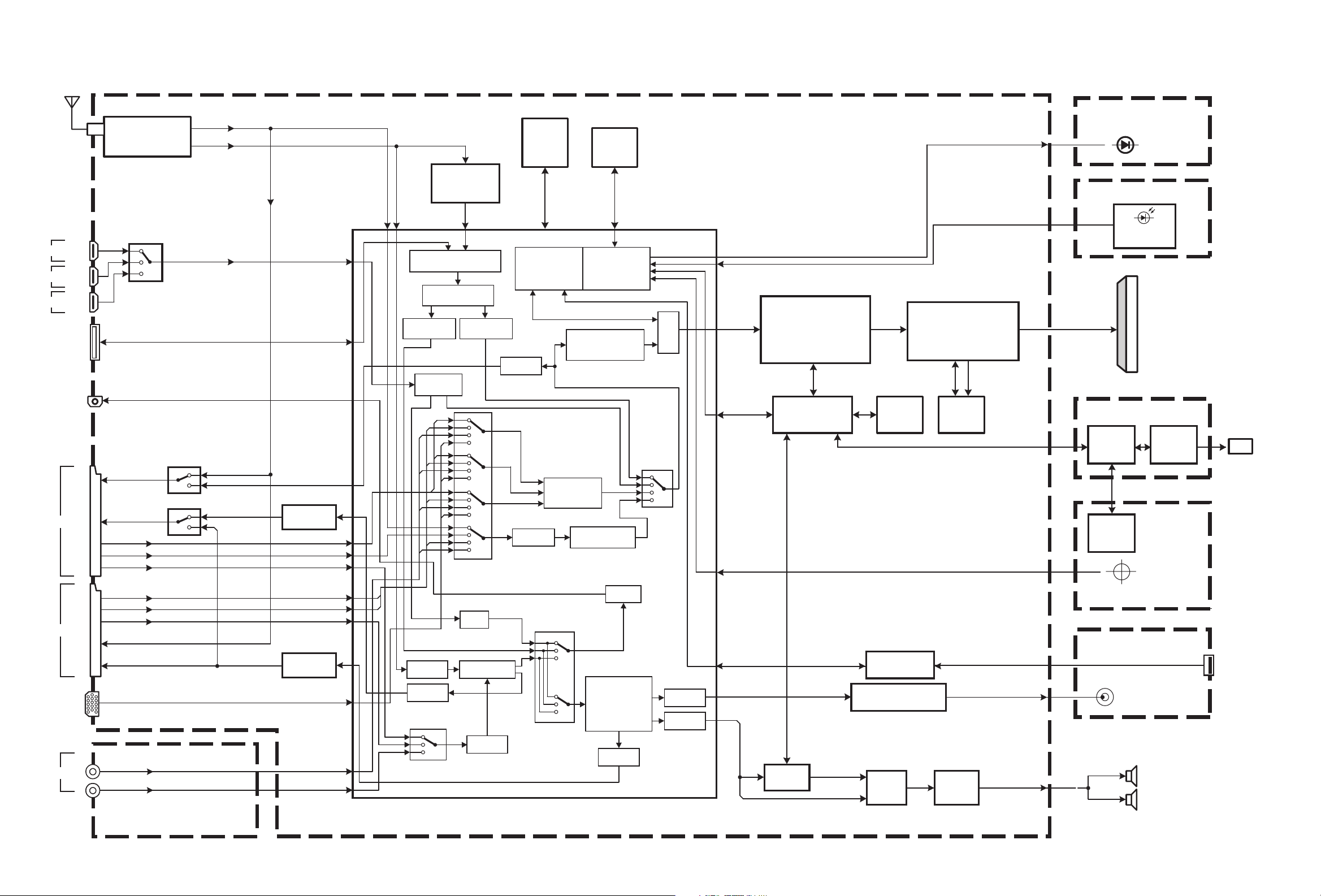

BLOCK DIAGRAM

EXT-4

HDMI 1

HDMI 2

EXT-5

HDMI 3

EXT-6

CI SLOT

DIGITAL

AUDIO

OPTICAL OUT

EXT-1

EXT-2

PC IN

EXT-3

TU2001

DIGITAL/ANALOG

(VHF/UHF) TUNER

IC3001

HDMI
SELECT

CA-MDI0-7
CA-MDO0-7

SPDIF_OUT

HM_ADT0PX/NX
HM_ADT1PX/NX
HM_ADT2PX/NX

IC2501

VTV OUT

IC2503

LTV/RTV OUT

R1/G1/B1

V1

L1/R1

V2/Y2

C2

L2/R2

V2 OUT

L2/R2 OUT

PC_R/G/B

Y3/PB3/PR3

L3/R3

SUB PWB

CVBS

IF

VIDEO SW

TU_CVBS_SCART

AUDIO SW

AUDIO_CL_L/R

AUDIO_OUT_L/R

SPDIF_OUT

CVBS1_Y

IC2506

AUDIO AMP

AV1_Y/PB/PR

AV1_V_CVBS

AUDIO_IN1_L/R

AV2_V_CVBS

AUDIO_IN2_L/R

IC2505

AUDIO AMP

AV4_Y/PB/PR

AUDIO_IN3_L/R

AV2 _C

CVBS_4

IC1001

IC1502
IC1503

FRAME

MEMORY

IC2001

DVB(COFDM)

DECODE

PROCESS

MPEG VIDEO

VIDEOAUDIO

INPUT

DEMODULATE

TNR_TSD10-17

DECODE

CONVERT

Y

Pb

Pr

CV

I2S

SOUND

A-D

CONVERT

MAIN CPU

D-A

A-D

CONVERT

A-D CONVERT/

COMPONENT

INTERFACE

IF_P/N

CONDITIONAL ACCESS

INTERFACE

MPEG SYSTEM

MPEG AUDIO

DECODE

HDMI

INTERFACE

A-D

CONVERT

D-A

CONVERT

MICROCOMPUTER/IF PROCESS/VIDEO PROCESS/AUDIO PROCESS/
VIDEO SELECT/AUDIO SELECT/A-D CONVERT/D-A CONVERT/
FORMAT CONVERT

IC1004

SETTING

MEMORY

SCL2
SDA2

SUB(STAND-BY)

CPU

SCALING/

FORMAT CONVERT/

RGB PROCESS

VIDEO DECODE/

3D COMB FILTER

I2S

OUTPUT

VOLUME/

BALANCE/

TONE CONTROL/

EQUALIZE/

SURROUND

D-A

CONVERT

OSD

MIX

D-A

CONVERT

D-A

CONVERT

B_OUT0-7
G_OUT0-7
R_OUT0-7

SCL3
SDA3

PCI_AD0-31

HP_L
HP_R

M_L
M_R

IC4001

2D NOISE REDUCTION/

ENHANCE/

GAMMA CORRECT/

COLOUR MANAGEMENT/

RGB DRIVE/LVDS DRIVE

CMOSI
CMISO
CSCLK
CCS

IC4101

AV PROCESS

CPU

SCL1
SDA1

IC4501

MaxxAudio

TA1+/­TB1+/­TC1+/­TD1+/­TE1+/-

TA2+/­TB2+/­TC2+/­TD2+/­TE2+/-

FRAME INTERPOLATE/

DOUBLE FRAME DRIVE/

TIMING CONTROL

ADQ0-31 AAD0-11

IC4102

SETTING
MEMORY

IC3501

USB CONTROL

IC4602

HEADPHONE AMP

IC4502

MIX

L/R

MAIN PWB

IC5001

LCD CONTROL/

IC5002

FRAME

MEMORY

IC4651

AUDIO

OUT

POWER_LED

REMOCON

DBE0-9
DGE0-9
DRE0-9

KEY1/2/3

USB_DP
USB_DN

HP_L/R

L/R

LED PWB

D8701

POWER

IR PWB

IC8852

IR RECEIVE

LCD PANEL

SUB PWB

IC7001 IC7002

SUB

MICON

IC7701

CAPSENS

A-D

CONVERT

CAPSENS
PWB

POWER/

CONTROL

SWITCH

S0 - S6

HP/USB PWB

J7301

HEADPHONE

SPEAKER (L)

SPEAKER (R)

MIC

USB

(PHOTO

VIEWER/

MUSIC

PLAYER)

(No.YA690<Rev.001>)2-5 2-6(No.YA690<Rev.001>)

CIRCUIT DIAGRAMS

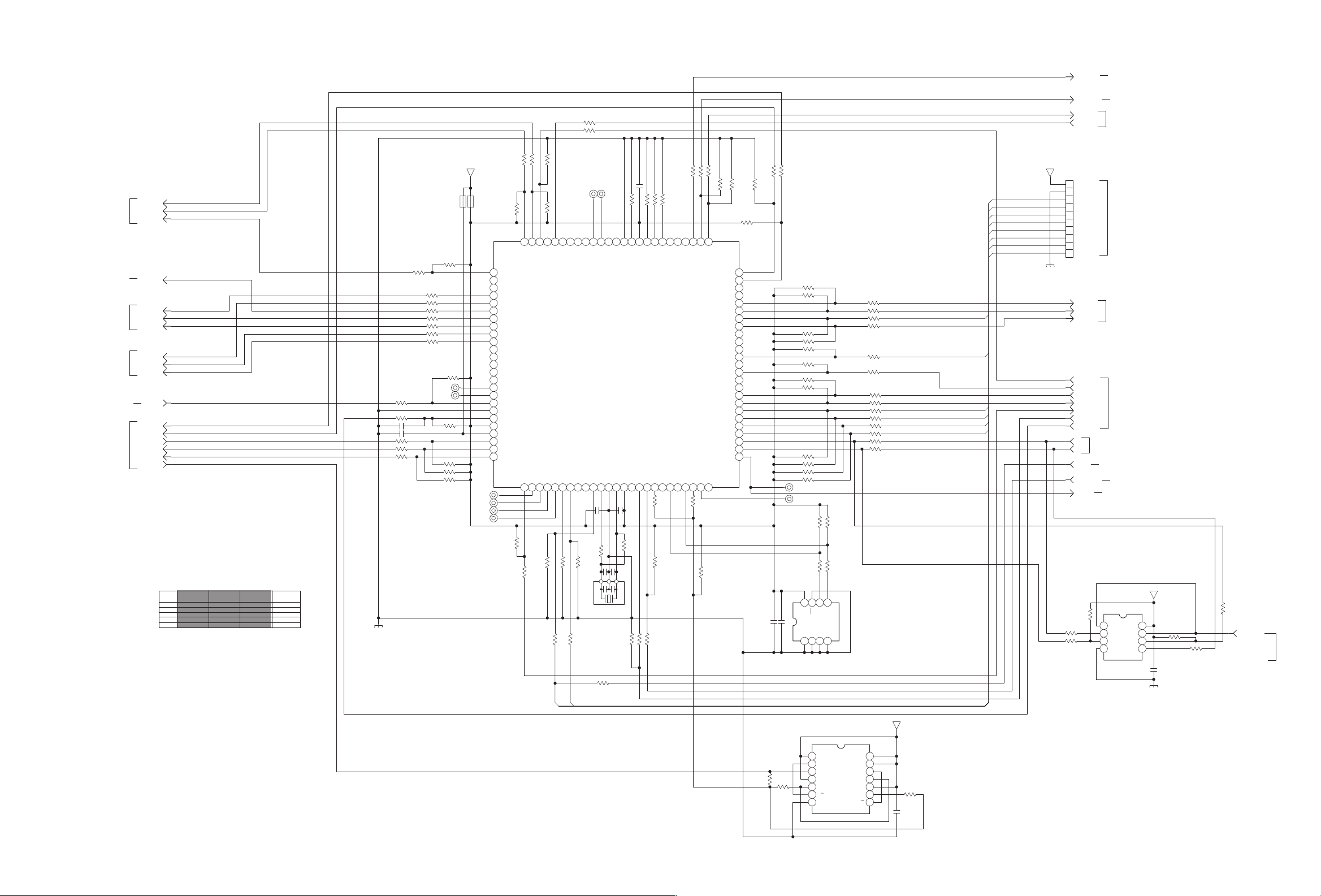

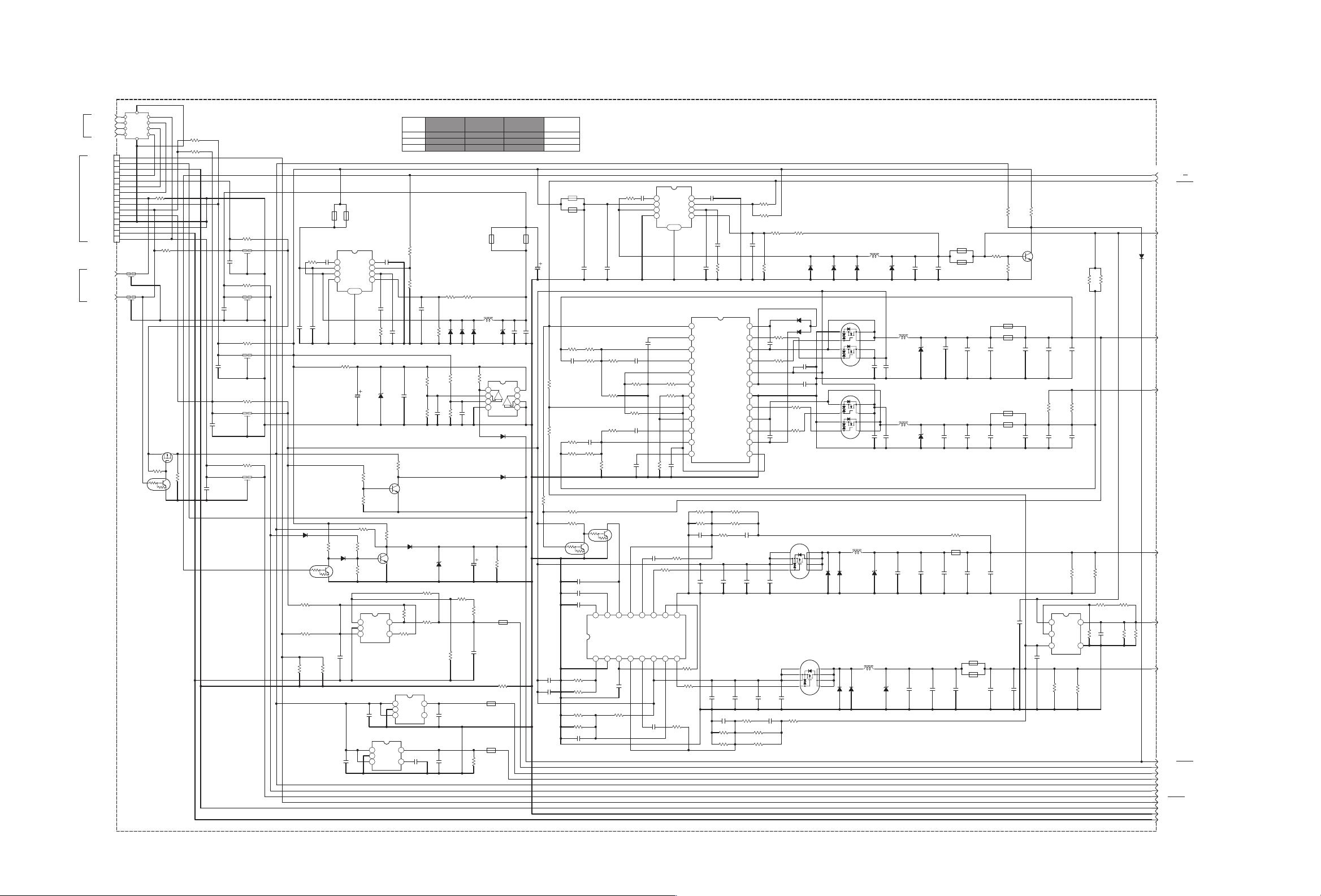

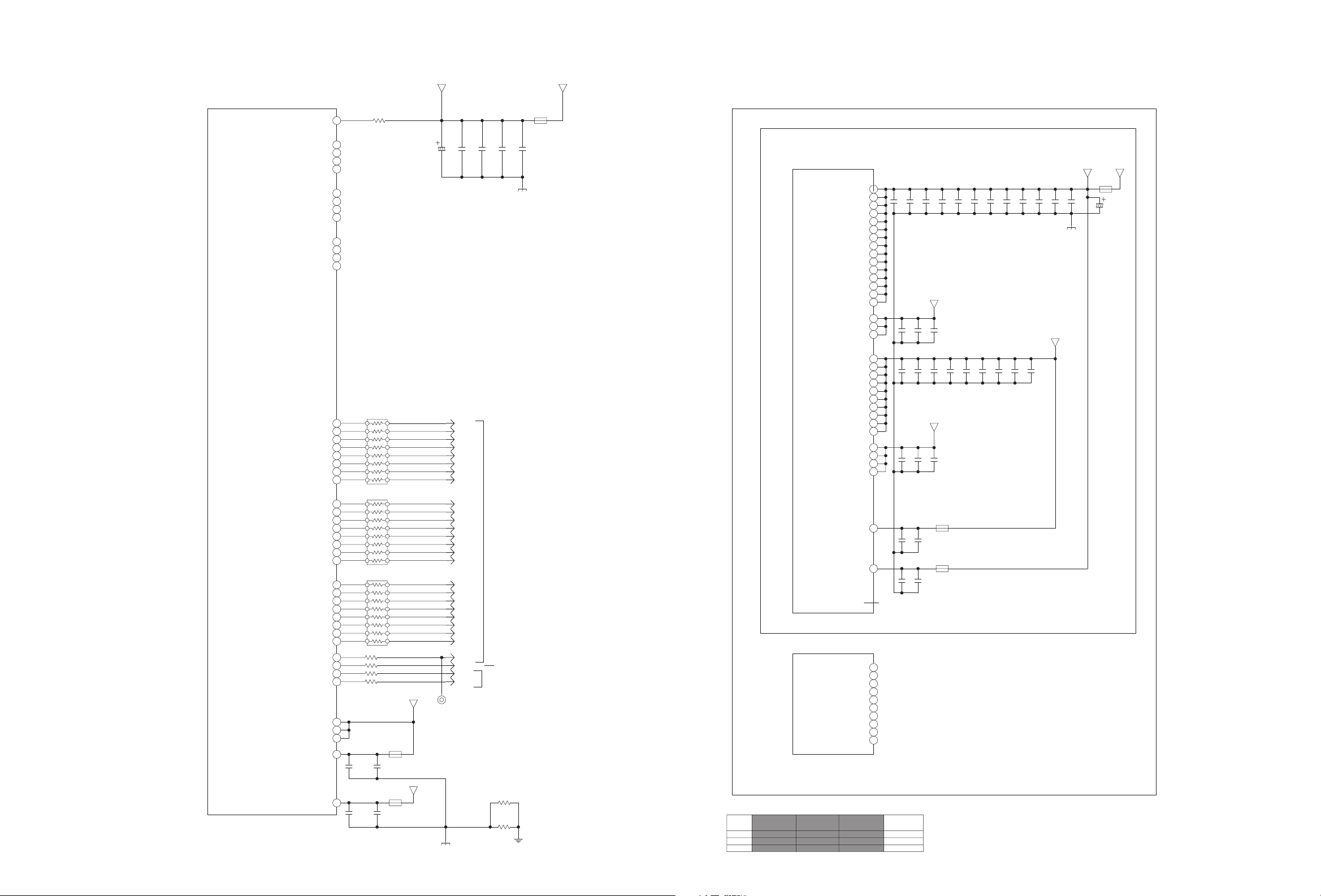

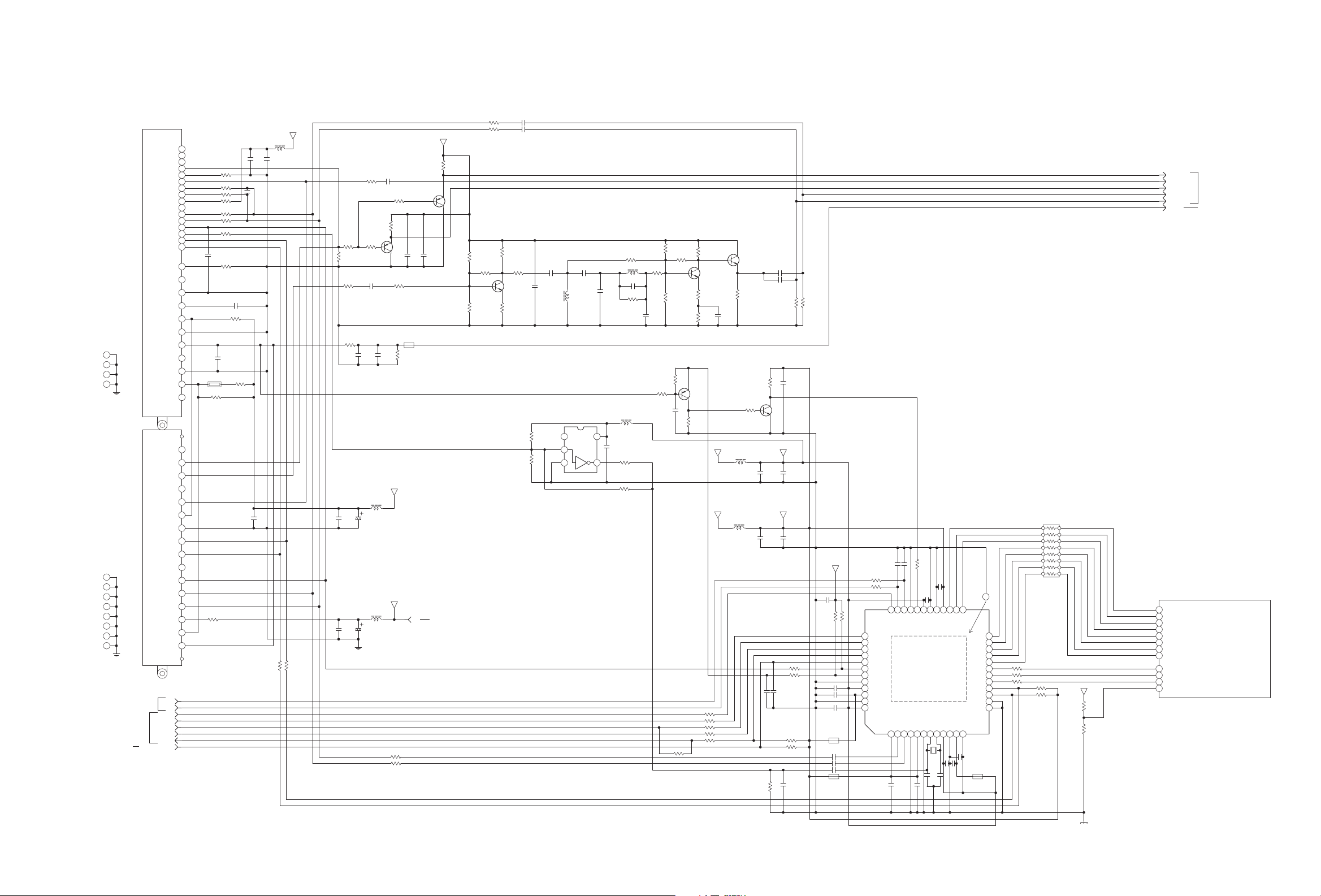

MAIN PWB CIRCUIT DIAGRAM (1/13) [FRONT END]

FIX PIN

TU2001

GND

25

GND

26

GND

27

GND

28

A_GND

TU2002

OPEN

FIX PIN

TU2002
OPEN

GND

16

GND

17

GND

18

GND

19

GND

20

GND

21

GND

22

GND

23

A_GND

MAIN PWB

(9/13),(11/13),(13/13)

MAIN PWB (11/13)

MAIN PWB

(5/13),(9/13),(11/13)

DIGITAL/ANALOG
(VHF/UHF) TUNER

TU2001

QAU0514-001

24

CVBS

AS_IF 23

22AUDIO

2ndIF2

21

202ndIF1

19+5V IF

18

17DIF2

16DIF1

15IF_AGC

14REF

13SDA

SCL

12

11AS

10WOUT

CVBS

SIF

AFT

Audio

B+(5V)

GND

SDA

SCL

TP

IF AGC

DIF2

DIF1

NC

ANT PWR

RF AGC

SDA3

SCL3

JTAG_TRST

JTAG_TMS

JTAG_TDI

JTAG_TCK

JTAG_TDO

RESET-SYS-DETECT

R2084

R2039
OPEN

R2041
OPEN

R2085

R2040
OPEN

R2044

OPEN

5V

L2008

10u

B1
C2057

C2056

10

C2054
OPEN

R2029

0

330

330

0

OPEN

OPEN

OPENR2060

0R2086

OPEN

C2030

0.1

0.1

CH
C2053

3.3p

OPENC2046

0R2090

R2028

R2027

100

100

R2061
75

R2034
0

R2037
OPEN

B1
C2031
10

C2033
OPEN

R2030
OPEN

R2033
OPEN

R2035
100

Q2002

ISA1530AC1/QR/X
2SA812A/5-6/-X

C2035
OPEN

C2027

0.1

L2001

NQL79GM-100X

NEHL1AM-107X
C2032
100/10

L2002
OPEN

C2034
OPEN

A_GND

C2028
OPEN

C2045
OPEN

10u

Q2001
ISA1530AC1/QR/X
2SA812A/5-6/-X

R2032

100

R2036
1k

NCJ21CK-106X-D

R2038
OPEN

K2001
NRSA63J-0R0X
SHORT

R2057
OPEN

5V

BT

330R2087

330R2088

R2083

R2079

R2080

R2089

R2082

R2081

C2018

0.1

9GND

8Vtu

7B+(5V)

6GND

5RF AGC

4NC

3GND

2ANT PWR

TH2001

OPEN

1NC

R2093

0

15

14

13

12

11

10

9

8

7

6

5

4

R2062
OPEN

3

2

1

R2031
1k

C2026

0.01

C2025
10

BT

MAIN PWB (12/13)

9V

0.01C2051

330

0.01C2052

330

TU_CVBS_SCART

L_AUDIO

R2042
OPEN

Q2003
OPEN

R2043
OPEN

OPEN
C2036

C2037
OPEN

OPEN

L2005

C2038
OPEN

C2039
OPEN

R2045
OPEN

L2006
OPEN

C2040
OPEN

R2046
OPEN

R2048
OPEN

C2041
OPEN

R2047
OPEN

R2049
OPEN

R2050
OPEN

R2051
OPEN

Q2004
OPEN

R2052
OPEN

R2053
OPEN

C2042
OPEN

Q2005
OPEN

R2054
OPEN

R2056
OPEN

CVBS_4

IF_N

IF_P

RF_AGC

OPENC2043

OPENC2044

R2055
OPEN

MAIN PWB (2/13)

MAIN PWB (11/13),(13/13)

MAIN PWB ASS'Y (1/13)

Q2006

ISA1530AC1/QR/X

R2091
OPEN

R2092
OPEN

IC2002

OPEN

TC7SL04FU-X

1

NC

IN A

2

3

GND

VCC

OUT Y

2SA812A/5-6/-X

R2063
OPEN

R2068
100k

C2047

0.01

L2007
OPEN

5

C2049
OPEN

R2076

OPEN

4

OPENR2074

R2064

10k

1.2V +1V2DVB

3.3V

OPENR2070

OPENR2071

OPENR2072

OPENR2073

OPEN

R2018

0R2069

R2065
1k

Q2007
2SC3928A/QR/-X
2SC1623A/5-6/-X

L2003

NRSA02J-0R0X

L2004

NRSA02J-0R0X

SHORT

SHORT

R2066

10k

R2075

C2021

0.1

C2023

0.1

OPEN

0.1C2017

C2048

0.01

C2022
22

NCJ41CM-226X-U

+3V3DVB

NCJ41CM-226X-U

R2026

OPENC2019

C2055

OPEN

C2024
22

5V

C2020

0.1
1k

1k

R2023

R2024

10kR2025

10k

C2012

0.1

0.1C2013

0.1

C2014

K2002

NQR0499-001X

10kR2019

OPENR2022

C2050

K2003

NQR0499-001X

0.01C2015

0.01C2016

OPEN

SFY-1006A-H3

100

47pC2011CH47pC2010

CH

TMS

37

TDI

38

TCK

39

TOD

40

CLR

41

AGC_IF

42

AGC_TUN

43

VSSIS

44

VDDI12

45

VDDE33

46

VSA_ANA

47

VDA_12_ANA

48

C2003

0.1

100R2016

100R2017

36

TRST

1

35

34

SCL

SDA

VI_P3VI_M2VDD33_ADC

R2067

0.1

C2009

33

32

31

30

GPIO

VSSIS

SADDR

VDDI12

IC2001

TDA10048HN/C200

DVB(COFDM)

DECODE

XIN

VSSA_OSC

VDD33_ADC

VSSA_ADC

7

6

5

4

X2001

0.1
39p

CH

C2001

C2004

0.1

C2008

29

28

VSSE

XOUT

9

8

4MHz

NAX0915-001X

39p

CH

C2002

DQ727DQ626DQ5

VDDE33

VSSA_PLL

VDDA12_OSC

11

10

0.1

0.1
C2006

C2005

GND_HS

25

TUN_SCL

TUN_SDA

VDDI1212VDD12_PLL

C2007

0.1

K2004

NQR0499-001X

OCLK

PSYNC

VSSE

VSSIS

NRZ0080-330X

RA2001

16

1

15

2

14

3

13

4

12

5

11

6

10

7

98

49

DQ4

24

DQ3

23

DQ2

22

DQ1

21

DQ0

20

19

DEN

18

17

16

15

14

13

R2006

33R2007

33

33R2005

3.3kR2004

+3V3_PER

3.3kR2003

R2001
10k

R2002
OPEN

TNR_TSDI7

TNR_TSDI6

TNR_TSDI5

TNR_TSDI4

TNR_TSDI3

TNR_TSDI2

TNR_TSDI1

TNR_TSDI0

TNR_MICLK

TNR_MIVAL

TNR_MISTRT

122

121

155

154

153

92

91

125

123

124

93

151

TNR_TSDI7

B5

TNR_TSDI6

A5

TNR_TSDI5

E6

TNR_TSDI4

D6

TNR_TSDI3

C6

TNR_TSDI2

B4

TNR_TSDI1

A4

TNR_TSDI0

E5

TNR_MICLK

C5

TNR_MIVAL

D5

TNR_MISTRT

C4

TNR_ERROR

A6

IC1001

PNX8541E/M12008

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

4/11

D_GND

c10611001a_0226_3/13_0.0

2-8(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-7

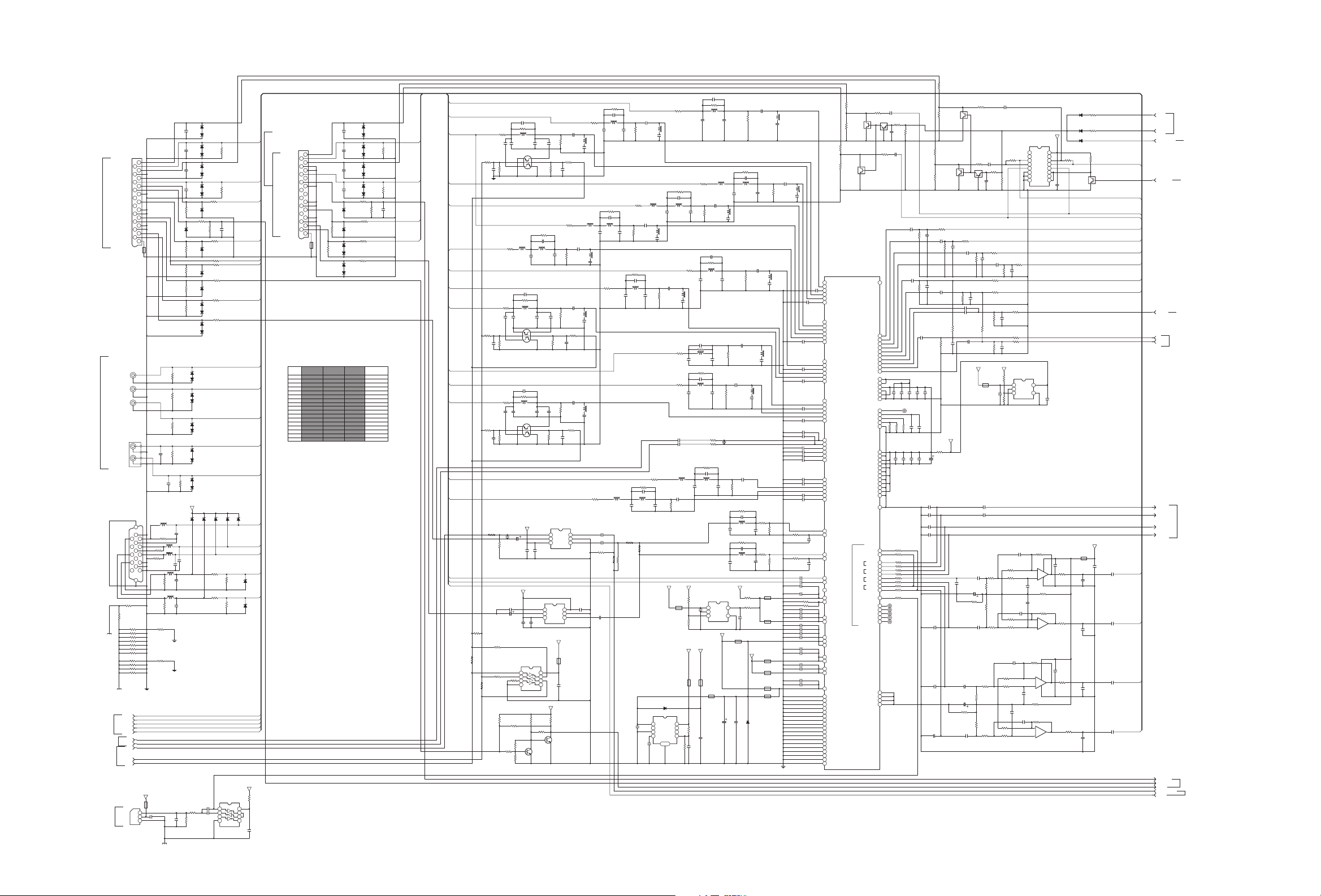

MAIN PWB CIRCUIT DIAGRAM (2/13) [EXT INPUT(SCART)]

A810

D2502

EXT-1

OPEN

FG_GND3

MAIN PWB (11/13)

MAIN PWB (1/13)

MAIN PWB (11/13),(13/13)

DIGITAL

AUDIO

OPTICAL OUT

SCART1

QNZ0996-001

AUDIO GND

SLOW SW2

NC(DATA BUS)

NC(DATA BUS)

GND(V OUT)

GND(V IN)

COMMON GND

COMPONENT

J2503

QNN0836-001

J2504

QNN0835-001

RIGHT

VGA CONNECTOR

R2841

R2842

R2843

R2844

R2845

R2846

R2780

D_GND

AUDIO_IN3_L

AUDIO_IN3_R

TV_OUT_SW

DIGITAL_AUDIO_OUT

RTV OUT

LTV OUT

(Y SOUT)

VTV OUT

V1/Y1 IN

LEFT

R2879
0

GND(B)

GND(G)

GND(R)

C1/R IN

FIL_SW1

FIL_SW2

J2501

R2847

AV4_PB

AV4_PR

R1 IN

L1 IN

B IN

G IN

YS IN

NQR0499-005X

Y

Pb

Pr

QNZ0973-001
QNZ0592-001

11

12

13

14

15

0

AV4_Y

IF_N

IF_P

IC2507

QNZ0727-001

VCC

GND

A810

C2686

D2506

0.0015
/50

A810

D2504

A810

9V

D2511

0

A810

D2537

A810

D2538

A810

D2539

A810

D2540

A810

D2541

A810

D2542

A810

D2543

A810

D2544

A810

D2546

A810

D2545

OPEN

NRSA63J-0R0X

R2567

D2505

100k

A810

D2503

A810

D2507

A810

D2508

A810

D2509

R2523

100k

220R2586

A810

D2527

8.2kR2575

CH

C2571
330p

R2510

/50

3.3k

220R2532

A810

D2529

R2677

OPEN

R2514

220

A810

D2531

R2550

220

A810

D2510

R2537

220

A810

D2533

A810

D2534

R2588

68

A810

D2535

A810

D2536

OPEN

D2513

R2577
150

R2785

R2578
150

OPEN

D2514

OPEN

IC2508

OPEN

1

1A

2

3Y

3

2A

42Y5

GND

OPEN
D2515

R2786
OPEN

VCC

8

1Y

7

3A

6

OPEN

D2512

C2773

C2765
OPEN

C2681

0.0015

C2678

NRSA63J-0R0X

NRSA63J-0R0X

NRSA63J-0R0X

3D

R2576

4.7k

3D

R2579

4.7k

R2848
0

R2849
OPEN

/160.1

C2677
OPEN

OPEN

L2552

CH

C2610

NRSA63J-0R0X

75R2581

75

CH

C2608

NRSA63J-0R0X

D_GND

/50

C2682

0.0015
/50

C2684

0.0015
/50

R2587

75

D2501
MA8120/M/-X
UDZW12B-X

R2507

75

R2504

75

R2536

75

R2552

75

R2682

R2683

R2684

R2678

R2679

/50100p

75R2582

L2553

L2554

CH

C2609

100p

/50

/50100p

L2557

CH

C2606

/5047p

L2556

CH

C2607

/5047p

A_GND1

A_GND2

R2779

C2774

R2781

OPEN

OPEN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

K2522

1

2

3

4

5

6

1

2

3

4

J2505

16

6

1

7

2

8

3

R2580

9

4

10

5

17

0R2837

0

0

0

0

0

0

OPENR2876

OPENR2877

OPENR2878

0

A_GND

3.3V

K2502

IN

1

C2725

2

3

AUDIO_IN1_R

AUDIO_IN1_L

AV1_Y_CVBS

AUDIO_IN3_L

AUDIO_IN3_R

VSYNC_VGA

D2570
MA8033-X

HSYNC_VGA

D2571
MA8033-X

AUDIO_IN3_L

AUDIO_IN3_R

3.3V

AV1_PB

AV1_PR

AV4_PB

AV4_PR

R2778

OPEN

EXT-2

SCART2

J2502

QNZ0996-001

R MON OUT

1

R2 IN

2

L MON OUT

3

AUDIO GND

4

GND(B)

5

L2 IN

6

B IN

7

SLOW SW2

8

GND(G)

9

NC(DATA BUS)

10

G IN

11

NC(DATA BUS)

12

GND(R)

13

(Y SOUT)

14

C2/R IN

15

YS IN

16

GND(V OUT)

17

GND(V IN)

18

VTV OUT

19

V2/Y2 IN

20

COMMON GND

AV1_Y

AV1_C

AV4_Y

R_VGA

G_VGA

B_VGA

AV4_Y

AV4_PB

AV4_PR

OPEN

C2764

21

K2523

NQR0499-005X

32DR1 37DR1 42DR1 DV1
reference Diff Diff Diff Diff

# D2537 MA8100/M/-X

# D2538

# D2539

# D2540

# D2541

# D2542

# D2543

# D2544

# D2545

# D2546

# J2503

# J2504

# R2678

# R2679

# R2682

# R2683

# R2684

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

QNN0836-001

QNN0835-001

NRSA63J-224X

NRSA63J-224X

NRSA63J-750X

NRSA63J-750X

NRSA63J-750X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

MA8100/M/-X

QNN0836-001

QNN0835-001

NRSA63J-224X

NRSA63J-224X

NRSA63J-750X

NRSA63J-750X

NRSA63J-750X NRSA63J-750X OPEN

MAIN PWB ASS'Y (2/13)

SFY-1006A-H3

R2634
220

AV1_Y

A810

D2522

A810

C2683

D2520

/500.0015

A810

D2525

A810

C2685

D2519

/500.0015

A810

D2516

A810

C2687

D2521

/500.0015

A810

D2518

A810

C2688

D2523

/500.0015

R2599

8.2k

D2524

MA8120/M/-X
UDZW12B-X

R2793

220

R2794

75

A810

D2563

R2611

220

A810

D2559

R2607

A810

75

D2560

R2596

68

A810

D2561

A810

D2562

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

MA8100/M/-X

OPEN

QNN0836-001

OPEN

QNN0835-001

OPEN

NRSA63J-224X

OPEN

NRSA63J-224X

OPEN

NRSA63J-750X

OPEN

NRSA63J-750X

AUDIO_IN2_R

R2851

100k

AUDIO_IN2_L

R2852

100k

CH

R2591

C2615

3.3k

330p
/50

AV2_C

AV2_Y_CVBS

G_VGA

AV4_Y

AV1_Y_CVBS

AV2_Y_CVBS

CVBS_4

AV1_PR

R_VGA

AV4_PR

AV1_PB

B_VGA

AV4_PB

AV1_C

AV2_C

HSYNC_VGA

VSYNC_VGA

CVBS_4

R2819
OPEN

C2794
OPEN

A_GND

R2822
OPEN

C2825
OPEN

R2824
OPEN

C2822
OPEN

R2541
OPEN

R2540

R2874
OPEN

R2854

R2855

OPEN

R2856
OPEN

R2867

OPENC2807

R2795

OPEN

R2545

3.3u

L2518

220

NQL093K-3R3X

CH

C2802

C2560

OPEN

/5018p

Q2514

OPEN

1

R2807
OPEN

R2539
220

L2524

SHORT

OPENC2803

R2801

OPEN

R2535
220

3.3u

L2523

NQL093K-3R3X

CH

C2523

C2785
OPEN

/5018p

1

R2810

Q2516

OPEN

OPEN

OPENC2804

R2803

OPEN

R2565

3.3u

L2502

220

NQL093K-3R3X

CH

C2787
OPEN

C2540

18p

/50

Q2518

OPEN

1

R2812
OPEN

9V

C2640
100/10

NEHL1AM-107X

C2506

OPEN

OPEN

C2766

/1610

NCJ21CK-106X-D

9V

B1

C2679

/1010

100/10

C2641

NEHL1AM-107X

C2767

10

/16

NCJ21CK-106X-D

OPEN

IC2511
OPEN

TC7WHU04FU-X

1

1A

OPENR2853

2

3Y

R2857

3

2A

OPEN

42Y5

GND

R2864

OPEN

10k

R2882

OPEN

R2865

OPEN

R2866

100

R2868

OPEN

CH

C2545

3.3p
/50

6

5432

R2832

L2517

NQL093K-3R3X

CH

C2516
39p

/50

C2520

6

5432

CH

C2569

3.3p
/50

6

5432

C2503
OPEN

C2504
OPEN

VCC

1Y

3A

R2863

OPEN

Q2521

2SC3928A/QR/-X
2SC1623A/5-6/-X

R2516
680

C2788
OPEN

R2829
OPEN

R2817

C2817

OPEN

OPEN

R2503

220

OPEN

OPENC2798

3.3u

CH

C2525

R2572

68p

1k

/50

R2506
680

CH

C2791
OPEN

/503.3p

R2828
OPEN

C2816

R2816

OPEN

OPEN

R2519
680

C2793
OPEN

R2825
OPEN

C2813

R2813

OPEN

OPEN

VIDEO SW

IC2501

MM1508XN-X

IN1 6

SW1

GND 5

OUT2

IN2 4VCC3

IC2502

MM1510XN-X

PS 6

SAG1

GND 5

OUT2

IN2 4VCC3

3.3V

K2514
NQR0499-002X
OPEN

8

7

6

C2827
OPEN

STB3.3V

R2862

OPEN

Q2520
2SC3928A/QR/-X
2SC1623A/5-6/-X

R2835

OPEN

OPENC2812

R2509

L2527

3.3u

390

NQL093K-3R3X

CH

R2566

CH

C2519

1k

C2532

/503.3p

/160.022C2597

L2550
OPEN

C2759
OPEN

L2515
SHORT

/160.022C2527

L2546
OPEN

C2755
OPEN

/160.022C2539

L2543

OPEN

C2752

OPEN

/160.022C2546

L2540
OPEN

C2749
OPEN

R2547

C2680
OPEN

/5010p

R2524

0

R2836

OPEN

C2811

OPEN

3.3u

L2508

NQL093K-3R3X

CH

CH

R2570

C2533

C2531

1k

/5039p

/5068p

R2834

OPEN

R2571
390

0

B1

C2501

/1010

C2502

B1

R2544
OPEN

R2543

B1

C2505

/1010

OPENC2810

3.3uL2522

CH

C2541

/503.3p

L2512

SHORTL2501

NQL093K-3R3X

CH

C2575

/5039p

R2551
OPEN

/1010

R2546
OPEN

OPEN

B1

C2841

C2842

0.01
/50

R2529
0

/160.022C2522

L2551
OPEN

C2760

OPEN

R2797

OPEN

OPENC2797

3.3u

L2520

NQL093K-3R3X

SHORTL2521

CH

C2567

/5039p

/160.022C2568

L2547
OPEN

C2756
OPEN

/160.022C2572

CH

R2549

L2544

C2588

1k

OPEN

/5010p

C2753
OPEN

R2559

0

CH

C2603

/5039p

R2528
390

L2503

R2522

OPEN

OPENR2804

OPENC2821

3.3u

CH

R2518

C2515

1k

/5068p

R2515
OPEN

K2512

NQR0499-002X

R2735

22k

K2520

NQR0499-002X

D2568
MA111-X

1SS355W-X

IC2512

MM1701YH-X

VIN 8

VOUT1

NC 7

NC2

/1010

NC 6

GND3

CONT 5CN4

9

R2872
OPEN

OPENC2808

R2798

OPEN

3.3u

L2511

NQL093K-3R3X

CH

CH

C2530

C2529

/5039p

68p

/50

R2796

R2526
820

L2525

NQL093K-3R3X

CH

C2552

/5039p

OPENC2805

OPEN

3.3uL2510

OPEN

OPENC2809

3.3uL2504

K2521

NQR0499-002X

NEX60JM-227X

B1

C2843

/1010

OPENC2806

OPEN

3.3u

CH

C2543

CH

C2593

OPEN

OPENC2820

OPENL2506

IC2509

S-1112B33MC-W

VIN

1

VSS

2

ON/OFF

3

C2830
220/6.3

C2796

L2526

NQL093K-3R3X

SHORTL2529

CH

C2537

/160.022C2534

L2548
OPEN

C2757
OPEN

CH

C2581

/5068p

R2530
1k

/5068p

R2538
1k

/5010p

C2589

0

OPEN

0

C2580

R2501

OPEN

0

R2806

CH

C2526

L2513

NQL093K-1R5X

CH

C2536

/50270p

R2805

C2819

C2551
OPEN

+3V3_PER3.3VSTB5V

5

VOUT

4

NC

1.25V

K2510

OPEN

C2831

R2512

0

CH

C2549

/5068p

R2799

0R2520

R2802

R2833

CH

C2598

/503.3p

R2554

/160.1C2595

R2517

/160.1C2561

R2831

OPEN

C2585
OPEN

/160.022C2574

R2736
22k

B1

C2726

/1010

3.3V

2.5V

K2519
OPEN

R2871
10k

C2844
OPEN

/160.022C2564

R2556

L2539

1k

OPEN

C2748
OPEN

OPEN

OPEN

3.3u

CH

C2566

/5039p

R2521
1k

C2754

/160.022C2535

L2542
OPEN

C2751
OPEN

/160.022C2584

L2541
OPEN

C2750
OPEN

/160.022C2590

OPEN

/5033p

R2553

1.5u

0

CH

C2547

OPEN

OPEN

R2561

OPENL2514

OPEN

CH

C2542
OPEN

R2782
OPEN

R2783
0

B1

C2727

/1010

VDDA_AUDIO

NQR0499-002X

NQR0499-002X

NQR0499-002X

/160.1

D2565
MA111-X

1SS355W-X

/160.022C2594

L2549

OPEN

R2525
820

/5068p

C2758
OPEN

/160.022C2605

L2545
OPEN

OPEN

R2505
75

/50120p

R2548
75

K2504

K2503

K2508

K2509

K2511

OPENK2515

C2826

C2587

/160.022C2604

/160.022C2823

/160.022C2586

/160.022C2824

/160.022C2553

OPEN

C2676

/160.1C2675

/160.022C2521

/160.022C2570

/160.022C2555

/160.022C2548

C2562 /160.022

C2565 /160.022

C2550 /160.022

C2556 /160.022

R2563

75

CH

C2559

R2502

75

CH

C2518
270p

/16

0.022C2538

/160.022C2524

B1

/1010C2573

/500.01C2578

R2508

4.7k

R2531

4.7k

B1 /1010C2554

/500.01

C2528

/160.022C2599

B1

C2689

/1010

OPENC2690

OPENC2691

/160.1C2692

B1 /1010C2771

/160.1C2693

B1 /1010C2770

/160.1C2694

B1 /1010C2696

/160.1C2695

A_GND

R2650

82k

IC1001
PNX8541E/M12008

AI10N

6

F1

AI11

36

F2

AI12

7

G1

AI13

37

G2

/160.022

AI14

67

G3
REF1

97

G4

/160.022

AI20N

8

H1
AI21

38

H2

AI22

9

J1

AI23

39

J2

AI24

69

J3

REF2

99

J4

AI30N

10

K1

AI31

40

K2

AI32

70

K3

AI33

100

K4

AI34

11

L1
REF3

41

L2

AI40N

104

P4

AI41

134

P5

AI42

15

R1

AI43

45

R2
AI44

75

R3

REF4

105

R4

AI51

42

M2

AI50N

12

M1

AI52

72

M3

AI53

102

M4

AI54

132

M5

REF5

13

N1

AI60N

43

N2

AI61

73

N3

AI62

103

N4

AI63

14

P1

AI64

44

P2

REF6

74

P3

CVBS1_Y_P

61

A3

CVBS1_Y_N

62

B3

/50270p

CVBS2_C_P

31

A2

CVBS2_C_N

32

B2

/50

HSYNCIN

66

F3

VSYNCIN

106

T4

AGC

1

A1

VDDA_3V3_VIDOUT

94

D4

VDAC_BIAS

63

C3

VDD_3V3_AOUT

101

L4

VDDA_3V3_UA

130

K5

VDDA_1V2_VID

129

J5

VDDA_1V2_VID

158

J6

VDDA_1V2_VID

159

K6

VDD_3V3_AADC

171

AE6

VDDA3V3_ACT

184

AF7

VDDA_3V3_DAC

194

AF8

VDDA_3V3_ADAC

228

AF11

VDD_A_1V2_AADC

183

AE7

VSSA_VIDEO

2

B1

VSSA_VIDEO

3

C1

VSSA_VIDEO

4

D1

VSSA_VIDEO

5

E1

VSSA_VIDEO

33

C2

VSSA_VIDEO

34

D2

VSSA_VIDEO

35

E2

VSSA_VIDEO

64

D3

VSSA_VIDEO

65

E3

VSSA_VIDEO

68

H3

VSSA_VIDEO

95

E4

VSSA_VIDEO

96

F4

VSSA_VIDEO

98

H4

VSSA_VIDEO

126

F5

VSSA_VIDEO

127

G5

VSSA_VIDEO

128

H5

VSSA_VIDEO

133

N5

VSSA_VIDEO

161

N6

R2645
220

R2646
82k

Q2508
RT6N230C-X
DTC323TK-X

R2649
220

Q2509
RT6N230C-X
DTC323TK-X

VSYNCOUT

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

VREF_AADC_R

VREF_AADC_L

VREF_POS

VREF_NEG

VRPOS_AADC

VRNGE_AADC

SPDIF_IN

VCOM_ADC

RES_REF

VSSA_ADAC

Audio

DAC_CAPR

DAC_CAPL

MAIN

HP

SCART2

SCART1

SPDIF_OUT

I2S_OSCLK

I2S_OUT_SCK

I2S_OUT_WS

I2S_OUT_SD1

I2S_OUT_SD2

VSS_AUDIO

VSS_AUDIO

VSS_AUDIO

VSS_AUDIO

5/11

B2

R2648

C2644

680

/102.2

Q2507

RT1P440C-X

R2647

UN2110-X

390

C2645

R2644

/161

39k

B2

R2652

C2647

680

/102.2

B2

C2649

R2669

B2

135

R5

AIN_1R

AK6

AIN_1L

AJ6

AIN_2R

AG5

AIN_2L

AF5

AIN_3R

AJ5

AIN_3L

AH5

AIN_4R

AH4

AIN_4L

AK5

AIN_5R

AK4

AIN_5L

AJ4

AG6

AF6

AH8

AH7

AJ7

AK7

AK15

AH6

AOUT

L5

L3

GND

M6

ADAC1P

AG12

ADAC1N

AK13

ADAC2P

AH12

ADAC2N

AJ12

ADAC3P

AK11

ADAC3N

AJ11

ADAC4P

AF10

ADAC4N

AG10

ADAC5P

AG9

ADAC5N

AK10

ADAC6P

AH9

ADAC6N

AJ9

AE10

AG7

AG8

ADAC1

AJ13

ADAC2

AK12

ADAC3

AH11

ADAC4

AH10

ADAC5

AJ10

ADAC6

AK9

ADAC7

AK8

ADAC8

AJ8

AJ15

AF14

AJ14

AK14

AH14

AG14

AE9

AF9

AE15

AE16

R2667

176

175

147

146

149

148

118

150

120

119

173

172

196

OPEN

186

/160.1

187

C2670

C2668

188

TP2509

298

OPEN

174

131

71

160

47k

47k

R2674

R267575R2676

241

262

/160.1

242

OPEN

C2621

C2622

243

232

231

218

219

207

222

208

209

217

33R2860

185

33R2861

195

R2513

33

261

R2568

33

244

R2558

33

230

R2511

33

220

R2557

33

221

R2527

33

210

R2542

OPEN

198

R2574

OPEN

197

R2562

10

297

TP2501

276

OPEN
TP2502

279

OPEN
TP2503

280

OPEN
TP2504

278

OPEN
TP2505

277

OPEN

205

206

293

311

/102.2

18k

18k

B2

/1010

C2672

B1

/16

0.1

C2674

OPEN

C2623

NEX60JM-227X

Q2506

RT6N230C-X
DTC323TK-X

R2638

82k

R2635
220

R2639

Q2505

82k

RT6N230C-X
DTC323TK-X

R2655
12k

CH

C2664

B2

/5033p

C2648

/102.2

CH

R2673

C2666

18k

/5033p

/102.2C2657

CH

C2660

/5033p

B2

/102.2C2656

R2664

18k

B2

B2

R2662

C2654

2.2

OPEN

B2

C2846

OPEN

R2668

0

/160.1

/1010

C2669

C2671

B1

/10

C2673

B1

10

VDDA_AUDIO

R2533

33

OPEN

C2624

C2626

220/6.3

C2833

ADAC[1]

/500.0033

C2834

ADAC[2]

/500.0033

C2835

ADAC[3]

/500.0033

C2836

ADAC[4]

/500.0033

ADAC[5]

C2837

C2761

100/16

C2838

/500.0033

ADAC[7]

C2839

C2840

B2

C2730

/500.0033

NEHU1CM-107X

C2762
100/16

ADAC[8]

B2

C2731

/500.0033

Q2503

RT1P440C-X

UN2110-X

R2660
12k

B2

B2

C2697

R2741

/6.34.7

/6.34.7

C2652

R2671

18k

CH

2.2C2650

/6.34.7

/500.0033

NEHU1CM-107X

ADAC[6]

10kR2721

680R2636

B2

R2637

C2508

680

R2641
390

C2643

/161

R2643

R2656

/102.2

12k

CH

C2667

/5033p

C2665

/5033p

/102.2C2653

/102.2C2655

R2670

0

R2657
OPEN

R2666

0

STB5V 3.3V

K2506

NQR0499-002X

B1

C2627

/1010

NRSA02J-0R0XC2741

NRSA02J-0R0XC2739

R2688

3.3k

R2739
33k

10k

R2740
33k

B2

R2699

C2705

3.3k

/6.34.7

R2711

3.3k

R2725
33k

R2724
33k

R2722

3.3k

B2

/102.2C2507

9V

AUDIO SW

IC2503

TC4053BFT-X

1Y1

VDD 16

R2602

0Y2

Y-COM 15

OPEN

1Z3

R2787

3.3k

R2743
1k

R2788

3.3k

C2781
OPEN

R2661
12k

CH

C2658

/5033p

OPENR2659

OPEN

OPEN

IC2504

S-1112B33MC-W

VIN

1

VSS

2

ON/OFF

3

C2775
OPEN

IC2505

MC4558CP-X

AUDIO AMP

C2776
OPEN

IC2506

MC4558CP-X

C2779
OPEN

C2780
OPEN

C2782
OPEN

X-COM 14

Z-COM4

0Z5

INH6

VEE7

VSS8C9

5

VOUT

4

NC

R2692
1k

(1/2)

-

2

+

3

C2777
OPEN

R2789
10k

C2778
OPEN

R2704
1k

-

6

+

5

(2/2)

IC2505

MC4558CP-X

AUDIO AMP

R2754
1k

AUDIO
AMP

8

-

2

(1/2)

+

4

3

R2790
10k

R2757
1k

-

6

+

5

IC2506

MC4558CP-X

AUDIO AMP

1X 13

0X 12

A11

B10

B1

C2625

/1010

8

1

4

7

1

7

(2/2)

/102.2

39k

B2

C2651

/102.2

R2672
18k

12kR2663

12kR2654

C2663

OPEN

R2880

R2881

C2845

OPEN

R2613
22k

R2612
22k

R2742
1k

R2758
1k

R2791

3.3k

R2759
1k

R2792

3.3k

R2869

D2566

OPEN

OPEN

D2567
MA111-X

R2870

1SS355W-X

10

D2569
MA111-X

1SS355W-X

R2601

R2784

OPEN

4.7k

C2509

0.1
/16

C2701

R2695
0

R2708
0

C2733

/160.1

R2750
0

Q2513

RT1N441C-X
UN2213-X

9V

K2501

NQR0499-002X

B1

C2703

/160.1

R2763
0

/162.2

C2710

C2729

SHORT

OPEN

NRSA02J-0R0X

C2711

C2736

SHORT

OPEN

NRSA02J-0R0X

C2723
SHORT

C2732
OPEN

NRSA02J-0R0X

C2724

C2737

SHORT

OPEN

NRSA02J-0R0X

AUDIO_CL_L

AUDIO_CL_R

AUDIO_OUT_L

AUDIO_OUT_R

AUDIO_IN1_R

AUDIO_IN1_L

AUDIO_IN2_R

AUDIO_IN2_L

AUDIO_IN3_R

AUDIO_IN3_L

AUDIO_OUT_L

AUDIO_OUT_R

AUDIO_CL_L

AUDIO_CL_R

LCD_POW_N

MAIN PWB (11/13)

M_MUTE

ACOFF_MMUTE

MAIN PWB (10/13)

MAIN PWB

TV_OUT_SW

(11/13),(13/13)

L_AUDIO

MAIN PWB (1/13)

PC_R

PC_L

MAIN PWB (11/13)

MAIN_L

MAIN_R

MAIN PWB (10/13)

HEADPHONE_L

HEADPHONE_R

AV2-STATUS

AV1-STATUS

MAIN PWB (11/13)

AV1-BLK

TU_CVBS_SCART

CVBS_4

MAIN PWB (1/13)

c10611001a_0226_4/13_0.0

(No.YA690<Rev.001>)2-9 2-10(No.YA690<Rev.001>)

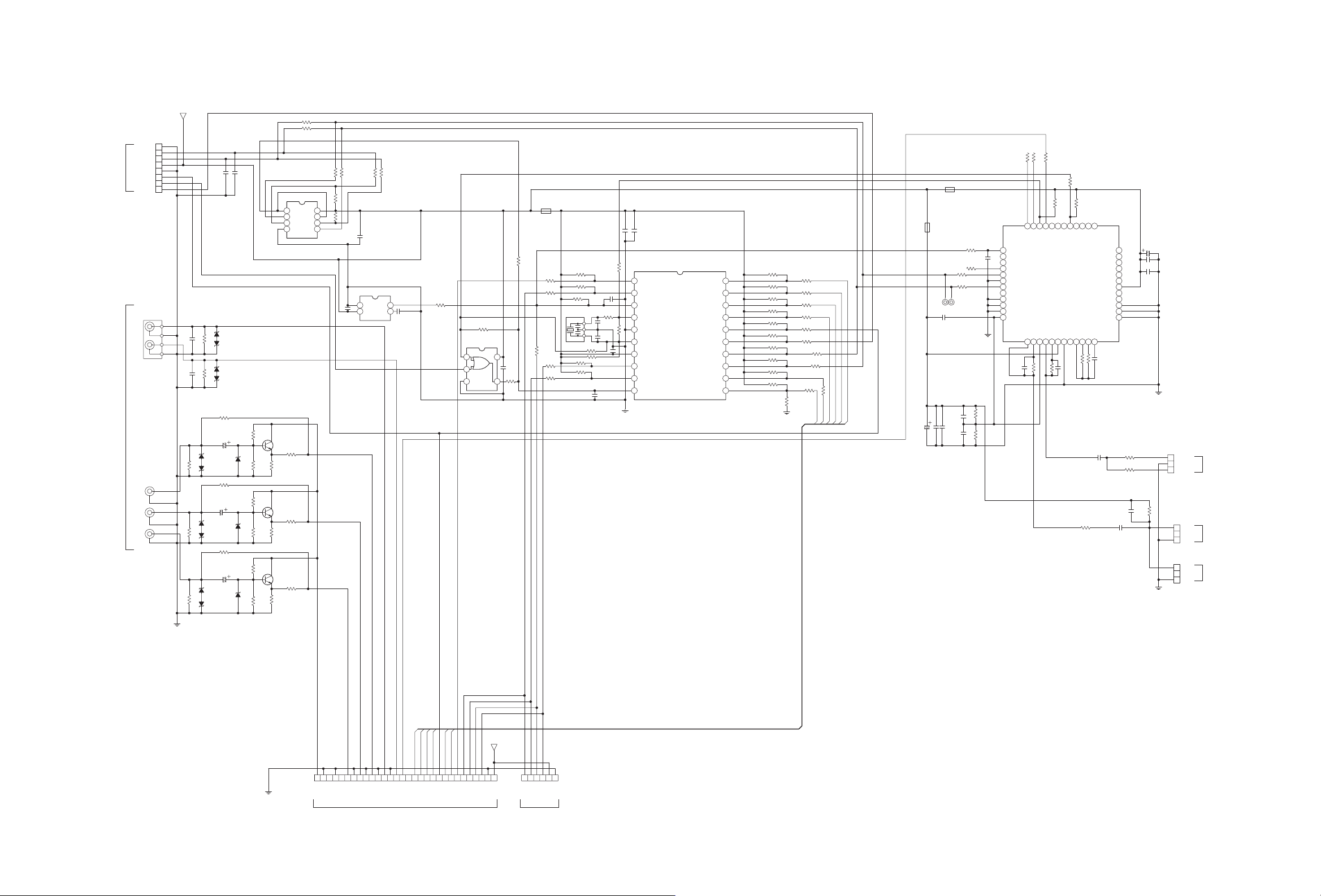

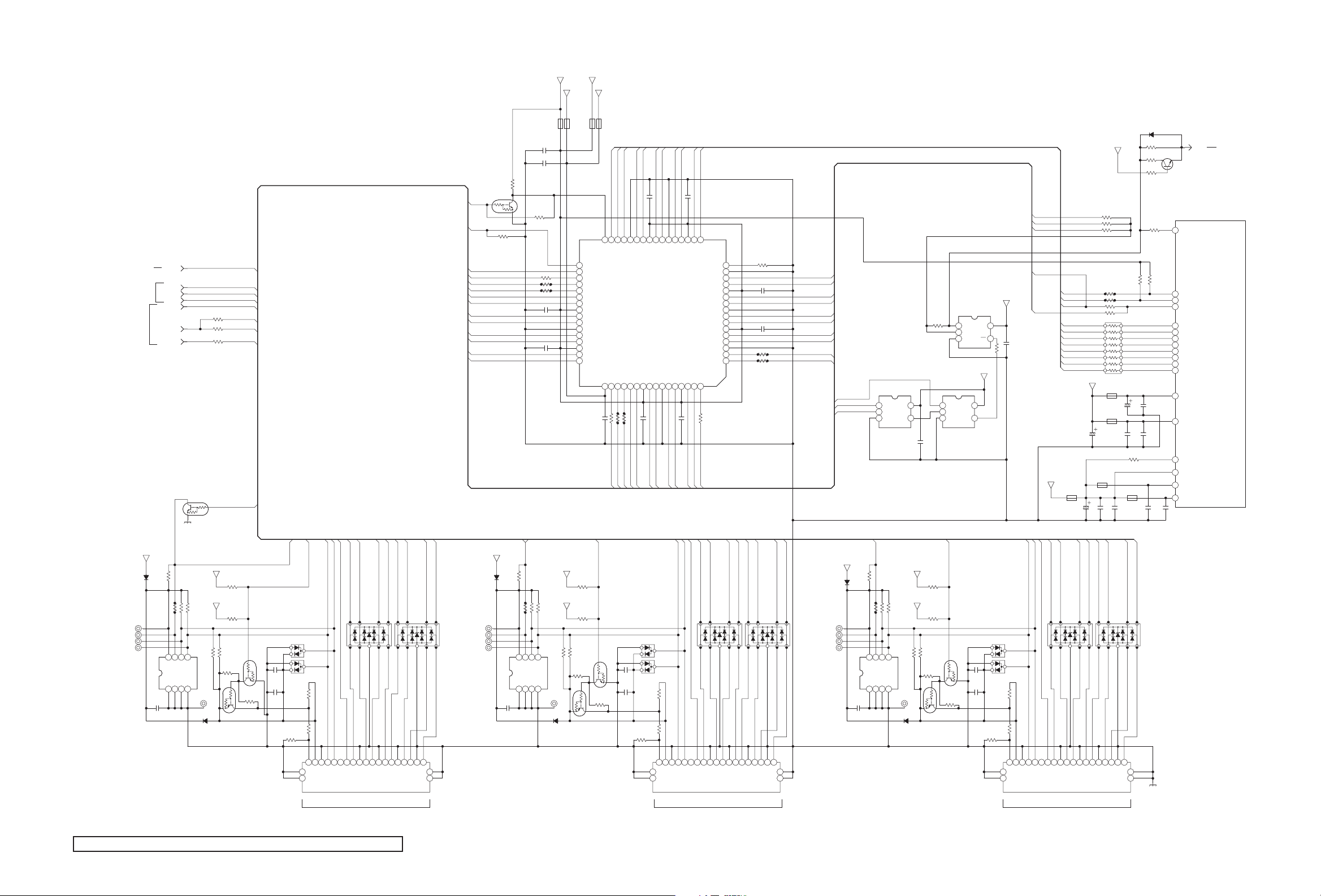

MAIN PWB CIRCUIT DIAGRAM (3/13) [

MAIN PWB ASS'Y (3/13)

SFY-1006A-H3

R3066

R3064

HDMI_EQ

HDMI_SEL1

HDMI_SEL2

EDID_WP

HM_HPLUG1

OPEN

SE_HPLUG

HM_HPLUG2_1

0

HM_HPLUG3_1

0

EDID_WP

MAIN PWB (11/13)

MAIN PWB (11/13),(13/13)

MAIN PWB (11/13)

HDMI_EQ

HDMI_SEL1

HDMI_SEL2

EDID_WP

HM_HPLUG1

HM_HPLUG2

HM_HPLUG3

Q3002
RT1N441C-X
UN2213-X

D_GND

R3065

SW

HDMI

]

HDMI_SEL1

HDMI_SEL2

HDMI_EQ

HM_HPLUG1

HM_SDA1

HM_SCL1

HM_ACKN1

HM_ACKP1

HM_ADT0N1

HM_ADT0P1

HM_ADT1N1

HM_ADT1P1

HM_ADT2N1

HM_ADT2P1

Q3011
RT1N441C-X
UN2213-X

R3067

R3068
100k

STB3.3V

K3008
OPEN

B1

10C3001

B1

10C3002

47k

R3069

OPEN

R3002

OPEN

R3003

OPEN

R3004

OPEN

0.1

C3003

0.01

C3004

STB5V

K3009

K3001

3.3V

5V

K3002

OPEN

STB3.3V

HM_SCLX

HM_SDAX

SE_HPLUG

HM_ACKPX

HM_ACKNX

HM_ADT0PX

HM_ADT0NX

0.01C3008

Z1 27

SCL_SINK 29

SCL252

R3005

HM_ACKN2

Y1 26

GND 28

IC3001

TMDS351PAG

HDMI SELECT

VCC55

A2154

B2153

0.1C3006

HM_ADT0N2

HM_ACKP2

VCC 25

B2256

HM_ADT0P2

Z2 24

Y2 23

GND58

A2257

S1 32

SDA_SINK 30

HPD_SINE 31

S2

33

EQ

34

HPD1

35

SDA1

36

SCL1

37

B11

38

A11

39

VCC

40

B12

41

A12

42

GND

43

B13

44

A13

45

VCC

46

B14

47

A14

48

SDA251

HPD250

VDD49

OPEN

OPEN

OPEN

0.1C3005

R3007

R3006

HM_SCL2

HM_SDA2

HM_HPLUG2_1

HM_ADT1NX

GND 22

B2359

HM_ADT1P2

HM_ADT1N2

HM_ADT1PX

Z3 21

Y3 20

VCC61

A2360

0.01C3007

HM_ADT2NX

0.1C3009

Z4 18

VCC 19

A2463

B2462

HM_ADT2P2

HM_ADT2N2

HM_ADT2PX

Y4 17

VSADJ

HPD364

OPEN

R3008

HM_HPLUG3_1

HM_CEC1

HM_CEC2

HM_CEC3

R3001

R3010

R3009

3.9k

HM_ADT2P3

0.01C3010

0.1C3011

OPEN

OPEN

HM_ADT2N3

HM_ADT1P3

HM_ADT1N3

HM_ADT0P3

HM_ADT0N3

HM_ACKP3

HM_ACKN3

HM_SCL3

HM_SDA3

HM_HPLUG1

HM_HPLUG2_1

HM_HPLUG3_1

OPEN
IC3008
TC7SH08FU-X

1

IN B

2

IN A

3

5

VCC

OE

STB3.3V

R3076

STB5V

5

4

OPEN

OPEN
IC3007
TC7SB384FU-X

R3075

0

1

A

2

B

3

GND

OPEN
IC3009

TC7SH00FU-X

1

5

VCC

OUT Y4GND

C3034

OPEN

IN B

VCC

2

IN A

3

OUT Y4GND

SE_HPLUG

HM_HPLUG1

C3033

OPEN

+3V3_PER

NEHM0GM-476X

16

GND

15

A34

14

B34

13

VCC

12

A33

11

B33

10

9

GND

8

A32

7

B32

6

VCC

5

A31

4

B31

3

GND

2

SCL3

1

SDA3

HM_SCLX

HM_SDAX

SE_HPLUG

HM_ACKNX

HM_ACKPX

HM_ADT0NX

HM_ADT0PX

HM_ADT1NX

HM_ADT1PX

HM_ADT2NX

HM_ADT2PX

NEX60GM-337X

K3007

NQR0499-002X

C3029

47/4

C3025
330/4

R3014

R3015

R3016

R3011

R3012

R3013

R3053

1

2

3

4

5

6

7

1.25V

NQR0499-002X

NEHM0GM-476X

NQR0499-002X

K3006

NQR0499-002X

RA3001

NRZ0080-0R0X

K3003

C3023

47/4

K3004

C3028

0.1

0

0

0

OPEN

OPEN

OPEN

OPEN

R3055

C3030

0.1

R3017
47k

16

15

14

13

12

11

10

98

C3027
1

K3005

NQR0499-002X

D3013
MA111-X
1SS355W-X

R3057
OPEN

R3070
0

R3071
47k

HM_ACKNX_1

HM_ACKPX_1

HM_ADT0NX_1

HM_ADT0PX_1

HM_ADT1NX_1

HM_ADT1PX_1

HM_ADT2NX_1

HM_ADT2PX_1

C3024

0.1

C3026

0.1

12k

R3054
OPEN

C3031

0.1

R3018
47k

C3032

0.1

213

201

215

214

211

199

200

190

189

177

178

152

180

191

179

181

182

193

Q3010
2SC3928A/QR/-X

CEC_IN

IC1001

PNX8541E/M12008

CEC(reserved)

C10

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

DDC_SCL

C9

DDC_SDA

E10

HOT_PLUG

D10

RXC_N

A10

RXC_P

A9

RX0_N

B9

RX0_P

B8

RX1_N

A8

RX1_P

A7

RX2_N

B7

RX2_P

B6

VDDA_1V2_HDMI_EQ

D7

VDDA_1V2_HDMI_PLL

C8

RREF

C7

VDDA_3V3_HDMI_PLL

E7

VDDA_3V3_HDMI_BIAS

F7

VDD_3V3_HDMI

E8

6/11

MAIN PWB (11/13)

D3001
MA111- X
1SS355W-X

TP3001

TP3002

TP3003

5V

R3019

IC3004

C3014

0.1

10k

OPEN

R3023

8

VCC

A01A12A23GND

3.3V

OPEN
R3029

STB3.3V

OPEN

OPEN

R3030 4.7k

(for CEC : 4.7k)

R3025

R3024

R3026

R3027
OPEN

47k

5

6WP7

SCL

4

R3028

SDA

4.7k

for HDMI

TP3013 TP3014 TP3015

D3002
MA111- X
1SS355W-X

Q3005
RT1N441C-X
UN2213-X

R3074

OPEN

Q3004
RT1P441C-X
UN2113-X

CableShield

C3015

0.1

CH
C3016
100p

R3061

100k

J3001

NNZ0226-001X

HDMI CONNECTOR

EDID_WP_1

D3003
BAV99-X-NS

D3004
BAV99-X-NS

R3031
OPEN

R3032
1k

20

HM_HPLUG1

195V18

HOT PLUG_DET

17

GND

HM_SDA1

16

SDA

HM_SCL1

15

SCL

HM_CEC1

14

Reserved

HM_ACKN1

13

CEC

HM_ACKP1

HM_ADT0N1

DA3001
OPEN

10 9 7 6

12

11

10

9

8

RX0-

RXC-

RXC+

RX0_GND

RXC_GND

HM_ADT0P1

7

RX0+

EXT-4 EXT-5 EXT-6

NOTE : Refer to the part list for the part number of IC3004, IC3005 and IC3006.

HM_ADT1P1

HM_ADT1N1

10 9 7 6

54321

6

5

4

3

RX1-

RX1+

RX1_GND

DA3002
OPEN

RX2-

2

RX2_GND

HM_ADT2N1

1

23

RX2+

2221

HM_ADT2P1

54321

D3005
MA111- X

1SS355W-X

TP3006

TP3007

5V

IC3005

C3017

0.1

R3020
OPEN

EDID_WP_1

OPEN

OPEN

R3033

R3034

6WP7

8

SCL

VCC

A01A12A23GND

OPEN

R3035

5

4

STB3.3V

(for CEC : 4.7k)

R3036
47k

SDA

for HDMI

D3006
MA111-X
1SS355W-X

3.3V

OPEN
R3039

R3040 4.7k

R3037
OPEN

R3038

4.7k

Q3007
RT1N441C-X
UN2213-X

R3073

OPEN

Q3006
RT1P441C-X
UN2113-X

HM_HPLUG2_1

C3018

0.1

CH
C3019
100p

R3062
100k

NNZ0226-001X

HDMI CONNECTOR

D3007
BAV99-X-NS

D3008
BAV99-X-NS

R3041
OPEN

R3042
1k

J3002

HM_SCL2

HM_SDA2

HM_CEC2

HM_ACKP2

HM_ACKN2

10 9 7 6

195V18

17

16

15

14

13

12

SCL

SDA

CEC

GND

20

Reserved

HOT PLUG_DET

RXC-

11

DA3003

OPEN

10

RXC_GND

HM_ADT0P2

HM_ADT1P2

HM_ADT1N2

HM_ADT0N2

10 9 7 6

54321

9

8

7

6

5

RX0-

RX1-

RX0+

RXC+

RX0_GND

RX1_GND

HM_ADT2P2

HM_ADT2N2

D3009
MA111-X

1SS355W-X

DA3004

OPEN

TP3009TP3005

TP3010

TP3011

TP3012TP3004 TP3008

54321

4

3

2

1

23

RX2-

RX1+

RX2+

2221

RX2_GND

EDID_WP_1

5V

R3021
OPEN

OPEN

R3044

6WP7

STB3.3V

OPEN

(for CEC : 4.7k)

R3045

R3046
47k

5

SCL

SDA

for HDMI

GND

4

D3010
MA111-X
1SS355W-X

IC3006

C3020

0.1

OPEN

8

VCC

A0

1A12A23

R3043

HM_HPLUG3_1

3.3V

OPEN
R3049

R3050

4.7k

D3011

C3021

0.1

CH
C3022
100p

R3063
100k

J3003

NNZ0226-001X

HDMI CONNECTOR

HDMI 3HDMI 2HDMI 1

BAV99-X-NS

D3012
BAV99-X-NS

R3051
OPEN

R3052
1k

R3047
OPEN

R3048

4.7k

Q3009

RT1N441C-X

UN2213-X

R3072

OPEN

Q3008
RT1P441C-X
UN2113-X

HM_SCL3

HM_SDA3

HM_CEC3

HM_ACKP3

HM_ACKN3

10 9 7 6

195V18

17

16

15

14

13

12

HOT PLUG_DET

SCL

SDA

CEC

GND

Reserved

20

RXC-

11

RXC_GND

DA3005
OPEN

10

HM_ADT0P3

HM_ADT1P3

HM_ADT1N3

HM_ADT0N3

10 9 7 6

54321

9

8

7

6

5

RX0-

RX1-

RX0+

RXC+

RX0_GND

RX1_GND

HM_ADT2P3

HM_ADT2N3

DA3006

OPEN

54321

4

3

2

1

23

RX2-

RX1+

RX2+

2221

RX2_GND

D_GND

c10611001a_0226_5/13_0.0

2-12(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-11

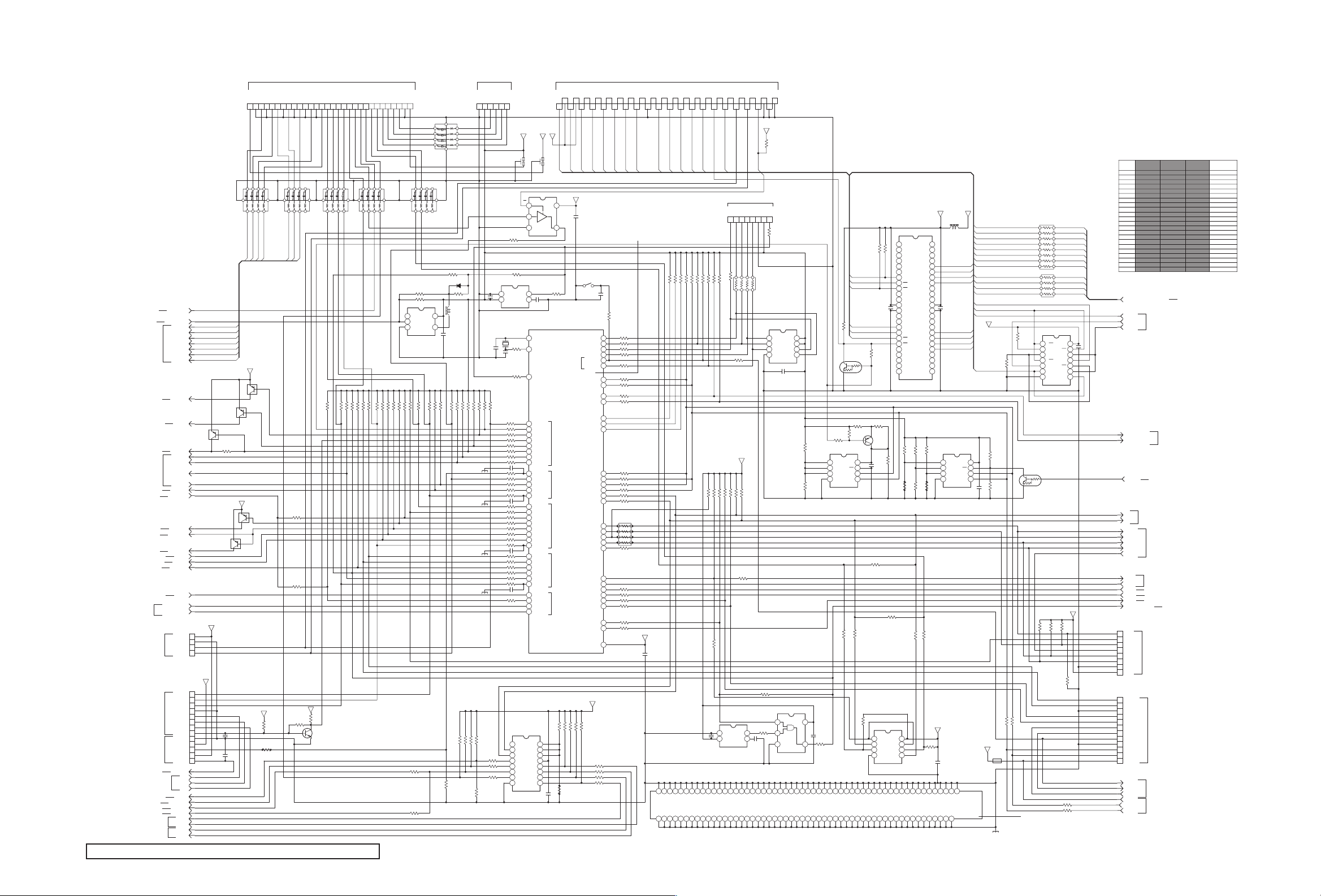

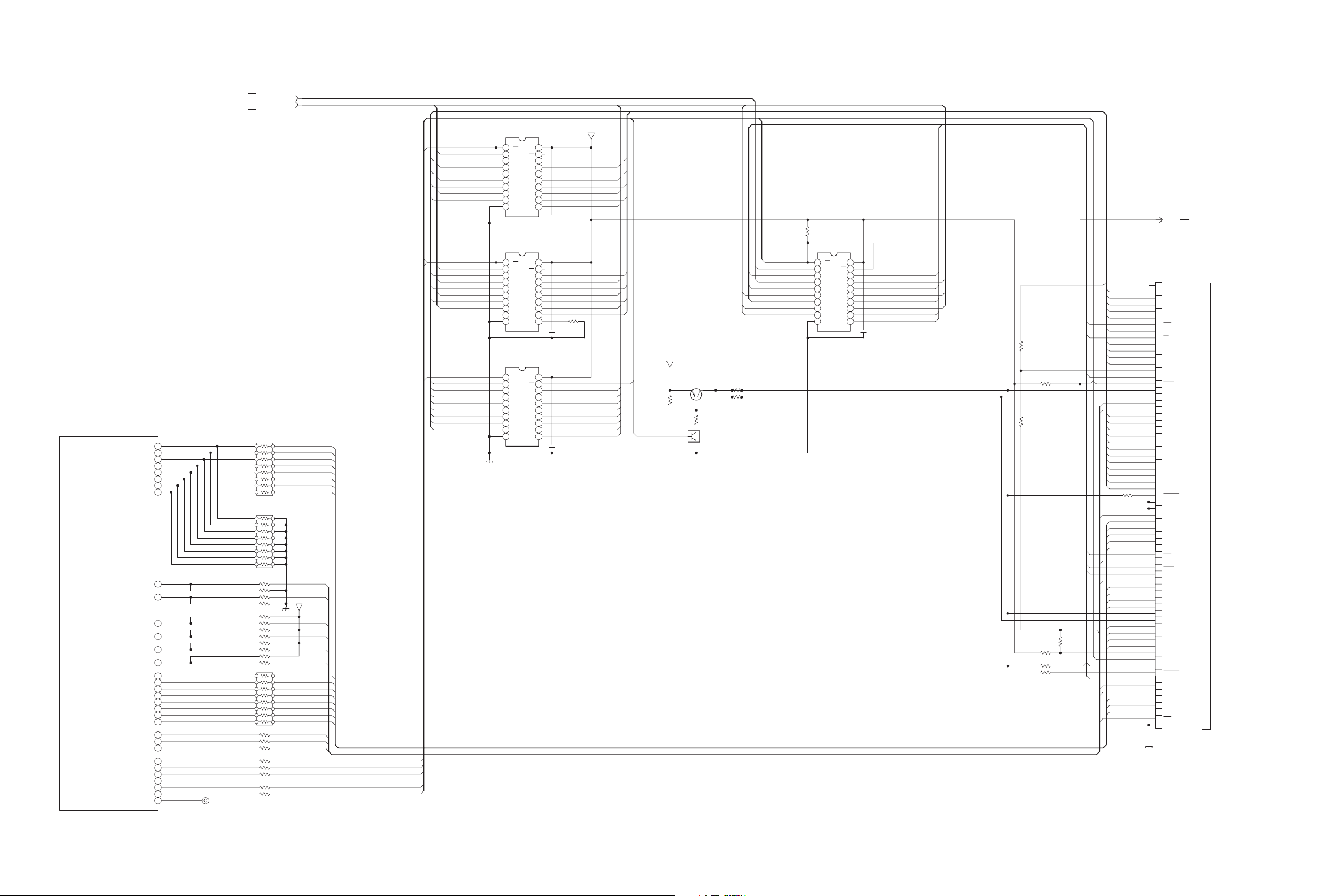

MAIN PWB CIRCUIT DIAGRAM (4/13) [CI]

IC1001

PNX8541E/M12008

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

MAIN PWB (5/13),(11/13)

CA_MDO0

423

C25

CA_MDO1

402

D23

CA_MDO2

401

C23

CA_MDO3

539

C29

CA_MDO4

569

C30

CA_MDO5

570

D30

CA_MDO6

507

A28

CA_MDO7

537

A29

CA_MOVAL

409

A24

CA_MOSTRT

424

D25

CA_VSN1

411

C24

CA_VSN0

567

A30

CA_CDN0

540

D29

CA_CDN1

400

B23

CA_MDI0

447

A26

CA_MDI1

C27

CA_MDI2

478

B27

CA_MDI3

477

A27

CA_MDI4

421

A25

CA_MDI5

450

D26

CA_MDI6

449

C26

CA_MDI7

448

B26

CA_MIVAL

422

B25

CA_MISTRT

568

B30

CA_MCLKI

508

B28

CA_RST

410

B24

CA_DATA_DIR

390

D22

CA_DATA_EN

387

A22

CA_OOB_EN

389

C22

CA_ADD_EN

388

B22

CA_VCCEN

399

A23

CA_VPPEN

412

7/11

D24

CA-MDO0_1 CA-MDO0

CA-MDO1_1

CA-MDO2_1

CA-MDO3_1

CA-MDO4_1

CA-MDO5_1

CA-MDO6_1

CA-MDO7_1

CA-MOVAL_1

CA-MOSTRT_1

TP3201

OPEN

PCI-AD[0-14,16-19,22-31]

NRZ0080-330X

RA3202

1

2

3

4

5

6

7

NRZ0080-103X

RA3203

1

2

3

4

5

6

7

R3268

R3220

R3269

R3221

R3222

R3270

R3223

R3271

R3224

R3272

R3225

R3273

NRZ0080-330X

RA3204

1

2

3

4

5

6

7

R3209

R3210

R3211

R3274

R3275

R3276

R3277

R3279

PCI-CBE[1,2]

16

15

14

13

12

11

10

98

16

15

14

13

12

11

10

98

33

10k

33

10k

10k

33

10k

33

10k

33

10k

33

16

15

14

13

12

11

10

98

33

33

33

33

33

33

33

33

D_GND

CA-MDO1

CA-MDO2

CA-MDO3

CA-MDO4

CA-MDO5

CA-MDO6

CA-MDO7

CA-MOVAL

CA-MOSTRT

3.3V

CA_CDN0

CA_CDN1

CA-MDI0

CA-MIVAL

CA-MISTRT

CA-MICLK

CA-DATADIR

CA-DATAEN

CA-ADDEN

CA-VCCEN

CA-VSN1

CA-VSN0

CA-MDI1

CA-MDI2

CA-MDI3

CA-MDI4

CA-MDI5

CA-MDI6

CA-MDI7

CA-RST

CA-ADDEN

PCI-AD10

PCMCIA-A3

PCI-AD11

PCMCIA-A2

PCI-AD13

PCMCIA-A1

PCI-AD12

PCMCIA-A0

CA-ADDEN

PCI-AD8

PCMCIA-A6

PCI-AD9

PCMCIA-A7

PCI-AD4

PCMCIA-A14

PCI-AD5

CA-DATADIR

PCMCIA-D2

PCMCIA-D1

PCMCIA-D0

PCMCIA-D7

PCMCIA-D6

PCMCIA-D5

PCMCIA-D4

PCMCIA-D3

D_GND

PCI_CBE

PCI_AD

PCMCIA_A

C3201

0.1

R3226

C3202

C3203

3.3V

PCMCIA-A10

PCI-AD3

PCMCIA-A11

PCI-AD2

PCMCIA-A13

PCI-AD1

PCMCIA-A12

PCI-AD0

/16

PCMCIA-A8

PCI-AD6

PCMCIA-A9

PCI-AD7

PCMCIA-A4

PCI-AD14

PCMCIA-A5

10k

/160.1

CA-DATAEN

PCI-AD26

PCI-AD25

PCI-AD24

PCI-AD31

PCI-AD30

PCI-AD29

PCI-AD28

PCI-AD27

/160.1

CA-VCCEN

IC3201

TC74LCX244FT-X

1

1OE

VCC

2

1A1

2OE

3

2Y4

1Y1

4

1A2

2A4

5

2Y3

1Y2

6

1A3

2A3

7

2Y2

1Y3

8

1A4

2A2

9

2Y1

1Y4

GND102A1

IC3202

TC74LCX244FT-X

1

VCC

1OE

2

1A1

2OE

3

2Y4

1Y1

4

1A2

2A4

5

2Y3

1Y2

6

1A3

2A3

7

2Y2

1Y3

8

1A4

2A2

9

2Y1

1Y4

GND102A1

IC3203

TC74LCX245FTK-X

1

DIR

VCC

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

GND10B8

20

19

18

17

16

15

14

13

12

11

20

19

18

17

16

15

14

13

12

11

20

OE

19

B1

18

B2

17

B3

16

B4

15

B5

14

B6

13

B7

12

11

MAIN PWB ASS'Y (4/13)

SFY-1006A-H3

PCI_CBE

PCI_AD

PCMCIA_A PCMCIA_A

CA_CNT

PCI_CBE

PCI_AD

CA-ADDEN

PCI-CBE2

CA-REG

PCI-CBE1

CA-IORD

PCI-AD16

CA-IOWR CA_CE2

PCI-AD17

PCI-AD18

5V

Q3203

2SB1188/QR/-W

R3259

OPEN

OPEN

R3254
470

Q3204
RT1N441C-X
UN2213-X

R3258
R3252
10k

R3227
10k

TC74LCX244FT-X

1

2

3

4

5

6

7

8

9

IC3204

1OE

1A1

2Y4

1A2

2Y3

1A3

2Y2

1A4

2Y1

GND102A1

PCI_AD

VCC

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

PCMCIA_A

CA_CNTCA_CNTCA_CNTCA_CNT

CA-INT

MAIN PWB (11/13)

20

19

18

17

16

15

14

13

12

11

C3204

/160.1

CA-OE

PCI-AD19

CA-WE

PCI-AD22

PCI-AD23

CA_CE1

CA-WAIT

R3238
0

R3240
OPEN

R3239

R3243

R3244

R3245

10k

10k

10k

10k

PCMCIA-A14

R3242
0

CA-WAIT

CA-VSN1

PCMCIA-D3

PCMCIA-D4

PCMCIA-D5

PCMCIA-D6

PCMCIA-D7

CA_CE1

PCMCIA-A10

CA-OE

PCMCIA-A11

PCMCIA-A9

PCMCIA-A8

PCMCIA-A13

MOCLK-POD_A14-CI

CA-WE

CA-INT

CA-MIVAL

CA-MICLK

PCMCIA-A12

PCMCIA-A7

PCMCIA-A6

PCMCIA-A5

PCMCIA-A4

PCMCIA-A3

PCMCIA-A2

PCMCIA-A1

PCMCIA-A0

PCMCIA-D0

PCMCIA-D1

PCMCIA-D2

R3241

CA_CDN0

CA-MDO3

CA-MDO4

CA-MDO5

CA-MDO6

CA-MDO7

CA_CE2

CA-VSN0

CA-IORD

CA-IOWR

CA-MISTRT

CA-MDI0

CA-MDI1

CA-MDI2

CA-MDI3

CA-MDI4

CA-MDI5

CA-MDI6

CA-MDI7

MOCLK-CI

CA-RST

CA-WAIT

CA-REG

CA-MOVAL

CA-MOSTRT

CA-MDO0

CA-MDO1

CA-MDO2

CA_CDN1

CN3201
QNZ0997-001

GND1

D32

D43

D54

D65

D76

CE17

A108

OE9

A1110

A911

A812

A1313

A1414

WE15

IREQ16

VCC17

VPP118

MIVAL19

MCLKI20

A1221

A722

A623

A524

A425

A326

A227

A128

A029

D030

D131

D232

10k

D_GND

IOIS1633

GND34

GND35

CD136

MDO337

MDO438

MDO539

MDO640

MDO741

CE242

VS143

IORD44

IOWR45

MISTRT46

MID047

MID148

MID249

MID350

VCC51

VPP252

MID453

MID554

MID655

MID756

MCLKO57

RESET58

WAIT59

INPACK60

REG61

MOVAL62

MOSTRT63

MDO064

MDO165

MDO266

CD267

GND68

CN3201
QNZ0997-001

PC CARD
SLOT

(No.YA690<Rev.001>)2-13 2-14(No.YA690<Rev.001>)

c10611001a_0226_6/13_0.0

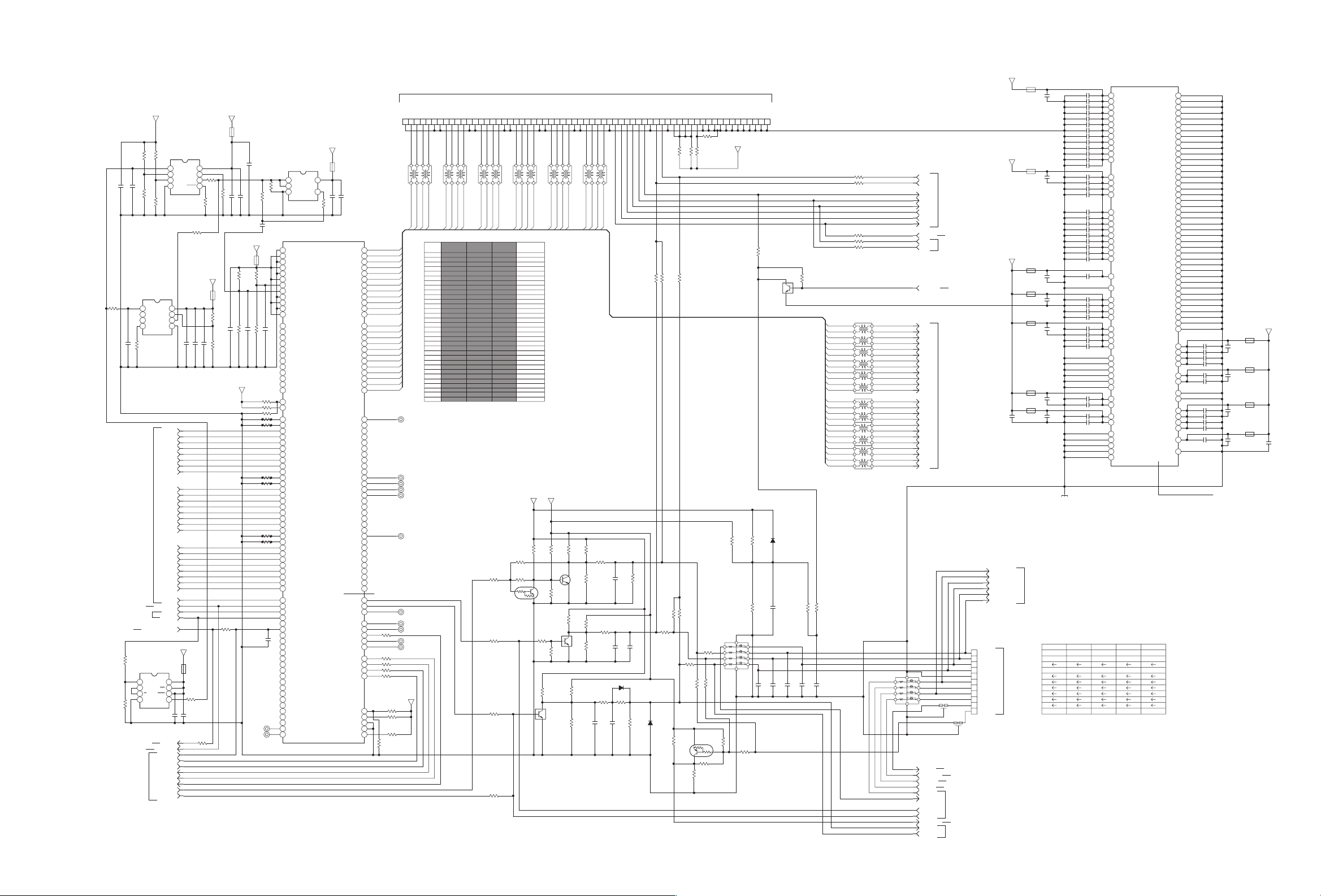

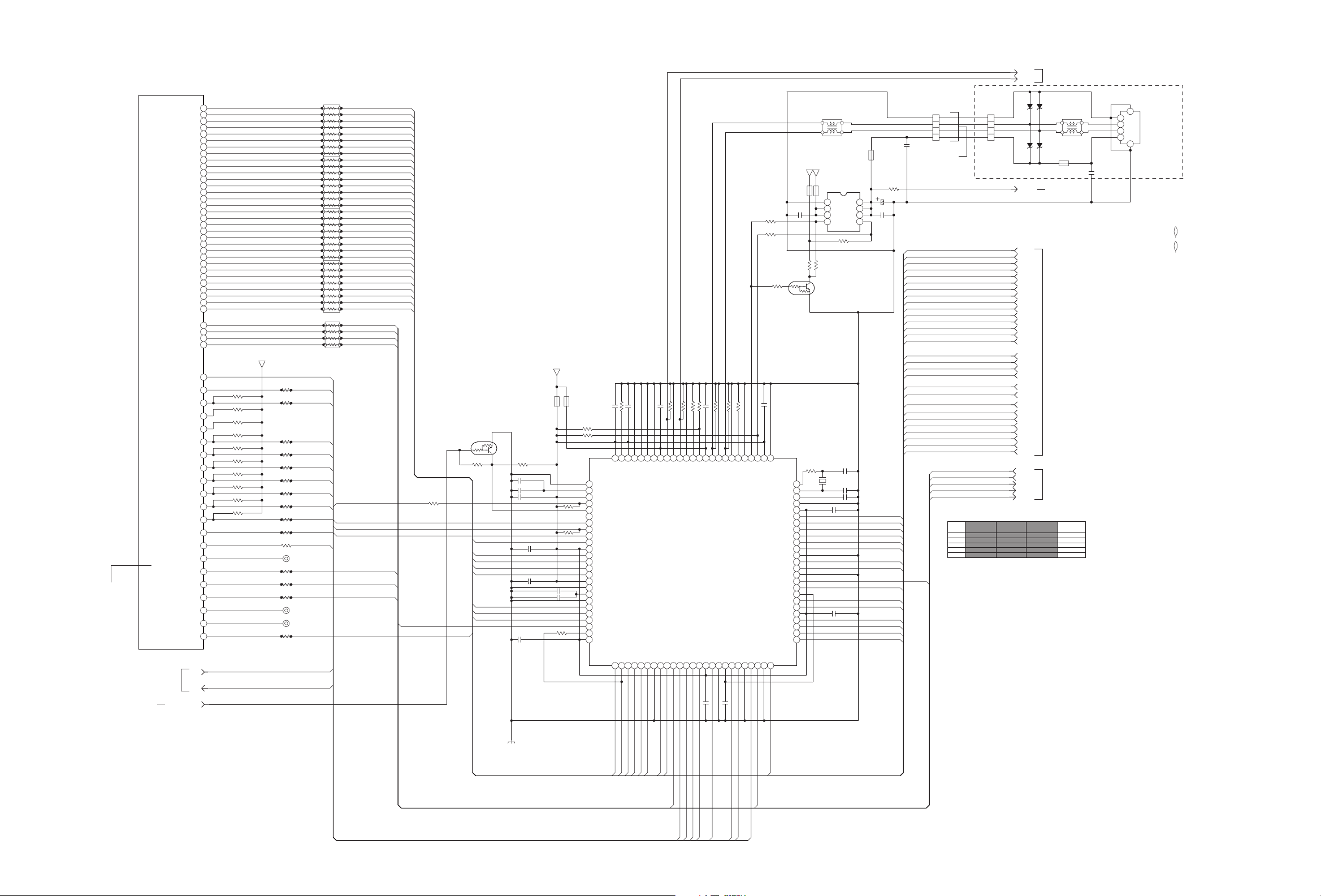

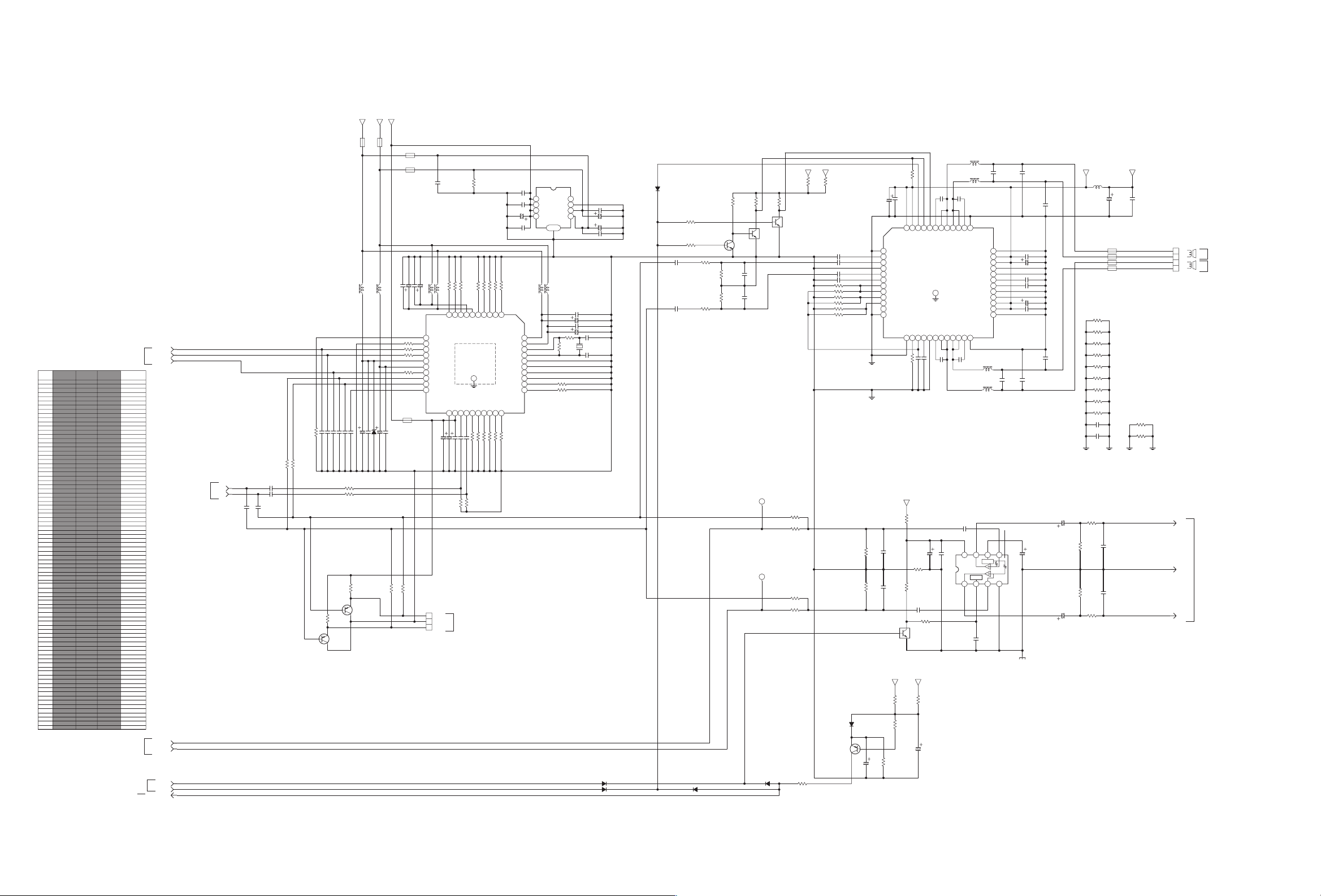

MAIN PWB CIRCUIT DIAGRAM (5/13) [

IC1001

PNX8541E/M12008

PCI_AD0

365

A20

PCI_AD1

366

B20

PCI_AD2

367

C20

PCI_AD3

368

D20

PCI_AD4

353

A19

PCI_AD5

354

B19

PCI_AD6

355

C19

PCI_AD7

356

D19

PCI_AD8

357

E19

PCI-AD9

335

A18

PCI_AD10

336

B18

PCI_AD11

337

C18

PCI_AD12

338

D18

PCI_AD13

339

E18

PCI_AD14

317

A17

PCI_AD15

318

B17

PCI_AD16

285

E15

PCI_AD17

284

D15

PCI_AD18

283

C15

PCI_AD19

282

B15

PCI_AD20

281

A15

PCI-AD21

267

E14

PCI-AD22

266

D14

PCI-AD23

265

C14

PCI-AD24

264

B14

PCI-AD25

263

A14

PCI-AD26

249

E13

PCI-AD27

248

D13

PCI-AD28

247

C13

PCI-AD29

246

B13

PCI-AD30

245

A13

PCI_AD31

237

E12

PCI_CBE0

236

D12

PCI_CBE1(WEN)

235

C12

PCI_CBE2(REN)

234

B12

PCI_CBE3

233

MICROCOMPUTER/

IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/

VIDEO SELECT/
AUDIO SELECT/

A-D CONVERT/
D-A CONVERT/

FORMAT CONVERT

MAIN PWB (11/13)

MAIN PWB

(1/13),(9/13),(11/13)

PCI_CLK

PCI_GNT_B

PCI_REQ_B

PCI_GNT

PCI_REQ

PCI_FRAME

PCI_IRDY

PCI_TRDY

PCI_DEVSEL

PCI_STOP

PCI_PERR

PCI_SERR

PCI_PAR

INTA_OUT

XIO_AD25

XIO_ACK

XIO_SEL0

XIO_SEL1

XIO_SEL2

XIO_SEL3

PCI_IDSEL

8/11

RESET-SYS-DETECT

27MHZ

IRQ-PCI

A12

375

A21

369

E20

391

E22

379

E21

378

D21

319

C17

320

D17

321

E17

299

A16

300

B16

301

C16

302

D16

303

E16

377

C21

212

B10

223

A11

224

B11

225

C11

226

D11

227

E11

376

B21

R3509

R3511

+3V3_PER

10k

10kR3510

10k

10kR3512

10kR3513

10kR3514

10kR3515

10kR3516

10kR3517

10kR3518

NXP_USB2.0

8

RA3501

7

OPEN

6

5

4

3

2

8

7

RA3502

OPEN

6

5

4

3

2

8

7

RA3503

OPEN

6

5

4

3

2

8

7

RA3504

OPEN

6

5

4

3

2

RA3505

OPEN

27MHZ

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPENR3549

OPENR3550

OPENR3551

OPENR3554

PCI-GNT-USB20

PCI-REQ-USB20

PCI-FRAME

PCI-IRDY

PCI-TRDY

PCI-DEVSEL

PCI-STOP

PCI-PERR

PCI-SERR

PCI-PAR

IRQ-PCI

TP3501

TP3502

TP3503

27MHZ

IRQ-PCI

R3519

R3520

R3523

R3524

R3525

R3526

R3527

R3528

R3529

R3530

R3531

4

3

]

9

10

11

12

13

14

15

161

9

10

11

12

13

14

15

161

9

10

11

12

13

14

15

161

9

10

11

12

13

14

15

161

5

6

7812

IRQ-PCI

27MHZ

PCI-GNT-USB20

PCI-REQ-USB20

PCI-CBE0

PCI-CBE1

PCI-CBE2

PCI-CBE3

XIO-ACK

XIO-SEL0

XIO-SEL1

PCI-AD0

PCI-AD1

PCI-AD2

PCI-AD3

PCI-AD4

PCI-AD5

PCI-AD6

PCI-AD7

PCI-AD8

PCI-AD9

PCI-AD10

PCI-AD11

PCI-AD12

PCI-AD13

PCI-AD14

PCI-AD15

PCI-AD16

PCI-AD17

PCI-AD18

PCI-AD19

PCI-AD20

PCI-AD21

PCI-AD22

PCI-AD23

PCI-AD24

PCI-AD25

PCI-AD26

PCI-AD27

PCI-AD28

PCI-AD29

PCI-AD30

PCI-AD31

PCI-CBE3

R3546
0

PCI-AD24

Q3502
OPEN

R3555
100

PCI-AD31

PCI-AD30

PCI-AD29

PCI-AD28

PCI-AD27

PCI-AD26

PCI-AD25

PCI-AD24

C3504

C3506

/160.1

/160.1

NQR0499-002X

R3533
OPEN

C3505

/1622

NCJ41CM-226X-U

C3507

C3508

NCJ41CM-226X-U

C3511

/160.1

USB_DP2

MAIN PWB (11/13)

USB_DM2

USB

LC3502
NQR0603-001X

43

21

K3503
NQR0499-001X

5V3.3V

K3501
NQR0499-002X

IC3502

K3502

NQR0499-002X

C3501

R3502

R3503

3.3V

15k

GNDA 91

IC3501

ISP1564HL

C/BE2#35

DM2 90

FRAME#36

R3541

/160.1C3515

15k

OPEN

OPEN

R3507

R3508

GNDA 89

OC2_N 87

PWE2_N 88

DEVSEL#39

TRDY#38

IRDY#37

12k

15k

15k

R3544

R3543

R3542

DP1 85

DM1 83

RREF 81

GNDA 84

GNDA 82

VCCA(AUX) 86

STOP#41

VCC(IO)40

PWE1_N 79

GND_RREF 80

PAR47

GNDA46

SERR#45

PERR#44

REG(1V8)43

CLKRUN#42

/160.1C3514

K3504

K3505

NQR0499-002X

10kR3537

10kR3538

1

GNDA

2

AUX(1V8)

3

VCC(AUX)

4

C3509

C3510

INTA#

5

RST#

6

SYS_TUNE

7

CLK

8

GND#

9

REQ#

AD31

10

VCC(IO)

11

AD30

12

AD29

13

AD28

14

AD27

15

VCC(REG)

16

GNDA

17

/1622

REG(1V8)

18

/160.1

GND

19

AD26

20

AD25

21

AD24

22

C/BE3#

23

100R3536

IDSEL

24

VCC(IO)

25

R3534

10k

R3535

10k

/160.1

/160.1

C3512

/160.1C3513

4.7k

/160.1

R3539

100

PME# 99

VCC(IO)AUX

VCC(IO)AUX 98

R3540

SCL 96

DP2 92

SDA 97

GND 95

GND 94

VCCA(AUX) 93

USB CONTROL

AD1634

AD1733

GND32

AD1831

AD1930

AD2029

AD2128

AD2227

AD2326

NCB11EK-105X

33

33

R3505
OPEN

R3504
OPEN

Q3501
OPEN

/160.1C3518

GND 76

OC1_N 78

VCC(IO)AUX 77

XTAL2

XTAL1

AUX(1V8)

GNDA

VCC(IO)

AD0

AD1

AD2

AD3

AD4

AD5

GND

AD6

AD7

GNDA

C/BE0#

AD8

REG(1V8)

AD9

AD10

VCC(IO)

AD11

AD12

AD13

AD14

AD1550

GND49

C/BE1#48

TPS2041BD-X

1

GND

OUT

2

VDD

C3523

R3506
OPEN

3

R3501

X3501
NAX0755-001X

C3522

/160.1

/160.1

VDD

CTRL4FLAG

CH
C3519

CH
C3520

C3521

/160.1

12MHz

OUT

OUT

10k

18p

18p

/251

R3545
0

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

60

59

58

57

56

55

54

53

52

51

8

7

6

5

R3547
OPEN

NEHM0JM-107X

C3502
100/6.3

C3503

/160.1

PCI-AD0

PCI-AD1

PCI-AD2

PCI-AD3

PCI-AD4

PCI-AD5

PCI-AD6

PCI-AD7

PCI-AD8

PCI-AD9

PCI-AD10

PCI-AD11

PCI-AD12

PCI-AD13

PCI-AD14

CN3501

C3524
OPEN

HP/USB PWB

(CN7302)

PCI-AD0

PCI-AD1

PCI-AD2

PCI-AD3

PCI-AD4

PCI-AD5

PCI-AD6

PCI-AD7

PCI-AD8

PCI-AD9

PCI-AD10

PCI-AD11

PCI-AD12

PCI-AD13

PCI-AD14

PCI-AD16

PCI-AD17

PCI-AD18

PCI-AD19

PCI-AD22

PCI-AD23

PCI-AD24

PCI-AD25

PCI-AD26

PCI-AD27

PCI-AD28

PCI-AD29

PCI-AD30

PCI-AD31

PCI-CBE1

PCI-CBE2

XIO-ACK

XIO-SEL0

XIO-SEL1

PCI-CBE0

GND

4

DP

3

DM

2

VCC

1

CN3502

GND

4

DP

3

DM

2

VCC

1

USB_VCC

PCI-AD0

PCI-AD1

PCI-AD2

PCI-AD3

PCI-AD4

PCI-AD5

PCI-AD6

PCI-AD7

PCI-AD8

PCI-AD9

PCI-AD10

PCI-AD11

PCI-AD12

PCI-AD13

PCI-AD14

PCI-AD16

PCI-AD17

PCI-AD18

PCI-AD19

PCI-AD22

PCI-AD23

PCI-AD24

PCI-AD25

PCI-AD26

PCI-AD27

PCI-AD28

PCI-AD29

PCI-AD30

PCI-AD31

PCI-CBE1

PCI-CBE2

XIO-ACK

XIO-SEL0

XIO-SEL1

32DR1 37DR1 42DR1 DV1
reference Diff Diff Diff Diff

# CL002 QZW0359-001

# CN3501

# J3501

# K3506

# LC3501

WJW0087-001A-E

QNZ0851-001

NQR0499-001X

NQR0603-001X

QZW0359-001

WJW0087-001A-E

QNZ0851-001

NQR0499-001X

NQR0603-001X

LC3501

OPEN

D3501

OPEN

D3503

43

OPEN

D3502

OPEN

D3504

K3506

MAIN PWB
(11/13)

MAIN PWB (4/11),(11/13)

MAIN PWB (11/13)

QZW0359-001

OPEN

WJW0087-001A-E

QGA2013C2-04

QNZ0851-001

OPEN

NQR0499-001X

OPEN

NQR0603-001X

OPEN

21

C3525
OPEN

MAIN PWB ASS'Y (5/13)

4 GND

3DP

2DM

1 VCC

6

5

CONNECTOR

J3501

OPEN

CL001
OPEN

CL002
QZW0359-001

SFY-1006A-H3

/160.1

/160.1

C3517

C3516

D_GND

PCI-AD22

PCI-AD23

PCI-AD21

PCI-AD20

PCI-AD19

PCI-AD18

PCI-AD16

PCI-AD17

PCI-CBE2

PCI-FRAME

PCI-IRDY

PCI-DEVSEL

PCI-TRDY

PCI-STOP

2-16(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-15

PCI-SERR

PCI-PERR

PCI-AD15

PCI-CBE1

PCI-PAR

c10611001a_0226_7/13_0.0

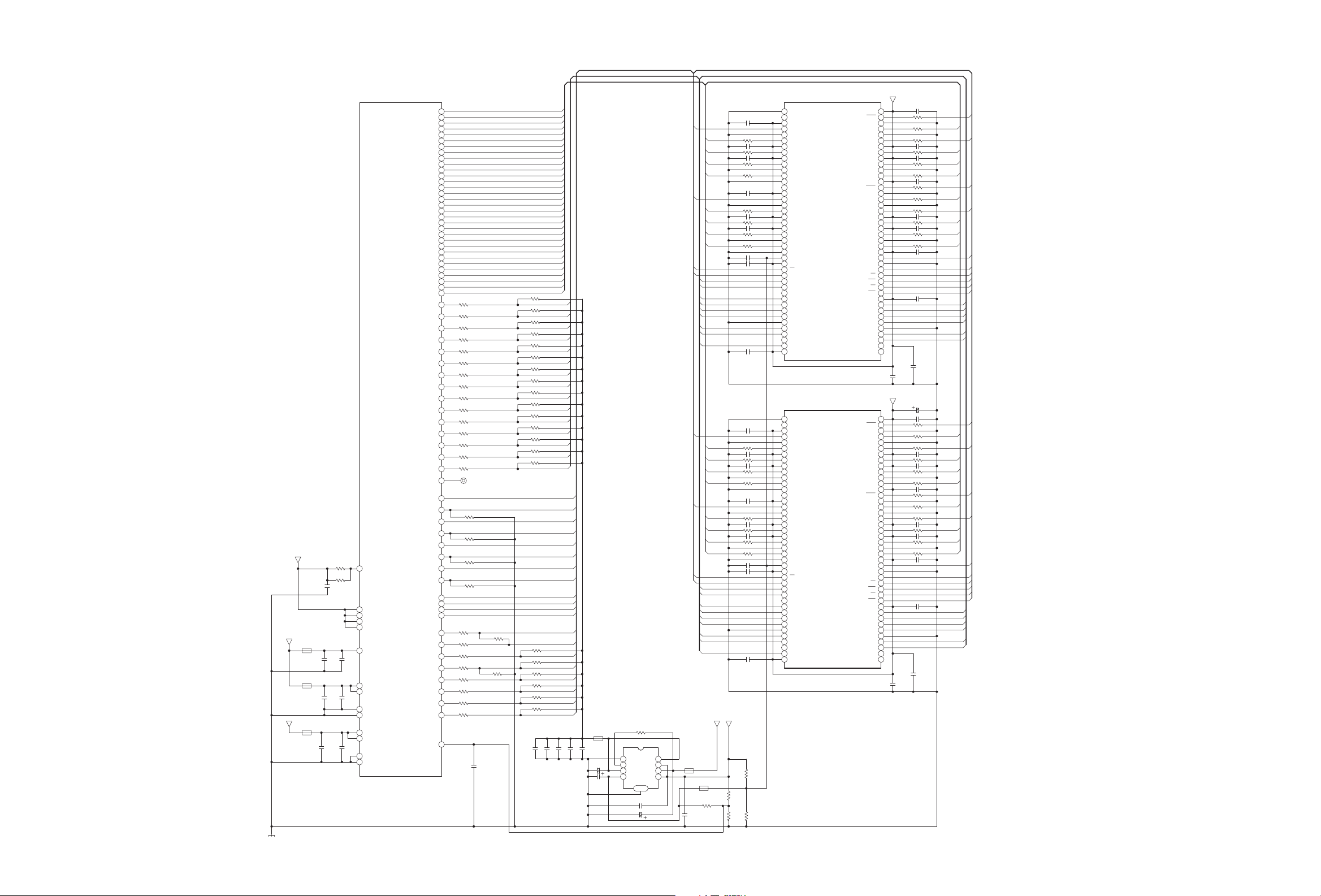

MAIN PWB CIRCUIT DIAGRAM (6/13) [DDR]

MAIN PWB ASS'Y (6/13)

SFY-1006A-H3

1.8V

+3V3_PER

K1505

NQR0499-002X

K1504

NQR0499-002X

C1556

1.25V

K1503

NQR0499-002X

IC1001

PNX8541E/M12008

M_DQ0

584

V30

M_DQ1

530

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

R1602

5.6k

M_IREF

471

AE26

R1603

820

C1557

/160.1

VDD_DDR

342

P18

VDD_DDR

343

R18

VDD_DDR

344

T18

VDD_DDR

345

U18

VDDA_3V3_DDRPLL

453

G26

C1554

C1555

/160.1

/161

VDDA_3V3_DLL1

495

W27

VDDA_3V3_DLL2

482

F27

C1553

/160.1

/160.1

VSSA_DLL1

465

W26

VSSA_DLL2

428

J25

VDDA_1V2_DLL0

498

AB27

VDDA_1V2_DDL3

455

C1551

J26

C1552

/160.1

/160.1

VSSA_DLL0

468

AB26

VSSA_DLL3

452

F26

3/11

M_DQ2

M_DQ3

M_DQ4

M_DQ5

M_DQ6

M_DQ7

M_DQ8

M_DQ9

M_DQ10

M_DQ11

M_DQ12

M_DQ13

M_DQ14

M_DQ15

M_DQ16

M_DQ17

M_DQ18

M_DQ19

M_DQ20

M_DQ21

M_DQ22

M_DQ23

M_DQ24

M_DQ25

M_DQ26

M_DQ27

M_DQ28

M_DQ29

M_DQ30

M_DQ31

M_BA0

M_BA1

M_A10

M_A11

M_A12

M_A13

M_DQS0_P

M_DQS0_N

M_DQS1_P

M_DQS1_N

M_DQS2_P

M_DQS2_N

M_DQS3_P

M_DQS3_N

M_DQM0

M_DQM1

M_DQM2

M_DQM3

M_CLK_P

M_CLK_N

M_ODT

M_CKE

M_WEB

M_CSB

M_RASB

M_CASB

M_VREF

AD28

528

AB28

588

AB30

560

AD29

554

V29

500

AD27

524

V28

585

W30

589

AC30

587

AA30

529

AC28

590

AD30

525

W28

559

AC29

586

Y30

571

E30

517

L28

545

J29

515

J28

547

L29

541

E29

487

L27

511

E28

572

F30

576

K30

574

H30

516

K28

577

L30

542

F29

575

J30

512

F28

T27

R29

M_A0

P26

M_A1

R30

M_A2

N26

M_A3

U28

M_A4

M26

M_A5

R27

M_A6

M27

M_A7

V26

M_A8

M28

M_A9

R26

T28

L26

U27

J27

AA28

AA29

Y28

Y29

H28

H29

G28

G29

U29

U30

M30

M29

N28

N29

P27

U26

R28

P28

P29

P30

T30

33R1507

492

33R1508

551

33R1509

460

33R1510

581

R1511

33

459

33R1512

523

33

R1513

458

33R1514

491

33R1515

488

33R1516

464

33R1517

518

33R1518

461

33R1519

522

33

R1520

457

33R1521

493

TP1501

485

OPEN

527

557

R1546

526

556

514

544

513

543

553

583

578

548

519

549

490

463

521

520

550

580

582

OPEN

R1547

OPEN

R1548

OPEN

R1549

OPEN

22R1523

R1550

22R1524

150

33R1525

33R1526

R1557

33R1527

1k

33R1528

33R1529

33R1530

C1510

NCB11AK-106X

/160.1

M_DQ0

M_DQ1

M_DQ2

M_DQ3

M_DQ4

M_DQ5

M_DQ6

M_DQ7

M_DQ8

M_DQ9

M_DQ10

M_DQ11

M_DQ12

M_DQ13

M_DQ14

M_DQ15

M_DQ16

M_DQ17

M_DQ18

M_DQ19

M_DQ20

M_DQ21

M_DQ22

M_DQ23

M_DQ24

M_DQ25

M_DQ26

M_DQ27

M_DQ28

M_DQ29

M_DQ30

M_DQ31

R1531

100

R1532

R1533

R1534

R1535

R1536

R1537

R1538

R1539

R1540

R1541

R1542

R1543

R1544

R1545

R1551

R1552

R1553

R1554

R1555

R1556

C1503

M_BA0

100

M_BA1

100

M_A0

100

M_A1

100

M_A2

100

M_A3

100

M_A4

100

M_A5

100

M_A6

100

M_A7

100

M_A8

100

M_A9

100

M_A10

100

M_A11

100

M_A12

M_DQS0_P

M_DQS0_N

M_DQS1_P

M_DQS1_N

M_DQS2_P

M_DQS2_N

M_DQS3_P

M_DQS3_N

M_DQM0

M_DQM1

M_DQM2

M_DQM3

M_CLK_P

M_CLK_N

100

M_ODT

100

M_CKE

100

M_WEB

100

M_CSB

100

M_RASB

100

M_CASB

K1501

NRSA63J-0R0X

C1506

C1507

C1508

C1509

0.1

0.1

0.1

/16

C1502

220/6.3

NEX60JM-227X

0.1

/16

/16

C1501

/160.1

/16

/1010

IC1504

AIC1384PSH-X

1

GND

2

SD

3

VSENSE

4

VREF

NEHM0GM-227X

1kR1598

8

VTT

7

PVIN

6

AVIN

5

VDDQ

GND

9

C1504

/160.1

220/4C1505

K1506

NRSA63J-0R0X

B2
C1560

K1502

NRSA63J-0R0X

/6.310

M_DQM1

M_DQ14

M_DQ9

M_DQ11

M_DQ12

M_DQM0

M_DQ6

M_DQ1

M_DQ3

M_DQ4

M_WEB

M_CKE

M_BA1

M_BA0

M_A1

M_A10

M_A5

M_A3

M_A9

M_A7

M_A12

M_DQM3

M_DQ30

M_DQ25

M_DQ27

M_DQ28

M_DQM2

M_DQ22

M_DQ17

M_DQ19

M_DQ20

M_WEB

M_CKE

M_BA1

M_BA0

M_A1

M_A10

M_A5

M_A3

M_A9

M_A7

M_A12

0R1601

3.3V 1.8V

/160.1C1511

47R1558

/160.1C1512

47

R1559

/160.1C1513

47R1560

47

R1561

/160.1C1514

R1562

47

0.1C1515

47R1563

OPENC1516

47

R1564

47R1565

/160.1C1517

/160.1C1518

/160.1C1519

/160.1C1528

47

R1578

/160.1C1529

47R1579

/160.1C1530

47R1580

R1581

47

/160.1C1531

47R1582

OPENC1532

47R1583

OPENC1533

47R1584

47R1585

/160.1C1534

/160.1C1535

/160.1C1536

R1501
OPEN

R1503
OPEN

R1504

R1502

OPEN

OPEN

FRAME MEMORY

VSS

3

A3

NC

2

A2

VDD

1

EDE5116AJBG-6E

A1

UDM

13

B3

VSSQ

12

B2

DQ14

11

B1

VDDQ

23

C3

DQ9

22

C2

VDDQ

21

C1

DQ11

33

D3

VSSQ

32

D2

DQ12

31

D1

VSS

43

E3

NC

42

E2

VDD

41

E1

LDM

53

F3

VSSQ

52

F2

DQ6

51

F1

VDDQ

63

G3

DQ1

62

G2

VDDQ

61

G1

DQ3

73

H3

VSSQ

72

H2

DQ4

71

H1

VSS

83

J3

VREF

82

J2

VDDL

81

J1

WE

93

K3

CKE

92

K2

BA1

103

L3

BA0

102

L2

NC(BA2)

101

L1

A1

113

M3

A10

112

M2

A5

123

N3

A3

122

N2

VSS

121

N1

A9

133

P3

A7

132

P2

NC

143

R3

A12

142

R2

VDD

141

R1

FRAME MEMORY

VSS

3

A3

NC

2

A2

VDD

1

A1

UDM

13

B3

VSSQ

12

B2

DQ14

11

B1

VDDQ

23

C3

DQ9

22

C2

VDDQ

21

C1

DQ11

33

D3

VSSQ

32

D2

DQ12

31

D1

VSS

43

E3

NC

42

E2

VDD

41

E1

LDM

53

F3

VSSQ

52

F2

DQ6

51

F1

VDDQ

63

G3

DQ1

62

G2

VDDQ

61

G1

DQ3

73

H3

VSSQ

72

H2

DQ4

71

H1

VSS

83

J3

VREF

82

J2

VDDL

81

J1

WE

93

K3

CKE

92

K2

BA1

103

L3

BA0

102

L2

NC(BA2)

101

L1

A1

113

M3

A10

112

M2

A5

123

N3

A3

122

N2

VSS

121

N1

A9

133

P3

A7

132

P2

NC

143

R3

A12

142

R2

VDD

141

R1

IC1502

IC1503

EDE5116AJBG-6E

VSSDL

VSSDL

1.8V

R1576

R1574

R1572

R1570

R1569

R1567

C1546

/161

C1561
NEX60JM-107X

R1595

R1592

C1549

1

/16

100/6.3

/160.1C1527

47R1577

M_DQS1_N

M_DQ15

47

47R1575

M_DQS1_P

/160.1C1526

M_DQ8

47

/160.1C1525

M_DQ13

47R1573

M_DQ10

47

/160.1C1524

47R1571

M_DQS0_N

M_DQ7

47

M_DQS0_P

47

OPENC1523

M_DQ0

47R1568

OPENC1522

M_DQ5

47

M_DQ2

47R1566

OPENC1521

M_CLK_P

M_ODT

M_CLK_N

M_RASB

M_CSB

M_CASB

/160.1C1520

M_A0

M_A2

M_A4

M_A6

M_A8

M_A11

/160.1C1544

47R1597

M_DQS3_N

M_DQ31

47R1596

47

M_DQS3_P

/160.1C1543

M_DQ24

47R1594

/160.1C1542

M_DQ29

47R1593

M_DQ26

47

/160.1C1541

47R1591

M_DQS2_N

M_DQ23

47R1590

47R1589

M_DQS2_P

OPENC1540

M_DQ16

47R1588

OPENC1539

M_DQ21

47R1587

M_DQ18

47R1586

/160.1C1538

M_CLK_P

M_ODT

M_CLK_N

M_RASB

M_CSB

M_CASB

/160.1C1537

M_A0

M_A2

M_A4

M_A6

M_A8

M_A11

VDDQ

9

A9

UDQS

8

A8

VSSQ

7

A7

DQ15

19

B9

VSSQ

18

B8

UDQS

17

B7

VDDQ

29

C9

DQ8

28

C8

VDDQ

27

C7

DQ13

39

D9

VSSQ

38

D8

DQ10

37

D7

VDDQ

49

E9

LDQS

48

E8

VSSQ

47

E7

DQ7

59

F9

VSSQ

58

F8

LDQS

57

F7

VDDQ

69

G9

DQ0

68

G8

VDDQ

67

G7

DQ5

79

H9

VSSQ

78

H8

DQ2

77

H7

VDD

89

J9

CK

88

J8

87

J7

ODT

99

K9

CK

98

K8

RAS

97

K7

CS

108

L8

CAS

107

L7

VDD

119

M9

A0

118

M8

A2

117

M7

A4

128

N8

A6

127

N7

VSS

139

P9

A8

138

P8

A11

137

P7

NC

148

R8

NC

147

R7

B2
C1558

/6.310

1.8V

VDDQ

9

A9

UDQS

8

A8

VSSQ

7

A7

DQ15

19

B9

VSSQ

18

B8

UDQS

17

B7

VDDQ

29

C9

DQ8

28

C8

VDDQ

27

C7

DQ13

39

D9

VSSQ

38

D8

DQ10

37

D7

VDDQ

49

E9

LDQS

48

E8

VSSQ

47

E7

DQ7

59

F9

VSSQ

58

F8

LDQS

57

F7

VDDQ

69

G9

DQ0

68

G8

VDDQ

67

G7

DQ5

79

H9

VSSQ

78

H8

DQ2

77

H7

VDD

89

J9

CK

88

J8

87

J7

ODT

99

K9

CK

98

K8

RAS

97

K7

CS

108

L8

CAS

107

L7

VDD

119

M9

A0

118

M8

A2

117

M7

A4

128

N8

A6

127

N7

VSS

139

P9

A8

138

P8

A11

137

P7

NC

148

R8

NC

147

R7

B2
C1559

/6.310

D_GND

c10611001a_0226_2/13_0.0

(No.YA690<Rev.001>)2-17 2-18(No.YA690<Rev.001>)

MAIN PWB CIRCUIT DIAGRAM (7/13) [LVDS ]

IC1001
PNX8541E/M12008

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

9/11

IREF_LVDS

LOUT_EN

LOUT_EP

LOUT_DN

LOUT_DP

LOUT_CLKP

LOUT_CLKN

LOUT_BN

LOUT_BP

LOUT_CP

LOUT_CN

LOUT_AP

LOUT_AN

R_OUT0

R_OUT1

R_OUT2

R_OUT3

R_OUT4

R_OUT5

R_OUT6

R_OUT7

G_OUT0

G_OUT1

G_OUT2

G_OUT3

G_OUT4

G_OUT5

G_OUT6

G_OUT7

B_OUT0

B_OUT1

B_OUT2

B_OUT3

B_OUT4

B_OUT5

B_OUT6

B_OUT7

RGB_HSYNC

RGB_VSYNC

RGB_FID

RGB_CLK

VDD_3V3_LVDS

VDD_3V3_LVDS

VDD_3V3_LVDS

VDDA_3V3_LVDS

VDDA_1V2_LVDS_PLL

AG21

AK24

AG23

AH23

AK23

AK22

AH22

AG22

AK21

AH19

AG19

AF19

AK20

AH20

AG20

AG17

AF17

AK18

AH18

AG18

AF18

AK19

AF15

AK16

AH16

AG16

AF16

AH17

AG15

AH15

AF20

AK17

AH24

AG24

AF23

AE22

AE21

AJ24

AJ23

AJ22

AJ21

AJ19

AJ20

AJ18

AJ16

AJ17

VDDA-LVDS

12k

R3858

383

419

420

405

406

408

407

397

398

396

395

386

385

C3847
100/6.3

NEX60JM-107X

C3845

/101

C3843

C3842

C3844

/160.1

/160.1

D_GND

MAIN PWB ASS'Y (7/13)

SFY-1006A-H3

RA3812

NRZ0080-0R0X

363

7

362

6

361

5

360

4

374

3

373

2

372

1

371

RA3813

NRZ0080-0R0X

331

7

330

6

352

5

351

4

350

3

349

2

348

1

364

RA3814

NRZ0080-0R0X

1

294

2

316

3

315

4

314

5

313

6

312

7

333

332

R3825

R3826

C3839

C3840

100

100

0R3827

33R3828

B1

C3838

/160.1

B1

C3841

/160.1

295

296

370

334

418

417

404

393

381

/1010

/1010

98

10

11

12

13

14

15

16

98

10

11

12

13

14

15

16

16

15

14

13

12

11

10

98

K3802

K3803

RGB_HSYNC

RGB_VSYNC

RGB_CLK

VDDA-LVDS

1.25V

R_OUT0

R_OUT1

R_OUT2

R_OUT3

R_OUT4

R_OUT5

R_OUT6

R_OUT7

G_OUT0

G_OUT1

G_OUT2

G_OUT3

G_OUT4

G_OUT5

G_OUT6

G_OUT7

B_OUT0

B_OUT1

B_OUT2

B_OUT3

B_OUT4

B_OUT5

B_OUT6

B_OUT7

RGB_FID

D_GND

R_OUT0

R_OUT1

R_OUT2

R_OUT3

R_OUT4

R_OUT5

R_OUT6

R_OUT7

G_OUT0

G_OUT1

G_OUT2

G_OUT3

G_OUT4

G_OUT5

G_OUT6

G_OUT7

B_OUT0

B_OUT1

B_OUT2

B_OUT3

B_OUT4

B_OUT5

B_OUT6

B_OUT7

RGB_HSYNC

RGB_VSYNC

RGB_FID

RGB_CLK

TP3801

OPEN

MAIN PWB (9/13)

MAIN PWB (9/13),(13/13)

MAIN PWB (9/13)

R3802

0

R3804

0

A_GND

/160.1

K3804

3.3V

IC1001
PNX8541E/M12008

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_PER

VDD_3V3_SBPER

VDD_3V3_SBPER

VDD_3V3_SBPER

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_CORE

VDD_1V2_SBCORE

VDD_1V2_SBCORE

VDD_1V2_SBCORE

VDD_1V2_SBCORE

VDDA_1V2_CAB

VDDA_3V3_MCAB

10/11

MICROCOMPUTER/
IF PROCESS/
VIDEO PROCESS/
AUDIO PROCESS/
VIDEO SELECT/
AUDIO SELECT/
A-D CONVERT/
D-A CONVERT/
FORMAT CONVERT

11/11

32DR1 37DR1 42DR1 DV1
reference Diff Diff Diff Diff

# C1047 OPEN

# C1049

OPEN

# C1070

OPEN

OPEN

OPEN

OPEN

F6

G6

F14

F15

F16

F17

AE17

AE18

AE19

F24

F25

G25

AC27

AC26

AD26

W5

V6

W6

F9

F10

AE12

AE13

AE14

F21

F22

U25

V25

W25

AA5

AB5

AA6

AB6

P6

R6

n.c.

AH1

n.c.

Y5

n.c.

AG11

n.c.

AG13

n.c.

AH13

n.c.

E23

n.c.

E24

n.c.

K25

n.c.

AD25

n.c.

K26

NCB31HK-102X

NCB31HK-102X

OPEN

001

156

157

268

C1051

C1053

B1

10

286

304

322

329

347

359

414

426

427

499

469

470

139

166

167

204

216

239

257

275

380

392

435

436

437

141

142

168

169

162

163

28

140

229

259

260

403

413

429

440

456

B1

OPEN

C1054

OPEN

C1041

/101

C1030

/101

C1057

/101

C1059

MICROCOMPUTER/IF PROCESS/
VIDEO PROCESS/AUDIO PROCESS/
VIDEO SELECT/AUDIO SELECT/
A-D CONVERT/D-A CONVERT/
FORMAT CONVERT

NC

NC

NC

NC

Unconected pin of IC1001

NC

NC

NC

NC

NC

NC

OPEN

OPEN

NEHL0JM-107X

10

STB3.3V

C1056

C1040

STB1.25V

C1031

/160.1

C1058

/160.1

C1060

B1

OPEN

OPEN

OPEN

C1052

10

K1002

K1003

/160.1

C1055

/101

C1039

C1032

B1

OPEN

C1050

10

C1033

+3V3_PER

OPEN

OPEN

0.1

C1043

C1044

C1045

/101

OPEN

OPEN

C1034

C1035

0.1

0.1

0.1

C1042

C1046

C1048

/160.1

/160.1

OPEN

C1036

C1037

C1038

0.1

1.25V

C1049

D_GND

C1047

OPEN

K1001

C1070

3.3V

OPEN

c10611001a_0226_8/13_0.0

2-20(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-19

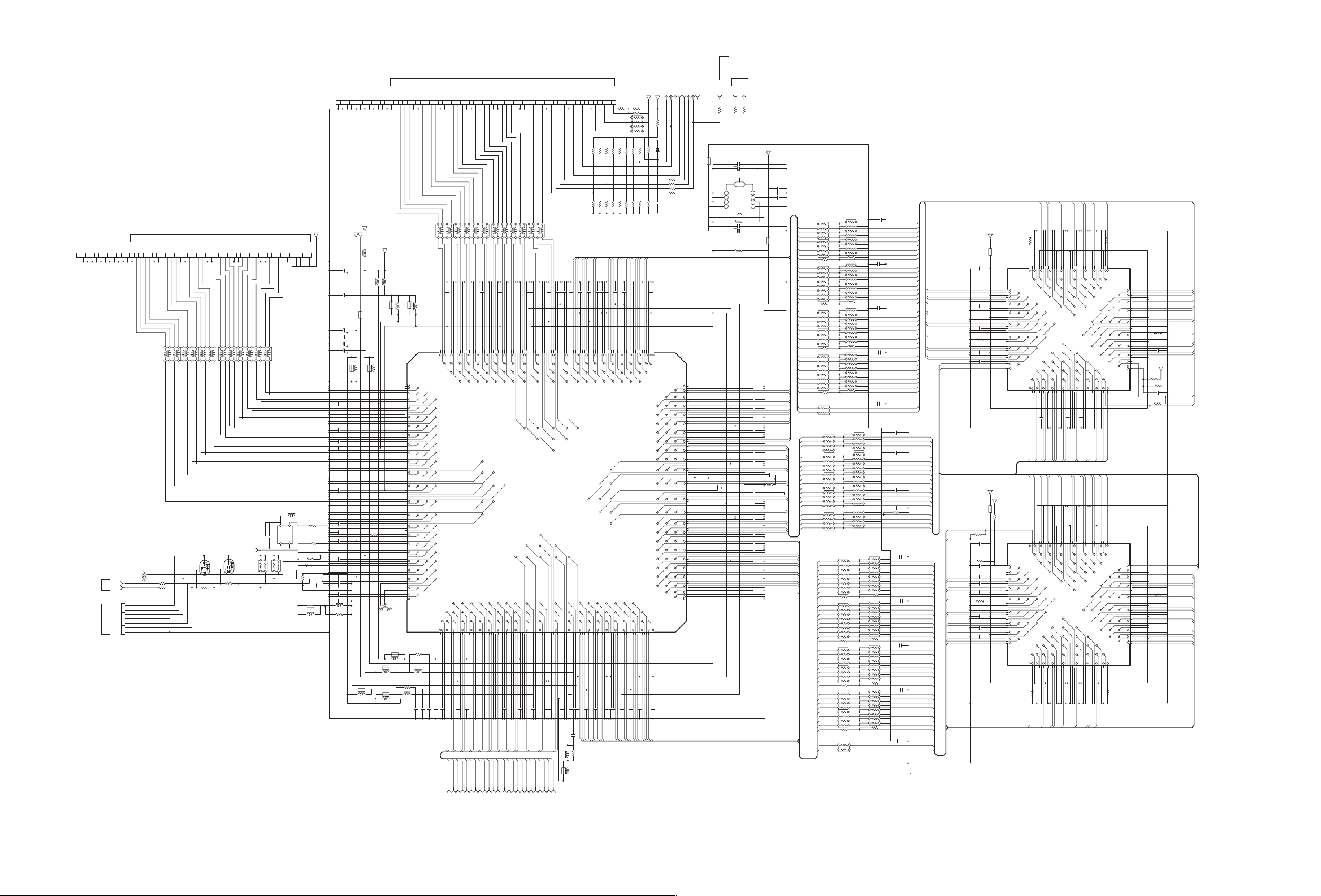

MAIN PWB CIRCUIT DIAGRAM (8/13)

LCD PANEL UNIT

[LCD CONTROL PWB]

GND36

GND35

TC1-34

TC1+33TCLK1-32TCLK1+31

GND30

GND29

TD1-28

321

321

54

876

54

RA5073

NQR0568-005X

RA5072

NQR0568-005X

MAIN PWB (13/13)

Q5002

INK0001AM1-X

0Ω

0ΩR5075

TD1+27

TE1-26

TE1+25

GND24

GND23

321

876

54

RA5074

NQR0568-005X

INK0001AM1-X

OPENR5015

TA2-22

876

Q5001

5352515049484746454443

MAIN PWB (13/13)

OPEN

CN5001

QGA0504F1-41X

FORZA_SCL

FORZA_SDA

QGA1217C1-07X

MS_SCL

MS_SDA

I2C_CLK

I2C_DATA

GND41TA1-40

TA1+39

TB1-38

TB1+37

42

TP5001

OPEN
TP5002
OPEN

R5074

CN5003

3.3V

1

2

3

GND

4

5

6

GND

7

MAIN PWB ASS'Y (8/13)

SFY-1006A-H3

TA2+21

TB2-20

TB2+19

GND18

GND17

TC2-16TC2+15

321

321

876

54

54

RA5075

NQR0568-005X

RA5076

NQR0568-005X

FORZA_RESET

RA5024

OPENR5014

TCLK2-14

TCLK2+13

GND12

GND11

321

54

876

RA5077

NQR0568-005X

/25

/6.3

0.1C5011

C5012 10
RA5025

4

3

OPEN

2

1

CONT9

K5201
0

MAIN PWB (13/13)

ANA_DIM_I

ANA_DIM_O

LVDS_SEL

MAIN PWB

0Ω

OPENR5078

C5216

IC5201

SC2596SE-X

R5209

R50790ΩR5080

NEX60JM-227X

VDDQ5VREF

6

AVIN

7

PVIN

8

VTT

(9/13)

0.1C5215

220/6.3

9

4

3

VSENSE

2

SD

1

GND

0Ω

0.1C5217

NEX60JM-227XC5218

OPENR5210

C5073

C5072

C5071

C5070

C5069

C5068

C5067

C5066

C5065

C5064

C5063

C5062

C5061

C5060

C5059

C5058

C5057

C5056

C5055
C5054

OPEN

C5053

C5052

C5051

C5050

0.1

0.1

0.01

0.1

0.01

0.1

0.01

0.01

OPEN

0.01

0.1

0.1

0.1

0.1
OPEN

0.1

0.01

0.1

0.1

0.01

0.1

0.01

1.25VD_VREF

0

K5202

/6.322

10C5219

0.1C5220

0.1C5221

*RA2

3

2

1

RA5202

51

*RA2

3

2

1

51

*RA2

3

2

1

RA5204

51

*RA2

3

2

1

51

*RA2

3

2

1

RA5206

51

*RA2

3

2

1

51

*RA2

3

2

1

RA5208

51

*RA2

3

2

1

51

RA5209

*RA2

51

54

6

3

7

2

8

1

54

6

3

7

2

8

1

54

6

3

7

2

8

1

54

6

3

7

2

8

1

RA5213

*RA2

51

54

6

3

7

2

8

1

RA5041

22
*RA1

R5205

RA5043

22

*RA1

R5206

RA5045

22

*RA1

R5207

RA5047

22

*RA1

R5208

1

0.1C5202

0.01C5203

0.1C5204

0.01C5205

RA5210

51

*RA2

RA5211

51

*RA2

RA5212

51

*RA2

R5211

RA5214

*RA2

51

54

6

3

7

2

8

1
RA5215

54

6

3

7

2

8

1

51

RA5216

*RA2

51

54

6

3

7

2

8

1
RA5217

54

6

3

7

2

8

1

51

RA5218

*RA2

51

54

6

3

7

2

8

1
RA5219

54

6

3

7

2

8

1

51

RA5220

*RA2

51

54

6

3

7

2

8

1
RA5221

54

6

3

7

2

8

1

51

0.01C5201

BDQ0_RA5026

BDQ1_RA5026

BDQ2_RA5026

BDQ3_RA5026

BDQ4_RA5027

BDQ5_RA5027

BDQ6_RA5027

BDQ7_RA5027

BDQS0_R5018

BDQ8_RA5028

BDQ9_RA5028

BDQ10_RA5028

BDQ11_RA5028

BDQ12_RA5029

BDQ13_RA5029

BDQ4_RA5027

BDQ14_RA5029

BDQ6_RA5027

BDQ15_RA5029

BDQ5_RA5027

BDQS1_R5019

BDQ7_RA5027

BDQ16_RA5030

BDQ17_RA5030
BDQ16_RA5030

BDQ17_RA5030

BDQ18_RA5030

BDQ19_RA5030

BDQ19_RA5030

BDQ18_RA5030

BDQ20_RA5031

BDQ21_RA5031

BDQS2_R5020

BDQ22_RA5031

BDQ23_RA5031

BDQS2_R5020

BDQ21_RA5031
BDQ20_RA5031

BDQ24_RA5032

BDQ22_RA5031

BDQ23_RA5031

BDQ25_RA5032

BDQ26_RA5032

BDQ27_RA5032

BDQ28_RA5033

BDQ29_RA5033

BDQ30_RA5033

BDQ31_RA5033

BDQS3_R5021

BCKP_RA5034

BCKN_RA5034

0.01C5206

0.1C5207

0.01C5208

0.1C5209

4.7k

0.01

C5210

51

*RA2

0.1C5211

51

*RA2

0.01C5212

51

*RA2

0.1C5213

51

*RA2

C5214

0.01

CKE_RA5035

ADDR8_RA5035

ADDR7_RA5035

ADDR5_RA5036

ADDR6_RA5036

ADDR9_RA5036

ADDR4_RA5036

ADDR11_RA5037

ADDR3_RA5037

ADDR2_RA5037

ADDR1_RA5037

ADDR10_RA5038

ADDR0_RA5038

BANK0_RA5038

BANK1_RA5038

CS_N_RA5039

RAS_N_RA5039

WE_N_RA5039

CAS_N_RA5039

ADQ0_RA5040

ADQ1_RA5040

ADQ2_RA5040

ADQ3_RA5040

ADQ4_RA5041

ADQ5_RA5041

ADQ6_RA5041

ADQ7_RA5041

ADQS0_R5022

ADQ8_RA5042

ADQ9_RA5042

ADQ10_RA5042

ADQ11_RA5042

ADQ12_RA5043

ADQ13_RA5043

ADQ14_RA5043

ADQ15_RA5043

ADQS1_R5023

ADQ16_RA5044

ADQ17_RA5044

ADQ18_RA5044

ADQ19_RA5044

ADQ20_RA5045

ADQ21_RA5045

ADQ22_RA5045

ADQ23_RA5045

ADQS2_R5024

ADQ24_RA5046

ADQ25_RA5046

ADQ26_RA5046

ADQ27_RA5046

ADQ28_RA5047

ADQ29_RA5047

ADQ30_RA5047

ADQ31_RA5047

ADQS3_R5025

ACKP_RA5048

ACKN_RA5048

CAS_N_RA5039
WE_N_RA5039
RAS_N_RA5039

ACKP_RA5048

ACKN_RA5048ACKN_RA5048

ADQ8_RA5042
ADQ9_RA5042

ADQ10_RA5042
ADQ11_RA5042

ADQS1_R5023

ADQ12_RA5043
ADQ13_RA5043

ADQ14_RA5043
ADQ15_RA5043

ADQ24_RA5046

ADQ25_RA5046
ADQ26_RA5046
ADQ27_RA5046

2.5V

K5013

10C5143

DQS0

DQ4

VDDQ

DQ6
DQ5

VSSQ

DQ7

0.1

C5145

VDD
VDD

VSS
DQ17
DQ16
VDDQ
VSSQ

VSS_T

DQ19
DQ18

C5148

OPEN

VDDQ
VSSQ

VSS_T
VSS_T

DQS2

DM2

NC

OPEN

R5041

VSSQ

VSS_T

DQ21
DQ20

0.1

C5149

VDDQ
VSSQ
DQ22
DQ23

OPEN

C5150

VDDQ

COL_N

WRITE_N

ROW_N

2.5V

1.25VD_VREF

0`R5037

K5012

R5034

150

10C5117

OPEN

R5035

VREF

OPEN

C5118

NC
/CK
NC
NC

0.1

VDD

C5119

DQ8

DQ9

OPEN

VDDQ

C5120

VSSQ

DQ10
DQ11

0.1

VDDQ

C5121

VSSQ

VSS_T

DQS1

DM1

NC

OPEN

R5036

VSSQ

VSS_T
VSS_T

DQ12
DQ13

0.1

VDDQ

C5122

VSSQ

VSS_T

DQ14
DQ15

VDDQ

0.1

C5123

VSSQ

DQ24

VDDQ

OPEN

VDD

C5125

DQ25
DQ26
DQ27

IC5002

EDD1232ABBH-5C

FRAME MEMORY

BDQ3_RA5026

BDQ2_RA5026

BDQ1_RA5026

BDQ0_RA5026

OPEN

R5047

VSS_T

VSS76VDD

VSSQ

NC

DM013VSSQ

25

26

1
2

14

3

15

27

28

4

16

17

5

29

30

18

6

19

7

31

8

32

20

33

21

9

10

22

11

12

24

NC23NC

NC

BANK0

CHIPSEL_N

CS_N_RA5039

BANK0_RA5038

CKE_RA5035

ADDR8_RA5035

ADDR8

CLKEN

CK

VSS

120

132

119

144
143

131

142

130

118

141

129

117

140

128

116

139

127

115

126

138

114

125

137

113

136

124

112

123

135

134

122

133

121

DM3

DQS3

VSSQ

VDDQ

OPEN

VSSQ

VDDQ

DQ3

40

41

42

43

44

34

35

36

VDD

0.1

C5151

ADDR7_RA5035

RFU

ADDR7

105

104

103

102

101

111

110

109

NC

VSSQ

VSSQ

DQ1

DQ2

37

38

39

53

54

55

45

46

47

48

VSS

VSSQ

ADDR0

BANK1

ADDR0_RA5038

BANK1_RA5038

ADDR6_RA5036

ADDR5_RA5036

RFU

ADDR5

ADDR6

VSS

108

107

106

92

91

90

100

99

98

97

VSS

DQ28

VSSQ

VDDQ

VSS_T

VSS

49

50

51

52

66

EDD1232ABBH-5C

56

57

58

59

60

ADDR1

ADDR2

ADDR10

ADDR1_RA5037

ADDR10_RA5038

ADDR2_RA5037

VSS_T

VSS

VDD

96

95

94

93

79

89

88

87

86

85

DQ29

DQ30

VSSQ

VDDQ

VSS_T

DQ0

61

62

63

64

65

IC5003

67

68

69

70

71

72

VSS

VSS_T

ADDR3

ADDR11

ADDR3_RA5037

ADDR11_RA5037

ADDR4_RA5036

ADDR9_RA5036

VSS_T

ADDR9

ADDR4

VSS_T

84

83

82

81

80

78

77

76

75

74

73

DQ31

VSSQ

VDDQ

VSS_T

0.1C5128

VDD

VSS

VDD

0.1

C5152

VDD

VSS

VSS

VDD

VDDQ

ADDR11_RA5037

ADDR11

VSS_T

BDQ29_RA5033

BDQ31_RA5033

BDQ30_RA5033

VSS_T

VSS

DQ30

VSSQ

DQ31

VSSQ

DQ29

73

85

86

74

75

87

88

89

77

78

79

81

82

83

84

VDD

VSS

ADDR9

VSS_T

VSS_T80ADDR5

ADDR696VSS_T

ADDR4

OPEN

C5153

ADDR4_RA5036

ADDR6_RA5036

ADDR9_RA5036

ADDR1_RA5037

ADDR2_RA5037

ADDR3_RA5037

ADDR10_RA5038

VSSQ

ADDR3

VSS_T56VSS57VDD

ADDR1058NC

ADDR2

ADDR1

72

60

71

59

70

69

68

67

66

65

64

63

62

61

VSS

DQ2

DQ0

VDD

VDDQ

VSS_T

VSS_T

0.1C5130

BDQ28_RA5033

VSSQ

VDDQ98DM3

VSSQ

DQ28

97

99

100

90

91

92

105

93

94

95

VSS

RFU

ADDR5_RA5036

BANK1_RA5038

ADDR0_RA5038

VSS

BANK1

ADDR0

48

47

46

45

55

54

53

52

50

49

DQ1

VSSQ51VSSQ

OPEN

R5046

VDDQ

NC

VSSQ

109

110

111

101

102

103

104

106

107

119

108

120

RFU

VSS

ADDR7

ADDR8

ADDR8_RA5035

ADDR7_RA5035

BANK0_RA5038

NC

BANK0

36

35

34

44

43

42

41

40

39

26

38

25

37

DQ3

VSSQ

VSSQ

VDDQ

BDQS3_R5021

DQS3

121

122

112

113

114

115

116

117

118

CK

CLKEN

CKE_RA5035

CS_N_RA5039

NC

CHIPSEL_N

24

23

33

32

31

30

29

28

27

NC

DM0

OPENR5039

133

C5155

R5043

1.25VD_VREF

R5044

R5045

C5161

R5042

BDQ27_RA5032BDQS0_R5018
BDQ26_RA5032
BDQ25_RA5032

BDQ24_RA5032

BDQ15_RA5029
BDQ14_RA5029

BDQ13_RA5029
BDQ12_RA5029

OPEN

BDQS1_R5019

BDQ11_RA5028
BDQ10_RA5028

0.1
BDQ9_RA5028
BDQ8_RA5028

0`

OPEN

OPEN

BCKN_RA5034

150

BCKP_RA5034

RAS_N_RA5039
WE_N_RA5039
CAS_N_RA5039

ADQ23_RA5045
ADQ22_RA5045

ADQ20_RA5045
ADQ21_RA5045

OPENR5040

ADQS2_R5024

ADQ18_RA5044
ADQ19_RA5044

ADQ16_RA5044
ADQ17_RA5044

ADQ7_RA5041

ADQ5_RA5041
ADQ6_RA5041

ADQ4_RA5041
ADQS0_R5022

DQ27

134

DQ26
DQ25

123

135

VDD
VDDQ

DQ24

124

136

VSSQ
VDDQ

DQ15
DQ14

125

137

VSS_T
VSSQ
VDDQ

DQ13

DQ12

126

138

VSS_T

VSS_T
VSSQ
NC
DM1
DQS1

127

139

VSS_T
VSSQ
VDDQ

DQ11

DQ10

140

128

VSSQ
VDDQ
DQ9
DQ8

141

129

VDD
NC
NC

142

130

/CK
NC

143

131

VREF

144

132

12

ROW_N

11

WRITE_N
COL_N

10

22

VDDQ
DQ23
DQ22

21

9

VSSQ
VDDQ
DQ20
DQ21

8

20

VSS_T
VSSQ
NC
DM2
DQS2

7

19

VSS_T
VSS_T
VSSQ
VDDQ
DQ18
DQ19

18

6

VSS_T
VSSQ
VDDQ
DQ16
DQ17

5

17

VSS
VDD
VDD
DQ7

16

4

VSSQ
DQ5
DQ6

15

3

VDDQ
DQ4

2

14

DQS0

1

13

R5038

ADQ3_RA5040

ADQ1_RA5040

ADQ2_RA5040

ADQ0_RA5040

ADQ31_RA5047

ADQ30_RA5047

ADQ29_RA5047

ADQ28_RA5047

ADQS3_R5025

BDQ0

BDQ1

BDQ2

BDQ3

BDQ4

BDQ5

BDQ6

BDQ7

BDQS0

R5018

BDQ8

BDQ9

BDQ10

BDQ11

BDQ12

BDQ13

BDQ14

BDQ15

BDQS1

BDQ16

BDQ17

BDQ18

BDQ19

BDQ20

BDQ21

BDQ22

BDQ23

BDQS2

R5020

BDQ24

BDQ25

BDQ26

BDQ27

BDQ28

BDQ29

BDQ30

BDQ31

BDQ4

BDQS3

BDQ5

R5021
BDQ6
BDQ7

BDQ16
BDQ17
BDQ18

BCKP

BDQ19

BCKN

BDQS2
BDQ20

BDQ21
BDQ22
BDQ23

CKE

BCKP

ADDR8

BCKN

ADDR7

CAS_N
WE_N
RAS_N

CS_N

ADDR5

BANK0
BANK1

ADDR6

ADDR9

ADDR0

ADDR4

ADDR10

C5075

ADDR11

OPEN

ADDR3

ADDR1

ADDR2

ADDR2

R5017

ADDR1

100

ADDR10

ADDR0

ADDR3

ADDR11

BANK0

BANK1

ADDR4
ADDR9

CS_N

RAS_N

ADDR6

WE_N

ADDR5

CAS_N

ADDR7
ADDR8

CKE

ACKP
ACKN

ADQ10

ADQ9
ADQ8

ADQ12
ADQS1
ADQ11

ADQ15
ADQ14
ADQ13

ADQ26
ADQ25
ADQ24

ADQ27

54

6

3

7

2

8

1
RA5027

54

22

*RA1

6

3

7

2

8

1

22

RA5028

*RA1

22

54

6

3

7

2

8

1
RA5029

54

22

*RA1

6

3

7

2

8

1

22R5019

RA5030

*RA1

22

54

6

3

7

2

8

1
RA5031

54

22

*RA1

6

3

7

2

8

1

22

RA5032

*RA1

22

54

6

3

7

2

8

1

RA5033

54

22

*RA1

6

3

7

2

8

1

22

RA5034

*RA3

22

32

4

1

RA5035

*RA1

22

54

6

7

8

54

6

7

8

54

6

7

8

54

6

7

8

RA5039

*RA1

22

54

6

7

8

ADQ0

ADQ1

ADQ2

ADQ3

ADQ4

ADQ5

ADQ6

ADQ7

ADQS0

R5022

ADQ8

ADQ9

ADQ10

ADQ11

ADQ12

ADQ13

ADQ14

ADQ15

ADQS1

R5023

ADQ16

ADQ17

ADQ18

ADQ19

ADQ20

ADQ21

ADQ22

ADQ23

ADQS2

R5024

ADQ24

ADQ25

ADQ26

ADQ27

ADQ28

ADQ29

ADQ30

ADQ31

ADQS3

ACKP

ACKN

54

6

7

8

54

6

7

8

R5201

RA5203

51

54

6

7

8

54

6

7

8

R5202

RA5205

51

54

6

7

8

54

6

7

8

R5203

RA5207

51

54

6

7

8

54

6

7

8

R5204

3

2

1

RA5036

22

*RA1

3

2

1

RA5037

22

*RA1

3

2

1

RA5038

22

*RA1

3

2

1

3

2

1

RA5040

*RA1

22

54

6

3

7

2

8

1

54

6

3

7

2

8

1

22

RA5042

*RA1

22

54

6

3

7

2

8

1

54

6

3

7

2

8

1
22

RA5044

*RA1

22

54

6

3

7

2

8

1

54

6

3

7

2

8

1
22

RA5046

*RA1

22

54

6

3

7

2

8

1

54

6

3

7

2

8

1
22R5025

RA5048

*RA3

22

32

4

RA5201

RA5026

51

*RA1

22

D_GND

LCD PANEL UNIT

[LCD CONTROL PWB]

CN5002

QGA0504F1-51X

GND51

TA1-50

TA1+49

TB1-48

TB1+47

GND46

GND45

TC1-44

TC1+43

TCLK1-42

TCLK1+41

GND40

GND39

TD1-38

TD1+37TE1-36

TE1+35

GND34

GND33

TA2-32

TA2+31

TB2-30TB2+29

GND28

GND27

TC2-26TC2+25

TCLK2-24

TCLK2+23GND22

GND21

TD2-20TD2+19

TE2-18

TE2+17

GND16

DISPEN15

SDATA14

SCK13

SLE12

GND11

I2CREADY10

RSV19

RSV28

RSV37

GND6

SCL5

GND4SDA3GND2

6059585756

1.2V

2.5V

K5001

L5005

K5004

3.3V

3

OPENL5010

55

21

NQR0415-006X

LC5021

0L5001

L5006

K5005

K5008

K5009

53

RA5083

RA5079

NQR0568-005X

RA5078

NQR0568-005X

RA5080

NQR0568-005X

321

321

54

876

D3.3V

0L5002

54

TX2BP

TX2AP

TX2CP

TX2BN

TX2AN

TX2CN

0.01

C5085

L5004

L5003

K5002

K5003

LTOVDDC

TX2Cn

TX2Cp

P16(GND)

LTOGNDH

TX2Bp

LTOGNDB

T13(GND)

TX2Ap

GND

TX2Bn

TX2An

E26

D26

C26

B26

E25

D25

C25

D24

H23(GND)

A26

LTOGNDA

B25

A25

D14(GND)

TX3En

B24

A24

TX3Ep

AC12(GND)

TX3Dn

B23

A23

TX3Dp
LTPVDDB
T14(GND)

TX3CLKn

A22

B22

TX3CLKp
AC4(GND)
LTPGNDB

TX3Cn

A21

B21

TX3Cp

LTOGNDG

K3(GND)

TX3Bn

B20

A20

TX3Bp
LTOVDDB
P15(GND)

TX3An

A19

B19

TX3Ap
LTOGNDF

VDD12D

TX4En

A18

B18

TX4Ep
LTPVDDA
LTPGNDA

TX4Dn

B17

A17

TX4Dp
LTOGNDE

AD15(GND)

TX4CLKn

A16

B16

TX4CLKp

W24(GND)

AF25(GND)

J23(GND)

TX4Cn

A15

B15

TX4Cp
LTOGNDD

AF19(GND)

D20(GND)

F4(GND)

TX4Bn

B14

A14

TX4Bp
LTOVDDA
AF2(GND)
D17(GND)
F24(GND)
C12(GND)

TX4An

B13

A13

TX4Ap
LTOGNDC

V4(GND)
R13(GND)
G23(GND)
J24(GND)

A12

B12

L11(GND)
D16(GND)
K23(GND)

VDD12E

XCKI

B11

A11

M12(GND)
P12(GND)

VDD33C

R5008

RESERVEDI

A10

B10

D12(GND)
N15(GND)

VDD12C

RST

B9

A9

M3(GND)
N13(GND)
P14(GND)
MODESEL

B8

A8

L16(GND)
M24(GND)

VDD33B

MS_SCL

B7

A7

L14(GND)
M16(GND)
AD9(GND)

MS_SDA

A6

B6

D7(GND)

PFCAPA

VDD12B

MODE[1]

A5

B5

VDDPA

TEST[2]
VDD33A
MODE[0]

B4

A4

TEST[1]

TEST[0]

VDDP12FSA

B3

A3

C24(GND)
C13(GND)

A2

OPEN

TP5004

OPEN

OPEN

TP5005

TP5003

R5003

K5010

OPEN

L5013

OPEN

L5016

22u

OPENL5011

R5002

22u

L5014

OPEN

OPENL5012

/6.322

10C5023

C5024

E24

E23

C24

D23

C23

D22

C22

D21

C21

C20

D20

D19

C19

C18

D18

C17

D17

D16

C16

D15

C15

D14

C14

C13

D13

C12

D12

D11

C11

D10

C10

C9

D9

D8

C8

D7

C7

D6

C6

D5

C5

C4

D4

E4

C3

E3

D3

B2

D2

C2

E2

A1

D1

C1

B1

E1

RX1Bn

RX1Bp

RX1Ap

RX1An

RX1Cp

RX1Cn

VDD12A

N3(GND)

C16(GND)

M14(GND)

AC23(GND)

VDDP12FSB

/6.322

0.01C5028

0.01C5027

10C5026

C5025

321

876

54

TX2CLKP

TX2CLKN

TX2EP

TX2EN

TX2DP

TX2DN

0.1

C5086

TX2CLKn

LTPVDDC

TX2Ep

TX2CLKp

TX2Dp

LTPGNDC

AE2(GND)

TX2En

TX2Dn

LTOGNDI

F26

G26

F25

G25

F24

G24

F23

G23

L16

L15

L14

L13

L12

G4

F4

F3

G3

F2

G2

F1

G1

RX1Dp

RX1Dn

RX1CLKp

RX1CLKn

AE8(GND)

LRHVDDC

LRHGNDC

AF26(GND)

AE25(GND)

AD18(GND)

0.1C5029

321

54

876

TX1AP

TX1AN

0.01

C5087

R12(GND)

TX1Ap

R24(GND)

TX1An

LTOGNDJ

LTOVDDD

H26

J26

J25

H25

H24

J24

J23

H23

M15

M14

M13

J4

H4

J3

H3

H2

J2

J1

H1

RX2Ap

RX1En

RX1Ep

RX2An

AD19(GND)

AD24(GND)

RA5081

NQR0568-005X

RA5082

NQR0568-005X

321

876

54

TX1CLKP

TX1CLKN

TX1BP

TX1CP

TX1BN

TX1CN

D21(GND)

TX1Cp

TX1Bn

TX1CLKn

TX1Bp

LTOGNDK

TX1CLKp

J3(GND)

E23(GND)

C22(GND)

TX1Cn

A25(GND)

L26

K26

M26

K25

M25

L25

L24

M24

K24

L23

K23

M23

M16

N14

FRAME INTERPOLATE/

DOUBLE FRAME DRIVE/

L11

K4

L4

K3

L3

K2

L2

L1

K1

RX2Bp

RX2Bn

RX2Cp

RX2Cn

RX2CLKp

T11(GND)

R14(GND)

R26(GND)

R15(GND)

LRAVDDA

LRHVDDD

LRAGNDA

0.01C5031

0.1C5030

NQR0568-005X

321

876

54

876

TX1EP

TX1EN

TX1DP

TX1DN

0.1

0.1

0.01

C5102

C5101

C5104

LTOGNDL

TX1Dn

VDD12H

TX1Dp

VDD33D

LTPGNDD

LTPVDDD

TX1En

D9(GND)

M15(GND)

TX1Ep

M11(GND)

L23(GND)

N26

P26

N25

P25

N24

P24

N23

P23

N16

P16

P15

N15

P14

IC5001

JCC5076

[FORZA]

LCD CONTROL/

TIMING CONTROL

N13

N12

P12

M12

M11

P11

N11

P4

N4

M4

N3

P3

M3

M2

N2

P2

N1

P1

M1

RX2Ep

RX2Dp

RX2Dn

VDD12F

VDD12G

H4(GND)

H3(GND)

RX2CLKn

E24(GND)

D23(GND)

D18(GND)

LRAVDDB

LRHGNDD

0.01C5033

0.1C5034

0.1C5032

0.1

C5099

VDD25B

RX2En

0.1

C5098

M23(GND)

VDD12_2A

VDD33E

LRAGNDB

0.01C5035

OPEN

VDD25C

D4(GND)

C5097

M12(GND)

R25

R24

R23

R15

L13(GND)

R26

R16

W2(GND)

VSSPSS

R11

R4

R3

R2

R1

BDQ10

0.1

C5096

BDQ10

VDD12I

VDDP12SS

VDDP33SS

0.1C5037

0.1C5036

BDQ8

BDQ9

BDQ8

BDQ9

T25

T24

T23

VDD25A

VDDP12FSC

0.01C5040

0.1C5039

0.1

C5095

VDD25G

T26

T16

ADQ23

636261

LCD5/12V

TD2-10TD2+9

TE2-8

TE2+7

GND6

LCD5V5

LCD5V4

LCD5V3

LCD5V2

LCD5V1

C5222 100/6.3

NEHM0JM-107X

10C5001

NEX60JM-107X

100/6.3

C5002

10C5004

NEX60JM-227X

C5005

100/6.3C5006

NEX60JM-107X

876

C5074

10

TX3EN
TX3EP

TX3DN
TX3DP

0.1C5003

TX3CLKN
TX3CLKP

TX3CN
TX3CP

TX3BN
TX3BP

0.1C5007

TX3AN
TX3AP

0.1C5008
TX4EN
TX4EP

0.01C5009

TX4DN
TX4DP

TX4CLKN
TX4CLKP

TX4CN
TX4CP

TX4BN
TX4BP

0.1C5010

TX4AN
TX4AP

L5007
NQR0499-001X

3

R5011 56

X5001

VDD4OUT

NAX0958-001X

GND2EN/DL

R5012

1

*RA4

4.7k

R5013

4

3

2

1

R5016
100

K5006

L5008

0.1C5013

0.1C5014

0.01C5015

100

OPEN

0.01C5016

100R5009

0.01C5017

C5076
OPEN

OPEN

/6.322C5018

0.1

C5019

0.1C5020

0.1

C5021

10C5022

L5009

22u

R5001
OPEN

K5007

52

54

NC1

R5051

R5052

R5050

OPEN

54

RA5084

6

OPEN

7

8

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

R5077

R5055

R5053

R5057

R5056

R5054

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

R5076

R5062

R5061

R5060

R5063

R5064

BDQ29

BDQ30

BDQ31

BDQ27

BDQ28

BDQ24

BDQ25

BDQ26

BDQ13

BDQ14

BDQ15

BDQ11

BDQ12

BDQS1

BDQS1

BDQ12

P13

T4

T3

T2

T1

ADQ21

ADQ22

0.1

C5094

BDQ11

MVREF[4]

U26

U25

U24

U23

ADQ20

VDD12_2B

0.1C5041

BDQS3

0.1

0.01

0.01

0.1

OPEN

C5089

C5091

C5092

C5093

C5090

VDD12_2D

BDQ29

AD3(GND)

VDD12_2E

VDD25K

BDQS3

BDQ28

BDQ27

BDQ24

BDQ14

VDD12K

BDQ25

BDQ26

BDQ31

BDQ30

AC17(GND)

BDQ13

VDD25J

BDQ15

W26

Y26

V26

AA26

V25

Y25

W25

AA25

Y24

W24

V24

AA24

Y23

W23

V23

AA23

T15

R14

T14

R13

T13

T12

R12

T11

U4

V4

W4

AA4

Y4

Y3

W3

V3

U3

U2

U1

AA3

Y2

W2

AA2

V2

Y1

W1

AA1

V1

ADQ3

ADQ5

ADQ6

ADQ4

ADQ7

ADQ16

ADQ19

ADQ18

ADQ17

ADQS2

ADQS0

VDD25I

VDD12J

VDD25F

VDD25H

MVREF[0]

AC7(GND)

W26(GND)

VDD12_2C

0.1C5044

0.1C5043

0.01C5042

0.01C5045

0.1C5047

0.1C5046

MAIN PWB

(9/13)

D3.3V

LCD5/12V

OPEN

OPEN

3

2

1

OPEN

OPEN

OPEN

OPEN

R5071

D5001

R5059

R5058

OPENC5103

OPEN

OPEN

OPEN

R5072

R5066

R5065

BDQ3

BDQ0

BDQ1

BDQ2

BDQS0

CONT7

CONT8

CONT4

CONT1

CONT2

CONT5

CONT6

OPENR5073

R5070

OPEN

R5069

OPEN

R5068

OPEN

R5067

OPEN

0.01

C5088

BDQ0

G3(GND)

E4(GND)

BDQ3

BDQS0

D22(GND)

BDQ1

G24(GND)

VDD25W

BDQ2

AB26

AC26

AF26

AD26

AE26

AD25

AE25

AC25

AB25

AB24

AD24

AC24

AB23

AC23

AC22

AC21

AC20

AC19

AC18

AC17

AC16

AC15

AC14

AC13

AC12

AC11

AC10

AC9

AC8

AC7

AC6

AC5

AC4

AB4

AB3

AC3

AD2

AC2

AB2

AC1

AB1

AE1

AD1

ADQ0

ADQ2

ADQ1

ADQ31

ADQ29

ADQ30

ADQ28

ADQS3

VDD25L

VDD25S

0.1C5049

0.01C5048

F3(GND)

AF25

VDD25V
BDQ4

AE24

AF24

BDQ5
BDQ6
BDQ7

AE23

AF23

AD23

MVREF[3]
BDQ16
BDQ17
BDQ18

AD22

AE22

AF22

VDD12M
BDQ19
BDQS2
BDQ20

AE21

AF21

AD21

VDD25P
BDQ21
BDQ22
BDQ23

AD20

AF20

AE20

VDD12_2H
C21(GND)
VDD25U
F23(GND)

AD19

AE19

AF19

VDD25O
C19(GND)
BCKP
BCKN

AD18

AE18

AF18

AF1(GND)
COL_N
WRITE_N
ROW_N

AE17

AF17

AD17

VDD25N
CHIPSEL_N
BANK0
BANK1

AE16

AF16

AD16

VDD25E
VDD12N
C17(GND)
ADDR0
ADDR10

AF15

AE15

AD15

M13(GND)
D15(GND)
ECHO_OUT
ECHO_IN
ADDR1
ADDR2

AD14

AE14

AF14

L15(GND)
D13(GND)
P11(GND)
VDDPB
PFCAPB
ADDR3
ADDR11

AF13

AD13

AE13

L4(GND)
VDD25D
T16(GND)
VDD25R
ADDR4
ADDR9

AD12

AF12

AE12

N14(GND)
VDD12_2F
VDD12_2I
ADDR6
ADDR5

AE11

AF11

AD11

MVREF[2]
ADDR7
ADDR8

CKE

AD10

AE10

AF10

VDD25M
C15(GND)
ACKP
ACKN

AD9

AF9

AE9

VDD12_2G
VDD25Q
N24(GND)
VDD25X

AE8

AF8

AD8

K4(GND)
ADQ10
ADQ9
ADQ8

AE7

AD7

AF7

VDD12L
ADQ12
ADQS1
ADQ11

AF6

AD6

AE6

MVREF[1]
ADQ15
ADQ14
ADQ13

AD5

AF5

AE5

P13(GND)
ADQ26
ADQ25
ADQ24

AD4

AF4

AE4

B26(GND)
VDD25T
ADQ27

AD3

AF3

AE3

L24(GND)
G4(GND)

AF2

AE2

P23(GND)

AF1

/6.322

ADQ4

ADQS3

ADQ28

ADQ29

ADQ30

ADQ31

ADQ0

ADQ1

ADQ2

ADQ3

ADQS0

ADQ5

ADQ6

ADQ7

ADQ16

ADQ17

ADQ18

ADQ19

ADQS2

ADQ20

ADQ21

ADQ22

ADQ23

C5038

TE2_N

TE2

TD2_N

TD2

TCLK2_N

TCLK2

TC2_N

TC2

TB2_N

TB2

TA2_N

TA2

TE1_N

TE1

TD1_N

TD1

TCLK1_N

TCLK1

TC1_N

TC1

TB1_N

TB1

TA1_N

TA1

TA2

TB2

TB1

TA1

TB1_N

TA1_N

TA1

TB1

TA1_N

TB1_N

TE1

TD1

TC1

TA2_N

TCLK1

TE1_N

TD1_N

TC1_N

TCLK1_N

TA2

TE1

TD1

TC1

TA2_N

TE1_N

TCLK1

TD1_N

TC1_N

TCLK1_N

TD2

TC2

TCLK2

TB2_N

TD2_N

TC2_N

TCLK2_N

TB2

TD2

TC2

TB2_N

TCLK2

TC2_N

TD2_N

TCLK2_N

OPEN

R5004

22u

L5018

TE2

TE2_N

OPEN

L5019

K5011

TE2

TE2_N

MAIN PWB (9/13)

(No.YA690<Rev.001>)2-21 2-22(No.YA690<Rev.001>)

c10611001a_0226_12/13_0.0

MAIN PWB CIRCUIT DIAGRAM (9/13) [

0.01

C4084

OPEN

C4079

R4060
OPEN

OPENC4086

MAIN PWB (7/13)

MAIN PWB (7/13),(13/13)

MAIN PWB (7/13)

MAIN PWB

(1/13),(5/13),(11/13)

R4048

22

R4064

OPEN

MAIN PWB (7/13)

MAIN PWB (7/13),(13/13)

MAIN PWB (13/13)

3.3V

OPEN

R4051

R4053

0

R4052

R4054

IC4005
OPEN

1

XIN

2

NC

3

NC

SSN4GND

R4057
OPEN

RESET-SYS-DETECT

IC4003

TC7WZ74FK-X

1

CK

2

D

3

Q

GND4Q

1k

OPEN

VDD

SEL

SSCOUT

R_OUT0

R_OUT1

R_OUT2

R_OUT3

R_OUT4

R_OUT5

R_OUT6

R_OUT7

G_OUT0

G_OUT1

G_OUT2

G_OUT3

G_OUT4

G_OUT5

G_OUT6

G_OUT7

B_OUT0

B_OUT1

B_OUT2

B_OUT3

B_OUT4

B_OUT5

B_OUT6

B_OUT7

RGB_HSYNC

RGB_VSYNC

RGB_FID

RGB_CLK

VCC

PR

CLR

C4083

/101

M_RST

RGB_VSYNC

CARIB_RESET

CSCLK

CDATA_IN

CDATA_OUT

CARIB_VD

BL_ON

M16_DIM

IC4004

DS1081LE-X

1

CLKIN

2

SEL1

3

SEL2

GND4SSEN

8

7

6

5

8

7

6

5

CCS

3.3V

OPENC4072

CRSEL

R4049

C4074

SSO

K4022

47

Vcc

R4055

R4045
OPEN

OPENC4073

NQR0499-001X

3.3V

K4023
NQR0499-001X

0.01

OPENR4058

OPENR4059

0

R4056

NQR0499-001X

/101C4090

R_OUT0

R_OUT1

R_OUT2

R_OUT3

R_OUT4

R_OUT5

R_OUT6

R_OUT7

G_OUT0

G_OUT1

G_OUT2

G_OUT3

G_OUT4

G_OUT5

G_OUT6

G_OUT7

B_OUT0

B_OUT1

B_OUT2

B_OUT3

B_OUT4

B_OUT5

B_OUT6

B_OUT7

R4003
OPEN

0.01C4081

3D

1.8k

R4044

C4085

/6.310C4082

R4061

B2

3.3V

K4024

3D
R4043

3.9k

2.2k

OPENC4087

3D

R4042

3.3V

R4001

R4050

R4021

R4022

R4023

R4024

R4025

R4026

C4076

TP4004

OPEN

TP4005

OPEN

8

7

6

R4046

150

5

0

3.3V

K4021

OPEN

OPENC4091

/500.01

R4095
1k

ASIC

R4062
NDC31HJ-220X

0

C4071

3D
R4041

3.9k

/101C4078

/500.01

]

1.2V

K4002

3.3V

1.2V

C4093

OPEN

PFC_POW_MP

MAIN_POW_MP

ANA_DIM_I_MP

POWER_GOOD_MP

DIM_CTL_MP

BL_ON_MP

OPEN

NQR0499-001X

B1
C4058

/1010

K4003
NQR0499-002X

B1
C4059

/1010

K4004
NQR0499-001X

B1
C4060

B1
C4061

C4063

B1
C4064
10

B1
C4062

/1010

/1010

/1010

/1010

/10

D_GND

K4005
NQR0499-001X

K4006
NQR0499-001X

K4007
NQR0499-001X

K4008
NQR0499-001X

MAIN PWB (12/13)

AUO

BL_ON BL_ON

BL_STATUS

N.C.

C4011

C4012

C4013

C4014

C4015

C4016

C4017

C4018

C4019

C4077

DC_DIM

ANA_DIM

BL_STATUS

0.1C4009

0.1C4010

0.1

0.1

0.1

0.1

0.1

0.1

0.1

0.1

0.1

0.1C4020

OPEN

OPENC4021

0.1C4022

OPENC4023

0.1C4024

0.1C4025

OPENC4026

0.1C4027

OPENC4028

0.1C4029

0.1C4030

OPENC4031

OPENC4032

0.1C4033

0.1C4034

0.1C4035

0.1C4036

0.1C4037

0.1C4038

0.1C4039

OPENC4040

OPENC4041

0.1C4042

OPENC4045

/160.1C4043

/160.1C4044

/160.1C4046

SAMSUNGLPL

BL_ON

BL_STATUS

ANA_DIMANA_DIM

N.C.

92

93

100

101

156

157

164

165

203

210

183

190

108

116

121

129

109

117

128

136

140

141

148

149

202

44

45

65

69

71

75

49

54

47

52

66

70

72

76

50

55

191

182

206

207

192

186

187

181

205

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD18

VDD18

VDD18

VDD18

VDD33

VDD33

VDD33

VDD33

VDD33

VDD33

VDD33

VDD33

VDD33

PLLAVD

PLLAVS

RXDVDD11

RXDVDD12

RXDVDD21

RXDVDD22

RXPLLNVDD1

RXPLLNVDD2

RXPLLQVDD1

RXPLLQVDD2

RXDVSS11

RXDVSS12

RXDVSS21

RXDVSS22

RXPLLNVSS1

RXPLLNVSS2

TXDVDD1

TXDVDD2

TXPLLNVDD

TXPLLQVDD

TXDVSS1

TXDVSS2

TXDVSS3

TXDVSS4

TXPLLNVSS

BL_ON

BL_STATUS

ANA_DIM

N.C.

IC4001

JCC5072

CMO2CMO1

N.C.

BL_ON

ANA_DIM

BL_STATUS

RXBGRVDD1

RXBGRVDD2

RXBGRVSS1

RXBGRVSS2

TXBGRVDD

TXBGRVSS

VSS

1

VSS

2

VSS

4

VSS

19

VSS

20

VSS

21

VSS

22

VSS

39

VSS

40

VSS

43

VSS

58

VSS

61

VSS

64

VSS

77

VSS

80

VSS

84

VSS

85

VSS

89

VSS

96

VSS

124

VSS

125

VSS

132

VSS

133

VSS

168

VSS

172

VSS

173

VSS

175

VSS

180

VSS

193

VSS

199

VSS

204

VSS

211

VSS

214

VSS

217

VSS

218

VSS

235

VSS

236

VSS

237

VSS

238

VSS

255

VSS

256

B1

RX33

RX33

RX33

RX33

TX33

TX33

TX33

TX33

0.1C4047

67

68

73

74

46

51

48

53

184

185

188

189

209

208

C4066

OPENC4048

OPENC4049

0.1C4050

B1

0.1C4051

C4065

0.1C4052

B1

0.1C4053
C4067

OPENC4054

0.1C4055

OPENC4056

B1

0.1C4057
C4068

2D NOISE REDUCTION/
ENHANCE/
GAMMA CORRECT/
COLOUR MANAGEMENT/
RGB DRIVE/LVDS DRIVE

K4009
NQR0499-001X

/1010

K4010
NQR0499-001X

/1010

K4011
NQR0499-001X

/1010

K4012
NQR0499-001X

/1010

C4092

3.3V

OPEN

CN4003

OPEN

QGA0504F1-51X

TC1-8

GND7

GND6

TB1+5

TB1-4

TA1+3

TA1-2

GND1

1.2V

RA4001

2

IC4006
OPEN

1

IN B

2

IN A

3

/160.1

R1AM

5

R1AP

25

R1BM

6

R1BP

26

R1CM

7

R1CP

27

R1CLKM

8

R1CLKP

28

R1DM

9

R1DP

29

R1EM

10

R1EP

30

R2AM

11

R2AP

31

R2BM

12

R2BP

32

R2CM

13

R2CP

33

R2CLKM

14

R2CLKP

34

R2DM

15

R2DP

35

R2EM

16

R2EP

36

OPEN

RX_EN1

17

0R4002

RX_EN2

37

0

OPEN

DV_R[0]

97

OPEN

DV_R[1]

98

DV_R[2]

99

DV_R[3]

90

DV_R[4]

91

DV_R[5]

82

DV_R[6]

83

DV_R[7]

62

DV_R[8]

63

DV_R[9]

42

OPEN

DV_Y[0]

162

OPEN

DV_Y[1]

153

DV_Y[2]

154

DV_Y[3]

155

DV_Y[4]

145

DV_Y[5]

146

DV_Y[6]

147

DV_Y[7]

137

DV_Y[8]

138

DV_Y[9]

139

OPEN

DV_B[0]

130

OPEN

DV_B[1]

131

DV_B[2]

122

DV_B[3]

123

DV_B[4]

113

DV_B[5]

114

DV_B[6]

115

DV_B[7]

105

DV_B[8]

106

DV_B[9]

107

DV_HD

24

DV_VD

3

DV_DE

23

CLKI

81

CLKIN

41

XRST

87

GSI[0]

219

GSI[1]

240

GSI[2]

220

GSI[3]

201

BSI[0]

198

BSI[1]

200

BSI[2]

179

BSI[3]

171

RSI[0]

197

RSI[1]

177

RSI[2]

178

RSI[3]

170

ASI[0]

241

ASI[1]

221

GHDI

163

GCKI

169

SCL

18

SDA

38

K4025

OPEN

5

VCC

OUT Y4GND

R4063

OPEN

IC4001

JCC5072

C4088

OPEN

C4089
OPEN

T1CLKM

T1CLKP

T2CLKM

T2CLKP

DRV[9]

DRV[8]

DRV[7]

DRV[6]

DRV[5]

DRV[4]

DRV[3]

DRV[2]

DRV[1]

DRV[0]

DGY[9]

DGY[8]

DGY[7]

DGY[6]

DGY[5]

DGY[4]

DGY[3]

DGY[2]

DGY[1]

DGY[0]

DBU[9]

DBU[8]

DBU[7]

DBU[6]

DBU[5]

DBU[4]

DBU[3]

DBU[2]

DBU[1]

DBU[0]

PWM0

HDO_PWM1

VDO_PWM2

GHDO

GCKO

TEST[0]

TEST[1]

TSB_TEST[0]

TSB_TEST[1]

PLLBP

T1AM

223

T1AP

243

T1BM

224

T1BP

244

T1CM

225

T1CP

245

226

246

T1DM

227

T1DP

247

T1EM

228

T1EP

248

T2AM

229

T2AP

249

T2BM

230

T2BP

250

T2CM

231

T2CP

251

232

252

T2DM

233

T2DP

253

T2EM

234

T2EP

254

103

104

110

111

112

118

119

120

126

127

134

135

142

143

144

150

151

152

159

160

158

166

167

174

176

194

2D NOISE REDUCTION/

195

ENHANCE/

196

GAMMA CORRECT/

215

COLOUR MANAGEMENT/

216

RGB DRIVE/LVDS DRIVE

102

86

94

CLKO

88

DEO

95

R4008

GVD0

242

222

239

R4009

MOSI

78

R4010

MISO

79

R4011

SCLK

60

R4012

SS

59

R4013

213

R4014

212

56

57

161

R4016
0

T1CLKM

T1CLKP

T2CLKM

T2CLKP

0

0

0

0

0

R4015
OPEN

T1AM

T1AP

T1BM

T1BP

T1CM

T1CP

T1DM

T1DP

T1EM

T1EP

T2AM

T2AP

T2BM

T2BP

T2CM

T2CP

T2DM

T2DP

T2EM

T2EP

3

81

T1AM

T1AP

T1BP

T1BM

reference Diff Diff Diff Diff

# C3821 NCB11AK-106X

# C4031

# C4074

# C4081

# CN4003

# D3802

# R3859

# R3870

# R3871

# R3876

# R3881

# R3889

# R3901

# R3904

# R4040

# R4051

# R4052

# R4053

# R4054

# R4066

# RA4001

# RA4002

# RA4003

# RA4004

# RA4005

# RA4006

# RA4007

# RA4008

# RA4009

# RA4010
# RA4011

# RA4012

TP4012
OPEN

TP4013
OPEN

TP4014
OPEN

TP4015
OPEN

TP4016
OPEN

TP4017
OPEN

TP4007
OPEN

TP4008
OPEN

TP4009
OPEN

TP4010
OPEN

TP4011
OPEN

3.3V

OPEN

OPEN

TCLK1+11

TCLK1-10

TC1+9

RA4002

2

3

4

81

567

T1CLKP

T1CLKM

T1CM

T1CP

32DR1 37DR1 42DR1 DV1

OPEN

NCB31HK-103X

NCB31HK-103X

QGA0504F1-51X

MA111- X

OPEN

NRSA63J-0R0X

NRSA63J-0R0X

NRSA63J-103X

NRSA63J-682X

NRSA63J-682X

OPEN

NRSA63J-0R0X

NRSA63J-0R0X

OPEN

NRSA63J-0R0X

NRSA63J-102X

OPEN

OPEN

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X

OPEN

OPEN

OPEN

OPEN
OPEN

OPEN

TD1+15

TD1-14

GND13

GND12

RA4003

4

81

567

T1DM

T1DP

NCB11AK-106X

NCB31CK-104X

NCB31HK-103X

NCB31HK-103X

QGA0504F1-51X

MA111- X

OPEN

NRSA63J-0R0X

NRSA63J-0R0X

NRSA63J-103X

NRSA63J-682X

NRSA63J-682X

OPEN

NRSA63J-0R0X

OPEN

OPEN

NRSA63J-0R0X

NRSA63J-102X

OPEN

NRSA63J-0R0X

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X

OPEN

OPEN

OPEN

OPEN
OPEN

OPEN

R4073

R4074

TE1+17

TE1-16

234

T1EP

T1EM

NCB11AK-106X

NCB31CK-104X

NCB31HK-102X

NCB31HK-102X

QGA0504F1-51X

MA111- X

OPEN

NRSA63J-0R0X

NRSA63J-0R0X

NRSA63J-103X

NRSA63J-682X

NRSA63J-682X

OPEN

NRSA63J-0R0X

NCB31HK-102X

NRSA63J-102X

OPEN

OPEN NRSA63J-102X

NRSA63J-103X OPEN

NRSA63J-0R0X OPEN

NQR0568-005X OPEN

NQR0568-005X OPEN

NQR0568-005X

NQR0568-005X

NQR0568-005X

NQR0568-005X OPEN

OPEN NQR0568-005X

OPEN NQR0568-005X

OPEN NQR0568-005X

OPEN NQR0568-005X
OPEN NQR0568-005X

OPEN NQR0568-005X

0R4083

0R4072

0

OPEN

TA2+21

TA2-20

GND19

GND18

RA4004

234

567

81

T2BM

T2AP

T2AM

OPEN

OPEN

NCB31HK-103X

NCB31HK-103X

OPEN

OPEN

NRSA63J-0R0X

OPEN

OPEN

OPEN

OPEN

NRSA63J-0R0X

NRSA63J-392X

OPEN

NRSA63J-0R0X

OPEN

NRSA63J-0R0X

OPEN

OPEN

OPEN

R3890
OPEN

R4090
0

R3894

OPEN

Q3807
OPEN

TB2-22

T2BP

LCD5/12V

TB2+23

TC2+27

TC2-26

GND25

GND24

RA4005

123

8

567

T2CP

T2CM

3.3V

R4091
OPEN

R3903

OPEN

Q3802
UN2213-X

RT1N441C-X

R3885

0

R3868

OPEN

R3876

Q3804
RT1N441C-X
UN2213-X

TCLK2-28

T2CLKM

TCLK2+29

T2CLKP

OPEN

Q3801
OPEN

OPEN

4

567

R3873

R3867

TD2+33

TD2-32

GND31

GND30

RA4006

81

T2DM

T2DP

R3860
OPEN

R3899

OPEN

R3865

OPEN

R3879

R3892

OPEN

R3901

R3889

R3891

OPEN

TE2-34

234

T2EM

R3884
1k

C3823

OPEN

CONT739

CONT838

CONT937

GND36

TE2+35

567

T2EP

CONT442

CONT541

CONT640

R3938
OPEN

LCD_POW48

LCD_POW47

GND46

CONT145

CONT244

GND43

NRSA02J-0R0X0R4037

R3939
OPEN

R3940
OPEN

LCD_POW49

NRSA02J-0R0X0R4039

SUPPORT54

SUPPORT53

SUPPORT52

LCD_POW51

LCD_POW50

R4040

R4066

SUPPORT57

SUPPORT56

SUPPORT55

LCD5/12V

CONT4

CONT5

CONT6

CONT7

CONT8

CONT9

R4069

OPEN

SUPPORT63

SUPPORT62

SUPPORT61

SUPPORT60

SUPPORT59

SUPPORT58

OPEN

R3945

OPEN

R3944

R3905

OPEN

R3874

OPEN

R4094
OPEN

R3923

Q3805
OPEN
RT1N441C-X

R3839

OPEN

OPEN

T1AM

T1AP

T1BM

T1BP

T1CM

T1CP

T1CLKM

T1CLKP

T1DM

T1DP

T1EM

T1EP

T2AM

T2AP

T2BM

T2BP

T2CM

T2CP

T2CLKM

T2CLKP

T2DM

T2DP

T2EM

T2EP

D3801

OPEN

OPENR3924

54

RA4007

6

3

7

2

8

1

54

RA4008

6

3

7

2

8

1

54

RA4009

6

3

7

2

8

1

54

RA4010

6

3

7

2

8

1

54

RA4011

6

3

7

2

8

1

5

4

RA4012

3

6

7

2

8

1

CONT1

CONT2

CONT4

MAIN PWB (8/13)

CONT5

CONT6

CONT7

CONT8

CONT9

RGB_FID

MAIN PWB (7/13)

SDA3

MAIN PWB (1/13),(11/13),(13/13)

SCL3

MAIN PWB

LCDFRAME

(11/13),(13/13)

TA1_N

TA1

TB1_N

TB1

TC1_N

TC1

TCLK1_N

TCLK1

TD1_N

TD1

TE1_N

TE1

MAIN PWB (8/13)

TA2_N

TA2

TB2_N

TB2

TC2_N

TC2

TCLK2_N

TCLK2

TD2_N

TD2

TE2_N

TE2

MAIN PWB ASS'Y (9/13)

SFY-1006A-H3

C3826

R3943

OPEN

OPEN

R3840

C3817

R4093

R3904

R3871

R3869

C3848
OPEN

R3881

0

R3870

OPENR3908

R3907
OPEN

D3803

OPEN

R3909
OPEN

Q3808

OPEN

R3847

OPEN
R3848
OPEN

0

C3824

OPEN

D3802

R3859

C3821

LC4001
NQR0628-004X

R3906
0

R3846
OPEN

OPEN

OPEN

5

4321

9876

10

C3835

C3834

OPEN

OPEN

R3910
OPEN

R3911

OPEN

OPEN

CN3804
OPEN

BL_ON1

DIM_CTL2

POWER_GOOD3

LC4002
NQR0628-004X

5

C3833

C3830

C3836

OPEN

OPEN

OPEN

4321

9876

10

LC4004
OPEN

LB_PRO

LCD_POW_1

PFC_POW

LB_POW

MAIN_POW

POWER_GOOD

PWM_DIM

ANA_DIM

BL_STATUS

ANA_DIM_O

ANA_DIM_I

DIMMING4

GND5

MAIN_POW6

LB_POW7

PFC_POW8

LCD_POW9

NQR0450-008XLC4003

LB_PRO10

BL_STATUS11

MAIN PWB (11/13),(12/13)

MAIN PWB (11/13),(12/13),(13/13)

MAIN PWB (11/13)

MAIN PWB (11/13),(12/13)

MAIN PWB (11/13)

MAIN PWB (13/13)

MAIN PWB (8/13)

c10611001a_0226_9/13_0.0

2-24(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-23

MAIN PWB CIRCUIT DIAGRAM (10/13)

MAIN PWB ASS'Y (10/13)

SFY-1006A-H3

SCL_AUDIO

NEHL0JM-107X

NEHL0JM-107X

NEHL0JM-107X

NEHL0JM-107X

NCB31HK-103X

NCJ21CK-475X-R

NCJ21CK-475X-R

NEHL0JM-107X

NCB31HK-103X

NCB31HK-103X

NCB31HK-103X

NCB31HK-102X

NCB31HK-102X

NEHL0JM-107X

NCB31HK-103X

NCB30JK-105X

NCB31HK-103X

NRSA02J-0R0X

NRSA02J-0R0X

NEHL1CM-106X

NEHL0JM-107X

NEHL0JM-107X

MM1689AH-X

NRSA63J-0R0X

NRSA63J-0R0X

NRSA63J-104X

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

NRSA63J-0R0X

NRSA63J-102X

OPEN

SDA_AUDIO

AUDIO_RESET

MAIN PWB (2/13)

HEADPHONE_R

HEADPHONE_L

HP_MUTE

AMP_MUTE

ACOFF_MMUTE

MAIN_L

MAIN_R

MAIN PWB (13/13)

32DR1 37DR1 42DR1 DV1

reference Diff Diff Diff Diff

# C4501 OPEN

OPEN

# C4502

OPEN

# C4503

OPEN

# C4504

OPEN

# C4505

OPEN

# C4507

OPEN

# C4508

OPEN

# C4509

OPEN

# C4510

OPEN

# C4513

OPEN

# C4514

OPEN

# C4515

OPEN

# C4516

OPEN

# C4517

OPEN

# C4518

OPEN

# C4519

OPEN

# C4525

OPEN

# C4526

NRSA02J-0R0X

# C4527

NRSA02J-0R0X

# C4528

OPEN

# C4529

OPEN

# C4534

OPEN

# C4535

OPEN

# C4536

OPEN

# C4537

OPEN

# C4538

OPEN

# C4539

OPEN

# C4540

OPEN

# C4541

OPEN

# C4542
# C4543

OPEN

# C4544

OPEN

# C4545

OPEN

# C4546

OPEN

# C4548

OPEN

# C4680

QETN1EM-477Z

# CN4652

OPEN

# D4501

OPEN

# IC4501

OPEN

OPEN

# IC4502

OPEN

# K4502

OPEN

# K4503

OPEN

# L4501

OPEN

# L4502

OPEN

# L4503

OPEN

# L4504

OPEN

# L4505
# L4506

OPEN

# L4507

OPEN

# Q4552

OPEN

# Q4553

OPEN

# R4501

OPEN

# R4502

OPEN

# R4504

OPEN

# R4505

OPEN

OPEN

# R4506

OPEN

# R4510

OPEN

# R4511

OPEN

# R4513

OPEN

# R4514

OPEN

# R4515

OPEN

# R4517

OPEN

# R4519

OPEN

# R4520

OPEN

# R4521

OPEN

# R4522

OPEN

# R4524

OPEN

# R4525

OPEN

# R4528

OPEN

# R4529
# R4530

OPEN

# R4531

OPEN

OPEN

# R4532

OPEN

# R4533

OPEN

# R4534

OPEN

# R4535

OPEN

# R4536

OPEN

# R4537

OPEN

# R4541

# R4542

OPEN

# R4549

OPEN

# R4653

NRSA63J-562X

# R4654

NRSA63J-562X

# X4501

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

NRSA02J-0R0X

NRSA02J-0R0X

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN
OPEN

OPEN

OPEN

OPEN

OPEN

QETN1EM-477Z

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN
OPEN

OPEN

OPEN

OPEN

OPEN

OPEN
OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN
OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

NRSA63J-562X

NRSA63J-562X

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN NDC31HJ-120X

NRSA02J-0R0X OPEN

NRSA02J-0R0X OPEN

OPEN NDC31HJ-120X

OPEN NCB31HK-103X

OPEN

OPEN

OPEN

OPEN NEHL0JM-107X

OPEN NEHL0JM-107X

OPEN NCB30JK-105X

OPEN NCB30JK-105X

OPEN NCB31HK-103X
OPEN NCB31HK-103X

OPEN NCB31HK-103X

OPEN

OPEN

OPEN NCB31HK-103X

QETN1EM-477Z QEHR1EM-477Z

OPEN QGA1217C2-03X

OPEN UDZW3.6B-X

OPEN MX5010B

OPEN

OPEN

OPEN

OPEN NQLE42M-100X

OPEN NQLE42M-100X

OPEN NQLE42M-100X

OPEN NQLE42M-100X

OPEN NQLE42M-100X
OPEN NQLE42M-100X

OPEN NQR0499-002X

OPEN ISA1530AC1/QR/X

OPEN ISA1530AC1/QR/X

OPEN NRSA63J-103X

OPEN NRSA63J-103X
OPEN NRSA63J-103X

OPEN NRSA63J-222X

OPEN

OPEN

OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN NRSA63J-392X

OPEN NRSA63J-392X

OPEN

OPEN

OPEN

OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN NRSA63J-103X
OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN

OPEN

OPEN NRSA63J-103X

OPEN NRSA63J-103X

OPEN NRSA63J-101X

OPEN NRSA63J-101X

OPEN NRSA63J-0R0X

OPEN

OPEN

NRSA63J-562X

NRSA63J-562X OPEN

OPEN NAX0932-001X

MAIN PWB (2/13)

MAIN PWB (11/13)

MAIN PWB (2/13)

5V

3.3V 1.8V

K4501

K4504

OPEN

OPEN

NQLE42M-100X

L4502

NQLE42M-100X

L4501

0.001C4516

0.001C4515

OPENC4512

OPENC4511

OPENC4506

OPEN

R4502

OPEN

OPEN

R4542

R4541

OPENC4536

OPENC4535

C4528

C4527

Q4552

R4525

3.9k

R4515

PNP

0.01C4510

100/6.3C4517

100/6.3C4509

1C4519

D4501

10kR4524

10k

3.9k

R4517

PNP

Q4553

0.01C4505

R4516

K4503

OPEN

0.01

C4501

C4514

R4501

R4536

R4537

R4504

L4507

NQR0499-002X

OPEN

R4518

100/6.3

C4513

0K4502
OPEN

0
OPEN

0.01
C4502

10k

100

100

10k

L4503

100/6.3

TEST11

HPSENCE12

SCL13

SDA14

VDD_3.3V15

16

VDD_1.8V

xRESET17

LOUT18

ROUT19

SBW20

CN4652
QGA1217C2-03X

R1

A_GND2

L3

C4548

0.01

NQLE42M-100X

NQLE42M-100X

L4504

10

21

10/16C4537

100/6.3C4538

R4526
OPEN

10k

10k

R4533

R4534

R4535

8

DOUT29DOUT1

AMP_MUTE

MaxxAudio

/16

4.7C4507

0.01

C4534

SUB PWB
CN7003

10k

VDD_1.8V7VDD_3.3V

IC4501

MX5010B

A_GND

/164.7C4508

L4651

C4677

0.22

43

BSRP

SHUTDOWN

49

BSLP

AGND

18

C4662

0.22

B2

ROUTP42ROUTP

19

B2

IC4602

BH3547F-X

41

LOUTP20LOUTP

21

C4606
OPEN

NCB30JK-105X

C4676

0.22

B2

39

ROUTN40ROUTN

C4663

0.22

NQLF3EM-330X

NQLF3EM-330X

38

BSRN

BSLN

LOUTN22LOUTN

23

B2

C4609

4.7

CB2

8

VCC

C4612

/6.3

1

L4652

37

GND

GND

24

MUTE

GND

PVCCR

PVCCR

PGNDR

PGNDR 32

VCLAMPL

VCLAMPL

PGNDL

PGNDL

PVCCL

PVCCL

GND

L4653

NQLF3EM-330X

L4654

NQLF3EM-330X

67

BIAS

6dB

21

B2
C4675

0.33

36

35

34

33

31

30

29

28

27

26

25

5

GND

43

B2
C4674

0.22

B2
C4672

QE

220/50C4671

/25B2C4670 1

1

/25

C4669

B2

QE

220/50C4668

C4667

/25

1

B2

B2
C4665

0.22

B2

B2

C4666

C4664

0.22

0.33

HEADPHONE
AMP

NEHL1CM-476X
C4613
47/16

HP_GND

/251

MIX

R4549
1k

6

41

10kR4522

10k

R4521

R4527
OPEN

10k

R4531

R4532

DIN25DIN14DIN0

10kR4520

C4541
1

C4540
1

C4539
100/6.3

C4542

0.01

OPEN

10k

10k

10k

10k

R4528

R4529

R4530

L4506

NQLE42M-100X

3

2

1

DCLK

SYNKH

VDD_3.3V

VDD_1.8V 39

Xtal_out 38

Xtal_in 37

A_ctr130A_ctr029R_IN328L_IN327R_IN226L_IN225R_IN124L_IN123VDD_5A22RCAP

10k

10k

10kR4514

R4519

R4513

IC4502

MM1689AH-X

PS21

NC 8

7

PS12

GND

6

VIN2

VO2

3

VO1 5VIN14

9

L4505

NQLE42M-100X

0.01C4518

100/6.3C4504

0.01C4525

40

36

35

34

33

32

31

100/6.3C4503

C4526

R4505

12p

2.2k
X4501
NAX0932-001X

12.288MHz

R4506

C4529
12p

100k

10kR4510

10kR4511

D4554

C4543

0.01
C4545

100/6.3

C4546
100/6.3

C4544

0.01

D4651
MA111-X

1SS355W-X

1M

R4664 2.7k

C4651

CB2

4.7

C4652

CB2

4.7

1SS355W-XMA111-X

1SS355W-XMA111-XD4555

OPENR4665

2SC3928A/QR/-X
2SC1623A/5-6/-X

R4651 5.6k

R4653

5.6k

R4654

5.6k

R4652 5.6k

Q4651

R4663
12k

C4653
OPEN

C4654
OPEN

1SS355W-XMA111-XD4553

R4662

R4661

22k

22k

Q4653
OPEN

Q4652
RT1N441C-X
UN2213-X

CH

1

1

CH

TL4501

R4551

R4617 0

TL4502

R4618 0

D4552

MA111- X

1SS355W-X

R4659
0

OPEN

OPENR4552

R4660
OPEN

5V_FOR_MUTE1

ISA1530AC1/QR/X
2SA812A/5-6/-X

1kR4579

5VSTB5V

C4656 1

C4658

C4659 1

R4666

R4670 100k

D4551
MA111- X
1SS355W-X

Q4551

4.7

OPENR4667

100k

OPENR4669

100kR4668

OPENR4671

/16C4657 4.7

/16

R4619
OPEN

R4620
OPEN

NEAF0JM-227X

NEHL1EM-226X

AU_GND

1M

A_GND

C4550
220/6.3

C4607
OPEN

C4608
OPEN

C4679
22/25

1M

GND

1

RININ2

RINP3

AGND

4

LINP

5

LININ6

GAIN0

7

GAIN08

GAIN1

9

MSTR/SCV10

SYNC

11

GND

12

1

1

STB5V 5V

R4578
56k

R4674
OPEN

1M

B2

C4678

/25

1

47

46

45

44

AVCC48AVCC

MUTE

FAULT

AUDIO OUT

IC4651

TPA3101D2PHP-W

AU_GND

VBYP

VREG

ROSC

GND

16

15

17

14

13

1

0.01

C4661

R4673 100k

C4660

5V

R4621
0

NEHL1AM-107X

C4611

100/10

R4622
0

R4623
47k

C4610

4.7

CB2

R4624

0

Q4601
DTC343TK-X
RT4N430C-X

R4574

R4575

0

OPEN

R4577
100k

NEHL1CM-106X
C4551

10/16

B2
C4673

0.22

NEHL0GM-227X

C4614 220/4

NEHL0GM-227X

C4615 220/4

AU_VCC

A_GND

R4628
1k

R4629
1k

K4655
NQR0499-002X

C4680

470/25

R4683
OPEN

R4682
OPEN

R4681

R4680
OPEN

R4679
OPEN

R4678

R4677

R4676

R4627
47

R4630
47

AUAUDIO_VCC

QE

0

0

0

0

R4675
OPEN

C4683
OPEN

C4682
OPEN

C4681

0.1

CN4651

NQR0499-002XK4651

NQR0499-002XK4652

NQR0499-002XK4653

NQR0499-002XK4654

R4685
OPEN

R4684
OPEN

A_GND

AU_GNDAU_GND

C4616

0.1

C4617

0.1

QGA2013C2-04

R+1

R-2

L+3

L-4

HP_R

HP_GND

HP_L

SPEAKER(R)

SPEAKER(L)

MAIN PWB
(11/13)

(No.YA690<Rev.001>)2-25 2-26(No.YA690<Rev.001>)

c10611001a_0226_10/13_0.0

MAIN PWB CIRCUIT DIAGRAM (11/13) [

CN1007

LC1001

MAIN PWB

(9/13),(12/13),(13/13)

MAIN PWB (9/13)

MAIN PWB (2/13)

MAIN PWB (9/13)

MAIN PWB (9/13),(12/13)

MAIN PWB (13/13)

MAIN PWB (3/13)

MAIN PWB (10/13)

MAIN PWB (2/13)

MAIN PWB (9/13)

MAIN PWB (2/13)

MAIN PWB (13/13)

MAIN PWB (9/13),(12/13)

MAIN PWB (2/13)

MAIN PWB (10/13)

LCD_POW_1

POWER_GOOD

AV4_PB

AV4_PR

AUDIO_IN3_L

AUDIO_IN3_R

PFC_POW

LB_POW

BL_ON_IN

HM_HPLUG2

HM_HPLUG3

HM_HPLUG1

CEC_IN

AMP_MUTE

AV1-BLK(Ys1)

MAIN_POW

LCD_POW_N

LCD_POW_IN

LB_PRO

M_MUTE

HP_MUTE

AV4_Y

PC_L

PC_R

AV4_Y

AV4_PB

AV4_PR

AUDIO_IN3_L

AUDIO_IN3_R

PC_L

PC_R

Q1009

RT1P441C-X
UN2113-X

Q1012

OPEN

R1272

0

STB3.3V

Q1010

RT1P441C-X
UN2113-X

9876

10

PC_L

STB3.3V

9V1

PC_R

Q1011
RT1P441C-X
UN2113-X

GND2

AUDIO_IN3_R

Q1008
RT1P441C-X
UN2113-X

SUB MICON

EXT_Y10

GND9

EXT_PB8

GND7

EXT_PR6

PC_R5

GND4

PC_L3

9876

5

10

4321

AUDIO_IN3_L

AV4_P R

AV4_P B

AV4_Y

R1280

0

R1279

OPEN

SUB PWB

CN7002

EXT_R12

GND11

5

4321

LC1002

MAIN PWB (1/13),(13/13)

LED PWB

CN8701

CN7301

IR PWB

CN8801

(SLOW1)AV1-STATUS

(SLOW2)AV2-STATUS

QGA1217F1-04X

POWER LED 3

DIMMER 4

QGA1217F1-13X

HP_GND 6

HP_DET 8

EE_SENSE

HP_GND

EDID_WP

TV_OUT_SW

LCDFRAME

HDMI_EQ

HDMI_SEL1

HDMI_SEL2

FIL_SW1

FIL_SW2

STB5V 1

GND 2

KEY1 1

KEY2 2

KEY3 3

GND 4

HP_L 5

HP_R 7

GND 9

REMO 11

STB5V 12

HP_L

HP_R

CN1005

CN1004

5V 10

EE 13

STB5V

5V

3.3V

R1205

10k

C1075

0.001

R1213

C1076

0.001

OPEN

3.3V

R1295

R1294

NPN
Q1013

MAIN PWB (2/13)

HP/USB PWB

MAIN PWB (13/13)

MAIN PWB (10/13)

MAIN PWB (3/13),(13/13)

MAIN PWB (2/13),(13/13)

MAIN PWB (9/13),(13/13)

MAIN PWB (3/13)

MAIN PWB (3/13),(13/13)

MAIN PWB (2/13),(13/13)

NOTE : Refer to the part list for the part number of IC1002 and IC1003.

EXT_L14

GND13

5

4321

LC1003

]

OPEN

OPENR1008

25

R1227

R1228

R1229

R1230

R1231

R1003

R1006

R1007

R1004

R1131

R1132

R1133

R1134

R1135

R1136

R1232

R1168

R1233

R1234

R1235

R1238

R1143

NAND_AD5

AD67

AD56

26

NAND_AD6

100

100

100

100

100

100

100

OPEN

OPEN

100

100

100

100

100

100

RA1002
OPEN

1

2

100

100

100

100

100

100

47

FOR SERVICE

CLE10

GND9

AD78

29

28

27

NAND_AD7

NAND_CLE

8

7

6543

1.25V

C1019

0.01

IC1001

PNX8541E/M12008

416

VSS

AJ1

29

ALE11

33

32

31

30

NAND_ALE

SEL-DB-NAND

NAND_NRE

NAND_NWE

10k

10k

10k

10k

10k

10k

4.7k

4.7k

R1001

R1002

R1005

R1009

R1010

R1011

R1019

R1016

10k

R1255

C1062
OPEN

431

438

430

433

434

425

432

439

T25

E25

P25

N25

R25

M25

AF24

VSS

VSST1

VSS

58

AA25

VSS

VSS

AH2

87

AB25

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

AG3

U6

AD6

AD5

T5

AE5

T6

165

170

144

136

145

164

37

36

35

34

CN1003
OPEN

OPEN

OPEN

R1018

R1017

10k

10k

R1149

R1237

R1293

441

442

AF25

AE25

VSS

VSS

VSS

VSS

D9

D8

202

192

38

STB3.3V

R1245

10k

XIO-ACK

DB_DETECT

DB_DETECT

OPEN

3.3V7GND6WP5CS4SDI3SDO2CLK

1

33

876

R1226

R1271

+3V3_PER

10k

10k

2.2k

R1151

R1236

R1148

IC1020

OPEN

1

VSS

2

8

R1250

33

2.2k

10k

R1040

R1039

R1026

10k

ISA1530AC1/QR/X
2SA812A/5-6/-X

1

E0

2

E1

3

E2

VSS4SDA

IC1003

10k

R1041

OPENR1289

XIO-ACK

NAND_NRE

SEL-MAIN-NAND

NAND_CLE

NAND_ALE

NAND_NWE

Q1005
RT1N441C-X
UN2213-X

R1025

0

R1024

10k

Q1001

VCC

WC

SCL

OPEN

R1288

C1005

0.1

R1042
OPEN

R1023
OPEN

R1022

10k

8

7

C1003

0.1

6

5

OPENR1291

OPENR1290

OPEN

IC1024

OPEN

R1285

1

OE1

VCC

2

A1

OE2

3

B2

B1

GND4A2

54

RA1001

33
NRZ0034-330W

321

SERIAL
FLASH

IC1002

1

8

S

VCC

2

7

Q

HOLD

3

6

W

C

5

VSS4D

100

2.2k

R1150

R1292

100

R1268

4

OUT

CD3VDD

C1063

OPEN

0.1C1001

/16

R1020

10k

R1021
OPEN

100

IC1021

OPEN

IN_B

VCC

5

1

R1266

OPEN

2

IN_A

3

C1064

OPEN

4

GND

OUT_Y

R1267
OPEN

GND PIN

446

445

466

444

443

AJ25

AH25

VSS

VSS

VSS

AG25

VSS

VSS

VSS

F12

AF12

E9

238

240

203

472

462

467

454

T26

E26

Y26

H26

AF26

AK25

AA26

VSS

VSS

VSS

VSS

VSS

AH26

VSS

VSS

VSS

VSS

P13

N13

F13

252

251

250

VSS

VSS

AG26

VSS

VSS

VSS

VSS

VSS

VSS

VSS

N14

R13

AF13

U13

T13

V13

269

253

258

255

254

256

497

502

486

480

484

496

489

494

K27

Y27

V27

D27

H27

N27

AF27

AA27

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

P14

N15

T14

U14

R14

R15

V14

270

P15

287

272

273

271

289

274

288

474

473

451

546

533

555

552

509

503

534

532

C28

AF28

VSS

VSS

VSS

VSS

AG28

AG27

VSS

VSS

VSS

VSS

T15

N16

V15

U15

290

305

292

306

291

561

563

558

538

562

T29

K29

B29

W29

AF29

AE29

AB29

VSS

VSS

VSS

VSS

VSS

AH28

VSS

VSS

VSS

AG29

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

V16

U16

T16

R16

N17

P17

T17

P16

307

R17

310

309

308

323

324

326

325

MAIN PWB ASS'Y (11/13)

SFY-1006A-H3

3.3V

+3V3_NAND

18u

NAND FLASH

IC1005

1

NC

NC

2

NC

NC

3

NC

NC

4

NC

NC

5

NC

IO7

6

NC

IO6

7

R/B

IO5

8

RE

IO4

9

CE

NC

NC

NC

10

NC

NC

11

VCC

VCC

12

VSS

VSS

13

NC

NC

14

NC

NC

15

CLE

NC

16

ALE

IO3

17

WE

IO2

18

WP

IO1

19

NC

IO0

20

NC

NC

21

NC

NC

22

NC

NC

23

NC24NC

4.7k

OPEN

R1155

R1156

OPEN

OPEN

R1152

R1154

OPEN

OPENR1286

R1287

8

7

6

5

565

564

579

573

591

N30

G30

AJ29

AH29

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

U17

N18

F18

V17

327

346

341

340

328

L1001

NQL093M-180X

NAND_AD0

NAND_AD1

NAND_AD2

C1004

0.1

SETTING
MEMORY

IC1004

1

NC

2

E1

3

E2

VSS4SDA

EEPROM

OPEN

C1071

594

596

595

AJ30

AK30

AH30

VSS

VSS

VSS

VSS

AH21

AF22

AE24

384

394

415

NAND_AD7

NAND_AD6

NAND_AD5

NAND_AD4

NAND_AD3

NAND_AD2

NAND_AD1

NAND_AD0

VCC

SCL

531

AE28

VSS

NAND_AD3

NAND_AD4

NAND_AD5

NAND_AD6

NAND_AD7

NAND_CLE

NAND_ALE

NAND_NWE

NAND_NRE

SEL-DB-NAND

DB_DETECT

XIO-ACK

3.3V

R1244

10k

SEL-MAIN-NAND

4.7k

R1158

8

7

WC

6

5

OPEN

R1159

0.1

C1023

STB3.3V

K1004

NQR0499-002X

2/11

D_GND

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

OPEN

R1157

OPEN

R1153

3.3V

R1284
OPEN

593

592

AF30

AE30

VSS

VSS

VSS

AG30

VSS

VSS

VSS

F19

V18

AF21

358

382

RA1003

NRZ0080-101X

1

2

3

4

5

6

1k

R1243

Q1002
RT1N441C-X
UN2213-X

1

2

RA1004

NRZ0034-101W

IC1018

TC74LCX125FTK-X

1

1OE

2

1A

3

1Y

4

2OE

5

2A

6

2Y

GND73Y

10k

R1147

PCI-AD24

16

PCI-AD25

15

PCI-AD26

14

PCI-AD27

13

PCI-AD28

12

PCI-AD29

11

PCI-AD30

10987

PCI-AD31

8

PCI-AD0

7

PCI-AD1

6543

PCI-CBE1

PCI-CBE2

0.1

C1029

VCC

14

4OE

13

4A

12

4Y

11

3OE

10

9

3A

8

3.3V

10k

10k

R1145

R1144

R1146

10k

0

R12420R1241

OPEN

R1246

OPEN

R1247

MICROCOMPUTER/
IF PROCESS/VIDEO PROCESS/
AUDIO PROCESS/VIDEO SELECT/
AUDIO SELECT/A-D CONVERT/
D-A CONVERT/FROMAT CONVERT

JTAG

UART

32DR1 37DR1 42DR1 DV1
reference Diff Diff Diff Diff

# C1069 OPEN

# CN1007

# CN1008

# IC1023

# LC1001

# LC1002

# LC1003

# LC1004

# LC1005

# LC1007

# LC1008

# LC1009

# Q1013

# R1111

# R1114

# R1119

# R1124

# R1163

# R1210

# R1293

# R1294

# R1295

PCI-AD[0,1,24-31],PCI-CBE[1,2]

XIO-ACK

XIO-SEL1

XIO-SEL0

PWM_DIM(BL_BOOST)

ANA_DIM(BL_CTRL)

EDID_WP

SCL3

SDA3

JTAG_TRST

JTAG_TDI

JTAG_TMS

JTAG_TCK

JTAG_TDO

BM_I2C_SW

REQ

IRQ-PCI

CA-INTRF_AGC

27MHZ

RESET-SYS-DETECT

CN1002
OPEN

TRSTN1

DETECT2

TDI3

TDD4

TMS5

TCK6

GND7

3.3V8

CN1001
QGA1501F4-12W

STBY_to_PC1

PC_to_STBY2

GND3

MIPS_to_PC4

PC_to_MIPS5

CARIB_TO_PC6

PC_TO_CARIB7

JIG8

GND9

I2C SDA10

I2C SCL11

5V12

JIG

PC_TO_CARIB

CARIB_TO_PC

USB_VCC

USB_DP2

USB_DM2

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

OPEN

NRSA63J-103X

OPEN

NRSA63J-0R0X

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

OPEN

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

NRSA63J-103X

OPEN

NRSA63J-103X

OPEN

NRSA63J-0R0X

OPEN

NCB31CK-104X

OPEN

QGF0508C2-30W

OPEN

QGA1501F4-06W

OPEN

TC7SZ126F-X

OPEN

NQR0628-001X

OPEN

NQR0628-001X

OPEN

NQR0628-001X

OPEN

NQR0628-001X

OPEN

NQR0628-001X

OPEN

NQR0450-008X

OPEN

NQR0450-008X

OPEN

NQR0628-001X

OPEN

2SC3928A/QR/-X

NRSA63J-103X

OPEN

NRSA63J-103X

OPEN

NRSA63J-103X

OPEN

NRSA63J-103X

OPEN

OPEN NRSA63J-0R0X

NRSA63J-103X OPEN

OPEN NRSA63J-101X

NRSA63J-0R0X OPEN

OPEN NRSA63J-103X

MAIN PWB (4/13),(5/13)

MAIN PWB (5/13)

MAIN PWB (9/13)

MAIN PWB (3/13),(13/13)

MAIN PWB (1/13),(9/13),(13/13)

MAIN PWB (1/13)

MAIN PWB (13/13)

MAIN PWB (5/13)
MAIN PWB (4/13)
MAIN PWB (5/13)

MAIN PWB (1/13),(5/13),(9/13)

OPEN

OPEN

MAIN PWB (13/13)

MAIN PWB (5/13)

GND40

GND39

GND20

DETECT19

LED218

LED117

ACK16

WP15

WE14

RE13

CE012

c10611001a_0226_1/13_0.0

2-28(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-27

OPEN

GND6

3.3V5

R_MODE4

R_RESET3

PC_TO_R8C2

LED_P15

9876

10k

10k

10k

R1130

R1125

R1124

10

LC1004

OPEN

R1126

5

4321

10k

OPEN

R1128

R1127

9876

10

10k

10k

10k

10k

OPEN

OPEN

R1116

R1117

R1118

R1121

R1129

R1119

R1282

R1283

5

LC1005

R1273

1

2

3

10k

10k

R1120

R1122

4321

OPENR1274

OPEN

IC1022

OPEN

VCC

NC

IN

OUT4GND

10k

R1123

OPEN

0

LC1009

10

9876

4321

5

9876

10

R1276

OPEN

D1001
OPEN

R1275

OPEN

OPEN

L1002

5

C1066
OPEN

10k

R1111

R1212
OPEN

10k

10k

27k

10k

OPEN

OPEN

OPEN

R1109

R1110

R1113

R1112

R1107

R1108

R1114

D_GND

D_GND

D_GND

D_GND

10k

2.7k

10k

R1204

R1206

R1210

R1270

10k

STB3.3V30

GND29

R_MODE28

R_RESET27

PC_TO_R8C26

R8C_TO_PC25

SCL24

SDA23

SM_SERVICE22

SENSE_HOST21

KEY420

KEY319

KEY218

KEY117

BUSY16

R8C_TO_PC1

R1163

R1277

IC1013

IC-PST8328U-W

1

VSS

2

C1024

0.1

X1001

27MHz

NAX0900-001X

CH

CH

C1012

C1013

12p

12p

10k

10k

10k

R1087

R1104

R1106

R1173

R1174

R1172

R1175

R1170

R1177

R1178

R1176

R1088

R1089

R1090

R1091

R1092

R1180

R1181

R1179

R1169

R1171

R1165

R1182

R1183

R1094

R1093

R1095

R1097

R1096

R1098

R1099

OPEN

R1203

100

R1192

100

R1202

100

R1208

CN1008

STB3.3V 9V

G

IN_A

GND

OPEN

OUT

CD3VDD

R1055

390

R1056

100

100

100

100

100

100

100

100

100

0.001C1067

100

100

100

100

100

0.001C1072

100

100

100

100

100

100

100

100

0.001C1073

100

100

100

100

100

100

0.001C1074

100

IC1017

M62320GP1-X

1

SO

2

SCL

3

SDA

4

D0

5

D1

6

D2

7

D3

GND8D4

CN1006

QGB0519J1-40X

3.3V

LC1008

LC1007

IC1023

1

VCC

2

3

OUT_Y

4

C1065

0.0018

PNX8541E/M12008

XTALI

27

AG1

XTALO

57

AG2

RESET_IN

81

AA3

P0_0

137

U5

P0_1

107

U4

P0_2

77

U3

P0_3

47

U2

P0_4

17

U1

P0_5

138

V5

P0_6

108

V4

P0_7

78

V3

P1_0

51

AA2

P1_1

21

AA1

P1_2

112

AB4

P1_3

82

AB3

P1_7

52

AB2

P2_0

48

V2

P2_1

18

V1

P2_2

109

W4

P2_3

79

W3

P2_4

49

W2

P2_5

19

W1

P2_6

110

Y4

P2_7

80

Y3

P3_0

22

AB1

P3_1

143

AC5

P3_2

113

AC4

P3_3

83

AC3

P3_4

53

AC2

P3_5

23

AC1

CADC0

116

AF4

CADC1

86

AF3

CADC2

56

AF2

CADC3

26

AF1

CS0

16

CS1

15

CS2

14

VDD

13

D7

12

D6

11

D5

10

9

C1028

0.1

R1162

100

P0

P1

P2

P3

P5

3.3V21

AD01

NAND_AD0

5

4

IC1001

1/11

10k

OPENR1224

R1265

R1222
OPEN

AD12

NAND_AD1

STB3.3V

10k

R1223

3.3V22

AD45

AD34

AD23

24

23

NAND_AD2

NAND_AD3

NAND_AD4

MICROCOMPUTER/

C1069

IF PROCESS/VIDEO PROCESS/
AUDIO PROCESS/VIDEO SELECT/
AUDIO SELECT/A-D CONVERT/
D-A CONVERT/FROMAT CONVERT

S1001
OPEN

C1002

SPI_SDO

114

AD4

SPI_SDI

25

AE1

SPI_CLK

24

AD1

SPI_CSB

85

AE3

P6_4

55

AE2

P6

P6_5

115

AE4

SCL_MC

117

AG4

SDA_MC

88

AH3

PWM0

84

AD3

PWM1

54

AD2

PSEN

20

Y1

ALE

50

Y2

EA

111

AA4

SCL1

506

AK27

SDA1

504

AH27

SCL2

566

AK29

SDA2

536

AK28

SCL3

535

AJ28

SDA3

505

AJ27

EJTAG_TRSTN

89

AJ3

EJTAG_TDI

30

AK1

EJTAG_TDO

60

AK2

EJTAG_TMS

90

AK3

EJETAG_TCK

59

AJ2

GPIO_0

16

T1

GPIO_1

46

T2

GPIO_2

76

T3

GPIO_3

483

G27

GPIO_4

481

E27

GPIO_5

510

D28

RESET_SYS

475

AJ26

27MHZ_OUT

476

AK26

VPP_ID

501

AE27

3.3V

10k

10k

R1264

R1225

100

R1263

100

R1256

100

R1257

100

R1262

MAIN PWB CIRCUIT DIAGRAM (12/13)

5

LC4858
NQR0628-004X

4321

BL_ON_MP

(9/13)

(9/13)

ANA_DIM_I_MP

MAIN_POW_MP

PFC_POW_MP

CN4701

QGA2013C1-15W

AU_VCC 1

LB_PRO 2

AU_GND 3

PFC_POW 4

STB_5V 5

MAIN_POW 6

DC_DIM 7

DIM_CTL/GND 8

24V 9

POWER_GOOD/10V 10

10V 11

GND 12

GND 13

GND 14

BL_ON/BT 15

DIM_CTL_MP

POWER_GOOD_MP

LC4856

NQR0450-008X

LC4857

NQR0450-008X

10

UN2213-X

9876

R4811

Q4812
RT1N441C-X

R4860

OPEN

R4812

RSR025P03-X
321

10k

10k

Q4811

OPENR4814

R4857

R4856

OPEN

OPEN

C4855
OPEN

C4854

C4853

/250.1

MAIN PWB

POWER PWB

CN9005

MAIN PWB

C4851

C4852

/500.1

R4851

OPEN

LC4851

NQR0450-001X

/160.1

R4852

OPEN

LC4852

NQR0415-006X

/250.1

R4853

OPEN

LC4853

NQR0450-001X

R4854
OPEN

LC4854

NQR0415-005X

R4855

OPEN

LC4855

OPEN

R4848

OPEN

NRSA02J-0R0X

R4877
SHORT

C4872

C4871

3.3

3.3

NCJ41HK-335X-U

D4832
MA111-X
1SS355W-X

Q4833
RT1N441C-X
UN2213-X

R4846

R4859

R4847
OPEN

K4871
SHORT

C4873

0.01

NRS12BJ-332W

R4834
15k

MA111-X
1SS355W-X

C4843

/1610

B1
C4813

D4833

/1010

1

2

3

4

R4821

IC4871

SI-8005Q-X

BS

IN

OUT

GND

3.3k
1/2W

K4872
SHORT

B1

EN

COMP

9

1/50

C4821

R4838

2.2k

R4835

6.8k

R4836

1.2k

1

2

3

PQ1LAX95MS-X

C4811

/1010

C4876

0.01

8

SS

7

6

5

FB

C4874
560p

3D
R4871

24k

NEHM1HM-105X

D4821

UDZW9.1B-X

R4831
OPEN

R4832
OPEN

Vout

Vadj

GND

Vin4SW

IC4842

IC4812

MM3143DN-X

1

VDD

2

GND

3

32DR1 37DR1 42DR1 DV1
reference Diff Diff Diff Diff

# LC4856 OPEN

# R4846

# R4859

C4875

OPEN

R4833
OPEN

Q4831
OPEN

R4837

OPEN

D4834
MA111-X
1SS355W-X

Q4832
2SC3928A/QR/-X
2SC1623A/5-6/-X

R4850

OPEN

5

R4841

0

IC4811

MM3141YN-X

1

VDD

2

GND

3

5

VOUT

NC4CE

C4822

0.1
/25

C4815

VOUT

OPEN

R4872

4.7k

R4873

100k

C4877
OPEN

4.7k

3D

R4823

R4858

OPEN

R4849

NC4CE

NRSA63J-0R0X

OPEN

3D
R4874

5.1k

3D
R4822

4.7k

C4823

0

5

EC30HA04-X

/250.1

D4861
UDZW3.3B-X
MA8033-X

C4812

C4814

3D
R4875

3D

D4871

R4825

/6.310

/6.310

100k

4.7k

3D
R4876

D4872

OPEN

3D
R4824

27k

C4824

/250.1

NEHM1HM-105X

3D
R4842

56k

3D
R4844
10k

OPEN

OPEN

NRS12BJ-560W

K4873
SHORT

NRSA02J-0R0X

18k

NQLF3EM-150X

D4873

EC30HA04-X

C4861
1/50

3D
R4843

7.5k

C4844

/1610

NRSA63J-0R0X

R4813

470
NRSA02J-471X

L4871

D4874

KDZ16B-X

R4826

6.8k

123

4

K4811
SHORT

K4812
SHORT

NRSA02J-0R0X

NCJ41CM-226X-U

IC4821

S393-X

+

-

GND

D4822
MA111-X

D4831
OPEN

R4861

K4841
SHORT

R4845

OPEN

OPEN

OPEN

NRS12BJ-560W

K4874
SHORT

C4879

C4878

/1622

8

VCC

+

­567

22k

C4880
OPEN

/1622

B1

C4771

2.2

C4772

0.1

NQR0450-008X

OPEN

NRS12BJ-560W

K4701
SHORT

K4702

SHORT

NCJ41HK-335X-U

3D
R4733

2.2k

C4731

OPEN

R4731

0

R4732

OPEN

R4734

OPEN

3D

R4735

R4795

0

R4794

R4793

Q4773
RT1N241C-X
UN2212-X

THV1023-X

/16

/25

NRSA02J-100X

R4710

NCJ41HK-335X-U

C4701

10k

OPEN

33k

IC4771

C4775

C4778

C4777

C4776

3D
R4771

R4772

R4774

R4775

/503.3

15k

OPEN

27k

OPEN

C4702

/503.3

3D
R4736
10k

3D
R4740
15k

R4737

OPEN

3D
R4741

15k

3D
R4742

15k

C4732

OPEN

3D

R4738

1.5k
3D
R4739

15k

Q4774
RT1N241C-X
UN2212-X

/500.047

/500.01

/500.01

/500.01

14

15

16

SCP

SS_2

VREF

RT1SGND2SS_13INV_14FB_15VCC6SYSUVLO7OUT_1

C4773

/500.01

R4776

82k

C4734

C4733

3D
R4743

3D

R4744

13

56k

C4736

INV_2

MAIN PWB ASS'Y (12/13)

SFY-1006A-H3

24V

C4703

/500.01

10

1

BS

2

IN

3

OUT

4

GND

C4735

/500.022

/500.0015

3D
R4746

/500.0015

12

/500.022

FB_2

C4774

C4779

11

3D
R4745

100k

3D
R4747

100k

C4737

56k

/500.01

NRSA02J-390X

R4779

39

10

OUT_2

P_GOOD2

/500.01

R4778

4.7k

R4773

75k

SS

EN

COMP

FB

9

IC4701

SI-8005Q-X

/250.1

9

PGND

8

R4785

0

R4777

39

NRSA02J-390X

18k

CH
C4704
OPEN

8

7

6

5

1

2

3

4

5

6

7

8

9

10

11

12

3D
R4780

CTL1

CS1

FB1

COMP1

ILIM1

RT

VREF

CTL2

ILIM2

COMP2

FB2

CS2

27k

R4781

OPEN

C4784

OPEN

C4706

MB39A136PFT-X

C4780

/1610

/500.01

IC4731

C4790

R4784

/1610

C4794

3D
R4787

R4788

0

OPEN

OPEN

C4705
560p

3D
R4701
24k

27k

C4781

3D
R4782

3D
R4783

/1610

R4708

0

R4709

OPEN

3D

3D

R4703

R4704

39k

3D
R4702

5.1k

NRSA02J-0R0X

R4752

C4738

R4753

NRSA02J-0R0X

C4741

C4783

OPEN

/1610

CH
C4795

/50150p

0Ω

0Ω

/500.1

/500.1

C4793

OPEN

8.2k

EC30HA04-X

D4731

MA2SD31-X

D4732

MA2SD31-X

C4739

B1
C4740

NRSA02J-0R0X

R4754

0Ω

R4755

0Ω

NRSA02J-0R0X

Q4771

RSS040P03-X

4321

4321

R4792

0

D4701

/500.01

/162.2

8765

Q4772

RSS040P03-X

D4702

OPEN

D4771

EC30HA03L-X

8765

EC30HA03L-X

S1

1

G1

2

S2

3

G2

4

Q4731
TPC8208-X

S1

1

G1

2

S2

3

G2

4

Q4732
TPC8208-X

D4774

D4703

EC30HA04-X

L4771

NQLF3EM-100X

D4772

OPEN

D4775
EC30HA03L-X

L4701

NQLF3EM-150X

KDZ6.8B-X

D1
8
D1
7
D2
6
D2
5

C4742

/1610

D1

8

D1

7

D2

6

D2

5

C4743

/1610

L4772

NQLF3EM-100X

D4704

D4773
OPEN

D4776
OPEN

NCJ41CM-226X-U

L4731

NQLF3EN-4R7X

C4744

/1610

L4732

NQLF3EM-100X

C4745

/1610

C4786

/6.310

C4796

/6.310

C4708

D4733

D4734

OPEN

OPEN

NRSA02J-0R0X

K4703
SHORT

K4704
SHORT

NRSA02J-0R0X

C4709

/1622

NCJ41CM-226X-U

/1622

C4746

C4748

/6.310

/6.310

C4749

C4747

/6.310

/6.310

R4791

0

NRSA02J-0R0X

K4771

SHORT

C4787

C4788

C4798

/6.310

/6.310

C4802

NRSA02J-0R0X

K4772
SHORT

K4773
SHORT

NRSA02J-0R0X

C4797

/6.310

/6.310

C4707
OPEN

CB1

24

DRVH1

23

LX1

22

DRVL1

21

VCC

20

VB

19

GND

18

DRVL2

17

LX2

16

DRVH2

15

CB2

14

MODE

13

56k

330k

CH
C4785

/50330p

C4782

/1610

C4791

C4792

/1610

R4786

2k

3D
R4789

33k

3D
R4790

330k

STB5V 24V

R4711

R4707

2.2k

OPEN

R4705

6.8k

R4706

1.8k

NRSA02J-0R0X

NRSA02J-0R0X

C4750

/6.310

NRSA02J-0R0X

NRSA02J-0R0X

C4751

/6.310

C4789

/160.1

/6.310

C4801

/160.1

K4733
SHORT

C4799

K4731
SHORT

K4732
SHORT

K4734
SHORT

/6.310

C4883
OPEN
/50

Q4701
2SC3928A/QR/-X
2SC1623A/5-6/-X

C4752

/6.310

C4753

/6.310

C4881

NRS12BJ-470W

/6.310

R4881

1/2W

47

C4754

/6.310

R4750

0

C4755

/6.310

NRS12BJ-470W

IC4881

PQ035ZM02Z-X

1

VB

2

Vadj

3

R4748

OPEN

C4756

/6.310

R4751

0

C4757

/6.310

R4797

47

1/2W

5

Vout

GND4Vin

R4885

47

1/2W

NRS12BJ-470W

3D

NRS12BJ-470W

R4799

1/2W

3D

R4882

22k

10k

R4884

47

R4749

C4882

OPEN

/6.310

D4705
MA111-X
1SS355W-X

3D

R4883

4.7k

R4798

33

1/4W

NRS144J-330X

R4796

33

1/4W

LCD_POW_1

LB_POW

5V

1.25V

1.2V

3.3V

1.8V

2.5V

LB_PRO

9V

STB1.25V

STB3.3V

STB5V

LCD5/12V

BT

AUAUDIO_VCC(13.5V)

AU_GND(AUDIO_GND)

D_GND

A_GND

MAIN PWB
(9/13),(11/13),(13/13)

MAIN PWB
(9/13),(11/13)

MAIN PWB
(9/13),(11/13)

MAIN PWB (1/13)

(No.YA690<Rev.001>)2-29 2-30(No.YA690<Rev.001>)

c10611001a_0226_11/13_0.0

MAIN PWB CIRCUIT DIAGRAM (13/13) [BACKEND MICON]

LVDS_SEL

MAIN PWB (8/13)

MAIN PWB (10/13)

MAIN PWB

(9/13),(11/13)

MAIN PWB

(3/13),(11/13)

MAIN PWB

(2/13),(11/13)

MAIN PWB

(1/13),(11/13)

MAIN PWB (9/13)

AUDIO_RESET

SDA_AUDIO

SCL_AUDIO

LCDFRAME

EDID_WP

HDMI_SEL1

HDMI_SEL2

TV_OUT_SW

FIL_SW1

FIL_SW2

RF_AGC

CCS

CARIB_RESET

CDATA_IN

CDATA_OUT

CSCLK

CARIB_VD

32DR1 37DR1 42DR1 DV1
reference Diff Diff Diff Diff
# R4131 OPEN
# R4133
# R4134
# R4137 OPEN
# R4138 OPEN

OPEN

OPEN

OPEN
OPEN
OPEN
OPEN
OPEN

OPEN
OPEN
OPEN
OPEN
OPEN

NRSA63J-101
NRSA63J-101
NRSA63J-101
NRSA63J-472
NRSA63J-472

D_GND

MAIN PWB ASS'Y (13/13)

SFY-1006A-H3

R4102

R4103

R4104

R4105

R4106

R4101

OPEN

100

OPENC4132

0.1C4101

100

100

100

LCD_POW_1

3.3V

D_GND

R4193

BL_ON

BL_STATUS

CN4101
QGA1501F4-10W

3.3V1

GND2

E8_WR3

E8_HOLD4

E8_CS5

E8_CLK6

E8_DATAI7

E8_DATAO8

E8_RESET9

CNVSS10

E8/E8a Emulator

FORZA_SCL

FORZA_SDA

FORZA_RESET

LCD_POW_IN

JIG

PC_TO_CARIB

CARIB_TO_PC

REQ

BL_ON_IN

EE_SENSE

SDA3

SCL3

M_RST

RGB_VSYNC

M16_DIM

OPENR4192

OPEN

R4150

100

100

R4168

33

100

10kR4149

0

OPENR4169

SCL_EEPROM

20NC19VD18

100

R4145

53

52

LVDS_SEL

22NC21

0

R4176

OPEN

R4118

R4144

R4148

10k

51

BL_ON

LCD_POW

CARIB_RST 50

SCL_FORZA 46

SDA_FORZA 45

FORZA_RST 43

MODE_SEL 37

T2R_RXD 34

T2R_TXD 33

E8_BUSY 32

E8_DATAI 30

E8_DATAO 29

NC25NC24VD23SDA_EEPROM

R4143

CS 49

NC 48

NC 47

E8_CE 44

NC 42

NC 41

NC 40

E8_EPM 39

NC 38

NC 36

NC 35

E8_CLK 31

SDA3 28

SCL3 27

NC 26

R4147

10k

R4146

10k

12.5MHz

0.1C4102

OPEN

OPEN

OPEN

OPEN

R4196

R4197

R4198

R4199

62

61

60

57NC56NC55NC54

VSS

VCC

MODE0

MODE159MODE258MODE3

MAIN_VD

BL_ON_IN

VCC14XIN13VSS12XOUT11RESET10NC9NC8CNVSS7BYTE6NC5NC4NC3NC2REQUEST

17

16NC15

0

R4175

C4114

0.1

1M

R4181

OPEN

OPEN

C4112

R4117

100

OPENR4174

100

R4120

R4119

3.3V

R4152

R4151

NQR0499-001X

K4102

NQR0499-001X

K4101

R4107

4.7k

33

OPENR4161

OPENR4162

OPENR4163

OPENR4164

OPENR4165

OPENR4166

OPENR4167

R4108

OPEN

TP4109

TP4110

R4109

OPEN

R4110

3.3k

R4111

4.7k

R4112

4.7k

TP4101

TP4102

TP4103

TP4104

76

100

SCL_AUDIO

NC77

NC78

NC79

NC80

NC81

NC82

NC83

NC84

NC85

NC86

NC87

NC88

NC89

NC90

NC91

NC92

RF_AGC93

AVSS94

EE_SENS95

VREF96

AVCC97

MISO98

MOSI99

SCLK

R4113

4.7k

R4116

R4154

100

4.7k

75

74

SDA_AUDIO

1

4.7k

R4153

73NC72

AUDIO_RST

LCD_POW_IN

OPEN

R4115

71NC70NC69NC68NC67NC66NC65NC64NC63

STATUS

0R4114

E8_RESET

0R4171

100R4170

CNVSS

B1
C4113

10

4.7k

R4172

TP4107

TP4108

IC4101

AV PROCESS CPU

0

R4182

OPEN

C4111

321

X4101

NAX0552-001X

1kR4173

0

100R4142

R4141

4.7k

R4137

R4187

B1

OPEN

2.2

C4121

0.1C4123

R4188

0

R4138

R4139

R4140

R4136

R4135

R4155

R4156

R4157

TP4106

TP4105

VCC 8

E01E12E23VSS

4.7k

OPEN

3.3k

3.3k

4.7k

4.7k

4.7k

4.7kR4158

4.7kR4159

4.7kR4160

WC 7

1

2

3

4

5

6

7

3.3kR4184

33R4185

1CLR

1D

1CK

1PR

1Q

1Q

GND

SCL 6

3.3k

R4183

33R4186

IC4102

M24C32-WMN6-X
24LC32A-I/SN-X

4 SDA 5

IC4103

TC74VHC74FT-X

R4134

R4133

R4132 100

R4131

R4130 100

R4129

R4128 100

R4127

R4126 100

R4125 100

R4124 100

R4123 100

R4121

SETTING
MEMORY

VCC

2CLR

2D

2CK

2PR

2Q

2Q

OPEN

100

0R4122

0

3.3V

14

13

12

11

OPEN
R4189

10

9

8

C4131

0.01

E8_DATAO

E8_CE

E8_EPM

E8_CS

E8_CLK

E8_DATAI

E8_CE

E8_EPM

E8_CS

E8_CLK

E8_DATAI

E8_DATAO

E8_RESET

CNVSS

MAIN PWB (9/13),(11/13),(12/13)

MAIN PWB (9/13)

OPEN

MAIN PWB (8/13)

MAIN PWB (11/13)

MAIN PWB (1/13),(9/13),(11/13)

MAIN PWB (9/13)

MAIN PWB (7/13),(9/13)

MAIN PWB (9/13)

3.3V

IC4104

OPEN

OPEN

R4191

1

2

3

OE1

A1

B2

GND4A2

8

VCC

7

OE2

R4190

6

B1

5

C4133

OPEN

D_GND

OPEN

OPEN

R4194

BM_I2C_SW

OPENR4195

MAIN PWB (11/13)

c10611001a_0226_13/13_0.0

2-32(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-31

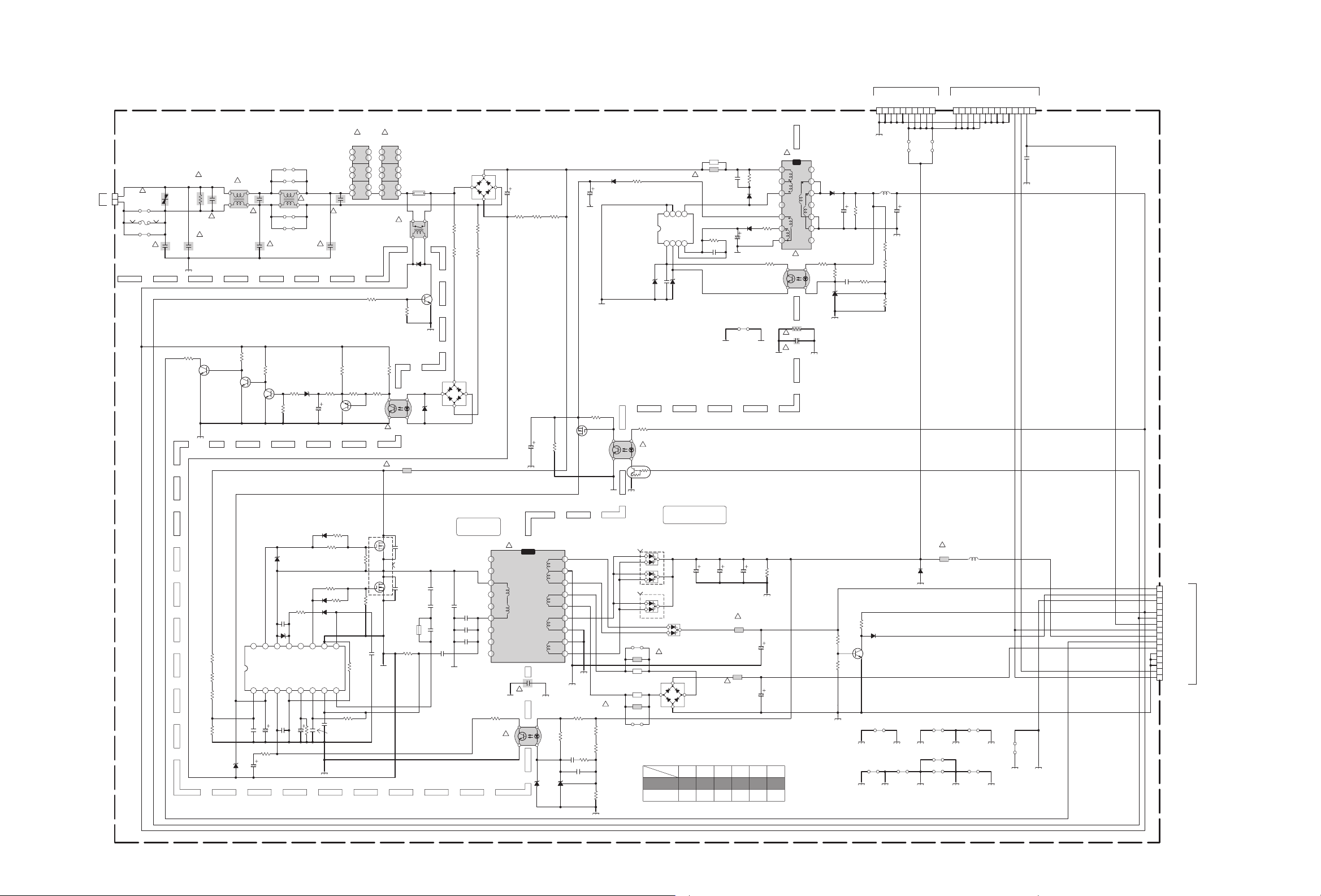

POWER PWB CIRCUIT DIAGRAM

POWER PWB ASS'Y

SFY-9006A-H3

LCD PANEL UNIT

[INVERTER PWB(SLAVE)]

#

QGA2013C2-10

CN9001

GND7

GND8

GND9

GND10

LCD PANEL UNIT

[INVERTER PWB(MASTER)]

CN9002

BL_STATUS14

DIMMING13

BL_ON12

DIM_CTL11

GND10

GND9

GND8

GND7

GND6

24V5

24V4

24V3

24V2

24V 1

24V1

24V2

24V3

24V4

24V5

GND6

QGA2013C2-14

AC INLET PWB

QGA7901C1-02

CN9021

CN9010

2

1

QAF0072-621
QAF0060-621
QAF0028-621

#
FC9001

#

QMF5AD2-3R15-J1

#

!

VA900 1

#
Y9006

#
FC9002

F9001

Y9005

QCZ9071-681
QCZ9079-681

! !

L9001

L9002

QQR1866-001

QQR1866-001

891011125

891011125

!

! !

C9013

QCZ9079-331

R9312

22k

Q9302

2SD601A/QR/-X

Y9001
OPEN

Y9002

OPEN

Y9003

OPEN

Y9004

OPEN

2SC3928A/QR/-X

2SC1623A/5-6/-X

R9310

3.3k

R9311

8.2k

3214

LF9003

!

QQR1635-001

QCZ9079-331

D9303

UDZW2.4B-X

TH9001

QAD0174-250

21 34 67

21 34 67

C9004

!

QFZ9084-474

QSK0162-001

C9014

2SC3928A/QR/-X

R9024

2SD601A/QR/-X

2.2k

MAIN_POW

R9315

6.8k

R9307

R9309

100k

47

C9301

Q9301

4.7/50

ISA1530AC1/QR/X
2SB709A/QR/-X

R9305

47k

R9306

33k

2SC1623A/5-6/-X

41

PC9301
PS2581AL1/QW/

!

!

QMFZ065-5R0Z-J8

RY9002

!

CP9501

13

D9022
MA111-X
1SS355W-X

Q9022

R9023

47k

GND2A

D9302
UDZW5.6B-X

23

CP

24

S1WB/A/60-X

D9301

2

!

R9001

QRZ9046-105Z

QFZ9084-474

!

C9012

GND2A

R9314

ǡ

QCZ9071-681
QCZ9079-681

GND2C

!

C9011

!

C9001

Q9304

2SD601A/QR/-X

2SC3928A/QR/-X

2SC1623A/5-6/-X

2SC3928A/QR/-X
2SD601A/QR/-X

2SC1623A/5-6/-X

!

LF9001

QQR1635-001

Q9303

3214

C9003

QFZ9084-105

R9313
22k

D9001

D3SBA60

2

4

3

C9501
QEZ0918-277

1

R9502

R9501
OPEN

R9301

R9303

100k

1/2W

1/2W

R9304

R9302

100k

1/2W

4

1

3

1/2W

100k

100k

1/2W

R9503

OPEN

OPEN

1/2W

1/2W

R9203

C9220

OPEN

100/50

GND1

3

1

GND3

2

Q9201

CPH3324-X

C9219

OPEN

GND3

R9201

47k

D9218
SJPX-H6-W

41

GND3

GND2C

R9221

1/2W

22

MIP2F20MSSCF

MA8330/M/-X

R9202

PC9201
PS2581AL1/QW/

23

Q9202

IC9201

D9216

1.8k

!

RT1N241C-X

UN2212-X

VDD

1234

C9207

0.1

5678

DSS

VCCCLFB

D9215
MA8330/M/-X

!

QMFZ052-2R0Z-E

CP9202
OPEN

CP

CP

CP9201

C9205

QFP32JK-222

EG01C-T2

R9207

390k

C9208

0.0022

GND3 GND1

D9203

SJPX-H6-W

C9206
1/50

GND3

Y9252

QUY160-100Y

R9205
220k
1/2W

D9204

!

T9201

QQS0440-001

1234

D9206

EC30HA04-X

11 12 13 14

C9211

567

R9206

100

1/2W

R9208

PC9202

15k

PS2581AL1/QW/

41

!

R9209

QRZ9046-685Z

!

C9209

QCZ9071-102

GND3

220/35

8910

!

R9210

270

R9211

3.3k

32

ERROR AMP

23

D9205

1

TL431/A/-T

GND2C

GND2B

GND24

Y9601

QUY153-050Y

L9201

QQL26AM-5R6Z

R9216
OPEN

R9212

C9210

1k

0.1

C9212
100/16

GND2C

R9215

10k

_0.5%

R9214

470

_0.5%

R9213

10k

_0.5%

Y9602
QUY153-050Y

C9606
OPEN

GND2

R9566

680k

R9567

680k

R9568

680k

R9569

33k

MTZJ33B-T2

R9557

4.7

D9562

EC30HA04-X

1/2W

R9556

D9558
MTZJ15B-T2

R9559

C9559

IC9551

SSC9500

Vsen1Vcc2FB3GND4Css5OC6RC7RV

C9560

0.0033

D9559

C9558
10/50

0.22

D9557

MTZJ15B-T2

15NC16

VGH

C9557

C9564

C9562
470p

2.2/50

47/50

R9558

47k

56

1/2W

R9553

56

1/2W

R9554

1/2W

4.7

D9561

150

EC30HA04-X

1/2W

D9556

D1FK60-X

9

10

11NC12VB13VS14

VGL

PGND

8

C9556

470p

C9561

0.001

R9561

680k

GND1

Q9551

TK10A60D

D

G

S

C9569

R9555

100k
1/4W

Q9552

TK10A60D

R9552

100k
1/4W

Reg

C9563

0.22

R9551

ǡ

R9565

680
_0.5%

220p/2kV

H9551
LC34432-003A

D

G

C9568

S

220p/2kV

K9551
OPEN

R9560

82

GND1

LIVE

T9501

!

QQS0434-001

123456789

C9565
15p

C9554
470p

C9566
15p

C9551

0.015

C9552

0.015
C9567
15p

C9553

0.015

C9555

150p

GND1

!

C9591

QCZ9071-102

GND3

R9563

41

1k

!

PC9505

PS2581AL1/QW/

10 11 12 13 14 15 16 17 18

GND24

AUDIO_GND

GND2B

23

3

D9611

OPEN

2

R9604
1k

C9521

0.01

1

IC9601
TL431/A/-T

UTCTL431-T

NMFZ018-5R0X-E

R9605

2.2k
R9606

27k
_0.5%

R9607

6.8k
_0.5%

R9608
47k

C9522

0.015

R9609

3.9k
_0.5%

GND24

H9601
LC34432-003A

#
H9602
LC31334-003B

Y9605

OPEN

CP

CP

CP9604

OPEN

CP9605

OPEN

CP

!

CP9607

CP

Y9606

OPEN

ISOLATED

1

2

D9601

3

1

2

D9602

3

1

2

3

1

3

D9605
FCHS20A08

!

CP9606
NMFZ018-5R0X-E

2

3

1

# DIFFERENCE TABLE

Dest

Key

Ref

LT-37DR1

LT-37DV1 YES

FCHS20A08

C9601

1200/35

FCHS20A08

#
D9603
FCHS20A08

2

4

D9606
D4SBS4

FC9001

F9001

FC9002

NO NO NO

YES

C9602

1200/35

QMFZ049-5R0Z-E

!

QMFZ049-5R0Z-E

Y9005
Y9006

YES

NO

CP9602

CP9603

CP

CN9006

C9604
1200/35

!

CP

C9655

680/25

C9656

680/25

NO

YES

!

CP9601

ICP-N70-T

CP

L9602

Y9201

QUY160-075Y

Y9053

Y9052

GND2C

QQL26AK-100Z

Y9604

QUY153-050Y

Y9054

QUY160-075Y

GND24

AU_Vcc1

LB_PRO2

AU_GND3

PFC_POW4

STB5V5

MAIN_POW6

DC_DIM7

DIM_CTL/GND8

24V9

POWER_GOOD/12V10

12V11

GND12

GND13

GND14

BL_ON15

DIM_CTL16

CN9005
QGA2013C2-15

GND2

Y9753

OPEN

AUDIO_GND

GND2

MAIN PWB
(12/13)
CN4701

GND24

Y9051

QUY153-050Y

GND2B

GND2C

GND2

D9802
MTZJ33B-T2

QUY153-050Y

QUY153-050Y

R9603
OPEN

GND24

R9803

D9801

2.2k
MA111-X

1SS355W-X

R9801

10k

Q9801
2SC3928A/QR/-X
2SD601A/QR/-X

R9802

2.2k

H9602

D9603

NO

YES

YES

2SC1623A/5-6/-X

GND2

Y9603

QUY153-050Y

GND2

Y9055
SHORT

GND2A

GND2A GND2A

(No.YA690<Rev.001>)2-33 2-34(No.YA690<Rev.001>)

c10621001a_0309_1/1_0.0

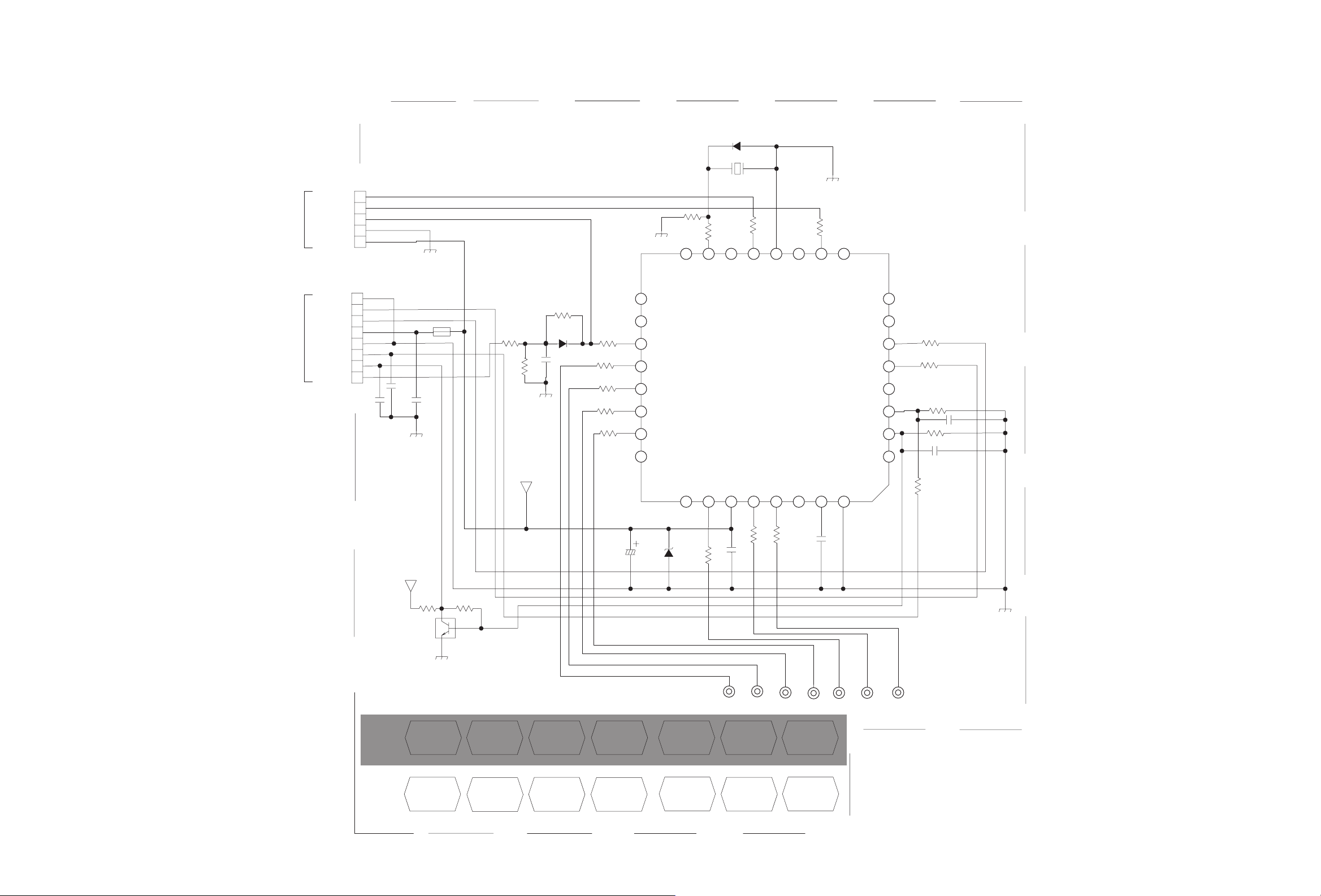

CAPSENS PWB CIRCUIT DIAGRAM

OPEN

SUB PWB

CN7001

CN7702

QGA1501C5-05W

ISSP_DATA 1

ISSP_CLK 2

XRES 3

GND 4

VDD 5

CN7701

QGA1217C2-08X

SHEILD_GND 1

SCL1 2

SDA1 3

STB3.3V 4

GND 5

SENS_HOST 6

INT_0 7

XRES 8

C7708

OPEN

C7707
OPEN

GND

K7701

NQR0599-003X

C7705

OPEN

GND

STB3.3V

R7714

0

R7715

OPEN

STB3.3V

R7724

NRSA63J-0R0X

D7704

OPEN

C7703

0.1

GND

R7723

R7707

R7706

R7701

D7703
MA111-X

BZ

BZ7701

NAN0005-001X

R7718

R7720

10K

GND

NC

13

330

XRES

14

560

560R7705

560

560

CSA_SW6

15

CSA_SW5

16

CSA_SW4

17

CSA_SW0

18

R7711

Beep_OUT 12

CSA_SW319

1k

100

NC 11

TP_Tx/ISSP_DATA 10

IC7701

CY2033412LQXI

CAPSENS

CSA_SW121

VDD20

R7719

VSS 9

CSA_SW222

GND

100

NC 8

ISSP_CLK 7

NC

6

330

I2C_SDA

I2C_SCL

NC

SENS_HOST

INT_0

GND25

CSA_Capacitor24

NC23

R7713

5

R7712

R7709

R7708

R7716

1k

330

C7704

OPEN

OPEN

33k

OPENC7709

4

3

2

1

WX70

Series

DV1

Series

STB3.3V

R7721

OPEN

POWER

SW0

TV/AV

SW0

GND

GND

R7722

Q7701
OPEN

SW5

R7702

560

R7703

560

SW4

C7702
1000p

VOL+

/OK

SW3

SW6

SW2

SW1

GND

SW0

MA8043/L/-X

C7701

R7704

560

0.1

SW6

VOL-

/Back

SW5

D7701

C7706

47/6.3

0

POWER/CONTROL SWITCH

INPUT

SW1

MENU/ω

SW2

φ

SW3

ψ

SW4

CAPSENS PWB ASS'Y

MENU/OK

SW1

CH - CH +

/ω

SW2

SW3

/χ

VOL-

SW4

VOL+

/φ

/ψ

SW5

POWER

SW6

SFY-7704A-H3

c30274001a_0310_1/1_0.0

2-36(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-35

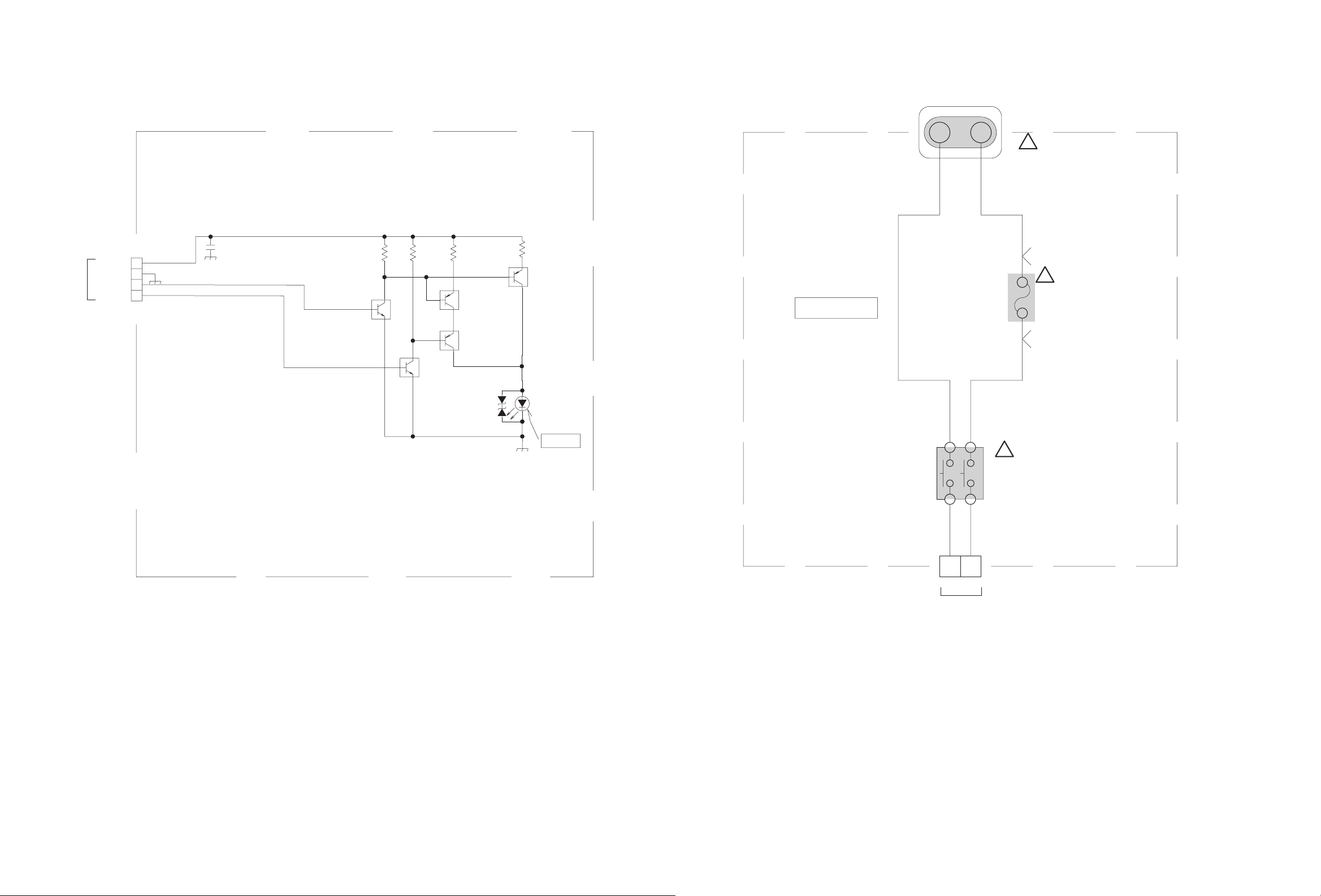

LED PWB CIRCUIT DIAGRAM AC INLET CIRCUIT DIAGRAM

12

!

AC INLET
J9021
QNC0119-001

MAIN PWB

(11/13)

CN1005

QGA2013F3-04

STB_5V

GND

POWER_LED

DIMMER

CN8701

R8701

75

GND

Q8701
RT1P440C-X

POWER

D8701
SELT5E20CS/EF/T

POWER LED

[BLUE]

LIVE

FC9022
QNG0003-001Z

!

F9021
QMF5AD2-3R15-J1

FC9021
QNG0003-001Z

2

43

!

Q8704
OPEN

R8702
OPEN

Q8702

Q8703
OPEN

MA8068-X

MA8068-X

D8702

D8703

R8703

R8704

OPEN

10K

C8701

OPEN

1

2

GND

3

4

GND

Q8705

OPEN

SW9021
QSW1269-001

1

CN9021
QGA7901F1-02

1

2

POWER PWB

CN9010

LED PWB ASS'Y

SFY-8704A-H3

c30266001a_0226_1/1_0.0 c40413001a_0310_1/1_0.0

(No.YA690<Rev.001>)2-37 2-38(No.YA690<Rev.001>)

AC INLET PWB ASS'Y

SFY-9901A-H3

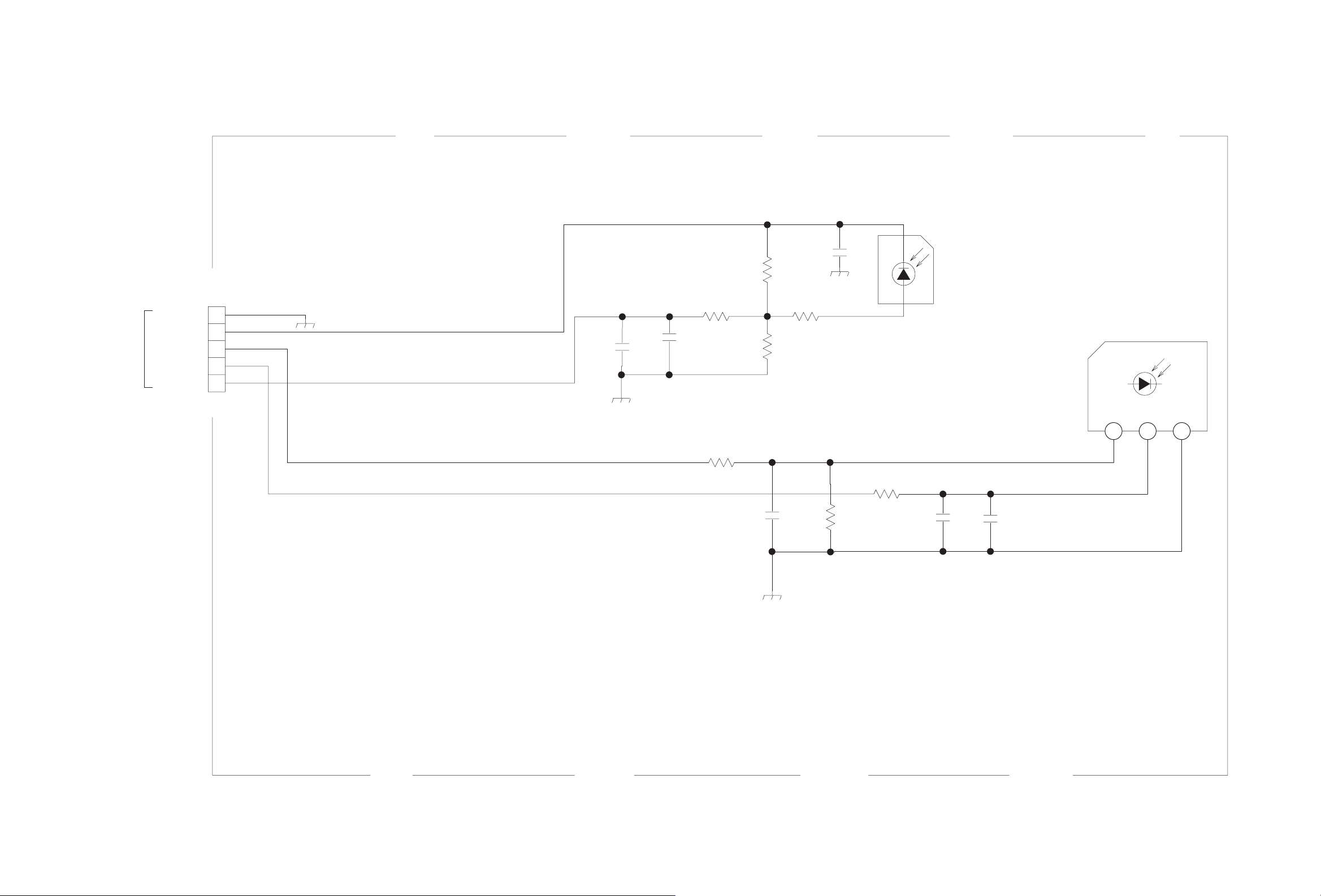

IR PWB CIRCUIT DIAGRAM

5V

MAIN PWB

(11/13)

CN1004

QGA2013C2-05

GND

5V

REMOCON

STNBY5V

EE_CDS

CN8801

1

2

3

4

5

GND

STB5V

C8851
OPEN

GND

C8856
OPEN

R8852

OPEN

R8855

1K

R8851

OPEN

C8853
OPEN

R8853

OPEN

R8856

C8854

OPEN

R8854

OPEN

180k

GND

R8857

0`

EE SENSOR

21

IC8851
S9648-100

WITH EE SENSOR MODEL
[LC42895-001A-HK]
EE SPACER

IR RECEIVE

C8857
OPEN

IC8852

C8852

NCJ20JM-226X-A

GP1UE281RKC1

321

IR PWB ASS'Y

SFY-8804A-H3

GND

c30268001a_0226_1/1_0.0

2-40(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-39

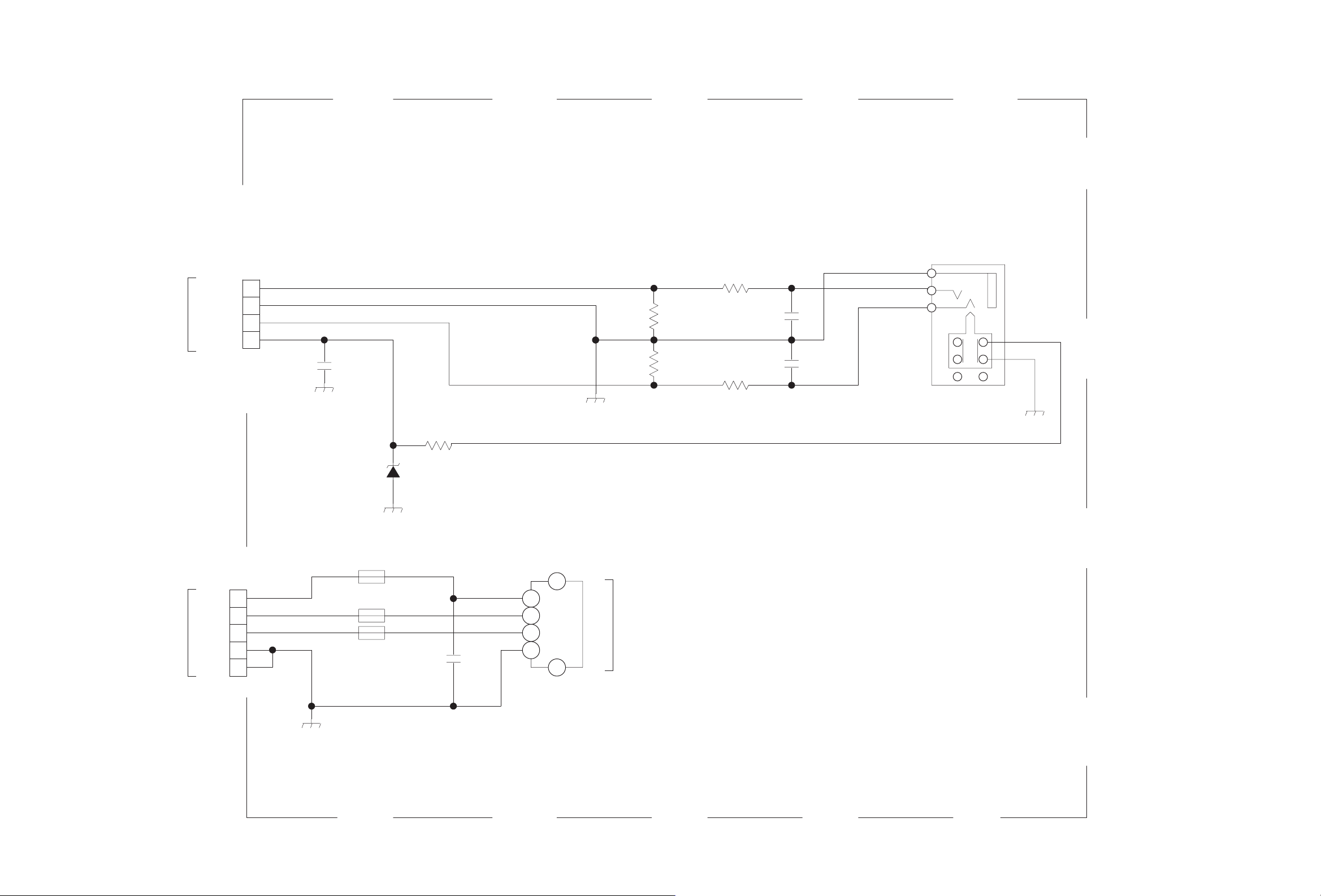

HP/USB PWB CIRCUIT DIAGRAM

MAIN PWB (11/13)

CN1004

CN7301

QGA2013F3-04

HP_L 1

HP_GND 2

HP_R 3

HP_DET 4

GND

C7313

OPEN

R7315
100

GND

R7311

1K

R7312

1K

R7313

0

R7314

0

C7311

0.1

C7312

0.1

HEADPHONE

J7301
QNS0294-001

1

L

23

6

7

1002

R

5

4

1001

GND

MAIN PWB (5/13)

CN3501

CN7302

QGA2013F3-05

5V 5

D-

D+ 3

GND 2

S-GND 1

D7311
UDZW6.2B-X

GND

K7301

4

K7303

0

0K7302

0

GND

5V

5V

C7301
OPEN

J7302

QNZ0906-001

65

1

5V

2

D-

3

D+

4

GND

USB
(PHOTO VIEWER/
MUSIC PLAYER)

HP/USB PWB ASS'Y

GND

SFY-7302A-H3

(No.YA690<Rev.001>)2-41 2-42(No.YA690<Rev.001>)

c30279001a_0309_1/1_0.0

SUB PWB CIRCUIT DIAGRAM

CAPSENS PWB

CN7701

EXT-3

CN7001

QGA1217C2-08X

shield_GND 1

SCL 2

SDA 3

STB3.3V 4

GND 5

SENS_HOST 6

C_INT 7

C_RESET 8

J7003
QNN0845-001

RIGHT

LEFT

COMPONENT

J7002
QNN0846-001

Y

Pb

Pr

STB3.3V

C7033

C7034

OPEN

OPEN

3

4

1

2

5

6

3

4

1

2

R7084

R7085

R7086

/16

D7007
MA8100/M/-X

R7090

220k

D7008

0.015

C7029

MA8100/M/-X

/16

D7009
MA8100/M/-X

R7091

0.015

220k

C7030

D7010
MA8100/M/-X

R7087

0

C7026

OPEN

R7075

OPEN

D7001
MA8100/M/-X

D7002

75

MA8100/M/-X

D7003
MA8100/M/-X

D7004

75

MA8100/M/-X

D7005
MA8100/M/-X

75

D7006
MA8100/M/-X

R7088

R7089

C7027
OPEN

C7028
OPEN

D7015
OPEN

0

OPEN

R7076

D7016
OPEN

0

OPEN

R7077

D7017
OPEN

R7078

R7080

R7082

OPEN

OPEN

OPEN

Q7001
OPEN

Q7002
OPEN

Q7003

OPEN

R7071

R7072

R7079

R7081

R7083

OPEN

OPEN

OPEN

R7001

R7002

IC7003

OPEN

1

OE1

2

A1

3

B2

GND4A2

OPENR7070

OPEN

OPEN

0

0

OPENR7043

OPENR7044

100

R7006

R7005

R7004

R7003

OPEN

OPEN

OPEN

R7007

8

VCC

7

OE2

OPEN

R7008

6

B1

5

C7002

/160.1

OPEN

C7001
OPEN

IC7004

IC-PST8328U-W

1

VSS

2

OPEN

K7001

NQR0499-002X

C7005

C7004
10
B1

R7099
OPEN

R7017

R7018

X7001
OPEN

R7020

C7035

OPEN

4.7kR7015

4.7kR7016

C7006

OPENR7093

/500.01

R7019
OPEN

321

C7007

OPEN

C7008

OPEN

OPENR7097

10k

C7009

4.7k

4.7k

R7011
OPEN

R7012

R7010
0

100

R7013
100

R7014
100

R7009

4

OUT

CD3VDD

C7003

100

/500.0022

R7098

0

IC7005

OPEN

321

54

OPEN

C7037

R7096
OPEN

/160.1

/10

IC7001

1

SCL

2

TXD1

3

RESET

4

BUSY(XOUT)

5

GND

6

XIN

7

3.3V

8

MODE

9

RXD

PADRIES_INT

10

R5F211B4SP-X

SUB MICON

SIDE_KEY3

SIDE_KEY2

SIDE_KEY1

POW_DET

PSOC_RESET

SCL_P

SDA_P

SERVICE

4.7kR7022

R7032

SDA

20

R7023

19

R7024

18

R7025

17

R7026

16

R7027

15

R7028

14

13

KEY4

R7030

12

R7031

11

OPEN

OPEN

OPEN

OPEN

OPEN

4.7k

4.7kR7029

OPEN

OPEN

R7041

OPEN

A_GND

R7033

R7037

R7040
100

OPEN

100

100R7034

100R7035

100R7036

100

100R7038

100R7039

100

R7042

KEY4

SDA

KEY3

KEY2

KEY1

SERVICE

R7095

100

OPEN

R7021

/160.1

A_GND

K7002

NQR0499-002X

TP7001 TP7002

C7013

/160.1C7018

C7017

100/6.3

NEHM0JM-107X

K7003

NQR0499-002X

OPEN

OPENC7039

R7051
0

R7052
0

C7019

C7020

0R7049

RST37

C7012

/160.1

OPEN

FEL38

/500.01

FEH39

OPENR7050

BUZ40

SDA41

VSS42

SCL43

CODE44

TIN045

TIN146

TEST247

IN148

A_GND

R7059

1M

1M

R7060

C7015

R7045

100

R7047

OPEN

R7048

OPEN

R7094

35

34

33

30

29

25

T0928T0827T0726T06

JINT

JDG232JDG131JDG0

LEDI136LEDI0

LEDO0(LED)

LEDO1(BUBY)

IC7002

JCC5075

A-D

CONVERT

1

R7055

/5022pC7036

CH

560k

1M

R7056

/50

CH

27p

75kR7057

150kR7058

T05 24

T04 23

T03 22

T02 21

T01 20

T00 19

VDD 18

CLKO 17

GATE 16

CLKI 15

TEST1 14

TEST0 13

C112R111R210R2C9VREG8AVSS7AVDD6OUT25XIN24IN23OUT12XIN1

C7016
10p

/50

CH

C7021

/500.01

5.6kR7073

R7063
680k

R7064
680k

C7038

/500.0039

C7010
OPEN

C7011

/160.1

C7040

/1010

B1

A_GND

CN7003

QGA1217C2-03X
R1

MAIN PWB (10/13)

A_GND2

CN4652

L3

R7074

2.2k

CN7005

A_GND

OPEN

MIC1

2

GND3

CN7004
QGA1501C5-03W

MIC1

2

GND3

OPEN

MICROPHONE

/160.022C7025

A_GND

A_GND

CN7002
QGF0508C2-30W

SUB PWB ASS'Y

SFY-7101A-H3

SDA

KEY4

KEY3

KEY2

KEY1

SERVICE

9V 30

GND 24

GND 27

GND 29

PC_L 28

PC_R 26

EXT_PR 25

GND 18

GND 20

GND 22

EXT_L 17

EXT_Y 21

EXT_R 19

EXT_PB 23

MAIN PWB (11/13)

CN1007

KEY4 11

KEY3 12

KEY2 13

KEY1 14

BUSY 15

LED_P 16

SERVICE 9

SENSE_HOST 10

STB3.3V

CN7006

SCL 7

SDA 8

GND 2

STB3.3V 1

R_MODE 3

R_RESET 4

PC_TO_R8C 5

R8C_TO_PC 6

R8C_TO_PC 1

QGA1501C5-06W

3.3V 5

GND 6

R_MODE 4

R_RESET 3

PC_TO_R8C 2

OPEN

c10619001a_0310_1/1_0.0

2-44(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-43

TOP

PATTERN DIAGRAMS

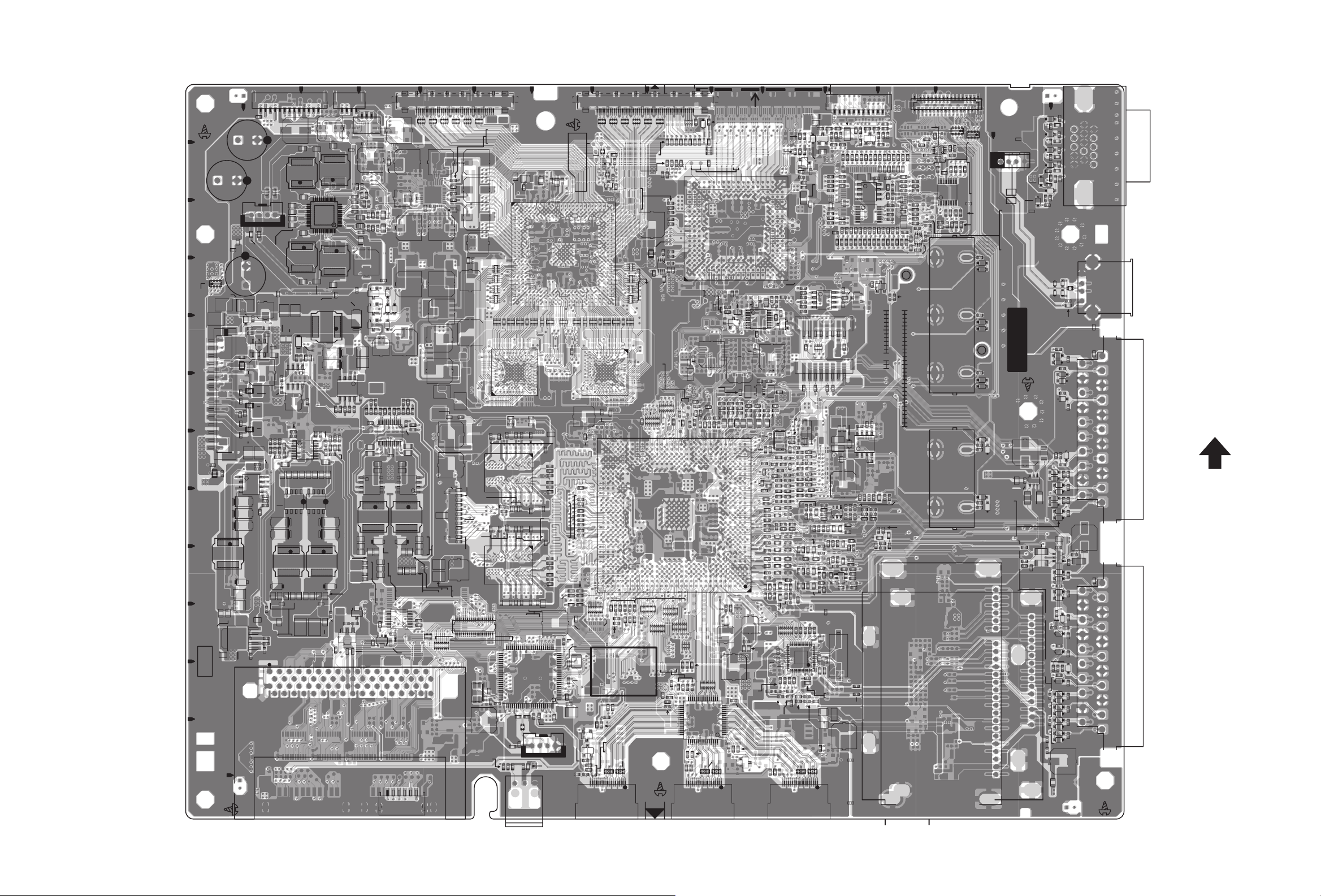

MAIN PWB PATTERN [SOLDER SIDE]

11

J2505

15

J3501

21

IP2525

IP2523

IP2521

J2502

IP2518

IP2516

IP2514

1

21

IP2512

IP2510

IP2508

J2501

IP2505

IP2502IP2501

1

P

6

1

O

41

CN3502

10

5

IP3504

N

IP3304

IP3325

IP3306

IP3309

IP3301

LC1008

IP3328

IP3326

IP3307

IP3302

IP3327

IP3323

IP3303

IP3305

LC1004

LC1004

LC1003

LC1008

LC1003

IP3503

LC4002

LC4001

LC4004

LC4003

R1264

R1264

R1225

R1225

R1224

R1223

R1265

R1265

R1223

X4101

R2847

R2847

313025

R2879

R2879

1

IP2529IP2528

4

R2849

20

151051 31302520151051

CL001

R2849

3

5

IP2527

1

IP2531

321 321

1

IP3505

20

IP2526

IP2524

IP2522

IP2520IP2519

IP2517

1261 1261

IP2515

2

TU2001

IP2513

20

IP2511

IP2509

IP2507IP2506

151

24

TU2002

IP2504IP2503

2

R2848

R2848

1

IP2530

R2083
R2079
R2080

R2033

R2082

R2081

C2018

C2054

R2030

K2001

R2060

R2027

R2028

R2086

R2090

R2057

R2093

C2025

C2028

C2027

R2061

C2030

R2032

R2034

C2046

C2031

TH2001

R2036

R2089

R2079

R2033

R2082

R2081

C2018

C2054

R2030

R2093

Q2001

R2036

R2083

R2080

R2060

R2086

C2046

R2090

C2030

TH2001

3

Q2001

R2031

R2032

R2035

R2034

R2061

Q2002

C2025

C2026

C2053

C2045

R2084

R2085

R2027

L2005

R2028

C2039

R2089

C2031

C2027

C2028

R2057

K2001

R2029

M

IP3322

IP3308

IP3316

LC1007

IP3324

IP1804

C4112

C4112

IC4101

LC1007

LC1009

C3833

IP1805

IP3401

LC4001

R3906

R3870

LC1009

R3943

R3903

Q3807

D3802

100

1

25

26

IP3319

IP1806

IP3312

IP3320

IP3315

IP3321

IP3318

IP3310

LC1005

LC1005

IP1802

IP1803

IP1801

R1224

R4182

C4111

R4182

R4181

X4101

C4111

R4181

2

CL002

4

6

R2857

R2856

R2853

R2853

R2874

IC2511

2

R2865

R2867

R2867

R2866

R2865

R2866

Q2521

R2868

R2868

Q2521

Q2520

R2882
R2522
C2585

4

R2535

Q2516

R2571

C2541

C2791
C2523
C2785

L2503

L2506

R2539

R2031

R2035

Q2002

R2038

R2039

R2041
R2040

C2026

C2035

R2041

R2038

C2035

R2040

R2039

C2053

R2037

Q2003

Q2003

C2051

R2042

R2042

C2052

R2043

C2036

R2044

R2044

L2005

C2037

L2006

C2041

C2038

R2050

R2051

R2050

C2056

R2053

C2056

R2052
R2053
C2042

R2029

R2043

C2037

C2036

C2039

C2038

R2046

R2045

C2040

L2006

R2046

R2045

C2040

R2048

R2047

R2049

R2051

R2049

R2048

R2047

C2041

Q2004

Q2004

R2052

Q2005

Q2005

C2042

R2054

C2044

C2043

R2054

C2044

C2043

R2056

R2055

R2055

R2056

C3834

IP3402

R5080

R4091

R3894

Q1011

Q1008

4

R2856

R2874

R2882

C2820

C2520

L2522

C3830

IP3403

IC4101

R2754
C2781

R2791
R2711

R2857

58

R2864

R2863

Q2520

R2831

L2523

C2810

R2512

R2092

C3835

R3890

Q3807

Q1011

Q1008

R2855

R2864

C2803

L2524

R2074

R1020

R1020

R2862

R2501

R2834

IP3404

LC4002

D3803

R1021

IC2511

R2862

R2801

L2517

L2529

R2076

IP3405

R3881

Q1010

1

R1021

R2855

R1280

C2588

L2526

IP3406

R3871

4

R2854

1

R2863

R2506

R2549

C2798

C2537

R2075

D3802

Q1010

Q1009

IP0003IP0002

IC2506

K2514

C2827

D2565

D2565

R1280

IC2002

R3072

IP3407

LC4003

D3803

IP1308

C1001

R2757
C2782

R2792
R2722

R2854

C2831

R2535

R2832

C2049

TP3015

TP3010

IP3408

R3859

C3821

K2514

C2827

C2525

R2512

R2091

L

IC1003

IC1003

IC1002

IP1307

IP1208

R1273
R1274
L1002
R1275
R1276

R1277

R1279

R1279

R2559

R2522

L2007

TP3011

IP3410 IP3409

LC4004

R5079

C3821

76

50

Q1009

5

8

L2510

C2585

Q2516

R2572

L2529

C2537

C2796

C2050

R2091

R2092

TP3012

R3048

IP3411

IP1113

D1001

C2805

R2539

IC2002

C3823

R4073

IP1306

C1001

D1001

L2503

R2571

L2526

R2796

R2074

Q3009

R3048

Q3008

75

51

R2692
C2775

R2787
R2688

R2844

R2802

C2541

C2566

R3889

R3891

R4069

R4199

R4198

R4197

R4196

8

IP1207

C2796

L2007

R2076

C2055

R3050

R3072

R3840

C1003

IP1305

IC1002

R1275

R1277

C2543

R2559

L2506

L2522

L2524

Q3009

Q3008

R3901

C1003

5

IP1304

R1273

R1274

L1002

R1276

C2791

C2523

C2785

R2525

K2512

C2050

C2049

R2075

C2055

Q3804

R3840

C4076
R4003
R4095
R4010
R4009
R4011
R4012

R1022

R1022

IP1303

R2844

R2530

C2580

C2820

L2517

R2796

C2005

R3050

R4069

Q1001

IP1202

L2510

L2523

C2810

K2004

51

R4066

R3876

Q3804

IP0008

R2831

C2798

C2516

C2566

C2727

K2004

C2004

C2003

K2003

D3010

R3839

R3923

K4011

Q1001

R1026

R1026
4

1

R2704

R2788

IC2505

R2699

C4811

IP1201

IP1206

IC1013

C2805

R2501

C2520

C2803

R2834

R2832

R2525

C2726

C2007

C2007

C2005

C2004

R2068

IC3006

TP3015

D3010

D3011
C3021
R3046

R4040

C2776

IC1022

C1024

C1065

R2802

C2603

C2588

C2047

R2063

TP3010

R3021

R3938

R4093

R3923

K4011

C4092

R1024

R1024

R2646
R2645
R2648

IP1302 IP1301

IC4811

C4811

IP1203

R1118

R1108

R2801

R2549

C2525

K2512

C2014

K2003

R2063

C3020

1

R3043

R3021

R3939

C3836

C4092

R1023

R1025

IC1022

IC1013

C2543

R2506

R2572

C2726

C2014

Q2006

TP3011

R3043

C4028

R1023

IP1205 IP1204

R1019

R1016

R1169

R1178

R2530

C2012

R3944

R3911

Q3805

K4003

R2750

C2548

C2727

C2012

R3046

R3924

R4094

C4067

C4026

Q2505
Q2508
C2644
C2723

R1025

C2732

R2841

IC4811

C1066

R1162

L2542

C2535

C2562

C2539

C2572

C2527

C2594

IC2509

IC3006

D3011

C3021

R3016

K4003

C4025

C4076

R4003

R4095

R1127

IC2509

Q2007

Q2006

R2065

R2065

R3016

C3022

D3012
R3047

R3874

C4028

R4010

R4009

R4011

R4012

R2635

C4812

R1006

R1003

R1127

C2565

K2503

K2504

R2735

R2735

C3020

TP3012

R3905

Q3805

C4067

C4059

C4059

C4027

C4012

R2639

R2646

R2648

R2750

R2754

C2781

R2791

C2730

C2730

C4812

K4811

RA1002

R1130

R1011

R1121

R1120

R1109

R1104

C2824

L2542

C2555

L2543

L2544

L2546

L2549

R2783

R2736

R2736

R2017

R2066
C2048

R2067

R2067

Q2007

R2064

R2064

K

C4027

C4010

C4038

R2645

C2732

R2711

R2725

R2725

R1099

R1182

R1179

R1177

R1174

C2556

C2521

C2010
R2016

C2011

TP3009

5

D3012

R3047

RA4012

C4068

C4030

C4077

C2723

1

C2779

R2654

K4811

RA1002

R1231R1230

C2553

C2751

R2676

C2752

C2753

C2755

C2758

R2782

R2066

D3009

D3009

TP3009

R3044

R3045

C3022

RA4006

RA4012

K4012

C4030

C4026

R4002

D2566

R2869

Q2505

Q2508

C2644

R2758

C2779

R2672

R1129

R1128

C2570

K2504

R2508

R2508

C2010

R2016

R2017

C2011

C2048

D3005

R2758

C2651

K2503

R2531

RA4011

RA4006

C4016

C4016

C4032

C4025

C4077

R4050

R4001

D2566

R2637

IC2506

R2721

R2721

R2654

R2661

C2658

C2651

R1001

R1056

R2675

C2826

C2587

C2518

R2531

C2021

D3005

TP3005

CN4003

RA4005

RA4011

C4014

C4014

C4032

C4012

C4038

C4049
C4050

C4040

D2567

C2508

R2790

R2790

R2656

R2671

R1255

IP1209

R1094

R1093

R1114

R1087

C2524

C2550

R2674

R2502

C2518

C2021

C2023

C2023

TP3014

TP3014

R3020

D3006

RA4010

RA4005

C4057

C4043

C4020
C4018

C4010

C4049

C4050

C4042

Q2507

R2759

R2759

R2656

C2667

C2652

R1232

C2590

C2586

C2823

C2554

C2573

C2559

R2502

C2022

L2003

C2024

C3017

Q3007

TP3005

D3006

RA4004

RA4010

K4012

C4068

C4020

C4018

C4040

C2724

8

C2780

C2780

R2664

C2652

R1095

R1089

R1173

C2550

C2604

R2563

C2559

L2003

1

TP3006

R3033

C4057

C4037

Q2503

C2645

R2724

C2665

C2656

R1227

R1168

C2590

C2578

L2004

C2024

C3017

R3020

RA4009

RA4004

C4043

D2567

R2647

C2737

C2782

R2722

R2724

C2656

R1095

R1173

R1168

C2604

C2554

R2563

C2022

K3001

IC3005

R3073

Q3007

TP3006

C4045

C4053
C4054

C4052

C4042

C4065

R2644

R2763

R2757

R2792

C2731

C2672

C3024

R3075

L2004

R3033

RA4003

RA4009

C4045

C4046

C4055

C4056

C4021

C4036

C4037

R2870

R2641

C2643

C2731

C2673

C2672

C2670
C2668

C2528

C2578

R3055

K3001

IC3005

R3038

J

RA4008

RA4003

C4046

C4053

C4054

C4022

C4052

C4039

C4065

R2643

R2695

R2695

R2692

C2775

R2787

C2697

C2697

C2673

C2674

C2670

C2668

C2693

C2695

C2599

C2573

C3024

C3028

K3007

K3008

K3008

8

R3073

R3038

Q3006

RA4002

RA4008

C4036

C4047

K4010

C2739

C2729

C2729

R2688

R2739

K2509

C2696

K2510
C1048

C2528

C3030

C3007

R3034

R3035

Q3006

K4008

R2739

K2515

C3026
C3032

C3028

R3055

C3001

C3010

RA4007

RA4002

C4064

C4033

C4017

C4022

C4021

C4039

C4051

C4041

C4041

K4010

K4024

C4090

R4044

C2739

C2710

C2710

1

R2742

C2777

C2777

C2771

C2771

C2669

C1030

C1055

C2599

C3032

K3007

R3076

R3076

C3001

C3010

C3019

D3007
C3018

RA4001

RA4007

C4064

C4033

C4019

C4031

C4048

C4047

C4035

R4043

R2741

R2742

C2694

C2694

C2695

C1031

C1059

C1057C1056

C2692

K3005

K3005

C3030

R3075

IC3007

C3011

C3007

D3007

C3018

1

RA4001

K4008

C4029

C4011

C4087

C2741

IC2505

R2789

R2741

C2835

K2509

C2770

K2508

C2693

C2669

C2696

C1032

C1054

C1060

C1058

C2691

C1048

C3026

K3006

K3006

R3071

C3033

IC3007

C3009

C3005

R5051

R5051

C4044

C4044

C4009

C4035

C4051

C4071

C2741

C2711

R2789

K2508

K1003

C2690

C3031

C3031

R3070

C3009

C3011

TP3007

TP3007

R2743

K1003

K1002

C3006

R5071

R5071

C4063

C4013

C4017

C4034

C4062

R2743

C2770

C2671

K2511

K2515

C2689

R3054

R3057

R3070

Q3010

D3013

D3013

C3033

C3008

C3006

D3008

R3036

C4063

C4034

C4062

C2711

C2778

C2778

C2671

R3054

C3008

C3019

R3036

C4015

C4019

8

R2740

C2835

C1039

C1040

C1041

R1090

R1113

K2510

C1034

C1033

R3071

R3018

TP3008

R3015

R3015

R5066

R5066

K4007

C4058

C4023

C2736

R2699

R2740

R2558

R2558

R2837

K1002

C2689

C1043
C1042

R3057

TP3502

C3004

R3041
R3037

R5065

C4011

C2705

R2511

TP3503

TP3501

Q3010

R3018

C3003

C3004

C3005

R3006

TP3008

CN4003

R5060

R5065

K4007

K4002

C4058

C4024

C4009

C4060

C4060

R2708

R2704

C2776

R2788

C2836

R2511

TP2505

C3840

TP2505

K2511

K3803

TP3502

TP3501

R3017

R3017

R3067

C3003

R3041

R3037

R5060

K4004
K4006

C2705

C2836

C2624

C2623

C2622

C2621

K3803

D3008

R5064

R5064

C4061

C2624
C2623
C2622
C2621

TP2501

C1044
C1049

C3840

C1051

C1043

C1042

TP3503

C3002

C3002

I

K4002

C4031

C3841

C1051

Q3011

R5063

R5063

C4023

K4004

K4006

C2736

RA3814

R3825

C3841

R3518

R3517

Q3011

K3002

R5062

R5062

C4024

C4029

C4061

K4005

C4093

C4093

R2708

TP2501

C1053

C1053

R1603

R1603

R3529

R3518

R3517

R3069

R3068

K3002

R5061

R5061

RA3814

R3825

C1044

C1049

C1557

C1557

R1602

R1602

R3529

R3528

R3528

K3009

K3009

L5002

K4005

L5001

IC4006

R4057

R4059

R4062

R4063

K5013
C5143
R5047

C5201

C3839

C1047

C1052

C1035

C1036

R3530

R3530

R3514

R3513

R3516

R3527

R3515

R3512

4

R4045

IC4006

R4061

L5001

L5002

C5001

R5019

C5001

C5143

RA5201

C3838

C3838

R3858

C1045

C1052

C1038

C1037

C1050

C1050

R3519

R3525

R3524

R3526

R3523

IC3008

R4046

C4088

C4089

C5092

R5021

C5205

C5205

K5013

RA5201

RA5208

R5046

R5204

K3802

K3802

R3858

K1504

K1503

C1046

C1555

R3509

R3510

R3511

R3510

R3516
R3527

IC3009

TP3013

IC4005

IC4005

C4073

C4085

K4025

1

R5019

R5021

R5201

R5047

C5202

RA5204

C3844

C3843

C3845

C1551

C1552

C1554

R3520

C3034

TP3003

C4072

R4056

C4079

R4051

C4084

R5201

RA5208

RA5207

RA5207

R1143

C1047

C1556

K1503

C1555

R3209

R3225

R3511

R3515

R3512

1

IC3004

TP3004

1

IC4004

R4053

C5088

R1143

C1045

C1553

C1554

C3015

C3015

H

R4058

R4055

R4054

R4052

C5088

RA5202

RA5202

C5150

C5151

C5152

RA5204

R1150

R1136

C3844
C3843
C3845

C1556

R3211

R3526

R3523

C3014

4

R3026

D3003

C4086

R4060

8

C4091

5

4

C5097

C5095

C5092

C1551
K1504

C1038
C1037

C1552

C1046

C1553

R1233

R1235

D3003

C4081

C5073

RA5205

C5149

C5153

R1151

R3211

RA3204

R3514

R3513

IC3008

TP3013

K4021

IC4004

C5104

C5093

C5091

C5091

RA5205

C5148

C5155

R5043

RA5203

R1135

R3225

R3525

R3524

IC3009

C3034

IC3004

R3026

C5073

R5041

R5041

C5145

R1133
R1132

R1238

R1234

RA3204

RA3202

C3014

TP3003

R3014

R3014

C5085

R5203

C5148

R5202

R1133

R1132

D3004
R3027

K4023

C4082

C5003

C5086

C5101

C5096

C5072

R5203

R5042

RA5203

R1237

C1019

C1019

R1233

R1235

R1234

TP3002

TP3004

D3004

C5087

C5098

C5094

RA5206

C5145

R5042

R1237

R1238

RA3202

D3001

R3024

R3025

R3027

C5007

L5003

C5090

C5089

RA5206

K3504

D3001

TP3002

C5007

L5005

K5007

C5071

C5070

C5068

C5161

C5203

C1063
IC1020
R1266
IC1021
R1268

TP1501

5

C3016

K5002

K5004

C5068

C5204

C5204

C1063

R1266

IC1021

R1268

R1516

R1526

R1521

R1512

R1519

R1527

R1514

R1528

R1518

R1525

R1509

R1511

R1517

R1515

R1513

R1520

TP1501

R1236

R1148

R3533

K3504

R3019

R3023

C5008

C5008

L5004

L5010

C5024

C5067

RA5038

R5045

R5045

IC1020

K1505

R3519

Q3502

Q3502

R3533

R3019

TP3001

D3002

R5012

C5009

C5009

K5003

C5074

C5102

C5064

C5069

RA5213

R5044

R5044

R1236
R1148
K1505

R3509

R5012

C5099

C5066

RA5038

C5208

RA5213

RA5210

RA5212

C1062

C1062

C1064

R1267

R1267

R3520

R3555

IP3502

R3023

TP3001

D3002

C5208

C5010

C5010

C5065

R5017

C5062

C5063

RA5212

R1516
R1526
R1521
R1512
R1519
R1527
R1514
R1528
R1518
R1525
R1509
R1511
R1517
R1515
R1513
R1520

R3209

C3513

R5008

K5009

L5012

RA5036

RA5036

RA5209

C5206

C5206

C1064

R1504

R1504

R3555

R3546

R3546

C3512

G

F

CN5003

L5013
K5010

X5001

L5013

L5008

K5010

K5006

X5001

R5013

R5016

C5076

C5019

R5009

R5011

C5018

C5014

C5020

C5017

C5016

C5015

R5002

C5023

L5014

C5032

C5030

K5011

L5019

C5031

C5013

C5033

C5034

L5018

C5035

R5004

C5040

C5039

C5038

C5061

C5041

C5075

C5045

C5057

C5046

C5052

C5047

C5051

C5059

C5058

C5055

C5060

C5050

C5054

C5056

C5053

C5053

C5054

C5212

C5212

C5209

R5035

C5209

R5035

C5118

RA5210

RA5209

R5034

R5037

R5034
C5125

C5125

RA5211

C5128

R5037

RA5211

C5207

RA5219

C5211

C5211

C5207

RA5219

R1503

R1601

R1503

R1559

R1561

R1561

R1559

R1558

R1558

C1515

C1525

C1515

C1522

C1525

C1522

R1576

R1574

R1573

R1576

C1546

L5008
K5006

C5076

C5021

C5029

C5036

C5042

C5044

C5050

RA5216

RA5216

R5206

C5128

R5207

RA5218

R1560

R1562

R1560

C1512

R1572

R1570

C5021

C5028

C5029

C5048

R5206

C5123

R5040

R1601

R1562

C5027

R5036

R5036

R1563

R1563

C1512

R1568

C5037

C5037

C5043

C5049

C5122

C5130

RA5218

RA5215

R1565

R1565

R1567

C5027

C5025

C5025

C5049

RA5217

RA5217

R1564

R1564

R1566

C5043

C5120

RA5215

C5028

R5024

C5121

C5119

R5003

L5016

R5003

R5022

RA5220

RA5220

R1574

L5016

R5205

L4505
L4506

R5024

R5022

C5213

R5038

R5039

K5012

R1573

C5004

C5213

R5208

R5208

RA5221

RA5214

C5210

C5117

C1504

R1572

L5011

K5008

C5214

RA5221

RA5214

R5039

C5117

K5012

C5210

C1504

R1570

L4504

L5011
K5008

C5004

R1568

C1546

R1581

R1585

R1584

R1583

R1582

R1580

R1579

R1578

C1539

R1596

R1578

C1532

C1549

C1532

C1542

C1529

C1529

C1539

C1542

R1596

R1594

R1593

R1592

R1590

R1588

R1587

C1549

R1593

R1592

R1590

R1594

R1588

R1583

R1582

R1581

R1580

R1579

R1586

L1001

R1587

R1586

L1001

C3517

C3516

C3517

C3516

C3511

C3511

R3534

C3512

R3534

R3508
R3507

4

C3508

C3507

K3505

CN3501

C3523

C3508

C3523

R3537

R3537

C3507

R3508

R3507

C3522

C3515

C3514

C3513

R3544

K3505

C3514

C3515

R3544

IP3501

1

IC2507

1

3

C3522

C3518

R2778

C2764

R2778

C2764

5

C3521

IC2508

C3521

IC2508

4

1

C2773

C2765

C3518

R3538

R3538

R3503

R3501

IC3502

R3503

R3501

K3502

C3503

C3503

E

CN5003

17

IP5002

IP5001

L4505

L4506

L4504

L4503

L4503

C4543

C4543

R5209
R5210

K5001

K5001

K5201

C5214

K5201

C1560

C1560

5

8

IC1504

R1532

R1551

R1567

R1566

R1531

R1555

R1554

R1556

R1535

R1533

R1544

R1539

R1585

R1584

2548

C1004

C1004

R3505

C2773

C2765

R3506
R3502
R3504

K3502

IC3502

8

R3547

R3547

IP5007

IP5006

IP5005

IP5004

IP5003

X4501

R4622

X4501

C4529

C4526

R4505

R4506

R4528

31

40

1

R4529

R4530

R4531

IC4501

R4532

R4533

R4534

R4535

10

C4515

R4504

R4502

R4537

R4536

R4501

L4501

C4512

C4506

C4511

R4542

L4501

C4511

C4512

C4506

R4542

R4549

K4503

K4501

K4501

C4544

K4503

R4549

C4544

IC4502

5

41

C4542

IC4502

8

C5217

C4541

K5202

R5209

K5202

R5210

C5219

C5215

C5220

C5215

4

C5221

IC5201

1

C5217

85

IC5201

R4743

4

IC1504

1

C1508

R1532
R1551

C1508

R1531
R1555
R1554
R1556

C1509

R1535
R1533

C1509

R1544
R1539

IC1005

IC1005

33

34

67

68

R3505

R3506

41

R3502

Q3501

R3504

K3501

C3501

K3501

C3501

IP4202

IP4201

1

CN4101

R4622

R4510

R4510

20

C4516

R4541

R4541

C4540

C5221

Q3501

IP4203

R4511

R4511

C4519

C4548

C4542

Q4551

C5219

11

IC4501

C4519

C4548

R4577

10

IP4204

Q4601

Q4601

R4513

R4519

R4521

R4527

C4508

C4507

R4526

K4502

K4502

R4579

Q4551

R4577

C4738

IC3203

IP4205

C4610

L4502

D4551

R4744

D4731

R3241

C4608

R4620

L4502

K4504

C4540
C4541

R4579

D4551

D4731

R3241

IP4206

CN4101

C4612
R4623

R4624

R4514

R4520

R4522

R4578

R4743

C4738

C4740

IC3203

R4624

R4525

R4524

K4504

D4553

D4552

R4578

IP4207

R4744

R3245

R3245

C4612

R4552

R4515

R4517

D4553

D4552

R4575

C4737
R4747

C4740

C4741

R4623

R4678

R4678

24

1

1

20

IP4208

R4518

C4737

D

IP1501

1

4

C4610

C4608

R4620

R4618

R4552

C4528

C4535

C4536

C4527

Q4553

Q4553

R4664

R4664

R4665

R4660

R4662

R4663

R4659

R4661

R4574

R4574

R4575

R4747

R4745

R4745

D4732

C4741

D4732

MARK

UL

Q1005

Q1005

R1042

R1041

R1041

C1005

C1005

R1039

R1039

R1040

R1040

R3244

R3243

10

C3203

C3203

IC3204

IP0004

IP4209

IP4210

IC4602

IC4602

R4619

R4617

R4551

Q4552

R4516

R4674

R4665
R4660
R4662

R4663
R4659
R4661

R1042

R3242

10

C4609

C4607

R4675

C4607

R4619
R4617

R4551

R4674

R3244

IC3204

R3227

C4609

Q4552

R4676

K4871

Q1013

IP1502

C4682

R4677

R4675

R3243

R3227

R4677

K4871

C4873

1

R3226

C

IP1401

Q1013

IP1504

IP1503

R1294 R1295

C1075

IP1406

IP1407

IP1405

C4617

R4629

C4606

R4628

C4616

R4630

R4627

58

R4630

R4627

C4682

C4662

C4662

R4682

R4682

C4677

C4677

R4679

R4676

R4679

R4834

K4872

Q4833

R4834

D4833

K4872

Q4833

D4833

Q4832

R4838

R4838

R4836

R4877

C4873

R4835

D4832

R4877

Q4832

R4836

D4832

R4835

R4826

R4821

D4831

R4795

R4794

R4833

R4795

R4794

Q4774

Q4773

Q4774

C4778

R4793

Q4773

C4778

R4793

N

A

CN3201

R3238

R3238

R3242

R3240

R3240

1

10

C3204

IC3202

C3204

R3226

IC3202

IP0001

IP1103

IP1101

IP1102

IP1104

B

IP1411

IP1409

IP1410

IP1408

IP1403

IP1404

IP1402

IP1413

R1213

R1205

R1213

R1205

R4628

C4616

C4668

C4671

IP4604IP4603

IP4600

1

4

CN4651

3

IP4602

IP4601

C4680

C4683

C4683

R4837

R4837

D4834

R4822

R4826

C4773

D4822

R4822

D4821

C4773

R4785

R4785

D4821

D4834

C4823

D4831

D4822

C4775

R4823

R4821

R4833

C4772

R4774

C4775

C4823

C4815

R4774

C4706
R4708
C4704

C4705

R4823

C4824

C4771

R4775

C4824

C4815

Q4831

R4776

R4775

R4843
R4842
R4844

Q4831

R4776

C4844

C4814
K4812

R4814

R4832

C4813

IC4812

C4814

C4772

R4858

C4844

R4858

R4843

R4842

R4844

R4845

Q4811

R4811

IP4705

C4851

IP4706

Q4812

R4852

IC4812

IP4708

R4813

K4812

IP4709

R4853

IP4710

R4853

R4831

R4854

R4854

R4832

R4831

C4771

IP0007

IP0006 IP0005

R4709

R4709

C4703

C4706

C4703

R4708

C4704

R4710

C4705

R4710

R4701

R4701

R4711

R4707

D4705

R4711

D4705

Q4701

Q4701

R4706

R4705

MAIN PWB

R4706

R4705

LCB10896 -001A

1

2

35

36

IC3201

10

1

C3202

IC3201

C3202

20

11

IP1109

IP1106

IP1110

IP1111

R1247

R1246

R1241

IP1108

IP1107

IP1105

CN1001

R3802

C3201

C3201

R1242

R3802

K1004

R1247

R1246

R1242

R1241

K1004

IP1112

121

13

CN1001

A

R3804

IP4702

IP4703IP4701

IP4704

LC4856

IP4707

R4860

LC4857

IP4715IP4714IP4713IP4712IP4711

R4707

1

2

R3804

45678911

LC4856

R4860

LC4857

10

SIDE.B

12

(No.YA690<Rev.001>)2-45 2-46(No.YA690<Rev.001>)

TOP

MAIN PWB PATTERN [PARTS SIDE]

A

CN1004

#PC00010

#PC00001

13

1

2

C4671

C1076

C4668

C4671

CN4651

3

456789 11

LC4858

R4847

R4859

R4859

1

CN4701

15

C4855

C4855

LC4855

SIZE:191x244

R4848

LC4855

D4703

D4702

LC4858

D4701

CN4701

R4855

R4855

R4847

IC4701

K4655

K4702
K4701

1

4

CN4651

1

K4652

K4651

K4655

K4651

C4681

C4681

C4680

R4848

R4861

D4861

R4849

R4850

IC4842

IC4842

R4851

1

LC4851

C4880

LC4852

C4853 C4852

LC4853

R4812

R4857

R4856

LC4854

C4854

C4701

C4701

C4702

K4702

K4701

IC4701

D4703

R4704

D4702

R4704

D4701

L4701

L4701

D4776

D4704

D4704

C4709

10

C4709

C4708

K4704

K4703

SIDE.A

K4704

C4881

K4703

IC4881

R4792

C4708

C4882

IC4881

1

C4883

12

13

#PC00012#PC00011

K4653

K4652

C4861

K4841

R4841

C4880

LC4853

LC4854

C4702

8

5

R4882

R4884

B

C4668

K4653

C4667
C4669
C4670

C4672

C4680

4

LC4852

R4788

R4788

R4790

5

C4707

R4702

R4703

L4772

R4792

R4883

1

35

K4654

4

C4861

C4843

R4824

R4787

Q4772

K4773

2

36

K4654

D4776

C4614

R4685

R4685

R4846

C4821

R4787

R4789

D4774

D4775

K4773

K4873

R4825

C4794

C4794

R4786

C4795

5

K4772

C4801

C4799

K4772

C4801

L4653

C4663

C4676

L4652

C4878

K4873

R4825

R4824

R4773

R4773

C4774

R4777

C4783

4

C4799

C4878

K4874

4

R4771
R4772

81

C4796

C4796

K4874

C4782

L4772

CN1004

R4771

R4772

R4777

Q4772

C4797

C4614

C4667

C4669

C4670

C4672

C4879

C4879

C4781

D4774

C4797

L4654

L4651

4

5

R4871

R4781

R4782

C4785

C4785

R4779

R4791

C4666

48

R4680

R4871

C4874

L4771

R3252

R3239

13

C4874

R4780

R4783

C4749
C4747

4

12

1

L4651

K4734

D4871

C4875

C4875

C4798

IC4651

R4684

D4872

IC4871

R4873

R4873

R4754

R4755

C4751

K4733

R3252

Q3203

R3259

CN1005

L4654

R4673

R4667

C4659

C4788

R3258

R4681

R4872

1

4

L4732

1

C4661

R4666

C4656

R4684

D4871

C4871

C4872

8

R4872

IC4731

C4743
C4745

C4787

Q3204

R3254

R3254

Q3203

C4678

Q4652

C4871

C4872

1

C4876

C4660

R4671

C4658

C4657

Q4651

Q4653

C4751

C4749

C4747

R4750

R4751

C4786

CN1005

CN4652

R4621

TL4501

R4670

R4669

C4679

C4876

R4739

K4771

Q3204

R1163

R3259

CN4652

C4611

C4611

TL4501

R4668

C4654

C4653

R4735

R4738

R4754

R4755

Q4732

K4734

R4749

R4748

C1029

R3258

R4654

R4653

Q4651

Q4653

Q4652

C4551

C4736

L4732

R1163

IC1023

1

R4734

C4732

K4733

R4652

R4651

13

TL4502

C4679

R4683

D4555

D4651

D4554

R4742

C4743

C4745

D4734

C4753

C4755

C4757

R4750
R4751
R4749
R4748

8

C1029

D

TL4502

C4652

C4652

C4651

C4651

C4551

IC1023

C4613

C4613

L4507

L4507

C4517

R4683

D4555

D2569

D4651

D2569

D4554

C4550

R4733

R4746

R4740

C4734

C4733

IC4731

24

C4739

C4742

C4744

5

8

Q4732

D4733

D4734

D4733

C4756

C4753
C4755
C4757

IC1018

R1245

IC1018

C1069

R1245

C

C4615

1

C4615

C4665

C4664

L4653

C4663

IC4651

C4676

L4652

C4675

C4673

C4674

C4673

C4674

C4675

R4680

L4871

L4871

D4874

D4874

D4872

R4876

R4875

R4874

C4877

D4873

IC4821

D4873

IC4821

IC4871

81

C4822

C4822

C4821

C4776

C4777

R4778

IC4771

C4777

C4776

16

C4784

R4784

R4778

IC4771

C4779

9

R4779

C4793

C4792

C4791

C4790

C4780

1

4

1

Q4771

Q4771

8

5

D4771

D4771

D4772

D4772

L4771

D4773

D4773

K4771

C4798

C4788

C4787

C4786

C4802

C4802

R4791

C4789

R4797

R4799

C4789

R4797

R4799

R3239

CN3201

CN3201

C4538

C4538

C4537

C4546

C4550

R4733

R4736

R4753

R4752

K4732

C1069

C4517

C4537

C4546

C4731

C4731

R4737

C4735

C4735

Q4731

L4731

C4754

7

1

R4731

C4742

C4744

K4731

R4741

C4752

C4534

C4539

R4885

R4732

R4753

R4752

C4746

C4748

C4750

R1244

RA1004

RA5072

R4731
R4732

R1243

RA5072

K1506

Q4731

14

L4731

C4756

33

67

C4505

R1244
R1243

C4510

C4509

C4545

C4754

RA1004

34

68

RA5073

RA5073

C4503

R1552
R1540
R1545

R1542
R1538
R1534

C4746
C4748
C4750

C4752

E

C4539

R4885

RA1003

RA5074

C4503

D4501

C4509

C4545

C5216

C5218

K1501

C1506

C1503

C1507

K4732

RA1003

RA5074

K4731

20

C4525

C4518

C4514

C4513

K1506

R1537

RA5075

D4501

C5216

C1505

C1502

R4796

R4798

40

CN5001

RA5075

K5005

C5218

R4881

R1553

K1501

R1553

R1552

R1540

R1545

R1543

R1536

R1542

R1538

R1534

R1541

R1537

C1561

RA5076

R1598

R1541

CN1006

RA5076

K5005

C5006

C5005

R4881

R1598

C1505

C1502

R1543

C1536

C1561

C4504

C4501

C4502

C5002

L5006

148

C1521

R1536

C1534

148

X3501

C3502

16

CN1008

CN1008

RA5077

RA5077

L5006

C5006

141

C1524

C1523

C1535

141139

139

CN1006

X3501

R2781

R2779

C5005

1133

C3502

C4525
C4518
C4514
C4513

RA5045

RA5040

K1502

C1501

C1519

C1520

C1536

C3520

C3520

C3519

C2774

C4504

C4501

C4502

C5002

RA5045

RA5044

RA5041

RA5040

RA5047

RA5047

R1550

1

21

51

75

C1517

C1520

C1534

C1537

50

R3545

K3503

RA5044

R5025

R5025

C1537

R2779

1

A

RA5041

AF

RA5046

RA5046

K1502

C1501

C1518

R1550

C1535

C1538

76

K3503

R2781

F

141

C5022

L5009

C5022

1

RA5043

RA5043

IC5002

C1516

IC1502

C1521

C1524

C1523

C1533

IC1503

C1540

C1538

C1541

C1540

R3543

LC3502

C3524

C3524

C2774

CN5001

C5026

C5011

C5026

L5009

C5011

R5001

R5023

RA5048

RA5042

RA5035

RA5048

RA5042

RA5035

R5023

144 12

IC5002

R1501

R1501
R1502

R1502

C1558

C1558

C1514

C1513

C1511

C1511

IC1502

R1569

R1571

R1575

91

R1577

C1527

C1526

C1527

C1526

C1533

C1531

C1530

C1531

C1530

C1528

C1528

19

IC1503

R1589

R1591

R1595

R1597

R3272

C1559

R3269

C1541

C1544

C1543

R3271

C1543

C1559

C1544

IC3501

IC3501

R3542

R3540

R3541

R3540

LC3502

CN3501

K2502

C2725

K2502

C2725

3

IC2507

IC2507

RA5025

RA5034

C3847

Q3005

Q3004

R3074

R3031

R3032

RA5078

TP5004

RA5024

RA5031

RA5031

R1131

596

567

RA3203

R3028

TP5005

TP5003

R3029

Q3004

H

RA5079

RA5078

RA5079

TP5002

TP5001

RA5025

R5015

Q5002

R5075

RA5024

R5074

R5014

Q5001

26

IC5001

R5020

RA5030

RA5027

RA5030

RA5027

R5020

IC5003

K3804

C3842

K3804

C3842

R1131

R3274

R3270

R3222

TP3201

R3220

TP3201

R3268

R3220
R3268

SFY-1003A

R3049

R3039

R3049

R3039

R3040

R3040

R3030

R3029

R3030

R3028
R3031

R3032

DA3002

DA3001

DA3001

J3001

R5077

R5068

R5018

R5018

RA5080

RA5080

R5054

R5069

R4015
R4023
R4024

R4025
R4026

RA5026

RA5026

R3273

R3279

R3279

DA3002

R5055

R5070

RA5028

RA5029

RA5032

RA5033

IC5003

1331

R3275

R3277

R3277

C5222

J3001

RA5081

R5056

R5078

IC4003

RA3812

R3827

R3276

R3531

R3531

RA5081

R5057

RA5028
RA5029
RA5032

RA5033

R3827

R3554

R3554

CN5002

RA5082

R5053

RA3501

RA5082

R5058

C5222

LC5021

TP2504

RA3812

RA3501

RA3502

RA5083

R5059

R5076

R4049

TP2503

TP2502

TP2509

R3053

R3003
R3004

RA5083

R5076

R4064

RA3813

RA3813

RA3502

R3064

R3065

R3053

R3002

R5077

R5078

R5067

IC4003

K4022

R3013

R3002

R3003

R3004

R4023

R4024

R4025

R4026

R4022

R5067

R4021

C4074

R3012

R3065

G

51 1

TP5004

TP5002

TP5001

TP5005

C5012

TP5003

L5007

L5007

C5012

IC5001

RA5039

RA5037

RA5039

RA5037

RA5034

R5211

12 144

R5211

C3847

R1134

C1519

C1518

C1517

C1516

C1514

C1513

R1134

R1569
R1571

R1546

R1546

R1575

R1557

R1557

R1577

R1547

R1547

R1507

C1510

R1507
C1510

R1508

R1510

R1508

R1529

R1510

R1530

R1529
R1530

R1523

R1523

R1524

R1524

R1589
R1591

R3224

R1548

R1548

R3221
R3210

R1595

R3223

R1597

R1549

R1549

R3272

R3224

R3269

R3221

R3210

R3271

R3223

K1001

K1001

RA3203

R3536

C1070

C3510

R3536

C3509

26

25

C3509

C3510

R3535

R3535

C3506

C3506

1

C3504

C3504

100

C3505

R3539

C3505

Q3005

41

R3074

CN3501

R3061

R3061

19

R5054

R5068

R4015

LC5021

R4048

C4083

R3828

IC1001

RA3503

R3011

R5055

R5069

33

48

I

R5056

R5070

1237

K2501

R3826

TP2509

RA3503

R3064

19

C2703

TP2504

R2562

RA3504

R3551

R3013

32

49

RA5084

R5057

R2649
R2652

R3270

R3550

R3062

R5053

TP4011

K2501

C2703

TP2503

TP2502

R2513

R3222

RA3504

RA3505

R3012

R3007

R3042

R5050

R5058

C2701

C2701

C2833

R2557

R2568

R3274

RA3505

R3549

R3011

R3005

R3042

R5059

TP4010

TP3801

C2761

R2533

C2833

C2834

C2837

R2527

R3273

R3551

RA3001

R3007

D5001

C2625

IC3001

C5103

C2839

R2861

R3275

R3550

RA3001

R3005

J3002

R5052

R5073

R4008

R2878

IC2504

C2838

R2542

R3276

R3549

DA3003

R5073

R5072

R4008

R2878

C2761

C2627

R2860

C3029

DA3003

RA5084

R5050

C5103
R5072

R2650

C2840

R2574

R2001

17

64

DA3004

DA3004

CN5002

D5001

R4041

R2649

R2652

R2650

Q2509

C2626

R2655

C2649

R2001

C3029

R2673 R2670R2669

R3008

J3002

J

R5052

TP4011

IC4001

C4078

C2647

Q2509

R2660R2659

C2666 C2664C2663

C2648

R2002

C3025

16

IC3001

1

R3009

TP4010

R4042

C2655

R3001

R3001

R3010

C2647

8

C2626

R2533

R2002

R2070

1

C2733

C2653

C3027

K3004

Q3002

LVDS

IC4001

TP4004

Q2506

R2602

C2625

R2663R2662

C2660

R2667

C2657

C3023

C3023

K3003

C3025

R2072

R2071

R3008

R3009

Q2506

5

130

R2073

R2602

C2733

R2612

R2668

R1055

C1072

C1073

IC1001

C3027

K3004

R3010

Q3002

IC2503

IC2503

R2612

C2846

C2654

C1012

R2548

RA2001

K3003

R2019

IC2504

1

R1229

C1073

R1002

R2666

R1055

C1072

R1149

C2574

C2538

R2548

R2505

R2505

C2009

R2018

C2507

R2613

C2650

R1005

R1175

R2022

R3063

R3910

TP4004

9

C2627

R2657

C1012

C1013

C2750

C2749

C2675

C2676

C2754

C2757

C2756

C2760

C2759

C2748

R2561

R2553

R2553

C2008

R3063

R3847

R2636

C2762

R2880

R2881

C2845

C2542

C2547

C2547

IC2001

R2019

R2069
C2019

R3052

256

R2638

C2509

R2601

Q2513

R2613

R1004

C1074

C1067

C2589

C2008

C2009

R3052

19

R3848

R2634

R2634

16

K2506

X1001

L2541

L2540

L2545

L2548

L2547

L2551

L2550

L2539

L2514

L2513

L2513

25

36

R2070

R2018

R3051

R3051

R3945

TP4005

R2784

K2506

R2880
R2881
C2845

R1091

R1183

R1165

R1180

R1172

R1170

RA2001

R2022

R3940

Q2513

R1017

R1098

R1112

R1119

R1116

R1123

R1106

R1110

C2584

C2546

R2517

R2554

C2605

C2534

C2568

C2522

C2597

C2564

24

R2071

K

C2762

X1001

R1008

R2805

R2806

C2536

R2072

R2069

C2019

C2020

DA3005

R1009

R1124

C2561

C2595

Q3808

20

C2551

C2819

C2526

C2536

C2020

R4039

R4037

R3910

TP4017

TP4016

TP4014

TP4012

TP4009

TP4007

TP4008

TP4005

C1002

R1271

R2007

R2007

R2073

R2023
R2024

TP4015

TP4013

TP4012

TP4009

TP4007

1

R1226

1

R1146

C1002
R1008

R1228

R1007

L2502

L2520

R2526

R2516

R2556

R2515

R2025
R2026

R3945

R3847

Q3808

R3846

R4016

R4013

C4066

TP4017
TP4015
TP4016
TP4013
TP4014

TP4008

R1154

R1152

R1153

R1146

R1097

R1096

R1092

R1088

R1171

R1176

R1181

R2798 R2797R2795

R2006

R2006

IC2001

R2023

R2024

DA3005

J3003

CN3804

R3940

R3848

R4014

R1156

R1155

R1157

R1226

S1001

R1010

R1018

R1126

R1125

R1111

R1117

R1107

R1122

R2803

R2519

C2797

C2567

C2808C2807

R2005

R2005

R2004

C2013

K2002

R2025

R2026

DA3006

R3909

K4009

1

4

R1212

C2804

C2569

R2004

D3801

S1001

R2518

L2520L2518

L2511

R2003

48

C2017

L2008

L2001

R3066

R4039

R4037

D3801

C4066

K4009

IC1004

RA1001

R1144

R1144

L2502

C2515

C2549

L2521

C2545

C2529

L2511

R2003

12 1

C2015

DA3006

L

C3848

11

R3869

R3867R3865R3860

C3848

C3824

R3892

R3868

Q3802

R4072

R3885

Q3802

C3817

C3817

C2787

C2540

C2793

C2560

C2530

C2006

C2002

C2015

C2017

R3066

111

R4161

R4101

R4107

R4154

R4152

R4153

R4151

IC4102

R4168

R4149

R4150

K4101

C4102

IC4103

C4102

K4101

R4169

R4148

R4145

R4147

R4144

R4138

R4137

R4146

R4143

R4142

R4134

R4133

R4141

R4142

R4141

R4134

R4133

C1023

85

R1158

C1023

IC1004

R1158

R1159

R1159

CN1003

CN1003
8

R1250

RA1001

R1250

CN1002

CN1002
8

R1147

R1145

R1147

R1145

K2520

K2519

D2568

C2843

8

K2519

K2520

C2843

C2841

D2568

C2841

K2521

K2521

C2830

C2830

Q2518

R2812

Q2518

R2565

C2822

C2813

R2813

R2547

L2501

C2821

L2512

R2804

C2575

C2581

C2806

C2552

R2521

R2799

L2525

R2524

C2812

C2532

R2835

L2527

R2566

C2519

R2829

C2788

C2802

C2817

R2545

Q2514

C2802

R2807

Q2514

R2807

R2529

R2843

R2843

X2001

C2006

C2001

X2001

C2016

C2016

R2088

C2013
K2002

C2057

R2087

C2057

L2008

L2001

C2032

C2032

R2842

R2842

J3003

R2876

R2876

R4162

1

R2509

C2794

R4163

1

R4139

R4132

R4132

Q1002

R2871

1

R2824

R2825

R2520

R2817

R2819

TU2002

C4121

R2538

C2532
R2509

R3904

R3908

R4164

R4140

R4131

R4131

Q1002

R2538

R2088

R2087

CN3804

Q3801

C4121

R4130

R2872

R2871

IC2512

C2842

C2593

R2816

R2829
C2817
R2817
R2819

C2794

R4165

R4136

R4130

R1272

C2593

Q3801

IC4102

IC4103

R4135

R4129

R4129

R2872

R2833

R2833

C2816

R2828

L2508

R4166

R1272

Q1012

C2844

C2844

C2842

C2809

R2822

R2810

R4167

R4156

R4127

R4127

45

C2809

R2570

R3873

R4090

R4155

R4128

R4128

IC2512

L2504

C2825

C2531

R2570

R4102

R4108

C4123

Q1012

L2504

C2811

C2811
R2836

R3907

R3884R3879

R3899

R4126

R2816
C2816

R2828

C2533

L2508

R4083

R4103

R4109

C4101

R4157

R4126

C2598

C2598

R2836

1

C3826

R4083

C4132

R4110

R4185

R4186

C4131

R4189

R4158

R4125

R4125

R2528

R2528

L2515

R2503

R1293

1 6 121261

1 2 3321

R3907
R3884

R4090

R4104

R4111

R4184

R4183

R4187

R4188

R4159

R4124

R4124

L2515

R2503

R1292

R4105

R4112

R4160

R4123

R4123

C2822

R3899

K4102

R4171

R4115

C4114

R4121

R4121

R2812

R2822
R2810
C2825

C2531

29

30

C3826

R4106

R4113

C4113

R4192

R4122

R1293

C2533

M

R4117

R4118

R4122

CL002

R2824

R4116

R1292

1 5 10 15

151051

20

20

25 3031313025

TU2002

TU2001

R4194

R4195

R4173R4172

R4174

CL002

R4193

R1290

TP4109

R4170

R4114

R4120

R4119

R4175

R4176

IC4104

R4190

IC4104

J2503

IC1024

R1284

TP4101

TP4103

TP4107

TP4105

R4191

1

C4133

2

4

6

J2504

TU2001

CN1007

R1291

R1287

R1286

IC1024

C1071

TP4110

R1222

TP4102

TP4104

16 1

TP4108

TP4106

R1203

2

4

N

CN1007

LC1001

LC1002

LC1002

TP4109

R1289

R1285

R1288

1

R1257

R1263

R1262

R1256

C1028

98

IC1017

IC1017

R2845

R2845

R1192

R1208

R1202

R1282

R1206

R1204

R1270

R1270

R1210

R1283

R1203

J2503

1

J2504

3

LC1001

TP4101

TP4103

R1192

1

3

5

D2543

C2677

R2678
C2677

D2546

C2678

R2679
C2678

TP4110

R1202

R1204

R2682

R2683

CL001

R2684

R2678

R2679

1

2

R2780

R2780

CN3502

TP4102

CN3502

TP4104

1 0

R1282

R1208

TP4108

TP4107

R1283

R1210

R1206

LCA10896-

TP4106

TP4105

R2682

D2537

D2537

D2538

D2538

PbF

R2683

D2539

D2539

D2540

D2540

CL001

R2684

D2541

D2541

D2542

D2542

C2641

D2543

D2544

D2544

C2767

C2767

D2546

D2545

D2518

D2545

D2523
D2516
D2521
D2525
D2519
D2522
D2520

D2527

D2508
D2509
D2503
D2507
D2504
D2505
D2502
D2506

O

#PC00014

#PC00013

P

11

6

1

R2582

D2515

D2515

C2610

L2552

D2514

R2581R2580

D2514

C2609

L2553

D2513

D2513

C2608

L2554

R2579

D2512

L2556

C2607

41

D2512

D2571

R2578

L2557

D2571

R2576

R2786

D2511

D2511

D2570

R2577

C2606

D2570

R2846

R2785

R2846

R2785

10

5

15

MAIN PB ASS'Y

J3501

D3502

4

LC3501

D3501

D3501

D3502

LC3501

D3504

D3503

D3503

D3504

C3525

K3506

1

R2877

C3525

R2877

K3506

R2607

J2502

R2596

R2793

D2524

R2852R2851

C2034

R2607

R2794

R2794

D2524

R2599

C2688 C2687 C2686C2685 C2684C2683 C2682 C2681

IC2501

R2540

R2588R2587

R2552

R2536

R2677

R2504

R2507

D2501

#PC00016

R2541

C2506

R2588

21

20

K2523

2

1

C2640

C2640

C2506

J2501

21

20

K2522

2

1

#PC00015

C2504

R2551

R2551

R2546

R2543

R2543

C2641

C2504

C2505

C2505

R2611

R2611

D2559

D2559

D2560

D2560

R2596

D2561

D2561

D2562

D2562

R2793

D2563

D2563

C2679

R2591

C2615

R2591

C2679

C2615

R2599

IC2502

D2518

IC2502

D2523

D2516

D2521

C2680

D2525

D2519

C2680

D2522

D2520

C2766

C2766

C2502

C2503

C2502

IC2501

C2501

6

1

R2544

C2501

D2536

D2536

D2535

D2535

D2533

R2537

D2533

D2534

D2534

D2510

15

R2550

D2510

R2514

D2531

D2531

R2532

D2529

D2529

D2501

C2571

R2510

R2575

R2586

D2527

D2508

R2523

D2509

D2503

D2507

D2504

R2567

D2505

D2502

R2062

D2506

C2033

C2034

1

L2002

L2002

J2505

J2505

J3501

J2502

J2501

2-48(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-47

POWER PWB PATTERN

Y9055

C9013

C9011

FC9002 FC9001

Y9006

Y9004

Y9051

C9004

Y9003

F9001

Y9005

LF9003

LF9001

C9003

Y9001

R9001

CN9010

C9001

Y9002

VA9001

Y9052

W9707

Y9053

C9014

W9706

LCB90886 -001A

MAIN POW PWB

MARK

UL

CL001

R9302

D9301

D9302

PC9301 PC9202

Q9301

R9315

R9312

C9012

D9303

R9310

CL002

R9311

R9309

R9306
R9307

C9301

N

R9305

W9301

Q9303Q9302

L9001

L9002

R9301

C9209

R9313

C9591

Y9201

Q9304

R9209

R9314

D9206

RY9002

D9203

T9201

1261 1261

151051 313025

151051

CL003

R9216

C9211

321 321

R9304

A

R9205

L9201

TH9001

20

20

D9001

R9303

D9022

R9023

W9604

W9603

W9705

C9205

R9206

Q9022

IC9201

W9302

313025

C9207

R9024

C9212

W9704

R9211

CP9501

R9503 R9502 R9501

C9501

D9216D9215

C9206

D9204

R9215 R9214

D9218
R9221

R9210

R9208

C9208

CP9202

C9219

R9203

R9207

PC9201

R9567

R9568

Y9252

CP9201

R9202

D9205

W9409

R9566

W9501

W9502

W9408

Q9202

C9210

CP9606

R9212

CL004

Y9605

W9202

H9551

T9501

CP9604

R9213

W9404

R9557

W9403

C9554

D9606

C9656

W9201

K9551

C9567

C9566

W9605

W9606

Y9604

R9555

CP9603

R9556

D9562

C9602

C9565

CP9607

Y9606

W9607

W9608

C9601

C9569

W9405

R9554

CP9605

Y9603

R9553

R9603

Q9552Q9551

R9552

W9407

D9561

W9402

ల㔚ㇱ

LIVE

C9551

W9406

C9568

W9702

C9604

D9556

C9552

W9213

W9303

W9609

R9559

C9563

W9703

C9556
R9560

C9655

W9203

D9558

D9605

C9555

R9551

R9201

F

E

D

C

D9557

D9603

C9559

R9561
C9561

W9210

CP9602

H9602

R9569

C9562

Q9201

16

W9411

IC9551

C9560

C9220

R9802

R9565

W9304

R9801

W9701

C9564
R9563
R9558

C9558

W9209

C9557

D9559

Q9801

W9601

W9602

IC9601

W9410

C9522

D9611

R9607

D9801

L9602

R9605

R9803

CP9601

R9604

R9606

C9521

R9608

R9609

W9610

W9611

W9503

W9504

D9602

CN9005

Y9753

D9802

㕖ల㔚ㇱ

PC9505

W9212

W9208

H9601

1

W9211

ISOLATED

W9207

D9601

B

Y9054

CN9002

W9204

W9206

10

C9606

W9205

A

CN9001

1

Y9601

Y9602

114

TOP

569 487 32 1

(No.YA690<Rev.001>)2-49 2-50(No.YA690<Rev.001>)

TOP

OP

OP

TOP

T

OP

OP

OP

CAPSENS PWB PATTERN [SOLDER SIDE]

A

T

SW0

LCB10905 -001A

SW0

CAPSENS PWB

SW1

SW1

CAPSENS PWB PATTERN [PARTS SIDE]

CN7702

5

CN7702

IP2 IP7

BZ7701

IP4

IP3

D7703

IP1 IP5 IP8

BZ7701

LCA10905-

CAPSENS PB ASS'Y

D7703

1 6 121261

1

PbF

R7714

R7715

R7724

C7703

D7704

IP6

R7707
R7706
R7705

R7720

R7714

IR PWB PATTERN

R8851

R8854

R8854

R8855

R8851

C8854

R8852

C8854

1

5

C8856

C8851

C8851

R8852

C8856

T

CN8801

SW2

IR EE PWB
LCB90872

IC8852

R8853

R8853

-001A

R8856

C8852

C8852

3

C8857

C8857

R8856

R8857

R8857

C8853

C8853

IC8851

R8855

MARK

UL

SW3

SW2

SW3

A

SW4

SW5

SW4

SW5

SW6

SW6

CL011

UL

1

MARK

HP/USB PWB PATTERN

R7311

CN7301

R7313

C7311

C7312

41

R7312

R7311

R7313

C7311

2

1

3

J7301

R7314

C7312

5

C7313

R7314

4

R7315

C7313

R7315

OP

D7311

D7311

CN7302

1

R7721

R7722

C7707

IP32

R7721

K7701

CN7701

IP36

CN7701

IP37

1

77

SMX-7701A
SFY-7704A

IP17

CN7303

MARK

UL

J7302

7

C7708

C7708

C7707

IP34

IP33

C7705

C7705

IP35

R7711

R7718

IP19

IP12

IP16

R7711

R7724

D7704

C7703

R7715

R7723

13

R7720

IP15

IP10

R7707

IP11

R7706

19 24

C7701

IP9

IP14

R7705

R7723

R7704

D7701

IP13

R7704

D7701

R7701

IP18

R7701

20

20

IP20

R7719

IC7701

1

IC7701

C7701

25 3031

R7719

IP22

R7713

IP28

R7713

R7712

IP24

R7712

R7716

R7716

IP29

IP23

C7704

C7704

R7709

R7709

C7709

C7709

IP25

R7708

R7708

C7702

IP27

C7702

R7703

R7703

IP26

R7702

R7702

313025151051

1 2 3321 1 5 10 15

R7722

Q7701

C7706

Q7701

C7706

IP31

K7701

IP30

IP21

R7718

5

K7301

K7303

K7302

K7303

K7302

K7301

C7301

C7301

14

HP/USB PWB

LCB90873 -001A

R7312

SUB PWB PATTERN [SOLDER SIDE]

LED PWB PATTERN

C8701

C8701

1

CN8701

LED PWB

UL

3

D8703

MARK

Q8702

D8703

Q8702

D8701

R8702

R8702

D8702

D8702

R8701

R8701

Q8701

Q8701

MARK

UL

LCB10899 -001A

SUB PWB

6412

35

J7003J7002

1

24

3

T

A

LCB90871 -001A

C INLET PWB PATTERN

MARK

UL

ల㔚ㇱ

LIVE

3

T

1

CN9021

12

21

4

SW9021

2

J9021

ISOLATED

ISOLATED

㕖ల㔚ㇱ

LCB90874

-001B

AC INLET PWB

ISOLATED

FC9021

FC9022

F9021

SUB PWB PATTERN [PARTS SIDE]

#PC00192

SFY-7101A

LCA10899-

SUB PB ASS'Y

C7001

IC7003

R7001

7

C7002

1

PbF

IC7004

#PC00191

1

2

CN7002

CN7001

CN7002

29

30

R7011

C7034

R7002

4

R7005

R7009

C7003

C7037

45

IC7005

13

R7098

R7099

J7003

R7101

X7001

IC7005

R7096

R7012

R7010

R7097

R7013

R7014

R7090

C7033

R7006

R7008

R7004

58

IC7003

1

R7003

R7007

41

IC7004

3

2

R7101

CN7001

18

K7001

R7015

R7016

C7004

R7093

C7004

C7006

R7019

R7095

X7001

R7021

C7008C7007

10

R7020

C7035

R7017

R7018

D7008

D7008

C7029

D7007

3

42

R7034

R7033 R7032

R7022

C7005

R7035

1

20

IC7001

R7028

IC7001

11

C7009

R7027

R7026

R7025

R7024

R7023

D7010

D7010

D7009

D7007

C7030

D7009

1

CN7006

1

CN7006

R7037 R7036

R7042

R7029

R7039 R7038

R7040

R7082

R7077

R7083

R7031

R7030

Q7003

R7072

Q7003

R7091

R7089

J7003

CN7003

6

31

CN7003

D7017

C7028

1

24

C7021

R7064

R7063

C7010

C7010

D7006

D7016

Q7002

R7080

D7016

D7017

R7081

R7076

D7006

Q7002

D7005

R7071

R7086R7085R7084

R7088

C7028

J7002

K7003

C7027

3

C7040

CN7005

C7039

C7039

R7056

R7058

R7057

C7036

C7018

C7015

C7016

1

12

13

C7040

C7011

R7048

R7047

24

R7045

R7094

D7004

C7027

48

IC7002

37

25

36

IC7002

D7015

R7078

Q7001

R7075

R7079

D7004

Q7001

R7070

D7003

C7026

R7087

C7026

5

6

#PC00194

CN7005

1

CN7004

3

1

R7055

C7013

R7052

R7051

R7050

R7049

R7043

R7044

D7015

J7002

R7059

C7020

TP7002

TP7001

TP7001

C7012

CN7004

C7019

3

R7060

C7038

R7074

C7025

TP7002

R7073

K7002

C7017

C7017

D7002

D7002

D7001

D7001

R7102

R7102

#PC00193

T

㕖ల㔚ㇱ

㕖ల㔚ㇱ

2-52(No.YA690<Rev.001>)(No.YA690<Rev.001>)2-51

VOLTAGE CHARTS

DC (V

<

>

MAIN PWB (2/13)

MODE

)

PIN NO.

IC2501
1 0.1
2 4.3
3 9.1
4 2.9
5 0
6 3.3
IC2502
1 3.3
2 3.5
3 9.1
4 2.8
5 0
6 9.1
IC2503
1 NC
2 NC
3 4.5
4 4.5
5 4.5
6 0
7 0
8 0
9 9.1
10 0.4
11 9. 1
12 4.5
13 4.5
14 4.5
15 NC
16 9.1
IC2504
1 5
2 0
3 1.6
4 0
5 3.2
IC2505
1 4.5
2 4.6
3 4.6
4 0
5 4.5
6 4.6
7 4.6
8 9.1
IC2506
1 4.5
2 4.5
3 4.5
4 0
5 4.5
6 4.5
7 4.5
8 9.1
IC2509
1 5
2 0
3 1.6
4 0
5 3.2
IC2512
1 1.2
2 NC
3 0
4 0.3
5 3.2
6 NC
7 NC
8 3.2
Q2503
E 0
C -0.1
B 0
Q2505
E 0
C 0
B -0.1
Q2506
E 0
C 0
B -1.8
Q2507
E 0
C -0.1
B 0
Q2508
E 0
C 0
B -0.1
Q2509
E 0
C 0
B -1.9

DC (V

>

MODE

)

PIN NO.

Q2513
E 0
C 9.1
B 0.1
Q2520
E 0
C 0
B 0.6
Q2521
E 0
C 0.6
B 0

<

MAIN PWB (3/13)
MODE
PIN NO.

IC3001
1 1.7
2 1.5
3 0
4 1.2
5 1.2
6 3.2
7 1.2
8 1.2
9 0
10 1.2
11 1. 2
12 3.2
13 1.2
14 1.2
15 0
16 1.2
17 3.2
18 2.5
19 3.2
20 2.9
21 2.9
22 0
23 2.9
24 2.5
25 3.2
26 3.2
27 2.5
28 0
29 3.2
30 3.2
31 1.8
32 3.2
33 3.2
34 0.1
35 0
36 3.5
37 4.3
38 3.2
39 3.2
40 3.2
41 3.2
42 3.2
43 0
44 3.2
45 3.2
46 3.2
47 3.2
48 3.2
49 4.9
50 0
51 0.7
52 0.4
53 0.3
54 0.8
55 3.2
56 0.8
57 0.8
58 0
59 0.7
60 0.7
61 3.2
62 0.8
63 0.8
64 0
IC3004
1 0
2 0
3 0
4 0
5 3.5
6 3.8
7 4.6
8 4.6

DC (V

DC (V

<

MAIN PWB (1/13)
MODE
PIN NO.

IC2001
1 3.2
2 1.6
3 1.6
4 0
5 3.2
6 0
7 0.5
8 0.5
9 1.2
10 0
11 1.2
12 1.2
13 0
14 0
15 3.2
16 3.2
17 0
18 0
19 1.5
20 0
21 0
22 0
23 0
24 0
25 0
26 0
27 0
28 3.2
29 0
30 0
31 1.2
32 3.2
33 0
34 3.2
35 3.2
36 1.2
37 0.7
38 0.7
39 0.7
40 3.2
41 3.2
42 0.3
43 4.9
44 0
45 1.2
46 3.2
47 0
48 1.2
Q2001
E 1.8
C 0
B 1.1
Q2002
E 1.8
C 0
B 1.1
Q2006
E 4.9
C 0
B 4.5
Q2007
E 0
C 3.2
B 0
TU2001
1 NC
2 4.9
3 0
4 NC
5 4.6
6 0
7 4.9
8 0
9 0
10 NC
11 0
12 3.2
13 3.2
14 0
15 0.3
16 0
17 0
18 NC
19 4.9
20 0
21 0
22 2.3
23 0
24 1.1

MODE

)

PIN NO.

IC3005
1 0
2 0
3 0
4 0
5 0.9
6 1.1
7 4.5
8 4.5
IC3006
1 0
2 0
3 0
4 0

>

5 0.9

)

6 1.3
7 4.5
8 4.5
Q3002
E 0
C 4.6
B 0
Q3004
E 2.9
C -0.3
B 2.9
Q3005
E 0
C 2.9
B 0.1
Q3006
E 0.1
C 0
B 0.1
Q3007
E 0
C 0.1
B 0.1
Q3008
E 0.1
C 0
B 0.1
Q3009
E 0
C 0.1
B 0.1
Q3010
E 3.2
C 3.1
B 3.2
Q3011
E 0
C 3.2
B 0

<

MAIN PWB (4/13)
MODE
PIN NO.

IC3201
1 3.2
2 1.4
3 0.2
4 0.1
5 0.2
6 1.5
7 0.2
8 0.2
9 0.2
10 0
11 1.1
12 0.9
13 1
14 0.9
15 1
16 0.9
17 1
18 0.9
19 3.2
20 3.2
IC3202
1 3.2
2 1.5
3 1
4 1.5
5 1
6 1
7 1.1
8 1
9 1.2
10 0
11 0
12 1
13 0.6
14 1
15 1.5
16 0
17 1.1

DC (V

DC (V

MODE

)

PIN NO.

18 1.1
19 3.2
20 3.2
IC3203
1 0
2 1
3 1
4 1
5 0.9
6 0.9
7 0.9
8 0.9
9 0.9
10 0
11 0. 5
12 0.5
13 0.5
14 0.5
15 0.5
16 0.5
17 0.5
18 0.5
19 3.2
20 3.2
IC3204
1 3.2
2 0.5
3 1
4 0.5
5 1
6 0.5
7 1
8 0.6
9 0.5
10 0
11 0. 5
12 0.9
13 0.6
14 1
15 0.5
16 1
17 0.6
18 0.9
19 3.2
20 3.2
Q3203
E 5
C 2.9
B 4.9
Q3204
E 0
C 4.9
B 0

<

MAIN PWB (5/13)

MODE

>

PIN NO.

)

IC3501
1 0
2 1.7
3 3.2
4 3.2
5 3.2
6 1.2
7 1.7
8 0
9 3.2
10 1
11 3. 2
12 1
13 1
14 1
15 0.9
16 3.2
17 0
18 1.7
19 0
20 0.9
21 1
22 0.9
23 1.1
24 1
25 3.2
26 1
27 1
28 1.2
29 1.1
30 1
31 1
32 0
33 1
34 1
35 0.9
36 3.2
37 3.2
38 3.2
39 3.2

DC (V

DC (V

MODE

)

PIN NO.

40 3.2
41 3.2
42 0
43 1.7
44 3.2
45 3.2
46 0
47 1.3
48 1
49 0
50 1.4
51 2.8
52 3.2
53 0.8
54 0.8
55 3.2
56 0.8
57 0.8
58 1.7
59 0.8
60 0.3
61 0
62 2.9
63 1.2
64 0
65 1.2
66 0.8
67 0.8
68 1.2
69 0.8
70 0.8
71 3.2
72 0
73 1.7
74 0.9
75 0.8
76 0
77 3.2
78 3.2
79 0
80 0
81 1.2
82 0
83 0.1
84 0
85 0
86 3.2
87 3.2
88 0
89 0
90 0
91 0
92 0.1
93 3.2
94 0

>

95 0

)

96 0
97 0
98 3.2
99 0
100 3.2
IC3502
1 0
2 4.9
3 4.9
4 0.1
5 3.2
6 4.9
7 4.9
8 4.9

<

MAIN PWB (6/12)
MODE
PIN NO.

IC1504
1 0
2 3.2
3 0.8
4 0.8
5 1.7
6 3.2
7 1.7
8 0.8

MAIN PWB (8/12)

<

MODE
PIN NO.

IC5201
1 0
2 2.4
3 1.1
4 1.1
5 2.4
6 2.4
7 2.4
8 1.2

DC (V

DC (V

DC (V

MODE

)

PIN NO.

Q5001
S 2.9
D 3.2
G 3.2
Q5002
S 2.9
D 3.2
G 3.2

<

MAIN PWB (9/13)
MODE
PIN NO.

IC4004
1 1.6
2 0
3 3.2
4 0
5 0
6 1.6
7 0
8 3.2
Q3802
E 0
C 1.6
B 2.5
Q3804
E 0
C 0.1
B 3.2

MAIN PWB (10/13)

<

MODE
PIN NO.

IC4502
1 5
2 5
3 5
4 5
5 3.3
6 1.8
7 0
8 NC
IC4602
1 0.1
2 0
3 1.9
4 0
5 1.9
6 1.9
7 1.9
8 4.9
IC4651
1 0
2 1.8
3 1.8
4 0
5 1.8
6 1.8
7 3.5
8 3.5
9 3.5
10 3.5
11 NC
12 0
13 0
14 1.5
15 4
16 1.3
17 0
18 11
19 6.8
20 6.8

>

21 6.8

)

22 6.8
23 11
24 0
25 0
26 14.6
27 14.6
28 0
29 0
30 10.2
31 10.1
32 0
33 0

>

34 14.6

)

35 14.6
36 0
37 0
38 11
39 6.8
40 6.8
41 6.8
42 6.8
43 11
44 5
45 0

DC (V

DC (V

DC (V

MODE

)

PIN NO.

46 0
47 14.6
48 14.6
Q4551
E 4.5
C 0
B 4.9
Q4552
E 2.9
C 0

>

B 2.3

)

Q4553
E 2.8
C 0
B 2.3
Q4601
E 0
C 0
B 1.6
Q4651
E 0
C 4
B 0.1
Q4652
E 0
C 0
B 4

<

MAIN PWB (11/13)
MODE
PIN NO.

>

IC1002

)

1 3.2
2 3.2
3 3.2
4 0
5 3.2
6 0
7 3.2
8 3.2
IC1003
1 3.2
2 3.2
3 3.2
4 0
5 3.1
6 3.2
7 0
8 3.2
IC1004
1 0
2 3.2
3 0
4 0
5 3.2
6 3.2
7 3.2
8 3.2
IC1005
1 NC
2 NC
3 NC
4 NC
5 NC
6 NC
7 3.2
8 0.5
9 3.2
10 NC
11 NC
12 3.2
13 0
14 NC
15 NC
16 1
17 1.1
18 0.5
19 3.2
20 NC
21 NC
22 NC
23 NC
24 NC
25 NC
26 NC
27 NC
28 NC
29 0.2
30 0.1
31 0.1
32 0.1
33 NC
34 NC
35 NC
36 0
37 3.2
38 NC

DC (V

DC (V

)

>

)

MODE

DC (V

PIN NO.

39 NC
40 NC
41 0.1
42 0.1
43 0.1
44 0.1
45 NC
46 NC
47 NC
48 NC
IC1013
1 0
2 3.2
3 0
4 3.2
IC1017
1 NC
2 3.2
3 3.2
4 0
5 0
6 3.2
7 3.2
8 0
9 3.2
10 3.2
11 0
12 3.2
13 3.2
14 0
15 0
16 0
IC1018
1 3.2
2 3.2
3 0
4 3.2
5 3.2
6 3.2
7 0
8 3.2
9 3.2
10 0
11 2.1
12 3.2
13 3.2
14 3.2
IC1023
1 3.2
2 3.2
3 0
4 3.2
5 3.2
Q1001
E 3.2
C 3.2
B 2.6
Q1002
E 0
C 3.2
B 0
Q1005
E 0
C 3.2
B 0
Q1008
E 3.2
C 3.2
B 0.1
Q1009
E 3.2
C 3.2
B 0
Q1010
E 3.2
C 3.2
B 0.1
Q1011
E 3.2
C 3.1
B 0.1
Q1013
E 0
C 0
B 0.6

<

MAIN PWB (12/13)

MODE

)

PIN NO.

IC4701
1 16.5
2 23.7
3 4.8
4 0
5 0.4
6 0.6
7 3.2
8 4.7
IC4731
1 3.2
2 2.3
3 0.6
4 0.6
5 1.8
6 1.6
7 3.2
8 3.2
9 1.1
10 0.4
11 0.7
12 2.3
13 3.2
14 6.7
15 2.3
16 1.5
17 3.8
18 0
19 4.8
20 9.9
21 4
22 1.2
23 1.9
24 6.6
IC4771
1 1.1
2 0
3 2.8
4 0
5 0.5
6 9.9
7 2.1
8 6.6
9 0
10 2.8
11 8.1
12 0.4
13 1.1
14 2.8
15 0
16 1.2
IC4811
1 5
2 0
3 5
4 NC
5 1.1
IC4812
1 5
2 0
3 5
4 NC
5 3.2
IC4821
1 0.1
2 4.5
3 3.2
4 0
5 0
6 0
7 0
8 9
IC4842
1 1.2
2 0
3 9.9
4 9.9
5 9.1
IC4871
1 23
2 23.7
3 11.7
4 0
5 0.5
6 0.9
7 2.9
8 4.7
IC4881
1 4.8
2 0.4
3 2.4
4 0
5 1.7
Q4701
E 0
C 0
B 0.6

DC (V

>

MODE

)

PIN NO.

Q4731
1 0
2 4
3 1.2
4 1.9
5 9.9
6 9.9
7 1.2
8 1.2
Q4732
1 1.5
2 2.3
3 0
4 3.8
5 1.5
6 1.5
7 9.9
8 9.9
Q4771
1 9.8
2 9.8
3 9.8
4 8.2
5 1.8
6 1.8
7 1.8
8 1.8
Q4772
1 9.8
2 9.8
3 9.8
4 6.7
5 3.2
6 3.2
7 3.2
8 3.2
Q4773
E 0
C 0
B 3.2
Q4774
E 0
C 2.8
B 0
Q4811
S 4.9
D 4.9
G 0
Q4812
E 0
C 0
B 4.1
Q4832
E 0
C 0
B 0.6
Q4833
E 0
C 0.1
B 3

<

MAIN PWB (13/13)
MODE
PIN NO.

IC4101
1 0
2 NC
3 NC
4 NC
5 NC
6 0
7 0.1
8 NC
9 NC
10 3.2
11 1. 6
12 0
13 1.5
14 3.2
15 NC
16 0.1
17 0
18 1.6
19 NC
20 3
21 3.2
22 3
23 1.6
24 NC
25 NC
26 NC
27 3.2
28 3.2
29 3.2
30 3.2
31 3.2
32 3.2

DC (V

DC (V

MODE

)

PIN NO.

33 3.2
34 3.2
35 NC
36 NC
37 3.2
38 NC
39 3.2
40 NC
41 NC
42 NC
43 3.2
44 3.2
45 3.2
46 3.2
47 NC
48 NC
49 2.5
50 3.2
51 3.2
52 3.2
53 3.2
54 NC
55 NC
56 NC
57 3.2
58 3.2
59 3.2
60 3.2
61 3.2
62 0
63 NC
64 NC
65 NC
66 NC
67 NC
68 NC
69 NC
70 NC
71 0.2
72 NC
73 3.1
74 3.2
75 3.2
76 3.2
77 NC
78 NC
79 NC
80 NC
81 NC
82 NC
83 NC
84 NC
85 NC
86 NC
87 NC
88 NC
89 NC
90 NC
91 NC
92 NC
93 0.1
94 0

>

95 1.1

)

96 3.2
97 3.2
98 0.2
99 3
100 2.9
IC4102
1 0
2 0
3 0
4 0
5 3.2
6 3.2
7 0
8 3.2
IC4103
1 3.2
2 1.6
3 0.1
4 3.2
5 1.6
6 1.6
7 0
8 1.5
9 NC
10 3.2
11 1. 6
12 1.5
13 3.2
14 3.2

DC (V

<

POWER PWB

MODE

)

PIN NO.

IC9201
1 5.8
2 0.6
3 2.3
4 15.5
5 NC
6 0
7 0
8 0
IC9551
1 1.9
2 19.9
3 3.1
4 0
5 5.3
6 0
7 0
8 2.9
9 10.3
10 0
11 4. 5
12 0
13 NC
14 NC
15 NC
16 0
IC9601
1 2.4
2 0
3 19.8
Q9022
E 0
C 0
B 0.7
Q9201
E NC
C NC
B 0.1
Q9202
E 0
C 0
B 3.3
Q9301
E 0
C 0
B 1.2
Q9302
E 0
C 0
B 0.1
Q9303
E 0
C 0
B 0
Q9304
E 0
C 3.8
B 0
Q9801
E 0
C 0
B 0.7

<

CAPSENS PWB
MODE
PIN NO.

IC7701
1 3.2
2 3.2
3 NC
4 2.4
5 2.4
6 NC
7 0.8
8 NC
9 0
10 0
11 NC
12 0
13 NC
14 0
15 0
16 0
17 0
18 0
19 0
20 3.2
21 0
22 0
23 NC
24 1.1

DC (V

DC (V

>

)

>

)

<LED PWB>

MODE
PIN NO.

Q8701
E 2.9
C 2.8
B 0

<IR PWB>

MODE
PIN NO.

IC8851
1 1.2
2 4.8
IC8852
1 2.9
2 4.9
3 0

<SUB PWB>

MODE
PIN NO.

IC7001
1 3.2
2 3.2
3 3.2
4 0
5 0
6 3.2
7 3.2
8 3.2
9 3.2
10 3.2
11 0
12 3.2
13 3.2
14 3.2
15 0
16 3.2
17 3.2
18 3.2
19 3.2
20 3.2
IC7002
1 1.6
2 1.6
3 1.5
4 1.6
5 1.6
6 3.2
7 0
8 NC
9 1.1
10 1.2
11 1. 5
12 1.2
13 0
14 0
15 0
16 NC
17 NC
18 3.2
19 NC
20 NC
21 NC
22 NC
23 NC
24 NC
25 NC
26 NC
27 NC
28 NC
29 3.2
30 NC
31 NC
32 NC
33 3.2
34 0
35 NC
36 NC
37 3.2
38 NC
39 NC
40 NC
41 3.1
42 0
43 3.2
44 NC
45 0
46 0
47 0
48 1.5
IC7004
1 0
2 3.2
3 1.6
4 3.2

(No.YA690<Rev.001>)2-53 2-54(No.YA690<Rev.001>)

DC (V

DC (V

DC (V

)

)

)

WAVEFORMS

MAIN PWB(1/13)

TU2001-24

(H)

2.7 Vp-p

MAIN PWB(13/13)

IC4101-11

2.2 Vp-p

(1µs)

IC4101-13

2.2 Vp-p

(1µs)

(No.YA690<Rev.001>)2-55

Victor Company of Japan, Limited

Display Division 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

(No.YA690<Rev.001>)

Printed in Japan

VSE
