IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Expanding the world of

beautiful images

Enjoy rich multi-media with JVC

DVB-T / VHF / UHF broadcasting

Digital camera

Video camera

Game console

Personal

Audio components

VCR DVD player

DVD recorder

computer

Digital terrestrial broadcasting (DVB-T)

 Digital channels

Analogue terrestrial broadcasting (VHF
/ UHF) and analogue cable TV

 Analogue channels

Contents

First things first!

 Warning ············································ 3

Getting started

 Names of all the parts ······················ 5
 Basic connections ···························· 7
 Connecting external devices ············ 9
 Initial settings ································· 11

Let’s try it out

 Enjoying your new TV! ··················· 15
 Watching digital channels ·············· 17
 Using EPG ···································· 19
 Viewing teletext ······························ 21
 Watching analogue channels ········· 23
 Watching videos / DVDs ················ 25
 Using timer-record ··························27
 Useful functions ······························29

· Subtitle / Audio selection / Sleep timer /
Zoom / Multi-picture, etc.



Operate JVC recorders and other devices

··· 33

Just the way you like it

 Customising your TV ······················ 35
 Using DTV menu ···························· 37
 Advanced picture adjustment ········· 39

·

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

 DTV configuration ·························· 41
 DTV setup ······································ 43
 DTV installation ······························ 45
 Editing digital channels ·················· 47
 Editing analogue channels ············· 49

When you have trouble

 Troubleshooting ····························· 51
 “CH/CC” List ··································· 55
 Technical information ····················· 56
 Specifications ································· 58

3

ENGLISH

4

First things

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

first!

Warning

Follow this manual
regarding setup!

 Connect only to a 220-240V, 50/60Hz

AC outlet.

Make enough room for
inserting and removing
the power plug!

Place the TV as
close to the outlet as
possible!

 The main power supply for this TV is

controlled by inserting or removing the
power plug.

Never cut or damage
the power cord!

Please follow all the guidelines below

Do not allow the TV
to fall!

 Do not rest your elbows on, or allow

children to hang from the TV.
There is a risk that the TV will fall and
cause injuries.

Never try to repair
the TV yourself!

 If the problem cannot be solved in

“Troubleshooting” (P. 51), unplug
the power cord and contact your
retailer.

On disposal of the
TV!

 Follow the instruction in

“Information for Users on
Disposal of Old Equipment”
(P.II ).

If the TV is damaged
or behaving strangely,
stop using it at once!

 Unplug the power cord and contact

your retailer.

Never place anything on
the TV!

 Placing liquids, naked

flames, cloths, paper,
etc. on the TV may
cause a fire.

Never expose to rain or
moisture!

 To prevent fire or electric

shock, never allow
liquids to enter the unit.

Never insert objects into
the cabinet openings!

 It may cause a fatal

electric shock. Take care
when children are near.

 If the AC plug is not the

right shape, or the power
cord is not long enough,
use an appropriate plug
adapter or extension cable.
(Consult your retailer.)

Unplug the power cord
when going out!

 The power buttons

on the remote control
and the TV unit cannot
completely turn off the
TV. (Make appropriate
arrangements for
bedridden people.)

 For more details on installation, usage and safety

When attaching the TV to
the wall, use the optional
JVC wall mounting unit!

 Consult a qualified technician.
 See the included manual on mounting

procedures.

 JVC assumes no responsibility for

damage due to improper mounting.

 Consult your retailer

Never dismantle the
rear panel!

 It may cause an electric shock.

Never obstruct the
ventilation holes!

 It may cause overheating or a fire.

Handle LCD panel
with care!

 Use a soft, dry cloth when cleaning.

Never listen to
headphones at high
volume!

 It may damage your hearing.

Hold the TV so as not to
scratch the screen!

 Do not touch the screen when carrying the

TV.

Do not carry the
TV on your own!

 In order to prevent accidents,

ensure that the TV is carried
by two or more people.

5

6

ENGLISH

Getting

TV/AV

MENU/OK

P

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

started

Names of all the parts

Illumination lamp

 Illumination lamp lights

while the TV is on.

 “Illumination” (P. 36)

LT-32DX7BSP/SSP

Press to
remove.

Remote control sensor

Power lamp

ON: Lit (Green)
OFF: Unlit
REC: Lit  (P. 27)

 Power lamp lights while

the TV is on.

 “Power Lamp” (P. 36)

Remove the terminal cover

Press to
remove.

Switch between
TV / AV devices

Display on-screen
menu / set

Change channel

Volume

Power On / Off

To headphones (P. 9)

LT-26DX7BSP/SSP

Mute

Channel information

(P. 17)

Colour buttons

Switch digital /
analogue channels

Volume

View teletext (P. 21)

 When watching digital channels

View the electronic
programme guide (EPG) (P. 19)

Switch TV / RADIO (P. 17)

Power On / Off

Change channel / page

Watch video, etc. (P. 25)

Switch between
“TV / VCR / DVR / DVD / HC” (P. 33)

Display on-screen menu (P. 35)

Select and
confirm settings in menus

Change channel / page
To previous channel

 When watching TV / Video

Change the aspect ratio (P. 30)

Turn on “3D Cinema Sound” (P. 30)

Take a snapshot
of the screen (P. 32)

View in multi-picture mode (P. 31)

 If the cover cannot be closed due to the cables being in the way

 Do not force the cover to close (leave it open).

 Connecting terminals on the back of the TV  Connecting External devices (P. 9)
 To remove the cable cover, refer to the included sheet.

Direction of TV

Tidying the cables

View subtitles (P. 29)

Audio select (P. 29)

 When viewing teletext (P. 21)

 When choosing a favourite

channel (Analogue channels)

(P. 23)

 When operating a JVC VCR

or DVD (P. 33)

Check accessories

Remote control

(RM-C1906S)

 LT-26DX7BSP/SSP

To attach the stand, refer to the included sheet.

AAA/R03 Batteries

For confirming
the TV works

Insert the batteries

Use two “AAA/R03” dry cell batteries. Insert the batteries from the

- end, making sure the + and - polarities are correct.

7

8

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Basic connections

Please read the user manuals of each device carefully before setup.
It is necessary to connect an aerial to watch TV.

 Connect with other devices  “Connecting external devices” (P. 9)

Connect the aerial

AERIAL

 After all the connections have been made, insert the plug into an AC outlet.
 When using an aerial which needs external power  “Power supply for the indoor aerial” (P. 56)

Connect a VCR / DVD recorder

AERIAL

EXT-2

EXT-1

VCR / DVD recorder

 After all the connections have been made, insert the plug into an AC outlet.
 Connect “T-V LINK” compatible recording device to “EXT-2”.
 “T-V LINK”  “What is “T-V LINK”?” (P. 11)
 When using an indoor aerial which needs external power, connect the aerial directly to the TV.

 “Power supply for the indoor aerial” (P. 56)

 Power requirements

 Connect the power cord only to a 220-240V,

50/60Hz AC outlet.

 When attaching the TV to the wall, use the

optional JVC wall mounting unit

 Consult a qualified technician.
 See the included manual on mounting procedures.
 JVC assumes no responsibility for damage due to

improper mounting.

 200mm × 200mm mount which conforms to VESA

standards.

Care when setting

 Installation requirements

 To avoid overheating, ensure the unit has ample

room.

200mm

50mm150mm 150mm 50mm

Watch pay-TV digital channels

Subscribe to a broadcasting company beforehand. A Smart
Card (B) will be sent by the broadcasting company after
subscribing to it. It may be necessary for you to purchase a
Conditional Access Module (A) in addition to the Smart Card.
Consult your broadcasting company or retailer.

1 Unplug the power cord
2 Insert “B” into “A”.
3 Insert “A”.
4 Plug the power cord, and turn the power on.

5 Perform necessary settings  “Common Interface” (P. 43)

 Pay-TV analogue channels cannot be watched.

A

B

9

10

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Connecting external devices

VCR / DVD / other devices

You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)

PC

To “EXT-3” R/L (PC IN)

 Check for PC compatibility

 “Technical information” (P. 56)

Game consoles

Video camera

VCR / DVD recorder

(“T-V LINK” compatible)

Satellite broadcast tuner

Headphone

DVD player

Amplifier

(L) (R)

 Audio signals received from

EXT-5 and EXT-6 can not
be sent to the “AUDIO OUT”
terminal.

Headphones

PC IN

(R)

(L)

EXT-3

EXT-2

(T-V LINK)

EXT-1

(Y)

(Pr)

(Pb)

(R)

(L)

(R)

(L)

EXT-4

AUDIO

OUT

: signal direction

AERIAL

EXT-6

(HDMI)

CI (Common Interface) slot

(“Watch pay-TV digital channels” P. 8)

DVD player

(HDMI compatible)

Satellite broadcast tuner

(HDMI compatible)

 Connect “DVI” devices

 (P. 56)

 “T-V LINK”  (P. 11)

Not available.

(For service adjustments)

DIGITAL

AUDIO OUT

EXT-5

(HDMI)

Amplifier

(Digital optical compatible)

EXT-1

Output  Input 

· Composite signal

· Sound L / R

 Use S-VIDEO  “S-IN” (P. 26)

EXT-2

Output  Input 

· Composite signal

· S-VIDEO (only for
DTV)

· Sound L / R

· T-V LINK

 Use S-VIDEO  “S-IN” (P. 26)
 Use DTV S-OUT  “S-OUT” (P. 26)
 Select dubbing sources

 “DUBBING” (P. 26)

 Connect a decoder

 “Decoder (EXT-2)” (P. 36)

EXT-3

Output  Input 

EXT-4

Output  Input 



“Component Auto Select”  (P. 36)

EXT-5
EXT-6

Output  Input 

 “HDMI Setting”  (P. 36)
 EXT-6 input does not support

analogue sound.

AUDIO OUT

Listening to the TV on external speakers

Output 

· Sound L / R

DIGITAL AUDIO OUT

Listening to the digital audio of digital
channels on external speakers

Output 

·

Digital sound (P. 58)



The sound from analogue channels
and external devices cannot be output.
“Dolby Digital output from the DIGITAL
AUDIO OUT terminal”

Watching videos

·

Composite signal /
RGB / S-VIDEO

· Sound L / R

Dubbing videos
Using “T-V LINK”

·

Composite signal /
RGB / S-VIDEO

· Sound L / R

Watching videos

· Composite
signal / S-VIDEO

· Sound L / R

Watching DVDs

·

Component signal
(P. 58)

· Sound L / R

Connecting
HDMI devices

· HDMI signal
(P. 58)

 (P. 57)

11

12

ENGLISH

Català
English
Castellano

First Time Installation > Language Setting

Step 1: Please choose language

Language

First Time Installation > Country Setting

Step 2: Please choose country

Country

Spain

First Time Installation > Service Scan

Step 3: Please press OK

Scan Automatic

Start Channel

_ _

Stop Channel

_ _

Mode Add

Start Scan

Service

First Time Installation > Service Scan

Step 3: Please press OK

Scan Automatic

Start Channel

_ _

Stop Channel

_ _

Mode

Add

Start Scan

Service

TVE 1

UHF33 : 3 Services found

24H TVE

TVE 2

Stop

Channel

_ _

Mode Add

Start Scan

Teema
Teema
Teema

Yes No

Scan completed! Store services?

No services found!

OK

Start Channel

_

_

Stop Channel

_

_

Mode Ad

d

Start Scan

On

Of

f

Antenna Powe

r

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Initial settings

Register digital / analogue channels on TV. These channels can be edited later.
(In this manual, digital terrestrial broadcasting is indicated as digital channels,
analogue terrestrial broadcasting and analogue cable TV as analogue channels.)

 To the previous screen

 Exit





 If the “JVC” logo does not appear or if you

wish to make changes later

 Digital channel settings : “Configurations” (P. 41)

“Installation” (P. 45)
Analogue channel settings : “Set Up” (P. 36)

TV/DTV

1

2

Begin

 Shown only when powering on for the first time.
 The power button on the unit can also be used.

Set digital channels

Select a language

1

Confirm “Spain” is set

2

Set the aerial power supply

3

 The remote control

doesn’t work

 Confirm the mode is set to

“TV”.

1 select

2 set

 Language for on-screen

displays when watching digital
channel including the DTV
menu.

 This TV can only receive

Spanish digital channels.

 Only when using an aerial which

needs external power, select “On”.

 “Power supply for the indoor

aerial” (P. 56)

What is “T-V LINK”?

Connecting the TV to a “T-V LINK”
compatible device allows :

 Analogue channels to be instantly

registered on the device.

 The “DIRECT REC” function to be

used.

 “Technical information” (P. 56)

 “T-V LINK” variations

“T-V LINK” (JVC) “Q-LINK” (Panasonic)
“Megalogic” (Grundig) “Data Logic” (Metz)
“SMARTLINK” (Sony) “Easy Link” (Philips)

BACK

Scan digital channels

4

Register digital channels

5

 If digital channels are not found, the following message will appear.

!

(Next page)



 After completing following steps, read “When the TV cannot find the digital

channels” (P. 14) and try scanning digital channels again

13

14

ENGLISH

CH 28

>> Auto Program

14%

01

AV

PR

02
03
04
05
06
07
08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC
CC

04

CC

05

03

> Edit

Download TV Recording Device

T-V LINK

> Language

>

United Kingdom

Country

Deutschland
Franc

e
Italia
España

Nederland
Belgium

Ireland
Switzerland
Danmark
Sverige
Österreich
Norge
Suomi

Auto Program

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Initial settings (continued)

3

4

Confirm the language

 Language for on-screen analogue

channel displays and menus
(excluding the DTV menu)

 When not using analogue channels



 When using analogue channels (or cable TV)

Set analogue channels

Register analogue channels

1

 When change a country

Check what was registered

2

 Edit analogue channels

 @ in “Editing analogue

channels” (P. 49)

 When change a language

select



@



select



If “ACI Start” appears, select and start settings.
(This will set up cable television channels.)

 “What is “ACI” (Automatic Channel



⁄

Installation)?” (P. 56)

 Confirm

When the TV cannot find the digital channels

Check the following points

 Is the TV connected correctly to the aerial?
 Change the direction of the indoor aerial.
 Is there a digital channels transmission tower nearby?

 Turn “Attenuator” to “On” (P. 36), since the radio waves are too strong.

 Register digital channels again  “Service Scan” (P. 45)

 If you still cannot watch digital channels after following the steps above, there may be a problem

with your aerial or its cable. Or, the signal may be too weak.  Consult your retailer

When the digital channel reception is poor

The “Missing or weak signal” message appears.

Check the following points

 Is the TV connected correctly to the aerial?
 Change the direction of the indoor aerial.
 Is there a digital channels transmission tower nearby?

 Turn “Attenuator” to “On” (P. 36), since the radio waves are too strong.

5



When not using
T-V LINK

3

Set TV-LINK

 When using T-V LINK

 If “Feature Not

Available” appears :



Is a T-V LINK compatible
device connected to EXT-2?

 Is the device turned on?

Initial setting is complete

 Edit digital channels  Editing digital channels (P. 47)

 If digital channel reception is poor  When the digital channel reception is poor (P. 14)

 If analogue channel reception is poor  Troubleshooting (P. 51)

 Some digital channels cannot be watched on this TV.  (P.57)

 Check digital channels signal  Signal Check (P. 45)

 If you still cannot watch digital channels after following the steps above, there may be a problem

with your aerial or its cable. Or, the signal may be too weak.  Consult your retailer

15

16

ENGLISH

Let’s try it out


IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Enjoying your new TV!

PAGE

17

PAGE

23

PAGE

21

Watching
digital channels

 View channel information
 Select a channel
 Listen to the radio

Watching
analogue channels

 View channel information
 Register your favourite channels

Viewing teletext

 Enlarge the text
 Bookmark your favourite pages
 Reveal hidden pages

PAGE

25

Watching
videos / DVDs

 Watch high quality video (S-VIDEO)
 Name connected devices
 Dub videos
 PC position adjustment

Personal preferences

 Adjust the picture

 Adjust the sound

 Advanced settings

(sleep-timer / child lock, etc.)

 Basic settings

(channel settings, etc.)

 Setting digital channels

(timer-record / configuration /
channel settings, etc.)

PAGE

35

TV and Text mode

PAGE

19

Using EPG

 View the programme list

for 8 days

 Search from a genre
 Reserve a programme to

watch / record

17

18

ENGLISH

P

M

EN

U/

O

K

T

V/

A

V

P

14:00

TVE 1

Next : 15:00 - 17:00

Gol

f

Noticias

1

5

Now : 14:00 - 15:00

Noticias domésticas
Noticias del mundo
Información económica
Deportes: Flash de noticias

CH33

PR List

TVE 1

1

TVE 2

2

3

CLAN/50 TVE

4

TM3

5

LAOTRA

6

ONDA6

7

TELEDEPORTE

8

VEO TV

9

VEO 2

10

24H TVE

Electronic Programme Guide

14:00

05/05/2006

05/05

06/05
07/05
08/05
09/05
10/05
11

/05

12/05

TVE 1

14:00-15:00 Noticias

4. CLAN/50 TVE

5. TM3

6. LAOTRA

7. ONDA6

9. VEO TV

14:00 Noticias
15:00 Golf
17:00 Noticias
17:15 Música
18:00 Parte meteorológico
18:20 Noticias
18:50 Fútbol
20:20 Noticias
20:30 Parte meteorológico

1. TVE 1

2. TVE 2

3. 24H TVE

8. TELEDEPORTE

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Watching digital channels

 Mute

 Volume

Set to “TV”

1

Power on

2

 Press again to turn the screen off

The green power lamp
on the TV lights.

and put the TV into standby mode.

Switch to digital channels

3

Switch TV / RADIO

4

Select a channel

5

Note

 To completely turn off the TV, unplug the AC plug.
 Watch pay-TV digital channels  (P. 8)
 Add a new station  (P. 45)
 Some digital channels cannot be watched on this

TV.  (P.57)

 To the previous channel



 View subtitles / Select audio

language  (P. 29)

Channel
information

Using PR list

ClockChannel

Name of station

Programme

More information

Symbols

 Symbols description

: Reception level

: TV programme

: Teletext is available (P. 22).

: t : Audio in another language is not available.

t-u

u : Other audio languages are available (P. 29).

Dolby Digital : Dolby Digital signal is output from the “DIGITAL AUDIO OUT” terminal (P.57)

 The information displayed may differ from programme to programme.

Red Yellow Green

: Poor

Acceptable

: Radio programme

EPG

: Excellent:

PR List

: Pay-TV channel

: Minimum viewing age limit of the programme.

Set viewing age limit.  (P. 41)

: Subtitles are available (P. 29).

:

More information about the programme is available.



1 select

2 view

Symbols



Whenever
changing the
channel, “Channel
Information” is
displayed.

(No indication)

 Channels registered in “Initial

settings” will appear here.



You can select only from your
favourite channels
mode”

(P. 41)

 “

Favourite

Basic operations using the side buttons

1

 To switch between digital /

analogue channels, or TV / radio,
use remote control.

Power on

2

 Volume

Change
the channel

Using EPG

Using the
number buttons,
up / down buttons

2 select a channel

1 select the channel column

3 view

 Display only programmes which match your

Channels

 Enter a channel number

E.g.

1 :



15 :



 Move up or down a channel

up





down

selected genre  “Genre” (P. 20)

 You can select only from your favourite

channels  “Favourite mode” (P. 41)

 The channels and programme names shown in the illustrations here are examples only.

19

20

ENGLISH

Electronic Programme Guide

14:00

05/05/2006

TVE 1
14:00-15:00

Noticias

5. TM3

6. LAOTRA

7. ONDA6

9. VEO TV

14:00 Noticias

15:00 Golf
17:00 Noticias
17:15 Música
18:00 Parte meteorológico
18:20 Noticias
18:50 Fútbol
20:20 Noticias
20:30 Parte meteorológico

05/05
06/05
07/05
08/05
09/05
10/05
11

/05

12/05

1. TVE 1

2. TVE 2

3. 24H TVE

4. CLAN/50 TVE

8. TELEDEPORTE

All

General
Movie
Information
Entertainment
Sports
Children
Music
Documentary
Current Affairs

Genre

Electronic Programme Guide

14:00

05/05/2006

TVE 1
15:00-17:00

Golf

4. CLAN/50 TVE

5. TM3

6. LAOTRA

7. ONDA6

9. VEO TV

15:00 Golf

18:50 Fútbol
22:30 Tenis

05/05
06/05
07/05
08/05
09/05
10/05
11

/05

12/05

1. TVE 1

2. TVE 2

3. 24H TVE

8. TELEDEPORTE

Electronic Programme Guide

14:00

TVE 1
14:00-15:00 Noticias

05/05
06/05
07/05
08/05
09/05
10/05
11/05
12/05

14:00 Noticias
15:00 Golf
17:00 Noticias
17:15 Música
18:00 Parte meteorológico
18:20 Noticias
18:50 Fútbol
20:20 Noticias
20:30 Parte meteorológico

4. CLAN/50 TVE

5. TM3

6. LAOTRA

7. ONDA6

9. VEO TV

1. TVE 1

2. TVE 2

3. 24H TVE

8. TELEDEPORTE

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Using EPG

You can find a digital channel programme from an eight-day programme guide, check its
information, and make a reservation.

 The channels and programme names shown in the illustrations here are examples only.

1

2

3

(Electronic Programme Guide)

Switch to digital channels

Display EPG

Genre

Date Channel Programme

 Check programme

information



 Close EPG



TV Radio

 Search from genre

Genre icon

Find a programme

 Watch / listen to the programme  (P. 18)

 Reserve the programme

select a date / a channel / a programme

select a column
(date  channel  programme)

 Switch TV / RADIO

General

Movie

Information

Entertainment

Sports

Children

Music

Documentary

Current Affairs

Telesales

Leisure

Bullfighting

Series

Adult

Religion

Display only
programmes
which
match your
selected
genre

Genre

Reserve a
programme
to watch and
record

Timer

Display the genre List

1

Select a genre

2

 More than one genre can be selected.

1 select

2 set /

3 search

Find a programme

3

 Only programmes in the selected genre are displayed.

 Select the reserved programme beforehand

1

Display “Timer”

(red)

Set “Timer”

2

 ¤ in “Using timer-record” (P. 27)

Confirm the reservation

3

 For more details about the timer-record setting

 “Using timer-record” (P. 27)

 Quick search

1 select

cancel

 Only one genre can be

selected.

Your selected genres are displayed

(red) : Reserve to record
(blue) : Reserve to watch
: Reservation time is
shorter than the
broadcasting time

(red)

2 search

21

22

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Viewing teletext

This TV can display TV broadcasts and teletext on the same channel in two windows.

Switch digital / analogue channels

1

When watching TV

Hold the
current page

HOLD

Hold the current page

 Release

 Press “ ” again

Bookmark
your favourite
page

LIST MODE

2

 Enter a teletext page

 Move up or down a page

up

down

 View sub-pages

to
sub-page

 To change the default language for teletext in digital channels

 “Teletext Language” (P. 41)

Display your

1

favourites list

Select a coloured button to save your page to

2

Enter the number of the page to save

(RED) (GREEN) (YELLOW) (BLUE)

(red)

3

Save

4

 Recall your favourite page

 Press the coloured button as in step 2

TV

TEXT

TEXT

.....

Reveal
hidden pages

REVEAL

Enlarge
the text

SIZE

To the
index page

INDEX

Switch briefly
from teletext
to TV

CANCEL

Display hidden information
(answers to quizzes, etc.)

Double the size of the
displayed text

Returns to page “100”
or a previously designated page

Leave the current page open,
while you switch to watch TV

 Useful when running a page search.

23

24

ENGLISH

P

M

EN

U/

O

K

T

V/

A

V

P

TVE1

1

12 : 00

AV

02
03
04
05
06
07
08
09

PR List

01

TVE1

Set 1 - 4?

Programmed!

Favourite 1 - 4?

1

TVE1

1

>Favourite Setting

1

PR 01

2

PR 03

4

PR 07

3

PR

05

>Favourite Setting

1

PR 01

2

PR 03

4

PR 07

3

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Watching analogue channels

Set to “TV”

 Mute

1

Power on

2

 Press again to turn the screen off

The green power lamp
on the TV lights.

and put the TV into standby mode.

Switch to analogue channels

3

Select a channel

4



Switch between mono / stereo /
bilingual broadcasting

 “Stereo / t·u” (P. 36)

 To completely turn off the TV, unplug

the AC plug.

 To watch analogue channels you must

 Volume

Basic operations using the side buttons

1

Power on

2

 Volume

register them beforehand.

 “Auto Program” (P. 36)

Change
the channel

 To the previous channel



Note

Channel
information and
clock

Using PR list

Using the
number buttons,
up / down buttons

Register a
channel to a
button

FAVOURITE

CHANNEL

Channel information Time

PR list

 Channels registered in “Initial settings” will appear here.

 Select a page 

1 select

2 view

select

 Press a channel number

E.g.

1 :



15 :

While the channel
is displayed

Hold down
for 3 seconds



Press the number
to register it on

 Recall the favourite channel

Press the
number you
registered

 Check your favourite channels

 Press “ ” and confirm that the channels

you have registered have a d beside them

 Delete a favourite channel

 “MENU”  “ ”  “Features”  “Favourite Setting”

select delete

(No indication)

 “Time” is displayed

only when teletext
broadcasting can be
received.

 Close PR list

(3 times)

 Move up or down a channel

up

down

Disappears after
a few seconds

 Customisations

(P. 36) to the picture
of a favourite
channel get saved
as well.

25

26

ENGLISH

Set Up

Auto Program

Component Auto Select

PC Position

Attenuator

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

EXT Setting

Off

Language

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

ID List

VHS
S-VHS
DVC
CAM
SAT
STB
GAME
DVD
DVR

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

ID List

VHS
S-VHS
DVC
CAM
SAT
STB
GAME
DVD
DVR

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

>

EXT-1

DVD

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

>

EXT-1

Dubbing
EXT-2

EXT-4

EXT-3

TV

DTV

EXT Setting

1

2

3

4

5

6

7

EXT-1
EXT-2
EXT-3
EXT-4
HDMI1
HDMI2
PC

8 DTV

EXT Mode

0

AV

Set Up

P

M

EN

U/

O

K

T

V/

A

V

TV/AV

P

MENU

/OK

Set Up

Auto Program

Component Auto Select

PC Position

Attenuator

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

EXT Setting

Off

Language

Set Up

PC Position

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

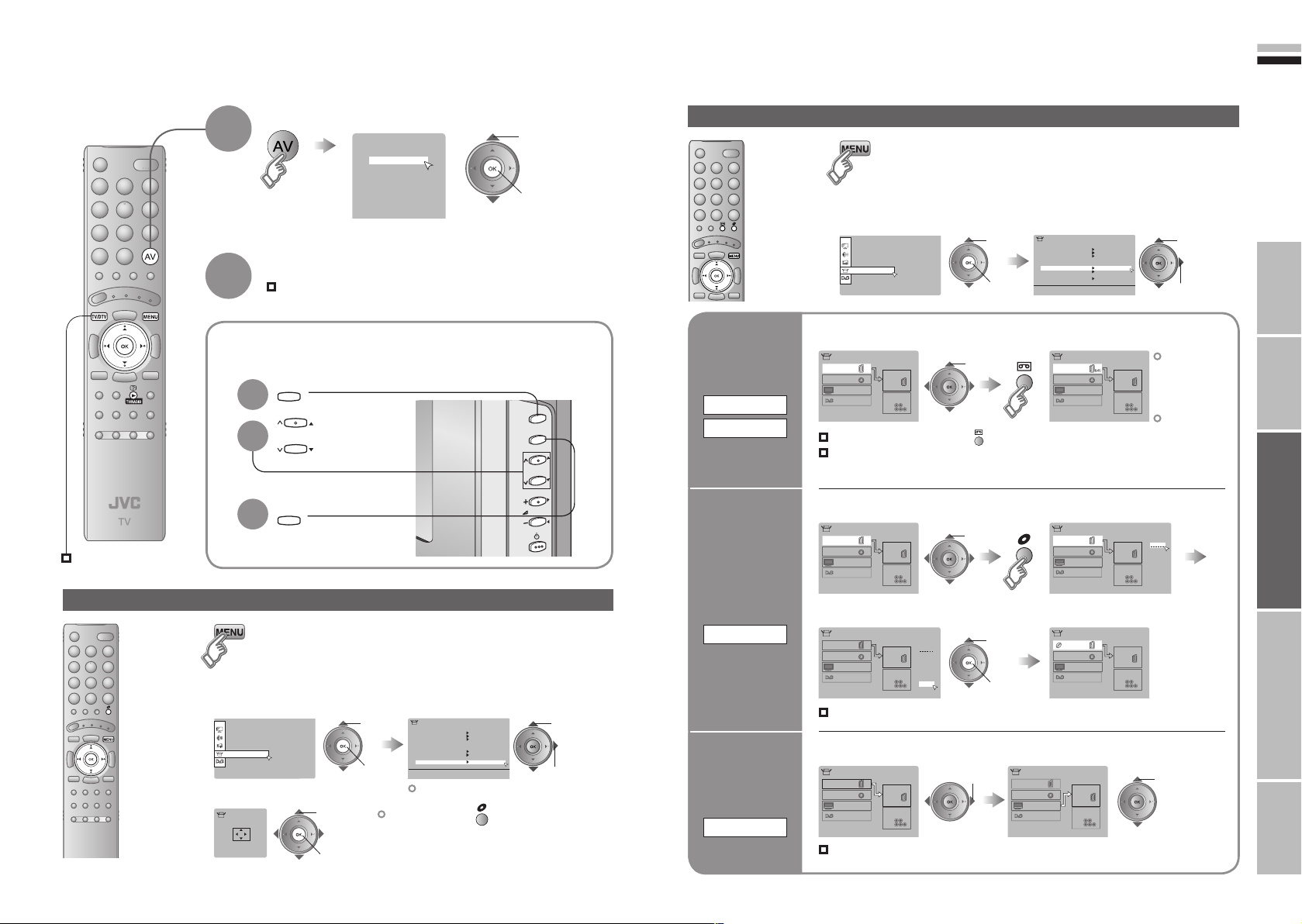

Watching videos / DVDs

 To TV

1

Select the video source

1

E.g. For EXT-1

Operate the connected device and play a video

2

 Operate JVC recorders and other devices (P. 33)

Select the video source using
the side buttons

1
2

Select the
video source

3

PC position adjustment

Display the
menu bar

1 select

2 watch

Switch
to S-VIDEO
input / output

S-IN

S-OUT

(Digital channels)

Edit names
of connected
devices

ID LIST

Advanced functions

Display the

1

2

1 Select the EXT connected to S-VIDEO

 Cancel this mode
 Set the S-OUT

1 Select an EXT to assign a name to 2 Show the name list

3 Select a name from the list

menu bar

Select “Set Up”

 Press “ ” in 2 again



Cancel S-IN at “EXT-2”, then select “DTV” and press
yellow button. (available only for digital channels)

Select “EXT Setting”

1 select

2 next

2 Set S-VIDEO input

select

select

1 select

1 select

2 next

 The device

selection
display will
change from
E1 to S1.

 S-OUT is

not available
when EXT-2
receives an
RGB input.

2 set

Select “Set Up”

2

1 select

Select “PC Position”

1 select

 Clear the name

 Select the blank space in 3

1 Select the arrow 2 Select the dubbing source

1 adjust

2 set

2 next

 Shown only when “PC” is selected.

 Reset position 

3

2 next

Set up
dubbing on
EXT-2

DUBBING

select

 Record digital channels with S-VIDEO

select

 Set S-OUT at “DTV”.

27

28

ENGLISH

DTV

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

PR TVE 1

Start 17:15

End 18:00

Date 05/05/2006

Mode Once

Audio PCM / Analogue

Subtitle Off

Maturity Rating Lock

PR TVE 1

Start 17:15

Date

05/05/2006

Mode

Once

14:00

05/05/2006

Start

Mode

1

- - - - - Once17 : 15

DateEnd

05/05/2006

Please select timer

Record Remind

Timer

14:00

05/05/2006

PR

Start

Timer list empty

End Date Mode

14:00

05/05/2006

Start

End Date Mode

1

17 : 15 18 : 00 05/05 /2006 Once

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Using timer-record

DTV original function and setting, such as a recorder-linked timer-record setting,
can be selected from the DTV menu.

 To the previous

screen



 Exit



 DTV menu

cannot be
operated with the
side buttons.

 Switch TV / RADIO

1

Switch to digital
channels

Display the menu bar

2

Select “DTV”

3

Select “Timer”

4

Set “Timer”

(red)

5

Select an item

6

 Up to 20 programmes can be

reserved.

 Cancel a reservation

 Select the reservation. Press “ ”. Select “Yes” and

press “OK” button.

 Change a reservation



Select the reservation and press “OK”.

 Search a channel using EPG

 Press “ ”

7

1 select

2 next

1 select

2 next

1 select

2 next

Reserve a
programme
to record

Record

Reserve a
programme to
watch

Remind

Input / confirm timer-record settings

1

 A message will be displayed if there is problem with the reservation
 In the following cases, enter the PIN code  “When entering the PIN Code” (P. 38)

· When changing the “Maturity Rating”

· When reserving a channel which is set to “Lock” (P. 47)

Set

2

(red)

 If you reserved the programme using EPG, the screen will return to EPG instead.

 Step 3 in “Timer” (P. 20)

Select the channel

Enter the time and date with number buttons

Select the reservation mode (Once / Daily / Weekly)
Normally set to “PCM / Analogue” (PCM / Analogue, Dloby

Digital)  (P. 57)
Set subtitle recording (Off / On)
Lock the recording with the maturity rating (Lock / Unlock)

TV programme

Radio programme

 At the start time, the channel will

automatically change and the
device connected to EXT-2 will
begin recording the programme.

: When “Maturity Rating” is set
to “Unlock”

Prepare for recording

· Set the recording device to external input mode before the start time.

3

· Manually set the timer on T-V LINK incompatible devices. For details, refer to the device’s manual.

· Make sure that recording times on the recording device do not overlap with recording times on the TV.

· Some T-V LINK compatible DVD recorders may not work correctly.

 When Rec Timer has been set, the power lamp on the TV will :

Start blinking 3 minutes before the start time (green or red)
Light during recording (green or orange)

Input / confirm timer-record settings

1

 A message will be displayed if there is problem with the reservation

Set

2

(blue)

 If you reserved the programme using EPG, the screen will return to EPG instead.

 Step 3 in “Timer” (P. 20)

Select the channel

Enter the time and date with number buttons

Select the reservation mode (Once / Daily / Weekly)

TV programme

Radio programme

 If the TV’s power is off at the

start time, nothing happens.

 At the start time, the channel will

automatically change.

29

30

ENGLISH

Audio Selection

Spanish

English

Features

>

Sleep Timer
Child Lock
Appearance
Blue Back
Favourite Setting

Type A

On

Illumination

Bright

Power Lamp

On

Features

> Sleep Timer

Off

Auto

Panoramic
14:9 Zoom
16:9 Zoom
16:9 Zoom Subtitle
Full

Zoom

Regular

16 : 9 Zoom

High3D Cinema Sound

Subtitle Selection

Off

On

Subtitle Selection

Off

On

Spanish

English

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Useful functions

View
subtitles

SUBTITLE

(Digital channels)

Select audio
language

AUDIO

SELECTION

(Digital channels)

1 select

: Don’t display

Off

: Display

On

 By default, the language set in “Subtitle Language”

(P. 41) is automatically selected.

When not broadcast in that language, another

broadcast language is automatically selected.

 When no subtitles are broadcasted, “No Subtitles” is

displayed.

2 set

 Switch to another language

1 select “ON”

2 next

1 select

2 set

: Special subtitles for the hearing impaired

Undefined : When the subtitle’s language cannot be

 The language that can be selected depends on the

broadcast.

By default, the language set in “Audio Language” (P. 41)
is automatically selected.
When not broadcast in that language, another broadcast
language is automatically selected.

identified

 Switch to another language

1 select

2 set

: Special audio track for the visually impaired

Undefined : When the audio’s language cannot be

Dolby : Dolby Digital

 The language that can be selected depends on the

broadcast.

 Please read ““Dolby Digital” output from the

“DIGITAL AUDIO OUT” terminal” (P. 57) before
selecting “Dolby”

identified

· Subtitle / Audio selection / Sleep timer / Zoom / Multi-picture, etc.

Set a time for
the TV to turn
itself off

SLEEP TIMER

Enjoy
ambient
sound

3D CINEMA

SOUND

Change the
aspect ratio

ZOOM

1

1 select

2

3

4

 Cancel

 Remaining time

 When set to “Auto”, the aspect ratio will turn to the ratio obtained from the

 Not available in 1080i (1125i) / 720p (750p) signals.
 In PC mode, “Regular” and “Full” can be selected.

 Set the time to “0” in step 4

 You can confirm the remaining time at step 4,

after repeating this process.

information the TV received.
Without receiving aspect information, it will be the setting in “4:3 Auto Aspect”
(P. 39)

“Features”

2 next

1 select

“Sleep Timer”

2 next

1 select a time in

minutes

2 set

High

: For stereo sound

Low

: For stereo sound

(when the sound distorts in “High” mode)

Mono

: For mono sound

(emulates a stereo-like sound)

Off

: Turns off “3D Cinema Sound”

1 select

2 set

Move the picture with
1 or 4 while this bar is
displayed

31

32

ENGLISH

Sleep Timer
Child Lock
Appearance
Blue Back
Favourite Setting

Type A

On

Illumination

Bright

Power Lamp

On

> Features

>> Set ID No.

ID

>

Child Lock

01

AV

PR

02
03
04
05
06
07
08
09

CH/C

C

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

03

CC

04

CC

05

CC

02

ID

>

Child Lock

01

AV

PR

02
03
04
05
06
07
08
09

CH/C

C

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

03

CC

04

CC

05

CC

02

Features

ID

TVE1

TVE

2

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Useful functions (continued)

Select the number

Watch in
multi-picture
mode

MULTI-PICTURE

of screens

Selecting “ ” returns to normal viewing mode

 Not available in PC mode.

 Watch in dual-picture mode

E.g. You can watch TV and video at the same time.

(For wide aspect ratio signals)

Main Sub

 Switch between

the sound sources



 When watching digital channels, there may

be occasions where the aspect ratio changes,
for example during commercials. In this case,
the layout of the screen in dual-picture mode
changes automatically according to the aspect
ratio signal.

 Change the channel

 (Main)

 (Sub)

1 select

2 set

Main

Sub

Stop
children from
watching
specific
channels

CHILD LOCK

(Analogue
channels)

1
2

3

4
5

6

7

1 select

“Features”

2 next

select
“Child Lock”

1 enter an “ID NO.”

(a secret number of your choice)

2 to the next column

3 set

select a channel to lock

 Lock more channels

 Repeat steps 5 and 6

 Select an analogue channel in 12-screen mode

All registered channels are displayed as still images.

1 select a

Main

Only the selected frame
has a moving picture.

2 watch

 Move up or down a page 

 Not available when in digital channels,

EXT-5, or EXT-6 input.

channel

Take
snapshots
of the screen

FREEZE

(Analogue
channels)

 Release a channel

 View a locked channel

 Press “ ” again in step 6

 Use the numerical buttons to enter the channel number.

When n appears, press “ ” and enter your “ID No.”.
(If you forget your “ID No.”, check it in step 4.)

Current programme

 Cancel


 You cannot save or export the snapshot.

 Press “ “ again, or change the channel

Not available when the SUB-PICTURE is displayed, or when in digital channels or PC mode.

Still picture

33

34

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Operate JVC recorders

The included remote control can be used to operate JVC recorders
and other devices.

1

2

3

Select a device

VCRs
DVD recorders
HDD recorders

TV

 The indicator lights for 3 seconds

each time the remote control is
operated.

Home
theatre
system

DVD playersTV (P. 6)

VCR/DVR

DVDHC

Turn on the device

Operate the device

 Other buttons can be used to

operate the TV at any time.

Operate the
VCR,
DVD recorder
or HDD recorder

VCR/DVR

Operate the
DVD player

DVD

and other devices

Select VCR / DVD recorder / HDD recorder

VCR

DVD recorders

HDD recorders

 Operate DVD / HDD recorder menus

Display menu

Select

Display

top menu

 Display the subtitle (DVD / HDD recorder mode)

 Operate DVD menus

Select

Display

top menu

OK

OK

Back to
previous menu

Display menu

Back to
previous menu

 Playback / Record etc.

Select a chapter

 Press “ ”

 Playback etc.

Select a chapter

Rewind / Playback
/ Fast-forward

Record / Stop / Pause

Rewind / Playback
/ Fast-forward

Stop / Pause

Try changing the remote control code
if you cannot operate a recorder.

 Code A or 1 (Default)

Press and hold Press and hold

 Confirm the code for your recorder by checking the manual it

came with.

 Some models of JVC devices cannot be operated with this

remote control.

 JVC DVD recorders and HDD recorders are set to code “C” or

“3” by default.

Note

 If the battery is removed, the remote control code reverts back

to code A or 1.

 Code C or 3

Operate the
home theatre
system

HC

 Display the subtitle

 Operate HC menus

Select

Display

top menu

 Display the subtitle

 Press “ ”

 Mute

 Volume

 Select a surround mode

 Press “ ”

 Press “ ”

OK

 Press “ ”

Display menu

Back to
previous menu

 Press “ ”

 Playback etc.

Rewind / Playback
/ Fast-forward

Stop / Pause

Select a chapter

35

36

ENGLISH

Just the way

Standard


Picture Mode

Standard

Bright-1

Features

Colour Temp.

Hue

Colour

Sharp

Bright-2

Contrast

Cool


Picture Mode

Standard

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

you like it

Customising your TV

 To the previous

screen



 Exit



 The menu disappears

after one minute of
inactivity.

1

2

3

4

Display the menu bar

Select a menu

1 select

2 next

Select an item

select

Adjust / Configure

1 adjust /

select

2 set

 When adjusting

with the sliding-bar

Move

 When selecting

from presets

The item will change.

 Some items have a

sub-menu.

Selected menu’s title


Sound
Features
Set Up

DTV

 DTV menu is available only when

watching digital channels  (P. 37)

Items

1 adjust

2 set

1 select

2 set

Menu Item Adjustments / Configurations

Picture Mode

Bright-1

Contrast


Bright-2

Sharp

Colour

Hue

Colour Temp.

Features
Stereo / t · u

Bass

Treble

Sound

Balance

3D Cinema Sound

MaxxBass

Voice Enhancer

Sleep Timer

Child Lock

Features

Appearance

Blue Back

Favourite Setting

Illumination

Power Lamp

Auto Program

Edit / Manual

Language

Decoder(EXT-2)

Set Up

Component Auto Select

EXT Setting

HDMI Setting

Attenuator

PC Position

 Other settings · Change the aspect ratio  “ZOOM” (P. 30)

· Turn on “3D Cinema Sound”  “3D CINEMA SOUND” (P. 30)

*1 MaxxBass is a registered trademark of Waves Audio Ltd. in the USA, Japan and other countries.

*1

Picture mode (Bright / Standard / Soft)

Backlight brightness (Darker  Brighter)

Contrast (Lower  Higher)

Brightness (Darker  Brighter)

Sharpness (Softer  Sharper)

Colour (Lighter  Deeper)

Tint (Reddish  Greenish)

Colour temperature (Warm / Normal / Cool)

Finer picture adjustments (P. 39)

Mode / Language (v : MONO / s : STEREO / t : SUB1 / u : SUB2)

Low tones (Weaker  Stronger)

High tones (Weaker  Stronger)

Speaker balance (Left Stronger  Right Stronger)

Ambience level (High / Low / Mono / Off)

Emphasize the bass sound (Off / Low / High)

Sound enhancement technology (On / Off)

Timer for turning off the TV (P. 30)

Stops children from watching specific channels (P. 32)

Format for displaying the channel number (Type A / Type B)

Displays a blue screen and mute the sound when the signal is weak or
absent (On / Off)

Clear favourite channel settings (P. 23)

Lights illumination lamp (P. 5) while the TV is on (Bright / Soft / Off)

Lights power lamp (P. 5) while the TV is on (On / Off)

Select a country, it automatically registers channels (P. 13, ⁄)

Change registered channels or add new ones (P. 49)

Select a language for on-screen analogue channel displays and menus
(excluding the DTV menu) (P. 13, Ÿ)

For when connected to VCR with “T-V LINK” (On / Off)

Changes the TV input to “EXT-4” when a component signal is input to “EXT­4” (On / Off) (Not available when viewing PC)

For use with video players and other devices (P. 26)

HDMI-1 (EXT-5) : Size (1 / 2 / Auto), Audio (Digital / Analogue / Auto)
HDMI-2 (EXT-6) : Size (1 / 2 / Auto)

For when digital channels are not received because of too strong radio waves (On / Off)

PC position adjustment (P. 25)

37

38

ENGLISH

DTV

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

Setup

14:00

05/05/2006

Digital Audio Output PCM

Banner Duration 2 sec

Receiver Upgrade Auto

Common Interface No CI Module

Antenna Power Off

Off

Antenna Power

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Using DTV menu

Digital channels original function and setting can be selected from the DTV menu.

Switch to digital channels

1

Display the menu bar

2

Select “DTV”

1 select

3

2 next

Select “Setup”

1 select

2 next

 To the previous

screen



 Exit



 DTV menu cannot

be operated with
the side buttons.

4

Select an item

5

E.g. “Antenna Power”

Change setting

6

E.g. “Antenna Power”

select

select

Menu Item Adjustments / Configurations

Reserve a programme to record / watch (P. 27)

Edit / Delete / Lock registered digital channels or add them to favourites.
(P. 47)

Confirm the country of installation (P. 41)

Select a language for on-screen menus (P. 41)

Select a default language for audio (P. 41)

Select a default language for subtile (P. 41)

Select a default language for teletext (P. 41)

Change PIN code (P. 41)

Enable your favourite channels (P. 41)

Restrict programmes according to the age (P. 41)

When the Dolby Digital signal is received, you can select to output the
signal from the DIGITAL AUDIO OUTPUT terminal. (P. 43)

Select the display time for channel information (2 sec / 5 sec / 8 sec)

Upgrade your tuner software as newer versions becomes available. (P. 43)

Set Conditional Access Module (P. 43)

Power supply for the indoor aerial (P. 43)

Register channels (P. 45)

Check the broadcast signal (P. 45)

Initialise the DTV settings (P. 45)

DTV

Timer

Edit PR

Country

Menu Language

Configuration

Audio Language

Subtitle Language

Teletext Language

Enter PIN Code

Favourite Mode

Maturity Rating

Digital Audio Output

Setup

Banner Duration

Receiver Upgrade

Common Interface

Antenna Power

Installation

Service Scan

Signal Check

Factory Settings

When entering the PIN code

When watching digital channels or changing DTV menu settings, it may be necessary for you to
enter a PIN code.
Once a PIN code has been entered, there is no need to enter it again until the TV is turned off.

 The default PIN code is “0000”.
 You can set your own PIN code.  “Enter PIN Code” (P. 41)

7

Finish

39

40

ENGLISH


Super DigiPure

Auto

Picture Mode

Standard

Bright-1

Features

Colour Temp.

Hue

Colour

Sharp

Bright-2

Contrast

Cool


> Features

Super DigiPure

Movie Theatre
Colour Management
Picture Management

Colour System
4:3 Auto Aspect

Auto

Auto

On
On
On
On

Smart Picture
MPEG Noise Reduction

Auto

>> Colour System

Sub

Main

Auto
PAL

>> 4:3 Auto Aspect

Regular
14:9 Zoom

Panoramic

Auto

On

On

On

On

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Advanced picture adjustment

By default, the TV automatically adjusts itself for the best picture.

1

Display the menu bar

Super
DigiPure

For
natural-looking
outlines

Off

: Function is

turned off

Min Max Auto

:

When the picture
loses sharpness

: When noise

appears

: Automatically

adjusts

 To the previous

screen



 Exit



 The menu disappears

after one minute of
inactivity.

2

3

4

5

6

Select “Picture”

Select “Features”

Select an item

E.g. “Super DigiPure”

Change settings

E.g. “Super DigiPure”

Finish

1 select

2 next

1 select

2 next

1 select

2 next

1 select

2 set

Movie
Theatre

Colour
Management

Management

Smart

MPEG Noise
Reduction

Colour
System

For smooth
cinema film

For
natural-looking
pictures

Fix
bright / dark
pictures

Fix
brightness of
white areas

To reduce
MPEG video
noise

When
there is no
colour

Off

: Function is

turned off

Off

: Function is

turned off

Off

: Function is

turned off

Off

: Function is

turned off

Off

: Function is

turned off

On Auto

: Function is

always on

On

: Maintain a natural

colour balance

On

: Make it easier to view

bright / dark pictures

On

: Make it easier to view

white areas

On

: When noise appears

: Automatically

adjusts

 Not available when

“Picture Mode” is set
to “Bright” (P. 36).

1 Select the screen to change settings on

Main

: Main picture

Sub

: Sub-picture in

MULTI-PICTURE mode (P. 31)

2 Select the colour system

PAL

: Western

Europe

SECAM

:

Eastern Europe
/ France

NTSC 3.58

: USA

3.58 MHz

NTSC 4.43

: USA

4.43 MHz

Auto

: When watching

videos, etc.

4:3 Auto
Aspect

· Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

Set a default
aspect ratio

Select a default aspect ratio for Auto in “Zoom” (P. 30)

Panoramic

16 : 9 4 : 3 14 : 9

Regular 14:9 Zoom

41

42

ENGLISH

DTV

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

Configuration

14:00

05/05/2006

Country Spain

Menu Language

English

Audio Language

Spanish

Subtitle Language

Spanish

Teletext Language

Spanish

Enter PIN Code

Favourite Mode Off

Maturity Rating

Spain

English

Spanish

Spanish

Spanish

Configuration

14:00

05/05/2006

Country Spain

Menu Language

English

Audio Language

Spanish

Subtitle Language

Spanish

Teletext Language

Spanish

Enter PIN Code

Favourite Mode Off

Maturity Rating

Audio Language

Spanish

Subtitle Language

Spanis

h

Teletext Language

Spanis

h

Enter PIN Code

Favorite Mode Off

Maturity Ratin

g

This function is locked.
Please enter PIN code

Audio Language

Spanish

Subtitle Language

Spanis

h

Teletext Language

Spanis

h

Enter PIN Code

Favourite Mode Off

Maturity Rating

Confirmation

Audio Language

Spanis

Subtitle Language

Spani

s

Teletext Language

Spanis

Enter PIN Code

Favorite Mode Off

Maturity Rating

Enter new PIN code

Audio Language

Spanish

Subtitle Language

Spanish

Teletext Language

Spanish

Enter PIN Code

Favorite Mode Off

Maturity Rating

Confirm PIN

PIN code changed

OK

Configuration

14:00

05/05/2006

Country Spain

Menu Language

English

Audio Language

Spanish

Subtitle Language

Spanish

Teletext Language

Spanish

Enter PIN Code

Favourite Mode Off

Maturity Rating

On

Configuration

14:00

05/05/2006

Country Spain

Menu Language

English

Audio Language

Spanish

Subtitle Language

Spanish

Teletext Language

Spanish

Enter PIN Code

Favourite Mode Off

Maturity Rating

Country

D

Menu Language

Audio Language

Subtitle Language

Teletext Language

D

Enter PIN Code

Favorite Mode

Maturity Rating

None

Maturity Rating

Age 4
Age 5
Age 6
Age 7
Age 8
Age 9
Age 10
Age 11
Age 12

4

5

6

7

8

9

10

11

12

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

DTV configuration

Available for favourite channel selection, changing PIN code, and selecting
maturity rating, etc.

Switch to digital channels

1

Display the menu bar

2

Country

Menu
Language

Audio
Language

The country of
installation

Select a
language for on­screen menus

Select a default
language for
audio

Spain

 Spain only

English Castellano

Spanish

Basque

Catalan

Gallegan

Català

 For visually

impaired



 To the previous

screen



 Exit



3

Select “DTV”

1 select

2 next

Subtitle
Language

Teletext
Language

Select a default
language for
subtitle

Select a default
language for
teletext

Spanish

Basque

Spanish

Basque

Catalan

Gallegan

Catalan

Gallegan

 For hearing

impaired



Select “Configuration”

4

1 select

1 select

5

6

Select an item

Finish

2 next

select

Change PIN
code

Enter PIN Code

Enable your
favourite

3 Input a new code twice.

2 next

1 select

channels

Favourite mode

Set the
viewing age

1 select

limit

Maturity Rating

2 next

2 Input the current code1 Select “Enter Pin Code”

 Default is “0000”.

 “When entering the PIN code” (P. 38)

 If you forget the code Input “0081”

2 Select “On”1 Select “Favourite Mode”

 If you cannot select “On”, register channels in “favourites”

first  “Favourites” (P. 47)

2 Select age1 Select “Maturity Rating”

1 select

2 set

1 select

2 set

 Only programmes with

a maturity rating can
be restricted.

 To watch the restricted

programme, the PIN
code must be entered.

(X-Rated): For adult channels

43

44

ENGLISH

DTV

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

Setup

14:00

05/05/2006

Digital Audio Output PCM

Banner Duration 2 sec

Receiver Upgrade Auto

Common Interface No CI Module

Antenna Power Off

PCM

Auto

No CI Module

Off

New software found.

Wo

uld you like to upgrade now?

In standby NoYes

Manual

Software Version

OK

Search for new

3.07.00

Downloading new software

Cancel

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

DTV setup

Available for setting power supply for the aerial, and upgrading the tuner software,
etc.

Switch to digital channels

1

Display the menu bar

2

 To the previous

screen



Select “DTV”

3

Select “Setup”

4

Select an item

5

1 select

2 next

1 select

2 next

select

Output the
Dolby Digital
signal

Digital Audio Output

Upgrade
tuner

Receiver Upgrade

PCM

: The Linear PCM

signal is output

 Please read “Dolby Digital output from the DIGITAL AUDIO OUT terminal” (P. 57) before setting.

You can upgrade the tuner software as newer versions become available. Normally set to “Auto”.

Auto

: Automatically download and

install software upgrades

 This occurs at midnight when

the TV’s power is off.

Dolby Digital

: The Dolby Digital

signal is output

 Only when the Dolby Digital signal is received

Manual

: Manually download and

install software upgrades

 When you change the setting,

enter PIN code

 When JVC or the broadcasting station informs you of the new software, download it as follows.

1 Select “Manual”

 Enter PIN code if needed.

3 Select “Yes”



If the TV has upgrade to the latest tuner software, the message “Search completed. No new software found” will appear.



Select “In standby” instead of “Yes” if you want to upgrade the software automatically when the TV is turned off.

To watch pay-TV digital channels, use the Conditional Access Module menu.
This function can only be used when pay-TV can be received in your region.

1 select

2 next

1 select

2 next

2 Select “Search for new”

 If upgrading is not necessary,

select “OK” to finish.

“Software upgraded
successfully! TV will
now reset!”.

1 select

2 start

 Exit



6

Finish

Set
Conditional
Access
Module

Common Interface

Power
supply for
the indoor
aerial

Antenna Power

No CI Module

: Function is not

available

1 Press “OK” button to display the

Conditional Access Module menu

 The content of the menu is different depending on the broadcasting company.

 For details, consult your broadcasting company

 The language shown in the menu may differ to the “Language” set for the TV.

Off

: Power not

supplied

 Please read “Power supply for the indoor aerial” (P. 56) before setting.

 Banner Duration: Select the display time for channel information (2 sec / 5 sec / 8 sec)

 When the Conditional Access Module etc. is

inserted after subscribing to the broadcasting
company, this function is available.  “Watch pay­TV digital channels” (P. 8)

2 Follow the instructions on the

screen to set up pay-TV

On

: Power supplied

45

46

ENGLISH

DTV

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

Installation

Service Scan

Signal Check

Factory Settings

Scan Automatic

Start Channel

_ _

Stop Channel

_ _

Mode Add

Start Scan

Service Scan

Scan Automatic

Start Channel

_ _

Stop Channel

_ _

Mode Add

Start Scan

Service

UHF33:3 Services found

14:00

05/05/2006

TVE 1

24H TVE

TVE 2

RGE

Network Name

TDT CAM
SFN

Scan completed! Store servi ces?

Yes No

Signal Check

14:00

05/05/2006

Channel 33

Service

Signal : Excellent

Signal Quality
Signal Strength

Signal : Excellent

TVE 1

24H TVE

TVE 2

Are you sure you want to de lete the PR list and
reset all settings?

Yes No

This function is locked.
Please enter PIN code

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

DTV installation

Available for registration of digital channels, checking of digital channels signal,
and initialisation of all digital channels settings.

Switch to digital channels

1

Display the menu bar

2

Register a
new channel

Service Scan

1 Set items

Scan

Start Channel

Stop Channel

Mode

Automatic : Scan automatically
Manual : Scan a specified channel range
Network : You can select and register only necessary networks.

Specify a scanning channel range (For “Manual”)

Add : Add a new channel to the registered channel
Reinstall : Register all channels again

2 Select “Start scan”

1 select an item

2 change

 To the previous

screen



 Exit



3

4

5

6

Select “DTV”

Select “Installation”

Select an item

Finish

1 select

2 next

1 select

2 next

1 select

2 next

Check the
broadcast
signal

Signal Check

Initialise the
DTV settings

Factory Settings

3 Select “Yes”

1 select

2 set

 This channel is the frequency of the digital

 Select another broadcast channel 

All registered digital channels are deleted and the DTV menu settings are initialised. Digital channels are
reregistered.

 For “Network”

Select broadcasting stations from a list

registered

broadcasting. It differs from the channel number
displayed in the TV.

Poor Acceptable Excellent

1 select

2 registered / cancel

3 set

select

Signal level

1 Enter PIN code

 Default is “0000”.

 “When entering the PIN code” (P. 38)

2 Select “Yes”

1 select

in “Initial settings” (P. 12)

Ÿ

2 next

47

48

ENGLISH

DTV

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

1.

2.

5.

3.

4.

6.

7.

8.

TVE 1

24H TVE

TVE 2

CLAN/50 TVE

TM3

LAOTRA

ONDA6

TELEDEPORTE

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

1. TVE 1

2. TVE 2

3. 24H TVE

4. VOX

5. TM3

6. LAOTRA

7. ONDA6

8. TELEDEPORTE

Name

T

VE 1

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

1. TVE 1

2. TVE 2

3. 24H TVE

4. VOX

5. TM3

6. LAOTRA

7. ONDA6

8. TELEDEPORTE

Name

ABCDEFG

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

1. ABCDEFG

2. TVE 2

3. 24H TVE

4. CLAN/50 TVE

5. TM3

6. LAOTRA

7. ONDA6

8. TELEDEPORTE

Edit PR List

14:00

05/05/2006

TV

Name Delete Favourites

Number Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number

Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Number

001

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

0

01

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

OK

Cancel

PR exists! Move it?

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number

Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

deleted. Do you want to proceed?

NoYes

The selected PR will be permanently

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number

Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Edit PR List

14:00

TV

Name Delete Favourites

Number Lock

4. CLAN

/50

TV

E

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Edit PR List

14:00

05/05/2006

TV

Name

Delete Favourites

Number

Lock

4. CLAN/50 TVE

5. TM3

6. LAOTRA

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3. 24H TVE

Edit PR List

TV

Name

Delete Favourites

Number

Lock

4. CLAN

/50

TV

E

5. TM3

6

. LAOTR

A

1. TVE 1

2. TVE 2

7. ONDA6

8. TELEDEPORTE

3

. 24H TV

E

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Editing digital channels

Edit the channels registered with “Automatic” in “Initial settings” (P. 12).

 Switch TV / RADIO

1

Switch to digital
channels

Display the menu bar

2

Select “DTV”

3

Select “Edit PR”

4

 To the previous

screen



5

Select a channel

1 select

2 next

1 select

2 next

select

Edit a

channel

name

Name

Edit a
channel
number

Number

Delete a
channel

Delete

3 Set

1 Select “Number”

2 Change the name1 Select “Name”

1 select

2 next

2 Change the number 3 Select “OK”

1 select

2 next

2 Select “Yes”1 Select “Delete”

1 select

2 next

1 select character

2 move position

1 select

2 move

 Only when the same channel

number exists.

 The channels are rearranged in

numerical order.

1 select

2 delete

 Exit



2 Lock1 Select “Lock”

Stop Children

6

7

Edit

Finish

from watching
specific
channels

Lock

Register your
favourite

 Enter PIN code if needed

 “When entering the PIN code” (P. 38)

1 Select “Favourites”

channel

Favourites

select

1 select

2 set

 To release, press “OK” button

again.

Lock icon

Favourite icon

 To release, press “OK”

button again.

 To enable “Lock”

function, turns the TV off
and on again.

 To watch the locked

channels, the PIN code
must be entered.

 To move through only your

favourite channels and have
them appear in the PR list.

 “Favourite Mode” (P. 41)

49

50

ENGLISH

Download TV Recording Device

T-V LINK

Set Up

Set Up

Auto Program

Component Auto Select
EXT Setting

Off

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

Attenuator
PC Position

Set Up

Auto Program

Component Auto Select
EXT Setting

Off

Off

Off

HDMI Setting

Edit/Manual

Decoder(EXT-2)

Attenuator

Language

PC Position

01

AV

PR

02
03
04
05
06
07
08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC
CC

04

CC

05

03

> Edit

01

AV

PR

02
03
04
05
06
07
08
09

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

03

CC

04

CC

05

ID

> Edit

CC

02

> Edit

01

AV

PR

02
03
04

05

06
07
08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC

03

CC

04

CC

05

01

AV

PR

02
03
04
05
06

07

08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC

03

CC

04

CC

05

A

>Edit

>Edit

01

AV

PR

02
03
04
05
06
07
08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

MBC

M6

ID List

MCM
MDR
MOVIE
MTV
MTV3

CH

25

CC

02

CC

03

CC

04

CC

05

M

01

AV

PR

02
03
04
05
06

07

08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC

03

CC

04

CC

05

JVC

>Edit

01

AV

PR

02
03
04
05
06

07

08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC

CC

03

CC

04

>Edit

>Edit

01

AV

PR

02
03
04
05
06

07

08
09

ID

CH/CC

TVE1 CH

21

CH

22

CH

23

CH

24

CH

25

CC

02

CC

CC

03

CC

04

12

>

01

AV

PR

02
03
04
05
06
07

ID

CH/CC

CH

22

CH

23

CH

24

CH

25

CC

02

CC

03

CC

04

Edit

>

11

10

PR

12
13
14
15
16
17

ID

CH/CC

CH

02 (B/G

)

CC

06

Manual

ID

>Manual

11

10

PR

12
13
14
15
16
17

CH/CC

CH

08 (B/G

)

CC

06

ID

>

11

10

PR

12
13
14
15
16
17

CH/CC

CH

08

CC

06

Edit

ID

>

Manual

11

10

PR

12
13
14
15
16

CH/CC

CH

08 (I

)

CC

06

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Editing analogue channels

Edit the channels registered with “Auto Program” in “Initial settings” (P. 13).

When coming from “Initial settings” (P. 13), skip to ¤.

Switch to analogue broadcasting

1

Display the menu bar

2

Select “Set Up”

3

Select “Edit / Manual”

4

Select a row

5

 To the previous

screen



6

 Exit



Edit

Confirm settings

7

Finish

 When using

“T-V LINK”

8

 If “Feature Not Available”

appears :

 Is a “T-V LINK”

compatible device
connected to “EXT-2”?

 Is the device turned on?

 “T-V LINK”  (P. 11)

 When not using

“T-V LINK”

1 select

2 next

1 select

2 next

select

Move a
channel’s
position

MOVE

Edit a
channel
name

ID

Insert a
channel

INSERT

Delete a
channel

DELETE

Register a
new channel

MANUAL

1 Begin 2 Select a destination 3 Finish

select

move out move in

1 Begin 2 Enter a channel name

(red)

 When selecting a preset name from the “ID List”

enter
the first
character

 When manually naming a channel

next
column

1 Begin

2 Select a “CH / CC” 3 Enter a number

select

 “CH/CC” List  (P. 55)

1 Delete

1 Begin

3 Set

2

Beginning channel search

From high
frequencies

 If necessary, press 3

to change the broadcasting system.

 “Receivable broadcast systems

(Analogue channels)” (P. 56)

(red)

From low
frequencies

or

 Adjust

 Picture fine tuning 

 Sound fine tuning 

1 select

2 set

1 enter

2

next
column

3 set

 Receives the

broadcast
signal.

 Auto-search begins,

and the nearest
frequency is imported.

 Repeat the previous

steps until the
desired channel is
displayed

/

select a system

51

52

ENGLISH

When you

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

have trouble

Troubleshooting

 Analogue channels

Severe noise or
snow

 Is the TV connected correctly to

the aerial?

 Change the direction of the aerial.
 Is the aerial or its cable

damaged?

 Consult your retailer

Patterns, stripes
or noise

 Is the aerial receiving interference

from high-voltage power lines or
wireless transmitters?

 Consult your retailer

 Are connected devices too close

to the TV?

 Insert the minimum distance

between the aerial and the
cause of interference until no
interference

Ghosting

(Doubling of images)

 Are you receiving interference

from signals reflected off
mountains or buildings?

 Adjust the direction of your

aerial, or change to a
good-quality directional aerial

 Digital channels.  (P. 14)

I can’t turn it on!

 Is the power cord connected to the AC outlet

correctly?

The remote
control doesn’t
work!

 Are the batteries flat?
 Are you more than 7 meters away

from the TV?

 Is the “MODE (TV, VDR/DVR, DVD, HC)” set to “TV”?

 When viewing teletext, the TV menu bar does not appear.
 Depending on the stability of the signal, there may be a time

lag when changing channels.

Problem Actions

Not displayed
(black screen)

Basics Screen Picture Sound

Remote control
stops working

Digital channel screen
is frozen

Some functions
do not work

Aspect ratio changes
unintentionally

PC screen alignment
is off

Poor picture quality

Strange picture
when using an external
device

Poor sound

No sound from the
audio component

 Is the analogue channel reception poor, too?

 Following the instructions in “Severe noise or snow”

can solve this problem.

 Digital channels are not displayed

 When the TV cannot find the digital channels

 There may be problems at the aerial, radio waves,

or the area you live in, where reception is bad.
Consult your retailer.

 Unplug TV, several minutes later plug it in again.

 Hold down “ ” and “ ” on the TV

simultaneously for three or more seconds to restart.

 It is not a malfunction. Some functions (dark background)

in the menu do not work depending on the situation.

 Press “ ” to return to your settings.

 Adjust the “PC Position”.

 Unnatural colour >>> Adjust “Colour” and “Bright-1”.

 Noise >>> Set to the following functions.

Picture Mode : Standard
Super DigiPure : Max

 Dull picture >>> Set to the following functions.

Picture Mode : Bright
Super DigiPure : Min

 If you connected S-Video output device, check the “S-IN”

setting.

 If the top of the image is distorted, check the video signal

quality itself.

 If movement appears unnatural when receiving a signal

from a DVD player, etc. with 625p (progressive-scanning),
change the output setting of the external device to 625i
(interlace-scanning).

 Adjust the “Bass” and “Treble”.


If receiving a poor signal in “Stereo / t·u”, switch to “Mono”.

 Audio signals received from EXT-5 and EXT-6 can not be

sent to the “AUDIO OUT” terminal.

Check your “Colour System”

page

51

14

–

–

–

–

30

25

36
39

36
39

36
39

26

–

–

36
36

–

53

54

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Troubleshooting (continued)

Problem Actions

Wrong screen size 36

No picture, no sound –

No sound

Green and distorted
screen

Some inputs cannot
be selected in the
sub-picture

“Feature Not Available”

“ACI Error” –

Error messageFunctionsHDMI

 Switch “Size” in “HDMI Setting” to “1” or “2”.

 Use the cable marked with HDMI logo.

 Check if the device is compliant with HDMI.
 Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for

HDMI devices, or “Analogue” or “Auto” for DVI devices.
(Not available for “EXT-6”.)

 Wait a little for the signal to stabilize when switching the

signal format for an “HDMI” device.

 Digital channels, EXT-4, EXT-5, EXT-6 inputs, and PC mode

cannot be selected in the sub-picture.

 RGB input signal of EXT-1 and EXT-2 are not available in

dual-picture mode.

 Is the T-V LINK compatible device connected to EXT-2?
 Is the SCART CABLE “Fully Wired”?
 Is the T-V LINK compatible device turned on?

After confirming all the conditions above,
press “OK” button again.

 Press 2 to start ACI again.

If you still receive the “ACI Error” after numerous tries,
press 3 to cancel ACI.

page

–

36

–

–

56
56

–

Problem Actions

Screen

Black or white dots
appear on the screen

No picture, no sound 57

“Dolby Digital selected!
No analogue audio
available”

DTV

Forgot my PIN code! 41

 LCD panels use fine dots (“pixels”) to display images.

While more than 99.99% of these pixels function properly,
a very small number of pixels may not light, or may light all
the time.
Please understand that this is not a malfunction.

 Some digital channels cannot be watched on this TV.

When “Dolby Digital” is selected in “Digital Audio Output”, the
sound of a programme containing “Dolby Digital” signals cannot
be output from the TV or the audio system connected to the
“AUDIO OUT” terminal.
When the channel is changed, a message will be displayed for
a few seconds.

 To listen with the TV or audio system

 Select a language without “(Dolby)” from “Audio Selection”
 Switch “Digital Audio Output” to “PCM”

 The default PIN code is “0000”. If you forget the numbers that

you used to change the default PIN code, first input “0081” in
the “Enter PIN code” and then register a new PIN code.

page

–

57

29
43

“No Recording” –

“ No Recording

Possible”

“ No Recording Media

Problem”

“ No Recording Device

Busy”

 A problem occurs at the recorder.

 The displayed video cannot be recorded.

 The recorder is not ready for recording.

Check the videotape or DVD disc.

 The recorder is recording another programme, or is playing.

–

–

–

Locked channels can
be watched without
inputting PIN code

When JVC or the
broadcasting station
informs you of the
software

 Once the PIN code is input, all the lock functions (“Lock” and

“Maturity Rating”) are released. If you want to use the lock
function again, turn the TV off and then turn it on again.

 Upgrade the tuner software by using the “Receiver Upgrade”

function.

–

43

55

56

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

“CH/CC” List

Technical information

To use the INSERT function (P. 49), find the “CH/CC” number corresponding to the TV’s analogue channel
number from this table.

 When the Country setting is “France”, select a three-digit CH/CC number.

CH Channel

CH 02/CH 202 E2, R1

CH 03/CH 203 E3, ITALY A

CH 04/CH 204 E4, ITALY B, R2

CH 05/CH 205 E5, ITALY D, R6

CH 06/CH 206 E6, ITALY E, R7

CH 07/CH 207 E7, ITALY F, R8

CH 08/CH 208 E8, R9

CH 09/CH 209 E9, ITALY G

CH 10/CH 210 E10, ITALY H, R10

CH 11/CH 211

CH 12/CH 212

CH 21/CH 221 E21, R21

CH 22/CH 222 E22, R22

CH 23/CH 223 E23, R23

CH 24/CH 224 E24, R24

CH 25/CH 225 E25, R25

CH 26/CH 226 E26, R26

CH 27/CH 227 E27, R27

CH 28/CH 228 E28, R28

CH 29/CH 229 E29, R29

CH 30/CH 230 E30, R30

CH 31/CH 231 E31, R31

CH 32/CH 232 E32, R32

CH 33/CH 233 E33, R33

CH 34/CH 234 E34, R34

CH 35/CH 235 E35, R35

CH 36/CH 236 E36, R36

CH 37/CH 237 E37, R37

CH 38/CH 238 E38, R38

CH 39/CH 239 E39, R39

CH Channel

CH 102 F2

CH 103 F3

CH 104 F4

CH 105 F5

CH 106 F6

CH 107 F7

CH 108 F8

CH 109 F9

CH 110 F10

CH 121 F21

CH 122 F22

CH 123 F23

CH 124 F24

CH 125 F25

CH 126 F26

CH 127 F27

CH 128 F28

CH 129 F29

CH 130 F30

CH 131 F31

CH 132 F32

CH 133 F33

CH 134 F34

CH 135 F35

CH 136 F36

CH 137 F37

CH 138 F38

CH 139 F39

CH 140 F40

E11, ITALY H+1, R11

E12, ITALY H+2, R12

CH Channel

CH 40/CH 240 E40, R40

CH 41/CH 241 E41, R41

CH 42/CH 242 E42, R42

CH 43/CH 243 E43, R43

CH 44/CH 244 E44, R44

CH 45/CH 245 E45, R45

CH 46/CH 246 E46, R46

CH 47/CH 247 E47, R47

CH 48/CH 248 E48, R48

CH 49/CH 249 E49, R49

CH 50/CH 250 E50, R50

CH 51/CH 251 E51, R51

CH 52/CH 252 E52, R52

CH 53/CH 253 E53, R53

CH 54/CH 254 E54, R54

CH 55/CH 255 E55, R55

CH 56/CH 256 E56, R56

CH 57/CH 257 E57, R57

CH 58/CH 258 E58, R58

CH 59/CH 259 E59, R59

CH 60/CH 260 E60, R60

CH 61/CH 261 E61, R61

CH 62/CH 262 E62, R62

CH 63/CH 263 E63, R63

CH 64/CH 264 E64, R64

CH 65/CH 265 E65, R65

CH 66/CH 266 E66, R66

CH 67/CH 267 E67, R67

CH 68/CH 268 E68, R68

CH 69/CH 269 E69, R69

CH Channel

CH 141 F41

CH 142 F42

CH 143 F43

CH 144 F44

CH 145 F45

CH 146 F46

CH 147 F47

CH 148 F48

CH 149 F49

CH 150 F50

CH 151 F51

CH 152 F52

CH 153 F53

CH 154 F54

CH 155 F55

CH 156 F56

CH 157 F57

CH 158 F58

CH 159 F59

CH 160 F60

CH 161 F61

CH 162 F62

CH 163 F63

CH 164 F64

CH 165 F65

CH 166 F66

CH 167 F67

CH 168 F68

CH 169 F69

CC Channel

CC 01/CC 201 S1

CC 02/CC 202 S2

CC 03/CC 203 S3

CC 04/CC 204 S4

CC 05/CC 205 S5

CC 06/CC 206 S6

CC 07/CC 207 S7

CC 08/CC 208 S8

CC 09/CC 209 S9

CC 10/CC 210 S10

CC 11/CC 211 S11

CC 12/CC 212 S12

CC 13/CC 213 S13

CC 14/CC 214 S14

CC 15/CC 215 S15

CC 16/CC 216 S16

CC 17/CC 217 S17

CC 18/CC 218 S18

CC 19/CC 219 S19

CC 20/CC 220 S20

CC 21/CC 221 S21

CC 22/CC 222 S22

CC 23/CC 223 S23

CC 24/CC 224 S24

CC 25/CC 225 S25

CC 26/CC 226 S26

CC 27/CC 227 S27

CC 28/CC 228 S28

CC 29/CC 229 S29

CC 30/CC 230 S30

CC Frequency (MHz)

CC 110 116-124

CC 111 124-132

CC 112 132-140

CC 113 140-148

CC 114 148-156

CC 115 156-164

CC 116 164-172

CC 123 220-228

CC 124 228-236

CC 125 236-244

CC 126 244-252

CC 127 252-260

CC 128 260-268

CC 129 268-276

CC 130 276-284

CC 131 284-292

CC 132 292-300

CC 133 300-306

CC 141 306-311

CC 142 311-319

CC 143 319-327

CC 144 327-335

CC 145 335-343

CC 146 343-351

CC 147 351-359

CC 148 359-367

CC 149 367-375

CC 150 375-383

CC 151 383-391

CC Channel

CC 31/CC 231 S31

CC 32/CC 232 S32

CC 33/CC 233 S33

CC 34/CC 234 S34

CC 35/CC 235 S35

CC 36/CC 236 S36

CC 37/CC 237 S37

CC 38/CC 238 S38

CC 39/CC 239 S39

CC 40/CC 240 S40

CC 41/CC 241 S41

CC 75/CC 275 X

CC 76/CC 276 Y, R3

CC 77/CC 277 Z, ITALY C, R4

CC 78/CC 278 Z+1, R5

CC 79/CC 279 Z+2

CC Frequency (MHz)

CC 152 391-399

CC 153 399-407

CC 154 407-415

CC 155 415-423

CC 156 423-431

CC 157 431-439

CC 158 439-447

CC 159 447-455

CC 160 455-463

CC 161 463-469

What is “T-V LINK”?

“T-V LINK” allows the TV to share information easily with a connected “T-V LINK” compatible device.
By using T-V LINK :

 You can send the analogue channel information programmed on the TV to the “T-V LINK” compatible device,

so that both the TV and the external device have the same channel settings. When connecting a new external
device, channel information is loaded into it, allowing channel setup to be completed very quickly. For more
details, refer to the external device’s manual.

 You can easily record the TV programme you are viewing on a “T-V LINK” compatible device by using the

“DIRECT REC” feature. For more details, refer to the external device’s manual.

 After timer-record setting, the TV will instruct the recorder to start and stop recording, via “DIRECT REC”.

What is “ACI” (Automatic Channel Installation)?

Some cable companies transmit a signal called “ACI” which contains information that allows analogue channels to
be registered automatically on your TV.
When an ACI signal is received, “ACI Start / ACI Skip” appears in the “Auto Program” screen.

PC Signals that can be displayed

*Macintosh* computers are not supported.
(Macintosh is a registered trademark of
Apple Computer, Inc.)

 If the signal doesn’t appear, check that the vertical

frequency on the PC is set to “60Hz”.

Resolution

640 x 480 (VGA)

1024 x 768 (XGA)

Vertical frequency (Hz) 60.0 60.0

Connect “DVI” devices

Connect a “DVI“ device to “EXT-5 (HDMI)” using “DVI-HDMI” conversion cable. Connect analogue sound output of
the DVI device to L and R terminals in EXT-4.

 Set “Audio” in “HDMI Setting” to “Analogue” or “Auto”  (P. 36)
 EXT-6 input does not support DVI devices.
 EXT-6 input does not support analogue sound (EXT-4).

Receivable broadcast systems (Analogue channels)

Depending on the country selected during “Auto Program”, the receivable broadcast system differs.

 UNITED KINGDOM: Receive only PAL-I.
 FRANCE: Can receive SECAM-L.

To receive SECAM-L in countries other than France:

1) Change the “Country” to “France” in “Auto Program”.

2) Press the “BACK” button to return to the menu and enter the channel using “Insert” or “Manual”.

Power supply for the indoor aerial

When using an indoor aerial which needs external power, set “Antenna power” to “On” during “Initial settings” (P. 11).
The TV will supply DC 5V, 50mA (max) from the aerial socket through the cable to the aerial.

 Supplying power to outdoor and indoor aerials which does not need external power, may cause damage to the

aerial. If you are uncertain whether the aerial needs external power, select “Off”.

 Connect the aerial directly to the TV. When a recording device is connected between the aerial and the TV,

power can not be supplied to the aerial.

 Power is supplied to the aerial only when the TV is on.

 To change the setting after “Initial settings” is complete  “Antenna power” (P. 43)

57

58

ENGLISH

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Technical information (continued)

Specifications

“Dolby Digital” output from the “DIGITAL AUDIO OUT” terminal

Some digital channels are broadcasted with “Dolby Digital” signals.
In these cases, “Dolby Digital” signals can be output from the “DIGITAL AUDIO OUT” terminal.

1. Connect an audio system with a “Dolby Digital” decoder. (P. 10)

2. Change the “Digital Audio Output” setting from “PCM” to “Dolby Digital”. (P. 43)

 When changing the setting, the message “Dolby Digital selected! No analogue audio available.” may be

displayed for a few seconds.

 Each time the channel is changed to a channel that is broadcast with “Dolby Digital” signals, the message

“Dolby Digital selected! No analogue audio available.” may be displayed for a few seconds.

 Even if “Dolby Digital” is set, “linear PCM” signals will be output by a channel that is not broadcast with “Dolby

Digital” signals.

Set the audio system so that it is compatible with both “Dolby Digital” and “linear PCM”. (For details, refer to

the audio system instruction manual.)

 When you want to temporarily change the setting from “Dolby Digital” to “PCM”, change with the “Audio

selection” menu (P. 29).

 Set “Digital Audio Output” to “PCM” in the following cases.

The sound of a channel broadcast with “Dolby Digital” signals cannot be heard even when “Dolby
Digital” is set.

 When listening with the TV speakers.
 When listening with an audio system that does not have a “Dolby Digital” decoder.
 When listening with an audio system that is connected to the “AUDIO OUT” terminal.
 When recording a programme.

 If a language with “(Dolby)” is selected when “(Dolby)” is displayed in the “Audio selection” menu

(P. 29), the “Digital Audio Output” setting can be temporarily changed from “PCM” to “Dolby
Digital”.

 A message recommending you to change the “Digital Audio Output” setting to “Dolby Digital” is displayed for

a few seconds.

 If you want to record a “Dolby Digital” signal using timer-record (P. 27), change the “timer-record

setting” from “PCM / Analogue” to “Dolby Digital”. However, if the setting is changed to “Dolby
Digital”, you cannot record analogue sound with a recording device that is connected to the EXT-2
terminal.

 “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Digital channels that cannot be watched on this TV

If a digital channel service uses new formats (such as DVB-H or MPEG4, etc.), or MHP, it cannot be
watched even though the channel name appears.
If the channel is selected, the picture will not appear and audio cannot be heard.

 You can delete these channels by using the “Delete” in the “Edit PR”

“Editing digital channels” (P.47)

Main unit

Broadcasting systems CCIR I / B / G / D / K / L (See “Technical information”, P. 56)

Colour systems

Channels and frequencies

Sound-multiplex systems NICAM (I / B / G / D / K / L), A2 (B / G / D / K)

Teletext systems

Power requirements AC 220 V - 240 V, 50/60 Hz
Audio output (
Speakers 5.0 cm round x 2
Power consumption

[standby]

Screen size
(visible area size measured diagonally)

Dimensions (W x H x D: mm)
[without stand]

Weights
[without stand]

Accessories (See “Check accessories”, P. 6)

 A Conditional Access Module for watching pay-TV digital channels can be installed (P.8)
 DC power can be supplied to the indoor aerial (P.56)

Model LT-32DX7BSP/SSP LT-26DX7BSP/SSP

TV broadcast : PAL, SECAM
External input : PAL, SECAM, NTSC 3.58/4.43 MHz

 Digital : E21-E69 (Frequency : 474 MHz-858 MHz)
 Analogue :

E2-E12 / E21-E69, F2-F10 / F21-F69, IR A-IR J, ITALY A-H / H+1 / H+2,
R1-R12 / R21-R69, S1-S41, X / Y / Z / Z+1 / Z+2,
French cable channels (Frequency : 116-172 MHz / 220-469 MHz)

Digital : EBU TEXT
Analogue : FLOF (Fastext), TOP, WST (World Standard System).

Rated power output

) 10 W + 10 W

134 W
[0.6 W]

80 cm 66 cm

800 x 591.6 x 244.2
[800 x 545 x 133.5]

18.7 kg
[16.3 kg]

120 W
[0.6 W]

672 x 517.6 x 244.2
[672 x 471 x 133.5]

15.5 kg
[13.1 kg]

Terminals / Connectors

Terminal name Terminal type Signal type (IN) Signal type (OUT)

EXT-1

Input / Output
terminals

Input terminals

Output
terminals

 We may change the design and specifications without notice.

EXT-2

EXT-3

EXT-4 RCA connectors x 5

EXT-5 (HDMI-1)

EXT-6 (HDMI-2)

PC INPUT D-SUB (15 pins) x 1 Analogue PC signal (P. 56)
AUDIO OUT RCA connectors x 2 Audio L / R

DIGITAL
AUDIO OUT

Headphone

Euroconnector x 1
(SCART connector)

Euroconnector x 1
(SCART connector)

RCA connectors x 3,
S-VIDEO connector x 1

HDMI connector x 1

OPTICAL connector x1

Stereo mini-jack x 1
(3.5 mm in diameter)

Composite video, S-video,
Analogue RGB, AUDIO L / R

Composite video, S-video,
Analogue RGB, AUDIO L / R

Composite video, S-video
AUDIO L / R

Analogue component
(576i (625i) / 480i (525i),
Progressive : 576p (625p) / 480p (525p)
HD : 1080i (1125i), 720p (750p)
AUDIO L / R

HDMI
(576i (625i) / 480i (525i) /
576p (625p) / 480p (525p),
1080i (1125i), 720p (750p))

TV out

Dubbing out
(S-VIDEO out is
available only for
digital channels)

,

)

Digital audio
(48 kHz,16 bit linear
PCM / Dolby Digital)

Headphone output
