DVD PLAYER & VIDEO CASSETTE RECORDER

HR-XVS20AA

INSTRUCTIONS

LPT0762-001B

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

8 When you are not using the unit for a long period of time,

it is recommended that you disconnect the power cord from the mains outlet.

8 Dangerous voltage inside. Refer internal servicing to

qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

SAFETY FIRST

ATTENTION (S-VHS deck only)

1. This unit can also receive SECAM colour television signals for recording and playback.

2. Recordings made of SECAM television signals produce monochrome pictures if played back on another video recorder of SECAM standard, or do not produce normal colour pictures if played back on another video recorder of PAL standard.

3. SECAM prerecorded cassettes or recordings made with a SECAM video recorder produce monochrome pictures when played back with this unit.

IMPORTANT

8 Please read the various precautions on pages 2 and 3

before installing or operating the unit.

8 It should be noted that it may be unlawful to re-record

pre-recorded tapes, DVDs, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

CAUTION

A DVD/VCR IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/VCR USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED. WHEN THIS DVD/VCR IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS DVD/VCR. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

● Manufactured under license from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.

● Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS”is registered trademark of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All rights reserved.

● Cassettes marked “S-VHS” and “VHS” can be used with this unit. However, S-VHS recordings are possible only with cassettes marked “S-VHS”. By using the S- VHS ET function, it is possible to record and play back with S-VHS picture quality on VHS cassettes with this unit.

● G-

● This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other

is a trademark of Gemstar Development Corporation and is registered in the following countries: Australia, China, Hong

CODE

Kong, Japan, South Korea, New Zealand, and Taiwan. S registered in the following countries: Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Italy, Luxembourg, Netherlands, Norway, Poland, Portugal, Russia, Slovakia, South Africa, Spain, Sweden and Switzerland. The G-

CODE/SHOWVIEW

G-

and S

CODE

term G-

intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

HOWVIEW

will be used in the instructions. If you use S

CODE

system is manufactured under license from Gemstar Development Corporation. are different trademarks used to represent the same easy recording feature. However, for simplicity, only the

HOWVIEW

Use only discs marked with the following.

DVD (8 cm /12 cm disc)

Video CDs (8 cm /12 cm disc)

Audio CDs (8 cm /12 cm disc)

is a trademark of Gemstar Development Corporation and is

system, follow the same steps listed for the G-

CODE

system.

POWER SYSTEM:

This unit operates on voltage of AC110 – 240 Vd (Rating), AC90 – 260 Vd (Operating), 50/60 Hz with automatic switching.

The STANDBY/ON 1 button does not completely shut off mains power from the unit, but switches operating current on and off. “`” shows electrical power standby and “

Video tapes recorded with this unit in the LP/EP (Long Play/Extended Play) mode cannot be played back on a single-speed video recorder. (S-VHS deck only)

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear.)

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or video cassette.

1. DO NOT place the unit —

— in an environment prone to extreme temperatures or humidity. — in direct sunlight. — in a dusty environment. — in an environment where strong magnetic fields are generated. — on a surface that is unstable or subject to vibration.

2. DO NOT

holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT

control.

4. DO NOT

the unit or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT

splashing.

6. DO NOT use this equipment in a bathroom or places

with water. Also DO NOT

with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT

lighted candles, on the apparatus.

8. AVOID

block the unit’s ventilation openings or

place heavy objects on the unit or remote

place anything which might spill on top of

expose the apparatus to dripping or

place any naked flame sources, such as

violent shocks to the unit during transport.

” shows ON.

place any containers filled

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the unit turned on for a few hours to let the moisture dry.

TTENTION

To mobile phone users:

Using a mobile phone in the vicinity of the unit may cause picture vibration on the TV screen or change the screen to a blue back display.

On placing the unit:

Some TVs or other appliances generates strong magnetic fields. Do not place such appliance on top of the unit as it may cause picture disturbance.

CONTENTS

SAFETY FIRST 2

Safety Precautions ............................................... 2

DISC INFORMATION 5

About Discs ......................................................... 5

INDEX 8

INSTALLING YOUR NEW UNIT 12

Basic Connections ............................................. 12

S-VIDEO Connection ........................................ 13

Component Video Connection

(DVD deck only) ............................................ 14

INITIAL SETTINGS 15

Video Channel Set ............................................. 15

Auto Set Up ....................................................... 16

Monitor Set (DVD deck) .................................... 18

Scan Mode Set (DVD deck) ............................... 19

Language ........................................................... 20

OPERATIONS ON S-VHS DECK 23

Basic Playback .................................................. 23

Playback Features .............................................. 24

Basic Recording ................................................ 27

Recording Features ............................................ 28

B.E.S.T. Picture System ...................................... 30

GG-

Express Timer Programming .............................. 34

Automatic Satellite Programme Recording ......... 39

CODE CODE

™/S

HOWVIEW

™/S

HOWVIEW

™ System Setup ............... 31

™ Timer Programming ..... 32

OPERATIONS ON DVD DECK 40

Basic Playback .................................................. 40

Playback Features .............................................. 41

Using the on-screen bar ..................................... 48

Parental Lock .................................................... 58

About MP3 Disc ................................................ 62

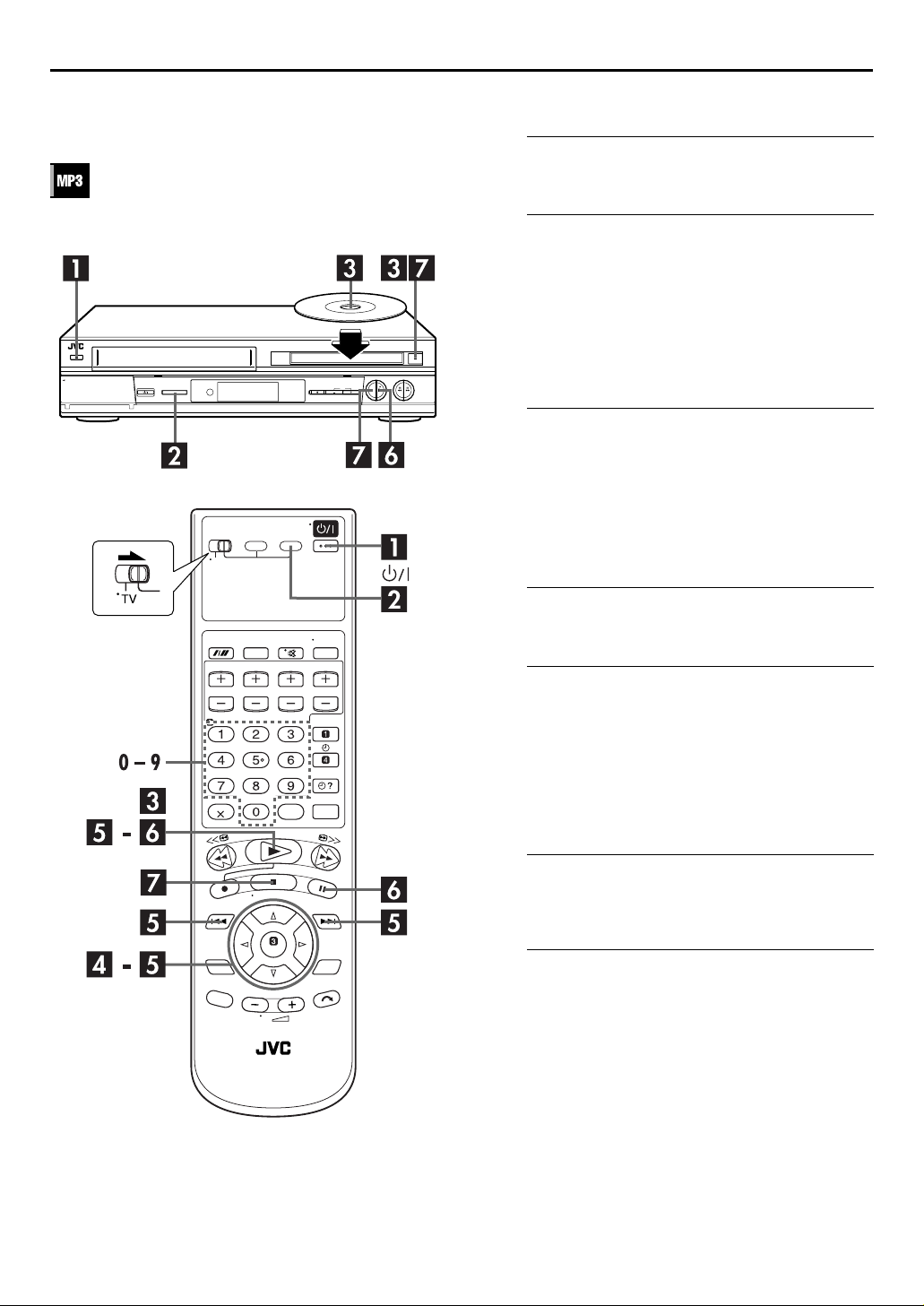

MP3 Playback ................................................... 63

About JPEG Disc ............................................... 65

JPEG Playback ................................................... 66

EDITING (S-VHS DECK) 68

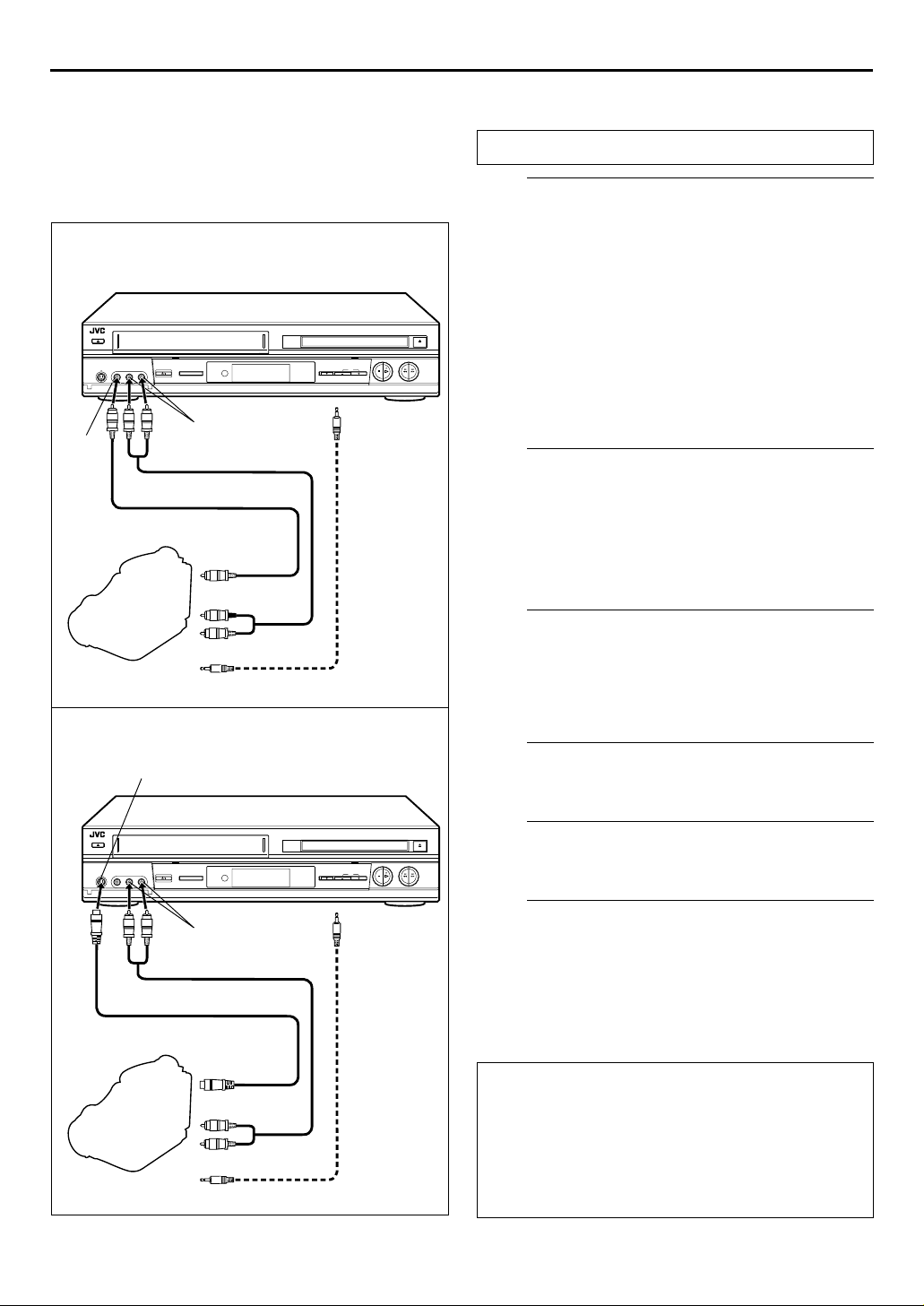

Edit From A Camcorder ..................................... 68

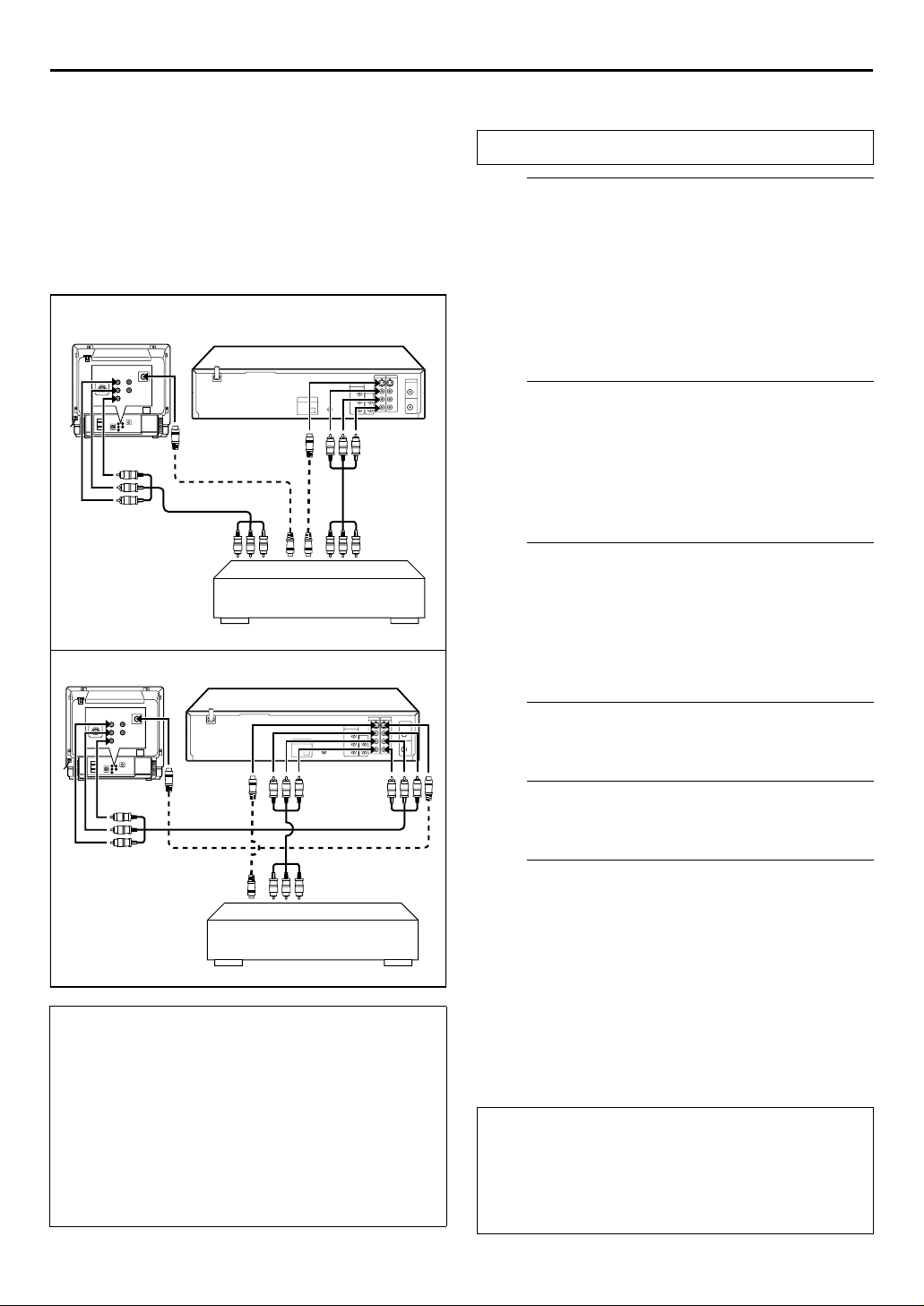

Edit To Or From Another Video Recorder .......... 69

Dubbing (from DVD to S-VHS) .......................... 70

EDITING (DVD DECK) 71

Digital Audio Dubbing ...................................... 71

REMOTE CONTROL 72

Remote Control Functions ................................. 72

SYSTEM CONNECTIONS 74

Connecting To A Satellite Receiver .................... 74

Connecting To A Dolby Digital Decoder or

An Amplifier With A Built-in DTS

(DVD deck only) ............................................ 75

SUBSIDIARY SETTINGS 76

Mode Set (S-VHS deck) ...................................... 76

Mode Set (DVD deck) ........................................ 80

Tuner Set ........................................................... 83

Clock Set ...........................................................87

Information on Multi-System Compatibility

(S-VHS deck only) .......................................... 88

TROUBLESHOOTING 90

QUESTIONS AND ANSWERS 95

SPECIFICATIONS 96

LIST OF TERMS 97

DISC INFORMATION

About Discs

The following discs also cannot be played back.

● Discs which have a region number other than “4”

● DVD+RW formatted discs

● DVD-RW formatted discs

● DVD-RAM

Playable Discs

You can use the discs with the following logos for playback only.

DVD VIDEO Video CD/Super Video CD

Music CD

CD-DA files

CD-RW

JPEG/ CD-DA/ MP3 files

● Discs other than the above cannot be played back.

● DVD video discs have a region number. Discs whose region

number includes “ALL” or “4” can be played back on this unit.

● Operation and audio quality of this unit are not guaranteed for discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

● Depending on the intentions of the author of the software, recording conditions of DVD discs and Video CD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.

● When switching from the first layer to the second layer of double-layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.

CD-R

CD-DA/ JPEG/MP3 files

CD-ROM

JPEG/MP3 files

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is “4”. Only discs whose region number includes “4” can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

ALL

Marks of discs in this instruction manual

Allows operation with a DVD VIDEO disc.

Allows operation with a Video CD disc.

Allows operation with a disc including MP3 files.

Allows operation with a Audio CD disc.

534

Allows operation with a CD-R/RW disc.

Allows operation with a SVCD disc.

Allows operation with a disc including JPEG files.

Allows operation with a CD-ROM disc.

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

● CD-ROM discs (including PHOTO-CD)

● DVD AUDIO discs

● Super Audio CDs (SACD)

● 1.3-GB double density CDs (DDCD)

DISC INFORMATION (cont.)

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of a disc. Check marks indicating the contents and functions of a disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

Mark Description

Number of subtitles

Number of angles

Recorded under the standard 4:3 aspect ratio

Screen includes black bands at top and bottom of image which has a standard 4:3 aspect ratio (letter box)

Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.

File Structure of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called “titles”. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called “chapters”. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

Title 1 Title 2

Chapter 1 Chapter 2Chapter 1Chapter 3Chapter 2

Audio CD/Video CD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD discs.

Track 1 Track 4Track 3Track 2

NOTE:

Video CD discs that support Playback Control (PBC)

The still image or motion image which follows a menu screen is called a “scene”. Each scene has a scene number. For more details, refer to “Locating a desired scene using the menu of the Video CD with PBC” (

墌

pg. 41).

Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).

Marks related to audio

Mark Description

Number of audio tracks

Dolby Digital mark Dolby Laboratories has developed a digital surround system for the home. This mark indicates that you may enjoy 5.1channel audio (front left and right, center, rear left and right, and a channel for LFE (Low-Frequency Effects)).

DTS (Digital Theater System) The DTS decoder on this unit enables you to enjoy DTS audio with the connected TV’s speakers by converting 5.1 channel audio signals into 2 channel signals (DTS Down Mixing). The decoder also outputs the original DTS 5.1 channel audio signals from the DIGITAL AUDIO OUT connector on this unit.

Placing a Disc

Open the disc tray.

Press x on the DVD deck to open the disc tray.

●

Pressing the button again closes the disc tray.

●

Do not block the disc tray with your hand while it is opening or closing as this may result in hardware failure.

●

Do not place unplayable discs or any object other than a disc in the disc tray.

●

Do not press down strongly on the disc tray or place any heavy objects on it.

Place the disc.

Place the disc in the disc tray with the label side facing up.

●

Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged.

●

To insert an 8 cm disc, place it according to the inner groove.

Care and Handling of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesive on its surface.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the center outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

CAUTION

Sometimes during playback, noise or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

FRONT VIEW

INDEX

S-VHS Eject Button (x) 墌pg. 23, 27

S-VHS Cassette Loading Slot

S-VHS Indicator 墌pg. 23, 27

DVD Indicator 墌pg. 40 Scan Mode Indicator* 墌pg. 19

* You can switch the scan mode by pressing and hold

for more than 5 seconds. The Scan Mode indicator lights up as described below.

: in the Interlace mode

Green

: in the Progressive mode

Red

Disc Tray

DVD Eject Button (x) 墌pg. 40

S-video/Video/Audio Input Connectors (S-VIDEO/VIDEO/AUDIO) 墌pg. 68

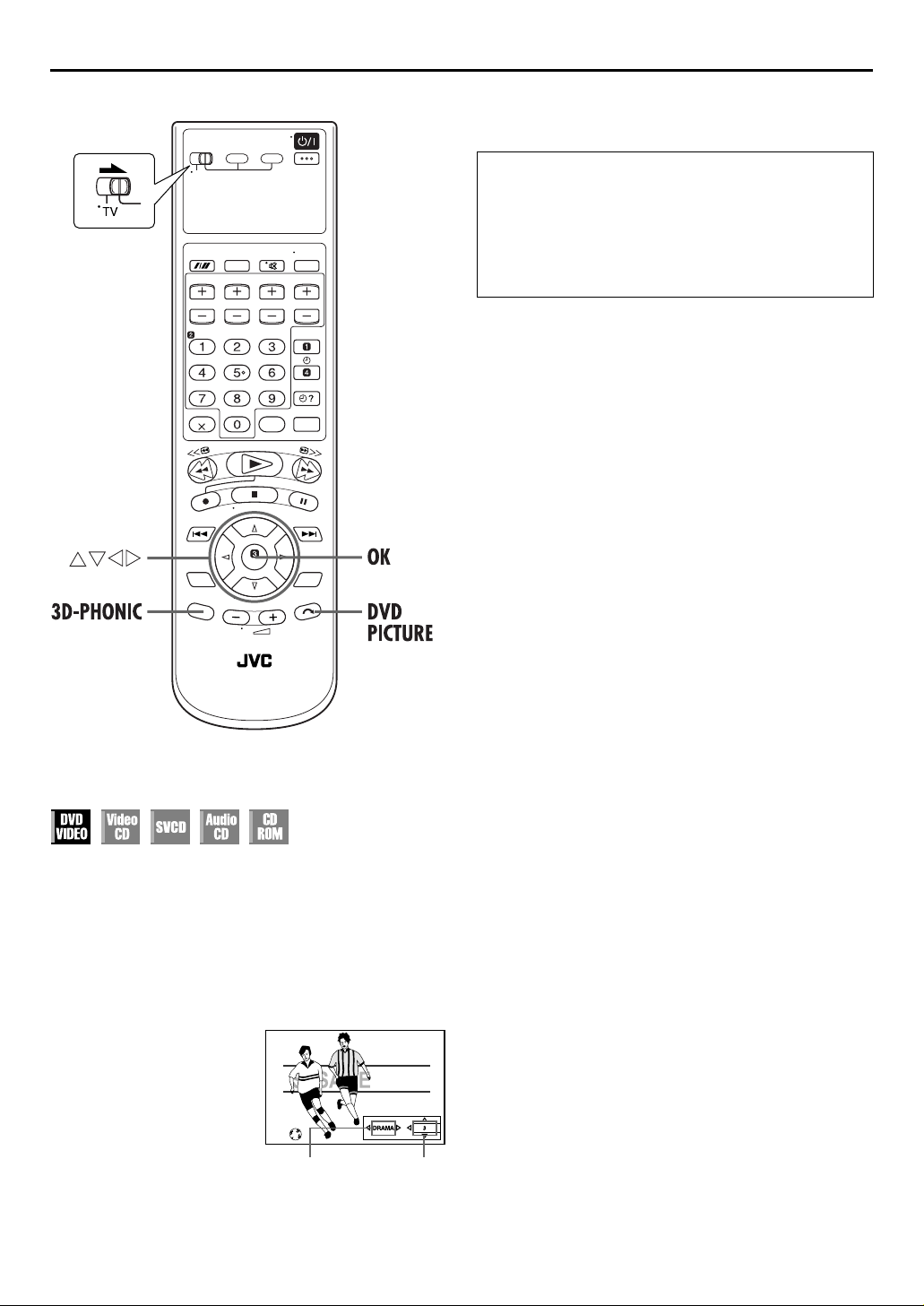

DVD PICTURE

STANDBY/ON Button (1) 墌pg. 16

S-VHS/DVD Button 墌pg. 23, 27, 40

Infrared Beam Receiving Window

Front Display Panel 墌pg. 9

Record Button (7) 墌pg. 27

Programme Button (PR +/–) 墌pg. 27

Stop Button (8) 墌pg. 23, 27, 40

Play Button (4) 墌pg. 23, 40

Rewind Button (3) 墌pg. 23, 24, 43

Fast Forward Button (5) 墌pg. 23, 24, 43

To access covered connectors, pull and open the connector cover.

REAR VIEW

Mains Power Cord 墌pg. 12

Region Number Label 墌pg. 5

S-video/Video/Audio Input Connectors

(S-VIDEO/VIDEO/AUDIO IN) 墌pg. 69 S-video/Video/Audio Output Connectors

(S-VIDEO/VIDEO/AUDIO OUT) 墌pg. 12, 13, 14, 69 Antenna Input Connector (ANTENNA IN)

pg. 12

墌

FRONT DISPLAY PANEL

Start Time Indicator (V) (S-VHS deck only)

pg. 34

墌

S-VHS Indicator (S-VHS deck only) 墌pg. 77, 79

Stop Time Indicator (v) (S-VHS deck only)

pg. 34

墌

Channel/Clock

Remain Display (S-VHS deck only) 墌pg. 29 Mode Display (L-1, F-1, S-1 or S-2) (S-VHS deck only) “Timer” Indicator (S-VHS deck only)

pg. 33, 35

墌

Digital Audio Output Connector

(DIGITAL AUDIO OUT) 墌pg. 71 Remote Pause Connector (PAUSE) 墌pg. 68

Component Video Output Connectors

(COMPONENT VIDEO OUT) 墌pg. 14 Audio Output Connectors (AUDIO OUT (L/R))*

* These are analogue audio output connectors for DVD.

Antenna Output Connector (ANTENNA OUT)

pg. 12

墌

Automatic Satellite Programme Recording

Indicator (N) (S-VHS deck only) 墌pg. 39 Play Indicator

Record Indicator (S-VHS deck only)

Multi-information window* (DVD deck)

Counter Display (S-VHS deck)

* The current group/title/track/chapter number(s), time and status

information.

Tape Speed (SP/LP/EP*) (S-VHS deck only)

pg. 27

墌

* EP is for NTSC only.

ON-SCREEN DISPLAY (S-VHS deck)

When “O.S.D.” is set to “ON” (墌pg. 78), various operational indicators appear on the TV screen. For On-screen display for DVD deck, refer to “Using the on-screen bar” (

PR. 12 SP 23 : 59 NTSC 3.58

31. 12. 03

墌

pg. 48).

INDEX (cont.)

ST 0

HIFI – 1 : 23 : 45 L R REMAIN – – : – –

Operation Mode Indicators

Tape Speed (SP/LP/EP*)

* EP is for NTSC only.

Colour System Indicator

Tape Direction

Tape Position Indicator

The tape position indicator appears on the TV screen when you press 3 or

from the Stop mode or perform an Index Search. (

pg. 25) The position of

墌

“q” in relation to “0” (beginning) or “+” (end) shows you where you are on the tape.

Beginning End

NOTE:

Depending on the type of tape being used, the tape position indicator may not appear correctly.

+++ +

Counter Display

Tape Remaining Time Indicator 墌pg. 29

Audio Mode Display 墌pg. 26

Type of Broadcast 墌pg. 29

Current Day/Month/Year

Clock Display

Channel Position Number and Station Name/

Auxiliary Input Indicator (L-1, F-1, S-1 or S-2) “Cassette Loaded” Mark

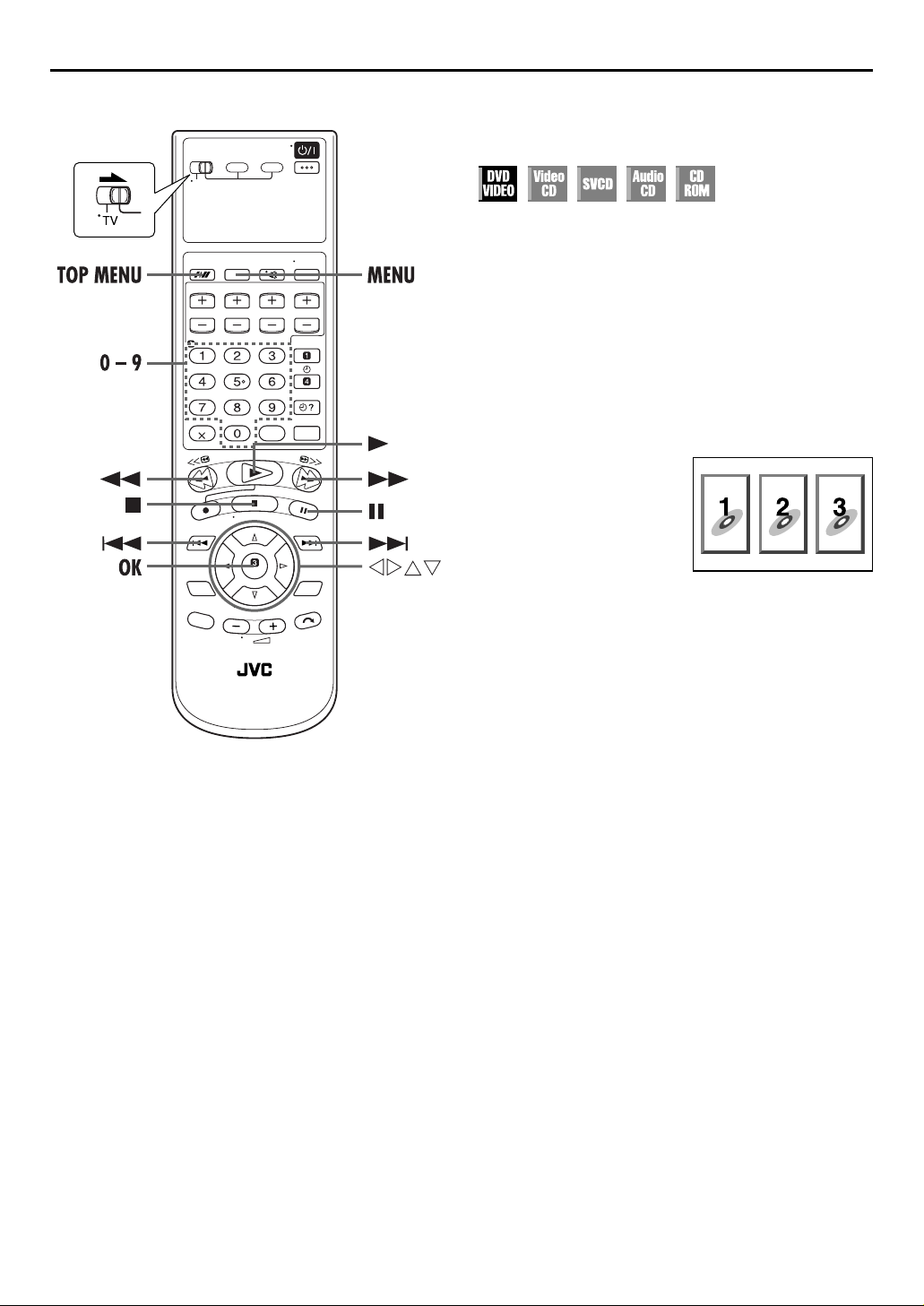

REMOTE CONTROL

The glow-in-the-dark buttons shown in grey on the illustration above are helpful when using the remote control in darkened rooms.

Buttons with a small dot on the left side of the name can also be used to operate your TV. (

S-VHS Button 墌pg. 23, 27

TV/S-VHS/DVD switch 墌pg. 18

Menu Button (MENU) 墌pg. 42

Auto Tracking Button (p) 墌pg. 26

SP/LP/EP Button 墌pg. 27 Top Menu Button (TOP MENU) 墌pg. 42 Stop Time Button (STOP +/–) 墌pg. 34

Display Button (DISPLAY) 墌pg. 48 Digest Button (DIGEST) 墌pg. 44 Start Time Button (START +/–) 墌pg. 34

Repeat Button (REPEAT) 墌pg. 50 – 53, 64, 67 Zooming Button (ZOOM) 墌pg. 45 Number Keys 墌pg. 27, 32, 64

Daily Button (DAILY) 墌pg. 33, 35

VPS/PDC Button*

* Not function with this unit.

墌

pg. 73)

Reset Button (0000) 墌pg. 29

Cancel Button (&) 墌pg. 37 Play Button (4) 墌pg. 23, 40

Rewind Button (3) 墌pg. 23, 24, 43

Stop Button (8) 墌pg. 23, 27, 40

Record Button (7) 墌pg. 27

Reverse Skip/Index Button (2) 墌pg. 25, 41

Button 墌pg. 16

P rt

TV/VCR Programme Button (TV/VCR PR +/–)

pg. 73

墌

Set Up Menu Button (SET UP MENU) 墌pg. 18

3D-PHONIC Button 墌pg. 46

TV Volume Button (TV%+/–) 墌pg. 73

DVD Button 墌pg. 40

STANDBY/ON Button (1) 墌pg. 16

TV Muting Button (^) 墌pg. 73

Audio Monitor Button (A.MONITOR)

pg. 26, 56, 57

墌

TV/VCR Button

Date Button (DATE +/–) 墌pg. 34

Subtitle Button (SUB TITLE) 墌pg. 54 Angle Button (ANGLE) 墌pg. 55 Programme Button (PR +/–) 墌pg. 27

Programming Button (PROG) 墌pg. 32, 34

Timer Button (#) 墌pg. 33, 35

Weekly Button (WEEKLY) 墌pg. 33, 35

Programme Check Button (") 墌pg. 36

Automatic Satellite Programming Button

(REC LINK) 墌pg. 39 Auxiliary Button (AUX) 墌pg. 68

Fast Forward Button (5) 墌pg. 23, 24, 43

Pause Button (9) 墌pg. 24, 27

Forward Skip/Index Button (6) 墌pg. 25, 41

OK Button 墌pg. 15

i j we k l

Button 墌pg. 18 Display Button (– –:– –) 墌pg. 29 Skip Search Button ( ) 墌pg. 25 DVD Picture Button (DVD PICTURE) 墌pg. 47

How To Use

The remote control can operate most of your unit’s functions, as well as basic functions of TV sets of JVC and other brands. (

pg. 73)

墌

●

Point the remote control toward the receiving window.

●

The maximum operating distance of the remote control is about 8 m.

NOTES:

●

When inserting the batteries, be sure to insert in the correct directions as indicated under the battery cover.

●

If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

INSTALLING YOUR NEW UNIT

It’s essential that your unit be properly connected.

Basic Connections

Aerial connector

Back of TV

RF cable

(provided)

TV aerial

Audio/video input connectors

Audio/video cable

(not provided)

Mains power cord

Back of unit

Mains outlet

Make AV connection if your TV has audio/video input connectors in order to reduce the possibility of interference. With AV connection, you can enjoy stereo playback of video tapes if you are using a stereo TV.

AUDIO/VIDEO OUT

NOTES:

●

For switching the TV’s mode, refer to the instruction manual of your television.

●

To obtain high-quality pictures, you can also use the S-VIDEO connection and Component Video Connection. (DVD deck only) (

pg. 13, 14)

墌

cable

ANTENNA IN

ANTENNA OUT

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Check the contents.

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” on page 96.

Situate the unit.

Place the unit on a stable, horizontal surface.

Connect the unit to TV.

The connection method you use depends on the type of TV you have.

RF Connection

To connect to a TV with NO AV input connectors —

Disconnect the TV aerial cable from the TV.

Connect the TV aerial cable to the ANTENNA IN

connector on the rear panel of the unit. Connect the provided RF cable between the

ANTENNA OUT connector on the rear panel of the unit and the TV’s aerial connector.

AV C onnection

To connect to a TV with AV input connectors —

Connect the aerial, unit and TV as per “RF

Connection”. Connect the audio/video cable between the AUDIO/

VIDEO OUT connectors on the rear panel of the unit and the TV’s audio/video input connectors.

Connect the unit to mains.

Plug the end of the mains power cord into a mains outlet.

After the connection is completed, perform “Video Channel Set” on page 15.

S-VIDEO Connection

Back of TV

Aerial connector

power cord

Mains outlet

Mains

Back of unit

AUDIO IN connectors

S-VIDEO IN connector

Audio cable

(not provided)

RF cable (provided)

S-Video cable

(provided)

TV aerial cable

S VIDEO OUT

AUDIO OUT

To connect to a TV with S-VIDEO/AUDIO IN

connectors . . .

Connect the unit to TV.

Connect the aerial, unit and TV as per “RF Connection”. (

Connect the unit’s S VIDEO OUT connector to the TV’s S-VIDEO IN connector.

Connect the unit’s AUDIO OUT connectors to the TV’s AUDIO IN connectors.

Connect the unit to mains.

Plug the end of the mains power cord into a mains outlet.

墌

pg. 12)

NOTES:

●

You can obtain high-quality S-VHS pictures.

●

If your TV is not stereo-capable, use the unit’s AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

●

For switching the TV’s mode, refer to the instruction manual of your television.

After the connection is completed, perform “Video Channel Set” on page 15.

INSTALLING YOUR NEW UNIT (cont.)

Component Video Connection

(DVD deck only)

TTENTION

Be sure to connect the unit’s VIDEO OUT or S VIDEO OUT connector to the TV’s VIDEO IN or S-VIDEO IN connector.

Back of TV

Aerial connector

Mains power

Back of unit

AUDIO IN connectors

COMPONENT VIDEO IN connector

Mains outlet

cord

Component Video cable

(not provided)

RF cable (provided)

COMPONENT

VIDEO OUT

Audio cable

(not provided)

TV aerial cable

AUDIO OUT

8 To connect to a TV with COMPONENT VIDEO IN

connectors . . .

Connect the unit to TV.

Connect the aerial, unit and TV as per “AV

Connection” or “S-VIDEO Connection”. (

pg. 12, 13)

墌

Connect the unit’s COMPONENT VIDEO OUT

connectors to the TV’s COMPONENT VIDEO IN connectors. Connect the unit’s AUDIO OUT connectors to the TV’s

AUDIO IN connectors.

Connect the unit to mains.

Plug the end of the mains power cord into a mains outlet.

NOTES:

●

You can obtain high-quality component video pictures.

●

If your TV is not stereo-capable, use the unit’s AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

●

For switching the TV’s mode, refer to the instruction manual of your television.

After the connection is completed, perform “Video Channel Set” on page 15.

INITIAL SETTINGS

Video Channel Set

Video channel (RF output channel) is the channel on which your TV receives picture and sound signals from the unit through the RF cable.

Before performing the following steps:

Make sure there is no cassette inserted in the unit. Press

Hold down 8 on the unit until the front display panel shows the following.

Press appropriate TV system that matches the system of TV being used (refer to the table below).

so that S-VHS indicator lights up, then press 1 to turn off the unit.

S-VHS

Access the Video Channel Set mode.

Set the TV system. (RF Connection only)

or – on the remote control to set the

PR +

With RF Connection

Set your TV to UHF channel 36.

● If the two vertical white bars appear clearly on the TV screen as shown on the right, press OK and then go to stepD.

● If the two vertical white bars do not appear clearly, press OK and then

or – to set the unit to a vacant channel between 28 and

PR +

60 which is not occupied by any local station in your area.

(Example) If channel 50 is available in your area

Then set your TV to UHF channel 50 and check if the two vertical white bars appear clearly on the TV screen; if so, go to stepD. If not, re-set the unit to another vacant channel and try again.

1:B/G 2:D/K 3:I 4:H

Major Countries/Areas TV System

New Zealand, Kuwait, U.A.E., Indonesia, Singapore, Thailand, Malaysia, Iran, Saudi Arabia, Egypt, Morocco, Lebanon, Iraq

China, Mongolia, Russia D/K

Hong Kong I

Australia H

Set the video channel.

With AV or S-VIDEO Connection

Press OK, then press shows “– –”.

● Now the video channel is set to off.

until the front display panel

PR –

B/G

NOTES:

● If you set the unit to a channel which is occupied by a local station or has neighbouring channels that are occupied by local stations, the picture reception quality will be affected and some interference noise will appear on the TV screen. Be sure to select a vacant channel which has no broadcast on neighbouring channels.

● If you cannot obtain the two vertical white bars clearly with any channel between 28 and 60, consult your JVC dealer.

Exit the Video Channel Set mode.

Press OK on the remote control.

● If Auto Set Up ( previously been performed, the Clock Set screen appears and Auto Set Up takes place automatically.

With AV or S-VIDEO Connection

To view picture signals from the unit, set your TV to its AV mode .

With RF Connection

The channel on which the TV screen in stepC appears clearly is your video channel. To view picture signals from the unit, set your TV to the video channel.

pg. 16) or Tuner Set (墌pg. 83) has not

墌

Auto Set Up

The Auto Set Up simplifies installation by guiding you through the procedures of setting the clock and tuner channels — simply follow the on-screen menus that appear.

INITIAL SETTINGS (cont.)

Before starting, make sure of the following:

● The TV aerial cable should be connected to the unit.

● The unit’s mains power cord should be connected to a

mains outlet.

● The “Video Channel Set” ( and the TV should be set to its AV mode (with AV or S-VIDEO connection connection

● Slide the

Turn on the unit.

Press 1 on the unit or remote control. The Clock Set screen appears on the TV screen.

Set the time.

Press rt to set the hour, then press OK or e.

● Press and hold rt to change the time by 30 minutes.

Set the date.

Press rt to set the date, then press OK or e.

● Press and hold rt to change the date by 15 days.

pg. 12).

墌

TV/S-VHS/DVD

pg. 15) should be performed

墌

pg. 12) or UHF channel (with RF

墌

switch to the right.

CLOCK SET

TIME DATE YEAR 0 : 00 01.01 03

[ / ] [MENU] : EXIT

Set the year.

Press rt to set the year, then press

● Press and hold rt to change the year by 1 year.

SET UP MENU

Select the TV system.

Press rt to place the pointer next to the appropriate TV system (refer to the table below).

Major Countries/Areas TV System

Australia, New Zealand, Kuwait, U.A.E., Indonesia, Singapore, Thailand, Malaysia, Iran, Saudi Arabia, Egypt, Morocco, Lebanon, Iraq

China, Mongolia, Russia D/K

Hong Kong I

Start Auto Channel Set

Press OK or e.

DO NOT press any button on the unit or remote control while Auto Set Up is in progress.

● Receivable channels in your area are automatically assigned to the

● As Auto Set Up progresses, the “q” mark on the TV screen moves from left to right.

● When Auto Set Up is completed, the lowest position number will appear on the front display panel. If “SCAN COMPLETED – NO SIGNAL–” is displayed on the TV screen, make sure that the aerial cable is connected to the unit properly and press OK on the remote control. The unit will try Auto Set Up again.

buttons, and non-receivable channels are skipped.

PR +/–

START FINISH

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

B/G

AUTO CH SET

PLEASE WAIT

– – – – – – –

NOTES:

● If there is a power cut, or if you press 1 or while Auto Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the unit power once and try again from stepA.

● If no sound accompanies the picture or the audio sounds unnatural on some channels that have been stored by Auto Set Up, the TV system setting for those channels may be incorrect. Select the appropriate TV system for those channels. (

pg. 86, “TV System Selection — When you see the picture

墌

but the audio can’t be heard or sounds unnatural”)

SET UP MENU

TTENTION

If you perform Auto Set Up successfully during installation, there's no need to separately perform the Clock Set or Channel Set procedures, but if adjustments become necessary, they can be performed as follows:

● Tuner setting

● Clock setting

After “Auto Set Up” is completed, perform “Monitor Set (DVD deck)” on page 18.

墌

pg. 83

pg. 87

Monitor Set

INITIAL SETTINGS (cont.)

Select the mode setting.

Press rt to select the desired setting.

(DVD deck)

You can select the monitor type depending the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

For the multi colour system TV

When you use a multi colour system TV, you can change the colour system of this unit automatically by selecting “MULTI” options as the monitor type. In this case, the setting of this unit is changed to match the colour system of the loaded disc regardless the TV system setting. (

“ATTENTION” below)

墌

TTENTION

How to change the TV system

Press and hold 8 for more than 3 seconds to change the DVD colour system between PAL and NTSC. The current colour system is displayed on the front display panel for about 3 seconds.

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

Turn on the unit.

Press 1.

TV/S-VHS/DVD

switch to the right.

Return to the normal screen.

Press

SET UP MENU

MONITOR TYPE

16:9 NORMAL / 16:9 MULTI NORMAL (Wide television conversion)

Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

16:9 AUTO / 16:9 MULTI AUTO (Wide television conversion)

Select this when the aspect ratio of your TV is 16:9 (wide TV).

/ 4:3 MULTI LB (Letter Box conversion)

4:3 LB

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3 PS / 4:3 MULTI PS (Pan&Scan)

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

* The default setting is

in the table below.

bold

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

Access the DVD Set Up menu screen.

Press

A B

Press rt to move 0 to “MONITOR TYPE”, then press OK.

SET UP MENU

Press we to select “PICTURE”.

Select the mode.

repeatedly so that the DVD indicator

so that the DVD indicator lights up.


MONITOR TYPE

PROGRESSIVE MODE

SCREEN SAVER

MP3 / JPEG

SELECT

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].


MONITOR TYPE

PROGRESSIVE MODE

SCREEN SAVER

MP3 / JPEG

SELECT

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

4:3LB

AUTO

MP3

4:3LB

AUTO

MP3

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, “Pan&Scan” (PS) and “Letter Box” (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

Letter Box

Black bands appear at the top and bottom of the image.The image itself appears in 16:9 aspect ratio.

NOTES:

●

Even if “4:3 PS” or “4:3 MULTI PS” is selected, the screen size may become “4:3 LB” or “4:3 MULTI LB” with some DVD VIDEO. This depends on how they are recorded.

●

When you select “16:9 NORMAL” or “16:9 MULTI NORMAL” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

Scan Mode Set

(DVD deck)

This unit supports the progressive scan system (eg. 480p*) as well as the conventional interlaced scan system (eg. 480i*). If your TV equipped with component video connectors supports the progressive video input, you can enjoy a high quality picture by setting the progressive scan mode to active.

●

Refer also to the instruction manuals supplied with your TV.

●

If your TV equipped with component video connectors does not support the progressive video input, do not change the scan mode to the “PROGRESSIVE” or “FILM”.

* 480p and 480i indicate the number of scanning lines and

scanning format of an image signal.

• 480p indicates 480 scanning lines with progressive format.

• 480i indicates 480 scanning lines with interlaced format.

You can select the progressive mode according to the picture type (film or video source). This takes effect only when Progressive mode is selected as the scanning mode. (

“ATTENTION” below)

墌

TTENTION

How to change the Scan mode

Press and hold

DVD PI CTU RE

seconds, to change the scan mode between Progressive and Interlace mode.* When DVD colour system is set to “PAL” (

墌

the progressive mode.

* The Scan Mode indicator lights up as described below.

: in the Interlace mode

Green

: in the Progressive mode

Red

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

Turn on the unit.

Press 1.

for more than 3

pg. 18), you cannot select

switch to the right.

Access the DVD Set Up menu screen.

Press

A B

SET UP MENU

Press we to select “PICTURE”.

Select the mode.

Press rt to move 0 to “PROGRESSIVE MODE”, then press OK.

Select the mode setting.


MONITOR TYPE

PROGRESSIVE MODE

SCREEN SAVER

MP3 / JPEG

SELECT


MONITOR TYPE

PROGRESSIVE MODE

SCREEN SAVER

MP3 / JPEG

SELECT

Press rt to select the desired setting.

Return to the normal screen.

Press

SET UP MENU

PROGRESSIVE MODE

: Suitable for playing back a video

VIDEO

* The default setting is

bold

source disc.

: Suitable for playing back a film or

FILM

progressive source disc.

: Used to play a disc containing both

AUTO

video and film source materials. This unit recognizes the picture type (film or video source) of the current disc according to the disc information.

●

If the playback picture is unclear or noisy, or the oblique lines of the picture are rough, try to change to other modes.

4:3LB

AUTO

MP3

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

4:3LB

AUTO

MP3

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

in the table below.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

Select the DVD deck.

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

Language

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

INITIAL SETTINGS (cont.)

On-screen Language Set (DVD deck)

This DVD deck offers you the choice to view on-screen messages in 3 different languages. You can change the language setting manually as required.

Turn on the unit.

Press 1.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

Access the DVD Set Up menu screen.

Press

A B

SET UP MENU

Press we to select “LANGUAGE”.

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

ENGLISH

OFF

ENGLISH

Select the mode.

Press rt to move 0 to “ON SCREEN LANGUAGE”, then press OK.

Select the mode setting.

Press rt to select the desired setting.

Return to the normal screen.

Press

SET UP MENU

LANGUAGE

SELECT

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

ENGLISH

OFF

ENGLISH

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio, subtitle in the multiple languages. With these discs, you can set the default language as you like.

The procedure shows how to set “MENU LANGUAGE”

●

on the DVD Set Up menu screen as an example.

Turn on the unit.

Press 1.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

Access the DVD Set Up menu screen.

Press

A B

SET UP MENU

Press we to select “LANGUAGE”.

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

ENGLISH

OFF

ENGLISH

SELECT

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

Select the mode.

Press rt to move 0 to “MENU LANGUAGE”, then press OK.

Select the mode setting.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

ENGLISH

OFF

ENGLISH

Press rt to select the desired setting.

●

See “Language Code List” (

Return to the normal screen.

Press

SET UP MENU

墌

pg. 22).

NOTE:

When the selected language is not available on the disc, the disc’s default menu language is played back.

Language Code List

INITIAL SETTINGS (cont.)

AA AB AF AM AR AS AY AZ BA BE BG BH BI BN BO BR CA CO CS CY DA DZ EL EO ET EU FA FI FJ FO FY GA GD GL GN GU HA HI HR HU HY IA IE

Afar Abkhazian Afrikaans Ameharic Arabic Assamese Aym ara Azerbaijani Bashkir Byelorussian Bulgarian Bihari Bislama Bengali, Bangla Tibe ta n Breton Catalan Corsican Czech Welsh Danish Bhutani Greek Esperanto Estonian Basque Persian Finnish Fiji Far oese Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue

IK IN IS IW JI JW KA KK KL KM KN KO KS KU KY LA LN LO LT LV MG MI MK ML MN MO MR MS MT MY NA NE NL NO OC OM OR PA PL PS PT QU RM

Inupiak Indonesian Icelandic Hebrew Yiddish Javanese Georgian Kazakh Greenlandic Cambodian Kannada Korean (KOR) Kashmiri Kurdish Kirghiz Latin Lingala Laothian Lithuanian Latvian, Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Malay (MAY) Maltese Burmese Nauru Nepali Dutch Norwegian Occitan (Afan) Oromo Oriya Pa nj ab i Polish Pashto, Pushto Portuguese Quechua Rhaeto-Romance

RN RO RU RW SA SD SG SH SI SK SL SM SN SO SQ SR SS ST SU SV SW TA TE TG TH TI TK TL TN TO TR TS TT TW UK UR UZ VI VO WO XH YO ZU

Kirundi Rumanian Russian Kinyarwanda Sanskrit Sindhi Sangho Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian Siswati Sesotho Sundanese Swedish Swahili Ta m il Te l ug u Tajik Thai Tig ri nya Tu r km e n Tagalog Setswana To n ga Tu r ki s h Tsonga Ta t ar Tw i Ukrainian Urdu Uzbek Vietnamese Volapuk Wolof Xhosa Yoruba Zulu

OPERATIONS ON S-VHS DECK

Basic Playback

●

Turn on the TV and select the video channel (or AV mode).

●

Slide the

TV/S-VHS/DVD

switch to the right.

Load a cassette.

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointed toward the unit.

●

Do not apply too much pressure when inserting.

●

If the record safety tab has been removed, playback begins automatically.

●

The unit’s power comes on automatically and the counter is reset to 0:00:00.

Select the S-VHS deck.

On the unit

S-VHS/DVD

Press lights up.

On the remote control

S-VHS

Press

Find the programme start point.

If the tape is advanced past the start point, press 3. To go forward, press 5.

Start playback.

Press 4. “bESt” appears blinking on the front display panel during automatic tracking. (

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

墌

pg. 30)

Clean the video heads using a dry cleaning cassette — ECL-3F — when:

●

Rough, poor picture appears while a tape is played back.

●

The picture is unclear or no picture appears.

●

“USE CLEANING CASSETTE” appears on the screen (only with “O.S.D.” set to “ON”). (

墌

pg. 78)

NOTE:

The heads get dirty in the following cases:

●

in an environment prone to extreme temperature or humidity

●

in a dusty environment

●

flaw, dirt or mold on video tapes

●

continuous usage for a long time

Stop playback.

Press 8. Then press x on the S-VHS deck to remove the cassette.

NOTE:

S-VHS playback is possible only with S-VHS PAL tapes recorded in SP or LP mode, or S-VHS NTSC tapes recorded in the SP mode.

Usable cassettes

●

Compact VHS camcorder recordings can be played on this unit. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

●

This unit can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes*, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

* By using the S-VHS ET function, it is possible to record and

play back with S-VHS picture quality on VHS cassettes with this unit.

Playback Features

Turn on the TV and select the video channel (or AV

●

mode). Slide the TV/S-VHS/DVD switch to the right.

●

OPERATIONS ON S-VHS DECK (cont.)

Still Picture/Frame-By-Frame Playback

Pause during playback.

Press 9.

● If there is vertical jitter, press PR +/– on the remote control to correct the picture.

Activate frame-by-frame playback.

Press 9.

Slow Motion

During still picture, press and hold 9 for 2 seconds, then release. Press 9 and release again to return to still picture.

NOTE:

During slow motion playback, some noise may appear on the TV screen. Press PR + or – on the remote control to eliminate the noises.

High-Speed (Turbo) Search

During playback, press 5 for forward high-speed search, or 3 for reverse high-speed search.

ATTENTION

In the search, still, slow-motion or frame-by-frame playback mode,

● the picture will be distorted.

● the noise bars will appear.

● there may be a loss of colour.

To resume normal playback, press 4.

Index Search

Your unit automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.

NOTE:

Before starting, make sure the unit is in the Stop mode.

Activate Index Search.

Press 2 or 6. “2 1” or “6 1” is displayed on the TV screen and search begins in the corresponding direction.

●

To access index codes 2 through 9, press 2 or 6 repeatedly until the correct index number is displayed.

Example:

To locate the beginning of B from the current position, press

twice.

To locate the beginning of D from the current position, press

once.

Current position

Skip Search

During playback, press 1 to 4 times to skip over unwanted sections. Each press initiates a 30-second period of fast-motion playback. Normal playback resumes automatically.

To resume normal playback during a Skip Search, press 4.

Index number

●

When the specified index code is located, playback begins automatically.

OPERATIONS ON S-VHS DECK (cont.)

Next Function Memory

The Next Function Memory “tells” the unit what to do after rewinding. Before continuing, make sure the unit is in the Stop mode.

For Automatic Start Of Playback Press 3, then press 4 within 2 seconds.

For Automatic Power Off Press 3, then press 1 within 2 seconds.

For Automatic Timer Standby Press 3, then press # (

For Automatic Cassette Ejection After Tape Rewind Press 3, then press x within 2 seconds.

TIMER

) within 2 seconds.

Repeat Playback

Your unit can automatically play back the whole tape 100 times repeatedly.

Start playback.

Press 4.

Activate Repeat Playback.

Press 4 and hold for over 5 seconds, then release.

●

The Play indicator ($) on the front display panel blinks slowly.

●

After playing back a tape 100 times, the unit stops automatically.

Stop Repeat Playback.

Press 8 at any time.

●

Pressing 4, 3, 5 or 9 also stops Repeat Playback.

NOTE:

Repeat playback is not possible with a cassette recorded in EP mode.

Manual Tracking

Your unit is equipped with automatic tracking control. During playback, you can override this and adjust the tracking manually by pressing the PR buttons.

Override automatic tracking.

During playback, press p on the remote control.

Adjust the tracking manually.

PR +

Press

●

Press p again to return to automatic tracking.

or – on the remote control.

NOTE:

When a new tape is inserted, the unit enters the automatic tracking mode automatically.

Soundtrack Selection

Your unit is capable of recording three soundtracks (HI-FI L, HI-FI R and NORM) and will play back the one you select.

During Playback

Pressing

A.MONITOR

TRACK

On-Screen Display

HI FI

j h

R For Hi-Fi stereo tapes

HI FI

changes the soundtrack as follows:

USE

For main audio of Bilingual tapes

HI FI

R For sub audio of Bilingual tapes

NORM

HI FI

NORM

For audio-dubbed tapes

NOTES:

●

“HIFI L Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio. For instructions on recording stereo and bilingual programmes, refer to page 29. “O.S.D.” must be set to “ON” or the on-screen displays will not appear. (

R” should normally be selected. In this mode,

墌

pg. 78)

Basic Recording

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

Load a cassette.

Insert a cassette with the record safety tab intact.

● The unit’s power comes on automatically and the counter is reset to 0:00:00.

Select the S-VHS deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

S-VHS

Choose a programme.

Press

PR +/–

you wish to record.

Set the tape speed.

Press

SP/LP/EP (p

front display panel or TV screen. Press again to change the setting while the tape speed is displayed on the TV screen.

● Select the appropriate colour system with “PAL/MESECAM” and “NTSC”. (

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

or the

墌

number keys

). The current setting appears on the

pg. 77, 78)

to select the channel

SP/LP/EP (p

)

Start recording.

Press and hold 7 and press 4 on the remote control, or press

on the unit.

B.E.S.T. takes place at the beginning of both the first SP and the first LP (or EP) recording after inserting the cassette. (

pg. 30)

墌

Pause/Resume recording.

Press 9. Press 4 to resume recording.

● You can select channel during the Record Pause mode.

Stop recording.

Press 8. Then press x on the S-VHS deck to remove the cassette.

NOTES:

● S-VHS recording is possible only for PAL signals recorded in the SP or LP mode, or NTSC signals recorded in the SP mode. S-VHS recording is impossible for NTSC4.43 signals.

● S-VHS ET recording is possible only for PAL signals recorded in the SP mode, or NTSC signals recorded in the SP mode.

● When recording in NTSC, if EP is selected, recording will always be done in the VHS mode even if an S-VHS cassette is used.

Recording Features

●

Turn on the TV and select the video channel (or AV mode).

●

Slide the

TV/S-VHS/DVD

switch to the right.

OPERATIONS ON S-VHS DECK (cont.)

Record One Programme While Watching Another

Once recording is in progress, all you need to do is to set the channel controls on the TV for the station you wish to view.

●

The programme selected with the TV’s channel controls appears on the TV screen, while the one selected with the unit’s PR buttons is recorded on the tape.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the unit off after recording is finished.

Start recording.

Press 7 on the unit.

Engage the ITR mode.

Press 7 again. “䡬” blinks and “0:30” appears on the front display panel.

Set the recording duration.

If you want to record for more than 30 minutes, press 7 to extend the time. Each press extends recording time by 30 minutes.

NOTE:

You can only perform ITR using the 7 button on the unit’s front panel.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

Elapsed Recording Time Indication

Set the counter display.

––:––

Press

until a counter reading appears on the front

display panel.

●

The front display panel shows the counter reading with “:” lit.

Reset the counter.

0000

Press

●

The counter is reset to “0:00:00” and shows the exact elapsed time as the tape runs. You can check the exact time of a recording or playback.

before starting recording or playback.

Tape Remaining Time

––:––

Press appears.

●

The front display panel shows the tape remaining time with “:” blinking.

●

By pressing the you can change display to show the channel position*, clock time, counter reading or tape remaining time.

* Channel position is not displayed during playback.

NOTE:

Depending on the type of tape being used, the tape remaining time reading may not appear right away, or is not correct. “– –:– –” may sometimes appear, or the display may blink on occasion.

until the time remaining on the tape

––:––

button,

Receiving Stereo and Bilingual Programmes

Your unit is equipped with a Sound-Multiplex decoder (A2) and a Digital stereo sound decoder (NICAM) making reception of stereo and bilingual broadcasts possible. When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being Received

A2 Stereo A2 Bilingual Regular Monaural NICAM Stereo NICAM Bilingual NICAM Monaural

●

To listen to a stereo programme, press

“HIFI L

●

To listen to a bilingual programme, press “HIFI Lj” or “HIFIhR” appears on the TV screen.

●

To listen to the standard (Regular Monaural) audio while receiving a NICAM broadcast, press “NORM” appears on the TV screen.

R” appears on the TV screen.

NOTE:

“O.S.D.” must be set to “ON”, or the on-screen displays will not

墌

appear. (

To Record Stereo and Bilingual Programmes (A2)

Stereo programmes are automatically recorded in stereo on the Hi-Fi audio track (with the normal audio track recording mixed L and R channel sound).

●

Bilingual programmes are automatically recorded in bilingual on the Hi-Fi audio track. The main soundtrack will be recorded on the normal audio track.

pg. 78)

On-screen Display

ST BIL. (none) ST NICAM BIL. NICAM NICAM

A.MONITOR

until

To Record NICAM Stereo and Bilingual Programmes

The NICAM audio programme will be recorded on the Hi-Fi audio track, and the standard audio programme will be recorded on the normal audio track.

NOTES:

●

If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.

●

Before playing back a programme recorded in stereo, or a bilingual programme, refer to “Soundtrack Selection” on page 26.

B.E.S.T. Picture System

The B.E.S.T. (Biconditional Equalised Signal Tracking) system checks the condition of the tape in use during playback and recording, and compensates to provide the highest-possible playback and recording pictures. You can set “B.E.S.T.” to “ON” or “OFF” to your preference.

墌

(

pg. 77)

Playback

The unit assesses the quality of the tape once you initiate playback.

●

The unit adjusts the playback picture quality based on the quality of the tape in use.

●

B.E.S.T. is active during automatic tracking. “bESt” appears blinking on the front display panel.

NOTES:

●

When watching a tape recorded with “B.E.S.T.” set to “ON”, it is recommended that you leave B.E.S.T. on during playback as well.

●

When watching a rental tape or one recorded on another video recorder, or when using this unit as the player for editing, set B.E.S.T. to your preference. (

●

“bESt” only appears at the beginning of automatic tracking. Even though it doesn’t appear after that, the B.E.S.T. function is operative.

墌

pg. 77)

OPERATIONS ON S-VHS DECK (cont.)

Recording

The unit assesses the quality of the tape once you initiate recording.

DURING B.E.S.T.

B.E.S.T. COMPLETE

●

The unit spends approximately 7 seconds assessing the condition of the tape, then begins recording.

NOTES:

●

The B.E.S.T. system works for both SP and LP (or EP) modes only after a tape has been inserted and the Record mode is first initiated. It does not work during recording.

●

The B.E.S.T. system does not work while Automatic Satellite Programme Recording is in progress. (

●

In the case of timer recordings, the B.E.S.T. system works before recording is initiated.

●

Once the cassette is ejected, the B.E.S.T. data is cancelled. The next time the cassette is used for recording, B.E.S.T. is reperformed.

●

Pressing the unit’s 7 button while “bESt” is displayed does not start Instant Timer Recording. (

ATTENTION

Since the B.E.S.T. system works before recording actually starts, there is a delay of approximately 7 seconds after 7 and 4 on the remote control are pressed, or 7 on the unit is pressed. To make sure you record the desired scene or programme in its entirety, first perform the following steps:

Press and hold 9 and press 7 to engage the Record Pause

mode.

●

The unit then automatically checks the condition of the tape and, after approximately 7 seconds, re-enters Record Pause mode.

Press 4 to start recording.

If you want to bypass the B.E.S.T. system and begin recording immediately, set “B.E.S.T.” to “OFF”. (

墌

pg. 28)

墌

pg. 39)

pg. 77)

G-

CODE

The Grecord function. Simply key in the Gtimer is automatically programmed. You have to set Guide Program numbers, which are assigned to each station for purposes of S stations stored in your unit’s memory to get proper results. Before G-

timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer

CODE

™/S

setup you must have performed Auto Set Up (墌pg. 16).

HOWVIEW

number for the TV programme you wish to record (found in most TV listings) and the unit’s

CODE

™ System Setup

HOWVIEW

timer programming, for all the

IMPORTANT

After setting the Guide Program Numbers, channel positions may be incorrect if you stored or skipped channels. In this case, reperform Guide Program Number setting.

INFORMATION

G-

and S

CODE

system will be used in the instructions. If you use the S

Turn on the TV and select the video channel (or AV mode).

HOWVIEW

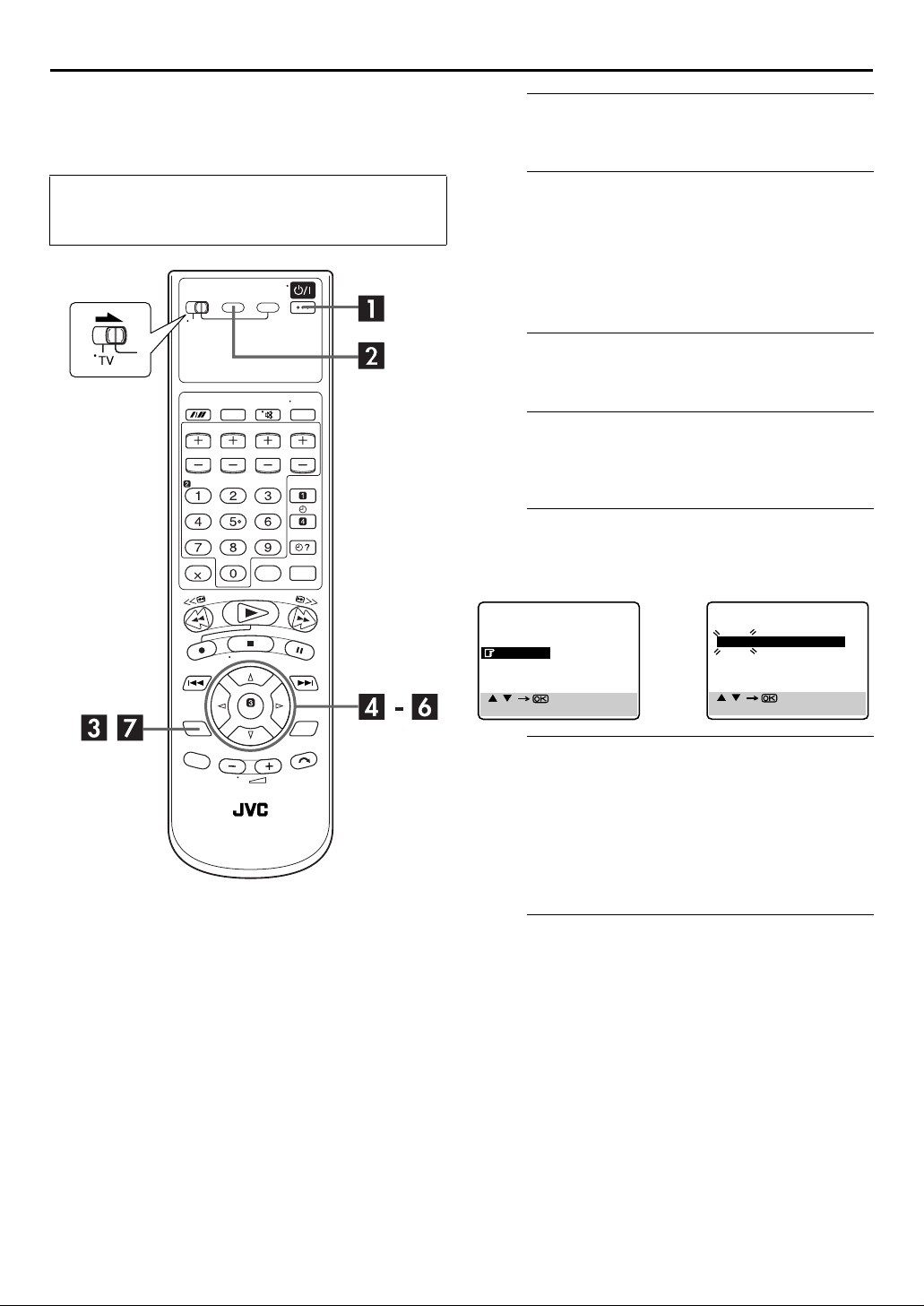

Guide Program Number Set

Access the Main Menu screen.

Press

SET UP MENU

Access the Initial Set screen.

Press rt to move the highlight bar (pointer) to “INITIAL SET”, then press OK or e.

Access the Guide Program Set screen.

Press rt to move the highlight bar (pointer) to “G-CODE/SHOWVIEW SETUP”, then press OK or e.

Enter the Guide Program number.

Press rt or enter the Guide Program number for the desired station as shown in the TV listings. Then press OK or e.

number keys

are different trademarks used to represent the same easy recording feature, but only the term G-

G-CODE/SHOWVIEW SETUP

GUIDE PROG TV PROG 2 5

[0–9] OR [ / ] : SELECT [MENU] : EXIT

(Example) When inputting the

Guide Program number 2 for RTR.

HOWVIEW

system, follow the same instructions listed for the G-

Enter the receiving channel position number.

Then press rt or to input the number of the unit’s channel position on which the Guide Program number’s broadcast is received by the unit. Then press OK or

●

If the satellite broadcast is received on your unit’s auxiliary channel “L-1”, select “L-1” for the channel position.

●

Repeat steps D and E as necessary.

Return to the normal screen.

Press

SET UP MENU

number keys

G-CODE/SHOWVIEW SETUP

GUIDE PROG TV PROG 2 5

[0–9] OR [ / ] : SELECT [MENU] : EXIT

(Example) If RTR is received on

Guide Program Number

“Guide Program (GUIDE PROG) number” refers to the assigned TV station numbers, according to broadcast area, for the Gcan be found in most TV listings.

timer recording. The Guide Program numbers

CODE

system.

CODE

channel position 2.

OPERATIONS ON S-VHS DECK (cont.)

G-

CODE

HOWVIEW

™/

™ Timer

Programming

With the Ggreatly simplified because each TV programme has a corresponding code number which your unit is able to recognize.

CODE/SHOWVIEW

INFORMATION

G-

and S

CODE

represent the same easy recording feature, but only the term G-

CODE

HOWVIEW

G-

CODE

HOWVIEW

system will be used in the instructions. If you use the

system, follow the same instructions listed for the

system.

system, timer programming is

are different trademarks used to

Before performing the GProgramming:

●

Be sure to read “G-

墌

(

pg. 31).

●

Make sure that the unit’s built-in clock is set properly.

●

Insert a cassette with the safety tab in place. The unit will come on automatically.

●

Turn on the TV and select the video channel (or AV mode).

●

Slide the

On the unit

Press lights up.

On the remote control

Press

TV/S-VHS/DVD

Select the S-VHS deck.

S-VHS/DVD

S-VHS

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

Access the G-

PROG

CODE

™/S

CODE

HOWVIEW

switch to the right.

CODE/SHOWVIEW

HOWVIEW

™/S

™ System Setup”

™ Timer

screen.

G-CODE/SHOWVIEW NO.

[0 – 9] [+/–] : EXPRESS PROGRAMING [PROG] : EXIT

Enter the G-

Press the enter the Ga programme you wish to record.

●

number keys

CODE

If you make a mistake, press & and input the correct number.

CODE

number of

number.

G-CODE/SHOWVIEW NO.

1 2 3 4 5 6 7 8

[0 – 9] [ ] : DELETE [PROG] : EXIT

Access the G-

Press OK, then the GProgram screen appears (if you’re just starting out, “P1” appears).

Program screen.

CODE

NO. 12345678

– P1 –

START STOP 21:00 22:00

DATE TV PROG

25.04 1 : [OK]

IMPORTANT

Make sure the channel position number you wish to record is displayed; if not, see “Gon page 31 and set the Guide Program number correctly.

● If the number you entered is invalid, “ERROR” appears on the

TV screen. Press & and input a valid G-

● If the “G-CODE/SHOWVIEW SETUP” screen appears, see “ATTENTION” on page 33.

Set the tape speed.

Press

SP/LP/EP

● Select the appropriate colour system with “PAL/MESECAM” and “NTSC”. (

Press

PROG

(p).

pg. 77, 78)

墌

Return to the normal screen.

or OK. “PROGRAM COMPLETED” appears

CODE

™/S

HOWVIEW

CODE

™ System Setup”

number.

on the TV screen for about 5 seconds, then the normal screen appears. If “PROGRAM OVERLAPPED” appears on the TV screen, see page 38.

● Repeat steps B–F for each additional programme.

Engage the unit’s timer mode.

Press # (

). The unit turns off automatically and

TIMER

“#” appears on the front display panel.

● To disengage the timer mode, press # (

TIMER

) again.

NOTES:

● To Change The Stop Time: — press

STOP +/–

compensate for anticipated programme schedule delays.

● To Timer-Record Weekly Or Daily Serials: — after pressing OK in stepD, press

) for weekly serials or

“9”

serials (Monday — Friday). Either “WEEKLY” or “DAILY” appears on the TV screen. Pressing the button again makes the corresponding indication disappear.

● You can programme this unit to timer-record as many as 8 programmes. If you try to programme the unit to record a ninth, “PROGRAM FULL” appears on the TV screen. To record the extra programme, you must first cancel any unnecessary programmes. (

after pressing OK in stepD. You can

WEEKLY (number key

墌

DAILY (number key “8”

pg. 37)

) for daily

Satellite Receiver Users

To timer-record a satellite broadcast using the GS

HOWVIEW

A Perform steps A–G. B Set the satellite receiver to the appropriate channel before

C Leave the satellite receiver’s power on.

system:

the selected programme begins.

CODE

ATTEN T I O N

Guide Program Number Set

“G-CODE/SHOWVIEW SETUP” appears after performing step D if the Guide Program number for the Gyou entered has not been set. Press rt or the number on which your unit receives that station, then press

or e to set the Guide Program number. The G-

Program screen appears.

G-CODE/SHOWVIEW SETUP

GUIDE PROG TV PROG 2 – –

[0–9] OR [ / ] : SELECT [PROG] : EXIT

number keys

to input the channel position

(Example) To timer-record a RTR programme with the Gsystem.

* If your unit receives RTR on the

channel position 2, press OK or

after entering “2”.

CODE

number

CODE

Express Timer Programming

If you do not know the Gwish to record, use the following procedure to set your unit to timer-record the programme.

Before performing Express Timer Programming:

●

Make sure that the unit’s built-in clock is set properly.

●

Insert a cassette with the safety tab in place. The unit will come on automatically.

●

Turn on the TV and select the video channel (or AV mode).

●

Slide the

TV/S-VHS/DVD

number for the programme you

CODE

switch to the right.

OPERATIONS ON S-VHS DECK (cont.)

Example: To timer-record the programme from 21:00 to 22:00 on 25th December, on channel 1.

Select the S-VHS deck.

On the unit

S-VHS/DVD

Press lights up.

On the remote control

S-VHS

Press

Access the G-

PROG

Press

Access the Programme screen.

START +/–

Press just starting out, “P1” appears.)

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

CODE/SHOWVIEW

. (If you’re

screen.

– P1 – START STOP

– –:– –– –:– –

DATE TV PROG

– –.– – – –

[+/–] [PROG] : EXIT

Enter the programme start time.

START +/–

Press time you want recording to start.

●

Press and hold move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

Enter the programme stop time.

STOP +/–

Press stop.

●

Press and hold press and release repeatedly to move 1 minute at a time.

Enter the programme date.

DATE +/–

Press

●

The current date appears on the TV screen. The date you enter appears in its place.

to enter the

START +/–

to enter the time you want recording to

STOP +/–

[+/–] [PROG] : EXIT

to move in 30-minute increments, or

– P1 – START STOP

21:00 – –:– –

DATE TV PROG

– –.– – – –

Enter the channel position.

Press

● Select the appropriate colour system with “PAL/MESECAM” and “NTSC”. (

Press on the TV screen for about 5 seconds, then the normal screen appears. If “PROGRAM OVERLAPPED” appears on the TV screen, see page 38.

● Repeat steps B–I for each additional programme.

Press # ( “#” appears on the front display panel.

● To disengage the timer mode, press # (

PR +/–

START STOP

21:00 22:00

DATE TV PROG

25.12 1

[+/–] [PROG] : EXIT

Set the tape speed.

pg. 77, 78)

墌

SP/LP/EP (p

Return to the normal screen.

or OK. “PROGRAM COMPLETED” appears

PROG

Engage the unit’s timer mode.

). The unit turns off automatically and

TIMER

– P1 –

) again.

NOTE:

You can programme this unit to timer-record as many as 8 programmes. If you try to programme the unit to record a ninth, “PROGRAM FULL” appears on the TV screen. To record the extra programme, you must first cancel any unnecessary programmes. (

Satellite Receiver Users

To timer-record a satellite broadcast using Express Timer Programming: A Perform steps A–J. Enter “L-1” for the channel position

in stepG.

B Set the satellite receiver to the appropriate channel before

the selected programme begins.

C Leave the satellite receiver’s power on.

墌

pg. 37)

To Timer-Record Weekly Or Daily Serials:

— anytime during stepsD through H, press

) for weekly serials or

key “9”

serials (Monday – Friday). Either “WEEKLY” or “DAILY” appears on the TV screen. Pressing the button again makes the corresponding indication disappear.

DAI LY (number key “8”

WEEKLY (number

) for daily

OPERATIONS ON S-VHS DECK (cont.)

Check, cancel and change programmes

Disengage the timer mode.

Press # (

Press ".

Press " again to check more information. Each time you press ", the next programme’s information appears.

TIMER

), then press 1.

Access the Programme Check screen.

PR START STOP CH DATE 1 21:00 22:00 1 25.12 2 10:00 10:45 2 25.04 3 11:30 13:00 1 25.04 4 5 6 7 8

[ ] : NEXT

Access the Programme screen.

– P1 – START STOP

21:00 22:00

DATE TV PROG

25.12 1

[ ] : NEXT

To cancel or change a programme

Cancel or change a programme.

Press & to cancel a programme. To change programme settings, press the appropriate button:

STOP +/–, DATE +/–, PR +/–, DAI LY (number key “8” WEEKLY (number key “9”

Return to the normal screen.

Press " as many times as necessary. If there are still some programmes remaining, go on to stepF.

Return to the timer mode.

Press # (

TIMER

) and/or

START +/–

SP/LP/EP

(p).

OPERATIONS ON S-VHS DECK (cont.)

When programmes overlap each other

If “PROGRAM OVERLAPPED” appears, you have another programme overlapping the programme you have just made. The Programme Check screen appears and conflicting programmes will start blinking.

PR START STOP CH DATE

PROGRAM OVERLAPPED

Example: Programme 1 (you have just made) and Programme 4 overlap each other.

Confirm the overlapping programmes.

Overlapping programmes blink on the TV screen.

Select the programme to modify.

Press rt, then press OK or e.

● You can only select one of the overlapping programmes.

NOTE:

If you do not mind this overlap, press programme setting. The programme with the lower programme number will be recorded and the other one will not be recorded correctly. If no changes are made for approximately 1 minute, the unit will return to the normal screen.

1 8:00 10:00 3 24.04

2 10:00 10:45 2 25.04 3 11:30 13:00 1 25.04 4 9:00 10:00 92 DAILY 5 6 7 8

[ / ] [PROG] : EXIT

to finish the timer

PROG

Cancel or change programme setting.

To cancel a programme,

screen you do not want is shown. “PROGRAM COMPLETED” appears on the TV screen for about 5 seconds, then the normal screen appears.

To change a programme, START +/–, STOP +/–, DATE +/–, PR +/–, DAI LY

(

number key “8”

LP/EP (p

want to make changes is shown, then press OK. “PROGRAM COMPLETED” appears on the TV screen for about 5 seconds, then the normal screen appears.

) when the Programme screen on which you

press & when the Programme

press the appropriate button:

WEEKLY (number key “9”

) and/or

SP/

NOTE:

If the overlap is not yet solved, or another overlap occurs with the timer programme setting after making the last correction on a programme, the conflicting programmes will be shown on the Programme Check screen again. Repeat the above steps again until the overlap is solved.

Automatic Satellite Programme Recording

This function allows you to automatically record a satellite programme which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the unit’s AUDIO/VIDEO IN (L-1) connector and programme the timer on the satellite receiver. The unit starts or stops recording by the signals input from the satellite receiver. After recording, the unit’s power shuts off automatically.

ATTENTION

●

Be sure not to turn on the satellite receiver before the programme is executed; otherwise, the unit will start recording when the satellite receiver’s power is turned on.

●

If you have connected another appliance other than a satellite receiver to the AUDIO/VIDEO IN (L-1) connector, be sure not to engage the Automatic Satellite Programme Recording mode; otherwise, the unit will start recording when the connected appliance’s power is turned on.

●

Automatic Satellite Programme Recording and timerrecording cannot be done at the same time.

Before performing the following steps:

●

Make sure the satellite receiver is connected to the unit’s AUDIO/VIDEO IN (L-1) connector. (

●

Programme the timer on the satellite receiver.

●

Insert a cassette with the safety tab in place.

●

Slide the

On the unit

Press lights up.

On the remote control

Press

TV/S-VHS/DVD

switch to the right.

Select the S-VHS deck.

S-VHS/DVD

S-VHS

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

墌

pg. 74)

“N” indicator

Set the tape speed.

SP/LP/EP

Press

●

Select the appropriate colour system with “PAL/MESECAM” and “NTSC”. (

(p).

墌

pg. 77, 78)

Engage the Automatic Satellite Programme Recording mode.

Press and hold indicator lights up and the unit turns off automatically.

REC LINK

for about 2 seconds. The “N”

NOTES:

●

To disengage the Automatic Satellite Programme Recording mode, press

●

If the unit’s power is off, it is not possible to engage the Automatic Satellite Programme Recording mode.

●

In stepC, if the “N” indicator does not light but instead blinks quickly even though your satellite receiver’s power is off, Automatic Satellite Programme Recording will not work properly with that satellite receiver*. If this is the case, perform “Express Timer Programming” (

* Some satellite receivers output signals even if the power is off. Automatic Satellite Programme Recording is not possible with those satellite receivers.

●

The “N” indicator blinks while Automatic Satellite Programme Recording is in progress.

●

For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.

●

Automatic Satellite Programme Recording is not possible if your satellite receiver does not have a timer.

●

Pressing the unit’s 1 button while Automatic Satellite Programme Recording is in progress turns off the unit’s power and disengages the Automatic Satellite Programme Recording mode.

●

If there are more than one satellite programmes you wish to record with Automatic Satellite Programme Recording, it is not possible to set different tape speeds for each programme.

●

Depending on the type of satellite receiver, the unit may not record a slight portion of the beginning of the programme or may record slightly longer than the actual length of the programme.

●

If you engage the Automatic Satellite Programme Recording mode when the satellite receiver’s power is on, the unit will not start Automatic Satellite Programme Recording even though the “N” indicator blinks. When the satellite receiver shuts off once and is turned back on again, the unit starts recording.

●

You can also record a programme from your cable system in the same way if the system has a timer.

●

The B.E.S.T. system (

墌

pg. 34) to timer-record a satellite programme.

墌

pg. 30) does not work while Automatic Satellite Programme Recording is in progress.

REC LINK

. The “N” indicator goes off.

OPERATIONS ON DVD DECK

To play back a MP3/JPEG disc, see pages 62 – 67.

Basic Playback

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

Load the disc.

Press x on the DVD deck to open the disc tray.

● The unit’s power comes on automatically.

Place the disc in the disc tray.

● For details, refer to “Placing a Disc” (

Press x on the DVD deck to close the disc tray.

● Pressing 4 also close the disc tray.

● Playback begins automatically if the auto-playback DVD disc

is loaded.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

Start playback.

Press 4.

● It may take a few seconds to start playback.

● If you load a DVD disc whose region code does not match the

DVD deck, “REGION CODE ERROR!” appears on the TV screen. For details, refer to “Region Number” (

● If “The DISC can’t play now!” appears on the TV screen, refer to “Parental Lock” (

● With Video CD discs with PBC control or some DVD discs, the menu display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go forward. Refer to “Locating a desired scene using the menu of the Video CD with PBC” ( scene using the DVD menu” (

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

pg. 58).

墌

pg. 41) or “Locating a desired

墌

pg. 42).

pg. 7).

墌

pg. 5).

ATTENTION

● You can not use the DVD deck when the S-VHS deck is in the Automatic Satellite Programme standby and recording mode.

● You can use the DVD deck when the S-VHS deck is in the timer standby mode.

Pause playback.

Press 9.

● To resume normal playback, press 4.

Stop playback.

Press 8. Press x on the DVD deck to open the disc tray, then remove the disc.

● Pressing 4 resume playback from the position where you stop playback. For details, see “Resume Function” on page 43.

NOTE:

When you press x while the unit is turned off, the unit’s power comes on and the disc tray opens automatically.

Playback Features

Playback Control (PBC) Function — Locating a desired scene using the

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

menu of the Video CD with PBC

Some Video CD discs supports the PBC function. PBC is an abbreviation of “PlayBack Control.” A Video CD disc recorded with PBC has its own menus, such as a list of the songs of the disc. You can locate a specific scene by using the menu.

Access the PBC menu.

In stop mode

Press 4.

During playback

Press

TOP MENU

● “Pbc” appears on the front display panel.

Start playback.

Press the appropriate

● The unit starts playback of the selected item.

● When “NEXT” or “PREVIOUS” appears on the TV screen:

Pressing 6 advances to the next page. Pressing 2 returns to the previous page.

● You can return to the menu by pressing

● The method of the operation is different depending on the

disc.

number keys

RETURN

NOTES:

● If you want to playback a PBC-compatible Video CD disc without activating the PBC function, start playback by using the

number keys

● To activate the PBC function when a PBC-compatible Video CD disc is being played back without the PBC function, press

TOP MENU

instead of the 4 button.

, or press 8 then press 4.

OPERATIONS ON DVD DECK (cont.)

Locating a desired scene using the DVD menu

DVD VIDEO discs may have two types of the menus; top menu and disc menu.

Top menu

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press

TOP MENU

Disc menu

DVD discs have the disc menu to select subtitle and audio language etc. for each title. Press

Access the DVD menu.

Press

TOP MENU

to access the top menu.

to access the disc menu.

Example:

Start playback.

Press

rt w e

● It may be possible to select the desired item using the

depending on the disc.

keys

to select a desired item, then press OK.

number

NOTE:

When “X” appears on the TV screen in step1, the disc does not have a top menu or disc menu.

Locating the start point of the item or skip the item

Press 2 or 6 during playback.

Example:

To locate the beginning of item B from the current position, press

twice. To locate the beginning of item D from the current position, press 6 once.

Current position

The number you press the button

● When the specified item is located, playback begins

automatically.

High-Speed Search

Still Picture/Frame-By-Frame Playback

Pause during playback.

Press 9.

Activate frame-by-frame playback.

Press 9.

● When you press and hold 9 for more than 2 seconds, the unit enters in strobe playback pause mode. ( strobe playback mode, press and hold 9 for more than 2 seconds again.

● To resume normal playback, press 4.

pg. 45). To cancel

墌

Slow Motion

During still picture, press 3 or 5.

● The speed changes for each direction by pressing 3 or

repeatedly.

● To resume normal playback, press 4.

During playback, press 5 for forward high-speed search, or 3 for reverse high-speed search.

● To resume normal playback, press 4.

During playback, press and hold 6 for forward highspeed search, or press and hold 2 for reverse highspeed search.

● To resume normal playback, release 2 or 6.

Resume Function

It is possible to memorize the position where you stop playback and resume playback from that position.

● Be sure to set “RESUME” to “ON”. (

Memorize the resume point.

Press 8.

● The unit enters Resume Stop mode and memorise the position where you stop playback as the resume point.

● “rESUM” appears on the front display panel.

● To clear the resume point:

• Press 1 to turn off the unit.

• Eject the disc.

• Press 8 in stop mode.

• Set “RESUME” to “OFF”. (

Resume playback.

Press 4. The unit start playback from the resume point.

● “rESUM” appears on the front display panel.

墌

pg. 82)

OPERATIONS ON DVD DECK (cont.)

Digest

The unit can display the opening scene of each title or chapter (DVD VIDEO) or each track (Video CD). You can select a desired scene from those displayed on the TV screen.

For DVD VIDEO

In stop mode or during playback

For Video CD

In stop mode or during playback without PBC function

Access the digest screen.

Press

DIGEST

● Up to 9 opening scenes appear.

●

DVD VIDEO

In stop mode, the opening scene of each title appears on the TV screen. During playback, the opening scene of each chapter in the current title appears on the TV screen.

●

Video CD

In stop mode or during playback, the opening scene of each track appears on the TV screen.

Start playback.

Press

rt w e

arrow to the desired scene, then press OK.

● If there are more than 9 scenes, the digest screen will have more than one page. In this case, pressing 6 advances to the next page, while pressing 2 returns to the previous page.

● When the lower right scene is selected, pressing e advances to the next page if available. Similarly, when the upper left scene is selected, pressing w returns to the previous page (if available).

to move the

Selected scene

NOTE:

With some discs, it may take some time until all the scenes appear on the screen depending on the contents.

Strobe Playback — To display continuous still pictures

During playback, press and hold 9 for more than 2 seconds at the point you want to view as continuous photographs.

● 9 continuous still pictures appear on the TV screen.

● While the 9 still pictures are shown, pressing 9 will pause the Strobe playback. After pausing, each time you press 9, the still picture advances frame-by-frame.

● Pressing 4 while the 9 still pictures are shown will advance pictures in normal playback speed.

● To return to normal playback, press and 9 for more than 2 seconds.

NOTES:

● During the operation above, audio is not played back.

● When playing back NTSC discs, the 9 still pictures may appear

vertically distorted, or a stripe may appear at the bottom of the screen. This is not a malfunction.

Zooming

Press

● Each time you press doubled up to the maximum 1024X.

● While zoomed, the picture may look coarse or distorted.

Press

during playback or while paused.

ZOOM

Current magnification

Zoomed-in area

rt w e

to move the zoomed-in scene.

, the scene magnification is

ZOOM

● To resume normal playback, press OK.

3D Phonic

OPERATIONS ON DVD DECK (cont.)

● Each time you press we, the setting changes as follows:

ACTION]DRAMA]THEATER]NONE](Back to the beginning)

ACTION

: Suitable for action movies and sports

programs in which sounds dynamically move.

DRAMA

: Provides the natural and warm sound. You

THEATER

NONE

: No effect

● The selection menu disappears automatically if you do not change the selection for 10 seconds.

Select the effect level.

Press rt to select the desired effect level. (level 1 to 5)

can enjoy movies in a relaxed mood.

: You can enjoy sound effects like in a major

theater in Hollywood.

NOTES:

● The 3D Phonic function works correctly only when playing back a DVD VIDEO disc recorded in the Dolby Digital format. With other sources, you cannot get any effect if you activate 3D Phonic function.

● When playing back a DVD VIDEO disc recorded with the Dolby Digital that does not contain the rear signal, you cannot get a correct 3D Phonic sound even if you activate 3D Phonic function.

● The 3D Phonic function does not affect the Dolby Digital bitstream signal from the DIGITAL AUDIO OUT connector.

● When you use the 3D Phonic function, it is not possible to set “ANALOG DOWN MIX” or “D. RANGE COMPRESSION”. (

pg. 81, 82)

墌

● To turn off the 3D Phonic display manually, press

3D-PHONIC

● With a Video CD disc, if the Audio setting is set to L or R, you cannot activate the 3D Phonic function and the 3D Phonic mode is fixed to off.

● Conversely, when the 3D Phonic function is activated, changing the audio setting to L or R from STEREO cancels the 3D Phonic function.

3D Phonic function allows you to get a simulated surround effect from your stereo system. You can enjoy the vertical surround sound with your 2-channel stereo system.

Access the selection menu.

Press

3D-PHONIC

● The current setting appears on the right bottom corner of the TV screen.

Select the mode.

Press we repeatedly, then press OK.

during playback.

Selected mode Effect level

VFP function — Adjusting the picture quality

Select the parameter.

Press rt repeatedly to select a parameter you want to adjust, then press OK.

● Adjust gradually and confirm picture appearance results are as preferred.

The VFP (Video Fine Processor) function enables you to adjust the picture character according to the type of programming, picture tone or personal preference.

NOTE:

Before you start operation; The VFP setting screen disappears if no operations are done for more than about 10 seconds. If the setting screen disappears before you finish, start from step 1 again.

Access the VFP setting menu.

Press

DVD PIC TUR E

playback.

● The current setting appears on the TV screen.

Select the VFP mode.

Press we repeatedly.

● Each time you press we, the VFP mode changes as follows:

NORMAL]CINEMA]USER 1]USER 2](Back to the beginning)

NORMAL

CINEMA

USER 1 USER 2

: Select this normally.

: Suitable for movie.

/ :

during

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Y DELAY

You can adjust parameters that affect picture appearance and store settings. Go to step 3.

GAMMA

(–4 to +4):

Controls brightness of neutral tints while maintaining brightness of dark and bright portions.

BRIGHTNESS

Controls screen brightness.

(–16 to +16):

CONTRAST

Controls screen contrast.

(–16 to +16):

SATURATION

Controls screen colour depth.

(–16 to +16):

TINT

Controls screen tint.

(–16 to +16):

SHARPNESS

Controls screen sharpness.

(+0 to +3):

Y DELAY

Controls screen colour gap.

(–2 to +2):

● VFP menu disappears and the following pop-up window appears on the TV screen.

GAMMA

Adjust the parameter.

GAMMA

Press rt repeatedly to change the setting, then press

● The current VFP settings appear again.

NOTE:

You cannot adjust the parameters of “NORMAL” and “CINEMA”. Press VFP to return to normal screen.

To adjust picture appearance manually

Access USER menu.

Press we repeatedly to select “USER 1” or “USER 2”.

USER 1

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Y DELAY

Adjust the other parameters.

Repeat steps 4 and 5 to adjust other parameters.

To return to the normal screen

Press

DVD PICTURE

To activate your setting

Press

DVD PICTURE

, then press we repeatedly to select “USER 1” or “USER 2” that you have changed the parameters.

Using the on-

OPERATIONS ON DVD DECK (cont.)

How to Access the on-screen bar

Press

DISPLAY

twice whenever a disc is loaded.

screen bar

You can check disc information while the disc is loaded and you can use some functions using the on-screen bar. The on-screen bar allows you the various playback operations.

Example: During DVD playback

Example: During Video CD playback

Contents of the on-screen bar during playback

DVD

Video CD

Disc type.

Audio recorded format (Dolby Digital, etc.)

Current title (for DVD) or group (for MP3) number.

Current chapter number (for DVD) or track number

(for other type of discs). Time information. (

Playback status.

: appears during playback. / : appears during fast forward/reverse. / : appears during playback in forward slow-

motion/reverse slow-motion.

: appears when paused. : appears when stopped.

Select this to change time information (

Select this for Repeat Playback. (

Select this for time search function. (

Select this for chapter search function. (

Select this to change audio language or channel.

pg. 56, 57)

(

墌

Select this to change subtitle language. (墌pg. 54)

Select this to change view angle. (墌pg. 55)

Select this for Program Playback. (

Select this for Random Playback. (墌pg. 53)

墌

pg. 49)

墌

FFFF

pg. 50)

pg. 52)

墌

pg. 53)

). (

墌

pg. 51)

pg. 49)

Basic operation on the on-screen bar

Example: When selecting the Repeat mode of DVD

During playback or while stopped

Access the on-screen bar.

Press

DISPLAY

TV screen.

● The currently selected item is highlighted.

Press we to move 0 to , then press OK. The pop-up window appears under the selected item.

● The current setting appears.

Press rt to select the desired option, then press OK.

● Each time you press rt, the options change.

twice. The on-screen bar appears on the

Select menu item.

Select the option.

Change the time information

You can change the time information in the on-screen bar on the TV screen and the display window of the unit.

During playback or while stopped

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● Each time you press OK, the time information changes as

follows;

Example: During DVD playback

TIME

: Elapsed playing time of current chapter/track

REM

: Remaining time of current chapter/track

TOTAL

T. R E M

To clear the on-screen bar

Press

DISPLAY

twice. The on-screen bar appears on the

Select menu item.

TIME

(Back to the beginning)

: Elapsed time of disc

: Remaining time of disc

To clear the on-screen bar

Press

DISPLAY

NOTE:

See the corresponding pages for details on each function.

NOTE:

While playing a Video CD or Audio CD, the hour digit indication does not appear.

OPERATIONS ON DVD DECK (cont.)

Select the repeat mode.

Press rt repeatedly to select the Repeat mode, then press OK.

● The mode changes as follows:

DVD VIDEO

CHAPTER]TITLE]A-B]OFF](Back to the beginning)

Repeat Playback

CHAPTER

TITLE

A-B

OFF:

Video CD/CD

TRACK]ALL]OFF](Back to the beginning)

TRACK

ALL

OFF:

To clear the on-screen bar

Press

To cancel Repeat Playback

Repeat from step A, select

When using the REPEAT button:

Press repeat.

● Repeat mode is displayed on the TV.

: The current chapter is played back

: The current title is played back

DISPLAY

repeatedly.

The desired part is played back repeatedly.

Each title and chapter is played back once.

All tracks are played back repeatedly.

The current track is played back repeatedly.

Each track is played back once.

in step C, then press

“OFF”

Access the repeat mode.

REPEAT

during playback of the item you want to

You can repeat playback as you like according to the type of disc.

When using the on-screen bar

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

twice. The on-screen bar appears on the

Select menu item.

Select the repeat mode.

Press

REPEAT

mode, then press OK.

● To stop Repeat Playback, press 8.

● To cancel Repeat Playback, press

“OFF” appears on the TV screen.

repeatedly to select the desired repeat

repeatedly until

REPEAT

NOTES:

● Repeat Playback is not possible with a Video CD with PBC function.

● Repeat Playback may not work properly depending on the type of disc being used.

A-B Repeat Playback

You can repeat the desired part.

When using the on-screen bar

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

Press rt repeatedly to select “A-B”.

twice. The on-screen bar appears on the

Select menu item.

Select the repeat mode.

Chapter Search

You can start playback the desired chapter using the on-screen bar.

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

Press

number keys

number, then press OK.

● The unit starts playback from the selected chapter.

twice. The on-screen bar appears on the

Select menu item.

CHAP.

Select the chapter.

(0-10) to enter the desired chapter

Select the start point.

Press OK at the beginning of the part you want to repeat (point A).

● The following display appears in the on-screen bar.

Select the end point

Press OK at the end of the part you want to repeat (point B).

● A-B Repeat Playback starts. The selected part of the disc (between point A and B) is played repeatedly.

● To clear the on-screen bar, press

● To stop A-B Repeat Playback, press 8.

● You can also stop Repeat Playback by pressing 2 or 6.

DISPLAY

NOTES:

● A-B Repeat Playback may not work properly depending on the type of disc being used.

● The subtitles recorded around A-B point may not appear.

● The end of the item will be set as “B” point if the end of the

item reached before you set the “B” point.

● When playing back a DVD, A-B Repeat Playback is possible only within the same title.

● “A-B” cannot be selected during Program and Random Playback.

● “A-B” cannot be selected while stopped.

Examples:

To select track 5, press the To select track 15, press the To select track 25, press

● It is not possible to use the

If you have specified a wrong selection

Enter the appropriate

● To clear the on-screen bar, press

number key “5”

number key “1”

number key “2”

number key “+10”

number keys

again.

DISPLAY

and

twice, then

“5”

NOTES:

● When “X” is displayed on the TV screen in stepC, the chapter you have selected is not contained in the disc, or chapter search does not work on the disc.

● Chapter Search starts automatically when you select the desired chapter in stepC depending on the disc.

OPERATIONS ON DVD DECK (cont.)

Time Search

You can play back a disc from the desired point by specifying the elapsed time from the beginning of the current title (for DVD VIDEO) or the disc (for Audio CD/Video CD) using the Time Search.

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

twice. The on-screen bar appears on the

Select menu item.

Select the time.

Use

number keys

Example: To play back from a point 2 (hours): 34 (minutes): 08 (seconds) elapsed

TIME _ : _ _ : _ _

(0-9) to enter the time, then press OK.

TIME _ : _ _ : _ _TIME 2 : _ _ : _ _

Press 2

Press 3

TIME _ : _ _ : _ _TIME 2 : 3 _ : _ _

TIME _ : _ _ : _ _TIME 2 : 3 4 : 0 _

If you have specified a wrong selection,

Press w repeatedly until the wrong number is erased, then press

● The unit starts playback from the specified time.

To clear the on-screen bar

Press

number keys

DISPLAY

TIME _ : _ _ : _ _TIME 2 : 3 4 : _ _

Press 4

TIME _ : _ _ : _ _TIME 2 : 3 4 : 0 8

Press 8

to enter the correct numbers.

Press 0

NOTES:

● When “X” is displayed on the TV screen in stepC, you have selected a point that excesses the recording time of the disc.

● Some DVD VIDEO discs do not contain time information, and it is no possible to use the Time Search function. In such a case, “X” is displayed on the TV screen as well.

● Time Search does not work while you play back the Video CD with the PBC Function. (

Reactivate the Playback Control (PBC) Function

You can reactivate the PBC function when you play back a PBCcompatible Video CD disc without PBC function.

Press

TOP MENU

●

pg. 41, right column)

墌

during playback.

Programme Playback

You can play back up to 99 tracks in the desired order.

Access the on-screen bar.

Press

DISPLAY

Press we to move 0 to “PROG.”, then press OK.

● The programme table appears under the on-screen bar.

Press the appropriate

number keys

tracks.

twice in stop mode.

Select the menu item.

Select the tracks in the desired order.

to select the

Programme time

Random Playback

You can play back all the tracks on the disc in random order.

Access the on-screen bar.

Press

DISPLAY

Press we to move 0 to “RAND.”, then press OK.

● Playback starts in random order.

● To clear the on-screen bar, press

● To stop and quit Random Playback, press 8.

NOTE:

The same track will not be played back more than once during Random Playback.

twice in stop mode.

Select the menu item.

DISPLAY

Examples:

● To select track 5, press the

● To select track 15, press the

● To select track 25, press

“5”

If you have specified a wrong selection

Press 8. The last selection programmed is erased.

Start playback.

Press 4. Playback starts in the selected order.

● When all of the programmed tracks have been played back, Programme Playback stops, but the programmed information remains.

● To clear the on-screen bar, press

● To stop Programme Playback, press 8.

● To cancel programming, press 8 in stop mode.

● During Programme Playback, pressing 6 skip to the next

selection of the programme. Pressing 2 returns to the beginning of the current selection.

number key “5”

number key “+10”

DISPLAY

twice, then

and

“5”

NOTE:

Programme Playback is not possible depending on the type of disc.

OPERATIONS ON DVD DECK (cont.)

Select the subtitle language.

Press rt or subtitle language.

● Each time you press the button, the subtitle language changes.

● The pop-up window disappears if no operation is done for

about 5 seconds.

SUB TITLE

repeatedly to select the desired

NOTE:

When “X” appears on the TV screen in stepB, subtitle language is not recorded.

When using the on-screen bar

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

Example (DVD): “ENGLISH” is selected out of 3 subtitle languages recorded.

twice. The on-screen bar appears on the

Select menu item.

Subtitle Selection

You can select subtitle language.

● During playback

When using the SUB TITLE button:

Access the menu.

Press

SUB TITLE

● The following pop-up window appears on the TV screen.

Example (DVD): “ENGLISH” is selected out of 3 subtitle languages recorded.

1/3

ENGLISH

1/3

ENGLISH

Select the subtitle language.

Press rt repeatedly to select the desired subtitle language, then press OK.

● Each time you press the button, the subtitle language changes.

To clear the on-screen bar

Press

DISPLAY

NOTES:

●

For DVD VIDEO

Some subtitle languages are abbreviated in the pop-up window. See “Language Code List” (

●

For SVCD

SVCD can contain up to four subtitles. Pressing changes the subtitles regardless of whether the subtitles are recorded or not. (Subtitles will not change if no subtitle is recorded.)

● When “X” appears on the TV screen in stepC, subtitle language is not recorded.

墌

pg. 22).

SUB TITLE

Angle Selection

You can enjoy a variety of scene angles if the DVD VIDEO disc contains “multi-angle” parts, where multiple cameras were used to shoot the same scene from different angles. If the disc contains “multi-angle” parts, “ ” appears on the TV screen at the beginning of the “multi-angle” part when “ON SCREEN GUIDE” is set to “ON”.

● During playback

When using the ANGLE button:

Access the menu.

Press

● The following pop-up window appears on the TV screen.

Example: The first view angle is selected out of 3 view angles recorded.

Press

● Each time you press the button, the angle of the scene changes.

Example:

1/3]2/3]3/3

ANGLE

1/3

Select the view angle.

repeatedly to select the desired view angle.

ANGLE

](Back to the beginning)

1/3

When using the on-screen bar

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

Example: The first view angle is selected out of 3 view angles recorded.

Press rt repeatedly to select the desired view angle, then press OK.

● Each time you press the button, the angle of the scene changes.

To clear the on-screen bar

Press

DISPLAY

twice. The on-screen bar appears on the

Select menu item.

Select the view angle.

NOTES:

● When “X” appears on the TV screen in stepC, the current scene is not recorded from multiple angles.

● During the operation above, audio is not played back.

1/3

The pop-up window disappears if no operation is done for about 5 seconds.

OPERATIONS ON DVD DECK (cont.)

Select the audio language.

Press

A.MONITOR

desired audio language.

● The pop-up window disappears if no operation is done for about 5 seconds.

or rt repeatedly to select the

NOTE:

Some audio languages are abbreviated in the pop-up window. See “Language Code List” (

When using the on-screen bar

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

Example: “ENGLISH” is selected out of 3 audio languages recorded.

twice. The on-screen bar appears on the

Select menu item.

墌

pg. 22).

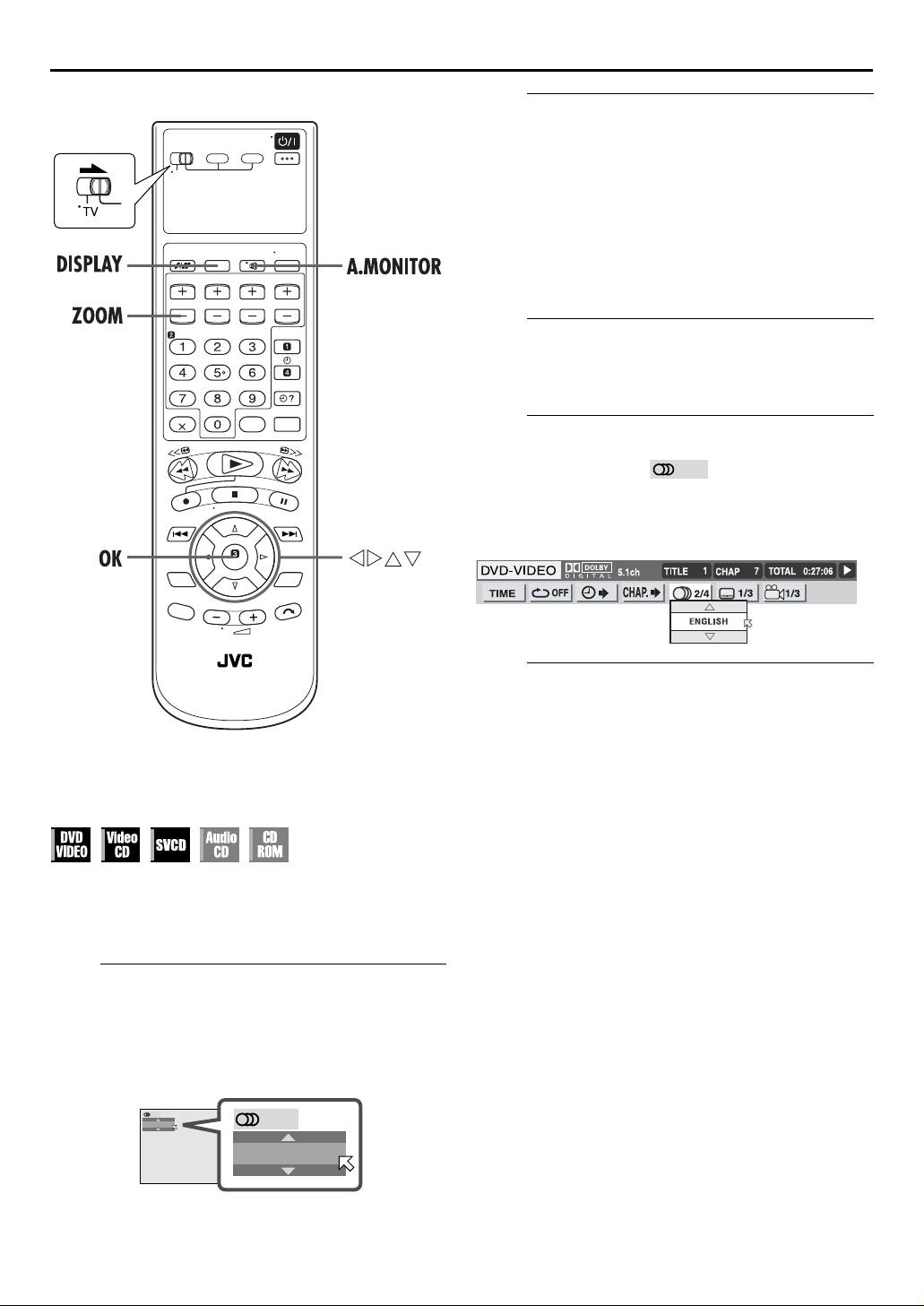

Audio Language Selection

Some DVD discs contain the multiple audio. You can select the audio language of movies (DVD VIDEO).

● During playback

When using the A.MONITOR button:

Access the menu.

Press

A.MONITOR

● The following pop-up window appears on the TV screen.

Example: “ENGLISH” is selected out of 3 audio languages recorded.

1/3

ENGLISH

1/3

ENGLISH

Select the audio language.

Press rt repeatedly to select the desired audio language, then press OK.

● Each time you press the button, the audio language changes.

To clear the on-screen bar

Press

DISPLAY

NOTES:

● Some audio languages are abbreviated in the pop-up window. See “Language Code List” (

● If “X” appears on the TV, the current scene does not contain plural audio languages.

墌

pg. 22)

Audio Channel Selection

When you play certain karaoke (DVD/Video CD/SVCD), you can enjoy karaoke by selecting the audio channel to play.

● The sound of each audio channel depends on the contents of the disc.

● During playback

When using the AUDIO button:

Access the menu.

Press

A.MONITOR

● The following pop-up window appears on the TV screen.

Example: “ST” (stereo) is selected out of 3 audio channels recorded.

Select the audio channel.

Press

A.MONITOR

channel.

● Each time you press the button, the audio channel changes.

1/3

repeatedly to select the desired audio

When using the on-screen bar

Access the on-screen bar.

Press

DISPLAY

TV screen.

Press we to move 0 to , then press OK.

● The following pop-up window appears under the selected item.

Example: “ST” (stereo) is selected.

VCD

TIME

Press rt repeatedly to select the desired audio channel, then press OK.

● Each time you press the button, the audio channel changes.

To clear the on-screen bar

Press

DISPLAY

twice. The on-screen bar appears on the

Select menu item.

TRACK

OFF

PROG.

RND.

1/3

Select the audio channel.

TIME

4:58

For Video CD

ST]L]R](Back to the beginning)

To listen to normal stereo playback.

To listen to L (left) audio channel only.

To listen to R (right) audio channel only.

For SVCD

ST 1]ST 2]L 1]R 1]L 2]R 2](Back to the beginning)

To listen to normal stereo playback of ST 1 or

ST 1/ST 2

L 1/L 2

R 1/R 2:

The pop-up window disappears if no operation is done for about 5 seconds.

ST 2 channel.

To listen to the L (left) 1 or 2 audio channel.

To listen to the R (right) 1 or 2 audio channel.

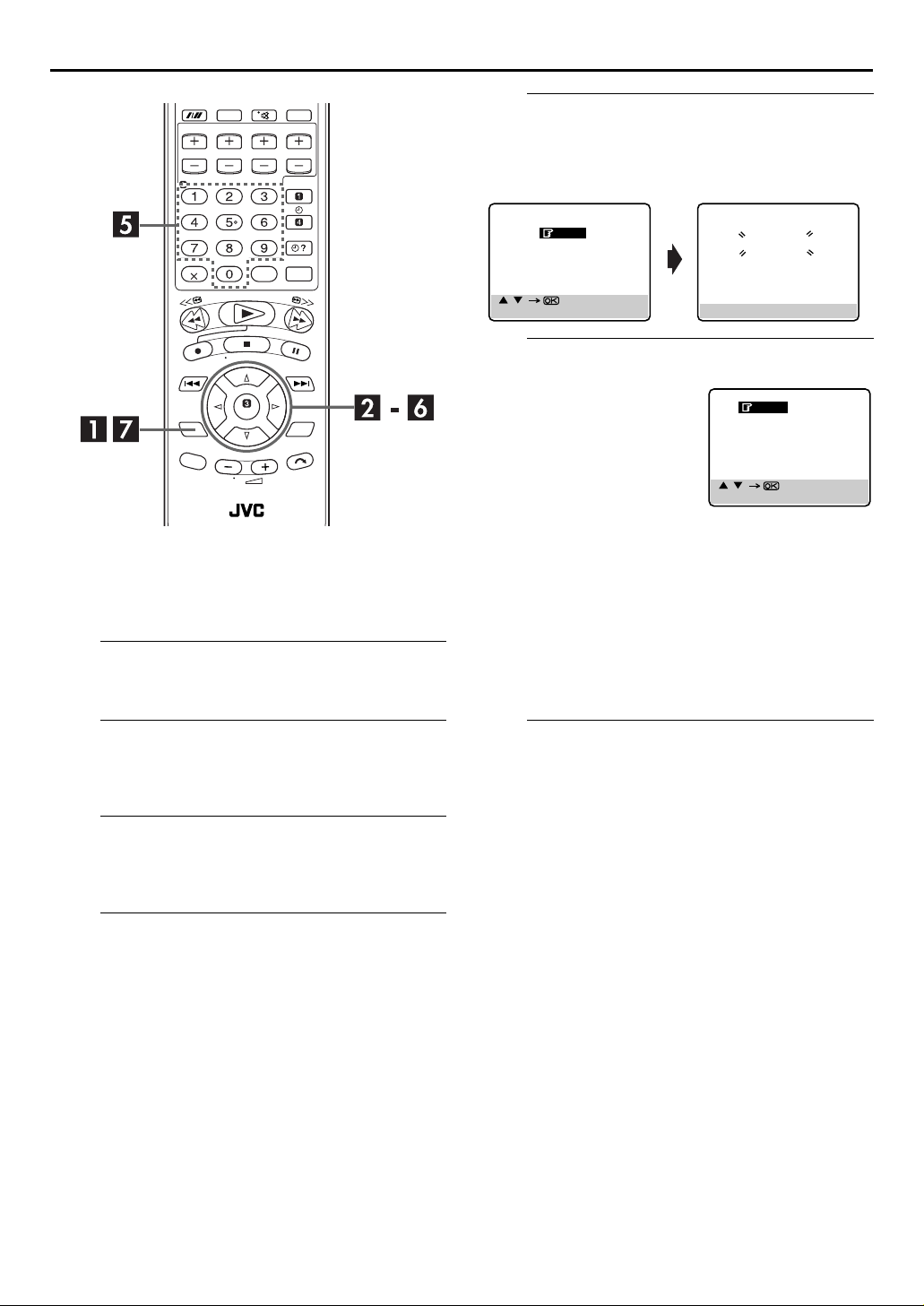

Parental Lock

This function restricts playback of DVD VIDEO discs which contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced with other scenes.

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

OPERATIONS ON DVD DECK (cont.)

Access the DVD Set Up menu.

Press

A B

SETUP MENU

Press we to select “ OTHERS”.

Access the “PARENTAL LOCK“ menu.

Press rt repeatedly to move 0 to “PARENTAL LOCK“, then press OK.

● The “PARENTAL LOCK“ submenu appears on the TV screen.

Access the country code menu.

Press rt repeatedly to move 0 to “COUNTRY CODE“, then press OK.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

USE TO SELECT. USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

USE TO SELECT. USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

NONE

_ _ _ _

NONE

_ _ _ _

UG UM

US UY UZ VA

To set Parental Lock for the first time

Turn on the unit.

Press 1.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

Select the country code.

Press rt repeatedly to move 0 to select the country code, then press OK.

● See “Country/Area Code List for Parental Lock” (

● The 0 moves to “SET LEVEL”.

Access the Level menu.

Press OK.

Select the Level.

Press rt repeatedly to move 0 to select the level of restriction, then press OK.

● The 0 moves to

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

“PASSWORD”.

● The smaller the value of level is, the more restrictive the

SELECT

Parental Lock level is.

● Select “NONE” to cancel this function.

pg. 60).

墌

NONE

_ _ _ _

8 7 6 5 4

_ _ _ _

? •••

PRESS 0 ~ 9 KEY

USE TO SELECT. USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

NEW PASSWORD TO EXIT, PRESS [SET UP MENU].

Enter the password.

Press the your password, then press OK.

● The 0 moves to “EXIT”.

Press OK.

● The “ OTHERS” menu resumes.

To return to the normal screen

Press

number keys

Return to the OTHERS menu screen.

SETUP MENU

to enter a four-digit number as

NOTE:

Remember your password, or make a note of it.

To change the settings

You can change the Parental lock settings later.

Access the Parental Lock screen.

Press

A B

● The “PARENTAL LOCK“ sub-

● You can only move 0 to

Press the appropriate password, then press OK.

● If you enter the wrong password, “WRONG! RETRY...” appears

Press rt to select the country code, then press OK.

● See “Country/Area Code List for Parental Lock” (

● When you change the country code, you must select the level.

SETUP MENU

Press we to select “ OTHERS”. Press rt repeatedly to move 0 to “PARENTAL LOCK“, then press OK.

menu appears on the TV screen.

“PASSWORD” or to “EXIT” before you enter your password.

Enter the password.

on the TV screen. Enter the correct password.

Change the country code.

number keys

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

to enter 4-digit

_ _ _ _

NEW PASSWORD

? •••

PRESS 0 ~ 9 KEY

TO EXIT, PRESS [SET UP MENU].

pg. 60).

墌

Return to the normal screen.

Press

SETUP MENU

NOTES:

● When you enter the wrong password more than 3 times in stepB above, the arrow moves to “EXIT” automatically and

does not work.

● If you forget your password, enter “8888” in stepB.

To temporarily release the Parental Lock

When you set the parental level strictly, some discs may not be played back at all. When you insert such a disc and try to play back it, the following Parental Lock screen appears on the TV screen, asking you whether you want the Parental Lock to be temporarily released or not.

Access the password screen.

Place the disc in the disc

tray.

● If the disc rated higher than the selected level, the following screen appears.

Press rt to move 0 to

“TEMPORARY RELEASE”, then press OK.

● If you select “NOT RELEASE”, you cannot play back that disc.

Enter the password.

Press the appropriate password, then press OK.

● If you enter the wrong password, “WRONG! RETRY...” appears on the TV screen. Enter the correct password.

● If you enter the correct password, the Parental lock is released and the unit starts playback.

number keys

NOTES:

● When you enter the wrong password more than 3 times in stepB above, the arrow moves to “NOT RELEASE” automatically and rt do not work. In such a case, press OK, then press x to remove the disc.

● If you forget your password, enter “8888” in stepB.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

SELECT

to enter 4-digit

_ _ _ _

PASSWORD? ••• PRESS 0 ~ 9 KEY

Change the level.

Press rt to select the desired level, then press OK.

Enter your new password.

Press the appropriate password, then press OK.

● The password entered in the this step becomes the new password. If you do not change the password, enter the same password as in the stepB.

● Even if you want to change only the country code and/or level, do not forget to enter the password after changing the country code and/or the level. Otherwise, the new country code and/ or the level will not become effective.

number keys

to enter 4-digit

Country/Area Code List for Parental Lock

OPERATIONS ON DVD DECK (cont.)

AD AE AF AG AI AL AM AN AO AQ AR AS AT AU AW AZ BA BB BD BE BF BG BH BI BJ BM BN BO BR BS BT BV BW BY BZ CA CC CF CG CH CI CK CL CM CN CO CR CU CV CX CY CZ DE DJ DK DM DO DZ EC EE EG EH ER

Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria Australia Aruba Azerbaijan Bosnia and Herzegovina Barbados Bangladesh Belgium Burkina Faso Bulgaria Bahrain Burundi Benin Bermuda Brunei Darussalam Bolivia Brazil Bahamas Bhutan Bouvet Island Botswana Belarus Belize Canada Cocos (Keeling) Islands Central African Republic Congo Switzerland Côte d’Ivoire Cook Islands Chile Cameroon China Colombia Costa Rica Cuba Cape Verde Christmas Island Cyprus Czech Republic Germany Djibouti Denmark Dominica Dominican Republic Algeria Ecuador Estonia Egypt Western Sahara Eritrea

ES ET FI FJ FK FM FO FR FX GA GB GD GE GF GH GI GL GM GN GP GQ GR GS GT GU GW GY HK HM HN HR HT HU ID IE IL IN IO IQ IR IS IT JM JO JP KE KG KH KI KM KN KP KR KW KY KZ LA LB

Spain Ethiopia Finland Fiji Falkland Islands (Malvinas) Micronesia (Federated States of) Faroe Islands France France, Metropolitan Gabon United Kingdom Grenada Georgia French Guiana Ghana Gibraltar Greenland Gambia Guinea Guadeloupe Equatorial Guinea Greece South Georgia and the South Sandwich Islands Guatemala Guam Guinea-Bissau Guyana Hong Kong Heard Island and McDonald Islands Honduras Croatia Haiti Hungary Indonesia Ireland Israel India British Indian Ocean Territory Iraq Iran (Islamic Republic of) Iceland Italy Jamaica Jordan Japan Kenya Kyrgyzstan Cambodia Kiribati Comoros Saint Kitts and Nevis Korea, Democratic People’s Republic of Korea, Republic of Kuwait Cayman Islands Kazakhstan Lao People’s Democratic Republic Lebanon

LC LI LK LR LS LT LU LV LY MA MC MD MG MH ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ NA NC NE NF NG NI NL NO NP NR NU NZ OM PA PE PF PG PH PK PL PM PN PR PT PW PY QA RE RO RU RW

Saint Lucia Liechtenstein Sri Lanka Liberia Lesotho Lithuania Luxembourg Latvia Libyan Arab Jamahiriya Morocco Monaco Moldova, Republic of Madagascar Marshall Islands Mali Myanmar Mongolia Macau Northern Mariana Islands Martinique Mauritania Montserrat Malta Mauritius Maldives Malawi Mexico Malaysia Mozambique Namibia New Caledonia Niger Norfolk Island Nigeria Nicaragua Netherlands Norway Nepal Nauru Niue New Zealand Oman Pa na ma Peru French Polynesia Papua New Guinea Philippines Pa ki st a n Poland Saint Pierre and Miquelon Pitcairn Puerto Rico Portugal Pa la u Pa ra gu ay Qatar Réunion Romania Russian Federation Rwanda

SA SB SC SD SE SG SH SI SJ SK SL SM SN SO SR ST SV SY SZ TC TD TF TG TH TJ TK TM TN TO TP TR TT TV TW TZ UA UG UM US UY UZ VA VC VE VG VI VN VU WF WS YE YT YU ZA ZM ZR ZW

Saudi Arabia Solomon Islands Seychelles Sudan Sweden Singapore Saint Helena Slovenia Svalbard and Jan Mayen Slovakia Sierra Leone San Marino Senegal Somalia Suriname Sao Tome and Principe El Salvador Syrian Arab Republic Swaziland Turks and Caicos Islands Chad French Southern Territories To g o Thailand Tajikistan Tokelau Tu r km e n is t a n Tu n is i a To n ga East Timor Tu r ke y Trinidad and Tobago Tu va l u Taiwan, Province of China Tanzania, United Republic of Ukraine Uganda United States Minor Outlying Islands United States Uruguay Uzbekistan Vatican City State (Holy See) Saint Vincent and the Grenadines Ven ezuel a Virgin Islands (British) Virgin Islands (U.S.) Viet Nam Vanuatu Wallis and Futuna Islands Samoa Ye m e n Mayotte Yu g o s l a v i a South Africa Zambia Zaire Zimbabwe

About MP3 Disc

This unit can playback CD discs recorded by the MP3 format (we refer to those discs as MP3 discs in this manual). Operations for MP3 discs are similar to those for Audio CD discs, though there are some restrictions and differences.

What is MP3?

MP3 is the abbreviation of “MPEG1 Audio Layer 3.” MPEG Audio is a compression specification that compresses the audio portion only. This image compression method is used in DVD or Video CD, etc. The audio data has been compressed into about 1/10.

On an MP3 disc, each material (song) is recorded on each Track (file), which usually belongs to a Group (folder).

Tra ck A . mp3

Tra ck B .mp 3

Tra ck C . mp3

MP3 disc

Group 2

Group 1

OPERATIONS ON DVD DECK (cont.)

NOTES:

● Because of the disc characteristics or recording condition, some discs may not be played back or it takes time to start playback.

● The unit does not support “packet writing” discs.

● If there are any Tracks (files) which are stored on a disc directly

and do not belong to any Group (directory), the unit recognized them as belonging to an independent Group.

● The unit does not output a digital audio signal from DIGITAL AUDIO OUT connector when playing back an MP3 disc.

● The unit plays back Groups/Tracks on an MP3 disc in the alphabetical order.

● For example, if there are three title Groups [one], [two] and [three] on a disc, the playback order is [one], [three] then [two]. Tracks in a Group are played back in the same way.

● Therefore, an MP3 disc on the market may be played back in the different order from the order printed on its sleeve.

MP3 control display

The MP3 control display appears on the TV screen and playback starts when a MP3 disc is loaded.

Total group number on

Current track

disc

number

Total track number

in current group

Track D.mp3

Track E.mp3

Group 4

This unit can recognize up to 99 Groups and up to 150 Tracks per Group. If a disc includes more than the Tracks above limit, the unit stops detecting Tracks when the number of detected Tracks reaches the limit and ignores the subsequent Tracks. The unit also ignores any non-MP3 file in the disc.

Track F.mp3

Group 3

NOTES for making a private MP3 disc using a CD-R/ CD-RW disc:

● Select “ISO9660” as the disc format.

● Do not select the “multi-session” recording.

● Finalize the disc.

Current group number

Current group

* Elapsed playing time of current track

Elapsed playing time is only shown during playback.

Current track

Total track number

on disc

MP3 Playback

You can search and play back desired groups and tracks using the MP3 control display.

Using the MP3 control display

Turn on the unit.

Press 1.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

● Set the type of playback files to “MP3” on the DVD Set Up menu. (

墌

Load the disc.

Press x on the DVD deck to open the disc tray.

Place the MP3 disc in the disc tray.

● For details, refer to “Placing a Disc” (

Press x on the DVD deck to close the disc tray.

● Pressing 4 also close the disc tray.

● The MP3 control display appears on the TV when an MP3 is

loaded.

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

pg. 81)

pg. 7).

墌

Select the group.

Press we to select the desired group.

Start playback.

Press rt to select the desired track, then press OK.

● You can skip a track across a group. Press 6 to skip to the first track of the next group when the last track of the current group is selected.

The playback starts from the selected track.

● If you select the track while stopped, press OK or 4 to start playback of the select track.

Pause playback.

Press 9.

● To resume normal playback, press 4.

Stop playback.

Press 8. Press x on the DVD deck to open the disc tray, then remove the disc.

NOTE:

4, 8, 9, 2

CD discs, however, 3 or 5 does not function for MP3 playback.

and 6 buttons function the same as with Audio

OPERATIONS ON DVD DECK (cont.)

Repeat Playback

You can repeat playback of the current group, track or all groups.

● While MP3 control display is on the TV:

Access the repeat mode.

Press

● The current repeat mode is displayed on the MP3 control display.

Press press OK.

● Each time you press

TRACK]GROUP]ALL]OFF (No indication)](Back to the beginning)

during playback.

REPEAT

Select the mode.

to select the desired repeat mode, then

REPEAT

, the mode changes as follows:

REPEAT

Track/group selection

To skip groups/tracks during playback

Press t repeatedly for forward-skip. Press r repeatedly for reverse-skip.

To start playback by specifying the track number

Press

number keys

Example: To select 3: Press 3. To select 14: Press +10, then 4. To select 20: Press +10, then 10.

To select 24: Press +10, +10, then 4. To select 110: Press +10 ten times, then 10. The entered number appears in the track number indication and playback starts from the track you have specified.

(0-10, +10) to enter the track number.

Or press +10 twice, then 0.

TRACK

GROUP

ALL

OFF (no indication):

● To stop Repeat Playback, press 8.

● To cancel Repeat Playback, press

repeat mode display disappears on the TV screen.

● You can also quit Repeat Playback in the following cases:

• Press x to open the disc tray.

• Turn off the unit.

The current track is played back repeatedly.

All tracks of the current group are played back repeatedly.

All tracks are played back repeatedly.

Each track is played back once.

repeatedly until the

REPEAT

About JPEG Disc

This unit can playback CD discs recorded by the JPEG format (we refer to those discs as JPEG discs in this manual). Operations for JPEG discs are similar to those for Audio CD discs, though there are some restrictions and differences.

What is JPEG?

JPEG is the abbreviation of “Joint Photographic Expert Group.” JPEG is a still-picture data compression system.

On a JPEG disc, each still picture is recorded as a file, which usually belongs to a Group (folder).

File A.jpg

File B.jpg

File C.jpg

JPEG disc

Group 2

Group 4

Group 1

File D.jpg

File E.jpg

File F.jpg

NOTES:

● We recommend to record a file at 640 x 480 resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a longer time to be displayed.)

● This unit can only play back baseline JPEG files*. Progressive JPEG files* or lossless JPEG files* cannot be played.

* Baseline JPEG format: Used for digital cameras, web, etc.

Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used now.

● Some files on a JPEG disc may be played back distortedly.

● Because of the disc characteristics or recording condition,

some discs may not be played back or it takes time to start playback.

● The unit does not support “packet writing” discs.

● If there are any Files which are stored on a disc directly and do

not belong to any Group (directory), the unit recognized them as belonging to an independent Group.

● The unit plays back Groups/Files on an JPEG disc in the alphabetical order.

● For example, if there are three title Groups [one], [two] and [three] on a disc, the playback order is [one], [three] then [two]. Files in a Group are played back in the same way.

● Therefore, an JPEG disc on the market may be played back in the different order from the order printed on its sleeve.

JPEG control display

The JPEG control display appears on the TV screen when stopping playback of a JPEG disc.

Total group number on

disc

Current file number

Total file number in

current group

Group 3

This unit can recognize up to 99 Groups and up to 150 Files per Group. If a disc includes more than the Files above limit, the unit stops detecting Files when the number of detected Files reaches the limit and ignores the subsequent Files. The unit also ignores any non-JPEG file in the disc.

NOTES for making a private JPEG disc using a CD-R/ CD-RW disc:

● Select “ISO9660” as the disc format.

● Do not select the “multi-session” recording.

● Finalize the disc.

Current group number

Current group

Current file

Total file number on

disc

JPEG Playback

You can search and play back desired groups and files using the JPEG control display.

OPERATIONS ON DVD DECK (cont.)

Using the JPEG control display

Turn on the unit.

Press 1.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

● Set the type of playback files to “JPEG” on the DVD Set Up menu. (

墌

Load the disc.

Press x on the DVD deck to open the disc tray.

Place the JPEG disc in the disc tray.

● For details, refer to “Placing a Disc” (

Press x on the DVD deck to close the disc tray.

● Pressing 4 also close the disc tray.

● The JPEG control display appears on the TV when an JPEG is

loaded.

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

pg. 81)

pg. 7).

墌

Select the group.

Press we to select the desired group.

Start playback.

Press rt to select the desired file, then press OK.

● You can skip a file across a group. Press 6 to skip to the first file of the next group when the last file of the current group is selected.

The slide-show playback starts from the selected file.

● If you select the file while stopped, press OK or 4 to start slide-show playback from the select file.

Pause playback.

Press 9.

● To resume normal playback, press 4.

Stop playback.

Press 8. Press x on the DVD deck to open the disc tray, then remove the disc.

NOTE:

4, 8, 9, 2

CD discs, however, 3 or 5 does not function for JPEG playback.

and 6 buttons function the same as with Audio

Repeat Playback

You can repeat playback of the current group, file or all groups.

● While JPEG control display is on the TV:

Access the repeat mode.

Press

● The current repeat mode is displayed on the JPEG control display.

Press press OK.

● Each time you press

GROUP]ALL]OFF (No indication)](Back to the beginning)

during playback.

REPEAT

Select the mode.

to select the desired repeat mode, then

REPEAT

, the mode changes as follows:

REPEAT

File/group selection

To start slide-show playback by specifying the file number

Press

number keys

Example: To select 3: Press 3. To select 14: Press +10, then 4. To select 20: Press +10, then 10.

To select 24: Press +10, +10, then 4. To select 110: Press +10 ten times, then 10. The slide-show playback starts from the file you have specified.

(0-10, +10) to enter the file number.

Or press +10 twice, then 0.

GROUP

ALL

OFF (No indication):

● To stop Repeat Playback, press 8.

● To cancel Repeat Playback, press

repeat mode display disappears on the TV screen.

● You can also quit Repeat Playback in the following cases:

• Press x to open the disc tray.

• Turn off the unit.

To return to the JPEG control display

Press

All files of the current group are played back repeatedly.

All files are played back repeatedly.

Each file is played back once.

repeatedly until the

REPEAT

Edit From A

EDITING (S-VHS DECK)

You can use a camcorder as the source player and your unit as the recording deck.

Slide the

TV/S-VHS/DVD

switch to the right.

Camcorder

If the camcorder has no S-VIDEO output connector:

Recorder

AUDIO input

VIDEO input

Audio cable (not provided)

Video cable (not provided)

VIDEO OUT

Camcorder

Player

If the camcorder has an S-VIDEO output connector:

AUDIO OUT

EDIT

To PAUSE connector

Mini-plug cable (not provided) (JVC camcorder only)

Make connections.

If the camcorder has no S-VIDEO output connector:

— connect the camcorder’s AUDIO OUT and VIDEO OUT connectors to the unit’s front panel AUDIO and VIDEO input connectors. If the camcorder has an S-VIDEO output connector:

— connect the camcorder’s AUDIO OUT and S-VIDEO OUT connectors to the unit’s front panel AUDIO and S-VIDEO input connectors.

When using a monaural camcorder, connect its AUDIO OUT

●

connector to the AUDIO L input connector on your unit. When a Master Edit Control-equipped JVC camcorder is used, the

●

camcorder is capable of controlling the unit. Refer to the camcorder’s instruction manual for operating procedure.

Select the S-VHS deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

S-VHS

Set the unit’s input mode.

Press

AUX (number key “0”

the AUDIO and VIDEO input connectors, or “S-1” for the AUDIO and S-VIDEO input connectors, depending on the connectors being used.

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

) and/or PR to select “F-1” for

S-VIDEO input

AUDIO input

Audio cable (not provided)

S-Video cable (not provided)

S-VIDEO OUT

Camcorder

Player

AUDIO OUT

EDIT

Recorder

To PAU S E connector

Mini-plug cable (not provided) (JVC camcorder only)

Set the edit mode.

See “PICTURE CONTROL” on page 77.

Start the camcorder.

Engage the Play mode of the camcorder.

Start the unit.

Engage the Record mode of the unit.

NOTES:

All necessary cables can be obtained from your dealer.

●

When you select “EDIT” to dub tapes in stepD, be sure to select

●

“AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you finish dubbing the tapes.

IMPORTANT

To edit, both the player and the recorder must be of the same

●

colour system. Select th e appropriate colour system. (

78) PAL, SECAM and NTSC camcorders can be used as a player for

●

editing. For more information on multi-system compatibility, refer to

●

“Information on Multi-System Compatibility (S-VHS deck only)” (墌pg. 88)

墌

pg. 77,

Edit To Or From

You can use your unit as the source player or as the recording deck.

Slide the

TV/S-VHS/DVD

switch to the right.

Another Video Recorder

TV receiver

Audio/video cable

Video channel or AV mode

TV receiver

Player

S-video cable

Another recorder

Recorder

Your unit

Audio/video cable

Your unit

Make connections.

When using your unit as the source player ...

... connect its AUDIO/VIDEO OUT or AUDIO/S VIDEO OUT connectors to the audio/video or audio/S-video input connectors on another recorder.

When using your unit as the recording deck ...

... connect its AUDIO/VIDEO IN or AUDIO/S VIDEO IN connectors to the audio/video or audio/S-video output connectors on another recorder.

Select the S-VHS deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

S-VHS

Set the input mode of recording deck.

With this video unit, press

to select “L-1” for the AUDIO/VIDEO IN connectors,

or “S-1” for the AUDIO/S VIDEO IN connectors, depending on the connector being used.

When using another recorder as the recording deck, refer to its

●

instruction manual.

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

AUX (number key “0”

) and/or

S-video

cable

Audio/video cable

Video channel or AV mode

Player

Audio/video cable

Another recorder

Advantages of S-VHS video recorders

You can edit from VHS to S-VHS, S-VHS to VHS, or, from S-VHS to S-VHS.

From VHS to S-VHS: Record VHS playback signals in the

●

S-VHS mode. Although the picture quality is inherently limited by that of the original, the edited tape has better picture quality than those made by VHS-to-VHS editing. From S-VHS to VHS: Because the picture quality of the

●

source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing. From S-VHS to S-VHS: All signals will be transferred with

●

minimum degradation.

Set the edit mode.

See “PICTURE CONTROL” on page 77.

Start the source player.

Engage the Play mode of the source player.

Start the recording deck.

Engage the Record mode of the recording deck.

NOTES:

All necessary cables can be obtained from your dealer.

●

When you select “EDIT” to dub tapes in stepD, be sure to select

●

“AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you finish dubbing the tapes. When you use this unit as the source player for editing, be sure to set

●

“O.S.D.” to “OFF” before starting. ( It is also possible to use the front AUDIO/VIDEO or AUDIO/S-VIDEO

●

input connectors for the connection. When you use the front connectors, select “F-1” for the AUDIO/VIDEO input connectors, “S-2” for the AUDIO/S-VIDEO input connectors in step C.

墌

pg. 78)

IMPORTANT

To edit, both the player and the recorder must be of the same

●

colour system. Select th e appropriate colour system. (

78) For more information on multi-system compatibility, refer to

●

“Information on Multi-System Compatibility (S-VHS deck only)” (墌pg. 88)

墌

pg. 77,

Dubbing

(from DVD to S-VHS)

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

EDITING (S-VHS DECK) (cont.)

You can dub selected scenes from the DVD disc to a cassette, starting and stopping wherever you wish. However, it is not possible to dub the copy-protected disc.

Load a cassette and place a disc.

For the S-VHS deck

Insert a cassette with the record safety tab intact.

For the DVD deck

Press x on the DVD deck to open the disc tray.

Place the disc in the disc tray.

Press x on the DVD deck to close the disc tray.

Prepare the S-VHS deck for dubbing.

Press

Search for the point where you want to start dubbing

by pressing 4, 5 or 3 then press 8.

Press

Search for the point where you want to start dubbing

by pressing 4, 5 or 3. Press 9 to pause playback a little before the start

point. Press and hold 7, then press 9.

“dub” blinks on the front display panel.

●

S-VHS

to select recording speed.

Prepare the DVD deck for dubbing.

DVD

Start dubbing.

Press 4 to start playback.

End dubbing.

Press 8.

NOTES:

Set “ON SCREEN GUIDE” to “OFF” (

●

want to record the on-screen display for DVD discs during dubbing. There may be a discrepancy of several seconds between where

●

you intend editing to start, and where it actually starts. The superimposed indication during the operation or dubbing

●

is not recorded.

pg. 82) if you do not

墌

EDITING (DVD DECK)

Digital Audio

You can dub selected audio from the DVD or Audio CD disc to a MD etc. However, it is not possible to dub the copy-protected disc.

Example: Dubbing to a MD

Dubbing

Turn on the TV and select the video channel (or AV

●

mode). Slide the TV/S-VHS/DVD switch to the right.

●

Recorder

Digital audio device (MD deck etc.)

Optical cable

(not provided)

Player

Make connections.

Connect the optical cable between the unit and the digital audio device.

Place a disc and load a MD.

For the DVD deck

Press x on the DVD deck to open the disc tray.

Place the disc in the disc tray.

Press x on the DVD deck to close the disc tray.

For the digital audio device

Insert a MD.

Prepare the DVD deck for dubbing.

Press DVD and select the audio to be dubbed.

Search for the point where you want to start dubbing

by pressing 4, 5 or 3 then press 8. Press 3 a little, then press 4 to start playback.

Press 9 to pause playback a little before the start

point.

Prepare the audio device for dubbing.

Select the input mode.

Rear of unit

DIGITAL AUDIO OUT

Note for connection:

Remove the connector cover from the unit and remove the protection cap from the cable.

Start dubbing.

Press 4 to start playback on the DVD deck.

Start recording on the audio device.

End dubbing.

Stop recording on the audio device. Then press 8 to stop playback on the DVD deck.

NOTES:

● There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

● You can also dub a Video CD or SVCD. Set “DIGITAL AUDIO OUTPUT” to “PCM ONLY”. (

墌

pg. 81)

Remote Control Functions

REMOTE CONTROL

On the remote control

Keep pressing S-VHS down during steps A–B.

Change the remote control code.

Press the number key “1” for A, “2” for B, “3” for C or “4” for D.

Remote A/B/C/D Code Switching

The remote control is capable of controlling four JVC video units independently. Each of units can respond to one of four codes (A, B, C or D). The remote control is preset to send A code signals because your unit is initially set to respond to A code signals. You can easily modify your unit to respond to B, C or D code signals.

Before performing the following steps:

Slide the TV/S-VHS/DVD switch to the right.

Set the remote control code.

Press OK to set the code.

On the unit

Turn off the unit.

Press 1.

Display the code.

Press 4 on the unit for over 5 seconds while the unit is turned off. The code currently set appears on the front display panel.

●

If the code displayed on the front display panel is different from the code set on the remote control, go to stepE.

Change the unit’s code.

Press 8 on the remote control. The code currently set on the remote control will be applied to the unit.

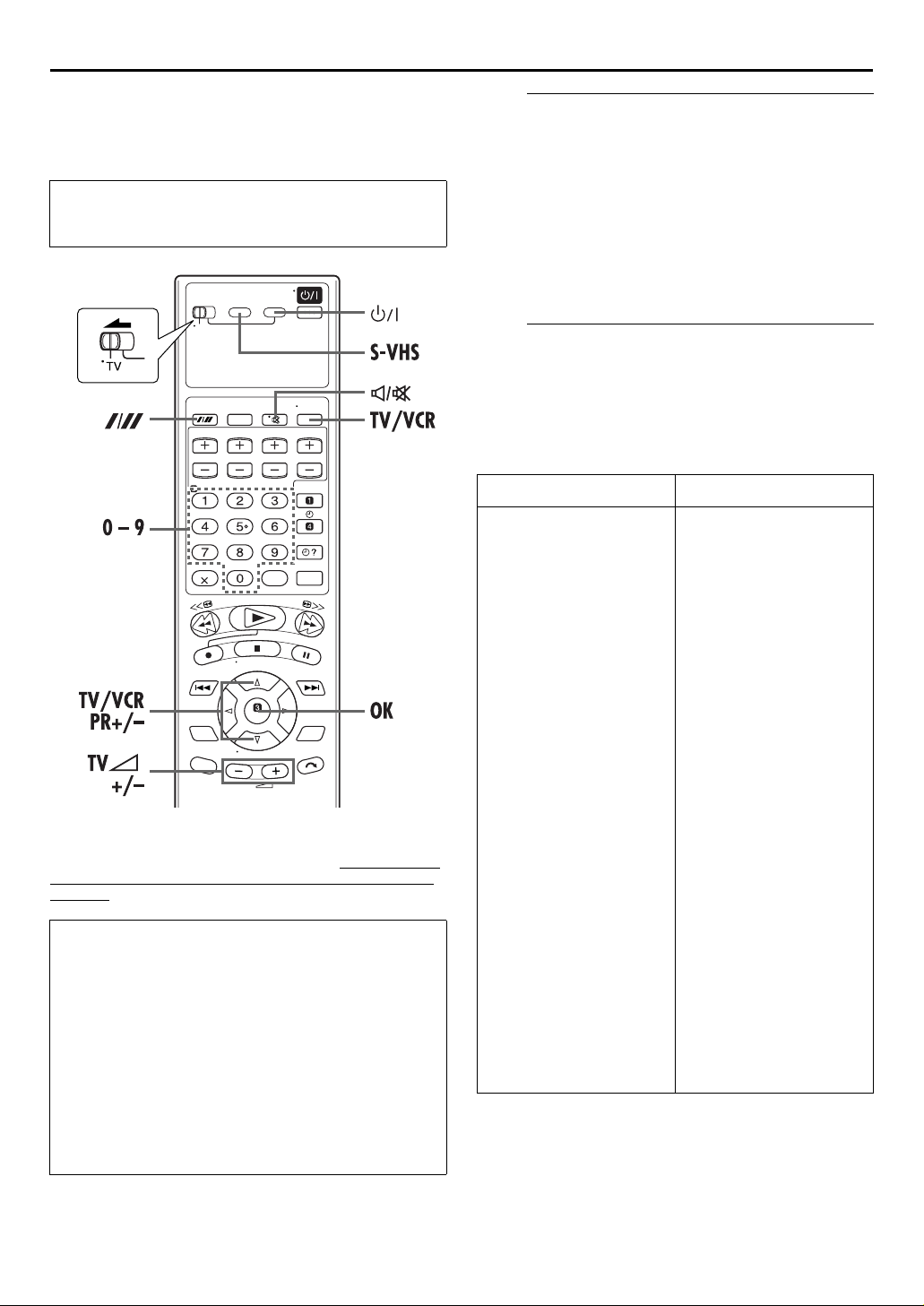

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

Before performing the following steps:

●

Turn off the TV using its remote control.

●

Slide the

TV/S-VHS/DVD

IMPORTANT

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

Control Your TV Using Additional Buttons

Use the

number keys

select the TV’s channel.

●

With televisions under Code 01, 02, 07, 10, 11, 14, 20, 23, 24, 25, 27, 33 or 35, the p button corresponds to the 1digit/2-digit entry switching button (often labelled – /– –) of your TV’s remote control.

●

With televisions under Code 01, 28, 29 or 34, the & button corresponds to the 10 + button of your TV’s remote control.

switch to the left.

, and the p button or & button to

Set the TV brand code.

Keep pressing Enter your TV’s brand code using the

down during stepA.

S-VHS

number keys

, then press OK. Press 1 on the unit’s remote control to turn on the TV and try operations (

●

Once you have set the remote control to operate the TV, you do not have to repeat this step until you replace your remote control’s batteries.

●

Some brands of TV have more than one code. If the TV does not function with one code, try entering another.

Operate the TV.

Press the corresponding button: 1,

PR +/–, TV %+/–

keys

●

For some brands of TV, you must press OK after having pressed the

number keys

BRAND NAME CODE

JVC AIWA BEIJING CCE CHANGHONG DAEWO O FERGUSON FINLUX FUNAI LG/GOLDSTAR GRADIENTE GRUNDIG HITACHI ITT JINXING KONKA MITSUBISHI MIVAR NEC NOBLEX NOKIA PANAS ONI C PEONY PHILCO RCA PHILIPS SAMSUNG SANYO SEARS SHARP SONY TCL THOMSON TOSHIBA ZENITH

stepB).

墌

TV/VCR, TV/VCR

(Volume), ^ (TV Muting),

01, 23, 24, 25 36 22 02 34 37 27 30 32 18 20 19 10 28 38 40 03 29 20 22 31 04, 11 34, 38, 39 10 05 02 12, 33, 34, 35 13, 16 13 06 07 41 26 08, 14 09

number

NOTE:

The way these buttons are used is determined by your TV. Use these buttons as instructed for your TV’s remote control.

SYSTEM CONNECTIONS

Connecting To A Satellite Receiver

Connect the satellite receiver to the AUDIO/VIDEO IN or S VIDEO IN connectors, then connect the AUDIO/ VIDEO OUT or S VIDEO OUT connectors to the TV’s connectors.

Outdoor unit

Aerial

Satellite cable

S-Video output

Satellite receiver

AUDIO/VIDEO output connectors

connector

RF OUT

NOTES:

● You cannot use Automatic Satellite Programme Recording

function if you connect the satellite receiver with S-video cable (

● To record a programme via the satellite receiver, select L-1 or

S-1 mode by pressing “L-1” or “S-1” appears on the front display panel.

● For details, refer to the instruction manual of the satellite

receiver.

TV aerial cable

ANT. IN

pg. 39).

墌

AUX (number key “0”

Audio/video input connectors

Back of TV

Aerial connector

S-video input connector

) and/or PR so that

Mains outlet

Back of unit

Connecting To A Dolby Digital Decoder or An Amplifier With A Built-in DTS

(DVD deck only)

These instructions enable you to connect your unit to dolby digital decoder or amplifier with a built-in DTS.

DIGITAL AUDIO OUT

Back of unit

To DIGITAL AUDIO input

Dolby Digital decoder or amplifier with a built-in DTS

Optical cable

(not provided)

Make connections.

Connect the optical cable between the unit and the Dolby Digital decoder or amplifier with a built-in DTS.

NOTES:

●

For Dolby digital sound, set “DIGITAL AUDIO OUTPUT” to “DOLBY DIGITAL/PCM”. (

●

For DTS sound, set “DIGITAL AUDIO OUTPUT” to “STREAM/

墌

PCM”. (

pg. 81)

墌

pg. 81)

Note for connection:

Remove the connector cover from the unit and remove the protection cap from the cable.

CAUTIONS:

●

This unit has a dynamic range of more than 80 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

●

Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the video playback picture.

Mode Set

SUBSIDIARY SETTINGS

You can change various mode settings on the Function Set screen by following the procedure described below.

For each mode setting, see pages 77 to 79.

●

(S-VHS deck)

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

Turn on the unit.

Press 1.

Select the S-VHS deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

S-VHS

Access the Main Menu screen.

Press

SET UP MENU

Access the Function Set screen.

Press rt to move the highlight bar (pointer) to “FUNCTION SET”, then press OK or e.

Select the mode.

Press rt to move the highlight bar (pointer) to the item you want to change.

FUNCTION SET

S-VHS ET OFF

B.E.S.T. ON PICTURE CONTROL AUTO PAL/MESECAM AUTO NTSC NTSC3.58 O.S.D. ON NEXT PAGE

[ / ] [MENU] : EXIT

repeatedly so that the S-VHS indicator

so that the S-VHS indicator lights up.

MAIN MENU

FUNCTION SET

TUNER SET INITIAL SET

[ / ] [MENU] : EXIT

AUTO SP]LP TIMER OFF VIDEO STABILIZER OFF S-VHS ON AUTO POWER OFF OFF

[ / ] [MENU] : EXIT

Select the mode setting.

Press OK or e.

Return to the normal screen.

Press

SET UP MENU

* The default setting is bold in the table below.

S-VHS ET

OFF

B.E.S.T.

OFF

You can record in SP mode on VHS cassettes with S-VHS picture quality. You can play back a tape recorded using the S-VHS ET function on most of S-VHS recorders and of VHS recorders equipped with SQPB (S-VHS QUASI PLAYBACK) function. (Notice some recorders are not compatible with the S-VHS ET function.) When this function is set to “ON”, the S-VHS indicator lights up on the front display panel.

NOTES:

●

You can activate the S-VHS ET function only before you start recording on a VHS cassette.

●

Before recording, make sure that “B.E.S.T.” is set to “ON”. (

●

You cannot activate the S-VHS ET function:

— while recording is in progress. — while timer-recording or Instant Timer Recording ( — while B.E.S.T. (

●

The S-VHS ET function does not work:

— with S-VHS cassettes. — with recordings in LP/EP mode.

●

To keep the highest quality recording and playback pictures over a long period of time, S-VHS recording on S-VHS cassettes is recommended.

●

Use of high grade tapes is recommended for S-VHS ET recordings. On some tapes, picture quality will not improve even if the S-VHS ET function is used. Check the recording quality before you start important recordings.

●

While playing back a tape recorded using the S-VHS ET function on some recorders, noise may appear. (If playback picture becomes blurred or interrupted, use a cleaning cassette.)

●

In the high-speed search, still, slow-motion or frame-by-frame playback modes (

25), noise may appear. If these modes are performed frequently on a tape recorded using the S-VHS ET function, the tape may be damaged and the picture may be deteriorated.

墌

pg. 30) is in progress.

You can set the B.E.S.T. (Biconditional Equalised Signal Tracking) system to “ON” or “OFF”. (墌pg. 30)

墌

below)

墌

pg. 28, 32, 34) is in progress.

墌

pg. 24,

PICTURE CONTROL

AUTO

EDIT SOFT

PAL/MESECAM

AUTO

PAL MESECAM

This feature helps you to adjust the playback picture quality according to your preference. Normally select “AUTO”.

AUTO

: Provides the optimised picture benefits of the B.E.S.T. Picture System.

EDIT

: Minimizes picture degradation during editing (recording and playback).

SOFT

: Reduces image coarseness when viewing overplayed tapes containing a

lot of noise.

NOTES:

●

When you select “EDIT” or “SOFT”, the selected mode will not change until you select another mode.

●

When you select “EDIT” to dub tapes, be sure to select “AUTO” after you finish dubbing the tapes.

●

When “B.E.S.T.” is “OFF”, “PICTURE CONTROL” switches automatically from “AUTO” to “NORM”.

Select the appropriate colour system for recording or playback.

AUTO

: Usually set to this mode. The appropriate colour system (PAL or

MESECAM) will be selected depending on the playback or recording signals.

If the “AUTO” mode does not work properly, select either of the following manual modes.

PAL

: To record PAL signals, or playback a PAL tape

MESECAM

: To record SECAM signals, or playback a SECAM or MESECAM tape.

NOTES:

●

SECAM signals will always be recorded as MESECAM. Select “AUTO” or “MESECAM” when recording SECAM signals.

●

When playing back a SECAM tape, select “AUTO” or “MESECAM”. The playback picture will always be monochrome.

SUBSIDIARY SETTINGS (cont.)

* The default setting is bold in the table below.

8 NTSC

NTSC 3.58

NTSC 4.43

PAL

NTSC

]

8 O.S.D.

OFF

8 AUTO SP]LP TIMER

OFF

To record NTSC signals or playback a NTSC tape, it will be necessary to select the appropriate mode.

NTSC 3.58

NTSC 4.43 NTSC

: To record NTSC signals or playback a NTSC tape. : To record NTSC4.43 signals or playback a NTSC4.43 tape.

PAL: To playback a NTSC tape on PAL TV.

]

NOTES:

● The “NTSC]PAL” mode does not work during recording. In this mode, NTSC signals will be recorded as NTSC3.58.

● The Menu screen is distorted during playing back a NTSC tape on PAL TV. Stop playback and access the Menu screen again.

● In the “NTSC4.43” mode, with some TVs, on-screen displays (Program screen, etc.) may roll up or down and there may be a loss of colour. When this happens, select “NTSC3.58”.

When this function is set to “ON”, various operational indicators appear on the TV screen.

NOTES:

● When you use this unit as the source player for editing, be sure to set “O.S.D.” to “OFF” before starting.

● During playback, the operation mode indicators may be disturbed depending on the type of tape being used.

When this function is set to “ON”, the unit automatically switches to LP mode to allow complete recording if there is not enough tape to record the entire programme while timer-recording in SP mode.

For Example:

Recording a programme of 210 minutes in length onto a 180-minute tape

Approximately 150 minutes Approximately 60 minutes

SP mode LP mode

Total 210 minutes

Make sure you set this function to “ON”, before the timer-recording starts.

NOTES:

● If you have programmed the unit to timer-record 2 or more programmes, the second programme and those thereafter may not fit on the tape if you set “AUTO SP]LP TIMER” to “ON”. In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.

● In order to ensure that the recording fits on the tape, this feature may leave a slight nonrecorded section at the end of the tape.

● There may be some noise and sound disturbance at the point on the tape where the unit switches from SP to LP mode.

● The Auto SP and the feature will not work properly with any tapes longer than E-180, or with some tapes of shorter lengths.

]

LP Timer feature is not available during ITR (Instant Timer Recording),

* The default setting is bold in the table below.

VIDEO STABILIZER

OFF

S-VHS

OFF

When this function is set to “ON”, you can automatically correct vertical vibration in the picture when playing back unstable recordings made on another recorder.

NOTES:

●

When you finish viewing a tape, be sure to set this function to “OFF”.

●

Regardless of the setting, this function has no effect during recording and during special effects playback.

●

The on-screen display may jitter vertically when this function is set to “ON”.

●

To watch recordings with close-caption, set this function to “OFF”.

Your unit can record in S-VHS (Super VHS), S-VHS ET or VHS.

To record in S-VHS:

●

Set “S-VHS” to “ON”. Then, insert a cassette marked “S-VHS”. The S-VHS indicator lights up on the front display panel. The S-VHS recording mode is selected.

To record in S-VHS ET on a VHS cassette:

●

Set “S-VHS ET” to “ON”. (墌pg. 77) Then, insert a cassette marked “VHS”. The S-VHS indicator lights up on the front display panel.

To record in VHS:

●

Insert a cassette marked “VHS”. Set “S-VHS ET” to “OFF”. ( The VHS recording mode is automatically selected regardless of the “S-VHS” mode setting.

To record in VHS on an S-VHS cassette:

●

Insert a cassette marked “S-VHS”. The S-VHS indicator lights up on the front display panel. Then, set “S-VHS” to “OFF”. The S-VHS indicator goes off. The VHS recording mode is selected.

墌

pg. 77)

AUTO POWER OFF

OFF

NOTE:

When playing back a tape that has been recorded in S-VHS or S-VHS ET, the S-VHS indicator lights up on the front display panel regardless of the “S-VHS” mode setting.

When this function is set to “3H”, the unit is turned off automatically if no operation is done within 3 hours. “AUTO POWER OFF IN 3 MIN” appears on the screen 3 minutes before the unit is turned off.

Mode Set

(DVD deck)

Turn on the TV and select the video channel (or AV

●

mode). Slide the

●

TV/S-VHS/DVD

switch to the right.

SUBSIDIARY SETTINGS (cont.)

The procedure shows how to set “RESUME” to “ON”

●

on the DVD Set Up menu screen as an example.

Turn on the unit.

Press 1.

Select the DVD deck.

On the unit

Press

S-VHS/DVD

lights up.

On the remote control

Press

DVD

Access the DVD Set Up menu screen.

Press

A B

●

](Back to the beginning)

SET UP MENU

Press we to select “ OTHERS”.

Each time you press the button, the setup menus change as follows;

LANGUAGE] PICTURE] AUDIO ] OTHERS

repeatedly so that the DVD indicator

so that the DVD indicator lights up.

OTHERS

RESUME

ON SCREEN GUIDE

PARENTAL LOCK

SELECT

USE TO SELECT, USE OK TO CONFIRM. TO EXIT, PRESS [SET UP MENU].

You can change various mode settings on the Mode Set screen by following the procedure described below.

For each mode setting, see pages 81 to 82.

●

墌

pg. 21)

墌

pg. 81)

墌

pg. 21)

墌

pg. 18)

墌

pg. 81)

墌

pg. 58)

pg. 21)

墌

pg. 19)

墌

pg. 81)

墌

pg. 82)

pg. 21)

pg. 81)

pg. 82)

LANGUAGE


AUDIO

OTHERS

MENU LANGUAGE ( AUDIO LANGUAGE ( SUBTITLE ( ON SCREEN LANGUAGE (

MONITOR TYPE ( PROGRESSIVE MODE ( SCREEN SAVER ( MP3/JPEG (

DIGITAL AUDIO OUTPUT ( ANALOG DOWN MIX ( D. RANGE COMPRESSION (

RESUME ( ON SCREEN GUIDE ( PARENTAL LOCK (

墌

pg. 82)

Select the mode.

Press rt to move 0 to “RESUME”, then press OK.

Select the mode setting.

Press rt to select “ON”, then press OK.

Return to the normal screen.

Press

SET UP MENU

Picture Settings

SCREEN SAVER

OFF

MP3/JPEG

MP3

JPEG

Audio Settings

DIGITAL AUDIO OUTPUT

PCM ONLY DOLBY DIGITAL/PCM

STREAM/PCM

* The default setting is

The TV screen may be burned out if a static picture is displayed for a long time. When this function is set to “ON”, the unit automatically activates the screen saver function if a static picture, such as an onscreen display or menu is displayed for over 5 minutes.

in the table below.

bold

NOTE:

This function is not available for Audio CDs and MP3 discs.

You can select files to play, when both MP3 files and JPEG files are recorded on a disc.

: Select this to play back MP3 files.

MP3

: Select this to play back JPEG files.

JPEG

* The default setting is

Set to the appropriate mode according to the type of the device connected to DIGITAL AUDIO OUT connector on the rear of unit. It is not necessary to set this mode when you connect no device to DIGITAL AUDIO OUTconnector.

PCM ONLY

DOLBY DIGITAL/PCM

STREAM/PCM

: Select this when you connect the unit’s DIGITAL AUDIO OUT connector to the linear PCM digital input connector of other audio device.

: Select this when you connect the unit’s DIGITAL AUDIO OUT connector to the digital input connector of a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

: Select this when you connect the unit’s DIGITAL AUDIO OUT connector to the digital input connector of an amplifier with a builtin DTS, Dolby Digital, or MPEG multichannel decoder.

in the table below.

bold

ANALOG DOWN MIX

DOLBY SURROUND

STEREO

Set to the appropriate mode according to your audio system when you play back a DVD VIDEO disc recorded with surround multichannel audio. This setting affects only the analogue audio output signal from the AUDIO OUT connectors (DVD) when playing back a DVD VIDEO disc recorded with surround multichannel audio.

DOLBY SURROUND

: Select this when you enjoy conventional 2-channel stereo

STEREO

Select this when you enjoy multichannel surround audio by

connecting the unit’s analogue AUDIO OUT connector (DVD)

to a surround decoder or an internal amplifier.

audio by connecting the unit’s analogue AUDIO OUT

connectors (DVD) to a stereo amplifier/receiver or TV, or when

you dub audio of a DVD VIDEO disc recorded with surround

audio to your MD, cassette, etc.

NOTE:

The “ANALOG DOWN MIX” function does not work when the 3D Phonic function is activated. (

墌

pg. 46)

SUBSIDIARY SETTINGS (cont.)

8 D. RANGE COMPRESSION

AUTO

You can compress the dynamic range (the difference between the loudest and quietest audio signals) of the sound when listening to the sound at a low volume or at night. This function is available with DVD VIDEO discs recorded with the Dolby Digital format. Set to the appropriate mode according to the number of channels recorded.

: Audio is played back with channels other than Dolby Digital

AUTO

channel 1 or 2 compressed.

Audio is played back with all channel compressed.

NOTES:

● It is recommended to set to “ON” when you enjoy surround sound at night.

● The “D. RNAGE COMPRESSION” function works only when playing back a disc

recorded with Dolby Digital format. The setting is not effective for other discs.

● The “D. RNAGE COMPRESSION” function does not work when the 3D Phonic function is activated. (

Playback discs

STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

DVD VIDEO with 48/44.1 kHz, 16/20/24 bit linear PCM

DVD VIDEO with 96/88.2 kHz linear PCM

DVD VIDEO with DTS DTS bitstream 48 kHz, 16 bit stereo linear PCM

pg. 46)

墌

Output

48/44.1 kHz, 16/20/24 bit linear PCM

No output

DVD VIDEO with Dolby Digital

Audio CD/Video CD 44.1 kHz, 16 bit stereo linear PCM

Audio CD with DTS DTS bitstream

Dolby Digital bitstream

48 kHz, 16 bit stereo linear

PCM

NOTES:

● The unit is not equipped with the DTS decoding function.

● When you play back a DVD VIDEO or Audio CD disc with DTS, use a DTS decoder to get correct signals from your speakers.

Never use the unit’s analog output connectors, which output incorrect signals that may damage your speakers.

● If you connect the analog outputs and digital outputs simultaneously, be sure to select the source of the amplifier correctly, or set the level control of the amplifier connected to the analog outputs to minimum.

Others Settings

8 RESUME

OFF

When this function is set to “ON”, you can use the resume function. (

pg. 43)

墌

: You can start playback from the resume point if it is

: You cannot use the resume function.

OFF

memorized.

* The default setting is bold in the table below.

NOTE:

This function is not available for Audio CDs and MP3 discs.

8 ON SCREEN GUIDE

OFF

When this function is set to “ON”, the unit can display “on-screen guide” icons or characters which shows the conditions of the unit or disc.

Tuner Set

Turn on the TV and select the video channel (or AV

●

mode). Slide the TV/S-VHS/DVD switch to the right.

●

IMPORTANT

Perform the following steps only if — — Auto Channel Set has not been set correctly by Auto Set

墌

Up. (

pg. 16) — you have moved to a different area or if a new station starts broadcasting in your area.

Your unit needs to memorize all necessary stations in channel positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area to call them up by using the PR buttons without going through any vacant channels.

Auto Channel Set

Turn on the unit.

Press 1.

Select the S-VHS deck.

On the unit

Press S-VHS/DVD repeatedly so that the S-VHS indicator lights up.

On the remote control Press S-VHS so that the S-VHS indicator lights up.

Access the Main Menu screen.

Press SET UP MENU.

Access the Auto Channel Set screen.

A Press rt to move the

highlight bar (pointer) to “TUNER SET”, then press OK or e.

B Press rt to move the

highlight bar (pointer) to “AUTO CH SET”, then press OK or e.

TUNER SET

CH EDIT

AUTO CH SET

[ / ] [MENU] : EXIT

SUBSIDIARY SETTINGS (cont.)

Select the TV system.

Press rt to move the highlight bar (pointer) to the appropriate TV system (refer to the table below).

Major Countries/Areas TV System

Australia, New Zealand, Kuwait, U.A.E., Indonesia, Singapore, Thailand, Malaysia, Iran, Saudi Arabia, Egypt, Morocco, Lebanon, Iraq

China, Mongolia, Russia D/K

Hong Kong I

Perform Auto Channel Set.

Press OK or e.

●

The Auto Set screen appears, and remains on screen while the unit searches for receivable stations. As Auto Channel Set progresses, the “q” mark on the TV screen moves from left to right. Wait until the TV screen as shown in stepG appears.

TV SYSTEM SELECT

B/G

D/K I

[ / ] [MENU] : EXIT

B/G

AUTO CH SET

PLEASE WAIT

START FINISH

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

– – – – – – –

IMPORTANT

●

When programming the timer using the GS

HOWVIEW

selected correctly. ( Timer Programming”) (S-VHS deck only)

●

Your unit memorizes all detected stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture. (

system, be sure to check the desired channel is

墌

pg. 32, “G-

CODE

墌

pg. 86, “Delete A Channel”)

™/S

CODE

HOWVIEW

™

NOTES:

●

Fine tuning is performed automatically during Auto Channel Set. If you want to perform tuning manually, refer to page 86.

●

If you perform Auto Channel Set when the aerial cable is not connected properly, “SCAN COMPLETED –NO SIGNAL–” appears on the TV screen in stepG. When this happens, make sure of the aerial connection and press OK; Auto Channel Set will take place again.

●

If no sound accompanies the picture or the audio sounds unnatural on some channels that have been stored by Auto Set Up, the TV system setting for those channels may be incorrect. Select the appropriate TV system for those channels.

墌

(

pg. 86, “TV System Selection — When you see the picture

but the audio can’t be heard or sounds unnatural”)

View the channel list screen.

After “SCAN COMPLETED” is displayed on the TV screen for about 5 seconds, the channel list screen looking like the one to the right appears. The stations your unit located appear on a channel list screen

CH FRQ SYS CH FRQ SYS

01 150 BG 07 229 BG

02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG

[ / ] [ ] : DELETE [ / ] : EDIT [MENU] : EXIT

— channel position (CH), frequency (“FRQ”) and TV system (SYS). The blueback screen and the programme currently being broadcast by the blinking station appear alternately for 8 seconds each. To view the next page, use the rt button on the remote control.

Return to the normal screen.

Press SET UP MENU.

●

Using the Confirmation screen, you can delete channels, swap channel positions and fine-tune channels already stored. Refer to page 85 – 86 for the procedures.

Manual Channel Set

Store channels that were not stored during Auto Set Up

墌

(

pg. 16) or Auto Channel Set (墌pg. 83).

Access the Main Menu screen.

Press SET UP MENU.

Select the band.

Press rt to move the highlight bar (pointer) to the desired band, then press OK to initiate Manual Channel Set.

BAND SELECT

VHF L

VHF H

UHF

[ / ] [MENU] : EXIT

Set the station.

The screen to the right appears when a station is detected.

If you do not want to store the detected station...

Press rt to move the highlight bar (pointer) to “CONTINUE”, then press OK or e. Channel search will resume.

If you want to store the detected station...

Press rt to move the highlight bar (pointer) to “STORE”, then press OK or e. The Channel List appears again.

●

The blueback screen and the TV picture currently being broadcast appear alternately for 8 seconds each.

●

If you want to store another channel, repeat steps

●

When channel search completes for that band, the Band Select screen appears again. To set channels for other bands, select another band and start Manual Channel Set again (

6666

and

MANUAL CH SET

PLEASE WAIT

VHF L 300MHZ

[MENU] : EXIT

STORE

CONTINUE

[ / ] [MENU] : EXIT

4444

–

墌

6666

steps

5555

Access the Tuner Set screen.

Press rt to move the highlight bar (pointer) to “TUNER SET”, then press OK or e.

Access the channel list.

Press rt to move the highlight bar (pointer) to ”CH EDIT”, then press OK or e.

Select the channel position.

Press rt to move the highlight bar (pointer) to an open channel position, then press OK or e.

Return to the normal screen.

Press SET UP MENU.

●

To change positions, see “Swap Channel Position” (

墌

pg. 86).

SUBSIDIARY SETTINGS (cont.)

Delete A Channel

Perform steps A to C of “Manual Channel Set” on page 85 to access the channel list screen before continuing.

Select the channel.

Press rt until the channel you want to delete begins blinking.

Delete a channel.

Press &.

●

To re-store it, simply press w.

●

The item directly beneath the cancelled one moves up one line.

●

Repeat steps A and B as necessary.

Return to the normal screen.

Press SET UP MENU.

Swap Channel Position

Perform steps A to C of “Manual Channel Set” on page 85 to access the channel list screen before continuing.

Fine-Tuning Channels Already Stored

Perform steps A to C of “Manual Channel Set” on page 85 to access the channel list screen before continuing.

Select the channel to fine-tune.

Press rt until the channel you want to tune begins blinking, then press OK twice

●

The “FRQ” number for the channel starts blinking.

Perform tuning.

Press rt until the picture is its clearest. Then press OK or e.

●

Repeat steps A and B as necessary.

Return to the normal screen.

Press SET UP MENU.

TV System Selection — When you see the picture but the audio can’t be heard or sounds unnatural

Select the position (e.g. 03).

Press rt until the section of CH “03” begins blinking, then press OK or e.

●

Only “03” will blink.

Select the position (e.g. 09).

Press number keys to input “0” and “9”.

●

The two selected channels will be swapped.

●

To cancel the channel swapping, press w.

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG

03 195 BG 09 355 BG

04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG

[0 – 9] : INPUT CH : FINE TUNING [MENU] : EXIT

●

Repeat steps A and C as necessary.

Store the new position.

Press OK or e.

Return to the normal screen.

Press SET UP MENU.

CH FRQ SYS CH FRQ SYS 01 150 BG 07 229 BG 02 165 BG 08 237 BG

03 355 BG 09 195 BG

04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG

[ ] : CANCEL : OK [MENU] : EXIT

Perform steps A to C of “Manual Channel Set” on page 85 to access the channel list screen before continuing.

Select the channel.

Press rt until the channel you want to change its TV system begins blinking, then press OK three times

●

The “SYS” display for that channel starts blinking.

Select the TV system.

Press rt to select the appropriate TV system (BG ] DK ] I). Then press OK or e.

●

Repeat steps A and B as necessary.

Return to the normal screen.

Press SET UP MENU.

CH FRQ SYS CH FRQ SYS

01 150 BG 07 229 BG

02 165 BG 08 237 BG 03 195 BG 09 355 BG 04 205 BG 10 365 BG 05 213 BG 11 374 BG 06 221 BG 12 384 BG

[ / ] : SELECT SYSTEM : OK [MENU] : EXIT

Clock Set

Turn on the TV and select the video channel (or AV

●

mode). Slide the TV/S-VHS/DVD switch to the right.

●

Turn on the unit.

Press 1.

Select the S-VHS deck.

On the unit

Press S-VHS/DVD repeatedly so that the S-VHS indicator lights up.

On the remote control Press S-VHS so that the S-VHS indicator lights up.

Access the Main Menu screen.

Press SET UP MENU.

Access the Initial Set screen.

Press rt to move the highlight bar (pointer) to “INITIAL SET”, then press OK or e.

Access the Clock Set screen.

Press rt to move the highlight bar (pointer) to “CLOCK SET”, then press OK or e. The Clock Set screen appears.

MAIN MENU

FUNCTION SET TUNER SET

INITIAL SET

CLOCK SET

TIME DATE YEAR 0 : 00 01.01 03

[ / ] [MENU] : EXIT

Set the date and time.

Press rt to set the time, then press OK or e. The “DATE” display begins blinking. Repeat the same procedure to set the date and year.

●

When you set the time, press and hold rt to change the time by 30 minutes.

●

When you set the date, press and hold rt to change the date by 15 days.

Start the clock operation.

Press SET UP MENU.

[ / ] [MENU] : EXIT

SUBSIDIARY SETTINGS (cont.)

Information on Multi-System Compatibility

(S-VHS deck only)

Off-Air Recording

The built-in multi-system tuner is capable of receiving PAL B/G, I and D/K, and SECAM B/G and D/K and NTSC* broadcasts.

TV system

HR-XVS20AG

Multi-system tuner (B/G, I, D/K)

Recorded tape

NOTE:

This model does not operate in BRAZIL (PAL-M) or ARGENTINA (PAL-N).

Playback

This unit can play back all 3 types of recorded tape.

Recorded tape

Playback circuit

Manual switching

HR-XVS20AG

Built-in RF converter K, I, G, H

Multi-system

receiver

Multi-system

receiver

NOTE:

When viewing NTSC tapes on a PAL TV set:

●

The picture may shrink vertically with black bars appearing at the top and bottom of the screen. This is not a malfunction on the part of the unit nor the TV.

●

The picture may roll up or down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)

●

During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.

ATTENTION:

When this unit is connected to a multi-system TV, the audio signal may not be heard or may be noisy if the colour system select switch of the TV is adjusted to the AUTO position. In such a case, set the TV’s colour system select switch to the appropriate position which corresponds to the TV system you have selected at the TV System Select screen.

Tape-To-Tape Editing

There are 4 different types of recorded tape, depending on the signal recorded.

Recorded tape HR-XVS20AG

Playback equipment

Dubbed tape

Recording circuit

TROUBLESHOOTING

Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your unit off for repair.

POWER

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. No power is supplied to the unit.

2. The remote control won’t function.

●

The mains power cord is disconnected. Connect the mains power cord.

●

The batteries are discharged. Replace the dead batteries with new ones.

TAPE TRANSPORT (S-VHS deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

●

1. During recording, the tape does not

2. The tape will not rewind or fast-

䡬

run. “

” lights up and the channel

display blinks on the front display panel.

forward.

The unit is in the Record Pause mode. Press 4 to resume recording.

●

The tape is already fully rewound or fast-forwarded.

Check the cassette.

PLAYBACK (S-VHS deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. The S-VHS deck can not be operated.●The S-VHS deck is not selected. On the unit

2. The playback picture does not appear while the tape is running.

3. Noise appears during visual search.

4. Noise appears during normal playback.

5. The playback picture is blurred or interrupted while TV broadcasts are clear or “USE CLEANING CASSETTE” message appears on the screen.

6. Breaks are noticeable in Hi-Fi soundtrack.

7. Playback picture has a loss of colour.

8. No sound accompanies the playback picture.

●

If you are using the RF connection, — the TV receiver’s channel selector is not set to the video channel. — the unit’s video channel has not been correctly set.

●

If you are using the AV or S-VIDEO connection, the TV receiver is not set to the AV mode.

●

This is normal.

●

The automatic tracking mode is engaged.

●

The video heads may be dirty. Use a dry cleaning cassette ECL-3F, or

●

The automatic tracking mode is engaged.

●

The wrong colour system is selected for the tape being played back.

●

The wrong colour system was selected during recording.

●

The TV system you have selected at the TV System Select screen is incorrect.

Press S-VHS/DVD repeatedly so that the S-VHS indicator lights up.

On the remote control

Press S-VHS so that the S-VHS indicator lights up.

If you are using the RF connection, — set the TV receiver to the video channel. — perform “Video Channel Set”

墌

(

pg. 15).

If you are using the AV or S-VIDEO connection, set the TV to its AV mode.

Try manual tracking. (

consult your JVC dealer.

Try manual tracking. (

Select the correct colour system.

墌

(

pg. 77, 78)

Once recorded, the signal cannot be corrected. Be sure to choose the correct setting before recording.

Set it to the correct position for the TV broadcast system used in your area.

墌

(

pg. 86)

墌

pg. 26)

PLAYBACK (DVD deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. The button do not work. ● The operation is prohibited on the

2. The DVD deck can not be operated. ● The DVD deck is not selected. On the unit

3. “X” appears on the TV screen. ● The operation is prohibited on the

4. “REGION CODE ERROR!” appears on the TV screen.

5. The disc cannot be played back. ● The disc’s region number does not

6. The language is not played back as you set.

7. Changing audio/subtitle language is not possible.

8. The subtitles do not appears on the TV screen.

9. Angle cannot be changed. ● The scene is not recorded from the

placed disc.

Press S-VHS/DVD repeatedly so that the DVD indicator lights up.

On the remote control

Press DVD so that the DVD indicator lights up.

placed disc.

● The disc’s region number does not match that of the unit.

match that of the unit.

● This type of the disc cannot be played back.

● The disc is not placed properly. Remove the disc, then place the disc

● The Parental Lock is engaged, and the

placed disc is rated higher than the set level.

● The disc does not contain the language you set.

● The disc does not contain the audio/ subtitle in the multiple languages.

● The disc does not contain the subtitles. —

● The subtitle display is set to off. Set the subtitles display to on. (

● A-B Repeat Playback is in progress.

(

pg. 51)

墌

multiple angles.

Use the discs whose region number includes “ALL” or “4”. (

See “Unplayable Discs” (

properly in the disc tray. ( “Placing a Disc”)

Release the Parental Lock temporarily (

pg. 59), or change the set level

墌

(

pg. 59).

墌

With some discs, the language should be set on the top menu. (

The subtitles recorded around A-B point may not appear.

—

pg. 5)

墌

pg. 5)

墌

pg. 5).

墌

pg. 7,

墌

—

pg. 42)

墌

pg. 54)

墌

—

TROUBLESHOOTING (cont.)

MP3 Playback (DVD deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. A disc cannot be played. ● No MP3 files are recorded to the disc. Replace the disc.

2. Not MP3 files but JPEG files are played.

3. The MP3 control display appears on the TV screen, but no operation can be performed.

● MP3 files do not have the file extension in their file names.

● MP3 files are not recorded in a format compliant with ISO 9660 Level 1 or 2.

● The different types of files are recorded to the disc.

● The MP3/JPEG setting is set to “JPEG”. When both MP3 files and JPEG files are

● No MP3 files or JPEG files are recorded

to the disc, or the disc is an unplayable disc (such as CD-ROM).

Add correct file extension (.mp3, .Mp3, .mP3 or .MP3) to their file names.

Replace the disc. (Record MP3 files using a compliant application.)

The disc which contains the different types of files may not be played because of its disc characteristics or recording conditions.

recorded to a disc, set “MP3/JPEG” to “MP3” to play MP3 files. (

Replace the disc. (

JPEG Playback (DVD deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. A disc cannot be played. ● No JPEG files are recorded to the disc. Replace the disc.

2. Not JPEG files but MP3 files are played.

● JPEG files do not have the correct file extension in their file names.

● JPEG files are not recorded in a format compliant with ISO 9660 Level 1 or 2.

● The MP3/JPEG setting is set to “MP3”. When both MP3 files and JPEG files are

Add correct file extension (.jpg, .jpeg, .JPG, .JPEG or any uppercase and lowercase combination such as “.Jpg”) to their file names.

Replace the disc. (Record JPEG files using a compliant application.)

recorded to a disc, set “MP3/JPEG” to “JPEG” to play JPEG files. (

墌

pg. 7)

墌

pg. 81)

RECORDING (S-VHS deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. Recording cannot be started. ● There is no cassette loaded, or the

2. TV broadcasts cannot be recorded. ● “L-1”, “L-2”, “F-1” or “S-1” has been

3. Tape-to-tape editing is not possible. ● The source (another video recorder,

4. Camcorder recording is not possible. ● The camcorder has not been properly

5. “

” and “$” on the front display

䡬

panel won’t stop blinking.

cassette loaded has had its record safety tab removed.

selected as the input mode.

camcorder) has not been properly connected.

● All necessary power switches have not been turned on.

● The input mode is not correct. Set the input mode to “L-1”, “L-2”, “F-1”

connected.

● The input mode is not correct. Set the input mode to “L-1”, “L-2”, “F-1”

● The end of the tape was reached during

recording.

Insert a cassette, or using adhesive tape, cover the hole where the tab was removed.

Set to the desired channel.

Confirm that the source is properly connected.

Confirm that all units’ power switches are turned on.

or “S-1”.

Confirm that the camcorder is properly connected.

or “S-1”.

The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.

TIMER RECORDING (S-VHS deck)

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

1. Timer recording won’t work.

2. Timer programming is not possible.

3. “#” on the front display panel won’t stop blinking.

4. “#”, “

5. “#” blinks for 10 seconds and the

6. The G-

7. “

8. “N”, “

䡬

display panel won’t stop blinking.

Timer mode is disengaged.

not timer-record properly.

panel won’t stop blinking.

” and “$” on the front

CODE/SHOWVIEW

䡬

” and “$” on the front display

䡬

” and “$” on the front display

system does

●

The clock and/or the timer have been set incorrectly.

●

The timer is not engaged. Press # (TIMER) and confirm that “#” is

●

Timer recording is in progress. Timer programming can’t be performed

●

The timer is engaged but there’s no cassette loaded.

●

The loaded cassette has had its record safety tab removed.

●

The end of the tape was reached during timer recording.

●

(TIMER) has been pressed when there are no programs in memory, or the timer record information has been programmed incorrectly.

●

The unit’s channel positions have been set incorrectly.

●

The end of the tape was reached during Instant Timer Recording.

●

The loaded cassette has had its record safety tab removed.

●

The end of the tape was reached during Automatic Satellite Programme Recording.

Re-perform the clock and/or timer settings.

displayed on the front display panel.

while a timer recording is in progress. Wait until it finishes.

Load a cassette with the record safety tab intact.

Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the record safety tab intact.

The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.

Check the programmed data and reprogram as necessary, then press # (TIMER) again.

Refer to “G- Programming” ( the procedure.

The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.

Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the record safety tab intact.

The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.

™/S

CODE

HOWVIEW

墌

pg. 32) and re-perform

™ Tim e r

QUESTIONS AND ANSWERS

PLAYBACK

Q. What happens if the end of the tape is reached

during playback or search?

A. The tape is automatically rewound to the

beginning.

Q. During search, slow, still and frame-by-frame

playback, I can’t hear any audio. What’s the problem?

A. This is normal.

Q. Can the unit indefinitely remain in the still

mode?

A. No. It stops automatically after 5 minutes to

protect the heads.

Q. When returning from search to normal

playback, the picture is disturbed. Should I be concerned about this?

A. No, it is normal.

Q. Noise bar appear during search. What’s the

problem?

A. This is normal.

Q. Sometimes, during Index Search, the unit can’t

find the programme I want to see. Why not?

A. There may be index codes too close together.

TIMER RECORDING

Q. “䡬” and “#” remain lit on the front display

panel. Is there a problem?

A. No. This is a normal condition for a timer

recording in progress.

Q. Can I programme the timer while I’m watching

a tape or a TV broadcast?

A. Yo u w o n ’t see the picture as it is replaced by the

on-screen menu, but the audio from the programme or tape you’re viewing can be heard.

RECORDING

Q. When I pause and then resume a recording, the

end of the recording before the pause is overlapped by the beginning of the continuation of recording. Why does this happen?

A. This is normal. It reduces distortion at the pause

and resume points.

Q. Can the unit indefinitely remain in the Record-

Pause mode?

A. No. The unit goes to its Stop mode

automatically after 5 minutes to protect the heads.

Q. What happens if the tape runs out during

recording?

A. The unit stops recording, and “䡬” and “$” on

the front display panel won’t stop blinking.

SPECIFICATIONS

GENERAL

Power requirement : AC 110 V – 240 Vd, 50 Hz/60 Hz Power consumption

Power on : 28 W Power off : 5.0 W

Temperature

Operating : 5°C to 40°C

Storage : –20°C to 60°C Operating position : Horizontal only Dimensions (WxHxD)

: 435 mm x 98 mm x 357 mm Weight : 4.8 kg Format : S-VHS/VHS standard Maximum recording time

(SP) : 240 min. with E-240 video cassette

(PAL/MESECAM)

: 160 min. with T-160 video cassette

(NTSC)

(LP) : 480 min. with E-240 video cassette

(PAL/MESECAM)

(EP) : 480 min. with T-160 video cassette

(NTSC)

VIDEO/AUDIO (S-VHS deck)

Signal system : PAL-type colour signal and CCIR

monochrome signal, 625 lines 50 fields NTSC colour and EIA monochrome signal, 525 lines/60 fields

Recording system : DA4 (Double Azimuth) head helical

scan system Signal-to-noise ratio: 45 dB Horizontal resolution

: 250 lines (PAL/MESECAM)

220 lines (NTSC) Frequency range : 70 Hz to 10,000 Hz (Normal audio)

20 Hz to 20,000 Hz (Hi-Fi audio) Input/Output : RCA connectors:

IN x 2, OUT x 1

S-Video connector:

IN x 2, OUT x 1

VIDEO/AUDIO (DVD deck)

Signal system : PAL Applicable disc : DVD (12 cm, 8 cm)

Audio characteristics

DVD : 4 Hz – 22 KHz

Frequency response

CD : 4 Hz – 20 KHz S/N Ratio : 90 dB Harmonic distortion

Wow and flutter : Below Measurable Level Dynamic range : 90 dB Output

Component-Y : (RCA) 1.0 Vp-p/75 ohm

Component-P

Audio : (RCA) 2 Vrms, 1 Kohm

Digital Audio : 0.5 Vp-p/75 ohm Pickup

Wavelength : 775 – 805 nm Maximum output power

DVD

Wavelength : 640 – 660 nm Maximum output power

CD (12 cm, 8 cm)

: 0.1 %

B/PR

: (RCA) 0.7 Vp-p/75 ohm

: 0.5 mW

: 1.0 mW

TUNER/TIMER (S-VHS deck)

TV channel storage capacity

Tuning system : Frequency synthesized tuner Channel coverage

VHF : (low) 42 MHz – 175 MHz

UHF : 470 MHz – 870 MHz Aerial output : UHF channels

Memory backup time

: 99 positions (+AUX position)

(high) 175 MHz – 470 MHz

(Adjustable E28 – E60)

: Approx. 10 min.

ACCESSORIES

Provided accessories

Specifications shown are for SP mode unless otherwise specified. E.& O.E. Design and specifications subject to change without notice.

: RF cable, S-Video cable,

Infrared remote control unit, “R6” battery x 2

LIST OF TERMS

A-B Repeat Playback About Discs

.............................................................. 65

JPEG

.............................................................. 62

MP3 Placing a Disc Playable Discs Region Number

Unplayable Discs Angle Selection Audio Channel Selection Audio Language Selection Auto Channel Set Auto Set Up Automatic Satellite Programme Recording

......................................................... 16

............................................ 51

.................................................. 7

.................................................. 5

................................................ 5

.............................................. 5

.................................................... 55

....................................... 57

..................................... 56

................................................. 83

Chapter Search Check, cancel and change programmes Clock Set Component Video Connection Connecting To A Dolby Digital Decoder or

An Amplifier With A Built-in DTS Connecting To A Satellite Receiver

.................................................... 51

.................. 36

............................................................ 87

............................... 14

...................... 75

......................... 74

Delete A Channel

................................................................. 44

Digest Digital Audio Dubbing Disc menu Dubbing (from DVD to S-VHS)

................................................. 86

.......................................... 71

.......................................................... 42

............................... 70

EDITING (DVD DECK)

Digital Audio Dubbing EDITING (S-VHS DECK)

Dubbing (from DVD to S-VHS)

Edit From A Camcorder

Edit To Or From Another Video Recorder Elapsed Recording Time Indication Express Timer Programming

..................................... 71

......................... 70

.................................... 68

......................... 29

................................... 34

File/group selection Fine-Tuning Channels Already Stored

.............................................. 67

...................... 86

G-

™/S

CODE

G-

CODE

Guide Program Number Set

™/S

HOWVIEW

™ System Setup ™ Timer Programming

..............................31, 33

..................... 31

............... 39

........... 69

............ 32

INDEX Index Search Information on Multi-System Compatibility

Instant Timer Recording (ITR)

.................................................................. 8

........................................................ 25

(S-VHS deck only)

........................................... 88

................................. 28

JPEG control display

............................................. 65

Language

Letter Box Locating the start point of the item or

............................................................ 20

Language Code List Menu/Audio/Subtitle Language Set

(DVD deck only)

On-screen Language Set (DVD deck)

............................................................ 18

skip the item

..........................................22

........................................21

................................................... 43

Manual Channel Set Manual Tracking Mode Set (DVD deck)

ANALOG DOWN MIX AUDIO LANGUAGE D. RANGE COMPRESSION DIGITAL AUDIO OUT MENU LANGUAGE MONITOR TYPE MP3/JPEG ON SCREEN GUIDE ON SCREEN LANGUAGE PROGRESSIVE MODE RESUME SCREEN SAVER SUBTITLE

Mode Set (S-VHS deck)

AUTO POWER OFF AUTO SP]LP TIMER B.E.S.T. NTSC O.S.D. PAL/MESECAM PICTURE CONTROL S-VHS S-VHS ET VIDEO STABILIZER

MP3 control display

................................................... 30, 77

............................................................. 78

.......................................................... 78

............................................................ 79

.............................................. 85

.................................................. 26

..................................... 81

....................................... 21

.............................. 82

..................................... 81

.........................................21

............................................. 18

...................................................... 81

........................................82

................................. 21

...................................... 19

........................................................ 82

............................................... 81

....................................................... 21

........................................79

...................................... 78

............................................... 77

........................................77

................................................. 77, 79

.........................................79

.............................................. 62

................. 20

High-Speed (Turbo) Search High-Speed Search

............................................... 43

.................................... 24

LIST OF TERMS (cont.)

Next Function Memory

......................................... 26

OPERATIONS ON DVD DECK OPERATIONS ON S-VHS DECK

....................... 40–67

...................... 23–39

Pan&Scan Parental Lock

Playback (DVD deck) Playback (JPEG) Playback (MP3) Playback (S-VHS deck) Playback Control (PBC) Function Programme Playback

........................................................... 18

Country/Area Code List

To change the settings

To set Parental Lock for the first time

To temporarily release the Parental Lock

............................................ 66–67

............................................. 63–64

.................................... 60

..................................... 59

.................................... 40–53

................................... 23–26

.......................41, 52

............................................ 53

Random Playback Record One Programme While Watching

Another Recording Region Number Remote Control Functions Repeat Playback Resume Function

.................................................... 27–30

................................................ 53

......................................................... 28

..................................................... 5

..................................... 72

................................. 26, 50, 64, 67

................................................. 43

.................. 58

............ 59

VFP function Video Channel Set

........................................................ 47

................................................ 15

When programmes overlap each other

Zooming

3D Phonic

............................................................. 45

........................................................... 46

.................... 38

Scan Mode Set

PROGRESSIVE MODE Skip Search Slow Motion Soundtrack Selection Still Picture/Frame-By-Frame Playback Strobe Playback Subtitle Selection S-VHS S-VIDEO Connection Swap Channel Position

......................................................... 25

...................................................24, 43

................................................... 45

................................................. 54

................................................................. 69

..................................... 19

............................................ 26

...............24, 43

............................................ 13

......................................... 86

Tape Position Indicator Tape Remaining Time Time Search Timer Recording Top menu Track/group selection Tuner Set TV System Selection

........................................................ 52

........................................................... 42

..................................................... 83–86

......................................... 10

........................................... 29

........................................... 32–39

........................................... 64

............................................. 86

MEMO

HR-XVS20AA

Printed in Malaysia 0403MNV

*ID*

JVC HR-XVS20AA, LPT0762-001B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions

SAFETY FIRST

DISC INFORMATION

About Discs

Playable Discs

Region Number

Unplayable Discs

DVD VIDEO Marks

File Structure of Discs

Placing a Disc

Care and Handling of Discs

FRONT VIEW

INDEX

REAR VIEW

FRONT DISPLAY PANEL

ON-SCREEN DISPLAY (S-VHS deck)

REMOTE CONTROL

INSTALLING YOUR NEW UNIT

Basic Connections

S-VIDEO Connection

INITIAL SETTINGS

Video Channel Set

Auto Set Up

Language

Menu/Audio/Subtitle Language Set (DVD deck only)

Language Code List

OPERATIONS ON S-VHS DECK

Basic Playback

Playback Features

Still Picture/Frame-By-Frame Playback

Slow Motion

High-Speed (Turbo) Search

Index Search

Skip Search

Next Function Memory

Repeat Playback

Manual Tracking

Soundtrack Selection

Basic Recording

Recording Features

Record One Programme While Watching Another

Instant Timer Recording (ITR)

Elapsed Recording Time Indication

Tape Remaining Time

Receiving Stereo and Bilingual Programmes

B.E.S.T. Picture System

Playback

Recording

Guide Program Number Set

Guide Program Number

Express Timer Programming

Check, cancel and change programmes

To cancel or change a programme

When programmes overlap each other

Automatic Satellite Programme Recording

OPERATIONS ON DVD DECK

Basic Playback

Playback Features

Locating a desired scene using the DVD menu

Locating the start point of the item or skip the item

High-Speed Search

Still Picture/Frame-By-Frame Playback

Slow Motion

Resume Function

Digest

Zooming

3D Phonic

VFP function — Adjusting the picture quality

How to Access the on-screen bar

Basic operation on the on-screen bar

Change the time information

Repeat Playback

A-B Repeat Playback

Chapter Search

Time Search

Programme Playback
