JVC LPT0679-001A User Manual

Mini DV/S-VHS VIDEO CASSETTE RECORDER

VHS

CABLE/SAT

– –:– –

LCD PROG

AUDIO

TV/VCR

123

456

VPS/PDC

789

0000

PROG

START DEBUT

DAILY/QTDN.

WEEKLY/HEBDO

AUX

ENTER/ENTREE

SEC

STOP

DATE

FIN

EXPRESS

PULL-OPEN

DUB

VHS

COPIE

TIRER-OUVRIR

PR Ð / + PUSH / TURN

VHS

24H

EXPRESS

PULL-OPEN TIRER-OUVRIR

625

CONTENTS

SAFETY FIRST 2

Safety Precautions .....................................2

Some Do’s And Don’ts On The Safe Use

Of Equipment ............................................3

INDEX 4 INSTALLING YOUR NEW RECORDER 10

Check Contents .......................................10

Basic Connections ...................................11

S-VIDEO Connection ...............................12

INITIAL SETTINGS 13

Auto Set Up ............................................. 13

Preset Download .....................................14

T-V LINK 16

T-V Link Functions ..................................16

SAT CONTROL SET 17

Satellite Receiver Control Setting .............17

PLAYBACK/RECORDING ON VHS DECK 20

Basic Playback (VHS deck) ...................... 20

Basic Recording (VHS deck) ....................21

Playback Features (VHS deck) .................22

Recording Features (VHS deck) ................26

B.E.S.T. Picture System (VHS deck) .......... 29

PLAYBACK/RECORDING ON DV DECK 30

Basic Playback (DV deck) ........................30

Basic Recording (DV deck) ......................31

Playback Features (DV deck) ...................32

Recording Features (DV deck) .................34

TIMER RECORDING 36

VIDEO Plus+® Timer Programming .........36

Express Timer Programming ....................38

24 Hour Express Timer Programming ......40

EDITING 44

Tape Dubbing (from DV to VHS) ............. 44

Tape Dubbing (from VHS to DV) ............. 45

Normal Dubbing (from DV to VHS) .........46

Normal Dubbing (from VHS to DV) .........47

Edit From A Camcorder ...........................48

Edit To Or From Another Video

Recorder ..................................................50

Output/Input Set ...................................... 52

Audio Dubbing ........................................54

Insert Editing ............................................56

Random Assemble Editing .......................58

REMOTE CONTROL 60

Remote Control Functions .......................60

SYSTEM CONNECTIONS 63

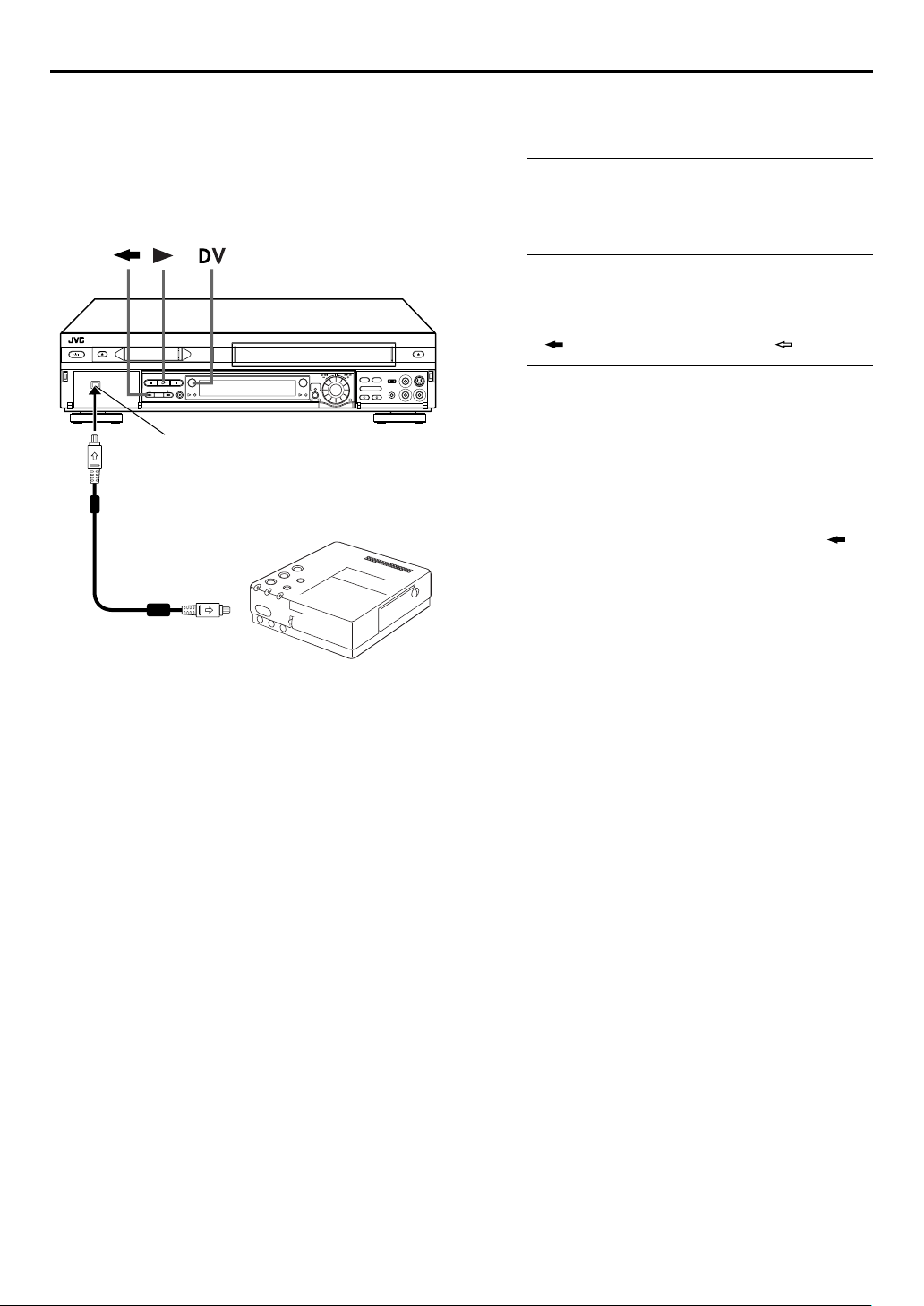

Connecting To A Printer ..........................63

Connecting To A Satellite Receiver ..........64

Connecting/Using A Stereo System ..........65

SUBSIDIARY SETTINGS 66

Mode Set .................................................66

Tuner Set .................................................72

Clock Set .................................................80

VIDEO Plus+® System Setup ....................82

TROUBLESHOOTING 83 QUESTIONS AND ANSWERS 87

SPECIFICATIONS 88

LIST OF TERMS 89

LPT0679-001A

Safety Precautions

SAFETY FIRST

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

When you are not using the recorder for a long period of time, it is recommended that you disconnect the power cord from the mains outlet.

Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

IMPORTANT

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.

In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below:

DO NOT

E or Green. The wires in the mains lead are coloured in accordance with the following code:

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

make any connection to the Larger Terminal coded

Blue to N (Neutral) or Black Brown to L (Live) or Red

If the

The STANDBY/ON 1 button does not completely shut off mains power from the unit, but switches operating current on and off. “ ON.

Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on a single-speed video recorder.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear.)

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

1. DO NOT

2. DO NOT

3. DO NOT

4. DO NOT

5. DO NOT

6. DO NOT

7. DO NOT

8. AVOID

” shows electrical power standby and “!” shows

... in an environment prone to extreme temperatures or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are generated. ... on a surface that is unstable or subject to vibration.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

control.

recorder or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

water. Also DO NOT

or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

candles, on the apparatus.

place the recorder ...

block the recorder’s ventilation openings or holes.

place heavy objects on the recorder or remote

place anything which might spill on top of the

expose the apparatus to dripping or splashing. use this equipment in a bathroom or places with

place any containers filled with water

place any naked flame sources, such as lighted

violent shocks to the recorder during transport.

IMPORTANT

Please read the various precautions on pages 2 – 3 before installing or operating the recorder.

It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

● Cassettes marked “S-VHS” and “VHS” can be used with this video cassette recorder. However, S-VHS recordings are possible only with cassettes marked “S-VHS”. By using the S-VHS ET function, it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

● Cassettes marked “Mini DV” can be used with the DV deck of this recorder. The DV deck can play back and record only PAL signals.

● VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is

manufactured under license from Gemstar Development Corporation.

MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.

Some Do’s And Don’ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

read the operating instructions before you attempt to use the equipment.

ensure that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections. consult your dealer if you are ever in doubt about the installation, operation or safety of your

equipment. be careful with glass panels or doors on equipment.

DON’T

DON’T DON’T

DON’T

DON’T DON’T

DON’T

ABOVE ALL...

continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer. remove any fixed cover as this may expose dangerous voltages. leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people. use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving. listen to headphones at high volume, as such use can permanently damage your hearing. obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions. allow electrical equipment to be exposed to rain or moisture.

—

NEVER

case — this could result in a fatal electrical shock;

—

NEVER

sorry!

let anyone especially children push anything into holes, slots or any other opening in the

guess or take chances with electrical equipment of any kind — it is better to be safe than

FRONT VIEW

INDEX

DV IN/OUT

ENTREE/SORTIE DV

STANDBY/ON

DV Eject Button 墌pg. 30, 31

Stop

Button 墌pg. 20, 21, 30, 31

C D E F G H I J

K L M N

Mini DV Cassette Loading Slot Play

Button 墌pg. 20, 30

Pau se

Button 墌pg. 21, 22, 31, 32

DV Button 墌pg. 30, 31 VHS Button 墌pg. 20, 21 VHS Cassette Loading Slot Random Assemble Edit (R.A.EDIT) Button

pg. 58

墌

Random Assemble Edit START Button 墌pg. 59 VIDEO Input Connector 墌pg. 48, 56 VHS Eject Button 墌pg. 20, 21 DV IN/OUT connector (i.Link*) 墌pg. 48

* i.Link refers to the IEEE1394-1995 industry specification and

extensions thereof. The logo is used for products compliant with the i.Link standard.

DUB

COPIE

Button 墌pg. 13

VHS

PR – / + PUSH / TURN

VHS

24H

EXPRESS

Dubbing Direction (DV / VHS) Indicators

pg. 44, 45

墌

Dubbing (DUB) Button 墌pg. 44, 45

R.A.EDIT

START

IN /OUT

INSERT A.DUB

Dubbing Direction ( / ) Buttons 墌pg. 44, 45 Record

DV mode Indicators 墌pg. 30, 31

Infrared Beam Receiving Window

Front Display Panel 墌pg. 6

VHS mode Indicators 墌pg. 20, 21

24H EXPRESS

Advanced JOG Dial 墌pg. 20, 30, 40

INSERT Button 墌pg. 57

Random Assemble Edit IN/OUT Button 墌pg. 58

Audio Dubbing (A.DUB) Button 墌pg. 55

Remote PAUSE Connector 墌pg. 48

AUDIO Input Connectors 墌pg. 48, 54, 56

S-VIDEO Input Connector 墌pg. 48, 56

Button 墌pg. 21, 31

Button 墌pg. 40

PULL-OPEN

TIRER-OUVRIR

To access covered buttons/connectors, pull and open the cover.

REAR VIEW

ANTENNA ANTENNE

ENTREE

OUT

SORTIE

OUT SORTIE

AV1 (L-1)

AV2 (L-2)

IN/OUT ENTREE/SORTIE

IN/DECODER ENTREE/DECODEUR

AUDIO

SAT CONTROL

CONTROLEUR SAT

OUT SORTIE

ANTENNA IN Connector 墌pg. 11

S OUT Connector 墌pg. 12

AV1 (L-1) IN/OUT Connector

pg. 11, 50, 64

墌

Mains Power Cord 墌pg. 11

ANTENNA OUT Connector 墌pg. 11

AV2 (L-2) IN/DECODER Connector

pg. 17, 50, 64

墌

SAT CONTROL Connector 墌pg. 17

AUDIO OUT (L/R) Connectors 墌pg. 65

Cooling fan

This prevents the temperature from rising inside the recorder.

●

Do not remove it. Install the recorder so as not to block the area around the fan.

●

The fan may be activated even if the recorder is turned off.

●

FRONT DISPLAY PANEL

INDEX (cont.)

B.E.S.T. Picture System Display (VHS deck only)

pg. 29

墌

Symbolic Mode Indicators

STILL:

PLAY: FF/REW VARIABLE SEARCH:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

INSERT:

INSERT PAUSE:

AV INSERT:

AV INSERT PAUSE:

SLOW:

RECORD:

RECORD PAUSE:

Tape Speed Indicators 墌pg. 21, 31

Start Time Indicator ( ) 墌pg. 38, 40

Stop Time Indicator ( ) 墌pg. 38, 40 “Timer” Indicator 墌pg. 37, 39, 40

Tape Remaining Time Indicator (VHS deck only)

pg. 27

墌

Channel/Clock Display 墌pg. 15

Instant REVIEW Indicator (VHS deck only)

pg. 23

墌

PDC* Indicator 墌pg. 37, 39

* VPS (Video Programme System) recording is not currently available

in the U.K. and not possible with this recorder.

S-VHS Indicator (VHS deck only) 墌pg. 69

VCR Indicator

“Cassette Loaded” Mark

Counter/Remain Display (VHS deck only)

pg. 27

墌

Time Code Display (DV deck only) 墌pg. 35 Mode Display (L-1, L-2, F-1 or SAT*)

* When “L-2 SELECT” is set to “SAT” (墌pg. 53), “SAT” appears

instead of “L-2”.

ON-SCREEN DISPLAY (for VHS deck)

Beginning End

When “O.S.D.” is set to “ON” (墌pg. 67), various operational indicators appear on the TV screen.

Operation Mode Indicators

Tape Speed SP/LP/EP

* EP is for NTSC playback only.

NTSC

Tape Direction

Counter Display

Tape Remaining Time Indicator 墌pg. 27

Audio Mode Display 墌pg. 25

PAL Indicator

]

Tape Position Indicator

The tape position indicator appears on the TV screen when you press

from the Stop mode or perform an Index Search (

pg. 23). The position of

墌

“

” in relation to “0” (beginning) or “+” (end) shows you where you are on the tape.

NOTE:

Depending on the type of tape being used, the tape position indicator may not appear correctly.

Type of Broadcast 墌pg. 28

VHS Indicator

Current Day/Month/Year

Clock Display

Channel Position Number and Station Name/

Auxiliary Input Indicator (L-1, L-2, F-1 or SAT*)

* When “L-2 SELECT” is set to “SAT” (墌pg. 53), “SAT” appears

instead of “L-2”.

Dubbing Direction Indicators (DV Timer Warning Display

A warning appears on the TV screen to tell you that the timerrecording is to start in 5 minutes if you’re not in the Timer mode at that time. The warning blinks for the entire 5 minutes leading up to the start of timer recording. To clear the display, press

“Cassette Loaded” Mark

VHS) 墌pg. 44, 45

}

on the remote control.

ON-SCREEN DISPLAY (for DV deck)

When “O.S.D.” is set to “ON” (墌pg. 67), various operational indicators appear on the TV screen.

Operation Mode Indicators

Tape Speed SP/LP

Sound Mode Display 墌pg. 71

Time Code Display 墌pg. 35, 71

Audio Mode Display 墌pg. 33

Type of Broadcast 墌pg. 35

DV Indicator

Current Day/Month/Year

Clock Display

Channel Position Number and Station Name/

Auxiliary Input Indicator (L-1, L-2, F-1 or SAT*)

* When “L-2 SELECT” is set to “SAT” (墌pg. 53), “SAT” appears

instead of “L-2”.

Dubbing Direction Indicators (DV Timer Warning Display

VHS) 墌pg. 44, 45

]

on the remote control.

ERROR Indicator*

* ERROR indicator appears when you start dubbing a tape with a

copy protection signals or when Audio Dubbing or Insert Editing is

not possible depending on the condition.

“Cassette Loaded” Mark

REMOTE CONTROL

CABLE/SAT

LCD PROG

123

456

VPS/PDC

789

0000

PROG

START DEBUT

–

Buttons with a small dot on the left side of the name can also be used to operate your TV. (

AUDIO

DAILY/QTDN.

AUX

STOP

FIN

EXPRESS

墌

VHS

– –:– –

WEEKLY/HEBDO

ENTER/ENTREE

30 SEC

DATE

–

pg. 61)

TV/VCR

INDEX (cont.)

LCD Panel 墌pg. 36

DV Button 墌pg. 30, 31

TV/CABLE/SAT Button 墌pg. 61, 62

AUDIO Button 墌pg. 25, 33

(TV Muting) Button 墌pg. 61

LCD PROG Button 墌pg. 36

Number Keys 墌pg. 21, 31, 36

DAILY Button 墌pg. 37, 39

PDC* Button 墌pg. 37, 39

* VPS (Video Programme System) recording is not currently available

in the U.K. and not possible with this recorder.

Counter Reset 0000 Button 墌pg. 27

Cancel Programme Check

PROG Button 墌pg. 38

START +/– Button 墌pg. 38

STOP +/– Button 墌pg. 38

Rewind

Play

Record

Stop

r t

TV PR +/– Button 墌pg. 61 VHS Button 墌pg. 20, 21

STANDBY/ON

Display – –:– – Button 墌pg. 27

TV/VCR Button 墌pg. 61

REVIEW Button 墌pg. 23

Transmit Button 墌pg. 36

WEEKLY Button 墌pg. 37, 39

Timer

AUX Button 墌pg. 48

MENU Button 墌pg. 18

Auto Tracking

SP/LP Button 墌pg. 21, 31 OK Button 墌pg. 13

30 SEC Button 墌pg. 23

PR +/– Button 墌pg. 21, 31

DATE +/– Button 墌pg. 39

Fast Forward

Pa us e

w e

Button 墌pg. 42

Button 墌pg. 20, 30

Button 墌pg. 21, 31

Button 墌pg. 20, 30

Button 墌pg. 13

Button 墌pg. 37, 39

Button 墌pg. 25

Button 墌pg. 20, 30

Button 墌pg. 21, 31

Button 墌pg. 22, 23

+/– Button 墌pg. 61

Button 墌pg. 42

How To Use

The remote control can operate most of your video recorder’s functions, as well as basic functions of TV sets and satellite receivers of JVC and other brands. (

● Point the remote control toward the receiving window.

● The maximum operating distance of the remote control is about 8 m.

pg. 61, 62)

墌

NOTES:

●

When inserting the batteries, be sure to insert in the correct directions as indicated under the battery cover.

●

If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

Remote Control LCD

The remote control can operate not only the video recorder but also some of your TV and satellite receiver’s functions. The LCD indicates which of these (VIDEO, TV or CABLE/SAT) the remote control can currently operate. When you first purchase the remote control, or after you have just replaced the batteries, VIDEO A (A code) is selected.

A To operate your video recorder, first press the

the remote control’s A/B/C/D code, refer to page 60.

or DV. To switch

VHS

B To operate your TV, first press

on the LCD. (

C To operate your satellite receiver, first press

“CABLE SAT” appears on the LCD. (

墌

pg. 61)

TV/CABLE/SAT

墌

until “TV” appears

TV/CABLE/SAT

pg. 62)

until

NOTES:

Even if “TV” is displayed on the LCD, the following operations can be performed without switching the mode.

●

Basic operations for the recorder After an operation is completed, “TV” reappears on the LCD.

●

Express timer programming and S To perform a TV operation again, switch to TV mode first.

●

Accessing main menu To perform a TV operation again, switch to TV mode first.

HOWVIEW

timer programming operations

Check Contents

CHECK ALL THE CONTENTS SHOWN BELOW

Video Cassette Recorder

INSTALLING YOUR NEW RECORDER

123

456

789

RF Cable

21-pin SCART Cable

“AA” Batteries (x 2)

Satellite Controller

You are now ready to install your video recorder. (

Infrared Remote Control Unit

墌

pg. 11

)

Basic Connections

Aerial connector

Back of TV

TV aerial cable

21-pin SCART connector

21-pin SCART

cable

(provided)

Mains power cord

Back of recorder

Mains outlet

ANTENNA IN

RF cable (provided)

AV1 (L-1) IN/OUT

ANTENNA OUT

It’s essential that your video recorder be properly connected.

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Situate the recorder.

Place the recorder on a stable, horizontal surface.

Connect the recorder to TV.

Disconnect the TV aerial cable from the TV.

Connect the TV aerial cable to the ANTENNA IN connector on the rear panel of the recorder.

Connect the provided RF cable between the ANTENNA OUT connector on the rear panel of the recorder and the TV’s aerial connector.

Connect the provided 21-pin SCART cable between the AV1 (L-1) IN/OUT connector on the rear panel of the recorder and the TV’s 21-pin SCART connector.

● The AV1 (L-1) IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). If your TV’s 21-pin AV input connector (SCART) is compatible with the Y/C signal, set “L-1 OUTPUT” to “S-VIDEO” after the connection and the initial settings are completed ( pictures. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

● Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV’s SCART connector.

● For switching the TV’s mode, refer to the instruction manual of your television.

● To obtain high-quality S-VHS pictures, you can also use the S-VIDEO connection described on page 12.

Connect the recorder to mains.

Plug the end of the mains power cord into a mains outlet.

pg. 52). You can obtain high-quality S-VHS

墌

ATTENTION:

Your TV must have a 21-pin AV input connector (SCART) for the connection to the recorder.

After the connection is completed, perform “Auto Set Up” on page 13.

INSTALLING YOUR NEW RECORDER (cont.)

S-VIDEO Connection

TV aerial cable

ANTENNA IN

ANTENNA ANTENNE

ENTREE

OUT

SORTIE

OUT

SORTIE

S-Video cable (not provided)

S OUT

IN/OUT

AV1 (L-1)

ENTREE/SORTIE

IN/DECODER

AV2 (L-2)

ENTREE/DECODEUR

SAT CONTROL

CONTROLEUR SAT

Audio cable (not provided)

AUDIO

OUT SORTIE

Aerial connector

S-VIDEO IN

connector

AUDIO IN connectors

Mains power cord

Back of recorder

Back of TV

ANTENNA OUT

To connect to a TV with S-VIDEO/AUDIO IN

AUDIO OUT

RF cable (provided)

connectors . . .

Connect the recorder to TV.

Connect the aerial, recorder and TV as per “Basic Connections” (

Connect the recorder’s S OUT connector to the TV’s

墌

pg. 11).

S-VIDEO IN connector.

Connect the recorder’s AUDIO OUT connectors to the TV’s AUDIO IN connectors.

Connect the recorder to mains.

Plug the end of the mains power cord into a mains outlet.

Mains outlet

NOTES:

●

You can obtain high-quality S-VHS pictures.

●

With S-VIDEO connection, you cannot use the Preset Download function (

●

If your TV is not stereo-capable, use the recorder’s AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction. (

●

To operate the recorder with your TV using the S-VIDEO connection, set your TV to its AV mode.

●

For switching the TV’s mode, refer to the instruction manual of your television.

After the connection is completed, perform “Auto Set Up” on page 13.

墌

pg. 14).

墌

pg. 65)

INITIAL SETTINGS

Beginning End

Auto Set Up

Auto Channel Set/Auto Clock Set/ Auto Guide Program Number Set

After the pressed for the first time to power on the recorder Set Up function sets the tuner channels, clock and Guide Program numbers automatically.

button on the recorder or remote control is

, the Auto

Before starting, make sure of the following:

● The TV aerial cable should be connected to the recorder.

● The recorder’s mains power cord should be connected to a

mains outlet.

● If you want to use the on-screen display, the TV should be set to its AV mode.

Turn on the recorder.

Press 1 on the recorder or remote control.

Perform Auto Set Up.

The AUTO SET/T-V LINK display appears on the front display panel and/or on the TV screen.

On the front display panel

Press

to select “Auto” and press OK or e.

123

456

789

ATTE N TIO N

Once you have performed Auto Set Up, even if the recorder’s memory backup has expired, all the stored stations and their Guide Program numbers remain in the recorder’s memory and the recorder will not perform Auto Set Up again. You only need to set the clock. ( If you have moved to a different area, perform each setting as required.

● Tuner setting

● Clock setting

If a new station starts broadcasting in your area, perform tuner setting (

墌

pg. 72 pg. 80

墌

pg. 72).

墌

pg. 80)

On the on-screen display

Press highlight bar (pointer) to “AUTO SET” and press OK or

“Auto” blinks on the front display panel; do NOT press any button on the recorder or remote control until the front display panel shows clock time, “(CH) 1” or “– –:– –” as illustrated on page 15.

● If you are using the on-screen

● When you have connected the video recorder to a TV offering

to move the

display, the AUTO SET screen will appear. As Auto Set Up progresses, the “ mark on the TV screen moves from left to right. When the Auto Set Up is completed, “SCAN COMPLETED” appears for about 5 seconds, then the normal screen appears.

T-V Link via a fully-wired 21-pin SCART cable ( the TV is turned on, the recorder automatically performs the Preset Download ( Auto Set Up function.

”

墌

pg. 14) even if you select “Auto” for

墌

pg. 11) and

NOTES:

●

In the area where no TV station transmits a PDC (Programme Delivery Control) signal, the recorder can perform neither Auto Clock Set nor Auto Guide Program Number Set.

●

If there is a power cut, or if you press Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the recorder power once and try again from step 1.

●

Auto Clock Set may not function properly depending on the reception condition.

while Auto

Preset Download

Auto Channel Set by Downloading from TV/Auto Clock Set/Auto Guide Program Number Set

INITIAL SETTINGS (cont.)

If you have connected the recorder to your TV via a 21-pin SCART cable ( perform Preset Download instead of the Auto Set Up in step 2 on page 13. After downloading, the recorder sets the clock and Guide Program numbers automatically.

Turn on the recorder.

Press 1 on the recorder or remote control.

pg. 11), the recorder will automatically

墌

ATTE N TIO N

You can use this function only with a TV offering T-V Link, etc.* Be sure to use a fully-wired 21-pin SCART cable.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link, DATA LOGIC or NexTView Link via fullywired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

123

456

789

Perform Preset Download.

The AUTO SET/T-V LINK display appears on the front display panel and/or on the TV screen.

On the front display panel

Press rt to select “CH – –” and press OK or e.

On the on-screen display

Press highlight bar (pointer) to “T-V LINK” and press OK or

Preset positions on the front display panel increase from “CH1”; do NOT press any button on the recorder or remote control until the front display panel shows clock time, “(CH) 1” or “– –:– –” as illustrated on page 15.

● If you are using the on-screen

● If you press any button on the

to move the

display, the T-V LINK screen will appear. Then the GUIDE PROG SET screen will appear during Guide Program Number Set. When Preset Download is completed, “COMPLETED” appears for about 5 seconds, then the normal screen appears.

recorder or remote control while downloading is in progress, it will be interrupted.

NOTES:

●

For details, refer to the instruction manual of your TV.

●

In the area where no TV station transmits a PDC (Programme Delivery Control) signal, the recorder can perform neither Auto Clock Set nor Auto Guide Program Number Set.

●

If there is a power cut, or if you press downloading or set up is in progress, it will be interrupted; be sure to turn off the recorder power once and try again from the beginning.

●

Auto Clock Set may not function properly depending on the reception condition.

●

On this recorder, the characters available for station names (ID) are A–Z, 0–9, –, downloaded stations may differ from those of your TV

墌

(

pg. 76).

, + and I (space). Some names of

while

Results of Auto Set Up/Preset Download appear on the front display panel

If both Auto Channel Set and Auto Clock Set have been performed successfully, the correct current time is displayed.

Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the recorder’s memory by using the PR button(s).

● If station names (ID – will be displayed at the top left corner of the TV screen for about 5 seconds when the recorder is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 74 – 78.

If Auto Channel Set has succeeded but Auto Clock Set has not, “1” (channel position) is displayed.

A Turn on the TV and select its AV mode, then make sure that all necessary stations have been

stored in the recorder’s memory by using the PR button(s).

● If station names (ID – will be displayed at the top left corner of the TV screen for about 5 seconds when the recorder is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 74 – 78.

B Perform “Clock Set” on page 80.

If both Auto Channel Set and Auto Clock Set have failed, “– –:– –” is displayed.

Make sure the cables are connected properly and turn off the recorder’s power once, then turn the recorder’s power back on again. The Country Set display appears on the front display panel and/or on the TV screen; perform “Auto Set Up” on page 13 or “Preset Download” on page 14 again.

pg. 78) have also been stored in the recorder’s memory, the station name

墌

pg. 78) have also been stored in the recorder’s memory, the station name

墌

IMPORTANT

● To check if the Guide Program numbers have been set correctly, perform the VIDEO Plus+ Timer Programming (

● In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work

properly. If the Guide Program numbers are not set properly when you timer-record a TV programme using the VIDEO Plus+ system, the recorder will record a TV programme of a different station. When programming the timer using the VIDEO Plus+ system, be sure to check the desired channel is selected correctly (

● Your video recorder memorizes all detected stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture (

pg. 75, “Delete A Channel”).

墌

pg. 36, “VIDEO Plus+® Timer Programming”).

墌

pg. 36).

INFORMATION

Just Clock

Your recorder is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. If you want to take advantage of this function, simply set it to “ON” (

pg. 80, “Just Clock”).

墌

If you have any difficulty with the above procedures call the JVC Customer Service Hot Line on 0870 330 5000

T-V LINK

T-V Link Functions

When you connect the recorder to your TV via a fully-wired 21-pin SCART cable (墌pg. 11), the following functions are available. You can use these functions only with a TV offering T-V Link, etc.* For details, refer to the instruction manual of your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic, SMARTLINK, Q-Link, DATA LOGIC or NexTView Link via fully-wired 21-pin SCART cable.

The degree of compatibility and available functions may differ by system.

NexTView Link

You can download the EPG (Electronic Programme Guide) information from your TV for timer-programming on the recorder. For details, refer to the instruction manual of your TV.

TV Auto Power On

The TV will turn on and be set to its AV mode automatically whenever you play a tape. For details, refer to the instruction manual of your TV.

VCR Auto Standby

You can use your TV’s remote control to turn off the recorder. For details, refer to the instruction manual of your TV.

Direct Rec

You can easily start recording the programme that you are watching on your TV. When you use this function, set “DIRECT REC” to “ON” (

墌

pg. 67).

SAT CONTROL SET

Satellite Receiver Control Setting

The following procedure is required if you receive satellite channels through a satellite receiver. Approximately 20 seconds before the VIDEO Plus+ timer programming ( (

pg. 38) starts, the recorder sets its input mode to “L-2”

墌

and automatically switches the satellite receiver’s channels using the provided Satellite Controller.

pg. 36) or Express timer programming

墌

Your recorder

Satellite receiver

Transmitter

Satellite receiver

Satellite Controller (suggested locations)

Satellite Controller

provided)

(

Installing Satellite Controller

Situate the Satellite Controller.

Place the Satellite Controller so that the path between its transmitter and the satellite receiver’s remote sensor is unobstructed.

Attach the Satellite Controller.

Fix securely using the adhesive strip attached on the back of the Satellite Controller.

Make connections.

Be sure to connect the recorder’s AV2 (L-2) IN/DECODER connector to the satellite receiver’s 21-pin SCART connector.

NOTE:

When connecting your satellite receiver, refer to its instruction manual.

Connect the Satellite Controller to recorder.

Connect the Satellite Controller to the SAT CONTROL connector on the rear panel.

21-pin SCART cable (provided)

AV2 (L-2) IN/DECODER

SAT CONTROL

Back of recorder

SAT CONTROL SET (cont.)

Setting satellite receiver's brand and channel

After installation, set the satellite receiver’s brand and channel correctly; otherwise, the Satellite Controller cannot work correctly.

Turn on the TV and select the AV mode.

123

456

789

Turn on the satellite receiver.

Turn on the satellite receiver’s power.

Access the Main Menu screen on the

recorder.

Press

Press rt to move the highlight bar (pointer) to “INITIAL SET”, then press OK or

Press highlight bar (pointer) to “SAT CONTROL SET”, then press OK or

Press the appropriate

to enter the brand code

keys

from the list on page 19, then press OK.

● If the brand code you entered is invalid, the code field will be reset. Enter the correct brand code again.

● If the recorder is in playback or recording mode, you cannot set the brand code.

Access the Initial Set screen.

Access the Sat Control Set screen.

to move the

Enter the satellite receiver’s brand.

number

Select the satellite receiver’s channel for

testing.

Press the appropriate

to enter one of the

keys

channel positions on the satellite receiver, then press

● You can select the channel position between 1 to 999.

● After pressing OK, the recorder enters the Test mode.

Check the result of the test.

If the satellite receiver’s channel number has been changed to the same one as you set in step 6 ...

Press

to move the highlight

bar (pointer) to “CHANGED TO ...”, then press OK or e to finish the Sat Control Set mode.

If the satellite receiver’s channel number has not been changed correctly...

Press rt to move the highlight bar (pointer) to “NOT CHANGED”, then press OK or procedure again from step 5.

number

. Then perform the

BRAND NAME CODE

JVC AMSTRAD CANAL SATELLITE CANA L + D-BOX ECHOSTAR ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG HIRSCHMANN ITT NOKIA JERROLD KATHREIN LUXOR MASCOM MASPRO NOKIA PACE PANASO NIC PHILIPS RFT SABA SAGEM SALORA SIEMENS SKYMASTER THOMSON TPS TRIAX WISI

73 60, 61, 62, 63, 92 81 81 85 78, 79, 80 82 68 89 88 64, 65 64, 78, 99 68 75 70, 71, 96 68 93 70 87, 94 65, 67, 74, 86, 92 74, 92 66, 84 69 97 83, 90 68 64 69, 98 97 83 91 64

NOTES:

●

The Satellite Controller may not work with all types of satellite receiver.

●

For some satellite receivers, you need to set its channel input mode to 2-digit.

●

If your satellite receiver has more than two channel modes, be sure to set to “All Channel Mode”. For details, refer to the instruction manual of the satellite receiver.

●

When selecting the satellite receiver’s channel ( signals from the remote control may interfere with signals transmitted from the Satellite Controller. In this case, move the remote control as close to the recorder’s infrared beam receiving window as possible.

墌

step 6),

Basic Playback

(VHS deck)

Turn on the TV and select the AV mode.

PLAYBACK/RECORDING ON VHS DECK

Load a cassette.

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointed toward the recorder.

● Do not apply too much pressure when inserting.

● The recorder’s power comes on automatically.

● If the record safety tab has been removed, playback begins

automatically.

● Make sure the VCR indicator appears on the front display panel. If not, press the VCR indicator.

Select the VHS deck.

Press

● The VHS button lights on the recorder.

If the tape is advanced past the start point, press 3 or turn the turn the

Press 4. “BEST” appears blinking in the recorder’s front display panel during automatic tracking. (

● The VHS playback indicator lights on the recorder.

VHS

Find the programme start point.

dial to the left. To go forward, press 5 or

JOG

dial to the right.

JOG

Start playback.

on the remote control to turn on

TV/VCR

墌

pg. 29)

123

456

789

Stop playback.

Press 8. Then press to remove the cassette.

● The VHS playback indicator turns off.

NOTE:

It is impossible to play back a tape on the VHS deck while the recording is in progress on the DV deck. When you start recording on the DV deck during playback on the VHS deck, playback stops on the VHS deck and recording continues on the DV deck.

Usable cassettes

● Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any fullsized VHS cassette.

● This video recorder can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes*, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

* By using the S-VHS ET function, it is possible to record and

play back with S-VHS picture quality on VHS cassettes with this recorder.

Basic Recording

(VHS deck)

Load a cassette.

Insert a VHS (or S-VHS) cassette with the record safety tab intact.

● The recorder’s power comes on automatically.

Turn on the TV and select the AV mode.

123

456

789

Select the VHS deck.

Press

● The VHS button lights on the recorder.

Press and turn it to the left or right to select the channel you wish to record.

Press recorder’s front display panel to confirm the selected tape speed.

Press and hold 7 and press 4 on the remote control, or press

● The VHS recording indicator lights on the recorder.

B.E.S.T. takes place at the beginning of both the first SP and the first LP recording after inserting the cassette. (

If “DIRECT REC” is set to “ON”, the programme that appears on the TV screen will be recorded (

Press 9. Press 4 to resume recording.

● You can select channel during the Record Pause mode.

Press 8. Then press to remove the cassette.

● The VHS recording indicator turns off.

VHS

Choose a programme.

PR +/–

or the

number keys

. Or push the

Set the tape speed.

(p). Check the SP/LP indicator on the

SP/LP

Start recording.

on the recorder.

pg. 67).

墌

Pause/Resume recording.

Stop recording.

JOG

墌

dial

pg. 29)

NOTE:

It is not possible to record a TV programme on both the VHS deck and the DV deck simultaneously. However, it is possible to record simultaneously from the same external input. Set the input mode to “L-1”, “L-2” or “F-1” depending on the connectors being used. (

pg. 49, “Simultaneous Dubbing”)

墌

Playback Features

(VHS deck)

NOTE:

Refer to the illustrations below as you read the following procedures.

Reverse Forward

Reverse

5steps

Reverse

play

Reverse

slow motion 2steps

123

456

789

Slow

motion

2steps

Normal

play

Forwar d

search 6steps

PLAYBACK/RECORDING ON VHS DECK (cont.)

Clean the video heads using a dry cleaning cassette — TCL-2 — when:

● Rough, poor picture appears while a tape is played back.

● The picture is unclear or no picture appears.

● “USE CLEANING CASSETTE” appears on the screen (only

with “O.S.D.” set to “ON” (

墌

pg. 67)).

Still Picture/Frame-By-Frame Playback

Pause during playback.

Push the

Press 9.

Activate frame-by-frame playback.

Tur n t h e playback, or to the left for reverse frame-by-frame playback.

Press 9.

Press w or e.

NOTE:

Still picture playback stops automatically after 5 minutes to protect the heads.

To resume normal playback, press 4 or push the dial.

dial.

JOG

dial to the right for forward frame-by-frame

JOG

ATTE N TIO N

●

Picture may not appear during high-speed search with an LPrecorded tape.

●

In the high-speed search, still, slow motion or frame-by-frame playback mode, the picture will be distorted.

●

When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

Slow Motion

During playback, turn the for forward slow motion. To play in reverse slow motion, continue to turn the the forward direction slow motion modes.

JOG

During still picture, press and hold 9 for 2 seconds, then release. Press picture.

and release again to return to still

During still picture, press and hold w or e. Release to return to still picture.

NOTES:

●

During slow motion playback, some noise may appear on the TV screen. Press the noise.

●

Slow motion playback stops automatically after 5 minutes to protect the heads.

To resume normal playback, press 4.

or – on the remote control to eliminate

PR +

dial one click to the left

JOG

dial to the left after selecting all

High-Speed (Turbo) Search

During playback, turn the right.

During playback or still, press 5 for forward highspeed search, or

for reverse high-speed search.

NOTE:

For short searches, press and hold 5 or 3 for over 2 seconds during playback or still picture. When released, normal playback resumes.

dial quickly to the left or

JOG

Variable Speed Search

During playback, turn the forward variable-speed search, or to the left for reverse variable-speed search.

During playback, press w or e.

● The more times you press, the faster the playback picture moves.

● To decrease speed, press the button for the opposite direction.

To resume normal playback, press 4.

dial to the right for

JOG

Skip Search

During playback, press unwanted sections. Each press initiates a 30-second period of fast-motion playback. Normal playback resumes automatically.

To resume normal playback during a Skip Search, press 4.

1 to 4 times to skip over

30 SEC

Index Search

Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.

NOTE:

Before starting, make sure the recorder is in the Stop mode.

Activate Index Search.

Press w or e (2 or 6). “2 1” or “6 1” is displayed on the TV screen and search begins in the corresponding direction.

● To access index codes 2 through 9, press until the correct index number is displayed.

Example:

To locate the beginning of B from the current position, press twice. To locate the beginning of D from the current position, press once.

Current position

● When the specified index code is located, playback begins automatically.

or e repeatedly

Index number

Instant ReView

Simply by pressing a single button, the recorder power comes on, rewinds, and begins playback of the last timer-recorded programme. If you have several programmes recorded, you can easily access any of them.

NOTE:

Before starting, make sure that the recorder is off and that the Timer mode is disengaged.

Activate Instant ReView.

Press

REVIEW

recorder searches for the index code indicating the start of the last timer-recorded programme. Once it’s found, playback begins automatically.

● The front display panel tells you how many programmes have been timer-recorded. If you have, for example, 3 programmes, “REVIEW” and “3” appear and blink. To watch the first of the 3 programmes, press and begins playback automatically. You can access a programme as far as 9 index codes away from the current tape position.

. The recorder power comes on and the

REVIEW

three times

. The recorder searches

PLAYBACK/RECORDING ON VHS DECK (cont.)

Next Function Memory

The Next Function Memory “tells” the recorder what to do after rewinding. Before continuing, make sure the recorder is in the Stop mode.

For Automatic Start Of Playback

123

456

789

Press For Automatic Power Off

Press 3, then press 1 within 2 seconds. For Automatic Cassette Ejection After Tape Rewind

Press 3, then press within 2 seconds.

NOTE:

The Automatic Power Off does not work if “AUTO TIMER” is set to “ON” and if any timer programming has been made. If “AUTO TIMER” is set to “ON”, the recorder directly goes into the Timer-Standby mode at the same time when the pressed for the Automatic Power Off.

, then press 4 within 2 seconds.

Repeat Playback

Your recorder can automatically play back the whole tape 100 times repeatedly.

Start playback.

Press 4.

Activate Repeat Playback.

Press 4 and hold for over 5 seconds, then release.

● The Play indicator ( u slowly.

● After playing back a tape 100 times, the recorder stops automatically.

Stop Repeat Playback.

Press 8 at any time.

● Pressing 4

, 3, 5 or 9 also stops Repeat Playback.

) on the front display panel blinks

Soundtrack Selection

Your recorder is capable of recording three soundtracks (HI-FI L, HI-FI R and NORM) and will play back the one you select.

During Playback

Pressing

changes the soundtrack as follows:

AUDIO

123

456

789

TRACK

On-Screen Display

H I F I L

H I F I

NORM

H I F I NORM

For Hi-Fi stereo tapes

For main audio of Bilingual tapes

For sub audio of Bilingual tapes

For audio-dubbed tapes

USE

NOTES:

●

j h

“HI FI L Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio. For instructions on recording stereo and bilingual programmes, refer to page 28. Bilingual programmes are not currently broadcasted in the U.K. “O.S.D.” must be set to “ON” or the on-screen displays will not appear (

R” should normally be selected. In this mode,

墌

pg. 67).

Manual Tracking

Your recorder is equipped with automatic tracking control. During playback, you can override this and adjust the tracking manually by pressing the PR buttons.

Override automatic tracking.

Press p on the remote control.

Adjust the tracking manually.

Press PR + or –.

● Press p

NOTE:

When a new tape is inserted, the recorder enters the automatic tracking mode automatically.

again to return to automatic tracking.

NTSC Playback

Your video recorder is equipped with NTSC circuitry that can play back NTSC tapes.

Load a cassette.

Insert a cassette recorded in NTSC.

Start playback.

Press 4.

● “NTSC→PAL” appears on the screen for about 5 seconds.

NOTES:

●

Some TVs shrink the picture vertically and place black bars at the top and bottom of the screen. This is not a malfunction on the part of either the video recorder or the TV.

●

The picture may roll up and down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)

●

The counter and tape remaining time readings will be incorrect.

●

During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.

●

Depending on the type of TV, the top and bottom portions of superimposed displays may be cut off during NTSC playback.

PLAYBACK/RECORDING ON VHS DECK (cont.)

Recording Features

(VHS deck)

Recording Resume Function

If there is a power outage during recording, Instant Timer Recording (in the right column) or timer recording (

pg. 36, 38, 40), the recording will resume automatically

墌

when power is restored to the recorder unless the recorder’s memory backup has expired.

Record One Programme While Watching Another

Once recording is in progress, all you need to do is to set the channel controls on the TV for the station you wish to view.

● The programme selected with the TV’s channel controls appears on the TV screen, while the one selected with the recorder’s PR buttons is recorded on the tape.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the recorder off after recording is finished.

Start recording.

Press 7 on the recorder.

Engage the ITR mode.

Press 7 again. “o” blinks and “0:30” appears on the front display panel.

Set the recording duration.

If you want to record for more than 30 minutes, press 7 to extend the time. Each press extends recording time by 30 minutes.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

NOTES:

●

You can only perform ITR using the front panel.

●

You can play back a tape on DV deck while using the VHS deck for Instant Timer Recording. However, remember that the recorder will turn itself off when the Instant Timer Recording ends.

button on the recorder’s

123

456

789

Elapsed Recording Time Indication

Set the counter display.

Press – –:– – until a counter reading appears on the front display panel.

Reset the counter.

Press

● The counter is reset to “0:00:00” and shows the exact elapsed time as the tape runs. You can check the exact time of a recording or playback.

Tape Remaining Time

Press – –:– – until the time remaining on the tape appears on the front display panel.

● The front display panel shows the tape remaining time with “

● By pressing the – –:– – button, you can change the display to show the counter reading, channel position*, clock time or tape remaining time.

* Channel position is not displayed during playback.

NOTE:

Depending on the type of tape being used, the tape remaining time reading may not appear right away, or is not correct. “– –:– –” may sometimes appear, or the display may blink on occasion.

before starting recording or playback.

0000

” displayed.

PLAYBACK/RECORDING ON VHS DECK (cont.)

Retake

You can cut out unnecessary parts of a TV programme while you are recording it.

End of programme Beginning of programme

Programme Programme

Engage the Record-Pause mode.

Press 9 during recording.

Locate the start point.

Tur n t h e or you want to resume recording.

● Your recorder returns to the Record-Pause mode.

Press 4 when you wish to resume recording.

JOG

) and release it when you reach the point where

Resume recording.

Unnecessary

part

Recorded part

Go back to end of programme to cut out unnecessary part

dial to the left or right (or hold down 3

NOTE:

Retake function does not work during Direct Rec (墌pg. 16,

67).

Unnecessary

part

Receiving Stereo and Bilingual Programmes

Your recorder is equipped with a Digital stereo sound decoder (NICAM) making reception of stereo and bilingual broadcasts possible. When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being Received

Regular Monaural NICAM Stereo NICAM Bilingual NICAM Monaural

● To listen to a stereo programme, press “HIFI L

● To listen to a bilingual programme, press “HIFI L

● To listen to the standard (Regular Monaural) audio while receiving a NICAM broadcast, press appears on the front display panel or the TV screen.

R” appears on the TV screen.

” or “HIFIhR” appears on the TV screen.

NOTE:

“O.S.D.” must be set to “ON” or the on-screen displays will not

墌

appear (

To Record NICAM Stereo and Bilingual Programmes

The NICAM audio programme will be recorded on the Hi-Fi audio track, and the standard audio programme will be recorded on the normal audio track.

pg. 67).

On-screen Display

(none) ST NICAM BIL. NICAM NICAM

AUDIO

until “NORM”

AUDIO

until

NOTES:

●

If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.

●

Bilingual programmes are not currently broadcasted in the U.K.

●

Before playing back a programme recorded in stereo, or a bilingual programme, refer to “Soundtrack Selection” on page 25.

+ 64 hidden pages
