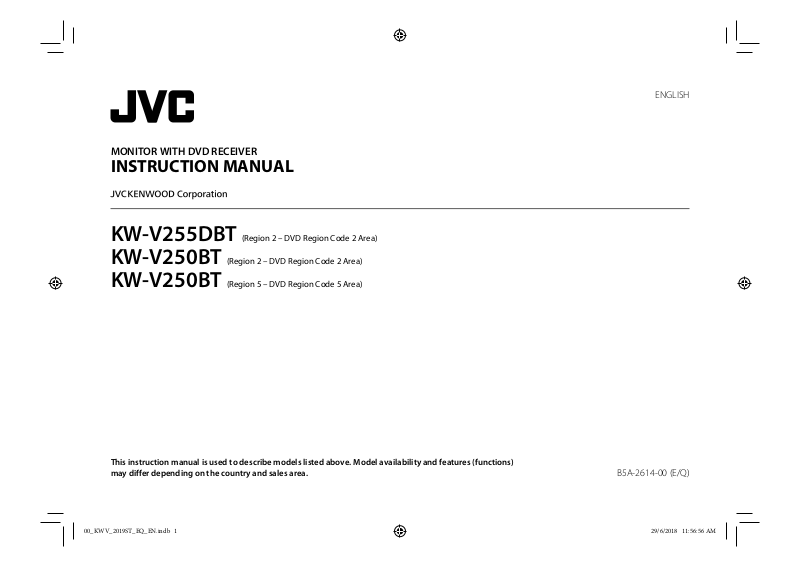

JVC KW-V255DBT User Manual

MONITOR WITH DVD RECEIVER

INSTRUCTION MANUAL

KW-V255DBT (Region 2 – DVD Region Code 2 Area) KW-V250BT (Region 2 – DVD Region Code 2 Area) KW-V250BT (Region 5 – DVD Region Code 5 Area)

ENGLISH

This instruction manual is used to describe models listed above. Model availability and features (functions) may differ depending on the country and sales area. B5A-2614-00 (E/Q)

Important NoticeImportant Notice

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.

WARNINGS

To prevent accidents and damages

• DO NOT install any unit or wire any cable in a location where;

– it may obstruct the steering wheel and gearshift

lever operations.

– it may obstruct the operation of safety devices such

as air bags.

– it may obstruct visibility.

• DO NOT raise the volume level too much, as this will make driving dangerous by blocking outside sounds, and may cause hearing loss.

• DO NOT operate the unit while driving. If you need to operate the unit while driving, be sure to look around carefully.

• Stop the car before performing any complicated operations.

• The driver must not watch the monitor while driving.

CAUTIONS

To care for the unit

• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

To care for the monitor

• The monitor built into this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not considered defective.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point pen or similar tool with a sharp tip.

Touch the keys on the touch panel with your finger

directly (if you are wearing a glove, take it off).

• When the temperature is very cold or very hot...

– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

On the volume setting

• Digital devices produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

For Israel

ENGLISHi

Important NoticeImportant Notice

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossedout wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVCKENWOOD Europe B.V. Amsterdamseweg 37, 1422 AC UITHOORN, THE NETHERLANDS

English

Hereby, JVCKENWOOD declares that the radio equipment “KW-V255DBT/KW-V250BT” is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.jvc.net/cs/car/eudoc/

Français

Par la présente, JVCKENWOOD déclare que l’équipement radio « KW-V255DBT/KW-V250BT » est conforme à la directive 2014/53/UE. L’intégralité de la déclaration de conformité UE est disponible à l’adresse Internet suivante : http://www.jvc.net/cs/car/eudoc/

Deutsch

Hiermit erklärt JVCKENWOOD, dass das Funkgerät “KW-V255DBT/KW-V250BT” der Richtlinie 2014/53/EU entspricht. Der volle Text der EU-Konformitätserklärung steht unter der folgenden Internetadresse zur Verfügung: http://www.jvc.net/cs/car/eudoc/

Nederlands

Hierbij verklaart JVCKENWOOD dat de radioapparatuur “KW-V255DBT/KW-V250BT” in overeenstemming is met Richtlijn 2014/53/EU. De volledige tekst van de EU-verklaring van overeenstemming is te vinden op het volgende internetadres: http://www.jvc.net/cs/car/eudoc/

ENGLISH ii

Important NoticeImportant Notice

Italiano

Con la presente, JVCKENWOOD dichiara che l΄apparecchio radio “KW-V255DBT/KW-V250BT” è conforme alla Direttiva 2014/53/UE. Il testo integrale della dichiarazione di conformità UE è disponibile al seguente indirizzo internet: http://www.jvc.net/cs/car/eudoc/

Español

Por la presente, JVCKENWOOD declara que el equipo de radio “KW-V255DBT/KW-V250BT” cumple la Directiva 2014/53/EU. El texto completo de la declaración de conformidad con la UE está disponible en la siguiente dirección de internet: http://www.jvc.net/cs/car/eudoc/

Português

Deste modo, a JVCKENWOOD declara que o equipamento de rádio “KW-V255DBT/KW-V250BT” está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade da UE está disponível no seguinte endereço de internet: http://www.jvc.net/cs/car/eudoc/

Polska

Niniejszym, JVCKENWOOD deklaruje, że sprzęt radiowy “KW-V255DBT/KW-V250BT” jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności EU jest dostępny pod adresem: http://www.jvc.net/cs/car/eudoc/

Český

Společnost JVCKENWOOD tímto prohlašuje, že rádiové zařízení “KW-V255DBT/KW-V250BT” splňuje podmínky směrnice 2014/53/EU. Plný text EU prohlášení o shodě je dostupný na následující internetové adrese: http://www.jvc.net/cs/car/eudoc/

Magyar

JVCKENWOOD ezennel kijelenti, hogy a „KW-V255DBT/ KW-V250BT“ rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU konformitási nyilatkozat teljes szövege az alábbi weboldalon érhető el: http://www.jvc.net/cs/car/eudoc/

Svenska

Härmed försäkrar JVCKENWOOD att radioutrustningen “KW-V255DBT/KW-V250BT” är i enlighet med direktiv 2014/53/EU. Den fullständiga texten av EU-försäkran om överensstämmelse finns på följande Internetadress: http://www.jvc.net/cs/car/eudoc/

Suomi

JVCKENWOOD julistaa täten, että radiolaite “KW-V255DBT/KW-V250BT” on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutusvaatim us löytyy kokonaisuudessaan seuraavasta internet-osoitteesta: http://www.jvc.net/cs/car/eudoc/

Slovensko

S tem JVCKENWOOD izjavlja, da je radijska oprema »KW-V255DBT/KW-V250BT« v skladu z Direktivo 2014/53/EU. Celotno besedilo direktive EU o skladnosti je dostopno na tem spletnem naslovu: http://www.jvc.net/cs/car/eudoc/

Slovensky

Spoločnosť JVCKENWOOD týmto vyhlasuje, že rádiové zariadenie „KW-V255DBT/KW-V250BT“ vyhovuje smernici 2014/53/EÚ. Celý text EÚ vyhlásenia o zhode nájdete na nasledovnej internetovej adrese: http://www.jvc.net/cs/car/eudoc/

Dansk

Herved erklærer JVCKENWOOD, at radioudstyret “KW-V255DBT/KW-V250BT” er i overensstemmelse med Direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende internetadresse: http://www.jvc.net/cs/car/eudoc/

Ελληνικά

Με το παρόν, η JVCKENWOOD δηλώνει ότι ο ραδιοεξοπλισμός «KW-V255DBT/KW-V250BT» συμμορφώνεται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης της ΕΕ είναι διαθέσιμο στην ακόλουθη διεύθυνση στο διαδίκτυο: http://www.jvc.net/cs/car/eudoc/

ENGLISHiii

Important NoticeImportant Notice

Eesti

Käesolevaga JVCKENWOOD kinnitab, et „KW-V255DBT/ KW-V250BT“ raadiovarustus on vastavuses direktiiviga 2014/53/EL. ELi vastavusdeklaratsiooni terviktekst on kättesaadav järgmisel internetiaadressil: http://www.jvc.net/cs/car/eudoc/

Latviešu

JVCKENWOOD ar šo deklarē, ka radio aparatūra „KW-V255DBT/KW-V250BT” atbilst direktīvas 2014/53/ES prasībām. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā tīmekļa adresē: http://www.jvc.net/cs/car/eudoc/

Lietuviškai

Šiuo JVCKENWOOD pažymi, kad radijo įranga „KW-V255DBT/KW-V250BT“ atitinka 2014/53/EB direktyvos reikalavimus. Visą EB direktyvos atitikties deklaracijos tekstą galite rasti šiuo internetiniu adresu: http://www.jvc.net/cs/car/eudoc/

Malti

B’dan, JVCKENWOOD jiddikjara li t-tagħmir tar-radju “KW-V255DBT/KW-V250BT” huwa konformi madDirettiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta’ konformità huwa disponibbli fl-indirizz intranet li ġej: http://www.jvc.net/cs/car/eudoc/

HRVATSKI / SRPSKI JEZIK

JVCKENWOOD ovim izjavljuje da je radio oprema “KW-V255DBT/KW-V250BT” u skladu s Direktivom 2014/53/EU. Cjeloviti tekst deklaracije Europske unije o usklađenosti dostupan je na sljedećoj internet adresi: http://www.jvc.net/cs/car/eudoc/

ROMÂNĂ

Prin prezenta, JVCKENWOOD declară că echipamentul radio “KW-V255DBT/KW-V250BT” este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației de conformitate UE este disponibil la urmatoarea adresă de internet: http://www.jvc.net/cs/car/eudoc/

БЪЛГАРСКИ

С настоящото JVCKENWOOD декларира, че радиооборудването на “KW-V255DBT/KW-V250BT” е в съответствие с Директива 2014/53/ЕС. Пълният текст на ЕС декларацията за съответствие е достъпен на следния интернет адрес: http://www.jvc.net/cs/car/eudoc/

Turkish

Burada, JVCKENWOOD “KW-V255DBT/KW-V250BT” radyo ekipmanının 2014/53/AB Direktifine uygun olduğunu bildirir. AB uyumluluk deklarasyonunun tam metni aşağıdaki internet adresinde mevcuttur. http://www.jvc.net/cs/car/eudoc/

Русский

JVCKENWOOD настоящим заявляет, что радиооборудование «KW-V255DBT/KW-V250BT» соответствует Директиве 2014/53/EU. Полный текст декларации соответствия ЕС доступен по следующему адресу в сети Интернет: http://www.jvc.net/cs/car/eudoc/

Українська

Таким чином, компанія JVCKENWOOD заявляє, що радіообладнання «KW-V255DBT/KW-V250BT» відповідає Директиві 2014/53/EU. Повний текст декларації про відповідність ЄС можна знайти в Інтернеті за такою адресою: http://www.jvc.net/cs/car/eudoc/

ENGLISH iv

About this manual

ContentsContents

The displays and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or panels.

Illustrations of KW-V250BT are mainly used for explanation.

The region code of a particular model will only be stated if only one of the regions supports the particular feature with the same model name.

This manual mainly explains operations using the buttons on the monitor panel and keys on the touch panel. For operations using the remote controller, see page 39.

< > indicates the various screens/menus/ operations/settings that appear on the touch panel.

[ ] indicates the keys on the touch panel.

Indication language: English indications are used for the purpose of explanation. You can select the indication language from the <Settings> menu. (Page 30)

ENGLISH

Component Names and Operations ...............3

Basic Operations .................................................3

How to reset your unit ..........................................................3

Turning on the power ...........................................................3

Turning off the power............................................................3

Turning off the AV source ....................................................4

Turning off the screen and button

illumination ..................................................................................4

Adjusting the volume ............................................................4

Getting Started ...................................................4

Initial settings ..............................................................................4

Clock settings ..............................................................................5

Various Screens and Operations .....................6

Home screen ...............................................................................6

Source control screen ............................................................6

List/setting screen ....................................................................8

Disc ........................................................................ 9

Video ...................................................................10

USB ......................................................................12

Android...............................................................14

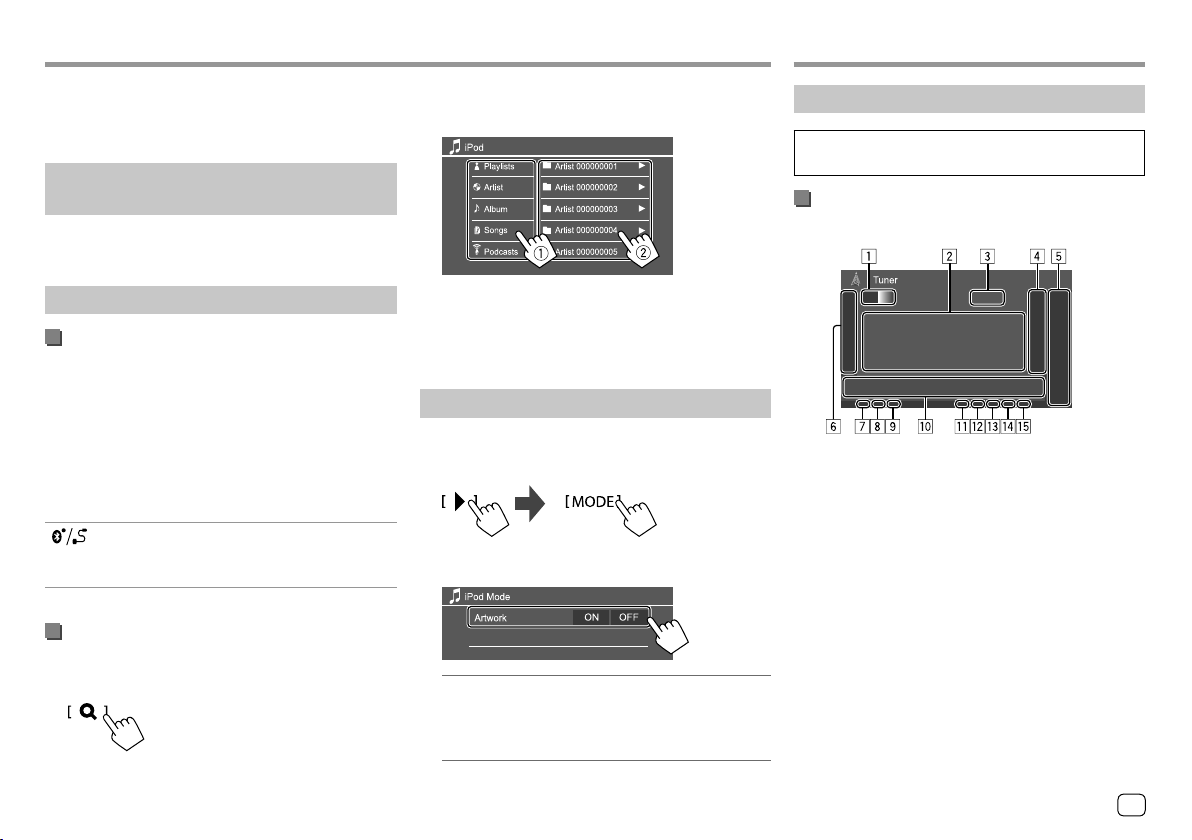

iPod/iPhone .......................................................14

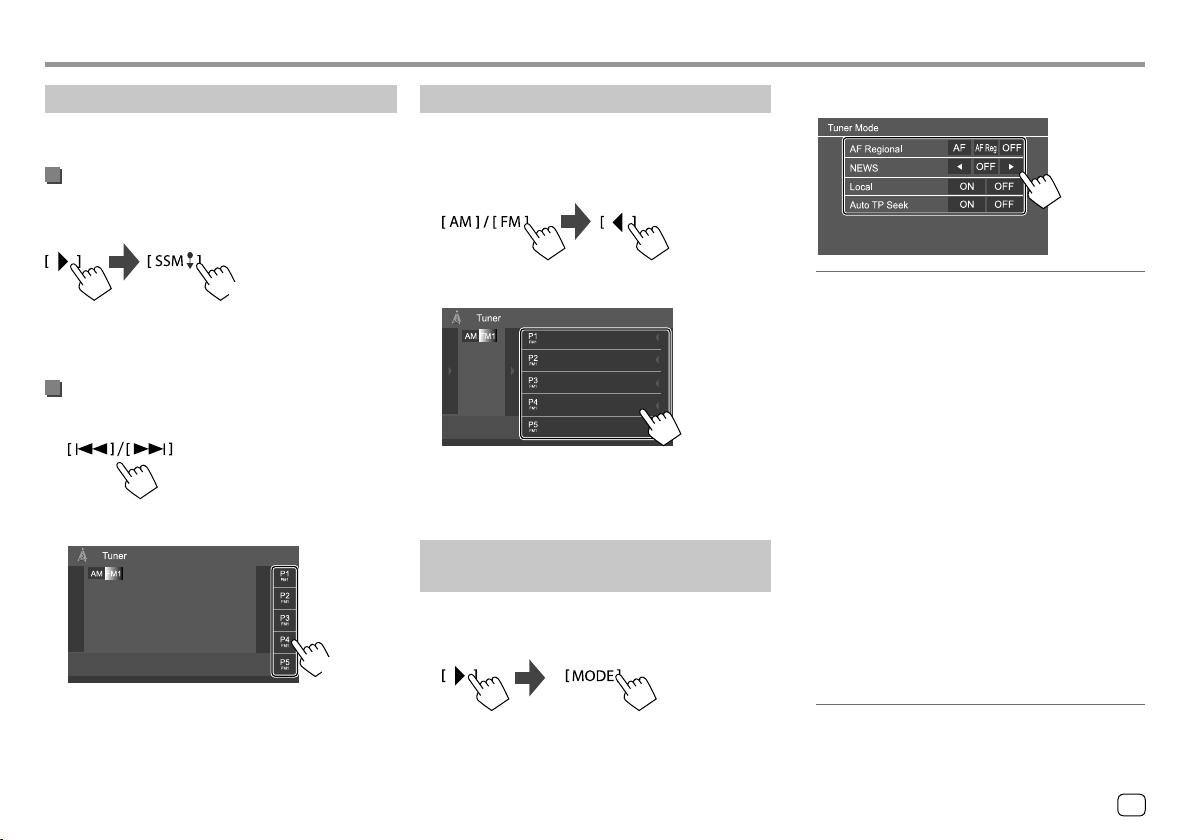

Tuner ...................................................................15

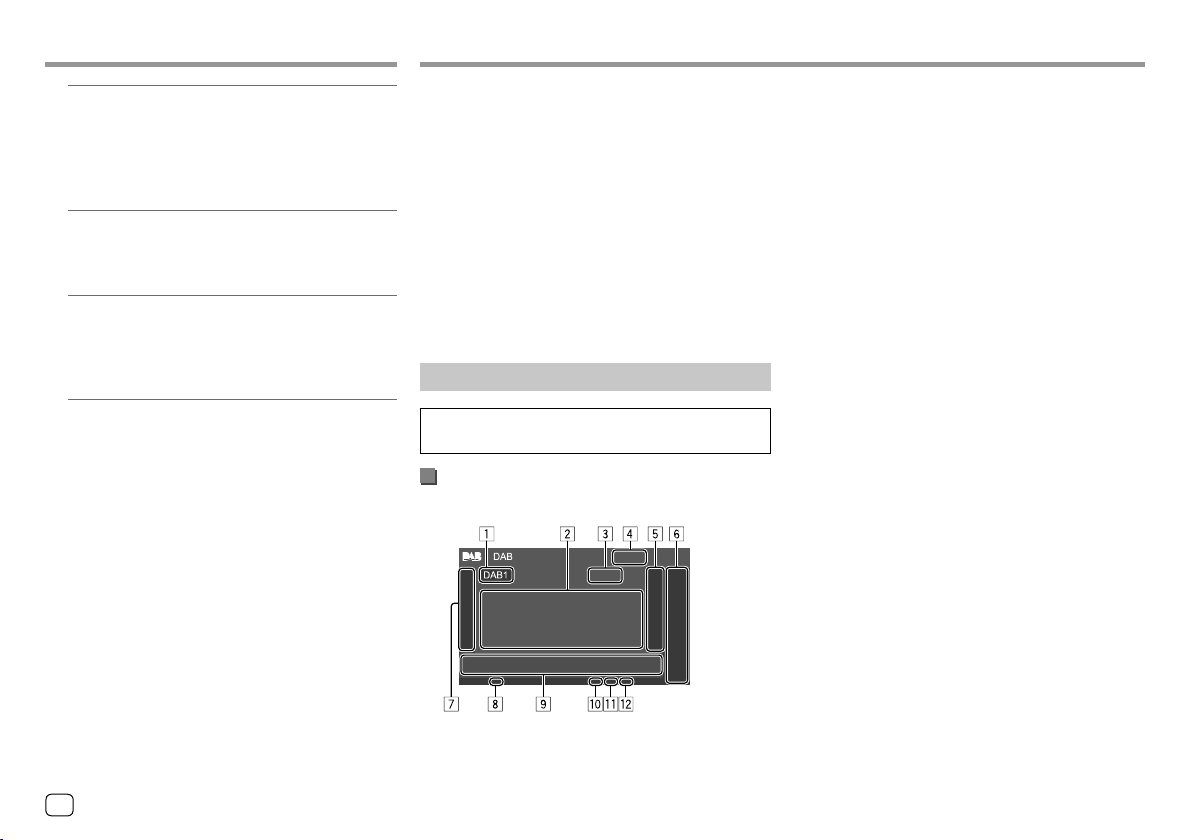

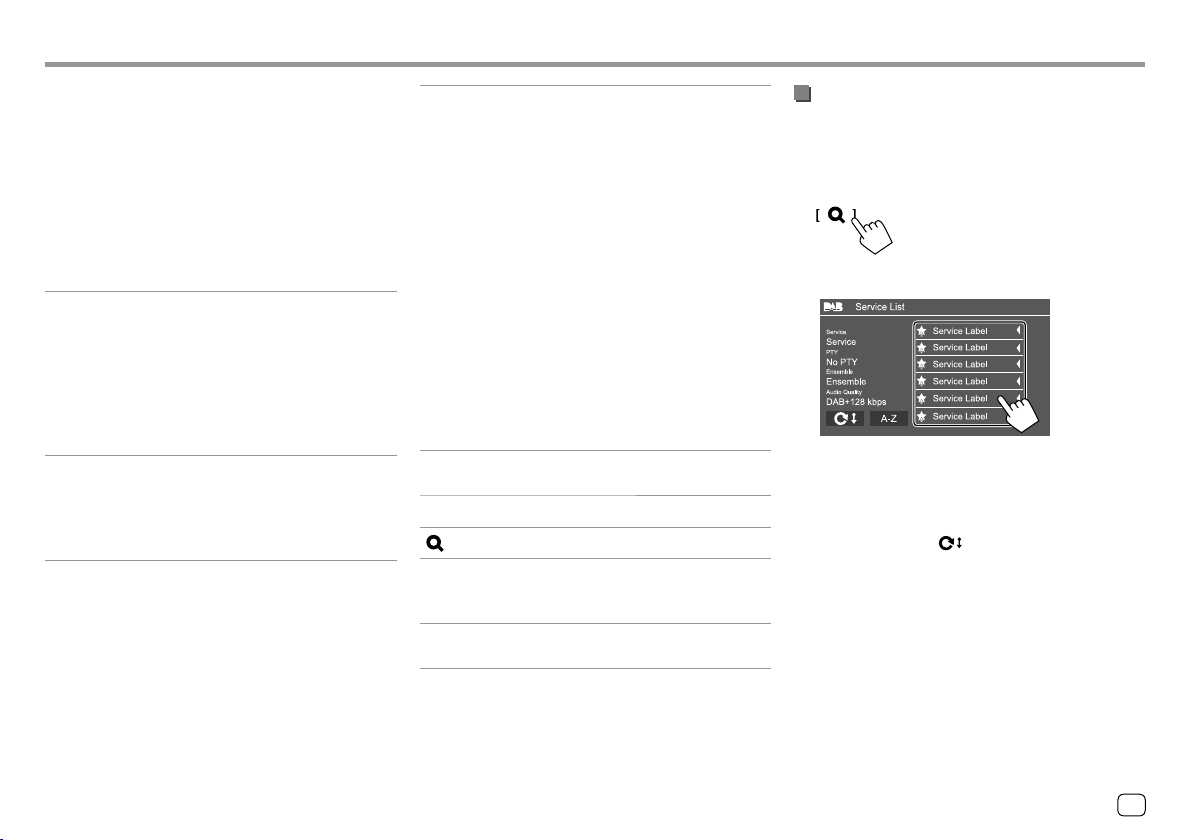

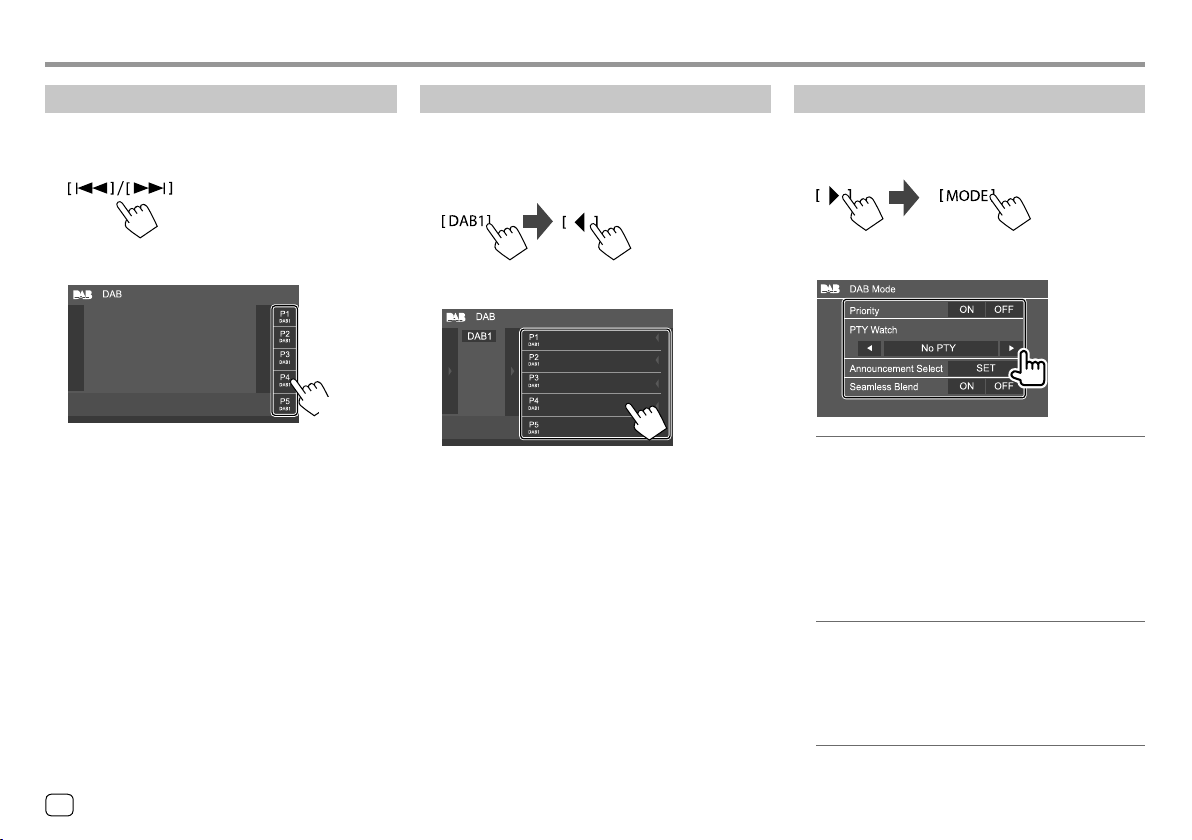

Digital Radio (DAB) ..........................................18

Spotify ................................................................21

Other External Components ..........................23

AV-IN ..............................................................................................23

Rear view camera ...................................................................23

Bluetooth® .........................................................24

Information ................................................................................24

Preparation ................................................................................24

Connection ................................................................................24

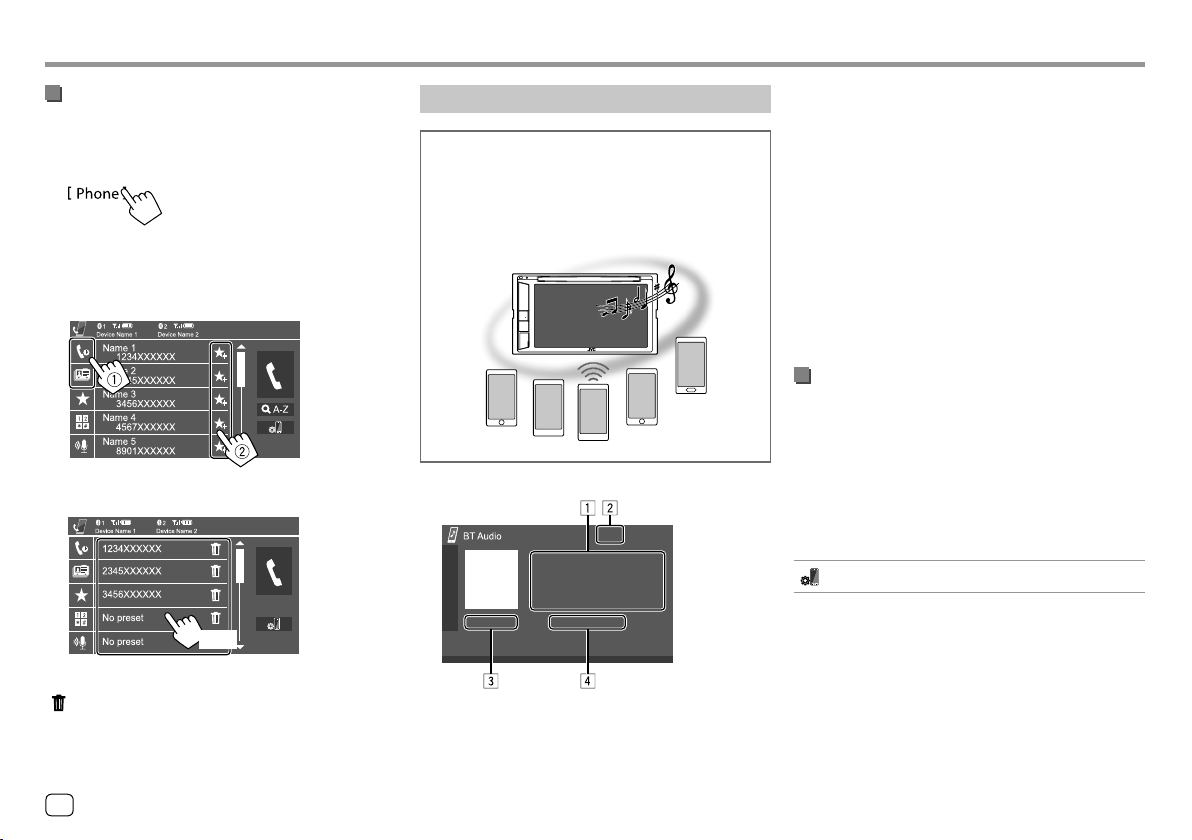

Bluetooth mobile phone ..................................................26

Bluetooth audio player.......................................................28

JVC Streaming DJ ........................................................28

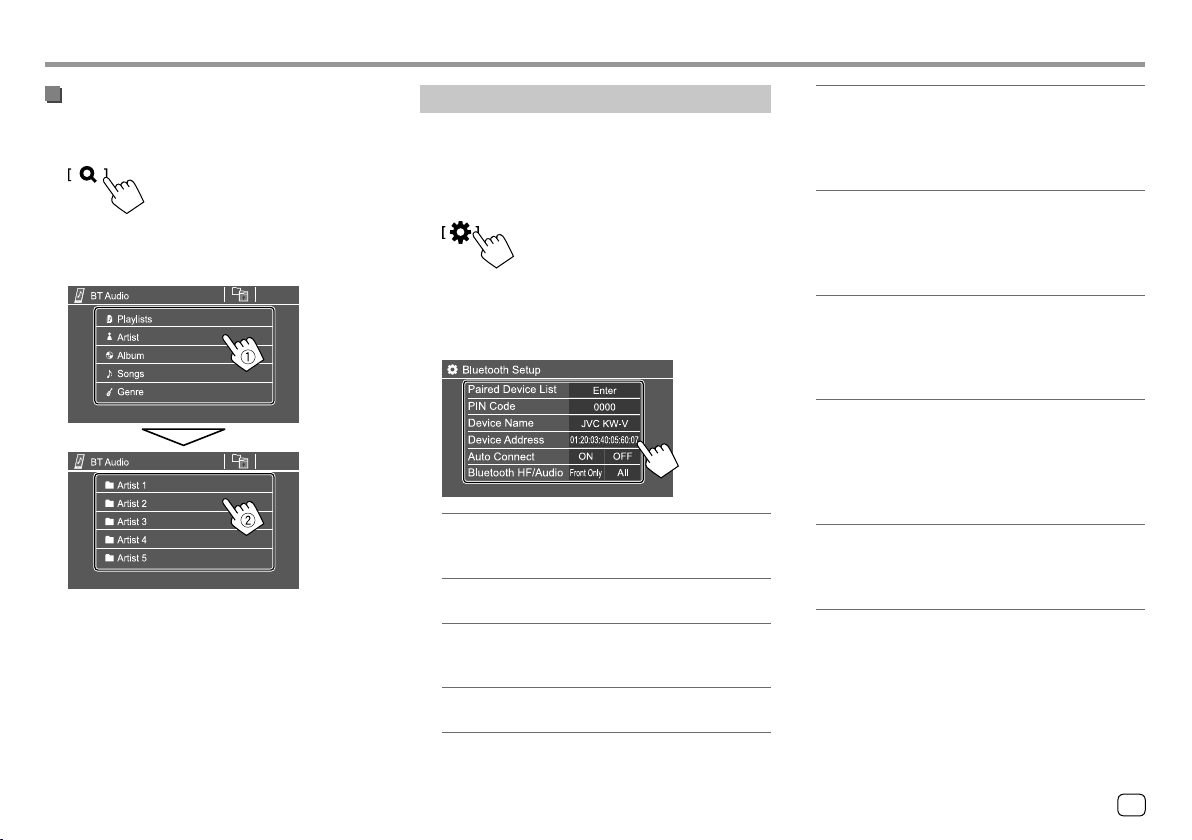

Bluetooth settings .................................................................29

Settings ..............................................................30

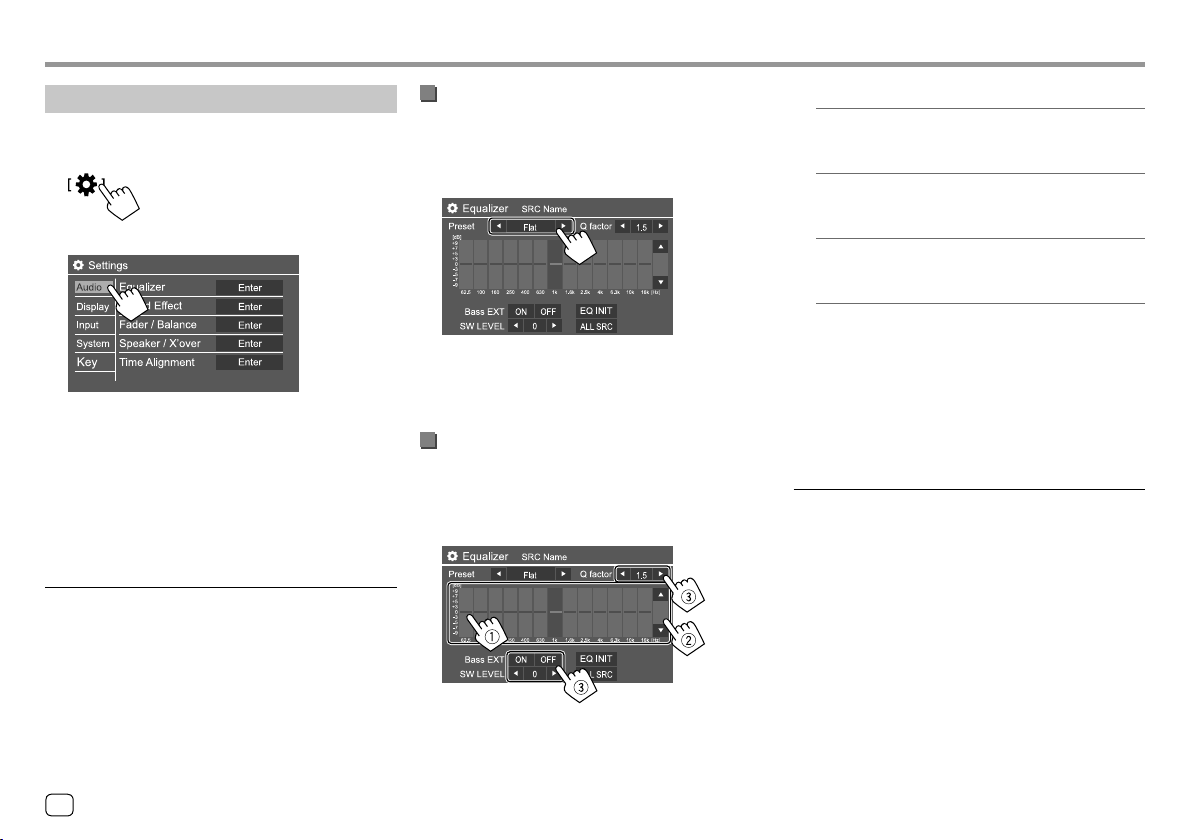

Audio settings ..........................................................................30

Display settings .......................................................................33

Input settings ...........................................................................35

System settings .......................................................................36

Key settings ...............................................................................38

Remote Controller ............................................39

Preparation ................................................................................39

Basic operations......................................................................40

Searching for an item directly ........................................40

JVC Remote APP ...........................................................40

Installation and Connection ...........................41

Before installation ..................................................................41

Installing the unit ...................................................................42

Installing the trim plate ......................................................42

Removing the unit ................................................................42

Wiring connection ................................................................43

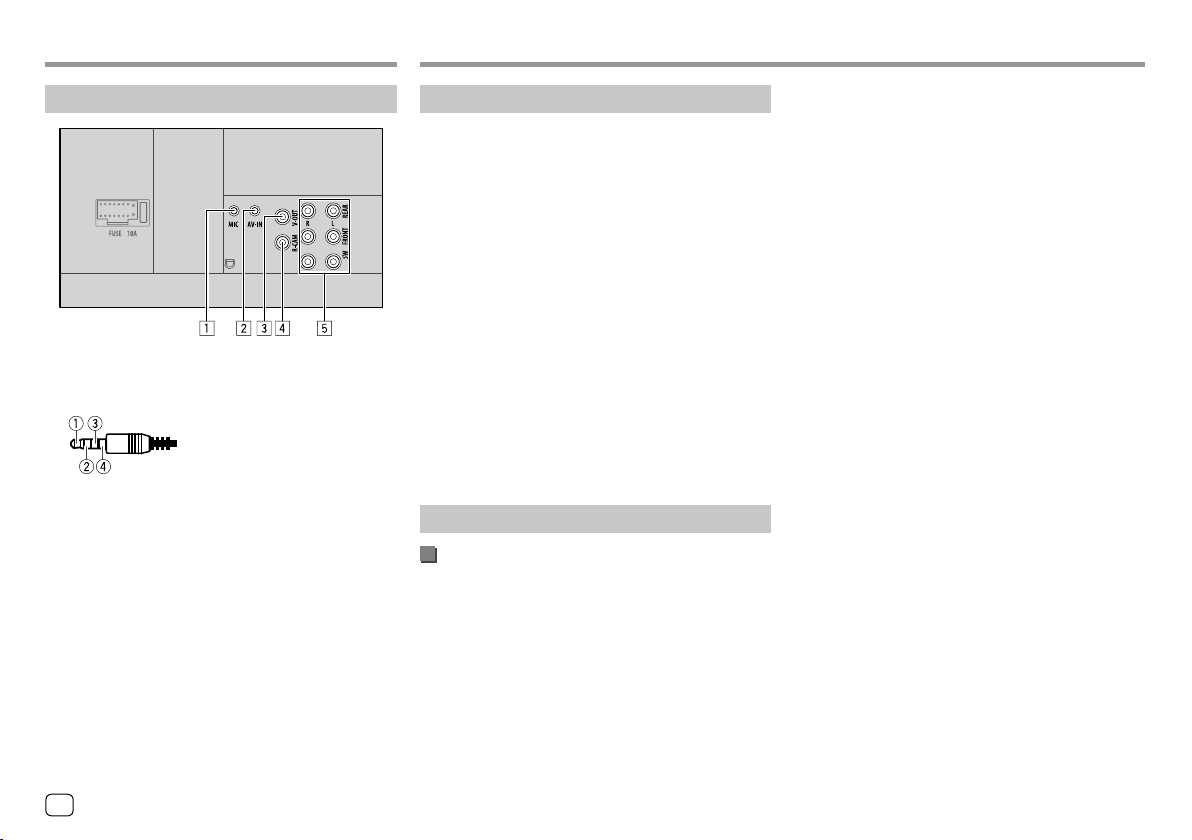

Connecting external components .............................44

References .........................................................44

Maintenance .............................................................................44

More information ...................................................................44

Troubleshooting ...............................................47

Specifications ....................................................50

Trademarks and licenses ...................................................53

Component Names and Operations Component Names and Operations

Basic Operations Basic Operations

1 Reset button 2 Loading slot 3 Screen (touch panel) 4 Monitor panel 5 Illumination bar The brightness of the illumination changes

according to the music level. (Page 34)

6 Volume +/– buttons 7 FNC - button

• FNC (Press, blink once): Pops up the short-cut

menu. (Page 8)

• (Hold, blink twice): Enters favorite setting. Default: Displays <Sound Effect> screen. (Page30)

8 - button

• (Press): Turns on the power.

• (Press): Displays the Home screen while the power is on.

• (Hold): Activates the voice dialing.

9 USB input terminal

How to reset your unit

If the unit fails to operate properly, press the reset button.

Turning on the power

Turning off the power

ENGLISH

Basic OperationsBasic Operations

Getting Started Getting Started

Turning off the AV source

1 Display the source/option selection

screen.

On the Home screen, touch as follows:

2 Turn off the AV source.

On the source/option selection screen, touch as follows:

Turning off the screen and button illumination

1 Display the pop-up short-cut menu.

2 On the pop-up short-cut menu, touch as

follows:

Adjusting the volume

You can adjust the volume (00 to 35) by pressing + to increase and pressing – to decrease.

• Holding + increases the volume continuously to

level 15.

Initial settings

When you power on the unit for the first time or reset the unit, the <Initial Settings> screen appears.

Perform the initial settings.

Once completed, the Home screen appears.

• ON (Initial): Activates the display demonstration.

• OFF: Deactivates the display demonstration.

(Hold)

To turn on the screen and button illumination: Press FNC on the monitor panel or touch the screen.

ENGLISH

Getting StartedGetting Started

Select the text language used for on-screen information.

• English/Español/Français/Deutsch/Italiano/

Nederlands/Ελληνικά/Português/Türkçe/Čeština/ Polski/Magyar/Руccĸий/ / /

/ / / /Bahasa

Malaysia/Bahasa Indonesia/

– For external monitors, only English/Spanish/

French/German/Italian/Dutch/Russian/Portuguese are available. If another language has been selected, the text language for external monitors will be set to English.

Initial:

KW-V255DBT/KW-V250BT Region 2: English KW-V250BT Region 5: Руccĸий

• GUI Language (Local (the language selected above) (Initial)/English): Selects the language used for displaying operation keys and menu items.

<Rear Camera> (Page 35) Make the settings to display the picture from the connected rear view camera.

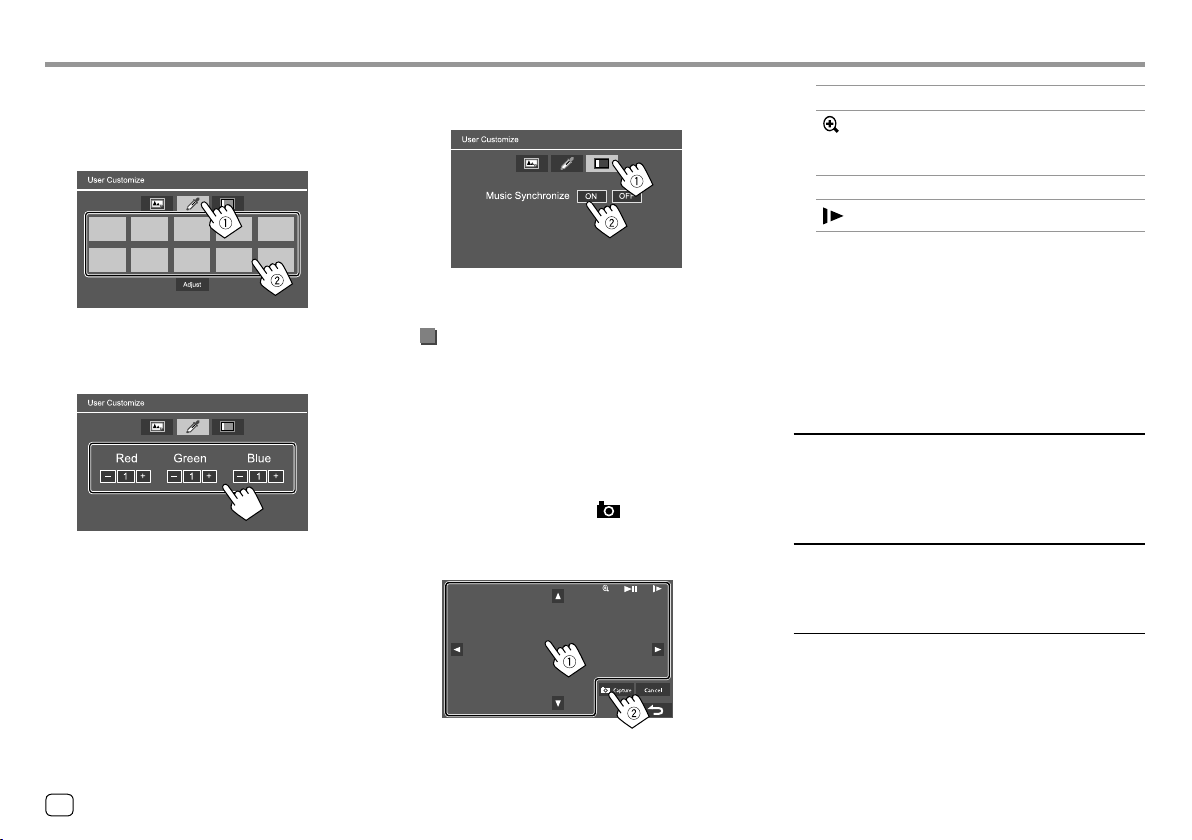

<User Customize> (Page 33) Change the display design.

<Viewing Angle> (Page 35) Select the viewing angle in relation to the monitor to make the image on the screen easier to see.

• Under 0° (Initial)/5°/10°/15°/20°

Clock settings

1 Display the Home screen.

2 Display the <Clock> screen.

On the Home screen, touch as follows:

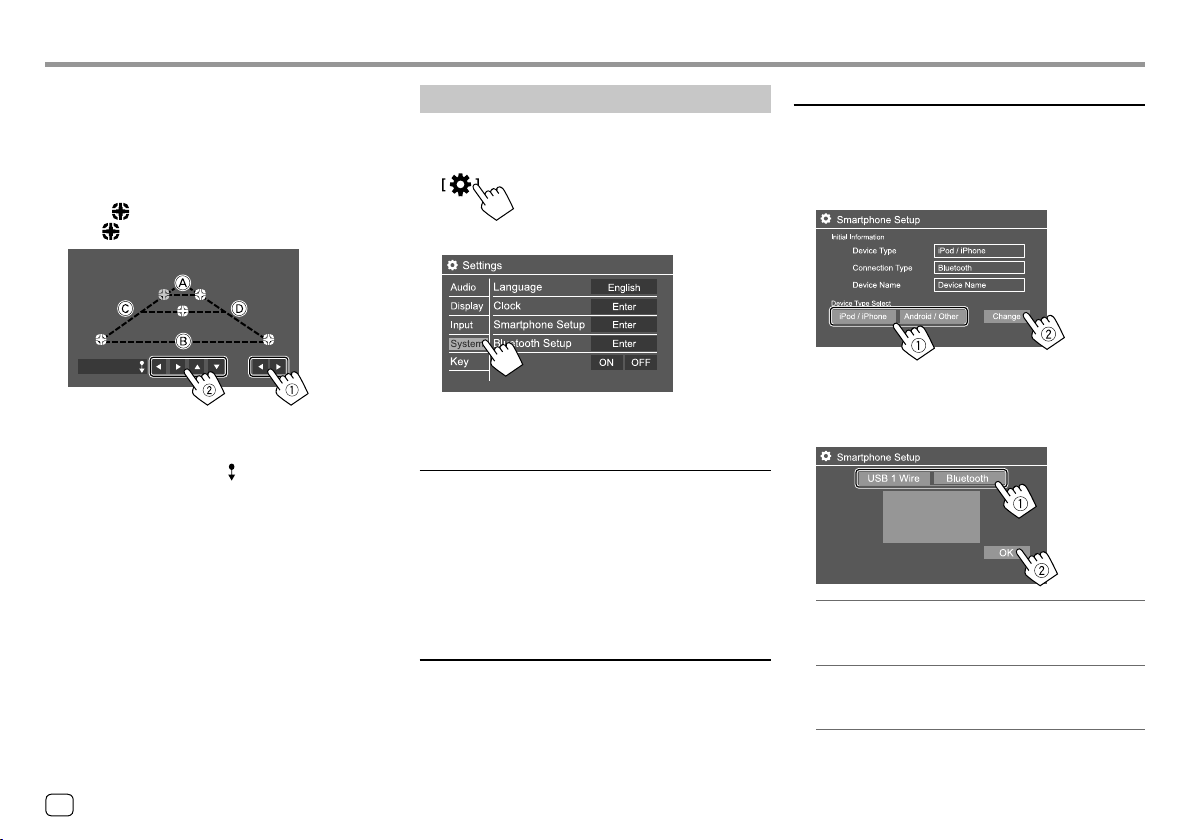

Then, on the <Settings> screen, touch as follows: [System]  <Clock> : [Enter]

• You can also display the <Clock> screen by

touching the clock area on the Home screen.

3 Set the clock time.

• Radio Data System*1: Synchronizes the clock

time with FM Radio Data System.

• DAB*2: Synchronizes the clock time with the

Digital Radio (DAB).

• Off: Sets the clock manually. Touch [J]/[K] to

adjust the hour, then minute.

– Touching [Reset] will set the minute to “00”.

Initial:

KW-V250BT: Radio Data System KW-V255DBT: DAB

*1 Only for KW-V250BT. *2 Only for KW-V255DBT.

5ENGLISH

Various Screens and Operations Various Screens and Operations

You can display or change to other screens at any time to show information, change the AV source, change the settings, etc.

Home screen

• You can customize the Home screen. (Page 35)

• To display the Home screen from other screens, press

- .

Touching the operation keys performs the following actions:

1 Selects or changes the playback source. 2 Displays all playback sources and options. 3 Displays the <Settings> screen. 4 Displays the <Clock> screen. 5 Displays the current playing source control screen. 6 Displays the phone control screen.

Available playback sources and options

Touch 2 to display the source/option selection screen.

E.g. Source/option selection screen for KW-V250BT

Region 2

Touching the operation keys performs the following actions:

[Tuner] Switches to the radio broadcast. [Disc] Plays a disc. [USB] Plays files on a USB device. [iPod] Plays an iPod/iPhone. [Android™] Plays an Android device. [AV-IN] Switches to an external component

connected to the AV-IN input terminal.

[BT Audio] Plays a Bluetooth audio player. [Spotify]*1 Switches to the Spotify application. [AV Off] Turns off the AV source. [DAB]*2 Switches to the Digital Radio (DAB).

[Home] Displays the Home screen. [Setup] Displays the <Settings> screen.

Power Off]

[

[Camera] Switches to the camera connected

[Now Playing] Displays the source currently

*1 Only for KW-V255DBT/KW-V250BT Region 2. *2 Only for KW-V255DBT.

To return to the Home screen

Touch [HOME] on the source/option selection screen.

Turns off the power.

to the rear view camera input.

played back.

Source control screen

You can perform the playback operation from the source control screen during playback.

• The operation keys and information displayed vary depending on the selected source/disc type/file type being played.

• If the operation keys are not displayed on the screen, touch the screen to show them.

ENGLISH

Various Screens and OperationsVarious Screens and Operations

E.g. Common audio playback source screen:

1 Playback source or media type 2 Picture/artwork (shown if the file contains the

information)

3 Track/file/song/video information

• Touching [H] scrolls the text if not all of the text

is shown.

4 Clock display 5 Current playback item information

(folder no./file no./track no./total track no./playback file type)

6 Displays/hides other available operation keys* 7 Operation keys* 8 IN indicator (lights up while a disc is inserted) 9 Playing time/playback status p Playback mode indicator (Repeat/Random) q File type indicator

* See the following “Common operation keys on source control

screen”.

Common operation keys on source control screen

• The appearance of the operation keys may differ, however the similar operation keys have the same operations.

• Available operation keys differ depending on the selected source or connected device.

Touching the operation keys performs the following actions:

[ I ]

][ ]

[

[ [MODE] Displays the setting screen of the current

[ ]

[

]

S]/[T]

[

IW]

[

]

[

Displays other available operation keys besides those shown on 7.

• To hide the window, touch [

Selects a folder.

]

Selects repeat playback mode.*

Stops playback.

playback source.

Displays the <Equalizer> screen. (Page30)

Displays the folder list/track list/audio menu/video menu.

• (Touch) Selects an item (chapter/ folder/track/audio file/video file).

• (Hold) Reverses/forwards search.

• (Hold) Plays in slow-motion while paused for video playback.

Starts/pauses playback. Selects random playback mode.*

H ].

* About playback mode:

– Available playback modes differ depending on the source, disc

type, connected device, etc.

– You cannot activate repeat playback mode and random

playback mode at the same time.

– To cancel the playback mode, touch repeatedly until the

indicator disappears.

Using gesture control

You can also control playback by moving your finger on the touch panel as follows (for some sources, the gesture control is not available).

• Sliding the finger up/down: Selects a folder.

• Sliding the finger left/right: Selects an item (chapter/track/audio file/video file).

• Moving your finger clockwise/counterclockwise: Increases/decreases the volume.

ENGLISH

Various Screens and OperationsVarious Screens and Operations

Using the pop-up short-cut menu

While displaying the source control screen, you can jump to another screen by touching the operation keys on the pop-up short-cut menu.

1 Display the pop-up short-cut menu.

2 Select an item to jump to by touching as

follows.

[ M ]

- ]

[

* You can customize these pop-up short-cut menu. For details, see

<Key Customize> on page 38.

To close the pop-up menu

Press FNC on the monitor panel.

Ejects the disc from loading slot.

• (Touch) Switches the screen.

• (Hold) Turns off the screen. Displays the <Settings> screen.

(Page 30) Displays the <User Customize>

screen and you can change the background design. (Page 33)

Displays the <Screen Adjustment> screen. (Page 35)

Displays the picture from the connected rear view camera.

Using touch screen operation during

playback

Touching the areas performs the following actions:

1 Displays the video control menu while playing a

video.

2 While playing a video: Displays the source control

screen.

While playing an audio file: Displays the playback

operation keys.

3 Goes to the previous chapter/track.* 4 Goes to the next chapter/track.*

* Not available for video from an external component (AV-IN).

List/setting screen

Below are the common operation keys which appear on the list/setting screen.

• The appearance of the operation keys may differ, however the similar operation keys have the same operations.

• Available operation keys differ depending on the setting screens. Not all these operation keys are shown on every screen.

Touching the operation keys performs the following actions:

1 Enters alphabet search* to list the items in

alphabetical order. When a keypad appears, touch the first letter you want to search for.

• For “USB” source, you can switch between the

folder list and file list by touching [ ] or [ ]. Then, touch [OK] to start searching.

2 Returns to the root folder. 3 Returns to the upper layer. 4 Closes the current screen. 5 Exits from the current screen or returns to the

previous screen.

6 Changes the page to display more items.

* Alphabet search is not available:

– For Android source – When the playlist is selected

ENGLISH

Disc Disc

• If a disc does not have a disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.

• For playable disc types, file types and other information, see pages44 and 45.

• If “ ” appears on the screen, the unit cannot accept the operation you have tried to do.

– In some cases, without showing “ ”, operations

will not be accepted.

• When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.

Inserting a disc

Label side up

The source changes to “DISC” and playback starts.

• The IN indicator lights up while a disc is inserted.

Ejecting a disc

Display the pop-up short-cut menu, then eject the disc.

• When removing a disc, pull it out horizontally.

• You can eject a disc while playing another AV source.

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Playback operations

Audio playback information and key

operation

• For playback information, see “Source control screen” on page6.

• For key operations on the touch panel, see “Common operation keys on source control screen” on page7.

Selecting a folder/track on the list

1 Display the folder/track list.

On the source control screen, touch as follows:

2 Select the folder (1), then the item (2) in

the selected folder.

Select an item in each layer until you reach and select the desired file.

Settings for disc playback

• Available items shown on the <DISC Mode> screen

differ depending on the type of disc/file being played back.

1 Display the <DISC Mode> screen.

On the source control screen, touch as follows:

ENGLISH

DiscDisc

Make the settings.

<Menu Language>*1

Select the initial disc menu language. (Initial:

KW-V255DBT/KW-V250BT Region 2: English KW-V250BT Region 5: Russian)

<Subtitle Language>*1 Select the initial subtitle language or turn subtitles off (Off). (Initial: English) <Audio Language>*1 Select the initial audio language. (Initial: English)

You can change the dynamic range while playing Dolby Audio encoded discs.

• Wide: Reproduces powerful sound at a low

volume level with its full dynamic range.

• Normal: Reduces the dynamic range a little.

• Dialog (Initial): Reproduces movie dialog more

clearly.

When playing back a multi-channel disc, this setting affects the signals reproduced through the front and/or rear speakers.

• Dolby Surround: Reproduces multi-channel

surround sound by connecting an amplifier compatible with Dolby Surround.

• Stereo (Initial): Reproduces stereo playback

sound.

Select the monitor type to watch a wide screen picture on the external monitor.

16:9 (Initial) 4:3 LB 4:3 PS

<File Type>*2

Select the playback file type when a disc contains different types of files.

• Audio: Plays back audio files.

• Still image: Plays back still picture files.

• Video: Plays back video files.

• Audio&Video (Initial): Plays back audio files and

video files.

*1 For list of language codes, see page46. *2 For playable file types, see page44. If the disc contains no files of the selected type, the existing

files are played in the following priority: audio, video, then still picture. You can change these settings only while playback is stopped.

Video Video

Playback operations

Video playback information on the source

control screen

E.g. Video playback source control screen

1 Media type 2 Playback status 3 Current playback item information

(title no./chapter no./folder no./file no./track no.)

4 Playing time 5 IN indicator (lights up while a disc is inserted) 6 Playback mode indicator (Repeat/Random) 7 File type indicator

ENGLISH

VideoVideo

Video menu control operations

You can display the video menu control during video playback.

• Available operation keys differ depending on the selected disc type and file type.

Video playback except VCD

E.g. Video menu control screen

Touching the operation keys performs the following actions:

[ ] *1

Displays the picture size selection screen. 1 Touch [

magnification level of the picture (Zoom1, Zoom2, Zoom3, Full: Initial).

2 Touch [J] [K] [H] [I] to move the

zooming frame.

Zoom] to change the

[ ]

Displays the aspect ratio selection screen. Touch [ Aspect] to select the aspect ratio. <Full>*2: For 16:9 original pictures

4:3 signal 16:9 signal

<Just>: For viewing 4:3 pictures naturally on the wide screen

4:3 signal 16:9 signal

<Normal>*2: For 4:3 original pictures

4:3 signal 16:9 signal

<Auto>: For “DISC” source and “USB” source only: The aspect ratio is automatically selected to match the incoming signals.

[ ]

[

]

*1 When [ ] is set to <Just> or <Auto>, the picture is

zoomed with the aspect ratio of the <Full> setting. This feature may not be used for some video sources. *2 While DivX is played back with <Screen Ratio> set to [16:9]

(Page10 for discs/Page13 for USB), the aspect ratio may

not be set correctly.

Displays the picture adjustment screen. 1 Touch [DIM ON] or [DIM OFF] to

turn on or off the dimmer.

2 Touch [+]/[–] to adjust the other

items.

• <Bright>: Adjusts the brightness

(−15 to +15).

• <Contrast>: Adjusts the contrast

(−10 to +10).

• <Black>: Adjusts the blackness

(−10 to +10).

• <Color>: Adjusts the color

(−10 to +10).

• <Tint>: Adjusts the tint (−10 to +10).

• <Sharpness>: Adjusts the sharpness

(−2 to +2).

]

Selects the audio type.

]

Selects the subtitle type.

Selects the view angle.

ENGLISH

VideoVideo USB USB

[ MENU]

[T MENU] Displays the disc menu (DVD). [

]

[

Video playback for VCD

Displays the disc menu (DVD).

Switches to the direct disc menu mode. Touch the target item to select.

Displays the menu/scene selection screen.

• [

J] [K] [H] [I]: Selects an item.

• [Enter]: Confirms the selection.

• [Return]: Returns to the previous

screen.

E.g. Video menu control screen

Touching the operation keys performs the following actions:

[ ]

Refer to “Video playback except VCD” on

]

[

[ MENU]

[

[Return] Displays the previous screen or menu.

* You need to stop playback to deactivate the PBC function when

playing a VCD with PBC activated.

page11.

]

Displays the disc menu.

Selects the audio channel

]

(ST: stereo, L: left, R: right). Displays or hides the direct selection

keys. 1 Touch [DIR/CLR] to select a track

directly on a VCD.

2 Touch the numbers ([0], [1] to [9]) to

select the desired track.

3 Touch [Enter] to confirm.

To delete the last entry, touch [DIR/ CLR].

You can connect a USB mass storage class device such as a USB memory, digital audio player, etc. to the unit.

• For playable file types and other information, see

pages44 and46.

• You cannot connect a PC or portable HDD to the

USB input terminal.

• You cannot connect a USB device via a USB hub.

Connecting a USB device

On the monitor panel

USB device (commercially available)

The source changes to “USB” and playback starts.

• All tracks in the USB device will be played repeatedly

until you change the source or disconnect the USB device.

ENGLISH

USBUSB

Playback operations

Playback information and key operation

• For playback information, see “Source control screen” on page6.

• For key operations on the touch panel, see “Common operation keys on source control screen” on page7.

Selecting the file type to play

You can specify the file type to play.

E.g. USB source control screen

Select the file type as follows:

[Audio] Plays back audio files. [Video] Plays back video files. [Photo] Plays back still picture files.

If the USB device contains no files of the selected type, the existing files are played in the following priority: audio, video, then still picture. You can change these settings only while playback is stopped.

Selecting a folder/track on the list

1 Display the folder/track list.

On the source control screen, touch as follows:

2 Select the folder (1), then the item (2) in

the selected folder.

E.g. USB list screen

Select an item in each layer until you reach and select the desired file.

Selecting a folder/track using alphabet

(Applicable only for audio file type)

You can search for a folder or an audio file by entering the first letter you want to search for.

1 Select the list (folder or track) to search.

On the USB list screen, touch as follows:

• [ ]: Folder list

• [

]: Track list

2 Enter the alphabet to search.

Touch the first letter you want to search for, then touch [OK].

Settings for USB playback

1 Display the <USB Mode> screen.

On the source control screen, touch as follows:

2 Make the settings.

Select the monitor type to watch a wide screen picture on the external monitor.

16:9 (Initial) 4:3 LB 4:3 PS

• Next: Switch between internal memory and the

memory source of the connected device (such as a mobile phone).

ENGLISH

Android Android iPod/iPhone iPod/iPhone

Connecting an Android device

This unit supports Android OS 4.1 and above.

Android (commercially available)

USB cable

(commercially available)

On the monitor panel

When connecting an Android device, “AUDIO MODE” is shown. You can control Android device using a media player application installed in the Android device.

Playback operations

Playback information and key operation

Android

E.g. Android source control screen

Touching the operation keys performs the following actions:

[S]/[T]

IW]

[

AUDIO MODE

IWST

Selects an audio file. Starts/pauses playback.

Connecting an iPod/iPhone

• For playable iPod/iPhone types and other information, see page 47.

• You cannot watch video.

Wired connection

iPod/iPhone

Lightning model

(commercially available)

USB Audio cable for iPod/iPhone:

KS-U62 (optional

accessory)

iPod/iPhone 30-pin connector model

(commercially available)

30-pin to USB cable (accessory of iPod/ iPhone)

monitor panel

On the

The source changes to “iPod” and playback starts.

ENGLISH

iPod/iPhone iPod/iPhone

Tuner Tuner

Bluetooth connection

Pair the iPod/iPhone with this unit via Bluetooth. (Page24)

Selecting the playback device via the connection method

See <Smartphone Setup> on page 36 for more information.

Playback operations

Playback information and key operation

• For playback information, see “Source control screen” on page6.

• For key operations on the touch panel, see “Common operation keys on source control screen” on page7.

Additional keys operations: Touching the operation keys performs the following actions.

[ ]

Switches the device on the <Smartphone Setup> screen. (Page36)

Selecting an audio file from the menu

1 Display the audio menu.

On the source control screen, touch as follows:

2 Select a category (1), then select a

desired item (

Select an item in each layer until you reach and select the desired file.

• Available categories differ depending on the type of iPod/iPhone.

Settings for iPod/iPhone playback

2).

1 Display the <iPod Mode> screen.

On the source control screen, touch as follows:

2 Make the settings.

• ON (Initial): Shows the artworks of the playing files.

• OFF: Hides the artworks of the playing files.

Listening to the radio

The unit switches to FM alarm scene automatically when receiving an alarm signal from FM broadcast.

Playback information on the source control

screen

1 Selects the band (AM/FM1/FM2/FM3) 2 Text information

• Touching [ H ] scrolls the text if not all of the text

is shown.

• Touching [Radio Text] switches the information

between Radio Text, Radio Text Plus and PTY code.

3 Current station frequency 4 Displays the preset stations window (Page17)

• To hide the window, touch [ I ].

5 [P1] – [P5]

• (Touch) Selects a preset station.

• (Hold) Presets the current station.

15ENGLISH

TunerTuner

6 Displays/hides other available operation keys* 7 NEWS indicator 8 AF indicator 9 TI indicator p Operation keys* q ST/MONO indicator The ST indicator lights up when receiving an FM

stereo broadcast with sufficient signal strength.

w Seek mode indicator e LO.S indicator r RDS indicator t EON indicator The EON indicator lights up when a Radio Data

System station is sending EON signals.

* See the following “Operation keys on source control screen”.

Operation keys on source control screen

• The appearance of the operation keys may differ, however the similar operation keys have the same operations.

• See also “Common operation keys on source control screen” on page7.

Touching the operation keys performs the following actions:

[SSM ] *1

[MONO]*1 Activates monaural mode for better FM

[TI]*1 (For FM RDS features)

[MODE ]*1 Change the settings for the selected

(Hold) Presets stations automatically.

reception (stereo effect will be lost).

• The MONO indicator lights up while monaural mode is activated.

• To deactivate, touch [MONO] again.

Activates TI standby reception mode.

• When TI is activated, the unit is ready to switch to traffic information if available. The TI indicator lights up in white.

• If the TI indicator lights up in orange, tune into another station providing Radio Data System signals.

• The volume adjustment for Traffic Information is automatically memorized. The next time the unit switches to Traffic Information, the volume is set to the memorized level.

• To deactivate, touch [TI] again.

tuner reception on <Tuner Mode> screen. (Page 17)

[PTY]*1*2 (For FM RDS features)

Enters PTY search mode.

1 Touch [PTY]. 2 Touch and hold a PTY code to search

for. If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

[SEEK]

S]/[T]

[

*1 Appears only when FM is selected as the source. *2 Only English/Spanish/French/German/Dutch/ Portuguese are

available for the text language here. If another language has been selected in <Language> (Page 36), the text language is set to English.

Changes the seek mode for [

• AUTO1 (Initial): Auto search

• AUTO2: Tunes in preset stations one

after another

• MANU: Manual search Searches for a station.

• The search method differs depending

on the selected seek mode (see above).

S]/[T].

ENGLISH

TunerTuner

Presetting stations in the memory

You can preset five stations for each band.

Automatic presetting — SSM (Strong-

station Sequential Memory) (for FM only)

On the source control screen, touch as follows:

(Hold)

The local stations with the strong signals are found and stored automatically.

Manual presetting

1 Tune in to a station you want to preset.

2 Select a preset number to store into.

(Hold)

E.g. Tuner source control screen

Selecting a preset station

1 Select the band, then display the preset

station window.

On the source control screen, touch as follows:

2 Select a preset station.

E.g. Preset station window

To hide the window: Touch [ I ].

Settings for other FM Radio Data System features

1 Display the <Tuner Mode> screen.

On the source control screen, touch as follows:

2 Make the settings.

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same program with stronger signals— Network-Tracking Reception. Select the Network-Tracking Reception mode.

• AF: Switches to another station. The program

may differ from the one currently received. The AF indicator lights up.

• AF Reg: Switches to another station broadcasting

the same program. The AF indicator lights up.

• OFF: Deactivates the function.

Initial:

KW-V255DBT/KW-V250BT Region 2: AF Reg KW-V250BT Region 5: OFF

The RDS indicator lights up when the NetworkTracking Reception is activated and an FM Radio Data System station is found.

The station selected in step 1 is stored into the preset number [P1] to [P5] you have selected.

ENGLISH

TunerTuner

Digital Radio (DAB) Digital Radio (DAB) (Only for KW-V255DBT)

<NEWS>*

• 00min to 90min: Activates News Standby

Reception by selecting the period of time to disable the interruption. The NEWS indicator lights up.

• OFF (Initial): Deactivates the function.

<Local>

• ON: Tunes in only to FM stations with sufficient

signal strength. The LO.S indicator lights up.

• OFF (Initial): Deactivates the function.

• ON (Initial): Automatically searches for a station

with better reception for traffic information if the current reception of current station is poor.

• OFF: Deactivates the function.

* The volume adjustment for Traffic Information is automatically

memorized. The next time the unit switches to Traffic Information, the volume is set to the previous level.

DAB (Digital Audio Broadcasting) is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “Primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information.

Listening to the Digital Radio

The unit switches to DAB alarm scene automatically when receiving an alarm signal from DAB broadcast.

Playback information on the source control

screen

1 Selects the band (DAB1/DAB2/DAB3) 2 Text information

• Touching [

is shown.

• Touching [Now Playing] switches the information and keys between [Next Program], [Title], [Artists], [PTY] and [Audio Quality].

3 Channel number 4 Signal strength 5 Displays the preset service window (Page20) 6 [P1] – [P5]

• (Touch) Selects a preset service.

• (Hold) Presets the current service.

7 Displays/hides other available operation keys* 8 TI indicator 9 Operation keys* p Seek mode indicator q DAB/MC indicator

• The DAB indicator lights up when receiving a DAB broadcast.

• The MC indicator lights up when receiving a DAB multi component.

w RDS indicator The RDS indicator lights up when receiving a Radio

Data System service.

* See “Operation keys on source control screen” on page 19.

H ] scrolls the text if not all of the text

ENGLISH

Digital Radio (DAB)Digital Radio (DAB)

Operation keys on source control screen

• The appearance of the operation keys may differ, however the similar operation keys have the same operations.

• See also “Common operation keys on source control screen” on page7.

Touching the operation keys performs the following actions:

[PTY]* (For RDS features)

Enters PTY search mode.

1 Touch [PTY]. 2 Touch and hold a PTY code to search

for. If there is a service broadcasting a program of the same PTY code as you have selected, that service is tuned in.

[SEEK]

* Only English/Spanish/French/German/Dutch/Portuguese are

available for the text language here. If another language has been selected in <Language> (Page 36), the text language is set to English.

Changes the seek mode for [

• AUTO1 (Initial): Auto search

• AUTO2: Tunes in preset services one

after another

• MANU: Manual search

S]/[T].

[TI] (For RDS features)

Activates TI standby reception mode.

• When TI is activated, the unit is ready to switch to traffic information if available. The TI indicator lights up in white.

• If the TI indicator lights up in orange, tune into another service providing Radio Data System signals.

• The volume adjustment for Traffic Information is automatically memorized. The next time the unit switches to Traffic Information, the volume is set to the memorized level.

• The TI Standby Reception can also be activated or deactivated from “Tuner” source control screen. (Page 16)

• To deactivate, touch [TI] again.

[MODE] Changes the settings for DAB reception

on the <DAB Mode> screen.

[ ]

[

S]/[T]

[DLS] Displays Dynamic Label Segment Screen

Displays the <Service List> screen.

Searches for a service.

• The search method differs depending on the selected seek mode.

(text messages the service sends).

Selecting a service on the list

You can obtain information on service or select a service to listen to.

1 Display the <Service List> screen.

On the source control screen, touch as follows:

2 Select a service from the list.

• Touch [A–Z] to display the <A–Z Search>

screen. Then, select the initial to start searching.

To search with non-alphabetical characters, touch

[#].

• Touch and hold [ ] to update the service list.

ENGLISH

Digital Radio (DAB)Digital Radio (DAB)

Presetting services in the memory

You can preset five services for each band.

1 Tune in to a service you want to preset.

2 Select a preset number to store into.

(Hold)

The service selected in step 1 is stored into the preset number [P1] to [P5] you have selected.

Selecting a preset service

1 Select the band, then display the preset

service window.

On the source control screen, touch as follows:

2 Select a preset service.

To hide the window: Touch [ I ].

Settings for Digital Radio

1 Display the <DAB> screen.

On the source control screen, touch as follows:

2 Make the settings.

• ON (Initial): If the same service is provided by

Digital Radio during Radio Data System reception, the unit automatically switches to Digital Radio. If the same service is provided by Radio Data System when reception of the service being provided by Digital Radio becomes poor, the unit automatically switches to Radio Data System.

• OFF: Deactivates the function.

If the service of the set program type begins with the ensemble being received, the unit switches from any source to Digital Radio for service reception. Select the type of program using [

H ] and [ I ].

ENGLISH

Digital Radio (DAB)Digital Radio (DAB) Spotify Spotify (Only for KW-V255DBT/KW-V250BT Region 2)

<Announcement Select>*1 If the service of the announcement item you activated begins with the ensemble being received, this unit switches from any source to the announcement received.*2

• News flash/Transport flash/Warning/Service/

Area weather flash/Event announcement/ Special event/Programme information/Sport report/Financial report

– Set [ON] for the annoucement items you need. – Select [All OFF] to deactivate all the

announcements.

• ON (Initial): Prevents audio break when switching

from Digital Radio to Analog Radio.

• OFF: Deactivates the function.

• ON (Initial): Supplies power to the DAB aerial.

• OFF: Deactivates the function.

• ON: When the current selected DAB service

network is not available and found the related service, the unit offers to switch to the related service.

• OFF (Initial): Deactivates the function.

*1 Only English/Spanish/French/German/Dutch/Portuguese/

Italian/Turkish are available for the text language here. If another language has been selected in <Language> (Page

36), the text language is set to English.

*2 The volume adjustment while receiving Announcement is

automatically memorized. The next time the unit switches to Announcement, the volume is set to the previous level.

With Spotify, your music is everywhere. Working out, partying or relaxing, the right music is always at your fingertips. There are millions of songs on Spotify—from old favorites to the latest hits. Just choose the music you love, or let Spotify surprise you.

You can stream Spotify from iPhone/iPod touch or Android devices.

• Because Spotify is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some functions of Spotify cannot be operated from this unit.

• For issues using the application, contact Spotify at <www.spotify.com>.

Preparation

Installing the application

Your smartphone must have built in Bluetooth and the following profiles must be supported:

• SPP (Serial Port Profile)

• A2DP (Advanced Audio Distribution Profile)

Establish an Internet connection using LTE, 3G, EDGE, or WiFi. Ensure you are logged in to your smartphone application. If you do not have an Spotify account, you can create one for free from your smartphone or at <www.spotify.com>.

Install the latest version of the Spotify application on your smartphone.

• For Android devices: Search for “Spotify” in Google Play to find and install the most recent version.

• For iPhone/iPod touch: Search for “Spotify” in the Apple iTunes App Store to find and install the most recent version.

Connecting the device

For Android devices

Pair the Android device with this unit via Bluetooth. (Page 24)

For iPhone/iPod touch

• Via USB input terminal: Connect iPhone/iPod touch with the cable. (Page14)

– For Lightning models: Use KS-U62 (optional

accessory).

– For 30-pin connector models: Use 30-pin to USB

cable (accessory of iPod/iPhone).

• Via Bluetooth: Pair the iPhone/iPod touch with this unit. (Page24)

Selecting the device

For selecting the playback device via the connection method to use, see <Smartphone Setup> on page

36.

ENGLISH

SpotifySpotify

Playback operations

Playback information and key operation

You can also operate Spotify with an optionally purchased remote controller, RM-RK258. You can only control play, pause and skip with the remote controller.

1 Displays/hides other available operation keys* 2 Picture data 3 Track information

• Touching [

is shown.

• Touching [ ] /[ ] changes the displayed information between artist ( ) and album ( ).

4 Operation keys* 5 Playing time/playback status 6 Progress bar

* See the following “Operation keys on source control screen”.

H] scrolls the text if not all of the text

Operation keys on source control screen

• The appearance of the operation keys may differ, however the similar operation keys have the same operations.

• See also “Common operation keys on source control screen” on page7.

Touching the operation keys performs the following actions:

[ ] *1

]*1

[

]*2

]*2*3

[

[ ]

]*3[ ]

[

][ ]

[

]

]*2*3

]

Thumbs down to the current track and skips to the next track.

Registers the current track as a favorite.

Activates/deactivates shuffle playback mode.

Repeats all tracks/cancels the repeat playback.

Repeats the current track/cancels the repeat playback.

Creates a new station.

]

Switches the device on the <Smartphone Setup> screen. (Page36)

Displays the Spotify menu screen.

Selects a track.

Starts (

I)/pauses (W) playback.

Saves the current track/artist to <Your Library>.

*1 Not available for tracks in a playlist. *2 Not available for tracks in the Radio. *3 Available only for premium account users.

Creating your station (Start Radio)

Start Radio is to start a radio channel based on the currently played track.

Create your station.

On the source control screen, touch as follows:

Station is created and playback starts automatically.

• You can personalize your station using thumb up

([ ]) or thumb down ([ ]).

– You cannot thumb up or down while playing tracks

in a playlist.

– Personalizing stations may not be available

depending on the track.

ENGLISH

SpotifySpotify Other External Components Other External Components

Selecting a track

1 Display the Spotify menu screen.

On the source control screen, touch as follows:

2 Select the list type, then select a desired

item.

The list types displayed differ depending on the information sent from Spotify.

• To return to the top layer, touch [ ] .

• To return to the upper layer, touch [

AV-IN

Connecting an external component

See page 44 for more information.

Starting playback

1 Select “AV-IN” as the source. 2 Turn on the connected component and

start playing the source.

Changing the AV-IN name

You can change the AV-IN name displayed on the source control screen.

• This setting does not affect the source name displayed on the Home screen.

1 Display the <VIDEO Mode> screen.

On the source control screen, touch as follows:

2 Select an AV-IN name.

Rear view camera

Install the rear view camera (separately purchased) in the appropriate position according to the instructions supplied with the rear view camera.

Connecting a rear view camera

See page 44 for more information.

• To use the rear view camera, a reverse lead (REVERSE) connection is required. (Page 43)

Using the rear view camera

• For rear camera settings, see <Rear Camera> on page 35.

To display the rear view camera screen

The rear view screen is displayed by shifting the gear to the reverse (R) position when <Rear Camera Interruption> is set to [ON]. (Page35)

• A caution message appears on the screen. To remove the caution message, touch the screen.

You can also display the picture from the rear view camera manually without shifting the gear to the reverse (R) position.

On the pop-up short-cut menu, touch as follows:

ENGLISH

Other External ComponentsOther External Components

Bluetooth® Bluetooth®

Operations while the camera screen is

displayed

To adjust the picture

Touch the area shown below.

Video menu control screen is displayed. For details, see “Video menu control operations” on page11.

• To exit video menu control screen, touch the same area again.

To display parking guidelines

Set <Parking Guidelines> to [ON] (Page35) or touch the area shown below.

• To close the parking guidelines, touch the same area again.

To exit the camera screen

Press on the monitor panel or touch the area shown below.

Information

Bluetooth is a short-range wireless radio communication technology for mobile devices such as mobile phones, portable PCs and other devices. Bluetooth devices can be connected without cables and communicate with each other.

Note

• While driving, do not perform complicated operations such as dialing numbers, using the phone book, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not connect to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting conditions may vary depending on your environment.

• For some Bluetooth devices, the device is disconnected when the unit is turned off.

• If your mobile phone supports PBAP (Phone Book Access Profile), you can display the following items on the touch panel when the mobile phone is connected.

– Phone book – Dialed calls, received calls, and missed calls (up to

10 entries in total)

Preparation

Connect and install the microphone beforehand. For details, see page 43.

Connection

When you connect a Bluetooth device to the unit for the first time: 1 Register the device by pairing the unit and the

device.

2 Connect the device to the unit. (Page25)

Registering a new Bluetooth device

Pairing allows Bluetooth devices to communicate with each other.

• The pairing method differs depending on the Bluetooth version of the device.

– For devices with Bluetooth 2.1:

You can pair the device and the unit using SSP

(Secure Simple Pairing) which only requires confirmation.

– For devices with Bluetooth 2.0:

You need to enter a PIN code both on the device

and unit for pairing.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Two devices for Bluetooth phone and one for Bluetooth audio can be connected at a time. However, when “BT Audio” is selected as the source, you can connect up to five Bluetooth audio devices and switch between these five devices.

• To use the Bluetooth function, you need to turn on the Bluetooth function of the device.

ENGLISH

Bluetooth®Bluetooth®

Auto pairing

When <Auto Pairing> is set to [ON] (Page29), iOS devices (such as iPhone) are automatically paired when connected via USB.

Pairing a Bluetooth device using SSP (for Bluetooth 2.1)

When the Bluetooth device is compatible with Bluetooth 2.1, a pairing request is sent from the available device.

1 Search for the unit (“JVC KW-V”) from your

Bluetooth device.

2 Confirm the request both on the device

and the unit.

On the device:

On the unit:

Pairing a Bluetooth device using a PIN code (for Bluetooth 2.0)

1 Display the <PIN Code Set> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch as follows: [System]  <Bluetooth Setup> : [Enter]

On the <Bluetooth Setup> screen, touch as follows:

<PIN Code> : [0000]

2 Change the PIN code.

If you wish to skip changing the PIN code, go to step 3.

• To delete the last entry, touch [Clear].

• To delete the PIN code, touch and hold [Clear].

3 Search for the unit (“JVC KW-V”) from your

Bluetooth device.

4 Select the unit (“JVC KW-V”) on your

Bluetooth device.

• If a PIN code is required, enter “0000” (initial) or the new PIN code you have entered in step 2.

• When pairing is completed, the device is registered on the <Paired Device List> screen.

Note

• The PIN code is initially set to “0000”.

• The maximum number of digits of the PIN code is 15.

Connecting/disconnecting a registered

Bluetooth device

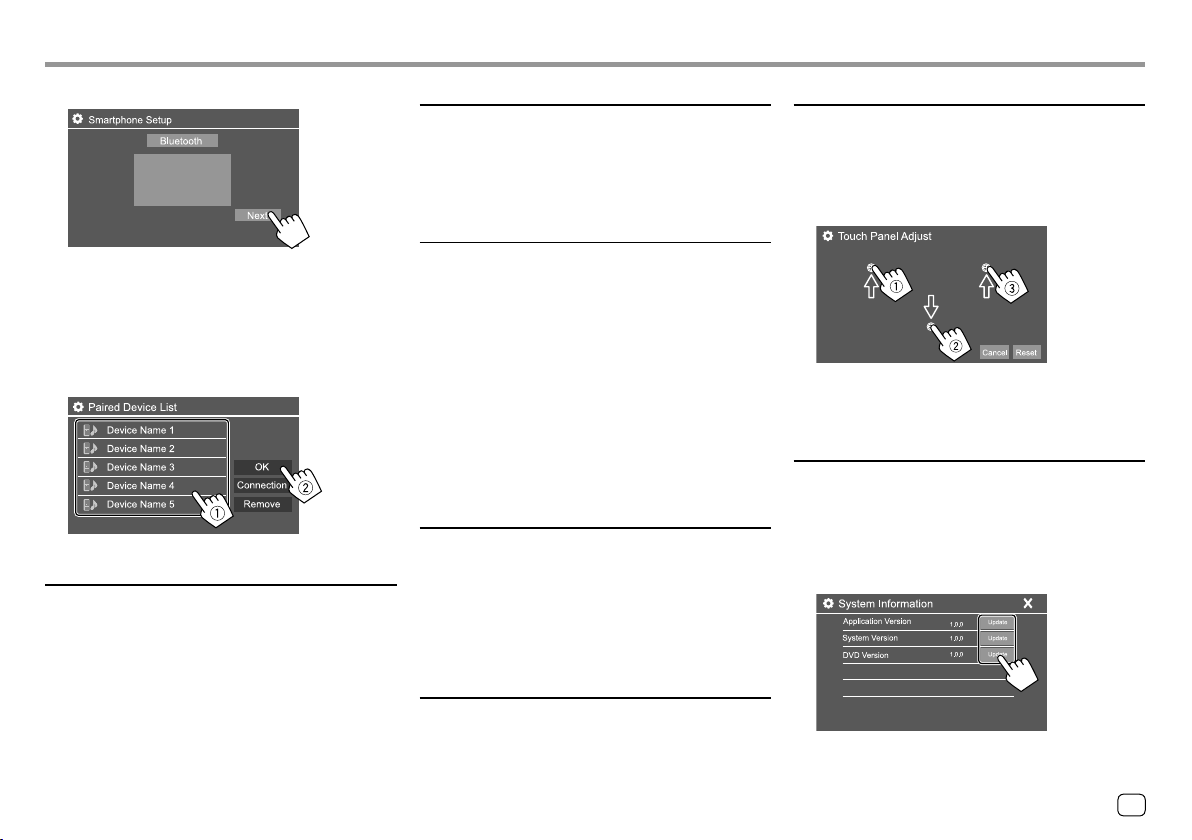

1 Display the <Paired Device List> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch as follows: [System]  <Bluetooth Setup> : [Enter]

On the <Bluetooth Setup> screen, touch as follows:

<Paired Device List> : [Enter]

To reject the request: Touch [Cancel].

ENGLISH

Bluetooth®Bluetooth®

2 Select the device (1) you want to connect,

then touch [Connection] (

2).

3 Select the device (1) to connect, then

return to the <Paired Device List> (

Select [ON] (to connect) or [OFF] (to disconnect).

: Mobile phone : Audio device

2).

4 Connect the selected device.

• The status is shown as follows:

<Connecting>: Connection is in progress. <Connected>: A connection has been established. <Connect Ready>: A connection is ready to be

established.

<Disconnecting>: Disconnection is in progress. <Disconnected>: No connection is established.

• When a Bluetooth mobile phone is connected, the signal strength and battery level are displayed when the information is acquired from the device.

To delete the registered device: Perform step 1, select the device you want to delete in step 2, then touch [Remove].

• A confirmation message appears. Touch [Yes].

Bluetooth mobile phone

When a call comes in...

Touching the operation keys performs the following actions:

During a call...

Touching the operation keys performs the following actions:

[ ]

[ [ ]

[DTMF] Enters DTMF (Dual Tone Multi

NR LEVEL [–] / [+]

EC LEVEL [–] / [+]

MIC LEVEL [–] / [+]

• Press the volume + / – buttons on the monitor panel

to adjust the volume of the call or earpiece.

Ends a call.

] /

Switches between handsfree mode and phone mode.

Frequency), then sends text using the keypad.

Adjusts the noise reduction level. (–5 to 5)

Adjusts the echo volume level. (–5 to 5)

Adjusts the volume level of the microphone. (–10 to 10)

ENGLISH

[ ]

[

• Call information is displayed if acquired.

• Phone operation is not available while the picture from the rear view camera is displayed.

]

Answers a call.

Rejects a call.

Bluetooth®Bluetooth®

Making a call

1 Display the phone control screen.

On the Home screen, touch as follows:

2 Select a method to make a call.

1 From the call history* (missed calls/received

calls/dialed calls)

2 From the phone book* 3 From the preset list (Page28) 4 Use direct number entry 5 Use voice dialling

* Applicable only for mobile phone compatible with PBAP (Phone

Book Access Profile).

3 Select a contact (1), then make a call (2).

When item 1, 2 or 3 is selected in step 2:

To use alphabet search in the phone book

1 Touch [ A-Z]. 2 Touch the first letter you want to search for on

the keypad.

To search for a number, touch [1,2,3...]. 3 Select a contact you want to call from the list.

Phone book search results:

“Sort order”, “display order” or any other equivalent settings of the phone may affect and show different search results (page display) of the phone book shown on the main unit.

To display other phone numbers in the same contact

You can store up to 10 phone numbers per contact.

1 Touch [ ]. 2 Select a contact you want to call from the list.

When item 4 is selected in step 2:

Enter the phone number (1), then make a

call (

2).

When item 5 is selected in step 2:

Say the name of the person you want to

call.

• Available only when the connected mobile phone has a voice recognition system.

• If the unit cannot find the target, “Please speak into the microphone” appears. Touch [Start], then say the name again.

• To cancel voice dialling, touch [Cancel].

Switching between two connected devices

You can change the device to use when two devices are connected.

On the phone control screen:

The active device is highlighted.

• To enter “+”, touch and hold [0/+].

• To delete the last entry, touch [ ] .

ENGLISH

Bluetooth®Bluetooth®

Presetting phone numbers

You can preset up to five phone numbers.

1 Display the phone control screen.

On the Home screen, touch as follows:

2 Select call history or phone book calling

method ( preset.

1), then select a contact (2) to

3 Select a preset number to store into.

(Hold)

Bluetooth audio player

JVC Streaming DJ

When “BT Audio” is selected as the source, you can connect up to five Bluetooth audio devices at the same time. You can easily switch between these five devices by playing music from the device.

1 Tag data* (current track title/artist name/album

title)

• Pressing [H] scrolls the text if not all of the text is shown.

2 Signal strength and battery level

(Appear only when the information is acquired from the device.)

3 Playing time*/playback status* 4 Connected device name

• Touching the device name switches to another connected Bluetooth audio device.

* Available only for devices compatible with AVRCP 1.3.

Playback information and key operation

• For playback information, see “Source control screen” on page6.

• For key operations on the touch panel, see “Common operation keys on source control screen” on page7.

Additional keys operations: Touching the operation keys performs the following actions.

[ ]

Displays <Bluetooth Setup> screen.

To delete the contact in the preset number: Touch [ ] besides the contact on the preset list.

ENGLISH

Bluetooth®Bluetooth®

Selecting an audio file from the menu

1 Display the audio menu.

On the source control screen, touch as follows:

2 Select a category (1), then select a

desired item (

Select an item in each layer until you reach and select the desired file.

2).

Bluetooth settings

You can change various settings for using Bluetooth devices on the <Bluetooth Setup> screen.

1 Display the <Bluetooth Setup> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch as follows: [System]  <Bluetooth Setup> : [Enter]

2 Make the settings.

Display the list of registered devices. You can connect a device or delete registered devices.

Change the PIN code of the unit.

Show the device name of this unit to be shown on the Bluetooth device — JVC KW-V.

Show the device address of the unit.

• ON (Initial): Automatically establishes a

connection with the last connected Bluetooth device when the unit is turned on.

• OFF: Cancels.

Select the speakers used for Bluetooth mobile phones and Bluetooth audio players.

• Front Only: Front speakers only.

• All (Initial): All speakers.

• ON: The unit answers the incoming calls

automatically in 5 seconds.

• OFF (Initial): The unit does not answer the calls

automatically. Answer the calls manually.

• ON (Initial): Establishes pairing automatically

with the iOS device (such as iPhone) connected via USB. (Auto pairing may not work for some devices depending on the iOS version.)

• OFF: Cancels.

Touch and hold [Enter] to reset all settings you have made for using Bluetooth mobile phones and Bluetooth audio players.

ENGLISH

Settings Settings

Audio settings

Display the <Audio> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch [Audio].

E.g. Audio settings screen

You cannot change the <Audio> screen in the following situations:

• When the AV source is turned off.

• When the Bluetooth phone is used (making or receiving a call, during a call, or while voice dialling).

The following adjustments are memorized for each source until you adjust the sound again. If the source is a disc, the adjustments are stored for each of the following categories.

• DVD/VCD

• CD

• DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC/FLAC

You cannot adjust the sound when the unit is in standby.

Selecting a preset sound mode

Select a preset sound mode on the <Equalizer> screen.

• Flat (Initial)/Hard Rock/Pop/Hip Hop/R&B/Jazz/ Classical/drvn 3/drvn 2/drvn 1/User

• To apply the adjusted equalizer to all playback sources, touch [ALL SRC], then touch [OK] to confirm.

Store your own sound adjustments

1 Select a preset sound mode. 2 Select a band (1) and adjust the level (2),

then adjust the sound (

3).

Adjust the sound as follows:

Adjusts the width of the frequency.

• 1.35/1.5 (Initial)/2.0

Activates/deactivates bass.

• ON/OFF (Initial)

Adjusts the subwoofer level.*

• –50 to +10 (Initial: 0)

• To clear the adjustment, touch [EQ INIT].

3 Repeat step 2 to adjust the level of other

bands.

* Not adjustable when <None> is selected for subwoofer on the

<Speaker Select> screen. (Page 31)

Adjust the sound effect.

Adjusts loudness.

• OFF (Initial)/Low/High

Selects the bass boost level.

• OFF (Initial)/Level 1/Level 2/Level 3/Level 4/

Level5

Reduces the driving noise by raising the bandwidth.

• OFF (Initial)/ON

ENGLISH

SettingsSettings

<Space Enhancement>*1 Virtually enhances the sound space using the Digital Signal Processor (DSP) system. Select the enhance level.

• OFF (Initial)/Small/Medium/Large

<K2>*2 Restores the sound lost due to audio compression to a realistic sound.

• OFF/ON (Initial)

Virtually makes the sound more realistic using the Digital Signal Processor (DSP) system. Select the sound level.

• OFF (Initial)/Level 1/Level 2/Level 3

Moves the center of the sound to the lower or higher point. Select the height.

• OFF (Initial)/Low/Middle/High

*1 You cannot change the setting when “Tuner” or “DAB” (only for

KW-V255DBT) is selected as the source.

*2 This function works only when “DISC”/ “USB”/ “iPod”/

“Android™” is selected as the source.

Touch [J]/[K]/[H]/[I] or drag the mark to adjust.

<Fader>

Adjusts the front and rear speaker output balance. When using a two-speaker system, set the fader to the center (0).

• F15 to R15 (Initial: 0)

Adjusts the left and right speaker output balance.

• L15 to R15 (Initial: 0)

To clear the adjustment: Touch [Center].

Preparation:

Before making the adjustment for <Speaker/X'over>, select the appropriate crossover network mode according to the speaker system (2-way speaker system or 3-way speaker system).

1 Turn off the AV source.

On the Home screen, touch as follows:

2 Display the <X’over Network> screen.

On the monitor panel, press and volume – buttons at the same time.

3 Select the crossover network mode.

[2way] Select this when 2-way system

speakers are used (front/rear).

[3way] Select this when 3-way system

speakers are used (tweeter/mid range/woofer).

A confirmation message appears. Touch [Yes].

Setting the speakers and crossover

frequency

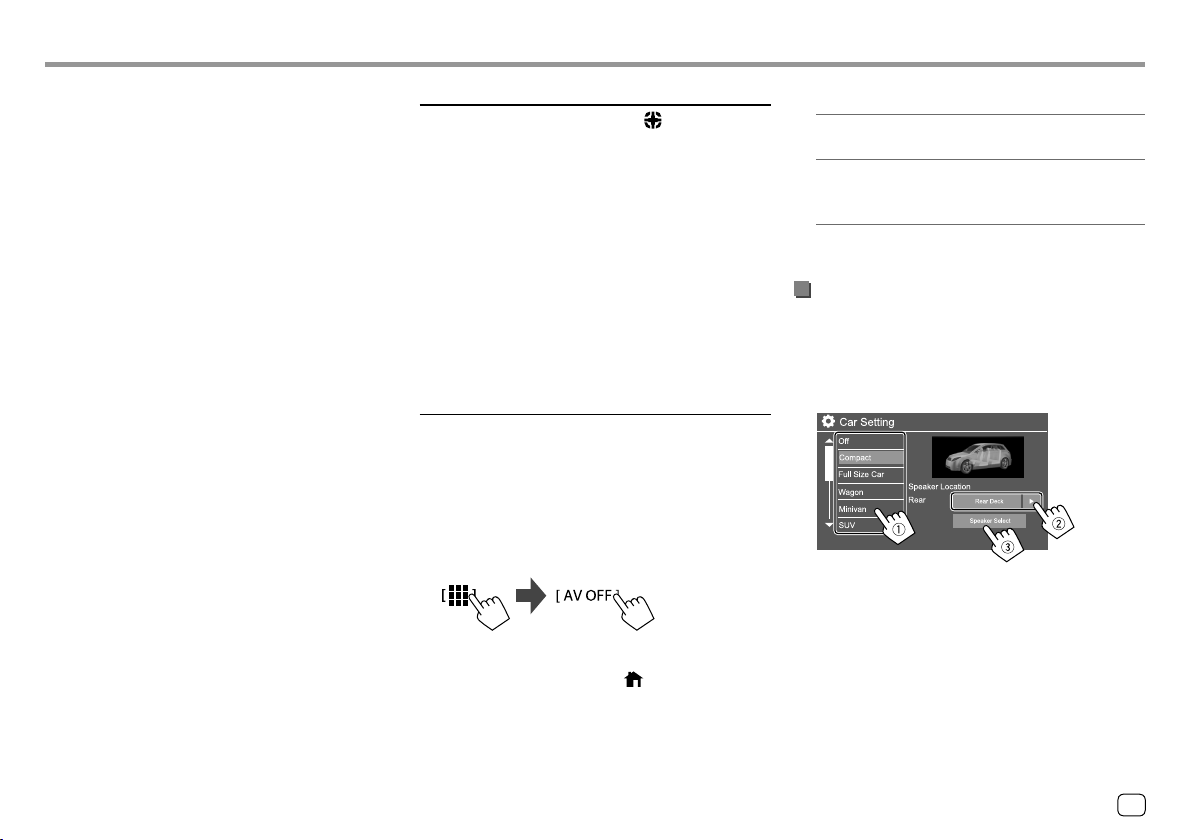

1 Select a car type (1), select the location

of the speakers ( <Speaker Select> screen (

* Speaker location selection is available only when

<X’overNetwork> is set to [2way].

2)*, then display the

3).

31ENGLISH

SettingsSettings

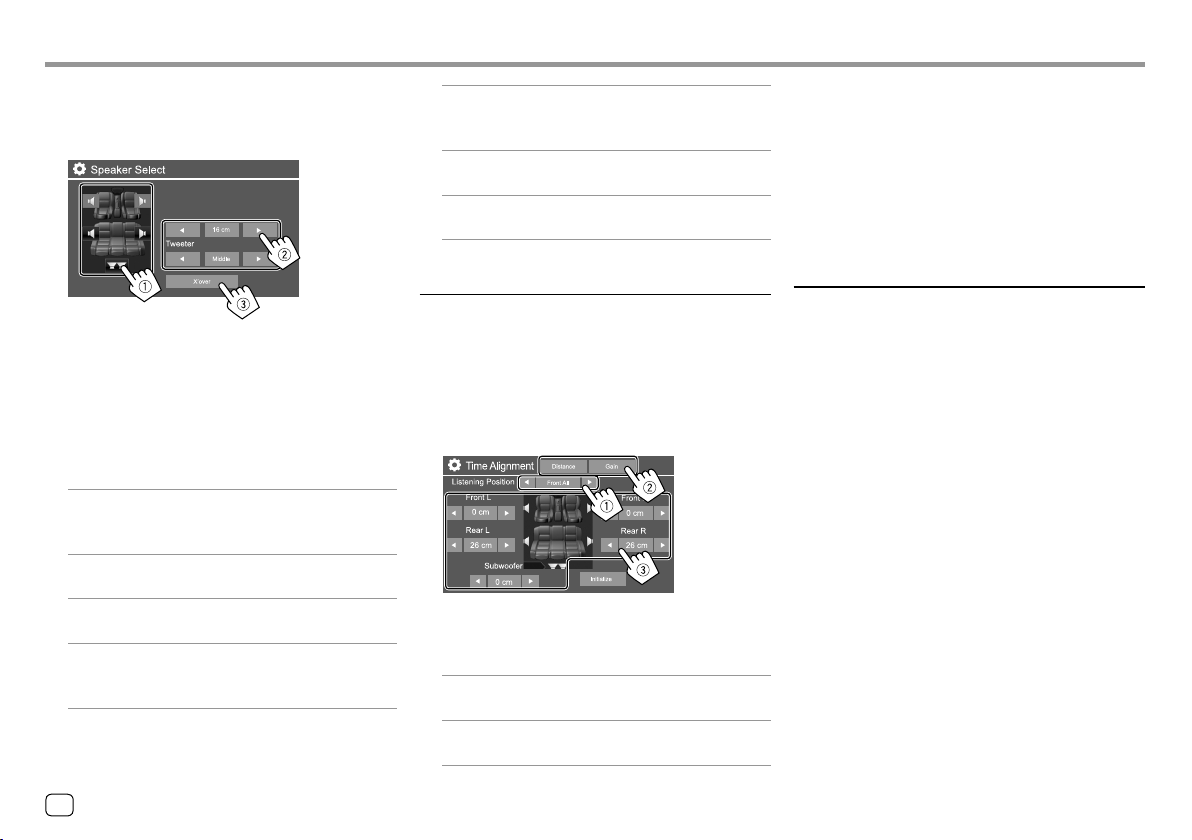

Select the speaker type (1), select the size of the selected speaker ( the <X’over> screen (

• If no speakers are connected, select <None>.

• When setting the front speakers, also select the

speaker size for <Tweeter>.

2), then display

3).

3 Adjust the crossover frequency of the

selected speaker.

• Adjustable items vary depending on the selected speaker type/speaker size/crossover settings.

<TW Gain (L)>/<TW Gain (R)> Adjusts the output volume of the tweeter (left/ right).

Adjusts the crossover frequency for the tweeter.

<Gain>

Adjusts the output volume of the selected speaker.

Adjusts the crossover frequency for the front or rear speakers (high pass filter).

Adjusts the crossover frequency for the speaker (low pass filter).

<Slope>

Adjusts the crossover slope.

<Phase>

Selects the phase for the speaker.

Make fine adjustments to the delay time of the speaker output to create a more suitable environment for your car.

Select the listening position (1), select [Distance] or [Gain]( adjustment, then adjust each speaker setting (

3).

1 Select from <All>, <FrontL>, <Front R> or

<Front All>*.

2 Select an item to adjust.

[Distance] Adjusts the digital time alignment

[Gain] Adjusts the output volume of the

2) to make an

value.

selected speaker.

3 To determine the adjustment value, see

“Determining the value for <Position DTA> adjustment” on page 33.

To initialize the setting value: Touch [Initialize].

* <Front All> is selectable only when <X'over Network> is set to

[2way].

Adjust and store the auto-adjustment volume level for each source. If the source is a disc, the adjustment is stored for each of the following categories:

• DVD/VCD

• CD

• DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC/FLAC The volume level will automatically increase or decrease when you change the source.

• –15 to +6 (Initial: 00)

ENGLISH

SettingsSettings

Determining the value for <Position DTA> adjustment

If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set. 1 Determines the center of the currently set

listening position as the reference point.

2 Measures the distances from the reference point

to the speakers.

3 Calculates the differences between the distance

of the furthest speaker and other speakers.

4 Sets the DTA value calculated in step 3 for

individual speakers.

5 Adjusts gain for individual speakers.

E.g. When <Front All> is selected as the listening position

+90 cm

60 cm

80 cm

150 cm

+70 cm

Display settings

Display the <Display> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch [Display].

E.g. Display settings screen

• Auto (Initial): Dims the screen and button

illumination when you turn on the headlights.

• ON: Activates dimmer.

• OFF: Deactivates dimmer.

You can change the display design. While playing a video or picture, you can capture an image and use the captured image as a background.

• You cannot capture copyrighted content and images.

• When using a JPEG file as the background, make sure that the resolution is 800 x 480 pixels.

• The color of the captured image may look different from that of the actual scene.

1 Change the background design Display the background design selection screen (1), select the dimmer setting (2) ([ ]: dimmer on or [ ]: dimmer off), then select the background design (3).

When one of these is selected, you can change the background color.

+0 cm

33ENGLISH

SettingsSettings

2 Change the illumination color of the

background design

Display the background color selection screen (1), then select the background color (2).

• You can also adjust the color yourself. Touch

[Adjust] to display the color adjustment screen, then adjust the color. The adjustment is saved on [User].

3 Activate Music Synchronize Effect By activating the Music Synchronize Effect, the brightness of illumination bar on the monitor panel changes according to the music level.

Display the music synchronize setting screen (1), then select [ON] (2).

To deactivate, touch [OFF].

Storing your own scene for the background


1 While playing a video or picture, display

the <User Customize> screen.

On the <Display> screen, touch as follows: <User Customize>: [Enter]

2 Display the background design selection

screen, then touch [

Capture].

3 Adjust the image (1), then capture the

image (

2).

[J][K][H][I]

]

[

IW ]*

[

A confirmation message appears. Touch [Yes] to store the newly captured image. (The existing image is replaced with the new one.)

• To return to the previous screen, touch [No].

• To cancel the capture, touch [Cancel].

* Not displayed when playing an external component connected to

the AV-IN input terminal.

Moves the zooming frame. Magnifies the scene.

• <OFF>/<Zoom1>/<Zoom2>/

<Zoom3>

Starts/pauses playback.

Advances scenes frame by frame.

• ON: Displays the clock while a video source is playing.

• OFF (Initial): Cancels.

• ON (Initial): Activates the display demonstration.

• OFF: Deactivates the display demonstration.

• ON: Scrolls the displayed information repeatedly.

• Once (Initial): Scrolls the displayed information once.

• OFF: Cancels.

E.g. Image adjustment screen

Touching [H] scrolls the text regardless of this setting.

ENGLISH

SettingsSettings

Selects the playback source to display on the Home screen.

Select an item to replace (1), then select an item (

2) you want to display in the selected

position.

Repeat the procedure to customize your Home screen.

• Only selectable sources are shown.

• You cannot locate [Camera] on the Home screen.

• Touching and holding the playback source icon on the Home screen can also display the item selection screen.

Adjust the brightness and blackness of the screen. Select [DIM ON] (dimmer on) or [DIM OFF] (dimmer off), then change the following settings:

<Black>

Adjusts blackness.

• –10 to +10 (Initial: 0)

Select the color system of the external monitor.

• NTSC/PAL (Initial)

“Please Power Off” appears when the setting is changed. Turn off the power, then turn on to enable the change.

Select the viewing angle in relation to the monitor to make the screen on the panel easier to see.

• Under 0° (Initial)/5°/10°/15°/20°

Input settings

Display the <Input> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch [Input].

E.g. Input settings screen

Configure the rear view camera settings.

• ON (Initial): Displays the picture from the rear view

camera when you shift the gear to the reverse (R) position.

– A caution message appears on the screen. To

remove the caution message, touch the screen.

• OFF: Select this when no camera is connected.

Adjusts brightness.

• –15 to +15 (Initial: 0 for dimmer on, +15 for dimmer off)

• ON (Initial): Displays the parking guidelines.

• OFF: Hides the parking guidelines.

ENGLISH

SettingsSettings

Adjust the parking guidelines according to the size of the car, parking space and so on. When adjusting the parking guidelines, make sure to use the parking brake to prevent the car from moving.

Select the selected mark (2).

Make sure that A and B are horizontally parallel, and that C and D are the same length.

• Touch and hold [Initialize ] for 2 seconds to set all the marks to the initial default position.

mark (1), then adjust the position of the

Initialize

System settings

Display the <System> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch [System].

E.g. System settings screen

Select the text language used for on-screen information. For details, see “Initial settings” on page4.

“Please Power Off” appears when the setting is changed. Turn off the power, then turn on to enable the change.

<Clock>

Set the clock. For details, see “Clock settings” on page5.

Specify the connection method of Android/iPod/ iPhone.

1 Select the device type (1), then touch

[Change] (

2).

2 Select the connection method (1), then

confirm the selection ([OK] or [Next]) (

If [iPod/iPhone] is selected in step 1:

[USB 1 Wire] Select this when the device is

connected via the USB input terminal on the monitor panel.

[Bluetooth] Select this when the device is

connected via Bluetooth. (Go to step 3.)

2).

ENGLISH

SettingsSettings

If [Android/Other] is selected in step 1:

The <Paired Device List> screen appears. Go to step 3.

3 When selecting [Bluetooth] as the

connection method: Select the device ( then touch [OK] (

• If the device is already connected, skip step 1.

Configure settings for using a Bluetooth device, such as connection and other general operations. For details, see “Bluetooth settings” on page 29.

2) to connect.

<Beep>

This setting is available only when 2-way speaker system is selected. (Page 31)

• ON (Initial): Activates the key-touch tone.

• OFF: Deactivates the key-touch tone.

Memorize, recall, or clear the settings you have made.

• The memorized settings are kept even when the unit is reset.

Touch [Yes] to display the setting screen, then select

1),

an operation:

• Recall: Recalls the memorized settings.

• Memory: Memorizes the current settings.

• Clear: Clears the currently memorized settings and return to the factory (initial) settings.

• Cancel: Cancels.

A confirmation message appears. Touch [Yes].

<DivX(R) VOD>

This unit has its own Registration Code. Once you have played back a file with the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

• Touch [Enter] to display the information.

• To return to the previous screen, touch [OK].

Adjust the touch positions of the buttons on the screen.

Touch the center of the marks at the upper left (1), the lower center (2), then the upper right (3) as instructed.

• To reset the touch position, touch [Reset].

• To cancel the current operation, touch [Cancel].

Update the system by connecting a USB device containing an update file.

• To obtain the update file, visit <http://www.jvc.net/cs/car/>.

Connect a USB device with the update file to the unit.

Initialize all settings you have made. Touch and hold [Enter] to initialize the settings.

• After initializing the settings, adjust the settings on

the <Initial Settings> screen.

E.g. System settings screen for KW-V250BT

ENGLISH

SettingsSettings

Updates the system application.

Updates the system.

• If you turn the ignition switch off then on after

selecting <Update>, the unit will reset.

Updates the DVD system application.

<DAB module Version>*

Updates the Digital Radio (DAB) module application.

The system update starts. It may take a while. If the update has been completed successfully, “Update Completed” appears, then reset the unit.

• Do not disconnect the USB device while updating.

• If the update has failed, turn off the ignition switch and then on the ignition switch, and retry the update.

* Only for KW-V255DBT.

Shows the Open Source Licenses.

Key settings

Display the <Key Customize> screen.

On the Home screen, touch as follows:

Then, on the <Settings> screen, touch [Key].

Settings

Equalizer

Audio

Display

Sound Effect

Input

Fader / Balance

System

Speaker / X’over

Key

Time Alignment

E.g. Key settings screen

Enter

You can customize the pop-up short-cut menu (page

8).

• You can also customize the (favorite) button.

1 Select the menu to customize.

Key Customize

FNC

Key1 Key2

Settings Background

Favorite

Sound Effect

Key3 Key4

Screen

Adjustment

Rear Camera

2 Select an item (1) you want to display in

the selected menu, then touch [ × ] to set (

2).

Key Customize

FNC

Key1

Settings

Key1 Customize

Settings

Equalizer

Sound Effect

Fader / Balance

Car Setting

3 Repeat steps 1 and 2 to replace the other

menus.

• To customize the (favorite) button, touch the icon under favorite instead.

ENGLISH

Remote Controller Remote Controller (Only for KW-V255DBT/KW-V250BT Region 2)

You can use an optionally purchased remote controller, RM-RK258, for controlling this unit.

• Refer to the instruction manual that comes with the remote controller.

Remote sensor*

* DO NOT expose the remote sensor to bright

light (direct sunlight or artificial lighting).

Preparation

Removing the battery sheet

Pull the battery sheet out from the remote controller to activate the battery.

Changing the battery of the remote

controller

CR2025 (+side)

• Use a commercially available button battery (CR2025).

• Insert the battery with the + and – poles aligned properly.

– If the effectiveness of the remote controller

decreases, replace the battery.

WARNINGS

• Do not ingest the battery, as it presents a chemical burn hazard

The remote controller supplied with this product

contains a coin/button cell battery.

If the coin/button cell battery is swallowed, it can

cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely,

stop using the product and keep it away from children.

If you think batteries might have been swallowed or

placed inside any part of the body, seek immediate medical attention.

CAUTION

• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.

• Do not set the remote controller in hot places such as on the dashboard.

• Danger of explosion if Lithium battery is incorrectly replaced. Replace only with the same or equivalent type.

ENGLISH

Remote ControllerRemote Controller

Basic operations

ATT Attenuates/restores the sound.

DISP Displays the current source control

screen.

J/AM/K

FM/

VOL +/VOL – Adjusts the volume level.

SRC Selects the source.

I/W

* The search method differs depending on the selected seek mode.

• Tuner: – Selects the band.

• DAB (only for KW-V255DBT): – Selects the band (FM/J).

• Selects a title/item/folder.

• Tuner: – Searches for stations

automatically. (Press)*

– Searches for stations manually.

(Hold)*

• DAB (only for KW-V255DBT): – Selects the service. (Press) – Searches for service. (Hold)

• Selects a track. (Press)

• Starts/pauses playback.

• Tuner/DAB (only for KW-V255DBT):

Changes the seek mode (AUTO1, AUTO2, MANU).

Answers incoming calls.

0 – 9 Enters a number.

1 – 5 Enters a preset station (Tuner) or

preset service (DAB).

ANGLE Not used for this unit. ASPECT Changes the aspect ratio.

• To check the current aspect ratio setting, operate on the touch panel. (Page11)

ENT Confirms selection. DIRECT Enters direct search mode. CLR Erases the misentry.

Searching for an item directly

While listening to the Tuner, DAB or during disc playback, you can search for a station frequency/ chapter/title/folder/file/track directly using the number buttons.

• To search for a track from the VCD menu, perform during PBC playback.

1 Press DIRECT to enter the search mode.

• Each time you press DIRECT, the item to search

for changes.

2 Press a number button to select a desired

item (station frequency/chapter/title/ folder/file/track).

• To erase a misentry, press CLR.

Press ENT to confirm.

To exit the search mode: Press DIRECT.

JVC Remote APP

JVC Remote is an application that connects and controls compatible JVC car receivers via Bluetooth® like a wireless remote control.

You can also operate this unit from a Smartphone using JVC Remote APP. This application can display the source information of this unit on the smartphone’s screen, and enables the user to make an audio setting using the graphic user interface of this application. This application also works as a free standalone music player application, when your Smartphone is not connected to this unit.

• For details, visit <www.jvc.net/car/app/jvc_remote/>.

ENGLISH

Installation and Connection Installation and Connection

WARNINGS

• DO NOT connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire.

• DO NOT cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

• Always connect the ignition wire (red) and the battery wire (yellow) to the power source running through the fuse box.

CAUTIONS

• Install this unit in the console of your car.

• Do not touch the metal parts of this unit during and shortly after the use of the unit. Metal parts such as the heat sink and enclosure become hot.

Before installation

Precautions on installation and connection

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Mount the unit so that the mounting angle is 30° or less.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a location exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Do not press hard on the panel surface when installing the unit to the car. Otherwise scratches, damage, or failure may result.

• If the power is not turned on (“Miswiring DC Offset Error”, “Warning DC Offset Error” is displayed), the speaker wire may have a short circuit or have touched the chassis of the car and the protection function may have been activated. In this case, the speaker wire should be checked.

• Keep all cables away from heat dissipating metal parts.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the fuse blows, first make sure the wires are not touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps and do not let the cable out at the ends of the unconnected wires or the terminals.

• Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires and to prevent short circuit.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the them to any metal part in the car.

• When only two speakers are being connected to the system, connect both connectors either to the front output terminals or to the rear output terminals (do not mix front and rear). For example, if you connect the ª connector of the left speaker to a front output terminal, do not connect the · connector to a rear output terminal.

· wires or ground

Parts list for installation

Note: This parts list does not include all the package contents.

¥ Wiring harness (× 1) ø Extension wire, 2 m (× 1) π Microphone, 3 m (× 1) [ Mounting sleeve (× 1) “ Trim plate (× 1) ] Extraction keys (× 2)

ENGLISH

Installation and ConnectionInstallation and Connection

Installation procedure

1 Remove the key from the ignition and

disconnect the

· battery.

2 Make the proper input and output wire

connections for each unit.

3 Connect the speaker wires of the wiring

harness.

4 Take Connector B on the wiring harness

and connect it to the speaker connector in your vehicle.

5 Take Connector A on the wiring harness

and connect it to the external power connector in your vehicle.

6 Connect the wiring harness to the unit. 7 Install the unit in your car.

Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (e.g., the sound may skip).

8 Reconnect the · battery. 9 Press the reset button on the monitor

panel. (Page3)

10 Configure <Initial Settings>. (Page4)

Installing the unit

Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

Installing the trim plate

Remove the separator of the trim plate (“), then attach the trim plate (

“) to the unit.

“

Removing the unit

1 Remove the trim plate (“).

“

2 Remove the unit by inserting the two

extraction keys ( illustrated.

Be careful to avoid injury from the catch pins on the extraction key.

]), then pulling them as

]

ENGLISH

Installation and ConnectionInstallation and Connection

Wiring connection

Aerial input jack*1

- - - - - (Or) - - - - -

DAB aerial input jack*2

*1 Only for KW-V250BT: Connect the

aerial cord.

*2 Only for KW-V255DBT: Connect the

DAB aerial (separately purchased). *3 Only for KW-V255DBT. *4 For 3-way speaker system

connection, see page 44.

10 A fuse

Purple with white stripe

Light green

Light blue with yellow stripe

Yellow (Battery wire)

Red (Ignition wire)

Red (A7)

Yellow (A4)

Connector A

Connector B

Connect the aerial cord to the aerial input terminal

To the car’s reverse lamp harness when using the optional rear view camera

Extension wire (

To the OE remote adapter (not supplied) which is compatible with your car (If no connections are made, do not let the cable come out from the tab.)

Connecting the ISO connectors

You may need to modify the wiring of the supplied wiring harness as illustrated below.

Red

(Ignition wire)

Yellow

(Battery wire)

Default wiring

Red (A7)

Yellow (A4)

)

Pin Color and Function

A4 A5 A6 A7

Connector A

VehicleUnit

B1/B2 B3/B4 B5/B6

Connector B

B7/B8

To the car’s parking brake detection switch harness (For best safety, be sure to connect the parking sensor.)

Yellow Blue/White Orange/White Red Black

Purple

]

/ Purple/Black Gray ] / Gray/Black White ] / White/Black Green ] / Green/Black

: Battery : Power control (12 V 350 mA) : Dimmer : Ignition (ACC) : Ground connection

: Right speaker (Rear/Tweeter*4)

[

: Right speaker (Front/Mid Range*4)

[

: Left speaker (Front/Mid Range*4)

[

: Left speaker (Rear/Tweeter*4)

[

43ENGLISH

Installation and ConnectionInstallation and Connection

References References

Connecting external components

1 Microphone input (MIC) (Page 43) 2 Audio video input (AV-IN)

Connect the following type of 4-pole mini plug:

Left audio

Right audio

Ground

Composite video

3 Video output (V-OUT) 4 Rear view camera input (R-CAM) 5 Output terminals*

• Left output (White)

• Right output (Red) REAR: Rear speaker preouts FRONT: Front speaker preouts SW: Subwoofer preouts For 3-way crossover: REAR: Tweeter preouts FRONT: Mid range speaker preouts SW: Woofer preouts

* When connecting an external amplifier, connect its ground wire

to the chassis of the car; otherwise the unit may be damaged.

Maintenance

Cleaning the unit

• Do not use any solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit.

• Gently wipe the panel with a soft, dry cloth.

Handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc.

More information

About playable files

Audio files

• This unit can play back the following files with following codec and extension code:

– For disc: MP3(.mp3), WMA(.wma), WAV(.wav),

AAC(.m4a)

– For USB mass storage class device: MP3(.mp3),

WMA(.wma), WAV(.wav), AAC(.aac, .m4a), FLAC(.flac)

• This unit can play back files that meet the conditions below:

– Bit rate: MP3: 8 kbps – 320 kbps WMA: For disc: 5 kbps – 320 kbps For USB : 32 kbps – 192 kbps AAC: 16 kbps – 320 kbps

– Sampling frequency: MP3: 16 kHz – 48 kHz WMA: 8 kHz – 48 kHz WAV: 44.1 kHz AAC: 32 kHz – 48 kHz FLAC: 8 kHz – 96 kHz

– Files recorded in VBR (variable bit rate), and have a

discrepancy in elapsed time indication

• This unit can show or display the following: – Tag:

MP3: ID3 Tag (version 1.0/1.1/2.2/2.3/2.4) WMA Tag WAV Tag AAC Tag FLAC Tag

– Jacket picture:

Picture size: 32 × 32 to 1 232 × 672 resolution Data size: Less than 500 KB File type: JPEG

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio.

ENGLISH

ReferencesReferences

– WMA/AAC files copy-protected with DRM. – AAC files copy-protected with FairPlay (except

those stored on an iPod/iPhone).

– Files which have data such as AIFF, ATRAC3, etc.

Video files

• This unit can play back the following files with following codec and extension code:

– DivX(.divx, .div, .avi) regardless of the letter case—

upper/lower

– MPEG1/MPEG2 (.mpg, .mpeg)

• Streams that conform to:

– DivX:

Audio: MP3 or Dolby Audio

– MPEG1/MPEG2:

Audio: MPEG1 Audio Layer-2 or Dolby Audio

Video: MPEG system/program stream

• Other playable conditions:

– Video file size: Less than 2 GB – DivX: Bit rate: 8 Mbps (maximum for average video

signals)

– MPEG1/MPEG2: File format: MP@ML (Main Profile at

Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level)

• This unit cannot play back the following files:

– DivX files encoded in the interlaced scanning

mode.

Picture files

• This unit can play back the following files with following codec and extension code:

– JPEG(.jpg, .jpeg)

• Other playable conditions:

– Resolution: 32 × 32 to 8192 × 7680 (It may take

time to display the file depending on its resolution.)

– Baseline JPEG files

• This unit cannot play back the following files:

– Progressive JPEG files – Lossless JPEG files

About disc playback

Playable disc types

• CD-DA: Audio CD, CD Text

• DVD Video: Region code: 2

• Dual Disc: DVD side

• VCD: Video CD (PBC compatible)

• DVD Recordable/Rewritable (DVD-R/-RW, +R/+RW)

– DVD Video: UDF bridge – ISO 9660 level 1, level 2, Romeo, Joliet – Other playable formats:

DVD-R recorded in multi-border format (except for dual layer discs)

Finalized +R/+RW (Video format only)

• CD Recordable/Rewritable (CD-R/-RW):

– ISO 9660 level 1, level 2, Romeo, Joliet

• Other information:

– While playing a DVD Video, DTS sound cannot be

reproduced or emitted from this unit.

– This unit can recognize a total of 5 000 files and

250 folders (a maximum of 999 files per folder) in a

recordable/rewritable disc. – Use only “finalized” recordable/rewritable discs. – This unit can play back multi-session recordable/

rewritable discs; however, unclosed sessions will be

skipped while playing.

Unplayable disc types and formats

• DVD-Audio/DVD-ROM discs

• SVCD (Super Video CD), CD-ROM, CD-I (CD-I Ready), DTS-CD

• MPEG4/DivX/AAC (.aac)/FLAC/MKV/DVD–VR/ DVD+VR/DVD-RAM recorded on DVD-R/RW or +R/+RW

• MPEG4/DivX/AAC (.aac)/FLAC/MKV recorded on CD-R/RW

• DVD-RW dual layer discs

• +RW double layer discs

• Non-DVD side of a “DualDisc” which does not comply with the “Compact Disc Digital Audio” standard

• Discs that are not round.

• Discs with coloring on the recording surface or discs that are dirty.

• Recordable/Rewritable discs that have not been finalized.

• 8 cm discs. Attempting to insert these discs using an adapter may cause a malfunction.

• Some recordable/rewritable discs or files may not be played back due to their characteristics or recording conditions.

ENGLISH

ReferencesReferences

Language codes (for DVD language selection)

AA Afar GD Scots Gaelic AB Abkhazian GL Galician AF Afrikaans GN Guarani AM Ameharic GU Gujarati AR Arabic HA Hausa AS Assamese HI Hindi AY Aymara HR Croatian AZ Azerbaijani HU Hungarian BA Bashkir HY Armenian BE Byelorussian IA Interlingua BG Bulgarian IE Interlingue BH Bihari IK Inupiak BI Bislama IN Indonesian BN Bengali, Bangla IS Icelandic BO Tibetan IW Hebrew BR Breton JA Japanese CA Catalan JI Yiddish CO Corsican JW Javanese CS Czech KA Georgian CY Welsh KK Kazakh DZ Bhutani KL Greenlandic EL Greek KM Cambodian EO Esperanto KN Kannada ET Estonian KO Korean (KOR) EU Basque KS Kashmiri FA Persian KU Kurdish FI Finnish KY Kirghiz FJ Fiji LA Latin FO Faroese LN Lingala FY Frisian LO Laothian GA Irish LT Lithuanian

LV Latvian, Lettish SM Samoan MG Malagasy SN Shona MI Maori SO Somali MK Macedonian SQ Albanian ML Malayalam SR Serbian MN Mongolian SS Siswati MO Moldavian ST Sesotho MR Marathi SU Sundanese MS Malay (MAY) SW Swahili MT Maltese TA Tamil MY Burmese TE Telugu NA Nauru TG Tajik NE Nepali TH Thai NO Norwegian TI Tigrinya OC Occitan TK Turkmen OM (Afan) Oromo TL Tagalog OR Oriya TN Setswana PA Panjabi TO Tonga PL Polish TR Turkish PS Pashto, Pushto TS Tsonga QU Quechua TT Tatar RM Rhaeto-Romance TW Twi RN Kirundi UK Ukrainian RO Rumanian UR Urdu RW Kinyarwanda UZ Uzbek SA Sanskrit VI Vietnamese SD Sindhi VO Volapuk SG Sangho WO Wolof SH Serbo-Croatian XH Xhosa SI Singhalese YO Yoruba SK Slovak ZU Zulu SL Slovenian

About USB playback

Important

Make sure all important data has been backed up to avoid losing the data. We bear no responsibility for any loss of data stored in the devices while using this unit.

Playable files on a USB device

• This unit can play the following types of files stored in a USB mass storage class device.

– JPEG/Divx/MPEG1/MPEG2/MP3/WMA/WAV/AAC

(.aac/.m4a)/FLAC

• This unit can recognize:

– A total of 5 000 files – 250 folders for video files and a maximum of 999

files per folder

– 250 folders for photo files and a maximum of 999

files per folder

– 999 folders for audio files and a maximum of 999

files per folder

• The maximum number of characters (when the characters are 1 byte):

– Folder names: 50 characters – File names: 50 characters

Notes on using a USB device

• Avoid using the USB device if it might affect driving safety.

• When connecting with a USB cable, use a USB 2.0 cable.

ENGLISH

ReferencesReferences Troubleshooting Troubleshooting

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.

• Do not pull out and connect the USB device repeatedly while “Reading” is shown on the screen.

• Operation and power supply may not work as intended for some USB devices.

• Do not leave a USB device in the car, or expose to direct sunlight or high temperatures to prevent deformation or damage to the device.

Unplayable USB device

• This unit may not play back files in a USB device properly when using a USB extension cable.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• This unit may not recognize a memory card inserted into a USB card reader.

About iPod/iPhone

Important

Make sure all important data has been backed up to avoid losing the data. We bear no responsibility for any loss of data stored in the devices while using this unit.

iPod/iPhone that can be connected

• Via the USB terminal: Made for

– iPod nano (7th Generation) – iPod touch (5th and 6th Generation) – iPhone 4S, 5, 5C, 5S, 6, 6Plus, 6S, 6SPlus, SE, 7,

7Plus, 8, 8Plus, X

• Via Bluetooth: Made for

– iPod touch (5th and 6th Generation) – iPhone 4S, 5, 5C, 5S, 6, 6Plus, 6S, 6SPlus, SE, 7,

7Plus, 8, 8Plus, X

Notes on using an iPod/iPhone

• When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.net/cs/car/>

• When you turn on this unit, the iPod/iPhone is charged through the unit.

• The text information may not be displayed correctly.

• For some iPod/iPhone models, the performance may be abnormal or unstable during operation. In this case, disconnect the iPod/iPhone device, then check its condition.

If the performance is not improved or slow, reset

your iPod/iPhone.

What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with external components, refer also to the instructions supplied with the adapters used for connection (as well as the instructions supplied with the external components).

General

No sound comes out of the speakers.

 Adjust the volume to the optimum level.  Check the cords and connections.

No picture is displayed on the screen.

 Turn on the screen. (Page4)

The unit does not work at all.

 Reset the unit. (Page3)

The remote controller* does not work.

 Replace the battery.

* Only for KW-V255DBT/KW-V250BT Region 2: Purchase optional

remote controller, RM-RK258.

“No Signal”/“No Video Signal” appears.

 Start playback on the external component

connected to the AV-IN input terminal.  Check the cords and connections.  Signal input is too weak.

“Miswiring DC Offset Error”/“Warning DC Offset Error” appears.

 A speaker cord has shorted or it has come into

contact with the car chassis. Wire or insulate the

speaker cord as appropriate, then reset the unit.

ENGLISH

TroubleshootingTroubleshooting

“Parking off” appears.

 No playback picture is shown when the parking

brake is not engaged.

Discs

Recordable/Rewritable discs cannot be played back.

 Insert a finalized disc.  Finalize the discs with the component which you

used for recording.

Tracks on the Recordable/Rewritable discs cannot be skipped.

 Insert a finalized disc.  Finalize the discs with the component which you

used for recording.

Playback does not start.

 The format of files is not supported by the unit.

No picture appears on the external monitor.

 Connect the video cord correctly.  Select the correct input on the external monitor.

DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC discs cannot be played back.

 Record the tracks using a compatible application

on the appropriate discs. (Page45)

 Add appropriate extension codes to the file names.

Tracks on the recordable/rewritable discs are not played back as you have intended them to play.

 Playback order may differ from the one played back

using other players.

ENGLISH

“Region Code Error” appears.

 You have inserted a DVD Video disc of an incorrect

region code. Insert a correct region code disc.

USB

“Reading” does not disappear from the screen.

 Turn the power off and on again.

While playing a track, sound is sometimes interrupted.

 The tracks are not properly copied into the USB

device. Copy the tracks again, and try again.

Tracks are not played back as you have intended them to play.

 Playback order may differ from the one played back

using other players.

The source does not change to “USB” when you connect a USB device while listening to another source or “USB Device Error” appears when you connect a USB device.

 The USB port is drawing more power than the

design limit.

 Turn the power off and unplug the USB device.

Then, turn on the power and reattach the USB device.

 If the above does not solve the problem, turn

the power off and on (or reset the unit) before replacing with another USB device.

Android

Sound cannot be heard during playback.

 Reconnect the Android device.  Launch any media player application on the

Android device and start playback.

Sound output only from the Android device.

 Use another media player application.  Restart the Android device.  If this does not solve the problem, the connected

Android device is unable to route the audio signal

to unit.  If USB connection does not work, connect the

Android device via Bluetooth or through the AV-IN

jack on the rear panel.

“NO DEVICE” or “READING” keeps flashing.

 Reconnect the Android device.  If USB connection does not work, connect the

Android device via Bluetooth or through the AV-IN

jack on the rear panel.

iPod/iPhone

No sound comes out of the speakers.

 Disconnect the iPod/iPhone, then connect it again.  Select another source, then reselect “iPod”.

The iPod/iPhone does not turn on or does not work.

 Check the connection.  Update the firmware version.  Charge the battery.  Reset the iPod/iPhone.

Sound is distorted.

 Deactivate the equalizer either on this unit or the

iPod/iPhone.

TroubleshootingTroubleshooting

A lot of noise is generated.

 Turn off (uncheck) “VoiceOver” on the iPod/iPhone.

For details, visit <http://www.apple.com>.

No operations are available when playing back a track containing artwork.

 Operate the unit after the artwork has loaded.

“Authorization Error” appears.

 Check whether the connected iPod/iPhone is

compatible with this unit. (Page47)

Tuner

SSM automatic presetting does not work.

 Store stations manually. (Page17)

Static noise while listening to the radio.

 Connect the antenna firmly.

Digital Radio (DAB)

(Only for KW-V255DBT)

Cannot receive an ensemble.

 Your area is not covered by the ensemble.

The DAB aerial is not properly extended or positioned.

 Adjust the aerial and try the ensemble scanning

again.

 Connect an active aerial (not supplied).

“Antenna Error” appears.

 The aerial has a short-circuit and the protective

circuit has activated.

 Check the Digital Radio aerial. If a passive aerial

without a booster is used, set antenna power to “OFF”.

AV-IN

No picture appears on the screen.

 Turn on the video component if it is not on.  Connect the video component correctly.

Spotify

The application does not work.

 The application on your iPod touch/iPhone/

Android is not the latest version. Update the application.

Bluetooth

Phone sound quality is poor.

 Reduce the distance between the unit and the

Bluetooth mobile phone.

 Move the car to a place where you can get a better

signal reception.

The sound is interrupted or skipped while using a Bluetooth audio player.

 Reduce the distance between the unit and the

Bluetooth audio player. Disconnect the device connected for Bluetooth phone.

 Turn off, then turn on the unit.

(When the sound is not yet restored) connect the player again.

The connected audio player cannot be controlled.

 Check whether the connected audio player

supports AVRCP (Audio/Video Remote Control Profile).

The Bluetooth device does not detect the unit.

 Search from the Bluetooth device again.

The unit does not pair with the Bluetooth device.

 For devices compatible with Bluetooth 2.1:

Enter the same PIN code for both the unit and

target device. If the PIN code of the device is not

indicated in its instructions, try “0000” or “1234.”  Turn off, then turn on the Bluetooth device.

Echo or noise occurs.

 Adjust the microphone unit position.  Adjust the echo volume or noise reduction volume.

(Page26)

The unit does not respond when you try to copy the phone book to the unit.

 You may have tried to copy the same entries (as

stored) to the unit.

“Connection Error” appears.

 The device is registered but the connection has

failed. Connect the registered device. (Page25)

“Please Wait...” appears.

 The unit is preparing to use the Bluetooth function.

If the message does not disappear, turn off and

turn on the unit, then connect the device again (or

reset the unit).

“No Voice Device” appears.

 The connected mobile phone does not have a

voice recognition system.

ENGLISH

TroubleshootingTroubleshooting

Specifications Specifications

“No Data” appears.

 No phone book data is contained in the connected

Bluetooth phone.

“Initialize Error” appears.

 The unit has failed to initialize the Bluetooth

module. Try the operation again.

“Dial Error” appears.

 Dialing has failed. Try the operation again.

“Hung Up Error” appears.

 The call has not ended yet. Park your car, and use

the connected mobile phone to end the call.

“Pick Up Error” appears.

 The unit has failed to receive a call.

The Bluetooth connection between the Bluetooth device and the unit is unstable.

 Delete the unused registered Bluetooth device

from the unit. (Page 26)

Monitor section

Picture Size (W × H) 6.2 inches (diagonal) wide

137.5 mm × 77.2 mm Display System Transparent TN LCD panel Drive System TFT active matrix system Number of Pixels 1 152 000

(800H × 480V × RGB) Effective Pixels 99.99% Pixel Arrangement RGB striped arrangement Back Lighting LED

USB interface section

USB Standard USB 2.0 Full Speed/High

Speed Compatible Device Mass Storage Class File System FAT 16/32 Maximum Power

Supply Current D/A Converter 24 bit Audio Decoder MP3/WMA/AAC (.aac/.m4a)/

Video Decoder MPEG1/MPEG2/DivX/JPEG Frequency Response 96 kHz Sampling:

DC 5 V

WAV/FLAC

20 Hz to 20 000 Hz

48 kHz Sampling:

20 Hz to 20 000 Hz

44.1 kHz Sampling:

20 Hz to 20 000 Hz

1.5 A

Total Harmonic Distortion

Signal to Noise Ratio 90 dB Dynamic Range 90 dB

0.01% (1 kHz)

DVD player section

D/A Converter 24 bit Audio Decoder Linear PCM/Dolby Audio/

MP3/WMA/WAV/AAC (.m4a) Video Decoder MPEG1/MPEG2/DivX/JPEG Wow & Flutter Below Measurable Limit Frequency Response 96 kHz Sampling:

20 Hz to 22 000 Hz

48 kHz Sampling:

20 Hz to 22 000 Hz

44.1 kHz Sampling:

20 Hz to 20 000 Hz Total Harmonic

Distortion Signal to Noise Ratio 90 dB Dynamic Range 90 dB Disc Format DVD-Video/VIDEO-CD/CD-DA

Sampling Frequency 44.1 kHz/48 kHz/96 kHz Quantifying Bit

Number

0.010% (1 kHz)

DVD-R/DVD-RW/

DVD+R/+RW/CD-R/RW

16 bit/20 bit/24 bit

ENGLISH

Specifications Specifications

FM tuner section

Frequency Range 50kHz:

87.5 MHz to 108.0 MHz 30kHz*:

65.0 MHz to 74.0 MHz

Usable Sensitivity 50kHz:

(S/N: 30 dB, Dev 22.5 kHz)

6.2 dBf (0.56 μV/75 Ω) 30kHz*: (S/N: 26 dB)

8.2 dBf (0.71 μV/75 Ω)

Quieting Sensitivity 50kHz:

(S/N: 46 dB, Dev 22.5 kHz)

15.2 dBf (1.58 μV/75 Ω) 30kHz*: (DIN S/N: 46 dB)

17.2 dBf (2.0 μV/75 Ω) Frequency Response 30 Hz to 15 kHz (±3.0 dB) Signal to Noise Ratio 50kHz:

68 dB (MONO) 30kHz*:

64 dB (MONO) Selectivity > 80 dB (±400 kHz) Stereo Separation 40 dB (1 kHz)

* Only for KW-V250BT Region 5.

LW tuner section

Frequency Range 153 kHz to 279 kHz (9 kHz) Usable Sensitivity 45 μV

MW tuner section

Frequency Range 531 kHz to 1 611 kHz (9 kHz) Usable Sensitivity 28.5 μV

Digital tuner (DAB) section

(only for KW-V255DBT)

Frequency Range BAND III:

174.928 MHz to

239.200MHz Sensitivity −100 dBm Signal to Noise Ratio 90 dB DAB Aerial

Connector

Connector Type: SMB Output Voltage:

14.4 V (11 V to 16 V) Maximum Current: < 100 mA

Bluetooth section

Technology Bluetooth V3.0 Frequency 2.402 GHz to 2.480 GHz RF Output Power

(E.I.R.P.) Maximum

Communication Range

Audio Codec SBC/AAC Multi Profile Support Multi Profile Profile HFP (Hands Free Profile) 1.6

+4 dBm (MAX), Power Class 2

Line of sight approx. 10 m

A2DP (Advanced Audio Distribution Profile) 1.3 AVRCP (Audio/Video Remote Control Profile) 1.5 GAP (Generic Access Profile) PBAP (PhoneBook Access Profile) 1.2 SDP (Service Discovery Profile) SPP (Serial Port Profile) 1.2

ENGLISH

SpecificationsSpecifications

DSP section

Equalizer 13 Band Band Frequency (Hz) (BAND1 – 13):

62.5/100/160/250/400/630/ 1k/1.6k/2.5k/4k/6.3k/10k/ 16k

Level:

−09 to +09 (−9 dB to +9 dB)

Q: 1.35/1.5/2.0

HPF (High Pass Filter) Frequency (Hz):

Through/30/40/50/60/70/

80/90/100/120/150/180/ 220/250

Slope (dB/Oct.): –6/–12/–18/–24 Gain (dB): –8/–7/–6/–5/–4/–3/–2/–1/0

LPF (Low Pass Filter) Frequency (Hz):

30/40/50/60/70/80/90/100/

120/150/180/220/250/ Through

Slope (dB/Oct.): –6/–12/–18/–24 Gain (dB): –8/–7/–6/–5/–4/–3/–2/–1/0

Video section

Color System of External Video Input

External Video Input Level (RCA jack)/ (mini jack)

External Audio Max Input Level (mini jack)

Video Output Level (RCA jack)

NTSC/PAL

1 Vp-p/75 Ω

Audio section

Maximum Power (Front & Rear)

Full Bandwidth Power (Front & Rear)

Preout Level 4 V/10 kΩ Preout Impedance ≤ 600 Ω Speaker Impedance 4 Ω to 8 Ω

50 W × 4

22 W × 4 (at less than 1% THD)

General

Operating Voltage 12 V DC car battery Installation

Dimensions (W × H × D)

Installation Size (Main Unit without Sleeve) (W × H × D)

Weight (Main Unit) 2.0 kg

Design and specifications are subject to change without notice.

182 mm × 111 mm × 160 mm

178 mm × 100 mm × 162 mm

(includes trimplate and sleeve)

ENGLISH

SpecificationsSpecifications

Trademarks and licenses

• Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod nano, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

• Font for this product is designed by Ricoh.

• Android is a trademark of Google LLC.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO

(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC

STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• libFLAC

with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/ or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• DIVX

– This DivX Certified® device can play DivX® Home

Theater video files up to 576p (including .avi, .divx). Download free software at www.divx.com to create, play and cast digital videos.

– DivX®, DivX Certified® and associated logos are

trademarks of DivX, LLC and are used under license.

ENGLISH

For updated information (the latest Instruction Manual, system updates, new functions, etc.),

please visit the following website:

<http://www.jvc.net/cs/car/>

JVC KW-V255DBT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
