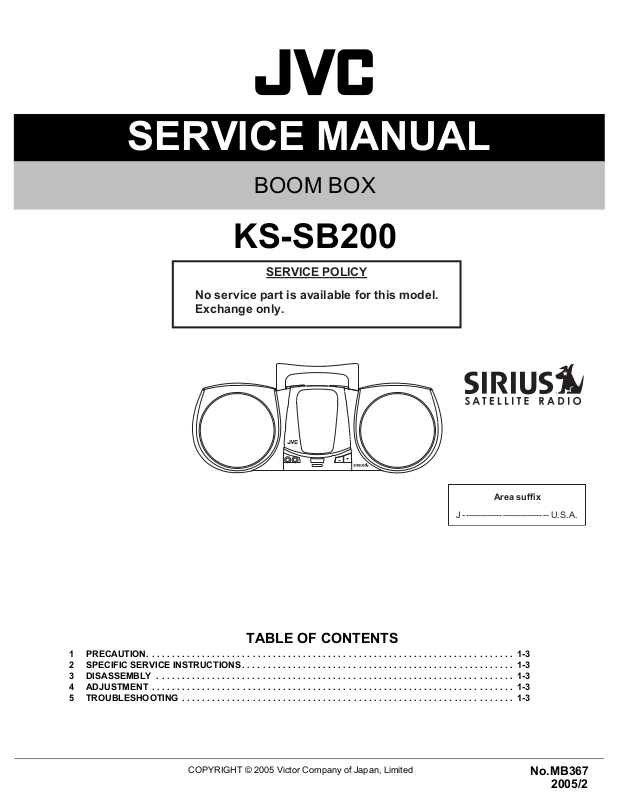

JVC KS-SB200 Service Manual

SERVICE MANUAL

BOOM BOX

MB36720052

KS-SB200

SERVICE POLICY

No service part is available for this model.
Exchange only.

Area suffix

J ---------------------------- U.S.A.

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

COPYRIGHT © 2005 Victor Company of Japan, Limited

No.MB367

2005/2

SPECIFICATION

Amplifier Output Power 4 W per channel, min. RMS, driven into 8 Ω at 1 kHz with no more than 10% total har-

monic distortion.

Input Impedance (AUX) 8 kΩ

Input Level (Satellite Radio/AUX) 2.0 V (Maximum)

Output Impedance (PHONES) 32 Ω

Output Level (Variable) (PHONES) 20 mV (Maximum)

Connector Type (PHONES, AUX) 3.5 mm Stereo Jack

Signal-to-noise ratio 86 dB (Maximum)

Speakers Speaker Type Bass-reflex type 12.6 cm (5 inches)

Tweeter 28 mm (1 - 1/8 inches)

Speaker Impedance 8 Ω

Frequency Response 100 Hz to 20 kHz

General Power Requirements DC 12V ("R20/D (13F)" batteries (8))

External DC 12V (TESA2-1202500 AC adaptor)

Dimensions (W × D × H) 497 mm × 183 mm × 196 mm

(19 - 5/8 inches × 7 - 1/4 inches × 7 - 3/4 inches)

Mass 3.3 kg (7.3 lbs) (without batteries)

4.1 kg (9.1 lbs) (with batteries)

Design and specifications are subject to change without notice.

1-2 (No.MB367)
