JVC HX-D7C, HX-D7J, HX-D7UJ, HX-D7, CA-HXD7 Instructions Manual

COMPACT COMPONENT SYSTEM

HX-D7

—Consists of CA-HXD7 and SP-HXD7

SP-HXD7

INSTRUCTIONS

CA-HXD7 SP-HXD7

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1351-001A

[J]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

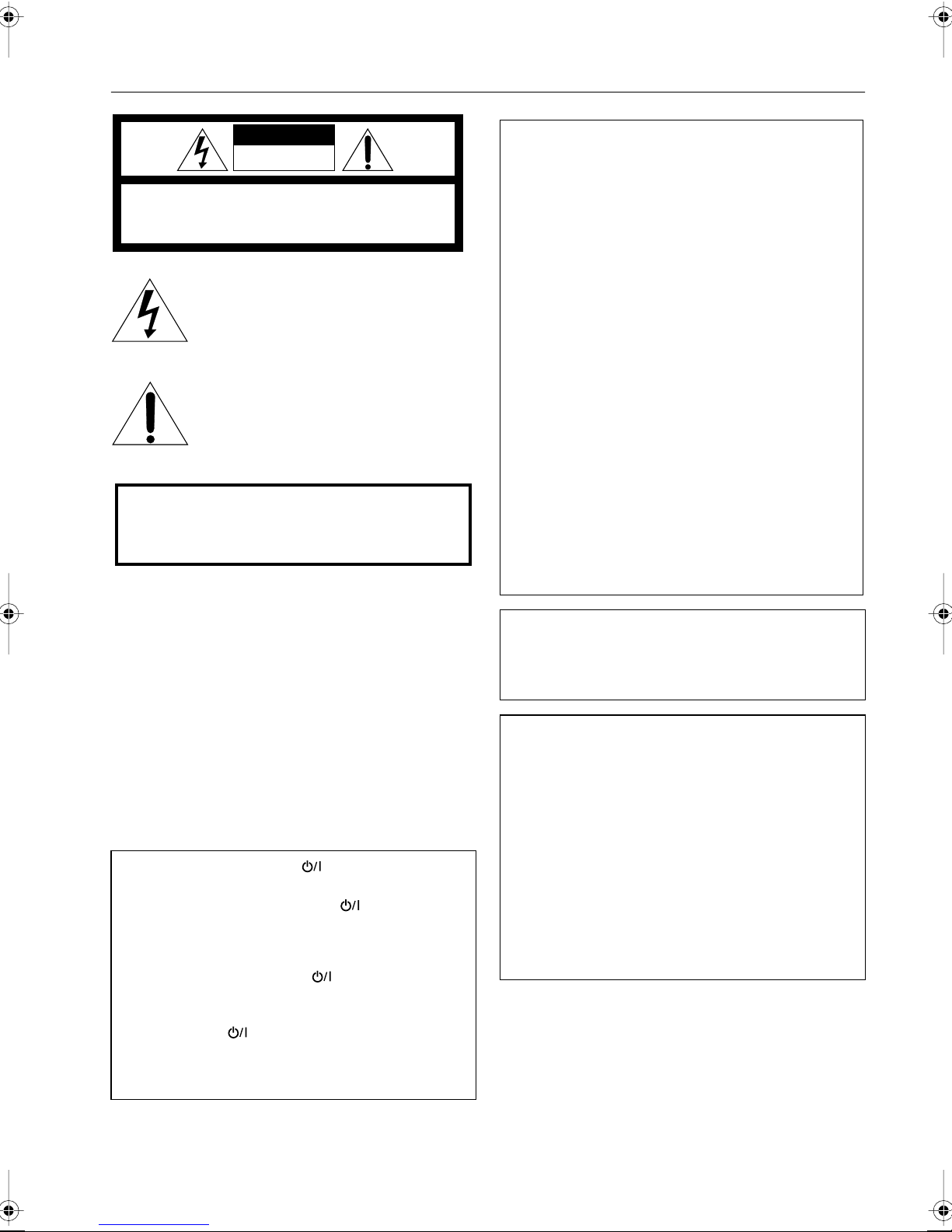

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1 Do not remove screws, covers or cabinet. 2 Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1 Ne pas enlever les vis ni les panneaux et ne pas

ouvrir le coffret de l’appareil.

2 Ne pas exposer l’appareil à la pluie ni à

l’humidité.

Caution—STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled.

Attention—STANDBY/ON Commutateur!

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON (attente/sous tension) ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

For the main unit:

Declaration of Conformity Model Number: HX-D7

Trade Name: JVC Responsible Party: JVC Americas Corp. Address: 1700 Valley Road, Wayne

New Jersey 07470

Telephone Number: 973-317-5000 This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

G-1

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

31 kg / 69 lbs.

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

ATTENTION!

Pour éviter toute blessure personnelle ou chute accidentelle del’appareil, faites déballer, transporter et installer l’appareil par deux personnes.

IMPORTANT FOR LASER PRODUCTS

1 CLASS 1 LASER PRODUCT 2

CAUTION

: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

3

CAUTION

: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4 REPRODUCTION OF LABEL: CAUTION LABEL,

PLACED INSIDE UNIT.

IMPORTANT POUR PRODUITS LASER

1 PRODUIT LASER CLASSE 1 2

ATTENTION

n’y a aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.

3

ATTENTION

invisible quand l’appareil est ouvert ou que le systéme de verrouillage ne fonctionne pas ou a été mis hors service. Évitez toute exposition directe au rayon.

4 REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE

DE PRÉCAUTION PLACÉE À L’INTERIEUR DE L’APPAREIL

: N’ouvrez pas le couvercle supérieur. Il

: Risque de radiations laser wisible et

.

For Canada/pour le Canada

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.

TO PREVENT ELECTRIC SHOCK,

POUR EVITER LES CHOCS

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

G-2

Introduction

2

sec.

Remote ONLY

Main Unit

ONLY

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C (41°F) and 35°C (95°F).

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

•

A cooling fan is mounted on the rear panel to prevent heat buildup inside the unit.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

How to Read This Manual

To make the explanations in this manual as simple and easyto-understand as possible, we have adapted the following methods:

•

Button and control operations are explained as listed in the table below. In this manual, the operations using the remote control are mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some informations).

about the functions, or if you have a doubt about the function, go to these sections and you will find your answer there.

Indicates that you press the button

briefly

Indicates that you press the button

briefly and repeatedly

option you want is selected.

Indicates that you press one of the buttons.

.

INFO

If you want to know more

.

until an

For safety, observe the following carefully:

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

• DO NOT block the cooling fan and the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

1

Indicates that you button for a specified period.

• The number inside the arrow indicates the period of press (in this example, 2 seconds).

• If no number is inside the arrow, press and hold until the entire procedure is complete or until you get a result you want.

Indicates that you turn the control toward the specified direction(s).

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the buttons and controls on the main unit.

press and hold

the

Contents

Before Operating the System.......................3

Playable Disc Types .................................................... 3

Getting Started.............................................. 4

Step 1: Unpack ............................................................ 4

Step 2: Prepare the Remote Control............................ 4

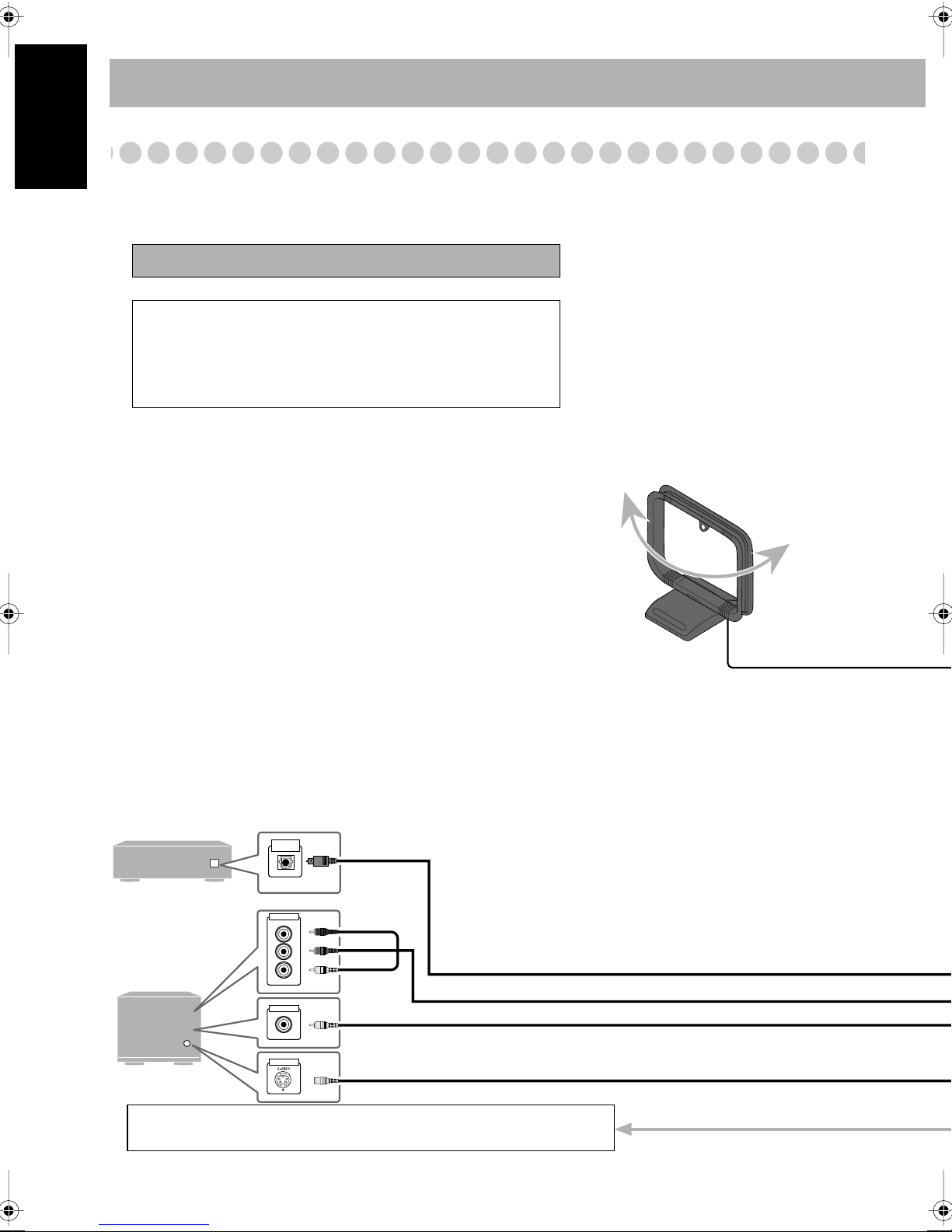

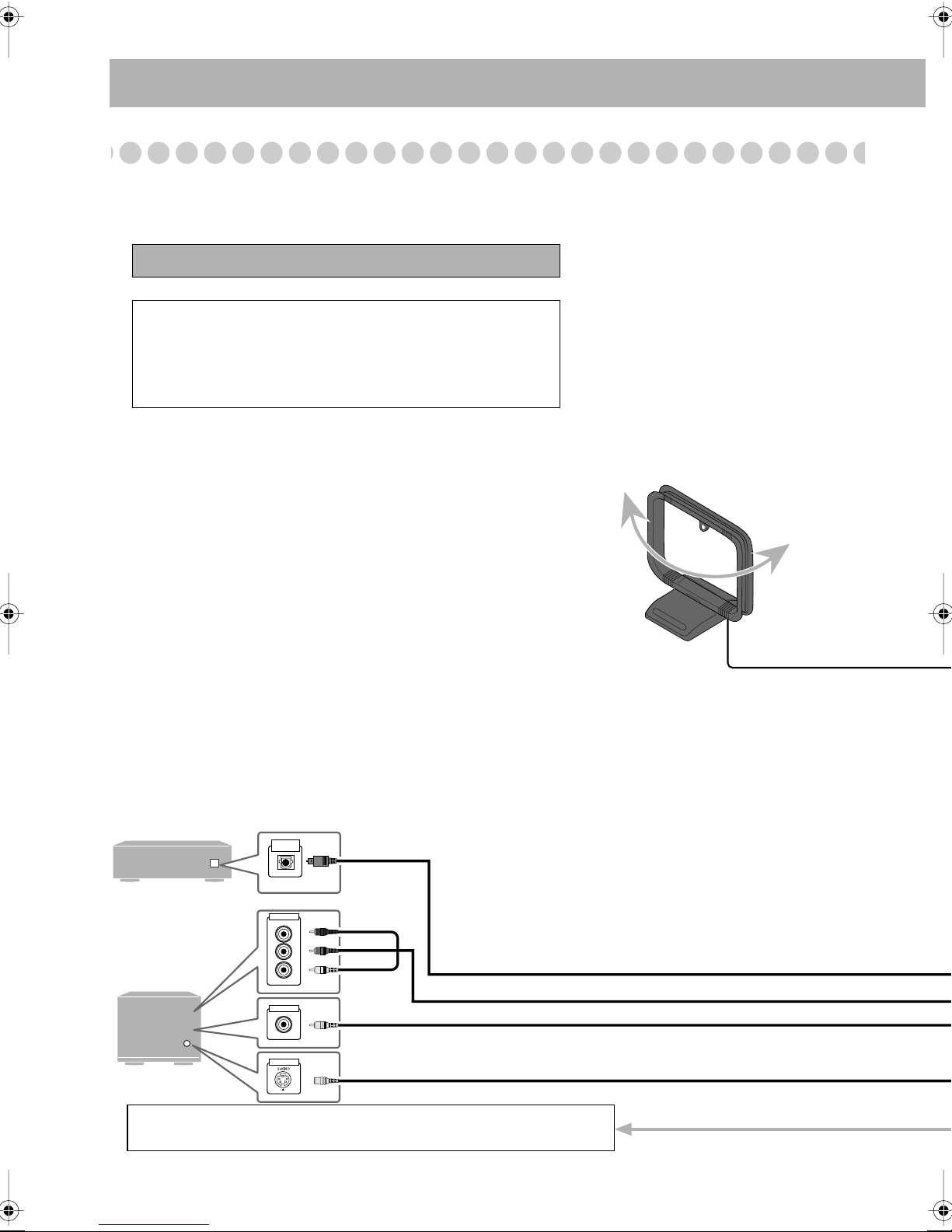

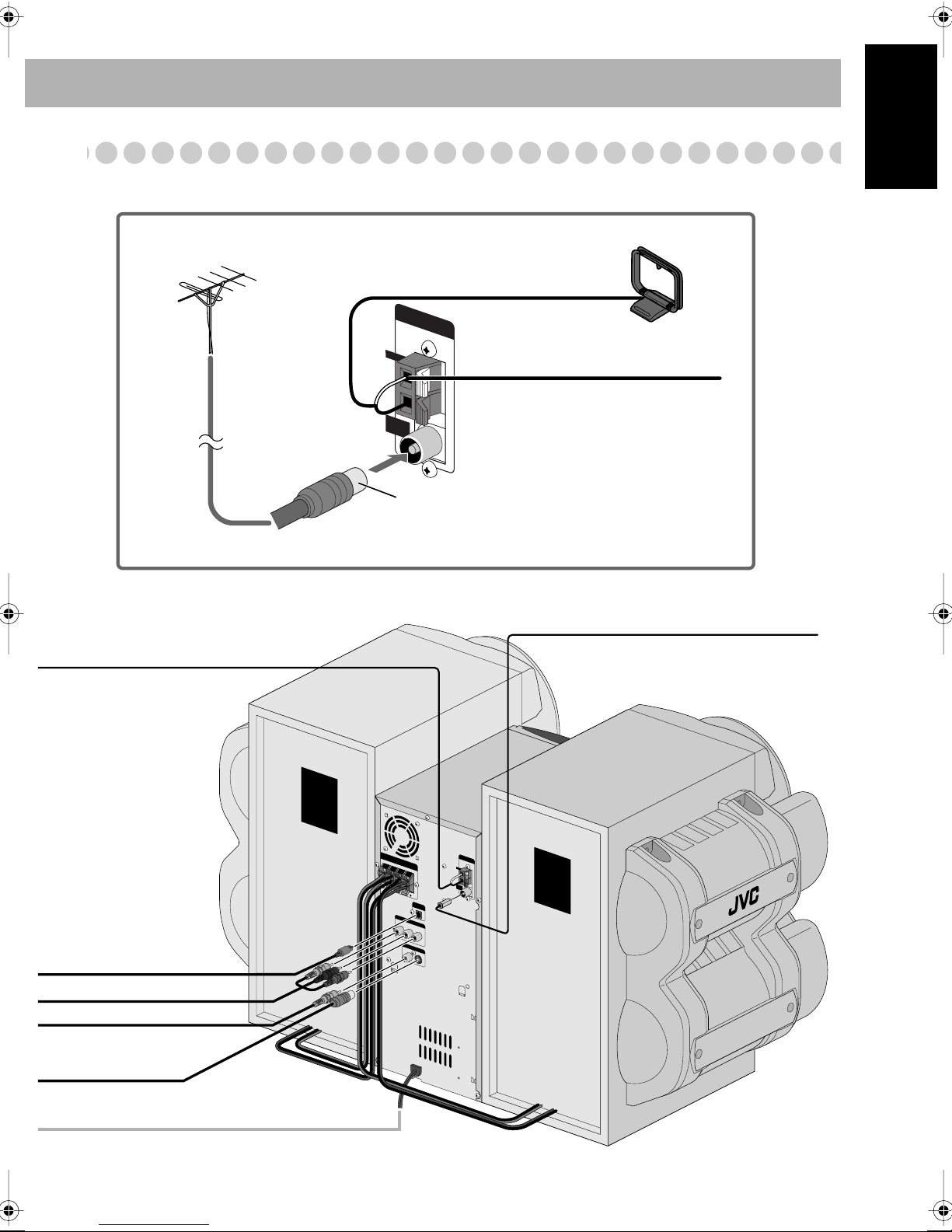

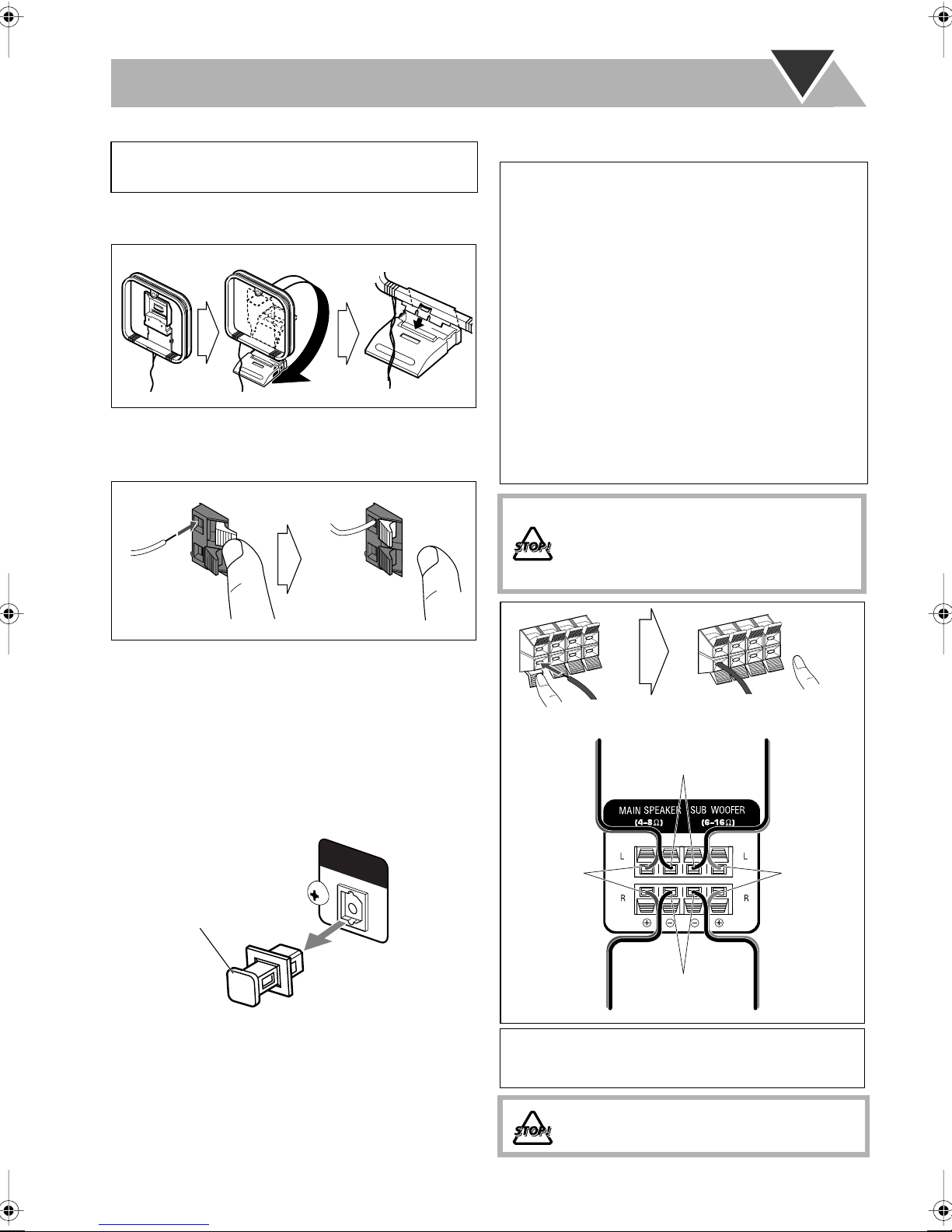

Step 3: Hook Up.......................................................... 5

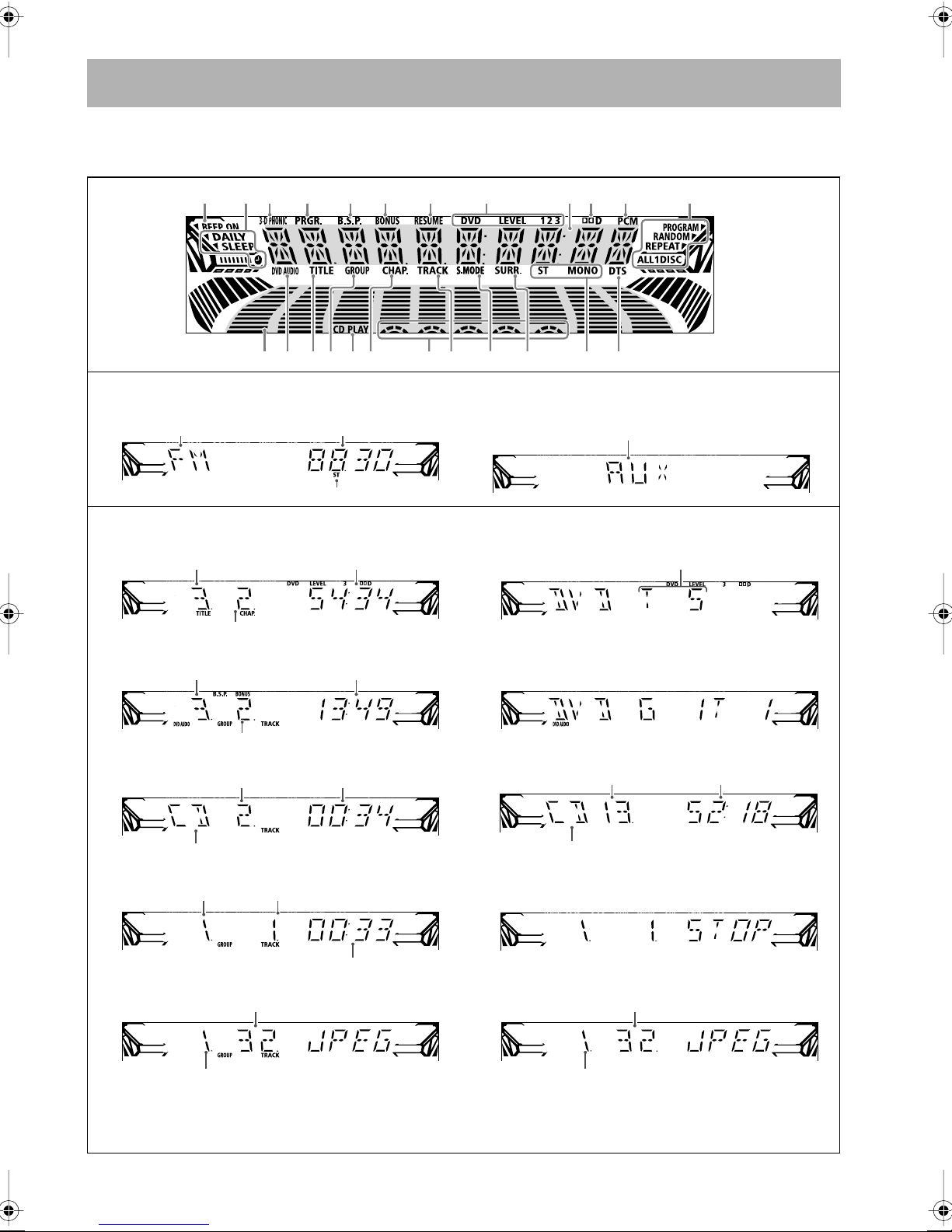

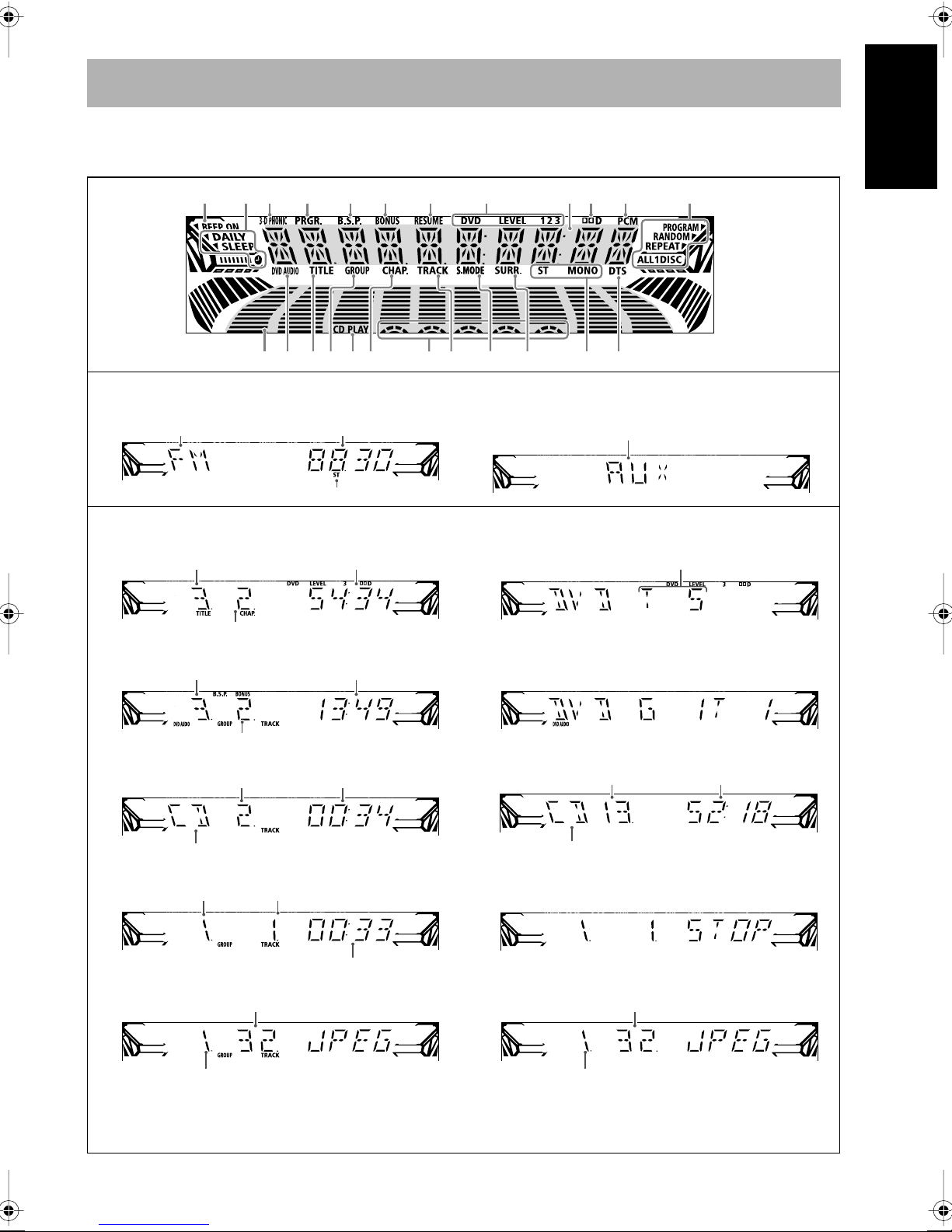

Display Indication.........................................8

Daily Operations—Playback ..................... 10

Listening to the Radio ............................................... 11

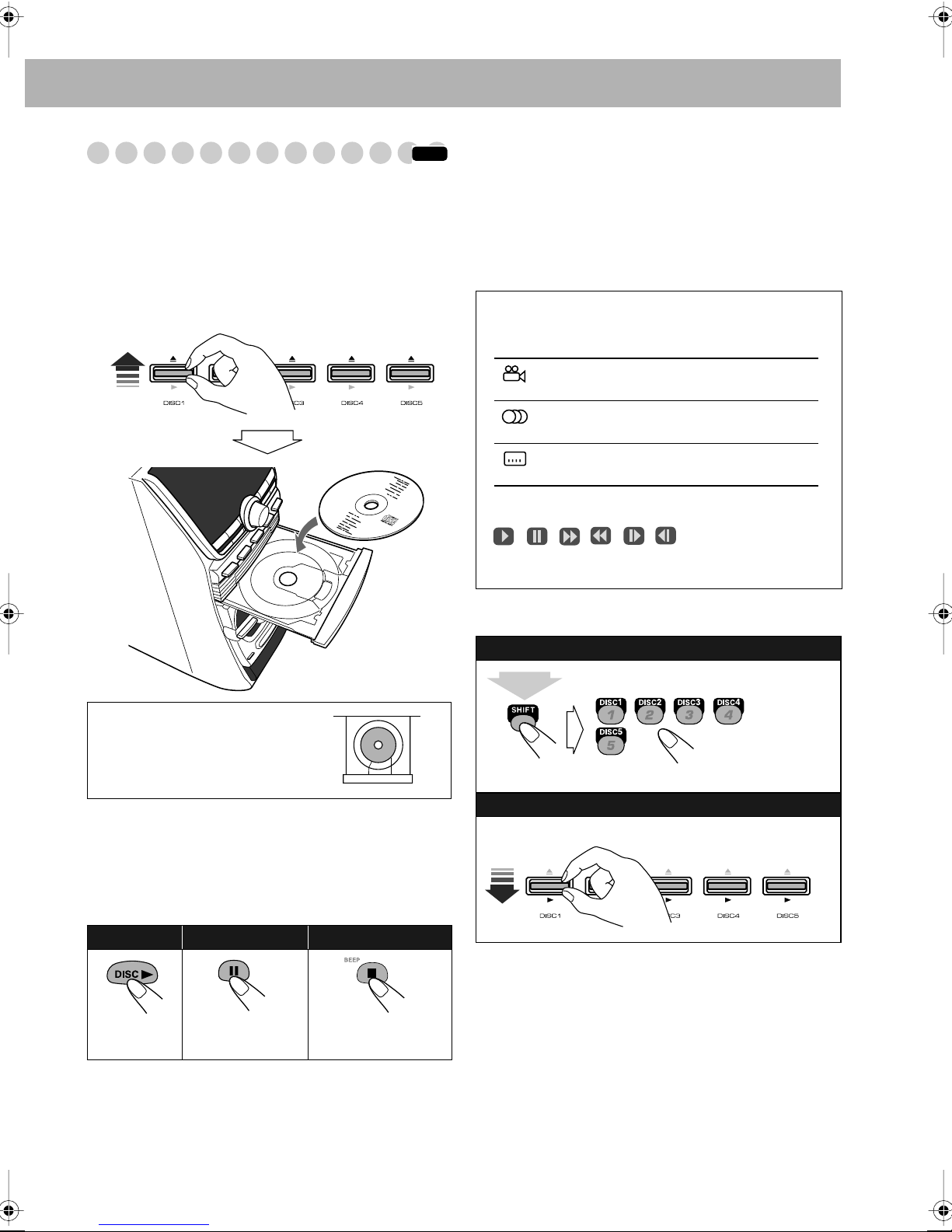

Playing Back a Disc................................................... 12

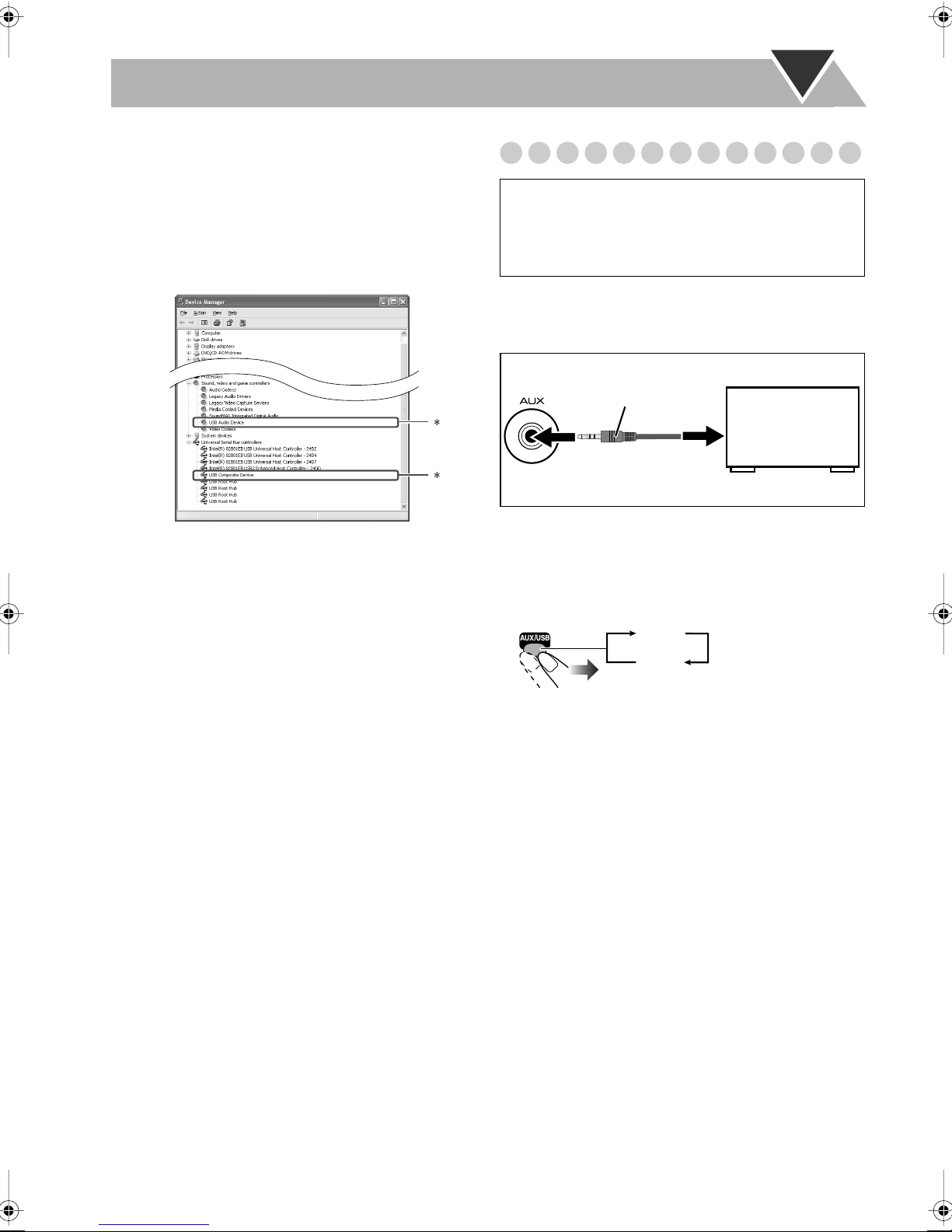

Playing Back from the PC ......................................... 14

Playing Back from Other Audio Equipment ............. 15

Daily Operations—Sound and Other

Adjustments .............................................16

Adjusting the Volume................................................ 16

Reinforcing the Bass Sound ...................................... 16

Making the Center Channel Sound Clear

—Clear Voice ........................................................ 17

Selecting the Sound Modes ....................................... 17

Selecting 3D Phonic Mode........................................ 17

Presetting Automatic DVD VIDEO Sound

Increase Level........................................................ 17

Changing the Scanning Mode ................................... 18

Changing the Picture Tone ........................................ 18

Turning On or Off the Key-Touch Tone ................... 19

Changing the Display Brightness .............................. 19

Setting the Clock ....................................................... 19

Turning Off the Power Automatically....................... 19

Advanced Disc Operations ........................ 23

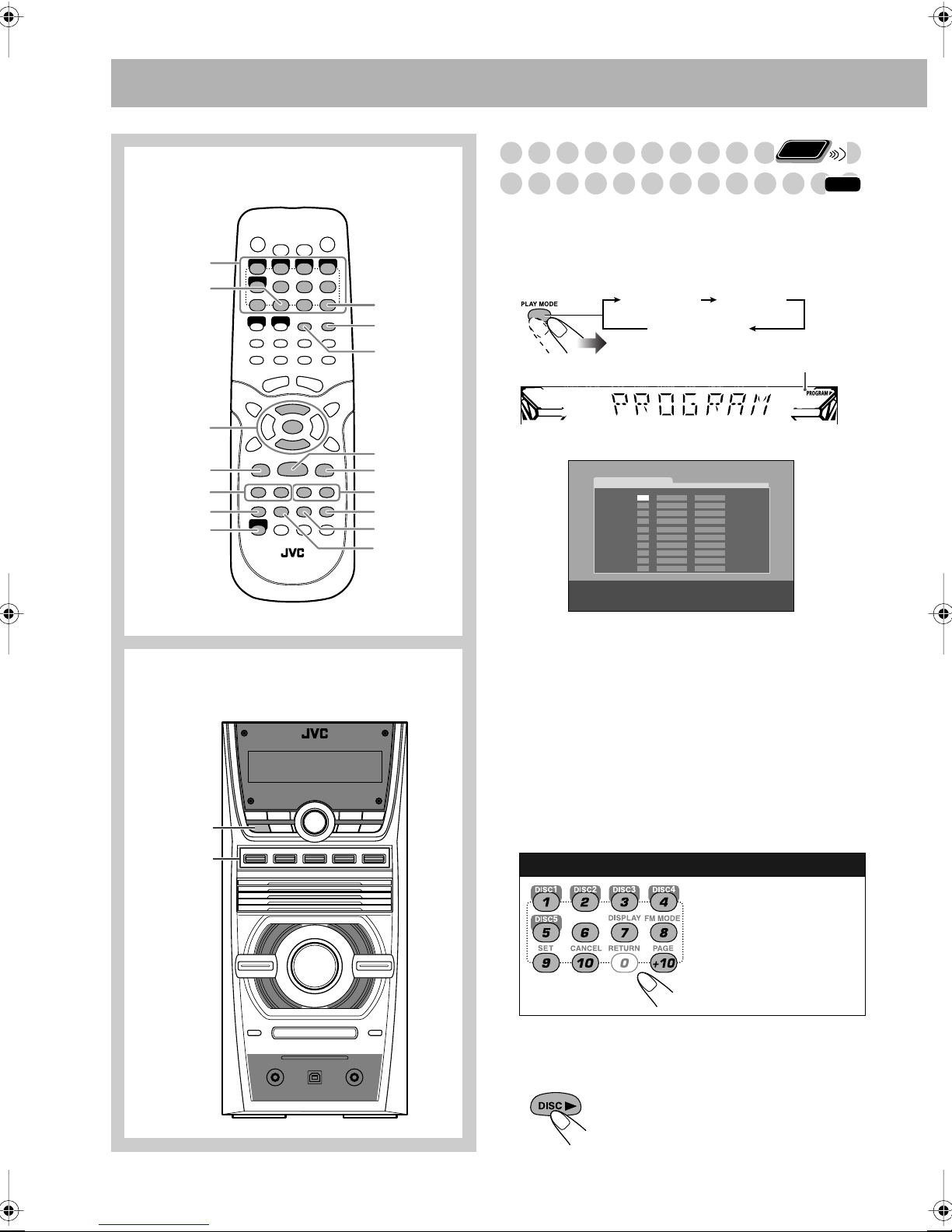

Programming the Playing Order—Program Play...... 23

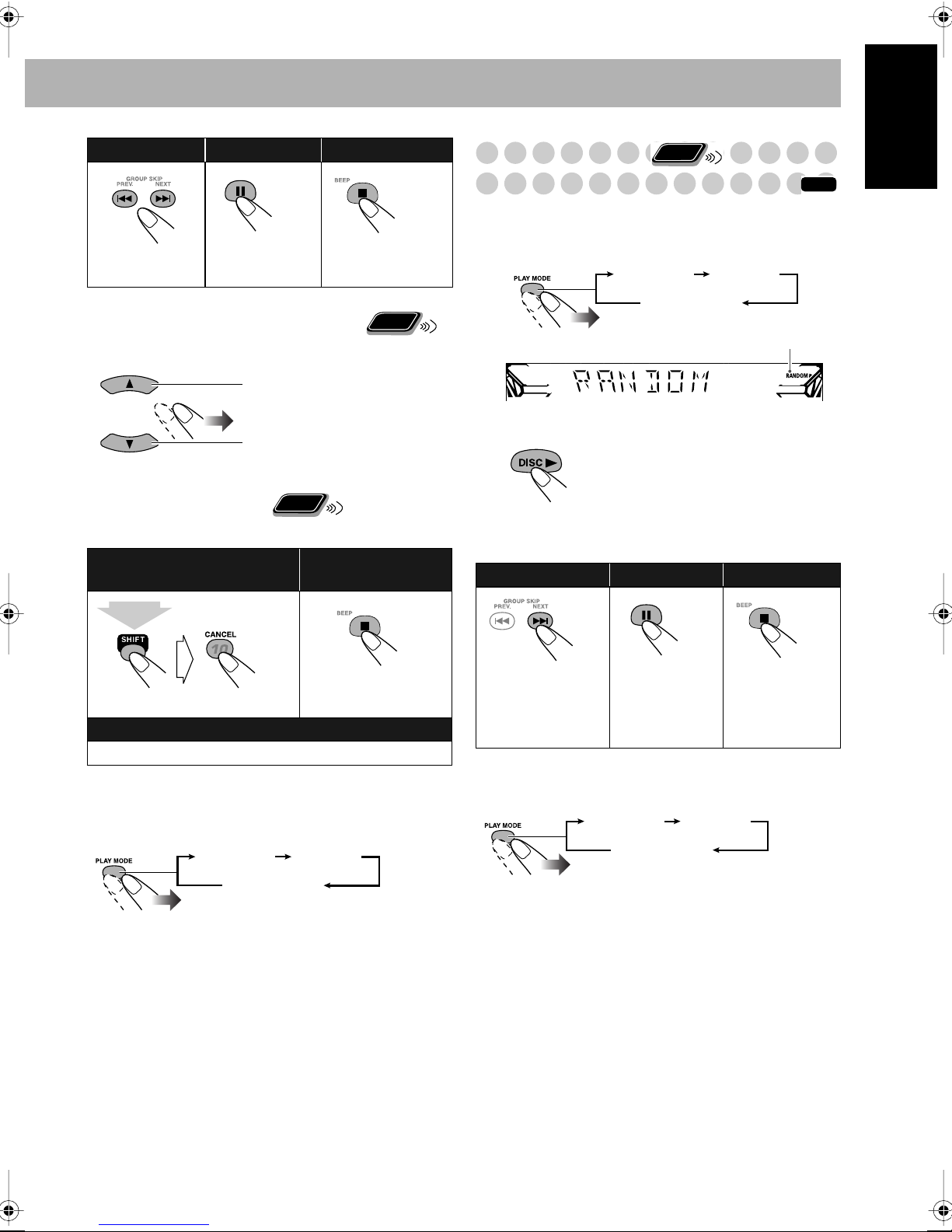

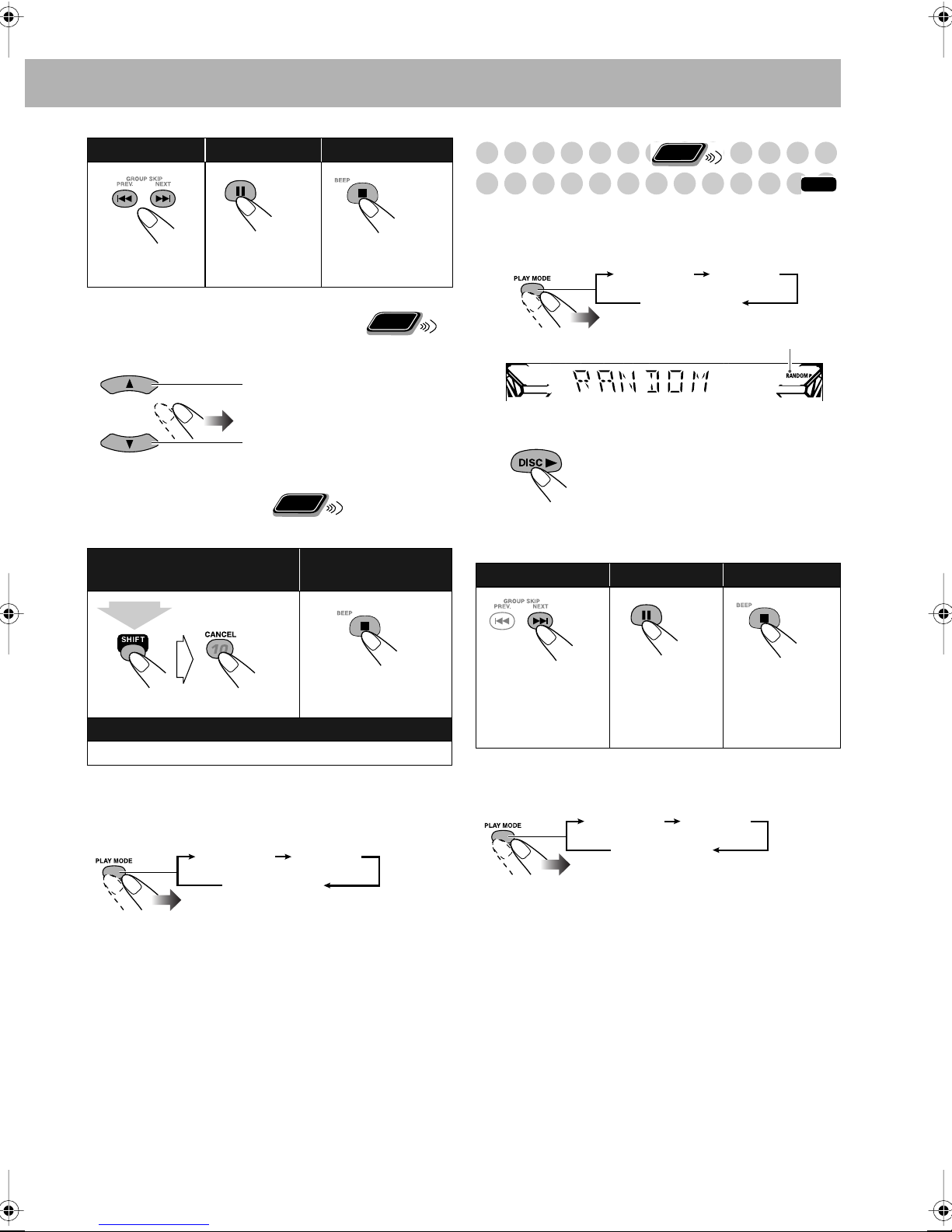

Playing at Random—Random Play........................... 24

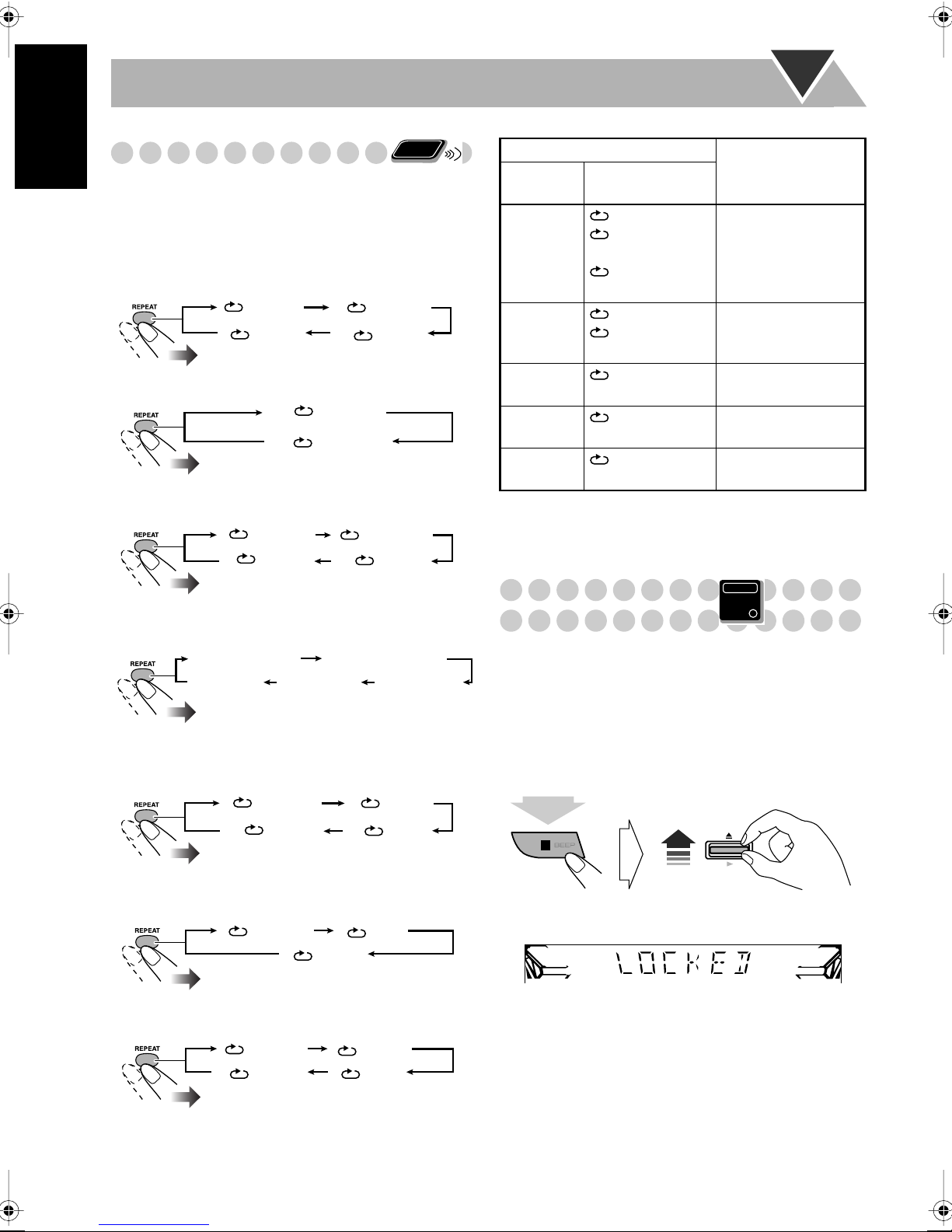

Playing Repeatedly—Repeat Play ............................ 25

Prohibiting Disc Ejection—Child Lock .................... 25

On-Screen Disc Operations ....................... 26

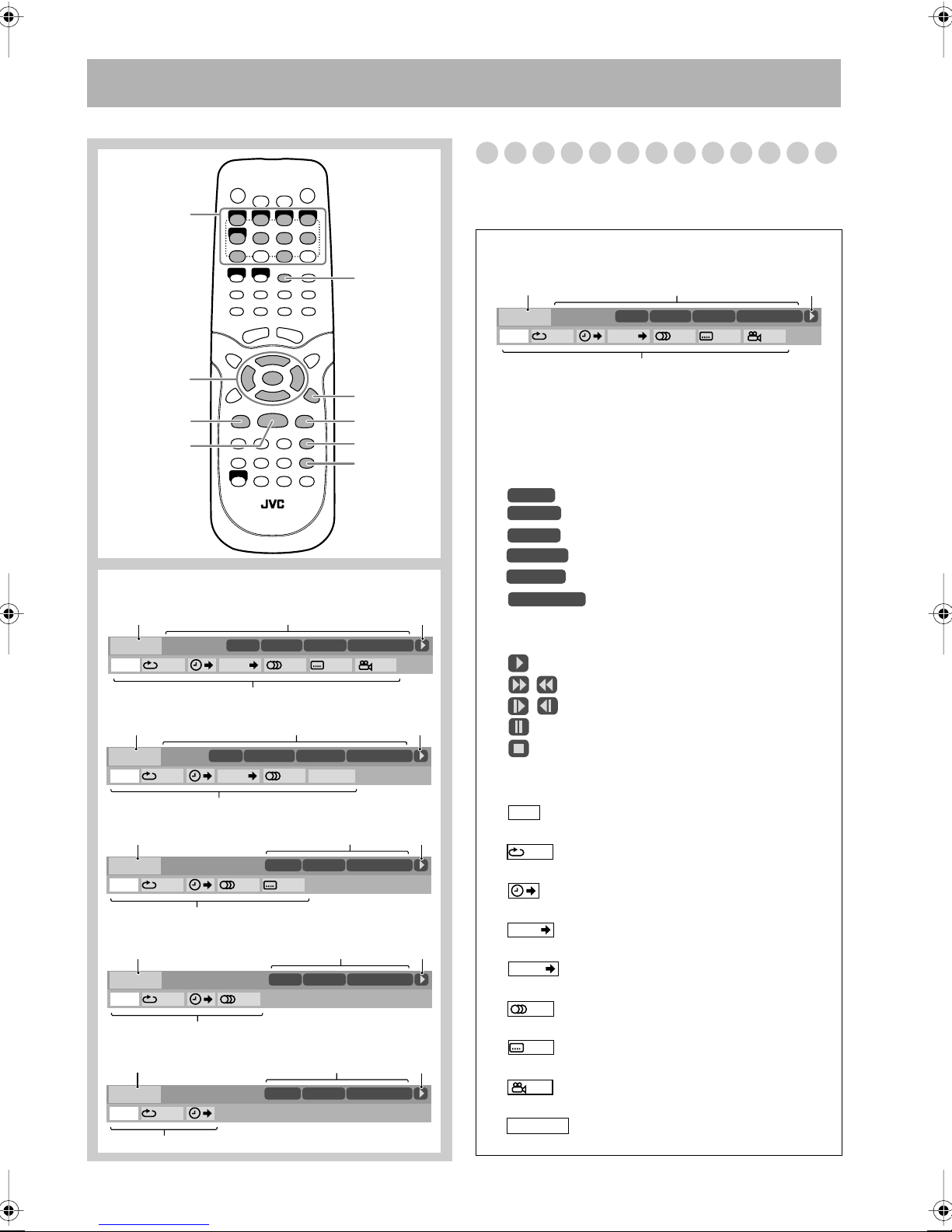

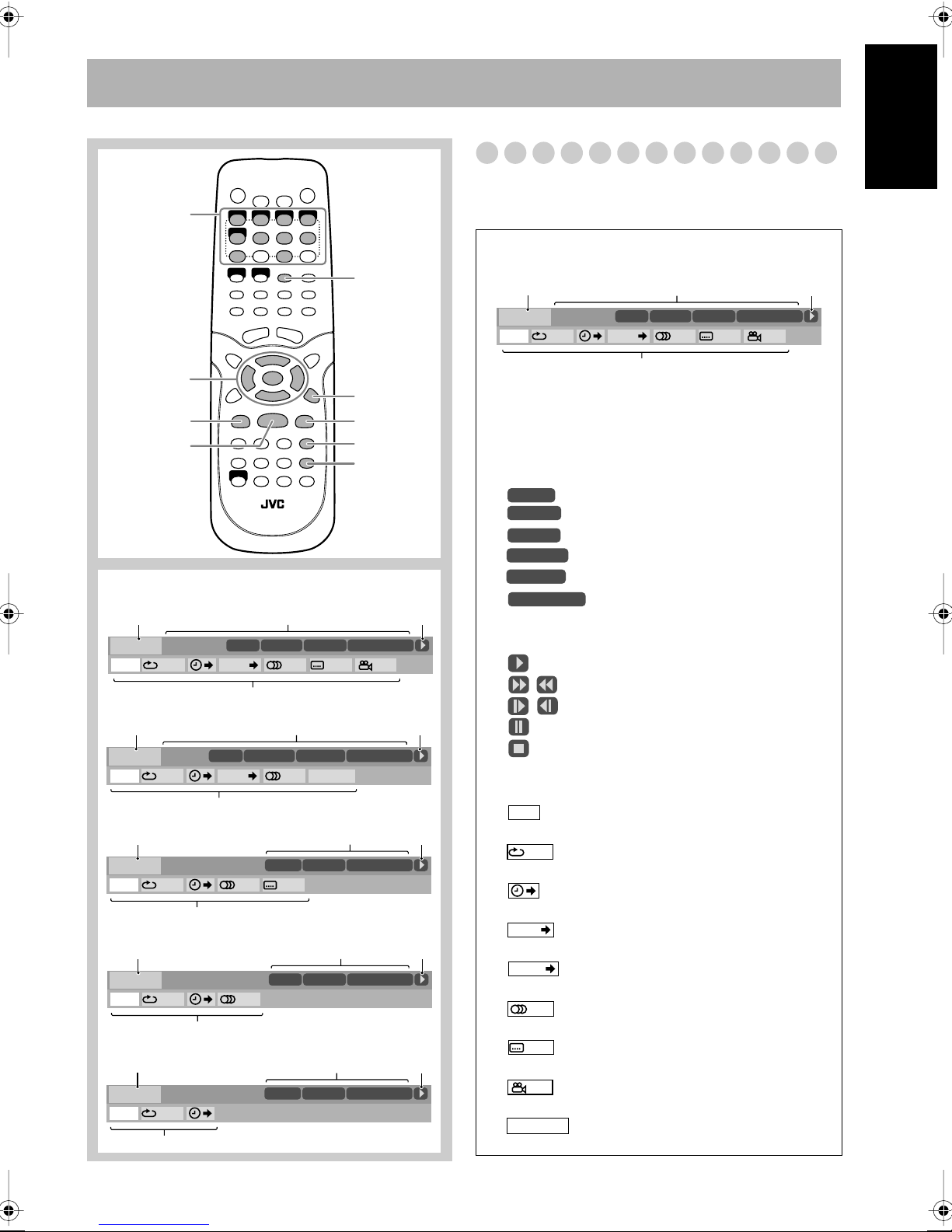

About the On-screen Bar........................................... 26

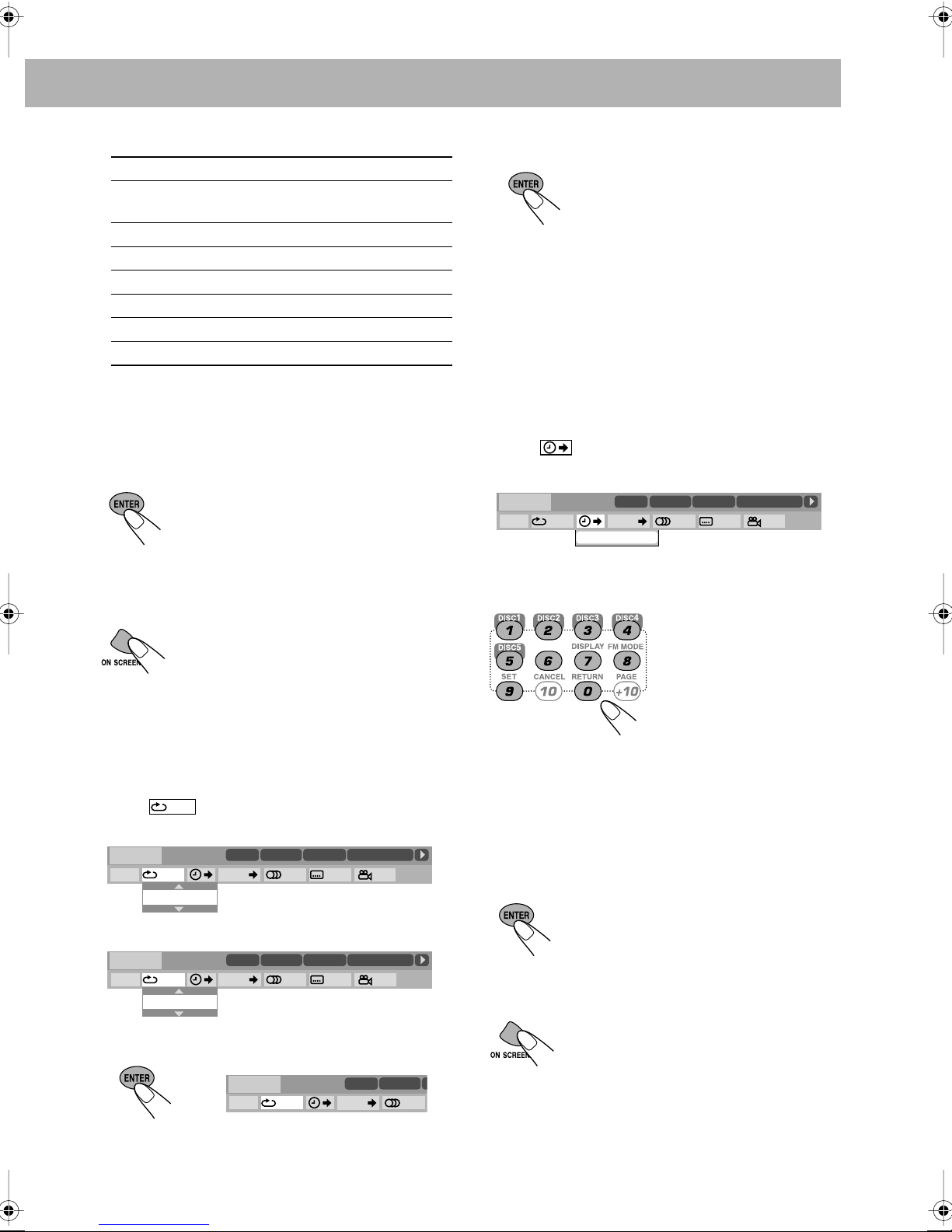

Operations Using the On-screen Bar......................... 27

Operations on the CONTROL Screen....................... 29

Timer Operations ....................................... 31

Setting the Timer....................................................... 31

Set up Menu Operations............................ 33

Operating Procedure.................................................. 33

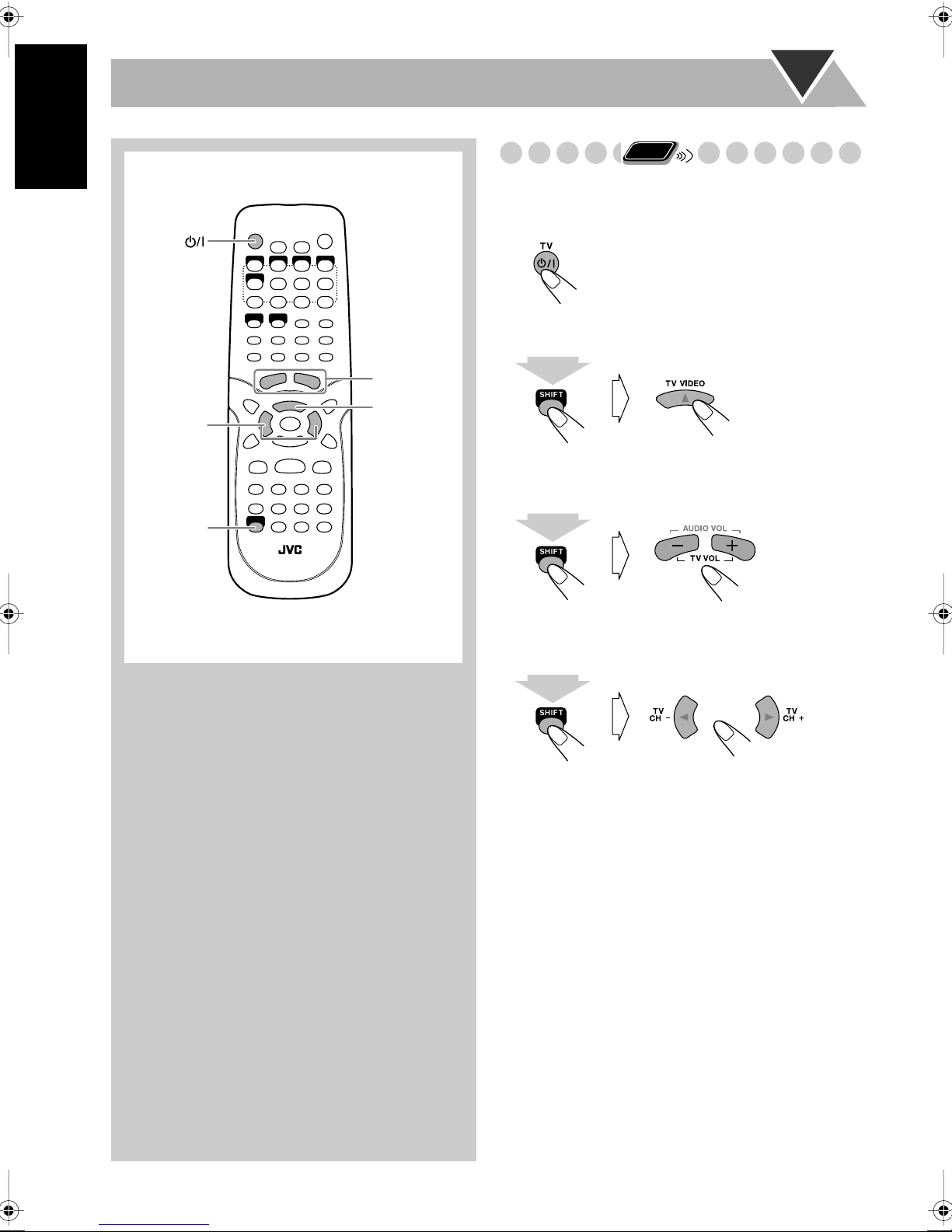

Operating the TV ....................................... 37

Operating TV............................................................. 37

Additional Information.............................. 38

Learning More about This System ............................ 38

Maintenance .............................................................. 40

Troubleshooting ........................................................ 40

OPTICAL DIGITAL OUTPUT Signals ................... 41

Language Code List .................................................. 42

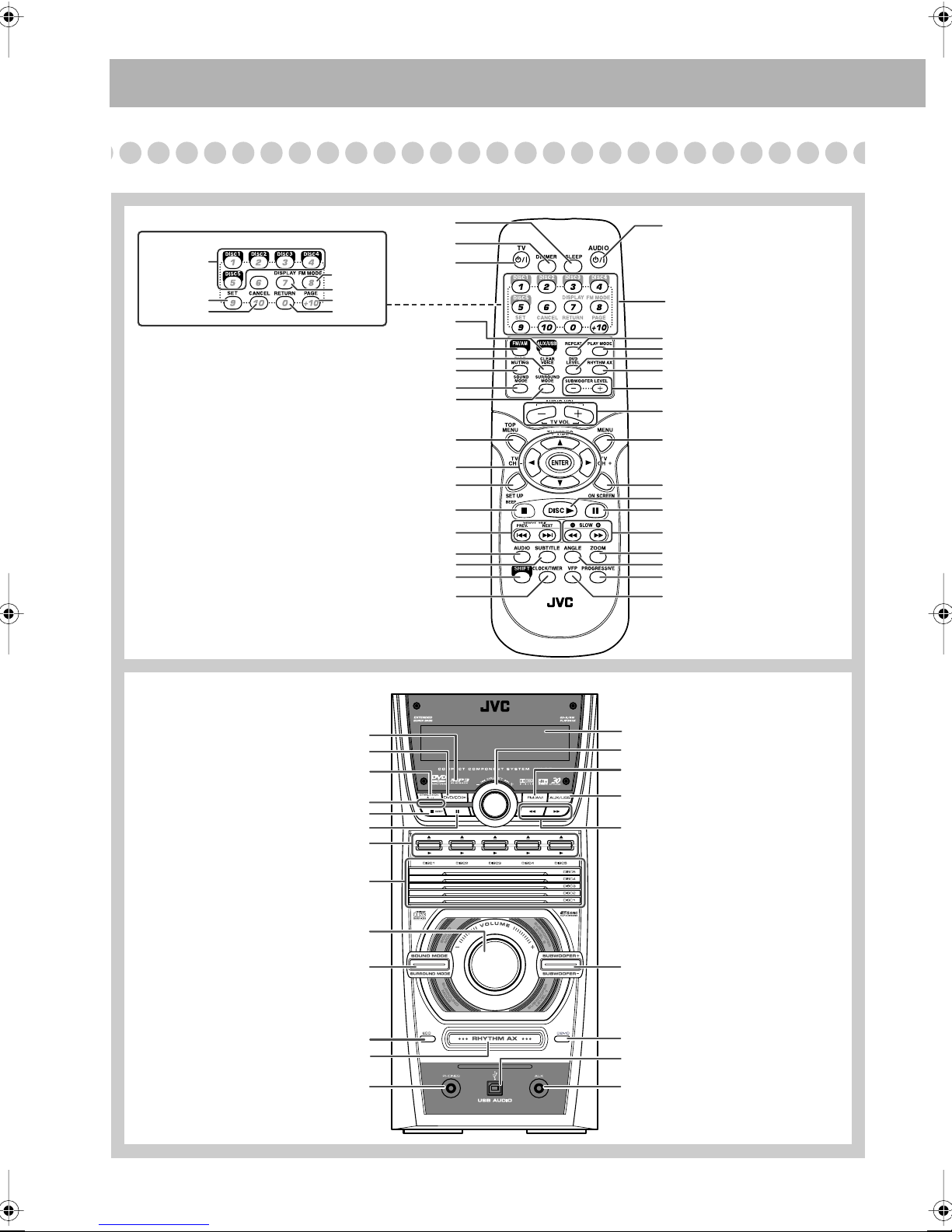

Parts Index................................................................. 43

Specifications ............................................................ 44

Unique DVD/VCD Operations ................. 20

Selecting the Sound Track......................................... 20

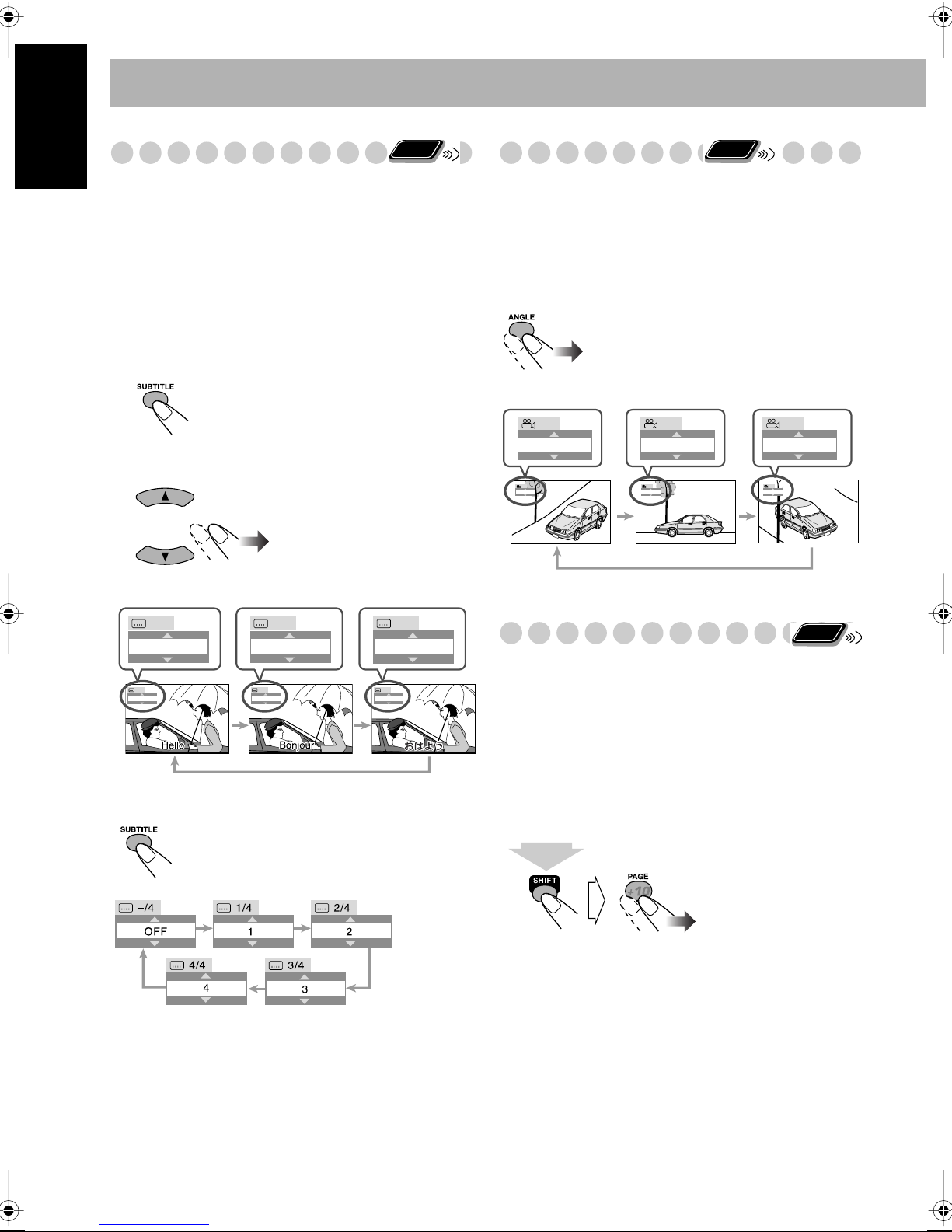

Selecting the Subtitle Language ................................ 21

Selecting a View Angle ............................................. 21

Selecting Browsable Still Pictures ............................ 21

Playing Back a Bonus Group .................................... 22

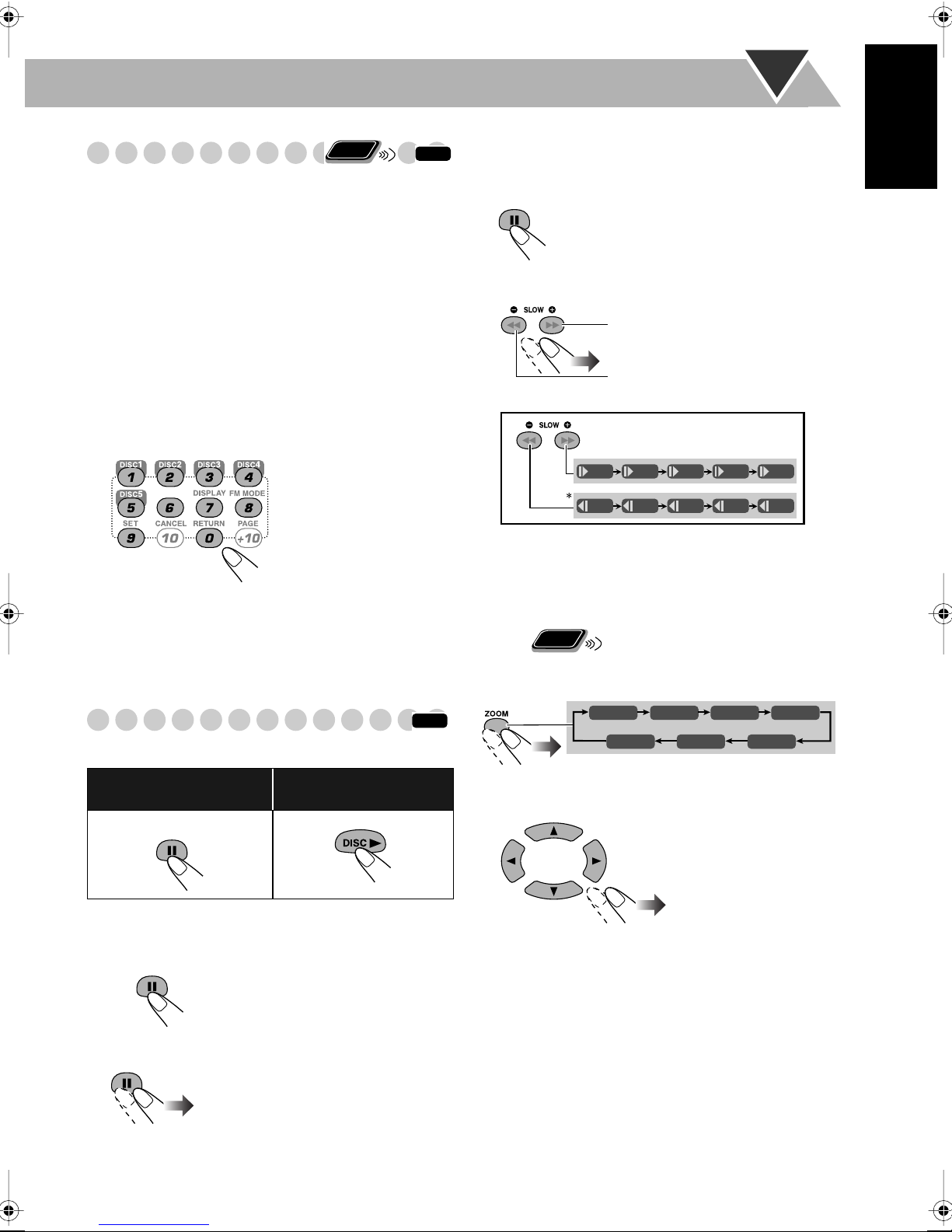

Special Picture Playback ........................................... 22

2

Before Operating the System

Playable Disc Types

INFO

This unit has been designed to play back the following discs:

Disc Type Mark (Logo)

DVD Video

DVD Audio

Video CD

(VCD)

Super Video

CD (SVCD)

Audio CD

CD-R

CD-RW

DVD-R

DVD-RW

The System can play back CD-R or CD-RW recorded in the Audio CD, Video CD, SVCD, MP3, and JPEG formats.

The System can play back DVD-R or DVDRW recorded in the video format.

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

In addition to the above discs, this system can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD-RAM, CD-I (CD-I Ready), CD-ROM, Photo CD, SACD, etc. Playing back these discs will generate noise and damage the speakers.

• In this manual, “file” and “track” are interchangeably used for MP3/JPEG operations.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This unit can play back only DVDs recorded with the NTSC color system whose Region Code numbers include “1.” EX.:

Audio formats

The System can play back the following digital audio formats.

• LPCM (

•

DTS

• MPEG

•

MLP

When playing a multi-channel encoded DVD, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers.

To enjoy the powerful sound of these multi-channel encoded DVDs,

with a proper built-in decoder to the OPTICAL DIGITAL OUTPUT terminal on the rear.

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on

• For disc playback, you can change the initial setting to

If “ ” appears on the TV screen when you press a button,

tried to do, or data required for that operation is not recorded on the disc.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are trademarks of Digital Theater Systems, Inc.

Linear PCM

DIGITAL

)

(Dolby Digital)

(Digital Theater Systems)

(MPEG Multichannel)

(Meridian Lossless Packing)

connect a proper decoder or an amplifier

the TV to view the pictures or on-screen displays on the TV screen.

your preference. See “Set up Menu Operations” on page 33.

the disc cannot accept the operation you have

If a DVD with the improper Region Code numbers is loaded, “REGION ERR” appears on the display and playback will not start.

3

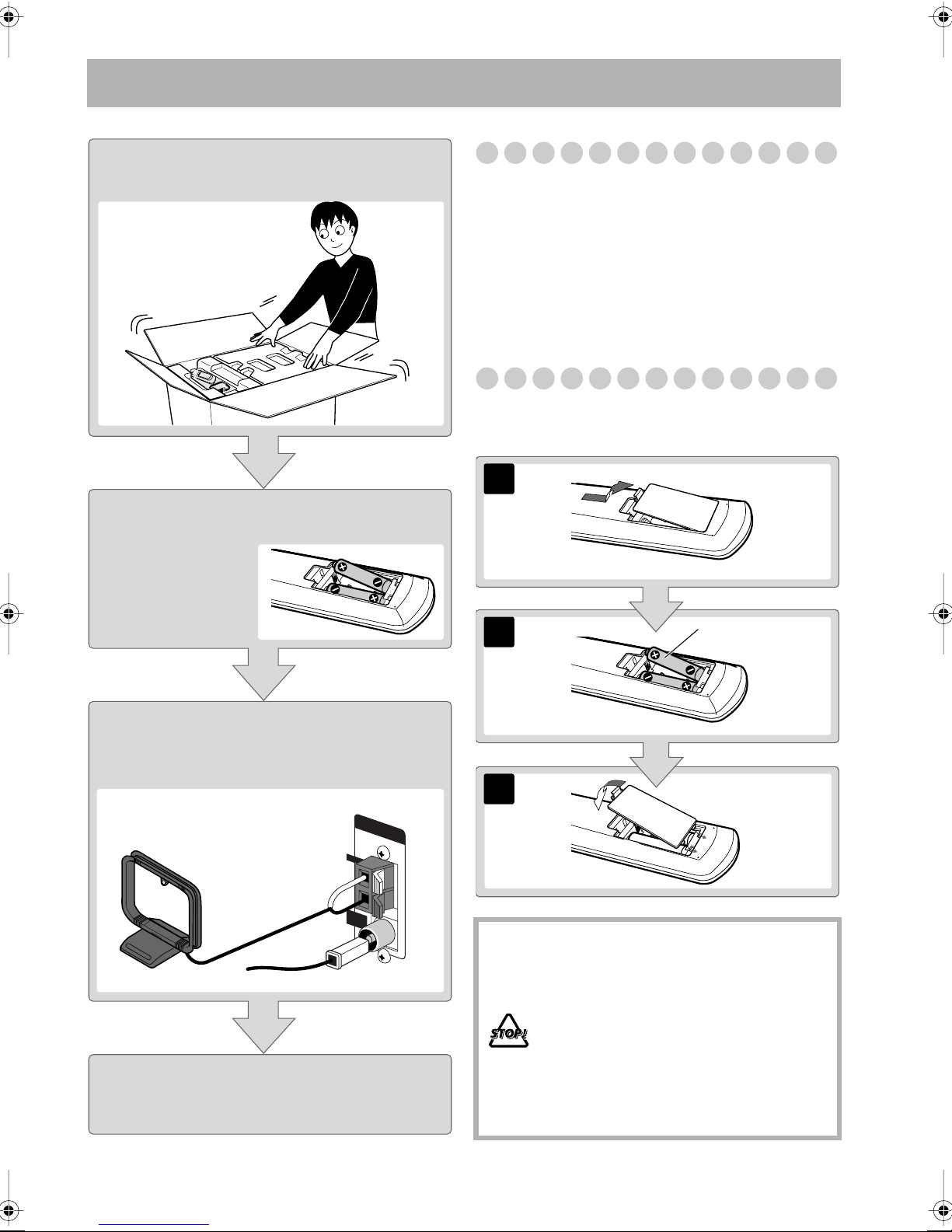

Getting Started

Step 1:Unpack the package and

check the accessories.

Step 2: Prepare the remote control.

Step 1: Unpack

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Composite video cord (1)

• Remote control (1)

• Batteries (2) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

1

Step 3: Hook up the components such

as AM/FM antennas, speakers, etc. (see pages 5 to 7).

ANTENNA

AM

FM

(75Ω)

Finally plug the AC power cord.

Now you can operate this System.

2

3

R6(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

4

Step 3: Hook Up

If you need more detailed information, see page 7.

Turn the power off to all components before connections.

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary.

AM loop antenna (supplied)

Turn it until the best reception is obtained.

Digital audio

equipment

OPTICAL

DIGITAL IN

VEDEO INPUT

P

R

P

B

TV

Y

VEDEO INPUT

To a wall outlet Plug the AC power cord only after all connections are complete.

5

Red

Blue Green

Yellow

Optical digital cord (not supplied)

Component video cord (not supplied)

Composite video cord (supplied)

S-video cord (not supplied)

For better FM/AM reception

ANTENNA

AM loop antenna

Keep it connected.

Outdoor FM antenna (not supplied)

AM

Vinyl-covered wire (not supplied)

Extend it horizontally.

FM

(75Ω)

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75

Ω wire with

coaxial type connector (IEC or DIN45325).

FM antenna (supplied)

Extend it so that you can obtain the best reception.

M

A

IN

S

PE

AK

(4

ER

·8

Ω

)

S

U

B W

O

FER

(6

·1 6

Ω

)

L

R

L

R

D

IG (OP

C

O M

P

O N

EN

T

VID

Y

EO O

P

B

VID

EO

O

U

T S-V

A N

TEN

N

A

AM

F

M

(7

5 Ω)

ITA

L O

U

T T IC

A

L)

U T

P

R

ID

EO

6

Turn the power off to all components before connections.

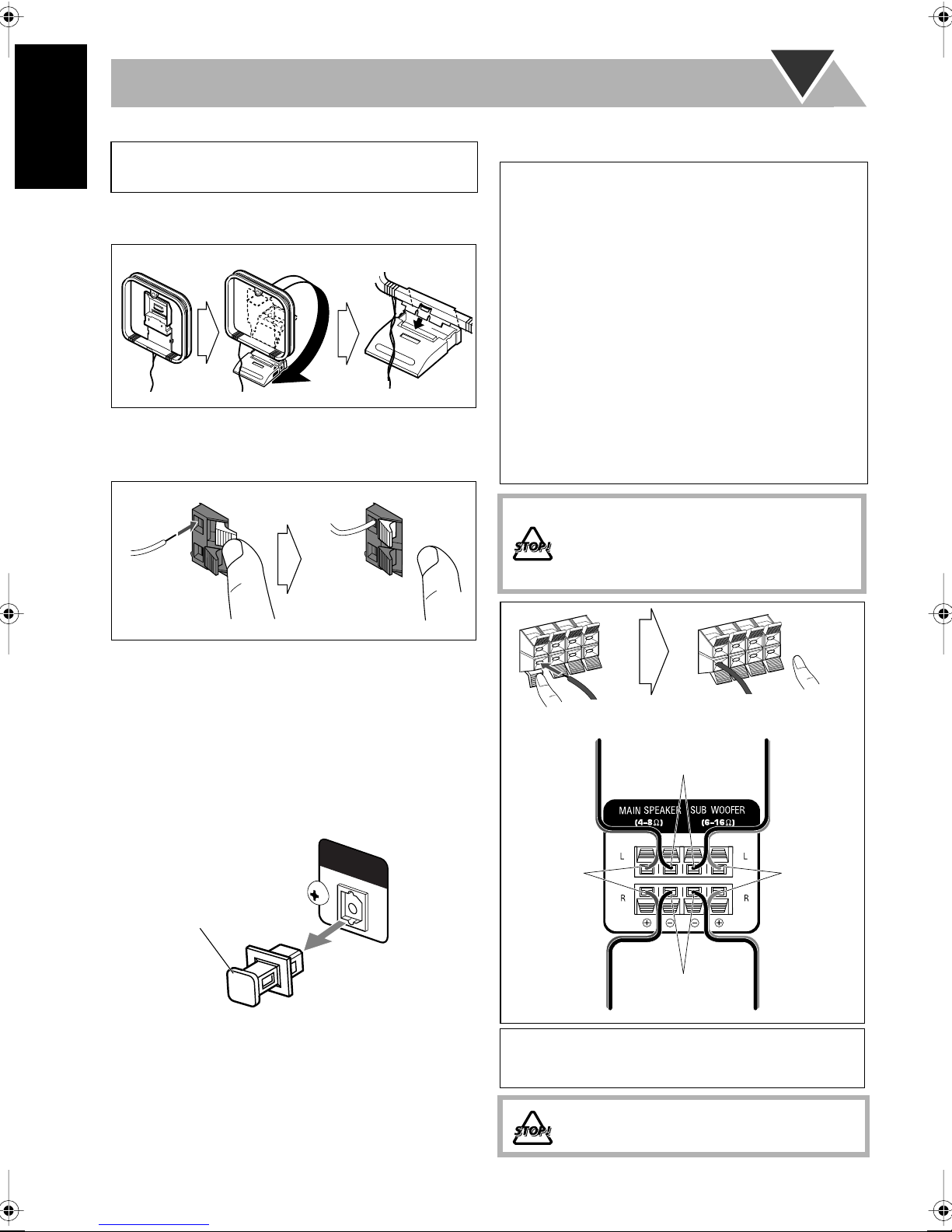

To assemble and connect the AM loop antenna

To assemble the AM loop antenna

To connect the AM loop antenna cords

• Connect black cord to the H

the other terminal.

terminal, and the white cord to

To connect the speaker cords

• When connecting the speaker cords, match their polarity with that of the speaker terminals: red/blue to (+) and black to (–).

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers. –When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the

TV’s main power switch again. Some TVs may still be affected even though you have followed the above instruction. If this happens, move the speakers away from the TV.

1 Hold

2 Insert

3 Release

• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor condition.

To connect digital audio

DIGITAL OUT

(OPTICAL)

Protective cap

1 Hold

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

2 Insert

From left speaker

Black

Blue

3 Release

Red

7

Black

From right speaker

IMPORTANT

• Always set volume to VOL MIN when connecting or disconnecting the other equipment.

DO NOT plug in any equipment until all connections are complete.

Display Indication

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

1

3 4 5 6 7 p q9

e

rt iyouaf;

8 w2

ds

Indications on the main display

• While listening to radio: • While selecting “AUX” or “USB”:

Band

• While playing a disc: • While disc play is stopped:

DVD Video:

Title number

Chapter number

DVD Audio:

Group number

Frequency

Reception mode (FM only)

Elapsed playing time

Source name

DVD Video:

Total title number

DVD Audio:

Track number

SVCD/VCD/CD:

Track number

Disc type*

MP3*3:

Group number

JPEG:

Current group number

1

*

Disc type is displayed with the following abbreviation: “SV (SVCD)”, “VD (VCD)”, and “CD (CD)”.

2

*

While activating PBC function, “PBC” appears on the display instead of the playing time.

3

At the playback beginning, the file name and ID3 Tag (if any) are shown.

*

1

Current file number

Elapsed playing time*

Track number

Elapsed playing time

2

SVCD/VCD/CD:

Total track number

Disc type*

MP3:

JPEG:

Current file number

Current group number

Total playing time*

1

2

8

1

BEEP ON indicator

• Lights when key-touch tone is activated.

2

Timer indicators

• DAILY: lights when the Daily Timer stands by or is working; flashes while Daily Timer is being set.

• SLEEP: lights when the Sleep Timer is activated.

•: lights when Daily Timer stands by or is being set; flashes while Daily Timer is working.

3

3-D PHONIC indicator

• Lights when 3D Phonic is activated (see page 17).

4

PRGR. (

• Lights when the scanning mode is set to progressive.

5

B.S.P. (browsable still picture) indicator

• Lights when browsable still picture on DVD Audio is

6

BONUS indicator

• Lights when a bonus group on DVD Audio is detected

7

RESUME indicator

• Lights when the Resume function is activated (see

8

DVD LEVEL 1, 2, 3 indicators

• Lights when the DVD Video is detected.

9

Main display

p q

PCM: lights when a source signal is linear PCM (only for DVD Video and DVD Audio).

w

Disc operation indicators

• PROGRAM: lights when Program Play mode is

• RANDOM: lights when Random Play is activated.

• REPEAT: lights when Repeat Play mode is activated.

• ALL, 1, DISC:

e

Audio level indicator

progressive

available (see page 21).

(see page 22).

page 12).

D: lights when a source signal is Dolby Digital.

– ALL: lights when All Disc Repeat is activated. –1: lights when One Track/Chapter/Step Repeat

–1 DISC: lights when One Disc Repeat is activated.

) indicator

activated.

is activated.

r

DVD AUDIO indicator

• Lights when DVD Audio is detected.

t

TITLE indicator

• Lights to indicate the title number when the source is DVD Video.

y

GROUP indicator

• Lights to indicate the group number when the source is DVD Audio, MP3, or JPEG disc.

u

CD PLAY indicator

• Lights when the disc player is selected as the source.

i

CHAP. (chapter) indicator

• Lights to indicate the chapter number when the source is DVD Video.

o

Disc indicators

• Each indicator shows the status of a disc placed on each corresponding disc tray (DISC1 – DISC5). – Lights up when a disc is detected. – Flashes when the tray is currently selected. – Goes off when the unit detects there is no disc loaded

on the disc tray.

;

TRACK indicator

• Lights to indicate the track number when the source is a disc (except for DVD Video).

a

S.MODE (sound mode) indicator

• Lights when the Sound mode is activated.

s

SURR. (surround) indicator

• Lights when 3D Phonic is activated (see page 17).

d

FM reception indicators

• ST (stereo): lights while an FM stereo station with

sufficient signal strength is tuned in.

• MONO: lights while receiving an FM stereo station

in monaural.

f

DTS: lights when a source signal is DTS Surround.

9

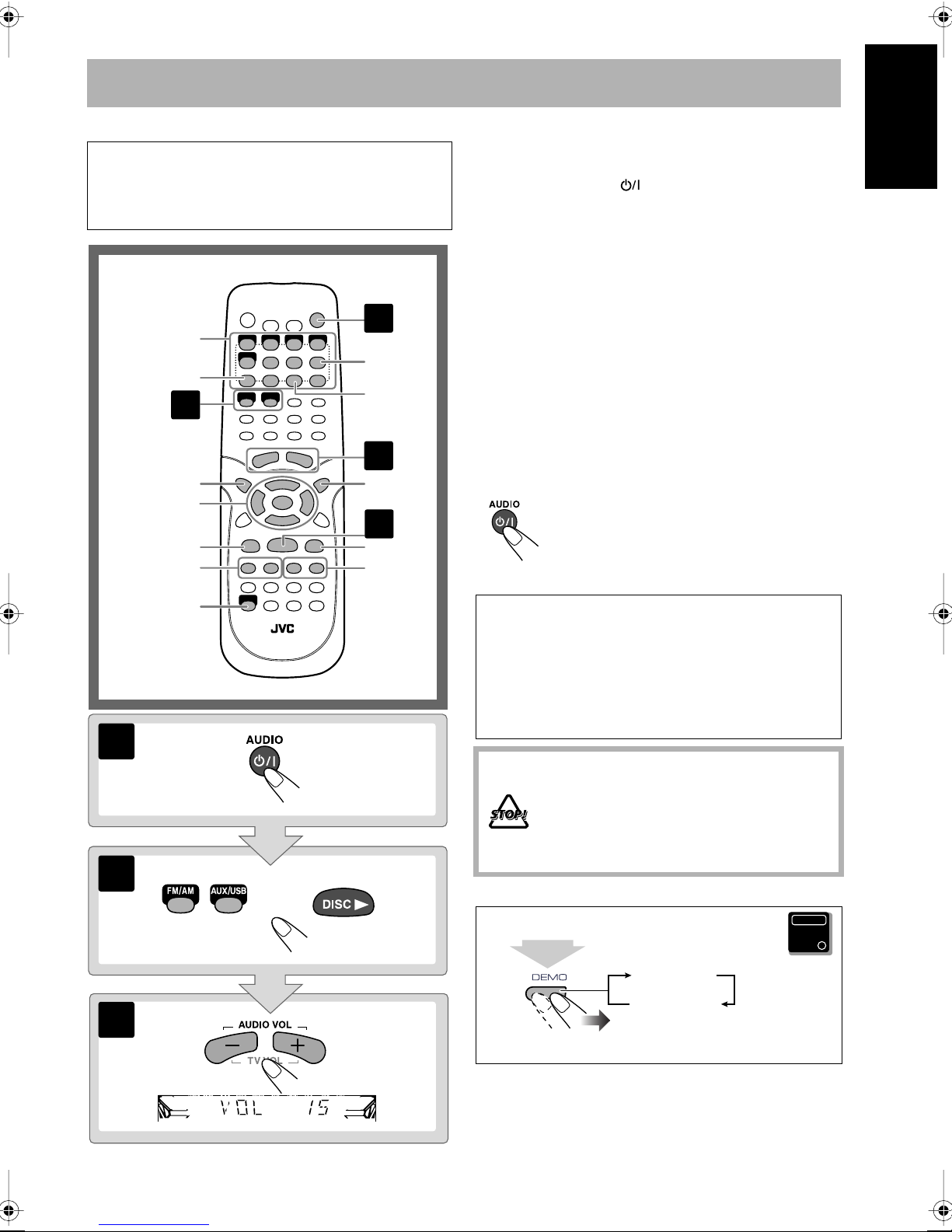

Daily Operations

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

Disc number

buttons,

10 keys

SET

2

1

FM MODE

RETURN

—Playback

¥

Turn on the power.

The standby lamp on the main unit goes off.

• Without pressing , the System also turns on by pressing one of the source select buttons in the next step.

ø

Select the source.

Playback automatically starts if the selected source is ready to start playback.

• If you press AUX/USB, start playback source on the external component or the PC.

π

Adjust the volume.

[

Operate the target source as explained later.

TOP MENU

3/2/5/∞

ENTER

GROUP SKIP

¢/4

SHIFT

1

2

3

MENU

2

7

8

¡/1

To turn off (stand by) the system

The standby lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

DO NOT turn off (stand by) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

3

To cancel the demonstration

2 sec.

DEMO OFF

DEMO START

Press and hold until “DEMO OFF” appears on the display.

Main Unit

ONLY

10

To save the power consumption while on standby—Eco mode

While on standby...

ECO

Canceled

The display illumination (including the display demonstration) disappears.

Main Unit

ONLY

Remote

To preset stations

ONLY

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset, then enter into

1

the presetting mode.

(holding then...)

Listening to the Radio

INFO

To select the band (FM/AM)

FM

AM

To tune in to a station

While FM or AM is selected...

1 sec.

Increases the frequency.

Decreases the frequency.

When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

If the received FM station is hard to listen

(holding then...)

To restore the stereo effect,

MONO indicator goes off).

press either button.

Remote ONLY

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—monaural reception mode.

press the button again (the

Select a preset number for the station you store.

2

Store the station.

3

(holding then...)

To tune in to a preset station

1

Select the band (FM or AM).

FM

AM

2

Select a preset number for the station you store.

Examples:

To select preset number 5, press 5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then

10.

11

• You can also use ¢

/4

on the remote control or the

PRESET +/– control on the main unit.

Groups

INFO

”

Playing Back a Disc

Before operating a disc, be familiar how a disc is recorded.

• DVD Video comprises of “ “

Chapters

which includes “ of only “

For JPEG playback, see page 29.

,” DVD Audio/MP3 comprise of “

Tracks

.”

Titles

” which includes

,” and CD/SVCD/VCD comprise

To insert discs

While playing DVD/SVCD/VCD:

the stop point, and when you start playback again by pressing DISC 3 stopped—Resume Play. (RESUME indicator lights up when you stop playback.)

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 36.)

, it starts from the position where you have

This System can store

press 7

On-screen guide icons

• During disc playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

• The following icons will be also shown on the TV screen to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 36.

• When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray,

• If you push down the same control automatically and playback starts.

•

When you push up want to place another disc onto, the first disc tray automatically closes and then next tray comes out.

To start:

push up the same control

(3)

, disc tray closes

the control (0

To pause: To stop:

To release it, press DISC 3

.

) for the next tray you

(0)

again.

To select a playback disc

Remote control:

(holding then...)

Main unit:

Ex.: To select DISC 1

Playback of the selected disc starts.

12

To select a title/group

While playing a disc...

Remote ONLY

Skips to the next title/ group.

Remote

To play back by using the disc menu

ONLY

You can operate the disc play—DVD and SVCD/VCD with Playback Control (PBC)—using the disc menu shown on the TV screen.

• When an SVCD or VCD with PBC is detected, “PBC” appears on the display instead of the playing time.

(holding then...)

title/group.

To select a chapter/track

Skips to the previous

While playing...

Increases the chapter/track numbers.

Decreases the chapter/track numbers.

To locate a particular portion

While playing a disc except MP3...

• No sound comes out while searching on DVD/SVCD/ VCD.

To return to normal playback,

press DISC 3

.

For DVD Video/DVD Audio:

7

Show the disc menu.

1

•

For DVD Video:

or

•

For DVD Audio:

2

Select an item on the disc menu.

• With some discs, you can also select items by entering the number using the 10 keys.

Remote

o select

T

an item directly

ONLY

You can select a title/chapter/track directly and start playback.

•

For DVD Video: playback playback

•

For MP3:

, while you can select .

You can select

a title before starting

a chapter after starting

Select a track number in the current folder.

Examples:

To select number 5, press

5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

For SVCD/VCD with PBC:

7

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

Examples:

To select number 5, press

5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

13

To move to the next or previous page of the current menu:

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

(holding then...)

To cancel PBC

You can also cancel PBC function by pressing the number button to select a track.

To reactivate PBC,

press 7

, then press 4

.

How to install the USB drivers

The following procedure is described using the English version of WindowsRXP. If your PC is running on a different version of Windows, the screens shown on your PC’s monitor will differ from the ones used in the following procedure.

Turn on your PC and start running WindowsR 98SE,

1

WindowsR Me, WindowsR 2000 or WindowsR XP.

• If the PC has been turned on, quit all the applications now running.

Turn on the System and select USB for the source.

2

AUX

USB

3

Connect the unit to the PC using a USB cable (not supplied).

USB cable

(front panel)

Playing Back from the PC

This System is equipped with a USB terminal on the front panel. You can connect your PC to this terminal and enjoy sound reproduced through your PC. When you connect your PC for the first time, follow the procedure below.

• Remember you cannot send any signal or data to your PC from this System.

IMPORTANT

• Always set volume to VOL MIN when connecting or disconnecting the other equipment.

DO NOT turn off the System and disconnect the USB cable while installing drivers and playing back, and for several seconds after your PC recognizes the System.

PC

• Use “USB series A plug to B plug” cable when connecting.

4

The USB drivers are installed automatically.

• If the USB drivers are not installed automatically, install the USB drivers following the instructions on the PC’s monitor.

14

5

Check if the drivers are correctly installed.

1 Open the Control Panel on your PC: Select [Start] =

[Settings] =

2 Click [System] =

=

[Sound, video and game controllers] and

[Universal Serial Bus controllers]

• The following window appears, and you can check whether the drivers are installed.

* The installed drivers can be shown only when the System is

connected to the PC.

[Control Panel]

[Hardware] =

[Device Manager]

Playing Back from Other Audio Equipment

IMPORTANT

• Turn the power off to all components before connections.

•

Always set volume to VOL MIN when connecting or disconnecting the other equipment.

By using a stereo mini plug cord (not supplied), you can connect equipment with analog audio output jacks such as an MD player, a TV, etc.

Stereo mini plug cord (not supplied)

Audio equipment output

(front panel)

If the audio output on the other equipment is not stereo mini plug type,

plug to the corresponding plug of the audio output.

use a plug adapter to convert the stereo mini

To play back sounds on the PC

Refer to the manuals supplied with the sound reproduction application installed in the PC.

• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations: – Disconnect and connect the USB cable again. – Restart the music software on your PC. – Turn off and on the System.

• Microsoft 2000 and Windows Microsoft corporation.

®

, Windows® 98SE, Windows® Me, Windows®

®

XP are registered trademarks of

To select other audio equipment for the source

AUX

USB

15

Daily Operations

—Sound and Other Adjustments

Remote Control

DIMMER

CLEAR VOICE

FADE MUTING

SURROUND

MODE

SOUND MODE

3/2/5/∞,

ENTER

BEEP

¢/4

SHIFT

CLOCK/TIMER

SLEEP

DISPLAY

DVD LEVEL RHYTHM AX

SUBWOOFER LEVEL

AUDIO VOL

VFP PROGRESSIVE

Adjusting the Volume

The volume level can be adjusted in 32 steps (VOL MIN, VOL 1 – VOL 30, VOL MAX).

Remote control:

To drop the volume in a moment

To restore the volume,

again, or adjust the volume level.

Main unit:

press the button

Remote ONLY

Reinforcing the Bass Sound

INFO

To adjust the subwoofer level gradually

You can select the subwoofer level from level 0 (minimum) to level 2 (maximum).

Main unit

BEEP

SUBWOOFER

LEVEL +

VOLUME +/–

SOUND MODE

SURROUND MODE

SUBWOOFER

LEVEL –

RHYTHM AX

Remote control:

Main unit:

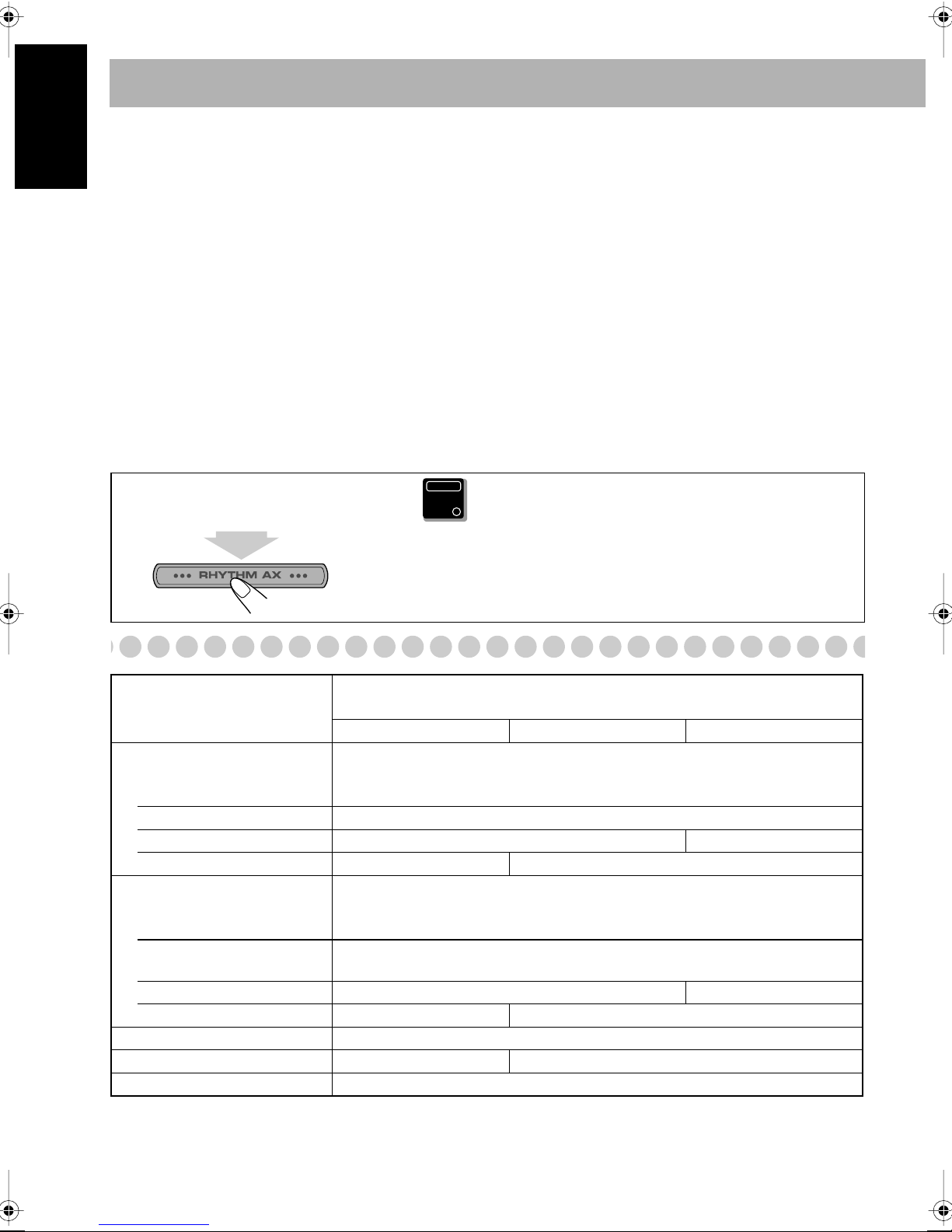

To emphasize rhythm feeling—RHYTHM AX

This function emphasizes bass attack feeling, and also changes the subwoofer level.

(subwoofer level 2)

(subwoofer level 0)

ON

OFF

16

Making the Center Channel Sound Clear

Remote

—Clear Voice

ONLY

Selecting 3D Phonic Mode

While playing a disc (except JPEG)...

INFO

When a multi-channel disc with center-channel signal is loaded on the current tray, you can increase the output level for the center channel sound.

• This function allows you to easily understand the dialogue of DVD Video even with the low volume level.

• You can also use this function for other discs than DVD Video when 3D Phonic (see the right column) is activated.

VOICE ON

VOICE OFF

• This function may not take much effect on some discs.

To cancel Clear Voice,

Selecting the Sound Modes

You can select one of the preset Sound Modes.

Remote control:

select “VOICE OFF.”

INFO

Main unit:

Remote control:

3D ACTION 3D DRAMA

3D OFF

3D ACTION

Main unit:

3D THEATER

Suitable for action movies and sports programs.

3D DRAMA

Creates natural and warm sound. Enjoy movies in a relaxed mood.

3D THEATER

Enjoy sound effects like in a major theater.

To cancel 3D Phonic,

select “3D OFF.”

Presetting Automatic DVD VIDEO Sound

Remote

Increase Level

ONLY

(canceled)

DANCE

HALL

STADIUM

ROCK

POP

CLASSIC

DANCE HALL

OFF

CLASSIC

STADIUM

POP

ROCK

Increases resonance and bass.

Adds depth and brilliance to the sound.

Adds clarity and spreads the sound, as in an outdoor stadium.

Boosts low and high frequency. Good for acoustic music.

Good for vocal music.

Good for classical music.

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for DVD Video, so you do not have to adjust the volume every time you change the source.

When DVD Video is loaded on the current tray...

DVD LEVEL1 DVD LEVEL2

DVD LEVEL3

• As the number increases, sound level also increases.

17

Changing the Scanning Mode

ONLY

INFO

Remote

This System supports progressive scanning. If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PROGRESSIV.”

PROGRESSIV

INTERLACE

To adjust the picture tone

Select “USER1” or “USER2.”

1

• Follow steps 1 and 2 explained above.

2

Select a parameter you want to adjust.

PROGRESSIV

Progressive scanning. For a progressive TV.

• PRGR. indicator lights on when progressive scanning mode is selected.

INTERLACE

Interlaced scanning. For a conventional TV.

Changing the Picture Tone

ONLY

INFO

Remote

While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own preference.

To select a preset picture tone

1

Activate VFP.

NORMAL

GAMMA

0

BRIGHTNESS

CONTRAST

NORMAL

GAMMA

0

BRIGHTNESS

CONTRAST

0

SATURATION

0

TINT

0

SHARPNESS

0

SATURATION

TINT

SHARPNESS

0

GAMMA

Adjust if the neutral color is bright or dark. The brightness of dark and bright portions is maintained (–3 to +3).

BRIGHTNESS

Adjust if the picture is bright or dark as a whole (–8 to +8).

CONTRAST

Adjust if the far and near position is unnatural (–7 to +7).

SATURATION

Adjust if the picture is whitish or blackish (–7 to +7).

TINT

Adjust if the human skin color is unnatural (–7 to +7).

SHARPNESS

Adjust if the picture is indistinct (–8 to +8).

3

Adjust the parameter.

Repeat steps 2 to 3 to adjust other parameters.

4 5

Finish setting.

On the TV screen

Select a preset picture tone.

2

NORMAL

CINEMA

USER1/USER2

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings (see the next column).

18

Turning On or Off the Key-Touch Tone

Remote control: Main unit:

3

sec.

(holding then...)

BEEP OFF

2

Adjust the hour.

Adjust the minute.

3

(holding then...)

BEEP ON

• When the key-touch tone is activated, the BEEP ON indicator lights up.

Remote

Changing the Display Brightness

ONLY

You can dim the display window.

DIMMER 1 DIMMER 2

DIMMER OFF

(canceled)

• Selecting “DIMMER 2” dims the display indication more than “DIMMER 1.”

Remote

Setting the Clock

ONLY

Without setting the build-in clock, you cannot use Daily Timer (see page 31).

• To exit from the clock setting, press CLOCK/TIMER as required.

• To go back to the previous step, press CANCEL (while holding SHIFT).

• If you have already adjusted the clock before, press the CLOCK/TIMER repeatedly in step 1, until the clock setting mode is selected.

1

Activate clock setting mode.

INFO

(holding then...)

Now the built-in clock starts working.

To check the current time during play

2 sec.

(holding then...)

To display the source information,

Turning Off the Power

Automatically

repeat the procedure.

Remote ONLY

INFO

With Sleep Timer, you can fall asleep listening to music.

• You can set Sleep Timer only while the System is turned on.

1

Specify the time (in minutes).

SLEEP 10 SLEEP 20 SLEEP 30 SLEEP 60

OFF SLEEP 120 SLEEP 90

(canceled)

(holding then...)

19

Wait until the set time goes off.

2

To check the time remaining until the shut-off time

• If you press the button repeatedly, you can change the shut-off time.

Remote Control

10 keys

CANCEL

5/∞

,

ENTER

7

¢/4

AUDIO

SHIFT

Unique DVD/VCD Operations

Selecting the Sound Track

PAG E PLAY MODE

REPEAT

DISC 3

8 ( SLOW 9

ZOOM ANGLE SUBTITLE

For DVD Video:

multiple audio tracks, you can select the one to listen to.

For DVD Audio:

audio channels, you can select the audio channel to listen to.

For SVCD/VCD:

the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 27).

While playing a DVD Video...

Ex.:

1/3

ENGLISH

1/3

ENGLISH

While playing back a chapter containing

While playing back a track containing

When playing back a track, you can select

2/3

FRENCH

2/3

FRENCH

Remote

ONLY

JAPANESE

INFO

3/3

JAPANESE

3/3

While playing an SVCD or VCD...

SVCD

ST1/ST2/ST

ST1 ST2

L2

VCD

ST L R

To listen to normal stereo (2 channel)

L1

R1R2

playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ ST2).

20

Selecting the Subtitle Language

(holding then...)

Remote ONLY

Selecting a View Angle

Remote ONLY

For DVD Video:

While playing back a chapter (of DVD Video) containing subtitles in different languages, you can select the subtitle language to display on the TV screen.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-

screen bar (see page 27).

While playing a DVD Video...

Display the subtitle selection window.

1

2

Select the subtitle language.

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

3/3

JAPANESE

3/3

While playing an SVCD...

While playing back a chapter (of DVD Video) containing multi-view angles, you can view the same scene from different angles.

• You can also select the view angle using the on-screen bar (see page 27).

While playing back or paused...

Ex.:

1/3

1

1/3

1

2/3

2

2/3

2

Selecting Browsable Still Pictures

3/3

3

3/3

3

Remote ONLY

While playing back a track (of DVD Audio) linked to browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• When a DVD Audio with browsable still pictures (B.S.P.) is detected, the B.S.P indicator lights up.

• If a track is linked to browsable still pictures (B.S.P.), they are usually shown in turn automatically during playback.

• You can also select the page using the on-screen bar (see page 27).

21

Each time you press the button, the still picture changes one after another (if available).

Remote

Playing Back a Bonus Group

Some DVD Audios have a special group called “bonus group” whose contents are not open to the public.

• When the bonus group is detected, the BONUS indicator lights up.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

ONLY

INFO

Slow-motion playback

While playing...

1

Select slow motion speed.

2

Still picture playback starts.

1

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 13.

Enter the key number.

2

3

Follow the interactive instruction shown on the TV screen.

To cancel the key number entry,

another source.

press 7

or change to

Special Picture Playback

Still picture playback

INFO

Forward slow motion starts.

Reverse slow motion* starts.

1/32 1/16 1/8 1/4 1/2

* Only for DVD Video.

To resume normal playback,

Remote

Zoom

1

While playing...

ONLY

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

press DISC 3

.

ZOOM 5ZOOM 6

To start still picture playback:

While playing...

To resume normal playback:

Frame-by-frame playback

1

While playing...

Still picture playback starts.

2

Advance the still picture frame by frame.

To resume normal playback,

press DISC 3

• As the number increases, magnification also increases.

Move the zoomed-in position.

2

To resume normal playback,

“ZOOM OFF” appears on the TV screen.

.

press ZOOM repeatedly until

22

Remote Control

Advanced Disc Operations

Programming the Playing Order —Program Play

You can arrange the playing order of the tracks (up to 99) before you start playback.

Remote ONLY

INFO

10 keys

CANCEL

5/∞

ENTER

¢/4

AUDIO

SHIFT

Main unit

1

Before starting playback, activate Program Play.

PAG E PLAY MODE

REPEAT

PROGRAM

Canceled

RANDOM

PROGRAM indicator

,

On the display

DISC 3

7

8 ( SLOW 9

ZOOM ANGLE SUBTITLE

PROGRAM

No Disc Group/Title Track/Chapter

1

2 3 4 5 6 7 8 9

10

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

On the TV screen

Select chapters or tracks you want for Program Play.

2

•

For DVD/MP3:

1

Select a disc number

2

Select a title or group number.

3

Select a chapter or track number.

•

For SVCD/VCD/CD:

1

Select a disc number

2

Select a track number.

• If the disc is not in the current tray, press ENTER to

7

0

skip the group number entry before selecting a track.

To enter the numbers:

Examples:

To enter number 5, press

5. To enter number 15, press +10, then 5. To enter number 30, press +10, +10, then 10.

23

Repeat the steps 2 until you finish what you want to

3

program.

4

Start playback.

Playback starts in the order you have programmed.

To skip a track:

Remote

ONLY

To pause: To stop:

Playing at Random

To release, press DISC 3

.

To check the programmed contents

Before or after playback...

in the reverse order

in the programmed order

Remote

To modify the program

Before or after playback...

To erase the last step:

ONLY

To erase the entire program:

Remote ONLY

—Random Pla

You can play the contents of all tracks at random.

1

Before playback...

y

PROGRAM

RANDOM

Canceled

RANDOM indicator

2

Start playback.

Playback starts in a random order. Random Play ends when all chapters/tracks are played.

To skip: To pause: To stop:

INFO

(holding then...)

To add steps in the program:

Repeat step 2 on page 23.

To exit from Program Play

Before or after playback...

PROGRAM

Canceled

RANDOM

To go to the beginning of the current track, press

4

.

To release, press DISC 3

To exit from Random Play

Before or after playback...

PROGRAM

Canceled

.

RANDOM

24

Remote

Playing Repeatedly—Repeat Play

ONLY

You can repeat playback.

• You can also select the repeat mode using the on-screen bar (see page 27).

• For DVD Video:

While playing...

CHAP TITLE

ALLOFF

On the TV screen

Before starting playback...

ALL

OFF

On the TV screen

• For DVD Audio:

While playing or before playback...

TRACK

OFF

On the TV screen

GROUP

ALL

• For MP3:

While playing or before playback...

REPEAT TRACK REPEAT GROUP

Canceled

REPEAT ALL

On the TV screen

REPEAT DISC

Indication

Display window

TV screen

REPEAT 1 CHAP,

TRACK,

Meanings

Repeats the current chapter/track.

REPEAT TRACK,

(REPEAT)

STEP

REPEAT TITLE,

GROUP,

Repeats the current title/group.

REPEAT GROUP

REPEAT ALL

*

REPEAT 1 DISC

*

No indication

ALL,

REPEAT ALL

DISC,

REPEAT DISC

OFF

Repeats all discs or all programmed tracks.

Repeats the current disc.

Selects to cancel Repeat Play mode.

* For DVD Video and DVD Audio, REPEAT ALL and

REPEAT 1 DISC may not be available depending on the disc.

Prohibiting Disc Ejection

Main Unit

ONLY

—Child Lock

You can lock the disc trays so that no one can eject the loaded disc.

• This operation is possible only when the source is the disc player.

•

For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

TRACK DISC

ALLOFF

On the TV screen

•

For Program Play mode:

While playing or before playback...

STEP ALL

OFF

On the TV screen

•

For Random Play mode:

While playing or before playback...

STEP DISC

OFF ALL

On the TV screen

While the disc trays are closed...

1

Push up and hold 0

(holding then...)

Release 7

2

, then 0

for any disc tray while holding 7

.

• If you try to eject discs while Tray Lock is in use, “LOCKED” appears to inform you that the disc trays are locked.

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

.

25

On-Screen Disc Operations

TOTAL

1:25:58

Remote control

About the On-screen Bar

You can check the information on disc (except for MP3/

10 keys

JPEG disc) and use some functions through the on-screen bar.

On-screen bar

Ex.: While playing a DVD Video

REPEAT

3/2/5/∞,

ENTER

7

DISC 3

ON SCREEN

8 ¡

1 2

ZOOM

On-screen bars

DVD Video

12

TOTAL 1:01:58

TITLE 2

CHAP 3

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

DISC 1

3

4

DVD Audio

12

DVD-AUDIO

TIME

SVCD

OFF

DISC 2

TRACK

4

GROUP 14

TRACK 23

1/31/3

TIME 0:15:58

PAGE

12

TIME 0:04:58

TRACK 3

DISC

SVCD

TIME OFF ST1

3

-/ 4

3

4

3

4

VCD

12

TIME 0:04:58

VCD

TIME OFF ST

TRACK 3DISC 4

3

4

CD

12

TIME 04:58

TRACK 3

CD

TIME OFF

DISC 5

3

4

12

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

DISC 1

TOTAL 1:01:58

CHAP 3

TITLE 2

4

Disc type

Playback information

Indication Meanings

Mbps

Current transfer rate (Megabits per second)

DISC

1

TITLE

2

CHAP

3

GROUP 1

TRACK

14

Current disc Current title

Current chapter

Current group

Current track

Time indications

Playback conditions

Indication Meanings

Playback

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Pause

Stop

Operation icons (on the pull-down menu)

Indication Meanings

TIME

Select to change the time indication (see also page 27).

Select to repeat playback (see also pages 25,

27 and 28).

Select for time search (see also page 28).

CHAP.

Select for chapter search (see also page 29).

TRACK

Select for track search (see also page 29).

1/3

Select to change the audio language or channel (see also page 20).

1/3

Select to change subtitle language (see also page 21).

1/3

Select to change the view angle (see also page 21).

PA GE 1/15

Select to change the page (see also page 21).

3

26

Remote

Operations Using the On-screen Bar

ONLY

INFO

Basic operation procedure through the on-screen bar is as follows:

Ex.: Selecting a subtitle (French) for DVD Video

While a disc is selected as the source...

1

Display the on-screen bar with the pull-down menu.

TOTAL 1:01:58

CHAP 3

TITLE 2

DISC 1

8.5 Mbps

DVD-VIDEO

TOTAL 1:01:58

CHAP 3

TITLE 2

DISC 1

8.5 Mbps

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Canceled

Select (highlight) the item you want.

2

TOTAL 1:01:58

TITLE 2

CHAP 3

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

DISC 1

Changing the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 Display the on-screen bar with the pull-down menu.

TOTAL 1:01:58

TITLE 2

CHAP 3

Elapsed time

Remaining

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

2 Make sure is selected (highlighted).

DISC 1

TIME

3 Change the time indication.

TOTAL

•

For DVD Video/DVD Audio:

Elapsed playing time of the title/ group.

•

For CD/SVCD/VCD:

of disc.

T.REM

•

For DVD Video/DVD Audio:

Remaining time of the title/group.

•

For CD/SVCD/VCD:

time of disc.

TIME

Elapsed playing time of the current chapter/track.

REM

Remaining time of the current chapter/ track.

3

Display the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 21

1/31/31/1

ENGLISH

4

Select the desired option in the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 21

1/32/31/1

FRENCH

5

Finish the setting.

Pop-up window goes off.

To erase the on-screen bar

Repeat Play

• See also page 25.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu. 2 Select . 3 Display the pop-up window.

TOTAL 1:01:58

TITLE 2

CHAP 3

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

OFF

DISC 1

27

4 Select the repeat mode you want.

H

C

ALL

A-B

Repeats all discs.

Repeats a desired portion (see page 28).

TITLE

GROUP

DISC

CHAPTER

TRACK

OFF

Repeats the current title.

Repeats the current group.

Repeats the disc.

Repeats the current chapter.

* Repeats the current track.

Cancels Repeat Play.

* During Program Play or Random Play, “STEP”

appears.

• Repeat modes depend on the current playback disc. Refer to page 25.

5 Finish the setting.

Pop-up window goes off.

6 Select the end point (B).

A-B Repeat starts. The selected portion plays repeatedly.

• Before pressing ENTER, you can

search for the end point using ¡

.

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the on-screen bar with the pull-down menu.

• Except for DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 2

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5 Mbps

OFF

DISC 1

TIME _ : _ _ : _ _

TITLE

CHAP

14

1/3

TOTAL

23

1/3 1/3

1:25:58

To cancel Repeat Play,

select “OFF” in step

4

.

To erase the on-screen bar

A-B Repeat

1 While playing, display the on-screen bar with the pull-

down menu. 2 Select . 3 Display the pop-up windows.

TOTAL 1:01:58

TITLE 2

14

1/3

CHAP 3

CHAP

TOTAL 1:01:58

TOTAL

23

1/3 1/3

1:25:58

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

OFF

DISC 1

4 Select “A-B.”

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5 Mbps

OFF

A–B

DISC 1

TITLE

4 Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

•

It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry, press cursor 2

to erase the last

entry.

5 Finish the setting.

The System starts playing from the specified time.

To erase the on-screen bar

5 Select the start point (A).

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

8.5 Mbps

OFF

DISC 1

TITLE

TITLE 2

14

1/3

C

28

Chapter/Track Search

You can search for the chapter (DVD Video) or track (DVD Audio) number to play.

1 While playing, display the on-screen bar with the pull-

down menu.

2 Select

CHAP.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5 Mbps

4 Enter the desired chapter/track number.

•

To correct a misentry, press the 10 keys until the

desired number shown in the pop-up window.

5 Finish the setting.

TRACK

or

DISC 1

CHAPTER _

TITLE 2

TITLE

.

TOTAL 1:01:58

CHAP 3

CHAP

14

1/3

TOTAL

23

1/3 1/3

Examples:

To select chapter/track 5, press 5. To select chapter/track 15, press 1, then 5. To select chapter/track 30, press 3, then 0.

The System starts playing the searched chapter or track.

1:25:58

Remote

Operations on the

Screen

CONTROL

ONLY

INFO

The CONTROL screen automatically appears on the TV screen when you load an MP3 or JPEG disc onto the current tray. You can search for and play the desired tracks through the CONTROL screen.

• If both types of files (MP3 files and JPEG files) are recorded on a disc, select the file type to play (see page 35).

CONTROL screen

Ex.: When the MP3 disc is loaded.

6 7

1

2 3

4

5

Group : 2 / 3

Blue

Red

Green

Tr ack Information

Title Rain Artist

Album

Time : 00:00:14REPEAT TRACK

Tr ack : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

8 9

0

-

To erase the on-screen bar

1 Current group number/total group number 2 Current group 3 Group list 4 Current track 5 Track information (ID3 Tag Version 1.0: only for

MP3)

6 Repeat Play setting 7 Elapsed playing time of the current track

(only for MP3)

8 Operation mode icon 9 Current track number/total number of tracks in the

current group (total number of tracks on the loaded disc)

0 Highlight bar

- Track list

29

To move the highlight bar between group list and track list

Moves the bar to the track list.

Moves the bar to the group list.

To repeat slide-show for JPEG

Before starting playback...

On the TV screen

GROUP DISC

ALLOFF

To select a group/track in the list

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back an MP3 disc, the selected track starts playback automatically.

To start playback

For MP3:

Playback starts with the selected track.

• Pressing DISC 3

playback.

For JPEG:

The selected track (still picture) is displayed until you change it.

Slide-show playback starts. Each track (still picture) is shown on the screen for a few seconds, then changes one after another.

also starts

Indication

Display window

REPEAT

REPEAT 1 DISC

REPEAT ALL

No indication

• For Repeat Play of MP3, see page 25.

TV screen

GROUP

DISC

ALL

OFF

Repeats the current group.

Repeats the current disc.

Repeats all discs or all programmed tracks.

Selects to cancel Repeat Play mode.

Meanings

To zoom in the still picture

1

During playback is paused...

ZOOM 1 ZOOM 2

ZOOM OFF

• As the number increases, magnification also increases.

2

Move the zoomed-in position.

• Once you start playing back a JPEG track, the CONTROL screen goes off.

• To cancel slide-show, and display the current still picture, press 8

.

To stop playback

To resume normal playback,

“ZOOM OFF” appears on the TV screen.

press ZOOM repeatedly until

30

Timer Operations

Remote ONLY

Remote control

SET

CANCEL

¢/4

SHIFT

CLOCK/TIMER

AUDIO

Setting the Timer

Using Daily Timer, you can wake up with your favorite song.

• To correct a misentry during the process, press CANCEL (while holding SHIFT). You can return to the previous step.

1

Select the timer setting mode for Daily Timer— “TIMER ON.”

DAILY

TIMER (ON)

INFO

Canceled Clock setting

2

Set the hour then minute for on-time.

(holding then...)

3

Enter the off-time setting mode.

(holding then...)

4

Set the hour then minute for off-time.

(holding then...)

31

5

Select the playback source—“TUNER FM,” “TUNER AM,” “CD,” “AUX,” or “USB.”

To turn off Daily Timer

Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

(holding then...)

Ex.: When “TUNER FM” is selected.

•

When you select “TUNER FM” or “TUNER AM,” repeat the procedure to select a preset station.

S

elect the volume level.

6

(holding then...)

7

Turn off the System (on standby) if you have set the timer with the System turned on.

DAILY

Canceled Clock setting

(holding then...)

• The timer ( ) indicator goes off.

To turn on the timer again...

DAILY

Canceled Clock setting

TIMER (ON)

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and DAILY indicator are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column).

When the on-time comes

The System turns on, tunes in to the specified station or starts playing the specified source, and sets the volume level to the preset level.

When the off-time comes

The System stops playback, and turns off (stands by).

• The timer setting remains in memory until you change it.

(holding then...)

32

Remote control

3/2/5/∞,

ENTER

SET UP

Set up Menu Operations

Operating Procedure

You can use the Set up Menus only when a disc is selected as the source and its playback is not yet started.

Ex.: Selecting “STILL PICTURE” for “FILE TYPE”:

1

Show the set up menu.

Select one of the set up menus.

2

Remote ONLY

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

ENGLISH

OFF

ENGLISH

[

SET UP

4:3 LB

AUTO

ON

AUDIO

]

.

Set up Menu Icons

The icon for the selected Set up Menu will be highlighted.

Ex.: LANGUAGE Set up Menu is selected.

12 3 4

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

ENGLISH

OFF

ENGLISH

3

Select the item you want to adjust.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

4

Display the pop-up window.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

Select the desired option in the pop-up window.

5


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

6

Finish the setting.

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

1 LANGUAGE Set up Menu 2 PICTURE Set up Menu 3 AUDIO Set up Menu 4 OTHERS Set up Menu

33

7

Repeat steps 3 up Menu. Repeat steps 2 Menu.

to 4

to set other items on the same Set

to 4

to set other items on another Set up

7

PICTURE Set up Menu

INFO

You can select the desired options concerning a picture or monitor screen.

To finish the Set up Menu

7

LANGUAGE Set up Menu

INFO

You can select the initial languages for disc playback. You can also select the language shown on the TV screen while operating this System.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

OFF

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

MENU LANGUAGE

Some discs have multiple menu languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 42).

AUDIO LANGUAGE

Some discs have multiple audio languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 42).


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM

[

SET UP].

TO EXIT, PRESS

MONITOR TYPE

You can select the monitor type of your TV when you play DVD Video recorded with aspect ratio of 16:9.

Select one of the following settings:

16:9 (Wide television conversion):

Select when the aspect ratio of your TV is 16:9 (wide TV) and when the TV has the screen size adjustment function.

4:3 LB (Letter Box):

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3 PS (Pan Scan):

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

SUBTITLE

Some discs have multiple subtitle languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 42) or “OFF (no subtitle).”

ON SCREEN LANGUAGE

Select one of the languages shown on the TV from— ENGLISH, SPANISH, and FRENCH.

Ex.: 16:9 Ex.: 4:3 LB

Ex.: 4:3 PS

34

PICTURE SOURCE

You can obtain optimal picture quality by selecting an appropriate option—picture source type (either video source or film source).

Select one of the following:

AUTO:

Normally select this. When playing back a disc containing both video and film sources, the System automatically changes the processing to match it to the picture type (film or video source) of the current chapter.

FILM:

VIDEO:

To play a film source disc.

To play a video source disc.

SCREEN SAVER

You can activate or deactivate screen saver while operating the built-in disc player.

Select one of the following:

ON:

The picture on the TV becomes dark when no operation is done for about 5 minutes.

OFF:

To cancel the screen saver.

FILE TYPE

If both audio tracks (MP3 files) and still picture (JPEG files) are recorded on a disc, you can select which to play.

Select one of the following:

AUDIO:

STILL PICTURE:

To play MP3 files.

To play JPEG files.

7

AUDIO Set up Menu

INFO

You can adjust the sound settings of the System.

AUDIO

DIGITAL AUDIO OUTPUT

DOWN MIX

D. RANGE COMPRESSION

SELECT

ENTER

STREAM/PCM

DOLBY SURROUND

AUTO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

DIGITAL AUDIO OUTPUT

When using the digital output terminal on the rear, set this correctly according to the connected component.

Select one of the following:

PCM ONLY:

To connect to a linear PCM digital equipment such as an MD recorder.

DOLBY DIGITAL /PCM:

To connect to a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM:

To connect to a DTS decoder or an amplifier with a built-in DTS decoder.

• See also “OPTICAL DIGITAL OUTPUT Signals” on page 41.

DOWN MIX

When playing a multi-channel DVD, the System converts the signals into 2 channels. Down mix setting is effective for the speaker output (and digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”) from this System.

Select one of the following:

STEREO:

DOLBY SURROUND:

To connect a conventional stereo amplifier, receiver, MD player, TV, etc.

To connect an amplifier with the Dolby Pro Logic decoder.

35

D. RANGE COMPRESSION

You can compress the dynamic range (the difference between the loudest sound and the softest sound) to enjoy a powerful sound even at a low volume level when listening to Dolby Digital software. This is useful at night.

• The effectiveness varies depends on a software.

Select one of the following:

AUTO:

ON:

7

You can change some other convenient functions.

To enjoy powerful sounds with full dynamic range.

Best for watching a movie at a low volume level.

OTHERS Set up Menu

OTHERS

RESUME

ON SCREEN GUIDE

SELECT

ENTER

ON

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

INFO

RESUME

You can activate or deactivate Resume for disc playback (see page 12).

Select one of the following:

ON:

OFF:

To activate Resume.

To cancel Resume.

ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons (see page 12).

• When recording the picture on a VCR, select “OFF” to avoid recording the guide icons on your video tape.

Select one of the following:

ON:

OFF:

To activate the on-screen guide icons.

To cancel the on-screen guide icons.

36

Remote control

TV

TV CH + / –

SHIFT

Operating the TV

Operating TV

You can operate the JVC’s TV using this remote control.

To turn on or off the TV:

To select the input mode (either TV or VIDEO):

TV VOL + / –

TV VIDEO

(holding then...)

To adjust TV volume:

Remote ONLY

(holding then...)

To select the TV channel:

(holding then...)

37

Additional Information

Learning More about This System

Before Operating the System

Playable Disc Types:

• About audio format

–

Linear PCM:

format used for CDs and most studio masters.

–

Dolby Digital:

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

–

DTS (Digital Theater Systems):

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

Uncompressed digital audio, the same

Compressed digital audio, developed by

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Disc:

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

• On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• Some DVD Audios prohibit down mix. When you play back such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• For MP3/JPEG playback... – MP3/JPEG discs are required a longer readout time than

regular CDs. (It depends on the complexity of the group/ file configuration.)

– Some MP3/JPEG files cannot be played back and will be

skipped. This results from their recording processes and conditions.

– When making MP3 discs, use ISO 9660 Level 1 or Level

2 for the disc format.

– This system can play back MP3/JPEG files with the

extension code <.mp3> or <.jpg> (regardless of the letter case—upper/lower).

– It is recommended that you make each MP3 file at a

sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

(see page 3)

Compressed digital

(see pages 10 to 15)

Daily Operations—Sound and Other Adjustments

Adjusting the Volume:

• Be sure to turn down the volume before connecting or putting the headphones.

• When you turn off the System with the volume level set to “VOL 16” or higher, the volume level is reset to “VOL 15” next time you turn on the System.

Reinforcing the Bass Sound:

• RHYTHM AX function also affects the sound through the headphones.

• You can adjust the subwoofer level while RHYTHM AX is on.

• The subwoofer lamp(s) indicates the current subwoofer level—1 or 2. (when you set the level to “0,” the lamp(s) turns off.)

Selecting the Sound Modes:

• The SOUND MODE lamp lights when one of the Sound Modes is activated.

Selecting 3D Phonic Mode:

• The SURROUND MODE lamp lights when 3D Phonic is activated.

• 3D Phonic function also affects the sound through the headphones.

• 3D Phonic setting is also applied to the optical digital output signals through the DIGITAL OUTPUT (OPTICAL) terminal.

Changing the Scanning Mode:

• To enjoy the progressive video picture, connect a TV with the progressive video input using component video cord.

• Do not change the progressive scanning mode in the following cases: – When your TV does not support the progressive video

input.

– When you have not connected your TV to the unit using

a component video cord.

Changing the Picture Tone:

• If no operation is done for about 10 seconds, the VFP setting screen disappears.

Setting the Clock:

• “– –:– –” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Turning Off the Power Automatically:

• If you turn off the System, Sleep Timer is canceled.

(see pages 16 to 19)

38

Unique DVD/VCD Operations

Selecting the Sound Track:

On some DVD videos, you cannot change audio languages while playing back.

Playing Back a Bonus Group:

• You cannot select a track in the bonus group for Program Play.

Special Picture Playback:

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

• While programming steps...

– If you try to program a disc number on which the System

has detected no disc is loaded, “ ” appears on the TV screen.

– Your entry will be ignored if you have tried to program an

item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks). Such entries are ignored.

– When you enter the group number for SVCD/VCD/CD

which is not in the current tray, the System will ignore these entries during playback.

• You cannot use Program Play and Random Play for JPEG discs.

• If you try to add a 100th track, “FULL” appears on the display.

• The program contents will be erased when... – You unplug the AC power cord. – You open the disc tray currently selected (regardless of the

play mode).

Playing at Random—Random Play:

• Random Play cannot be used on some DVD discs.

On-Screen Disc Operations

Operations Using the On-screen Bar:

• A-B Repeat:

– A-B Repeat cannot be used on some DVDs. – For DVD Video, A-B Repeat is possible only within the

same title.

– For DVD Audio/SVCD/VCD/CD, A-B Repeat is

possible only within the same track.

(see pages 20 to 22)

(see pages 23 to 25)

(see pages 26 to 30)

Operations on the CONTROL Screen:

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files*.

Progressive JPEG files* or lossless JPEG files* cannot be played. * Baseline JPEG format: Used for digital cameras,

web, etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

• This unit may not play back JPEG files properly which are recorded by the devices other than digital still camera.

• During Slide-show playback, zoom cannot be operated.

Timer Operations

Setting the Timer:

• When you select “CD” for the playback source, playback starts from the beginning of the current disc when timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• If you set DVD Video as the source, Daily Timer may not work correctly.

Set up Menu Operations

LANGUAGE Set up Menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE Set up Menu—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may become 4:3 letter box with some DVD Videos. This depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

AUDIO Set up Menu—DOWN MIX:

• This setting is not effective when DTS multi-channel software is played back.

OTHERS Set up Menu—ON SCREEN GUIDE:

• The set up menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zooming in always appear on the display regardless of this setting.

(see pages 31 and 32)

(see pages 33 to 36)

39

Maintenance

Troubleshooting

To get the best performance of the System, keep your discs clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strong. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact

for a long time.

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive video input.

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB” for “MONITOR TYPE” (see page 34)

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

]

The disc is placed upside down. Place the disc with the label side up.

MP3 groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3 or JPEG files are not played back.

]

The inserted disc may include both types of tracks (MP3 ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 35).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

40

The disc sound is discontinuous.

]

The disc is scratched or dirty.

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, press SUBTITLE after starting play (see page 21).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, press AUDIO after starting play (see page 20).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use (see page 25).

]

Program Play is in use. Exit from Program Play (see

page 24).

USB Operations:

Unable to play back through the USB connection.

]

USB connection and setting is incorrect (see page 14).

The sound through the USB connection stops.

]

Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations:

• Disconnect and connect the USB cable again

• Restart the music software on your PC

• Turn off and on the system

Timer operations:

Daily Timer does not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

If you still have a problem, reset the System.

While in standby...

Main Unit

ONLY

Press and hold until the display flashes. The factory default settings are restored and all the settings you have made are erased.

OPTICAL DIGITAL OUTPUT Signals

DIGITAL AUDIO

OUTPUT Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD VIDEO

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS Digital Surround DTS bitstream 48 kHz, 16 bit Linear PCM

DVD AUDIO

2

*

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/ 20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS Digital Surround DTS bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD CD with DTS Digital Surround MP3 disc

44.1 kHz, 16 bit Linear PCM*/48 kHz, 16 bit Linear PCM*

DTS bitstream 44.1 kHz, 16 bit Linear PCM

32/44.1/48 kHz, 16 bit Linear PCM

*1While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the

DIGITAL OUTPUT (OPTICAL) terminal if the discs are not copy-protected.

2

*

There is no output for DVD Audio with content protection set.

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

1

41

Language Code List

AA

AB

AF

AM

AR

AS

AY

AZ

BA

BE

BG

BH

BI

BN

BO

BR

CA

CO

CS

CY

DA

DZ

EL

EO

ET

EU

FA

FI

FJ

FO

FY

GA

GD

GL

GN

GU

HA

HI

HR

HU

HY

IA

IE

IK

IN

IS

IW

JI

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

JW

KA

KK

KL

KM

KN

KO

KS

KU

KY

LA

LN

LO

LT

LV

MG

MI

MK

ML

MN

MO

MR

MS

MT

MY Burmese

NA Nauru

NE Nepali

NL Dutch

NO Norwegian

OC Occitan

OM (Afan) Oromo

OR Oriya

PA Panjabi

PL Polish

PS Pashto, Pushto

PT Portuguese

QU Quechua

RM Rhaeto-Romance

RN Kirundi

RO Rumanian

RU Russian

RW Kinyarwanda

SA Sanskrit

SD Sindhi

SG Sangho

SH Serbo-Croatian

SI Singhalese

SK Slovak

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay (MAY)

Maltese

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA Tamil

TE Telugu

TG Tajik

TH Thai

TI Tigrinya

TK Turkmen

TL Tagalog

TN Setswana

TO Tonga

TR Turkish

TS Tsonga

TT Tatar

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

VI Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu

42

Parts Index

Refer to the pages to see how to use the buttons and controls.

Remote control

12, 23

11, 19, 31 19, 24, 32

19

11 19 21

14

13, 27, 30, 33, 37

11, 13, 14, 31

11, 13, 14, 19, 21, 31, 37

37

14, 15

11 17 16

17 17

13

33 12

20 21

19, 31

10, 32

11, 13, 23

25

23, 24

17

16

10, 16, 37

13

27 12 12

13, 22

22, 30 21 18

18

Main unit

Remote sensor

10, 12

10

STANDBY lamp

12, 19, 24

12, 22 12, 25

12

10, 16

17

11

16, 41

10

8 11, 13

10, 11

14, 15

11, 13

16

10 14

15

43

Specifications

Amplifier section—CA-HXD7

Output Power: SUBWOOFERS: 180 W per channel, min. RMS,

driven into 6 Ω at 63 Hz with no more than 10% total harmonic distortion.

MAIN SPEAKERS: 80 W per channel, min. RMS,

driven into 4 Ω at 1 kHz with no more than distortion.

Audio input sensitivity/impedance AUX: 400 mV/47 k USB: USB Version 1.1

Digital output: DIGITAL OUTPUT (OPTICAL):

–21 dBm to –15 dBm (660 nm ±30 nm) VIDEO OUT: Color system: NTSC VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

C (chrominance, burst)

COMPONENT (interlace/ progressive):

(Y) 1 V(p-p)/75 (P

) 0.7 V(p-p)/75

B/PR

Speaker Terminals: 4 Ω – 8 Ω (main speakers)

6 Ω – 16 Ω (subwoofers)

Tuner section

FM tuning range: 87.5 MHz – 108.0 MHz AM tuning range: 530 kHz – 1 710 kHz

Disc player section

Playable disc: DVD Video/DVD Audio

CD/VCD/SVCD CD-R/CD-RW (recorded in Audio CD/ Video CD/Super Video CD/MP3/JPEG format) DVD-R/DVD-RW (recorded in video

format) Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

10% total harmonic

Ω

0.286 V(p-p)/75

Ω Ω

Ω

Ω Ω

General

Power requirement: AC 120 V , 60 Hz Power consumption: 160 W/ 210 VA (at operation)

30 W

(on standby; with power saving

off—Normal mode)

1.7 W (on standby; with power saving on—Eco mode)

Dimensions (approx.): 175 mm x 373 mm x 389 mm

(6 15/16 in. x 14 11/16 in. x 15 3/8 in.) (W/H/D)

Mass (approx.): 10.1 kg (22.3 lbs)

Supplied Accessories

See page 3.

Speaker section—SP-HXD7

Type: 4-Way Front Twin Woofer

(Magnetically Shielded Type)

Speakers:

Subwoofer: 16 cm (6 Woofer: 16 cm (6 5/ Mid range: 7 cm (2 13/ Tweeter: 2 cm (13/16 in.) piezo x 1

Power handling capacity:

Subwoofer: 360 (180 + 180) W Main speaker: 160 (80 + 80) W

Impedance:

Subwoofer: 6 Main speaker: 4

Frequency range:

Subwoofer: 30 Hz – 1 000 Hz Main speaker: 50 Hz – 20 000 Hz

Sound pressure level:

Subwoofer: 74 dB/W•m Main speaker: 84 dB/W•m

Dimensions (approx.): 295 mm x 452 mm x 390 mm

(11 5/8 in. x 17 (W/H/D)

Mass (approx.): 8.9 kg (19.7 lbs) each

Design and specifications are subject to change without notice.

5

/

in.) cone x 1

16

in.) cone x 1

16

in.) cone x 1

16

Ω Ω

13

in. x 15 3/8 in.)

/

16

44

HX-D7 COMPACT COMPONENT SYSTEM

EN

0305TMMMDWSAM

COMPACT COMPONENT SYSTEM

SYSTEME DE COMPOSANTS COMPACT

HX-D7

—Consists of CA-HXD7 and SP-HXD7 —Composé du CA-HXD7 et du SP-HXD7

SP-HXD7

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

CA-HXD7 SP-HXD7

LVT1351-002A

[C]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1 Do not remove screws, covers or cabinet. 2 Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1 Ne pas enlever les vis ni les panneaux et ne pas

ouvrir le coffret de l’appareil.

2 Ne pas exposer l’appareil à la pluie ni à

l’humidité.

Caution—STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled.

Attention—STANDBY/ON Commutateur!

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON (attente/sous tension) ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

For the main unit:

Declaration of Conformity Model Number: HX-D7

Trade Name: JVC Responsible Party: JVC Americas Corp. Address: 1700 Valley Road, Wayne

New Jersey 07470

Telephone Number: 973-317-5000 This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

G-1

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

31 kg / 69 lbs.

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

ATTENTION!

Pour éviter toute blessure personnelle ou chute accidentelle del’appareil, faites déballer, transporter et installer l’appareil par deux personnes.

IMPORTANT FOR LASER PRODUCTS

1 CLASS 1 LASER PRODUCT 2

CAUTION

: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3

CAUTION

: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4 REPRODUCTION OF LABEL: CAUTION LABEL,

PLACED INSIDE UNIT.

IMPORTANT POUR PRODUITS LASER

1 PRODUIT LASER CLASSE 1 2

ATTENTION

n’y a aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.

3

ATTENTION

invisible quand l’appareil est ouvert ou que le systéme de verrouillage ne fonctionne pas ou a été mis hors service. Évitez toute exposition directe au rayon.

4 REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE

DE PRÉCAUTION PLACÉE À L’INTERIEUR DE L’APPAREIL

: N’ouvrez pas le couvercle supérieur. Il

: Risque de radiations laser wisible et

.

For Canada/pour le Canada

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.

TO PREVENT ELECTRIC SHOCK,

POUR EVITER LES CHOCS

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

G-2

Introduction

2

sec.

Remote ONLY

Main Unit

ONLY

English

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

•

If the System is brought directly from a cold to a warm place. Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

•

A cooling fan is mounted on the rear panel to prevent heat buildup inside the unit.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

How to Read This Manual

To make the explanations in this manual as simple and easyto-understand as possible, we have adapted the following methods:

•

Button and control operations are explained as listed in the table below. In this manual, the operations using the remote control are mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some informations).

about the functions, or if you have a doubt about the function, go to these sections and you will find your answer there.

Indicates that you press the button

briefly

Indicates that you press the button

briefly and repeatedly

option you want is selected.

Indicates that you press one of the buttons.

.

INFO

If you want to know more

.

until an

For safety, observe the following carefully:

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

• DO NOT block the cooling fan and the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

1

Indicates that you button for a specified period.

• The number inside the arrow indicates the period of press (in this example, 2 seconds).

• If no number is inside the arrow, press and hold until the entire procedure is complete or until you get a result you want.

Indicates that you turn the control toward the specified direction(s).

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the buttons and controls on the main unit.

press and hold

the

Contents

Before Operating the System.......................3

Playable Disc Types .................................................... 3

Getting Started.............................................. 4

Step 1: Unpack ............................................................ 4

Step 2: Prepare the Remote Control ............................ 4

Step 3: Hook Up .......................................................... 5

Display Indication.........................................8

Daily Operations—Playback ..................... 10

Listening to the Radio ............................................... 11

Playing Back a Disc................................................... 12

Playing Back from the PC ......................................... 14

Playing Back from Other Audio Equipment ............. 15

Daily Operations—Sound and Other

Adjustments .............................................16

Adjusting the Volume................................................ 16

Reinforcing the Bass Sound ...................................... 16

Making the Center Channel Sound Clear

—Clear Voice ........................................................ 17

Selecting the Sound Modes ....................................... 17

Selecting 3D Phonic Mode........................................ 17

Presetting Automatic DVD VIDEO Sound

Increase Level........................................................ 17

Changing the Scanning Mode ................................... 18

Changing the Picture Tone ........................................ 18

Turning On or Off the Key-Touch Tone ................... 19

Changing the Display Brightness .............................. 19

Setting the Clock ....................................................... 19

Turning Off the Power Automatically....................... 19

Advanced Disc Operations ........................ 23

Programming the Playing Order—Program Play...... 23

Playing at Random—Random Play........................... 24

Playing Repeatedly—Repeat Play ............................ 25

Prohibiting Disc Ejection—Child Lock .................... 25

On-Screen Disc Operations ....................... 26

About the On-screen Bar........................................... 26

Operations Using the On-screen Bar......................... 27

Operations on the CONTROL Screen....................... 29

Timer Operations ....................................... 31

Setting the Timer....................................................... 31

Set up Menu Operations............................ 33

Operating Procedure.................................................. 33

Operating the TV ....................................... 37

Operating TV............................................................. 37

Additional Information.............................. 38

Learning More about This System ............................ 38

Maintenance .............................................................. 40

Troubleshooting ........................................................ 40

OPTICAL DIGITAL OUTPUT Signals ................... 41

Language Code List .................................................. 42

Parts Index................................................................. 43

Specifications ............................................................ 44

English

Unique DVD/VCD Operations ................. 20

Selecting the Sound Track......................................... 20

Selecting the Subtitle Language ................................ 21

Selecting a View Angle ............................................. 21

Selecting Browsable Still Pictures ............................ 21

Playing Back a Bonus Group .................................... 22

Special Picture Playback ........................................... 22

2

Before Operating the System

English

Playable Disc Types

This unit has been designed to play back the following discs:

Disc Type Mark (Logo)

DVD Video

DVD Audio

Video CD

(VCD)

Super Video

CD (SVCD)

Audio CD

CD-R

CD-RW

DVD-R

DVD-RW

The System can play back CD-R or CD-RW recorded in the Audio CD, Video CD, SVCD, MP3, and JPEG formats.

The System can play back DVD-R or DVDRW recorded in the video format.

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

In addition to the above discs, this system can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD-RAM, CD-I (CD-I Ready), CD-ROM, Photo CD, SACD, etc. Playing back these discs will generate noise and damage the speakers.

• In this manual, “file” and “track” are interchangeably used for MP3/JPEG operations.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This unit can play back only DVDs recorded with the NTSC color system whose Region Code numbers include “1.” EX.:

INFO

Audio formats

The System can play back the following digital audio formats.

• LPCM (

•

DTS

• MPEG

•

MLP

When playing a multi-channel encoded DVD, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers.

To enjoy the powerful sound of these multi-channel encoded DVDs,

with a proper built-in decoder to the OPTICAL DIGITAL OUTPUT terminal on the rear.

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on

• For disc playback, you can change the initial setting to

If “ ” appears on the TV screen when you press a button,

tried to do, or data required for that operation is not recorded on the disc.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are trademarks of Digital Theater Systems, Inc.

Linear PCM

DIGITAL

)

(Dolby Digital)

(Digital Theater Systems)

(MPEG Multichannel)

(Meridian Lossless Packing)

connect a proper decoder or an amplifier

the TV to view the pictures or on-screen displays on the TV screen.

your preference. See “Set up Menu Operations” on page 33.

the disc cannot accept the operation you have

If a DVD with the improper Region Code numbers is loaded, “REGION ERR” appears on the display and playback will not start.

3

Getting Started

Step 1:Unpack the package and

check the accessories.

Step 2: Prepare the remote control.

Step 1: Unpack

English

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Composite video cord (1)

• Remote control (1)

• Batteries (2) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

1

Step 3: Hook up the components such

as AM/FM antennas, speakers, etc. (see pages 5 to 7).

ANTENNA

AM

FM

(75Ω)

Finally plug the AC power cord.

Now you can operate this System.

2

3

R6(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

4

English

Step 3: Hook Up

If you need more detailed information, see page 7.

Turn the power off to all components before connections.

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary.

AM loop antenna (supplied)

Turn it until the best reception is obtained.

Digital audio

equipment

OPTICAL

DIGITAL IN

VEDEO INPUT

P

R

P

B

TV

Y

VEDEO INPUT

To a wall outlet Plug the AC power cord only after all connections are complete.

5

Red

Blue Green

Yellow

Optical digital cord (not supplied)

Component video cord (not supplied)

Composite video cord (supplied)

S-video cord (not supplied)

For better FM/AM reception

ANTENNA

English

AM loop antenna

Keep it connected.

Outdoor FM antenna (not supplied)

AM

Vinyl-covered wire (not supplied)

Extend it horizontally.

FM

(75Ω)

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75

Ω wire with

coaxial type connector (IEC or DIN45325).

FM antenna (supplied)

Extend it so that you can obtain the best reception.

M

A

IN

S

PE

AK

(4

ER

·8

Ω

)

S

U

B W

O

FER

(6

·1 6

Ω

)

L

R

L

R

D

IG (OP

C

O M

P

O N

EN

T

VID

Y

EO O

P

B

VID

EO

O

U

T S-V

A N

TEN

N

A

AM

F

M

(7

5 Ω)

ITA

L O

U

T T IC

A

L)

U

T

P

R

ID

EO

6

English

Turn the power off to all components before connections.

To assemble and connect the AM loop antenna

To assemble the AM loop antenna

To connect the AM loop antenna cords

• Connect black cord to the H

the other terminal.

terminal, and the white cord to

To connect the speaker cords

• When connecting the speaker cords, match their polarity with that of the speaker terminals: red/blue to (+) and black to (–).

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers. –When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the

TV’s main power switch again. Some TVs may still be affected even though you have followed the above instruction. If this happens, move the speakers away from the TV.

1 Hold

2 Insert

3 Release

• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor condition.

To connect digital audio

DIGITAL OUT

(OPTICAL)

Protective cap

1 Hold

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

2 Insert

From left speaker

Black

Blue

3 Release

Red

7

Black

From right speaker

IMPORTANT

• Always set volume to VOL MIN when connecting or disconnecting the other equipment.

DO NOT plug in any equipment until all connections are complete.

Display Indication

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

1

3 4 5 6 7 p q9

e

rt iyouaf;

8 w2

ds

Indications on the main display

• While listening to radio: • While selecting “AUX” or “USB”:

Band

• While playing a disc: • While disc play is stopped:

DVD Video:

Title number

Frequency

Reception mode (FM only)

Elapsed playing time

Source name

DVD Video:

Total title number

English

Chapter number

DVD Audio:

Group number

Track number

SVCD/VCD/CD:

Track number

Disc type*

MP3*3:

Group number

JPEG:

Current group number

1

*

Disc type is displayed with the following abbreviation: “SV (SVCD)”, “VD (VCD)”, and “CD (CD)”.

2

*

While activating PBC function, “PBC” appears on the display instead of the playing time.

3

At the playback beginning, the file name and ID3 Tag (if any) are shown.

*

1

Current file number

Elapsed playing time

Elapsed playing time*

Track number

Elapsed playing time

2

DVD Audio:

SVCD/VCD/CD:

Total track number

Disc type*

MP3:

JPEG:

Current file number

Current group number

Total playing time*

1

2

8

1

English

2

3

4

5

6

7

8

9 p q

w

e

BEEP ON indicator

• Lights when key-touch tone is activated.

Timer indicators

• DAILY: lights when the Daily Timer stands by or is working; flashes while Daily Timer is being set.

• SLEEP: lights when the Sleep Timer is activated.

•: lights when Daily Timer stands by or is being set; flashes while Daily Timer is working.

3-D PHONIC indicator

• Lights when 3D Phonic is activated (see page 17).

PRGR. (

• Lights when the scanning mode is set to progressive.

B.S.P. (browsable still picture) indicator

• Lights when browsable still picture on DVD Audio is

BONUS indicator

• Lights when a bonus group on DVD Audio is detected

RESUME indicator

• Lights when the Resume function is activated (see

DVD LEVEL 1, 2, 3 indicators

• Lights when the DVD Video is detected.

Main display

PCM: lights when a source signal is linear PCM (only for DVD Video and DVD Audio). Disc operation indicators

• PROGRAM: lights when Program Play mode is

• RANDOM: lights when Random Play is activated.

• REPEAT: lights when Repeat Play mode is activated.

• ALL, 1, DISC:

Audio level indicator

progressive

available (see page 21).

(see page 22).

page 12).

D: lights when a source signal is Dolby Digital.

– ALL: lights when All Disc Repeat is activated. –1: lights when One Track/Chapter/Step Repeat

–1 DISC: lights when One Disc Repeat is activated.

) indicator

activated.

is activated.

r

DVD AUDIO indicator

• Lights when DVD Audio is detected.

t

TITLE indicator

• Lights to indicate the title number when the source is DVD Video.

y

GROUP indicator

• Lights to indicate the group number when the source is DVD Audio, MP3, or JPEG disc.

u

CD PLAY indicator

• Lights when the disc player is selected as the source.

i

CHAP. (chapter) indicator

• Lights to indicate the chapter number when the source is DVD Video.

o

Disc indicators

• Each indicator shows the status of a disc placed on each corresponding disc tray (DISC1 – DISC5). – Lights up when a disc is detected. – Flashes when the tray is currently selected. – Goes off when the unit detects there is no disc loaded

on the disc tray.

;

TRACK indicator

• Lights to indicate the track number when the source is a disc (except for DVD Video).

a

S.MODE (sound mode) indicator

• Lights when the Sound mode is activated.

s

SURR. (surround) indicator

• Lights when 3D Phonic is activated (see page 17).

d

FM reception indicators

• ST (stereo): lights while an FM stereo station with

sufficient signal strength is tuned in.

• MONO: lights while receiving an FM stereo station

in monaural.

f

DTS: lights when a source signal is DTS Surround.

9

Daily Operations

—Playback

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

Disc number

buttons,

10 keys

SET

1

FM MODE

RETURN

2

3

TOP MENU

3/2/5/∞

ENTER

7

GROUP SKIP

¢/4

MENU

2

8

¡/1

¥

Turn on the power.

The standby lamp on the main unit goes off.

• Without pressing , the System also turns on by pressing one of the source select buttons in the next step.

ø

Select the source.

Playback automatically starts if the selected source is ready to start playback.

• If you press AUX/USB, start playback source on the external component or the PC.

π

Adjust the volume.

[

Operate the target source as explained later.

To turn off (stand by) the system

The standby lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

English

1

2

3

SHIFT

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

DO NOT turn off (stand by) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

To cancel the demonstration

2 sec.

DEMO OFF

DEMO START

Press and hold until “DEMO OFF” appears on the display.

Main Unit

ONLY

10

English

To save the power consumption while on standby—Eco mode

While on standby...

ECO

Canceled

The display illumination (including the display demonstration) disappears.

Main Unit

ONLY

Remote

To preset stations

ONLY

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset, then enter into

1

the presetting mode.

(holding then...)

Listening to the Radio

INFO

To select the band (FM/AM)

FM

AM

To tune in to a station

While FM or AM is selected...

1 sec.

Increases the frequency.

Decreases the frequency.

When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

If the received FM station is hard to listen

(holding then...)

To restore the stereo effect,

MONO indicator goes off).

press either button.

Remote ONLY

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—monaural reception mode.

press the button again (the

Select a preset number for the station you store.

2

Store the station.

3

(holding then...)

To tune in to a preset station

1

Select the band (FM or AM).

FM

AM

2

Select a preset number for the station you store.

Examples:

To select preset number 5, press 5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then

10.

11

• You can also use ¢

/4

on the remote control or the

PRESET +/– control on the main unit.

Groups

INFO

”

Playing Back a Disc

Before operating a disc, be familiar how a disc is recorded.

• DVD Video comprises of “ “

Chapters

which includes “ of only “

For JPEG playback, see page 29.

,” DVD Audio/MP3 comprise of “

Tracks

.”

Titles

” which includes

,” and CD/SVCD/VCD comprise

To insert discs

While playing DVD/SVCD/VCD:

the stop point, and when you start playback again by pressing DISC 3 stopped—Resume Play. (RESUME indicator lights up when you stop playback.)

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 36.)

, it starts from the position where you have

This System can store

press 7

On-screen guide icons

• During disc playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

• The following icons will be also shown on the TV screen to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 36.

English

• When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray,

• If you push down the same control automatically and playback starts.

•

When you push up want to place another disc onto, the first disc tray automatically closes and then next tray comes out.

To start:

push up the same control

(3)

, disc tray closes

the control (0

To pause: To stop:

To release it, press DISC 3

.

) for the next tray you

(0)

again.

To select a playback disc

Remote control:

(holding then...)

Main unit:

Ex.: To select DISC 1

Playback of the selected disc starts.

12

English

To select a title/group

While playing a disc...

Remote ONLY

Skips to the next title/ group.

Remote

To play back by using the disc menu

ONLY

You can operate the disc play—DVD and SVCD/VCD with Playback Control (PBC)—using the disc menu shown on the TV screen.

• When an SVCD or VCD with PBC is detected, “PBC” appears on the display instead of the playing time.

(holding then...)

title/group.

To select a chapter/track

Skips to the previous

While playing...

Increases the chapter/track numbers.

Decreases the chapter/track numbers.

To locate a particular portion

While playing a disc except MP3...

• No sound comes out while searching on DVD/SVCD/ VCD.

To return to normal playback,

press DISC 3

.

For DVD Video/DVD Audio:

7

Show the disc menu.

1

•

For DVD Video:

or

•

For DVD Audio:

2

Select an item on the disc menu.

• With some discs, you can also select items by entering the number using the 10 keys.

Remote

o select

T

an item directly

ONLY

You can select a title/chapter/track directly and start playback.

•

For DVD Video: playback playback

•

For MP3:

, while you can select .

You can select

a title before starting

a chapter after starting

Select a track number in the current folder.

Examples:

To select number 5, press

5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

For SVCD/VCD with PBC:

7

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

Examples:

To select number 5, press

5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

13

To move to the next or previous page of the current menu:

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

(holding then...)

To cancel PBC

You can also cancel PBC function by pressing the number button to select a track.

To reactivate PBC,

press 7

, then press 4

.

How to install the USB drivers

The following procedure is described using the English version of WindowsRXP. If your PC is running on a different version of Windows, the screens shown on your PC’s monitor will differ from the ones used in the following procedure.

Turn on your PC and start running WindowsR 98SE,

1

WindowsR Me, WindowsR 2000 or WindowsR XP.

• If the PC has been turned on, quit all the applications now running.

Turn on the System and select USB for the source.

2

AUX

USB

3

Connect the unit to the PC using a USB cable (not supplied).

USB cable

(front panel)

English

Playing Back from the PC

This System is equipped with a USB terminal on the front panel. You can connect your PC to this terminal and enjoy sound reproduced through your PC. When you connect your PC for the first time, follow the procedure below.

• Remember you cannot send any signal or data to your PC from this System.

IMPORTANT

• Always set volume to VOL MIN when connecting or disconnecting the other equipment.

DO NOT turn off the System and disconnect the USB cable while installing drivers and playing back, and for several seconds after your PC recognizes the System.

PC

• Use “USB series A plug to B plug” cable when connecting.

4

The USB drivers are installed automatically.

• If the USB drivers are not installed automatically, install the USB drivers following the instructions on the PC’s monitor.

14

5

English

Check if the drivers are correctly installed.

1 Open the Control Panel on your PC: Select [Start] =

[Settings] =

2 Click [System] =

=

[Sound, video and game controllers] and

[Universal Serial Bus controllers]

• The following window appears, and you can check whether the drivers are installed.

* The installed drivers can be shown only when the System is

connected to the PC.

[Control Panel]

[Hardware] =

[Device Manager]

Playing Back from Other Audio Equipment

IMPORTANT

• Turn the power off to all components before connections.

•

Always set volume to VOL MIN when connecting or disconnecting the other equipment.

By using a stereo mini plug cord (not supplied), you can connect equipment with analog audio output jacks such as an MD player, a TV, etc.

Stereo mini plug cord (not supplied)

Audio equipment output

(front panel)

If the audio output on the other equipment is not stereo mini plug type,

plug to the corresponding plug of the audio output.

use a plug adapter to convert the stereo mini

To play back sounds on the PC

Refer to the manuals supplied with the sound reproduction application installed in the PC.

• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations: – Disconnect and connect the USB cable again. – Restart the music software on your PC. – Turn off and on the System.

• Microsoft 2000 and Windows Microsoft corporation.

®

, Windows® 98SE, Windows® Me, Windows®

®

XP are registered trademarks of

To select other audio equipment for the source

AUX

USB

15

Daily Operations

—Sound and Other Adjustments

Remote Control

DIMMER

CLEAR VOICE

FADE MUTING

SURROUND

MODE

SOUND MODE

3/2/5/∞,

ENTER

BEEP

¢/4

SHIFT

CLOCK/TIMER

SLEEP

DISPLAY

DVD LEVEL RHYTHM AX

SUBWOOFER LEVEL

AUDIO VOL

VFP PROGRESSIVE

Adjusting the Volume

The volume level can be adjusted in 32 steps (VOL MIN, VOL 1 – VOL 30, VOL MAX).

Remote control:

To drop the volume in a moment

To restore the volume,

again, or adjust the volume level.

Main unit:

press the button

Remote ONLY

Reinforcing the Bass Sound

INFO

To adjust the subwoofer level gradually

You can select the subwoofer level from level 0 (minimum) to level 2 (maximum).

English

Main unit

BEEP

SUBWOOFER

LEVEL +

VOLUME +/–

SOUND MODE

SURROUND MODE

SUBWOOFER

LEVEL –

RHYTHM AX

Remote control:

Main unit:

To emphasize rhythm feeling—RHYTHM AX

This function emphasizes bass attack feeling, and also changes the subwoofer level.

(subwoofer level 2)

(subwoofer level 0)

ON

OFF

16

English

Making the Center Channel Sound Clear

Remote

—Clear Voice

ONLY

Selecting 3D Phonic Mode

While playing a disc (except JPEG)...

INFO

When a multi-channel disc with center-channel signal is loaded on the current tray, you can increase the output level for the center channel sound.

• This function allows you to easily understand the dialogue of DVD Video even with the low volume level.

• You can also use this function for other discs than DVD Video when 3D Phonic (see the right column) is activated.

VOICE ON

VOICE OFF

• This function may not take much effect on some discs.

To cancel Clear Voice,

Selecting the Sound Modes

You can select one of the preset Sound Modes.

Remote control:

select “VOICE OFF.”

INFO

Main unit:

Remote control:

3D ACTION 3D DRAMA

3D OFF

3D ACTION

Main unit:

3D THEATER

Suitable for action movies and sports programs.

3D DRAMA

Creates natural and warm sound. Enjoy movies in a relaxed mood.

3D THEATER

Enjoy sound effects like in a major theater.

To cancel 3D Phonic,

select “3D OFF.”

Presetting Automatic DVD VIDEO Sound

Remote

Increase Level

ONLY

(canceled)

DANCE

HALL

STADIUM

ROCK

POP

CLASSIC

DANCE HALL

OFF

CLASSIC

STADIUM

POP

ROCK

Increases resonance and bass.

Adds depth and brilliance to the sound.

Adds clarity and spreads the sound, as in an outdoor stadium.

Boosts low and high frequency. Good for acoustic music.

Good for vocal music.

Good for classical music.

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for DVD Video, so you do not have to adjust the volume every time you change the source.

When DVD Video is loaded on the current tray...

DVD LEVEL1 DVD LEVEL2

DVD LEVEL3

• As the number increases, sound level also increases.

17

Changing the Scanning Mode

ONLY

INFO

Remote

This System supports progressive scanning. If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PROGRESSIV.”

PROGRESSIV

INTERLACE

To adjust the picture tone

Select “USER1” or “USER2.”

1

• Follow steps 1 and 2 explained above.

2

Select a parameter you want to adjust.

English

PROGRESSIV

Progressive scanning. For a progressive TV.

• PRGR. indicator lights on when progressive scanning mode is selected.

INTERLACE

Interlaced scanning. For a conventional TV.

Changing the Picture Tone

ONLY

INFO

Remote

While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own preference.

To select a preset picture tone

1

Activate VFP.

NORMAL

GAMMA

0

BRIGHTNESS

CONTRAST

NORMAL

GAMMA

0

BRIGHTNESS

CONTRAST

0

SATURATION

0

TINT

0

SHARPNESS

0

SATURATION

TINT

SHARPNESS

0

GAMMA

Adjust if the neutral color is bright or dark. The brightness of dark and bright portions is maintained (–3 to +3).

BRIGHTNESS

Adjust if the picture is bright or dark as a whole (–8 to +8).

CONTRAST

Adjust if the far and near position is unnatural (–7 to +7).

SATURATION

Adjust if the picture is whitish or blackish (–7 to +7).

TINT

Adjust if the human skin color is unnatural (–7 to +7).

SHARPNESS

Adjust if the picture is indistinct (–8 to +8).

3

Adjust the parameter.

Repeat steps 2 to 3 to adjust other parameters.

4 5

Finish setting.

On the TV screen

Select a preset picture tone.

2

NORMAL

CINEMA

USER1/USER2

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings (see the next column).

18

English

Turning On or Off the Key-Touch Tone

Remote control: Main unit:

(holding then...)

BEEP OFF

3

sec.

2

Adjust the hour.

Adjust the minute.

3

(holding then...)

BEEP ON

• When the key-touch tone is activated, the BEEP ON indicator lights up.

Remote

Changing the Display Brightness

ONLY

You can dim the display window.

DIMMER 1 DIMMER 2

DIMMER OFF

(canceled)

• Selecting “DIMMER 2” dims the display indication more than “DIMMER 1.”

Remote

Setting the Clock

ONLY

Without setting the build-in clock, you cannot use Daily Timer (see page 31).

• To exit from the clock setting, press CLOCK/TIMER as required.

• To go back to the previous step, press CANCEL (while holding SHIFT).

• If you have already adjusted the clock before, press the CLOCK/TIMER repeatedly in step 1, until the clock setting mode is selected.

1

Activate clock setting mode.

INFO

(holding then...)

Now the built-in clock starts working.

To check the current time during play

2 sec.

(holding then...)

To display the source information,

Turning Off the Power

Automatically

repeat the procedure.

Remote ONLY

INFO

With Sleep Timer, you can fall asleep listening to music.

• You can set Sleep Timer only while the System is turned on.

1

Specify the time (in minutes).

SLEEP 10 SLEEP 20 SLEEP 30 SLEEP 60

OFF SLEEP 120 SLEEP 90

(canceled)

(holding then...)

19

Wait until the set time goes off.

2

To check the time remaining until the shut-off time

• If you press the button repeatedly, you can change the shut-off time.

Unique DVD/VCD Operations

Remote Control

10 keys

3/2/5/∞

7

AUDIO

SHIFT

PAG E

DISC 3

8 ( SLOW 9

ZOOM ANGLE SUBTITLE

Selecting the Sound Track

For DVD Video:

While playing back a chapter containing

ONLY

INFO

Remote

multiple audio tracks, you can select the one to listen to.

For DVD Audio:

While playing back a track containing

audio channels, you can select the audio channel to listen to.

For SVCD/VCD:

When playing back a track, you can select

the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 27).

While playing a DVD Video...

Ex.:

3/3

JAPANESE

3/3

JAPANESE

1/3

ENGLISH

1/3

ENGLISH

2/3

FRENCH

2/3

FRENCH

English

While playing an SVCD or VCD...

SVCD

ST1/ST2/ST

ST1 ST2

L2

VCD

ST L R

To listen to normal stereo (2 channel)

L1

R1R2

playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ ST2).

20

English

(holding then...)

Selecting the Subtitle Language

Remote ONLY

Selecting a View Angle

Remote ONLY

For DVD Video:

While playing back a chapter (of DVD Video) containing subtitles in different languages, you can select the subtitle language to display on the TV screen.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-

screen bar (see page 27).

While playing a DVD Video...

Display the subtitle selection window.

1

2

Select the subtitle language.

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

3/3

JAPANESE

3/3

While playing an SVCD...

While playing back a chapter (of DVD Video) containing multi-view angles, you can view the same scene from different angles.

• You can also select the view angle using the on-screen bar (see page 27).

While playing back or paused...

Ex.:

1/3

1

1/3

1

2/3

2

2/3

2

Selecting Browsable Still Pictures

3/3

3

3/3

3

Remote ONLY

While playing back a track (of DVD Audio) linked to browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• When a DVD Audio with browsable still pictures (B.S.P.) is detected, the B.S.P indicator lights up.

• If a track is linked to browsable still pictures (B.S.P.), they are usually shown in turn automatically during playback.

• You can also select the page using the on-screen bar (see page 27).

21

Each time you press the button, the still picture changes one after another (if available).

Remote

Playing Back a Bonus Group

Some DVD Audios have a special group called “bonus group” whose contents are not open to the public.

• When the bonus group is detected, the BONUS indicator lights up.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

ONLY

INFO

Slow-motion playback

While playing...

1

Select slow motion speed.

2

English

Still picture playback starts.

1

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 13.

Enter the key number.

2

3

Follow the interactive instruction shown on the TV screen.

To cancel the key number entry,

another source.

press 7

or change to

Special Picture Playback

Still picture playback

INFO

Forward slow motion starts.

Reverse slow motion* starts.

1/32 1/16 1/8 1/4 1/2

* Only for DVD Video.

To resume normal playback,

Remote

Zoom

1

While playing...

ONLY

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

press DISC 3

.

ZOOM 5ZOOM 6

To start still picture playback:

While playing...

To resume normal playback:

Frame-by-frame playback

1

While playing...

Still picture playback starts.

2

Advance the still picture frame by frame.

To resume normal playback,

press DISC 3

• As the number increases, magnification also increases.

Move the zoomed-in position.

2

To resume normal playback,

“ZOOM OFF” appears on the TV screen.

.

press ZOOM repeatedly until

22

Advanced Disc Operations

English

Remote Control

10 keys

CANCEL

5/∞,

ENTER

7

¢/4

SHIFT

REPEAT PLAY MODE

DISC 3

8

Remote

Programming the Playing Order —Program Play

ONLY

INFO

You can arrange the playing order of the tracks (up to 99) before you start playback.

1

Before starting playback, activate Program Play.

PROGRAM

RANDOM

Canceled

PROGRAM indicator

On the display

PROGRAM

No Disc Group/Title Track/Chapter

1

2 3 4 5 6 7 8 9

10

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

Main unit

On the TV screen

Select chapters or tracks you want for Program Play.

2

•

For DVD/MP3:

1

Select a disc number

2

Select a title or group number.

3

Select a chapter or track number.

•

For SVCD/VCD/CD:

1

Select a disc number

2

Select a track number.

• If the disc is not in the current tray, press ENTER to

7

0

skip the group number entry before selecting a track.

To enter the numbers:

Examples:

To enter number 5, press

5. To enter number 15, press +10, then 5. To enter number 30, press +10, +10, then 10.

Repeat the steps 2 until you finish what you want to

3

program.

4

Start playback.

Playback starts in the order you have programmed.

23

To skip a track:

Remote

ONLY

To pause: To stop:

Playing at Random

English

To release, press DISC 3

.

To check the programmed contents

Before or after playback...

in the reverse order

in the programmed order

Remote

To modify the program

Before or after playback...

To erase the last step:

ONLY

To erase the entire program:

Remote ONLY

—Random Pla

You can play the contents of all tracks at random.

1

Before playback...

y

PROGRAM

RANDOM

Canceled

RANDOM indicator

2

Start playback.

Playback starts in a random order. Random Play ends when all chapters/tracks are played.

To skip: To pause: To stop:

INFO

(holding then...)

To add steps in the program:

Repeat step 2 on page 23.

To exit from Program Play

Before or after playback...

PROGRAM

Canceled

RANDOM

To go to the beginning of the current track, press

4

.

To release, press DISC 3

To exit from Random Play

Before or after playback...

PROGRAM

Canceled

.

RANDOM

24

English

Playing Repeatedly—Repeat Play

You can repeat playback.

• You can also select the repeat mode using the on-screen bar (see page 27).

• For DVD Video:

While playing...

CHAP TITLE

On the TV screen

Before starting playback...

ALL

OFF

On the TV screen

• For DVD Audio:

While playing or before playback...

TRACK

GROUP

OFF

On the TV screen

• For MP3:

While playing or before playback...

REPEAT TRACK REPEAT GROUP

Canceled

REPEAT ALL

On the TV screen

Remote ONLY

ALLOFF

ALL

REPEAT DISC

Indication

Display window

TV screen

REPEAT 1 CHAP,

TRACK,

Meanings

Repeats the current chapter/track.

REPEAT TRACK,

(REPEAT)

STEP

REPEAT TITLE,

GROUP,

Repeats the current title/group.

REPEAT GROUP

REPEAT ALL

*

REPEAT 1 DISC

*

No indication

ALL,

REPEAT ALL

DISC,

REPEAT DISC

OFF

Repeats all discs or all programmed tracks.

Repeats the current disc.

Selects to cancel Repeat Play mode.

* For DVD Video and DVD Audio, REPEAT ALL and

REPEAT 1 DISC may not be available depending on the disc.

Prohibiting Disc Ejection

Main Unit

ONLY

—Child Lock

You can lock the disc trays so that no one can eject the loaded disc.

• This operation is possible only when the source is the disc player.

•

For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

TRACK DISC

ALLOFF

On the TV screen

•

For Program Play mode:

While playing or before playback...

STEP ALL

OFF

On the TV screen

•

For Random Play mode:

While playing or before playback...

STEP DISC

OFF ALL

On the TV screen

While the disc trays are closed...

Push up and hold 0

1

(holding then...)

Release 7

2

, then 0

for any disc tray while holding 7

.

• If you try to eject discs while Tray Lock is in use, “LOCKED” appears to inform you that the disc trays are locked.

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

.

25

On-Screen Disc Operations

TOTAL

1:25:58

Remote control

About the On-screen Bar

You can check the information on disc (except for MP3/

10 keys

JPEG disc) and use some functions through the on-screen bar.

On-screen bar

Ex.: While playing a DVD Video

REPEAT

3/2/5/∞,

ENTER

7

DISC 3

ON SCREEN

8 ¡

1 2

ZOOM

On-screen bars

DVD Video

12

TOTAL 1:01:58

TITLE 2

CHAP 3

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

DISC 1

3

4

DVD Audio

12

DVD-AUDIO

TIME

SVCD

OFF

DISC 2

TRACK

4

GROUP 14

TRACK 23

1/31/3

TIME 0:15:58

PAGE

12

TIME 0:04:58

TRACK 3

DISC

SVCD

TIME OFF ST1

3

-/ 4

3

4

3

4

VCD

12

TIME 0:04:58

VCD

TIME OFF ST

TRACK 3DISC 4

3

4

CD

12

TIME 04:58

TRACK 3

CD

TIME OFF

DISC 5

3

4

12

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

DISC 1

TOTAL 1:01:58

CHAP 3

TITLE 2

4

Disc type

Playback information

Indication Meanings

Mbps

Current transfer rate (Megabits per second)

DISC

1

TITLE

2

CHAP

3

GROUP 1

TRACK

14

Current disc Current title

Current chapter

Current group

Current track

Time indications

Playback conditions

Indication Meanings

Playback

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Pause

Stop

Operation icons (on the pull-down menu)

Indication Meanings

TIME

Select to change the time indication (see also page 27).

Select to repeat playback (see also pages 25,

27 and 28).

Select for time search (see also page 28).

CHAP.

Select for chapter search (see also page 29).

TRACK

Select for track search (see also page 29).

1/3

Select to change the audio language or channel (see also page 20).

1/3

Select to change subtitle language (see also page 21).

1/3

Select to change the view angle (see also page 21).

PA GE 1/15

Select to change the page (see also page 21).

English

3

26

English

Operations Using the

Remote

ONLY

On-screen Bar

Basic operation procedure through the on-screen bar is as follows:

Ex.: Selecting a subtitle (French) for DVD Video

While a disc is selected as the source...

1

Display the on-screen bar with the pull-down menu.

TITLE 2

DISC 1

8.5 Mbps

DVD-VIDEO

TITLE 2

DISC 1

8.5 Mbps

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Canceled

Select (highlight) the item you want.

2

TITLE 2

CHAP 3

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

DISC 1

TOTAL 1:01:58

CHAP 3

TOTAL 1:01:58

CHAP 3

TOTAL 1:01:58

INFO

Changing the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 Display the on-screen bar with the pull-down menu.

TOTAL 1:01:58

TITLE 2

CHAP 3

Elapsed time

Remaining

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

2 Make sure is selected (highlighted).

DISC 1

TIME

3 Change the time indication.

TOTAL

•

For DVD Video/DVD Audio:

Elapsed playing time of the title/ group.

•

For CD/SVCD/VCD:

of disc.

T.REM

•

For DVD Video/DVD Audio:

Remaining time of the title/group.

•

For CD/SVCD/VCD:

time of disc.

TIME

Elapsed playing time of the current chapter/track.

REM

Remaining time of the current chapter/ track.

3

Display the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 21

1/31/31/1

ENGLISH

4

Select the desired option in the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 21

1/32/31/1

FRENCH

5

Finish the setting.

Pop-up window goes off.

To erase the on-screen bar

Repeat Play

• See also page 25.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu. 2 Select . 3 Display the pop-up window.

TOTAL 1:01:58

TITLE 2

CHAP 3

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

OFF

DISC 1

27

4 Select the repeat mode you want.

H

C

ALL

A-B

Repeats all discs.

Repeats a desired portion (see page 28).

TITLE

GROUP

DISC

CHAPTER

TRACK

OFF

Repeats the current title.

Repeats the current group.

Repeats the disc.

Repeats the current chapter.

* Repeats the current track.

Cancels Repeat Play.

* During Program Play or Random Play, “STEP”

appears.

• Repeat modes depend on the current playback disc. Refer to page 25.

5 Finish the setting.

Pop-up window goes off.

6 Select the end point (B).

A-B Repeat starts. The selected portion plays repeatedly.

• Before pressing ENTER, you can

search for the end point using ¡

.

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the on-screen bar with the pull-down menu.

• Except for DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 2

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5 Mbps

OFF

DISC 1

TIME _ : _ _ : _ _

TITLE

CHAP

14

1/3

TOTAL

23

1/3 1/3

1:25:58

English

To cancel Repeat Play,

select “OFF” in step

4

.

To erase the on-screen bar

A-B Repeat

1 While playing, display the on-screen bar with the pull-

down menu. 2 Select . 3 Display the pop-up windows.

TOTAL 1:01:58

TITLE 2

14

1/3

CHAP 3

CHAP

TOTAL 1:01:58

TOTAL

23

1/3 1/3

1:25:58

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

8.5 Mbps

OFF

DISC 1

4 Select “A-B.”

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5 Mbps

OFF

A–B

DISC 1

TITLE

4 Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

•

It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry, press cursor 2

to erase the last

entry.

5 Finish the setting.

The System starts playing from the specified time.

To erase the on-screen bar

5 Select the start point (A).

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

8.5 Mbps

OFF

DISC 1

TITLE

TITLE 2

14

1/3

C

28

English

Chapter/Track Search

You can search for the chapter (DVD Video) or track (DVD Audio) number to play.

1 While playing, display the on-screen bar with the pull-

down menu.

2 Select

CHAP.

or

TRACK

.

3 Display the pop-up window.

TITLE 2

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5 Mbps

DISC 1

TITLE

CHAPTER _

CHAP

14

1/3

TOTAL

23

1/3 1/3

TOTAL 1:01:58

CHAP 3

4 Enter the desired chapter/track number.

Examples:

To select chapter/track 5, press 5. To select chapter/track 15, press 1, then 5. To select chapter/track 30, press 3, then 0.

•

To correct a misentry, press the 10 keys until the

desired number shown in the pop-up window.

5 Finish the setting.

The System starts playing the searched chapter or track.

1:25:58

Remote

Operations on the

Screen

CONTROL

ONLY

INFO

The CONTROL screen automatically appears on the TV screen when you load an MP3 or JPEG disc onto the current tray. You can search for and play the desired tracks through the CONTROL screen.

• If both types of files (MP3 files and JPEG files) are recorded on a disc, select the file type to play (see page 35).

CONTROL screen

Ex.: When the MP3 disc is loaded.

6 7

1

2 3

4

5

Group : 2 / 3

Blue

Red

Green

Tr ack Information

Title Rain Artist

Album

Time : 00:00:14REPEAT TRACK

Tr ack : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

8 9

0

-

To erase the on-screen bar

1 Current group number/total group number 2 Current group 3 Group list 4 Current track 5 Track information (ID3 Tag Version 1.0: only for

MP3)

6 Repeat Play setting 7 Elapsed playing time of the current track

(only for MP3)

8 Operation mode icon 9 Current track number/total number of tracks in the

current group (total number of tracks on the loaded disc)

0 Highlight bar

- Track list

29

To move the highlight bar between group list and track list

Moves the bar to the track list.

Moves the bar to the group list.

To repeat slide-show for JPEG

Before starting playback...

On the TV screen

GROUP DISC

English

ALLOFF

To select a group/track in the list

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back an MP3 disc, the selected track starts playback automatically.

To start playback

For MP3:

Playback starts with the selected track.

• Pressing DISC 3

playback.

For JPEG:

The selected track (still picture) is displayed until you change it.

Slide-show playback starts. Each track (still picture) is shown on the screen for a few seconds, then changes one after another.

also starts

Indication

Display window

REPEAT

REPEAT 1 DISC

REPEAT ALL

No indication

• For Repeat Play of MP3, see page 25.

TV screen

GROUP

DISC

ALL

OFF

Repeats the current group.

Repeats the current disc.

Repeats all discs or all programmed tracks.

Selects to cancel Repeat Play mode.

Meanings

To zoom in the still picture

1

During playback is paused...

ZOOM 1 ZOOM 2

ZOOM OFF

• As the number increases, magnification also increases.

2

Move the zoomed-in position.

• Once you start playing back a JPEG track, the CONTROL screen goes off.

• To cancel slide-show, and display the current still picture, press 8

.

To stop playback

To resume normal playback,

“ZOOM OFF” appears on the TV screen.

press ZOOM repeatedly until

30

Timer Operations

Remote ONLY

English

Remote control

SET

CANCEL

¢/4

SHIFT

CLOCK/TIMER

AUDIO

Setting the Timer

Using Daily Timer, you can wake up with your favorite song.

• To correct a misentry during the process, press CANCEL (while holding SHIFT). You can return to the previous step.

1

Select the timer setting mode for Daily Timer— “TIMER ON.”

DAILY

TIMER (ON)

INFO

Canceled Clock setting

2

Set the hour then minute for on-time.

(holding then...)

3

Enter the off-time setting mode.

(holding then...)

4

Set the hour then minute for off-time.

(holding then...)

31

5

Select the playback source—“TUNER FM,” “TUNER AM,” “CD,” “AUX,” or “USB.”

To turn off Daily Timer

Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

English

(holding then...)

Ex.: When “TUNER FM” is selected.

•

When you select “TUNER FM” or “TUNER AM,” repeat the procedure to select a preset station.

S

elect the volume level.

6

(holding then...)

7

Turn off the System (on standby) if you have set the timer with the System turned on.

DAILY

Canceled Clock setting

(holding then...)

• The timer ( ) indicator goes off.

To turn on the timer again...

DAILY

Canceled Clock setting

TIMER (ON)

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and DAILY indicator are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column).

When the on-time comes

The System turns on, tunes in to the specified station or starts playing the specified source, and sets the volume level to the preset level.

When the off-time comes

The System stops playback, and turns off (stands by).

• The timer setting remains in memory until you change it.

(holding then...)

32

Set up Menu Operations

English

Remote control

3/2/5/∞,

ENTER

SET UP

Remote

Operating Procedure

ONLY

You can use the Set up Menus only when a disc is selected as the source and its playback is not yet started.

Ex.: Selecting “STILL PICTURE” for “FILE TYPE”:

1

Show the set up menu.

LANGUAGE

Select one of the set up menus.

2

3

Select the item you want to adjust.

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

ENGLISH

OFF

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM

[

]

SET UP

.

TO EXIT, PRESS

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

Set up Menu Icons

The icon for the selected Set up Menu will be highlighted.

Ex.: LANGUAGE Set up Menu is selected.

12 3 4

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

1 LANGUAGE Set up Menu 2 PICTURE Set up Menu 3 AUDIO Set up Menu 4 OTHERS Set up Menu

ENGLISH

OFF

ENGLISH

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

4

Display the pop-up window.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

Select the desired option in the pop-up window.

5


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

6

Finish the setting.

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

33

7

Repeat steps 3 up Menu. Repeat steps 2 Menu.

to 4

to set other items on the same Set

to 4

to set other items on another Set up

7

PICTURE Set up Menu

INFO

You can select the desired options concerning a picture or monitor screen.

English

To finish the Set up Menu

7

LANGUAGE Set up Menu

INFO

You can select the initial languages for disc playback. You can also select the language shown on the TV screen while operating this System.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

OFF

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

MENU LANGUAGE

Some discs have multiple menu languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 42).

AUDIO LANGUAGE

Some discs have multiple audio languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 42).


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM

[

SET UP].

TO EXIT, PRESS

MONITOR TYPE

You can select the monitor type of your TV when you play DVD Video recorded with aspect ratio of 16:9.

Select one of the following settings:

16:9 (Wide television conversion):

Select when the aspect ratio of your TV is 16:9 (wide TV) and when the TV has the screen size adjustment function.

4:3 LB (Letter Box):

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3 PS (Pan Scan):

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

SUBTITLE

Some discs have multiple subtitle languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 42) or “OFF (no subtitle).”

ON SCREEN LANGUAGE

Select one of the languages shown on the TV from— ENGLISH, SPANISH, and FRENCH.

Ex.: 16:9 Ex.: 4:3 LB

Ex.: 4:3 PS

34

English

PICTURE SOURCE

You can obtain optimal picture quality by selecting an appropriate option—picture source type (either video source or film source).

Select one of the following:

AUTO:

Normally select this. When playing back a disc containing both video and film sources, the System automatically changes the processing to match it to the picture type (film or video source) of the current chapter.

FILM:

VIDEO:

To play a film source disc.

To play a video source disc.

SCREEN SAVER

You can activate or deactivate screen saver while operating the built-in disc player.

Select one of the following:

ON:

The picture on the TV becomes dark when no operation is done for about 5 minutes.

OFF:

To cancel the screen saver.

FILE TYPE

If both audio tracks (MP3 files) and still picture (JPEG files) are recorded on a disc, you can select which to play.

Select one of the following:

AUDIO:

STILL PICTURE:

To play MP3 files.

To play JPEG files.

7

AUDIO Set up Menu

INFO

You can adjust the sound settings of the System.

AUDIO

DIGITAL AUDIO OUTPUT

DOWN MIX

D. RANGE COMPRESSION

SELECT

ENTER

STREAM/PCM

DOLBY SURROUND

AUTO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

DIGITAL AUDIO OUTPUT

When using the digital output terminal on the rear, set this correctly according to the connected component.

Select one of the following:

PCM ONLY:

To connect to a linear PCM digital equipment such as an MD recorder.

DOLBY DIGITAL /PCM:

To connect to a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM:

To connect to a DTS decoder or an amplifier with a built-in DTS decoder.

• See also “OPTICAL DIGITAL OUTPUT Signals” on page 41.

DOWN MIX

When playing a multi-channel DVD, the System converts the signals into 2 channels. Down mix setting is effective for the speaker output (and digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”) from this System.

Select one of the following:

STEREO:

DOLBY SURROUND:

To connect a conventional stereo amplifier, receiver, MD player, TV, etc.

To connect an amplifier with the Dolby Pro Logic decoder.

35

D. RANGE COMPRESSION

You can compress the dynamic range (the difference between the loudest sound and the softest sound) to enjoy a powerful sound even at a low volume level when listening to Dolby Digital software. This is useful at night.

• The effectiveness varies depends on a software.

Select one of the following:

AUTO:

ON:

7

You can change some other convenient functions.

To enjoy powerful sounds with full dynamic range.

Best for watching a movie at a low volume level.

OTHERS Set up Menu

OTHERS

RESUME

ON SCREEN GUIDE

SELECT

ENTER

ON

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

INFO

English

RESUME

You can activate or deactivate Resume for disc playback (see page 12).

Select one of the following:

ON:

OFF:

To activate Resume.

To cancel Resume.

ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons (see page 12).

• When recording the picture on a VCR, select “OFF” to avoid recording the guide icons on your video tape.

Select one of the following:

ON:

OFF:

To activate the on-screen guide icons.

To cancel the on-screen guide icons.

36

Operating the TV

English

Remote control

TV

TV CH + / –

SHIFT

TV VOL + / –

TV VIDEO

Remote

Operating TV

You can operate the JVC’s TV using this remote control.

To turn on or off the TV:

To select the input mode (either TV or VIDEO):

(holding then...)

To adjust TV volume:

ONLY

(holding then...)

To select the TV channel:

(holding then...)

37

Additional Information

Learning More about This System

Before Operating the System

Playable Disc Types:

• About audio format

–

Linear PCM:

format used for CDs and most studio masters.

–

Dolby Digital:

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

–

DTS (Digital Theater Systems):

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

Uncompressed digital audio, the same

Compressed digital audio, developed by

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Disc:

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

• On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• Some DVD Audios prohibit down mix. When you play back such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• For MP3/JPEG playback... – MP3/JPEG discs are required a longer readout time than

regular CDs. (It depends on the complexity of the group/ file configuration.)

– Some MP3/JPEG files cannot be played back and will be

skipped. This results from their recording processes and conditions.

– When making MP3 discs, use ISO 9660 Level 1 or Level

2 for the disc format.

– This system can play back MP3/JPEG files with the

extension code <.mp3> or <.jpg> (regardless of the letter case—upper/lower).

– It is recommended that you make each MP3 file at a

sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

(see page 3)

Compressed digital

(see pages 10 to 15)

Daily Operations—Sound and Other Adjustments

Adjusting the Volume:

• Be sure to turn down the volume before connecting or putting the headphones.

• When you turn off the System with the volume level set to “VOL 16” or higher, the volume level is reset to “VOL 15” next time you turn on the System.

Reinforcing the Bass Sound:

• RHYTHM AX function also affects the sound through the headphones.

• You can adjust the subwoofer level while RHYTHM AX is on.

• The subwoofer lamp(s) indicates the current subwoofer level—1 or 2. (when you set the level to “0,” the lamp(s) turns off.)

Selecting the Sound Modes:

• The SOUND MODE lamp lights when one of the Sound Modes is activated.

Selecting 3D Phonic Mode:

• The SURROUND MODE lamp lights when 3D Phonic is activated.

• 3D Phonic function also affects the sound through the headphones.

• 3D Phonic setting is also applied to the optical digital output signals through the DIGITAL OUTPUT (OPTICAL) terminal.

Changing the Scanning Mode:

• To enjoy the progressive video picture, connect a TV with the progressive video input using component video cord.

• Do not change the progressive scanning mode in the following cases: – When your TV does not support the progressive video

input.

– When you have not connected your TV to the unit using

a component video cord.

Changing the Picture Tone:

• If no operation is done for about 10 seconds, the VFP setting screen disappears.

Setting the Clock:

• “– –:– –” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Turning Off the Power Automatically:

• If you turn off the System, Sleep Timer is canceled.

(see pages 16 to 19)

English

38

English

Unique DVD/VCD Operations

Selecting the Sound Track:

On some DVD videos, you cannot change audio languages while playing back.

Playing Back a Bonus Group:

• You cannot select a track in the bonus group for Program Play.

Special Picture Playback:

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

• While programming steps...

– If you try to program a disc number on which the System

has detected no disc is loaded, “ ” appears on the TV screen.

– Your entry will be ignored if you have tried to program an

item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks). Such entries are ignored.

– When you enter the group number for SVCD/VCD/CD

which is not in the current tray, the System will ignore these entries during playback.

• You cannot use Program Play and Random Play for JPEG discs.

• If you try to add a 100th track, “FULL” appears on the display.

• The program contents will be erased when... – You unplug the AC power cord. – You open the disc tray currently selected (regardless of the

play mode).

Playing at Random—Random Play:

• Random Play cannot be used on some DVD discs.

On-Screen Disc Operations

Operations Using the On-screen Bar:

• A-B Repeat:

– A-B Repeat cannot be used on some DVDs. – For DVD Video, A-B Repeat is possible only within the

same title.

– For DVD Audio/SVCD/VCD/CD, A-B Repeat is

possible only within the same track.

(see pages 20 to 22)

(see pages 23 to 25)

(see pages 26 to 30)

Operations on the CONTROL Screen:

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files*.

Progressive JPEG files* or lossless JPEG files* cannot be played. * Baseline JPEG format: Used for digital cameras,

web, etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

• This unit may not play back JPEG files properly which are recorded by the devices other than digital still camera.

• During Slide-show playback, zoom cannot be operated.

Timer Operations

Setting the Timer:

• When you select “CD” for the playback source, playback starts from the beginning of the current disc when timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• If you set DVD Video as the source, Daily Timer may not work correctly.

Set up Menu Operations

LANGUAGE Set up Menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE Set up Menu—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may become 4:3 letter box with some DVD Videos. This depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

AUDIO Set up Menu—DOWN MIX:

• This setting is not effective when DTS multi-channel software is played back.

OTHERS Set up Menu—ON SCREEN GUIDE:

• The set up menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zooming in always appear on the display regardless of this setting.

(see pages 31 and 32)

(see pages 33 to 36)

39

Maintenance

Troubleshooting

English

To get the best performance of the System, keep your discs clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strong. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact

for a long time.

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive video input.

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB” for “MONITOR TYPE” (see page 34).

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

]

The disc is placed upside down. Place the disc with the label side up.

MP3 groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3 or JPEG files are not played back.

]

The inserted disc may include both types of tracks (MP3 ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 35).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

40

The disc sound is discontinuous.

English

]

The disc is scratched or dirty.

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, press SUBTITLE after starting play (see page 21).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, press AUDIO after starting play (see page 20).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use (see page 25).

]

Program Play is in use. Exit from Program Play (see

page 24).

USB Operations:

Unable to play back through the USB connection.

]

USB connection and setting is incorrect (see page 14).

The sound through the USB connection stops.

]

Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations:

• Disconnect and connect the USB cable again

• Restart the music software on your PC

• Turn off and on the system

Timer operations:

Daily Timer does not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

If you still have a problem, reset the System.

While in standby...

Main Unit

ONLY

Press and hold until the display flashes. The factory default settings are restored and all the settings you have made are erased.

OPTICAL DIGITAL OUTPUT Signals

DIGITAL AUDIO

OUTPUT Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD VIDEO

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS Digital Surround DTS bitstream 48 kHz, 16 bit Linear PCM

DVD AUDIO

2

*

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/ 20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS Digital Surround DTS bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD CD with DTS Digital Surround MP3 disc

44.1 kHz, 16 bit Linear PCM*/48 kHz, 16 bit Linear PCM*

DTS bitstream 44.1 kHz, 16 bit Linear PCM

32/44.1/48 kHz, 16 bit Linear PCM

*1While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the

DIGITAL OUTPUT (OPTICAL) terminal if the discs are not copy-protected.

2

*

There is no output for DVD Audio with content protection set.

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

1

41

Language Code List

English

AA

AB

AF

AM

AR

AS

AY

AZ

BA

BE

BG

BH

BI

BN

BO

BR

CA

CO

CS

CY

DA

DZ

EL

EO

ET

EU

FA

FI

FJ

FO

FY

GA

GD

GL

GN

GU

HA

HI

HR

HU

HY

IA

IE

IK

IN

IS

IW

JI

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

JW

KA

KK

KL

KM

KN

KO

KS

KU

KY

LA

LN

LO

LT

LV

MG

MI

MK

ML

MN

MO

MR

MS Malay (MAY)

MT Maltese

MY Burmese

NA Nauru

NE Nepali

NL Dutch

NO Norwegian

OC Occitan

OM (Afan) Oromo

OR Oriya

PA Panjabi

PL Polish

PS Pashto, Pushto

PT Portuguese

QU Quechua

RM Rhaeto-Romance

RN Kirundi

RO Rumanian

RU Russian

RW Kinyarwanda

SA Sanskrit

SD Sindhi

SG Sangho

SH Serbo-Croatian

SI Singhalese

SK Slovak

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA Tamil

TE Telugu

TG Tajik

TH Thai

TI Tigrinya

TK Turkmen

TL Tagalog

TN Setswana

TO Tonga

TR Turkish

TS Tsonga

TT Tatar

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

VI Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu

42

English

Parts Index

Refer to the pages to see how to use the buttons and controls.

Remote control

12, 23

11, 19, 31 19, 24, 32

19

11 19 21

14

13, 27, 30, 33, 37

11, 13, 14, 31

11, 13, 14, 19, 21, 31, 37

37

14, 15

11 17 16

17 17

13

33 12

20 21

19, 31

10, 32

11, 13, 23

25

23, 24

17

16

10, 16, 37

13

27 12 12

13, 22

22, 30 21 18

18

Main unit

Remote sensor

10, 12

10

STANDBY lamp

12, 19, 24

12, 22 12, 25

12

10, 16

17

11

16, 41

10

8 11, 13

10, 11

14, 15

11, 13

16

10 14

15

43

Specifications

Amplifier section—CA-HXD7

Output Power: SUBWOOFERS: 180 W per channel, min. RMS,

driven into 6 Ω at 63 Hz with no more than 10% total harmonic distortion.

MAIN SPEAKERS: 80 W per channel, min. RMS, driven

into 4 Ω at 1 kHz with no more than 10% total harmonic distortion.

Audio input sensitivity/impedance AUX: 400 mV/47 k USB: USB Version 1.1

Digital output: DIGITAL OUTPUT (OPTICAL):

–21 dBm to –15 dBm (660 nm ±30 nm) VIDEO OUT: Color system: NTSC VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

C (chrominance, burst)

COMPONENT (interlace/ progressive):

(Y) 1 V(p-p)/75 (P

B/PR

Speaker Terminals: 4 Ω – 8 Ω (main speakers)

6 Ω – 16 Ω (subwoofers)

Tuner section

FM tuning range: 87.5 MHz – 108.0 MHz AM tuning range: 530 kHz – 1 710 kHz

Disc player section

Playable disc: DVD Video/DVD Audio

CD/VCD/SVCD CD-R/CD-RW (recorded in Audio CD/ Video CD/Super Video CD/MP3/JPEG format) DVD-R/DVD-RW (recorded in video

format) Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Ω

0.286 V(p-p)/75

) 0.7 V(p-p)/75

Ω Ω

Ω

Ω Ω

General

Power requirement: AC 120 V , 60 Hz Power consumption: 160 W (at operation)

30 W

(on standby; with power saving

off—Normal mode)

1.7 W (on standby; with power saving on—Eco mode)

Dimensions (approx.): 175 mm x 373 mm x 389 mm

(W/H/D)

Mass (approx.): 10.1 kg

Supplied Accessories

See page 3.

Speaker section—SP-HXD7

Type: 4-Way Front Twin Woofer

(Magnetically Shielded Type)

Speakers:

Subwoofer: 16 cm cone x 1 Woofer: 16 cm cone x 1 Mid range: 7 cm cone x 1 Tweeter: 2 cm piezo x 1

Power handling capacity:

Subwoofer: 360 (180 + 180) W Main speaker: 160 (80 + 80) W

Impedance:

Subwoofer: 6 Main speaker: 4

Frequency range:

Subwoofer: 30 Hz – 1 000 Hz Main speaker: 50 Hz – 20 000 Hz

Sound pressure level:

Subwoofer: 74 dB/W•m Main speaker: 84 dB/W•m

Dimensions (approx.): 295 mm x 452 mm x 390 mm

Mass (approx.): 8.9 kg each

Design and specifications are subject to change without notice.

Ω Ω

(W/H/D)

English

44

HX-D7 COMPACT COMPONENT SYSTEM

EN, FR

0405TMMMDWSAM

JVC HX-D7C, HX-D7J, HX-D7UJ, HX-D7, CA-HXD7 Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
