JVC HR-VP636U User Manual

VIDEO CASSETTE RECORDER
MAGNÉTOSCOPE À CASSETTE
HR-VP636U
POWER
A
B
ENTER
OSD
12453
6
DAILY (M-F)
WEEKLY
9
807
AUX
C.RESET
CANCEL
TIMER
CH SKIP
TV
CH
VOL.
SP/EP
DISPLAY TV/VIDEO
CABLE
TV
VCR
PLAY
F
F
REW
STOP
PAUSE
REC
M
.
C
R
O
M
E
ADD
E
M
REMOTE CONTROL UNIT
S
K
I
P
Y
S
E
A
R
C
H
U
O
N
K
SHUTTLE
PLUS
MULTI BRAND
POWER
VIDEO (MONO) L – AUDIO – R
ITR TIMER
VIDEO
SP
MENU
AM
M
EP
PM
ST SAP
HMS
CH
REC PLAY PAUSE
PLAY
REW
2
REC
STOP/EJECT PAUSE
8
q
5
OK
/
FF
2
w Channel
Cable
Changer
6
INSTRUCTIONS
MANUEL D'INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which is located on the rear of cabinet. Retain this information for future reference.  Model No. HR-VP636U(C) 
Serial No.
PU30425-1788
2
Dear Customer,
Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.
Failure to heed the following precautions may result in
CAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC 120V`, 60Hz only. To prevent electric shocks and fire hazards, DO NOT use any other power source.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
damage to the VCR, remote control or video cassette.
1. DO NOT place the VCR . . .
... in an environment prone to extreme temperatures or
humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are
generated. ... on a surface that is unstable or subject to vibration.
2. DO NOT block the VCR’s ventilation openings.
3. DO NOT place heavy objects on the VCR or remote control.
4. DO NOT place anything which might spill on top of the VCR or remote control.
5. AVOID violent shocks to the VCR during transport.
**MOISTURE CONDENSATION
Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensa­tion may occur, keep the VCR’s power turned on for a few hours to let the moisture dry.
**ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or inter­rupted. Be sure to contact your nearest JVC dealer if such troubles occur.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
CAUTION:
Changes or modifications not approved by JVC could void user's authority to operate the equipment.
VCR Plus+C3 and PlusCode are trademarks of Gemstar Development Corporation. The VCR Plus+C3 system is manufactured under licence from Gemstar Development Corporation.
n Cassettes marked "VHS" (or "S-VHS") can be used with this
video cassette recorder. However, only "VHS" recordings can be played back in this model.
n HQ VHS is compatible with existing VHS equipment.
3
IMPORTANT PRODUCT SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.
ATTENTION:
Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
• Do not block the openings by placing the product on a bed,
sofa, rug or other similar surface.
• Do not place the product in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
ANTENNA INSTALLATION INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT (NEC SECTION 
ELECTRIC SERVICE EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
810-20)
GROUNDING  CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
4
USE
1. Accessories
To avoid personal injury:
• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.
• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.
• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.
2. Product and Cart Combination
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Water and Moisture
Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short­out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
PORTABLE CART WARNING (Symbol provided by RETAC)
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a.When the power supply cord or plug is damaged. b.If liquid has been spilled, or objects have fallen into the
product. c.If the product has been exposed to rain or water. d.If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation. e.If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION MANUAL
All major sections and subsections are listed in the Table Of
Contents on page 5. Use this when searching for information
on a specific procedure or feature.
The Index on pages 55–57 lists frequently-used terms, and
the number of the first page on which they are used or
explained in the manual. This section also illustrates the
controls and connections on the front and rear panel, the
front display panel and the remote control.
The Z mark signals a reference to another page for
instructions or related information.
Operation buttons necessary for the various procedures are
clearly indicated through the use of illustrations at the
beginning of each major section.
BEFORE YOU INSTALL YOUR NEW VCR . . .
. . . please read the sections/literature listed below.
”Cautions” on page 2
”Important Products Safety Instructions” on the previous pages
CONTENTS
5
INSTALLING YOUR NEW VCR 6
Basic Connections .................................. 6
INITIAL SETTINGS 7
Dual Quick Set .......................................7
Clock .....................................................8
Preparation .......................................................8
Language Select ............................................... 8
Clock Setting .....................................................9
Semi-Auto ......................................................9
Manual ........................................................ 11
Auto ............................................................. 11
Tuner ...................................................12
Set Receivable Channels ................................ 12
Add Or Delete A Channel .............................. 14
Tuner And Cable Box Controller ........... 15
Situate And Connect Controller ...................... 15
Set Cable Box Output Channel ....................... 16
Set Cable Box Brand....................................... 17
VCR Plus+ Setup ..................................19
IMPLE PLAYBACK AND
S
RECORDING 22
Simple Playback ..................................22
Simple Recording .................................23
LAYBACK AND RECORDING
P
FEATURES 24
Playback .............................................24
Still Picture...................................................... 24
Slow, Reverse, Reverse Slow Or Fast-Motion
Picture ............................................................24
Manual Tracking............................................. 25
Select The Soundtrack .................................... 26
Superimpose ...................................................27
Skip Search .....................................................28
Repeat Playback ............................................. 28
Index Search ...................................................28
Instant ReView ................................................29
Counter Reset ..................................................29
Counter Memory ............................................ 29
Tape Position Indicator ................................... 30
Next-Function Memory .................................. 30
AV COMPU LINK Playback............................ 30
Active Video Calibration...................... 32
Preparation .....................................................32
Recording .......................................................33
Playback .........................................................34
Recording ............................................35
Record One Program While
Watching Another .......................................... 35
Display Elapsed Recording Time..................... 35
Stereo And SAP (Second Audio Program)........ 36
To Record SAP Programs ................................ 36
TIMER RECORDING 37
VCR Plus+ Timer Programming ............ 37
Enter Program Information.............................. 37
Instant Timer Recording (ITR) ............... 39
On-Screen Timer Programming ........... 39
Check And Cancel Programs .......................... 41
Auto Timer ......................................................42
EDITING 43
Edit To Or From Another VCR............... 43
Edit From A Camcorder ....................... 44
Assemble Editing .................................46
SPECIAL FEATURES 47
TV Multi-Brand Remote Control ..................... 47
Cable Box Multi-Brand Remote Control.......... 48
Control Two JVC VCRs ................................... 49
Child Lock ......................................................49
T
ROUBLESHOOTING 50
Power ................................................. 50
Tape Transport .....................................50
Playback .............................................50
Recording ............................................51
Timer Recording ...................................51
Other Problems....................................52
QUESTIONS AND ANSWERS 53
Playback .............................................53
Recording ............................................53
Timer Recording ...................................53
S
PECIFICATIONS 54
I
NDEX 55
List Of Terms ........................................ 55
Front View ...........................................56
Rear View ...........................................56
Front Display Panel ..............................57
Remote Control ....................................57
6
Basic
INSTALLING YOUR NEW VCR
CHECK CONTENTS
Make sure the package contains all of the accessories listed in “SPECIFICATIONS” (Z pg. 54).
1
Connections
Antenna or Cable
Coaxial Cable
Flat Feeder
AC Power Cord
Back of VCR
AC Outlet
Maching Transformer
TV
ANTENNA-IN (Antenna or Cable input)
RF Cable (provided)
75 ohm terminal
RF OUT
SITUATE VCR
Place the VCR on a stable, horizontal surface.
2
CONNECT VCR TO TV
The connection method you use depends on the type of TV you have.
3
RF Connection
To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV antenna from the TV. b– Connect the TV antenna cable to the ANT IN jack
on the rear of the VCR.
c– Connect the supplied RF cable between the RF
OUT jack on the rear of the VCR and the TV’s antenna terminal.
AV Connection
To Connect To A TV With AV Input Terminals . . .
a– Connect the antenna, VCR and TV as shown in
the illustration.
b– Connect an Audio/Video Cable (not supplied)
between the AUDIO OUT and VIDEO OUT jacks on the rear of the VCR and the AV IN jacks on the TV.
CONNECT VCR TO POWER SOURCE
Connect the power plug to an AC outlet.
The clock will automatically be set when the antenna
4
is connected and when the AC is first connected to the VCR (Z pg. 7).
Back of VCR
AUDIO
VIDEO
CH3 CH4
FINAL PREPARATION FOR USE
Select the VCR channel (3 or 4) by setting the switch on the rear of the VCR as shown in the illustration.
5
Turn on the power to the TV. You are now able to perform simple playback (Z pg. 22) and recording (Z pg. 23).
L
(If 'Auto' is displayed on the front display panel, the clock is being set automatically. Wait for the time to be displayed before powering on the VCR.)
NOTES:
The VCR channel is the channel on the TV which will display
the audio and video signals from the VCR. The VCR's CH3-
CH4 switch sets the VCR channel to CH3 or CH4.
The CH3–CH4 switch is preset to the CH3 position.
Set to CH4 if CH3 is used for broadcasting in your area.
If your TV has no AV input terminals, set the channel on the
TV to correspond to the CH3–CH4 switch on the back of the
VCR.
Even if your TV has AV input terminals, you must connect it
to the VCR using an RF cable in order to record one show
while watching another (Z pg. 35).
For full identification of the VCR's rear panel, refer to the
Index (REAR VIEW Z pg. 56).
INITIAL SETTINGS
PM
Dual Quick Set
2
2
6
8
q5
/
IMPORTANT
Don’t press any buttons on the VCR or remote during Dual Quick Set.
If you perform Dual Quick Set successfully, there’s no need to perform the Clock (Z pg. 8) and Tuner (Z pg. 12) procedures. If, however, you want to add or delete channels, refer to “Add Or Delete A Channel” on page 14.
ATTENTION CABLE BOX SUBSCRIBERS
If you perform the Dual Quick Set procedure . . .
Select the PBS channel on your cable box before plugging your VCR’s power plug into the AC outlet. (If you have more than one PBS channel, you may have to select an alternative PBS channel if Dual Quick Set is not successful.)
If there is no PBS channel in your area, perform the Manual Clock Set procedure (Z pg. 11).
For automatic clock adjustment to take place the VCR's power must be off and the cable box must be set to the PBS channel at clock adjustment times.
If you perform Dual Quick Set successfully, D.S.T. will be set to “AUTO”. At the D.S.T. adjustment time (Z pg. 10), your VCR's power must be off and your cable box must be set to the host PBS channel in your area for the D.S.T. adjustment to take place. If the clock is not set correctly, change the D.S.T. setting to “ON” or “OFF. See step 6 of Semi-Auto procedure (Z pg. 9) or step 3 of Manual procedure (Z pg. 11).
With the antenna cable connected the Dual Quick Set function allows the clock and tuner to be set automatically when the power plug is first connected to an AC outlet.
The time and date can be set automatically from clock setting data that is transmitted by one of the regular TV broadcast channels. We call this TV channel the “Host Channel” and it is a PBS channel in your area.
The auto clock set function scans all the channels received by your VCR to find the clock setting data of the Host Channel.
The auto channel set function scans all the channels received by your VCR, then automatically assigns receivable channels to
5
the CH
buttons, and skips non-receivable channels.
PERFORM DUAL QUICK SET
Make sure that the antenna cable is connected to the VCR. Then connect the VCR’s power plug to an AC
1
outlet. For connection configuration, refer to “Basic Connections” (Z pg. 6). The clock and tuner channels will automatically be set.
Auto clock set is performed first. AUTO is displayed on the Front Display Panel during Auto clock set. Auto Channel set is performed next. The channel numbers are displayed in ascending order during auto channel set. When Dual Quick Set has been completed successfully the correct time is displayed.
The clock can be adjusted automatically by the Host PBS every hour on the hour (except for 11:00 PM, midnight, 1:00 AM and 2:00 AM) by the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the VCR’s power is turned off.)
If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semi-Auto procedure (Z pg. 9). Auto channel set (Z pg. 12) has already taken place and it need not be set again.
If “- -:- -” appears on the display, your antenna cable may not be connected to the VCR, there may not be a Host PBS signal available in your area, or your cable box may not be set to the PBS channel. If everything is connected and set correctly, perform the Manual Clock Set procedure (Z pg. 11). Auto channel set has not yet taken place, so please also perform the “Set Receivable Channels” procedure (Z pg. 12).
7
During Auto Clock Set
During Auto Channel Set
The channels appear in ascending order, beginning with 1.
Dual Quick Set Completed
The current time (including AM/PM) is displayed.
8
POWER
OK
MENU
CH5∞
TV/VIDEO
INITIAL SETTINGS (cont.)
Preparation
Clock
MENU
12 45
8
7
0
 
2
q5
POWER
3 6 9
CH5∞
OK
SHUTTLE PLUS 5∞
8
/
2
6
TURN ON THE VCR
Press POWER. If watching channel 3 or 4, press TV/VIDEO to select the VIDEO mode. VIDEO is
1
displayed on the front display panel.
ACCESS ON-SCREEN MENU
Press MENU to bring up the Main Menu screen.
2
ACCESS CUSTOM SET SCREEN
At the Main Menu screen, place the arrow next to
3
“CUSTOM SET” by pressing CH
SHUTTLE PLUS press OK.
Language Select
ACCESS LANGUAGE SELECT SCREEN
The messages are preset to appear in English. If you
1
want to see them in Spanish or French, place the arrow next to “LANGUAGE SELECT” by pressing CH
PLUS
SELECT LANGUAGE
At the Language Select screen, place the arrow
2
next to the desired language by pressing
5
CH
5
The Custom Set screen reappears.
5
or
5
, then
5
or SHUTTLE
5
, then press OK.
or SHUTTLE PLUS
, then press MENU.
MAIN MENU
PROGRAM SET FUNCTION SET TUNER SET
=CUSTOM SET
VIDEO CALIBRATION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
CUSTOM SET
OVERRIDE
AUTO CLOCK SET
=LANGUAGE SELECT
VCR PLUS+ SET-UP
PRESS (5,), THEN (OK) PRESS (MENU) TO END
LANGUAGE SELECT
=ENGLISH
ESPAÑOL FRANCAIS
PRESS (5,) TO SELECT PRESS (MENU) TO END
CH
OK
MENU
Clock Setting
This step must be performed before going on to Auto, Semi-Auto or Manual clock setting procedures (each starts from step 2).
9
NUMBER
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
2
q5
8
/
2
6
ACCESS MODE SELECT SCREEN
Place the arrow at the Custom Set screen next to
1
“OVERRIDE AUTO CLOCK SET” by pressing
5
CH
or SHUTTLE PLUS
5
, then press OK.
=OVERRIDE
AUTO CLOCK SET LANGUAGE SELECT VCR PLUS+ SET-UP
PRESS (5,), THEN (OK) PRESS (MENU) TO END
Semi-Auto
SELECT MODE
At the Override Auto Clock Set screen, place the
2
arrow next to “SEMI­AUTO CLOCK SET” by pressing CH▲▼ or
SHUTTLE PLUS press OK.
5
, then
OVERRIDE AUTO CLOCK SET
AUTO CLOCK SET
=SEMI-AUTO CLOCK SET
MANUAL CLOCK SET
PRESS (5,), THEN (OK) PRESS (MENU) TO END
ACCESS SELECT SCREENS
At the Semi-Auto Clock Set screen, place the
3
arrow next to the desired mode by pressing CH▲▼ or SHUTTLE PLUS then press OK.
To select the Host Channel — step 4 To select the Time Zone — step 5 To select the D.S.T. mode — step 6
5
,
SEMI-AUTO CLOCK SET
=HOST CHANNEL SELECT
TIME ZONE SELECT D.S.T. SELECT
PRESS (5,), THEN (OK) PRESS (MENU) TO END
CUSTOM SET
SELECT HOST CHANNEL
You can either select “AUTO”, or enter a PBS
4
channel number. For automatic channel selection, simply press MENU. To manually select the PBS channel, press the appropriate NUMBER key, CH▲▼ or SHUTTLE PLUS
5
to cycle through the channel numbers (hold button
down to speed through numbers) and stop when the desired number appears. Press MENU and the Semi­Auto Clock Set screen reappears.
NOTE:
There are some PBS channels that do not transmit clock setting data.
CONTINUED ON NEXT PAGE.
HOST CHANNEL SELECT
PRESS (5,) TO SELECT PRESS (MENU) TO END
(CATV)
CH AUTO
10
CH
MENU
12 45
8
7
0
3 6 9
CH
2
q5
8
/
2
6
INITIAL SETTINGS (cont.)
SELECT TIME ZONE
You can either select “AUTO”, or select the
5
correct zone. If you selected "AUTO" in step 4 and if you live near the boundary of an adjacent time zone, or receive cable TV channels, a PBS channel from a different time zone may become your host channel. Therefore, in this case make sure to manually select the correct time zone. Place the arrow next to your choice by pressing CH MENU to return to the Semi-Auto Clock Set screen.
5
or SHUTTLE PLUS
TIME ZONE SELECT
=AUTO MOUNTAIN
ATLANTIC PACIFIC EASTERN ALASKA CENTRAL HAWAII
PRESS (5,) TO SELECT PRESS (MENU) TO END
5
SELECT D.S.T. MODE
You have three choices:
a–Select “AUTO” and the
6
adjustment to your VCR’s clock will be made according to the incoming signal from the host channel. b–Select “ON” and the adjustment will be made based on the clock itself. c–Select “OFF” if Daylight Saving Time doesn’t apply to you.
D.S.T. SELECT
PRESS (5,) TO SELECT PRESS (MENU) TO END
, then press
=AUTO
ON OFF
MENU
SHUTTLE PLUS
 
Place the arrow next to your choice by pressing
5
CH
or SHUTTLE PLUS
the Semi-Auto Clock Set screen reappears.
5
, then press MENU and
IMPORTANT
After performing the Semi-Auto clock set procedure, make sure that the VCR is off before the next hour so that the clock can be set. (The clock is automatically adjusted on the hour except at 11:00 PM, midnight, 1:00 AM and 2:00 AM.)
**AUTO DAYLIGHT SAVING TIME
This function enables automatic adjustment of the VCR’s clock at the start and end of Daylight Saving Time. With Auto DST activated, . . . . . . on the first Sunday of April at 2:00 AM, the clock is adjusted
to 3:00 AM.
. . . on the last Sunday of October at 2:00 AM, the clock is
adjusted to 1:00 AM.
2
CH
OK
MENU
2
Manual
SELECT MODE
At the Override Auto Clock Set screen, place the arrow next to “MANUAL CLOCK SET” by pressing
2
CH▲▼ or SHUTTLE PLUS
5
, then press OK.
11
NUMBER
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
8
q5
/
6
SET DATE, TIME AND D.S.T.
The Manual Clock Set screen is displayed and the
3
first setting that can be set begins flashing. Press the appropriate NUMBER keys to set the date and time (if only 1 digit, press "0" first). Press CH▲▼ or SHUTTLE PLUS
5
to set AM/PM and D.S.T. (Daylight Saving Time) to
“ON” (automatic adjustment based on VCR’s clock) or “OFF” (if D.S.T. doesn’t apply to you). Press OK after AM/PM and D.S.T. settings. The next setting that can be set begins flashing. When you’re finished with this set-up procedure, press MENU to start the clock.
NOTE:
5
CH
and SHUTTLE PLUS
all operations. (In this case, press OK after each setting.)
MANUAL CLOCK SET
DATE 1/ 1/96 MON TIME – – : – – AM D.S.T. ON
PRESS NUMBER KEY(0-9)
OR (5,), THEN (OK)
PRESS (MENU) TO END
5
can be used to perform
MAKE CORRECTIONS
To change any of the settings, press OK or SHUTTLE PLUS ™ £ until the item you want to change
4
blinks, then set as in step 3.
Auto
Auto need only be selected if Semi-Auto or Manual had previously been selected.
SELECT MODE
At the Override Auto Clock Set screen, place the arrow next to “AUTO CLOCK SET” by pressing CH
2
SHUTTLE PLUS
as necessary to return to the normal screen.
5
, then press MENU as many times
5
or
12
CH
OK
MENU
TV/VIDEO
POWER
INITIAL SETTINGS (cont.)
Set Receivable Channels
Tuner
12 45
8
7
0
3 6 9
2
q5
POWER
8
/
2
6
TURN ON THE VCR
Press POWER. If watching on channel 3 or 4, press TV/ VIDEO to select the VIDEO mode. VIDEO is displayed
1
on the front display panel.
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
2
ACCESS TUNER SET SCREEN
Place the arrow next to "TUNER SET" by pressing
5
CH
or SHUTTLE PLUS
5
, then press OK.
3
ACCESS BAND SCREEN
Place the arrow next to "BAND" by pressing
4
CH
5
5
or SHUTTLE PLUS
, then press OK.
=BAND
AFC AUTO CHANNEL SET MANUAL CHANNEL SET
PRESS (5,), THEN (OK) PRESS (MENU) TO END
TUNER SET
MENU
SHUTTLE PLUS
 
CH
OK
SET FREQUENCY BAND
If you receive your TV channels from an external
5
antenna, select "TV". If you receive your TV channels from a cable TV system, select "CATV". Place the arrow next to your choice by pressing
5
CH
or SHUTTLE PLUS
5
, then press MENU to return to the Tuner Set screen.
BAND
TV
=CATV
PRESS (5,) TO SELECT PRESS (MENU) TO END
12
CH
OK
MENU
45
8
7
0
3 6 9
CH
2
q5
8
/
2
6
PERFORM AUTO CHANNEL SET
Place the arrow next to "AUTO CHANNEL SET" by
6
pressing CH SHUTTLE PLUS
press OK. Receivable channels in your area are automatically assigned to
5
the CH non-receivable channels are skipped.
NOTES:
At the end of Auto Channel Set, “SCAN COM­PLETED” appears on screen.
If the scan was unsuccessful, “SCAN COMPLETED– NO SIGNAL” appears on screen. Check the band setting and connections and start again.
5
or
5
buttons, and
, then
AUTO CHANNEL SET
PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
7
(TV)
CH 2 ADD
SCANNING ...
13
MENU
SHUTTLE PLUS
 
OK
14
CH
OK
MENU
ADD
NUMBER
CH.SKIP
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
2
q5
8
/
2
6
INITIAL SETTINGS (cont.)
Add Or Delete A Channel
ACCESS TUNER SET SCREEN
Access by performing steps 2 and 3 of the Tuner procedure on page 12.
1
To add a channel, go to step 2.
To delete a channel, skip to step 4.
ACCESS AFC SCREEN
Place the arrow next to "AFC" by pressing CH SHUTTLE PLUS
5
, then press OK.
5
2
MAKE SELECTION
Place the arrow next to "SPCL" by pressing CH
3
or SHUTTLE PLUS then press MENU to return to the Tuner Set screen.
5
5
,
PRESS (5,) TO SELECT PRESS (MENU) TO END
AFC
NORM
=SPCL
ACCESS MANUAL CHANNEL SET SCREEN
Place the arrow next to "MANUAL CHANNEL SET" by pressing CH
5
or SHUTTLE PLUS
5
, then press OK.
4
STORE DESIRED CHANNEL
Input the channel number using the NUMBER keys or
5
by pressing CH SHUTTLE PLUS press ADD to add or CH.SKIP to delete. Repeat
for each channel you want to store or skip.
5
or
∞ 5
, then
MANUAL CHANNEL SET
(CATV)
CH 125 SKIP
SELECT CH NO. AND
PRESS (ADD/SKIP)
PRESS (MENU) TO END
or
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
6
Tuner And Cable Box Controller
15
This procedure is required if you receive your TV channels through a cable box (descrambler). The Cable Box Controller allows the VCR to automatically switch cable box channels, allowing you to timer-record programs from various cable stations. The Cable Box Controller is effective for recording shows that have been programmed using VCR Plus+ (Z pg. 37) or On-Screen Timer Programming (Z pg. 39).
Situate And Connect Controller
Suggested Location
Place the cable box on top of the VCR. Attach the VCR's Cable Box Controller to the top of the VCR with the Controller’s transmitter pointed towards the cable box’s remote sensor.
Cable box
Your VCR
Controller (suggested locations)
Cable box
Controller
Transmitter
SITUATE CONTROLLER
Place the Cable Box Controller so that the path between its transmitter and the cable box’s remote
1
sensor is unobstructed.
ATTACH CONTROLLER
Fasten securely using the supplied adhesive strips.
2
CONNECT CABLE BOX TO VCR
The connection method depends on the type of cable box you have.
3
If your cable box has AUDIO and VIDEO OUT connectors . . .
. . . connect them to the AUDIO and VIDEO IN connectors on your VCR.
If your cable box doesn’t have AUDIO and VIDEO OUT connectors . . .
. . . connect the antenna output connector on the cable box to the ANT.IN connector on the rear of your VCR.
NOTE:
Refer to your cable box’s instruction manual during connection.
CONNECT CONTROLLER TO VCR
Connect to the CABLE BOX connector on your VCR.
Your VCR
Connected to ANT. IN
CABLE
BOX
Connected to VIDEO/ AUDIO IN
4
About Your Cable Box
This VCR has two separate methods to control your Cable Box.
The VCR's Wireless Remote Control Unit can control your Cable Box. This eliminates the need for a separate Cable Box Remote Control Unit.
The VCR's Cable Box Controller can also control your Cable Box. This allows the VCR to change your Cable Box's channel number during timer recording.
Each method must be set up separately. To set up the VCR's Remote Control unit, refer to page 48.
16
CH
MENU
POWER
OK
TV/VIDEO
2
q5
8
/
2
6
INITIAL SETTINGS (cont.)
Set Cable Box Output Channel
TURN ON THE VCR
Press POWER. If watching channel 3 or 4, press TV/ VIDEO to select the VIDEO mode. VIDEO is displayed
1
on the front display panel.
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
2
MENU
12 45
8
7
0
 
POWER
3 6 9
CH
OK
SHUTTLE PLUS
ACCESS CUSTOM SET SCREEN
Press CH PLUS
3
arrow next to “CUSTOM SET”, then press OK.
5
5
to place the
or SHUTTLE
PROGRAM SET FUNCTION SET TUNER SET
=CUSTOM SET
VIDEO CALIBRATION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
ACCESS VCR PLUS+ SET-UP SCREEN
Press CH PLUS
4
arrow next to “VCR PLUS+ SET-UP”, then press OK.
5
5
to place the
or SHUTTLE
OVERRIDE
AUTO CLOCK SET LANGUAGE SELECT
=VCR PLUS+ SET-UP
PRESS (5,), THEN (OK) PRESS (MENU) TO END
ACCESS CABLE BOX OUTPUT SCREEN
Press CH PLUS
5
arrow next to “CABLE BOX OUTPUT”, then press OK.
5
5
to place the
or SHUTTLE
VCR PLUS+ SET-UP
GUIDE CHANNEL SET GUIDE GHANNEL MAP
=CABLE BOX OUTPUT
CABLE BOX BRAND SET
PRESS (5,), THEN (OK) PRESS (MENU) TO END
MAIN MENU
CUSTOM SET
2
CH
MENU
OK
q5
8
/
2
6
SELECT CABLE BOX OUTPUT CHANNEL
Your selection depends on how your cable box is
6
connected to your VCR.
If your cable box is connected to your VCR using an RF connection . . .
. . . press CH SHUTTLE PLUS
place the arrow next to the channel number representing the cable box’s output (2–6).
If your cable box is connected to your VCR’s AUDIO/ VIDEO IN connectors . . .
. . . press CH arrow next to “ON LINE”.
5
or
5
to
5
or SHUTTLE PLUS
CABLE BOX OUTPUT
=OFF
PRESS (5,), TO SELECT
PRESS (MENU) TO END
5
ON CH2 ON CH3 ON CH4 ON CH5 ON CH6 ON LINE
to place the
17
NUMBER
MENU
12 45
8
7
0
 
ENTER
3 6 9
CH
OK
SHUTTLE PLUS
RETURN TO VCR PLUS+ SET-UP SCREEN
Press MENU.
7
Set Cable Box Brand
TURN ON CABLE BOX
Select a channel other than channel 9 on your Cable Box.
1
ACCESS CABLE BOX BRAND SET SCREEN
At the VCR Plus+ Set-Up screen, press CH
2
SHUTTLE PLUS
place the arrow next to “CABLE BOX BRAND SET”, then press OK.
5
or
5
to
ENTER CABLE BOX BRAND
Press the appropriate
NUMBER keys to enter the
3
Cable Box Code from the CABLE BOX BRAND LIST on page 18, then press ENTER.
If the cable box’s channel changes to 9, setting is complete.
If there are more than one code number listed for your brand of cable box, repeat step 3 until the cable box’s channel changes to 9.
If you go through all listed code numbers and the channel doesn’t change, try all other numbers between 1 and 101.
VCR PLUS+ SET-UP
GUIDE CHANNEL SET GUIDE GHANNEL MAP CABLE BOX OUTPUT
=CABLE BOX BRAND SET
PRESS (5,), THEN (OK) PRESS (MENU) TO END
CABLE BOX BRAND SET
SELECT BRAND NO. AND PRESS (ENTER) PRESS (MENU) TO END
1
CONTINUED ON NEXT PAGE.

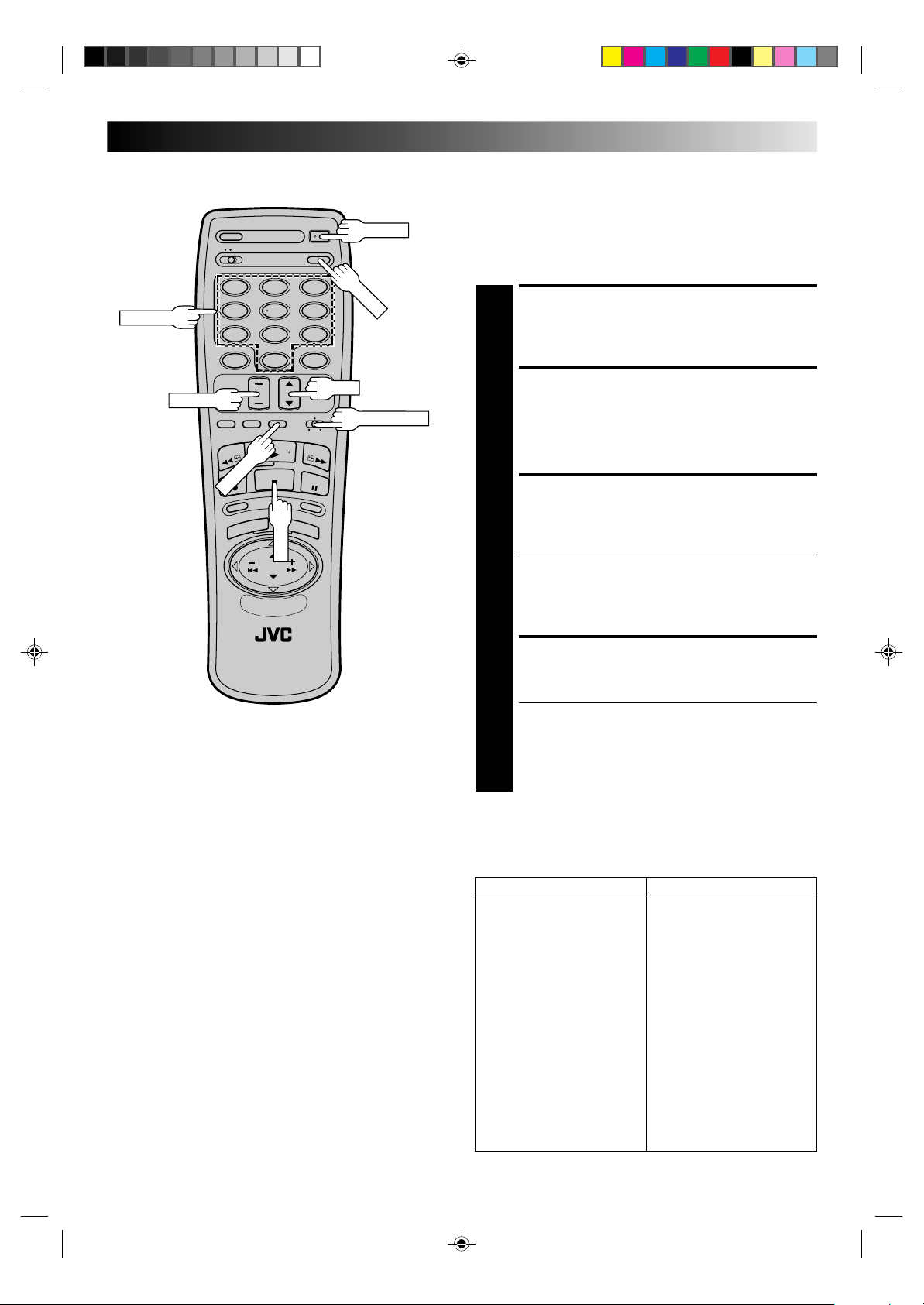

18
MENU
INITIAL SETTINGS (cont.)
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
2
8
q5
/
12 45
7
MENU
8 0
 
3 6 9
NOTES:
Although the supplied Cable Box Controller is compatible with many different cable box brands, it is possible that it will not work with your cable box.
If your cable box doesn’t respond to any code between 1 and 101, you can’t use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording. Please contact your cable company about the possibility of exchanging your current cable box with one that is compat­ible with your VCR.
The VCR can only change the cable box channel through the Cable Box Controller during timer recording.
If your cable box is one that can’t be operated with a remote control (has no remote sensor), you can’t use the Cable Box Controller to change its channels. Make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.
2
6
4
You can now set up the VCR Plus+ feature ( Z pg. 19).
CABLE BOX BRAND LIST
BRAND CODE
ARCHER 52, 53, 54, 85, 86 CABLEVIEW 85, 86 CITIZEN 85, 86 CURTIS 13, 14, 15, 16 DIAMOND 52, 53, 54 EAGLE 30, 31, 32, 33, 34, 35, 36, 37 EASTERN 51 GC BRAND 85, 86 GEMINI 55, 56 GENERAL ELECTRIC 67 GENERAL INSTRUMENTS 1, 2, 3, 4, 5, 6, 101 HAMLIN 23, 24 JERROLD 1, 2, 3, 4, 5, 6, 101 MACOM, HITACHI 57, 58, 59 MAGNAVOX 43, 44, 45, 46, 47, 48, 49 MOVIETIME 71, 72, 73 NSC 71, 72, 73 OAK 17, 18, 19, 20, 21, 22 PANASONIC 25, 26, 27 PHILIPS 38, 39, 40, 41, 42 PIONEER 7, 8 PULSER 85, 86 RCA 25, 26, 27 REGAL 78, 79, 80 REGENCY 51 SAMSUNG 74, 75, 76 SCIENTIFIC ATLANTA 13, 14, 15, 16 SL MARX 74, 75, 76 SPRUCER 25, 26, 27 STARGATE 74, 75, 76, 85, 86 SYLVANIA 70 TEKNIKA 68, 69 TELECAPTION 100 TELEVIEW 74, 75, 76 TEXSCAN 28, 29 TOCOM 62, 63, 64, 65, 66 UNIKA 52, 53, 54, 85, 86 UNIVERSAL 81, 82, 83, 84 VIDEOWAY 9, 10, 11, 12 VID TECH 89 VIDTER 89 VIEWSTAR 30, 31, 32, 33, 34, 35, 36, 37 ZENITH 9, 10, 11, 12
VCR Plus+
MENU
TV/VIDEO
POWER
Setup
12 45 7
8 0
3 6 9
2
q5
POWER
8
/
2
6
19
The VCR Plus+ timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer record function. Simply key in the PlusCode number for the TV program you wish to record (found in most TV listings) and the VCR’s timer is automatically programmed.
Depending on the TV or cable stations that you receive and the channel numbers that they are received on in your area, you may have to make certain changes in your VCR’s “Guide Channel Set” menu to get proper results. Please read the following information carefully to find out which tasks you need to perform.
Before VCR Plus+ setup you must have performed the following procedures:
Dual Quick setting (Z pg. 7)
or
Clock setting (Z pg. 8) Tuner setting (Z pg. 12)
Tuner and cable box setting if you receive your TV channels through a cable box (Z pg. 15)
Channel Number Matching
Most TV listings have a chart indicating the “Guide Channel” number assigned to each station for purposes of VCR Plus+ programming. Check the chart in your TV listings and see if the Guide Channel numbers listed for the stations you receive are the same as the channel number on which each is received by your VCR or cable box.
**SPECIAL NOTES FOR CABLE SUBSCRIBERS**
In many instances, cable TV stations have VCR Plus+ Guide Channel numbers that DO NOT match the number of the channel on which you receive the station. Check your TV listings, or contact your cable supplier for details.
Many normal broadcast TV stations can be viewed on cable. Check your TV listing, or contact your cable supplier for details.
If the numbers match, go directly to “VCR Plus+ Timer Programming” (Z pg. 37).
If the numbers are different, and you want to be able to timer record programs from those stations, you have to inform the VCR of the mismatch. Go to step 1. If timer recording on those stations is not important to you, you can go directly to “VCR Plus+ Timer Programming” (Z pg. 37).
MENU
 
TURN ON THE VCR
Press POWER. If watching channel 3 or 4, press TV/ VIDEO to select the TV’s VIDEO mode. VIDEO is
1
displayed on the front display panel.
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
2
CONTINUED ON NEXT PAGE.
20
CH
OK
NUMBER
12 45
8
7
0
3 6 9
CH
2
q5
8
/
2
6
INITIAL SETTINGS (cont.)
ACCESS CUSTOM SET SCREEN
Press CH PLUS
3
arrow next to “CUSTOM SET”, then press OK.
5
5
to place the
or SHUTTLE
PROGRAM SET FUNCTION SET TUNER SET
=CUSTOM SET
VIDEO CALIBRATION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
ACCESS VCR PLUS+ SET-UP SCREEN
Press CH PLUS
4
arrow next to “VCR PLUS+ SET-UP”, then press OK.
5
5
to place the
or SHUTTLE
OVERRIDE
AUTO CLOCK SET
LANGUAGE SELECT
=VCR PLUS+ SET-UP
PRESS (5,), THEN (OK) PRESS (MENU) TO END
ACCESS GUIDE CHANNEL SET SCREEN
Press CH PLUS
5
arrow next to “GUIDE CHANNEL SET”, then press OK.
5
5
to place the
or SHUTTLE
VCR PLUS+ SET-UP
=GUIDE CHANNEL SET
GUIDE GHANNEL MAP CABLE BOX OUTPUT CABLE BOX BRAND SET
PRESS (5,), THEN (OK) PRESS (MENU) TO END
MAIN MENU
CUSTOM SET
SHUTTLE PLUS
 
OK
INPUT GUIDE CHANNEL NUMBER
Press CH PLUS
6
ate NUMBER keys to input the Guide Channel number as shown in the TV listing. Then press OK.
If you receive your
5
, SHUTTLE
5
or the appropri-
channels with a cable box and if you have properly set your Cable Box Controller, “CABLE CH” appears in place of “VCR CH”. If not, refer to pages 15–16 and re-perform the procedure.
GUIDE CHANNEL SET
GUIDE CH : VCR CH
1 : 1
PRESS NUMBER KEY (0-9)
OR (5,), THEN (OK)
PRESS (MENU) TO END
CH
MENU
OK
NUMBER
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
2
q5
8
/
2
6
INPUT RECEIVING CHANNEL NUMBER
Press CH NUMBER keys to input the number of the channel on
7
which the Guide Channel’s broadcasts are received. Then press OK.
If there is more than one mismatch, repeat steps 6 and 7
5
, SHUTTLE PLUS
for each instance.
5
or the appropriate
RETURN TO VCR PLUS+ SET-UP SCREEN
Press MENU.
8
CHECK INPUT DATA
Press CH PLUS
9
arrow next to “GUIDE CHANNEL MAP”, then press OK.
The Guide Channel and
If you entered more than
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
5
or SHUTTLE
5
to place the
VCR or cable box channel numbers you input appear on the screen in ascending order. Check to ensure you’ve entered them correctly.
10 sets of numbers, press OK to see the next set of numbers.
VCR PLUS+ SET-UP
GUIDE CHANNEL SET
=GUIDE GHANNEL MAP
CABLE BOX OUTPUT CABLE BOX BRAND SET
PRESS (5,), THEN (OK) PRESS (MENU) TO END
GUIDE CHANNEL MAP
GUIDE: VCR GUIDE : VCR
6 :47 10 :55 12 :41 15 :38 33 :28 67 :49
PRESS (OK) TO NEXT PRESS (MENU) TO END
21
10
You can now use VCR Plus+ for quick and simple timer programming (Z pg. 37).
22
FF (Fast-Forward)
PLAY
REW (Rewind)
STOP
STOP/EJECT
PLAY
TV/VIDEO

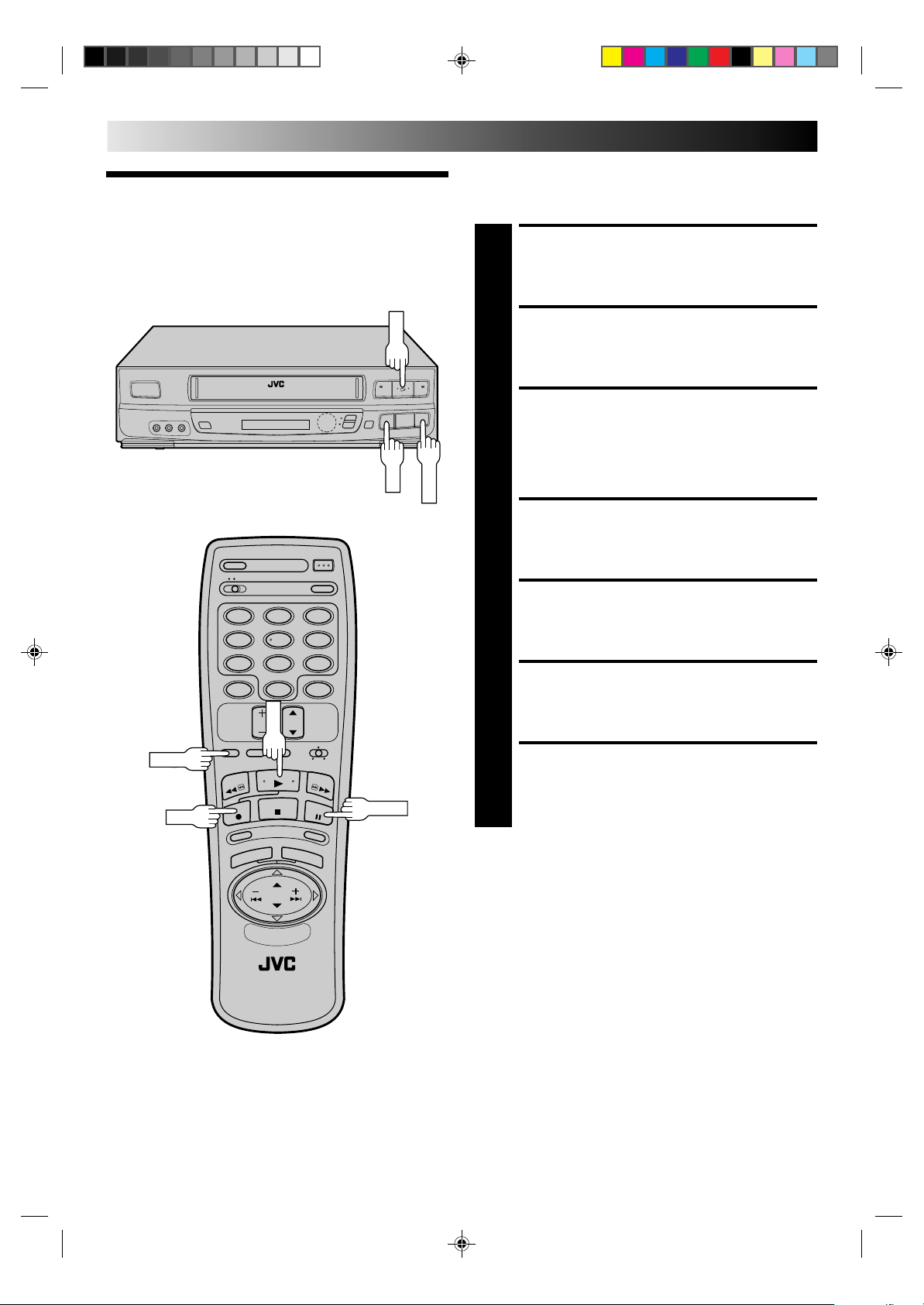

Simple Playback
SIMPLE PLAYBACK AND RECORDING
LOAD A CASSETTE
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is
1
pointing towards the VCR. Don’t apply too much pressure when inserting.
The VCR’s power comes on automatically.
If watching channel 3 or 4, press TV/VIDEO to select
the VIDEO mode. VIDEO is displayed on the front display panel.
The counter is automatically reset to "0H 00M 00S".
If the cassette's record safety tab has been removed,
playback begins automatically.
FIND PROGRAM START POINT
2
q5
8
/
2
6
If the tape is advanced past the start point, press REW. To go forward, press FF.
2
START PLAYBACK
Press PLAY. "VIDEO CALIBRATION" appears on screen (Z pg. 34).
3
STOP PLAYBACK
Press STOP or STOP/EJECT. Then press STOP/EJECT to remove the cassette.
4
REW (Rewind)
12 45
8
7
0
3 6 9
FF (Fast-Forward)
Usable cassettes
Full-Size VHS T-30 (ST-30**) T-60 (ST-60**) T-90 T-120 (ST-120**) T-160 (ST-160**) ST-210**
Compact VHS* TC-20 (ST-C20**) TC-30 (ST-C30**) TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on
this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.
** This video recorder can record on regular VHS and
Super VHS cassettes. However, it will record and play back regular VHS signals only. It is not possible to play back Super VHS recordings.
Simple
STOP
PLAY
PAUSE
REC
STOP/EJECT
PLAY
CH
23
LOAD A CASSETTE
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.
1
Recording
NUMBER
12 45
7
8 0
3 6 9
CH
2
q5
ENTER
8
/
2
6
SELECT RECORDING CHANNEL
Press CH5∞. Or press the appropriate NUMBER keys, then press ENTER. (The channel changes after a few
2
seconds whether you press ENTER or not.)
SET TAPE SPEED
Press SP/EP to set the recording speed.
3
START RECORDING
Press and hold REC and press PLAY on the remote control, or press REC on the VCR's front panel.
4
Active Video Calibration takes place at the beginning of both the first SP and the first EP recording after inserting the cassette (Z pg. 33).
PAUSE/RESUME RECORDING
Press PAUSE. Press PLAY to resume recording.
5
STOP RECORDING
Press STOP or STOP/EJECT. Then press STOP/EJECT to remove the cassette.
6
SP/EP
REC
 
PAUSE
Accidental erasure prevention
To prevent accidental recording on a recorded cassette, remove its record safety tab. To record on it later, cover the hole with adhesive tape.
Record safety tab
24
FF
REW
PLAY
PAUSE
CH
PLAY
CH
PLAYBACK AND RECORDING FEATURES
Still Picture
Playback
12 45
7
8 0
3 6 9
2
q5
8
/
2
6

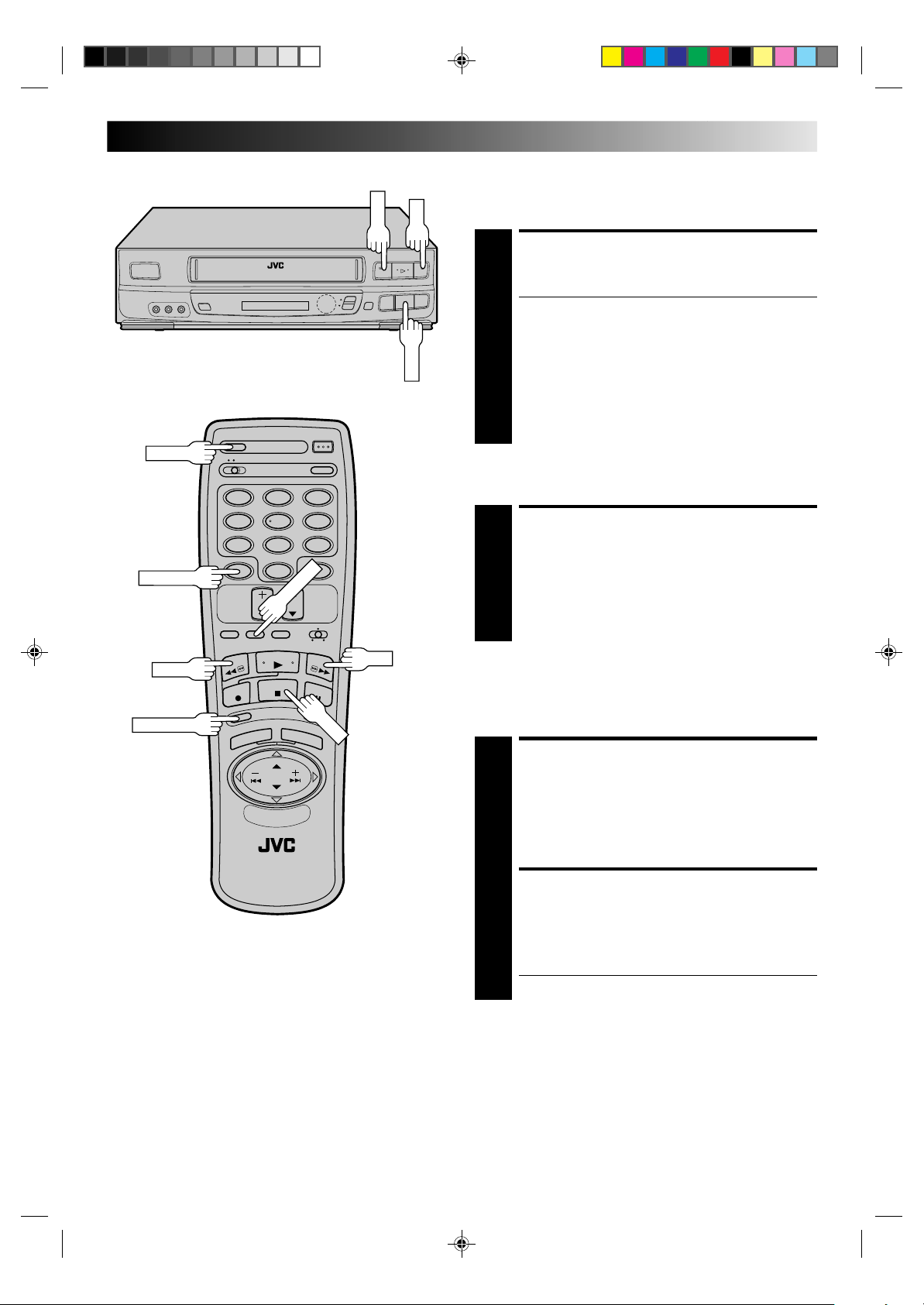

PAUSE DURING PLAYBACK
Press PAUSE. If there is vertical jitter, press CH5 or on the VCR's front panel or remote to stabilize the picture.
1
FRAME-BY-FRAME PLAYBACK
Advance the tape one frame by pressing PAUSE again.
To control the direction of Frame-by-Frame playback,
2
press SHUTTLE PLUS ™ or £ during still picture mode.
RESUME NORMAL PLAYBACK
Press PLAY during still picture mode.
3
Slow, Reverse, Reverse Slow Or Fast-Motion Picture
REW
FF
SHUTTLE PLUS /£
 
PAUSE
DURING PLAYBACK
Press SHUTTLE PLUS ™ or £.
To increase the speed in the forward direction,
1
press £.
To decrease the speed in the forward direction, press .
To play in reverse slow motion, and in reverse play mode, continue to press after selecting all the forward slow motion modes.
Press FF for forward fast motion, or REW for reverse fast motion.
RESUME NORMAL PLAYBACK
Press PLAY.
2
NOTES:
Press and hold FF or REW for more than 2 seconds for short fast-motion searches. When the button is released, normal playback resumes.
If noise bars appear during playback or slow motion, correct using manual tracking. (Z pg. 25).
2
CH
2
25
Manual Tracking
Once playback begins, the VCR’s automatic tracking function is engaged. If noise appears in the picture, you can override this and make the adjustment manually.
ENGAGE MANUAL
12 45
8
7
0
3 6 9
CH
q5
/
8
6
TRACKING MODE
During playback, press the CH VCR's front panel simultaneously to cancel the
1
automatic tracking mode and enable manual tracking adjust.
5
buttons on the
ADJUST MANUAL TRACKING
Press CH lightly for fine adjust, or press and hold for coarse
2
adjust. Watch the screen and continue adjusting until optimum picture and sound quality are achieved.
5
on the VCR's front panel or remote. Press
RE-ENGAGE AUTOMATIC TRACKING
Press the CH simultaneously.
3
When automatic tracking is re-engaged, video calibration is automatically activated.
NOTE:
During slow-motion playback, simply press CH5 or ∞ on the VCR's front panel or remote to adjust tracking.
5
buttons on the VCR's front panel
 
26
CH
OK
MENU
PLAYBACK AND RECORDING FEATURES (cont.)

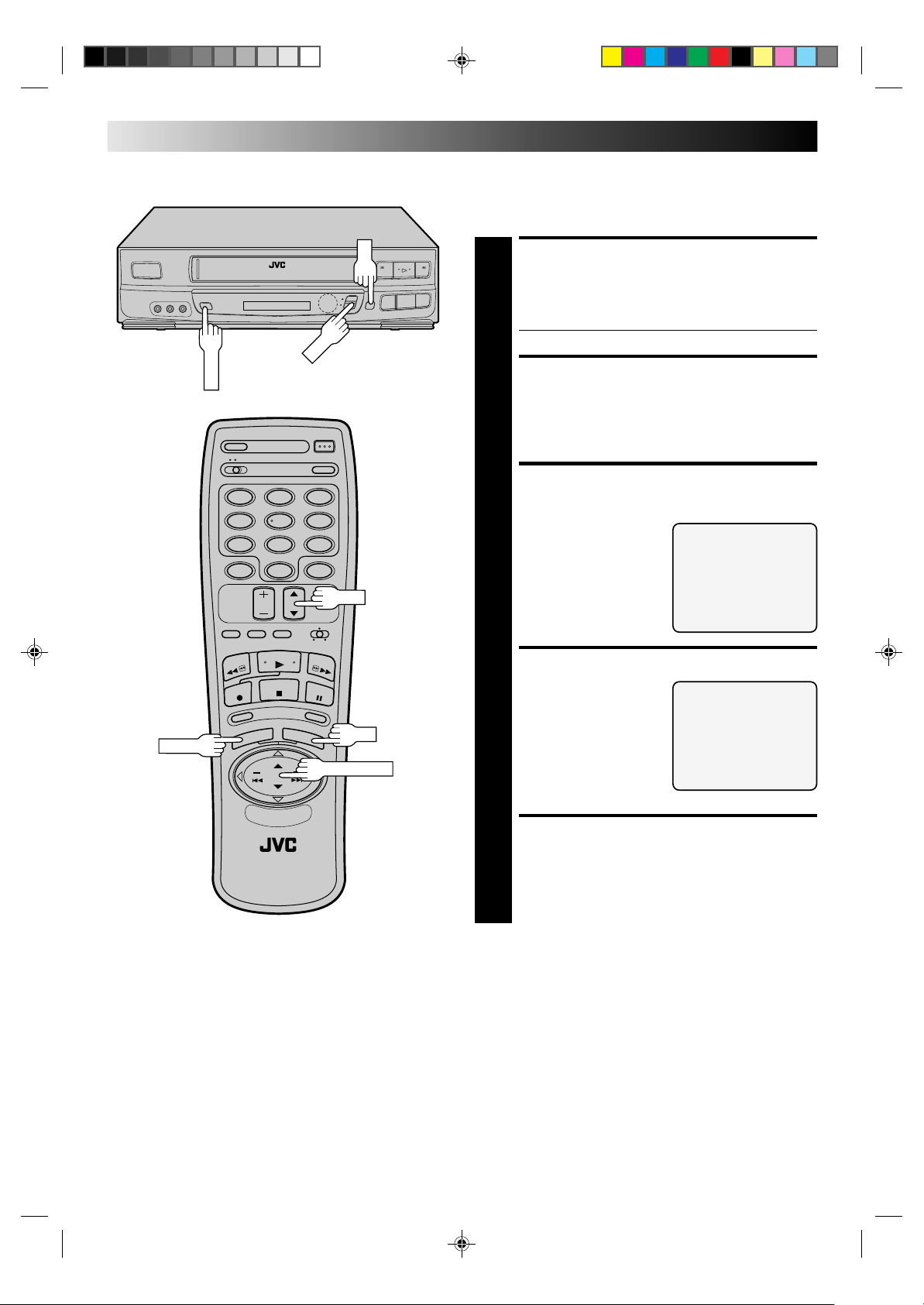

Select The Soundtrack
Your VCR can record two soundtracks simultaneously (Normal and Hi-Fi) and play back the selected one, or both together.
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
2
q5
8
/
2
6
ACCESS MAIN MENU SCREEN
Press MENU during playback or when VCR is in stop mode.
1
If the VCR Plus+ screen appears press MENU again.
ACCESS FUNCTION SET SCREEN
Place the arrow next to "FUNCTION SET" by pressing
5
CH
or SHUTTLE PLUS
5
, then press OK.
2
ACCESS AUDIO MONITOR SCREEN
Place the arrow next to "AUDIO MONITOR" by
3
pressing CH SHUTTLE PLUS press OK.
SELECT MODE
You have three choices:
a– Hi-Fi
4
b– Normal c– Mix
Place the arrow next to your choice by pressing
5
CH
or SHUTTLE
5
PLUS
.
5
or
5
, then
AUTO TIMER
SUPERIMPOSE 2ND AUDIO
=AUDIO MONITOR
AUX INPUT SPECIAL FUNCTION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
PRESS (5,) TO SELECT PRESS (MENU) TO END
FUNCTION
AUDIO MONITOR
=HI-FI
NORM MIX
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
5
NOTE:
If the tape being played back has no Hi-Fi soundtrack, the Normal soundtrack will be heard no matter what choice you make at the Audio Monitor screen.
27
CH
OK
MENU

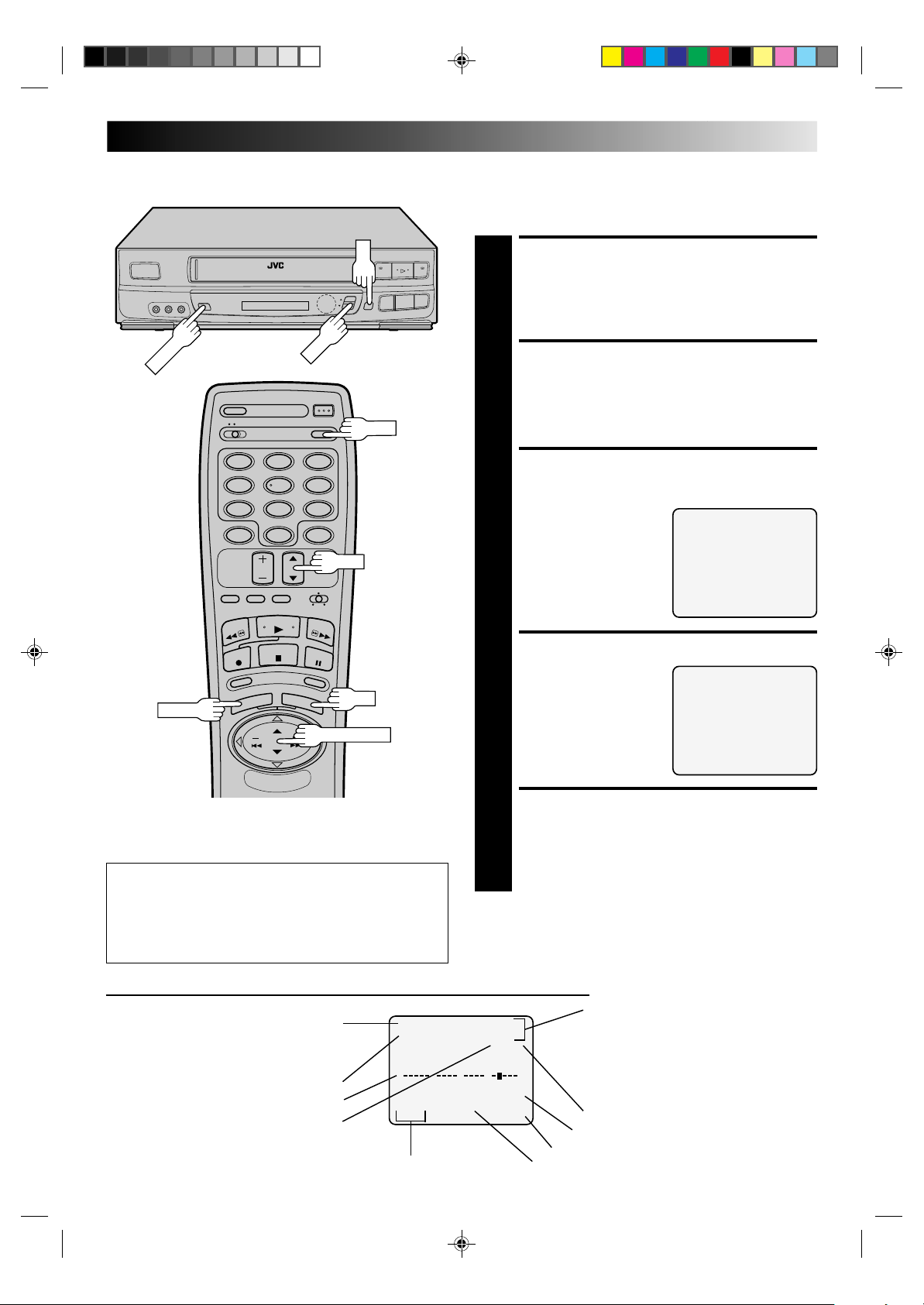

Superimpose
This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.
MENU
12 45
8
7
0
 
OSD
3 6 9
CH
OK
SHUTTLE PLUS
2
q5
8
/
2
6
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
1
ACCESS FUNCTION SET SCREEN
Place the arrow next to "FUNCTION SET" by pressing CH
5
or SHUTTLE PLUS
2
ACCESS SUPERIMPOSE SCREEN
Place the arrow next to "SUPERIMPOSE" by
3
pressing CH SHUTTLE PLUS press OK.
SELECT MODE
Place the arrow next to "ON" or "OFF" by pressing
4
5
CH PLUS
5
or SHUTTLE
5
.
or
5
, then
5
, then press OK.
FUNCTION
AUTO TIMER
=SUPERIMPOSE
2ND AUDIO AUDIO MONITOR AUX INPUT SPECIAL FUNCTION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
SUPERIMPOSE
=ON
OFF
PRESS (5,) TO SELECT PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
To recall an indication
1 Press OSD.
n All indications corresponding to the current status are
displayed for 5 seconds, leaving the counter information, and RECORD/PAUSE if in the Record Pause mode, on the screen. (No indication during still and search.)
2 Press OSD again to clear the display.
The superimposed indication on the TV screen tells you what the VCR is doing.
Tuned-in channel or AUX(iliary) mode
When the channel is changed, the new
channel is displayed on the screen for 5
seconds.
Clock time
Tape position indicator
"Cassette Loaded" mark
When a cassette is loaded, the mark is
displayed for 5 seconds. It blinks when the
VCR's EJECT button is pushed. Audio mode indicators
CH 125 RECORD THU 12:00 AM PAUSE
+++
BE
NORM MEMORY OFF HI–FI COUNT –1:23:45
Press MENU as many times as necessary.
5
NOTE:
If you engage the Record Pause mode, RECORD/PAUSE is displayed whether "SUPERIMPOSE" is set to "ON" or "OFF".
] SP
INDEX-1
Counter reading
Counter memory on/off
Operation mode
When the operation mode is changed, the new mode is displayed — RECORD (5 sec.), PLAY (5 sec.), FF/REW (5 sec. when engaged from Stop mode), RECORD PAUSE (for as long as Pause is engaged), and ITR *:** (5 sec.).
Tape speed indicator
INDEX indication
28
PLAY
STOP
STOP
FF
PLAY
SHUTTLE PLUS
SKIP SEARCH
PLAYBACK AND RECORDING FEATURES (cont.)
Skip Search
SKIP OVER UNWANTED SECTIONS
2
REW
8
q5
/
2
6
Press SKIP SEARCH 1 to 4 times during playback. Each press initiates a 30-second period of fast- motion
1
playback. Normal playback resumes automatically.
NOTE:
To return to normal playback during a Skip Search, press PLAY.
Repeat Playback
VIDEO
SP
REW
PLAY
HMS
12 45
7
8 0
 
3 6 9
FF
PAUSE
START REPEAT
Press and hold PLAY (until "PLAY" blinks on the front display panel) during playback, then release.
1
The entire tape is played back 20 times.
STOP REPEAT
To stop, press STOP at any time.
2
NOTE:
Pressing PLAY, REW, FF, PAUSE or SHUTTLE PLUS
or £ also stops Repeat Playback.
Index Search
This function seeks out index codes that are placed on the tape at recording start.
START SEARCH
While the tape is stopped, press SHUTTLE PLUS or £.
1
ACCESS DISTANT CODE
To access a recording 2–9 index codes away, press
SHUTTLE PLUS or £ repeatedly until the
2
correct number is displayed on screen (only if SUPER­IMPOSE is set to ON (Z pg. 27). Playback begins automatically when the desired recording is located.
To find the very beginning of the desired program, press REW or FF and search visually for the start point.
FF
REW
REVIEW
DISPLAY
STOP
STOP
2
q5
8
/
2
6
29
Instant ReView
At the press of a button, you can power up your VCR, rewind the tape and begin viewing the most recent timer-recorded program.
ACTIVATE INSTANT REVIEW
After ensuring that the VCR is off and the Timer mode is disengaged, press REVIEW.
1
The power comes on and the VCR searches for the index code indicating the start of the last timer-recorded program, then begins playback automatically.
You can access a program 2–9 index codes away from the current position on the tape. If, for example, you have 5 programs recorded and you want to watch the third one, press REVIEW three times.
To find the very beginning of the desired program, press REW or FF and search visually for the program’s start point.
C.RESET
REW
C.MEMORY
12 45
8
7
0
 
3 6 9
FF
Counter Reset
RESET COUNTER TO ZERO
Press C.RESET.
1
NOTE:
By pressing the DISPLAY button, you can change the display to show the counter reading, channel number or clock time. (Channel number is not displayed during playback.)
Counter Memory
When activated, this feature returns the tape to counter position “zero”.
ACTIVATE COUNTER MEMORY
Press C.RESET during playback at a point you want to have quick access to later. The counter reads “0H 00M 00S”.
1
Then press C.MEMORY. The Counter Memory indicator in the front display panel lights.
RETURN TO COUNTER POSITION ZERO
Press STOP (during playback), then press REW. The tape rewinds and stops at approximately “0H 00M 00S”
2
automatically.
To cancel Counter Memory, press C.MEMORY.
30
FF
REW
PLAY
POWER
MENU
PLAY
C.MEMORY
MENU
REW
12 45
8
7
0
 
PLAYBACK AND RECORDING FEATURES (cont.)
Tape Position Indicator
The Tape position indicator appears on screen when, from the stop mode, you press FF, REW or
2
q5
8
/
2
6
perform an Index Search or Instant ReView. The position of " " in relation to "B" (Beginning) or "E" (End) shows you where you are on the tape.
+++
BE
COUNT 0:33:27
NOTE:
"SUPERIMPOSE" must be set to "ON", or the indicator will not appear (Z pg. 27).
Next-Function Memory
POWER
3 6 9
TIMER
FF
The Next Function Memory “tells” the VCR what to do after rewinding. * Before continuing, ensure that the VCR is in stop mode.
a– For Automatic Start Of Playback After Tape Rewind . . . . . . press REW, then press PLAY within 2 seconds. b– For Automatic Power Off After Tape Rewind . . . . . . press REW, then press POWER within 2 seconds. c– For Automatic Timer Standby After Tape Rewind . . . . . . press REW, then press TIMER within 2 seconds.
NOTE:
If you want the "next function" to automatically start when the counter reads "0H 00M 00S" (instead of at the beginning of the tape), press C. MEMORY so that the counter memory indicator appears on the front display panel before pressing REW or FF.

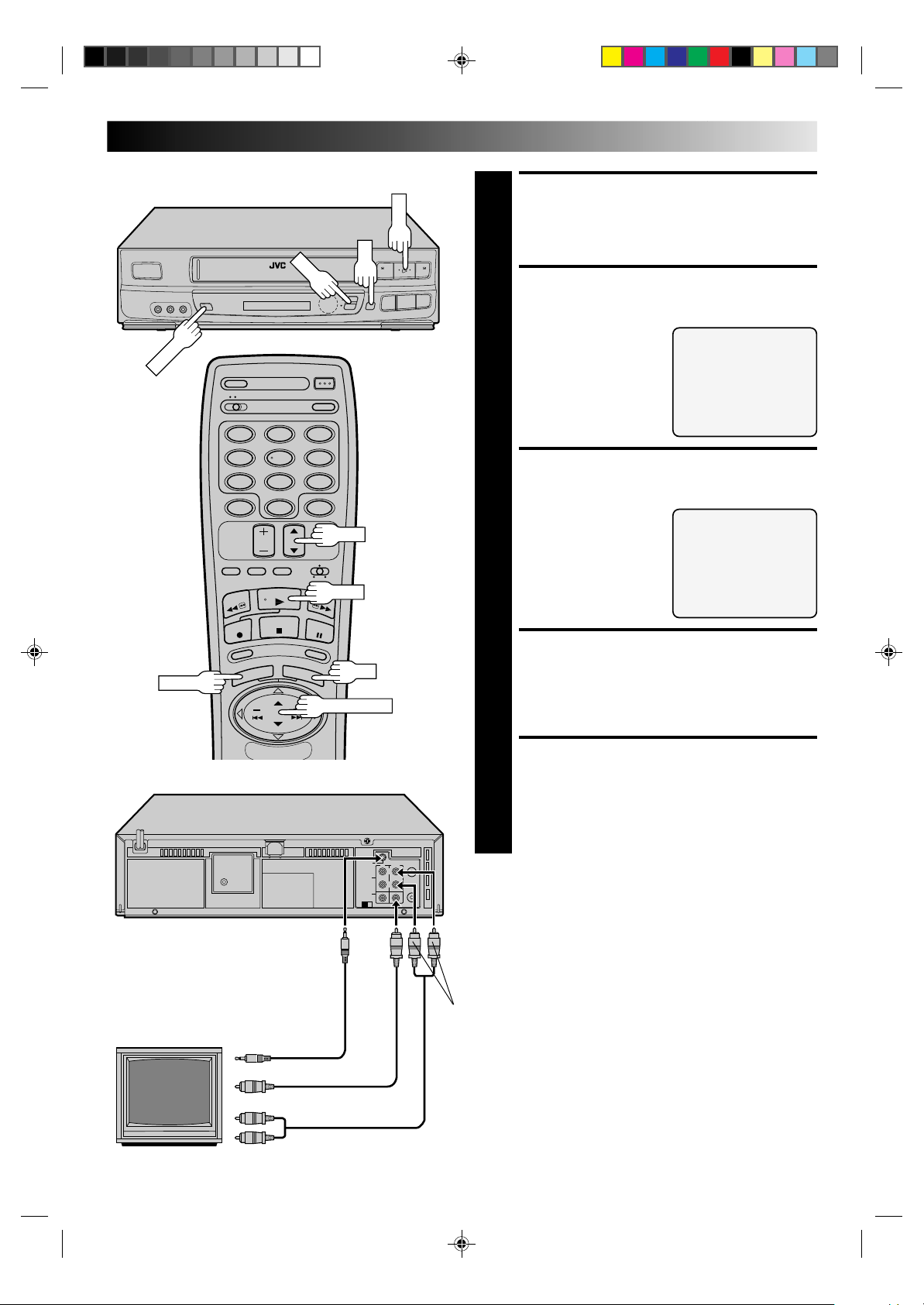

AV COMPU LINK Playback
Your VCR is compatible with JVC’s AV COMPU LINK components, including amplifiers (or receivers) and televisions. AV COMPU LINK provides one touch control of the audio and video compo­nents that are linked via their AV COMPU LINK connectors.
For example: simply load a cassette in the VCR and press PLAY and the AV COMPU LINK components automatically power on, the TV's VIDEO mode is selected and the VCR goes into play mode. (PLAY need not be pressed if the cassette's record safety tab is removed.)
MAKE CONNECTION
Connect your VCR to an AV COMPU LINK component as shown in the illustration on page 31.
1
The AV COMPU LINK cable is a mono 3.5 mm mini­plug to mono 3.5 mm mini-plug connector.
TURN ON THE VCR
Press POWER.
2
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
3
OK
CH
PLAY
MENU
12 45
8
7
0
3 6 9
CH
2
q5
8
/
2
6
ACCESS FUNCTION SET SCREEN
Press CH next to “FUNCTION SET”, then press OK.
5
or SHUTTLE PLUS
5
4
ACCESS SPECIAL FUNCTION SCREEN
Press CH PLUS
5
arrow next to “SPECIAL FUNCTION”, then press OK.
ENABLE AV COMPU LINK PLAYBACK
Press CH PLUS
6
next to “AV COMPU LINK”.
5
or SHUTTLE
5
to place the
5
or SHUTTLE
5
to place the arrow
AUTO TIMER SUPERIMPOSE 2ND AUDIO AUDIO MONITOR AUX INPUT
=SPECIAL FUNCTION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
31
to place the arrow
FUNCTION
SPECIAL FUNCTION
PAUSE
=AV COMPU-LINK
MENU
 
Example
AV COMPU LINK
AV COMPU LINK Cable (not supplied)
AV COMPU LINK II
(VCR ONLY)
PLAY
OK
SHUTTLE PLUS
Your VCR
VIDEO
OUT
PRESS (5,) TO SELECT PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
7
PERFORM AV COMPU LINK PLAYBACK
Simply insert a cassette and press PLAY (if the cassette’s record safety tab has been removed, playback begins
8
automatically). Linked components are turned on, and the TV set to its VIDEO mode, automatically!
NOTE:
Connection varies depending on the type of JVC TV you have. Please refer to the TV’s instruction manual when making this connection.
AUDIO OUT
AV COMPU LINK
Television
VIDEO IN
AUDIO IN
32
POWER
OK
CH
TV/VIDEO
MENU
PLAYBACK AND RECORDING FEATURES (cont.)
Active Video
Your VCR is equipped with the Active Video Calibration feature, which checks the condition of the tape in use during recording and playback, and compensates to provide the highest-possible recording and playback pictures. *The default setting for both recording and playback is "ON".
Calibration
12 45 7
MENU
8 0
 
3 6 9
CH
OK
SHUTTLE PLUS
2
q5
POWER
8
/
2
6
Preparation
TURN ON THE VCR
Press POWER. If watching channel 3 or 4, press TV/ VIDEO to select the VIDEO mode. VIDEO is displayed
1
on the front display panel.
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
2
ACCESS VIDEO CALIBRATION SCREEN
Press CH5∞ or SHUTTLE
5
PLUS
3
arrow next to “VIDEO CALIBRATION”, then press OK.
SELECT MODE
Place the arrow next to "ON" by pressing CH5
4
or SHUTTLE PLUS then press OK to move the arrow to the Playback section. Set Playback to "ON", then press MENU as many times as necessary to return to the normal screen. (Pressing OK returns the arrow to the Recording section.)
to place the
PROGRAM SET FUNCTION SET TUNER SET CUSTOM SET
=VIDEO CALIBRATION
PRESS (5,), THEN (OK) PRESS (MENU) TO END
5
,
ACTIVE VIDEO CALIBRATION
RECORDING = ON
PLAYBACK = ON
PRESS (5,), THEN (OK) PRESS (MENU) TO END
MAIN MENU
OFF
OFF
REC
REC
PLAY
PAUSE
PLAY
12 45
8
7
0
3 6 9
2
q5
PAUSE
8
/
2
6
33
Recording
Perform steps 13 on page 23 ("Simple Recording") before continuing.
START RECORDING
Press and hold REC and press PLAY on the remote
1
control, or press REC on the VCR's front panel.
The VCR takes about 7 seconds to assess the quality of the tape in use, then recording begins with the picture level optimized.
NOTES:
Calibration occurs immediately prior to both the first SP and the first EP recording after inserting the cassette. It does not take place during recording.
In the case of timer recording, calibration takes place for both SP and EP before the first timer recording after inserting the cassette (regardless of the tape speed selected for that recording).
Once the cassette is ejected, the calibration data is canceled. The next time the cassette is used for recording, calibration is re-performed.
During Active Video Calibration, all other functions are disabled.
While Active Video Calibration is operative, the PAUSE button will not function.
SUPERIMPOSE must be set to "ON" or the Active Video Calibration screen will not appear (Z pg. 27).
DURING CALIBRATION
START END
+++
ACTIVE VIDEO CALIBRATION
CALIBRATION COMPLETE
START END
+++
ACTIVE VIDEO CALIBRATION
+
+
 
ATTENTION:
n As calibration takes place before recording actually starts,
there is a delay of about 7 seconds after REC and PLAY on the remote, or REC on the VCR's front panel, are pressed. To make sure you record the desired scene or program completely, first perform the following steps:
1) Press and hold PAUSE, and press REC to engage the
RECORD PAUSE mode.
The VCR then automatically checks the condition of the tape and, after about 7 seconds, re-enters RECORD PAUSE.
2) Press PLAY to start recording. n If you want to bypass Active Video Calibration and start
recording right away, set "RECORDING" to "OFF" in step 4 of the Preparation procedure (Z pg. 32).
34
PLAY
PLAY
12 45
8
7
0
PLAYBACK AND RECORDING FEATURES (cont.)
Playback
The VCR assesses the quality of the tape once you initiate playback.
Before beginning, perform steps 1 and 2 on page 22.
2
2
START PLAYBACK
Press PLAY.
The VCR adjusts the
1
playback picture quality based on the quality of the tape in use.
NOTES:
When using rental tapes, or tapes recorded on other VCRs, set “PLAYBACK” in step 4 of the Preparation procedure to either “ON” or “OFF” as desired (Z pg. 32).
The Video Calibration screen only appears at the beginning of automatic tracking. Even though the screen doesn't appear after that, the Active Video calibration function is operative.
“SUPERIMPOSE” must be set to "ON" or the Video Calibration screen will not appear (Z pg. 27).
VIDEO CALIBRATION
3 6 9
8
q5
/
6
 
Recording
TV/VIDEO
2
q5
8
/
2
6
35
Record One Program While Watching Another
ENGAGE TV MODE
During recording...
If using the RF connection (Z pg. 6), press TV/VIDEO.
1
The VCR's VIDEO indicator goes out and the TV broadcast being recorded disappears.
If using the AV connection (Z pg. 6), change the TV's input mode from AV to TV.
SELECT CHANNEL FOR VIEWING
Use the TV’s channel selector to set the channel you want to watch.
2
C.RESET
12 45
8
7
0
 
3 6 9
OSD
Display Elapsed Recording Time
RESET COUNTER TO ZERO
Before recording starts, press C.RESET. The counter resets to zero and displays the exact elapsed time as the
1
tape runs.
DISPLAY ELAPSED TIME ON SCREEN
During recording, press OSD at any time to see the elapsed time. All indications corresponding to the
2
current status of the VCR are displayed for 5 seconds. The counter display remains on the screen indicating the elapsed time. Press OSD again to remove the display.
Make sure "SUPERIMPOSE" is set to "ON" (Z pg. 27).
36
CH
OK
MENU
PLAYBACK AND RECORDING FEATURES (cont.)
Stereo And SAP (Second Audio Program)
Your VCR’s built-in MTS decoder enables reception of Multi­channel TV Sound broadcasts.
2
q5
8
/
2
6
The ST indicator on the front display panel lights during stereo broadcast reception, and SAP lights during SAP program reception.
Both indicators light when a stereo program is accompanied by SAP audio.
To Record Stereo Programs . . .
. . . simply follow the basic recording procedure.
To Listen To Stereo Soundtrack During Recording . . .
. . . select "HI-FI" at the Audio Monitor screen (Z pg. 26).
To Record SAP Programs . . .
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
1
ACCESS FUNCTION SET SCREEN
Place the arrow next to "FUNCTION SET" by pressing
5
CH
or SHUTTLE PLUS
5
, then press OK.
2
ACCESS 2ND AUDIO SCREEN
Place the arrow next to "2ND AUDIO" by pressing
5
CH
or SHUTTLE PLUS
5
, then press OK.
3
SELECT MODE
Place the arrow next to "ON" by pressing CH
4
or SHUTTLE PLUS
5
5
.
PRESS (5,) TO SELECT PRESS (MENU) TO END
2ND AUDIO
=ON
OFF
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
5
NOTES:
If a SAP program is received, the SAP audio is recorded on both the Normal and Hi-Fi tracks. The main audio program is not recorded.
If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and Normal audio tracks.
OK
MENU
NUMBER "8"
TV/VIDEO
TIMER RECORDING
VCR Plus+
37
Before VCR Plus+ Timer programming, see "VCR Plus+ Setup" on page 19.
Timer Programming
2
2
6
8
q5
/
NUMBER
CANCEL
12 45 7
8 0
3 6 9
NUMBER "9"
Enter Program Information
LOAD A CASSETTE
Make sure the record safety tab is present.
The VCR’s power comes on automatically.
1
If you’re watching on channel 3 or 4, press TV/VIDEO
to select the VIDEO mode. VIDEO is displayed on the front display panel.
ACCESS VCR PLUS+ SCREEN
Press MENU.
The clock must be set in
2
order to access the VCR Plus+ screen. If you haven’t set the clock, the Main Menu screen appears when you press MENU. Refer to page 7 for the Dual Quick Set procedure or page 8 for the clock setting procedure.
VCR PLUS+
PRESS NUMBER KEY(0-9) PRESS (MENU) TO MAIN MENU
ENTER PLUSCODE NUMBER
Press the appropriate
NUMBER keys to enter the
3
PlusCode number printed in the TV listings for the TV program you wish to record, then press OK. The Program screen appears.
To make corrections,
press CANCEL and input the correct PlusCode number.
If the PlusCode number you input is incorrect, "ERROR" may appear on the screen to advise you of the error. This happens when the PlusCode number is for a program which has already passed. "ERROR" is displayed for about 4 seconds and the VCR Plus+ screen reappears (step 2).
PROGRAM 1
(VCR PLUS+ 12345678) DATE 7/10 FRI START 8:00 PM STOP 9:00 PM CHANNEL 8 SP
PRESS (8=DAILY, 9=WEEKLY
SP/EP=REC SPEED)
PRESS (MENU) TO END
MENU
 
OK
CHECK INPUT DATA
The PlusCode number you entered appears in the Program screen. Check to make sure it’s accurate.
4
To timer-record daily or weekly serials, press DAILY (NUMBER “8”) or WEEKLY (NUMBER “9”). “DAILY” or “WEEKLY” appears on the Program screen.
If you made a mistake, press CANCEL and, after pressing MENU as many times as necessary to access the VCR Plus+ screen, input the correct PlusCode number.
CONTINUED ON NEXT PAGE.
38
CH
OK
MENU
NUMBER
SP/EP
12 45
8
7
0
3 6 9
CH
2
TIMER
8
q5
/
2
6
TIMER RECORDING (cont.)
SET TAPE SPEED
Press SP/EP.
5
CHECK/CORRECT INPUT DATA
If the data is correct as it is, go to step 7. If not, press OK or SHUTTLE PLUS ™£ until the item you
6
want to change begins to blink. Then press the appropriate NUMBER keys, CH
5
to obtain the desired setting.
5
or SHUTTLE PLUS
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
Press just once to access the Auto Timer screen
7
(Z pg. 42).
ENGAGE TIMER MODE
Press TIMER. The VCR turns off automatically.
8
NOTES:
To disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.
In case of a power failure after programming, the VCR’s memory backup keeps your selections for 10 minutes.
When timer-recording cable channels received through a Cable Box, be sure to keep the Cable Box set to ON.
MENU
SHUTTLE PLUS
 
OK
Instant Timer
REC
Recording
39
This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the VCR off after recording is finished.
START RECORDING
Press REC.
1
(ITR)
2
2
6
8
q5
/
ITR
VIDEO
SP
REC
On-Screen Timer Programming
ENGAGE ITR MODE
Press REC again. ITR blinks and 0:30 appears on the front display panel.
2
SET RECORDING DURATION
If you want to record for more than 30 minutes, press
REC to extend the time. Each press extends recording
3
time by 30 minutes.
NOTES:
You can only perform ITR using the REC button on the VCR's front panel.
After you set the time, the previous display reappears.
To check remaining recording time, press REC once during recording and the remaining time is displayed for about 5 seconds. Be careful not to press again during this 5 seconds, or you’ll add 30 more minutes to the recording.
You can directly program the VCR’s timer to record up to 8 shows, as far as a year in advance. Remember, the clock must be set before you can program the timer (Z pg. 7 or 8).
LOAD A CASSETTE
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load.
1
The VCR comes on, and the counter is reset, automatically.
* Refer to the illustration on page 40.
ACCESS PROGRAM SET SCREEN
Press MENU as many times as necessary to bring
2
up the Main Menu screen, then press OK.
CONTINUED ON NEXT PAGE.
PROGRAM 1
DATE - - / - ­START - - : - - AM STOP - - : - - AM CHANNEL - - SP
PRESS NUMBER KEY(0-9)
OR (5,), THEN (OK)
PRESS (MENU) TO END
40
CH
OK
MENU
NUMBER "8"
NUMBER
12 45
8
7
0
3 6 9
CH
2
8
q5
/
NUMBER "9"
TIMER
2
6
TIMER RECORDING (cont.)
SELECT PROGRAM NUMBER
Press the appropriate NUMBER keys or CH SHUTTLE PLUS
3
then press OK. The first time you do this, all numbers will be vacant, so just press OK when the screen appears.
5
to select a vacant program number,
SET PROGRAM INFORMATION
Press the appropriate NUMBER keys to set the date, start/stop time and channel number. Press CH
4
SHUTTLE PLUS
Then press OK after AM/PM, channel number and tape speed settings. The next setting that can be set begins flashing.
Any information comprised of 1 digit (except the channel number) should have a "0" entered before it.
It is possible to set all information using the CH SHUTTLE PLUS
after each setting.)
NOTE:
If you are using a cable box, enter the cable box channel, not the channel to be recorded. The channel to be recorded must be selected on the cable box. (The cable box channel is the VCR's channel that displays the chennels received by the cable box.)
** You can record selected programs at the same time
every weekday, or once a week. Before entering the month, press NUMBER key “8” (DAILY) or “9” (WEEKLY). Either "DAILY" or "WEEKLY" appears. Press again and "DAILY" or "WEEKLY" disappears.
5
to set AM/PM and tape speed.
5
buttons. (In this case, press OK
5
or
5
or
5
or
MENU
 
OK
SHUTTLE PLUS
EXAMPLE
If you program the VCR to timer record a show on September 6 on channel 40 from 12:00 noon to 1:00 PM in SP mode, the screen will look like this:
PROGRAM 1
DATE 9/ 6 SUN START 12:00 PM STOP 1:00 PM CHANNEL 40 SP
PRESS NUMBER KEY(0-9)
OR (5,), THEN (OK)
PRESS (MENU) TO END
NOTES:
To disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.
In case of a power failure after programming, the VCR’s memory backup keeps your selections for 10 minutes.
If you select "PROGRAM SET" without having set the date and time, an error message appears. Follow its instructions.
If you enter a start time that has already passed, "ERROR" appears on the screen and flashes.
Programs that start after midnight must have the next day’s date.
MAKE CORRECTIONS
To change any of the settings, press OK or SHUTTLE PLUS ™ £ until the item you want to change
5
begins blinking. Then set as in step 4.
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
Press just once to access the Auto Timer screen
6
(Z pg. 42).
ENGAGE TIMER MODE
Press TIMER. The VCR turns off automatically.
7
After timer recording is completed, the VCR’s power goes off automatically.
You can program the timer while a regular recording is in progress; the on-screen menu will not be recorded.
If the end of tape is reached during timer recording, the cassette is automatically ejected.
When timer-recording cable channels received through a Cable Box, be sure to keep the Cable Box set to ON.
CH
OK
MENU
POWER
CANCEL
12 45
8
7
0
3 6 9
CH
2
POWER
TIMER
8
q5
/
2
6
41
Check And Cancel Programs
DISENGAGE TIMER
Press TIMER, then press POWER.
1
ACCESS PROGRAM SET SCREEN
Press MENU, then press OK.
2
CHECK PROGRAM INFOR­MATION
Press CH programs in succession.
5
or SHUTTLE PLUS
5
to check the
3
To Cancel A Program . . .
MENU
SHUTTLE PLUS
 
OK
CANCEL A PROGRAM
Press CANCEL.
Repeat steps 3 and 4 as many times as necessary.
4
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary. If there are still programs remaining, go to step 6.
5
RE-ENGAGE TIMER
Press TIMER again.
6
42
CH
OK
MENU
2
q5
8
/
2
6
TIMER RECORDING (cont.)
Auto Timer
When activated, this function automatically engages the timer when the VCR's power is turned off, and disengages it when the power is turned on.
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
1
ACCESS FUNCTION SET SCREEN
Place the arrow next to "FUNCTION SET" by pressing
5
CH
or SHUTTLE PLUS
5
, then press OK.
2
MENU
12 45
8
7
0
 
3 6 9
TIMER
CH
OK
SHUTTLE PLUS
ACCESS AUTO TIMER SCREEN
Place the arrow next to "AUTO TIMER" by pressing
5
CH
or SHUTTLE PLUS
3
Or, during on-screen timer programming ...
skip to step 2 of the procedure below.
5
, then press OK. Now
ACCESS AUTO TIMER SCREEN
In step 7 in the VCR Plus+ Timer Programming procedure (Z pg. 38) or in step 6 in the On-Screen
1
Timer Programming procedure (Z pg. 40), press MENU.
SELECT MODE
Place the arrow next to your choice ("ON" or
2
"OFF") by pressing CH or SHUTTLE PLUS
5
5
.
AUTO TIMER
=ON
OFF
PRESS (5,) TO SELECT PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary.
3
NOTE:
For safety, when AUTO TIMER is set to “OFF”, all other VCR functions are disabled while the Timer mode is engaged. To disengage the timer, press TIMER.
EDITING
43
You can use your VCR as the player or the recorder.

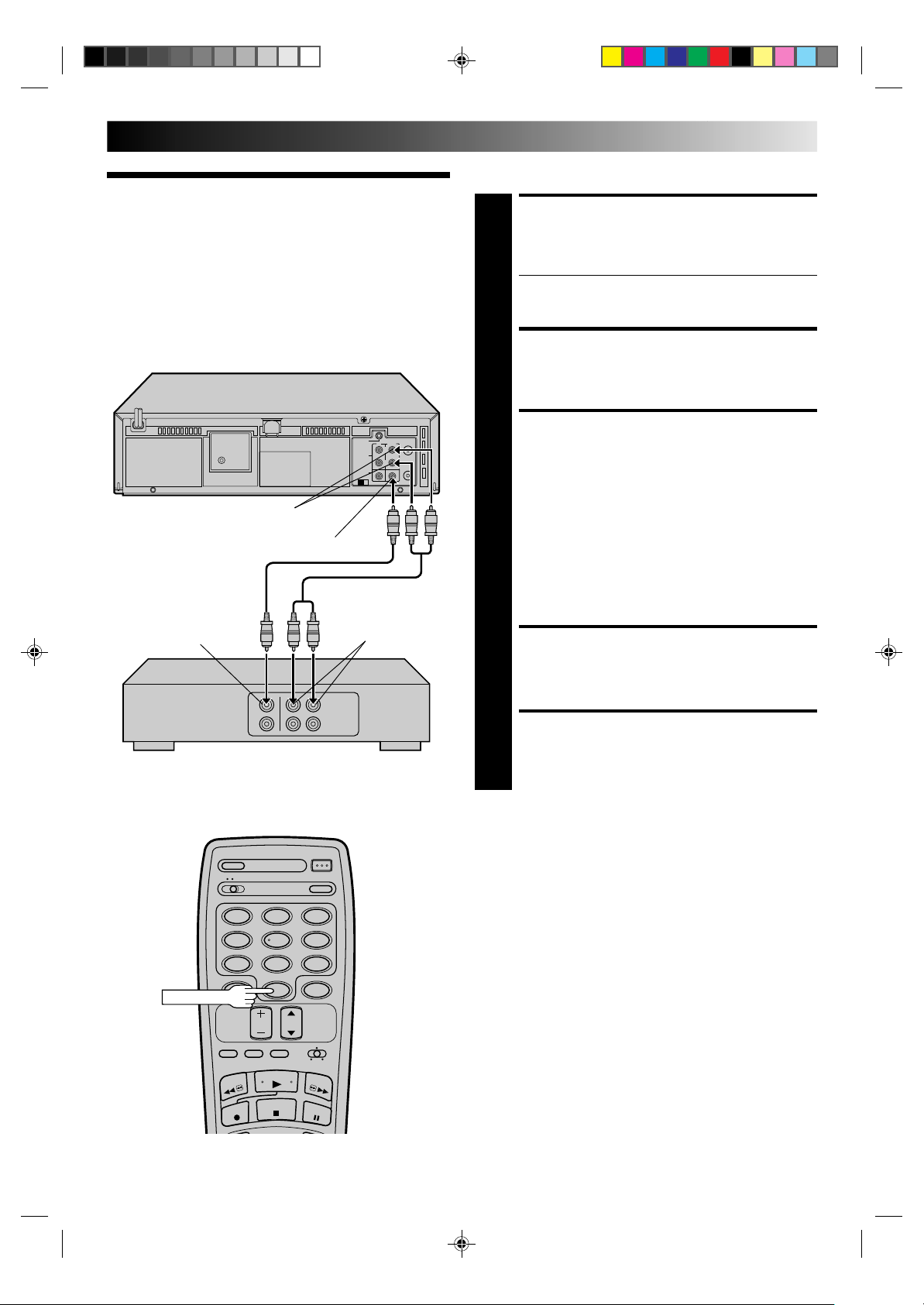

Edit To Or From Another VCR
Player
AUDIO OUT
VIDEO OUT
VIDEO IN
Your VCR
AUDIO IN
MAKE CONNECTIONS
Connect an AV cable (not supplied) between the player’s VIDEO OUT and AUDIO OUT connectors and
1
the recorder’s VIDEO IN and AUDIO IN connectors.
When using your VCR as the recorder and a monaural VCR as the player, connect the player’s AUDIO OUT connector to the AUDIO IN L connector on the recorder.
LOAD CASSETTES
Insert the playback cassette into the player and the cassette to be recorded on into the recorder.
2
SET RECORDER’S INPUT MODE
Set to AUX. With this VCR, press NUMBER key “0” (AU appears on the front display panel in place of a channel
3
number).
NOTE:
When using this VCR as the recorder, make sure to select "FRONT" or "REAR" (depending on which input connectors you use) at the Aux Input Screen. (To select the correct AUX input connector, follow steps 4, 5, 911 from the "Edit From A Camcorder" section, Z pg. 44.)
START PLAYER
Set to its play mode.
Recorder
NUMBER "0"
12 45
8
7
0
4
START RECORDER
Set to its record mode.
Another VCR
5
3 6 9
44
EDITING (cont.)
You can use a camcorder as the player and your VCR as the recorder.
Edit From A Camcorder
Recorder Your VCR
VIDEO IN
AUDIO IN
Camcorder
Player
To rear panel PAUSE/AV COMPU-LINK connector
Editing cable (not supplied) (JVC camcorder only)
VIDEO OUT
AUDIO OUT
EDIT
2
q5
8
/
2
6
MAKE CONNECTIONS
Connect an AV cable (not supplied) between the camcorder’s VIDEO OUT and AUDIO OUT connectors
1
and your VCR’s VIDEO IN and AUDIO IN connectors.
When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling your VCR. The editing cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.
LOAD A CASSETTE
Insert the cassette to be recorded on into the recorder.
2
SET RECORDER’S INPUT MODE
Press NUMBER key “0” to set to AUX.
3
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
4
ACCESS FUNCTION SET SCREEN
Press CH next to “FUNCTION SET”, then press OK.
5
or SHUTTLE PLUS
5
to place the arrow
5
If you’re using a JVC Master Edit Control-equipped camcorder — step 6 If not — step 9
NUMBER "0"
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
ACCESS SPECIAL FUNCTION SCREEN
Press CH next to “SPECIAL FUNCTION”, then press OK.
5
or SHUTTLE PLUS
6
SELECT MODE
Press CH PLUS
7
arrow next to “PAUSE”.
5
5
to place the
or SHUTTLE
RETURN TO FUNCTION SET SCREEN
Press MENU.
8
5
to place the arrow
SPECIAL FUNCTION
=PAUSE
AV COMPU-LINK
PRESS (5,) TO SELECT PRESS (MENU) TO END
2
CH
OK
MENU
q5
8
/
2
6
ACCESS AUX INPUT SCREEN
Press CH next to “AUX INPUT”, then press OK.
5
or SHUTTLE PLUS
5
to place the arrow
9
SELECT INPUT
If you are connecting the AV cable to the
10
connectors on the front of the VCR
next to "FRONT" by pressing CH
SHUTTLE PLUS
you are connecting the AV cable to the
on the back of the VCR
by pressing CH
RETURN TO NORMAL
AV
, place the arrow
5
or
5
. If
AV connectors
5
or SHUTTLE PLUS
PRESS (5,) TO SELECT PRESS (MENU) TO END
, place the arrow next to "REAR"
AUX INPUT
= FRONT
REAR
5
.
45
MENU
12 45
8
7
0
 
3 6 9
CH
OK
SHUTTLE PLUS
SCREEN
Press MENU as many times as necessary.
11
START PLAYER
Set the camcorder to its play mode.
12
START RECORDER
Set your VCR to its record mode.
If you are using a Master Edit Control-equipped JVC
13
camcorder, it can put the recorder automatically into Play mode. (Refer to camcorder's instruction manual.)
46
PLAY
PAUSE
REC
PLAY
Assemble Editing
2
q5
8
/
2
6
EDITING (cont.)
Assemble Editing adds one recorded scene to another in succession. To use your VCR as the recorder ...
LOAD CASSETTES
Insert the original cassette in the player, and the recording cassette in the recorder.
1
SET TAPE SPEED
Set to "SP" or "EP" by pressing the SP/EP button on the remote control.
2
ENGAGE RECORD­STANDBY MODE
Press and hold PAUSE, and press REC.
3
FIND EDIT START POINT
Play back the original tape until you reach the scene to be edited.
4
SP/EP
REC
12 45
8
7
0
 
3 6 9
PAUSE
START EDITING
When you reach the scene on the original tape to be edited, press PLAY to initiate the recorder’s record
5
mode.
STOP EDITING
Press PAUSE to pause the tape in the recorder.
6
CONTINUE EDITING
Repeat steps 4 through 6 to add additional scenes.
7
NOTE:
Assemble Editing is also possible using your VCR as the playback deck.
SPECIAL FEATURES
ENTER
TV/VIDEO
STOP
12
NUMBER
45
8
7
0
3 6 9
POWER
47
TV Multi-Brand Remote Control
The VCR's remote control can control several functions on JVC remote control TVs and on the brands of remote control TVs listed below.
TURN ON THE TV
Turn the power on using the TV's remote control.
1
VOL. +/-
 
CH
TV/CABLE/VCR
SET REMOTE CONTROL MODE
Set the TV/CABLE/VCR switch on the VCR's remote control to TV.
2
SET TV BRAND CODE
Refer to the chart below. While holding down POWER, enter your TV’s brand code using the NUMBER keys,
3
then press STOP.
Once you have set the remote control to operate the TV, you don’t have to repeat this step until you replace your remote control’s batteries.
PANASONIC has two codes. If the TV does not function with one code, try entering the other.
OPERATE TV
First, press POWER on the remote to see if the TV’s power goes off as it should. If it does, try other operations.
4
The POWER, TV/VIDEO, CH NUMBER keys on the remote can all be used to
operate the TV. *For some brands of TV, you must press ENTER after having pressed the NUMBER keys.
To return the remote to VCR control, set the TV/ CABLE/VCR switch to VCR.
NOTE:
Depending on the kind of TV, there may be cases where some or all functions cannot be operated using the remote control.
5
, VOL +/– and
TV BRAND NAME BRAND CODE
JVC 01 MAGNAVOX 02 MITSUBISHI 03 PANASONIC 04, 11 RCA 05 SHARP 06 SONY 07 TOSHIBA 08 ZENITH 09 HITACHI 10 SAMSUNG 12 SANYO 13 SEARS 13
48
ENTER
STOP
NUMBER
12 45
8
7
0
3 6 9
POWER
SPECIAL FEATURES (cont.)
Cable Box Multi-Brand Remote Control
The VCR's remote control can control functions on the brands of cable boxes listed below. Some cable box brands have more than one code. If your cable box does not function with a specified code, try other codes.
TURN ON THE CABLE BOX
Turn the power on using the cable box’s remote control.
1
CH
TV/CABLE/VCR
 
CABLE BOX BRAND NAME BRAND CODE
CURTIS 09, 10 GEMINI 08 GENERAL INSTRUMENTS 01, 02, 03, 04, 05, 06, 07, 08 HAMLIN 15, 16, 17, 18 JERROLD 01, 02, 03, 04, 05, 06, 07, 08 OAK 19, 20, 21 PANASONIC 24, 25, 26 PIONEER 13, 14 RCA 24, 25, 26 REGAL 15, 16, 17, 18 SAMSUNG 08, 13 SCIENTIFIC ATLANTA 09, 10 SIGMA 19, 20, 21 SL MARX 08, 13 SPRUCER 24, 25, 26 TELEVIEW 08, 13 TOCOM 22, 23 VIDEOWAY 11, 12 ZENITH 11, 12
SET REMOTE CONTROL MODE
Set the TV/CABLE/VCR switch on the VCR’s remote control to CABLE.
2
ENTER CABLE BOX BRAND
While holding down POWER, use the NUMBER keys to enter the cable box brand number from the chart below
3
and then press STOP.
Once you have set the remote control to operate the cable box, you don't have to repeat this step until you replace the remote control's batteries.
OPERATE CABLE BOX
First, press POWER to see if the cable box’s power goes off as it should. If it does, try other functions (CH
4
and the NUMBER keys can be used to operate the cable box).
For some brands of cable box, you must press ENTER after having pressed the NUMBER keys.
To return the remote to VCR control, set the TV/ CABLE/VCR switch to VCR.
NOTES:
You must set the cable box brand for your remote control and the cable box brand for your Cable Box Controller (Z pg. 17) individually. Cable box brands available for the remote control differ from those available for the Cable Box Controller.
It is possible that the remote control will not operate your cable box even if the cable box’s channels automatically change during timer recording using the Cable Box Controller.
5
A/B CODE
12 45
8
7
0
 
3 6 9
POWER
TIMER
49
Control Two JVC VCRs
The supplied remote control is capable of controlling two JVC VCRs independently using the A/B CODE switch. You can set this VCR so it responds to remote commands only when the switch is set to B, and another VCR so it responds to commands when the switch is set to A. The switch is preset to A because this VCR normally responds to A-code signals. You can easily modify this VCR to accept B-code commands.
UNPLUG VCR'S POWER CORD
Unplug from the AC outlet.
1
SET A/B CODE SWITCH
Set the A/B CODE switch on the remote control to B.
2
PLUG IN POWER CORD
Plug back in to the AC outlet.
3
TURN VCR POWER ON
Press POWER on the remote.
4
The VCR will now respond only to B-code commands.
Child Lock
This feature allows you to prevent the operation of the VCR.
TURN VCR POWER ON
Press POWER.
1
ENGAGE CHILD LOCK
Press and hold POWER on the remote control until the Child Lock indicator ("—") appears on the front display
2
panel.
To cancel Child Lock, press and hold POWER on the remote to turn the VCR on. During timer recording, pressing TIMER also cancels Child Lock.
NOTES:
When Child Lock is engaged, make sure to keep the remote control out of the reach of children.
Timer recording can be performed while Child Lock is engaged. The feature remains in effect after the recording is finished.
50
Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.
TROUBLESHOOTING
POWER
SYMPTOM
1. The power won’t come on.
2. The clock works, but the VCR’s power won’t come on.
3. The remote control won’t function.
TAPE TRANSPORT
SYMPTOM
1. The cassette gets stuck partway during loading, and is ejected.
2. The tape stops during rewind or fast forward.
PLAYBACK
SYMPTOM
1. The tape is running but the picture won’t appear.
2. Noise appears during visual search.
3. Breaks are noticeable in Hi-Fi soundtrack.
4. The playback picture is blurred or interrupted, even though TV broadcasts are clear.
5. The Hi-Fi soundtrack cannot be heard.
POSSIBLE CAUSE
The power cord is disconnected.
The TIMER mode is engaged with
Auto Timer set to "OFF" (Z pg. 42).
The batteries are discharged.
The A/B CODE switch is in the
wrong position.
The TV/CABLE/VCR switch is in the
wrong position.
POSSIBLE CAUSE
The cassette was inserted incorrectly.
The Counter Memory indicator
(“M”) is lit on the front display panel.
POSSIBLE CAUSE
If you’re using the RF OUT connec­tion (Z pg. 6), the channel selector on the TV is set incorrectly.
If you’re using the AV connection (Z pg. 6), the TV receiver is set to the wrong mode.
This is normal.
Automatic tracking is engaged.
The video heads may be dirty.
The AUDIO MONITOR option at
the Function Set screen was set incorrectly.
CORRECTIVE ACTION
Connect the power cord. Press TIMER to disengage.
Replace the dead batteries with new ones. Re-perform the A/B Code setting (Z pg. 49). Set the switch to the position corresponding with the unit you want to operate.
CORRECTIVE ACTION
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Then insert the cassette
Press C.MEMORY to disengage the Counter Memory mode and extin­guish the indicator.
CORRECTIVE ACTION
Set the channel selector to channel 3 or 4.
Set the TV receiver to its AV mode.
Engage and adjust tracking manually (Z pg. 25).
The heads must be cleaned. Consult your JVC dealer.
Set AUDIO MONITOR to "HI-FI" (Z pg. 26).
RECORDING
51
SYMPTOM
1. Recording won’t start.
2. TV broadcasts won’t record properly.
3. Tape-to-tape editing won’t work.
TIMER RECORDING
SYMPTOM
1. Timer recording won’t work.
2. On-screen timer programming won’t work.
3. TIMER and ] on the front display panel won’t stop blinking.
4. The cassette is automatically ejected, and TIMER and ] on the front display panel won’t stop blinking.
5. TIMER blinks for 10 seconds and the timer mode is disengaged.
6. The cassette is automatically ejected, the power shuts off and TIMER and ] won’t stop blinking.
7. Cable channels are not automatically switched during timer recording.
POSSIBLE CAUSE
There’s no cassette loaded.
The loaded cassette has had its
record safety tab removed.
The VCR has been set to its AUX mode by mistake.
The VCRs or the camcorder and the VCR have been incorrectly con­nected.
The power to one or more of the units has not been turned on.
The recorder’s input mode has been set incorrectly.
POSSIBLE CAUSE
The clock and/or the timer have been set incorrectly.
The timer is not engaged.
The VCR has not been set up properly.
Timer recording is in progress.
The timer is engaged but there’s no
cassette loaded.
The loaded cassette has had its record safety tab removed.
TIMER has been pressed when there are no programs in memory, or the timer record program information has not been programmed correctly.
The end of tape was reached during timer recording.
The Cable Box Controller is not properly connected to the VCR.
The output channel selected in the Cable Box Output screen is incorrect.
The cable box’s power is off.
CORRECTIVE ACTION
Insert a cassette. Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.
Set the VCR to the appropriate channel.
Refer to the directions and the illustration under “Edit to And From Another VCR” (Z pg. 43) or “Edit From A Camcorder” (Z pg. 44) and properly connect the units. Make sure the power to all units is on.
Set the recorder’s input mode to AUX and select "FRONT" or "REAR" at the Aux Input Screen (Z pg. 45).
CORRECTIVE ACTION
Check or re-perform the clock/timer settings to ensure correctness. Press TIMER and check to make sure that TIMER appears on the front display panel. Re-perform the set-up procedures. Make sure you have compensated for Guide Channel and VCR or cable box channel number mismatches (Z pg. 19).
Timer programming can’t be performed when timer recording is in progress. Wait until it finishes.
Load a cassette with the record safety tab intact, or with the hole covered with adhesive tape.
Remove the cassette and cover its hole with adhesive tape, or replace it with a cassette on which the safety tab is intact.
Check the programmed data and re­program as necessary, then press TIMER again.
The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.
Connect the Cable Box Controller correctly (Z pg. 15). After confirming your cable box’s output channel number, re-access the Cable Box Output screen and select the correct number (Z pg. 17). Make sure the power is on before timer recording starts.
CONTINUED ON NEXT PAGE.
52
TROUBLESHOOTING (cont.)
8. Timer recording begins as sched­uled, but the channel is always incorrect.
9. We moved, and now VCR Plus+ doesn’t work properly.
10.“PROGRAM FULL” is displayed on the VCR Plus+ screen.
OTHER PROBLEMS
SYMPTOM
1. When scanning channels, some of them are skipped over.
2. The channel can’t be changed.
3. The remote control won’t operate my TV.
4. The remote control won't operate my cable box.
5. Even though Auto or Semi-Auto clock setting has been selected, the clock is incorrect.
Even though you don't use an external Cable Box, "CABLE BOX OUTPUT" is set to "ON".
The receivable stations in the new area are received on different channels than those in the previous area.
All 8 programs of the VCR’s timer memory are used.
POSSIBLE CAUSE
Those channels have been preset to be skipped.
Recording is in progress.
The TV/CABLE/VCR switch is set to
a position other than TV.
The TV/CABLE/VCR switch is set to a position other than CABLE.
The clock setting data received from the Host Channel is incorrect.
Set "CABLE BOX OUTPUT" to "OFF" (Z pg. 16).
Re-perform the VCR Plus+ setup procedure (Z pg. 19).
Wait until a space in memory clears, or cancel unnecessary program information (Z pg. 41).
CORRECTIVE ACTION
If you need the skipped channels, restore them (Z pg. 14).
Press PAUSE to pause the recording, change channels, then press PLAY to resume recording.
Set the switch to TV.
Set the switch to CABLE.
Select a different Host Channel during the Semi-Auto setting procedure (Z pg. 9), or perform the Manual setting procedure (Z pg. 11).
ATTENTION:
This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the power off and unplug the power cord. Then plug it in again and switch power on. Take out the cassette. After checking the cassette, operate the unit as usual.
QUESTIONS AND ANSWERS
53
PLAYBACK
Q. What happens if the end of the tape is reached
during playback or search?
A. The tape is automatically rewound to the beginning.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the VCR indefinitely remain in the still mode? A. No. It stops automatically after 5 minutes to protect
the heads.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. During search, slow, still and frame-by-frame
playback, I can’t hear any audio. What’s the problem?
A. This is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. During search, still and frame-by-frame playback,
the picture is intermittent. What’s the cause?
A. Picture loss occurs when these types of playback are
attempted with a tape recorded in LP mode. Pressing PLAY to return to normal playback will restore the picture.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. When returning from multi-speed search to normal
playback, the picture is disturbed. Should I be concerned about this?
A. No, it is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Noise bars appear during multi-speed search. What’s
the problem?
A. This is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
RECORDING
Q. When I pause and then resume a recording, the end
of the recording before the pause is overlapped by the new recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and
resume points.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the VCR indefinitely remain in the Record-Pause
mode?
A. No. The VCR automatically goes to its Stop mode
after 5 minutes to protect the heads. When paused during Instant Timer Recording (ITR), the VCR shuts off automatically after 5 minutes.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. What happens if the tape runs out during recording? A. The VCR automatically rewinds it to the beginning.
TIMER RECORDING
Q. REC and TIMER remain lit on the front display panel.
Is there a problem?
A. No. This is a normal condition for a timer recording
in progress.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can I program the timer while I’m watching a tape
or a TV broadcast?
A. You won’t see the picture as it is replaced by the on-
screen menu, but the audio from the program or tape you’re viewing is present.
Q. Other than preventing further recording, what effect
does removing the safety tab have?
A. It disables marking of index codes.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Sometimes, during Index Search, the VCR can’t find
the program I want to see. Why not?
A. There may be index codes too close together.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. During playback, on-screen operational indicators
sometimes jitter. Why does this happen?
A. If the condition of the tape being played back is not
good, jittering of the video (including on-screen indicators) may occur.
54
SPECIFICATIONS
GENERAL
Power requirement : AC 120 V` , 60 Hz Power consumption : 21 W Temperature
Operating : 5°C to 40°C (41°F to 104°F)
Storage : –20°C to 60°C (–4°F to140°F) Operating position : Horizontal only Dimensions (W x H x D) : 360 x 94 x 276 mm
(14-3/16" x 3-3/4" x 10-7/8") Weight : 3.4 kg (7.5 lbs) Format : VHS NTSC standard Maximum recording time
SP : 210 min. with ST-210 video
cassette
EP : 630 min. with ST-210 video
cassette
VIDEO/AUDIO
Signal system : NTSC-type color signal and
EIA monochrome signal, 525
lines/60 fields Recording/ Playback system : DA-4 (Double Azimuth) head
helical scan system Signal-to-noise ratio : 45 dB Horizontal resolution : 240 lines Frequency range
Normal audio : 70 Hz to 10,000 Hz Hi-Fi audio : 20 Hz to 20,000 Hz
Input/Output : RCA connectors (IN x 2,
OUT x 1)
TIMER
Clock reference : Quartz Program capacity : 1-year programmable timer/
8 programs
Memory backup time : Approx. 10 min.
ACCESSORIES
Provided accessories : RF cable (F-type),
Infrared remote control unit, “AA” battery x 2, Cable Box Controller
Specifications shown are for SP mode unless otherwise specified. E. & O.E. Design and specifications subject to change without notice.
TUNER
Tuning system : Frequency-synthesized tuner Channel coverage
VHF : Channels 2–13 UHF : Channels 14–69 CATV : 113 Channels
RF output : Channel 3 or 4 (switchable;
preset to Channel 3 when
shipped) 75 ohms,
unbalanced
INDEX
List Of Terms
This guide serves as a quick way to locate frequently used terms and on-screen display names. The first page on which the term appears is listed. Most terms appear more than once in the instruction manual.
55
A
A/B Code .................................................................... 49
Active Video Calibration .............................................32
Add Channel ...............................................................14
AFC.............................................................................14
Audio Monitor ............................................................ 26
Auto Channel Setting .................................................. 13
Auto Clock .................................................................... 7
Auto Clock Setting ...................................................... 11
Auto Daylight Saving Time..........................................10
Auto Timer .................................................................. 42
Automatic Tracking ..................................................... 25
Aux Input ....................................................................45
AV Compu Link Playback ........................................... 30
AV Connection ............................................................. 6
B
Band ...........................................................................12
C
Cable Box ...................................................................15
Cable Box Brand Setting..............................................17
Cable Box Controller...................................................15
Cancel Program .......................................................... 41
Cassette Adapter.......................................................... 22
Check Program ........................................................... 41
Child Lock .................................................................. 49
Connection to TV ..........................................................6
Contents........................................................................5
Counter Memory .........................................................29
Counter Reset..............................................................29
D
Delete Channel ...........................................................14
Dual Quick Setting........................................................7
E
Editing.........................................................................43
F
Fast Motion Playback ..................................................24
Frame-by-Frame Playback ........................................... 24
Function Setting ..........................................................26
G
Guide Channel Map....................................................21
Guide Channel Setting ................................................20
H
Host Channel Selection ................................................. 9
I
Index Search ...............................................................28
Insert Cassette .............................................................22
Instant ReView ............................................................29
ITR (Instant Timer Recording) ......................................39
L
Language Selection .......................................................8
M
Main Menu ...................................................................8
Manual Channel Setting ..............................................14
Manual Clock Setting ..................................................11
Manual Tracking .........................................................25
MBR (Multi-Brand Remote) Code Setting.....................47
N
Next-Function Memory ...............................................30
O
On-Screen Display ...................................................... 27
On-Screen Timer Programming ................................... 39
On-Screen Timer Recording ........................................39
Override Auto Clock Setting..........................................9
P
PBS Channel .................................................................7
Playback .....................................................................22
R
Record Safety Tab .......................................................23
Recording ................................................................... 23
Repeat Playback..........................................................28
Reverse Motion Playback ............................................24
Reverse Playback ........................................................24
Reverse Slow Motion Playback ................................... 24
RF Connection ..............................................................6
S
SAP (Second Audio Program) ......................................36
Second Audio .............................................................36
Select Cable Box Output Channel ...............................16
Semi-Auto Clock Setting................................................9
Shuttle Plus ...................................................................8
Skip Search .................................................................28
Slow Motion Playback ................................................ 24
Specifications ..............................................................54
Still Playback .............................................................. 24
Superimpose ...............................................................27
T
Tape Position Indicator ................................................30
Tape Speed Setting ...................................................... 23
Time Zone Selection ...................................................10
Tuner Setting ............................................................... 12
V
VCR Plus+...................................................................19
VCR Plus+ Timer Programming ...................................37
VCR Plus+ Timer Recording ........................................37
56
FRONT VIEW
INDEX (cont.)
1
POWER
VIDEO (MONO) L – AUDIO – R
678
1 Power ON/OFF Button (Z pg. 8) 2 Cassette Loading Slot 3 Rewind Button (Z pg. 22)
Reverse Search Button (Z pg. 24)
4 Play Button (Z pg. 22) 5 Fast-Forward Button (Z pg. 22)
Forward Search Button (Z pg. 24)
6 Video Input Connector (Z pg. 44) 7 Mono Audio Input Connector (Z pg. 44)
Audio Input Connector [L] (Z pg. 44)
MENU
9
IT R TIMER
VIDEO
M
2
REC
ST
SP
AM
EP
PM
HMS
PLAY
SAP
PAUSE
0 ! @
8 Audio Input Connector [R] (Z pg. 44) 9 Menu Button (Z pg. 8) 0 Front Display Panel (Z pg. 57) ! Remote Control Sensor @ Channel # OK Button (Z pg. 8) $ Record Button (Z pg. 23) % Stop/Eject Button (Z pg. 22) ^ Pause Button (Z pg. 23)
CH
OK
#
5
Buttons (Z pg. 8)
3 4
PLAY
REW
2
REC
STOP/EJECT PAUSE
8
q
5
/
$ % ^
5
FF
2
6
REAR VIEW
1
CABLE
BOX
70!
1 Power Cord (Z pg. 6) 2 Mono Audio Input Connector (Z pg. 43)
Audio Input Connector [L] (Z pg. 43)
3 Audio Input Connector [R] (Z pg. 43) 4 Remote PAUSE Connector (Z pg. 44)
AV COMPU LINK Connector (Z pg. 30)
5 Hi-Fi Audio Output Connector [R] (Z pg. 6)
23 4 56
PAUSE/ AV COMPU
-LINK AUDIO
VIDEO
CH3 CH4
IN OUT
ANT. IN
R
L
RF OUT
89
6 Hi-Fi Audio Output Connector [L] (Z pg. 6) 7 CABLE BOX Connector (Z pg. 15) 8 Channel 3/4 Switch (Z pg. 6) 9 Video Input Connector (Z pg. 43) 0 Video Output Connector (Z pg. 6) ! RF OUT Connector (Z pg. 6) @ ANT. IN Connector (Z pg. 6)
@
FRONT DISPLAY PANEL
57
1
23 4 5 67 8
I T R TIMER
VIDEO
9!
SP
AM
M
EP
PM
HMS
0 @ # $
1 Video Mode Indicator (Z pg. 8) 2 Instant Timer Recording Indicator (Z pg. 39) 3 Timer Mode Indicator (Z pg. 38) 4 Clock Display (Z pg. 7) 5 Counter Display (Z pg. 29) 6 Multichannel TV Sound Indicators (Z pg. 36) 7 Recording Mode Indicator (Z pg. 23) 8 Play Mode Indicator (Z pg. 22)
REMOTE CONTROL (Provided)
1 2
3 4
5
6 7 8
9
0 !
@ #
A
B
12 45
DAILY (M-F)
7
C.RESET
CANCEL
CH SKIP
TV
VOL.
SP/EP
DISPLAY TV/VIDEO
PLAY
REW
STOP
REC
Y
R
O
M
E
M
.
C
ADD
U
N
E
M
SHUTTLE
PLUS
MULTI BRAND
REMOTE CONTROL UNIT
8
AUX
0
CH
CABLE
S
K
O
POWER
ENTER
OSD
3 6
WEEKLY
9
TIMER
TV
PAUSE
I
P
S
E
A
K
VCR
FF
R
C
H
$ %
^
& *
( )
q w e r
t
y
u
REC
ST
PLAY
SAP
PAUSE
9 “Cassette Loaded” Mark 0 Counter Memory Mark (Z pg. 29) ! Tape Speed Indicators (Z pg. 23) @ AM/PM Indicators (Z pg. 7) # Channel Display [“AU” for AUX mode]
(Z pg. 43)
$ Pause Mode Indicator (Z pg. 23)
1 Instant REVIEW Button (Z pg. 29) 2 A/B Code Select Switch (Z pg. 49) 3 NUMBER Buttons (Z pg. 9) 4 “AUX” Mode Select Button (Z pg. 43) 5 CANCEL Button (Z pg. 41)
Counter [C.] RESET (Z pg. 29) Channel [CH.] SKIP Button (Z pg. 14)
6 Volume [VOL] +/– Buttons (Z pg. 47) 7 DISPLAY Button (Z pg. 29) 8 Recording Speed [SP/EP] Button (Z pg. 23) 9 Rewind [REW] Button (Z pg. 22) 0 PLAY Button (Z pg. 22) ! Record [REC] Button (Z pg. 23) @ Counter [C.] MEMORY Button (Z pg. 29)
ADD Button (Z pg. 14)
# MENU Button (Z pg. 8) $ POWER ON/OFF Button (Z pg. 8) % ENTER Button (Z pg. 23)
On-Screen Display [OSD] Button (Z pg. 27)
^ DAILY Timer Recording Button (Z pg. 37) & WEEKLY Timer Recording Button (Z pg. 37) * TIMER Button (Z pg. 38) ( Channel [CH]
5
Buttons (Z pg. 8)
) TV/VIDEO Button (Z pg. 8) q TV/CABLE/VCR Switch (Z pg. 47) w Fast-Forward [FF] Button (Z pg. 22) e PAUSE Button (Z pg. 23) r STOP Button (Z pg. 22) t SKIP SEARCH Button (Z pg. 28) y OK Button (Z pg. 8) u SHUTTLE PLUS Button (Z pg. 8)
HR-VP636U
VICTOR COMPANY OF JAPAN, LIMITED
COPYRIGHT © 1996 VICTOR COMPANY OF JAPAN, LTD.
U(C)
Printed in Malaysia 0296HOV
*UN*
PJ
Loading...
