Table of Contents
Thank you for purchasing this JVC VHS • VideoCD COMBO.
To ensure optimum performance of this unit, please read this
instruction manual thoroughly.
Precautions ...........................................................................3
General Information ..............................................................4
Controls, Indicators and Terminals ........................................5
Front panel ..........................................................................5
Wireless remote control ......................................................6
TV Multi-Brand Remote Control ..........................................7
Display panel.......................................................................8
Rear panel...........................................................................8
Connections ..........................................................................9
Basic Playback (Video CD) .................................................10
Various Unique Functions...................................................13
Playback Control Function ..................................................16
The video cassette ..............................................................18
Playback (Video cassette player) ........................................18
Playback Features...............................................................19
Recording............................................................................20
Karaoke Features................................................................21
Editing .................................................................................26
CD Recording......................................................................27
Live Recording ....................................................................28
Troubleshooting...................................................................30
Specifications ......................................................................31
Features
• Triple disc tray
• Program playback
• Video intro search
• Highlight search
• Playback control function
• TV multi-brand remote control
• Digital auto tracking
• Spatializer
• CD Recording
• Live recording
Automatic features
Auto power on
This Player is automatically turned on when the tape is inserted.
Auto rewind
The video tape is automatically rewound when the end of the
tape is reached during the play, recording or shuttle search
forward mode.
Auto playback
If the video cassette’s safety tab has been removed, playback
will begin automatically when the tape is inserted into the
Player.
Power off eject
Even when the Player's power is off, pressing the eject button
will turn the power on and eject the tape. Once ejected, the
power will be turned off again automatically.
7 Only cassettes marked “VHS” can be used with this Player.
7 Certain audio features of this product manufactured under a
license from Desper Products, Inc. Spatializer is a trademark owned by Desper Products, Inc.
PAL NTSC
R
3
English
Importants
• Video tapes recorded with this Player in the LP (Long Play)
or EP (Extended Play) mode cannot be played back on a
single-speed video recorder.
• It may be unlawful to record or playback copyrighted material
without the consent of the copyright owner.
Beware of moisture condensation
Moisture in the air will condense on the recorder when you move
it from a cold place to a warm place, or under extremely humid
conditions — just as water droplets form on the surface of a
glass filled with cold liquid. Moisture condensation on the head
drum will cause damage to the tape. In conditions where
condensation may occur, keep the recorder’s power turned on
for a few hours to let the moisture dry.
Accumulation of dirt and other particles on the video heads may
cause the playback picture to become blurred or interrupted.
Although this model is equipped with a built-in head cleaner
which automatically cleans the heads, reducing the likelihood of
dirty heads, if such troubles are encountered please consult the
nearest JVC dealer.
Auto Head Cleaner
A built-in head cleaner automatically cleans the video heads
and head drum whenever a tape is loaded or unloaded to
reduce head clogging.
ATTENTION:
This Player contains microcomputers. External electronic
noise or interference could cause malfunctioning. In such
cases, switch the power off and unplug the power cord.
Then plug it in again and switch on. Take out the cassette.
After checking the cassette, operate the unit as usual.
Special note on head cleaning
Precautions
Please follow these precautions. Not doing so may result
in damage to the Player, remote control, or video cassette.
• Avoid extreme heat and direct sunlight.
• Avoid extreme cold.
• Avoid extreme humidity.
• Avoid dust.
• Avoid places subject to vibrations.
• Avoid strong magnetic fields.
• Do not block the Player's ventilation openings.
• Do not place anything heavy on the Player or remote
control.
• Do not Place anything which might spill on top of the
Player or remote control.
• Do not place the Player on cushions, pillows, or thick
carpeting.
• Use the Player in a stable, horizontal position only.
• Place cassettes in cassette cases and store vertically.
When transporting
m Be sure to remove cassette and CD from Player before
packing.
m Avoid violent shocks to the Player during packing and
transport.
Safety precautions
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE IN-
SIDE
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
The POWER /button does not completely shut off
mains power from the unit, but switches operating current
on and off. “
” shows electrical power standby and “ ”
shows ON.
This unit produced to comply with Standard IEC Publ. 65.
CAUTION:
n When you are not using the Player for a long period of
time, it is recommended that you disconnect the power
cord from the AC outlet.
n Dangerous voltage inside. Refer internal servicing to
qualified service personnel. To prevent electric shock or
fire hazard, remove the power cord from the AC outlet
prior to connecting or disconnecting any signal lead or
aerial.
n This unit operates on voltage of AC110 – 240 V~(Rating),
AC90 – 260 V~(operating), 50/60 Hz with automatic
switching.
Precautions
4
General Information

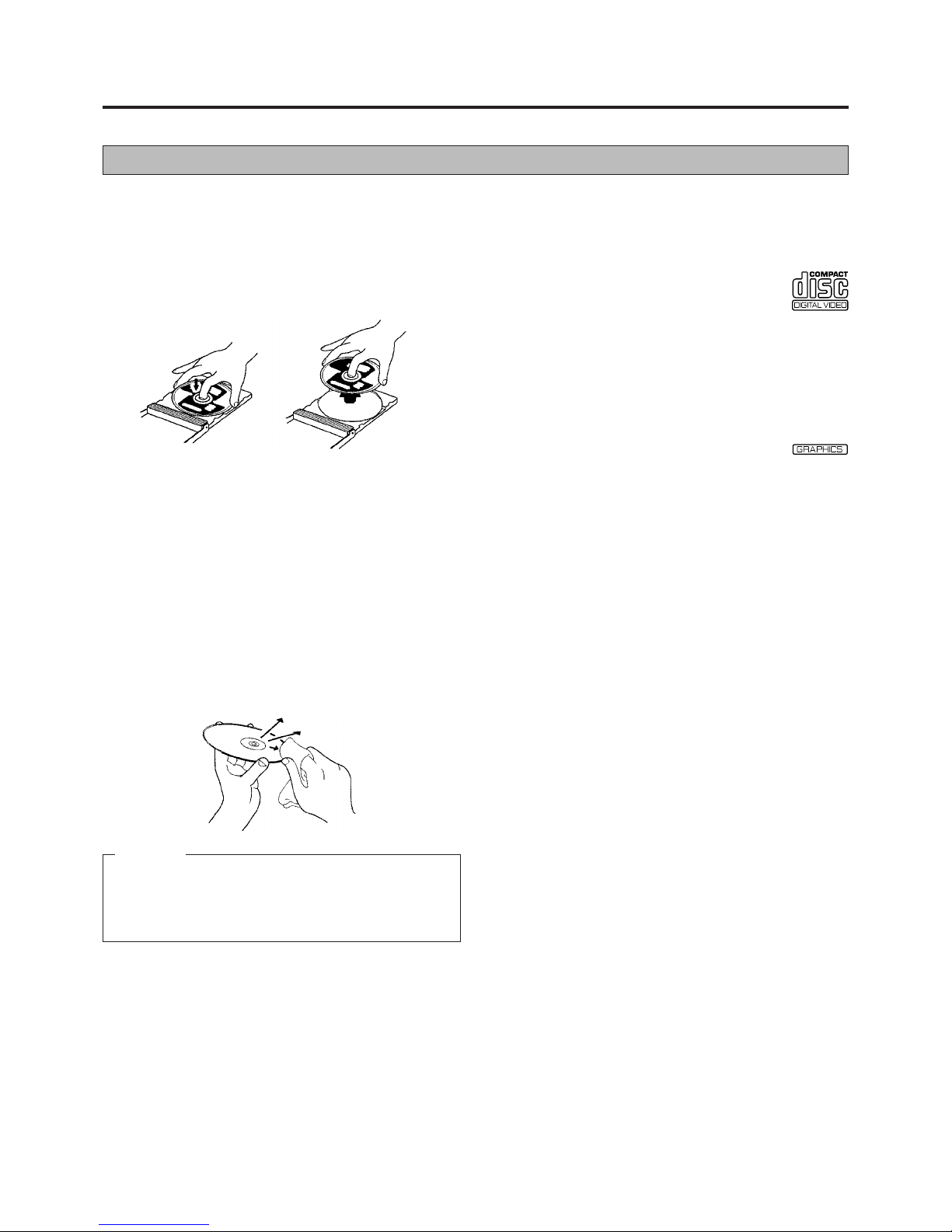

Care and handling of compact discs
How to handle CDs
When handling a compact disc, do not touch the surface of the
disc (reflective silver side –– the side without the label).
Since compact discs are made of plastic, they are easily
damaged. If a disc gets dirty, dusty, scratched or warped, the
sound will not be picked up correctly and, in addition, such a disc
may cause the CD player to malfunction.
Even on label side
Do not damage the label side, stick paper to or use any adhesive
on its surface.
Storage
Make sure that discs are kept in their cases. If discs are piled
one on top of another without their protective cases, they can be
damaged. Do not put discs in a location where they may be
exposed to direct sunlight, or in a place where the humidity or
temperature is high. Avoid leaving discs in your car!
Maintenance of discs
If there are fingerprints or other dirt adhering to a disc, wipe it
with a soft dry cloth, moving from the center outwards.
If a disc is difficult to clean, wipe with a cloth moistened with
water. Never use record cleaners, petrol, alcohol or any antistatic agents.
CAUTION
Sometimes during play noise or images may be garbled.
This is sometimes due to the disc. (It may not be up to
industry standards.)
These symptom are caused by the discs, not by the malfunction of the Player.
Which compact discs can be used?
Many types of compact discs are sold for a variety of uses. The
Video CD Player can play the following compact discs:
• Video CD
for audio and video (moving picture) reproduction, including multiplex sound.
• Video CD with Playback Control function
featuring menu-type operation and superfine still pictures for audio and video (moving
picture) reproduction, including multiplex
sound.
• CD Graphics (CD-G)
for audio and video (still picture) reproduction, including multiplex sound.
• Digital Audio CD, including single discs
for audio reproduction.
CDs you can't play back
Do not play back CD-ROMs on this equipment. Doing so may
generate a noise which can damage your speakers.
Using the remote control
The remote control is ready to use when its batteries are
installed properly.
To use it, point its infrared light-emitting window toward the
display window of the player and press a button. The operating
range of the remote control is up to about seven meters in front
of the player and within about 30 degrees to each side –– with
nothing between the remote control and the player interrupting
the beam path.
If pressing a button on the remote control does not produce any
response, check to make sure it is pointed correctly and try
again. If it still does not function, check the batteries.
'
'
PlayBack
Control
5
English
Controls, Indicators and Terminals

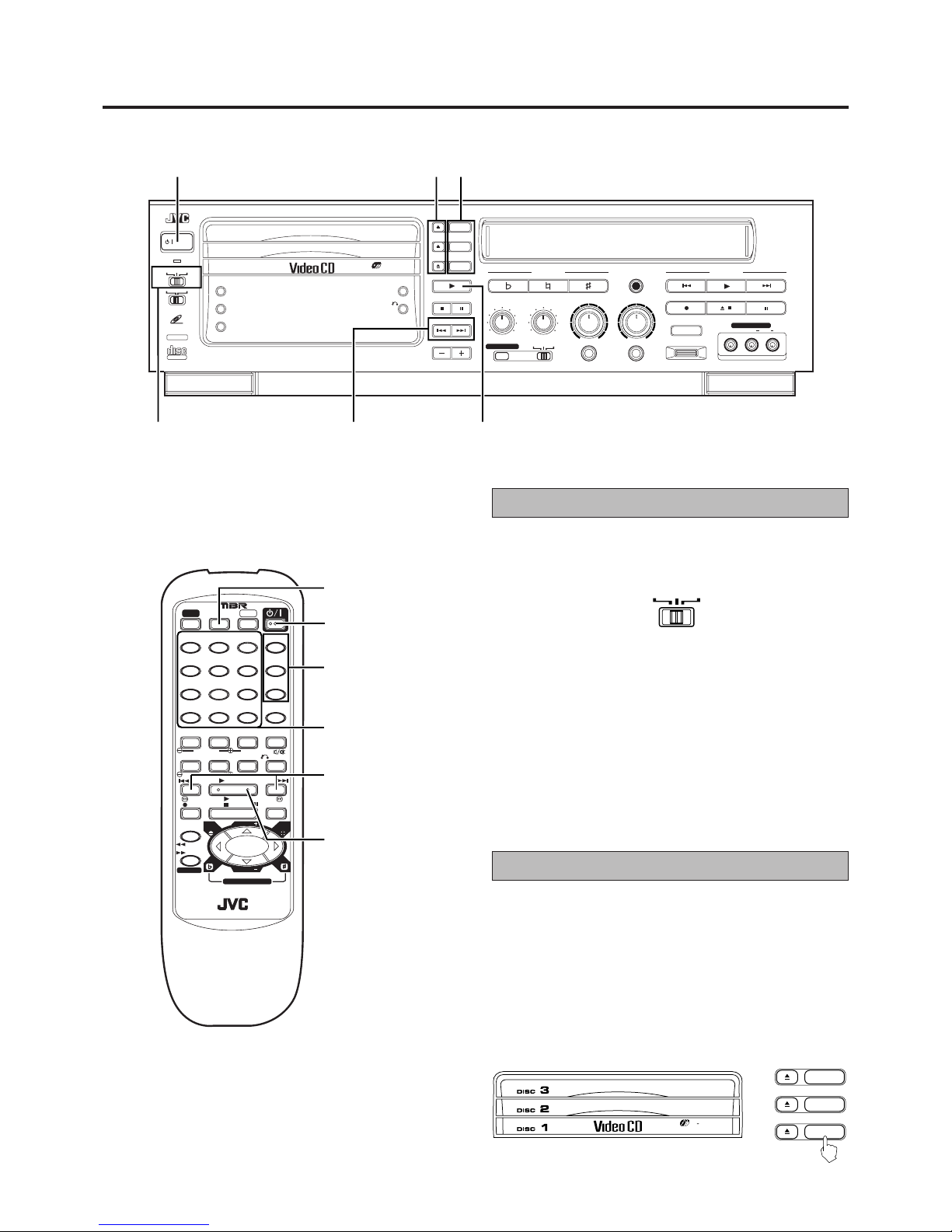

Front panel
$
DIGITAL ECHO knob Z p.25
%
SPATIALIZER switch and indicator Z p.20
^
MIX VOL knob Z p.29
&
MIC 1 and MIC2 knobs and MIC input terminals
Z p.25
*
SP/LP/EP button Z p.20
(
CD REC button with indicator Z p.27,29
)
VIDEO/AUDIO input terminals Z p.26,28
q
VHS CONTROL buttons
4 / ¢ Karaoke search buttons Z p.20
‰ Play button
Z p.18
¶ Record button
Z p.20
§ Stop/Eject button
Z p.18
8 Pause/Still button Z p.20
1
POWER button / STANDBY indicator
2
DISC 1 to DISC 3 trys
3
Open/Close buttons (Disc number 1 to 3) Z p.11
4
DISC 1 through DISC 3 buttons with indicators
Z p.10
5
KEY CONTROL buttons Z p.25
6
WIRELESS MIC button with indicator Z p.23
7
Cassette loading slot
8
MODE switch Z p.10
9
Video out select switch Z p.9
0
VOCAL REPLACE button Z p.25
VOCAL MASKING button Z p.25
MPX button
Z p.14
!
Display panel Z p.8
@
VIDEO INTRO button Z p.14
RETURN button Z p.16
#
‰ SELECT button Z p.11
7 Stop button
Z p.12
8
STILL button Z p.12
4 PREV / ¢ NEXT buttons
Z p.12
VCD NUMBER -/+ buttons
Z p.16
WARNING of cassette loading slot
n Do not insert fingers or foreign objects into the
cassette loading slot since this could lead to injury
or damage to the mechanism. Be especially careful
with children.
n Do not try to pull out a cassette once automatic
loading has started.
.
VHS VideoCD COMBO HR-VCD1
DISC
3
DISC
2
STANDBY
KARAOKENORMAL PBC OFF
PAL
NTSC
VIDEO CD
DIGITAL VIDEO
COMPACT
GRAPHICS
VOCAL
REPLACE
VOCAL
MASKING
MPX
NTSC/PAL COMPATIBILITY
DISC
1
3
-
DISC
TRIPLE TRAY
VIDEO
INTRO
RETURN
3
2
1
SELECT
STILL
NEXTPREV
VCD NUMBER
KEY CONTROL
DOWN NORMAL UP
DIGITAL ECHO
MIN MAX VCD
MIX VOL
MIN MAX
MIC 1
MIN MAX
MIC 2
OFF ON S.ST
WIRELESS MIC
VHS CONTROL
SP / LP / EP
CD REC
VIDEO (MONO) L AUDIO R
SPATIALIZER
LIVE RECORDING
/
4 5 7
6
321
16 21
9
14
8
18
201917121110 13 15
FRONT AV
/ POWER
6
Controls, Indicators and Terminals (cont’d)

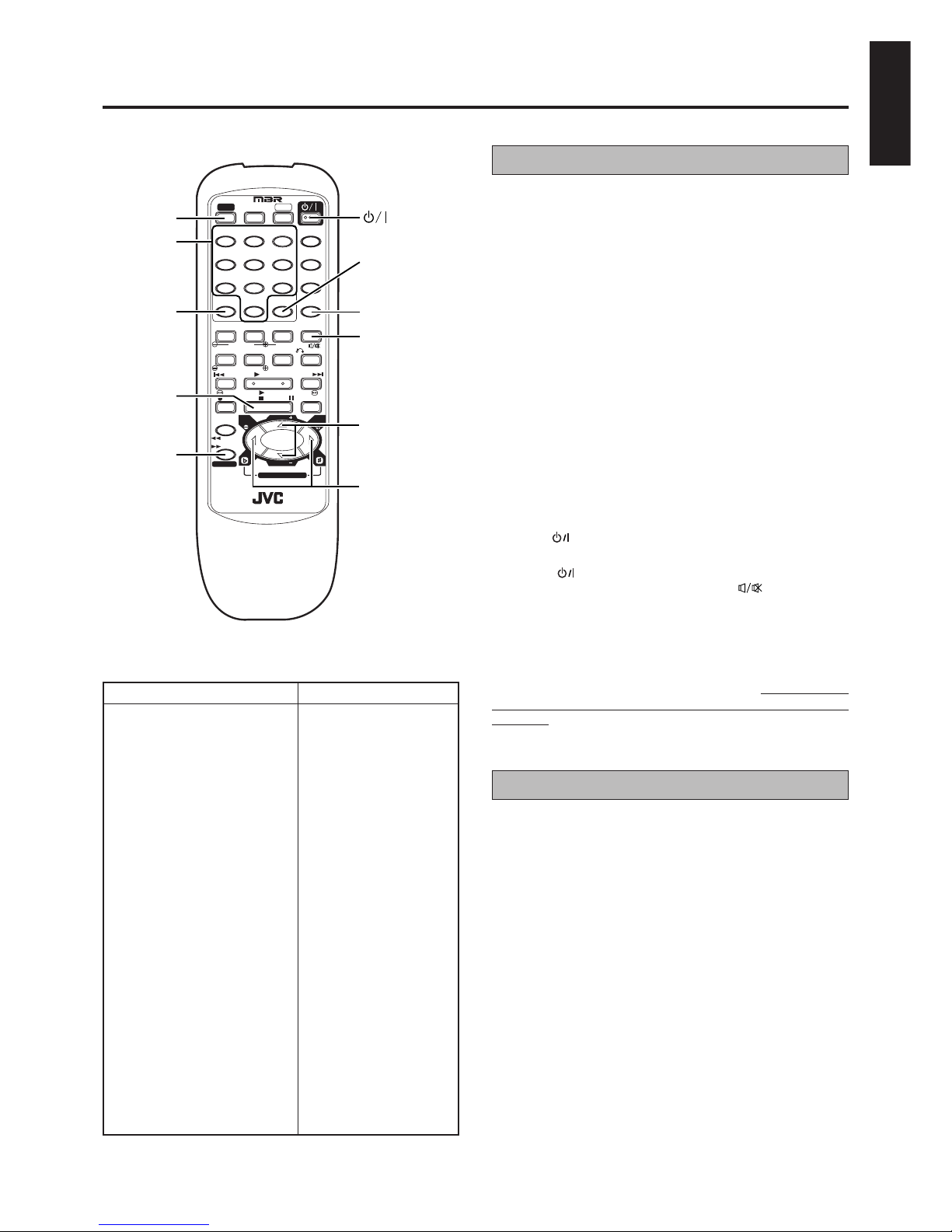

Wireless remote control
1
TV, VCD, VCP control buttons
First press these buttons before beginning to operate
the equipment.
2
Number keys Z p.11
3
PROGRAM button [VCD] Z p.13
REPEA T button [VCD] Z p.14
TRACKING -/+ buttons [VCP] Z p.19
4
CANCEL button [VCD] Z p.13
RANDOM button [VCD] Z p.14
KARAOKE SEARCH -/+ buttons [VCP] Z p.20
5
[VCD operation buttons]
4 PREV / ¢ NEXT buttons Z p.12
‰ SELECT button
Z p.11
7
STOP button
Z p.12
8 P A USE/STILL button Z p.12
[VCP operation buttons]
‰
PLA Y / 1 REW / ¡FF / 7
STOP buttons
Z p.18
¶ REC / 8 PAUSE/STILL buttons Z p.20
6
SP/LP button [VCP] Z p.20
TV/VIDEO button [TV] Z p.7
MANUAL SEARCH 1 / ¡ buttons [VCD]
Z p.12
7
POWER button
8
DISC 1 through DISC 3 buttons [VCD] Z p.10
9
OSD button [VCD] Z p.13
0
VIDEO INTRO button [VCD] Z p.14
AUT O TRACKING ON/OFF button [VCP]
Z p.19
!
MPX button [VCD] Z p.14
TV sound mute
button [TV] Z p.7
Audio monitor button [VCP]
Z p.19
@
HIGHLIGHT button [VCD] Z p.15
RETURN button [VCD] Z p.16
#
TV VOL -/+ buttons [TV] Z p.7
$
TV PROG -/+ buttons [TV] Z p.7
KEY CONTROL b/# buttons [VCD] Z p.25
Installing Batteries
1
Open the battery compartment cover.
2
Insert 2 “AA/UM-3” size batteries (provided) in the
correct directions.
3
Replace the cover.
TV VCD VHS
1
4
7
10
2
5
8
0
3
6
9
+10
DISC 1
DISC 2
DISC 3
OSD
PROGRAM REPEAT VIDEO INTRO MPX
TRACKING ON/OFF
CANCEL RANDOM HIGHLIGHT RETURN
KARAOKE SEARCH
PREV SELECT NEXT
REW
REC
PLAY
STOPFFPAUSE/STILL
SP/LP
MANUAL
SEARCH
TV/VIDEO
KEY CONTROL
TV VOL
TV VOL
TV
PROG
TV
PROG
6
14
13
12
11
8
7
10
9
3
4
5
1
2
7
English
TV Multi-Brand Remote Control
Controls, Indicators and Terminals (cont’d)
Control Y our TV Using Additional Buttons
Y our remote control can operate the basic functions of your TV
set. In addition to JVC TVs, other manufacture’s TVs can also
be controlled.
Before you start...
¶ Turn on the TV using its remote control.
¶ Press the TV button on the remote control.
The NUMBER keys on the remote control can also be used to
select the TV’s channel by setting the remote control to the TV
mode.
1
Press the TV button.
2
Use the NUMBER keys, and the DIGIT ENTRY (NUMBER
10) button, the NUMBER +10 button or the OSD button to
select the TV’s channel.
¶ DIGIT ENTRY (NUMBER 10) button corresponds to the 1-
digit/2-digit entry switching button (often labelled –/– –) of
your TV’s remote control.
¶ NUMBER +10 button corresponds to the 10 + button, and
the OSD button corresponds to the 20 + button of your TV’s
remote control.
NOTE:
• The way these buttons are used is determined by your TV.
Use these buttons as instructed for your TV’s remote control.
TV BRAND NAME CODE
JVC 01
AIWA 10
BEIJING 05, 27
CHANGHONG 05, 06, 16, 25
DAEWOO 11
FERGUSON 15
FINLUX 20
FUNAI 09
GOLDSTAR 13
GRUNDIG 17
HITACHI 07
ITT 18
JINXING 23
KONKA 26
MITSUBISHI 06
MIVER 19
NEC 22
NOBLEX 27
NOKIA 21
PANASONIC 02
PEONY 23, 24, 25
PHILIPS 16
SAMSUNG 12
SANYO 08
SHARP 04
SONY 03
TCL 16, 28
THOMSON 14
TOSHIBA 05
TV VCD VHS
1
4
7
10
2
5
8
0
3
6
9
+10
DISC 1
DISC 2
DISC 3
OSD
PROGRAM REPEAT VIDEO INTRO MPX
TRACKING ON/OFF
CANCEL RANDOM HIGHLIGHT RETURN
KARAOKE SEARCH
PREV SELECT NEXT
REW
REC
PLAY
STOPFFPAUSE/STILL
SP/LP
MANUAL
SEARCH
TV/VIDEO
KEY CONTROL
TV VOL
TV VOL
TV
PROG
TV
PROG
TV PROG
–/+ buttons
TV VOL
–/+ buttons
MUTE
button
OSD button
NUMBER
10 button
TV button
STOP
button
TV/VIDEO
button
NUMBER
keys
NUMBER + 10
button
(POWER)
button
NOTE:
• If your TV is a JVC, you don’t have to set the code in step 1.
Go to step 2.
1
SET TV BRAND CODE
Refer to the chart below. While holding down TV, enter your
TV’s brand code using the NUMBER keys, then press STOP.
¶ You don’t have to repeat this step until you replace your
remote control’s batteries.
2
TRY OPERATING TV
Press on the remote control to turn the TV off. If it goes
off, try other operations.
¶ The button, TV/VIDEO button, TV PROG -/+ but-
ton, TV VOL -/+ button and MUTE button on the
remote control can all be used to operate the TV.
IMPORTANT
Although the provided remote control unit is compatible with
JVC televisions, as well as many other models, it may not work
with your TV, or in some instances, may have limited function
capability.
8
Controls, Indicators and Terminals (cont’d)
VCD CD-GPBC VHS
PAL
NTSC
L R
SP LP EPPROGRAM
NEXT
NTSC
TRACK
PAL
KEY
DISC
REPLACE
MASKING
REPEAT1
RANDOM
MPX LR
1211
765
10
984
31 2
[VCD display]
1
Disc number indicator
2
Key control indicator
3
Colour system indicator
4
Type of disc indicator
5
Track number indicator
Total number of tracks indicator
6
Each indicator in this area lights when
the corresponding function is activated.
7
Cumulative time of the track indicator
Total time of the disc indicator
[VCP display]
8
VHS mode indicator
9
Tape speed indicator
0
Colour system indicator
!
Symbolic mode indicator
3
Play ¶ Record ¶8 Record pause
1
Rewind
1 3
Shuttle search
(reverse)
3
8
Still/Slow
¡
Fast forward
3 ¡
Shuttle search
(forward)
- - - - - - - - - - - - -
- - - - - - - - - - - - -
- - - - - - - - - - - - -
@
Audio mode indicator
Display panel
1
Wireless MIC antenna terminals Z p.23
2
VIDEO/AUDIO output terminals Z p.9,26
3
Power cord
4
MIC Frequency Adjustment screws
Z p.23
5
Colour System Output switch Z p.9
WIRELESS MIC ANT.
FREQ
ADJUST
AUDIO R
AUDIO L
VIDEO
OUT1 OUT2
NT8C3.58
NTSC4.43
NTSC
ON PAL TV
21
3
4
5
Rear panel
9
English
Connections
Make sure that the power to the Player and TV is off before
making the following connections.
Selecting the NTSC 3.58 mode
Select this mode to watch NTSC tapes on a NTSC system TV.
Selecting the NTSC 4.43 mode
Select this mode to watch NTSC tapes on a multi-system TV
(that has an NTSC 4.43 setting).
Select NTSC 4.43 to record NTSC 4.43 signal.
Colour system output mode selection (VCP)
To watch an NTSC tape, it will be necessary to select one of the
following output modes.
Selecting the NTSC PLAYBACK ON PAL TV mode
Select this mode to watch NTSC tapes on a PAL system TV.
WIRELESS MIC ANT.
FREQ
ADJUST
AUDIO R
AUDIO L
VIDEO
OUT1 OUT2
NT8C3.58
NTSC4.43
NTSC
ON PAL TV
Note:
• Adjust the System Output switch to the appropriate position
in order to record NTSC signals.
Select the NTSC PLAYBACK ON PAL TV or NTSC 3.58 to
record NTSC 3.58 signals.
Select NTSC 4.43 to record NTSC 4.43 signals.
NTSC3.58
NTSC4.43
NTSC
PLAYBACK
ON PAL TV
NTSC3.58
NTSC4.43
NTSC
PLAYBACK
ON PAL TV
NTSC3.58
NTSC4.43
NTSC
PLAYBACK
ON PAL TV
How to connection
Connect the TV’s VIDEO input and AUDIO input terminals to the Player's VIDEO output and AUDIO output
terminals.
Connect the power cord to your household AC outlet.
Notes:
• Connection not available with television sets without audio/
video input terminals.
• If you put a TV set directly on this Player or install it too close
to a TV set, noise may occur. If this noise occurs, separate
the Player and the TV set.
2
1
Video out select (VCD)
Set the VIDEO OUT SELECT switch on the front panel to
NTSC or PAL mode according to your television system.
NTSC........ for NTSC exclusive TV
PAL .......... for PAL exclusive TV
Note:
• If the wrong video system mode for the Video CD is selected, it will not playback with the correct screen size.
10
Basic Playback (Video CD)
1
2
3
T riple disc tray usage
Up to three (3) discs can be loaded in the Player. You may insert
a disc into any of the disc trays 1 through 3 whichever you prefer.
If you want to play only a specified disc, press the corresponding disc 1, 2 or 3 button located to the right of the 0 (OPEN/
CLOSE) button.
When three discs are in inserted, basic order of playing is as
following.
• Pressing DISC 1: DISC 1 → DISC 2 → DISC 3 → STOP
• Pressing DISC 2: DISC 2 → DISC 3 → DISC 1 → STOP
• Pressing DISC 3: DISC 3 → DISC 1 → DISC 2 → STOP
Overview of the three modes
This Player has three (3) modes called KARAOKE, NORMAL,
and PBC OFF mode. These are selected by the MODE switch.
This enables various ways of playing a video CD.
KARAOKE mode : One track playing mode. Whenever one
track has completed play, the Player stops.
NORMAL mode : Continuous plural tracks playing mode.
The Player plays tracks continuously in
the order they appear on the disc.
PBC OFF mode : This mode is identical to the NORMAL
mode, except that the PBC function is
inhibited.
To set the mode, switch the MODE switch on the left side of the
front panel.
DISC
3
TRIPLE TRAY
NORMAL PBC OFFKARAOKE
TV VCD VHS
1
4
7
10
2
5
8
0
3
6
9
+10
DISC 1
DISC 2
DISC 3
OSD
PROGRAM REPEAT VIDEO INTRO MPX
TRACKING ON/OFF
CANCEL RANDOM HIGHLIGHT RETURN
KARAOKE SEARCH
PREV SELECT NEXT
REW
REC
PLAY
STOPFFPAUSE/STILL
SP/LP
MANUAL
SEARCH
TV/VIDEO
KEY CONTROL
TV VOL
TV VOL
TV
PROG
TV
PROG
SELECT
button
PREV/NEXT
buttons
Number keys
POWER
button
DISC1
through 3
buttons
VCD button
.
VHS VideoCD COMBO HR-VCD1
DISC
3
DISC
2
/ POWER
STANDBY
KARAOKENORMAL PBC OFF
PAL
NTSC
VIDEO CD
DIGITAL VIDEO
COMPACT
GRAPHICS
VOCAL
REPLACE
VOCAL
MASKING
MPX
NTSC/PAL COMPATIBILITY
DISC
1
3
-
DISC
TRIPLE TRAY
VIDEO
INTRO
RETURN
3
2
1
SELECT
STILL
NEXTPREV
VCD NUMBER
KEY CONTROL
DOWN NORMAL UP
DIGITAL ECHO
MIN MAX VCD FRONT AV
MIX VOL
MIN MAX
MIC 1
MIN MAX
MIC 2
OFF ON S.ST
WIRELESS MIC
VHS CONTROL
SP / LP / EP
CD REC
VIDEO (MONO) L AUDIO R
SPATIALIZER
LIVE RECORDING
/
DISC1 through 3
buttons
OPEN/CLOSE
buttons
MODE switch
PREV/NEXT buttons
SELECT button
POWER button
Loading...
