Thank you for purchasing the JVC VHS video cassette recorder.
Before use, please read the safety information and precautions to
ensure safe use of your new VCR.
CAUTIONS
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
WAR NING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC 120Vd,
60Hz only.
To prevent electric shocks and fire hazards, DO NOT use any
other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU
FOND.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
—1—
CAUTION:
Changes or modifications not approved by JVC could void
user’s authority to operate the equipment.
Declaration of Conformity
Model Number:HR-S5901/5911U
Trade Name:JVC
Responsible Party:JVC Americas Corp.
Address:1700 Valley Road Wayne, N.J. 07470
Telephone Number: 973-317-5000
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Failure to heed the following precautions may result in damage to
the VCR, Remote or video cassette.
1. DO NOT
...in an environment prone to extreme temperatures or
humidity.
...in direct sunlight.
...in a dusty environment.
...in an environment where strong magnetic fields are
generated.
...on a surface that is unstable or subject to vibration.
2. DO NOT
3. DO NOT
4. DO NOT
VCR or on the Remote.
5. AVOID
VCR Plus+, C
Development Corporation.
The VCR Plus+ system is manufactured under license from
Gemstar Development Corporation.
For Customer Use:
Enter below the Model No. and Serial No. which are located
on the rear of cabinet. Retain this information for future
reference.
Model No.
Serial No.
● Cassettes marked “S-VHS” and “VHS” can be used with this
video cassette recorder. However, S-VHS recordings are
possible only with cassettes marked “S-VHS”.
By using S-VHS ET it is possible to record and play back with
S-VHS picture quality on VHS cassettes with this VCR.
● As an E
or product model meets the E
efficiency.
place the VCR . . .
block the VCR’s ventilation openings.
place heavy objects on the VCR or on the Remote.
place anything which might spill on the top of the
violent shocks to the VCR during transport.
3
and PlusCode are registered trademarks of Gemstar
®
NERGY STAR
Partner, JVC has determined that this product
NERGY STAR
®
guidelines for energy
IMPORTANT PRODUCT SAFETY
INSTRUCTIONS
Electrical energy can perform many useful functions. But improper
use can result in potential electrical shock or fire hazards. This
product has been engineered and manufactured to assure your
personal safety. In order not to defeat the built-in safeguards,
observe the following basic rules for its installation, use and
servicing.
ATTENTION:
Follow and obey all warnings and instructions marked on your
product and its operating instructions. For your safety, please read
all the safety and operating instructions before you operate this
product and keep this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way.
This is a safety feature.
If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only
fit into a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your product dealer or local
power company. If your product is intended to operate from
battery power, or other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for ventilation. To
ensure reliable operation of the product and to protect it from
overheating, these openings must not be blocked or covered.
● Do not block the openings by placing the product on a bed,
sofa, rug or other similar surface.
● Do not place the product in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
ANTENNA INSTALLATION INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product,
be sure the antenna or cable system is grounded so as to provide
some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding connectors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
—2—
2. Lightning
A
For added protection for this product during a lightning storm, or
when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning
and power-line surges.
3. Power Lines
An outside antenna
system should not be
located in the vicinity of
overhead power lines or
other electric light or
power circuits, or where
it can fall into such
power lines or circuits.
When installing an
outside antenna system,
extreme care should be
taken to keep from
touching such power
lines or circuits as
contact with them might
be fatal.
USE
1. Accessories
To avoid personal injury:
● Do not place this product on an unstable cart, stand, tripod,
bracket, or table. It may fall, causing serious injury to a child or
adult, and serious damage to the product.
● Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the product.
● Use a mounting accessory recommended by the manufacturer
and follow the manufacturer’s instructions for any mounting of
the product.
● Do not try to roll a cart with small casters across thresholds or
deep-pile carpets.
2. Product and Cart Combination
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces may
cause the product and cart combination
to overturn.
3. Water and Moisture
Do not use this product near water—for
example, near a bath tub, wash bowl,
kitchen sink or laundry tub, in a wet
basement, or near a swimming pool and
the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of any
kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer of
this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
7. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked
change in performance and you are unable to restore normal
operation by following the detailed procedure in its operating
instructions, do not attempt to service it yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance—
this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or which have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the
product is in safe operating condition.
How to use the Remote
Before use, insert two AA size batteries into the Remote with the
polarity ( and ) matched correctly as indicated on the battery
compartment or on the lid.
The Remote can operate most of your VCR’s functions, as well as
basic functions of TV sets, cable boxes and DBS receivers.
● Point the Remote toward the remote sensor on the target
component.
● The maximum operating distance of the Remote is about 8 m.
NOTE:
If the Remote does not work properly, remove its batteries, wait for
a few seconds, replace the batteries and then try again.
Video heads cleaning
The heads get dirty in the following cases:
● in an environment prone to extreme temperature or humidity.
● in a dusty environment
● flaw, dirt or mold on video tapes
● continuous usage for a long time
Use a dry cleaning cassette — TCL-2 — when:
● Rough, poor picture appears while a tape is played back.
● The picture is unclear or no picture appears.
● “USE CLEANING CASSETTE” appears on the screen (only with
“SUPERIMPOSE” set to “ON” (
TTENTION:
To mobile phone users:
Using a mobile phone in the vicinity of the VCR may cause
picture vibration on the TV screen or change the screen to a
blue back display.
On placing the recorder:
Some TVs or other appliances generates strong magnetic fields.
Do not place such appliance on top of the VCR as it may cause
picture disturbance.
墌
pg. 15)).
—3—
Buttons, Connectors and
Indicators
Front Panel
Cassette
loading slot
REC LINK
Advanced
24HR QUICK
PROGRAM
JOG dial
FF
REW
Remote
Number keys
S-VIDEO
S-VIDEO
input
connector
Display panel
Play indicator
Record indicator
Rear Panel
AC power cord
POWER
VIDEO/AUDIO input
connectors
Timer mode indicator
Channel and auxiliary input/Clock time
Remote
sensor
INSERT
A.DUB
VCR mode
indicator
S-VHS
indicator
The glow-in-the-dark buttons shown in white on the illustration
above are helpful when using the Remote in darkened rooms.
On-screen display
S-VIDEO
If you press OSD (OK) on the Remote when “SUPERIMPOSE” is
set to “ON” (
pg. 15), you can see the current VCR status on the
墌
TV screen.
The indications are not recorded even if the VCR is in the
recording mode.
Channel and
auxiliary input
Day and
clock time
STEREO
program
indication
SAP
indication
Audio
monitor
indications
To recall an indication
Press OSD (OK).
A
●
All indications corresponding to the current status are
displayed for 5 seconds. After that, the counter
information and RECORD/PAUSE if in the Record Pause
mode, remain on the TV screen.
Press OSD (OK) again to clear the display.
B
●
The RECORD/PAUSE indication remains on the TV screen.
—4—
Timer warning display
Time counter
VCR operation
mode
Tape speed
Cassette mark
Tape position
Index number
Ta pe
remaining time
A
Connections and Plug&Play
Setting
A
Check contents
Make sure the package contains all of the accessories listed in
“Specifications” (
B
Situate VCR
Place the VCR on a stable, horizontal surface.
C
Connect VCR to TV
Antenna or cable
Flat feeder
AC power cord
pg. 20).
墌
Coaxial cable
Matching transformer
(not supplied)
S-video Connection
(allows you to make the most of the S-VHS picture performance.)
If your TV is equipped with a S-video input connector
Perform “RF Connection” above.
A
Connect a S-video cable between the S VIDEO OUT
B
connector on the rear of the VCR and the S-video input
connector on the TV.
Connect an audio cable between the AUDIO OUT connectors
C
on the rear of the VCR and the audio input connectors on the
TV.
●
Even if you are using audio/video cables to connect your VCR to
your TV, you must also connect it using the RF cable. This will
ensure that you can record one show while watching another.
D
Perform Plug&Play setup
Plug the AC power cord into an AC outlet. Do not turn on the
VCR. The clock and tuner channels will be set automatically. The
time and date can be set automatically by the clock setting data
transmitted from one of the regular TV broadcast channels. We
call this TV channel the “host channel” and it is a PBS channel in
your area.
TTENTION:
●
If you use a cable box, Plug&Play will not function; set the clock
and tuner channels separately (
●
Depending on areas or reception conditions, the VCR may not
receive the Auto clock setting data from the PBS channel. If this
function is taking a considerable amount of time, it may be
necessary to perform the procedure in “Semiauto Clock Set”
(
pg. 6) or “Manual Clock Set” (墌pg. 6).
墌
During Initial Auto Clock Set
“Aut” blinks.
pg. 6 – 7).
墌
Back of VCR
AC outlet
To audio/video
input connectors
To 75 ⍀ terminal
TV
To S-video input
connector
Audio/video
cable
(not supplied)
RF cable
(supplied)
S-video cable
(supplied)
RF Connection
Disconnect the TV antenna from the TV.
A
Connect the TV antenna cable to the ANT. IN terminal on the
B
rear of the VCR.
Connect the supplied RF cable between the TV OUT terminal
C
on the rear of the VCR and the TV’s antenna input terminal.
AV Connection
(improves picture quality during tape playback.)
If your TV is equipped with audio/video input connectors
Connect the antenna, VCR and TV as shown in the illustration.
A
Connect an audio/video cable between the AUDIO/VIDEO
B
OUT connectors on the rear of the VCR and the audio/video
input connectors on the TV.
During Auto Channel Set
The channel numbers are displayed as they are
scanned and set.
Plug&Play Completed
The current time is displayed.
What to do if Plug&Play setting failed
●
If an incorrect time is displayed on the display panel, perform
the procedure in “Semiauto Clock Set” (
Clock Set” (
●
If “–:– –” appears on the display panel, ensure that the antenna
cable is connected correctly. Then turn on and off the VCR; the
Plug&Play setting will be automatically reactivated. If Plug&Play
setting is not performed though the antenna cable is connected
correctly, perform the procedure in “Manual Clock Set”
(
pg. 6) and “Auto Channel Set” (墌pg. 7) or “Manual
墌
Channel Set” (
E
Set VCR channel
The VCR channel is the channel on which you can watch the
picture from the VCR on the TV when only using the RF
connection. Press POWER 1 to turn off the VCR, then press STOP/EJECT (
appears on the display panel. Press CH+/– on the Remote to select
“CH3”, “CH4” or “CH–”(OFF), then press OK.
●
The VCR channel is preset to “CH3”. Set to “CH4” if CH3 is
used for broadcasting in your area.
F
Final preparation for use
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or
AV mode) on the TV. You can now perform basic playback or basic
recording.
●
If you connect the TV and the VCR only using the RF
connection, press TV/VCR on the Remote so that the VCR mode
indicator lights on the display panel.
pg. 6).
墌
pg. 7).
墌
) on the VCR for more than 5 seconds. “CH3”
0
pg. 6) or “Manual
墌
—5—
Initial Settings
Language Setting
The default setting is “ENGLISH”.
A
Access Main Menu screen, then Initial
Set screen
Press MENU on the Remote. Press rt to
move the highlight bar (arrow) to “INITIAL
SET”, then press OK or
B
Select language
This VCR offers you the language choice to
view menus and some messages — in
English, Spanish or French. Press
move the highlight bar (arrow) to
“LANGUAGE”, then press OK or
repeatedly until the desired language is
selected.
Press MENU to return to normal screen.
Language selection will be reset to “ENGLISH” after a power
failure occurs.
e
.
rt
to
e
MAIN MENU
FUNCTION SET
TUNER SET
INITIAL SET
PRESS ( , ), THEN (OK)
PRESS (MENU) TO END
INITIAL SET
CLOCK SET
LANGUAGEENGLISH
GUIDE CHANNEL SET
CABLE BOX SET
DBS RECEIVER SET
SELECT WITH ( , ) AND (OK)
PRESS (MENU) TO END
C
Select D.S.T. mode
Press OK or e to move the highlight bar to “D.S.T.”, then press
rt
repeatedly until the desired setting is selected.
AUTO
: Select if you want to adjust your VCR’s clock
automatically by the incoming signal from the host
channel. (Auto Daylight Saving Time enables automatic
adjustment of the VCR’s clock at the start and end of
Daylight Saving Time.) Be sure to select the correct time
zone manually in step
ON
:Adjustment will be made by the built-in clock itself.
OFF
:Select when Daylight Saving Time does not apply to you.
D
Select time zone
Press OK or e to move the highlight bar to “TIME ZONE”, then
rt
press
selected. Each time you press the button, the time zone changes as
follows:
{
{
{
E
Press MENU to return to normal screen. Turn off the VCR. “Aut”
will appear on the display panel while the clock is being set. The
current clock time will appear automatically when the clock
setting is complete.
repeatedly until “AUTO” or the desired time zone is
AUTO { ATL ANTIC { EASTERN
MOUNTAIN { PACIFIC
(back to the beginning)
Complete Semiauto Clock Set
4444
.
{
{
ALASKA { HAWAII
CENTRAL
Clock Setting
Perform clock setting only if the clock has not been set correctly
by the Plug&Play setting or if you use a cable box.
Preparations
A
Access Main Menu screen, then Initial
Set screen
Press MENU on the Remote. Press rt to
move the highlight bar (arrow) to “INITIAL
SET”, then press OK or
B
Access Clock Set screen
Press rt to move the highlight bar
(arrow) to “CLOCK SET”, then press OK or
e
.
e
.
Setting clock semiautomatically
— Semiauto Clock Set
You can change the host channel/D.S.T. (Daylight Saving Time)/
time zone setting manually. First follow steps
“Preparations” above, then go to the following steps.
NOTE:
The time set previously will be erased when “AUTO CLOCK”,
“HOST CH”, “D.S.T.” or “TIME ZONE” setting is changed.
A
Set Auto Clock to ON
Press OK or e on the Remote repeatedly to
move the highlight bar to “AUTO CLOCK”,
then press
B
You can either select “AUTO” or enter a PBS channel number.
Press OK or
press
number is selected.
● Some PBS channels do not transmit clock setting data.
rt
so that “ON” is selected.
Select host channel
e
rt
to move the highlight bar to “HOST CH”, then
repeatedly until “AUTO” or the desired PBS channel
MAIN MENU
FUNCTION SET
TUNER SET
INITIAL SET
PRESS ( , ), THEN (OK)
PRESS (MENU) TO END
INITIAL SET
CLOCK SET
LANGUAGEENGLISH
GUIDE CHANNEL SET
CABLE BOX SET
DBS RECEIVER SET
SELECT WITH ( , ) AND (OK)
PRESS (MENU) TO END
1111 to 2222 in
CLOCK SET
TIMEDATE YEAR
– –:– – AM 1/ 1 02
AUTO CLOCK : ON
HOST CH : AUTO (CATV)
D.S.T.: AUTO
TIME ZONE : AUTO
PRESS ( , ), THEN (OK)
PRESS (MENU) TO END
Selections of host channel and D.S.T. mode will be reset to
“AUTO” after a power failure occurs.
Setting clock manually
— Manual Clock Set
First follow steps 1
following steps.
A
Set time, date and year
Press rt until the desired time appears,
then press OK or
in the same way.
● Holding
minute intervals, or changes the date in
15-day intervals.
B
Select D.S.T. mode
Press OK or e to move the highlight bar to
“D.S.T.”, then press
desired setting.
ON
: Adjustment will be made by the
built-in clock itself.
OFF
: Select when Daylight Saving Time
does not apply to you.
C
Start clock
Press MENU and normal screen appears.
To make corrections any time during the process
Press OK or
blinks, then press
Manual setting of the clock will be lost after a power failure
occurs.
1 to 2222 in “Preparations” above, then go to the
11
e
. Set the date and year
rt
changes the time in 30-
rt
to select the
e
repeatedly until the item you want to change
rt
.
— 6 —
Tuner Setting
Setting channels automatically
— Auto Channel Set
Perform Auto Channel Set only if channels have not been set
correctly by the Plug&Play setting.
A
Access Main Menu screen, then Tuner
Set screen
Press MENU on the Remote. Press rt to
move the highlight bar (arrow) to “TUNER
SET”, then press OK or
B
Perform Auto Channel Set
Press rt to move the highlight bar
(arrow) to “AUTO CHANNEL SET”, then
press OK or
band (TV or CATV) automatically during
Auto Channel Set.
● When Auto Channel Set is complete,
“SCAN COMPLETED” appears on
screen.
● If the scan was unsuccessful, “SCAN
COMPLETED–NO SIGNAL–” appears on
screen. Check the connections and start
again.
Press MENU to return to normal screen.
e
. The VCR selects the correct
Setting channels manually
— Manual Channel Set
You can add the channels you want or delete the channels you do
not want manually.
A
Access Main Menu screen, then Tuner
Set screen
Press MENU on the Remote. Press rt to
move the highlight bar (arrow) to “TUNER
SET”, then press OK or
e
.
e
.
Cable Box and/or DBS Receiver Control
Setting
The following procedure is required if you receive your TV
channels through a cable box (descrambler) and/or if you receive
satellite channels through DBS (Direct Broadcast Satellite)
receiver. The Controller allows the VCR to automatically switch
the cable box or DBS receiver’s channel during timer recording.
NOTES:
● The Controller is not supplied with this unit. It can be requested
by mailing in the completed JVC Cable Mouse Certificate that is
included with the accessory package.
● For the cable box, the Controller is effective for VCR Plus+ or
Express timer programing.
● For the DBS receiver, the Controller is effective only for Express
timer programing.
● When connecting your cable box or DBS receiver, refer to its
instruction manual.
A
Situate Controller
If both a cable box and a DBS receiver are used, position the
Controller so its signal reaches the remote sensors on both the
cable box and DBS receiver.
B
Attach Controller
Fix securely using the adhesive strip attached on the back of the
Controller.
Your VCR
C
Connect cable box and/or DBS receiver to VCR
Cable box or DBS receiver
Controller
(suggested locations)
B
Access Manual Channel Set screen
Press rt to move the highlight bar
(arrow) to “MANUAL CHANNEL SET”,
then press OK or
C
Add or skip desired channels
To add channels
Press the Number keys on the Remote
A
to input a channel number you want to
add.
Press OK or e to set to “ADD”.
B
Repeat A to B to add other channels.
C
Press MENU to return to normal screen.
To skip channels
Press rt or the Number keys to select a channel number you
A
want to skip.
Press OK or e to set to “SKIP”.
B
Repeat A and B to skip other channels. Press MENU to return
C
to normal screen.
After a power failure occurs, band selection will be reset to
“CATV”.
e
.
Cable box or DBS receiver
Transmitter
Controller
● If your cable box or DBS receiver does not have audio/video
output connectors, connect the RF output terminal on the unit to
the ANT. IN terminal on the rear of your VCR.
● If your cable box or DBS receiver has audio/video output
connectors, connect an audio/video cable between the AUDIO/
VIDEO IN connectors on the rear of the VCR and the audio/
video output connectors on the unit.
● If both a cable box and a DBS receiver are used, it is
recommended that you connect the DBS receiver to your VCR’s
AUDIO/VIDEO IN connectors and the cable box to your VCR’s
ANT. IN connector.
— 7 —
RF outAudio/video output
To ANT. IN
To AUDIO/VIDEO IN
VCR
CONTINUED ON NEXT PAGE
D
Connect Controller to VCR
Connect the Controller to the CABLE BOX Controller connector
on the rear panel.
E
Turn on cable box or DBS receiver
Select a channel other than channel 9 on your cable box, or
channels 55, 100, 205 on your DBS receiver.
F
Access Main Menu screen, then Initial Set screen on VCR
Press MENU on the Remote. Press rt to move the highlight bar
(arrow) to “INITIAL SET”, then press OK or
G
Access Cable Box Set screen or DBS
e
.
Receiver Set screen
Press rt to move the highlight bar
(arrow) to “CABLE BOX SET” or “DBS
RECEIVER SET”, then press OK or
H
Select output channel
Your selection depends on how the unit is
connected to your VCR.
● If the unit is connected to your VCR’s
ANT. IN terminal on the rear panel,
Press
rt
until the channel number
representing the cable box’s output (CH2
– CH9) or DBS receiver’s output (CH3 or CH4) appears on the
screen.
● If the unit is connected to your VCR’s AUDIO/VIDEO IN
connectors on the front panel, press
(FRONT)” appears on the screen.
● If the unit is connected to your VCR’s AUDIO/VIDEO IN
connectors on the rear panel, press
appears on the screen.
● If you do not use any unit, press
the screen.
I
Access Brand Set screen
Press OK or e.
● If the Clock Set screen appears, perform “Manual Clock Set”. If
you press MENU after the clock has been set, the Brand Set
screen appears.
e
.
rt
until “ON F-1
rt
until “ON L-1 (REAR)”
rt
until “OFF” appears on
J
Enter brand code and perform test
Press the appropriate Number keys on the
Remote to enter the brand code from the
following list, then press OK or e.
CABLE BOX BRANDCODE
ARCHER
CABLETENNA
CABLEVIEW
CITIZEN
CURTIS
DIAMOND
GC BRAND
GEMINI
GENERAL INSTRUMENTS
HAMLIN
JASCO
JERROLD
NOVAVISION
OAK
PANASONIC
PULSER
RCA
REGAL
REMBRANDT
SAMSUNG
SCIENTIFIC ATLANTA
SIGMA
SL MARX
SPRUCER
STARGATE
TELEVIEW
TOCO M
UNIKA
UNIVERSAL
VIDEOWAY
ZENITH
● Each time you press
a click position, the playback speed changes. To decrease the
speed during picture search, press the opposite direction button
repeatedly or turn the dial in the opposite direction.
● During still picture, press and hold
2
to start reverse) slow motion playback. When you release
the button, still picture resumes. During still picture, holding
PAUSE (
9
) for more than 2 seconds also starts forward slow
motion playback. If you press PAUSE (
resumes.
NOTE:
During slow motion, some noise may appear on the TV screen.
Press CH+/– on the Remote to eliminate the noise.
OR Press STOP/EJECT (
the VCR.
OR Push the JOG dial.
● Push the JOG dial again to
resume normal playback.
OR Push the JOG dial to pause,
then turn the JOG dial to the
left or right.
● Push the JOG dial again to
resume normal playback.
OR Turn the JOG dial quickly to
the left or right.
3
) or FF (5) for more than
OR Turn the JOG dial to the left
or right.
2
or 6 or each time JOG dial passes
6
to start forward (or
9
) again, still picture
24HR QUICK
PROGRAM
REC LINK
INSERT
A.DUB
pg. 11).
0
REW
) on
ReverseForward
FF
Reverse
search
2steps
Reverse
play
Reverse
slow
motion
2steps
Slow
motion
2steps
Normal
play
When the tape is not running
Rewind/fast-forward
Press REW (3) or FF
5
(
).
OR Turn the JOG dial to the left
or right.
Eject the cassette
Press STOP/EJECT (
0
).
● You can also eject the cassette when the VCR is turned off.
Whenever you insert a tape and start playback, automatic tracking
starts working and continuously analyzes the signal to enable
optimum picture quality during playback.
Manual tracking adjustment
If automatic tracking cannot eliminate noises well during
playback, follow the procedures below.
On the Remote
A
Press SP/EP during playback to activate manual tracking.
B
Press CH+/– to eliminate the noises. Press it briefly for a fine
adjustment, or press and hold for a coarse adjustment.
● Press SP/EP again to reactivate automatic tracking.
Selecting monitor sound
— Audio Monitor
While playing back a tape on which stereo sound or SAP sound is
recorded, press A.MONITOR on the Remote. Each time you press
the button, sound changes.
HI-FI: Normally select this. Hi-Fi sound is played back.
HI-FI L: Sound on the left Hi-Fi channel is played back.
HI-FI R: Sound on the right Hi-Fi channel is played back.
NORM: Sound on the normal track is played back.
NORM HI-FI: Both sounds on the Hi-Fi track and normal track are
mixed and played back.
NOTE:
The above indication appears when “SUPERIMPOSE” is set to
“ON” (
sequence.
pg. 15), though the monitor sound changes in
墌
Forward
search
3steps
—9—
Automatic operations after rewinding
— Next Function Memory
The Next Function Memory “tells” the VCR what to do after
rewinding is complete. Ensure that the VCR is in stop mode.
● For Automatic Playback Start
Press REW (
● For Automatic Power Off
Press REW (
● For Automatic Timer Standby
Press REW (
NOTE:
It is not possible to select the Automatic Timer Standby function if
the cassette’s record safety tab is removed.
3
), then press PLAY (4) within 2 seconds.
3
), then press POWER 1 within 2 seconds.
3
), then press TIMER within 2 seconds.
Locating beginning of timer recordings
— Instant Review
After ensuring that the VCR is turned off and that the timer mode is
disengaged, press REVIEW.
● The VCR turns on, and rewinds to the index code indicating the
beginning of the last timer-recorded program, then begins
playback automatically.
● You can access a program of 2 to 9 index codes away from the
current position on the tape. If, for example, you have
5 programs recorded and you want to watch the third one, press
REVIEW three times.
● The Instant Review function will also operate if the VCR is
turned on.
Playing back tape repeatedly (100 times)
— Repeat Play
During playback, press and hold PLAY (4) for more than
5 seconds. The play indicator (
blinking slowly. To stop playback, press STOP (
or STOP/EJECT (
0
$
) on the display panel starts
) on the VCR.
8
) on the Remote
Locating beginning of recordings
— Index Search
Index codes are placed on the tape at the beginning of each
recording when recording on this VCR.
A
While the tape is not running, press SHUTTLE PLUS 2 or 6
on the Remote to start search.
B
To access a recording of 2 to 9 index
codes away, press
repeatedly until the correct number is
displayed on the screen (only if
“SUPERIMPOSE” is set to “ON”
(
pg. 15)). Playback begins
墌
automatically when the desired
recording is located.
Beginning of the
current program
recorded
Previous
program
recorded
2
or 6
Current
position on
the tape
Next
program
recorded
Beginning of the
2nd next program
recorded
2nd next
Skipping unwanted portions
— Skip Search
Press SKIP SEARCH on the Remote once to 4 times during
playback. Each press initiates a 30-second period of high speed
playback (up to 2 minutes). When the specified portion of the tape
is skipped, normal playback resumes automatically. To return to
normal playback during Skip Search, press PLAY (
4
).
— 10 —
Recording
Recording Features
It may be unlawful to record or play back copyrighted material
without the consent of the copyright owner.
Accidental erasure prevention
To prevent accidental recording on a
recorded cassette, remove its record
safety tab. To record on it later, cover
the hole with adhesive tape.
Record safety tab
Basic Recording
A
Load a cassette
Make sure the record safety tab is intact. If not, cover the hole with
adhesive tape before inserting the cassette.
● The VCR turns on, and the counter on the on-screen display is
reset, automatically.
B
Select recording channel
Press
dial, then turn it to the left or right.
● If you connect the TV and the VCR only using the RF
connection, press
indicator lights on the display panel, to view the program to be
recorded.
C
Press
NOTE:
You can select tape speed in the stop mode or during recording
pause mode.
D
On the VCR, press
7
(
), press
NOTE:
If “VIDEO CALIBRATION” is set to “ON” (墌pg. 15) (default
setting), the VCR takes about 7 seconds to assess the quality of the
tape in use, then recording begins with the picture level
optimized.
During recording
Pause recording
Press
● Press
● You can select channel in the recording pause mode.
Stop recording
Press
Remote.
NOTE:
If the tape reaches its end during recording, the recording stops
and “
(0) on the VCR to eject the cassette or press REW (3) on the
Remote to rewind the tape.
CH+/–
or the
Number keys
TV/VCR
on the Remote. Or push the
on the Remote so that the VCR mode
Set tape speed
. The selected tape speed will appear on the TV screen.
SP/EP
Start recording
(7). Or on the Remote, while holding
REC
(4).
PLAY
(9).
PAU SE
4
(
PLAY
STOP
” and “$” on the display panel blink. Press STOP/EJECT

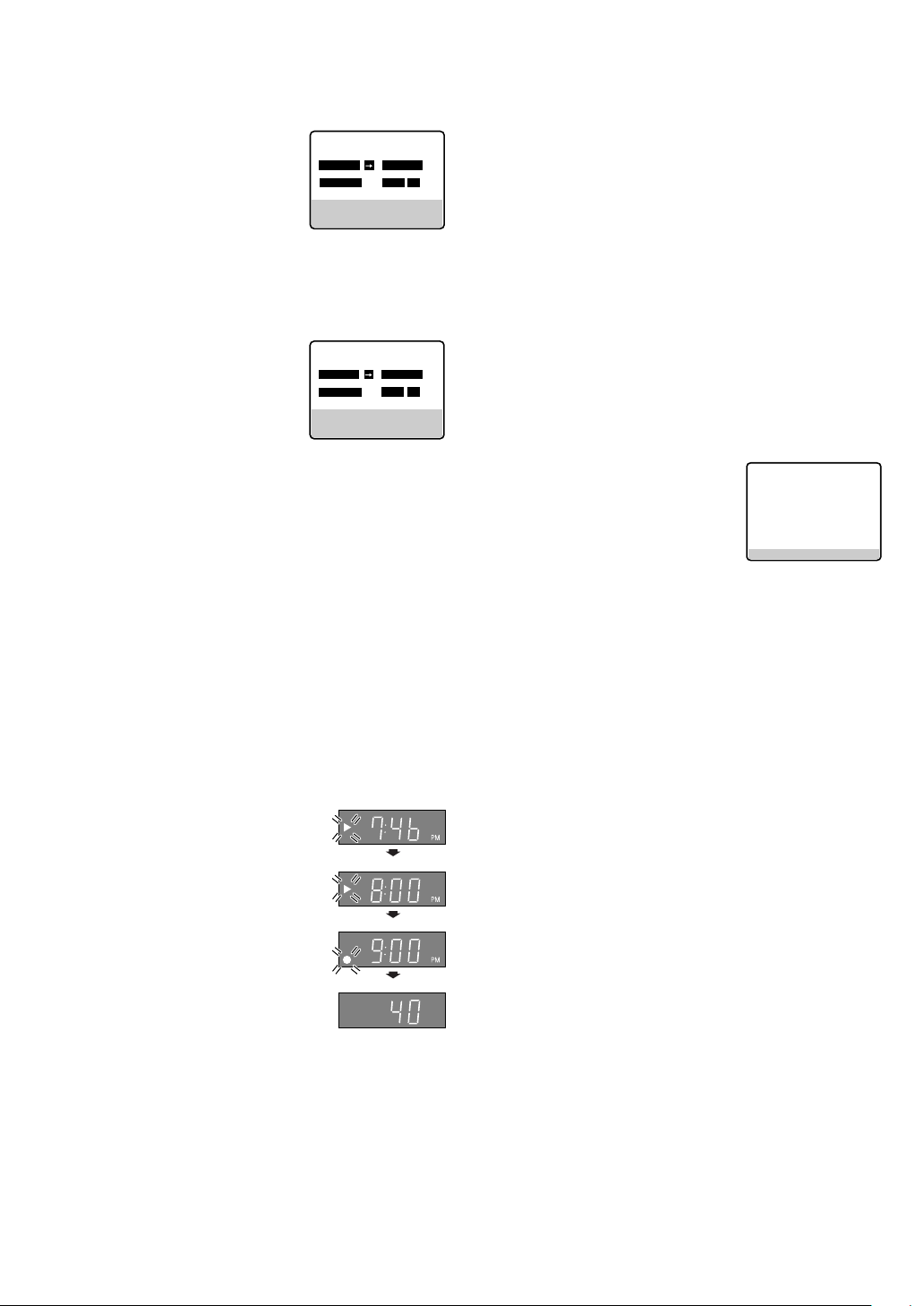

During recording, press
recording length you want appears on the display panel. The
record indicator (
● Each time you press the button, recording length increases in
30-minute intervals (up to 6 hours).
● The VCR shuts off after recording is finished.
● To cancel an ITR, press
0
(
) on the VCR.
) on the display panel starts blinking.
䡬
(7) on the VCR repeatedly until the
REC
(
8
STOP
) on the Remote or
Watching one program while recording another
During recording...
● If you connect the TV and the VCR only using the RF
connection (
on the Remote so that VCR mode indicator goes off from
VCR
the display panel. (The TV broadcast being recorded
disappears.)
● If you are using the AV connection (
from the VCR, change the TV’s input mode from AV to TV.
Then, select the channel you want to watch, on the TV.
pg. 5) to view pictures from the VCR, press
墌
pg. 5) to view pictures
墌
Second Audio Recording
This VCR’s built-in MTS decoder enables reception of
Multichannel TV Sound broadcast. To record a SAP program
received, set “2ND AUDIO RECORD” to “ON” (
墌
S-VHS (Super VHS), S-VHS ET or VHS Recording
Mode
This VCR can record in S-VHS (Super VHS), S-VHS ET or VHS.
●
To record in S-VHS:
Set “S-VHS MODE” to “ON” (
marked “S-VHS”. The S-VHS indicator lights up on the display
panel.
The S-VHS recording mode is selected.
●
To record in S-VHS ET on a VHS cassette:
Set “S-VHS ET” to “ON” (
marked “VHS”. The S-VHS indicator lights up on the display
panel.
●
To record in VHS:
Insert a cassette marked “VHS”.
Set “S-VHS ET” to “OFF” (
●
To record in VHS on an S-VHS cassette:
Insert a cassette marked “S-VHS”. The S-VHS indicator lights up
on the display panel. Then, set “S-VHS MODE” to “OFF”
(
pg. 16). The S-VHS indicator goes off.
墌
The VHS recording mode is selected.
NOTE:
When playing back a tape that has been recorded in S-VHS or
S-VHS ET, the S-VHS indicator lights up on the display panel
regardless of the “S-VHS ET” or “S-VHS MODE” setting.
(
pg. 15, 16)
墌
pg. 16). Then, insert a cassette
墌
pg. 15). Then, insert a cassette
墌
pg. 15).
墌
STOP/EJECT
TV/
pg. 15).
—11—
Timer Recording
Up to 8 timer recording programs can be made using VCR Plus+
timer programing, Express timer programing or 24HR Quick
Programing method as far as a year in advance. Remember, the
clock must be set before you can program the timer.
NOTES:
● If all the 8 programs have already been set, “PROGRAM FULL”
or “Full” appears on the TV screen or the display panel.
● After timer recording is completed, the VCR turns off
automatically.
● You can program the timer recording while a regular recording
is in progress; the menu screens will not be recorded.
● To timer-record cable or satellite channels, perform “Cable Box
and/or DBS Receiver Control Setting” and be sure to keep the
cable box or DBS receiver turned on.
● Even if a power failure occurs, the VCR keeps your timer
programs. However, the clock time, channel settings, and other
menu settings are lost. As a result, when the power is supplied
again to this VCR after the power failure, this VCR starts the
Plug&Play setting automatically to restore the clock time and
channel setting. If the clock time and channel setting are
restored correctly, each timer program you have made will start
at its start time unless its end time has elapsed.
NOTE:
If the tape reaches its end during timer recording, the recording
stops and “
TIMER to disengage timer, then press STOP/EJECT (0) on the
VCR to eject the cassette or press POWER 1 then press REW
(3) on the Remote to rewind the tape.
Changing VCR Plus+® Setting
The VCR Plus+ programing system assigns a VCR Plus+ guide
channel to the TV channels and the cable channels. These guide
channel numbers are also called the VCR Plus+ channel codes.
Most TV listings have a section, usually a chart, indicating the
guide channel numbers assigned to each station.
To ensure that VCR Plus+ timer recording operates correctly, it is
necessary to set the VCR Plus+ “Guide Channel Set” for each
station.
If you have moved to a different area or if a broadcasting station’s
channel number has been changed, perform the following steps to
set the correct guide channel number.
A
Press MENU on the Remote. Press rt to move the highlight bar
(arrow) to “INITIAL SET”, then press OK or
B
Press rt to move the highlight bar (arrow) to “GUIDE
CHANNEL SET”, then press OK or
C
Press rt or the Number keys to select the
VCR Plus+ guide channel number as
shown in the TV listing, then press OK or
e
.
D
Press rt or the Number keys to select the
number of the channel on which the guide
channel’s broadcasts are received, then
press OK or
● Repeat steps
E
Press MENU on the Remote.
#
“, “䡬” and “$” on the display panel blink. Press
Access Main Menu screen, then Initial Set screen
e
.
Access Guide Channel Set screen
e
.
Input guide channel number
Input receiving channel number
e
.
3333
4444
and
for each instance.
GUIDE CHANNEL SET
GUIDE CH : 6
VCR CH : – – –
PRESS NUMBER KEY (0–9)
OR ( , ), THEN (OK)
PRESS (MENU) TO END
GUIDE CHANNEL SET
GUIDE CH : 6
VCR CH : 47
PRESS NUMBER KEY (0–9)
OR ( , ), THEN (OK)
PRESS (MENU) TO END
Return to normal screen
VCR Plus+® Timer Programing
The PlusCode programing numbers are
the numbers next to the program in
most TV listing.
Load a cassette with the record safety
tab intact. The VCR turns on, and the
counter is reset, automatically.
A
Press PROG. on the Remote to access
the PlusCode No. screen.
PLUSCODE NO.
PRESS NUMBER KEY (0–9)
PRESS (+/–) TO SET
EXPRESS PROGRAMMING
PRESS (PROG.) TO END
B
Press the appropriate Number keys
to input the PlusCode number, then
press OK or
setting is accurate on the Program screen.
● If the Guide Channel Set screen
● To set the tape speed, press SP/EP.
● To change the stop time, press STOP+/–.
● To timer-record daily (Monday–Friday) or weekly serials,
● If you made a mistake, press CANCEL to access the PlusCode
● If an incorrect PlusCode number or the one for a broadcast
C
Press OK or PROG..
● If “PROGRAM NOT COMPLETED PROGRAM OVERLAP”
D
Press TIMER. The VCR turns off automatically and “#” is
displayed on the display panel.
e
. Check to make sure the
PLUSCODE NO.
12345678
PRESS NUMBER KEY (0–9)
PRESS (PROG.) TO END
THEN (OK)
appears after pressing OK, press the
Number keys, CH+/– or
rt
PROGRAM 1
(PLUSCODE NO. 12345678)
STARTSTOP
8:00PM10:00PM
DATECH
12/24/0212 SP
TUE
PRESS (8=DAILY, 9=WEEKLY
STOP+/– = STOP TIME, SP/EP)
PRESS (PROG.) TO END
GUIDE CHANNEL SET
to input
GUIDE CH : 12
VCR CH : – – –
the number of the channel on which
the broadcast for the PlusCode
number is received on the VCR or
cable box, then press OK.
PRESS NUMBER KEY (0–9)
OR ( , ), THEN (OK)
PRESS (PROG.) TO END
press DAI LY (M-F) (Number key “8”) or WEEKLY (Number
key “9”). Pressing the button again makes the “DAILY” or
“WEEKLY” display disappear.
No. screen again.
already finished has been inputted, “ERROR” is displayed for
about 5 seconds, then the PlusCode No. screen reappears.
appears, see “Program overlap warning display” (
墌
pg. 14).
— 12 —
Express Timer Programing
Load a cassette with the record safety tab intact. The VCR turns
on, and the counter is reset, automatically.
A
Press PROG. on the Remote to access the PlusCode No. screen.
B
Press START+/– once to access
Program screen.
Press START+/–, STOP+/–, DATE +/– or CH+/– repeatedly to enter the start
time, stop time, date or channel.
● Press and hold START+/– or STOP+/–
to increase the time in 30-minute
intervals.
● To set the tape speed, press SP/EP.
● To timer-record daily (Monday–Friday) or weekly serials,
press DAI LY (M-F) (Number key “8”) or WEEKLY (Number
key “9”). Pressing the button again makes the “DAILY” or
“WEEKLY” display disappear.
● If you are using a DBS receiver and
“DBS RECEIVER SET” is set to “ON”,
the band indication appears under
the channel number indication.
(Refer to “Cable Box and/or DBS
Receiver Control Setting” (
TV: To timer-record a regular TV
broadcast received on the VCR.
CATV: To timer-record a cable TV broadcast received on the
VCR, or through a cable box (unless “CABLE BOX
SET” is set to “OFF”).
DBS: To timer-record a satellite broadcast received through
a DBS receiver.
If the channel number entered requires that the band be set
and “7=DBS” is displayed on the screen, press DBS (Number key “7”) to select “DBS”.
C
Press OK or PROG..
● If “PROGRAM NOT COMPLETED PROGRAM OVERLAP”
appears, see “Program overlap warning display” (
D
Press TIMER. The VCR turns off automatically and “#” is
displayed on the display panel.
墌
pg. 7).)
PROGRAM 1
STARTSTOP
– –:– –AM– –:– –AM
DATECH
– –/– –/– –– – – SP
PRESS (+/–, SP/EP, 8=DAILY
9=WEEKLY), THEN (0K)
PRESS (PROG.) TO END
PROGRAM 1
STARTSTOP
8:00AM9:00AM
DATECH
12/24/02110 SP
TUEDBS
PRESS (+/–, SP/EP, 8=DAILY
9=WEEKLY, 7=DBS), THEN (0K)
PRESS (PROG.) TO END
pg. 14).
墌
24HR Quick Programing
You can program a timer recording that starts within 24 hours
using the JOG dial on the VCR.
Load a cassette with the record safety tab intact. The VCR turns
on, and the counter is reset, automatically.
A
Press 24HR QUICK PROGRAM on the VCR.
$
“
” starts blinking on the display panel.
B
Turn the JOG dial to the left or right to set
the start time.
● One click stop of the JOG dial changes
the time in 5-minute intervals.
C
Push the JOG dial. “䡬” starts blinking on
the display panel. Turn the JOG dial to the
left or right to set the stop time.
● To set the tape speed, press SP/EP. The
current setting for the tape speed appears
on the display panel for about 5 seconds.
Press SP/EP again to change the setting
while tape speed is displayed.
D
Push the JOG dial. Turn the JOG dial to the
left or right to select the channel, then press 24HR QUICK PROGRAM. The VCR turns off automatically and “
displayed on the display panel.
Start time
Stop time
Channel number
#
” is
NOTES:
● If “Err” appears on the display panel, repeat the above steps
again.
● When a menu screen is shown, you cannot use 24HR Quick
Programing function. Press MENU to return to normal screen,
and try again.
● You can use 24HR Quick Programing function also when the
VCR is turned off.
● For 24HR Quick Programing function, the program overlap
warning display does not appear even if some programs overlap
each other.
To use the VCR while it is in timer recording standby
mode
Press TIMER, then press POWER 1. After you use the VCR, press
TIMER again to put the VCR into timer recording standby mode.
Checking, canceling or changing program settings
A
Disengage timer
Press TIMER, then press POWER 1.
● When “AUTO TIMER” is set to “ON” (
have to press TIMER.
B
Access Program Check screen
Press PROG. CHECK.
C
Access Program screen
Press PROG. CHECK again. Each time you
press PROG. CHECK, the next program’s
Program screen appears.
D
Cancel or change program setting
To cancel a program, press CANCEL when the Program screen you
do not want is shown.
To change a program, press the appropriate button: START+/–,
STOP+/–, DATE+/–, CH+/–, DAILY (M-F) (Number key “8”),
WEEKLY (Number key “9”), and/or SP/EP when the Program
screen on which you want to make changes is shown.
E
Return to normal screen
Press PROG. CHECK repeatedly until no Program screen is
shown.
F
Reengage timer recording standby mode
Press TIMER. The VCR turns off automatically and “#” is
displayed on the display panel.
● When “AUTO TIMER” is set to “ON” (
recording standby mode automatically resumes when you turn
off the VCR.
If “PROGRAM NOT COMPLETED PROGRAM OVERLAP”
appears, you have another program overlapping the program you
have just made. The Program Check screen appears and
conflicting programs will start blinking.
PR START STOP CH DATE
PROGRAM NOT COMPLETED
PROGRAM OVERLAP
Example:
Program 1 (you have just made) and Program 4 overlap each other
A
Select program to modify
Press rt, then press OK or e.
● You can only select one of the
overlapping programs.
● If you do not mind this overlap, press
PROG. to finish the timer program
setting. The program starting earlier or
program with the lower program number will be recorded.
B
Cancel or change program setting
To cancel a program, press CANCEL when
the Program screen you do not want is
shown.
To change a program, press the
appropriate button: START+/–, STOP+/–,
DATE +/–, CH+/–, DAILY (M-F) (Number
key “8”), WEEKLY (Number key “9”) and/or SP/EP when the
Program screen on which you want to make changes is shown,
then press OK or
e
.
● If the overlap is not yet solved, the conflicting programs will be
shown on the Program check screen. Repeat the above steps
again.
A warning appears on the TV screen to tell
you that the timer-recording is to start in
5 minutes if you are not in the timer
recording standby mode at that time. Press
TIMER to put the VCR into timer recording
standby mode. To clear the display, press CANCEL on the Remote.
Checking tape position
When you change the VCR operation
mode from the stop mode to fast forward
or rewind mode, or when you perform an
Index Search or Instant Review, the tape
position indicator appears.
The position of “
q
” in relation to “B” (Beginning) or “E” (End)
shows you where you are on the tape.
● Set “SUPERIMPOSE” to “ON” (
墌
pg. 15).
Changing display information
Each time you press DISPLAY, the display panel
shows the channel number and the clock time
alternatively.
● You can change display in the stop or recording
mode, or during rewind/fast-forward.
● When “SUPERIMPOSE” is set to “ON”
(
pg. 15) and DISPLAY on the Remote is pressed, time
墌
counter and tape remaining time will appear on the TV screen.
To reset the time counter, press C.RESET on the Remote.
Function settings
You can use the other useful function settings on the Function Set
screen.
A
Access Main Menu screen, then
Function Set screen
Press MENU on the Remote. Press rt to
move the highlight bar (arrow) to
“FUNCTION SET”, then press OK or
B
Select Function
Press rt to move the highlight bar (arrow) to the function you
want to set.
FUNCTION
S-VHS ET
VIDEO CALIBRATIONON
PICTURE CONTROLAUTO
AUTO TIMEROFF
SUPERIMPOSEON
AUTO SP
EP TIMEROFF
NEXT PAGE
SELECT WITH ( , ) AND (OK)
PRESS (MENU) TO END
PREVIOUS PAGE
VIDEO STABILIZEROFF
OFF
BLUE BACKON
2ND AUDIO RECORDOFF
AUDIO MONITORHI-FI
S-VHS MODEON
AV COMPU-LINKON
NEXT PAGE
SELECT WITH ( , ) AND (OK)
PRESS (MENU) TO END
e
.
–WARNING–
TIMER RECORDING
TO START SOON
(CANCEL)
+++ E
B
REMAIN1:00
COUNT– 1:23:45
MAIN MENU
FUNCTION SET
TUNER SET
INITIAL SET
PRESS ( , ), THEN (OK)
PRESS (MENU) TO END
PREVIOUS PAGE
FRONT AUX INPUTVIDEO
REAR AUX INPUTVIDEO
SELECT WITH ( , ) AND (OK)
PRESS (MENU) TO END
C
Change setting
Press OK or e. The default setting is bold in the table below. Press
MENU to return to normal screen.
After a power failure occurs, Function Settings will be reset to
its default setting.
—14—
S-VHS ET
䡵
When this function is set to “ON”, you can record on VHS
cassettes with S-VHS picture quality. Tapes recorded using this
function can be played back on a S-VHS VCR equipped with the
S-VHS ET function or VHS VCR equipped with the SQPB (S-VHS
QUASI PLAYBACK) function.
When this function is set to “ON”, the S-VHS indicator lights up
on the display panel.
— ON/
OFF
NOTES:
● Before recording, set “VIDEO CALIBRATION” to “ON”.
(
See below)
墌
● You cannot activate the S-VHS ET function while recording,
timer-recording or Instant Timer Recording (
the “VIDEO CALIBRATION” function (
progress.
● The S-VHS ET function does not work with S-VHS cassettes.
● To keep the highest quality recording and playback pictures over
a long period of time, S-VHS recording on S-VHS cassettes is
recommended.
● Use of high grade tapes is recommended for S-VHS ET
recordings. On some tapes, picture quality will not improve
even if the S-VHS ET function is used. Check the recording
quality before you start important recordings.
VIDEO CALIBRATION
䡵
When this function is set to “ON”, this VCR checks the condition
of the tape in use during playback and recording, and
compensates to provide the highest-possible pictures. This takes
place whenever you play back a tape or start recording after
inserting a tape.
— ON/OFF
墌
pg. 11, 12) or
墌
See below) is in
NOTE:
The VCR checks the tape condition for about 7 seconds, then
starts recording. To make sure you record the desired scene or
program completely, perform the following steps:
Press and hold PAUS E (9), and press REC (7). After about
A
7 seconds, the VCR re-enters Record Pause mode.
Press PLAY (4) to start recording.
B
SUPERIMPOSE
䡵
When this function is set to “ON”, various VCR status information
(on-screen display) appears on the screen.
— ON/OFF
NOTE:
When you use this VCR as the playback VCR for editing a tape, be
sure to set this function to “OFF”; otherwise, the VCR status
information (on-screen display) will be recorded on the edited
tape.
AUTO SP
䡵
When this function is set to “ON”, the VCR automatically
switches to EP mode to allow complete recording if there is not
enough tape to record the entire program while timer-recording in
SP mode.
For Example, Recording a program of 140 minutes in length onto
a 120-minute tape
Approximately 110 minutesApproximately 30 minutes
EP TIMER
]
SP modeEP mode
— ON/
OFF
NOTES:
● If you have programed the VCR to timer-record 2 or more
programs, do not use this function, but change the tape speed
manually during timer programing.
● There may be some noise and sound disturbance where the tape
speed switches from SP to EP mode on the tape.
● This function is not available during ITR (Instant Timer
Recording), and will not work properly on the following tapes:
T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120.
VIDEO STABILIZER
䡵
When this function is set to “ON”, you can automatically correct
vertical vibrations in the picture when playing back unstable
recordings made on another VCR.
— ON/
OFF
NOTE:
To watch recordings with close-caption or when you finish
viewing a tape, set this function to “OFF”.
PICTURE CONTROL
䡵
This function helps you to adjust the playback picture quality
according to your preference.
AUTO
: Normally select this. Picture quality is adjusted
(NORM)
automatically. When “VIDEO CALIBRATION” is “OFF”, “NORM”
will appear instead of “AUTO”.
: Minimizes picture degradation during editing (recording and
EDIT
playback).
: Reduces image coarseness when viewing overplayed tapes
SOFT
containing much noise.
: Clearer, sharper-edged picture when viewing images with
SHARP
much flat, same-colored surfaces such as cartoons.
—
AUTO
(NORM)/EDIT/SOFT/SHARP
NOTE:
Select “EDIT” when you are editing tapes. After you finish editing
the tapes, select “AUTO”.
AUTO TIMER
䡵
● When this function is set to “ON”:
The timer recording standby mode is automatically engaged when
the VCR is turned off. It is temporarily canceled when the VCR is
turned on. You do not have to press TIMER to engage or disengage
the timer recording standby mode.
● When this function is set to “OFF”:
You have to press TIMER to engage or disengage the timer
recording standby mode.
— ON/
OFF
BLUE BACK
䡵
When this function is set to “ON”, the TV screen becomes all blue
when receiving a channel not in use.
— ON/OFF
NOTE:
When you want to receive an unstable channel with poor signals,
set this function to “OFF”.
2ND AUDIO RECORD
䡵
● When this function is set to “ON”;
If a SAP program is received, the SAP audio is recorded on both
the normal and Hi-Fi tracks. The main audio is not recorded.
If a non-SAP program is received, the main audio is recorded on
both the Hi-Fi and normal tracks.
● When this function is set to “OFF”, the SAP audio cannot be
recorded.
— ON/
OFF
NOTE:
When the channel is changed on the VCR;
● The “STEREO” indication appears on the screen for about
5 seconds if the program is a stereo broadcast.
● The “SAP” indication appears on the screen for about 5 seconds
if the program is a SAP broadcast.
● Both indications appear when a stereo program is accompanied
by SAP sound.
—15—
AUDIO MONITOR — HI-FI/HI-FI L/HI-FI R/NORM/MIX
䡵
This VCR can record two sound tracks simultaneously (normal and
Hi-Fi) on a Hi-Fi stereo tape. You can select the sound track(s) to
listen to while playing back a Hi-Fi stereo tape. In addition, when
playing back a prerecorded tape containing two separate audio
programs on the Hi-Fi tracks, you can choose either one by
selecting either “HI-FI L” or “HI-FI R”.
HI-FI
: Normally select this. Hi-Fi sound is played back.
HI-FI L
: Sound on the left Hi-Fi channel is played back.
HI-FI R
: Sound on the right Hi-Fi channel is played back.
NORM
: Sound on the normal track is played back.
MIX
: Both sounds on the Hi-Fi track and normal track are mixed
and played back.
NOTES:
● While playing back a monaural tape, sounds on the normal
track will be heard regardless of this setting.
● If RF connection (
TV, sound will be monaural even though you select “HI-FI”.
● You can also use the A.MONITOR button on the Remote to
select the desired monitor sound. (
S-VHS MODE — ON/OFF
䡵
You can determine which recording mode — either S-VHS mode
or VHS mode — is used for recording on S-VHS tapes.
● When this function is set to “ON”, you can record on S-VHS
tapes with S-VHS picture quality.
● When this function is set to “OFF”, you can record on S-VHS
tapes with VHS picture quality.
pg. 5) is used for viewing pictures on the
墌
pg. 9)
墌
NOTES:
● S-VHS mode allows you to make high quality video recordings
with horizontal resolution of 400 lines, comparing with the 230
lines of resolution of conventional VHS recordings. To achieve
the highest quality picture we recommended to record in S-VHS
mode. (But remember that a conventional VHS VCR without
SQPB cannot play back S-VHS tapes recorded in S-VHS mode.)
● S-VHS MODE setting does not affect recording on VHS tapes.
Recording on VHS tapes is always performed in VHS mode
except when using S-VHS ET mode (
AV COMPU-LINK — ON/OFF
䡵
The remote PAUSE/AV COMPULINK terminal on the rear panel
can be used as either the remote PAUSE terminal or the AV
COMPULINK terminal.
● When this function is set to “ON”, you can use this terminal as
the AV COMPULINK terminal. By connecting other JVC’s AV
COMPULINK components, including amplifiers (or receivers)
and televisions, one touch control of the audio and video
components linked via their AV COMPULINK connectors
becomes possible.
● When this function is set to “OFF”, you can use this terminal as
the remote PAUSE terminal. If your JVC camcorder is equipped
with the Master Edit Control, you can control the VCR from the
camcorder. Connect the mini-plug cable (not supplied with this
VCR) between the remote PAUSE terminal and the EDIT
connector on the camcorder.
墌
pg. 15).
NOTE:
Refer to the other components’ instruction manuals for connection
and its operations.
FRONT AUX INPUT — VIDEO/S-VIDEO
䡵
You have to select which terminal — either VIDEO (composite) or
S VIDEO (Y/C separate signals) to use as the video input terminal
on the front panel.
Make sure to select the correct terminal; otherwise, you may fail in
recording (editing) on this VCR.
REAR AUX INPUT — VIDEO/S-VIDEO
䡵
You have to select which terminal — either VIDEO (composite) or
S VIDEO (Y/C separate signals) to use as the video input terminal
on the rear panel.
Make sure you select the correct terminal; otherwise, you may fail
in recording (editing) on this VCR.
Satellite Auto Recording
You can automatically record a satellite program which is timerprogramed on your DBS receiver.
A
Connect a DBS receiver to the AUDIO/VIDEO IN connectors on
the rear panel. You can also connect the cable box if it has a timer.
B
Set timer program on DBS receiver referring to its instruction
manual.
C
Load a cassette with the record safety tab intact.
D
Press SP/EP to set the tape speed. The selected tape speed will
appear on the TV screen.
E
Press REC LINK for more than 2 seconds. The VCR turns off
automatically and enter the Satellite Auto Recording standby
mode (the REC LINK lamp lights). When signals come into the
VCR from the DBS receiver, the VCR starts recording (the REC
LINK lamp blinks), and stops recording and goes off when
signals stop coming in.
NOTES:
● Be sure not to turn on the DBS receiver before the program starts
broadcasting; otherwise, the VCR will start recording when the
DBS receiver is turned on.
● To disengage the Satellite Auto Recording standby mode, press
REC LINK (the REC LINK lamp goes off).
● Depending on the type of satellite receiver, Satellite Auto
Recording may not be compatible.
Child Lock
You can disable the VCR operations. While the VCR is turned on,
press and hold POWER 1 on the Remote
10 seconds. The VCR turns off, “CL” appears for about 5 seconds
on the display panel.
To release the child lock, press and hold POWER 1 on the
Remote until the VCR turns on.
NOTES:
● Pressing TIMER during timer recording, unplugging the AC
power cord or a power outage also releases the child lock.
● When the child lock function is in use, keep the Remote out of
the children’s reach.
● Timer recording programs will be performed even if the child
lock function activated.
for more than
— 16 —
Multi-Brand Remote Control
This Remote can control some functions of remote controllable
TVs, cable boxes or DBS (Direct Broadcast Satellite) receivers
listed below. Without setting, you can control a JVC TV.
NOTES:
● Some unit’s brands have more than one code. If the unit does
not function with a specified code, try other codes.
● Depending on the type of unit, some or all functions cannot be
operated using this Remote.
● It is not possible to operate a unit not equipped with a remote
sensor.
● It is not possible to set the Remote for both your cable box and a
DBS receiver at the same time.
● Once you have set the Remote to operate the unit, you do not
have to set it until you replace the batteries from the Remote.
● If the batteries of the Remote are discharged, the Remote may
not be able to control the TV, cable box or DBS receiver.
Replace the batteries.
TV Brand Setting
A
Turn o n TV
Turn on the TV using the Power button on the TV or its Remote.
B
Set TV brand code
Press and hold TV.
A
Press MBR SET.
B
Press the Number keys to enter your TV’s brand code.
C
Press OK, and release TV. The TV should turn off.
D
C
Operate TV
While holding down TV, press one of the following buttons:
POWER 1, TV/VCR, TV CH+/–,
and the Number keys.
● For some brands, you must press ENTER after having pressed the
Number keys to enter a channel number.
TV BRANDCODETV BRANDCODE
JVC
HITACHI
MAGNAVOX
MITSUBISHI
PANASO NIC
RCA
SHARP
01, 03
10
02
03
04, 11
05
06
Cable Box or DBS Receiver Brand Setting
A
Turn on cable box or DBS receiver
Turn on the cable box or DBS receiver using the Power button on
the unit or its Remote.
B
Enter brand code
Press and hold CABLE/DBS.
A
Press MBR SET.
B
Press the Number keys to enter your cable box’s (or DBS
C
receiver’s) brand code.
Press OK, and release CABLE/DBS.
D
C
Operate cable box or DBS receiver
While holding down CABLE/DBS, press one of the following
buttons: POWER 1, TV CH+/–, and the Number keys.
● For some brands, you must press ENTER after having pressed the
Number keys to enter a channel number.
● To change the cable box’s (or DBS receiver’s) channels, press TV
CH+/– or the Number keys. (The CH+/– button can be used to
change the VCR’s channels only.)
^
(TV Muting), TV VOL+/–,
SONY
SAMSUNG
SANYO
SEARS
TOSHIBA
ZENITH
07
12
13
13
08
09
CABLE BOX BRANDCODE
ARCHER
CABLETENNA
CABLEV IEW
CITIZEN
CURTIS
DIAMOND
GC BRAND
GEMINI
GENERAL INSTRUMENTS
HAMLIN
JASCO
JERROLD
NOVAVISION
OAK
PANASO NIC
PULSER
RCA
REGAL
REMBRANDT
SAMSUNG
SCIENTIFIC ATLANTA
SIGMA
SL MARX
SPRUCER
STARGATE
TELEVIEW
TOCOM
UNIKA
UNIVERSAL
VIDEOWAY
ZENITH
DBS RECEIVER BRANDCODE
JVC (DISH Network)
ECHOSTAR (DISH Network)
SONY (DSS)
RCA (DSS)
This Remote is capable of transmitting two control codes; one set
to respond to A code control signals and another set to respond to
B code control signals. This Remote control is preset to send A
code signals because your VCR is initially set to respond to A code
signals. You can easily modify your VCR and the Remote to
respond to B code signals. When using two JVC VCRs, set two
VCRs and their Remotes to different codes, so that you can
operate these VCRs separately.
A
Set remote control code for Remote
Press and hold A/B.
A
Press the Number key“2”.
B
Press OK, and release A/B.
C
● The Remote now can transmit B code control signals.
B
Check remote control code for VCR
Press and hold 4 on the VCR for more than 5 seconds while the
VCR is turned off. The code currently set appears on the display
panel.
C
Change code for VCR
Press any key on the Remote. The VCR now responds to B code
control signals.
● To set the Remote and the VCR back to A code control signals,
repeat the same procedure as shown above except pressing the
Number key“1” in step B of
To control two VCRs with the same Remote
You can control two JVC VCRs by switching the remote control
code for the Remote between A and B (
VCRs to different control codes.
● To change only the remote control code for the Remote, DO
NOT perform steps
BBBB and CCCC.
1111
.
step A
A), keeping two
墌
AA
— 17 —
Editing
Example 3: When another VCR is S-VHS VCR and when using
this VCR as the recording VCR
Editing with Another VCR
You can use your VCR as the playback or recording VCR. You can
use a camcorder as the playback VCR and your VCR as the
recording VCR. Refer also to the other components’ instruction
manuals for connection and its operations.
A

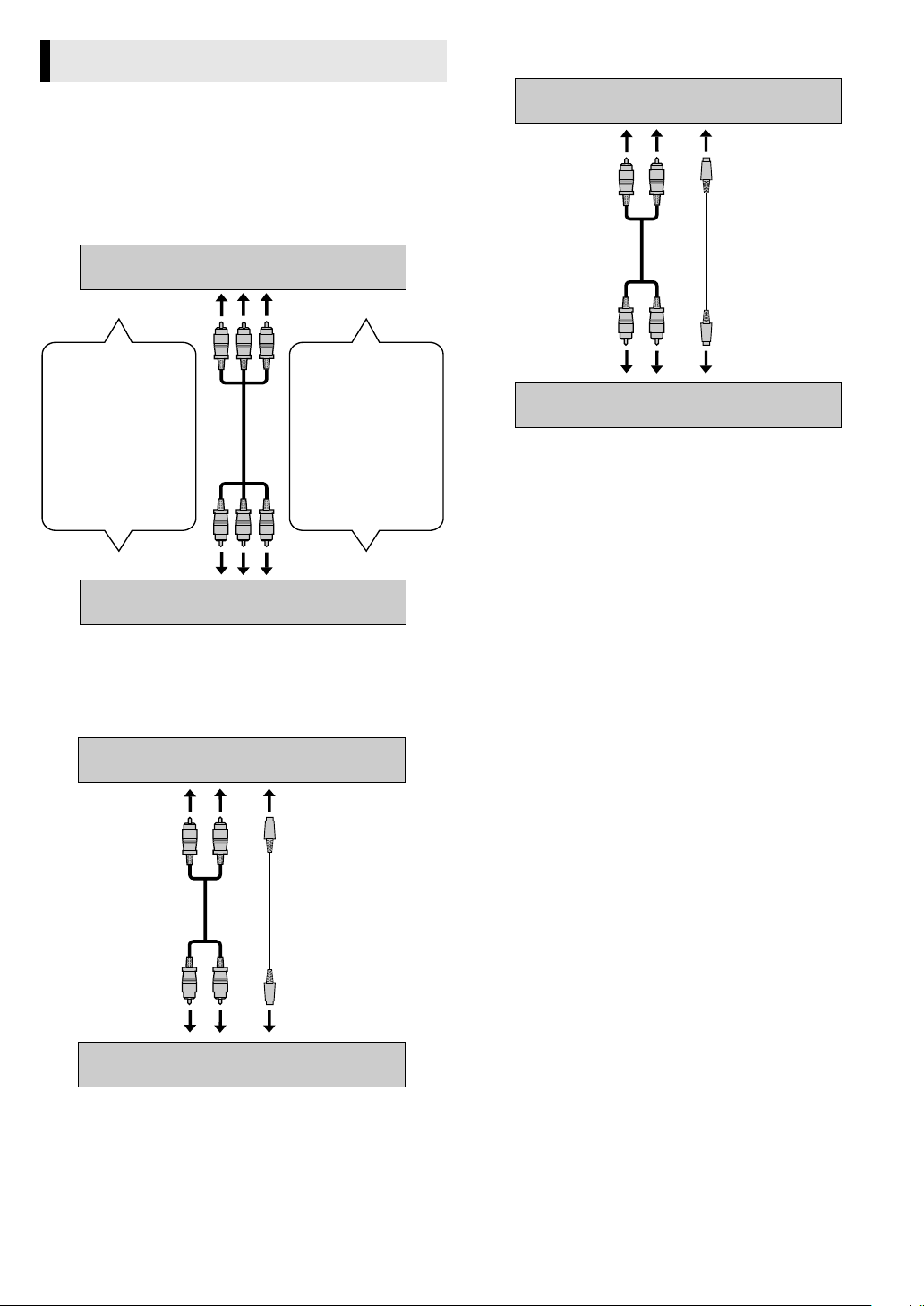

Make connections
Example 1: When another VCR is VHS VCR
This VCR
To AUDIO/VIDEO IN
When using this VCR
as the recording VCR,
connect this VCR’s
AUDIO/VIDEO IN
connectors to the
audio/video output
connectors on another
VCR.
To audio/video output
Another VCR
● If another VCR is monaural, connect this VCR’s AUDIO L IN (or
OUT) connector to the audio output (or input) connector on
another VCR.
Example 2: When another VCR is S-VHS VCR and when using
this VCR as the playback VCR
This VCR (for playback)
To AUDIO OUT
Audio cable
(not supplied)
To audio input
To AUDIO/VIDEO OUT
When using this VCR
as the playback VCR,
connect this VCR’s
AUDIO/VIDEO OUT
connectors to the
audio/video input
connectors on another
VCR.
To audio/video input
To S-VIDEO OUT
S-video cable
(supplied)
To S-video input
This VCR (for recording)
To AUDIO input
Audio cable
(not supplied)
To audio output
Another VCR (for playback)
B
Load cassettes
Insert the playback cassette into the playback VCR and the
cassette to be recorded on into the recording VCR.
C
Select input mode on recording VCR
Select the correct external input on the recording VCR.
On this VCR (when using this VCR as the recording VCR);
Select “L-1” — when connecting the other VCR to the audio/video
Select “F-1” — when connecting the other VCR to the audio/video
Press AUX or CH+/– on the Remote. Or push the JOG dial, then
turn it to the left or right.
D
Select video input connector on recording VCR
When using this VCR as the recording VCR, select the appropriate
mode depending on the connector being used (
When using S-VIDEO input connector on the front panel, set
“FRONT AUX INPUT” to “S-VIDEO”.
When using S-VIDEO IN connector on the rear panel, set “REAR
AUX INPUT” to “S-VIDEO”.When using VIDEO input connector on the front panel, set
“FRONT AUX INPUT” to “VIDEO”.
When using VIDEO IN connector on the rear panel, set “REAR
AUX INPUT” to “VIDEO”.
E
Select edit mode
Set the edit mode to “ON” for the VCRs if such a mode is
equipped.
● On this VCR, set “PICTURE CONTROL” to “EDIT” (
F
Start playback
Press PLAY (4) on the playback VCR.
G
Start recording
Press REC (7) on the recording VCR.
(or S-video) input connectors on the rear panel.
(or S-video) input connectors on the front panel.
To S-VIDEO input
S-video cable
(supplied)
To S-video output
pg. 16).
墌
墌
pg. 15).
Another VCR (for recording)
— 18 —
Various connection for editing tapes
The following three methods can be used for editing tapes.
● VHS to S-VHS editing (VIDEO-VIDEO connection):
Although the picture quality is inherently limited by the original
VHS quality, the edited tape has better picture quality than
those made by VHS-to-VHS editing.
● S-VHS to VHS editing (VIDEO-VIDEO connection):
Since the original source is recorded in S-VHS mode, the edited
tape has better picture quality than those made by VHS-to-VHS
editing.
● S-VHS to S-VHS (S-VIDEO connection):
Original picture quality of S-VHS made can be duplicated with
minimal picture degradation. This is the best editing method
you can use on S-VHS VCRs.
NOTES:
● When monitoring the sound during Audio Dubbing, the normal
soundtrack is automatically selected. If you wish to hear the
Hi-Fi or mixed sound (Hi-Fi + normal soundtracks), press
A.MONITOR to select “NORM HI-FI”. (
monitor sound”)
● Audio Dubbing stops automatically when the counter reaches
“0:00:00”, and the VCR enters the Play mode. Check the
counter reading on the screen before dubbing.
● Audio Dubbing is not possible with a cassette whose record
safety tab has been removed.
● When playing back an audio-dubbed tape, press A.MONITOR
to select the soundtrack you wish to hear. (
monitor sound”)
pg. 9, “Selecting
墌
pg. 9, “Selecting
墌
Audio Dubbing
Audio Dubbing replaces the normal audio sound of a previously
recorded tape with a new soundtrack.
A
Make connections
Connect an audio cable between the VCR’s audio input
connectors and the audio component’s audio output connectors.
● When connecting a monaural audio component, use only the
VCR’s AUDIO L input connector.
● Audio Dubbing is possible by using the audio input connectors
on the front panel or on the rear panel.
This VCR
To AUDIO input
To AUDIO output
CD player, etc.
B
Select input mode
Select “F-1” —when connecting the audio component to the
Select “L-1” —when connecting the audio component to the
Press AUX or CH+/– on the Remote. Or push the JOG dial, then
turn it to the left or right.
C
Locate start point, and engage Audio Dubbing mode
Load a cassette and press PLAY (4) on the VCR. Press PAU SE (9)
at the point where you want to start dubbing, then press A.DUB.
● The VCR enters the Audio Dubbing Pause mode. “
and “$” lights on the display panel.
D
Start dubbing
Engage the Play mode of the audio component, then press PLAY
(4) on the VCR. Audio Dubbing begins at this point.
● To pause dubbing, press PAUSE (9). Press PLAY (4) to resume
dubbing.
E
End Audio Dubbing
Press STOP (8) on the Remote or STOP/EJECT (0) on the VCR,
then engage the Stop mode of the audio component.
audio input connectors on the front panel.
audio input connectors on the rear panel.
䡬
” blinks
Insert Editing and AV Dubbing
Insert Editing:
You can replace a recorded scene with new scene recorded on
another tape or with other material. Both the picture and the
sound recorded on the Hi-Fi sound track are replaced at the same
time.
AV Dubbing:
You can perform Audio Dubbing and Insert Editing at the same
time. This means that the picture and the sounds recorded on the
Hi-Fi sound track and on the normal track are replaced at the
same time.
● For AV Dubbing, you can edit pictures and sound using different
sources; connect a video source to the video input connector,
and an audio source to the audio input connectors.
A
Make connections
Connect an audio/video cable between the VCR’s audio/video
input connectors and the other component’s audio/video output
connectors.
● Insert Editing and AV Dubbing are possible by using the audio/
video input connectors on the front panel or on the rear panel.
This VCR (for recording)
To AUDIO/VIDEO IN
Audio/video cable
(not supplied)
To audio/video output
Another VCR (for playback)
B
Select input mode
Select “F-1” —when connecting the other component to the
Select “L-1” —when connecting the other component to the
Press AUX or CH+/– on the Remote. Or push the JOG dial, then
turn it to the left or right.
audio/video input connectors on the front panel.
audio/video input connectors on the rear panel.
To S-VIDEO IN
S-video cable
(supplied)
To S-video output
— 19 —
CONTINUED ON NEXT PAGE
C
Select video input connector
Select the appropriate mode depending on the connector being
used (
When using S-VIDEO input connector on the front panel, set
“FRONT AUX INPUT” to “S-VIDEO”.
When using S-VIDEO IN connector on the rear panel, set “REAR
AUX INPUT” to “S-VIDEO”.
When using VIDEO input connector on the front panel, set
“FRONT AUX INPUT” to “VIDEO”.
When using VIDEO IN connector on the rear panel, set “REAR
AUX INPUT” to “VIDEO”.
D
Set the edit mode to “ON” for the VCRs if such a mode is
equipped.
●
E
Load the cassette to be edited into the VCR and press PLAY (4),
then press PAUSE (9) when you find the end of the scene for
which you want to edit.
Press C.RESET so that the counter reading becomes “0:00:00”.
F
Press REW (3), then press PAUSE (9) when you find the
beginning of the scene for which you want to edit, then press
INSERT.
●
●
G
Load the source cassette and engage the Play mode of the other
component, then press PLAY (4) on the VCR. Insert Editing begins
at this point.
●
pg. 16).
墌
Select edit mode
On this VCR, set “PICTURE CONTROL” to “EDIT” (
墌
pg. 15).
Locate end point
Locate start point, and engage Insert Editing mode
The VCR enters the Insert Editing Pause mode. “
light on the display panel.
If you want to perform AV Dubbing and replace the picture,
Hi-Fi audio soundtrack and normal audio soundtrack all at the
same time, after you press INSERT, press A.DUB also.
” and “$”
䡬
Start editing
Insert Editing stops automatically when the counter reaches
“0:00:00”, and the VCR enters the Play mode.
To stop editing any time during recording
Press STOP (8) on the Remote or STOP/EJECT (0) on the
VCR, then engage the Stop mode of the other component.
NOTES:
●
Insert Editing is not possible with a cassette whose record safety
tab has been removed.
●
The recording speed (SP/EP) is determined by the previous
recording to be replaced. If the recording speed changes on the
tape to be edited while editing the tape, the inserted picture will
be distorted where the recording speed changes.
●
When you edit a tape, a small portion of the recording
preceding to the editing start point will be erased from the
edited tape.
Specifications
GENERAL
Power requirement: AC 120 Vd, 60 Hz
Power consumption
Power on: 17 W
Power off: 1.5 W
Te m pe r at u r e
Operating: 5°C to 40°C (41°F to 104°F)
Storage: –20°C to 60°C (–4°F to140°F)
Operating position: Horizontal only
Dimensions (W x H x D) : 435 mm x 94 mm x 247 mm
Weight: 2.8 kg (6.2 lbs)
Format: S-VHS/VHS NTSC standard
Maximum recording time
SP: 210 min. with ST-210 video cassette
EP: 630 min. with ST-210 video cassette
VIDEO/AUDIO
Signal system: NTSC-type color signal and EIA
Recording/Playback
system
Signal-to-noise ratio: 45 dB
Horizontal resolution
VHS: 230 lines
S-VHS: 400 lines
Frequency range
Normal audio: 70 Hz to 10,000 Hz
Hi-Fi audio: 20 Hz to 20,000 Hz
Input/Output: RCA connectors (IN x 2, OUT x 1)
TUNER
Tuning system : Frequency-synthesized tuner
Channel coverage
VHF: Channels 2–13
UHF: Channels 14–69
CATV: 113 Channels
RF output: Channel 3 or 4 (switchable; preset to
(17-3/16" x 3-3/4" x 9-3/4")
monochrome signal, 525 lines/
60 fields
: DA-4 (Double Azimuth) head helical
scan system
S-video connectors (IN x 2, OUT x 1)
Channel 3 when shipped) 75 ohms,
unbalanced
TIMER
Clock reference: Quartz
Program capacity: 1-year programmable timer/
Memory backup for timer is not supported.
8 programs
ACCESSORIES
Provided accessories: Infrared remote control unit,
“AA” battery x 2,
S-video cable (4-pin),
RF cable (F-type)
Specifications shown are for SP mode unless specified otherwise.
E. & O.E. Design and specifications subject to change without
notice.
—20—
Troubleshooting
Before requesting service, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this
can save you from the trouble of sending your VCR off for repair.
Power
SYMPTOMPOSSIBLE CAUSECORRECTIVE ACTION
The power will not come
on.
The clock works, but the
VCR’s power will not come
on.
The Remote will not
function.
Playback
SYMPTOMPOSSIBLE CAUSECORRECTIVE ACTION
The tape is running but the
picture will not appear.
Recording
● The AC power cord is disconnected.● Connect the AC power cord.
● The Child Lock function is activated.● Press and hold POWER 1 for more than
● The VCR is in the timer recording standby mode
with “AUTO TIMER” set to “OFF” (
● The Child Lock function is activated.● Press and hold POWER 1 for more than
● The batteries are discharged.● Replace batteries.
● The VCR is in the timer recording standby mode. ● Press TIMER to disengage the timer.
● Remote control A/B code is wrong.● Reset A/B code. (
● If the RF connection (墌pg. 5) is used to view the
picture, the channel on the TV is set incorrectly.
● If the AV or S-video connection (
to view the picture, the TV receiver is set to the
wrong mode.
pg. 15).
墌
pg. 5) is used
墌
10 seconds to release the Child Lock function.
(
pg. 16)
墌
● Press TIMER to disengage the timer.
10 seconds to release the Child Lock function.
(
pg. 16)
墌
pg. 17)
墌
● Select channel 3 or 4 on the TV.
● Select the AV mode on the TV.
SYMPTOMPOSSIBLE CAUSECORRECTIVE ACTION
Recording will not start.● There is no cassette loaded.● Insert a cassette on which the record safety tab is
● The loaded cassette has had its record safety tab
removed.
intact.
● Remove the cassette and cover the hole with
adhesive tape, or load a cassette on which the
record safety tab is intact.
Timer Recording
SYMPTOMPOSSIBLE CAUSECORRECTIVE ACTION
Timer recording will not
work.
Timer programing will not
work.
Timer recording begins as
scheduled, but the channel
is always incorrect.
You moved, and now VCR
Plus+ system does not
work properly
● The clock and/or the timer program have been set
incorrectly.
● The timer is not engaged.● Press TIMER to engage the timer and make sure
● The VCR has not been set up properly.● Re-perform the set-up procedures. Make sure you
● Timer recording is in progress.● Timer programing cannot be performed when
● Even though you do not use an external cable box
or DBS receiver, “CABLE BOX SET” is set to “ON”
or “DBS RECEIVER SET” is set to “ON”.
● The receivable stations in the new area are
received on different channels than those in the
previous area.
● Set the clock and/or timer program correctly.
that # appears on the display panel.
have compensated for guide channel and VCR or
cable box channel number mismatches. (
timer recording is in progress. Wait until it finishes.
● Set “CABLE BOX SET” to “OFF” or “DBS RECEIVER
SET” is set to “OFF”. (
● Re-perform the procedure in “Changing VCR
®
Plus+
Setting” (墌pg. 12).
墌
pg. 8)
墌
pg. 12)
Other Problems
SYMPTOMPOSSIBLE CAUSECORRECTIVE ACTION
The channel cannot be
changed.
Even though Auto or
Semiauto Clock Set has
been performed, the clock
is incorrect.
● Recording is in progress.● Press PAUSE (9) to pause the recording, change
● The clock setting data received from the host
channel is incorrect.
channels, then press PLAY (4) to resume
recording.
● Select a different host channel during Semiauto
Clock Set (
(
pg. 6).
墌
pg. 6), or perform Manual Clock Set
墌
—21—
FOR SERVICING (Only in U.S.A.)
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1-800-537-5722
http://www.jvc.com
Dear Customer,
In order to receive the most satisfaction from your purchase, please read the instruction booklet before operating the
unit. In the event that repair is necessary, or for the address nearest your location within the Continental United
States, please call 1-800-537-5722 for your nearest authorized servicer or visit our website at www.JVC.com.
Remember to retain your Bill of Sale for Warranty Service.
— JVC
JVC SERVICE & ENGINEERING
COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and
production of the wide array of JVC products, service is the key to maintaining the high level performance for which
JVC is world famous. The JVC service and engineering organization stands behind our products.
NATIONAL HEADQUARTERS
JVC SERVICE & ENGINEERING COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
10 New Maple Avenue
Pine Brook, NJ 07058-9641
ACCESSORIESDon’t service the product yourself.
To purchase accessories for your JVC product, you
may contact your local JVC Dealer.
From the 48 Continental United States call toll free:
1-800-882-2345 or on the web at www.JVC.com
CAUTION
To prevent electrical shock, do not open the cabinet.
There are no user serviceable parts inside.
Please refer to qualified service personnel for repairs.
— 22 —
WARRANTY (Only in U.S.A.)
LIMITED WARRANTY
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL
PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail
purchase for the period as shown below. (“The Warranty Period”)
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN
COMMONWEALTH OF PUERTO RICO.
CONSUMER VIDEO 1-90
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and
replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for
replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC
authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are
covered on an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service
center, please call toll free: (800) 537-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill
of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be
given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation,
lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such
service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered,
tampered with, defaced or removed;
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner’s Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);
There are no other express warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED
TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER
DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO
TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty
lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have
other rights which vary from state to state.
JVC COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF
REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.
1700 Valley Road
Wayne, New Jersey 07470
For customer use:
Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this
information for future reference.
