JVC HR-S4500U User Manual

VIDEO CASSETTE RECORDER
HR-S4500U
MBRSET
CABLE/
DBS
A/B
TV
POWER
TV/VCR
DISPLAY
ENTER/OSD
123
2
456
DBS
DAILY(M-F)
WEEKLY
89
7
AUX
C. RESET
4
CANCEL
TIMER
0
START STOP DATE
CH
EXPRESS PROGRAMMING
PROG
SP/EP SKIP SEARCH
PROG
1
REW
REC
MENU
T
V
V
O
L
REMOTE CONTROL UNIT
CHECK
MULTI BRAND
PLAY
FF
STOP
PAUSE
3
OK
C
H
V
+
T
TIME SCAN
+
L
O
V
V
T
T
H
V
C
MENU OK
POWER
(MONO)
VIDEO
L –AUDIO– R
S-VHS ET
CH
REC LINK
SP
VCR
PAUSE
REC
STOP/EJECT
INSERT
REW
PLAY
A.DUB
FF
JOG
SHUTTLE
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.
Model No. Serial No.
LPT0025-001C
2 EN
Dear Customer,
Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.
Failure to heed the following precautions may result in
CAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC 120V`, 60Hz only. To prevent electric shocks and fire hazards, DO NOT use any other power source.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
damage to the VCR, remote control or video cassette.
1. DO NOT place the VCR . . .
... in an environment prone to extreme temperatures or
humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are
generated. ... on a surface that is unstable or subject to vibration.
2. DO NOT block the VCR’s ventilation openings.
3. DO NOT place heavy objects on the VCR or remote control.
4. DO NOT place anything which might spill on top of the VCR or remote control.
5. AVOID violent shocks to the VCR during transport.
**MOISTURE CONDENSATION
Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensa­tion may occur, keep the VCR’s power turned on for a few hours to let the moisture dry before inserting a tape.
**ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or inter­rupted. Be sure to contact your nearest JVC dealer if such troubles occur.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
CAUTION:
Changes or modifications not approved by JVC could void user's authority to operate the equipment.
VCR Plus+C3 and PlusCode are trademarks of Gemstar Develop­ment Corporation. The VCR Plus+ system is manufactured under licen se from Gemstar Development Corporation.
TM
DSS
is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. PRIMESTAR is a registered service mark of Primestar Partners, L.P. DISH Network Echostar Communications Corporation.
MOVIE ADVANCETM is a trademark of SRT, Inc. A Jerry Iggulden invention licensed in association with Arthur D. Little Enter­prises, Inc.
n Cassettes marked "S-VHS" and "VHS" can be used with this
video cassette recorder. However, S-VHS recordings are possible only with cassettes marked "S-VHS". By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this VCR.
n As an ENERGY STAR® Partner, JVC has determined that this
product or product model meets the ENERGY STAR® guidelines for energy efficiency.
TM
is a trademark of
EN 3
IMPORTANT PRODUCT SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.
ATTENTION:
Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
5. V entilation
Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
• Do not block the openings by placing the product on a bed,
sofa, rug or other similar surface.
• Do not place the product in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
ANTENNA INSTALLATION INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT (NEC SECTION
ELECTRIC SERVICE EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
4 EN
USE
1. Accessories
To avoid personal injury:
• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.
• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.
• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.
2. Product and Cart Combination
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Water and Moisture
Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short­out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
PORTABLE CART WARNING (Symbol provided by RETAC)
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a.When the power supply cord or plug is damaged. b.If liquid has been spilled, or objects have fallen into the
product. c.If the product has been exposed to rain or water. d.If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation. e.If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION MANUAL
All major sections and subsections are listed in the Table Of
Contents on page 5. Use this when searching for information
on a specific procedure or feature.
The Index on pages 65–68 lists frequently-used terms, and the
number of the page on which they are used or explained in
the manual. This section also illustrates the controls and
connections on the front and rear panel, the front display
panel and the remote control.
The Z mark signals a reference to another page for
instructions or related information.
Operation buttons necessary for the various procedures are
clearly indicated through the use of illustrations at the
beginning of each major section.
BEFORE YOU INSTALL YOUR NEW VCR . . .
. . . please read the sections/literature listed below.
”Cautions” on page 2
”Important Products Safety Instructions” on the previous pages
CONTENTS
NSTALLING YOUR NEW VCR 6
I
Connections ...........................................6
Basic Connections .....................................................6
S-Video Connection...................................................7
NITIAL SETTINGS 8
I
Plug & Play .................................................. 8
Language ................................................... 10
Clock ..........................................................11
Preparation ..............................................................11
Semi-Auto................................................................12
Manual ....................................................................13
Tuner .......................................................... 14
Set Receivable Channels..........................................14
Add Or Delete A Channel........................................15
Cable Box Control....................................... 16
Situate And Connect Controller ...............................16
Set Cable Box Output Channel &
Cable Box Brand......................................................17
DBS Receiver Control................................... 19
Situate And Connect Controller ...............................19
Set DBS Receiver Output Channel &
DBS Receiver Brand ................................................20
IMPLE PLAYBACK AND
S
RECORDING 22
Simple Playback ......................................... 22
Simple Recording ........................................ 23
LAYBACK AND RECORDING FEATURES 24
P
Playback Features ...................................... 24
Still Picture/Frame-By-Frame Playback .....................24
Slow Motion/Reverse Slow Motion ..........................24
Index Search............................................................25
High-Speed Search ..................................................25
Manual T racking ......................................................25
Video Stabilizer .......................................................26
Instant ReView.........................................................27
Repeat Playback ......................................................27
Counter Reset ..........................................................27
Tape Position Indicator ............................................27
Next-Function Memory............................................27
Superimpose............................................................28
Select The Soundtrack..............................................29
Movie Advance........................................................30
AV COMPU LINK Playback .....................................31
Active Video Calibration ............................. 32
Preparation ..............................................................32
Recording ................................................................33
Playback..................................................................33
Recording Features .....................................34
Record One Program While Watching Another........34
Display Elapsed Recording Time ..............................34
Display T ape Remaining Time ..................................34
S-VHS (Super VHS), S-VHS ET and VHS ...................35
Super VHS ET ..........................................................36
Stereo And SAP (Second Audio Program) .................37
To Record SAP Programs..........................................37
EN 5
Time Scan ................................................... 38
Variable-Speed Search/Reverse Motion Playback .....38
Skip Search..............................................................39
Time Scan Audio......................................................40
IMER RECORDING 41
T
VCR Plus+ Timer Programming ................... 41
VCR Plus+ Setup ......................................... 43
Express Timer Programming .......................45
Check, Cancel And Revise Programs........................47
Auto SPEP T imer...................................................48
Auto T imer ...............................................................48
Instant Timer Recording (ITR)....................... 49
Automatic Satellite Program Recording ....... 50
DITING 51
E
Edit To Or From Another VCR ...................... 51
Edit From A Camcorder ............................... 52
Insert Editing .............................................. 54
Audio Dubbing ........................................... 56
PECIAL FEATURES 57
S
TV Multi-Brand Remote Control ..............................57
Cable Box Multi-Brand Remote Control...................58
DBS Receiver Multi-Brand Remote Control..............59
Child Lock ...............................................................60
Control T wo JVC VCRs .............................................60
ROUBLESHOOTING 61
T
Power ........................................................ 61
Tape Transport ............................................ 61
Playback ....................................................61
Recording ................................................... 61
Timer Recording.......................................... 62
Other Problems .......................................... 63
UESTIONS AND ANSWERS 64
Q
Playback ....................................................64
Recording ................................................... 64
Timer Recording.......................................... 64
NDEX 65
I
List Of Terms............................................... 65
Front View.................................................. 66
Rear View .................................................. 67
Front Display Panel..................................... 67
Remote Control ........................................... 68
PECIFICATIONS 69
S
OR SERVICING (Only in U.S.A.) 70
F W
ARRANTY (Only in U.S.A.) 71
6 EN
INST ALLING YOUR NEW VCR
Basic Connections
Connections
Antenna or Cable
Coaxial Cable
Flat Feeder
AC Outlet
AC Power Cord
Back of VCR
Audio/Video Cable (supplied)
TV
Matching Transformer (Not supplied)
75 ohm terminal
Back of VCR
NOTES:
The VCR channel is the channel on the TV which will display the audio and video signals from the VCR. The VCR's CH3­CH4 switch, on the back of the VCR, sets the VCR channel to CH3 or CH4.
The CH3–CH4 switch is preset to the CH3 position. Set to CH4 if CH3 is used for broadcasting in your area and set the channel on the TV to correspond to the VCR's CH3– CH4 switch setting.
If you are connected to the TV using the RF connector, you may need to press CH U P and then CH DO WN on the TV when switching between the TV and VCR input modes, to maintain good picture quality.
Even if you are using AV cables to connect your VCR to your TV, you must also connect it using the RF cable. This will ensure that you can record one show while watching another (Z pg. 34).
For full identification of the VCR's rear panel, refer to the Index (REAR VIEW Z pg. 67).
ANTENNA IN (Antenna or Cable input)
TV OUT
RF Cable (supplied)
CH3
CH4
CHECK CONTENTS
Make sure the package contains all of the accessories listed in “SPECIFICATIONS” (Z pg. 69).
1
SITUATE VCR
Place the VCR on a stable, horizontal surface.
2
CONNECT VCR TO TV
The connection method you use depends on the type of TV you have.
3
RF Connection
To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV antenna from the TV. b– Connect the TV antenna cable to the ANTENNA
IN jack on the rear of the VCR.
c– Connect the supplied RF cable between the TV
OUT jack on the rear of the VCR and the TV’s antenna terminal. Set TV on CH3 or CH4 corre­sponding to the CH3 – CH4 switch setting on the back of the VCR.
AV Connection
To Connect To A TV With AV Input Terminals . . .
a– Connect the antenna, VCR and TV as shown in
the illustration.
b– Connect an Audio/Video Cable between the AUDIO
OUT and VIDEO OUT jac ks on the rear of the VCR and the A V IN jac ks on the TV . Set your TV in video input mode or A/V input mode. Refer to the TV Instruction Manual.
S-VIDEO Connection
If you have a TV with S-VIDEO input terminals, see "S-VIDEO Connection" on page 7.
CONNECT VCR TO POWER SOURCE
Connect the power plug to an AC outlet.
The clock and tuner channels will automatically be
4
5
set when the antenna is connected and when the AC is first connected to the VCR (Z pg. 8). (If "Auto" or "CH" is displayed on the front display panel before the VCR is powered on, the clock and tuner channels are being set automatically. Wait for the time to be displayed on the front display panel before powering on the VCR.)
FINAL PREPARATION FOR USE
Power on the VCR and if you are connected to the TV using the RF connector, select the VCR channel (3 or 4) by setting the switch on the rear of the VCR as shown in the illustration. You can now perform simple playback (Z pg. 22) or simple recording (Z pg. 23).
AC Power Cord
EN 7
ANTENNA IN (Antenna or Cable input)
Antenna or Cable
Coaxial Cable
Flat Feeder
Matching T ransformer (not supplied)
AC Outlet
Back of VCR
S VIDEO OUT
S-Video Cable (supplied)
S VIDEO IN
TV
OUT
S VIDEO
IN
OUT IN
VIDEO
(MONO)
L
AUDIO
R
75 ohm terminal
REMOTE
AV
PAUSE
COMPULINK
CABLE
BOX
CH3
CH4
Audio/Video Cable (supplied)
IN
ANTENNA
VHF/UHF
TV
OUT
RF Cable (supplied)
TV OUT
NOTES:
To make the most of the Super VHS picture performance we recommend that you use the supplied S-VIDEO cable to connect your VCR to a TV with an S-VIDEO input connector.
To operate the VCR with your TV using the S-VIDEO connec­tion, set your TV to the AV mode using the TV's remote control. You can also use the TV/VCR button on the VCR's remote control to set your TV to the AV mode. (Z pg. 57)
S-VIDEO Connection
CONNECT VCR TO TV
a– Connect both the RF cable and the A V cables to the TV as
explained in step 3 of "Basic Connections" (Z pg. 6).
b– Connect the S-Video cable between the S-VIDEO OUT
jack on the rear of the VCR and the S-VIDEO IN jack on the TV .
8 EN
Plug & Play
Auto Clock Set/Auto T uner Set
ATTENTION
If you use a cable box, Plug & Play will not function; set the clock and tuner channels manually. (Z pg.11 – 15)
IMPORTANT
Don’t press any buttons on the VCR or remote while Plug & Play is in progress.
If you perform Plug & Play successfully , there’s no need to perform the Clock (Z pg. 11) and Tuner (Z pg. 14) procedures. If, however , y ou w ant to add or delete channels, refer to “Add Or Delete A Channel” on page 15.
INITIAL SETTINGS
The Plug & Play function sets the clock and tuner channels automatically when power is first connected to the VCR. The antenna cable must be connected for the Plug & Play function.
The time and date can be set automatically from clock setting data that is transmitted by one of the regular TV broadcast channels. We call this TV channel the “Host Channel” and it is a PBS channel in your area.
PLUG & PLAY SETUP
Connect the antenna cable to the VCR (Z pg. 6). Then connect the VCR’s power plug to an AC outlet. Do not
1
power on the VCR. The clock and tuner channels will be set automatically.
NOTES:
Auto clock set is performed first. The auto clock set function scans all the channels received by your VCR to find the Host Channel and then sets the clock. "Auto" blinks on the front display panel during Auto clock set.
Auto channel set is performed next. The auto channel set function scans all the channels that are receivable by your VCR. It then automatically assigns each receivable channels to the CH skips non-receivable channels. During auto channel set the channel numbers are displayed as they are scanned and set.
When Plug & Play has been completed successfully the correct time is displayed.
If an incorrect time or "– –:– –" appears on the display panel, see "What To Do If Plug & Play Has Failed" on next page.
5
(+/–) buttons. It
During Initial Auto Clock Set
"Auto" blinks.
* If an incorrect time or "– –:– –" appears on the display panel, see "What To Do If Plug & Play Has Failed" on next page.
During Auto Channel Set
The channel numbers are displayed as they are scanned and set.
Plug & Play Completed
The current time (including AM/PM) is displayed.
EN 9
INFORMATION
If "AUTO CLOCK" is set to "ON" at the Clock Set screen on page 12, the clock will be adjusted automatically by the host channel every hour on the hour (except for 11:00 PM, midnight, 1:00 AM and 2:00 AM) by the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the VCR’s power is turned off. The clock will be adjusted on the hour based on the time displayed on the VCR, not on the actual real time.) The default setting of "AUTO CLOCK" is "ON".
If the memory backup fails, because of a power outage or because the AC was removed from the VCR, Plug & Play will be performed when power is restored to the VCR.
What To Do If Plug & Play Has Failed
If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semi-Auto (Z pg. 12) or Manual Clock Set (Z pg. 13) procedure. Auto channel set has already taken place and it need not be set again.
If “- -:- -” appears on the display, your antenna cable may not be connected to the VCR or there may not be a Host PBS signal available in your area. Ensure that the antenna cable is connected correctly. Then power on and power off the VCR; the Plug & Play function will be automatically reactivated and "Auto" will be displayed on the VCR's front panel. If Plug & Play is not performed but the antenna cable is connected correctly, perform the Manual Clock Set procedure (Z pg. 13). Auto channel set has not yet taken place, so please also perform the “Set Receivable Channels” procedure (Z pg. 14).
10 EN
POWER
MENU
CH5∞
Language
INITIAL SETTINGS (cont.)
This VCR offers you the choice to view on-screen messages in English, Spanish or French (not including messages superimposed on the TV picture). Select the desired language using this procedure. The default setting is "ENGLISH".
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
POWER
123 456
89
7
0
2
4

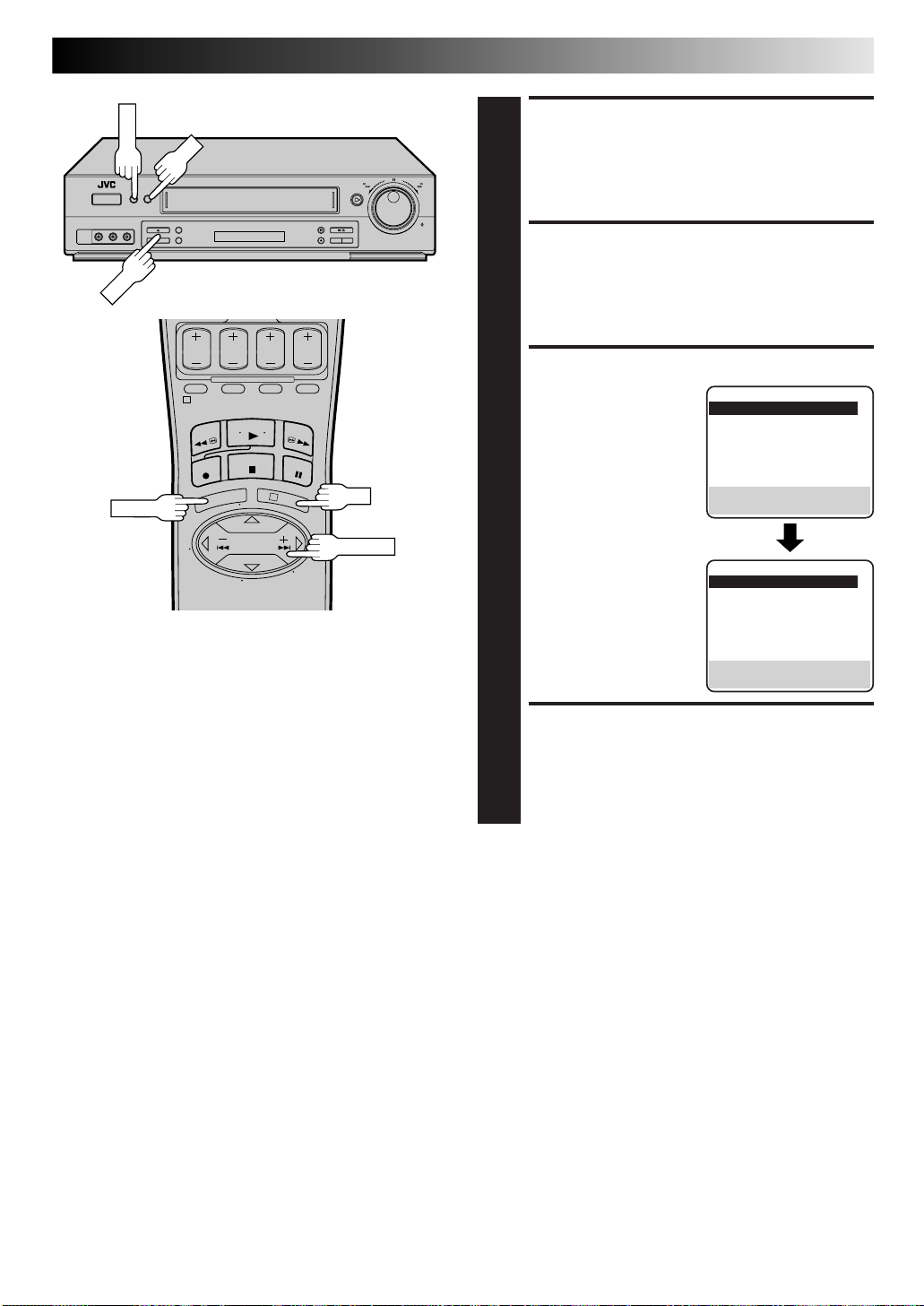

TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS INITIAL SET SCREEN
At the Main Menu screen, move the highlight bar
3
(arrow) to “INITIAL SET” by pressing CH TIME SCAN press OK or TIME SCAN #.
SELECT LANGUAGE
Move the highlight bar (arrow) to "LANGUAGE"
4
by pressing CH TIME SCAN
press OK or TIME SCAN to select the desired language.
5
or
%
, then
5
or
%
, then
#
MAIN MENU
FUNCTION SET TUNER SET
=INITIAL SET
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
INITIAL SET
CLOCK SET
=LANGUAGE ENGLISH
GUIDE CHANNEL SET CABLE BOX SET DBS RECEIVER SET
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
MENU
RETURN TO NORMAL
1
SCREEN
Press MENU.
5
3
OK
TIME SCAN
Clock
POWER
CH
MENU
EN 11
Perform clock setting only if the clock has not been set correctly by the Plug & Play function or you use a cable box. Access the Clock Set screen to perform the Semi-Auto or Manual clock setting procedure. Each procedure starts from step 5. If you use a cable box, set the clock manually. (Z pg. 13)
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
POWER
123 456
89
7
0
1
2
4
Preparation
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS INITIAL SET SCREEN
At the Main Menu screen, move the highlight bar
3
(arrow) to “INITIAL SET” by pressing CH TIME SCAN press OK or TIME SCAN #.
5
or
%
, then
ACCESS CLOCK SET SCREEN
Move the highlight bar (arrow) at the Initial Set screen to “CLOCK SET” by
4
pressing TIME SCAN then press OK or TIME SCAN #.
"CABLE BOX USERS SET CLOCK MANUALLY" appears on the screen for about 5 seconds, then the Clock Set screen appears.
%
FUNCTION SET TUNER SET
=INITIAL SET
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
,
=CLOCK SET
LANGUAGE ENGLISH GUIDE CHANNEL SET CABLE BOX SET DBS RECEIVER SET
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
MAIN MENU
INITIAL SET
MENU
3
OK
TIME SCAN
12 EN
CH
MENU
INITIAL SETTINGS (cont.)
Semi-Auto
You can change the Host Channel/D.S.T. /Time Zone setting manually.
MENU
OK
123 456
89
7
0
1
3
2
4
OK
TIME SCAN
SET AUTO CLOCK TO ON
At the Clock Set screen, press OK or TIME SCAN
5
repeatedly to move the highlight bar to "AUTO CLOCK" and press CH or TIME SCAN to "ON". a– To select the Host
Channel — go to step 6
b– To select the D.S.T. mode — go to step 7 c– To select the Time Zone — go to step 8
%
to set
#
TIME DATE YEAR
1:00PM 12/24 98 THU
5
AUTO CLOCK: ON
HOST CH : AUTO (CATV) D.S.T. : AUTO TIME ZONE : AUTO PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
NOTE:
The time that has been set previously will be erased when "AUTO CLOCK", "HOST CH", "D.S.T." or "TIME ZONE" setting is changed.
SELECT HOST CHANNEL
You can either select "AUTO" or enter a PBS channel number. Move the highlight bar to "HOST CH" by
6
pressing OK or TIME SCAN #, then press CH TIME SCAN
channel number.
%
to set to "AUTO" or the desired PBS
NOTE:
There are some PBS channels that do not transmit clock setting data.
SELECT D.S.T. MODE
You have three choices:
a– Select "AUTO" and the adjustment to your VCR's
7
clock will be made according to the incoming signal from the host channel.
b– Select "ON" and the adjustment will be made based
on the clock itself.
c– Select "OFF" if Daylight Saving Time does not apply
to you. Move the highlight bar to "D.S.T." by pressing OK or TIME SCAN #, then press CH to select the desired mode.
5
or TIME SCAN
CLOCK SET
5
or
%
**AUTO DAYLIGHT SAVING TIME
This function enables automatic adjustment of the VCR’s clock at the start and end of Daylight Saving Time. With Auto DST activated, . . . . . . on the first Sunday of April at 2:00 AM, the clock is
adjusted to 3:00 AM.
. . . on the last Sunday of October at 2:00 AM, the clock is
adjusted to 1:00 AM.
EN 13
SELECT TIME ZONE
You can select the time zone automatically or manually. Move the highlight bar to "TIME ZONE" by pressing OK
8
or TIME SCAN #, then press CH to select "AUTO" or the desired time zone.
AUTO ATLANTIC HAWAII EASTERN ALASKA CENTRAL PACIFIC MOUNTAIN
5
or TIME SCAN
NOTE:
If an incorrect time is displayed by the Plug & Play function, you may be receiving the clock setting data of a PBS channel from an adjacent time zone or from an incorrect PBS channel from a cable TV system. If you selected "AUTO" for the host channel in step 6, be sure to select the correct time zone manually.
RETURN TO NORMAL SCREEN
Press MENU.
9
IMPORTANT
Turn the VCR off after performing the Semi-Auto Clock Set procedure. "Auto" will appear on the front display panel when the clock is being set. The current time will appear automatically when the clock is set.
Manual
SET TIME
%
Press CH SCAN
5
time appears, then press OK or TIME SCAN #.
Press and hold CH
When the time is entered manually, "AUTO CLOCK"
5
or TIME
%
until the desired
5
or TIME SCAN change the time by 30­minute increments.
will be automatically set to "OFF", and "HOST CH" and "TIME ZONE" will disappear.
%
to
CLOCK SET
TIME DATE YEAR
– –:– –AM 1/ 1 98
AUTO CLOCK: ON HOST CH : AUTO (CATV) D.S.T. : AUTO TIME ZONE : AUTO PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
SET DATE
Press CH appears, then press OK or TIME SCAN #.
6
Press and hold CH
5
or TIME SCAN
the date by 15-day increments.
%
5
or TIME SCAN
until the desired date
%
to change
SET YEAR
Press CH appears, then press OK or TIME SCAN # twice.
5
or TIME SCAN
%
until the desired year
7
SELECT D.S.T. MODE
Press CH mode.
8
a– Set to "ON" so that the adjustment to your VCR's b– Set to "OFF" if Daylight Saving Time does not apply
5
or TIME SCAN
clock will be made on the clock itself.
to you.
%
to select the desired
START CLOCK
Press MENU and normal screen appears.
9
To Make Corrections
Press OK or TIME SCAN # until the item you want to change blinks, then press CH
5
or TIME SCAN
%
.
14 EN
POWER
MENU
CH5∞
INITIAL SETTINGS (cont.)
Set Receivable Channels
Tuner
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
POWER
MENU
123 456
89
7
0
1
3
2
4
CH+/–
OK
TIME SCAN
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS TUNER SET SCREEN
Move the highlight bar (arrow) to "TUNER SET" by
3
pressing CH SCAN or TIME SCAN #.
5
or TIME
%
, then press OK
PERFORM AUTO CHANNEL SET
Move the highlight bar (arrow) to "AUT O CHAN-
4
NEL SET" by pressing
5
CH
or TIME SCAN
then press OK or TIME SCAN #.
Receivable channels in
your area are automatically assigned to
5
the CH and non-receivable channels are skipped.
(+/–) buttons,
NOTES:
At the end of Auto Channel Set, “SCAN COMPLETED” appears on screen.
If the scan was unsuccessful, “SCAN COMPLETED– NO SIGNAL” appears on screen. Check the connections and start again.
%
FUNCTION SET
=TUNER SET
INITIAL SET
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
BAND CATV
=AUTO CHANNEL SET
,
MANUAL CHANNEL SET
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
AUTO CHANNEL SET
PRESS (MENU) TO END
MAIN MENU
TUNER SET
SCANNING...
INFORMATION
The VCR detects the band (TV or CATV) and selects the correct band automatically during Auto Channel Set. The selected band will be displayed on the right side of "BAND" on the Tuner Set screen.
RETURN TO NORMAL SCREEN
Press MENU.
5
CH
MENU
NUMBER
MENU
OK
123 456
89
7
0
1
3
2
4
OK
TIME SCAN
EN 15
Add Or Delete A Channel
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS TUNER SET SCREEN
Move the highlight bar (arrow) to "TUNER SET" by pressing CH
2
TIME SCAN #.
ACCESS MANUAL CHANNEL SET SCREEN
Move the highlight bar (arrow) to "MANUAL
3
CHANNEL SET" by pressing CH SCAN or TIME SCAN #.
ADD OR SKIP DESIRED CHANNEL
Input the channel number using the NUMBER keys or
4
by pressing CH TIME SCAN
press OK or TIME SCAN to set to "ADD" or "SKIP" as required. Repeat for each channel you want to add or skip.
RETURN TO NORMAL SCREEN
Press MENU.
5
or TIME SCAN
5
or TIME
%
, then press OK
5
%
or
, then
%
, then press OK or
BAND CATV AUTO CHANNEL SET
=MANUAL CHANNEL SET
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
MANUAL CHANNEL SET
#
CH 45 ADD
PRESS NUMBER KEY (0–9)
OR (5,∞), THEN (OK)
PRESS (MENU) TO END
TUNER SET
(CATV)
5
16 EN
Cable Box Control
Suggested Location
Place the cable box on top of the VCR. Attach the VCR's Controller to the top of the VCR with the Controller’s transmitter pointed towards the cable box’s remote sensor.
ATTENTION:
The Controller can also control a DBS receiver. If both a cable box and a DBS receiver are used, position the controller so its signal reaches the remote control sensors of both the cable box and DBS receiver.
INITIAL SETTINGS (cont.)
This procedure is required if you receive your TV channels through a cable box (descrambler). The Controller allows the VCR to automatically switch the cable box channel during timer-recording. The Controller is effective for recording shows that have been programmed using VCR Plus+ (Z pg. 41) or Express Timer Programming (Z pg. 45).
Situate And Connect Controller
SITUATE CONTROLLER
Place the Controller so that the path between its transmitter and the cable box’s remote sensor is
1
unobstructed.
ATTACH CONTROLLER
Fasten securely using the supplied adhesive strip.
Y our VCR
Cable box
Y our VCR
VIDEO OUT
Audio/Video cable (supplied)
Controller
Tr ansmitter
CABLE
BOX
AUDIO OUT
AUDIO IN
Cable box
Controller (suggested locations)
Connected to ANTENNA IN
VIDEO IN
2
CONNECT CABLE BOX TO VCR
The connection method depends on the type of cable box you have.
3
If your cable box has AUDIO and VIDEO OUT connectors . . .
. . . connect them to the AUDIO and VIDEO IN connectors on your VCR. Set the VCR to channel "L-1" for the rear AUDIO and VIDEO IN connectors, or channel "F-1" for the front AUDIO and VIDEO IN connectors to use the cable box.
If your cable box doesn’t have AUDIO and VIDEO OUT connectors . . .
. . . connect the antenna output connector on the cable box to the ANTENNA IN connector on the rear of your VCR. Set the VCR tuner to the same channel as the cable box RF output (see page 17 also).
NOTE:
When connecting your cable box refer to its instruction manual.
CONNECT CONTROLLER TO VCR
Connect to the CABLE BOX connector on your VCR.
4
About Your Cable Box
This VCR has two separate methods to control your Cable Box.
The VCR's Wireless Remote Control Unit can control your Cable Box. This eliminates the need for a separate Cable Box Remote Control Unit.
The VCR's Controller can also control your Cable Box. This allows the VCR to change your Cable Box's channel number during timer recording.
Each method must be set up separately. To set up the VCR's Remote Control unit, refer to page 58. To set up the Controller go to page 17.
EN 17
POWER
CH
MENU
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
POWER
123 456
89
7
0
1
2
4
Set Cable Box Output Channel & Cable Box Brand
TURN ON CABLE BOX
Select a channel other than channel 9 on your cable box.
1
TURN ON THE VCR
Press POWER.
2
ACCESS MAIN MENU SCREEN
Press MENU.
3
ACCESS INITIAL SET SCREEN
Press CH bar (arrow) to “INITIAL SET”, then press OK or TIME
4
SCAN #.
5
or TIME SCAN
ACCESS CABLE BOX SET SCREEN
Press CH SCAN
5
highlight bar (arrow) to “CABLE BOX SET”, then press OK or TIME SCAN #.
5
or TIME
%
to move the
%
to move the highlight
INITIAL SET
CLOCK SET LANGUAGE ENGLISH GUIDE CHANNEL SET
=CABLE BOX SET
DBS RECEIVER SET SELECT WITH (5,) AND (OK)
PRESS (MENU) TO END
MENU
3
OK
TIME SCAN
SELECT CABLE BOX OUTPUT CHANNEL
Your selection depends on how your cable box is
6
connected to your VCR.
If your cable box is connected to your VCR using an RF connection . . .
. . . press CH SCAN
channel number representing the cable box’s output (CH2 – CH9) appears on the screen.
If your cable box is connected to your VCR's FRONT AUDIO/VIDEO IN connectors . . .
. . . press CH (FRONT)" appears on the screen.
If your cable box is connected to your VCR’s REAR AUDIO/VIDEO IN connectors . . .
. . . press CH (REAR)" appears on the screen.
%
5
until the
5
5
or TIME
or TIME SCAN
or TIME SCAN
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
%
%
CONTINUED ON NEXT PAGE
CABLE BOX SET
OFF
until "ON F-1
until "ON L-1
18 EN
MENU
CH
OK
123
NUMBER
MENU
456
89
7
0
1
INFORMATION
When the VCR's clock has not been set (with AUTO CLOCK set to ON), if you press OK in step 7, "CABLE BOX USERS SET CLOCK MANUALLY" will be displayed on the screen for about 5 seconds, then the Clock Set screen will appear; perform the manual clock setting procedure on page 13. If you press MENU after the clock has been set, the Cable Box Brand Set screen appears.
NOTES:
Although the supplied Controller is compatible with many different cable box brands, it is possible that it will not work with your cable box.
If your cable box doesn’t respond to any code between 1 and 25, you can’t use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording. Please contact your cable company about the possibility of exchanging your current cable box with one that is compatible with your VCR.
The VCR can only change the cable box channel through the Controller during timer recording.
If your cable box is one that can’t be operated with a remote control (because it has no remote sensor), you can’t use the Controller to change its channels. Make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.
If the VCR's memory backup expires because of a power failure, set the cable box output channel and brand again.
For customers in U.S.A.: If you are unable to set the Controller, please contact JVC toll free at 1-800-252-5722.
3
2
4
OK
TIME SCAN
INITIAL SETTINGS (cont.)
ACCESS CABLE BOX BRAND SET SCREEN
Press OK.
7
ENTER CABLE BOX BRAND
Press the appropriate
NUMBER keys to enter the
8
Cable Box Code from the CABLE BOX BRAND LIST shown below, then press OK.
If the cable box’s
channel changes to 9, setting is complete. Press OK and "CABLE BOX CONTROL IS ON" appears on the screen for about 5 seconds, then it returns to the normal screen.
If the cable box's channel does not change to 9, press
5
CH
or TIME SCAN
(arrow) to "NO", then press OK. By entering another code, repeat step 8 until the cable box’s channel changes to 9.
If the channel does not change after going through all
the code numbers listed for your model of cable box, then try all the other numbers between 1 and 25.
CABLE BOX BRAND LIST
BRAND CODE
ARCHER 1, 5, 17 CABLETENNA 1, 17 CABLEVIEW 15, 16, 17, 21, 25 CITIZEN 15, 16, 17, 21, 25 CURTIS 2 DIAMOND 1, 17 EASTERN 19 GC BRAND 15, 16, 17, 21, 25 GEMINI 15 GENERAL INSTRUMENTS 1, 4, 6, 11, 12, 15 HAMLIN 10, 18, 19, 23 JASCO 15 JERROLD 1, 4, 6, 11, 12, 15 NOVAVISION 2 OAK 7, 20 PANASONIC 13, 14 PULSER 15, 16, 17, 21, 25 RCA 13, 14 REGAL 10, 18, 19, 23 REGENCY 19 REMBRANDT 1, 16, 17 SAMSUNG 5, 16, 24 SCIENTIFIC ATLANTA 2 SIGMA 7, 20 SL MARX 5, 16, 17, 24, 25 SPRUCER 13, 14 STARGATE 5, 15, 16, 17, 21, 24, 25 TELEVIEW 5, 16, 24 TOCOM 1, 4, 16 UNIKA 1, 17 UNIVERSAL 16, 17, 25 VIDEOWAY 3, 9, 22 ZENITH 3, 9, 22
CABLE BOX BRAND SET
1
PRESS NUMBER KEY (0–9)
THEN (OK) TO TEST
PRESS (MENU) TO END
%
to move the highlight bar
DBS Receiver Control
Suggested Location
Place the DBS (Direct Broadcast Satellite) receiver on top of the VCR. Attach the VCR's Controller to the top of the VCR with the Controller’s transmitter pointed towards the DBS receiver's remote sensor.
ATTTNTION:
The Controller can also control a cable box. If both a DBS receiver and a cable box are used, position the controller so its signal reaches the remote control sensors of both the DBS receiver and cable box.
EN 19
The following procedure is required if you recei ve satellite c hannels through a DBS (Direct Broadcast Satellite) Receiver . The Controller allows the VCR to automatically switc h the DBS Recei ver's c hannels during timer recording.
NOTES:
The VCR can automatically change the DBS Receiver channels using the controller when the VCR has been programmed using Express Timer Programming (Z pg. 45). Because satellite programming does not use PlusCode; the Controller can not change the DBS Receiver channels during VCR Plus+ Timer Recording.
If a cable box is also used it is recommended that you connect the DBS receiver to your VCR's A/V inputs and the cable box to your VCR's antenna input.
Situate And Connect Controller
Y our VCR
Y our VCR
Controller
DBS receiver
Transmitter
Connected to ANTENNA IN
CABLE
BOX
DBS receiver
Controller (suggested locations)
Connected to VIDEO/ AUDIO IN
SITUATE CONTROLLER
Place the Controller so that the path between its transmitter and the DBS receiver's remote sensor is
1
unobstructed.
ATTACH CONTROLLER
Fasten securely using the supplied adhesive strips.
2
CONNECT DBS RECEIVER TO VCR
The connection method depends on the type of DBS receiver you have.
3
If your DBS receiver has AUDIO and VIDEO OUT connectors . . .
. . . connect them to the AUDIO and VIDEO IN connectors on your VCR. Set the VCR to channel "L-1" for the rear AUDIO and VIDEO IN connectors, or channel "F-1" for the front AUDIO and VIDEO IN connectors to use the DBS receiver.
If your DBS receiver doesn’t have AUDIO and VIDEO OUT connectors . . .
. . . connect the antenna output connector on the DBS receiver to the ANTENNA IN connector on the rear of your VCR. Set the VCR's tuner to the same channel as the DBS receiver's RF output. (See page 20 also.)
NOTE:
When connecting your DBS receiver refer to its instruction manual.
About Your DBS Receiver
This VCR has two separate methods to control your DBS Receiver .
The VCR's Wireless Remote Control Unit can control your DBS Receiver. This eliminates the need for a separate DBS Receiver Remote Control Unit.
The VCR's Controller can also control your DBS Receiver. This allows the VCR to change your DBS receiver's channel number during timer recording.
Each method must be set up separately. To set up the VCR's Remote Control unit, refer to page 59. To set up the Controller go to page 20.
CONNECT CONTROLLER TO VCR
Connect to the CABLE BOX connector on your VCR.
4
20 EN
POWER
CH
MENU
INITIAL SETTINGS (cont.)
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
POWER
123 456
89
7
0
2
4
Set DBS Receiver Output Channel & DBS Receiver Brand
TURN ON DBS RECEIVER
Select a channel other than channel 55, 100 or 205 on your DBS receiver.
1
TURN ON THE VCR
Press POWER.
Set the VCR to the channel (3 or 4 or F-1 or L-1) on
2
which the signals from the DBS receiver are received.
ACCESS MAIN MENU SCREEN
Press MENU.
3
ACCESS INITIAL SET SCREEN
Press CH bar (arrow) to “INITIAL SET”, then press OK or TIME
4
SCAN #.
5
or TIME SCAN
ACCESS DBS RECEIVER SET
%
to move the highlight
MENU
SCREEN
Press CH
1
3
OK
SCAN
5
highlight bar (arrow) to “DBS RECEIVER SET”, then press OK or TIME SCAN #.
5
or TIME
%
to move the
INITIAL SET
CLOCK SET LANGUAGE ENGLISH GUIDE CHANNEL SET CABLE BOX SET
=DBS RECEIVER SET
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
SELECT DBS RECEIVER
TIME SCAN
OUTPUT CHANNEL
Your selection depends on how your DBS receiver is
6
connected to your VCR.
If your DBS receiver is connected to your VCR using an RF connection . . .
. . . press CH SCAN
channel number representing the DBS receiver's output (CH3 – CH4) appears on the screen.
If your DBS receiver is connected to your VCR's FRONT AUDIO/VIDEO IN connectors . . .
. . .
press
(FRONT)" appears on the screen
If your DBS receiver is connected to your VCR’s REAR AUDIO/VIDEO IN connectors . . .
. . . press CH (REAR)" appears on the screen.
%
CH
5
until the
5
5
or TIME
or TIME SCAN
or TIME SCAN
DBS RECEIVER SET
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
%
until "ON F-1
.
%
until "ON L-1
OFF
NUMBER
CH
OK
123 456
89
7
0
1
3
2
4
OK
TIME SCAN
EN 21
ACCESS DBS RECEIVER BRAND SET SCREEN
Press OK.
7
SET DBS RECEIVER BRAND
Press the appropriate
NUMBER keys to enter the
8
DBS Receiver Code from the following list, then press OK.
BRAND CODE
JVC (DISH Network) 51 ECHOSTAR (DISH Network) 51 PRIMESTAR 50 SONY (DSS) 41 RCA (DSS) 40
After OK is pressed, the program currently received
through the DBS receiver will appear for about 10 seconds.
If the DBS receiver's channel changes to the channel
listed below for your brand of DBS receiver, setting is complete. Press OK and "DBS RECEIVER CONTROL IS ON" appears on the screen for about 5 seconds, then it returns to the normal screen.
JVC [ 100 ECHOSTAR [ 100 PRIMESTAR [ 55 SONY [ 205 RCA [ 205
If the DBS receiver's channel does not change as
shown above, press CH move the highlight bar (arrow) to "NO", then press OK. Re-enter the correct code.
NOTES:
It is possible that the Controller will not work with all types of DBS receiver.
If your DBS receiver doesn’t respond to the code, you can’t use the Controller to change satellite channels. In this case, make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.
The VCR can only change the satellite channel through the Controller during timer recording.
If your DBS receiver is one that can’t be operated with a remote control (because it has no remote sensor), you can’t use the Controller to change its channels. Make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.
For customers in U.S.A.: If you are unable to set the Control­ler, please contact JVC toll free at 1-800-252-5722.
DBS RECEIVER BRAND SET
PRESS NUMBER KEY (0–9)
THEN (OK) TO TEST
PRESS (MENU) TO END
5
or TIME SCAN
4 0
%
to
22 EN
STOP/EJECT
PLAY
PLAY
STOP
TIME SCAN SHUTTLE
Simple Playback
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
SIMPLE PLAYBACK AND RECORDING
LOAD A CASSETTE
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is
1
pointing towards the VCR. Don’t apply too much pressure when inserting.
The VCR’s power comes on automatically.
The counter is automatically reset to "0:00:00".
If the cassette's record safety tab has been removed,
playback begins automatically.
FIND PROGRAM START POINT
If the tape is advanced past the start point, press REW or turn the TIME SCAN SHUTTLE ring to the left. To go
2
forward, press FF or turn the TIME SCAN SHUTTLE ring to the right.
START PLAYBACK
Press PLAY. "VIDEO CALIBRATION" appears on the screen (when VIDEO CALIBRATION is set to "ON"
3
Z pg. 32).
STOP PLAYBACK
Press STOP or STOP/EJECT. T hen press STOP/EJECT to remove the cassette.
4
REW (Rewind)
123 456
89
7
0
1
3
2
4
FF (Fast-Forward)
Usable cassettes
Full-Size VHS T-30 (ST-30**) T-60 (ST-60**) T-90 T-120 (ST-120**) T-160 (ST-160**) ST-210**
Compact VHS* TC-20 (ST-C20**) TC-30 (ST-C30**) TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on
this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.
**This VCR can record on regular VHS and Super VHS
cassettes. While only VHS signals can be recorded on regular VHS cassettes, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.
Simple
PLAY
REC
CH
STOP
TV/VCR
ENTER
STOP/EJECT
EN 23
LOAD A CASSETTE
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.
1
Recording
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
PAUSE
NUMBER
REC
123 456 7
1
PLAY
89 0
2
4
CH
SP/EP
PAUSE
3
SELECT RECORDING CHANNEL
Press CH5 keys, then press ENTER. (The channel changes after a
2
few seconds whether you press ENTER or not.)
If you use the RF connection, by pressing the TV/VCR
button, select VCR mode to view the progr am to be recorded.
. Or press the appropriate NUMBER
(+/–)
SET TAPE SPEED
Press SP/EP to set the recording speed.
3
START RECORDING
Press and hold REC and press PLAY on the remote control, or press REC on the VCR's front panel.
4
Video Calibration takes place at the beginning of both the first SP and the first EP recording after inserting the cassette (when Video Calibration is set to "ON", Z pg. 32).
PAUSE/RESUME RECORDING
Press PAUSE. Press PLAY to resume recording.
During record pause, you can change the recording
5
channel by using the CH5 keys.
Video Calibration will not take place if the tape speed is changed while in record pause mode.
buttons or NUMBER
(+/–)
STOP RECORDING
Press STOP or ST OP/EJECT. T hen press STOP/EJECT to remove the cassette.
6
Accidental erasure prevention
To prevent accidental recording on a recorded cassette, remove its record safety tab. To record on it later, cover the hole with adhesive tape.
Record safety tab
24 EN
JOG
PLAY
CH5∞
TIME SCAN SHUTTLE
Playback Features
PAUSE
123 456
89
7
0
PLAY
PLAYBACK AND RECORDING FEATURES
Still Picture/Frame-By­Frame Playback
PAUSE DURING PLAYBACK
Press PAUSE. If there is vertical jitter, use the CH
button to correct the picture.
(–)
1
During still picture, the normal (mono) sound from the previous 3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal playback prior to engaging the still picture mode).
"TIMESCAN AUDIO" must be set to "ON", or the sound will not be heard (Z pg. 40).
5 (+) or
ACTIVATE FRAME-BY­FRAME PLAYBACK
Turn the JOG dial to the right for forward frame-by­frame playback, or to the left for reverse frame-by-frame
2
playback.
OR
Press PAUSE repeatedly to advance one frame at a time.
OR
Press TIME SCAN £ repeatedly for forward frame-by-
2
4
CH+/–
frame playback or TIME SC AN ™ repeatedly for reverse frame-by-frame pla ybac k.
T o resume normal pla ybac k, press PLAY.
Slow Motion/Reverse Slow Motion
REW
1
SKIP SEARCH
FF
PAUSE
3
ACTIVATE SLOW-MOTION PLAYBACK
For hands-free slow-motion, press and release TIME SCAN during playback to decrease speed in the
1
forward direction. Continue to press and release TIME SCAN to select the reverse slow motion, reverse
play and reverse search modes.
OR
TIME SCAN
During playback or still picture, turn the TIME SC AN SHUTTLE ring to the right for forward slow motion, or
to the left for reverse slow motion.
OR
During still picture, press and hold TIME SCAN £ for forward slow motion, or press and hold TIME SCAN for reverse slow motion. Release to return to still picture.
T o resume normal pla ybac k, press PLAY.
Refer to the chart on page 39 for the Play, Slow Motion and Search speeds that are selected using the TIME SCAN buttons.
EN 25
Index Search
Index codes are placed on the tape at the start of each recording. You can find and automatically play back from the start of any recording using the Index Search function.
START SEARCH
While the tape is stopped, press TIME SCAN ™ or £ (@ or #).
1
ACCESS DISTANT CODE
To access a recording 2–9 index codes away, press
TIME SCAN or £ (@ or #) repeatedly until the
2
correct number is displayed on screen (only if "SUPER­IMPOSE" is set to "ON" (Z pg. 28). Playback begins automatically when the desired recording is located.
If necessary press REW or FF when play starts to search visually to find the very beginning of the desired program.
NOTE:
An index code is not placed on the tape when recording is paused and then resumed.
High-Speed Search
ACTIVATE HIGH-SPEED SEARCH
During playback or still, press FF for forward high­speed search, or REW for reverse high-speed search.
1
The search speed is 7 times normal playback speed with SP recordings, and 21 times normal with EP recordings.
TimeScan will be automatically engaged during high­speed search with an SP-recorded tape.
If the tape speed changes from SP to EP during high­speed search the TimeScan mode will change to EP search mode.
Manual Tracking
Once playback begins, the VCR’s automatic tracking function is engaged. If tracking noise appears in the picture, you can override this and make the adjustment manually.
ENGAGE MANUAL TRACKING MODE
During playback, press the CH5 and ∞ buttons on the VCR's front panel simultaneously to cancel the
1
automatic tracking mode and enable manual tracking adjust.
ADJUST MANUAL TRACKING
Press CH 5 remote. Press briefly for fine adjust, or press and hold for
2
coarse adjust. Watch the screen and continue adjusting until optimum picture and sound quality are achieved.
(+) or
(–) on the VCR's front panel or
RE-ENGAGE AUTOMATIC TRACKING
Press the CH5 and ∞ buttons on the VCR's front panel simultaneously.
3
When automatic tracking is re-engaged, Video Calibration is automatically activated.
NOTES:
To obtain a noiseless still picture it may be necessary to adjust tracking in slow playback and then engage Pause.
Manual tracking is possible during hands-free slow-motion. During hands-free slow-motion playback, simply press CH (+) or
(–) on the VCR's front panel or remote to adjust
tracking.
5
During high-speed search with an EP-recorded tape pressing TIME SCAN for the opposite direction or turning the TIME SCAN SHUTTLE ring to the opposite direction changes it to 7x-speed TimeScan search. (Z pg. 38) T o resume normal pla ybac k, press PLAY.
NOTE:
For short searches, during playback or still, press and hold FF or REW for over 2 seconds. When released, normal playback
resumes.
26 EN
MENU
OK
CH
PLAYBACK AND RECORDING FEATURES (cont.)
123 456
89
7
0
1
Video Stabilizer
By activating the Video Stabilizer you can correct vertical vibrations in the picture when playing back unstable EP recordings that were made on another VCR. When this function is set to "ON", vertical vibration will be automatically corrected. *The default setting is "OFF".
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Move the highlight bar (arrow) to "FUNCTION
2
SET" by pressing CH TIME SCAN press OK or TIME SCAN #.
2
4
ACTIVATE VIDEO STABILIZER
Move the highlight bar (arrow) to "VIDEO
3
STABILIZER" by pressing
5
CH
or TIME SCAN
%
, then press
TIME SCAN
.
"ON"
%
, then
OK or
#
to set to
5
or
MAIN MENU
=FUNCTION SET
TUNER SET INITIAL SET
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
FUNCTION AUTO TIMER OFF SUPERIMPOSE ON AUTO SP
=EP TIMER OFF
= VIDEO STABILIZER ON
2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
MENU
3
OK
RETURN TO NORMAL SCREEN
TIME SCAN
Press MENU.
4
NOTES:
Regardless of the setting, this function has no effect with SP recordings, during recording and during special-effects playback.
When you finish viewing the tape, be sure to set it back to "OFF".
DISPLAY
POWER
STOP
PLAY
PLAY
PAUSE
TIME SCAN SHUTTLE
POWER
REVIEW
C.RESET
REW
123 456
89
7
0
1
STOP
2
TIMER
4
FF
PAUSE
3
TIME SCAN
Instant ReView
At the press of a button, you can power up your VCR, rewind the tape and begin viewing the most recently recorded or timer­recorded program.
ACTIVATE INSTANT REVIEW
After ensuring that the Timer mode is disengaged, press
REVIEW.
1
The power comes on and the VCR rewinds to the index code indicating the start of the last timer-recorded program, then begins playback automatically.
You can access a program 2–9 index codes away from the current position on the tape. If, for example, you have 5 programs recorded and you want to watch the third one, press REVIEW three times.
If necessary press REW or FF when play starts to search visually to find the very beginning of the desired program.
If the tape is already rewound when REVIEW is pressed, it will play the tape from the beginning. It will not fast forward to an index code.
The Instant Review function will also operate if the VCR's power is on.
EN 27
Repeat Playback
START REPEAT
Press and hold PLAY (until " " blinks on the front display panel) during playback, then release.
1
SP
VCR
The entire tape is played back 50 times.
STOP REPEAT
To stop, press STOP at any time.
2
NOTE:
Pressing PLAY, REW, FF, PAUSE or TIME SCAN ™ or
£
also stops Repeat Playback.
Counter Reset
RESET COUNTER TO ZERO
Press C.RESET.
1
NOTE:
By pressing the DISPLAY button, you can change the display to show the counter reading, channel number or clock time. (Channel number is not displayed during playback.)
Tape Position Indicator
The Tape position indicator appears on screen when, from the stop mode, you press FF, REW, or use the TIME SCAN SHUTTLE ring, or perform an Index Search or Instant ReView. The position of " " in relation to "B" (Beginning) or "E" (End) shows you where you are on the tape.
NOTES:
"SUPERIMPOSE" must be set to "ON", or the indicator will not appear (Z pg. 28).
It may take a few seconds for the Tape Position Indicator to be displayed.
Next-Function Memory
The Next Function Memory “tells” the VCR what to do after rewinding. Before continuing, ensure that the VCR is in stop mode.
a– For Automatic Start Of Playback After Tape Rewind . . . . . . press REW, then press PLAY within 2 seconds. b– For Automatic Power Off After Tape Rewind . . . . . . press REW, then press POWER within 2 seconds. c– For Automatic Timer Standby After Tape Rewind . . . . . . press REW, then press TIMER within 2 seconds.
NOTE:
It is not possible to select the Automatic Timer functions if the cassette's record safety tab is removed.
+++
BE
COUNT 0:33:27
28 EN
MENU
CH
OK
PLAYBACK AND RECORDING FEATURES (cont.)
Superimpose
This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET
123 456
89
7
0
1
MENU
3
To recall an indication
1 Press OSD.
n All indications corresponding to the current status are
displayed for 5 seconds. After that, the counter information and RECORD/PAUSE if in the Record Pause mode, are left displayed on the screen.
2 Press OSD again to clear the display.
OSD
2
4
OK
TIME SCAN
SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
2
TIME SCAN #.
5
or TIME SCAN
%
, then press OK or
SELECT SUPERIMPOSE SET MODE
Move the highlight bar (arrow) to "SUPERIMPOSE"
3
by pressing CH TIME SCAN
press OK or TIME SCAN to select the desired mode: a– Select "ON" if you want
the superimposed operational indications on the TV screen.
b– Select "OFF" if you do not want the superimposed
operational indications on the screen.
5
or
%
, then
= SUPERIMPOSE ON
#
FUNCTION
AUTO TIMER OFF AUTO SP
=EP TIMER OFF
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTES:
If you engage the Record Pause mode, RECORD/PAUSE is displayed regardless of the Superimpose mode setting.
If you select a channel on which no signal is received, the channel number is displayed regardless of the Superimpose mode setting.
The superimposed indication on the TV screen tells you what the VCR is doing.
Tuned-in channel or AUX(iliary) mode
When the channel is changed, the new
channel is displayed on the screen for 5
seconds.
Clock time
Stereo program indication
Second Audio Program indication
Tape position indicator
Audio mode indications
CH 125 RECORD THU 12:00 AM PAUSE STEREO ] SP SAP
+++
BE
NORM HI–FI COUNT –1:23:45
Counter reading
Switchable to the tape remaining time display
INDEX-1
Operation mode
When the operation mode is changed, the new mode is displayed — RECORD (5 sec.), PLAY (5 sec.), FF/REW (5 sec. when engaged from Stop mode), RECORD PAUSE (for as long as Pause is engaged), and ITR *:** (5 sec.).
Tape speed indication "Cassette Loaded" mark
When a cassette is loaded, the mark is displayed for 5 seconds. It blinks when the VCR's EJECT button is pushed.
INDEX indication
EN 29
MENU
CH
OK
Select The Soundtrack
Your VCR can record two soundtracks simultaneously (Normal and Hi-Fi) and play back the selected one, or both together. Or, when viewing a pre-recorded tape that contains two separate Hi-Fi audio programs, you can choose to listen to either one by selecting either "Hi-Fi L" or "Hi-Fi R" in step 3.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
2
TIME SCAN #.
5
or TIME SCAN
%
, then press OK or
MENU
123 456
89
7
0
1
3
2
4
OK
TIME SCAN
SELECT AUDIO MONITOR SET MODE
Move the highlight bar (arrow) to "AUDIO
3
MONITOR" by pressing
5
CH
or TIME SCAN
%
, then press OK or
TIME SCAN # to select the desired mode:
a– Hi-Fi b– Hi-Fi L c– Hi-Fi R d– Normal e– Mix
= AUDIO MONITOR HI-FI
FUNCTION AUTO TIMER OFF SUPERIMPOSE ON AUTO SP
=EP TIMER OFF
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF
NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTES:
If the tape being played back has no Hi-Fi soundtrack, the Normal soundtrack will be heard no matter what choice you make in step 3.
If RF connection is used for TV, even if Hi-Fi audio monitor is selected the sound will be mono and will be reproduced in both loudspeakers.
30 EN
PLAY
MENU
PLAYBACK AND RECORDING FEATURES (cont.)
Movie Advance
This feature helps you locate certain parts of prerecorded movies (rented or purchased) and works in two wa ys.
1
SKIP SEARCH
You can go to the beginning of the movie, skipping over all previews.
You can fast-motion the tape to the beginning of the next preview, so y ou can skip over previews one b y one.
LOAD A CASSETTE
3
OK
Insert a cassette that has a prerecorded movie (rented or purchased), with no safety tab, into the VCR. Playback
1
begins automatically.
TIME SCAN
ATTENTION
Movie Advance and Movie Advance (Preview) works only on prerecorded cassettes that have been recorded in the SP mode, and have no safety tab. If the VCR detects the EP mode after you press OK in step 4, the following screen appears.
MOVIE ADVANCE
MOVIE ADVANCE CAN NOT BE SELECTED FOR EP RECORDINGS.
PRESS (SKIP) TO CANCEL
Skip Search will work for prerecorded EP tapes.
When "MOVIE ADVANCE" is selected...
If you want to stop searching for the start of the movie, simply press SKIP SEARCH or STOP.
When "MOVIE ADVANCE (PREVIEW)" is selected...
If SKIP SEARCH was inadvertently pressed, press it again to resume normal playback.
While the VCR is searching for the next preview, if you see a preview you wish to view, press SKIP SEARCH and the VCR will immediately go to the start of that preview.
If the VCR starts to reverse to a preview you do not wish to view, press SKIP SEARCH to initiate searching to the next preview.
ACCESS SKIP MENU SCREEN
Press SKIP SEARCH.
2
SELECT MODE
Press CH SCAN
3
highlight bar (arrow) to your choice.
a– Select "MOVIE
b– Select "MOVIE ADVANCE (PREVIEW)" if you want to c– Select "SKIP SEARCH" if you do not want to perform
PERFORM MOVIE ADVANCE
a– If you selected "MOVIE ADVANCE" in step 3 and
4
5
or TIME
%
to move the
ADVANCE" if you want to advance directly to the beginning of the movie.
advance to the next preview. Movie Advance, then press OK to go back to the
normal screen. Pressing SKIP SEARCH activates the Skip Search function (Z pg. 25 ).
press OK, the following screen will appear with a blue background. The VCR will rewind the beginning of the tape, then will fast-motion to the beginning of the movie. "READY" will appear and blink when the beginning of the movie is detected and the Stop mode will be engaged. Press PLAY to view the movie.
MOVIE ADVANCE
=MOVIE ADVANCE
MOVIE ADVANCE (PREVIEW) SKIP SEARCH
PRESS (5,∞), THEN (OK) PRESS (SKIP) TO CANCEL
MOVIE ADVANCE
SKIP MENU
NOTES:
Normally there is a period of black and no audio at the beginning and end of previews. The Movie Advance feature detects those parts where the picture fades to black and the audio fades to silence, and initiates fast-motion to skip over the detected previews.
Some previews may not be detected and Movie Advance may not work properly.
The setting you selected in step 3 remains in effect until the cassette is ejected.
"MOVIE ADVANCE (PREVIEW)" does not use TimeScan when searching for the next preview.
Patents Pending
SEARCHING FOR BEGINNING OF MOVIE.
PRESS (STOP) TO CANCEL
b– If you selected "MOVIE ADVANCE (PREVIEW)" in
step 3 and press OK, the VCR will fast-motion to the beginning of the next preview and normal playback will resume when it is detected. Each press of SKIP SEARCH fast-motions to the beginning of the next preview, thereby skipping over one preview each time. The tape will forward-search a little past the start of the next preview, then will reverse-search to the beginning of the preview and start playback.
READY
PRESS (PLAY) TO ST ART PRESS (STOP) TO CANCEL
MENU
CH
OK
MENU
PLAY
PLAY
123 456
89
7
0
1
3
2
4
OK
TIME SCAN
EN 31
AV COMPU LINK Playback
Your VCR is compatible with JVC’s AV COMPU LINK components, including amplifiers (or receivers) and televisions. AV COMPU LINK provides one touch control of the audio and video compo­nents that are linked via their A V COMPU LINK connectors.
For example: simply load a cassette in the VCR and press PLAY and the A V COMPU LINK components automatically power on, the TV's AV mode is selected and the VCR goes into play mode. (PLAY need not be pressed if the cassette's record safety tab is removed.)
MAKE CONNECTION
Connect your VCR to an AV COMPU LINK component as shown in the illustration in the left column.
1
The mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS FUNCTION SET SCREEN
Press CH bar (arrow) to “FUNCTION SET”, then press OK or
3
TIME SCAN #.
5
or TIME SCAN
ENABLE AV COMPU LINK PLAYBACK
Press CH SCAN
4
highlight bar (arrow) to “AV COMPU-LINK”, then press OK or TIME SCAN to set to "ON".
5
or TIME
%
to move the
%
to move the highlight
= AUTO TIMER OFF
#
FUNCTION
SUPERIMPOSE ON AUTO SP
=EP TIMER OFF
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END

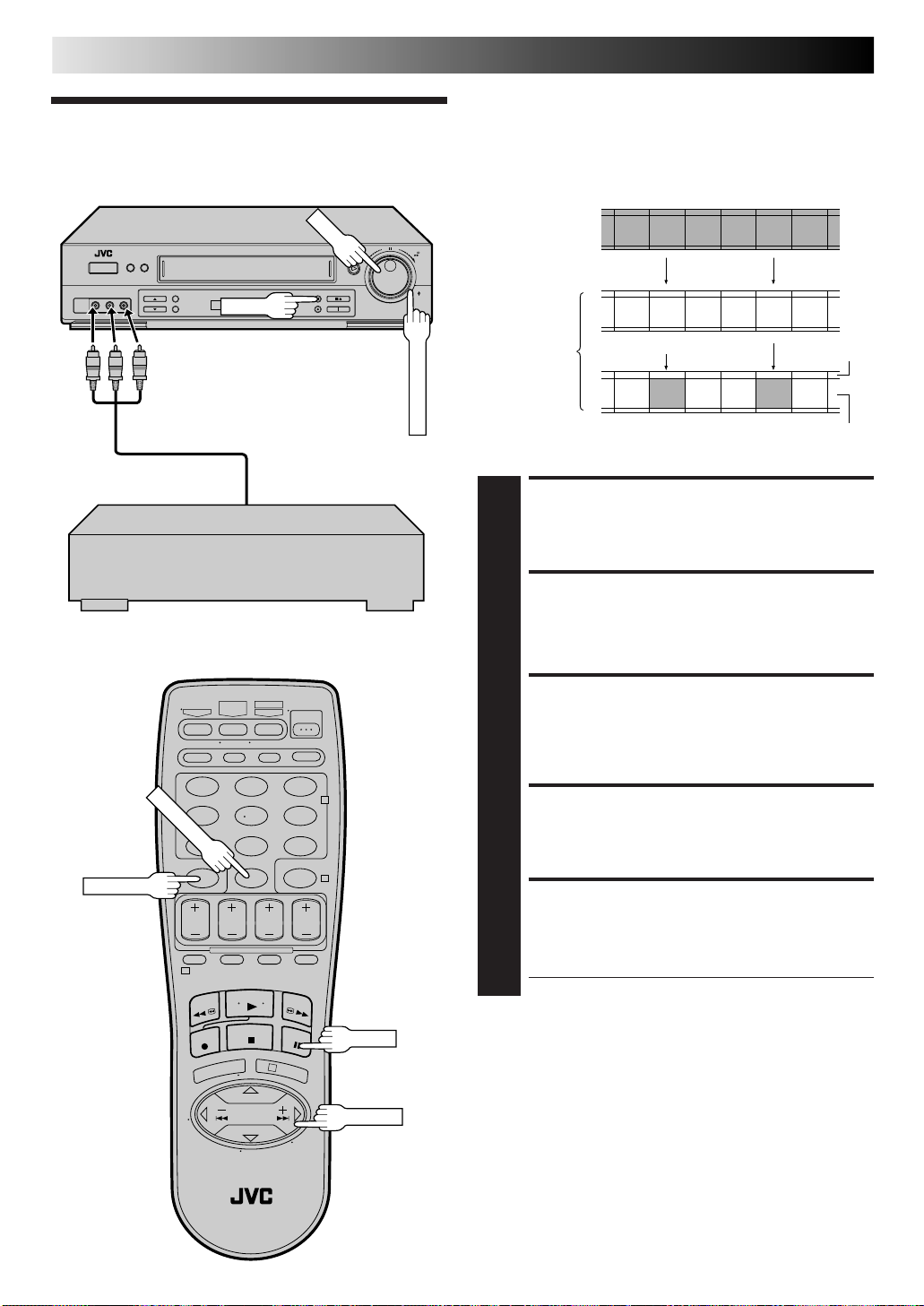

Example
Audio/Video cable (supplied)
VIDEO IN
AV COMPU LINK
Y our VCR
Television
VIDEO OUT
AUDIO OUT
AUDIO IN
AV COMPU LINK II (VCR ONLY)
REMOTE PAUSE/ AV COMPULINK
Mini-plug cable (not supplied)
PREVIOUS PAGE S-VHS MODE AUTO
= AV COMPU-LINK ON
VIDEO CALIBRATION ON TIMESCAN AUDIO ON REAR AUX INPUT VIDEO TAPE DUB MODE ON
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
5
PERFORM AV COMPU LINK PLAYBACK
Simply insert a cassette and press PLAY (if the cassette’s record safety tab has been removed, playback begins
6
automatically). Linked components are turned on, and the TV set to its AV mode, automatically!
NOTE:
Connection varies depending on the type of JVC TV you have. Please refer to the TV’s instruction manual when making this connection.
32 EN
POWER
CH
MENU
PLAYBACK AND RECORDING FEATURES (cont.)
Active Video Calibration
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
Active Video Calibration checks the condition of the tape during recording and playback, and compensates for poor reproduc­tion to provide the best quality recording and playback pictures. *The default setting is "ON".
Preparation
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS FUNCTION SET SCREEN
Press CH5∞ or TIME
%
SCAN
3
highlight bar (arrow) to “FUNCTION SET”, then press OK or TIME SCAN #.
to move the
MAIN MENU
=FUNCTION SET
TUNER SET INITIAL SET
MENU
123 456
89
7
0
1
3
POWER
2
4
OK
TIME SCAN
SELECT VIDEO CALIBRATION MODE
Press CH 5∞ or TIME
%
SCAN
4
highlight bar (arrow) to "VIDEO CALIBRATION", then press OK or TIME SCAN # to set to "ON" or "OFF".
to move the
NOTE:
When recording or when playing back tapes recorded on this VCR set the Video Calibration to "ON".
RETURN TO NORMAL SCREEN
Press MENU.
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
= AUTO TIMER OFF
= VIDEO CALIBRATION ON
FUNCTION
SUPERIMPOSE ON AUTO SP
=EP TIMER OFF
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
PREVIOUS PAGE S-VHS MODE AUTO AV COMPU-LINK ON
TIMESCAN AUDIO ON REAR AUX INPUT VIDEO TAPE DUB MODE ON
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
5
PLAY
REC
PLAY
REC
PAUSE
123 456
89
7
0
1
3
2
4
PAUSE
EN 33
Recording
Perform steps 13 on page 23 ("Simple Recording") before continuing.
START RECORDING
Press and hold REC and press PLAY on the remote
1
control, or press REC on the VCR's front panel.
The VCR takes about 7 seconds to assess the quality of the tape in use, then recording begins with the picture level optimized.
NOTES:
Calibration occurs immediately prior to both the first SP and the first EP recording after inserting the cassette. It does not take place during recording.
In the case of timer recording, calibration takes place for both SP and EP before the first timer recording after inserting the cassette (regardless of the tape speed selected for that recording).
Once the cassette is ejected, the calibration data is canceled. The next time the cassette is used for recording, calibration is re-performed.
While Video Calibration is operative, the PAUSE button will not function.
To display the Video Calibration screen, "SUPERIM­POSE" must be set to "ON" or the Video Calibration screen will not appear (Z pg. 28).
DURING CALIBRATION
START END
+++
ACTIVE VIDEO CALIBRATION
CALIBRATION COMPLETE
START END
+++
ACTIVE VIDEO CALIBRATION
+
+
Playback
The VCR assesses the quality of the tape once you start playback.
Perform steps 1 and 2 on page 22 ("Simple Playback") before continuing.
START PLAYBACK
Press PLAY.
The VCR adjusts the
1
playback picture quality based on the quality of the tape in use.
VIDEO CALIBRATION
NOTES:
When using rental tapes, or tapes recorded on other VCRs, set “VIDEO CALIBRATION” in step 4 of the Preparation proce­dure to either “ON” or “OFF” as desired to give the best picture (Z pg. 32).
The Video Calibration screen only appears at the beginning of automatic tracking. Even though the screen doesn't appear after that, the Video calibration function is operative.
To display the Video Calibration screen, “SUPERIM­POSE” must be set to "ON" or the Video Calibration screen will not appear (Z pg. 28).
ATTENTION
n As calibration takes place before recording actually starts,
there is a delay of about 7 seconds after REC and PLAY on the remote, or REC on the VCR's front panel, are pressed. To make sure you record the desired scene or program completely, first perform the following steps:
1) Press and hold PAUSE, and press REC to engage the RECORD PAUSE mode.
The VCR then automatically checks the condition of the tape and, after about 7 seconds, re-enters RECORD PA USE.
2) Press PLAY to start recording.
n If you want to bypass Video Calibration and start
recording right away, set "VIDEO CALIBRATION" to "OFF" in step 4 of the Preparation procedure (Z pg. 32).
34 EN
OSD
TV/VCR
Recording Features
123 456
89
7
C.RESET
0
PLAYBACK AND RECORDING FEATURES (cont.)
Display Elapsed Recording Time
RESET COUNTER TO ZERO
Before recording starts, press C.RESET. The counter resets to zero and displays the exact elapsed time as the
1
tape runs.
DISPLAY ELAPSED TIME ON SCREEN
DISPLAY
2
4
During recording, press OSD at any time to see the elapsed time.
2
All indications corresponding to the current status of the VCR are displayed for 5 seconds. The counter display remains on the screen indicating the elapsed time. Press OSD again to remove the display.
Make sure "SUPERIMPOSE" is set to "ON" (Z pg. 28).
The indications are not recorded.
Press DISPLAY to change to the COUNT display if
"REMAIN" is displayed.
Display Tape Remaining Time
1
3
Record One Program While Watching Another
ENGAGE TV MODE
During recording...
Press TV/VCR. The VCR's VCR indicator goes out. (If
1
you are using the RF connection (Z pg. 6) to view the output from your VCR, the TV broadcast being recorded disappears.)
If you are using the AV connection (Z pg. 6) to view the output from your VCR, change the TV's input mode from AV to TV.
SELECT CHANNEL FOR VIEWING
Use the TV’s channel selector to set the channel you want to watch.
2
DISPLAY COUNTER INFORMATION
Press OSD. All indications corresponding to the VCR's current
1
status are displayed for 5 seconds. The counter display remains on the screen indicating the elapsed time.
DISPLAY TAPE REMAINING TIME
Press DISPLAY until "REMAIN" appears on screen. The approximate tape remaining time appears on the TV
2
screen and also on the VCR display panel with a " " indicator.
The tape remaining time is calculated based on the tape speed (SP or EP) being used. The indicated remaining time is only an estimate.
Press DISPLAY to change the on-screen display from REMAIN to COUNT and vice versa; and to show counter reading, channel number, clock time or tape remaining time on the front display panel. Then channel number will not be displayed when the VCR is playing a tape.
EXIT THE DISPLAY
Press OSD again.
3
NOTES:
"SUPERIMPOSE" must be set to "ON", or the on-screen display will not appear (Z pg. 28).
Near the beginning of the tape, the tape remaining estimate may be inaccurate. However, the estimate becomes more accurate as the tape comes closer to the end.
Depending on the type of tape used, the tape remaining time
reading may not appear right awa y, or may not be correct. "- -:- -" may sometimes appear , or the displa y ma y blink on occasion.
The tape remaining time indication is not accurate when using
VHS-C tapes with VHS-C adapter.
1
CH
MENU
OK
MENU
3
OK
TIME SCAN
S-VHS (Super VHS), S-VHS ET and VHS
Your VCR can record in S-VHS, S-VHS ET or VHS. S-VHS allows you to make high quality video recordings with a
horizontal resolution of 400 lines. This compares with the 240 lines of resolution of normal VHS recordings. To achieve the highest quality picture we recommend that you record in S-VHS mode.
By using S-VHS ET it is possible to record and play back with S­VHS picture quality on VHS cassettes with this VCR. For details, refer to page 36.
To record in S-VHS;
perform the steps 1 – 4 below to set the "S-VHS MODE" to "ON".
then, insert a cassette marked "S-VHS", the S-VHS indicator will light on the display panel.
The S-VHS recording mode will be automatically selected.
To record in S-VHS ET on a VHS cassette;
Z "Super VHS ET" on page 36.
To record in VHS;
insert a cassette marked "VHS".
The VHS recording mode will be automatically selected regardless of the S-VHS mode setting.
To record in VHS on an S-VHS cassette;
insert the cassette marked "S-VHS", the S-VHS indicator will light on the display panel.
then, perform the steps 1 – 4 below to set the "S-VHS MODE" to "OFF"; the S-VHS indicator will go out.
The VHS recording mode will be selected.
EN 35
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
2
TIME SCAN #.
5
or TIME SCAN
%
, then press OK or
SELECT S-VHS MODE
Move the highlight bar (arrow) to "S-VHS MODE"
3
by pressing CH
%
SCAN
or TIME SCAN # to set to "ON" or "OFF".
5
or TIME
, then press OK
= AUTO TIMER OFF
= S-VHS MODE ON
FUNCTION
SUPERIMPOSE ON AUTO SP
=EP TIMER OFF
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
PREVIOUS PAGE AV COMPU-LINK ON
VIDEO CALIBRATION ON TIMESCAN AUDIO ON REAR AUX INPUT VIDEO TAPE DUB MODE ON
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTE:
When playing back a tape that has been recorded in S-VHS or S-VHS ET, the S-VHS indicator lights on the display panel regardless of the "S-VHS MODE" setting.
NOTE:
Tapes recorded in S-VHS or S-VHS ET mode can not be played back successfully on normal VHS VCRs.
36 EN
S-VHS ET
PLAYBACK AND RECORDING FEATURES (cont.)
Super VHS ET
Your VCR is equipped with Super VHS ET that makes it possible to record with S-VHS picture quality on VHS cassettes.
SELECT S-VHS ET SET MODE
Press S-VHS ET. T he current setting appears on
1
the screen for about 5 seconds.
NOTES:
You cannot activate the S-VHS ET function... ...while recording is in progress. ...while timer-recording (incl. Instant Timer Recording Z pg.
49 and Automatic Satellite Program Recording Z pg. 50) is
in progress. ...while Video Calibration (Z pg. 32) is in progress. ...when the VCR's power is off.
S-VHS ET does not work with S-VHS tapes.
ENGAGE S-VHS ET MODE
While the current setting is displayed on the screen, press S-VHS ET again to set to "ON".
2
The "S-VHS" indicator lights on the front display panel.
S-VHS ET
This facility allows recording with S-VHS picture quality on VHS cassettes. You can play back those cassettes recorded in S-VHS ET on a VCR equipped with S-VHS ET.
S-VHS ET : OFF
NOTES:
To obtain the highest quality recording and playback pictures over a longer period on this model, S-VHS recording on S-VHS tape is recommended.
You can play back S-VHS ET recordings not only on this VCR but also on another VHS VCR equipped with S-VHS ET. * It is recommended to specifically label S-VHS ET recordings so you can easily distinguish them from regular VHS recordings.
S-VHS ET recordings can also be played back on an S-VHS VCR or a VHS VCR equipped with SQPB (S-VHS QUASI PLAY­BACK) function. However, there may be cases where S-VHS ET playback is not possible on a particular VCR.
Frequent still, frame-by-frame and slow-motion playback TIME SCAN SEARCH may damage the tape and cause picture degradation.
With some tapes, better picture quality may not be obtained even with S-VHS ET recording. It is recommended that you do test record beforehand to make sure whether better results can be obtained.
High Grade tapes are recommended for superior results.
Make sure that "VIDEO CALIBRATION" is set to "ON" at the Function screen (Z pg. 32).
During S-VHS ET playback noise may appear depending on tape quality.
Noise may appear during still frame-by-frame, slow-motion playback and TIME SCAN SEARCH.
If the playback picture becomes blurred or interrupted, use a cleaning cassette.
EN 37
MENU
CH
OK
Stereo And SAP (Second Audio Program)
Your VCR’s built-in MTS decoder enables reception of Multi­channel TV Sound broadcasts. When the channel is changed on the VCR ...
The "STEREO" indication appears on the screen for about 5 seconds if the program is a stereo broadcast.
The "SAP" indication appears on the screen for about 5 seconds if the program is a SAP broadcast.
Both indications appear when a stereo program is accompanied by SAP audio.
To Record Stereo Programs . . .
. . . simply follow the basic recording procedure.
To Listen To Stereo Soundtrack During Recording . . .
. . . set "AUDIO MONITOR" to "HI-FI" at the Function screen (Z pg. 29).
To Record SAP Programs . . .
MENU
123 456
89
7
0
1
3
2
4
OK
TIME SCAN
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
2
TIME SCAN #.
SELECT 2ND AUDIO RECORD SET MODE
Move the highlight bar (arrow) to "2ND AUDIO
3
RECORD" by pressing
5
CH
%
TIME SCAN # to set to "ON".
RETURN TO NORMAL SCREEN
Press MENU.
5
or TIME SCAN
or TIME SCAN
, then press OK or
%
AUTO TIMER OFF SUPERIMPOSE ON AUTO SP VIDEO STABILIZER OFF
= 2ND AUDIO RECORD ON
AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
, then press OK or
FUNCTION
=EP TIMER OFF
4
NOTES:
If a SAP program is received and "2ND AUDIO RECORD" is set to "ON", the SAP audio is recorded on both the Normal and Hi-Fi tracks. The main audio program is not recorded.
If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and Normal audio tracks.
38 EN
PLAY
PLAY
TIME SCAN SHUTTLE
Time Scan
PLAYBACK AND RECORDING FEATURES (cont.)
Your VCR is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during any of the TimeScan modes (Z pg. 39). TimeScan allows you to view a program in search mode while listening to the audio.
NOTES:
"TIMESCAN AUDIO" must be set to "ON", or the sound will not be heard in TimeScan mode (Z pg. 40).
The audio will not synchronize with the video in TimeScan modes.
In Pause mode 3 seconds (approx.) of audio will be played back repeatedly. (Z pg. 24)
In TimeScan search modes some of the audio information will not be played so that the audio can keep up with the video.
Audio signal during TimeScan
Playback tape ➀➁➂➃➄
Sound of ➀, ➂ and is heard. Sound of and is not heard. Output audio signal is normal (monaural) sound.
123 456
89
7
0
1
3
2
4
TIME SCAN
Variable-Speed Search/ Reverse Motion Playback
ACTIVATE VARIABLE-SPEED SEARCH
During playback or still, turn the VCR's TIME SCAN SHUTTLE ring. It remains at that position even after you
1
release it. Each time it passes a click position, the playback speed changes. (Refer to the chart on pg. 39 for playback speeds).
OR
During playback, repeatedly press and TIME SCAN
or £ to select the search speed.
To increase the speed in the forward direction, press and release £ repeatedly to select the various forward search modes.
To decrease the speed in the forward direction, press and release ™.
To play in reverse slow motion and in reverse play mode, continue to press repeatedly after selecting all the forward slow motion modes. (Refer to the chart on pg. 39 for playback speeds).
T o resume normal pla ybac k, press PLAY.
If the picture jitters vertically during variable-speed search:
1 Press PAUSE. 2 Press CH 5 (+) or ∞ (–) so that the vibration stops.
If the superimposed indication jitters vertically during TimeScan, adjust until the optimum condition is achieved by using manual tracking (Z pg. 25).
TimeScan
EN 39
Names of special-effects playback
× 7 ×–5 × 5 ×–3 × 3 ×–1 × 1 × 2 ×–1/
Speed
Audio output
The speed is shown in the upper right corner of the TV screen for approx. 5 seconds.
The TimeScan search speed is the same for SP and EP recordings.
To resume normal playbac k, press PLAY.
When using the VCR's TIME SCAN SHUTTLE ring, the playback speed may not change depending on how far it is turned.
When using the VCR's TIME SCAN SHUTTLE ring, the playback speed will change up to 7× and –7× search speeds. Turning the
TIME SCAN SHUTTLE ring further will not increase the search speed.
Picture may be distorted at the position where the recording speed is switched.
The picture may be noisy for a moment when you change the playback speed.
During high-speed search with a tape containing both SP and EP recordings, where the recording tape speed switches from EP to
SP, the search speed will change automatically to 7× normal playback speed with TimeScan.
Depending on the tape in use, noise may appear or the upper part of the picture may be distorted.
Picture may appear distorted in comparison to normal playback.
In TimeScan mode there will be a time lag between the video and the audio and noise may appear in the audio signal.
TimeScan sound quality will differ in comparison to normal playback.
When material such as music videos where there is non-stop sound (very few breaks in the sound track) are viewed at 2x normal
speed, the audio play back may be faster than normal.
When the playback direction is reversed, it takes approximately 6 seconds until sound is heard.
–7
Audio is output.
*Still mode cannot be engaged using the TIME SCAN buttons. Still mode can only be engaged by pressing
the PAUSE button.
Reverse
Play Slow-Motion *Still Slow-Motion Play SearchSearch
6
×
18
Audio is
not output.
×
Audio is
output.
1
/
18
×0
Audio is
not output.
Forward
1
/
6
×1/
Audio is output.
If you don't want to hear TimeScan audio, set "TIMESCAN AUDIO" to "OFF" (Z pg. 40).
0
4
Skip Search
SKIP OVER UNWANTED
1
SKIP SEARCH
3
SECTIONS
Press SKIP SEARCH 1 to 4 times during playback. Each press initiates a 30-second period of fast-motion
1
playback. Normal playback resumes automatically.
NOTES:
To return to normal playback during a Skip Search, press PLAY.
40 EN
MENU
CH
OK
PLAYBACK AND RECORDING FEATURES (cont.)
123 456
89
7
0
2
4
CH+/–
TimeScan Audio
The audio output can be set ON/OFF during TimeScan. Select ON/OFF as required.
*The default setting is "ON".
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Press CH5∞ or TIME SCAN bar (arrow) to “FUNCTION SET”, then press OK or
2
TIME SCAN #.
SELECT TIMESCAN AUDIO MODE
Press CH 5∞ or TIME
%
SCAN
3
highlight bar (arrow) to "TIMESCAN AUDIO", then press OK or TIME SCAN to set to "ON" or "OFF".
to move the
%
to move the highlight
PREVIOUS PAGE S-VHS MODE AUTO AV COMPU-LINK ON VIDEO CALIBRATION ON
= TIMESCAN AUDIO ON
#
REAR AUX INPUT VIDEO TAPE DUB MODE ON
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
MENU
1
RETURN TO NORMAL SCREEN
Place MENU.
3
OK
TIME SCAN
4
CH
TIMER RECORDING
VCR Plus+ Timer Programming
EN 41
Timer recording allows you to program the VCR to automatically record a program that will be broadcast at some future time. The timer record function can be programmed using VCR Plus+ or Express Timer Programming up to 8 shows as far as a year in advance. (Z pg. 45) The VCR Plus+ timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer record function. Simply key in the PlusCode number for the TV program you wish to record and the VCR's timer will be automatically programmed. (The PlusCodes are the numbers next to the programs in most TV listings.)
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
CANCEL
123 456
89
7
0
2
NUMBER
4
LOAD A CASSETTE
Make sure the record safety tab is present.
The VCR’s power comes on automatically.
1
ACCESS VCR PLUS+ SCREEN
Press PROG. on the remote control.
2
The clock must be set in order to access the VCR Plus+ screen. If you haven’t set the clock, the Main Menu screen appears after an error message is displayed. Refer to page 8 for the Plug & Play procedure or page 11 for the clock setting procedure.
VCR PLUS+
PRESS NUMBER KEY (0–9) PRESS (+/–) TO SET
EXPRESS PROGRAMMING
PRESS (PROG.) TO END
ENTER PLUSCODE NUMBER
Press the appropriate
NUMBER keys to enter the
3
PlusCode number printed in the TV listings for the TV program you wish to record and press OK.
If the Guide Channel Set screen appears, go to step 4. If the VCR Plus+ Program screen appears, go to step 5.
To make corrections, press CANCEL and input the correct PlusCode number.
VCR PLUS+
123
PRESS NUMBER KEY (0–9) PRESS (PROG.) TO END
THEN (OK)
PROG.
INPUT RECEIVING CHANNEL
1
3
OK
TIME SCAN
NUMBER
The Guide Channel Number, which is assigned
4
to the TV or cable station for the PlusCode number that you entered in step 3, will appear automatically on the Guide Channel Set screen. Input the number of the channel on which the broadcast for the PlusCode number is received on the VCR or cable box using the NUMBER keys, CH or TIME SCAN
The Guide Channel Set screen appears only when you input the PlusCode number of a station for which the Guide Channel number has not previously been set.
If you receive your channels with a cable box and if you have properly set your Controller, "CABLE CH" appears in place of "VCR CH". If not, refer to pages 16 – 18.
%
, then press OK.
GUIDE CHANNEL SET
GUIDE CH: 12
VCR CH : –––
PRESS NUMBER KEY (0–9)
OR (5,∞), THEN (OK)
PRESS (PROG.) TO END
5
42 EN
SP/EP
NUMBER "9"
NUMBER "8"
CANCEL
STOP+/–
PROG.
123 456
89
7
0
1
TIMER RECORDING (cont.)
CHECK PROGRAM DATA
The PlusCode number you entered and the matching
5
Timer-Recording informa­tion is displayed on the Program screen. Check to make sure it’s accurate.
To change the stop time,
2
TIMER
4
press STOP +/–.
To timer-record daily or weekly serials, press DAILY (NUMBER “8”) or WEEKL Y (NUMBER “9”). “DAILY” or “WEEKLY” appears on the Program screen. Pressing the button again makes each corresponding display disappear.
If you made a mistake, press CANCEL to access the VCR Plus+ screen again and input the correct PlusCode number.
If the PlusCode number you inputted is incorrect, "ERROR" may appear on the screen to advise you of the error. This happens when the PlusCode number is for a program which has already passed. "ERROR" is displayed for about 5 seconds and the VCR Plus+ screen reappears.
PROGRAM 1
(VCR PLUS+ 12345678)
START STOP 8:00PM = 10:00PM DATE CH
12/24/98 12 SP
THU
PRESS (8=DAILY, 9=WEEKLY STOP+/– = STOP TIME, SP/EP) PRESS (OK) TO END
3
OK
ATTENTION
If there is a conflict in the timer schedule and one program overlaps with another, only the parts shown below in gray will be recorded.
Pattern 1: The program with the lower program number
Program 1
Program 2
Pattern 2: The program that is broadcast earlier will be
Program 1
Pattern 3: The program that is broadcast earlier will be
Program 1
will be recorded.
10:00
recorded.
10:00
Program 2
recorded, followed by the remaining portion of the other program.
10:00
11:00
CH10
CH40
11:00
CH10
CH40
11:00
CH10
Program 2
12:00
Not recorded
12:00
Not recorded
12:00
CH40
SET TAPE SPEED
Press SP/EP.
6
RETURN TO NORMAL SCREEN
Press PROG. or OK. "PROGRAM COMPLETED" appears on the screen for about 5 seconds, then normal
7
screen appears.
ENGAGE TIMER MODE
Press TIMER. The VCR turns off automatically and "" is displayed on the display panel.
8
IMPORTANT
If you have moved to a different area or if a broadcasting station's channel number has been changed, the wrong VCR or CABLE CH number will be displa y ed on the VCR Plus+ Program screen in step 5. When this happens, set the correct Guide Channel number for that station. (Z pg. 43, "VCR Plus+ Setup")
NOTES:
T o disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.
In case of a power failure after programming, the VCR’s memory backup keeps your selections for approximately 10 minutes.
When timer-recording cable channels received through a Cable Box, be sure to keep the Cable Box set to ON.
Not recorded
VCR Plus+
POWER
CH
MENU
Setup
EN 43
IMPORTANT
If you have moved to a different area or if a broadcasting station's channel number has been changed, the wrong VCR or CABLE CH number will be display ed on the VCR Plus+ Program screen (Z step 5 on page 42). When this happens, perform the following steps to set the correct the Guide Channel number for that station.
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
OK
POWER
123 456
89
7
0
2
4
To ensure that VCR Plus+Timer Recording operates correctly it is necessary to set the VCR Plus+ "Guide Channel Set " for each station. Please read the following information carefully.
VCR Plus+ Guide Channel Matching
VCR Plus+ assigns a VCR Plus+ "Guide Channel" to broadcast and cable TV c hannels. These Guide Channel numbers are also called the VCR Plus+ Channel Codes. Most TV listings have a section, usually a chart, indicating the "Guide Channel" numbers assigned to each station. For accurate VCR Plus+ Programming the VCR Plus+ Guide Channel number for each station should match the channel number on which it is received in your area.
NOTES:
In many instances the VCR Plus+ Guide Channel numbers for cable and broadcast TV stations DO NOT match the channel number on which it is received by your VCR or cable box. Check your TV listing, or contact your cable supplier for details.
Many broadcast TV stations can be viewed on cable. Check your TV listing, or contact your cable supplier for details.
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU SCREEN
Press MENU.
MENU
2
1
3
OK
TIME SCAN
ACCESS INITIAL SET SCREEN
Press CH SCAN
3
highlight bar (arrow) to “INITIAL SET”, then press OK or TIME SCAN #.
5
or TIME
%
to move the
MAIN MENU
FUNCTION SET TUNER SET
=INITIAL SET
PRESS (5,∞), THEN (OK) PRESS (MENU) TO END
44 EN
MENU
CH
OK
123 456
89
7
0
2
4
NUMBER
TIMER RECORDING (cont.)
ACCESS GUIDE CHANNEL SET SCREEN
Press CH SCAN
4
highlight bar (arrow) to “GUIDE CHANNEL SET”, then press OK or TIME SCAN #.
5
%
to move the
or TIME
CLOCK SET LANGUAGE ENGLISH
=GUIDE CHANNEL SET
CABLE BOX SET DBS RECEIVER SET
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
INPUT GUIDE CHANNEL NUMBER
Press CH SCAN
5
appropriate NUMBER keys to input the VCR Plus+ Guide Channel number as shown in the TV listing. Then press OK or TIME SCAN #.
If you receive your
5
, TIME
%
or the
channels with a cable box and if you have properly set your Controller, “CABLE CH” appears in place of “VCR CH”. If not, refer to pages 16 – 18 and re-perform the procedure.
(Ex.) When inputting the Guide Channel number 6 for WNJU(Ind.)
GUIDE CHANNEL SET
PRESS NUMBER KEY (0-9) PRESS (MENU) TO END
INITIAL SET
GUIDE CH : 6
VCR CH : – – –
OR (5,∞), THEN (OK)
MENU
INPUT RECEIVING CHANNEL
1
3
OK
TIME SCAN
NUMBER
Press CH
%
SCAN
6
appropriate NUMBER keys to input the number of the channel on which the Guide Channel’s broad­casts are received. Then press OK or TIME SCAN #.
Repeat steps 5 and 6 for each instance.
5
or the
, TIME
(Ex.) If WNJU(Ind.) is received on channel 47
GUIDE CHANNEL SET
=
GUIDE CH : 6
VCR CH : 47
PRESS NUMBER KEY (0-9)
OR (5,∞), THEN (OK)
PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
7
Express Timer
STOP+/–
DATE+/–
Programming
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
EN 45
You can directly program the VCR’s timer to record up to 8 shows, as far as a year in advance. Remember, the clock must be set before you can program the timer (Z pg. 8 or 11).
LOAD A CASSETTE
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.
1
The VCR comes on, and the counter is reset, automatically.
ACCESS VCR PLUS+ SCREEN
Press PROG.
2
ACCESS PROGRAM SCREEN
Press START +/–. (If you’re just starting out,
3
“PROGRAM 1” appears.)
PROGRAM 1
START STOP
– –:– –AM = – –:– –AM
DATE CH
– –/– –/– – – – – SP
PRESS (+/–, SP/EP, 8=DAILY,
9=WEEKLY), THEN (0K)
PRESS (PROG.) TO END
START+/–
PROG.
123 456
89
7
0
1
3
SET PROGRAM START TIME
Press START +/– to enter the time you want
4
2
4
CH+/–
recording to start.
Press and hold START +/– to move in 30-
minute increments, or press and release repeatedly to move 1 minute at a time.
PROGRAM 1
START STOP
8:00 AM = – –:– –AM
DATE CH
– –/– –/– – – – – SP
PRESS (+/–, SP/EP, 8=DAILY,
9=WEEKLY), THEN (0K)
PRESS (PROG.) TO END
SET PROGRAM STOP TIME
Press STOP +/– to enter the time you want recording to stop.
5
Press and hold STOP +/– to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.
SET PROGRAM DATE
Press DATE +/–. (The current date is displayed on screen. The date you enter appears in its place.)
6
SET CHANNEL NUMBER
Press CH +/–.
If you are using a DBS receiver, see "ATTENTION
7
FOR DBS RECEIVER USERS" on next page.
Holding down CH +/– rapidly scans through the channels.
46 EN
NUMBER "8"
SP/EP
10:00
11:00
12:00
10:00
11:00
12:00
10:00
11:00
12:00
NUMBER "7"
123 456
89
7
0
2
4
NUMBER "9"
TIMER
TIMER RECORDING (cont.)
SET TAPE SPEED
Press SP/EP to set the tape speed.
8
RETURN TO NORMAL SCREEN
Press PROG. or OK. "PROGRAM COMPLETED" appears on the screen for about 5 seconds, then normal
9
screen appears.
ENGAGE TIMER MODE
Press TIMER. The VCR turns off automatically and "" is displayed on the display panel.
10
PROG.
1
3
OK
ATTENTION FOR DBS RECEIVER USERS
If you are using a DBS receiver (unless "DBS RECEIVER SET" is set to "OFF" Z pg. 20), the BAND indication (TV or CATV or DBS) appears under the channel number display. If the channel number that has been entered requires that the band be set, "7=DBS" is displayed on the screen. Press the NUMBER key "7" to select the desired band.
a– TV : T o timer -record a regular TV program recei ved on b– CATV : To timer-record a cable TV program received on
c– DBS : To timer-record a satellite program received
If "BAND" is set to "TV" at the Tuner Set screen (Z pg.14) and "CABLE BOX SET" is set to "OFF" at the Cable Box Set screen (Zpg. 17), CATV will not be displayed on the Program screen; If "BAND" is set to "C ATV" or "CABLE BOX SET" is set to "ON", TV will not be displayed.
the VCR. the VCR, or through a cable box (unless "CABLE
BOX SET" is set to "OFF" Z pg.17). through a DBS receiver.
PROGRAM 1
START STOP
8:00AM = 9:00PM
DATE CH
12/24/98 110 SP
THU DBS
PRESS (+/–, SP/EP, 8=DAILY,
9=WEEKLY, 7=DBS), THEN (0K)
PRESS (PROG.) TO END
To Timer-Record Weekly Or Daily Serials . . .
. . . anytime during steps 3 through 9, press WEEKL Y (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday–Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.
NOTES:
T o disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.
In case of a power failure after programming, the VCR’s memory backup keeps your selections for approximately 10 minutes.
Programs that start after midnight must have the next da y’s date.
After timer recording is completed, the VCR’s power goes off automatically.
You can program the timer while a regular recording is in progress; the on-screen menu will not be recorded.
If the end of tape is reached during timer recording, the cassette is automatically ejected.
When timer-recording cable or satellite channels through an external tuner, be sure to keep the cable box or satellite receiver's power ON.
ATTENTION
If there is a conflict in the timer schedule and one program overlaps with another, only the parts shown below in gray will be recorded.
Pattern 1: The program with the lower program number
Program 1
Program 2
Pattern 2: The program that is broadcast earlier will be
Program 1
Pattern 3: The program that is broadcast earlier will be
Program 1
will be recorded.
CH10 CH40
recorded.
CH10
Program 2
recorded, followed by the remaining portion of the other program.
CH40
Program 2
Not recorded
CH10
Not recorded
Not recorded
CH40
PROG. CHECK
STOP+/–
DATE+/–
SP/EP
CH
POWER
MENU
OK
POWER
EN 47
Check, Cancel And Revise Programs
DISENGAGE TIMER
Press TIMER, then press POWER.
1
ACCESS PROGRAM CHECK SCREEN
Press PROG. CHECK.
2
PR START STOP CH DATE 1 8:00P 10:00 12 12/24 2 10:00A 10:45 40 12/25 3 11:30P 01:00 125 12/25 4 5 6 7 8
PRESS (CHECK) TO NEXT
CANCEL
START+/–
MENU
123 456
89
7
0
1
3
2
TIMER
4
CH+/–
OK
TIME SCAN
ACCESS PROGRAM SCREEN
Press PROG. CHECK again to check more information. Each time you press PROG. CHECK, the next program's
3
information appears.
To Cancel Or Revise A Program...
CANCEL OR REVISE A PROGRAM
To cancel a program, press CANCEL at the appropriate program screen.
4
To revise a program, press the appropriate button: START+/–, STOP+/–, DATE+/–, CH+/–, SP/EP.
RETURN TO NORMAL SCREEN
Press PROG. CHECK as many times as necessary. If there are still programs remaining, go to step 6.
5
RE-ENGAGE TIMER
Press TIMER.
6
48 EN
TIMER RECORDING (cont.)
Auto SP→EP Timer
If, when recording in SP mode, there is not enough tape to record the entire program, the VCR automatically switches to EP mode to allow complete recording. This feature is especially handy when recording a program of more than 2 hours in length.
For Example . . .
Recording a program of 140 minutes in length onto a 120­minute tape
Approximately 110 minutes
SP mode
Total 140 minutes
Make sure you set "AUTO SP EP TIMER" to “ON” at the Function screen before the timer recording starts.
Approximately 30 minutes
EP mode
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
2
TIME SCAN #.
SELECT AUTO SP→EP
5
or TIME SCAN
%
, then press OK or
Auto Timer
When the Auto Timer is set to ON the timer is automatically engaged when the VCR's power is turned off. It is automatically disengaged when the VCR is powered back on.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS FUNCTION SET SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
2
TIME SCAN #.
SELECT AUTO TIMER SET MODE
Move the highlight bar (arrow) to "AUTO TIMER"
3
by pressing CH TIME SCAN
press OK or TIME SCAN to set to "ON" or "OFF".
5
or TIME SCAN
5
or
%
, then
%
, then press OK or
=AUTO TIMER OFF
#
FUNCTION
SUPERIMPOSE ON AUTO SP
=EP TIMER OFF
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
TIMER SET MODE
Move the highlight bar (arrow) to "AUTO SP→EP
3
TIMER" by pressing CH
5
or TIME SCAN
then press OK or TIME SCAN # to set to "ON".
%
=AUTO SP
,
FUNCTION AUTO TIMER OFF SUPERIMPOSE ON
=EP TIMER ON
VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTES:
If you have programmed the VCR to timer-record 2 or more programs, the second program and those thereafter may not fit on the tape if you set the Auto SP→EP Timer mode to "ON". In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.
In order to ensure that the recording fits on the tape, this feature may leave a slight non-recorded section at the end of the tape.
There may be some noise at the point on the tape where the VCR switches from SP to EP mode.
The Auto SP→EP Timer feature is not available during ITR (Instant Timer Recording), and the feature will work with the following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120.
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTE:
For safety, when AUTO TIMER is set to “OFF”, all other VCR functions are disabled while the Timer mode is engaged. To disengage the timer, press TIMER.
Instant Timer
REC
Recording
EN 49
This easy method lets you record from 30 minutes to 6 hours (selectable in 30-min. increments) and shuts the VCR off after recording is finished.
START RECORDING
Press REC on the front panel.
1
(ITR)
SP
VCR
ENGAGE ITR MODE
Press REC again. " " blinks and 0:30 appears on the front display panel.
2
SET RECORDING DURATION
If you want to record for more than 30 minutes, press
REC to extend the time. Each press extends recording
3
time by 30 minutes.
NOTES:
You can only perform ITR using the REC button on the VCR's front panel.
After you set the ITR time, the previous display reappears.
To check the remaining time, press REC once during record­ing and the remaining time will be displayed for about 5 seconds. Be careful not to press REC again within these 5 seconds, or you will round the recording time up to the next 30 minute increment.
50 EN
REC LINK
SP/EP
Automatic Sat­ellite Program Recording
89
7
0
4
TIMER RECORDING (cont.)
This facility allows you to automatically record a satellite program which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the VCR's rear AUDIO/ VIDEO IN or S VIDEO IN* (L-1) connectors and program the timer on the satellite receiver; the VCR starts recording when the signals input from the satellite receiver to the rear AUDIO/VIDEO IN or S VIDEO IN (L-1) connectors, and when there is no input signals the VCR stops recording and the power shuts off.
* If you have connected the satellite receiver to the VCR's
S VIDEO IN connector, set "REAR AUX INPUT" to "S-VIDEO" at the Function screen (Z pg. 52 – 53).
Before performing the following steps:
Program the timer on the satellite receiver.
Insert a cassette with the safety tab in place.
SET TAPE SPEED
Press SP/EP to set the tape speed.
1
ENGAGE AUTO SATELLITE PROG REC MODE
Press and hold REC LINK for about 2 seconds. The button lights up and the VCR turns off automatically.
2
To disengage the Auto Satellite Prog Rec mode, press
REC LINK. The button's light goes off.
If the VCR's power is off, it is not possible to engage the Auto Satellite Prog Rec mode.
ATTENTION
Be sure not to turn on the satellite receiver before the
1
3
program is executed; otherwise, the VCR will start recording when the satellite receiver's power is turned on.
If you have connected another appliance other than a satellite receiver to the rear AUDIO/VIDEO IN or S VIDEO IN (L-1) connectors, be sure not to engage the Auto Satellite Prog Rec mode; otherwise, the VCR will start recording when the connected appliance's power is turned on.
Auto Satellite Prog recording and timer-recording cannot be done at the same time.
NOTES:
Auto Satellite Prog recording is not possible with the front AUDIO/VIDEO IN (F-1) connectors.
When the Auto Satellite Prog Rec mode is engaged or the VCR's power is turned off after Auto Satellite Prog recording is finished, the VCR will not enter the Timer mode even though "AUTO TIMER" is set to "ON".
For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.
Auto Satellite Prog recording is not possible if your satellite receiver does not have a timer.
The REC LINK button's light blinks while Auto Satellite Prog recording is in progress.
Pressing the VCR's POWER button while Auto Satellite Prog recording is in progress turns off the VCR's power and disengages the Auto Satellite Prog Rec mode.
If there is more than one satellite program you wish to record with Auto Satellite Prog Recording, it is not possible to set a different tape speed for each; the tape speed selected in step 1 will apply to all the programs for Auto Satellite Prog recording.
The Active Video Calibration (Z pg. 32) does not work while Auto Satellite Prog recording is in progress.
Auto Clock (Z pg. 9) does not work when the Auto Satellite Prog Rec mode is engaged.
Depending on the type of satellite receiver, the VCR may not record a short portion at the beginning of the program or may record slightly longer than the actual length of the program.
If you engage the Auto Satellite Prog Rec mode when the satellite receiver's power is on, the VCR will not start Auto Satellite Prog recording even though the REC LINK button's light blinks. When the satellite receiver shuts off once and is turned back on again, the VCR starts recording.
You can also record a program from your cable system in the same way if the system has a timer and is connected to the VCR's rear AUDIO/VIDEO IN or S VIDEO IN (L-1) connectors.
When you press the VCR's REC LINK button to engage the Auto Satellite Prog Rec mode, if the REC LINK button does not light but instead blinks quickly even though your satellite receiver's power is off, Auto Satellite Prog Recording will not work properly with that satellite receiver*. If this is the case, perform "Express Timer Programming" (Z pg. 45) to timer-record a satellite program.
* Some satellite receivers output signals even if the power is off. Auto Satellite Prog Recording is not possible with those satellite receivers.
EDITING
EN 51
You can use your VCR as the player or the recorder.
Edit To Or From Another VCR
Player
S VIDEO OUT
S-Video cable (supplied)
S VIDEO IN
VIDEO OUT
AUDIO OUT
Y our VCR
Audio/Video cable (supplied)
AUDIO IN
MAKE CONNECTIONS
Connect an AV cable between the player’s VIDEO OUT and AUDIO OUT connectors and the recorder’s VIDEO
1
IN and AUDIO IN connectors.
If using another VCR with an S-VIDEO input or output connector, it is recommended to use the S-VIDEO connection to minimize picture degradation while editing.
When using your VCR as the recorder and a monaur al VCR as the player, connect the player’ s A UDIO OUT connector to the AUDIO IN L connector on the recorder.
LOAD CASSETTES
Insert the playback cassette into the player and the cassette to be recorded on into the recorder.
2
SET RECORDER’S INPUT MODE
Set to "AUX". With this VCR, press the NUMBER key "0" and/or CH to select depending on the connector being
3
used – "L-1" for the rear AUDIO/VIDEO IN connector, or "F-1" for the front AUDIO/VIDEO IN connector.
NOTE:
If you use your VCR as the recorder and have connected another VCR to your VCR's S-VIDEO IN connector, you need to set "REAR AUX INPUT" to "S-VIDEO" at the Function screen. Follow steps 4 6 from the "Edit From A Camcorder" section (Z pg. 52).
Recorder
Advantages Of S-VHS Editing
S-VHS allows you make high resolution video recordings when dubbing from one VCR to another. You can edit from VHS to S-VHS, from S-VHS to VHS, or from S-VHS to S-VHS.
From VHS to S-VHS (VIDEO-VIDEO connection): Record VHS playback signals in the S-VHS mode. Although the picture quality is inherently limited by the orignal VHS source material, the edited tape has better picture quality than those made by VHS-to-VHS editing.
From S-VHS to VHS (VIDEO-VIDEO connection): Because the picture quality of the source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing.
From S-VHS to S-VHS (S-VIDEO connection): A high resolution copy is made of a high resolution original S­VHS tape with minimal picture degradation. This is the preferred method of video dubbing.
VIDEO IN
Another VCR
ENGAGE TAPE DUBBING MODE
Follow steps 12 14 from the "Edit From A Camcorder" section (Z pg. 53).
4
START PLAYER
Set to its play mode.
5
NOTE:
If the player is equipped with a superimpose/OSD disable feature then set "SUPERIMPOSE" to OFF before pressing PLAY (Z pg. 28).
START RECORDER
Set to its record mode.
6
NOTES:
Be sure to set "TAPE DUB MODE" back to "OFF" when you finish editing.
When "TAPE DUB MODE" is set to "ON" Active Video Calibration is deactivated in order to provide better picture quality edits.
If you use an auxiliary input to connect a cable box or DBS receiver make sure that the correct input ("L-1", "F-1" or "S­VIDEO") is selected after you have finished editing (Z step 6, page 52).
52 EN
OK
MENU
EDITING (cont.)
Y ou can use a camcorder as the pla y er and your VCR as the recorder.
Edit From A Camcorder
Recorder
VIDEO IN
Audio/Video cable (supplied)
VIDEO OUT
AUDIO IN
To rear panel REMOTE PAUSE/AV COMPULINK connector
Mini-plug cable (not supplied) (JVC camcorder only)
AUDIO OUT
Camcorder
Player
Y our VCR
S-VIDEO cable (supplied)
EDIT
S-VIDEO IN
S-VIDEO OUT
MAKE CONNECTIONS
Connect an AV cable between the camcorder’s VIDEO OUT and AUDIO OUT connectors and your VCR’s
1
VIDEO IN and AUDIO IN connectors.
If connecting a camcorder with an S-VIDEO output connector, it is recommended to use the S-VIDEO connection to minimize picture degradation while editing.
When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling your VCR. The mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.
If connecting to a camcorder with a monaural output, connect the audio output connector on the camcorder to AUDIO IN L of the VCR.
LOAD A CASSETTE
Insert the cassette to be recorded on into the recorder.
2
SET RECORDER’S INPUT MODE
Set to "AUX". Press the NUMBER key “0” and/or CH to select depending on the connector being used – "L-1"
3
for the rear AUDIO/VIDEO IN connector, or "F-1" for the front AUDIO/VIDEO IN connector.
If you have connected a JVC Master Edit Control­equipped camcorder to... ... the VCR's rear panel S-VIDEO IN and AUDIO IN
connectors — step 4
... the VCR's rear panel VIDEO IN and AUDIO IN
connectors — step 4
... the VCR's front panel VIDEO IN and AUDIO IN
connectors — step 8 If you are not using a JVC Master Edit Control-equipped camcorder — step 12
ACCESS MAIN MENU SCREEN
Press MENU.
CH
NUMBER "0"
MENU
4
ACCESS FUNCTION SET SCREEN
Press CH bar (arrow) to “FUNCTION SET”, then press OK or
5
TIME SCAN #.
5
or TIME SCAN
SELECT REAR AUX INPUT SET
0
1
4
3
OK
TIME SCAN
MODE
a– S-VHS IN: Move the highlight bar (arrow) to
6
"REAR AUX INPUT" by pressing CH TIME SCAN SCAN # to set to "S-VIDEO".
b– REAR VIDEO: Move the highlight bar (arrow) to
"REAR AUX INPUT" by pressing CH TIME SCAN SCAN # to set to "VIDEO".
=AUTO TIMER OFF
SUPERIMPOSE ON AUTO SP VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
%
, then press OK or TIME
%
, then press OK or TIME
FUNCTION
=EP TIMER OFF
%
to move the highlight
5
or
5
or
PREVIOUS PAGE S-VHS MODE AUTO AV COMPU-LINK ON VIDEO CALIBRATION ON TIMESCAN AUDIO ON
=REAR AUX INPUT S-VIDEO
TAPE DUB MODE ON SELECT WITH (5,) AND (OK)
PRESS (MENU) TO END
EN 53
RETURN TO NORMAL SCREEN
Press MENU.
7
ACCESS MAIN MENU SCREEN
Press MENU.
8
ACCESS FUNCTION SET SCREEN
Press CH bar (arrow) to “FUNCTION SET”, then press OK or TIME
9
SCAN #.
5
or TIME SCAN
%
to move the highlight
ENABLE REMOTE PAUSE FUNCTION
Press CH SCAN
10
highlight bar (arrow) to "AV COMPU-LINK", then press OK or TIME SCAN to set to "OFF".
The REMOTE PAUSE/AV
5
or TIME
%
to move the
COMPU-LINK connec­tor works as the AV Compulink Playback connector when "AV COMPU-LINK" is set to "ON" (Z pg. 31), and works as the Remote Pause connector when "AV COMPU-LINK" is set to "OFF".
=AUTO TIMER OFF
SUPERIMPOSE ON AUTO SP VIDEO STABILIZER OFF
#
2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
PREVIOUS PAGE S-VHS MODE AUTO
=AV COMPU-LINK OFF
VIDEO CALIBRATION ON TIMESCAN AUDIO ON REAR AUX INPUT VIDEO TAPE DUB MODE ON
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
11
FUNCTION
=EP TIMER OFF
SELECT TAPE DUB MODE
Move the highlight bar (arrow) to "TAPE DUB
14
MODE" by pressing CH
5
or TIME SCAN
then press OK or TIME SCAN # to set to "ON".
%
= AUTO TIMER OFF
SUPERIMPOSE ON
,
AUTO SP VIDEO STABILIZER OFF 2ND AUDIO RECORD OFF AUDIO MONITOR HI-FI NEXT PAGE SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
PREVIOUS PAGE S-VHS MODE AUTO AV COMPU-LINK ON VIDEO CALIBRATION ON TIMESCAN AUDIO ON REAR AUX INPUT VIDEO
= T APE DUB MODE ON
SELECT WITH (5,) AND (OK) PRESS (MENU) TO END
RETURN TO NORMAL SCREEN
Press MENU.
15
START PLAYER
Set the camcorder to its play mode.
16
NOTE:
If the camcorder is equipped with a superimpose/OSD disable feature then set its superimpose or display feature to OFF before pressing play.
START RECORDER
Set your VCR to its record mode.
If you are using a Master Edit Control-equipped JVC
17
camcorder, it can put the recorder automatically into Record mode. (Refer to camcorder's instruction manual.)
FUNCTION
=EP TIMER OFF
ACCESS MAIN MENU SCREEN
Press MENU.
12
ACCESS FUNCTION SET SCREEN
Press CH bar (arrow) to “FUNCTION SET”, then press OK or TIME
13
SCAN #.
5
or TIME SCAN
%
to move the highlight
NOTES:
Be sure to set "TAPE DUB MODE" back to "OFF" when you finish editing.
When "TAPE DUB MODE" is set to "ON" Active Video Calibration is deactivated in order to provide better picture quality edits.
If you use an auxiliary input to connect a cable box or DBS receiver make sure that the correct input ("L-1", "F-1" or "S-VIDEO") is selected after you have finished editing (Z step 3, 6, pg. 52).
54 EN
NUMBER "0"
TIME SCAN SHUTTLE
JOG
Insert Editing
Recorder
PAUSE
Y our VCR
EDITING (cont.)
Insert editing replaces part of the recorded scene with new material. Both the picture and Hi-Fi audio soundtrack are replaced with new ones, while the normal audio soundtrack remains unchanged. If you with to change the normal audio track as well, use the audio dubbing function simultaneously. Use your VCR as the recorder.
Source tape
Audio/Video cable (supplied)
Player
C.RESET
Audio/Video signal
Another VCR
123 456
89
7
0
1
Recorded tape
Before insert editing
After insert editing
Normal
audio track
Video/Hi-Fi
audio track
MAKE CONNECTIONS
Connect the player's VIDEO OUT and AUDIO OUT connectors to your VCR's VIDEO IN and AUDIO IN
1
connectors.
SET RECORDER’S INPUT MODE
Set to "AUX". Press the NUMBER key “0” and/or CH to select depending on the connector being used – "L-1"
2
for the rear AUDIO/VIDEO IN connector, or "F-1" for the front AUDIO/VIDEO IN connector.
LOCATE END POINT
Load the recording cassette into your VCR, and play it back to determine the edit-out point (the end of the
3
segment to be replaced) using the JOG/TIME SCAN SHUTTLE controls or TIME SCAN
2
4
RESET THE COUNTER
Press C.RESET to change the counter display to "0:00:00".
4
and PAUSE.
LOCATE START POINT
Determine the edit-in point (the beginning of the segment to be replaced) using the JOG/TIME SCAN
5
SHUTTLE controls or TIME SCAN
Be sure to engage the Still mode at the edit-in point.
and PAUSE.
PAUSE
3
TIME SCAN
ENGAGE INSERT EDITING
PLAY
INSERT
PLAY
Press INSERT.
● Your VCR enters the Insert-Pause mode. (" ", " "
6
and " " light up on the front display panel.)
The TV screen changes from the still picture to the
input source you are going to record.
EN 55
C.RESET
123 456
89
7
0
1
3
A.DUB
START EDITING
Load the source cassette and play back the segment that is to be inserted. When you reach the start of the
7
section of the source tape that you wish to insert, press PLAY to start the tape in your VCR; Insert Editing begins at this point.
" " and " " are displayed on the front display
panel.
END INSERT EDITING
At counter "0:00:00", Insert Editing will stop automati­cally and both tapes will continue running in the Play
8
mode. If you wish to stop Insert Editing before the
2
4
specified edit-out point, press C.RESET.
FOR AV INSERT EDITING
If you want to replace the picture, Hi-Fi audio soundtrack and normal audio soundtrack all at the same time... In step 6 above, after you press INSERT, press A.DUB also. (" " and " " blink and " " lights up on the display panel.)
NOTES:
Insert editing is not possible with cassettes whose safety tab has been removed.
In insert editing, the recording speed (SP/EP) is determined by the previous recording to be replaced. If the previous recording's speed changes within a single edit, the inserted picture will be distorted at the switching point.
As small portion of the recording which precedes an insert edit may become erased.
56 EN
PAUSE
PLAY
A.DUB
Audio Dubbing
EDITING (cont.)
Audio dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack. Use your VCR as the recorder.
Pre-recorded tape
Audio-dubbed tape
Normal audio track
Video/Hi-Fi audio track
MAKE CONNECTIONS
Connect an audio component to your VCR's AUDIO IN L+ R connectors. *When connecting monaural
1
equipment, use only the VCR's AUDIO IN L connector.
Audio cable
Audio component
(CD player etc.)
NOTES:
When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the Hi-Fi or mixed sound (Hi-Fi + Normal soundtracks), refer to the "Select The Soundtrack" section (Z pg. 29) and select the soundtrack you wish to hear.
Audio dubbing stops automatically when the counter reaches "0:00:00", and the VCR enters the Play mode. Check the counter reading before dubbing.
Audio dubbing cannot be performed on a cassette that has had its record safety tab removed.
When playing back an audio-dubbed tape, refer to the "Select The Soundtrack" section (Z pg. 29) to select the soundtrack you wish to hear.
Picture may be distorted during Audio Dubbing Pause.
It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.
SET RECORDER’S INPUT MODE
Set to "AUX". Press the NUMBER key “0” and/or CH to select depending on the connector being used – "L-1"
2
for the rear AUDIO/VIDEO IN connector, or "F-1" for the front AUDIO/VIDEO IN connector.
LOCATE START POINT
Press PLAY to start playback of the tape in your VCR, and press PAUSE when you find the point where you
3
want to start dubbing.
ENGAGE AUDIO DUBBING
Press A.DUB.
Your VCR enters the Audio Dubbing Pause mode.
4
(" " blinks, " " and " " light up on the front display panel.)
START DUBBING
Engage the audio component's Play mode, then press
PLAY to start the tape in your VCR. Audio dubbing
5
begins at this point.
" " blinks and " " is displayed on the front
display panel.
To stop dubbing temporarily, press PAUSE. Press PLAY
to resume dubbing.
END AUDIO DUBBING
Press STOP to stop the tape in your VCR, and engage the audio component's Stop mode.
6
SPECIAL FEATURES
MBR SET
ENTER
TV
TV/VCR
123 456
89
7
0
1
STOP
3
TV VOL +/–
2
4
TV CH+/–
POWER
NUMBER
EN 57
TV Multi-Brand Remote Control
The VCR's remote control can control several functions on JVC remote control TVs and on the brands of remote control TVs listed below. *The default setting is JVC code 01.
TURN ON THE TV
Turn the power on using the TV's remote control.
1
SET TV BRAND CODE
Refer to the chart in the left column. While holding down
TV on the VCR's remote control, press MBR SET and enter
2
your TV’s brand code using the NUMBER keys, then press STOP.
Follow the example shown below. The TV's power should go off. If it does, try other operations (Z step 3).
Once you have set the remote control to operate the
TV, you don’t have to repeat this step until you replace your remote control’s batteries.
PANASONIC has two codes. If the TV does not
function with one code, try entering the other.
OPERATE TV
First, while holding down TV, press the corresponding button: POWER, TV CH +/–, TV/VCR, TV V OL +/–,
3
NUMBER keys.
For some brands of TV, you must press ENTER after
having pressed the NUMBER keys.
TV BRAND NAME BRAND CODE
JVC 01 MAGNAVOX 02 MITSUBISHI 03 PANASONIC 04, 11 RCA 05 SHARP 06 SONY 07 TOSHIBA 08 ZENITH 09 HITACHI 10 SAMSUNG 12 SANYO 13 SEARS 13
NOTE:
Depending on the type of TV, there may be cases where some or all functions cannot be operated using the remote control.
(Ex.) To set remote control to RCA 05:
Hold down
MBRSET
TV
A/B
Press in succession
0
5
STOP
Release
58 EN
MBR SET
ENTER
CABLE/DBS
POWER
SPECIAL FEATURES (cont.)
Cable Box Multi-Brand Remote Control
The VCR's remote control can control functions on the brands of cable boxes listed below. Some cable box brands have more than one code. If your cable box does not function with a specified code, try other codes.
123 456
89
7
0
1
STOP
3
TV CH+/–
CABLE BOX BRAND NAME BRAND CODE
ARCHER 01, 05, 17 CABLETENNA 01, 17 CABLEVIEW 15, 16, 17, 21, 25 CITIZEN 15, 16, 17, 21, 25 CURTIS 02 DIAMOND 01, 17 EASTERN 19 GC BRAND 15, 16, 17, 21, 25 GEMINI 15 GENERAL INSTRUMENTS 01, 04, 06, 11, 12, 15 HAMLIN 10, 18, 19, 23 JASCO 15 JERROLD 01, 04, 06, 11, 12, 15 NOVAVISION 02 OAK 07 PANASONIC 13, 14 PULSER 15, 16, 17, 21, 25 RCA 13, 14 REGAL 10, 18, 19, 23 REGENCY 19 REMBRANDT 01, 16, 17 SAMSUNG 05, 16, 24 SCIENTIFIC ATLANTA 02 SIGMA 07 SL MARX 05, 16, 17, 24, 25 SPRUCER 13, 14 STARGATE 05, 15, 16, 17, 21, 24, 25 TELEVIEW 05, 16, 24 TOCOM 01, 04, 16 UNIKA 01, 17 UNIVERSAL 16, 17, 25 VIDEOWAY 03, 09, 22 ZENITH 03, 09, 22
2
NUMBER
Turn the power on using the cable box’s remote control.
1
TURN ON THE CABLE BOX
4
ENTER CABLE BOX BRAND
While holding down CABLE/DBS on the VCR's remote control, press MBR SET and use the NUMBER keys to
2
enter the cable box brand number from the chart in the left column and then press STOP. Follow the example shown below. The cable box's power should go off. If it does, try other operations (Z step 3).
Once you have set the remote control to operate the
cable box, you don't have to repeat this step until you replace the remote control's batteries.
OPERATE CABLE BOX
First, while holding down CABLE/DBS, press the corresponding button: POWER, TV CH +/–, NUMBER
3
keys.
For some brands of cable box, you must press ENTER
after having pressed the NUMBER keys.
To change the cable box's channel, press TV CH +/–
or the NUMBER keys. (The CH +/– button can be used to change the VCR's channel only.)
NOTES:
Depending on the type of cable box, there may be cases where some or all functions cannot be operated using the remote control.
It's not possible to set the remote control for both your cable box and a DBS receiver at the same time. You can only set the remote control to operate one of these units at a time.
(Ex.) To set remote control to RCA 14:
DBS
MBRSET
A/B
1
Press in succession
4
STOP
Release
CABLE/
Hold down
CABLE/DBS
MBR SET
ENTER
STOP
123 456
89
7
0
1
3
TV CH+/–
EN 59
DBS Receiver Multi-Brand Remote Control
The VCR's remote control can control functions on the brands of
POWER
DBS (Direct Broadcast Satellite) receivers listed below.
TURN ON THE DBS RECEIVER
2
NUMBER
Turn the power on using the DBS receiver's remote control.
1
4
ENTER DBS RECEIVER BRAND
While holding down CABLE/DBS on the VCR’s remote control, press MBR SET and use the NUMBER keys to
2
enter the DBS receiver brand number from the chart in the left column and then press STOP. Follow the example shown below. The DBS receiver's power should go off. If it does, try other operations (Z step 3).
Once you have set the remote control to operate the
DBS receiver, you don't have to repeat this step until you replace the remote control's batteries.
DBS BRAND NAME BRAND CODE
JVC (DISH Network) 51 ECHOSTAR (DISH Network) 51 PRIMESTAR 50 SONY (DSS) 41 RCA (DSS) 40
OPERATE DBS RECEIVER
First, while holding down CABLE/DBS, press the corresponding button: POWER, TV CH +/–, NUMBER
3
keys.
Depending on the DBS receiver you may have to
press ENTER after having pressed the NUMBER keys.
To change the DBS recei ver's channel, press TV CH
+/– or the NUMBER keys. (The CH +/– button can be
used to change the VCR's channel only.)
NOTES:
Depending on the type of DBS receiver, there may be cases where some or all functions cannot be operated using the remote control.
It's not possible to operate a DBS receiver that is not equipped with a remote control sensor.
Though ECHOSTAR has a number of different remote codes, this remote control is applicable only to one of those codes preset at the factory.
It's not possible to set the remote control for both your DBS receiver and a cable box at the same time. You can only set the remote control to operate one of these units at a time.
(Ex.) To set remote control to JVC 51:
DBS
MBRSET
A/B
5
Press in succession
1
STOP
Release
CABLE/
Hold down
60 EN
A/B
NUMBER "1"
123 456
89
7
0
NUMBER "2"
2
4
POWER
TIMER
SPECIAL FEATURES (cont.)
Control Two JVC VCRs
The remote control is capable of controlling two JVC VCRs independently; one set to respond to your remote control's A code control signals and another set to respond to B code control signals. The remote control is preset to send A code signals because your VCR is initially set to respond to A code signals. You can easily modify your VCR to respond to B code signals.
UNPLUG VCR'S POWER CORD
Unplug from the AC outlet.
1
SET REMOTE CONTROL
1
STOP
3
Child Lock
This feature allows you to prevent the operation of the VCR.
TURN VCR POWER ON
Press POWER.
1
ENGAGE CHILD LOCK
Press and hold POWER on the remote control until the Child Lock indicator ("—") appears on the front display
2
panel.
Power turns OFF and the VCR cannot be turned on from the POWER button on the front panel.
To cancel Child Lock, press and hold POWER on the remote until the VCR turns on. During timer record­ing, pressing TIMER also cancels Child Lock.
CODE
While holding down A/B on the remote control, press the NUMBER key "2" and then press STOP.
2
PLUG IN POWER CORD
Plug back in to the AC outlet.
3
TURN VCR POWER ON
Press POWER on the remote.
4
The VCR will now respond only to B-code commands. To set the VCR back to respond to A code signals, repeat the same procedure as shown above except pressing NUMBER key "1" instead of "2" in step 2. You can control two VCRs with the same remote control by switching the remote's code between A and B (Z Step 2), pressing "1" for A-code commands and "2" for B-code commands.
NOTES:
When Child Lock is engaged, make sure to keep the remote control out of the reach of children.
Timer recording of programs that were previously set can be performed while the Child Lock is engaged. The feature remains in effect after the recording is finished.
TROUBLESHOOTING
Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.
EN 61
POWER
SYMPTOM
1. The power won’t come on.
2. The clock works, but the VCR’s power won’t come on.
3. The remote control won’t function.
TAPE TRANSPORT
SYMPTOM
1. The cassette gets stuck partway during loading, and is ejected.
PLAYBACK
SYMPTOM
1. The tape is running but the picture won’t appear.
2. Breaks are noticeable in Hi-Fi soundtrack.
3. The playback picture is blurred or interrupted, even though TV broadcasts are clear.
4. The Hi-Fi soundtrack cannot be heard.
POSSIBLE CAUSE
The power cord is disconnected.
The TIMER mode is engaged with
Auto Timer set to "OFF" (Z pg. 48).
The Child Lock mode is engaged.
The batteries are discharged.
POSSIBLE CAUSE
The cassette was inserted incorrectly.
POSSIBLE CAUSE
If you’re using the RF OUT connec­tion (Z pg. 6), the channel selector on the TV is set incorrectly.
If you’re using the AV connection (Z pg. 6), the TV receiver is set to the wrong mode.
Automatic tracking is engaged.
The video heads may be dirty.
The AUDIO MONITOR option was
set incorrectly.
CORRECTIVE ACTION
Connect the power cord. Press TIMER to disengage.
Press and hold POWER on the remote to disengage the mode (Z pg. 60).
Replace the dead batteries with new ones.
CORRECTIVE ACTION
Make sure the cassette's window is facing up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Then insert the cassette.
CORRECTIVE ACTION
Set the channel selector to channel 3 or 4.
Set the TV receiver to its AV mode.
Disengage Auto Tracking and adjust the tracking manually (Z pg. 25).
The heads must be cleaned. Consult your JVC dealer.
Set AUDIO MONITOR to "HI-FI" (Z pg. 29).
RECORDING
SYMPTOM
1. Recording won’t start.
2. TV broadcasts won’t record properly.
3. Tape-to-tape editing won’t work.
POSSIBLE CAUSE
There’s no cassette loaded.
The loaded cassette has had its
record safety tab removed.
The VCR has been set to its AUX mode by mistake.
The VCRs or the camcorder and the VCR have been incorrectly con­nected.
The power to one or more of the units has not been turned on.
The recorder’s input mode has been set incorrectly.
CORRECTIVE ACTION
Insert a cassette. Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.
Set the VCR to the appropriate channel.
Refer to the directions and the illustration under “Edit To Or From Another VCR” (Z pg. 51) or “Edit From A Camcorder” (Z pg. 52) and properly connect the units. Make sure the power to all units is on.
Select the recorder’s appropriate input mode.
CONTINUED ON NEXT PAGE
62 EN
TIMER RECORDING
TROUBLESHOOTING (cont.)
SYMPTOM
1. Timer recording won’t work.
2. Timer programming won’t work.
3. ‰ and ] on the front display panel won’t stop blinking.
4. The cassette is automatically ejected, and and ] on the front display panel won’t stop blinking.
5. ‰ blinks for 10 seconds and the timer mode is disengaged.
6. The cassette is automatically ejected, the power shuts off and and ] won’t stop blinking.
7. Cable channels are not automatically switched during timer recording.
8. Satellite channels are not automati­cally switched during timer recording.
9. Timer recording begins as sched­uled, but the channel is always incorrect.
10.We moved, and now VCR Plus+ doesn’t work properly.
11.“PROGRAM FULL” is displayed on the screen.
POSSIBLE CAUSE
The clock and/or the timer have been set incorrectly.
The timer is not engaged.
The VCR has not been set up properly.
Timer recording is in progress.
The timer is engaged but there’s no
cassette loaded.
The loaded cassette has had its record safety tab removed.
TIMER has been pressed when there are no programs in memory, or the timer record program information has not been programmed correctly.
The end of tape was reached during timer recording.
The Controller is not properly connected to the VCR.
The output channel selected in the Cable Box Set screen is incorrect.
The cable box’s power is off.
The Controller is not properly
connected to the VCR.
The output channel selected in the DBS Receiver Set screen is incorrect.
The VCR is not set correctly to control the DBS Receiver
The DBS receiver’s power is off.
Even though you don't use an
external Cable Box, "CABLE BOX SET" is set to "ON".
The receivable stations in the new area are received on different channels than those in the previous area.
All 8 programs of the VCR’s timer memory are used.
CORRECTIVE ACTION
Set the clock and/or timer correctly. Press TIMER and check to make sure
that ‰ appears on the front display panel. Re-perform the set-up procedures. Make sure you have compensated for Guide Channel and VCR or cable box channel number mismatches (Z pg. 43).
Timer programming can’t be performed when timer recording is in progress. Wait until it finishes.
Load a cassette with the record safety tab intact, or with the hole covered with adhesive tape.
Remove the cassette and cover its hole with adhesive tape, or replace it with a cassette on which the safety tab is intact.
Check the programmed data and re­program as necessary, then press TIMER again.
The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.
Connect the Controller correctly (Z pg. 16). After confirming your cable box’s output channel number, re-access the Cable Box Set screen and select the correct number (Z pg. 17). Make sure the power is on before timer recording starts.
Connect the Controller correctly (Z pg. 19). After confirming your DBS receiver’s output channel number, re-access the DBS Receiver Set screen and select the correct number (Z pg. 20). Set the correct DBS Receiver brand code (Z pg. 21). Make sure the power is on before timer recording starts.
Set "CABLE BOX SET" to "OFF" (Z pg. 17).
Re-perform the VCR Plus+ setup procedure (Z pg. 43).
Wait until a space in memory clears, or cancel unnecessary program information (Z pg. 47).
OTHER PROBLEMS
EN 63
SYMPTOM
1. When scanning channels, some of them are skipped over.
2. The channel can’t be changed.
3. The remote control won’t operate my TV or cable box or DBS receiver.
4. Even though Auto or Semi-Auto clock setting has been selected, the clock is incorrect.
POSSIBLE CAUSE
Those channels have been preset to be skipped.
Recording is in progress.
The remote control brand setting is
incorrect.
The clock setting data received from the Host Channel is incorrect.
CORRECTIVE ACTION
If you need the skipped channels, restore them (Z pg. 15).
Press PAUSE to pause the recording, change channels, then press PLAY to resume recording.
Re-set the remote control to the correct brand (Z pg. 57 or 58 or 59).
Select a different Host Channel during the Semi-Auto setting procedure (Z pg. 12), or perform the Manual setting procedure (Z pg. 13).
ATTENTION
This VCR contains microcomputers. External electronic noise or interference can cause microcomputer to malfunction. If the VCR does not operate correctly switch its power off and unplug the power cord from the AC supply. Wait for a while and then plug the power back in. Eject and check the condition of the cassette. If everything appears normal resume operating the VCR as usual.
64 EN
QUESTIONS AND ANSWERS
PLAYBACK
Q. What happens if the end of the tape is reached
during playback or search?
A. The tape is automatically rewound to the beginning.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the VCR indefinitely remain in the still mode? A. No. It stops automatically after 5 minutes to protect
the heads.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. During search, still and frame-by-frame playback,
the picture is intermittent. What’s the cause?
A. Picture loss occurs when these types of playback are
attempted with a tape recorded in LP mode. Pressing PLAY to return to normal playback will restore the picture.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. When returning from multi-speed search to normal
playback, the picture is disturbed. Should I be concerned about this?
A. No, it is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. When playing back programs that have been timer-
recorded with consecutive times (such one program from 8:00 to 9:00 and another one from 9:00 to 10:00), the picture and sound become momentarily distorted at the point where the first program ends and the second program begins. Is this a malfunction?
A. No. This is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
RECORDING
Q. When I pause and then resume a recording, the end
of the recording before the pause is overlapped by the new recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and
resume points.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the VCR indefinitely remain in the Record-Pause
mode?
A. No. The VCR automatically goes to its Stop mode
after 5 minutes to protect the heads. When paused during Instant Timer Recording (ITR), the VCR shuts off automatically after 5 minutes.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. What happens if the tape runs out during recording? A. The VCR automatically rewinds it to the beginning.
TIMER RECORDING
Q. REC and remain lit on the front display panel. Is
there a problem?
A. No. This is a normal condition for a timer recording
in progress.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can I program the timer while I’m watching a tape
or a TV broadcast?
A. Yes, but while you are setting the timer you won't see
the tape's or broadcast program's picture as it is replaced by the on-screen menu. The audio from the tape or broadcast program will be present during the setting of the timer.
Q. Other than preventing further recording, what effect
does removing the safety tab have?
A. It disables marking of index codes.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Sometimes, during Index Search, the VCR can’t find
the program I want to see. Why not?
A. There may be index codes too close together.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. During playback, on-screen operational indicators
sometimes jitter. Why does this happen?
A. If the condition of the tape being played back is not
good, jittering of the video (including on-screen indicators) may occur.
INDEX
List Of Terms
This guide serves as a quick way to locate frequently used terms and on-screen display names.
EN 65
A
A/B Code ....................................................................60
Active Video Calibration..............................................32
Add Channel...............................................................15
Audio Monitor ............................................................29
Audio Dubbing ...........................................................56
Auto Channel Setting ..................................................14
Auto Daylight Saving Time ..........................................12
Auto SPEP T imer ......................................................48
Auto T imer ..................................................................48
Automatic Tracking ..................................................... 25
Aux Input ....................................................................51
AV Compu Link Playback ............................................31
AV Connection .............................................................6
B
Band ...........................................................................14
C
Cable Box ...................................................................16
Cable Box Brand Setting..............................................18
Cable Box Controller...................................................16
Cancel Program ..........................................................47
Cassette Adapter .........................................................22
Check Program ...........................................................47
Child Lock ..................................................................60
Connection to TV..........................................................6
Contents........................................................................5
Counter Reset..............................................................27
D
DBS Receiver ..............................................................19
DBS Receiver Brand Setting ........................................21
DBS Receiver Controller .............................................19
Delete Channel ...........................................................15
E
Editing.........................................................................51
Express T imer Programming ........................................45
Express T imer Recording .............................................45
F
Frame-by-Frame Playback ...........................................24
G
Guide Channel Setting ................................................44
H
Host Channel Selection...............................................12
I
Index Search ...............................................................25
Insert Cassette .............................................................22
Insert Edit ....................................................................54
Instant ReView ............................................................27
ITR (Instant Timer Recording) ......................................49
L
Language Selection .....................................................10
M
Main Menu .................................................................10
Manual Channel Setting ..............................................15
Manual Clock Setting ..................................................13
Manual Tracking .........................................................25
MBR (Multi-Brand Remote) Code Setting.....................59
Movie Advance...........................................................30
N
Next-Function Memory ...............................................27
O
On-Screen Display......................................................28
P
PBS Channel .................................................................8
Playback .....................................................................22
Plug & Play ...................................................................8
R
REC LINK ....................................................................50
Record Safety Tab ........................................................23
Recording ...................................................................23
Repeat Playback..........................................................27
Reverse Motion Playback ............................................24
Reverse Slow Motion Playback ...................................24
RF Connection ..............................................................6
S
SAP (Second Audio Program) ......................................37
Second Audio .............................................................37
Select Cable Box Output Channel ...............................17
Select DBS Receiver Output Channel..........................20
Semi-Auto Clock Setting..............................................12
Skip Search .................................................................39
Slow Motion Playback.................................................24
Specifications..............................................................69
Still Picture Playback...................................................24
Superimpose ...............................................................28
S-VHS (Super VHS) .....................................................35
S-VHS ET ....................................................................36
S-Video Connection ......................................................7
T
Tape Position Indicator................................................27
Tape Speed Setting ......................................................23
Time Scan ...................................................................38
Time Zone Selection ...................................................13
Tuner Setting ...............................................................14
V
Variable-Speed Search ................................................38
VCR Plus+ Timer Programming ...................................41
VCR Plus+ Timer Recording ........................................41
Video Stabilizer...........................................................26
66 EN
FRONT VIEW
INDEX (cont.)
1 2 3
L –AUDIO– R
MENU OK
S-VHS ET
CH
REC LINK
VIDEO
POWER
(MONO)
8 # $
1 Power On/Off Button (Z pg. 10) 2 MENU Button (Z pg. 10) 3 OK Button (Z pg. 10) 4 Cassette Loading Slot 5 PLAY Button (Z pg. 22) 6 JOG Dial (Z pg. 24) 7 TIME SCAN SHUTTLE Ring (Z pg. 22) 8 VIDEO/AUDIO Input Connectors (Z pg. 52) 9 Channel [CH]
5
Button (Z pg. 23)
4
PAUSE
SP
VCR
REC
STOP/EJECT
INSERT
A.DUB
5 6
REW
PLAY
&% ^@09 !
*
FF
SHUTTLE
7
JOG
0 REC LINK Button (Z pg. 50) ! S-VHS ET Button (Z pg. 36) @ Front Display Panel (Z pg. 67) # Remote Control Sensor $ PAUSE Button (Z pg. 24) % Record [REC] Button (Z pg. 23) ^ INSERT Button (Z pg. 55) & A.DUB Button (Z pg. 56) * STOP/EJECT Button (Z pg. 22)
REAR VIEW
5
EN 67
1
S VIDEO
OUT
IN
1 Power Cord (Z pg. 6) 2 VIDEO/AUDIO Output Connectors (Z pg. 51) 3 VIDEO/AUDIO Input Connectors (Z pg. 51) 4 ANTENNA IN Connector (Z pg. 6) 5 S-Video (S-VHS) Output Connector (Z pg. 51) 6 S-Video (S-VHS) Input Connector (Z pg. 51)
VIDEO
AUDIO
FRONT DISPLAY PANEL
2 3 4
OUT IN
(MONO)
L
R
REMOTE PAUSE
CABLE
BOX
75 6 8
AV COMPULINK
CH3
CH4
9
7 CABLE BOX Controller Connector (Z pg. 16, 19) 8 REMOTE PAUSE/AV COMPULINK Connector
REMOTE PAUSE Connector (Z pg. 52)
AV COMPU-LINK Connector (Z pg. 31)
9 Channel 3/4 Switch (Z pg. 6) 0 TV OUT Connector (Z pg. 6)
ANTENNA
VHF/UHF
TV
IN
OUT
0
1
1 Symbolic Mode Indicators
STILL: PLAY: FF/REW VARIABLE SHUTTLE SEARCH:
AUDIO DUBBING: AUDIO DUBBING PAUSE: INSERT: INSERT PAUSE: AUDIO DUBBING INSERT:
SLOW:
RECORD:
RECORD PAUSE:
2 3 4
SP
VCR
76
8
9
2 Tape Speed Indicators (Z pg. 23) 3 Timer Mode Indicator 4 Tape Remaining Time Indicator (Z pg. 34) 5 Child Lock Indicator (Z pg. 60) 6 S-VHS Indicator (Z pg. 35) 7 VCR Mode Indicator (Z pg. 36) 8 “Cassette Loaded” Mark 9 Channel Display [“L-1” and "F-1" for AUX mode]
Counter Display (Z pg. 8) Clock Display (Z pg. 8)
AUDIO DUBBING INSERT PAUSE:
68 EN
i o
u
)
W
1
3
8
7
6
2
9
4
0
5
! @ #
$ %
& *
(
r
e
w
q
t y
Q
p
^
E
INDEX (cont.)
REMOTE CONTROL
TV
C. RESET
CANCEL
START STOP DATE
PROG
1
T
V
V
O
The glow-in-the-dark buttons shown in white on the illustration above are helpful when using the remote control in darkened rooms.
Buttons with a small dot on the left side of the name can also be used to operate your TV while holding down the TV button. Z pg. 51.
Installing Batteries
1 Open the battery compartment cover. 2 Insert 2 "AA"-size batteries (provided) in the direction
indicated under the battery cover.
3 Replace the cover.
MBRSET
CABLE/
DBS
A/B
POWER
TV/VCR
123 456
DBS
DAILY(M-F)
7
EXPRESS PROGRAMMING
PROG CHECK
REW
REC
MENU
TIME
SCAN
L
MULTI BRAND
REMOTE CONTROL UNIT
DISPLAY
ENTER/OSD
WEEKLY
89
AUX
TIMER
0
CH
SP/EP SKIP SEARCH
PLAY
FF
STOP
PAUSE
3
OK
H
C
V
+
T
+
L
O
V
V
T
T
V
H
C
2
4
1 CABLE/DBS Button (Z pg. 59) 2 TV Button (Z pg. 57) 3 TV/VCR Button (Z pg. 34) 4 Instant REVIEW Button (Z pg. 27) 5 NUMBER Buttons (Z pg. 23, 41) 6 DBS Button (Z pg. 46) 7 CANCEL Button (Z pg. 47)
Counter [C.] RESET Button (Z pg. 27)
8 STOP +/– Button (Z pg. 45) 9 START +/– Button (Z pg. 45) 0 PROG. Button (Z pg. 41, 45) ! PROG. CHECK Button (Z pg. 47) @ Rewind [REW] Button (Z pg. 22) # Record [REC] Button (Z pg. 23) $ STOP Button (Z pg. 22) % MENU Button (Z pg. 10) ^ TIME SCAN %fi Button (Z pg. 10)
TV Channel [CH] +/– Button (Z pg. 57, 58, 59)
& MBR SET Button (Z pg. 57, 58, 59)
A/B Code Button (Z pg. 60)
* POWER On/Off Button (Z pg. 10) ( ENTER Button (Z pg. 23)
On-Screen Display [OSD] Button (Z pg. 28)
) DISPLAY Button (Z pg. 27) q DAILY Timer Recording Button (Z pg. 42, 46) w WEEKLY Timer Recording Button (Z pg. 42, 46) e "AUX" Mode Select Button (Z pg. 52) r TIMER Button (Z pg. 42, 46) t DATE +/– Button (Z pg. 45) y Channel [CH] +/– Button (Z pg. 23, 45) u SKIP SEARCH Button (Z pg. 30, 38) i Recording Speed [SP/EP] Button (Z pg. 23) o PLA Y Button (Z pg. 22) p Fast-Foward [FF] Button (Z pg. 22) Q PAUSE Button (Z pg. 24) W OK Button (Z pg. 10) E TIME SCAN ™£ (@ #) Button
(Z pg. 24, 25) TV Volume [VOL.] +/– Button (Z pg. 57)
How To Use
The remote control can operate most of your VCR's func­tions.
1 Point the remote control toward the sensor window
(Z pg. 66).
2 Press the appropriate operation button. 3 The maximum operating distance of the remote control is
about 8 m.
NOTES:
This remote control can also operate various brands of TVs, Cable Boxes and DBS Receivers. For instructions,
Z
pg. 57 – 59.
If the remote control doesn't work properly, remove its batteries, wait a short time, replace the batteries and then try again.
SPECIFICATIONS
EN 69
GENERAL
Power requirement : AC 120 V` , 60 Hz Power consumption
Power on : 28 W Power off : 3 W
Temperature
Operating : 5°C to 40°C (41°F to 104°F)
Storage : –20°C to 60°C (–4°F to140°F) Operating position : Horizontal only Dimensions (W x H x D) : 400 x 94 x 340 mm
(15-3/4" x 3-3/4" x 13-7/16") Weight : 4.4 kg (9.7 lbs) Format : S-VHS/VHS NTSC standard Maximum recording time
SP : 210 min. with ST-210 video
cassette
EP : 630 min. with ST-210 video
cassette
VIDEO/AUDIO
Signal system : NTSC-type color signal and
EIA monochrome signal, 525
lines/60 fields Recording/ Playback system : DA-4 (Double Azimuth) head
helical scan system Signal-to-noise ratio : 45 dB Horizontal resolution : 240 lines (VHS)
: 400 lines (S-VHS)
Frequency range
Normal audio : 70 Hz to 10,000 Hz Hi-Fi audio : 20 Hz to 20,000 Hz
Input/Output : RCA connectors
(IN x 2, OUT x 1)
: S-Video connectors
(IN x 1, OUT x 1)
TIMER
Clock reference : Quartz Program capacity : 1-year programmable timer/
8 programs
Memory backup time : Approx. 10 min.
ACCESSORIES
Provided accessories : RF cable (F-type),
Infrared remote control unit, “AA” battery x 2, Audio/Video Cable, S-Video cable (4-pin), Controller
Specifications shown are for SP mode unless otherwise specified. E. & O.E. Design and specifications subject to change without notice.
TUNER
Tuning system : Frequency-synthesized tuner Channel coverage
VHF : Channels 2–13 UHF : Channels 14–69 CA TV : 113 Channels
RF output : Channel 3 or 4 (switchable;
preset to Channel 3 when
shipped) 75 ohms,
unbalanced
70 EN
FOR SERVICING (Only in U.S.A.)
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1-800-252-5722
Dear customer:
In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or wi thin the Continental United States, call 1-800-252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.
JVC SERVICE & ENGINEERING
COMPANY OF AMERICA
DIVISION OF US JVC CORP.
FACTORY SERVICE CENTER LOCATIONS
107 Little Falls Road 1500 Lakes Parkway 705 Enterprise Street Fairfield, NJ 07004-2105 Lawrenceville, GA 30243-5857 Aurora, IL 60504-8135 (973) 808-9279 (770) 339-2522 (630) 851-7855
5665 Corporate Avenue 10700 Hammerly Boulevard, Suite 110 2969 Mapunapuna Place, Suite 101 Cypress, CA 90630-4727 Houston, TX 77043-2310 Honolulu, HI 96819-2000 (714) 229-8011 (713) 935-9331 (808) 833-5828
— JVC
230 Eliot Street 8192 W State Road 84 890 Dubuque Avenue Ashland, MA 01721-2377 Davie, FL 33324-4611 South San Francisco, CA 94080-1804 (508) 881-5923 (954) 472-1960 (415) 871-2666
Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The JVC service and engineering organization stands behind our products.
NATIONAL HEADQUARTERS
JVC SERVICE & ENGINEERING COMPANY OF AMERICA
If you ship the product...
Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. Print your home return address on the outside and the inside of the carton. Send to the appropriate JVC Factory Service Center as listed above.
DIVISION OF US JVC CORP.
107 Little Falls Road
Fairfield, NJ 07004-2105
Don't service it yourself.
CAUTION
T o prevent electrical shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.
ACCESSORIES
To purchase accessories for your JVC product, you may contact your local JVC Dealer. Or from the 48 Continental United States call toll free: 1-800-882-2345.
WARRANTY (Only in U.S.A.)
EN 71
LIMITED WARRANTY CONSUMER VIDEO 1-90
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONL Y T O THE ORIGINAL PURCHASER A T RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")
PARTS LABOR
1 YR 90 DAYS
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN COMMONWEALTH OF PUERTO RICO.
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 252-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase); from the date of purchase);
There are no other express warranties except as listed above. THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER
DAMAGES, WHETHER DIRECT , INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential dameges or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
JVC COMPANY OF AMERICA 41 Slater Drive DIVISION OF US JVC CORP. Elmwood Park, New Jersey 07407
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.
For customer use:
Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No.: Serial No.: Purchase date: Name of dealer:
JVC COMPANY OF AMERICA
DIVISION OF US JVC CORP.
41 Slater Drive, Elmwood Park, N.J. 07407
HR-S4500U
COPYRIGHT © 1998 VICTOR COMPANY OF JAPAN, LTD.
U
Printed in Malaysia 0698 IYV
