HDD / VHS DUAL RECORDER

;

HM-HDS1U

123

4 56

789

POWER

HM-HDS1

–

REC LINK

STOP PLAY PAUSE REC

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHSHDD

REW FEW

A. DUB

EJECT

;

(M) L – AUDIO – R

VIDEO

;

S-VIDEO

PAUSE

F - 1

For Customer Use:

INSTRUCTIONS

Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.

Model No.

Serial No.

LPT0585-001A

2 EN

Dear Customer,

Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new recorder.

Failure to heed the following precautions may result in

CAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This video cassette recorder should be used with AC 120V`, 60Hz only. To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

damage to the recorder, remote control or video cassette.

1. DO NOT place the recorder . . .

... in an environment prone to extreme temperatures or

humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are

generated. ... on a surface that is unstable or subject to vibration.

2. DO NOT block the recorder’s ventilation openings.

3. DO NOT place heavy objects on the recorder or remote control.

4. DO NOT place anything which might spill on top of the recorder or remote control.

5. AVOID violent shocks to the recorder during transport.

**MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder’s power turned on for a few hours to let the moisture dry before inserting a tape.

**ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.

VCR Plus+, C3 and PlusCode are registered trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

DSS

is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. PRIMESTAR is a registered service mark of Primestar Partners, L.P. DISH Network Echostar Communications Corporation.

is a trademark of

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION:

Changes or modifications not approved by JVC could void user's authority to operate the equipment.

䡲 Cassettes marked “S-VHS“ and “VHS” can be used with this

recorder. However, S-VHS recordings are possible only with cassettes marked “S-VHS“. By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

This product incorporates copyright protection technology that is protected by method claimes of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

EN 3

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized alternating-

current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire grounding-type

plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed,

sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a

bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

4 EN

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/ NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

USE

1. Accessories

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod,

bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

• Use only with a cart, stand, tripod, bracket, or table

recommended by the manufacturer or sold with the product.

• Use a mounting accessory recommended by the

manufacturer and follow the manufacturer’s instructions for any mounting of the product.

• Do not try to roll a cart with small casters across thresholds or

deep-pile carpets.

2. Product and Cart

Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

PORTABLE CART WARNING (Symbol provided by RETAC)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

EN 5

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a.When the power supply cord or plug is damaged. b.If liquid has been spilled, or objects have fallen into the

product. c.If the product has been exposed to rain or water. d.If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper

adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the product to its normal operation. e.If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

HOW TO USE THIS INSTRUCTION MANUAL

● All major sections and subsections are listed in the Table Of Contents on page 7. Use this when searching for information on a specific procedure or feature.

● The Index on pages 90 – 94 lists frequently-used terms, and the number of the page on which they are used or explained in the manual. This section also illustrates the controls and connections on the front and rear panel, the front display panel and the remote control.

● The 墌 mark signals a reference to another page for instructions or related information.

● Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.

BEFORE YOU INSTALL YOUR NEW RECORDER . . .

. . . please read the sections/literature listed below.

● ”Cautions” on page 2

● ”Important Product Safety Instructions” on the previous pages

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

6 EN

PRECAUTION FOR Hard Disk Drive

1.Before installing the recorder

This recorder has a built-in hard disk drive, which is a device to read minute magnetic changes. The inside of the device is precision-built, which, when installing the recorder, requires you to note the following:

• DO NOT use the recorder in a location prone to vibration or dust.

• DO NOT place the recorder where difference in temperatures is large (condensation can occur), or where humidity is high. – When condensation occurs

Water droplets form on the hard disc or head drums inside, possibly causing hard disc and heads to be damaged.

– About condensation

When well-cooled beer is poured into a glass, water droplets often form around its outside. This phenom enon is called condensation.

• DO NOT install the recorder where the cooling fans in its back may be blocked, or where the recorder may be closed in.

• DO NOT use the recorder placed vertically.

2.Before using the recorder

When the power of the unit is on, the hard disc is constantly rotating at high speed. This requires you to note the following:

• DO NOT impart vibration or shock. If given a heavy shock, not only is the data recorded damaged but also the hard disk itself can be damaged.

• DO NOT allow anything having strong magnetism or emitting strong electromagnetic waves (cell phones, etc.) near the recorder.

• DO NOT disconnect the power plug from the wall outlet when the power of the recorder is on. If the power supply is cut off while the hard disc is in operation, it can be damaged or the data stored on it may be damaged. Be sure to push the POWER button before turning off the power.

3.While using the recorder

When viewing a program by selecting HDD (Hard Disk Drive), there occurs a slight time lag relative to the actual program being broadcast. This is because pictures received are once stored on the hard disk, and then played back.

The time lag is about three seconds. If you turn the power on with the hard disk already selected, it will take about 30 seconds before the pictures received appear on the screen. Up until then, any operation is disabled. But it is not a malfunction.

NSTALLING YOUR NEW RECORDER 8

Connections .................................................. 8

Basic Connections ................................................................ 8

NITIAL SETTINGS 9

Plug & Play .................................................. 9

Clock .......................................................... 10

Preparation ........................................................................ 10

Semi-Auto .......................................................................... 11

Manual .............................................................................. 12

Tuner .......................................................... 13

Set Receivable Channels .................................................... 13

Add Or Delete A Channel ..................................................14

Cable Box Control ....................................... 15

Situate And Connect Controller ..........................................15

Set Cable Box Output Channel & Cable Box Brand ............16

DBS Receiver Control................................... 18

Situate And Connect Controller ..........................................18

Set DBS Receiver Output Channel &

DBS Receiver Brand ...........................................................19

Setting Blue Back ........................................ 21

Setting Video Inputs Mode .......................... 22

IMPLE OPERATION FOR HDD DECK 23

Simple Recording ........................................ 23

Simple Playback ......................................... 24

Playback with HDD Navigation................... 25

Scan for Beginning(s) of Program(s) .................................... 26

LAYBACK FEATURES FOR HDD DECK 27

Live Memory Playback ............................... 27

Setting Time for Live Memory Playback..............................27

Start Live Memory Playback ...............................................27

Superimpose ...................................................................... 28

To Recall Indication ........................................................... 29

Playback Features ...................................... 30

High-Speed Search ............................................................. 30

Still Picture/Frame-By-Frame Playback ...............................30

Slow Motion/Reverse Slow Motion ..................................... 30

Variable-Speed Search/Reverse Motion Playback ............... 31

Quick Rewind a little ......................................................... 31

Quick Skip Forward ........................................................... 31

Repeat Playback (Normal Playback Only) ..........................32

ECORDING FEATURES FOR HDD DECK 33

Record One Program While Watching Another .................. 33

Live Memory Playback (while recording) ........................... 33

Display While Recording ................................................... 33

IMPLE OPERATION FOR VHS DECK 34

Simple Playback ......................................... 34

Simple Recording ........................................ 35

Playback with VHS Navigation ................... 36

Set VHS Navigation ............................................................ 37

Scan for Beginning of Program with VHS Navigation ......... 38

LAYBACK FEATURES FOR VHS DECK 39

Playback Features ...................................... 39

High-Speed Search ............................................................. 39

Still Picture/Frame-By-Frame Playback ...............................39

Slow Motion/Reverse Slow Motion ..................................... 39

Variable-Speed Search/Reverse Motion Playback ............... 40

Index Search ...................................................................... 40

Superimpose ...................................................................... 41

Manual Tracking ................................................................ 42

Repeat Playback ................................................................. 42

Counter Reset ..................................................................... 43

EN 7

Next-Function Memory ......................................................43

Tape Position Indicator ....................................................... 43

Picture Control ...................................................................44

Video Stabilizer .................................................................. 45

TBC .................................................................................... 46

Select The Soundtrack ........................................................46

Active Video Calibration ............................. 47

Preparation ........................................................................ 47

Playback ............................................................................ 48

Recording .......................................................................... 48

ECORDING FEATURES FOR VHS DECK 49

Recording Features ..................................... 49

Record One Program While Watching Another .................. 49

Display Elapsed Recording Time ........................................49

Display Tape Remaining Time (VHS deck only) ..................49

S-VHS (Super VHS), S-VHS ET and VHS .............................50

Super VHS ET ..................................................................... 51

Retake (VHS deck only) ...................................................... 52

Stereo And SAP (Second Audio Program) ........................... 53

IMER RECORDING 54

VCR Plus+

Changing VCR Plus+® Setting ...................... 56

Express Timer Programming ....................... 58

Check and Revise the overlapped Programs .......................60

Check, Cancel And Revise Programs ..................................61

Auto SP→EP Timer (VHS deck only)...................................62

REC LINK Timer Recording

(HDD deck only).......................................... 63

Instant Timer Recording (ITR) ....................... 64

DITING 65

About Hybrid Navigation ............................ 65

Modify Information..................................... 66

Modify Index ...................................................................... 66

Modify Program Title..........................................................67

Modify Category ................................................................ 68

Delete Information .............................................................69

Dubbing ..................................................... 70

Easy Dubbing from HDD to VHS ....................................... 70

Normal Dubbing (from HDD to VHS) ........... 72

Normal Dubbing (from VHS to HDD) ........... 73

Random Assemble Editing ........................... 74

8-program Editing Memory (1 program x 8 scenes) ............ 74

Edit From A Camcorder ............................... 76

Edit To Or From Another VCR ...................... 78

Audio Dubbing (VHS deck only) .................. 80

PECIAL FEATURES 82

TV Multi-Brand Remote Control .........................................82

Cable Box Multi-Brand Remote Control ............................. 83

DBS Receiver Multi-Brand Remote Control ........................84

Control Four JVC VCRs ...................................................... 85

ROUBLESHOOTING 86

Q I

NDEX 90

PECIFICATIONS 95

OR SERVICING 96

Timer Programming .................. 54

UESTIONS AND ANSWERS 89

ARRANTY 97

8 EN

INSTALLING YOUR NEW RECORDER

Basic Connections

Connections

Antenna or Cable

Coaxial Cable

Flat Feeder

Matching Transformer

(not supplied)

AC Outlet

ANTENNA IN

(Antenna or

cable input)

ANTENNA IN

VHF/UHF TV OUT

(Antenna or

cable output)

CABLE

BOX

TV OUT

S-Video Cable

(supplied)

RF Cable

(supplied)

S-VIDEO

OUT

V I D E O

OUT1 OUT2

VIDEO

AUDIO

Audio/Video Cable

S-VIDEO IN

OUT

OUT1

OUT2

AUDIO

OUT

(supplied)

Back of recorder

CHECK CONTENTS

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” (墌 pg. 95).

SITUATE RECORDER

Place the recorder on a stable, horizontal surface.

CONNECT RECORDER TO TV

The connection method you use depends on the type of TV you have.

a– Disconnect the TV antenna from the TV. b– Connect the TV antenna cable to the ANT. IN jack

on the rear of the recorder.

c– Connect the supplied RF cable between the TV

OUT terminal on the rear of the recorder and the TV’s antenna input terminal.

d– Connect the supplied Audio/Video Cable between

the AUDIO OUT and VIDEO OUT jacks on the rear of the recorder and the AV IN jacks on the TV. Set your TV in video input mode or A/V input mode. Refer to the TV Instruction Manual.

S-VIDEO Connection

●

If you have a TV with S-VIDEO input terminals....

e– Connect the supplied S-Video cable between the S-

VIDEO OUT jack on the rear of the recorder and the S-VIDEO IN jack on the TV.

CONNECT RECORDER TO POWER SOURCE

Connect the AC power plug to an AC outlet.

● The clock and tuner channels will automatically be set when the antenna is connected and when the AC is first connected to the recorder (墌 pg. 9). (If “Auto” or “CH” is displayed on the front display panel before the recorder is powered on, the clock and tuner channels are being set automatically. Wait for the time to be displayed on the front display panel before powering on the recorder.)

USE

Power on the recorder. You can now perform simple playback (墌 pg. 24 for

the HDD deck, pg. 34 for the VHS deck) or simple recording (墌 pg. 23 for the HDD deck, pg. 35 for the VHS deck).

NOTES:

●

For full identification of the recorder’s rear panel, refer to the Index (REAR VIEW 墌 pg. 91).

●

TV equipped with Audio and Video Inputs is required to operate the recorder.

●

To make the most of the Super VHS picture performance we recommend that you use the supplied S-VIDEO cable to connect your recorder to a TV with an S-VIDEO input connector.

●

To operate the recorder with your TV using the S-VIDEO connection, set your TV to the AV mode using the TV’s remote control. You can also use the TV/VCR button on the recorder’s remote control to set your TV to the AV mode. (墌 pg. 82)

FINAL PREPARATION FOR

INITIAL SETTINGS

Plug & Play

Auto Clock Set/Auto Tuner Set

EN 9

The Plug & Play function sets the clock and tuner channels automatically when power is first connected to the recorder. The antenna cable must be connected for the Plug & Play function.

The time and date can be set automatically from clock setting data that is transmitted by one of the regular TV broadcast channels. We call this TV channel the “Host Channel” and it is a PBS channel in your area.

ATTENTION

If you use a cable box, Plug & Play will not function; set the clock and tuner channels manually. (墌 pg.10 – 13)

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

IMPORTANT

● Don’t press any buttons on the recorder or remote while Plug & Play is in progress.

● If you perform Plug & Play successfully, there’s no need to perform the Clock (墌 pg. 10) and Tuner (墌 pg. 13) procedures. If, however, you want to add or delete channels, refer to “Add Or Delete A Channel” on page 14.

PLUG & PLAY SETUP

Connect the antenna cable to the recorder on the previous page. Then connect the recorder’s power

plug to an AC outlet. Do not power on the recorder. The clock and tuner channels will be set automatically.

EJECT

PAUSE

NOTES:

●

Auto clock set is performed first. The auto clock set function scans all the channels received by your recorder to find the Host Channel and then sets the clock. "Auto" blinks on the front display panel during Auto clock set.

●

Auto channel set is performed next. The auto channel set function scans all the channels that are receivable by your recorder. It then automatically assigns each receivable channels to the CH +/– buttons. It skips non-receivable channels. During auto channel set the channel numbers are displayed as they are scanned and set.

●

When Plug & Play has been completed successfully the correct time is displayed.

●

If an incorrect time or “– –:– –” appears on the display panel, see “What To Do If Plug & Play Has Failed” below.

During Initial Auto Clock Set

"Auto" blinks.

During Auto Channel Set

The channel numbers are displayed as they are scanned and set.

Plug & Play Completed

The current time (including AM/PM) is displayed.

* If an incorrect time or “– –:– –” appears on the display panel, see “What To Do If Plug & Play Has Failed” below.

INFORMATION

● If “AUTO CLOCK” is set to “ON” at the Clock Set screen on page 11, the clock will be adjusted automatically by the host channel every hour on the hour (except for 11:00 PM, midnight, 1:00 AM and 2:00 AM) by the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the recorder’s power is turned off. The clock will be adjusted on the hour based on the time displayed on the recorder, not on the actual real time.) The default setting of “AUTO CLOCK” is “ON”.

● If the memory backup fails, because of a power outage or because the AC was removed from the recorder, Plug & Play will be performed when power is restored to the recorder.

What To Do If Plug & Play Has Failed

● If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semi-Auto (墌 pg. 11) or Manual Clock Set (墌 pg. 12) procedure. Auto channel set has already taken place and it need not be set again.

● If “- -:- -” appears on the display, your antenna cable may not be connected to the recorder or there may not be a Host PBS signal available in your area. Ensure that the antenna cable is connected correctly. Then power on and power off the recorder; the Plug & Play function will be automatically reactivated and “Auto” will be displayed on the recorder’s front panel. If Plug & Play is not performed but the antenna cable is connected correctly, perform the Manual Clock Set procedure (墌 pg. 12). Auto channel set has not yet taken place, so please also perform the “Set Receivable Channels” procedure (墌 pg. 13).

10 EN

POWER

Clock

INITIAL SETTINGS (cont.)

Perform clock setting only if the clock has not been set correctly by the Plug & Play function or you use a cable box. Access the Clock Set screen to perform the Semi-Auto or Manual clock setting procedure. Each procedure starts from step 5. If you use a cable box, set the clock manually. (墌 pg. 12)

Turn on the TV and select the AV mode.

POWER

HM-HDS1

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

–

S-VHS

S-VHS ET

REW FEW

A. DUB

DIGITPURE TECHNOLOGY

POWER

Preparation

TURN ON THE RECORDER

Press POWER.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS MAIN MENU SCREEN

Press MENU.

● If you want to stop the following procedure on its

way, press MENU.

ACCESS INITIAL SET SCREEN

1) At the top of Main Menu screen, move

the arrow to “INITIAL SET UP” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

2) At the Initial Set Up screen, move the arrow to “INITIAL SET” by pressing @# (or 23), then press OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

TUNER SET INITIAL SET

CLOCK SET GUIDE CHANNEL SET CABLE BOX SET DBS RECEIVER SET

INDEX MENU

SELECT OK END

ACCESS CLOCK SET SCREEN

At the Initial Set screen, move the arrow to

“CLOCK SET” by pressing %ﬁ (or 5∞), then press # (or 3) or OK.

● “CABLE BOX USERS

SET CLOCK MANUALLY” appears on the screen for about 5 seconds, then the Clock Set screen appears.

CLOCK SET

GUIDE CHANNEL SET CABLE BOX SET DBS RECEIVER SET

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

INITIAL SET

SELECT WITH [∞523] THEN PRESS [OK]

INITIAL SET

EN 11

Semi-Auto

You can change the Host Channel/D.S.T. /Time Zone setting manually.

SET AUTO CLOCK TO ON

At the Clock Set screen, press # (or 3) or OK

repeatedly to move the highlighted bar to “AUTO CLOCK”, then press %ﬁ (or 5∞) to set to “ON”. a– To select the Host

Channel — go to step

b– To select the D.S.T. mode — go to step 7 c– To select the Time Zone — go to step 8

NOTE:

The time that has been set previously will be erased when “AUTO CLOCK”, “HOST CH”, “D.S.T.” or “TIME ZONE” setting is changed.

CLOCK SET

TIME DATE YEAR – –:– –AM 1/ 1 01

AUTO CLOCK:ON

HOST CH :AUTO (TV) D.S.T. :AUTO TIME ZONE :AUTO

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

SELECT HOST CHANNEL

You can either select “AUTO” or enter a PBS channel number.

Press # (or 3) or OK repeatedly to move the highlighted bar to “HOST CH”, then press %ﬁ (or 5∞) to set to “AUTO” or the desired PBS channel number.

NOTE:

There are some PBS channels that do not transmit clock setting data.

SELECT TIME ZONE

You can select the time zone automatically or manually. Press # (or 3) or OK repeatedly to move the high-

lighted bar to “TIME ZONE”, then press %ﬁ (or 5∞) to select “AUTO” or the desired time zone.

AUTO ATLANTIC HAWAII EASTERN ALASKA CENTRAL PACIFIC MOUNTAIN

NOTE:

If an incorrect time is displayed by the Plug & Play function, you may be receiving the clock setting data of a PBS channel from an adjacent time zone or from an incorrect PBS channel from a cable TV system. If you selected to select the correct time zone manually.

“AUTO”

for the host channel in step 6, be sure

RETURN TO NORMAL SCREEN

Press MENU. The Initial Set Up screen appears, then press MENU again.

IMPORTANT

Turn the recorder off after performing the Semi-Auto Clock Set procedure. “AUTO” will appear on the front display panel when the clock is being set. The current time will appear automatically when the clock is set.

SELECT D.S.T. MODE

You have three choices:

a– Select “AUTO” and the adjustment to your

**AUTO DAYLIGHT SAVING TIME

This function enables automatic adjustment of the recorder’s clock at the start and end of Daylight Saving Time. With Auto DST activated, . . . . . . on the first Sunday of April at 2:00 AM, the clock is

. . . on the last Sunday of October at 2:00 AM, the clock is

recorder's clock will be made according to the incoming signal from the host channel.

b– Select “ON” and the adjustment will be made based

on the clock itself.

c– Select “OFF” if Daylight Saving Time does not apply

to you.

Press # (or 3) or OK repeatedly to move the highlighted bar to “D.S.T.” and press %ﬁ (or 5∞) to select the desired mode.

adjusted to 3:00 AM.

adjusted to 1:00 AM.

CONTINUED ON NEXT PAGE

12 EN

POWER

HM-HDS1

INITIAL SETTINGS (cont.)

Manual

SET TIME

Press %ﬁ (or 5∞) until the desired time appears,

then press # (or 3) or OK.

● Press and hold %ﬁ (or

5∞) to change the

time by 30-minute increments.

DIGITPURE TECHNOLOGY

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

● When the time is entered manually, “AUTO CLOCK”

will be automatically set to “OFF”, and “HOST CH” and “TIME ZONE” will disappear.

CLOCK SET

TIME DATE YEAR

– –:– –AM 1/ 1 01

AUTO CLOCK:ON HOST CH :AUTO (TV) D.S.T. :AUTO TIME ZONE :AUTO

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

SET DATE

Press %ﬁ (or 5∞) until the desired date appears, then press # (or 3) or OK.

● Press and hold %ﬁ (or 5∞) to change the date by 15-

day increments.

SET YEAR

Press %ﬁ (or 5∞) until the desired year appears, then press # (or 3) or OK twice.

123

4 56

78 9

SELECT D.S.T. MODE

Press %ﬁ (or 5∞) to select the desired mode.

a– Set to “ON” so that

the adjustment to your recorder's clock will be made on the

clock itself.

b– Set to “OFF” if

Daylight Saving Time does not apply to you.

START CLOCK

Press MENU. The Main Menu screen appears, then press MENU again.

CLOCK SET

TIME DATE YEAR 9:30AM 6/12 01 TUE AUTO CLOCK:OFF

HOST CH :AUTO (TV) D.S.T. :ON TIME ZONE :AUTO

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

–

To Make Corrections

Press # (or 3) or OK until the item you want to change blinks, then press %ﬁ (or 5∞).

EN 13

POWER

Set Receivable Channels

Tuner

Turn on the TV and select the AV mode.

POWER

HM-HDS1

REC LINK

HDD

NAVI

123

4 56

78 9

STOP PLAY PAUSE REC

–

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU SCREEN

Press MENU.

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

POWER

CH+/–

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS TUNER SET SCREEN

1) At the top of Main Menu screen, move

the arrow to “INITIAL SET UP” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

2) At the Initial Set Up screen, move the

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

TUNER SET INITIAL SET

BAND AUTO CHANNEL SET MANUAL CHANNEL SET

INDEX MENU

SELECT OK END

TUNER SET

SELECT WITH [∞523] THEN PRESS [OK]

arrow to “TUNER SET” by pressing @# (or 23), then press OK.

PERFORM AUTO CHANNEL SET

At the Tuner Set screen, move the arrow to

“AUTO CHANNEL SET” by pressing %ﬁ (or 5∞), then press # (or 3) or OK.

● Receivable channels in

your area are automatically assigned to the CH +/– buttons, and non-receivable channels are skipped.

● If you want to set the

CATV channels, change the BAND mode into CATV by moving the arrow to “BAND” and pressing # (or 3) or OK. The BAND mode alternates between TV and CATV by pressing # (or 3) or OK when BAND is highlighted.

TUNER SET

BAND CATV

AUTO CHANNEL SET

MANUAL CHANNEL SET

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

AUTO CHANNEL SET

SCANNING...

PRESS[MENU] TO END

INFORMATION

The recorder detects the band (TV or CATV) and selects the correct band automatically during Auto Channel Set. The selected band will be displayed on the right side of “BAND” on the Tuner Set screen.

NOTES:

●

At the end of Auto Channel Set, “SCAN COMPLETED” appears on screen.

●

If the scan was unsuccessful, “SCAN COMPLETED – NO SIGNAL –” appears on screen. Check the connections and start again.

RETURN TO NORMAL SCREEN

Press MENU. The Initial Set Up screen appears, then press MENU again.

14 EN

POWER

HM-HDS1

NUMBER

REC LINK

NAVI

STOP PLAY PAUSE REC

HDD

123

4 56

78 9

–

INITIAL SETTINGS (cont.)

Add Or Delete A Channel

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS TUNER SET SCREEN

1) At the top of Main

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

Menu screen, move the arrow to “INITIAL SET UP” by pressing @# (or 23), press ﬁ (or ∞) or OK.

2) At the Initial Set Up screen, move the arrow to “TUNER SET” by pressing @# (or 23), then press OK.

ACCESS MANUAL CHANNEL SET SCREEN

At the Tuner Set screen, move the arrow to

“MANUAL CHANNEL SET” by pressing %ﬁ (or 5∞), then press # (or 3) or OK.

● If you want to set the

CATV channels, change the BAND mode into CATV by moving the arrow to “BAND” and pressing # (or 3) or OK. The

BAND mode alternates between TV and CATV by pressing # (or 3) or OK when BAND is highlighted.

ADD OR SKIP DESIRED

CHANNEL

Input the channel number using the

NUMBER keys or select

“L-1” or “F-1” by pressing %ﬁ (or 5∞), then press OK to set to “SKIP”. Repeat for each channel you want to skip. Input the channel number using the NUMBER keys, then press OK to set to “ADD” the channel.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

TUNER SET INITIAL SET

TUNER SET

BAND AUTO CHANNEL SET MANUAL CHANNEL SET

INDEX MENU

SELECT WITH [∞523]

SELECT OK END

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

PRESS NUMBER KEY[0-9] OR[5,∞], THEN[OK] PRESS[MENU] TO END

THEN PRESS [OK]

TUNER SET

BAND TV AUTO CHANNEL SET

MANUAL CHANNEL SET

(TV) CH 0 SKIP

RETURN TO NORMAL SCREEN

Press MENU. The Initial Set Up screen appears, then press MENU again.

Cable Box Control

Suggested Location

Place the cable box on top of the recorder. Attach the recorder’s Controller to the top of the recorder with the Controller’s transmitter pointed towards the cable box’s remote sensor.

ATTENTION:

The Controller can also control a DBS receiver. If both a cable box and a DBS receiver are used, position the controller so its signal reaches the remote control sensors of both the cable box and DBS receiver.

Cable box

Controller

Your recorder

Cable box

(suggested locations)

EN 15

This procedure is required if you receive your TV channels through a cable box (descrambler). The Controller allows the recorder to automatically switch the cable box channel during timer-recording. The Controller is effective for recording shows that have been programmed using the VCR Plus+ system (墌 pg. 54) or Express Timer Programming (墌 pg. 58).

Situate And Connect Controller

SITUATE CONTROLLER

Place the Controller so that the path between its transmitter and the cable box’s remote sensor is

unobstructed.

ATTACH CONTROLLER

Fasten securely using the supplied adhesive strip.

CONNECT CABLE BOX TO RECORDER

The connection method depends on the type of cable box you have.

If your cable box has AUDIO and VIDEO OUT connectors . . .

. . . connect them to the AUDIO and VIDEO IN connectors on your recorder. Set the recorder to channel “L-1” for the rear AUDIO and VIDEO IN connectors to use the cable box.

If your cable box doesn’t have AUDIO and VIDEO OUT connectors . . .

. . . connect the antenna output connector on the cable box to the ANTENNA IN connector on the rear of your recorder. Set the recorder tuner to the same channel as the cable box RF output (see page 16 also).

Controller

Your recorder

Transmitter

Connected to ANT. IN

CABLE

BOX

NOTE:

When connecting your cable box refer to its instruction manual.

CONNECT CONTROLLER TO RECORDER

Connect to the CABLE BOX connector on your recorder.

About Your Cable Box

This recorder has two separate methods to control your Cable Box.

●

The recorder’s Wireless Remote Control Unit can control your Cable Box. This eliminates the need for a separate Cable Box Remote Control Unit.

●

The recorder’s Controller can also control your Cable Box. This allows the recorder to change your Cable Box's channel number during timer recording.

Each method must be set up separately. To set up the recorder’s Remote Control unit, refer to page 83. To set up the Controller go to page 16.

CONTINUED ON NEXT PAGE

16 EN

POWER

INITIAL SETTINGS (cont.)

Turn on the TV and select the AV mode.

POWER

HM-HDS1

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

S-VHS

DIGITPURE TECHNOLOGY

S-VHS ET

REW FEW

A. DUB

POWER

Set Cable Box Output Channel & Cable Box Brand

TURN ON CABLE BOX

Select a channel other than channel 9 on your cable box.

TURN ON THE RECORDER

EJECT

Press POWER.

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

1) At the top of Main

Menu screen, move the arrow to “INITIAL SET UP” by pressing @# (or 23), then press ﬁ (or ∞) or OK.

2) At the Initial Set Up screen, move the arrow to “INITIAL SET” by pressing @# (or 23), then press OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

TUNER SET INITIAL SET

INITIAL SET

CLOCK SET GUIDE CHANNEL SET CABLE BOX SET DBS RECEIVER SET

INDEX MENU

SELECT WITH [∞523]

SELECT OK END

THEN PRESS [OK]

123

4 56

78 9

ACCESS CABLE BOX SET

–

SCREEN

Press %ﬁ (or 5∞) to move the arrow to

“CABLE BOX SET”, then press # (or 3) or OK.

SELECT CABLE BOX

INITIAL SET

CLOCK SET GUIDE CHANNEL SET

CABLE BOX SET

DBS RECEIVER SET

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

OUTPUT CHANNEL

If your cable box is connected to your

recorder using an RF connection,

press %ﬁ (or 5∞) until the channel number representing the cable box’s output (CH2 – CH9) appears on the screen.

If your cable box is connected to your recorder’s REAR or FRONT AUDIO/VIDEO IN connectors,

(or 5∞) until “ON L-1 REAR” or “ON F-1 FRONT” appears on the screen.

CABLE BOX SET

ON CH7

PRESS[5,∞], THEN[OK] PRESS[MENU] TO END

press %ﬁ

EN 17

ACCESS CABLE BOX BRAND SET SCREEN

Press # (or 3) or OK.

ENTER CABLE BOX BRAND

Press the appropriate

NUMBER keys to enter

the Cable Box Code from the CABLE BOX BRAND LIST shown below, then press # (or

3) or OK.

● If the cable box’s channel changes to 9, setting is complete. Press # (or

3) or OK and “CABLE BOX CONTROL IS ON” appears on the screen for about 5 seconds, then the Initial Set Up screen appears. To returns to the normal screen, press MENU.

● If the cable box’s channel does not change to 9, press %ﬁ (or 5∞) to select “NO”, then press # (or 3) or OK. By entering another code, repeat step 8 until the cable box’s channel changes to 9.

● If the channel does not change after going through all the code numbers listed for your model of cable box, then try all the other numbers between 1 and 25.

CABLE BOX BRAND SET

PRESS NUMBER KEY(0-9) THEN(OK) TO TEST PRESS(MENU) TO END

INFORMATION

When the recorder’s clock has not been set (with AUTO CLOCK set to ON), if you press OK in step 7, “CABLE BOX USERS SET CLOCK MANUALLY” will be displayed on the screen for about 5 seconds, then the Clock Set screen will appear; perform the manual clock setting procedure on page 12. If you press MENU after the clock has been set, the Cable Box Brand Set screen appears.

NOTES:

●

Although the supplied Controller is compatible with many different cable box brands, it is possible that it will not work with your cable box.

●

If your cable box doesn’t respond to any code between 1 and 25, you can’t use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording. Please contact your cable company about the possibility of exchanging your current cable box with one that is compatible with your recorder.

●

The recorder can only change the cable box channel through the Controller during timer recording.

●

If your cable box is one that can’t be operated with a remote control (because it has no remote sensor), you can’t use the Controller to change its channels. Make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.

●

If the recorder’s memory backup expires because of a power failure, set the cable box output channel and brand again.

●

If you are unable to set the Controller, please contact JVC toll free at 1-800-252-5722.

CABLE BOX BRAND LIST

BRAND CODE

ARCHER 1, 5, 17 CABLETENNA 1, 17 CABLEVIEW 15, 16, 17, 21, 25 CITIZEN 15, 16, 17, 21, 25 CURTIS 2, 8 DIAMOND 1, 17 EASTERN 19 GC BRAND 15, 16, 17, 21, 25 GEMINI 15 GENERAL INSTRUMENTS 1, 4, 6, 11, 12, 15 HAMLIN 10, 18, 19, 23 JASCO 15 JERROLD 1, 4, 6, 11, 12, 15 NOVAVISION 2, 8 OAK 7, 20 PANASONIC 13, 14 PULSER 15, 16, 17, 21, 25 RCA 13, 14 REGAL 10, 18, 19, 23 REGENCY 19 REMBRANDT 1, 16, 17 SAMSUNG 5, 16, 24 SCIENTIFIC ATLANTA 2, 8 SIGMA 7, 20 SL MARX 5, 16, 17, 24, 25 SPRUCER 13, 14 STARGATE 5, 15, 16, 17, 21, 24, 25 TELEVIEW 5, 16, 24 TOCOM 1, 4, 16 UNIKA 1, 17 UNIVERSAL 16, 17, 25 VIDEOWAY 3, 9, 22 ZENITH 3, 9, 22

18 EN

DBS Receiver Control

Suggested Location

Place the DBS (Direct Broadcast Satellite) receiver on top of the recorder. Attach the recorder’s Controller to the top of the recorder with the Controller’s transmitter pointed towards the DBS receiver's remote sensor.

ATTENTION:

The Controller can also control a cable box. If both a DBS receiver and a cable box are used, position the controller so its signal reaches the remote control sensors of both the DBS receiver and cable box.

INITIAL SETTINGS (cont.)

The following procedure is required if you receive satellite channels through a DBS (Direct Broadcast Satellite) Receiver. The Controller allows the recorder to automatically switch the DBS Receiver's channels during timer recording.

NOTES:

●

The recorder can automatically change the DBS Receiver channels using the controller when the recorder has been programmed using Express Timer Programming (墌 pg. 58). Because satellite programming does not use PlusCode; the Controller cannot change the DBS Receiver channels during the VCR Plus+ Timer Recording.

●

If a cable box is also used it is recommended that you connect the DBS receiver to your recorder’s A/V inputs and the cable box to your recorder’s antenna input.

Situate And Connect Controller

Your recorder

Controller

DBS receiver

Transmitter

Connected to ANT. IN

CABLE

BOX

DBS receiver

Controller (suggested locations)

Connected to VIDEO/ AUDIO IN

SITUATE CONTROLLER

Place the Controller so that the path between its transmitter and the DBS receiver's remote sensor is

unobstructed.

ATTACH CONTROLLER

Fasten securely using the supplied adhesive strips.

CONNECT DBS RECEIVER TO RECORDER

The connection method depends on the type of DBS receiver you have.

If your DBS receiver has AUDIO and VIDEO OUT connectors . . .

. . . connect them to the AUDIO and VIDEO IN connectors on your recorder. Set the recorder to channel “L-1” for the rear AUDIO and VIDEO IN connectors to use the DBS receiver.

If your DBS receiver doesn’t have AUDIO and VIDEO OUT connectors . . .

. . . connect the antenna output connector on the DBS receiver to the ANT. IN connector on the rear of your recorder. Set the recorder’s tuner to the same channel as the DBS receiver’s RF output. (See page 19 also.)

NOTE:

When connecting your DBS receiver refer to its instruction manual.

About Your DBS Receiver

This recorder has two separate methods to control your DBS Receiver.

●

The recorder’s Wireless Remote Control Unit can control the power and channel functions of your DBS Receiver. For these functions, the need for a separate DBS Receiver Control Unit is eliminated.

●

The recorder’s Controller can also control your DBS Receiver. This allows the recorder to change your DBS receiver's channel number during timer recording.

Each method must be set up separately. To set up the recorder’s Remote Control unit, refer to page 84. To set up the Controller go to page 19.

CONNECT CONTROLLER TO RECORDER

Connect to the CABLE BOX connector on your recorder.

EN 19

POWER

Turn on the TV and select the AV mode.

POWER

HM-HDS1

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

S-VHS

S-VHS ET

REW FEW

A. DUB

DIGITPURE TECHNOLOGY

POWER

TURN ON THE RECORDER

Press POWER.

● Set the recorder to the channel (3 or 4 or L-1 or F-1)

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

on which the signals from the DBS receiver are received.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

1) At the top of Main

Menu screen, move the arrow to “INITIAL SET UP” by pressing @# (or 23), then press ﬁ (or ∞) or OK.

2) At the Initial Set Up screen, move the arrow to “INITIAL SET” by pressing @# (or 23), then press OK.

ACCESS DBS RECEIVER SET SCREEN

At the Initial Set screen, move the arrow to “DBS

RECEIVER SET” by pressing %ﬁ (or 5∞), then press # (or 3) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

TUNER SET INITIAL SET

INITIAL SET

CLOCK SET GUIDE CHANNEL SET CABLE BOX SET DBS RECEIVER SET

INDEX MENU

SELECT WITH [∞523]

SELECT OK END

CLOCK SET GUIDE CHANNEL SET CABLE BOX SET

DBS RECEIVER SET

SELECT WITH[5,∞] THEN[OK] PRESS[MENU] TO END

THEN PRESS [OK]

INITIAL SET

–

Set DBS Receiver Output Channel & DBS Receiver Brand

TURN ON DBS RECEIVER

Select a channel other than channel 55, 100 or 205 on your DBS receiver.

SELECT DBS RECEIVER OUTPUT CHANNEL

If your DBS receiver is connected to your

recorder using an RF connection,

5∞) until the channel number representing the DBS receiver’s output (CH3 – CH4) appears on the screen.

If your DBS receiver is connected to your recorder’s REAR or FRONT AUDIO/VIDEO IN connectors,

%ﬁ (or 5∞) until “ON L-1 REAR” or “ON F-1 FRONT” appears on the screen.

press %ﬁ (or

DBS RECEIVER SET

OFF

PRESS[5,∞], THEN[OK] PRESS[MENU] TO END

CONTINUED ON NEXT PAGE

press

20 EN

INITIAL SETTINGS (cont.)

Turn on the TV and select the AV mode.

POWER

HM-HDS1

NUMBER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

ACCESS DBS RECEIVER BRAND SET SCREEN

Press # (or 3) or OK.

SET DBS RECEIVER BRAND

Press the appropriate

NUMBER keys to enter

the DBS Receiver Code

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

from the following list, then press # (or 3) or OK.

BRAND CODE

JVC (DISH Network) 51 ECHOSTAR (DISH Network) 51 PRIMESTAR 50 SONY (DSS) 41 RCA (DSS) 40

● After OK is pressed, the program currently received

through the DBS receiver will appear for about 10 seconds.

● If the DBS receiver's channel changes to the channel

listed below for your brand of DBS receiver, setting is complete. Press OK and “DBS RECEIVER CONTROL IS ON” appears on the screen for about 5 seconds, then it returns to the Initial Set Up screen. To returns to the normal screen, press MENU.

JVC [ 100 ECHOSTAR [ 100

PRIMESTAR [ 55 SONY [ 205 RCA [ 205

● If the DBS receiver's channel does not change as

shown above, press %ﬁ (or 5∞) repeatedly until

“NO” appears, then press OK. Re-enter the correct

code.

DBS RECEIVER BRAND SET

PRESS NUMBER KEY(0-9) THEN(OK) TO TEST PRESS(MENU) TO END

NOTES:

●

–

It is possible that the Controller will not work with all types of DBS receiver.

●

If your DBS receiver doesn’t respond to the code, you can’t use the Controller to change satellite channels. In this case, make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.

●

The recorder can only change the satellite channel through the Controller during timer recording.

●

If your DBS receiver is one that can’t be operated with a remote control (because it has no remote sensor), you can’t use the Controller to change its channels. Make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.

●

If you are unable to set the Controller, please contact JVC toll free at 1-800-252-5722.

EN 21

POWER

The recorder changes the screen into the Blue Back screen automatically after/while the input signals do not come into.

Setting Blue Back

Turn on the TV and select the AV mode.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

POWER

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU SCREEN

Press MENU.

● If you want to stop the following procedure on its

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

way, press MENU.

ACCESS FUNCTION SCREEN

1) At the top of Main Menu screen, move the arrow to “FUNC- TION SET UP” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

2) On the Function Set Up screen, move the arrow to “FUNCTION” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

SELECT BLUE BACK MODE

1) On the Function screen, move the arrow to “BLUE BACK” by pressing %ﬁ (or 5∞), then press OK.

2) Press %ﬁ (or 5∞) to select the desired mode, then press OK.

a– Select “OFF” if you do not want to use the Blue

Back screen.

b– Select “ON” if you want to use the Blue Back

screen.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

OFF ON

RETURN TO NORMAL SCREEN

–

Press MENU.

22 EN

POWER

INITIAL SETTINGS (cont.)

You can change the video inputs mode.

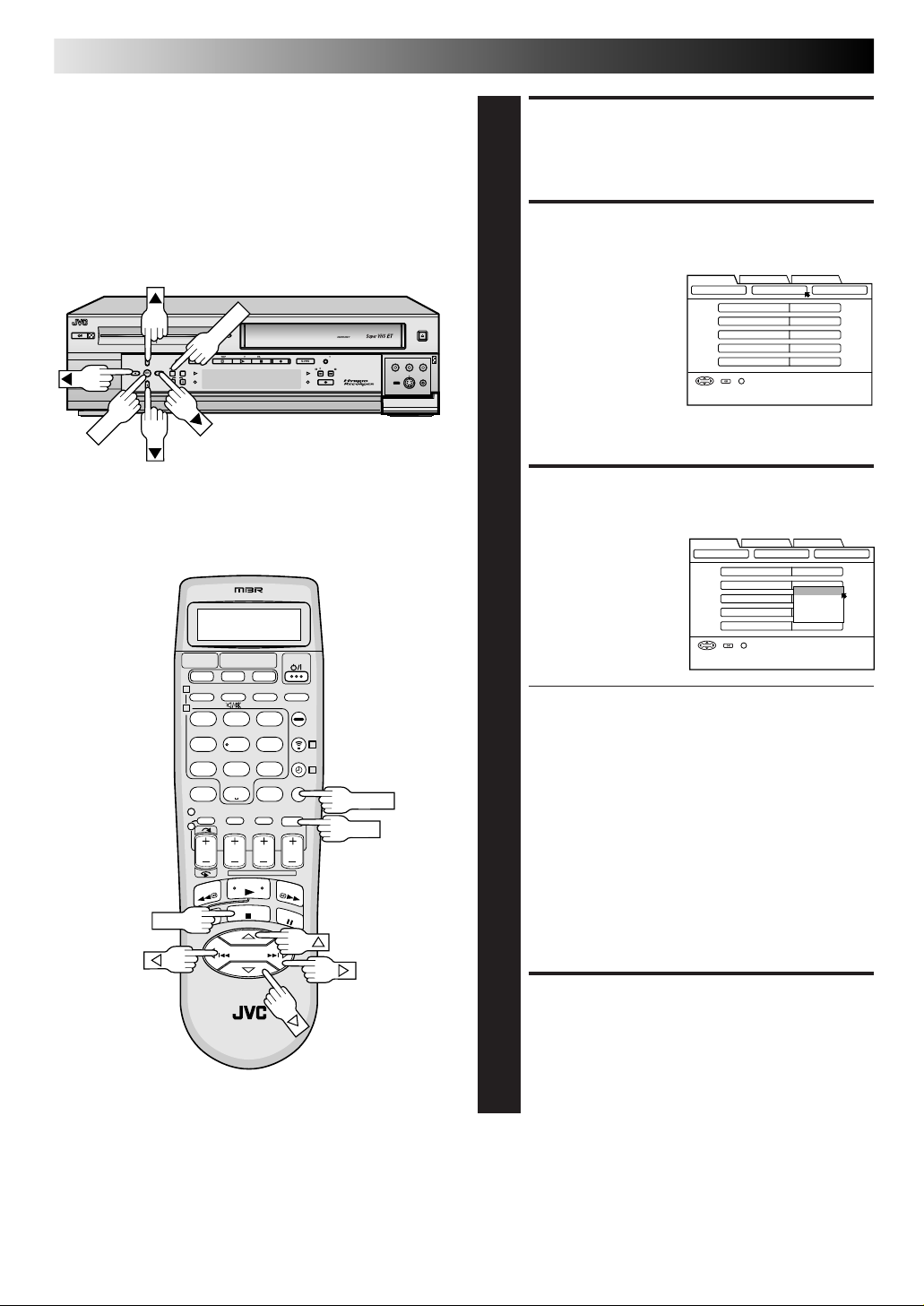

Setting Video Inputs Mode

Turn on the TV and select the AV mode.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

S-VHS

S-VHS ET

REW FEW

A. DUB

DIGITPURE TECHNOLOGY

POWER

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU SCREEN

Press MENU.

● If you want to stop the following procedure on its

EJECT

PAUSE

way, press MENU.

ACCESS VIDEO INPUTS SCREEN

1) At the top of Main Menu screen, move the arrow to “FUNC- TION SET UP” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

2) On the Function Set Up screen, move the arrow to “VIDEO INPUTS” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

SELECT VIDEO INPUTS MODE

1) On the Function screen, move the arrow to “FRONT AUX F-1” or “REAR AUX L-1” by pressing %ﬁ (or 5∞), then press OK.

2) Press %ﬁ (or 5∞) to select the desired mode, then press OK.

a– Select “VIDEO” if you use VIDEO IN jacks for

connecting the external equipment.

b– Select “S-VIDEO” if you use S VIDEO IN jacks for

connecting the external equipment.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

FRONT AUX F-1 VIDEO

REAR AUX L-1 VIDEO

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

VIDEO

S-VIDEO

–

SCREEN

Press MENU.

RETURN TO NORMAL

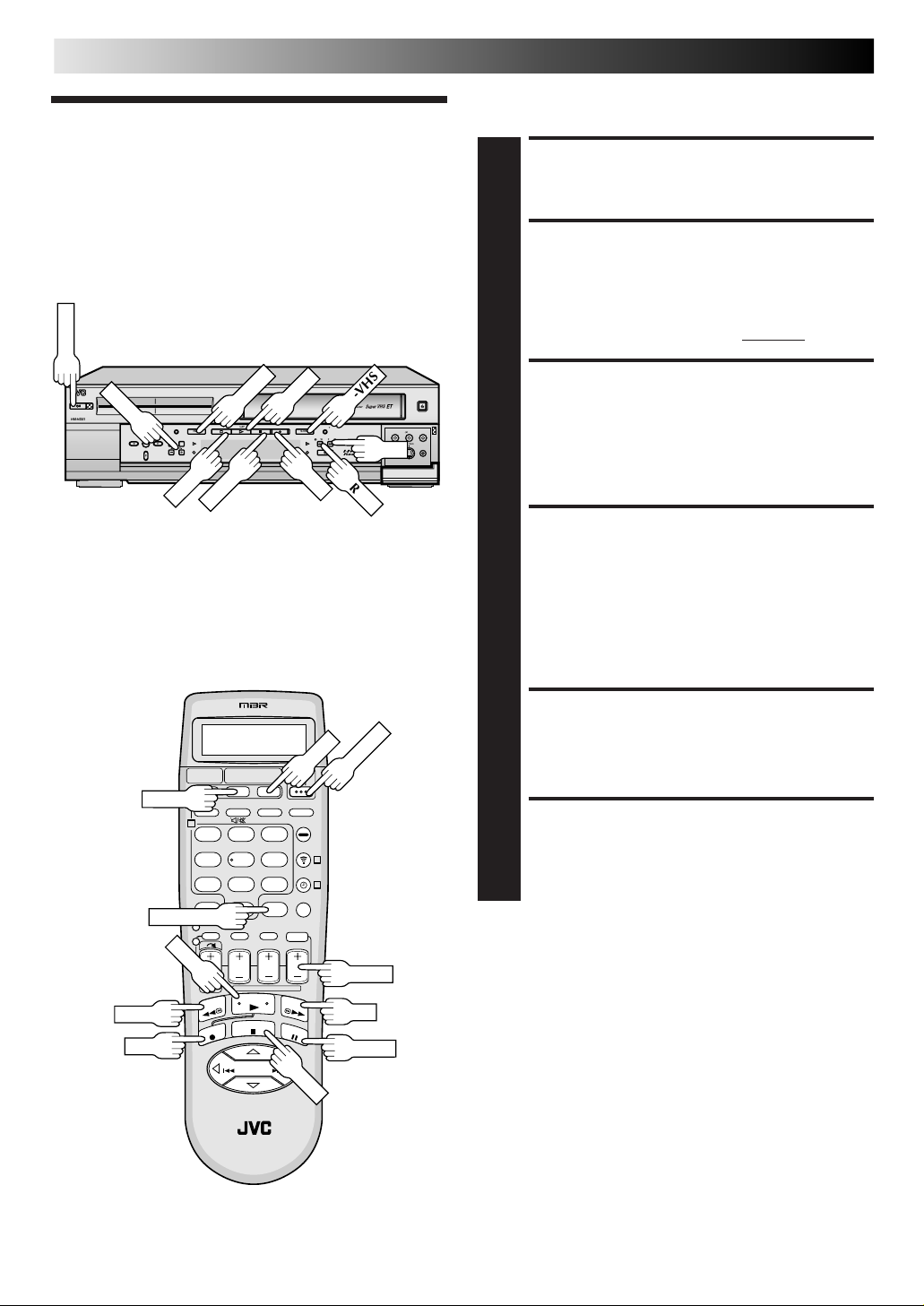

SIMPLE OPERATION for HDD deck

POWER

CH+/–

REC

STOP

HDD

Simple

EN 23

TURN ON THE RECORDER

Press POWER. The button corresponding to the previously selected deck lights.

Recording

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

VIDEO

F - 1

(M) L – AUDIO – R

S-VIDEO

SELECT HDD DECK

Press HDD. The HDD button lights on the front panel.

SELECT RECORDING CHANNEL

Press CH +/–. Or press the appropriate NUMBER keys, then press ENTER. (The channel changes after a few

seconds whether you press ENTER or not.)

When you switch channels on the HDD deck, the pictures appears a few seconds behind. It is not a malfunction.

EJECT

PAUSE

SET RECORDING SPEED

Press REC SPEED to set the recording speed.

● For details on the recording speed, see the next page.

START RECORDING

Press and hold REC and press PLAY on the remote control, or press REC on the front panel. The HDD

recording indicator lights.

STOP RECORDING

Press STOP. The HDD recording indicator turns off.

There may be a few seconds’ delay in resuming normal screen. It is not a malfunction.

NUMBER

HDD

REC SPEED

PLAY

REC

123

4 56

78 9

–

ENTER

CH+/–

STOP

NOTES:

●

It is not possible to record a TV program on both the HDD deck and the VHS deck simultaneously. In addition, it is not possible to record simultaneously from the same external input.

●

It is not possible to pause recording on the HDD deck while recording from the channels other than “L-1”, “F-1”, “DUB”. See also pages 73 and 77.

24 EN

POWER

STOP

PAUSE

PLAY

HDD

Simple

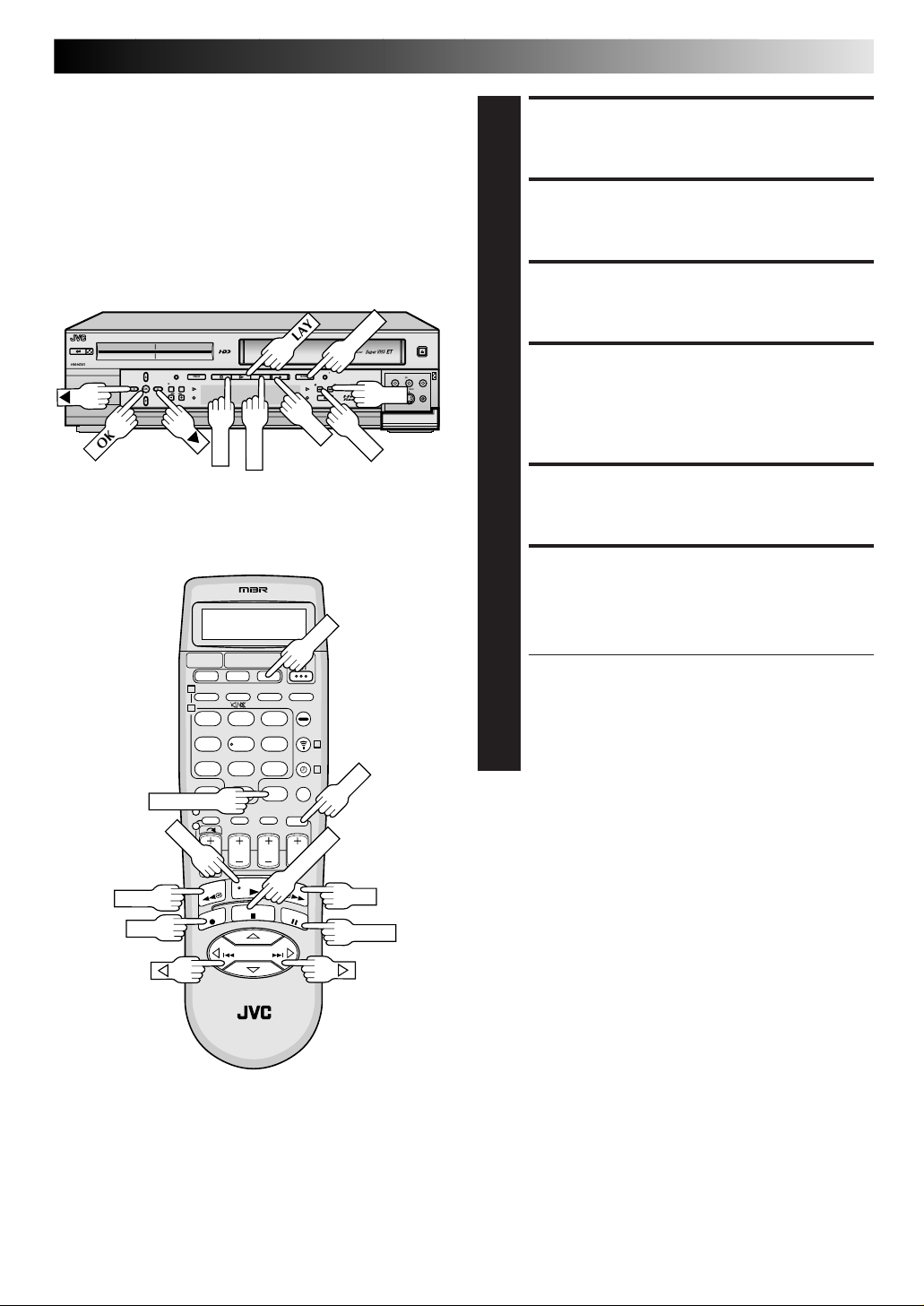

SIMPLE OPERATION for HDD deck (cont.)

TURN ON THE RECORDER

Press POWER. The button corresponding to the previously selected deck lights on the front panel.

Playback

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

SELECT HDD DECK

Press HDD. The HDD button lights on the front panel.

START PLAYBACK

Press PLAY. The HDD playback indicator lights on the front panel.

One of the following screens will appear: – the program which has been recorded on the HDD

deck at the last and has not been played back yet

– the program which has been stopped during playback – the HDD Navigation screen (See the next page.)

● There are some programs for demonstration on the

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HDD deck when it is shipped from the factory.

PAUSE PLAYBACK

Press PAUSE.

● To resume normal playback, press PLAY.

STOP PLAYBACK

Press STOP. The HDD playback indicator turns off.

HDD

PLAY

STOP

123

4 56

78 9

–

Recording Speed on the HDD deck

This recorder has a 40 Gbyte hard disk drive. The pictures and sounds recorded on the HDD deck and other information are written down on the hard disk drive.

As recording format for the HDD deck, MPEG2 format, the

same for DVD, is used. As a guide for picture quality, the “bps” unit is used to represent how much data can be recorded per second. The larger this value, the better the picture quality is but the more capacity is required for recording. Select SP for programs where quick movement occurs, such as sports programs, and SEP for talk shows, etc. where relativity less movement.

The recording speeds of the recorder are set as follows:

Recording

speed

SEP

Recording

amount

about 6.4 Mbps

about 4.5 Mbps

about 3.2 Mbps

about 2.2 Mbps

Maximum

recording time

about 14 hours

about 20 hours

about 28 hours

about 40 hours

EN 25

The HDD Navigation enables you to seach and select the desired programs recorded on the HDD deck very

Playback with HDD Navigation

The following screen appears as the HDD Navigation screen when you press NAVI with the HDD deck selected. You can move the arrow to select the desired position on the screen by pressing @%#ﬁ (or 253∞). When you move the arrow at the top of the HDD Navigation screen, you can change the screens by pressing @# (or 23).

easily. There is a 40 Gbyte hard disk drive on this recorder. You

can record up to 60 programs for the HDD deck. Each time a program is recorded on the HDD deck, the information of the program are registered in the HDD Navigation automatically.

So, you can confirm the information of the programs recorded on the HDD with the HDD Navigation Screen. And, you can also select one of the programs recorded on the HDD deck using the HDD Navigation.

You need to select “SCAN” to scan the beginning of the programs.

TOTAL TIME : for the selected programs

Index : small still picture of the each program

Recording Information for the program indicated by the arrow

Operational commands

Guidance for operations

HDD NAVI

SCAN EDITINGEASY DUBBING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

06/12/01 TUE

06/12/01 TUE 10:30AM – 12:55PM 2CH SP 145min

PLAY MODIFY DELETE CANCEL

SELECT OK END

06/12/01 TUE

INDEX NAVI

The Icons and their meanings

You cannot dub this program from the HDD deck to the VHS deck.

This program was recorded with Daily mode of Timer recording.

This program was recorded with Weekly mode of Timer recording.

This program has stereo sounds.

This program has SAP audio.

This program was recorded with Timer recording.

06/11/01 MON 06/11/01 MON

SELECT WITH [∞523] THEN PRESS [OK]

3 / 6

[MISC.]

REMAIN TIME : it is based on the recording speed currently selected.

There are 6 recorded programs and the program indicated by the arrow is the 3rd one.

This appears when there are over 4 registered programs. You can select the other program by pressing @# (or 23).

The icons : they show the recording situation for each program.

26 EN

POWER

STOP

PAUSE

NAVI

PAUSE

PLAY

HDD

SIMPLE OPERATION for HDD deck (cont.)

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

HDD

123

4 56

78 9

MEMORY

PLAY

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

NAVI

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

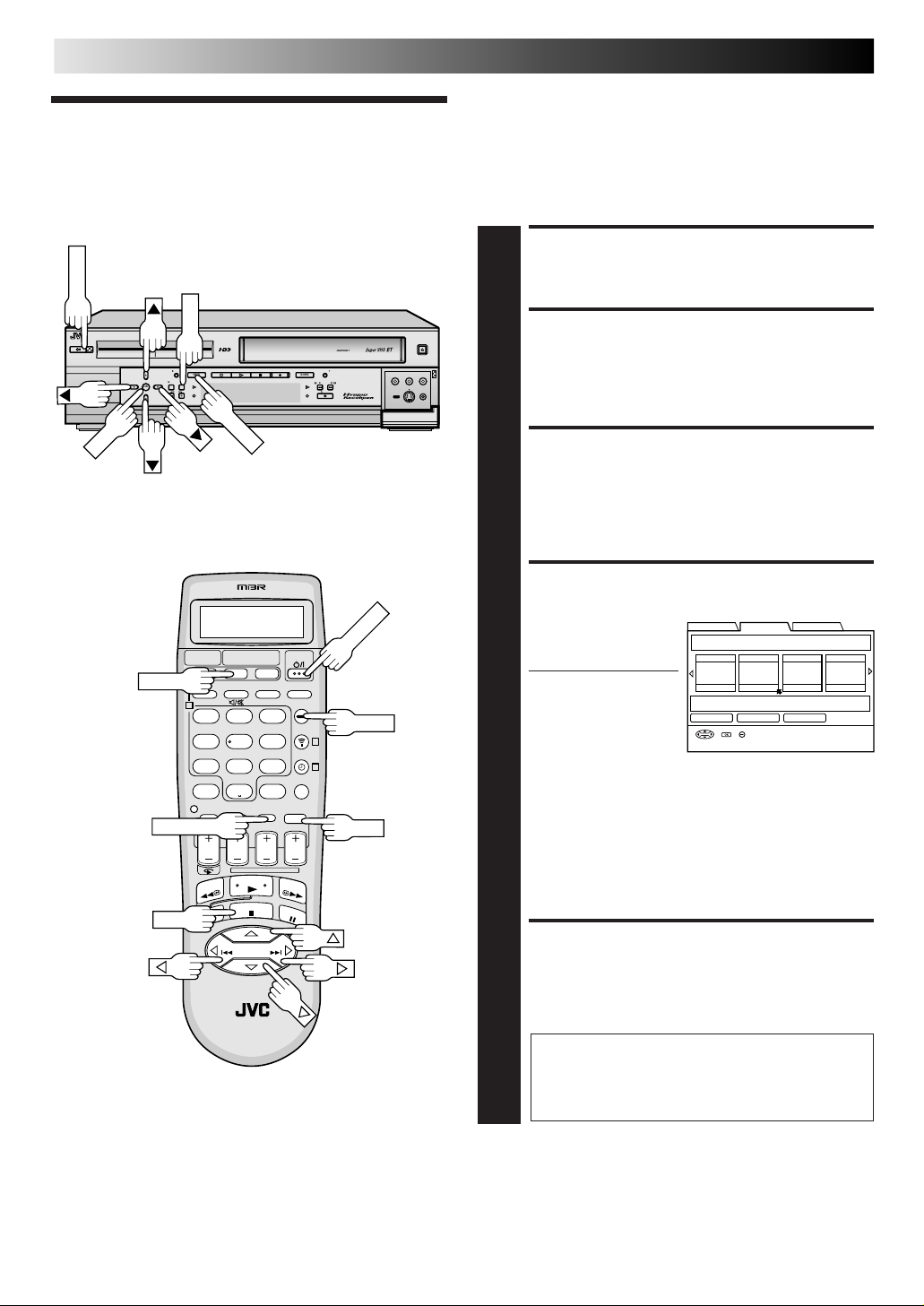

Scan for Beginning(s) of Program(s)

You can scan the beginning of the program easily with the HDD Navigation.

TURN ON THE RECORDER

Press POWER.

SELECT HDD DECK

Press HDD. The HDD button lights.

EJECT

PAUSE

ACCESS SCAN SCREEN

1) Press NAVI. The HDD Navigation screen

appears.

2) Confirm that “SCAN” screen appears. Then, press ﬁ (or ∞) or OK.

HDD NAVI

SCAN EDITINGEASY DUBBING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

06/12/01 TUE 06/12/01 TUE 06/12/01 MON06/12/01 TUE

06/12/01 TUE 10:30AM – 12:55PM 2CH SP 145min

PLAY MODIFY DELETE CANCEL

INDEX

NAVI

SELECT OK END

SELECT PROGRAM(S)

Press @# (or 23) to move the arrow on the

index (small still pictures) of the desired program.

• When you want the

plural programs to be played back continuously, press MEMORY on the remote control after selecting the desired program. The numbers of the playback order appear on the index. You can select up to 8 programs.

• When you want to correct the order, move the arrow

on the desired index and press MEMORY on the remote control. Or, move the arrow on the desired index and press OK, then move the arrow to “CANCEL” and press OK. The number disappears and the recorder re-numbers the other programs automatically.

HDD NAVI

SCAN EDITINGEASY DUBBING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

06/12/01 TUE 06/12/01 TUE 06/12/01 MON06/12/01 TUE

06/12/01 TUE 10:30AM – 12:55PM 2CH SP 145min

PLAY MODIFY DELETE CANCEL

INDEX

NAVI

SELECT OK END

SELECT WITH [∞523] THEN PRESS [OK]

– / 6

[MISC.]

– / 6

[MISC.]

OK/STOP

–

NOTE:

When there are programs stored in MEMORY for Playback, the MODIFY and DELETE commands are not possible.

START PLAYBACK

Press OK to move the arrow to “PLAY” on the Scan Screen, then press OK again. Or simply press PLAY. The

playback starts.

PAUSE PLAYBACK

Press PAUSE.

● To resume normal playback, press PLAY.

STOP PLAYBACK

Press STOP.

PLAYBACK FEATURES for HDD deck

Live Memory

EN 27

Setting Time for Live Memory Playback

ACCESS MAIN MENU

Playback

Equipped with a hard disk drive, this recorder allows information to be written to and read from the hard disk at high speeds. Taking advantage of this feature, you can temporarily record programs received with the tuner or from an externallyconnected equipment — CATV or DBS, and can watch them only a few seconds behind actual air time.

In this recorder, viewing a program through HDD (not a recorded program) means you are always watching the program temporarily recorded on it. This feature enables you to reverse the program back to view any previous part of it — so called “Live Memory Playback”, which was impossible until now.

To access “Live Memory Playback”, all that you have to do is to turn on the recorder and select the HDD deck. So, the temporary recording is started on the HDD deck. And, you can select the length of the time for temporary recording from off, 30 minutes, 1 hour, and 3 hours.

About “Live Memory Playback”

With a certain amount of space (for 30 minutes, 1 hour, and 3 hours) reserved on the hard disk, the recorder records broadcasts being received or signals input from an externally connected equipment. Even while you are reversing the program to review any previous part, the recorder continues recording the same program or externally-input signals.

When the reserved amount of time (or space) runs out, the recorder overwrites the previous recordings on the hard disk, starting with the oldest one, repeatedly if necessary. After having recorded a certain number of programs, if you try to increase the amount of your reserved time on HDD, you may not be allowed to do so because of possible lack of available space, and the recorder will inform you of this by displaying a message on the screen.

About limitation on Live Memory Playback

Recording to perform Live Memory playback, which means the use of temporary recording on the hard disk, works for signals from built-in tuners, external tuners and externallyconnected equipment. This feature also works for copyprotected programs. The temporary recording for Live Memory is canceled in the following cases, and will start all over again when it is to resume.

• When channels are changed

• When the power is turned off

• When the thumbnails are changed

• When the setting for Live Memory playback is changed

• When recording is started via the HDD deck or the VHS

deck

• When a recorded program is played back or deleted

SCREEN

Press MENU.

● If you want to stop the following procedure on its

way, press MENU.

ACCESS HDD SET UP SCREEN

1) Press @# (or 23) to

move the arrow to “HDD/VHS SET UP”, then press ﬁ (or ∞) or OK.

2) Press @# (or 23) to move the arrow to “HDD SET UP”, then press ﬁ (or ∞) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

LIVE MEMORY 1 HR.

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

SELECT LIVE MEMORY MODE

1) At the “LIVE

MEMORY”, press OK.

2) Press %ﬁ (or 5∞) to select the desired mode, then press OK.

a– Select “OFF” if you

do not want to use the Live Memory Playback.

b– Select “30 MIN.” if you want to use the Live

Memory Playback for up to 30 minutes.

c– Select “1 HR.” if you want to use the Live Memory

Playback for up to an hour.

d– Select “3 HR.” if you want to use the Live Memory

Playback for up to 3 hours.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1

LIVE MEMORY 1 HR.

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

VHS SET UP 2HDD SET UP

OFF 30 MIN. 1 HR. 3 HR.

RETURN TO NORMAL SCREEN

Press MENU.

Start Live Memory Playback

You can start Live Memory Playback by pressing @ (or 2) or 1, then press PLAY. When you press @ (or 2) to start Live

Memory Playback, the recorder will rewind the pictures to the point where Live Memory time counter shows “00” or “30” in its minutes’ place (or to the beginning of the program), then start Live Memory Playback automatically.

You can use various playback features during Live Memory Playback. (See pages 30 and 31.)

• To stop Live Memory Playback, press STOP. The on-air screen

resumes.

28 EN

PLAYBACK FEATURES for HDD deck (cont.)

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

Superimpose

This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.

ACCESS MAIN MENU SCREEN

Press MENU.

● If you want to stop the following procedure on its

EJECT

PAUSE

way, press MENU.

ACCESS FUNCTION SCREEN

1) At the top of Main Menu screen, move the arrow to “FUNC- TION SET UP” by pressing @# (or 23),

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

then press ﬁ (or ∞ ) or OK.

2) On the Function Set

INDEX MENU

SELECT OK END

SELECT WITH [∞523] THEN PRESS [OK]

Up screen, move the arrow to “FUNCTION” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

SELECT SUPERIMPOSE

123

4 56

78 9

–

MODE

1) On the Function screen, move the

arrow to “SUPERIM- POSE” by pressing %ﬁ (or 5∞), then press OK.

2) Press %ﬁ (or 5∞) to select the desired

OSD

mode, then press OK.

a– Select “ON” if you want the superimposed opera-

tional indications on the screen for about 5 seconds when operating the recorder.

b– Select “OFF” if you do not want the superimposed

operational indications on the screen.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

OFF ON

RETURN TO NORMAL SCREEN

Press MENU.

NOTE:

If you select a channel on which no signal is received, the channel number is displayed regardless of the Superimpose mode setting.

To Recall Indication

Press OSD. The indication appears on the top of the screen as follows.

To clear the indication, press OSD again.

When playing back a recorded program

EN 29

PRESENT TIME 9:47 PM

ON AIR

8:00 PM 9:00 PM 10:00 PM

STEREO

1CH

Playback mode and time counter

The beginning of the program

Time scale of the current program :

PLAY 3 0:59:24

0:00 1:00 2:00

Current playback point This program has an hour and a half contents.

When watching a program on air

ON AIR

Time scale around

8:00 PM 9:00 PM 10:00 PM

the current time

The beginning point of this program : The recorder starts receiving this program at about 8:30 PM.

You can enjoy Live Memory Playback in this field.

When pressing PAUSE

PAUSE is pressed at 9:33 PM.

8:00 PM 9:00 PM 10:00 PM

Recording information : date, start time, channel and recording speed

06/12 TUE 10:07 AM

1CH

STEREO

Time scale

The end of the program

Current time

PRESENT TIME ∞ 9:32:15 PM

Current recording speed

STEREO

1CH

Pointer for current time : The recorder has been receiving this program for an hour.

PRESENT TIME ∞ 9:45 PMPAUSE 8 9:33 PM

STEREO

1CH

Audio mode

Current channel

Pointer for current picture The end of this program : The

When using Live Memory playback

The time counter using actual time

8:00 PM 9:00 PM 10:00 PM

Pointer for current picture The end of this program :

recorder is now capturing new pictures in this point.

PRESENT TIME ∞ 9:46 PMLIVE MEMORY 3 9:03 PM

STEREO

1CH

The recorder is now capturing new pictures in this point.

30 EN

PLAY

PAUSE

PLAY

REW

PLAYBACK FEATURES for HDD deck (cont.)

High-Speed Search

Playback Features

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

VIDEO

F - 1

(M) L – AUDIO – R

S-VIDEO

ACTIVATE HIGH-SPEED SEARCH

During playback (or Live Memory Playback), press FF for forward high-speed search, or REW for reverse high-

speed search.

● The search speed is 15 times normal playback speed.

To resume normal playback, press PLAY.

NOTES:

●

For short searches, during playback or still, press and hold FF, or REW. When released, normal playback resumes.

●

If either end of the program is reached during high-speed search, normal playback will resume.

Still Picture/Frame-By-Frame Playback

EJECT

PAUSE DURING PLAYBACK

PAUSE

Press PAUSE.

ACTIVATE FRAME-BYFRAME PLAYBACK

Press PAUSE or # (or 3) repeatedly to advance one frame at a time. Press @ (or 2) repeatedly to reverse

one frame at a time.

REW

123

4 56

78 9

–

To resume normal playback, press PLAY.

Slow Motion/Reverse Slow Motion

ACCESS SLOW-MOTION PLAYBACK

For hands-free slow-motion, press PAUSE during playback (or Live Memory Playback).

ACTIVATE SLOW-MOTION

PAUSE

PLAYBACK

Press and hold # (or 3) for forward slow-motion, @ (or

2) for reverse slow-motion.

CHANGE SLOW-MOTION SPEED

Press # (or 3) or @ (or 2) repeatedly. The slow-motion speed changes in three steps for each direction.

To resume normal playback, press PLAY.

EN 31

PLAY

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

Variable-Speed Search/ Reverse Motion Playback

ACTIVATE VARIABLE-SPEED SEARCH

During playback (or time-shift playback), press # (or 3) for forward variable-speed search or press @ (or 2) for

reverse motion playback.

EJECT

PAUSE

CHANGE SPEED

Press # (or 3) or @ (or 2) repeatedly to change playback speed as illustrated below.

To resume normal playback, press PLAY.

START –/

123

4 56

78 9

–

START +/

PLAY

Quick Rewind a little

ACTIVATE QUICK REWIND

During playback (or Live Memory Playback), press

(START –). The unit rewinds the picture a little

(about 7 seconds) and resumes playback.

• If the button is pressed repeatedly, the unit rewinds the pictures continuously and resumes playback.

Quick Skip Forward

ACTIVATE QUICK SKIP

During playback (or Live Memory Playback), press (START +). The unit skips forward (about 30 seconds at

a time) and resumes playback.

• If the button is pressed repeatedly, the recorder skips continuously and resumes playback.

32 EN

PLAY

PLAYBACK FEATURES for HDD deck (cont.)

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

Repeat Playback (Normal Playback Only)

START REWIND

During playback, press and hold PLAY (until “ ” blinks on the front display panel), then release. The unit

starts playing back the whole program repeatedly up to 100 times. The HDD playback indicator is flashing.

To resume normal playback, press PLAY.

EJECT

PAUSE

Select The Soundtrack

The HDD deck can record wo soundtracks simulaneously (L and R) and play back the selected one, or both together.

You can select the soundtrack by simply pressing the remote control’s A. MONITOR button as follows:

L+R → L → R → L+R

123

4 56

78 9

–

PLAY

RECORDING FEATURES for HDD deck

Live Memory Playback

Recording

(while recording)

You can use the following playback features as the Time-Shift Playback while you are recording a program.

EN 33

Features

Record One Program While Watching Another

ENGAGE TV MODE

During recording...

● Change the TV’s input mode from AV to TV.

SELECT CHANNEL FOR VIEWING

Use the TV’s channel selector to set the channel you want to watch.

Display While Recording

Press OSD. The indication appears on the top of the screen as follows.

● To clear the indication, press OSD again.

• High-Speed Search

• Still Picture/Frame-By-Frame Playback

• Slow Motion/Reverse Slow Motion

• Variable-Speed Search/Reverse Motion Playback

• Quick Rewind a little

• Quick Skip Forward

While recording

REC indicator

Time scale around the current time

Starting point of recording this program

REC ÷

You can enjoy Live Memory Playback in this field.

PRESENT TIME ∞ 9:03 PM

Current time Recording speed

Current recording point

When using Live Memory Playback while recording

The time counter using the actual time

Pointer for current picture

PRESENT TIME ∞ 9:12 PMLIVE MEMORY 3 8:53 PM

The end of this program : The recorder is now recording new pictures in this point.

STEREO8:00 PM 9:00 PM 10:00 PM

1CH

STEREO8:00 PM 9:00 PM 10:00 PM

1CH

Audio mode

Recording channel

34 EN

S-VHS

REW

STOP

PLAY

Simple Playback

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

SIMPLE OPERATION for VHS deck

LOAD A CASSETTE

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is

pointing towards the recorder. Don’t apply too much pressure when inserting.

● The recorder’s power comes on automatically.

● The counter is automatically reset to “0:00:00”.

● If the cassette’s record safety tab has been removed,

playback begins automatically.

SELECT VHS DECK

Press VHS (or S-VHS). The S-VHS button lights on the front panel.

HM-HDS1

EJECT

FIND PROGRAM START POINT

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

If the tape is advanced past the start point, press REW. To go forward, press FF.

START PLAYBACK

Press PLAY. “VIDEO CALIBRATION” appears on the screen (when VIDEO CALIBRATION is set to “ON”

 pg. 47). The VHS playback indicator lights on the

front panel.

STOP PLAYBACK

Press STOP. Then press EJECT on the front panel to remove the cassette.

Usable cassettes

VHS deck

Full-Size VHS T-30 (ST-30**) T-60 (ST-60**) T-90 T-120 (ST-120**) T-160 (ST-160**) ST-210**

Compact VHS* TC-20 (ST-C20**) TC-30 (ST-C30**) TC-40 (ST-C40**)

* Compact VHS camcorder recordings can be played on

this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

** This recorder can record on regular VHS and Super VHS

cassettes. While only VHS signals can be recorded on regular VHS cassettes*, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

REW

123

4 56

78 9

–

VHS

STOP

Simple

S-VHS

STOP

CH+/–

STOP

REC

PLAY

PAUSE

Recording

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

VIDEO

F - 1

(M) L – AUDIO – R

S-VIDEO

EJECT

PAUSE

EJECT

LOAD A CASSETTE

Insert a VHS (or S-VHS) cassette with the record safety tab intact.

If you want to use VHS Navigation to select the program after recording with this unit, set “VHS NAVIGATION” to “ON” in VHS SET UP 1 of Main Menu before recording. For details, see the next page.

SELECT VHS DECK

Press VHS (or S-VHS). The S-VHS button lights on the front panel.

SELECT RECORDING CHANNEL

Press CH +/–. Or press the appropriate NUMBER keys, then press ENTER. (The channel changes after a few

seconds whether you press ENTER or not.)

SET TAPE SPEED

Press REC SPEED to select the recording speed from SP or EP.

EN 35

NUMBER

REC

PLAY

123

4 56

78 9

–

VHS

REC SPEED

ENTER

CH+/–

PAUSE

START RECORDING

Press and hold REC and press PLAY on the remote control, or press REC on the recorder’s front panel. The

VHS recording indicator lights on the front panel.

Video Calibration takes place at the beginning of both the first SP and the first EP recording after inserting the cassette (when Video Calibration is set to “ON”  pg. 47).

PAUSE/RESUME RECORDING

Press PAUSE. Press PLAY to resume recording.

● During record pause, you can change the recording

channel by using the CH +/– buttons or NUMBER keys.

Video Calibration will not take place if the tape speed is changed while in record pause mode.

STOP RECORDING

Press STOP. Then press EJECT on the VHS to remove the cassette.

NOTE:

●

It is not possible to record a TV program on both the VHS deck and the HDD deck simultaneously. In addition, it is not possible to record simultaneously from the same external input.

36 EN

Playback with VHS Navigation

The following screen appears as the VHS Navigation screen when you press NAVI with the VHS deck selected. You can move the arrow to select the desired position on the screen by pressing @%#ﬁ (or 253∞).

The number appears when the registered cassette is loaded.

This date shows when the loaded cassette is registered.

Index : Small still picture of the each program. In this case, there are two registered programs

Operational commands

VHS NAVI

0001

[06/12/01 TUE ] 120M BLANK 87M (SP)

06/12/01 TUE 06/12/01 TUE

06/12/01 TUE 12:00PM–12:30PM 8CH SP 30min

PLAY STOP MODIFY DELETE

SELECT OK END

SIMPLE OPERATION for VHS deck (cont.)

The VHS Navigation enables you to seach and select the desired program recorded with the VHS deck very easily.

When you record a program with the VHS deck for more than 5 minutes in SP mode (for more than 15 minutes in EP mode) with “NAVIGATION” of “VHS SET UP 1” set to “ON”, its information are registered in the VHS Navigation automatically.

When the first program is recorded on a cassette, the VHS Navigation gives the register number to the cassette. The VHS Navigation memorizes the cassette by the number. You can confirm the register number of the cassette when the cassette is loaded or ejected.

The VHS Navigation can register up to 2000 programs or up tp 680 cassettes.

Total time and BLANK time of this cassette :

DATE REC. CATEGORY CASSETTE #

BLANK

87min(SP)

[MISC.]

INDEX NAVI

SELECT WITH [∞523] THEN PRESS [OK]

based on the recording speed currently selected

Recording Information for the program indicated by the arrow

The icons : they show the recording situation for each program.

Guidance for operations

The Icons and their meanings

This program has a little gap at the beginning.

This program has stereo sounds.

This program has SAP audio.

This program was recorded with Timer recording.

EN 37

POWER

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

–

Set VHS Navigation

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU SCREEN

Press MENU.

EJECT

PAUSE

ACCESS VHS SET UP 1 SCREEN

1) At the top of the Main

Menu screen, move

the arrow to “HDD/ VHS SET UP” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

2) On the HDD/VHS Set

Up screen, move the arrow to “VHS SET UP 1” by pressing @# (or 23), then press ﬁ (or ∞) or OK.

SELECT VHS NAVIGATION MODE

1) On the VHS Set Up

1 screen, move the

arrow to “NAVIGA- TION” by pressing %ﬁ (or 5∞), then press OK.

2) Pressing %ﬁ (or

5∞) to select the desired mode, then press OK.

a– Select “ON” if you want to use the VHS Navigation.

When you set the VHS Navigation to “ON”, “VN” appears on the display of the front panel.

b– Select “OFF” if you do not want to use VHS

Navigation.

RETURN TO NORMAL

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT OK END

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

AUTO

SELECT WITH [∞523] THEN PRESS [OK]

VHS SET UP 1 VHS SET UP 2HDD SET UP

OFF

AUTO

SELECT WITH [∞523] THEN PRESS [OK]

SCREEN

Press MENU.

38 EN

POWER

PLAY

STOP

PAUSE

S-VHS

NAVI

SIMPLE OPERATION for VHS deck (cont.)

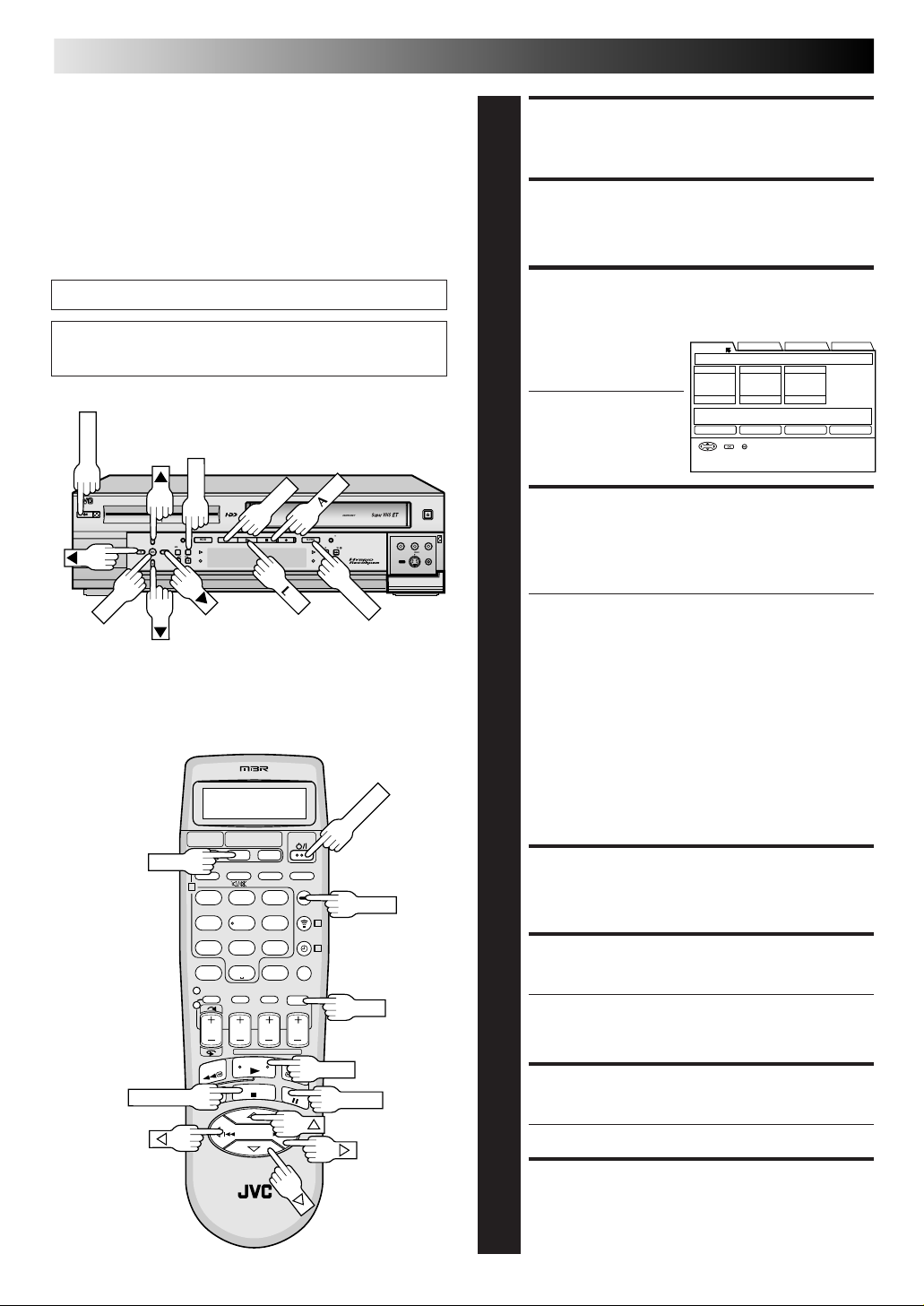

Scan for Beginning of Program with VHS Navigation

The VHS Navigation can take effect for the program which has been recorded, and whose information has been registered with this recorder. Once the VHS (S-VHS) cassettes have been used for recording with this recorder, they have the register number given by this recorder.

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

TURN ON THE RECORDER

Press POWER.

SELECT VHS DECK

Press VHS (or S-VHS). The S-VHS button lights on the front panel.

ACCESS VHS NAVIGATION SCREEN

Press NAVI. The VHS Navigation screen

appears.

● If a registered cassette

has been loaded, the contents of the loaded cassette will appear.

SEARCH FOR THE REGISTERED PROGRAM

Press @# or 23 to move the arrow to select one of the following search types, then press OK or ﬁ (or ∞).

a– Select the number if you want to select the regis-

tered program from the currently loaded cassette. If no cassette is loaded, “----” will appear in this position and this is unable to be selected.

b– Select “DATE REC.” if you want to search for the

registered program by the recording date.

c– Select “CATEGORY” if you want to search for the

registered program by the category in which you have classified the program.

d– Select “CASSETTE #” if you want to search for the

program by each registered cassette. If you select b, c, or d to search for the program, you

must go to screen a after checking the number of the registered cassette including the desired program.

VHS NAVI

0001

DATE REC. CATEGORY CASSETTE #

[06/12/01 TUE ] 120M BLANK 87M (SP)

06/12/01 TUE 06/12/01 TUE

06/12/01 TUE 12:00PM–12:30PM 8CH SP 30min

PLAY STOP MODIFY DELETE

INDEX NAVI

SELECT OK END

BLANK

87min(SP)

SELECT WITH [∞523] THEN PRESS [OK]

[MISC.]

VHS

OK/STOP

123

4 56

78 9

–

SELECT PROGRAM

NAVI

PLAY

PAUSE

Press @# (or 23) to move the arrow on the index of the desired program.

START PLAYBACK

Press PLAY or OK.

● If no cassette has been loaded, the register number

will be required. In this case, load the cassette with the required number on the VHS deck, then retry.

PAUSE PLAYBACK

Press PAUSE.

● To resume normal playback, press PLAY.

STOP PLAYBACK

Press STOP.

PLAYBACK FEATURES for VHS deck

PAUSE

PLAY

REW

PLAY

EN 39

High-Speed Search

Playback Features

POWER

HM-HDS1

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

ACTIVATE HIGH-SPEED SEARCH

During playback (or Live Memory Playback), press FF for forward high-speed search, or REW for reverse high-

speed search.

● The search speed is 11 times normal playback speed with SP recordings, and 31 times with EP recordings.

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

To resume normal playback, press PLAY.

NOTE:

●

For short searches, during playback or still, press and hold FF, REW. When released, normal playback resumes.

Still Picture/Frame-By-Frame Playback

PAUSE DURING PLAYBACK

Press PAUSE.

ACTIVATE FRAME-BY-

FRAME PLAYBACK

Press PAUSE repeatedly to advance one frame at a time.

Press PAUSE for two seconds to start frame-by-frame playback.

To resume normal playback, press PLAY.

REW

–

PAUSE

ATTENTION

● In the high-speed search, still, slow motion or frame-byframe playback mode, the picture will be distorted, and there will be a loss of color.

● When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

Slow Motion/Reverse Slow Motion

ACCESS SLOW-MOTION PLAYBACK

For hands-free slow-motion, press PAUSE during playback (or time-shift playback).

ACTIVATE SLOW-MOTION PLAYBACK

Press ¢ (or 3) for forward slow-motion, or 4 (or 2) for reverse slow-motion.

CHANGE SLOW-MOTION SPEED

Press ¢ (or 3) or 4 (or 2) repeatedly. The slowmotion speed changes in three steps for each direction.

To resume normal playback, press PLAY.

40 EN

PLAY

REW

PLAY

PLAYBACK FEATURES for VHS deck (cont.)

Variable-Speed Search/ Reverse Motion Playback

ACTIVATE VARIABLE-SPEED

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

During playback (or time-shift playback), press ¢ (or

3) for forward variable-speed search, 4 (or 2) for

reverse motion playback.

CHANGE SPEED

Press ¢ (or 3) or 4 (or 2) repeatedly to change playback speed as illustrated below.

To resume normal playback, press PLAY.

123

REW

4 56

78 9

–

OSD

Index Search

Index codes are placed on the tape at the start of each recording. You can find and automatically play back from the start of any recording using the Index Search function.

START SEARCH

While the tape is stopped, press # or @ (¢ or 4).

ACCESS DISTANT CODE

To access a recording 2–9 index codes away, press # or @ repeatedly until the correct number is displayed

on screen (only if “SUPERIMPOSE” is set to “ON” ( pg. 41). Playback begins automatically when the desired recording is located.

● If necessary press REW or FF when play starts to

search visually to find the very beginning of the desired program.

NOTE:

An index code is not placed on the tape when recording is paused and then resumed.

EN 41

Superimpose

This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.

ACCESS MAIN MENU SCREEN

Press MENU.

● If you want to stop the following procedure on its

way, press MENU.

ACCESS FUNCTION SCREEN

1) At the top of Main

Menu screen, move the arrow to “FUNC- TION SET UP” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

2) On the Function Set Up screen, move the arrow to “FUNCTION” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

SELECT SUPERIMPOSE MODE

1) On the Function

screen, move the arrow to “SUPERIM- POSE” by pressing %ﬁ (or 5∞), then press OK.

2) Press %ﬁ (or 5∞) to select the desired mode, then press OK.

a– Select “ON” if you want the superimposed opera-

tional indications on the screen about 5 seconds when operating the recorder.

b– Select “OFF” if you do not want the superimposed

operational indications on the screen.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VIDEO INPUTSFUNCTION

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

OFF ON

RETURN TO NORMAL SCREEN

Press MENU.

To recall an indication

Press OSD.  All indications corresponding to the current status are

displayed for 5 seconds. After that, the counter information and RECORD/PAUSE if in the Record Pause mode, are left displayed on the screen.

Press OSD again to clear the display.

 The RECORD/PAUSE indication is left displayed on the

screen.

NOTES:

●

If you engage the Record Pause mode, RECORD/PAUSE is displayed regardless of the Superimpose mode setting.

●

If you select a channel on which no signal is received, the channel number is displayed regardless of the Superimpose mode setting.

The superimposed indication on the TV screen tells you what the recorder is doing.

CH 125 RECORD

THU 12:00 AM PAUSE

STEREO ] SP SAP

VHS

NORM

HI–FI COUNT –1:23:45

1– Tuned-in channel or AUX(iliary) mode

When the channel is changed, the new channel is displayed on the screen for 5 seconds.

2– Clock time 3– Stereo program indication 4– Second Audio Program indication 5– VHS indicator 6– Audio mode indications 7–“Cassette Loaded” mark

When a cassette is loaded, the mark is displayed for 5 seconds. It blinks when the recorder’s EJECT button is pushed.

8– Operation mode

When the operation mode is changed, the new mode is displayed — RECORD (5 sec.), PLAY (5 sec.), FF/REW (5 sec. when engaged from Stop mode), RECORD PAUSE (for as long as Pause is engaged), and ITR *:** (5 sec.).

9– Tape speed indication 10– Tape position indicator 11– INDEX indication 12– Counter reading

Switchable to the tape remaining time display

+++

INDEX-1

VHS

8 9

10 11 12

42 EN

CH+/– PLAY

PAUSE

REW

PLAY

PLAYBACK FEATURES for VHS deck (cont.)

Manual Tracking

Once playback begins, the VCR’s automatic tracking function is engaged. If tracking noise appears in the picture, you can override this and make the adjustment manually.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ENGAGE MANUAL TRACKING MODE

During playback, press CH +/– on the front panel simultaneously to cancel the automatic tracking mode

and enable manual tracking adjust.

ADJUST MANUAL TRACKING

Press CH briefly for fine adjust, or press and hold for coarse adjust.

Watch the screen and continue adjusting until optimum picture and sound quality are achieved.

+ or

– on the front panel or remote. Press

RE-ENGAGE AUTOMATIC TRACKING

Press CH +/– on the front panel simultaneously.

● When automatic tracking is re-engaged, Video

123

4 56

78 9

Calibration is automatically activated.

NOTES:

●

To obtain a noiseless still picture it may be necessary to adjust tracking in slow playback and then engage Pause.

●

Manual tracking is possible during hands-free slow-motion. During hands-free slow-motion playback, simply press CH or

– on the recorder’s front panel or remote to adjust tracking.

REW

CH+/–

PAUSE

–

Repeat Playback

START REPEAT

Press and hold PLAY (until " " blinks on the front display panel) during playback, then release.

VCR

● The entire tape is played back 100 times.

STOP REPEAT

To stop, press STOP at any time.

NOTE:

Pressing

PLAY, REW, FF, PAUSE

Repeat Playback.

or ™ £ also stops

Counter Reset

PLAY

REW

PLAY

EN 43

HM-HDS1

POWER

C.RESET

REW

EJECT

RESET COUNTER TO ZERO

Press C.RESET.

DIGITPURE TECHNOLOGY

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

NOTE:

By pressing the

DISPLAY

button, you can change the display to show the counter reading, channel number, clock time or tape remaining time. (Channel number is not displayed during playback.)

Next-Function Memory

The Next Function Memory “tells” the recorder what to do after rewinding. Before continuing, ensure that the recorder is in stop mode.

a – For Automatic Start Of Playback After Tape Rewind . . . . . . press REW, then press PLAY within 2 seconds.

b – For Automatic Ejection Of Cassette After Tape Rewind . . . . . . press REW, then press EJECT within 2 seconds.

123

4 56

78 9

–

DISPLAY

Tape Position Indicator

The Tape position indicator appears on screen when, from the stop mode, you press FF, REW, or perform an Index Search. The position of “ ” in relation to “B“ (Beginning) or “E“ (End) shows you where you are on the tape.

+++

COUNT 0:33:27

NOTES:

●

“SUPERIMPOSE” must be set to “ON”, or the indicator will not appear ( pg. 41).

●

It may take a few seconds for the Tape Position Indicator to be displayed.

44 EN

PLAYBACK FEATURES for VHS deck (cont.)

Picture Control

This feature helps you to adjust the playback picture quality according to your preference. *The default setting is “AUTO.”

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

–

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

(M) L – AUDIO – R

VIDEO

S-VIDEO

F - 1

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VHS SET UP 1 SCREEN

1) At the top of the

Main Menu screen,

EJECT

move the arrow to “HDD/VHS SET UP” by pressing @# (or

23), then press ﬁ

PAUSE

(or ∞) or OK.

2) On the HDD/VHS

Set Up screen, move the arrow to “VHS SET UP 1” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

SELECT PICTURE CONTROL MODE

1) On the VHS Set Up 1

screen, move the arrow to “PICTURE CONTROL” by pressing %ﬁ (or 5∞), then press OK.

2) Pressing %ﬁ (or 5∞)

to select the desired mode, then press OK.

AUTO*: Normally select “AUTO”.

It automatically adjusts the picture quality. * When “VIDEO CALIBRATION” is set to

“OFF” ( pg. 47), you can only select NORM instead of AUTO.

EDIT: Select when you dub tapes. SOFT: Select when you want to soften the picture. SHARP: Select when you want to sharpen the picture.

NOTE:

• When you select “EDIT”, “SHARP" or “SOFT”, the

selected mode will not change until you select again.

• When you select “EDIT" to dub tapes, be sure to

select “AUTO” (or “NORM” when “VIDEO CALIBRATION” is set to “OFF”) after you finish dubbing the tapes.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

VHS SET UP 1 VHS SET UP 2HDD SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

AUTO

AUTO EDIT SOFT

SHARP

AUTO

RETURN TO NORMAL SCREEN

Press MENU.

NOTE:

Select “EDIT” when you are dubbing tapes. Refer to page 73.

EN 45

Video Stabilizer

By activating the Video Stabilizer you can correct vertical vibrations in the picture when playing back unstable EP recordings that were made on another VCR. When this function is set to “ON”, vertical vibration will be automatically corrected. *The default setting is “OFF”.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VHS SET UP 1 SCREEN

1) At the top of the

Main Menu screen,

move the arrow to “HDD/VHS SET UP” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

2) On the HDD/VHS

Set Up screen, move the arrow to “VHS SET UP 1” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

SELECT VIDEO STABILIZER MODE

1) On the VHS Set Up 1

screen, move the arrow to “VIDEO STABILIZER” by pressing %ﬁ (or 5∞), then press OK.

2) Pressing %ﬁ (or 5∞)

to select the desired mode, then press OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT OK END

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

AUTO

SELECT WITH [∞523] THEN PRESS [OK]

VHS SET UP 1 VHS SET UP 2HDD SET UP

OFF

AUTO

SELECT WITH [∞523] THEN PRESS [OK]

123

4 56

78 9

RETURN TO NORMAL

–

SCREEN

Press MENU.

NOTES:

●

When you finish viewing the tape, be sure to set it back to “OFF”.

●

Regardless of the setting, this function has no effect during recording and during special-effects playback.

●

The Superimpose mode indications may jitter vertically when “VIDEO STABILIZER” is set to “ON”.

●

To watch recordings with close-caption, it is necessary to set the Video Stabilizer function to “OFF”.

46 EN

PLAYBACK FEATURES for VHS deck (cont.)

TBC

Your recorder is equipped with the TBC (Time Base Corrector) that removes jitter from fluctuating video signals to deliver a stable picture even with old tapes and rental cassettes. The on/off of Digital 3-DNR (Noise Reduction) which cuts noise and enables clear picture reproduction is also linked to this function. * The default setting is “ON”.

We recommend that you use the TBC feature when... ... playing back a tape recorded on a camcorder. ... playing back a tape repeatedly used. ... using this recorder as the player for editing.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VHS SET UP 1 SCREEN

1) At the top of the

2) On the HDD/VHS

Main Menu screen, move the arrow to “HDD/VHS SET UP” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

Set Up screen, move the arrow to “VHS SET UP 1” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

AUTO

NOTES:

●

If you play back a tape recorded under poor TV reception condition, there may be cases where the picture becomes more stable with Digital TBC set to off.

●

When Digital TBC is set to on, if you play back a tape where certain types of signals are recorded (using a PC or some character generators), the playback picture may be distorted. If this is the case, turn off Digital TBC.

●

Digital TBC and Video Stabilizer ( pg. 45) cannot be used at the same time; if you turn on Digital TBC when "VIDEO STABILIZER" is set to "ON", Video Stabilizer will be automatically turned "OFF". Make sure Digital TBC is off when you want to use Video Stabilizer.

Select The Soundtrack

The VHS deck can record two soundtracks simultaneously (Normal and Hi-Fi) and play back the selected one, or both together. Or, when viewing a pre-recorded tape that contains two separate Hi-Fi audio programs, you can choose to listen to either one by selecting either "Hi-Fi L" or "Hi-Fi R".

You can select the soundtrack by simply pressing the remote control's A. MONITOR button as follows:

Hi-Fi → Hi-Fi L → Hi-Fi R → Normal → Mix → Hi-Fi

NOTE:

If the tape being played back has no Hi-Fi soundtrack, the Normal soundtrack will be heard no matter what choice you make.

SELECT TBC MODE

1) On the VHS Set Up 1

screen, move the arrow to “TBC” by pressing %ﬁ (or 5∞), then press OK.

2) Pressing %ﬁ (or 5∞) to select the desired mode, then press OK.

RETURN TO NORMAL SCREEN

Press MENU.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

OFF ON

AUTO

Active Video

POWER

Calibration

Turn on the TV and select the AV mode.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EN 47

Preparation

Active Video Calibration checks the condition of the tape during recording and playback, and compensates for poor reproduction to provide the best quality recording and playback pictures. *The default setting is “ON”.

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU SCREEN

Press MENU.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS VHS SET UP 1 SCREEN

1) At the top of the

2) On the HDD/VHS

Main Menu screen, move the arrow to “HDD/VHS SET UP” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

Set Up screen, move the arrow to “VHS SET UP 1” by pressing @# (or

23), then press ﬁ (or ∞) or OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

AUTO

123

4 56

78 9

SELECT VIDEO CALIBRATION MODE

1) On the VHS Set Up 1 screen, move the

arrow to “VIDEO CALIBRATION” by pressing %ﬁ (or 5∞), then press OK.

2) Pressing %ﬁ (or 5∞) to select the desired mode, then press OK.

RETURN TO NORMAL

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

VHS SET UP 1 VHS SET UP 2HDD SET UP

NAVIGATION ON

VIDEO STABILIZER OFF

TBC ON

VIDEO CALIBRATION

PICTURE CONTROL

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

OFF

AUTO

SCREEN

Press MENU.

–

48 EN

PLAY

PAUSE

REC

PLAY

POWER

HM-HDS1

REC

PLAYBACK FEATURES for VHS deck (cont.)

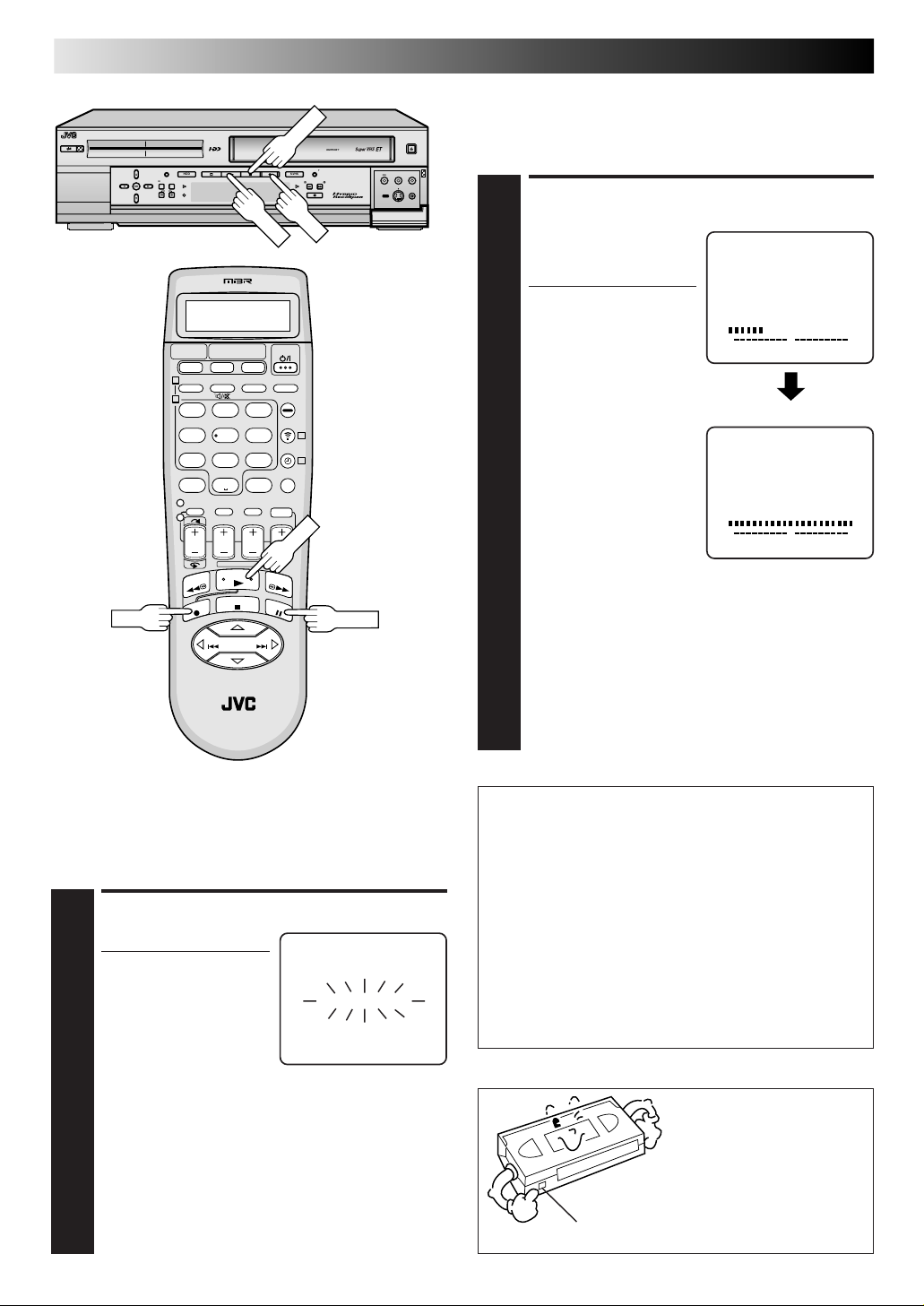

Recording

DIGITPURE TECHNOLOGY

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

PAUSE

–

Perform steps 1 – 4 on page 35 (“Simple Recording”) before continuing.

START RECORDING

Press and hold REC and press PLAY on the remote

control, or press REC on the recorder’s front panel.

● The recorder takes about 7 seconds to assess the quality of the tape in use, then recording begins with the picture level optimized.

NOTES:

●

Calibration occurs immediately prior to both the first SP and the first EP recording after inserting the cassette. It does not take place during recording.

●

In the case of timer recording, calibration takes place for both SP and EP before the first timer recording after inserting the cassette (regardless of the tape speed selected for that recording).

●

Once the cassette is ejected, the calibration data is canceled. The next time the cassette is used for recording, calibration is re-performed.

●

While Video Calibration is operative, the button will not function.

●

To display the Video Calibration screen, “SUPERIM- POSE” must be set to “ON” or the Video Calibration screen will not appear ( pg. 41).

DURING CALIBRATION

START END

+++

ACTIVE VIDEO CALIBRATION

CALIBRATION COMPLETE

START END

+++

ACTIVE VIDEO CALIBRATION

PAUSE

Playback

The recorder assesses the quality of the tape once you start playback.

Perform steps 1 – 3 on page 34 (“Simple Playback”) before continuing.

START PLAYBACK

Press PLAY.

● The recorder adjusts the

playback picture quality based on the quality of the tape in use.

VIDEO CALIBRATION

NOTES:

●

When using rental tapes, or tapes recorded on other VCRs, set “VIDEO CALIBRATION” in step 3 of the Preparation procedure to either “ON” or “OFF” as desired to give the best picture ( pg. 47).

●

The Video Calibration screen only appears at the beginning of automatic tracking. Even though the screen doesn't appear after that, the Video Calibration function is operative.

●

To display the Video Calibration screen, “SUPERIM- POSE” must be set to “ON” or the Video Calibration screen will not appear ( pg. 41.)

ATTENTION

 As calibration takes place before recording actually starts,

there is a delay of about 7 seconds after REC and PLAY on the remote, or REC on the recorder’s front panel, are pressed. To make sure you record the desired scene or program completely, first perform the following steps:

1) Press and hold PAUSE, and press REC to engage the

RECORD PAUSE mode.

● The VCR then automatically checks the condition of the tape and, after about 7 seconds, re-enters RECORD PAUSE.

2) Press PLAY to start recording.

 If you want to bypass Video Calibration and start

recording right away, set “VIDEO CALIBRATION” to "OFF" in step 3 of the Preparation procedure ( pg. 47).

Accidental erasure prevention

● VHS/S-VHS

To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

RECORDING FEATURES for VHS deck

Display Elapsed Recording

Recording

Time

Features

123

C.RESET

4 56

78 9

OSD

Display Tape Remaining Time

(VHS deck only)

EN 49

RESET COUNTER TO ZERO

Before recording starts, press C.RESET. The counter resets to zero and displays the exact elapsed time as the tape runs.

DISPLAY ELAPSED TIME ON SCREEN

During recording, press OSD at any time to see the elapsed time. All indications corresponding to the current status of the recorder are displayed for 5 seconds. The counter display remains on the screen indicating the elapsed time. Press OSD again to remove the display.

● Make sure “SUPERIMPOSE” is set to “ON“ ( pg.

41).

● The indications are not recorded.

● Press OSD to change to the COUNT display if

“REMAIN” is displayed.

–

Record One Program While Watching Another

ENGAGE TV MODE

During recording...

● Change the TV's input mode from AV to TV.

SELECT CHANNEL FOR VIEWING

Use the TV’s channel selector to set the channel you want to watch.

DISPLAY COUNTER INFORMATION

Press OSD. All indications corresponding to the recorder’s current status are displayed for 5 seconds. The counter display

remains on the screen indicating the elapsed time.

DISPLAY TAPE REMAINING TIME

Press OSD repeatedly until “REMAIN” appears on screen. The approximate tape remaining time appears on the TV screen and also on the recorder display panel

with a " " indicator.

● The tape remaining time is calculated based on the tape speed (SP or EP) being used. The indicated remaining time is only an estimate.

● Press OSD to change the on-screen display from “REMAIN” to “COUNT” and vice versa; and to show counter reading, channel number, clock time or tape remaining time on the front display panel. Then channel number will not be displayed when the recorder is playing a tape.

EXIT THE DISPLAY

Press OSD again.

NOTES:

●

“SUPERIMPOSE” must be set to “ON”, or the on-screen display will not appear ( pg. 41).

●

Near the beginning of the tape, the tape remaining estimate may be inaccurate. However, the estimate becomes more accurate as the tape comes closer to the end.

●

Depending on the type of tape used, the tape remaining time

reading may not appear right away, or may not be correct. "- -:- -" may sometimes appear, or the display may blink on occasion.

●

The tape remaining time indication is not accurate when

using VHS-C tapes with VHS-C adapter.

50 EN

S-VHS MODE

AUTO SP=EP TIMER

OFF

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

VHS SET UP 1 VHS SET UP 2HDD SET UP

SELECT OK END

SELECT WITH [∞523] THEN PRESS [OK]

INDEX MENU

RECORDING FEATURES for VHS deck (cont.)

S-VHS (Super VHS), S-VHS ET and VHS

Your recorder can record in S-VHS, S-VHS ET or VHS. S-VHS allows you to make high quality video recordings with a

horizontal resolution of 400 lines. This compares with the 240 lines of resolution of normal VHS recordings. To achieve the highest quality picture we recommend that you record in S-VHS mode.

By using S-VHS ET it is possible to record and play back with SVHS picture quality on VHS cassettes with this recorder. For details, refer to the next page.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

78 9

–

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VHS SET UP 2 SCREEN

1) At the top of the Main Menu screen, move

the arrow to “HDD/ VHS SET UP” by pressing @# (or 23), then press ﬁ (or ∞) or OK.

2) On the HDD/VHS Set Up screen, move the arrow to “VHS SET UP 2” by pressing @# (or 23), then press ﬁ (or ∞) or OK.

SELECT S-VHS MODE

1) On the VHS Set Up

2 screen, move the

arrow to “S-VHS MODE” by pressing %ﬁ (or 5∞), then press OK.

2) Pressing %ﬁ (or 5∞)

to select the desired mode, then press OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SELECT OK END

RETURN TO NORMAL SCREEN

Press MENU.

VHS SET UP 1 VHS SET UP 2HDD SET UP

S-VHS MODE

AUTO SP=EP TIMER

INDEX MENU

SELECT WITH [∞523] THEN PRESS [OK]

OFF

To record in S-VHS;

● perform the steps 1 – 4 below to set the “S-VHS MODE” to

“ON”.

● then, insert a cassette marked “S-VHS”, the S-VHS indicator will light on the display panel.

The S-VHS recording mode will be automatically selected.

To record in S-VHS ET on a VHS high grade cassette;

● press S-VHS ET and set to “ON”.

 “Super VHS ET” on the next page.

To record in VHS;

● insert a cassette marked “VHS”.

● press S-VHS ET and set to “OFF”.

The VHS recording mode will be automatically selected regardless of the S-VHS mode setting.

NOTE:

When playing back a tape that has been recorded in S-VHS or S-VHS ET, the S-VHS indicator lights on the display panel regardless of the “S-VHS MODE” setting.

To record in VHS on an S-VHS cassette;

● insert the cassette marked “S-VHS”, the S-VHS indicator will light on the display panel.

● then, perform the steps 1 – 4 below to set the “S-VHS MODE” to “OFF”; the S-VHS indicator will go out.

The VHS recording mode will be selected.

NOTE:

Tapes recorded in S-VHS or S-VHS ET mode can not be played back successfully on normal VHS VCRs.

EN 51

S-VHS ET

Super VHS ET

Your recorder is equipped with Super VHS ET that makes it possible to record with S-VHS picture quality on VHS cassettes.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

ENGAGE S-VHS ET MODE

Press S-VHS ET on the front panel. You can check the current setting (“S-VHS ET : ON” or “S-VHS ET : OFF”)

if “SUPERIMPOSE” is set to “ON” (pg. 41). If “S-VHS ET : OFF” appears on the TV screen, press S-VHS ET again in about 5 seconds later to set it “ON”.

• The S-VHS indicator lights up on the front display panel.

To cancel S-VHS ET, press the button again.

NOTES:

●

You cannot activate the S-VHS ET function... ...while recording is in progress. ...while timer-recording (incl. Instant Timer Recording



pg. 64) is in progress. ...while Video Calibration ( pg. 47) is in progress. ...when the recorder’s power is off.

●

S-VHS ET does not work with S-VHS tapes.

S-VHS ET

This facility allows recording with S-VHS picture quality on VHS cassettes. You can play back those cassettes recorded in S-VHS ET on a VCR equipped with S-VHS ET.

NOTES:

●

To obtain the highest quality recording and playback pictures over a longer period on this model, S-VHS recording on S-VHS tape is recommended.

●

You can play back S-VHS ET recordings not only on this recorder but also on another VHS VCR equipped with SVHS ET. * It is recommended to specifically label S-VHS ET

recordings so you can easily distinguish them from regular VHS recordings.

●

S-VHS ET recordings can also be played back on an SVHS VCR or a VHS VCR equipped with SQPB (S-VHS QUASI PLAYBACK) function. However, there may be cases where S-VHS ET playback is not possible on a particular VCR.

●

Frequent still, frame-by-frame and slow-motion playback may damage the tape and cause picture degradation.

●

With some tapes, better picture quality may not be obtained even with S-VHS ET recording. It is recommended that you do test record beforehand to make sure whether better results can be obtained.

●

High Grade tapes are recommended for superior results.

●

Make sure that “VIDEO CALIBRATION” is set to “ON” at the Function screen ( pg. 47).

●

During S-VHS ET playback, noise may appear depending on tape quality.

●

Noise may appear during still, frame-by-frame and slowmotion playback.

●

If the playback picture becomes blurred or interrupted, use a cleaning cassette.

52 EN

PAUSE

PLAY

REW

PLAY

RECORDING FEATURES for VHS deck (cont.)

Retake (VHS deck only)

You can cut out unnecessary parts of a TV program while you're recording it.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

123

4 56

78 9

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

ENGAGE RECORD-PAUSE MODE

Press PAUSE during recording.

LOCATE START POINT

Hold down REW or FF and release it when you reach the point where you want to resume recording.

* Your recorder returns to the Record-Pause mode.

RESUME RECORDING

Press PLAY when you wish to resume recording.

End of program

Program

Unnecessary part

Recorded part

Go back to end of program to cut out unnecessary part

Beginning of program

Unnecessary part

Program

REW

PAUSE

–

EN 53

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

VIDEO INPUTSFUNCTION

SELECT OK END

SELECT WITH [∞523] THEN PRESS [OK]

INDEX MENU

OFF ON

POWER

Stereo And SAP (Second Audio Program)

Your recorder’s built-in MTS decoder enables reception of Multichannel TV Sound broadcasts. When the channel is changed on the recorder ...

● The “STEREO” indication appears on the screen for about 5 seconds if the program is a stereo broadcast.

● The “SAP” indication appears on the screen for about 5 seconds if the program is a SAP broadcast.

● Both indications appear when a stereo program is accompanied by SAP audio.

To Record Stereo Programs . . .

. . . simply follow the basic recording procedure.

To Listen To Stereo Soundtrack During Recording . . . . . . press A. MONITOR to select “HI-FI” ( pg. 46).

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS FUNCTION SCREEN

1) At the top of Main Menu screen, move

the arrow to “FUNC- TION SET UP” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

2) On the Function Set Up screen, move the arrow to “FUNCTION” by pressing @# (or 23), then press ﬁ (or ∞ ) or OK.

SELECT 2ND AUDIO RECORD MODE

1) On the Function

screen, move the arrow to “2ND AUDIO RECORD” by pressing %ﬁ (or 5∞), then press OK.

2) Press %ﬁ (or 5∞) to select the desired mode, then press OK.

HDD/VHS SET UP INITIAL SET UPFUNCTION SET UP

SUPERIMPOSE OFF

BLUE BACK ON

2ND AUDIO RECORD OFF

INDEX MENU

SELECT OK END

VIDEO INPUTSFUNCTION

SELECT WITH [∞523] THEN PRESS [OK]

123

4 56

78 9

RETURN TO NORMAL SCREEN

Press MENU.

–

NOTES:

●

If a SAP program is received and “2ND AUDIO RECORD” is set to “ON”, the SAP audio is recorded on both the Normal and Hi-Fi tracks. The main audio program is not recorded.

●

If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and Normal audio tracks.

54 EN

POWER

REC SPEED

S-VHS

VHS

TRANS

WEEKLY OK

HDD

STOP +/–

PROG.

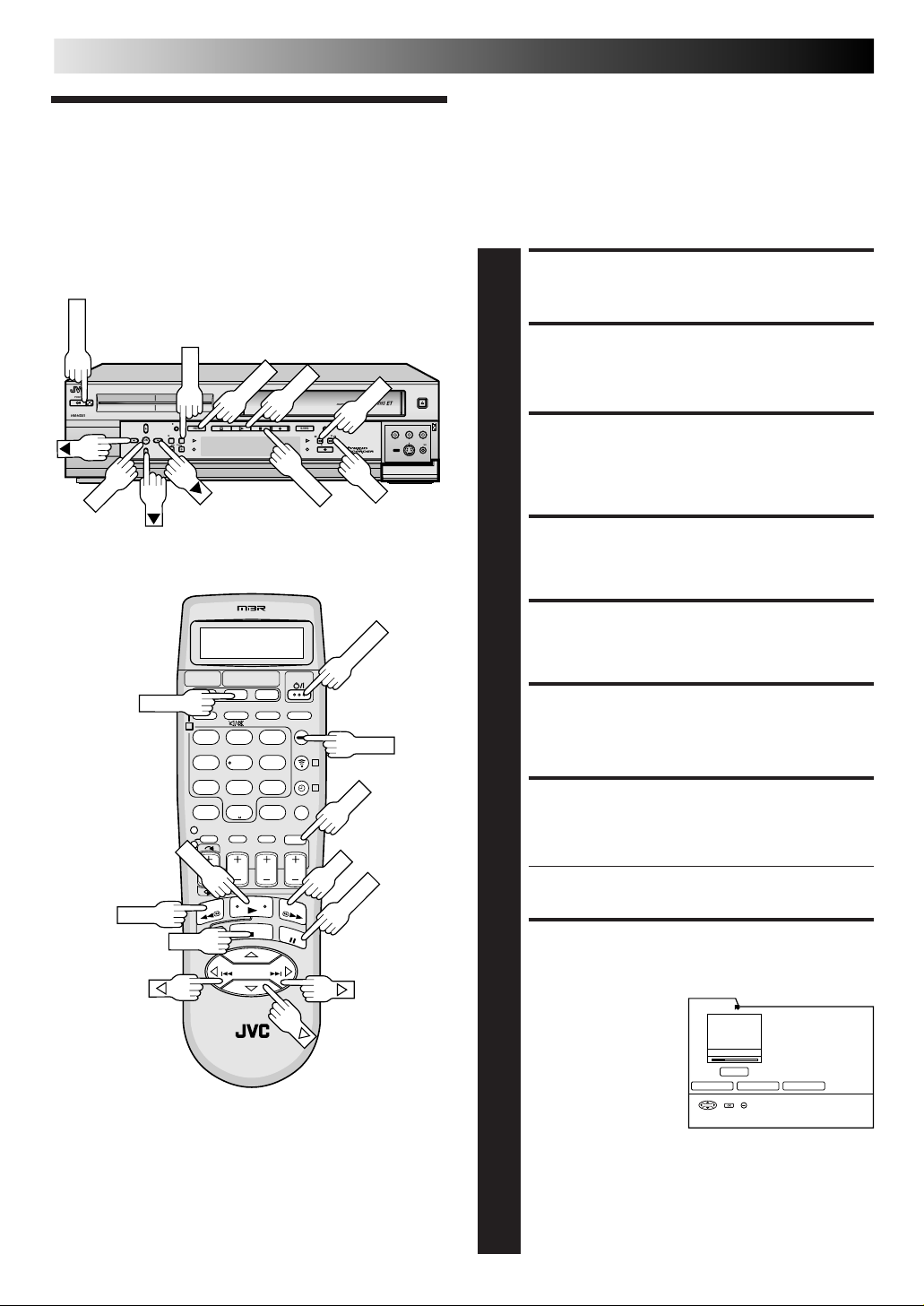

VCR Plus+ Timer Programming

TIMER RECORDING

Timer recording allows you to program the recorder to automatically record a program that will be broadcast at some future time. The timer record function can be programmed using the VCR Plus+ or Express Timer programming (墌 pg. 58) up to 16 shows each on the HDD and VHS decks as far as a year in advance. The VCR Plus+ timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer record function. Simply key in the PlusCode number for the TV program you wish to record and the recorder’s timer will be automatically programmed. (The PlusCode programming numbers are the numbers next to the program in most TV listing.)

Turn on the TV and select the AV mode.

POWER

HM-HDS1

VCR PLUS

NUMBER

DAIRY

CANCEL

REC LINK

HDD

NAVI

123

4 56

78 9

STOP PLAY PAUSE REC

–

TURN ON THE RECORDER

Press POWER.

SELECT THE DECK

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

TIMER

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

Press HDD or VHS (or S-VHS).

ACCESS VCR PLUS+ SCREEN

Press VCR PLUS on the remote control. The indication for VCR

PLUS+ appears on the display window of the remote control.

ENTER PLUSCODE NUMBER

Press the appropriate NUMBER keys to enter the PlusCode

number printed in the TV listings for the TV program you wish to record.

● To make corrections, press CANCEL and input the

correct PlusCode number.

● If you want to stop programming the timer recording,

press VCR PLUS on the remote control. The indication on the remote control disappears.

TRANSFER THE PLUSCODE TO THE UNIT

Press TRANS to transmit the PlusCode number from the remote control to the recorder.

If “SET GUIDE CHANNEL THEN RETRY” appears on the screen, perform VCR Plus+ setup procedure.

(墌

page 56.

When “PROGRAM FULL DELETE UNWANTED TIMER PROGRAM” appears on the screen, you need to cancel some of the reserved programs. (墌 page 61.)

)

–––––––––

123––––––

EN 55

CHECK PROGRAM DATA

The PlusCode number you entered and the

matching TimerRecording information are displayed on the Program screen. Check to make sure their correct.

● To change the stop

time, press STOP +/–.

● To timer-record daily or weekly serials, press DAILY (NUMBER key “8”) or WEEKLY (NUMBER key “9”). “DAILY” or “WEEKLY” appears on the Program screen. Pressing the button again makes each corresponding display disappear.

● You can also set category.

1) Press @# (or 23)

to move the arrow to “CATEGORY”, then press OK. The Category Set screen appears.

2) Select the desired

category by pressing

@%#ﬁ (or 253∞), then press

OK.

2) Confirm the arrow is on the “RETURN”, then press

OK. The Program screen resumes.

● If you want to cancel this reservation, move the arrow to “CANCEL” by pressing @# (or 23), then press OK. Or, press PROG.

PROGRAM

PLUS CODE NO.

RECORD TO

START TIME STOP TIME DATE

11:30 PM 12:00 AM 06/12/01 TUE 5 CH

CONFIRM CANCEL CATEGOTY MISC.

–

START

EDITING

EN 65

About Hybrid Navigation

In the Simple Operations section, it is briefly described how to search for the beginning of each recorded program using the Navigation functions, but more detailed explanations are provided in this section using HDD Navigation by way of example.

This recorder has a built-in Hybrid Navigation system, which consists of two Navigation system: HDD Navigation and VHS Navigation. Using Navigation system, you can easily modify registered information or edit the program when dubbing from the HDD deck to VHS deck, as well as search for the beginning of each program.

About Registration of Information

The following information is automatically registered for each program when ordinary recording or timer recording is performed (for the VHS deck, when “NAVIGATION” is set to “ON” in the “VHS SET UP 1” of the main MENU), then stored in an area specified on the hard disk.

• index*: reduced still pictures to show program titles

• program title*

• category*

• date and time

• channel

• recording speed

• length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Navigation system.

About Editing of Programs

Navigation system has three functions for editing of programs: modification or deletion of information, dubbing easily from HDD deck to VHS deck, and random assemble editing. In the following section, those functions are mentioned.

The Limitations of Registration

You can register information up to 60 programs in HDD Navigation. In VHS Navigation, you can register information up to 2000 programs or up to 680 cassettes.

To register the information on VHS Navigation, you need record a program for more than 5 minutes in SP mode (for more than 15 minutes in EP mode).

When the amount of information is at the limits of registration, you cannot record new program any more. In this case, you need to delete old programs to register new one.

The display for modification or deletion

HDD NAVI

SCAN EDITINGEASY DUBBING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

06/12/01 TUE 06/12/01 TUE 06/12/01 MON06/12/01 TUE

06/12/01 TUE 10:30AM – 12:55PM 2CH SP 145min

PLAY MODIFY DELETE CANCEL

INDEX

NAVI

SELECT WITH [∞523]

SELECT OK END

THEN PRESS [OK]

[MISC.]

The display for EASY DUBBING

HDD NAVI

SCAN EDITINGEASY DUBING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

06/12/01 TUE06/12/01 TUE 06/11/01 MON 06/10/01 MON

06/12/01 TUE 10:30AM – 12:55PM 2CH SP 145min

DUB START DUB/DEL CANCEL

INDEX

NAVI

SELECT WITH [∞523] AND [MEMORY]

SELECT OK END

THEN PRESS [OK]

The display for EDITING

HDD NAVI

R.A.EDIT

1 0:05:10 TO 0:06:37 2 0:01:42 TO 0:02:53 3 0:10:18 TO –:––:–– 4 –:––:–– TO –:––:––

0:10:18

START END

IN / OUT

NAVIINDEX

SELECT OK END

5 –:––:–– TO –:––:–– 6 –:––:–– TO –:––:–– 7 –:––:–– TO –:––:–– 8 –:––:–– TO –:––:––

MODIFYEDIT START RETURN TOTAL 0:01:50

SEARCH IN/OUT POINT WITH [PLAY/ FF/REW/PAUSE] THEN PRESS "IN/OUT"

– / 6

[MISC.]

66 EN

POWER

STOP

PAUSE

NAVI

PAUSE

PLAY

S-VHS

REW

HDD

VHS

Modify Information

POWER

HM-HDS1

HDD

REW

OK/STOP

REC LINK

HDD

NAVI

123

4 56

78 9

STOP PLAY PAUSE REC

–

S-VHS ET

S-VHS

REW FEW

A. DUB

DIGITPURE TECHNOLOGY

NAVI

EDITING (cont.)

SELECT DECK

Press HDD or VHS (or S-VHS).

●

When you select the VHS deck, load the cassette you want to edit.

ACCESS NAVIGATION SCREEN

Press NAVI. The Navigation screen corresponding to the selected deck appears.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

●

For VHS deck, when “NAVIGATION” is set to “OFF”, the Navigation screen does not appear.

SELECT PROGRAM

Press @%#ﬁ (or 253∞) to move the arrow to select one program you want to modify, then press ﬁ (or ∞) or

OK.

ACCESS MODIFY SCREEN

1) Press @# (or 23) to move the arrow to “MODIFY”,

then press ﬁ (or ∞) or OK.

2) Press @# (or 23) to move the arrow to “MODIFY

INDEX”, then press OK. The arrow moves to “REPLACE”.

1) Search for the picture

from the program by pressing the appropriate buttons: PLAY, FF, REW, or PAUSE. The pictures of the program appear on the left window.

2) Confirm the arrow is

on “REPLACE”, then press OK to register new index. New index appears on the right window.

●

When you press OK with the arrow on “RETURN” you can return the previous screen.

HDD NAVI

MODIFY INDEX

MODIFY TITLE MODIFY CATEGORY

REPLACE

0:10:30

START END

06/12/01 TUE 12:25AM – 12:55PM 2CH SP 30min

RETURN

NAVIINDEX

SELECT WITH [∞523]

SELECT OK END

THEN PRESS [OK]

0:10:30

[MISC.]

Modify Index

The Navigation systems cannot work while the recorder is recording on the HDD deck or in REC LINK mode.

TURN ON THE RECORDER

Press POWER.

RETURN TO NORMAL SCREEN

Press NAVI.

●

When you select VHS deck, press STOP to cancel PAUSE after pressing NAVI.

EN 67

MODIFY INDEX

MODIFY TITLE MODIFY CATEGORY

RETURN

HDD NAVI

ABC DEF GHI 123 :–+ J KL MNO PQR 4 5 6 • / * STU VWX YZ 7890 []

ENTER DELETE

DELETE ALL

SELECT OK END

SELECT WITH [∞523] THEN PRESS [OK]

NAVIINDEX

06/12/01 TUE 12:25AM – 12:55PM 2CH SP 30min

[MISC.]

POWER

NAVI

S-VHS

HDD

VHS

Modify Program Title

The Navigation systems cannot work while the recorder is recording on the HDD deck or in REC LINK mode.

POWER

HM-HDS1

NUMBER

REC LINK

HDD

NAVI

CLEAR

123

4 56

78 9

STOP PLAY PAUSE REC

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

VIDEO

F - 1

NAVI

(M) L – AUDIO – R

S-VIDEO

ACCESS NAVIGATION SCREEN

Press NAVI. The Navigation screen corresponding to the selected deck appears.

●

For VHS deck, when “NAVIGATION” is set to “OFF”, the Navigation screen does not appear.

SELECT PROGRAM

Press @%#ﬁ (or 253∞) to move the arrow to select one program you want to modify, then press ﬁ (or ∞) or

EJECT

PAUSE

OK.

ACCESS MODIFY SCREEN

1) Press @# (or 23) to move the arrow to “MODIFY”,

then press ﬁ (or ∞) or OK.

2) Press @# (or 23) to move the arrow to “MODIFY

TITLE”, then press OK. The Modify Title screen appears.

ENTER NEW TITLE

Press @%#ﬁ (or 253∞) to move the

arrow to the desired letter or command, then OK. Repeat this process to complete the title.

●

To correct a letter,

press CLEAR on the remote control.

●

You can enter the letters up to 15.

●

You can enter the new title from the remote control.

For example, when you press 2 repeatedly, “A”,“B”,“C”,“2”,“A” appears by turns. You can use the following buttons.

1, 2, 3, 4, 5, 6, 7, 8, 9, 0 : for entering letters, numbers, marks (–, +, *) and blank

<, > : for moving the entering or inserting point

TURN ON THE RECORDER

Press POWER.

SELECT DECK

Press HDD or VHS (or S-VHS).

–

Press @%#ﬁ (or 253∞) to move the arrow to

“RETURN”, then press OK. The Navigation screen

appears again.

RETURN TO NORMAL SCREEN

Press NAVI.

68 EN

POWER

NAVI

S-VHS

HDD

VHS

EDITING (cont.)

Modify Category

The Navigation systems cannot work while the recorder is recording on the HDD deck or in REC LINK mode.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

TURN ON THE RECORDER

Press POWER.

SELECT DECK

Press HDD or VHS (or S-VHS). The Navigation screen corresponding to the selected deck appears.

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS NAVIGATION SCREEN

Press NAVI. The Navigation screen corresponding to the selected deck appears.

• For VHS deck, when “NAVIGATION” is set to “OFF”,

the Navigation screen does not appear.

SELECT PROGRAM

Press @%#ﬁ (or 253∞) to move the arrow to select one program you want to modify, then press ﬁ (or ∞) or

OK.

ACCESS MODIFY SCREEN

1) Press @# (or 23) to move the arrow to “MODIFY”,

then press ﬁ (or ∞) or OK.

2) Press @# (or 23) to move the arrow to “MODIFY

CATEGORY”, then press OK. The Modify Category screen appears.

HDD

123

4 56

78 9

SELECT NEW CATEGORY

Press @%#ﬁ (or

NAVI

253∞) to move the

arrow to the new category, then press OK.

HDD NAVI

MODIFY INDEX

MODIFY TITLE MODIFY CATEGORY

CHILDRENS

CLASSICS

COMEDY

MOVIES

SERIES

SPORTS

SELECT WITH [∞523] THEN PRESS [OK]

MUSIC

SHOPPING

OTHERS

RELIGIOUS

SOAPS

06/12/01 TUE 12:25AM – 12:55PM 2CH SP 30min

RETURN

NAVIINDEX

SELECT OK END

DRAMA

NEWSEDUCATIONS

SPECIAL

MISC.

[MISC.]

Press @%#ﬁ (or 253∞) to move the arrow to

“RETURN”, then OK. The Navigation screen appears

–

again.

RETURN TO NORMAL SCREEN

Press NAVI.

EN 69

POWER

NAVI

S-VHS

HDD

VHS

Delete Information

The Navigation systems cannot work while the recorder is recording on the HDD deck or in REC LINK mode.

For HDD Navigation:

When you delete the registered information of a program, the recorder delete the program itself on the hard disk drive. The deleted program is never resumed.

For VHS Navigation:

When you delete the registered information of a program, the recorder delete only the information on the hard disk drive. The program itself cannot be deleted with VHS Navigation.

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

VIDEO

F - 1

(M) L – AUDIO – R

S-VIDEO

TURN ON THE RECORDER

Press POWER.

SELECT DECK

Press HDD or VHS (or S-VHS). The indicator corresponding to the selected deck lights up.

ACCESS NAVIGATION SCREEN

Press NAVI. The Navigation screen corresponding to the selected deck appears.

• For VHS deck, when “NAVIGATION” is set to “OFF”,

the Navigation screen does not appear.

EJECT

PAUSE

SELECT PROGRAM

Press @%#ﬁ (or 253∞) to move the arrow to select one program whose information you want to delete,

then press ﬁ (or ∞) or OK.

• For VHS deck, you can delete all the information of a

cassette at the “CASSETTE #”.

ACCESS DELETE SCREEN

Press @# (or 23) to move the arrow to “DELETE”, then press OK. The message appears for your confirma-

tion.

HDD

123

4 56

78 9

CONFIRM DELETION

Press @# (or 23) to select “DELETE”, then press OK.

• When you cancel the deletion, select “CANCEL”,

NAVI

–

then press OK.

RETURN TO NORMAL SCREEN

Press NAVI.

70 EN

SCAN EDITINGEASY DUBING

HDD NAVI

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

DUB START DUB/DEL CANCEL

SELECT OK END

SELECT WITH [∞523] AND [MEMORY] THEN PRESS [OK]

06/12/01 TUE 10:30AM – 12:55PM 2CH SP 145min

INDEX

[MISC.]

– / 6

06/12/01 TUE06/12/01 TUE 06/11/01 MON 06/10/01 MON

NAVI

POWER

NAVI

HDD

Dubbing

POWER

HM-HDS1

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

EDITING (cont.)

Easy Dubbing from HDD deck to VHS deck

Because this recorder includes both HDD deck and VHS deck, you can easily use it for dubbing without connecting any other equipment.

TURN ON THE RECORDER

Press POWER.

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS HDD NAVIGATION SCREEN

Press HDD, then press NAVI. The HDD Navigation appears.

ACCESS EASY DUBBING SCREEN

Press @# (or 23) to move the arrow to “EASY DUBBING”, then press OK. The Easy Dubbing screen

appears.

HDD

MEMORY

123

4 56

78 9

–

SELECT PROGRAM(S)

Press @# (or 23) to move the arrow to the

desired program, then press OK.

●

When you want to select the plural

NAVI

programs, press MEMORY on the remote control after selecting the desired program. The numbers of the playback order appear on the index. You can select up to 8 programs.

●

When you want to correct the order, after moving the arrow on the numbered index, press MEMORY on the remote control, or move arrow to “CANCEL” by pressing @%#ﬁ (or 253∞), then press OK. The number disappears and the recorder re-numbers the other programs automatically.

SELECT DUBBING OPTION

Press @%#ﬁ (or 253∞) to move the arrow to select “DUB START” or “DUB/DEL”, then press OK. The message for preparing a cassette appears.

• When “DUB START” is selected, the programs remains on the hard disk after dubbing.

• When “DUB/DEL” is selected, the unit delete the programs on the hard disk after dubbing automatically.

SELECT VHS DECK

STOP

PAUSE

PLAY

S-VHS

REW

REC

OK/STOP

VHS

Press VHS (or S-VHS).

LOAD A CASSETTE

Insert a recordable VHS (or S-VHS) cassette.

SELECT REC SPEED

Press REC SPEED on the remote control.

EN 71

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

LOCATE START POINT

1) Search the point where you want to start dubbing by

pressing PLAY, FF, REW, then press STOP.

2) Press REC and PAUSE simultaneously to enter the

Record-Pause mode.

SELECT HDD DECK

Press HDD. The screen in step 5 appears again.

START DUBBING

Press @# (or 23) to move the arrow to “DUB START”, then press OK. When the dubbing completes success-

fully, the message “DUBBING COMPLETES” appears on the screen.

●

To cancel dubbing, select “CANCEL” in above step.

●

REC SPEED

123

4 56

78 9

NOTE:

If you start dubbing without setting the VHS deck to Record Pause mode in step 9, you can watch the preview.

To cancel while dubbing, press STOP. Once the dubbing is stopped, it can be not resumed.

In this case, the message appears on the screen, and the programs on the hard disk drive are not deleted even though “DUB/DEL” is selected.

REW

REC

–

PAUSE

72 EN

POWER

PLAY

S-VHS

REW

POWER

REC

CH+/–

STOP

PAUSE

STOP

HDD

VHS

EDITING (cont.)

You can dub selected scenes on a tape, starting and stopping wherever you wish.

Normal Dubbing

(from HDD to VHS)

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

TURN ON THE RECORDER

Press POWER.

PREPARE HDD DECK FOR DUBBING

1) Press HDD and select the program to be dubbed.

You can select the program by HDD Navigation.

2) Press CH +/– to set the channel other than “DUB”.

LOCATE START POINT

1) Select the point where you want to start dubbing by

pressing PLAY, FF, REW.

2) Press REW a little, then press PLAY to start playback.

3) Press PAUSE to pause playback before that point a

little.

PREPARE VHS DECK FOR DUBBING

1) Press VHS (or S-VHS) and load a recordable cassette.

2) Press CH +/– to set the channel “DUB”.

3) Press REC SPEED to select recording speed.

4) Select the point where you want to start recording by

pressing PLAY, FF, REW, STOP.

HDD

REW

REC

REC SPEED

123

4 56

78 9

–

START DUBBING

1) Press HDD and PLAY to start playback.

2) Press VHS and REC (REC and PLAY on the remote

control) to start dubbing.

END DUBBING

CH+/–

PAUSE

Press STOP. Then press HDD and press STOP.

NOTES:

●

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

●

The superimposed indication during the operation or dubbing is not recorded.

EN 73

POWER

PLAY

S-VHS

REW

POWER

REC

STOP

PAUSE

STOP

CH+/–

VHS

HDD

You can dub selected scenes on a tape, starting and stopping wherever you wish.

Normal Dubbing

(from VHS to HDD)

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

HM-HDS1

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

TURN ON THE RECORDER

Press POWER.

PREPARE VHS DECK FOR DUBBING

1) Press VHS (or S-VHS) and select the program to be

dubbed. You can select the program by VHS Navigation.

2) Press CH +/– to set the channel other than “DUB”.

LOCATE START POINT

1) Select the point where you want to start dubbing by

pressing PLAY, FF, REW.

2) Press REW a little ,then PLAY to start playback.

3) Press PAUSE to pause playback before that point a

little.

PREPARE HDD DECK FOR DUBBING

1) Press HDD.

2) Press CH +/– to set the channel “DUB”.

3) Press REC SPEED to select recording speed.

4) Select the point where you want to start recording by

pressing PLAY, FF, REW, STOP.

• Set “PICTURE CONTROL” to “EDIT” at the “VHS SET UP 1” of the Main Menu (墌 pg. 44).

HDD

REW

REC

REC SPEED

123

4 56

78 9

–

START DUBBING

1) Press VHS and PLAY to start playback.

2) Press HDD and REC (REC and PLAY on the remote

CH+/–

PAUSE

NOTES:

●

control) to start dubbing.

●

To enter recording pause, press and hold REC and press PAUSE on the remote control. To resume recording, press and hold REC and press PLAY on the remote control.

END DUBBING

Press STOP. Then press VHS and press STOP.

●

Set “PICTURE CONTROL” to “AUTO” or “STANDARD” at the “VHS SET UP 1” of the main MENU after dubbing.

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts. The superimposed indication during the operation or dubbing is not recorded. For HDD deck, the recording pause takes effect only when the recorder is recording on the HDD deck with the channel set to “L-1”, “F-1”, or “DUB”. The recording pause is released in 5 minutes automatically. Picture and sound may be disturted at the point where the recording pause is released. Dubbing copyright guarded tape is not possible.

74 EN

R.A.EDIT

MODIFYEDIT START RETURN TOTAL 0:01:50

IN / OUT

SEARCH IN/OUT POINT WITH [PLAY/ FF/REW/PAUSE] THEN PRESS "IN/OUT"

HDD NAVI

1 0:05:10 TO 0:06:37 2 0:01:42 TO 0:02:53 3 0:10:18 TO –:––:–– 4 –:––:–– TO –:––:–– 5 –:––:–– TO –:––:–– 6 –:––:–– TO –:––:–– 7 –:––:–– TO –:––:–– 8 –:––:–– TO –:––:––

SELECT OK END

NAVIINDEX

0:10:18

START END

POWER

NAVI

PAUSE

PLAY

REW

PLAY

PAUSE

HDD

Random Assemble

EDITING (cont.)

8-program Editing Memory (1 program x 8 scenes)

By using the Random Assemble Editing function, you can select up to 8 scenes from a previously recorded program on the HDD deck and automatically dub them onto a VHS cassette.

Random Assemble Editing is possible only when dubbing from the HDD deck to the VHS deck.

Editing

POWER

HM-HDS1

REW

HDD

REC LINK

HDD

NAVI

123

4 56

78 9

STOP PLAY PAUSE REC

–

TURN ON THE UNIT

Press POWER.

SELECT HDD DECK

Press HDD.

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

ACCESS HDD NAVIGATION SCREEN

Press NAVI. The HDD Navigation screen appears.

ACCESS EDIT SCREEN

Press @# (or 23) to move the arrow to “EDITING”, then press ﬁ (or ∞) or OK.

SELECT PROGRAM

Press @# (or 23) to move the arrow to one program you want to edit, then press ﬁ (or ∞) or OK.

ACCESS R.A. EDIT SCREEN

Press OK at the “R.A. EDIT”. The R.A.Edit screen

NAVI

appears.

START PROGRAM

Press PLAY to start playback. The playback pictures appear in the window of the R.A.Edit screen. The first

edit-in time starts counting with the arrow to “IN/OUT”.

• You can search the scene by using the following

buttons: PLAY, PAUSE, FF, REW.

SELECT EDIT-IN AND EDIT-OUT POINTS

1) Find the point where

you want the edited scene to begin, then press OK with the arrow to “IN/OUT”. The edit-in time is fixed and the edit-out time starts counting.

2) Find the point where

you want the edited scene to end, then press OK with the arrow to “IN/ OUT”. The edit-out time is fixed and the next editout time starts counting. You can repeat this up to 8 times.

HM-HDS1

PAUSE

PLAY

REW

STOP

PLAY

REW

PAUSE

OK/STOP

HDD

S-VHS

NAVI

REC

VHS

EN 75

SELECT THE OTHER EDIT-IN AND EDIT-OUT POINTS

Repeat step 8. You can select up to 8 pairs of edit-in and edit-out points.

● To modify the points

1) Move the arrow to “MODIFY”, then press OK.

2) Select the desired points by pressing @%#ﬁ

(or 253∞), then press OK. The selected point starts couting.

3) Repeat step 8.

ACCESS START EDITING SCREEN

Press @%#ﬁ (or 253∞) to move the arrow to

“EDIT START”, then press OK. The Start Editing screen

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

with message appear.

PREPARE VHS DECK FOR RECORDING

1) Press VHS (or S-VHS).

2) Load a recordable cassette. And, find the point where

you want to start recording by pressing PLAY, FF, REW.

3) Press PAUSE and REC to enter the Record-Pause

mode.

REC

HDD

123

4 56

78 9

–

ACCESS START EDITING SCREEN

Press HDD. The Start Editing screen with message appear again.

START EDITING

Press @%#ﬁ (or 253∞), to move the arrow to “OK”, then press OK. The editing starts. The message “EDIT

COMPLETED” appears when the editing is complete successfully.

NAVI

RETURN TO R.A. EDIT SCREEN

Press OK.

● If you want to continue to edit, start from step 7.

STOP EDITING

Press NAVI. The VHS deck stops recording and enters the Record-Pause mode. Press VHS (or S-VHS), then

press STOP.

76 EN

;;;;yy

EDITING (cont.)

You can use a camcorder as the player and your recorder as the recorder.

Edit From A Camcorder

POWER

HM-HDS1

Player

Recorder

Camcorder

S-VIDEO OUT

VIDEO IN

S-VIDEO IN

Audio/Video cable (supplied)

AUDIO OUT

EDIT

S-VIDEO

(supplied)

VIDEO OUT

PAUSE connector

Your recorder

DIGITPURE TECHNOLOGY

cable

AUDIO IN

Mini-plug cable

(not supplied)

(JVC camcorder only)

MAKE CONNECTIONS

Connect an AV cable between the camcorder’s VIDEO OUT and AUDIO OUT connectors and your recorder’s

VIDEO IN and AUDIO IN connectors.

● If connecting a camcorder with an S-VIDEO output connector, it is recommended to use the S-VIDEO connection to minimize picture degradation while editing.

● VHS deck ONLY

When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling your recorder. The mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.

● If connecting to a camcorder with a monaural output, connect the audio output connector on the camcorder to AUDIO IN L of the recorder.

TURN ON THE RECORDER

Press POWER.

SELECT RECORDING DECK

Press HDD or VHS (or S-VHS).

• When you select VHS deck, load a recordable

cassette.

SELECT INPUT MODE

Press CH +/– to select depending on the connector being used – “F-1” for the front panel input connectors, or “L-1” for the rear panel input connectors.

ACCESS VIDEO INPUTS SCREEN

1) Press MENU.

2) Select “FUNCTION SET UP”, then press %ﬁ (or 5∞)

or OK.

3) Select “VIDEO INPUTS”, then press %ﬁ (or 5∞) or

OK.

SELECT VIDEO INPUT MODE

Set ”S-VIDEO” or ”COMPOSITE” to “FRONT AUX F-1” or “REAR AUX L-1” by pressing %ﬁ (or 5∞) or OK.

For details on setting, see page 22.

HM-HDS1

CH+/–

HDD

VHS

POWER

S-VHS

EN 77

RETURN TO NORMAL SCREEN

Press MENU.

START PLAYER

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

Set the camcorder to its play mode.

NOTE:

If the camcorder is equipped with a superimpose/OSD disable feature then set its superimpose or display feature to OFF before pressing play.

START RECORDER

Set your recorder to its record mode.

● VHS deck ONLY

If you are using a Master Edit Control-equipped JVC camcorder, it can put the recorder automatically into Record mode. (Refer to camcorder's instruction manual.)

● For HDD deck

To enter recording pause, press and hold REC and press PAUSE on the remote control. To resume recording, press and hold REC and press PLAY on the remote control.

HDD

123

4 56

78 9

–

NOTES:

●

If you use an auxiliary input to connect a cable box or DBS receiver, make sure that the correct AUX INPUT

CH+/–

(“COMPOSITE” or “S-VIDEO”) is selected after you have finished editing ( steps 5 – 7).

●

For HDD deck, the recording pause takes effect only when the recorder is recording on the HDD deck with the channel set to “L-1”, “F-1”, or “DUB”. The recording pause is released in 5 minutes automatically. Picture and sound may be disturted at the point where the recording pause is released.

●

Dubbing copyright guarded tape is not possible.

78 EN

S-VHS

VHS

HDD

EDITING (cont.)

You can use your recorder as the player or the recorder.

Edit To Or From Another VCR

Player

ANTENNA IN

VHF/UHF TV OUT

S VIDEO OUT

S-Video cable

(supplied)

S VIDEO IN

Recorder

POWER

HM-HDS1

VIDEO OUT

OUT1 OUT2

CABLE

BOX

VIDEO IN

REC LINK

HDD

NAVI

AUDIO OUT

V I D E

OUT1

OUT2

VIDEO

AUDIO

Audio/Video cable (supplied)

STOP PLAY PAUSE REC

Your recorder

AUDIO IN

Another VCR

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

MAKE CONNECTIONS

Connect an AV cable between the player’s VIDEO OUT and AUDIO OUT connectors and the recorder’s VIDEO

IN and AUDIO IN connectors.

● If using another VCR with an S-VIDEO input or output connector, it is recommended to use the SVIDEO connection to minimize picture degradation while editing.

● When using your recorder as the recorder and a monaural VCR as the player, connect the player’s AUDIO OUT connector to the AUDIO IN L connector on the recorder.

LOAD CASSETTES

Insert the playback cassette into the player and the cassette to be recorded on into the recorder.

SELECT DECK

Press HDD or VHS (or S-VHS).

Advantages Of S-VHS Editing

S-VHS allows you make high resolution video recordings when dubbing from one VCR to another. You can edit from VHS to S-VHS, from S-VHS to VHS, or from S-VHS to S-VHS.

● From VHS to S-VHS: Record VHS playback signals in the SVHS mode. Although the picture quality is inherently limited by the original VHS source material, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to VHS: Because the picture quality of the source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to S-VHS: A high resolution copy is made of a high resolution original S-VHS tape with minimal picture degradation. This is the preferred method of video dubbing.

HDD

123

4 56

78 9

HM-HDS1

CH+/–

PLAY

EN 79

SET RECORDER’S INPUT MODE

Press CH +/– to select depending on the connector being used – “L-1” for the front panel input connectors,

POWER

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

DIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

or “R-1” for the rear panel input connectors.

NOTE:

If you use your recorder as the recorder and have connected another VCR to your recorder´s S-VIDEO IN connector, you need to set “REAR AUX INPUT” to “S- VIDEO” at the Mode Set screen. Follow steps 5 – 7 from the “Edit From A Camcorder” section ( pg. 76 and 77).

SELECT “EDIT” FOR PICTURE CONTROL SET MODE

(VHS DECK ONLY)

Follow the “Picture Control” section on page 44, then select “EDIT.”

NOTE:

When you select “EDIT” to dub tapes, be sure to select “AUTO” or (“NORM” when “VIDEO CALIBRATION” is set to “OFF”) after you finish dubbing the tapes.

START PLAYER

Set to its play mode.

NOTE:

If the player is equipped with a superimpose/OSD disable feature then set “SUPERIMPOSE” to “OFF” before pressing PLAY ( pg. 28 for HDD deck, pg. 41 for VHS deck).

PLAY

123

4 56

78 9

CH+/–

–

START RECORDER

Set to its record mode.

NOTE:

If you use an auxiliary input to connect a cable box or DBS receiver, make sure that the correct AUX INPUT (“VIDEO” or “S- VIDEO”) is selected after you have finished editing ( pg. 22).

80 EN

;;

Audio Dubbing

EDITING (cont.)

VHS Audio Dubbing

Audio dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack. Use your recorder as the recorder.

(VHS deck only)

POWER

HM-HDS1

Audio component

(CD player etc.)

DIGITPURE TECHNOLOGY

Audio cable

Normal audio track

Video/Hi-Fi audio track

Pre-recorded tape

Audio-dubbed tape

MAKE CONNECTIONS

Connect an audio component to the AUDIO IN L + R connectors on the recorder´s front panel. *When

connecting monaural equipment, use only the recorder´s AUDIO IN L connector.

SELECT VHS DECK

Press VHS (or S-VHS).

SET INPUT MODE

Press CH +/– to select depending on the connector being used – “F-1” for the front panel input connectors,

or “L-1” for the rear panel input connectors.

LOCATE START POINT

Press PLAY to start playback of the tape in your recorder, and press PAUSE when you find the point

where you want to start dubbing.

● Press C.RESET to change the counter display to

“0:00:00”.

ENGAGE AUDIO DUBBING

Press A. DUB.

● Your recorder enters the Audio Dubbing Pause mode.

( blinks, and light up on the front display panel.)

HM-HDS1

PAUSE

PLAY

CH+/–

A.DUB

VHS

S-VHS

STOP

POWER

C.RESET

EN 81

START DUBBING

Engage the audio component´s Play mode, then press

PLAY to start the tape in your recorder. Audio dubbing

DIGITPURE TECHNOLOGY

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

begins at this point.

● blinks and is displayed on the front display panel.

● To stop dubbing temporarily, press PAUSE. Press PLAY to resume dubbing.

END AUDIO DUBBING

Press STOP to stop the tape in your recorder, and engage the audio component's Stop mode.

NOTES:

●

When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the Hi-Fi or mixed sound (Hi-Fi + Normal soundtracks), refer to the “Select The Soundtrack” section ( pg. 46) and select the soundtrack you wish to hear.

●

Audio dubbing stops automatically when the counter reaches

123

4 56

78 9

CH+/–

“0:00:00”, and the recorder enters the Play mode. Check the counter reading before dubbing.

●

Audio dubbing is also possible using the rear AUDIO IN connectors.

●

Audio dubbing cannot be performed on a VHS/S-VHS cassette that has had its record safety tab removed.

●

When playing back an audio-dubbed tape, refer to the “Select The Soundtrack” section ( pg. 46) to select the soundtrack you wish to hear.

●

Picture may be distorted during Audio Dubbing Pause.

●

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

PLAY

STOP

–

PAUSE

82 EN

POWER

VHS

HDD

A.MONITOR

NUMBER

TV VOL –

TV CH –

123

4 56

78 9

–

SPECIAL FEATURES

TV Multi-Brand Remote Control

The recorder´s remote control can control several functions on JVC remote control TVs and on the brands of remote control TVs listed below.

TURN ON THE TV

Turn the power on using the TV´s remote control.

TV/VCR

ENTER/OK

TV CH +

TV VOL +

SET REMOTE CONTROL MODE

Press TV on the remote control when “TV” appears on the display window of the recorder’s remote control.

SET TV BRAND CODE

Enter your TV’s brand code using the NUMBER keys, then press OK.

Follow the example shown at bottom left.

● Once you have set the remote control to operate the TV, you don’t have to repeat this step until you replace your remote control’s batteries.

● PANASONIC has two codes. If the TV does not function with one code, try entering the other.

TV BRAND NAME BRAND CODE

JVC 01

MAGNAVOX 02

MITSUBISHI 03

PANASONIC 04, 11

RCA 05

SHARP 06

SONY 07

TOSHIBA 08

ZENITH 09

HITACHI 10

SAMSUNG 12

SANYO 13

SEARS 13

OPERATE TV

First, press POWER on the remote to see if the TV’s power goes off as it should. If it does, try other operations.

● The POWER, TV/VCR, TV CH A. MONITOR (TV Muting) and NUMBER keys on the

remote can all be used to operate the TV. *For some brands of TV, you must press ENTER after having pressed the NUMBER keys.

● To return the remote to the recorder control, press HDD or VHS (or S-VHS).

NOTE:

Depending on the type of TV, there may be cases where some or all functions cannot be operated using the remote control.

+/–

, TV VOL +/–,

EN 83

POWER

VHS

HDD

Cable Box Multi-Brand Remote Control

The recorder’s remote control can control functions on the brands of cable boxes listed below. Some cable box brands have more than one code. If your cable box does not function with a specified code, try other codes.

NUMBER

TV CH –

CABLE BOX BRAND NAME BRAND CODE

ARCHER 01, 05, 17 CABLETENNA 01, 17 CABLEVIEW 15, 16, 17, 21, 25 CITIZEN 15, 16, 17, 21, 25 CURTIS 02, 08 DIAMOND 01, 17 EASTERN 19 GC BRAND 15, 16, 17, 21, 25 GEMINI 15 GENERAL INSTRUMENTS 01, 04, 06, 11, 12, 15 HAMLIN 10, 18, 19, 23 JASCO 15 JERROLD 01, 04, 06, 11, 12, 15 NOVAVISION 02, 08 OAK 07, 20 PANASONIC 13, 14 PULSER 15, 16, 17, 21, 25 RCA 13, 14 REGAL 10, 18, 19, 23 REGENCY 19 REMBRANDT 01, 16, 17 SAMSUNG 05, 16, 24 SCIENTIFIC ATLANTA 02, 08 SIGMA 07, 20 SL MARX 05, 16, 17, 24, 25 SPRUCER 13, 14 STARGATE 05, 15, 16, 17, 21, 24, 25 TELEVIEW 05, 16, 24 TOCOM 01, 04, 16 UNIKA 01, 17 UNIVERSAL 16, 17, 25 VIDEOWAY 03, 09, 22 ZENITH 03, 09, 22

123

4 56

78 9

TV CH +

–

TV/VCR

ENTER/OK

TURN ON THE CABLE BOX

Turn the power on using the cable box’s remote control.

SET REMOTE CONTROL MODE

Press TV on the remote control when “CABLE DBS” appears on the display window of the recorder’s remote

control.

ENTER CABLE BOX BRAND

Enter your cable box brand code using the NUMBER keys, then press OK.

Follow the example shown at bottom left.

● Once you have set the remote control to operate the cable box, you don't have to repeat this step until you replace the remote control's batteries.

OPERATE CABLE BOX

First, press POWER to see if the cable box’s power goes off as it should. If it does, try other functions (TV CH

the NUMBER keys can be used to operate the cable box).

● For some brands of cable box, you must press ENTER after having pressed the NUMBER keys.

● To return the remote to the recorder control, press HDD or VHS (or S-VHS).

NOTES:

●

You must set the cable box brand for your remote control and the cable box brand for your Controller ( pg. 16) separately. The list of cable box brands that can be controlled by your remote control is different from the list of brands that can be controlled by your controller.

●

Depending on the type of cable box, there may be cases where some or all functions cannot be operated using the remote control.

●

It's not possible to set the remote control for both your cable box and a DBS receiver at the same time. You can only set the remote control to operate one of these units at a time.

+/–

and

84 EN

POWER

HDD

VHS

NUMBER

TV CH –

123

4 56

78 9

SPECIAL FEATURES (cont.)

DBS Receiver Multi-Brand Remote Control

The recorder´s remote control can control functions on the brands of DBS (Direct Broadcast Satellite) receivers listed below.

TURN ON THE DBS RECEIVER

Turn the power on using the DBS receiver ’s remote control.

TV/VCR

SET REMOTE CONTROL

ENTER/OK

MODE

Press TV on the remote control when “CABLE DBS” appears on the display window of the recorder’s remote

control.

ENTER DBS RECEIVER BRAND

Enter your cable box brand code using the NUMBER keys, then press OK.

Follow the example shown at bottom left.

TV CH +

–

● Once you have set the remote control to operate the DBS receiver, you don´t have to repeat this step until you replace the remote control´s batteries.

OPERATE DBS RECEIVER

First, press POWER to see if the DBS receiver’s power goes off as it should. If it does, try other functions (TV

NOTES:

●

You must set the DBS receiver brand for your remote control and the DBS receiver brand for your Controller ( pg. 19) separately.

●

Depending on the type of DBS receiver, there may be cases where some or all functions cannot be operated using the remote control.

●

It's not possible to operate a DBS receiver that is not equipped with a remote control sensor.

●

Though ECHOSTAR has a number of different remote codes, this remote control is applicable only to one of those codes preset at the factory.

●

It's not possible to set the remote control for both your DBS receiver and a cable box at the same time. You can only set the remote control to operate one of these units at a time.

JVC (DISH Network) 51 ECHOSTAR (DISH Network) 51 PRIMESTAR 50 SONY (DSS) 41 RCA (DSS) 40

+/–

and the NUMBER keys can be used to operate

the DBS receiver).

● For some brands of DBS receiver, you must press ENTER after having pressed the NUMBER keys.

● To return the remote to the recorder control, press

HDD or VHS (or S-VHS).

DBS BRAND NAME BRAND CODE

EN 85

PLAY

POWER

Control Four JVC VCRs

The remote control is capable of controlling two JVC VCRs independently; one set to respond to your remote control's A code control signals and the other set to respond to B, C, D code control signals. The remote control is preset to send A code signals because your recorder is initially set to respond to A code signals. You can easily modify your recorder to respond to the other code signals.

HDD

123

STOP

4 56

78 9

–

SET REMOTE CONTROL CODE

Press and hold HDD on the remote control until “A” starts blinking on the display window of the remote

control.

VCR A

ENTER REMOTE CONTROL CODE

Press one of the following buttons to enter the desired cord, then press OK. The current setting code of the

remote control appears on the display window.

2: sets the remote control code to “B” 3: sets the remote control code to “C” 4: sets the remote control code to “D” 1: sets the remote control code to “A”

VCR C

Ex. When pressing 3.

PREPARE THE RECORDER FOR RECEIVING CONTROL CODE

1) To turn off the unit, press POWER on the front panel.

2) Press PLAY on the front panel for 5 seconds. The

current setting code of the unit appears on the display.

POWER

HM-HDS1

STOP PLAY PAUSE REC

REC LINK

HDD

NAVI

S-VHS

TURN ON THE RECORDER

Press POWER.

REW FEW

TRANSMIT THE NEW CODE TO THE RECORDER

Press STOP on the remote control. The new code is transmitted to the unit and blinks for about 5 seconds

on the display, then the clock time appears.

DIGITPURE TECHNOLOGY

S-VHS ET

A. DUB

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

CONFIRM THE SETTING

Press POWER on the remote control. When the unit is turned on, the setting is complete. If the unit is NOT

turned on, repeat from step 1.

86 EN

Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your recorder off for repair.

TROUBLESHOOTING

POWER

SYMPTOM

1. The power won’t come on.

2. The remote control won’t function.

TAPE TRANSPORT

SYMPTOM

1. The cassette gets stuck partway during loading, and is ejected.

PLAYBACK

SYMPTOM

1. Playback won’t start.

2. The tape is running but the picture won’t appear.

3. Noise appears during visual search.

4. Breaks are noticeable in Hi-Fi soundtrack.

5. The playback picture is blurred or interrupted, even though TV broadcasts are clear.

6. The Hi-Fi soundtrack cannot be heard.

POSSIBLE CAUSE

● The power cord is disconnected.

● The batteries are discharged.

POSSIBLE CAUSE

● The cassette was inserted incorrectly.

POSSIBLE CAUSE

● HDD deck

Playback point is at the end of the program.

● The TV receiver is set to the wrong mode.

● This is normal.

● Automatic tracking is engaged.

● The video heads may be dirty.

● The soundtrack option was set

incorrectly.

CORRECTIVE ACTION

Connect the power cord.

Replace the dead batteries with new ones.

CORRECTIVE ACTION

Make sure the cassette's window is facing up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards therecorder. Then insert the cassette.

CORRECTIVE ACTION

Reverse the program by pressing appropriate buttons.

Set the TV receiver to its AV mode.

Disengage Auto Tracking and adjust the tracking manually (墌 pg. 42).

The heads must be cleaned. Consult your JVC dealer.

Press A. MONITOR to select "HI-FI" (墌 pg. 46).

RECORDING

SYMPTOM

1. Recording won’t start.

2.Recording won’t stop.

3.TV broadcasts won’t record properly.

4. Tape-to-tape editing won’t work.

POSSIBLE CAUSE

● VHS deck

There is no cassette loaded, or the cassette loaded has had its Record Safety tab removed.

● HDD deck

Live Memory Playback is in progress.

● The recorder has been set to its AUX mode by mistake.

● The VCRs or the camcorder and the VCR have been incorrectly connected.

● The power to one or more of the units has not been turned on.

● The recorder’s input mode has been set incorrectly.

CORRECTIVE ACTION

Insert a cassette, or using adhesive tape, reseal the slot where the tab was removed.

When Live Memory Playback is used, press STOP to stop Live Memory Playback, then press STOP to stop recording.

Set the recorder to the appropriate channel.

Refer to the directions and the illustration under “Edit To Or From Another VCR” (墌 pg. 78) or “Edit From A Camcorder” (墌 pg. 76) and properly connect the units. Make sure the power to all units is on.

Select the recorder’s appropriate input mode.

RECORDING

EN 87

SYMPTOM

5. Audio dubbing is not possible.

7. When performing Tape Dubbing, the beginning of the dubbing start point is not dubbed.

TIMER RECORDING

SYMPTOM

1. Timer recording won’t work.

2. Timer programming won’t work.

3. ‰ and ] on the front display

panel won’t stop blinking.

4. The cassette is automatically

ejected, and ‰ and ] on the front display panel won’t stop blinking.

5. ‰ blinks for 10 seconds and the

timer mode is disengaged.

6. The cassette is automatically

ejected, the power shuts off and ‰ and ] won’t stop blinking.

POSSIBLE CAUSE

● The tape speed had been set to LP at the original recording.

● HDD deck

This is normal. Audio dubbing is not available for HDD deck.

● This is normal.

POSSIBLE CAUSE

● The clock and/or the timer have been set incorrectly.

● The timer is not engaged.

● The recorder has not been set up

properly.

● Timer recording is in progress.

● The timer is engaged but there’s no

cassette loaded.

● VHS deck

The loaded cassette has had its Record Safety tab removed.

● TIMER has been pressed when there are no programs in memory, or the timer record program information has not been programmed correctly.

● The end of tape was reached during timer recording.

CORRECTIVE ACTION

Set the tape speed to SP at the original recording.

CORRECTIVE ACTION

Set the clock and/or timer correctly.

Press TIMER and check to make sure that ‰ appears on the front display panel. Re-perform the set-up procedures. Make sure you have compensated for Guide Channel and recorder or cable box channel number mismatches (墌 pg. 56).

Timer programming can’t be performed when timer recording is in progress. Wait until it finishes.

VHS deck

Load a cassette with the Record Safety tab intact, or cover the hole using adhesive tape.

Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the Record Safety tab intact. Remove the cassette and set the erase protection switch to “REC”.

Check the programmed data and reprogram as necessary, then press TIMER again.

The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.

CONTINUED ON NEXT PAGE

88 EN

TIMER RECORDING

TROUBLESHOOTING (cont.)

SYMPTOM

7. Cable channels are not automatically switched during timer recording.

8. Satellite channels are not automatically switched during timer recording.

9. Timer recording begins as scheduled, but the channel is always incorrect.

10.We moved, and now the recorder Plus+ system doesn’t work properly.

11. “PROGRAM FULL” is displayed on the screen.

QUESTIONS AND ANSWERS

EN 89

PLAYBACK

Q. What happens if the end of the tape is reached

during playback or search?

A. The tape is automatically rewound to the beginning.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Can the VCR indefinitely remain in the still mode? A. No. It stops automatically after 5 minutes (VHS deck)

to protect the heads.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. During search, still and frame-by-frame playback,

the picture is intermittent. What’s the cause?

A. Picture loss occurs when these types of playback are

attempted with a tape recorded in LP mode. Pressing PLAY to return to normal playback will restore the picture.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. When returning from multi-speed search to normal

playback, the picture is disturbed. Should I be concerned about this?

A. No, it is normal.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. When playing back programs that have been timer-

recorded with consecutive times (such one program from 8:00 to 9:00 and another one from 9:00 to 10:00), the picture and sound become momentarily distorted at the point where the first program ends and the second program begins. Is this a malfunction?

A. No. This is normal.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Other than preventing further recording, what effect

does removing the safety tab have?

A. It disables marking of index codes.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

RECORDING

Q. When I pause and then resume a recording, the end

of the recording before the pause is overlapped by the new recording. Why does this happen?

A. This is normal. It reduces distortion at the pause and

resume points.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Can the VCR indefinitely remain in the Record-Pause

mode?

A. No. The VCR automatically goes to its Stop mode

after 5 minutes (VHS deck) to protect the heads. When paused during Instant Timer Recording (ITR), the VCR shuts off automatically after 5 minutes (VHS deck).

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. What happens if the tape runs out during recording? A. The VCR automatically rewinds it to the beginning.

TIMER RECORDING

Q. REC and ‰ remain lit on the front display panel. Is

there a problem?

A. No. This is a normal condition for a timer recording

in progress.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Can I program the timer while I’m watching a tape

or a TV broadcast?

A. Yes, but while you are setting the timer you won't see

the tape's or broadcast program's picture as it is replaced by the on-screen menu. The audio from the tape or broadcast program will be present during the setting of the timer.

Q. Sometimes, during Index Search, the VCR can’t find

the program I want to see. Why not?

A. There may be index codes too close together.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. During playback, on-screen operational indicators

sometimes jitter. Why does this happen?

A. If the condition of the tape being played back is not

good, jittering of the video (including on-screen indicators) may occur.

90 EN

;

INDEX

FRONT VIEW

21 5 8 0 @

3 64

POWER

HM-HDS1

Power On/Off Button (墌 pg. 10)

Remote Control Sensor

Hard Disk Drive Illumination

MENU button (墌 pg. 10)

REC LINK Button (墌 pg. 63)

HDD Button (墌 pg. 23)

STOP Button (墌 pg. 23)

PLAY Button (墌 pg. 24)

PAUSE Button (墌 pg. 24)

REC Button (墌 pg. 23)

VHS Button (墌 pg. 34)

1 and ¡ Buttons (墌 pg. 30)

S-VHS ET Button (墌 pg. 51)

VHS Cassette Loading Slot

REC LINK

NAVI

79!

STOP PLAY PAUSE REC

HDD

(

)

% ^ & * ( ) q w e

S-VHS

VHS EJECT Button (墌 pg. 34)

Channel [CH] +/– Button (墌 pg. 23) NAVI Button (墌 pg. 26) HDD indicators (墌 pg. 23) Display Panel (墌 pg. 43) VHS indicators (墌 pg. 34) A. DUB Button (墌 pg. 80) S-VIDEO/VIDEO/AUDIO Input Connectors

(墌 pg. 76)

Remote PAUSE connector (墌 pg. 76)

and OK Buttons (墌 pg. 10)

∞23

S-VHS ET

REW FEW

A. DUB

DIGITPURE TECHNOLOGY

INDEX (cont.)

EJECT

(M) L – AUDIO – R

VIDEO

S-VIDEO

PAUSE

F - 1

;

REAR VIEW

EN 91

ANTENNA IN

VHF/UHF TV OUT

ANTENNA IN Connector (墌 pg. 8)

S VIDEO Input/Output Connector (墌 pg. 8)

VIDEO/AUDIO Input Connectors

Power Cord (墌 pg. 8)

CABLE

BOX

21 3

I D E

OUT1 OUT2

VIDEO

OUT1

OUT2

AUDIO

TV OUT Connector (墌 pg. 8)

CABLE BOX Controller Connector (墌 pg. 15)

VIDEO/AUDIO Output Connectors (墌 pg. 8)

92 EN

DISPLAY PANEL

INDEX (cont.)

1 2 3 4

VN SP S

VCR

Symbolic Mode Indicators (Refer to the chart below)

VN (VHS Navigation) Indicators (墌 pg. 37)

Speed Indicators (墌 pg. 23)

Timer Mode Indicator (墌 pg. 55)

Remaining Time Indicator (墌 pg. 43)

S-VHS Indicator (墌 pg. 51)

Symbolic Mode Indicators

PLAY: FF/REW VARIABLE SEARCH:

VCR Mode Indicator

“Cassette Loaded” Mark

Channel Display [“L-1” and “F-1” for AUX mode] Counter Display (墌 pg. 43) Clock Display (墌 pg. 43)

STILL: SLOW:

RECORD:

RECORD PAUSE:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

REMOTE CONTROL

1 2

3 4 5 6 7

8 9

0 ! @ # $ % ^

Buttons with a small dot on the left side of the name can also be used to operate your TV with the remote control mode set to TV. 墌 pg. 82

How To Use

The remote control can operate most of your recorder’s functions, as well as basic functions of TV sets, Cable Boxes and DBS Receivers.

● Point the remote control toward the sensor window.

● The maximum operating distance of the remote

control is about 8 m.

/CABLE DBS

VCR PLUS A.MONITOR DISPLAY

C.RESET

VOL

–

VCR

HDDTV

123

ABC

4 56

GHI

JKL MNO

78 9

PQRS TUV WXYZ

CANCEL 0

PROG

CHECK

MEMORY

START STOP DATE CH

EXPRESS PROGRAMING

PLAY

REW

STOP

REC

TV CH +

–

SHUTTLE

PLUS

TV CH –

VCR/TV

VHS

CLEAR

WEEKLYDAILY(M – F)

SPEED

DEF

REC

INDEXPROG

ENTER/OSD

PAUSE

POWER

TV/VCR

NAVI

TRANSFER

TIMER

VOL

( )

q w

r t y

u i

o p

W E

R T

Display Window (墌 pg. 54)

HDD Button (墌 pg. 23)

TV Button (墌 pg. 82)

A.MONITOR Button (墌 pg. 46)

VCR PLUS Button (墌 pg. 54)

Number Buttons (墌 pg. 14)

Space Button (墌 pg. 67)

CANCEL Button (墌 pg. 54) Counter [C.] RESET Button (墌 pg. 43)

PROG. CHECK Button (墌 pg. 61)

PROG. Button (墌 pg. 55)

STOP +/– Button (墌 pg. 55)

START +/– Button (墌 pg. 58)

PLAY Button (墌 pg. 24)

Rewind [REW] Button (墌 pg. 27)

Record [REC] Button (墌 pg. 23)

%ﬁ Buttons (墌 pg. 10) TV Channel [CH] +/– Button (墌 pg. 82)

VHS Button (墌 pg. 34)

POWER On/Off Button (墌 pg. 10)

(

DISPLAY Button (墌 pg. 43)

)

TV/VCR Button (墌 pg. 8)

NAVI Button (墌 pg. 26)

TRANS Button (墌 pg. 54)

DAILY(M-F) Button (墌 pg. 55)

TIMER Button (墌 pg. 55)

WEEKLY Button (墌 pg. 55)

MENU Button (墌 pg. 10)

REC SPEED Button (墌 pg. 23)

OK Button (墌 pg. 10) INDEX Button (墌 pg. 66) ENTER Button (墌 pg. 23) On-Screen Display [OSD] Button (墌 pg. 29)

MEMORY Button (墌 pg. 26)

Channel [CH] +/– Button (墌 pg. 23)

DATE +/– Button (墌 pg. 58)

Fast Forward [FF] Button (墌 pg. 30)

PAUSE Button (墌 pg. 24)

STOP Button (墌 pg. 23) OK Button (墌 pg. 10)

™ £ (

) Button (墌 pg. 10)

TV Volume [VOL] +/– Button (墌 pg. 82)

EN 93

NOTES:

●

When inserting the batteries, be sure to insert in the correct directions as indicated under the battery cover.

●

If the remote control doesn't work properly, remove its batteries. Replace with fully charged batteries and then try again.

94 EN

List Of Terms

This guide serves as a quick way to locate frequently used terms and on-screen display names.

INDEX (cont.)

A/B/C/D Code .............................................................85

Active Video Calibration .............................................47

Add Channel ............................................................... 14

Audio Dubbing (VHS deck only) .................................80

Audio Monitor ............................................................ 46

Auto Channel Setting .................................................. 13

Auto Daylight Saving Time.......................................... 11

Auto SP→EP Timer ......................................................62

Automatic Tracking ..................................................... 42

Aux Input ....................................................................76

Band ...........................................................................13

Cable Box ...................................................................15

Cable Box Brand Setting..............................................17

Cable Box Controller...................................................15

Cancel Program .......................................................... 61

Cassette Adapter.......................................................... 34

Changing VCR Plus+

Check Program ........................................................... 60

Connection to TV .......................................................... 8

Contents........................................................................7

Counter Reset..............................................................43

Setting ...................................... 56

DBS Receiver ..............................................................18

DBS Receiver Brand Setting ........................................ 20

DBS Receiver Controller ............................................. 18

Delete Channel ...........................................................14

Delete Information ......................................................14

Delete Program ...........................................................69

TBC/NR.......................................................................46

Display Mode Setting ..................................................27

Editing.........................................................................65

Express Timer Programming ........................................58

Frame-by-Frame Playback ..................................... 30, 39

Guide Channel Setting ................................................56

HDD Navigation ......................................................... 25

Host Channel Selection ............................................... 11

Index.....................................................................25, 36

Index Search ...............................................................40

Insert Cassette .............................................................34

ITR (Instant Timer Recording) ......................................64

Live Memory Playback ................................................ 27

Main Menu .................................................................10

Manual Channel Setting ..............................................14

Manual Clock Setting ..................................................12

Manual Tracking .........................................................42

MBR (Multi-Brand Remote) Code Setting.....................82

Next-Function Memory ...............................................43

Normal Dubbing ................................................... 72, 73

On-Screen Display ................................................ 29, 41

PBS Channel .................................................................9

Playback ...............................................................24, 34

Plug & Play ...................................................................9

Random Assemble Editing ........................................... 74

Record Safety Tab ....................................................... 48

Recording ............................................................. 23, 35

Recording Speed .........................................................24

Repeat Playback....................................................32, 42

Retake ......................................................................... 52

Reverse Motion Playback ......................................30, 39

Reverse Slow Motion Playback ............................. 30, 39

SAP (Second Audio Program) ......................................53

Second Audio ............................................................. 53

Select Cable Box Output Channel ...............................16

Select DBS Receiver Output Channel .......................... 19

Semi-Auto Clock Setting.............................................. 11

Slow Motion Playback .......................................... 30, 39

Specifications .............................................................. 95

Still Picture Playback.............................................30, 39

Superimpose .........................................................28, 41

S-VHS (Super VHS) ..................................................... 50

S-VHS ET .................................................................... 51

S-Video Connection ......................................................8

Dubbing......................................................................70

Tape Position Indicator ................................................43

Tape Speed Setting ......................................................35

Time Zone Selection ................................................... 11

Tuner Setting ...............................................................13

Variable-Speed Search .......................................... 31, 40

VCR Plus+® Timer Programming ................................. 54

VHS Navigation ..........................................................36

Video Stabilizer...........................................................45

SPECIFICATIONS

EN 95

GENERAL

Power requirement : AC 120 V`, 60 Hz Power consumption

Power on : 45 W

Power off : 14 W Temperature Operating : 5°C to 40°C (41°F to 104°F) Storage : –20°C to 60°C (–4°F to 140°F) Operating position : Horizontal only Dimensions (WxHxD) : 435 mm x 124 mm x 385 mm

(17-1/16" x 4-15/16" x 15-3/16") Weight : 7.4 kg (16.4 lbs) Input/Output : RCA connectors:

(IN x 1, OUT x 2)

S-Video connectors:

(IN x 1, OUT x 2)

HDD DECK VIDEO/AUDIO

Video format : MPEG2 (VBR) Audio format : MPEG1 Layer2

Maximum recording time

(SP) : 14 hours (LP) : 20 hours (EP) : 28 hours

(SEP) : 40 hours

TUNER

Tuning system : Frequency-synthesized tuner Channel coverage

VHF : Channels 2–13 UHF : Channels 14–69 CATV : 113 Channels

TIMER

Clock reference : Quartz Program capacity : 1-year programmable timer/

16 programs each on the VHS and HDD deck

Memory backup time : Approx. 60 min.

ACCESSORIES

Provided accessories : RF cable (F-type),

Infrared remote control unit, “AA” battery x 2, Audio/Video Cable, S-Video cable (4-pin), Controller

Specifications shown are for SP mode unless otherwise specified. E. & O.E. Design and specifications subject to change without notice.

VHS DECK VIDEO/AUDIO

Signal system : NTSC-type colour signal and EIA

monochrome signal, 525 lines/

60 fields Recording system : DA4 (Double Azimuth) head

helical scan system Format : S-VHS/VHS NTSC standard Signal-to-noise ratio : 45 dB Horizontal resolution : 240 lines (VHS)

400 lines (S-VHS) Frequency range : 70 Hz to 10,000 Hz

(Normal audio)

20 Hz to 20,000 Hz

(Hi-Fi audio) Maximum recording time

(SP) : 210 min. with ST-210 video

cassette (EP) : 630 min. with ST-210 video

cassette

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

96 EN

FOR SERVICING (Only in U.S.A.)

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1-800-252-5722

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental United States, call 1-800-252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.

DIVISION OF JVC AMERICAS CORP.

10 New Maple Avenue 1500 Lakes Parkway 705 Enterprise Street Pine Brook, NJ 07058-9641 Lawrenceville, GA 30243-5857 Aurora, IL 60504-8135 (973) 396-1000 (770) 339-2522 (630) 851-7855

5665 Corporate Avenue 10700 Hammerly Boulevard, Suite 110 2969 Mapunapuna Place, Suite 105 Cypress, CA 90630-4727 Houston, TX 77043-2310 Honolulu, HI 96819-2000 (714) 229-8011 (713) 935-9331 (808) 833-5828

http://www.jvcservice.com

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

FACTORY SERVICE CENTER LOCATIONS

— JVC

13 Cummings Park 8192 W State Road 84 890 Dubuque Avenue Woburn, MA 01801-2105 Davie, FL 33324-4611 South San Francisco, CA 94080-1804 (781) 376-9100 (954) 472-1960 (650) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The JVC service and engineering organization stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

If you ship the product...

Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. Print your home return address on the outside and the inside of the carton. Send to the appropriate JVC Factory Service Center as listed above.

DIVISION OF JVC AMERICAS CORP.

10 New Maple Avenue

Pine Brook, NJ 07058-9641

Don't service it yourself.

CAUTION

To prevent electrical shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer. Or from the 48 Continental United States call toll free: 1-800-882-2345.

WARRANTY (Only in U.S.A.)

EN 97

LIMITED WARRANTY CONSUMER VIDEO 1-90

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS LABOR

1 YR 90 DAYS

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 252-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase); from the date of purchase);

There are no other express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA 1700 Valley Road DIVISION OF JVC AMERICAS CORP. Wayne, New Jersey 07470

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.: Serial No.:

Purchase date: Name of dealer:

98 EN

MEMO

EN 99

HM-HDS1U

VICTOR COMPANY OF JAPAN, LIMITED

Printed in Japan 0301 YSV*MW*VP

JVC HM-HDS1U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

INSTALLING YOUR NEW RECORDER

INITIAL SETTINGS

SIMPLE OPERATION for HDD deck

PLAYBACK FEATURES for HDD deck

RECORDING FEATURES for HDD deck

SIMPLE OPERATION for VHS deck

PLAYBACK FEATURES for VHS deck

RECORDING FEATURES for VHS deck

TIMER RECORDING

EDITING

SPECIAL FEATURES

TROUBLESHOOTING

QUESTIONS AND ANSWERS

INDEX

SPECIFICATIONS

FOR SERVICING (Only in U.S.A.)

WARRANTY (Only in U.S.A.)

MEMO
