D-VHS DIGITAL RECORDER

HM-DR10000EK

CABLE

/SAT

VCR

– –:– –

LCD PROG

AUDIO

TV/VCR

ENTER/ENTREE

30 SEC

. , ? ABC DEF

456

GHI JKL MNO

WEEKLY/HEBDO

DAILY/QTDN.

VPS/PDC

789

PQRS TUV WXYZ

AUX

0000

NAVIGATION

PROG

START

STOP

DATE

PROG

DEBUT

FIN

EXPRESS

–

POWER TIMER REC LINK DIGITAL TBC/NR STD LS3

INSTRUCTIONS

MTP PAL

CONTENTS

SAFETY FIRST 2

Safety Precautions.............................2

Some Do's And Don'ts ..................... 4

QUICK SET UP GUIDE 5

CHECK THE CONTENTS ..................5

INSTALLATION ................................6

AUTO SET UP ..................................8

T-V LINK 11

T-V LINK Functions ......................... 11

BASIC OPERATIONS 12

Playback ......................................... 12

Recording .......................................14

VIDEO Plus+

Timer Programming ........................18

Express Timer Programming............20

VIDEO NAVIGATION 24

Navigation ...................................... 24

Title Editing..................................... 26

ADVANCED OPERATIONS 32

Recording According To

Tape Type .......................................32

Playback/Recording According

To Tape Characteristics ...................34

Playback Picture Adjustment .......... 36

Looking For The Scene You Want ... 37

Selecting the Sound You Want ........38

Automatic Satellite Programme

Recording .......................................40

Remote Control Functions .............. 42

Minimizing Picture Degradation

While Editing .................................. 45

Edit From A Camcorder................... 46

Edit To Or From Another Video

Recorder ......................................... 48

Synchro Editing...............................51

Information On J Terminal ..............52

Other Functions .............................. 53

SYSTEM CONNECTIONS 57

Connection To A Stereo System ......57

SUBSIDIARY SETTINGS 58

Tuner Set.........................................58

VIDEO Plus+

Clock Set ........................................66

SUBSIDIARY INFORMATION 68

Questions And Answers .................. 68

Troubleshooting ..............................69

Index ..............................................72

LIST OF TERMS 78 SPECIFICATIONS Back Cover

Setup .......................65

LPT0307-001A

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

IMPORTANT

n Please read the various precautions on p. 2 – 4 of this instruction manual before installing or operating the

recorder.

n It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent

of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

IMPORTANT

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your

home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/ adapter or consult your dealer.

In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

CAUTION

n To avoid electric shock or damage to the unit, first firmly insert the small end of

the mains power cord into the recorder until it is no longer wobbly, and then plug the larger end of the mains power cord into a mains outlet.

n When you are not using the recorder for a long period of time, it is recom-

mended that you disconnect the power cord from the mains outlet.

n Dangerous voltage inside. Refer internal servicing to qualified service personnel.

To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

MTP PAL

n Cassettes marked "D-VHS", "S-VHS" and "VHS" can be used with this video cassette recorder. However, D-VHS recordings are

possible only with cassettes marked "D-VHS".

n D-VHS is a new digital memory system that uses D-VHS tapes. D-VHS was developed as a memory system for multimedia

applications that require storage for large volumes of information, such as for digital video.

n VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufac-

tured under license from Gemstar Development Corporation.

The STANDBY/ON button does not completely shut off mains power from the unit, but switches operating current on and off. "

Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on a singlespeed video recorder.

" shows electrical power standby and " " shows ON.

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

1. DO NOT place the recorder . . .

... in an environment prone to extreme temperatures or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are generated. ... on a surface that is unstable or subject to vibration.

DO NOT block the recorder’s ventilation openings.

2. DO NOT place heavy objects on the recorder or remote control.

3. DO NOT place anything which might spill on top of the recorder or remote control.

5.AVOID violent shocks to the recorder during transport.

MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.

ABOUT HEAD CLEANING

After an extended period of use, the video heads can become dirty, resulting in a loss of picture or sound during playback. If this happens, clean the video heads by using the optional cleaning tapes.

Symptoms of dirty video heads:

● The picture is not clear, or does not appear.

There is no sound.

● Mosaic (block) noise appears in the picture.

● Black or mosaic horizontal stripes appear in the

picture.

● The picture stops (as if the tape is paused).

● A blank black or blue screen appears.

● The picture is fuzzy. (VHS playback)

Use a cleaning tape designed specifically for D-VHS video heads (JVC D-VHS video head cleaner DFC-2) to clean the video heads.

● In order to avoid misoperation, set "NAVIGATION" to "OFF" ( Z pg. 25).

● Follow the instructions that are provided with the cleaning tape.

If you still do not get a clear picture after using a cleaning tape:

● The heads may be worn. Contact your nearest JVC dealer.

● During VHS playback, if there is a tracking problem, the picture may appear fuzzy. Adjust the tracking manually ( Z pg. 36).

VHS playback

Early symptom Late symptom

D-VHS playback

Block noise Still image Black screen

SAFETY FIRST (cont.)

Some Do's And Don'ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnec-

tions between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equip-

ment.

DO be careful with glass panels or doors on equipment. DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is

damaged in any way — switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages. DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is de-

signed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements

of road safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your hearing. DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheat-

ing will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always

fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL...

— NEVER let anyone especially children push anything into holes, slots or any other opening in the

case — this could result in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than

sorry!

QUICK SET UP GUIDE

Dear Customer,

Thank you for purchasing this JVC Video Cassette Recorder. Please use this QUICK SET UP GUIDE to help you to set up your video cassette recorder.

CHECK THE CONTENTS

STEP

RF Cable

CHECK ALL THE CONTENTS SHOWN BELOW

Video Cassette Recorder

VCR

LCD PROG

POWER TIMER REC LINK DIGITAL TBC/NR STD LS3

"AA" Batteries (x 2)

AUDIO

. , / ABC DEF

456

GHI JKL MNO

DAILY/QTDN.

VPS/PDC

789

PQRS TUV WXYZ

AUX

0000

PROG

START

STOP

DEBUT

FIN

EXPRESS

–

CABLE

/SAT

– –:– –

ENTER/ENTREE

WEEKLY/HEBDO

NAVIGATION

DATE

–

TV/VCR

30 SEC

PROG

21-pin SCART Cable

S-Video Cable

Power Cord

DV Cable

Infrared Remote Control Unit

You are now ready to install your video recorder.

QUICK SET UP GUIDE (cont.)

INSTALLATION

STEP

CONNECT VIDEO RECORDER TO TV

Place the recorder on a stable, flat surface.

Back of TV

Aerial connector

21-pin AV input connector (SCART)

21-pin SCART Cable (provided)

AV1 OUT switch

S OUT

Mains outlet

Mains power inlet

RF Cable (provided)

TV Aerial Cable (not provided)

AV1 IN/OUT

SYNCHRO EDIT

JLIP

AV1 OUT

S IN

COMP. Y/C

(S-1)

AV1 IN/OUT

AV2 IN/DECODER

DV IN

R.PAUSE

(L-1)

AUDIO

(S-1)

OUT IN

(L-2)

ANT. IN

ANT. OUT

ANT. IN

ANT. OUT

Back of Recorder

ATTENTION:

You can not use the recorder connected to your TV only with the RF cable. This is because the RF cable does not deliver signal from the recorder. Your TV must have a 21-pin AV input connector (SCART) to connect to the recorder.

AV CONNECTION

To connect to a TV with 21-pin AV input connector (SCART) . . .

1– Disconnect the TV aerial cable from the TV. 2– Connect the TV aerial cable to the ANT. IN jack on the rear

panel of the recorder.

3– Connect the provided RF cable between the ANT. OUT jack on

the rear panel of the recorder and the TV’s aerial connector.

AV1 INPUT/OUTPUT SIGNAL SELECTION FOR AV CONNECTION

The AV1 IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). For input signal selection, select "VIDEO" (regular video signal) or "S-VIDEO" (Y/C signal) for "AV1 SELECT" setting (Z pg. 50). For output signal selection, use the AV1 OUT switch on the rear panel.

● If your TV's 21-pin AV input connector (SCART) is compatible only with the regular video signal, set this switch to COMP.

● If your TV's 21-pin AV input connector (SCART) is compatible with the Y/C signal, set this switch to Y/C. You can obtain high-

quality S-VHS pictures. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

4– Connect the provided SCART cable between the AV1 IN/OUT

socket on the rear panel of the recorder and the TV’s 21-pin AV input connector (SCART).

5– Set the AV1 OUT switch to the appropriate position. See "AV1

INPUT/OUTPUT SIGNAL SELECTION FOR AV CONNECTION" below.

NOTES:

●

Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV's SCART connector.

●

For switching the TV's mode, refer to the instruction manual of your television.

●

To obtain high-quality S-VHS pictures, you can also use the S-VIDEO CONNECTION described on page 7.

ATTENTION

n Do NOT plug the mains power cord into a mains outlet until all connections are completed. n Do NOT press the button on the recorder or on the remote control to turn on the recorder's

power before you start the Auto Set Up procedure described on page 8.

Back of TV

Aerial connector

Mains power inlet

AUDIO IN connectors

S-VIDEO IN connector

Mains outlet

S-Video cable (provided)

S IN

S OUT

(S-1)

S OUT

AV1 OUT

COMP. Y/C

Audio cable (not provided)

(L-1)

AV1 IN/OUT

AV2 IN/DECODER

ANT. IN

SYNCHRO EDIT

JLIP

R.PAUSE

AUDIO

(S-1)

OUT IN

(L-2)

ANT. IN

ANT. OUT

DV IN

Back of Recorder

AUDIO OUT

ANT. OUT

RF Cable (provided)

S-VIDEO CONNECTION

To connect to a TV with S-VIDEO/AUDIO IN connectors . . . 1– Connect the aerial, recorder and TV as per "AV CONNEC-

TION" (Z pg. 6).

2– Connect the recorder's S OUT connector to the TV's S-

VIDEO IN connector.

3– Connect the recorder's AUDIO OUT connectors to the TV's

AUDIO IN connectors.

NOTES:

●

You can obtain high-quality S-VHS pictures.

●

If your television is not stereo-capable, use the recorder's AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction. (Z pg. 57)

●

To operate the recorder with your TV using the S-VIDEO connection, set your TV to the AV mode.

●

For switching the TV's mode, refer to the instruction manual of your television.

ATTENTION

n Do NOT plug the mains power cord into a mains outlet until all connections are completed. n Do NOT press the button on the recorder or on the remote control to turn on the recorder's

power before you start the Auto Set Up procedure described on page 8.

AFTER YOU FINISH THIS STEP

Go to Step 3 – AUTO SET UP

QUICK SET UP GUIDE (cont.)

AUTO SET UP

STEP

The Auto Set Up function sets the tuner channels, clock and Guide Program numbers assigned by the VIDEO Plus+ system automatically the first time the button on the recorder or on the remote is pressed to turn on the recorder after the mains power cord has been plugged into a mains outlet.

SET THE TUNER CHANNELS, CLOCK AND GUIDE PROGRAM NUMBERS

Before performing the following procedure, make sure that:

n the TV aerial cable is connected to the recorder. n the mains power cord is plugged into the mains outlet. n batteries have been installed in the remote control.

Press to turn on the recorder.

If "Auto" appears on the display panel,

press OK or #. "Auto" blinks; do NOT press any button on the recorder or remote control until the display panel shows clock time, "(PR) 1" or "– –:– –" as illustrated on page 10. Auto Set Up usually takes about 4 – 12 minutes; the duration varies by area.

● If you are using the on-screen display, the AUTO

123 456 789

– –:– –

SET screen will appear. As Auto Set Up progresses, the " " mark on the screen moves from left to right.

[MENU] : EXIT

Beginning End

AUTO SET

PLEASE WAIT

+++

ATTENTION

Once you have performed Auto Set Up, all the stored stations and Guide Program numbers remain in the recorder's memory and the recorder will not perform Auto Set Up again. If there is a power cut and the recorder's memory backup expires you only need to reset the clock. (Z pg. 66)

If you have moved to a different area, perform each setting as required.

n Tuner setting Z pg. 58 n Clock setting Z pg. 66

If a new station begins broadcasting in your area, perform tuner setting (Z pg. 58).

NOTES:

●

Auto channel set function takes place first; it assigns automatically all receivable stations in your area.

●

Auto clock set function sets the clock automatically.

●

During auto channel set, the recorder recognizes each

station name of the detected stations and stores them in the recorder's memory, then automatically sets the Guide Program numbers assigned by the VIDEO Plus+ system for those stations according to the broadcast area.

●

If there is a power cut or if you press or MENU while

Auto Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the recorder power once and press to turn the power back on in order to re-start Auto Set Up.

PRESET DOWNLOAD

SET THE TUNER CHANNELS BY DOWNLOADING FROM YOUR TV, CLOCK AND GUIDE PROGRAM NUMBERS

When you connect the recorder and your TV via fully-wired 21-pin SCART cable (Z pg. 6), you can set the recorder's tuner channels by downloading preset data from your TV instead of using the Auto Set Up function (Z pg. 8). After downloading is completed, the recorder sets the clock and Guide Program numbers assigned by the VIDEO Plus+ system automatically. For details, refer to the instruction manual for your TV.

ATTENTION

You can use this function only with a TV offering T-V Link, etc.*

* Compatible with TVs offering T-V Link, EasyLink, Megalogic, SMARTLINK, Q-Link, DATA LOGIC or NEXTVIEWLINK via fully-wired 21-pin

SCART cable. The degree of compatibility and available functions may differ by system.

Before performing the following procedure, make sure that:

n the TV aerial cable is connected to the recorder and a 21-pin SCART cable is connected between your TV and the recorder. n the mains power cord is plugged into the mains outlet. n batteries have been installed in the remote control.

Press to turn on the recorder.

If "Auto" appears on the display panel,

123 456 789

– –:– –

Press

to select "CH – –" and press OK

ﬁ

or #. Preset position on the display panel increases from "CH1"; do NOT press any button on the recorder or remote control until the display panel shows clock time, "(PR) 1" or "– –:– –" as illustrated on page 10.

● If you are using the on-screen display, the T-V LINK screen will appear. Then the GUIDE PROG SET screen will appear during Guide Program number set.

● If you press any button on the recorder or remote control while downloading is in progress, this process will be interrupted and you will need to start again. See NOTES below.

T-V LINK

PLEASE WAIT

[MENU] : EXIT

GUIDE PROG SET

PLEASE WAIT

[MENU] : EXIT

NOTES:

●

In areas where no TV station transmits the PDC signal, the recorder cannot perform either auto clock set or auto Guide Program number set.

●

If there is a power cut, or if you press or MENU while downloading or set up is in progress, it will be interrupted; be sure to turn off the recorder power once and try again from the beginning.

●

Auto clock may not function properly depending on reception conditions.

●

When you perform T-V LINK function, be sure to use fully-wired 21-pin SCART cable.

●

On this recorder, the characters available for station names (ID) are A–Z, 0–9, –, *, + and (space). The names of some downloaded stations may differ from those on your TV (Z pg. 62).

Auto Set Up results appear on the display panel

QUICK SET UP GUIDE (cont.)

* You can check if the Guide Program numbers have been set correctly when you perform the VIDEO Plus+ Timer Programming

(Z pg. 18); if the correct preset position number is displayed in step 3, this confirms that the Guide Program number for the PlusCode number you enter in step 2 has been set correctly.

A If both auto channel set and auto clock set have been performed successfully:

1 Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the recorder's memory

by using the TV PROG button(s).

● If station names (ID — Z pg. 63) have also been stored in the recorder's memory, the station name will be displayed at the top left corner of the screen for about 5 seconds each time the recorder is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change preset positions, or to set or change station names, see pages 60 – 62.

When both auto channel set and auto clock set have been completed successfully the correct current time will be displayed.

When auto channel set has been completed successfully but auto clock set has not, "(PR)1" will be displayed.

When neither auto channel set nor auto clock set has been completed successfully, "– –:– –" will be displayed.

Now you have finished the basic set up and can use your recorder for both playback and recording.

B If auto channel set has succeeded but auto clock set has not:

1 Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the recorder's memory

by using the TV PROG button(s).

● If you want to set the tuner manually such as to add or skip channels, to change preset positions, or to set or change station names, see pages 60 – 62.

2 Perform "Clock Set" on page 66.

Now you have finished the basic set up and can use your recorder for both playback and recording.

C If both auto channel set and auto clock set have failed:

1 Make sure the TV aerial cable is connected properly to the recorder and turn off the recorder power once, then turn the

recorder power back on again.

2 Perform "Auto Set Up" on page 8 or "Preset Download" on page 9.

IMPORTANT

n In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work

properly. If the Guide Program numbers are not set properly, when you timer-record a TV programme using the VIDEO Plus+ system, the recorder will record a TV programme of a different station. When programming the timer using the VIDEO Plus+ system, be sure to check that the preset position corresponding to the broadcasting station you wish to record has been selected (Z pg. 18, "VIDEO Plus+® Timer Programming").

n Your video recorder memorizes all detected stations even if reception of some of them is poor. In these cases picture quality

may be poor. To delete those stations which have an unacceptable picture Z "Delete A Channel" on page 61.

n If any of the above problems occur, refer to pages 60 – 62 to input station names (Z "Set Stations") or delete unnecessary

stations (Z "Delete A Channel"). You can also change station preset positions (Z "Change Station Preset Position").

If you have any difficulty with the above procedures call the JVC Customer Service Hot Line on 0208 208 7654

T-V LINK

T-V Link Functions

Direct Rec

You can start recording the programme that you are watching on your TV with simple operation. Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder. Follow the procedure below to use this function.

When you connect the recorder and your TV via a fully-wired 21-pin SCART cable (Z pg. 6), the following functions are available. You can use these functions only with a TV offering T-V Link, etc.* For details, refer to the instruction manual for your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link, DATA LOGIC or NEXTVIEWLINK via fullywired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

NexTView Link

You can download the EPG (Electronic Programme Guide) information from your TV for timer-programming on the recorder. For details, refer to the instruction manual for your TV.

TV Auto Power On

You can turn on the TV and set it to video mode automatically whenever you play a tape. For details, refer to the instruction manual for your TV.

VCR Auto Standby

You can use your TV's remote control to turn off the recorder. For details, refer to the instruction manual for your TV.

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to

"MODE SET", then press OK or #.

SELECT DIRECT REC MODE

Press %ﬁ to move the highlight bar (pointer) to

"DIRECT REC", then press OK or # to set to "ON".

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET VIDEO NAVIGATION

] =

[

∞

[MENU] : EXIT

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON

DIRECT REC ON

AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MAIN MENU

MODE SET

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

If "DIRECT REC" is set to "OFF", the RECORD button functions as described in "Recording" (Z pg. 14) .

●

During the Direct Rec, "– –" appears on the display panel.

●

When you perform T-V LINK functions, be sure to use a fullywired 21-pin SCART cable.

PLAY

STOP

REW

EJECT

STOP

Playback

Turn on the TV and select the AV mode.

REW

BASIC OPERATIONS

The easiest, most basic operation possible with your video recorder is tape playback. Already-recorded signals on a video tape are read by your video recorder and displayed on your TV just like a TV programme.

● This recorder can play back tapes that have been recorded in D-VHS (MTP), S-VHS and VHS formats.

● When playing back a tape, this recorder automatically identifies the recording format (D-VHS, S-VHS, or VHS).

LOAD A CASSETTE

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is

pointing towards the recorder. Don’t apply too much pressure when inserting.

● The recorder power comes on automatically and the counter is reset to 0:00:00.

● While "– – – –" is blinking on the front display panel, the tape will run for a few seconds to search for the tape number.

● If the record safety tab has been removed, playback begins automatically.

FIND PROGRAMME START POINT

If the tape is advanced past the start point, press REW. To go forward, press FF.

START PLAYBACK

Press PLAY. "BEST" appears blinking in the recorder's display panel during automatic tracking (only cassettes

recorded in the S-VHS or VHS mode Z pg. 34).

● Playback picture quality of LP recordings will not be as high as SP recordings.

STOP PLAYBACK

Press STOP. Then press EJECT to remove the cassette.

Tape Position Indicator

The tape position indicator appears on screen when, from the Stop mode, you press FF, REW or perform an Index Search. The position of “5” in relation to “0” (beginning) or “+” (end) shows you where you are on the tape.

”O.S.D.” (Z pg. 53) must be set to “ON”, or the indicator will not appear.

Beginning End

NOTE:

Depending on the type of tape used, there may be times when the indication is not correct.

1:23:45

REMAIN 2:35

+++

INFORMATION

When using the AV connection (Z pg. 6), initiating playback causes the VCR indicator to light and the TV to automatically enter AV mode. To return the TV to TV mode after playback is complete, press TV/VCR so that the VCR indicator turns off. * Depending on the type of TV used, TV/VCR button does

not always function as described above.

NOTE:

Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any fullsized VHS cassette.

Still

JOG dial SHUTTLE ring

NOTES:

●

The operations using the JOG dial or SHUTTLE ring are not possible with cassttes recorded in D-VHS mode.

●

Refer to the SHUTTLE ring illustration above as you read the following procedures.

●

If the recorder is left in still or forward slow motion mode for over 5 minutes, it will automatically go into stop mode.

●

If the recorder is left in reverse slow motion mode for over 30 seconds, it will automatically go into stop mode.

Still Picture/Frame-By-Frame Playback

Possible operations on this page for tapes recorded in D-VHS mode:

● Still picture during playback by pressing PAUSE.

● High-speed (turbo) search by pressing FF or REW.

Slow Motion (S-VHS/VHS Mode Only)

ACTIVATE SLOW-MOTION PLAYBACK

During playback or still, turn the SHUTTLE ring to the right for forward slow motion, or to the left for reverse

slow motion (refer to the illustration on the left).

During still picture, press and hold PAUSE for 2 seconds, then release. Press and release again to return to still picture.

During still picture, press and hold @ or #. Release to return to still picture.

To resume normal playback, press PLAY.

High-Speed (Turbo) Search

PAUSE DURING PLAYBACK

Press PAUSE.

ACTIVATE FRAME-BY-FRAME PLAYBACK (S-VHS/VHS MODE ONLY)

Turn the JOG dial to the right for forward frame-byframe playback, or to the left for reverse frame-by-frame

playback.

Press PAUSE.

Press @ or #.

To resume normal playback, press PLAY.

ATTENTION (S-VHS/VHS Mode Only)

● When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

In the search, still, slow-motion or frmae-by-frame playback mode,

● the picture will be distorted.

● the noise bar will appear.

● there may be a loss of colour.

ACTIVATE HIGH-SPEED SEARCH

During playback or still, turn the SHUTTLE ring all the way to the right for forward high-speed search, or to

the left for reverse high-speed search. Releasing

SHUTTLE resumes still picture playback.

During playback or still, press FF for forward highspeed search, or REW for reverse high-speed search.

To resume normal playback, press PLAY.

NOTES:

●

For short searches, press and hold FF or REW during playback or still picture. When released, normal playback resumes.

●

Search in D-VHS mode is not possible with cassettes recorded in D-VHS mode on other D-VHS recorders.

Variable-Speed Search (S-VHS/VHS Mode Only)

ACTIVATE VARIABLE-SPEED SEARCH

During playback or still, turn the SHUTTLE ring to the right for forward variable-speed search, or to the left for

reverse variable-speed search (refer to the illustration above).

To resume normal playback, press PLAY.

TV PROG

STOP

EJECT

STOP

TV PROG

D-VHS

PLAY

RECORD

STD/LS3 (SP/LP)

PAUSE

BASIC OPERATIONS (cont.)

D-VHS Recording

Recording

TV signals being received by the recorder’s built-in tuner can be recorded onto a video tape. You can “capture” a TV programme using your video recorder.

● Turn on the TV and select the AV mode.

● Insert a D-VHS cassette to record in the D-VHS mode.

STD indicator

LS3 indicator

LOAD A CASSETTE

Insert a cassette with the record safety tab intact (See next page).

● The counter is reset to 0:00:00 and the recorder power comes on automatically.

● While "– – – –" is blinking on the front display panel, the tape will run for a few seconds to search for the tape number.

● The STD (or LS3) indicator lights and the D-VHS recording mode is selected automatically.

CHOOSE A PROGRAMME

Press TV PROG +/– or the NUMBER keys to select the preset you wish to record.

● The TV PROG dial can also be used to select a channel.

SET TAPE SPEED

Press STD/LS3 ( ). Check the STD or LS3 indicator to confirm the selected tape speed.

START RECORDING

Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder.

If "DIRECT REC" is set to "ON", the programme that appears on the TV screen will be recorded (Z pg. 11).

NUMBER

RECORD

123 456 789

STD/LS3 (SP/LP)

TV PROG

PLAY

4,5

PAUSE

● You can not change the preset whilst recording is in progress. To change the preset, see step 5.

PAUSE/RESUME RECORDING

Press PAUSE. Press PLAY to resume recording.

● During the Record Pause mode, you can change the

preset by pressing the TV PROG +/– buttons or the NUMBER keys.

STOP RECORDING

Press STOP. Then press EJECT to remove the cassette.

NOTE:

To record in the S-VHS or VHS mode on a D-VHS cassette, press D-VHS so that the STD (or LS3) indicator goes off (Z pg.

32).

Compatibility Of Cassettes And Recording Mode

Recording Mode

Cassette

D-VHS Yes Yes Yes

S-VHS No Yes Yes

VHS No No Yes

D-VHS S-VHS VHS

NOTES:

●

The D-VHS (MTP), S-VHS and VHS mode recordings are possible with this recorder.

●

To record in the D-VHS mode, use a D-VHS cassette.

●

To record in the S-VHS mode, you can use a S-VHS or DVHS cassette.

●

To record in the VHS mode, you can use a VHS, S-VHS or D-VHS cassette.

INFORMATION

When using the AV connection (Z pg. 6), you can switch between TV mode and AV mode by pressing TV/VCR. * Depending on the type of TV used, TV/VCR button does

not function as described above.

S-VHS/VHS Recording

LOAD A CASSETTE

Insert a cassette with the record safety tab intact.

● The counter is reset to 0:00:00 and the recorder

power comes on automatically.

CHOOSE A PROGRAMME

Press TV PROG +/– or the NUMBER keys to select the channel you wish to record.

● The TV PROG dial can also be used to select a channel.

SET TAPE SPEED

Press SP/LP ( ). Check the SP/LP indicator on the front display panel to confirm the selected tape speed.

START RECORDING

Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder.

B.E.S.T. takes place at the beginning of both the first SP and the first LP recording after inserting the cassette (Z pg. 34).

If "DIRECT REC" is set to "ON", the programme that appears on the TV screen will be recorded (Z pg. 11).

● You can not change the preset whilst recording is in progress. To change the preset, see step 5.

Accidental erasure prevention

● To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

PAUSE/RESUME RECORDING

Press PAUSE. Press PLAY to resume recording.

● During the Record Pause mode, you can change the

preset by pressing the TV PROG +/– buttons or the NUMBER keys.

STOP RECORDING

Press STOP. Then press EJECT to remove the cassette.

RECORD

TV PROG

123 456 789

– –:– –

TV PROG

BASIC OPERATIONS (cont.)

Record One Programme While Watching Another

SELECT PRESET TO WATCH

Once recording is in progress, all you need to do is to set the preset controls on the TV for the station you

wish to view.

● The programme selected with the TV’s preset controls appears on the TV screen while the one selected with the recorder's TV PROG buttons is recorded on the tape.

Instant Timer Recording (ITR)

This easy method allows you to record for any length of time from 30 mins. to 8 hours (selectable in 30-min. increments), and shuts off the recorder after recording is finished.

START RECORDING

Press RECORD on the recorder.

ENGAGE ITR MODE

Press RECORD again. " " blinks and 0:30 appears on the front display panel.

SET RECORDING DURATION

If you want to record for more than 30 minutes, press

RECORD to extend the time. Each press extends

recording time by 30 minutes.

NOTE:

You can only perform ITR using the RECORD button on the recorder's front panel.

Elapsed Recording Time

DISPLAY

COUNTER RESET

Indication

You can check the exact time of a recording.

SET COUNTER DISPLAY

Press – –:– – (or DISPLAY) until a counter reading appears on the dispay panel.

RESET COUNTER

Press 0000 (or COUNTER RESET) before starting recording or playback.

● The counter is reset to “0:00:00” and shows the exact elapsed time as the tape runs.

0000

123 456 789

– –:– –

Tape Remaining Time

DISPLAY REMAINING TIME

Press – –:– – (or DISPLAY) until the time remaining on the tape appears.

● The display panel shows the tape remaining time with " " displayed.

● By pressing the – –:– – (or DISPLAY) button, you can change the display to show the counter reading, preset position*, clock time or tape remaining time.

* Preset position is not displayed during playback.

NOTE:

Depending on the type of tape used, there may be times when the tape remaining time reading may not appear right away, or is not correct. "– –:– –" may sometimes appear, or the display may blink on occasion.

WEEKLY

DAILY

VIDEO Plus+ Timer Programming

Before performing the VIDEO Plus+ Timer Programming:

● Make sure that the recorder's built-in clock is set properly.

● Insert a cassette with the safety tab in place. The recorder

will come on automatically.

● Set the appropriate recording mode (D-VHS, S-VHS or VHS) (Z pg. 14, 15).

● Turn on the TV and select the AV mode.

BASIC OPERATIONS (cont.)

With the VIDEO Plus+ system, timer programming is greatly simplified because each TV programme has a corresponding code number which your recorder is able to recognise.

ACCESS VIDEO PLUS+ SCREEN

Press PROG.

VIDEO PLUS+

[0 – 9] : VIDEO PLUS+

+/–

[

] : EXPRESS PROGRAMING

[PROG] : EXIT

The front display panel looks like this:

TIMER

‰ TIMER indicator

LCD panel

LCD PROG

NUMBER

PDC

1,6

You can use the remote control with LCD panel to enter the PlusCode number.

PROG

123 456 789

– –:– –

STD/LS3 (SP/LP)

STOP+/–

2 7

ACCESS VIDEO PLUS+ DISPLAY

Press LCD PROG. The LCD panel looks like this:

2,6

ENTER PLUSCODE NUMBER

Press the NUMBER keys to enter the PlusCode number

of the programme you wish to record, then press OK.

● If you make a mistake, press and input the correct number.

The PlusCode number you enter appears on the front display panel:

The display panel shows only a 4-digit number.

VIDEO PLUS+

12345678

[0 – 9] = [ ] : DELETE [PROG] : EXIT

ACCESS VIDEO PLUS+ PROGRAM SCREEN

The VIDEO Plus+ Program screen appears (if you’re just starting out, “P1”

appears). The display panel shows the

programme start time. Pressing changes the display to the programme stop time, then the date and preset position.

VIDEO PLUS+ 123456789

START STOP 21:00 = 22:00

SP(STD) VPS/PDC OFF

DATE TV PROG

25.12 1

: OK

– P1 –

BBC 1

ENTER PLUSCODE NUMBER

Press the NUMBER keys to enter the PlusCode number of a programme you wish to record, then press .

● If you make a mistake, press and input the correct number.

The PlusCode number you enter appears on the LCD panel:

Then go to step 3 in the right column.

IMPORTANT

Make sure the preset position number you wish to record is displayed; if not, see "VIDEO Plus+ Setup" on page 65 and set the Guide Program number for that PlusCode number correctly.

● If the number you entered is invalid, "ERROR" appears on the screen and "Err" appears on the display panel. Press and input a valid PlusCode number.

● If the "GUIDE PROG SET" screen appears, see "ATTENTION – Regarding Guide Program Number Set" on page 19.

SET TAPE SPEED

D-VHS mode: Press STD/LS3 ( ) to set the tape speed.

S-VHS or VHS mode: Press SP/LP ( ) to set the tape speed.

SET PDC MODE

Press PDC to select "ON" or "OFF".

If "VPS/PDC ON" is displayed on the screen or "VPS/

PDC" is lit on the display panel, PDC is set to ON. If "VPS/PDC OFF" is displayed on the screen or "VPS/ PDC" is not lit on the display panel, PDC is set to OFF.

Z "PDC Recording" in the column below.

● VPS (Video Programme System) recording is not

currently available in the U.K. and not possible with this recorder.

RETURN TO NORMAL SCREEN

Press PROG or OK. "PROGRAM COMPLETED" appears on the screen for about 5 seconds, then normal screen

appears.

● Repeat steps 1 – 6 for each additional programme.

ENGAGE RECORDER’S TIMER MODE

Press ‰ (or ‰TIMER). The recorder turns off automatically and ‰ appears on the display panel. The ‰TIMER indicator on the recorder also lights up.

● To disengage the timer, press ‰ (or ‰TIMER) again.

NOTES:

●

To Change The Stop Time . . . . . . press STOP +/– in step 3. You can compensate for anticipated programme schedule delays this way.

●

To Timer-Record Weekly Or Daily Serials . . . . . . in step 3, press WEEKLY (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday – Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.

●

You can programme this recorder to timer-record as many as 8 programmes. If you try to programme the recorder to record a ninth, "PROGRAM FULL" appears on screen and "FULL" appears on the front display panel. To record the extra programme, you must first cancel any unnecessary programmes (Z pg. 22).

●

It is not possible to timer-record a TV programme with a PlusCode number which starts with "0".

Satellite Receiver Users

To timer-record a satellite broadcast using the VIDEO Plus+ system:

1 Set "AV2 SELECT" to the appropriate mode. (Z pg. 50) 2 Perform steps 1 – 7. 3 Set the satellite receiver to the appropriate channel

before the selected programme begins.

4 Leave the satellite receiver's power on.

ATTENTION

Regarding Guide Program Number Set

"GUIDE PROG SET" appears after performing step 3 if the Guide Program number for the PlusCode number you entered has not been set.

● Press the NUMBER keys or %ﬁ to input the preset

position number on which your recorder receives that station, then press OK or # to set the Guide Program Number. The VIDEO Plus+ Program screen appears.

GUIDE PROG SET

GUIDE PROG TV PROG

2 – –

[

] =

∞

[PROG] : EXIT

(Ex.) To timer-record a BBC2 programme with the VIDEO Plus+ system. * If your recorder receives

BBC2 on the preset position 2, press OK or # after entering "2".

PDC Recording

Now available from some TV stations, PDC (Programme Delivery Control) is a service designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video recorder and have precedence over the advertised times which you may have preset into the timer. This means that your recorder will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed from what has been advertised. PDC is currently available nationally on BBC1, BBC2, Ch.4 and Ch.5, except from a few small relay transmitters. Ch.3 operates a PDC service in some areas. All channels intend to offer this service in due course. Check your TV programme listing guide for latest information. If the channel you intend to record does not offer a PDC service your recorder will not start recording if PDC has been selected. Be sure to set PDC to "OFF" if PDC is not available on your selected channel (Z step 5 above).

NOTES:

●

PDC recording is also possible when a satellite receiver or a cable system is connected to AV2 IN/DECODER on your recorder.

●

PDC recording is also possible via the AV1 IN/OUT connector.

WEEKLY

DAILY

STOP+/–

DATE+/–

PDC

Express Timer

BASIC OPERATIONS (cont.)

If you don’t know the PlusCode number for the programme you wish to record, use the following procedure to set your recorder to timer-record the programme.

ACCESS VIDEO PLUS+

Programming

Before performing Express Timer Programming:

● Make sure that the recorder's built-in clock is set properly.

● Insert a cassette with the safety tab in place. The recorder will come on automatically.

● Set the appropriate recording mode (D-VHS, S-VHS or VHS) (Z pg. 14, 15).

● Turn on the TV and select the AV mode.

– –:– –

STD/LS3 (SP/LP)

TV PROG+/–

1,9

PROG

START+/–

2,3

123 456 789

SCREEN

Press PROG.

ACCESS PROGRAMME SCREEN

Press START +/–. (If you’re just starting out, “P1”

appears.)

The front display panel looks like this:

ENTER PROGRAMME START TIME

Press START +/– to enter the time you want

recording to start.

● Press and hold START +/– to move in 30-

minute increments, or press and release repeatedly to move 1 minute at a time.

The front display panel looks like this:

– P1 –

START STOP

– –:– – = – –:– –

SP(STD) VPS/PDC OFF

DATE TV PROG

– –.– – – –

[+/–] = [PROG] : EXIT

– P1 –

START STOP

21:00 = – –:– –

SP(STD) VPS/PDC OFF

DATE TV PROG

– –.– – – –

[+/–] = [PROG] : EXIT

ENTER PROGRAMME STOP TIME

Press STOP +/– to enter the time you want recording to stop.

● Press and hold STOP +/– to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

ENTER PROGRAMME DATE

Press DATE +/– to enter the date on which you wish to record. (The current date first appears on screen. The

date you enter will appear in its place.)

ENTER PRESET POSITION

Press TV PROG +/– to enter the preset position

corresponding to the broadcasting station you wish to record.

START STOP

21:00 = 22:00

SP(STD) VPS/PDC OFF

DATE TV PROG

25.12 1

[+/–] = [PROG] : EXIT

SET TAPE SPEED

D-VHS mode: Press STD/LS3 ( ) to set the tape speed.

S-VHS or VHS mode: Press SP/LP ( ) to set the tape speed.

SET PDC MODE

Press PDC to select "ON" or "OFF".

If "VPS/PDC ON" is displayed on the screen or "VPS/ PDC" is lit on the display panel, PDC is set to ON.

If "VPS/PDC OFF" is displayed on the screen or "VPS/ PDC" is not lit on the display panel, PDC is set to OFF.

Z "PDC Recording" in the right column.

● VPS (Video Programme System) recording is not

currently available in the U.K. and not possible with this recorder.

RETURN TO NORMAL SCREEN

After confirming all information is correct, press PROG or OK. "PROGRAM COMPLETED" appears on the

screen for about 5 seconds, then normal screen appears.

● Repeat steps 1 – 9 for each additional programme.

ENGAGE RECORDER’S TIMER MODE

Press ‰ (or ‰TIMER). The recorder turns off automatically and ‰ appears on the display panel. The ‰TIMER indicator on the recorder also lights up.

● To disengage the timer, press ‰ (or ‰TIMER) again.

– P1 –

BBC 1

Satellite Receiver Users

To timer-record a satellite broadcast using Express Timer Programming:

1 Set "AV2 SELECT" to the appropriate mode. (Z pg. 50) 2 Perform steps 1 – 10. Select "L-1" or "L-2" for the

channel position in step 6, depending on the connection to the satellite tuner (Z pg. 40).

3 Set the satellite receiver to the appropriate channel

before the selected programme begins.

4 Leave the satellite receiver's power on.

PDC Recording

NOTES:

●

Set the start time (PDC time) exactly as advertised in the TV listing. A different time than advertised will result in no recording.

●

PDC recording is also possible when a satellite receiver or a cable system is connected to AV2 IN/DECODER on your recorder.

●

PDC recording is also possible via the AV1 IN/OUT connector.

To Timer-Record Weekly Or Daily Serials . . .

. . . anytime during steps 2 through 9, press WEEKLY (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday – Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.

NOTE:

123 456 789

– –:– –

BASIC OPERATIONS (cont.)

Check, Cancel And Replace Programmes

DISENGAGE TIMER MODE

Press ‰ (or ‰TIMER), then press .

ACCESS PROGRAMME CHECK SCREEN/DISPLAY

Press .

ACCESS PROGRAMME SCREEN/DISPLAY

Press again to check more information. Each

time you press , the next programme's information appears.

PR START STOP CH DATE 1 8:00 10:00 3 24.12 2 10:00 10:45 2 25.12 3 11:30 13:00 1 25.12 4 5 6 7 8

[

] : NEXT

– P1 –

START STOP

8:00 = 10:00

SP(STD) VPS/PDC OFF

DATE TV PROG

24.12 3

] : NEXT

[

ITV

● The display panel shows the programme start time. Pressing OK changes the display to the programme stop time, then the date and the preset position.

PDC

DATE+/–

STOP+/–

START+/–

123 456 789

– –:– –

STD/LS3 (SP/LP)

TV PROG+/–

To cancel or replace a programme...

CANCEL OR REPLACE A PROGRAMME

Press to cancel a programme. To replace a programme, press the appropriate button: START+/–,

STOP+/–, DATE+/–, TV PROG+/–, STD/LS3 (SP/LP) ( ), PDC.

RETURN TO NORMAL SCREEN/DISPLAY

Press as many times as necessary. If there are still some programmes to be recorded, go on to step 6.

RETURN TO TIMER MODE

Press ‰ (or ‰TIMER).

NOTE:

You can also check the programmes on the display panel even if the recorder's power is off (unless the recorder is in the Power Save mode Z pg. 54) or the recorder is in the Timer mode; however, it is not possible to cancel or replace the programmes.

NAVIGATION

Navigation

VIDEO NAVIGATION

This function is useful when you wish to quickly find out what programmes you have recorded on a tape with this recorder. This function allows you to select a programme to watch, and then automatically searches for the start of the programme.

Turn on the TV and select the AV mode.

123 456 789

NAVIGATION

– –:– –

LOAD A RECORDED CASSETTE

Insert a recorded cassette.

● The tape will run for a few seconds while the

recorder searches for the tape number.

ACCESS TITLE SCREEN

Press NAVIGATION.

● After pressing NAVIGATION, it may take a few

seconds to access the title screen while the recorder searches for the programme information.

CHOOSE A PROGRAMME

Press move the highlight bar

(pointer) to the programme you want to watch.

(or 5∞) to

ﬁ

]

0013 FOOTBALL '98 1/ 3

BLANK 1:25 (LS3) 22 : 00 26.02.99 BBC1 20 : 00 27.02.99 BBC2 BLANK 0 : 30 (LS3)

21 : 00 28.02.99 I-1

22 : 15 28.02.99 PR.07

21 : 00=22 : 30 1 : 30 (STD) WORLD CUP '98 /SPORTS

[

] =

∞

[3]

EDIT

[NAVIGATION]

EXIT

START PLAYBACK

Press OK. Playback begins automatically after the selected programme is located.

● If you press # instead of OK, the editing screen will appear. You can edit the programme title and category (Z pg. 27).

To start recording on the blank portion of a tape

If you do not record programs consecutively, two tape numbers will be recorded on one tape and the recorder will not be able to search for the correct programme. To continue recording on the blank portion of a tape, follow the procedure described below:

1 Press %ﬁ, and select a "BLANK" item on the program

title screen.

2 Press OK. The recorder automatically searches for a

blank portion on the tape.

3 After confirming that this is the tape on which you

really wish to record, begin recording.

Checking Memory

You can check the amount of recorded information in the memory.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VIDEO NAVIGATION SCREEN

Press highlight bar (pointer) to

"VIDEO NAVIGATION", then press OK or #.

to move the

ﬁ

MAIN MENU

MODE SET AUTO CH SET MANUAL CH SET INITIAL SET

VIDEO NAVIGATION

] =

[

∞

[MENU] : EXIT

CHECK MEMORY

Press highlight bar (pointer) to

"CHECKING MEMORY", then press OK or #.

● The CHECKING

to move the

ﬁ

MEMORY screen will appear.

VIDEO NAVIGATION

EDITING SORTING

CHECKING MEMORY

NAVIGATION : ON

[5∞] = [MENU] : EXIT

CHECKING MEMORY

0 100

[MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

Turn Off Navigation

If you don't want to record information on the programmes, set "NAVIGATION" to "OFF".

Perform steps 1 to 2 of "Checking Memory" in the left column before continuing.

TURN OFF NAVIGATION

Press highlight bar (pointer) to

"NAVIGATION", then press OK or # to set to "OFF".

to move the

ﬁ

VIDEO NAVIGATION

EDITING SORTING CHECKING MEMORY

NAVIGATION : OFF

[5∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

Video Navigation is possible with the cassettes recorded with this recorder only.

●

To record the date and time as the programme title in this recorder's memory, make sure the recorder's clock is set correctly before recording.

●

To record the programme information in this recorder's memory, you must record each programme for over the minimum recording time; 10 min. for the D-VHS (STD) mode, 30 min. for the D-VHS (LS3) mode, 8 min. for the S-VHS/VHS (SP) mode or 15 min. for the S-VHS/VHS (LP) mode.

●

Video Navigation may not work properly depending on the cassette being used.

●

If the recorder finds two tape numbers in one tape while playing back or searching for the beginning of a programme, then when you remove the tape, the tape will be assigned just one number (smaller number).

●

If you overwrite a programme from the beginning, the " " symbol is displayed for the title that was overwritten.

●

The programme information is stored in this recorder’s memory. If the memory in this recorder should ever be damaged and the programme information lost, it is impossible to restore that information.

●

After recording a tape with this recorder, write the tape number on a label and affix the label to the cassette in order to allow you to find the tape by its number.

VIDEO NAVIGATION (cont.)

Edit Tape Title

Title Editing

When you record a TV programme with this recorder, the recorder automatically records the recording start time, date, and channel in each programme title. If the tape is recorded for the first time, the tape number and the date and time are recorded in the tape title. You can then edit the tape title and the programme titles as you like. You can also edit the category in the programme title. In short, you can use the Video Navigation function to create your own video tape library.

Turn on the TV and select the AV mode.

– –:– –

NUMBER

123 456 789

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VIDEO NAVIGATION SCREEN

Press highlight bar (pointer) to

"VIDEO NAVIGATION", then press OK or #.

ACCESS EDITING SCREEN

Press highlight bar (pointer) to

"EDITING", then press OK or #.

SELECT TAPE NO.

Press highlight bar (pointer) to

the number of the tape whose title you want to edit, then press OK or #.

to move the

ﬁ

to move the

ﬁ

to move the

ﬁ

MODE SET AUTO CH SET MANUAL CH SET INITIAL SET

VIDEO NAVIGATION

[

] =

∞

[MENU] : EXIT

EDITING

SORTING CHECKING MEMORY NAVIGATION : ON

[5∞] = [MENU] : EXIT

]

0115 MOVIE1

0114 18.03.99 -

0113 25.02.99 0112 23.02.99 0111 MOVIE2 0110 BASEBALL 0108 05.09.98 0107 29.08.98 0106 BEST HIT

] =

[

∞

[MENU]

MAIN MENU

VIDEO NAVIGATION

EXIT

1/ 12

● The "*" mark indicates the tape number of the cassette that is currently in the recorder.

SELECT TAPE TITLE

Press highlight bar (pointer) to

the tape number, then press OK or #.

● The "*" mark indicates the current position on the tape.

to move the

ﬁ

]

20:00 27.02.99 BBC2 22:00 26.02.99 BBC1 21:00 28.02.99 I-1 22:15 28.02.99 PR.07

[

∞

= = [

[MENU]

0114 18.03.99 - 1/ 3

8:15 15.01.00 PR.99

]

: EDIT

]

] : DELETE

EXIT

ENTER CHARACTER

Press NUMBER keys to enter characters, then press OK. For details, refer to "Entering Character" below.

RETURN TO NORMAL SCREEN

Press MENU.

Entering Character

Press NUMBER key, then press # to enter each character. Refer to the example below.

(Ex.) Enter "JVC NEWS"

1 Press 5 (JKL) once to enter "J", then press 2 Press 8 (TUV) three times to enter "V", then press 3 Press 2 (ABC) three times to enter "C", then press 4 Press 0 ( ) twice to enter " (space)", then press 5 Press 6 (MNO) twice to enter "N", then press 6 Press 3 (DEF) twice to enter "E", then press 7 Press 9 (WXYZ) once to enter "W", then press 8 Press 7 (PQRS) four times to enter "S", then press

NUMBER KEY CHARACTER

1 . , / – + * ( ) 1 2 A B C 2 Ä À Á Â Ã Å Æ 3 D E F 3 È É Ë Ê 4 G H I 4 Î Ï Ì Í 5 J K L 5 6 M N O 6 Ö Ô Ò Ó Õ Ø Ñ 7 P Q R S 7 8 T U V 8 Ü Ù Û Ú 9 W X Y Z 9 0 0

NOTES:

●

If you make a mistake, press enter the correct character.

●

If you want to delete a character, press character, then press .

@ #

to select the character, then

@ #

to select the

Edit Programme Title And Category

Perform steps 1 to 4 of "Edit Tape Title" on page 26 before continuing.

SELECT PROGRAMME

Press highlight bar (pointer) to

the programme you want to edit, then press OK or #.

to move the

ﬁ

]

0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1 21:00 28.02.99 I-1 22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

20:00=21:30 1:30 (STD) TITLE /CATEGORY

]

[

∞

: EDIT

= [

] : DELETE

[MENU]

EXIT

ENTER CHARACTER

Press NUMBER keys to enter characters, then press OK. For details, refer to "Entering Character" in the left

column.

SELECT CATEGORY

Press highlight bar (pointer) to

select the category you want, then press OK or #.

to move the

ﬁ

]

0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1 21:00 28.02.99 I-1 22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

20:00=21:30 1:30 (STD) WORLD CUP '98 /SPORTS

]: SELECT

[

∞

: OK

[MENU]

EXIT

RETURN TO NORMAL SCREEN

Press MENU.

Choice Of Category

CATEGORY

MOVIE

SPORTS

SPECIAL

SERIES

SHOW

MUSIC

CHILDREN

NEWS

OTHERS

ﬁ

123

– –:– –

VIDEO NAVIGATION (cont.)

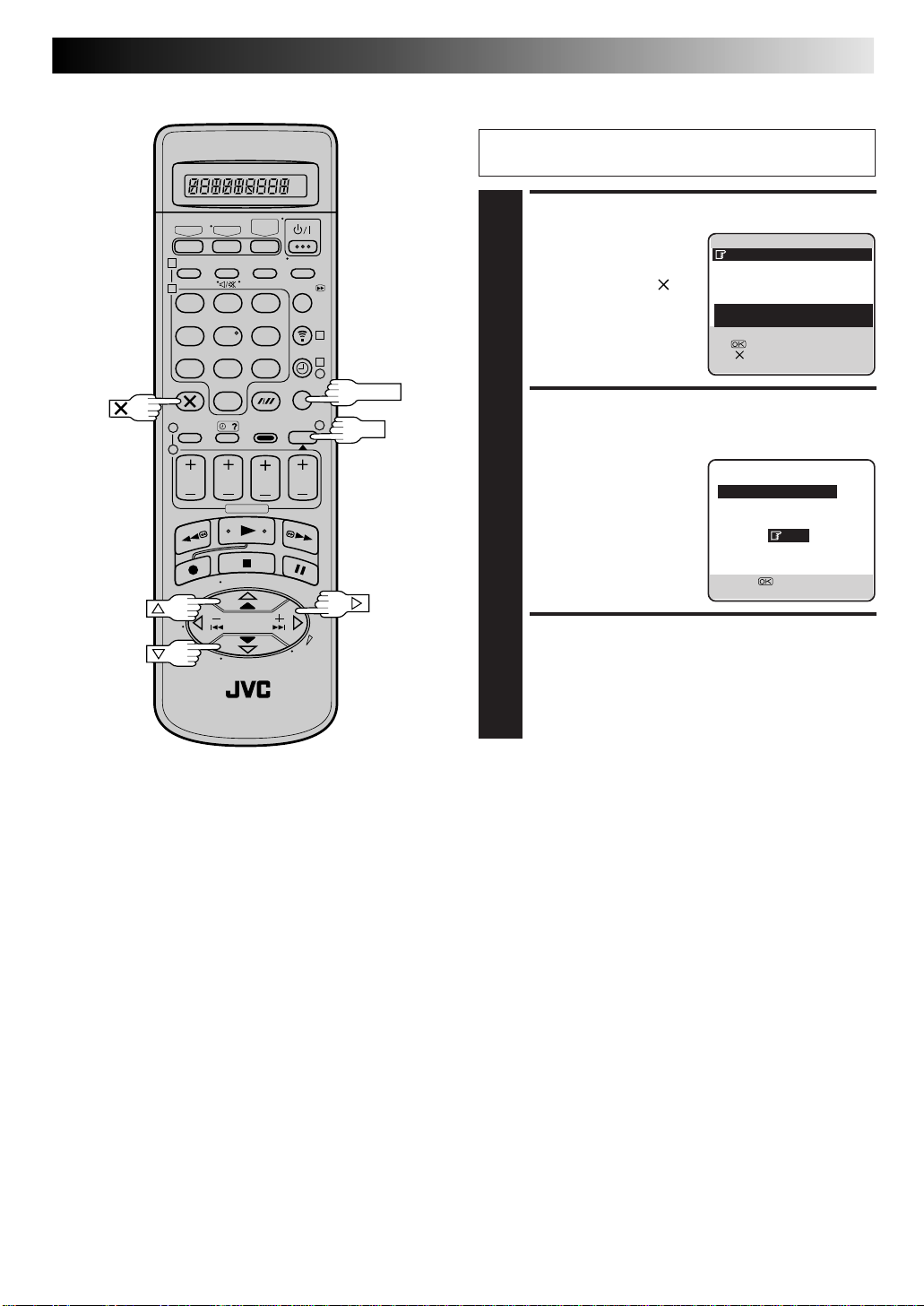

Delete Tape Data

Perform steps 1 to 4 of "Edit Tape Title" on page 26 before continuing.

SELECT TAPE TITLE

Press highlight bar (pointer) to

the tape number you want to delete, then press .

to move the

ﬁ

]

0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2 22:00 26.02.99 BBC1 21:00 28.02.99 I-1 22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

456 789

DELETE TAPE DATA

Press highlight bar (pointer) to

"YES", then press OK or #.

to move the

ﬁ

]

[

∞

] : DELETE

= [

[MENU]

]

0114 18.03.99 -

[

] =

∞

[MENU]

: EDIT

EXIT

DELETE

YES

]

RETURN TO NORMAL SCREEN

Press MENU.

123 456 789

– –:– –

Delete Programme Data

Perform steps 1 to 4 of "Edit Tape Title" on page 26 before continuing.

SELECT PROGRAMME

Press highlight bar (pointer) to

the programme you want to delete, then press .

DELETE PROGRAMME DATA

Press highlight bar (pointer) to

"YES", then press OK or #.

to move the

ﬁ

to move the

ﬁ

]

0114 18.03.99 - 1/ 3

20:00 27.02.99 BBC2

22:00 26.02.99 BBC1 21:00 28.02.99 I-1 22:15 28.02.99 PR.07

8:15 15.01.00 PR.99

20:00=21:30 1:30 (STD) TITLE /CATEGORY

[

]

∞

: EDIT

] : DELETE

= [

[MENU]

EXIT

20:00 27.02.99 BBC2

DELETE

YES

[

] =

∞

[MENU]

EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

When you delete data, only the tape and/or programme information is deleted. The actual recording on the tape is not erased.

●

If the recorder’s memory becomes full, the recorder registers the tape in the library under the smallest tape number that is still available.

VIDEO NAVIGATION (cont.)

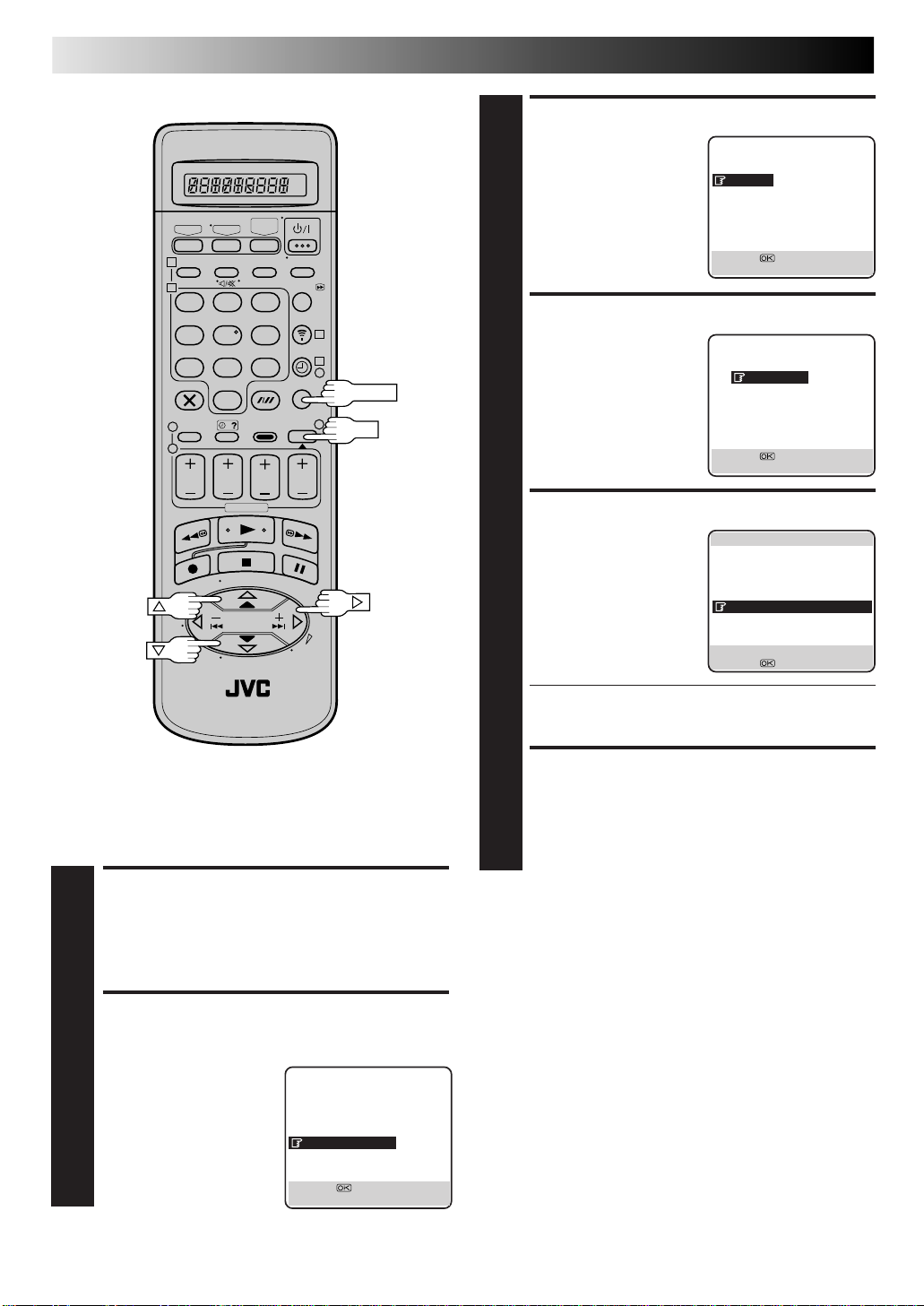

ACCESS SORTING SCREEN

Press highlight bar (pointer) to

"SORTING", then press OK or #.

to move the

ﬁ

VIDEO NAVIGATION

EDITING

SORTING

CHECKING MEMORY NAVIGATION : ON

123 456 789

– –:– –

[5∞] = [MENU] : EXIT

ACCESS TAPE NO. SCREEN

Press highlight bar (pointer) to "BY TAPE NO.", then press OK or #.

to move the

ﬁ

BY TAPE NO.

BY DATE BY CATEGORY

[5∞] = [MENU] : EXIT

SORTING

SELECT TAPE NO.

Press highlight bar (pointer) to

the tape number you want to select, then press OK.

● The editing screen will appear. You can edit the tape

to move the

ﬁ

title, or the programme title and category (Z pg. 26,

27).

]

0999 BBC2 1900 28.12.99 0999 F1 BRAZIL 28.12.99 0999 007 GOLDE 25.12.99 0999 BBC1 2100 30.11.99 0998 ZDF 2100 28.11.99

0998 PR99 1000 01.01.00

0997 ARSENAL V 25.11.99 0996 BBC2 2300 24.11.99 0996 RA11 915 26.12.99

[

2 3

]

PAGE [MEMU] : EXIT

[

] = : EDIT

∞

1/100

RETURN TO NORMAL

Sorting By Tape Number

If you have recorded a lot of tapes with this recorder, this function is useful for finding out what is recorded on each tape.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS VIDEO NAVIGATION SCREEN

Press highlight bar (pointer) to

"VIDEO NAVIGATION", then press OK or #.

to move the

ﬁ

MAIN MENU

MODE SET AUTO CH SET MANUAL CH SET INITIAL SET

VIDEO NAVIGATION

] =

[

∞

[MENU] : EXIT

SCREEN

Press MENU.

NOTE:

If you wish to play back the programme on the tape you have found, insert the cassette and see the "Navigation" (Z pg. 24) for the operation.

Sorting By Date

If you have recorded a lot of tapes with this recorder, this function is useful for searching for tape numbers sorted by date.

Perform steps 1 to 3 of "Sorting By Tape Number" on page 30 before continuing.

ACCESS DATE SCREEN

Press highlight bar (pointer) to

"BY DATE", then press OK or #.

to move the

ﬁ

BY TAPE NO.

BY DATE

BY CATEGORY

[5∞] = [MENU] : EXIT

SORTING

SELECT TAPE NO.

Press highlight bar (pointer) to

the tape number you want to select, then press OK.

● The editing screen will appear. You can edit the tape

to move the

ﬁ

title, or the programme title and category (Z pg. 26,

27).

]

0997 JAPAN VS 14.02.00 0993 LOST WORL 02.01.00

0998 PR99 1000 01.01.00

0999 FOOTBALL 28.12.99 0999 F1 BRAZIL 28.12.99 0996 RA11 2000 26.12.99 0999 007 GOLDE 25.12.99 0993 CNN 115 25.12.99 0999 BBC1 2000 30.11.99

[

2 3

]

PAGE [MEMU] : EXIT

] =

[

: EDIT

∞

1/100

RETURN TO NORMAL SCREEN

Press MENU.

Sorting By Category

If you have recorded a lot of tapes with this recorder, this function is useful for finding out what category of programme is recorded on the tape.

Perform steps 1 to 3 of "Sorting By Tape Number" on page 30 before continuing.

ACCESS CATEGORY SCREEN

Press highlight bar (pointer) to

"BY CATEGORY", then press OK or #.

to move the

ﬁ

BY TAPE NO. BY DATE

BY CATEGORY

[5∞] = [MENU] : EXIT

SORTING

SELECT CATEGORY

Press highlight bar (pointer) to

the category you want to watch, then press OK or #.

to move the

ﬁ

MOVIE

SPORTS SPECIAL SERIES SHOW MUSIC CHILDREN NEWS OTHERS

– – – – – – – – [5∞] = [MENU] : EXIT

SELECT TAPE NO.

Press highlight bar (pointer) to

the tape number you want to select, then press OK.

to move the

ﬁ

]

MOVIE 1/ 2 0999 007 GOLDE25.12.99 0980 GUNDAM3 23.12.98 0979 GUNDAM2 21.12.98 0975 GUNDAM1 30.10.99 0960 ZDF 2100 28.11.97

0960 PR99 1000 01.01.00

0951 GODILLA 25.11.97 0926 CNN 115 06.06.98 0910 RA11 930 05.02.99

[

2 3

]

PAGE [MEMU] : EXIT

] =

[

: EDIT

∞

● The editing screen will appear. You can edit the tape title, or the programme title and category (Z pg. 26,

27).

RETURN TO NORMAL SCREEN

Press MENU.

ADVANCED OPERATIONS

S-VHS (Super VHS) And VHS

Recording According To Tape Type

Turn on the TV and select the AV mode.

D-VHS

Your recorder can also record in either S-VHS or VHS.

To record in S-VHS on a D-VHS cassette:

Perform the steps 1 – 4 to set "S-VHS" to "AUTO". Then, insert a cassette marked "D-VHS" and press D-VHS to turn off the D-VHS mode. The STD (or LS3) indicator will go off and the S-VHS indicator on the front display panel will light. The S-VHS recording mode will be selected.

To record in VHS on a D-VHS cassette:

Insert a cassette marked "D-VHS" and press D-VHS to turn off the D-VHS mode. The STD (or LS3) indicator will go off and the S-VHS indicator on the front display panel will light. Then, perform the steps 1 – 4 to set the "S-VHS" to "OFF"; the S-VHS indicator will go off. The VHS recording mode will be selected.

To record in S-VHS on an S-VHS cassette:

Perform the steps 1 – 4 to set "S-VHS" to "AUTO". Then, insert a cassette marked "S-VHS". The S-VHS indicator on the front display panel will light. The S-VHS recording mode will be selected.

To record in VHS on an S-VHS cassette:

Insert a cassette marked "S-VHS". The S-VHS indicator on the front display panel will light. Then, perform the steps 1 – 4 to set the "S-VHS" to "OFF"; the S-VHS indicator will go off. The VHS recording mode will be selected.

To record in VHS on a VHS cassette:

Insert a cassette marked "VHS". The VHS recording mode will be automatically selected regardless of the S-VHS mode setting.

ACCESS MAIN MENU SCREEN

Press MENU.

AUDIO

123 456 789

– –:– –

ACCESS MODE SET SCREEN

Move the highlight bar (pointer) to "MODE SET"

by pressing %ﬁ, then press

OK or #.

SELECT S-VHS MODE

Move the highlight (pointer) to "S-VHS" by pressing

%ﬁ, then press OK or # to select "AUTO" or "OFF".

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MAIN MENU

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET VIDEO NAVIGATION

[

] =

∞

[MENU] : EXIT

PREVIOUS PAGE POWER SAVE OFF

S-VHS AUTO

AV1 SELECT VIDEO AV2 SELECT AV2 DV SOUND SOUND 1 AUDIO REC NICAM

[5∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTE:

When playing back a tape that has been recorded in S-VHS, the S-VHS indicator lights on the display panel regardless of the "S-VHS" mode setting.

Playback/ Recording

ADVANCED OPERATIONS (cont.)

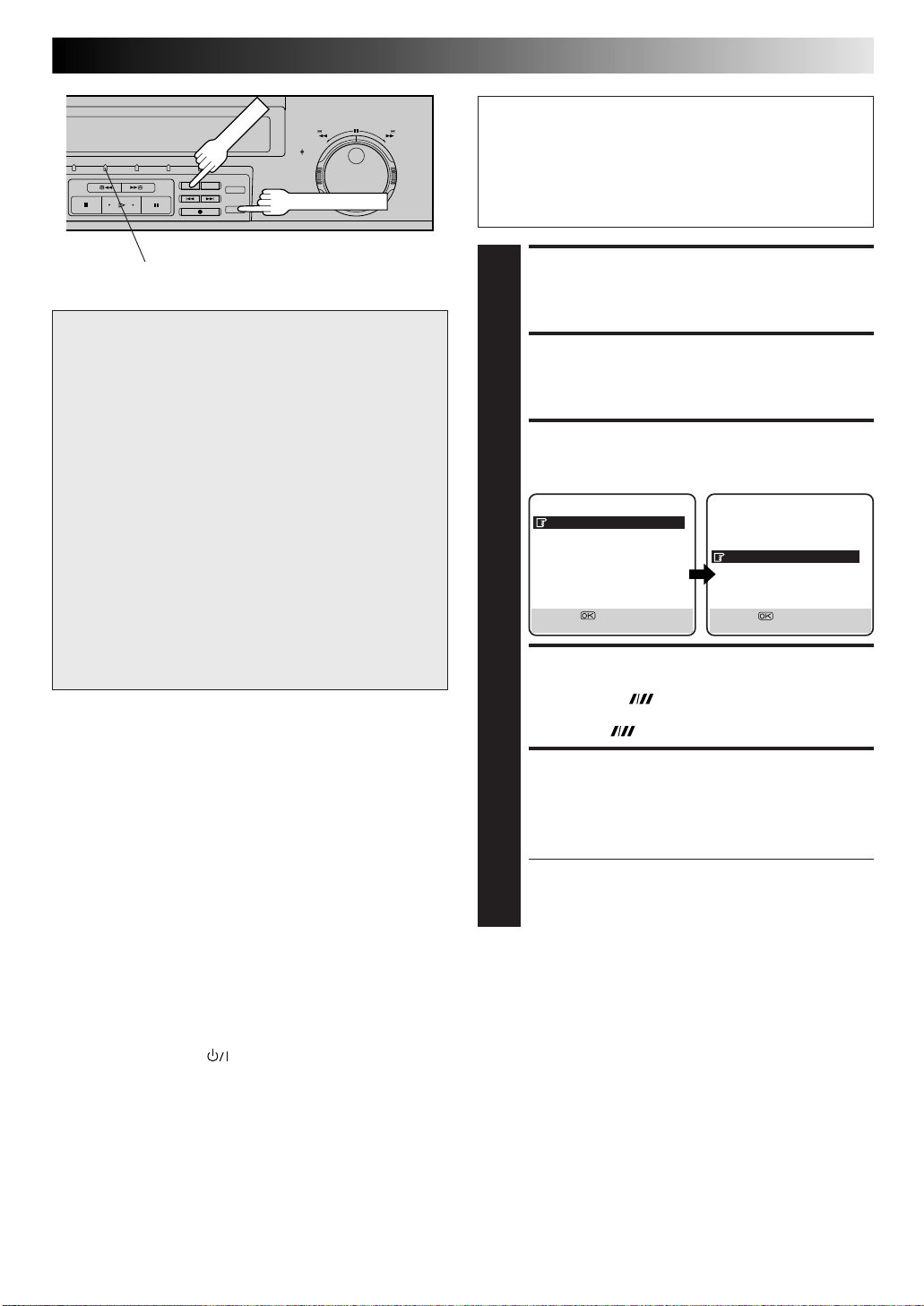

B.E.S.T. Picture System

The B.E.S.T. (Biconditional Equalised Signal Tracking) system checks the condition of the tape in use during recording and playback, and compensates to provide the highest-possible recording and playback pictures. The default setting for both recording and playback is “ON”.

According To Tape Characteristics (S-VHS/

VHS Mode Only)

Turn on the TV and select the AV mode.

123 456 789

– –:– –

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to

"MODE SET", then press OK or #.

SELECT B.E.S.T. MODE

Press %ﬁ to move the highlight bar (pointer) to

"B.E.S.T.", then press OK or # to set to "ON" or "OFF".

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET VIDEO NAVIGATION

] =

[

∞

[MENU] : EXIT

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MAIN MENU

MODE SET

PLAY

RECORD

The , PLAY, RECORD, and PAUSE buttons on the recorder have the same function as those on the remote control.

PAUSE

RETURN TO NORMAL SCREEN

Press MENU.

Recording

START RECORDING

Press and hold RECORD and press PLAY on the remote, or press RECORD on the recorder.

NOTES:

●

DURING B.E.S.T.

B.E.S.T. COMPLETE

● The recorder spends approximately 7 seconds assessing the condition of the tape, then begins recording.

The B.E.S.T. system works for both SP and LP modes only after a tape has been inserted and the Record mode is first initiated. It does not work during recording. The B.E.S.T. system does not work while Auto Satellite Prog recording is in progress (Z pg. 40). In the case of timer recording, the B.E.S.T. system works before recording is initiated. Once the cassette is ejected, the B.E.S.T. data is cancelled. The next time the cassette is used for recording, B.E.S.T. is reperformed. Pressing the recorder's RECORD button while "BEST" is displayed does not start Instant Timer Recording (Z pg. 16).

Playback

The recorder assesses the quality of the tape once you initiate playback.

START PLAYBACK

Press PLAY.

● The recorder adjusts the playback picture quality based on the quality of the tape in use.

● B.E.S.T. is active during Auto Tracking. “BEST” appears blinking on the recorder’s display panel.

NOTES:

●

When watching a tape recorded with “B.E.S.T.” set to “ON”, it is recommended that you leave B.E.S.T. on during playback as well.

●

When watching a rental tape or one recorded on another video recorder, or when using this recorder as the player for editing, set B.E.S.T. to your preference by performing steps 1 through 5 on page 34.

●

"BEST" only appears at the beginning of automatic tracking. Even though it doesn't appear after that, the B.E.S.T. function is operative.

ATTENTION

Since the B.E.S.T. system works before recording actually starts, there is a delay of approximately 7 seconds after RECORD and PLAY on the remote are pressed, or RECORD on the recorder is pressed. To make sure you record the desired scene or programme in its entirety, first perform the following steps:

1) Press and hold PAUSE and press RECORD to engage the

RECORD PAUSE mode.

●

The recorder then automatically checks the condition of the tape and, after approximately 7 seconds, reenters RECORD PAUSE.

2) Press PLAY when you are ready to start recording.

●

If you want to bypass the B.E.S.T. system and begin recording immediately, set “B.E.S.T.” to “OFF” in step 4 on page 34.

ADVANCED OPERATIONS (cont.)

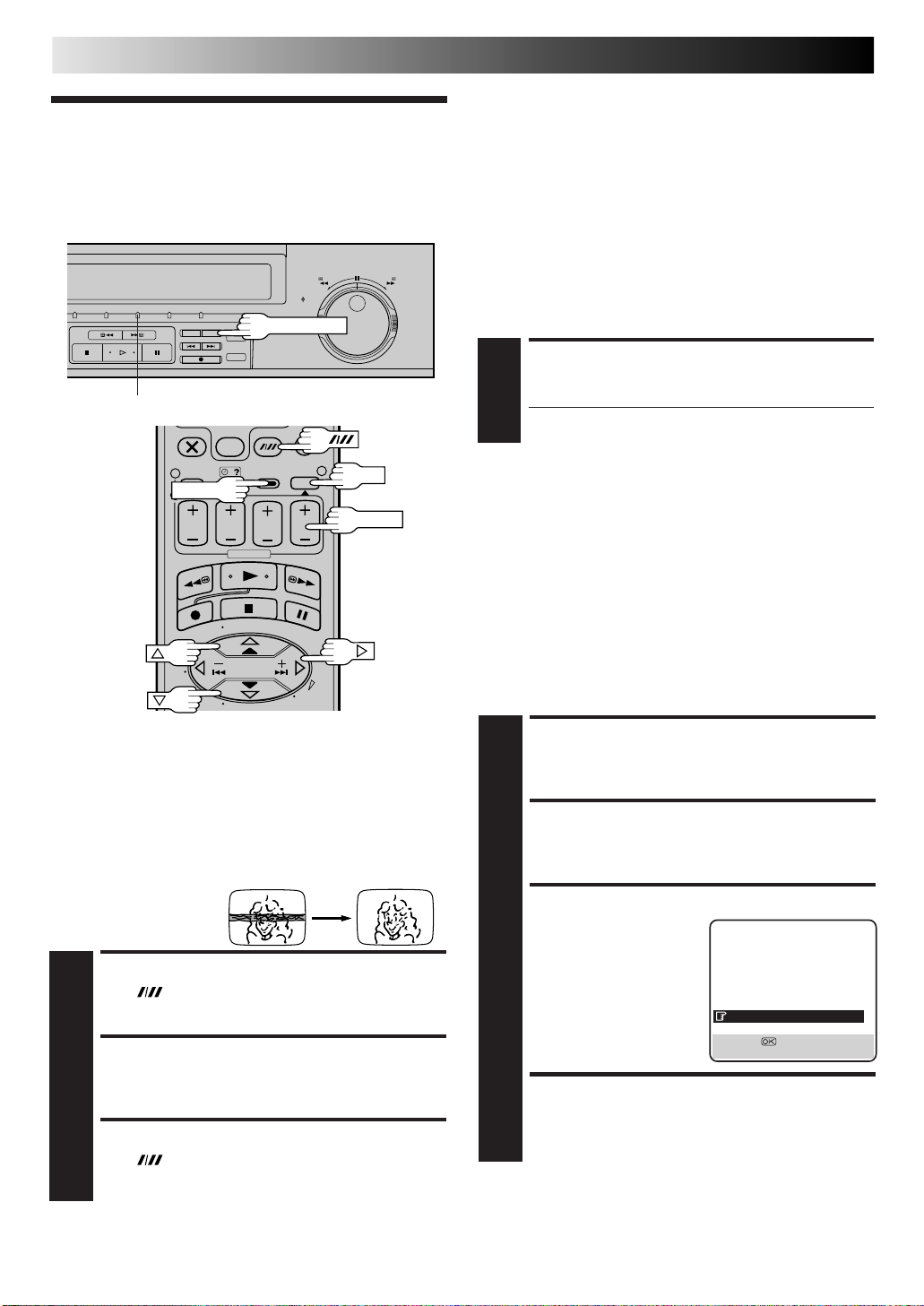

Digital TBC/NR

Playback Picture Adjustment

DIGITAL TBC/NR

DIGITAL TBC/NR indicator

TV PROG

(S-VHS/VHS Mode Only)

Your video recorder is equipped with the Digital TBC (Time Base Corrector) that removes jitter from fluctuating video signals to deliver a stable picture even with old tapes and rental cassettes. The on/off of Digital 3-DNR (Noise Reduction) which cuts noise and enables clear picture reproduction is also linked to this function. * The default setting is "ON".

We recommend that you use the Digital TBC feature when... ... playing back a tape recorded on a camcorder. ... playing back a tape repeatedly used. ... using this video recorder as the player for editing.

NOTES:

●

If you play back a tape recorded under poor TV reception condition, there may be cases where the picture becomes more stable with Digital TBC/NR set to off.

●

When Digital TBC/NR is set to on, if you play back a tape where certain types of signals are recorded (using a PC or some character generators), the playback picture may be distorted. If this is the case, turn off Digital TBC/NR.

Digital 3R (S-VHS/VHS Mode Only)

Digital 3R picture system applies edge correction to the luminance and chrominance signals to enhance detail.

ACTIVATE DIGITAL TBC/NR

Press DIGITAL TBC/NR so that the DIGITAL TBC/NR indicator lights up.

● To turn off DIGITAL TBC/NR, press DIGITAL TBC/NR again so that the indicator goes off.

Manual Tracking

Your video recorder is equipped with automatic tracking control. For most tapes this will automatically adjust the tracking to suit the particular tape you are playing. In some circumstances it may be necessary to make manual tracking adjustments. This is usually only associated with old or worn tapes or recordings made on old or worn recorders. If the automatic tracking control fails to operate correctly you will see noise bars across the picture as shown on the left below. To correct this you can override the automatic control and adjust the tracking manually by pressing the TV PROG buttons.

OVERRIDE AUTOMATIC TRACKING

Press on the remote to engage manual tracking.

ADJUST TRACKING MANUALLY

Press TV PROG + or – to adjust tracking.

RETURN TO AUTOMATIC TRACKING

Press on the remote to re-engage automatic tracking.

NOTE:

When a new tape is inserted, the recorder returns to the automatic tracking mode automatically.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Move the highlight bar (arrow) to "MODE SET" by pressing %ﬁ, then press OK or #.

SELECT DIGITAL 3R SET MODE

Move the highlight bar (arrow) to "DIGITAL 3R" by pressing %ﬁ, then press

OK or # to set to "ON".

MODE SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF

DIGITAL 3R ON

[5∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

Normally it is recommendable to keep "DIGITAL 3R" set to "ON".

●

Depending on the type of tape being used, picture quality may sometimes be better with "DIGITAL 3R" set to "OFF".

Looking For The Scene You Want

123 456 789

– –:– –

30 SEC

Index Search

Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.

NOTE:

Before starting, make sure the recorder is in the Stop mode.

ACTIVATE INDEX SEARCH

Press @ or # (™ or £). “™ 1” or “£ 1” is displayed on screen and search begins in the corre-

sponding direction.

● To access index codes 2 through 9, press @ or repeatedly until the correct index number is displayed. Ex.: To locate the beginning of B from the current

position, press @ twice. To locate the beginning of D from the current position, press # once.

Current position

AB C D E F

–2 –1 1 2 3



● When the specified index code is located, playback begins automatically.

£ 2

Index number

PLAY

Skip Search

SKIP OVER UNWANTED SECTIONS

Press 30 SEC 1 to 4 times during playback. Each press initiates a 30-second period of fast-motion playback.

Normal playback resumes automatically.

NOTE:

To return to normal playback during a Skip Search, press PLAY.

Selecting The Sound You Want

– –:– –

AUDIO

123 456 789

ADVANCED OPERATIONS (cont.)

Receiving NICAM Stereo And Bilingual Programmes

Your recorder is equipped with a Digital stereo sound decoder (NICAM), making reception of stereo and bilingual broadcasts possible.

When the recorder is tuned to a different station, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being Received

Regular Monaural (none) NICAM Stereo ST NICAM NICAM Bilingual BIL NICAM NICAM Monaural NICAM

● To listen to a stereo programme, press AUDIO until " " and

" " appear on the front display panel or "L R" appears on the screen.

● To listen to a bilingual programme, press AUDIO until either

" " or " " appears on the front display panel or "L " or " R" appears on the screen (as required).

● S-VHS/VHS mode

To listen to the Standard (regular monaural) audio while receiving a NICAM broadcast, press AUDIO until "NORM" appears on the front display panel or on the screen.

NOTES:

●

The NICAM audio programme will be recorded on the Hi-Fi audio track, and the Standard audio programme on the normal audio track.

●

If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.

●

Before playing back a programme recorded in stereo, or a bilingual programme, refer to "Soundtrack Selection" (See page

39).

●

"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 53).

On-screen Display

To Record NICAM Stereo And Bilingual Programmes (Only For The Users In Eastern Europe)

● S-VHS/VHS mode

The NICAM audio programme will be recorded on the Hi-Fi audio track, and the Standard audio programme on the normal audio track.

● D-VHS mode (See "Audio Rec Mode Setting" on page 39.)

NOTES:

●

If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.

●

Before playing back a programme recorded in stereo, or a bilingual programme, refer to "Soundtrack Selection" (Z pg. 39).

Soundtrack Selection (S-VHS/VHS Mode)

Your video recorder is capable of recording three soundtracks (Hi-Fi L, Hi-Fi R and NORM) in the S-VHS/VHS mode and will play back the one you select.

During Playback

Pressing AUDIO on the remote control changes the soundtrack being played back as follows:

TRACK

Recorder's Front Panel On-Screen Display

+ L R For Hi-Fi stereo tapes

L For main audio of Bilingual tapes

R For sub audio of Bilingual tapes

NORM NORM For audio-dubbed tapes

+ NORM

NORM

USE

For audio-dubbed tapes

NOTES:

●

" + " should normally be selected. In this mode, Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio.

●

For instructions on recording NICAM stereo and bilingual programmes, see page 38.

●

Bilingual programmes are not currently broadcast in the U.K.

●

"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 53).

Soundtrack Selection (D-VHS Mode)

Your video recorder is capable of recording two soundtracks (L and R) in the D-VHS mode and will play back the one you select.

During Playback

Pressing AUDIO on the remote control changes the soundtrack being played back as follows:

TRACK

Recorder's Front Panel On-Screen Display

+ L R For stereo tapes

L For main audio of Bilingual tapes

R For sub audio of Bilingual tapes

USE

Audio Rec Mode Setting (D-VHS Mode Only)

1 Press MENU to access the Main Menu screen. 2 Move the highlight bar (pointer) to "MODE SET" by pressing

ﬁ, then press OK or #.

3 Move the highlight bar (pointer) to "AUDIO REC" by pressing

ﬁ, then press OK or # to select "NICAM" or "MONO".

4 Press MENU to return to the normal screen.

● When "AUDIO REC" is set to "NICAM", the NICAM audio programme will be recorded on the audio track.

● When "AUDIO REC" is set to "MONO", the Standard (monaural) audio program will be recorded on the audio track.

[5∞] = [MENU] : EXIT

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO AV1 SELECT VIDEO AV2 SELECT AV2 DV SOUND SOUND1

AUDIO REC NICAM

[5∞] = [MENU] : EXIT

ADVANCED OPERATIONS (cont.)

Automatic Satellite Programme Recording

This facility allows you to record automatically a satellite programme which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the recorder's AV2 IN/DECODER connector and programme the timer on the satellite receiver; the recorder starts recording when the signals input from the satellite receiver to the AV2 IN/DECODER connector, and when there is no input signals the recorder stops recording and the power shuts off.

Outdoor Unit

Aerial

Satellite Cable

Satellite Receiver Unit

DECODER VCR TV

TV Aerial cable

ANT. IN

RF OUT

S-VIDEO IN

connector

Aerial

connector

AUDIO IN connectors

Back of TV

21-pin AV input connector (SCART)

Mains outlet

S-VIDEO OUT

SYNCHRO EDIT

JLIP

S OUT

AV1 OUT

S IN

COMP. Y/C

(S-1)

AV1 IN/OUT

AV2 IN/DECODER

DV IN

R.PAUSE

(L-1)

AUDIO

(S-1)

OUT IN

(L-2)

ANT. IN

ANT. OUT

Back of Recorder

AV1 OUT switch

IMPORTANT

When you set "AV2 SELECT" to "SAT" (Z pg. 50), it is possible to view a satellite broadcast with the TV set to its AV mode even if the recorder is in Timer mode, in Stop mode, recording or turned off. When the recorder is in Stop mode or recording, press TV/VCR on the remote control to turn off the VCR indicator on the display panel.

●

In this case, be sure to set the AV1 OUT switch on the rear panel to COMP.

NOTES:

●

Set the satellite receiver's output mode to Composite.

●

Refer to the instructions supplied with your satellite receiver.

STD/LS3 (SP/LP)

REC LINK

Before performing the following steps:

● Make sure the satellite receiver is connected to the recorder's AV2 IN/DECODER connector. (Z pg. 40)

● Programme the timer on the satellite receiver.

● Insert a cassette with the safety tab in place.

● Set the appropriate recording mode (D-VHS, S-VHS or

VHS) (Z pg. 14, 15).

REC LINK indicator

ACCESS MAIN MENU SCREEN

Press MENU.

ATTENTION

● Be sure not to turn on the satellite receiver before the programme is executed; otherwise, the recorder will start recording when the satellite receiver's power is turned on.

● If you have connected another appliance other than a satellite receiver to the AV2 IN/DECODER connector, be sure not to engage the Auto Satellite Prog Rec mode; otherwise, the recorder will start recording when the connected appliance's power is turned on.

● Auto Satellite Prog recording and timer-recording cannot be done at the same time.

● When you press and hold the recorder's REC LINK button to engage the Auto Satellite Prog Rec mode, if the REC LINK indicator does not light but instead blinks quickly even though your satellite receiver's power is off, Auto Satellite Prog Recording will not work properly with that satellite receiver*. If this is the case, perform "Express Timer Programming" (Z pg. 20) to timer-record a satellite programme.

* Some satellite receivers output signals even if the power is off.

Auto Satellite Prog Recording is not possible with those satellite receivers.

NOTES:

●

Auto Satellite Prog recording is possible with the AV2 IN/DECODER connector only.

●

When the Auto Satellite Prog Rec mode is engaged or the recorder's power is turned off after Auto Satellite Prog recording is finished, the recorder will not enter the Timer mode even though "AUTO TIMER" is set to "ON".

●

For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.

●

Auto Satellite Prog recording is not possible if your satellite receiver does not have a timer.

●

The REC LINK indicator blinks while Auto Satellite Prog recording is in progress.

●

Pressing the recorder's button while Auto Satellite Prog recording is in progress turns off the recorder's power and disengages the Auto Satellite Prog Rec mode.

●

If there is more than one satellite programme you wish to record with Auto Satellite Prog Recording, it is not possible to set a different tape speed for each; the tape speed selected in step 4 will apply to all the programmes for Auto Satellite Prog recording.

●

The B.E.S.T. system (Z pg. 34) does not work while Auto Satellite Prog recording is in progress.

●

Just Clock (Z pg. 66) does not work when the Auto Satellite Prog Rec mode is engaged.

●

Depending on the type of satellite receiver, the recorder may not record a short portion at the beginning of the programme or may record slightly longer than the actual length of the programme.

●

If you engage the Auto Satellite Prog Rec mode when the satellite receiver's power is on, the recorder will not start Auto Satellite Prog recording even though the REC LINK indicator blinks. When the satellite receiver shuts off once and is turned back on again, the recorder starts recording.

●

You can also record a programme from your cable system in the same way if the system has a timer and is connected to the recorder's AV2 IN/DECODER connector.

ACCESS MODE SET SCREEN

Move the highlight bar (pointer) to "MODE SET" by pressing %ﬁ, then press OK or .

SELECT AV2 SELECT MODE

Move the highlight bar (pointer) to "AV2 SELECT", by pressing %ﬁ, then press OK or to set to "SAT".

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

SET TAPE SPEED

D-VHS mode: Press STD/LS3 ( ) to set the tape speed.

S-VHS or VHS mode: Press SP/LP ( ) to set the tape speed.

ENGAGE AUTO SATELLITE PROG REC MODE

Press and hold REC LINK for about 2 seconds. The REC LINK indicator lights up and the recorder turns off

automatically.

● To disengage the Auto Satellite Prog Rec mode, press

REC LINK. The REC LINK indicator goes off.

● If the recorder's power is off, it is not possible to engage the Auto Satellite Prog Rec mode.

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO AV1 SELECT VIDEO

AV2 SELECT SAT

DV SOUND SOUND1 AUDIO REC NICAM

[5∞] = [MENU] : EXIT

NUMBER "2"

Remote Control

ADVANCED OPERATIONS (cont.)

Remote A/B Code Switching

The remote control is capable of controlling two JVC video recorders independently; one set to respond to the remote control’s A code control signals and another set to respond to B code control signals. The remote control is preset to send A code signals because your video recorder is initially set to respond to A code signals. You can easily modify your video recorder to respond to B code signals.

Functions

Remote control code switch

VCR

NUMBER "1"

123 456 789

– –:– –

SET REMOTE CONTROL CODE

Slide the remote control code switch on the recorder to "B".

AND

Press and hold VCR on the remote control for over 2 seconds, press the NUMBER key "2" and then press OK.

NOTES:

●

To set the recorder back to respond to A code signals, repeat the same procedure as shown above, except sliding the remote control code switch to "A" and pressing NUMBER key "1" instead of "2" in step 1.

●

If you don't want to control the recorder by the remote control, slide the remote control code switch to "OFF".

NUMBER

TV/VCR

VCR

TV PROG+/–

– –:– –

123 456 789

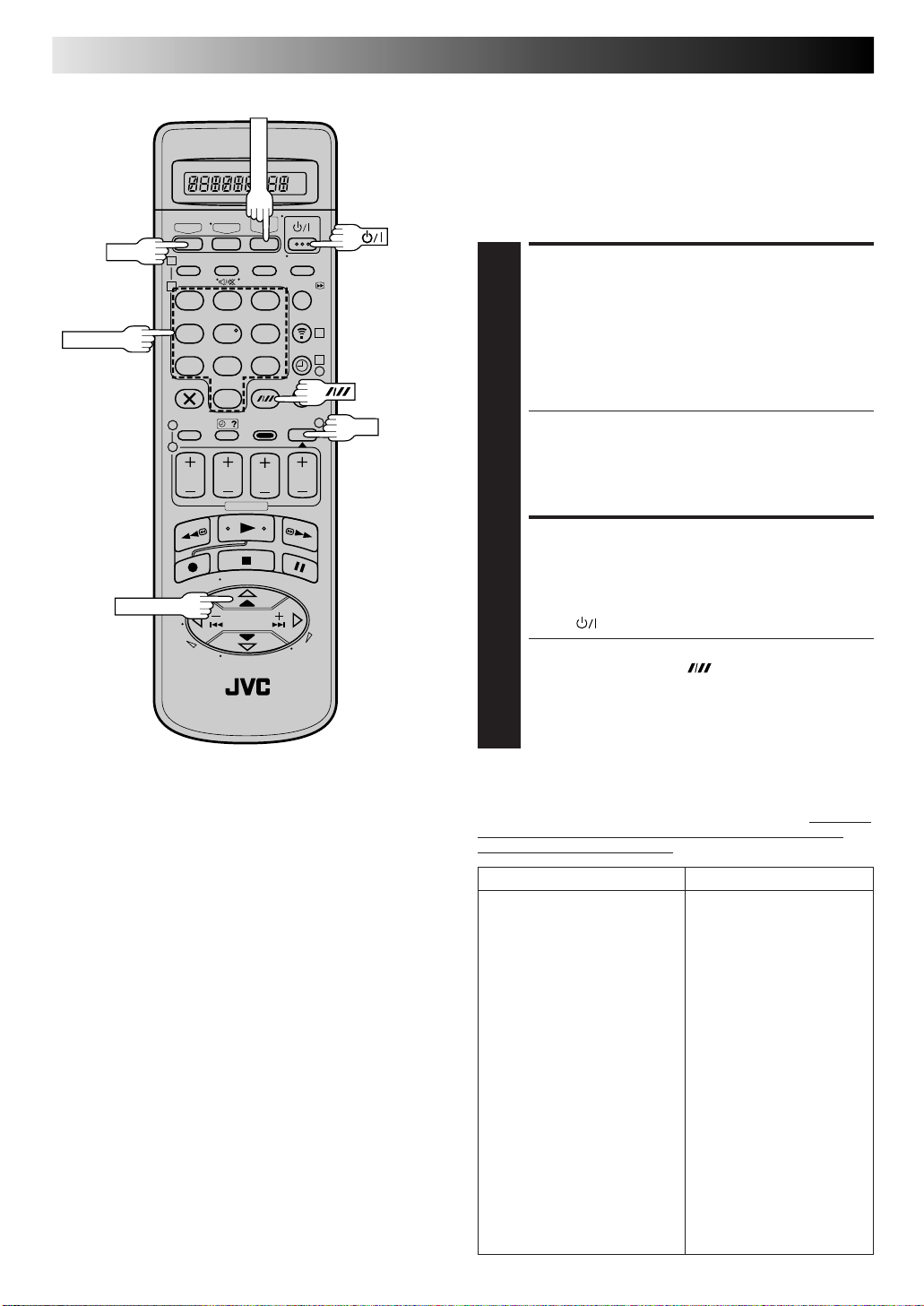

TV Multi-brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

Before you start . . .

● Turn off the TV using its remote control.

SET TV BRAND CODE

Refer to the chart below. Press and hold TV on the recorder's remote control for over 2 seconds, enter your

+/–

TV’s brand code using the NUMBER keys, then press OK.

Check if the TV's power goes on as it should. If it does, try other operations (Z step 2).

● Once you have set the remote control to operate the TV, you don't have to repeat this step until you replace your remote control's batteries.

● JVC and SAMSUNG have more than one code. If the TV does not function with one code, try entering another.

OPERATE TV

First, press TV to set the remote control to TV mode, then press the corresponding button: , TV PROG +/–,

TV/VCR, TV +/– (Volume), (Muting), NUMBER

keys.

● For some brands of TV, you must press OK after having pressed the NUMBER keys.

● To return the remote to video recorder control, press VCR.

Control Your TV Using Additional Buttons

Use the NUMBER keys, and the button, button or ‰ button to select the TV’s channel.

● With televisions under Code 01, 02, 07, 10, 11, 14, 20,

23, 24, 25, 27, 33 or 35, the button corresponds to the 1-digit/2-digit entry switching button (often labelled – /– –) of your TV’s remote control.

● With televisions under Code 01, 28, 29 or 34, the button corresponds to the 10 + button, and the ‰ button corresponds to the 20 + button of your TV’s remote control.

NOTE:

The way these buttons are used is determined by your TV. Use these buttons as instructed for your TV’s remote control.

IMPORTANT

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

TV BRAND NAME CODE

JVC 01, 23, 24, 25 BLAUPUNKT 19 BRANDT 26 FERGUSON 27 FINLUX 30 FUNAI 32 LG/GOLDSTAR 18 GRAETZ 28 GRUNDIG 19 HITACHI 10 ITT 28 LUXOR 28 MITSUBISHI 03 MIVAR 29 NEC 20 NOKIA 31 NORDMENDE 26 PANASONIC 11 PHILIPS 02 SABA 26 SALORA 28 SAMSUNG 02, 12, 33, 34, 35 SELECO 28 SHARP 06 SONY 07 TELEAVIA 26 TELEFUNKEN 26 THOMSON 26 TOSHIBA 14

CABLE/SAT

NUMBER

VCR

TV PROG+/–

123 456 789

– –:– –

ADVANCED OPERATIONS (cont.)

Satellite Receiver MultiBrand Remote Control

Your remote control can operate the basic functions of your satellite receiver set. In addition to JVC satellite receivers, other manufacturer’s satellite receivers can also be controlled.

Before you start . . .

● Turn off the satellite receiver using its remote control.

SET SATELLITE RECEIVER BRAND CODE

Refer to the chart below. Press and hold CABLE/SAT on the recorder's remote control for over 2 seconds, enter your satellite tuner’s brand code using the NUMBER

keys, then press OK. Check if the satellite receiver's power goes on as it should. If it does, try other operations (Z step 2).

● Once you have set the remote control to operate the satellite receiver, you don't have to repeat this step until you replace your remote control's batteries.

● Some satellite receiver brands have more than one code. If the satellite receiver does not function with one code, try entering another.

OPERATE SATELLITE RECEIVER

First, press CABLE/SAT to set the remote control to satellite tuner mode, then press the corresponding button: , TV PROG +/–, NUMBER keys.

● For VIDEOWAY or some other brands of satellite receiver, you must press after having pressed the NUMBER keys.

● The NUMBER buttons may not function with some satellite receivers.

● To return the remote to video recorder control, press VCR.

IMPORTANT

Although the provided remote control unit is compatible with JVC satellite receivers, as well as many other models, it may not work with your satellite receiver, or in some instances, may have limited function capability.

SATELLITE TUNER BRAND CODE

JVC 72, 73 AMSTRAD 60, 61, 62, 63 BT 72 CANAL + 81 FINLUX 68 GRUNDIG 64, 65 HIRSCHMANN 64 ITT 68 JERROLD 75 KATHREIN 70, 71 LUXOR 68 MASPRO 70 NOKIA 68 PACE 65, 67 PANASONIC 74 PHILIPS 66 RFT 69 SALORA 68 SIEMENS 64 SKYMASTER 69 VIDEOWAY 76 WISI 64

Minimizing

Picture Control

This feature helps you to adjust the playback picture quality according to your preference. *The default setting is "AUTO."

Picture Degradation While Editing

(S-VHS/VHS Mode Only)

Turn on the TV and select the AV mode.

123 456 789

– –:– –

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Move the highlighted bar (pointer) to "MODE SET" by pressing %ﬁ, then press OK or #.

SELECT PICTURE CONTROL SET MODE

Move the highlighted bar (pointer) to "PICTURE

CONTROL" by pressing %ﬁ, then press OK or # to select the desired mode. AUTO: Provides

optimised picture benefits of B.E.S.T. Picture System. Normally select AUTO.

EDIT: Minimizes picture degradation during editing

(recording and playback).

SOFT: Reduces image coarseness when viewing

overplayed tapes containing a lot of noise.

SHARP: Clearer, sharper-edged picture when viewing

images with lots of flat, same-coloured surfaces such as cartoons.

B. E. S. T. ON

PICTURE CONTROL AUTO

AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MODE SET

Advantages Of S-VHS Video Recorders

You can edit from VHS to S-VHS, S-VHS to VHS, or, from S-VHS to S-VHS.

● From VHS to S-VHS: Record VHS playback signals in the S-VHS mode. Although the picture quality is inherently limited by that of the original, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to VHS: Because the picture quality of the source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to S-VHS: All signals will be transferred with minimum degradation.

NOTES:

When you select EDIT, SOFT or SHARP, the selected

mode will not change until you select again.

When you select EDIT to dub tapes, be sure to select

AUTO after you finish dubbing the tapes.

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

When B.E.S.T. is OFF, "PICTURE CONTROL" switches automatically from AUTO to NORM.

●

Select EDIT when you are dubbing tapes. Refer to page 48.

Edit From

ADVANCED OPERATIONS (cont.)

You can use a camcorder as the source player and your video recorder as the recorder. You can perform digital editing if the camcorder has a DV output connector.

A Camcorder

123 456 789

NUMBER "0"

– –:– –

TV PROG

MAKE CONNECTIONS

If the camcorder has no S-VIDEO output connector...

A C

... connect the camcorder’s AUDIO/VIDEO OUT connectors to the recorder’s front panel AUDIO/ VIDEO input connectors.

If the camcorder has an S-VIDEO output connector...

... connect the camcorder’s S-VIDEO OUT and AUDIO OUT connectors to the recorder’s front panel S-VIDEO and AUDIO input connectors.

If the camcorder has a DV OUT connector...

... connect the camcorder’s DV OUT connector to the recorder’s DV IN connector. See "DV Sound Setting" (Z pg. 47) for the DV sound selection.

● When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your recorder.

● When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder’s instruction manual for operating procedure.

SET RECORDING MODE

Set the appropriate recording mode (D-VHS, S-VHS or VHS) (Z pg. 14, 15, 32, 33).

SET RECORDER’S INPUT MODE

Press NUMBER key "0" and/or TV PROG to select "F-1" for the AUDIO/VIDEO input connectors, "S-2" for the

AUDIO/S-VIDEO input connectors, or "I-1" for the DV input connectors, depending on the connectors being used.

NOTES:

●

All necessary cables can be obtained from your dealer.

●

You can also use another video recorder as the player instead of a camcorder.

●

When you select EDIT to dub tapes in step 4, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes.

●

When you are editing through the DV IN connector, the recorder will stop if the player begins playing a blank portion of tape or the signal is interrupted.

SET EDIT MODE (S-VHS/ VHS MODE ONLY)

See "Picture Control" on page 45.

START CAMCORDER

Engage its Play mode.

START RECORDER

Engage its Record mode.

A If the camcorder has no S-VIDEO output connector...

AUDIO input

Recorder

To rear panel

VIDEO

R.PAUSE connector

input

Audio Cable (not provided)

Video Cable (not provided)

Player

VIDEO OUT

Mini-Plug Cable (not provided) (JVC camcorder only)

Camcorder

AUDIO OUT

EDIT

B If the camcorder has an S-VIDEO output connector...

AUDIO input

Recorder

To rear panel

S-VIDEO

R.PAUSE connector

input

Audio Cable (not provided)

Player

S-Video Cable (provided)

S-VIDEO OUT

Mini-Plug Cable (not provided) (JVC camcorder only)

Camcorder

AUDIO OUT

EDIT

C If the camcorder has a DV OUT connector...

Recorder

DV IN

R.PAUSE connector

DV Cable

Player

(provided)

DV OUT

Mini-Plug Cable (not provided) (JVC camcorder only)

DV Camcorder

EDIT

DV Sound Setting

Up to four audio signal channels can be input from a DV camcorder through the DV IN connector (i.Link). This recorder allows you to select and record two of these channels. This setting is used to specify which two channels to record.

1 Press MENU to access the Main Menu screen. 2 Move the highlight bar (pointer) to "MODE SET" by

pressing %ﬁ, then press OK or #.

3 Move the highlight bar (pointer) to "DV SOUND" by

pressing %ﬁ, then press OK or # to select "SOUND1", "SOUND2" or "FULL".

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

When there are four DV audio channels (32kHz):

SOUND1: Records the two channels (L/R) of DV

SOUND 1.

SOUND2: Records the two channels (L/R) of DV

SOUND 2.

FULL: Mixes and records both DV SOUND 1 and

When there are two DV audio channels (48kHz):

Because there are only two channels, those two channels are recorded regardless of the DV sound setting.

4 Press MENU to return to the normal screen.

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO AV1 SELECT VIDEO AV2 SELECT AV2

DV SOUND SOUND1

AUDIO REC NICAM

[5∞] = [MENU] : EXIT

ADVANCED OPERATIONS (cont.)

You can use your video recorder as the source player or as the recording deck.

Edit To Or From Another Video Recorder

123 456 789

NUMBER "0"

– –:– –

TV PROG

MAKE CONNECTIONS

Connect the player’s 21-pin SCART connector to the recorder’s 21-pin SCART connector as illustrated on

page 49. A

When Using Your Video Recorder As The Source Player ...

... connect its AV1 IN/OUT connector to the recording deck.

BWhen Using Your Video Recorder As The Recording

Deck ...

... connect its AV2 IN/DECODER or AV1 IN/OUT connector to the source player.

CIf Another Recorder Is Compatible With The Y/C

Signal ...

... connect your recorder's AV1 IN/OUT connector to another recorder.

With C connection ...

● When using your recorder as the recording deck, set "AV1 SELECT" to "S-VIDEO" and "AV2 SELECT" to "AV2" (Z pg. 50).

● When using your recorder as the source player, set the AV1 OUT switch on the rear panel to Y/C (Z pg. 6).

SET RECORDING MODE

Set the appropriate recording mode (D-VHS, S-VHS or VHS) (Z pg. 14, 15, 32, 33).

SET RECORDING DECK’S INPUT MODE

Set to AUX. With this video recorder, press NUMBER key "0" and/or TV PROG to select “L-1” for the AV1 IN/

OUT connector, or “L-2” for the AV2 IN/DECODER connector, depending on the connector being used.

● When using the AV2 IN/DECODER connector, set "AV2 SELECT" to the appropriate mode. (Z pg. 50)

SET EDIT MODE (S-VHS/ VHS MODE ONLY)

See "Picture Control" on page 45.

START SOURCE PLAYER

Engage its Play mode.

START RECORDING DECK

Engage its Record mode.

A B

TV Receiver (AV mode)

Player

Your recorder

Recorder

Your recorder

TV Receiver (AV mode)

21-pin SCART Cable (not provided)

TV Receiver (AV mode)

21-pin SCART Cable (not provided)

21-pin SCART Cable (provided)

Recorder Player

Recorder

S-Video Cable (provided)

Another recorder

Your recorder

21-pin SCART Cable (provided)

21-pin SCART Cable

(provided)

Another recorderAnother recorder

21-pin SCART Cable (not provided)

Player

NOTES:

●

All necessary cables can be obtained from your dealer.

●

For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.

●

When you select EDIT to dub tapes in step 4, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes.

●

When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting (Z pg. 47).

●

If you are using another recorder with S-Video and Audio input/output connectors, you can connect those connectors to this recorder's S-VIDEO IN/S OUT and AUDIO IN/OUT connectors.

When Using Your Video Recorder As The Source Player ... ... connect its rear panel S OUT and AUDIO OUT connectors to the recording deck's S-Video and Audio input connectors. When Using Your Video Recorder As The Recording Deck ... ... connect its rear panel S-VIDEO and AUDIO input connectors to the source player's S-Video and Audio output connectors. Then, set the recorder's input mode to "S-1".

ADVANCED OPERATIONS (cont.)

AV1 SELECT Setting

Set "AV1 SELECT" to the appropriate mode depending on the type of unit connected to the rear panel AV1 IN/OUT connector of this recorder.

1 Press MENU to access the Main Menu screen. 2 Press %ﬁ to move the highlight bar (pointer) to "MODE SET", then press OK or 3 Press %ﬁ to move the highlight bar (pointer) to "AV1 SELECT". 4 Press OK or

a–VIDEO : If a connected device's output is compatible only with regular video signals,

b–S-VIDEO : If a connected device's output is compatible with Y/C signals, set "AV1

5 Press MENU to return to normal screen.

● If "AV2 SELECT" is set to "DECODER", it is impossible to set "AV1 SELECT" to "S-VIDEO".

to select "VIDEO" or "S-VIDEO".

set "AV1 SELECT" to "VIDEO".

SELECT" to "S-VIDEO". This setting will let you take advantage of higherquality S-VHS pictures.

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO

AV1 SELECT VIDEO

AV2 SELECT AV2 DV SOUND SOUND1 AUDIO REC NICAM

[5∞] = [MENU] : EXIT

AV2 SELECT Setting

Set "AV2 SELECT" to the appropriate mode depending on the type of unit connected to the rear panel AV2 IN/DECODER connector of this recorder.

1 Press MENU to access the Main Menu screen. 2 Press %ﬁ to move the highlight bar (pointer) to "MODE SET", then press OK or 3 Press %ﬁ to move the highlight bar (pointer) to "AV2 SELECT". 4 Press OK or

a–AV2 : To use this recorder as the recording deck with the player connected to the

b–DECODER : To use a decoder connected to the AV2 IN/DECODER connector. c–SAT : To view a satellite programme with the TV set while the recorder is in Timer

to select "AV2", "DECODER" or "SAT".

AV2 IN/DECODER connector, or to use the satellite tuner connected to the AV2 IN/DECODER connector.

mode, in Stop mode, recording or turned off. (Z pg. 40)

5 Press MENU to return to normal screen.

● If you have a satellite receiver or a decoder connected to the AV2 IN/DECODER connector, be sure to set "AV2 SELECT" back to appropriate mode after editing.

● If you're not connecting a satellite receiver or a decoder to the AV2 IN/DECODER connector, leave "AV2 SELECT" set to "AV2".

● The default setting is "AV2"; if the recorder's memory backup has expired due to a power cut or because the AC was removed from the recorder, "AV2" will be automatically selected when the power is restored to the recorder. If you are using a satellite receiver or a decoder, be sure to set "AV2 SELECT" back to appropriate mode.

● If the AV1 OUT switch on the rear panel is set to Y/C, it is impossible to set "AV2 SELECT" to "DECODER".

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO AV1 SELECT VIDEO

AV2 SELECT AV2

DV SOUND SOUND1 AUDIO REC NICAM

[5∞] = [MENU] : EXIT

Synchro Editing

SYNCHRO EDIT

PAUSE

RECORD

The Synchro Editing function synchronizes the start of the playback and recording operations when starting an edit operation using a camcorder equipped with a LANC connector and your video recorder.

(S-VHS/VHS Mode Only)

123

TV PROG

NUMBER "0"

456 789

MAKE CONNECTIONS

Connect your recorder to camcorder (Z pg. 46), and connect your recorder's SYNCHRO EDIT connector to

the camcorder's LANC connector.

SET RECORDING MODE

Set the appropriate recording mode (S-VHS or VHS) (Z pg. 15, 32, 33).

SET RECORDER'S INPUT MODE

Set the appropriate input mode, depending on the connectors being used in step 1.

SET EDIT MODE

See "Picture Control" on page 45.

LOCATE START POINT

Start playback of the tape in the camcorder, and pause playback when you find the point where you want to

start editing. Press and hold PAUSE and press RECORD on your recorder so that the recorder enters the RecordPause Mode.

START SYNCHRO EDITING

Press SYNCHRO EDIT.

Player

Camcorder

Recorder

SYNCHRO EDIT connector

To LANC connector

LANC Cable (not provided)

PAUSE SYNCHRO EDITING

Press SYNCHRO EDIT again.

● Repeat steps 5 – 7 as necessary.

NOTES:

●

The Synchro Editing function is impossible with the connection using DV connector.

●

The Synchro Editing function may not work with the initial part of a camcorder tape.

●

The Synchro Editing function cannot be used when using the JLIP function. (Pressing SYNCHRO EDIT cancels the JLIP function.)

●

The Synchro Editing function may not work properly with some type of camcorder.

●

The Synchro Editing function enables the recorder to control a camcorder which has a LANC connector. It is not possible to control the recorder by a camcorder, even though the camcorder has a LANC conector.

●

When you select EDIT to dub tapes in step 4, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes.

Information On J Terminal

J terminal

ADVANCED OPERATIONS (cont.)

J Terminal (JLIP (Joint Level Interface Protocol) Connector)

The J Terminal is used to connect the recorder to a personal computer or similar device to allow computerized control of the recorder during editing and certain other operations.

Example:

With the optional JLIP VIDEO CAPTURE BOX GV-CB3E:

● Allows you to capture still images from the recorder into a personal computer.

For further details consult your nearest JVC dealer.

JLIP ID Number

Your recorder has its own JLIP ID number. This ID number must be unique when your recorder is connected to another device via its J terminal. The ID Number is preset to "1" at the factory. You can change this number to any number between "1" and "99". If it is necessary to change the JLIP ID number perform the following steps.

ACCESS MAIN MENU SCREEN

Press MENU.

NUMBER

123 456 789

– –:– –

ACCESS INITIAL SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to "INITIAL SET", then press OK or #.

ACCESS JLIP ID NO. SET SCREEN

Press %ﬁ and move the highlight bar (pointer) to

"JLIP ID NO. SET", then press OK or #.

[ [MENU] : EXIT

INTIAL SET

CLOCK SET GUIDE PROG SET

JLIP ID NO. SET

] =

∞

SET JLIP ID NUMBER

Press NUMBER keys to enter the desired ID

number.

JLIP ID NO. SET

CLOCK SET

[0-9] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press OK.

Other

On-Screen Display

You can choose whether or not to have various operational indicators appear on screen, by setting this function ON or OFF.

Functions

Turn on the TV and select the AV mode.

123 456 789

– –:– –

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Move the highlight bar (pointer) to "MODE SET" by pressing %ﬁ, then press OK or #.

ENABLE/DISABLE ON-SCREEN DISPLAY

The default setting is

“ON”, so if you want on-

screen displays, leave the setting as it is and go to step 4. If you don’t want the displays to appear, press %ﬁ to move the highlight bar (pointer) to "O.S.D." and press OK or # to set “O.S.D.” to “OFF”.

RETURN TO NORMAL

Press MENU.

MODE SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF

O. S. D. ON

DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

NOTES:

●

When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting.

●

During playback, the operation mode indicators may sometimes be disturbed depending on the type of tape being used.

The superimposed indication on the TV screen tells you what the recorder is doing.

1– Operation mode indicators 2– Tape speed SP/LP/EP (EP is for NTSC playback only) 3– Tape direction 4– Counter display 5– Tape remaining time indicator (Z pg. 17) 6– Audio mode display (Z pg. 39) 7– Tape position indicator (Z pg. 12) 8– Type of Broadcast (Z pg. 38) 9– Current day/month/year 10– Clock display 11– Channel position number and station name/Aux. indicator

(DV, L-1, L-2, F-1, S-1 or S-2)

12– Cassette loaded mark

11 10

PR. 12 ABCD 21 : 00

8 7

24. 12. 99

NORM REMAIN 1 : 00

]

–1 : 23 : 45

3 4

123 456 789

– –:– –

ADVANCED OPERATIONS (cont.)

Power Save Mode

You can reduce the power consumption while the recorder is turned off.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to

"MODE SET", then press OK or #.

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET VIDEO NAVIGATION

] =

[

∞

[MENU] : EXIT

SELECT POWER SAVE MODE

Press %ﬁ to move the highlight bar (pointer) to "POWER SAVE", then press OK or # to set to "ON".

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

POWER SAVE ON

S-VHS AUTO AV1 SELECT VIDEO AV2 SELECT AV2 DV SOUND SOUND1 AUDIO REC NICAM

[5∞] = [MENU] : EXIT

MAIN MENU

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

During Power Save, the display panel will be turned off.

●

The Just Clock function (Z pg. 66) does not work while the Power Save mode is engaged.

●

While the recorder is in the Power Save mode, the picture may be distorted momentarily when you turn on/off the recorder.

●

Power Save does not work when ... ... the recorder is in the Timer mode. ... the recorder's power is turned off after timer-recording (or

Instant Timer Recording).

... the Auto Satellite Prog Recording mode is engaged

(Z pg. 40).

... "AV2 SELECT" is set to "DECODER" or "SAT" (Z pg. 50).

Auto SP→LP Timer

(S-VHS/VHS Mode Only)

If, when timer-recording in SP mode, there is not enough tape to record the entire programme, the recorder automatically switches to LP mode to allow complete recording.

For Example . . .

Recording a programme of 210 minutes in length onto a 180minute tape

Approximately 150 minutes Approximately 60 minutes

SP mode LP mode

Total 210 minutes

Make sure you set "AUTO SP→LP TIMER" to "ON" at the Mode Set screen before the timer-recording starts.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to "MODE SET", then press OK or #.

SELECT MODE

Press %ﬁ to move the highlight bar (pointer) to

"AUTO SP→LP TIMER", then press OK or # to select "ON".

MODE SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON

AUTO SP=LP TIMER ON

DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

Auto Timer

When the Auto Timer is set to ON the timer is automatically engaged when the recorder power is turned off and automatically disengaged when the recorder is powered back on.

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to

"MODE SET", then press OK or #.

MAIN MENU

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET VIDEO NAVIGATION

] =

[

∞

[MENU] : EXIT

SELECT MODE

Press %ﬁ to move the highlight bar (pointer) to

"AUTO TIMER", then press OK or # to select either "ON" or "OFF".

MODE SET

B. E. S. T. ON PICTURE CONTROL AUTO

AUTO TIMER ON

O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

The Auto SP→LP Timer feature is not available during ITR (Instant Timer Recording), and the feature will not work properly with any tapes longer than E-180 or with some tapes of shorter lengths.

●

If you have programmed the recorder to timer-record 2 or more programmes, the second programme and those thereafter may not fit on the tape if you set "AUTO SP→LP TIMER" to "ON". In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.

●

In order to ensure that the recording fits on the tape, this feature may leave a short non-recorded section at the end of the tape.

●

There may be some picture noise and sound disturbance at the point on the tape where the recorder switches from SP to LP mode.

●

If you perform timer recording with both PDC and the Auto SP→LP Timer activated, and the programme goes beyond its originally scheduled length, there may be times when the programme cannot be recorded in its entirety.

NOTE:

For safety, when Auto timer is set to "OFF", all other recorder functions are disabled while the Timer mode is engaged. To disengage the timer, press ‰ (or ‰TIMER).

Next Function Memory

The Next Function Memory "tells" the recorder what to do after rewinding. Before continuing, make sure the recorder is in the Stop mode. a– For Automatic Start Of Playback After Tape Rewind . . . . . . press REW, then press PLAY within 2 seconds. b– For Automatic Power Off After Tape Rewind . . . . . . press REW, then press within 2 seconds. c– For Automatic Timer Standby After Tape Rewind . . . . . . press REW, then press ‰ (or ‰TIMER) within 2 seconds.

PLAY

ADVANCED OPERATIONS (cont.)

Repeat Playback

Your video recorder can automatically play back the whole tape 50 times repeatedly.

REW

123 456 789

STOP

– –:– –

START PLAYBACK

Press PLAY.

PAUSE

ACTIVATE REPEAT PLAYBACK

Press PLAY and hold for over 5 seconds, then release.

● The Play indicator ( ) on the display panel blinks

slowly.

● The tape plays 50 times automatically, and then stops.

STOP PLAYBACK

Press STOP at any time to stop playback.

NOTES:

●

Pressing PLAY, REW, FF or PAUSE also stops Repeat Playback.

●

For a cassette recorded in D-VHS mode, Repeat Playback is

possible only if the cassette was recorded in STD mode.

NTSC Playback

Your video recorder is equipped with NTSC circuitry that can play back NTSC tapes.

LOAD A CASSETTE

Insert a cassette recorded in NTSC.

START PLAYBACK

Press PLAY.

● "NTSC→PAL" appears on the screen for about 5

seconds.

● Some TVs shrink the picture vertically and place black bars at the top and bottom of the screen. This is not a malfunction on the part of either the video recorder or the TV.

● The picture may roll up and down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)

● The counter and tape remaining time readings will be incorrect.

● During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.

● Depending on the type of TV, the top and bottom portions of superimposed displays may be cut off during NTSC playback.

SYSTEM CONNECTIONS

Connection To A Stereo System

FM Tuner

CD Player

These instructions enable you to connect your video recorder to your Hi-Fi stereo system (if you have one) and listen to the soundtrack through the stereo.

Speaker

Mains outlet

Stereo Amplifier

Television

Back of Recorder

AUX IN or TAPE MONITOR

Speaker

AV1 OUT

S IN

S OUT

COMP. Y/C

(S-1)

AV1 IN/OUT

AV2 IN/DECODER

DV IN

(L-1)

AUDIO

(L-2)

Audio Cable (not provided)

SYNCHRO EDIT

JLIP

R.PAUSE

(S-1)

OUT IN

AUDIO OUT

ANT. IN

ANT. OUT

MAKE CONNECTIONS

Connect the AUDIO OUT L and R connectors on your video recorder to the AUX IN or TAPE MONITOR

terminals on your stereo system's receiver or amplifier.

NOTES:

●

When connecting your recorder's audio output connectors to a stereo amplifier, make sure you connect L and R correctly.

●

If you can receive NICAM TV broadcasts in your area, this recorder can record them independently of the TV set and play them back through the connected stereo system.

●

When listening to sound through the connected stereo system, turn the TV's volume down completely.

CAUTIONS:

● This recorder has a dynamic range of more than 80 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the video playback picture.

Tuner Set

Turn on the TV and select the AV mode.

SUBSIDIARY SETTINGS

IMPORTANT

Perform the following steps only if — — Auto Channel Set has not been set correctly by Auto Set

Up function (Z pg. 8) or Preset Download (Z␣ pg. 9).

— you have moved to a different area or if a new station

starts broadcasting in your area.

Your recorder needs to memorise all necessary stations in preset positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area to call them up by using the TV PROG buttons without going through any vacant channel.

Auto Channel Set

123 456 789

– –:– –

TV PROG

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

PERFORM AUTO CHANNEL SET

Move the highlight bar (pointer) to "AUTO CH

SET" by pressing %ﬁ, then press OK or #.

● The Auto Set screen appears, and remains on screen while the recorder searches for receivable stations. As Auto Channel Set progresses, the " " mark on the screen moves from left to right. Wait until the screen as shown in step 4 appears.

● Auto Channel Set usually takes about 4 – 12 minutes; the duration varies by area.

[ [MENU] : EXIT

[MENU] : EXIT

Beginning

MODE SET

AUTO CH SET

MANUAL CH SET INITIAL SET VIDEO NAVIGATION

] =

∞

AUTO SET

PLEASE WAIT

MAIN MENU

+++

End

123 456 789

– –:– –

VIEW CONFIRMATION SCREEN

After "SCAN COMPLETED" is displayed on the screen

for about 5 seconds, a Confirmation screen looking like the one on the right appears. The stations your recorder located appear on a Confirmation screen — preset positions

(PR), channels (CH) and station names (ID – Z pg. 63). The blueback screen and the programme currently being broadcast by the station which is blinking appear alternately for 8 seconds each. To view the next page, use the remote control.

● The Guide Program numbers will also be set automatically during Auto channel Set.

RETURN TO NORMAL SCREEN

Press MENU.

● Using the Confirmation screen, you can skip or add

preset positions, enter station names and perform other operations. Refer to pages 60 – 64 for the procedures.

● Depending on reception conditions, the stations may, on occasion, not be stored in order, and the station names may not be stored correctly.

PR CH ID PR CH ID

01 26 BBC1 08 ––––

02 33 BBC2 09 –––– 03 23 ITV 10 –––– 04 30 CH4 11 –––– 05 37 CH5 12 –––– 06 –––– 13 –––– 07 –––– 14 ––––

]

[

∞

: EDIT

= [X] : DELETE

[MENU] : EXIT

@ #

button on the

ﬁ

IMPORTANT

● In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work properly. If the Guide Program numbers are not set properly, when you timer-record a TV programme using VIDEO Plus+, the recorder will record a TV programme of a different station. When programming the timer using VIDEO Plus+, be sure to check that the preset position corresponding to the broadcasting station you wish to record has been selected (Z pg. 18, "VIDEO Plus+® Timer Programming").

● Your video recorder memorizes all detected stations even if reception of some of them is poor. In these cases picture quality may be poor. To delete those stations which have an unacceptable picture Z "Delete A Channel" on page 61.

NOTES:

●

Fine tuning is performed automatically during Auto Channel Set. If you wish to perform it manually, refer to page 61.

●

If, for any reason, you perform Auto Channel Set when the aerial cable is not connected properly, "SCAN COMPLETED

-NO SIGNAL-" appears on the screen in step 4. When this happens, make sure of the aerial connection and press OK; Auto Channel Set will take place again.

NUMBER

123 456 789

– –:– –

SUBSIDIARY SETTINGS (cont.)

SELECT BAND

Press band between CH (regular)

and CC (cable), then press #.

INPUT CHANNEL

Press the NUMBER keys to input the channel number

you want to store.

● To input the registered

● For fine tuning

● When "AV2 SELECT" is set to "AV2" or "SAT", the

to change the

ﬁ

PR CH ID FINE DECODER

– –␣ – –

+/– OFF

06 CH01

[

] : SELECT

∞

[

] : CURSOR +=

∞

: OK

[MENU] : EXIT

The blueback screen and the programme currently being broadcast by the selected channel appear alternately for 8 seconds each.

PR CH ID FINE DECODER

06 CH21

station name (ID – Z pg. 63), press # until "– – –␣ –" (ID setting) begins blinking, then press %ﬁ.

adjustment, press until "+/–" begins blinking, then press %ﬁ. While tuning, “+” or “–” appears.

"DECODER" setting cannot be changed (Z pg. 50).

] : SELECT

[

∞

[

] : CURSOR +=

∞

: OK

[MENU] : EXIT

The blueback screen and the programme currently being broadcast by the selected channel appear alternately for 8 seconds each.

Storing Channels Manually

To store channels that were not stored during Auto Set Up (Z pg. 8), Preset Download (Z␣ pg. 9) or Auto Channel Set (Z␣ pg. 58).

ACCESS MAIN MENU

Press MENU.

ACCESS CONFIRMATION SCREEN

Press %ﬁ to move the highlight bar (pointer) to “MANUAL CH SET”, then press OK or #. The Confir-

mation screen appears.

SELECT POSITION

Press open position in which

you want to store a channel begins blinking, then press OK. The Manual Channel Set screen appears.

ﬁ

@ #

until an

(Ex.) To store in position 6.

PR CH ID PR CH ID 01 26 BBC1 08 –––– 02 33 BBC2 09 –––– 03 23 ITV 10 –––– 04 30 CH4 11 –––– 05 37 CH5 12 ––––

06 –––– 13 ––––

07 –––– 14 ––––

]

[

∞

: EDIT

= [X] : DELETE

[MENU] : EXIT

The blueback screen and the programme currently being broadcast by the selected channel appear alternately for 8 seconds each.

ENTER NEW CHANNEL INFORMATION

Press OK and the Confirmation screen appears.

● Repeat steps 3 through 6 as necessary.

CLOSE CONFIRMATION SCREEN

Press MENU.

● To change positions, see "Change Station Preset

Position" (Z pg. 61).

● If you wish to set station names other than the ones registered in your recorder, Z "Set Stations (B)" on pg. 62.

ATTENTION

Guide Program numbers are not set when channels are stored manually. If an attempt is made at timer programming with VIDEO Plus+ in this state, the “GUIDE PROG SET” screen appears; set the Guide Program numbers on this screen. Z “ATTENTION – Regarding Guide Program Number Set” on pg. 19. Or perform “Guide Program Number Set” (Z pg. 65).

Delete A Channel

Perform steps 1 and 2 of "Storing Channels Manually" on page 60 to access the Confirmation screen before continuing.

SELECT ITEM

Press %ﬁ blinking.

@ #

until the item you want to delete begins

DELETE CHANNEL

Press .

● The item directly beneath the cancelled one moves

up one line.

● Repeat steps 1 and 2 as necessary.

CLOSE CONFIRMATION SCREEN

Press MENU.

Change Station Preset Position

Perform steps 1 and 2 of "Storing Channels Manually" on page 60 to access the Confirmation screen before continuing.

Fine-Tuning Channels Already Stored

Perform steps 1 and 2 of "Storing Channels Manually" on page 60 to access the Confirmation screen before continuing.

SELECT CHANNEL TO FINE-TUNE

Press %ﬁ blinking.

@ #

until the channel you want to tune begins

ACCESS MANUAL CHANNEL SET SCREEN

Press OK twice. The Manual Channel Set screen appears.

PERFORM TUNING

Press # until "+/–" begins blinking, then press %ﬁ until the picture is clearest. Then press OK.

● The Confirmation screen appears.

● Repeat steps 1 through 3 as necessary.

CLOSE CONFIRMATION SCREEN

Press MENU.

SELECT ITEM

Press %ﬁ blinking. Then press OK and the station name (ID) and

its channel (CH) number begin blinking.

@ #

until the item you want to move begins

SELECT NEW POSITION

Press %ﬁ position, then press OK.

Example: If you moved the station in position 4 to

PR CH ID PR CH ID 01 26 BBC1 08 –––– 02 23 ITV 09 –––– 03 30 CH4 10 ––––

04 33 BBC2 11 ––––

05 37 CH5 12 –––– 06 –––– 13 –––– 07 –––– 14 ––––

● Repeat steps 1 and 2 as necessary.

@ #

to move the station to the new preset

position 2, the stations originally in positions 2 and 3 each move down one space.

PR CH ID PR CH ID 01 26 BBC1 08 ––––

02 33 BBC2 09 ––––

03 23 ITV 10 –––– 04 30 CH4 11 –––– 05 37 CH5 12 –––– 06 –––– 13 ––––

] : MOVE

[

∞

: MANUAL CH SET

[MENU] : EXIT

07 –––– 14 ––––

[

∞

[MENU] : EXIT

CLOSE CONFIRMATION SCREEN

Press MENU.

] : MOVE =

ATTENTION

If channel positions are changed or deleted, the Guide Program numbers that have been set are reset.

● Example 1: If a channel is deleted, all the Guide Program numbers are reset.

● Example 2: If a channel is changed from position 4 to position 2, the Guide Program numbers above position 4 are reset.

● Example 3: If a channel is changed from position 4 to position 6, the Guide Program numbers above position 6 are reset.

* In Examples 2 and 3, if the channel is moved to position

10 before OK is pressed, the Guide Program numbers above position 10 are reset. If an attempt is made at timer programming with VIDEO Plus+ in this state, the “GUIDE PROG SET” screen appears; set the Guide Program numbers on this screen.

Z “ATTENTION – Regarding Guide Program Number

Set” on pg. 19. Or perform “Guide Program Number Set” (Z pg. 65).

SUBSIDIARY SETTINGS (cont.)

When Receiving A Scrambled Broadcast

SELECT DECODER MODE

Set "AV2 SELECT" to "DECODER" (Z pg. 50).

ACCESS CONFIRMATION SCREEN

Perform steps 1 and 2 of "Storing Channels Manually" on page 60.

SELECT POSITION

Press ing scrambled programmes, then press OK twice.

@ #

to select the channel position broadcast-

ﬁ

CHANGE DECODER SETTING

Press # until "OFF" (decoder setting) begins blinking, and set it to "ON" by pressing

ﬁ

RETURN TO CONFIRMATION SCREEN

Press OK.

● Repeat steps 3 through 5 as necessary.

CLOSE CONFIRMATION SCREEN

Press MENU.

NOTE:

Scrambled programmes are not currently broadcasted in the U.K.

SELECT NEW STATION

Press # until the station name (ID) begins blinking,

then press %ﬁ until the new station’s name (ID) you want to store begins blinking. Registered station names (Z pg. 63) appear as you press %ﬁ.

PR CH ID FINE DECODER

– –␣ – –

06 CH45

] : CHANGE ID

[

∞

[

] : CURSOR +=

∞

: OK

[MENU] : EXIT

+/– OFF

SWITCH STATIONS

Press OK.

● The Confirmation screen appears.

● Repeat steps 1 through 4 as necessary.

CLOSE CONFIRMATION SCREEN

Press MENU.

Set Stations (B)

Set station names other than the ones registered in your recorder.

Perform steps 1 and 2 of "Storing Channels Manually" on page 60 to access the Confirmation screen and then perform steps 1 and 2 of "Set Stations (A)" on the left before continuing.

SELECT STATION NAME CHARACTER

Press # until the first letter of the station name begins

blinking.

PR CH ID FINE DECODER

06 CH45 BBC1 +/– OFF

Set Stations (A)

Set station names that are registered in your recorder.

Perform steps 1 and 2 of "Storing Channels Manually" on page 60 to access the Confirmation screen before continuing.

SELECT ITEM

Press %ﬁ

@ #

until the item you want begins blinking.

ACCESS MANUAL CHANNEL SET SCREEN

Press OK twice.

] : A-Z, 0-9

[

∞

[

] : CURSOR +=

∞

: OK

[MENU] : EXIT

ENTER NEW CHARACTER

Press %ﬁ to cycle through the characters (A–Z, 0–9, –,

, +, (space) ) and stop when the desired character

is indicated, then press characters the same way (maximum of 4). After entering all characters, press OK.

● The Confirmation screen appears.

● If you make a mistake, press @ until the incorrect

character begins blinking. Then enter the correct character by pressing %ﬁ.

to enter. Enter the remaining

CLOSE CONFIRMATION SCREEN

Press MENU.

NOTE:

The characters available for the station name (ID) are A–Z, 0–9, –, *, +, (space) (maximum of 4).

TV Station And ID List

STATION NAME ID*

Anglia TV ANGL ARD ARD ARTE ARTE BBC Group BBC BBC1 BBC1 BBC2 BBC2 Berlin 1 BLN1 Berlin 2 BLN2 Border TV BORD Bayern1 BR1 Bayern3 BR3 BRT1 BRT1 BRT2 BRT2 Children Ch CHLD Canal + CH+ CNN CNN Channel TV CHNL Central TV CNTR Channel 4 CH 4 Channel 5 CH 5 DRS DRS DR TV DRTV DSF DSF Euronews EURN Euronews EURO Eurosports EURS France1 FR1 France2 FR2 France3 FR3 Granada TV GRNA Grampian TV GRMP Hessen1 HR1 Hessen3 HR3 HRT HRT HTV HTV ITV Network ITV Kabelkanal KABL London LNDN MDR MDR MTV MTV Nord3 N3 NDR1 NDR1 NDR3 NDR3 NED1 NED1 NED2 NED2 NED3 NED3 Network 2 NET2 NRK NRK N-TV N-TV Offener Kanal OKAN ORF1 ORF1 ORF2 ORF2 ORF3 ORF3 OWL 3 OWL3 Premiere PRMI PR07 PR07 RAI1 RAI1 RAI2 RAI2 RAI3 RAI3 RB1 RB1 RB3 RB3 Rikisutvarpid-S RKPS RTBF 1 RTB1 RTBF 2 RTB2 RTE 1 RTE1 RTL RTL RTL 2 RTL2 RTP RTP

STATION NAME ID*

SAT SAT SAT 1 SAT1 Scottish TV SCOT SC4 SC4 SDR SDR SDR1 SDR1 SFB1 SFB1 SFB3 SFB3 SKY SKY Sky One SKY1 Sky Net SKYN Sport SPRT SR 1 SR1 Super RTL SRTL STV Test STVT STV 1 STV1 STV 2 STV2 Suedwest3 SWR SWF 1 SWF1 Schweiz4 SWZ4 TYNE TEES TEES Text TEXT TF1 TF1 TNT int TNT TRT int TRT TSI TSI TSR TSR TSW TSW TVE TVE TV Polonia TVPA TVP 1 TVP1 TVP 2 TVP2 TVS TVS TV2 TV2 TV5 TV5 Tele Zurich TZUR Ulster TV ULST Veronica VERN VIVA VIVA VIVA2 VIV2 VOX VOX VTM VTM VT4 VT4 West1 WDR1 West3 WDR3 YLE 1 YLE1 YLE 2 YLE2 Yorkshire TV YORK ZDF ZDF Zurich 1 ZUR1 3SAT 3SAT

* The "ID" abbreviation is what is shown on-screen in lieu of the

station name. The "ID" abbreviation is listed in the Confirmation screen and is displayed on the TV screen each time the recorder is tuned to a different station.

SUBSIDIARY SETTINGS (cont.)

TV Station Channel Number Guide

For customers in the U.K.

Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV.

BBC1 BBC2 ITV CH4 CH5

London & South-East

Bluebell Hill ......................... 40 46 43 65 —

Crystal Palace....................... 26 33 23 30 37

Dover ................................... 50 56 66 53 —

Heathfield ............................ 49 52 64 67 —

Oxford ................................. 57 63 60 53 49

South-West

Beacon Hill .......................... 57 63 60 53 —

Caradon Hill ........................ 22 28 25 32 —

Huntshaw Cross ................... 55 62 59 65 67

Redruth ................................ 51 44 41 47 37

Stockland Hill ...................... 33 26 23 29 —

Channel Islands

Fremont Point....................... 51 44 41 47 —

South

Hannington .......................... 39 45 42 66 35

Midhurst............................... 61 55 58 68 —

Rowridge.............................. 31 24 27 21 —

West

Mendip ................................ 58 64 61 54 37

North-West

Caldbeck .............................. 30 34 28 32 56

Winter Hill ........................... 55 62 59 65 48

North-East

Bilsdale West Moor .............. 33 26 29 23 35

Chatton ................................ 39 45 49 42 —

Pontop Pike .......................... 58 64 61 54 68

Scotland

Angus ................................... 57 63 60 53 —

Black Hill ............................. 40 46 43 50 37

Sandale ................................ 22 ————

Caldbeck .............................. — 34 28 32 56

Creigkelly ............................. 31 27 24 21 48

Darvel .................................. 33 26 23 29 35

Durris ................................... 22 28 25 32 67

Eitshal .................................. 33 26 23 29 —

Keelylang Hill ...................... 40 46 43 50 —

Knock More ......................... 33 26 23 29 —

Rosemarkie .......................... 39 45 49 42 67

Rumster Forest...................... 31 27 24 21 —

Selkirk .................................. 55 62 59 65 52

BBC1 BBC2 ITV CH4 CH5

East

Sandy Heath......................... 31 27 24 21 39

Sudbury................................ 51 44 41 47 35

Tacolneston .......................... 62 55 59 65 52

Midlands

Ridge Hill ............................. 22 28 25 32 35

Sutton Coldfield ................... 46 40 43 50 37

The Wrekin .......................... 26 33 23 29 35

Waltham .............................. 58 64 61 54 35

North

Belmont ............................... 22 28 25 32 56

Emley Moor.......................... 44 51 47 41 37

Wales

Blaenplwyf ........................... 31 27 24 21 56

Carmel ................................. 57 63 60 53 —

Llanddona ............................ 57 63 60 53 —

Moel-y-Parc ......................... 52 45 49 42 —

Presely ................................. 46 40 43 50 37

Wenvoe................................ 44 51 41 47 —

Northern Ireland

Brougher Mountain .............. 22 28 25 32 —

Divis .................................... 31 27 24 21 37

Limavady ............................. 55 62 59 65 —

VIDEO Plus+® Setup

IMPORTANT

Normally, Auto Set Up (Z pg. 8), Preset Download (Z␣ pg. 9) or Auto Channel Set (Z pg. 58) sets the Guide Program Numbers automatically. You need to set the Guide Program Numbers manually only in the following cases.

●

When timer-programming with the VIDEO Plus+ system, the preset position, where the station you wish to record is received on your recorder, is not selected or when you add a channel after Auto Set Up or Auto Channel Set has taken place.

— Set the Guide Program Number for that station manually.

●

When you delete a channel or change preset positions manually after Auto Set Up or Auto Channel Set has taken place.

— Set the Guide Program Numbers for all the receivable stations manually.

●

When you wish to timer-record a satellite programme with the VIDEO Plus+ system.

— Set the Guide Program Numbers for all satellite broadcasts received on your satellite receiver.

Turn on the TV and select the AV mode.

Guide Program Number Set

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

Press "INITIAL SET", then press OK or #.

to move the highlight bar (pointer) to

ﬁ

ACCESS GUIDE PROG SET SCREEN

Press PROG SET", then press OK or #.

to move the highlight bar (pointer) to "GUIDE

ﬁ

ENTER GUIDE PROG NUMBER

Press keys to enter the Guide

Program number for the desired station as shown in the TV listings. Then press OK or #.

or NUMBER

ﬁ

GUIDE PROG TV PROG

] =

[

∞

[MENU] : EXIT

(Ex.) When inputting the

Guide Program number 4 for CH4.

GUIDE PROG SET

ENTER RECEIVING PRESET POSITION NUMBER

Press keys to input the number

of the recorder's preset position on which the Guide Program number's broadcast is received. Then press OK or #.

● If the satellite broadcast

• Repeat steps 4 and 5 as necessary.

or NUMBER

ﬁ

is received on your recorder's auxiliary channel "L-1" or "L-2", select "L-1" or "L-2" for the channel position, depending on the connection to the satellite receiver (Z pg. 40).

GUIDE PROG SET

GUIDE PROG TV PROG

[

] =

∞

[MENU] : EXIT

(Ex.) If CH4 is received on

preset position 4.

RETURN TO NORMAL SCREEN

Press MENU.

Guide Program Number

"Guide Program (GUIDE PROG) number" refers to the assigned TV station numbers, according to broadcast area, for the VIDEO Plus+ timer recording. The Guide Program numbers can be found in most TV listings.

CH4

Clock Set

Turn on the TV and select the AV mode.

SUBSIDIARY SETTINGS (cont.)

IMPORTANT

If you performed Auto Set Up (Z pg. 8), Preset Download (Z␣ pg. 9) or Auto Channel Set (Z pg. 58), without ever having set the clock previously, the recorder's built-in clock is also set automatically. Perform the following steps only if — — Auto Clock Set has not been performed correctly by

Auto Set Up, Preset Download or Auto Channel Set.

— the recorder's memory backup has expired.

— you want to change Just Clock setting (Z "Just Clock" in

the left column).

123 456 789

– –:– –

TURN THE RECORDER ON

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

Move the highlight bar (pointer) to "INITIAL SET" by pressing %ﬁ, then press OK or #.

ACCESS CLOCK SET SCREEN

Move the highlight bar (pointer) to "CLOCK SET" by pressing %ﬁ, then press OK or #. The Clock Set screen

appears.

INITIAL SET

CLOCK SET

GUIDE PROG SET JLIP ID NO. SET

CLOCK SET

TIME DATE YEAR 0: 00 01 . 01 99

JUST CLOCK: ON

TV PR. : 1

Just Clock

The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. The Just Clock option can be set "ON" or "OFF" at the Clock Set screen (the default setting is "ON"). Press OK until the Just Clock setting begins blinking, then press %ﬁ to change the setting.

IMPORTANT: If you turn the Just Clock function off, the accuracy of your recorder’s built-in clock may be impaired, which could adversely affect timer recording.

[

] =

[

∞

[MENU] : EXIT

∞

[MENU] : EXIT

SET DATE AND TIME

Press %ﬁ to set the time, then press OK or #. The "date" display begins blinking. Repeat the same procedure to

set the date and year.

● When you set the time, press and hold %ﬁ to change the time by 30 minutes.

● When you set the date, press and hold %ﬁ to change the date by 15 days.

SET JUST CLOCK

The default setting is “ON”. Set as desired by pressing

%ﬁ, then press OK or #.

● For the Just clock function, Z "Just Clock" on page 66.

● If you set to “OFF”, you can disregard the next step as

you won’t be able to receive regular clock adjustments.

123 456 789

– –:– –

SET CLOCK DATA SOURCE PRESET

The recorder is preset to receive clock setting and

adjustment data from preset position 1. Press %ﬁ to set

the preset position to the number representing the station transmitting clock setting data (BBC1, BBC2, etc.), then press OK or #.

START CLOCK OPERATION

Press MENU.

NOTES:

●

Just Clock (when set to "ON") adjusts the recorder's built-in clock every hour, except for 23:00, 0:00, 1:00 and 2:00.

●

Just Clock is not effective when . . . – the recorder’s power is on. – the recorder is in the Timer mode. – a difference of more than 3 minutes exists between the

built-in clock’s time and the actual time.

– the recorder is in the Auto Satellite Prog Rec mode

(Z␣ pg.␣ 40).

●

If Just Clock is set to "ON", the recorder’s clock is automatically adjusted at the start/end of Summer Time.

●

Just Clock may not function properly in poor reception conditions.

SUBSIDIARY INFORMATION

Questions And Answers

PLAYBACK

Q. What happens if the end of the tape is reached

during playback or search?

A. The tape is automatically rewound to the beginning.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Can the video recorder indefinitely remain in the

still mode?

A. No. It stops automatically after 5 minutes to protect

the heads.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. When returning from multi-speed search to normal

playback, the picture is disturbed. Should I be concerned about this?

A. No, it is normal.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Sometimes, during Index Search, the video recorder

can’t find the programme I want to see. Why not?

A. There may be index codes too close together.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

RECORDING

Q. When I pause and then resume a recording, the end

of the recording before the pause is overlapped by the beginning of the continuation of recording. Why does this happen?

A. This is normal. It reduces distortion at the pause and

resume points.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TIMER RECORDING

Q. " " and "‰" remain lit on the display panel. Is there

a problem?

A. No. This is a normal condition for a timer recording in

progress.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Can I programme the timer while I’m watching a

tape or a TV broadcast?

A. You won’t see the picture as it is replaced by the on-

screen menu, but the audio from the program or tape you’re viewing can be heard.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Is it possible to timer-record a TV programme

broadcast in 2000?

A. Yes, it is possible.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. Can the video recorder indefinitely remain in the

Record-Pause mode?

A. No. The video recorder shuts off automatically after 5

minutes to protect the heads.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Q. What happens if the tape runs out during recording? A. The video recorder automatically rewinds it to the

beginning or, if Timer Recording, the cassette is ejected.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

ATTENTION

This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the recorder off and unplug the mains power cord. Then plug it in again and turn the recorder on. Take out the cassette. After checking the cassette, operate the unit as usual.

Troubleshooting

Before requesting service for a problem, use this chart to see if you can correct the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your video recorder off for repair.

POWER

SYMPTOM

1. No power is applied to the recorder.

2. The clock is functioning properly, but the recorder cannot be powered.

3. The remote control won’t function.

TAPE TRANSPORT

SYMPTOM

1. The tape does not run during recording.

2. The tape will not rewind or fastforward.

PLAYBACK

SYMPTOM

1. The playback picture does not appear while the tape is running.

2. Noise appears during visual search.

3. Noise appears during normal playback.

4. The playback picture is blurred or interrupted while TV broadcasts are clear.

5. Breaks are noticeable in Hi-Fi soundtrack.

POSSIBLE CAUSE

● The mains power cord is disconnected.

● “‰“ is displayed on the display

panel with Auto Timer set to "OFF".

● The batteries are discharged.

POSSIBLE CAUSE

● “ “ is displayed on the display panel.

● The tape is already fully rewound or fast-forwarded.

POSSIBLE CAUSE

● The TV receiver is not set to the AV mode.

● This is normal.

● The automatic tracking mode is

engaged.

● The video heads may be dirty.

● Automatic tracking is engaged.

CORRECTIVE ACTION

Connect the mains power cord. Press the ‰ button to turn the “‰“

indicator off. Replace the dead batteries with new

ones.

CORRECTIVE ACTION

Press PLAY to turn the “ “ indicator off.

Check the cassette.

CORRECTIVE ACTION

Set the TV to its AV mode.

Try manual tracking (Z pg. 36).

Consult your JVC dealer.

Engage and adjust tracking manually (Z pg. 36), or set the soundtrack to "NORM" (Z pg. 39).

RECORDING

SYMPTOM

1. Recording cannot be started.

2. TV broadcasts cannot be recorded.

3. Tape-to-tape editing is not possible.

4. Camcorder recording is not possible.

POSSIBLE CAUSE

● There is no cassette loaded, or the cassette loaded has had its Record Safety tab removed.

● “I-1”, “L-1”, “L-2”, “F-1”, “S-1” or “S-2” has been selected as the input mode.

● The source (another video recorder, camcorder) has not been properly connected.

● All necessary power switches have not been turned on.

● The input mode is not correct.

● The camcorder has not been

properly connected.

● The input mode is not correct.

CORRECTIVE ACTION

Insert a cassette, or using adhesive tape, reseal the slot where the tab was removed.

Set to the desired preset.

Confirm that the source is properly connected.

Confirm that all units’ power switches are turned on. Set the input mode to “I-1”, “L-1”, “L-2”, “F-1”, “S-1” or “S-2”.

Confirm that the camcorder is properly connected.

Set the input mode to “I-1”, “L-1”, “L-2”, “F-1”, “S-1” or “S-2”.

TIMER RECORDING

SUBSIDIARY INFORMATION (cont.)

SYMPTOM

1. Timer recording won’t work.

2. Timer programming is not possible.

3. “‰“ and “]“ on the display panel won’t stop blinking.

4. The cassette is automatically ejected, and “‰“ and “]“ on the display panel won’t stop blinking.

5. “‰“ blinks for 10 seconds and the Timer mode is disengaged.

6. The cassette is automatically ejected, the power shuts off and “‰“ and “]“ won’t stop blinking.

7. The VIDEO Plus+ system does not timer-record properly.

JVC HM-DR10000EK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
