JVC HM700U - Camcorder - 1080p, GY-HM700U, GY-HM700CHU, GY-HM700E, GY-HM700CHE Instruction Manual

HD MEMORY CARD CAMERA RECORDER

INSTRUCTIONS

GY-HM700U GY-HM700CHU GY-HM700E GY-HM700CHE

* The illustration shows the GY-HM700E with the supplied viewfinder, microphone and lens attached. * GY-HM700CHU/GY-HM700CHE does not come with a lens.

For Customer Use:

Enter below the Serial No. which is located on the body. Retain this information for future reference. Model No. GY-HM700U/GY-HM700CHU Serial No.

Please read the following before getting started:

Thank you for purchasing this JVC product. Before operating this unit, please read the instructions carefully to ensure the best possible performance.

In this manual, each model number is described without the last letter (U/E) which means the shipping destination. (U: for USA and Canada, E: for Europe)

Only “U”models (GY-HM700CHU/GY-HM700U) have been evaluated by UL.

LST0904-001A

Introduction

FOR USA These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances.

IMPORTANT SAFEGUARDS

Read all of theseinstructions.

Save theseinstructions for later use.

All warnings on the product and in the operating instructionsshould be adhered to.

Unplug thisappliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners.Use a damp cloth for cleaning.

Do not use attachments not recommended by the appliance manufacturer as they maycausehazards.

Do not use thisappliance nearwater - for example, near abathtub,washbowl, kitchen sink, or laundry tub,ina wet

basement, or near aswimming pool, etc. Do not place thisappliance on an unstable cart, stand, or table. The appliance mayfall,

causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manu mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces maycause the appliance and cart combination to overturn.

Slotsand openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of

the appliance and to protect it from overheating, these openings must not be blocked or covered. The openingsshould never be blocked byplacing the appliance on abed, sofa,rug, or other similar surface. Thisappliance should never beplaced near or over a radiator or heat regi Thisappliance should not beplaced in abuilt-in installation such asabookcase unless proper ventilation is provided.

Thisappliance should be operated only from the type of power source indicated on the marking label. If youare not sure

of the type of power supplied to your home, consult yourdealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods

10.

of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

Do not allow anything to rest on the power cord. Do not locate thisappliance where the cord will be abused by persons

11.

walking on it.

Follow all warningsand instructions marked on the appliance.

12.

Do not overloadwall outletsand extension cordsasthis canresult in fire or electric shock.

13.

Never pushobjects of any kind into thisappliance through cabinet slotsasthey maytouch dangerous voltage points or

14.

short outparts thatcould result in a fire or electric shock. Never spill liquid of any kind on the appliance.

Do not attempt to service thisappliance yourself as opening or removing covers may exposeyou to dangerous voltage

15.

or other hazards. Refer all servicing to qualified service personnel.

Unplug thisappliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

16.

a. When the power cord or plugis damaged or frayed. b. If liquid has been spilled into the appliance.

c. If the appliance has been exposed to rain or water. d.

If the appliance does not operate normally by following the operating instructions. Adjus are covered by the operating instructionsasimproper adjustment of other controls mayresult in damage and will often require extensive work by a qualified techniciantorestore the appliance to normal operation.

e. If the appliance has been dropped or the cabinet has been damaged.

When the appliance exhibitsadistinct change in performance - this indicatesaneed for service.

When replacement partsare required, be sure the service technicianhas used replacement partsspecified by the

17.

manufacturer thathave the same characteristicsasthe originalpart. Unauthorized substitutions mayresult in fire, electric shock, or other hazards.

Upon completion of any service or repairs to thisappliance, ask the service technician to perform routine safety checks

18.

to determine that the appliance is in safe operating condition.

facturer's instructions, and should use a

ster.

PORTABLE CART WARNING (symbol provided by RETAC)

S3125A

t only those controls that

Safety Precautions

POUR CANADA

ATTENTION

RISQUE D’ELECTROCUTION NE

PAS OUVRIR

FOR USA AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTSINSIDE . REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

ATT ENTION:

POUR EVITER TOUT RISQUE D’ELECTROCUTION NE PAS OUVRIR LE BOITER. AUCUNE PIECE INTERIEURE N’EST A REGLER PAR L’UTILISATEUR. SE REFERER A UN AGENT QUALIFIE EN CAS DE PROBLEME.

Le symbole de l’éclair à l’intérieur d’un triangle

équilatéral est destiné à alerter l’utilisateur sur la

présence d’une “tension dangereuse” non isolée dans le boîtier du produit. Cette tension est suffisante pour provoquer l’électrocution de personnes.

Le point d’exclamation à l’intérieur d’un triangle

équilatéral est destiné à alerter l’utilisateur sur la

présence d’opérations d’entretien importantes au sujet desquelles des renseignements se trouvent dans le manuel d’instructions.

Ces symboles ne sont utilisés qu’aux Etats-Unis.

INFORMATION (FOR CANADA) RENSEIGNEMENT (POUR CANADA)

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Class A est conforme à la norme NMB-003 du Canada.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

This unit should be used with 12V DC only. To prevent electric shocks and fire hazards, do NOT use any other power source.

NOTE:

The rating plate (serial number plate) is on the unit.

CAUTION:

CHANGES OR MODIFICAT IONS NOT APPROVED BY JVC COULD VOID USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

NOTE:

The rating plate (serial number plate) is on this unit.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERAT ION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERAT ION.

REMARQUE:

La plaque signalétique (plaq le cadre inférieur de l’unité.

CAUTION:

To prevent electric shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

Due to design modifications, data given in this instruction book are subject to possible change without prior notice.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed close to the apparatus.

AVERTISSEMENT: POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTROCUTION, NE PAS EXPOSER L'APPAREIL A L'HUMIDITE OU A LA PLUIE.

ATTENTION: Ce magnétoscope ne doit être utilisé que sur du courant direct en 12V. Afin d’eviter tout resque d’incendie ou d’electrocution, ne pas utillser d’autres sources d’alimentation électrique

ue du numéro desérie) est située sur

III

Introduction

Safety Precautions (continued)

FOR EUROPE

This equipment is in conformity with the provisions and protection requirements of the corresponding European Directives. This equipment is designed for professional video appliances and can be used in the following environments:

●

Controlled EMC environment (for example, purpose-built broad-casting or recording studio), and rural outdoors environments.

In order to keep the best performance and furthermore for electromagnetic compatibility we recommend to use cables not exceeding the following lengths:

Port Cable Length

[DC INPUT] Exclusive Cable 5 m

[Y/VIDEO], [P

[AUDIO INPUT 1/2] Shielded Cable 3 m

[AUDIO OUTPUT] Shielded Cable 10 m

[PHONES] Exclusive Cable 3 m

[IEEE1394] (HD/DV) Exclusive Cable 3 m

[HD/SD-SDI] Coaxial Cable 10 m

[REMOTE] Exclusive Cable 5 m

[LENS] Unshielded Cable 0.1m

[VF] Special Cable 0.3m

[USB] Shielded Cable 3 m

Caution:

Where there are strong electromagnetic waves or magnetism, for example near a radio or TV transmitter, transformer, motor, etc., the picture and the sound may be disturbed. In such case, please keep the apparatus away from the sources of the disturbance.

B], [PR] Coaxial Cable 10 m

Information for Users on Disposal of Old Equipment [European Union]

Attention:

Thissymbol isonly valid in the European Union.

Thissymbol indicates that the electrical and electronic equipment should not bedisposed as generalhousehold waste atits end-of-life. Instead, the product should behanded over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with yournational legislation. By disposing of this product correctly, you will help to conserve naturalresourcesand will help prevent potentialnegative effects on the environment and humanhealth which could otherwise becaused byinappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your localmunicipal office, yourhousehold waste disposal s where you purchased the product. for incorrect disposalofthis waste, in accordance with national legislation.

ervice or the shop

Penalties may be applicable

(Business users)

If you wishtodisposeofthis product, pleasevisit ourweb page http://www.jvc.eu to obtain information about the takeback of the product.

[Other Countries outside the European Union]

If you wishtodisposeofthis product, pleasedosoin accordance with applicable national legislation or other rules

in yourcountry for the treatment of old electrical and electronic equipment.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is: JVC Technical Services Europe GmbH

Postfach 10 05 04 61145 Friedberg Germany

Sehr geehrter Kunde, sehr geehrte Kundin,

dieses Gerät stimmt mit den gültigen europäischen Richtlinien und Normen bezüglich elektromagnetischer Verträglichkeit und elektrischer Sicherheit überein.

Die europäische Vertretung für die Victor Company of Japan, Limited ist: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Deutschland

Introduction

Contents

Introduction

Precautions for Proper Use . . . . . . . . . . . . . . . . . . . . . . . . .5

Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Names of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Side Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Side Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SD Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Zoom Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Basic System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Displays on the LCD Monitor and Viewfinder . . . . . . . . . . 16

Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Enlarged Status Display on LCD Monitor . . . . . . . . . .17

Auto White Display (Camera Mode Only) . . . . . . . . . .18

Menu Setting Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Alarm Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Zebra Pattern Display . . . . . . . . . . . . . . . . . . . . . . . . . 18

Preparations

Attaching Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Attaching the Zoom Lens . . . . . . . . . . . . . . . . . . . . . . .19

Attaching the Microphone (Supplied) . . . . . . . . . . . . . .19

Attaching the Viewfinder (Supplied) . . . . . . . . . . . . . . .20

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using AC Power (DC IN Power) . . . . . . . . . . . . . . . . . . . . 21

Using a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Turning On/Off the Power . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting the Clock (Initial Setting) . . . . . . . . . . . . . . . . . . . . 25

Adjusting the Monitor Speaker . . . . . . . . . . . . . . . . . . . . . 26

Adjusting Back Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

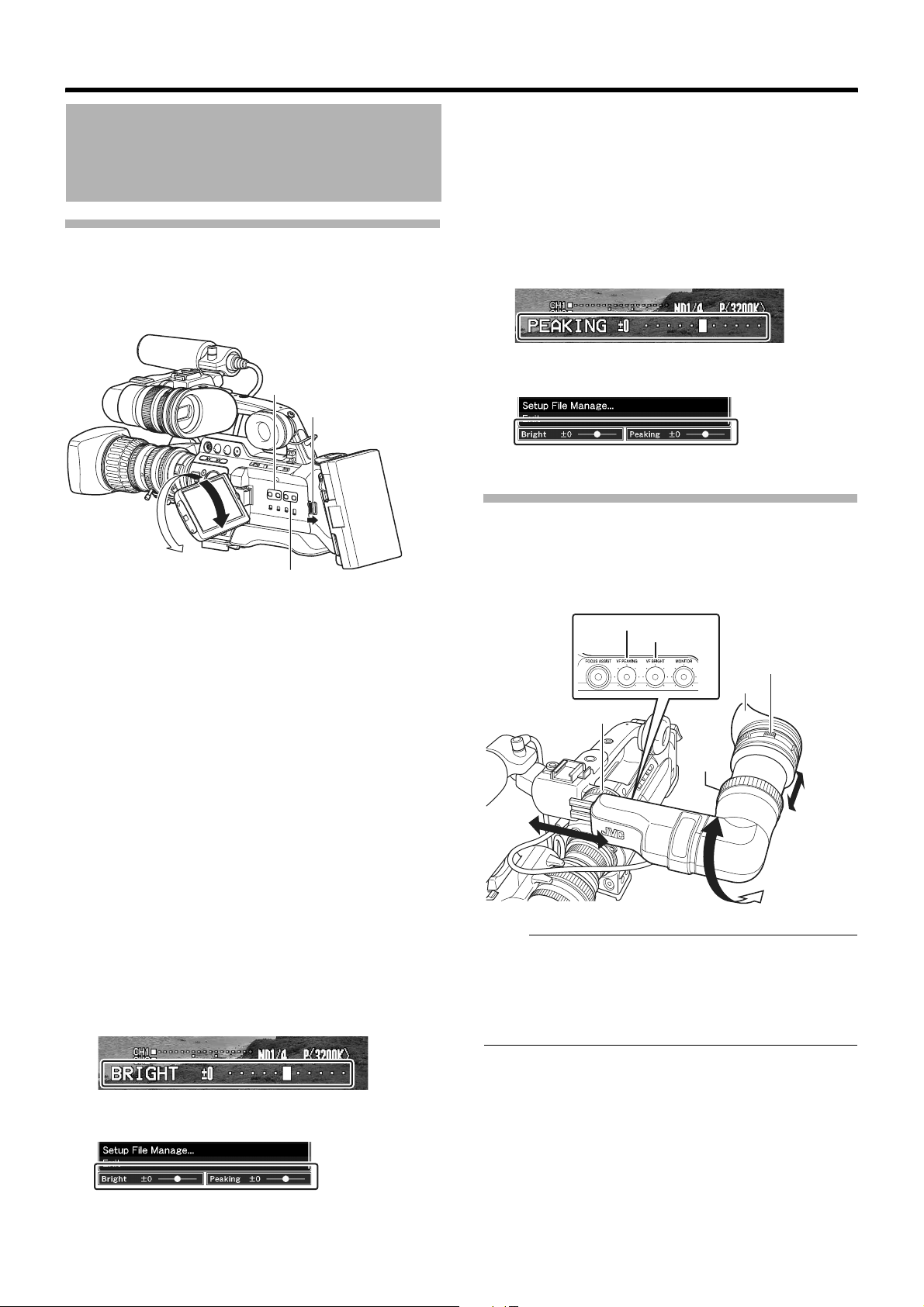

Adjusting the LCD Monitor and Viewfinder . . . . . . . . . . . .28

Tally Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

SDHC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Formatting (Initializing) SDHC Cards . . . . . . . . . . . . . . 32

Restoring the SDHC Card . . . . . . . . . . . . . . . . . . . . . .33

Estimated Recordable Time of SDHC Cards . . . . . . . . 33

Shooting

Basic Shooting Procedures . . . . . . . . . . . . . . . . . . . . . . . .34

Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Focus Assist Function . . . . . . . . . . . . . . . . . . . . . . . . .35

Recording Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Selecting File and Video Formats . . . . . . . . . . . . . . . . . . .36

Adjusting the Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Setting Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Setting the Electronic Shutter . . . . . . . . . . . . . . . . . . . . . .38

Adjusting the White Balance . . . . . . . . . . . . . . . . . . . . . . .40

Adjusting the White Shading . . . . . . . . . . . . . . . . . . . . . . .42

Setting the ND Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

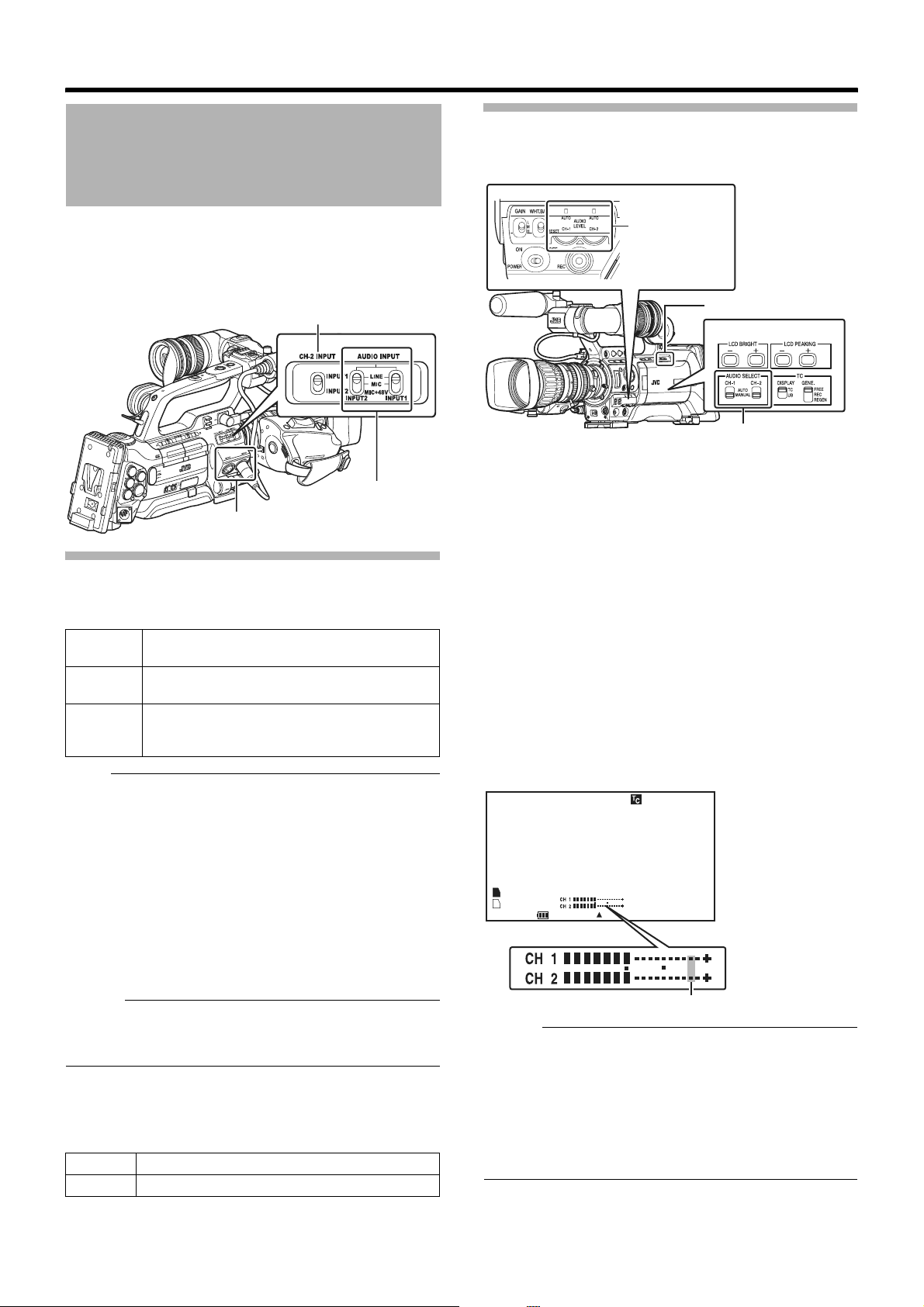

Adjusting Audio Input Settings and Recording Level . . . . .44

Setting Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Adjusting Audio Recording Level . . . . . . . . . . . . . . . . .44

Audio Monitor During Recording . . . . . . . . . . . . . . . . . 45

Setting Time Code and User’s Bit . . . . . . . . . . . . . . . . . . .46

Displaying Time Code and User’s Bit . . . . . . . . . . . . . .46

Time Code Operation Mode . . . . . . . . . . . . . . . . . . . . .46

Presetting the User’s Bit . . . . . . . . . . . . . . . . . . . . . . . .48

Setting Time Code Without Opening the Menu . . . . . .48

Setting User’s Bit Without Opening the Menu . . . . . . .49

Recording Time Code in Continuation of

the Recorded Time Code on SDHC card . . . . . . . . .49

Setting Zebra Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Setting Spot Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Viewing Recorded Videos Immediately (Clip Review) . . . .52

Assigning Functions to User Buttons . . . . . . . . . . . . . . . . .53

Protecting Important Scenes (OK Mark Function) . . . . . . .54

Special Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Pre REC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Clip Continuous REC . . . . . . . . . . . . . . . . . . . . . . . . . .55

Variable Frame REC . . . . . . . . . . . . . . . . . . . . . . . . . .56

Playback

Playing Back Recorded Clips . . . . . . . . . . . . . . . . . . . . . . .57

Thumbnail Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Playing Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Thumbnail Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Deleting Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Appending and Deleting OK Marks . . . . . . . . . . . . . . . . . .64

Menu Display and Detailed Settings

Connecting External Devices

Basic Operations in Menu Screen . . . . . . . . . . . . . . . . . . .66

Display and Description of the Menu Screen . . . . . . . .66

Text Input with Software Keyboard . . . . . . . . . . . . . . . .67

Menu Screen Hierarchical Chart . . . . . . . . . . . . . . . . . . . . 68

Main Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Record Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Record Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Rec Mode Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Clip Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Audio Set Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Camera Function Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Switch Set... Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

FULL AUTO... Item . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Camera Process Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Detail/Adjust... Item . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

White Balance... Item . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Shading Mode/Adjust... Item . . . . . . . . . . . . . . . . . . . . 80

Color Matrix/Adjust... Item . . . . . . . . . . . . . . . . . . . . . . 80

TC/UB Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

LCD/VF Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Shooting Assist... Item . . . . . . . . . . . . . . . . . . . . . . . . . 83

Marker Setting... Item . . . . . . . . . . . . . . . . . . . . . . . . .84

Status Display... Item . . . . . . . . . . . . . . . . . . . . . . . . . . 84

A/V Out Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Others Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Media Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Setup File Manage Menu . . . . . . . . . . . . . . . . . . . . . . . . . 89

Status Screen

Status Screen in Camera Mode . . . . . . . . . . . . . . . . . . . .90

Status Screen in SD Card Mode . . . . . . . . . . . . . . . . . . . .96

Status Screen in 1394 Mode . . . . . . . . . . . . . . . . . . . . . . . 98

Enlarged Status Display on LCD Monitor . . . . . . . . . . . . .99

Connecting an External Monitor . . . . . . . . . . . . . . . . . . .110

IEEE1394 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Backup Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Stream Transmission to a Non-linear Editing System

Managing/Editing Clips on a PC . . . . . . . . . . . . . . . . . . .114

Remote Control Unit Connection . . . . . . . . . . . . . . . . . . .115

List of Remote Control Unit Functions . . . . . . . . . . . .116

. .113

Others

Error Displays and Actions . . . . . . . . . . . . . . . . . . . . . . .118

Tally Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Alarm Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

How to use this manual

䡵 Symbols used

Caution

Note

A : Indicates the reference page numbers and

䡵 Content of this manual

●

All other product names used in this manual are trademarks or registered trademarks of their respective companies. Marks such as in this manual.

●

Illustrated designs, specifications and other contents of this manual are subject to changes for improvement without prior notice.

: Describes precautions concerning the

operation of this product.

: Describes reference information, such as

functions and usage restrictions of this product.

reference items.

™, 姞

and 姝 have been omitted

Camera Features

Marker and Safety Zone Displays (Camera Mode Only)

Smoothening the Skin Color (Skin Detail Function) . . . .102

Color Bar Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Color Matrix Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 104

Reproduction of Dark Areas

(Black Stretch/Compress Function) . . . . . . . . . . . . . . . . 106

Configuring Setup Files . . . . . . . . . . . . . . . . . . . . . . . . . .107

Saving Setup Files . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Loading a Setup File . . . . . . . . . . . . . . . . . . . . . . . . .109

Resetting Setup Files . . . . . . . . . . . . . . . . . . . . . . . . .109

. . .100

Introduction

Main Features

This camera recorder enables recording of HD format images on an SDHC card, and also playback of these images.

Recording in QuickTime File Format

Recording can be made in QuickTime file format of Final Cut Pro, a video editing software from Apple Inc. You can edit the recorded clips directly with Final Cut Pro.

Recording on SDHC Memory Card (Class 6)

The absence of mechanisms with the use of SDHC (class 6) as recording media brings about increased operation reliability. In addition, the improved compatibility with computers enables high-speed data transfer to NLE as well as reduction of operating costs.

35 Mbps High Image Quality Mode

This camera recorder is equipped with a 35 Mbps high quality mode, in addition to the HDV mode bit rate (19/25

Mbps).

New Viewfinder

With a high resolution of 852x480 in 0.425 inches, the new viewfinder is now more robust and enables more accurate focusing.

High Resolution LCD Monitor

Equipped with a 4.3 inch 800x480 large LCD monitor, both shooting precision and viewing performance are improved.

Updated User Interface

The sophisticated user interface allows more intuitive operations. Thumbnail display is also available for you to select a recorded clip for easy playback.

Compact Shoulder Style

By inheriting the compact shoulder style from the GY-HD100 series which is widely accepted in the industry, more stable shooting can be done on this camera recorder while its weight remains similar to that of a handheld camera recorder.

Lens Interchangeability

Existing lens can be used, thus saving on costs. You can also select the most appropriate lens according to your shooting requirements.

Dual Media Slots

Continuous recording is possible by loading two SDHC cards into the dual media slots, thereby allowing a long recording time.

Wide Variety of Recording Formats

This camera recorder supports various HD formats (1080i, 1080p, 720p) and can be used under various environments.

It also supports 1440x1080 and 1920x1080 full resolution in the 1080 format.

Adoption of MPEG-2 Long GOP for Easy Editing

Shortens editing and output time by adopting MPEG-2 codec, which puts less stress on the editing computer.

High Resolution via New [Triplex Offset]

2.5kx1.4k pixels are generated with the new Triplex Offset and a high resolution of more than 900 horizontal lines and 1000 diagonal lines is achieved using the proprietary front

processing.

New [Spot Meter] Function

The brightest and darkest positions on the screen are automatically detected and displayed together with the dynamic range. As this is a pre-gamma value, it allows you to understand the lighting ratio and prevents overexposure or underexposure in shooting scenes where lighting is controlled.

Professional Batteries

Batteries such as Anton Bauer and IDX batteries that are used in the broadcast industry can be used in this camera recorder.

Support for Wide Variety of Output

Supports industrial output such as HD-SDI output and IEEE1394 output.

DV Transcode Output

In consideration of the usage in SD environment, IEEE1394 output can also be encoded in DV format.

Application Software Provided

The [JVC ProHD Clip Manager] application software is provided for you to copy recorded clips to Windows or Macintosh computers and for checking the video images.

(MP4 file format)

The CD-ROM provided with this camera recorder comes with [JVC ProHD Clip Manager] and other application software as well as the user guides.

* For details, refer to the user guides for each application

software.

Precautions for Proper Use

Storage and Usage Locations

䡵 Allowable ambient temperature and humidity Be sure to use this device within the allowable temperature range of

to 40 I and a relative humidity of 30 % to 80 %. Using this device at a temperature or humidity outside the allowable ranges could result not only in malfunction but also serious impact on the CCD elements as small white spots may be generated.

䡵 Strong electromagnetic waves or magnetism Noise may appear in the picture or audio and/or the colors may be

incorrect if the camera is used near a radio or television transmitting antenna, in places where strong magnetic fields are generated by transformers, motors, etc., or near devices emitting radio waves, such as transceivers or cellular phones.

䡵 Use of wireless microphone near the camera When a wireless microphone or wireless microphone tuner is used

near the camera during recording, the tuner could pick up noise.

䡵 Avoid using or placing this device in the following places.

● Places subject to extreme heat or cold

● Places with excessive dirt or dust

● Places with high humidity or moisture

● Places subject to smoke or vapor such as near a

cooking stove

● Places subject to strong vibrations or unstable surfaces

● In a parked car under direct sunlight or near a heater for

long hours

䡵 Do not place this device at places that are subject to radiation or X-rays, or where corrosive gases occur.

䡵 Protect this device from being splashed with water. (Especially when shooting in the rain)

䡵 Protect this device from getting wet when shooting on a beach. In addition, salt and sand may adhere to the camera body. Be sure to clean the camera after use.

䡵 Protect this device against penetration of dust when using it in a place subject to sandy dust.

Transportation

Do not drop or hit this device against a hard object when transporting.

Maintenance

䡵 Turn off the power before performing any maintenance.

Wipe the external cabinet of the device with a soft cloth. Do not

䡵

wipe the body with benzene or thinner. Doing so may cause the surface to melt or turn cloudy. When it is extremely dirty, soak the cloth in a solution of neutral detergent, wipe the body with it, and then use a clean cloth to remove the detergent.

Power Saving

䡵

When this device is not in use, be sure to set the [POWER]

switch to

OFFB in order to reduce power consumption.

Batteries

䡵 The following batteries can be used on this device. GY-HM700CHU/GY-HM700U

: Dionic90 (Anton Bauer)

GY-HM700CHE/GY-HM700E

: Endura-7 (IDX)

* Models with an E suffix are for the European market and

will not employ the UL Listing mark.

䡵 Make use of the recommended batteries. Heavy batteries may fall off if not used correctly.

Regular Inspection (Maintenance)

Under normal environment, dust will accumulate on the camera recorder when it is used over a long period. Dust may enter the camera especially if it is used outdoors. This may affect the image and sound quality of the camera recorder. Check and replace the fan after every 9000 hours (suggested guideline).

You can check the usage time of the fan at [Others...] menuB[System Information]B[Fan Hour]. (A Page 88) If the fan is used for more than 9000 hours without replacement, AFAN MAINTENANCE REQUIREDB will be displayed every time you turn on the power.

Others

䡵 Do not insert objects other than the memory card into the card slot.

䡵 Do not block the vent on the device. Blocking of the vent causes internal heating and may lead to

burns and fires.

䡵 Do not turn off the [POWER] switch or remove the power cable during recording or playback.

䡵 The camera may not show stable pictures for a few seconds immediately after the power is turned on, but this is not a malfunction.

䡵 When the video signal output terminals are not in use, put on the covers to prevent damage to the terminals.

䡵 Do not drop this device or subject it to strong impact or vibration as it is a precision equipment.

䡵 Optical performance of lens Due to the optical performance of the lens, color divergence

phenomena (magnification chromatic aberration) may occur at the periphery of the image. This is not a camera malfunction.

SDHC Cards

Use an SDHC card (4 GB to 32 GB) with Class 6 or higher performance.

* Using cards other than those from Panasonic, TOSHIBA or

SanDisk may result in recording failure or data loss.

Introduction

Precautions for Proper Use (continued)

Handling of SDHC Cards

䡵 The access lamp lights up in red when data on the SDHC card is being accessed. Do not remove the SDHC card during data access (such as recording, playback, or formatting). Do not turn off the power or remove the battery and AC adapter during access either.

䡵 Do not use or store this device in a place that is subject to static electricity or electrical noise.

䡵 Do not place the SDHC card near locations that are exposed to strong magnetic fields or radio waves.

䡵 Inserting the SDHC card incorrectly may result in damage of this device or the SDHC card.

䡵 We are not liable for any accidental loss of data stored on the SDHC card. Please back up any important data.

䡵 Make use of the SDHC card within the prescribed conditions of use. Do not use the SDHC card in places.

that are subject to direct sunlight, high humidity or corrosion; places near thermal equipment; sandy or dusty places; or in a car under the sun with the doors and windows closed.

䡵 Do not bend or drop the SDHC card, or subject it to strong impact or vibration.

䡵 When formatting or erasing data using the camera recorder, only the file administration information is changed. The data is not completely erased from the SDHC card. If you want to completely erase all of the data, we recommend either using commercially available software that is specially designed for that purpose, or by physically destroying the SDHC card with a hammer, etc.

䡵 Do not dismantle or modify the SDHC card.

䡵 Do not touch the terminals with your hands or with a metal

object.

䡵 Do not allow dust, dirt, water, or foreign objects to adhere to the terminals.

䡵 Do not remove the pasted labels or stick other labels or stickers on the SDHC cards.

䡵 Do not use pencils or ballpoint pens to write on the SDHC cards. Always use oil-based pens.

䡵 If you format (initialize) the SDHC card, all data recorded on the card, including video data and setup files, will be deleted.

䡵 You are recommended to use cards that are formatted (initialized) on this camera recorder.

●

The SDHC card may be damaged if the camera recorder is not operated correctly. Formatting (Initializing) the SDHC card may allow it to operate correctly.

●

SDHC cards that have been formatted (initialized) on other cameras, computers or peripheral equipment may not operate correctly. In this case, format (initialize) the SDHC card on this camera recorder.

LCD Monitor and Viewfinder

䡵 The LCD monitor and viewfinder screens are manufactured using high-precision technology. Black spots may appear on the LCD monitor and viewfinder screens, or red, blue, and/or white spots may not turn off. However, this is not a malfunction and these spots are not recorded on the SDHC card.

䡵 If you use this device continuously for a long period of time, the characters displayed in the viewfinder may temporarily remain on the screen. This is not recorded on the SDHC card. They will not appear after you turn the power off and then on again.

䡵 If you use this device in a cold place, the images may appear to lag on the screen, but this is not a malfunction. Retained images are not recorded on the SDHC card.

䡵 Do not press against the surface with force or subject it to strong impact. Doing so may damage or break the screens.

䡵 Noise may appear in the viewfinder when switching between the live video and playback images.

䡵 Due to the characteristic of the viewfinder display device, colors may appear on the images when you blink your eyes. This is not a malfunction. It does not affect the recorded images, SDI output, or component output.

Characteristic CCD Phenomena

䡵 Smear and blooming Due to the physical structure of CCDs, vertical streaking

(called “smear”) may occur when shooting an extremely bright light source or expansion of light (called “blooming”) may appear around it. Although the CCD employed in this device produces very little smear or blooming, these phenomena may still occur when shooting a bright light source.

Smear Vertical pale streaking appearing at high luminous object

High luminous object (such as light bulbs, sun)

Blooming

Monitor Screen

䡵 Moire or aliasing Stripes, lines or other fine patterns may appear jagged when

they are shot.

䡵 White dots High temperatures can cause CCD sensor pixels to produce

white dots in the image. This is especially prominent when boosting the sensitivity. This is a characteristic of the charged-coupled device (CCD). As far as possible, use this device under conditions where the temperature of this device does not increase.

Blurring in highlight

Any recordings made on this camera recorder that are played back for profit or public preview may infringe on the rights of the owner of the recordings.

Do not use the recordings for purpose other than personal enjoyment without prior consent from the owner.

Operation Mode

This camera recorder has three operation modes - Camera mode, Media mode, and USB mode. The operation mode indicator on the left side of the camera recorder lights up according to the mode.

Camera Mode

[CAM/MEDIA] Selection Button

Connection disabled on PC

Operation

Operation Mode

Camera Mode Blue

Media Mode

USB Mode Orange

SD Card Mode

IEEE1394 Mode

Mode

Indicator

Purple

Green

Orange

Media Mode

[CAM/MEDIA] Selection Button

SD Card Mode

Thumbnail Display

(USB mass storage class)

This is the camera shooting mode. The camera recorder starts up in Camera mode when the power is turned on.

Playback Button

Stop Button

USB Connection (when the confirmation to change to USB mode appears and [Change] is selected)

USB Mode

(Playback/Pause/Fast Forward/ Rewind/Clip Jump)

IEEE1394

Mode

Playback

[CAM/MEDIA] Button

Operation Mode Indicator

Stop Button

Playback Button

Description

Memo :

●

Images recorded on the SDHC card cannot be played back in this mode. However, you can check (play back) the most recently recorded image using the Clip Review function. (APage 5 2)

When [Rec Mode] is set to AVariable FrameB, the operation mode indicator lights up in purple during Variable Frame REC in Camera mode. (

This mode allows you to play back or delete clips recorded on the SDHC card. Press the [CAM/MEDIA] selection button to enter SD Card mode when you are not shooting in Camera mode. Once the camera recorder is in SD Card mode, thumbnails of the selected media slot are displayed.

This is the input mode for video images from the IEEE1394-connected equipment. The camera recorder enters IEEE1394 mode when you press the [CAM/MEDIA] selection button while the power of the equipment connected to the [IEEE1394] terminal is turned on during thumbnail display in Media mode (SD Card mode). Once the camera recorder is in IEEE1394 mode, the playback images of the connected equipment are displayed. However, if the IEEE1394 connection is not recognized (such as when the power of the IEEE1394-connected equipment is not turned on), the camera recorder will switch to Camera mode instead. Press the [CAM/MEDIA] selection button during IEEE1394 mode to switch to Camera mode. If the power of the equipment connected to the [IEEE1394] terminal is OFF or if connection is canceled in IEEE1394 mode, the camera recorder will not automatically switch to other modes. To quit IEEE1394 mode, you must operate the [CAM/MEDIA] selection button.

Page 56)

Note :

●

This mode is used for viewing images input to the [IEEE1394] terminal from an external device, and not intended for recording input images on the camera recorder.

This mode allows you to connect to a PC and transfer the files on an SDHC card to the PC. When the camera recorder is connected to a USB cable, the message AChange to USB ModeB appears. Select [Change] and press the Set button to switch to USB mode. (APage 115) In USB mode, the camera recorder is recognized by the connected PC as a peripheral drive (USB mass storage class only). Disable the connection on the PC and remove the USB cable from the camera recorder to switch to Camera mode. (

Page 115)

Memo :

●

When a USB cable is connected, the message appears after recording stops.

●

If playback is in progress, the message appears once the files are closed automatically, such as when playback stops.

Introduction

Names of Parts

A B

Zoom Lens (A Page 14)

LN M K

Viewfinder (A Page 11)

LCD Monitor (A Page 11)

DC E

Side Control Panel (A Page 10)

F GHI

Front Tally Lamp (APage 30) (APage 87)

Viewfinder Cable Clamp (APage 20)

[ZEBRA ON/OFF] Zebra ON/OFF Switch (APage 18) [SKIN AREA/SPOT METER] Skin Area/Spot Meter Switch (

Page 75)

[AWB] Auto White Balance Button (APage 40)

Lens Lock Lever (APage 19)

[MONITOR SELECT] Audio Monitor Selection Switch (

Page 44)

[DISPLAY] Display Button (APage 29)

[CAM/MEDIA] Camera/Media Mode Selection Button (

Page 7)

[FULL AUTO] Full Auto Shooting (FAS) Switch (

Page 75)

Monitor Speaker (Cheek Pad) (APage 26)

Shoe

For mounting separately sold lights and accessories.

Microphone Holder Lock Knob (APage 19)

Microphone Holder (APage 19)

Microphone (APage 19)

Battery Mount

(A Page 21)

SDHC Slot (A Page 13)

Side Terminal (A Page 12)

Back Tally Lamp (APage 30) (APage 87)

[PHONES] Earphone Connector (3.5) (APage 45)

[LENS] Lens Connector (12-pin Connector) (

Page 19)

[INPUT1/INPUT2] Audio Input Terminal 1, 2 (XLR 3- pin

⳯

2) (APage 44)

Microphone Cable Clamp (APage 19)

[CH-2 INPUT] CH-2 Audio Input Terminal Selection Switch

Select the audio input terminal to record to CH-2. (APage 44)

Memo :

●

Audio from [INPUT1] terminal is input to CH-1 regardless of the setting.

[AUDIO INPUT 1/2] Audio Input Signal Selection Switch (

Page 44)

(APage 35)

Set the switch toward the lens to lock the [REC] trigger button Z.

Memo :

●

Starts/stops recording.

Memo :

●

a Handle

[FOCUS ASSIST] Focus Assist Button

Record Button Lock Switch

The [REC] trigger button (APage 10) K at the side control panel on the right of the camera recorder is not locked.

[REC] REC Trigger Button (Recording Start/Stop)

The [REC] trigger button (APage 10) K at the side control panel on the right of the camera recorder is interlocked with this button.

Viewfinder Connector (20-pin) (APage 20)

Accessory Mounting Screw Hole (x2)

Introduction

Names of Parts (continued)

Side Control Panel

A B

C D

F G H

[VF BRIGHT] Viewfinder Luminance Adjustment Knob (

Page 28)

[VF PEAKING] Contour Adjustment Knob (APage 28)

Memo :

●

This knob does not function when Focus Assist is activated. (APage 35)

[FOCUS ASSIST] Focus Assist Button

Press this button during shooting to display the focused area in either blue, red, or green. This enables easy and accurate focusing.(A Page 35)

[USER1], [USER2], [USER3] User Buttons (

Page 74)

Use these buttons to switch shooting conditions according to the object. The functions change as below according to the operation mode (A Page 7).

During Camera Mode During Media Mode

[USER1] Button

[USER2] Button

[USER3] Button

●

Activates the function assigned to [USER1] in the menu.

●

Loads the [TC Preset] screen when pressed together with the

[MENU] button. (

●

Activates the function assigned to [USER2] in the menu.

●

Resets settings on the [TC Preset]/[UB Preset] screen when pressed. (

●

Activates the function assigned to [USER3] in the menu.

Page 48)

Page 48, 49 )

Adds/deletes OK mark.

(A Page 64)

Deletes clip. (A Page 62)

Memo :

●

Set the functions of the [USER1,USER2,USER3] buttons in

the menu. (

●

When the menu screen is displayed, these buttons function as the menu operation buttons. ( A Page 66 [Operation Buttons])

Page 74)

[MENU] Menu Button (APage 66)

[ND FILTER] ND Filter Switch (APage 43)

[STATUS] Status Screen Display Button

Press the [STATUS] button to display the Status Screen on the viewfinder and LCD monitor during normal screen display (when the menu screen is not displayed). ( A Page 16 [Status Screen])

[GAIN] Sensitivity Selection Switch (APage 37)

[WHT.BAL.] White Balance Selection Switch

(

Page 40)

You can select one of the three white balance types.

[POWER] Power ON/OFF Switch

Turns ON/OFF the power. When the power is OFF, APOFFB appears on the LCD

monitor and viewfinder. Wait for 5 seconds or more to turn on the power again.

[REC] REC Trigger Button (Recording Start/Stop)

Starts/stops recording. The [REC] trigger button (A Page 9) Z on top and the [REC] trigger button (A Page 14) of the lens are interlocked with

this button.

Memo :

●

When [1394 Rec Trigger] in the [Others] menu is set to

SplitB, this button becomes the recording start/stop button of the external equipment. (APage 88) ( A Page 113 [Backup Recording])

[CH1/CH2 AUDIO LEVEL]/[AUTO] CH-1/CH-2 Recording Level Adjustment Knob/Auto Indicator (

Page 44)

[CANCEL] Cancel Button

Cancels various settings and stops playback.

Cross-Shaped Button (

The function changes according to the operation status of the camera recorder.

䡵 During menu operation (all modes) (A Page 66)

Center Set button (R) : Confirms menu items and setting

Cross-shaped button (

䡵 During Camera mode Shutter operation :

Center Set button (R) : Shutter ON/OFF Cross-shaped button (JK) : Switches shutter speed when shutter

AE level operation: Cross-shaped button (HI)

JKHI

)/Set Button (R)

values

) : Selects menu items and setting values

is ON

Memo :

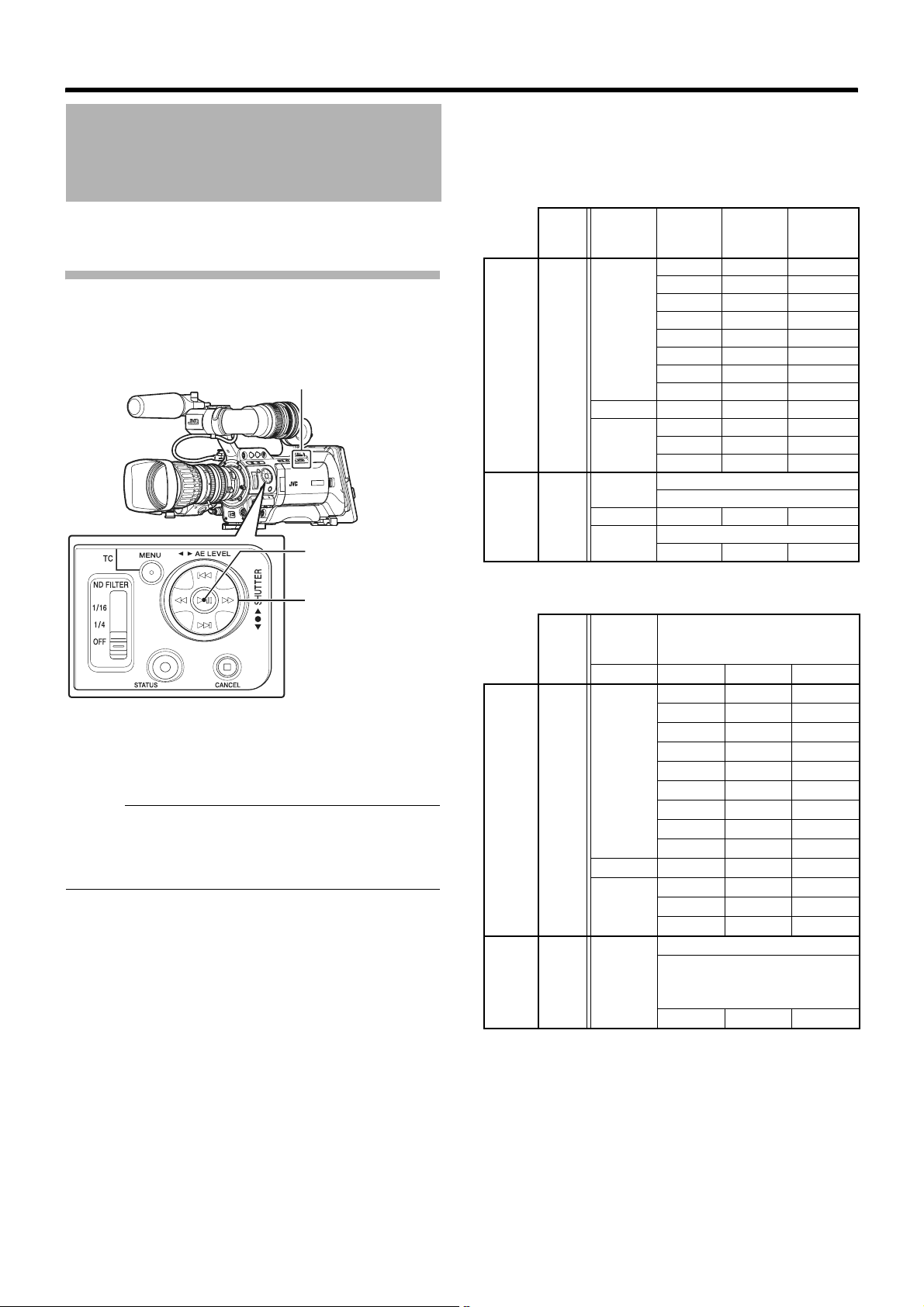

● When [Camera Function][Switch Set...]B[AE LEVEL] is set

to AAE LEVEL/VFRB, the cross-shaped button is used to set the number of frames during Variable Frame REC.

( A Page 56 [Variable Frame REC]) ( A Page 75 [AE LEVEL])

䡵 During Media mode (SD Card mode) (A Page 57) Thumbnail operation : Cross-shaped button (JKHI), center

Set button (

Operation Mode Indicator

Lights up as below according to the operation mode. (

Page 7)

Operation Mode Color

Camera Mode Blue/Purple

Media Mode (SD Card Mode) Green

Media Mode (IEEE1394 Mode) Orange

USB Mode Orange

Memo :

●

You can select whether to light up the indicator using [Mode LED] in the [Others] menu. (APage 87)

[MONITOR] Audio Monitor Level Adjustment Knob

For adjusting the volume of the monitor speaker and earphones.

LCD Monitor

When the LCD monitor is open

B C

A LCD Monitor (A Page 28)

[LCD PEAKING +/-] LCD Contour Adjustment Button (

Page 28)

Viewfinder

(A Page 28)

A Viewfinder Slide Lock Ring

For loosening the ring and adjusting the position of the viewfinder E to the left or right.

Eyepiece Focus Ring

For adjusting the visibility.

Viewfinder Eyepiece Lock Ring

For loosening the ring and adjusting the eyepiece position of the viewfinder to the front or back.

Viewfinder

[LCD BRIGHT +/-] LCD Display Brightness Adjustment Button (

Page 28)

D [AUDIO SELECT CH-1/CH-2] Audio Recording Mode

Switch (A Page 44)

[TC DISPLAY] TC/UB Display Switch (APage 46)

[TC GENE.] Time Code Generator Switch (APage 46)

LCD Cover Lock Release Knob (APage 28)

Eyepiece

Prevents external light from entering the viewfinder screen and cameraman’s vision.

Introduction

Names of Parts (continued)

Side Terminal

B C

D E

Shoulder Pad Slide Button

For adjusting the shoulder pad position. Press this button to adjust the shoulder pad K position to the front or back.

Shoulder Pad

[USB] USB Terminal (APage 115)

[IEEE1394] IEEE1394 Terminal (4-pin)

For connecting digital video equipment with IEEE1394 terminal using an IEEE1394 cable (sold separately). To enable this terminal, set the [INT/EXT] IEEE1394 terminal switch I to [EXT]. ( A Page 112 [IEEE1394 Connection])

Page 114 [Stream Transmission to a Non-linear Editing System])

(

Note :

●

When connecting IEEE1394 cables, check that the connectors are facing the right direction before you insert.

Memo :

●

Put on the covers when the connectors are not in use.

A [HD/SD-SDI] HD/SD-SDI Output Terminal (BNC)

(A Page 111)

[Y/VIDEO] Y/Composite Video Signal Output Terminal

(BNC) (

Page 111)

[PB] PB Video Signal Output Terminal (BNC)

(

Page 111)

[PR] PR Video Signal Output Terminal (BNC)

(

Page 111)

[REMOTE] Remote Terminal (APage 116)

[DC INPUT] DC Input Terminal (APage 21)

Input terminal for DC 12 V power supply. Connects with an AC adapter.

[AUDIO OUTPUT] Audio Output Terminal (RCA)

Output terminal for audio signals.

●

Input audio signals are output during Camera mode.

●

Playback audio signals are output during Media mode.

●

Audio from input audio signals is output during HD/DV signal (IEEE1394) input.

Memo :

●

Alarm tone is not output.

[HD/DV] IEEE1394 Terminal Mode Switch

(

Page 112)

[INT/EXT] IEEE1394 Interface Terminal Switch

(

Page 112)

For selecting a valid IEEE1394 interface terminal.

[EXT]

[INT]

Enables IEEE1394 signals from the [IEEE1394]

terminal M. Enables the Accessory Connector B at the rear

of the camera recorder. (A Page 13)

SD Slot

(A Page 31)

Rear

A B

A Card Slot A Status Indicator

[SLOT SELECT] Card Slot Selection Button

For switching SDHC cards.

SDHC Card Cover

Card Slot B Status Indicator

[OPEN] SDHC Card Cover Open/Close Knob

A Shoulder Belt Mount (x2)

For mounting a shoulder belt (sold separately).

Note :

●

Be sure to use a shoulder belt with the strength to withstand the weight of this camera recorder.

●

If the shoulder belt is not properly attached, the camera recorder may fall and cause injuries.

●

Check the instruction manual provided with the shoulder belt before using.

Accessory Connector (Connect to a option)

Battery Mounting Folder (APage 21)

The shape is different for GY-HM700CHU/GY-HM700U and GY-HM700CHE/GY-HM700E.

* The above is the illustration for GY-HM700CHE/GY-

HM700E.

Introduction

Names of Parts (continued)

Zoom Lens

(Supplied with GY-HM700U/GY-HM700E only)

CANON KT14 x 4.4KRSJ

RET

REC

GFE

A Focus Ring

Zoom Lever/Ring

To operate zoom with this lever, turn the [ZOOM] switch M and set it to AMANU.B.

Iris Ring

To operate auto iris, set the iris mode switch H to AAB.

Lens Cable

[REC] Record Trigger Button

Starts/stops recording.

[RET] Return Video Button

Press this button to play back and check the latest clip, according to the settings under [Clip Review] of [Switch Set...] in the [Camera Function] menu. (A Page 74) ( A Page 52 [Viewing Recorded Videos Immediately (Clip Review)])

Memo :

● When [LENS RET] of [Switch Set...] in the [Camera

Function] menu is set to AFocus AssistB, this button functions as the Focus Assist button. (A Page 74)

ABC

A M

IRIS

SERVO

MANU.

ZOOM

NL O

Zoom Servo Control Lever

To operate zoom servo with the zoom servo control lever, set the [ZOOM] switch M to ASERVOB.

●

Zooms into wide angle and increases the angle of view when AWB is pressed.

●

Zooms into telephoto and decreases the angle of view when

ATB

is pressed.

●

Zoom speed increases when the lever is pressed hard.

Iris Mode Switch

: Auto iris operation mode.

: Manual iris operation mode.

Iris Momentary Button

Press and hold this button to change to auto iris mode when the iris mode switch H is set at AMB.

[I.G.] Iris Speed Adjustment Knob

If the speed is set too fast, opening/closing of the iris becomes unstable and hunting may occur. Readjust the speed in this case.

Filter Built-In Screw

A transparent or UV filter for lens protection can be installed inside the lens hood from the front. Filters for various effects can also be used.

● Installable filter types

When installed on the hood : 82mmP0.75 When installed on the lens body : 72mmP0.75

Zoom Servo Connector

For connecting a zoom servo unit (sold separately).

[ZOOM] Zoom Switch

SERVO

MANU.

Exclusive ring for adjusting the back focus. After adjusting, secure with a lock screw. ( A Page 27 [Adjusting Back Focus])

Turn the ring in the direction of the arrow to take closeup shots of small objects. Normal focusing and zooming cannot be performed in macro mode.

To take macro shots

● Set focus ring A to infinity (•).

● Set zoom ring B to the maximum wide angle.

● Rotate this ring in the direction of the arrow to adjust

: Enables zooming with the zoom servo control

lever G.

: Enables zooming with the zoom lever/ring B.

Back Focus Ring/Lock Screw

[M] Macro Focus Ring (for close-ups)

focus on the object.

Note :

●

As the back focus knob is located nearby, be careful not to mistake the two knobs.

●

Do not forget to restore the macro ring to its original position after use. ( A Page 27 [Adjusting Back Focus])

Basic System Diagram

Microphone MV-P615

Focus Manual Unit HZ-FM13 (FUJINON) HZ-FM15 (CANON)

1/3 Zoom Lens Th13x3.5BRMU(FUJINON)

PL Mount Film Lens

XLR 3P

16 mm PL Mount Film Lens adapter HZ-CA13U

Zoom Servo Control HZ-ZS13B

1/2 Zoom Lens

Mount Converter

(1/2B1/3):ACM-12

Shoulder Belt

Earphone

Microphone

1/3 Zoom Lens KT14x4.4KRSJ (CANON) (GY-HM700U/GY-HM700E only)

Standard Package

GY-HM700CHU/GY-HM700U : Gold Mount

Battery Mount

GY-HM700CHE/GY-HM700E : V Mount

Tripod Base KA-551U

XLR 4P

SDI Cable BNC

Component Cable BNC

Composite Cable BNC

Audio Cable RCA pin

IEEE1394 Cable

4P-6P

For GY-HM700CHU/GY-HM700U

Anton Bauer Battery (Dionic90)

Anton Bauer Battery Charger

For GY-HM700CHE/GY-HM700E*

IDX Battery

(Endura)

IDX

Battery Charger

AC Adapter

External Recording

Non-linear Editing

Monitor

Device

VTR

BR-HD50U/E*

System

Carrying Case

Mount Converter

2/3 Zoom Lens

* Models with an E suffix are for the European market and will not employ the UL Listing mark.

(2/3B1/3): ACM-17

Tripod

SDHC Memory Card

USB Cable

SDHC Card Reader

Remote Control Unit RM-LP25U/RM-LP55U/ RM-P57U

Non-linear Editing

System

Introduction

Displays on the LCD Monitor and Viewfinder

You can display the camera status, media information, zebra pattern, and various markers in the video image on the LCD monitor and viewfinder screens during shooting.

Besides camera and playback images, the following characters are displayed on the LCD monitor and viewfinder.

䡵 Status screen (A Page 16)

䡵 Auto White display *(A Page 18)

䡵 Menu setting screen (A Page 18)

䡵 Alarm display (A Page 18)

䡵

Marker and safety zone indicators *(APage 100)

䡵 Zebra pattern display (A Page 18)

* Displayed in Camera mode only

Memo :

●

When [Analog Out Char.]/[SDI Out Char.] in the [A/V Out]

AOnB

menu is set to also displayed in the video image of the video signal output terminal. (APage 86)

, the status screen and menu screen are

Viewfinder

LCD monitor display

The display switches between the 5 screen types with every press of the [STATUS] button. (STATUS 0B1B2B3B4B0)

Press the [DISPLAY] button to switch to the enlarged status display screen. (A Page 17)

30/24 fps

MAX 123% MIN 45%

SKIN AREA

S.DTL

B -3

STBY

STATUS 0 Screen

1280x720

30/24 fps

24p HQ

100min 100min

B STBY

282min

STATUS 1 Screen

CAMERA INFORMATION

SETUP FILE SCENE [ SCENE ] ZEBRA1 50%~100% ZEBRA2 70%~80% AUDIO CH1 CH2 FORMAT QuickTime MEDIA 125min 123min

STBY

282min

STATUS 2 Screen

F5.6 AE+1 9dB 1/10000

Jan 2. 2009 01:23:45AM

A<3200K>

00:00:00:00

MAX 123% MIN 45%

SKIN AREA

S.DTL

ND1/16 A<3200K>

B -3

[DISPLAY] Button

[STATUS]

Button

LCD Monitor

Status Screen

This screen allows you to check the current settings. To display the status screen, press the [STATUS] button in

the normal screen. The status display differs according to the operation mode

(4 types). ( A Page 7 [Operation Mode])

䡵 Status Screen in Camera Mode (A Page 90)

Viewfinder display

The display switches between the 5 screen types with every press of the [STATUS] button. (STATUS 0B1B2B3B4B0)

SWITCH ASSIGN

FAW NONE GAIN [ L / M / H ] 0dB / 9dB / 12dB USER 1 BARS USER 2 B.STRETCH3 USER 3 LOAD FILE RET CLIP REVIEW SKIN/SPOT SPOT METER AELEVEL AE LEVEL/VFR

STBY

282min

Jan 2. 2009 01:23:45AM

STATUS 3 Screen

30/24 fps

STBY

STATUS 4 Screen

Press [DISPLAY]

CH1

CH2

FREE

STBY

min

100 min

1280 x 720 24p HQ

STATUS 1 Enlarged Display Screen

(LCD monitor only)

MAX 123% MIN 45%

Press [DISPLAY]

282min

䡵

Status Screen (VF/LCD) During Clip Playback in Media Mode (SD Card Mode) (A Page 96)

The display switches between the 3 screen types with every press of the [STATUS] button. (STATUS 0B1B2B0)

STATUS 0 Screen

䡵 Status Screen in USB Mode

This screen displays the USB mode.

Enlarged Status Display on LCD Monitor

You can enlarge and display only the characters of the status screen on the LCD monitor. (Camera mode only)

CH1

CH2

FREE

STATUS 1 Screen

STATUS 2 Screen

䡵 Status Screen in Media Mode (IEEE1394 Mode) (A Page 98)

The display switches between the 2 screen types with every press of the [STATUS] button. (STATUS 0B1B0)

STATUS 0 Screen

1280x720 24p HQ

STBY

100 min

min

1280 x 720 24p HQ

282min

[DISPLAY] Button

1 Set [LCD + VF] in the [LCD/VF] menu to AOnB.

(A Page 82).

2 Press the [DISPLAY] button while the LCD screen is

displayed.

The display switches between the same display as the viewfinder and the enlarged display with every press of the button.

Memo :

●

During enlarged display of the status on the LCD monitor screen, the video image remains displayed on the viewfinder.

282min

STATUS 1 Screen

Introduction

Displays on the LCD Monitor and Viewfinder (continued)

Auto White Display (Camera Mode Only)

Displays the operation and result when Auto White Balance is activated.

( A Page 40 [Adjusting the White Balance])

Menu Setting Screen

For configuring various settings. Press the [MENU] button to display the menu setting screen. ( A Page 66 [Basic Operations in Menu Screen])

Alarm Display

●

Alarm is displayed during the status screen display in Camera mode (STATUS 0, 1, 4) and Media mode. If the alarm sounds during STATUS 2 or 3 Screen display in Camera mode, the display will return to STATUS 0 Screen

and alarm will be displayed. (

Page 119 [Error Displays

and Actions])

30/24 fps

MAX 123% MIN 45%

SKIN AREA

1min 1min

STBY

Alarm Display Area

F5.6 AE+1 9dB 1/10000

RES

S.DTL

B -3

A<3200K>

Zebra Pattern Display

Two types of zebra patterns that indicate the luminance level of the video image can be displayed on this camera recorder. You can set the luminance levels for displaying the two types of zebra patterns. ( A Page 50 [Setting Zebra Pattern])

[Main Menu] Screen

Zebra Pattern

Memo :

●

Use the [ZEBRA ON/OFF] switch in front to turn ON/OFF the zebra pattern display.

●

Set the display pattern and luminance level in [LCD/ VF]B[Shooting Assist...]B[Zebra]. (APage 83)

Preparations

Attaching Accessories

Attaching the Zoom Lens

(Supplied with GY-HM700U/GY-HM700E only)

Hole

Clamp

1 Loosen the mount ring.

2 Attach the zoom lens such that the pin matches the

hole of the mounting area.

3 Tighten the mount ring.

REC

Attaching the Microphone (Supplied)

You can attach the supplied microphone to the microphone holder. The supplied microphone has a phantom power supply.

1 Turn the knob on the microphone holder

anticlockwise to loosen and open the microphone holder.

2 Place the microphone in the microphone holder.

3 Turn the knob on the microphone holder clockwise to

secure the microphone.

4 Connect the microphone cable to the [INPUT1] or

[INPUT2] terminal.

5 Pin the microphone cable to the clamp.

6 Make sure to perform the correct settings for the

phantom microphone (A Page 44).

Knob

Microphone

Microphone Holder

4 Connect the cable connector.

5 Attach the lens cable to the clamp.

Memo :

●

Tighten the mount ring completely. If it is not fully tightened,

the lens may drop or the back focus may be out of alignment.

●

When attaching or removing the zoom lens, set the

[POWER] switch of the camera recorder to AOFFB.

Clamp

[INPUT1/INPUT2] Terminal

Preparations

Attaching Accessories (continued)

Attaching the Viewfinder (Supplied)

1 Slide the viewfinder in the direction of the arrow to

attach it.

2 Turn the slide lock ring to secure the position of the

viewfinder.

Slide Lock Ring

Viewfinder

Power Supply

To use this camera recorder, you can attach a battery pack or connect an AC adapter to it. ( A Page 21 [Using a Battery Pack])

( A Page 21 [Using AC Power (DC IN Power)])

Note :

● Set the [POWER] switch to AOFFB before changing the

power supply that operates this camera recorder.

3 Attach the viewfinder cable to the viewfinder terminal.

4 Pin the viewfinder cable to the clamp.

Clamp

Using AC Power (DC IN Power)

Use an AC adapter (sold separately) to operate the camera recorder with AC power.

1 Connect the DC cable of the AC adapter to the [DC

INPUT] terminal of the camera recorder.

Check that the power of the camera recorder and the AC adapter is turned AOFFB and connect as shown in the diagram.

Using a Battery Pack

Recommended Batteries

U model : Dionic90 (Anton Bauer) E model : Endura-7 (IDX)

* Models with an E suffix are for the European market and

will not employ the UL Listing mark.

Note :

●

Make use of the recommended batteries. Heavy batteries may fall off if not used correctly.

●

See the battery instruction manual on how to charge the battery.

[DC INPUT]

DC Cable

DC OUTPUT

AC Adapter

2 Set the [POWER] switch of the camera recorder to

AONB after turning on the AC adapter.

Power will be supplied to the camera recorder.

Note :

●

Do not insert or remove the DC cable during recording.

●

Do not use power supply of high voltage fluctuation,

containing noise such as ripple, or with insufficient capacity.

䡵 Charging the Built-In Battery

The date/time and time code data are stored in the built-in rechargeable battery. When power is connected to the camera recorder, the built-in battery always get charged. When the power is disconnected, the battery gradually discharges. The battery will be totally discharged if left unused for 3 months and the date/time and time code data will be reset. When this happens, set the [POWER] switch to AONB to display the [Initial Setting] screen, then set the date/time. ( A Page 25 [Setting the Clock (Initial Setting)])

Battery Operating Time

The following are the approximate times for continuous operation on fully-charged batteries.

Battery

Dionic90 (U model) Approx. 3.2 h

Endura-7 (E model) Approx. 2.5 h

Continuous Operating Time

(At 25 I)

Memo :

●

Actual operating times may differ depending on the age of the battery, charging condition, and operating environment.

●

Operating time is shortened in cold environment.

●

Operating time is shortened when the electronic zoom lens and LCD screen are frequently used.

Precautions for the Battery Operation

●

Do not remove the battery when the [POWER] switch is

AONB

●

Do not insert or remove the DC cable when the battery is in use.

●

Leaving the camera recorder unused with the battery inside will deplete the battery power even if you set the [POWER]

switch to camera recorder.

OFFB. Remove the battery if you are not using the

Preparations

Using a Battery Pack (continued)

Attaching the Battery (GY-HM700CHU/GYHM700U)

Use the Dionic90 (Anton Bauer) battery.

1 Align the battery guide pins (x3) with the battery,

adapter, and guide hole and insert straight.

Guide Hole (x3)

Release Lever

LCD Screen Side

Memo :

● If the guide pins are not inserted straight, the battery will

not be attached correctly.

Guide Pins

Battery

Attaching the Battery (GY-HM700CHE/GYHM700E)

Use the Endura-7 (IDX) battery.

1 Attach the battery.

Face the terminal downward and attach the V mount of the battery onto the V mount attachment bracket of the camera recorder.

V Mount Attachment

V Mount

2 Press down the battery until it snaps into place.

䡵 Detaching

Press down the release lever and slide the battery upward to detach it from the camera recorder.

Release Button

2 Slide the battery toward the SDHC card cover side

panel until it snaps into place.

䡵 Detaching the Battery

Press down the release lever and slide the battery toward you to detach it from the camera recorder.

Release Lever

Battery

Power Status Display

䡵 Viewfinder and LCD Monitor Screens

The power status is displayed on the status and menu screens. If the battery or supplied voltage from the AC adapter is low, a warning will be displayed in red.

Note :

● If the battery in use is not a recommended one, the battery

mark which indicates the battery level may not appear.

䡵 Status screen ( A Page 90 [Status Screen in Camera Mode]) ( A Page 96 [Status Screen in SD Card Mode]) ( A Page 98 [Status Screen in 1394 Mode])

1280x720 24p HQ

䡵

30/24 fps

100min 100min

B STBY

RES

Enlarged status display on the LCD monitor (APage 99)

CH1

CH2

FREE

STBY

100 min

min

00:00:00:00

MAX 123% MIN 45%

SKIN AREA

S.DTL

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

1280 x 720 24p HQ

B -3

RES

Note :

●

The remaining battery power and time are displayed as there are from the battery information. Accurate data may not be displayed according to the battery condition. Replace the battery as soon as possible when the remaining battery power and time are low.

Precautions for Batteries

●

Store the battery in a cool and dry place when not in use. Do not expose the battery to high temperatures (such as in a car under direct sunlight). This will cause battery leakage and shortens the battery life.

●

Operating time is shortened if the battery terminal is dirty.

●

If the operating time shortens drastically even after charging, the battery may be reaching the end of its life. Replace the battery with a new one.

Charging

●

Use up the charge completely before you charge the battery. If the battery is not fully discharged before charging, the battery capacity may drop after repeated cycles.

●

If the battery capacity drops due to repetitive shallow charging and discharging, it may be recovered by using up the charge completely and then fully charging the battery again.

●

If you charge the battery immediately after using while the battery is still warm, it may not be fully charged.

●

It is recommended to charge the battery in an environment

between 10 charged or the charging time may be prolonged if charged under low temperatures (below 10 I).

and 35 I. The battery may not be fully

䡵 Menu screen (A Page 66)

䡵 Warnings by Lamps and Alarm Tones

●

Warning status is indicated by tally lamps and alarm tones.

● The front and back tally lamps of the camera recorder

blink.

● Alarm tone is output from the monitor speaker or

[PHONES] terminal.

Memo :

● If you continue to use the camera recorder while the power

warning is displayed, the camera recorder will stop automatically when the battery or supplied voltage from the AC adapter becomes lower.

Preparations

Turning On/Off the Power

Turning On the Power

1 Set the [POWER] switch to AONB.

The camera recorder starts up in Camera mode.

Memo :

● The camera recorder always start up in Camera mode

when the [POWER] switch is set to AONB.

●

Press the [CAM/MEDIA] button to switch to a different mode.

The operation mode indicator changes as below. See

[Operation Mode] (

mode.

●

During Camera mode : Lights up in blue/purple

●

During Media mode (SD Card mode) : Lights in green

●

During Media mode (IEEE1394 Input mode)

●

During USB mode : Lights up in orange

●

During mode switching : Blinks in the color of the

Page 7 ) for details of each operation

: Lights up in orange

new mode

䡵 Camera mode

Camera images are output on the viewfinder and LCD monitor. When a recordable SDHC card is inserted, the camera recorder enters the recording standby mode. ASTBYB appears on the operation mode display area of the LCD monitor and viewfinder. Press the [REC] trigger button to start recording.

Memo :

●

Playback of SDHC card is not possible in Camera mode. However, you can use the Clip Review function to check the most recently recorded video clip. (APage 52)

䡵 Media mode (SD Card mode)

This mode allows you to play back or delete clips recorded on the SDHC card. When a playable SDHC card is inserted, the thumbnail or playback screen is output on the viewfinder and LCD monitor.

䡵 Media mode (IEEE1394 Input mode)

This mode allows you to check IEEE1394 input signals. When playable IEEE1394 signals are input, input images are

output on the viewfinder and LCD monitor. IEEE1394 input signals cannot be recorded.

Note :

● The camera recorder will switch to IEEE1394 Input Mode

only when the IEEE1394-connected equipment is in operation.

[CAM/MEDIA] Button

[MENU] Button

Cross-Shaped Button, Set Button

[CANCEL] Button

[REC] Button

[POWER] Switch

Turning Off the Power

Set the camera recorder to the recording standby or stop mode.

1 Set the [POWER] switch to AOFFB.

2 Remove the battery and the power to the [DC INPUT]

terminal (when not in use for a long time).

Note :

●

Do not set the [POWER] switch to AOFFB during recording.

Check that the operation mode display is

STOPB before you turn off the power.

●

If you have mistakenly set the [POWER] switch to AOFFB during recording, wait for 5 seconds or more before you turn on the power again.

●

When turning off the power, first set the [POWER] switch of

the camera recorder to turn off the AC power while the [POWER] switch is set to

AONB

OFFB. Do not remove the battery or

STBYB or

(

Setting the Clock (Initial Setting)

2 Specify [Time Zone] and [Date/Time].

A Move the cursor with the cross-shaped button (HI) and

select the setting item.

B Change the values with the cross-shaped button (JK).

Set the date/time of the built-in clock in the [Initial Setting] screen. The configured date/time data is saved in the built-in rechargeable battery even if the power is turned off.

Setting the Clock in the [Initial Setting] Screen

The [Initial Setting] screen appears when the power is turned on for the first time and when the built-in battery is turned on again after being fully discharged.

All operations are disabled until initial settings are complete.

[MENU] Button

Cross-Shaped Button, Set Button

[POWER] Switch

3 Press the Set button after setting is complete.

The clock is set to 0 seconds of the input date/time.

Memo :

●

The configured date/time data can be displayed on the LCD monitor and viewfinder and be recorded to the SDHC card.

●

The value of the year that can be set ranges from A2000B to

2099B.

Changing the Time after Initial Setting

䡵 Setting the date/time (A Page 88)

1 Select [Others]B[Date/Time].

The [Date/Time] setting screen appears.

1 Set the [POWER] switch to AONB.

The [Initial Setting] screen appears.

䡵 For GY-HM700CHU/GY-HM700U

䡵 For GY-HM700CHE/GY-HM700E

2 Set the date and time.

A Move the cursor with the cross-shaped button (HI) and

select the setting item.

B Change the values with the cross-shaped button (JK).

3 Press the Set button after setting is complete.

The clock is set to 0 seconds of the input date/time.

Preparations

Setting the Clock (Initial Setting) (continued)

Changing the Display Style

You can change the display style of the date/time on the menu.

Memo :

●

To perform the settings while looking at the monitor screen

connected to the video signal output terminal, set [Analog

Out Char.] or [SDI Out Char.] in the [A/V Out] menu to

(APage 86)

䡵 Setting the date style (Date Style) (A Page 85)

Select [LCD/VF]B[Status Display...]B[Date/Time].

B Select the date display style.

[Setting values: YMD (year, month, day), MDY (month,

day, year), DMY (day, month, year)]

C Press the Set button.

䡵 Setting the time style (Time Style) (A Page 85)

Select [LCD/VF]B[Status Display...]B[Time Style].

B Select the time display style.

[Setting values: 12hour (12 hour display), 24hour (24 hour

display)]

C Press the Set button.

Date/Time Display in Different Operation Modes

AOnB

Adjusting the Monitor Speaker

The monitor speaker can be rotated 180 degrees. Adjust according to the position of your ear.

180 Degrees Rotation

Monitor Speaker

[MONITOR] Level Adjustment Knob

Memo :

● Adjust the volume of the monitor speaker with the

[MONITOR] level adjustment knob at the side control panel on the right of the camera recorder. Various warning alarm tones may also be output repeatedly. (A Page 120)

Note :

●

The rotation angle of the monitor speaker is 180 degrees. Do not over-rotate the monitor speaker.

During Camera Mode Date/time of the built-in clock is

displayed.

During Media Mode (SD Card Mode)

During Media Mode (IEEE1394 Mode)

Shooting date/time of the clip being played back is displayed.

Date/time is not displayed.

Adjusting Back Focus

When the lens is first attached, adjust the back focus of the lens if the focus is not clear when zoomed to the telephoto or wide angle end.

●

Place an object 3 m and above away from the camera.

●

The Siemens Star Chart is most suitable as the object.

34, 6 5

RET

A M

IRIS

1 Set the iris mode switch of the lens to AMB (manual).

2 Set the zoom mode switch to AMANU.B (manual).

3 Turn to open the iris ring.

Adjust the lighting such that the optimum image level can be obtained.

4 Turn the zoom lever to set the lens to the maximum

telephoto position.

5 Turn the focus ring to adjust the focus of the object.

6 Set the lens to the maximum wide angle position.

7 Loosen the lock screw of the back focus ring.

8 Shoot the same object and secure the back focus ring

at the position where the object is in focus.

9 Repeat steps 4 to 8 three times until the object is in

focus at both the telephoto and wide angle positions.

10 Tighten and secure the lock screw of the back focus

ring.

2 7, 8, 10

Siemens Star Chart

Preparations

Adjusting the LCD Monitor and Viewfinder

Adjusting the LCD Monitor

You can change the angle and brightness of the LCD monitor screen according to your usage condition. Changing the brightness of the screen will not affect the recorded images.

[LCD BRIGHT +/-] Button

LCD Lock Release Knob

Use the [LCD PEAKING +/-] button to adjust the contour of

●

the LCD monitor screen. Press the [+] and [-] buttons simultaneously to return to standard settings.

[+] : Press the button to increase contour correction. [-] : Press the button to decrease contour correction.

●

During adjustment, the contour level is displayed on the LCD

monitor screen. ( brightness])

● During Camera mode, SD Card mode (playback), or

IEEE1394 mode

● During SD Card mode (thumbnail), menu operation, or

USB mode

Page 28 [Adjusting contour and

Tilt 180 degrees upward

Tilt 90 degrees downward

[LCD PEAKING +/-] Button

䡵 Adjusting the Angle of the LCD Monitor

1 Slide the LCD lock release knob to open the LCD

monitor.

2 Rotate the LCD monitor to adjust the angle.

While the LCD monitor is open, you can rotate it 180

●

degrees upward or 90 degrees downward.

●

Rotating the LCD monitor 180 degrees upward enables you

to see the screen from the lens side.

Select [Main Menu]

Set [LCD Mirror Mode] to AMirrorBB

[LCD/VF]

䡵 Adjusting the LCD Monitor Screen

Adjusting contour and brightness

Use the [LCD BRIGHT +/-] button to adjust the brightness of

●

the LCD monitor screen. Press the [+] and [-] buttons

simultaneously to return to standard settings.

[+] : Press this button to brighten the screen. [-] : Press this button to darken the screen.

●

During adjustment, the brightness level is displayed on the

LCD monitor screen.

● During Camera mode, SD Card mode (playback), or

IEEE1394 mode

Set button (APage 82)

Adjusting the Viewfinder

You can change the brightness and peaking of the viewfinder screen according to your usage conditions.

Changing the brightness of the screen will not affect the recorded images.

[VF PEAKING] Knob

Slide Lock Ring

Note :

● A high-definition viewfinder is used on this camera

recorder in order to provide an accurate focusing environment. Due to the characteristic of the display device, colors may appear on the images when you blink your eyes. This is not a malfunction. It does not affect the recorded images, SDI output, or component output.

[VF BRIGHT] Knob

Eyepiece Lock Ring

Eyepiece Focus Ring

Eyepiece

● During SD Card mode (thumbnail), menu operation, or

USB mode

䡵 Adjusting the Angle

Adjust the position and angle of the viewfinder.

䡵 Adjusting the Visibility

Turn the eyepiece focus ring to sharpen the image on the viewfinder screen.

䡵 Adjusting the Viewfinder Screen

Adjusting contour and brightness

●

Use the [VF BRIGHT] knob to adjust the brightness of the

viewfinder screen.

●

Use the [VF PEAKING] knob to adjust the contour of the

viewfinder screen.

T Screen display during adjustment

( A Page 28 [Adjusting contour and brightness])

Displaying in black and white (A Page 82)

You can display the viewfinder screen in black and white. Select [Main Menu] B [LCD/VF] B

[VF Display] B Set button B Select AB & WB B Set button

Displays on the LCD Monitor and Viewfinder Screens

䡵 When [LCD + VF] in the [LCD/VF] menu is set to AOffB (A Page 82)

Displays on the LCD monitor and viewfinder screens (VF) are indicated as below.

LCD Monitor Status LCD Display VF Display

Closed LCD Normal LCD OFF ON

Inversed LCD ON OFF

Opened LCD Normal LCD ON OFF

Inversed LCD ON OFF

Memo :

●

Press and hold the [DISPLAY] button for 2 seconds to switch the display between the LCD monitor and viewfinder screens.

●

The function to switch between LCD monitor and viewfinder displays by pressing the [DISPLAY] button can be canceled by opening/closing or rotating the LCD monitor.

●

When the LCD monitor is stored in the camera recorder in the direction of normal display, pressing of the [DISPLAY] button will not work.

●

You can display both the LCD monitor and viewfinder screens at the same time by selecting [LCD + VF] in the [LCD/VF] menu. (APage 82)

䡵 When [LCD + VF] in the [LCD/VF] menu is set to AOnB (A Page 82)

Displays on the LCD monitor and viewfinder screens (VF) are indicated as below.

LCD Screen Status LCD Display VF Display

Closed LCD Normal LCD OFF ON

Inversed LCD ON ON

Opened LCD Normal LCD ON ON

Inversed LCD ON ON

Inversed LCD

[DISPLAY] Button

Normal LCD

LCD opened at 40 degrees and above

LCD closed at 40 degrees and below

Memo :

●

Press and hold the [DISPLAY] button for 2 seconds to turn ON/OFF the LCD monitor screen.

●

The function to turn ON/OFF the LCD monitor screen by pressing the [DISPLAY] button can be canceled by opening/ closing or rotating the LCD monitor.

●

The viewfinder screen is always displayed.

Preparations

Tally Lamps

These are indicator lamps for recording and warning. The operation changes according to the menu settings. When the battery or remaining space on the SDHC card is low, the lamps blink. (Camera mode only)

* Set using [Tally System]/[Front Tally]/[Back Tally] in the [Main Menu]B[Others...] menu. (A Page 87)

Menu Setting

camera recorder Information

External Device Information

camera recorder Recording Status

External Device Recording Status

Remote Control Input [CALL]

[Front Tally]/[Back Tally] *1 Off On Blink On Blink On Blink

Warning ^^ J ^ J ^ J

Alarm ^^

Warning

Alarm

Recording ^ RR^^^^

Special Recording *3 ^ RR^^^^

Recording

[TALLY(PGM)]

[TALLY(PVW)]

Front Tally Lamp

[Tally System] ^ [Int] [Ext] [Studio]

o ^ o*2 ^^

^^^^ J ^^

^^^ RR^^

^^^^^

^^^^^ RR

^^^^^ XX

Back Tally Lamp

: Lights up

J : Blinks 4 times in 1

second

o : Blinks once in 1

second

: Only back tally lamp

lights up

*1 : [Front Tally] and [Back Tally] can be set independently with the menu settings. (A Page 87) *2 : Only battery alarm is displayed. *3 : Paused state during special recording ([Clip Continuous]). (A Page 55)

Memo :

● Blinking takes priority over lighting up. However, [CALL] has priority in [Studio].

SDHC Cards

This camera recorder saves the recorded images and audio sound on the SDHC card (sold separately) in the card slot.

Memo :

● If the SDHC card contains files recorded by devices other

than this camera recorder or files that are saved from a PC, the recordable time may be shorter or data may not be properly recorded.

䡵 SDHC Cards to Use

Use a Class 6 SDHC card (4 GB - 32 GB).

Note :

● Using cards other than those from Panasonic, TOSHIBA

or SanDisk may result in recording failure or data loss.

SDHC Card Cover Knob

Slot B Status Indicator

䡵 Card Slot Status Indicator

The following table shows the respective states of slot A and B.

Lamp Slot Status

Lights up in red Inserted SDHC card is being accessed.

(writing/reading data) Do not turn off the power of the camera recorder or remove the SDHC card.

Lights up in green On standby. Inserted SDHC card can be

used for recording or playback.

Light goes out ● SDHC card is not inserted.

● An unusable card is inserted.

● An SDHC card is inserted but a different

slot is selected.

Removing the SDHC Card

1 Check that the SDHC card to be removed is not being

accessed (lights up in red).

2 Slide the SDHC card cover knob in the direction of the

arrow and open the cover.

3 Push the SDHC card and remove it from the slot.

Slot A Status

Indicator

[SLOT

SELECT]

Button

SDHC Card Cover

Inserting an SDHC Card

This camera recorder comes with two card slots for video/ audio recording and playback (Slot A and B).

1 Slide the SDHC card cover knob of the desired slot in

the direction of the arrow and open the cover.

2 Insert an SDHC card with the notched corner first.

3 Close the SDHC card cover.

Notched Corner

SDHC Card

4 Close the SDHC card cover.

Memo :

●

When both slots are inserted with usable SDHC cards, the previously selected slot is used.

Note :

●

Data may be lost if you turn off the power of the camera recorder or remove the SDHC card when it is being accessed. All data recorded on the card, including the file that is being accessed, may be corrupted. Be sure to check whether the status indicator is lighted in green or not before you turn off the power or remove the SDHC card.

●

If you mistakenly remove the card when it is being accessed, reinsert the card only after the status indicator goes off.

●

The SDHC card may not be recognized if you insert and remove the card within a short time. When this happens, remove the card and wait for a few seconds before you reinsert.

Preparations

SDHC Cards (continued)

Switching SDHC cards

When both card slots are inserted with SDHC cards, you can use the [SLOT SELECT] button to switch the card to use. When the memory on an SDHC card is full during recording, data recording automatically switches to the other card.

[SLOT SELECT] Button

Cross-Shaped

Button

Set Button

[CANCEL] Button

Note :

●

The [SLOT SELECT] button is disabled during recording or

playback. Cards will not be switched even if you press the

button.

2 Select the slot of the SDHC card to be formatted and

press the Set button.

3 The status of the selected SDHC card appears.

4 Select [Format] and press the Set button.

5 Formatting starts.

Formatting (Initializing) SDHC Cards

When the following cards are inserted, AFormatting RequiredB appears. Format the card using the camera recorder menu.

Unformatted SDHC cards

●

SDHC cards formatted under different specifications

* For details of the menu operation, see [Basic Operations in

Menu Screen] (A Page 66 ).

Note :

●

Be sure to format the SDHC card on this camera recorder.

SDHC cards formatted on a PC and other peripheral

equipment cannot be used on this camera recorder.

Memo :

●

To cancel the message display, press the [CANCEL] button.

A [!] mark appears at the remaining media display area

when an SDHC card that requires formatting is inserted.

1 Select [Format Media] in the [Media...] menu.

(A Page 89)

6 Formatting is complete.

ACompleteB appears when formatting is complete.

Memo :

●

If you do not want to format the card, select [Cancel] or press the [CANCEL] button to return to the previous screen.

●

If you remove the SDHC card during formatting, AFormat Error!B appears and the camera recorder returns to the previous screen.

●

During formatting, menu operation is unavailable but you can start recording. However, this is only available when a recordable SDHC card is inserted in the other slot.

●

Formatting cannot be performed in the following cases.

● Recording is in progress on the SDHC card to be

formatted.

● SDHC card is not inserted.

● Write-protect switch of the SDHC card is set

( is displayed).

Note :

●

If you format the SDHC card, all data recorded on the card, including video data and setup files, will be deleted.

Restoring the SDHC Card

It is necessary to restore the SDHC card if an abnormality occurs to the data in the card due to some reasons. The message ARestore MediaB appears on the LCD monitor/ viewfinder screen when an SDHC card that requires restoring is inserted.

Memo :

●

To cancel the message display, press the [CANCEL] button.

A [!] mark appears at the remaining media display area

when an SDHC card that requires formatting is inserted.

1 Select [Restore Media] in the [Media...] menu.

(A Page 89)

2 Select the slot of the SDHC card to be restored and

press the Set button.

Note :

●

[Restore Media] can only be selected in Camera mode. However, it cannot be selected while the camera recorder is recording. Select [Restore Media] in Camera mode when the camera recorder is not recording.

●

[Restore Media] does not restore the SDHC card to its original states completely. If restoring fails, replace or format the SDHC card. Take note that formatting the SDHC card erases all information inside.

Memo :

●

Restoring cannot be performed in the following cases.

● Camera recorder is recording in progress.

● SDHC card is not inserted.

● Write-protect switch of the SDHC card is set ( is

displayed).

● Restoring is not required.

3 Restoring starts.

4 Restoring is complete.

When restoring is complete, ACompleteB appears and the

●

camera recorder returns to the [Restore Media] screen.

●

When no media that requires restoring is inserted, the

camera recorder returns to the [Media...] menu screen.

Write-Protect Switch on the SDHC Card

A Slide the write-protect switch upward to enable writing or

deleting.

B Slide the write-protect switch downward to prevent writing

or deleting. (Images in the card are protected.)

Write-Protect Switch

Write/Delete Enabled Write/Delete Disabled

Estimated Recordable Time of SDHC Cards

The estimated recordable time is only a guide. Differences may occur depending on the SDHC card in use and the battery condition.

( A Page 71 [Camera Resolution]) ( A Page 71 [Frame & Bit Rate])

QuickTime/MP4 SDHC Card Size

Camera Resolution

1280x720 1440x1080 1920x1080

1440x1080 SP 17 min 35 min 70 min 140 min

1280x720 SP 22 min 45 min 90 min 180 min

Memo :

● If the SDHC card contains files recorded by devices other

than this camera recorder or files that are saved from a PC, the recordable time may be shorter or data may not be properly recorded.

Bit Rate

HQ 12 min 25 min 50 min 100 min

4 GB 8 GB 16 GB 32 GB

Shooting

Basic Shooting Procedures

[REC] Button

Back Tally Lamp

Front Tally Lamp

[POWER] Switch [REC] Button

Preparations

1 Attach the accessories. (A Page 19)

2 Supply battery or AC adapter power to the camera

recorder. (A Page 21)

3 Insert an SDHC card. (A Page 31)

4 Turn on the power of the camera recorder.

Set the [POWER] switch to AONB. The camera recorder starts up in Camera mode and is ready for shooting.

5 Adjust the angle of the LCD monitor and viewfinder.

(A Page 28)

Shooting

1 Configure the video and audio input settings.

You have to configure video settings such as brightness adjustment (iris, gain, shutter) and white balance adjustment in order to start shooting. You also have to adjust the audio input settings and audio recording level for audio recording.

Adjusting the Iris (APage 37)

●

Setting Gain (APage 37)

●

Setting the Electronic Shutter (APage 38)

●

Adjusting the White Balance (APage 40)

●

Adjusting the White Shading (APage 42)

●

Setting the ND Filter (APage 43)

●

Adjusting Audio Input Settings and Recording Level

(

Page 44)

2 Press the [REC] button to start recording to the SDHC

card.

●

There are two [REC] buttons on the camera recorder and one on the lens. Any of the [REC] buttons can be used to start/stop recording by default.

●

During recording, the front and back tally lamps light up in red.

Memo :

● Tally lamps can be turned off with [Front Tally]/[Back Tally]

in the [Others] menu. (A Page 87)

● To separately control this camera recorder and other

equipment connected to the [IEEE1394] terminal, you can configure the setting at [1394 Rec Trigger] in the [Others] menu. (A Page 88)

3 Check the most recently captured images (Clip

Review)

Press the [RET] button on the lens to activate the Clip Review function (A Page 52). The most recently captured images are played back on the LCD monitor and viewfinder screens. After playback, the camera recorder returns to standby mode (STBY).

* When [Main Menu]B[Camera Function]B[Switch

Set...]B[LENS RET] is set to AClip ReviewB (A Page 74)

Focus Assist Function

When the [FOCUS ASSIST] button is pressed during shooting, the focused area is displayed in color (blue, red, or green). This enables easy and accurate focusing. Select the color in the menu.

[FOCUS ASSIST] Button

Recording Clips

䡵 Clip (Recorded Data) and Clip Name

When recording is stopped, the images, audio and accompanying data which are recorded from start to stop are recorded as one “clip” on the SDHC card.

An 8-character clip name is automatically generated for the recorded clip. (Clip Name Prefix + Clip Number)

Example:

ABCG0001

Clip Number

A number in automatic ascending order is assigned in the recording order. The clip number can be reset in the menu.

* [Clip Set]B[Reset Clip Number] (A Page 72)

Clip Name Prefix (any 4 alphanumeric characters)

This is set to AxxxGB (AxxxB denotes the last 3 digits of the serial number) by default.

Memo :

● Before recording starts, you can set any characters for the

clip name prefix by using [Main Menu]B[Record Set]B[Clip Set]B[Clip Name Prefix]. (A Page 72)

● Changes cannot be made after recording.

Memo :

●

When [Main Menu]B[LCD/VF]B[Shooting Assist...]B[Focus

Assist] is set to AACCU-FocusB, the depth of field of the

object becomes shallower to enable easier focusing.

Page 83)

(

●

The AACCU-FocusB function switches automatically to AOffB

after about 10 seconds.

●

Select the display color in [Main Menu]B[LCD/

VF]B[Shooting Assist...]B[Color]. (APage 83)

䡵 Assigning Focus Assist function to the [RET] button on the lens

You can assign the Focus Assist function to the [RET] button on the lens.

* Set [Main Menu]B[Camera Function]B[Switch

Set...]B[LENS RET] to AFocus AssistB. (A Page 74)

䡵 Recorded Clips

This camera recorder uses FAT32 File System. As such, recorded materials may be split into several files due to the file size. However, they can be played back

continuously on the camera recorder. Clips may be recorded across both SDHC cards in card slot A and B depending on the recording time of the clip. When copying clips to a HDD using a PC, it is recommended to use [JVC Clip Manager Software], which is found in the bundled CD-ROM, to maintain continuity.

Note :

●

When copying via Explorer (Windows environment) or Finder (Mac environment), the continuity and relativity of the recorded material may not be maintained.

Note :

●

A clip recorded across several cards cannot be played back continuously. Continuous playback is only possible when the recording is made on one card.

Shooting

Selecting File and Video Formats

You can select the file format for recording/playback and the record format for video images on this camera recorder.

Selecting a File Format

There are two file formats for selection. QuickTime : QuickTime file format MP4 : MP4 file format *

* AMP4B can be selected only when KA-MR100G (Memory

Recorder) is connected.

Selecting a Video Format

Select a [Record Format] from the list of formats. The selectable [Frame & Bit Rate] changes according to the settings of [File Format] and [Camera Resolution]. The recording bit rate is 35 Mbps VBR when AHQB is selected, and 18.3 Mbps (1080i is 25 Mbps) CBR when ASPB is selected.

䡵 List of Formats

The following is a list of file formats and video formats that can be selected on this camera recorder.

Record Format Remarks

File Format Camera Resolution Frame & Bit Rate

Horizontal×Line

QuickTime 1280x720 60p(HQ)

60p(SP) HDV

compatible

30p(HQ)

30p(SP) HDV

compatible

24p(HQ)

24p(SP) HDV

compatible

50p(HQ)

50p(SP) HDV

compatible

25p(HQ)

25p(SP) HDV

compatible

1440x1080 60i(HQ)

60i(SP) HDV

compatible

50i(HQ)

50i(SP) HDV

compatible

1920x1080 60i(HQ) Full HD

30p(HQ) Full HD

50i(HQ) Full HD

25p(HQ) Full HD

24p(HQ) Full HD

Record Format Remarks

File Format Camera Resolution Frame & Bit

Horizontal×Line

MP4 1280x720 60p(HQ)

1440x1080 60i(SP) HDV

1920x1080 60i(HQ) Full HD

Rate

60p(SP) HDV

30p(HQ)

30p(SP) HDV

24p(HQ)

24p(SP) HDV

50p(HQ)

50p(SP) HDV

25p(HQ)

25p(SP) HDV

50i(SP) HDV

30p(HQ) Full HD

50i(HQ) Full HD

25p(HQ) Full HD

24p(HQ) Full HD

compatible

Adjusting the Iris

Setting Gain

You can adjust the aperture of the lens iris manually or automatically according to the brightness of the object.

Iris Ring

RET

A M

IRIS

[IRIS] Switch

Manual Iris (Manual Adjustment) Mode

Set the [IRIS] switch on the lens to AMB to enter Manual Iris Mode.

Turn the iris ring on the lens to adjust the iris manually.

Memo :

● Even during Manual Iris Mode, the camera recorder enters

forced Auto Iris Mode while the [IRIS AUTO] button is pressed.

Auto Iris (Automatic Adjustment) Mode

Set the [IRIS] switch on the lens to AAB to enter Auto Iris Mode. The iris is automatically adjusted according to the brightness of the object. Or, set the [FULL AUTO] switch on the camera recorder to AONB to enter Auto Iris Mode. The iris is automatically adjusted according to the brightness of the object.

Memo :

●

When [Iris Control] in the [Camera Function...]B[FULL

AUTO...] menu is set to AOffB, you can adjust the iris

manually even if the [FULL AUTO] switch on the camera

AONB

recorder is set to

●

You can use the cross-shaped button (H, I) on this camera

recorder to set the target level (brighter/darker) of the auto

iris. You can also use the menu to set the tracking sensitivity

of the auto iris. (APage 73)

. (APage 75)

This function electrically boosts the light sensitivity when there is insufficient illumination on the object. You can set the gain of the video amplifier according to the brightness of the object. Select the setting mode according to your shooting conditions.

[GAIN] Selection

Switch

[FULL AUTO] Switch

Fixed Gain Mode (Manual Gain Switching)

You can select the gain of the video amplifier using the [GAIN] switch on the camera recorder. The default positions of the switch are as follows.

[L] : 0 dB (No electrical boosting.) [M] : 9 dB (Boosts sensitivity by about 2.8 times.) [H] : 18 dB (Boosts sensitivity by about 8 times.)

Memo :

●

The gain value of each position can be set to AALCB and within the range of in the menu. Increasing the sensitivity causes the screen to appear grainier. (APage 74)

0dBB to A18dBB (in increments of 3 dB)

Automatic Gain Mode (Automatic Gain Adjustment)

Set the [FULL AUTO] switch on the camera recorder to AONB to enter Automatic gain Level Control (AALCB fixed). The gain of the video amplifier is automatically set according to the brightness of the object.

In this case, the [GAIN] switch on the camera recorder is disabled.

Memo :

●

When [Gain] in the [Camera Function...]B[FULL AUTO...] menu is set to ASW SetB, you can switch the gain with the [GAIN] switch even if the [FULL AUTO] switch on the camera recorder is set to AONB. (APage 75)

Shooting

Setting the Electronic Shutter

You can change the shutter speed (time for each shooting frame) using the electronic shutter function. Electronic shutter can be adjusted manually or automatically.

Fixed Shutter Mode (Manual Shutter Switching)

Use the [SHUTTER] switch (JK) to switch between shutter modes and speeds.

[FULL AUTO] Switch

Set Button (R)

䡵 Switching Shutter Speed

When shutter is ON, use the [SHUTTER] switch (JK) to set the shutter speed. Shutter speed differs according to the video format and variable frame rate settings.

䡵 During modes other than Variable Frame REC

Camera

Shutter

Button

Step

Button 1/7.5 1/6.25 1/6

Button

Var iable

Button (Lower limit) 1/30.03 1/25.04 1/24.01

Resolution/ Frame & Bit

Rate

(Standard) 1/60 1/50 1/48

(Upper limit) 1/10489.5

(Standard) 1/60.00 1/50.00 1/48.00

720/60p

720/30p 1080/60i 1080/30p

1/10000 1/10000 1/4000

1/4000 1/4000 1/2000

1/2000 1/2000 1/1000

1/1000 1/1000 1/500

1/500 1/500 1/250

1/250 1/250 1/100

1/100 1/120 1/60

1/301/251/24

1/15 1/12.5 1/12

720/50p 720/25p

1080/50i

1080/25p

720/24p

1080/24p

1/10000

[SHUTTER] Switch (JK)

䡵 Switching Shutter Mode

Press the Set button (center of the cross-shaped button) to turn ON/OFF the shutter.

Memo :

●

When shutter is ON, AStepB, AVar iabl eB, or AEEIB (Extended Electric Iris, i.e. Automatic Shutter Mode) may be selected

using [Shutter] in the [Camera Function] menu. at factory default. (APage 73)

StepB is set

䡵 During Variable Frame REC

Camera

Resolution/

Shutter

Button

Step

Button

Var iable

Button (Lower limit)

Frame & Bit

Rate

Frame Rate

(Standard)

(Upper limit)

720/30p 720/24p

60, 30, 15 48, 24, 12 40, 20, 10

1/10000

1/10000 1/4000

1/10000 1/4000 1/2000

1/4000 1/2000 1/1000

1/2000 1/1000 1/500

1/1000 1/500 1/250

1/500 1/250 1/100

1/250 1/100 1/60

1/100 1/60 1/48

1/60 1/48 1/40

1/30 1/24 1/20

1/15 1/12 1/10

1/7.5 1/6 1/5

1/10489.5

1/60.00 1/48.00 1/40.00

Button

Shutter

Step

Camera

Resolution/

Frame & Bit

Rate

Frame Rate

(Standard)

(Upper limit)

720/25p

50, 25, 12.5 40, 20, 10

1/10000

1/10000 1/4000

1/4000 1/2000

1/2000 1/1000

1/1000 1/500

1/500 1/250

1/250 1/120

1/120 1/50

1/50 1/40

1/25 1/20

1/12.5 1/10

1/6.25 1/5

1/10489.5

Variabl e

Button (Lower limit)

1/50.00 1/40.00

Memo :

● Shutter speed is usually displayed in seconds (SEC).

However, only when [Frame & Bit Rate] is set to A24p(SP)B, A24p(HQ)B, A25p(SP)B, or A25p(HQ)B, the speed can be displayed in angle (DEG). ( A Page 71 [Frame & Bit Rate]) ( A Page 85 [Shutter Disp.])

Automatic Shutter Mode (Automatic Shutter Adjustment)

Set the [FULL AUTO] switch on the camera recorder to AONB to enter the automatic shutter adjustment mode. The shutter speed is automatically adjusted according to the brightness of the object. Switching of shutter speed with the [SHUTTER] switch ( and switching of shutter mode with the Set button ( disabled.

Memo :

●

When [Shutter] in the [Camera Function]B[FULL AUTO...] menu is set to

SW SetB, you can switch the shutter mode and speed with the cross-shaped button even if the [FULL AUTO] switch on the camera recorder is set to

AONB

(APage 75)

●

When [Shutter] in the [Camera Function]B[FULL AUTO...] menu is set to AEEIB, the camera recorder enters Automatic Shutter Adjustment Mode. Switching of shutter mode and speed with the cross-shaped button is disabled. (APage 75)

JK)

R) are

Shooting

Adjusting the White Balance

Adjust the white balance according to the color temperature of the lighting. You can select the adjustment mode according to the shooting conditions. As the color of the light (color temperature) varies according to the light source, it is necessary to readjust the white balance when the main light source illuminating the object changes.

[WHT.BAL.] Selection Switch

䡵 Memory A Mode (A), Memory B Mode (B)

Set to the white balance saved in Memory A or Memory B. When the [WHT.BAL.] selection switch is set to [A] or [B], press the [AWB] button to execute white balance. The white balance will be automatically adjusted and the adjusted

value will be saved in Memory A or Memory B.

1 Prepare the camera recorder.

ASet the [POWER] switch to AONB. BSet the iris mode switch of the lens to AAB (automatic). CSet the [FULL AUTO] switch to AOFFB.

[FULL AUTO] Switch

[POWER] Switch

[AWB] Button

Manual White Balance Mode (Manual Switching)

You can select the white balance with the [WHT.BAL.] selection switch.

Use the [WHT.BAL.] selection switch to select APRESETB (preset

AAB

mode),

Memo :

●

(memory A mode), or ABB (memory B mode).

The [FAW] (Fulltime Auto White balance) function can be assigned to the [A], [B], or [PRESET] button using [Switch

Set...] in the [Camera Function] menu. ( In [FAW] mode, color temperature of the images is sampled and white balance is automatically adjusted to the appropriate level. When [White Balance...] in the [Camera Function]B[FULL AUTO...] menu is set to AFAWB and the [FULL AUTO] switch on the camera recorder is set to

FAWB.

AONB

Page 74)

, the mode is fixed at

2 Set the [ND FILTER] switch according to the lighting

(A Page 43).

3 Set the [WHT.BAL.] switch to AAB or ABB.

4 Locate a place with similar lighting conditions as the

object to be shot, place a white object near the center of the screen and zoom in to fill the screen with white.

5 Press the [AWB] (Auto White Balance) button.

The white detection frame appears when Auto White

●

Balance is activated. Fill the frame with white completely.

●AAUTO WHITE A, B OPERATIONB appears on the

viewfinder when Auto White Balance is activated.

●

When the correct white balance is achieved, AAUTO WHITE A, B OKB appears for about 3 seconds together with the approximate color temperature.

AUTO WHITE A

OPERATION

[AWB] Activating

AUTO WHITE A

OK <3200K>

White Detection Frame

䡵 Preset Mode (PRESET)

The color temperature in Preset Mode is set to A3200KB by default. The preset color temperature can be changed in [Main Menu]B[Camera Process]B[White Balance]B[Preset Temp.]. ((A3200KB or A5600KB) (A Page 79)

Memo :

● The operation to switch the preset color temperature can

be assigned to the [USER1], [USER2], or [USER3] buttons using [Switch Set...] in the [Camera Function] menu. (A Page 74)

Result Display

Note :

●

Do not use highly reflective objects, such as metals. Doing so may result in improper white balance adjustment.

●

The Auto White function cannot provide optimum white balance with an object outside the adjustment range, for example when it contains only a single color or not enough white color.

䡵 Error message If the white balance adjustment is not correctly completed,

one of the following messages will appear for about 5 seconds.

Error Message Status

NG : OBJECT The object used is defective.

Displayed when there is not enough white color on the object, or when the color temperature is not suitable.

Use another white object and adjust the white balance again.

ERROR : LOW LIGHT Insufficient illumination.

Displayed when the lighting is dark. Increase the lighting and adjust the white balance again.

ERROR : OVER LIGHT Excessive illumination.

Displayed when the lighting is too bright. Decrease the lighting and adjust the white balance again.

䡵 White Paint Adjustment

You can fine-tune the white balance saved in Memory A or Memory B.

* Adjust [White Paint R]/[White Paint B] in [Main

Menu]B[Camera Process]B[White Balance] (A Page 79)

When [AWB] is selected, the normal white paint adjustment value is cleared. However, you can also set to keep the value even when [AWB] is executed. (A Page 79)

Automatic White Balance Mode (FAW: Fulltime Auto White balance)

You can assign AFAWB (Fulltime Auto White balance) to any of the three positions on the [WHT.BAL.] selection switch. Configure the setting with [FAW] in the [Camera Function]B[Switch Set...] menu. (A Page 74)

Set the [FULL AUTO] switch on the camera recorder to AONB to enter FAW mode. White balance is automatically adjusted according to the color temperature of the lighting on the object.

White balance switching with the [WHT.BAL.] selection switch is disabled.

Memo :

● When [White Balance] in the [Camera Function]B[FULL

AUTO...] menu is set to ASW SetB, you can switch the white balance with the [WHT.BAL.] selection switch on the camera recorder. (A Page 75)

Note :

●

The accuracy of [FAW] is inferior to that of Auto White Balance.

●

When the power of the camera recorder is turned on with the [FAW] mode selected, it takes about 15 seconds for the colors to stabilize.

Shooting

Adjusting the White Shading

You need to adjust white shading when you change the lens. Even if white balance is adjusted in the center of the screen,

the top and bottom of the screen may not be adjusted. In this case, green and yellow colors may appear on the screen.

This is due to the characteristic of the lens. Correcting this phenomena is known as white shading adjustment. Perform this adjustment after adjusting the white balance.

[MENU] Button

Cross-Shaped Button (JKHI)

Set Button (R)

CSelect the item to change with the cross-shaped button

(JK) and press the Set button (R).

DChange the setting value with the cross-shaped button

while looking at the evaluated value at the bottom right of the LCD monitor or viewfinder screen.

● If the evaluated value of the adjusting channel is larger

than 0, use the cross-shaped button (K) to change the setting value so that the value is more or less AEvenB. Similarly, if the value is smaller than 0, use the crossshaped button ( ( A Page 42 [Evaluated value])

[R]

[G]

[B]

(Adjustment range : Min (-128) to Normal to Max(127))

Red adjustment

Green adjustment

Blue adjustment

J) to change the setting value.

Memo :

●

There may be some delay in the changes of the evaluated value after pressing the cross-shaped button.

●

Increasing the setting value suppresses the colors at the bottom and enhances the colors on top.

EPress the Set button (R) to save the settings after the

changes are complete.

FSelect [Back] and press the Set button (R) to return to

the [White Balance] menu.

Fill the monitor screen with a pattern box of uniform light

source or white (plain) paper shone with uniform lighting.

2 Set the control of the camera lens as follows.

ASet the aperture to F4 or more such that the iris achieves

optimum brightness. If the brightness is insufficient even at F4, set to the optimum brightness by increasing the lighting.

BWhen using zoom lens, set to the center of the zoom

adjustment range.

3 Adjust the white balance of the camera recorder.

( A Page 40 [Memory A Mode (A), Memory B Mode (B)])

4 Set the macro level of the monitor to the maximum.

5 Check the monitor screen.

There is no need for adjustment if there is no color at the top

●

and bottom of the screen.

●

If the top of the screen is greenish and the bottom is reddish or vice versa, continue this adjustment.

6 Adjust the white shading.

It is recommended to adjust only G (green).

ASet [Main Menu]B[Camera Process]B[White

Balance...]B[Shading Mode] to AManualB. (A Page 79)

BSelect [Adjust...] in the [White Balance] menu and press

the Set button (

R).

Top

Evaluated

Btm

Evaluated Value Detection Frames

Val ue

7 Press the [MENU] button to return to the normal

screen.

8 Readjust the white balance. (A Page 40)

Note :

●

If the lens setup is incorrect, you may have over-corrected the white shading. Set to the recommended settings for the lens. (Do not open the iris more than F4. Do not adjust the zoom lens at the telephoto or wide angle end.)

●

White shading occurs as a result of the optical characteristic of the attached lens. This is not a camera malfunction.

Evaluated value

A value that compares the average values of the R, G, B channels in the evaluated value detection frames at the top (Top) and bottom (Btm) of the LCD monitor or viewfinder (difference between [Top] and [Btm]).

If [Top] is larger than [Btm], a negative value is displayed. If [Top] is smaller than [Btm], a positive value is displayed.

When there is no difference between [Top] and [Btm], AEvenB is displayed. Set such that the evaluated value is more or less AEvenB.

Setting the ND Filter

Use the ND filter to keep the lens aperture in the appropriate range. Switch according to the brightness of the object. When the switch is changed, the position of the switched ND filter is displayed on the LCD monitor and viewfinder screens. (STATUS 1 Screen)

[ND FILTER] Switch

1280x720 24p HQ

B STBY

[1/16] Reduces the amount of incident light to 1/16. Select

[1/4] Reduces the amount of incident light to 1/4. Select

[OFF] Select this for indoor and dark outdoor environments.

100min 100min

30/24 fps

282min

Displays the position of the ND filter

this for extremely bright outdoor environments.

this for bright and sunny outdoor environments.

00:00:00:00

MAX 123% MIN 45%

SKIN AREA

S.DTL

B -3

ND1/16 A<3200K>

Memo :

● The display of the ND filter position is set to AOffB by

default. To display the position of the ND filter, set [Filter] in the [LCD/VF]B[Status Display...] menu to AOnB. (A Page 84)

● It is recommended to use the ND filter to set the lens

aperture to less than F5.6.

Shooting

Adjusting Audio Input Settings and Recording Level

You can record audio from the two channels (CH-1/CH-2) in synchronization with video images on this camera recorder. The camera recorder is equipped with [INPUT1] and [INPUT2] terminals for audio input. You can select a recording channel and the adjustment mode (manual/ automatic).

[CH-2 INPUT] Selection Switch

[AUDIO INPUT 1/2]

[INPUT1/INPUT2] Terminal

Setting Audio Input

Select the audio to input through [INPUT1] and [INPUT2] terminals with the [AUDIO INPUT 1/2] mode switch.

[LINE]

[MIC] Use this setting when connecting to a dynamic

[MIC+48V]

Note :

●

When connecting a device that does not require a +48 V power supply, make sure that it is not set to the position.

●

When the [AUDIO INPUT 1/2] mode switch is set to AMICB, make sure that a microphone is connected to the [INPUT1/ INPUT2] terminal. If you increase the recording level when a microphone is not connected, noise from the input terminal may be recorded.

●

When a microphone is not connected to the [INPUT1/ INPUT2] terminal, set the [AUDIO INPUT 1/2] mode switch to ALINEB or adjust the volume with the [CH1/CH2 AUDIO LEVEL] recording level adjustment knob.

Memo :

●

Set the reference input level of AMICB and AMIC+48VB using [Input1 Mic Ref.]/[Input2 Mic Ref.] in the [Main Menu]B[Record Set]B[Audio Set] menu. (APage 72)

䡵

Setting of [CH-2 INPUT] Selection Switch

Use the [CH-2 INPUT] selection switch to select the audio to be recorded to CH-2.

[INPUT1] Records audio from [INPUT1] terminal to CH-2.

[INPUT2] Records audio from [INPUT2] terminal to CH-2.

Use this setting when connecting to an audio device or other equipment. The reference input level is +4 dBu.

microphone.

Use this setting when connecting to a microphone (phantom microphone) that requires a +48 V power supply.

Mode Switch

MIC+48VB

Adjusting Audio Recording Level

You can select to adjust the audio recording levels for the two channels (CH-1/CH-2) manually or automatically.

[AUDIO LEVEL CH-1/CH-2] Adjustment Knob

[FULL AUTO] Switch

When the LCD monitor is open

[AUDIO SELECT CH-1/ CH-2] Selection Switch

䡵 Manual Adjustment Mode (Manual Adjustment)

Set the [AUDIO SELECT CH-1/CH-2] switch on the camera recorder to AMANUALB to enter the manual adjustment mode, and use the [AUDIO LEVEL CH-1/CH-2] adjustment knob to set the recording level. You can adjust the level manually during the recording, recording pause, and stop modes.

1 Set the [AUDIO SELECT CH-1/CH-2] switch to

AMANUALB for the channel to manually adjust the recording level.

2 Turn the corresponding [AUDIO LEVEL CH-1/CH-2]

adjustment knob to adjust the level.

Adjust such that the audio level meter does not light up at -2 dB even for loud sounds.

1280x720 24p HQ

30/24 fps

100min 100min

B STBY

STATUS 1 Screen

282min

Memo :

●

Set [Audio Limiter] in the [Main Menu]B[Record Set]B[Audio Set] menu to AOnB to activate the audio limiter in the Manual Adjustment Mode. This controls the recording level when excessive audio signals are input. (

●

For the reference level to be recorded on SDHC cards, set [Audio Ref. Level] in the [Main Menu]B[Record Set]B[Audio

Set] menu to

-20dBB or A-12dBB. (common for CH-1, CH-2)

(APage 72)

00:00:00:00

MAX 123% MIN 45%

SKIN AREA

S.DTL

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

B -3

-2 dB

Audio Level Meter

Page 72)

Note :

●

When the [FULL AUTO] switch on the camera recorder is set to AONB, the recording level cannot be adjusted with the [AUDIO LEVEL CH-1/CH-2] adjustment knob.

䡵 Using Stereo Type Earphone Jack

When a stereo type earphone jack is connected, perform the following setting to output stereo sound.

1 Set the [MONITOR SELECT] switch to ABOTHB.

䡵 Automatic Adjustment Mode

Set the [AUDIO SELECT CH-1/CH-2] switch on the camera recorder to AAUTOB or the [FULL AUTO] switch to AONB to enter Automatic Adjustment Mode. The audio recording level is set automatically according to the input level.

When the [FULL AUTO] switch is set to AONB, mode switching with the [AUDIO SELECT CH-1/CH-2] switch is disabled.

Memo :

●

When [Audio] in the [Camera Function]B[FULL AUTO...]

menu is set to mode with the [AUDIO SELECT CH-1/CH-2] switch on the camera recorder even if the [FULL AUTO] switch is set to

AONB

. (APage 75)

SW SetB, you can switch the recording level

Audio Monitor During Recording

You can check the input audio with the monitor speaker or earphones.

1 Select the channel to monitor with the [MONITOR

SELECT] switch.

[CH-1] Outputs audio from [INPUT1] terminal.

[BOTH] Mixes and outputs audio from both [INPUT1/INPUT2]

terminals.

[CH-2] Outputs audio from [INPUT2] terminal.

2 Set [Main Menu]B[A/V Out]B[Audio Monitor] to

AStereoB. (A Page 87)

Only audio from [CH-1] is output through the monitor speaker.

Memo :

●

You can set the volume of the alarm tone with [Alarm Level]

in the [Main Menu]

HighB) (APage 87)

[Others] menu. (AOffB/ALowB/AMiddleB/

2 Adjust the volume of the monitor audio with the

[MONITOR] adjustment knob.

Monitor Speaker [PHONES] Te r m in a l

[MONITOR] Adjustment Knob

[MONITOR SELECT] Switch

Memo :

●

Alarm tone is output when there is an abnormality in the camera recorder. Alarm tone is also output when the SDHC card is full or when the battery is low.

Note :

●

Increasing the volume of the monitor too much may result in howling of the camera microphone.

Shooting

Setting Time Code and User’s Bit

Time code and user’s bit data are recorded with the video in this camera recorder. The time code and user’s bit are displayed on the viewfinder and LCD screens during playback or recording. (Status screen)

Displaying Time Code and User’s Bit

The time code and user’s bit are displayed on the viewfinder and LCD screens during playback or recording. The display differs according to the menu settings.

1 Set [Main Menu]B[LCD/VF]B[Status Display...]B[TC/

UB] to AOnB. (A Page 85)

Time code or user’s bit data is displayed on the status screen.

Time Code or User’s Bit

00:00:00:00

MAX 123% MIN 45%

SKIN AREA

S.DTL

B -3

ND1/16 A<3200K>

100min 100min

30/24 fps

282min

STATUS 1 Screen

1280x720 24p HQ

STBY

2 Select the display with the [TC DISPLAY] switch on

the LCD monitor.

Select time code display (TC) or user’s bit display (UB).

Memo :

●

The built-in time code generator number is displayed.

●

Time code display for [IEEE1394] input is not supported.

●

Values recorded on the SDHC card is displayed in Media mode.

Setting Display LCD/VF Display

Time Code

User’s Bit

When [Main Menu]B[LCD/

[Status Display...]B[TC/

VF]

AOnB

UB] is set to or user’s bit is displayed during the following status display and information display mode of the LCD screen.

䡵

STATUS 1 Screen in

Camera mode

䡵

STATUS 1, STATUS 2

Screens in Media mode (SD)

, time code

VIDEO Output

Display

When [Analog Out Char.] or [SDI Out Char.] in the [A/V Out] menu is set to

AOnB

, time code or user’s bit is displayed in the respective video output images during the LCD/VF display setting on the left.

Time Code Operation Mode

Three types of time code operation can be selected with the [TC GENE.] switch. They are AFREEB, ARECB, and AREGENB.

Setting Mode Description

FREE FreeRun

mode

REC RecRun

mode

REGEN Regen

mode

* When [Rec Mode] in the [Record Set] menu is set to

AVariable FrameB, time code operation enters RecRun mode.

The time code operates in the run mode at all times regardless of the recording status. It continues to run even when the power of the camera recorder is turned off. *

The time code operates in the run mode during recording. It continues to run in the order of the recorded clips as long as the SDHC card is not replaced. If the SDHC card is removed and recording is made on another card, time code will be recorded on the new card from where it was left off in the previous card.

The time code operates in the run mode during recording. When the SDHC card is replaced, the last time code recorded on the card is read and recorded on a new card so that the time code continues in running order. (A Page 49)

[TC DISPLAY] Setting Switch

[TC GENE.] Setting Switch

Presetting the Time Code

Time code and user’s bit data generated from the internal time code generator are recorded. This section describes how to set [TC Preset] in the [TC/UB] menu. (A Page 82)

[USER2] Button

[TC GENE.] Setting Switch

Memo :

●

When the frame rate setting in [Main Menu]B[Record Set]B[Record Format]B[Frame & Bit Rate] is A50, 25, 24B,

settings cannot be made in [Drop]. (

●

You can configure the setting without accessing the [TC/UB] menu screen. (APage 48)

Page 71)

䡵 Setting Time Code

[USER2] Button

[MENU] Button

Set Button (

[CANCEL] Button

CrossShaped Button

JKHI)

(

1 Select [Main Menu]B[TC/UB]B[TC Preset] and press

the Set button (

The [TC Preset] screen appears.

R). (A Page 82)

䡵 Required Settings Before Preset

1 Set the [TC GENE.] switch to ARECB or AFREEB.

[REC] Preset data in the time code generator operates in

[FREE] Time code starts to operate in run mode from the

run mode during recording mode. Set this when recording continous time code in connecting frames.

preset time in the time code generator.

2 Select the framing mode for the time code generator

(only when the frame rate setting is A60B or A30B).

Set using [Main Menu]B[TC/UB]B[Drop]. (A Page 82)

[Drop] Sets the run mode of the time code generator to drop

[Non Drop]

Memo :

Drop frame/non-drop frame mode

When the frame rate setting in [Main Menu]B[Record Set...]

●

[Record Format]B[Frame & Bit Rate] is 60 (30), the actual number of frames per second is approximately 59.94 (29.97). However, the time code processing standard is 60 (30) frames. To make up for the frame number discrepancy, the drop frame mode (Drop) drops the 00 frame and 01 frame every minute except for minutes that are multiples of

10.

●

On the other hand, the non-drop frame mode (Non Drop) does not drop frames and ignores the discrepancy with the actual time.

frame mode. Use this setting when placing emphasis on the

recording time.

Sets the run mode of the time code generator to nondrop frame mode.

Use this setting when placing emphasis on the number of frames.

[TC/UB] Menu Screen

Memo :

● When the [TC GENE.] switch is set to AREGENB, the

parameter is displayed as ARegenerationB and cannot be selected.

2 Set the time code (hour, minute, second, frame).

Use the cross-shaped button ( item to set, then the cross-shaped button ( the values.

[TC Preset] Screen

(During drop frame)

Memo :

●

Press the [USER2] button to reset each digit to A0B. The cursor moves to the time digit (left).

H, I) to place the cursor at the

J, K) to change

Cursor

During non-drop frame

3 Check the values and press the cross-shaped button

(R).

The time code is set and the screen returns to [TC/UB].

●

To cancel the setting, press the [CANCEL] button.

4 Press the [MENU] button.

Returns to the normal screen.

Shooting

Setting Time Code and User’s Bit (continued)

Presetting the User’s Bit

You can add an 8-digit hexadecimal number as the user’s bit to the recorded image.

[USER2] Button

[MENU] Button

Set Button (

[CANCEL] Button

CrossShaped Button

JKHI)

(

Check the values and press the cross-shaped button (R).

●

The time code is set and the screen returns to [TC/UB].

●

To cancel the setting, press the [CANCEL] button.

4 Press the [MENU] button.

Returns to the normal screen.

Setting Time Code Without Opening the Menu

[USER1] Button

[USER2] Button

[MENU] Button

Set Button (

CrossShaped Button

JKHI)

(

1 Select [Main Menu]B[TC/UB]B[UB Preset] and press

the Set button (

The [UB Preset] setting screen appears.

R). (A Page 82)

[TC/UB] Menu Screen

Memo :

●

When the [TC GENE.] switch is set to AREGENB, the parameter is displayed as ARegenerationB and cannot be selected.

2 Use the cross-shaped button (H, I) to place the

cursor at the item to set, then the cross-shaped button (

J, K) to change the values.

Numbers between 0 and 9 or alphabets between A and F can be specified for the user’s bit.

[CANCEL] Button

Memo :

●

Settings cannot be made in the following cases.

● [TC GENE.] switch is set to AREGENB.

● Menu screen is displayed.

● The camera recorder is not in Camera mode.

䡵 Required Settings Before Preset

(A Page 47)

●

Set the [TC DISPLAY] switch to ATCB.

● Set the [TC GENE.] switch to settings other than

AREGENB.

䡵 Setting Time Code

1 Hold down the [MENU] button and press the [USER1]

button.

The [TC Preset] setting screen appears.

Cursor

[UB Preset] Screen

Memo :

●

Press the [USER2] button to reset each digit to A0B. The cursor moves to the left.

[TC Preset] Screen

(During drop frame)

2 Set the time code (hour, minute, second, frame).

Use the cross-shaped button ( item to set, then the cross-shaped button ( the values.

Memo :

●

Press the [USER2] button to reset each digit to A0B. The cursor moves to the time digit (left).

H, I) to place the cursor at the

J, K) to change

2 Set the user’s bit.

Use the cross-shaped button ( item to set, then the cross-shaped button ( the values.

Memo :

●

Press the [USER2] button to reset each digit to A0B. The cursor moves to the left.

H, I) to place the cursor at the

J, K) to change

3 Check the values and press the cross-shaped button

(

●

The time code is set and the screen returns to the normal screen.

●

To cancel the setting, press the [CANCEL] button.

Note :

●

Editing will be canceled and the screen will close under the following situations.

●

The [TC DISPLAY] switch is selected during editing.

●

The camera recorder is switched to the Media mode.

●

When editing time code, operations of the [USER1], [USER2], [USER3] buttons that are set in the [Main

Menu] disabled. [USER2] functions as the number reset button. (APage 74)

Setting User’s Bit Without Opening the Menu

Memo :

●

Settings cannot be made in the following cases.

● [TC GENE.] switch is set to AREGENB.

● Menu screen is displayed.

● The camera recorder is not in Camera mode.

[Camera Function]B[Switch Set...] menu are

Check the values and press the cross-shaped button (R).

●

The user’s bit is set and the screen returns to the normal screen.

●

To cancel the setting, press the [CANCEL] button.

Note :

●

Editing will be canceled and the screen will close under the following situations.

●

The [TC DISPLAY] switch is selected during editing.

●

The camera recorder is switched to the Media mode.

●

When editing time code, operations of the [USER1], [USER2], [USER3] buttons that are set in the [Main

Menu] disabled. [USER2] functions as the number reset button. (APage 74)

[Camera Function]B[Switch Set...] menu are

Recording Time Code in Continuation of the Recorded Time Code on SDHC card

䡵 Required Settings Before Preset (A Page 47)

●

Set the [TC DISPLAY] switch to AUBB.

● Set the [TC GENE.] switch to settings other than

AREGENB.

䡵 Setting User’s Bit

1 Hold down the [MENU] button and press the [USER1]

button.

The [UB Preset] setting screen appears.

Cursor

[UB Preset] Screen

[TC GENE.] Setting Switch

This camera recorder is equipped with the time code reader. Set the [TC GENE.] switch on the inner panel of the LCD to

AREGENB. When the camera recorder enters from recording standby

mode to recording mode, it reads the time code already recorded on the SDHC card and records the new time code in continuation of that value.

The same data as the user’s bit already recorded on the SDHC card is recorded.

Memo :

● When the [TC GENE.] switch is set to AREGENB, the

framing mode of the time code follows the settings in [Drop] of the [TC/UB] menu instead of the clip settings. (A Page 82)

Shooting

Setting Zebra Pattern

When the luminance level range for displaying zebra patterns is specified, diagonal lines (zebra pattern) are displayed at areas with the specified luminance levels during shooting.

Specifying the Brightness (Luminance) Level Range for Displaying Zebra Pattern

[ZEBRA ON/OFF] Switch

Memo :

● ATo p 2B and ABottom2B cannot be set if [Zebra] is set to

A1PatternB.

● When the specified range of two zebra patterns overlaps,

the two zebra patterns overlap and are displayed in a grid.

3 Display the zebra pattern.

Set the [ZEBRA ON/OFF] switch in front of the camera recorder to AONB to display the zebra pattern at the specified range.

Zebra Pattern

Specify the upper (Top1, Top2) and lower (Bottom1, Bottom2) limits of the luminance level.

1 Set the zebra display pattern.

●

Select the display pattern in [LCD/VF]B[Shooting Assist...]B[Zebra].

[Zebra1] Display

[Zebra2] Display

2 Specify the brightness (luminance) level range for

displaying zebra pattern.

Specify the upper (Top1, Top2) and lower (Bottom1, Bottom2) limits of the luminance level in [LCD/ VF]B[Shooting Assist...]B[Zebra].

Item Settings Options

Zebra Zebra display pattern 1Pattern

2Patterns

Top1 Upper luminance limit for

displaying [Zebra1]

Bottom1 Lower luminance limit for

displaying [Zebra1]

Top2 Upper luminance limit for

displaying [Zebra2]

Bottom2 Lower luminance limit for

displaying [Zebra2]

5 % - 100 %, Over (in 5 % increments)

0 % - 100 % (in 5 % increments)

5 % - 100 %, Over (in 5 % increments)

0 % - 100 % (in 5 % increments)

Setting Spot Meter

The brightness of the object during shooting is displayed. This function is useful when setting video or stage lighting or when specifying camera exposure. A cursor indicating the location and the brightness (%) of that location are displayed in the images shown on the LCD monitor and viewfinder screens.

●

Zebra patterns display the brightness of output video

signals. (

●

This function allows you to check the brightness of input images from the lens without depending on image processing such as gamma curve. The dynamic range of the camera recorder is 300 % and a brightness range of 0 % to 300 % and above is displayed.

Memo :

● Spot meter may not be consistent with the zebra display

range. When [Gamma] in the [Camera Process] menu is set to ACinemaB or AFilm OutB, the 100IRE output is not consistent with the 100 % display. (A Page 77)

When an object of more than 300 % luminance is detected, it is displayed as 300 %.

Page 50)

Flip the [SKIN AREA/SPOT METER] switch of the camera

recorder.

The operation switches as below when the [SKIN AREA/ SPOT METER] switch is flipped.

䡵 When [Max&Min]/[Max]/[Min] is selected

[SPOT METER ON] is displayed when the switch is

flipped. Cursors appear according to the settings. The positions of the brightest (Max) and darkest (Min) areas in the screen are automatically detected with regard to the changes of the object, and the brightness of these areas are displayed.

Cursor ([Max]:Green)

Cursor ([Min]:Yellow)

B [SPOT METER FIXED] is displayed when the switch is

flipped. Automatic detection stops. Frames are fixed at the stopped positions and the brightness are displayed.

Set Button (

[SKIN AREA/SPOT METER] Switch

Select ASpot MeterB in [SKIN A./SPOT M.] of the [Main

Menu]

[Camera Function]B[Switch Set...] menu. (APage 75)

Select one of the following from [SPOT METER]. (APage 75)

Item Settings

[Max&Min]

[Max]

[Min]

[Manual]

Displays the brightness (%) and positions of the brightest and darkest areas in the screen. Frames may also be stopped at the current positions.

Displays the brightness (%) and position of the brightest area in the screen. Frames may also be stopped at the current positions.

Displays the brightness (%) and position of the darkest area in the screen. Frame may also be stopped at the current positions.

Displays the brightness (%) of the specified position.

[Max] : Green [Min] : Yellow

Green

Ye l l o w

Green (Blinks in red when specifying the position)

CrossShaped Button (

JKHI)

Color of frame

indicating the

position

Cursor ([Max]:Green)

Cursor ([Min]:Yellow)

C [SPOT METER OFF] is displayed when the switch is

flipped. Displays of cursors and brightness disappear.

D Returns to the state in A.

Shooting

Setting Spot Meter

[

Viewing Recorded Videos

(continued)

䡵 When [Manual] is selected

[SPOT METER FIXED] is displayed when the switch is

flipped. The brightness of the cursor position is displayed.

Cursor (Green)

B [SPOT METER OFF] is displayed when the switch is

flipped. Displays of cursors and brightness disappear.

Immediately (Clip Review)

You can check (review) the last recorded video clip on the screen. However, the video clip cannot be played back if the settings of the camera recorder are different from the video format (Camera Resolution/Frame & Bit Rate) of the clip. (A Page 71)

Memo :

●

To use this function, assign AClip ReviewB to any of the [USER1], [USER2], [USER3] buttons or the [RET] button on the lens.

* [Main Menu]B[Camera Function]B[Switch Set...]B[LENS

RET]/[USER1]/[USER2]/[USER3]BAClip ReviewB(A Page 74)

[RET] Button

RET

A M

IRIS

C [SPOT METER SELECT] is displayed when the switch is

flipped. The cursor blinks in red. Move the cursor with the cross-shaped button to specify the position to display the brightness. When the position is decided, press the Set button or flip the switch to confirm.

Cursor (Blinks in red)

D Returns to the state in A.

Memo :

●

When moving the cursor position, [SHUTTER]/[AE LEVEL] control is disabled.

●

You can also decide the position of the cursor with the crossshaped button (Set button).

●

When the brightness is 0 % in the entire screen, the frame is fixed in the center.

1 Press the button assigned with the AClip ReviewB

function during standby (ASTBYB is displayed).

Playback of the configured section starts.

Memo :

● The video clip is played back according to the [Clip

Review] settings in the [Camera Function] menu. By default setting (Last 5 sec), the last 5 seconds of the clip is played back. (A Page 74)

● When playback is complete, the camera recorder exits

Clip Review and returns to ASTBYB (recording standby) mode.

Note :

●

During Clip Review, only the [CANCEL] and [REC] buttons are enabled. Press the [CANCEL] button to cancel clip

review and return to Press the [REC] button to cancel clip review and enter recording mode. It will take some time to start recording after the button is pressed.

●

When the last clip is less than 5 seconds, the whole clip is played back.

●

Only video clips in the currently selected slot can be reviewed.

●

When there are no clips in the selected slot, Clip Review function is disabled.

●

Clip Review is unavailable when Clip Continuous REC is paused (STBYC , red text) . To operate Clip Review, use the [CANCEL] button to set to (APage 55)

●

Clip Review is unavailable when the camera recorder is connected to an external equipment and the equipment is in recording state.

STBYB (recording standby) mode.

STBYCB

(white text) first.

Assigning Functions to User Buttons

You can assign functions to the [USER1], [USER2], and [USER3] buttons. By assigning functions to the [USER1], [USER2], and [USER3] buttons, the usability of the camera recorder is enhanced.

[USER1], [USER2], [USER3] Buttons

1 Assign functions to the [USER1], [USER2], and

[USER3] buttons from the menu. (A Page 74)

Set each of the [USER1], [USER2], and [USER3] items in the [Main Menu]B[Camera Function]B[Switch Set...] menu.

Memo :

● Operations of the [USER1], [USER2], and [USER3]

buttons are interlocked with the menu settings.

● When the menu screen is displayed, these buttons

function as the menu operation buttons. ( A Page 66 [Basic Operations in Menu Screen])

Shooting

Protecting Important Scenes (OK Mark Function)

You can append OK marks to the clips for important scenes. Clips appended with OK marks cannot be deleted, thus

protecting the important clips. In addition, you can display only the clips with OK marks in the thumbnail display during Media mode.

Appending OK Marks During Recording

1 Assign the AOK MarkB function to the [RET] button on

the lens from the menu.

●

Select [Main Menu]B[Camera Function]B[Switch

[LENS RET]BA

Set...]

●

Append or delete the [OK] mark with every press of the [RET] button.

●

When an OK mark is appended, AOKB appears at the top left of the status screen on the viewfinder/LCD monitor. (

Page 92)(APage 99)

1280x720 60p HQ

100min 100min

B REC

30/24 fps

282min

STATUS 1 Screen

OK MarkB. (APage 74)

AOKB Mark

00:00:00:00

MAX 123%

MIN 45%

SKIN AREA

S.DTL

B -3

ND1/16 A<3200K>

F5.6 AE+1 9dB 1/10000

Special Recording

Besides the normal recording mode, three special recording methods are available in this camera recorder. They are Pre REC, Clip Continuous REC, and Variable Frame REC. Select the mode from [Rec Mode] in the [Record Set] menu.

* Set using [Main Menu]B[Record Set]B[Rec Mode].

(A Page 71)

Pre REC

This mode allows you to start video and audio recording about 3 seconds before the actual recording. You can start recording about 3 seconds before the actual recording when the camera recorder is in recording standby mode (STBYP).

Using Pre REC allows you to record a complete event without missing the initial scenes even if you start the recording late.

Finished clip

(Recorded video and audio)

Records approx. 3 seconds before

Press [REC]

(Recording starts)

1 Set [Rec Mode] to APre RecB. (A Page 71)

●

Set [Main Menu]B[Record Set]B[Rec Mode] to APre RecB.

●

The status display changes to ASTBYBBASTBYPB

Press [REC]

(Recording stops)

Memo :

● Clips appended with [OK Mark] cannot be deleted from the

camera recorder using [Delete Clip...]. (However, they will be deleted when the SDHC card is formatted.)

●

When the camera recorder is in Media mode (SD Card mode), you can delete the [OK] marks appended during recording, or append/delete [OK] marks after shooting.

Page 64 [Appending and Deleting OK Marks])

(

Note :

●

When the write-protect switch on the SDHC card is set ( is displayed), [OK] marks cannot be appended/deleted.

2 Press the [REC] button to start recording in Pre REC

mode.

The status display changes to ASTBYPBBA

●

card slot status indicator lights up in red.

●

Press the [REC] button again to pause recording. The

display changes to status indicator lights up in green.

RECPBBA

STBYPB

Note :

●

When the interval between start and stop recording is short,

STBYPB

is complete. ARECPBBASTBYPB (STBY blinks in red)BASTBYPB is displayed. When the SDHC card becomes full during recording,

●

recording stops and ASTOPPB

●

Video and audio before the above mentioned time may not be recorded after recording starts in the following cases.

● Immediately after power on

● Immediately after switching from Media mode to

Camera mode

● Immediately after setting [Rec Mode]

● Immediately after the end of Clip Review

● Immediately after changing file format

● Immediately after changing video format

may not be displayed immediately after recording

is displayed.

RECPB

and the card slot

and the

Clip Continuous REC

In normal recording, when the recording stops, the image, audio, and accompanying data from the start till the end of the recording are recorded as one AclipB on the SDHC card.

This mode allows you to consolidate several rounds of Astart- stop recordingB into one clip.

Example: In normal recording, three clips are generated as

Recording 1, Recording 2, and Recording 3. However, recording in this mode generates only one clip.

Press [REC]

(Recording starts)

Press [REC]

(Recording pauses)

Recording 1 Recording 2 Recording 3

Press [REC]

(Recording resumes)

Press [REC]

(Recording pauses)

Finished clip

(Recorded video and audio)

Recording 1 Recording 2 Recording 3

Press [REC]

(Recording resumes)

Press [REC]

(Recording stops)

1 Set [Rec Mode] to AClip ContinuousB.

●

Set [Main Menu]B[Record Set]B[Rec Mode] to AClip ContinuousB. (APage 71)

●

The status display changes to ASTBYBBASTBYCB

2 Start recording. (Recording 1)

Press the [REC] button to start recording in Clip Continuous

●

mode.

●

The status display changes to ASTBYCBBA card slot status indicator lights up in red.

RECCB

and the

3 Pause recording.

Press the [REC] button again to pause recording. The

●

display changes to

●

The card slot status indicator remains lighted in red.

Memo :

●

When the [CANCEL] button is pressed while the camera recorder is paused (STBY

STBYCB

BASTBYCB

status indicator lights up in green.

(red text) BA

RECCBBA

(white text). A AclipB is generated. The card slot

STBYCB

), the display changes to

STBYCB

(red text).

(blinking red text)

6 Resume recording. (Recording 3)

Press the [REC] button again to resume recording. The

●

display changes to

●

The card slot status indicator remains lighted in red.

STBYCB

(red text) BA

RECCB

7 Press and hold the [REC] button.

Recording stops and the display changes to

●

RECCBBA

●

The card slot status indicator lights up in green.

STBYCB

. A AclipB is generated.

8 Press the [REC] button again.

The status display changes to ASTBYCBBA

●

card slot status indicator lights up in red.

●

A new AclipB is generated from here.

Memo :

●

Do not remove the SDHC card during recording (RECC, red

text) or recording pause (

● Clip Review (A Page 52)

● Switching SDHC card slots

● Switching operation mode (A Page 7)

●

Files are split into sizes of 4 GB (or 30 minutes) regardless of the menu settings.

STBYCB

Note :

●

Do not remove the SDHC card during recording (RECC, red text) or recording pause (STBYC, red text).

●

To remove the SDHC card in AClip ContinuousB mode, press the [CANCEL] button, check that ASTBYCB displayed and the card slot status indicator is lighted in green before you remove the card.

●

When the SDHC card becomes full during recording,

recording stops and

●

When the [POWER] switch is turned off during recording or recording pause, recording stops and power is cut off after a clip is generated.

●

If the power is cut off due to low battery power, a proper clip may not be generated.

STOPCB

is displayed.

RECCB

, red text).

(white text) is

and the

4 Resume recording. (Recording 2)

Press the [REC] button again to resume recording. The

●

display changes to

●

The card slot status indicator remains lighted in red.

STBYCB

(red text) BA

RECCB

5 Pause recording.

Press the [REC] button again to pause recording. The

●

display changes to ARECCBBA

●

The card slot status indicator remains lighted in red.

STBYCB

(red text).

Shooting

Special Recording (continued)

Variable Frame REC

Shooting in this mode allows you to obtain smooth slow motion or quick motion videos. Using different frame rate settings for recording and playback., videos captured at normal speed can be played back more smoothly than those in low or high speed playback. Variable Frame REC is only enabled under the following situations.

●

[Camera Resolution] in the [Record Format] menu is set to

1280x720B.

●

[Frame & Bit Rate] in the [Record Format] menu is set to

30p(HQ)B, A24p(HQ)B, or A25p(HQ)B.

䡵 Number of Frames that can be Set

1 Set [Camera Resolution] to A1280x720B, then set

[Frame & Bit Rate]. (A Page 71)

Set [Frame & Bit Rate] to A30p(HQ)B, A24p(HQ)B, or A25p(HQ)B.

Note :

●

The recording frame rate cannot be changed during recording. To change the frame rate, stop the recording first and perform the change.

●

When the [TC GENE.] switch located on the inner panel of the LCD is set to AFREEB, videos are recorded in REC (RecRun) time code.

●

Audio cannot be recorded. A mark appears in the audio level meter display. (APage 92)

●

Depending on the settings, images beyond the recording stop position may be recorded and it may take time for the camera recorder to enter ASTBYB mode.

2 Set [Rec Mode] to AVariable FrameB. (A Page 71)

Set [Main Menu]B[Record Set]B[Rec Mode] to AVariabl e FrameB.

3 Select a recording frame rate from [Frame Rate].

(A Page 71)

The selectable frame rates are as shown below.

Record Format Selectable Shooting Frame Rate

1280x720 30p(HQ) 10 12 15 20 24 30 404860^

24p(HQ) ^ 10 12 15 20 24 30404860

25p(HQ) ^^10 12.5 20 25 40 50 ^^

Effect during playback Quick motion Standard Slow motion

Memo :

●

When [AE LEVEL] in the [Main Menu]B[Camera

Function] you can use the cross-shaped button ( frame rate during Variable Frame REC. In modes other than Variable Frame REC, the cross-shaped button (HI) functions as the [AE LEVEL] setting button. (APage 75)

[Switch Set...] menu is set to AAE LEVEL/VFRB,

) to select the

Playback

Playing Back Recorded Clips

To play back clips recorded on SDHC cards, switch to the Media mode (SD Card mode). Press the [CAM/MEDIA] selection button in Camera mode to enter SD Card mode. A thumbnail screen of the clips recorded on the SDHC card is displayed. You can play back the selected clip on the thumbnail screen.

Memo :

●

When an SDHC card without any clips is inserted, ANo ClipsB is displayed.

Operation Buttons

Use the operation buttons on the side control panel of the camera recorder to operate the thumbnail screen.

Thumbnail Screen

The thumbnail screen is available in “No Detailed Properties (4x3 thumbnails)” and “Detailed Properties (4x1 thumbnails)” displays.

Use the thumbnail menu [Detailed Properties] to switch display. (A Page 61)

The first frame of the recorded clip on the SDHC card is displayed as the thumbnail.

Thumbnails are displayed in order of recording from the oldest to most recent.

䡵

No Detailed Properties (4x3 Thumbnails)

Screen

C B

E F

Name Description

A [MENU] Button

B [USER1] Button

C [USER2] Button D Set (Play) Button

E Cross-Shaped

Button (JKHI)

F [CANCEL] (Stop)

Button

Displays the thumbnail screen menu. Press this button to close the menu screen during menu display and return to the normal screen.

Appends (or deletes) an OK mark on the selected clip.

Deletes the selected clip.

Sets the values and items. (Confirm) Plays back the selected clip.

J : Moves the cursor upward. K : Moves the cursor downward. H : Moves back to the previous item. I : Moves forward to the next item.

(To enter sub-menus or display pop-up menus.)

Cancels settings and returns to the previous screen. Stops video playback.

Name Description

A Cursor

Indicates the selected clip. Use the crossshaped button (JKHI) to move the cursor. After power is turned on and SDHC card is inserted, or when the camera recorder is switched to Media mode (SD Card mode), the cursor is positioned on top of the latest clip. When the camera recorder changes to the thumbnail screen during playback, the cursor is positioned on the clip that was played back. If you play back the same clip again, it will continue from where it was left off. The default position of the cursor when SDHC card slot is switched is on the previously selected clip before the switch.

Example of the moving order of the cursor

䡵

(total 22 clips)

Scrolls page

Playback

Playing Back Recorded Clips (continued)

Thumbnail Screen (continued)

䡵 No Detailed Properties (4x3 Thumbnails) Screen (continued)

Name Description

B SDHC Card

C File Format

Displays the status of the inserted SDHC card, selected SDHC card, write-protect switch, and the need for restoring.

Use the [SLOT SELECT] switch to switch slots. Clips in slot A and B cannot be displayed at the same time.

: Write-protect switch of the SDHC card

in slot A is set.

: SDHC card in slot B needs to be

restored or formatted, or is an unsupported SDHC card.

Shows the file format of the currently displayed clips. Clips of other [File Format] will not be displayed.

* Depends on the settings in [Record

Set]B[Record Format]B[File Format] of the [Main Menu] screen. (A Page 71)

Name Description

D Video

Format

E Number of

Clips

F Remaining

Battery Power

Displays the video format (Camera Resolution/Frame Rate) that allows playback and thumbnail display.

Available in 4 types: [1080/60i, 30p, 24p], [1080/50i, 25p], [720/60p, 30p, 24p], and [720/50p, 25p]. Clips of other video formats are represented in alternative display. Clips that are in alternative display cannot be played back with the current video format settings.

A B

A A clip with corrupted management

information. It cannot be played back even if you press the playback button.

A clip that cannot be played back nor displayed in thumbnail with the current video format settings. It cannot be played back even if you press the playback button. The format of the clip is displayed.

* Depends on the settings in [Record

Set]B[Record Format]B[Frame & Bit Rate] of the [Main Menu] screen. (A Page 71)

Displays the [running number/total number of clips] of the displayed clips.

: Ample battery power. : Slightly reduced battery power. : Low battery power. : Empty battery power. (Blinks in red) : External power supply connected.

Memo :

● If the battery in use is not a recommended

one, the battery mark which indicates the battery level may not appear.

G Scroll Bar

H Thumbnail

Te xt

Indicates the scroll position. When there is a black space below the scroll bar (white), this indicates further pages. When the scroll bar (white) is at the bottom, this indicates the last page.

Displays the time code or date/time at the start of clip recording. Date/time is displayed in the local time of the shooting location.

Set whether to display ATCB or ADate/TimeB in the thumbnail menu [Thumbnail Text...]. (A Page 61)

Data/time display depends on the settings in [LCD/VF]B[Status Display...]B[Date Style] of the [Main Menu] screen. (A Page 85) Time is displayed in 24-hour display regardless of the [Time Style] setting.

Name Description

I Clip Mark

Displays clip information (properties).

A OK Mark

Clip is appended with OK mark.

Memo :

● Clips appended with OK marks cannot be

deleted on the camera recorder.

Continued From Mark

This mark indicates that the current clip is continued from another SDHC card when recording is divided and made on several SDHC cards.

Continue Mark

This mark indicates that the current clip will continue to another SDHC card when recording is divided and made on several SDHC cards.

J Operation

Guide for the current operation buttons.

Guide

Moves the clip cursor to the top/bottom/left/right.

Plays back the selected clip.

Appends an OK mark to the selected clip.

This is displayed when an OK mark is not

appended to the clip. (A Page 64)

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the OK mark from the selected clip.

This is displayed when an OK mark is

appended to the clip. (A Page 65)

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the selected clip.

(A Page 62)

Playback

Playing Back Recorded Clips (continued)

Thumbnail Screen (continued)

䡵

Detailed Properties (4x1 Thumbnails)

Screen

Name Description

A Cursor

Indicates the selected clip. Use the crossshaped button (HI) to move the cursor. After power is turned on and SDHC card is inserted, or when the camera recorder is switched to Media mode (SD Card mode), the cursor is positioned on top of the latest clip. When the camera recorder changes to the thumbnail screen during playback, the cursor is positioned on the clip that was played back. If you play back the same clip again, it will continue from where it was left off. The default position of the cursor when SDHC card slot is switched is on the previously selected clip before the switch.

Example of the moving order of the cursor

䡵

(total 6 clips)

Name Description

C Detailed

Properties

D Operation

Guide

Shows the detailed properties of the selected clip. The following information is displayed. File Format : File format

Clip Name : Clip name Resolution : Image size Frame Rate : Frame rate Bit Rate : Bit rate Audio : Audio format Start TC : Time code at the start of

End TC : Time code at the end of

Duration : Clip length UB : User’s bit Creation Date : Date created Variable Frame : Variable frame (only in

Guide for the current operation buttons.

Moves the clip cursor to the left/right.

Plays back the selected clip.

Appends an OK mark to the selected clip.

This is displayed when an OK mark is not

appended to the clip. (A Page 64)

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the OK mark from the selected clip.

This is displayed when an OK mark is

appended to the clip. (A Page 65)

Memo :

● This is disabled when the SDHC card is

locked. (Displayed in gray)

Deletes the selected clip.

(A Page 62)

recording

Variable Frame REC)

B Scroll Bar

Scrolls page

Indicates the scroll position. When there is a black space on the right of the scroll bar (white), this indicates further

pages. When the scroll bar (white) is at the right end,

this indicates the last page.

Playing Back

Use the operation buttons on the side control panel of the camera recorder to play back.

Thumbnail Menu

Name Description

A Button B Button

Button

C Button

Plays back/pauses the selected clip.

Skips in the reverse or forward direction.

Fast forwards in the reverse or forward direction.

Stops playback.

1 Select the clip to play back on the thumbnail screen.

Select the clip to play back with the cross-shaped button.

2 Press the playback/pause button.

Playback of the selected clip starts.

䡵 Time Code Playback

Time code or user’s bit recorded on an SDHC card can be displayed on the LCD monitor and viewfinder.

Memo :

●

When [HD/SD-SDI Out] in the [A/V Out] menu is set to AHD-

or ASD-SDIB, time code is also output from the [HD/

SDI

SD-SDI] output terminal. (

●

User’s bit output from the [HD/SD-SDI] output terminal is used as a flag to determine valid video signals. Therefore, accurate values will not be output.

●

If a section without time code is played back, the time code will stop. However, playback will continue.

Page 86)

Press the [MENU] button during thumbnail display to display the thumbnail menu. Press the [MENU] button during menu display to cancel the settings and exit the menu.

Thumbnail Menu

Sub-Menu

Thumbnail Menu Screen

Item Function

Media info Displays the information screen of the SDHC

card.

Detailed Properties

Thumbnail Text...

TC Displays the recording start time code at the

Date/Time Displays the recording start date/time at the

Delete Clip... For deleting clips. (A Page 62)

One Clip Deletes the selected clip.

All Clips Deletes all clips that are displayed.

Main Menu... Opens the [Main Menu] screen. (A Page 70)

Exit Exits and closes the menu.

For selecting the display method of the thumbnail screen. If a check is selected, the thumbnail screen will be displayed as [Detailed Properties (4x1 Thumbnail) Screen]. (A Page 60)

For selecting the display method for the thumbnail text on the thumbnail screen.

thumbnail text display area (below the thumbnail).

Playback

Deleting Clips

For deleting clips.

[USER2] Button

[MENU] Button

Set Button (

[CANCEL] Button

Note :

● Clips appended with OK marks cannot be deleted on the

camera recorder.

● Read-only clips can be deleted on a PC.

CrossShaped Button (

JKHI)

2 Press the [USER2] button.

A screen to confirm deletion appears.

3 Use the cross-shaped button (JK) to select [Delete]

and press the Set button (

Deleting starts.

Deleting One Clip

You can delete a selected clip with any of the following operations.

A Press [USER2] button when menu is not displayed.

B Perform [Delete Clip...]B[One Clip] in thumbnail menu.

Memo :

●

A clip cannot be deleted with the [USER2] button and menu operation ([Delete Clip...]B[One Clip]) under the following situations.

● A clip with OK mark is selected.

● Write-protect switch of the SDHC card is set ( is

displayed).

䡵 During Thumbnail Screen

䡵 Deleting with [USER2] button

1 Select the clip to delete.

Select the clip to delete with the cross-shaped button (

JKHI).

Memo :

●

Button operations are unavailable during deletion. The deleting operation cannot be canceled.

●

The cursor moves to the next clip (or previous clip if a next clip does not exist) after deletion.

䡵 Deleting with [Delete Clip...]B[One Clip] in the menu

1 Select the clip to delete.

Select the clip to delete with the cross-shaped button

JKHI).

(

2 Press the [MENU] button.

The thumbnail menu screen appears.

Select [Delete Clip...]B[One Clip] and press the Set

button.

A screen to confirm deletion appears.

4 Use the cross-shaped button (JK) to select [Delete]

and press the Set button (

Deleting starts.

Memo :

●

Button operations are unavailable during deletion. The deleting operation cannot be canceled.

●

The cursor moves to the next clip (or previous clip if a next clip does not exist) after deletion.

䡵 During Playback or Pause Screen

䡵 Deleting with [USER2] button

1 Press [USER2] button during clip playback.

A screen to confirm deletion appears.

2 Select [Delete] and press the Set button.

Deleting starts.

Deleting All Clips

Deletes all clips that are displayed.

1 Press the [MENU] button.

The thumbnail menu screen appears.

2 Select [Delete Clip...]B[All Clips] in the menu.

A screen to confirm deletion appears.

3 Select [Delete] and press the Set button.

Deleting starts.

Memo :

●

Button operations are unavailable during deletion. The deleting operation cannot be canceled.

●

The time taken to delete clips depends on the number of clips to be deleted.

Playback

Appending and Deleting OK Marks

You can append OK marks to the clips for important scenes. Clips appended with OK marks cannot be deleted, thus

protecting the important clips. When the camera recorder is in Media mode (SD Card

mode), you can delete the [OK] marks appended during recording, or append/delete [OK] marks after shooting.

[USER1] Button

[MENU] Button

Set Button (

OK Mark

Memo :

●

The [USER1] button is disabled (displayed in gray) and OK marks cannot be appended when the write-protect switch of the SDHC card is set ( is displayed).

●AOK Mark Added...B is displayed when changing marks and

other operations are unavailable.

CrossShaped Button

JKHI)

(

[CANCEL] Button

Appending OK Marks

䡵 During Thumbnail Screen

1 Select a clip without an OK mark and press the

[USER1] button.

An OK mark is appended to the clip.

䡵 During Playback or Pause Screen

1 Press [USER1] button during clip playback.

An OK mark is appended to the clip.

OK Mark

Memo :

● The clip pauses when an OK mark is appended or deleted

during playback.

Deleting OK Marks

䡵 During Thumbnail Screen

1 Select a clip to delete OK mark and press the [USER1]

button.

The OK mark is deleted.

䡵 During Playback or Pause Screen

1 Press the [USER1] button when playing back a clip

appended with OK mark.

The OK mark is deleted.

Memo :

●

The [USER1] button is disabled (displayed in gray) and OK marks cannot be deleted when the write-protect switch of the SDHC card is set ( is displayed).

●AOK Mark Added...B/AOK Mark Deleted...B is displayed when

changing marks and other operations are unavailable.

Menu Display and Detailed Settings

Basic Operations in Menu Screen

Press the [MENU] button on the side control panel of the camera recorder to display the menu screen on the LCD monitor and viewfinder. Various settings for shooting and playback can be configured on the menu screen. The menu screen can also be displayed on external monitors connected to the video signal output terminal. ( A Page 86 [Analog Out Char.]) ( A Page 86 [SDI Out Char.])

Operation Buttons

Use the operation buttons on the side control panel of the camera recorder to operate the menu.

Name Description

A [MENU] Button

B [USER2] Button

C Set Button D Cross-Shaped

Button (

JKHI)

E [CANCEL] Button

Displays the menu screen. Press this button to close the menu screen during menu display and return

to the normal screen.

Resets settings in the [TC Preset] or [UB Preset] setting screen. This button is disabled in other screens.

Sets the values and items.

J: Moves the cursor upward. K: Moves the cursor downward. H: Moves back to the previous item. I: Moves forward to the next item.

Cancels settings and returns to the previous screen.

Display and Description of the Menu Screen

䡵 Screens of the Selected Menu Items

Name Description

A Status Display

B Cursor

C Menu Item

D Fixed Item

E [Back] Back

F Menu Title G Remaining

Battery Power

H Scroll Bar I Setting Values

J Operation

Guide

Displays the current states, such as recording and playback. Same display as the status screen.

䡵 During Camera mode: [STBY], [REC], etc. (A Page 90)

During Media mode (SD Card mode):

䡵

[PLAY], [STILL], etc. (A Page 97)

Indicates the selected item. Use the crossshaped button (JK) to move the cursor.

Displays the names of the menu item and sub-menu.

Menu items with [...] after them indicates that there is a sub-menu to access.

Items that cannot be changed are displayed in gray and cannot be selected.

Select [Back] and press the Set button to return to the previous level.

Title of the currently displayed menu.

: Ample battery power. : Slightly reduced battery power. : Low battery power. : Empty battery power. (Blinks in red) : External power supply connected.

Memo :

● If the battery in use is not a

recommended one, the battery mark which indicates the battery level may not appear.

Indicates the scroll position.

Setting values for the menu items. For menus with sub-menus, values are not

displayed.

Guide for the current operation buttons.

F G

䡵 Changing Setting Values

䡵 [Clip Name Prefix]

Name Description

A Menu Item to

Change

B Operation Guide

C List of Setting

Val u es

D Scroll Bar E Cursor

F Setting Values

Before Change

Menu item to be changed. A list of setting values C appears in a pop-up.

Guide for the current operation buttons.

A pop-up displaying a list of setting values for selection.

The height of the pop-up depends on the number of settings available. Use the scroll bar D to confirm the current display status.

Indicates the scroll position.

Indicates the selected item. Use the cross-shaped button (JK) to move the cursor.

Setting values before changing. R is displayed at the first item.

Text Input with Software Keyboard

Use the software keyboard to enter the [Scene File]/[Picture File] subname and [Clip Name Prefix].

䡵 [Scene File]/[Picture File](A Page 109)

G H

Name Description

A Character Entry

Field

B Character Cursor

C Character Keys

D Key Cursor

E Confirmation

Buttons

F Arrow Keys

G [BS] Backspace Key

H [SP] Space Key

Field for entering the title. You can enter up to 8 characters for

the [Scene File]/[Picture File] subname or up to 4 characters for the [Clip Name Prefix].

Select a character using the key cursor D, and press the Set button to input the selected character at the position of the character cursor. The character cursor moves to the next position on the right each time a character is input. The cursor can be moved using the arrow keys F.

Use the cross-shaped button (JKHI) to move the key cursor D to the character you want to enter.

Indicates the currently selected character or item. Use the crossshaped button (JKHI) to move the cursor.

Select [Set]/[Store] and press the Set button to confirm the title. Select [Cancel] and press the Set button on the side control panel of the camera recorder to abort character input and return to the previous screen.

Moves the position of the character cursor B.

Select [BS] and press the Set button on the side control panel to delete the character on the left of the character cursor B.

Select [SP] and press the Set button on the side control panel to enter a space at the current position of the character cursor B.

Menu Display and Detailed Settings

Menu Screen Hierarchical Chart

Main Menu... (A Page 70)

Record Set...(A Page 71) Record Format(A Page 71) File Format

Rec Mode (A Page 71)

Clip Set (A Page 72) Clip Name Prefix

Audio Set (A Page 72) Input1 Mic Ref.

Camera Resolution

Frame & Bit Rate

Reset Clip Number

Input2 Mic Ref.

Mic Wind Cut

Audio Ref. Level

Audio Limiter

Te s t Ton e

Camera Function... (A Page 73)Bars

Shutter

AE LEVEL

AE Speed

ALC Limit

Auto Iris Limit (OPEN)

Auto Iris Limit (CLOSE)

EEI Limit

Smooth Trans

Switch Set... (A Page 74)

FULL AUTO... (A Page 75)

Camera Process... (A Page 76) Detail Adjust... (A Page 78)

Master Black

Black Toe

Knee

White Clip

Gamma

White Balance... (A Page 79)

Color Matrix (A Page 80)

Color Gain

DNR

Reverse Picture

Reset Process

(Continued on next page)

Memo :

● A [Back] item (omitted in the chart) can be found at the end of each menu item. Select [Back] and press the Set button to return

to the previous level.

TC/UB... (A Page 82) TC Preset

UB Preset

Drop

LCD/VF... (A Page 82) Shooting Assist... (A Page 83)

Marker Setting... (A Page 84)

Status Display... (A Page 84)

LCD + VF

VF Display

LCD Mirror Mode

A/V Out... (A Page 86) Output Terminal

Down Convert

Set Up

HD/SD-SDI Out

Analog Out Char.

SDI Out Char.

Audio Monitor

Others... (A Page 87) Alarm Level

Mode LED

Tally System

Front Tally

Back Tally

1394 Rec Trigger
