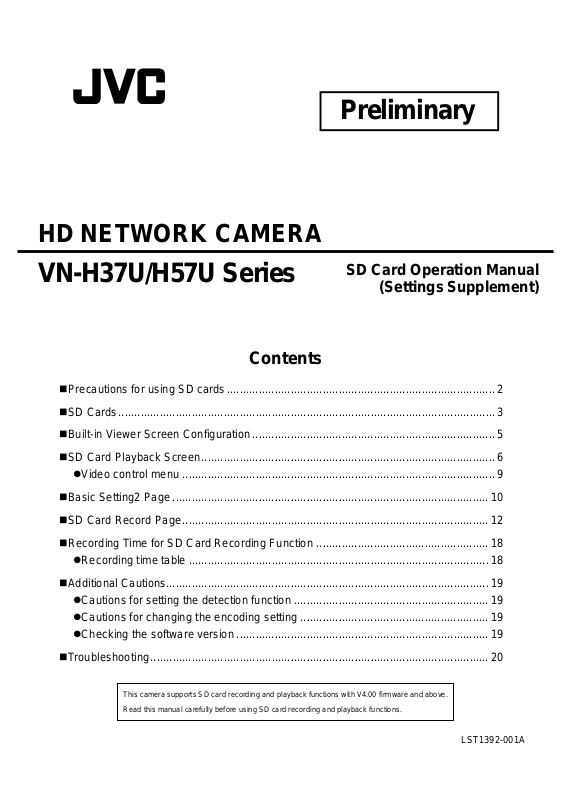

JVC H57U, VN-H37U User Manual

Preliminary

HD NETWORK CAMERA

VN-H37U/H57U Series

Contents

Precautions for using SD cards....................................................................................2

SD Cards......................................................................................................................3

SD Card Operation Manual

(Settings Supplement)

Built-in Viewer Screen Configuration............................................................................ 5

SD Card Playback Screen............................................................................................6

zVideo control menu .................................................................................................. 9

Basic Setting2 Page................................................................................................... 10

SD Card Record Page................................................................................................12

Recording Time for SD Card Recording Function ...................................................... 18

zRecording time table .............................................................................................. 18

Additional Cautions.....................................................................................................19

zCautions for setting the detection function ............................................................. 19

zCautions for changing the encoding setting ........................................................... 19

zChecking the software version............................................................................... 19

Troubleshooting .......................................................................................................... 20

This camera supports SD card recording and playback functions with V4.00 firmware and above. Read this manual carefully before using SD card recording and playback functions.

LST1392-001A

This manual contains instructions for the SD card recording function and operations.

Precautions for using SD cards



Do not insert anything into the camera.

• If anything other than an SD card is inserted into the SD card slot, it may cause a fire, electrical shock or failure of the unit.

Before turning the camera off or removing the SD card, be sure to set the SD card setting to [Disable].

() Page 13)

you turn the camera off or remove the SD card while data is being written to the SD card, data stored on

If the SD card becomes corrupt.

If the data in an SD card becomes corrupt, it will be automatically repaired when the camera starts up. This

repair function enables the card to be written to again; it does not repair corrupted video data. If data is damaged excessively, format the SD card again. In such a case, the recorded data is completely

deleted. Do not use or store SD cards in a place where they may be affected by static electri city or electrical noise.

Insert the SD card in the correct direction. If you insert the SD card in the incorrect orientation, the camera

or the card may be damaged. () Page 3 Our company will not be liable for damages arising out of dat a loss due to an un expected a ccident. (Please

back up your data.) Use this unit under the stated conditions of use. Do not use this unit in the following locations.

A location exposed to direct sunlight, near a heated appliance, inside a closed car in a sunny environment, in a humid place, or a corrosive environment, etc.

Do not bend or drop this unit, and do not subject this unit to strong impact or vibration.

Do not moisten this unit with water.

Do not touch the card connectors.

If you format or delete data using the camera's functions, only the file management information is changed.

The data is not erased completely. If you wish to completely delete the data, use commercially available data erasing software or physically destroy the SD card using a hammer or other device.

If the SD card degrades, you may be unable to write to it. By reformatting the SD card, you may be able to

continue using it temporarily.

)

Do not disassemble or modify the SD card.

Do not let dust, dirt, liquid, or other foreign objects come into contact with the connectors.

Do not peel the label off of the SD card, or attach any other label or sticker to the SD card. This may result

in damage. Do not use a pencil or ballpoint pen when writing on the SD card. Be sure to use an oil-based pen.

SD Cards



This unit can record the images you shoot in an SD card (sold separately) inserted in the card slot.

Memo:

z If the SD card's switch is set to “Lock”, recording and playback cannot be performed. Make sure there is no

critical data on the SD card before disengaging the lock.

z If you insert the SD card in the incorrect direction, the camera or the card may be damaged. Always check

that the card has been inserted in the correct direction as shown in the illustration of the SD card slot.

When using VN-H237U/H257U/ H237VPU/H257VPU

SD card slot SD card LED

When using VN-H37U/H57U/H137U

SD card cove

③

①

Follow the steps below to insert an SD card.

1. Loosen the setscrew (1) by rotating it about 3 times, and then open the SD cover.

Note：

Rotating the setscrew 10 times or more may cause it to fall out.

①Lift the setscrew side of the SD cover slightly from the cam era bo dy.

②

One (M1.4) setscrew

SD card slot SD card LED

SD mark

SD card LED

※You can pull the setscrew up by its edge to kee p it su spended. ②Slide the SD cover to the direction of the setscrew side. ③Lift and open the side with a slit of the SD cover from the camera body.

2. Insert the SD card into the slot until it clicks.

3. Close the SD cover, and retighten the setscrew.

When using VN-H157WP

1・3

SD card cover

SD card (label side)

Sunshade rotation setscrew

Follow the steps below to insert an SD card.

1. Loosen the screw at the bottom of the camera, and rotate the sunshade enough so that the SD card can be inserted.

2. Perform insertion (or removal) of the SD card.

(If an SD card cover is attached, pull it off to remove it.)

3. Return the sunshade to its original position.

4. Fasten the screw after the adjustment.

Memo:

z If the sunshade cannot be rotated because it is difficult to access, turn the camera before performing this

procedure. After finishing, return the camera to its original angle, verify the camera image, and readjust settings if necessary.

Use the following SD cards. SDHC cards (4 to 32 GB) of Class 10 or above

Use SD cards with a guaranteed operation temperature of 85 ℃ or higher. The following SD cards are confirmed to function correctly with this camera:

• Panasonic : RP-SDW04GJ1K

• Toshiba : SD-FX004G

• SanDisk : SDSDX-004G-J95

z Operation of all SD cards that meet the above conditions is not guaranteed.

Memo:

z Do not leave the SD card slot cover open for a long period of time. Dust may enter inside and cause

malfunctions. (VN-H37U/H57U/H137U only)

z Make sure to set [SD Card] on the Record page to [Disable] before removing an SD card or turning off this

camera. () Page

When using an unsupported SD card, it can be set to record, but recording errors may occur.

13)

z You can easily remove the SD card by lightly pushing it inward to release the lock. The SD card may pop

out when you eject it. Exercise care not to lose it.

z Some SD cards on the market may be difficult to remove from the camera body. After the card has been

inserted and removed several times, it will be easier to remove.

z Turn off camera before inserting or changing the SD card.

Built-in Viewer Screen Configuration



Start the Built-in Viewer by entering the IP address of the camera in the address bar of Internet Explorer.

①

②

No. Item Description

SD Card Press the [SD Card] button to display the SD Card Playback Screen.

①

Memo:

z If you log in with only user privileges, the [SD Card] button becomes

unselectable, and SD card playback cannot be performed.

REC The REC icon is displayed while recording to an SD card.

②

SD Card Playback Screen



This is displayed when you click [SD Card] on the Built-in Viewer screen. You can play video files stored in the SD card.

②

① ⑥ ⑦ ⑧ ⑨ ⑩

③

④

⑤

Memo:

z Video recorded to an SD card cannot be output from the camera's [MONITOR] terminal.

No. Item Description

⑪

⑫

MENU ON /

①

MENU OFF Video control

②

menu Specified Time

③

Playback menu

Displays / hides the operation menu. Click [MENU ON] to display the menu on the left side of the page.

Controls the video playback state. For an explanation of each button, see "Video control menu". () Page 9)

Specify the date and time before starting playback.

[Playback] button

Press the [Playback] button to play videos recorded at the specified date and time.

Memo:

z If there is no video recorded for the specified date and time, video near that

date and time will be played.

z When playing video while recording, video recorded within 5 minutes of the

current time cannot be viewed.
