Page 1

INSTRUCTIONS

HARD DISK CAMCORDER

GZ-MG275E/EK GZ-MG255E/EK GZ-MG155E/EK GZ-MG135E/EK GZ-MG130E/EK

ENGLISH

Dear Customer

Thank you for purchasing this hard disk camera. Before use, please read the safety information and precautions contained in pages 2 and 3 to ensure safe use of this product.

The camera illustrations appearing in this instruction manual are of the GZ-MG135.

Page 2

Safety Precautions

IMPORTANT (for owners in the U.K.) Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

If the plug ﬁ tted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally ﬁ tted, and to replace the fuse cover.

If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied ﬁ tted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black

Brown to L (Live) or Red

If these colours do not correspond with the terminal identiﬁ cations of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTIONS:

To prevent shock, do not open the cabinet. No

•

user serviceable parts inside. Refer servicing to qualiﬁ ed personnel.

When you are not using the AC adapter for a

•

long period of time, it is recommended that you disconnect the power cord from AC outlet.

NOTES:

The rating plate and safety caution are on the

•

bottom and/or the back of the main unit.

The serial number plate is on the battery pack

•

mount.

The rating information and safety caution of the

•

AC adapter are on its upper and lower sides.

WARNING:

Batteries shall not be exposed to excessive heat such as direct sunshine, ﬁ re or the like.

CAUTION:

The mains plug shall remain readily operable.

Caution on Replaceable lithium battery

The battery used in this device may present a ﬁ re or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of ﬁ re if the battery is incorrectly replaced.

Dispose of used battery promptly.

•

Keep away from children.

•

Do not disassemble and do not dispose of in ﬁ re.

•

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufﬁ cient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked ﬂ ame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers ﬁ lled with water or liquids (such as cosmetics or medicines, ﬂ ower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, ﬁ re or electric shock may be caused.)

Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of ﬁ re or electric shock.

CAUTION!

The following notes concern possible physical damage to the camera and to the user. Carrying or holding the camera by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camera.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camera and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camera to fall, resulting in damage.

CAUTION:

To avoid electric shock or damage to the unit, ﬁ rst ﬁ rmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet.

Page 3

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal ofﬁ ce, your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

Attention:

This symbol is only valid in the European Union.

SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer. DON’T remove any ﬁ xed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is speciﬁ cally stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for inﬁ rm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving. DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DON’T use makeshift stands and NEVER ﬁ x legs with wood screws — to ensure complete safety always ﬁ t the manufacturer’s approved stand or legs with the ﬁ xings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

NEVER let anyone especially children push

•

anything into holes, slots or any other opening in the case — this could result in a fatal electrical shock;

NEVER guess or take chances with electrical

•

equipment of any kind — it is better to be safe than sorry!

Remember that this camera is intended for private consumer use only.

Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

Trademarks

Manufactured under license from Dolby

•

Laboratories. Dolby and double-D symbol are trademarks of Dolby Laboratories.

•

Other product and company names included

•

in this instruction manual are trademarks and/or registered trademarks of their respective holders.

ENGLISH

Page 4

Read This First!

Make a backup of important recorded data

JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to a DVD or other recording media for storage. ( pg. 40)

Make a trial recording

Before the actual recording of important data, make a trial recording and play back the recorded data to check that the video and sound have been recorded correctly.

Reset the camera if it does not operate correctly

This camera uses a microcomputer. Factors such as background noise and interference can prevent it from operating correctly. If the camera does not operate correctly, reset the camera. ( pg. 51)

Precautions on handling batteries

Be sure to use the JVC BN-VF808U/VF815U/VF823U battery packs.

•

If the camera is subjected to electrostatic discharge, turn the power off before using it

•

again.

If a malfunction occurs, stop using the camera immediately and consult your local JVC dealer

If a problem occurs when using the SD card, take the card together with the camera

•

for repair. If one of them is not included, the cause of the malfunction cannot be diagnosed, and the camera cannot be repaired.

Recorded data may be erased while the camera is being repaired or inspected. Back

•

up all data before requesting repairs or inspections.

Because the camera may be used for demonstration in a shop, the demonstration mode is set to on by default

To deactivate the demonstration mode, set [DEMO MODE] to [OFF]. ( pg. 48)

This operating instruction is applicable to models GZ-MG275, GZ-MG255, GZ-MG155, GZ-MG135 and GZ-MG130

Unless otherwise indicated, illustrations in this operating instructions are of GZ-

•

MG135.

Icons such as indicate that the feature is applicable to the speciﬁ ed model

•

only.

When connecting the camera to other device using a DV cable, make sure to follow the procedure below. Connecting the cable incorrectly may cause malfunctions to the camera and/or other device.

Connect the DV cable ﬁ rst to other device, and then to the camera.

•

Connect the DV cable (plugs) correctly according to the shape of the DV connector.

•

Page 5

Contents

GETTING STARTED

Accessories ............................................ 6

How to Use the Everio Dock ......................... 6

Attaching the Shoulder Strap ........................ 7

Attaching the Core Filter ................................7

Preparing the Remote Control .......................7

Index ........................................................ 8

Indications on LCD Monitor ................ 10

Necessary Settings before Use .......... 12

Charging the Battery Pack .......................... 12

Language Setting .......................................13

Date/Time Setting .......................................13

Other Settings ...................................... 14

Grip Adjustment ..........................................14

Lens Cover .................................................14

Checking the Remaining Battery Power .....14

Tripod Mounting .......................................... 14

When Using an SD Card ............................15

RECORDING

Recording Files ..................................... 16

Video Recording ......................................... 16

Still Image Recording .................................17

Zooming ...................................................... 18

LED Light ....................................................18

Flash ...........................................................18

Registering Files to Events .........................19

Checking the Remaining Space on the

Recording Media ........................................19

Manual Recording ............................... 20

To Change to Manual Recording Mode ...... 20

Program AE ................................................ 20

Nightscope .................................................. 21

Backlight Compensation .............................21

Spot Exposure Control ...............................21

Manual Setting in Function Menu ............... 22

EDITING/PRINTING

Managing Files ..................................... 30

Deleting/Protecting Files ............................. 30

Viewing File Information .............................32

Changing the Event Registration of Video

Files after Recording ..................................32

Partial Delete (EDITED COPY) ...................33

Playlists ................................................ 34

Creating Playlists ........................................34

Playing Back Playlists ................................. 35

Other Operations of Playlists ......................36

Print Setting ......................................... 37

DPOF Print Setting ..................................... 37

Direct Printing with PictBridge Printer ........ 38

COPYING

Copying Files ....................................... 40

Using a DVD Burner to Copy Files from the

Camera (DVD Creation Function) ............... 40

Using a VCR/DVD Recorder to Dub Files from

the Camera ..................................................44

Copying/Moving Still Image Files ................45

MENU SETTINGS

Changing the Menu Settings .............. 46

FURTHER INFORMATION

Troubleshooting ................................... 51

Warning Indications ............................ 54

Cleaning ............................................... 55

Speciﬁ cations ...................................... 55

Cautions ............................................... 58

Terms ................................................... 60

ENGLISH

PLAYBACK

Playing Back Files ................................ 24

Video Playback ...........................................24

Still Image Playback ...................................25

File Search Function ................................... 26

To Play Back Demonstration Files

Playback with Special Effects .....................28

................. 27

Watching Images on TV ....................... 29

Page 6

Accessories

Everio Dock

CU-VC3U ( below)

AC Adapter

AP-V17E/14E

Power Cord

(for AP-V14E only)

Battery Pack

BN-VF808U

Audio/Video Cable USB Cable

( pg. 38, 40 and PC

Shoulder Strap

( pg. 7)

OPERATION GUIDE)

CD-ROM

( PC OPERATION

GUIDE)

NOTE

Remote Control Unit

RM-V750U ( pg. 7)

Lithium Battery

CR2025

Pre-installed in the

remote control unit.

Core Filter ( pg. 7)

Make sure to use the provided cables for connections. Do not use any other cables.

How to Use the Everio Dock

You can connect cables to the connectors of the Everio dock. The connection is completed when you place the camera on the dock.

Camera Connection Terminal

NOTE

For the connection using the S connector and DV Connector, an optional S-Video cable and DV cable are needed. To purchase these cables, consult the JVC Service Centre described on the sheet included in the package for details on its availability. Make sure to connect the end with a core ﬁ lter to the camera. The core ﬁ lter reduces interference.

The S-Video cable (optional) enables even higher quality playback on TV. ( pg. 29) Be sure to use

•

the YTU94146A S-Video cable.

When dubbing ﬁ les from the camera using a VCR/DVD recorder ( pg. 44), using the DV cable

•

enables even higher quality dubbing. Be sure to use the VC-VDV204U DV cable. Operation using the DV cable is not guaranteed on all of the devices.

S Connector

AV Connector

DC Connector

DV Connector

USB Connector

Page 7

Attaching the Shoulder Strap

ENGLISH

Peel off the pad and thread the end of the strap through the eyelet.

Eyelet

Thread the strap through the buckle, adjust its length, and use the strap guide to ﬁ x it in place.

Buckle

Strap Guide

Position the buckle near the eyelet and reattach the pad.

Attaching the Core Filter

Attach the core ﬁ lter to the AC adapter’s DC cord. The core ﬁ lter reduces interference.

Release the stopper.

3 cm

Wind once.

Preparing the Remote Control

A battery is included inside the remote control at the time of purchase. Remove the insulation sheet before use.

Beam Effective Area

Remote Sensor

Effective distance: 5 m

To Reinsert the Battery

Pull out the battery holder by pressing the lock tab.

Lock Tab

Lithium Battery (CR2025)

NOTE

The transmitted beam may not be effective or may cause incorrect operation when the remote sensor is directly exposed to sunlight or powerful lighting.

Page 8

Index

NOTES

The LCD monitor can rotate 270°.

•

• Power-linked operation

You can also turn the camera on/off by

opening/closing the LCD monitor during the recording mode.

Be careful not to cover 4, 5, 7 and 9

•

during shooting.

Page 9

Camera

! Index Button [INDEX] ( pg. 26)/

Remaining Space Button/Data Battery Button [ 0/ 1 ] ( pg. 14, 19)

# Set Lever Move to ¡ :

Reverse Skip ( pg. 24)/Up/Backlight Compensation [ - ] ( pg. 21)/Spot Exposure Control [ . ] ( pg. 21)

Move to ¢ :

Forward Skip ( pg. 24)/Down/

[FLASH] ( pg. 18)/

[LIGHT] ( pg. 18)

Move to £ :

Reverse Search ( pg. 24)/Left/ Nightscope [NIGHT] ( pg. 21)

Move to ¤ :

Forward Search ( pg. 24)/Right/ Program AE [PROGRAM AE] ( pg. 20)

Press down:

Play/Pause ( pg. 24)

$ Menu Button [MENU] ( pg. 46) % Speaker ( pg. 24) & Playback/Recording Mode Switching

Button [SELECT PLAY/REC] ( pg. 16)

( Zoom Lever [W 7 , T

Speaker Volume Control [–VOL+] ( pg. 24)

) Still Image Shooting Button [SNAPSHOT]

( pg. 17)

* Function Button [FUNCTION] ( pg. 22) + Direct DVD Button [DIRECT DVD]

( pg. 41 and PC OPERATION GUIDE)

, Direct Backup Button [DIRECT BACK UP]

( PC OPERATION GUIDE)/Event Button [EVENT] ( pg. 19)

- Auto/Manual Mode Button [AUTO]

( pg. 20)/ Information Button [INFO] ( pg. 32)

. Video Recording Start/Stop Button [REC]

( pg. 16)

/ Access/Charge Lamp [ACCESS/CHARGE]

( pg. 12) (Blinks when you access ﬁ les or charge the battery. Do not turn off the power or remove the battery pack/AC adapter while accessing ﬁ les.) Video/Still Image Mode Lamp [ !, # ] ( pg. 16, 17)

Change Flash Setting

Change LED Light Setting

] ( pg. 18)

0 Power/Mode Switch [OFF (CHARGE), ON,

MODE] ( pg. 12)

1 Lock Button ( pg. 12) 2 Grip Strap ( pg. 14) 3 USB (Universal Serial Bus) Connector

[

] ( pg. 38, 40 and PC OPERATION

GUIDE)

5 Camera Sensor

Remote Sensor ( pg. 7)

6 Lens Cover ( pg. 14) 7 Lens 8 Lens Cover Switch [ =, > ] ( pg. 14) 9 Stereo Microphone : SD Card Slot ( pg. 15) ; Tripod Mounting Socket ( pg. 14) < Stud Hole ( pg. 14) = DC Input Connector [DC] ( pg. 12) > Audio/Video Connector [AV] ? Battery Pack Mount ( pg. 12) @ Battery Release Button [BATT.] ( pg. 12)

Flash ( pg. 18)/ LED Light ( pg. 18)

Remote Control

Q Infrared Beam Transmitting Window R ZOOM (T/W) Buttons

Zoom In/Out ( pg. 18)

S Up Button

Rotate Button (counterclockwise) ( pg. 25)

T Skip Backward Button U Left Button V Back Button W PLAYLIST Button ( pg. 34) X START/STOP Button Y SNAPSHOT Button ( pg. 17) Z INFO Button ( pg. 32) a Skip Forward Button b PLAY/PAUSE Button c Right Button d Next Button e Down Button

Rotate Button (clockwise) ( pg. 25)

f INDEX Button g DATE Button

ENGLISH

Page 10

Indications on LCD Monitor

During both Video and Still Image Recording

200X

F5.6 1/250

20.01.2007

! Selected Operation Mode Indicator

( pg. 20)

4 : Auto Mode 3 : Manual Mode

# Tele Macro Mode Indicator ( pg. 23) $ Approximate Zoom Ratio ( pg. 18) % Zoom Indicator ( pg. 18) & Shutter Speed ( pg. 23) ( White Balance Indicator ( pg. 23) ) Brightness Control Indicator ( pg. 48) * Battery Indicator ( pg. 54) + Date/Time ( pg. 13) , Manual Focus Adjustment Indicator

( pg. 22)

- Selected Medium Indicator

( pg. 47, 48)

. Drop Detection Indicator (Appears when

[DROP DETECTION] is set to [OFF].) ( pg. 48)

/ Effect Mode Indicator ( pg. 23) 0 Program AE Mode Indicator ( pg. 20)/

: Nightscope Indicator ( pg. 21)

1 Aperture Value (F-number)

( pg. 23)

LED Light Indicator ( pg. 18)

3 ± : Exposure Adjustment Indicator

( pg. 22)

- : Backlight Compensation Indicator ( pg. 21) . : Spot Exposure Control Indicator ( pg. 21)

4 Iris Lock Indicator ( pg. 21)

16:55

During Video Recording Only

16:9

[5h56m] 0:04:01

! Mode Indicator ( pg. 16) # Aspect Ratio of the Image (16:9/4:3)

( pg. 47)

$ Picture Quality: B (ultra ﬁ ne), C (ﬁ ne), D

(normal), E (economy) ( pg. 46)

% Remaining Time ( pg. 16, 57) & Counter ( pg. 47) ( 7REC: (Appears during recording.)

( pg. 16) 79: (Appears during record-standby mode.)

) Wind Cut Indicator ( pg. 47) * Event Indicator ( pg. 19) + Digital Image Stabiliser (DIS) Indicator

(Appears when [DIS] is set to [OFF].) ( pg. 47)

During Still Image Recording Only

640

FINE

[9999]


4:3

! Mode Indicator ( pg. 17) #

ISO Sensitivity

(GAIN): When set to [AUTO], there is no indication. ( pg. 47)

$ Focus Indicator ( pg. 22) %

Aspect Ratio of the Image (16:9/4:3)

& Image Size ( pg. 47) ( Picture Quality: FINE (ﬁ ne) or STD

(standard) ( pg. 47)

) Remaining Number of Shots ( pg. 57) * Continuous Shooting Mode Indicator

( pg. 48)

+ Shooting Indicator ( pg. 17) , Self-Timer Recording Indicator ( pg. 48)

Flash Mode Indicator

( pg. 18)

Page 11

During Video Playback

During Still Image Playback

ENGLISH

X-60

9:55:01

16:55

20.01.2007

! Mode Indicator ( pg. 24) #

: Playlist Playback Indicator (Appears

when playing back a playlist.) ( pg. 35)

¨ª : Event Search Playback Indicator

(Appears when playing back a video ﬁ le from the event search.) ( pg. 27)

¨© : Date Search Playback Indicator

(Appears when playing back a video ﬁ le from the date search.) ( pg. 26)

$ Picture Quality: B (ultra ﬁ ne), C (ﬁ ne), D

(normal), E (economy) ( pg. 46)

% Playback Mode ( pg. 24)

U : Playback 9 : Pause 5

: Forward Search

: Reverse Search

9U : Forward Slow-Motion Y9 : Reverse Slow-Motion

(The number on the left shows speed.)

& Counter ( pg. 47) ( Volume Level Indicator ) Battery Indicator ( pg. 54) * Date/Time ( pg. 13) + Selected Medium Indicator ( pg. 47, 48) , Drop Detection Indicator (Appears when

[DROP DETECTION] is set to [OFF].) ( pg. 48)

- Effect Mode Indicator ( pg. 28) . Wipe/Fader Effect Indicator ( pg. 28)

101-0098

16:55

20.01.2007

! Mode Indicator ( pg. 25) # Folder/File Number $ Slide Show Playback Indicator ( pg. 25) % Battery Indicator ( pg. 54) & Date/Time ( pg. 49) ( Selected Medium Indicator ( pg. 47, 48) ) Drop Detection Indicator (Appears when

[DROP DETECTION] is set to [OFF].) ( pg. 48)

* Effect Mode Indicator ( pg. 28)

Operation guide display

The operation guide is displayed at the bottom of the screen during menu display etc.

SELECT

SET QUIT

Page 12

Necessary Settings before Use

Access/Charge Lamp

Set Lever

Be sure to conﬁ gure the following three settings before use.

Power/Mode Switch

Charging the Battery Pack

1 Set the power/mode switch to OFF.

Slide while pressing down the lock button.

MODE

(CHARGE)

OFF

Required charging / recording time (approx.)

The values within ( ) are the times when the LED light is on.

Battery pack Charging time

BN-VF808U

(Provided)

BN-VF815U 2 hr. 40 min. 2 hr. 35 min.

BN-VF823U 3 hr. 50 min. 3 hr. 50 min.

1 hr. 30 min. 1 hr. 15 min.

GZ-MG275/255 GZ-MG155 GZ-MG135/130

2 Attach the battery pack.

Slide the battery pack down until it locks in place.

Bottom of the Camera

BATT.

3 Connect the AC adapter.

DC Connector

To AC Outlet (110V to 240V)

AC Adapter

Open the cover.

* If the provided AC adapter is AP-V14E,

connect the power cord to the AC adapter, and plug the power cord into an AC outlet.

You can also connect

•

the AC adapter using the Everio dock connector. ( pg. 6)

The access/charge lamp blinks to indicate

•

charging has started.

When the lamp goes out, charging is

•

ﬁ nished. Unplug the AC adapter (or the power cord) from the AC outlet and disconnect the AC adapter from the camera.

Recording time

1 hr. 30 min.

(1 hr. 25 min.)

3 hr. 5 min.

(2 hr. 55 min.)

4 hr. 35 min.

(4 hr. 20 min.)

(ex. AP-V17E)*

1 hr. 35 min.

(1 hr. 30 min.)

3 hr. 15 min. (3 hr. 5 min.)

4 hr. 55 min.

(4 hr. 35 min.)

Page 13

8 To detach the battery pack

Slide and hold BATT. (

墌 step 2), then

remove the battery pack.

8 To check the remaining battery power

See page 14.

NOTES

You can also use the camera with just the AC

•

adapter.

Please do not pull or bend the AC adapter plug

•

and cable. This may damage the AC adapter.

6 Select the desired language.

Select

Set

8 To return to the previous screen

Move the set lever to £.

8 To exit the screen

Press MENU.

ENGLISH

Language Setting

The language on the display can be changed.

1 Set the power/mode switch to ON.

Slide while pressing down the lock button.

MODE

(CHARGE)

OFF

VIDEO

REC MEDIA FOR VIDEO SCENE COUNTER

QUALITY

ZOOM DIS

SELECT SET QUIT

VIDEO

REC MEDIA FOR VIDEO SCENE COUNTER QUALITY ZOOM DIS

SELECT SET QUIT

4 Select [GENERAL].

Select

Set

GENERAL

QUICK RESTART AUTO POWER OFF

BRIGHT

DROP DETECTION REMOTE

SELECT SET QUIT

5 Select [LANGUAGE].

Select

Set

GENERAL

SELECT SET

ENGLISH

QUIT

Date/Time Setting

After performing steps 1-4 (墌 left column)

5 Select [ CLOCK ADJUST].

Select

Set

GENERAL

SELECT SET QUIT

DATE TIME

2007

31 01

11 07

6 Set the date and time.

Select

Set

Repeat this step to input the month, day, year, hour and minute.

8 To return to the previous screen

Move the set lever to £.

8 To exit the screen

Press MENU.

You have now ﬁ nished conﬁ guring the necessary settings.

8 To use the camera right away

See page 16.

8 To conﬁ gure other settings

See page 14.

Page 14

Other Settings

Lens Cover Switch

INDEX

Power/Mode Switch

Grip Adjustment

Open the pad and make grip adjustments.

Lens Cover

When not using the camera, close the lens cover to protect the lens.

Close the lens cover

Checking the Remaining Battery Power

Preparation:

Set the power/mode switch to OFF.

•

Attach the battery pack.

•

INDEX

BATTERY CONDITION

100%

MAX TIME

50%

min

Battery information is displayed for approx. 5 seconds if the button is pressed and released quickly, and for approx. 15 seconds if the button is pressed and held for several seconds.

NOTES

If “COMMUNICATING ERROR” appears,

•

there may be a problem with your battery. In such a case, consult your nearest JVC dealer.

The recordable time display should only be

•

used as a guide. It is displayed in 10 minute units.

Tripod Mounting

Align the camera stud hole with the tripod stud, and the mounting socket with the screw, and then rotate the camera clockwise to mount it to the tripod.

Bottom of the Camera

Open the lens cover

NOTE

Do not push the lens cover strongly. Doing so may cause damage to the lens.

NOTE

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camera.

Page 15

When Using an SD Card

If you want to record to an SD card, the following three operations need to be performed.

Compatible SD cards: Panasonic, TOSHIBA and SanDisk.

128 MB to 4 GB.

If other media are used, they may fail to

•

record data correctly, or they may lose data that had already been recorded.

For video recording, use a high-speed SD

•

card (at least 10 MB/s).

MultiMediaCards are not supported.

•

Q Insert an SD card

Preparation: Set the power/mode switch to OFF.

1 Open the SD card cover.

Bottom of the Camera

2 Firmly insert the card with its clipped

edge ﬁ rst.

NOTES

Insert and remove the SD card only while

•

the power is turned off. Otherwise, data on the card may be corrupted.

Do not touch the terminal on the reverse

•

side of the label.

R Change the recording medium

The camera is programmed to record on the built-in hard disk when it is shipped from the factory. You can change the recording medium to SD card.

Set [REC MEDIA FOR VIDEO] and [REC MEDIA FOR IMAGE] to [SD]. ( pg. 47,

48)

S Format an SD card when using it for

the ﬁ rst time

This will also ensure stable speeds and operation when accessing the SD card.

Select [EXECUTE] in [FORMAT SD CARD] to format the card. ( pg. 50)

ENGLISH

Clipped Edge

3 Close the SD card cover.

8 To remove an SD card

Push the SD card once. After the card comes out a little, pull it out.

Page 16

Recording Files

REC

[5h56m]

Video Recording

Preparation: Set the power/mode switch to ON.

Slide the power/mode switch to MODE to select ! (video) mode.

The switch returns to

MODE

the original position

when it is released.

OFF

The ! lamp on the camera lights up.

Press the PLAY/REC button to select recording mode.

[5h56m]

SELECT

PLAY/REC

16:9

Press the REC button to start recording.

REC

Approximate remaining time for recording appears.

8 To stop recording

Press the REC button again.

8 To change the picture quality

Change the settings in [QUALITY]. (

pg. 46)

8 To change the aspect ratio of the image

(16:9/4:3)

Change the settings in [16:9 WIDE RECORDING]. (

pg. 47)

8 To register a ﬁ le to an event

See page 19.

NOTES

The video recording mode is automatically selected when you turn the camera’s power off and then

•

on again.

If the camera is not operated for 5 minutes while the power is on, it turns itself off automatically to

•

conserve power. To turn the camera on again when using the battery pack, set the power/mode switch to OFF, then to ON. When using the AC adapter, perform any operation such as zooming.

Video ﬁ les are given the names MOV_001.MOD to MOV_009.MOD, MOV_00A.MOD to

•

MOV_00F.MOD, and MOV_010.MOD in order of recording.

After recording video for 12 consecutive hours, recording stops automatically.

•

A new ﬁ le will be created for every 4 GB of continuous shooting.

•

This camera records video in MPEG2 format compliant with SD-VIDEO format. Remember that this

•

camera is not compatible with other digital video formats.

Do not move or shake the camera suddenly during recording. If you do so, the sound of the hard disk

•

drive may be recorded.

Page 17

Still Image Recording

[

Preparation: Set the power/mode switch to ON.

Slide the power/mode switch to MODE to select # (still image) mode.

The switch returns

MODE

to the original

position when it is

OFF

released.

The

lamp on the camera lights up.

Press the PLAY/REC button to select recording mode.

640

[9999]

SELECT

PLAY/REC

FINE

Press and hold the SNAPSHOT button halfway.

640

FINE

The ? indicator becomes green when the captured image is focused.

ENGLISH

8 To change the picture quality

Change the settings in [QUALITY]. (

pg. 47)

8 To record still images continuously

Press the SNAPSHOT button to start recording.

[9999]

FINE

Set [CONTINUOUS SHOOTING] to [ON]. (

pg. 48)

To change the image size

Change the settings in [IMAGE SIZE]. (

pg. 47)

NOTE

If the camera is not operated for 5 minutes while the power is on, it turns itself off automatically to conserve power. To turn the camera on again when using the battery pack, set the power/mode switch to OFF, then to ON. When using the AC adapter, perform any operation such as zooming.

Page 18

Recording Files (Continued)

Zoom Lever

PLAY/REC

INDEX

Set Lever

Button

Power/Mode

Switch

Zooming

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

recording mode.

or # mode.

Zoom out Zoom in

LED Light

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

recording mode.

Each time you move the set lever to ¢, setting changes.

No display

or # mode.

The light remains on regardless of the surrounding conditions.

The light turns on automatically when shooting in insufﬁ cient light conditions.

Disables this function.

Flash – # mode only

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

recording mode.

mode.

[9999]

FINE

W: Wide angle T: Telephoto

Maximum Zoom Ratio (Factory-preset)

Model

GZ-MG275/255 40X 10X

GZ-MG155 64X 27X

GZ-MG135/130 68X 34X

8 To change the maximum zoom ratio (for

! mode only)

Change the settings in [ZOOM]. ( pg. 46)

NOTE

Macro shooting is possible as close as approx. 5 cm to the subject when the zoom lever is set all the way to W.

! mode # mode

Each time you move the set lever to ¢, setting changes.

()

()*

No display

The ﬂ ash ﬁ res automatically.

The ﬂ ash ﬁ res automatically but reduces the red-eye phenomenon of the subject’s eyes.

The ﬂ ash ﬁ res regardless of the

(

shooting condition.

The ﬂ ash ﬁ res. The shutter speed becomes slower, so the background can also be brightened.

Disables this function.

Page 19

Registering Files to Events – ! mode only

If you select an event to register the ﬁ le to before starting recording, the ﬁ le will be registered to the selected event, thus making the ﬁ le easy to ﬁ nd at playback. There are up to 3 different destinations within each event (for example: BABY1, BABY2, BABY3).

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

recording mode.

mode.

CHANGE EVENT REG. ON/SELECT OFF

2 Select [ON/SELECT].

Select

VACATION

1/ 3

NOTE

Once you select to register a ﬁ le to a certain event, the setting will remain even if you turn the power off. Unless you change the setting, you will register a ﬁ le to the same event that you had previously selected.

Checking the Remaining Space on the Recording Media – ! mode only

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

recording mode.

INDEX

mode.

MAX RECORDING TIME

7h30m 11h15m 22h30m 45h00m

HDD

FREE USED

The maximum recording time is displayed for each picture quality mode ( B

: ULTRA FINE,

C : FINE, D : NORMAL, E : ECONOMY).

ENGLISH

Set

NON SECTION NEXT PAGE

SET QUIT

SELECT

3 Select the event that you want to

To select a different destination, select

•

[NEXT PAGE].

To cancel the event registration, select

•

[NON SECTION].

Select

Set

The selected event is displayed on the screen. Press the REC button to start recording.

8 To exit the screen

Press EVENT.

8 To search by event for a ﬁ le to play back

See page 26.

8 To return to the normal screen

Press the 0 button again.

Page 20

OFF

Manual Recording

Set Lever

FUNCTION

Manual recording mode enables you to set the focus and screen brightness etc. manually. You need to switch to this mode because auto recording mode, which adjusts these settings automatically, is selected by default.

To Change to Manual Recording Mode

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

recording mode.

Press twice.

INFO

or # mode.

PLAY/REC Button

Power/Mode

INFO

Switch

Program AE

You can record videos or still images with optimum brightness by adjusting the exposure and shutter speed to suit your surroundings or the subject.

After performing “To Change to Manual Recording Mode” ( left column)

2 Select the desired setting.

For details on each setting, see below.

Select

Set

8 To cancel the program AE

Select [OFF] in step 2.

8 Items for program AE setting

6 PORTRAIT:

•

The subject in the foreground is accentuated by blurring the background.

H SPORTS :

•

Records fast moving subjects clearly.

G SNOW :

•

Compensates for subjects that may appear too dark when shooting in extremely bright surroundings, such as in snow.

/ SPOTLIGHT :

•

Select this when a spotlight makes a subject appear too bright.

I TWILIGHT :

•

Makes evening scenes look more natural.

8 To return to the auto recording mode

Press the AUTO button so that the 4 indicator appears.

Page 21

Nightscope

Spot Exposure Control

ENGLISH

The shutter speed is automatically adjusted from 1/2 to 1/250 seconds. It enables recording with low light levels in dim locations.

After performing “To Change to Manual Recording Mode” ( pg. 20)

8 To cancel nightscope

Move the set lever to £ (NIGHT) so that the

indicator disappears.

NOTE

It is recommended to use the tripod ( pg. 14) when recording with a slow shutter speed.

Backlight Compensation

Backlight compensation brightens the subject by increasing the exposure.

After performing “To Change to Manual Recording Mode” ( pg. 20)

Use this function when backlight compensation does not work well, or to adjust the brightness in the desired spot.

After performing “To Change to Manual Recording Mode” ( pg. 20)

1 Move twice.

2 Select the desired spot metering area

frame.

Select

Set

8 To lock the exposure

After you ﬁ nish conﬁ guring the setting, press and hold the set lever for more than 2 seconds. The

indicator appears.

8 To cancel spot exposure control

Move the set lever to ¡ ( the

. indicator disappears.

[5h56m]

16:9

- ) once so that

8 To cancel backlight compensation

Move the set lever to ¡ ( - ) twice so that the - indicator disappears.

Page 22

Manual Recording (Continued)

Manual Setting in Function Menu

You can use manual recording functions easily by selecting items in the function menus.

After performing “To Change to Manual Recording Mode” ( pg. 20)

FUNCTION

FOCUS ADJUST BRIGHTNESS SHUTTER SPEED APERTURE PRIORITY WB EFFECT TELE MACRO

2 Select the desired menu.

For details on each menu, see below.

Select

Set

Menus Settings: [ ] = Factory-preset

FOCUS

Adjusts the focus.

ADJUST BRIGHTNESS

Adjusts the brightness.

ADJUST BRIGHTNESS AUTO

[AUTO] : The focus is adjusted automatically.

@ 9 : A : Adjusts the focus manually. Move the set lever to £ / ¤

to set the focus. (When zooming, the subject will not go out of focus if you adjust the focus at the telephoto (T) side before zooming to the wide-angle (W) side.)

For ! mode [AUTO] : The brightness is adjusted automatically. –6 to +6 : Corrects the brightness within this range in increments

of 1. Move the set lever to ¡ / ¢ to set the value.

For

# mode

[±0] : The brightness is not adjusted. –2.0 to +2.0 (EV) : Corrects the brightness within this range in

increments of 1/3EV. Move the set lever to ¡ / ¢ to set the value.

8 To lock the exposure

When the menu disappears after you ﬁ nish conﬁ guring the setting, press and hold the set lever for more than 2 seconds. The

indicator appears.

3 Select the desired setting.

Select

Set

Depending on the kind of settings you select, you can set the value by moving the set lever to ¡ / ¢ after selecting.

FUNCTION

The menu disappears and the indicator for the set function appears.

8 To return to the previous screen

Move the set lever to £.

8 To exit the screen

Press FUNCTION.

ADJUST BRIGHTNESS AUTO

16:9

Page 23

Menus Settings: [ ] = Factory-preset

SHUTTER SPEED

A fast shutter speed can freeze the motion of a fast-moving subject, and a slow shutter speed can blur the subject to give the impression of motion.

APERTURE PRIORITY

You can add a blurring effect to the background by setting the aperture value (F-number).

Adjusts the white balance to achieve the optimum colours for the amount of light in your surroundings during recording.

EFFECT

Enables you to record videos or still images with special effects.

TELE MACRO

Enables you to shoot a subject as large as possible at a distance of approx. 40 cm.

[AUTO] : The shutter speed is adjusted automatically. 1/2 to 1/4000 (For 1/2 to 1/500 (For

! mode) /

# mode):

The smaller the value, the faster the shutter speed. Move the set lever to ¡ / ¢ to set the value.

NOTE

It is recommended to use the tripod ( pg. 14) when recording with a slow shutter speed.

[AUTO] : The aperture value is adjusted automatically. F1.2 to F16:

The lower the F-number (larger aperture value), the more blurred the background will become. The higher the Fnumber (smaller aperture value), the clearer the focus will be for both near and far objects. Move the set lever to ¡ / ¢ to set the value.

NOTE

If the image is too bright, set to a larger F-number. If the image is too dark, set to a smaller F-number.

[AUTO] : White balance is adjusted automatically.

B MWB : Adjusts the white balance manually depending on the

light source.

1) Hold a sheet of plain white paper in front of the subject so that the white paper ﬁ lls the screen.

2) Press and hold the set lever until the

B indicator starts blinking then stops

blinking.

D FINE : When shooting outdoors on a sunny day. E CLOUD : When shooting outdoors on a cloudy day. F HALOGEN : When a video light or similar type of lighting is

used.

[OFF] : No effect is used.

J SEPIA : The image has a brownish tint like old photos. K MONOTONE : The image becomes black and white like old

movies.

L CLASSIC FILM* : This effect skips frames to give images of an

old movie atmosphere.

M STROBE* : The image looks like a series of consecutive

snapshots.

* Not available in

[OFF] : Disables the function.

t ON : Activates the function.

# mode.

ENGLISH

Page 24

Playing Back Files

Video Playback

Slide the power/mode switch to MODE to select ! (video) mode.

The switch returns to

MODE

the original position

when it is released.

OFF

The ! lamp on the camera lights up.

8 To return to the index screen

Press INDEX.

8 To watch on TV

See page 29.

8 To turn the date display on/off

Change the settings in [DATE/TIME]. ( pg. 49)

8 To check the ﬁ le information

Press INFO when playback is paused. ( pg. 32)

Operations during Playback

Return to the ﬁ rst scene of the ﬁ le

Play/Pause

Reverse search/ Frame-by-frame playback (during pause)

Forward search/ Frame-by-frame playback (during pause)

Press the PLAY/REC button to select playback mode.

SELECT

PLAY/REC

VIDEO

SELECT

8/8

SET SORT

The index screen for videos appears.

Move the set lever to ¡ / ¢ / £ / ¤ to select the desired ﬁ le, then press down.

Select

Set

J J : Turn down the

volume

Go to the ﬁ rst scene of the next ﬁ le

During forward reverse search, moving the set lever to £ / ¤ alters the search speed (maximum 60x).

I I : Turn up the

volume

Page 25

Still Image Playback

ENGLISH

Slide the power/mode switch to MODE to select # (still image) mode.

The switch returns

MODE

to the original

position when it is

OFF

released.

The

lamp on the camera lights up.

8 To return to the index screen

Press INDEX.

8 To watch on TV

See page 29.

8 To turn the date display on/off

Change the settings in [DATE/TIME]. ( pg. 49)

8 To check the ﬁ le information

Press INFO. ( pg. 32)

Operations during Playback

Rotate 90 degrees (counterclockwise)

Press the PLAY/REC button to select playback mode.

SELECT

PLAY/REC


SELECT

8/8

SET SORT

The index screen for still images appears.

Move the set lever to ¡ / ¢ / £ / ¤ to select the desired ﬁ le, then press down.

Select

Set

Start/end the slide show

Display the previous ﬁ le

Rotate 90 degrees

(clockwise)

During the slide show, moving the set lever to ¡ / playback order.

Display the next ﬁ le

¢ changes the

Page 26

Playing Back Files (Continued)

2 Select the recording date.

Power/Mode Switch

INDEX

3 Select the ﬁ le you want to play back.

FUNCTION

Set Lever

File Search Function

You can switch the index screen to the date index screen or event screen for the convenient ﬁ le search. The event screen can be used in cannot be used in

mode.

Date Index Screen

You can search the desired ﬁ le by the recording date.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

or # mode.

INDEX

SEARCH DATE

31 01 2007 25 01 2007

22 01 2007

22 12 2006 19 12 2006

SELECT

PLAY/REC Button

mode. It

SET SORT

8 To return to the index screen

Press the INDEX button.

Event Screen –

You can search the desired ﬁ le by the event that you registered the ﬁ le to when recording. ( pg. 19) After searching by the event, you can search by the recording date to narrow down the search.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select the

•

playback mode.

1 Press twice.

INDEX

Select

Set

Select

Set

mode.

07 01 2007

SET SORT

SELECT

! mode only

VACATION

SET SORT

SELECT

1/3

1/ 3

Page 27

2 Select the event.

To move to the next page, select [NEXT PAGE].

Select

Set

SEARCH EVENT

ALL SCENES 25 01 2007

22 01 2007

SELECT

SET SORT

3 Select the recording date.

To display all the ﬁ les, select [ALL SCENES].

Select

Set

VACATION

SELECT

1/3

SET SORT

4 Select the ﬁ le you want to play back.

Select

Set

To Play Back Demonstration Files – ! mode only

Video ﬁ les that are used for demonstration in a shop may be recorded on the camera you purchased. These ﬁ les are saved to the [EXTMOV] folder and can be played back by the following operations.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

mode.

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

2 Select [PLAYBACK MPG FILE].

Select

VIDEO [MPG]

8/8

ENGLISH

8 To return to the index screen

Press the INDEX button.

8 To change the event registration of a ﬁ le

See page 32.

Set

SELECT

SET QUIT

3 Select the ﬁ le you want to play back.

Select

Set

8 To exit the screen

Press FUNCTION.

8 To return to the normal ﬁ le playback

mode

Select [PLAYBACK NORMAL FILE] in step 2.

Page 28

Playing Back Files (Continued)

Playback with Special Effects

Wipe or fader effects

Add effects at the beginning and end of videos. These effects cannot be set for still images.

Playback effects

Add effects that, for example, alter the colour tones of images.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select the

•

playback mode.

or # mode.

ex.) Set [EFFECT] to [SEPIA].

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

2 Select [WIPE/FADER] (! mode only)

or [EFFECT].

Select

Set

SELECT

EFFECT

OFF SEPIA MONOTONE CLASSIC FILM STROBE

SET QUIT

3 Select a desired effect.

For details on each effect, see right column.

Select

Set

VIDEO

SELECT

SET SORT

4 Select the ﬁ le you want to play back.

Select

Set

8 To exit the screen

Press FUNCTION.

8 To turn off the effect

Select [OFF] in step 3.

8 Items for WIPE/FADER setting

O FADER:WHITE:

•

Fade in or out with a white screen.

P FADER:BLACK:

•

Fade in or out with a black screen.

Q FADER:B.W:

•

Fade in to a color screen from a black and white screen, or fade out in the opposite way.

R WIPE:CORNER:

•

Wipe in on a black screen from the upper right to the lower left corner, or wipe out in the opposite way.

S WIPE:WINDOW:

•

The scene starts in the center of a black screen and wipes in toward the corners, or wipes out in the opposite way.

T WIPE:SLIDE:

•

Wipe in from right to left, or wipe out in the opposite way.

U WIPE:DOOR:

•

Wipe in as the two halves of a black screen open to the left and right revealing the scene, or wipe out in the opposite way.

V WIPE:SCROLL:

•

The scene wipes in from the bottom to the top of a black screen, or wipes out in the opposite way.

W WIPE:SHUTTER:

•

Wipe in from the center of a black screen toward the top and bottom, or wipe out in the opposite way.

8 Items for EFFECT setting

8/8

J SEPIA:

•

The image is given a brownish tint like an old photo.

K MONOTONE:

•

The image becomes black and white like an old movie.

L CLASSIC FILM*:

•

The image is given an old movie atmosphere by the effect of skipping frames.

M STROBE*:

•

The image looks like a series of consecutive snapshots. * Not available in # mode.

Page 29

Watching Images on TV

Preparation:

Turn off all units.

AV Connector

DC Connector

NOTES

You can also connect the cables using the Everio dock connectors. The

•

S-Video cable (optional) enables even higher quality playback. ( pg. 6) When other devices such as a DVD burner are connected to the Everio dock, switch off these devices power.

This camera is designed to be used with PAL-type colour television signals. It cannot be used

•

with a television of a different standard.

AV Cable

AC Adapter

AV Input Connector

To AC Outlet

1 Turn on the camera and the TV.

2 Set the TV to its VIDEO mode.

3 (Only when connecting the camera to the VCR/DVD recorder)

Turn on the VCR/DVD recorder, and set the VCR/DVD recorder to its AUX input mode.

ENGLISH

4 Start playback on the camera. ( pg. 24, 25)

8 If the aspect ratio of the image is not correct

as shown right

Change the settings in [SELECT TV TYPE]. ( pg. 49)

8 To display camera’s on-screen display on TV

Set [DISPLAY ON TV] to [ON]. ( pg. 49)

16:9 TV 4:3 TV

Page 30

Managing Files

Set Lever

PLAY/REC

Zoom Lever

Button

FUNCTION

INFO

CAUTION

Power/ Mode Switch

Do not remove the recording medium or perform any other operation (such as turning off the power) while accessing ﬁ les. Also, be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation. If the data on the recording medium becomes corrupted, format the recording medium. ( pg. 50)

Deleting/ Protecting Files

Protected ﬁ les cannot be deleted. To delete

•

them, release the protection ﬁ rst.

Once ﬁ les are deleted, they cannot be

•

restored. Check ﬁ les before deleting.

For an SD card, you can use the write/erase

•

protection tab to set protection. To protect all the ﬁ les, slide the tab to the “LOCK” position.

Write/erase protection tab

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

or # mode.

ex.) Performing [DELETE].

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

2 Select [DELETE] or [PROTECT].

Select

Set

Deleting/Protecting the Currently Displayed File

After performing steps 1-2

SELECT

DELETE

CURRENT FILE SELECT DELETE ALL

SET QUIT

3 Select [CURRENT].

Select

Set

You can select the previous or next ﬁ le by moving the set lever to £ / ¤.

SELECT

DELETE?

EXECUTE

CANCEL

SET

0008Remaining files:

4 Select [EXECUTE].

Select

Set

8 To exit the screen

Press FUNCTION.

Page 31

Selecting and Deleting/Protecting Files

After performing steps 1-2 ( pg. 30)

Deleting/Protecting All Files

After performing steps 1-2 ( pg. 30)

ENGLISH

3 Select [FILE SELECT].

Select

Set

VIDEO DELETE

SELECT

8/8

SET QUIT

4 Select the desired ﬁ le.

Select

Set

The $ or x mark appears on the ﬁ le. To

•

select other ﬁ les, repeat this step.

If you slide the zoom lever towards T,

•

the preview screen is displayed. Sliding the zoom lever towards W returns to the index screen.

FUNCTION

VIDEO DELETE

SELECT SET

EXECUTE AND QUIT

SELECT

DELETE?

QUIT

CANCEL

SET

8/8

QUIT

6 Select [EXECUTE AND QUIT] (when

performing [DELETE]) or [QUIT] (when performing [PROTECT]).

Select

3 Select [DELETE ALL] or [PROTECT

ALL].

Select

Set

DELETE ALL?

EXCEPT PROTECTED FILE

EXECUTE

CANCEL

SET

SELECT

4 Select [EXECUTE].

Select

Set

8 To exit the screen

Press FUNCTION.

8 To release protection

Select the protected ﬁ le in step 4 (“Selecting and Deleting/Protecting Files”  left column).

8 To release protection of all ﬁ les

1) In step 3, select [CANCEL ALL], then

press down the set lever.

2) Move the set lever to ¡ / ¢ to select [EXECUTE], then press down.

Set

8 To exit the screen

Press FUNCTION.

Page 32

Managing Files (Continued)

Viewing File Information

Preparation:

For ! mode: Pause the playback.

•

Alternatively, select the ﬁ le on the index screen.

For # mode: Play back the still image.

•

Alternatively, select the ﬁ le on the index screen.

FILE

: MOV005.MOD

FOLDER

: PRG001

DATE/TIME

: 01.01.2007 10:56

PB TIME

: 00:30:02

QUALITY

: ULTRA FINE

PROTECT

INFO

FILE:

•

File name

FOLDER:

•

Folder name

DATE/TIME:

•

Date and time of the recording

PB TIME (for video ﬁ les):

•

Playback time (length of the ﬁ le)

SIZE (for still images):

•

Image size ( pg. 47)

QUALITY:

•

Image quality ( pg. 46, 47)

PROTECT:

•

File protection status ( pg. 30)

: OFF

8 To turn off the ﬁ le information display

Press INFO again.

Changing the Event Registration of Video Files after Recording –

! mode only

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

mode.

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

2 Select [CHANGE EVENT REG.].

Select

Set

NON SECTION NEXT PAGE

SELECT

VACATION

1/ 3

QUIT

3 Select a new event to register the ﬁ le

to.

To move to the next page, select [NEXT

•

PAGE].

To cancel the event registration, select

•

[NON SECTION].

Select

VIDEO

8/8

Set

SELECT

SET QUIT

4 Select the ﬁ le you want to register.

Select

Set

The s mark appears on the ﬁ le. To select

•

other ﬁ les, repeat this step.

If you slide the zoom lever towards T,

•

the preview screen is displayed. Sliding the zoom lever towards W returns to the index screen.

Page 33

FUNCTION

EVENT RE-REGISTRATION ENDS

DO YOU WANT TO SAVE?

SAVE AND QUIT

DELETE AND QUIT

CANCEL

SELECT

SET

6 Select [SAVE AND QUIT].

Select

Set

8 To exit the screen

Press FUNCTION.

Partial Delete (EDITED COPY) – ! mode only

You can divide the selected video ﬁ le into two, and make a copy of the desired section as a new video ﬁ le.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

mode.

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

4 Set the point at which you want to

divide the ﬁ le.

COPY 1st SECTION

COPY 2nd SECTION

CANCEL

00 : 24 : 18

SET QUIT

SELECT

5 Select the ﬁ le you want to copy.

[COPY 1st SECTION]:

•

Copy the section before the division

point.

[COPY 2nd SECTION]:

•

Copy the section after the division point.

Select

Set

When copying is ﬁ nished, the copied ﬁ le is added to the index screen.

8 To exit the screen

Press FUNCTION.

NOTE

When playing back the copied ﬁ le, the recording date of the original ﬁ le is displayed. Meanwhile, the date when you copied is displayed on the ﬁ le information display. ( pg. 32)

ENGLISH

2 Select [EDITED COPY].

Select

Set

EDITED COPY

SELECT

3 Select the desired ﬁ le.

Select

Set

Playback starts.

RETURN

SET QUIT

EDITED COPY

SET QUIT

8/8

00 : 00 : 03

Page 34

Playlists –

mode only

Power/Mode

Switch

INDEX

FUNCTION

PLAY/REC Button

Set Lever

It is a list that enables you to organise recorded videos in order of preference.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

mode.

Creating Playlists

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

2 Select [EDIT PLAYLIST].

Select

Set

EDIT PLAYLIST

SELECT

NEW LIST EDIT RENAME DELETE

SET QUIT

3 Select [NEW LIST].

Select

Set

NEW LIST

IMPORT FROM EVENT

IMPORT FROM DATE

ALL SCENES

SELECT

SET QUIT

4 Select an item and display ﬁ les.

Select

Set

[IMPORT FROM EVENT]:

•

Search for an event and display the corresponding ﬁ les listed by recording date. Move the set lever to ¡ / ¢ / £ / ¤ to select the event, then press down.

[IMPORT FROM DATE]:

•

Display all the ﬁ les in the medium listed by recording date.

[ALL SCENES]:

•

Display all ﬁ les individually.

EDIT

SELECT

TOTAL

00h00m

8/8

5 Select the ﬁ le to add to playlist.

Select

Set

To preview scenes, move the set lever to ¡ / ¢ to select the ﬁ le and press the INDEX button. When the index screen of individual scenes appears, move the set lever to ¡ / ¢ / £ / ¤ to select the ﬁ le, then press down. To return to previous screen, press INDEX.

EDIT

TOTAL

00h00m

8/8

Page 35

6 Select the insertion point.

Select

Set

To add other ﬁ les, repeat steps 5 and 6.

•

To delete a registered scene, move the

•

set lever to ¡ / ¢ to select the registered ﬁ le, then press down.

FUNCTION

EDIT

TOTAL

30h15m

SELECT

QUIT PLAYLIST

SAVE EDITED CONTENTS?

SAVE AND QUIT

DELETE AND QUIT

CANCEL

SELECT

SET

8 Select [SAVE AND QUIT].

Select

8/8

Playing Back Playlists

FUNCTION

DELETE PROTECT EDITED COPY CHANGE EVENT REG. EFFECT WIPE/FADER PLAYBACK PLAYLIST EDIT PLAYLIST PLAYBACK MPG FILE PLAYBACK NORMAL FILE

ENGLISH

2 Select [PLAYBACK PLAYLIST].

Select

Set

PLAYBACK PLAYLIST

ALL SCENES

01 07. 01. 2007 16:45

02 07. 01. 2007 21:25 03 07. 01. 2007 21:55

SET QUIT

SELECT

3 Select the playlist that you want to

play back.

Select

Set

8 To exit the screen

Press FUNCTION.

NOTES

A maximum of 99 playlists can be created.

•

Each playlist can consist of a maximum of

•

99 scenes.

If you delete the original ﬁ les, the

•

corresponding ﬁ les are also deleted from the playlist.

Set

8 To exit the screen

Press FUNCTION.

8 To stop playback

Press down the set lever.

8 To return to the normal ﬁ le playback

mode

Select [PLAYBACK NORMAL FILE] in step 2.

8 To play back from the desired scene

1) In step 2, press the INDEX button. (The

index screen for playlist appears.)

2) Move the set lever to ¡ / ¢ / £ / ¤ to select the desired scene, then press down.

8 When dubbing playlists using a

VCR/DVD recorder ( pg. 44)

Play back playlists by performing the following operations.

1) After performing steps 1-2, move the set lever to ¤.

2) Move the set lever to ¡ / ¢ to select [START PLAYBACK], then press down. (A black screen is displayed for ﬁ ve seconds at the ﬁ rst and the last scene.)

Page 36

Playlists –

mode only (Continued)

Other Operations of Playlists

You can perform additional editing and delete ﬁ les in a created playlist.

Preparation:

Perform steps 1-2. ( pg. 34)

Adding/Deleting Files in Playlist

3 Move the set lever to

[EDIT], then press down.

4 Move the set lever to

the playlist you want to edit, then press down.

To add or delete ﬁ les, follow the steps 5 to

8 in “Creating Playlists”. ( pg. 34)

Changing Playlist Names

The default name of a playlist is its creation date and time.

3 Move the set lever to

[RENAME], then press down.

4 Move the set lever to

the desired playlist, then press down.

5 Move the set lever to

select the desired letter, then press down.

Repeat this process to complete the name.

•

You can change the character types (capital

•

letters, small letters or marks) by selecting [A/a/@].

To correct a letter, select [}] or []] and

•

press down the set lever to move the cursor to the letter, then select [CLEAR] and press down the set lever.

/ ¢ to select

/ ¢ / £ / ¤ to

Deleting Playlist

Original ﬁ les are not deleted even if you delete the playlist.

3 Move the set lever to

[DELETE], then press down.

4 Move the set lever to

playlist you want to delete.

To delete all playlists at once, select [DELETE ALL].

/ ¢ to select

/ ¢ to select a

5 Press down the set lever.

6 Move the set lever to

[EXECUTE], then press down.

/ ¢ to select

6 Move the set lever to

select [¯], then press down.

/ ¢ / £ / ¤ to

Page 37

Print Setting –

mode only

Set Lever

FUNCTION

Power/Mode Switch

PLAY/REC Button

DPOF Print Setting

This camera is compatible with DPOF (Digital Print Order Format). You can set which images to be printed and the number of prints with this camera. This feature is useful to print with a DPOF-compatible printer or for taking the recording medium to a photo lab for printing.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

mode.

FUNCTION

DELETE PROTECT COPY MOVE DPOF EFFECT

2 Select [DPOF].

Select

Set

SELECT

DPOF

SELECT IMAGES ALL 1 CHECK SETTINGS RESET

SET QUIT

Setting Files Individually

After performing steps 1-2

3 Select [SELECT IMAGES].

Select

Set

DPOF TOTAL: 0

SELECT

8/8

SET QUIT

4 Select the desired ﬁ le.

Select

Set

If you slide and hold the zoom lever towards T, the preview screen of the still image is displayed.

5 Select the number of prints. (max. 15

prints)

Select

Set

To set print information for other images, repeat steps 4 and 5. (You can set up to 999 ﬁ les.)

FUNCTION

8 To exit the screen

Press FUNCTION.

8 To cancel the selection

Set the number of prints to “00” in step 5.

8 To conﬁ rm DPOF settings

In step 3, move the set lever to ¡ / ¢ to select [CHECK SETTINGS], then press down.

If necessary, change the number of

•

prints for the desired ﬁ le by following steps 4 and 5.

8 To reset DPOF settings

1) In step 3, move the set lever to ¡ / ¢ to select [RESET], then press down.

2) Move the set lever to ¡ / ¢ to select [EXECUTE], then press down.

ENGLISH

Page 38

Print Setting –

mode only (Continued)

Setting All Files Together (One Print for Each)

After performing steps 1-2 ( pg. 37)

3 Select [ALL1].

Select

Set

SELECT

ALL1

EXECUTE

CANCEL

SET

4 Select [EXECUTE].

Select

Set

8 To exit the screen

Press FUNCTION.

8 To conﬁ rm DPOF settings

In step 3, move the set lever to ¡ / ¢ to select [CHECK SETTINGS], then press down.

If necessary, change the number of

•

prints for the desired ﬁ le by following steps 4 and 5. ( pg. 37)

8 To reset DPOF settings

1) In step 3, move the set lever to ¡ / ¢ to

select [RESET], then press down.

2) Move the set lever to ¡ / ¢ to select [EXECUTE], then press down.

Direct Printing with PictBridge Printer

If your printer is compatible with PictBridge, still images can be printed easily by connecting the camera directly to the printer with the USB cable. DPOF setting can also be used. ( pg. 37)

Preparation:

Set the power/mode switch to OFF.

DC Connector

AC Adapter

PictBridge Printer

To AC Outlet

USB Connector

USB Cable

USB Connector

You can also connect the

cables using the Everio dock connectors.

1 Set the power/mode switch to ON.

MODE

OFF

PLAYBACK ON PC

CONNECT TO DEVICE CREATE DVD BACK UP DIRECT PRINT

SELECT

SET

QUIT

2 Select [DIRECT PRINT].

Select

Set

SELECT

DIRECT PRINT

SELECTED PRINT

DPOF PRINT

CANCEL

SET

Page 39

To Print by Selecting a Still Image

After performing steps 1-2 ( pg. 38)

3 Select [SELECTED PRINT].

Select

Set

PRINT THIS IMAGE

SET

4 Select the desired Image.

Select

NUMBER OF PRINTS

DATE1OFF

Set

CANCEL

To Print Using the DPOF Settings

If the printer is compatible with DPOF, you can use the DPOF settings. ( pg. 37)

After performing steps 1-2 ( pg. 38)

3 Select [DPOF PRINT].

Select

Set

SELECT

DPOF PRINT

CHECK SETTINGS

CANCEL

SET

4 Select [PRINT].

Select

ENGLISH

5 Move the set lever to

/ ¢ to select

menus and £ / ¤ to select settings.

[NUMBER OF PRINTS]:

•

The number of prints can be set from 1 to 99.

[DATE]:

•

Set whether to print the date and time.

6 Select [PRINT].

Select

Set

8 To stop printing after printing starts

1) Press down the set lever.

2) Move the set lever to ¡ / ¢ to select [EXECUTE], then press down.

Set

8 To stop printing after printing starts

1) Press down the set lever.

2) Move the set lever to ¡ / ¢ to select [EXECUTE], then press down.

8 To conﬁ rm the DPOF setting

In step 4, move the set lever to ¡ / ¢ to select [CHECK SETTINGS], then press down. To return to the previous screen, press FUNCTION.

NOTES

If the printer is not recognised, disconnect

•

the USB cable, then reconnect it.

You cannot return to the previous screen

•

while operating Direct print. If you want to redo the operation, remove the USB cable, switch off the camera’s power, and start the operation again from the beginning.

Page 40

Copying Files

Set Lever

INDEX

FUNCTION

Power/Mode Switch

PLAY/REC Button

DIRECT DVD

Types of Copying and Connectable Device

The Camera

You can copy still images between the HDD and SD card with this camera alone. ( pg. 45)

DVD Burner (CU-VD10/CU-VD20)

You can copy video ﬁ les recorded on this camera onto DVD discs. ( right column)

Using a DVD Burner to Copy Files from the Camera (DVD Creation Function)

Supported discs: 12cm DVD-R, DVD-RW

Regarding DVD-R discs, only unused DVD-

•

R discs can be used. Regarding DVD-RW discs, used DVD-RW discs can also be used, but they need to be formatted before recording. Formatting a disc deletes all content recorded on the disc up until that time.

Dual-layer discs cannot be used.

•

Regarding ﬁ nalisation after copying

The disc is automatically ﬁ nalised so that it can be played on other devices. After ﬁ nalising, the disc is a play-only disc, so no more ﬁ les can be added.

Preparation:

Set the power/mode switch to OFF.

DC Connector

AC Adapter

USB Connector

To AC Outlet

USB Connector

USB Cable

DVD Burner

VCR/DVD Recorder

You can dub video ﬁ les recorded on this camera onto DVD discs. ( pg. 44)

NOTE

You can also connect the

cables using the Everio dock connectors.

Page 41

Copying Only the Newly Taken Video Files

Files that have never been copied to the DVD discs are automatically selected and copied.

1 Set the power/mode switch to ON.

OFF

CREATE DVD

SELECT FROM SCENES ALL SCENES

SELECT FROM EVENT

SELECT FROM DATE SELECT FROM PLAYLIST

SET

SELECT

ALL WILL

BE CREATED

TIME REQUIRED: 45 MIN.

DVD-RW EXECUTE

CANCEL

SET QUIT

SELECT

QUIT

MODE

3 Select [EXECUTE].

Select

Set

The DVD disc begins to be created.

•

When [COMPLETED] appears, press down the set lever to complete the operation.

When [COMPLETED. CHANGE DISC]

•

appears, change the disc. The second DVD disc begins to be created.

To cancel the DVD creation, select

•

[CANCEL].

8 To exit the screen

Press MENU, then move the set lever to

/ ¢ to select [EXECUTE] and press

down.

Selecting and Copying Video Files

After performing step 1 ( left column)

2 Select an item and display the DVD

Creation List for the ﬁ les to be copied.

Select

Set

[SELECT FROM EVENT]:

•

Search for an event and display the

corresponding ﬁ les listed by recording date.

Move the set lever to ¡ / ¢ / £ / ¤ to

select the event, then press down.

[SELECT FROM DATE]:

•

Display the ﬁ les recorded on selected

dates listed by recording date. Move the set lever to ¡ / ¢ to select the recording date, then press down.

[SELECT FROM PLAYLIST]:

•

Playlists are displayed in a list in the selection order.

1) Move the set lever to ¡ / ¢ to select the desired list, then press down. To select other lists, repeat this process.

2) Move the set lever to ¤ twice.

[CREATE DUPLICATE]:

•

Create a DVD disc identical to the one

created last time. The last creation date is displayed. (Up to 20 ﬁ les)

Move the set lever to ¡ / ¢ to select the

date, then press down.

[SELECT FROM SCENES]:

•

displayed in a list in the selection order.

1) Move the set lever to ¡ / ¢ to select the desired ﬁ le, then press down. To select other ﬁ les, repeat this process.

2) Move the set lever to ¤ twice.

[ALL SCENES]:

•

Display all ﬁ les individually.

DVD CREATION LIST

ALL

DVD1 01.01.2007 12:04

01.01.2007 12:15

DVD2 01.02.2007 12:04

01.02.2007 12:15

SET QUIT

SELECT

ENGLISH

Make sure to read “Disc number” ( pg. 42) before proceeding to the next procedure.

Continued on next page

Page 42

Copying Files (Continued)

3 Select the desired disc number.

If you select [ALL], all discs in the list are

•

created.

To preview scenes, move the set lever

•

to ¡ / ¢ to select the ﬁ le and press the INDEX button. When the index screen of individual scenes appears, move the set lever to ¡ / ¢ / £ / ¤ to select the ﬁ le, then press down.

To return to previous screen, press

INDEX.

mark shows that the disc is created

•

already.

ALL WILL

BE CREATED

TIME REQUIRED: 45 MIN.

DVD-RW EXECUTE

CANCEL

SET QUIT

SELECT

5 Select [EXECUTE].

Select

Set

The DVD disc begins to be created.

•

When [COMPLETED] appears, press down the set lever to complete the operation.

When [COMPLETED. CHANGE DISC]

•

appears, change the disc. The second DVD disc begins to be created.

To cancel the DVD creation, select

•

[CANCEL].

8 To check whether the DVD disc was

created properly

In step 2 ( pg. 41), move the set lever to ¡ / ¢ to select [PLAY DVD], then press down. To return to the previous screen, press the INDEX button.

8 Disc number

Disc number shows the number of DVD discs you can create. The dubbing range of each disc is automatically allocated, presuming that all the ﬁ les are to be dubbed from the ﬁ rst one on the list. This dubbing range cannot be changed. ex.) “DVD1” records 2 ﬁ les, “01.01.2007”

and “15.01.2007”.

ALL DVD1 01.01.2007 12:04

15.01.2007 12:15

DVD2 01.02.2007 12:04

08.02.2007 12:15

8 To exit the screen

Press MENU, then move the set lever to

/ ¢ to select [EXECUTE] and press

down.

Page 43

8 Title and chapter of created DVD

Each recording date becomes one title in a created DVD and each scene recorded in a same day becomes one chapter in the title.

10.01.2007: records ﬁ le 1 and 2.

File 1

11.01.2007: records ﬁ le 3 and 4.

File 3

Title

File 1 File 2 File 3 File 4

12 3 4

Chapter

File 2

File 4

Create a DVD

8 Menu for disc playback

When you play back the created DVD disc on a DVD player or other devices, the following top menu will be displayed.

25.01.2007

11.01.200709.01.200707.01.2007

! Disc title: Creating date of the disc # DVD number ( pg. 42) $ Title thumbnail: First scene of the title % Title name: Recording date/Playlist name

ENGLISH

Page 44

Copying Files (Continued)

Using a VCR/DVD Recorder to Dub Files from the Camera

Preparation:

Turn off all units.

AV Connector

DC Connector

To AC Outlet

VCR/DVD Recorder

AV Input Connector

cables using the Everio dock connectors.

S-Video or DV cable (optional) enables even higher quality dubbing.

devices such as a DVD burner are connected to the Everio dock, switch off these devices power.

You can also connect the

AC Adapter

AV Cable

The

( pg. 6) When other

1 Set the VCR/DVD recorder to its AUX

input mode.

2 Start playback on the camera.

To play back videos ( pg. 24)

•

To play back playlists (“When dubbing

•

playlists using a VCR/DVD recorder”  pg. 35)

At the point you want to start dubbing, start recording on the VCR/DVD recorder.

Refer to the VCR/DVD recorder’s instruction manual.

8 To stop dubbing

Stop recording on the VCR/DVD recorder, then press the REC button again.

NOTE

To make the ﬁ le to record only the date information among the display indications, set [DISPLAY] to [OFF], [DISPLAY ON TV] to [ON], and [DATE/TIME] to [ON] or [AUTO]. ( pg. 49)

Page 45

Copying/Moving Still Image Files

You can copy or move still image ﬁ les between the HDD and SD card using the onscreen display.

Preparation:

Slide the power/mode switch to MODE to

•

select

Press the PLAY/REC button to select

•

playback mode.

Make sure that SD card is inserted in the

•

SD slot.

Make sure that enough free space is left in

•

the copy/move destination medium.

mode.

FUNCTION

DELETE PROTECT COPY MOVE DPOF EFFECT

2 Select [COPY] or [MOVE].

[COPY]:

•

Files are copied to the destination

medium while leaving original ﬁ les in the source medium.

[MOVE]:

•

Files are moved to the destination

medium while deleting original ﬁ les (except read-only ﬁ les) in the source medium.

Select

Set

IMAGE COPY

FILE UNIT NUMBER OF FILE

SELECT

HDD SDMEDIA

ALL

EXECUTE

CANCEL

SET QUIT

0059

3 Set the direction of copy/move.

(HDD ] SD or SD ] HDD)

5 Set the ﬁ le unit ([ALL] or [FILE]) to

copy/move.

[FILE]:

•

Select when you want to transfer the

selected ﬁ les.

1) Move the set lever to ¡ / ¢ / £ / ¤ to select the desired ﬁ le, then press down.

The s mark appears on the ﬁ le. To

•

select other ﬁ les, repeat this step.

2) Press FUNCTION.

[ALL]:

•

Select when you want to transfer all ﬁ les

in the recording medium.

6 Select [EXECUTE].

Select

Set

File transfer starts. When [COPYING/ MOVING COMPLETED] appears, press down the set lever.

8 To exit the screen

Press MENU, then move the set lever to

¡ /

to select [EXECUTE] and press

down.

8 To stop the ﬁ le transfer

1) Press down the set lever.

2) Select [EXECUTE] and press down the set lever.

ENGLISH

Page 46

Changing the Menu Settings

ex.) Set [DEMO MODE] to [OFF].

VIDEO

REC MEDIA FOR VIDEO SCENE COUNTER

QUALITY

ZOOM DIS

SELECT

VIDEO

REC MEDIA FOR VIDEO SCENE COUNTER QUALITY ZOOM DIS

SELECT

SET QUIT

3 Select the desired menu from the ﬁ rst

menu item.

[VIDEO]:

•

Display menus related to ! mode.

[IMAGE]:

•

Display menus related to # mode.

[GENERAL]:

•

Display menus common to ! and #

modes.

[MEDIA]:

•

Display menus related to recording

media (HDD and SD cards).

Select

Set

GENERAL

SELECT

QUICK RESTART AUTO POWER OFF

BRIGHT

DROP DETECTION REMOTE

SET QUIT

4 Select the desired menu from the

second menu item.

For details on each menu, see below.

Select

Set

GENERAL

SELECT

ON OFF

SET QUIT

5 Select the desired setting from the

third menu item.

Select

Set

8 To return to the previous screen

Move the set lever to £.

8 To exit the screen

Press MENU.

Menus Settings: [ ] = Factory-preset

n QUALITY

Enables you to set the picture quality for videos.

! VIDEO

@ ZOOM

Enables you to set the maximum zoom ratio.

ULTRA FINE / [FINE] / NORMAL / ECONOMY

10X / [40X] / 300X

32X / [64X] / 800X

34X / [68X] / 800X

NOTE

When the smallest value is set, the optical zoom is used. When one of the larger values is set, the digital zoom is used.

Page 47

Menus Settings: [ ] = Factory-preset

q DIS

Compensates for hand shake.

16:9 WIDE RECORDING

!

Records videos in 16:9 size.

! VIDEO

p GAIN UP

Makes the subject appear bright automatically when you record in dark places. However, the overall colour tones appear grayish.

o WIND CUT

Reduces noise caused by wind.

REC MEDIA FOR VIDEO

/

Enables you to set the recording medium for videos.

h SCENE COUNTER

Enables you to set whether to display the scene counter.

n QUALITY

Enables you to set the picture quality for still images.

# IMAGE

y IMAGE SIZE

Enables you to select the picture size for still images.

OFF : Disables the function. [ON] : Activates the function.

NOTES

Accurate stabilisation may not be possible if hand shake

•

is excessive, or depending on the shooting conditions.

Switch off this mode when recording with the camera on a

•

tripod.

OFF : Records videos in 4:3 size. [ON] : Records videos in 16:9 size. The 16:9 indicator

lights up on the LCD monitor.

NOTES

If the recording mode is set to ECONOMY, you cannot

•

record in 16:9 size (the

If you want to burn the recorded videos onto DVD discs,

•

it is recommended not to mix 16:9 size videos and 4:3 size videos.

If you record videos in 16:9 size, the aspect ratio of the

•

video may be incorrect when watching the videos on your TV. If this occurs, change the settings in [SELECT TV TYPE]. (墌 pg. 49)

OFF : Disables the function. [ON] : Activates the function.

[OFF] : Disables the function. ON : Activates the function.

[HDD] / SD

[OFF] : Disables the function. ON : Activates the function.

[FINE] / STANDARD

[1632 x 1224] / 1280 x 960 / 1024 x 768 / 640 x 480 / 1632 x 912 / 1280 x 720

[1152 x 864] / 640 x 480

16:9 indicator lights up blue).

ENGLISH

2 GAIN

You can set the ISO setting to increase the sensitivity in dark conditions.

[AUTO] / 100 / 200

Page 48

Changing the Menu Settings (Continued)

Menus Settings: [ ] = Factory-preset

p GAIN UP

Makes the subject appear bright automatically when you record in dark places. However, the overall colour tones appear grayish.

# IMAGE

{ CONTINUOUS SHOOTING

Records still images continuously while the SNAPSHOT button is pressed.

z SELF-TIMER

Starts recording when the set time elapses after the

SNAPSHOT button is pressed.

REC MEDIA FOR IMAGE

3

Enables you to set the recording medium for still images.

g BRIGHT

Enables you to set the brightness of the LCD monitor.

^ DROP DETECTION

Prevents damage to the HDD by turning off the power automatically when the camera detects that it has been dropped.

Y GENERAL

] REMOTE

Turns reception of the operation signal from the remote control on/off.

[ DEMO MODE

Introduces special features of the camera at the following cases.

When the menu screen is

•

closed.

When there is no operation

•

for about 3 minutes during recording mode.

\ OPERATION SOUND

Enables you to set the operation sound or turn the operation sound on/off.

OFF : Disables the function. [ON] : Activates the function.

[OFF] : Disables the function. ON : Activates the function.

NOTES

The interval between recording still images is approx. 0.3

•

seconds.

Continuous shooting may not work well depending on the

•

recording medium.

The continuous shooting speed will drop if this function is

•

used repeatedly.

[OFF] / 2SEC / 10SEC

[HDD] / SD

Adjust the brightness of the display moving the set lever to £ / ¤, then press down.

OFF : Disables the function. [ON] : Activates the function.

To turn the unit on when the drop detection worked, set the power/mode switch to OFF, and to ON again.

CAUTION

Setting this function to off increases the chances of damaging the built-in hard disk if the camera is accidentally dropped.

OFF : The camera does not receive the signal from the

remote control.

[ON] : Enables operation with the remote control.

OFF : Disables the function. [ON] : Activates the function.

NOTES

The demonstration only works when the DC cord is

•

connected, not with the battery.

If an SD card is in the camera, demonstration will not take

•

place even if this mode is set to [ON].

OFF : Turns off the operation sound. [MELODY] : The melody sounds when any operation is

performed.

Page 49

Menus Settings: [ ] = Factory-preset

SELECT TV TYPE

#

Enables you to select the TV type when watching ﬁ les recorded on the camera on your TV.

l DISPLAY

Enables you to set whether to display the on-screen display.

DISPLAY ON TV

%

Used for displaying camera’s onscreen display on a TV screen.

LANGUAGE

9

Enables you to set the display language. ( pg. 13)

CLOCK ADJUST

:

Enables you to set the time. ( pg. 13)

Y GENERAL

DATE DISPLAY STYLE

;

Enables you to set the date and time display format.

DATE/TIME

<

Enables you to set whether to display the current time on the LCD monitor.

Z PRESET

Returns all the camera settings to their default values.

QUICK RESTART

&

Enables the camera to start up quickly when you turn the power off and then on again within ﬁ ve minutes by closing and opening the LCD monitor. (“Power-linked operation”  pg. 8)

AUTO POWER OFF

(

If the camera is not operated for 5 minutes while the power is on, it turns itself off automatically to conserve power.

4:3 / [16:9]

OFF : Turns off the on-screen display. [ON] : Turns on the on-screen display.

[OFF] : Does not display on TV. ON : Displays on TV.

NOTE

connected with the AV/S-Video cables. If connected with the DV cable, camera’s on-screen display will not be displayed on TV.

This setting is available only if the TV is

[ENGLISH] / FRANÇAIS / DEUTSCH / ESPAÑOL / ITALIANO / NEDERLANDS / PORTUGUÊS / РУССКИЙ / POLSKI / ČEŠTINA / TÜRKÇE

DATE / TIME

DATE STYLE: year.month.day / month.day.year / [day.month.year] TIME: [24h] / 12h

OFF : The date/time does not appear. [AUTO] : The date/time appears for approx. 5 seconds in

the following cases.

When the power/mode switch is set from OFF to ON

•

When playback starts

•

When the date is changed during playback

•

ON : The date/time is always displayed. EXECUTE : Performs this function.

[CANCEL] : Returns to the menu screen without

executing reset.

OFF : Disables the function. [ON] : Activates the function. The ! or # lamp ﬂ ashes

when closing the LCD monitor.

NOTE

This function is not available during charging.

OFF : Disables the function. [ON] : Activates the function.

To turn the camera on again, set the power/mode switch to OFF, then to ON when using the battery pack. When using the AC adapter, perform any operation such as zooming.

ENGLISH

Page 50

Changing the Menu Settings (Continued)

Menus Settings: [ ] = Factory-preset

CLEAN-UP HDD

)

Writing speed to HDD tends to become slow after long periods of repeated use. Execute cleanup periodically to regain the writing speed.

FORMAT HDD

*

This will ensure stable speeds and operation when accessing the hard disk drive.

DELETE DATA ON HDD

+

This will make it more difﬁ cult to

 MEDIA

recover data on the HDD which has already been erased. It is recommended that you do this when disposing of the camera to prevent illegal data recovery (using commercially available software).

FORMAT SD CARD

You have to format newly purchased SD cards with this camera before using them. This will also ensure stable speeds and operation when accessing the SD card.

VIDEO NO. RESET

-

IMAGE NO. RESET

By resetting the ﬁ le number (name), a new folder will be made. The new ﬁ les you are going to make will be stored in the new folder. It is convenient to separate the new ﬁ les from previously recorded ﬁ les.

Connect the AC adapter. EXECUTE : Performs this function. Select [OK] when

completed.

[CANCEL] : Cancels this function.

NOTE

Depending on the condition of the HDD, it may take several minutes for the cleanup process to be completed.

EXECUTE : Performs this function. Select [OK] when

completed.

[CANCEL] : Cancels this function.

NOTES

Be aware that all ﬁ les and data including protected ﬁ les

•

will be erased by the formatting process.

Do not format the recording medium on your PC.

•

Connect the AC adapter. EXECUTE : Performs this function. Select [OK] when

completed.

[CANCEL] : Cancels this function.

EXECUTE : Performs this function. Select [OK] when

completed.

[CANCEL] : Cancels this function.

NOTES

Be aware that all ﬁ les and data including protected ﬁ les

•

will be erased by the formatting process.

Do not format the recording medium on your PC.

•

EXECUTE : Performs this function. Select [OK] when

completed.

[CANCEL] : Cancels this function.

Page 51

Troubleshooting

The camera is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly.

The following phenomena are not malfunctions.

The camera heats up when it is used for a

•

long time.

The battery heats up during charging.

•

When playing back a video ﬁ le, the

•

image stops momentarily or the sound is interrupted at junctions between scenes.

Trouble Action

Connect the AC adapter securely.

•

No power is supplied.

No display appears.

The power was turned off accidentally.

Power

The displayed amount of remaining battery power differs from the actual operating time.

The power does not turn on, or the battery operation time is extremely short even after the battery is fully charged.

The access/charge lamp on the camera does not light during charging.

Detach the battery pack once again and re-attach it ﬁ rmly.

•

Replace the dead battery with a fully charged one.

•

If the camera is not operated for 5 minutes while

•

the power is on, it turns itself off automatically to conserve power.

using the battery pack, set the power/mode switch to OFF, then to ON. When using the AC adapter, perform any operation such as zooming.

Adjust the brightness of the LCD monitor.

•

Move to a place where no vibration or excessive sound.

•

The drop detection function operated. Set the power/

•

mode switch to OFF, and to ON again. To turn off this function, set [DROP DETECTION] to [OFF].

Fully charge the battery, and then run it down. If the

•

problem persists, the battery is worn out and needs to be replaced. Please purchase a new one.

Make sure to use the camera under appropriate operating

•

temperatures.

The battery is worn out and needs to be replaced. Please

•

purchase a new one.

Charging is difﬁ cult in places subject to extremely

•

high/low temperatures. To protect the battery, it is recommended to charge it in places with a temperature of 10°C to 35°C.

When the battery is already fully charged, the lamp does

•

not light. Check the remaining battery power.

To solve the problem, ﬁ rst follow the

•

instructions below.

If the problem is not solved, reset the

•

camera. ( below)

If the problem persists, please consult your

•

nearest JVC dealer.

8 To reset the camera

1) Set the power/mode switch to OFF and remove the power supply (battery pack or AC adapter) from the camera, then reattach it.

2) Execute [PRESET] from the menu. ( pg. 49)

To turn the camera on again when

ENGLISH



12 12

–

Page 52

Troubleshooting (Continued)

Trouble Action

Images on the LCD monitor appear dark or whitish.

Coloured bright spots

Displays

appear on the LCD monitor.

Aspect ratio of the image is strange when watching images on your TV.

Recording cannot be performed.

Vertical lines appear on recorded images.

The LCD monitor becomes red or black for an instant.

During recording, the date/time does not appear.

During video

Recording

recording, the 7REC indicator ﬂ ashes.

The LCD monitor indications blink.

Digital zoom does not work.

The focus is not adjusted automatically.

The colour of the image looks strange.

Adjust the brightness and angle of the LCD monitor.

•

When the LCD monitor’s LED light reaches the end of

•

its service life, images on the LCD monitor become dark. Consult your nearest JVC dealer.

The LCD monitor is made with high precision technology.

•

However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor. These spots are not recorded on the picture. This is not due to any defect of the unit. (Effective dots: more than 99.99 %)

Change the settings in [SELECT TV TYPE] so that it

•

matches the screen size of the connected TV.

Recording medium is full. Delete unnecessary ﬁ les or

•

replace the SD card.

Select the recording medium properly.

•

Such a phenomenon occurs when shooting a subject

•

illuminated by bright light. This is not a malfunction.

Such a phenomenon occurs when shooting under direct

•

sunlight. This is not a malfunction.

Set [DATE/TIME] to [ON]. 49

•

The temperature of the camera is increasing. If the

•

camera continues to heat up, recording may be stopped to protect the recording medium. In this case, turn off the power, and then wait until the camera cools down.

Certain modes of program AE, effect, DIS, and other

•

functions that cannot be used together are selected at the same time.

Change the settings in [ZOOM].

•

Digital zoom is not available in the still image recording

•

mode.

Set focus to the automatic mode.

•

Clean the lens and check the focus again.

•

Wait to become natural colour. The camera adjusts the

•

white balance automatically but it takes a time.

Try manual white balance adjustment.

•

In bright places, setting “Nightscope” or a slow speed is

•

not recommended.

When the recorded image is too dark, try backlight

•

compensation or adjust brightness.

When the recorded image is too bright, try adjust

•

brightness.

墌

–

47, 48

–

22 55

–

21, 22

Page 53

Recording

Playback

Other problems

Trouble Action

White balance setting cannot be activated.

The continuous shooting speed is slow.

Playback cannot be performed.

The black & white fader does not work.

There is a noise during playback.

During video playback, the U indicator ﬂ ashes.

Files cannot be deleted.

When the image is printed from the printer, a black bar appears at the bottom of the screen.

The data process is too slow after the power is switched on or the mode is changed.

The SD card cannot be removed from the camera.

The CREATE DVD screen is displayed in the LCD monitor, and no other operations can be performed.

Do not select the sepia (SEPIA) or monotone

•

(MONOTONE) mode before setting white balance.

The continuous shooting speed will drop when

•

repeatedly making continuous shots, when using certain recording media, or under certain recording conditions.

Select the recording medium properly.

•

To watch images on a TV, set the TV’s input mode or

•

channel that is appropriate for video playback.

Do not select the sepia (SEPIA) or monotone

•

(MONOTONE) mode before setting white balance.

The sound of the hard disk drive may have been

•

recorded if the camera was moved suddenly during recording. Do not move or shake the camera suddenly during recording.

The temperature of the camera is increasing. If the

•

camera continues to heat up, playback may be stopped to protect the recording medium. In this case, turn off the power, and then wait until the camera cools down.

Remove protection from the ﬁ les and delete them. 31

•

This is not a malfunction. This can be avoided by

•

recording with DIS activated.

There is a large number of still images (approx. 1,000

•

or more) stored in the recording medium. Copy the stored ﬁ les to a PC, and delete them from the recording medium.

Push the SD card in a few more times. 15

•

Another operation is being attempted while a DVD burner

•

that is switched on is connected. Switch off the DVD burner power, and switch the camera’s power off and back on again.



–

47, 48

–

ENGLISH

Page 54

Warning Indications

Indication Meaning/Action

Displays the remaining battery power. –

•

(Battery indicator)

SET DATE/TIME!

LENS COVER

HDD ERROR! MEMORY CARD ERROR!

CHECK CARD’S WRITE PROTECTION SWITCH

VIDEO MANAGEMENT FILE IS BROKEN. TO RECORD/PLAYBACK VIDEO, RECOVERY IS REQUIRED. RECOVER?

CAN NOT READ EVENT INFORMATION

RECORDING FAILURE

INCOMPATIBLE USB DEVICE

High Exhausted

As the battery power comes close to nil, the battery

•

indicator blinks. When the battery power is exhausted, power turns off automatically.

Appears when the date/time is not set.

•

The built-in clock’s rechargeable lithium battery is

•

discharged, so the previously set date/time is erased. Connect the camera to an AC outlet using the AC adapter for over 24 hours to charge the clock’s lithium batter y. Then set the date/time.

Appears for 5 seconds after power is turned on in recording

•

mode if the lens cover is closed or when it is dark.

Remove the card once and insert it again. If the error is

•

not cancelled, replace the card with one that has been guaranteed for correct operation.

Perform clean up to restore the capacity of the recording

•

media.

Appears when you attempt recording when the write/erase

•

protection tab on the SD card is set to the “LOCK” position.

The video management ﬁ le is broken. Recovery is required

•

to record or play back video ﬁ les. Move the set lever to ¡ /

to select [YES], then press down to recover the video

management ﬁ le.

Appears when the event information cannot be read. –

•

Performance of recording medium is poor. Use the Cleanup

•

function.

The writing speed of recording medium is slow, or the

•

recording medium is corrupted. Use an SD card that is guaranteed to operate.

The recording medium was subjected to vibrations or jolts.

•

Be careful not to subject the recording medium to vibrations or jolts.

Appears when the recording medium is full and recording

•

is not possible. Delete unnecessary ﬁ les, or replace the SD card.

Appears when an incompatible USB device is connected to

•

the camera.

Appears when a DVD burner that is switched off is

•

connected. If you want to use the DVD burner, switch the power on.



–

13 12

–

Page 55

Indication Meaning/Action

RECORDING MAY NOT BE CORRECT ON THE MEMORY CARD

DROP DETECTION WORKED AND THE POWER IS TURNED OFF

The data may not be recorded on the recording medium

•

correctly. Try recording again.

Otherwise, clean up the recording medium.

•

To turn the unit on again, set the power/mode switch to

•

OFF, and to ON again.

Cleaning

Before cleaning, turn off the camera and remove the battery pack and AC adapter.

8 To clean the exterior

Wipe gently with a soft cloth. If the camera is particularly dirty, dip the cloth into diluted mild soap and wring it out well before wiping. Then wipe again with a dry cloth.

8 To clean the LCD monitor

Wipe gently with a soft cloth. Be careful not to damage the monitor.

8 To clean the lens

Wipe gently with lens cleaning paper.

NOTES

Avoid using strong cleaning agents such as benzine or alcohol.

•

Mould may form if the lens is left dirty.

•

When using a cleaner or chemically treated cloth, refer to the cautions for each product.

•

Speciﬁ cations

ENGLISH

墌

–

Camera

8 For general

Power supply

DC 11 V (Using AC adapter) DC 7.2 V (Using battery pack)

Power consumption

Approx. 3.8 W

Approx. 3.2 (3.4)* W *When using the LED light

Approx. 3 (3.2)* W *When using the LED light

Dimensions (W x H x D)

66 mm x 71 mm x 110 mm

Weight

Approx. 355 g (incl. strap) Approx. 400 g (incl. battery and strap)

Approx. 330 g (incl. strap) Approx. 375 g (incl. battery and strap)

Approx. 320 g (incl. strap) Approx. 365 g (incl. battery and strap)

Operating temperature

0°C to 40°C

Operating humidity

35% to 80%

Storage temperature

–20°C to 50°C

Page 56

Speciﬁ cations

Pickup

1/3.9 ″ (2,180,000 pixels) CCD

1/6 ″ (1,070,000 pixels) CCD

1/6 ″ (800,000 pixels) CCD

Lens

F 1.2 to 2.0, f = 3.8 mm to 38 mm, 10:1 power zoom lens

Video: F 1.8 to 4.5, f = 2.5 mm to 80 mm, 32:1 power zoom lens Still image: F 1.9 to 4.5, f = 2.9 mm to 80 mm, 27:1 power zoom lens

F 2.0 to 4.7, f = 2.3 mm to 78.2 mm, 34:1 power zoom lens

Filter diameter

ø30.5 mm

LCD monitor

2.7

″

diagonally measured, LCD panel/TFT

active matrix system

Speaker

Monaural

Within 2 m (recommended shooting distance)

Within 1.5 m (recommended shooting distance)

Language

English/French/German/Spanish/Italian/Dutch/ Portuguese/Russian/Polish/Czech/Turkish

Flash

LED Light

8 For video/Audio

Format

SD-VIDEO

Recording/Playback format

Video: MPEG-2 Audio: Dolby Digital (2 ch)

Signal format

PAL standard

Recording mode (video)

ULTRA FINE: 720 x 576 pixels, 8.5 Mbps (VBR) FINE: 720 x 576 pixels, 5.5 Mbps (VBR) NORMAL: 720 x 576 pixels, 4.2 Mbps (VBR) ECONOMY: 352 x 288 pixels, 1.5 Mbps (VBR)

Recording mode (audio)

ULTRA FINE: 48 kHz, 384 kbps FINE: 48 kHz, 384 kbps NORMAL: 48 kHz, 256 kbps ECONOMY: 48 kHz, 128 kbps

8 For still image

Format

JPEG

Image size

6 modes (1632 x 1224 / 1280 x 960 / 1024 x 768 / 640 x 480 / 1632 x 912 / 1280 x 720)

2 modes (1152 x 864 / 640 x 480)

1 mode (640 x 480)

Picture quality

2 modes (FINE/STANDARD)

8 For connectors

4-pin (I.LINK/IEEE1394 compliant)

Y: 1.0 V (p-p), 75 Ω C: 0.3 V (p-p), 75 Ω

AV output

Video output: 1.0 V (p-p), 75 Ω Audio output: 300 mV (rms), 1 kΩ

USB

Mini USB type A and type B, USB 2.0 compliant

DV output

S output

AC Adapter

Power requirement

AC 110 V to 240 Vd, 50 Hz/60 Hz

Output

DC 11 V

, 1 A

Page 57

Remote Control

Power supply

DC 3 V

Battery life

Approx. 1 year (depending on the frequency of use)

Operating distance

Dimensions (W x H x D)

42 mm x 14.5 mm x 91 mm

Weight

Approx. 30 g (incl. battery)

Design and speciﬁ cations subject to change without notice.

Within 5 m

Operating temperature

0°C to 40°C

Approximate recording time (minutes) (for video)

Recording medium

Quality

HDD SD Card

30 GB*140 GB*2128 MB 256 MB 512 MB 1 GB 2 GB 4 GB

ULTRA FINE 430 570 1 3 7 14 29 57

FINE 640 850 2 5 10 22 43 85

NORMAL 850 1130 3 7 14 29 57 113

ECONOMY 2250 3000 9 19 38 77 152 298

*1 GZ-MG255/155/135/130

GZ-MG275

Approximate number of storable images (for still image)

Recording medium

Image size/Quality

1632 x 1224 / FINE*

1632 x 1224 / STANDARD*

1280 x 960 / FINE*

1280 x 960 / STANDARD*

1152 x 864 / FINE*

4:3

1152 x 864 / STANDARD*

1024 x 768 / FINE*

1024 x 768 / STANDARD*

640 x 480 / FINE*

640 x 480 / STANDARD*

640 x 480 / FINE*

640 x 480 / STANDARD*

1632 x 912 / FINE*

16:9

1632 x 912 / STANDARD*

1280 x 720 / FINE*

1280 x 720 / STANDARD*

GZ-MG275/255

GZ-MG155

GZ-MG135/130

HDD

3, 4

128 MB 256 MB 512 MB 1 GB 2 GB 4 GB

9999 140 280 560 1135 2195 4310

9999 235 470 935 1890 3615 7095

9999 215 430 855 1735 3415 6700

9999 355 705 1405 2835 5585 9999

9999 270 535 1065 2150 4095 8045

9999 410 820 1625 3285 6145 9999

9999 325 650 1285 2600 5120 9999

9999 520 1040 2060 4160 7680 9999

9999 780 1560 3090 6245 9999 9999

9999 1115 2225 4420 8920 9999 9999

9999 521 1040 2062 4164 7683 9999

9999 1118 2229 4420 8923 9999 9999

9999 185 370 735 1485 2925 5745

9999 285 575 1145 2310 4390 8620

9999 430 865 1715 3470 6830 9999

SD Card

ENGLISH

Page 58

Cautions

Battery Packs

The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

To avoid hazards

•

... do not burn. ... do not short-circuit the terminals. Keep it away

from metallic objects when not in use. When transporting, make sure the provided battery cap is attached to the battery. If the battery cap is misplaced, carry the battery in a plastic bag.

... do not modify or disassemble. ... do not expose the battery to temperatures

exceeding 60°C, as this may cause the battery to overheat, explode or catch ﬁ re.

... use only speciﬁ ed chargers.

To prevent damage and prolong service life

•

... do not subject to unnecessary shock. ... charge within the temperature range of

10°C to 35°C. This is a chemical reaction type battery — cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

... store in a cool, dry place. Extended exposure

to high temperatures will increase natural discharge and shorten service life.

... fully charge and then fully discharge the

battery every 6 months when storing the battery pack over a long period time.

... remove from charger or powered unit when

not in use, as some machines use current even when switched off.

Terminals

Recording Medium

Be sure to follow the guidelines below

•

to prevent corruption or damage to your recorded data.

Do not bend or drop the recording medium, or

•

subject it to strong pressure, jolts or vibrations.

Do not splash the recording medium with water.

•

Do not use, replace, or store the recording

•

medium in locations that are exposed to strong static electricity or electrical noise.

Do not turn off the camera power or remove

•

the battery or AC adapter during shooting, playback, or when otherwise accessing the recording medium.

Do not bring the recording medium near objects

•

that have a strong magnetic ﬁ eld or that emit strong electromagnetic waves.

Do not store the recording medium in locations

•

with high temperature or high humidity. Do not touch the metal parts.

•

When formatting or erasing data using the

•

camera, only the ﬁ le administration information is changed. The data is not completely erased from the hard disk. If you want to completely erase all of the data, we recommend either using commercially available software that is specially designed for that purpose, or by physically destroying the camera with a hammer etc.

LCD Monitor

To prevent damage to the LCD monitor, DO

•

NOT

... push it strongly or apply any shocks. ... place the camera with LCD monitor on the

bottom.

To prolong service life

•

... avoid rubbing it with coarse cloth.

Page 59

Main Unit

For safety, DO NOT

•

... open the camera’s chassis. ... disassemble or modify the unit. ... allow inﬂ ammables, water or metallic objects

to enter the unit.

... remove the battery pack or disconnect the

power supply while the power is on.

... leave the battery pack attached when the

camera is not in use.

... place naked ﬂ ame sources, such as lighted

candles, on the apparatus.

... expose the apparatus to dripping or splashing.

Avoid using the unit

•

... in places subject to excessive humidity or dust. ... in places subject to soot or steam such as

near a cooking stove.

... in places subject to excessive shock or

vibration. ... near a television set. ... near appliances generating strong magnetic

or electric ﬁ elds (speakers, broadcasting

antennas, etc.). ... in places subject to extremely high (over 40°C)

or extremely low (under 0°C) temperatures. ... in places subject to the air pressure is low

(more than 3000 m (9870 ft) above the sea

level).

DO NOT leave the unit

•

... in places of over 50°C. ... in places where humidity is extremely low

(below 35%) or extremely high (above 80%). ... in direct sunlight. ... in a closed car in summer. ... near a heater. ... in high places such as on a TV. Leaving the

unit in high places while a cable is connected

may result in a malfunction if the cable is

caught and the unit falls onto the ﬂ oor.

To protect the unit, DO NOT

•

... allow it to become wet. ... drop the unit or strike it against hard objects. ... subject it to shock or excessive vibration

during transportation. ... keep the lens directed at extremely bright

objects for long periods. ... expose the lens to direct sunlight. ... swing it excessively when using the hand

strap. ... swing the soft camera case excessively when

the camera is inside it.

How to Handle a CD-ROM

Take care not to soil or scratch the mirror

•

surface (opposite to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the centre hole. Do not use conventional disc cleaners or

•

cleaning spray. Do not bend the CD-ROM or touch its mirror

•

surface. Do not store your CD-ROM in a dusty, hot or

•

humid environment. Keep it away from direct sunlight.

Dear Customer, [European Union]

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan Limited is: JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany

ENGLISH

Page 60

Terms

A AC Adapter ..................................................... 12

Adjust Brightness ........................................... 22

Aperture Priority ............................................. 23

Auto Power Off ............................................... 49

B Backlight Compensation ................................. 21

Battery Pack ....................................... 12, 14, 58

Brightness Control (LCD Monitor) .................. 48

C Clean-up HDD ................................................ 50

Clock Adjust ............................................. 13, 49

Continuous Shooting ...................................... 48

Copying (Moving) Still Images ........................ 45

Copying Video Files .................................. 41, 44

Core Filter ........................................................ 7

D Date/Time ....................................................... 49

Date Display Style .......................................... 49

Date Index Screen .......................................... 26

Deleting Files ........................................... 30, 50

Deleting Playlist .............................................. 36

Demonstration Mode ...................................... 48

Digital Image Stabiliser (DIS) ......................... 47

Direct Printing ................................................. 38

Display on TV ................................................. 49

DPOF ............................................................. 37

Drop Detection ............................................... 48

DVD Burner .................................................... 40

DVD Recorder ................................................ 44

E Effect ........................................................ 23, 28

Event Registration .................................... 19, 32

Event Screen .................................................. 26

Everio Dock ...................................................... 6

F File Information ............................................... 32

Flash .............................................................. 18

Focus .............................................................. 22

Formatting a Recording Medium .................... 50

G Gain ................................................................ 47

Gain Up .................................................... 47, 48

H Hard Disk ....................................................... 58

I Image Rotation ............................................... 25

Image Size ..................................................... 47

L Language Setting .....................................13, 49

LCD Monitor ......................................... 8, 10, 58

LED Light ....................................................... 18

Lens Cover ..................................................... 14

M Manual Recording .......................................... 20

Menu Settings ................................................ 46

N Nightscope ..................................................... 21

O On-Screen Display ......................................... 49

Operation Sound ............................................ 48

P Partial Delete .................................................. 33

PictBridge ....................................................... 38

Picture Quality .......................................... 46, 47

Playlist ............................................................ 34

Power-Linked Operation ................................... 8

Preset ............................................................. 49

Printer ............................................................. 38

Program AE .................................................... 20

Protecting Files .............................................. 30

Q Quick Restart ................................................. 49

R Recordable Time/Number of Images .............. 57

Recording Medium ....................... 19, 47, 48, 58

Remote Control ...................................... 7, 8, 48

Resetting the Camera .................................... 51

Resetting the File Number .............................. 50

S Scene Counter ...............................................47

Screen Size (16:9/4:3) .................................... 47

SD Card ......................................................... 15

Select TV Type ...............................................49

Self-Timer ....................................................... 48

Shutter Speed ................................................ 23

Slide Show ..................................................... 25

Speaker Volume ............................................. 24

Spot Exposure Control ................................... 21

Still Image ................................................ 17, 25

T Tele Macro ...................................................... 23

Tripod Mounting .............................................. 14

TV ................................................................... 29

V VCR ................................................................ 44

Video ........................................................ 16, 24

W White Balance ................................................ 23

Wind Cut ........................................................ 47

Wipe or Fader Effects ..................................... 28

Z Zooming ................................................... 18, 46

Printed in Malaysia

0207FOH-AL-VM

Page 61

PC OPERATION GUIDE

ENGLISH

Dear Customer

Some of the camera illustrations in

this instruction manual may differ slightly from your camera.

Windows® is either registered

trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Macintosh is a registered trademark

of Apple Computer, Inc.

Other product and company names

included in this instruction manual are trademarks and/or registered trademarks of their respective holders.

Page 62

For All Users

JVC SOFTWARE LICENSE

AGREEMENT

IMPORTANT

TO CUSTOMERS: PLEASE MAKE SURE

TO READ THIS CAREFULLY BEFORE

INSTALLING OR USING THE SOFTWARE

PROGRAM NAMED “DIGITAL PHOTO

NAVIGATOR” (“Program”) ON YOUR PC.

The right to use the Program is granted by Victor

Company of Japan, Limited (“JVC”) to You only

on the condition that You agree to the following.

Should You not agree to the terms hereof, You

may not install or use the Program. HOWEVER,

INSTALLING OR USING THE PROGRAM

INDICATES YOUR ACCEPTANCE OF THESE

TERMS AND CONDITIONS.

1 COPYRIGHT; OWNERSHIP

You acknowledge that all copyrights and other

intellectual property rights in the Program are

owned by JVC and its licensor, and remain

vested in JVC and such licensor. The Program is

protected under the copyright law of Japan and

other countries, and related Conventions.

2 GRANT OF LICENSE

(1) Subject to the conditions of this Agreement,

JVC grants to You a non-exclusive right to use the Program. You may install and use the Program on a HDD or other storage devices incorporated in Your PC.

(2) You may make one (1) copy of the Program

solely for your personal backup or archival purposes.

3 RESTRICTION ON THE PROGRAM

(1) You may not reverse engineer, decompile,

disassemble, revise or modify the Program, except to the extent that expressly permitted by applicable law.

(2) You may not copy or use the Program, in

whole or in part, other than as expressly speciﬁ ed in this Agreement.

(3) You have no right to grant a license to use

the Program, and may not distribute, rent, lease or transfer the Program to any third party or otherwise let them use the Program.

4 LIMITED WARRANTY

JVC warrants that any media in which the Program is embodied are free from any defects in materials and workmanship for a period of thirty (30) days from the date of Your purchasing any our products accompanying the Program. JVC’s entire liability and your exclusive remedy in connection with the Program shall be replacement of such defective media. EXCEPT FOR THE EXPRESS WARRANTIES STATED HEREIN AND TO THE EXTENT PERMITTED BY APPLICABLE LAW, JVC AND ITS LICENSORS DISCLAIM ANY OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IN REGARD TO THE PROGRAM AND THE ACCOMPANYING PRINTED MATERIALS. SHOULD THERE BE ANY PROBLEM ARISING FROM OR CAUSED BY THE PROGRAM, YOU SHOULD SETTLE ALL SUCH PROBLEM AT YOUR OWN COST AND EXPENSE.

5 LIMITED LIABILITY

TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL JVC AND ITS LICENSORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, REGARDLESS OF THE FORM OF ACTION WHETHER IN CONTRACT, TORT OR OTHERWISE ARISING OUT OF OR IN CONNECTION WITH THE USE OF OR INABILITY TO USE THE PROGRAM, EVEN IF JVC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU WILL INDEMNIFY AND HOLD HARMLESS JVC FROM ANY LOSS, LIABILITY OR COST ARISING OUT OF OR IN ANY WAY CONNECTED TO CLAIMS FROM ANY THIRD PARTY RELATING TO THE USE OF THE PROGRAM.

Page 63

6 TERM

This Agreement will become effective on the date when You install and use the Program on Your machine, and continue to be in effect until the termination under the following provision. Should You breach any provision of this Agreement, JVC may terminate this Agreement without giving any notice to You. In this event, JVC may claim against You for any damages caused by Your breach. Should this Agreement be terminated, You must immediately destroy the Program stored in Your machine (including the erasing from any memory in Your PC), and no longer own such Program.

7 EXPORT CONTROL

You agree that You will not ship, transfer or export the Program or underlying information and technology to any countries to which Japan and other relevant countries have initiated an embargo on such goods.

8 U.S. GOVERNMENT USER

If You are an agency of the United States of America (the “Government”), You acknowledge JVC’s representation that the Program is a “Commercial Item” as deﬁ ned in Federal Acquisition Regulation (FAR) part 2.101 (g) consisting unpublished “Commercial Computer Software” as those items are used at FAR part

12.212 and is only licensed to You with the same use rights JVC grants all commercial end users pursuant to the terms of this Agreement.

9 GENERAL

(1) No modiﬁ cation, change, addition, deletion

or other alternation of or to this Agreement will be valid unless reduced to writing and signed by an authorized representative of JVC.

(2) If any part of this Agreement is held

invalid by or in conﬂ ict with any law having jurisdiction over this Agreement, the remaining provisions will remain in full force and effect.

(3) This Agreement shall be governed by and

interpreted under the laws of Japan. The Tokyo District Court has jurisdiction over all disputes which may arise with respect to the execution, interpretation and performance of this Agreement.

Victor Company of Japan, Limited

NOTE

If You acquired the Program in Germany, the provisions of Sections 4 (Limited Warranty) and 5 (Limited Liability) provided above will be replaced with those of the German version of this Agreement.

CAUTION:

Operate this equipment according to the

operating procedures described in this manual.

Use only the provided CD-ROM. Never use

any other CD-ROM to run this software. Do not attempt to modify this software. Changes or modiﬁ cations not approved by

JVC could void user’s authority to operate the

equipment.

How to handle a CD-ROM

Take care not to soil or scratch the mirror

Do not use conventional disc cleaners or

cleaning spray.

Do not bend the CD-ROM or touch its mirror

surface.

Do not store your CD-ROM in a dusty, hot

or humid environment. Keep it away from direct sunlight.

You can ﬁ nd the latest information (in English) on the provided software program at our world wide web server at http://www. jvc-victor.co.jp/english/global-e.html

ENGLISH

Page 64

Contents

Remember to back up your ﬁ les to your computer!

Creating room in the Everio’s hard disk clears space for you to store your next masterpiece.

Windows

File Backup on the PC (Windows®) ...................................................5

System Requirements ....................................................................................................6

Software Installation .......................................................................................................6

Connecting the Camera to the PC .................................................................................9

Playing back Files on the PC .......................................................................................10

File Backup on the PC .................................................................................................11

File Backup on the PC without using Software ............................................................13

Other PC Operations (Windows®) ...................................................14

Creating a DVD-Video ..................................................................................................14

Getting More Use from the Software ...........................................................................16

Macintosh

File Backup on the PC (Macintosh) ................................................18

System Requirements ..................................................................................................18

Connecting the Camera to the PC ...............................................................................18

File Backup on the PC .................................................................................................20

Other Devices

File Backup on a NAS Compatibles* ..............................................21

(*No devices can be connected to a camera at the time of camera’s release.)

Connecting the Camera to the External Device ...........................................................21

File Backup on an External Device ..............................................................................22

Folder Structure and Extensions ....................................................23

Page 65

Windows

File Backup on the PC (Windows®)

Install the software that came with your Everio. You can back up your ﬁ les on your computer with a simple one-touch operation, edit your ﬁ les on your computer, and also create DVDs. If you cannot install the software, you can still back up your ﬁ les on your computer. (墌 pg. 13)

Settings:

You can perform detailed settings for each item.

Function Explanation:

Select a function on the right, and an explanation is displayed.

Tutorial:

The operating procedure for each function is displayed.

ENGLISH

A B C D

E F

A Plays back video ﬁ les on

the PC (墌 pg. 10)

D Burns ﬁ les that are

backed up on the PC onto a DVD

B Plays back still image ﬁ les

on the PC (墌 pg. 10)

E Creates a DVD-Video

(墌 pg. 14)

C Edits ﬁ les on the PC

F Backs up camera ﬁ les

onto the PC (墌 pg. 11)

Page 66

File Backup on the PC (Windows®) (continued)

System Requirements

OS: Windows® XP Home Edition [XP] (preinstalled), or Windows® XP Professional [XP] (preinstalled) CPU:

Intel

Pentium® 4, at least 1.6 GHz

(at least 2.2 GHz recommended)

Pentium® M, at least 1.4 GHz

Intel RAM: At least 256 MB (at least 512 MB recommended) Free hard disk space: At least 550 MB for installation For creating DVD-Video, at least 10 GB recommended For creating VCD, at least 1 GB recommended Connector: USB 2.0 connector Display: Must be capable of displaying 1024 x 600 dots (VRAM: 128 MB and more recommended)

Software Installation

Miscellaneous: Internet Explorer 5.5 or later DirectX 9.0 or later DirectX is automatically installed during installation. Supported media: DVD-Video: DVD-R/-RW, DVD+R/+RW DVD-VR: DVD-RW, DVD-RAM DVD+VR: DVD+RW VideoCD: CD-R/RW For the compatible DVD burners, refer to CyberLink web site: http://www.cyberlink.com/english/products/ powerproducer/3/comp_dvd_drives.jsp

NOTE

The system requirements information is not a guarantee that the provided software will work on all personal computers meeting those requirements.

The following software is included in the CD-ROM that came with your Everio.

CyberLink DVD Solution

Comprehensive application software that consists of the following 3 software.

PowerCinema NE for Everio

The main authoring software. You can perform various operations such as ﬁ le backup, playback, and editing from the top menu of this software.

PowerProducer 3 NE

Allows you to create DVDs with more speciﬁ ed settings. Automatically starts from an operation in PowerCinema NE for Everio.

PowerDirector 5 NE Express

Allows you to edit ﬁ les on your PC. Automatically starts from an operation in PowerCinema NE for Everio.

Digital Photo Navigator 1.5

Allows you to change the format of still image ﬁ les backed up on your computer.

Page 67

Preparation: Quit any other software you are using. (Check that there are no other

application icons on the status bar.)

Load the provided CD-ROM into the PC.

After a moment, the [SETUP] screen appears. If the [SETUP] screen does not appear, double-click the CD-ROM icon in the [My Computer].

ENGLISH

Click [Easy Installation].

If you want to specify the type of software to install or the installation destination folder etc., select [Custom Installation]. Follow the instructions on the screen to install the software.

Click [Yes].

Select the desired language and click [OK].

Continued on next page

Page 68

File Backup on the PC (Windows®) (continued)

When installation is completed

The installed software is displayed in [All Programs].

Click [Yes].

The software installation starts.

Click [Finish].

The backup destination folder [MyWorks] for ﬁ les is created on the hard disk drive that has the most free space.

Page 69

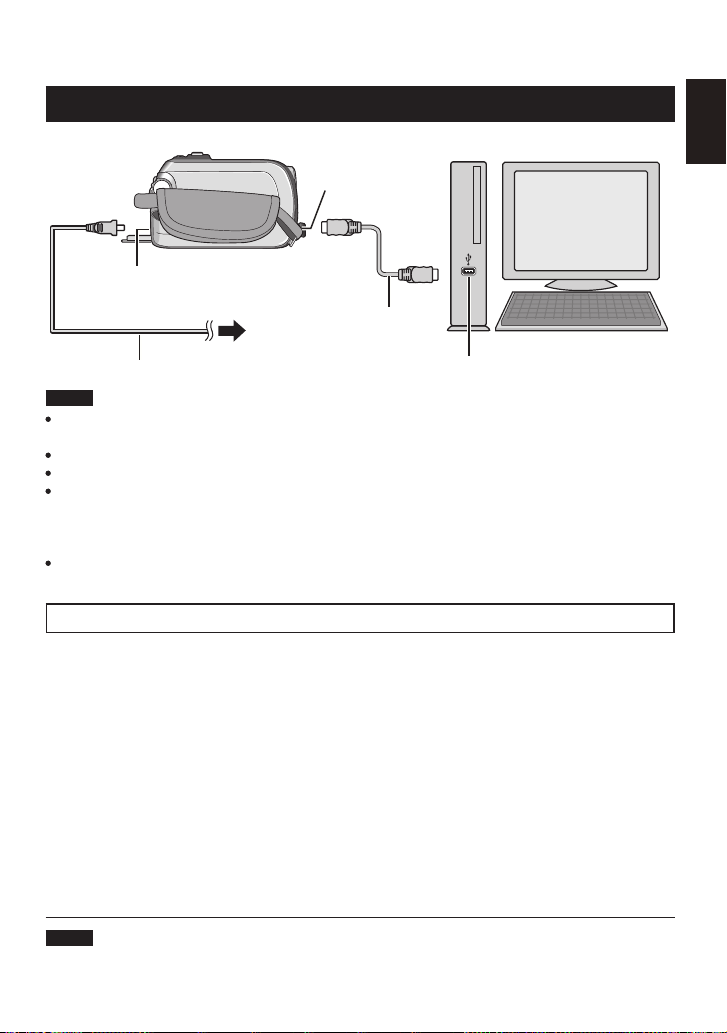

Connecting the Camera to the PC

Preparation: Set the camera’s power/mode switch to OFF.

USB Connector

DC Connector

USB Cable

AC Adapter

NOTE

When the USB cable is connected, turning on or off the camera causes malfunctions of

the PC. Connect the camera directly to the PC, not through the hub. Do not use an extension USB cable. Saving the wrong kinds of ﬁ les in a recording medium or deleting ﬁ les or folders from

a recording medium can cause problems with the operation of the camera. When it is

necessary to delete a ﬁ le from a recording medium, delete it through the camera. Also,

do not move or rename folders and ﬁ les in the medium on PC. Never disconnect the USB cable while the access/charge lamp on the camera lights or

blinks.

When you have ﬁ nished operation

Always follow the procedures below when disconnecting the camera, or turning off the camera/computer power. Failing to do so may cause damage to the camera and computer.

Conﬁ rm that the access/charge lamp on the camera does not light or blink.

If the access/charge lamp lights or blinks, wait until it is turned off before proceeding.

Double-click the [Safely Remove Hardware] or [Unplug or Eject Hardware] icon in the status bar.

Select [USB Mass Storage Device] or [USB Disk], and then click [Stop].

Click [OK].

The model name depends on the connected camera.

Disconnect the USB cable.

Turn off the camera and PC.

AC Outlet

USB Connector

ENGLISH

NOTE

If you make a mistake operating the camera, you cannot return to the previous screen in order to perform the operation again. Follow the procedure above to switch off the camera’s power, then perform the operation again from the beginning.

Page 70

File Backup on the PC (Windows®) (continued)

Playing back Files on the PC

Preparation: Install the software from the included CD-ROM. (墌 pg. 6)

Connect the camera to the computer with the USB cable. (墌 pg. 9) Set the camera’s power/mode switch to ON.

On the camera:

PLAYBACK ON PC

CONNECT TO DEVICE CREATE DVD BACK UP DIRECT PRINT

SELECT

SET

QUIT

Move the set lever to ¡ / ¢ to select [PLAYBACK ON PC], then press down.

A dialog box is displayed on the PC screen.

However, you do not need to use the dialog box.

PowerCinema starts.

NOTE

Only ﬁ les (extension “.mod”) shot using Everio can be played back.

Files that were edited using PowerDirector should be read and played back with

PowerDirector.

On the PC: Click [Browse Videos] (for video playback) or [Browse Pictures] (for still image playback).

Click the media that contains desired ﬁ les.

EVERIO_HDD:

Plays back the ﬁ les stored in the camera’s HDD.

EVERIO_SD:

Plays back the ﬁ les stored in the camera’s SD card.

Backup Folder:

Plays back the ﬁ les stored in the PC backup folder (墌 pg. 8).

Click the desired ﬁ le.

You can use the convenient ﬁ le search function.

Sort by:

The order of ﬁ les is rearranged according to item that you selected.

Filter by:

Files are ﬁ ltered according to the item that you selected.

Page 71

File Backup on the PC

This method uses the included software to back up ﬁ les onto your computer. Video ﬁ les that have never been backed up onto the connected computer are automatically selected from the back up history and backed up. If you could not install the software, turn to pg. 13 for details of how to back up your ﬁ les without using this software.

Preparation:

Install the software from the included CD-ROM. (墌 pg. 6) Connect the camera to the computer with the USB cable. (墌 pg. 9) Set the camera’s power/mode switch to ON.

On the camera: Press [DIRECT BACK UP].

A dialog box is displayed on the PC screen.

However, you do not need to use the dialog box.

PowerCinema starts.

ENGLISH

On the PC:

File copy starts. Click [Cancel] to cancel the procedure.

When the progress bar disappears, and the screen on the left is displayed, the process is complete.

Page 72

File Backup on the PC (Windows®) (continued)

File Backup from the speciﬁ ed media

Preparation:

Install the software from the included CD-ROM. (墌 pg. 6) Connect the camera to the computer with the USB cable. (墌 pg. 9) Set the camera’s power/mode switch to ON.

On the camera:

PLAYBACK ON PC CONNECT TO DEVICE CREATE DVD

BACK UP

DIRECT PRINT

SELECT

SET

QUIT

Move the set lever to ¡ / ¢ to select [BACK UP], then press down.

A dialog box is displayed on the PC screen.

However, you do not need to use the dialog box.

PowerCinema starts.

NOTE

When backup is performed, a folder for each of the media (HDD or SD) stored in the [MyWorks] folder (墌 pg. 8) is created, and the ﬁ les are backed up inside those folders. (If backup is performed from more than one camera HDD, that number of HDD folders is created.)

On the PC: Click [EVERIO_HDD] or [EVERIO_SD].

Turn to pg. 11 and see step B and onwards for details on this operation.

Page 73

File Backup on the PC without using Software

ENGLISH

Preparation: Connect the camera to the computer with the USB cable. (墌 pg. 9)

Set the camera’s power/mode switch to ON.

On the PC: Create a folder to back up ﬁ les into.

On the camera:

PLAYBACK ON PC

CONNECT TO DEVICE CREATE DVD BACK UP DIRECT PRINT

SELECT

SET

QUIT

Move the set lever to ¡ / ¢ to select [PLAYBACK ON PC], then press down.

On the PC: Double-click [EVERIO_HDD] or [EVERIO_SD].

Select the folder that you want to back up, and drag & drop it into the folder you created in step A.

SD_VIDEO:

Folder that contains video ﬁ les. If you want to back up ﬁ les individually, open this folder, and drag & drop folders such as [PRG001] one by one.

DCIM:

Folder that contains still image ﬁ les. If you want to back up ﬁ les individually, open this folder, and drag & drop ﬁ les such as [PIC_0001.JPG] one by one.

NOTE

For further details on the use of folders, please refer to pg. 23.

Page 74

Other PC Operations (Windows®)

Creating a DVD-Video

Using the software included, burn the scenes directly from the camera onto a DVD disc.

Preparation: Install the software from the included CD-ROM. (墌 pg. 6)

Burning only the newly taken scenes

Files that have never been copied to the DVD are automatically selected from the DVD creation history and copied.

Connect the camera to the computer with the USB cable. (墌 pg. 9) Set the camera’s power/mode switch to ON.

On the camera: Press [DIRECT DVD].

A dialog box is displayed on the PC screen.

However, you do not need to use the dialog box.

PowerCinema starts.

NOTE

DVD-RAM discs cannot be used. Regarding DVD-R/DVD+R discs, only unused DVD-R/

DVD+R discs can be used. Regarding DVD-RW/DVD+RW discs, used DVD-RW/ DVD+RW discs can also be used, but they need to be formatted before recording. Formatting a disc deletes all content recorded on the disc up until that time.

If the number of ﬁ les exceeds 98, or if the total data size exceeds 4300 MB, more than

one DVD will be required.

You may not able to play back the created DVD-Video depending on the performance

of a DVD device. Also the image may stop momentarily at junctions between scenes.

PC must be equipped a DVD drive and DVD player software to playback the created

DVD-Video.

On the PC:

Authoring and burning starts. Click [Stop] to cancel the procedure.

Click [OK].

Page 75

Selecting and burning scenes

ENGLISH

PLAYBACK ON PC CONNECT TO DEVICE

CREATE DVD

BACK UP DIRECT PRINT

SELECT

SET

QUIT

On the camera: Move the set lever to ¡ / ¢ to select [CREATE DVD], then press down.

A dialog box is displayed on the PC screen.

However, you do not need to use the dialog box.

PowerCinema starts.

On the PC: Click the check box of the desired ﬁ le.

The

mark appears in the check box.

To select other ﬁ les, repeat this step.

Click [Author and Burn].

Click [Burn to Disc].

Authoring and burning starts. Click [Stop] to cancel the procedure.

Click [OK].

Page 76

Other PC Operations (Windows®) (continued)

Getting More Use from the Software

For more information on detailed operations of the software, see the Tutorials for each software program or the User’s Guides.

PowerCinema NE for Everio

Select [PowerCinema NE for Everio] from [All Programs].

Click [Tutorial].

PowerProducer 3 NE

Select [PowerProducer 3 NE] from [All Programs].

Click [Readme].

PowerDirector 5 NE Express

Select [PowerDirector 5 NE Express] from [All Programs].

Click [User’s Guide] or [Readme].

Digital Photo Navigator 1.5

The User’s Guide is included on the CD-ROM in PDF format.

Load the provided CD-ROM into the PC.

Right-click the CD-ROM icon in [My Computer], then click [Open].

Double-click the [DOCS] folder.

Open the “Start.pdf” ﬁ le and click the button of the desired language.

NOTE

You need to connect to the Internet to be able to see the Tutorial.

Adobe® Acrobat® ReaderTM or Adobe® Reader® must be installed to read PDF ﬁ les.

Adobe® Reader® can be loaded from Adobe’s web site: http://www.adobe.com/

Page 77

Use of this software is authorized according to the terms of the software license.

JVC

When contacting the nearest JVC ofﬁ ce or agency in your country about this software (refer to the JVC Worldwide Service Network at http://www.jvc-victor.co.jp/english/worldmap/indexe.html), please ﬁ ll out the following and have the appropriate information ready.

Product Name Model Problem Error Message

Manufacturer Model (Desktop/Laptop) CPU OS Memory (MB) Available Hard Disk Space (MB)

Please note that it may take some time to respond to your questions, depending on their subject matter.

JVC cannot answer questions regarding basic operation of your PC, or questions regarding speciﬁ cations or performance of the OS, other applications or drivers.

CyberLink

Telephone/fax support

Location Language

Germany

Taiwan Mandarin

Japan Japanese

English / German /

French / Spanish /

Italian / Dutch

Paid voice support

Location Language

U.S.A. English

Support web/e-mail

Language URL/e-mail address

English

German / French / Spanish /

Italian

Japanese http://jp.cyberlink.com/support/

Lines are open

(Mon. to Fri.)

1:00 pm to 10:00 pm

Ofﬁ ce hours

(Mon. to Fri.)

9:00 am to

5:00 pm

9:00 am to

6:00 pm

10:00 am to

5:00 pm

http://www.cyberlink.com/english/cs/support/

CST

http://www.cyberlink.com/english/cs/support/new_site/support_

goCyberlink@aixtema.de

Phone # Fax #

+49-700-462-

92375

+886-2-8667-1298

ext. 333

+81-3-3516-9555 +81-3-3516-9559

new_site/voice_support.jsp

index.html

+49-241-70525-25

+886-2-8667-1300

URL

ENGLISH

Page 78

Macintosh

File Backup on the PC (Macintosh)

You can back up camera ﬁ les onto your computer. The included software is not compatible with Macintosh computers. You can edit video ﬁ les, create DVDs, and perform other such operations by purchasing the Macintosh supported software. For further information on this software, please refer to the PIXELA website. http://www.pixela.co.jp/oem/jvc/e/index.html

System Requirements

Hardware: Macintosh must be standard equipped with USB 2.0 connector

OS: Mac OS X (v10.3.1 to v10.3.9, v10.4.2 to v10.4.8)

NOTE

In case of using the PIXELA’s optional software, please refer to their system requirements.

Connecting the Camera to the PC

Preparation: Set the camera’s power/mode switch to OFF.

USB Connector

DC Connector

AC Adapter

AC Outlet

USB Cable

USB Connector

Page 79

When connection is completed

On the PC’s desktop, [EVERIO_HDD]/[EVERIO_SD] icon which represents the recording medium in the camera appears. (墌 pg 23, Folder Structure and Extensions)

NOTE

When the USB cable is connected, turning on or off the camera causes malfunctions of

the PC. Connect the camera directly to the PC, not through the hub. Do not use an extension USB cable. Saving the wrong kinds of ﬁ les in a recording medium or deleting ﬁ les or folders from

a recording medium can cause problems with the operation of the camera. When it is

necessary to delete a ﬁ le from a recording medium, delete it through the camera. Also,

do not move or rename folders and ﬁ les in the medium on PC. Never disconnect the USB cable while the access/charge lamp on the camera lights or

blinks.

When you have ﬁ nished operation

Always follow the procedures below when disconnecting the camera, or turning off the camera/computer power. Failing to do so may cause damage to the camera and computer.

Drag & drop the recording medium icon on the desktop into the [Trash] icon.

If the conﬁ rmation message appears, click [OK].

Conﬁ rm that the access/charge lamp on the camera does not light or blink.

If the access/charge lamp lights or blinks, wait until it is turned off before proceeding.

Disconnect the USB cable.

Turn off the camera and PC.

ENGLISH

Page 80

File Backup on the PC (Macintosh) (continued)

File Backup on the PC

Preparation: Connect the camera to the computer with the USB cable. (墌 pg. 18)

Set the camera’s power/mode switch to ON.

Create a folder to back up ﬁ les into.

Double-click [EVERIO_HDD] or [EVERIO_SD].

Select the folder that you want to back up, and drag & drop it into the folder you created in step A.

SD_VIDEO:

Folder that contains video ﬁ les. If you want to back up ﬁ les individually, open this folder, and drag & drop folders such as [PRG001] one by one.

DCIM:

Folder that contains still image ﬁ les. If you want to back up ﬁ les individually, open this folder, and drag & drop ﬁ les such as [PIC_0001.JPG] one by one.

NOTE

For further details on the use of folders, please refer to pg. 23.

Page 81

Other Devices

File Backup on a NAS Compatibles

No devices can be connected to a camera at the time of camera’s release.

You can back up the ﬁ les in the camera’s HDD onto an NAS compatible external device, such as an external HDD. You cannot back up ﬁ les that are stored on an SD card. (NAS: Network Attached Storage)

Connecting the Camera to the External Device

Preparation: Set the camera’s power/mode switch to OFF.

USB Connector

DC Connector

USB Cable

ENGLISH

AC Adapter

AC Outlet

USB Connector

Page 82

File Backup on a NAS Compatibles (continued)

File Backup on an External Device

Preparation: Connect the camera to the external device with a USB cable. (墌 pg. 21)

Set the camera’s power/mode switch to ON.

On the camera:

PLAYBACK ON PC

CONNECT TO DEVICE

CREATE DVD BACK UP DIRECT PRINT

SELECT

SET

QUIT

Move the set lever to ¡ / ¢ to select [CONNECT TO DEVICE], then press down.

Operate the external device to back up the ﬁ les.

Page 83

Folder Structure and Extensions

Recording medium

[DCIM]

[XXXJVCSO] [XXXJVCSO] [XXXJVCSO]

[SD_VIDEO]

[MGR_INFO] [PRGXXX]

[PRGXXX] [PRGXXX]

[EXTMOV]

[PRGXXX.PGI] [MOVXXX.MOD] [MOVXXX.MOI]

Contains the still image folders.

Contains the video ﬁ le folders. Management information* for the media as

a whole Management information* Video ﬁ le Management information* for the video ﬁ le

It may be displayed as the save destination

X = number

folder for the in-store demonstration ﬁ le.

[MISC]

[PRIVATE]

Contains folders with DPOF setting data.

Contains management information ﬁ les of event information and/or DVD creation for the ﬁ les taken with the camera.

* Information such as the date and time of recording, recorded with the video ﬁ le.

Extensions

Video ﬁ les : “.mod”

Still image ﬁ les : “.jpg”

The ﬁ le extension may not appear depending on the [FOLDER] option setting of Windows®.

ENGLISH

Page 84

Printed in Malaysia

1206FOH-AL-VM

JVC GZ-MG275E, GZ-MG255E, GZ-MG135E, GZ-MG130E, GZ-MG155E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
