JVC GZ-EX515, GZ-EX555, GZ-E505 User Guide

Download

CAMCORDER

GZ-E505 GZ-EX515 GZ-EX555

Detailed User Guide

LYT2565-002A

Table of Contents

Beginner’s Guide ........................................................... 4

Useful Shooting Techniques

Holiday Season/Christmas ...................................................... 5

Wedding .................................................................................. 6

Travel ....................................................................................... 8

Amusement Park ................................................................... 10

Getting Started

Verifying the Accessories ...................................................... 12

Attaching the Core Filter ..................................................... 13

Charging the Battery Pack ..................................................... 14

Grip Belt Adjustment (GZ-EX555/GZ-EX515) ........................ 15

Grip Belt Adjustment (GZ-E505) ............................................ 15

Inserting an SD Card ............................................................. 16

Types of Usable SD Card ................................................... 16

Using the Touch Screen ........................................................ 17

Adjusting the Touch Panel ................................................. 18

Names of Buttons and Functions on the LCD Monitor ....... 19

Clock Setting ......................................................................... 21

Resetting the Clock ............................................................ 22

Changing the Display Language ............................................ 23

Holding this Unit .................................................................... 23

Tripod Mounting .................................................................... 24

Using this Unit Overseas ....................................................... 24

Charging the Battery Pack Overseas ................................. 24

Setting the Clock to Local Time when Traveling ................. 25

Setting Daylight Saving Time ............................................. 25

Optional Accessories ............................................................. 26

Recording

Taking Videos in Auto Mode .................................................. 27

Capturing Still Images During Video Recording ................. 29

Taking Still Images in Auto Mode ........................................... 30

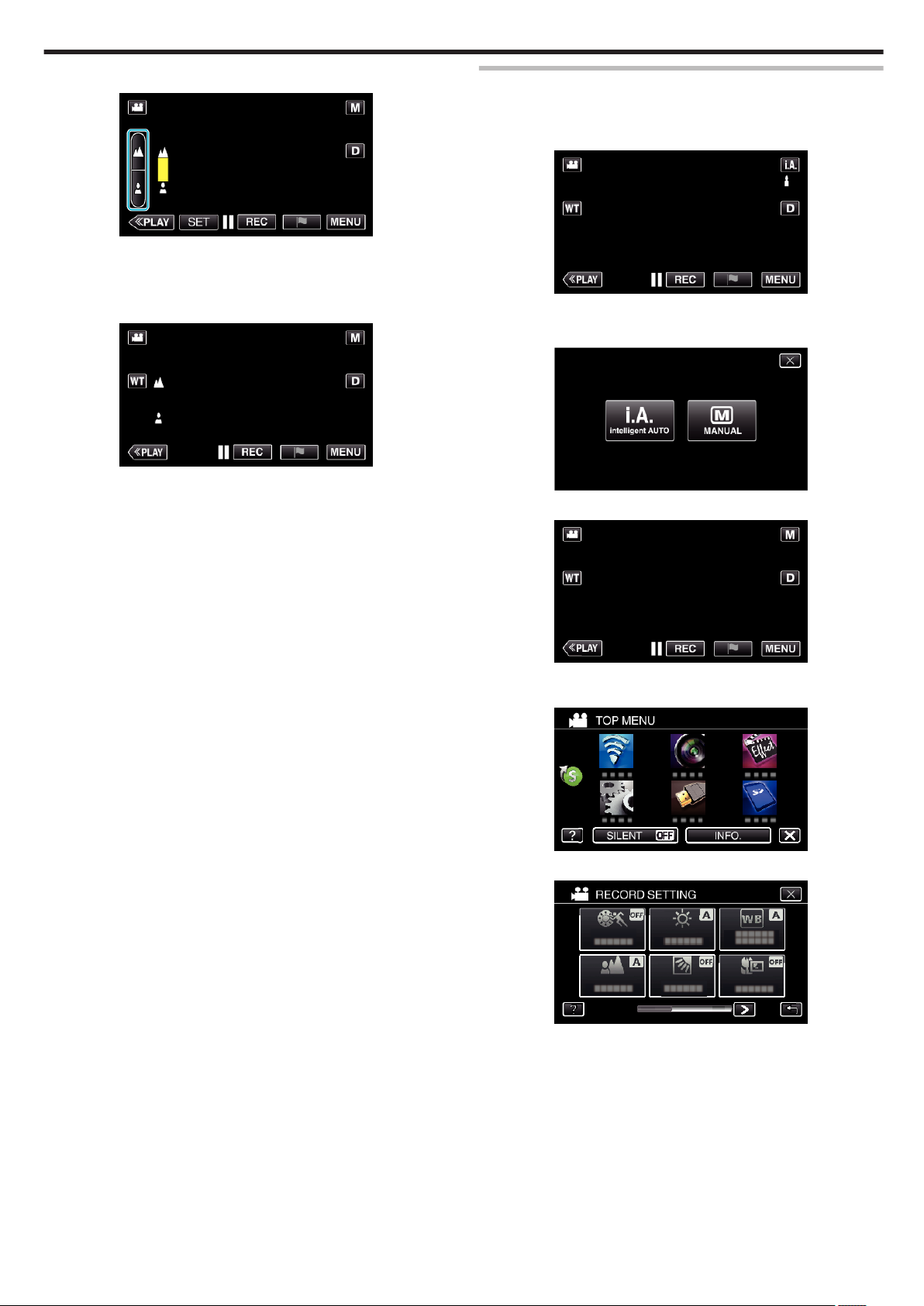

Zooming ................................................................................ 33

Manual Recording ................................................................. 33

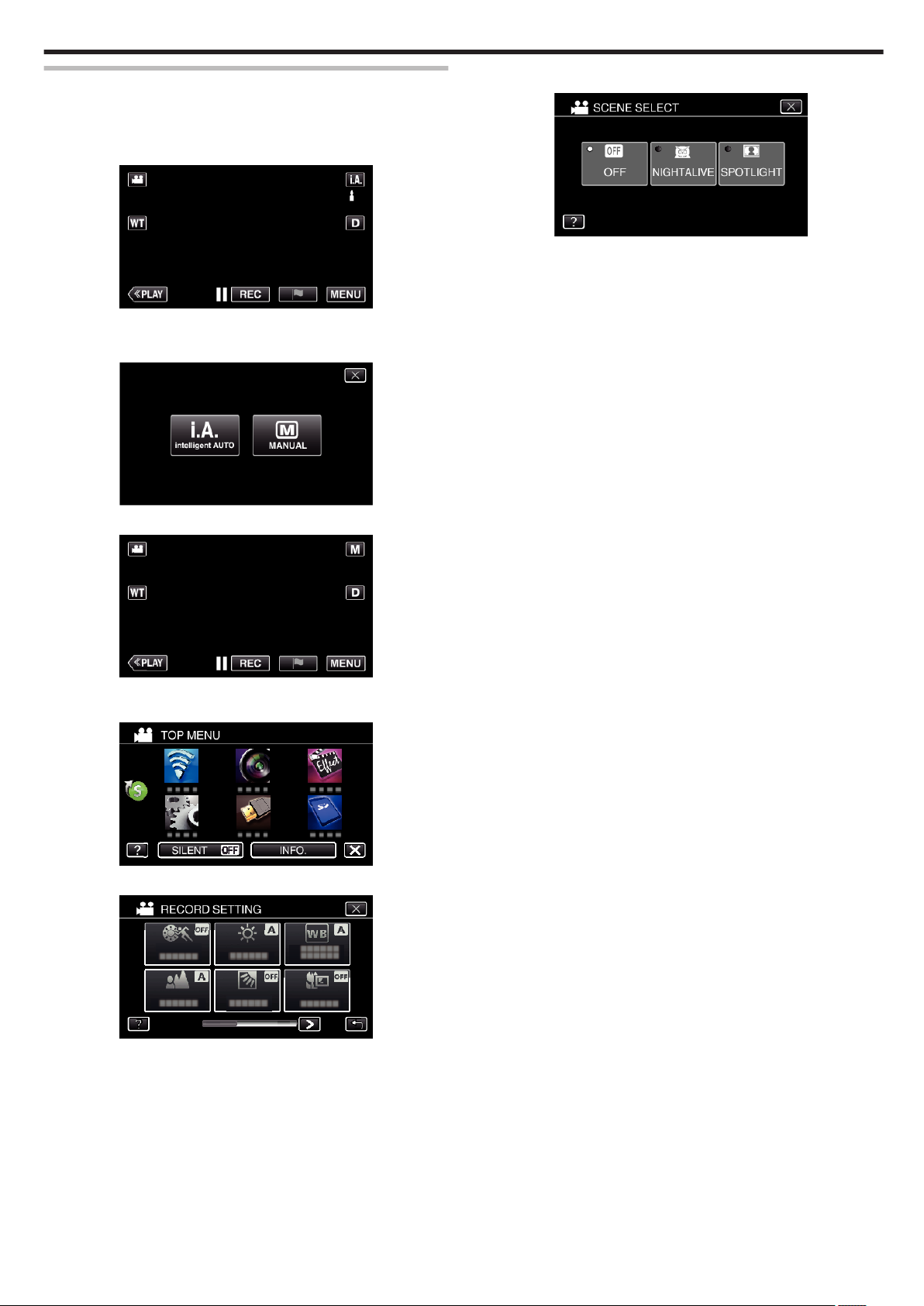

Shooting According to Scene (Subject) ............................. 35

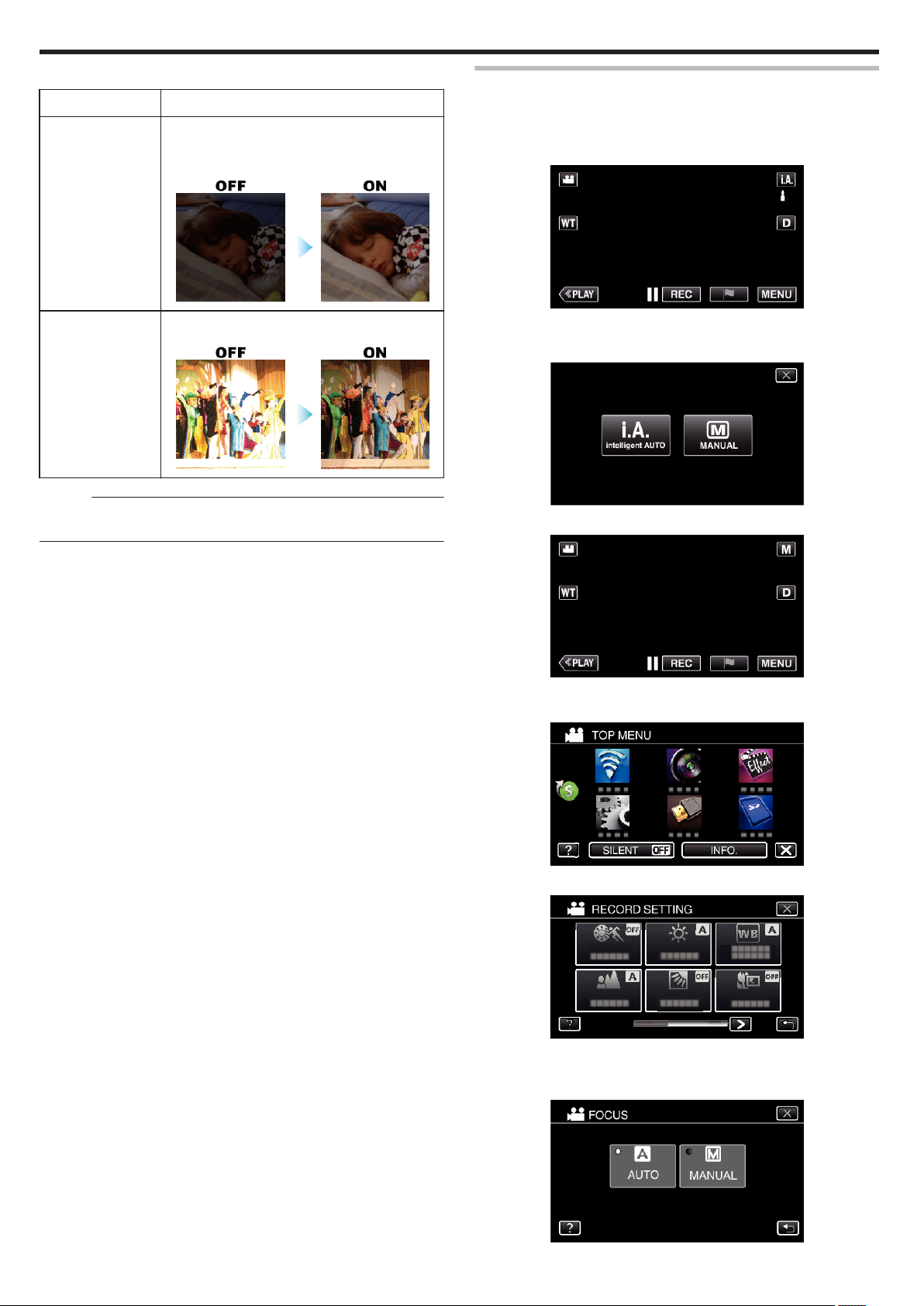

Adjusting Focus Manually .................................................. 36

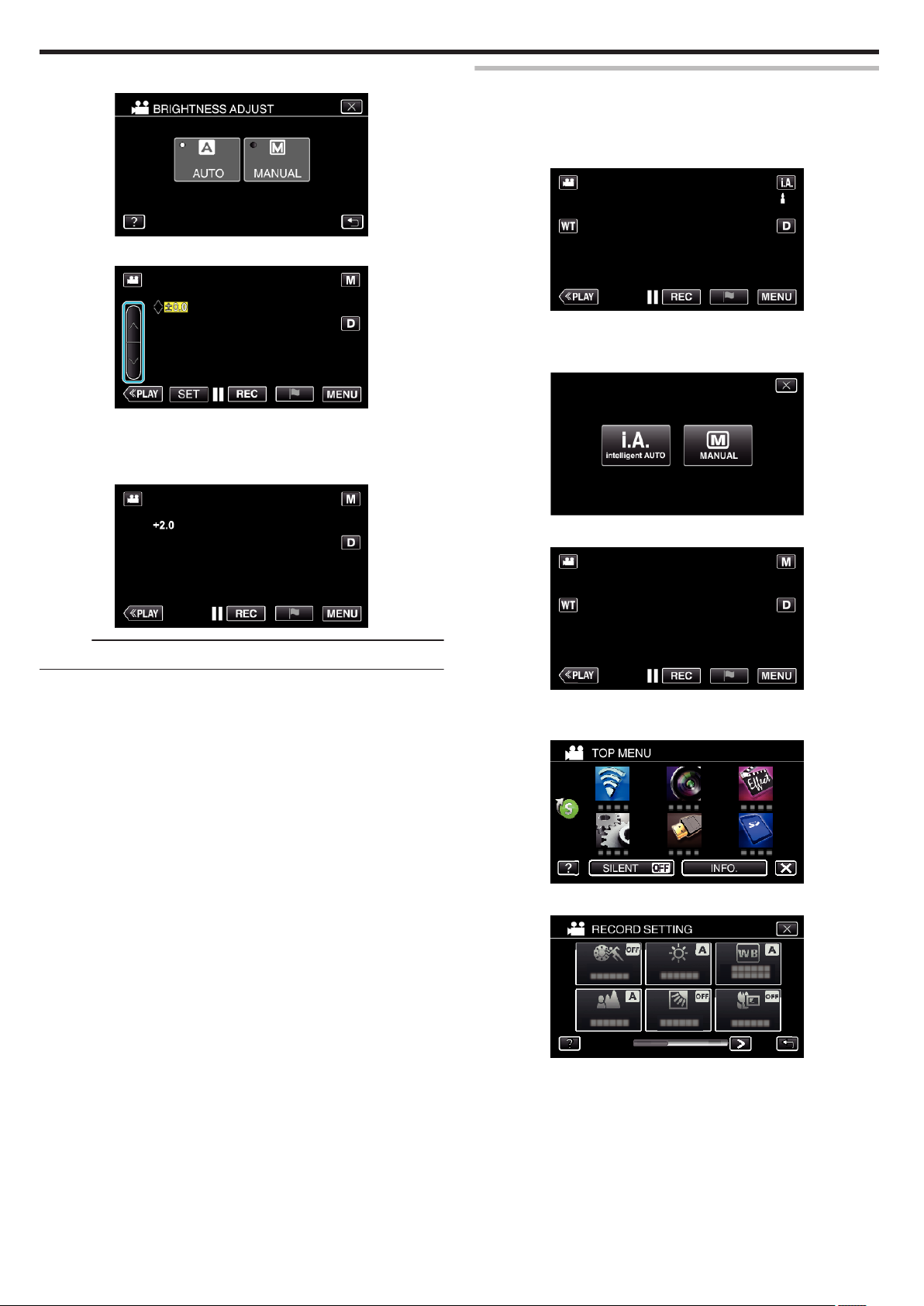

Adjusting Brightness .......................................................... 37

Setting Backlight Compensation ........................................ 38

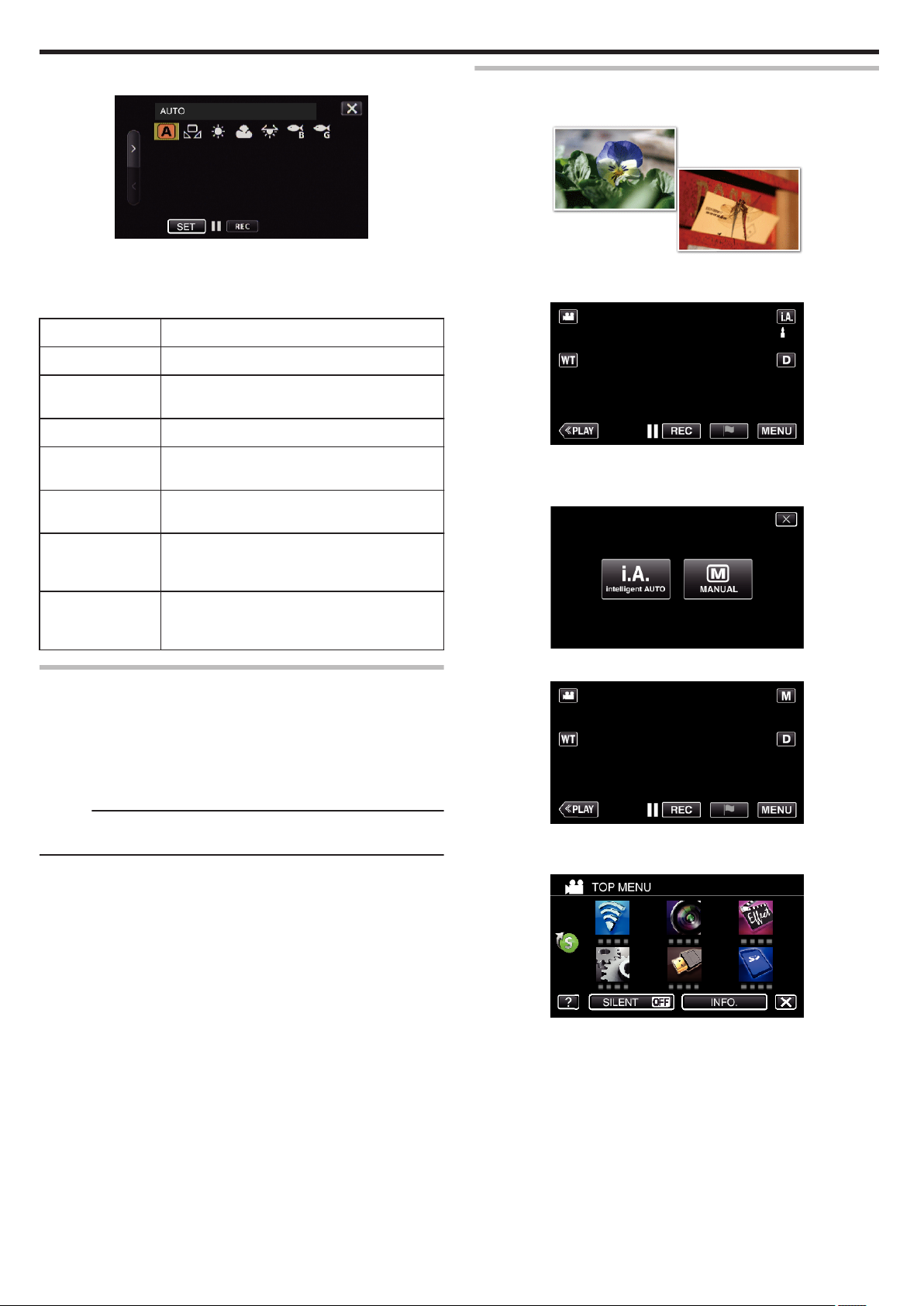

Setting White Balance ........................................................ 39

Taking Close-up Shots ....................................................... 40

Recording with Effects ........................................................... 41

Recording with Animation Effects (ANIMATION EFFECT) . 42

Recording with Face Decorations (DECORATE FACE

EFFECT) ........................................................................ 44

Recording with Decorative Stamps (STAMP) .................... 45

Recording with Personal Handwriting (HANDWRITING

EFFECT) ........................................................................ 46

Capturing Subjects Clearly (TOUCH PRIORITY AE/AF) ....... 47

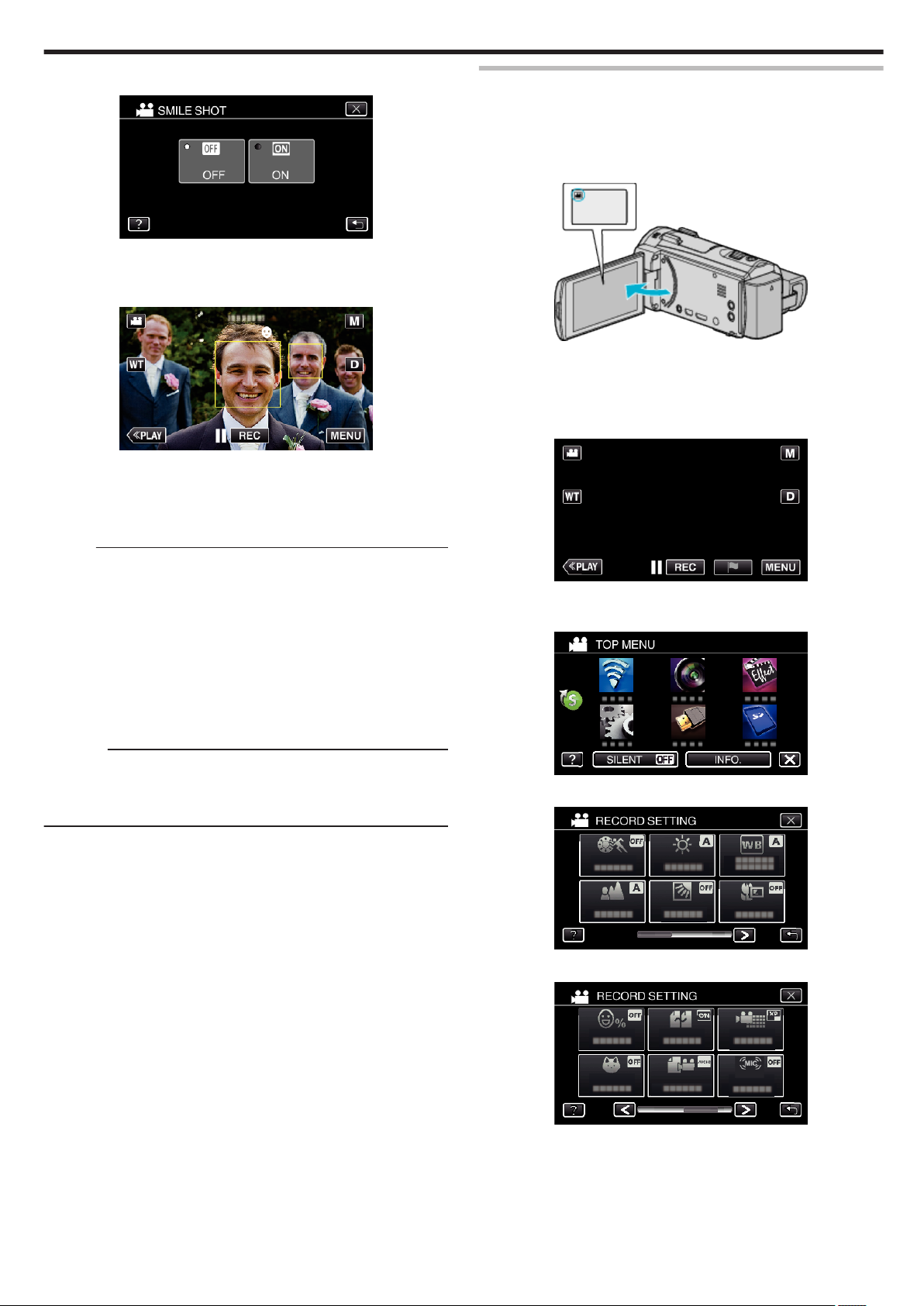

Capturing Smiles Automatically (SMILE SHOT) ................. 48

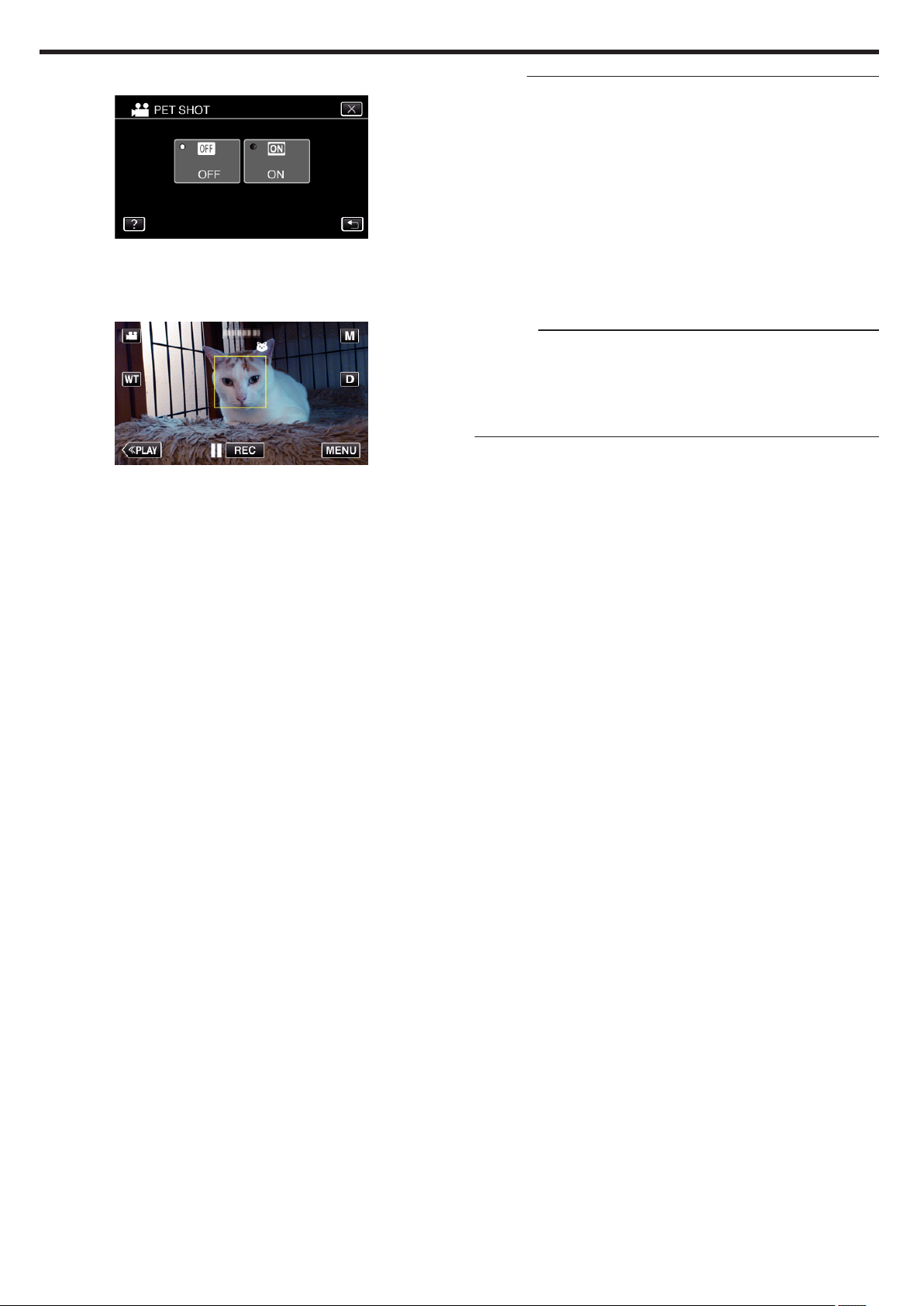

Capturing Pets Automatically (PET SHOT) ........................ 49

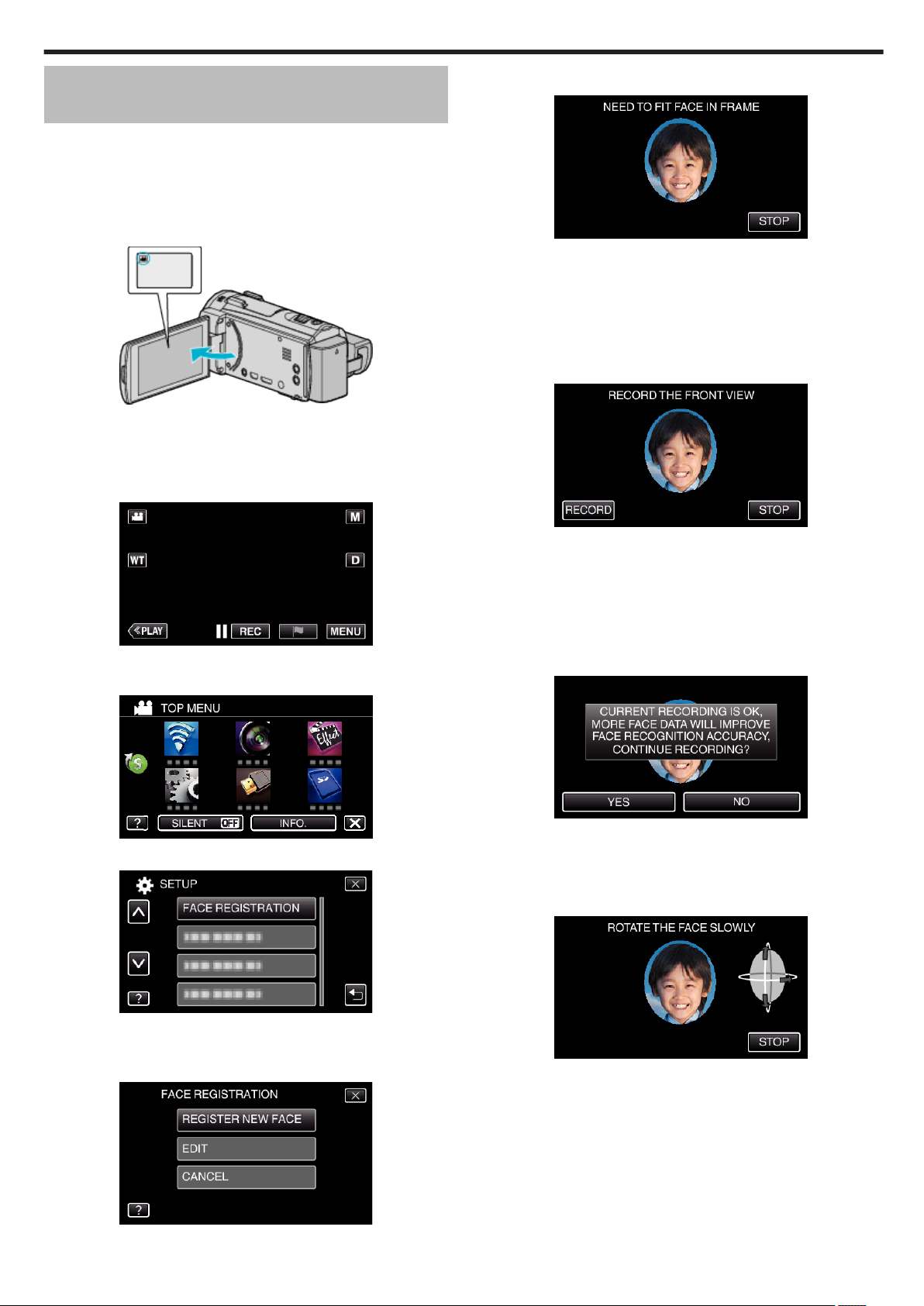

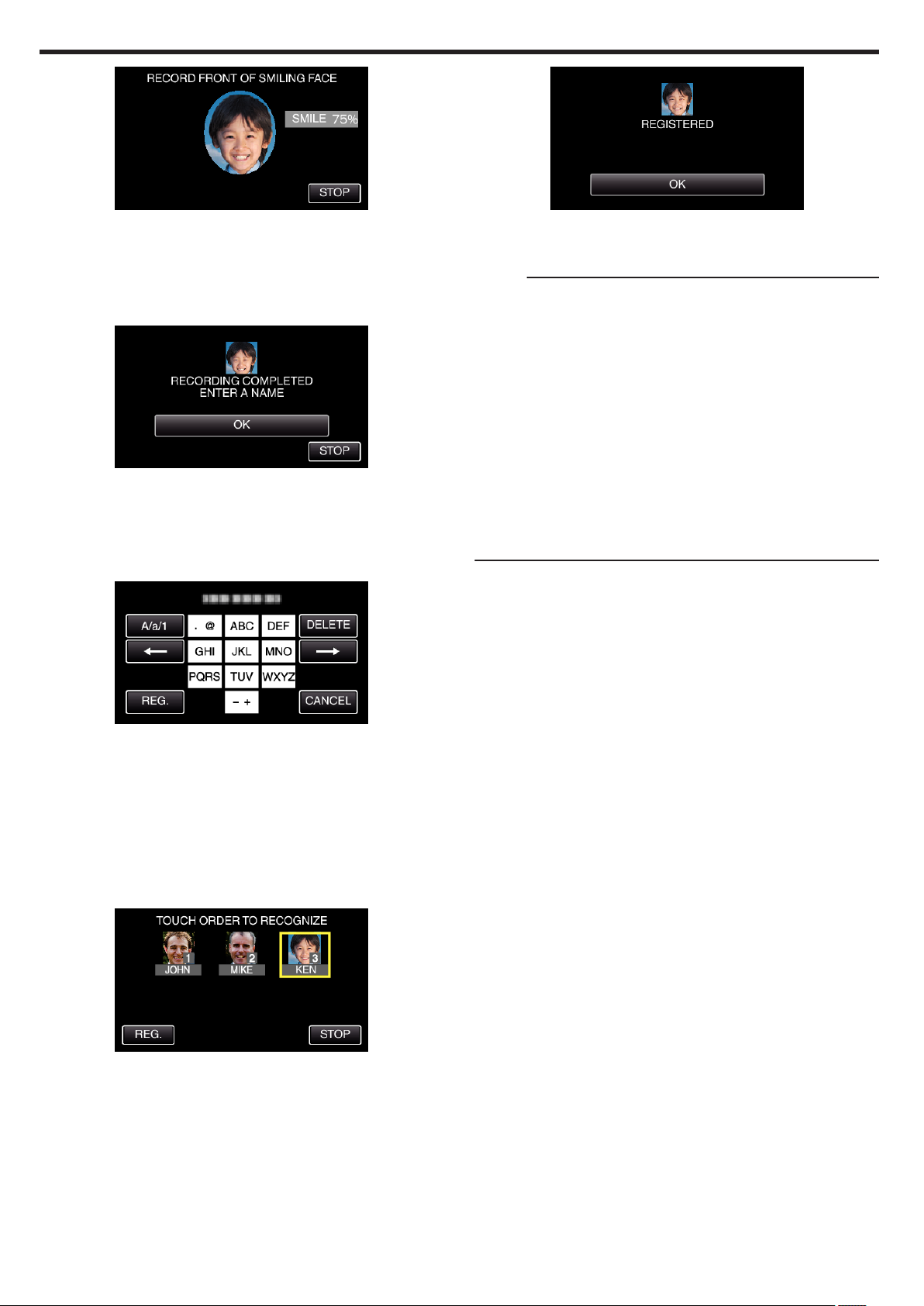

Registering Human Face Personal Authentication Information

............................................................................................ 51

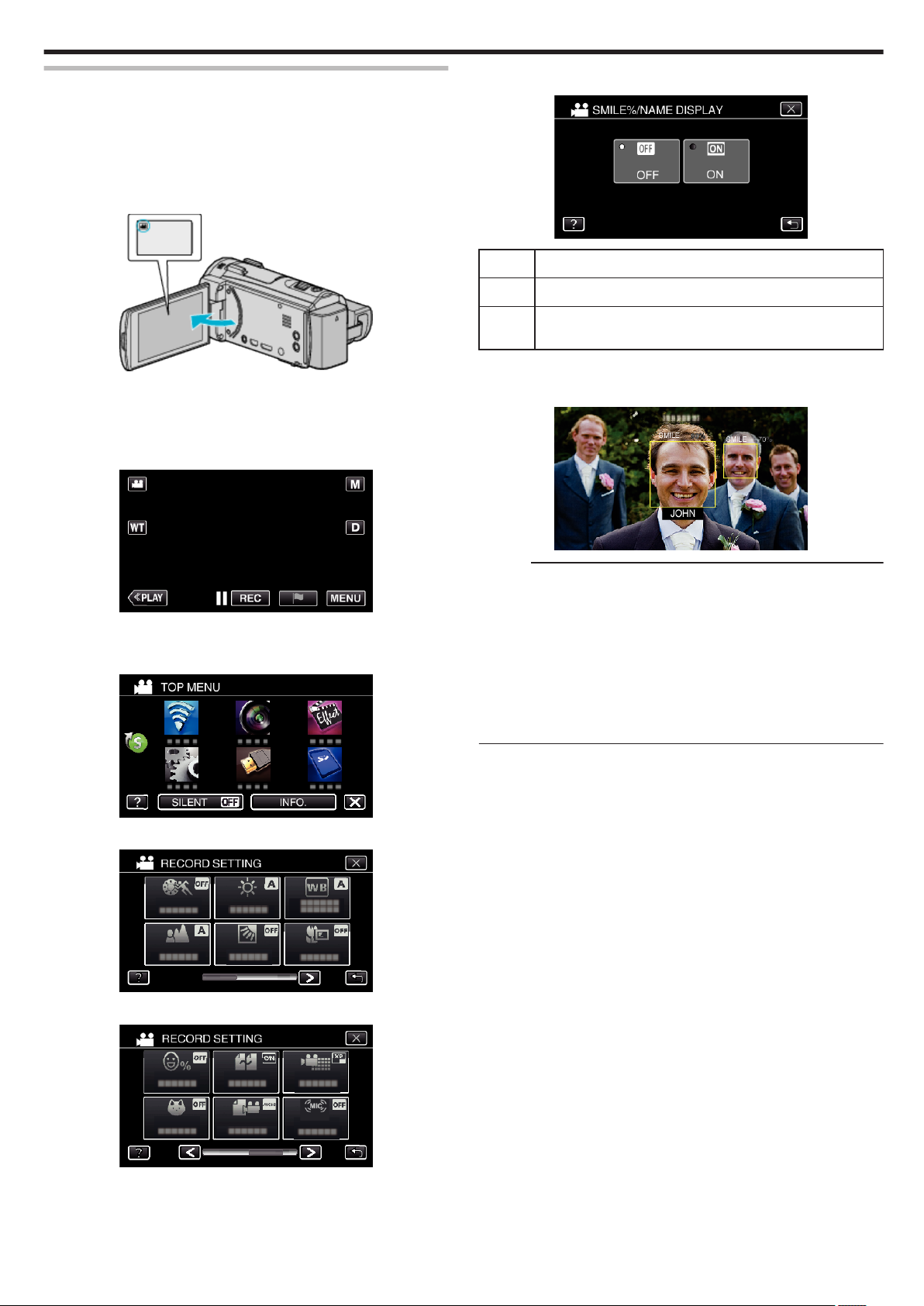

Setting SMILE%/NAME DISPLAY ...................................... 53

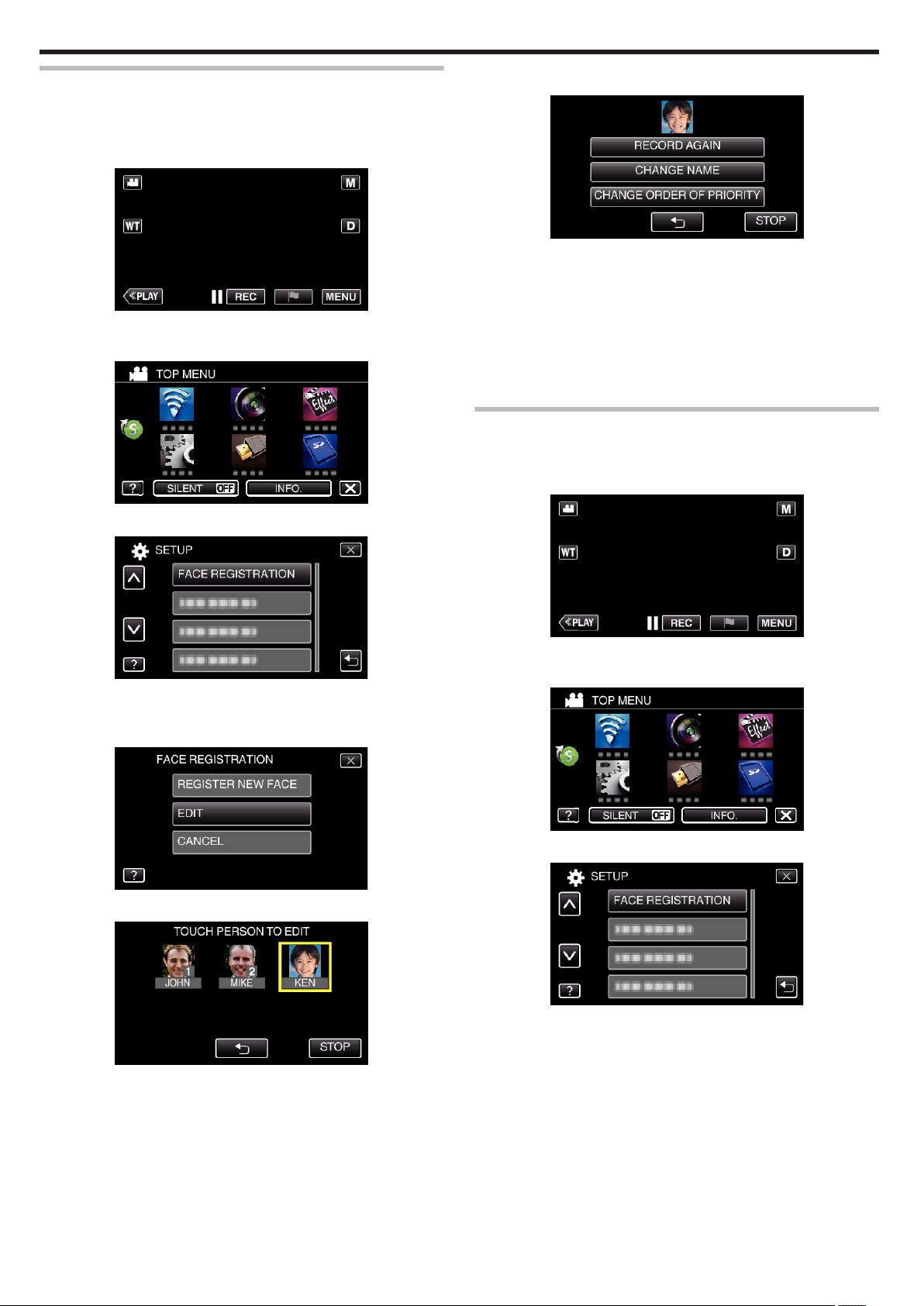

Editing the Registered Face Information ............................ 54

Reducing Camera Shake ....................................................... 55

Marking the Video While Recording ...................................... 56

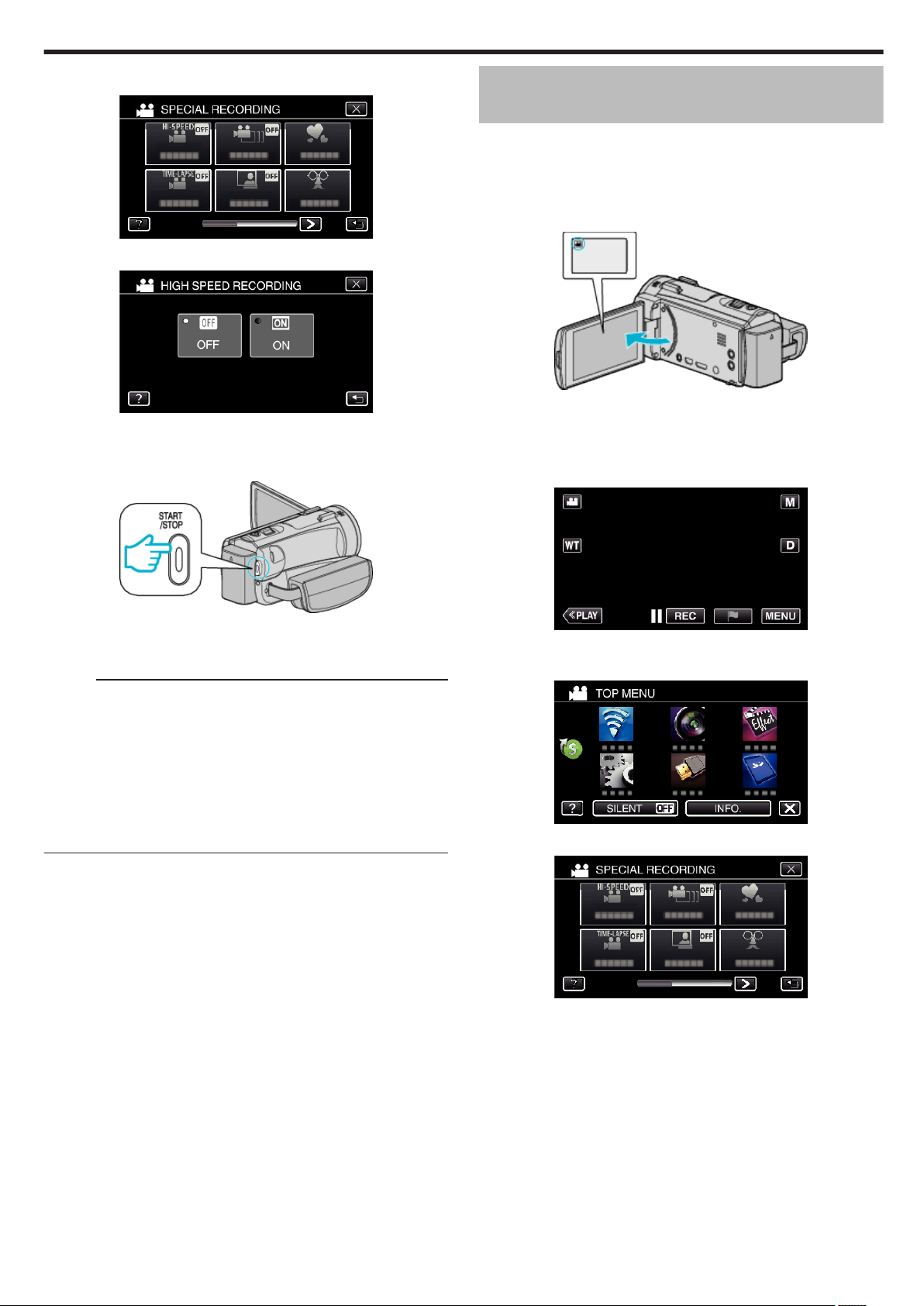

Slow-motion (High-speed) Recording .................................... 56

Recording at Intervals (TIME-LAPSE RECORDING) ............. 57

Recording Stop-Motion Videos (STOP-MOTION REC) ......... 59

Recording Automatically by Sensing Movements (AUTO REC)

............................................................................................ 60

Taking Group Shots (Self-timer) ............................................ 61

Recording Videos with Date and Time ................................... 63

Checking the Remaining Recording Time ............................. 64

Playback

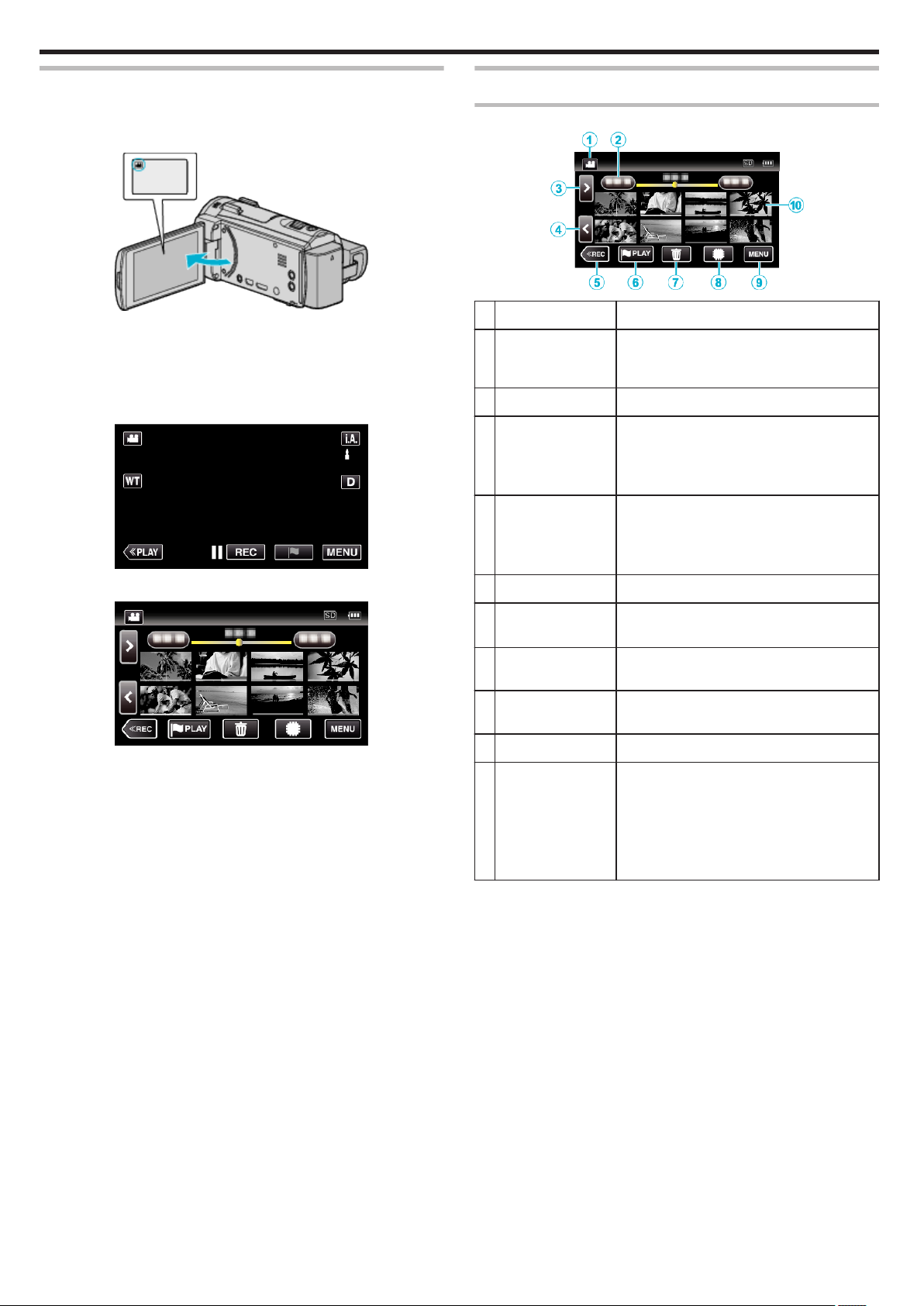

Playing Back Videos .............................................................. 67

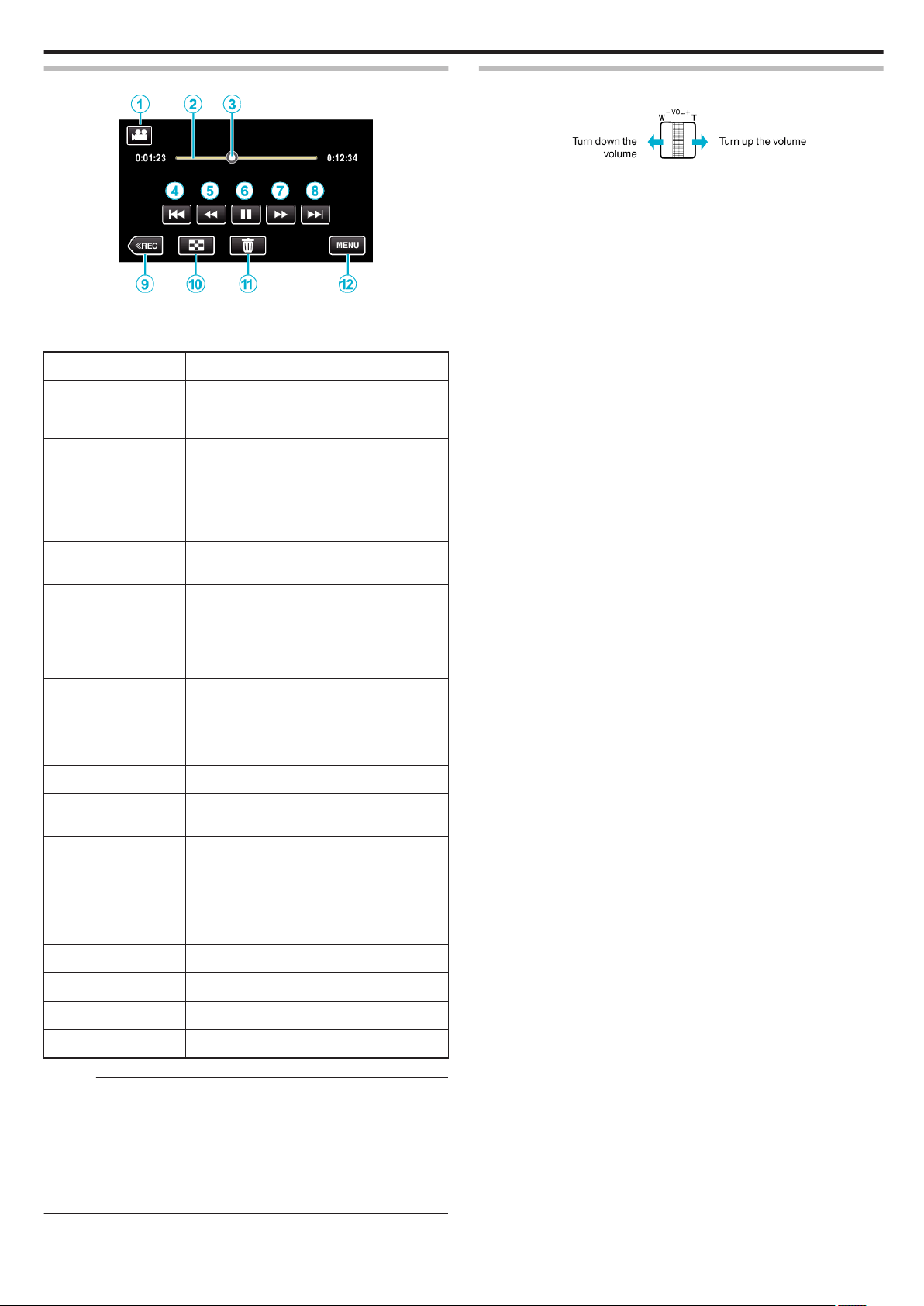

Normal Playback ................................................................ 68

Checking the Recording Date and Other Information ......... 70

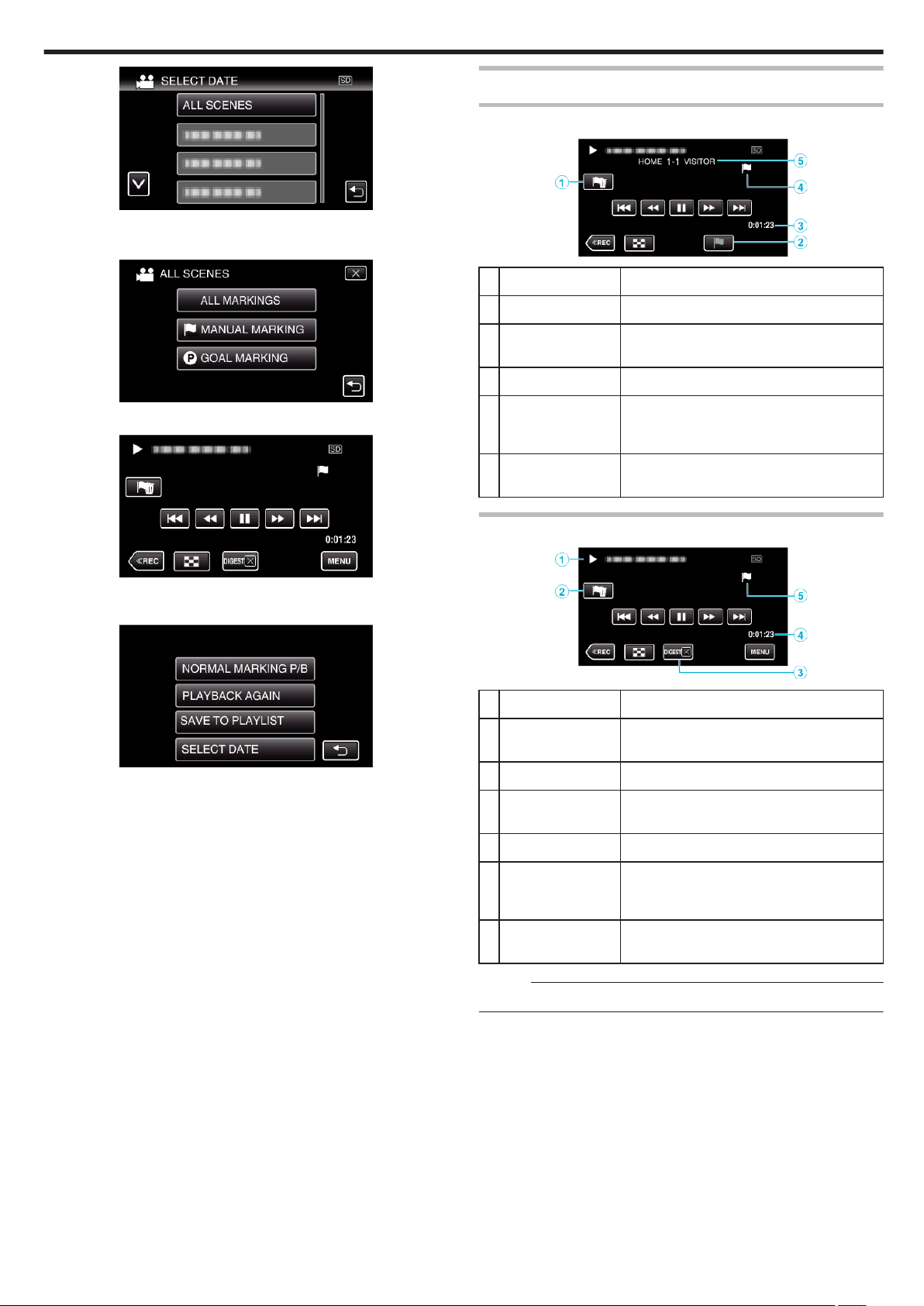

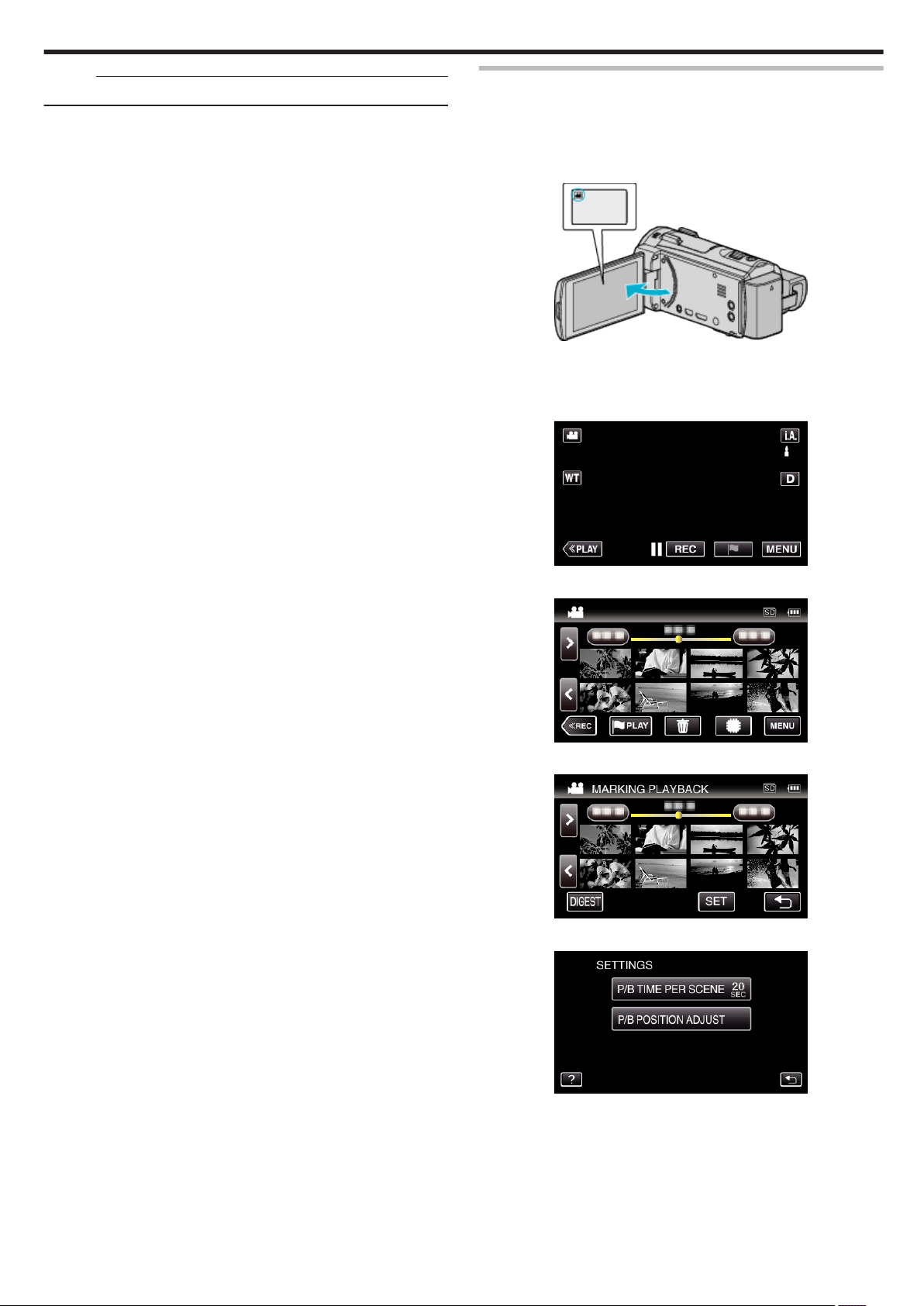

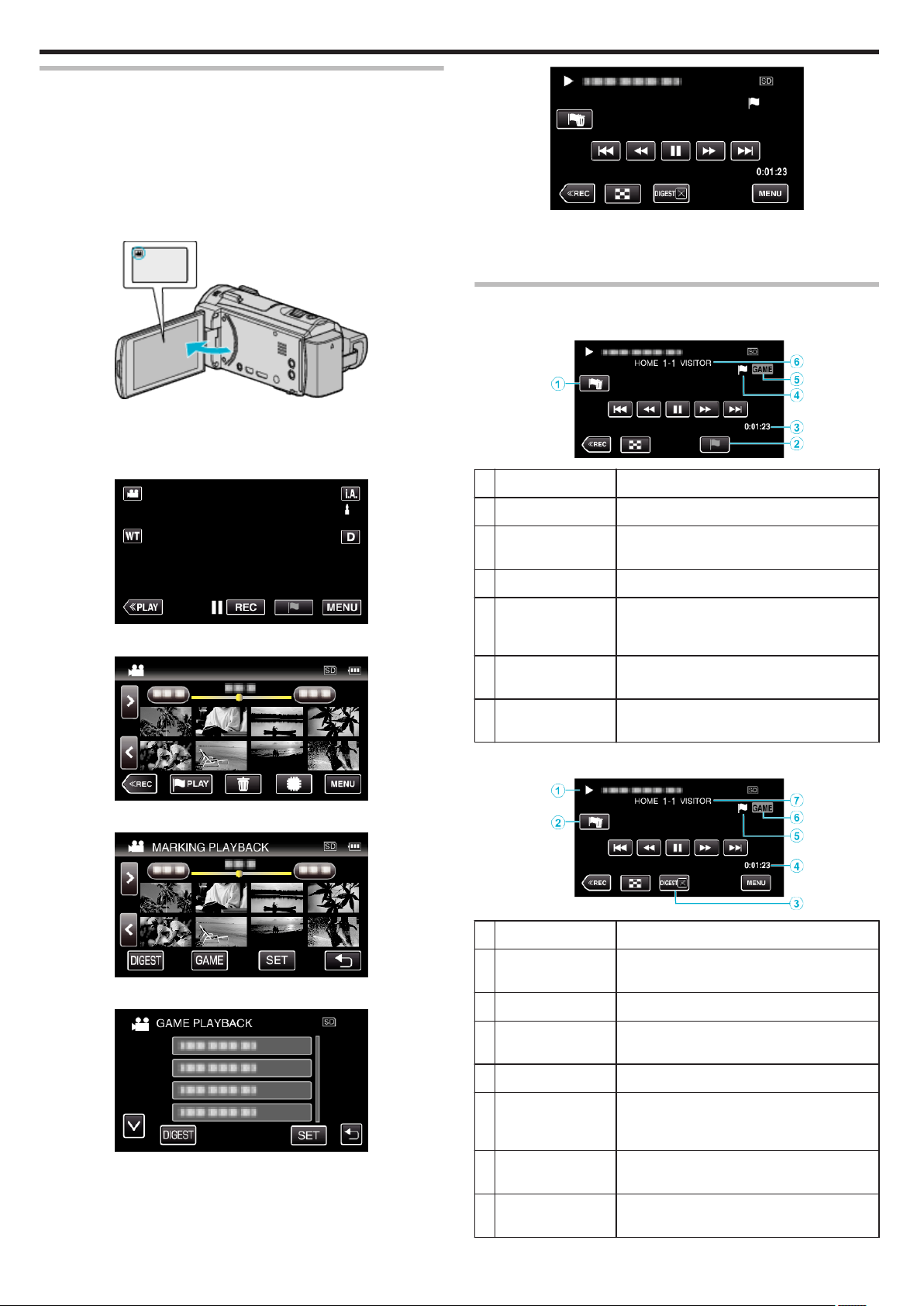

MARKING PLAYBACK ...................................................... 70

DIGEST PLAYBACK .......................................................... 74

PLAYBACK PLAYLIST ...................................................... 76

PLAYBACK OTHER FILE .................................................. 77

Playing Back Still Images ....................................................... 78

Slideshow Playback ........................................................... 80

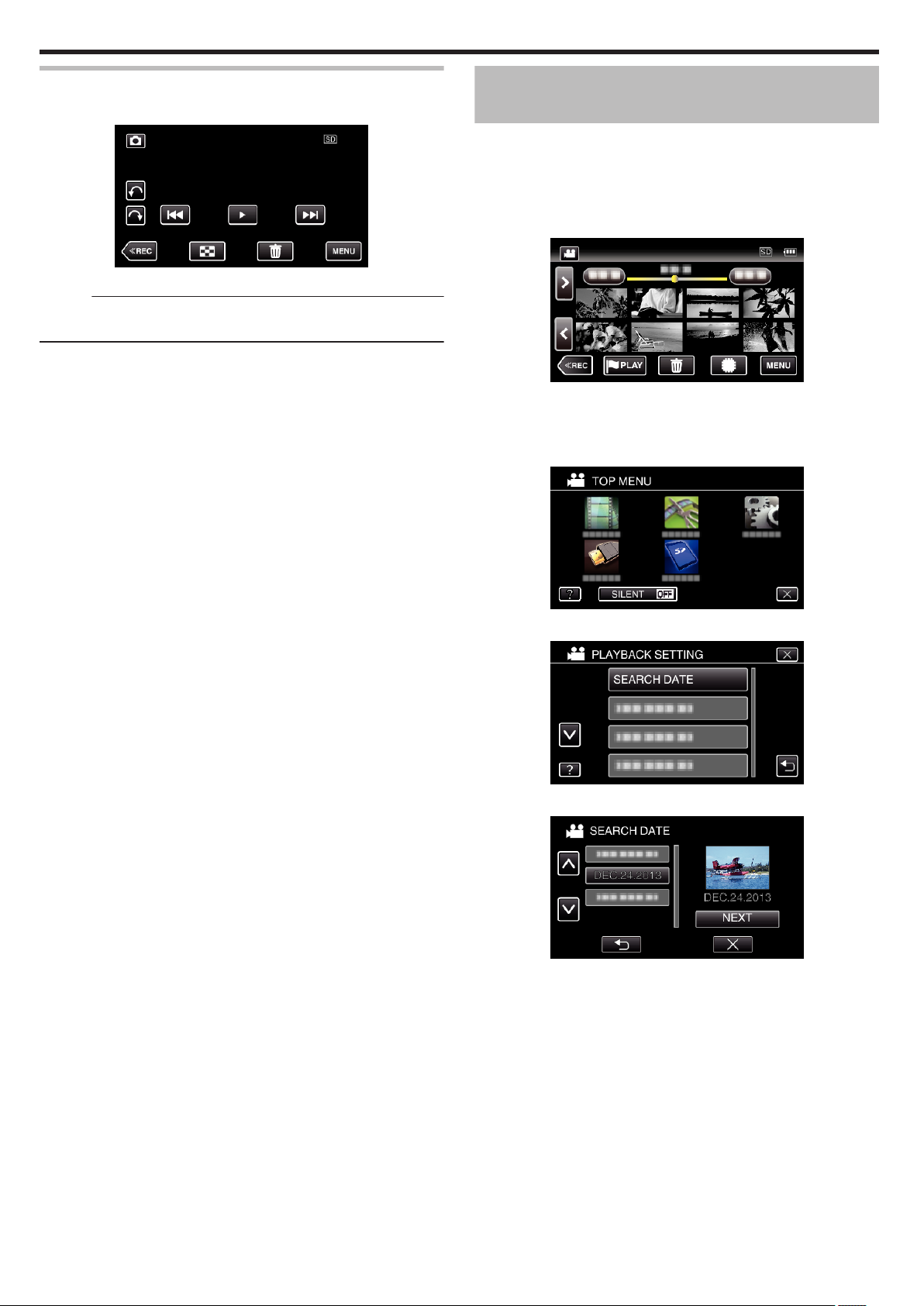

Searching for a Specific Video/Still Image by Date ................ 80

Connecting to and Viewing on TV .......................................... 81

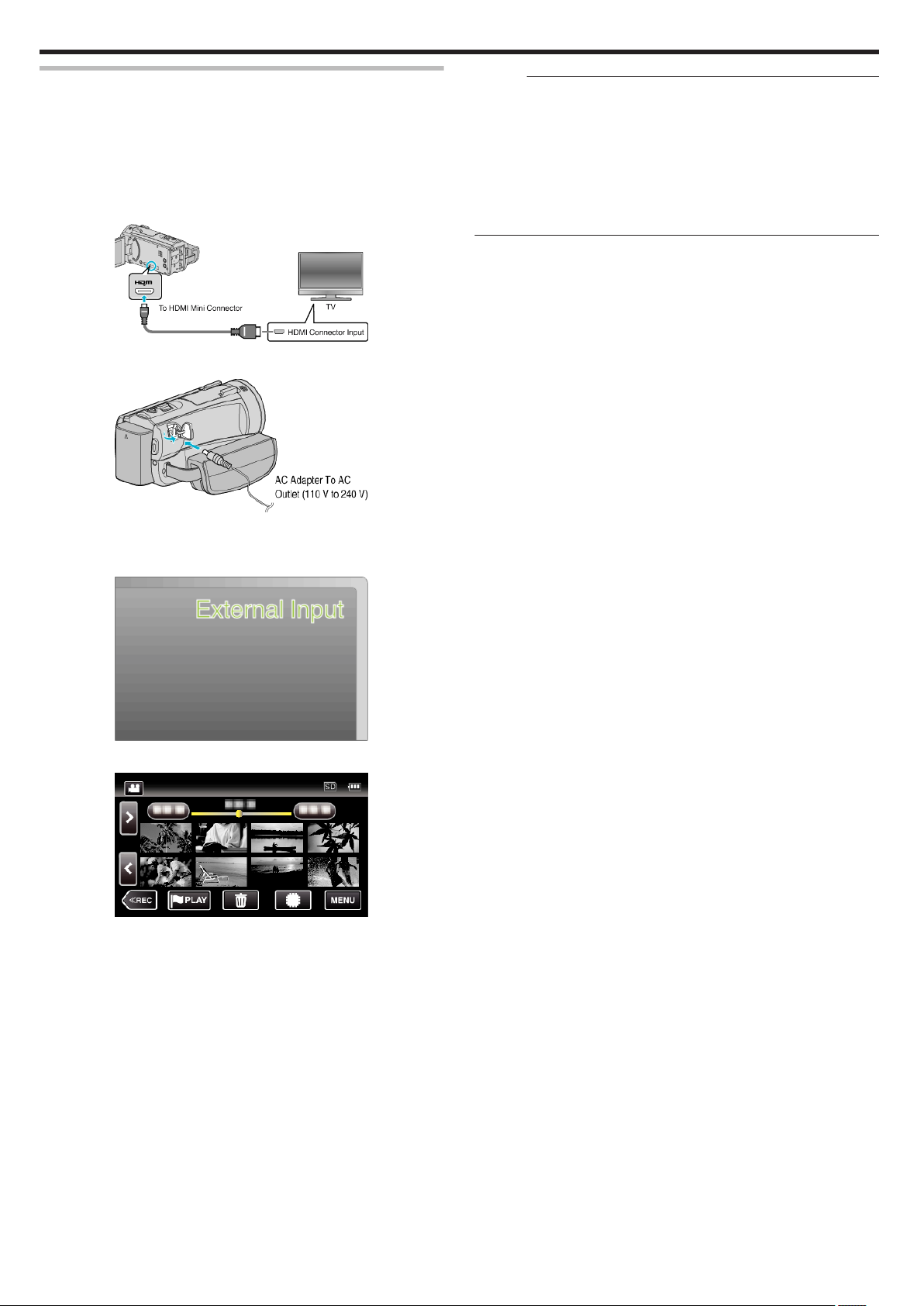

Connecting via the HDMI Mini Connector .......................... 82

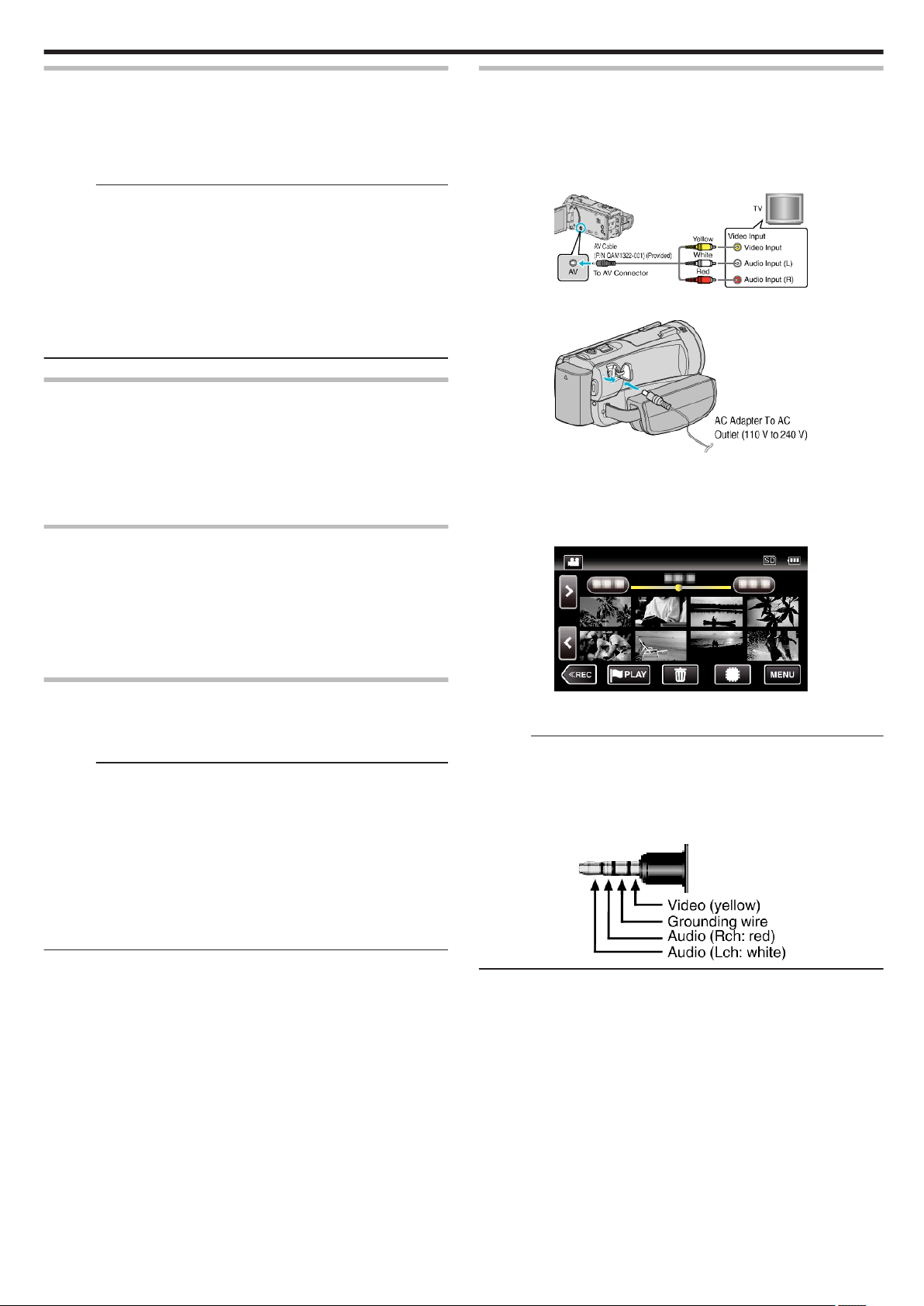

Connecting via the AV Connector ...................................... 83

Editing

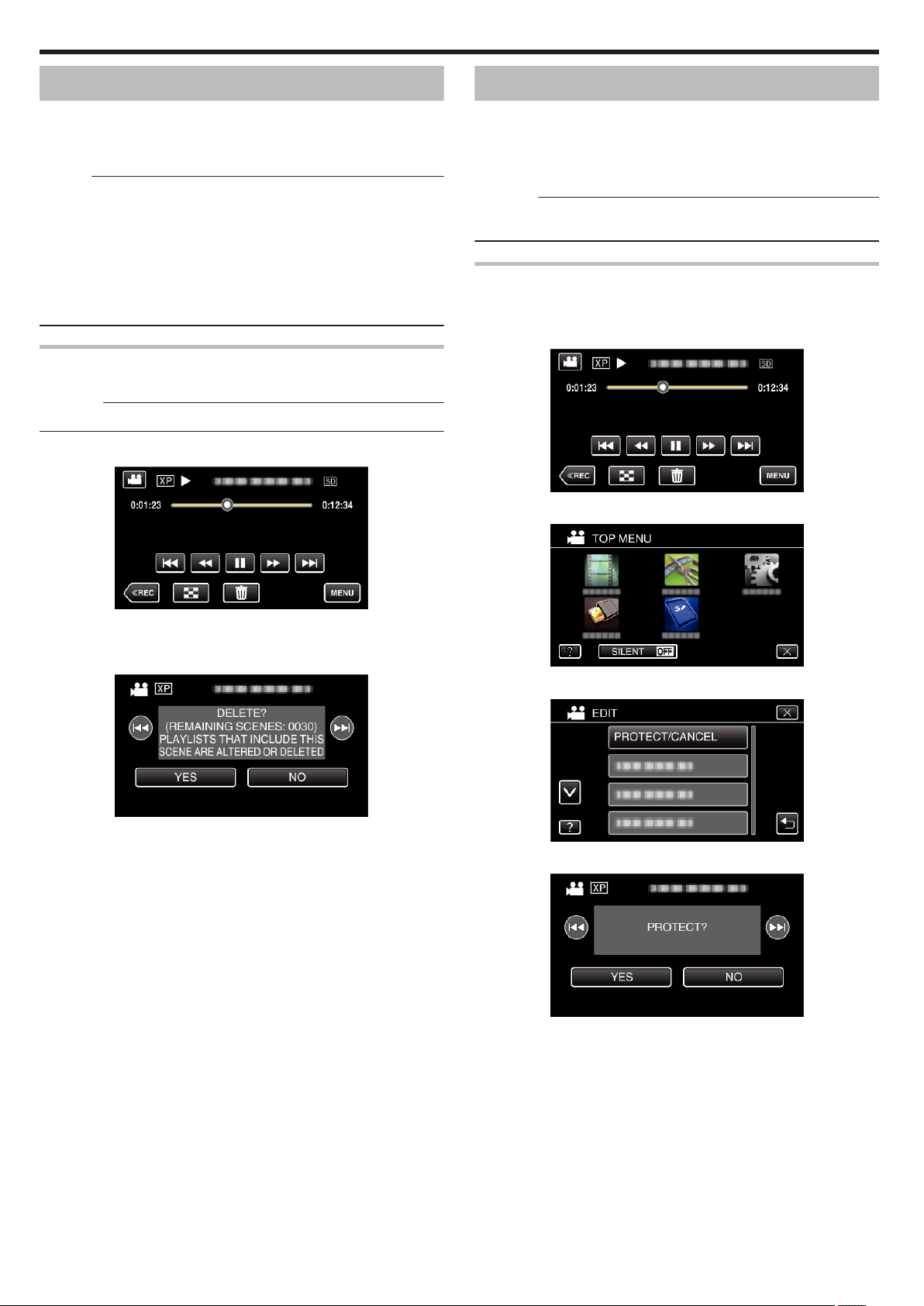

Deleting Unwanted Files ........................................................ 84

Deleting the Currently Displayed File ................................. 84

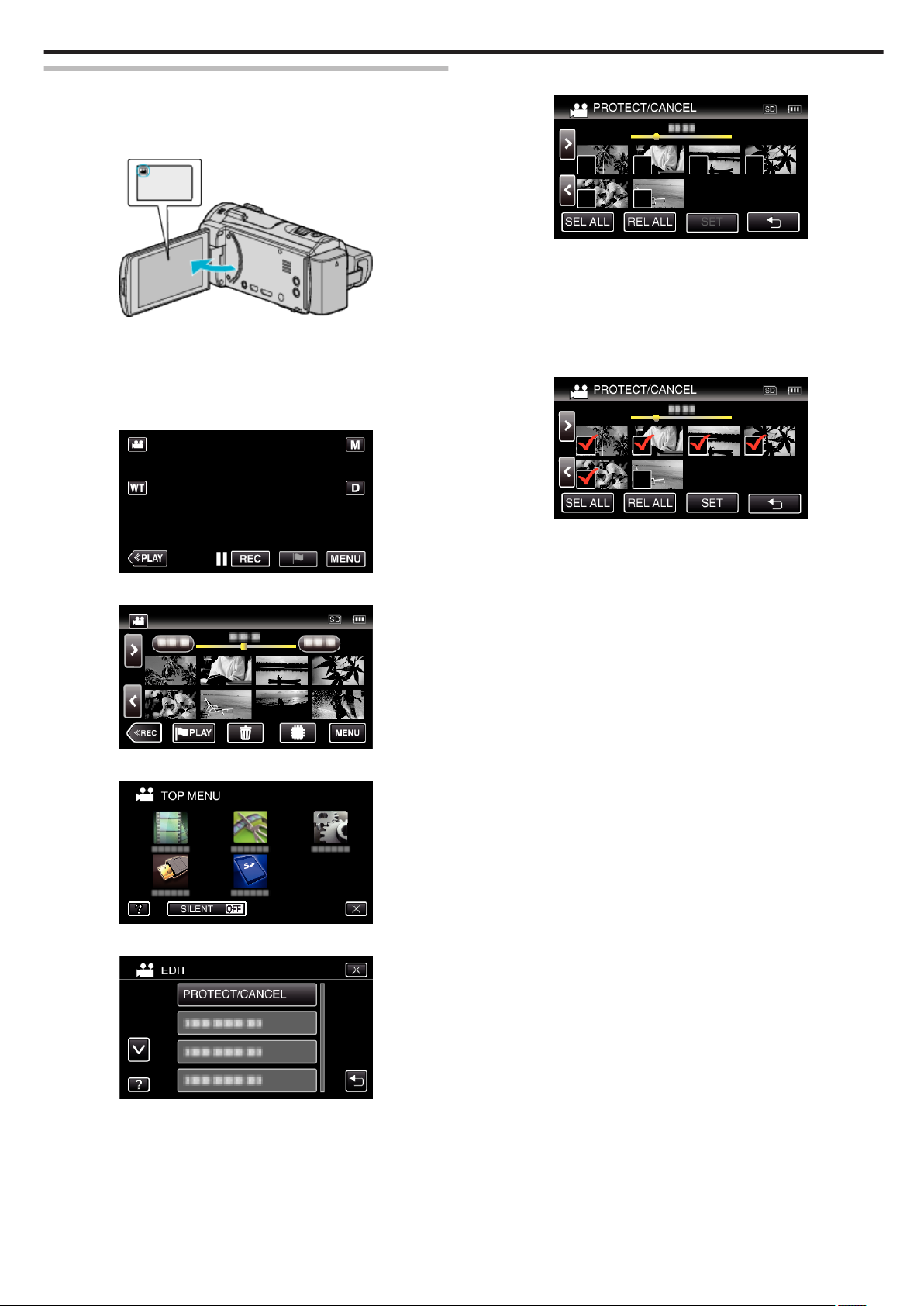

Protecting Files ...................................................................... 84

Protecting/Releasing Protection of the Currently Displayed

File .................................................................................. 84

Protecting/Releasing Protection of Selected Files .............. 85

Capturing a Still Image in the Video During Playback ............ 86

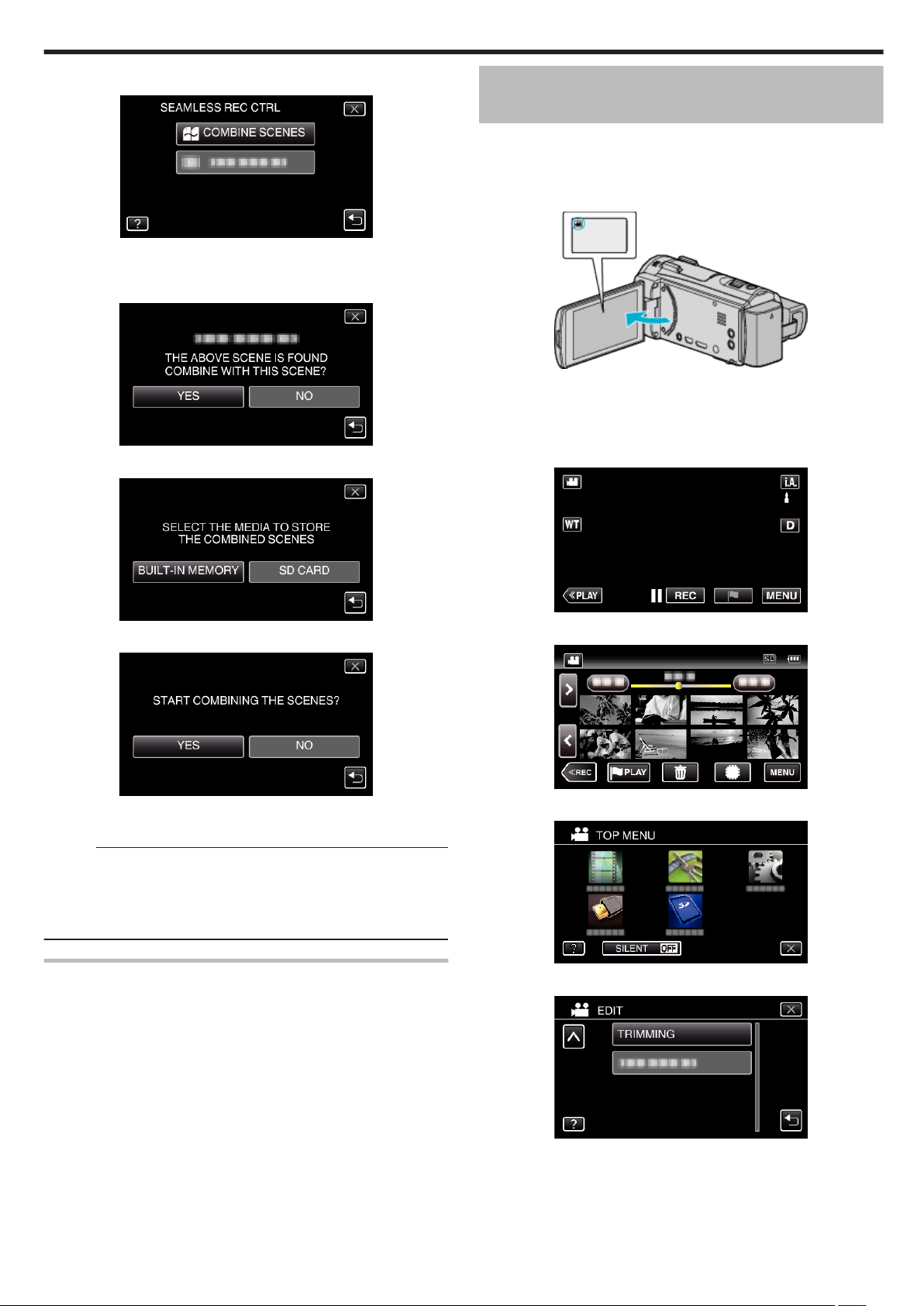

Combining Videos Recorded by Seamless Recording (GZ-

EX555) ............................................................................... 86

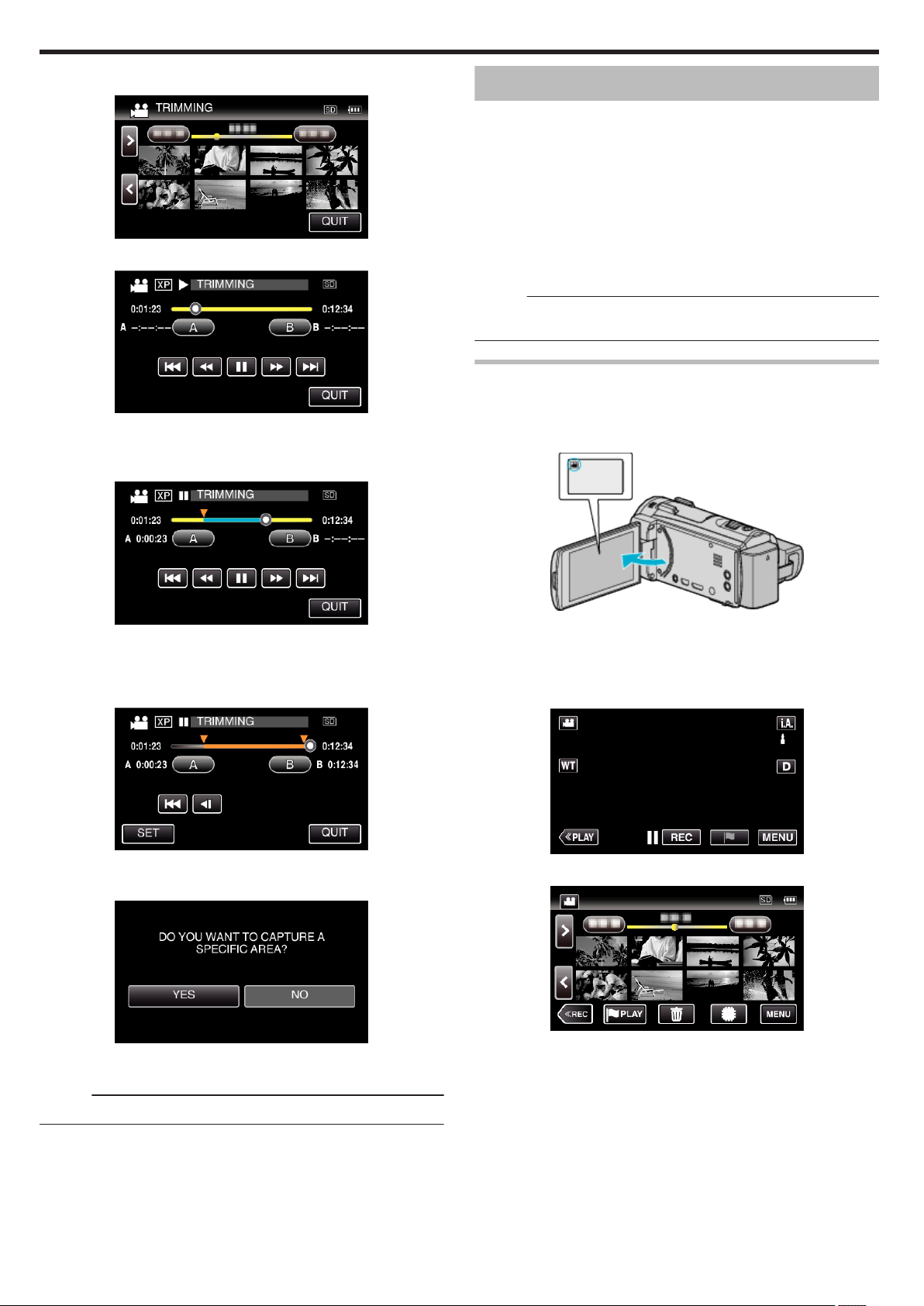

Capturing a Required Part in the Video (TRIMMING) ............ 87

Creating Playlists from the Recorded Videos ......................... 88

Creating Playlists with Selected Files ................................. 88

Creating Playlists by Date .................................................. 90

Editing Playlists .................................................................. 91

Deleting Playlists ................................................................ 93

Copying

Creating a Disc Using a Connected Blu-ray Recorder ........... 94

Dubbing Files to a Disc by Connecting to a DVD Recorder ... 94

Dubbing Files to a VHS Tape by Connecting to a VCR .......... 95

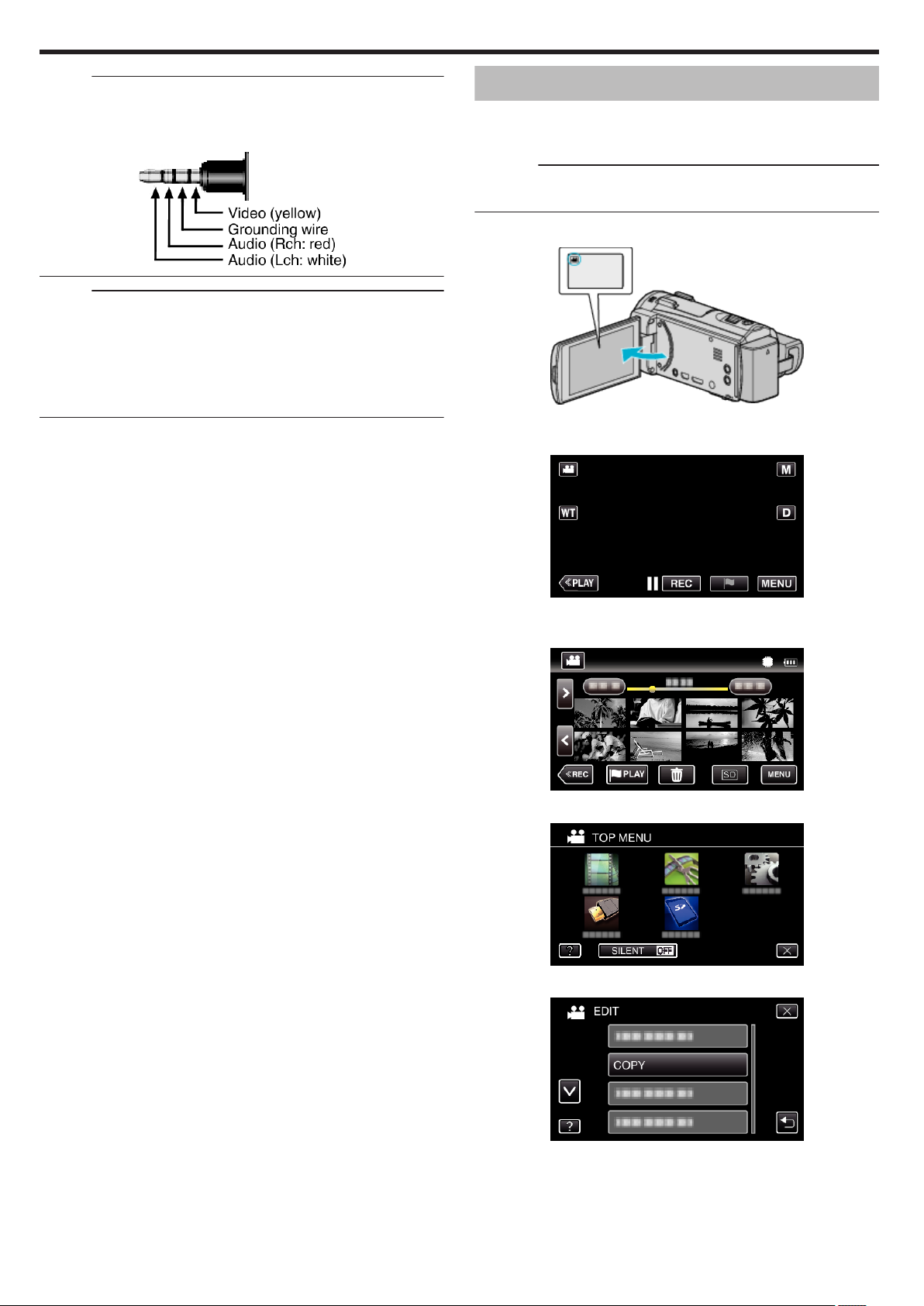

Copying Files to an SD Card (GZ-EX555) ............................. 96

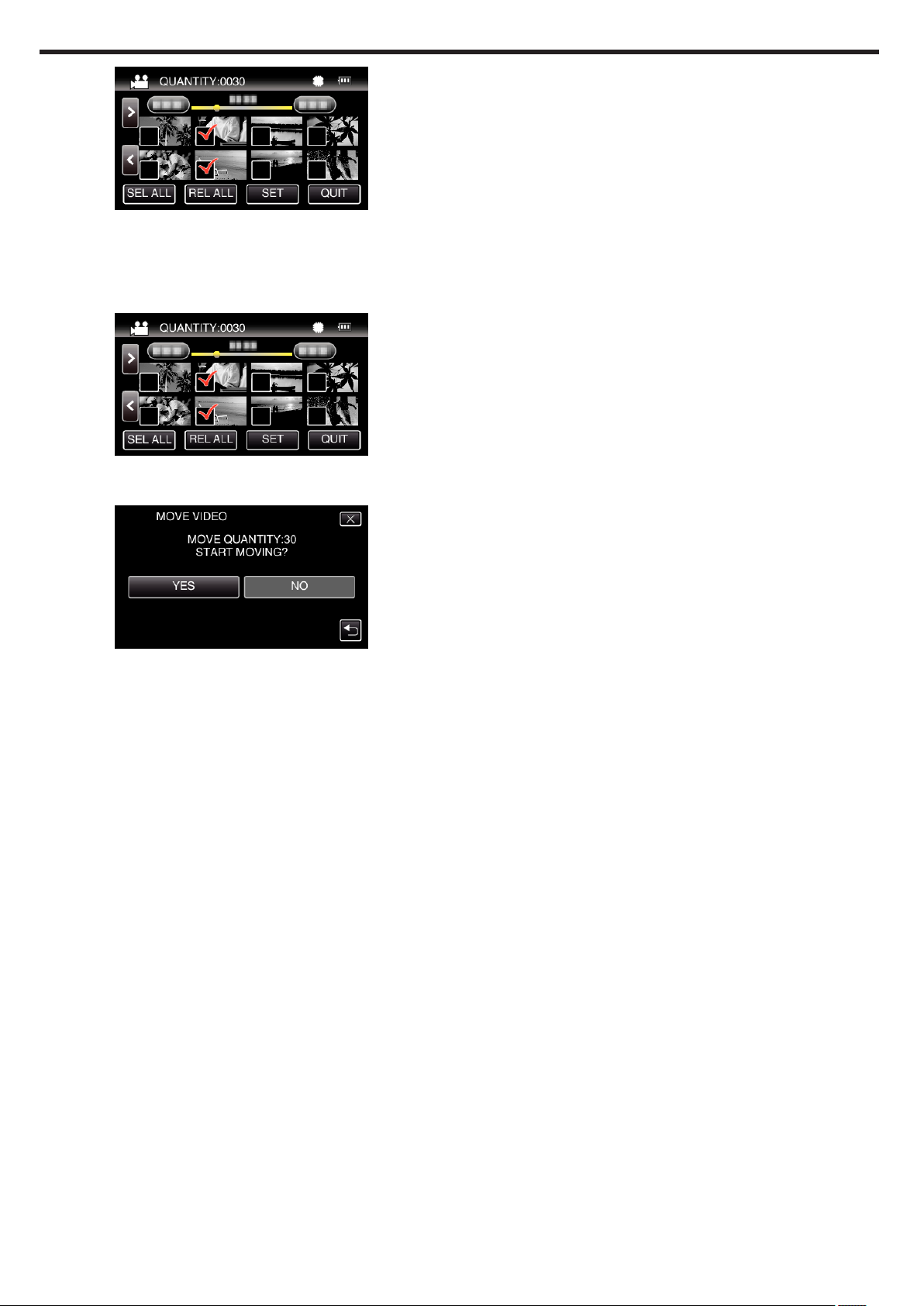

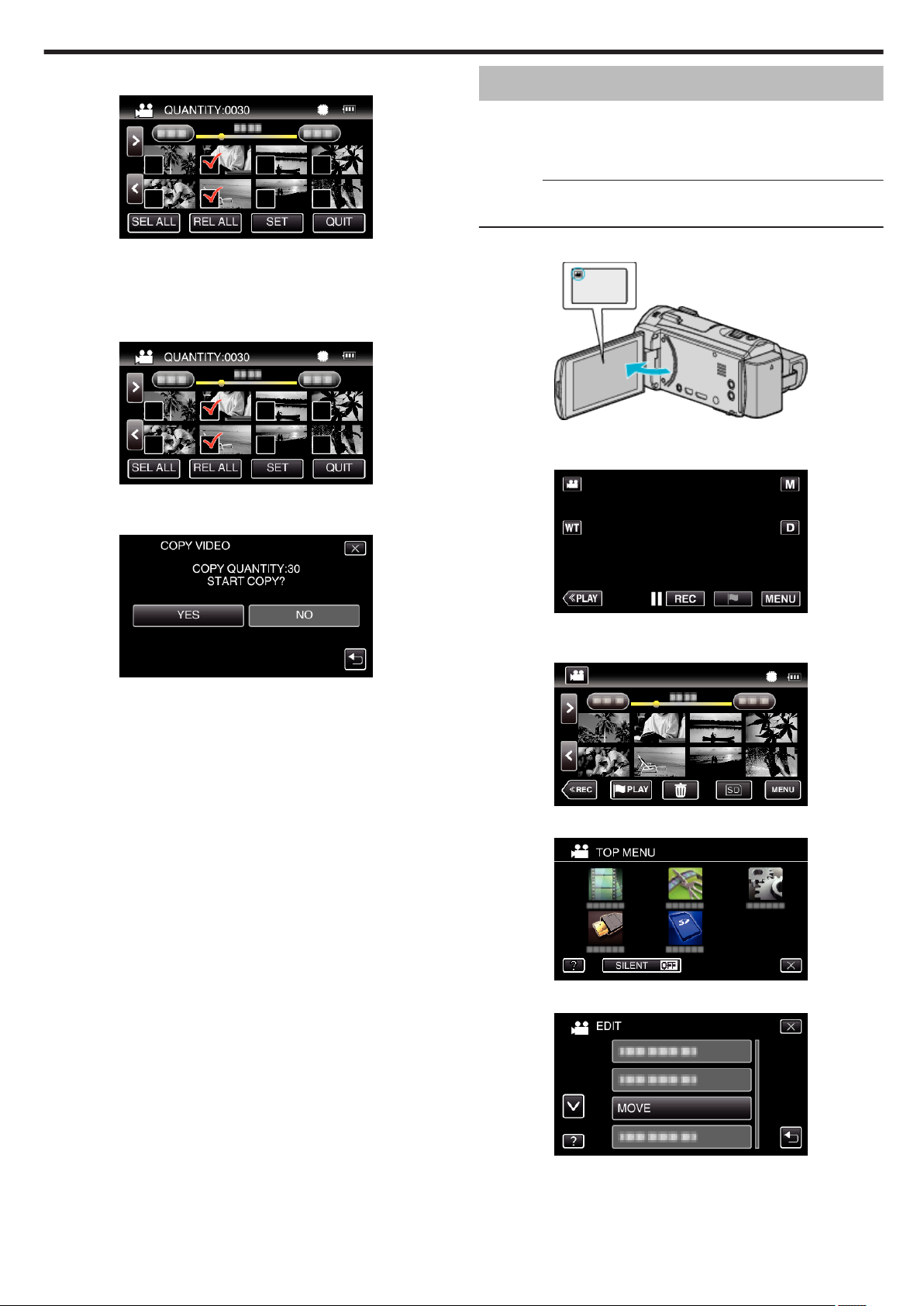

Moving Files to an SD Card (GZ-EX555) ............................... 97

Copying to Windows PC (GZ-EX555/GZ-EX515) .................. 99

Verifying System Requirements (Guideline) ....................... 99

Installing the Provided Software ....................................... 100

Backing Up Files .............................................................. 101

Recording Videos to Discs ............................................... 102

Backing Up Files Without Using Provided Software ......... 104

List of Files and Folders ................................................... 105

Copying to Windows PC (GZ-E505) .................................... 106

Verifying System Requirements (Guideline) ..................... 106

Installing the Provided Software (Built-in) ......................... 107

Backing Up All Files ......................................................... 108

Organizing Files ............................................................... 109

Recording Videos to Discs ............................................... 110

Backing Up Files Without Using Provided Software ......... 112

List of Files and Folders ................................................... 113

Copying to Mac Computer ................................................... 114

Using Wi-Fi (GZ-EX555/GZ-EX515)

Wi-Fi Capabilities ................................................................. 115

Operating Environment ........................................................ 116

Precautions on Using Wi-Fi ................................................. 116

Image Monitoring via Direct Connection (DIRECT

MONITORING) ................................................................ 117

Image Monitoring via an Access Point at Home (INDOOR

MONITORING) ................................................................ 120

Image Monitoring via the Internet (OUTDOOR MONITORING)

.......................................................................................... 125

Sending Still Images via E-mail upon Detection of Face or

Movement (DETECT/MAIL) ............................................. 128

Record and Send Videos via E-mail (VIDEO MAIL) ............. 129

Image Monitoring on TV (TV MONITORING) ....................... 131

EASY STORAGE ................................................................. 132

Recording the Location Information ..................................... 133

Using the Pan Cradle (Sold Separately) .............................. 136

Changing the Settings ......................................................... 138

Setting the Password (DIRECT MONITORING/INDOOR

MONITORING/OUTDOOR MONITORING) ................. 141

Setting the Enforced Group Owner (DIRECT MONITORING)

...................................................................................... 142

Changing the HTTP Port (DIRECT MONITORING/INDOOR

MONITORING/OUTDOOR MONITORING) ................. 142

Setting the UPnP of this Camera (OUTDOOR MONITORING)

...................................................................................... 143

Obtaining a Dynamic DNS (DDNS) Account .................... 143

Setting Dynamic DNS on this Camera (OUTDOOR

MONITORING) ............................................................. 144

Setting the Sender’s E-mail Address of the Camera ........ 145

Registering the Recipient’s E-mail Address of the Camera 147 Setting the Detection Method of this Camera (DETECT/MAIL

SETTING) ..................................................................... 149

Setting the Detection Interval of this Camera (DETECT/MAIL

SETTING) ..................................................................... 149

Setting Self Recording on this Camera (DETECT/MAIL

SETTING) ..................................................................... 150

Registering the Access Points of the Camera to Connect

(ACCESS POINTS) ...................................................... 150

Setting the Password (DIRECT MONITORING) ............... 156

Enabling the MAC Address Filter (TV MONITORING) ..... 157

Registering the MAC Address (TV MONITORING) .......... 157

Checking the MAC Address of this Camera ..................... 158

Protecting the Network Settings with a Password ............ 158

Initializing the Wi-Fi Settings ............................................ 159

Changing the Panning Speed .......................................... 160

Using Smartphone Applications ........................................... 161

Indications on the Screen ................................................. 161

Using the Markings .......................................................... 162

Using the Game Score ..................................................... 163

Transferring Videos (AVCHD format) ............................... 165

Transferring Videos (iFrame format) ................................ 168

Transferring Still Images .................................................. 170

Smartphone Application Settings ..................................... 172

Using the Wi-Fi Function from a Web Browser .................... 174

Indications on the Screen ................................................. 174

Troubleshooting ................................................................... 177

Wi-Fi Specifications ............................................................. 181

Names of Parts

Indications on the LCD monitor

Troubleshooting

When the unit is not working properly .................................. 234

Battery Pack ........................................................................ 235

Recording ............................................................................ 235

SD Card ............................................................................... 236

Playback .............................................................................. 236

Editing/Copying ................................................................... 237

Computer ............................................................................. 238

Screen/Image ...................................................................... 238

Other Problems ................................................................... 239

Error Message? ................................................................... 240

Maintenance

Specifications

Using Wi-Fi by Creating a QR Code (GZ-EX555/GZEX515)

DIRECT MONITORING ....................................................... 184

INDOOR MONITORING ...................................................... 188

OUTDOOR MONITORING .................................................. 192

DETECT/MAIL ..................................................................... 197

VIDEO MAIL ........................................................................ 201

TV MONITORING ................................................................ 205

Settings Menu

Operating the Menu ............................................................. 209

Operating the Top Menu .................................................. 209

Operating the Shortcut Menu ........................................... 210

RECORD SETTING Menu (video) ....................................... 211

SPECIAL RECORDING Menu (video) ................................. 215

RECORD SETTING Menu (still image) ................................ 216

SPECIAL RECORDING Menu (still image) .......................... 218

PLAYBACK SETTING Menu (video) ................................... 219

EDIT Menu (video) ............................................................... 220

PLAYBACK SETTING Menu (still image) ............................ 221

EDIT Menu (still image) ....................................................... 222

SETUP (video/still image) .................................................... 223

CONNECTION SETTINGS (video/still image) ..................... 225

MEDIA SETTINGS (video/still image) .................................. 226

USB CONNECTION MENU ................................................. 227

Beginner’s Guide

Basic Way to Hold a Camcorder ~ Recording Stable Images ~

This is the standard way of shooting while standing up. Be sure to master this basic technique in order to achieve stable images.

[Getting Ready]

A Open your feet to the width of your shoulders. B Keep the elbow of your right arm, which is holding the camcorder, close

to your side.

C Hold the LCD monitor with your left hand and adjust the angle

accordingly.

Extending Your Hands to Shoot ~ High-Angle Shooting ~

Squatting and Shooting at Eye Level

Staying low is a common position to take when shooting small children. By recording from the eye level of the child, you can capture all his cute expressions clearly.

[Getting Ready]

A Kneel down with your left knee while keeping your right foot on the

ground.

B Place the elbow of your right arm, which is holding the camcorder, on

your right knee.

C Hold the LCD monitor with your left hand and adjust the angle

accordingly.

Panning

Refer to the operating instructions found in the animation on the Detailed User Guide.

Use this method to shoot a wide angle of view.

[Getting Ready]

A Shoot by rotating your body instead of moving your arms while keeping

the basic way of holding a camcorder as stated above.

B Stand facing the direction where the rotation will stop. C Twist your upper body to the direction where recording will start. D Press the start button and record for 2 seconds, then slowly twist back

your body to face the front. Record for another 2 seconds while facing the front, then press the stop button. (The 90 degrees rotation should take about 5 seconds, giving the feeling of a slow motion.)

Extend your hand when your subject is being hidden behind a crowd of people.

[Getting Ready]

A Open your feet to the width of your shoulders. B Extend your right hand and hold the camcorder over your head. C Hold the LCD monitor with your left hand and adjust the angle

accordingly.

Caution :

Use this way of shooting only as a last resort as it is difficult to achieve stable images.

Set to the wide angle as much as possible as the image will be prone to camera shake.

Be considerate. Do not inconvenience the people around you.

Useful Shooting Techniques

Introducing the Various Shooting Techniques!

“Holiday Season/Christmas” (A p. 5)

Record the happy Christmas celebration with your family!

“Wedding” (A p. 6)

Create an awesome wedding video for the bride and groom!

Holiday Season/Christmas

Record the happy Christmas celebration with your family!

Photo by 101st CAB, Wings of Destiny

Decorating the Tree and Preparing the Dinner

The decoration of tree and preparation of dinner are part of the joy of Christmas. Be sure to record these happy family times!

Decorating the tree

“Travel” (A p. 8)

Capture all the good times of your domestic or overseas trips!

“Amusement Park” (A p. 10)

Take more shots of the smiling faces of everyone in the family!

A tree is the most important thing to bring out the mood of Christmas.

Simply the scene of all family members engaging in the decorating of a fir tree with various colorful ornaments is full of the feeling of happiness.

Preparing the Dinner

Photo by Manicosity

Creative Commons Attribution-No Derivative Works 3.0

Record the scenes as everyone helps to prepare the feast of the night. You can film the mother who is cooking, the children who are helping, and of course, the process of making a cake!

Useful Shooting Techniques

Recording the Christmas Party

Photo by InnerSpirit

Creative Commons Attribution-No Derivative Works 3.0

After all preparations, it is finally the Christmas party itself. Not only should you record the candle-blowing scene, but also the smiles of the family while being surrounded by good food, or even the father who is slightly drunk from champagne!

Finding the Presents

Wedding

Create an awesome wedding video for the bride and groom!

Discussing and Planning Before the Event

Before the day of the wedding reception, it is important to discuss with the bride and groom about various details such as the order of the ceremony and whether there are any entertainment programs or change of clothes. By understanding the preferences of the bride and groom, you will be able to shoot more appropriately.

Finding out the route of entrance

For children, the greatest joy of Christmas is receiving presents the next

morning. Their expression of delight when finding a present next to their pillow is a recording opportunity not to be missed. Get ready to shoot before the children wake up!

The highlight of a wedding reception is the entrance of the bride and groom.

Find out which door they will enter from and the route they will take from the person-in-charge of the wedding hall in advance. Set up the tripod at a place where you can follow the couple using zoom without having to move around.

Number of times and timing of clothes-changing

Find out the timing of any changing of clothes so as to capture the scene well when the bride and groom enter again. You can also make use the time while the bride and groom are changing to record comments of well wishes from the guests.

Finding the Right Angle to Capture Both Bride and Groom

Composing the picture with the groom in front and the guests at the back

The main characters of a wedding are of course the bride and groom. Record their expressions clearly during the toast, speech, entertainment programs, and other scenes. Another recommendation is to capture the face shots of the guests, then pan towards the groom. Picture composition containing the crowd of guests only lacks fun, so be sure to pay attention to the shooting angle and size.

Useful Shooting Techniques

Recording the Expressions and Comments of Guests

Setting the shot from eye level to chest level

You can record comments from the guest by going around asking, "Please say a few words for the bride and groom". This can be done at the guests' waiting room, when the bride and groom are changing, or during the entertainment programs.

Advanced Operation with Two Camcorders

If video-editing is to be done, record using two camcorders so that a video with varying scenes can be created. You can try asking a close friend who has a camcorder at home. Set the borrowed camcorder on a tripod to focus on taking close-up shots of the bride and groom. In this way, the other camcorder can be moved around to record other scenes, enabling an interesting video with changing scenes to be created through editing and compilation. As most people own at least a digital camera nowadays, even if you are really unable to find an extra camcorder, inserting still pictures to the video at various points is also a good way to add variety. Do give it a try!

<Camcorder 1> Closing up on the bride and groom all the time

<Camcorder 2> Recording the congratulatory messages from friends at the same time

Useful Shooting Techniques

Travel

Capture all the good times of your domestic or overseas trips!

Battery Charger

Bringing the Necessary Equipment

The necessary things to bring on a trip depends on your traveling purpose and the destination. For overseas trips in particular, you have to think about what to bring in accordance to the local conditions. Here are some suggestions for your consideration.

Camcorder

Think about how many hours of shooting you will usually perform in a day. Be sure to prepare enough recording medium especially for long overseas trips. If you are recording in SD cards, get ready the sufficient number of cards, including some for backup.

Battery Pack

Prepare a battery pack that is ready for three times the expected recording time in a day. For example, if you plan to record for 2 hours a day, prepare a battery pack that is ready for 6 hours (actual recording time). For a day trip, you can prepare a battery with low capacity but for a long trip, do prepare a few batteries with high capacities.

AC Adapter

The JVC AC adapter supports voltages from 110 V to 240 V, and hence can be used anywhere in the world. Bring along the adapter if you are traveling for a long time. Charge the battery pack while sleeping so that you can record with full battery power the next day.

Power Plug Adapter

Recording cannot be performed when an AC adapter is connected to the

camcorder for battery charging. You can bring an additional battery charger to charge battery packs if you plan to use the camcorder for recording at night. You can also charge multiple battery packs by using both the battery charger and this camcorder at the same time.

Tripod

A tripod is an essential item to take stable images. Select an appropriate tripod in accordance to your purpose and style of traveling, such as a compact one to be used on a table or one that is at least 1 m tall.

Recording the Excitement Before Departure

It may be a little abrupt to start your travel video at the destination suddenly. Record also the preparations prior to departure if it is a family trip, or the time when everyone is gathered at the meeting place if you are traveling with your friends. For overseas trips, taking a shot of the signs and displays at the airport of the flight you are taking may be useful for future reference.

The shape of the power plug varies according to countries. Be sure to check

the shape of the power plug beforehand, and bring the appropriate power plug adapter. “Charging the Battery Pack Overseas” (A p. 24)

Using Pan at the Places of Interest

Tourists spots with beautiful scenery or historical sites are places that you would certainly want to record. To capture the magnificence of a scene which cannot be fitted into a single frame, try the panning technique. Refer to “Shooting Tips” found in the “Beginner’s Guide” on this website on how to use panning effectively. In addition, you may also like to take a shot of the signs or monuments that can often be found at the tourist spots.

Useful Shooting Techniques

Showing Everyone Having a Good Time

When taking a video, it is rather dull to shoot only the scenery or historical sites. Talk about your feelings while recording the breath-taking scenery of an attraction so that it will be an interesting scene to view later.

Useful Shooting Techniques

Amusement Park

Take more shots of the smiling faces of everyone in the family!

Taking Videos or Still Images According to the Attraction

You may choose to take videos all the time. However, you may want to take some still images too. The following section explains the scenarios suitable for taking videos or still images.

Scenarios suitable for taking videos

Inducing Responses by Calling Out

Videos with no waving of hands nor laughter are not only dull when you view them later, but also put the capability of the audio-recording function of the camcorder to a waste. When recording, induce more reactions by enthusiastically waving your hands or shouting out "Is it fun?" and the like.

Capturing the Best Moment in a Video as a Still Image

Shots with the eyes closed are often taken by accident. To reduce such mistakes, make use of the function to capture still images from videos. As videos are actually continuous recording of 60 still images within 1 minute, using this function allows you to select the best moment and save it as a still image. “Capturing a Still Image in the Video During Playback” (A p. 86)

Scenarios with changes in body movement are suitable for taking videos.

This includes situations where there are rapid changes in facial expressions or voices of surprise and delight. *Some amusement parks do not allow passengers to perform any recording. Be sure to check beforehand. [Examples]

Merry-go-round, go kart, coffee cup, etc.

Scenarios suitable for taking still images (photos)

Scenarios with little movement of the subject are suitable for taking still images. Try to take the still images from an angle such that the surroundings can be seen clearly. [Examples]

Carousal, ferris wheel, fun bicycle rides, etc.

Photo by just that good guy jim

Creative Commons Attribution-No Derivative Works 3.0

Video Playback in Progress

Creative Commons Attribution-No Derivative Works 3.0

Photo by just that good guy jim

Creative Commons Attribution-No Derivative Works 3.0

Video Playback in Progress

Advanced Operation with Backlight Compensation

When the subject’s face is in backlight or when the expression cannot be seen clearly, the Intelligent Auto function of this unit automatically increases

its brightness for recording. If Intelligent Auto fails to function as expected or if the brightness correction is insufficient, you can increase the brightness by using backlight compensation in the Manual mode. “Setting Details” (A p. 38)

Useful Shooting Techniques

Getting Started

Verifying the Accessories

If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.

Illustration Description

AC Adapter AC-V11U

Connects to this unit to charge the battery pack. It can also be used when recording or playing back videos indoors.

Battery Pack BN-VG114U

Attaches to this unit to supply power.

AV Cable QAM1322-001

Connects this unit to a TV to play back recorded images on the TV.

Consult your nearest JVC service center if you need to purchase the AV cable.

USB Cable (Type A - Mini Type B)

Connects this unit to a computer.

CD-ROM (GZ-EX515)

For installing the provided software on a computer.

Core Filter (for AC Adapter)

The core filter reduces interference when this unit is connected to other devices.

“Attaching the Core Filter” (A p. 13)

Basic User Guide

Read well and keep in a safe place where it can be accessed easily when necessary.

Memo :

SD cards are sold separately.

“Types of Usable SD Card” (A p. 16)

When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.

“Charging the Battery Pack Overseas” (A p. 24)

Attaching the Core Filter

Attach a core filter to the power cord of the AC adapter that is connected to this unit. The core filter reduces interference when this unit is connected to other devices.

GZ-EX555/GZ-EX515

GZ-E505

Getting Started

Charging the Battery Pack

Charge the battery pack immediately after purchase and when the remaining battery power is low. The battery pack is not charged at the time of purchase.

Attach the battery pack.

Align the top of the battery with the mark on this unit, and slide in until the battery clicks into place.

Connect the AC adapter to the DC connector and plug in the power.

The charging lamp blinks when charging is in progress. It goes out when charging is finished.

Rechargeable Batteries：

When using the battery in a low temperature environment (10°C or below), the operating time may be shortened, or it may not function properly. When using this unit outdoors in the winter weather, warm the battery, such as by placing it in the pocket, before attaching it. (Keep away from direct contact with a warm pack.)

Do not expose the battery to excessive heat, such as direct sunlight or fire.

After removing the battery, store it in a dry place between 15°C to 25°C.

Keep a 30 % battery level (X) if the battery pack is not to be used for a long period of time. In addition, fully charge and then fully discharge the battery pack every 6 months, then continue to store it at a 30 % battery level (X).

Memo :

You can connect this unit to the AC adapter to record for long hours indoors. (Battery charging begins when the LCD monitor is closed.)

Detaching the Battery Pack

To detach the battery pack, perform the above steps in reverse order.

Warning

Make sure not to insert the battery pack in the wrong direction. It may cause damage to the unit and battery pack.

Caution :

Be sure to use JVC battery packs.

If you use any other battery packs besides JVC battery packs, safety and performance cannot be guaranteed.

Charging time: Approx. 2 h 30 m (using supplied battery pack) The charging time is when the unit is used at 25°C. If the battery pack is charged outside the room temperature range of 10°C to 35°C, charging may take a longer time or it may not start. CHARGE lamp blinks 2 times in a slow cycle for notification if the battery charge does not start.

If malfunctions (overvoltage, etc) occur, or if any battery manufactured other than JVC is attempted for battery charge, charging stops. In these cases, CHARGE lamp blinks quickly for notification.

Be sure to use the supplied AC adapter.

If you use any other AC adapters besides the supplied AC adapter, malfunctions may occur.

You can record or play back videos while the AC adapter is connected. (Battery charging cannot be performed during recording or playback.) Remove the battery when the unit is to be used for a long time. Performance of the battery may drop if it is left attached to the unit.

Approximate Battery Charging Time (Using AC Adapter)

Battery Pack Charging time

BN-VG114U (Supplied)

BN-VG121U 3 h 30 m

BN-VG138U 6 h 10 m

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

* The charging time is when the unit is used at 25°C. If the battery pack is charged outside the room temperature range of 10°C to 35°C, charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature. “Approximate Recording Time (Using Battery)” (A p. 66)

2 h 30 m

Getting Started

Grip Belt Adjustment (GZ-EX555/GZ-EX515)

A Open the pad. B Adjust the length of the belt C Close the pad.

Memo :

Wi-Fi antenna is located inside the pad. Do not pull out the Wi-Fi antenna when adjusting the belt.

Caution :

Be sure to fasten the grip belt properly. If the belt is loose, this unit may drop and result in injuries or damages.

Grip Belt Adjustment (GZ-E505)

A Open the lever on the strap lock B Adjust the length of the belt C Close the lever

Caution :

Be sure to fasten the grip belt properly. If the belt is loose, this unit may drop and result in injuries or damages.

Getting Started

Inserting an SD Card

“Types of Usable SD Card” (A p. 16) “Approximate Video Recording Time” (A p. 65)

Close the LCD monitor.

Open the SD card cover.

Insert an SD card.

Removing the Card

Push the SD card inward once, then pull it out straight.

Types of Usable SD Card

The following SD cards can be used on this unit. Operations are confirmed on the SD cards from the following manufacturers.

Panasonic

TOSHIBA

SanDisk

SD Card

Warning

Make sure not to insert the SD card in the wrong direction. It may cause damage to the unit and SD card.

Turn off the power of this unit before inserting or removing an SD card.

Do not touch the metal contact area when inserting the SD card.

Memo :

When “SEAMLESS RECORDING” is set to “ON”, recordings can still be made to the SD card without stopping when the remaining recording time on the built-in memory runs out.

“SEAMLESS RECORDING (GZ-EX555)” (A p. 212)

Both videos and still images can be recorded on one SD card. It is recommended to confirm the video operation of the SD card before usage.

To record to the SD card, it is necessary to perform media settings.

To use SD cards that have been used on other devices, it is necessary to format (initialize) the SD card using “FORMAT SD CARD” from media settings.

“ FORMAT SD CARD ” (A p. 226)

This unit supports 256 MB to 2 GB SD cards.

Use a Class 4 or higher compatible SD card (2 GB) for video recording.

SDHC Card

Use a Class 4 or higher compatible SDHC card (4 GB to 32 GB) for video recording.

SDXC Card

Use a Class 4 or higher compatible SDXC card (Max. 128 GB) for video recording.

Getting Started

Memo :

Using SD cards (including SDHC/SDXC cards) other than those specified above may result in recording failure or data loss.

This unit is not guaranteed to operate with all SD cards. Some SD cards may not work due to specification changes, etc.

To record videos with “VIDEO QUALITY” set to “UXP”, use of a Class 6 or higher compliant SDHC/SDXC card is recommended.

Class 4 and Class 6 are guaranteed to have a minimum transfer rate of 4 MB/s and 6 MB/s respectively during reading or writing of data.

You can also use a Class 10 compliant SDHC/SDXC card.

Both videos and still images can be recorded on one SD card. It is recommended to confirm the video operation of the SD card before usage.

To protect the data, do not touch the terminals of the SD card.

UHS-I SDHC/SDXC cards can be used in the same manner as standard SDHC/SDXC cards. UHS Speed Class is not supported.

When your computer cannot recognize the SDXC card

Confirm and update the OS of your computer.

Windows XP

Windows Vista

Make sure that the operating system version is SP2 or higher.

Download and install the updating program (KB955704) from the following URL.

http://www.microsoft.com/downloads/details.aspx? FamilyID=1cbe3906-ddd1-4ca2-b727c2dff5e30f61&displaylang=en

Make sure that the operating system version is SP1 or higher.

Download and install the updating program (KB975823) from the following URL.

32 bit version

http://www.microsoft.com/downloads/en/details.aspx? FamilyID=2d1abe01-0942-4f8a-abb2-2ad529de00a1

64 bit version

http://www.microsoft.com/downloads/en/details.aspx? FamilyID=7d54c53f-017c-4ea5-ae08-34c3452ba315

Using the Touch Screen

Icon operation buttons, thumbnails, and menu items are displayed on the touch screen according to the mode in use.

There are two ways to operate the touch screen, namely “tap” and “drag”. The following are some examples.

*The following is a screen of the model with Wi-Fi functions.

A Tap the displayed button (icon) or thumbnail (file) on the touch screen to make selection. B Drag the thumbnails on the touch screen to search for the desired file.

Memo :

The touch screen of this unit is pressure-sensitive. When the touch screen does not respond smoothly, apply slightly more force to your fingertip or the stylus pen.

Tap the buttons (icons) on the touch screen accurately. The buttons may not respond if they are not tapped on the right area.

Do not press or rub with excessive force.

Do not operate the touch screen using an object with a sharp tip.

Pressing two or more places at a time may cause a malfunction.

Perform “TOUCH SCREEN ADJUST” if the reactive area of the screen is misaligned with the touched area. (Adjust by lightly tapping with the stylus pen. Do not press with an object with a sharp tip or do not press hard.)

Windows 7 Download and install the updating program (KB976422)

Mac OS X

10.4 Tiger / Mac OS X

10.5 Leopard

Mac OS X

10.6 Snow Leopard

from the following URL. 32 bit version

http://www.microsoft.com/downloads/en/details.aspx? FamilyID=3ee91fc2-a9bc-4ee1-aca3-2a9aff5915ea

64 bit version

http://www.microsoft.com/downloads/en/details.aspx? FamilyID=73f766dd-7127-4445-b860-47084587155f

Not compatible.

Update the OS version to 10.6.5 or later.

Getting Started

Adjusting the Touch Panel

Adjusts the response position of the buttons on the touch screen. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

Tap “SETUP”.

Tap “TOUCH SCREEN ADJUST”.

Setting ends and returns to the menu screen.

Caution :

Do not tap areas other than the “+” mark during touch screen adjustment (steps 4 - 5). Doing so may cause the touch screen to malfunction.

Memo :

Adjust by lightly tapping with the stylus pen.

Do not press with an object with a sharp tip or do not press hard.

The touch screen adjustment screen appears.

Tap “+”. (3 times in total)

Keep tapping “+” as its position changes with every tap.

If areas other than the “+” mark are tapped, errors will occur. Make sure to tap the “+” mark.

Tap “+” again to confirm the adjusted positions. (3 times in total)

Keep tapping “+” as its position changes with every tap.

Tap “OK”.

Getting Started

Names of Buttons and Functions on the LCD Monitor

The following screens are displayed during the video and still image modes, and operate as the touch screens.

Recording Screen (Video/Still Image)

A/B (Video/Still Image) Mode Button

Switches between video and still image modes.

Zoom Button

“Zooming” (A p. 33)

Playback Mode Button

Switches to the playback mode.

Recording Start/Stop Button

6: Video Recording Start Button

7: Video Recording Stop Button

Q: Still Image Recording Button

Mark Button (for video only)

By tapping the icon while recording is in progress, you can mark a particular scene to make it easier to find it.

“Marking the Video While Recording” (A p. 56)

Menu Button

“Operating the Menu” (A p. 209)

Display Button

Switches the display between full (m) and simple (n) with every tap of the button.

Simple display: Some displays disappear after approximately 3 seconds.

Full display: Displays everything. The display button changes from n to m.

When the power is turned off, simple display (n) will be set.

Recording Mode Button

Switches the recording mode between P Intelligent Auto and H Manual.

Playback Screen (Video)

Operations buttons on the touch screen disappear if the unit is not operated for about 5 seconds. Tap on the screen to display the operation buttons again.

A/B (Video/Still Image) Mode Button

Switches between video and still image modes.

Recording Mode Button

Switches to the recording mode.

Index Screen (Thumbnail Display) Button

“Operation Buttons for Video Playback” (A p. 68)

Delete Button

“Deleting the Currently Displayed File” (A p. 84)

Menu Button

“Operating the Menu” (A p. 209)

Operation Buttons

“Operation Buttons for Video Playback” (A p. 68)

Playback Screen (Still Image)

Operations buttons on the touch screen disappear if the unit is not operated for about 5 seconds. Tap on the screen to display the operation buttons again.

A/B (Video/Still Image) Mode Button

Switches between video and still image modes.

Rotate Button

Rotates a still image 90°. (Clockwise/Counterclockwise)

Recording Mode Button

Switches to the recording mode.

Index Screen (Thumbnail Display) Button

“Operation Buttons for Still Image Playback” (A p. 79)

Delete Button

“Deleting the Currently Displayed File” (A p. 84)

Menu Button

“Operating the Menu” (A p. 209)

Operation Buttons

“Operation Buttons for Still Image Playback” (A p. 79)

Getting Started

Index Screen (Thumbnail Display) Display

*The following is a screen of the model with the built-in memory. F is not displayed on the GZ-EX515/GZ-E505 screen.

A/B (Video/Still Image) Mode Button

Date Button

“Operation Buttons for Video Playback” (A p. 68) “Operation Buttons for Still Image Playback” (A p. 79)

Recording Mode Button

Mark Playback button (video only)

“ MARKING PLAYBACK ” (A p. 70)

Delete Button

“Deleting the Currently Displayed File” (A p. 84)

Playback Media Button

Menu Button

“Operating the Menu” (A p. 209)

Page Forward/Back Button

“Operation Buttons for Video Playback” (A p. 68) “Operation Buttons for Still Image Playback” (A p. 79)

Switches between video and still image modes.

Switches to the recording mode.

Switches between SD card and built-in memory.

Menu screen (recording mode)

*The following is a screen of the model with Wi-Fi functions.

Wi-Fi menu

“Wi-Fi Capabilities” (A p. 115)

Shortcut Menu

“Operating the Shortcut Menu” (A p. 210)

SETUP Menu

“SETUP (video/still image)” (A p. 223)

Help Button

Tap the K (help) button and item to display descriptions.

SILENT Button

“Using the Silent Mode” (A p. 29)

CONNECTION SETTINGS Menu

“CONNECTION SETTINGS (video/still image)” (A p. 225)

INFO. Button

“Checking the Remaining Recording Time” (A p. 64)

Close Button

Exit the menu.

MEDIA SETTINGS Menu

“MEDIA SETTINGS (video/still image)” (A p. 226)

SPECIAL RECORDING Menu

“SPECIAL RECORDING Menu (video)” (A p. 215)

RECORD SETTING Menu

“RECORD SETTING Menu (video)” (A p. 211)

Getting Started

Menu screen (playback mode)

PLAYBACK SETTING Menu

“PLAYBACK SETTING Menu (video)” (A p. 219) “PLAYBACK SETTING Menu (still image)” (A p. 221)

CONNECTION SETTINGS Menu

“CONNECTION SETTINGS (video/still image)” (A p. 225)

Help Button

Tap the K (help) button and item to display descriptions.

SILENT Button

“Using the Silent Mode” (A p. 29)

MEDIA SETTINGS Menu

“MEDIA SETTINGS (video/still image)” (A p. 226)

Close Button

Exit the menu.

SETUP Menu

“SETUP (video/still image)” (A p. 223)

EDIT Menu

“EDIT Menu (video)” (A p. 220) “EDIT Menu (still image)” (A p. 222)

Clock Setting

The “SET DATE/TIME!” screen appears when you turn on this unit for the first time after purchase, when it has not been used for a long time, or when the clock is not set yet. Set the clock before recording. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

The unit turns on.

When the LCD monitor is closed, the unit turns off.

Tap “YES” when “SET DATE/TIME!” is displayed.

Set the date and time.

When the year, month, day, hour, or minute item is tapped, “3” and “2” will be displayed.

Tap 3 or 2 to adjust the year, month, day, hour, and minute.

After setting the date and time, tap “SET”.

Select the region where you live and tap “SAVE”.

Time difference between the selected city and the GMT (Greenwich Mean Time) is displayed.

Tap 0 or 1 to select the city name.

Memo :

The clock can be reset again later.

“Resetting the Clock” (A p. 22)

When using this unit overseas, you can set it to the local time for recording.

“Setting the Clock to Local Time when Traveling” (A p. 25)

“SET DATE/TIME!” is displayed when you turn on this unit after it has not been used for a prolonged period. Connect the AC adapter for more than 24 hours to charge the internal clock battery of this unit before setting the clock.

Getting Started

Resetting the Clock

Set the clock with “CLOCK ADJUST” from the menu. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

Tap “SETUP”.

Tap “CLOCK ADJUST”.

Set the date and time.

When the year, month, day, hour, or minute item is tapped, “3” and “2” will be displayed.

Tap 3 or 2 to adjust the year, month, day, hour, and minute.

After setting the date and time, tap “SET”.

Select the region where you live and tap “SAVE”.

Time difference between the selected city and the GMT (Greenwich Mean Time) is displayed.

Tap 0 or 1 to select the city name.

Tap 3 or 2 to scroll the screen.

Tap “CLOCK SETTING”.

Getting Started

Changing the Display Language

The language on the display can be changed. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

Tap “SETUP”.

Tap “LANGUAGE”.

Holding this Unit

When holding this unit, keep your elbows close to your sides to prevent camera shake.

Tap 3 or 2 to scroll the screen.

Tap to the desired language.

Tap 3 or 2 to scroll the screen.

Memo :

The languages supported are Japanese, English, French, Spanish, Portuguese, Chinese (Simplified), and Korean.

Hold the LCD monitor with your left hand and adjust the angle accordingly. Holding the LCD monitor with your left hand helps to stabilize the camera for recording.

Caution :

Be careful not to drop this unit during transportation.

Guardians should pay close attention when this unit is being used by children.

Memo :

If camera shake is excessive, use the image stabilizer.

“Reducing Camera Shake” (A p. 55)

Getting Started

Tripod Mounting

This unit can be mounted on a tripod (or monopod). This is useful for preventing camera shake and recording from the same position.

To prevent this unit from falling off, check the tripod mounting screw holes and positioning holes on the unit carefully before mounting, and turn the screws until they are fastened firmly.

Caution :

To prevent injuries or damages which may result if this unit falls off, read the instruction manual of the tripod (or monopod) to be used and make sure that it is securely attached.

Memo :

It is recommended to use a tripod or monopod when recording in conditions prone to camera shake (such as in dark places or when zoomed to the telephoto end).

Set the image stabilizer to b (OFF) when using a tripod for recording.

“Reducing Camera Shake” (A p. 55)

Using this Unit Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet. “Charging the Battery Pack Overseas” (A p. 24) Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. “Setting the Clock to Local Time when Traveling” (A p. 25) When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is set 1 hour ahead. “Setting Daylight Saving Time” (A p. 25)

Charging the Battery Pack Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet.

Getting Started

Setting the Clock to Local Time when Traveling

Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. Restore the region settings after you returned from the trip. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

Tap “SETUP”.

Tap “CLOCK ADJUST”.

Setting Daylight Saving Time

When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is set 1 hour ahead. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

Tap “SETUP”.

Tap “CLOCK ADJUST”.

Tap 3 or 2 to scroll the screen.

Tap “AREA SETTING”.

Select the area you are traveling to and tap “SAVE”.

Time difference between the selected city and the GMT (Greenwich Mean Time) is displayed.

Tap 0 or 1 to select the city name.

Memo :

Setting “AREA SETTING” changes the clock time such that time difference is accounted for. After returning to your country, re-select the region that was set initially to restore the original clock settings.

Tap 3 or 2 to scroll the screen.

Tap “DST SETTING”.

Tap “ON”.

Memo :

What is daylight saving time? Daylight saving time is the system of setting the clock 1 hour ahead for a fixed period in summer. It is used mainly in the Western countries.

Restore the daylight saving time settings after you returned from the trip.

Getting Started

Optional Accessories

You can record for a longer time by using the optional battery pack.

Product Name Description

Battery Pack BN-VG114U BN-VG121U BN-VG138U

Battery Charger

AA-VG1

HDMI Mini Cable

VX-HD310

VX-HD315

Provides a longer recording time. It can also be used as a spare battery pack.

Enables the battery pack to be charged without using this unit.

Allows viewing in high picture quality when connected to a TV.

Transmits video, audio, and control signals between devices.

Memo :

The optional accessories above may not be supported in some regions.

For more information, refer to the catalog.

For details on the provided accessories, refer to “Verifying the Accessories”.

“Verifying the Accessories” (A p. 12)

Approximate Recording Time (Using Battery)

60i mode (GZ-EX555/GZ-EX515)

Battery Pack Actual recording

BN-VG114U (Supplied)

1 h 1 h 50 m

time

Continuous recording time

(Maximum Recording Time)

BN-VG121U 1 h 30 m 2 h 45 m

BN-VG138U 2 h 40 m 4 h 55 m

60p mode (GZ-EX555/GZ-EX515)

Battery Pack Actual recording

BN-VG114U (Supplied)

BN-VG121U 1 h 10 m 2 h 10 m

BN-VG138U 2 h 5 m 3 h 50 m

GZ-E505

Battery Pack

BN-VG114U (Supplied)

BN-VG121U 1 h 35 m 2 h 50 m

BN-VG138U 2 h 50 m 5 h 5 m

The above are values when “LIGHT” is set to “OFF” and “MONITOR BRIGHTNESS” is set to “3” (standard).

The actual recording time is an estimate in case that such operations as zooming is used or recording is stopped repeatedly. It may be shorter in the actual usage. (It is recommended to prepare battery packs ready for three times the expected recording time.)

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

45 m 1 h 25 m

1 h 1 h 50 m

time

Actual recording

time

Continuous recording time

(Maximum Recording Time)

Continuous recording time

(Maximum Recording Time)

Recording

Taking Videos in Auto Mode

You can record without worrying about the setting details by using the Intelligent Auto mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions.

In case of specific shooting scenes such as person etc., its icon is displayed on the screen.

Before recording an important scene, it is recommended to conduct a trial recording.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Check if the recording mode is P Intelligent Auto.

Indications for Video Recording

Display Icon Description

Video Quality Displays the icon of the “VIDEO QUALITY”

TOUCH PRIORITY AE/AF

Time Displays the current time.

Image Stabilizer Displays the image stabilizer setting.

setting selected in the recording menu. “ VIDEO QUALITY ” (A p. 212)

Displays the setting of “TOUCH PRIORITY AE/ AF”. By default, it is set to “FACE TRACKING”. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

“Clock Setting” (A p. 21)

“Reducing Camera Shake” (A p. 55)

If the mode is H Manual, tap H on the recording screen to display the mode switching screen. Tap P to switch the recording mode to Intelligent Auto.

Press the START/STOP button to start recording.

Press again to stop.

Some displays disappear after approximately 3 seconds. Use the n button to change the displays.

Recording Media Displays the icon of the media where videos

are recorded to. The recording media can be changed. “REC MEDIA FOR VIDEO (GZ-EX555)” (A p. 226)

Battery Indicator Displays the approximate remaining battery

power during use. “Checking the Remaining Recording Time” (A p. 64)

Recording Mode Displays the current recording mode of P

(Intelligent Auto) or H (Manual).

Setting Scenes of Intelligent Auto

Displays scenes detected automatically in the Intelligent Auto function. Multiple scenes may be detected.

SEAMLESS RECORDING (GZ-EX555)

Displays the seamless recording icon when it is set. q appears if seamless recording cannot be performed. “SEAMLESS RECORDING (GZ-EX555)” (A p. 212)

Remaining Recording Time

Displays the remaining time for video recording. “Checking the Remaining Recording Time” (A p. 64)

Scene Counter (Recorded Time)

Displays the elapsed time of the video that is currently being recorded.

Recording

Scenes of Intelligent Auto

Display Icon Description

Operation Buttons for Video Recording

Captures one’s skin beautifully.

Allows people to be captured naturally.

Record a group of people with the most suitable settings.

Record the smiling face clearly.

Records while focusing on a near object.

Focuses at a far distance and captures a sharp image with vivid colors.

Records in dark places with minimal noise in the overall image.

Allows night scenes to be captured accurately with minimal noise in the overall image.

Prevents colors from fading even when recording in a bright environment, such as snowfield and beaches.

Prevents colors from fading when recording a subject in a spotlight.

Reproduces the green color of trees vividly.

Reproduces the colors of sunset naturally.

Adjusts settings so that the subject does not appear too dark due to backlight.

Records while emphasizing the brightness of the colors.

Reproduces the natural colors of the outdoors during the day.

Reproduces the natural colors of the indoors in a cold-color illumination.

Reproduces the natural colors of the indoors in a warm-color illumination.

Selects the most suitable settings for handheld shooting.

Selects the most suitable settings when a tripod is used for shooting.

Memo :

Scenes can be detected according to the shooting conditions and automatically adjusted in Intelligent Auto mode.

Multiple scenes may be detected depending on the recording conditions.

Some functions may not work properly depending on the shooting conditions.

Operation

Buttons

Video/Still Image Mode A/B

T/W Zoom Allows the same functions as the zoom

Playback Mode Switches to the playback mode.

D / E Recording Start

Record-Standby

Mark

MENU Displays the various menus of video

Display Button n Switches the display between full (m) and

Recording Mode P/H

Description

Switches between video and still image modes.

lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. “Zooming” (A p. 33)

Functions as the START/STOP button.

By tapping the icon while recording is in progress, you can mark a particular scene to make it easier to find it.

recording. “Operating the Menu” (A p. 209)

simple (n) with every tap of the button.

Simple display: Some displays disappear after approximately 3 seconds.

Full display: Displays everything. The display button changes from n to m.

When the power is turned off, simple display (n) will be set.

Switches the recording mode.

Recording

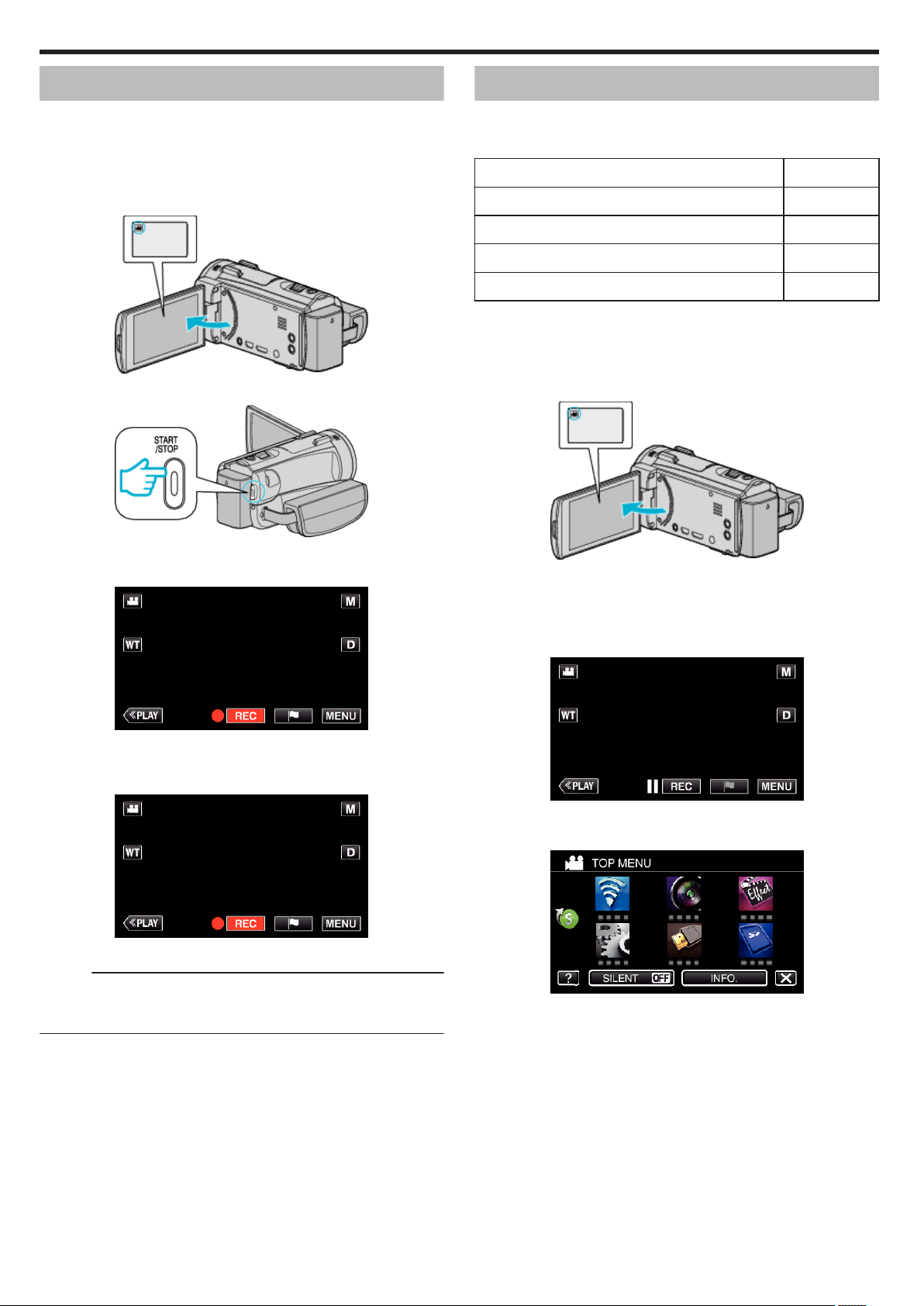

Using the Silent Mode

When the Silent mode is used, the LCD monitor darkens and operation sounds will not be output. Use this mode to record quietly in dark places such as during a performance.

T appears when “SILENT MODE” is set to “ON”.

The light is disabled when “SILENT MODE” is set to “ON”.

Operating procedure

A Tap “MENU”.

The top menu appears. B Tap “SILENT”.

C Tap “ON”.

- We shall not be held responsible for loss of recorded contents when recording videos/audio or playback cannot be operated due to malfunctions in this unit, provided parts, or SD card.

- Once deleted, recorded contents (data), including data loss due to malfunctions in this unit, cannot be restored. Please be forewarned.

- JVC will not be responsible for any lost data.

- In order for quality improvement, defective recording medium is subject to be analyzed. Therefore, it may not be returned.

Memo :

Check the remaining recording time in the media before you start shooting. If there is not enough space, move (copy) the data to a computer or disc.

When there are many files in the media, it may take time for them to be displayed on the playback screen. Wait for a while as the access lamp appears blinking, which indicates normal operation.

Do not forget to make copies after recording!

Recording stops automatically as it cannot be performed for 12 or more consecutive hours according to specifications. (It may take some time to resume recording.)

For long recordings, the file is split into two or more files if the size exceeds 4 GB.

You can connect this unit to the AC adapter to record for long hours indoors.

Depending on the subject and shooting conditions, recording may not be performed properly even in the Intelligent Auto mode.

Depending on the shooting conditions, the four corners of the screen may appear dark, but this is not a malfunction. In this case, change the shooting conditions by moving the zoom lever, etc.

Useful Settings for Recording

When “QUICK RESTART” is set to “ON”, this unit turns on immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

“ QUICK RESTART ” (A p. 224)

When “AUTO POWER OFF” is set to “ON”, this unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

“ AUTO POWER OFF ” (A p. 224)

When “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”, this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

If the remaining space on the built-in memory runs out while “SEAMLESS RECORDING” is set to “ON”, recording continues after switching to the SD card.

“SEAMLESS RECORDING (GZ-EX555)” (A p. 212)

When “DATE/TIME RECORDING” is used, the date and time can be recorded together with the video.

“Recording Videos with Date and Time” (A p. 63)

Caution :

Do not expose the lens to direct sunlight.

Do not use this unit in the rain, snow, or places with high humidity like the bathroom.

Do not use this unit in places subject to excessive humidity or dust, as well as places exposed to steam or smoke directly.

While this unit may be used with the LCD monitor reversed and closed, the temperature rises more easily. Leave the LCD monitor open when using this unit in places exposed to direct sunlight or high temperatures.

The power may turn off to protect the circuit if the temperature of this unit rises too much.

Do not remove the battery pack, AC adapter, or SD card when the access lamp is lighted. The recorded data may become unreadable.

This unit is a microcomputer-controlled device. Electrostatic discharge, external noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such a case, turn off the power, then remove the AC adapter and battery pack. This unit will be reset.

Disclaimer

Capturing Still Images During Video Recording

Still images can be captured by pressing the SNAPSHOT button while in the video mode (standby or recording).

“PHOTO” lights up on the screen when a still image is being captured.

The still images captured during video recording are saved to the destination set in “REC MEDIA FOR IMAGE”.

Memo :

This function does not support the iFrame recording format.

The size of the still image that is captured in the video mode is 1,920 x 1,080.

Operation is invalid under the following conditions:

- when menu is being displayed

- when remaining recording time is being displayed

- when any functions in “SPECIAL RECORDING” is set

Recording

Taking Still Images in Auto Mode

You can record without worrying about the setting details by using the Intelligent Auto mode.

Open the LCD monitor.

Check if the recording mode is B.

If the mode is A video, tap A on the recording screen to display the mode switching screen. Tap B to switch the mode to still image.

Check if the recording mode is P Intelligent Auto.

Take a still image.

PHOTO lights up when a still image is being captured.

Memo :

Depending on the subject and shooting conditions, recording may not be performed properly even in the Intelligent Auto mode.

If the mode is H Manual, tap H on the recording screen to display the mode switching screen. Tap P to switch the recording mode to Intelligent Auto.

Set the focus on the subject.

When focused, the focus icon lights up in green.

Indications During Still Image Recording

Scenes of Intelligent Auto

Display Icon Description

Recording

Some displays disappear after approximately 3 seconds. Use the n button to change the displays.

Display Icon Description

Image Size Displays the icon of the image size.

The size of still images can be changed.

“ IMAGE SIZE ” (A p. 217)

TOUCH PRIORITY AE/AF

Time Displays the current time.

Recording media Displays the icon of the media where still

Battery Indicator Displays the approximate remaining battery

Recording Mode Displays the current recording mode of P

Setting Scenes of Intelligent Auto

Remaining Number of Shots

Recording in Progress

Focus Lights up in green when focused.

Shutter Speed Displays the shutter speed.

Displays the setting of “TOUCH PRIORITY AE/ AF”. By default, it is set to “FACE TRACKING”. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

“Clock Setting” (A p. 21)

images are recorded to. The recording media can be changed. “REC MEDIA FOR IMAGE (GZ-EX555)” (A p. 226)

power during use. “Checking the Remaining Recording Time” (A p. 64)

(Intelligent Auto) or H (Manual).

Displays scenes detected automatically in the Intelligent Auto function. Multiple scenes may be detected.

Displays the remaining number of shots for still image recording. “Approximate Number of Still Images (Unit: Number of Shots)” (A p. 65)

“PHOTO” appears when a still image is being captured.

Captures one’s skin beautifully.

Allows people to be captured naturally.

Record a group of people with the most suitable settings.

Record the smiling face clearly.

Records while focusing on a near object.

Focuses at a far distance and captures a sharp image with vivid colors.

Records in dark places with minimal noise in the overall image.

Allows night scenes to be captured accurately with minimal noise in the overall image.

Prevents colors from fading even when recording in a bright environment, such as snowfield and beaches.

Prevents colors from fading when recording a subject in a spotlight.

Reproduces the green color of trees vividly.

Reproduces the colors of sunset naturally.

Adjusts settings so that the subject does not appear too dark due to backlight.

Records while emphasizing the brightness of the colors.

Reproduces the natural colors of the outdoors during the day.

Reproduces the natural colors of the indoors in a cold-color illumination.

Reproduces the natural colors of the indoors in a warm-color illumination.

Selects the most suitable settings for handheld shooting.

Selects the most suitable settings when a tripod is used for shooting.

Memo :

Scenes can be detected according to the shooting conditions and automatically adjusted in Intelligent Auto mode.

Multiple scenes may be detected depending on the recording conditions.

Some functions may not work properly depending on the shooting conditions.

Recording

Operation Buttons for Still Image Recording

Operation

Buttons

Video/Still Image Mode A/B

T/W Zoom Allows the same functions as the zoom

Playback Mode Switches to the playback mode.

Snapshot

Switches between video and still image modes.

lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. “Zooming” (A p. 33)

Functions as the SNAPSHOT button. However, focus cannot be set by pressing halfway.

Description

Using the Silent Mode

When the Silent mode is used, the LCD monitor darkens and operation sounds will not be output. Use this mode to record quietly in dark places such as during a performance.

T appears when “SILENT MODE” is set to “ON”.

The light is disabled when “SILENT MODE” is set to “ON”.

*The following is a screen of the model with Wi-Fi functions.

Operating procedure

A Tap “MENU”.

The top menu appears. B Tap “SILENT”.

C Tap “ON”.

MENU Displays the various menus of still image

Display Button n Switches the display between full (m) and

Recording Mode P/H

recording. “Operating the Menu” (A p. 209)

simple (n) with every tap of the button.

Simple display: Some displays disappear after approximately 3 seconds.

Full display: Displays everything. The display button changes from n to m.

When the power is turned off, simple display (n) will be set.

Switches the recording mode.

Useful Settings for Recording

When “QUICK RESTART” is set to “ON”, this unit turns on immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

“ QUICK RESTART ” (A p. 224)

When “AUTO POWER OFF” is set to “ON”, this unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

“ AUTO POWER OFF ” (A p. 224)

When “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”, this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

Caution :

Do not expose the lens to direct sunlight.

Do not use this unit in the rain, snow, or places with high humidity like the bathroom.

Do not use this unit in places subject to excessive humidity or dust, as well as places exposed to steam or smoke directly.

While this unit may be used with the LCD monitor reversed and closed, the temperature rises more easily. Leave the LCD monitor open when using this unit for long periods of time, or in places exposed to direct sunlight or high temperatures.

The power may turn off to protect the circuit if the temperature of this unit rises too much.

Do not remove the battery pack, AC adapter, or SD card when the access lamp is lighted. The recorded data may become unreadable.

Memo :

Before recording an important scene, it is recommended to conduct a trial recording.

Depending on the shooting conditions, the four corners of the screen may appear dark, but this is not a malfunction. In this case, change the shooting conditions by moving the zoom lever, etc.

Recording

Zooming

The angle of view can be adjusted using zoom.

Use the W end (wide angle end) to shoot a wider field of view.

Use the T end (telephoto end) to magnify the subject for shooting.

The following zoom options are available:

- Optical Zoom (1 - 38x)

- Digital Zoom (39 – 200x)

You can also use the zoom (T/W) button on the touch screen to zoom.

Memo :

When digital zoom is used, the image becomes grainy as it is digitally enlarged.

The zoom ratio range can be changed.

“ ZOOM ” (A p. 213)

Manual Recording

You can adjust settings, such as brightness, by using the manual mode. Manual recording can be set for both video and still image modes. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap the item to set manually.

Recording

Manual Recording Menu

The following items can be set.

Name Description

For details on the various manual settings, refer to “Manual Recording Menu”.

SCENE SELECT

FOCUS

BRIGHTNESS ADJUST

BACKLIGHT COMP.

WHITE BALANCE

TELE MACRO

Recordings that suit the shooting conditions can be performed easily.

“Shooting According to Scene (Subject)” (A p. 35)

Use manual focus if the subject is not focused automatically.

“Adjusting Focus Manually” (A p. 36)

Overall brightness on the screen can be adjusted.

Use this when recording in a dark or bright location.

“Adjusting Brightness” (A p. 37)

Corrects the image when the subject appears dark due to backlight.

Use this when shooting against the light.

“Setting Backlight Compensation” (A p. 38)

Overall color on the screen can be adjusted.

Use this when the color on the screen appears differently from the actual color.

“Setting White Balance” (A p. 39)

Use this to take close-up (macro) shots of the subject.

“Taking Close-up Shots” (A p. 40)

Recording

Shooting According to Scene (Subject)

Common scenes that are often encountered can be recorded with the most suitable settings. *The following is a screen of the model with Wi-Fi functions.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

Tap the appropriate scene.

Tap “OFF” to cancel the selection.

Tap L to exit the menu.

The top menu appears.

Tap “RECORD SETTING”.

Tap “SCENE SELECT”.

Tap 0 or 1 to move to the previous/next menu.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

*The image is only an impression.

Setting Effect

b NIGHTALIVE Increases gain and brightens the scene

automatically using a slow shutter when the surrounding is dark. To prevent camera shake, use a tripod.

g SPOTLIGHT Prevents the human subject from appearing too

bright under light.

Memo :

All scenes of “SCENE SELECT” cannot be set during “HIGH SPEED RECORDING” or “AUTO REC”.

Adjusting Focus Manually

Set this when the focus is not clear in Intelligent Auto or when manual focusing is desired. *The following is a screen of the model with Wi-Fi functions.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap “FOCUS”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

Recording

Adjust the focus.

Tap E to focus on a distant subject. If E appears blinking, focus cannot be set any further.

Tap p to focus on a near subject. If p appears blinking, focus cannot be set any nearer.

Tap “SET” to confirm.

When focus is confirmed, the focusing frame disappears and E and p are displayed.

Adjusting Brightness

You can adjust the brightness to your preferred level. *The following is a screen of the model with Wi-Fi functions.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap “BRIGHTNESS ADJUST”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Tap “MANUAL”.

Adjust the brightness value.

Compensation range: -2.0 to +2.0

Tap 3 to increase the brightness.

Tap 2 to decrease the brightness.

Tap “SET” to confirm.

Setting Backlight Compensation

You can correct the image when the subject appears too dark due to backlight. *The following is a screen of the model with Wi-Fi functions.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

Memo :

Settings can be adjusted separately for videos and still images.

The top menu appears.

Tap “RECORD SETTING”.

Tap “BACKLIGHT COMP.”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Tap “ON” or “ADVANCE”.

“ADVANCE” is designed to perform more effective backlight compensation. Choose this when the backlight compensation is not adjusted appropriately by “ON”.

After setting, the backlight icon l appears.

Setting Details

OFF Backlight compensation is disabled.

ON Backlight compensation is enabled.

ADVANCE Should be selected for a better backlight

compensation effect.

Setting White Balance

You can set the color tone to suit the light source. *The following is a screen of the model with Wi-Fi functions.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap “WHITE BALANCE”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Tap the appropriate shooting environment.

Select the item by using 0 or 1, then tap “SET”. (Tap the icon directly to select.)

The White Balance icon appears on the screen upon completing the setting.

Setting Details

AUTO Adjusts automatically to the natural colors.

MWB Use this when the problem of unnatural colors is

not resolved.

FINE Set this when shooting outdoors on a sunny day.

CLOUD Set this when shooting on a cloudy day or inside a

shade.

HALOGEN Set this when shooting under illumination such as

a video light.

Taking Close-up Shots

You can take close-up shots of an object using the tele macro function. *The following is a screen of the model with Wi-Fi functions.

*The image is only an impression.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

MARINE:BLUE Set this when shooting the sea at deep water area

(water appears blue) using an optional marine case.

MARINE:GREEN Set this when shooting the sea at shallow water

area (water appears green) using an optional marine case.

Using MWB

Hold a sheet of plain white paper in front of the lens so that the white paper fills the screen.

Position the cursor to “MWB”, and press and hold “SET”.

Or, press and hold the “MWB” icon.

Release your touch after the menu disappears and o lights up.

Memo :

The setting will not change if “MWB” is being tapped too fast (less than 1 second).

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap “TELE MACRO”.

Recording

Recording with Effects

Type of Effect Description of Effect

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “ON”.

After setting, the tele macro icon o appears.

Setting Details

OFF Enables close-up shots up to 1.6 cm at the telephoto (T) end.

ON Enables close-up shots up to 70 cm at the telephoto (T) end.

Enables close-up shots up to 5 cm at the wide angle (W) end.

ANIMATION EFFECT

DECORATE FACE EFFECT

STAMP Records videos with various decorative stamps.

HANDWRITING EFFECT

Records videos with animation effects. “Recording with Animation Effects (ANIMATION EFFECT)” (A p. 42)

Detects faces and enables decorations such as crowns or sunglasses to be added. “Recording with Face Decorations (DECORATE FACE EFFECT)” (A p. 44)

“Recording with Decorative Stamps (STAMP)” (A p. 45)

Records videos with your personal handwriting or drawing. “Recording with Personal Handwriting (HANDWRITING EFFECT)” (A p. 46)

Caution :

When you are not taking close-up shots, set “TELE MACRO” to “OFF”. Otherwise, the image may be blur.

Recording

Recording with Animation Effects (ANIMATION EFFECT)

You can add animation effects to video recordings. The animation effects appear when smiles are detected or when the screen is touched. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

To select another effect again after tapping “SET”, tap J.

Tap L to exit “ANIMATION EFFECT”. (To perform operations other than recording, tap L to cancel the “ANIMATION EFFECT” first.)

The top menu appears.

Tap “SPECIAL RECORDING”. (Go to step 4.) Alternatively, tap “ANIMATION EFFECT” in the shortcut menu. (Go to step 5.)

Tap “ANIMATION EFFECT”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Select a desired effect and tap “SET”.

Tap 0 or 1 to change the effect.

Press the START/STOP button the camera to start recording. Press again to stop.

During Setting After Setting Note

. .

Recording

Animation (effect) appears when smiles are detected.

. .

Animation (effect) appears when smiles are detected.

Animation (effect) appears when the screen is touched.

. .

Animation (effect) appears when the screen is touched.

Recording

Recording with Face Decorations (DECORATE FACE EFFECT)

Detects faces and enables decorations such as crowns or sunglasses to be added. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

Select a desired effect and tap “SET”.

Tap 0 or 1 to select an item.

Press the START/STOP button the camera to start recording. Press again to stop.

To select another effect again after tapping “SET”, tap J.

Tap L to exit “DECORATE FACE EFFECT”. (To perform operations other than recording, tap L to cancel the “DECORATE FACE EFFECT” first.)

The top menu appears.

Tap “SPECIAL RECORDING”. (Go to step 4.) Alternatively, tap “DECORATE FACE EFFECT” in the shortcut menu. (Go to step 5.)

Tap “DECORATE FACE EFFECT”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Recording with Decorative Stamps (STAMP)

Records videos with various decorative stamps. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

Select a stamp.

Tap K to start selecting a stamp. Tap on the desired stamp to use. The number indicates the size of the stamp.

Tap I to scroll through the list of stamps.

Tap M to change the size of stamps.

Tap J to return to the previous screen.

Tap on the screen to add a stamp.

The top menu appears.

Tap “SPECIAL RECORDING”.

Tap 1 on the lower right of the screen.

Tap “STAMP”.

Tap J and the “YES” button to delete the stamp.

Tap “ON/OFF” to display/hide the stamps.

Press the START/STOP button the camera to start recording. Press again to stop.

Tap L to exit “STAMP”. (To perform operations other than recording, tap L to cancel the “STAMP” first.)

Memo :

Up to 50 stamps may be added.

The added stamps are deleted when the stamp mode ends or when power is turned off.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Recording with Personal Handwriting (HANDWRITING EFFECT)

Records videos with your personal handwriting or drawing. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

The top menu appears.

Tap “SPECIAL RECORDING”.

Select a line.

Tap G to select the line color and thickness. The number indicates the thickness of the line.

You can select a color from white, gray, black, etc.

Select P to tap and erase part of the line.

Tap H to select the line color. Tap I to scroll through the list of colors.

Tap L to select the line thickness.

Tap J to return to the previous screen.

Draw a line with your finger.

Tap 1 on the lower right of the screen.

Tap “HANDWRITING EFFECT”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap J and the YES button to delete all the lines.

Tap “ON/OFF” to display/hide the lines.

Press the START/STOP button the camera to start recording. Press again to stop.

Tap L to exit “HANDWRITING EFFECT”. (To perform operations other than recording, tap L to cancel the “HANDWRITING EFFECT” first.)

Memo :

If the writings and drawings appear to be misaligned, correct the touch position.

“Adjusting the Touch Panel” (A p. 18)

The writings and drawings are deleted when the handwriting mode ends or when the power is turned off.

Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)

“TOUCH PRIORITY AE/AF” is a function that adjusts focus and brightness based on a tapped position. By registering the face of a person beforehand, you can enable tracking of the person even without specific selection during recording. This function is available for both videos and still images. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap the desired setting.

Focus and brightness will be adjusted automatically based on the tapped position (face/color/area). A blue frame appears around the selected subject (face/color), while a white frame appears around the selected area.

To reset, tap the desired position (face/color/area) again.

To cancel “FACE TRACKING”, “PET TRACKING”, or “COLOR TRACKING”, tap the blue frame.

To cancel “AREA SELECT”, tap the white frame.

Setting Details

OFF Deactivates the function.

Recording

Tap 1 on the lower right of the screen.

Tap “TOUCH PRIORITY AE/AF”.

FACE TRACKING

PET TRACKING

COLOR TRACKING

AREA SELECT

e appears on the screen. Recording is performed while tracking and automatically adjusting the tapped face (subject) with appropriate focus and brightness. In addition, a blue frame appears around the tapped face (subject). (When the face of a person is registered, it becomes the main subject and the blue frame appears even without specific selection.)

N appears on the screen. Recording is performed while tracking and automatically adjusting the face of the tapped pet (subject) with appropriate brightness. In addition, a blue frame appears around the tapped pet (subject).

f appears on the screen. Recording is performed while tracking and automatically adjusting the tapped color (subject) with appropriate focus. In addition, a blue frame appears around the tapped color (subject).

g appears on the screen. Recording is performed while automatically adjusting the tapped area (fixed position) with appropriate focus and brightness. In addition, a white frame appears around the tapped area. AREA SELECT in TOUCH PRIORITY AE/AF is only available within the optical zoom range. (unavailable when digital zoom is being used)

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Memo :

When “TOUCH PRIORITY AE/AF” is set, “FOCUS” will be set to “AUTO” automatically.

Tap the selected position (face/color/area) again to cancel the setting. (Setting remains for registered faces.)

Tap on an unselected position (face/color/area) to reset.

If the camera loses track of a subject, tap the subject again.

Settings are canceled when zoom operation is performed. (“AREA SELECT” only)

When “FACE TRACKING” is set after face registration, the blue frame appears around the face with the highest priority registered.

When recording registered faces using “FACE TRACKING”, focus and brightness will be adjusted automatically even without specific selection. In addition, registered faces may be tracked back again even if they are lost. Therefore, it is recommended to register the faces that are often being recorded by this camera beforehand.

“Registering Human Face Personal Authentication Information” (A p. 51)

When “COLOR TRACKING” is set, the targeted subject (color) may change if similar colors are detected. In this case, tap the subject again. The targeted subject (color) may also be tracked back again if it appears in the center of the screen within a specific time.

Caution :

Subjects near the sides of the LCD monitor may not respond or be recognized when tapped. In this case, move the subject to the center and tap again.

“FACE TRACKING” may not work properly depending on the shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, etc.). It is also particularly difficult to detect faces in backlight.

“PET TRACKING” may not work properly depending on the type of pet, shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, etc.). It is also particularly difficult to detect faces of pets that are totally black, covered in long hair, or in backlight.

“COLOR TRACKING” may not function properly in the following cases:

- when recording subjects with no contrast

- when recording subjects that are moving at high speed

- when recording in a dark place

- when the surrounding brightness changes

“AREA SELECT” is not available while the digital zoom is in use.

When “FACE TRACKING” is set, the subject may be lost if the camera is moved vertically or horizontally very fast. For unregistered faces, they cannot be tracked back again. To track back the subject, tap on it again. For registered faces, focus and brightness will be adjusted automatically even without specific selection. In addition, registered faces may be tracked back again even if they are lost. Therefore, it is recommended to register the faces that are often being recorded by this camera beforehand.

“Registering Human Face Personal Authentication Information” (A p. 51)

Capturing Smiles Automatically (SMILE SHOT)

“SMILE SHOT” automatically captures a still image upon detection of a smile. This function is available for both videos and still images. Set “TOUCH PRIORITY AE/AF” to “FACE TRACKING” before selecting “SMILE SHOT”. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47) *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”. (Go to step 4.) Alternatively, tap “SMILE SHOT” in the shortcut menu. (Go to step 6.)

Tap 1 on the lower right of the screen.

Tap “SMILE SHOT”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Tap “ON”.

Tap L to exit the menu as the previous screen appears.

Point the camera toward the human subject.

A still image is automatically captured when smiles are detected.

PHOTO lights up when a still image is being captured.

You can display the name and smile level (%) together with the frame by setting “SMILE%/NAME DISPLAY” in the menu to “ON” before recording.

“Setting SMILE%/NAME DISPLAY” (A p. 53)

Memo :

The camera is able to detect up to 16 faces. Smile levels will be displayed for up to 3 of the largest faces displayed on the screen.

This function may not work properly depending on the shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, smile level, etc.). It is also difficult to detect a smile in backlight.

After a smile is detected and captured, it takes time before the next recording may be performed.

“SMILE SHOT” does not work in the following cases:

- when menu is being displayed

- when remaining recording time is being displayed

- when any functions in “SPECIAL RECORDING” is set

Caution :

If “TOUCH PRIORITY AE/AF” is not set to “FACE TRACKING”, “SMILE SHOT” will not work.

If appropriate results cannot be obtained, record with “SMILE SHOT” set to “OFF”.

Capturing Pets Automatically (PET SHOT)

“PET SHOT” automatically captures a still image upon detection of the face of a pet, such as dogs or cats. This function is available for both videos and still images. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap 1 on the lower right of the screen.

Tap “PET SHOT”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Tap “ON”.

Tap L to exit the menu as the previous screen appears.

Point the camera toward the pet.

A still image is automatically captured when faces of pets are detected.

PHOTO lights up when a still image is being captured.

Memo :

The camera is able to detect up to 6 faces of pets.

“PET SHOT” may not work properly depending on the type of pet, shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, etc.). It is also particularly difficult to detect faces of pets that are totally black, covered in long hair, or in backlight.

Subjects other than your pet may be detected by mistake sometimes. Make use of “PET SHOT” only for pets such as dogs or cats.

After a pet is detected and captured, it takes time before the next recording may be performed.

“PET SHOT” does not work in the following cases:

- when menu is being displayed

- when remaining recording time is being displayed

- when any functions in “SPECIAL RECORDING” is set

“Recording with Effects” (A p. 41)

Caution :

When “PET SHOT” is set to “ON”, “TOUCH PRIORITY AE/AF” will be set to “PET TRACKING” automatically. Even when “PET SHOT” is set to “ON” , if “TOUCH PRIORITY AE/AF” is not set to “PET TRACKING”, “PET SHOT” will be set to “OFF” automatically.

If appropriate results cannot be obtained, record with “PET SHOT” set to “OFF”.

Registering Human Face Personal Authentication Information

By registering the face of a person beforehand, focus and brightness can be adjusted automatically by the face tracking function. Up to 6 faces, together with names and priority levels, can be registered. It is recommended to register the faces that are often being recorded by this camera beforehand. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

Point the camera toward the human subject.

Information is collected before face registration recording. The frame appears blinking while information is being collected.

Adjust to fit the face within the frame while it is blinking. The frame stops blinking and lights up after information collection is complete.

To cancel the registration, tap “STOP”. When “CANCEL FACE RECOGNITION?” appears, tap “YES” to return to the normal recording mode.

Tap “RECORD” and record the face from the front.

Recording

The top menu appears.

Tap “SETUP”.

Tap “FACE REGISTRATION”.

A face is captured to be used on the face registration index screen.

Other than tapping “RECORD”, you can also record by pressing the SNAPSHOT button fully.

A sound can be heard when recording is complete.

To cancel the registration, tap “STOP”. When “CANCEL FACE RECOGNITION?” appears, tap “YES” to return to the normal recording mode.

Tap “YES” to continue recording.

To proceed to collect face information in the four directions of up, down, left, and right, tap “YES”. It is recommended to continue recording to increase the accuracy of face recognition.

To end face registration recording, tap “NO”. Go to step 11.

Rotate the face slowly in four directions to register the face information.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “REGISTER NEW FACE”.

Rotate the face slowly while looking at the camera. A sound can be heard when recording is complete for each direction. (4 times in total) Repeat the step until recording (registration) is complete for all directions.

Registration of the four directions may fail depending on the shooting environment. In this case, tap “STOP” to cancel recording, then tap “NO” and go to step 11.

If the face cannot be properly recognized during recording, register the face again.

Face the camera with a smiling face.

Recording

Recording starts automatically. Using the smile % display as a reference, smile such that the value is as high as possible.

A sound can be heard when recording is complete.

To cancel recording of smiling face and proceed to enter a name, tap “STOP”, then tap “NO” and go to step 11.

Tap “OK”.

Tapping “OK” registers the recorded face and the screen for entering a name appears.

To cancel the registration, tap “STOP”. When “CANCEL FACE RECOGNITION?” appears, tap “YES” to return to the normal recording mode.

Tap on the on-screen keyboard to enter a name, then tap “REG.”.

Tap “OK” to complete the registration.

You can edit registered face information in “EDIT”.

“Editing the Registered Face Information” (A p. 54)

Memo :

Faces may not be registered correctly in the following cases:

- when the face appears either too small or too large compared to the frame

- when it is too dark or too bright

- when the face appears horizontal or slanted

- when a part of the face is hidden

- when there are multiple faces within the frame

To increase the accuracy of face recognition, fit only one face within the frame and register in a bright environment.

Faces may not be recognized correctly depending on the shooting conditions and environment. In this case, register the face again.

Faces may not be recognized correctly during recording if the face recognition level is low. In this case, register the face again.

Face tracking and name display may not work properly depending on the registered faces, shooting conditions (distance, angle, brightness, etc.), and expressions.

Face tracking and name display may not work properly for people with similar facial features, such as siblings, parents, children, etc.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

Up to 8 characters can be entered.

How to input characters Example: To enter “KEN” Tap “JKL” 2 times F Tap “DEF” 2 times F Tap “MNO” 2 times

Tap the desired priority level, then tap “REG.”.

Upon registration, the last number is assigned as the priority level. During face detection, the subject with the highest priority (lowest number) will be detected.

You can change the priority level of a subject by tapping on the number. Example: To change the priority level of number 3 to number 1, tap number 1. The priority level of the registered subject becomes number 1, while the priority levels of the original number 1 and the ones below drop by one place. (In this example, the original number 1 becomes number 2, and the orignal number 2 becomes number 3.)

When “REG.” is tapped, the registration complete screen appears.

Recording

Setting SMILE%/NAME DISPLAY

“SMILE%/NAME DISPLAY” allows you to set the items to display when faces are detected. This item is only displayed when “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47) *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

Tap the desired setting.

Setting Details

OFF Displays only the frames when faces are detected.

ON Displays the frames, names, and smile levels (%) when faces

are detected.

Frame: Appears around detected faces. Name: Appears for faces that are registered. Smile level: Appears in value (0 % - 100 %) for detected smiles.

Tap “RECORD SETTING”. (Go to step 4.) Alternatively, tap “SMILE%/NAME DISPLAY” in the shortcut menu. (Go to step 5.)

Tap 1 on the lower right of the screen.

Tap “SMILE%/NAME DISPLAY”.

Memo :

The camera is able to detect up to 16 faces. Smile levels will be displayed for up to 3 of the largest faces displayed on the screen.

Some faces may not be detected depending on the shooting environment.

You can register personal authentication information like face, name, and priority level of person before recording.

Up to 3 registered names will be displayed according to the priority level.

“Registering Human Face Personal Authentication Information” (A p. 51)

“SMILE%/NAME DISPLAY” is set to “ON” when the demo mode is activated.

“ DEMO MODE ” (A p. 224)

Recording

Editing the Registered Face Information

You can change the name, priority level, and face information that are registered. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

The top menu appears.

Tap “SETUP”.

Tap “FACE REGISTRATION”.

Tap the item to edit.

If you select “RECORD AGAIN”, proceed to step 6 in ““Registering Human Face Personal Authentication Information” (A p. 51) ”.

If you select “CHANGE NAME”, proceed to step 12 in ““Registering Human Face Personal Authentication Information” (A p. 52) ”.

If you select “CHANGE ORDER OF PRIORITY”, proceed to step 13 in ““Registering Human Face Personal Authentication Information” (A p. 52) ”.

“Registering Human Face Personal Authentication Information” (A p. 51)

Canceling (Deleting) the Registered Face Information

You can cancel (delete) the face information that is registered. *The following is a screen of the model with Wi-Fi functions.

Tap “MENU”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “EDIT”.

Tap the person to edit.

The top menu appears.

Tap “SETUP”.

Tap “FACE REGISTRATION”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “CANCEL”.

Tap the person to cancel registration of.

Recording

Reducing Camera Shake

When the image stabilizer is set, camera shake during video recording can be effectively reduced.

Open the LCD monitor.

Press the a button to change the setting.

appears on the selected person.

To remove R from a person, tap on the person again.

Tap “SET”.

Tap “YES”.

Tap “YES” to delete the face information of the selected person.

Tap “NO” to return to the previous screen.

Tap “OK” when the deletion complete screen appears.

The setting of image stabilizer changes with every press.

Setting Details

b OFF

a ON

Deactivates image stabilizer.

Reduces camera shake under normal shooting conditions.

r ON (AIS) (A video mode only)

Reduces camera shake more effectively when shooting bright scenes on the wide angle end. Only on the wide angle end (approx. 5x).

Memo :

It is recommended to set the image stabilizer to “OFF” when shooting a subject of little movement with the unit on a tripod.

Complete stabilization may not be possible if camera shake is excessive.

When “ON (AIS)” is set, the angle of view becomes narrower.

Image stabilization only starts when the SNAPSHOT button is pressed halfway during still image recording.

Recording

Marking the Video While Recording

You can mark a specific scene while recording video. When a mark is made, the marked position is recorded to make it easy to find the position and start a digest playback.

The mark function can be used only for videos recorded in AVCHD format. (Videos recorded in iFrame format is not supported.)

Open the LCD monitor.

Start recording a video.

Press the START/STOP button again to stop recording.

Tap the mark icon D at the scene you want to mark.

Slow-motion (High-speed) Recording

You can record videos in slow-motion by increasing the recording speed to emphasize the movements, and play back the slow-motion video smoothly. This is a handy function for checking movements, such as golf swings.

Recording Speed 300 fps

Image size 720×480

Maximum Recording Time 144 m

Maximum Playback Time 12 h

Image Size when Connected to Monitor 1920×1080

The playback time will be 5 times of the actual recorded time. (Example: If the recorded time is 1 minute, the playback time will be 5 minutes.)

*The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “MENU”.

Once a scene is marked, the next mark won’t be made within 5 seconds.

End recording a video.

Tap 7 to end the video recording.

Memo :

Refer to the below for playing back the marked scenes.

“ MARKING PLAYBACK ” (A p. 70) “Using the Markings” (A p. 162)

The top menu appears.

Tap “SPECIAL RECORDING”.

Tap “HIGH SPEED RECORDING”.

Tap “ON”.

When “ON” is tapped, 300 frames can be recorded in 1 second.

To cancel high-speed recording, tap “OFF”.

Start recording.

Recording

Recording at Intervals (TIME-LAPSE RECORDING)

This function enables the changes of a scene that occur slowly over a long period to be shown within a short time by taking frames of it at a certain interval. This is useful for making observations such as the opening of a flower bud. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “MENU”.

Press the START/STOP button again to stop recording.

Settings of high-speed recording are not saved when the power is turned off.

Memo :

Images may appear grainier than other videos. The image displayed on the LCD monitor during recording may also appear grainier.

Audio sound is not recorded together with the video.

When high-speed recording is enabled, only the optical zoom can be used.

During high-speed recording, “TOUCH PRIORITY AE/AF” is set to “OFF” . In addition, as image stabilizer is set to “OFF”, it is recommended that a tripod be used, and recording be performed in a bright location with the subject magnified as much as possible.

“Tripod Mounting” (A p. 24)

The top menu appears.

Tap “SPECIAL RECORDING”.

Tap “TIME-LAPSE RECORDING”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Tap to select a recording interval (1 to 80 seconds).

The greater the number of seconds, the longer the recording interval.

Tap 0 or 1 to scroll the screen.

Tap L to exit the menu.

Tap J to return to the previous screen.

Start recording.

A frame is taken at intervals of the selected period.

When the recording interval is set to “20SEC INTERVAL” or higher, this unit switches to the power-saving mode between recordings. At the next point to record, the power-saving mode will be turned off and recording will start automatically.

Settings of Time-Lapse recording are not saved when the power is turned off.

Indications During Time-Lapse Recording

Display Description

Recording interval Displays the recording interval that is set.

Recorded Time Displays the actual recorded time of the video.

Recorded time increases in units of frames.

Time-Lapse Setting

The greater the number of seconds, the longer the recording interval.

Setting Details

OFF Deactivates the function.

1SEC INTERVAL Takes a frame at 1-second intervals.

2SEC INTERVAL Takes a frame at 2-second intervals.

5SEC INTERVAL Takes a frame at 5-second intervals.

10SEC INTERVAL Takes a frame at 10-second intervals.

20SEC INTERVAL Takes a frame at 20-second intervals.

40SEC INTERVAL Takes a frame at 40-second intervals.

80SEC INTERVAL Takes a frame at 80-second intervals.

Recorded videos will be played back at 30 times speed.

Recorded videos will be played back at 60 times speed.

Recorded videos will be played back at 150 times speed.

Recorded videos will be played back at 300 times speed.

Recorded videos will be played back at 600 times speed.

Recorded videos will be played back at 1 200 times speed.

Recorded videos will be played back at 2 400 times speed.

Caution :

Audio cannot be recorded during time-lapse recording.

Zooming, simultaneous still image recording, and image stabilizer are not available in time-lapse recording.

When recording is stopped with the recorded time less than “0:00:00:17”, the video will not be saved.

Seamless recording is disabled in time-lapse recording.

Memo :

Settings of time-lapse recording are reset when the power is turned off. To start time-lapse recording again, it is necessary to make the selection once more.

Recording stops automatically 99 hours after it is started.

Make use of a tripod and AC adapter for time-lapse recordings with long intervals. It is also recommended to fix the focus and white balance manually.

“Tripod Mounting” (A p. 24) “Adjusting Focus Manually” (A p. 36) “Setting White Balance” (A p. 39)

Actual Elapsed Time

Remaining Recording Time

Displays the actual elapsed time after recording starts.

Remaining time left to record with the currently selected video quality.

Recording Stop-Motion Videos (STOPMOTION REC)

By pressing the SNAPSHOT button, 2 frames of still images are recorded, and stop-motion videos are created by piecing these images together. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “MENU”.

The top menu appears.

Tap “SPECIAL RECORDING”.

Recording

Tap “ON”.

The “STOP-MOTION RECORDING MODE. PRESS SNAPSHOT TO CAPTURE FRAME” appears.

Press the SNAPSHOT button to start recording.

Tap still image recording (Q) to start recording.

Press the START/STOP button or tap f to stop recording.

“CAPTURE” lights up when a scene is recorded.

Settings of the Stop-Motion video are not saved when the power is turned off.

Caution :

Audio cannot be recorded during “STOP-MOTION REC”.

When recording is stopped with the recorded time less than “0:00:00:17” (or less than 8 snapshots), the video will not be saved.

Simultaneous still image recording and image stabilizer are not available during “STOP-MOTION REC”.

“SEAMLESS RECORDING” is not available during “STOP-MOTION REC”.

When “STOP-MOTION REC” is set, the power-saving mode is deactivated.

“TOUCH PRIORITY AE/AF”, “SMILE SHOT”, “PET SHOT” and “AUTO REC” are not available.

Tap “STOP-MOTION REC”.

Recording

Recording Automatically by Sensing Movements (AUTO REC)

This function enables the unit to record automatically by sensing the changes in subject’s movement (brightness) within the red frame displayed on the LCD monitor. It can be set for both video and still image modes. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Compose the picture according to the subject.

Adjust the angle of view with the zoom, etc.

Tap “MENU”.

The top menu appears.

Tap “SPECIAL RECORDING”.

Tap “AUTO REC”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “ON”.

Recording starts automatically when the subject within the red frame moves.

A red frame appears 2 seconds after the menu display disappears.

For video recording, recording continues while there are still movements of the subject (changes in brightness) within the red frame. When there are no more movements of the subject (changes in brightness) within the red frame, recording will stop in 5 seconds.

To stop video recording manually, press the START/STOP button. However, as the “AUTO REC” setting remains at “ON” even after the video recording is stopped, recording starts again when movements of the subject (changes in brightness) are detected within the red frame. To cancel “AUTO REC”, set it to “OFF”.

Caution :

Digital zoom, image stabilizer, self-timer, and continuous shooting are not available after “AUTO REC” is set.

“AUTO REC” cannot be used together with “TIME-LAPSE RECORDING” . When both are set, priority is given to “TIME-LAPSE RECORDING”.

“IMAGE SIZE” cannot be changed after “AUTO REC” is selected. Set it before selecting “AUTO REC”.

The auto power off and power-saving modes are not available after “AUTO REC” is set.

Memo :

Recording stops when there are no changes for 5 seconds during video recording.

Settings of “AUTO REC” are not saved when the power is turned off.

Recording may not start when the movements of the subject within the red frame are too fast or the changes in brightness are too small.

Recording may start due to changes in brightness even if there is no movement within the red frame.

While zooming, recording cannot be started.

Recording

Taking Group Shots (Self-timer)

The 10-second self-timer and Face Detection self-timer are convenient functions for taking group photos. The 2-second self-timer is useful for preventing camera shake caused by pressing the shutter button. *The following is a screen of the model with Wi-Fi functions.

Memo :

When shooting a photo using the self-timer function, use of a tripod is recommended. “Tripod Mounting” (A p. 24)

Using the 2-/10-second Self-timer

Open the LCD monitor.

Check if the recording mode is B.

If the mode is A video, tap A on the recording screen to display the mode switching screen. Tap B to switch the mode to still image.

Tap “MENU”.

The top menu appears.

Tap “RECORD SETTING”.

Tap 1 on the lower right of the screen.

Recording

Tap “SELF-TIMER”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “2SEC” or “10SEC”.

Set the focus on the subject.

Using the Face Detection Self-timer

Pressing the SNAPSHOT button starts face detection, and shooting is performed three seconds after another person enters the frame. This function is useful when you want to include the photographer in the group photo. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor and select the still image mode.

The still image mode icon appears.

Tap “MENU”.

When focused, the focus icon lights up in green.

Take a still image.

A timer appears and countdown to shooting starts.

To stop the self-timer, press the SNAPSHOT button again.

The top menu appears.

Tap “RECORD SETTING”.

Tap 1 on the lower right of the screen.

Tap “SELF-TIMER”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “FACE DETECTION”.

After making sure that everyone is facing the camera, press the SNAPSHOT button.

Recording

Recording Videos with Date and Time

You can record videos together with the date and time. Set this when you want to save the file with date and time display. (The date and time cannot be deleted after recording.) *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Frames appear around the faces of the subjects.

Pressing the SNAPSHOT button again starts the 10-second selftimer.

The photographer enters the frame.

The shutter is released 3 seconds after the photographer enters the frame.

To stop the self-timer, press the SNAPSHOT button again.

Memo :

The “FACE DETECTION” function may fail to detect faces depending on the shooting environment.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “MENU”.

The top menu appears.

Tap “SPECIAL RECORDING”.

Tap 1 on the lower right of the screen.

Tap “DATE/TIME RECORDING”.

Tap L to exit the menu.

Tap J to return to the previous screen.

Recording

Select the type if the clock with 0 or 1, and tap “SET”.

When “SET” is tapped, the precaution for date/time recording appears.

Tap L to exit the menu.

Adjust the display position of the date and time display with a finger mark by touching it with your finger and dragging it.

Move the date and time display while touching it with your finger and tracing it on a screen.

Press the START/STOP button to start recording.

Checking the Remaining Recording Time

You can check the remaining recording time on the built-in memory (GZEX555) and SD card as well as the remaining battery power. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “MENU”.

Press the START/STOP button again to stop recording.

Tap J to return to the screen for selecting the types of clock.

Tap L to exit “DATE/TIME RECORDING”. (To perform operations other than recording, tap L to cancel the “DATE/TIME RECORDING” first.)

Caution :

The date and time cannot be deleted after recording.

The top menu appears.

Tap “INFO.”.

Display the remaining recording time.

The remaining recording time is displayed only in the video recording mode.

To display the remaining battery power, tap l.

l will not be displayed when the AC adapter is connected.

Tap J to return to the recording mode.

To exit the display, tap L.

Memo :

You can change to the desired video quality by tapping on it from the remaining recording time display.

Recording

Approximate Video Recording Time

Picture quality Built-in memory (GZ-EX555 only)

16GB

UXP 1 h 20 m

XP 1 h 50 m

SP 2 h 40 m

EP 6 h 40 m

SSW 5 h 10 m

SEW 10 h 40 m

iFrame (1280x720) 55 m

iFrame (960x540) 1 h 10 m

60p 1 h 10 m

Picture quality SDHC/SDXC card

4GB 8GB 16GB 32GB 48GB 64GB 128GB

UXP 20 m 40 m 1 h 20 m 2 h 50 m 4 h 10 m 5 h 40 m 11 h 30 m

XP 30 m 1 h 2 h 4 h 6 h 8 h 10 m 16 h 20 m

SP 40 m 1 h 20 m 2 h 50 m 5 h 50 m 8 h 30 m 11 h 30 m 23 h 10 m

EP 1 h 40 m 3 h 30 m 7 h 10 m 14 h 40 m 21 h 30 m 28 h 50 m 57 h 50 m

SSW 1 h 20 m 2 h 40 m 5 h 30 m 11 h 20 m 16 h 40 m 22 h 20 m 44 h 50 m

SEW 2 h 50 m 5 h 40 m 11 h 30 m 23 h 30 m 34 h 30 m 46 h 10 m 92 h 40 m

iFrame (1280x720) (GZ-EX555/GZ-EX515)

iFrame (960x540) (GZ-EX555/GZ-EX515)

60p 15 m 35 m 1 h 10 m 2 h 30 m 3 h 50 m 5 h 10 h 10 m

The actual recording time may shorten depending on the shooting environment.

10 m 30 m 1 h 2 h 3 h 4 h 8 h

15 m 40 m 1 h 10 m 2 h 40 m 3 h 50 m 5 h 10 m 10 h 30 m

Approximate Number of Still Images (Unit: Number of Shots)

Image size Built-in memory (GZ-EX555 only) SDHC/SDXC card

16GB 4GB 8GB 16GB 32GB 48GB

3840X2160(8M)(16:9) 3000 800 1600 3200 6600 9600

1920x1080(2M)(16:9) 9999 3100 6500 9999 9999 9999

1440x1080(1.5M)(4:3) 9999 4200 8500 9999 9999 9999

640x480(0.3M)(4:3) 9999 9999 9999 9999 9999 9999

Still images that are captured during video recording or video playback are saved at a size of 1920 x 1080.

Recording

Approximate Recording Time (Using Battery)

60i mode (GZ-EX555/GZ-EX515)

Battery Pack Actual recording time Continuous recording time

BN-VG114U (Supplied)

BN-VG121U 1 h 30 m 2 h 45 m

BN-VG138U 2 h 40 m 4 h 55 m

60p mode (GZ-EX555/GZ-EX515)

Battery Pack Actual recording time Continuous recording time

BN-VG114U (Supplied)

BN-VG121U 1 h 10 m 2 h 10 m

BN-VG138U 2 h 5 m 3 h 50 m

GZ-E505

Battery Pack Actual recording time Continuous recording time

BN-VG114U (Supplied)

BN-VG121U 1 h 35 m 2 h 50 m

1 h 1 h 50 m

45 m 1 h 25 m

1 h 1 h 50 m

(Maximum Recording Time)

BN-VG138U 2 h 50 m 5 h 5 m

The above are values when “LIGHT” is set to “OFF” and “MONITOR BRIGHTNESS” is set to “3” (standard).

Recording time may differ depending on the shooting environment and usage.

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

Playback

Playing Back Videos

The followings are the types of playback that can be performed by this unit.

Item Description

Normal Playback

Mark Playback (Mark playback/ game playback)

DIGEST PLAYBACK

PLAYBACK PLAYLIST

Plays back the recorded videos.

Scenes that are marked while recording the video can be extracted and played back. To start, tap J on the playback screen. “Game Score Settings” (A p. 173)

The scenes marked while recording the video can be searched. Also, marked scenes can be extracted for playback; extracted scenes can be saved as a playlist. To start, tap J on the playback screen.

From the recorded video, scenes with a smile detected, scenes with a person whose face is registered, and scenes that are marked manually are extracted and pieced together for a digest playback. When “AUTO” is selected, recorded video is digested in the pre-set length of time. Start the playback from “DIGEST PLAYBACK” in the “PLAYBACK SETTING” menu.

Plays back the playlists that you have created. Start the playback from “PLAYBACK PLAYLIST” in the “PLAYBACK SETTING” menu.

It is recommended to copy your important recorded data to a DVD or other recording media for storage.

Disclaimer

- We shall not be held responsible for loss of recorded contents when recording videos/audio or playback cannot be operated due to malfunctions in this unit, provided parts, or SD card.

- Once deleted, recorded contents (data), including data loss due to malfunctions in this unit, cannot be restored. Please be forewarned.

- JVC will not be responsible for any lost data.

- In order for quality improvement, defective recording medium is subject to be analyzed. Therefore, it may not be returned.

Switching to the video playback screen

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

The video playback screen is displayed.

Caution :

Make a backup of important recorded data.

Playback

Normal Playback

Plays back the recorded videos. *The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video. (You can also use the A/B button on this unit.)

Tap “<<PLAY” to select the playback mode.

Tap on the file to start playback.

Operation Buttons for Video Playback

During Index Screen Display

Display Description

Video/Still Image Mode A/B

Date Moves to the previous/next date

> Displays the next index screen (thumbnail

< Displays the previous index screen (thumbnail

<<REC Switches to the recording mode.

Switches between video and still image modes.

display)

You can perform the same operation with the zoom lever.

display)

You can perform the same operation with the zoom lever.

Tap I/J to select the media for playback and change the index screen (thumbnail display). (GZ-EX555)

Tap e to pause.

Tap u to return to the index screen.

L appears on the last image played back.

Lines in different colors are displayed under the thumbnail display to distinguish the recording date.

I/J Switches between the index screen of the built-

MENU Displays the menu screen

Thumbnail (File) Tap on thumbnail - Starts playback

Moves to the mark playback mode. “ MARKING PLAYBACK ” (A p. 70)

Displays the index screen (thumbnail display) to perform deletion

in memory and SD card (GZ-EX555)

Drag to right - Scrolls to the right to show the previous index screen (thumbnail display) Drag to left - Scrolls to the left to show the next index screen (thumbnail display) Images with the same underlined color indicates the same recording date.

Playback

During Video Playback

Operations buttons on the touch screen disappear if the unit is not operated for about 5 seconds. Tap on the screen to display the operation buttons again.

Display Description

Video/Still Image Mode A/B

Timeline Bar Tap on a random position - Moves to the

Switches between video and still image modes.

tapped position Drag playback point to the left or right - Starts playback from the new position Tap on a random position - Moves to the tapped position

Adjusting the Volume of Videos

You can use the zoom/volume lever to control the volume.

Pointer Displays the current estimated playback

d / e Playback/pause

<<REC Switches to the recording mode.

position within the scene

Returns to the beginning of the scene Returns to the previous scene if tapped at the beginning of a scene.

Allows the same functions as the zoom lever to be performs while pausing playback.

Reverse search (speed increases with each tap)

Reverse slow-motion / Press and hold to start reverse slow playback

Forward search (speed increases with each tap)

Forward slow-motion / Press and hold to start slow playback

Advances to the next scene

Allows the same functions as the zoom lever to be performs while pausing playback.

Stop (returns to index screen)

MENU Displays the menu screen

Deletes the currently displayed video.

Memo :

Tap or drag on the operation area of the touch screen.

You can search for a specific file by the recording date.

“Searching for a Specific Video/Still Image by Date” (A p. 80)

The recording date and time can be displayed on the screen during playback.

“ DISPLAY DATE/TIME ” (A p. 219)

Displays the approximate remaining battery power during use.

Playback

Checking the Recording Date and Other Information

You can see the recording information of the recorded videos.

Open the LCD monitor.

Tap A or B to select the video or still image mode.

Tap “<<PLAY” to select the playback mode.

Tap on the file to start playback.

MARKING PLAYBACK

The scenes marked while recording the video and the scoring scenes recorded in the game recording mode (by using the smartphone application) can be searched. Also, marked scenes and goal scenes can be extracted for playback; extracted scenes can be saved as a playlist.

Switch to the mark playback mode by tapping J on the video playback screen.

*The following is a screen of the model with Wi-Fi functions and built-in memory.

Open the LCD monitor.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Tap “INFO.”.

Tap L to exit the menu.

You can display the recording date and duration of the selected file.

Tap J to open the mark playback mode.

Tap “DIGEST” to select the DIGEST/Mark Playback mode.

When the thumbnail display is tapped directly (without tapping the “DIGEST” button), normal playback (additional marks can be added) starts.

Tap “SET” to adjust the playback time per scene and the playback position.

“Adjusting the Marked Playback Position” (A p. 73)

Select the recording date of the video that you want to playback.

Tap “ALL SCENES” to playback all scenes.

Select the type of the “MARK”.

Digest Playback starts.

Indications during the Marking Playback

During the Normal Marking Playback

Display Description

Mark Delete button Deletes the mark that is currently displayed.

Playback Mark Button

Elapsed Time Displayed the playback time of the video.

“D” icon displayed “P” icon displayed

Score Displays the score of the game (displayed only

Enter a mark while playback is in progress.

Indicates that the current scene is marked. Indicates that recording of the score is in progress.

if the score is registered.)

Playback

Digest playback stops automatically, or display the next screen by tapping “MENU”.

NORMAL MARKING P/B: start normal marking playback.

PLAYBACK AGAIN: start the digest playback again.

SAVE TO PLAYLIST: save the digest playback images to the playlist.

“ PLAYBACK PLAYLIST ” (A p. 76)

SELECT DATE: return to step 5.

During the DIGEST/Mark Playback

Display Description

Date and time display

Mark Delete button Deletes the mark that is currently displayed.

DIGEST Playback Cancel Button

Elapsed Time Displayed the playback time of the video.

“D” icon displayed “P” icon displayed

Score Displays the score of the game (displayed only

Moves to the normal mark playback.

Indicates that the current scene is marked. Indicates that recording of the score is in progress.

if the score is registered.)

Memo :

Once a scene is marked, the next mark won’t be made within 5 seconds.

Playback

GAME PLAYBACK

Game playback is a function to playback the goal scenes and/or marked scene that is recorded by the smartphone application Everio sync. 2.

To start, tap J on the playback screen.

For the game recording mode, refer to “Game Score Settings” (A p. 173) .

*The following is a screen of the model with Wi-Fi functions and built-in memory.

Open the LCD monitor.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Playback stops after all the scenes are played back.

Tap DIGESTL during DIGEST playback to exit the Mark/DIGEST playback and to switch to the normal mark playback.

Indications during the Game Playback

During the Normal Game Playback

Display Description

Tap J to open the mark playback mode.

Tap “GAME” to select the game playback mode.

Mark Delete button Deletes the mark that is currently displayed.

Playback Mark

Enter a mark while playback is in progress.

Button

Recorded time Displays the time that the video is recorded.

“D” icon displayed “P” icon displayed

Indicates that the current scene is marked. Indicates that recording of the score is in progress.

Game playback mode

Score Displays the score of the game (displayed only

Indicates that the game playback is in progress.

if the score is registered.)

During the DIGEST/Game Playback

Display

Description

Tap the recorded game.

Tap the list of the game to playback all the scenes of the game.

Tap DIGEST to extract the score and marked scenes from the game, and to start a DIGEST playback.

Marked scenes are played back automatically.

Date and time

display

Mark Delete button Deletes the mark that is currently displayed.

DIGEST Playback

Moves to the normal mark playback.

Cancel Button

Recorded time Displays the time that the video is recorded.

“D” icon displayed “P” icon displayed

Indicates that the current scene is marked. Indicates that recording of the score is in progress.

Game playback mode

Score Displays the score of the game (displayed only

Indicates that the game playback is in progress.

if the score is registered.)

Playback

Memo :

Once a scene is marked, the next mark won’t be made within 5 seconds.

Adjusting the Marked Playback Position

Specify the length of time before and after the marked position for playing back the marked video. The maximum length of playback time per mark is 20 seconds. *The following is a screen of the model with Wi-Fi functions.

Open the LCD monitor.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap J to open the mark playback mode.

Tap “SET”.

Select the items for setting.

Proceed to Step 6 if “P/B TIME PER SCENE” is selected, and proceed to Step 7 if “P/B POSITION ADJUST” is selected.

Playback

Select the playback time per scene.

Tap J to return to the previous screen.

Adjust the playback position.

Shift the playback position back and forth. Playback time that is set in step 6 is unchanged.

Adjust by using 0 or 1, then tap “SET”.

Tap J to return to the previous screen.

Tap L to exit the menu.

DIGEST PLAYBACK

You can play back a digest of the recorded videos (Digest Playback). This is useful for checking the content of the videos quickly.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Tap “PLAYBACK SETTING”.

Tap “DIGEST PLAYBACK”.

Tap to select a date for Digest Playback.

Playback

After selecting a date, tap “NEXT”.

When “ALL” is tapped, Digest Playback will be performed for all the dates.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap to select a scene for Digest Playback.

Error message is displayed if no scene is found. Select another scene, or tap “AUTO”.

Select the Digest Playback time

(Only when “AUTO” is selected in Step 7)

TO NORMAL PLAYBACK: start normal playback.

PLAYBACK AGAIN: start the digest playback again.

SAVE TO PLAYLIST: save the digest playback images to the playlist.

“ PLAYBACK PLAYLIST ” (A p. 76)

SELECT DATE: return to step 5.

The time display of Digest Playback varies according to the recording time.

When it takes time (more than 2 seconds) for “DIGEST PLAYBACK” to start after selecting Digest Playback time, a progress status will be displayed.

The Digest Playback time is only a guide.

Digest Playback starts.

Tap e to pause.

Tap u to return to the index screen.

Tap “DIGESTL“ to return to the normal playback screen.

Operations During Video Playback

“Operation Buttons for Video Playback” (A p. 68)

Digest playback stops automatically, or display the next screen by tapping “MENU”.

Playback

Types of Digest Playback

Select the types of Digest Playback from the following. When “AUTO” is selected, playback is performed by shortening the video to the pre-set length of time.

Item Details

PLAYBACK PLAYLIST

Plays back the playlists that you have created.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

AUTO Playback is performed by shortening the video to the

pre-set length of time. Depending on the recording time of the video, playback time can be selected from: 1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 45 minutes and 60 minutes. All the recorded parts (recording time is less than 1 minute) are played back.

SMILING FACE SCENE

Playback the scenes with detected smiles as a digest. It is necessary to set “SMILE SHOT” in “RECORD SETTING” to “ON” and record in advance. “Capturing Smiles Automatically (SMILE SHOT)” (A p. 48)

REGISTERED FACE SCN

Playback the scenes mainly with a person whose face is registered “Registering Human Face Personal Authentication Information” (A p. 51)

MARKED SCENE

Start a digest playback by piecing the scenes that are marked during recording.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Tap “PLAYBACK SETTING”.

Tap “PLAYBACK PLAYLIST”.

Tap to select a playlist.

Playback of the playlist starts.

“Operation Buttons for Video Playback” (A p. 68)

Tap u to return to the index screen.

Tap “CHECK” and select a playlist to check its content. After checking, tap J.

Playlists with a O (Digest Playback) icon are the playlists created during Digest Playback.

Creating Playlists：

“Creating Playlists from the Recorded Videos” (A p. 88)

Playback

PLAYBACK OTHER FILE

The management information of a video may be damaged if recording is not performed correctly, such as turning off the power in the middle of recording. You can perform the following operations to play back the videos with defective management information.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Tap “PLAYBACK SETTING”.

Tap “PLAYBACK OTHER FILE”.

Playback

Tap on the file to start playback.

Playing Back Still Images

You can select and play back the recorded still images from an index screen (thumbnail display).

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

“Operation Buttons for Video Playback” (A p. 68)

Memo :

An MTS file is created in the EXTMOV folder when management information is corrupted.

Depending on the condition of the damaged file, playback might fail or may not run smoothly.

Check if the recording mode is B.

If the mode is A video, tap A on the recording screen to display the mode switching screen. Tap B to switch the mode to still image.

Tap “<<PLAY” to select the playback mode.

Tap on the file to start playback.

Tap I/J to select the media for playback and change the index screen (thumbnail display).

Tap u to return to the index screen.

L appears on the last image played back.

Lines in different colors are displayed under the thumbnail display to distinguish the recording date.

Playback

Operation Buttons for Still Image Playback

During Index Screen Display

Display Description

Video/Still Image Mode A/B

Date Moves to the previous/next date

> Displays the next index screen (thumbnail

< Displays the previous index screen (thumbnail

<<REC Switches to the recording mode.

Switches between video and still image modes.

display)

You can perform the same operation with the zoom lever.

display)

You can perform the same operation with the zoom lever.

Displays the index screen (thumbnail display) to perform deletion

During Still Image Playback

Operations buttons on the touch screen disappear if the unit is not operated for about 5 seconds. Tap on the screen to display the operation buttons again.

Display Description

Video/Still Image Mode A/B

d / e Starts/pauses slideshow

Switches between video and still image modes.

Rotates to the left (rotates by -90° with each tap)

Rotates to the right (rotates by 90° with each tap)

Returns to the previous still image

You can perform the same operation with the zoom lever.

“Slideshow Playback” (A p. 80)

Advances to the next still image

You can perform the same operation with the zoom lever.

I/J Switches between the index screen of the built-

MENU Displays the menu screen

File (Still Image) Tap on thumbnail - Starts playback

in memory and SD card (GZ-EX555)

Drag to right - Scrolls to the right to show the previous index screen (thumbnail display) Drag to left - Scrolls to the left to show the next index screen (thumbnail display)

<<REC Switches to the recording mode.

MENU Displays the menu screen

Returns to index screen

Deletes the currently displayed still image.

Starts reverse playback.

Displayed during slideshow playback.

Memo :

Tap or drag on the operation area of the touch screen.

You can rotate a still image 90° to the right or left during playback. Rotation applies to the on-screen display only.

You can search for a specific file by the recording date. This is useful when searching from a large number of files.

“Searching for a Specific Video/Still Image by Date” (A p. 80)

Caution :

Playback

Slideshow Playback

Still images can be played back in a slideshow. Tap I during still image playback to start the slideshow.

“Operation Buttons for Still Image Playback” (A p. 79)

Memo :

Effects can be added to the transitions in slideshow playback.

“ SLIDE SHOW EFFECTS ” (A p. 221)

Searching for a Specific Video/Still Image by Date

When there is a large number of recorded videos and still images, it is difficult to look for the desired file from the index screen. Use the search function to find the file you want. You can search and play videos or still images according to recording dates.

*The following is a screen of the model with the built-in memory.

Tap “MENU”.

Tap I/J to select the media for playback. (GZ-EX555)

Searching can be performed in both the video and still image modes. *The image shows the video mode.

Tap “PLAYBACK SETTING”.

Tap “SEARCH DATE”.

Tap a recording date, then tap “NEXT”.

Tap again to cancel the selected date.

Tap on the file to start playback.

You can select videos in the video mode and still images in the still image mode.

Only the files recorded on the selected date are displayed.

Tap L to stop searching and return to the index screen (thumbnail display).

Deleting Files of a Selected Date：

Tap R on the index screen (thumbnail display) to delete unwanted files. “Deleting Unwanted Files” (A p. 84)

Playback

Connecting to and Viewing on TV

You can connect this unit to a TV for playback. The image quality on TV varies with the type of TV and the connecting cable. Select the connector that best suits your TV.

Refer also to the instruction manual of the TV in use.

“Connecting via the HDMI Mini Connector” (A p. 82) “Connecting via the AV Connector” (A p. 83)

To display the date and time on TV, set both “DISPLAY DATE/TIME” and “DISPLAY ON TV” to “ON”.

“ DISPLAY DATE/TIME ” (A p. 219) “ DISPLAY ON TV ” (A p. 225)

Unnatural Displays on TV

Trouble Action

Images do not appear on the TV properly.

Disconnect the cable and connect again.

Turn off and on this unit again.

Images may not appear properly when the remaining battery power is low. Use an AC adapter.

Images are projected vertically on the TV.

Images are projected horizontally on the TV.

The color of images looks strange.

HDMI-CEC functions do not work properly, and the TV does not work in conjunction with this unit.

The language on the display changed.

Set “VIDEO OUTPUT” in the “CONNECTION SETTINGS” menu to “4:3”.

“ VIDEO OUTPUT ” (A p. 225)

Adjust the TV's screen accordingly.

TVs may operate differently depending on the specifications, even if they are HDMI-CEC compliant. Therefore, the HDMI-CEC functions of this unit cannot be guaranteed to operate in combination with all the TVs. In such cases, set “HDMI CONTROL” to “OFF”.

“ HDMI CONTROL ” (A p. 225)

It may occur when you connect this unit to a TV with different language setting using an HDMI mini cable.

Caution :

Do not remove the recording medium or perform any other operation (such as turning off the power) while accessing files. Also, be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation. If the data on the recording medium becomes corrupted, format the recording medium to use the medium again.

Playback

Connecting via the HDMI Mini Connector

If you are using an HDTV, you can play back in HD quality by connecting to the HDMI mini connector.

Use a High Speed HDMI mini cable as the HDMI mini cable.

Refer also to the instruction manual of the TV in use.

*The following is a screen of the model with the built-in memory.

Connect to a TV.

Connect the AC adapter to this unit.

The unit turns on automatically.

Press the external input button on the TV to switch to the input from this unit via the connected connector.

Memo :

Change the settings in “HDMI OUTPUT” according to the connection.

“ HDMI OUTPUT ” (A p. 225)

When connected to the TV via the HDMI mini cable, images and sounds may not be output properly depending on the TV connected. In such cases, perform the following operations.

1) Disconnect the HDMI mini cable and connect it again.

2) Turn off and on this unit again.

For questions about the TV or method of connection, contact your TV's manufacturer.

Play back a file.

“Playing Back Videos” (A p. 67) “Playing Back Still Images” (A p. 78)

Playback

Operating in Conjunction with TV via HDMI

Connecting this unit to an HDMI-CEC enabled TV using the HDMI mini cable allows linked operations with the TV to be performed.

HDMI-CEC (Consumer Electronics Control) is an industry standard that enables interoperability between HDMI-CEC compliant devices that are connected via HDMI cables.

Memo :

Not all HDMI control devices comply with the HDMI-CEC standard. The HDMI control function of this unit will not work when connected to these devices.

This unit is not guaranteed to operate with all HDMI-CEC enabled devices.

Depending on the specifications of each HDMI-CEC enabled device, some functions may not work with this unit. (For details, refer to the instruction manual of your TV.)

Unintended operations may occur with some connected devices. In these cases, set “HDMI CONTROL” to “OFF”.

“ HDMI CONTROL ” (A p. 225)

Preparations

Connect an HDMI mini cable between this unit and the TV.

“Connecting via the HDMI Mini Connector” (A p. 82)

Turn on the TV and set the HDMI-CEC related setting to “ON”. (For details, refer to the instruction manual of the TV.)

Set “HDMI CONTROL” in the CONNECTION SETTINGS menu to “ON”.

“ HDMI CONTROL ” (A p. 225)

Connecting via the AV Connector

To playback videos on TV, connect the provided AV cable (P/N QAM1322-001) to the AV terminal of this unit.

Refer also to the instruction manual of the TV in use.

*The following is a screen of the model with the built-in memory.

Connect to a TV.

Connect the AC adapter to this unit.

The unit turns on automatically.

Press the external input button on the TV to switch to the input from this unit via the connected connector.

Operation Method 1

Turn on this unit.

Select the playback mode.

Connect the HDMI mini cable.

TV turns on automatically and switches to HDMI input mode when this unit is turned on.

Operation Method 2

Turn off the TV.

This unit turns off automatically.

Memo :

Depending on the TV connected, the display language of this unit will automatically switch to the language that is selected for the TV when this unit is turned on. (This is applicable only if this unit supports the language selected for the TV.) To use this unit with a language that differs from the display language of the TV, set “HDMI CONTROL” to “OFF”.

The display language of the TV will not switch automatically, even if the display language of this unit is changed.

These functions may not work correctly when devices such as amplifier and selector are connected. Set “HDMI CONTROL” to “OFF”.

If HDMI-CEC does not work properly, turn off and on this unit again.

Play back a file.

“Playing Back Videos” (A p. 67) “Playing Back Still Images” (A p. 78)

Memo :

For questions about the TV or method of connection, contact your TV's manufacturer.

AV cable (P/N: QAM1322-001)

Wiring specifications (for video/audio) of the 4-pole mini plug are described in the following. For purchasing, consult your nearest JVC service center.

Editing

Deleting Unwanted Files

Delete unwanted videos and still images when the space in the recording media is running out. Doing so frees up more space in the recording media. “Deleting the Currently Displayed File” (A p. 84)

Memo :

Deleted files cannot be restored.

When files in a playlist are deleted, the playlist changes.

Files that are protected cannot be deleted. Release protection before deleting the file.

“Protecting Files” (A p. 84)

Be sure to back up important files on a computer.

“Backing Up Files” (A p. 101) “Backing Up All Files” (A p. 108)

Deleting the Currently Displayed File

Deletes the currently displayed file.

Caution :

Deleted files cannot be restored.

Tap R.

Protecting Files

Prevent important videos/still images from being deleted accidently by protecting them. “Protecting/Releasing Protection of the Currently Displayed File” (A p. 84) “Protecting/Releasing Protection of Selected Files” (A p. 85)

Caution :

When the recording media is formatted, even the protected files will be deleted.

Protecting/Releasing Protection of the Currently Displayed File

Protects or releases protection of the currently displayed file.

Tap “MENU”.

Tap “EDIT”.

While the video mode is shown in the image, the same operations apply for the still image mode.

Tap “YES”.

Tap h / g to select the previous or next file.

When no file remains, the screen returns to the index screen.

Tap “PROTECT/CANCEL”.

Tap “YES”.

Tap h / g to select the previous or next file.

After setting, tap “OK”.

Editing

Protecting/Releasing Protection of Selected Files

Protects or releases protection of the selected files.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Tap A or B to select the video or still image mode.

Tap B or A on the recording screen to display the mode switching screen. Tap A to switch to the video mode A. Tap B to switch to the still image mode B.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Tap on the files to protect or release protection of.

P appears on the selected files. To remove P from a file, tap on the file again.

and P are displayed on the files that are already protected.

To release protection of a file, tap on the file such that P is removed.

Tap “SEL ALL” to select all files.

Tap “REL ALL” to release all selections.

Tap “SET” to complete the setting.

Protect marks I appear on the selected files. Protect marks I disappear from the deselected files.

Tap “EDIT”.

Tap “PROTECT/CANCEL”.

Editing

Capturing a Still Image in the Video During Playback

You can capture still images of the scenes you like in the recorded videos.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Combining Videos Recorded by Seamless Recording (GZ-EX555)

Videos that are recorded on two separate media and with “SEAMLESS RECORDING” in the video recording menu enabled can be combined into a single video. “SEAMLESS RECORDING (GZ-EX555)” (A p. 212)

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap on the desired video.

Tap pause e at the desired scene during playback.

After pausing the video, you can fine-tune the point to capture by tapping forward slow-motion k and reverse slow-motion l.

Press the SNAPSHOT button.

Tap “MENU”.

Tap “EDIT”.

Tap “SEAMLESS REC CTRL”.

Memo :

Still images are captured with a size of 1920×1080.

Captured still images are stored in the media where the video is being played back from.

Tap “COMBINE SCENES”.

This unit starts a search to detect seamless videos. Combining cannot be performed if no seamless videos are found.

Tap “YES”.

Tap the media to store to.

Capturing a Required Part in the Video (TRIMMING)

Select the required part of a video and save it as a new video file.

The original video remains in its existing location.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Editing

Tap “YES”.

Combining of the videos starts.

After videos are combined, tap “OK”.

Memo :

Seamless videos cannot be combined if there is not enough free space in the built-in memory or SD card. Check the amount of remaining free space before combining.

Seamless recording can not be performed if the video recording format is iFrame.

How to Enable Seamless Video Recording Again

To start seamless recording again after the previous session is complete, it is necessary to combine seamless videos, or delete the combination information of the seamless videos. To delete the combination information of seamless videos, select “DEL COMBINED SCENES” in step 6.

Tap “MENU”.

Tap “EDIT”.

Tap “TRIMMING”.

Editing

Tap the video to edit.

Tap e to pause playback at the desired start point, then tap “A”.

When “A” is tapped, the start point is set.

After setting the start point, tap d to continue playback.

Tap e to pause playback at the desired end point, then tap “B”.

Creating Playlists from the Recorded Videos

A list created by selecting your favorite videos from the recorded ones is called a playlist. By creating a playlist, you can play back only your favorite videos in the order you like. The original video file remains even when it is registered to a playlist.

To create a new playlist

“Creating Playlists with Selected Files” (A p. 88) “Creating Playlists by Date” (A p. 90)

To edit or delete a created playlist

“Editing Playlists” (A p. 91) “Deleting Playlists” (A p. 93)

Memo :

When a video file is deleted or moved, the same file will be removed from the playlist.

Creating Playlists with Selected Files

Create a playlist by arranging the files one by one.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

When “B” is tapped, the end point is set.

To reset the start or end point, tap “A” or “B” at the desired scene (position).

Tap “SET”.

When “SET” is tapped, the trimming area is confirmed.

Tap “YES”.

After copying, tap “OK”.

When copying finishes, the copied file is added to the index screen.

Memo :

The division point may deviate slightly from the selected scene.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Editing

Tap “EDIT”.

Tap “EDIT PLAYLIST”.

Tap “NEW LIST”.

Tap “ADD”, and insert the video image.

Repeat steps 8-9 and arrange the videos in the playlist.

To change the position of a video in the playlist (lower row), select the insertion point with E/F after step 8 and tap “ADD”.

appears when the inserted video is selected.

Tap J to deselect.

Tap on the selected video again to check the video. After checking, tap

To delete of a video in the playlist (lower row), tap the video, then tap “CANCEL”.

indicates the size of the video.

After arranging, tap “SAVE”.

Tap “CREATE FROM SCENE”.

Tap on the video to add to playlist.

d appears on the selected video. Tap J to deselect.

Tap on the selected video again to check the video. After checking, tap J.

Tap 0/1 or move the zoom lever to display the previous/next video.

X indicates the size of the video.

Tap “YES”.

Memo :

Tap L on each screen to exit the menu.

Editing

Creating Playlists by Date

Create a playlist by arranging multiple files according to recording date.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “CREATE BY DATE”.

Tap on the video of the date to add to playlist.

Tap “MENU”.

Tap “EDIT”.

Tap “EDIT PLAYLIST”.

d appears on the selected video. Tap J to deselect.

Tap on the selected video again to check all the videos of the same date. After checking, tap J.

Tap 0/1 or move the zoom lever to display the previous/next video.

The number on the video indicates the number of videos recorded on the same day.

Tap “ADD”, and insert the video image.

Repeat steps 8-9 and arrange the videos in the playlist.

To change the position of a video in the playlist (lower row), select the insertion point with E/F after step 8 and tap “ADD”.

d appears when the inserted video is selected. Tap J to deselect.

Tap on the selected video again to check all the videos of the same date. After checking, tap J.

To delete of a video in the playlist (lower row), tap the video, then tap “CANCEL”.

After arranging, tap “SAVE”.

Tap “NEW LIST”.

Tap “YES”.

Memo :

Tap L on each screen to exit the menu.

Editing

Editing Playlists

You can change the content of a created playlist. However, the playlists created from Digest Playback cannot be changed.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “MENU”.

Tap “EDIT”.

Tap “EDIT PLAYLIST”.

Editing

Tap “EDIT”.

Tap on the playlist to edit, and tap “NEXT”.

Tap on the video (upper row) to arrange in the playlist.

After arranging, tap “SAVE”.

Tap “YES”.

Memo :

Tap L on each screen to exit the menu.

d appears on the selected video. Tap J to deselect.

Tap on the selected video again to check the video. After checking, tap J.

Tap 0/1 or move the zoom lever to display the previous/next video.

X indicates the size of the video.

Tap “ADD”, and insert the video image.

Repeat steps 8-9 and arrange the videos in the playlist.

To change the position of a video in the playlist (lower row), select the insertion point with E/F after step 8 and tap “ADD”.

d appears when the inserted video is selected. Tap J to deselect.

Tap on the selected video again to check the video. After checking, tap J.

To delete of a video in the playlist (lower row), tap the video, then tap “CANCEL”.

X indicates the size of the video.

Editing

Deleting Playlists

Delete the playlists that you have created.

*The following is a screen of the model with the built-in memory.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “<<PLAY” to select the playback mode.

Tap “DELETE”.

Tap on the playlist to delete, and tap “NEXT”.

All created playlists will be deleted when “DELETE ALL” is selected.

Tap “YES” to confirm the deletion.

Tap “MENU”.

Tap “EDIT”.

Tap “EDIT PLAYLIST”.

After deleting, tap “OK”.

After deleting is complete, the screen returns to the delete playlist selection screen.

Memo :

Tap L on each screen to exit the menu.

Copying

Creating a Disc Using a Connected Blu-ray Recorder

You can create discs using a Blu-ray recorder by connecting it to this unit using a USB cable.

*The following is a screen of the model with the built-in memory.

Remove the AC adapter and battery pack from this unit.

Open the LCD monitor.

Connect to a Blu-ray recorder.

A Connect using the provided USB cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is connected, and the “SELECT DEVICE” screen is displayed.

Be sure to use the supplied AC adapter.

Tap “CONNECT TO OTHER”.

Dubbing Files to a Disc by Connecting to a DVD Recorder

You can dub videos in standard quality by connecting to a DVD recorder.

Refer also to the instruction manuals of the TV and DVD recorder.

Remove the AC adapter and battery pack from this unit.

Open the LCD monitor.

Connect to a DVD recorder.

A Connect using the provided AV cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is connected.

Be sure to use the supplied AC adapter.

Tap “<<PLAY” to select the playback mode.

Tap the desired media.

The following screen is displayed after the camera operation is completed.

Operations are to be performed on the Blu-ray recorder after the screen switches.

Perform dubbing on the Blu-ray recorder.

Refer also to the instruction manual of the Blu-ray recorder.

After dubbing is complete, disconnect the USB cable. Operations cannot be performed on this unit until the USB cable is disconnected.

Prepare the TV/DVD recorder for recording.

Switch to a compatible external input.

Insert a disc (DVD-R, etc.) into the DVD recorder.

Prepare this unit for playback.

Set “VIDEO OUTPUT” in the “CONNECTION SETTINGS” menu to the aspect ratio (“4:3” or “16:9”) of the connecting TV.

“ VIDEO OUTPUT ” (A p. 225)

Start recording.

Start playback on this unit and press the record button on the recorder.

“Playing Back Videos” (A p. 67)

After playback is complete, stop the recording.

Copying

Memo :

AV cable (P/N: QAM1322-001)

Wiring specifications (for video/audio) of the 4-pole mini plug are described in the following. For purchasing, consult your nearest JVC service center.

Memo :

When there are many videos to dub, you can create a playlist in advance and play it back so that all your favorite videos can be dubbed at once.

“Creating Playlists with Selected Files” (A p. 88) “ PLAYBACK PLAYLIST ” (A p. 76)

To include the recording date and time during dubbing, set “DISPLAY DATE/TIME” in the “PLAYBACK SETTING” menu to “ON”. Or, set “DISPLAY ON TV” in the “CONNECTION SETTINGS” menu to “ON”.

Dubbing Files to a VHS Tape by Connecting to a VCR

You can dub videos in standard quality by connecting to a VCR.

Refer also to the instruction manuals of the TV and VCR.

Remove the AC adapter and battery pack from this unit.

Open the LCD monitor.

Connect to a VCR/DVD recorder.

A Connect using the provided AV cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is connected.

Be sure to use the supplied AC adapter.

Tap “<<PLAY” to select the playback mode.

Prepare the TV/VCR for recording.

Switch to a compatible external input.

Insert a video tape.

Prepare this unit for playback.

Set “VIDEO OUTPUT” in the “CONNECTION SETTINGS” menu to the aspect ratio (“4:3” or “16:9”) of the connecting TV.

“ VIDEO OUTPUT ” (A p. 225)

Start recording.

Start playback on this unit and press the record button on the recorder.

“Playing Back Videos” (A p. 67)

After playback is complete, stop the recording.

Copying

Memo :

AV cable (P/N: QAM1322-001)

Wiring specifications (for video/audio) of the 4-pole mini plug are described in the following. For purchasing, consult your nearest JVC service center.

Memo :

When there are many videos to dub, you can create a playlist in advance and play it back so that all your favorite videos can be dubbed at once.

“Creating Playlists with Selected Files” (A p. 88) “ PLAYBACK PLAYLIST ” (A p. 76)

Copying Files to an SD Card (GZ-EX555)

You can copy videos and still images from the built-in memory to SD card. Copying still images to cards makes it convenient to bring them to the shop for printing (developing).

Caution :

Make sure that there is enough space left in the destination medium.

Videos in the SD card cannot be copied to the built-in memory.

Open the LCD monitor.

Tap A or B to select the video or still image mode.

Tap “<<PLAY” to select the playback mode.

The mode changes between recording and playback with every tap.

Tap “MENU”.

Tap “EDIT”.

Tap “COPY”.

Tap on the files to copy.

P appears on the selected files. To remove P from a file, tap on the file again.

Tap “SEL ALL” to select all files.

Tap “REL ALL” to release all selections.

Tap “SET”.

“SET” is deactivated when no file is selected.

Tap “YES”.

Copying

Moving Files to an SD Card (GZ-EX555)

You can move videos and still images from the built-in memory to SD card. Files that are moved will be deleted from the built-in memory. Moving still images to SD cards makes it convenient to bring them to the shop for printing (developing).

Caution :

Make sure that there is enough space left in the destination medium.

Videos in the SD card cannot be moved to the built-in memory.

Open the LCD monitor.

Tap A or B to select the video or still image mode.

Tap “<<PLAY” to select the playback mode.

Copying starts.

After copying, tap “OK”.

The mode changes between recording and playback with every tap.

Tap “MENU”.

Tap “EDIT”.

Tap “MOVE”.

Tap on the files to move.

Copying

P appears on the selected files. To remove P from a file, tap on the file again.

Tap “SEL ALL” to select all files.

Tap “REL ALL” to release all selections.

Tap “SET”.

“SET” is deactivated when no file is selected.

Tap “YES”.

Moving of files starts.

After moving, tap “OK”.

Copying to Windows PC (GZ-EX555/GZ-EX515)

You can copy files to a computer using the provided software. Discs can also be created using the computer’s DVD or Blu-ray drive. If the provided software is not installed, this unit will be recognized as an external storage when connected.

Memo :

To record to discs, a recordable DVD or Blu-ray drive is required for the computer in use.

Still images cannot be recorded to discs using the provided software.

Videos recorded in the iFrame format can not be copied.

In order to record on the Blu-ray disc, it is necessary to upgrade to the paid version of LoiLoFit for Everio. For details, refer to the following link.

http://loilo.tv/us/product/33/page/27

Backing up of files using other softwares is not supported.

Trouble with Using the Provided Software LoiLoFit for Everio

Consult the customer service center below.

http://loilo.tv/us/product/LoiLoFit_for_Everio

For details on how to upload to YouTube, refer to “Help” in LoiLoFit for Everio.

Verifying System Requirements (Guideline)

Right-click on “Computer” (or “My Computer”) in the “Start” menu and select “Properties” to check the following items.

Windows Vista/Windows 7

Refer to the operating instructions found in the animation on the Detailed User Guide.

Copying

Windows XP

Refer to the operating instructions found in the animation on the Detailed User Guide.

OS Windows Vista 32/64-bit

CPU Intel Core 2 Duo, CPU 2 GHz or higher

RAM At least 2 GB

Graphics (during playback/backing up):

Other requirements

VRAM: 256MB or higher

Microsoft .NET Framework 3.5 SP1 needs to be installed.

To edit/playback videos, the use of a computer with Intel Core i7 (4 core) CPU is recommended.

Home Basic or Home Premium (Pre-installed versions only) Service Pack 2 Windows 7 32/64-bit Home Premium (Pre-installed versions only) Service Pack 1

Intel 965 or later, NVIDIA Geforce 6000 series or later, ATI Radeon 9600 or later (during video editing/creating a disc/converting video/uploading): Intel G45 or later, NVIDIA Geforce 8000 series or later (except for 8800GTX and 8300), ATI Radeon HD2000 series or later (except for

2900)

Windows Vista/Windows 7 Windows XP

Windows XP Home Edition or Professional (Pre-installed versions only) Service Pack 3

Memo :

If your PC does not meet the above system requirements, operations of the provided software cannot be guaranteed.

Depending on the PC environment, even if the operating environment is adequate, 1 frame per second may be reduced during video playback.

Since the standard specification of Windows XP does not support UDF2.5, AVCHD disc cannot be played back. Depending on the operating environment, UDF2.5 driver may be already installed. If the disc cannot be played back, either purchase a commerciallyavailable software for playing back the disc, or use a AVCHD-compatible device (such as Blu-ray recorder, etc) for playback.

For more information, contact your PC's manufacturer.

Copying

Installing the Provided Software

You can display the recorded images in calendar format and perform editing using the provided software.

Windows Vista/Windows 7

Refer to the operating instructions found in the animation on the Detailed User Guide.

Windows XP

Refer to the operating instructions found in the animation on the Detailed User Guide.

100

JVC GZ-EX515, GZ-EX555, GZ-E505 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
